Glutathione–Allylsulfur Conjugates as Mesenchymal Stem Cells Stimulating Agents for Potential Applications in Tissue Repair

by
Emilia Di Giovanni
1,
Silvia Buonvino
1,
Ivano Amelio
2 and
Sonia Melino
1,3,*
1
Department of Chemical Science and Technologies, University of Rome Tor Vergata, via della Ricerca Scientifica 1, 00133 Rome, Italy
2
MRC Toxicology Unit, University of Cambridge, Cambridge CB2 1QP, UK
3
CIMER Center for Regenerative Medicine, University of Rome Tor Vergata, via Montpellier 1, 00166 Rome, Italy
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2020, 21(5), 1638; https://doi.org/10.3390/ijms21051638
Submission received: 4 January 2020 / Revised: 24 February 2020 / Accepted: 25 February 2020 / Published: 28 February 2020
(This article belongs to the Special Issue Hydrogen Sulfide in the Diseases and Tissue Regeneration)
Browse Figures
Versions Notes

Abstract

:
The endogenous gasotransmitter H2S plays an important role in the central nervous, respiratory and cardiovascular systems. Accordingly, slow-releasing H2S donors are powerful tools for basic studies and innovative pharmaco-therapeutic agents for cardiovascular and neurodegenerative diseases. Nonetheless, the effects of H2S-releasing agents on the growth of stem cells have not been fully investigated. H2S preconditioning can enhance mesenchymal stem cell survival after post-ischaemic myocardial implantation; therefore, stem cell therapy combined with H2S may be relevant in cell-based therapy for regenerative medicine. Here, we studied the effects of slow-releasing H2S agents on the cell growth and differentiation of cardiac Lin− Sca1+ human mesenchymal stem cells (cMSC) and on normal human dermal fibroblasts (NHDF). In particular, we investigated the effects of water-soluble GSH–garlic conjugates (GSGa) on cMSC compared to other H2S-releasing agents, such as Na2S and GYY4137. GSGa treatment of cMSC and NHDF increased their cell proliferation and migration in a concentration dependent manner with respect to the control. GSGa treatment promoted an upregulation of the expression of proteins involved in oxidative stress protection, cell–cell adhesion and commitment to differentiation. These results highlight the effects of H2S-natural donors as biochemical factors that promote MSC homing, increasing their safety profile and efficacy after transplantation, and the value of these donors in developing functional 3D-stem cell delivery systems for cardiac muscle tissue repair and regeneration.

Graphical Abstract

1. Introduction

The gasotransmitter H2S is a physiological signalling molecule in mammalian cells that stimulates important molecular pathways [1,2,3]. Endogenous H2S is produced in tissues from l-cysteine by the activity of cystathionine γ–lyase (CSE), cystathionine β-synthase (CBS), thiosulfate:cyanide sulphurtransferase (TST, EC. 2.8.1.1; rhodanese) and 3-mercapto-piruvate sulfurtrasferase (3-MST) [4,5,6]. In the last decade slow H2S-releasing donors have been suggested as exogenous sources for therapeutic applications in cardiovascular [7,8,9], neurodegenerative [1,4,10] and gastrointestinal diseases [11,12]. One of most relevant problems in the H2S-based therapy is the identification of an appropriate posology and an accurate administration protocol of H2S donors, in order to avoid the high risk of overdosing. Therefore, slow H2S releasing agents, such as garlic derivatives, seem to exhibit the pharmacological features needed to generate H2S with a controlled rate and represent an interesting natural alternative for therapeutic applications. Organo-sulfur compounds (OSCs) derived from the garlic compound allicin, such as S-allylcysteine (SAC) diallyldisulfide (DADS) and diallyltrisulfide (DATS), have been recognized to have potential pharmacological properties, related to the H2S signaling pathway [13,14]. In particular, the allylsulfides DADS and DATS, which are the major components of oil-soluble garlic extract, are H2S slow-releasing donors. Their intracellular H2S-release mechanism requires the cooperation of reduced GSH, as elucidated by Kraus et al. [13]. In regards to the α carbon of a diallyl polysulphide, GSH acts as a nucleophilic substituent and the nucleophilic substitution leads to S-allyl glutathione and allyl perthiol [13]. By thiol/disulphide exchange with GSH, allyl perthiol can be transformed either into allyl glutathione disulphide (GSSH) and H2S, or into H2S2 and S-allyl glutathione through a nucleophilic substitution by GSH at the α-carbon. Finally, H2S2 can interact with GSH, resulting in GSSH and H2S. Therefore, polysulfides have recently been considered potential physiological mediators that are able to activate membrane channels, enzymes, and transcription factors by sulfhydration mechanism. The cytotoxicity of OSCs and H2S-donors in general likely depends on their concentration per cell and on their metabolic rate in the cells, which in turn depends on the cell type. The exogenous H2S can have pro- [15,16,17,18] or anti-apoptotic effects [19,20,21,22], depending on the individual cell phenotype and on the experimental settings used, such as the concentration of H2S. Previous studies suggest that garlic-derived OSCs selectively induce programmed cell death in neoplastic cells but not in their physiological counterparts or adult stem cells [23,24,25,26,27,28,29,30]. H2S is able, in fact, to improve cell survival in a cell-specific manner by activation of molecular signalling [31]. H2S represses programmed cell death and inflammation by downregulation of inflammatory cytokines, such as, for example, TNF-α, IL-1b, NF-kB, IL-8 and IL-6 [32,33,34,35]; furthermore, it regulates blood pressure–lowering, and exerts anti-nociceptive and cardioprotective effects due to the activation of cardiac extracellular signal-dependent-kinases, such as Akt pathways and KATP channels [36,37].
To assess the effects of H2S-donors with antitumor properties on adult stem cells, in this study, water-soluble glutathione-garlic extract (GSGa) was produced using the protocol previously described [16,38], and it was used for treatment of human adult stem cells. GSGa is a particular extract rich in glutathione-conjugates with pro-apoptotic properties on cancer cell lines and the ability to promote their G2/M phase cell cycle arrest [16]. The data herein presented demonstrate that, in contrast with the effects on tumor cells, GSGa treatment of cardiac Lin− Sca-1+ human mesenchymal stem cells (hereinafter, cMSC) improves their viability, proliferation and migration rate, without affecting their plasticity. The effects of the treatment on cMSC were also compared with other H2S-donors, such as Na2S and GYY4137. Our previous studies performed on other H2S releasing systems (nanoemulsions, hydrogels and nanofibers) showed that the H2S release improves the proliferation of cMSC, as well as of normal human dermal fibroblasts (NHDF), and increases the expression of proteins related to cell–cell interaction, such as connexin 43, and cell survival under oxidative stress [38,39,40]. H2S-donors, in fact, display relevant antioxidant properties; they can either act as reducing agents/scavengers by directly reacting with ROS species or rescue the cells from oxidative stress by promoting glutathione production, which is the most abundant and potent intracellular antioxidant species [41]. Exogenous H2S can protect primary rat cortical neurons from oxidative stress, so it can be a powerful neuroprotective agent due to its cytoprotective, anti-inflammatory, antioxidant and anti-apoptotic properties [41,42,43,44]. Furthermore, recent studies demonstrate that H2S preconditioning protects bone marrow-derived mesenchymal stem cells (BMSCs) from hypoxia, and biologically-active factors released by conditioned-H2S BMSCs provide protection of neurons exposed to ischaemic conditions [45]. On these bases, we investigated the antioxidant properties of GSGa, demonstrating its ability to inhibit cell death induced by ROS damage or CoCl2 in cMSC and normal human dermal fibroblasts (NHDF). These properties were related to an upregulation of antiapoptotic and antioxidant proteins, such as Bcl2, NAD(P)H quinone oxidoreductase 1 (NQO1) and thioredoxin (Trx). Furthermore, a prolonged treatment of cMSC with GSGa allowed us to obtain a selected cMSC line, named GcMSC, which showed an increased proliferation and migration rate as well as resistance to oxidative stress, while preserving the stem cell multi-potency. Therefore, these results suggest a potential use of prolonged treatment with H2S-donors for the optimization of adult stem cells for tissue engineering and repair.

2. Results

2.1. H2S-Donors Promote Proliferation and Migration of cMSC

The effects of H2S on stem cells have not been fully investigated. To further study the effect of H2S donors on human adult stem cells, Na2S, GYY4137 and water-soluble garlic extracts (GSGa) were used for the treatment of cMSC. In Figure 1, the effects of H2S releasing agents on the cell proliferation of cMSC are shown. Cell viability was analyzed after three days of treatments with different H2S-donors and, in general, an increase of cMSC proliferation in a concentration-dependent manner was observed with respect to the control, especially after treatment with GYY4137 and GSGa (Figure 1b,c). Notably, Na2S treatment induced a decrease in proliferation at 25 and 50 μM concentrations, probably due to a direct cytotoxic effect for the high concentrations of H2S. By contrast, at higher H2S concentrations, 100 and 200 μM, an increase in cell proliferation was observed after 3 days of growth (Figure 1a).

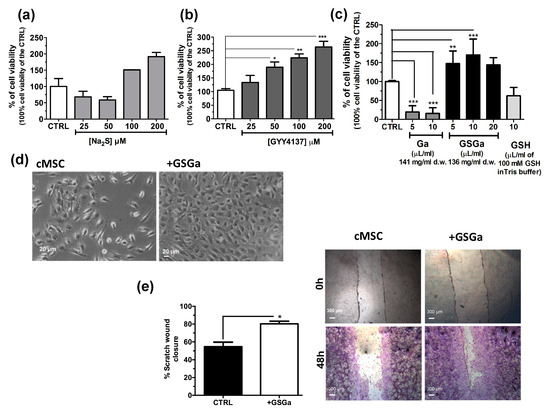

Both GYY4237 and GSGa induced an increase in the cell proliferation in a concentration dependent manner. After three days of treatment with 680 μg/mL of GSGa, a statistically significant increase of up to 170.3 ± 41.99% of cell proliferation with respect to the control was observed (Figure 1c). By contrast, the treatments with both water-soluble garlic extracts obtained without reaction with GSH (Ga) and GSH, at similar concentrations used for the GSGa treatment, did not induce an increase in cell viability, demonstrating that the relevant role on the induction of the stem cell proliferation by GSGa treatment is due to the presence of glutathionyl-conjugates. A cell proliferation increase due to the GSGa treatment was also confirmed by microscopy analysis, as shown by micrographs of the cells after three days culture in the presence or in the absence of 136 μg/mL of GSGa (Figure 1d). The proliferation and migration were also assessed by scratch test (Figure 1e); the cell cultures after 48 h in the presence of GSGa showed a closer scratch than in the absence, probably due to concomitant increase in both cell migration and proliferation.

2.2. Antioxidant Properties of GSGa and Increase in cMSC Survival under a Chemical Hypoxia-Mimicking Agent

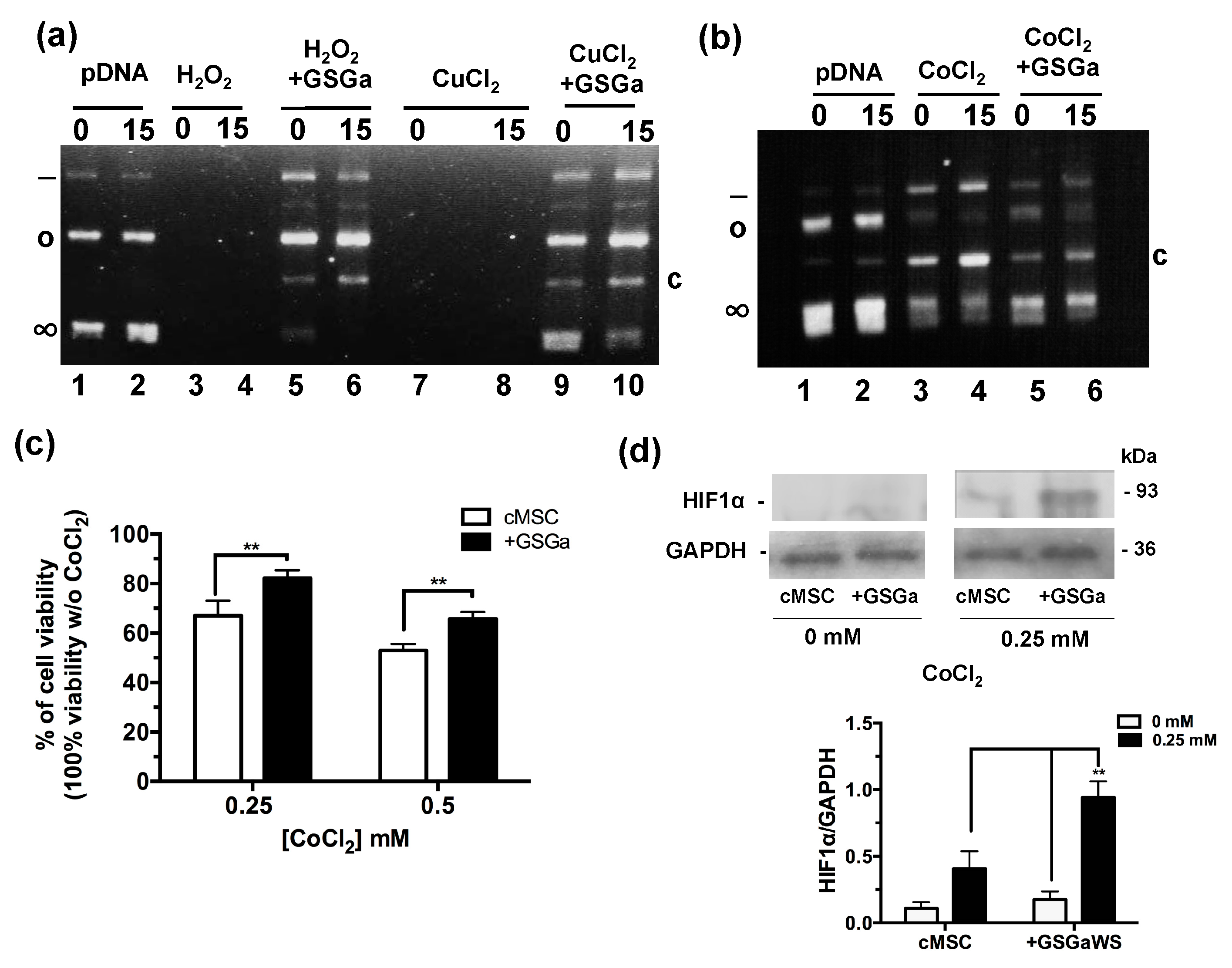

The antioxidant properties of the GSGa was tested using a pDNA damage assay based on assessing the cleavage effect of oxidant species such as H2O2 or Cu2+ and Co2+ ions in the presence of ascorbic acid (Figure 2a,b). The presence of GSGa at 10.8 μg/μL inhibited the pDNA cleavage obtained in both cases: after incubation with 100 μM of H2O2 and after incubation with 100 μM of Cu2+ and 10 mM ascorbic acid. The pDNA cleavage was also reduced in the presence of 100 μM of CoCl2 and 10 mM ascorbic acid by addition of GSGa, as shown by the presence of the supercoiled form of the pDNA and the reduced presence of a cleaved form after treatment with CoCl2 (Figure 2b). The effects of CoCl2 on the cMSC viability were also studied in the presence and in the absence (see also Figure S2 in Supplementary Materials) of 680 μg/mL of GSGa in the cell culture medium (Figure 2c), showing a protective anti-hypoxic effect of the GSGa, in turn resulting in an increase of 15% in cell survival in the presence of 0.25 mM of CoCl2. An increase in the expression of HIF-1α was observed under CoCl2 treatment in the presence of GSGa (Figure 2d).
Therefore, the cytoprotective effect of GSGa against CoCl2 could promote the expression of hypoxia-responsive element (HRE)-controlled genes by reduction of HIF-1α subunit degradation.

2.3. GSGa Improves Cell Survival under Oxidative Stress

H2S is a physiological mediator that limits inflammation and free radical damage [46] and is able to upregulate ARE-gene transcription [47]. In Figure 3, the protective effects of the pretreatment with GSGa from the oxidative damage induced by H2O2 on NHDF and cMSC cultures are shown. Figure 3a shows the micrographs of NHDF after 12 h of H2O2 exposure and pretreating with GSGa. After three days of growth in the presence (GSGa) or in the absence (NHDF) of 680 μg/mL of GSGa, the cells were re-seeded, and after adhesion (6 h from seeding), H2O2 was added to the cell culture medium at a final concentration of 100 μM. Pretreatment with GSGa induced major resistance to the oxidative stress due to presence of H2O2, as was observable by the presence of a larger number of the cells in the well (Figure 3a,b).

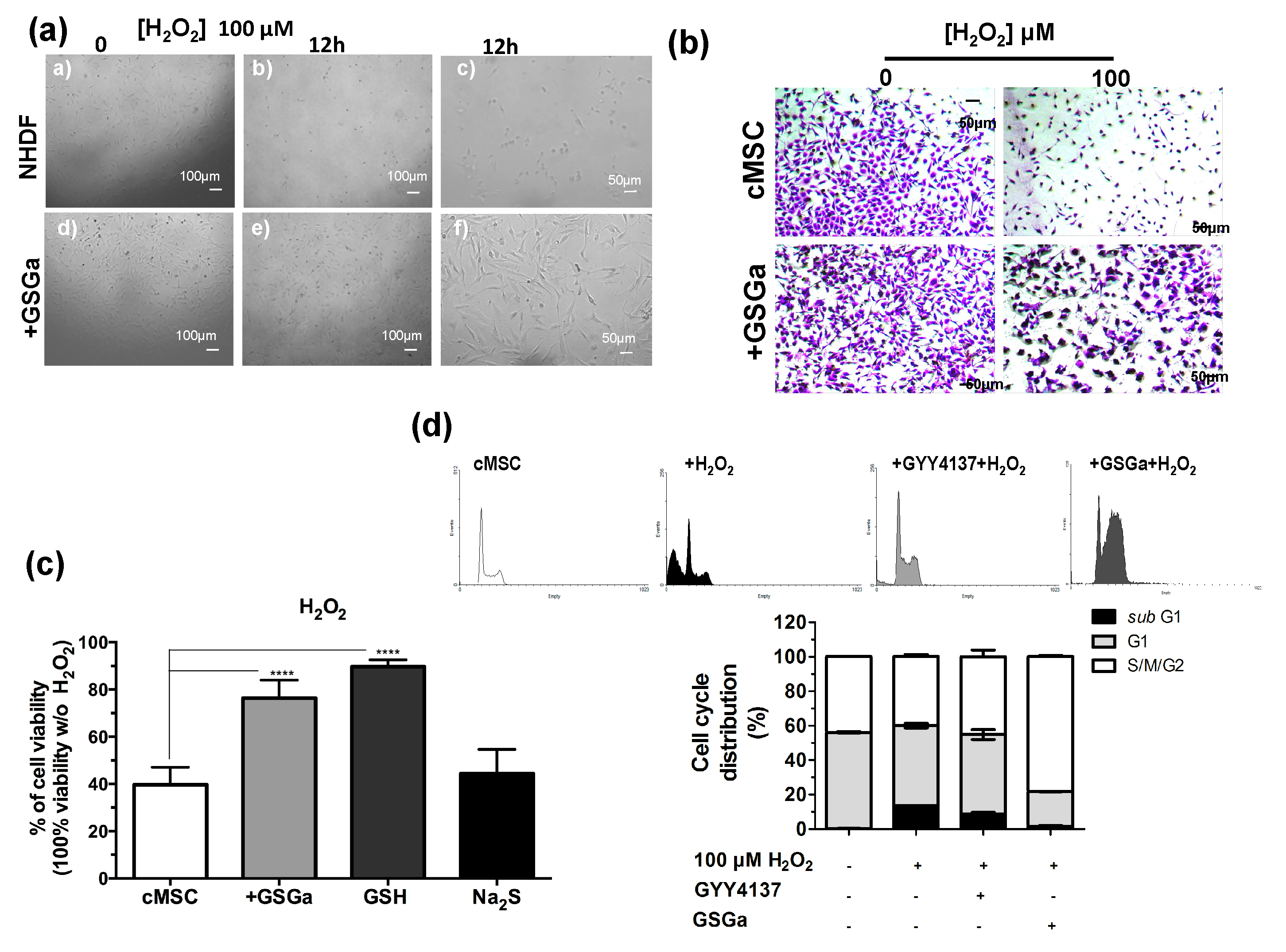

Moreover, the presence of GSGa in the medium significantly prevented H2O2-induced cell death of cMSC (Figure 3b). To determine whether GSGa treatment of cMSC could protect from oxidative damage, cMSC were treated with 100 μM H2O2 for 24 h either in the presence or in the absence of 680 μg/mL of GSGa (Figure 3c). An increase of 36.7% cell survival in the presence of GSGa with respect to its absence was observed. Furthermore, the effect due to the presence of GSH and Na2S in the medium was also analyzed, resulting in cell viability of 89.7%, compared to 44.4% cell viability without H2O2. The FACS cell cycle profiles after treatment confirmed the increased percentage of cMSC in the subG1-phase after treatment with H2O2, which was not observable in the presence of GSGa, confirming the antioxidant properties of the glutathione-conjugate extract. Moreover, in the presence of a known H2S-donor, such as GYY4137, the same decrease in the subG1-phase was not detected (Figure 3d).

2.4. GSGa Increases the Expression of Pro-Cell Survival and Differentiation-Associated Markers

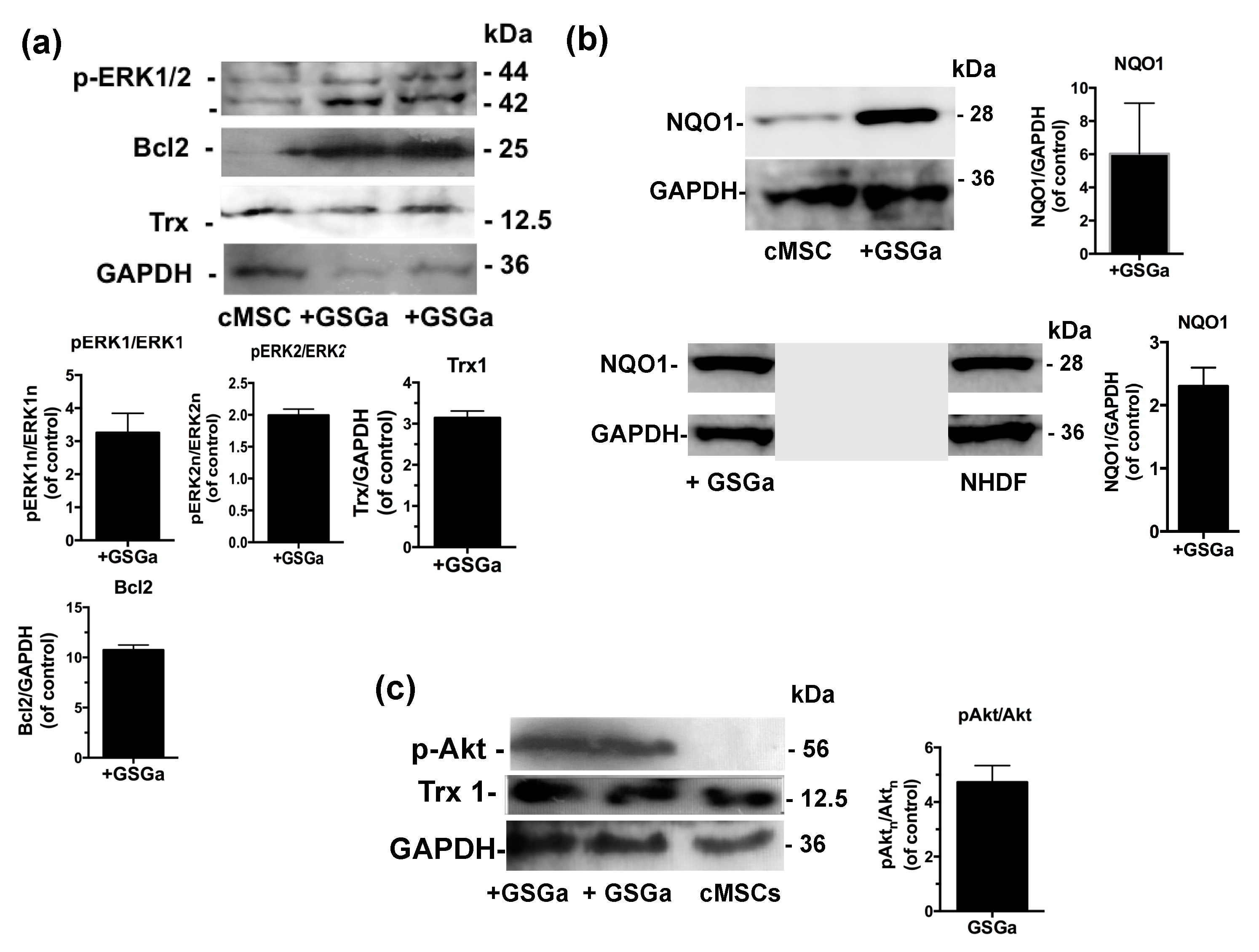

The molecular mechanisms underlying GSGa’s cytoprotective effect on both NHDF and cMSC were investigated using western blot analysis of the cellular extract after 3 days of treatment with GSGa (680 μg/mL). The expression of the proteins involved in the cellular redox system, such as thioredoxin 1 (Trx1) and NQO1, and the anti-apoptotic protein Bcl2, were substantially increased after treatment with GSGa (Figure 4a,b). In particular, Bcl2 was increased up to 10 times compared to control non-treated cMSC (Figure 4a).

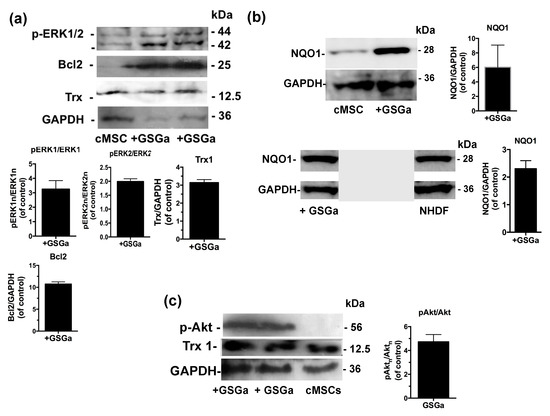

Furthermore, to determine the potential pathways involved in the GSGa-mediated pro-cell survival effect, the activation of extracellular signal-regulated kinases ERK1/2 and Akt, also known as protein kinase B, was observed in cMSC after GSGa treatment (Figure 4a,c). An increased activation of ERK1/2 (p-ERK1/2) was observed in treated cMSC compared to control (Figure 4a), therefore ERK1/2 could be responsible for the pro-survival and anti-apoptotic effect of GSGa. After three days of cell culture in the presence of 680 μg/mL of GSGa (Figure 4c), the intracellular level of p(Ser 473)-Akt in cMSC was increased.

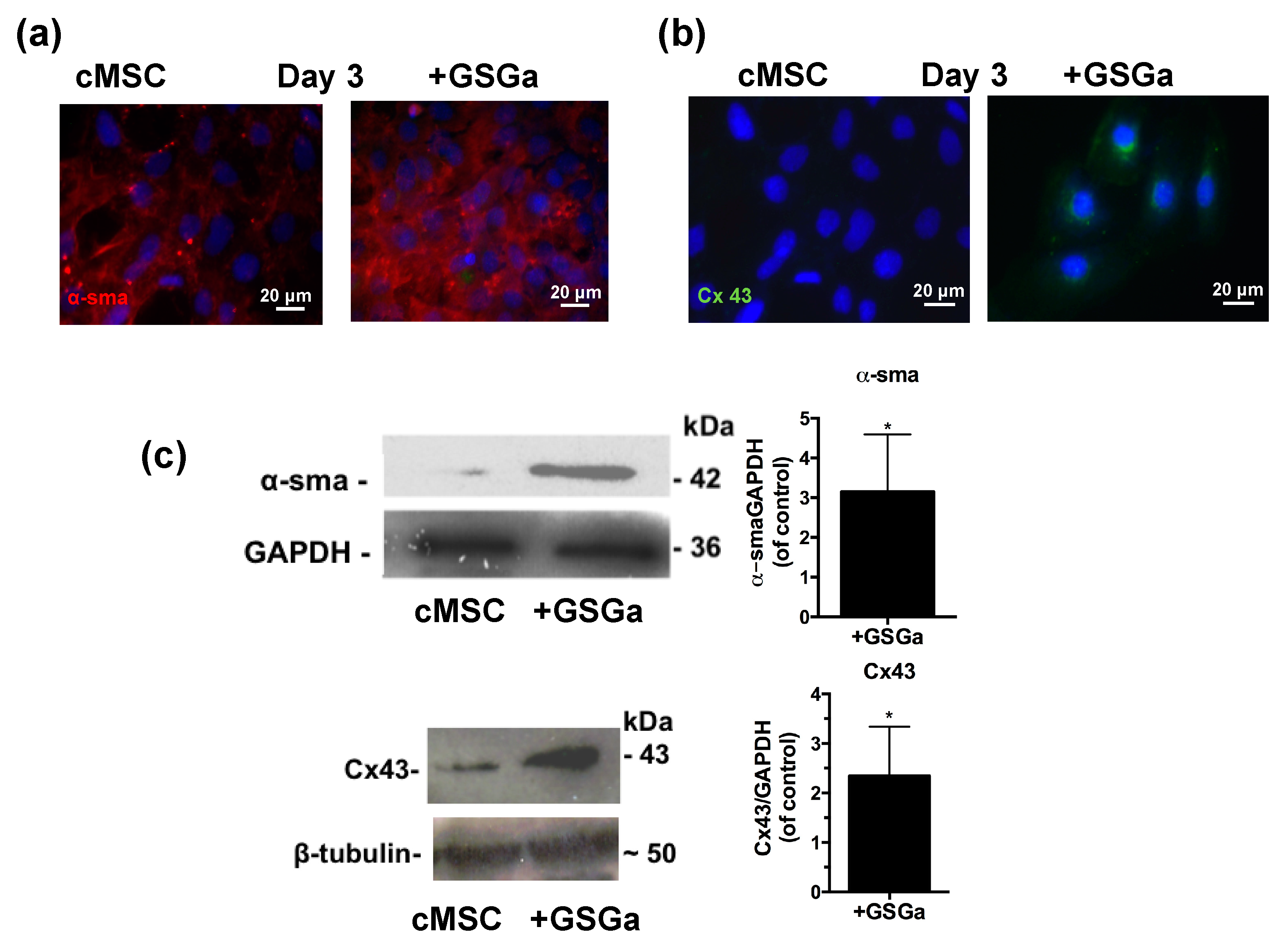

The expression of proteins involved in the commitment of the cardiac muscle phenotype differentiation was also assessed by fluorescence microscopy and western blot analysis. Figure 5a,b show the fluorescence micrographs of cMSC after 3 days of growth in the presence and in the absence of 680 μg/mL of GSGa. An increased expression of the proteins α-smooth muscle actin (α-SMA) and connexin 43 (Cx43) were observed in the cMSCs cultured in the presence of GSGa and the increased expression was maintained over time after 6 or 7 days of treatment (Figure S7 in Supplementary Materials). As shown in Figure 5c, treatment of cMSC with 680 μg/mL of GSGa led to a significant increase of the expression of α-SMA and Cx43 proteins.

2.5. Prolonged Treatment with GSGa Stimulates Cell Proliferation, Resistance to Oxidative Stress and Migration of cMSC

Thanks to the cytoprotective properties of H2S-donors, the preconditioning of stem cells before their transplantation has recently gained attention. On this basis, we performed a prolonged pretreatment of the cells using a low concentration of GSGa with the aim to select cMSC with more resistant features to the oxidative stress compared to non-treated cells. In detail, cMSC were cultured for one month in the presence of 140 μg/mL of GSGa and the selected line was named GcMSC. The resistance to oxidative stress was tested by exposure of cMSC and GcMSC to 100 µM H2O2 for 24 h. Figure 6a shows the representative optical micrographs of the cells after H2O2 treatment, where it is evident that the GcMSCs had higher cell density and improved morphology compared to cMSC after treatment.

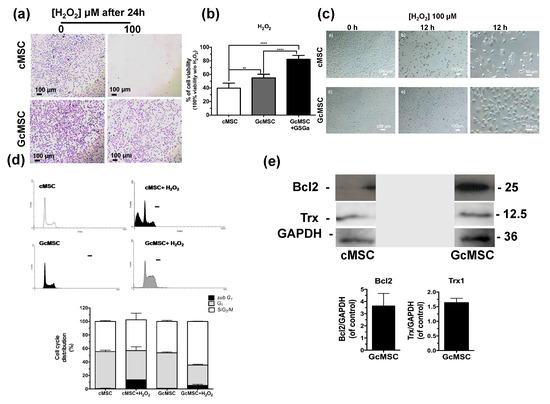

This result was also confirmed by a WST-1 viability assay (Figure 6b). GcMSC showed a survival of up to 15 ± 5.3% higher than the cMSC used as control. Notably, further addition of GSGa to the medium of the GcMSC culture, led to a survival of 42.5 ± 5.7%. This last value was higher than that obtained with only the addition of GSGa (36.7% ± 7.67, Figure 3c) without preconditioning.
GcMSC were more resistant than cMSC to the oxidative damage by the cellular density after 12 h of treatment with H2O2 (Figure 6d). This finding was also confirmed by the cell cycle analysis, which showed that the percentage of the GcMSC population in the subG1-phase was half that of cMSC. This increased resistance to the oxidative stress was also in agreement with higher levels of expression of proteins associated with pro-survival Bcl2 and Trx1 in GcMSC compared to those in cMSC (Figure 6e and Figure S6b in Supplementary Materials). The cell migration ability was also tested using both the percentage of scratch wound closure after 48 h, shown in Figure 7a, and the trans-well migration through the membrane after 6 h. In both cases, the GcMSC migration was significantly higher than that of cMSC.

2.6. Prolonged Treatment with GSGa Does Not Affect the Mesenchymal Stem Cell Plasticity

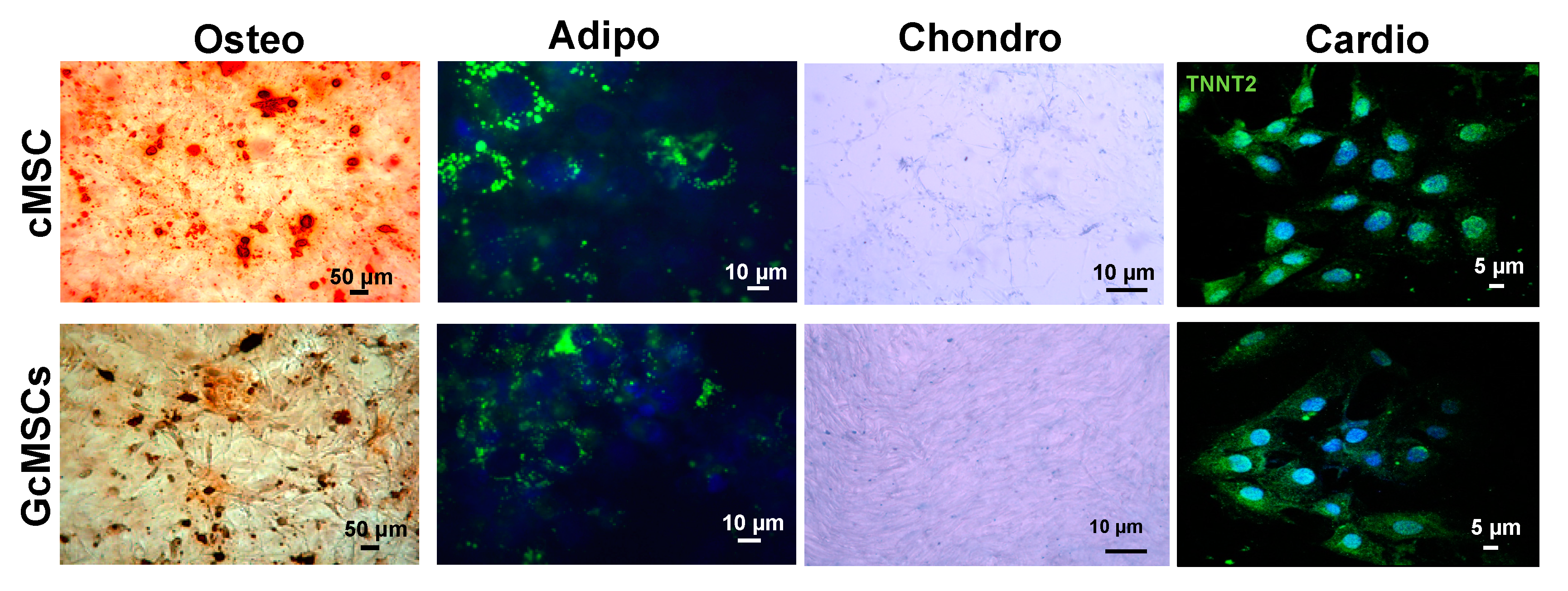

To assess the multipotency of the GcMSC, they were subjected to different differentiation protocols. As shown in Figure 8, GcMSC were able to differentiate into different cell types: osteoblasts, adipocytes, chondrocytes and cardiocytes. In particular, the cardiogenic differentiation was assessed by the expression of human troponin T2 (TNNT2). The microscopic analyses of the cells did not show any relevant differences between the cell plasticity of GcMSC and cMSC.

2.7. GSGa Treatment of cMSCs Modulates the Expression of Genes Related to the Cardiovascular Disease and Detoxification Enzymes

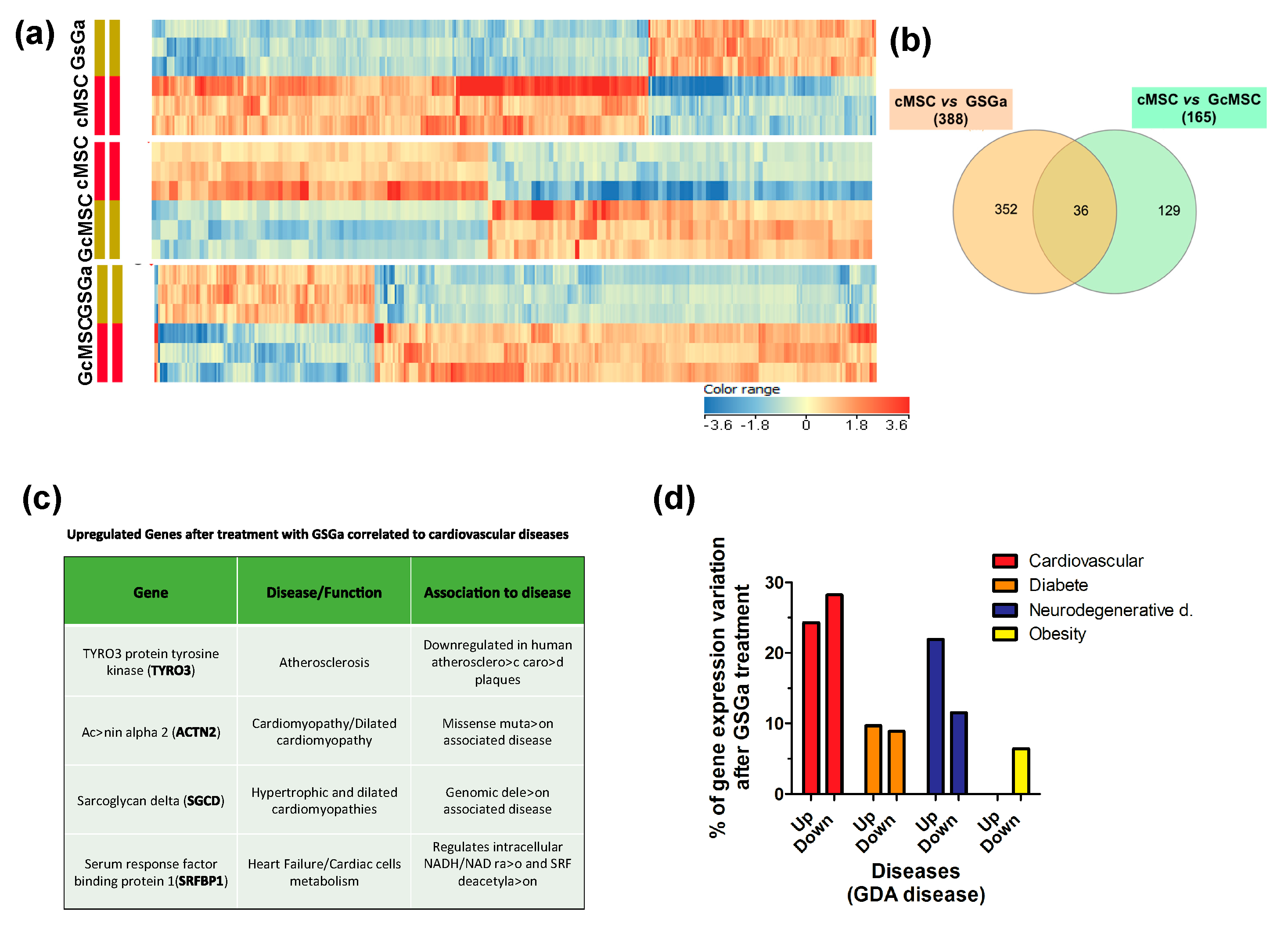

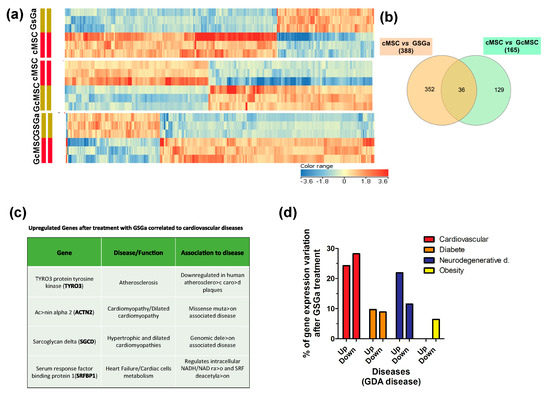

To determine the signaling pathways modulated by the treatment with GSGa, the global transcriptional profile (50,599 genes) of cMSCs was analyzed by gene microarray analysis. In total, 388 and 165 genes showed modulated expression in the cMSCs treated for 3 days with GSGa and in the GcMSCs, respectively, compared with the control. In detail, 266 genes were downregulated and 122 were upregulated after GSGa treatment with respect to the control, while 77 genes were upregulated and 88 downregulated in GcMSC with respect to cMSC. Figure 9a shows the respective heat-maps. Volcano plots from microarray analysis are shown in Figure S8 (in Supplementary Materials). Venn diagram (see Figure 9b) of cMSC vs. GSGa and cMSC vs. GcMSC shows that 36 genes were regulated in both acute and prolonged preconditioning. Interestingly, the transcription of genes involved in the metabolism of xenobiotics and the MAPK signaling pathway, such as cytocrome P450 and myocyte enhancer factor 2C (MEF2C), was changed, after both the preconditioning treatments (see Table S1 in Supplementary Materials). However, these results must be confirmed by protein expression analysis.
Among the proteins upregulated after treatment, four proteins were found to be either downregulated or not expressed at all in certain cardiovascular diseases. In particular, the protein tyrosine-protein kinase receptor (TYRO3) was found to be upregulated in treated cMSC, while its expression is reported to be downregulated in atherosclerotic carotid plaque [48]. Actinin alpha 2 (ACTN2) was also upregulated upon treatment with GSGa, while it has been reported to be downregulated in cardiomyopathy/dilated cardiomyopathy [49]. This protein is expressed in skeletal and cardiac muscle tissue and it serves as a bridge for anchoring myofibrillar actin thin filaments and titin to Z-discs. Finally, two more proteins were found to be upregulated upon treatment: sarcoglycan delta (SGCD) and serum response factor binding protein 1 (SRFBP1), usually downregulated or mutated in hypertrophic and dilated cardiomyopathies and during heart failure, respectively [50,51].
The analysis, performed using DAVID 6.8 program (https://david-d.ncifcrf.gov/home.jsp), of the functions of the genes both up and downregulated in cells after GSGa treatment with respect to the control showed that 52.5% of the genes whose expression was altered upon the treatment were linked to the cardiovascular system/cardiovascular diseases (approximately 24.3% were upregulated and the remaining 28.2% were downregulated), 33.4% of the altered genes were linked to neurodegenerative diseases (21.9% upregulated, 11.5% downregulated), and 18.6% were associated with diabetes (9.7% upregulated, 8.9% downregulated) (Figure 9c). The remaining 6.4% were associated with obesity and were all downregulated (Figure 9c).

3. Discussion

The water-soluble garlic extract, named GSGa, obtained by conjugation of garlic OSCs with glutathione was here investigated for its antioxidant properties and its ability to induce cell proliferation and migration in adult stem cells.
Recently, in vivo and in vitro studies have shown that NaHS is able to enhance the survival of bone marrow-derived mesenchymal stem cells (BMSC) upon hypoxia-ischaemic conditions [45]. Our results show an increase of the cMSC proliferation in a concentration-dependent manner with respect to the control after treatment with GYY4137 and GSGa. These data are in agreement with previous results demonstrating the ability of H2S to promote neural stem cell proliferation and differentiation and to protect against hypoxia-induced decreases in hippocampal neurogenesis [52].
The cytotoxic effect observed at 50 μM of Na2S could be compatible with a very fast H2S-release, while at higher concentrations this initial cytotoxic effect was compensated by a positive effect on the cell growth of a slow H2S release due to the protein S-sulfhydration. As already described, the cellular or tissue response may be influenced by the manner in which cells and tissues are exposed to H2S [53]. Both Na2S and NaHS instantaneously generate H2S and are very short-lived compounds, indeed they are not ideal H2S-donors for studying the physiology, whereas enzymatic or GSH-derived H2S synthesis is considerably slower, over a much longer time [13,54,55,56]. The GSGa was also able to improve the stem cell migration as demonstrated by the scratch assays where the cell cultures after 48 h in the presence of GSGa showed a closer scratch than in the absence. This effect was probably due to concomitant increase in both cell migration and proliferation.
The antioxidant properties of the GSGa was also tested using a pDNA damage assay based on assessing the cleavage effect of oxidant species such as H2O2 or Cu2+ and Co2+ ions in the presence of ascorbic acid. The presence of GSGa inhibited the pDNA cleavage obtained in both H2O2, CuCl2 and CoCl2. GSGa showed a protective anti-hypoxic effect on the cMSC, leading to an increase of 15% in cell survival with increased expression of HIF-1α. The HIF-1α subunit of the heterodimeric transcription factor HIF is continuously synthesized, hydroxylated and degraded through the ubiquitin–proteasome system [57]. Under hypoxic or hypoxic-mimic conditions, such as after treatment with CoCl2, a chemical hypoxia-mimicking agent, the prolyl-hydroxylase activity is inhibited and consequently HIF-1α is stabilized for translocation into the nucleus and dimerization with HIF-1β [58]. Active HIF-1 regulates the expression of genes involved in the anti-hypoxic/oxidant cellular response. Target genes of HIF-1 are involved in different biological pathways, such as energy metabolism, angiogenic signaling, growth, apoptosis, and cell migration [59]. The cytoprotective effect of GSGa against CoCl2, similarly to other H2S-donors [60], could reduce HIF-1α subunit degradation, promoting the expression of hypoxia-responsive element (HRE)-controlled genes.
During the last decade, it has been demonstrated that H2S is a physiological mediator that limits inflammation and free radical damage [46] by reacting with multiple oxidant stressors including peroxynitrite [57], superoxide radical anion [61], and hydrogen peroxide [62]. Moreover, H2S is able to upregulate ARE-genes transcription [47] and also produce glutathione persulfide (GSSH) in mitochondria [63,64,65], a more efficient H2O2 -scavenging molecule than GSH. The pretreatment with GSGa of both NHDF and cMSC cultures led to an increase in cell survival from the oxidative damage induced by H2O2.
The presence of GSGa led to an increased percentage of cells in the S/M/G2-phase, which could be related to both an increase of S-phase or a partial cell-cycle arrest in G2 phase. This increased rate of MSCs in the S/M/G2-phase was not observed in the presence of GSGa, without the addition of H2O2 (see Figure S4 in Supplementary Materials). Therefore, the GSGa treatment could have both a direct protective effect against oxidative species, as demonstrated using the pDNA degradation assay, and an indirect effect in which it elicits a cellular antioxidant response by inducing ARE-controlled gene expression.
The molecular mechanisms underlying GSGa’s cytoprotective effect on both NHDF and cMSC were here investigated using western blot analysis.
In both cMSC and NHDF, the treatment with GSGa also led to an increased expression of NQO1, and these results are also in agreement with previous findings [45]. NQO1 is one of the target proteins of the transcription factor Nrf2, involved in the antioxidant response of mammalian cells. NQO1′s primary activity is the 2-electron reduction of endogenous and exogenous quinones to their corresponding hydroquinones through the use of either NADH or NADPH as the hydride donors, thus preventing the formation of radical species [66]. NQO1′s antioxidant effects also correlate with its role in preserving a reduced pool of endogenous antioxidant molecules and stabilizing the tumor suppressor protein p53 [67]. The activity of antioxidant enzymes is regulated in the cell by the Nrf2-antioxidant response element (ARE) pathway. Nrf2 is a transcription factor normally found in the cytoplasm bound to the Kelch-like ECH-associated protein 1 (Keap1), which acts as a substrate adaptor protein for the Cullin3 (Cul3)-containing E3-ligase complex. The interaction between the aforementioned complex and Keap1 leads to Nrf2 ubiquitination and, eventually, to its degradation [68]. During oxidative stress, Keap1 undergoes structural modifications that result in the exposure of lysine residues, which become targets for ubiquitination and subsequent degradation [69]. Similarly, H2S is able to induce the dissociation between Nrf2 and Keap1 through the sulfhydration of the Cys151 residue on Keap1 [70]. Nrf2 is therefore free to translocate to the nucleus where it binds to ARE (Figure 10).
The activation of extracellular signal-regulated kinases ERK1/2 and Akt, also known as protein kinase B, was observed after GSGa treatment in both cMSC and NHDF (see also Figure S6a in the Supplementary Materials). ERK1/2, belonging to the Ras-Raf-MEK-ERK signal transduction cascade, are involved in the regulation of several cellular processes such as cell adhesion, cell cycle progression, cell migration, cell survival, differentiation, metabolism, proliferation and transcription [71]. The activation of ERK1/2 follows the phosphorylation of the residues Tyr 204/187 and Thr 202/185 by MEK [71]. ERK1/2 targets include hundreds of cytoplasmic or nuclear substrates involved in different cellular processes. ERK1/2 could be responsible for the pro-survival and anti-apoptotic effect of GSGa, considering that an increased activation of ERK1/2 (p-ERK1/2) was observed in treated cMSC compared to control. Akt activation has also been associated with numerous crucial cell functions, such as proliferation, differentiation, cell migration, survival and angiogenesis [72].
This marked activation of Akt was also in agreement with the effect induced by H2S-releasing agents on normal cells and BMSCs [45,73,74]. Therefore, our results are in agreement with recent findings that link H2S pro-survival effects to the activation of the PI3K/Akt pathway [72,75,76].
GSGa treatment of cMSCs also led to increased expression of the proteins α-smooth muscle actin (α-SMA) and Cx43. Their increased expression can be linked to a commitment of the cells towards a cardiac phenotype. Cx43, in fact, is the most abundant isoform of gap-junction channels in cardiac tissue and its increased expression is also in agreement with our previous data obtained using H2S- releasing nanoemulsions [40]. Generally, Cx43 expression is low in MSC [77], while high Cx43 expression in MSC can improve their survival and cardiomyogenesis after transplantation [78,79].
Thus, the therapeutic efficacy of cardiac progenitor/stem cell transplantation could be enhanced by the overexpression of Cx43 because it promotes neovascularization, reduces infarct size and preserves cardiac function preservation in the ischemic heart [80,81,82]. Cell therapy using MSC overexpressing Cx43 reduces infarct size, improving the heart functionality [74,80]. These results suggest a possible use of GSGa preconditioning of cMSC for improving their survival and eventually potentiate their ability to promote cardiac muscle tissue repair.
Thanks to the cytoprotective properties of H2S-donors, the preconditioning of stem cells before their transplantation has recently gained attention. H2S-donors are, without a doubt, promising exploitable tools to overcome the massive cell death that occurs after the implantation of stem cells in the site of injury for stem cell therapy. Currently, not many studies have investigated the use of H2S-donors in tissue repair, and most of them are focused on short-term preconditioning of the stem cells prior to transplantation. The time-span of the pretreatment varies from as short as 30 min to 48–72 h [45,81,82]. A selected cell line named GcMSC was obtained after long-term preconditioning and was here characterized. GcMSCs were more resistant to the oxidative stress and further addition of GSGa to the medium of the GcMSC culture, and led to a survival higher than that obtained with only the addition of GSGa without preconditioning. This result suggests that the combination of these two approaches might be the best choice for potential in vivo applications.
This increased resistance to the oxidative stress was also in agreement with higher levels of expression of proteins associated with pro-survival/proliferation, such as pERK-1, p-Akt, Bcl2 and Trx1, in GcMSC compared to those in cMSC (Figure 6e). One of the most important features of a successful stem-cell based therapy is the ability of the implanted cells to migrate to the site of injury, proliferate and eventually differentiate in order to replace the damaged tissue. The cell migration ability was tested using both the percentage of scratch wound closure and the trans-well migration, and in both cases, the GcMSC migration was significantly higher than that of cMSC.
These results are in agreement with the recent studies that demonstrate that H2S is able to promote migration and wound healing. The underlying mechanism involves increased levels of p-Akt, p-ERK1/2 and phosphorylated glycogen synthase kinase-3b [81,82,83]. Overall these results demonstrate that prolonged cell GSGa pre-conditioning could represent a powerful tool for selecting adult stem-cell lines that maintain an increased proliferative and migration capability and resistance to oxidative stress, suggesting a potential successful approach for future in vivo/therapeutic applications. GcMSC were able to differentiate into different cell types and the analyses performed did not show any relevant differences between the cell plasticity of GcMSC and cMSC.
The microarray data analysis showed that 52.5% of the genes, whose expression was altered upon the GSGa treatment, (+GSGA), were linked to the cardiovascular system/cardiovascular diseases, neurodegenerative diseases and diabetes. As previously stated, the study of the effects of H2S on pathological conditions is focused mainly on the field of cardiovascular and neurodegenerative diseases. The first report of an H2S cytoprotective effect goes back to 1996, when Abe and Kimura reported a beneficial role of NaHS in inducing long-term potentiation of the hippocampus at micromolar concentrations [84]. After that, interest gradually increased and other roles of this gasotransmitter in the central nervous system (CNS) and in neurodegenerative diseases were reported. In particular, H2S concentration is relatively high in the brain, due to the tissue-specific expression of CBS. Indeed, H2S has been reported to enhance N-methyl-D-aspartate (NMDA) receptor-mediated responses and to modulate Ca2+ and pH homeostasis in neurons, microglial cells and astrocytes [85]. Exogenous administration of H2S has been therefore seen as a potential therapeutic tool for the cure of several CNS diseases including Alzheimer’s disease, Parkinson’s disease, ischemic stroke and traumatic brain injury [86]. H2S also plays a central role in regulating cardiovascular system homeostasis. Changes in endogenous H2S levels have been correlated to many diseases, including heart failure, myocardial ischaemia and atherosclerosis [87]. On this basis, our results are in agreement with the effects of other H2S donors on cardiovascular and neurodegenerative diseases and suggest the possible value of investigating other potential target proteins whose expression can be regulated upon treatment with the natural H2S-donor GSGa.

4. Materials and Methods

4.1. Preparation of Water-Soluble Extracts from Allium sativum L. and H2S-Release Assay

The garlic water-soluble extracts (GaWS and GSGa) were prepared as previously described [16]. Briefly, 5 g of garlic cloves were crushed in 50 mM Tris-HCl buffer at pH 7.5 at room temperature for about 5–10 min with or without 10 mM reduced glutathione (GSH) and then the crushing procedure was continued in liquid N2. After centrifugation, the water soluble fraction was stored at −20 °C for molecular characterization by RP-HPLC. RP-HPLC analysis was performed using mod. LC-10AVP (Shimadzu, Milan, Italy), equipped with a UV detector (Shimadzu, Milan, Italy) and a C18 column (150 mm × 4.6 mm, 5 μm, CPS Analitica, Rome, Italy). The solvent B gradient (solvent B: 80% CH3CN, 0.1% TFA; solvent A: 0.1% TFA) used was: 0–5 min, 0%; 5–55 min, 60%; 55–60 min, 60% and 65–85 min 90%. The elution was monitored at 220 nm. To obtain the dry weight of the extract (and therefore its concentration), 100 μL of GSGa extract were lyophilized.

4.2. H2S Release Assay

H2S production and release by GSGa, GYY4137 and Na2S was assessed by methylene blue assay as previously described [16]. Briefly, each sample with 1 mM dithiothreitol (DTT) in 50 mM Tris HCl, pH 7.4 (150 µL final volume) was incubated at 37 °C on a shaker for 30 min. After the incubation, 20 µL of solution I (20 mM N’, N’-dimethyl-p-phenylene-diamine-dihydrochloride in 7.2 M HCl) and 20 µL of solution II (30 mM FeCl3 in 1.2 M HCl) were added to each solution. After an incubation time of 10 min at room temperature, coupled to gentle mixing of the solutions, absorbance was measured at 670 nm. Na2S was used to elaborate a standard curve (Figure S1A in Supplementary Materials) and the H2S- release from GYY4137 was also tested by MB assay and compared to that from GSGa (Figure S1B Supplementary Materials). All the results in this work were elaborated and plotted using GraphPad Prism version 5.0 software (GraphPad Software, San Diego, CA, USA).

4.3. Plasmid DNA Cleavage Inhibition Assay

These experiments were performed as previously described with minor modifications [40]. Briefly, reagents were added to a 0.5 mL microfuge tube in the following order: 0.5 μg of plasmid DNA, 20 mM Tris-HCl steril pH 7.4 buffer, 10.8 mg/mL of GSGa, 100 μM of either H2O2 or CuCl2 or CoCl2 and 10 mM ascorbic acid, and sterilized ddH2O to a final volume of 10 μL. After an incubation period of 15 min at 37 °C, the reactions were stopped by the addition of 2 μL of gel loading buffer (5% glycerol, 0.125% bromophenol blue, 25 mM EDTA) and freezing. Samples were kept on ice until electrophoresis in 0.8% agarose gel in TAE buffer.

4.4. Cell Viability Assay

Cell viability and proliferation were tested either by MTT 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide [88] or WST-1(4-[3-(4-lodophenyl)-2-(4-nitrophenyl)-2H-5-tetrazolio]-1,3-benzene disulfonate (Cell Proliferation Reagent WST-1, Roche, Mannheim, Germany) [88] assay as indicated. After each treatment, the medium was replaced with fresh DMEM high glucose without phenol-red (Gibco, Life Technologies, Milan, Italy) containing tetrazolium salt WST-1 (5% v/v) or MTT (0.5 mg/mL). The cells were then incubated for 3 h at 37 °C, 5% CO2. Absorbance of the medium was evaluated using a microplate reader at a wavelength of 450 nm for WST-1. For MTT assay, formazan crystals were solubilized with a solution of isopropanol and DMSO (1:1) and then the absorbance was measured at a wavelength of 570 nm.

4.5. Cell Migration

4.5.1. Scratch Wound Healing Assay

cMSC were seeded into 24-well plates (6.5 × 104 cells/cm2) and incubated over night at 37 °C, 5% CO2, so that the cells would reach confluency the next day. After 24 h, a scratch-wound was created with a 1 mL sterile pipette on the cell monolayer of each well. The medium was then removed and cells were washed twice with PBS; fresh medium was added to each well (800 μL/well). Area of the scratch-wound at time 0 and after 48 h was measured with ImageJ Software. Percentage of wound closure was measured as follows:
Wound closure (%) = (Wound surface area after 48 h/Wound surface area at time 0) × 100

4.5.2. Trans-Well Migration Assay

Cell migration was assessed using 8 µm-pore-size Falcon TM Cell Culture Inserts (Thermo Fisher Scientific, Milan, Italy). cMSC (0.1 × 106) were added on the upper chamber of the inserts in serum-free DMEM. Complete medium was added to the lower chamber of the inserts to attract the cells. After incubation for 6 h at 37 °C, 5% CO2, cells were removed from the upper surface of the trans-well membrane with a water-wetted cotton swab. Cells that had migrated on the other side of the membrane were fixed and stained for 20 min with a solution containing 6% (v/v) glutaraldehyde and 0.5% (w/v) crystal violet in deionized water. The inserts were then washed repeatedly with water. Air-dried membranes were analyzed by optical microscopy.

4.6. Protection from Oxidative Stress

NHDF were seeded at a density of 3 × 103 cells/cm2 and cultured for three days in the absence or in the presence of 680 μg/mL of GSGa. After that, the cells were reseeded at a density of 104 cells/cm2 and after 6 h of incubation, the medium was replaced with fresh medium containing 100 μM of H2O2. After 12 h, cell survival was assessed by optical microscopy. Two different experiments were performed in order to analyze the anti-oxidant effect of GSGa treatment on cMSC. In the first one, cMSCs and GcMSCs were seeded at a density of 5 × 103 cells/cm2 and after 24 h of growth the medium was replaced with fresh medium containing 100 μM of H2O2 with or without the addition of 680 μg/mL of GSGa, GSH (100 μM), Na2S (100 μM) or GYY4137 (300 μM). After 24h, the medium was replaced with fresh DMEM medium (Gibco, Life Technologies, Milan, Italy) without phenol red and cell viability was assessed by WST-1 assay (Sigma-Aldrich, Milan, Italy). Cell cycle distribution analysis was performed by flow cytometry (FACS analysis) after 12 h of incubation. Briefly, cells (about 0.5 × 106) were harvested and stained with 50 μg/mL propidium iodide (Sigma-Aldrich, Milan, Italy) for 30 min at 4 °C. After incubation, the samples were immediately analyzed using a FACSCalibur flow cytometer (Beckton and Dickinson, San Josè, CA, USA). The data obtained were then elaborated with the WinMDI free software. The second experiment was performed using cMSC and GcMSC that were seeded at a density of 104 cells/cm2 and after 6 h of growth, the medium was replaced with fresh medium containing 100 μM of H2O2. After 12 h of growth, cell survival was assessed by optical microscopy.

4.7. cMSC and NHDF Cultures and Immunofluorescence Analyses

Cell studies were conducted on cMCS and NHDF (Lonza, Basel, Switzerland) cell lines. cMSC were extracted by auricular biopsies made during the course of coronary artery bypass surgery from patients after signing a written consent form as previously described [38,39,40,89,90]. Cell cultures were grown in DMEM (Dulbecco’s modified Eagle medium) (Gibco, Life Technologies, Milan, Italy), containing 10% v/v FBS (Fetal Bovine Serum) (Gibco, Life Technologies, Milan, Italy), 1% w/v penicillin-streptomycin (Sigma-Aldrich, Italy), and 1% w/v L-glutamine (Sigma-Aldrich, Italy). To perform the microscopy analyses, cMSCs, after the treatment, were washed in PBS, fixed in PBS with 4% v/v PFA at 4 °C for 15 min, permeabilized with 0.2% v/v Triton X-100 (Sigma-Aldrich, Italy) for 30 min and after washing, were incubated with specific antibodies for immunofluorescence microscopy. The antibodies used were anti-α-smooth muscle actin (α-sma) mouse, anti-connexin-43 (Cx43) mouse (Sigma-Aldrich, Italy), anti-human troponin T2 (TNNT2), followed by the appropriate Alexa Fluor®® 488 fluorochrome-conjugated secondary antibody (Invitrogen, Life Technologies, Milan, Italy). Nuclei were stained with Hoechst 33342 (Sigma-Aldrich, Italy). The cells were analyzed by fluorescence microscopy using a Nikon Filter microscope and Lucia G version 4.61 software.

4.8. Protein Extraction and Western Blot Analysis

Proteins were extracted from cMSCs using 100 μL of RIPA buffer containing a protease inhibitor cocktail (Sigma-Aldrich, Italy) and pervanadate (Sigma-Aldrich, Italy) as phosphatase inhibitor and after 90 min of incubation in ice were sonicated for 10 sec at 0 °C. Samples were centrifuged for 10 min at 8000 rpm at 4 °C. Protein content was determined by BCA protein assay (Sigma-Aldrich, Milan, Italy), and the SDS-PAGE of cell extracts (30 μg of protein) were performed using 12 or 15% polyacrylamide gel. PVDF membranes (Sigma-Aldrich, Italy) were used for electro-blotting and were then blocked and probed with primary monoclonal antibodies (Ab-ERK1/2 rabbit, Ab-p-ERK1/2 rabbit, Ab-Trx rabbit, Ab-NQO1 rabbit, Ab-Akt and Ab-pAKT-(pSer473) rabbit, A, Ab-α-sma rabbit, b-Cx43 rabbit) (Sigma-Aldrich, Italy,) overnight at 4 °C. Immunoblots were next processed with secondary antibodies (Sigma-Aldrich, Italy) for 2 h at room temperature. Immunoblot with Ab-GAPDH rabbit or Ab-β-tubulin mouse (Sigma-Aldrich Italia, Milan Italy) were also probed for controlling the protein loading. The protein complex formed upon incubation with specific secondary antibodies (dilution 1:10000) (Sigma-Aldrich, Milan, Italy). Immunoblots were probed with a Super Signal West Pico kit (Thermo Scientific, Milan, Italy) to visualize signal, followed by exposure to Fluorchem Imaging system (Alpha Innotech Corporation-Analitica De Mori, Milan, Italy) or using a X-ray film (Kodak, Sigma-Aldrich, Italy).

4.9. Cell Differentiation

Control untreated cMSC and those pre-treated for one month with 140 μg/mL of GSGa (GcMSCs) were seeded in 35 mm dishes at a density of 5000 cells/cm2 until they reached a confluency of 80–90%. For adipogenic and osteogenic differentiation, the cells were stimulated for 3 days in the differentiation mediums, StemPro®® Adipogenesis Differentiation Kit and StemPro®® Chondrogenesis Differentiation Kit (Gibco, Life Technologies, Milan, Italy), respectively. After 3 days, the medium was removed and the cells were washed twice with PBS and fixed with 4% v/v PF for 20 min at room temperature in the dark. Cells were then washed once with PBS, stained with Alcian Blue pH 2.5 to detect chondrogenic differentiation or Adipo Red for the adipogenic differentiation and analyzed by optical and fluorescent microscopy, respectively. For osteogenic differentiation, confluent cells were stimulated for 3 days with DMEM supplemented with 10% FBS, 1% w/v penicillin-streptomycin (Sigma-Aldrich, Italy), 1% w/v L-glutamine (GIBCO, Life Technologies, Milan, Italy), 1% v/v non-essential amino acids solution (Sigma-Aldrich, Italy), 50μg/mL ascorbic acid, 10 mM β-glycerophosphate and 10 nM dexamethasone. After the stimulation period, the cells were stained with Alizarin Red dye and analyzed by optical microscopy. Cardiogenic differentiation was performed following the instructions provided with the Human Cardiomyocyte Immunocytochemistry Kit®® (Life Technologies, Milan, Italy); after differentiation, cells were fixed as previously described and stained with a primary mouse anti-human troponin T2 (TNNT2) antibody and an Alexa Fluor®® 488 donkey anti-mouse secondary antibody.

4.10. Microarray

RNA was extracted from cells, using a RNAeasy Kit (Qiagen, Manchester, UK). RNA was reverse transcribed, converted to cDNA, amplified, and labeled with a cyanine-3 dye using a Low Input Quick Amp labeling kit from Agilent. Labeled cRNAs were hybridized to human gene expression microarrays (Agilent, Cheshire, UK). The data were extracted using the Agilent Feature Extraction software (version 10.7.3.1) and analyzed using Agilent GeneSpring GX software (version 12.1, Agilent, Cheshire, UK). An unpaired Student’s t test with Benjamini–Hochberg multiple testing correction was applied in order to analyze significant differences of expression, mRNAs with a p value of less than or equal to 0.05 and a fold change of greater than 1.5 were considered to be both statistically significant. Heat-maps were generated by Agilent GeneSpring GX software (version 12.1) with a hierarchical clustering algorithm based on normalized intensity value by using Euclidean similarity measurements (cut-off p value 0.05; cut-off fold change 1.5). Microarray analyses were performed using the DAVID 6.8 program [91,92] and InteractiVenn webtool (http://www.interactivenn.net).

4.11. Statistical Analysis

GraphPad Prism version 6.0 for Windows (GraphPad Software, San Diego, CA, USA) was used for the statistical analysis. Data obtained from three or five independent experiments were quantified and analyzed for each variable using a one-way ANOVA test or in some cases one-tailed Student’s t-test. A p value of < 0.05 was considered to be statistically significant. Standard deviations or the standard error means were calculated and presented for each experiment.

5. Conclusions

The endogenous H2S levels help regulating the equilibrium of several organs, including the respiratory, reproductive, neuronal, renal, cardiovascular, gastrointestinal and liver systems. The broad physiological role of this lipid-soluble gasotransmitter is due to its membrane permeability, although its unique chemical reactivity towards some macromolecules in different cell lines makes this gas a selective signalling molecule. Here a garlic water-soluble extract obtained with glutathione conjugation was used as a natural H2S-releasing agent to analyse the effects of both acute and prolonged preconditioning on progenitor stem cells. Although the protective effect of H2S by the oxidative stress was well investigated in the human cells using NaHS as H2S donor [1,41], the effects of potential nutraceutical bio-products, such as GSGa, on MSC has not yet been assessed. Several studies suggest that the inherent reparative capability of the body could in theory be supported by incrementing the efficiency of the endogenous MSC via therapeutic exogenous MSC [93,94,95].
One of the most relevant problems in cell-based therapy is the optimization of the stem cell delivery system and of the capability of multipotent stem cells to proliferate, migrate and differentiate, generally, in compromised sites where active oxidative and inflammatory processes are ongoing, with the aim of improving tissue repair and regeneration.
We demonstrated that the cell line selection by GSGa conditioning significantly improves the ability of the cMSC to proliferate, migrate and survive oxidative injury by activation of the expression of both HRE- and ARE-mediated transcription genes. The subsequent increase in antioxidant enzymes and molecules might protect against cellular senescence induced by oxidative stress. Moreover, we demonstrated that the prolonged GSGa treatment does not affect the cell plasticity of cMSC, although it improves the expression of proteins such as α-SMA and Cx43, which are important in muscle tissue commitment. The results presented here suggest the possibility of ameliorating MSC therapy by prolonged treatment with natural H2S-releasing donors that could improve MSC homing to the site of injury, promoting their cell proliferation, migration and survival under oxidative stress conditions and ultimately favouring the capability of MSC to secrete paracrine factors with both immunoregulatory and structural functions for microenvironment regeneration.

Supplementary Materials

Supplementary Materials can be found at https://www.mdpi.com/1422-0067/21/5/1638/s1.

Author Contributions

Conceptualization and writing—original draft preparation, S.M.; investigation E.D.G., S.M., I.A. and S.B.; analysed the results, S.M., I.A., E.D.G., S.B.; writing manuscript, S.M., I.A. and E.D.G.; project administration, S.M.; funding acquisition, S.M. All authors reviewed the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

We thank Martina Colaicovo for technical support for the preliminary experiments, and P. Di Nardo for giving us the Lin− Sca-1+ human cardiac MSC line.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

3-MTS 3-mercapto-piruvate sulfurtrasferase;
α-SMAα-smooth muscle actin;
AcH3acetylated histone H3;
ACTN2Actinin alpha 2;
AktProtein kinase B;
AREAntioxidant response element;
BAD-NEBSA/ALA/DADS nanoemulsion;
BCAbicinchoninic acid;
BMSCsbone marrow mesenchymal stem cells;
CBScystathionine β-synthase;
CNScentral nervous system;
CSEcystathionine γ–lyase;
Cx43connexin-43;
cMSCsLin-Sca-1+ human cardiac progenitor cells;
DADS diallyl-disulfide;
DMEMDulbecco’s modified Eagle medium;
DATSdiallyl-trisulfide;
DU145cells prostate cancer cell line;
ERK1/2extracellular signal–regulated kinases 1/2;
FBSFetal Bovine Serum; H2S, hydrogen sulfide;
HO1heme oxygenase 1
Keep1Kelch ECH associating protein 1;
MEF2Cmyocyte enhancer factor 2C
MSCsmesenchymal stem cells;
NHDFnormal human dermal fibroblasts;
NQO1NAD(P)H quinoneoxidoreductase 1;
NMDAN-methyl-D-aspartate;
Nrf2nuclear factor erythroid 2-related factor 2;
NSAIDsnon-steroidal anti-inflammatory drugs;
OSCsOrgano-sulfur compounds;
p21cyclin-dependent kinase inhibitor 1;
SGCDsarcoglycan delta;
Trx1thioredoxin 1;
TYRO3tyrosine-protein kinase receptor;
SRFBP1serum response factor binding protein 1;
TFAtrifluoroacetic acid;
TNNT2human Troponin T2;
TSTthiosulfate: cyanide sulfurtransferase enzyme.
