NtMYB3, an R2R3-MYB from Narcissus, Regulates Flavonoid Biosynthesis

by
Muhammad Anwar
1,†,
Weijun Yu
1,†,
Hong Yao
1,
Ping Zhou
1,
Andrew C. Allan
2,3 and
Lihui Zeng
1,*
1
College of Horticulture, Fujian Agriculture and Forestry University, Fuzhou 35002, China
2
The New Zealand Institute for Plant & Food Research, Mt Albert Research Centre, Private Bag 92169, Auckland 1025, New Zealand
3
School of Biological Sciences, University of Auckland, Private Bag 92019, Auckland 1142, New Zealand
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2019, 20(21), 5456; https://doi.org/10.3390/ijms20215456
Submission received: 8 October 2019 / Revised: 27 October 2019 / Accepted: 28 October 2019 / Published: 1 November 2019
(This article belongs to the Special Issue Antioxidant Metabolic Pathways in Plants)
Browse Figures
Review Reports Versions Notes

Abstract

:
R2R3-MYB transcription factors play important roles in the regulation of plant flavonoid metabolites. In the current study, NtMYB3, a novel R2R3-MYB transcriptional factor isolated from Chinese narcissus (Narcissus tazetta L. var. chinensis), was functionally characterized. Phylogenetic analysis indicated that NtMYB3 belongs to the AtMYB4-like clade, which includes repressor MYBs involved in the regulation of flavonoid biosynthesis. Transient assays showed that NtMYB3 significantly reduced red pigmentation induced by the potato anthocyanin activator StMYB-AN1 in agro-infiltrated leaves of tobacco. Over-expression of NtMYB3 decreased the red color of transgenic tobacco flowers, with qRT-PCR analysis showing that NtMYB3 repressed the expression levels of genes involved in anthocyanin and flavonol biosynthesis. However, the proanthocyanin content in flowers of transgenic tobacco increased as compared to wild type. NtMYB3 showed expression in all examined narcissus tissues; the expression level in basal plates of the bulb was highest. A 968 bp promoter fragment of narcissus FLS (NtFLS) was cloned, and transient expression and dual luciferase assays showed NtMYB3 repressed the promoter activity. These results reveal that NtMYB3 is involved in the regulation of flavonoid biosynthesis in narcissus by repressing the biosynthesis of flavonols, and this leads to proanthocyanin accumulation in the basal plate of narcissus.

1. Introduction

Chinese narcissus (Narcissus tazetta L. var. chinensis Roem) belongs to the Amaryllidaceae family and is a perennial bulbous plant widely cultivated in East Asia and China. It has popular ornamental flowers and fragrance with significant cultural and commercial value. Chinese narcissus has been reported as a triploid species, generally propagated by vegetative methods. Traditional cross breeding is complicated [1]. Therefore, only a limited number of cultivars have been exploited for commercial production in China, and agronomic characters, such as flower colors, have yet to be improved [2].
Flower color is a very important consideration for customer choice. The pigments that color most flowers are commonly flavonoids. Flavonoids belong to a class of secondary metabolites, which are mainly classified into main subgroups, including isoflavones, flavones, flavonols, flavan-diols, chalcones, anthocyanins, and proanthocyanidins (condensed tannins) [3]. Anthocyanins constitute a large subclass of flavonoids and are natural plant pigments that give diverse colors—typically purple, red, and blue—to flowers, fruits, and vegetables [4,5]. Proanthocyanidins (PAs) derived from the condensation of flavan-3-ols units such as catechin, epicatechins, and epigallocatechin are one of the major groups of polyphenolic compounds produced through the flavonoid biosynthetic pathway [6]. Proanthocyanidin broadly exists in the plant kingdom [7]. They are found in flowers, seeds, bark, and leaves and play a key role in defense in response to plant diseases. PAs improve health benefits and quality of plant products including fruits and wine [8].
Flavonoids are also synthesized through the phenylpropanoid pathway. Phenylalanine acts as the precursor molecule for flavonoid biosynthesis, which is transformed to cinnamic acid by phenylalanine ammonia lyase (PAL). One molecule of CoA-ester of cinnamic acid and three molecules of malonyl-CoA are reduced into the naringenin chalcone, and the reaction is catalyzed by chalcone synthase (CHS). The chalcone is isomerised to a flavanone by chalcone flavanone isomerase (CHI). The biosynthesis of the different branches of flavonoids including anthocyanins, proanthocyanidins and flavonols shares general precursors. Dihydroflavonols act as substrates for dihydroflavonol 4-reductase (DFR) or flavonol synthase (FLS), and therefore, these various metabolite branches compete with each other, resulting in flavonol, anthocyanin, or PA compositions of secondary metabolites.
Flavonoid biosynthesis is modulated by various transcriptional factors (TFs) belonging to diverse families such as MYB, basic helix-loop-helix (bHLH), and WD40 proteins, which constitute a MYB-bHLH-WD40(MBW) complex [9]. MYB proteins play a key role in controlling target genes in the flavonoid biosynthetic pathway.
The regulation of the flavonoid biosynthetic pathway in dicotyledons species occurs by diverse patterns. Specific MYB transcriptional factors have been proposed to control branches of the flavonoid biosynthetic pathway in plants. For instance, AtMYB11, AtMYB12, and AtMYB111 are responsible for the biosynthesis of flavonol in Arabidopsis, whereas AtPAP1 controls the anthocyanin biosynthesis pathway. AtMYB75, AtMYB90, AtMYB113, and AtMYB114 are also involved in the regulation of the anthocyanin biosynthetic pathway [9,10,11,12]. Other MYB transcriptional factors simultaneously control many branches of flavonoid biosynthesis. For example, in grape, VvMYB5a and VvMYB5b are known to regulate the biosynthesis of several branches, including anthocyanins, PAs, flavonols, and lignins [13]. In monocotyledon plants, most R2R3-MYB genes reported in flavonoid biosynthetic pathway regulate anthocyanin pigmentation, such as ZmC1 and ZmPl in maize, OgMYB1 in orchid, and LhMYB6/LhMYB12 in Asiatic Hybrid Lily [14,15].
In addition to the activator MYBs, some repressors of the flavonoid pathway, particularly anthocyanins, have been reported, including an R2R3-MYB repressor from strawberry FaMYB1 [16], Arabidopsis AtMYB4 [17], and a single domain MYB in Arabidopsis, AtMYBL2 [18]. NtMYB2, a R2R3-MYB in Chinese narcissus, was found to repress anthocyanin biosynthesis [19]. Two R3-MYB repressors of anthocyanin, LhR3MYB1 and LhR3MYB2, were identified in lily [20]. However, other negative regulators of flavonoids in monocot plants still remain to be studied.
In Chinese narcissus, flower color is either yellow or white. The composition of flavonoid compounds in flowers of narcissus cultivars was examined, with flavonols detected and no anthocyanins found [19]. Previous studies showed that PAs are accumulated in the scales, roots, and basal plates of Chinese narcissus, but not in flowers. A high expression level of the genes that encode the FLS or DFR steps play a key role in regulating flux through the different branches of the flavonoid biosynthetic pathway [21]. Understanding the regulation of different branches in flavonoid biosynthesis will provide knowledge to produce anthocyanins by genetic engineering in narcissus. In the current investigation, a novel R2R3-MYB repressor NtMYB3 was isolated from Chinese narcissus and functionally characterized. The results suggest that NtMYB3 may be a repressor of flavonol biosynthesis. The putative role of NtMYB3 provides an understanding of the regulatory mechanisms of flavonoid biosynthesis in Chinese narcissus as well as other monocot species.

2. Results

2.1. Cloning and Sequence Analysis of NtMYB3

Sequence analysis showed that NtMYB3 has a full length ORF of 603bp. NtMYB3 encodes a putative protein of 201 amino acids with a molecular weight of 23 kDa, which has 83% amino acid sequence identity with Allium cepa AcMYB1 and 78% with Vitis vinifera VvMYB4a which are both MYB repressors. Insilico investigation (http://nls-mapper.iab.keio.ac.jp/cgi-bin/NLS_Mapper_form.cgi) for subcellular localization showed the occurrence of nuclear localization signal “RPDLKRGNFTEEEDDLIIKLHSL” starting from the amino acid at 62nd location. Results of phylogenetic tree analysis indicated that amino acid sequences of R2R3-MYB repressor genes from various plants were divided into two clades (Figure 1). Clade 1 included related MYB transcriptional factors grouped with the AtMYB4-like clade. Clade 2 was composed of associated MYB transcriptional factors grouped with the FaMYB1-like clade. Both of clades transcriptional factors contained the C2 repressor motifs. NtMYB3 was grouped with AcMYB1, Arabidopsis AtMYB4, AtMYB32, and VvMYB4a, belonging to subgroup 4 of the R2R3-MYB transcriptional factors. NtMYB2, which was previous functionally characterized as a repressor of anthocyanin, belongs to same clade with NtMYB3 [19] (Figure 1).
Protein sequence alignment between NtMYB3 and numerous R2R3-MYB repressors showed that NtMYB3 consisted of conserved R2 and R3 DNA binding domains at the N-terminus. R3 DNA binding domains of NtMYB3 contained a bHLH binding motif [D/E]Lx2[R/K]x3Lx6Lx3R, as previously identified [22]. The conserved motif “DNEI” was found in R3 DNA binding domains of NtMYB3. In addition to R2R3 binding domains, NtMYB3 have two typically conserved signature or motifs C1 (KLIsrGIDPxT/SHRxI/L) and C2 (pdLNLD/ELxiG/S) found at the C-terminus, as previously identified in subgroup 4 R2R3-MYB transcriptional factors. On the other hand, the C-terminal downstream conserved motifs indicate high divergence (Figure 2).
Arabidopsis thaliana AtMYB32(NP 195225), Fragaria ananassa FaMYB1 (AAK84064.1), Petunia hybrid PhMYB27 (AHX24372.1), Vitis vinifera VvMYBC2-L1 (ABW34393), Vitis vinifera VvMYBC2_L3 (AIP98385.1), Gossypium hirsutum GhMYB6 (AAN28286), Populus tremuloides PtrMYB182 (Potri.004G088100), Arabidopsis thaliana AtMYB4 (NP_195574.1), Vitis vinifera VvMYB4a (ABL61515.1), Antirrhinum majus AmMYB308 (P81393), Glycine max GmMYB54 (ABHO2822.1), Malus domestica MdMYB16 (HM122617.1), Punica granatum PgMYB1 (AJD79907.1), Salvia miltiorrhiza SmMYB39 (KC213793), Narcissus tazetta NtMYB3 (KC763975.1), NtMYB2 (KY860527.1), Vitis vinifera VvMYBC2-L2 (ACX50288).
Arabidopsis thaliana AtMYB32(NP 195225), Fragaria ananassa FaMYB1 (AAK84064.1), Petunia hybrid PhMYB27 (AHX24372.1), Vitis vinifera VvMYBC2-L1 (ABW34393), Vitis vinifera VvMYBC2-L3 (AIP98385.1), Gossypium hirsutum GhMYB6 (AAN28286), Populus tremuloides PtrMYB182 (Potri.004G088100), Arabidopsis thaliana AtMYB4 (NP_195574.1), Vitis vinifera VvMYB4a (ABL61515.1), Antirrhinum majus AmMYB308 (P81393), Glycine max GmMYB54 (ABHO2822.1), Malus domestica MdMYB16 (HM122617.1), Punica granatum PgMYB1 (AJD79907.1), Salvia miltiorrhiza SmMYB39 (KC213793), Narcissus tazetta NtMYB3 (KC763975.1), NtMYB2 (KY860527.1), Vitis vinifera VvMYBC2-L2 (ACX50288).

2.2. Transient Expression of NtMYB3 in Tobacco

To check the function of NtMYB3, transient assays were performed in tobacco. Noticeable red pigmentation was found 3–4 days after infiltration with StMYB-AN1, which is a potato anthocyanin activator [23]. No anthocyanin accumulation or red pigmentation was found with infiltration of NtMYB3. Red pigmentation or anthocyanin accumulation significantly decreased in leaves of tobacco when co-infiltrated with NtMYB3 and StMYB-AN1. Furthermore, anthocyanin accumulation was also significantly reduced in leaves co-infiltrated with NtMYB3, StMYB-AN1, and StbHLH (Figure 3).

2.3. The Over-Expression of NtMYB3 Decreases the Flower Pigmentation of Transgenic Tobacco

NtMYB3, under control of the 35S promoter, was transferred into tobacco by leaf disc transformation using Agrobacterium. Five transgenic lines carrying NtMYB3 gene were obtained. The transgenic plants were confirmed by PCR. Transgenic flowers carrying NtMYB3 genes displayed a significant decrease in color as compared to control, which generate pink flowers, changing from light pink to almost white. One NtMYB3 over-expression line (L-2) showed almost white flowers with light red veins at the tips of petals. Transgenic lines (L-4 and L-5) showed very weak red flowers (Figure 4A). Moreover, in transgenic lines, the positions of stigmas were above the anther, as compared to wild type, because of the style extending (Figure 4B). Furthermore, anthocyanin contents of wild type and transgenic flowers were analysed. The anthocyanin content of flowers carrying NtMYB3 gene was significantly decreased compared to those of wild type (Figure 5).

2.4. Over-Expression of NtMYB3 Affects Expression Level of Flavonoid Key Genes in Transgenic Flowers of Tobacco

To check the effects of ectopic over-expression of NtMYB3 on biosynthetic genes involved in the flavonoid biosynthesis pathway in transformed tobacco flowers, qRT-PCR analysis was performed. The results of qPCR analysis indicated that over-expression of NtMYB3 strongly affected the transcript level of the biosynthetic genes involved in flavonol, anthocyanin, and proanthocyanin biosynthesis pathways. Expression of CHS, CHI, F3H, DFR, ANS, and UFGT, were significantly down-regulated in transgenic flowers (Figure 6), especially the UFGT gene. In addition, the expression level of FLS gene encoding for flavonol biosynthesis was significantly decreased in transgenic lines with respect to wild type. However, PA biosynthetic pathway genes LAR and ANR were up-regulated and had higher expression levels in transgenic flowers of all NtMYB3 over expression lines (Figure 6). To confirm the up-regulation of LAR and ANR genes and the down-regulation of FLS, PA and flavonol contents of wild type and transgenic flowers were calculated. The PA contents in transgenic flowers carrying NtMYB3 gene were significantly increased, while the flavonol contents decreased as compared to wild type (Figure 7).

2.5. The Expression Pattern of NtMYB3 Gene in Different Tissues of Chinese Narcissus

QRT-PCR was carried out to determine the expression levels of NtMYB3 in various tissues of Chinese narcissus. These results showed that NtMYB3 was expressed in petals, corona, leave, scale, and basal plates of narcissus (Figure 8). The expression level of NtMYB3 in basal plates was highest, as compared to leaves, bulb scales, petals, and the corona (Figure 9). These results suggested that NtMYB3 may play a role in the flavonoid biosynthesis of basal plates.

2.6. Regulation Analysis of NtMYB3 to the NtFLS Promoter

A 968 bp promoter fragment of narcissus NtFLS was amplified from genomic DNA by genome walking (GenBank number MH 472580). The promoter contained 12 TATA-box, 10 CAAT-box elements, and other promoter elements in the promoter region (Supplementary Table S1). Two MYB transcription factor elements were found within the promoter sequence. In addition, the light-responsive elements, including Box I, G-box, G-Box, boxII, Sp1, TCT-motif, 3-AF1binding site, and ACE, were found.
Transient expression in tobacco leaves was used to investigate whether NtMYB3 regulates the cloned NtFLS promoter. A histochemical GUS assay showed that NtMYB3 decreased pNtFLS::GUS activity (Figure 10A,B). The expression level of GUS was decreased by 58% (Figure 10C).
A dual luciferase assay was carried out to verify the interaction between NtMYB3 and NtFLS promoter. NtMYB4, a flower-specific MYB homologous to Arabidopsis MYB21 that regulates stamen development and pollen phenylpropanoid [24], was found to elevate NtFLS levels (unpublished) and used in the assay. The results obtained with the GUS activity assay results, indicating that NtMYB3 significantly decreased the activity of NtFLS promoter under conditions of activation by NtMYB4 (Figure 11).
Agrobacterium cultures containing the reporter construct pNtFLS:LUC were mixed with the effector constructs GUS (empty), NtMYB3, NtMYB4, and NtMYB3+NtMYB4 separately and co-infiltrated into N. benthamiana leaves. Small letter showed the significant difference at the level of p < 0.05 by using LSD test. The error bars stand for the SE of three biological replicates.

3. Discussion

3.1. The Sequence of NtMYB3 Has Features of an R2R3-MYB Repressor

The C2 repressor motif is a general feature of EAR-type transcriptional repressors, with changes in the amino acid residues within the EAR motif resulting in a decrease or loss of suppression. In Arabidopsis, inhibitory activity was lost by replacing amino acid residues D with A in the EAR motif [25]. In apple, MdMYB16 has an EAR repressor motif at the C-terminus (PDLNLDLQIS) when removed, suppresses the inhibition of anthocyanin [26]. Sequence analysis showed that NtMYB3 had this C2 motif, suggesting NtMYB3 may have a repressor function.
Phylogenetic tree analysis revealed that repressor MYB transcriptional factors were separated into AtMYB4-like and FaMYB1-like clades. In the present study, NtMYB3 is related to the AtMYB4-like clade, which also includes NtMYB2 [19]. The R2R3-MYB members of the AtMYB4-like clade were previously functionally characterized and are involved in the down-regulation of the flavonoid biosynthetic pathway. Therefore, NtMYB3 may be a repressor of flavonoid biosynthesis.

3.2. NtMYB3 Regulates Flavonoid Biosynthesis in Tobacco

In potato, StMYB-AN1 positively regulates anthocyanin biosynthesis [23]. Visible red pigmentation was induced in agro-infiltrated tobacco leaves with individual StMYB-AN1. A significantly reduction of red pigmentation or patches was found when young leaves were co-injected with StMYB-AN1 and NtMYB3. Ectopic over-expression of NtMYB3 in tobacco decreased petal pigmentation, and total anthocyanin was reduced in transgenic tobacco flowers, suggesting that NtMYB3 is an anthocyanin repressor in tobacco. R2R3-MYB repressors have two kinds, one of which functioned on MBW complexes such as FaMYB1, and the other directly binds on target genes such as AtMYB4 [26]. In the presence of StbHLH co-infiltration, the red pigment was reduced as only co-injected with StMYB-AN1 and NtMYB3, indicating that NtMYB3 may not compete for StbHLH with StMYB and may play a role by directly binding with the promoters of structural genes.
Our study is consistent with the previous results of R2R3-MYB repressors in dicotyledons. Ectopic expression of VvMYB4 in tobacco decreased anthocyanin accumulation in flowers [27]. Poplar PtrMYB57 decreases the content of anthocyanin in transgenic poplar plants as compared to the control [28]. Similar results were also obtained in our previous study, which showed that another R2R3-MYB in Chinese narcissus, NtMYB2, repressed the anthocyanin accumulation in tobacco transgenic flowers [19].
In dicotyledons, R2R3-MYBs are reported to repress expression of genes of the flavonoid biosynthesis pathway. The main effect of FaMYB1 overexpression is at the lower end of the flavonoid biosynthetic pathway, more directly related to the biosynthesis of anthocyanins and the flavonol quercetin [16]. Overexpression of AtMYB4 in Arabidopsis affects the up-stream flavonoid biosynthesis genes such as C4H, CHS and 4CL [17]. In grapevine, VvMYB4-like and VvMYB4A decreased anthocyanin accumulation by suppressing the expression of the DFR, ANS and UFGT genes respectively [27,29]. In NtMYB3 tobacco flowers, nearly all structural genes involved in anthocyanin and flavonol biosynthetic pathway were down-regulated. The results suggest NtMYB3 regulates anthocyanin and flavonol biosynthesis in tobacco, acting as a transcriptional repressor of flavonoid structural genes. However, the expression of ANR and LAR was up-regulated, and PA contents increased in transgenic flowers, in contrast to the suppression of anthocyanin and flavonol biosynthesis. This observation requires further study.
In addition to changes in floral color pattern, changes in other morphological traits were seen in NtMYB3 lines. Pistil length of over-expression NtMYB3 lines was extended compared to wild type, with stigmas above the anther in transgenic flowers. Similar observations were reported for AmMYB308, which when over expressed in transgenic tobacco enhanced styles of the pistil [30]. However, the mechanisms of how NtMYB3 can induce morphological character changes require further study.

3.3. NtMYB3 Suppresses the Transcription of NtFLS in Chinese Narcissus

Previous evidence has shown that perianths and coronas of Chinese narcissus have a higher level of flavonols, PAs are accumulated in basal plates, and no anthocyanidins are detected in all organs [21]. Expression analysis indicated that NtMYB3 has a higher expression level in basal plates than petals and corona, which contrasts with NtMYB2, which has higher expression levels in petals and corona [19]. Previous studies have suggested that decreased expression of NtFLS and a lack of ANS expression lead to PAs accumulation in basal plates of Chinese narcissus [21]. Therefore, it is suggested that NtMYB3 may play a repressive role in basal plates of Chinese narcissus by down-regulating NtFLS expression. Results of transient expression in tobacco leaves and dual luciferase assays verify the regulation of the promoter of NtFLS by NtMYB3. Our results also indicate the different roles between NtMYB3 and NtMYB2 in Chinese narcissus, although both are AtMYB4-like repressors.

4. Materials and Methods

4.1. Plant Materials

Chinese narcissus (Narcissus tazetta L. var. chinensis) “Jin Zhan Yin Tai” was used in this experiments. The samples of petals, corona, leaves, bulb scales, and basal plates of Chinese narcissus were collected and further used for the RNA extraction.
Tobacco (Nicotiana tabacum) was used in transient expression and stable transformation. The young and healthy leaves of Nicotiana benthamiana were used for dual luciferase assay. The seeds of tobacco were sterilized with 75% alcohol and followed by 10% sodium hypochlorite (NaClO), then washed 3–5 times with dH2O, and cultured on MS medium. Leaves of sterile plantlets are used for stable transformation. The transgenic flowers of tobacco were collected and used for the extraction and estimation of total anthocyanins and PAs.

4.2. Cloning and Sequence Analysis of NtMYB3

The full length ORF of NtMYB3 was obtained by designing gene-specific primers according to the published sequence (KC763975.1) (Table S1). The molecular weight, isoelectric point (pI), and theoretical NtMYB3 coding sequence translation was predicted using an online ExPASy server (www.ExPASy.org). The protein sequence of R2R3-MYB transcriptional factors from other various species were collected from NCBI (www.ncbi.nlm.nih.gov/BLAST/). The amino acid sequence of NtMYB3 and other crops were aligned by using DNAMAN6.0 software with default parameters (Lynnon Corporation, San Ramon, CA, USA). The whole protein sequence of R2R3-MYB transcriptional factors related to NtMYB3 were used to develop a phylogenetic tree using MEGA5 software with default parameters. Bootstrap was 1000.

4.3. Expression Vector Construction

Plant expression vector was constructed using a cloning Kit (In-Fusion®HD, Clonetech, Palo Alto, CA, USA). The entire ORF of NtMYB3 was obtained by primers with special restriction enzyme site. The forward primer was added with an EcoRI restriction site and reverse primer with a HindIII restriction site (Table S1). The sequence was then cloned into a plant expression vector pSAK277 with the CaMV35S promoter. The constructed expression vector pSAK277-NtMYB3 was transformed into the Agrobacterium tumefaciens strain GV3101 (MP90) by electroporation. A positive colony was chosen on medium (YEB) supplemented with 100 mg/L rifamycin (Solarbio, Beijing, China) and 50 mg/L kanamycin ((Solarbio, Beijing, China)) for transient and stable genetic transformation of tobacco.

4.4. Q-PCR

The expression of the NtMYB3 gene in different tissues of Chinese narcissus was analyzed by real time qRT-PCR. The total RNA from various tissues was extracted using Omega Total RNA Kit (Omega, Norcross, GA, USA). cDNA was synthesized after removal of genomic DNA usinga PrimeScriptTM RT reagent Kit (Takara, China). QPCR was carried out with Light cycler® 480 real time PCR (Roche Diagnostics, Indianapolis, IN, USA). The qRT-PCR condition was same as in our previous study [19]. The comparative transcript level was calculated with the Chinese narcissus Actin gene (GenBank number JN204912.1). The comparative Ct technique was performed to calculate the gene transcript level [31]. Three technical and biological replications for each sample were performed.

4.5. Transient Assays to Investigate NtMYB3 Function

For transient assays, the vectors pSAK277-NtMYB3, pSAK277-StbHLH, pSAK277-StMYB-AN1, and empty vector pSAK277 (as a negative control) were introduced into Agrobacterium stain GV3101 (MP90). StMYB-AN1 and StbHLH were provided by Dr. Liu [23]. Transient assays were performed by the method, as previously described [19]. NtMYB3, StMYB-AN1, NtMYB3+StMYB-AN1, and StMYB-AN1+NtMYB3+StbHLH were carried out as treatments separately. StMYB-AN1+pCAMBIA1301 were used as a control treatment. Each treatment was replicated three times in transient assays. After 4–5 days of agro-infiltration injection, changes in color pigmentation were noticed in leaves. The collected samples were stored at −80 °C refrigerator for further study.

4.6. Stable Transformation of Tobacco

Stable transformation of tobacco (Nicotiana tabacum) through a leaf disc method was performed as previously reported [32]. The putative transformed shoots were selected on MS basal medium with the addition of 350 mg/L carbenicillin and 100mg/L kanamycin. In order to confirm the transgenic tobacco plants, PCR assay was carried out. The transgenic plants were moved to soil for their normal growth.

4.7. Extraction and Quantification of Proanthocyanins, Flavonol and Total Anthocyanins

Total contents of anthocyanin were extracted and quantified in transgenic flowers of tobacco using the method as previously described [33]. For the analysis of proanthocyanins, extraction and estimation of PAs was carried out as previously described [34]. The total flavonol was extracted and quantified in transgenic flowers of tobacco according to the method as previously described [35].

4.8. Isolation and Sequence Analysis of NtFLS Promoter

Genomic DNA was isolated from the leaves of Chinese narcissus using the CTAB method. The NtFLS promoter was isolated using the Genome Walking Kit (TaKaRa, Dalian, China) following the manufacturer’s instructions. The nested PCR analysis was carried out with three sets of primers, as well as three gene-specific primers, which were NtFLS-R1:5′-ATGAAACAAGTAGTCGACCCAAGC-3′, NtDFR-R2: 5′-TCACGTAAGCCTCCTTCTCCCCTTGT-3′, and NtDFR-R3: 5′-TGGTTCACGATTTGGAAGATCCCC-3′. Putative cis-acting elements of the promoter were predicted using the PLACE databases (http://www.dna.affrc.go.jp/PLACE/signalscan.html) and Plant CARE (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/).

4.9. Transient Expression to Investigate the Regulation of NtMYB3 to NtFLS Promoters

The promoter of NtFLS was constructed into the plant expression vector pBI121, replacing the 35S promoter before GUS gene. The recombinant vector pBI121-pNtFLS::GUS was transformed into the Agrobacterium tumifaciens GV3101(MP90), and their agro-infiltration suspension (10 mM MgCl2, 10 mM 2-(N-Morpholino) ethanesulfonic acid (MES), 200 μM Acetosyringone incubated for one hour at 28 °C) was injected into the young leaves of tobacco was mixed with pSAK277-NtMYB3 at the ratio of 1:1 as described by NayeriandAnbuhi [36]. In this assay, three biological replications were performed.
After three days, tobacco leaves were collected and RNA was isolated, real-time qPCR was performed using TaKaRa SYBR Premix ExTaqTMII (Takara, Dalian, China) to analyze the expression levels of GUS gene of various treatments. Primers of GUS gene are GUS-F: TACCGTACCTCGCATTACCC, GUS-R: CTGTAAGTGCGCTTGCTGAG. At the same time, histochemical GUS assay was performed to measure GUS activity. Tobacco leaf tissues were incubated in GUS staining solution (2 mM 5-bromo-4-chloro-3-indolyl-b-D-glucuronide acid in 0.1 M sodium phosphate pH 7.0, 0.1% (g/mL) Triton X-100, 0.5 mM K3FeCN6, 0.5 mM K4FeCN6, 10 mM Na2EDTA) for one day at 37 °C. After staining, the chlorophyll was liberated by extraction in 100% ethanol for 1 h and 75% ethanol for 1 h.

4.10. Dual Luciferase Assay

The dual luciferase test was performed as previously described by Espley, et al. [36]. The promoter of NtFLS gene cloned in pGreenII 0800-LUC was used as the reporter cassette, TFs NtMYB3, and NtMYB4 in pSAK277 driven by the cauliflower mosaic virus (CaMV) 35S promoter as the effector cassette, and the negative control β-glucuronidase (GUS) in pSAK277 was used in assays. Agrobacterium cultures (10 mM MgCl2, 10 mM 2-(N-Morpholino) ethanesulfonic acid (MES), 200 μM Acetosyringone incubated for one hour at 28 °C) containing the reporter cassette and the effector cassettes were mixed and co-infiltrated into N. benthamiana leaves as previously described by NayeriandAnbuhi [37]. Plants were placed in growth chamber for three days. For each treatment, the samples of leaf discs about 1 cm in diameter were taken. Cell lysate was put into the grinded sample and then followed by incubation for 5 min on ice. Firefly luciferase (LUC) values are reported relative to the Renilla luciferase (REN) control. The assays were carried out according to the instruction of dual luciferase reporter assay kit (Yeasen Biotech Co, Ltd. Shanghai, China) using the Luciferase Assay System (Tecan infinite M200 PRO, (Yeasen Biotech Co, Ltd. Shanghai, China), and the setting for fluorescence value measurement reading time was 1000 ms in the luminometer.

4.11. Statistical Analysis

In this study, statistical analysis was performed by one-way ANOVA. LSD values were estimated using p = 0.05 and used to compare treatment means.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/20/21/5456/s1.

Author Contributions

M.A. and L.Z. conceived the study. M.A., L.Z., and A.C.A. wrote the manuscript; M.A., W.Y., H.Y. and P.Z. carried outfield, lab experiments and statistical analysis. All authors discussed the results and commented on the main manuscript.

Funding

This research work was supported by Fujian Agriculture and Forestry University International Scientific and Technological Exchange and Cooperation Project, China (Kxb16013A), the Construction of Plateau Discipline of Fujian Province, China and Fujian Agriculture and Forestry University Science and Technology Innovation Fund (KFA17352A).

Acknowledgments

We thank Yuhui Liu from Gansu Agricultural University kindly providing StMYB-AN1 and StbHLH genes.

Conflicts of Interest

The authors declare no competing interests.

References

  1. Wu, J.; Chen, L.; Gu, L.; Wang, Y.; Tian, H. Embryological studies on narcissus tazetta var. chinensis. J. Xiamen Univ. Nat. Sci. 2004, 44, 112–115. [Google Scholar]
  2. Lu, G.; Zou, Q.; Guo, D.; Zhuang, X.; Yu, X.; Xiang, X.; Cao, J. Agrobacterium tumefaciens-mediated transformation of Narcissus tazzeta var. chinensis. Plant Cell Rep. 2007, 26, 1585–1593. [Google Scholar] [CrossRef]
  3. Winkel; Brenda, S.J. The biosynthesis of flavonoids. In Sci. Flavonoids; Springer: New York, NY, USA, 2006; pp. 71–95. [Google Scholar]
  4. Davies, K.M.; Albert, N.W.; Schwinn, K.E. From landing lights to mimicry: The molecular regulation of flower colouration and mechanisms for pigmentation patterning. Funct. Plant Biol. 2012, 39, 619–638. [Google Scholar] [CrossRef]
  5. Tanaka, Y.; Sasaki, N.; Ohmiya, A. Biosynthesis of plant pigments: Anthocyanins, betalains and carotenoids. Plant J. 2008, 54, 733–749. [Google Scholar] [CrossRef]
  6. Jiang, X.; Liu, Y.; Wu, Y.; Tan, H.; Meng, F.; sheng Wang, Y.; Li, M.; Zhao, L.; Liu, L.; Qian, Y. Analysis of accumulation patterns and preliminary study on the condensation mechanism of proanthocyanidins in the tea plant [Camellia sinensis]. Sci. Rep. 2015, 5, 8742. [Google Scholar] [CrossRef] [Green Version]
  7. Tanner, G.J.; Francki, K.T.; Abrahams, S.; Watson, J.M.; Larkin, P.J.; Ashton, A.R. Proanthocyanidin biosynthesis in plants purification of legume leucoanthocyanidin reductase and molecular cloning of its cDNA. J. Biol. Chem. 2003, 278, 31647–31656. [Google Scholar] [CrossRef]
  8. Carrier, G.; Huang, Y.-F.; Le Cunff, L.; Fournier-Level, A.; Vialet, S.; Souquet, J.-M.; Cheynier, V.; Terrier, N.; This, P. Selection of candidate genes for grape proanthocyanidin pathway by an integrative approach. Plant Physiol. Biochem. 2013, 72, 87–95. [Google Scholar] [CrossRef]
  9. Hichri, I.; Barrieu, F.; Bogs, J.; Kappel, C.; Delrot, S.; Lauvergeat, V. Recent advances in the transcriptional regulation of the flavonoid biosynthetic pathway. J. Exp. Bot. 2011, 62, 2465–2483. [Google Scholar] [CrossRef] [Green Version]
  10. Nesi, N.; Jond, C.; Debeaujon, I.; Caboche, M.; Lepiniec, L. The Arabidopsis TT2 gene encodes an R2R3 MYB domain protein that acts as a key determinant for proanthocyanidin accumulation in developing seed. Plant Cell 2001, 13, 2099–2114. [Google Scholar] [CrossRef]
  11. Stracke, R.; Jahns, O.; Keck, M.; Tohge, T.; Niehaus, K.; Fernie, A.R.; Weisshaar, B. Analysis of PRODUCTION OF FLAVONOL GLYCOSIDES--dependent flavonol glycoside accumulation in Arabidopsis thaliana plants reveals MYB11--, MYB12-- and MYB111--independent flavonol glycoside accumulation. New Phytol. 2010, 188, 985–1000. [Google Scholar] [CrossRef]
  12. Gonzalez, A.; Zhao, M.; Leavitt, J.M.; Lloyd, A.M. Regulation of the anthocyanin biosynthetic pathway by the TTG1/bHLH/Myb transcriptional complex in Arabidopsis seedlings. Plant J. 2008, 53, 814–827. [Google Scholar] [CrossRef]
  13. Deluc, L.; Barrieu, F.; Marchive, C.; Lauvergeat, V.; Decendit, A.; Richard, T.; Carde, J.-P.; Mérillon, J.-M.; Hamdi, S. Characterization of a grapevine R2R3-MYB transcription factor that regulates the phenylpropanoid pathway. Plant Physiol. 2006, 140, 499–511. [Google Scholar] [CrossRef]
  14. Allan, A.C.; Hellens, R.P.; Laing, W.A. MYB transcription factors that colour our fruit. Trends Plant Sci. 2008, 13, 99–102. [Google Scholar] [CrossRef]
  15. Yamagishi, M.; Shimoyamada, Y.; Nakatsuka, T.; Masuda, K. Two R2R3-MYB genes, homologs of petunia AN2, regulate anthocyanin biosyntheses in flower tepals, tepal spots and leaves of Asiatic hybrid lily. Plant Cell Physiol. 2010, 51, 463–474. [Google Scholar] [CrossRef]
  16. Aharoni, A.; De Vos, C.R.; Wein, M.; Sun, Z.; Greco, R.; Kroon, A.; Mol, J.N.; O’connell, A.P. The strawberry FaMYB1 transcription factor suppresses anthocyanin and flavonol accumulation in transgenic tobacco. Plant J. 2001, 28, 319–332. [Google Scholar] [CrossRef]
  17. Jin, H.; Cominelli, E.; Bailey, P.; Parr, A.; Mehrtens, F.; Jones, J.; Tonelli, C.; Weisshaar, B.; Martin, C. Transcriptional repression by AtMYB4 controls production of UV--protecting sunscreens in Arabidopsis. EMBO J. 2000, 19, 6150–6161. [Google Scholar] [CrossRef]
  18. Matsui, K.; Umemura, Y.; Ohme Takagi, M. AtMYBL2, a protein with a single MYB domain, acts as a negative regulator of anthocyanin biosynthesis in Arabidopsis. Plant J. 2008, 55, 954–967. [Google Scholar] [CrossRef]
  19. Anwar, M.; Wang, G.; Wu, J.; Waheed, S.; Allan, A.; Zeng, L. Ectopic overexpression of a novel R2R3-MYB, NtMYB2 from Chinese narcissus represses anthocyanin biosynthesis in tobacco. Molecules 2018, 23, 781. [Google Scholar] [CrossRef]
  20. Sakai, M.; Yamagishi, M.; Matsuyama, K. Repression of anthocyanin biosynthesis by R3-MYB transcription factors in lily (Lilium spp.). Plant Cell Rep. 2019, 38, 1–14. [Google Scholar] [CrossRef]
  21. Wang, G.; Yang, B.; Wu, J.; Luo, P.; Anwar, M.; Allan, A.C.; Lin-Wang, K.; Espley, R.V.; Zeng, L. Identification of genes involved in flavonoid biosynthesis of Chinese Narcissus (Narcissus tazetta L. var. chinensis). Plant Mol. Biol. Report. 2018, 36, 812–821. [Google Scholar] [CrossRef]
  22. Zimmermann, I.M.; Heim, M.A.; Weisshaar, B.; Uhrig, J.F. Comprehensive identification of Arabidopsis thaliana MYB transcription factors interacting with R/B--like BHLH proteins. Plant J. 2004, 40, 22–34. [Google Scholar] [CrossRef] [PubMed]
  23. Liu, Y.; Lin-Wang, K.; Espley, R.V.; Wang, L.; Yang, H.; Yu, B.; Dare, A.; Varkonyi-Gasic, E.; Wang, J.; Zhang, J. Functional diversification of the potato R2R3 MYB anthocyanin activators AN1, MYBA1, and MYB113 and their interaction with basic helix-loop-helix cofactors. J. Exp. Bot. 2016, 67, 2159–2176. [Google Scholar] [CrossRef] [PubMed]
  24. Battat, M.; Eitan, A.; Rogachev, I.; Hanhineva, K.; Fernie, A.; Tohge, T.; Beekwilder, J.; Aharoni, A. A MYB Triad controls primary and phenylpropanoid metabolites for pollen coat patterning. Plant Physiol. 2019, 180, 87–108. [Google Scholar] [CrossRef] [PubMed]
  25. Ohta, M.; Matsui, K.; Hiratsu, K.; Shinshi, H.; Ohme-Takagi, M. Repression domains of class II ERF transcriptional repressors share an essential motif for active repression. Plant Cell 2001, 13, 1959–1968. [Google Scholar] [CrossRef]
  26. Xu, H.; Wang, N.; Liu, J.; Qu, C.; Wang, Y.; Jiang, S.; Lu, N.; Wang, D.; Zhang, Z.; Chen, X. The molecular mechanism underlying anthocyanin metabolism in apple using the MdMYB16 and MdbHLH33 genes. Plant Mol. Biol. 2017, 94, 149–165. [Google Scholar] [CrossRef]
  27. Pérez-Díaz, J.R.; Pérez-Díaz, J.; Madrid-Espinoza, J.; González-Villanueva, E.; Moreno, Y.; Ruiz-Lara, S. New member of the R2R3-MYB transcription factors family in grapevine suppresses the anthocyanin accumulation in the flowers of transgenic tobacco. Plant Mol. Biol. 2016, 90, 63–76. [Google Scholar] [CrossRef]
  28. Wan, S.; Li, C.; Ma, X.; Luo, K. PtrMYB57 contributes to the negative regulation of anthocyanin and proanthocyanidin biosynthesis in poplar. Plant Cell Rep. 2017, 36, 1–14. [Google Scholar] [CrossRef]
  29. Matus, J.T.; Aquea, F.; Arce-Johnson, P. Analysis of the grape MYB R2R3 subfamily reveals expanded wine quality-related clades and conserved gene structure organization across Vitis and Arabidopsis genomes. BMC Plant Biol. 2008, 8, 83. [Google Scholar] [CrossRef]
  30. Tamagnone, L.; Merida, A.; Parr, A.; Mackay, S.; Culianez-Macia, F.A.; Roberts, K.; Martin, C. The AmMYB308 and AmMYB330 transcription factors from Antirrhinum regulate phenylpropanoid and lignin biosynthesis in transgenic tobacco. Plant Cell 1998, 10, 135–154. [Google Scholar] [CrossRef]
  31. Schmittgen, T.D.; Livak, K.J. Analyzing real-time PCR data by the comparative CT method. Nat. Protoc. 2008, 3, 1101. [Google Scholar] [CrossRef]
  32. Horsch, R.; Fry, J.; Hoffman, N.; Eichholtz, D.; Rogers, S.A.; Fraley, R. A simple and general method for transferring genes into plants. Science 1985, 227, 1229–1232. [Google Scholar]
  33. Mehrtens, F.; Kranz, H.; Bednarek, P.; Weisshaar, B. The Arabidopsis transcription factor MYB12 is a flavonol-specific regulator of phenylpropanoid biosynthesis. Plant Physiol. 2005, 138, 1083–1096. [Google Scholar] [CrossRef]
  34. Yuan, L.; Wang, L.; Han, Z.; Jiang, Y.; Zhao, L.; Liu, H.; Yang, L.; Luo, K. Molecular cloning and characterization of PtrLAR3, a gene encoding leucoanthocyanidin reductase from Populus trichocarpa, and its constitutive expression enhances fungal resistance in transgenic plants. J. Exp. Bot. 2012, 63, 2513–2524. [Google Scholar] [CrossRef]
  35. Fornalé, S.; Lopez, E.; Salazar-Henao, J.E.; Fernández-Nohales, P.; Rigau, J.; Caparros-Ruiz, D. AtMYB7, a New Player in the Regulation of UV-Sunscreens in Arabidopsis thaliana. Plant Cell Physiol. 2014, 55, 507–516. [Google Scholar] [CrossRef]
  36. Nayeri, F.D.; Anbuhi, M.H. Transient expression of etanercept therapeutic protein in tobacco (Nicotiana tabacum L.). Int. J. Biol. Macromol. 2019, 130, 483–490. [Google Scholar]
  37. Espley, R.V.; Brendolise, C.; Chagné, D.; Kutty-Amma, S.; Green, S.; Volz, R.; Putterill, J.; Schouten, H.J.; Gardiner, S.E.; Hellens, R.P. Multiple repeats of a promoter segment causes transcription factor autoregulation in red apples. Plant. Cell 2009, 21, 168–183. [Google Scholar] [CrossRef]
Ijms 20 05456 g001 550

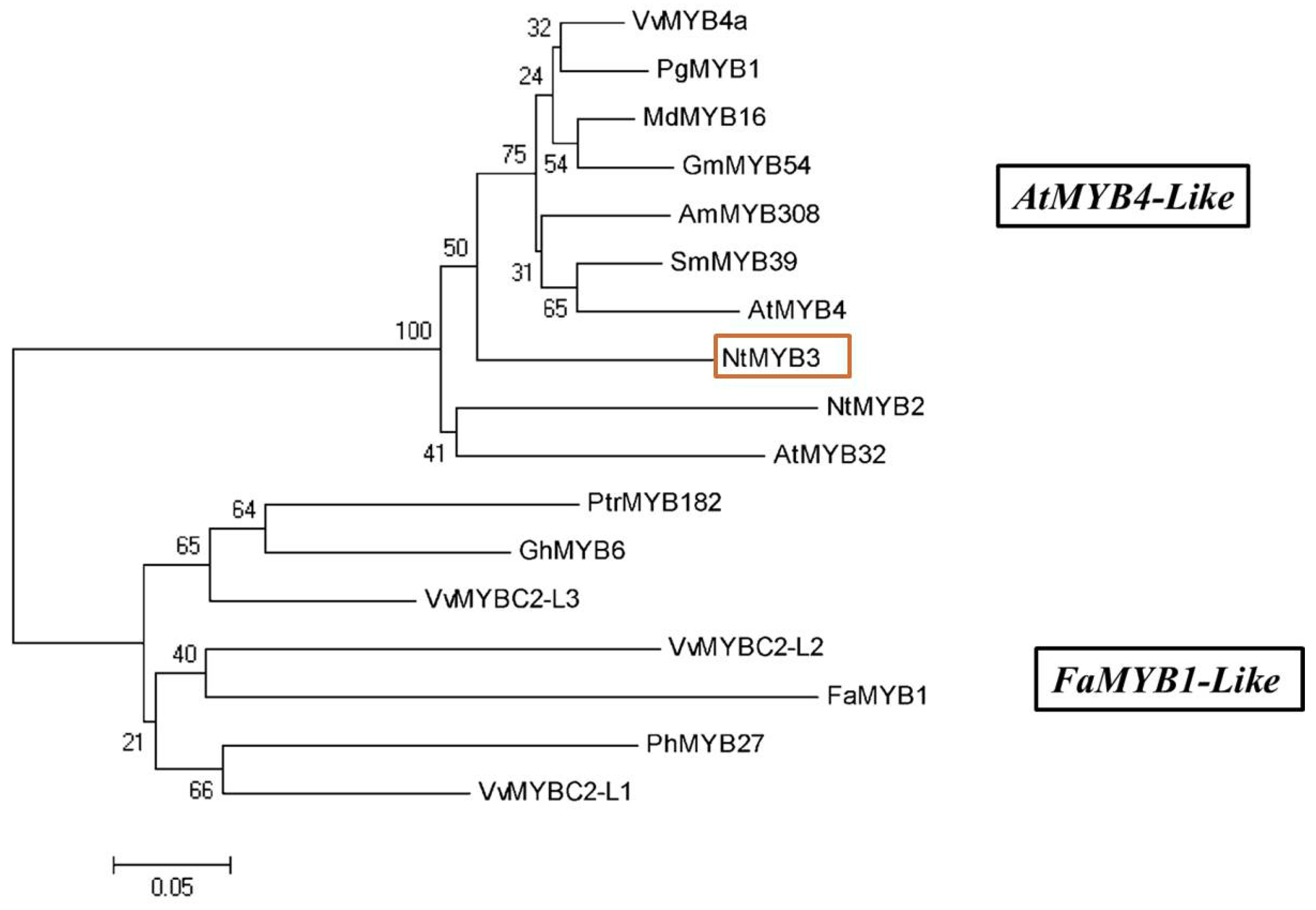

Figure 1. Phylogenetic tree analyses of MYB repressors. Our candidate gene NtMYB3 are shown by red rectangle.
Figure 1. Phylogenetic tree analyses of MYB repressors. Our candidate gene NtMYB3 are shown by red rectangle.
Ijms 20 05456 g001
Ijms 20 05456 g002 550

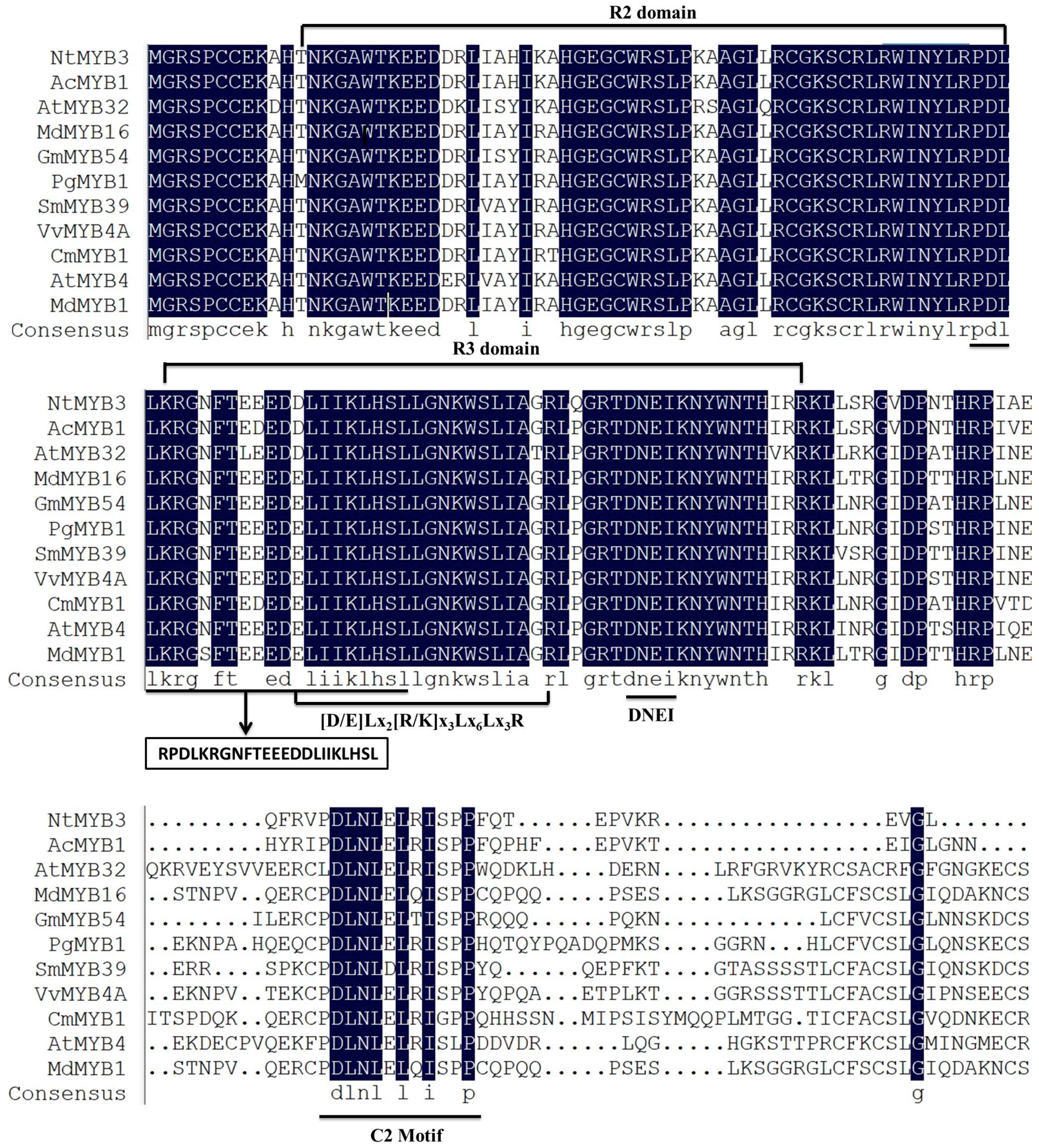

Figure 2. Multiple alignments of the protein sequences of NtMYB3 with other R2R3-MYB repressors belonging to subgroup 4. Blue shaded are indicated the 100 % homology suquences of amino acids.
Figure 2. Multiple alignments of the protein sequences of NtMYB3 with other R2R3-MYB repressors belonging to subgroup 4. Blue shaded are indicated the 100 % homology suquences of amino acids.
Ijms 20 05456 g002
Ijms 20 05456 g003 550
Figure 3. Transient transformation of tobacco leaves (Nicotiana tabacum). R1, R2, and R3 represent three replicates. (A) Infiltration with StMYB-AN1; (B) Co-infiltration of pSAK277 with StMYB-AN1; (C) Infiltration with NtMYB3; (D) Co-infiltration of StMYB-AN1with NtMYB3; (E) Co-infiltration of StMYB-AN1, NtMYB3, and StbHLH. Photos were taken after five days of agro-infiltration injection. (Scale bar = 1 cm).
Figure 3. Transient transformation of tobacco leaves (Nicotiana tabacum). R1, R2, and R3 represent three replicates. (A) Infiltration with StMYB-AN1; (B) Co-infiltration of pSAK277 with StMYB-AN1; (C) Infiltration with NtMYB3; (D) Co-infiltration of StMYB-AN1with NtMYB3; (E) Co-infiltration of StMYB-AN1, NtMYB3, and StbHLH. Photos were taken after five days of agro-infiltration injection. (Scale bar = 1 cm).
Ijms 20 05456 g003
Ijms 20 05456 g004 550
Figure 4. Floral phenotypes of transgenic tobacco plants carrying NtMYB3 gene.Wild type tobacco (WT) and transgenic lines of tobacco are (L-2, L-4 and L-5). Flower color comparison in wild type (WT) and transgenic lines (A); Comparison of pistil length in WT and transgenic tobacco (B). Blue circle indicated the top of the pistal length.
Figure 4. Floral phenotypes of transgenic tobacco plants carrying NtMYB3 gene.Wild type tobacco (WT) and transgenic lines of tobacco are (L-2, L-4 and L-5). Flower color comparison in wild type (WT) and transgenic lines (A); Comparison of pistil length in WT and transgenic tobacco (B). Blue circle indicated the top of the pistal length.
Ijms 20 05456 g004
Ijms 20 05456 g005 550

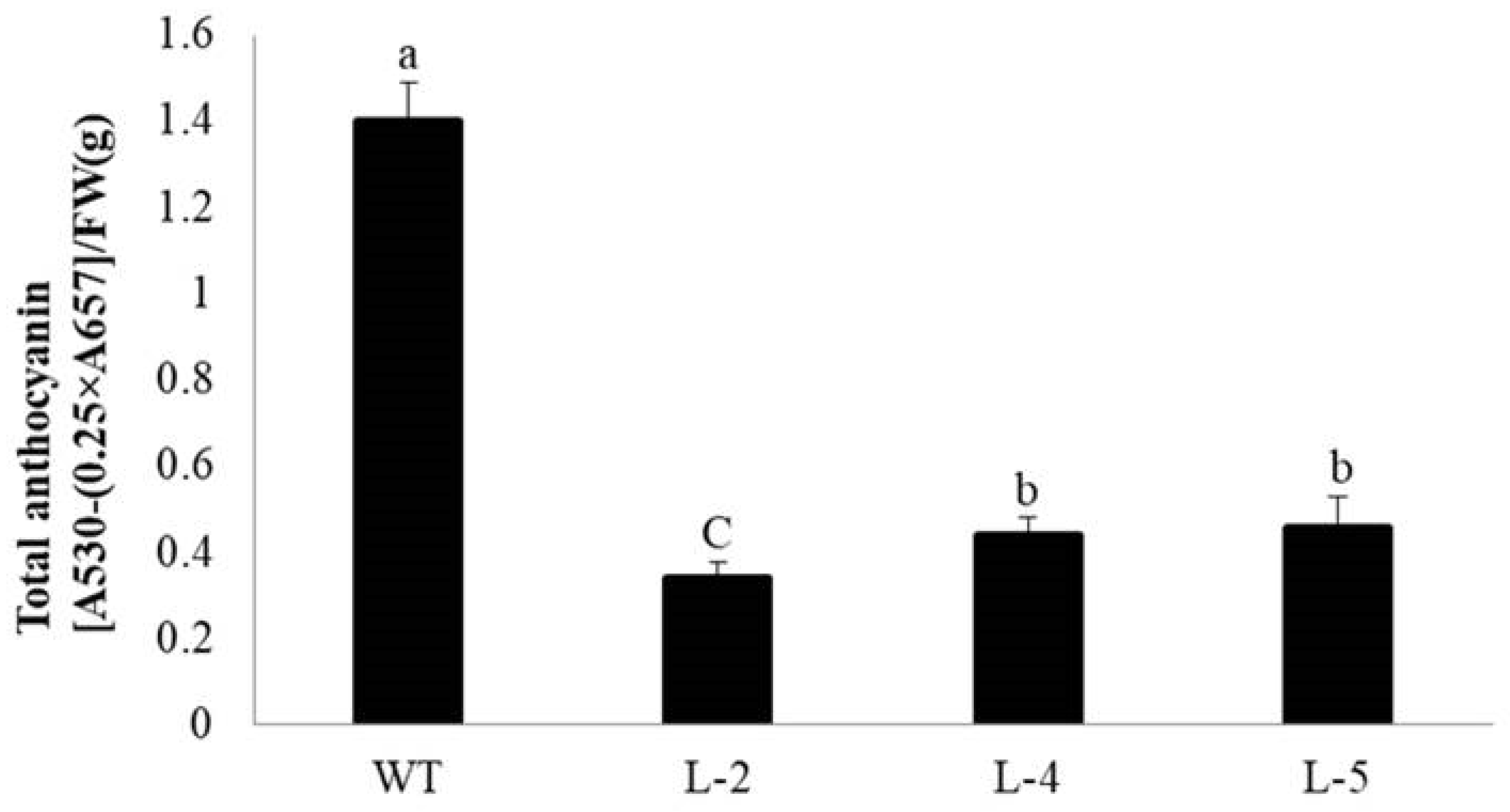

Figure 5. Estimation of total anthocyanin in wild type and transgenic lines (L-2, L-4, and L-5). The bars represent the standard error of thrice biological replication. Small letters showed a significant difference at the level of p < 0.05 by using LSD statistical analysis.
Figure 5. Estimation of total anthocyanin in wild type and transgenic lines (L-2, L-4, and L-5). The bars represent the standard error of thrice biological replication. Small letters showed a significant difference at the level of p < 0.05 by using LSD statistical analysis.
Ijms 20 05456 g005
Ijms 20 05456 g006 550

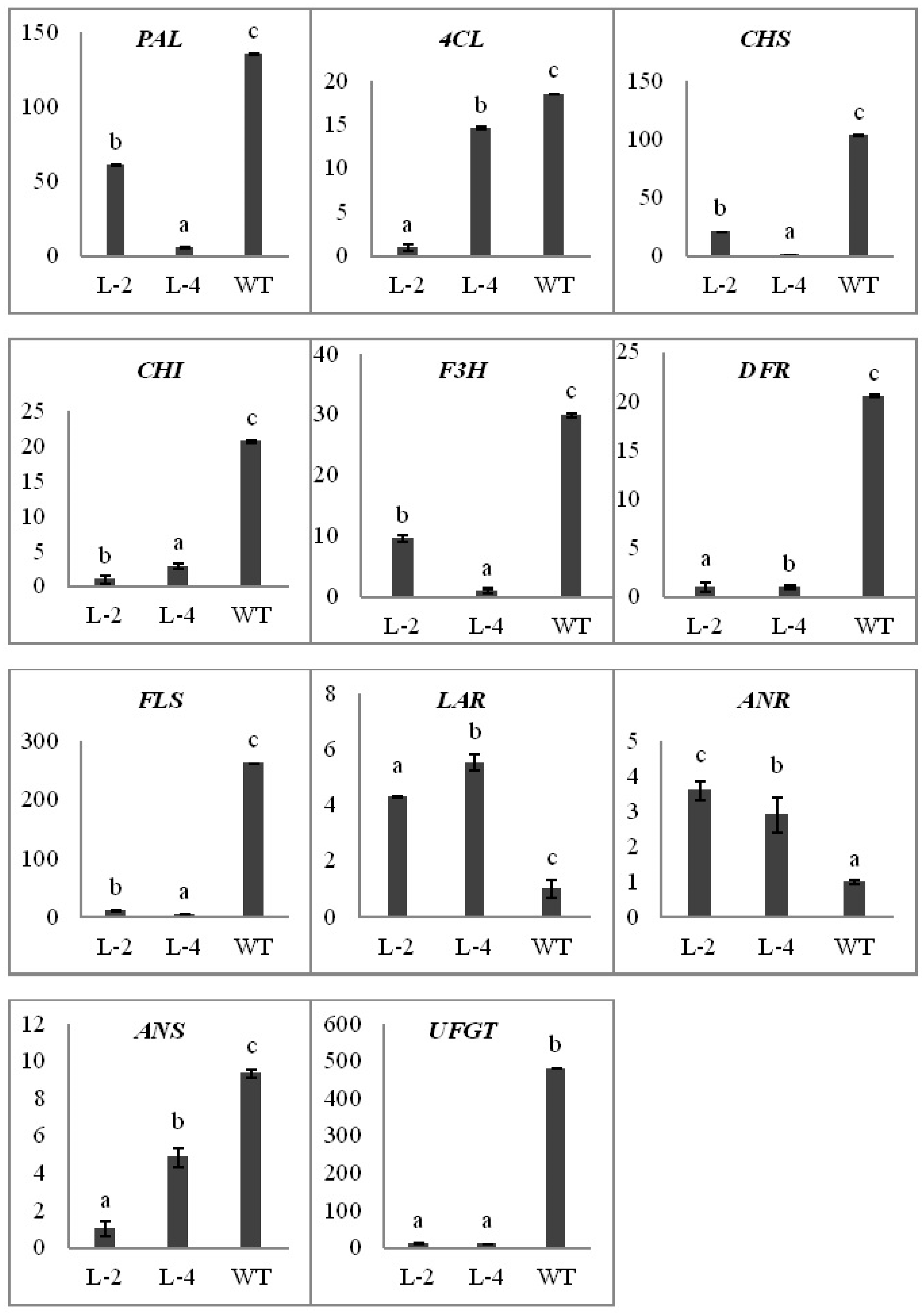

Figure 6. Expression analyses of flavonoid biosynthetic pathway key genes in transgenic flowers carrying NtMYB3 by qPCR. L-2, L-4, indicated two transgenic tobacco lines. PAL, Phenylalanine ammonia lyase; 4CL, 4-coumaroyl-CoA ligase, CHS, Chalcone synthase; CHI, Chalcone isomerase; F3H, Flavanone 3-hydroxylase; DFR, Dihydroflavonol 4-reductase; FLS, flavonol synthase LAR, leucoanthocyanidin reductase; ANR, anthocyanidin reductase; ANS, anthocyanin synthase; UFGT, UDP glucose-flavonoid 3-O glucosyltransferase. Small letter showed the significant difference from wild type at the level of p < 0.05 by using LSD test. The bar represents the standard error of thrice biological replications.
Figure 6. Expression analyses of flavonoid biosynthetic pathway key genes in transgenic flowers carrying NtMYB3 by qPCR. L-2, L-4, indicated two transgenic tobacco lines. PAL, Phenylalanine ammonia lyase; 4CL, 4-coumaroyl-CoA ligase, CHS, Chalcone synthase; CHI, Chalcone isomerase; F3H, Flavanone 3-hydroxylase; DFR, Dihydroflavonol 4-reductase; FLS, flavonol synthase LAR, leucoanthocyanidin reductase; ANR, anthocyanidin reductase; ANS, anthocyanin synthase; UFGT, UDP glucose-flavonoid 3-O glucosyltransferase. Small letter showed the significant difference from wild type at the level of p < 0.05 by using LSD test. The bar represents the standard error of thrice biological replications.
Ijms 20 05456 g006
Ijms 20 05456 g007 550

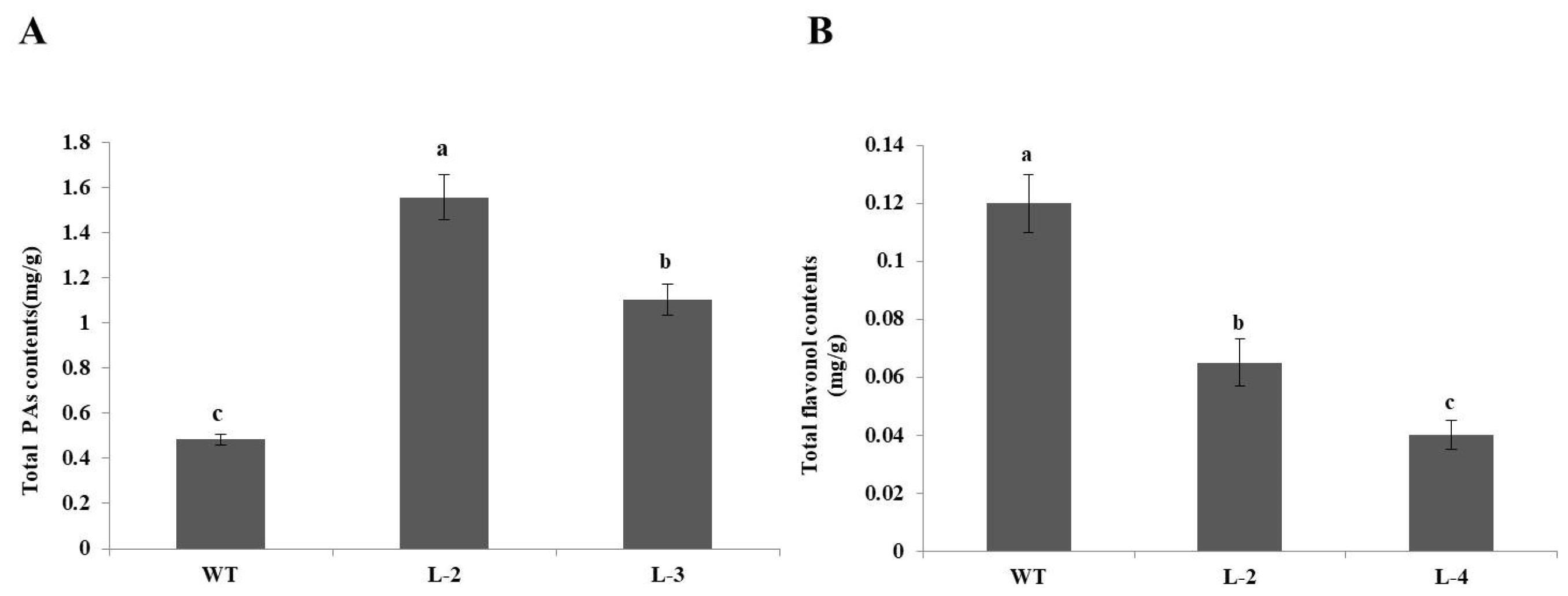

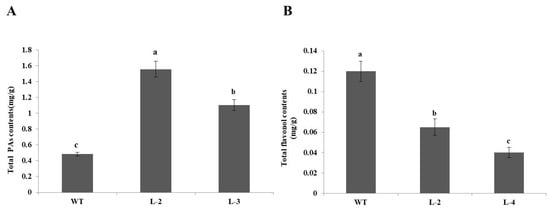

Figure 7. Quantification of proanthocyanin and flavonol in transgenic and wild type tobacco flowers. (A) PA contents and (B) flavonol contents. Small letters showed a significant difference at the level of p < 0.05 by using LSD statistical analysis.
Figure 7. Quantification of proanthocyanin and flavonol in transgenic and wild type tobacco flowers. (A) PA contents and (B) flavonol contents. Small letters showed a significant difference at the level of p < 0.05 by using LSD statistical analysis.
Ijms 20 05456 g007
Ijms 20 05456 g008 550
Figure 8. Different tissues and organs of Chinese narcissus used in this experiment.
Figure 8. Different tissues and organs of Chinese narcissus used in this experiment.
Ijms 20 05456 g008
Ijms 20 05456 g009 550

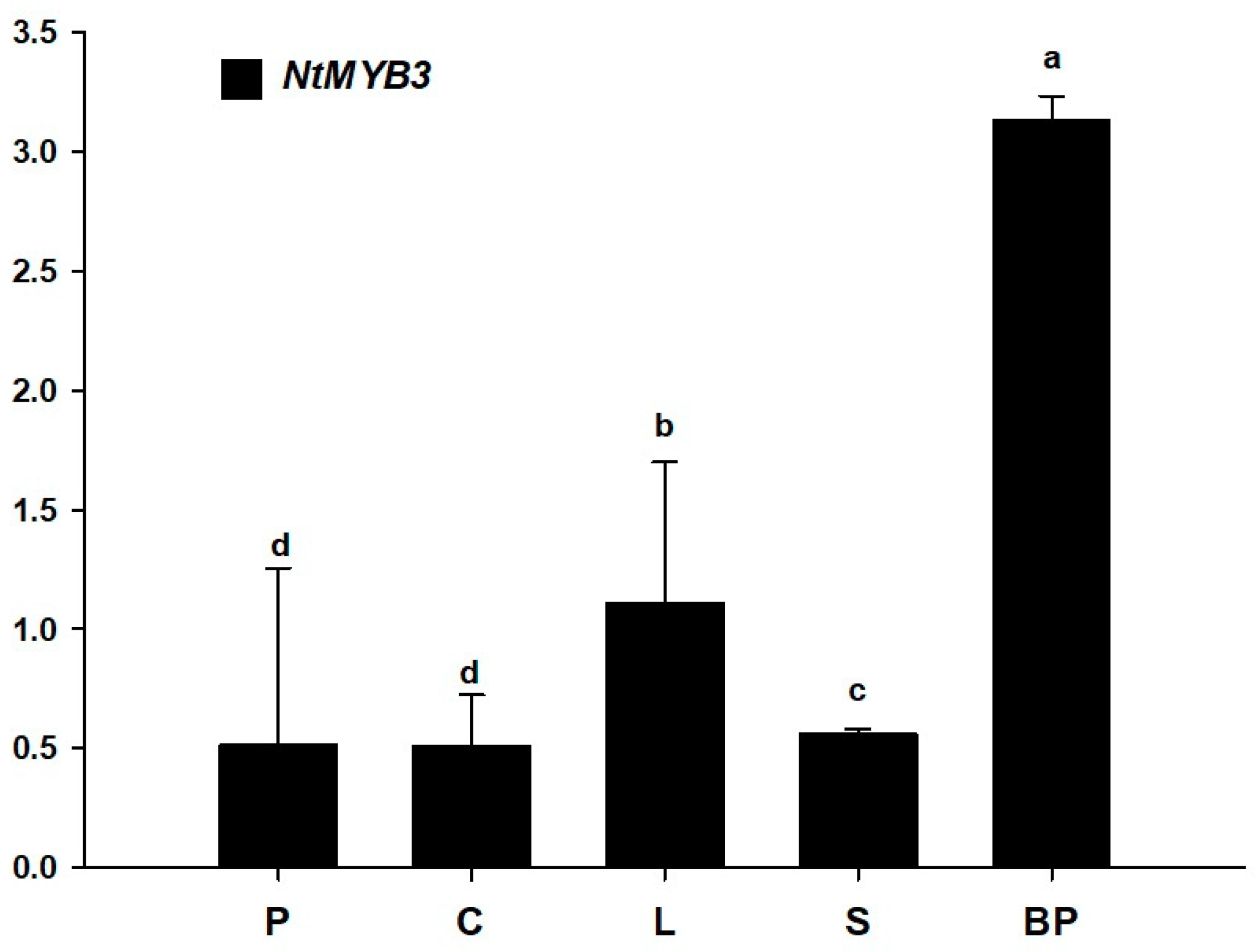

Figure 9. Expression analysis of NtMYB3 in various tissues of Narcissus tazetta. P, C, L, S, and BP indicate the petals, corona, leaves, bulb scales, and basal plates, respectively. Small letters showed the significant difference among different tissues at the level of p < 0.05 by using LSD test. Bars showed the standard error of three replicates.
Figure 9. Expression analysis of NtMYB3 in various tissues of Narcissus tazetta. P, C, L, S, and BP indicate the petals, corona, leaves, bulb scales, and basal plates, respectively. Small letters showed the significant difference among different tissues at the level of p < 0.05 by using LSD test. Bars showed the standard error of three replicates.
Ijms 20 05456 g009
Ijms 20 05456 g010 550

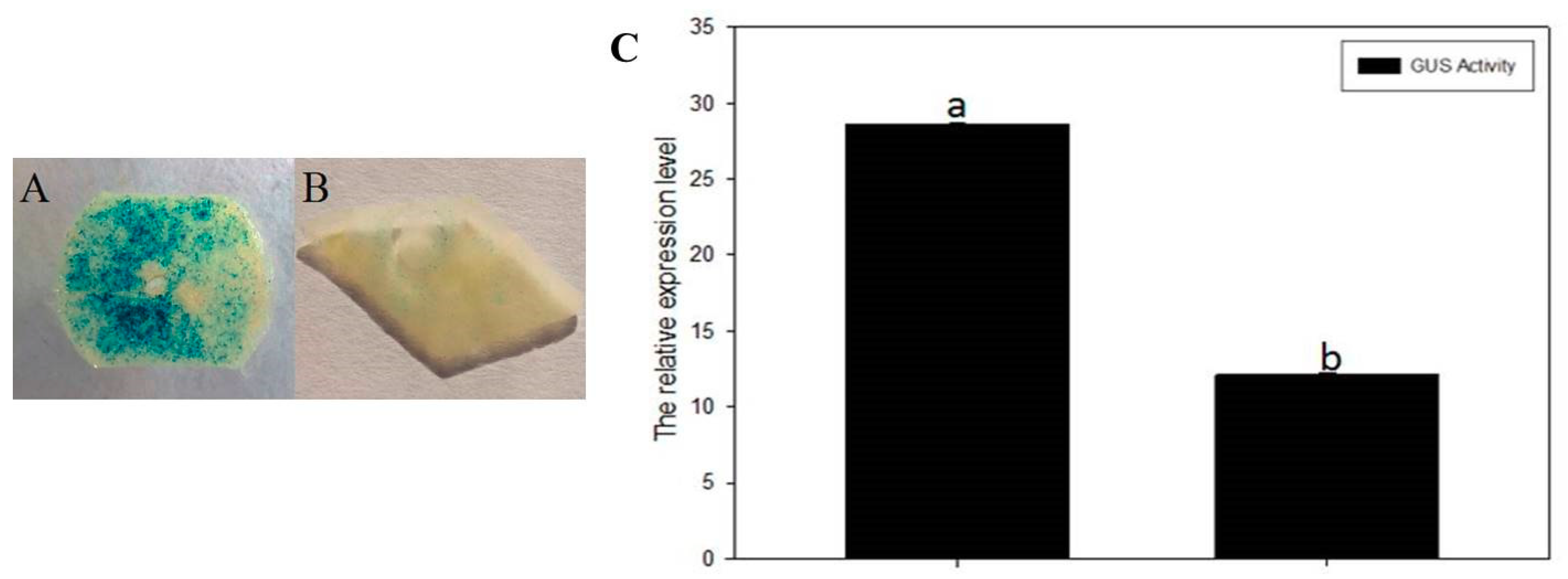

Figure 10. Tobacco transient expression to investigate the regulation of the NtFLS promoter by NtMYB3. (A) Tobacco leaf injected with pNtFLS::GUS; (B) Tobacco leaf injected with pNtFLS::GUS +NtMYB3; (C) QPCR analysis of GUS expression levels in tobacco leaves injected with pNtFLS::GUS (1) and injected with pNtFLS::GUS +NtMYB3 (2). Small letters showed the significant difference at the level of p < 0.05 by using LSD test. (Scale bar = 1cm)
Figure 10. Tobacco transient expression to investigate the regulation of the NtFLS promoter by NtMYB3. (A) Tobacco leaf injected with pNtFLS::GUS; (B) Tobacco leaf injected with pNtFLS::GUS +NtMYB3; (C) QPCR analysis of GUS expression levels in tobacco leaves injected with pNtFLS::GUS (1) and injected with pNtFLS::GUS +NtMYB3 (2). Small letters showed the significant difference at the level of p < 0.05 by using LSD test. (Scale bar = 1cm)
Ijms 20 05456 g010
Ijms 20 05456 g011 550

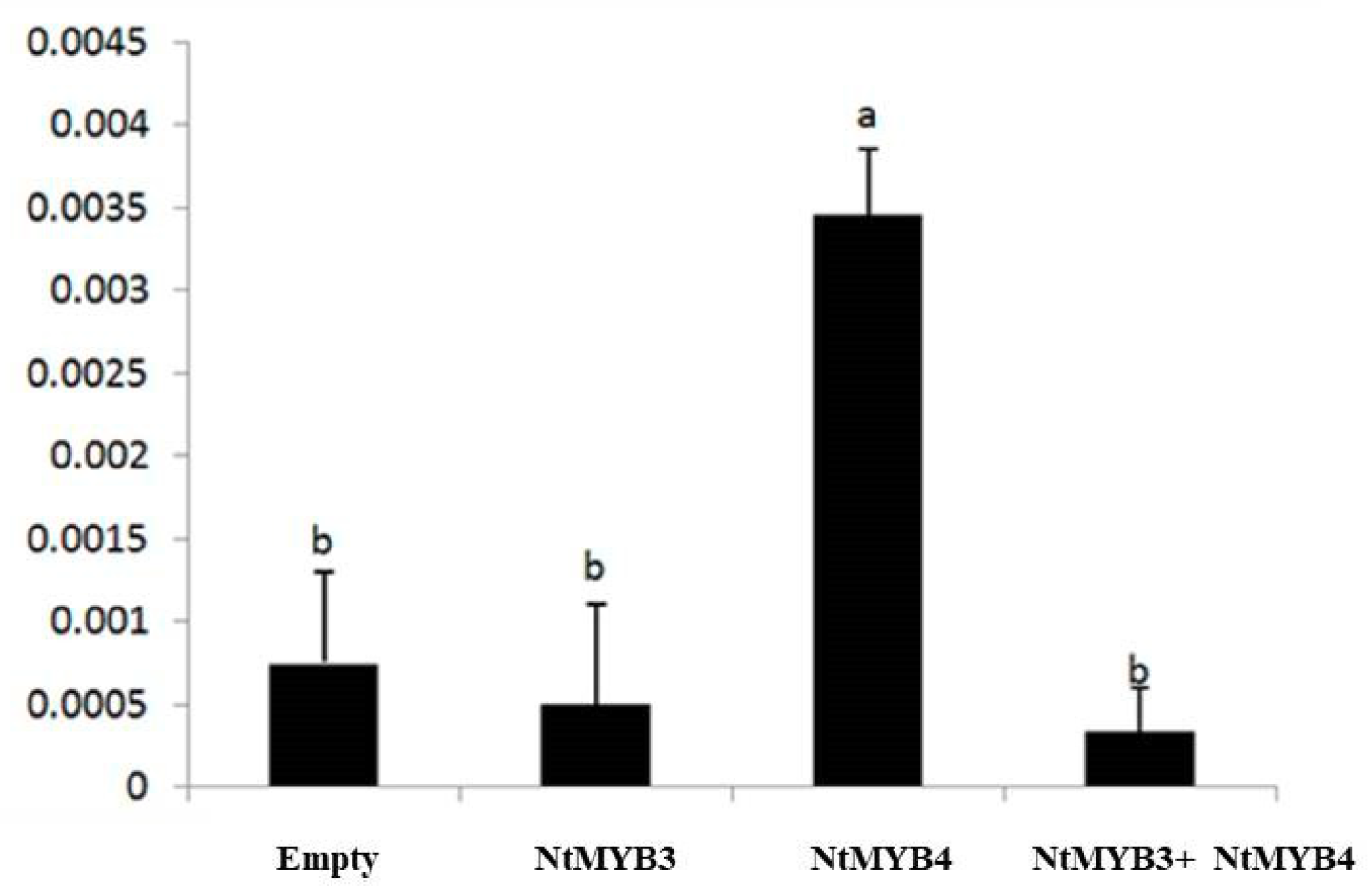

Figure 11. Dual luciferase assay confirms the repression of NtMYB3 to NtFLS promoter.
Figure 11. Dual luciferase assay confirms the repression of NtMYB3 to NtFLS promoter.
Ijms 20 05456 g011
