Wnt Binding Affinity Prediction for Putative Frizzled-Type Cysteine-Rich Domains

Mark Agostino
1,2,* and
Sebastian Öther-Gee Pohl
School of Pharmacy and Biomedical Sciences, Curtin Health and Innovation Research Institute, Curtin University, Perth WA 6845, Australia
Curtin Institute for Computation, Curtin University, Perth WA 6845, Australia
The Institute of Genetics and Molecular Medicine, Edinburgh Cancer Research Centre, University of Edinburgh, Edinburgh, EH4 2XU, UK
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2019, 20(17), 4168;
Submission received: 20 June 2019 / Revised: 22 August 2019 / Accepted: 22 August 2019 / Published: 26 August 2019
(This article belongs to the Section Molecular Biophysics)


Several proteins other than the frizzled receptors (Fzd) and the secreted Frizzled-related proteins (sFRP) contain Fzd-type cysteine-rich domains (CRD). We have termed these domains “putative Fzd-type CRDs”, as the relevance of Wnt signalling in the majority of these is unknown; the RORs, an exception to this, are well known for mediating non-canonical Wnt signalling. In this study, we have predicted the likely binding affinity of all Wnts for all putative Fzd-type CRDs. We applied both our previously determined Wnt‒Fzd CRD binding affinity prediction model, as well as a newly devised model wherein the lipid term was forced to contribute favourably to the predicted binding energy. The results obtained from our new model indicate that certain putative Fzd CRDs are much more likely to bind Wnts, in some cases exhibiting selectivity for specific Wnts. The results of this study inform the investigation of Wnt signalling modulation beyond Fzds and sFRPs.

1. Introduction

The Wnt signalling pathway is an evolutionarily conserved signalling cascade that dictates many aspects of development and cell fate. It is initiated through the extracellular binding of Wnt ligands to membrane receptor complexes [1]. These signalling cascades are classified as canonical (β-catenin dependent) or non-canonical (β-catenin independent). β-catenin-dependent signalling is initiated following Wnt ligand binding to the cysteine-rich domain (CRD) of Frizzled (Fzd) receptors to recruit the low-density lipoprotein receptor 5/6 (LRP5/6) [2]. The LRP/Fzd receptor complex transduces signals to a cytoplasmic protein complex composed of glycogen synthase kinase 3β (GSK3β), casein kinase 1α (CK1α), Axin and adenomatous polyposis coli (APC). The stability of this destruction complex regulates the degradation and subcellular localisation of β-catenin, controlling Wnt-mediated transcriptional activity. Non-canonical pathways include the Wnt/Ca2+-mediated signalling pathway as well as the planar cell polarity (PCP) pathway, which influences cytoskeletal rearrangements and actin polymerisation [3]. Wnt ligands are lipid-modified with palmitoleic acid by the O-acyltransferase Porcupine [4]. This lipidation has been demonstrated to be essential for secretion and binding to Fzd receptors [5]. Wnt signalling is known to be negatively regulated by sequestration of Wnt ligands by endogenous secreted Frizzled-related proteins (sFRPs) [6,7], which carry a Fzd-type CRD thought to mediate this process.
A range of proteins other than the Fzds and sFRPs feature Fzd-type CRDs [8]. These include the membrane Frizzled-related protein (MFRP), carboxypeptidase Z (CPZ), atrial natriuretic peptide-converting enzyme (CORIN), collagen XVIII α-chain (COL18A1), smoothened (SMO), the muscle skeletal receptor tyrosine-protein kinase (MuSK), and the receptor tyrosine kinase-like orphan receptors (ROR1 and ROR2). With the exception of ROR1 and ROR2, which are known to be key receptors in the Wnt PCP pathway [9,10,11,12], the relevance of these proteins to Wnt signalling is largely unknown or incompletely proven; hence, we refer to the CRDs of these proteins as “putative Fzd-type CRDs.”
MFRP is a CRD-containing protein with a role in ophthalmological development and various pathologies [13,14,15]. There has yet to be any conclusive evidence of its role in Wnt signalling or carcinogenesis. CPZ is an enzyme that removes C-terminal amino acids, in particular arginine residues. It differs from other members of the carboxypeptidase family due to its N-terminal Fzd-like CRD [16]. CPZ has been demonstrated to act as a Wnt pathway agonist through its CRD-mediated interaction with Wnt4. Furthermore, CPZ has been shown to remove the C-terminal arginine of Wnt4a to promote canonical Wnt signalling [17]. A definitive role in cancer has yet to be elucidated, although genome-wide association studies (GWAS) studies have indicated a variant of the CPZ gene is associated with neuroblastoma tumorigenesis [18]. CORIN, is a serine protease that cleaves the pro-atrial natriuretic peptide (pro-ANP) to ANP. It contains two Fzd-type CRDs, the specific functions of which are currently unknown. CORIN can indirectly negatively regulate Wnt/β-catenin signalling by increasing levels of ANP, which reduces Wnt1-mediated β-catenin nuclear localisation in colon adenocarcinoma cells [19]. COL18A1, or endostatin, is a basement membrane protein, which has been implicated in tumour growth and angiogenesis [20]. It contains an N-terminal domain that shares homology with the Fzd CRD [21]. Proteolytic cleavage of the COL18A1 CRD results in the antagonism of Wnt3a-induced canonical Wnt signalling [22], indicating a clear role for COL18A1 in regulating Wnt signalling.
SMO is a key regulator of Hedgehog signalling, and free lipids, such as cholesterol, have been shown to trigger signalling through SMO [23,24]. However, protein agonists or antagonists for SMO have not been identified. Considerable crosstalk between Hedgehog and Wnt/β-catenin signalling has been demonstrated, with key regulatory enzymes of the canonical Wnt pathway, GSK3β and CK1α, both negatively regulating Hedgehog/Gli signalling [25]. MuSK is a well-characterised receptor expressed in the neuromuscular synapses that regulates acetylcholine receptor (AChR) pre-patterning. Its association with Wnt signalling has been well studied in this context, with direct interactions occurring between Dvl1 and LRP4, which directly regulate the clustering of neurotransmitter receptors [26,27]. MuSK has also been shown to interact with wnt11r and wnt4a in the zebrafish through its CRD to regulate AChR signalling and MuSK endocytosis [28,29].
We have recently developed a computational model for predicting the binding energy (and hence, binding affinity) for Wnt interactions with Fzd-type CRDs (Equation (1)) [30]:
ΔG = 0.0038165 × AP_calRW − 0.22506 × MMGBSA dG Bind vdW − 0.24626 × HBOND2 − 0.049875 × FIREDOCK_AB − 3.3475
This model utilises a series of protein‒protein docking scoring functions (AP_calRW, HBOND2, FIREDOCK_AB) to assess the protein‒protein contribution to the binding energy, as well as a function to consider the lipid‒protein contribution to the binding energy (MMGBSA dG Bind vdW). The model was built and validated against Wnt‒Fzd CRD binding affinity data derived by biolayer interferometry [31]. This model was selected as it afforded the most accurate predictions in both the training and test sets, as given by low root-mean-square errors (RMSE) between the predictions and experimental values, and by having a majority of the predictions occurring within the error range of the experiments. A peculiar feature of this model is that the coefficient of the lipid‒protein term in our model, which is derived from the Prime MM-GB/SA van der Waals component, is negative; since the values calculated by MMGBSA dG vdW are typically negative, the net result is that this term contributes positively—and hence, unfavourably—to the predicted binding energy. This is at odds with the majority of experimental findings that suggest the lipid is essential for Wnt signalling [4,32], although one recent study suggests that Wnt lipidation is not essential for Wnt signalling in specific contexts [33].
In this study, we have aimed to estimate the binding affinities for all human Wnts with all human proteins bearing putative Fzd CRDs. We applied our previously derived Wnt‒Fzd CRD binding affinity prediction model, as well as developed a new binding affinity prediction model, forcing the lipid‒protein contribution in the model to be favourable, thus better accounting for the role of Wnt lipidation in binding. While the new model affords an increased error compared to the previous model, the majority of binding affinities for Wnt‒Fzd and Wnt‒sFRP interactions are predicted to occur in similar ranges to the previous model. Applying the new model to estimate Wnt‒putative Fzd binding affinities implicates several of these in previously unexplored roles in effecting and modulating Wnt signalling. The results here will inform investigations of Wnt signalling modulation beyond Wnt‒Fzd and Wnt‒sFRP interactions.

2. Results

To our surprise, our previously published binding affinity prediction model suggests very strong binding affinities for nearly all Wnt interactions with the putative Fzd-type CRDs (Figure 1, Table S2). As the majority of these interactions have never been experimentally implicated in Wnt signalling, this seems an unlikely outcome, and prompted us to investigate alternative affinity prediction models.
As noted in the introduction, lipidation is generally essential for mediating protein‒protein interactions involving Wnt proteins, thus expected to contribute favourably in Wnt‒protein binding energy, while in our previous model, this component will generally make an unfavourable contribution. Thus, we aimed to identify new models wherein the lipid‒protein term contributes favourably to the calculated binding energy. In repeating the model building and evaluation process and forcing this term to contribute favourably, we have identified several new Wnt‒Fzd CRD binding affinity prediction models (Table 1, Figure 2). As found previously [30], a four-descriptor model appears to be the optimal model for binding affinity prediction, with limited improvement observed when going to a five-descriptor model (data not shown). None of the obtained models provide quite as low an RMSE in either training or testing as compared to our previously published model; the best model, described in more detail in the next paragraph, yields binding energies within experimental error for at least half of the training and test sets, with an RMSE around 0.35 kcal/mol.
The best four-descriptor model features the residue-level interaction two-step potential described by Dror [34], as well as the Elocal Cβ and Elocal Rmin statistical potential constituent terms described by Feliu et al. [35]; we have previously identified potentials related to both of these as being useful for pose prediction of Fc‒protein complexes [36]. The protein‒lipid term incorporated into the model is the MMGBSA dG Bind Solv GB term, which describes the energy associated with desolvating the protein binding site to facilitate ligand (in this case, lipid) binding. As this term is almost invariably positive (as desolvation is energetically unfavourable), the negative co-efficient against this term results in a negative value for the term, thus resulting in a net favourable contribution to the overall binding energy. Furthermore, while the previous model incorporates a number of atomic level potentials, the new model only incorporates residue-level potentials, which are likely to perform better with lower quality or predicted structures such as employed here [36]. Testing suggests that the new model is more likely to overestimate binding energies than the previous model, particularly for high-affinity interactions. Interactions between Wnt5 and Wnt5b appear to be particularly likely to be miscalculated, with the affinity of an equal number of complexes significantly over- and underestimated (Table 2).
In comparing the energies calculated by the new model to those obtained by the previous model for the Wnt‒Fzd and Wnt‒sFRP interactions (Figure 3, Table S3), we find that 25% of these are predicted to be in the same affinity range by the two models, about 40% are in adjacent affinity ranges, and the remaining 35% predicted more than one affinity range apart. Particularly striking differences occur between the predictions made by the two models for SFRP1, SFRP2 and SFRP5, all of which are predicted by the new model to exhibit the same broad specificity as SFRP3 and SFRP4.
Several trends are noticeable in the predictions of Wnt interactions with putative Fzd CRDs obtained using the new model (Figure 4, Table S4). Firstly, all Wnts are predicted to bind to MuSK with high affinity. Almost all Wnts are predicted to bind to MFRP and ROR2 with high affinity. Approximately half of the Wnts are predicted to bind to ROR1 with high affinity. The two CORIN Fzd-type CRDs display high affinity for selected Wnts, and exhibit largely complementary specificities to one another; that is, Wnts bound with high affinity by the CORIN Fz1 domain are usually bound with low affinity by the CORIN Fz2 domain, and vice versa. Only Wnt8a is predicted to have high affinity for CPZ, and only Wnt3a is predicted to have at least moderate affinity for SMO. COL18A1 is not predicted to have high affinity for any Wnts.

3. Discussion

The striking difference in the Wnt‒Fzd and Wnt‒SFRP binding affinities predicted by the previous and the new model in selected cases illustrates the target-dependent nature of these types of interactions. Specifically, the CRDs for which the greatest deviation in Wnt affinity between the two models was observed come from two relatively well-conserved subfamilies of Fzd CRDs: SFRP1, SFRP2 and SFRP5 form a subgroup, while Fzd3 and Fzd6 form another subgroup. Further experimental knowledge of Wnt‒Fzd CRD binding affinities would be invaluable for generating more consistent affinity prediction models.
The prediction that many Wnts are capable of binding to ROR1 and ROR2 with high affinity suggests that numerous Wnts are capable of participating in non-canonical Wnt signalling. It is worth reiterating here that during training and testing, interactions with mWnt5 and mWnt5b proved to be some of the most likely to exhibit large variations. Similarly, MuSK is predicted to bind with high affinity to all Wnts. MuSK is also known to bind to Dishevelled; however, this has not been demonstrated in the context of Wnt signalling [26].
The prediction that the only Wnt capable of binding to SMO with at least moderate affinity is Wnt3a is quite interesting, considering that both of these proteins are implicated in numerous cancer types [37,38,39], albeit studied in distinct signalling contexts. SMO has never been reported to participate in Wnt signalling, but as the only protein other than the Fzds in the Class F GPCR family, it is not inconceivable that SMO could participate in Wnt signalling. Interestingly, it has been demonstrated that Wnt3a can activate Hedgehog signalling through the β-catenin/TCF4 mediated transcription of Hedgehog target genes, SMO, PTCH1 and GLI1, indicating considerable cross-talk between these two pathways [40]. Signalling through SMO is known to utilise G proteins, as is Wnt‒Ca2+ signalling [41], which could implicate SMO as a potential mediator of Wnt‒Ca2+ signalling. The lack of conservation between SMO and the Fzds of known Dvl-binding residues in the intracellular loops between SMO suggests that SMO is unlikely to utilise Dvl as an adapter protein to promote intracellular signalling (Table S5).
The complementary Wnt-binding specificities displayed by the two CORIN Fzd-type CRDs suggest that it may be able to bind to different Wnt ligands, depending on the physiological context. CORIN expression is enriched in heart muscle, although has also been reported to be highly expressed in the dermal papilla (DP) of hair follicles [42]. The activation of β-catenin signalling in the DP induces the expression of CORIN. Furthermore, the expression of Wnt ligands in the DP seems to be limited to Wnt5a [42], which our model predicted to bind with moderate affinity to CORIN‒Fz1. Our model also predicted a high binding affinity between Wnt1 and CORIN‒Fz1, which have been indirectly linked through the negative regulation of Wnt1-induced β-catenin accumulation in colorectal cancer cells by CORIN’s major substrate, ANP [19].
Although the Fzd CRD of COL18A1 has been demonstrated to modulate Wnt signalling by sequestering Wnt3a [22], no Wnts are predicted to bind to COL18A1 with high affinity; all Wnt‒COL18A1 interactions are predicted to occur in approximately the 0.2–2 μM range. While this is orders of magnitude lower than other Wnt‒Fzd interactions, it is well within the range of many physiologically relevant protein‒protein interactions [43]. Furthermore, COL18A1 strongly binds heparin, which in turn, could be potentiating the Wnt‒COL18A1 interaction; including carbohydrates—in particular, glycosaminoglycans—in structure and affinity prediction models is extremely challenging due to their high flexibility and hydrogen-bonding propensity [44,45,46].
Several recent studies suggest that Fzd-type CRDs may dimerise in the presence of free lipids, and that this dimerization is functionally significant [5,47]. CRD dimerization may be relevant in the context of the function of proteins with putative Fzd CRDs; in this case, the Fzd-type CRD may be acting to facilitate the lipid-mediated dimerization of the protein, rather than afford a function related to Wnt binding or Wnt signalling. In light of recent structural data for a mammalian Wnt‒Fzd interaction demonstrating CRD dimerization in the crystal packing [48], the affinity prediction models derived in this study and our previous work could be used to explore Wnt binding to CRD homo- and hetero-dimers. While specific kinetic data for Wnt‒CRD dimer interactions are not available at present, quantitative data derived from Fzd oligomerisation assays are available [49,50] and may assist with validating structural and functional predictions for Wnt interactions with Fzd CRD dimers.
In conclusion, we have predicted binding affinities for all human Wnts to all human putative Fzd CRDs using a newly validated affinity prediction model. The results of this study will guide the focus of future experimental investigations on specific Wnt‒Fzd interactions.

4. Materials and Methods

4.1. Homology Modelling, Complex Generation and Refinement

Homology models of the 19 human Wnt proteins have been previously prepared [30]. Homology models of the putative Fzd-type CRDs—with the exception of the SMO CRD, which was taken directly form the crystal structure complex of SMO with cholesterol (PDB 5L7D) [23]—were prepared against one of three templates, as detailed in Table 3: the structure of the rat MuSK CRD (PDB 3HKL) [51], the structure of the human Fzd7 CRD in complex with a C24 lipid (PDB 5URV) [5] and the structure of the mouse Fzd8 CRD in complex with Xenopus Wnt8 (PDB 4F0A) [52]. For structures modelled against the rat MuSK CRD, chain B in the structure was used; this chain was selected over chain A as a greater amount of the domain is resolved. For structures modelled against the human Fzd7 CRD complex with the C24 lipid, the lipid was retained during model building. For structures modelled against PDB 4F0A, the Wnt lipid was retained during model building. Sequence alignments generated for the homology modelling are provided in the Supplementary Materials (Table S1). Wnt complexes with putative Fzd CRDs were assembled and refined via minimisation and side-chain prediction using Prime (Schrodinger Suite, Schrodinger, New York NY, United States) as previously described [30], using a KNIME workflow to automate the process.

4.2. Prediction of Wnt Binding Affinities for Putative Fzd-Type CRDs

The refined complexes were analysed using CCharPPI [53], which contains over 100 scoring functions used for investigating protein‒protein interactions, and Prime MMGBSA. CCharPPI facilitated scoring of the refined complexes using the functions contained in our previously published model [30]: AP_calRW [54], HBOND2 [55] and FIREDOCK_AB [56]. Binding energies were then calculated according to this model. New affinity prediction models were generated wherein the lipid‒protein contribution to the binding energy was favourable. Utilizing the modelled complexes, scores and binding affinity data for the known mouse Wnt‒Fzd CRD complexes [31] we previously generated [30] (listed in Table 2), we repeated the model building and evaluation step using Strike (Schrodinger Suite) and an inhouse script, as previously described [30], with the additional condition that the lipid‒protein contribution to the binding energy must be favourable. Binding affinity plots were prepared using the ggplot2 module of R.

Supplementary Materials

Supplementary materials can be found at Table S1. Sequences alignments for homology modelling of putative Fzd domains. Table S2. Descriptor values, predicted binding energy and predicted dissociation constants for all Wnt‒putative Fzd CRD interactions using the previously published model. Table S3. Descriptor values, predicted binding energy and predicted dissociation constants for all human Wnt‒Fzd and Wnt‒SFRP interactions with the new model. Table S4. Descriptor values, predicted binding energy and predicted dissociation constants for all Wnt‒putative Fzd CRD interactions. Table S5. Aligned sequences of Class F GPCR intracellular loops (ICLs).

Author Contributions

Conceptualization, M.A. and S.Ö.-G.P.; Data curation, M.A.; Investigation, M.A. and S.Ö.-G.P.; Methodology, M.A.; Visualization, M.A.; Writing—original draft, M.A. and S.Ö.-G.P.; Writing—review and editing, M.A. and S.Ö.-G.P.


M.A. was supported by a Curtin Research Fellowship.

Conflicts of Interest

The authors declare no conflict of interest.


ANPAtrial natriuretic peptide
APCAdenomatous polyposis coli
COL18A1Collagen XVIII α-chain
CORINAtrial natriuretic peptide-converting enzyme
CPZCarboxypeptidase Z
CRDCysteine-rich domain
DPDermal papilla
GSKGlycogen synthase kinase
LRPLow-density lipoprotein receptor
MFRPMembrane Frizzled-related protein
MMGBSAMolecular mechanics generalized Born surface area
MuSKMuscle skeletal receptor tyrosine-protein kinase
PCPPlanar cell polarity
PDBProtein Data Bank
RORReceptor tyrosine kinase-like orphan receptor
sFRPSecreted Frizzled-related protein


  1. Clevers, H. Wnt/β-catenin signaling in development and disease. Cell 2006, 127, 469–480. [Google Scholar] [CrossRef] [PubMed]
  2. MacDonald, B.T.; He, X. Frizzled and LRP5/6 receptors for Wnt/β-catenin signaling. Cold Spring Harb. Perspect. Biol. 2012, 4, a007880. [Google Scholar] [CrossRef] [PubMed]
  3. Pohl, S.-G.; Brook, N.; Agostino, M.; Arfuso, F.; Kumar, A.P.; Dharmarajan, A. Wnt signaling in triple-negative breast cancer. Oncogenesis 2017, 6, e310. [Google Scholar] [CrossRef] [PubMed]
  4. Gao, X.; Hannoush, R.N. Single-cell imaging of Wnt palmitoylation by the acyltransferase Porcupine. Nat. Chem. Biol. 2014, 10, 61–68. [Google Scholar] [CrossRef] [PubMed]
  5. Nile, A.H.; Mukund, S.; Stanger, K.; Wang, W.; Hannoush, R.N. Unsaturated fatty acyl recognition by Frizzled receptors mediates dimerization upon Wnt ligand binding. Proc. Natl. Acad. Sci. USA 2017, 114, 4147–4152. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Pohl, S.; Scott, R.; Arfuso, F.; Perumal, V.; Dharmarajan, A. Secreted Frizzled-related protein 4 and its implications in cancer and apoptosis. Tumour Biol. 2015, 36, 143–152. [Google Scholar] [CrossRef] [PubMed]
  7. Surana, R.; Sikka, S.; Cai, W.; Shin, E.M.; Warrier, S.R.; Tan, H.J.G.; Arfuso, F.; Fox, S.A.; Dharmarajan, A.M.; Kumar, A.P. Secreted Frizzled related proteins: Implications in cancers. Biochim. Biophys. Acta (BBA) Bioenerg. 2014, 1845, 53–65. [Google Scholar] [CrossRef] [PubMed]
  8. Pei, J.; Grishin, N.V. Cysteine-rich domains related to Frizzled receptors and Hedgehog-interacting proteins. Protein Sci. 2012, 21, 1172–1184. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Minami, Y.; Oishi, I.; Endo, M.; Nishita, M. Ror-family receptor tyrosine kinases in noncanonical Wnt signaling: Their implications in developmental morphogenesis and human diseases. Dev. Dyn. 2010, 239, 1–15. [Google Scholar] [CrossRef] [PubMed]
  10. Klemm, F.; Bleckmann, A.; Siam, L.; Chuang, H.N.; Rietkotter, E.; Behme, D.; Schulz, M.; Schaffrinski, M.; Schindler, S.; Trumper, L.; et al. β-catenin-independent Wnt signaling in basal-like breast cancer and brain metastasis. Carcinogenesis 2011, 32, 434–442. [Google Scholar] [CrossRef] [PubMed]
  11. Mikels, A.; Minami, Y.; Nusse, R. Ror2 receptor requires tyrosine kinase activity to mediate Wnt5A signaling. J. Biol. Chem. 2009, 284, 30167–30176. [Google Scholar] [CrossRef] [PubMed]
  12. Gohil, S.H.; Paredes-Moscosso, S.R.; Harrasser, M.; Vezzalini, M.; Scarpa, A.; Morris, E.; Davidoff, A.M.; Sorio, C.; Nathwani, A.C.; Della Peruta, M. An ROR1 bi-specific T-cell engager provides effective targeting and cytotoxicity against a range of solid tumors. OncoImmunology 2017, 6, e1326437. [Google Scholar] [CrossRef] [PubMed]
  13. Shi, H.; Zhu, R.; Hu, N.; Shi, J.; Zhang, J.; Jiang, L.; Jiang, H.; Guan, H. Association of frizzled-related protein (MFRP) and heat shock protein 70 (HSP70) single nucleotide polymorphisms with primary angle closure in a Han Chinese population: Jiangsu Eye Study. Mol. Vis. 2013, 19, 128–134. [Google Scholar] [PubMed]
  14. Matsushita, I.; Kondo, H.; Tawara, A. Novel compound heterozygous mutations in the MFRP gene in a Japanese patient with posterior microphthalmos. Jpn. J. Ophthalmol. 2012, 56, 396–400. [Google Scholar] [CrossRef] [PubMed]
  15. Mukhopadhyay, R.; Sergouniotis, P.I.; Mackay, D.S.; Day, A.C.; Wright, G.; Devery, S.; Leroy, B.P.; Robson, A.G.; Holder, G.E.; Li, Z.; et al. A detailed phenotypic assessment of individuals affected by MFRP-related oculopathy. Mol. Vis. 2010, 16, 540–548. [Google Scholar] [PubMed]
  16. Novikova, E.G. Carboxypeptidase Z is present in the regulated secretory pathway and extracellular matrix in cultured cells and in human tissues. J. Biol. Chem. 2000, 275, 4865–4870. [Google Scholar] [CrossRef] [PubMed]
  17. Wang, L.; Shao, Y.Y.; Ballock, R.T. Carboxypeptidase Z (CPZ) links thyroid hormone and Wnt signaling pathways in growth plate chondrocytes. J. Bone Miner. Res. 2009, 24, 265–273. [Google Scholar] [CrossRef] [PubMed]
  18. McDaniel, L.D.; Conkrite, K.L.; Chang, X.; Capasso, M.; Vaksman, Z.; Oldridge, D.A.; Zachariou, A.; Horn, M.; Diamond, M.; Hou, C.; et al. Common variants upstream of MLF1 at 3q25 and within CPZ at 4p16 associated with neuroblastoma. PLoS Genet. 2017, 13, e1006787. [Google Scholar] [CrossRef] [PubMed]
  19. Serafino, A.; Moroni, N.; Psaila, R.; Zonfrillo, M.; Andreola, F.; Wannenes, F.; Mercuri, L.; Rasi, G.; Pierimarchi, P. Anti-proliferative effect of atrial natriuretic peptide on colorectal cancer cells: Evidence for an Akt-mediated cross-talk between NHE-1 activity and Wnt/β-catenin signaling. Biochim. Biophys. Acta (BBA) Mol. Basis Dis. 2012, 1822, 1004–1018. [Google Scholar] [CrossRef]
  20. O’Reilly, M.S.; Boehm, T.; Shing, Y.; Fukai, N.; Vasios, G.; Lane, W.S.; Flynn, E.; Birkhead, J.R.; Olsen, B.R.; Folkman, J. Endostatin: An endogenous inhibitor of angiogenesis and tumor growth. Cell 1997, 88, 277–285. [Google Scholar] [CrossRef]
  21. Rehn, M.; Pihlajaniemi, T. Alpha 1(XVIII), a collagen chain with frequent interruptions in the collagenous sequence, a distinct tissue distribution, and homology with type XV collagen. Proc. Natl. Acad. Sci. USA 1994, 91, 4234–4238. [Google Scholar] [CrossRef] [PubMed]
  22. Quelard, D.; Lavergne, E.; Hendaoui, I.; Elamaa, H.; Tiirola, U.; Heljasvaara, R.; Pihlajaniemi, T.; Clement, B.; Musso, O. A cryptic Frizzled module in cell surface collagen 18 inhibits Wnt/β-catenin signaling. PLoS ONE 2008, 3, e1878. [Google Scholar] [CrossRef] [PubMed]
  23. Byrne, E.F.; Sircar, R.; Miller, P.S.; Hedger, G.; Luchetti, G.; Nachtergaele, S.; Tully, M.D.; Mydock-McGrane, L.; Covey, D.F.; Rambo, R.P.; et al. Structural basis of Smoothened regulation by its extracellular domains. Nature 2016, 535, 517–522. [Google Scholar] [CrossRef] [PubMed]
  24. Huang, P.; Nedelcu, D.; Watanabe, M.; Jao, C.; Kim, Y.; Liu, J.; Salic, A. Cellular cholesterol directly activates Smoothened in Hedgehog signaling. Cell 2016, 166, 1176–1187. [Google Scholar] [CrossRef] [PubMed]
  25. Song, L.; Li, Z.Y.; Liu, W.P.; Zhao, M.R. Crosstalk between Wnt/β-catenin and Hedgehog/Gli signaling pathways in colon cancer and implications for therapy. Cancer Biol. Ther. 2015, 16, 1–7. [Google Scholar] [CrossRef] [PubMed]
  26. Luo, Z.G.; Wang, Q.; Zhou, J.Z.; Wang, J.; Luo, Z.; Liu, M.; He, X.; Wynshaw-Boris, A.; Xiong, W.C.; Lu, B.; et al. Regulation of AChR clustering by Dishevelled interacting with MuSK and PAK1. Neuron 2002, 35, 489–505. [Google Scholar] [CrossRef]
  27. Yumoto, N.; Kim, N.; Burden, S.J. LRP4 is a retrograde signal for presynaptic differentiation at neuromuscular synapses. Nature 2012, 489, 438–442. [Google Scholar] [CrossRef] [PubMed]
  28. Gordon, L.R.; Gribble, K.D.; Syrett, C.M.; Granato, M. Initiation of synapse formation by Wnt-induced MuSK endocytosis. Development 2012, 139, 1023–1033. [Google Scholar] [CrossRef] [Green Version]
  29. Jing, L.; Lefebvre, J.L.; Gordon, L.R.; Granato, M. Wnt signals organize synaptic prepattern and axon guidance through the zebrafish unplugged/MuSK receptor. Neuron 2009, 61, 721–733. [Google Scholar] [CrossRef]
  30. Agostino, M.; Pohl, S.Ö.-G.; Dharmarajan, A. Structure-based prediction of Wnt binding affinities for Frizzled-type cysteine-rich domains. J. Biol. Chem. 2017, 292, 11218–11229. [Google Scholar] [CrossRef] [Green Version]
  31. Dijksterhuis, J.P.; Baljinnyam, B.; Stanger, K.; Sercan, H.O.; Ji, Y.; Andres, O.; Rubin, J.S.; Hannoush, R.N.; Schulte, G. Systematic mapping of WNT-FZD protein interactions reveals functional selectivity by distinct WNT-FZD pairs. J. Biol. Chem. 2015, 290, 6789–6798. [Google Scholar] [CrossRef] [PubMed]
  32. Willert, K.; Brown, J.D.; Danenberg, E.; Duncan, A.W.; Weissman, I.L.; Reya, T.; Yates, J.R., 3rd; Nusse, R. Wnt proteins are lipid-modified and can act as stem cell growth factors. Nature 2003, 423, 448–452. [Google Scholar] [CrossRef] [PubMed]
  33. Speer, K.F.; Sommer, A.; Tajer, B.; Mullins, M.C.; Klein, P.S.; Lemmon, M.A. Non-acylated Wnts can promote signaling. Cell Rep. 2019, 26, 875–883. [Google Scholar] [CrossRef] [PubMed]
  34. Tobi, D. Designing coarse grained-and atom based-potentials for protein-protein docking. BMC Struct. Biol. 2010, 10, 40. [Google Scholar] [CrossRef] [PubMed]
  35. Feliu, E.; Aloy, P.; Oliva, B. On the analysis of protein–protein interactions via knowledge-based potentials for the prediction of protein–protein docking. Protein Sci. 2011, 20, 529–541. [Google Scholar] [CrossRef] [PubMed]
  36. Agostino, M.; Mancera, R.L.; Ramsland, P.A.; Fernández-Recio, J. Optimization of protein-protein docking for predicting Fc-protein interactions. J. Mol. Recognit. 2016, 29, 555–568. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Walter, K.; Omura, N.; Hong, S.-M.; Griffith, M.; Vincent, A.; Borges, M.; Goggins, M. Overexpression of Smoothened activates the Sonic Hedgehog signaling pathway in pancreatic cancer associated fibroblasts. Clin. Cancer Res. 2010, 16, 1781–1789. [Google Scholar] [CrossRef] [PubMed]
  38. Cazet, A.S.; Hui, M.N.; Elsworth, B.L.; Wu, S.Z.; Roden, D.; Chan, C.-L.; Skhinas, J.N.; Collot, R.; Yang, J.; Harvey, K.; et al. Targeting stromal remodeling and cancer stem cell plasticity overcomes chemoresistance in triple negative breast cancer. Nat. Commun. 2018, 9, 2897. [Google Scholar] [CrossRef] [PubMed]
  39. Green, J.L.; La, J.; Yum, K.W.; Desai, P.; Rodewald, L.-W.; Zhang, X.; Leblanc, M.; Nusse, R.; Lewis, M.T.; Wahl, G.M. Paracrine Wnt signaling both promotes and inhibits human breast tumor growth. Proc. Natl. Acad. Sci. USA 2013, 110, 6991–6996. [Google Scholar] [CrossRef] [Green Version]
  40. Wang, Y.; Lin, P.; Wang, Q.; Zheng, M.; Pang, L. Wnt3a-regulated TCF4/β-catenin complex directly activates the key Hedgehog signalling genes Smo and Gli1. Exp. Ther. Med. 2018, 16, 2101–2107. [Google Scholar] [CrossRef] [PubMed]
  41. De, A. Wnt/Ca2+ signaling pathway: A brief overview. Acta Biochim. Biophys. Sin. 2011, 43, 745–756. [Google Scholar] [CrossRef]
  42. Enshell-Seijffers, D.; Lindon, C.; Wu, E.; Taketo, M.M.; Morgan, B.A. β-catenin activity in the dermal papilla of the hair follicle regulates pigment-type switching. Proc. Natl. Acad. Sci. USA 2010, 107, 21564–21569. [Google Scholar] [CrossRef]
  43. Erijman, A.; Rosenthal, E.; Shifman, J.M. How structure defines affinity in protein-protein interactions. PLoS ONE 2014, 9, e110085. [Google Scholar] [CrossRef]
  44. Agostino, M.; Velkov, T.; Dingjan, T.; Williams, S.J.; Yuriev, E.; Ramsland, P.A. The carbohydrate-binding promiscuity of Euonymus europaeus lectin is predicted to involve a single binding site. Glycobiology 2015, 25, 101–114. [Google Scholar] [CrossRef]
  45. Agostino, M.; Mancera, R.L.; Ramsland, P.A.; Yuriev, E. AutoMap: A tool for analyzing protein–ligand recognition using multiple ligand binding modes. J. Mol. Graph. Model. 2013, 40, 80–90. [Google Scholar] [CrossRef]
  46. Agostino, M.; Gandhi, N.S.; Mancera, R.L. Development and application of site mapping methods for the design of glycosaminoglycans. Glycobiology 2014, 24, 840–851. [Google Scholar] [CrossRef]
  47. Debruine, Z.J.; Ke, J.; Harikumar, K.G.; Gu, X.; Borowsky, P.; Williams, B.O.; Xu, W.; Miller, L.J.; Xu, H.E.; Melcher, K. Wnt5a promotes Frizzled-4 signalosome assembly by stabilizing cysteine-rich domain dimerization. Genes Dev. 2017, 31, 916–926. [Google Scholar] [CrossRef] [Green Version]
  48. Hirai, H.; Matoba, K.; Mihara, E.; Arimori, T.; Takagi, J. Crystal structure of a mammalian Wnt–Frizzled complex. Nat. Struct. Mol. Biol. 2019, 26, 372–379. [Google Scholar] [CrossRef]
  49. Kaykas, A.; Yang-Snyder, J.; Heroux, M.; Shah, K.V.; Bouvier, M.; Moon, R.T. Mutant Frizzled 4 associated with vitreoretinopathy traps wild-type Frizzled in the endoplasmic reticulum by oligomerization. Nat. Cell Biol. 2004, 6, 52–58. [Google Scholar] [CrossRef]
  50. Phesse, T.; Flanagan, D.; Vincan, E. Frizzled7: a promising Achilles’ heel for targeting the Wnt receptor complex to treat cancer. Cancers 2016, 8, 50. [Google Scholar] [CrossRef]
  51. Stiegler, A.L.; Burden, S.J.; Hubbard, S.R. Crystal Structure of the Frizzled-like cysteine-rich domain of the receptor tyrosine kinase MuSK. J. Mol. Biol. 2009, 393, 1–9. [Google Scholar] [CrossRef]
  52. Janda, C.Y.; Waghray, D.; Levin, A.M.; Thomas, C.; Garcia, K.C. Structural basis of Wnt recognition by Frizzled. Science 2012, 337, 59–64. [Google Scholar] [CrossRef]
  53. Moal, I.H.; Jiménez-García, B.; Fernandez-Recio, J. CCharPPI web server: Computational characterisation of protein-protein interactions from structure. Bioinformatics 2015, 31, 123–125. [Google Scholar] [CrossRef]
  54. Zhang, J.; Zhang, Y. A novel side-chain orientation dependent potential derived from random-walk reference State for protein fold selection and structure prediction. PLoS ONE 2010, 5, e15386. [Google Scholar] [CrossRef]
  55. Chaudhury, S.; Lyskov, S.; Gray, J.J. PyRosetta: A script-based interface for implementing molecular modeling algorithms using Rosetta. Bioinformatics 2010, 26, 689–691. [Google Scholar] [CrossRef]
  56. Andrusier, N.; Nussinov, R.; Wolfson, H.J. FireDock: Fast interaction refinement in molecular docking. Proteins Struct. Funct. Bioinform. 2007, 69, 139–159. [Google Scholar] [CrossRef]

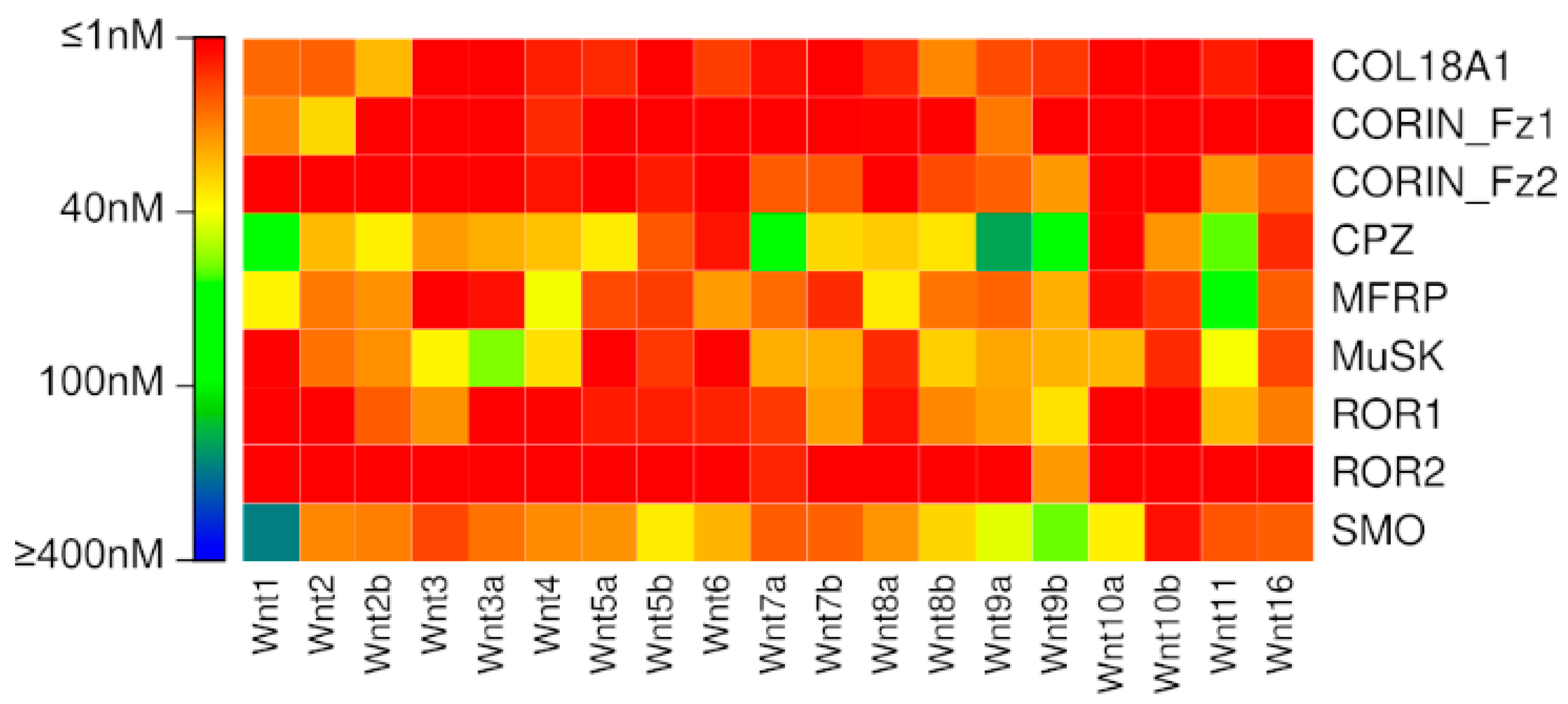

Figure 1. Binding affinities predicted for putative Fzd CRD interactions by the previously published model (Agostino, et al. 2017).
Figure 1. Binding affinities predicted for putative Fzd CRD interactions by the previously published model (Agostino, et al. 2017).
Ijms 20 04168 g001

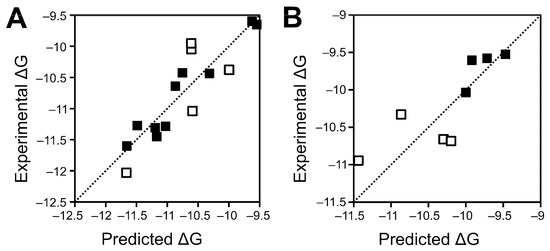

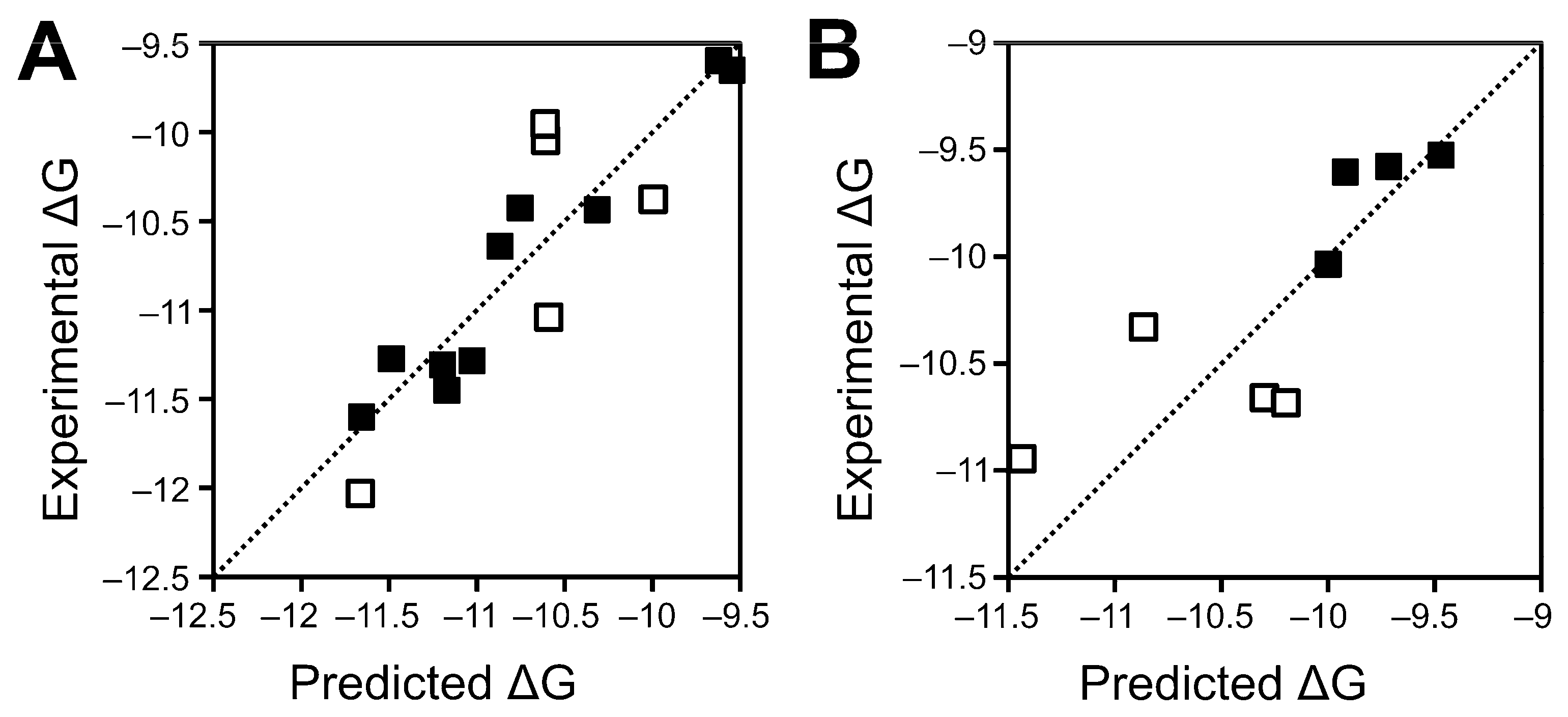

Figure 2. Comparison of experimental and predicted binding energies by Model 1 for training (A) and test (B) sets.
Figure 2. Comparison of experimental and predicted binding energies by Model 1 for training (A) and test (B) sets.
Ijms 20 04168 g002

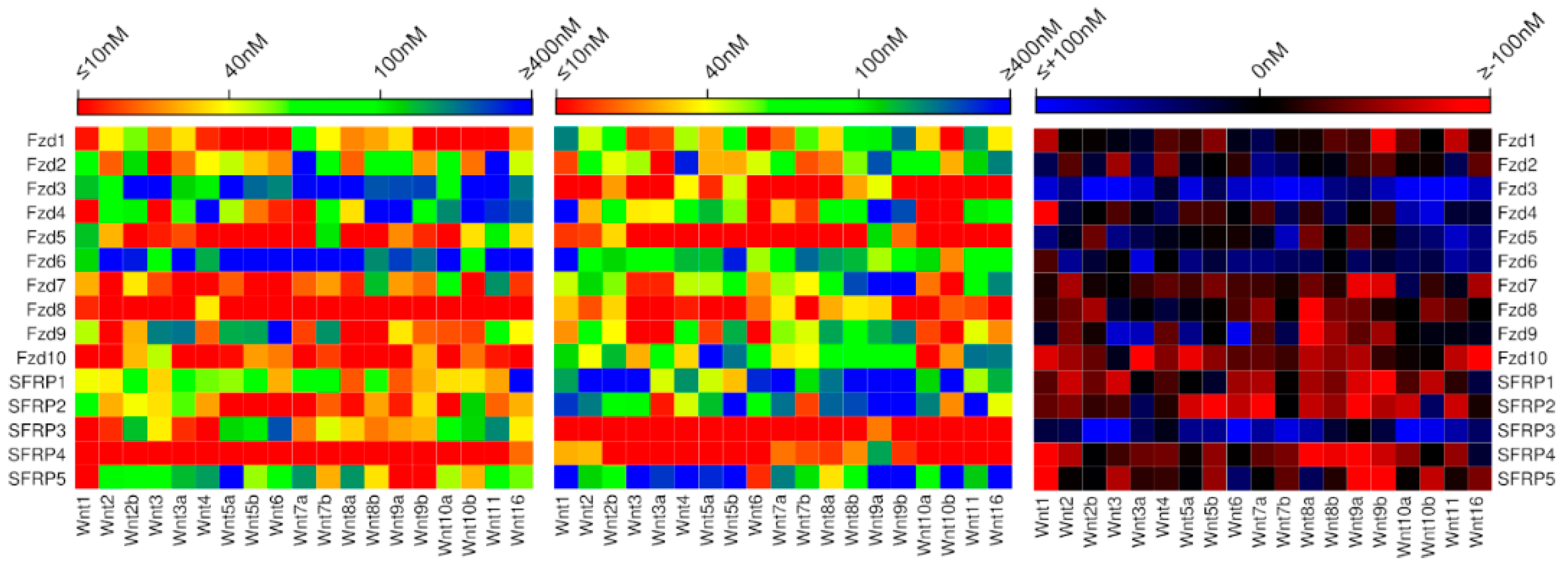

Figure 3. Comparison of binding affinities for all human Wnt‒Fzd and Wnt‒sFRP interactions predicted by the new model (left) and the previously published model (center), with differences between the models enumerated (right).
Figure 3. Comparison of binding affinities for all human Wnt‒Fzd and Wnt‒sFRP interactions predicted by the new model (left) and the previously published model (center), with differences between the models enumerated (right).
Ijms 20 04168 g003

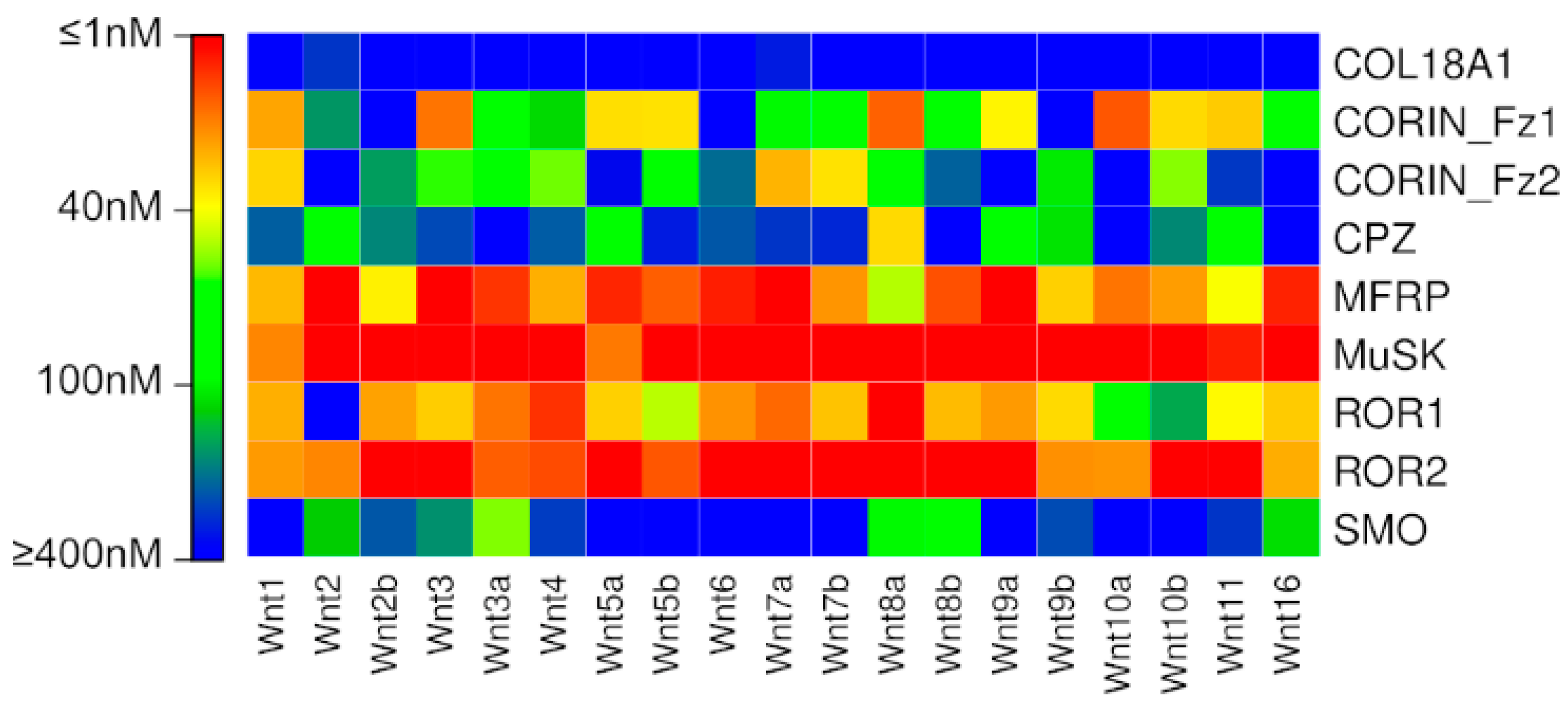

Figure 4. Binding affinities predicted for putative Fzd CRD interactions using the new model.
Figure 4. Binding affinities predicted for putative Fzd CRD interactions using the new model.
Ijms 20 04168 g004
Table 1. Best performing four-descriptor models predicting Wnt‒Fzd CRD binding energy obtained in this study a.
Table 1. Best performing four-descriptor models predicting Wnt‒Fzd CRD binding energy obtained in this study a.
1ΔG = 0.06715 × CP_TSC + 0.001913 × CP_ELOCAL_CB − 0.01128 × CP_ELOCAL_MIN − 0.3072 × MMGBSA dG Bind Solv GB − 6.29410.330.369/154/8
2ΔG = 0.002936 × CP_ELOCAL_CB − 0.01811 × CP_ELOCAL_MIN − 0.6022 × CP_ZLOCAL_CB − 0.2115 × MMGBSA dG Bind Solv GB − 7.27040.400.326/154/8
3ΔG = 0.0840 × CP_TSC + 0.2258 × INSIDE − 0.06487 × FA_PP − 0.4274 × MMGBSA dG Bind Solv GB − 4.68330.360.407/156/8
a ΔG and RMSE values in kcal/mol. InExptrain/test refers to the number of complexes for which ΔG was predicted within the error range reported by the experiment.
Table 2. Comparison of predictions made by Model 1 with experimental data for the training and test sets.
Table 2. Comparison of predictions made by Model 1 with experimental data for the training and test sets.
InteractionΔGexp aΔGpred a|ΔGexp − ΔGpred| a,bExperimental Kd cPredicted Kd cExperimental Range (Predicted Range) dSet
mWnt3a–mFzd2−10.64−10.870.2315.710.7+++ (+++)Training
mWnt3a–mFzd4−11.27−11.490.225.43.7++++ (++++)Training
mWnt3a–mFzd5−11.60−11.660.063.12.8++++ (++++)Training
mWnt3a–mFzd7−11.28− (++++)Training
mWnt3a–mFzd8−12.03−11.660.371.52.8++++ (++++)Training
mWnt5–mFzd2−10.38−10.000.3824.446.3+++ (++)Training
mWnt5–mFzd4−10.38−10.750.3724.413.0+++ (+++)Training
mWnt5–mFzd5−11.31− (++++)Training
mWnt5–mFzd7−10.05−10.610.5642.616.5++ (+++)Training
mWnt5–mFzd8−11.45− (++++)Training
mWnt5b–mFzd2−9.60−9.620.0291.087.9++ (++)Training
mWnt5b–mFzd4−9.95−10.610.6650.416.5++ (+++)Training
mWnt5b–mFzd5−10.44−10.320.1222.027.0+++ (+++)Training
mWnt5b–mFzd7−9.65−9.550.1083.799.0++ (++)Training
mWnt5b–mFzd8−11.04−10.590.458.017.1++++ (+++)Training
mWnt3a–mFzd1−10.66−10.300.3615.227.9+++ (+++)Test
mWnt4–mFzd2−9.53−9.470.06102.5113.3+ (+)Test
mWnt4–mFzd4−10.04−10.000.0443.346.3++ (++)Test
mWnt4–mFzd5−10.68−10.200.3814.733.0+++ (+++)Test
mWnt4–mFzd7−9.58−9.720.1494.274.3++ (++)Test
mWnt4–mFzd8−10.95−11.440.499.34.1++++ (++++)Test
mWnt5–mFzd1−10.33−10.870.4426.510.7+++ (+++)Test
mWnt5b–mFzd1−9.60−9.920.3291.053.0++ (++)Test
a Experimental ΔG (ΔGexp) calculated from experimental Kd values as ΔG = RT ln Kd where R is the gas constant (1.987 × 10−3 kcal K−1 mol−1) and T is the temperature at standard conditions (298 K). Predicted ΔG (ΔGpred) calculated according to Model 1. ΔG values expressed as kcal/mol. b Absolute value of difference between experimental and predicted ΔG values. c Kd values were obtained from Dijksterhuis et al. and represent the average values reported. All Kd values are expressed in nM. d Guide to affinity range classifications: <10 nM, ++++; 10–40 nM, +++; 40–100 nM, ++; 100–400 nM, +; >400 nM, −. Cases in which the experimental and predicted Kd values occur in different ranges are underlined. The range in which the value of experimental Kd occurs is shown outside parentheses; the range in which the predicted Kd value occurs is shown inside parentheses.
Table 3. Putative Fzd CRDs used in this study.
Table 3. Putative Fzd CRDs used in this study.
ProteinUniProt AccessionSequence UsedModelled Against a
CORIN (Fzd 1)Q9Y5Q5134–2595URV
CORIN (Fzd 2)Q9Y5Q5450–5734F0A
SMOQ9983565–1815L7D b
a Sequence alignments between sequences and templates listed in the Supplementary Materials (Table S1). b CRD extracted from this structure.
