The Latest Studies on Lotus (Nelumbo nucifera)-an Emerging Horticultural Model Plant

State Key Laboratory of Biocatalysis and Enzyme Engineering, School of Life Sciences, Hubei University, Wuhan 430062, China
Key Laboratory of Plant Germplasm Enhancement and Specialty Agriculture, Wuhan Botanical Garden, Chinese Academy of Sciences, Wuhan 430074, China
University of Chinese Academy of Sciences, Beijing 100039, China
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2019, 20(15), 3680;
Submission received: 16 June 2019 / Revised: 12 July 2019 / Accepted: 20 July 2019 / Published: 27 July 2019


Lotus (Nelumbo nucifera) is a perennial aquatic basal eudicot belonging to a small family Nelumbonaceace, which contains only one genus with two species. It is an important horticultural plant, with its uses ranging from ornamental, nutritional to medicinal values, and has been widely used, especially in Southeast Asia. Recently, the lotus obtained a lot of attention from the scientific community. An increasing number of research papers focusing on it have been published, which have shed light on the mysteries of this species. Here, we comprehensively reviewed the latest advancement of studies on the lotus, including phylogeny, genomics and the molecular mechanisms underlying its unique properties, its economic important traits, and so on. Meanwhile, current limitations in the research of the lotus were addressed, and the potential prospective were proposed as well. We believe that the lotus will be an important model plant in horticulture with the generation of germplasm suitable for laboratory operation and the establishment of a regeneration and transformation system.

Graphical Abstract

1. Introduction

Lotus is a perennial aquatic plant. It belongs to the small family of Nelumbonaceae, comprising of only one genus Nelumbo with two species: Nelumbo nucifera Gaertn. and Nelumbo lutea Pear., which are popularly named as Asian lotus and American lotus, respectively [1]. Generally, lotus refers to Asian lotus and mainly distributes in Asia and the north of Oceania, while the American lotus primarily occurs in the eastern and southern parts of North America, as well as the north of South America [1,2,3,4] (Figure 1). Being separated by the Pacific Ocean, these two species differ in their external morphologies, such as petal color and shape, leaf shape and plant size [5] (Figure 1). In spite of this, both of them have the same chromosome number (2n = 16), and show a similar life style, with about five months of life span for each generation. Crossing between these two species could generate an F1 population, which is totally infertile. Although there are only two species of lotus in taxonomy, very abundant germplasms exist all over the world, which display variable genetic backgrounds and phenotypes, especially in Asia. In addition, the lotus is a basal eudicot, which makes it a very important species in plant phylogenetic and evolution studies.
Asian lotus is also named as sacred lotus because of its significance in the religions of Buddhism and Hinduism [5]. It is a very good symbol in Chinese traditional culture. All of these make sacred lotus a very popular ornamental plant. In addition, it is also a popular vegetable and traditional medicinal plant with great economic value in South-East Asia. China is regarded as one of the major centers in lotus cultivation and breeding, with over several thousands of years of cultivation history [1]. As the result of the long period of breeding, domestication and cultivation, large amounts of lotus cultivars have been obtained, showing variable morphology and other traits. The cultivated lotus is generally divided into three categories, namely, rhizome, seed and flower lotus, according to their usage in reality. The lotus rhizome and seed could not only be consumed as vegetables, but are also used for lotus propagation, whereas, the flower lotus is mainly applied in ornamentation and environmental improvement. Based on the climatic regions they are accustomed to, sacred lotus could also be classified into two ecotypes, which are temperate lotus and tropical lotus. The temperate lotus has an enlarged rhizome occurring after flowering and its leaves wither. In contrast, the tropical lotus has a whip-like rhizome with a longer green period and flowering time [1,2].
Because of its importance in horticulture, medicinal usage and plant phylogeny, the sacred lotus has gained increasing interests from the scientific community. It will undoubtedly enhance the breeding and application of lotus to obtain enough fundamental knowledge about this plant. Recently, the genome of two sacred lotus germplasms were sequenced and released [6,7], which facilitates further study on this species. Up-to-date, there are nearly 1000 research publications focusing on different aspects of the lotus, half of which were published in the last decade. In this review, we summarized the latest advancement of studies on the sacred lotus in order to provide a comprehensive insight into the basic biology and economic usage of this important plant, which might also contribute to future studies on lotus breeding and germplasm enhancement.

2. Phylogeny and Genomic Studies

Taxonomically, lotus belongs to the genus of Nelumbo, which is the only existing genus of the Nelumbonaceae family. Cretaceous fossils have been assigned to Nelumbonaceae. Analysis on these fossils indicate that the family of Nelumbonaceae might have more than 100 Ma years of history, and showed considerable morphological stasis. [8]. Determination of lotus classification in taxonomy took a long time. Because of its superficial similarities in the flowers and vegetative body with the waterlily, Nelumbo used to be regarded as one genus of the Nymphaeaceae family in the old classification system. In the Cronquist system, the Nelumbonaceae family was recognized, but still placed in the order of Nymphaeales [9]. In both the Dahlgren system [10] and the Thorne system [11], the Nelumbonaceae family was placed in its own order, Nelumbonales. Takhtajan [12] removed Nelumbonaceae from Nymphaeales, but placed them alone in the subclass of the Nelumbonidae. With the increasing accumulation of evidence at the molecular level, The Angiosperm Phylogeny Group (APG) has placed it into the basal eudicot order of Proteales, which is outside of the core eudicots (, last accessed date: 23 June, 2019) [13].
Except for Nelumbonaceae, Proteales contains three other families, including Platanaceae, Proteaceae, and Sabiaceae, of which the former two are the closest relatives of the lotus, and are mainly shrubs and woody trees [14], indicating the possibility of the lotus being a land plant adapted to aquatic environments. Interestingly, the family of Nelumbonaceae is still classified within the order of Nymphaeales on the USDA webpage (, last accessed date: 22 July, 2019). Furthermore, studies also showed that the gene expression patterns in the floral organs of Nymphaea and Nelumbo are remarkably similar to each other [15]. It would be interesting to understand the evolutionary convergences between Nymphaeales and the lotus.
From the genetic point of view, both species of lotus are diploid with the number of chromosomes 2n = 16. The predicted size of the lotus genome is 929 Mb, which is based on the flow cytometry analysis [16]. In 2013, the draft genomes of two lotus wild germplasms ‘China Antique’ and ‘Chinese Tai-zi’ were sequenced, assembled and released [6,7], which made lotus into a model angiosperm along with the other 22 species (, last accessed date: 23 June, 2019). The assembled genome size of ‘China Antique’ is 804 Mb and the sequencing data shows that this genome contains 26,685 protein-coding genes [6]. Recently, a more comprehensive transcriptomic analysis increased the number of protein-coding genes to 32,121 in ‘China Antique’ [17]. The assembled genome of ‘Chinese Tai-zi’ is 792 Mb with 36,385 protein-coding genes [7,18]. Based on their data, it seems that the lotus genome contains a high content of repeat sequences, with transposable elements (TEs) accounting for about 50% of the genome sequence. The availability of these two genomes will facilitate further studies on the different biological features of lotus, including agronomic and horticultural traits, and might contribute to the knowledge of flowering plant evolution. Wang et al. [19] combined the lotus genome and transcriptome data of ‘China Antique’ and constructed the public accessible lotus genome database (, last accessed date: 20 March, 2015), which makes further molecular and genetic studies on this species more convenient among the scientific community. Additionally, the lotus chloroplast and mitochondrion genome were also sequenced, which have been applied in optimizing the genetic maps and analyzing the evolution of the lotus [20,21]. Because of the availability of abundant genome information, phylogenetic and evolution analysis of lotus at the molecular level was also conducted, which showed the functional divergence of miRNAs in temperate and tropical lotus [22]. Based on the study, 57 pre-eudicot miRNA families from different evolutionary stages were predicted. Combining the miRNA data and the lotus genome information, it was revealed that the loss of miRNA families in descendent plants is associated with that in duplicated genomes [22]. However, because of the high percentage of repetitive sequences (>47%), the assembly of the lotus genome, especially for ‘China Antique’, is still far behind completion, although a study has been conducted aiming at anchoring the megascaffolds into eight chromosomes [23]. The nine anchored megascaffolds, which have a combined size of 543.4 Mb, just account for 67.6% of the lotus genome. The advent of a third generation sequencing technique has been successfully applied in many other species, which will be able to improve the assembly of this lotus genome in the near future.

3. Unique Properties of Lotus

Biologically, lotus has not only the common aquatic plant features, but also certain unique features that distinguish it from other plant species. These features include seed longevity, leaf ultrahydrophobicity and floral thermoregulation. Understanding of the mechanisms that lead to the formation of these unique properties is important, for not only the basic plant biology, but also their great usage potential through bionics.
Lotus fruit is famous for its longevity. It was reported that lotus fruits buried underground over 1300 years in the Northeast of China could still be germinated [24]. Understanding the underlying mechanism of lotus seed longevity may contribute to enhancing seed storage in agriculture, and even in the healthcare of human beings.
Previous studies have shown that the first factor contributing to this feature might be the chemical compositions of lotus fruit wall, which contains high contents of polysaccharides (galactose, mannose) and tannins [25]. These compounds might help to prevent any negative effects from the environment. Recently, another study showed that the polyphenols content in lotus seed epicarp increased along with the ripening, and showed strong anti-oxidation activity [26], which might also be helpful. Besides of the physical factors, several thermo-proteins, which showed high stability under high temperature, were also indicated to be helpful. These proteins include CuZn-SOD, 1-CysPRX, dehydrin, Cpn20, Cpn60, HSP80, EF-1α, Enolase1, vicilin, Met-Synthase and PIMT [27]. The functions of some genes involved in seed thermos-tolerance and germination vigor, including NnANN1 and NnPER1 (Peroxiredoxin 1), were verified in transgenic Arabidopsis [28,29]. To achieve this, the lotus genome contains multi-copies for most of the antioxidative genes [6,7]. Recent study showed that small RNA might also be involved in the regulation of lotus seed longevity [30]. How these different factors cooperatively function to contribute to the lotus seed longevity is still elusive, but worthy of studying. More importantly, it is very interesting to know if these factors also work in other systems.
Lotus leaves exhibit ultra-hydrophobicity, which is also known as the “lotus effect” [31]. This characteristic of ultra-hydrophobicity could ensure that the leaf upper epidermis is not covered by water, thus maintaining the normal function of its stomata [32]. Because of this, ultrahydrophobicity is believed to be an advantage in the evolution of the lotus. Studies have shown that it is achieved by a special dense layer of waxy papillae on the lotus leaf surface [33,34]. Further studies showed that the easily rolling water droplets could help to remove the dirt particles adhering on the leaf surface and result in a self-cleaning phenomenon, which is heavily dependent upon the contact angle [35]. Two wax biosynthesis-related genes (NnCER2 and NnCER2-LIKE) were cloned from the lotus, and transformed in Arabidopsis, which resulted in an alteration of the cuticle wax structure in inflorescence stems, and proved their function in the biosynthesis of the extra-long fatty acids [36]. More studies on the lotus leaf chemical compositions and structure might be very helpful in producing materials with super-hydrophobicity and self-cleaning features.
In addition, floral organ thermogenesis is another unique feature of the lotus, which independently occurs at receptacle, stamen and petal, respectively [37]. This property has been proven to be the results of a cyanide-resistant alternative oxidase pathway conducted in the floral organs [38,39,40], which initiated extensive studies on alternative oxidases (AOXs) and plant uncoupling mitochondrial proteins (PUMPs) [41]. This feature of thermogenesis seems to be ecologically important for the sexual reproduction of the lotus through attracting insect pollinators [42]. Studies have shown that the generated heat could either provide a warm environment to the thermo-sensitive pollinators or help to release the volatile compounds to attract the flying insects, mainly beetles [37,43,44]. Generation of heat only occurs before anthesis, which ends with pollination and a fertilized ovary. After anthesis, there is no need to attract the pollinators any more, and the main function of the floral organs, especially the receptacle, transits into photosynthesis [45,46]. It will be very important to explore the mechanism that controls this kind of metabolism transition.

4. Genetic and Molecular Studies on the Horticultural Traits of the Lotus

As mentioned above, a lotus is also a popular ornamental, vegetable and medicinal plant, with great potential of utilization in reality, based on which, three types of lotus, named as flower, seed, and rhizome lotus, were defined. Each type of lotus shows notable abundant variable phenotypes (Figure 2), which provide suitable germplasm for its breeding and further study on different traits. Recently, a number of studies have been conducted focusing on the genetic and molecular mechanisms underlying the formation of different traits of lotus flower, seed and rhizome. These traits could largely determine the economic value of the lotus, hence becoming the main factors selected in its breeding. Several genetic maps have been constructed through crossing between different germplasms with contrasting phenotypes in some of the economic traits, based on which a number of molecular markers associated with the target traits were developed, including ISSR, AFLP, SSR, RAPD, and SRAP [47,48,49,50].
Meanwhile, whole genome re-sequencing on the natural germplasm also identified abundant SNPs and Indels [51,52,53]. Together, these data will undoubtedly facilitate the lotus breeding.

4.1. The Flower of Lotus

Lotus flower is among the top ten traditional famous flowers in China, and was chosen as the national flower in India and Vietnam. It is widely cultivated for its aesthetic value, which is largely attributed to its gorgeous color and its diversified form and shape (Figure 2). For ornamental plants, flower color and shape are the major two factors that determine their ornamental value. The lotus petals show three major colors; white, red and yellow, with the former two existing only in Asian lotus and the later one only in American lotus. Through breeding and artificial selection, many cultivars with mixed colors have been obtained on the purpose of increasing its ornamental value (Figure 2). A large-scale analysis on the pigment composition of different germplasm has shown that the yellow and red color is mainly determined by the contents of carotenoids and anthocyanins, respectively [54]. Genome-wide analysis of the MYB gene family indicated that there is a similar anthocyanin biosynthesis regulatory system in lotus and Arabidopsis [55], based on which an overexpression of NnMYB5 in Arabidopsis resulted in the accumulation of anthocyanin in immature seeds and flower stalks [56]. In spite of this similarity, a comparative proteomics study between white and red cultivars showed that the expression of the ANS gene might be the major reason for the absence of anthocyanin biosynthesis in the white flower lotus [57]. Further analysis found that different levels of methylation occur in the promoter regions of ANS gene between the two cultivars, which indicates the epigenetic regulation on expression of this gene. However, the gene that lead to the different methylation level on the promoter of ANS gene between the red and white lotus cultivars is still unknown. In addition, there are cultivars showing genetic constant spotted color (Figure 3), which is still not understood. It will be very important not only to the breeding of flower lotus, but also to enriching our knowledge on the coloration of plant flowers to explore the mechanism underlying the regulation of spotted color in lotus.
In addition to color, flower shape is also important for the economic value of ornamental plants. Based on different purposes of breeding, lotus cultivars with diversified flower shapes were obtained, including few-petalled, semidouble-petalled, double-petalled, duplicate-petalled and all-double-petalled cultivars [2]. For the semidouble-petalled, double-petalled shapes, they are usually the resultants of stamen petaloid. Comparative transcriptomic studies among petal, stamen petaloid and stamen through RNA-seq were conducted, which identified several candidate genes involved in stamen petaloid, especially some MADS-box genes [58]. Their study revealed 11 MADS-box genes and one APETALA2 (AP2) gene being involved in the stamen petaloid phenomenon. Among them, AGL15, AGL80 and AGAMOUS genes are positively related to, and AGL6 is negatively related to the stamen petaloid [58]. Meanwhile, a genome-wide DNA methylation analysis was also conducted among these three tissues, which indicates the potential involvement of epigenetic regulation on the stamen petaloid [59]. However, this study did not detect any obvious changes of the methylation on the MADS-box genes [59]. There also exist pistil petaloid cultivars (Figure 2), in which the stamen petaloid also occurs. How these are coordinately regulated is still unknown in the lotus. Furthermore, it is well known that lotus bloom in the summer days, which brings some challenges for its wide utilization in ornamentation. It will be very important to make it bloom either earlier or later for ornamental purposes. Hence, unveiling the mechanism controlling the time of flowering is also important. A transcriptomic analysis has been conducted aiming at exploring the candidate genes that control the time of flowering, which indicate the existence of a complicated regulatory network [60]. Their data indicate that the differential regulation of some photoperiod related genes, such as COP1, CCA1, LHY, CO-LIKE, and FT, the vernalization gene VIN3 and the gibberellic acid-related gene GAI, might be involved in the regulation of early flowering in lotus. Specifically, several isoforms of the FT gene were found to be differentially expressed [60].

4.2. Rhizome and Seeds

As mentioned above, lotus is not only an ornamental plant, but also a vegetable because of its edible rhizome and seeds. Lotus has a morphologically modified subterraneous stem. Especially for the temperate ecotype, its subterraneous stem is enlarged in autumn, which is known as rhizome (Figure 2). The rhizome contains abundant starch, proteins and vitamins, making it a popular edible vegetable. Enlargement of lotus rhizome could largely determine its economic value. In addition, the enlarged rhizome could also help the lotus to survive from winter during its bud dormancy, and provide substrates and energy for its asexual propagation. This phenomenon is very similar with the tuberization of the potato, which has been proven to be regulated through a very intricate genetic network. Being a significant feature distinguishing between the temperate and tropical lotus, it may also facilitate in understanding the evolution and domestication of the lotus [2,61]. It seems that rhizome enlargement is tightly related to the flowering in a lotus. Usually, the enlargement occurs after flowering. For the purposes of increasing its yield in agricultural production, genetic and transcriptomic studies focusing on the enlargement of this rhizome have been conducted.
Gene expressions during the rhizome development were analyzed through RNA-Seq, which identified the specific candidate genes for rhizome enlargement [62]. The results also indicated the role of SNPs and alternative splicing (AS) events in Asian lotus rhizome development [61,63]. Similar with the yield traits in many crops, the enlargement of the lotus rhizome is a quantitative trait. Developing a suitable genetic population and constructing high density genetic map will be very helpful to elucidate the mechanism underlying rhizome development and enlargement.
Besides its longevity, lotus seed is also edible either fresh or dry matured, with an additional medicinal versatility resulting from compounds like alkaloids, flavonoids and certain micronutrients [3,5]. Both the size and number of the seeds per seedpod vary among different lotus cultivars (Figure 2). It is very important to increase its nutrition as well as its yield in lotus seed production. To achieve this, comparative proteomics and metabolomics studies were conducted on lotus seeds during its development, which not only deepen the understanding on the development of lotus seed, but also determine candidate genes crucial for lotus seed size [62]. In addition, comparative transcriptomic analysis was also conducted between two lotus germplasms with contrasting phenotypes in both seed size and seed number per seedpod [64]. Similar to rhizome, the yield of seed is also a quantitative trait, which requires more study at the genetic aspect. Meanwhile, because of its medicinal usage, it is necessary to conduct a comprehensive analysis on it metabolites during seed development.

4.3. Secondary Metabolites and Medicinal Usage of Lotus

Lotus is a traditional herb, of which nearly each tissue has a medicinal usage [65,66,67]. It has been used as a traditional Chinese medicine for over a thousand years. This might ascribe to its abundant content of secondary metabolites, including flavonoids, phenolic acids and alkaloids [65,66,67]. Systematic studies were conducted in optimizing the method to extract these metabolites from different tissues of the lotus [26,54,68,69,70,71,72,73,74,75,76,77]. Meanwhile, distributions of different secondary metabolites in different tissues of lotus were profiled [26,54,68,69,70,71,72,73,74,75,76,77]. Furthermore, assessment of the lotus germplasm with different origins was also performed by these established methods [65,66,67], which helped in screening of the germplasm with a high content of specific secondary metabolites. These candidate germplasms might be used for either the breeding or for further study on the biosynthesis of different metabolites in the lotus. In addition, the potential medicinal usage of different lotus secondary metabolites was also assessed [65,66,67]. However, the exact compounds that function in each medicinal usage are still unknown, which seems to be the general challenge for most traditional Chinese medicine.
Specifically, the leaf of a lotus is a very important traditional Chinese herbal medicine, which has been widely used in controlling the blood lipids and treating hyperlipidemia [78]. In the last decade, it is becoming more and more popular as weight-losing tea in China to reduce the level of lipids in the human body [79]. Studies have shown that alkaloids are the major bioactive compounds in lotus leaves, with nuciferine and N-nornuciferine being the major two [80,81,82]. To evaluate the biosynthesis pathway of alkaloids and its regulation in lotus leaf, several transcriptomic studies were performed [83,84], which revealed that a benzylisoquinoline alkaloids (BIA) biosynthetic pathway and its transcriptional regulation differ in high BIAs lotus compared with low BIAs lotus [84]. Several genes encoding the enzymes involved in the BIA biosynthetic pathway were proposed based on sequence similarity analysis [85]. Further functional analysis of these genes will be necessary to obtain comprehensive knowledge on the biosynthesis of these bioactive compounds.

4.4. Studies on the Establishment of Lotus Regeneration and Transformation System

To be a model horticultural plant, it might be necessary to establish a transformation system, which will facilitate the studies on the functions of different genes in the lotus. A study was conducted to induce the formation of a callus from different explants of the lotus, in which somatic embryo cultivated in suitable medium containing a combination of different growth regulators was proposed [86]. To obtain more in-depth understanding, a proteomic analysis was conducted to identify the key proteins that might be critical for the induction of callus from developing cotyledon [87].
Directly inducing the formation of a shoot from the bud has also been successfully performed [88]. Based on this system, various studies have been conducted to transform the lotus. It seems that the induced shoot from the embryo apical bud could be successfully transformed through a particle bombardment device with a pCAMBIA2301 vector [89]. This method not only succeeded with the GUS reporter gene, but also with the anti-sense of two anthocyanin biosynthesis genes dihydroflavonol 4-reductase (anti-DFR) and Chalcone synthase (anti-CHS) [89,90]. Except for the group from Thailand, there are still no other studies conducted successfully on the transformation of the lotus, although a lot of researchers are working on this. It seems there are still challenges on the reproducibility and the efficiency of the transformation, as well as the selection of a suitable cultivar.

5. Conclusions and Perspectives

Because of its significance in the ordinary life of the population in South and East Asia, as well as in horticultural and medicinal usage, lotus is attracting more and more attention from the scientific community. A large number of studies have been conducted on nearly all aspects of this plant, including phylogeny and evolution, genomics, genetics and breeding and medicinal usage. With the release of its genome information, -omics and molecular genetics studies, focusing on the economic traits of this plant have stepped into the center, which undoubtedly will contribute a lot to the lotus breeding. Unfortunately, there are still some limitations that constrain the studies, especially the molecular biology study, on this species. The first one might be the assembly and annotation of its genome, which still needs to be improved further. Secondly, there is no universally recognized lotus cultivar or germplasm that is commonly used for the basic biology studies in the scientific community. Among all the germplasm, the sequenced one ‘China Antique’ might be an ideal candidate because of its genetic homozygosity. Thirdly, the low efficiency of the regeneration and transformation system seriously prevents the molecular genetic studies on the lotus, which is a prerequisite for gene function study. The fourth, but not the last, is the indeterminate growth and long life span (~5 months per generation) of the lotus plant, which limits the cultivation of lotus in small space. Through artificial selection, a number of cultivars with small plant architecture and short life span (~3 months’ generation time) were obtained in lotus, which are very popular in the ornamental market, and named as ‘Wan Lian’ (bowl lotus). To cross these bowl lotus with ‘China Antique’, and then subject to backcrossing breeding, it might be possible to obtain germplasm with both small plant size and the ‘China Antique’ genetic background. This type of germplasm might be suitable for cultivation in the lab, and hence for further studies at molecular level. In conclusion, lotus could be regarded as an emerging model of horticultural plants, and be capable for the utilization in studying many aspects of unique features in plants.

Author Contributions

Original draft preparation, writing, review and art work, Z.L. and C.Z.; review and editing, D.C. and R.N.D.; editing, review, conceptualization, supervision, P.Y.


This work was supported by distinguished talents project to Pingfang Yang from Hubei University.


We thank to all the colleagues who have been involved in the studies on lotus. It is their great achievements that have provided abundant data for this review. Due to space limitation, we could not include and cite all the available literatures on lotus, and we apologize for this. We are grateful to Chen Jingxing for kindly providing image in graphic abstract.

Conflicts of Interest

The authors declare no conflict of interest.


AFLPAmplified Fragment Length Polymorphism
ANSanthocyanin synthase
AOXalternative oxidases
APGThe Angiosperm Phylogeny Group
ASalternative splicing
BIAbenzylisoquinoline alkaloid
CHSChalcone synthase
DFRdihydroflavonol 4-reductase
EFelongation factor
HSPHeat shock protein
GAIgibberellic acid insensitive
ISSRinter-simple sequence repeat
PIMTProtein L-isoaspartyl methyltransferase
PUMPplant uncoupling mitochondrial protein
RAPDRandom Amplified Polymorphic DNA
SNPsingle nucleotide polymorphism
SODsuperoxide demutase
SRAPSequence—related amplified polymorphism
SSRSimple Sequence Repeats
TEtransposable element


  1. Wang, Q.; Zhang, X. Colored Illustration of Lotus Cultivars in China; China Forestry Publishing House: Beijing, China, 2005. [Google Scholar]
  2. Zhang, X.; Chen, L.; Wang, Q. New Lotus Flower Cultivars in China; China Forestry Publishing House: Beijing, China, 2011. [Google Scholar]
  3. Zhang, Y.; Lu, X.; Zeng, S.; Huang, X.; Guo, Z.; Zheng, Y.; Tian, Y.; Zheng, B. Nutritional composition, physiological functions and processing of lotus (Nelumbo nucifera Gaertn.) seeds: A review. Phytochem. Rev. 2015, 14, 321–334. [Google Scholar] [CrossRef]
  4. Li, Y.; Smith, T.; Svetlana, P.; Yang, J.; Jin, J.-H.; Li, C.-S. Paleobiogeography of the lotus plant (Nelumbonaceae: Nelumbo) and its bearing on the paleoclimatic changes. Palaeogeogr. Palaeoclimatol. Palaeoecol. 2014, 399, 284–293. [Google Scholar] [CrossRef]
  5. Shen-Miller, J. Sacred lotus, the long-living fruits of China Antique. Seed Sci. Res. 2002, 12, 131–143. [Google Scholar] [CrossRef] [Green Version]
  6. Ming, R.; Vanburen, R.; Liu, Y.; Yang, M.; Han, Y.; Li, L.T.; Zhang, Q.; Kim, M.J.; Schatz, M.C.; Campbell, M. Genome of the long-living sacred lotus (Nelumbo nucifera Gaertn.). Genome Biol. 2013, 14, R41. [Google Scholar] [CrossRef] [PubMed]
  7. Wang, Y.; Fan, G.; Liu, Y.; Sun, F.; Shi, C.; Liu, X.; Peng, J.; Chen, W.; Huang, X.; Cheng, S.; et al. The sacred lotus genome provides insights into the evolution of flowering plants. Plant J. 2013, 76, 557–567. [Google Scholar] [CrossRef] [PubMed]
  8. Gandolfo, M.A.; Cuneo, R.N. Fossil Nelumbonaceae from the La Colonia Formation (Campanian-Maastrichtian, Upper Cretaceous), Chubut, Patagonia, Argentina. Rev. Palaeobot. Palynol. 2005, 133, 169–178. [Google Scholar] [CrossRef]
  9. Cronquist, A. An Integrated System of Classification of Flowering Plants; Columbia University Press: New York, NY, USA, 1981. [Google Scholar]
  10. Dahlgren, G. An updated angiosperm classification. Bot. J. Linn. Soc. 1989, 100, 197–203. [Google Scholar] [CrossRef]
  11. Thorne, R.F. An Updated Phylogenetic Classification of the Flowering Plants. Aliso 1992, 13, 365–389. [Google Scholar] [CrossRef]
  12. Takhtajan, A. Diversity and Classification of Flowering Plants; Columbia University Press: New York, NY, USA, 1997. [Google Scholar]
  13. Stevens, P.F. (2001 onwards). Angiosperm Phylogeny Website, Version 14; July 2017. Available online: (accessed on 23 June 2019).
  14. Byng, J.; Chase, M.; Christenhusz, M.; Fay, M.; Judd, W.; Mabberley, D.; Sennikov, A.; Soltis, D.; Soltis, P.; Stevens, P. An update of the Angiosperm Phylogeny Group classification for the orders and families of flowering plants: APG IV. Bot. J. Linn. Soc. 2016, 181, 1–20. [Google Scholar]
  15. Yoo, M.J.; Soltis, P.S.; Soltis, D.E. Expression of floral MADS-box genes in two divergent water lilies: Nymphaeales and Nelumbo. Int. J. Plant Sci. 2010, 171, 121–146. [Google Scholar] [CrossRef]
  16. Diao, Y.; Chen, L.; Yang, G.; Zhou, M.; Song, Y. Nuclear DNA C-values in 12 species in Nymphaeales. Caryologia 2006, 59, 25–30. [Google Scholar] [CrossRef] [Green Version]
  17. Zhang, Y.; Nyong, A.T.; Shi, T.; Yang, P. The complexity of alternative splicing and landscape of tissue-specific expression in lotus (Nelumbo nucifera) unveiled by Illumina- and single-molecule real-time-based RNA-sequencing. DNA Res. 2019. [Google Scholar] [CrossRef] [PubMed]
  18. Gui, S.; Peng, J.; Wang, X.; Wu, Z.; Cao, R.; Salse, J.; Zhang, H.; Zhu, Z.; Xia, Q.; Quan, Z.; et al. Improving Nelumbo nucifera genome assemblies using high-resolution genetic maps and BioNano genome mapping reveals ancient chromosome rearrangements. Plant J. 2018, 94, 721–734. [Google Scholar] [CrossRef] [PubMed]
  19. Wang, K.; Deng, J.; Damaris, R.N.; Yang, M.; Xu, L.; Yang, P. LOTUS-DB: An integrative and interactive database for Nelumbo nucifera study. Database 2015, 2015, bav023. [Google Scholar] [CrossRef] [PubMed]
  20. Gui, S.; Wu, Z.; Zhang, H.; Zheng, Y.; Zhu, Z.; Liang, D.; Ding, Y. The mitochondrial genome map of Nelumbo nucifera reveals ancient evolutionary features. Sci. Rep. 2016, 6, 30158. [Google Scholar] [CrossRef]
  21. Wu, Z.; Gui, S.; Quan, Z.; Pan, L.; Wang, S.; Ke, W.; Liang, D.; Ding, Y. A precise chloroplast genome of Nelumbo nucifera (Nelumbonaceae) evaluated with Sanger, Illumina MiSeq, and PacBio RS II sequencing platforms: Insight into the plastid evolution of basal eudicots. BMC Plant Biol. 2014, 14, 289. [Google Scholar] [CrossRef]
  22. Shi, T.; Wang, K.; Yang, P. The evolution of plant microRNAs: Insights from a basal eudicot sacred lotus. Plant J. 2017, 89, 442–457. [Google Scholar] [CrossRef] [PubMed]
  23. Meng, Z.; Hu, X.; Zhang, Z.; Li, Z.; Lin, Q.; Yang, M.; Yang, P.; Ming, R.; Yu, Q.; Wang, K. Chromosome Nomenclature and Cytological Characterization of Sacred Lotus. Cytogenet. Genome Res. 2017, 153, 223–231. [Google Scholar] [CrossRef]
  24. Shen-Miller, J.; Mudgett, M.B.; Schopf, J.W.; Clarke, S.; Berger, R. Exceptional seed longevity and robust growth: Ancient Sacred Lotus from China. Am. J. Bot. 1995, 82, 1367–1380. [Google Scholar] [CrossRef]
  25. Van Bergen, P.F.; Hatcher, P.G.; Boon, J.J.; Collinson, M.E.; de Leeuw, J.W. Macromolecular composition of the propagule wall of Nelumbo nucifera. Phytochemistry 1997, 45, 601–610. [Google Scholar] [CrossRef]
  26. Liu, Y.; Ma, S.S.; Ibrahim, S.A.; Li, E.H.; Yang, H.; Huang, W. Identification and antioxidant properties of polyphenols in lotus seed epicarp at different ripening stages. Food Chem. 2015, 185, 159–164. [Google Scholar] [CrossRef] [PubMed]
  27. Shen-Miller, J.; Lindner, P.; Xie, Y.; Villa, S.; Wooding, K.; Clarke, S.G.; Loo, R.R.; Loo, J.A. Thermal-stable proteins of fruit of long-living Sacred Lotus Nelumbo nucifera Gaertn var. China Antique. Trop. Plant Biol. 2013, 6, 69–84. [Google Scholar] [CrossRef] [PubMed]
  28. Chu, P.; Chen, H.; Zhou, Y.; Li, Y.; Ding, Y.; Jiang, L.; Tsang, E.W.; Wu, K.; Huang, S. Proteomic and functional analyses of Nelumbo nucifera annexins involved in seed thermotolerance and germination vigor. Planta 2012, 235, 1271–1288. [Google Scholar] [CrossRef] [PubMed]
  29. Chen, H.H.; Chu, P.; Zhou, Y.L.; Ding, Y.; Li, Y.; Liu, J.; Jiang, L.W.; Huang, S.Z. Ectopic expression of NnPER1, a Nelumbo nucifera 1-cysteine peroxiredoxin antioxidant, enhances seed longevity and stress tolerance in Arabidopsis. Plant J. 2016, 88, 608–619. [Google Scholar] [CrossRef] [PubMed]
  30. Hu, J.; Jin, J.; Qian, Q.; Huang, K.; Ding, Y. Small RNA and degradome profiling reveals miRNA regulation in the seed germination of ancient eudicot Nelumbo nucifera. BMC Genom. 2016, 17, 684. [Google Scholar] [CrossRef]
  31. Darmanin, T.; Guittard, F. Superhydrophobic and superoleophobic properties in nature. Mater. Today 2015, 18, 273–285. [Google Scholar] [CrossRef]
  32. Ensikat, H.J.; Ditsche-Kuru, P.; Neinhuis, C.; Barthlott, W. Superhydrophobicity in perfection: The outstanding properties of the lotus leaf. Beilstein J. Nanotechnol. 2011, 2, 152–161. [Google Scholar] [CrossRef]
  33. Zhang, Y.; Wu, H.; Yu, X.; Chen, F.; Wu, J. Microscopic Observations of the Lotus Leaf for Explaining the Outstanding Mechanical Properties. J. Bionic Eng. 2012, 9, 84–90. [Google Scholar] [CrossRef]
  34. Marmur, A. The Lotus effect: Superhydrophobicity and metastability. Langmuir 2004, 20, 3517–3519. [Google Scholar] [CrossRef]
  35. Bhushan, B.; Jung, Y.C.; Koch, K. Self-Cleaning Efficiency of Artificial Superhydrophobic Surfaces. Langmuir 2009, 25, 3240–3248. [Google Scholar] [CrossRef]
  36. Yang, X.; Wang, Z.; Feng, T.; Li, J.; Huang, L.; Yang, B.; Zhao, H.; Jenks, M.A.; Yang, P.; Lü, S. Evolutionarily conserved function of the sacred lotus (Nelumbo nucifera Gaertn.) CER2-LIKE family in very-long-chain fatty acid elongation. Planta 2018, 248, 715–727. [Google Scholar] [CrossRef] [PubMed]
  37. Li, J.K.; Huang, S.Q. Flower thermoregulation facilitates fertilization in Asian sacred lotus. Ann. Bot. 2009, 103, 1159–1163. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Watling, J.; Robinson, S.; Seymour, R. Contribution of the Alternative Pathway to Respiration during Thermogenesis in Flowers of the Sacred Lotus. Plant Physiol. 2006, 140, 1367–1373. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Seymour, R.; Schultze-Motel, P.; Lamprecht, I. Heat production by sacred lotus flowers depends on ambient temperature, not light cycle. J. Exp. Bot. 1998, 49, 1213–1217. [Google Scholar] [CrossRef]
  40. Grant, N.; Miller, R.; Watling, J.; Robinson, S. Distribution of thermogenic activity in floral tissues of Nelumbo nucifera. Funct. Plant Biol. 2010, 37, 1085–1095. [Google Scholar] [CrossRef] [Green Version]
  41. Zhu, Y.; Lu, J.; Wang, J.; Chen, F.; Leng, F.; Li, H. Regulation of thermogenesis in plants: The interaction of alternative oxidase and plant uncoupling mitochondrial protein. J. Integr. Plant Biol. 2011, 53, 7–13. [Google Scholar] [CrossRef] [PubMed]
  42. Wang, R.; Zhang, Z. Floral thermogenesis: An adaptive strategy of pollination biology in Magnoliaceae. Commun. Integr. Biol. 2015, 8, e992746. [Google Scholar] [CrossRef]
  43. Wagner, A.M.; Krab, K.; Wagner, M.J.; Moore, A.L. Regulation of thermogenesis in flowering Araceae: The role of the alternative oxidase. Biochim. Biophys. Acta 2008, 1777, 993–1000. [Google Scholar] [CrossRef] [Green Version]
  44. Dieringer, G.; Leticia Cabrera, R.; Mottaleb, M. Ecological relationship between floral thermogenesis and pollination in Nelumbo lutea (Nelumbonaceae). Am. J. Bot. 2014, 101, 357–364. [Google Scholar] [CrossRef] [Green Version]
  45. Miller, R.E.; Watling, J.R.; Robinson, S.A. Functional transition in the floral receptacle of the sacred lotus (Nelumbo nucifera): From thermogenesis to photosynthesis. Funct. Plant Biol. 2009, 36, 471–480. [Google Scholar] [CrossRef]
  46. Grant, N.M.; Miller, R.E.; Watling, J.R.; Robinson, S.A. Synchronicity of thermogenic activity, alternative pathway respiratory flux, AOX protein content, and carbohydrates in receptacle tissues of sacred lotus during floral development. J. Exp. Bot. 2008, 59, 705–714. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Li, Z.; Liu, X.Q.; Gituru, R.W.; Juntawong, N.; Zhou, M.Q.; Chen, L.Q. Genetic diversity and classification of Nelumbo germplasm of different origins by RAPD and ISSR analysis. Sci. Hortic. 2010, 125, 724–732. [Google Scholar] [CrossRef]
  48. Hu, J.; Pan, L.; Liu, H.; Wang, S.; Wu, Z.; Ke, W.; Ding, Y. Comparative analysis of genetic diversity in sacred lotus (Nelumbo nucifera Gaertn.) using AFLP and SSR markers. Mol. Biol. Rep. 2012, 39, 3637–3647. [Google Scholar] [CrossRef] [PubMed]
  49. Yang, M.; Han, Y.; VanBuren, R.; Ming, R.; Xu, L.; Han, Y.; Liu, Y. Genetic linkage maps for Asian and American lotus constructed using novel SSR markers derived from the genome of sequenced cultivar. BMC Genom. 2012, 13, 653. [Google Scholar] [CrossRef] [PubMed]
  50. Yang, M.; Han, Y.N.; Xu, L.M.; Zhao, J.R.; Liu, Y.L. Comparative analysis of genetic diversity of lotus (Nelumbo) using SSR and SRAP markers. Sci. Hortic. 2012, 142, 185–195. [Google Scholar] [CrossRef]
  51. Huang, L.; Yang, M.; Li, L.; Li, H.; Yang, D.; Shi, T.; Yang, P. Whole genome re-sequencing reveals evolutionary patterns of sacred lotus (Nelumbo nucifera). J. Integr. Plant Biol. 2018, 60, 2–15. [Google Scholar] [CrossRef] [PubMed]
  52. Zhao, M.; Yang, J.-X.; Mao, T.-Y.; Zhu, H.-H.; Xiang, L.; Zhang, J.; Chen, L.-Q. Detection of Highly Differentiated Genomic Regions Between Lotus (Nelumbo nucifera Gaertn.) with Contrasting Plant Architecture and Their Functional Relevance to Plant Architecture. Front. Plant Sci. 2018, 9, 1219. [Google Scholar] [CrossRef] [PubMed]
  53. Hu, J.; Gui, S.; Zhu, Z.; Wang, X.; Ke, W.; Ding, Y. Genome-Wide Identification of SSR and SNP Markers Based on Whole-Genome Re-Sequencing of a Thailand Wild Sacred Lotus (Nelumbo nucifera). PLoS ONE 2015, 10, e0143765. [Google Scholar] [CrossRef]
  54. Deng, J.; Chen, S.; Yin, X.J.; Wang, K.; Liu, Y.L.; Li, S.H.; Yang, P.F. Systematic qualitative and quantitative assessment of anthocyanins, flavones and flavonols in the petals of 108 lotus (Nelumbo nucifera) cultivars. Food Chem. 2013, 139, 307–312. [Google Scholar] [CrossRef]
  55. Deng, J.; Li, M.; Huang, L.; Yang, M.; Yang, P. Genome-wide analysis of the R2R3 MYB subfamily genes in lotus (Nelumbo nucifera). Plant Mol. Biol. Report. 2016, 34, 1016–1026. [Google Scholar] [CrossRef]
  56. Sun, S.-S.; Gugger, P.F.; Wang, Q.-F.; Chen, J.-M. Identification of a R2R3-MYB gene regulating anthocyanin biosynthesis and relationships between its variation and flower color difference in lotus (Nelumbo Adans.). PeerJ 2016, 4, e2369. [Google Scholar] [CrossRef] [PubMed]
  57. Deng, J.; Fu, Z.; Chen, S.; Damaris, R.N.; Wang, K.; Li, T.; Yang, P. Proteomic and Epigenetic Analyses of Lotus (Nelumbo nucifera) Petals Between Red and White cultivars. Plant Cell Physiol. 2015, 56, 1546. [Google Scholar] [CrossRef] [PubMed]
  58. Lin, Z.; Damaris, R.N.; Shi, T.; Li, J.; Yang, P. Transcriptomic analysis identifies the key genes involved in stamen petaloid in lotus (Nelumbo nucifera). BMC Genom. 2018, 19, 554. [Google Scholar] [CrossRef] [PubMed]
  59. Lin, Z.; Liu, M.; Damaris, R.N.; Nyong’a, T.M.; Cao, D.; Ou, K.; Yang, P. Genome-Wide DNA Methylation Profiling in the Lotus (Nelumbo nucifera) Flower Showing its Contribution to the Stamen Petaloid. Plants 2019, 8, 135. [Google Scholar] [CrossRef] [PubMed]
  60. Yang, M.; Zhu, L.; Xu, L.; Pan, C.; Liu, Y. Comparative transcriptomic analysis of the regulation of flowering in temperate and tropical lotus (Nelumbo nucifera) by RNA-Seq. Ann. Appl. Biol. 2014, 165, 73–95. [Google Scholar] [CrossRef]
  61. Yang, M.; Zhu, L.; Pan, C.; Xu, L.; Liu, Y.; Ke, W.; Yang, P. Transcriptomic Analysis of the Regulation of Rhizome Formation in Temperate and Tropical Lotus (Nelumbo nucifera). Sci. Rep. 2015, 5, 13059. [Google Scholar] [CrossRef]
  62. Kim, M.-J.; Nelson, W.; Soderlund, C.A.; Gang, D.R. Next-Generation Sequencing-Based Transcriptional Profiling of Sacred Lotus ‘China Antique’. Trop. Plant Biol. 2013, 6, 161–179. [Google Scholar] [CrossRef]
  63. Yang, M.; Xu, L.; Liu, Y.; Yang, P. RNA-Seq Uncovers SNPs and Alternative Splicing Events in Asian Lotus (Nelumbo nucifera). PLoS ONE 2015, 10, e0125702. [Google Scholar] [CrossRef]
  64. Li, J.; Shi, T.; Huang, L.; He, D.; Nyong’A, T.M.; Yang, P. Systematic transcriptomic analysis provides insights into lotus (Nelumbo nucifera) seed development. Plant Growth Regul. 2018, 86, 339–350. [Google Scholar] [CrossRef]
  65. Chen, S.; Fang, L.; Xi, H.; Guan, L.; Fang, J.; Liu, Y.; Wu, B.; Li, S. Simultaneous qualitative assessment and quantitative analysis of flavonoids in various tissues of lotus (Nelumbo nucifera) using high performance liquid chromatography coupled with triple quad mass spectrometry. Anal. Chim. Acta 2012, 724, 127–135. [Google Scholar] [CrossRef]
  66. Limwachiranon, J.; Huang, H.; Shi, Z.; Li, L.; Luo, Z. Lotus Flavonoids and Phenolic Acids: Health Promotion and Safe Consumption Dosages. Compr. Rev. Food Sci. Food Saf. 2018, 17, 458–471. [Google Scholar] [CrossRef] [Green Version]
  67. Sharma, B.R.; Gautam, L.N.; Adhikari, D.; Karki, R. A Comprehensive Review on Chemical Profiling of Nelumbo Nucifera: Potential for Drug Development. Phytother. Res. 2017, 31, 3–26. [Google Scholar] [CrossRef] [PubMed]
  68. Chen, S.; Xiang, Y.; Deng, J.; Liu, Y.L.; Li, S.H. Simultaneous Analysis of Anthocyanin and Non-Anthocyanin Flavonoid in Various Tissues of Different Lotus (Nelumbo) Cultivars by HPLC-DAD-ESI-MSn. PLoS ONE 2013, 8, e62291. [Google Scholar] [CrossRef] [PubMed]
  69. Chen, S.; Zheng, Y.; Fang, J.B.; Liu, Y.L.; Li, S.H. Flavonoids in lotus (Nelumbo) leaves evaluated by HPLC-MSn at the germplasm level. Food Res. Int. 2013, 54, 796–803. [Google Scholar] [CrossRef]
  70. Li, S.S.; Wu, J.; Chen, L.G.; Du, H.; Xu, Y.J.; Wang, L.J.; Zhang, H.J.; Zheng, X.C.; Wang, L.S. Biogenesis of C-Glycosyl Flavones and Profiling of Flavonoid Glycosides in Lotus (Nelumbo nucifera). PLoS ONE 2014, 9, e108860. [Google Scholar] [CrossRef] [PubMed]
  71. Zhao, X.; Shen, J.; Chang, K.J.; Kim, S.H. Comparative Analysis of Antioxidant Activity and Functional Components of the Ethanol Extract of Lotus (Nelumbo nucifera) from Various Growing Regions. J. Agric. Food Chem. 2014, 62, 6227–6235. [Google Scholar] [CrossRef] [PubMed]
  72. Zhu, M.Z.; Wu, W.; Jiao, L.L.; Yang, P.F.; Guo, M.Q. Analysis of Flavonoids in Lotus (Nelumbo nucifera) Leaves and Their Antioxidant Activity Using Macroporous Resin Chromatography Coupled with LC-MS/MS and Antioxidant Biochemical Assays. Molecules 2015, 20, 10553–10565. [Google Scholar] [CrossRef]
  73. Feng, C.Y.; Li, S.S.; Yin, D.D.; Zhang, H.J.; Tian, D.K.; Wu, Q.; Wang, L.J.; Su, S.; Wang, L.S. Rapid determination of flavonoids in plumules of sacred lotus cultivars and assessment of their antioxidant activities. Ind. Crop. Prod. 2016, 87, 96–104. [Google Scholar] [CrossRef]
  74. Guo, Y.J.; Chen, X.; Qi, J.; Yu, B.Y. Simultaneous qualitative and quantitative analysis of flavonoids and alkaloids from the leaves of Nelumbo nucifera Gaertn. using high-performance liquid chromatography with quadrupole time-of-flight mass spectrometry. J. Sep. Sci. 2016, 39, 2499–2507. [Google Scholar] [CrossRef]
  75. Zhu, M.Z.; Liu, T.; Zhang, C.Y.; Guo, M.Q. Flavonoids of Lotus (Nelumbo nucifera) Seed Embryos and Their Antioxidant Potential. J. Food Sci. 2017, 82, 1834–1841. [Google Scholar] [CrossRef]
  76. Tian, W.Y.; Zhi, H.; Yang, C.; Wang, L.K.; Long, J.T.; Xiao, L.M.; Liang, J.Z.; Huang, Y.; Zheng, X.; Zhao, S.Q.; et al. Chemical composition of alkaloids of Plumula nelumbinis and their antioxidant activity from different habitats in China. Ind. Crop. Prod. 2018, 125, 537–548. [Google Scholar] [CrossRef]
  77. Zheng, J.X.; Tian, W.Y.; Yang, C.; Shi, W.P.; Cao, P.H.; Long, J.T.; Xiao, L.M.; Wu, Y.; Liang, J.Z.; Li, X.B.; et al. Identification of flavonoids in Plumula nelumbinis and evaluation of their antioxidant properties from different habitats. Ind. Crop. Prod. 2019, 127, 36–45. [Google Scholar] [CrossRef]
  78. Commission, C.P. Pharmacopoeia of the People’s Republic of China; China Medical Science and Technology Press: Beijing, China, 2015. [Google Scholar]
  79. Huang, B.; Ban, X.; He, J.; Tong, J.; Tian, J.; Wang, Y. Hepatoprotective and antioxidant activity of ethanolic extracts of edible lotus (Nelumbo nucifera Gaertn.) leaves. Food Chem. 2010, 120, 873–878. [Google Scholar] [CrossRef]
  80. Paudel, K.R.; Panth, N. Phytochemical Profile and Biological Activity of Nelumbo nucifera. Evid. -Based Complement. Altern. Med. 2015, 2015, 789124. [Google Scholar] [CrossRef] [PubMed]
  81. Ye, L.H.; He, X.X.; Kong, L.T.; Liao, Y.H.; Pan, R.L.; Xiao, B.X.; Liu, X.M.; Chang, Q. Identification and characterization of potent CYP2D6 inhibitors in lotus leaves. J. Ethnopharmacol. 2014, 153, 190–196. [Google Scholar] [CrossRef] [PubMed]
  82. Ye, L.-H.; He, X.-X.; You, C.; Tao, X.; Wang, L.-S.; Zhang, M.-D.; Zhou, Y.-F.; Chang, Q. Pharmacokinetics of Nuciferine and N-Nornuciferine, Two Major Alkaloids From Nelumbo nucifera Leaves, in Rat Plasma and the Brain. Front. Pharmacol. 2018, 9, 902. [Google Scholar] [CrossRef]
  83. Yang, M.; Zhu, L.; Li, L.; Li, J.; Xu, L.; Feng, J.; Liu, Y. Digital Gene Expression Analysis Provides Insight into the Transcript Profile of the Genes Involved in Aporphine Alkaloid Biosynthesis in Lotus (Nelumbo nucifera). Front. Plant Sci. 2017, 8, 80. [Google Scholar] [CrossRef] [PubMed]
  84. Deng, X.; Zhao, L.; Fang, T.; Xiong, Y.; Ogutu, C.; Yang, D.; Vimolmangkang, S.; Liu, Y.; Han, Y. Investigation of benzylisoquinoline alkaloid biosynthetic pathway and its transcriptional regulation in lotus. Hortic. Res. 2018, 5, 29. [Google Scholar] [CrossRef]
  85. Menendez-Perdomo, I.M.; Facchini, P.J. Benzylisoquinoline Alkaloids Biosynthesis in Sacred Lotus. Molecules 2018, 23, 2899. [Google Scholar] [CrossRef]
  86. Arunyanart, S.; Chaitrayagun, M. Induction of somatic embryogenesis in lotus (Nelumbo nucifera Geartn.). Sci. Hortic. 2005, 105, 411–420. [Google Scholar] [CrossRef]
  87. Liu, Y.; Chaturvedi, P.; Fu, J.; Cai, Q.; Weckwerth, W.; Yang, P. Induction and quantitative proteomic analysis of cell dedifferentiation during callus formation of lotus (Nelumbo nucifera Gaertn. spp. baijianlian). J. Proteom. 2016, 131, 61–70. [Google Scholar] [CrossRef]
  88. Shou, S.Y.; Miao, L.X.; Zai, W.S.; Huang, X.Z.; Guo, D.P. Factors influencing shoot multiplication of lotus (Nelumbo nucifera). Biol. Plant. 2008, 52, 529–532. [Google Scholar] [CrossRef]
  89. Buathong, R.; Saetiew, K.; Phansiri, S.; Parinthawong, N.; Arunyanart, S. Tissue culture and transformation of the antisense DFR gene into lotus (Nelumbo nucifera Gaertn.) through particle bombardment. Sci. Hortic. 2013, 161, 216–222. [Google Scholar] [CrossRef]
  90. Kanjana, S.; Prissadang, A.; Nanglak, P.; Sumay, A. Transformation of Antisense Chalcone Synthase (CHS) Gene into Lotus (Nelumbo Nucifera Gaertn.) by Particle Bombardment. Open Biotechnol. J. 2017, 11, 1–8. [Google Scholar] [CrossRef]

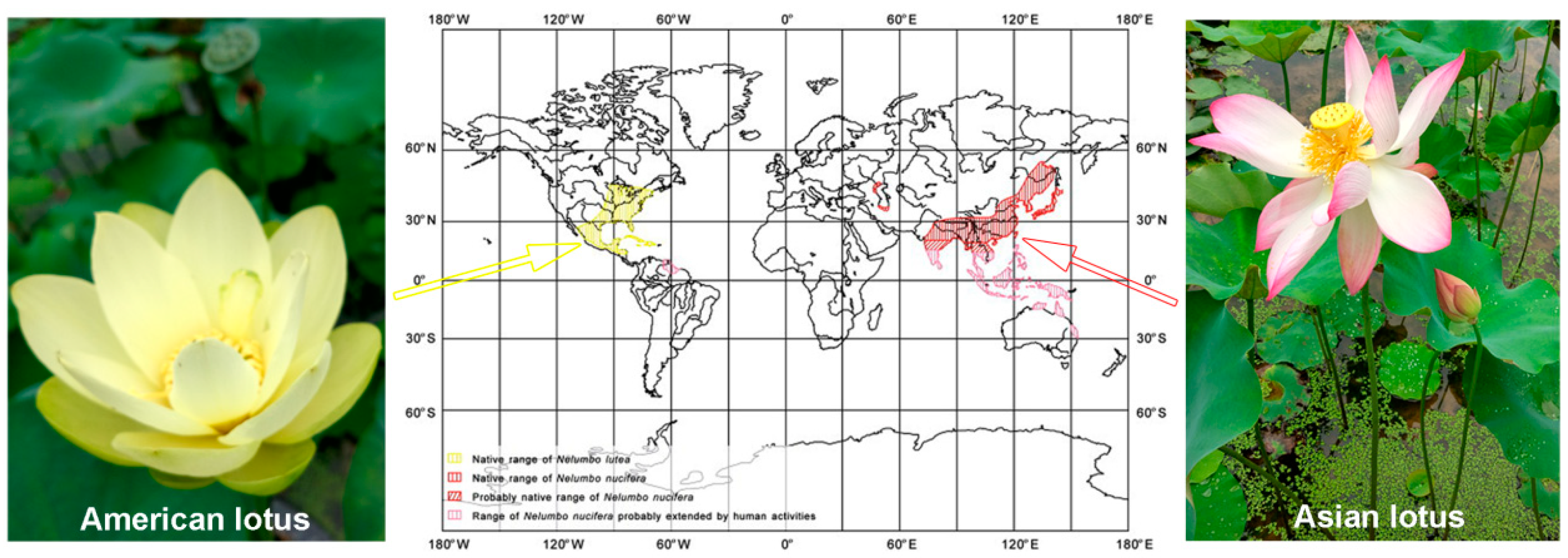

Figure 1. Overview of the lotus species and their global distribution. The left and right panels show the flowers of American and Asian lotus, respectively. The yellow and red shadow areas in the world map of the middle panel show the distributions of American and Asian lotus, respectively. (Figure revised from Li, Y. et al. [4]).
Figure 1. Overview of the lotus species and their global distribution. The left and right panels show the flowers of American and Asian lotus, respectively. The yellow and red shadow areas in the world map of the middle panel show the distributions of American and Asian lotus, respectively. (Figure revised from Li, Y. et al. [4]).
Ijms 20 03680 g001
Figure 2. The diversified phenotypes of the Asian lotus germplasm. (A) Flower lotus germplasm showing different flower color and shape. (B) Seed lotus germplasm showing different size and shape of seed and seedpod. (C) Rhizome lotus germplasm showing different branching, elongation and expansion of the rhizome.
Figure 2. The diversified phenotypes of the Asian lotus germplasm. (A) Flower lotus germplasm showing different flower color and shape. (B) Seed lotus germplasm showing different size and shape of seed and seedpod. (C) Rhizome lotus germplasm showing different branching, elongation and expansion of the rhizome.
Ijms 20 03680 g002
Figure 3. Lotus cultivar with spotted color flower.
Figure 3. Lotus cultivar with spotted color flower.
Ijms 20 03680 g003
