Effect of Surfactant Type and Sonication Energy on the Electrical Conductivity Properties of Nanocellulose-CNT Nanocomposite Films

1
Laboratory of Materials Science, Tampere University of Technology, FI-33720 Tampere, Finland
2
BioMediTech, Tampere University of Technology, FI-33720 Tampere, Finland
3
VTT Research Center, FI-02044 Espoo, Finland
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2018, 19(6), 1819; https://doi.org/10.3390/ijms19061819
Received: 15 May 2018 / Revised: 6 June 2018 / Accepted: 15 June 2018 / Published: 20 June 2018
(This article belongs to the Special Issue Synthesis and Applications of Biopolymer Composites)
We present a detailed study on the influence of sonication energy and surfactant type on the electrical conductivity of nanocellulose-carbon nanotube (NFC-CNT) nanocomposite films. The study was made using a minimum amount of processing steps, chemicals and materials, to optimize the conductivity properties of free-standing flexible nanocomposite films. In general, the NFC-CNT film preparation process is sensitive concerning the dispersing phase of CNTs into a solution with NFC. In our study, we used sonication to carry out the dispersing phase of processing in the presence of surfactant. In the final phase, the films were prepared from the dispersion using centrifugal cast molding. The solid films were analyzed regarding their electrical conductivity using a four-probe measuring technique. We also characterized how conductivity properties were enhanced when surfactant was removed from nanocomposite films; to our knowledge this has not been reported previously. The results of our study indicated that the optimization of the surfactant type clearly affected the formation of freestanding films. The effect of sonication energy was significant in terms of conductivity. Using a relatively low 16 wt. % concentration of multiwall carbon nanotubes we achieved the highest conductivity value of 8.4 S/cm for nanocellulose-CNT films ever published in the current literature. This was achieved by optimizing the surfactant type and sonication energy per dry mass. Additionally, to further increase the conductivity, we defined a preparation step to remove the used surfactant from the final nanocomposite structure. View Full-Text
Keywords: nanocellulose; carbon nanotubes; nanocomposite; conductivity; surfactant nanocellulose; carbon nanotubes; nanocomposite; conductivity; surfactant
Show Figures

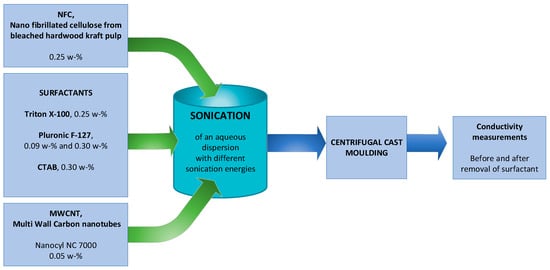

Graphical abstract
