Transcription factors (i.e., DNA binding proteins controlling the rate of gene transcription; TFs) are nodal points in signaling pathways and among the most frequently affected genes in cancer [1
]. Signal transducer and activator of transcription (STAT) is a family of cytoplasmic TFs (STAT1, STAT2, STAT3, STAT4, STAT5a, STAT5b, and STAT6) responsible for the transmission to the nucleus of signals from multiple receptors and non-receptor associated kinases [3
In this review, we will focus on structural biology studies of a specific member of the STAT family, namely STAT3, and its implications for comprehension of the protein functional mechanism and the development of novel anticancer therapies. This protein plays a pivotal role in the regulation of several genes involved in proliferation, differentiation, apoptosis, angiogenesis and immuno-inflammatory processes. Additionally, it has been recently demonstrated that STAT3 also localizes into mitochondria and that it can influence their function [5
Over the years, enhanced and dysregulated STAT3 activity has been observed in a large number of cancer cell lines [8
], indicating this protein as a promising target for the development of anticancer therapies [9
]. In fact, STAT3 drives the expression of proliferation and survival genes, like c-myc
]. Furthermore, it has important consequences on the tumor microenvironment by increasing the expression of pro-angiogenic factors [3
]. Finally, STAT3 activation in tumors induces immune-suppressive cytokines and promotes immune-evasion [16
A search in the Web of Science database for papers with the word “STAT3” and “inhibitor” in the title revealed more than 500 articles published in the last twenty years. This data makes explicit the great effort made by the scientific community to develop pharmacological therapies based on the modulation of STAT3 functions.
Despite the significant efforts made, the tendency of the STAT3 to aggregate prevented, until now, the determination of the structure of the entire protein in both monomeric and dimeric form. However, several recombinant proteins not prone to aggregation have been expressed and their structure solved by X-ray crystallography (Table 1
). These investigations [19
] confirmed that STAT3 shares with other members of the STAT family a peculiar 3D-structure characterized by six main structural motifs (Figure 1

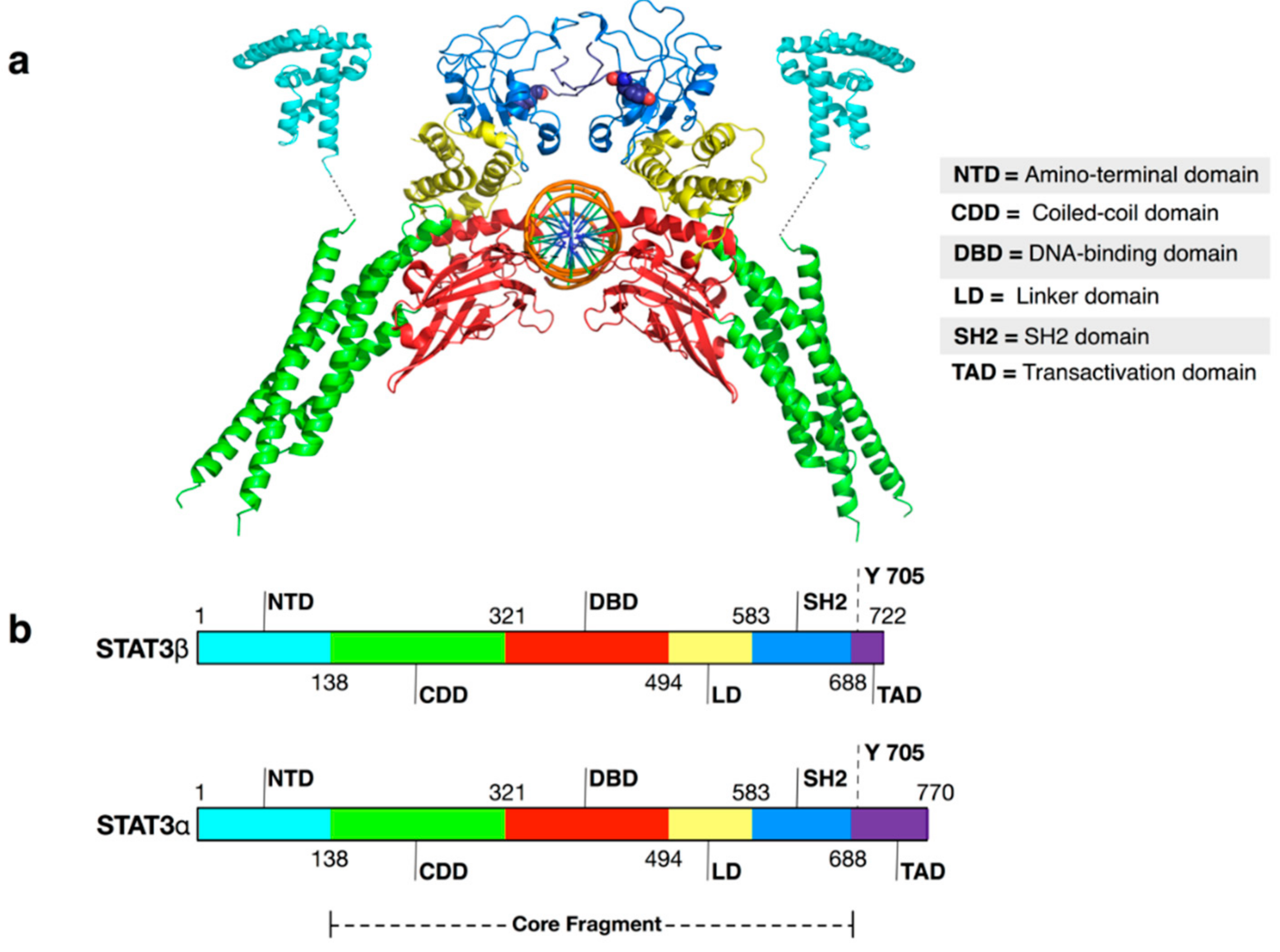

): (1) Amino-terminal domain (NTD), (2) coiled-coil domain, (3) DNA-binding domain, (4) linker domain (LD), (5) Src Homology 2 (SH2) domain and (6) trans-activation domain (TAD). The domain at the C-terminal of STAT3, TAD, is intrinsically disordered and highly conserved between STAT proteins. Several experiments indicate that the TAD is not involved directly in dimerization interface of many STATs proteins. However, when phosphorylated, a specific tyrosine residue (Tyr705 in the case of STAT3) included in the TAD can reinforce the protein-protein interaction binding in a specific site located in the other protein partner [22
Different splicing results in two main STAT3 isoforms (α and β) that differ for the length of the TAD (∼50 residues in STAT3α and ∼7 residues in STAT3β). The biological roles of the two isoforms have been debated since their discovery. However, because the high disorder that marks this protein region it has been scarcely characterized from the structural point of view. Therefore, in this review we will only discuss the other structured domains that are common in both isoforms.
2. Functional Mechanism
Cytokine receptors and growth factor receptors are the main drivers of STAT3 activation. Moreover, it has been shown that also environmental factors such as smoking cigarettes, infections and stress can lead to STAT3 triggering by toll-like receptors (TLR), adrenergic receptors and nicotinic receptors [16
The interaction of the physiological ligands with their receptors starts the so-called “canonical” STAT3 activation pathway that involves phosphorylation of a specific tyrosine residue (Tyr705) in the TAD [3
]. This post-transcriptional modification is mainly catalyzed by a family of receptor-associated tyrosine kinases, JAK1–JAK3 and Tyk2 [28
], but also by non-receptor kinases like c-src and c-abl [3
Phosphorylation changes the propensity of STAT3 molecules to form homo-dimers [3
]. Similar to the STAT1 dimer-DNA structure [26
], while the main dimerization interface is formed by the SH2 domains, the two TADs increase the stability of the dimer by the binding of p-Tyr705 in a specific cavity located in the SH2 domain of the other monomer. A key element for the p-Tyr705 recognition is the presence of an arginine, strictly conserved in all known SH2 domain (Arg609 in STAT3) residing in the interior of the SH2 domain [26
]. This arginine residue, because of the favorable electrostatic interaction energy between the negatively charged phosphate and the positive NH3
amino group, stabilizes the p-Tyr705 binding. Phosphorylated STAT3 is retained in the nucleus, where it binds to DNA in order to promote and activate transcription of a wide array of genes controlling cell differentiation, proliferation and survival in various cell types.
Year after year, is becoming clearer that the phosphorylation–dimerization–activation scheme does not completely recapitulate the complexity of the STAT3 functional mechanisms and a novel more complicated picture, involving unphosphorylated STAT3 and other post-transcriptional modifications, is emerging [30
]. For example, the presence of unphosphorylated STAT proteins (USTATs) inside the nucleus, as well as, their ability to dimerize and bind DNA have been shown experimentally [20
]. Concerning their functional roles, the formation of USTAT3 dimers influences the nuclear localization of the protein, DNA-binding, chromatin-remodeling and the regulation of specific gene expression [27
The NTD domain is not directly involved in the formation of phosphorylated STAT3 dimers or in their interaction with DNA, therefore it was not considered central for the STAT3 functions for a long time. However, recent studies indicated that NTD has an important role at low cytokine concentration, i.e., when the activated STAT3 concentration is small. In fact, the NTD domains seem to facilitate the STAT3 binding to weak STAT3-binding sites by forming tetramers composed of a pair of phosphorylated dimers [27
]. Moreover, both experimental [35
] and computational studies [25
] indicated that the NTD is part of the dimerization surface in USTAT3 dimers and that it is important for nuclear accumulation [37
], DNA binding [31
] and gene expression regulation [38
]. Collectively, these studies revealed that also this protein region could be suitable for the development of new drugs, however, few attempts were done [39
] and a more intense research activity is required to develop inhibition strategies based on NTD binding.
3. Post-Transcriptional Modifications and Their Role in the STAT3 Function
Phosphorylation of tyrosine residues located in the SH2 and TAD domains of STAT proteins by protein tyrosine kinases (PTKs) has been identified as a critical event for modulating their functions [24
]. However, other post-transcriptional modifications (PTMs) can influence the protein activity.
For example, STAT3 is subject to phosphorylation on serine 727 (that lacks in STAT3β) by serine protein kinases, as well as, lysine acetylation and methylation by protein acetyltransferase and methyltransferases [16
]. Multiple studies reported about the possible roles of Ser727 phosphorylation in both protein functions and progression of specific cancers [43
]. Moreover, Wakahara et al., reported that Ser727 phosphorylation regulates the duration of the STAT3 transcriptional activity by bolstering the p-Tyr705 dephosphorylation [44
Concerning acetylation, recent studies supported the hypothesis that it modulates different functions and properties of STAT3 [45
] such as protein dimerization [46
], transcriptional activity [47
], mitochondrial translocation [48
], cardiogenesis [49
] and methylation of tumor-suppressor gene promoters [50
]. Other studies lead to the identification of additional acetylation sites: K685, K49, K87, K679, K707, K709 [45
Regarding methylation, Lee and coworkers recently demonstrated that Enhancer of Zest Homolog 2 (EZH2), a histone-lysine N-methyltransferase, interacts with and methylates STAT3 increasing its activity [51
Finally, in 2014 Mariotto and coworkers reported that the S-Glutathionylation of Cys328 and Cys542, located in the DNA-binding domain and in the linker domain, respectively, severely impair STAT3 phosphorylation [52
4. Structural and Biophysical Investigations
As already pointed out, structural studies on STAT3 and other STAT proteins, have been slowed down by problems with protein expression and purification due to the tendency of STATs to form aggregates. As consequence, only domains of the STAT proteins have been solved and the structure of full length STAT3 is not available in the protein data bank (PDB).
The first structure (PDB code 1BG1) of mouse phosphorylated STAT3β core fragment (i.e., lacking NTD) in complex with DNA (see Figure 1
) was solved in 1998 by Becker and coworkers with a resolution of 2.25 Å [21
]. This structure enabled a detailed characterization of the interaction between DNA and the STAT3-DNA binding domain and the identification of residues essential for the interaction. Moreover, the binding of p-Tyr705 to SH2 was characterized in detail. In particular, the structural studies confirmed that p-Tyr705 forms polar interactions with residues Lys591, Arg609, Ser611, and Ser613. This information has been crucial for drug design given that the majority of STAT3 inhibitors reported in the literature so far has been designed to compete with p-Tyr705 for the binding in its SH2 cavity.
In 2008 Chen and coworkers solved by X-ray crystallography the structure of the monomeric core fragment of USTAT3 (PDB code 3CWG) at a resolution of 3.05 Å [19
]. This study confirmed that STAT3 and USTAT3 have essentially an identical structure and indicated that the core fragment is primarily monomeric.
The same core fragment, with the NTD replaced by green fluorescent protein (GFP), was solved in complex with DNA (PDB code 3E68) at a resolution of 2.65 Å by Nkansah et al., in 2013 [20
]. Notably, in this case, it was possible to observe for the first time the complex formed by two USTAT3 molecules and a DNA fragment, demonstrating that Tyr705 phosphorylation is not the only event triggering STAT3 dependent transcription.
Finally, in 2015 the first structure of the NTD was published by Frank and coworkers [27
]. During their experiment, the authors found that the removal of the first two residues (Met1 and Ala2) from the protein sequence significantly increased the protein solubility. In particular, they expressed different constructs (residues 3 to 120, 3 to 124, 3 to 126, 3 to 130, 3 to 135, and 3 to 138), but only the one with residues from 2 to 138 produced crystals. The obtained 3D structure of STAT3-NTD monomers is very similar to those of STAT1 [53
] and STAT4 [54

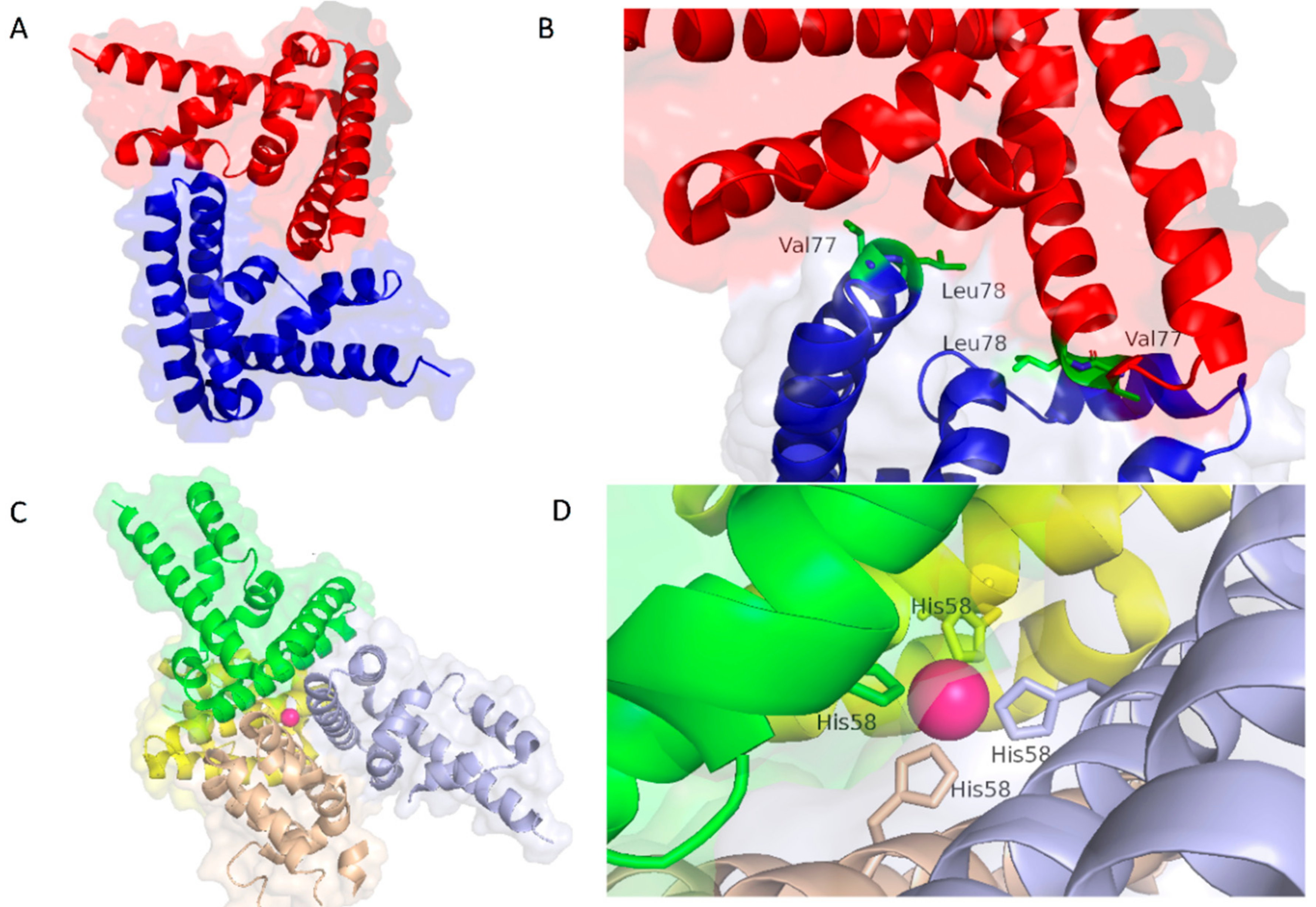

Concerning the interaction between multiple NTD, the asymmetric unit of the crystal is formed by five NTDs and two different protein-protein interaction surfaces were observed, one indicated as ‘“handshake” interface and the other as “Ni2+
-mediated” (Figure 2
). It is important to note that, while the first interaction mode is accepted to be present in physiological conditions, the authors state that “Ni2+
-mediated” interaction is probably due to the purification conditions. However, considering (1) the tendency of STAT3 to form paracrystals [23
] or nuclear bodies to defend itself from phosphorylation and (2) that its function is directly influenced by metals [56
], also the “Ni2+
-mediated” interface could be necessary for some physiological, still not well characterized, effects.
Interestingly, in the previously discussed study [27
], the NTD dimerization was also investigated by SEC—small-angle X-ray scattering (SEC-SAXS) experiment. The obtained results confirmed not only the NTD dimerization, but also that this methodology is a very useful tool to study dynamics and aggregation prone samples.
Computational studies also have been carried out to investigate the structure of STAT3 monomer and dimer. In 2012, Husby et al. [57
] investigated the interaction between STAT3, USTAT3 and DNA by molecular dynamics simulations obtaining interesting data about the importance of specific residues in the interaction with DNA.
More recently, some of us used protein-protein docking and molecular dynamics simulations to investigate the structure of USTAT3 dimers not bound to DNA [25
]. In particular, the models obtained by docking were screened by the available structural information and then molecular dynamics simulations were used to relax the models. Finally, Molecular Mechanics-Generalized Born Surface Area (MM-GBSA) [58
] calculations have been used to identify the residues more important for the dimer stability.
5. Drug Design
Over the years, experimental information about the structure of STAT3 and computer simulations have been used to (1) identify new inhibitors, (2) to better understand the binding mode of existing inhibitors and (3) to improve their affinity for the target. A list of papers published in the last five years, together with a summary, is reported in Table 2
. Multiple strategies, involving different protein regions, have been followed aiming to design potent and selective inhibitors of the STAT3 functions [59
The goal of this section is to give an overview about how structural biology influenced the discovery of new biologically active molecules. The medicinal chemistry efforts to discover STAT3 inhibitors have been extensively reviewed elsewhere [9
]. Here, therefore, we will discuss only selected examples of ligand-based drug design and how computational, structural and biochemical techniques have been used to understand the binding mode of STAT3 inhibitors. The majority of the ligands have been designed to antagonize the phosphorylation induced protein dimerization. In this case, the rationale that guided the screening and the structural optimization of the lead compounds was the identification of molecules able to compete with p-Tyr705 for binding to a site located in the SH2 domain [67
Among the STAT3 inhibitors designed to compete for p-Tyr705 binding site a large group is formed by phosphopeptides. This approach was firstly attempted by Turkson et al. in 2001 [68
]. Starting from the sequence of the SH2 binding peptide (PY*LKTK, where Y* indicates p-Tyr705) they carried out a systematic analysis of the binding properties of derived peptides. After an in-depth characterization of the in vitro and in vivo activity of PY*LKTK and the other synthesized peptides, they concluded that the sequence XY*L (X is a generic residue) represents the minimal active sequence. Using a similar approach McMurray and coworkers [69
] considered tyrosine-phosphorylated hexapeptides, selected taking into consideration the STAT3 docking sites for gp130, LIFR, EGFR, IL-10R, and GCSFR. They discovered one peptide (sequence Y*LPQTV) able to block STAT3 dimerization and DNA binding with an IC50
of 150 nM (determined by electrophoretic mobility shift assay, EMSA) [69
] or 290 nM (determined by fluorescence polarization, FP) [70
]. The subsequent optimization of this peptide benefitted of the structural information about the interaction between one STAT3 monomer and the Y*LKTKF peptide from the other STAT3 molecule forming the “canonical” dimer reported in the seminal work of Becker et al. [21
] (PDB code 1BG1, Figure 3
). However, the X-ray structure did not give any information about the interaction of the PQTV portion of the lead peptide, because this is not present in the co-crystallized peptide. Then, structure-activity relationship (SAR) analyses were performed to identify residues that are important for binding and could be modified. Collectively, these studies led to the identification of a peptidomimetic (hydroxycinnamoyl-Tyr(PO3H2)-Leu-cis
-3,4-methanoPro-Gln-NHBn) that showed an IC50
of 150 nM in FP assays [70
]. More recently, the same group published a peptidomimetic inspired by their best phosphopeptide that displayed an IC50
162 nM [71
]. Structure-based computational methods have been applied to identify many small organic compounds able to modulate STAT3 activity by binding to the SH2 domain. For example, the structural and computational analysis of the interaction between phosphotyrosine peptides and STAT3 guided the development of a peptidomimetic molecule (S3I-M2001) [72
]. The list of the molecules discovered by virtual screening includes STAT-21 [73
], STX-0119 [74
] and a group of three molecules named cpd3, cpd30, and cpd188 that compete with Y* for its binding site in the SH2 domain [75
Computational methods, based on the use of the available structural information, have also been used to improve our knowledge of how already identified compounds interact with STAT3. For example, Brambilla et al. [76
] used an integrated approach between computational and experimental methods to identify the binding site for OPB-31121, a STAT3 inhibitor discovered by biochemical/cellular assays. In particular, computational studies based on docking, molecular dynamics and free energy calculations suggested that OPB-31121 binds to a site different from that of other characterized STAT3 inhibitors, such as S3I.201. Free energy calculations gave essential suggestions about the residues more critical for the binding of OPB-31121 to the SH2 domain. Then, two mutants (S636A and V637A) were expressed and their ability to bind OPB-31121 and S3I.201 was tested by isothermal titration calorimetry (ITC) experiments. Interestingly, these mutations abrogated only the binding of OPB-31121 and not of S3I.201, confirming that computer simulations correctly identified the specific OPB-31121 binding site. This strategy was used by the same group to investigate the binding of another structurally similar STAT3 inhibitor, OPB-51602 [5
Importantly, also other STAT3 domains have been explored to design innovative inhibitors. The relevance of the NTD in USTAT3 dimerization, oligomerization [66
] and other cellular processes motivated Timofeeva at al. [40
] to design peptides able to bind this region and inhibit specific STAT3 functions. Starting from the analysis of the STAT4 NTD dimers structure, available at the time of their study (PDB code 1BGF [54
]), they selected two helices of 12 and 20 residues involved in the binding surface. Then, they synthetized peptides considering the sequence the corresponding to the same protein region in STAT3 and hypothesizing that they might antagonize the NTD dimer formation.
The complex between the two peptides and the STAT4 NTD was investigated by nuclear magnetic resonance (NMR). The structure with the 20-residues long peptide was not determined because it induced protein aggregation, probably due to NTD unfolding. Also, the experiments on the 12-residues long peptide, analog of helix 2 (Figure 4
), suggested an effect on the NTD structure. Nevertheless, in this case, it was possible to carry on the analysis and observe that the majority of the chemical shift changes were located in the region occupied by helix 8. The authors concluded that a new interaction interface, not detected in the NDT STAT4 structure [54
], was induced by the presence of the 12-residues peptide.
Finally, starting from the helix 2 analog, a library of mutant peptides was synthetized and their ability to suppress STAT3 signaling in cancer cells was evaluated. To note, these peptides were fused with penetratin, a peptide able to permit the entrance in the cells of non-cell penetrating molecules [77
Some of the synthetized peptides demonstrated STAT3 inhibitory activity in the gamma activation sequence (GAS)-luciferase reporter assays and inhibition of proliferation of Michigan Cancer Foundation (MCF)-7 breast cancer cells, confirming that the NTD domain is a protein region suitable for the development of new anticancer drugs.
In summary, these studies provide clear evidence of the crucial role of structural biology information for the identification and optimization of STAT3 inhibitors and indicate that future studies cannot disregard the use of computational and experimental structural techniques.
In summary, despite difficulties in the expression and crystallization of the protein, structural biology investigations have been of great help in improving our understanding of the STAT3 structure and its functional mechanism.
The structures available in the PDB have been the starting point for a large number of studies in which computer simulations have been used to identify new drugs, improving their affinity for the target or simply to understand their biding mode.
However, a lot of issues, in particular concerning the structure of USTAT3 dimers, the interaction with specific drugs but also the role of NTD domains in the phosphorylated dimers and other molecular events, are still open and should be the subjects of new studies.
Hopefully, in the next future the integration between computational, structural and biophysical techniques will help to better characterize from the structural point of view the drug protein complexes and those STAT3 species that have eluded the attempts of characterization carried out so far.
