Pan-Cancer Mutational and Transcriptional Analysis of the Integrator Complex

Antonio Federico
Monica Rienzo
Ciro Abbondanza
Valerio Costa
Alfredo Ciccodicola
1,2,† and
Amelia Casamassimi
Institute of Genetics and Biophysics “Adriano Buzzati Traverso”, CNR, 80131 Naples, Italy
Department of Science and Technology, University of Naples “Parthenope”, 80143 Naples, Italy
Department of Environmental, Biological, and Pharmaceutical Sciences and Technologies, University of Campania “Luigi Vanvitelli”, 81100 Caserta, Italy
Department of Biochemistry, Biophysics and General Pathology, University of Campania “Luigi Vanvitelli”, Via L. De Crecchio, 80138 Naples, Italy
Author to whom correspondence should be addressed.
These two authors contributed equally to this work as co-last authors.
Int. J. Mol. Sci. 2017, 18(5), 936;
Submission received: 10 April 2017 / Revised: 20 April 2017 / Accepted: 23 April 2017 / Published: 29 April 2017
(This article belongs to the Special Issue Transcriptome Profiling in Human Diseases)


The integrator complex has been recently identified as a key regulator of RNA Polymerase II-mediated transcription, with many functions including the processing of small nuclear RNAs, the pause-release and elongation of polymerase during the transcription of protein coding genes, and the biogenesis of enhancer derived transcripts. Moreover, some of its components also play a role in genome maintenance. Thus, it is reasonable to hypothesize that their functional impairment or altered expression can contribute to malignancies. Indeed, several studies have described the mutations or transcriptional alteration of some Integrator genes in different cancers. Here, to draw a comprehensive pan-cancer picture of the genomic and transcriptomic alterations for the members of the complex, we reanalyzed public data from The Cancer Genome Atlas. Somatic mutations affecting Integrator subunit genes and their transcriptional profiles have been investigated in about 11,000 patients and 31 tumor types. A general heterogeneity in the mutation frequencies was observed, mostly depending on tumor type. Despite the fact that we could not establish them as cancer drivers, INTS7 and INTS8 genes were highly mutated in specific cancers. A transcriptome analysis of paired (normal and tumor) samples revealed that the transcription of INTS7, INTS8, and INTS13 is significantly altered in several cancers. Experimental validation performed on primary tumors confirmed these findings.

Graphical Abstract

1. Introduction

The integrator complex (INT) is one of the major components of the RNA polymerase II mediated transcription machinery, playing a role in the regulation of most dependent genes [1,2,3]. This multiprotein consists of at least 14 different subunits, even though its structure and composition have not yet been fully characterized [3]. It was originally discovered as a complex implicated in the 3′-end formation of noncoding uridine-rich small nuclear RNAs [1,4,5,6,7,8]. However, in the last few years, many studies have promptly indicated broader functions for this complex, extending its role to other aspects of transcriptional regulation [2,3]. For instance, several experimental studies have also allowed for the assumption of a critical role for the INT complex in the activation of protein-coding genes, particularly in the pause-release and elongation of polymerase [9,10,11]. Moreover, in a very recent paper, the INT complex was shown to mediate the biogenesis of transcripts derived from distal regulatory elements (enhancers) involved in the tissue- and temporal-specific regulation of gene expression in metazoans [12]. Finally, some of its components (particularly IntS3, IntS6, and IntS7) were shown to participate, together with nucleic acid binding proteins (NABPs), in the formation of other protein complexes involved in DNA and RNA metabolism, including the DNA damage response [2,13,14,15,16].
It is worth noting that, given its main role in transcription regulation and nucleic acid metabolism, it is feasible that some INT subunits are also involved in human cancer [2]. Indeed, INTS6/DICE1 was earlier identified as a tumor suppressor gene in lung carcinomas where it was frequently downregulated [17,18], and in esophageal squamous cell carcinomas where mutations occurred, although at a low frequency [19]. Furthermore, promoter CpG hypermethylation and the downregulation of INTS6/DICE1 expression was also observed in prostate cancer cells [20]. More recent studies have supported the notion that the INTS6/DICE1 gene has a role in malignancy [21,22,23]. The involvement of this subunit in human malignancy can be hypothesized from its function in the DNA damage response and the maintenance of genome stability [24]. Similarly, INTS3 was found to be significantly overexpressed in cell lines and tumor tissues from hepatocellular carcinoma (HCC) patients compared with their non-cancerous counterparts [25]. In the last few years, both microarray and exome sequencing analyses have suggested a possible role of INTS8 in gastric cancer and peripheral T-cell lymphoma, respectively [26,27]. Furthermore, INTS14/VWA9 was found to be upregulated in immortalized cells, cancer cells, and non-small-cell lung cancer tissues [28]. More recently, whole-exome sequencing revealed recurrent mutations in the INTS2 gene of gastric cancer patients [29]. Finally, the promoter methylation of INTS1, enclosed in a panel with other genes, was used to discriminate with high sensitivity and specificity cervical intraepithelial neoplastic lesions (grade 2 or higher) from samples with no intraepithelial lesions or malignancy [30].
Overall, although most of these studies did not demonstrate a direct participation of INT subunits in carcinogenesis, it is expected that further alterations of these genes can be discovered in human cancer because of their key role in fundamental biological processes, often altered in malignancies.
Thus, to date, both mutations and altered expression have been reported for some subunits in specific cancer entities; however, a systematic and comprehensive approach deciphering the mutational status and the complete transcriptional profile of the whole INT complex across a large number of different cancer types is still lacking.
Here, The Cancer Genome Atlas (TCGA) deposited exome and RNA-Seq data [31] were used to perform a systematic analysis of both the mutational status and the transcriptional profile of all INT subunit genes across 31 distinct human cancer types.

2. Results

2.1. Mutational Profiling of Integrator Complex across Human Cancers

In order to systematically identify somatic mutations within genes encoding INT subunits, we analyzed exome-Seq data downloaded from TCGA (see Methods) for 31 cancer types. All of the INT subunit genes, INTS6L included, were analyzed. The number of samples for each cancer type is illustrated in Table 1.
Overall, 1916 point mutations and 128 insertions/deletions (both in-frame and frame-shift) affecting the protein products encoded by INT genes have been identified across all examined cancer types and all analyzed patients (>11,000). Silent (synonymous) mutations ranged between 19% (INTS12) and 42% (INTS1) of the total of detected mutations for each subunit. More than 50% of mutations detected in the TCGA data were non-synonymous. In particular, despite the highest percentage of silent mutations being identified in INTS1, we noticed that this gene has an overall huge number of mutations (528) and the largest number of non-synonymous ones (306).
Similarly, INTS8 (209/266) and INTS2 (193/252) were the other INT genes with high non-synonymous mutations. Nonsense mutations were more recurrent in INTS8 and INTS4 genes (19 and 16, respectively), whereas splice sites disrupting mutations were more frequently detected in INTS3 and INTS10 genes (14 and 13, respectively; Figure 1).
To measure the frequencies of somatic mutations for each INT gene across all tumor types, only non-synonymous mutations were considered. A global low mutation rate (from 0 to 9.09%) was found, with INTS3 and INTS7 being frequently mutated in lymphoid neoplasm diffuse large B-cell lymphoma (DLBC) (8.16%) and in pancreas adenocarcinoma (PAAD) (9.1%), respectively. Conversely, INTS1 and INTS4 were mutated in almost all cancer types, at low rates (Figure 2 and Table S1). INTS9, INTS11, INTS13, and INTS14 were mutated in very few cancer types, with a very low mutation rate.
Distinguishing between so called “driver events”, i.e., somatic alterations (point mutations and gene rearrangements) that provide a growth advantage to cancer cells and which are positively selected during clonal tumor expansion, and mutations that stochastically occur during cancerogenesis (i.e., “passenger events”) is a great challenge. Mutations with a frequency higher than the background rate that tend to cluster in specific regions of protein-coding genes are likely to be driver genes. To assess whether members of the INT complex may be driver genes in a given cancer, we used OncodriveFML to analyze the pattern of somatic mutations undergoing positive selection, and therefore, those which are potentially involved in tumorigenesis [32].
The INTS7 and INTS8 mutation patterns significantly differed from the background in uterine corpus endometrial carcinoma (UCEC) (INTS7, q-val = 0,182; INTS8, q-val = 0,184; Figure 3). However, when analyzing the co-occurrence among mutations in INT genes and those in known driver genes, we observed that a very small fraction of the total cohort of UCEC patients was hypermutated, and that most of them carried mutations in both INTS7 and INTS8 genes.

2.2. Differentially Expressed INT Subunits across Human Cancers

In order to ascertain whether the expression of INT genes is affected in human primary cancers, we took advantage of RNA-Seq datasets from paired samples (cancer vs. benign counterpart) available at the TCGA web portal. For the analysis of differential expression, we only considered, for each tumor type, samples with the corresponding “non-tumor” counterpart (see Methods and Table 1). Globally, 590 patients across 22 cancer types were analyzed. The gene expression profiles differed considerably between normal and tumor specimens, depending on the cancer type, as shown by the principal component analysis (see Supplementary_file_S1). The results of the gene expression profiling of INT genes across all available cancer types are summarized in Table S2.
Data indicate that a small subset of INT genes is consistently deregulated across several cancer types. In particular, a significant overexpression was measured for INTS7, INTS8, and INTS13 (Figure 4). Notably, INTS13, which is significantly up-regulated in rectum adenocarcinoma, lung cancer small cells, and cholangiocarcinoma, is the most frequently deregulated INT gene at the transcriptional level (eight out of 22 analyzed cancer types).
On the other side, INTS10, INTS6, and INTS6L are more often downregulated across tumors. Our analysis reveals that among these genes, INTS6L is significantly down-modulated in breast cancer (logFC = −1.75; FDR = 1.47 × 10−21).
A strong deregulation of all INT genes was only measured in cholangiocarcinoma. Indeed, in this cancer type, 11/15 genes encoding INT subunits were overexpressed in tumor vs. healthy counterparts. Among them, the expression of INTS6L (logFC = 2.58; FDR = 1.26 × 10−5), INTS3 (logFC = 2.42; FDR = 2.96 × 10−10), INTS8 (logFC = 2.26; FDR = 9.84 × 10−12), INTS9 (logFC = 2.18; FDR = 1.63 × 10−7), and INTS7 (logFC = 1.97; FDR = 2.72 × 10−9) is significantly increased. Conversely, pheochromocytoma and paraganglioma (PCPG), thyroid cancer (THCA), and PAAD are the cancer types with the greatest number of downregulated genes.

2.3. The Expression of INTS7, INTS8 and INTS13 Is Increased in Human Primary Tumors

The re-analysis of TCGA RNA-Seq data from paired samples (tumor vs. healthy) revealed a robust over-expression of INTS7, INTS8, and INTS13 genes in different tumors. As shown in Figure 5, the expression of these three genes is increased in cholangiocarcinoma, colon and lung adenocarcinomas, as well as in liver and lung squamous cell carcinomas. Additionally, INTS7 is specifically over-expressed in breast cancer, whereas INTS8 and INTS13 is particularly over-expressed in kidney renal clear cell carcinoma.
To validate these findings obtained from the analysis of TCGA datasets, we assayed a cDNA panel array containing eight different tumors (breast, colon, kidney, liver, lung, ovary, prostate, and thyroid). The panel contained normal and cancer tissues from independent patients diagnosed at various clinical disease stages and selected from mixed ages and genders. As illustrated in Figure 6, breast, colon, kidney, liver, lung, ovary, and prostate cancer tissues revealed a general over-expression of all analyzed genes. However, statistically significant differences in the expression of INTS7, INTS8, and INTS13 between tumor and healthy samples were only measured for breast and colon cancers. Additionally, the INTS13 gene was confirmed as being significantly overexpressed in kidney and ovarian tumors. Although not significant, a mild reduction of INTS7, INTS8, and INTS13 expression was measured in thyroid cancer samples compared to normal ones.

3. Discussion

This is the first study providing a systematic and comprehensive overview of both the mutational status and the expression profile of all the genes encoding INT complex subunits across a large number of different cancer types. This complex plays key roles in transcription regulation and nucleic acid metabolism; besides, previous literature data indicated that some of the INT components are also be involved in human diseases, including many malignancies [2].
In the last few decades, the recent progress in high-throughput sequencing technology has contributed to the construction of genome-wide somatic mutation and transcription profiles in diverse cancer samples. In this regard, the large collection of multi-omic datasets available at the TCGA web portal represents a unique data source to study human cancers, especially for pan-cancer analysis. Particularly, genome-wide somatic alterations have been automatically catalogued starting from exome and whole-genome sequencing data in thousands of tumor samples. Similarly, gene expression—both at gene and transcript level—has been measured from RNA-Seq datasets in paired and unpaired tumor samples for the same cancer types [31].
The acquisition of somatic mutations is a key mechanism for the onset and progression of cancer, as well as for the sensitivity to chemotherapy. Thus, many researchers have tried to identify mutations causative of specific types of tumors, as well as to obtain a complete catalog of significantly mutated genes across all major cancer types [33,34]. Given the considerable number of somatic gene mutations found in tumor tissues, in the last few years, a huge effort has been employed in discerning mutated genes conferring a selective growth advantage (drivers) from those without a proven role in cancer and which have simply gradually accumulated randomly over the course of development or during uncontrolled cell growth (passengers) [33,35,36]. To date, several sophisticated mathematical tools have been developed to distinguish driver from passenger genes and to rank protein-coding genes using different strategies, such as the rate of cancer mutations over the background, the clustering patterns of mutations, and their functional impact [37]. Moreover, since many genes with an altered expression in tumor tissues can also provide a small growth advantage to tumor cells, a sub-classification was proposed to differentiate “Mut-driver genes”, usually altered by somatic gene mutations from “Epi-driver genes”, which are aberrantly expressed in tumors through epigenetic modifications, but are not frequently mutated [33]. In this regard, our pan-cancer investigation of mutations in the INT complex by OncodriveFML revealed that INTS7 and INTS8 can potentially be Mut-driver genes in endometrial carcinoma. However, considering that the mean number of somatic mutations in UCEC patients was about 850, an unusually high number of somatic mutations (from 5000 to 15,000) were identified in patients carrying mutations in INTS7 and INTS8. Hypermutation is a frequent event in cancer, and recent whole-exome sequencing analyses have revealed that the “ultramutated” phenotype associates with somatic mutations in POLE1, even in endometrial carcinoma [38].
It is worth noting that the patients harboring mutations in INTS7 and INTS8 also have somatic mutations in POLE1. Endometrial cancers fall into four categories: POLE ultramutated, microsatellite instability hypermutated, copy number low, and copy number high [38]. According to TCGA classification, we cannot exclude the patients carrying INTS7 and INTS8 mutations from the POLE ultramutated subgroup. However, these patients are characterized by an increased C→A transversion frequency and improved progression-free survival. Noteworthy, in a very recent computational study, a multiscale mutation clustering algorithm was applied to identify variable length pan-cancer mutation clusters in cancer genes starting from an initial list of genes containing the highest ranked genes from MutSig; this analysis found multiscale clusters in 393 genes including, among others, INTS7 [39].
Although our findings cannot definitely establish that these two genes are cancer drivers, it would be interesting to deepen these data in further analyses. The concept of a “driver” gene is gradually evolving and accordingly, new algorithms are being developed. Indeed, a recent comparative analysis of the currently available driver gene prediction methods has evaluated their performance, pointing out the strengths and weaknesses of each computational strategy and the lack of a gold standard [40]. Moreover, recent studies have highlighted the existence of genes, termed “mini-drivers”, with relatively weak tumor-promoting effects [41]. Multiple mutations in mini-driver genes might substitute for a major change in a known driver gene, especially in the presence of genomic instability or high mutagen exposure. Such a view is in line with a polygenic model of tumorigenesis. Another category has been also proposed: the so-called “latent drivers”, whose mutations behave as passengers. Usually, mutations in these genes do not confer a cancer phenotype, but when they occur with other mutations, they can drive cancer development and drug resistance [42]. The presence of “mini” and “latent” driver genes may be added to the list of explanations (technical issues, statistical power, exclusion of the non-coding regions, etc.) that account for the smaller than expected number of driver mutations observed in solid tumors. In this scenario, we cannot exclude the INTS genes from these alternative categories of driver genes. The development of new tailored computational methods will be used to definitely include (or exclude) the mutations in these genes from the growing list of cancer-driving events. It should be noted that known cancer driver genes are mainly involved in three core cellular processes: cell fate, cell survival, and genome maintenance. Interestingly, the Integrator complex has a relevant role in all of them. Specifically, IntS7 participates with other INT subunits and NABPs in the formation of protein complexes involved in the DNA damage response and in genome maintenance [2,13,14,15,16,43]. Indeed, its siRNA-mediated depletion determines cell cycle arrest bypass and mitomycin C sensitivity [2,43]. Additionally, pan-cancer studies are gradually highlighting that individual mutations (even at a low frequency) tend to converge—in a particular type of cancer—into specific cellular pathways, rather than into specific genes. This hypothesis has encouraged the development of novel computational approaches for evaluating cancer somatic mutation data that are based on pathways or protein complexes network analyses [44,45], rather than on the sole mutation frequency of a specific gene.
Remarkably, despite not being able to definitely establish INTS7 and INTS8 as cancer driver genes, the transcriptome analysis of RNA-Seq paired samples revealed that these two genes, together with INTS13, are the most deregulated across cancers. These data suggest that they may act as Epi-driver genes, rather than as Mut-drivers. Of note, we experimentally validated their transcriptional alteration in primary breast and colon tumor samples (Figure 6), confirming TCGA data re-analysis. Interestingly, microarray- and exome sequencing-based studies proposed a role of INTS8 in gastric cancer and peripheral T-cell lymphoma [26,27]. Unfortunately, freely available data from TCGA (tier 1) did not include RNA-Seq data from paired stomach adenocarcinoma (STAD) samples and datasets of peripheral T-cell lymphoma (see Table 1).
Interestingly, we found that INTS6, also known as DICE1 (deleted in cancer 1), was downregulated in several cancer types, thus corroborating previous literature data and supporting its role as a tumor suppressor gene [17,18,19,20,21,22,23].
Our results can be useful to restrict the attention to a subset of relevant INT subunits deserving further targeted investigations. Indeed, some of the genes described in this work as frequently mutated and/or transcriptionally deregulated might have a potential impact on tumor initiation and progression. We are aware that functional studies on specific INT gene mutations should be performed to definitely prove their potential oncogenic role. It would also be desirable to investigate whether these mutations contribute to cancer progression and survival, other than their relation with drug-response and -resistance, through follow-up studies examining the mutational status of INT subunits in lymph node and distant metastases tissues. Moreover, molecular studies addressing the (epi)genetic changes underlying the altered gene expression observed in tumor samples are needed. Finally, the effect of protein interactions between INT subunits and other partners involved in the genome maintenance pathways needs to be investigated. Indeed, recent studies revealed that other subunits (such as NABPs) belong to this complex [2], and it would be relevant to investigate whether mutations in the genes encoding these proteins or their deregulation can also contribute to cancer.
The availability of data produced from TCGA and other large consortia is offering the unique opportunity to easily access large catalogues of single omic datasets to investigate distinct molecular aspects of many cancer types. However, despite having provided the possibility to formulate new biological hypotheses (that need experimental validation), it has posed new challenges. Indeed, the impact of such data cannot be fully exploited without the development of multi-omic data integration tools and methods [46]. In this regard, we envisage that our analysis of INT gene expression could be further integrated by a systematic pan-cancer study of the epigenetic marks in these genes.

4. Materials and Methods

4.1. TCGA Data Source Selection and Processing for Mutation Analysis

All the data used in this work (exome- and RNA-Seq data) were downloaded from The Cancer Genome Atlas, [47]. In order to analyze the Exome-Seq data, all files containing somatic mutations in a .maf (Mutation Annotation File) format were downloaded for every human primary cancer. Since such data were analyzed from several consortia, all files retrieved for each cancer type were merged. The number of samples for each cancer type is illustrated in Table 1.
The selection and nomenclature of INT genes were based on the HUGO Gene Nomenclature Committee [48]. Analyses of the mutational landscape of INT subunit genes (i.e., evaluation of mutated patients for each subunit, Mann–Whitney test, and identification of frequently mutated sites) were performed building a customized computational pipeline in R programming language. Only non-synonymous mutations were considered for further analyses.
To estimate the positive selection and the accumulated functional impact (FI) bias for the somatic mutations falling within the coding region of INT genes, we used OncodriveFML [32,49]. OncodriveFML was run using default parameters and the statistical significance values were set as reported in Mularoni et al., 2016. OncodriveFML used precomputed Combined Annotation-Dependent Depletion (CADD) scores for functional impact bias (obtained via OncodriveFML) and a file reporting the genomic coordinates of the coding sequences (CDS) from the OncodriveFML website

4.2. TCGA Data Source Selection and Processing for Expression Analysis

The analysis of gene expression and the identification of differentially expressed genes were performed comparing the expression profiles of cancer vs. normal samples within the same patient in a paired analysis. Therefore, expression data taken from human primary cancers for which healthy samples were not available were discarded. According to this criterion, 22 tumor entities were analyzed. In order to have a more robust differential expression analysis in paired samples, we applied generalized linear models (GLM) implemented in the EdgeR Bioconductor package version 3.17.10. Multiple correction was performed through the application of the false discovery rate (FDR) method. We considered differentially expressed genes with a logFC ≤ −1 and logFC ≥ 1, and an FDR ≤ 0.01.

4.3. Real-Time RT-PCR Analysis

Quantitative Real-Time PCR (qRT-PCR) experiments were carried out on TissueScan Cancer Survey Panels (OriGene, Rockville, MD). TissueScan Cancer Survey Panels were purchased in a 96-well format with lyophilized cDNA samples from various normal and tumor tissues covering eight different cancers (breast, colon, kidney, liver, lung, ovary, prostate, and thyroid).
To quantitatively determine the relative amount of INTS7, INTS8, and INTS13 RNAs, qRT-PCR was performed using a Bio-Rad iQ iCycler Detection System (Bio-Rad Laboratories, Ltd. Hercules, California 94547, USA) with SYBR green fluorophore. The amplification reaction mix contained 2X SSoAdvanced Universal SYBR Green Supermix (Bio-Rad Laboratories), 10 pmol/uL of each primer. The conditions used were: First denaturation at 95 °C for 2 min, followed by 40 cycles of 95 °C for 5 s and 60 °C for 30 s. Primers were designed using Primer3Plus [50]. The specificity of each oligonucleotide pair used was verified with the BLAST program and through in-silico PCR analysis by UCSC-Genome Browser [51].
The selected sequences of oligonucleotides were: INTS7 forward 5′-AAG TCA AAA CCG AAG AAA TGC-3′; INTS7 reverse 5′-CCC TGG CAT TTT CAT AGA CA-3′; INTS8 forward 5′-AAG TCA AAA CCG AAG AAA TGC-3′; INTS8 reverse 5′-CCC TGG CAT TTT CAT AGA CA-3′; INST13 forward 5′-GAC AAG TCA GAG AAA GCA GT-3′; and INST13 reverse 5′-GGG GAA TCA GGC GAA TCT TT-3′.
The amplification conditions for each primer pair were experimentally determined. The amplification products were also analyzed by agarose gel electrophoresis [52]. Data were normalized with β-actin (ACTB gene) that was provided with TissueScan Cancer Survey Panels. Melting curves were generated after amplification; the relative gene expression was calculated using the 2−ΔΔCt method [53]. The results are expressed as the mean ± ES. The statistical significance of differences between experimental groups was calculated using the unpaired two-tailed Student’s t-test. Results with a p-value < 0.05 were considered significant.

Supplementary Materials

Supplementary materials can be found at


This work was supported by grant from Associazione Italiana per la Ricerca sul Cancro (AIRC IG 2013-14689) to Alfredo Ciccodicola.

Author Contributions

Conceived and designed the analysis: Valerio Costa, Monica Rienzo, Alfredo Ciccodicola, and Amelia Casamassimi. Analyzed the data and produced the report: Antonio Federico. Contributed to the data analysis: Antonio Federico, Valerio Costa, Monica Rienzo, and Amelia Casamassimi. Interpreted and validated the results: Valerio Costa, Monica Rienzo, and Amelia Casamassimi. Wrote the paper: Valerio Costa, Monica Rienzo, Ciro Abbondanza, Alfredo Ciccodicola, and Amelia Casamassimi. All authors read and approved the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.


INTIntegrator complex
NABPNucleic acid binding proteins
TCGAThe Cancer Genome Atlas
FCFold change
FDRFalse discovery rate


  1. Baillat, D.; Hakimi, M.A.; Näär, A.M.; Shilatifard, A.; Cooch, N.; Shiekhattar, R. Integrator, a multiprotein mediator of small nuclear RNA processing, associates with the C-terminal repeat of RNA polymerase II. Cell 2005, 123, 265–276. [Google Scholar] [CrossRef] [PubMed]
  2. Baillat, D.; Wagner, E.J. Integrator: Surprisingly diverse functions in gene expression. Trends Biochem. Sci 2015, 40, 257–264. [Google Scholar] [CrossRef] [PubMed]
  3. Rienzo, M.; Casamassimi, A. Integrator complex and transcription regulation: Recent findings and pathophysiology. Biochim. Biophys. Acta 2016, 1859, 1269–1280. [Google Scholar] [CrossRef] [PubMed]
  4. Dominski, Z.; Yang, X.C.; Purdy, M.; Wagner, E.J.; Marzluff, W.F. A CPSF-73 homologue is required for cell cycle progression but not cell growth and interacts with a protein having features of CPSF-100. Mol. Cell. Biol. 2005, 25, 1489–1500. [Google Scholar] [CrossRef] [PubMed]
  5. Chen, J.; Wagner, E.J. snRNA 3′ end formation: The dawn of the Integrator complex. Biochem. Soc. Trans. 2010, 38, 1082–1087. [Google Scholar] [CrossRef] [PubMed]
  6. Ezzeddine, N.; Chen, J.; Waltenspiel, B.; Burch, B.; Albrecht, T.; Zhuo, M.; Warren, W.D.; Marzluff, W.F.; Wagner, E.J. A subset of Drosophila integrator proteins is essential for efficient U7 snRNA and spliceosomal snRNA 3′-end formation. Mol. Cell. Biol. 2011, 31, 328–341. [Google Scholar] [CrossRef] [PubMed]
  7. Albrecht, T.R.; Wagner, E.J. snRNA 3′ end formation requires heterodimeric association of integrator subunits. Mol. Cell. Biol. 2012, 32, 1112–1123. [Google Scholar] [CrossRef] [PubMed]
  8. O’Reilly, D.; Kuznetsova, O.V.; Laitem, C.; Zaborowska, J.; Dienstbier, M.; Murphy, S. Human snRNA genes use polyadenylation factors to promote efficient transcription termination. Nucleic Acids Res. 2014, 42, 264–275. [Google Scholar] [CrossRef] [PubMed]
  9. Gardini, A.; Baillat, D.; Cesaroni, M.; Hu, D.; Marinis, J.M.; Wagner, E.J.; Lazar, M.A.; Shilatifard, A.; Shiekhattar, R. Integrator regulates transcriptional initiation and pause release following activation. Mol. Cell 2014, 56, 128–139. [Google Scholar] [CrossRef] [PubMed]
  10. Stadelmayer, B.; Micas, G.; Gamot, A.; Martin, P.; Malirat, N.; Koval, S.; Raffel, R.; Sobhian, B.; Severac, D.; Rialle, S.; et al. Integrator complex regulates NELF-mediated RNA polymerase II pause/release and processivity at coding genes. Nat. Commun. 2014, 5, 5531. [Google Scholar] [CrossRef] [PubMed]
  11. Skaar, J.R.; Ferris, A.L.; Wu, X.; Saraf, A.; Khanna, K.K.; Florens, L.; Washburn, M.P.; Hughes, S.H.; Pagano, M. The Integrator complex controls the termination of transcription at diverse classes of gene targets. Cell Res. 2015, 25, 288–305. [Google Scholar] [CrossRef] [PubMed]
  12. Lai, F.; Gardini, A.; Zhang, A.; Shiekhattar, R. Integrator mediates the biogenesis of enhancer RNAs. Nature 2015, 525, 399–403. [Google Scholar] [CrossRef] [PubMed]
  13. Huang, J.; Gong, Z.; Ghosal, G.; Chen, J. SOSS complexes participate in the maintenance of genomic stability. Mol. Cell 2009, 35, 384–393. [Google Scholar] [CrossRef] [PubMed]
  14. Li, Y.; Bolderson, E.; Kumar, R.; Muniandy, P.A.; Xue, Y.; Richard, D.J.; Seidman, M.; Pandita, T.K.; Khanna, K.K.; Wang, W. hSSB1 and hSSB2 form similar multiprotein complexes that participate in DNA damage response. J. Biol. Chem. 2009, 284, 23525–23531. [Google Scholar] [CrossRef] [PubMed]
  15. Skaar, J.R.; Richard, D.J.; Saraf, A.; Toschi, A.; Bolderson, E.; Florens, L.; Washburn, M.P.; Khanna, K.K.; Pagano, M. INTS3 controls the hSSB1-mediated DNA damage response. J. Cell Biol. 2009, 187, 25–32. [Google Scholar] [CrossRef] [PubMed]
  16. Zhang, F.; Wu, J.; Yu, X. Integrator3, a partner of single-stranded DNA-binding protein 1, participates in the DNA damage response. J. Biol. Chem. 2009, 284, 30408–30415. [Google Scholar] [CrossRef] [PubMed]
  17. Wieland, I.; Arden, K.C.; Michels, D.; Klein-Hitpass, L.; Bohm, M.; Viars, C.S.; Weidle, U.H. Isolation of DICE1: A gene frequently affected by LOH and downregulated in lung carcinomas. Oncogene 1999, 18, 4530–4537. [Google Scholar] [CrossRef] [PubMed]
  18. Wieland, I.; Röpke, A.; Stumm, M.; Sell, C.; Weidle, U.H.; Wieacker, P.F. Molecular characterization of the DICE1 (DDX26) tumor suppressor gene in lung carcinoma cells. Oncol. Res. 2001, 12, 491–500. [Google Scholar] [CrossRef] [PubMed]
  19. Li, W.J.; Hu, N.; Su, H.; Wang, C.; Goldstein, A.M.; Wang, Y.; Emmert-Buck, M.R.; Roth, M.J.; Guo, W.J.; Taylor, P.R. Allelic loss on chromosome 13q14 and mutation in deleted in cancer 1 gene in esophageal squamous cell carcinoma. Oncogene 2003, 22, 314–318. [Google Scholar] [CrossRef] [PubMed]
  20. Röpke, A.; Buhtz, P.; Böhm, M.; Seger, J.; Wieland, I.; Allhoff, EP.; Wieacker, P.F. Promoter CpG hypermethylation and downregulation of DICE1 expression in prostate cancer. Oncogene 2005, 24, 6667–6675. [Google Scholar] [CrossRef] [PubMed]
  21. Li, J.; Zhai, X.; Wang, H.; Qian, X.; Miao, H.; Zhu, X. Bioinformatics analysis of gene expression profiles in childhood B-precursor acute lymphoblastic leukemia. Hematology 2015, 20, 377–383. [Google Scholar] [CrossRef] [PubMed]
  22. Ellinghaus, E.; Stanulla, M.; Richter, G.; Ellinghaus, D.; te Kronnie, G.; Cario, G.; Cazzaniga, G.; Horstmann, M.; Panzer Grümayer, R.; Cavé, H.; et al. Identification of germline susceptibility loci in ETV6-RUNX1-rearranged childhood acute lymphoblastic leukemia. Leukemia 2012, 26, 902–909. [Google Scholar] [CrossRef] [PubMed]
  23. Peng, H.; Ishida, M.; Li, L.; Saito, A.; Kamiya, A.; Hamilton, J.P.; Fu, R.; Olaru, A.V.; An, F.; Popescu, I.; et al. Pseudogene INTS6P1 regulates its cognate gene INTS6 through competitive binding of miR-17–5p in hepatocellular carcinoma. Oncotarget 2015, 6, 5666–5677. [Google Scholar] [CrossRef] [PubMed]
  24. Zhang, F.; Ma, T.; Yu, X. A core hSSB1-INTS complex participates in the DNA damage response. J. Cell Sci. 2013, 126, 4850–4855. [Google Scholar] [CrossRef] [PubMed]
  25. Inagaki, Y.; Yasui, K.; Endo, M.; Nakajima, T.; Zen, K.; Tsuji, K.; Minami, M.; Tanaka, S.; Taniwaki, M.; Itoh, Y.; et al. CREB3L4, INTS3, and SNAPAP are targets for the 1q21 amplicon frequently detected in hepatocellular carcinoma. Cancer Genet. Cytogenet. 2008, 180, 30–36. [Google Scholar] [CrossRef] [PubMed]
  26. Cheng, L.; Zhang, Q.; Yang, S.; Yang, Y.; Zhang, W.; Gao, H.; Deng, X.; Zhang, Q. A 4-gene panel as a marker at chromosome 8q in Asian gastric cancer patients. Genomics 2013, 102, 323–330. [Google Scholar] [CrossRef] [PubMed]
  27. Simpson, H.M.; Khan, R.Z.; Song, C.; Sharma, D.; Sadashivaiah, K.; Furusawa, A.; Liu, X.; Nagaraj, S.; Sengamalay, N.; Sadzewicz, L.; et al. Concurrent mutations in ATM and genes associated with common γ chain signaling in peripheral T cell lymphoma. PLoS ONE 2015, 10, e0141906. [Google Scholar] [CrossRef] [PubMed]
  28. Jung, H.M.; Choi, S.J.; Kim, J.K. Expression profiles of SV40-immortalization-associated genes upregulated in various human cancers. J. Cell. Biochem. 2009, 106, 703–713. [Google Scholar] [CrossRef] [PubMed]
  29. Lim, B.; Kim, C.; Kim, J.H.; Kwon, W.S.; Lee, W.S.; Kim, J.M.; Park, J.Y.; Kim, H.S.; Park, K.H.; Kim, T.S.; et al. Genetic alterations and their clinical implications in gastric cancer peritoneal carcinomatosis revealed by whole-exome sequencing of malignant ascites. Oncotarget 2016, 7, 8055–8066. [Google Scholar] [PubMed]
  30. Guerrero-Preston, R.; Valle, B.L.; Jedlicka, A.; Turaga, N.; Folawiyo, O.; Pirini, F.; Lawson, F.; Vergura, A.; Noordhuis, M.G.; Dziedzic, A.; et al. Molecular triage of premalignant lesions in liquid-based cervical cytology and circulating cell free DNA from urine, using methylated viral and host genes. Cancer Prev. Res. 2016, 9, 915–924. [Google Scholar] [CrossRef] [PubMed]
  31. Cancer Genome Atlas Research Network; Weinstein, J.N.; Collisson, E.A.; Mills, G.B.; Shaw, K.R.; Ozenberger, B.A.; Ellrott, K.; Shmulevich, I.; Sander, C.; Stuart, J.M. The Cancer Genome Atlas Pan-Cancer analysis project. Nat. Genet. 2013, 45, 1113–1120. [Google Scholar] [PubMed]
  32. Mularoni, L.; Sabarinathan, R.; Deu-Pons, J.; Gonzalez-Perez, A.; López-Bigas, N. OncodriveFML: A general framework to identify coding and non-coding regions with cancer driver mutations. Genome Biol. 2016, 17, 128. [Google Scholar] [CrossRef] [PubMed]
  33. Lawrence, M.S.; Stojanov, P.; Polak, P.; Kryukov, G.V.; Cibulskis, K.; Sivachenko, A.; Carter, S.L.; Stewart, C.; Mermel, C.H.; Roberts, S.A.; et al. Mutational heterogeneity in cancer and the search for new cancer-associated genes. Nature 2013, 499, 214–218. [Google Scholar] [CrossRef] [PubMed]
  34. Costa, V.; Esposito, R.; Ziviello, C.; Sepe, R.; Bim, L.V.; Cacciola, N.A.; Decaussin-Petrucci, M.; Pallante, P.; Fusco, A.; Ciccodicola, A. New somatic mutations and WNK1-B4GALNT3 gene fusion in papillary thyroid carcinoma. Oncotarget 2015, 6, 11242–11251. [Google Scholar] [CrossRef] [PubMed]
  35. Vogelstein, B.; Papadopoulos, N.; Velculescu, V.E.; Zhou, S.; Diaz, L.A., Jr.; Kinzler, K.W. Cancer genome landscapes. Science 2013, 339, 1546–1558. [Google Scholar] [CrossRef] [PubMed]
  36. Garraway, L.A.; Lander, E.S. Lessons from the cancer genome. Cell 2013, 153, 17–37. [Google Scholar] [CrossRef] [PubMed]
  37. Marx, V. Cancer genomes: Discerning drivers from passengers. Nat. Methods 2014, 11, 375–379. [Google Scholar] [CrossRef] [PubMed]
  38. Cancer Genome Atlas Research Network; Kandoth, C.; Schultz, N.; Cherniack, A.D.; Akbani, R.; Liu, Y.; Shen, H.; Robertson, A.G.; Pashtan, I.; Shen, R.; et al. Integrated genomic characterization of endometrial carcinoma. Nature 2013, 497, 67–73. [Google Scholar] [PubMed]
  39. Poole, W.; Leinonen, K.; Shmulevich, I.; Knijnenburg, T.A.; Bernard, B. Multiscale mutation clustering algorithm identifies pan-cancer mutational clusters associated with pathway-level changes in gene expression. PLoS Comput. Biol. 2017, 13, e1005347. [Google Scholar] [CrossRef] [PubMed]
  40. Tokheim, C.J.; Papadopoulos, N.; Kinzler, K.W.; Vogelstein, B.; Karchin, R. Evaluating the evaluation of cancer driver genes. Proc. Natl. Acad. Sci. USA 2016, 113, 14330–14335. [Google Scholar] [CrossRef] [PubMed]
  41. Castro-Giner, F.; Ratcliffe, P.; Tomlinson, I. The mini-driver model of polygenic cancer evolution. Nat. Rev. Cancer 2015, 15, 680–685. [Google Scholar] [CrossRef] [PubMed]
  42. Nussinov, R.; Tsai, CJ. “Latent drivers” expand the cancer mutational landscape. Curr. Opin. Struct. Biol. 2015, 32, 25–32. [Google Scholar] [CrossRef] [PubMed]
  43. Cotta-Ramusino, C.; McDonald, E.R., 3rd; Hurov, K.; Sowa, M.E.; Harper, J.W.; Elledge, S.J. A DNA damage response screen identifies RHINO, a 9-1-1 and TopBP1 interacting protein required for ATR signaling. Science 2011, 332, 1313–1317. [Google Scholar] [CrossRef] [PubMed]
  44. Leiserson, M.D.; Vandin, F.; Wu, H.T.; Dobson, J.R.; Eldridge, J.V.; Thomas, J.L.; Papoutsaki, A.; Kim, Y.; Niu, B.; McLellan, M.; et al. Pan-cancer network analysis identifies combinations of rare somatic mutations across pathways and protein complexes. Nat. Genet. 2015, 47, 106–114. [Google Scholar] [CrossRef] [PubMed]
  45. Cho, A.; Shim, J.E.; Kim, E.; Supek, F.; Lehner, B.; Lee, I. MUFFINN: Cancer gene discovery via network analysis of somatic mutation data. Genome Biol. 2016, 17, 129. [Google Scholar] [CrossRef] [PubMed]
  46. Angelini, C.; Costa, V. Understanding gene regulatory mechanisms by integrating ChIP-seq and RNA-seq data: Statistical solutions to biological problems. Front. Cell Dev. Biol. 2014, 2, 51. [Google Scholar] [CrossRef] [PubMed]
  47. TCGA. Available online: (accessed on 6 June 2016).
  48. HGNC. Available online: (accessed on 28 April 2017).
  49. OncodriveFML. Available online: (accessed on 28 April 2017).
  50. Primer3Plus. Available online: (accessed on 28 April 2017).
  51. UCSC-Genome Browser. Available online: (accessed on 28 April 2017).
  52. De Brasi, D.; Esposito, T.; Rossi, M.; Parenti, G.; Sperandeo, M.P.; Zuppaldi, A.; Bardaro, T.; Ambruzzi, M.A.; Zelante, L.; Ciccodicola, A.; et al. Smith-Lemli-Opitz syndrome: Evidence of T93M as a common mutation of D7-sterol reductase in Italy and report of three novel mutations. Eur. J. Hum. Genet. 1999, 7, 937–940. [Google Scholar] [CrossRef] [PubMed]
  53. Costa, V.; Angelini, C.; D’Apice, L.; Mutarelli, M.; Casamassimi, A.; Sommese, L.; Gallo, M.A.; Aprile, M.; Esposito, R.; Leone, L.; et al. Massive-scale RNA-Seq analysis of non ribosomal transcriptome in human trisomy 21. PLoS ONE 2011, 6, e18493. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Stacked histograms showing the number of different classes of somatic mutations affecting INT genes as reported in the Mutation Annotation Files across all analyzed cancer entities.
Figure 1. Stacked histograms showing the number of different classes of somatic mutations affecting INT genes as reported in the Mutation Annotation Files across all analyzed cancer entities.
Ijms 18 00936 g001

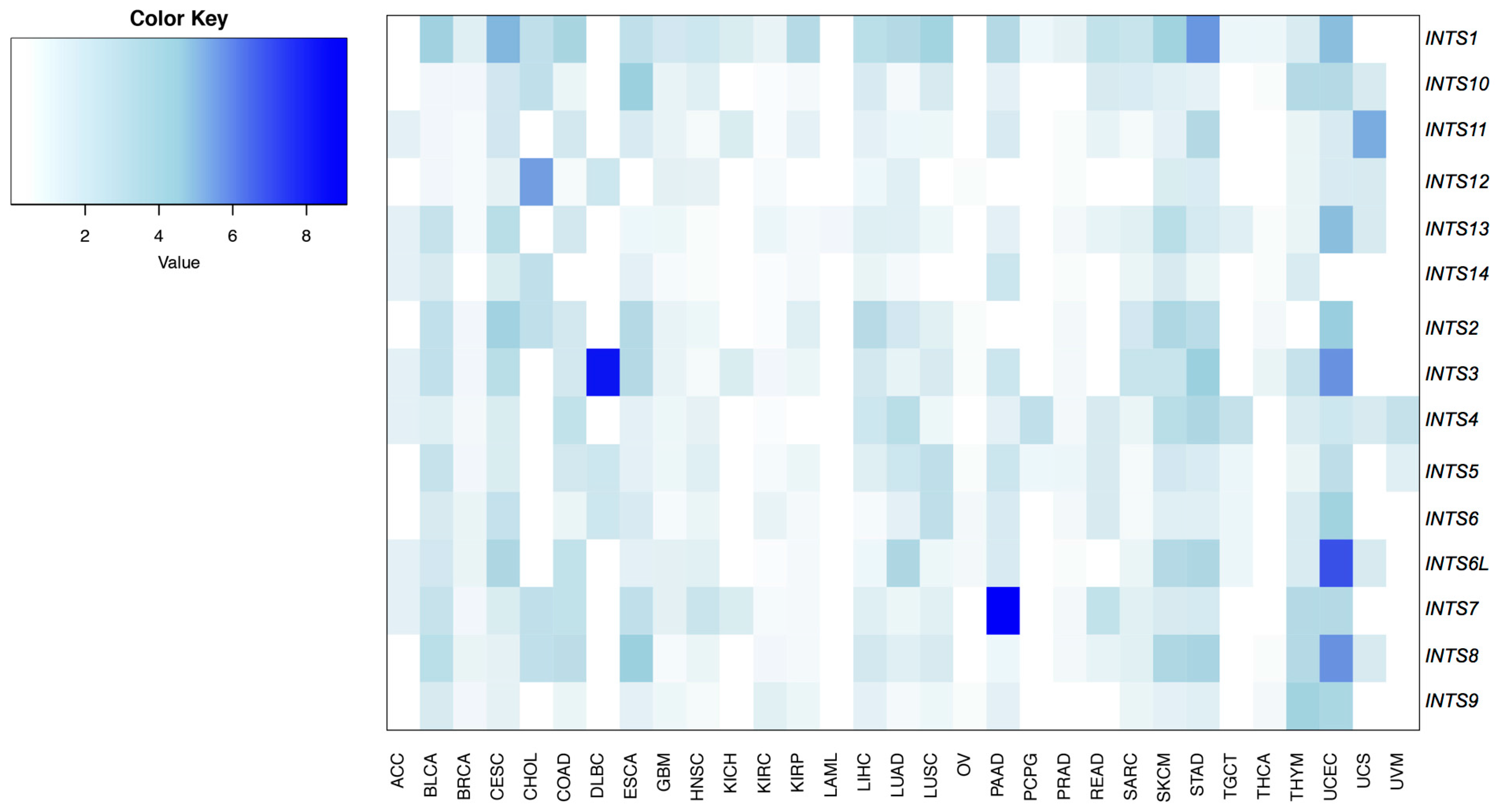

Figure 2. Frequency of patients carrying mutations in the INT subunits across the 31 analyzed tumors.
Figure 2. Frequency of patients carrying mutations in the INT subunits across the 31 analyzed tumors.
Ijms 18 00936 g002

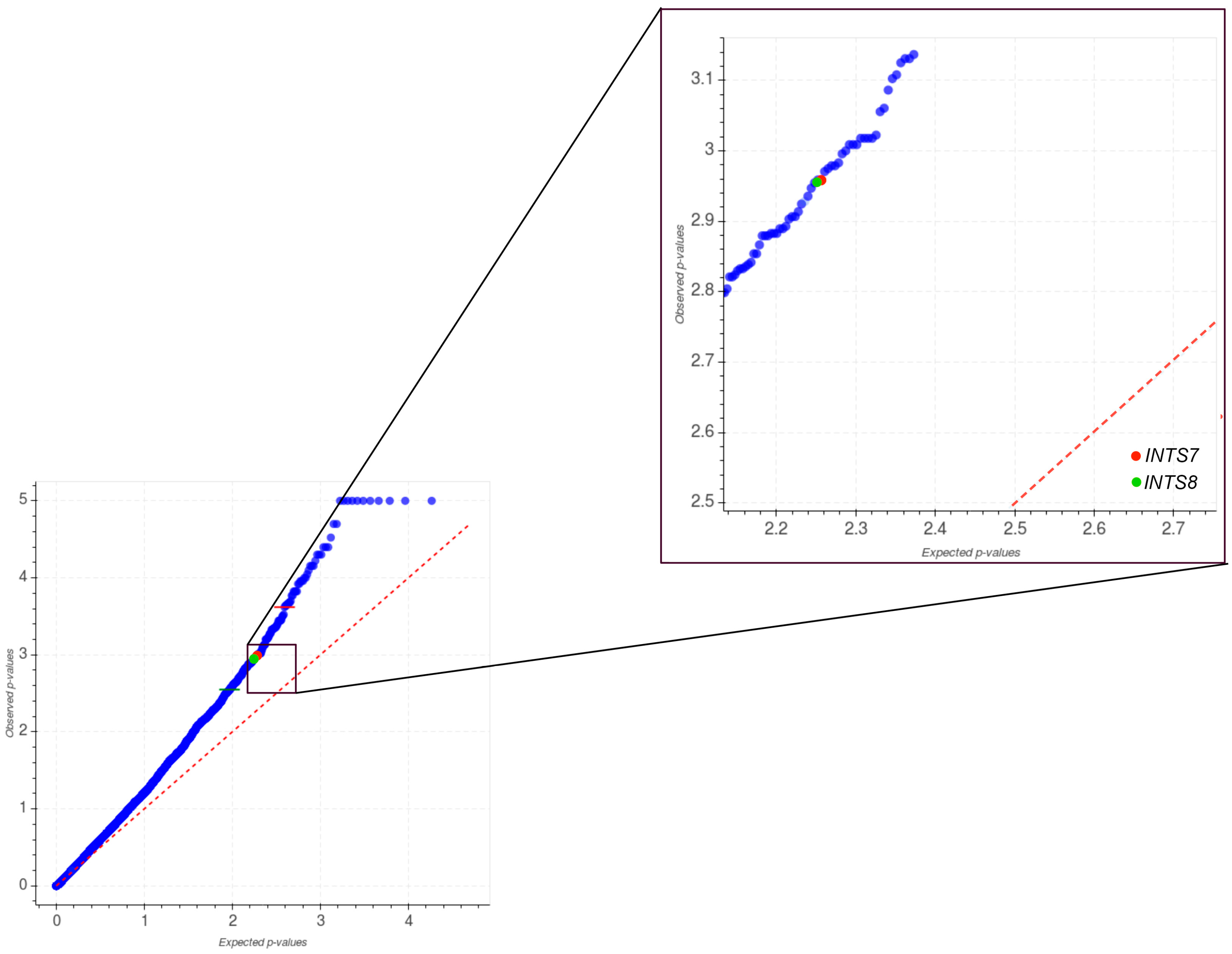

Figure 3. Quantile–quantile (QQ) plot comparing the expected and observed distribution of functional mutation (FM) bias p-values of genes detected in the UCEC cohort. Blue dots indicate genes reporting at least one somatic mutation in UCEC Exome-Seq data. Red dotted line indicates coincident values of expected and observed distributions of p-values. INTS7 and INTS8 genes are highlighted in red and green, respectively.
Figure 3. Quantile–quantile (QQ) plot comparing the expected and observed distribution of functional mutation (FM) bias p-values of genes detected in the UCEC cohort. Blue dots indicate genes reporting at least one somatic mutation in UCEC Exome-Seq data. Red dotted line indicates coincident values of expected and observed distributions of p-values. INTS7 and INTS8 genes are highlighted in red and green, respectively.
Ijms 18 00936 g003

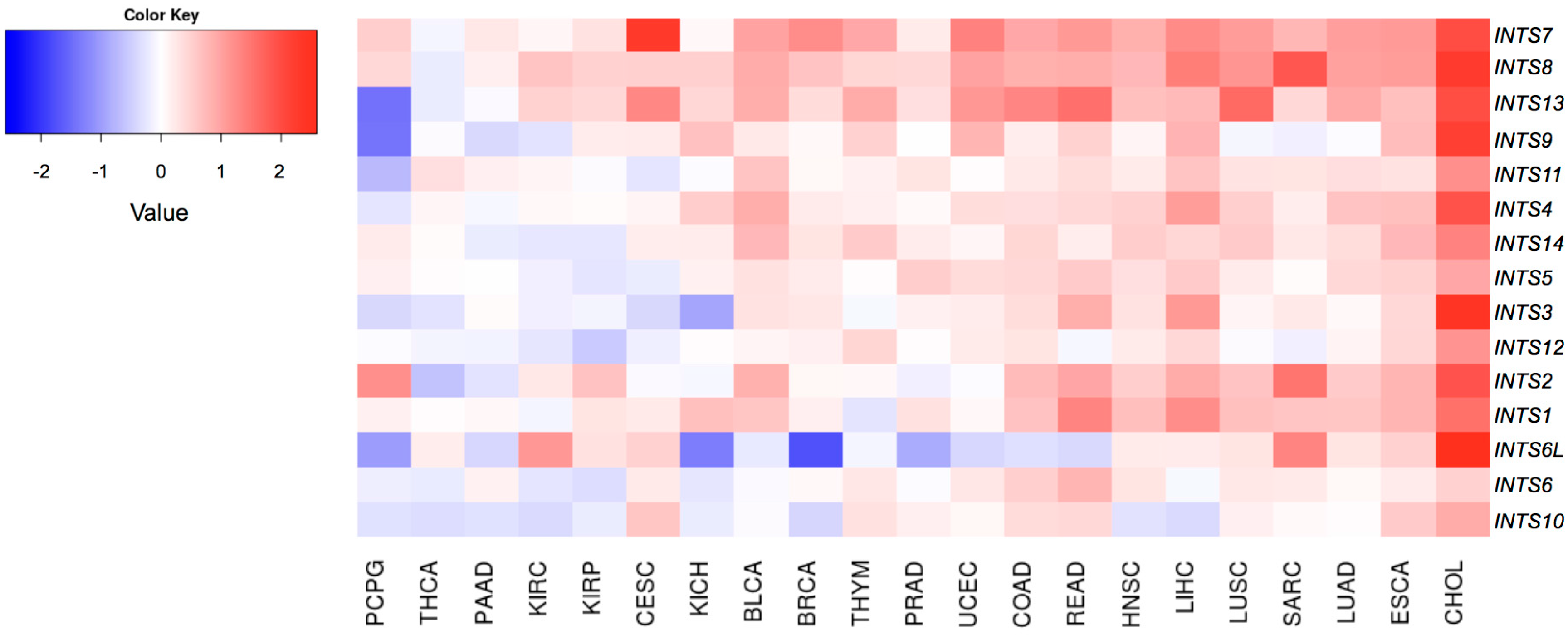

Figure 4. The heatmap shows the expression profiles of INT genes across analyzed cancer types.
Figure 4. The heatmap shows the expression profiles of INT genes across analyzed cancer types.
Ijms 18 00936 g004

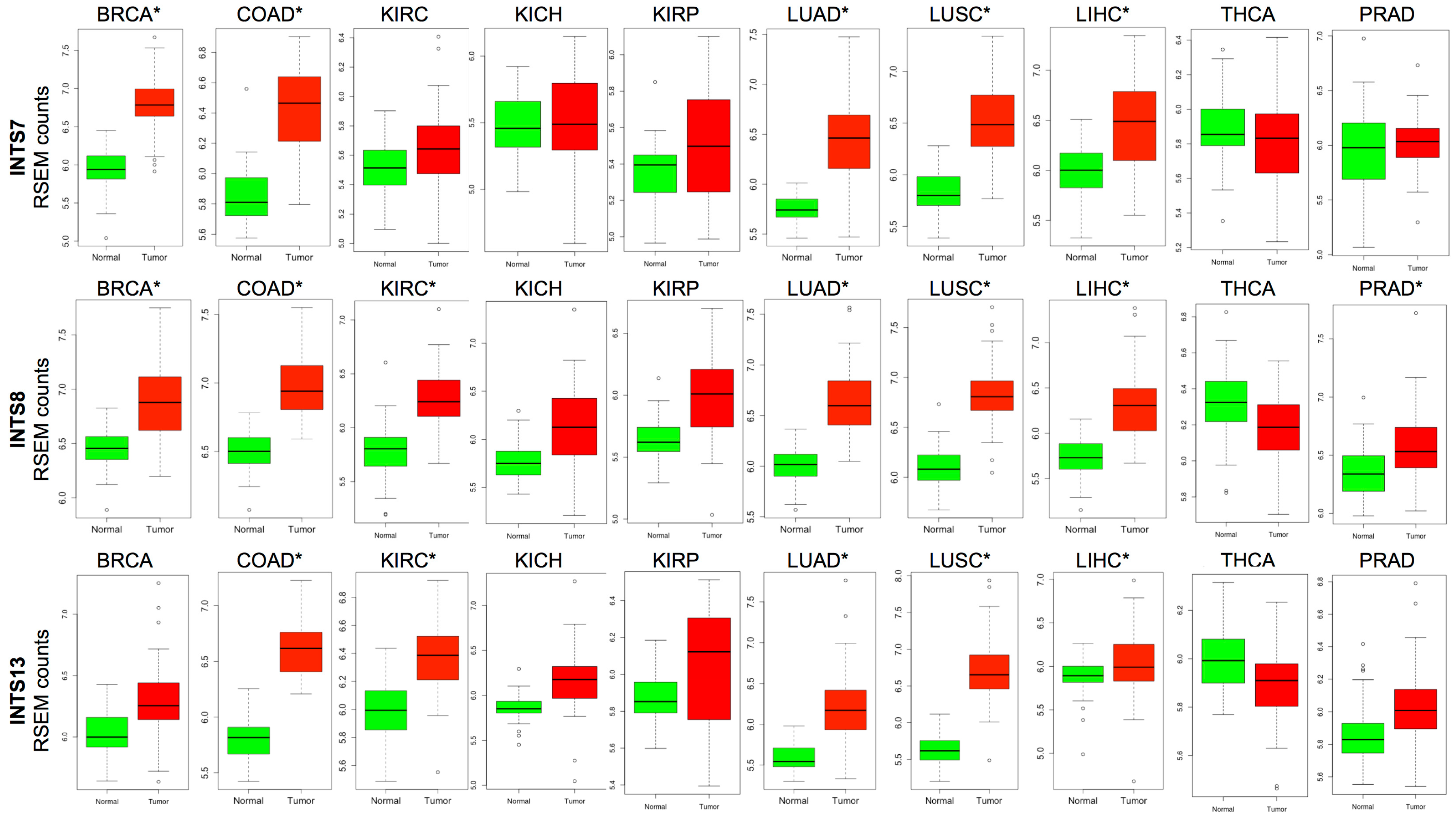

Figure 5. Boxplots showing the unbalanced expression of INTS7, INTS8, and INTS13, between tumors and normal counterparts. The asterisks indicate the tumor cohorts for which the deregulation has been validated in vitro.
Figure 5. Boxplots showing the unbalanced expression of INTS7, INTS8, and INTS13, between tumors and normal counterparts. The asterisks indicate the tumor cohorts for which the deregulation has been validated in vitro.
Ijms 18 00936 g005

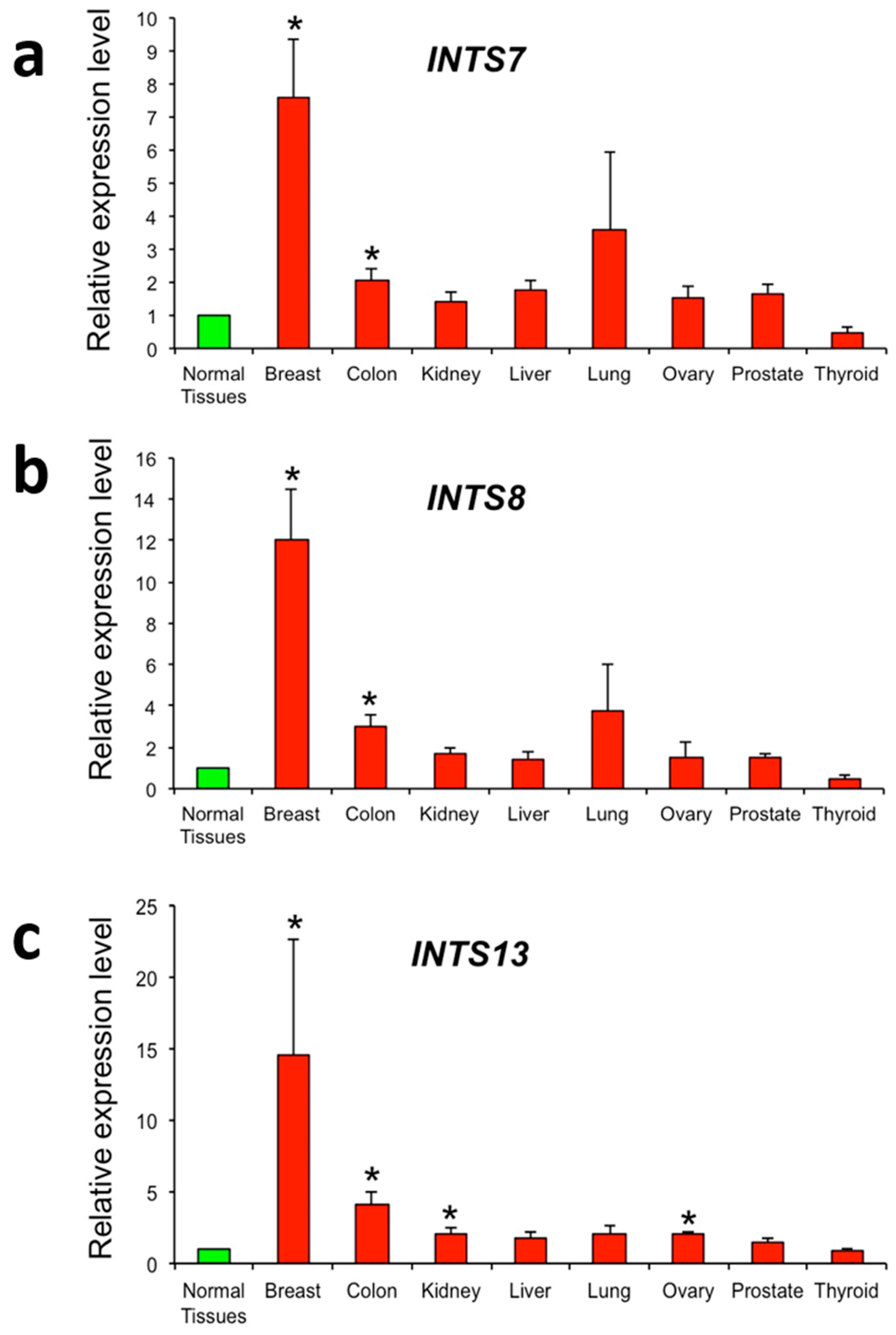

Figure 6. Relative expressions (mean ± ES) obtained by real-time PCR in breast, colon, kidney, liver, lung, ovary, prostate, and thyroid cancer tissues vs. corresponding normal tissues (with arbitrary expression value equal to 1). INTS7 (a); INTS8 (b) and INTS13 (c). Significance: * p < 0.05 vs. normal tissues.
Figure 6. Relative expressions (mean ± ES) obtained by real-time PCR in breast, colon, kidney, liver, lung, ovary, prostate, and thyroid cancer tissues vs. corresponding normal tissues (with arbitrary expression value equal to 1). INTS7 (a); INTS8 (b) and INTS13 (c). Significance: * p < 0.05 vs. normal tissues.
Ijms 18 00936 g006
Table 1. List of cancer types and number of patients (n) analyzed from TCGA (The Cancer Genome Atlas).
Table 1. List of cancer types and number of patients (n) analyzed from TCGA (The Cancer Genome Atlas).
AbbreviationCancer TypeMutation Analysis nExpression Analysis n (Paired)
ACCAdrenocortical carcinoma92-
BLCABladder cancer41219
BRCABreast cancer109857
CESCCervical squamous cell carcinoma and endocervical adenocarcinoma3083
COADColon adenocarcinoma46326
DLBCLymphoid neoplasm diffuse large B-cell lymphoma58-
ESCAEsophageal carcinoma18513
HNSCHead and neck squamous cell carcinoma52843
KICHKidney chromophobe carcinoma11325
KIRCKidney renal clear cell carcinoma53772
KIRPKidney renal papillary cell carcinoma29132
LAMLAcute myeloid leukemia200-
LIHCLiver hepatocarcinoma37750
LUADLung adenocarcinoma58558
LUSCLung squamous cell carcinoma50451
OVOvarian cancer608-
PAADPancreas adenocarcinoma18551
PCPGPheochromocytoma and paraganglioma1794
PRADProstate adenocarcinoma5003
READRectum adenocarcinoma17252
SKCMSkin cutaneous melanoma470-
STADStomach adenocarcinoma478-
TGCTTesticular germ cell tumors150-
THCAThyroid cancer50757
UCECUterine corpus endometrial carcinoma5607
UCSUterine carcinosarcoma57-
UVMUveal melanoma80-
