Review

On the Edge of Research and Technological Application: A Critical Review of Electromethanogenesis

1
Laboratory of Chemical and Environmental Engineering (LEQUIA), Institute of the Environment, University of Girona, Campus Montilivi, Carrer Maria Aurèlia Capmany, 69, E-17003 Girona, Spain
2
Department of Innovation and Technology, FCC Aqualia, Balmes Street, 36, 6th Floor, 08007 Barcelona, Spain
3
Department of Chemistry, Sapienza University of Rome, P.le Aldo Moro 5, 00185 Rome, Italy
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2017, 18(4), 874; https://doi.org/10.3390/ijms18040874
Received: 16 February 2017 / Revised: 22 March 2017 / Accepted: 11 April 2017 / Published: 20 April 2017
(This article belongs to the Special Issue Bioelectrochemical Systems)

Abstract

:
The conversion of electrical current into methane (electromethanogenesis) by microbes represents one of the most promising applications of bioelectrochemical systems (BES). Electromethanogenesis provides a novel approach to waste treatment, carbon dioxide fixation and renewable energy storage into a chemically stable compound, such as methane. This has become an important area of research since it was first described, attracting different research groups worldwide. Basics of the process such as microorganisms involved and main reactions are now much better understood, and recent advances in BES configuration and electrode materials in lab-scale enhance the interest in this technology. However, there are still some gaps that need to be filled to move towards its application. Side reactions or scaling-up issues are clearly among the main challenges that need to be overcome to its further development. This review summarizes the recent advances made in the field of electromethanogenesis to address the main future challenges and opportunities of this novel process. In addition, the present fundamental knowledge is critically reviewed and some insights are provided to identify potential niche applications and help researchers to overcome current technological boundaries.

Graphical Abstract

1. Introduction

In nature methane formation or methanogenesis is accomplished by two main routes: biogenic and abiogenic. Abiogenic methane is produced in much smaller amounts by chemical reactions that do not directly include organic matter. In those cases, methane is produced by either natural thermal splitting of kerogen contained in sedimentary rocks [1] or catalytic formation (Equations (1) and (2), Gibbs free energy values calculated from Thauer et al. [2]) [3,4]. Both are reversible, exothermic and catalyst-dependent reactions. In industry, reaction 1 is used to produce synthetic methane-rich fuel from syngas [5,6], whereas reaction 2 was discovered in the early 1900s by Paul Sabatier and requires elevated temperatures (300–400 °C), high pressure and the presence of a metal catalyst to occur. However, this approach requires large volumes of H2 gas externally produced from non-fossil or green sources to be helpful for greenhouse gas mitigation.
CO + 3 H 2 CH 4 + H 2 O ,   Δ G = 151   kJ / mol
CO 2 + 4 H 2 CH 4 + 2 H 2 O ,   Δ G = 131   kJ / mol
Alternatively, biogenic methane formation results from the degradation of organic matter by microbes in anaerobic natural environments, and from different substrates such as CO2/H2, methanol, formate, methylamines and/or acetate added to engineered bioreactors containing methanogens [7]. Recently, the bioelectrochemical reduction of carbon dioxide (CO2) has been postulated as a promising process to obtain methane [8]. In this case, CO2 can be either directly reduced by providing electrons as a reducing power (Equation (3)) or by means of the in situ production of hydrogen (H2)—an electron donor for hydrogenotrophic methanogenesis—which act as catalyst (Equation (2)) to reduce the large overpotentials affecting the reaction. Indeed, even though the CO2 conversion into methane (CH4; Equation (3)) theoretically requires a voltage of −0.244 V vs. standard hydrogen electrode (SHE) and pH = 7, more negative values are typically needed.
CO 2 + 8 H + + 8 e CH 4 + 2 H 2 O

1.1. Bioelectrochemical Methane Production: Etymology

The term electromethanogenesis was first used to refer to an alternative methanogenic pathway described by Cheng et al. in 2009 [8], where CO2 is reduced by a single Archaeon (Methanobacterium palustre) using electrical current supplied to the reactor (Equation (3)). Cheng and co-workers observed methane production in a biocathode at a cathodic potential lower than −0.5 V vs. SHE, with 96% of the applied current converted into methane at poised potential of −1 V vs. SHE. Based on the high current densities and the low abiotic hydrogen generation, the fact that methane was directly produced from current rather than hydrogen was suggested for the first time. Although the molecular mechanism of this reaction is still not clear, several studies have suggested that methanogenic archaea can directly take up CO2, electrons and protons to produce methane [9,10,11,12]. However, Villano et al. observed that the abiotic hydrogen production was also taking place along with the extracellular electron transfer during the bioelectrochemical methane production. The contribution of these two mechanisms was observed to depend on the set cathode potential. Particularly, the production of molecular hydrogen (Equation (4)), previous to methane production, was observed to enhance the methane yield through the activity of hydrogenotrophic methanogens found in biocathodes [13]. Such claim was supported by other authors, Batlle-Vilanova et al. suggested that only a small amount of methane is directly produced via accepting electrons from the electrode, while most of the production comes from biologically generated hydrogen (Equation (4)) in the biocathode surface followed by hydrogenotrophic methanogenesis [14]. Therefore H2 is nowadays considered to be the main electron transfer molecule for bioelectrochemical methane production, especially at low applied cathode potentials [15].
2 H + + 2 e H 2
During the last years, the term electromethanogenesis has been widened to include H2-mediated methane production [13,16,17,18,19]. Nevertheless, many authors have employed synonyms in the literature such as “methane biolectrosynthesis” [10], “electromethanosynthesis” [20] or “methane electroautotrophic synthesis” [21]. More recently the concept “bioelectrochemical power-to-gas” [22], encompasses bioelectrochemically produced methane through all catalytic processes taking place using renewable electricity. The objectives of this work are to delimit the concept of electromethanogenesis and clarify the scope of the term, and to assess current state-of-the-art technologies in terms of development of future applications.
The delimitation of new concepts is needed in the field of microbial electrochemistry and microbial electrochemical technologies due to its rapid growth and expansion [23]. To the best of the authors’ knowledge, the term “electromethanogenesis” would be a synonym for “bioelectrochemical methane production”. Up to date, electromethanogenesis has been applied to the process of producing methane using CO2 as the sole carbon source, using electroactive microbes in an engineered system (biocathode) powered with electric current. These electroactive microbes were limited to species that can only utilize electrons from a biocathode, however the term should also include both those that accept electrons directly from the cathode and those that accept electrons from another source produced on the electrode. Therefore, it is assumed that electromethanogenesis includes methane formation via (i) direct electron uptake from the electrode (direct electromethanogenesis) and (ii) mediated by hydrogen or other compounds such as formate, acetate or other mediators (mediated electromethanogenesis).

1.2. Bioelectrochemical Methane Production: Timeline

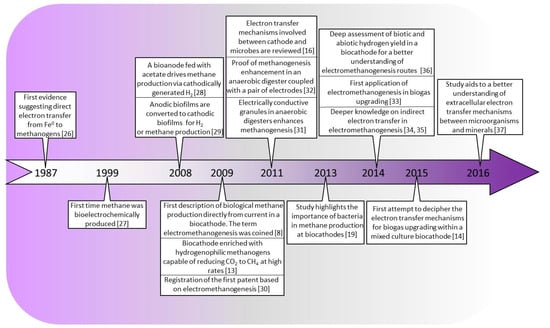

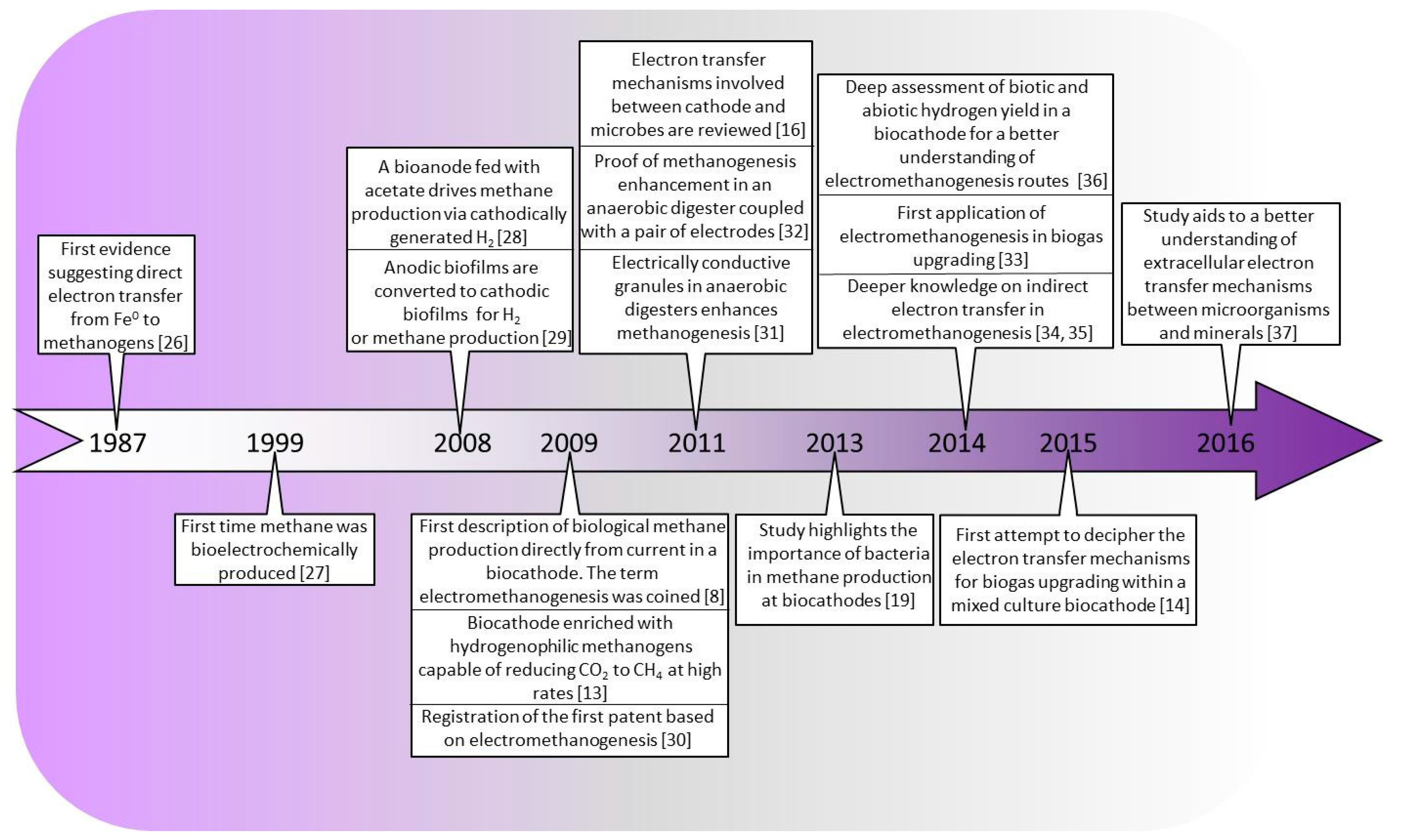

Most old-standing methane producing technologies attracted the attention of the scientific community before the 2000s. However the scientific interest in catalytic methanation and electromethanogenesis rocketed from 2008 on. As shown in Figure 1, the methanation reaction catalyzed by different metals (i.e., nickel, ruthenium or rhodium)—catalytic methanation—started to be deeply studied from 2008 onwards, most likely due to the boom of anaerobic digestion technology. More recently, the same increasing trend is also followed by manuscripts and citations dealing with bioelectrochemical methane production. This remarkable tendency might be explained by works that appeared between 2007 and 2011, which lead to a better understanding of the relationship between electrodes and microbes (highlighted also in Figure 2). For instance, in 2007 Schröder provided new insight on anodic electron transfer mechanisms [24] expanding the applicability of BES beyond wastewater treatment [25]. Moreover, the first description of the ability of microorganisms to produce methane from CO2 reduction by using an electrode in 2009 [8], followed by a better understanding of cathodes as electron donors for microbial metabolism in 2011 [16], may explain why electromethanogenesis-related publications have dramatically increased in the past few years. A recent review on the Bioelectrochemical Power-to-Gas (BEP2G) concept conducted by Geppert et al. is, to the best of our knowledge, the only document of this nature published that has been published thus far [22]. In that review, the performance of methane-producing BESs in relation to cathode potential, electrode materials, operational strategies, and inocula are summarized. On the other hand, this review focuses more thoroughly on the fundamentals of the process, the microbiology and the future niches of the future technology based on electromethanogenesis.

2. Electromethanogenesis Pathways, Microbial Communities and Proposed Functionalities

The three known pathways are taking place in electromethanogenic BESs are (i) CO2 reduction (Figure 3: reactions 1, 4, 5, 6, 7 and 9); (ii) methylotrophic; and (iii) acetoclastic pathway (Figure 3: reaction 8). Among them, CO2 reduction pathway is considered the major one that drives the methane production, and thus determines the overall performance of the system. However, the importance of the other ones should not be underrated when working with mixed cultures.
Some of the reactions for methane production performed by biocathode communities (Table 1) have been described in the literature, however further research is needed for the elucidation of the molecular pathways involved. Molecular studies are scarce due to their complexity, but a few of them have recently given some insights into how methane is bioelectrochemically produced. For instance, Bretschger et al. correlated electricity consumption with methane production in a mixed methanogenic community suggesting functional correlations between species, especially between members of the family Desulfovibrionaceae and the phylum Euryarcheota [38]. The high relative abundance in the biocathodes of Desulfovibrionaceae species suggested its involvement in energy transduction (direct electron transfer or hydrogen transfer) between the electrode surface and methanogenic populations. In this study, long-term functional and taxonomic analyses provided new knowledge toward achieving stable and reproducible performance of electromethanogenic reactors. The highest methane production rates occurred when multiple methanogenic phylotypes (Methanobacterium sp. YCM1, Methanobacterium bryantii RiH2 and Methanosarcina mazei Tuc01) were present in moderate abundance within an electrode-associated microbial community. Moreover, Marshall et al. mapped thirteen genomes from a high-performing electroacetogenic culture and modelled the metabolism of three primary electroacetogens in the community [39].

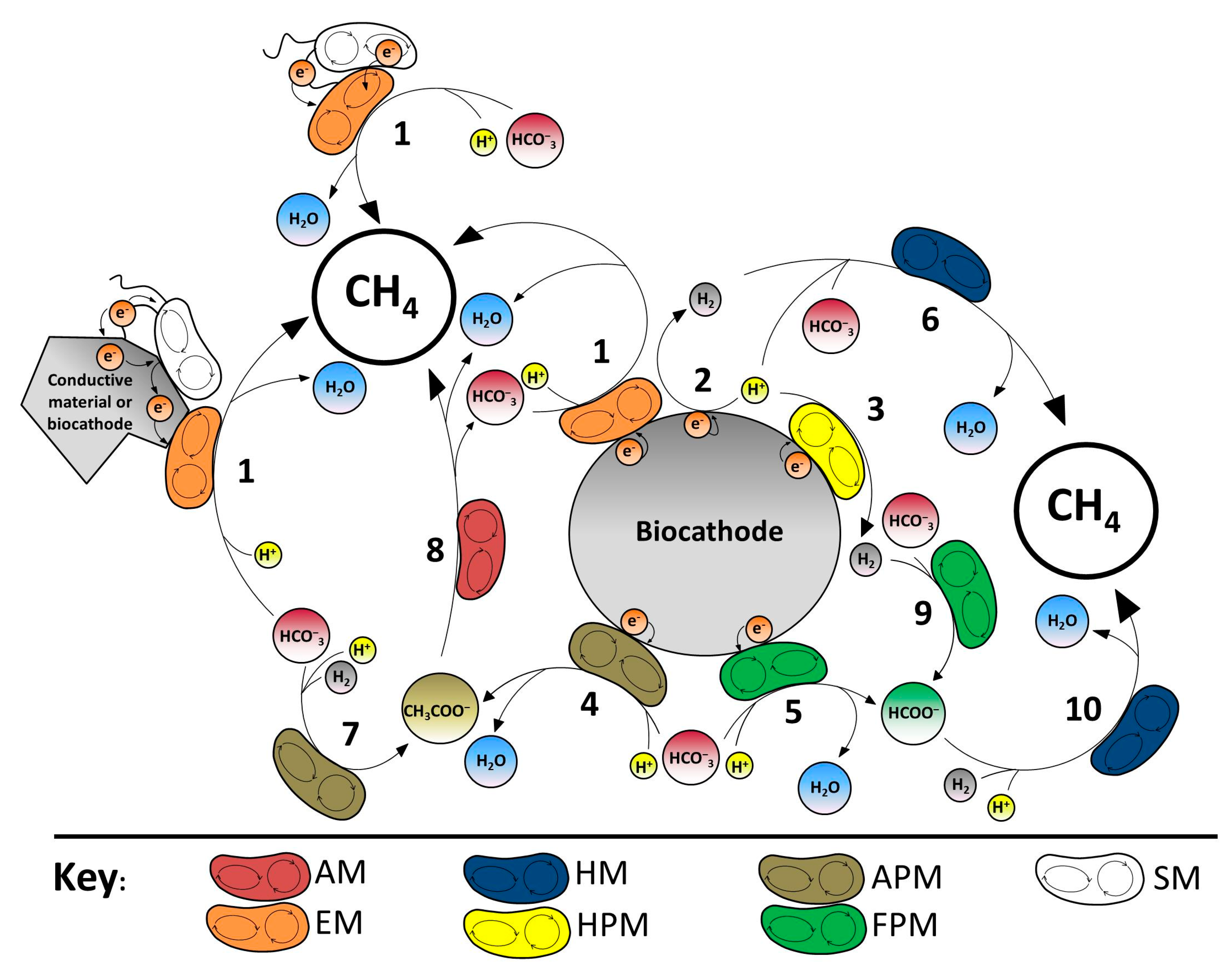

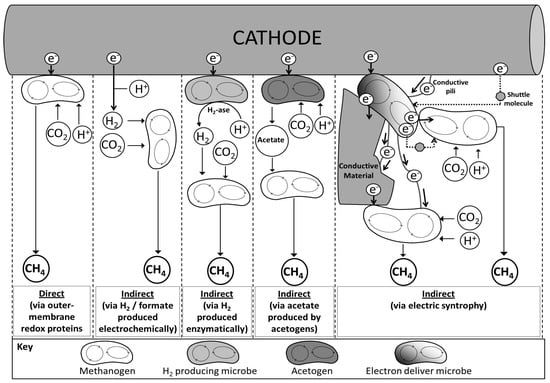

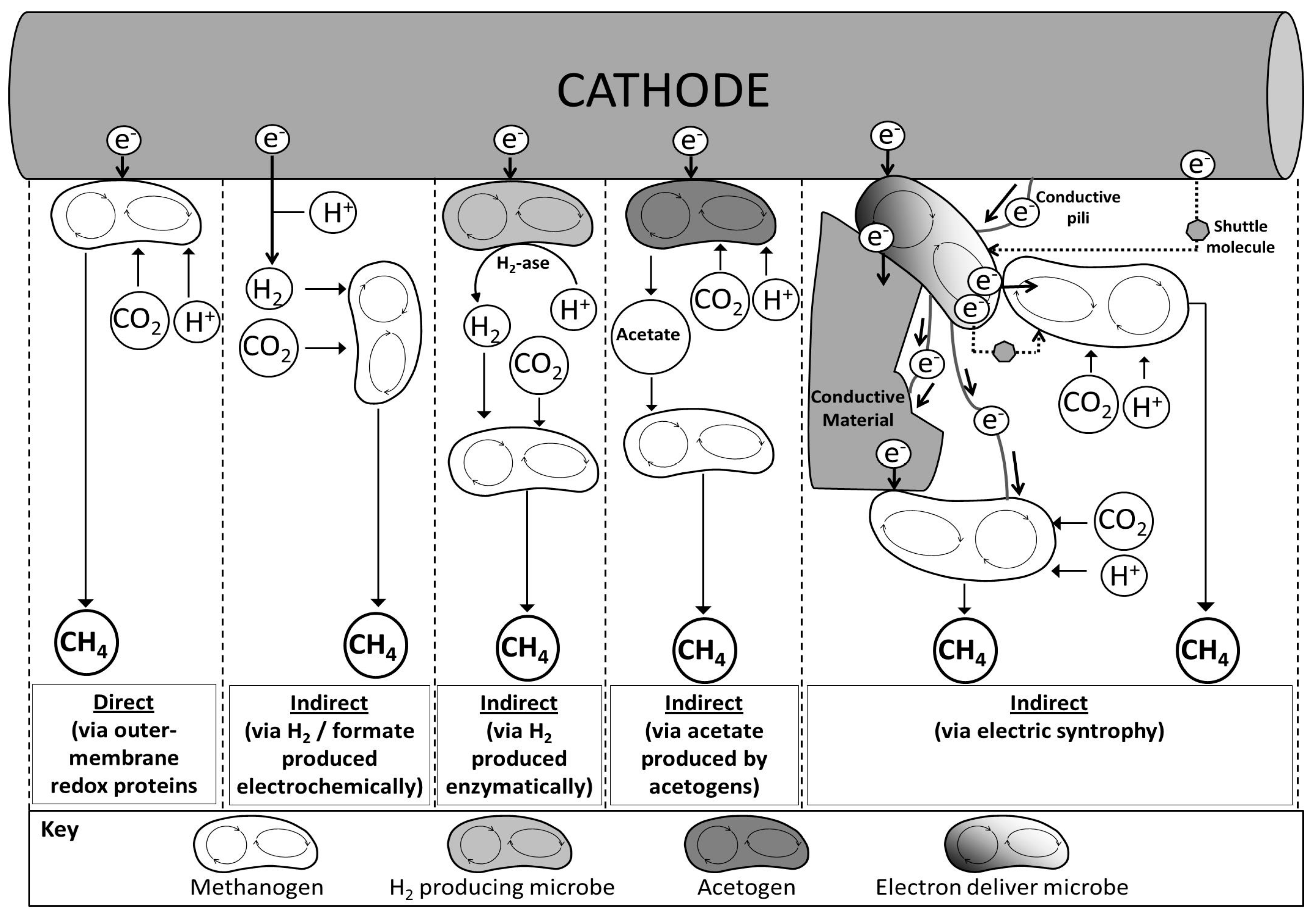

An overview of possible methanogenic routes within the biocathode compartment according to the literature is shown in Figure 3. The capability of some microorganisms to catalyze the production of hydrogen (Figure 3: reaction 3) and methane (Figure 3: reactions: 1, 6, 8 and 10) with electrons derived from electrodes has been widely studied in BES [8,13,18,40,41]. In addition, methanogens have been found the main microbial community for the reduction of CO2 into CH4 in BES (Figure 3: reactions 1 and 6) [8,11,13,19,42,43]. Among such community, hydrogenotrophic methanogens (i.e., Methanobacterium or Methanobrevibacter) have been found to play a main role (Figure 3: reaction 6) [19,44], specifically in studies dealing with mixed culture biocathodes in BESs [45]. Therefore favorable conditions for the growth and the activity of hydrogenotrophic methanogens, such as better bioavailability of H2, might lead to an increase in methane production by these systems.
Bacteria species might also have an important role in methane production (Figure 3: reaction 1 with syntrophic microorganisms involved) [46]. Furthermore, a current network based on microbial nanowires as electric connectors has been described between bacteria and methanogens in methane production environments (Figure 3: reaction 1 with syntrophic microorganisms connected to methanogens via nanowires) [31]. Results from studies analyzing microbial communities may lead to hypothesize that bacteria enhance methane production not only by catalyzing hydrogen production (i.e., Hydrogenophaga caeni and Desulfovibrio putealis) as an intermediate for methane generation [45], but also by consuming oxygen (i.e., Hydrogenophaga caeni, Methylocystis sp. and Acidovorax caeni), which causes toxicity to methanogenic archaea [11,19].
Moreover, some microbes are able to use cathodic electrons to produce reduced compounds such as hydrogen (Figure 3: reaction 6) or formate (Figure 3: reaction 10) at rates exceeding their own metabolic capacity to use them [47]. Consequently, these compounds become available as substrates to other hydrogenotrophic strains and could potentially sustain a diverse electromethanogenic cathodic biofilm.

Electron Transfer from Cathode to Microbes in Electromethanogenesis

Energy supplied in electromethanogenesis is mediated by electric current flowing through conductive solid materials (electrode) and/or small molecules acting as energy carriers (Figure 4). From the electron transfer mechanism perspective, methane production in a biocathode aimed for electromethanogenesis can take place directly and/or indirectly. Similarly to a bioanode, direct electromethanogenesis would take place in the biocathode through outer membrane redox proteins which are in contact with the electrode such as c-type cytochromes [82,83], ferredoxin, rubredoxin, hydrogenase and/or formate dehydrogenase [84], in addition to electrically conductive pili (nanowires) [85]. Mediated electromethanogenesis could also take place by using (i) electrochemically or bioelectrochemically produced H2 [13,14]; (ii) formate [71] or biologically produced acetate [42,55,64,65,66,67,68,69,70]; (iii) soluble external mediators such as flavins [86], riboflavins [87], quinones [88] and phenazines [89] secreted by microbes or not (i.e., humic acids, thionine, viologens, methylene blue, and sulfur species) [90,91]; and/or (iv) interspecies electron transfer (IET) [34,35] through similar electron carriers, nanowires [87,92] or c-type cytochromes as membrane-bound proteins [82,93,94,95].
Recent studies have given some insights into how microbes interact with cathodes [16,84], where hydrogenotrophic methanogens were considered crucial players in the process [48,73,96]. Controversy appeared when some studies questioned the direct electron uptake from electrodes, in which electromethanogenesis mechanism was first based. In 1999, Park et al. were the first to report the ability of a methanogenic mixed culture to drive methanogenesis with an electrical current using neutral red as electron shuttle [27], according to the given terminology this would be considered mediated electromethanogenesis. Afterwards, Cheng et al. [8] found electromethanogenesis without the use of an artificial mediator, suggesting the primacy of a direct electric pathway over a mediated electromethanogenesis in a culture dominated by Methanobacterium palustre. In another study, Villano et al. [13] demonstrated that only a fraction of methane was produced by direct electromethanogenesis with the remainder being generated via H2-mediated electromethanogenesis by hydrogenotrophic methanogens present in the bioelectrochemical reactor and the prevalence of a mechanism over the other on the overall methane production was highly dependent on the potential applied to the biocathode. Moreover, Deutzmann and colleagues attributed extra product to extracellular redox-active enzymes sorbed to a redox-active surface catalyzing the formation of compounds (e.g., H2 or formate), which function as electron donors in microbial catabolism [50]. The authors also claimed that redox-active enzymes, such as hydrogenases and formate dehydrogenase, can be present in cell-free spent medium and interact with a cathodic surface [50].
On the other hand, evidence of direct electron transfer mechanisms suggested that hydrogenotrophic methanogen Methanosarcina sp. and acetoclastic methanogen Methanosaeta sp. can produce methane via CO2 reduction by exploiting direct electron transfer from elemental iron [26,49,51], iron oxides [97], activated carbon [98] and other microorganisms [34]. Recently, Methanobacterium-like strain IM1 was also found to be capable of direct electromethanogenesis [52] at a cathode potential of −0.4 V versus SHE, at which a hydrogenotrophic control strain (M. maripaludis) did not produce methane. In addition, another study conducted by Lohner et al. provided direct evidence of the capability of hydrogenotrophic methanogens to accept electrons directly from a cathode using a hydrogenase-disrupted mutant of Methanococcus maripaludis [48]. In the study they suggested that even though a direct hydrogen-independent pathway for extracellular electron transfer exists, most of the electrons used for methanogenesis were indirectly derived from hydrogen. To elucidate the electron transfer mechanisms within direct electromethanogenesis, future research should focus on the role of extracellular enzymes in the process, taking into account that different species might carry out different electron transfer strategies, thus explaining such contradictory findings [99].
In addition, the cooperation of multiple microbial species in terms of energy exchange, known as electric syntrophy [100] or IET [101], has been also described in electromethanogenic biocathodes [102]. Electron exchange via IET is similar to electron uptake from the cathode. In order to elucidate syntrophic cooperation between species, co-culture studies representative of such interactions have been conducted, suggesting that indeed IET can occur between bacteria and methanogens in electromethanogenesis [102]. IET between species such as Geobacter metallireducens and electron-accepting methanogens of the Methanosaeta and Methanosarcina genera to reduce CO2 into CH4 was observed by Rotaru et al., in spite of the acetoclastic nature of both methanogens [34,35]. Methanosaeta harundinacea, another methanogen, can also interact with bacteria G. metallireducens in a co-culture by using additional electrons from ethanol fermentation to reduce CO2 into CH4 via IET [34]. In any case, syntrophic interactions within methanogenic conditions are highly dependent on the organisms present [34], and the presence of high conductive materials [97,98,103,104,105]. In fact, enhancements of methanogenesis through electric syntrophy have been reported in studies using conductive materials such iron oxides [106,107], graphite [98,108], biochar [103], and microbial nanowires [31,35]. Indeed, many methanogens have shown inability to directly uptake electrons from the cathode, thus being dependent from other species such as Geobacter [31,109,110,111,112] or Acetobacterium species that function as electron bridges between methanogens and the cathode [47].
Nevertheless, still a deeper understanding of the biochemical energetics of the reaction mechanisms is necessary to optimize electromethanogenesis. In this sense, Rosenbaum et al. suggested that energy gain for biocathode application must be maximized, while microbial energy consumption minimized [16]. According to the authors, the microbes energy gain from biocathodic reaction is strongly affected by the type and efficiency of the extracellular electron transfer mechanism utilized. Yet, supplementary energy must be added in different forms (e.g., light, organics) to maintain biocatalytic activity when microbes are not capable to conserve energy during the biocathodic reaction. Undoubtedly, improved designs in electromethanogenic BESs must walk hand in hand with the elucidation of the electric routes. A better understanding of electrode-microbe and microbe-microbe interactions is required in order to increase the efficiency of future electromethanogenic BESs. A possible approach to increase that knowledge might be the use of molecular techniques to elucidate molecular mechanisms. In this sense, an study conducted by Sydow et al., in which all the current molecular techniques able to be used in the elucidation of electron transfer mechanisms of electroactive species were gathered, are of high interest [113]. In this sense, genome sequencing, conjugation, gene disruption, electroporation and the use of suicide/natural plasmids and gene promoters have become extremely valuable in bioelectrochemistry. Recently, many reviews in the literature have focused not only on the electrode-microbe [40,114] and microbe-microbe interactions [115,116], but also on the biotechnological potential of such an electrical network [64,101,117,118,119,120]. Moreover, reviews on electroactive microorganisms themselves [121,122] and their capability to transfer electrons through conductive materials or pili in prokaryotic organisms [123], enabling electrical exchange, have recently appeared in the literature as a result of an increasing attention by the scientific community.

3. Applications of Electromethanogenesis

The niche of a future technology based on methane bioelectrochemically produced from CO2 is not clear yet. However, electromethanogenesis-based technologies have a great potential for storing renewable energy in the form of methane, improving waste treatment processes or upgrading gas streams containing CO2. In all cases, future studies must focus on further up-scaling, increase process efficiencies and reduce operation costs in order to reach coexistence with well-established technologies, or even a hypothetical overtaking. Those improvements will be achieved by targeting the current limitations of the process—later discussed in this review—such as side reactions, mass transport, inoculum type, electrode material, membranes, operation parameters, up-scaling, and the lack of novel efficient reactor designs. Although these constraints are common to all BES processes, the authors think that, what is specifically referred to CH4-producing BES, the establishment of the best conditions, which allow the growth of a well-stablished methanogenic biofilm, are crucial. However, since these biofilms are dependent on several parameters such as the cathode potential, electrode material, pH, etc. only an extensive knowledge of how they interact between themselves will permit electromethanogenesis to be the basis of a competitive technology.

3.1. Renewable Energy Storage: The Bioelectrochemical Power-to-Methane Concept

Electromethanogenesis provides a new way to store electrical energy in a stable form as “carbon-neutral” methane [18,42,124], becoming an attractive technology for bio-methane production and renewable energy storage integration [18,22,125,126,127]. Furthermore, the process enhances the role of BESs within the waste biorefinery concept for the production of biofuels and chemicals [128,129,130]. High efficiencies and yields of electromethanogenesis-based technologies will allow for a future applicability of BES technology for energy storage in the stable form of biomethane, which could be also directly injected into the existing gas grid, or used as vehicle fuel [131]. This technology will become really interesting during events of intermittent renewables electricity from solar and wind [124], whose surpluses are nowadays unsuccessfully recovered. The stored methane could be converted back into energy and electricity when needed [132]. In this sense, Sato et al. also proposed to apply electric energy in depleted oil fields re-filled with CO2, in which electroactive microbes would perform electromethanogenesis [9]. Besides its feasibility as an energy carrier [133,134,135], methane could also be applied as a precursor for green fuels such as biodiesel, methanol and other hydrocarbons [136].
Bioelectrochemical methane production from renewable energy is nowadays considered the main application of electromethanogenesis. In terms of productivity, the highest electromethanogenic-BES methane yield reported so far is 2.9 mol CH4 day−1 m−2 at a potential of −1.2 V (vs. SHE)—lowest potential of the assessed studies—using a hybrid graphite felt biocathode [20]. Table 2 gives an overview of the operational parameters (in terms of both reactor operation and cathode material) and performance of methane-producing biocathodes so far. Both methane production rate and cathode capture efficiency (CCE) have been considered to evaluate the process performance, with CCE being a key parameter representing the fraction of equivalents of current recovered as methane.

3.2. Electromethanogenesis for Biogas Upgrading

Many efforts are being made to improve the typical CH4:CO2 ratio of around 3:2 in the biogas in order to improve the quality of the product for novel applications, such as biomethane. Among the existing biological biogas upgrading technologies, BES-based technology has recently emerged as a promising alternative [33]. A proof of concept carried out by Xu et al. and it resulted in an enriched biogas—CO2 content <10% (v/v)—with a better performance of the upgrading process when the electrodes were placed within the anaerobic digester and the system was operated in continuous mode. Moreover, several recent studies also showed that the integration of anaerobic digestion (AD) and BES may accomplish biogas upgrading [142]. For instance, Bo et al. inserted an electrode in an AD reactor increasing the content of methane up to 98% (v/v), mainly due to the in situ reduction of CO2 by the hydrogenotrophic methanogens which used the H2 produced in the electrode as an electron donor [143]. Other studies contributed to deepen knowledge of the electron transfer mechanisms for biogas upgrading to biomethane within a mixed culture biocathode, also reporting hydrogenotrophic methanogenesis by Methanobacterium sp. as the main mechanism for methane production in the biocathode rather than direct electromethanogenesis [14]. Regardless of the lack of long-term operation studies in larger digesters, the promising results showed in lab-scale demonstrate the need to focus the efforts in a further up-scaling of the process.

3.3. Electromethanogenesis Coupled to Waste Treatment

Electromethanogenesis has recently been considered at the service of waste treatment technologies. Among them, AD technology, as it enhances methane production increasing the overall efficiency of the process. Several works have reported an increase of the methane yield and/or a better decomposition of complex substrates when coupling BES to anaerobic digesters [31,32,72,80,109,144,145,146,147,148,149,150,151,152,153,154,155,156,157,158]. However, de Vrieze et al. attributed those improvements to an increase of biomass retention on the electrodes, rather than electrochemical interaction [159]. Nevertheless, electromethanogenesis has been reported to take place in psicrophilic [145], mesophilic [8,13,146,160], and thermophilic conditions [15,53,161] proving robustness to the technology. Besides the introduction of electrodes directly in the anaerobic reactor, methane production could be enhanced by the addition of carbon-based (i.e., carbon cloth, carbon felt, and granular activated carbon) [76,147,162] or non-carbon-based [163] conductive materials as a method to increase electro-active methanogenic activity. Moreover, the coupling of an external cathode to the anaerobic digester resulted in an improvement of its performance [148]. Bo et al. reported a CH4 yields, chemical oxygen demand (COD) removal rates and carbon recovery rates that were 24–230%, 130–300% and 55–56% higher than traditional AD reactors [143]. Likewise, the authors showed an enhancement of the activities of enzymes associated with hydrolysis-acidification, together with a decrease of oxidative-reductive potential when an iron anode and a graphite cathode were inserted into AD for waste activated sludge treatment. Song et al. also proved that the electromethanogenesis coupled to anaerobic digestion system could obtain much higher volatile solids reduction and energy recovery with shorter hydraulic retention times than the conventional AD technologies [152]. In addition, Feng et al. experienced a boost in the growth of methanogens, a higher removal of suspended and volatile suspended solids and an increase of CH4 production by 22.4% when the anode served as a source of electrons by self-oxidation and release of Fe2+ in an iron-graphite electrode placed in an anaerobic reactor [164]. Moreover, the introduction of the anode and cathode in an upflow anaerobic sludge blanket, together with the addition of zero valent iron, raised the COD removal from 60% to 95% and increased reactor stability in another study [155].
Four possible mechanisms have been proposed for electrochemical enhancement of the AD: (i) the release of anodic oxygen formed during water electrolysis in the AD broth leading to a microaerophilic environment and a boost of substrate hydrolysis [165,166]; (ii) cathodic hydrogen formation by the electrolyzer as a co-substrate for the fermentation with enhanced methane formation by hydrogenotrophic methanogenesis; (iii) direct electron transfer to methanogens attached to the cathode surface [8]; and (iv) the enhancement of the biomass retention on the electrodes attached inside the AD reactor [54,74,159]. However, the second mechanism proposed highly depends on the reaction taking place in the counter electrode—usually water electrolysis and/or oxidation of organic matterwhich, in turn, depends on the potential applied and the electrode material.
In addition, syntrophic reactions may have an important role on interspecies electron transfer in the digester. Related findings suggest that IET may alter the conventional concept of ATP generation and could be an important mechanism for hydrogenotrophic methanogenesis in AD [31].
Early studies suggested that direct electromethanogenesis holds some potential advantages compared to traditional anaerobic digestion processes [167]. First, in the case of a two chambered BES, organic matter oxidation and methane production are two physically separated processes occurring at the anode and the cathode, respectively. This allows protecting methanogens at the cathode against inhibitory compounds contained in the waste stream which is treated at the anode, as well as, increasing the methane content in the produced biogas. Second, electromethanogenesis is more energetically feasible since it can occur at ambient temperature or, if operated at higher temperatures (e.g., 35–55 °C), still there is no need for heating the influent waste stream (separately treated at the anode). Third, BESs can treat waste streams with low organic matter content, where AD cannot take place [140].
In a typical electromethanogenesis-based BES, hydrogen gas produced by the cathode can act as an electron carrier for hydrogenotrophic methanogenesis. As hydrogen gas is only measured in the gas phase, this process cannot be quantitatively measured yet. Thus, finding a sensor to quantify methanogenesis via hydrogenotrophic archaea may lead to a better understanding of electromethanogenesis and its further scaling up. In most cases none or very little hydrogen is measured in the gas phase, which may indicate either immediate conversion to methane or that hydrogen gas is not produced at all [54,74,155]. Nevertheless, new approaches of how to couple more effectively both technologies are needed. Indeed, some authors are already working on developing new reactor designs to exploit the existing synergies between the electromethanogenesis and AD with promising results [168].
In addition to the application of electromethanogenesis in AD, the potential of CH4-producing BES on treating medium/low strength wastewater while maximizing energy recovery from organic substrates attracted the attention for its application on wastewater treatment (WWT) [138,169]. Wastewater as an electron donor is desirable due to its low price, availability, and the growing awareness for ecological WWT with a minimum carbon output. Bacteria in these systems degrade organic material in the anode, and transfer electrons to the cathode electrode. Even if organic matter is used as electron donor, an additional voltage is supplied to BESs to overcome thermodynamic limitations and produce H2 or CH4 in the cathode compartment [28,170,171,172]. WWT in BESs has potential benefits compared to traditional AD. For instance, the physical isolation of the waste organic compounds oxidation phase from the methane generation enables (i) the protection of the methanogenic culture against inhibitory substances which may be present in waste streams and (ii) to generate biogas with higher methane content, and less CO2 and other impurities. WWT with BESs must face several important challenges to achieve practical implementation at large scale [25]. The former demand of using real wastewater in the studies has been fulfilled and resulted in a better understanding of how to operate such systems. In many cases, the use of real wastewater [139,144,168,173,174,175,176], sewage sludge [152,153], waste activated sludge [177], digested or non-digested slurry [178] was supplemented by other substrates such as glucose [168] or sodium acetate [144] to enhance microorganism growth. Nevertheless, further studies are required to develop strategies for improving the degradation of complex materials and controlling the microbial reactions occurring in the system [25]. Zeppilli et al. fed simulated municipal wastewater in the anode of a BES and experienced a stable and robust performance in terms of current generation (coulombic efficiency, CE, higher than 70%), and COD removal (70% on average), whereas methane production took place in the cathode [56]. However, the overall performance was lower than that obtained by feeding the anode with acetate as sole electron donor, due to the presence of slowly biodegradable COD in the municipal wastewater-like feeding.
In the broader context of both biogas upgrading and wastewater treatment, particularly attractive is the possibility to integrate the anaerobic digestion technology with a CH4-producing BES. Indeed, the AD liquid effluent generally consists of diluted organic acids which can be further removed at the anode of the bioelectrochemical system whereas the carbon dioxide contained in the AD biogas can be converted into additional methane at the cathode. Also, by using a cation exchange membrane to separate the anode and cathode compartments in the BES, this integration opportunity has been proposed as a strategy to remove ammonium, along with organic substrates, from the AD liquid effluent [138].
However, new designs for full-scale BESs are needed to maximize degradation of organics in the anode and thus increase the electron availability in the cathode. In this sense, a new reactor design proposed by Ran et al. produced hydrogen and methane with 98.0% COD removal rate in the anode [168]. Cheng et al. proposed a new design based on a membraneless BES (rotatable bioelectrochemical contactor) for large scale BES-WWT to recover methane from a synthetic low strength wastewater. This new design achieved significant COD removal and methane yield (404.88 mmol·day−1·m−2) with a CE over 80% [179]. Katuri et al. evaluated another novel electrochemical bioreactor composed of conductive hollow-fiber membranes used to treat low-organic strength solutions, removing more than 95% of the initial COD (320 mg·L−1). Furthermore, up to 71% of the substrate energy was recovered as methane rich biogas at an applied voltage of 0.7 V and a net energy needed of 0.27 kWh m−3 of wastewater, far from the 1–2 kWh·m−3 currently needed for wastewater treatment using aerobic membrane bioreactors [180]. Besides the microbial oxidant capability of bioelectrodes, the electrode itself might act as a physical filter of solids with removal efficiencies of 83% of suspended solids and 77% of the COD in a study using real wastewater and carbon felt as anodic electrode [175]. However, suspended solids in the electrode might lead to electrode clogging, which makes the reactor dependent on an effective cleaning system.
Moreno et al. assessed the use of a BES to treat low-strength wastewater in the surface of the anode, while recovering methane in the cathode surface with promising results in a 3 L single-chambered reactor [139]. The authors suggested that controlling cathode potential, in parallel with a smart electrode choice with higher specific surface area in both the cathode and the anode, might lead to better results due to higher CO2 conversion and larger methanogenic communities attached on the electrode. In this sense, Feng and Song proved, in a similar but smaller setup, that coal tar pitch is a biocompatible binder for the enrichment of electrochemically active bacteria, and nickel is a good catalyst for electron transfer on the anode, which enhanced the methane production in the biocathode [181]. Moreover, studies with very low CE have been carried out in semi-pilot scale tubular BES fed with real domestic wastewater [176].
Nevertheless, the extent to which these challenges can be resolved will eventually determine how bioelectrochemical wastewater treatment can be practically implemented.
Besides the combination of cathodic electromethanogenesis and anodic WWT in BESs, several authors proposed alternative anodic processes such as bioremediation with great success. Huang et al. successfully recovered cobalt with simultaneous methane and acetate production in a biocathode [182]. In this study, Co(II) was added and subsequently reduced in the biocathode, while sodium acetate was oxidized in the bioanode, thus mimicking cathodic bioremediation and anodic WWT. Furthermore, Jiang et al. performed anodic sulfide removal and cathodic electromethanogenesis in a microbial fuel cells-microbial electrolysis cell coupled system [44]. These proofs of concept demonstrate that a low energetic cost methodology for bioremediation through BESs is possible when electromethanogenesis occurs in the biocathode. However, its potential as electron donors to electromethanogenic biocathodes at this early stage of development is questionable. Future research should focus on how to increase the bioremediation potential of those anodic processes, identify the species involved and chose their best operation parameters. In addition, the treatment of different substrates such as wastes from the food industry, agricultural by-products or pure organics has successfully been investigated as anodic substrates [183,184]. Therefore, these processes must be considered as potential electron donors for methanogens colonizing the cathodes.

4. Current Limitations in Electromethanogenesis and Proposed Strategies

Although many limitations still need to be addressed to optimize this technology and make it economically feasible. Constraints regarding side reactions, mass transfer, inoculum type, electrode material, anode-cathode separation, operation parameters, system design or scaling-up are currently the bottlenecks of a future technology based on electromethanogenesis.

4.1. Side/Parasitic Reactions

Methane and oxygen diffusion to anode and cathode respectively occurs in BES. Gas diffusion through the membrane is considered one of the main limitations lowering the CE of the process [18] due to losses in the methane yield and the role of diffused oxygen as an alternative electron acceptor. Moreover, most of the microorganisms in the cathode chamber are likely to be sensitive to oxygen. Improvements on the reactor design and manufacture of low gas permeability membranes must be achieved to definitely prevent it. Despite this problem is inherent to current available membranes, recent studies have addressed this issue concluding that proton exchange membrane allows a higher methane production [185].
Other electron sinks in the system are reactions of reduced compounds present present in the buffer solution of the cathodic culture medium (e.g., sulfides, Fe2+) with oxidants generated in the anode chamber (e.g., O2, H2, or Cl2), because membranes are not completely impermeable to neutral and positively charged small molecules. Some of these molecules could be re-oxidized or re-reduced at the anode or cathode, or react in solution and generate intermediates [48].
Moreover, oxygen diffusion to mixed culture biocathode compartment enhances the growth of methanotrophic species able to use methane as carbon source and thus decreasing its yield [19]. Nonetheless some authors consider the presence of methanotrophs beneficial to preserve anaerobic conditions and thus keeping anaerobic methanogens active [19]. Other factors such as competitive processes and bacterial growth could lead to a reduction in the CE of the process. In addition, the methanotroph community is rather interesting from the commercial point of view since recent studies have suggested the new methanotroph-based biorefinery concept [186]. Methanotrophs are able to generate multiple products from methane fermentation such as feed supplement, ectoine, sucrose, biofuels, biopolymers, surface layers, metal chelating protein, enzymes and/or heterologous proteins [187]. Nowadays, companies such as Mango Materials are commercializing biomethane to bioplastics [128] since a life cycle analysis has recently shown that biomethane conversion to bioplastics is carbon neutral and energetically and economically feasible [188]. Additionally, a methane-oxidizing community may serve as methane scavenger in the exhaust gas resulted from a biogas upgrading process [189].

4.2. Mass Transport

Transport rates within the BES system rather limit the electromethanogenesis performance. Concentration gradients at anode and cathode inherent to several fluxes within the system such as electron donor and acceptor, ionic acidity and alkalinity, electron transport at the biofilm, and reactant/product crossover affect its overall performance [190]. However, improved MEC designs focused in overcome transport limitations could result in higher performances and thus better product yields. A more efficient electromethanogenesis process in large-scale systems will be achieved when these transport processes occur at the same rate that microorganisms consume electrical current.
One successful strategy is to combine the catalyst layer and a hydrophobic gas diffusion layer, creating a three-phase interface at the electrode, thus the availability of the substrates to the biocatalyst on the cathode surface is enhanced [191]. Such approach has been proven in the microbial catalysis of CO2 reduction to multi-carbon compounds, which makes it also applicable to electromethanogenesis. Moreover, strategies proposed for a successful up-scaling are using thinner electrodes to maintain a 3D structure for biofilm growth and decreasing ohmic losses [192,193], removing ionic membranes or placing anode and cathode close to each other to minimize acidity and alkalinity gradients, as well as treating high strength and high alkalinity wastewaters in the anode to alleviate gradients to the cathode chamber [194].
In addition, limitations between phases due to poor solubility of CO2 and H2 are far for being avoided through the classic BESs configurations, even though the in situ H2 production in the liquid phase of the reactor eases its direct utilization by the microbes. Solubilization profile in fresh water is completely different as compared to salt water, fact that complicates the operation due to oscillations in the system. Moreover, bacteriostatic effect of using CO2 as substrate can hamper bacteria growth [195] and thus decrease the overall performance of mixed consortia biofilms [120]. The extremely poor aqueous solubility of H2 also compromises mediated electromethanogenesis, which is known to occur in the aqueous phase containing the cathodic methanogenic community. Process operation under H2 mass transfer limitation is known to decrease the efficiency of CH4 production at the expenses of an enhanced biomass formation [196], resulting in the need to operate at high retention times. The implementation of high-mass-transfer gas phase bioreactors (i.e., two-phase partitioning or Taylor flow) designs to biocathodes may lead to an increase in the volumetric CH4 productivities of up to 1 order of magnitude [197], due to a higher H2 and CO2 bio-availability to planktonic hydrogenotrophic communities.

4.3. Inoculum Type

The nature of the electromethanogenic inoculum is of major importance in the productivity of a biocathode. Siegert et al. reported higher methane yields in biocathodes when hydrogenotrophic methanogens where presented in the inoculum [73]. In agreement with other studies [44,45,55], these findings suggest that the presence of Archaea of the hydrogenotrophic genera Methanobacterium and Methanobrevibacter are crucial to produce methane in BESs and their presence in the inoculum favours electromethanogenesis processes. Obviously methanogens must be included in a wide range of inoculum, but also the presence of effective electron uptake species will ensure a free electron flow from the electrode to electromethanogens unable to attach on the electrode surface.
On the other hand, a study conducted by Pissciota et al. reported the successful transfer of sediment-type microbial fuel cells bioanode suspension as inoculum to sterile cathodes made of graphite plates, carbon rods, or carbon brushes in new BESs [63]. The authors reported an increase of current demand and methane production related to the growth of methanogen Methanocorpusculum labreanum in the biocathode. Thus, the versatility of bioanode community to live in a methanogenic biocathode and the ability of methanogens present in the inoculum to grow on a variety of cathode substrates were demonstrated.

4.4. Electrode

Electrode material and its surface are key factors that govern electron exchange and methane formation efficiencies in electromethanogenesis. Current efforts to improve performance are focused on combining new and existing materials [20,198], re-shaping them [181,199] or applying different pre-treatments to the electrode surface [200] in order to increase biocompatibility. The use of modified carbon cloth with chitosan or cyanuric chloride, which is relatively inexpensive, showed a 6 to 7-fold increase in microbial electrosynthesis activity [198]. Aryal et al. developed a 3D-network cathode as an effective approach to improve microbe-electrode interactions leading to productive CO2-reducing biocathodes [199]. LaBarge et al. confirmed that microbes related to electromethanogenesis and exocellular electron transfer were enriched on a pretreated granular activated carbon, improving methane generation rates and decreasing startup times [200]. The pretreatment consisted of adding such as inorganics (hydrogen gas) or organics (methanol, acetate and propionate) substrates to the inoculum communities, and enriching them in archaea, Geobacter spp., and sulfate-reducing bacteria prior to their inoculation.
In addition, Zhen et al. obtained inspiring results when they evaluated the performance of a hybrid biocathode covered with graphite felt [20]. In this study, methane production was highly comparable to that originally reported for Pt-catalysed carbon cloth by Cheng et al. [8], for carbon paper by Villano et al. [13], for graphite/carbon fiber brush by Pisciotta et al. [63] and Siegert et al. [11], for Pt by Siegert et al. [11], and for graphite felt (GF) alone by Van Eerten-Jansen et al. [18]. The use of the hybrid GF-biocathode in these studies showed great promise in promoting electromethanogenesis of BES processes not only because of high energy recoveries but also as a result of the ease of operation with low-cost materials [20]. Moreover, much attention has been focused on successfully improving of electron uptake in CO2 reducing biocathodes by modifying the electrode surface. For instance, Jourdin et al. used a macropore of about 0.6 mm in diameter, in a highly open macroporous reticulated vitreous carbon electrodes. This electrode shape seemed optimal to achieve a good balance between total surface area available for biofilm formation and effective mass transfer between the bulk liquid and the electrode and biofilm surface [201].
Nevertheless, the lack of understanding of the mechanisms by which electrons are transferred from cathodes to cells is a clear hurdle for an effective design of cathode materials. Thus, new knowledge about electron transfer mechanisms will definitely lead to the design of new and more effective electrodes and will boost the electromethanogenesis performance. Further research is expected to tune materials and cathode potentials to best interact with the appropriate electron carriers, electromethanogens or efficient electron uptake species functioning as electron providers to electromethanogens. Improve attachment and biofilm growth of electron uptake species might greatly increase areal current densities and improve the performance of electromethanogenic biocathodes.

4.5. Anode-Cathode Separation: Membrane

An effective selection of the cathode-anode separation is crucial in electromethanogenic BESs. The type of ion selective membrane not only determines stability and production levels [202], but also the economic feasibility of the technology. Moreover, Babanova et al. assessed a Nafion 117 and an Ultrex CMI-7000 membrane in an electromethanogenic BES, pointing out differences in the electrochemical operation and in the microbial taxonomic composition and dynamics within the biocathode [75]. This study emphasizes the need of a thorough research of membrane types commonly used in electromethanogenic setups to determine and evaluate the impact of its usage in terms of methane production, electrochemical performance, microbial population and dynamics, scalability and practical application.
In addition, Hernandez-Flores et al. determined that agar-containing membranes could replace high cost conventional membranes, thus improving the economic feasibility of electromethanogenesis [203]. The proposed low cost membranes also avoid the use of chemicals needed for the pretreatment (i.e., hydrogen peroxide, sulphuric acid, etc.), which nowadays generates hazardous wastes and increases its cost. For this reasons, a deeper assessment of a broader range of alternative low cost membranes must be carried out.
Therefore, an appropriate membrane selection should be carefully considered in future elelectromethanogenic BES applications and fundamental studies since it may induce significant impacts on system efficiencies, microbial community selection and final costs.

4.6. Operation Parameters

The cathode potential is undoubtedly the most important operation parameter, since it drives the hydrogen production and subsequently the methanogenic process in BESs. The combination of cathode potential with the energy losses at the anode, ohmic losses, and transport and pH losses, determines the overall internal resistance [204], which is also a crucial parameter. Moreover, the assessment of the overall performance of electromethanogenesis must be performed in terms of cathodic and energy efficiencies [22].
The assessment of long-term operation studies of electromethanogenic BESs is essential, however only a few have been conducted so far. Van Eerten-jansen et al. experienced internal resistances at long term, ending up in low energy efficiencies. The study showed that cathode and anode losses where dominant in the short term, whereas pH gradient—due to water oxidation in the anode—and transport losses through the membrane were critical in the long term [18].
The reduction of energy losses at the cathode (cathode overpotential) is essential to improve the performance of electromethanogenic-like reactors. For that reason, new strategies on increasing the mass transfer of substrates and products in the electrode or improving the microbial adhesion to the cathode are crucial to overcome such limitation. A forced catholyte flow through the electrode may increase the mass transport of substrates towards the electrode and products away from it [205]. In addition, a better microbial adhesion to the electrode must be in consideration to decrease the overpotential in electromethanogenic systems [11,206,207]. In this sense, promising approaches to increase the microbial adhesion are (i) novel electrode materials and (ii) decrease the electrostatic repulsion of the negatively charged microbial and electrode surfaces by increasing the hydrophobicity of the electrode. Moreover, Luo et al. considered using a microbial reverse-electrodialysis methanogenesis cell in order to decrease the energy requirement to overcome large cathode overpotentials [208]. In this study, the authors successfully minimized the energy by placing a reverse electrodialysis stack between the anode and the biocathode, creating a salinity gradient which was subsequently converted to electrical energy.

4.7. System Design and Scaling-Up

Although the results have been less than sterling, many efforts to scale-up BES-based technologies have already been made. In fact, Cusick et al. successfully constructed and tested a pilot-scale (1000 L) continuous flow microbial electrolysis cell for current generation and COD removal with winery wastewater [209]. Techniques for scaling up microbial fuel cells are also used for the upscaling of electromethanogenic-based reactors. Nowadays, the proposed strategies are either a connection of single small cells together, or the increase of a single BES volume. However, usually the process of scaling up requires a change in electrode spacing and orientation, which impacts the internal resistance of the system and therefore decreases the overall performance. On the other hand, doubling the anode and cathode electrode sizes can increase current density, which together with a correct cathodic electrode choice will result in an increase of the methane production rate. Simplifying reactor design by both removing potentiostatic control of the cathode and the membrane separating the anode and cathode is not valid for methanogenesis purposes, which will inhibit methanogenesis due to the production of oxygen.
The optimization of electrochemical, biological, hydraulic and mass transport requirements should be performed as a result of merging existing configurations of industrial and electrochemical reactors [120]. Roy et al. proposed key aspects for the configuration and the engineering of electromethanogenic-like reactors such us (i) maximize microbial cell retention, keeping in mind requirements of substrates and target products; (ii) favor electron transport; and (iii) use separators between anode and cathode for a simultaneous product recovery [120]. In regards to cell retention, planktonic microbial culture must be retained, to improve configurations and performance. Cell retention can be achieved by recycling and using membrane reactors. In addition, Blanchet et al. confirmed that hydrogen produced on the cathode by water electrolysis is an essential mediator in the microbial electrochemical reduction of CO2, underlying the importance of the hydrogen route in up-scaling electrosynthesis for microbial CO2 reduction [210].
The use of low-cost membranes and cloth electrodes are always desirable when designing large scale reactors. However, low cost clothes may slowly get degraded in large scale systems by the microorganisms, which might reduce the long-term stability of the process. In this sense, non-biodegradable low-cost separators with high proton transfer rates are suggested. Developments in the field of polymer electrolyte membranes applied to fuel cell stacks would be very valuable to avoid constraints when designing electromethanogenesis reactors.
Although those restrictions still compromise larger electromethanogenic prototypes, companies such as Electrochaea (available online: http://www.electrochaea.com) or Cambrian Innovation (available online: http://cambrianinnovation.com/resources/) are currently developing real-scale reactors, which highlight the existence of a market niche for electromethanogenesis-based technology. In fact, many patents have been registered so far [30,211,212,213,214] in view of upscaling the technology. Nevertheless, large scale undertakings are crucial not only to obtain know—how of scaling-up electromethanogenesis, but also to perform techno-economic analyses. Both Electrochaea and Cambrian Innovation initiatives are able to deal with gas streams with variable composition (e.g., biogas), a key aspect to develop a robust technology in the future.
There is an increasing need for innovative prototypes at the industrial level, especially those able to keep high methane yields regardless of operation parameters when performing electromethanogenesis.

5. Outlook

The broad range of applications for electromethanogenesis opens new technological niches to be fulfilled. Its nature of one-step process, capability to perform at ambient temperature and the low-cost inputs—CO2 as the sole carbon source—make nowadays electromethanogenesis a promising technology. However, its success will be closely subjected to new insights provided by basic research, which will help to overcome the limitations pointed out throughout this review.
Additional studies dealing with the elucidation of different methane production mechanisms, together with conclusive roles of the intermediates in methanogens, will lead to an optimization of the biocathode for methane formation. In this sense, a deeper understanding of electron uptake mechanisms utilized by electroactive species and their identities is needed. For that reason, further research with defined co-cultures that would provide new knowledge of interspecific interactions may represent a foundation for an engineering strategy for electromethanogenesis and provide a means to understand complex cathodic biofilms. The increase of the methane yield and energy efficiencies of the electromethanogenic processes will undoubtedly place the technology in a privileged position to compete with well-established technologies. Furthermore, the future up-scaling of the process should successfully address the maintenance of high production rates regardless of possible trace contaminants in real carbon dioxide streams.
Electromethanogenic BES should take advantage of the rapid development in digester designs adapted to novel fermentation processes. There is an increasing necessity to adapt new engineered designs to electromethanogenic reactors that will solve current constraints dealing with physicochemical limitations. Moreover, ongoing advances in new electrode materials and shapes should also harness the birth of new electromethanogenic reactors with better microbe adhesion properties. Those improvements will lead to a better interaction between electron-accepting microorganisms involved in electromethanogenesis and the cathode surface, therefore increasing methane yields.
Moreover, the raising of an environmental awareness concerning global warming has opened an invigorating scenario for the development of novel green technologies. Governments worldwide are willing to support initiatives that aim to mitigate climate change, and thus electromethanogenic-based technologies are placed in a privilege position.
Electromethanogenesis has born to be an alternative to current power-to-gas processes such as the Sabatier process or AD, despite the uncertainties about whether it will work as a stand-alone system or a supplementary system.
The authors are optimistic in the feasibility of electromethanogenesis to be the basis of robust, feasible and marketable technologies in the short term. Such upcoming technologies are expected to play an important role in the near future of global bioenergy field, placing them on the cutting edge of the foreseen biofuel production scenario.

Acknowledgments

Ramiro Blasco-Gómez is grateful for the Research Personnel Training (FPI) grant BES-2015-074229 within the research project CTQ2014-53718-R from the Spanish Ministry of the Economy and Competitiveness (MINECO). Marianna Villano acknowledges the financial support of the Italian Ministry of Education, University and Research (MIUR) through the Projects of National Interest (PRIN) 2012 Project “WISE: turning organic Waste into Innovative and Sustainable End-products”. LEQUIA has been recognized as consolidated research group by the Catalan Government with code 2014-SGR-1168.

Author Contributions

Sebastià Puig conceived the idea of writing a review on the topic; Sebastià Puig, Pau Batlle-Vilanova and Ramiro Blasco-Gómez defined the structure of the document; Ramiro Blasco-Gómez wrote the paper; Pau Batlle-Vilanova, Marianna Villano, Maria Dolors Balaguer, Jesús Colprim and Sebastià Puig read, amended and finally approved the final version of the present manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

ADAnaerobic digestion
BESBioelectrochemical system
CCECathode capture efficiency
CECoulombic efficiency
CODChemical oxygen demand
IETInterspecies electron transfer
GFGraphite felt
SHEStandard hydrogen electrode
WWTWastewater treatment

References

  1. Kotelnikova, S. Microbial production and oxidation of methane in deep subsurface. Earth Sci. Rev. 2002, 58, 367–395. [Google Scholar] [CrossRef]
  2. Thauer, R.K.; Jungermann, K.; Decker, K. Energy conservation in chemotrophic anaerobic bacteria. Bacteriol. Rev. 1977, 41, 100–180. [Google Scholar] [PubMed]
  3. Rostrup-Nielsen, J.R.; Pedersen, K.; Sehested, J. High temperature methanation: Sintering and structure sensitivity. Appl. Catal. A Gen. 2007, 330, 134–138. [Google Scholar] [CrossRef]
  4. Sabatier, P.; Senderens, J.B. New synthesis of methane. C. R. Chim. 1902, 134, 514–516. [Google Scholar]
  5. Ryi, S.-K.; Lee, S.-W.; Hwang, K.-R.; Park, J.-S. Production of synthetic natural gas by means of a catalytic nickel membrane. Fuel 2012, 94, 64–69. [Google Scholar] [CrossRef]
  6. Khorsand, K.; Marvast, M.A.; Pooladian, N.; Kakavand, M. Modeling and simulation of methanation catalytic reactor in Ammonia unit. Pet. Coal 2007, 49, 46–53. [Google Scholar]
  7. Thauer, R.K.; Kaster, A.-K.; Seedorf, H.; Buckel, W.; Hedderich, R. Methanogenic archaea: Ecologically relevant differences in energy conservation. Nat. Rev. Microbiol. 2008, 6, 579–591. [Google Scholar] [CrossRef] [PubMed]
  8. Cheng, S.; Xing, D.; Call, D.F.; Logan, B.E. Direct biological conversion of electrical current into methane by electromethanogenesis. Environ. Sci. Technol. 2009, 43, 3953–3958. [Google Scholar] [CrossRef] [PubMed]
  9. Sato, K.; Kawaguchi, H.; Kobayashi, H. Bio-electrochemical conversion of carbon dioxide to methane in geological storage reservoirs. Energy Convers. Manag. 2013, 66, 343–350. [Google Scholar] [CrossRef]
  10. Zhen, G.; Kobayashi, T.; Lu, X.; Xu, K. Understanding methane bioelectrosynthesis from carbon dioxide in a two-chamber microbial electrolysis cells (MECs) containing a carbon biocathode. Bioresour. Technol. 2015, 186, 141–148. [Google Scholar] [CrossRef] [PubMed]
  11. Siegert, M.; Yates, M.D.; Call, D.F.; Zhu, X.; Spormann, A.M.; Logan, B.E. Comparison of nonprecious metal cathode materials for methane production by electromethanogenesis. ACS Sustain. Chem. Eng. 2014, 2, 910–917. [Google Scholar] [CrossRef] [PubMed]
  12. Kobayashi, H.; Saito, N.; Fu, Q.; Kawaguchi, H.; Vilcaez, J.; Wakayama, T.; Maeda, H.; Sato, K. Bio-electrochemical property and phylogenetic diversity of microbial communities associated with bioelectrodes of an electromethanogenic reactor. J. Biosci. Bioeng. 2013, 116, 114–117. [Google Scholar] [CrossRef] [PubMed]
  13. Villano, M.; Aulenta, F.; Ciucci, C.; Ferri, T.; Giuliano, A.; Majone, M. Bioelectrochemical reduction of CO2 to CH4 via direct and indirect extracellular electron transfer by a hydrogenophilic methanogenic culture. Bioresour. Technol. 2010, 101, 3085–3090. [Google Scholar] [CrossRef] [PubMed]
  14. Batlle-Vilanova, P.; Puig, S.; Gonzalez-Olmos, R.; Vilajeliu-Pons, A.; Balaguer, M.D.; Colprim, J. Deciphering the electron transfer mechanisms for biogas upgrading to biomethane within a mixed culture biocathode. RSC Adv. 2015, 5, 52243–52251. [Google Scholar] [CrossRef]
  15. Fu, Q.; Kuramochi, Y.; Fukushima, N.; Maeda, H.; Sato, K.; Kobayashi, H. Bioelectrochemical analyses of the development of a thermophilic biocathode catalyzing electromethanogenesis. Environ. Sci. Technol. 2015, 49, 1225–1232. [Google Scholar] [CrossRef] [PubMed]
  16. Rosenbaum, M.; Aulenta, F.; Villano, M.; Angenent, L.T. Cathodes as electron donors for microbial metabolism: Which extracellular electron transfer mechanisms are involved? Bioresour. Technol. 2011, 102, 324–333. [Google Scholar] [CrossRef] [PubMed]
  17. Van Eerten-Jansen, M.C.A.A.; Jansen, N.C.; Plugge, C.M.; de Wilde, V.; Buisman, C.J.; Ter Heijne, A. Analysis of the mechanisms of bioelectrochemical methane production by mixed cultures. J. Chem. Technol. Biotechnol. 2015, 90, 963–970. [Google Scholar] [CrossRef]
  18. Van Eerten-Jansen, M.C.A.A.; Ter Heijne, A.; Buisman, C.J.; Hamelers, H.V.M. Microbial electrolysis cells for production of methane from CO2: Long-term performance and perspectives. Int. J. Energy Res. 2012, 31, 135–147. [Google Scholar] [CrossRef]
  19. Van Eerten-Jansen, M.C.A.A.; Veldhoen, A.B.; Plugge, C.M.; Stams, A.J.M.; Buisman, C.J.; Ter Heijne, A. Microbial community analysis of a methane-producing biocathode in a bioelectrochemical system. Archaea 2013, 2013, 1–12. [Google Scholar] [CrossRef] [PubMed]
  20. Zhen, G.; Lu, X.; Kobayashi, T.; Kumar, G.; Xu, K. Promoted electromethanosynthesis in a two-chamber microbial electrolysis cells (MECs) containing a hybrid biocathode covered with graphite felt (GF). Chem. Eng. J. 2016, 284, 1146–1155. [Google Scholar] [CrossRef]
  21. Marshall, C.; LaBelle, T.; Fichot, E.B.; Ross, D.E.; Norman, R.; May, H.D. Electroautotrophic Synthesis of Acetate and Methane. In Proceedings of the American Institute of Chemical Engineers 2012 Annual Meeting, Pittsburgh, PA, USA, 28 October–2 November 2012. [Google Scholar]
  22. Geppert, F.; Liu, D.; van Eerten-Jansen, M.; Weidner, E.; Buisman, C.; Ter Heijne, A. Bioelectrochemical power-to-gas: State of the art and future perspectives. Trends Biotechnol. 2016, 34, 879–894. [Google Scholar] [CrossRef] [PubMed]
  23. Schröder, U.; Harnisch, F.; Angenent, L.T. Microbial electrochemistry and technology: Terminology and classification. Energy Environ. Sci. 2015, 8, 513–519. [Google Scholar] [CrossRef]
  24. Schröder, U. Anodic electron transfer mechanisms in microbial fuel cells and their energy efficiency. Phys. Chem. Chem. Phys. 2007, 9, 2619–2629. [Google Scholar] [CrossRef] [PubMed]
  25. Rozendal, R.A.; Hamelers, H.V.M.; Rabaey, K.; Keller, J.; Buisman, C.J. Towards practical implementation of bioelectrochemical wastewater treatment. Trends Biotechnol. 2008, 26, 450–459. [Google Scholar] [CrossRef] [PubMed]
  26. Daniels, L.; Belay, N.; Rajagopal, B.S.; Weimer, P.J. Bacterial methanogenesis and growth from CO2 with elemental iron as the sole source of electrons. Science 1987, 237, 509–511. [Google Scholar] [CrossRef] [PubMed]
  27. Park, D.H.; Laivenieks, M.; Guettler, M.V.; Jain, M.K.; Zeikus, J.G. Microbial utilization of electrically reduced neutral red as the sole electron donor for growth and metabolite production. Appl. Environ. Microbiol. 1999, 65, 2912–2917. [Google Scholar] [PubMed]
  28. Clauwaert, P.; Tolêdo, R.; van der Ha, D.; Crab, R.; Verstraete, W.; Hu, H.; Udert, K.M.; Rabaey, K. Combining biocatalyzed electrolysis with anaerobic digestion. Water Sci. Technol. 2008, 57, 575–579. [Google Scholar] [CrossRef] [PubMed]
  29. Rozendal, R.A.; Jeremiasse, A.W.; Hamelers, H.V.M.; Buisman, C.J. Hydrogen production with a microbial biocathode. Environ. Sci. Technol. 2008, 42, 629–634. [Google Scholar] [CrossRef] [PubMed]
  30. Cheng, S.; Logan, B. Electromethanogenic Reactor and Processes for Methane Production. U.S. Patent 20,090,317,882 A1, 24 December 2009. [Google Scholar]
  31. Morita, M.; Malvankar, N.S.; Franks, A.E.; Summers, Z.M.; Giloteaux, L.; Rotaru, A.-E.; Rotaru, C.; Lovley, D.R. Potential for direct interspecies electron transfer in methanogenic wastewater digester aggregates. MBio 2011, 2, e00159-11. [Google Scholar] [CrossRef] [PubMed]
  32. Tartakovsky, B.; Mehta, P.; Bourque, J.-S.; Guiot, S.R. Electrolysis-enhanced anaerobic digestion of wastewater. Bioresour. Technol. 2011, 102, 5685–5691. [Google Scholar] [CrossRef] [PubMed]
  33. Xu, H.; Wang, K.; Holmes, D.E. Bioelectrochemical removal of carbon dioxide (CO2): An innovative method for biogas upgrading. Bioresour. Technol. 2014, 173, 392–398. [Google Scholar] [CrossRef] [PubMed]
  34. Rotaru, A.-E.; Shrestha, P.M.; Liu, F.; Shrestha, M.; Shrestha, D.; Embree, M.; Zengler, K.; Wardman, C.; Nevin, K.P.; Lovley, D.R. A new model for electron flow during anaerobic digestion: Direct interspecies electron transfer to Methanosaeta for the reduction of carbon dioxide to methane. Energy Environ. Sci. 2014, 7, 408–415. [Google Scholar] [CrossRef]
  35. Rotaru, A.E.; Shrestha, P.M.; Liu, F.; Markovaite, B.; Chen, S.; Nevin, K.P.; Lovley, D.R. Direct interspecies electron transfer between geobacter metallireducens and Methanosarcina barkeri. Appl. Environ. Microbiol. 2014, 80, 4599–4605. [Google Scholar] [CrossRef] [PubMed]
  36. Batlle-Vilanova, P.; Puig, S.; Gonzalez-Olmos, R.; Vilajeliu-Pons, A.; Bañeras, L.; Balaguer, M.D.; Colprim, J. Assessment of biotic and abiotic graphite cathodes for hydrogen production in microbial electrolysis cells. Int. J. Hydrog. Energy 2014, 39, 1297–1305. [Google Scholar] [CrossRef]
  37. Shi, L.; Dong, H.; Reguera, G.; Beyenal, H.; Lu, A.; Liu, J.; Yu, H.-Q.; Fredrickson, J.K. Extracellular electron transfer mechanisms between microorganisms and minerals. Nat. Rev. Microbiol. 2016, 14, 651–662. [Google Scholar] [CrossRef] [PubMed]
  38. Bretschger, O.; Carpenter, K.; Phan, T.; Suzuki, S.; Ishii, S.; Grossi-Soyster, E.; Flynn, M.; Hogan, J. Functional and taxonomic dynamics of an electricity-consuming methane-producing microbial community. Bioresour. Technol. 2015, 195, 254–264. [Google Scholar] [CrossRef] [PubMed]
  39. Marshall, C.; Ross, D.; Handley, K.; Weisenhorn, P.; Edirisinghe, J.; Henry, C.; Gilbert, J.; May, H.; Norman, R.S. Metabolic reconstruction and modeling microbial electrosynthesis. BioRxiv 2016. [Google Scholar] [CrossRef]
  40. Lovley, D.R. Powering microbes with electricity: Direct electron transfer from electrodes to microbes. Environ. Microbiol. Rep. 2011, 3, 27–35. [Google Scholar] [CrossRef] [PubMed]
  41. Geelhoed, J.S.; Hamelers, H.V.; Stams, A.J. Electricity-mediated biological hydrogen production. Curr. Opin. Microbiol. 2010, 13, 307–315. [Google Scholar] [CrossRef] [PubMed]
  42. Marshall, C.W.; Ross, D.E.; Fichot, E.B.; Norman, R.S.; May, H.D. Long-term operation of microbial electrosynthesis systems improves acetate production by autotrophic microbiomes. Environ. Sci. Technol. 2013, 47, 6023–6029. [Google Scholar] [CrossRef] [PubMed]
  43. Sasaki, K.; Morita, M.; Sasaki, D.; Hirano, S.; Matsumoto, N.; Ohmura, N.; Igarashi, Y. Methanogenic communities on the electrodes of bioelectrochemical reactors without membranes. J. Biosci. Bioeng. 2011, 111, 47–49. [Google Scholar] [CrossRef] [PubMed]
  44. Jiang, Y.; Su, M.; Li, D. Removal of sulfide and production of methane from carbon dioxide in microbial fuel cells–microbial electrolysis cell (MFCs–MEC) coupled system. Appl. Biochem. Biotechnol. 2014, 172, 2720–2731. [Google Scholar] [CrossRef] [PubMed]
  45. Siegert, M.; Yates, M.D.; Spormann, A.M.; Logan, B.E. Methanobacterium dominates biocathodic archaeal communities in methanogenic microbial electrolysis cells. ACS Sustain. Chem. Eng. 2015, 3, 1668–1676. [Google Scholar] [CrossRef]
  46. Xafenias, N.; Mapelli, V. Performance and bacterial enrichment of bioelectrochemical systems during methane and acetate production. Int. J. Hydrog. Energy 2014, 39, 21864–21875. [Google Scholar] [CrossRef]
  47. Deutzmann, J.S.; Spormann, A.M. Enhanced microbial electrosynthesis by using defined co-cultures. ISME J. 2017, 11, 704–714. [Google Scholar] [CrossRef] [PubMed]
  48. Lohner, S.T.; Deutzmann, J.S.; Logan, B.E.; Leigh, J.; Spormann, A.M. Hydrogenase-independent uptake and metabolism of electrons by the archaeon Methanococcus maripaludis. ISME J. 2014, 8, 1673–1681. [Google Scholar] [CrossRef] [PubMed]
  49. Uchiyama, T.; Ito, K.; Mori, K.; Tsurumaru, H.; Harayama, S. Iron-corroding methanogen isolated from a crude-oil storage tank. Appl. Environ. Microbiol. 2010, 76, 1783–1788. [Google Scholar] [CrossRef] [PubMed]
  50. Deutzmann, J.S.; Sahin, M.; Spormann, A.M. Extracellular enzymes facilitate electron uptake in biocorrosion and bioelectrosynthesis. MBio 2015, 6, 1–8. [Google Scholar] [CrossRef] [PubMed]
  51. Dinh, H.T.; Kuever, J.; Mussmann, M.; Hassel, A.W.; Stratmann, M.; Widdel, F. Iron corrosion by novel anaerobic microorganisms. Nature 2004, 427, 829–832. [Google Scholar] [CrossRef] [PubMed]
  52. Beese-Vasbender, P.F.; Grote, J.P.; Garrelfs, J.; Stratmann, M.; Mayrhofer, K.J.J. Selective microbial electrosynthesis of methane by a pure culture of a marine lithoautotrophic archaeon. Bioelectrochemistry 2015, 102, 50–55. [Google Scholar] [CrossRef] [PubMed]
  53. Hara, M.; Onaka, Y.; Kobayashi, H.; Fu, Q.; Kawaguchi, H.; Vilcaez, J.; Sato, K. Mechanism of electromethanogenic reduction of CO2 by a thermophilic methanogen. Energy Procedia 2013, 37, 7021–7028. [Google Scholar] [CrossRef]
  54. Sasaki, K.; Hirano, S.I.; Morita, M.; Sasaki, D.; Matsumoto, N.; Ohmura, N.; Igarashi, Y. Bioelectrochemical system accelerates microbial growth and degradation of filter paper. Appl. Microbiol. Biotechnol. 2011, 89, 449–455. [Google Scholar] [CrossRef] [PubMed]
  55. Marshall, C.W.; Ross, D.E.; Fichot, E.B.; Norman, R.S.; May, H.D. Electrosynthesis of commodity chemicals by an autotrophic microbial community. Appl. Environ. Microbiol. 2012, 78, 8412–8420. [Google Scholar] [CrossRef] [PubMed]
  56. Zeppilli, M.; Villano, M.; Aulenta, F.; Lampis, S.; Vallini, G.; Majone, M. Effect of the anode feeding composition on the performance of a continuous-flow methane-producing microbial electrolysis cell. Environ. Sci. Pollut. Res. Int. 2015, 22, 7349–7360. [Google Scholar] [CrossRef] [PubMed]
  57. Tatsumi, H.; Takagi, K.; Fujita, M.; Kano, K.; Ikeda, T. Electrochemical study of reversible hydrogenase reaction of Desulfovibrio vulgaris cells with methyl viologen as an electron carrier. Anal. Chem. 1999, 71, 1753–1759. [Google Scholar] [CrossRef] [PubMed]
  58. Lojou, E.; Durand, M.C.; Dolla, A.; Bianco, P. Hydrogenase activity control at Desulfovibrio vulgaris cell-coated carbon electrodes: Biochemical and chemical factors influencing the mediated bioelectrocatalysis. Electroanalysis 2002, 14, 913–922. [Google Scholar] [CrossRef]
  59. Geelhoed, J.S.; Stams, A.J.M. Electricity-assisted biological hydrogen production from acetate by Geobacter sulfurreducens. Environ. Sci. Technol. 2011, 45, 815–820. [Google Scholar] [CrossRef] [PubMed]
  60. Yates, M.D.; Siegert, M.; Logan, B.E. Hydrogen evolution catalyzed by viable and non-viable cells on biocathodes. Int. J. Hydrog. Energy 2014, 39, 16841–16851. [Google Scholar] [CrossRef]
  61. Aulenta, F.; Catapano, L.; Snip, L.; Villano, M.; Majone, M. Linking bacterial metabolism to graphite cathodes: Electrochemical insights into the H2-producing capability of Desulfovibrio sp. Chem. Sus. Chem. 2012, 5, 1080–1085. [Google Scholar] [CrossRef] [PubMed]
  62. Jourdin, L.; Freguia, S.; Donose, B.C.; Keller, J. Autotrophic hydrogen-producing biofilm growth sustained by a cathode as the sole electron and energy source. Bioelectrochemistry 2015, 102, 56–63. [Google Scholar] [CrossRef] [PubMed]
  63. Pisciotta, J.M.; Zaybak, Z.; Call, D.F.; Nam, J.Y.; Logan, B.E. Enrichment of microbial electrolysis cell biocathodes from sediment microbial fuel cell bioanodes. Appl. Environ. Microbiol. 2012, 78, 5212–5219. [Google Scholar] [CrossRef] [PubMed]
  64. Nevin, K.P.; Woodard, T.L.; Franks, A.E.; Summers, Z.M.; Lovley, D.R. Microbial electrosynthesis: Feeding microbes electricity to convert carbon dioxide and water to multicarbon extracellular organic compounds. MBio 2010, 1, e00103-10. [Google Scholar] [CrossRef] [PubMed]
  65. Nevin, K.P.; Hensley, S.A.; Franks, A.E.; Summers, Z.M.; Ou, J.; Woodard, T.L.; Snoeyenbos-West, O.L.; Lovley, D.R. Electrosynthesis of organic compounds from carbon dioxide is catalyzed by a diversity of acetogenic microorganisms. Appl. Environ. Microbiol. 2011, 77, 2882–2886. [Google Scholar] [CrossRef] [PubMed]
  66. Kato, S.; Yumoto, I.; Kamagata, Y. Isolation of acetogenic bacteria that induce biocorrosion by utilizing metallic iron as the sole electron donor. Appl. Environ. Microbiol. 2015, 81, 67–73. [Google Scholar] [CrossRef] [PubMed]
  67. Spirito, C.M.; Richter, H.; Rabaey, K.; Stams, A.J.M.; Angenent, L.T. Chain elongation in anaerobic reactor microbiomes to recover resources from waste. Curr. Opin. Biotechnol. 2014, 27, 115–122. [Google Scholar] [CrossRef] [PubMed]
  68. LaBelle, E.V.; Marshall, C.W.; Gilbert, J.A.; May, H.D. Influence of acidic pH on hydrogen and acetate production by an electrosynthetic microbiome. PLoS ONE 2014, 9, e109935. [Google Scholar] [CrossRef] [PubMed]
  69. Patil, S.A.; Arends, J.B.A.; Vanwonterghem, I.; van Meerbergen, J.; Guo, K.; Tyson, G.W.; Rabaey, K. Selective enrichment establishes a stable performing community for microbial electrosynthesis of acetate from CO2. Environ. Sci. Technol. 2015, 49, 8833–8843. [Google Scholar] [CrossRef] [PubMed]
  70. Rago, L.; Ruiz, Y.; Baeza, J.A.; Guisasola, A.; Cortés, P. Microbial community analysis in a long-term membrane-less microbial electrolysis cell with hydrogen and methane production. Bioelectrochemistry 2015, 106, 359–368. [Google Scholar] [CrossRef] [PubMed]
  71. Song, J.; Kim, Y.; Lim, M.; Lee, H.; Lee, J.I.; Shin, W. Microbes as electrochemical CO2 conversion catalysts. ChemSusChem 2011, 4, 587–590. [Google Scholar] [CrossRef] [PubMed]
  72. Lee, B.; Park, J.-G.; Shin, W.-B.; Tian, D.-J.; Jun, H.-B. Microbial communities change in an anaerobic digestion after application of microbial electrolysis cells. Bioresour. Technol. 2017, 234, 273–280. [Google Scholar] [CrossRef] [PubMed]
  73. Siegert, M.; Li, X.F.; Yates, M.D.; Logan, B.E. The presence of hydrogenotrophic methanogens in the inoculum improves methane gas production in microbial electrolysis cells. Front. Microbiol. 2015, 5, 778. [Google Scholar] [CrossRef] [PubMed]
  74. Sasaki, K.; Sasaki, D.; Morita, M.; Hirano, S.; Matsumoto, N.; Ohmura, N.; Igarashi, Y. Bioelectrochemical system stabilizes methane fermentation from garbage slurry. Bioresour. Technol. 2010, 101, 3415–3422. [Google Scholar] [CrossRef] [PubMed]
  75. Babanova, S.; Carpenter, K.; Phadke, S.; Suzuki, S.; Ishii, S.; Phan, T.; Grossi-Soyster, E.; Flynn, M.; Hogan, J.; Bretschger, O. The effect of membrane type on the performance of microbial electrosynthesis cells for methane production. J. Electrochem. Soc. 2017, 164, H3015–H3023. [Google Scholar] [CrossRef]
  76. Zhao, Z.; Zhang, Y.; Quan, X.; Zhao, H. Evaluation on direct interspecies electron transfer in anaerobic sludge digestion of microbial electrolysis cell. Bioresour. Technol. 2016, 200, 235–244. [Google Scholar] [CrossRef] [PubMed]
  77. De Vrieze, J.; Hennebel, T.; Boon, N.; Verstraete, W. Methanosarcina: The rediscovered methanogen for heavy duty biomethanation. Bioresour. Technol. 2012, 112, 1–9. [Google Scholar] [CrossRef] [PubMed]
  78. Schuchmann, K.; Muller, V. Direct and reversible hydrogenation of CO2 to formate by a bacterial carbon dioxide reductase. Science 2013, 342, 1382–1385. [Google Scholar] [CrossRef] [PubMed]
  79. Costa, K.C.; Yoon, S.H.; Pan, M.; Burn, J.A.; Baliga, N.S.; Leigh, J.A. Effects of H2 and formate on growth yield and regulation of methanogenesis in Methanococcus maripaludis. J. Bacteriol. 2013, 195, 1456–1462. [Google Scholar] [CrossRef] [PubMed]
  80. Zhao, Z.; Zhang, Y.; Ma, W.; Sun, J.; Sun, S.; Quan, X. Enriching functional microbes with electrode to accelerate the decomposition of complex substrates during anaerobic digestion of municipal sludge. Biochem. Eng. J. 2016, 111, 1–9. [Google Scholar] [CrossRef]
  81. McInerney, M.J.; Bryant, M.P. Anaerobic degradation of lactate by syntrophic associations of Methanosarcina barkeri and Desulfovibrio species and effect of H2 on acetate degradation. Appl. Environ. Microbiol. 1981, 41, 346–354. [Google Scholar] [PubMed]
  82. Holmes, D.E.; Chaudhuri, S.K.; Nevin, K.P.; Mehta, T.; Methé, B.A.; Liu, A.; Ward, J.E.; Woodard, T.L.; Webster, J.; Lovley, D.R. Microarray and genetic analysis of electron transfer to electrodes in Geobacter sulfurreducens. Environ. Microbiol. 2006, 8, 1805–1815. [Google Scholar] [CrossRef] [PubMed]
  83. Lies, D.P.; Mielke, R.E.; Gralnick, J.A.; Newman, D.K. Shewanella oneidensis MR-1 uses overlapping pathways for iron reduction at a distance and by direct contact under conditions relevant for biofilm. Society 2005, 71, 4414–4426. [Google Scholar] [CrossRef] [PubMed]
  84. Choi, O.; Sang, B.I. Extracellular electron transfer from cathode to microbes: Application for biofuel production. Biotechnol. Biofuels 2016, 9, 11. [Google Scholar] [CrossRef] [PubMed]
  85. Reguera, G.; McCarthy, K.D.; Mehta, T.; Nicoll, J.S.; Tuominen, M.T.; Lovley, D.R. Extracellular electron transfer via microbial nanowires. Nature 2005, 435, 1098–1101. [Google Scholar] [CrossRef] [PubMed]
  86. Coursolle, D.; Baron, D.B.; Bond, D.R.; Gralnick, J.A. The MTR respiratory pathway is essential for reducing flavins and electrodes in Shewanella oneidensis. J. Bacteriol. 2010, 192, 467–474. [Google Scholar] [CrossRef] [PubMed]
  87. Reguera, G.; Nevin, K.P.; Nicoll, J.S.; Covalla, S.F.; Woodard, T.L.; Lovley, D.R. Biofilm and nanowire production leads to increased current in Geobacter sulfurreducens fuel cells. Appl. Environ. Microbiol. 2006, 72, 7345–7348. [Google Scholar] [CrossRef] [PubMed]
  88. Freguia, S.; Masuda, M.; Tsujimura, S.; Kano, K. Lactococcus lactis catalyses electricity generation at microbial fuel cell anodes via excretion of a soluble quinone. Bioelectrochemistry 2009, 76, 14–18. [Google Scholar] [CrossRef] [PubMed]
  89. Pham, T.H.; Boon, N.; Aelterman, P.; Clauwaert, P.; de Schamphelaire, L.; Vanhaecke, L.; De Maeyer, K.; Höfte, M.; Verstraete, W.; Rabaey, K. Metabolites produced by Pseudomonas sp. enable a Gram-positive bacterium to achieve extracellular electron transfer. Appl. Microbiol. Biotechnol. 2008, 77, 1119–1129. [Google Scholar] [CrossRef] [PubMed]
  90. Angenent, L.T.; Karim, K.; Al-Dahhan, M.H.; Wrenn, B.A.; Domíguez-Espinosa, R. Production of bioenergy and biochemicals from industrial and agricultural wastewater. Trends Biotechnol. 2004, 22, 477–485. [Google Scholar] [CrossRef] [PubMed]
  91. Stams, A.J.M.; de Bok, F.A.M.; Plugge, C.M.; van Eekert, M.H.A.; Dolfing, J.; Schraa, G. Exocellular electron transfer in anaerobic microbial communities. Environ. Microbiol. 2006, 8, 371–382. [Google Scholar] [CrossRef] [PubMed]
  92. Gorby, Y.A.; Yanina, S.; McLean, J.S.; Rosso, K.M.; Moyles, D.; Dohnalkova, A.; Beveridge, T.J.; Chang, I.S.; Kim, B.H.; Kim, K.S.; et al. Electrically conductive bacterial nanowires produced by Shewanella oneidensis strain MR-1 and other microorganisms. Proc. Natl. Acad. Sci. USA 2006, 103, 11358–11363. [Google Scholar] [CrossRef] [PubMed]
  93. Bond, D.R.; Lovley, D.R. Electricity production by geobacter sulfurreducens attached to electrodes electricity production by geobacter sulfurreducens attached to electrodes. Appl. Environ. Microbiol. 2003, 69, 1548–1555. [Google Scholar] [CrossRef] [PubMed]
  94. Bretschger, O.; Obraztsova, A.; Sturm, C.A.; In, S.C.; Gorby, Y.A.; Reed, S.B.; Culley, D.E.; Reardon, C.L.; Barua, S.; Romine, M.F.; et al. Current production and metal oxide reduction by Shewanella oneidensis MR-1 wild type and mutants. Appl. Environ. Microbiol. 2007, 73, 7003–7012. [Google Scholar] [CrossRef] [PubMed]
  95. Meitl, L.A.; Eggleston, C.M.; Colberg, P.J.S.; Khare, N.; Reardon, C.L.; Shi, L. Electrochemical interaction of Shewanella oneidensis MR-1 and its outer membrane cytochromes OMCA and MTRC with hematite electrodes. Geochim. Cosmochim. Acta 2009, 73, 5292–5307. [Google Scholar] [CrossRef]
  96. Li, Y.; Zhang, Y.; Liu, Y.; Zhao, Z.; Zhao, Z.; Liu, S.; Zhao, H.; Quan, X. Enhancement of anaerobic methanogenesis at a short hydraulic retention time via bioelectrochemical enrichment of hydrogenotrophic methanogens. Bioresour. Technol. 2016, 218, 505–511. [Google Scholar] [CrossRef] [PubMed]
  97. Kato, S.; Hashimoto, K.; Watanabe, K. Methanogenesis facilitated by electric syntrophy via (semi)conductive iron-oxide minerals. Environ. Microbiol. 2012, 14, 1646–1654. [Google Scholar] [CrossRef] [PubMed]
  98. Liu, F.; Rotaru, A.-E.; Shrestha, P.M.; Malvankar, N.S.; Nevin, K.P.; Lovley, D.R. Promoting direct interspecies electron transfer with activated carbon. R. Soc. Chem. 2012, 5, 8982–8989. [Google Scholar] [CrossRef]
  99. Philips, J.; Verbeeck, K.; Rabaey, K.; Arends, J.B.A. Electron Transfer Mechanisms in Biofilms. In Microbial Electrochemical and Fuel Cells; Woodhead Publishing: Cambridge, UK, 2016; Volume 3, pp. 67–113. [Google Scholar]
  100. Kouzuma, A.; Kato, S.; Watanabe, K. Microbial interspecies interactions: Recent findings in syntrophic consortia. Front. Microbiol. 2015, 6, 477. [Google Scholar] [CrossRef] [PubMed]
  101. Kato, S. Biotechnological aspects of microbial extracellular electron transfer. Microbes Environ. 2015, 30, 133–139. [Google Scholar] [CrossRef] [PubMed]
  102. Cheng, Q.; Call, D.F. Hardwiring microbes via direct interspecies electron transfer: Mechanisms and applications. Environ. Sci. Process. Impacts 2016, 18, 4158–4163. [Google Scholar] [CrossRef] [PubMed]
  103. Chen, S.; Rotaru, A.-E.; Shrestha, P.M.; Malvankar, N.S.; Liu, F.; Fan, W.; Nevin, K.P.; Lovley, D.R. Promoting interspecies electron transfer with biochar. Sci. Rep. 2014, 4, 5019. [Google Scholar] [CrossRef] [PubMed]
  104. Kato, S.; Hashimoto, K.; Watanabe, K. Microbial interspecies electron transfer via electric currents through conductive minerals. Proc. Natl. Acad. Sci. USA 2012, 109, 10042–10046. [Google Scholar] [CrossRef] [PubMed]
  105. Liu, F.; Rotaru, A.E.; Shrestha, P.M.; Malvankar, N.S.; Nevin, K.P.; Lovley, D.R. Magnetite compensates for the lack of a pilin-associated c-type cytochrome in extracellular electron exchange. Environ. Microbiol. 2015, 17, 648–655. [Google Scholar] [CrossRef] [PubMed]
  106. Cruz Viggi, C.; Rossetti, S.; Fazi, S.; Paiano, P.; Majone, M.; Aulenta, F. Magnetite particles triggering a faster and more robust syntrophic pathway of methanogenic propionate degradation. Environ. Sci. Technol. 2014, 48, 7536–7543. [Google Scholar] [CrossRef] [PubMed]
  107. Yamada, C.; Kato, S.; Ueno, Y.; Ishii, M.; Igarashi, Y. Conductive iron oxides accelerate thermophilic methanogenesis from acetate and propionate. J. Biosci. Bioeng. 2015, 119, 678–682. [Google Scholar] [CrossRef] [PubMed]
  108. Chen, S.; Rotaru, A.-E.; Liu, F.; Philips, J.; Woodard, T.L.; Nevin, K.P.; Lovley, D.R. Carbon cloth stimulates direct interspecies electron transfer in syntrophic co-cultures. Bioresour. Technol. 2014, 173, 82–86. [Google Scholar] [CrossRef] [PubMed]
  109. Zhao, Z.; Zhang, Y.; Wang, L.; Quan, X. Potential for direct interspecies electron transfer in an electric-anaerobic system to increase methane production from sludge digestion. Sci. Rep. 2015, 5, 11094. [Google Scholar] [CrossRef] [PubMed]
  110. Holmes, D.E.; Shrestha, P.M.; Walker, D.J.F.; Dang, Y.; Nevin, K.P.; Woodard, T.L.; Lovley, D.R. Metatranscriptomic evidence for direct interspecies electron transfer between geobacter and methanothrix species in methanogenic rice paddy soils. Appl. Environ. Microbiol. 2017. [Google Scholar] [CrossRef] [PubMed]
  111. Wang, L.Y.; Nevin, K.P.; Woodard, T.L.; Mu, B.Z.; Lovley, D.R. Expanding the diet for DIET: Electron donors supporting direct interspecies electron transfer (DIET) in defined co-cultures. Front. Microbiol. 2016, 7, 236. [Google Scholar] [CrossRef] [PubMed]
  112. Lovley, D.R. Happy together: Microbial communities that hook up to swap electrons. ISME J. 2016, 11, 327–336. [Google Scholar] [CrossRef] [PubMed]
  113. Sydow, A.; Krieg, T.; Mayer, F.; Schrader, J.; Holtmann, D. Electroactive bacteria—Molecular mechanisms and genetic tools. Appl. Microbiol. Biotechnol. 2014, 98, 8481–8495. [Google Scholar] [CrossRef] [PubMed]
  114. Semenec, L.; Franks, A.E. Delving through electrogenic biofilms: From anodes to cathodes to microbes. AIMS Bioeng. 2015, 2, 222–248. [Google Scholar] [CrossRef]
  115. Shrestha, P.M.; Rotaru, A.E. Plugging in or going wireless: Strategies for interspecies electron transfer. Front. Microbiol. 2014, 5, 237. [Google Scholar] [CrossRef] [PubMed]
  116. Lovley, D.R. Reach out and touch someone: Potential impact of DIET (direct interspecies energy transfer) on anaerobic biogeochemistry, bioremediation, and bioenergy. Rev. Environ. Sci. Biotechnol. 2011, 10, 101–105. [Google Scholar] [CrossRef]
  117. Malvankar, N.S.; Lovley, D.R. Microbial nanowires for bioenergy applications. Curr. Opin. Biotechnol. 2014, 27, 88–95. [Google Scholar] [CrossRef] [PubMed]
  118. Hallenbeck, P.C.; Grogger, M.; Veverka, D. Recent advances in microbial electrocatalysis. Electrocatalysis 2014, 5, 319–329. [Google Scholar] [CrossRef]
  119. Kracke, F.; Vassilev, I.; Krömer, J.O. Microbial electron transport and energy conservation—The foundation for optimizing bioelectrochemical systems. Front. Microbiol. 2015, 6, 1–18. [Google Scholar] [CrossRef] [PubMed]
  120. Roy, S.; Schievano, A.; Pant, D. Electro-stimulated microbial factory for value added product synthesis. Bioresour. Technol. 2016, 213, 129–139. [Google Scholar] [CrossRef] [PubMed]
  121. Lovley, D.R. Electromicrobiology. Annu. Rev. Microbiol. 2012, 66, 391–409. [Google Scholar] [CrossRef] [PubMed]
  122. Koch, C.; Harnisch, F. Is there a specific ecological niche for electroactive microorganisms? Chemelectrochem 2016, 3, 1–15. [Google Scholar] [CrossRef]
  123. Tan, Y.; Adhikari, R.Y.; Malvankar, N.S.; Pi, S.; Ward, J.E.; Woodard, T.L.; Nevin, K.P.; Xia, Q.; Tuominen, M.T.; Lovley, D.R. Synthetic biological protein nanowires with high conductivity. Small 2016, 12, 4481–4485. [Google Scholar] [CrossRef] [PubMed]
  124. Rabaey, K.; Rozendal, R.A. Microbial electrosynthesis—Revisiting the electrical route for microbial production. Nat. Rev. Microbiol. 2010, 8, 706–716. [Google Scholar] [CrossRef] [PubMed]
  125. Logan, B.E.; Rabaey, K. Conversion of wastes into bioelectricity and chemicals by using microbial electrochemical technologies. Science 2012, 337, 686–690. [Google Scholar] [CrossRef] [PubMed]
  126. Lovley, D.R.; Nevin, K.P. Electrobiocommodities: Powering microbial production of fuels and commodity chemicals from carbon dioxide with electricity. Curr. Opin. Biotechnol. 2013, 24, 385–390. [Google Scholar] [CrossRef] [PubMed]
  127. ElMekawy, A.; Hegab, H.M.; Mohanakrishna, G.; Elbaz, A.F.; Bulut, M.; Pant, D. Technological advances in CO2 conversion electro-biorefinery: A step toward commercialization. Bioresour. Technol. 2016, 215, 357–370. [Google Scholar] [CrossRef] [PubMed]
  128. Marshall, C.W.; LaBelle, E.V.; May, H.D. Production of fuels and chemicals from waste by microbiomes. Curr. Opin. Biotechnol. 2013, 24, 391–397. [Google Scholar] [CrossRef] [PubMed]
  129. Wang, H.; Ren, Z.J. A comprehensive review of microbial electrochemical systems as a platform technology. Biotechnol. Adv. 2013, 31, 1796–1807. [Google Scholar] [CrossRef] [PubMed]
  130. Sadhukhan, J.; Lloyd, J.R.; Scott, K.; Premier, G.C.; Yu, E.H.; Curtis, T.; Head, I.M. A critical review of integration analysis of microbial electrosynthesis (MES) systems with waste biorefineries for the production of biofuel and chemical from reuse of CO2. Renew. Sustain. Energy Rev. 2016, 56, 116–132. [Google Scholar] [CrossRef]
  131. Persson, M.; Jonsson, O.; Wellinger, A. Biogas Upgrading To Vehicle Fuel Standards and Grid Injection. In Brochure of IEA Task 37. Energy from Biogas and Landfill Gas; International Energy Agency: Paris, France, 2006. [Google Scholar]
  132. Chandra, R.; Takeuchi, H.; Hasegawa, T. Methane production from lignocellulosic agricultural crop wastes: A review in context to second generation of biofuel production. Renew. Sustain. Energy Rev. 2012, 16, 1462–1476. [Google Scholar] [CrossRef]
  133. Dickinson, R.R.; Battye, D.L.; Linton, V.M.; Ashman, P.J.; Nathan, G.J. Alternative carriers for remote renewable energy sources using existing CNG infrastructure. Int. J. Hydrog. Energy 2010, 35, 1321–1329. [Google Scholar] [CrossRef]
  134. O’Shea, R.; Wall, D.; Kilgallon, I.; Murphy, J.D. Assessment of the impact of incentives and of scale on the build order and location of biomethane facilities and the feedstock they utilise. Appl. Energy 2016, 182, 394–408. [Google Scholar] [CrossRef]
  135. Budzianowski, W.M.; Brodacka, M. Biomethane storage: Evaluation of technologies, end uses, business models, and sustainability. Energy Convers. Manag. 2016. [Google Scholar] [CrossRef]
  136. Zhao, W.; Zhang, B.; Wang, G.; Guo, H. Methane formation route in the conversion of methanol to hydrocarbons. J. Energy Chem. 2014, 23, 201–206. [Google Scholar] [CrossRef]
  137. Jiang, Y.; Su, M.; Zhang, Y.; Zhan, G.; Tao, Y.; Li, D. Bioelectrochemical systems for simultaneously production of methane and acetate from carbon dioxide at relatively high rate. Int. J. Hydrog. Energy 2013, 38, 3497–3502. [Google Scholar] [CrossRef]
  138. Villano, M.; Scardala, S.; Aulenta, F.; Majone, M. Carbon and nitrogen removal and enhanced methane production in a microbial electrolysis cell. Bioresour. Technol. 2013, 130, 366–371. [Google Scholar] [CrossRef] [PubMed]
  139. Moreno, R.; San-Martín, M.I.; Escapa, A.; Morán, A. Domestic wastewater treatment in parallel with methane production in a microbial electrolysis cell. Renew. Energy 2016, 93, 442–448. [Google Scholar] [CrossRef]
  140. Villano, M.; Monaco, G.; Aulenta, F.; Majone, M. Electrochemically assisted methane production in a biofilm reactor. J. Power Sources 2011, 196, 9467–9472. [Google Scholar] [CrossRef]
  141. Kuramochi, Y.; Fu, Q.; Kobayashi, H.; Ikarashi, M.; Wakayama, T.; Kawaguchi, H.; Vilcaez, J.; Maeda, H.; Sato, K. Electromethanogenic CO2 conversion by subsurface-reservoir microorganisms. Energy Procedia 2013, 37, 7014–7020. [Google Scholar] [CrossRef]
  142. Lu, L.; Ren, Z.J. Microbial electrolysis cells for waste biorefinery: A state of the art review. Bioresour. Technol. 2016, 215, 254–264. [Google Scholar] [CrossRef] [PubMed]
  143. Bo, T.; Zhu, X.; Zhang, L.; Tao, Y.; He, X.; Li, D.; Yan, Z. A new upgraded biogas production process: Coupling microbial electrolysis cell and anaerobic digestion in single-chamber, barrel-shape stainless steel reactor. Electrochem. Commun. 2014, 45, 67–70. [Google Scholar] [CrossRef]
  144. Zhao, Z.; Zhang, Y.; Chen, S.; Quan, X.; Yu, Q. Bioelectrochemical enhancement of anaerobic methanogenesis for high organic load rate wastewater treatment in a up-flow anaerobic sludge blanket (UASB) reactor. Sci. Rep. 2014, 4, 6658. [Google Scholar] [CrossRef] [PubMed]
  145. Liu, D.; Zhang, L.; Chen, S.; Buisman, C.; ter Heijne, A. Bioelectrochemical enhancement of methane production in low temperature anaerobic digestion at 10 °C. Water Res. 2016, 99, 281–287. [Google Scholar] [CrossRef] [PubMed]
  146. Liu, W.; Cai, W.; Guo, Z.; Wang, L.; Yang, C.; Varrone, C.; Wang, A. Microbial electrolysis contribution to anaerobic digestion of waste activated sludge, leading to accelerated methane production. Renew. Energy 2016, 91, 334–339. [Google Scholar] [CrossRef]
  147. Lee, J.-Y.; Lee, S.-H.; Park, H.-D. Enrichment of specific electro-active microorganisms and enhancement of methane production by adding granular activated carbon in anaerobic reactors. Bioresour. Technol. 2016, 205, 205–212. [Google Scholar] [CrossRef] [PubMed]
  148. Cai, W.; Han, T.; Guo, Z.; Varrone, C.; Wang, A.; Liu, W. Methane production enhancement by an independent cathode in integrated anaerobic reactor with microbial electrolysis. Bioresour. Technol. 2016, 208, 13–18. [Google Scholar] [CrossRef] [PubMed]
  149. Yin, Q.; Zhu, X.; Zhan, G.; Bo, T.; Yang, Y.; Tao, Y.; He, X.; Li, D.; Yan, Z. Enhanced methane production in an anaerobic digestion and microbial electrolysis cell coupled system with co-cultivation of Geobacter and Methanosarcina. J. Environ. Sci. 2016, 42, 210–214. [Google Scholar] [CrossRef] [PubMed]
  150. Guo, X.; Liu, J.; Xiao, B. Bioelectrochemical enhancement of hydrogen and methane production from the anaerobic digestion of sewage sludge in single-chamber membrane-free microbial electrolysis cells. Int. J. Hydrog. Energy 2013, 38, 1342–1347. [Google Scholar] [CrossRef]
  151. Lei, Y.; Sun, D.; Dang, Y.; Chen, H.; Zhao, Z.; Zhang, Y.; Holmes, D.E. Stimulation of methanogenesis in anaerobic digesters treating leachate from a municipal solid waste incineration plant with carbon cloth. Bioresour. Technol. 2016, 222, 270–276. [Google Scholar] [CrossRef] [PubMed]
  152. Song, Y.C.; Feng, Q.; Ahn, Y. Performance of the bio-electrochemical anaerobic digestion of sewage sludge at different hydraulic retention times. Energy Fuels 2016, 30, 352–359. [Google Scholar] [CrossRef]
  153. Feng, Q.; Song, Y.-C.; Bae, B.-U. Influence of applied voltage on the performance of bioelectrochemical anaerobic digestion of sewage sludge and planktonic microbial communities at ambient temperature. Bioresour. Technol. 2016, 220, 500–508. [Google Scholar] [CrossRef] [PubMed]
  154. Gajaraj, S.; Huang, Y.; Zheng, P.; Hu, Z. Methane production improvement and associated methanogenic assemblages in bioelectrochemically assisted anaerobic digestion. Biochem. Eng. J. 2017, 117, 105–112. [Google Scholar] [CrossRef]
  155. Liu, Y.; Zhang, Y.; Quan, X.; Zhang, J.; Zhao, H.; Chen, S. Effects of an electric field and zero valent iron on anaerobic treatment of azo dye wastewater and microbial community structures. Bioresour. Technol. 2011, 102, 2578–2584. [Google Scholar] [CrossRef] [PubMed]
  156. Zhen, G.; Kobayashi, T.; Lu, X.; Kumar, G.; Xu, K. Biomethane recovery from Egeria densa in a microbial electrolysis cell-assisted anaerobic system: Performance and stability assessment. Chemosphere 2016, 149, 121–129. [Google Scholar] [CrossRef] [PubMed]
  157. Zamalloa, C.; Arends, J.B.A.; Boon, N.; Verstraete, W. Performance of a lab-scale bio-electrochemical assisted septic tank for the anaerobic treatment of black water. New Biotechnol. 2013, 30, 573–580. [Google Scholar] [CrossRef] [PubMed]
  158. Tartakovsky, B.; Mehta, P.; Santoyo, G.; Roy, C.; Frigon, J.C.; Guiot, S.R. Electrolysis-enhanced co-digestion of switchgrass and cow manure. J. Chem. Technol. Biotechnol. 2014, 89, 1501–1506. [Google Scholar] [CrossRef]
  159. De Vrieze, J.; Gildemyn, S.; Arends, J.B.A.; Vanwonterghem, I.; Verbeken, K.; Boon, N.; Verstraete, W.; Tyson, G.W.; Hennebel, T.; Rabaey, K. Biomass retention on electrodes rather than electrical current enhances stability in anaerobic digestion. Water Res. 2014, 54, 211–221. [Google Scholar] [CrossRef] [PubMed]
  160. Cai, W.; Liu, W.; Yang, C.; Wang, L.; Liang, B.; Thangavel, S.; Guo, Z.; Wang, A. Biocathodic methanogenic community in an integrated anaerobic digestion and microbial electrolysis system for enhancement of methane production from waste sludge. ACS Sustain. Chem. Eng. 2016, 4, 4913–4921. [Google Scholar] [CrossRef]
  161. Fu, Q.; Kobayashi, H.; Kawaguchi, H.; Vilcaez, J.; Sato, K. Identification of new microbial mediators for electromethanogenic reduction of geologically-stored carbon dioxide. Energy Procedia 2013, 37, 7006–7013. [Google Scholar] [CrossRef]
  162. Dang, Y.; Holmes, D.E.; Zhao, Z.; Woodard, T.L.; Zhang, Y.; Sun, D.; Wang, L.-Y.; Nevin, K.P.; Lovley, D.R. Enhancing anaerobic digestion of complex organic waste with carbon-based conductive materials. Bioresour. Technol. 2016, 220, 516–522. [Google Scholar] [CrossRef] [PubMed]
  163. Beckmann, S.; Welte, C.; Li, X.; Oo, Y.M.; Kroeninger, L.; Heo, Y.; Zhang, M.; Ribeiro, D.; Lee, M.; Bhadbhade, M.; et al. Novel phenazine crystals enable direct electron transfer to methanogens in anaerobic digestion by redox potential modulation. Energy Environ. Sci. 2015, 9, 644–655. [Google Scholar] [CrossRef]
  164. Feng, Y.; Zhang, Y.; Chen, S.; Quan, X. Enhanced production of methane from waste activated sludge by the combination of high-solid anaerobic digestion and microbial electrolysis cell with iron–graphite electrode. Chem. Eng. J. 2015, 259, 787–794. [Google Scholar] [CrossRef]
  165. Jenicek, P.; Keclik, F.; Maca, J.; Bindzar, J. Use of microaerobic conditions for the improvement of anaerobic digestion of solid wastes. Water Sci. Technol. 2008, 58, 1491–1496. [Google Scholar] [CrossRef] [PubMed]
  166. Jenicek, P.; Koubova, J.; Bindzar, J.; Zabranska, J. Advantages of anaerobic digestion of sludge in microaerobic conditions. Water Sci. Technol. 2010, 62, 427–434. [Google Scholar] [CrossRef] [PubMed]
  167. Kadier, A.; Kalil, M.S.; Abdeshahian, P.; Chandrasekhar, K.; Mohamed, A.; Azman, N.F.; Logroño, W.; Simayi, Y.; Hamid, A.A. Recent advances and emerging challenges in microbial electrolysis cells (MECs) for microbial production of hydrogen and value-added chemicals. Renew. Sustain. Energy Rev. 2016, 61, 501–525. [Google Scholar] [CrossRef]
  168. Ran, Z.; Gefu, Z.; Kumar, J.A.; Chaoxiang, L.; Xu, H.; Lin, L. Hydrogen and methane production in a bio-electrochemical system assisted anaerobic baffled reactor. Int. J. Hydrog. Energy 2014, 39, 13498–13504. [Google Scholar] [CrossRef]
  169. Logan, B.E.; Hamelers, B.; Rozendal, R.A.; Schröder, U.; Keller, J.; Freguia, S.; Aelterman, P.; Verstraete, W.; Rabaey, K. Microbial fuel cells: Methodology and technology. Environ. Sci. Technol. 2006, 40, 5181–5192. [Google Scholar] [CrossRef] [PubMed]
  170. Call, D.; Logan, B.E. Hydrogen production in a single chamber microbial electrolysis cell lacking a membrane. Environ. Sci. Technol. 2008, 42, 3401–3406. [Google Scholar] [CrossRef] [PubMed]
  171. Logan, B.E.; Call, D.; Cheng, S.; Hamelers, H.V.M.; Sleutels, T.H.J.A.; Jeremiasse, A.W.; Rozendal, R.A. Microbial electrolysis cells for high yield hydrogen gas production from organic matter. Environ. Sci. Technol. 2008, 42, 8630–8640. [Google Scholar] [CrossRef] [PubMed]
  172. Jeremiasse, A.W.; Hamelers, H.V.M.; Buisman, C.J. Microbial electrolysis cell with a microbial biocathode. Bioelectrochemistry 2010, 78, 39–43. [Google Scholar] [CrossRef] [PubMed]
  173. Ghasemi Naraghi, Z.; Yaghmaei, S.; Mardanpour, M.M.; Hasany, M. Produced water treatment with simultaneous bioenergy production using novel bioelectrochemical systems. Electrochim. Acta 2015, 180, 535–544. [Google Scholar] [CrossRef]
  174. Marone, A.; Carmona-Martínez, A.A.; Sire, Y.; Meudec, E.; Steyer, J.P.; Bernet, N.; Trably, E. Bioelectrochemical treatment of table olive brine processing wastewater for biogas production and phenolic compounds removal. Water Res. 2016, 100, 316–325. [Google Scholar] [CrossRef] [PubMed]
  175. Khalfbadam, H.M.; Ginige, M.P.; Sarukkalige, R.; Kayaalp, A.S.; Cheng, K.Y. Bioelectrochemical system as an oxidising filter for soluble and particulate organic matter removal from municipal wastewater. Chem. Eng. J. 2016, 296, 225–233. [Google Scholar] [CrossRef]
  176. Gil-Carrera, L.; Escapada, A.; Carracedo, B.; Morán, A.; Gómez, X. Performance of a semi-pilot tubular microbial electrolysis cell (MEC) under several hydraulic retention times and applied voltages. Bioresour. Technol. 2013, 146, 63–69. [Google Scholar] [CrossRef] [PubMed]
  177. Zhao, Z.; Zhang, Y.; Yu, Q.; Ma, W.; Sun, J.; Quan, X. Enhanced decomposition of waste activated sludge via anodic oxidation for methane production and bioenergy recovery. Int. Biodeterior. Biodegrad. 2016, 106, 161–169. [Google Scholar] [CrossRef]
  178. Cerrillo, M.; Oliveras, J.; Viñas, M.; Bonmatí, A. Comparative assessment of raw and digested pig slurry treatment in bioelectrochemical systems. Bioelectrochemistry 2016, 110, 69–78. [Google Scholar] [CrossRef] [PubMed]
  179. Cheng, K.Y.; Ho, G.; Cord-Ruwisch, R. Novel methanogenic rotatable bioelectrochemical system operated with polarity inversion. Environ. Sci. Technol. 2011, 45, 796–802. [Google Scholar] [CrossRef] [PubMed]
  180. Katuri, K.P.; Werner, C.M.; Jimenez-Sandoval, R.J.; Chen, W.; Jeon, S.; Logan, B.E.; Lai, Z.; Amy, G.L.; Saikaly, P.E. A novel anaerobic electrochemical membrane bioreactor (AnEMBR) with conductive hollow-fiber membrane for treatment of low-organic strength solutions. Environ. Sci. Technol. 2014, 48, 12833–12841. [Google Scholar] [CrossRef] [PubMed]
  181. Feng, Q.; Song, Y.-C. Surface Modification of a Graphite fiber fabric anode for enhanced bioelectrochemical methane production. Energy Fuels 2016, 30, 6467–6474. [Google Scholar] [CrossRef]
  182. Huang, L.; Jiang, L.; Wang, Q.; Quan, X.; Yang, J.; Chen, L. Cobalt recovery with simultaneous methane and acetate production in biocathode microbial electrolysis cells. Chem. Eng. J. 2014, 253, 281–290. [Google Scholar] [CrossRef]
  183. ElMekawy, A.; Srikanth, S.; Bajracharya, S.; Hegab, H.M.; Nigam, P.S.; Singh, A.; Mohan, S.V.; Pant, D. Food and agricultural wastes as substrates for bioelectrochemical system (BES): The synchronized recovery of sustainable energy and waste treatment. Food Res. Int. 2015, 73, 213–225. [Google Scholar] [CrossRef]
  184. Pant, D.; Van Bogaert, G.; Diels, L.; Vanbroekhoven, K. A review of the substrates used in microbial fuel cells (MFCs) for sustainable energy production. Bioresour. Technol. 2010, 101, 1533–1543. [Google Scholar] [CrossRef] [PubMed]
  185. Zeppilli, M.; Lai, A.; Villano, M.; Majone, M. Anion vs cation exchange membrane strongly affect mechanisms and yield of CO2 fixation in a microbial electrolysis cell. Chem. Eng. J. 2016, 304, 10–19. [Google Scholar] [CrossRef]
  186. Strong, P.J.; Xie, S.; Clarke, W.P. Methane as a resource: Can the methanotrophs add value? Environ. Sci. Technol. 2015, 49, 4001–4018. [Google Scholar] [CrossRef] [PubMed]
  187. Strong, P.J.; Kalyuzhnaya, M.; Silverman, J.; Clarke, W.P. A methanotroph-based biorefinery: Potential scenarios for generating multiple products from a single fermentation. Bioresour. Technol. 2016, 215, 314–323. [Google Scholar] [CrossRef] [PubMed]
  188. Rostkowski, K.H.; Criddle, C.S.; Lepech, M.D. Cradle-to-gate life cycle assessment for a cradle-to-cradle cycle: Biogas-to-bioplastic (and back). Environ. Sci. Technol. 2012, 46, 9822–9829. [Google Scholar] [CrossRef] [PubMed]
  189. Wu, Y.; Yang, J.; Fan, X.; Fu, S.; Sun, M.; Guo, R. Elimination of methane in exhaust gas from biogas upgrading process by immobilized methane-oxidizing bacteria. Bioresour. Technol. 2017. [Google Scholar] [CrossRef] [PubMed]
  190. Popat, S.C.; Torres, C.I. Critical transport rates that limit the performance of microbial electrochemistry technologies. Bioresour. Technol. 2016, 215, 265–273. [Google Scholar] [CrossRef] [PubMed]
  191. Bajracharya, S.; Vanbroekhoven, K.; Buisman, C.J.; Pant, D.; Strik, D.P. Application of gas diffusion biocathode in microbial electrosynthesis from carbon dioxide. Environ. Sci. Pollut. Res. 2016, 23, 22292–22308. [Google Scholar] [CrossRef] [PubMed]
  192. Jeremiasse, A.W.; Bergsma, J.; Kleijn, J.M.; Saakes, M.; Buisman, C.J.; Cohen Stuart, M.; Hamelers, H.V.M. Performance of metal alloys as hydrogen evolution reaction catalysts in a microbial electrolysis cell. Int. J. Hydrogen Energy 2011, 36, 10482–10489. [Google Scholar] [CrossRef]
  193. Fan, Y.; Han, S.-K.; Liu, H. Improved performance of CEA microbial fuel cells with increased reactor size. Energy Environ. Sci. 2012, 5, 8273–8280. [Google Scholar] [CrossRef]
  194. Zhang, B.; Zhao, H.; Zhou, S.; Shi, C.; Wang, C.; Ni, J. A novel UASB–MFC–BAF integrated system for high strength molasses wastewater treatment and bioelectricity generation. Bioresour. Technol. 2009, 100, 5687–5693. [Google Scholar] [CrossRef] [PubMed]
  195. Ballestra, P.; Cuq, J.-L. Influence of pressurized carbon dioxide on the thermal inactivation of bacterial and fungal spores. LWT Food Sci. Technol. 1998, 31, 84–88. [Google Scholar] [CrossRef]
  196. Strevett, K.A.; Vieth, R.F.; Grasso, D. Chemo-autotrophic biogas purification for methane enrichment: Mechanism and kinetics. Chem. Eng. J. Biochem. Eng. J. 1995, 58, 71–79. [Google Scholar] [CrossRef]
  197. Kreutzer, M.T.; Kapteijn, F.; Moulijn, J.A.; Heiszwolf, J.J. Multiphase monolith reactors: Chemical reaction engineering of segmented flow in microchannels. Chem. Eng. Sci. 2005, 60, 5895–5916. [Google Scholar] [CrossRef]
  198. Zhang, T.; Nie, H.; Bain, T.S.; Lu, H.; Cui, M.; Snoeyenbos-West, O.L.; Franks, A.E.; Nevin, K.; Russell, T.P.; Lovley, D. Improved cathode materials for microbial electrosynthesis. Energy Environ. Sci. 2013, 6, 217–224. [Google Scholar] [CrossRef]
  199. Aryal, N.; Halder, A.; Tremblay, P.-L.; Chi, Q.; Zhang, T. Enhanced microbial electrosynthesis with three-dimensional graphene functionalized cathodes fabricated via solvothermal synthesis. Electrochim. Acta 2016, 217, 117–122. [Google Scholar] [CrossRef]
  200. LaBarge, N.; Yilmazel, Y.D.; Hong, P.-Y.; Logan, B.E. Effect of pre-acclimation of granular activated carbon on microbial electrolysis cell startup and performance. Bioelectrochemistry 2017, 113, 20–25. [Google Scholar] [CrossRef] [PubMed]
  201. Jourdin, L.; Freguia, S.; Flexer, V.; Keller, J. Bringing high-rate, CO2-based microbial electrosynthesis closer to practical implementation through improved electrode design and operating conditions. Environ. Sci Technol. 2016, 50, 1982–1989. [Google Scholar] [CrossRef] [PubMed]
  202. Gildemyn, S.; Verbeeck, K.; Jansen, R.; Rabaey, K. The type of ion selective membrane determines stability and production levels of microbial electrosynthesis. Bioresour. Technol. 2016, 224, 358–364. [Google Scholar] [CrossRef] [PubMed]
  203. Hernández-Flores, G.; Poggi-Varaldo, H.M.; Solorza-Feria, O. Comparison of alternative membranes to replace high cost Nafion ones in microbial fuel cells. Int. J. Hydrog. Energy 2016, 21, 23354–23362. [Google Scholar] [CrossRef]
  204. Sleutels, T.H.J.A.; Hamelers, H.V.M.; Rozendal, R.A.; Buisman, C.J. Ion transport resistance in Microbial Electrolysis Cells with anion and cation exchange membranes. Int. J. Hydrog. Energy 2009, 34, 3612–3620. [Google Scholar] [CrossRef]
  205. Sleutels, T.H.J.A.; Lodder, R.; Hamelers, H.V.M.; Buisman, C.J. Improved performance of porous bio-anodes in microbial electrolysis cells by enhancing mass and charge transport. Int. J. Hydrog. Energy 2009, 34, 9655–9661. [Google Scholar] [CrossRef]
  206. Van Loosdrecht, M.C.M.; Lyklema, J.; Norde, W.; Zehnder, A.J.B. Bacterial adhesion: A physicochemical approach. Microb. Ecol. 1989, 17, 1–15. [Google Scholar] [CrossRef] [PubMed]
  207. Rijnaarts, H.H.M.; Norde, W.; Bouwer, E.J.; Lyklema, J.; Zehnder, A.J.B. Reversibility and mechanism of bacterial adhesion. Colloids Surf. B Biointerfaces 1995, 4, 5–22. [Google Scholar] [CrossRef]
  208. Luo, X.; Zhang, F.; Liu, J.; Zhang, X.; Huang, X.; Logan, B.E. Methane production in microbial reverse-electrodialysis methanogenesis cells (MRMCs) using thermolytic solutions. Environ. Sci. Technol. 2014, 48, 8911–8918. [Google Scholar] [CrossRef] [PubMed]
  209. Cusick, R.D.; Bryan, B.; Parker, D.S.; Merrill, M.D.; Mehanna, M.; Kiely, P.D.; Liu, G.; Logan, B.E. Performance of a pilot-scale continuous flow microbial electrolysis cell fed winery wastewater. Appl. Microbiol. Biotechnol. 2011, 89, 2053–2063. [Google Scholar] [CrossRef] [PubMed]
  210. Blanchet, E.; Duquenne, F.; Rafrafi, Y.; Etcheverry, L.; Erable, B.; Bergel, A. Importance of the hydrogen route in up-scaling electrosynthesis for microbial CO2 reduction. Energy Environ. Sci. 2015, 8, 3731–3744. [Google Scholar] [CrossRef]
  211. May, H.D.; Marshall, C.W.; Labelle, E.V. Microbial Electrosynthetic Cells. U.S. Patent 20150259669 A1, 17 September 2015. [Google Scholar]
  212. Materi, W.P. Photoelectromethanogenic Microbial Fuel Cell for Co-Generation of Electricity and Methane from Carbon Dioxide. U.S. Patent 8,551,629 B2, 8 October 2013. [Google Scholar]
  213. Lovley, D.R.; Nevin, K. Microbial Production of Multi-Carbon Chemicals and Fuels from Water and Carbon Dioxide Using Electric Current. U.S. Patent 20,120,288,898 A1, 15 November 2012. [Google Scholar]
  214. Sefton, B. Chemoautotrophic Conversion of Carbon Oxides in Industrial Waste to Biomass and Chemical Products. U.S. Patent 9,206,451 B2, 8 December 2015. [Google Scholar]

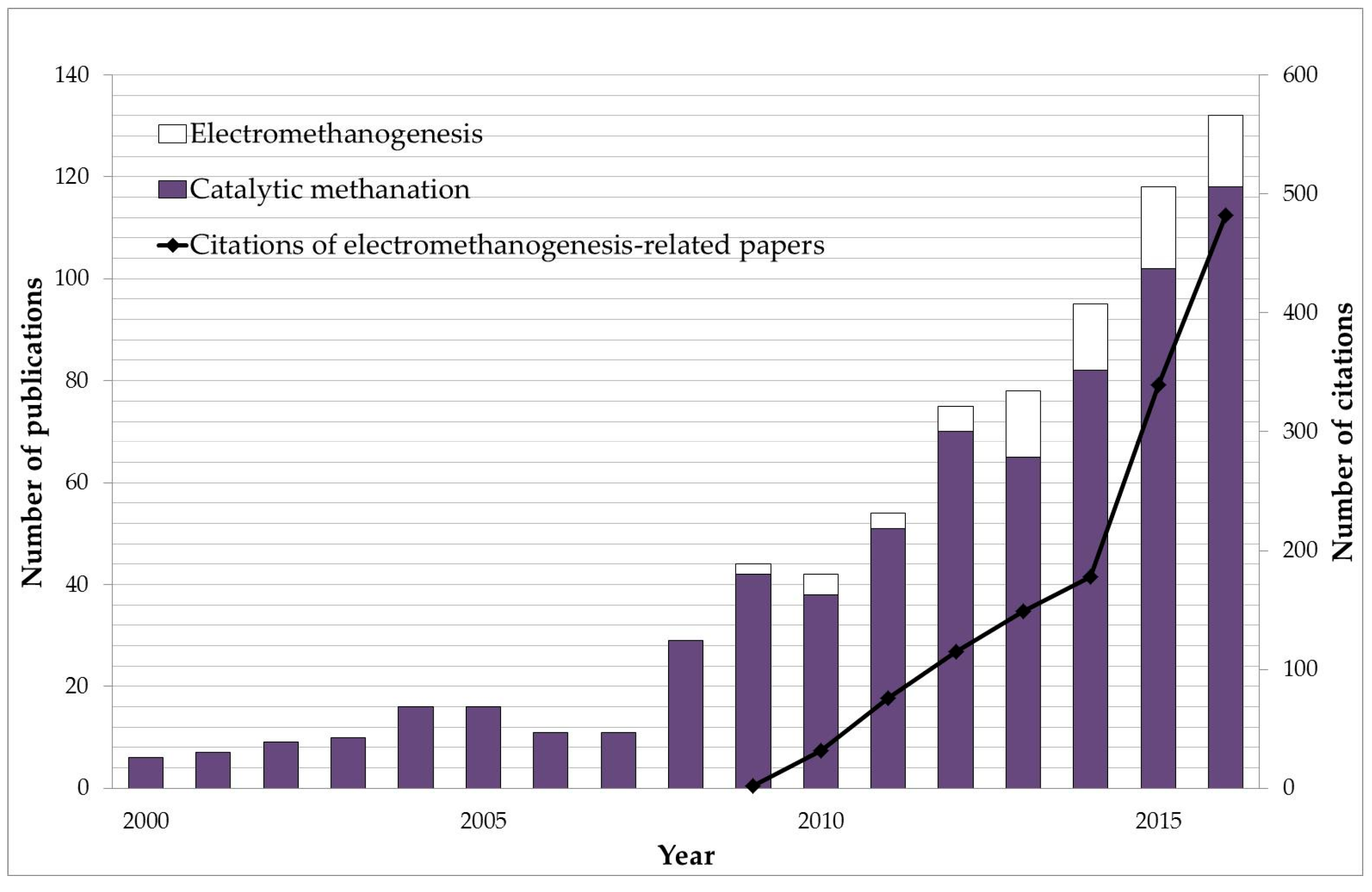

Figure 1. Scientific publications dealing with methane production catalyzed by minerals (catalytic methanation) or microbes (electromethanogenesis) published from 2000 to the beginning of 2017. Additionally, the number of citations of electromethanogesis-related papers is also shown. This data was extracted from Scopus database using the keywords “methane production bioelectrochemical systems”, “electromethanogenesis”, “methane bioelectrosynthesis”, bioelectrochemical methane production”, “electromethanosynthesis”, “methanogenesis bioelectrochemical system” for electromethanogenesis and “catalytic methanation” for catalytic methane formation. (Search date: 4 January 2017).
Figure 1. Scientific publications dealing with methane production catalyzed by minerals (catalytic methanation) or microbes (electromethanogenesis) published from 2000 to the beginning of 2017. Additionally, the number of citations of electromethanogesis-related papers is also shown. This data was extracted from Scopus database using the keywords “methane production bioelectrochemical systems”, “electromethanogenesis”, “methane bioelectrosynthesis”, bioelectrochemical methane production”, “electromethanosynthesis”, “methanogenesis bioelectrochemical system” for electromethanogenesis and “catalytic methanation” for catalytic methane formation. (Search date: 4 January 2017).
Ijms 18 00874 g001
Figure 2. Historical overview of major achievements towards methane production via BESs. In 1987 Daniels et al. reported for the first time the capability of some methanogens to use elemental iron as an electron donor and reduce CO2 into CH4 [26]. 12 years later, in 1999 Park et al. used a BES with pure and mixed cultures of H2-consuming bacteria to produce methane from CO2 [27]. They used neutral red as the sole source of reducing power, thus replacing H2 as the sole electron donor source. In 2008, works of Clauwaert et al. and Rozendal et al. on H2 production at the cathode [28] and the placement of cathodic biofilm for H2 and CH4 production [29], served as a precursor for the birth of the term [8] just one year later by Cheng et al. During the same year 2009 the first patent based on electromethanogenesis was registered by Cheng et al. [30] and Villano et al. increased the methane production with the enrichment of hydrogenophilic methanogens in the cathodic community [13]. The possible electron transfer mechanisms between microbes and the cathode were reviewed by Rosenbaum et al. in 2011 [16], the same year in which Morita et al. demonstrated the enhancement of electron transfer between methanogens with conductive aggregates in anaerobic digester [31]. Proofs of concept for further application of electromethanogenesis were conducted by Tartakovsky et al. [32] and Xu et al. [33] in 2011 and 2014 respectively, demonstrating methanogenesis enhancement in anaerobic digesters and biogas purification. The importance of the presence of bacteria species in the microbial community to enhance methane production in BESs was highlighted by Van Eerten-jansen [19]. Afterwards, in 2014 Rotaru et al. provided further knowledge of indirect electron transfer routes between microbes for the reduction of CO2 into CH4 [34,35]. Batlle-Vilanova et al. elucidated the biotic and abiotic hydrogen yield in a biocathode [36], directly linked with the methane yield in electromethanogenic reactors. Electron transfer mechanisms in a bioelectrochemical biogas upgrading process were deciphered in 2015 by Batlle-Vilanova et al. as a first step for further scaling-up of such electromethanogenesis-based technology [14]. Recently, Shi et al. reviewed the extracellular electron transfer mechanisms between microorganisms and minerals, as a basic for designing future methane producing BESs [37].
Figure 2. Historical overview of major achievements towards methane production via BESs. In 1987 Daniels et al. reported for the first time the capability of some methanogens to use elemental iron as an electron donor and reduce CO2 into CH4 [26]. 12 years later, in 1999 Park et al. used a BES with pure and mixed cultures of H2-consuming bacteria to produce methane from CO2 [27]. They used neutral red as the sole source of reducing power, thus replacing H2 as the sole electron donor source. In 2008, works of Clauwaert et al. and Rozendal et al. on H2 production at the cathode [28] and the placement of cathodic biofilm for H2 and CH4 production [29], served as a precursor for the birth of the term [8] just one year later by Cheng et al. During the same year 2009 the first patent based on electromethanogenesis was registered by Cheng et al. [30] and Villano et al. increased the methane production with the enrichment of hydrogenophilic methanogens in the cathodic community [13]. The possible electron transfer mechanisms between microbes and the cathode were reviewed by Rosenbaum et al. in 2011 [16], the same year in which Morita et al. demonstrated the enhancement of electron transfer between methanogens with conductive aggregates in anaerobic digester [31]. Proofs of concept for further application of electromethanogenesis were conducted by Tartakovsky et al. [32] and Xu et al. [33] in 2011 and 2014 respectively, demonstrating methanogenesis enhancement in anaerobic digesters and biogas purification. The importance of the presence of bacteria species in the microbial community to enhance methane production in BESs was highlighted by Van Eerten-jansen [19]. Afterwards, in 2014 Rotaru et al. provided further knowledge of indirect electron transfer routes between microbes for the reduction of CO2 into CH4 [34,35]. Batlle-Vilanova et al. elucidated the biotic and abiotic hydrogen yield in a biocathode [36], directly linked with the methane yield in electromethanogenic reactors. Electron transfer mechanisms in a bioelectrochemical biogas upgrading process were deciphered in 2015 by Batlle-Vilanova et al. as a first step for further scaling-up of such electromethanogenesis-based technology [14]. Recently, Shi et al. reviewed the extracellular electron transfer mechanisms between microorganisms and minerals, as a basic for designing future methane producing BESs [37].
Ijms 18 00874 g002
Figure 3. Described electromethanogenesis routes within mixed culture biocathodes. Sizes of the circles do not correspond to any proportions. 1. Direct electromethanogenesis; 2. Abiotic H2 production; 3. Biotic H2 production; 4. Bioelectrochemical acetate production; 5. Bioelectrochemical formate production; 6. Hydrogenotrophic methanogenesis; 7. Mediated acetate production; 8. Acetoclastic methanogenesis; 9. Mediated formate production; 10. Indirect methane production from formate. AM: Acetoclastic methanogen; EM: Electromethanogen (includes species capable to perform direct and mediated electromethanogenesis); HM: Hydrogenotrophic methanogen; HPM: Hydrogen-producing microorganism; APM: Acetate-producing microorganism; FPM: Formate-producing microorganism; SM: Syntrophic microorganism; Mred: Reduced mediator; Mox: Oxidized mediator.
Figure 3. Described electromethanogenesis routes within mixed culture biocathodes. Sizes of the circles do not correspond to any proportions. 1. Direct electromethanogenesis; 2. Abiotic H2 production; 3. Biotic H2 production; 4. Bioelectrochemical acetate production; 5. Bioelectrochemical formate production; 6. Hydrogenotrophic methanogenesis; 7. Mediated acetate production; 8. Acetoclastic methanogenesis; 9. Mediated formate production; 10. Indirect methane production from formate. AM: Acetoclastic methanogen; EM: Electromethanogen (includes species capable to perform direct and mediated electromethanogenesis); HM: Hydrogenotrophic methanogen; HPM: Hydrogen-producing microorganism; APM: Acetate-producing microorganism; FPM: Formate-producing microorganism; SM: Syntrophic microorganism; Mred: Reduced mediator; Mox: Oxidized mediator.
Ijms 18 00874 g003
Figure 4. Proposed electron transfer mechanisms within the biocathode compartment. Even though H2 is the only intermediate molecule (bio)electrochemically produced on the surface of the electrode shown in the figure, formate or other molecules must be also considered to play the same role as electron carrier. Sizes of the circles do not correspond to any proportions.
Figure 4. Proposed electron transfer mechanisms within the biocathode compartment. Even though H2 is the only intermediate molecule (bio)electrochemically produced on the surface of the electrode shown in the figure, formate or other molecules must be also considered to play the same role as electron carrier. Sizes of the circles do not correspond to any proportions.
Ijms 18 00874 g004
Table 1. Overview of the reaction equations that could occur in the possible electron transfer mechanisms of bioelectrochemical methane production. Based on reactions described in Van Eerten-jansen et al. 2014 [17]. Additionally, microorganisms described to possibly take part in the electromethanogenesis process are related to each reaction.
Table 1. Overview of the reaction equations that could occur in the possible electron transfer mechanisms of bioelectrochemical methane production. Based on reactions described in Van Eerten-jansen et al. 2014 [17]. Additionally, microorganisms described to possibly take part in the electromethanogenesis process are related to each reaction.
Reaction/ProcessType (Place)References in Figure 3Microorganism [References]
HCO 3 + 9 H + + 8 e electricity CH 4 + 3 H 2 O BEC (C)[1]Methanobacterium palustre [8,19]
Methanococcus maripaludis [48,49,50]
Methanobacterium-like (IM1) [51,52]
Methanosaeta spp. [34]
Methanosaeta concilii [33]
Methanosarcina barkeri [12,35]
Methanothermobacter thermautotrophicus [12,53]
Methanosaeta harundinacea [34]
Methanothermobacter sp. [54]
Methanoculleus sp. [54]
Methanobacterium sp. [14,54,55]
Methanosarcina mazei [56]
Methanothermobacter-like [15]
Methanobacteriaceae [20]
Methanobacterium petrolearium [33]
Methanobacterium subterraneum [33]
Methanothermobacter thermautotrophicus [9]
Methanosaeta concilii 2 [34]
2 H + + 2 e electricity H 2 BEC (C)[2,3]Desulfovibrio vulgaris [57,58]
Geobacter sulfurreducens [12,59,60]
Pelobacter carbinolicus [35]
Hydrogenophaga caeni (EMB71) [19]
Desulfovibrio putealis (B7-43) [19]
Desulfovibrio paquesii [61]
Firmicutes [14,62]
Proteobacteria [62]
Bacteroidetes [62]
Actinobacteria [62]
Rhodococcus sp. [63]
Sphingobacteriales [55]
Desulfovibrio spp. [63]
2 HCO 3 + 9 H + + 8 e electricity CH 3 COO + 4 H 2 O BEC (C)[4]Sporomusa ovata [64]
Sporomusa sphaeroides [65,66]
Sporomusa silvacetica [65]
Clostridium aceticum [65]
Clostridium ljungdahlii [65]
Moorella thermoacetica [65]
Clostridium thermoaceticum [67]
Acetobacterium spp. [42,55,68,69,70]
HCO 3 + 2 H + + 2 e electricity HCOO + H 2 O BEC (C)[5]Moorella thermoacetica [71]
Clostridium formicoaceticum [71]
HCO 3 + H 2 + H + CH 4 + 3 H 2 O BC (C)[6]Methanobacterium sp. [14,43,55,72]
Methanobacterium palustre [19]
Methanobacterium aarhusense [19]
Methanobacterium formicicum [72]
Methanobrevibacter arboriphilus [44,56]
Methanocorpusculum parvum [44]
Methanocorpusculum labreanum [63]
Methanobrevibacter [45,70,73]
Methanosarcina sp. [43]
Methanosarcina mazei [56]
Methanoculleus sp. [43,74]
Methanomicrobiales [20]
Methanobacterium petrolearium [33]
Methanobacterium subterraneum [33]
Methanothermobacter thermautotrophicus [9]
Methanothermobacter sp. [74]
Methanococcus maripaludis [47]
2 HCO 3 + H 2 + H + CH 3 COO + 4 H 2 O BC (C)[7]Acetobacterium woodii [65]
Sporomusa silvacetica [65]
Clostridium aceticum [65]
Clostridium ljungdahlii [65]
Moorella thermoacetica [65]
Clostridium sp. [75]
CH 3 COO + H 2 O CH 4 + HCO 3 BC (C)[8]Methanosaeta sp. [45,73,76]
Methanosarcina sp. [7,74,77]
Methanosarcina thermophila [72]
Methanosaeta harundinacea [34]
Methanosarcina mazei [38,56]
HCO 3 + H 2 HCOO + H 2 O BC (C)[9]Acetobacterium woodii [78]
Candida boidinii [78]
HCOO + 3 H 2 + H + CH 4 + 2 H 2 O BC (C)[10]Methanococcus maripaludis [79]
Methanomicrobiales [20]
Methanobacterium formicicum [72]
CH 4 + 2 O 2 CO 2 + 2 H 2 O BC (C)n.s.Acidovorax caeni (R-24608) [19]
Hydrogenophaga caeni (EMB71) [19]
Methylocystis sp. (SC2) [19]
Unknown 1--δ-Proteobacteria [14,45]
Geobacter sp. [54,76,80]
Pelobacter carbinolicus [35]
Desulfovibrio spp. [75,81]
Synergistetes-like [15,72]
Thermotogae-like [15]
Methylocystis sp. [14]
Unknown 2--Methanospirillum hungatei [12]
Methanoregula boonei [12]
Methanocopusculum bavaricum [12]
Thermoplasma sp. [12]
Methanoculleus bourgensis [72]
Unknown 3--Methanobacterium sp. (YCM1) [38]
Methanobacterium bryantii (RiH2) [38]
Methanosarcina mazei (Tuc01) [38]
Methanosarcina thermophila [72]
Methanobacterium arcticum (M2) [75]
Methanobacterium bryantii (MOH) [75]
4 H 2 O 2 O 2 + 8 H + + 8 e Ch (A)n.s.
1 Higher relative abundance correlated with higher CH4 production in electromethanogenic biocathode; 2 Associated with syntrophic associations with methanogens in the biocathode to produce CH4; 3 Archaea identified in electromethanogenic BES reactor biocathodes; BEC: Bioelectrochemical; BC: Biochemical; Ch: Chemical; C: Cathode; A: Anode; n.s.: Not shown.
Table 2. Overview of the operational parameters and performance of methane-producing biocathodes.
Table 2. Overview of the operational parameters and performance of methane-producing biocathodes.
Reactor OperationCathode MaterialCathode Potential (V vs. SHE)Cathode Working Volume (mL)Cathode Specific Surface (cm2)Anode ReactionCurrent Density (A·m−2) 5CH4 Yield (mmol·day−1·m−2)CE (%)Reference
BCarbon paper−0.901508WO0.69 (6)40080[13]
BCarbon black powder + Pt 1<−0.551009.28n.r.n.r.35.85 (2,3)>100[11]
BGraphite rod<−0.435013n.r.0.05 (8,9)3.580[52]
BGraphite granules−0.84205700WO0.07 (10)5.175[14]
BCarbon paper−1.0 (4)103n.r.3.00 (8)87.919[53]
BCarbon paper coated + carbon layer−1.0 (4)103n.r.n.r.95.596[9]
BGraphite plate−0.720064.5BO1.00 (9)48.05 (2,3)83[33]
BCarbon felt−0.6/−0.724098SO + BOn.r.29.26 (2,3)51[44]
BGranular graphite−0.5975n.r.n.r.n.r.n.r.55[55]
BCarbon felt−0.9524049n.r.n.r.1062 (2,3)56.7[137]
BCarbon felt−1.25 (4)n.r.42BOn.r.>400>95[12]
BGraphite felt−1.5 (4)404700WOn.r.n.r.n.r.[27]
BGraphite fiber brush−0.43912013.8WO0.0463.48 (3)n.r.[63]
BGraphite bar−0.51008n.r.n.r.0.22n.r.[47]
CGraphite felt<−0.55n.r.250HO + WO0.21 (7,10)22.223[18]
CGraphite granules−0.9386011,094BO0.10 (8,10)8.84 (3)79[138,139]
CGraphite granules−0.84205700WO0.20 (10)15.469[14]
CGraphite plate−0.780064.5BO>3 (9)155 (2,3)>80[33]
CGraphite felt−0.7240250WO2.90 (7,10)477.7 (2,3)<60[17]
CCarbon cloth−0.511085.5n.r.0.04 (10)0.58 (2,3)63[38]
FBGraphite plate−0.62504150WOn.r.1901.19 (2,3)n.r.[74]
FBGraphite granules−0.8586011,094BO0.02 (9)1.58 (3)74[140]
FBGraphite fiber brush<−0.51750947BO0.30 (8,10)20096[8]
FBGraphite felt<−0.6620290HO + WO1.60 (7,10)205 (3)99[19]
FBCarbon cloth0.8 (4)15080BO0.17 (7,9)1103>90[15]
FBPlain carbon felt−0.75 (4)11040BO2.60 (8,9)38698[141]
FBCarbon stick−0.740011WOn.r.397 (3)24.2[10]
FBCarbon stick + graphite felt 1−1.220022WOn.r.2911.99 (3)194.4[20]
Studies assessed were not conducted with the enhancement of methane production as main purpose. CO2 was not the only carbon source in some of them. 1 Different cathode materials were studied in this work; 2 Highest production rate reported; 3 Calculated from the data reported (temperature, pressure, cathode surface area, etc.); 4 Applied cell voltage (cathode potential not reported); 5 Calculated at standard temperature and pressure (STP, 298.15 K and 1 bar); 6 Calculated from an average of a range reported in the study; 7 Projected surface area: projected 2D active area of the 3D cathode; 8 Geometric surface area: total outer active surface area of the cathode, not including pores; 9 Study states the maximum value; 10 Study states the average value; B: Batch; C: Continuous; FB: Fed-batch (medium in the cathode compartment substituted with fresh medium when considered); BO: Biotic organic oxidation; WS: Water oxidation; SO: Sulfide oxidation; HO: hexacyanoferrate (II) oxidation; n.r.: not reported.

Share and Cite

MDPI and ACS Style

Blasco-Gómez, R.; Batlle-Vilanova, P.; Villano, M.; Balaguer, M.D.; Colprim, J.; Puig, S. On the Edge of Research and Technological Application: A Critical Review of Electromethanogenesis. Int. J. Mol. Sci. 2017, 18, 874. https://doi.org/10.3390/ijms18040874

AMA Style

Blasco-Gómez R, Batlle-Vilanova P, Villano M, Balaguer MD, Colprim J, Puig S. On the Edge of Research and Technological Application: A Critical Review of Electromethanogenesis. International Journal of Molecular Sciences. 2017; 18(4):874. https://doi.org/10.3390/ijms18040874

Chicago/Turabian Style

Blasco-Gómez, Ramiro, Pau Batlle-Vilanova, Marianna Villano, Maria Dolors Balaguer, Jesús Colprim, and Sebastià Puig. 2017. "On the Edge of Research and Technological Application: A Critical Review of Electromethanogenesis" International Journal of Molecular Sciences 18, no. 4: 874. https://doi.org/10.3390/ijms18040874

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
