Molecular Basis for the Neutralization of Tumor Necrosis Factor ? by Certolizumab Pegol in the Treatment of Inflammatory Autoimmune Diseases

by
Jee Un Lee
,
Woori Shin
,
Ji Young Son
,
Ki-Young Yoo
and
Yong-Seok Heo
*
Department of Chemistry, Konkuk University, 120 Neungdong-ro, Gwangjin-gu, Seoul 05029, Korea
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2017, 18(1), 228; https://doi.org/10.3390/ijms18010228
Submission received: 28 December 2016 / Revised: 17 January 2017 / Accepted: 17 January 2017 / Published: 23 January 2017
(This article belongs to the Special Issue Dissecting Mechanisms of Action of Biologics in Inflammatory Bowel Diseases)
Browse Figures
Versions Notes

Abstract

:
Monoclonal antibodies against TNFα, including infliximab, adalimumab, golimumab, and certolizumab pegol, are widely used for the treatment of the inflammatory diseases such as rheumatoid arthritis and inflammatory bowel disease. Recently, the crystal structures of TNFα, in complex with the Fab fragments of infliximab and adalimumab, have revealed the molecular mechanisms of these antibody drugs. Here, we report the crystal structure of TNFα in complex with the Fab fragment of certolizumab pegol to clarify the precise antigen-antibody interactions and the structural basis for the neutralization of TNFα by this therapeutic antibody. The structural analysis and the mutagenesis study revealed that the epitope is limited to a single protomer of the TNFα trimer. Additionally, the DE loop and the GH loop of TNFα play critical roles in the interaction with certolizumab, suggesting that this drug exerts its effects by partially occupying the receptor binding site of TNFα. In addition, a conformational change of the DE loop was induced by certolizumab binding, thereby interrupting the TNFα-receptor interaction. A comprehensive comparison of the interactions of TNFα blockers with TNFα revealed the epitope diversity on the surface of TNFα, providing a better understanding of the molecular mechanism of TNFα blockers. The accumulation of these structural studies can provide a basis for the improvement of therapeutic antibodies against TNFα.

Graphical Abstract

1. Introduction

Tumor necrosis factor superfamily (TNFSF) proteins mediate a diverse range of signaling events, including cell growth, survival, and apoptosis, and modulate inflammation, host defense, and organogenesis of the immune, ectodermal, and nervous systems [1,2,3]. The binding of TNFSF proteins to their receptors (TNFRSF) initiates many pro-inflammatory immune responses. It has been known that there are more than 35 specific ligand-receptor pairs between TNFSF and TNFRSF [4]. Among them, TNFα is a major inflammatory cytokine with a crucial role in the pathogenesis of inflammatory autoimmune diseases via interactions with its cognate receptors, TNFR1 and TNFR2 [5,6,7]. TNFα is a trimeric transmembrane protein; it can be cleaved to release a soluble trimer [8,9]. Both a mature form of soluble TNFα as well as a precursor form of transmembrane TNFα can mediate various inflammatory responses [10,11]. Each protomer of a TNFα trimer is formed by a sandwich of an inner and outer β-sheet with all 10 strands [12].
Biological agents against TNFα have been developed for the treatment of inflammatory diseases, including rheumatoid arthritis, psoriatic arthritis, axial spondyloarthritis, and inflammatory bowel diseases, such as Crohn’s disease and ulcerative colitis [13,14,15,16]. The USA Food and Drug Administration (FDA) has approved five TNFα blockers. Four are antibody-based drugs, i.e. infliximab, adalimumab, certolizumab-pegol, and golimumab, and the other drug, etanercept, is a fusion protein composed of two extracellular domains of TNFR2 and the Fc region of IgG1 [17,18,19,20,21]. All of these TNFα blockers bind to both a soluble and a transmembrane form of TNFα, thereby interrupting the TNFα–TNFR interaction [22,23].
Certolizumab pegol has a unique structure compared to those of the other approved therapeutic antibodies against TNFα. It is a monovalent Fab fragment of a humanized anti-TNFα antibody and lacks the Fc region [24]. The hinge region of certolizumab is attached to two cross-linked chains of a 20-kDa polyethylene glycol (PEG) and is therefore named the certolizumab pegol [25]. The lack of the IgG Fc region can result in the fast degradation of biologics because the binding of the Fc region to the neonatal Fc receptor (FcRn) in the endosome is important for regulating antibody homeostasis by protecting IgG from degradation, thereby contributing to the long plasma half-life of IgG [26,27]. However, the plasma half-life of certolizumab pegol is prolonged by the presence of the covalently linked PEG moiety, as PEGylation increases the plasma half-life and solubility and reduces immunogenicity and protease sensitivity [28]. Indeed, the serum half-life of certolizumab pegol (14 days) is comparable to those of other IgG1 drugs, including infliximab (8–10 days), adalimumab (10–20 days), and golimumab (9–15 days), despite its inability to bind to FcRn [29,30]. The distribution of certolizumab pegol in the inflamed joint is greater than those of infliximab and adalimumab [31], and this is probably due to the unique structure of certolizumab pegol. The lack of the Fc region in certolizumab pegol results in no activity of complement-dependent cytotoxicity (CDC) and antibody-dependent cell-mediated cytotoxicity (ADCC), whereas other TNFα blockers can induce potent CDC and ADCC [32,33].
The crystal structures of TNFα-TNFR2 and TNFβ-TNFR1 complexes have established the foundations of the ligand-receptor interactions between TNFSF and TNFRSF, providing invaluable information for understanding the molecular mechanisms of TNF signaling [34,35]. Recently, the crystal structures of TNFα in complex with the Fab fragments of infliximab and adalimumab have been reported, clarifying their epitopes and inhibitory mechanisms by overlap with the TNFα–TNFR interface [36,37]. In the TNFα-infliximab structure, the Fab fragment interacts with only one TNFα protomer in the TNFα trimer, and the EF loop plays a pivotal role in infliximab recognition by TNFα. In the TNFα-adalimumab complex structure, the epitope consists of two adjacent TNFα molecules in the homotrimer of TNFα and is highly similar to the interface of the TNFα–TNFR2 complex. To elucidate the molecular mechanism and epitope of another anti-TNFα agent, certolizumab pegol, we determined the crystal structure of TNFα in complex with the Fab fragments of certolizumab pegol. We examined the binding mode of the complex and the conformational changes induced by antibody binding, thereby clarifying the molecular basis by which certolizumab pegol effectively blocks TNFα-TNFR interactions, despite the monovalency originating from its unique structure.

2. Results

2.1. Crystal Structure of TNFα in Complex with Certolizumab Fab Fragment

We determined and refined the crystal structure of human TNFα in complex with the certolizumab Fab fragment at a resolution of 2.89 Å with R/Rfree = 0.225/0.265. The crystallographic asymmetric unit contained 3 copies of TNFα-certolizumab Fab complex with a non-crystallographic 3-fold symmetry (Figure 1A). The gel filtration results also indicated a 3:3 molar ratio for TNFα and certolizumab Fab fragment in the complex (data not shown). Almost all residues of TNFα, except those in the EF loop region, were well defined in the electron density map. The dimensions of the trimeric complex of the TNFα-certolizumab Fab fragment were 130 × 130 × 75 Å3. When viewed along the 3-fold axis, the trimeric complex had a shape that resembles a three-bladed propeller, with one protomer representing one blade. It consisted of three certolizumab Fab fragments radially bound to a single TNFα homotrimer. The root mean square (rms) deviations between equivalent residues from the protomers of TNFα or the certolizumab Fab molecules in the complex were less than 0.25 Å, as non-crystallographic symmetry restraints were applied during most of the refinement process. The pseudo 2-fold axes of the bound certolizumab Fab fragments relating the heavy and light chains intersected the 3-fold axis of the TNFα homotrimer and had an approximate angle of 40˚ downward from a plane that was perpendicular to the 3-fold axis. When we consider a cell with a TNFα precursor attached, this plane represents the cell membrane (Figure 1A). In this binding orientation, certolizumab not only can bind to soluble TNFα, but also to a TNFα precursor that is not released from the cell membrane. This structural feature is quite consistent with the drug characteristics, which targets both soluble TNFα and transmembrane TNFα [23]. Each TNFα protomer of the trimeric complex adopted a typical β-sandwich with jellyroll topology composed of two five-stranded antiparallel β-sheets [12]. Superimposing TNFα in the TNFα-certolizumab Fab complex with its receptor-bound form (PDB code 3ALQ) yielded an rms deviation of 0.38 Å for all Cα atoms and indicated no significant overall structural changes, except for the conformational change of the DE loop region due to the interaction with certolizumab, which will be described later.
The crystal structure of the uncomplexed certolizumab Fab fragment was also determined and refined to a resolution of 1.95 Å with R/RFree = 0.147/0.179. The certolizumab Fab presented a canonical immunoglobulin fold and four intramolecular disulfide bonds in the structures of both its uncomplexed form and its TNFα-bound form, as expected. The elbow angle of the certolizumab Fab fragment, defined as the angle subtended by the two pseudo-dyad axes relating the variable and constant domains of the Fab fragment, did not differ between the TNFα-bound and the free certolizumab, despite the intrinsic flexibility of the Fab elbow (Figure 1B). The electron density of the structure of the uncomplexed Fab fragment was clear throughout the entire structure, including in the complementary-determining regions (CDRs) (Figure 1C). Additionally, all CDRs of the structure of the uncomplexed certolizumab Fab fragment had the same conformation as those of this antibody in complex with TNFα, implying that this antibody drug maintains the CDRs in productive binding conformations prior to interactions with TNFα, thereby contributing to the high binding affinity to TNFα (Figure 1B–D).

2.2. Interaction between TNF-α and Certolizumab Fab

The interaction of a single Fab fragment of certolizumab with TNFα buried a total solvent-accessible area of 1887 Å2, which was larger than a typical protein–protein interface (1560–1700 Å2) [38], and thereby contributed to the high affinity between TNFα and certolizumab (Figure 2) [39]. Although TNFα exists as a trimer, the epitope of certolizumab was composed of only residues from a single protomer of TNFα. The certolizumab epitope of TNFα consisted of a number of residues, including TNFαG24, TNFαD45, TNFαQ47, TNFαT77, TNFαI83, TNFαV85, TNFαS86, TNFαQ88, TNFαT89, TNFαK90, TNFαR131, TNFαE135, TNFαN137, TNFαR138, TNFαP139, and TNFαD140, and most were located in the DE loop and GH loop regions of TNFα. Several residues on the epitope of certolizumab were also involved in the TNFα–TNFR interaction [35], indicating the mechanism by which certolizumab competitively blocks the TNFα–TNFR interaction.
While all three CDRs from the heavy chain of certolizumab participated in the interaction with TNFα, only one CDR from the light chain, LCDR2, was involved in the TNFα interaction. The interaction of the light chain of certolizumab mediated only by the LCDR2 loop was quite unique; it is generally observed that the LCDR2 region of antibodies is frequently not involved in antigen binding [40]. The paratope of certolizumab consisted of heavyT30, heavyD31, heavyY32 of HCDR1, heavyN52, heavyT53, and heavyY54 of HCDR2; heavyY100 heavyR101, and heavyY103 of HCDR3; and lightY49, lightF53, lightL54, lightY60, and lightF62 of LCDR2.
There were 12 hydrogen bonds and no salt bridge interaction between a single protomer of TNFα and the certolizumab Fab fragment, and several residues of TNFα contributed to van der Waals contacts with the certolizumab. The heavy chain of certolizumab interacted with the B′B loop and the G strand as well as the DE loop. The side chain atoms of TNFαD45 and TNFαQ47 in the B′B loop formed hydrogen bonds with the hydroxyl groups of heavyY32 and heavyY100, respectively. The residues TNFαI83, TNFαV85, TNFαS86, TNFαQ88, TNFαT89, and TNFαK90 of the DE loop were involved in the interaction with certolizumab. The backbone carbonyl groups of TNFαS86 and TNFαQ88 formed hydrogen bonds with the side chain of heavyN52 and the backbone amide group of heavyR101, and the side chain of TNFαQ88 made two hydrogen bonds with the backbone atoms of heavyT30 and heavyT53. The side chains of TNFαI83, TNFαV85, TNFαT89, and TNFαK90 made van der Waals contacts with the side chains of heavyY100, heavyY54, heavyR101, and heavyY103, respectively. The side chain of TNFαR131 in the G strand also made a hydrogen bond with the backbone carbonyl group of heavyD31. The interaction between the light chain of certolizumab and TNFα was primarily attributed to the GH loop. Several residues in the D strand and AA′′ loop also contributed to the interaction with certolizumab. The residues in the GH loop of TNFα involved in the interaction with certolizumab were TNFαE135, TNFαN137, TNFαR138, TNFαP139, and TNFαD140. The side chain atom of TNFαE135 and the backbone carbonyl group of TNFαN137 made hydrogen bonds with the side chain atom of lightY49 and the backbone amide group of lightL54, respectively. TNFαR138 made two hydrogen bonds with the backbone carbonyl groups of lightY60 and lightF62. In addition, the backbone carbonyl groups of TNFαG24 in the AA´´ loop made a hydrogen bond with the side chain atom of lightY60. The residues lightF53, lightL54, and lightY60 of LCDR2 contributed to van der Waals contacts with the side chains of TNFαT77 in the D strand and TNFαN137, TNFαR138, TNFαP139, and TNFαD140 in the GH loop.
Interestingly, the bidentate hydrogen bond mediated by TNFαQ88 induced a conformational change of the DE loop of TNFα (Figure 3A,B). In the structure of TNFα in complex with TNFR2, TNFαY87 of the DE loop was optimally accommodated into a small pocket on the surface of TNFR2 and thereby contributed to the energetics of the TNFα-TNFR2 interaction (Figure 3C) [35]. However, the structural change of the DE loop induced by certolizumab binding was incompatible with TNFR2 binding, as the positional change of TNFαY87 would cause steric collision with TNFR2 (Figure 3B,C). Thus, the neutralizing effect of certolizumab appears to be a consequence of the partial overlap of the epitope with the TNFα-TNFR interface and an antibody-induced conformational change of the DE loop.

2.3. Mutagenesis Study of the TNFα-Certolizumab Interface

For the mutagenesis analysis, we selected 6 residues of TNFα whose side chains were involved in the hydrogen bonds with certolizumab; i.e., TNFαD45, TNFαQ47, TNFαQ88, TNFαR131, TNFαE135, and TNFαN137. Each residue was replaced by alanine and the binding affinities of each mutant with certolizumab were measured by surface plasmon resonance to evaluate the effects of these replacements on the interaction with certolizumab (Figure 4). The substitutions of TNFαD45, TNFαQ47, and TNFαR131 with alanine did not substantially affect the binding affinity of TNFα to certolizumab, with decreases in the on-rate constants kon of 3–5-fold and similar off-rate constant koff values. These results imply that the hydrogen bonds mediated by these residues would only facilitate fast associations between TNFα and certolizumab, but are not important for slow dissociation in order to maintain the stable TNFα-certolizumab complex (Table 1). The replacement of TNFαQ88 resulted in a drastic decrease in binding affinity, with an 18-fold higher dissociation constant, KD, implying that the hydrogen bonds by TNFαQ88 play a critical role in the interaction between the DE loop of TNFα and the heavy chain of certolizumab. The substitution of TNFαR138 also dramatically increased KD by 20-fold, implying the importance of this residue for the interaction between the GH loop of TNFα and the light chain of certolizumab. The critical contribution of the residues TNFαQ88 and TNFαR138 to the binding affinity can be easily predicted from the structural features of the TNFα-certolizumab interaction, as the side chains of only these two residues made bidentate hydrogen bonds with certolizumab (Figure 2). The hydrogen bond between TNFαE135 and lightY49 may also play a supplementary role in the energetics of the TNFα-certolizumab interaction as the mutation TNFαE135A increased KD by 11-fold. Nonetheless, the mutation of a single residue side chain did not result in the complete loss of the TNFα-certolizumab interaction but slightly decreased the binding affinity. This indicates that the interaction surface is very extensive, involving a molecular network rather than individual residues.

3. Discussion

TNFα is an important target for the treatment of inflammatory diseases, such as rheumatoid arthritis and inflammatory bowel diseases. Accordingly, five biological agents against TNFα have been approved by the FDA including three monoclonal anti-TNFα full IgG1 antibodies, infliximab, adalimumab, and golimumab; the PEGylated Fab fragment of the anti-TNFα antibody certolizumab pegol; and the extracellular domain of the TNFR2/IgG1-Fc fusion protein etanercept (Table 2). Each shows excellent efficacy, with similar rates of response, although the similarity is somewhat controversial owing to the lack of a head-to-head comparative studies [41].
Comparison of the TNFα interactions of each TNFα blocker can provide a better understanding of the neutralizing mechanism of these anti-TNFα drugs. The structural features of the TNFα-etanercept interface can be deduced from the crystal structure of TNFα in complex with TNFR2, as the TNFα binding part of etanercept is the extracellular domain of TNFR2, implying that the drug exerts neutralizing effects by occupying the receptor binding site of TNFα [35]. The crystal structures of TNFα in complex with infliximab and adalimumab have revealed the epitopes of each antibody drug, showing that they bind to TNFα efficiently and outcompete TNFRs for binding to TNFα, thereby preventing TNFα from functioning in inflammatory diseases [36,37]. However, structural studies of certolizumab pegol and golimumab have not been reported, despite many biochemical and clinical analyses of them. In this study, we report the crystal structure of the soluble trimer of human TNFα in complex with the Fab fragment of the therapeutic antibody certolizumab pegol to understand the antigen-antibody interface and the neutralizing mechanism of this drug. The structure showed that three Fab fragments bind symmetrically to a TNFα trimer. Certolizumab neutralizes TNFα function by partially overlapping with the TNFα-TNFR interface and preventing the conformational rearrangement of the DE loop, which is necessary for TNFR binding.
The CDRs of certolizumab have a typical length without an unusual amino acid sequence, according to a Kabat antibody sequence database search [42], which is similar to the other antibodies infliximab and adalimumab (Figure 5). However, comparison of the interactions of certolizumab with other TNFα blockers shows that the epitopes are very different from each other (Figure 6). In the TNFα-adalimumab Fab complex, one Fab fragment of adalimumab interacts with two adjacent TNFα protomers, similar to the TNFα-TNFR2 complex [37]. By contrast, the interactions mediated by the infliximab and certolizumab Fab fragments involve only one protomer of the TNFα homotrimer [36]. The EF loop of TNFα is involved in the interaction with the adalimumab and infliximab Fab fragments. In particular, in the TNFα-infliximab Fab complex, the residues in the EF loop play a crucial role in the antigen-antibody interaction. However, this region in the TNFα-certolizumab Fab complex is completely unobservable in the crystal structure, indicating that the EF loop is flexible and not involved in the interaction with certolizumab, as observed in the structure of the TNFα–TNFR2 complex [35]. It has been reported that the TNFα homotrimer is non-stable at physiological concentrations and slowly dissociates into a monomeric form with reversible trimerization, although the details of this process are not fully elucidated [43,44,45]. Etanercept, adalimumab, and infliximab were found to completely abrogate this monomer exchange reaction in the TNFα homotrimer, whereas certolizumab and golimumab could not prevent it but did slow down the monomer exchange process [39]. In other words, the former three anti-TNFα drugs stabilize the trimeric form of TNFα, whereas the others exhibit no or only slight stabilization. The differences in the monomer exchange behavior of the TNFα blockers are not likely correlated with their binding affinities to TNFα [39]. In the experiment, to measure the affinity of the Fab fragments of the TNFα blockers, the adalimumab Fab fragment, which inhibits the monomer exchange reaction and stabilizes the TNFα homotrimer, had the lowest affinity, whereas the certolizumab Fab fragment had the highest affinity to TNFα [39]. This high affinity of certolizumab Fab may lead to an excellent therapeutic efficacy, similar to those of other bivalent biologics, despite its monovalency originating from the shape of the PEGylated Fab fragment. The differences in TNFα homotrimer stabilization can be explained by the structural features of TNFα in complex with the biologics, described above (Figure 6). Adalimumab and etanercept interact with two neighboring protomers of TNFα simultaneously [35,37], thereby stabilizing interactions between the protomers in the TNFα homotrimer. Although the epitope of infliximab consists of the residues from only one protomer, the antigen-antibody interaction involves the EF loop and leads to its unique conformation [36], which may contribute to the stabilization of the trimeric form of TNFα via the productive communication between the EF loops of the unique conformation in the trimer. On the contrary, the binding of certolizumab is limited to only a single protomer and does not involve the EF loop without influencing its conformation or the interactions between the protomers in the TNFα homotrimer. Based on the monomer exchange behavior of golimumab, which is similar to that of certolizumab, golimumab is expected to bind to an epitope composed of only a single protomer without interacting with the EF loop of TNFα.

4. Materials and Methods

4.1. Expression and Purification of TNFα

Genes encoding the soluble form of human TNFα (aa 77–233) were subcloned into pET-21a (Addgene, Cambridge, MA, USA). The protein was overexpressed with a C-terminal 6His-tag using plasmid-transformed E. coli BL21 (DE3) competent cells. The cells were first grown at 37 °C in Luria-Bertini (LB) medium supplemented with 50 μg·mL−1 ampicilin. Protein expression was induced by adding 0.5 mM isopropyl β-d-1-thiogalactopyranoside (IPTG) when the cells reached an optical density at 600 nm of about 0.6, and the cells were grown for 16 h at 18 °C prior to harvesting by centrifugation (3000× g for 0.5 h at 4 °C). The cell pellet was resuspended in a lysis buffer (20 mM Tris pH 8.0, 300 mM NaCl, 5 mM β-mercaptoethanol) and disrupted by sonication on ice. After the crude lysate was centrifuged (25,000× g for 1 h at 4 °C), the supernatant containing soluble was applied to the HisTrap HP column (GE Healthcare Life Sciences, Marlborough, MA, USA) and washed with five column volumes of wash buffer (20 mM Tris pH 8.0, 300 mM NaCl, 5 mM β-mercaptoethanol, 50 mM imidazole). The protein was then eluted with elution buffer (20 mM Tris pH 8.0, 300 mM NaCl, 5 mM β-mercaptoethanol, 400 mM imidazole). The eluted protein was concentrated for gel filtration chromatography using a HiLoad 16/60 Superdex 200 pg column (GE Healthcare Life Sciences). The column had previously been equilibrated with gel filtration buffer (20 mM Tris pH 8.0, 300 mM NaCl). The protein purity was evaluated by SDS–PAGE.

4.2. Expression and Purification of the Certolizumab Fab

The DNA sequence for the Fab fragment of certolizumab was synthesized after codon-optimization for expression in E. coli (Bioneer, Inc., Daejon, Korea). The sequences for the heavy chain and the light chain were cloned into a modified pBAD vector, containing the STII signal sequence in each chain for periplasmic secretion and a C-terminal 6His-tag in the heavy chain [46]. The plasmid pBAD-certolizumab Fab fragment was transformed into E. coli Top10F (Invitrogen, Carlsbad, CA, USA). The cells were grown at 37  °C in LB medium supplemented with 50 μg·mL−1 ampicillin. At an OD600 of 1.0, the protein expression was induced with 0.2% arabinose and cells were grown at 30  °C for 15  h. The cells were harvested by centrifugation, re-suspended in a lysis buffer (20  mM Tris, pH 8.0, 200  mM NaCl), and lysed by sonication on ice. After removing cell debris by centrifugation (25,000× g for 0.5  h at 4  °C), the supernatant containing soluble protein was applied to the HisTrap HP column (GE Healthcare Life Sciences) and washed with five column volumes of wash buffer (20  mM Tris, pH 8.0, 300  mM NaCl, 50  mM imidazole). The protein was then eluted with elution buffer (20  mM Tris pH 8.0, 300  mM NaCl, 400  mM imidazole). The eluted protein was concentrated for gel filtration chromatography using a HiLoad 16/60 Superdex 200  pg column (GE Healthcare Life Sciences). The column had previously been equilibrated with gel filtration buffer (20 mM Tris pH 8.0, 300  mM NaCl). The elution profile of the protein showed a single major peak and the protein quality was evaluated by reducing and nonreducing SDS–PAGE.

4.3. Crystallization and Structure Determination of the Certolizumab Fab

Gel-filtration fractions containing the certolizumab Fab fragment were concentrated to 10 mg·mL−1 in 20 mM Tris, pH 8.0, and 300 mM NaCl. Crystals were grown using a hanging-drop vapor diffusion with a reservoir solution containing 0.1 M Bis-Tris, pH 5.5, 0.2 M ammonium sulfate, and 25% PEG3350 at 20 °C within a week. Crystals were cryoprotected by brief immersion in a well solution, supplemented with 20% glycerol, and flash frozen in liquid nitrogen. X-ray diffraction data were collected at 100 K on beamline 5C of the Pohang Light Source (PLS) (Pohang, Korea). The crystals belonged to space group P212121 (a = 58.33, b = 63.70, c = 161.41 Å) with one copy in the asymmetric unit. X-ray diffraction data were collected to a resolution of 1.95 Å, integrated, and scaled using HKL2000 (HKL Research, Charlottesville, VA, USA). The structure was solved by molecular replacement using a Phaser [47] with a structure of the Fab fragments that has high sequence identities with certolizumab Fab fragments (PDB code 4DKF, chains H and L). Due to the intrinsic elbow flexibility of a Fab fragment, the Fv region and the other region including the CH1 and CL domains were separated when used as a search model. At this point, the electron density corresponding certolizumab was prominent. Iterative rounds of refinement were done using PHENIX [48] with manual inspection using COOT [49]. Statistics for data collection and refinement can be found in Table 3. All structure figures were prepared using PyMOL [50].

4.4. Crystallization and Structure Determination of the TNFα-Certolizumab Fab Complex

Purified TNFα and certolizumab Fab were mixed in a 1:1 molar ratio and incubated for 1 h at 4 °C before being subjected to size exclusion chromatography using a HiLoad 16/60 Superdex 200 pg column equilibrated with 20 mM Tris, pH 8.0, and 300 mM NaCl. Gel-filtration fractions containing the TNFα-certolizumab Fab complex were concentrated to 7 mg·mL−1 in 20 mM Tris, pH 8.0, and 300 mM NaCl. Crystals were grown using hanging-drop vapor diffusion with a reservoir solution containing 0.1 M 3-(cyclohexylamino)-1-propanesulfonic acid pH 5.6, 0.2 M lithium sulfate, and 1.5 M ammonium sulfate at 20 °C within 20 days. Crystals were cryoprotected by brief immersion in the well solution, supplemented with 25% ethylene glycol, and flash frozen in liquid nitrogen. X-ray diffraction data were collected at 100 K on beamline 7A of the Pohang Light Source (PLS) (Pohang, Korea). The crystals belonged to space group C2 (a = 148.59, b = 207.22, c = 112.63 Å, β = 118.81˚) with three copies in the asymmetric unit. X-ray diffraction data were collected to a resolution of 2.89 Å, integrated, and scaled using HKL2000 (HKL Research, Charlottesville, VA, USA). The structure was solved by molecular replacement using Phaser with a structure of the free certolizumab Fab fragment and human TNFα (PDB code 1TNF). Due to the intrinsic elbow flexibility of a Fab fragment, the Fv region and the other regions, including the CH1 and CL domains, were separated when the structure of the free certolizumab Fab fragment was used as a search model. At this point, the electron density corresponding to the TNFα-certolizumab Fab Complex was prominent. Iterative rounds of refinement were done using PHENIX with manual inspection using COOT. Statistics for data collection and refinement can be found in Table 1.

4.5. Binding Kinetics of the TNFα WT and Mutants

Site-directed mutants of TNFα, including TNFαD45A, TNFαQ47A, TNFαQ88A, TNFαR131A, TNFαE135A, and TNFαR138A, were created with the QuickChange Kit (Agilent Technologies, Santa Clara, CA, USA) and confirmed by DNA sequencing. The mutant proteins were expressed and purified as described for wild-type TNFα. Approximately 1000 response units of the certolizumab Fab fragment were immobilized on the surface of a CM-5 chip (GE Healthcare Life Sciences) via amine coupling reactions, as described in the manufacturer’s instructions. Purified wild-type and the mutants of TNFα were serially diluted to concentrations ranging from 2 nM to 250 nM using PBS buffer and flowed through the chip. A BIAcore T100 instrument (GE Healthcare Life Sciences, Marlborough, MA, USA) was operated at 25 °C using PBS buffer as a running buffer. The bound TNFα was removed with 10 mM glycine (pH 2.0) at the end of each cycle while retaining the surface integrity for chip regeneration. Sensorgrams were locally fitted and the dissociation constants (Kd) were calculated with the analysis software, BIAevaluation (GE Healthcare Life Sciences, Marlborough, MA, USA).

4.6. Accession Number

The coordinates and structure factors for the crystal structures of the free certolizumab Fab fragments and the complex of TNFα-certolizumab Fab fragments have been deposited in the Protein Data Bank under accession codes 5WUV and 5WUX, respectively.

5. Conclusions

In summary, the elucidation of the crystal structure of TNFα in complex with the Fab fragments of certolizumab pegol sheds light on the molecular mechanism underlying the therapeutic activity of this antibody drug. In addition, the precise epitope revealed by the present complex structure could provide useful information for the improvement of the current biological agents against TNFα for the treatment of inflammatory autoimmune diseases.

Acknowledgments

We are grateful to the staffs of beamline 7A and 5C at Pohang Accelerator Laboratory for help with the X-ray diffraction experiments. This paper was supported by Konkuk University in 2013.

Author Contributions

Jee Un Lee and Yong-Seok Heo designed the study. Jee Un Lee, Woori Shin, Ji Young Son, and Ki-Young Yoo performed the experiments, including expression, purification, crystallization, SPR analysis, and X-ray data collection. Jee Un Lee and Yong-Seok Heo determined and analysed the structures. Yong-Seok Heo wrote the manuscript. All authors discussed the results and commented on the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bodmer, J.L.; Schneider, P.; Tschopp, J. The molecular architecture of the TNF superfamily. Trends Biochem. Sci. 2002, 27, 19–26. [Google Scholar] [CrossRef]
  2. Locksley, R.M.; Killeen, N.; Lenardo, M.J. The TNF and TNF receptor superfamilies: Integrating mammalian biology. Cell 2001, 104, 487–501. [Google Scholar] [CrossRef]
  3. Wiens, G.D.; Glenney, G.W. Origin and evolution of TNF and TNF receptor superfamilies. Dev. Comp. Immunol. 2011, 35, 1324–1335. [Google Scholar] [CrossRef] [PubMed]
  4. Bossen, C.; Ingold, K.; Tardivel, A.; Bodmer, J.L.; Gaide, O.; Hertig, S.; Ambrose, C.; Tschopp, J.; Schneider, P. Interactions of tumor necrosis factor (TNF) and TNF receptor family members in the mouse and human. J. Biol. Chem. 2006, 281, 13964–13971. [Google Scholar] [CrossRef] [PubMed]
  5. Idriss, H.T.; Naismith, J.H. TNFα and the TNF receptor superfamily: Structure-function relationship(s). Microsc. Res. Tech. 2000, 50, 184–195. [Google Scholar] [CrossRef]
  6. Aggarwal, B.B. Signalling pathways of the TNF superfamily: A double-edged sword. Nat. Rev. Immunol. 2003, 3, 745–756. [Google Scholar] [CrossRef] [PubMed]
  7. Chen, G.; Goeddel, D.V. TNF-R1 signaling: A beautiful pathway. Science 2002, 296, 1634–1635. [Google Scholar] [CrossRef] [PubMed]
  8. Aggarwal, B.B.; Gupta, S.C.; Kim, J.H. Historical perspectives on tumor necrosis factor and its superfamily: 25 years later, a golden journey. Blood 2012, 119, 651–665. [Google Scholar] [CrossRef] [PubMed]
  9. Marušič, J.; Podlipnik, Č.; Jevševar, S.; Kuzman, D.; Vesnaver, G.; Lah, J. Recognition of human tumor necrosis factor α (TNF-α) by therapeutic antibody fragment: Energetics and structural features. J. Biol. Chem. 2012, 287, 8613–8620. [Google Scholar] [CrossRef] [PubMed]
  10. Pennica, D.; Lam, V.T.; Weber, R.F.; Kohr, W.J.; Basa, L.J.; Spellman, M.W.; Ashkenazi, A.; Shire, S.J.; Goeddel, D.V. Biochemical characterization of the extracellular domain of the 75-kilodalton tumor necrosis factor receptor. Biochemistry 1993, 32, 3131–3138. [Google Scholar] [CrossRef] [PubMed]
  11. Loetscher, H.; Gentz, R.; Zulauf, M.; Lustig, A.; Tabuchi, H.; Schlaeger, E.J.; Brockhaus, M.; Gallati, H.; Manneberg, M.; Lesslauer, W. Recombinant 55-kDa tumor necrosis factor (TNF) receptor. Stoichiometry of binding to TNFα and TNFβ and inhibition of TNF activity. J. Biol. Chem. 1991, 266, 18324–18329. [Google Scholar] [PubMed]
  12. Eck, M.J.; Sprang, S.R. The structure of tumor necrosis factor-α at 2.6 Å resolution. Implications for receptor binding. J. Biol. Chem. 1989, 264, 17595–17605. [Google Scholar] [PubMed]
  13. Elliott, M.J.; Maini, R.N.; Feldmann, M.; Kalden, J.R.; Antoni, C.; Smolen, J.S.; Leeb, B.; Breedveld, F.C.; Macfarlane, J.D.; Bijl, H.; et al. Randomised double-blind comparison of chimeric monoclonal antibody to tumour necrosis factor α (cA2) versus placebo in rheumatoid arthritis. Lancet 1994, 344, 1105–1110. [Google Scholar] [CrossRef]
  14. Hanauer, S.B.; Sandborn, W.J.; Rutgeerts, P.; Fedorak, R.N.; Lukas, M.; MacIntosh, D.; Panaccione, R.; Wolf, D.; Pollack, P. Human anti-tumor necrosis factor monoclonal antibody (adalimumab) in Crohn’s disease: The CLASSIC-I trial. Gastroenterology 2006, 130, 323–333. [Google Scholar] [CrossRef] [PubMed]
  15. Murdaca, G.; Colombo, B.M.; Cagnati, P.; Gulli, R.; Spanò, F.; Puppo, F. Update upon efficacy and safety of TNF-α inhibitors. Expert Opin. Drug Saf. 2012, 11, 1–5. [Google Scholar] [CrossRef] [PubMed]
  16. Weinblatt, M.E.; Keystone, E.C.; Furst, D.E.; Moreland, L.W.; Weisman, M.H.; Birbara, C.A.; Teoh, L.A.; Fischkoff, S.A.; Chartash, E.K. Adalimumab, a fully human anti-tumor necrosis factor α monoclonal antibody, for the treatment of rheumatoid arthritis in patients taking concomitant methotrexate: The ARMADA trial. Arthritis Rheum. 2003, 48, 35–45. [Google Scholar] [CrossRef] [PubMed]
  17. De Simone, C.; Amerio, P.; Amoruso, G.; Bardazzi, F.; Campanati, A.; Conti, A.; Gisondi, P.; Gualdi, G.; Guarneri, C.; Leoni, L.; et al. Immunogenicity of anti-TNFα therapy in psoriasis: A clinical issue? Expert Opin. Biol. Ther. 2013, 13, 1673–1682. [Google Scholar] [CrossRef] [PubMed]
  18. Ducharme, E.; Weinberg, J.M. Etanercept. Expert Opin. Biol. Ther. 2008, 8, 491–502. [Google Scholar] [CrossRef] [PubMed]
  19. Taylor, P.C. Pharmacology of TNF blockade in rheumatoid arthritis and other chronic inflammatory diseases. Curr. Opin. Pharmacol. 2010, 10, 308–315. [Google Scholar] [CrossRef] [PubMed]
  20. Cohen, M.D.; Keystone, E.C. Intravenous golimumab in rheumatoid arthritis. Expert Rev. Clin. Immunol. 2014, 10, 823–830. [Google Scholar] [CrossRef] [PubMed]
  21. Deeks, E.D. Certolizumab Pegol: A Review in inflammatory autoimmune diseases. BioDrugs 2016, 30, 607–617. [Google Scholar] [CrossRef] [PubMed]
  22. Kaymakcalan, Z.; Sakorafas, P.; Bose, S.; Scesney, S.; Xiong, L.; Hanzatian, D.K.; Salfeld, J.; Sasso, E.H. Comparisons of affinities, avidities, and complement activation of adalimumab, infliximab, and etanercept in binding to soluble and membrane tumor necrosis factor. Clin. Immunol. 2009, 131, 308–316. [Google Scholar] [CrossRef] [PubMed]
  23. Lis, K.; Kuzawińska, O.; Bałkowiec-Iskra, E. Tumor necrosis factor inhibitors—State of knowledge. Arch. Med. Sci. 2014, 10, 1175–1185. [Google Scholar] [CrossRef] [PubMed]
  24. Rivkin, A. Certolizumab pegol for the management of Crohn’s disease in adults. Clin. Ther. 2009, 31, 1158–1176. [Google Scholar] [CrossRef] [PubMed]
  25. Bourne, T.; Fossati, G.; Nesbitt, A. A PEGylated Fab’ fragment against tumor necrosis factor for the treatment of Crohn disease: Exploring a new mechanism of action. BioDrugs 2008, 22, 331–337. [Google Scholar] [CrossRef] [PubMed]
  26. Suzuki, T.; Ishii-Watabe, A.; Tada, M.; Kobayashi, T.; Kanayasu-Toyoda, T.; Kawanishi, T.; Yamaguchi, T. Importance of neonatal FcR in regulating the serum half-life of therapeutic proteins containing the Fc domain of human IgG1: A comparative study of the affinity of monoclonal antibodies and Fc-fusion proteins to human neonatal FcR. J. Immunol. 2010, 184, 1968–1976. [Google Scholar] [CrossRef] [PubMed]
  27. Junghans, R.P.; Anderson, C.L. The protection receptor for IgG catabolism is the β2-microglobulin-containing neonatal intestinal transport receptor. Proc. Natl. Acad. Sci. USA 1996, 93, 5512–5516. [Google Scholar] [CrossRef] [PubMed]
  28. Pasut, G. Pegylation of biological molecules and potential benefits: Pharmacological properties of certolizumab pegol. BioDrugs Suppl. 2014, 1, S15–S23. [Google Scholar] [CrossRef] [PubMed]
  29. Tracey, D.; Klareskog, L.; Sasso, E.H.; Salfeld, J.G.; Tak, P.P. Tumor necrosis factor antagonist mechanisms of action: A comprehensive review. Pharmacol. Ther. 2008, 117, 244–279. [Google Scholar] [CrossRef] [PubMed]
  30. Mahadevan, U.; Wolf, D.C.; Dubinsky, M.; Cortot, A.; Lee, S.D.; Siegel, C.A.; Ullman, T.; Glover, S.; Valentine, J.F.; Rubin, D.T.; et al. Placental transfer of anti-tumor necrosis factor agents in pregnant patients with inflammatory bowel disease. Clin. Gastroenterol. Hepatol. 2013, 11, 286–292. [Google Scholar] [CrossRef] [PubMed]
  31. Palframan, R.; Airey, M.; Moore, A.; Vugler, A.; Nesbitt, A. Use of biofluorescence imaging to compare the distribution of certolizumab pegol, adalimumab, and infliximab in the inflamed paws of mice with collagen-induced arthritis. J. Immunol. Methods 2009, 348, 36–41. [Google Scholar] [CrossRef] [PubMed]
  32. Nesbitt, A.; Fossati, G.; Bergin, M.; Stephens, P.; Stephens, S.; Foulkes, R.; Brown, D.; Robinson, M.; Bourne, T. Mechanism of action of certolizumab pegol (CDP870): In vitro comparison with other anti-tumor necrosis factor alpha agents. Inflamm. Bowel Dis. 2007, 13, 1323–1332. [Google Scholar] [CrossRef] [PubMed]
  33. Ueda, N.; Tsukamoto, H.; Mitoma, H.; Ayano, M.; Tanaka, A.; Ohta, S.; Inoue, Y.; Arinobu, Y.; Niiro, H.; Akashi, K.; et al. The cytotoxic effects of certolizumab pegol and golimumab mediated by transmembrane tumor necrosis factor α. Inflamm. Bowel Dis. 2013, 19, 1224–1231. [Google Scholar] [CrossRef] [PubMed]
  34. Banner, D.W.; D’Arcy, A.; Janes, W.; Gentz, R.; Schoenfeld, H.J.; Broger, C.; Loetscher, H.; Lesslauer, W. Crystal structure of the soluble human 55 kD TNF receptor-human TNFβ complex: Implications for TNF receptor activation. Cell 1993, 73, 431–445. [Google Scholar] [CrossRef]
  35. Mukai, Y.; Nakamura, T.; Yoshikawa, M.; Yoshioka, Y.; Tsunoda, S.; Nakagawa, S.; Yamagata, Y.; Tsutsumi, Y. Solution of the structure of the TNF–TNFR2 complex. Sci. Signal 2010, 3, ra83. [Google Scholar] [CrossRef] [PubMed]
  36. Liang, S.; Dai, J.; Hou, S.; Su, L.; Zhang, D.; Guo, H.; Hu, S.; Wang, H.; Rao, Z.; Guo, Y.; et al. Structural basis for treating tumor necrosis factor α (TNFα)-associated diseases with the therapeutic antibody infliximab. J. Biol. Chem. 2013, 288, 13799–13807. [Google Scholar] [CrossRef] [PubMed]
  37. Hu, S.; Liang, S.; Guo, H.; Zhang, D.; Li, H.; Wang, X.; Yang, W.; Qian, W.; Hou, S.; Wang, H.; et al. Comparison of the inhibition mechanisms of adalimumab and infliximab in treating tumor necrosis factor α-associated diseases from a molecular view. J. Biol. Chem. 2013, 288, 27059–27067. [Google Scholar] [CrossRef] [PubMed]
  38. Jones, S.; Thornton, J.M. Principles of protein-protein interactions. Proc. Natl. Acad. Sci. USA 1996, 93, 13–20. [Google Scholar] [CrossRef] [PubMed]
  39. Van Schie, K.A.; Ooijevaar-de Heer, P.; Dijk, L.; Kruithof, S.; Wolbink, G.; Rispens, T. Therapeutic TNF inhibitors can differentially stabilize trimeric TNF by inhibiting monomer exchange. Sci. Rep. 2016, 6, 32747. [Google Scholar] [CrossRef] [PubMed]
  40. Wilson, I.A.; Stanfield, R.L. Antibody-antigen interactions: New structures and new conformational changes. Curr. Opin. Struct. Biol. 1994, 4, 857–867. [Google Scholar] [CrossRef]
  41. Mitoma, H.; Horiuchi, T.; Tsukamoto, H.; Ueda, N. Molecular mechanisms of action of anti-TNF-α agents—Comparison among therapeutic TNF-α antagonists. Cytokine 2016. [Google Scholar] [CrossRef] [PubMed]
  42. Martin, A.C. Accessing the Kabat antibody sequence database by computer. Proteins 1996, 25, 130–133. [Google Scholar] [CrossRef]
  43. Narhi, L.O.; Arakawa, T. Dissociation of recombinant tumor necrosis factor-α studied by gel permeation chromatography. Biochem. Biophys. Res. Commun. 1987, 147, 740–746. [Google Scholar] [CrossRef]
  44. Corti, A.; Fassina, G.; Marcucci, F.; Barbanti, E.; Cassani, G. Oligomeric tumour necrosis factor α slowly converts into inactive forms at bioactive levels. Biochem. J. 1992, 284, 905–910. [Google Scholar] [CrossRef] [PubMed]
  45. Hlodan, R.; Pain, R.H. The folding and assembly pathway of tumour necrosis factor TNFα, a globular trimeric protein. Eur. J. Biochem. 1995, 231, 381–387. [Google Scholar] [CrossRef] [PubMed]
  46. Lee, J.Y.; Lee, H.T.; Shin, W.; Chae, J.; Choi, J.; Kim, S.H.; Lim, H.; Heo, T.W.; Park, K.Y.; Lee, Y.J.; et al. Structural basis of checkpoint blockade by monoclonal antibodies in cancer immunotherapy. Nat. Commun. 2016, 7, 13354. [Google Scholar] [CrossRef] [PubMed]
  47. McCoy, A.J.; Grosse-Kunstleve, R.W.; Adams, P.D.; Winn, M.D.; Storoni, L.C.; Read, R.J. Phaser crystallographic software. J. Appl. Crystallogr. 2007, 40, 658–674. [Google Scholar] [CrossRef] [PubMed]
  48. Adams, P.D.; Afonine, P.V.; Bunkóczi, G.; Chen, V.B.; Davis, I.W.; Echols, N.; Headd, J.J.; Hung, L.W.; Kapral, G.J.; Grosse-Kunstleve, R.W.; et al. PHENIX: A comprehensive Python-based system for macromolecular structure solution. Acta Crystallogr. D Biol. Crystallogr. 2010, 66, 213–221. [Google Scholar] [CrossRef] [PubMed]
  49. Emsley, P.; Cowtan, K. Coot: Model-building tools for molecular graphics. Acta Crystallogr. D Biol. Crystallogr. 2004, 60, 2126–2132. [Google Scholar] [CrossRef] [PubMed]
  50. DeLano, W.L. The PyMOL Molecular Graphics System; Schrödinger, LLC: New York, NY, USA, 2002. [Google Scholar]
Ijms 18 00228 g001 550

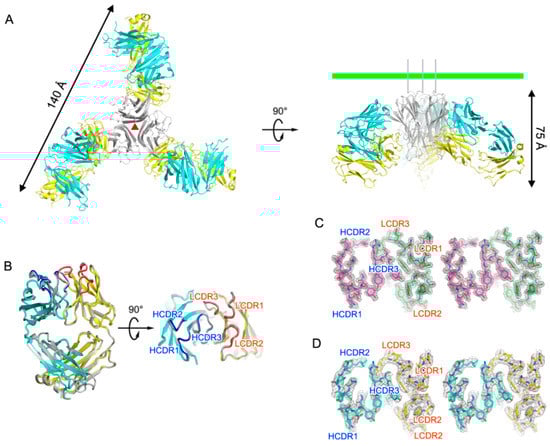

Figure 1. Overall structure of TNFα in complex with the certolizumab Fab fragment. (A) Ribbon representation of TNFα (gray) in complex with the certolizumab Fab fragment (heavy chain: cyan; light chain: yellow) in two orientations. The 3-fold axis in the trimeric complex is indicated as a red triangle. The green bar indicates a putative membrane of a TNFα-producing cell if the TNFα trimer is a precursor form of transmembrane TNFα; (B) Superposition of the free certolizumab Fab fragment (gray) onto the Fab fragment extracted from the TNFα-certolizumab complex (heavy chain: cyan; light chain: yellow; heavy chain complementary-determining regions: blue; light chain complementary-determining regions: red); (C) Cross-eyed stereoview of the 2fo-fc composite omit map (1.2 σ contour level) at the complementary-determining regions (CDRs) of the free certolizumab Fab fragment, calculated at 1.95 Å resolution (heavy chain: purple; light chain: green); (D) Cross-eyed stereoview of the 2Fo-Fc composite omit map (1.2 σ contour level) at the CDRs of the Fab fragment in the TNFα-certolizumab complex, calculated at 2.89 Å resolution (heavy chain: cyan; light chain: yellow).
Figure 1. Overall structure of TNFα in complex with the certolizumab Fab fragment. (A) Ribbon representation of TNFα (gray) in complex with the certolizumab Fab fragment (heavy chain: cyan; light chain: yellow) in two orientations. The 3-fold axis in the trimeric complex is indicated as a red triangle. The green bar indicates a putative membrane of a TNFα-producing cell if the TNFα trimer is a precursor form of transmembrane TNFα; (B) Superposition of the free certolizumab Fab fragment (gray) onto the Fab fragment extracted from the TNFα-certolizumab complex (heavy chain: cyan; light chain: yellow; heavy chain complementary-determining regions: blue; light chain complementary-determining regions: red); (C) Cross-eyed stereoview of the 2fo-fc composite omit map (1.2 σ contour level) at the complementary-determining regions (CDRs) of the free certolizumab Fab fragment, calculated at 1.95 Å resolution (heavy chain: purple; light chain: green); (D) Cross-eyed stereoview of the 2Fo-Fc composite omit map (1.2 σ contour level) at the CDRs of the Fab fragment in the TNFα-certolizumab complex, calculated at 2.89 Å resolution (heavy chain: cyan; light chain: yellow).
Ijms 18 00228 g001
Ijms 18 00228 g002 550

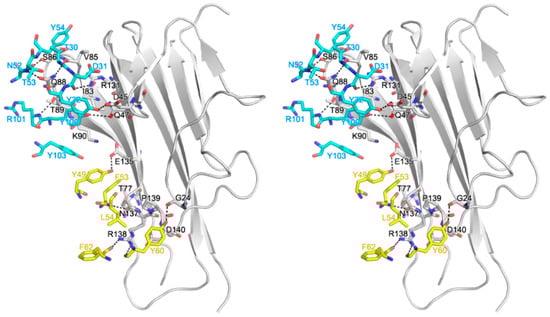

Figure 2. TNFα-certolizumab Fab fragment interface. Cross-eyed stereoview of the detailed TNFα-certolizumab Fab fragment interface. The carbon atoms from TNFα and the heavy and light chains of certolizumab are colored gray, cyan, and yellow, respectively. Hydrogen bonds are indicated with dashed lines.
Figure 2. TNFα-certolizumab Fab fragment interface. Cross-eyed stereoview of the detailed TNFα-certolizumab Fab fragment interface. The carbon atoms from TNFα and the heavy and light chains of certolizumab are colored gray, cyan, and yellow, respectively. Hydrogen bonds are indicated with dashed lines.
Ijms 18 00228 g002
Ijms 18 00228 g003 550

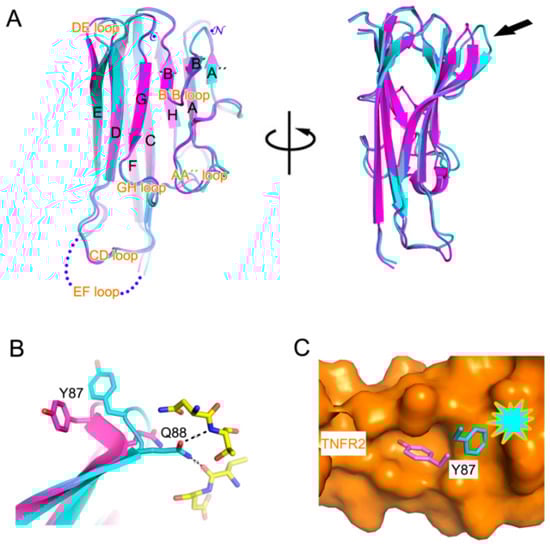

Figure 3. Conformational change of the DE loop. (A) Superposition of the TNFα protomers extracted from the TNFα-certolizumab complex (cyan) and the TNFα–TNFR2 complex (purple) in two orientations. The strands, loops, N-, and C-terminus of TNFα are labelled. The arrow indicates the discrepancy of the DE loop conformation; (B) Conformational change of the DE loop induced by certolizumab binding. The bidentate hydrogen bond by TNFαQ88 with certolizumab (yellow) changes the DE loop conformation; (C) Steric collision of TNFαY87 with TNFα is represented in the case of the DE loop conformation altered by certolizumab binding. The surface of TNFR2 is colored orange.
Figure 3. Conformational change of the DE loop. (A) Superposition of the TNFα protomers extracted from the TNFα-certolizumab complex (cyan) and the TNFα–TNFR2 complex (purple) in two orientations. The strands, loops, N-, and C-terminus of TNFα are labelled. The arrow indicates the discrepancy of the DE loop conformation; (B) Conformational change of the DE loop induced by certolizumab binding. The bidentate hydrogen bond by TNFαQ88 with certolizumab (yellow) changes the DE loop conformation; (C) Steric collision of TNFαY87 with TNFα is represented in the case of the DE loop conformation altered by certolizumab binding. The surface of TNFR2 is colored orange.
Ijms 18 00228 g003
Ijms 18 00228 g004 550

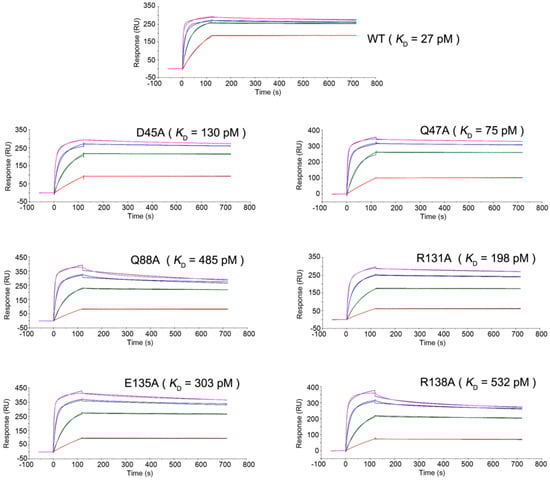

Figure 4. Sensorgrams for the binding kinetics of the TNFα mutants. Surface plasmon resonance analyses of wild-type and mutant TNFα, demonstrating their binding affinities to certolizumab Fab fragments. The concentrations of the wild-type and mutant TNFα for each experiment are 2 (red), 10 (green), 50 (blue), 250 nM (purple).
Figure 4. Sensorgrams for the binding kinetics of the TNFα mutants. Surface plasmon resonance analyses of wild-type and mutant TNFα, demonstrating their binding affinities to certolizumab Fab fragments. The concentrations of the wild-type and mutant TNFα for each experiment are 2 (red), 10 (green), 50 (blue), 250 nM (purple).
Ijms 18 00228 g004
Ijms 18 00228 g005 550

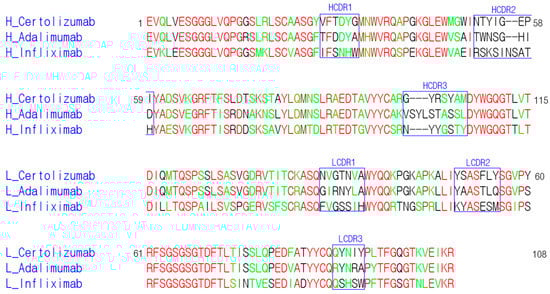

Figure 5. Sequence comparison of the antibodies against TNFα. The CDRs are indicated with boxes and labeled. The residue numbers refer to those in certolizumab. The identical and homologous residues are colored red and green, respectively.
Figure 5. Sequence comparison of the antibodies against TNFα. The CDRs are indicated with boxes and labeled. The residue numbers refer to those in certolizumab. The identical and homologous residues are colored red and green, respectively.
Ijms 18 00228 g005
Ijms 18 00228 g006 550

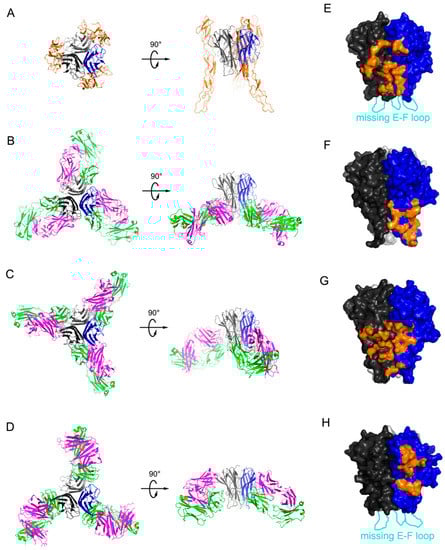

Figure 6. A comparison of the interface between TNFα and the TNFα blockers. (A) The structure of the TNFα trimer (black, gray, and blue) in complex with TNFR2 (orange); (B) The structure of the TNFα trimer (black, gray, and blue) in complex with the infliximab Fab fragment (heavy chain: purple; light chain: green); (C) The structure of the TNFα trimer (black, gray, blue) in complex with the adalimumab Fab fragment (heavy chain: purple; light chain: green); (D) The structure of the TNFα trimer (black, gray, blue) in complex with the certolizumab Fab fragment (heavy chain: purple; light chain: green); (E) The TNFR2 binding site on the surface of the TNFα trimer (black and blue for each protomer) is colored orange; (F) The infliximab epitope on the surface of the TNFα trimer (black and blue for each protomer) is colored orange; (G) The adalimumab epitope on the surface of the TNFα trimer (black and blue for each protomer) is colored orange; (H) The certolizumab epitope on the surface of the TNFα trimer (black and blue for each protomer) is colored orange. The EF loop, which is missing in the structures of TNFα–TNFR2 and the TNFα-certolizumab complex owing to a lack of interactions, is labeled.
Figure 6. A comparison of the interface between TNFα and the TNFα blockers. (A) The structure of the TNFα trimer (black, gray, and blue) in complex with TNFR2 (orange); (B) The structure of the TNFα trimer (black, gray, and blue) in complex with the infliximab Fab fragment (heavy chain: purple; light chain: green); (C) The structure of the TNFα trimer (black, gray, blue) in complex with the adalimumab Fab fragment (heavy chain: purple; light chain: green); (D) The structure of the TNFα trimer (black, gray, blue) in complex with the certolizumab Fab fragment (heavy chain: purple; light chain: green); (E) The TNFR2 binding site on the surface of the TNFα trimer (black and blue for each protomer) is colored orange; (F) The infliximab epitope on the surface of the TNFα trimer (black and blue for each protomer) is colored orange; (G) The adalimumab epitope on the surface of the TNFα trimer (black and blue for each protomer) is colored orange; (H) The certolizumab epitope on the surface of the TNFα trimer (black and blue for each protomer) is colored orange. The EF loop, which is missing in the structures of TNFα–TNFR2 and the TNFα-certolizumab complex owing to a lack of interactions, is labeled.
Ijms 18 00228 g006
Table
Table 1. Binding kinetics of the TNFα mutants with certolizumab Fab fragments. WT: Wild-type.
Table 1. Binding kinetics of the TNFα mutants with certolizumab Fab fragments. WT: Wild-type.
TNFαKon (M−1·s−1)Koff (s−1)KD (M)
WT1.97 × 1065.40 × 10−52.74 × 10−11
D45A5.86 × 1057.64 × 10−51.30 × 10−10
Q47A5.83 × 1054.39 × 10−57.53 × 10−11
Q88A4.76 × 1052.31 × 10−44.85 × 10−10
R131A3.74 × 1057.42 × 10−51.98 × 10−10
E135A4.60 × 1051.40 × 10−43.04 × 10−10
R138A4.52 × 1052.41 × 10−45.32 × 10−10
Table
Table 2. Approved biologics against TNF-α.
Table 2. Approved biologics against TNF-α.
DrugTrade NameTypeApproval Date
FDAEMA
EtanerceptEnbrelTNFR2 extracellular portion Fc fusion19982000
InfliximabRemicadeChimeric murine/human IgG119981999
AdalimumabHumiraFully Human IgG120052003
Certolizumab-pegolCimziaHumanized, PEGylated Fab’20082009
GolimumabSimponiFully Human IgG120092009
FDA, Food and Drug Administration; EMA, European Medicine Agency.
Table
Table 3. Data collection and refinement statistics.
Table 3. Data collection and refinement statistics.
Certolizumab FabTNFα-Certolizumab Fab
Data Collection
X-ray sourcePLS 5CPLS 7A
Wavelength (Å)1.00001.0000
Space groupP212121C2
Cell dimensions
a, b, c (Å)58.33, 63.70, 161.41148.59, 207.22, 112.63
α, β, γ (°)90, 90, 9090, 118.81, 90
Resolution (Å)1.95 (1.98–1.95) *2.89 (2.95–2.89)
Rsym (%)7.8 (29.7)8.1 (48.6)
I/σI58.1 (3.1)19.6.1 (2.3)
Completeness (%)98.2 (85.6)95.2 (94.5)
Redundancy5.9 (2.5)2.9 (2.6)
Refinement
Resolution (Å)1.952.89
No. reflections4374963355
Rwork/Rfree (%)14.7/17.922.5/26.5
No. atoms
Protein329012793
Water6070
R.m.s. deviation
Bond lengths (Å)0.0070.006
Bond angles (˚)1.0601.278
Ramachandran
Favored (%)98.3795.04
Allowed (%)1.634.47
Outlier (%)0.000.49
PDB code5WUV5WUX
* Values in parentheses are for the outer resolution shell.
