Int. J. Mol. Sci. 2016, 17(7), 1048; https://doi.org/10.3390/ijms17071048

Article
The Salicylic Acid-Mediated Release of Plant Volatiles Affects the Host Choice of Bemisia tabaci
1
Department of Plant Protection, Institute of Vegetables and Flowers, Chinese Academy of Agricultural Sciences, Beijing 100081, China
2
Plant Protection Institute, Hunan Academy of Agricultural Sciences, Changsha 410125, China
3
Department of Entomology, University of Kentucky, Lexington, KY 40546, USA
*
Author to whom correspondence should be addressed.
Academic Editors: Massimo Maffei and T. G. Emyr Davies
Received: 25 February 2016 / Accepted: 23 June 2016 / Published: 30 June 2016

Abstract

:
The whitefly Bemisia tabaci (Gennadius) (Hemiptera: Aleyrodidae) causes serious crop losses worldwide by transmitting viruses. We have previously shown that salicylic acid (SA)-related plant defenses directly affect whiteflies. In this study, we applied exogenous SA to tomato plants in order to investigate the interaction between SA-induced plant volatiles and nonviruliferous B. tabaci B and Q or B- and Q-carrying tomato yellow leaf curl virus (TYLCV). The results showed that exogenous SA caused plants to repel nonviruliferous whiteflies, but the effect was reduced when the SA concentration was low and when the whiteflies were viruliferous. Exogenous SA increased the number and quantity of plant volatiles—especially the quantity of methyl salicylate and δ-limonene. In Y-tube olfactometer assays, methyl salicylate and δ-limonene repelled the whiteflies, but the repellency was reduced for viruliferous Q. We suggest that the release of plant volatiles as mediated by SA affects the interaction between whiteflies, plants, and viruses. Further studies are needed to determine why viruliferous Q is less sensitive than nonviruliferous Q to repellent plant volatiles.
Keywords:
Bemisia tabaci; choice test; salicylic acid; plant volatile; plant–insect interaction

1. Introduction

The whitefly Bemisia tabaci (Gennadius) (Hemiptera: Aleyrodidae) is a highly polyphagous pest that causes substantial economic crop losses worldwide. In recent years, B. tabaci has rapidly adapted to new climatic zones and has expanded its host range [1]. B. tabaci damages crops by feeding on phloem sap and by transmitting viruses [2,3]. B. tabaci B and Q are the two most invasive whiteflies, and they have invaded nearly 60 countries during the last two decades [2].
In China, the concurrence of the spread of tomato yellow leaf curl virus (TYLCV) with the invasion of Q suggests a mutualistic relationship between TYLCV and Q; the relationship between TYLCV and B, in contrast, seems to be neutral or deleterious [4,5,6,7]. Based on these results, we hypothesize that plant defense may play an important role in the interaction of whiteflies with plants and viruses.
Plant protect themselves against herbivorous insects with both direct defenses, such as those involving plant hormones, and indirect defenses, such as those involving plant volatiles [8,9,10,11]. A recent study showed that the deposition of free salicylic acid (SA) on plants elicits a strong defense response against whiteflies [12]. Our previous results showed that B-carrying TYLCV induces more SA than Q-carrying TYLCV and that the performance of viruliferous B was reduced more than that of viruliferous Q on plants treated with exogenous SA [13]. Another study showed that aphid growth was greater on salicylate-deficient plants than on wild-type plants, and was lower on salicylate-induced plants than on non-induced control plants [14].
SA induces resistance in plants against biotrophic pathogens and some phloem-feeding insects [15,16,17]. Thus, feeding by aphids or whiteflies induces SA-related defenses [18,19,20]. Plant volatiles can also contribute to plant defense against herbivores and pathogens [21,22]. Although plant volatiles can help insects recognize host plants [23,24], volatiles can also attract predators and parasitoids in response to herbivore-induced damage [25,26,27,28]. A “push-pull strategy” of insect pest management has recently attracted increasing attention [29,30]. This strategy involves the use of stimuli that repel pests or prevent pests from locating crops and the use of stimuli that attract natural enemies or that attract pests to trap crops. Implementing a “push-pull” strategy obviously requires an understanding of which volatiles repel or attract herbivorous insects and their natural enemies. The role of SA in the production and release of plant volatiles that repel phloem-feeding insects is unknown.
We have previously reported that the application of exogenous SA to plants negatively affected nonviruliferous and viruliferous B and Q [13]. In the current study, we investigated how the exogenous application of SA affected the release of volatiles from the treated tomato plants and how the volatiles affected the choice of B and Q with and without TYLCV. We also used a Y-tube olfactometer to determine whether specific volatile compounds induced by SA repelled or attracted viruliferous or nonviruliferous B and Q. The results of this research will increase our understanding of the role of SA in plant defense against B. tabaci and TYLCV, and will also suggest novel strategies for increasing plant defense against B. tabaci.

2. Results

2.1. Establishment of Nonviruliferous and Viruliferous B. tabaci Colonies

The identity and purity of the colonies of B and Q used in this study were confirmed by using the molecular diagnostic technique CAPS (cleavage amplified polymorphic sequence) and the molecular marker mitochondrial cytochrome oxidase I gene (mtCOI) (Figure 1a,c). The presence of TYLCV in the viruliferous colonies and its absence in the nonviruliferous colonies was confirmed by amplification of the AV2 gene (Gene ID: 949226) (Figure 1b,d).

2.2. Choice Test of B. tabaci on SA-Treated vs. Control Plants

The choice test of nonviruliferous B and Q (NVB and NVQ, respectively) and viruliferous B and Q (VB and VQ, respectively) for SA-treated and control plants was investigated. The numbers per plant were significantly lower on SA-treated plants than on control plants in all cases (NVB: F = 249.437, p < 0.001; NVQ: F = 120.761, p < 0.001; VB: F = 459.871, p < 0.001; VQ: F = 10.360, p = 0.007) (Figure 2). The number of whiteflies was not significantly affected by three SA concentrations (NVB: F = 2.572, p = 0.118; NVQ: F = 0.267, p = 0.770; VB: F = 0.003, p = 0.997; VQ: F = 0.103, p = 0.903). However, the number of B. tabaci that selected SA-treated plants tended to decrease as SA concentration increased (Figure 2b).

2.3. Extraction and Analysis of Volatiles

The quantities and identities of volatiles released by tomato plants were significantly affected by the application of exogenous SA (Table 1). The following compounds were released in significantly higher concentrations by SA-treated plants than by control plants: α-pinene, β-phellandrene, ρ-cymene, and α-humulene. The other two volatiles, methyl salicylate and δ-limonene, were released from the SA-treated plants but not from the control plants (Table 1).

2.4. Effects of Methyl Salicylate and δ-Limonene on Whitefly Behavior as Determined with a Y-Tube Olfactometer

In a Y-tube olfactometer, a lower percentage of the whiteflies moved into the arm with methyl salicylate than without methyl salicylate, and the percentage was also affected by virus status but not whitefly species (Figure 3, Table 2). Fewer whiteflies also moved into the arm with δ-limonene than without δ-limonene, but the percentage was not affected virus status or whitefly species (Figure 3, Table 2). The percentage of viruliferous Q that moved into the arm with methyl salicylate or δ-limonene was greater than the corresponding percentages of nonviruliferous Q, nonviruliferous B, or viruliferous B.

3. Discussion

Herbivorous insects can use plant volatiles to locate hosts and to obtain information about host condition [31]. Although plant volatiles may indirectly prevent the insects from colonizing the plant by attracting natural enemies to the site of herbivory [32,33,34], they can also attract or resist herbivorous arthropods directly [35,36]. Plant volatile manipulated by insects can make the plants attractive or repellent to other herbivores [37]. Horiuchi et al. (2003) [38] reported that when lima bean plants are slightly infested by two-spotted spider mite, they can attract the conspecific mites, whereas when they are heavily infested, they can repel the conspecifics. Aphid infestation may induce secondary metabolites of host plants that deter B. tabaci from settling on the same host plants [39]. Common armyworms (Mythimna separata) can utilize plant volatiles emitted from maize plants infested by conspecifics to determine their nocturnal behavior [40].
SA is involved in activating a number of plant responses to herbivory including the production and release of volatiles [41]. Plants treated with exogenous SA reduced the fecundity and longevity of nonviruliferous and viruliferous B. tabaci B and Q [13]. However, how SA affects plant volatiles and host choice of insects is largely unknown. Our results showed that exogenous SA repelled nonviruliferous B. tabaci B and Q. Viruliferous Q, however, was not repelled by plants sprayed with 0.01 or 0.1 mM SA concentration. Previous results showed that whiteflies can decrease the emission of volatiles by plants [42]. We therefore speculate that viruliferous Q was not greatly repelled by tomato plants treated with a low SA concentration perhaps because viruliferous Q may manipulate the emission of volatiles triggered by SA.
The oral secretions and saliva enzymes of insects can help to explain this speculation. Plant volatiles are mediated by a complicated network of signal perception and transduction. The oral secretions and saliva enzymes of insects have been reported to participate in this process. For example, when tobacco plants are infested by Manduca sexta, fatty acid amino acid conjugates were found in the oral secretions, which were introduced into plant wounds during M. sexta feeding [43]. Ca2+ influx has been reported to function in gel saliva enzymes of aphid elicitors (e.g., oligogalacturonides) [44], but there is still a missing link between the biosynthetic pathways and the induced volatiles. In our research, the oral secretions or saliva enzymes of B. tabaci Q may be changed by TYLCV, and plant volatile may be induced differently during the feeding of viruliferous Q. Furthermore, the olfactory sensilla of B. tabaci Q may also be altered by TYLCV. These speculations need to be further investigated.
The changes in volatiles released by SA-treated tomato plants may have altered the choices of whiteflies for treated vs. non-treated plants. Plant volatiles include a wide range of active substances such as terpenes and green leaf volatiles, which can function as airborne signals within and between plants [31]. The quantities of the volatiles α-pinene, β-phellandrene, ρ-cymene, and α-humulene released by tomato plants were increased by SA treatment, and all four volatiles are terpenes. Terpenes play a major role in mediating plant–herbivore interactions [45,46,47,48]. We conclude that SA activates multiple pathways involved in the synthesis of tomato volatiles.
In the current study, the volatiles methyl salicylate and δ-limonene were released from SA-treated plants but not from the control plants. Many reports have shown that the ester methyl salicylate and the monoterpene δ-limonene can be induced by herbivore attack and may help defend against herbivore attack [49,50,51,52]. Limonene of the citrus peel has been shown to confer partial resistance in fruits to the Mediterranean fruit fly, medfly (Ceratitis capitata), a major pest of citrus species worldwide [53]. MeSA has been reported to be involved in plant defence, particularly in the elicitation of systemic acquired resistance (SAR) [54]. Although methyl salicylate was not one of the volatiles collected from control tomato plants in the current study or in two previous studies [55,56], it has been detected as a volatile released by tomato plants in other studies [57,58,59]. Perhaps this discrepancy is due to differences in the cultivars used in the studies.
When given a choice between δ-limonene or methyl salicylate and purified air in a Y-tube olfactometer assay, most of the nonviruliferous and viruliferous whiteflies in the current study preferred purified air, i.e., they were repelled by the two volatiles (Figure 2). The repellency by δ-limonene and methyl salicylate, however, was much lower for viruliferous B. tabaci Q than for nonviruliferous Q or for viruliferous or nonviruliferous B. This was consistent with the results of the assay with SA-treated tomato plants in which viruliferous Q showed no preference for treated vs. untreated plants when the SA concentration was low (Figure 1d). A possible explanation is that TYLCV alters the oral secretions, saliva enzymes, or olfactory sensilla of viruliferous Q. Further research is needed to determine why viruliferous Q exhibits reduced sensitivity to SA-induced volatiles.

4. Materials and Methods

4.1. Host Plants

Tomato plants (Lycopersicon esculentum, cv. Zhongza 9) were grown in a glasshouse. TYLCV-infected tomato plants were produced at the 3–4 true leaf stage by Agrobacterium tumefaciens-mediated inoculation with a cloned TYLCV genome (GenBank accession ID: AM282874) that was originally isolated from Shanghai, China [60]. Viral infection of test plants was confirmed by the development of characteristic leaf curl symptoms and by molecular analysis of tomato leaves with the TYLCV primer set TYLCV-61 and TYLCV-473, which amplified the AV2 gene (Gene ID: 949226) [5].

4.2. Establishment of Nonviruliferous and Viruliferous B. tabaci Colonies

B. tabaci B and Q were originally collected from infested cabbage (Brassica oleracea. cv. Jingfeng 1) and poinsettia (Euphorbia pulcherrima Wild. ex Klotz.) in fields in Beijing, China [5]. We created four whitefly colonies: nonviruliferous B, nonviruliferous Q, viruliferous B, and viruliferous Q. Viruliferous colonies were created by placing four TYLCV-infected tomato plants in each of two cages (60 × 60 × 60 cm). Then, 300 nonviruliferous B and Q adults were transferred to each of the two cages, one biotype per cage. Nonviruliferous B and Q colonies were simultaneously established by placing 300 nonviruliferous B and Q adults in cages with virus-free tomato plants, one biotype per cage. All colonies were maintained for more than six generations in separate greenhouses at 25 ± 1 °C, 60% ± 100% Relative Humidity and Light14: Dark10. The purity of these colonies was monitored by sampling 20 adults per generation using the molecular diagnostic technique CAPS (cleavage amplified polymorphic sequence) and the molecular marker mitochondrial cytochrome oxidase I gene (mtCOI) [61]. The presence of TYLCV in the viruliferous whiteflies was confirmed by molecular analysis of DNA of the individual 30 whiteflies with the TYLCV primer set TYLCV-61 and TYLCV-473, which amplifies the AV2 gene (Gene ID: 949226) [5]. For the latter determination, the viruliferous whitefly DNA was divided into two parts: one part was used to determine the whitefly biotype, and the other part was used to detect TYLCV.

4.3. Effect of Salicylic Acid (SA) Application on Tomato Plants

SA (Sigma Chemical Co., St. Louis, MO, USA) was dissolved in ethanol (1 mL) and dispersed in water containing 10% Tween 20 to produce a 1 mM SA solution. The 1 mM SA solution was diluted to prepare 0.1 mM and 0.01 mM SA solutions. A hand-sprayer was then used to treat the foliage of healthy tomato plants (with six true leaves) with 0.01, 0.1, or 1 mM SA. As a control, other plants were sprayed with water (containing 1 mL ethanol and 10% Tween 20). Each of the four treatments was represented by 9 plants.

4.4. Choice Test of B. tabaci on SA-Treated vs. Control Plants

Tomato plants of the same size were treated with water or with one of the three concentrations of SA as described in the previous section. Two plants (one treated with SA and one control) were placed 40 cm apart in opposite corners of a whitefly-proof screen cage (80 × 40 × 60 cm). At 7:00 a.m. on the day of the experiment, a suction tool was used to collect about 100 adult whiteflies (either B. tabaci B or Q and either nonviruliferous or viruliferous that had been starved for 24 h) in a clear centrifuge tube. After the centrifuge tube with whiteflies was placed in the center of the cage, the lid of the tube was removed so that the whiteflies could fly out of the tube and approach the plants from above. The number of whiteflies on each treated or control plant was determined after 48 h. To prevent whiteflies from being disturbed and from relocating to the other plant during counting, each plant was enclosed in transparent plastic and was assessed at 7:00 a.m. Each choice test experiment was performed in 9 cages (3 concentrations of SA × 3 technical replications) at one time, and the experiment was performed three times.

4.5. Extraction and Analysis of Volatiles

Volatiles emitted by control tomato plants or tomato plant treated with 1 mM SA were collected using a headspace collection system as described by Zhang et al. [62] with slight modification. After volatiles were trapped for 6 h under continuous light, the plants were weighed (FW) so that the quantity of volatile released could be expressed per g of FW. Each of the two treatments was represented by 9 replicate plants.
Headspace samples were dissolved in n-hexane that contained 0.2 μg·mL−1 of n-dodecane as an internal standard. Then, a 1-μL sample of the supernatant was subjected to gas chromatography–mass spectrometry. The temperature profile was as follows: 50 °C 1 min; 50 to 240 °C, 5 °C·min−1; 240 °C 2 min; 240 to 300 °C, 30 °C·min−1; and 300 °C 5 min. The injection temperature was 270 °C. The temperature of the source was 200 °C, and the interface temperature was 280 °C. The column effluent was ionized by electron impact ionization (70 eV). Compounds were identified by comparison of GC retention times and normalization of peak areas with those of internal standard and true standards whenever possible, and by comparison of mass spectra with spectra of the NIST database. When standards were not available, the concentrations of the compounds were matched to published information [63,64].

4.6. Y-Tube Olfactometer Assays

Choice tests of whiteflies for the plant volatiles methyl salicylate and δ-limonene (which were the volatiles whose concentrations were most increased by SA application) were determined in a Y-tube olfactometer. Two streams of purified air (filtered through activated charcoal) were passed through two glass containers (one containing methyl salicylate or δ-limonene and the other containing purified air) and into the olfactometer arms at 100 mL·min−1. Each assay began with the release of one adult whitefly at the base of the Y-tube. Each whitefly was observed for a maximum of 20 min. A “no choice” was recorded when the adults remained inactive during the assay period, and a choice for one of the two odor sources was recorded when the whitefly moved >5 cm onto either arm and stayed in that arm for at least 15 s. For each of the two volatiles, four whitefly populations were tested: nonviruliferous B, viruliferous B, nonviruliferous Q, and nonviruliferous Q. For each population, the preference of 30 whiteflies was tested three times in 1 day. The experiment was then repeated on two additional days. As a consequence, a total of 270 whiteflies were tested for each of four populations.

4.7. Statistical Analysis

All proportional data were arcsine-square root transformed before analyses. Concentrations of volatiles emitted from SA-treated and control tomato plants were compared with t-tests. Whitefly choice for plants that were treated with control vs. SA (at three concentrations) was compared with the General Linear Model (GLM). The choice of whiteflies for methyl salicylate or δ-limonene vs. control in the Y-tube olfactometer was also compared with the General Linear Model (GLM). SPSS version 20.0 (SPSS Inc., Chicago, IL, USA) was used for all statistical analyses.

5. Conclusions

Our results confirm that plant volatiles mediated by SA play an important role in the interaction of whiteflies with plants and viruses. SA applications could be used to repel whiteflies, and it could also be used to reduce whitefly fecundity, longevity, and survival on target crops [13]. SA applications could also increase the quantity and makeup of volatiles released by plants, resulting in reduced choice behavior of whiteflies. Exogenous SA had a reduced effect on viruliferous Q. Further studies will be needed to investigate why viruliferous Q has an increased ability to resist host defenses such as plant volatiles.

Acknowledgments

This research was supported by the National Natural Science Foundation of China (3120103919, 31401747, and 31572014), the Special Fund for Agroscientific Research in the Public Interest (201303019), the China Agriculture Research System (CARS-26-10), the Beijing Key Laboratory for Pest Control and Sustainable Cultivation of Vegetables, and the Beijing Training Project for the Leading Talents in S & T (LJRC201412).

Author Contributions

Xiaobin Shi and Youjun Zhang conceived and designed the experiments; Xiaobin Shi, Gong Chen, Lixia Tian, and Zhengke Peng performed the experiments; Xiaobin Shi analyzed the data; Wen Xie, Qingjun Wu, and Shaoli Wang contributed reagents/materials/analysis tools; Xiaobin Shi, Youjun Zhang and Xuguo Zhou wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bleeker, P.M.; Diergaarde, P.J.; Ament, K.; Guerra, J.; Weidner, M.; Schütz, S.; de Both, M.T.; Haring, M.A.; Schuurink, R.C. The role of specific tomato volatiles in tomato-whitefly interaction. Plant Physiol. 2009, 151, 925–935. [Google Scholar] [CrossRef] [PubMed]
  2. De Barro, P.J.; Liu, S.S.; Boykin, L.M.; Dinsdale, A.B. Bemisia tabaci: A statement of species status. Annu. Rev. Entomol. 2011, 56, 1–19. [Google Scholar] [CrossRef] [PubMed]
  3. Jones, D.R. Plant viruses transmitted by whiteflies. Eur. J. Plant Pathol. 2003, 109, 195–219. [Google Scholar] [CrossRef]
  4. Pan, H.P.; Chu, D.; Liu, B.M.; Shi, X.B.; Guo, L.T.; Xie, W.; Carrière, Y.; Li, X.C.; Zhang, Y.J. Differential effects of an exotic plant virus on its two closely related vectors. Sci. Rep. 2013, 3, 2230. [Google Scholar] [CrossRef] [PubMed]
  5. Pan, H.P.; Chu, D.; Yan, W.Q.; Su, Q.; Liu, B.M.; Wang, S.L.; Wu, Q.J.; Xie, W.; Jiao, X.G.; Li, R.M. Rapid spread of tomato yellow leaf curl virus in China is aided differentially by two invasive whiteflies. PLoS ONE 2012, 7, e34817. [Google Scholar] [CrossRef] [PubMed]
  6. Liu, B.M.; Preisser, E.L.; Chu, D.; Pan, H.P.; Xie, W.; Wang, S.L.; Wu, Q.J.; Zhou, X.G.; Zhang, Y.J. Multiple forms of vector manipulation by a plant-infecting virus: Bemisia tabaci and tomato yellow leaf curl virus. J. Virol. 2013, 87, 4929. [Google Scholar] [CrossRef] [PubMed]
  7. Chen, G.; Pan, H.P.; Xie, W.; Wang, S.L.; Wu, Q.J.; Fang, Y.; Shi, X.B.; Zhang, Y.J. Virus infection of a weed increases vector attraction to and vector fitness on the weed. Sci. Rep. 2013, 3, 2253. [Google Scholar] [CrossRef] [PubMed]
  8. Pare, P.W.; Tumlinson, J.H. Plant volatiles as defense against insect herbivores. Plant Physiol. 1999, 121, 325–331. [Google Scholar] [CrossRef] [PubMed]
  9. Baldwin, I.T.; Preston, C.A. The eco-physiological complexity of plant responses to insect herbivores. Planta 1999, 208, 137–145. [Google Scholar] [CrossRef]
  10. Kahl, J.; Siemens, D.H.; Aerts, R.J.; Gabler, R.; Kuhnemann, F.; Preston, C.A.; Baldwin, I.T. Herbivore-induced ethylene suppresses a direct defense but not a putative indirect defense against an adapted herbivore. Planta 2000, 210, 336–342. [Google Scholar] [CrossRef] [PubMed]
  11. Fürstenberg-Hägg, J.; Zagrobelny, M.; Bak, S. Plant Defense against insect herbivores. Int. J. Mol. Sci. 2013, 14, 10242–10297. [Google Scholar] [CrossRef] [PubMed]
  12. VanDoorn, A.; de Vries, M.; Kant, M.R.; Schuurink, R.C. Whiteflies glycosylate salicylic acid and secrete the conjugate via their honeydew. J. Chem. Ecol. 2015, 41, 52–58. [Google Scholar] [CrossRef] [PubMed]
  13. Shi, X.B.; Pan, H.P.; Xie, W.; Wu, Q.J.; Wang, S.L.; Liu, Y.; Fang, Y.; Chen, G.; Gao, X.W.; Zhang, Y.J. Plant virus differentially alters the plant’s defense response to its closely related vectors. PLoS ONE 2013, 8, e83520. [Google Scholar] [CrossRef] [PubMed]
  14. Thaler, J.S.; Agrawal, A.A.; Halitschke, R. Salicylate-mediated interactions between pathogens and herbivores. Ecology 2010, 91, 1075–1082. [Google Scholar] [CrossRef] [PubMed]
  15. Glazebrook, J. Contrasting mechanisms of defense against biotrophic and necrotrophic pathogens. Annu. Rev. Phytopathol. 2005, 43, 205–227. [Google Scholar] [CrossRef] [PubMed]
  16. Howe, G.A.; Jander, G. Plant immunity to insect herbivores. Annu. Rev. Plant Biol. 2008, 59, 41–66. [Google Scholar] [CrossRef] [PubMed]
  17. Walling, L.L. Adaptive defense responses to pathogens and insects. Adv. Bot. Res. 2009, 51, 551–612. [Google Scholar]
  18. Mohasea, L.; van der Westhuizen, A.J. Salicylic acid is involved in resistance responses in the Russian wheat aphid-wheat interaction. J. Plant Physiol. 2002, 159, 585–590. [Google Scholar] [CrossRef]
  19. Heidel, A.J.; Baldwin, I.T. Microarray analysis of salicylic acid- and jasmonic acid-signalling in responses of Nicotiana attenuata to attack by insects from multiple feeding guilds. Plant Cell Environ. 2004, 27, 1362–1373. [Google Scholar] [CrossRef]
  20. Zarate, S.I.; Kempema, L.A.; Walling, L.L. Silverleaf whitefly induces salicylic acid defenses and suppresses effectual jasmonic acid defenses. Plant Physiol. 2007, 143, 866–875. [Google Scholar] [CrossRef] [PubMed]
  21. Kessler, A.; Baldwin, I.T. Defensive function of herbivore-induced plant volatile emissions in nature. Science 2001, 291, 2141–2144. [Google Scholar] [CrossRef] [PubMed]
  22. Song, G.C.; Ryu, C.M. Two volatile organic compounds trigger plant self-defense against a bacterial pathogen and a sucking insect in cucumber under open field conditions. Int. J. Mol. Sci. 2013, 14, 9803–9819. [Google Scholar] [CrossRef] [PubMed]
  23. Schütz, S.; Weißbecker, B.; Klein, A.; Hummel, H.E. Host plant selection of the Colorado potato beetle as influenced by damage induced volatiles of the potato plant. Naturwissenschaften 1997, 84, 212–217. [Google Scholar] [CrossRef]
  24. Bruce, T.J.A.; Wadhams, L.J.; Woodcock, C.M. Insect host location: A volatile situation. Trends Plant Sci. 2005, 10, 269–274. [Google Scholar] [CrossRef] [PubMed]
  25. Van Poecke, R.M.P.; Dicke, M. Induced parasitoid attraction by Arabidopsis thaliana: involvement of the octadecanoid and the salicylic acid pathway. J. Exp. Bot. 2002, 53, 1793–1799. [Google Scholar] [CrossRef] [PubMed]
  26. Kappers, I.F.; Aharoni, A.; van Herpen, T.W.; Luckerhoff, L.L.P.; Dicke, M.; Bouwmeester, H.J. Genetic engineering of terpenoid metabolism attracts bodyguards to Arabidopsis. Science 2005, 309, 2070–2072. [Google Scholar] [CrossRef] [PubMed]
  27. Gols, R.; Roosjen, M.; Dijkman, H.; Dicke, M. Induction of direct and indirect plant responses by jasmonic acid, low spider mite densities, or a combination of jasmonic acid and spider mite infestation. J. Chem. Ecol. 2003, 29, 2651–2666. [Google Scholar] [CrossRef] [PubMed]
  28. Li, S.J.; Ren, S.L.; Xue, X.; Ren, S.X.; Cuthbertson, A.G.; van Dam, N.M.; Qiu, B.L. Efficiency of plant induced volatiles in attracting Encarsia formosa and Serangium japonicum, two dominant natural enemies of whitefly Bemisia tabaci in China. Pest Manag. Sci. 2014, 70, 1604–1610. [Google Scholar] [CrossRef] [PubMed]
  29. Cook, S.M.; Khan, Z.R.; Pickett, J.A. The use of push-pull strategies in integrated pest management. Annu. Rev. Entomol. 2007, 52, 375–400. [Google Scholar] [CrossRef] [PubMed]
  30. Yan, H.; Zeng, J.; Zhong, G. The push-pull strategy for citrus psyllid control. Pest Manag. Sci. 2015, 71, 893–896. [Google Scholar] [CrossRef] [PubMed]
  31. Brunissen, L.; Vincent, C.; Roux, V.L.; Giordanengo, P. Effects of systemic potato response to wounding and jasmonate on the aphid Macrosiphum euphorbiae (Sternorryncha: Aphididae). J. Appl. Entomol. 2010, 134, 562–571. [Google Scholar]
  32. Girling, R.D.; Hassall, M.; Turner, J.G.; Poppy, G.M. Behavioural responses of the aphid parasitoid Diaeretiella rapae to volatiles from Arabidopsis thaliana induced by Myzus persicae. Entomol. Exp. Appl. 2006, 120, 1–9. [Google Scholar] [CrossRef]
  33. Baldwin, I.T.; Karb, M.J. Plasticity in allocation of nicotine to reproductive parts in Nicotiana attenuata. J. Chem. Ecol. 1995, 21, 897–909. [Google Scholar] [CrossRef] [PubMed]
  34. Turlings, T.C.J.; Loughrin, J.H.; McCall, P.J.; Rose, U.S.R.; Lewis, W.J.; Tumlinson, J.H. How caterpillar-damaged plants protect themselves by attracting parasitic wasps. Proc. Natl. Acad. Sci. USA 1995, 92, 4169–4174. [Google Scholar] [CrossRef] [PubMed]
  35. Hildebrand, D.F.; Brown, G.C.; Jackson, D.M.; Hamiltonkemp, T.R. Effects of some leaf-emitted volatile compounds on aphid population increase. J. Chem. Ecol. 1993, 19, 1875–1887. [Google Scholar] [CrossRef] [PubMed]
  36. Halitschke, R.; Stenberg, J.A.; Kessler, D.; Kessler, A.; Baldwin, I.T. Shared signals—“Alarm calls” from plants increase apparency to herbivores and their enemies in nature. Ecol. Lett. 2008, 11, 24–34. [Google Scholar] [CrossRef] [PubMed]
  37. Arimura, G.; Matsui, K.; Takabayashi, J. Chemical and molecular ecology of herbivore-induced pant volatiles: proximate factors and their ultimate functions. Plant Cell Physiol. 2009, 50, 911–923. [Google Scholar] [CrossRef] [PubMed]
  38. Horiuchi, J.; Arimura, G.; Ozawa, R.; Shimoda, T.; Takabayashi, J.; Nishioka, T. A comparison of the response of Tetranychus urticae (Acari: Tetranychidae) and Phytoseiulus persimilis (Acari: Phytoseiidae) to volatiles emitted from lima bean leaves with different levels of damage made by T. urticae or Spodoptera exigua (Lepidoptera: Noctuidae). Appl. Entomol. Zool. 2003, 38, 109–116. [Google Scholar]
  39. Saad, K.A.; Mohamad Roff, M.N.; Hallett, R.H.; Idris, A.B. Aphid-induced defences in chilli affect preferences of the whitefly, Bemisia tabaci (Hemiptera: Aleyrodidae). Sci. Rep. 2015, 5, 13697. [Google Scholar] [CrossRef] [PubMed]
  40. Shiojiri, K.; Karban, R. Plant age, communication, and resistance to herbivores: Young sagebrush plants are better emitters and receivers. Oecologia 2006, 149, 214–220. [Google Scholar] [CrossRef] [PubMed]
  41. Wu, J.Q.; Baldwin, I.T. Herbivory-induced signalling in plants: Perception and action. Plant Cell Environ. 2009, 32, 1161–1174. [Google Scholar] [CrossRef] [PubMed]
  42. Rodriguez-Saona, C.; Crafts-Brandner, S.J.; Cañas, L.A. Volatile emissions triggered by multiple herbivore damage: Beet armyworm and whitefly feeding on cotton plants. J. Chem. Ecol. 2003, 29, 2539–2550. [Google Scholar] [CrossRef] [PubMed]
  43. Halitschke, R.; Gase, K.; Hui, D.; Schmidt, D.D.; Baldwin, I.T. Molecular interactions between the specialist herbivore Manduca sexta (Lepidoptera, Sphingidae) and its natural host Nicotiana attenuata. VI. Microarray analysis reveals that most herbivore-specific transcriptional changes are mediated by fatty acid-amino acid conjugates. Plant Physiol. 2003, 131, 1894–1902. [Google Scholar] [PubMed]
  44. Will, T.; van Bel, A.J. Induction as well as suppression: How aphid saliva may exert opposite effects on plant defense. Plant Signal. Behav. 2008, 3, 427–430. [Google Scholar] [CrossRef] [PubMed]
  45. Ali, M.; Sugimoto, K.; Ramadan, A.; Arimura, G. Memory of plant communications for priming anti-herbivore responses. Sci. Rep. 2013, 3, 1872. [Google Scholar] [CrossRef] [PubMed]
  46. Ntalli, N.G.; Ferrari, F.; Giannakou, I.; Menkissoglu-Spiroudi, U. Synergistic and antagonistic interactions of terpenes against Meloidogyne incognita and the nematicidal activity of essential oils from seven plants indigenous to Greece. Pest Manag. Sci. 2011, 67, 341–351. [Google Scholar] [CrossRef] [PubMed]
  47. Rodríguez, A.; Andrés, V.S.; Cervera, M.; Redondo, A.; Alquézar, B.; Shimada, T.; Gadea, J.; Rodrigo, M.J.; Zacarías, L.; Palou, L.; et al. Terpene down-regulation in orange reveals the role of fruit aromas in mediating interactions with insect herbivores and pathogens. Plant Physiol. 2011, 156, 793–802. [Google Scholar] [CrossRef] [PubMed]
  48. Luan, J.B.; Yao, D.M.; Zhang, T.; Walling, L.L.; Yang, M.; Wang, Y.J.; Liu, S.S. Suppression of terpenoid synthesis in plants by a virus promotes its mutualism with vectors. Ecol. Lett. 2013, 16, 390–398. [Google Scholar] [CrossRef] [PubMed]
  49. Paré, P.W.; Tumlinson, J.H. Induced synthesis of plant volatiles. Nature 1997, 385, 30–31. [Google Scholar] [CrossRef]
  50. Turlings, T.C.J.; Lengwiler, U.B.; Bernasconi, M.L.; Wechsler, D. Timing of induced volatile emissions in maize seedlings. Planta 1998, 207, 146–152. [Google Scholar] [CrossRef]
  51. Dudareva, N.; Negre, F.; Nagegowda, D.A.; Orlova, I. Plant volatiles: recent advances and future perspectives. Crit. Rev. Plant Sci. 2006, 25, 417–440. [Google Scholar] [CrossRef]
  52. Pichersky, E.; Noel, J.P.; Dudareva, N. Biosynthesis of plant volatiles: nature’s diversity and ingenuity. Science 2006, 311, 808–811. [Google Scholar] [CrossRef] [PubMed]
  53. Papachristos, D.P.; Papadopoulos, N.T. Are citrus species favorable hosts for the Mediterranean fruit fly? A demographic perspective. Entomol. Exp. Appl. 2009, 132, 1–12. [Google Scholar] [CrossRef]
  54. Park, S.W.; Kaimoyo, E.; Kumar, D.; Mosher, S.; Klessig, D.F. Methyl salicylate is a critical mobile signal for plant systemic acquired resistance. Science 2007, 318, 113–116. [Google Scholar] [CrossRef] [PubMed]
  55. Krumbein, A.; Peters, P.; Brückner, B. Flavour compounds and a quantitative descriptive analysis of tomatoes (Lycopersicon esculentum Mill.) of different cultivars in short-term storage. Postharvest Biol. Technol. 2004, 32, 15–28. [Google Scholar] [CrossRef]
  56. Bianchi, F.; Careri, M.; Mangia, A.; Mattarozzi, M.; Musci, M.; Concina, I.; Falasconi, M.; Gobbi, E.; Pardo, M.; Sberveglieri, G. Differentiation of the volatile profile of microbiologically contaminated canned tomatoes by dynamic headspace extraction followe d by gas chromatography-mass spectrometry analysis. Talanta 2009, 77, 962–970. [Google Scholar] [CrossRef] [PubMed]
  57. Farag, M.A.; Paré, P.W. C6-Green leaf volatiles trigger local and systemic VOC emissions in tomato. Phytochemistry 2002, 61, 545–554. [Google Scholar] [CrossRef]
  58. Takayama, K.; Jansen, R.M.C.; van Henten, E.J.; Verstappen, F.W.A.; Bouwmeester, H.J.; Nishina, H. Emission index for evaluation of volatile organic compounds emitted from tomato plants in greenhouses. Biosyst. Eng. 2012, 113, 220–228. [Google Scholar] [CrossRef]
  59. Degenhardt, D.C.; Refi-Hind, S.; Stratmann, J.W.; Lincoln, D.E. Systemin and jasmonic acid regulate constitutive and herbivore-induced systemic volatile emissions in tomato, Solanum lycopersicum. Phytochemistry 2010, 71, 2024–2037. [Google Scholar] [CrossRef] [PubMed]
  60. Wu, J.B.; Dai, F.M.; Zhou, X.P. First report of tomato yellow leaf curl virus in China. Ann. Appl. Biol. 2006, 155, 439–448. [Google Scholar]
  61. Chu, D.; Wan, F.H.; Zhang, Y.J.; Brown, J.K. Change in the biotype composition of Bemisia tabaci in shandong province of China from 2005 to 2008. Environ. Entomol. 2010, 39, 1028–1036. [Google Scholar] [CrossRef] [PubMed]
  62. Zhang, P.J.; Broekgaarden, C.; Zheng, S.J.; Snoeren, T.A.L.; van Loon, J.J.A.; Gols, R.; Dicke, M. Jasmonate and ethylene signaling mediate whitefly-induced interference with indirect plant defense in Arabidopsis thaliana. New Phytol. 2013, 197, 1291–1299. [Google Scholar] [CrossRef] [PubMed]
  63. Ament, K.; Kant, M.R.; Sabelis, M.W.; Haring, M.A.; Schuurink, R.C. Jasmonic acid is a key regulator of spider mite-induced volatile terpenoid and methyl salicylate emission in tomato. Plant Physiol. 2004, 135, 2025–2037. [Google Scholar] [CrossRef] [PubMed]
  64. Kant, M.R.; Ament, K.; Sabelis, M.W.; Haring, M.A.; Schuurink, R.C. Differential timing of spider mite-induced direct and indirect defenses in tomato plants. Plant Physiol. 2004, 135, 483–495. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Confirmation of the status of nonviruliferous and viruliferous colonies of B. tabaci B and Q based on amplification of mtCOI for the whiteflies and on amplification of the AV2 gene for tomato yellow leaf curl virus (TYLCV). M: marker; lane 1–10: whitefly individuals. In the case of nonviruliferous colonies, the amplified product had the correct size for B (478 bp, (a)) and for Q (303 bp, (c)). In the case of viruliferous colonies, the whitefly DNA was divided into two parts: one part was used to confirm whitefly identity and purity as described in the previous sentence; the other part was used to confirm the presence of TYLCV by amplification of the virus’s AV2 gene. In each of the detection, the results of 10 biological replicates are shown in this figure. For viruliferous whiteflies, the amplified product had the correct size for B and Q as indicated in (a,c), and an amplification product of 400 bp was obtained for both viruliferous B (b) and viruliferous Q (d), indicating that B and Q whiteflies in the viruliferous colony contained TYLCV.
Figure 1. Confirmation of the status of nonviruliferous and viruliferous colonies of B. tabaci B and Q based on amplification of mtCOI for the whiteflies and on amplification of the AV2 gene for tomato yellow leaf curl virus (TYLCV). M: marker; lane 1–10: whitefly individuals. In the case of nonviruliferous colonies, the amplified product had the correct size for B (478 bp, (a)) and for Q (303 bp, (c)). In the case of viruliferous colonies, the whitefly DNA was divided into two parts: one part was used to confirm whitefly identity and purity as described in the previous sentence; the other part was used to confirm the presence of TYLCV by amplification of the virus’s AV2 gene. In each of the detection, the results of 10 biological replicates are shown in this figure. For viruliferous whiteflies, the amplified product had the correct size for B and Q as indicated in (a,c), and an amplification product of 400 bp was obtained for both viruliferous B (b) and viruliferous Q (d), indicating that B and Q whiteflies in the viruliferous colony contained TYLCV.
Ijms 17 01048 g001

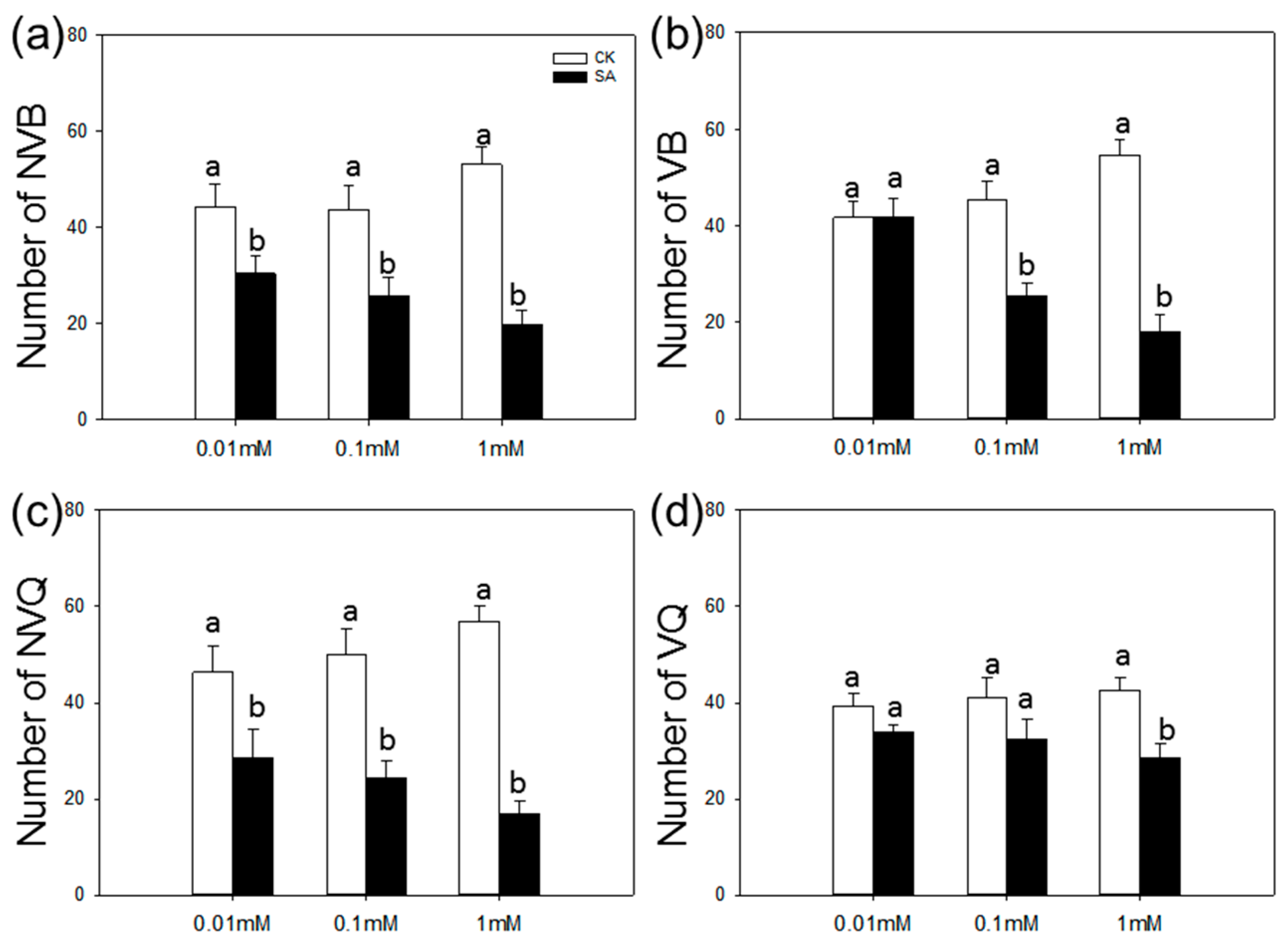

Figure 2. Choice test of B. tabaci on SA-treated vs. control plants. Choice test of nonviruliferous B (a); viruliferous B (b); nonviruliferous Q (c); and viruliferous Q (d) as indicated by numbers per plant. Three concentrations of SA were used: 0.01, 0.1, and 1 mM. Values are means ± SE (n = 9). Different lowercase letters indicate significant differences between control plants and SA-treated plants (LSD test at p < 0.05).
Figure 2. Choice test of B. tabaci on SA-treated vs. control plants. Choice test of nonviruliferous B (a); viruliferous B (b); nonviruliferous Q (c); and viruliferous Q (d) as indicated by numbers per plant. Three concentrations of SA were used: 0.01, 0.1, and 1 mM. Values are means ± SE (n = 9). Different lowercase letters indicate significant differences between control plants and SA-treated plants (LSD test at p < 0.05).
Ijms 17 01048 g002

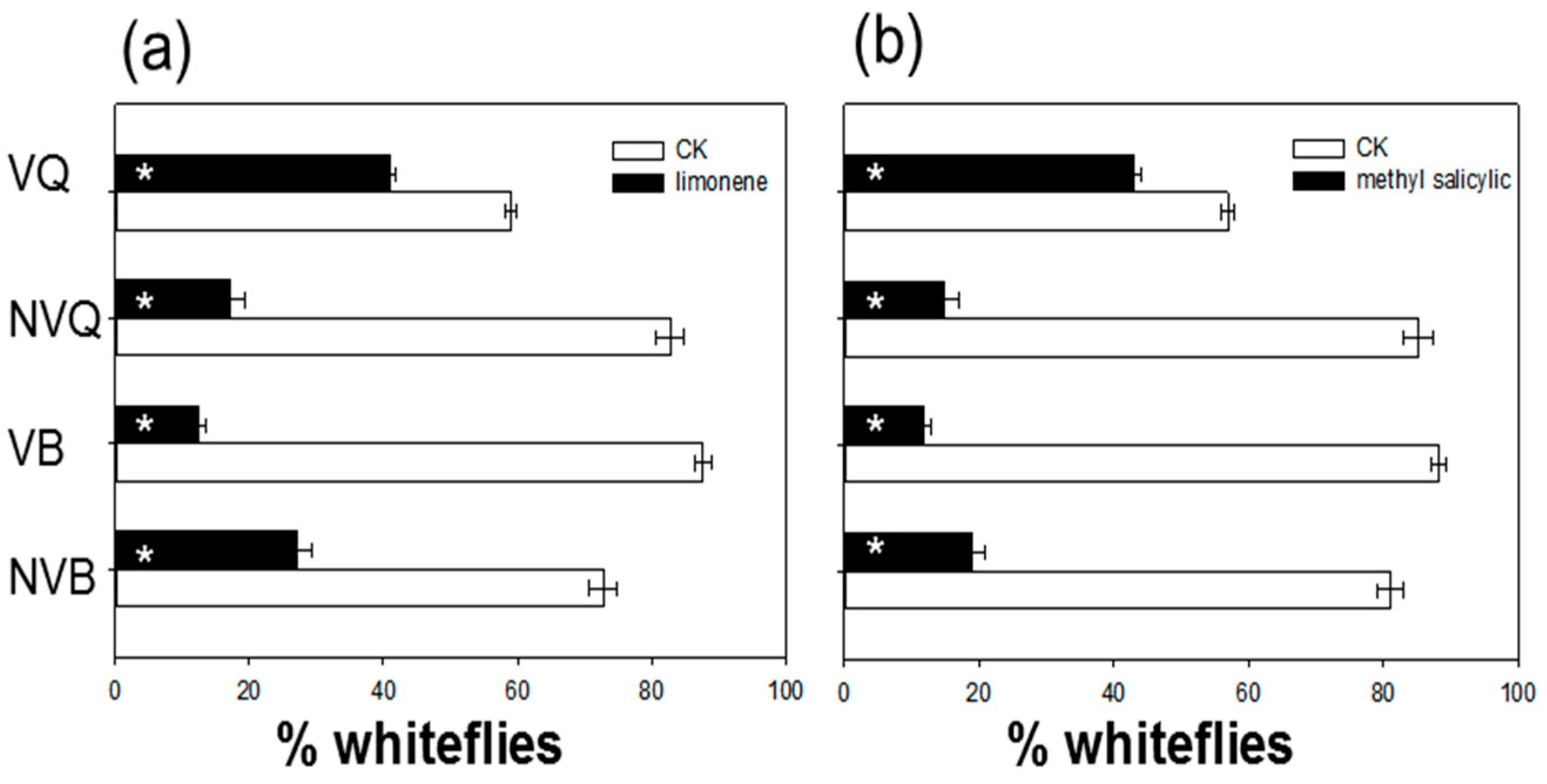

Figure 3. Choice test of nonviruliferous and viruliferous B. tabaci B and Q for (a) δ-limonene vs. control volatiles and for (b) methyl salicylate vs. control volatiles in a Y-tube olfactometer. NVQ: nonviruliferous Q; VQ: viruliferous Q; NVB: nonviruliferous B; VB: viruliferous B. Values are means ± SE (n = 9). Asterisks indicate significant differences (p < 0.05).
Figure 3. Choice test of nonviruliferous and viruliferous B. tabaci B and Q for (a) δ-limonene vs. control volatiles and for (b) methyl salicylate vs. control volatiles in a Y-tube olfactometer. NVQ: nonviruliferous Q; VQ: viruliferous Q; NVB: nonviruliferous B; VB: viruliferous B. Values are means ± SE (n = 9). Asterisks indicate significant differences (p < 0.05).
Ijms 17 01048 g003
Table 1. Concentrations (µg·g·FW−1) of volatile compounds released from tomato plants treated or not treated (control) with salicyclic acid (SA) a.
Table 1. Concentrations (µg·g·FW−1) of volatile compounds released from tomato plants treated or not treated (control) with salicyclic acid (SA) a.
Volatile CompoundControl Plants bSA-Treated Plants c
3-Hexenal0.422 ± 0.112 A0.561 ± 0.098 A
3-Hexen-1-ol0.130 ± 0.012 A0.376 ± 0.070 A
α-Pinene0.029 ± 0.007 A0.245 ± 0.027 B
β-Myrcene0.819 ± 0.197 A1.826 ± 0.864 A
β-Phellandrene0.089 ± 0.037 A0.513 ± 0.099 B
β-Caryophyllene0.939 ± 0.303 A1.612 ± 0.072 A
ρ-Cymene0.325 ± 0.069 A1.188 ± 0.092 B
α-Phellandrene2.935 ± 0.096 A2.485 ± 0.151 A
α-Humulene0.073 ± 0.020 A0.307 ± 0.037 B
Methyl salicylaten.d.3.428 ± 0.141
δ-Limonenen.d.2.420 ± 0.146
a Values are means ± SE. Volatiles were compared by horizontal not vertical direction. For each compound, different uppercase letters (A and B) indicate significant differences between SA-treated plants and control plants (LSD test at p < 0.05). n.d.: not detected; b Plants were sprayed with water (containing 1 mL ethanol and 10% Tween 20) 24 h before volatiles were trapped; c Plants were sprayed with 1 mM SA 24 h before volatiles were trapped.
Table 2. p-Values from two-way ANOVA analysis concerning the percentage of nonviruliferous and viruliferous B and Q whose movement was affected by methyl salicylate or δ-limonene in a Y-tube olfactometer.
Table 2. p-Values from two-way ANOVA analysis concerning the percentage of nonviruliferous and viruliferous B and Q whose movement was affected by methyl salicylate or δ-limonene in a Y-tube olfactometer.
Independent VariableDependent Variable aIndependent VariableDependent Variable
Methyl salicylate<0.001 ***δ-Limonene<0.001 ***
V b0.045 *V0.542
Biotype c0.884Biotype0.542
Methyl salicylate × V<0.001 ***δ-Limonene × V0.225
Methyl salicylate × Biotype<0.001 ***δ-Limonene × Biotype<0.001 ***
V × Biotype<0.001 ***V × Biotype0.189
Methyl salicylate × V × Biotype<0.001 ***δ-Limonene × V × Biotype<0.001 ***
a Significance levels are indicated by * p < 0.05; and *** p < 0.001; b whitefly virus status (nonviruliferous and viruliferous); c whitefly biotype (B and Q).
