Int. J. Mol. Sci. 2015, 16(5), 11034-11054; https://doi.org/10.3390/ijms160511034

Article
Synthesis, Characterization and Biological Evaluation of Transition Metal Complexes Derived from N, S Bidentate Ligands
1
Department of Chemistry, Faculty of Science, Universiti Putra Malaysia, UPM Serdang 43400, Malaysia
2
Department of Chemistry, University of Malaya, Kuala Lumpur 50603, Malaysia
3
Medical Genetics Laboratory, Faculty of Medicine and Health Sciences, Universiti Putra Malaysia, UPM Serdang 43400, Malaysia
4
Department of Chemistry, Cape Breton University, Sydney, NS B1P 6L2, Canada
*
Author to whom correspondence should be addressed.
Academic Editor: Bing Yan
Received: 8 January 2015 / Accepted: 13 March 2015 / Published: 15 May 2015

Abstract

:
Two bidentate NS ligands were synthesized by the condensation reaction of S-2-methylbenzyldithiocarbazate (S2MBDTC) with 2-methoxybenzaldehyde (2MB) and 3-methoxybenzaldehyde (3MB). The ligands were reacted separately with acetates of Cu(II), Ni(II) and Zn(II) yielding 1:2 (metal:ligand) complexes. The metal complexes formed were expected to have a general formula of [M(NS)2] where M = Cu2+, Ni2+, and Zn2+. These compounds were characterized by elemental analysis, molar conductivity, magnetic susceptibility and various spectroscopic techniques. The magnetic susceptibility measurements and spectral results supported the predicted coordination geometry in which the Schiff bases behaved as bidentate NS donor ligands coordinating via the azomethine nitrogen and thiolate sulfur. The molecular structures of the isomeric S2M2MBH (1) and S2M3MBH (2) were established by X-ray crystallography to have very similar l-shaped structures. The Schiff bases and their metal complexes were evaluated for their biological activities against estrogen receptor-positive (MCF-7) and estrogen receptor-negative (MDA-MB-231) breast cancer cell lines. Only the Cu(II) complexes showed marked cytotoxicity against the cancer cell lines. Both Schiff bases and other metal complexes were found to be inactive. In concordance with the cytotoxicity studies, the DNA binding studies indicated that Cu(II) complexes have a strong DNA binding affinity.
Keywords:
bidentate NS ligands; crystal structure analysis; hydrogen bonding; cytotoxic activity; DNA binding

1. Introduction

Despite only a small difference in the backbone of their structure, Schiff bases having N and S donor atoms have been shown to possess a wide spectrum of biological activities and physicochemical properties [1,2], such as metal complexation, electrochemical, adsorptive and crystallographic properties [3,4]. Schiff bases that contain an imino group (–RC=N–) are formed by the condensation of a primary amine with an active carbonyl group. A number of Schiff bases containing the imino functionality have been shown to have a wide range of biological activities, including antibacterial, antifungal, antidiabetic, antitumor, antiproliferative, anticancer, anticorrosive and anti-inflammatory activities [5,6,7,8]. It is believed that the biological activity is related to the hydrogen bonding through the imino group of Schiff bases with the active centers of the cell constituents [9]. Ejiah et al., (2013) reported that the anti-bacterial activity was dependent on the position of substituents in the benzene ring, type of bacteria (whether Gram-positive or Gram-negative) and also the solvent used in the experiment. Gram-positive bacteria had higher MIC values and hence, were less active when compared to Gram-negative bacteria. This could be due to thick peptidoglycan cell wall of Gram-positive bacteria that restricts penetration or diffusion of the compound [10].
Schiff bases and their metal complexes have been shown to be promising leads for both synthetic and structural research due to their relatively simple synthesis and structural diversity [11]. It has also been reported that metal complexes were more biologically active as compared to noncoordinated Schiff bases [12,13,14]. Chelation to the metal ion can be useful in in developing cytotoxic drugs, radioactive agents in imaging studies, and radio immunotherapy (RIT) [15]. Marzano et al., (2006) reported that tris-(hydroxymethyl)phosphine copper(I) complexes containing the new bis(1,2,4-triazol-1-yl)acetate ligand showed greater in vitro antitumor activity as compared to the Schiff bases alone. These complexes were able to overcome cisplatin resistance by triggering paraptosis, a non-apoptotic mechanism of cell death in the resistant cells [16].
Many chemotherapeutic drugs have been designed based on the ability of these synthetic drugs to target the DNA molecule. A new bidentate Schiff base derived from 2,4-dihydroxybenzophenone and aniline and its metal complexes were synthesized and evaluated for their DNA binding ability and the in vitro biological activity of these complexes were markedly better than that of the Schiff base. The results indicated that Cu(II) complexes bound to the DNA through noncovalent interactions [17]. Sunscreen creams are commonly produced from 2-hydroxy-4-methoxybenzophenone and 2-hydroxy-4-methoxy-4-methoxybenzophenone. These creams help to avoid photosensitization, phototoxicity or allergic reactions from various treatments [18]. Based on the DNA binding studies involving copper and nickel complexes derived from this Schiff base, it was found that the complexes showed moderate DNA binding and oxidative cleavage activities. The complexes interacted with DNA through the stacking interactions between the aromatic chromophore and the base pairs of DNA. It was concluded that the Schiff base and in particular, their metal complexes have efficient bio-efficacy, DNA binding and cleavage ability [17].
Although cisplatin is widely-used in cancer therapy, it is associated with a spectrum of side effects, such as anemia, diarrhea, alopecia, petechia, fatigue, nephrotoxicity, emetogenesis, ototoxicity, and neurotoxicity [17]. These side-effects limit the full efficacy of this potent drug. Thus, research involving the development of new metal-based anticancer drugs with minimal side effects and maximal curative potential has intensified over the years. In this study we synthesized and characterized dithiocarbazate Schiff bases and their metal complexes. We also evaluated the cytotoxicity and binding activity of these complexes for their potential as anti-cancer compounds.

2. Results and Discussion

2.1. Synthesis

The Schiff bases (1) and (2) were prepared by the condensation reaction of S2MBDTC and 2-methoxybenzaldehyde (1) or 3-methoxybenzaldehyde (2) in acetonitrile with 72%–75% yields (Scheme 1). Two moles of Schiff bases were then reacted with 1 mol of various metal salts in an ethanol-acetonitrile solution in the ratio of 2:1 to produce the metal complexes (38). Compounds 18 are non-hygroscopic, stable at room temperature, and soluble in common organic solvents, especially dimethyl sulfoxide (DMSO) and dimethyl furan (DMF). The melting points were sharp (over 1 or 2 °C) indicating that the complexes were free of impurities. The chemical properties of both Schiff bases (1) and (2) and their metal complexes (38) were characterized by elemental analysis, IR, UV-Vis, 1H-NMR, 13C-NMR, mass spectroscopy and Single X-ray diffraction analysis (only for compounds 1 and 2). Table 1 shows that the percentage of carbon, hydrogen, nitrogen, and metal were in good agreement with the proposed formulae. The data achieved were in agreement with the proposed structures. The molar conductivity data for the metal complexes 38 showed that the complexes are non-electrolytes in dimethyl sulfoxide (DMSO) where the molar conductivity values fall in the range of 0.28–2.44 Ω−1·cm2·mol−1, which is well below 25 Ω−1·cm2·mol−1, the amount beyond which the complexes are considered 1:1 electrolytes [19].

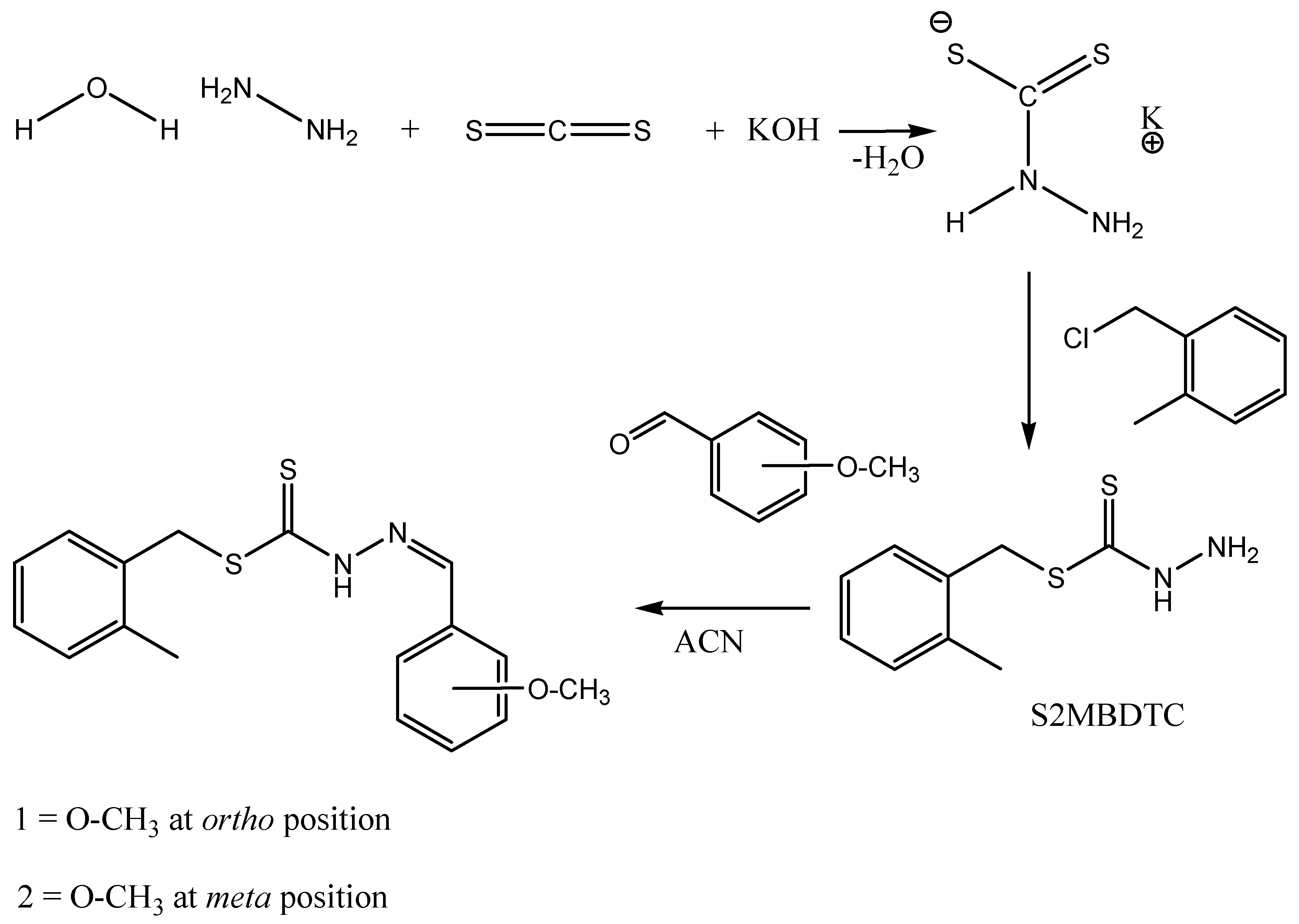

Scheme 1. Synthetic pathway of 1 and 2.
Scheme 1. Synthetic pathway of 1 and 2.
Ijms 16 11034 g008
Table 1. Analytical data of the Schiff bases and their metal complexes
Table 1. Analytical data of the Schiff bases and their metal complexes
Serial NumberCompound% Found (Calculated)
CHNM
1S2M2MBH62.51 (61.79)5.44 (5.49)8.00 (8.48)-
2S2M3MBH64.06 (61.79)5.50 (5.49)9.08 (8.48)-
3[Cu(S2M2MB)2]57.18 (56.52)4.80 (4.74)8.20 (7.75)8.40 (8.8)
4[Ni(S2M2MB)2]56.55 (56.91)4.82 (4.78)8.21 (7.81)8.54 (8.18)
5[Zn(S2M2MB)2]57.34 (56.38)4.80 (4.73)8.24 (7.74)9.02 (9.03)
6[Cu(S2M3MB)2]56.32 (56.52)4.58 (4.74)7.94 (7.75)8.30 (8.8)
7[Ni(S2M3MB)2]56.96 (56.91)4.76 (4.78)8.21 (7.81)8.51 (8.18)
8[Zn(S2M3MB)2]55.46 (56.38)4.65 (4.73)7.88 (7.74)8.79 (9.03)

2.2. 1H- and 13C-NMR Spectra

Table 2 shows the 13C-NMR and 1H-NMR spectral data for compounds 1 and 2. The 13C-NMR spectra of compounds 1 and 2 showed the presence of deshielded –HN–C(=S)S at 196.62 and 196.08 ppm. The positions of these chemical shifts proved that 1 and 2 predominates as the thione tautomer in DMSO-d6 solution. The –CH2, which is located in between the CSS group and benzene ring, was assigned at 36.84 and 38.04 ppm, was shielded due to the proximity of electronegative residues close to the CH2 group. The free CH3 attached to the benzene ring for 1 and 2 was shielded by the aromatic group and the signal was found ranging between 19.40–19.41 ppm. Resonances attributed to the carbon nuclei in the aromatic rings of the Schiff bases were observed in the region of 112.53–147.13 ppm, comparable to that previously reported by Dilović et al. [20]. The assignment for resonance peaks of carbon atoms in the aromatic rings were confirmed by DEPT NMR and all the signals matched with the proposed structure. The signal that appeared closest to the septet splitting of the solvent indicated the presence of the methoxy carbon atom, which fell between 55.74 and 55.88 ppm. The methylene carbon is less shielded as it is closely bonded to the electronegative oxygen atom. Apart from that, the Schiff bases exhibited a –CH resonance near the CSS group at 158.85 and 161.98 ppm, which was deshielded due to the electronegative effect experienced by the carbon atom.
The 1H-NMR spectra of compounds 1 and 2 displayed chemical shifts at 13.29 and 13.22 ppm indicating the presence of a proton that was directly attached to the N atom adjacent to the –C=S and –N=C corresponding to an sp-type proton appearing as a singlet. This proton signal appeared deshielded due to the close proximity to the electronegative nitrogen atom. The presence of the methylene (–CH2) proton in between the sulfur atom and the benzene ring was clearly observed at 4.38 ppm. The singlet due to a deshielded –CH proton was observed at 7.70 and 8.30 ppm. The –CH proton occurred at the deshielded area due to the electron repulsion from the neighboring electronegative sulfur atom, which was located near to the proton. There was one singlet appearing at 2.29 and 2.30 ppm corresponding to an sp3-type of proton (–CH3), which is located at the ortho position attached to the benzene ring of the dithiocarbazate backbone, which was shielded by the benzene ring. The methyl proton of the methoxy group (O–CH3) was also clearly present at 3.80 ppm (1) and 3.74 ppm (2). The resonances corresponding to the aromatic protons were observed at chemical shifts 6.92–7.70 ppm. The integration values from the 1H-NMR spectra for 1 and 2 matched exactly with the number of hydrogens proposed for the respective structures.
Table 2. 13C-NMR and 1H-NMR spectral data for compounds 1 and 2.
Table 2. 13C-NMR and 1H-NMR spectral data for compounds 1 and 2.
Compound13C-NMR Assignment, δ (ppm)1H-NMR Assignment, δ (ppm)
–C=S–CH3–CH2–CHO–CH3Aromatic CarbonsNHCHCH2CH3Aromatic Protons
1196.619.438.0158.955.7112.5–142.8s, 1H (13.3)s, 1H (7.7)s, 2H (4.4)s, 3H (3.8 & 2.3)d, 1H (7.2, 7.3, 7.7, 7.1)
t, 1H (7.1, 7.1, 7.4, 7.0)
2196.119.436.8162.055.9115.1–147.1s, 1H (13.2)s, 1H (8.3)s, 2H (4.4)s, 3H (3.7 & 2.3)s, 1H (8.1)
d, 1H (7.0, 7.2, 7.3, 7.6)
t, 1H (7.1, 7.1, 7.1)

2.3. IR Spectra

The IR spectra provide information about any functional groups present in the molecules that support the successful formation of Schiff bases and metal complexes. Table 3 shows the comparative analysis of IR spectra of the Schiff bases (1 and 2) and metal complexes (38). Strong bands corresponding to aldehydic v(C=O) disappeared in the infrared spectra of compounds 1 and 2 indicating that 1 and 2 were successfully formed through condensation. The stretching vibrations of v(N–H), at 3085 and 3099 cm−1 were not present in the metal complexes (38). This is due to the deprotonation of the nitrogen atom upon complexation. Compounds 1 and 2 displayed sharp peaks at 1598 and 1609 cm−1, which corresponded to v(C=N), attributable to the azomethine group. This stretching band shifted to lower wavenumbers upon complexation to the metal ions [21]. In this work, the v(C=N) decreased upon complexation, indicating the coordination of compounds 1 and 2 to the metal ions via the azomethine nitrogen [22]. The shifting of hydrazinic v(N–N) band to both higher and lower wavenumbers in the infrared spectra of complexes 36 showed evidence of metal coordination through the azomethine nitrogen atom, as this was related to the reduction in the repulsion between lone pairs of electrons on the nitrogen atoms upon complexation [23,24,25]. Compounds 1 and 2 exist only in the thione tautomeric form due to the presence of strong v(C=S) bands at 736 and 775 cm−1 which did not appear in the spectra 38, an observation that was in agreement with the NMR data. The splitting of v(CSS) of compounds 1 and 2 were found in the range of 729–770 cm−1. This was strong evidence to support that the coordination of the compounds 1 and 2 to the metal ions was via the thiolate sulfur, with the loss of a proton.
Table 3. Infrared, magnetic susceptibility and electronic spectral data of compounds 1–8.
Table 3. Infrared, magnetic susceptibility and electronic spectral data of compounds 1–8.
CompoundIR Bands (cm−1)µeff (BM)Electronic Spectra (in DMSO) λmax(log εmax)
v(NH)v(C=N)v(N–N)v(C=S)/v(C–S)
13085 (w)1598 (m)1035 (s)736 (s)-352(4.86)
23099 (w)1606 (m)1043 (s)775 (s)-341(4.63)
3-1584 (m)1014 (s)750 (s)1.60352(4.93); 601(2.57)
4-1579 (m)1011 (s)732 (s)Diamagnetic354(4.90); 609(2.08)
5-1593 (m)947 (s)729 (s)Diamagnetic354(5.21)
6-1573 (m)964 (s)732 (s)1.67624(2.23); 422(3.92); 324(4.61)
7-1573 (m)969 (s)770 (s)Diamagnetic342(4.88); 444(3.55); 609(2.07)
8-1599 (m)957 (s)731 (s)Diamagnetic341(5.08)
s = strong; m = medium; w = weak.

2.4. Magnetic Susceptibility and Electronic Spectral Studies

In order to obtain further structural information on the metal complexes, the magnetic moments and electronic spectra were measured and the results tabulated in Table 3. At room temperature, complexes 3 and 6 showed magnetic moments of 1.60 and 1.67 Bohr magneton (B.M), respectively, indicating one unpaired electron with the electronic configuration of d9. Complexes 3 and 6 are hence expected to have a square planar geometry, which is the predicted geometries of a metal ion with an unpaired electron at dx2-y2 orbital with magnetic moments of around 1.73 B.M [26]. Compound 4, 5, 7, and 8 showed diamagnetic properties, again indicative of a four-coordinate geometry. The Ni(II) complexes, 4 and 7 have a d8 electronic configuration with a low spin state which commonly adopts a four-coordinated environment around the metal ion [27]. The diamagnetic Zn(II) complexes are expected to be four-coordinated and have a distorted tetrahedral structure. However, to date, we were unable to obtain suitable crystals of the metal complexes for single X-ray diffraction analysis.
The electronic spectral data of all the compounds is displayed in Table 3. In common transition metal complexes, the color consequences of light absorption is due to the transfer of electrons from an orbital primarily on the ligand to one primarily located on the metal ions, such as ligand-to-metal charge transfer (LMCT) or vice versa, metal-to-ligand charge transfer (MLCT). The yellow compounds 1 and 2 show intense intraligand absorptions in the range of 352 and 341 nm due to the π → π* transition, corresponding to the nonbonding electron pairs of the azomethine bond. Bands at 324–352 nm corresponded to a intraligand π → π* transition, whereas bands at 422 nm corresponded to an LMCT transition and bands at 601–624 nm corresponded to d-d band transitions which is a 2Eg4A2g. The high intensity π → π* transition overlapped with the LMCT transitions, thus the LMCT bands did not appear in some cases. The occurrence of a S→Cu LMCT band around 422 nm is common in square planar dithiocarbazate Cu(II) complexes [28,29]. All the Cu(II) complexes displayed a weak d-d transition, which is a spin-forbidden transition hence, the relative weakness of d-d band assigned as tetrahedral and square planar complexes. The Ni(II) complexes displayed absorption bands in the range of 342–354, 444 and 609 nm, due to the π → π* transitions, LMCT transitions, and d-d transitions, respectively. The three d-d bands corresponding to 1A1g1A2g, 1A1g1B1g, and 1A1g1E1g transitions are indicative of square planar Ni(II) complexes [18,27]. The magnetic moments for all the Ni(II) complexes further supported the proposed square planar configuration.
The electronic spectra of the yellow Zn(II) complexes only showed a band in the region 341–354 nm, due to the presence of LMCT transition. An electron migrates between an orbital that is predominantly ligand in character to an orbital that is predominantly zinc in character The LMCT transition of Zn(II) complexes were identified by their high intensity and the sensitivity of their energies to the solvent polarity.

2.5. Crystal Data and Molecular Structures

2.5.1. Molecular Structures

Crystal structures were obtained for isomeric 1 and 2. The molecular structure of 1 is shown in Figure 1 and selected geometric parameters are collected in Table 4. The central CN2S2 atoms are co-planar with a root mean square (r.m.s) = 0.014 Å. The adjacent tolyl ring is twisted out of this plane as seen in the value of the dihedral angle of 82.70(4)° but the methoxy-substituted ring is almost co-planar with the central residue forming a dihedral angle of 6.14(5)°. This implies the terminal rings are almost orthogonal. Indeed the dihedral angle between the rings is 87.05(5)° so that overall the molecule adopts the shape of the letter L. The methoxy group is co-planar with the ring to which it is attached as seen in the value of the C11'‒O1‒C11‒C12 torsion angle of 4.4(2)°. Thus, with the exception of the tolyl-methyl group, to a first approximation the molecule has mirror symmetry with the ipso- and para-carbon atoms of the tolyl group lying on the putative plane. The thione-S1 and amino-H atoms are syn, an important consideration for the crystal packing as discussed in 2.5.2. The C1‒S1 bond distance is significantly shorter than the C1‒S2 bond, which, in turn is shorter than the C2‒S2 bond (Table 1), indicating significant double bond character in the thione C1‒S1 bond. The bond lengths of N1‒N2 and C9‒N2 are consistent with single and double bonds, respectively, so that despite the planarity in the central residue, there is little evidence for extensive delocalization of π-electron density over these atoms; the conformation about the C9‒N2 double bond is E. The angles subtended at the C1 atom by the thione-S1 atom are systematically wider than the S2‒C1‒N1 bond, again consistent with the double character of the thione C1‒S1 bond.

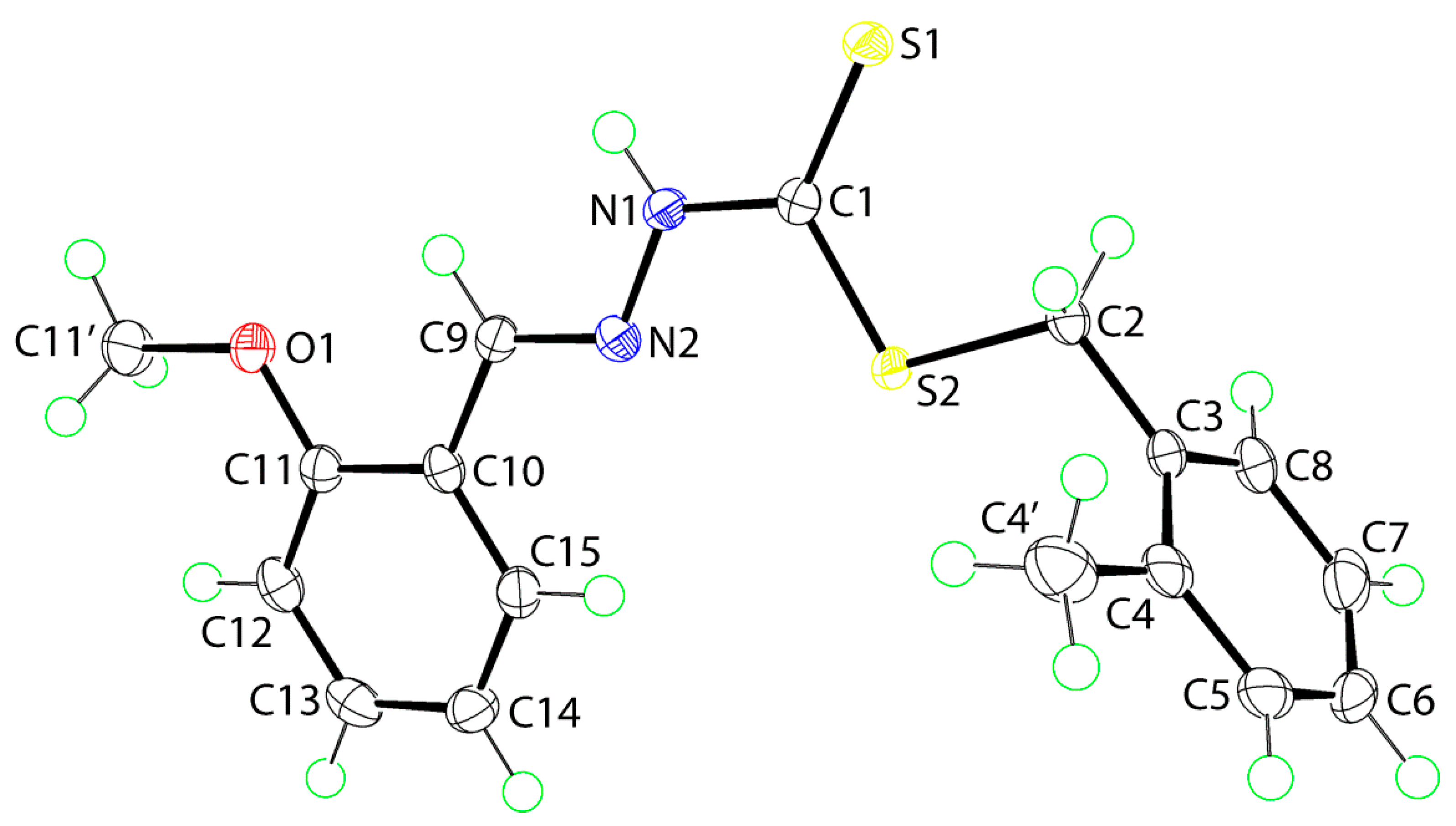

Figure 1. The molecular structure of 1 showing the atom-labeling scheme and 70% displacement ellipsoids.
Figure 1. The molecular structure of 1 showing the atom-labeling scheme and 70% displacement ellipsoids.
Ijms 16 11034 g001
Table 4. Selected geometric parameters (Å, °) for 1 and 2.
Table 4. Selected geometric parameters (Å, °) for 1 and 2.
Parameter12
C1‒S11.6613(14)1.6724(14)
C1‒S21.7587(14)1.7537(14)
C2‒S21.8245(14)1.8241(15)
C1‒N11.3470(17)1.3373(19)
N1‒N21.3694(16)1.3765(17)
C9‒N21.2821(19)1.2797(19)
S1‒C1‒S2124.77(8)124.68(9)
S1‒C1‒N1122.02(10)121.68(11)
S2‒C1‒N1113.21(10)113.64(11)
C1‒N1‒N2118.76(11)119.64(12)
N1‒N2‒C9116.56(12)115.74(12)
The molecular structure of 2 is shown in Figure 2. To a first approximation, the structure of the 3-methoxy isomer is the same as the 2-methoxy isomer in 1. The r.m.s. deviation for the central CN2S2 atoms is 0.010 Å, and this forms dihedral angles of 80.01(3) and 1.58(7)° with the tolyl and methoxyphenyl rings, respectively. The dihedral angle between the rings is 81.19(4)° consistent with an L-shape. The methoxy group is co-planar with the ring to which it is attached (C12'‒O1‒C12‒C11 = 179.28(13)°) and again, with the exception of the tolyl-methyl group, the entire molecule approximates mirror symmetry as for 1. The anti-disposition of the thione-S1 and amine-H atoms, the E configuration about the C9‒N2 bond and the key geometric parameters conform to that discussed for 1.

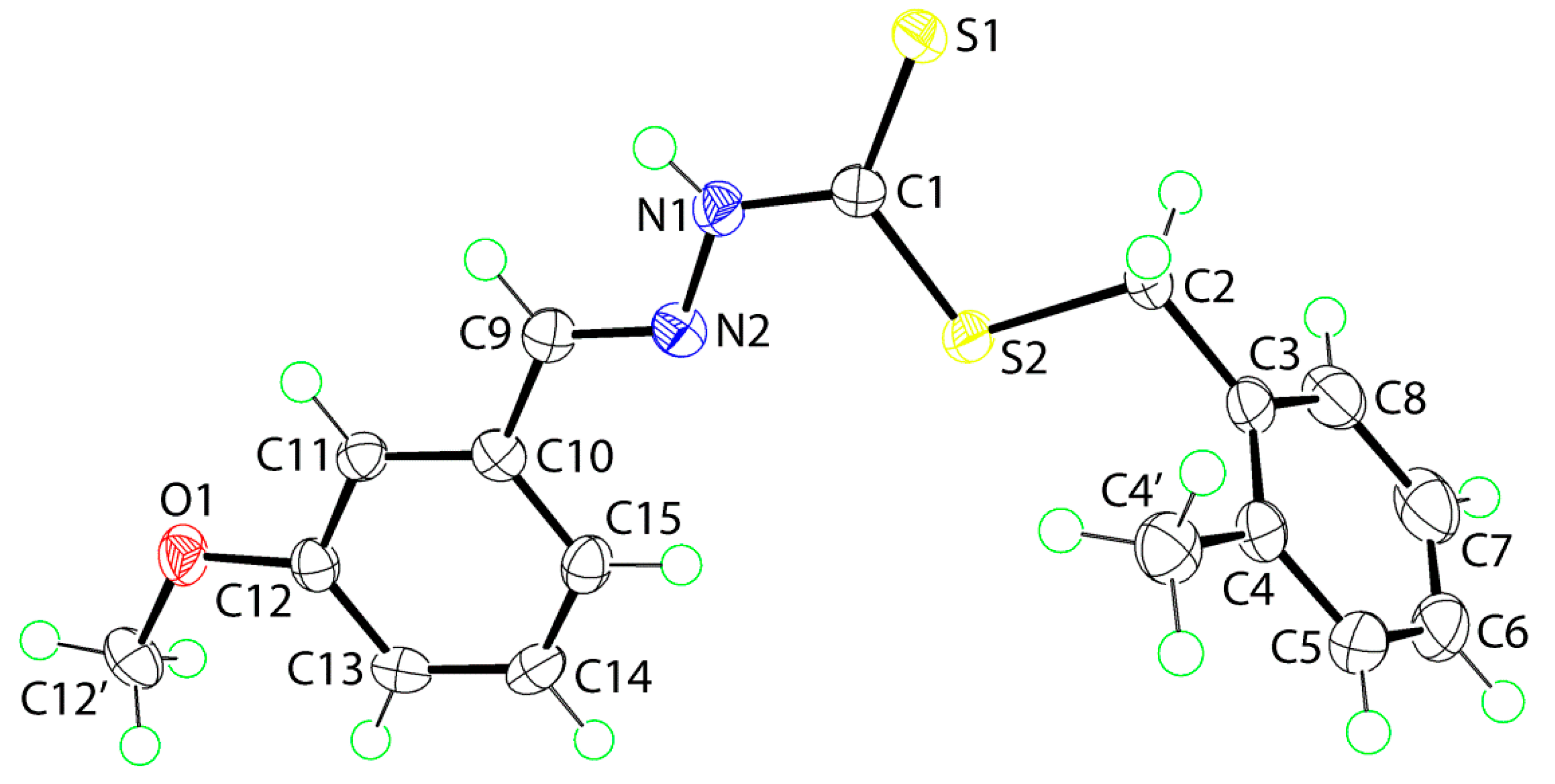

Figure 2. The molecular structure of 2 showing the atom-labeling scheme and 70% displacement ellipsoids.
Figure 2. The molecular structure of 2 showing the atom-labeling scheme and 70% displacement ellipsoids.
Ijms 16 11034 g002
The similarity between the molecules is highlighted in the overlay diagram shown in Figure 3, where the CS2 residues are coincident. Also included is the structure of the unsubstituted parent compound, i.e., PhC(H)=NNC(=S)SCH2Ph [30]. This, too, has the same features as 1 and 2 indicating that substitution in the rings has not resulted in a significant difference in molecular conformation.
Figure 3. Overlay diagram of the molecular structures of 1 (red image), 2 (blue) and the unsubstituted parent compound (green) with the CS2 residues coincident.
Figure 3. Overlay diagram of the molecular structures of 1 (red image), 2 (blue) and the unsubstituted parent compound (green) with the CS2 residues coincident.
Ijms 16 11034 g003

2.5.2. Supramolecular Architectures

The syn disposition of the thione-S1 and amino-H atoms enables the formation of the cyclic eight-membered {···HNCS}2 thioamide synthon in the crystal structures of each of 1 and 2; geometric parameters characterizing the intermolecular interactions are listed in Table 5. In 1, the dimeric aggregates stack in columns along the b-axis. The only other intermolecular interactions within the standard criteria [31] are of the type C‒H···π, where the donor and acceptors are derived from the methoxyphenyl ring, and these serve to link the dimers into supramolecular layers parallel to [30]. A view of the unit cell contents is shown in Figure 4.
Table 5. Geometric parameters characterizing the key intermolecular contacts in 1 and 2.
Table 5. Geometric parameters characterizing the key intermolecular contacts in 1 and 2.
AHBH···B (Å)A···B(Å)A-H-B(°)Symmetry Operation
1
N1H1nS12.503(14)3.3665(12)172.6(13)1-x, 3-y, 1-z
C13H13Cg(C10–C15)2.773.5374(15)139½- x, -½+y, 1½-z
2
N1H1nS12.53(2)3.3688(15)168.5(19)-x, -y, -z
C11H11O12.443.351(2)160-x, -½+y, ½-z
C12'H12bS12.843.5574(17)130x, 1½-y, ½+z
C12'H12cCg(C10–C15)2.803.6949(19)152x, 1½-y, ½+z

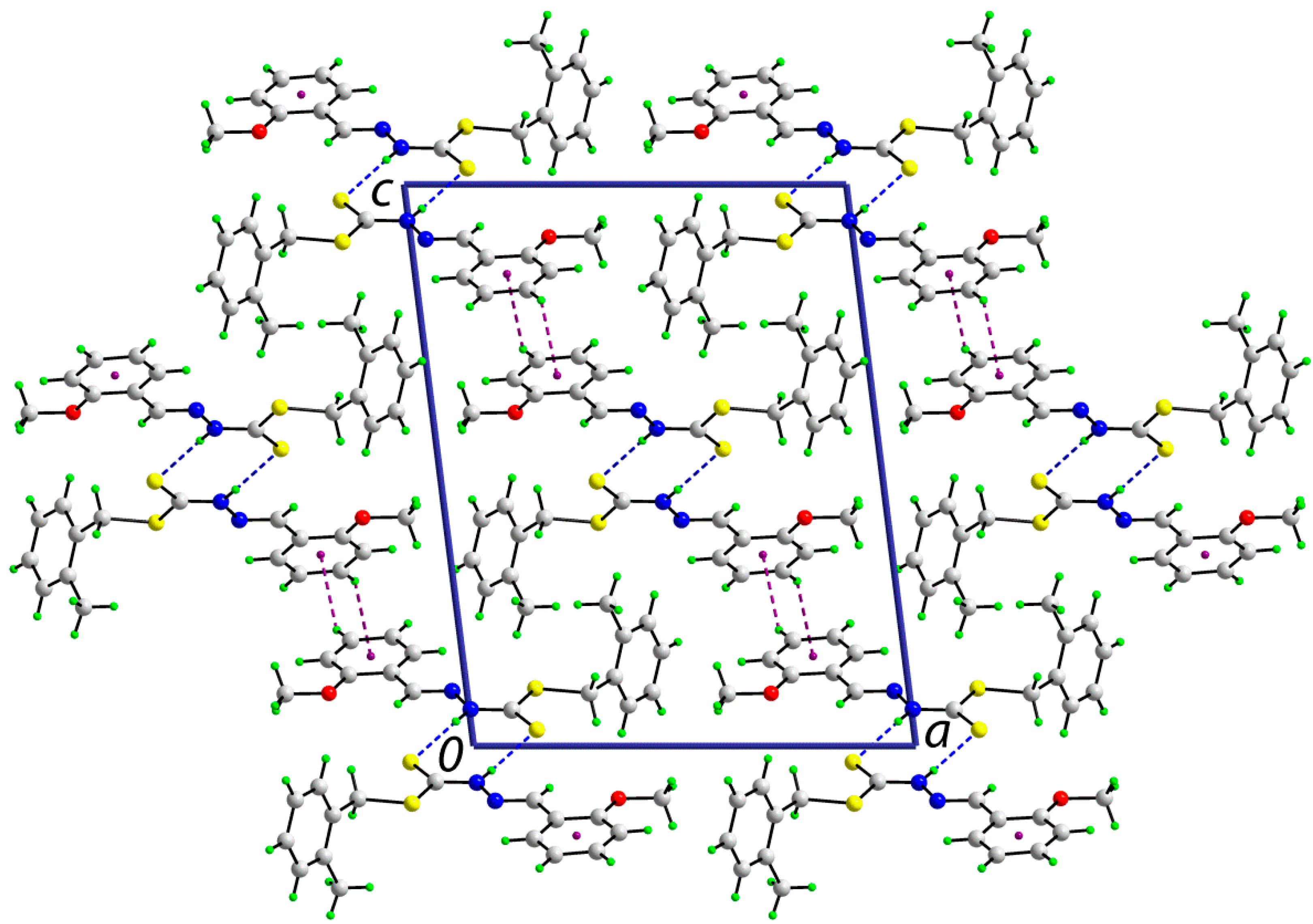

Figure 4. A view in projection down the b-axis of the unit cell contents of 1. The N‒H···S and C‒H···π interactions are indicated by blue and purple dashed lines, respectively.
Figure 4. A view in projection down the b-axis of the unit cell contents of 1. The N‒H···S and C‒H···π interactions are indicated by blue and purple dashed lines, respectively.
Ijms 16 11034 g004
The centrosymmetric dimeric aggregates formed via {···HNCS}2 synthons also stack in columns parallel to the b-axis in the crystal structure of 2. They are also assembled into layers that stack along the a-axis (Figure 5). The interactions between the dimers are of the type C‒H···O, C‒H···S and C‒H···π, with all donors and acceptors (except the thione-S1 atom) derived from the methoxyphenyl ring (Table 5).

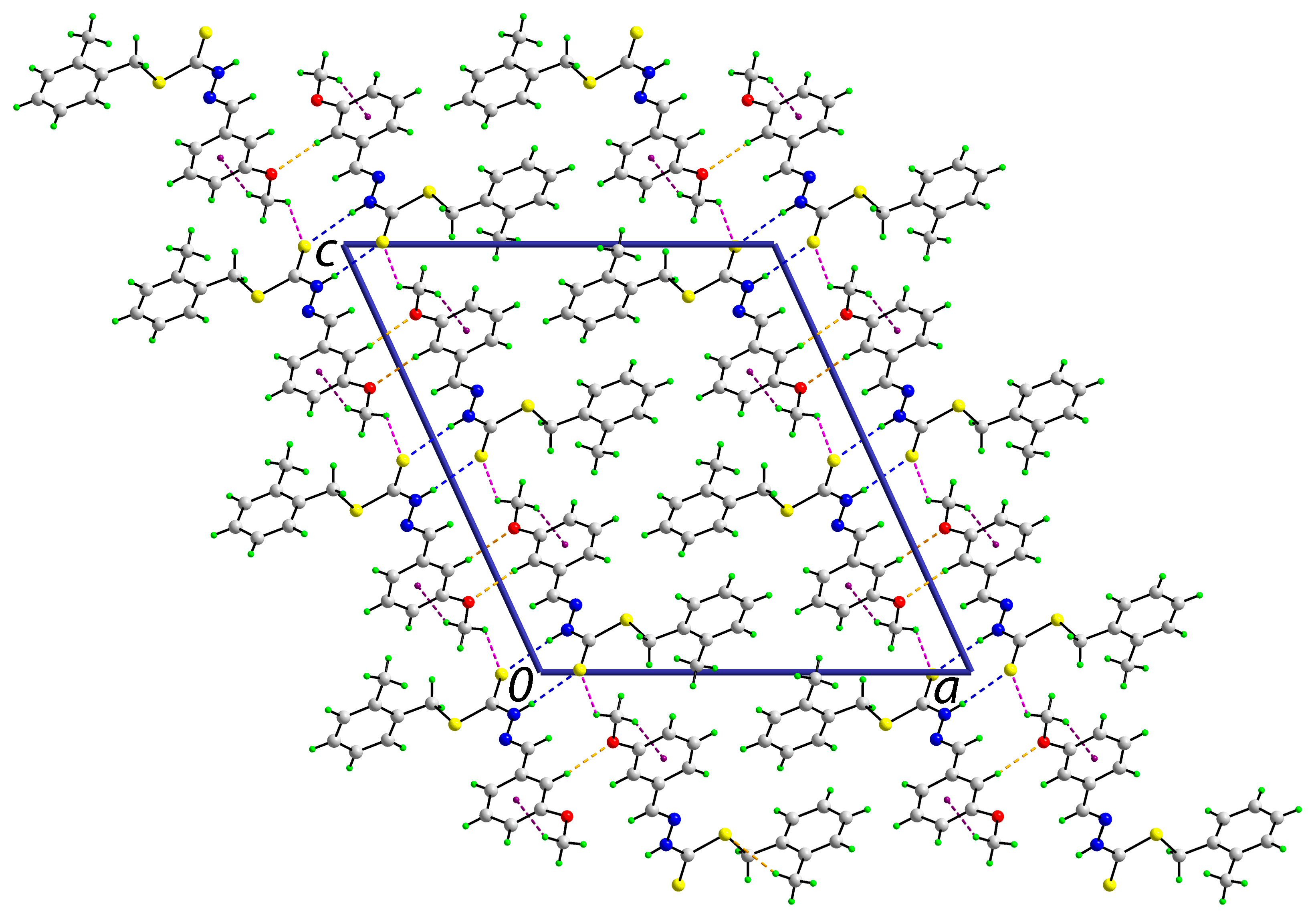

Figure 5. A view in projection down the b-axis of the unit cell contents of 2. The N‒H···S and C‒H···π interactions are indicated by blue and purple dashed lines, respectively.
Figure 5. A view in projection down the b-axis of the unit cell contents of 2. The N‒H···S and C‒H···π interactions are indicated by blue and purple dashed lines, respectively.
Ijms 16 11034 g005

2.6. Cytotoxic Activity

Compound 18, standard drug (Tamoxifen), and dimethyl sulfoxide (DMSO) solvent were evaluated separately for their cytotoxic activity against MDA-MB-231 and MCF-7 cell lines using the MTT Assay method. Except for the Cu(II) complexes, the other test compounds did not show any activity against both cell lines. Complexation with Cu(II) ions also significantly reduced the polarity of the metal ions and enhanced the lipophilic character of central the Cu(II) atom. The complexation may facilitate faster diffusion through biological membranes [32] and also disturb the respiration process of the cells and thus restrict further growth of the organism [33,34]. These factors enhance the cytotoxic properties of Cu(II) complexes presumably by blocking the enzymatic activity of the cell or catalyzing cytotoxic reactions [35]. Hence, upon complexation, the cytotoxic activity of the Cu(II) complexes was drastically enhanced as compared to the Schiff bases.

2.7. DNA Binding Studies

The interaction between Cu(II) complexes (3 and 6) and calf thymus DNA (CT-DNA) was studied using electronic absorption titration [36]. Hypochromism and red-shifts indicate strong stacking interaction between the DNA double helix strand and an aromatic chromophore [36,37,38]. The electronic absorption spectra for the Cu(II) complexes (3 and 6) recorded in the absence and presence of CT-DNA are shown in Figure 6 and Figure 7.

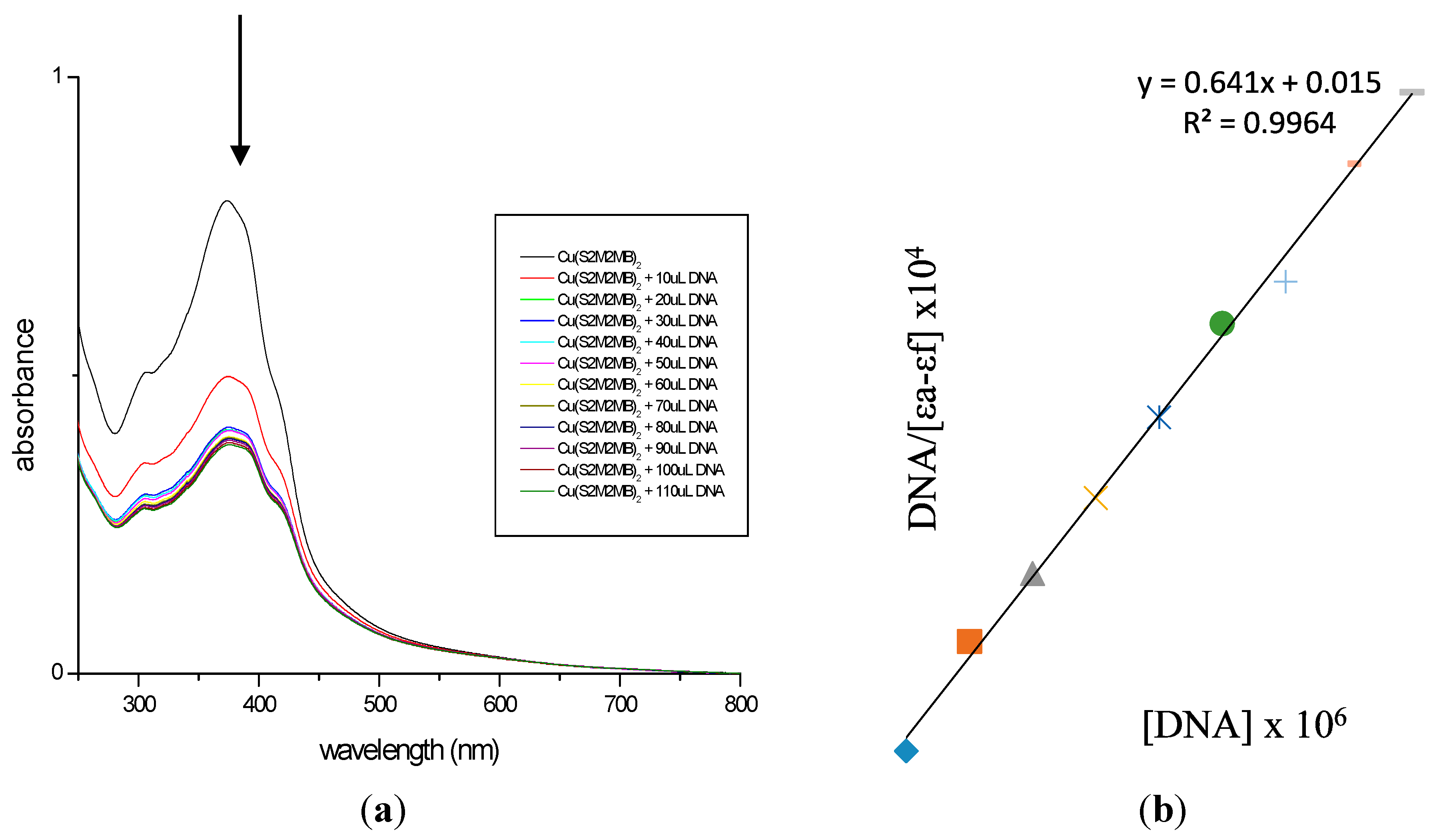

Figure 6. (a) Electronic absorption spectrum of 3; (b) Plot of [DNA]/εa−εf vs. [DNA] for absorption titration of DNA with 3. (The arrow indicates the change in absorbance in tandem with increasing DNA concentration.).
Figure 6. (a) Electronic absorption spectrum of 3; (b) Plot of [DNA]/εa−εf vs. [DNA] for absorption titration of DNA with 3. (The arrow indicates the change in absorbance in tandem with increasing DNA concentration.).
Ijms 16 11034 g006

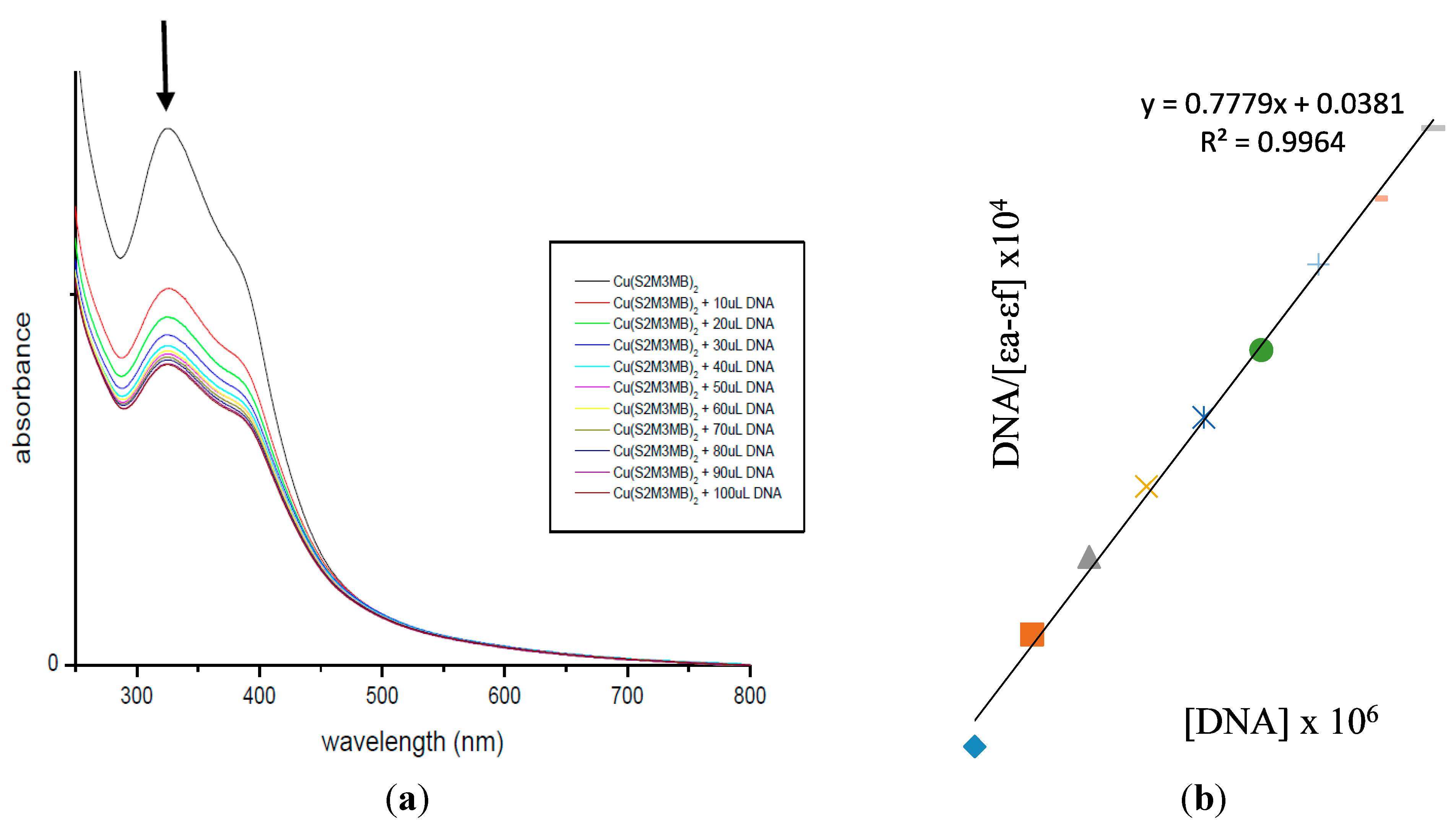

Figure 7. (a) Electronic absorption spectrum of 6; (b) Plot of [DNA]/εa−εf vs. [DNA] for absorption titration of DNA with 6. (The arrow indicates the change in absorbance in tandem with increasing DNA concentration.).
Figure 7. (a) Electronic absorption spectrum of 6; (b) Plot of [DNA]/εa−εf vs. [DNA] for absorption titration of DNA with 6. (The arrow indicates the change in absorbance in tandem with increasing DNA concentration.).
Ijms 16 11034 g007
Each displayed two intense absorption bands attributed to the LMCT and intra-ligand (π → π*) transitions of an aromatic chromophore in the regions 322–392 and 263–282 nm, respectively. The decreasing energies of π → π* indicated that the π* orbital of the ligands on the complexes were coupled with a π orbital of the DNA base pairs. Therefore, this interaction was manifested by hypochromism and red-shifts [39]. In order to compare the binding strengths of the complexes to CT-DNA, the binding constants were determined quantitatively. The Kb obtained for complexes 3 and 6 were 4.11 × 105 and 2.04 × 105 M−1, respectively, suggesting both the complexes have good binding affinities due to π → π* stacking interactions between the respective complex and the base pairs of DNA [38,40,41]. Complex 3 has the higher binding constant which correlates with it having the lowest IC50 value among the compounds assayed. The greater potency of 3 against cancer cells arises from its ability to block the enzyme that bind to the nitrogenous bases of DNA or RNA [42].

3. Experimental Section

3.1. Chemicals

All chemicals and solvents were of analytical grade and were used as received without further purification. IR spectra were recorded in KBr pellets on a Perkin-Elmer1750X FTIR spectrophotometer (Waltham, MA, USA) in the range of 4000–280 cm−1. C, H, N and S elemental analyses were carried out using a LECO CHNS-932 instrument (St. Joseph, MI, USA). Metal determinations were carried out using a Perkin-Elmer Plasma 1000 Emission Spectrometer (Waltham, MA, USA). Molar conductivities of 10−3 M solutions of the metal complexes in DMSO were measured at 27 °C using a Jenway 4310 conductivity meter (Dunmow, Essex, UK) and a dip-type cell with a platinized electrode. Electronic spectra were recorded on a Shimadzu UV-2501 PC recording spectrophotometer (1000–200 nm) (Tokyo, Japan). Magnetic susceptibilities were measured with a Sherwood Scientific MSB-AUTO magnetic susceptibility balances at 298 K (Sherwood Scientific, Cambridge, UK). Melting points were determined using an Electrothermal digital melting point apparatus (Electrothermal Engineering Ltd., Essex, UK).

3.2. Syntheses

3.2.1. S-2-Methybenzyldithiocarbazate (S2MBDTC)

Following a procedure adapted from Ravoof et al. [43], potassium hydroxide (11.4 g, 0.2 mol) was dissolved in ethanol (70 mL, 90%). Then, the hydrazine hydrate (10 g, 0.2 mol) was added and the mixture was maintained at 0 °C in an ice-salt bath. Carbon disulfide (15.2 g, 0.2 mol) was added drop-wise with vigorous stirring (750 rpm) over a period of 1 h. The two layers that formed were separated using a separating funnel. The light-brown lower layer was dissolved in 40% ethanol (60 mL) below 5 °C. The mixture was kept in an ice-bath and 4-methylbenzyl chloride (26.5 mL, 0.2 mol) was added drop-wise with vigorous stirring. The sticky white product, which formed S4MBDTC, was filtered and left to dry overnight in a desiccator over anhydrous silica gel. Yield: 68%. Mp 170–171 °C (lit. 171.2 °C).

3.2.2. S-2-Methylbenzyl-β-N-(2-benzyl-2-methoxymethylene)dithiocarbazate (NS1) (1)

S2MBDTC (2.12 g, 0.01 mol) was dissolved in hot acetonitrile (100 mL). An equimolar amount of 2-methoxybenzaldehyde (1.36 g, 0.01 mol) was added to the S2MBDTC solution and the mixture was stirred and heated to reduce the original volume of the mixture. The mixture was then stirred under room temperature until a precipitate formed, which was washed with ice-cold ethanol. Compounds were recrystallized from ethanol and dried over silica gel.

3.2.3. S-2-Methylbenzyl-β-N-(2-benzyl-3-methoxymethylene)dithiocarbazate (NS2) (2)

S2MBDTC (2.12 g, 0.01 mol) was dissolved in hot acetonitrile (100 mL). An equimolar amount of 3-methoxybenzaldehyde (1.36 g, 0.01 mol) was added to the S2MBDTC solution and the mixture was stirred and heated to reduce the original volume of the mixture. The mixture was then stirred under room temperature until a precipitate formed, which was washed with ice-cold ethanol. Compounds were recrystallized from ethanol and dried over silica gel.

3.2.4. Metal Complexes Derived from Ni(II) Acetate, Cu(II) Acetate, and Zn(II) Acetate

Schiff base (0.001 mol) in hot acetonitrile (50 mL) was added to the metal salt (0.0005 mol) in ethanolic solution (30 mL). The mixture was heated and stirred to reduce the volume of the solution. Precipitation occurred once the mixture cooled to the room temperature. The precipitate then was filtered and dried over silica gel. The complexes were recrystallized using methanol to purify the complexes. The metal salts used were: nickel (II) acetate tetrahydrate, zinc(II) acetate dihydrate, and Cu(II) acetate monohydrate.

3.3. X-ray Crystallography

The X-ray diffraction measurements for yellow crystals of 1 (0.24 × 0.29 × 0.37 mm) and 2 (0.20 × 0.31 × 0.37 mm) were performed at 100 K on an Oxford Diffraction Gemini CCD diffractometer [44] using CuKα radiation (λ = 1.5418 Å) and ω scans so that θmax was 71.4°. The structures were solved by direct methods and refined on F2 (anisotropic displacement parameters, C-bound H atoms in the riding model approximation and a weighting scheme of the form w = 1/[σ2(Fo2) + aP2 + bP] where P = (Fo2 + 2Fc2)/3) using the SHELXL2014 package of programs [45] through the WinGX Interface [x3]. The N-bound hydrogen atoms were refined with the N–H distance constraint 0.88 ± 0.01 Å. Crystal data and refinement details are collated in Table 6. The molecular structures shown in Figure 1 and Figure 2 were drawn with 70% displacement ellipsoids [46]. The overlay diagram, Figure 3, was drawn with QMol [47] and the crystal packing diagrams with DIAMOND [48]. Crystallographic data for 1 and 2 have been deposited with the Cambridge Crystallographic Data Centre as supplementary publication numbers CCDC 1035013 and 1035014.

3.4. Cytotoxic Assay

The MCF-7 (estrogen receptor-positive human breast cancer) and MDA-MB-231 (estrogen receptor-negative human breast cancer) cell lines were used in this study (ATCC, Manassas, VA, USA). The cells were cultured in RPMI-1640 (High glucose) (Sigma, St. Louis, MO, USA) medium supplemented with 10% fetal calf serum. The cytotoxic activity was determined using the microtitration of 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) assay (Sigma) as previously reported [49]. Untreated cells were included for each assay as the negative control. The standard breast cancer chemotherapeutic, Tamoxifen, was used as the standard positive control. Cytotoxicity levels were expressed as IC50 values, i.e., the concentration of compound that results in 50% cell death as compared to the negative controls in vitro.
Table 6. Crystallographic data and refinement details for 1 and 2.
Table 6. Crystallographic data and refinement details for 1 and 2.
Compound12
FormulaC17H18N2OS2C17H18N2OS2
Formula weight330.45330.45
Crystal systemmonoclinicmonoclinic
Space groupP21/nP21/c
a14.4313(2)17.6572(6)
b6.0887(1)5.2747(2)
c18.4462(3)19.3205(7)
β/°97.074(2)114.736(4)
V31608.49(4)1634.33(11)
Z44
Dc/g·cm−31.3651.343
F(000)696696
μ/mm−13.0172.969
Measured data19,87310,986
θ range/°3.7–71.44.6–71.4
Unique data31283151
Observed data (I ≥ 2.0σ(I))30582965
R, obs. data; all data0.033; 0.0340.033; 0.035
a, b in weighting scheme0.057, 0.7630.052, 0.787
Rw, obs. data; all data0.089; 0.0890.086; 0.088
Residual electron density peaks/e Å30.31, −0.420.43, −0.30

3.5. DNA Binding Studies

The DNA binding experiments were carried out at 25 °C. DNA concentration per nucleotide was determined using the molar absorption coefficient (6600 M−1·cm−1) at 260 nm [50]. Absorption titration experiments were performed maintaining the concentration of the metal complex solution at 50 µM and gradually increasing the concentration of CT-DNA. The compounds were dissolved in DMSO and Tris-HCI buffer (50:50) containing (5 mM Tris, pH 7.1, 25 mM NaCl) [39] at room temperature (25 °C). The solutions were scanned over the 250–800 nm range. Absorbance values were recorded 10 min after the addition of DNA solution. The binding constant, Kb was determined, using the Equation:
[ D N A ] / ( ε a     ε f )   =   [ D N A ] / ( ε b     ε f )   +   1 / K b ( ε a     ε f )
where [DNA] is the concentration of DNA in base pairs, εa corresponds to the apparent molar extinction coefficient Aabs/[M], εf corresponds to the extinction coefficient for the free metal [M] complex and εb corresponds to the extinction coefficient for the fully bound metal complex [39,50,51,52].

4. Conclusions

Schiff bases 1 and 2 act as bidentate ligands coordinating through the sulfur and nitrogen atom forming metal complexes with Cu(II), Ni(II) and Zn(II). The coordination of these structurally similar Schiff bases to different metal ions was confirmed by physicochemical techniques and various spectral studies. X-ray crystallography showed isomeric 1 and 2 to have similar structures, each with a conformation akin to the letter L. The cytotoxic studies of all the compounds were carried out against MCF-7 (estrogen receptor-positive human breast cancer) and MDA-MB-231 (estrogen receptor-negative human breast cancer) cell lines and their IC50 values were determined. The Cu(II) complexes 3 and 6 were found to be moderately active against both cancer cell lines but the other complexes were inactive. In agreement with cytotoxic assay data, the DNA binding studies indicated that complexes 3 and 6 bound to CT-DNA with a good binding affinity, Kb = 105 M−1.

Acknowledgments

We thank the Department of Chemistry, the Molecular Genetics Laboratory and the Department of Obstetrics and Gynaecology, Universiti Putra Malaysia, and the Malaysian Genome Institute for their facilities. This research was funded by Universiti Putra Malaysia (UPM) and the Malaysian Government under the Research University Grant Scheme (RUGS No. 9419400), the Malaysian Fundamental Research Grant Scheme (FRGS No. 01–02-13-1344FR) and the ScienceFund under the Ministry of Science, Technology and Innovation (MOSTI) (06-01-04-SF1810). E.N.M.Y wishes to thank UPM for the award of Graduate Research Fellowship. Support from the High Impact Research MoE Grant UM.C/625/1/HIR/MoE/SC/12 from the Ministry of Higher Education Malaysia and the University of Malaya is also gratefully acknowledged.

Author Contributions

Enis Nadia Md Yusof is the postgraduate student who carried out the research as part of her Masters’ thesis. Thahira Begum S. A. Ravoof is the main supervisor for the Enis Nadia Md Yusof and the research was conducted in her laboratory. Edward R. T. Tiekink is the crystallographer and wrote the crystallographic analysis for this article. Abhimanyu Veerakumarasivam is a molecular geneticist who provided lab facilities and edited the cytotoxic data reported. Karen Anne Crouse contributed to this work by editing and improving on the draft. Mohamed Ibrahim Mohamed Tahir solved the initial crystal data obtained and Haslina Ahmad provided assistance and edited the DNA binding studies section reported in this work.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Torre, M.H.; Gambino, D.; Araujo, J.; Ceretto, H.; González, M.; Lavanggi, M.L.; Azqueta, A.; Cerain, A.L.; Vega, A.M.; Abram, U.; et al. Novel Cu(II) quinoxaline N1,N4-dioxide complexes as selective hypoxic cytotoxins. Eur. J. Med. Chem. 2005, 40, 473–483. [Google Scholar] [CrossRef] [PubMed]
  2. Richardson, D.R.; Bernhardt, P.V. Crystal and molecular structure of 2-hydroxy-1-naphthaldehyde isonicotinoyl hydrazone (NIH) and its iron (III) complex: an iron chelator with anti-tumour activity. J. Biol. Inorg. Chem. 1999, 4, 266–273. [Google Scholar] [CrossRef] [PubMed]
  3. Blanco, A.G.; Sola, M.; Gomis-Rüth, F.X.; Coll, M. Tandem DNA recognition by PhoB, a two-component signal transduction transcriptional activator. Structure 2002, 10, 701–713. [Google Scholar] [CrossRef] [PubMed]
  4. Fukushima, T.; Takata, M.; Morrison, C.; Araki, R.; Fujimori, A.; Abe, M.; Takeda, S. Genetic analysis of the DNA-dependent protein kinase reveals an inhibitory role of Ku in late S–G2 phase DNA double-strand break repair. J. Biol. Chem. 2001, 276, 44413–44418. [Google Scholar] [CrossRef] [PubMed]
  5. Gomathi, V.; Selvameena, R. Synthesis, characterisation and biological studies of complexes of 3D transition metals and with Schiff base derived from sulfadiazine and 2-acetylnaphthalene. Int. J. Recent Sci. Res. 2013, 4, 94–97. [Google Scholar]
  6. Shivakumar, K.; Shashidhar, P.; Vithal Reddy, P.; Halli, M.B. Synthesis, spectral characterisation and biological activity of benzofuran Schiff bases with Co(II), Ni(II), Cu(II), Zn(II), Cd(II) and Hg(II) complexes. J. Coord. Chem. 2008, 61, 2274–2287. [Google Scholar] [CrossRef]
  7. Hunashal, R.D.; Satyanarayana, D. One pot synthesis of 3-(substituted phenoxymethyl)-6-phenyl/substituted phenoxymethyl-1,2,4-triazolo[3,4-b][1,3,4] thiadiazole derivatives as antimicrobial agents. Int. J. Pharm. Biol. Sci. 2012, 3, 183–192. [Google Scholar]
  8. Tarafder, M.T.H.; Ali, M.A.; Wee, D.J.; Azahari, K.; Silong, S.; Crowse, K.A. Complexes of a tridentate ONS Schiff base. Synthesis and biological properties. Transit. Metal Chem. 2000, 25, 456–460. [Google Scholar] [CrossRef]
  9. Dharamraj, N.; Viswanathanmurthi, P.; Natarajan, K. Ruthenium (II) complexes containing bidentate Schiff bases and their antifungal activity. Transit. Metal Chem. 2001, 26, 105–109. [Google Scholar] [CrossRef]
  10. Ejiah, F.N.; Fasina, T.M.; Familoni, O.B.; Ogunsola, F.T. Substituent effect on spectral and antimicrobial activity of Schiff bases derived from aminobenzoic acids. Adv. Biol. Chem. 2013, 3, 475–479. [Google Scholar] [CrossRef]
  11. Pedreño, E.; López-Contreras, A.J.; Cremades, A.; Peñafiel, R. Protecting or promoting effects of spermine on DNA strand breakage induced by iron or copper ions as a function of metal concentration. J. Inorg. Biochem. 2005, 99, 2074–2080. [Google Scholar] [CrossRef] [PubMed]
  12. Routier, S.; Vezin, H.; Lamour, E.; Bernier, J.L.; Catteau, J.P.; Bailly, C. DNA cleavage by hydroxy-salicylidene-ethylendiamine-iron complexes. Nucleic Acids Res. 1999, 27, 4160–4166. [Google Scholar] [CrossRef] [PubMed]
  13. Singh, N.K.; Tripathi, P.; Bharty, M.K.; Srivastava, A.K.; Singh, S.; Butcher, R.J. Ni(II) and Mn(II) complexes of NNS tridentate ligand N′-[(2-methoxyphenyl)carbonothioyl] pyridine-2-carbohydrazide (H2mcph): Synthesis, spectral and structural characterization. Polyhedron 2010, 29, 1939–1945. [Google Scholar] [CrossRef]
  14. Walcourt, A.; Loyevsky, M.; Lovejoy, D.B.; Gordeuk, V.R.; Richardson, D. Novel aroylhydrazone and thiosemicarbazone iron chelators with antimalarial activity against chloroquine resistant and sensitive parasites. Int. J. Biochem. 2004, 36, 401–407. [Google Scholar]
  15. Livingstone, S.E.; Mihkelson, A.E. Metal chelates of biologically important compounds. II. Nickel complexes of dialkyldithiophosphates and their adducts with nitrogen heterocycles. Inorg. Chem. 1970, 9, 2545–2551. [Google Scholar] [CrossRef]
  16. Ali, M.A.; Livingstone, S.E. Metal complexes of sulphur-nitrogen chelating agents. Coord. Chem. Rev. 1974, 13, 101–132. [Google Scholar] [CrossRef]
  17. Subbaraj, P.; Ramu, A.; Raman, N.; Dharmaraja, J. Synthesis, characterization and pharmacological aspects of metal (II) complexes incorporating 4-[phenyl (phenylimino) methyl] benzene-1, 3-diol. J. Coord. Chem. 2014, 67, 2747–2764. [Google Scholar] [CrossRef]
  18. Spielmann, H.; Müller, L.; Averbeck, D.; Balls, M.; Brendler-Schwaab, S.; Castell, J.V.; Vohr, H.W. The second ECVAM workshop on phototoxicity testing. The report and recommendations of ECVAM workshop42. Altern. Lab. Anim. 2000, 28, 777–814. [Google Scholar] [PubMed]
  19. Tarafder, M.T.H.; Jin, K.T.; Crouse, K.A.; Ali, M.A.; Yamin, B.M.; Fun, H.-K. Coordination chemistry and bioactivity of Ni2+, Cu2+, Cd2+ and Zn2+ complexes containing bidentate Schiff bases derived from S-benzyldithiocarbazate and the X-ray crystal structure of bis[S-benzyl-β-N-(5-methyl-2-furylmethylene)dithiocarbazato]cadmium(II). Polyhedron 2002, 21, 2547–2554. [Google Scholar] [CrossRef]
  20. Dilović, I.; Rubčić, M.; Vrdoljak, V.; Pavelić, S.K.; Kralj, M.; Piantanida, I.; Cindrić, M. Novel thiosemicarbazone derivatives as potential antitumor agents: synthesis, physicochemical and structural properties, DNA interactions and antiproliferative activity. Bioorg. Med. Chem. 2008, 16, 5189–5198. [Google Scholar] [CrossRef] [PubMed]
  21. Mohan, M.; Sharma, P.; Jha, N.K. Some metal (II) chelates of 4-(m-aminophenyl)-2-formylpyridine thiosemicarbazone: Their preparation, characterizafion and antitumour activity. Inorg. Chim. Acta 1985, 107, 91–95. [Google Scholar] [CrossRef]
  22. Malhotra, R.; Singh, J.P.; Dudeja, M.; Dhindsa, K.S. Ligational behavior of N-substituted acid hydrazides towards transition metals and potentiation of their microbiocidal activity. J. Inorg. Biochem. 1992, 46, 119–127. [Google Scholar] [CrossRef] [PubMed]
  23. Ali, M.A.; Majumder, S.M.; Butcher, R.J.; Jasinski, J.P.; Jasinski, J.M. The preparation and characterization of bis-chelated nickel (II) complexes of the 6-methylpyridine-2-carboxaldehyde Schiff bases of S-alkyldithiocarbazates and the X-ray crystal structure of the bis {S-methyl-β-N-(6-methylpyrid-2-yl)-methylenedithiocarbazato} nickel(II) complex. Polyhedron 1997, 16, 2749–2754. [Google Scholar] [CrossRef]
  24. Ali, M.A.; Mirza, A.H.; Butcher, R.J. Synthesis and characterization of copper (II) complexes of the methylpyruvate Schiff base of S-methyldithiocarbazate (Hmpsme) and the X-crystal structures of Hmpsme and [Cu(mpsme)Cl]. Polyhedron 2001, 20, 1037–1043. [Google Scholar] [CrossRef]
  25. Ali, M.A.; Mirza, A.H.; Hamid, M.H.S.; Bujang, F.H.; Bernardt, P.V. The preparation and characterization of tin(IV) complexes of 2-quinolinecarboxaldehyde Schiff bases of S-methyl- and S-benzyldithiocarbazates and the X-ray crystal and molecular structures of the 2-quinolinecarboxaldehyde Schiff base of S-benzyldithiocarbazate (Hqaldsbz) and its tin(IV) complex [Sn(qaldsbz)I3]. Polyhedron 2004, 23, 2405–2412. [Google Scholar] [CrossRef]
  26. Ali, M.A.; Tarafder, M.T.H. Metal complexes of sulphur and nitrogen-containing ligands: Complexes of s-benzyldithiocarbazate and a schiff base formed by its condensation with pyridine-2-carboxaldehyde. J. Inorg. Nucl. Chem. 1977, 39, 1785–1791. [Google Scholar] [CrossRef]
  27. Tarafder, M.T.H.; Jin, K.T.; Crouse, K.A.; Ali, M.A.; Yamin, B.M.; Fun, H.-K. Coordination chemistry and bioactivity of some metal complexes containing two isomeric bidentate NS Schiff bases derived from S-benzyldithiocarbazate and the X-ray crystal structures of S-benzyl-β-N-(5-methyl-2-furylmethylene)dithiocarbazate and bis[S-benzyl-β-N-(2-furylmethylketone) dithiocarbazato]cadmium(II). Polyhedron 2002, 21, 2691–2698. [Google Scholar] [CrossRef]
  28. Ali, M.A.; Mirza, A.H.; Fereday, R.J.; Butcher, R.J.; Fuller, J.M.; Drew, S.C.; Gahan, L.R.; Hanson, G.R.; Moubaraki, B.; Murray, K.S. Synthetic, EPR spectroscopic, magnetic and X-ray crystallographic structural studies on copper (II) complexes of the tridentate NS donor ligand formed from 6-methyl-2-formylpyridine and S-methyldithiocarbazate (Hmpsme). Inorg. Chim. Acta 2005, 358, 3937–3948. [Google Scholar] [CrossRef]
  29. Tarafder, M.T.H.; Kasbollah, A.; Crouse, K.A.; Ali, A.M.; Yamin, B.M.; Fun, H.K. Synthesis and characterization of Zn(II) and Cd(II) complexes of S-benzyl-β-N-(2-pyridyl)methylene dithiocarbazate (HNNS): bioactivity of the HNNS Schiff base and its Zn(II), Cu(II) and Cd(II) complexes and the X-ray structure of the [Zn(NNS)2] complex. Polyhedron 2001, 20, 2363–2370. [Google Scholar] [CrossRef]
  30. Shan, S.; Tian, Y.-L.; Wang, S.-H.; Wang, W.-L.; Xu, Y.-L. Benzyl 3-[(E)-benzylidene] dithiocarbazate. Acta Crystallogr. 2008, 64. [Google Scholar] [CrossRef]
  31. Spek, A.L. Single-crystal structure validation with the program PLATON. J. Appl. Crystallogr. 2003, 36, 7–13. [Google Scholar] [CrossRef]
  32. Todorović, T.R.; Bacchi, A.; Juranić, N.O.; Sladić, D.M.; Pelizzi, G.; Božić, T.T.; Anđelković, K.K. Synthesis and characterization of novel Cd (II), Zn (II) and Ni (II) complexes with 2-quinolinecarboxaldehyde selenosemicarbazone. Crystal structure of bis (2-quinolinecarboxaldehyde selenosemicarbazonato) nickel (II). Polyhedron 2007, 26, 3428–3436. [Google Scholar] [CrossRef]
  33. Bharti, N.; Athar, F.; Maurya, M.R.; Azam, A. Synthesis, characterization and in vitro anti-amoebic activity of new palladium (II) complexes with 5-nitrothiophene-2-carboxaldehyde N (4)-substituted thiosemicarbazones. Bioorg. Med. Chem. 2004, 12, 4679–4684. [Google Scholar] [CrossRef] [PubMed]
  34. Singh, V.P.; Singh, P.; Singh, A.K. Synthesis, structural and corrosion inhibition studies on cobalt (II), nickel (II), copper (II) and zinc (II) complexes with 2-acetylthiophene benzoylhydrazone. Inorg. Chim. Acta 2011, 379, 56–63. [Google Scholar] [CrossRef]
  35. Singh, K.; Barwa, M.S.; Tyagi, P. Synthesis and characterization of cobalt (II), nickel (II), copper (II) and zinc (II) complexes with Schiff base derived from 4-amino-3-mercapto-6-methyl-5-oxo-1, 2,4-triazine. Eur. J. Med. Chem. 2007, 42, 394–402. [Google Scholar] [CrossRef] [PubMed]
  36. Barton, J.K.; Danishefsky, A.; Goldberg, J. Tris (phenanthroline) ruthenium (II): Stereoselectivity in binding to DNA. J. Am. Chem. Soc. 1984, 106, 2172–2176. [Google Scholar] [CrossRef]
  37. Tysoe, S.A.; Morgan, R.J.; Baker, A.D.; Strekas, T.C. Spectroscopic investigation of differential binding modes of Δ and Δ-Ru(bpy)2(ppz)2+ with calf thymus DNA. J. Phys. Chem. 1993, 97, 1707–1711. [Google Scholar] [CrossRef]
  38. Kelly, J.M.; Tossi, A.B.; McConnell, D.J.; OhUigin, C. A study of the interactions of some polypyridylruthenium (II) complexes with DNA using fluorescence spectroscopy, topoisomerisation and thermal denaturation. Nucleic Acids Res. 1985, 13, 6017–6034. [Google Scholar] [CrossRef] [PubMed]
  39. Sangeetha Gowda, K.R.; Bhojya Naik, H.S.; Vinay Kumar, B.; Sudhamani, C.N.; Sudeep, H.V.; Ravikumar Naik, T.R.; Krishnamurthy, G. Synthesis, antimicrobial, DNA-binding and photonuclease studies of Cobalt(III) and Nickel(II) Schiff base complexes, Spectrochim. Acta Mol. Biomol. Spectrosc. 2013, 105, 229–237. [Google Scholar] [CrossRef]
  40. Wu, B.Y.; Gao, L.H.; Duan, Z.M.; Wang, K.Z. Syntheses and DNA-binding studies of two ruthenium(II) complexes containing one ancillary ligand of bpy or phen: [Ru(bpy)(pp[2,3]p)2](ClO4)2 and [Ru(phen)(pp[2,3]p)2](ClO4)2. J. Inorg. Biochem. 2005, 99, 1685–1691. [Google Scholar] [CrossRef] [PubMed]
  41. Long, E.C.; Barton, J.K. On demonstrating DNA intercalation. Acc. Chem. Res. 1990, 23, 271–273. [Google Scholar] [CrossRef]
  42. Kovala-Demertzi, D.; Miller, J.R.; Kourkoumelis, N.; Hadjikakou, S.K.; Demertzis, M.A. Palladium(II) and platinum(II) complexes of pyridine-2-carbaldehyde thiosemicarbazone with potential biological activity. Synthesis, structure and spectral properties. Extended network via hydrogen bond linkages of [Pd(PyTsc)Cl]. Polyhedron 1999, 18, 1005–1013. [Google Scholar] [CrossRef]
  43. Ravoof, T.B.S.A.; Crouse, K.A.; Tahir, M.I.M.; How, F.N.F.; Rosli, R.; Watkins, D. Synthesis, characterisation and biological activities of 2-methylbenzyl 2-(dipyridin-2-yl methylene)hydrazinecarbodithioate. J. Chem. Crystallogr. 2011, 41, 491–495. [Google Scholar] [CrossRef]
  44. CrysAlis, P.R.O. Agilent Technologies; Yarnton: Oxfordshire, UK, 2011. [Google Scholar]
  45. Sheldrick, G.M. A short history of SHELX. Acta Crystallogr. Sect. A 2008, 64, 112–122. [Google Scholar] [CrossRef]
  46. Farrugia, L.J. WinGX and ORTEP for Windows: An update. J. Appl. Crystallogr. 2012, 45, 849–854. [Google Scholar] [CrossRef]
  47. Gans, J.; Shalloway, D. Qmol: A program for molecular visualization on Windows-based PCs. J. Mol. Graph. Model. 2001, 19, 557–559. [Google Scholar] [CrossRef] [PubMed]
  48. Brandenburg, K. Diamond; Crystal Impact GbR: Bonn, Germany, 2006. [Google Scholar]
  49. Mosmann, T. Rapid colorimetric assay for cellular growth and survival: Application to proliferation and cytotoxicity assays. J. Immunol. Methods 1983, 65, 55–63. [Google Scholar] [CrossRef] [PubMed]
  50. Badiger, D.S.; Hunoor, R.S.; Patil, B.R.; Vadavi, R.S.; Mangannavar, C.V.; Muchchandi, I.S.; Gudasi, K.B. Synthesis, spectroscopic properties and biological evaluation of transition metal complexes of salicylhydrazone of anthranilhydrazide: X-ray crystal structure of copper complex. Inorg. Chim. Acta 2012, 384, 197–203. [Google Scholar] [CrossRef]
  51. Reichmann, M.E.; Rice, S.A.; Thomas, C.A.; Doty, P. A further examination of the molecular weight and size of desoxypentose nucleic acid. J. Am. Chem. Soc. 1954, 76, 3047–3053. [Google Scholar] [CrossRef]
  52. Chaires, J.B.; Dattagupta, N.; Crothers, D.M. Studies on interaction of anthracycline antibiotics and deoxyribonucleic acid: Equilibrium binding studies on the interaction of daunomycin with deoxyribonucleic acid. Biochemistry 1982, 21, 3933–3940. [Google Scholar] [CrossRef] [PubMed]
Back to TopTop
