Int. J. Mol. Sci. 2014, 15(9), 15377-15395;

Biosurfactant-and-Bioemulsifier Produced by a Promising Cunninghamella echinulata Isolated from Caatinga Soil in the Northeast of Brazil
Master's Course in Development of Environmental Processes, Catholic University of Pernambuco, 50050-900 Recife, PE, Brazil
Academic Unit of Serra Talhada-UAST, Federal Rural University of Pernambuco, 56900-000 Serra Talhada, PE, Brazil
Department of Biology, Federal Rural University of Pernambuco, 52171-900 Recife, PE, Brazil
Nucleus of Research in Environmental Sciences and Biotechnology, Catholic University of Pernambuco, 50050-590 Recife, PE, Brazil
Author to whom correspondence should be addressed.
Received: 25 February 2014; in revised form: 22 May 2014 / Accepted: 21 July 2014 / Published: 1 September 2014


A Mucoralean fungus was isolated from Caatinga soil of Pernambuco, Northeast of Brazil, and was identified as Cunninghamella echinulata by morphological, physiological, and biochemical tests. This strain was evaluated for biosurfactant/bioemulsifier production using soybean oil waste (SOW) and corn steep liquor (CSL) as substrates, added to basic saline solution, by measuring surface tension and emulsifier index and activity. The best results showed the surface water tension was reduced from 72 to 36 mN/m, and an emulsification index (E24) of 80% was obtained using engine oil and burnt engine oil, respectively. A new molecule of biosurfactant showed an anionic charge and a polymeric chemical composition consisting of lipids (40.0% w/w), carbohydrates (35.2% w/w) and protein (20.3% w/w). In addition, the biosurfactant solution (1%) demonstrated its ability for an oil displacement area (ODA) of 37.36 cm2, which is quite similar to that for Triton X-100 (38.46 cm2). The stability of the reduction in the surface water tension as well as of the emulsifier index proved to be stable over a wide range of temperatures, in pH, and in salt concentration (4%–6% w/v). The biosurfactant showed an ability to reduce and increase the viscosity of hydrophobic substrates and their molecules, suggesting that it is a suitable candidate for mediated enhanced oil recovery. At the same time, these studies indicate that renewable, relatively inexpensive and easily available resources can be used for important biotechnological processes.
Cunninghamella echinulata; agroindustrial substrates; biosurfactant; bioemulsifier; spread oil; reduction in viscosity; polymeric molecule

1. Introduction

Biosurfactants were first discovered as extracellular compounds of fermentation by bacteria but which have both clearly defined hydrophilic and hydrophobic groups. Initially they were regarded as interesting due to their ability to increase the solubility of insoluble or poorly soluble hydrocarbons. They occur in nature in bacteria, yeasts, and filamentous fungi [1].
However, there are few filamentous fungi that produce biosurfactants from renewable sources. An overview of biosurfactants produced by reported bacterial species is well investigated, however relatively fewer fungi are known to produce biosurfactants [2]. Among fungi, Candida bombicola [3,4,5,6], Candida lipolytica [7,8,9], Candida sphaerica [10,11], Candida ishiwadae [12], Candida batistae [13], Aspergillus ustus [14], Ustilago maydis [15], and Trichosporon ashii [16] have been investigated. Many of these are known to produce biosurfactants from low cost raw materials. The four main classes of biosurfactant are: (a) glycolipids; (b) phospholipids; (c) lipoproteins or lipopeptides; and (d) polymeric biosurfactants. The best known glycolipids produced by these strains are sophorolipids [2].
Biosurfactants are amphiphilic surface active compounds produced by a variety of micro-organisms, with an attractive and environmentally acceptable industrial market due to their properties, and are mainly applied in enhanced oil recovery [17].
Biosurfactants are considered superior to chemically synthetic products due to their origin, structural diversity, greater substrate selectivity, low critical micelle concentration, biodegradability and low toxicity. In recent years, these advantageous features and biomolecules have gained prominence in the therapeutic and biomedical sector, and are used in pharmacological and dermatological products, and in the agricultural, food and cosmetics industries [18,19]. Biosurfactants have properties such as antimicrobial activity, and anti-adhesive activity against pathogenic microorganisms [20,21].
The chemical compositions of biosurfactants are described as glycolipids, lipopeptides, phospholipids, fatty acids, lipopolysaccharides, protein complexes, neutral lipids, and polymers [19,22].
Biosurfactants are considered extracellular secondary metabolites or associated with the cell membrane, the structure of which depends on the ratio of carbon and nitrogen sources. This has a strong influence on total production [21,23].
Patents on producing biosurfactants at an industrial level have increased, as have those that exploit the biodiversity of microorganisms for biotensioactive production, or to produce bioemulsifiers from renewable sources [20,24,25].
However, the use of these biomolecules is limited since the cost of production is high, and the production potential is low [9,26,27]. In order to raise the productivity of biosurfactant, several researchers have suggested: optimizing the bioprocess; statistical methods; using low cost, raw materials; and noted that greater availability of waste varies from country to country [25,28,29].
Thus, the literature affirms that the successful production of a tensioactive material depends on the use of renewable substrates from biotechnological processes as this cuts total costs by around 50%, despite the purification process being another obstacle to producing these compounds from a microbial origin [11,30,31,32].
In this study, an isolate of indigenous fungus from Caatinga soil of Pernambuco, Brazil is shown to be capable of producing a new biosurfactant/bioemulsifier molecule. The isolated fungus was identified by morphological and physiological studies and biosurfactant/bioemulsifier production was investigated using corn steep liquor (CSL) and soybean oil waste (SOW) which are agroindustrial wastes. In addition, some properties of the biosurfactant/bioemulsifier were investigated to confirm what the commercial prospects are and their applicability.

2. Results and Discussion

2.1. Description of the Isolate of Cunninghamella echinulata

The isolated fungus from caatinga soil was seen to have pale cream to light brown, cottony colonies; its sporophores present primary monopodial, pseudoverticilate, rarely verticillate branches; Long and short ramifications can arise from the same sporophore, which can form single branches or be branched several times. Two types of sporangioles were observed: (1) subhialines or hyaline, ellipsoid equinulates with some punctates in one end, 8.5 to 17.5−21.5 × 7 to 13.5−15.5 µm or globose (8−14.5 µm in diameter); (2) sporangioles, in common, only globose, 8.5 to 19.5−27 µm in diameter which were obviously equinulates and dark, giant, long, thin spines in older cultures. The fungus was identified as C. echinulata (Thaxt.) Thaxt. ex Blakeslee, as per Zeng and Chen [33].
Figure 1. Light microscopic and macroscopic characteristics of Cunninghamella echinulata isolated from Caatinga soil of Northeastern Brazil. Photographes of light microscopy (A) and growth on Sabouraud dextrose agar (B).
Figure 1. Light microscopic and macroscopic characteristics of Cunninghamella echinulata isolated from Caatinga soil of Northeastern Brazil. Photographes of light microscopy (A) and growth on Sabouraud dextrose agar (B).
Ijms 15 15377 g001
Cunninghamella echinulata colonies display fast-growing at temperatures of 28 to 45 °C, develop well at pH 4, 7 and 9, and have a salinity level of up to 15%. The growth of the colony has a velvety appearance with a white coloring, as does the reverse of the colony. The light microscopy culture showed hyphae without septum, many vesicles, and single and short sporophores; its features can be observed in Figure 1A,B and these data are in agreement with that found in the literature [34,35].

2.2. Time-Course of Growth, Carbohydrate Consumption, pH, and Biosurfactant Production

In this study, two residues—corn steep liquor (CSL) and soybean oil waste (SOW)—were used as carbon and nitrogen sources in the saline solution to produce biosurfactant by C. echinulata, grown within 96 h, using a full 22 factorial design, with its dependent and independent variables and their values. The results demonstrated that the fungus had the ability to reduce surface tension, and the best condition was confirmed using SOW (3% w/v) and CSL (4% w/v) and NaCl (7% w/v), described in Table 1. From this selected condition, all analyses to investigate the biosurfactant production were performed.
According to the literature, there are few fungi that can be effective in reducing surface tension in relation to bacteria such as Pseudomonas aeruginosa and Bacillus subtilis, which have the most significant results with regard to reducing such tension. However, yeasts demonstrate consistent values of tensioactives [2,36]. The best biosurfactant production achieved by Fusarium sp was BS-8 and this reduced the water surface tension from 72 to 32 mN/m under the condition pH 7.0, temperature 30 °C [37].
The carbon and nitrogen sources, in addition to the association with the basic solution of salts and trace elements, influenced the type and properties of biosurfactants, such as biomass accumulation. The literature describes various alternative hydrophilic and hydrophobic substrates, such as additional sources of carbon and nitrogen for synthesizing biomolecules. In this study, similar conditions were used, namely SOW as hydrophobic and CSL as hydrophilic substrates [38,39,40].
The study demonstrated a profile of growth in the first 48 h, with slight modifications until the end of cultivation (Table 1). The fungus is able to use the vegetable oil (SOW) as a carbon source that provides additional effect to biomass and the process of inducing biosurfactant production. The literature reports that biosurfactant production occurred by activating the genes responsible for their biosynthesis, and also by providing fatty acids that lengthen the lipid chain in the hydrophobic domain [41].
Table 1. Time-course of growth, pH, carbohydrate consumption and biosurfactant production using industrial wastes (corn steep liquor—CSL and soybean oil waste—SOW).
Table 1. Time-course of growth, pH, carbohydrate consumption and biosurfactant production using industrial wastes (corn steep liquor—CSL and soybean oil waste—SOW).
Time (h)Biomass (g·L−1)pHCarbohydrate Consumption (g·L−1)* Biosurfactant Surface Tension (mN/m)
* Surface tension of water: 72 mN/m and the average was 65 mN/m.
The growth in the first 48 h of culture reached a maximum value of 30.0 g·L−1, and slightly increased thereafter until 96 h. The surface tension decreased at 48 h of growth with values less than 40 mN/m, and continuously decreased to 36.0 mN/m. The pH is a factor that also determines the production of biomolecules, scales ranged from Candida species 5.0, 5.7, 6.0 and 7.8. However, Pichia anamola and Aspergillus ustus MFS3 showed maximum production with values in 7.0 and 5.5 pH, respectively. Thus, the production of tensioactives becomes feasible if it is possible to use low cost substrates that enable the biotechnological process [2,13,14,37,38,39].
The production of the biosurfactant is also influenced by the length of incubation, and various microorganisms are able to produce at different intervals of time as observed for Aspergillus ustus after 5 days, Fusarium sp. BS after 8 to 15 days, and Candida bombicola after 7 to 11 days of incubation [1,37,42].
The C. echinulata growth in such working conditions is related to the consumption of the sources offered by SOW and CSL residues. At the same time, the production of biosurfactant showed the surface tension reduced gradually during the 96 h of cultivation (Table 1).
Figure 2 illustrates the Pareto chart, with a 95% confidence level, for the estimated effects of CSL and SOW in reducing the surface tension. It was seen that the interaction of the two substrates CSL (hydrophilic) and SOW (hydrophobic) at 3% SOW and 4% CSL, and 7% of NaCl had a significant influence on reducing the surface tension. Both substrates were statistically significant for biosurfactant production by C. echinulata. These results are in accordance with the literature that affirms that physiological biosurfactant production is associated with the assimilatory mechanism in response to exposure to hydrophobic substrates [1,2,17].

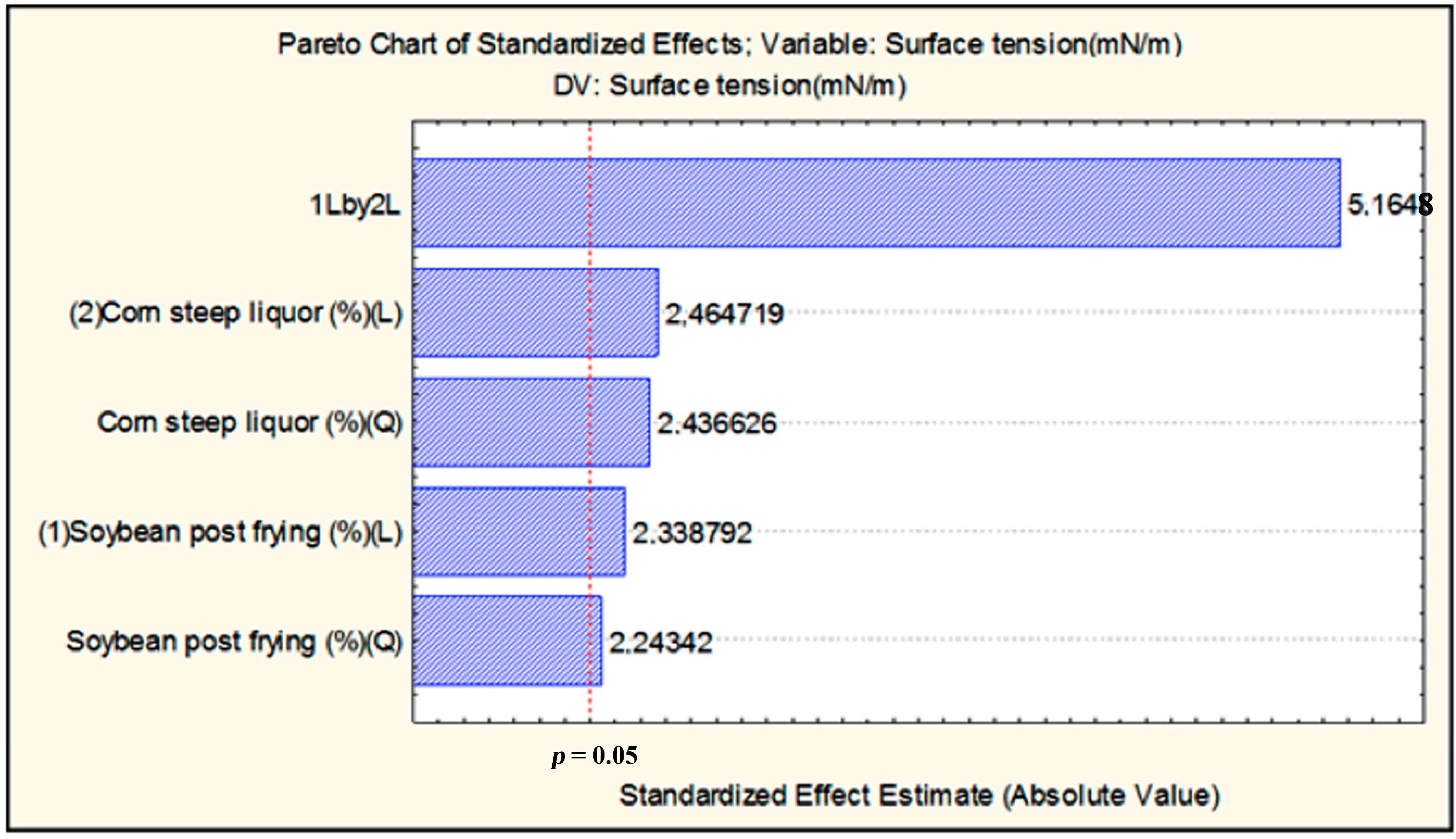

Figure 2. Pareto Chart of standardized effects of the cell-free broth by Cunninghamella echinulata after 96 h of cultivation for the 22 full experimental factorial designs on surface tension. The point estimates the statistical significance (at p = 0.05).
Figure 2. Pareto Chart of standardized effects of the cell-free broth by Cunninghamella echinulata after 96 h of cultivation for the 22 full experimental factorial designs on surface tension. The point estimates the statistical significance (at p = 0.05).
Ijms 15 15377 g002

2.3. Emulsification Characteristic of the Biosurfactant

During the past two decades, biosurfactants have been under continuous investigation as a potential replacement for synthetic surfactants. Due to their having properties such as biodegradability, environmental compatibility, low toxicity, high selectivity and specific activity at extreme temperatures, pH and salinity, they have steadily gained in significance in industrial and environmental applications such as bioremediation, soil washing, enhanced oil recovery and other general oil processing and related industries [22,23,24,25,28,30].
Amiriyan et al. [39] suggested that emulsifier activity depends on the affinity of bioemulsifier for hydrocarbon substrates which involves a direct interaction with itself rather than an effect on surface tension of the medium. In the present study, a consistent emulsion was formed with the hydrophobic substrates of burnt engine oils and engine oils, and showed values above 80%. However, the vegetable oils of canola and soybean showed values near 60% (Figure 3). The supplementary Figure S1 was used as control of emulsification activity by culture medium; and the Figure S2 showed stable emulsion to four hydrophobic substrates using the CMC (20 g/L) of the isolate biosurfactant produced by C. echinulate forming 65%, 70%, 80% and 85% index (E24) to soybean oil, canola oil, motor oil and burnet motor oil, respectively.
Among the various bioactive compounds, biosurfactant (BS)/bioemulsifiers (BE) are attracting major interest and attention due to their structural and functional diversity. Our results show the bioemulsifier (BE) property of the biosurfactant (BS) produced by C. echinulata, a compound which compound comprises the polar and nonpolar moieties of the molecule and is able to emulsify biphasic systems (water and oil). The emulsification values obtained were compatible with those of the fungal and bacterial bioemulsifiers described in the literature [2,9,10,37,43].

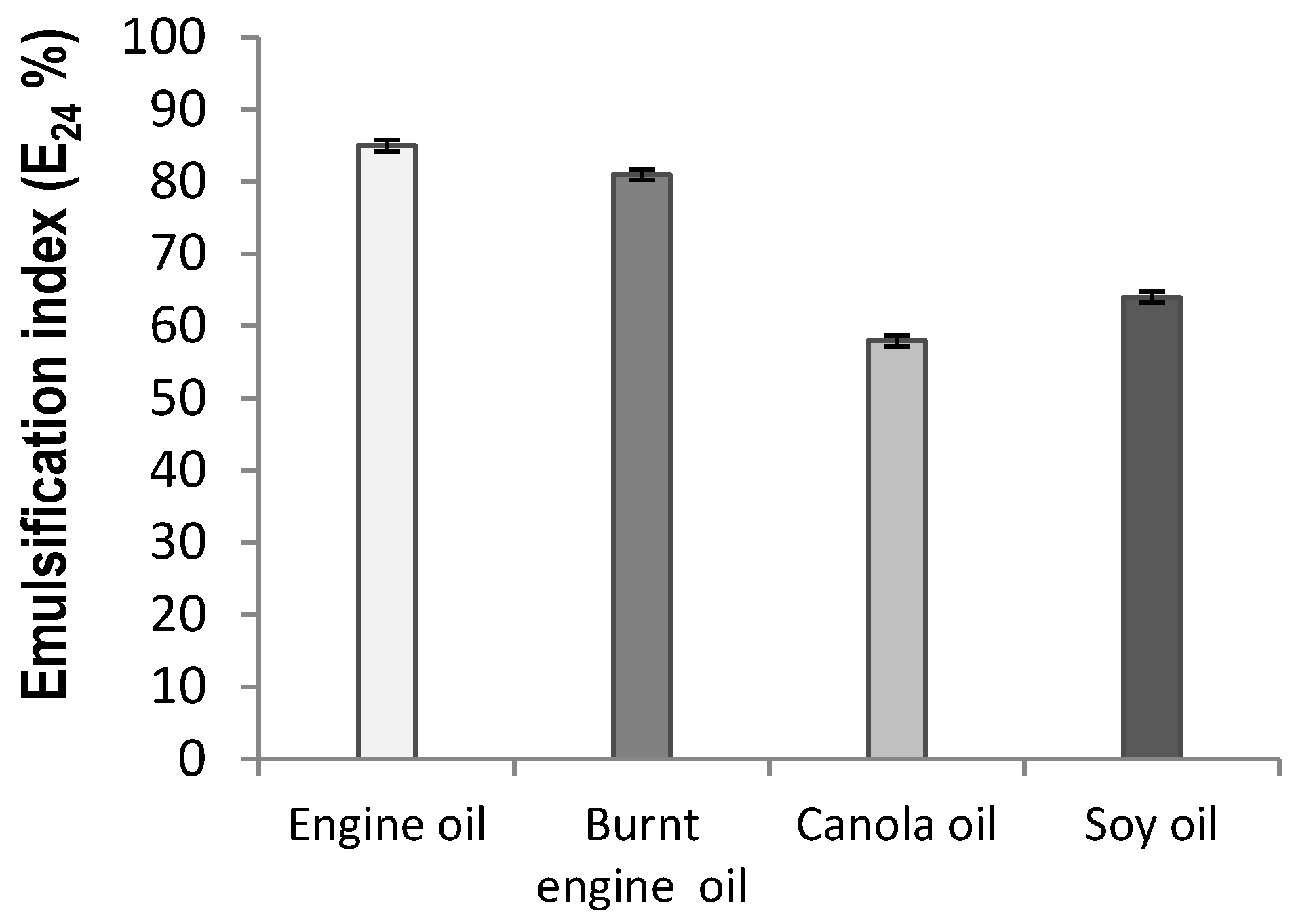

Figure 3. Emulsifier Index (E24) of the biosurfactant produced by Cunninghamella echinulata using corn steep liquor (CSL) and soybean oil waste (SOW) tested with engine oil, burnt engine oil, canola and soy oil.
Figure 3. Emulsifier Index (E24) of the biosurfactant produced by Cunninghamella echinulata using corn steep liquor (CSL) and soybean oil waste (SOW) tested with engine oil, burnt engine oil, canola and soy oil.
Ijms 15 15377 g003

2.4. Stability Studies

As observed in Figure 4A–C and Figure 5A–C, the biosurfactant stability results of some of these results are quite impressive compared to those of the most potent biosurfactant described in the literature [44,45,46].
The stability of the surface tension and emulsifier index are important factors for using biosurfactants under specific environmental conditions. The ability to reduce the surface and interfacial tension is a key parameter for detecting the production of surface-active compounds. On the other hand, the formation of emulsion is also an indicator of the emulsifier property of isolated biosurfactant [47,48,49].
The effects of temperature, pH and salinity concentration are factors that influenced the activity and stability of the emulsifier index and surface tension due to the presence of their functional groups and are important properties of the biosurfactant produced by C. echinulata (Figure 4 and Figure 5). These results obtained for biosurfactant produced by C. echinulata showed that the cell-free broth was thermally stable. When the pH was gradually increased, there was a noticeable stability in the surface tension value until pH 12 was observed. The cell-free broth of C. echinulata was adjusted for various pH in the range 2–12 at room temperature, following which the surface activities were measured. The surface tensions remained practically uniform at all pHs, indicating that variation in pH had no appreciable effect on surface tension or the emulsifier index.
Figure 4. Stability of surface tension of biosurfactant produced by Cunninghamella chinulata using corn steep liquor (CSL) and soybean oil waste (SOW). Influence of pH (A); temperature (B); and sodium chloride concentrations (C) on surface tension stability.
Figure 4. Stability of surface tension of biosurfactant produced by Cunninghamella chinulata using corn steep liquor (CSL) and soybean oil waste (SOW). Influence of pH (A); temperature (B); and sodium chloride concentrations (C) on surface tension stability.
Ijms 15 15377 g004
However, a small change was observed at pH 12 which must be the consequence of the desnaturation of proteinaceous compounds of the biosurfactant under extreme pH, as suggested by Ghurye et al. [50]. However, the variations in salt concentration values were stable at 8% and 10%. Similar behaviors regarding stability were also observed for the biosurfactants produced by Fusarium sp [37], Candida lipolytica [8], and Candida sphaerica [11]. Changes were observed with the increase of sodium chloride effects.
The stability of the biosurfactant C. echinulata at different temperatures was tested and demonstrated to be stable during one hour of incubation at 0–100 °C as shown in Figure 4B. The stability was maintained in both oils at 5 °C, using the engine oil, and showed a maximum efficiency of 80% while increasing the temperature decreases the index. However, the burnt engine oil results showed a maximum efficiency of over 60% when the temperature reached 100 °C.

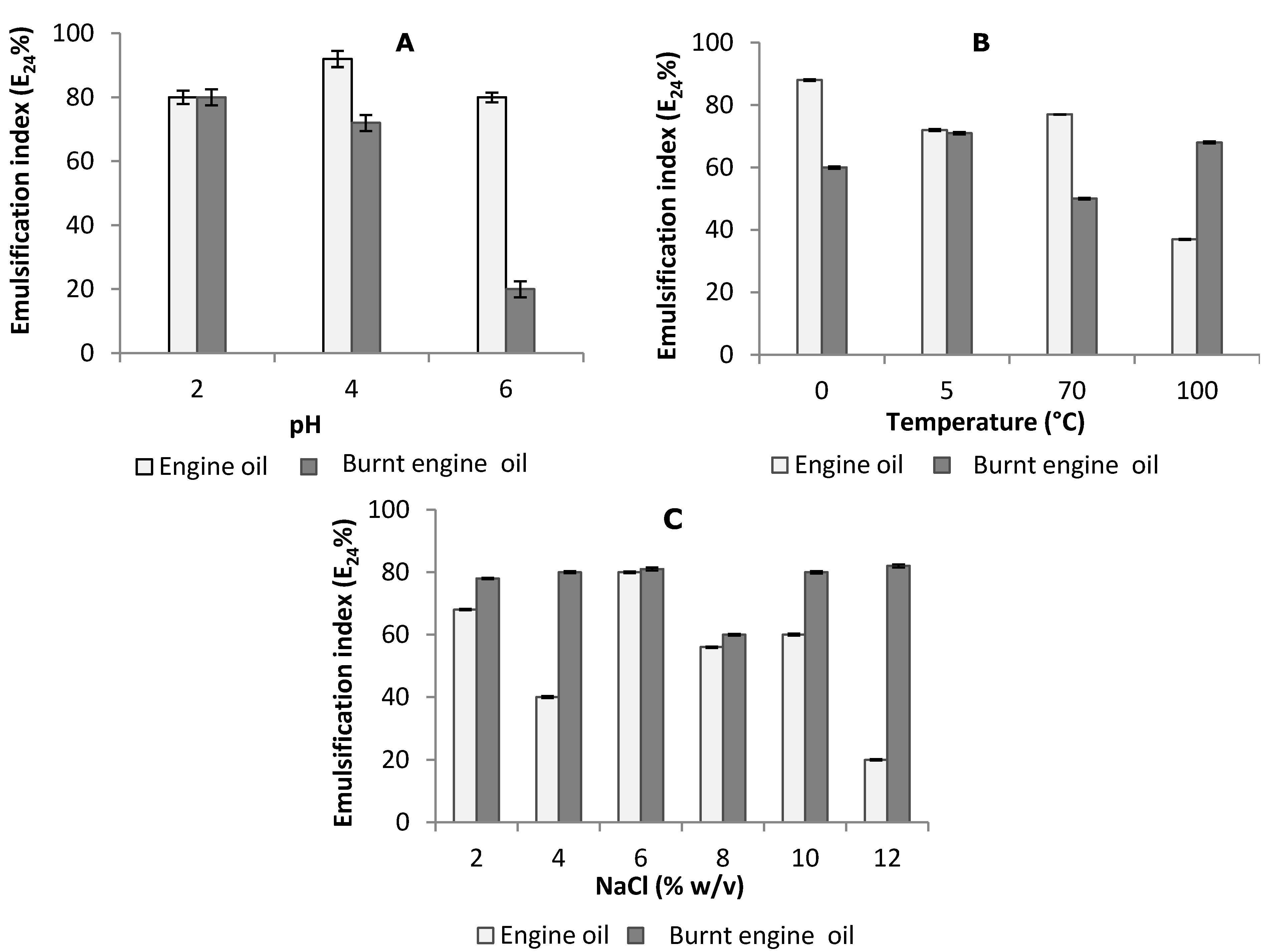

Figure 5. Stability of bioemulsifier of the biosurfactant produced by Cunninghamella echinulata using CSL (corn steep liquor) and SOW (soybean oil waste). Studies of the effect of pH (A); temperature (B); and sodium chloride concentrations (C) on emulsifier index (E24).
Figure 5. Stability of bioemulsifier of the biosurfactant produced by Cunninghamella echinulata using CSL (corn steep liquor) and SOW (soybean oil waste). Studies of the effect of pH (A); temperature (B); and sodium chloride concentrations (C) on emulsifier index (E24).
Ijms 15 15377 g005
At different NaCl concentrations, the biosurfactant was stable throughout the emulsification activity. Values correspond to 50% of burnt motor oil, although the engine oil showed values lower than 40% in the concentrations of 4 and 12. The major increase of biosurfactant emulsification for the two oils (engine and burnt engine) suggested that this depends on the affinity for substrates, as shown in Figure 5C. The results obtained for the emulsification index are corroborated as is the interaction of the hydrophobic portion of the biosurfactant with hydrocarbon substrates, according to Shavandi et al. [51].

2.5. Yield, CMC, Ionic Charge and Preliminary Chemical Composition of Biosurfactant

The results obtained showed a higher yield of 4.0 g·L−1 of isolated biosurfactant produced by C. echinulata. These results show that the Mucoralean fungus C. echinulata is an excellent tensioactive/bioemulsifier producer, when compared with fungi mentioned as producing biosurfactant from renewable sources such as glycerol, oleic acid and other wastes [1,3,52].
The chemical characterization of the isolate molecule of the biosurfactant showed the presence of lipids (40%), carbohydrates (35.2%) and proteins (20.3%). The biosurfactant showed an anionic profile by Zeta meter with −64.9 ZPmv, 4.13 μS/cm at 26.4 °C, full scale. The zeta potential determines the function of the surface charge of the particle that serves to predict and control the stability of colloidal suspensions and emulsions, and confirmed the higher values obtained, indicating good stability by repulsion between hydrophilic particles, as per the literature [45,47,53].
The critical micelle concentration (CMC) is the minimum biosurfactant concentration needed to reduce the surface tension to the maximum extent. The biosurfactant from C. echinulata showed a great capacity for reducing surface tension since the water surface tension was reduced from 70 to 36 mN/m when the CMC was increased to 20 g/L (Figure 6). Above this point, increasing the biosurfactant concentration did not lead to further reductions in water surface tension, thus indicating that the CMC had been reached. The results obtained show that the biosurfactant produced by C. echinulata possesses an increased capacity to reduce tension as compared to the biosurfactants produced by yeasts [2,8,9,10,11].

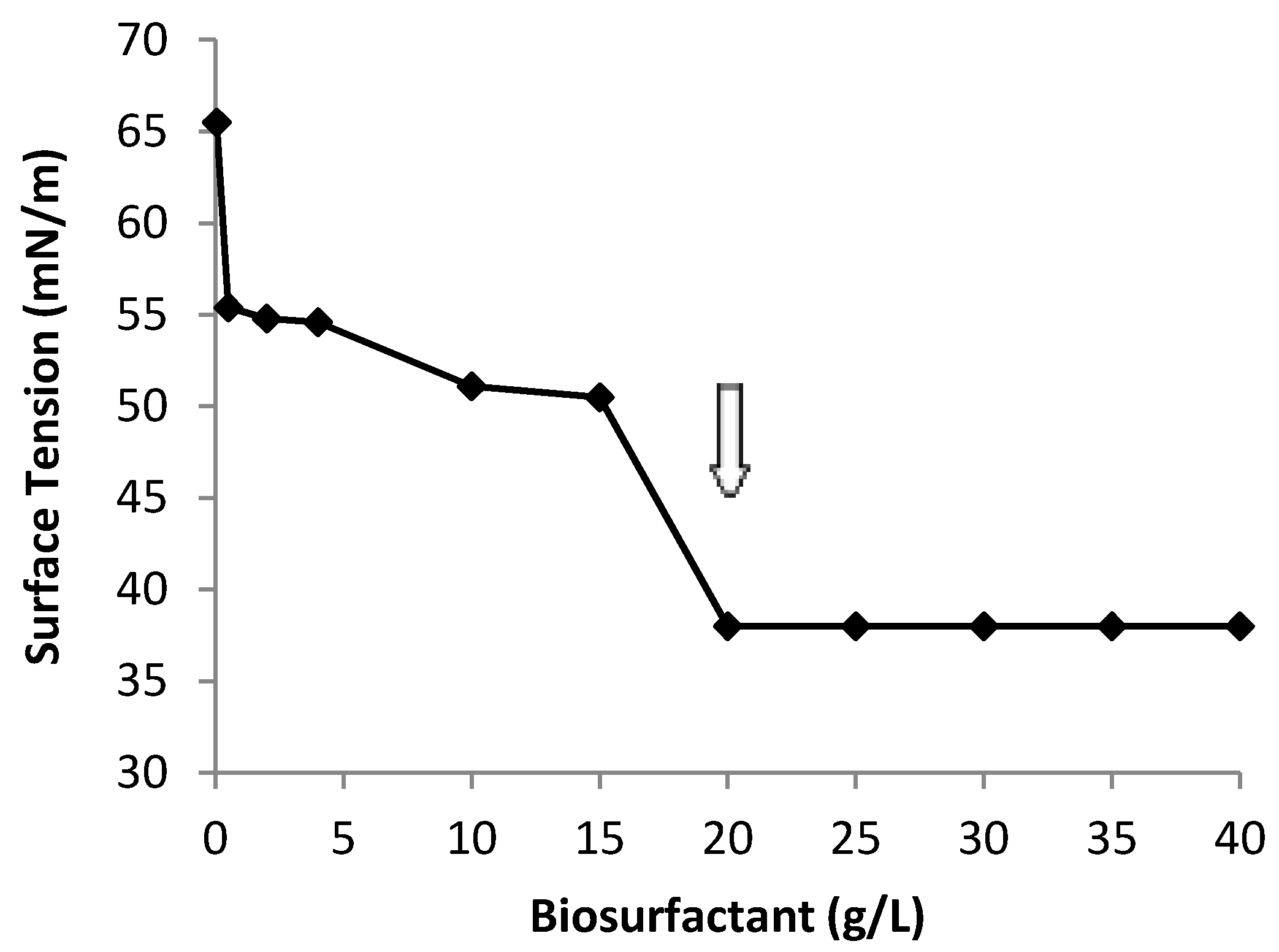

Figure 6. Surface tension versus concentration of isolated biosurfactant produced by Cunninghamella echinulata grown in soybean oil waste (SOW) and corn steep liquor (CSL) as substrates, added to basic saline solution on the Critical Micelar Concentration (CMC).
Figure 6. Surface tension versus concentration of isolated biosurfactant produced by Cunninghamella echinulata grown in soybean oil waste (SOW) and corn steep liquor (CSL) as substrates, added to basic saline solution on the Critical Micelar Concentration (CMC).
Ijms 15 15377 g006

2.6. Oil Displacement Area-ODA

Figure 7A–D shows oil displacement area results. These results indicated a low area was formed when water was added, corresponding to 0 (Figure 5A), using commercial detergent resulted in 19.52 cm2 (Figure 5B), the use of Triton X-100 (1%) in 38.46 cm2, (Figure 5C), and the application of the biosurfactant produced by C. echinulata (1%) in a 37.36 cm2 oil displacement area (Figure 5D). However, there is little information about oil displacement areas (ODA) brought about by biosurfactants produced by filamentous fungi in the literature. However, Bacillus spp. (SH 20 and SH 26) were grown in ISM medium supplemented with vegetable oils but this failed to produce active biosurfactants, while in the presence of molasses they were able to produce surfactants of 51.2 ± 3.5 and 32.1 ± 2.7 cm2 ODA, respectively. The same authors reported that Pseudomonas aeruginosa, grown in ISM medium supplemented with waste oil, was able to produce biosurfactant and an ODA corresponding to 45.3 ± 2.8 cm2 [54].
Figure 7. Oil displacement area formed according to substrates: (A) Burnt engine oil + distilled water; (B) Burnt engine oil + commercial detergent; (C) Burnt engine oil + Triton X-100 (1%); and (D) Burnt engine oil + isolated biosurfactant (1%) produced by Cunninghamella echinulata.
Figure 7. Oil displacement area formed according to substrates: (A) Burnt engine oil + distilled water; (B) Burnt engine oil + commercial detergent; (C) Burnt engine oil + Triton X-100 (1%); and (D) Burnt engine oil + isolated biosurfactant (1%) produced by Cunninghamella echinulata.
Ijms 15 15377 g007

2.7. Effect of the Biosurfactant on Viscosity

We determined the viscosity in Engine oil, Burnt Engine oil, Diesel, Biodiesel, Canola oil, Corn oil, Soybean oil, Soybean waste oil, Sunflower oil, Palm oil, Rice oil, Mineral oil and Water (Control) isolate and after adding biosurfactant isolate from C. echinulata. The centipoise (cP) and percentage (%) of the hydrophobic substrates was determined before and post solubilisation by using biosurfactant at 1% solution for 30 min. The best results were achieved when biosurfactant was used. Viscosity decreased as follows: Engine oil from 736.6 to 179.0 cP; Diesel from 159.1 to 43.8 cP; Canola oil from 374.0 to 110.9 cP, and Castor oil from 187.9 to 185.4 cP (Table 2).
Table 2. Influence of the biosurfactant produced by Cunninghamella echinulata in the viscosity of hydrophobic substrates
Table 2. Influence of the biosurfactant produced by Cunninghamella echinulata in the viscosity of hydrophobic substrates
Hydrophobic SubstratesViscosity without BiosurfactantViscosity with Biosurfactant
Engine oil 736.659.9179.072.5
Burnt engine oil148.948.3210.787.9
Canola oil374.060.8110.978.5
Corn oil47.638.8404.066.1
Soybean oil472.838.2970.138.9
Soybean waste oil380.161.9556.345.3
Castor oil187.975.1185.461.6
Sunflower oil355.557.6493.340.9
Palm oil403.067.7536.345.1
Rice oil459.974.8461.175.2
Mineral oil27.022.0102.283.3
The viscosity increased after adding biosurfactant as follows: Burnt engine oil from 148.9 to 210.7 cP; Biodiesel from 36.0 to 51.3 cP; Canola oil 374.0 to 110.9 cP; Corn oil from 47.6 to 404.0 cP; Soybean from 472.8 to 970.1 cP; Soybean waste oil from 380.1 to 556.3 cP; Sunflower oil from 355.5 to 493.3 cP; Palm oil from 403.0 to 536.3 cP; Rice oil from 459.9 to 461.1 cP; Mineral oil from 27.0 to 102.2 cP and Water as Control. And sometimes the increase observed is justified because of the oils’ properties, since they are consistent donors. Accordingly, the result of the biosurfactant produced by C. echinulata for cleaning oil contaminated plates is described. The results indicate two mechanisms that increase and decrease the viscosity using hydrophobic substrates when the new biosurfactant solution is used at CMC (20 g/L). The viscosity results suggest the new biosurfactant is a candidate for mediated enhanced oil recovery and other applications when it is necessary to increase viscosity and this is in accordance with the literature [55,56].

3. Experimental Section

3.1. Isolation, Identification and Preservation of the Microorganism

The isolation of the microorganism from Caatinga soil of the Pernambuco, Northeast of Brazil was carried out during the summer period. The isolation was performed using the successive dilution method soil/water (10−1, 10−2, 10−3 and 10−4). The isolation of fungi was carried out using media: Marttin (1.0 g K2HPO4, 0.5 g MgS04; H2O, 5.0 g peptone, 10 g dextrose; 0.03 g Rose Bengal; 16 g agar to 1000 mL of distilled water, with chloramphenicol 0.008%); Sabouraud dextrose agar (peptone 5 g, glucose 20 g, 15 g agar, 1000 mL distilled water, pH 6.5). Plates were incubated at 28 °C until colonies appeared and were then counted. The purified colonies were transferred to new Petri dishes containing a similar medium and incubated at 28 °C, at 5 days. After this period, the monosporic culture was transferred to test tubes containing Sabouraud dextrose agar and preserved at 5 °C. Each experiment was carried out in triplicate. Identification was made using the key to Mucoralean fungi given by [37]. The isolated and identified fungus was preserved by freeze-drying and freezing in glycerol solution.

3.2. Agroindustrial Substrates

The agroindustrial residues were kindly provided from Corn Products, (Cabo, PE, Brazil) (corn steep liquor-CSL) and from street stalls that sell hot food in Recife-PE (soybean waste oil-SOW).

3.3. Culture Conditions and Biosurfactant Production

The isolate of the fungus was inoculated in Petri dishes containing Potato dextrose agar medium and incubated at 28 °C for 72 h until sporulation. After this period, the sporangioles were counted (107/mL) using a hematimeter chamber, and aliquots of 5% (v/v) suspension were inoculated into 250 mL Erlenmeyer flasks containing 100 mL of the medium for biosurfactant production (KH2PO4 2.0 g, MgSO4 1.0 g) and 1 mL/L elements of trace solution was added (FeSO4·7H2O 0.63 mg, MnSO4 0.01 mg, ZnSO4 0.62 mg/L, pH 5.0). The substrates of soybean waste oil (SOW) and corn steep liquor (CSL) were used as agroindustrial substrates, according to factorial designs 22. The flasks were incubated in an orbital shaker at 150 rpm, at 28 °C at 96 h. The cell-free metabolic liquid was obtained from centrifugation at 10,000× g for 15 min, and then filtered.

3.4. Kinetics of Growth and Biosurfactant Production

The growth of strains of C. echinulata was accompanied by a biomass and results were expressed in (g/L). Aliquots were collected at defined intervals of time and submitted to analysis to determine the biomass, total carbohydrate consumption, pH, surface tension, the stability of bioproducts, and to extract and characterize the biosurfactant. All experiments were performed in triplicate.

3.5. Determining the pH

Aliquots of the cell-free metabolic liquid were used to determine pH using an Orion potentiometer (Model 310) (Orion Research Inc., Cambridge, MA, USA).

3.6. Determining the Surface Tension

The surface tension was monitored for biosurfactant production from the cell-free metabolic liquid using a Tensiometer model Sigma 70 (KSV Instruments Ltd., Helsinki, Finland) by the Du Nouy ring method at room temperature (±28 °C), as per Kuyukina et al. [57]. Measurements of surface tension from distilled water and from the conventional medium were used as control.

3.7. Determining the Emulsification Index and Activity

To determine the percentage of emulsification, the samples removed after 96 h fermentation were centrifuged at 10,000× g for 15 min and then analyzed according to the methodology described by Cooper and Goldenberg [58]. 1.0 mL of hydrophobic substrates and 2 mL of cell-free metabolic liquid containing the biosurfactant was added to a graduated tube, and the mixture was vortexed for 2 min. Hydrophobic substrates of engine oil and burnt engine oil were tested. The percentage of emulsification (E24) index is given as percentage of height of emulsified layer (mm) divided by total height of the liquid column (mm).

3.8. Determining the Critical Micelle Concentration (CMC)

The critical micelle concentration of biosurfactant isolated during 96 h of cultivation was determined in aqueous solution. The surface tension was measured on an automatic tensiometer (model Sigma 70 KSV Ltd., Helsinki, Finland) using a platinum-iridium ring. The sample of the isolated biosurfactant was diluted in different concentrations, starting with a minimum concentration of 0.001 mg/mL until reaching the CMC was seen to have produced a surface tension of a constant value. A graph of the percentage concentration of biosurfactant (%)/TS (surface tension) was plotted.

3.9. Determining the Stability of the Biosurfactant

Stability studies were undertaken using the cell-free broth obtained after centrifuging the cultures at 10,000× g for 15 min. Four milliliters of this broth were heated at 0, 5, 70, and 100 °C for 1 h, and cooled to room temperature, after which the surface tension and emulsification activity were measured. The surface tension and emulsification index of the broth were also determined after exposure at the same temperatures. To study the pH stability of the cell-free broth, its pH was adjusted to different pH values (2–12) and the surface tension and emulsification activity were measured. The liquid-culture pH was adjusted with 1 M NaOH. The effect of NaCl concentrations (2%–12%) on reducing the surface tension and emulsification capacity of the cell-free culture broth were also determined. The tests were performed in triplicate.

3.10. Isolation of the Biosurfactant

The biosurfactant produced by C. echinulata was isolated by the precipitation method using the cell-free metabolic liquid with acetone 1:1 (v/v) as per Paraszkiewicz et al. [20]. The precipitate was allowed to stand for 24 h at 4 °C, and after this period was centrifuged at 4000 rpm for 15 min, at 5 °C. The supernatant was discarded and the isolated biosurfactant was submitted to dialysis against deionized water, which was changed every 3 h, for 96 h at 5 °C. The biosurfactant was collected and freeze-dried [51].

3.11. Characterization of the Biosurfactant

Protein content in the isolated biosurfactant was estimated by total protein test kit from Labtest Diagnostica S.A., Minas Gerais, Brazil. The total carbohydrate content was estimated by the phenol-sulphuric acid method [59]. The lipid content was determined according to Manocha et al. [60].

3.12. Ionic Charge and Viscosity

The ionic charge of the biosurfactant was determined by using a Zeta potentiometer model ZM3-D-G, Zeta Meter System 3.0+, with direct images to the video of the Zeta Meter, San Francisco, CA, USA. The top row was filled with a pure compound of a known ionic charge. The substance is known as anionic sodium dodecyl sulfate (SDS) at a concentration of (0.02 M) cationic substance and barium chloride (0.05 M). The Petri dish was kept at room temperature for 48 h. The result was calculated when the precipitation lines appear, as per Meylheuc et al. [61].

3.13. Oil Spread Test (Oil Displacement Area-ODA)

The oil spreading test was carried out using the methodology described by Diab and El Din [54] in order to evaluate the effect of the biosurfactant on the oil displacement area. Twenty milliliter of burnt engine oil was placed on each Petri dish (9 mm diameter), and this was followed by spreading 1 mL of distilled water (A), 1 mL of commercial detergent (B), 1 mL of synthetic surfactant Triton X-100 (C), and 1 mL of crude biosurfactant produced by by Cunninghamella echinulata (D) in the centre of a film of oil. The Petri dishes were incubated at room temperature (28 °C) for 24 h. After this period, the diameters of clear zones of the assays were measured in cm2. Distilled water was used as control. All data were reported as the range of triplicate samples. The diameter of the clear zone formed was calculated as an oil displacement area (ODA) according to Morikawa et al. [62] using the following equation [60]: ODA = 22/7 (radius)2 cm2.

3.14. Determining Oil Viscosity

In order to investigate the effects that the biosurfactant produced on the viscosity, tests were carried out at a fixed volume of 6 mL. These viscosities were measured at 25 °C using a standard viscometer (Brookfield (Middleboro, MA, USA) TC 500). The hydrophobic substrates of Engine oil, burned engine oil, Diesel, Biodiesel, Corn oil, Coconut oil, Mineral oil, Soybean oil, Soybean post-frying oil and water as control were tested. In the same sequence as the hydrophobic substrates we added 2 mL of biosurfactant solution at 1.0% (w/v), which was vortexed for 1 min. and the viscosity was measured again. The viscosity results were expressed in cP and %.

3.15. Statistical Analysis

In order to verify the effect of independent variables (the concentrations of industrial residues, corn steep liquor-CSL and soybean oil waste-SOW) on biosurfactant production, a complete factorial design 22, with three central values, was used (Table 3). The results were then examined to determine the main effects of all factors and tests were performed to determine which factors are statistically significant. Analysis and graphs of the data, and all calculations were performed using the Statistica version 7.0 software package (Statsoft Inc., Tulsa, OK, USA), and the significance of the results was tested at (p ≤ 0.05).
Table 3. Level and factors applied to the factorial design compound 22.
Table 3. Level and factors applied to the factorial design compound 22.
Soybean oil waste (SOW) (%)0.623.006.5010.0012.38
Corn steep liquor(CSL) (%)2.644.

4. Conclusions

The new biosurfactant produced by the Mucoralean fungus C. echinulata, besides being a good surfactant, has attractive properties as a tensioactive and emulsifier compound. The biosurfactant has several properties and it is not affected by temperature, pH, nor the sodium chloride concentration. The preliminary biochemical composition suggests that the molecule is a new polymeric biosurfactant, comprising lipids (40%), carbohydrates (35.2%) and proteins (20.3%). The biosurfactant induced a larger oil displacement area using burnt engine oil, and reduced viscosity. These are characteristics that are desirable for industrial processes, given that it has several properties which could be attractive and is a potent emulsifier and surface-active compound which are useful in many fields of industry. This approach to the biosurfactant produced by C. echinulata represents a promising, simple and cost effective tool for treating the oily sludge generated during the periodical cleaning of oil storage tanks and by other petroleum industries, and has other applications when an increase in viscosity is necessary.

Supplementary Materials

Supplementary materials can be found at

Supplementary Files

Supplementary File 1


This work was financially supported by the National Council for Scientific and Technological Development-CNPq (Brasilia-D.F., Brazil) (563382/2010-4-SISBIOTA and 308245/2010-5 G.M.C.T.), and the Foundation for Science and Technology of the State of Pernambuco-FACEPE (Recife-PE., Brazil) (APQ N°.0086-2.12/11, and Master fellowship), CAPES (Coordination for the Improvement of Higher Level Education, Brasília-D.F., Brazil). The authors are grateful to Corn Products (Cabo de Santo Agostinho-PE, Brazil) who kindly provided the substrate corn steep liquor. The authors are grateful for the CNPq-fellowship awarded to the technician Severino Humberto de Almeida, and also to the Catholic University of Pernambuco for the use of laboratories.

Author Contributions

Nadielly R. Andrade Silva: Development and execution of the all subjects, fungal isolation, stability of biosurfactant, viscosity tests, revision, writing and discussion of the results (Master Course).
Marcos A. C. Luna: Support to stability of biosurfactant.
André L. C. M. A. Santiago: Support to identification of Cunninghamella echinulata.
Luciana O. Franco: Support to identification the area for collect the soil from Caatinga of Pernambuco (PE-Brazil) and abiotic factors tests.
Grayce K. B. Silva: Support to fungal isolation, stability and oil displacement area-ODA.
Patrícia M. de Souza: Support to bioemulsification tests.
Kaoru Okada: Support to fungal physiology for biosurfactant production.
Clarissa D. C. Albuquerque: Support to factorial designs for biosurfactant production.
Carlos A. Alves da Silva: Co-superviser N.R.A. Silva: Support to chemical analysis for identification of biosurfactant composition and discussion of the results.
Galba M. Campos-Takaki: Superviser N.R.A. Silva, scope of the paper, Fermentative process using wastes as carbon and nitrogen sources for biosurfactant production, revision and discussion of the results.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Kitamoto, D.; Morita, T.; Fukuoka, T.; Konishi, M.; Imura, T. Self-assembling properties of glycolipid biosurfactants and their potential applications. Curr. Opin. Colloid Interface Sci. 2009, 14, 315–328. [Google Scholar] [CrossRef]
  2. Bhardwaj, G.; Cameotra, S.S.; Chopra, H.K. Biosurfactants from Fungi: A Review. J. Pet. Environ. Biotechnol. 2013, 4, 160–166. [Google Scholar]
  3. Felse, P.A.; Shah, V.; Chan, J.; Rao, K.J.; Gross, R.A. Sophorolipid biosynthesis by Candida bombicola from industrial fatty acid residues. Enzym. Microb. Technol. 2007, 40, 316–323. [Google Scholar] [CrossRef]
  4. Deshpande, M.; Daniels, L. Evaluation of sophorolipid biosurfactant production by Candida bombicola using animal fat. Bioresour. Technol. 1995, 54, 143–150. [Google Scholar] [CrossRef]
  5. Casas, J.A.; Garcia de Lara, S.; Garcia-Ochoa, F. Optimization of a synthetic medium for Candida bombicola growth using factorial design of experiments. Enzym. Microb. Technol. 1997, 21, 221–229. [Google Scholar] [CrossRef]
  6. Williams, K. Biosurfactants for cosmetic applications: Overcoming production challenges. MMG 445 Basic Biotechnol. 2009, 5, 78–83. [Google Scholar]
  7. Sarubbo, L.A.; Farias, C.B.; Campos-Takaki, G.M. Co-utilization of canola oil and glucose on the production of a surfactant by Candida lipolytica. Curr. Microbiol. 2008, 54, 68–73. [Google Scholar]
  8. Rufino, R.D.; Sarubbo, L.A.; Campos-Takaki, G.M. Enhancement of stability of biosurfactant produced by Candida lipolytica using industrial residue as substrate. World J. Microbiol. Biotechnol. 2007, 23, 729–734. [Google Scholar] [CrossRef]
  9. Rufino, R.D.; Luna, J.M.; Sarubbo, L.A.; Rodrigues, L.R.M.; Texeira, J.A.C.; Campos-Takaki, G.M. Antimicrobial and anti-adhesive potential of a biosurfactant Rufisan produced by Candida lipolytica UCP 0988. Colloids Surf. B 2011, 84, 1–5. [Google Scholar] [CrossRef]
  10. Luna, J.M.; Rufino, R.D.; Albuquerque, C.D.C.; Sarubbo, L.A.; Campos-Takaki, G.M. Economic Optimized Medium for Tensio-Active Agent Production by Candida sphaerica UCP0995 and Application in the Removal of Hydrophobic Contaminant from Sand. Int. J. Mol. Sci. 2011, 12, 2463–2476. [Google Scholar] [CrossRef]
  11. Luna, J.M.; Rufino, R.D.; Sarubbo, L.A.; Campos-Takaki, G.M. Characterisation, surface properties and biological activity of a biosurfactant produced from industrial waste by Candida sphaerica UCP0995 for application in the petroleum industry. Colloids Surf. B 2013, 102, 202–209. [Google Scholar] [CrossRef]
  12. Thanomsub, B.; Watcharachaipong, T.; Chotelersak, K.; Arunrattiyakorn, P.; Nitoda, T.; Kanzaki, H. Monoacylglycerols: Glycolipid biosurfactants produced by a thermotolerant yeast, Candida ishiwadae. J. Appl. Microbiol. 2004, 96, 588–592. [Google Scholar] [CrossRef]
  13. Konishi, M.; Fukuoka, T.; Morita, T.; Imura, T.; Kitamoto, D. Production of new types of sophorolipids by Candida batistae. J. Oleo Sci. 2008, 57, 359–369. [Google Scholar] [CrossRef]
  14. Kiran, G.S.; Hema, T.A.; Gandhimathi, R.; Selvin, J.; Thomas, T.A.; Rajeetha Ravji, T.; Natarajaseenivasan, K. Optimization and production of a biosurfactant from the sponge-associated marine fungus Aspergillus ustus MSF3. Colloids Surf. B 2009, 73, 250–256. [Google Scholar] [CrossRef]
  15. Alejandro, C.S.; Humberto, H.S.; María, J.F. Production of glycolipids with antimicrobial activity by Ustilago maydis FBD12 in submerged culture. Afr. J. Microbiol. Res. 2011, 5, 2512–2523. [Google Scholar]
  16. Chandran, P.; Das, N. Biosurfactant production and diesel oil degradation by yeast species Trichosporon asahii isolated from petroleum hydrocarbon contaminated soil. Int. J. Eng. Sci. Technol. 2010, 2, 6942–6953. [Google Scholar]
  17. Chandankere, R.; Yao, J.; Choi, M.M.F.; Masakorala, K.; Chan, Y. An efficient biosurfactant-producing and crude-oil emulsifying bacterium Bacillus methylotrophicus USTBa isolated from petroleum reservoir. Biochem. Eng. J. 2013, 74, 46–53. [Google Scholar] [CrossRef]
  18. Gudiña, R.; Rangarajan, V.; Sen, R.; Rodrigues, L.R. Potential therapeutic applications of biosurfactants. Trends Pharmacol. Sci. 2013, 34, 667–675. [Google Scholar] [CrossRef][Green Version]
  19. Donio, M.B.S.; Ronica, S.F.A.; Thanga Viji, V.; Velmurugan, S.; Adlin Jenifer, J.; Michaelbabu, M.; Citarasu, T. Isolation and characterization of halophilic Bacillus sp. BS3 able to produce pharmacologically important biosurfactants. Asian Pac. J. Trop. Med. 2013, 6, 873–886. [Google Scholar]
  20. Rodrigues, L.R.; Teixeira, J.A.; Mei, H.C.; Oliveira, R. Physicochemical and functional characterization of a biosurfactant produced by Lactococcus lactis 53. Colloids Surf. B 2006, 49, 79–86. [Google Scholar] [CrossRef][Green Version]
  21. Janek, T.; Łukaszewicza, M.; Krasowska, A. Identification and characterization of biosurfactants produced by the Arctic bacterium Pseudomonas putida BD2. Colloids Surf. B 2013, 110, 379–386. [Google Scholar] [CrossRef]
  22. Pacwa-Plociniczak, M.; Plaza, G.A.; Piotrowska-Seget, Z.; Cameotra, S.S. Review Environmental Applications of Biosurfactants: Recent Advances. Int. J. Mol. Sci. 2011, 12, 633–654. [Google Scholar]
  23. Ron, E.Z.; Rosenberg, E. Biosurfactants and oil bioremediation. Curr. Opin. Biotechnol. 2002, 13, 249–252. [Google Scholar] [CrossRef]
  24. Mukherjee, S.; Das, P.; Sen, R. Towards commercial production of microbial surfactants. Trends Biotechnol. 2006, 24, 509–515. [Google Scholar] [CrossRef]
  25. Makkar, R.S.; Cameotra, S.S.; Banat, I.M. Advances in utilization of renewable substrates for biosurfactant production. AMB Express 2011, 1, 5–24. [Google Scholar] [CrossRef]
  26. Solaiman, D.; Ashby, R.; Zerkowski, J.; Foglia, T. Simplified soy molasses-based medium for reduced-cost production of sophorolipids by Candida bombicola. Biotechnol. Lett. 2007, 29, 1341–1347. [Google Scholar] [CrossRef]
  27. Batrakov, S.G.; Konova, I.V.; Sheichenko, V.I.; Galanina, L.A. Glycolipids of the filamentous fungus Absidia corymbifera F-295. Chem. Phys. Lipids 2003, 123, 157–164. [Google Scholar] [CrossRef]
  28. Banat, I.M.; Makkar, R.S.; Cameotra, S.S. Potential commercial applications of microbial surfactants. Appl. Microbiol. Biotechnol. 2000, 53, 495–508. [Google Scholar] [CrossRef]
  29. Nitschke, M.; Costa, S.G. Biosurfactants in food industry. Trends Food Sci. Technol. 2007, 18, 252–259. [Google Scholar] [CrossRef]
  30. Banat, I.M.; Franzetti, A.; Gandolfi, I.; Bestetti, G.; Martinotti, M.G.; Fracchia, L.; Smyth, T.J.; Marchant, R. Microbial biosurfactants production, applications and future potential. Appl. Microbiol. Biotechnol. 2010, 87, 427–444. [Google Scholar]
  31. Rocha e Silva, N.M.P.; Rufino, R.D.; Luna, J.M.; Santos, V.A.; Sarubbo, L.A. Screening of Pseudomonas species for biosurfactant production using low-cost substrates. Biocatal. Agric. Biotechnol. 2014, 3, 132–139. [Google Scholar]
  32. Santos, S.C.; Fernandez, L.G.; Rossi-Alva, J.C.; Roque, M.R.A. Evaluation of substrates from renewable resources in biosurfactants production by Pseudomonas strains. Afr. J. Biotechnol. 2010, 9, 5704–5711. [Google Scholar]
  33. Zheng, R.Y.; Chen, G.Q. Cunninghamella echinulata (Thaxt.) Thaxt. ex Blakeslee var. echinulata and var. verticillata (Paine) comb. nov. Mycosystema 1996, 8, 1–13. [Google Scholar]
  34. Domsch, K.H.; Gams, W.; Anderson, T.-H. Compendium of Soil Fungi; Academic Press: London, UK, 1980. [Google Scholar]
  35. Zheng, R.Y.; Chen, G.Q. A monograph of Cunninghamella. Mycotaxon 2001, 80, 1–75. [Google Scholar]
  36. Rufino, R.D.; Luna, J.M.; Campos-Takaki, G.M.; Sarubbo, L.A. Characterization and properties of the biosurfactant produced by Candida lipolytica UCP 0988. Electron. J. Biotechnol. 2013, 17, 34–38. [Google Scholar]
  37. Qazi, M.A.; Subhan, M.; Nighat, F.; Ali, M.I.; Ahmed, S. Role of biosurfactant produced by Fusarium sp. BS-8 in enhanced oil recovery (EOR) through sand Pack column. Int. J. Biosci. Biochem. Bioinform. 2013, 3, 6–10. [Google Scholar]
  38. Sarubbo, L.A.; de Luna, G.M.; de Campos-Takaki, G.M. Production and stability studies of the bioemulsifier obtained from a new strain of Candida glabrata UCP 1002. Electron. J. Biotechnol. 2006, 9, 400–406. [Google Scholar]
  39. Amiriyan, A.; Mazaheri Assadi, M.; Sajadian, V.A.; Noohi, A.A. Bioemulsan production by Iranian oil reservoirs microorganism. Iran. J. Environ. Health Sci. Eng. 2004, 1, 28–35. [Google Scholar]
  40. Fontes, G.C.; Amaral, P.F.F.; Coelho, M.A.Z. Biosurfactant production by yeasts. Quím. Nova 2008, 31, 2091–2099. [Google Scholar]
  41. Morita, T.; Ishibashi, Y.; Fukuoka, T.; Imura, T.; Sakai, T.; Abe, M.; Kitamoto, D. Production of glycolipid biosurfactants, mannosylerythritol lipids, by a smut fungus, Ustilago scitaminea NBRC 32730. Biosci. Biotechnol. Biochem. 2009, 73, 788–792. [Google Scholar] [CrossRef]
  42. Cavalero, D.A.; Cooper, D.G. The effect of medium composition on the structure and physical state of sophorolipids produced by Candida bombicola ATCC 22214. J. Biotechnol. 2003, 103, 31–41. [Google Scholar] [CrossRef]
  43. Diab, A.; Din, S.G.E. Production and characterization of biosurfactants produced by Bacillus spp. and Pseudomonas spp. isolated from the rhizosphere soil of an egyptian salt marsh plant. Nat. Sci. 2013, 11, 103. [Google Scholar]
  44. Deleu, M.; Paquot, M. From renewable vegetables resources to microorganisms: New trends in surfactants. Comptes Randus Chim. 2004, 7, 641–646. [Google Scholar] [CrossRef]
  45. Satpute, S.K.; Banpurkar, A.G.; Dhakephalkar, P.K.; Banat, I.M.; Chopade, B.A. Methods for investigating biosurfactants and bioemulsifiers: A review. Crit. Rev. Biotechnol. 2010, 30, 127–144. [Google Scholar] [CrossRef]
  46. Youssef, N.H.; Duca, K.E.; Nagle, D.P.; Savager, K.N.; Kapp, R.M.; Mclnemey, M.J. Comparison of methods to detect biosurfactant production by diverse microorganism. J. Microbiol. Methods 2004, 56, 339–346. [Google Scholar]
  47. Pornsunthorntawee, O.; Wongpanit, P.; Chavadej, S.; Abe, M.; Rujiravanit, R. Structural and physicochemical characterization of crude biosurfactant produced by Pseudomonas aeruginosa SP4 isolated from petroleum-contaminated soil. Bioresour. Technol. 2008, 99, 1589–1595. [Google Scholar]
  48. Whang, L.M.; Liu, P.W.G.; Ma, C.C.; Cheng, S.S. Application of biosurfactant, rhamnolipid, and surfactin, for enhanced biodegradation of diesel-contaminated water and soil. J. Hazard. Mater. 2008, 151, 155–163. [Google Scholar] [CrossRef]
  49. Mulligan, C.N. Environmental applications for biosurfactants. Environ. Pollut. 2005, 133, 183–198. [Google Scholar]
  50. Ghurye, G.L.; Vipulanandan, C.; Willson, R.C. A practical approach to biossurfactant production using nonaseptic fermentation of mixed cultures. Biotechnol. Bioeng. 1994, 44, 661–666. [Google Scholar] [CrossRef]
  51. Shavandi, M.; Mohebali, G.; Haddadib, A.; Shakaramia, H.; Nuhic, A. Emulsification potential of a newly isolated biosurfactant-producing bacterium, Rhodococcus sp. strain TA6. Colloids Surf. B 2011, 82, 477–482. [Google Scholar] [CrossRef]
  52. Kim, H.S.; Jeon, J.W.; Lee, H.W.; Park, Y.I.; Seo, W.T.; Oh, H.-M.; Katsuragi, T.; Tani, Y.; Yoon, B.-D. Extracellular production of a glycolipid biosurfactant, mannosylerythritol lipid, from Candida antarctica. Biotechnol. Lett. 2002, 24, 225–229. [Google Scholar] [CrossRef]
  53. Patil, J.R.; Chopade, B.A. Studies on bioemulsifier production by Acinetobacter strains isolated from healthy human skin. J. Appl. Microbiol. 2001, 91, 290–298. [Google Scholar] [CrossRef]
  54. Ali Diab, A.; El Din, S.G. Application of the biosurfactants produced by Bacillus spp. (SH 20 and SH 26) and Pseudomonas aeruginosa SH 29 isolated from the rhizosphere soil of an Egyptian salt marsh plant for the cleaning of oil-contaminated vessels and enhancing the biodegradation of oily sludge. Afr. J. Environ. Sci. Technol. 2013, 7, 671–679. [Google Scholar]
  55. Banat, I.M. Biosurfactants production and possible uses in microbial enhanced oil recovery and oil pollution remediation: A review. Bioresour. Technol. 1995, 51, 1–12. [Google Scholar] [CrossRef]
  56. Sen, R. Biotechnology in petroleum recovery: The microbial EOR. Prog. Energy Combust. 2008, 34, 714–724. [Google Scholar] [CrossRef]
  57. Kuyukina, M.S.; Ivshina, I.B.; Makarov, S.O.; Litvinenko, L.V.; Cunningham, C.J.; Philip, J.C. Effect of biosurfactants on crude oil desorption and mobilization in a soil system. Environ. Int. 2005, 31, 155–161. [Google Scholar]
  58. Cooper, D.G.; Goldenberg, B.G. Surface-active agents from two Bacillus species. Appl. Environ. Microbiol. 1987, 53, 224–229. [Google Scholar]
  59. Dubois, M.; Gilles, K.A.; Hamilton, J.K. Colorimetric method for determination of sugar and related substances. Anal. Chem. 1956, 28, 350–356. [Google Scholar] [CrossRef]
  60. Manocha, M.S.; San-Blas, G.; Centeno, S. Lipid composition of paracciodioids brasilienses: Possible correlation with virulence of different strains. J. Gen. Microbiol. 1980, 177, 147–154. [Google Scholar]
  61. Meylheuc, T.; van Oss, C.J.; Bellon-Fontaine, M.N. Adsorption of biosurfactants on solid surface and consequences regarding the bioahesion of Listeria monocytogenes LO28. J. Appl. Microbiol. 2001, 91, 822–832. [Google Scholar] [CrossRef]
  62. Morikawa, M.; Daido, H.; Takao, T.; Murata, S. A new lipopeptide biosurfactant produced by Arthrobacter sp. strain MIS38. J. Bacteriol. 1993, 175, 6459–6466. [Google Scholar]
Int. J. Mol. Sci. EISSN 1422-0067 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
