Review

Application of Ionic Liquids in Hydrometallurgy

by
Jesik Park
1,†,
Yeojin Jung
2,†,
Priyandi Kusumah
2,
Jinyoung Lee
3,
Kyungjung Kwon
2,* and
Churl Kyoung Lee
1,*
1
School of Advanced Materials & Systems Engineering, Kumoh National Institute of Technology, Gumi, Kyungbuk 203-701, Korea
2
Department of Energy & Mineral Resources Engineering, Sejong University, Seoul 143-747, Korea
3
Metallurgy Research Team, Korea Institute of Geoscience and Mineral Resources, Daejeon 305-350, Korea
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2014, 15(9), 15320-15343; https://doi.org/10.3390/ijms150915320
Submission received: 28 May 2014 / Revised: 31 July 2014 / Accepted: 18 August 2014 / Published: 29 August 2014
(This article belongs to the Special Issue Ionic Liquids 2014 & Selected Papers from ILMAT 2013)
Browse Figures
Versions Notes

Abstract

:
Ionic liquids, low temperature molten salts, have various advantages manifesting themselves as durable and environmentally friendly solvents. Their application is expanding into various fields including hydrometallurgy due to their unique properties such as non-volatility, inflammability, low toxicity, good ionic conductivity, and wide electrochemical potential window. This paper reviews previous literatures and our recent results adopting ionic liquids in extraction, synthesis and processing of metals with an emphasis on the electrolysis of active/light, rare earth, and platinum group metals. Because the research and development of ionic liquids in this area are still emerging, various, more fundamental approaches are expected to popularize ionic liquids in the metal manufacturing industry.

1. Introduction

There has been rapid development in electronic, informative, automotive and petrochemical industries in recent decades, and accordingly, the depletion of underground metal resources has become more and more serious. Solutions to the metal resources depletion could be the efficient extraction of low grade ores, and the recovery of valuable metals from urban mining. In addition, new environmentally friendly and less energy consumptive methods should be developed to relieve environmental and energy problems of the existing metal extraction technology.
In general, the whole metal extraction processes can be divided into: (1) pretreatment process; (2) extraction process; and (3) refining process. The pretreatment process is basically the mineral processing stage including crushing, grinding, screening, separation and so on. The extraction process can be classified as pyrometallurgy, reducing metal concentrates at high temperatures, and as hydrometallurgy, which is the process of recovering metals from solution media through dissolution, separation and purification steps. The refining process, which is also based on pyrometallurgy and hydrometallurgy principles, is usually required for increasing the purity of final metal products.
In the case of the steel making industry based on pyrometallurgy, efforts to reduce environmental issues such as exhaust gas, dust, slag, and waste water arising from the smelting process and to recover waste energy in the smelting process need to be expanded, in addition to the development of highly efficient smelting techniques for the treatment of low grade ores. Copper extractive metallurgy using high temperature smelting and electrolytic refining undergoes similar technological, environmental, and energy challenges to the steel making industry. Zinc manufacturing technology based on hydrometallurgy needs to consider an environmental issue of waste acid as well as the aforementioned pursuit of highly efficient and energy saving extractive methods. The development of energy saving techniques is critical, in particular, for aluminum making industry considering the current extractive technology based on high temperature molten salt electrolysis.
Among a variety of efforts to overcome the disadvantages of the existing metal manufacturing technology, non-aqueous solvents can be an alternative to the current acid media in hydrometallurgy. Ionic liquids, salts in the liquid state, are especially emerging in an effort to replace conventional water or organic solvents. Ionic liquids started to gain attention from the ethylammonium nitrate, a room temperature molten salt, synthesized in 1914 by Paul Walden, and relevant studies have exploded since 2000 as seen in Figure 1 where the number of publications related to ionic liquids is expressed from 1998–2013. The initial application of ionic liquids was restricted to media for polymer synthesis, but the application has expanded to various fields such reaction catalyst, electrolyte of energy storage devices, biosensor, separation/extraction agent, lubricant and so on [1]. Ionic liquids have a variety of advantages manifesting themselves as durable and environmentally friendly solvents—so called, green solvents. They have low vapor pressure, a non-flammable nature, and excellent chemical/electrochemical/thermal stability, which are favorable to long-term operation. More often than not, the term of task specific ionic liquids is used to emphasize their versatility in performing a specific task by designing their structure with countless combinations of cations and anions. Thus, the development of task specific ionic liquids for various kinds of industry including metal manufacturing is actively continued. This paper reviews previous literatures adopting ionic liquids in extraction, synthesis and processing of metals in the field of hydrometallurgy.
Ijms 15 15320 g001 1024

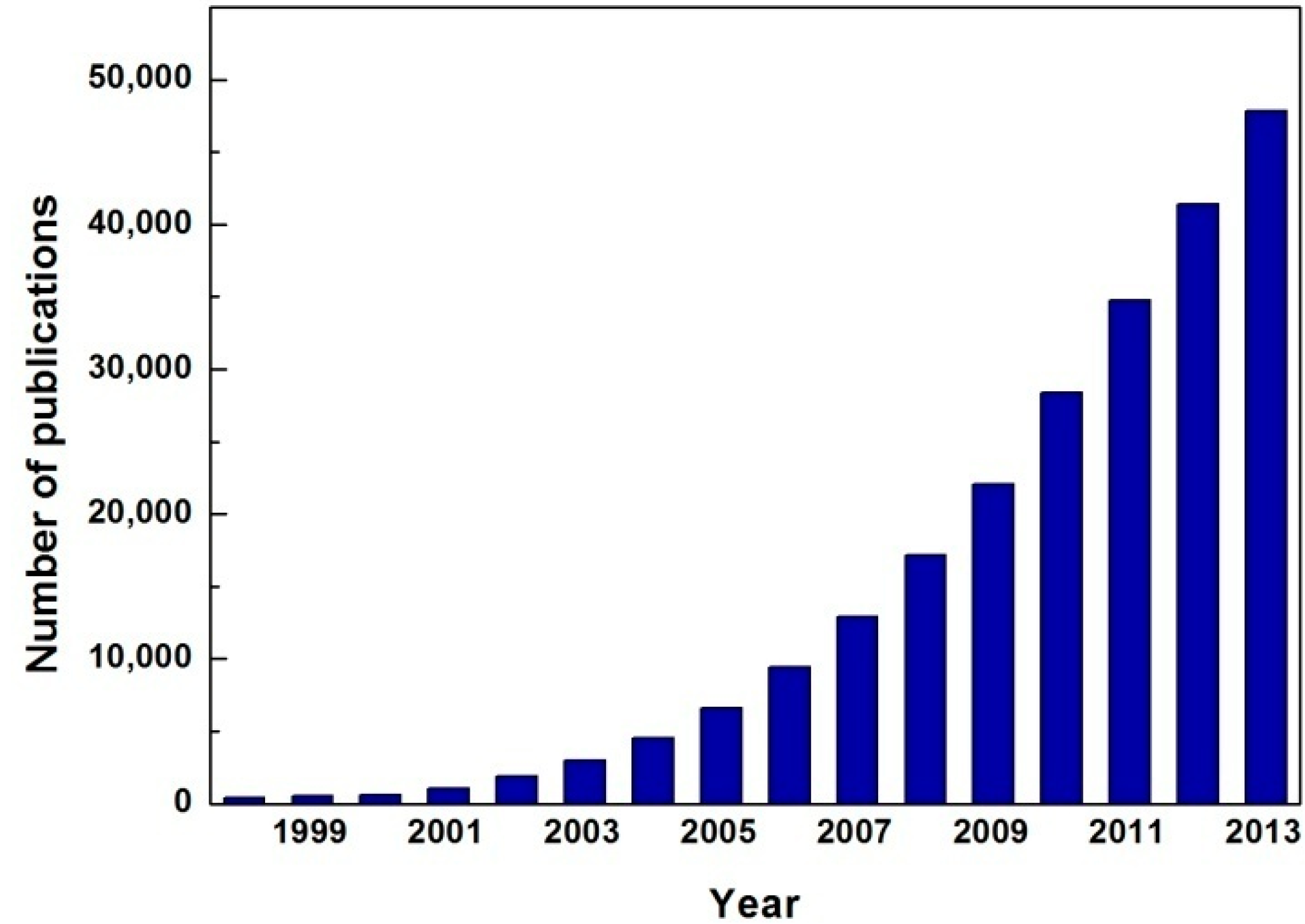

Figure 1. Annual growth of publications related to ionic liquids [2].
Figure 1. Annual growth of publications related to ionic liquids [2].
Ijms 15 15320 g001

2. Results and Discussion

2.1. Ionic Liquids

Ionic liquids are basically a family of molten salts comprising organic cations and organic/inorganic anions [3]. While common ionic salts at room temperature exist as a solid where cations and anions are alternately packed, ionic liquids have a lower melting point below 100 °C because cations and anions are not packed due to their large difference in ionic size and the resulting low lattice energy [4]. In particular, ionic liquids that exist as a liquid at room temperature are called room temperature ionic liquids (RTILs), and the number of currently known RTILs reaches about 106 [5,6]. Figure 2 illustrates the structures of representative molten salt, ionic liquid, and aqueous solution.
Ijms 15 15320 g002 1024

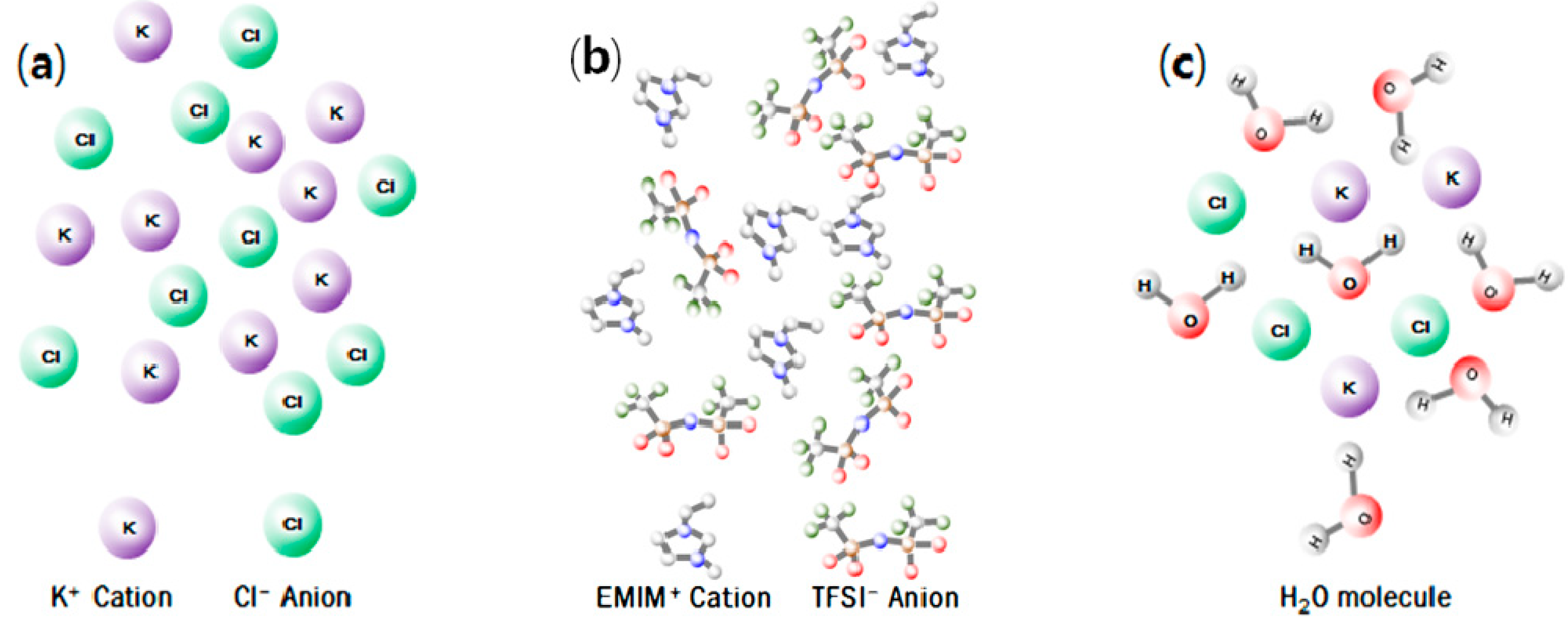

Figure 2. Schematic diagram of (a) molten KCl; (b) ionic liquid; and (c) aqueous KCl structures.
Figure 2. Schematic diagram of (a) molten KCl; (b) ionic liquid; and (c) aqueous KCl structures.
Ijms 15 15320 g002
A large percentage of ionic liquids have organic cations such as imidazolium or pyridinium, alkyl-substituted heterocyclic ring molecules, capable of ionic bonding with various kinds of anions. By a proper combination of cation and anion, we could control the melting point, density, viscosity, hydrophilicity/hydrophobicity of ionic liquids. Table 1 summarizes the unique properties of ionic liquids.
Table
Table 1. Unique properties of ionic liquids.
Table 1. Unique properties of ionic liquids.
PropertiesValues
Melting pointPreferably below 100 °C
Liquidus rangeOften > 200 °C
Thermal stabilityUsually high
ViscosityNormally < 100 cP, workable
Dielectric constantImplied < 30
PolarityModerate
Ionic conductivityUsually < 10 mS/cm
Molar conductivity<10 Scm2/mol
Electrochemical windowOften > 4 V
Vapor pressureUsually negligible
Contrary to the usual electrolyte where ionic salts are dissolved in a solvent, ionic liquids can act as electrolyte without the addition of solvent. Further, ionic liquids have very low vapor pressure suffering a negligible loss at room temperature and can even be vacuum dried [7,8]. Electrochemical stability and ionic conductivity are also very important properties of electrolyte to be considered as well as low vapor pressure. A large number of ionic liquids have wider electrochemical windows than 4 V, and some can have as wide as 6 V. Moreover, ionic liquids have a generally satisfactory ionic conductivity about 10 mS/cm, which can be comparable to that of sea water. However, they have a much larger viscosity than common organic solvents or water, which incurs a reduced ionic conductivity [9]. Thus, a combination of low viscosity and high ionic conductivity would be favorable to the usage of ionic liquids as electrolyte. The aforementioned features in addition to non-flammability make ionic liquids attractive to various applications such as organic synthesis [10,11], fine chemical production [12,13], and electrolytes for capacitors [14], dye-sensitized solar cells [15] and batteries [16].
Favorable properties of ionic liquids are different depending on their applications, and the control of their properties is possible by a proper combination of cation and anion. For example, ionic liquids should be aprotic with low volatility, non-flammability, high ionic conductivity, and a wide potential window to be used as electrolytes for energy storage devices such as lithium batteries. On the other hand, ionic liquids need to be protic to be used as electrolytes for fuel cells while zwitterionic ionic liquids are preferable as membranes for metal extraction as illustrated in Figure 3.
Physicochemical properties of ionic liquids are basically determined by their components, that is, combinations of cations and anions. By combining cations and anions of different structure and size, the melting point, density, viscosity, and chemical reactivity can be controlled. The species in Figure 4 are usually considered in tuning the relevant properties of ionic liquids for cations, anions and substituents. For example, Figure 5 shows the temperature dependence of viscosity (η) for the six N(SO2CF3)2-anion-based RTILs. The obtained viscosities increase in the order EMIm (1-ethyl-3-methylimidazolium) < P13 (N-methyl-N-propylpyrrolidinium) < EDMIm (1-ethyl-2,3-dimethylimidazolium) < TMPA (trimethylpropylammonium) < ETMP (1-ethyl-2,3,5-trimethylpyrazolium) < PP13 (N-methyl-N-propylpiperidinium) at all measured temperatures.
Ijms 15 15320 g003 1024

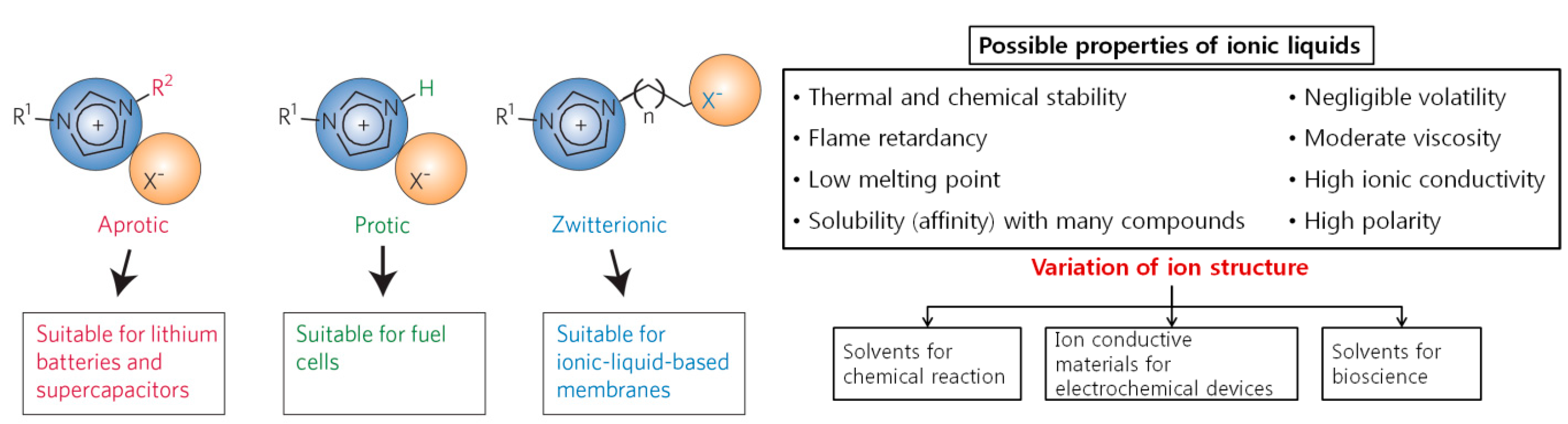

Figure 3. Design of ionic liquids for special purposes (Reprinted with permission from ref. [17] Copyright 2009 Rights Managed by Nature Publishing Group).
Figure 3. Design of ionic liquids for special purposes (Reprinted with permission from ref. [17] Copyright 2009 Rights Managed by Nature Publishing Group).
Ijms 15 15320 g003
Ijms 15 15320 g004 1024

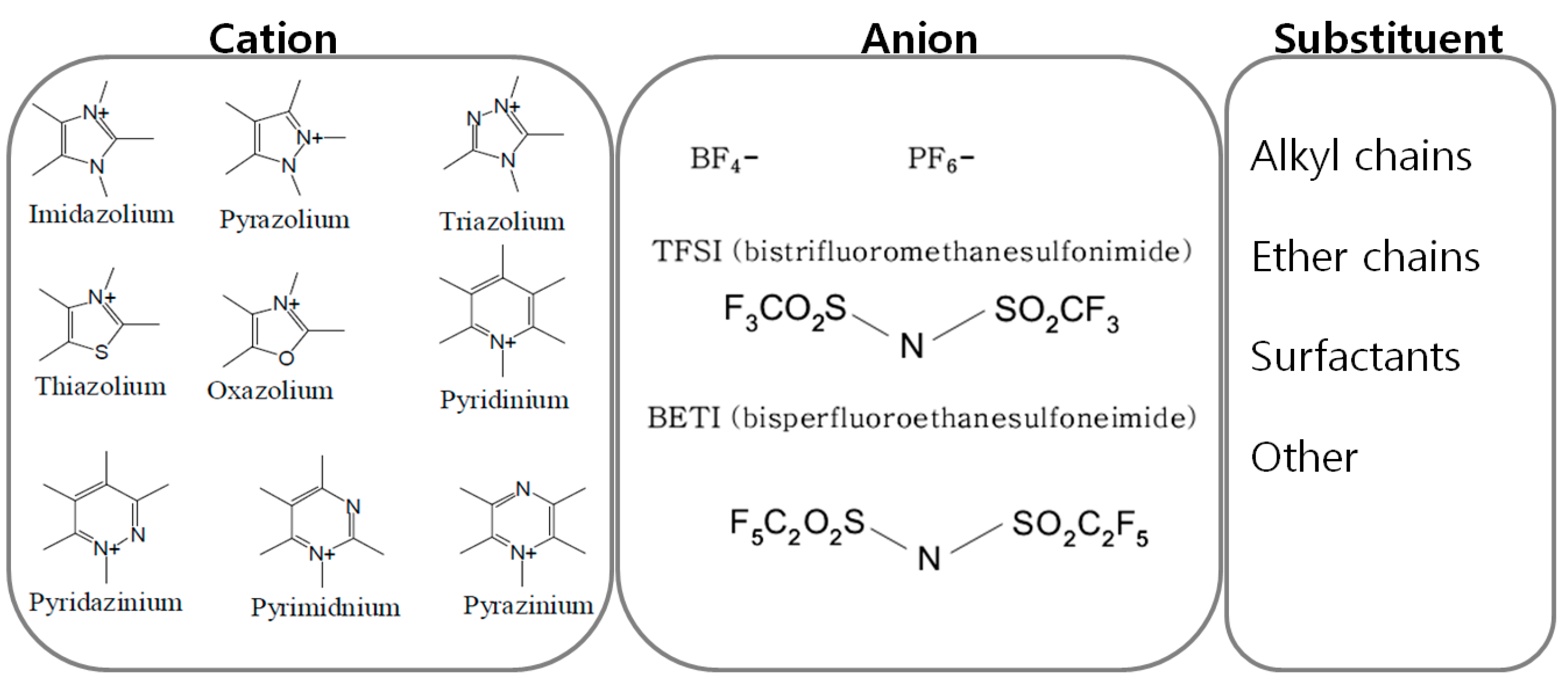

Figure 4. Species that are usually considered as cations, anions and substituents for designing task specific ionic liquids.
Figure 4. Species that are usually considered as cations, anions and substituents for designing task specific ionic liquids.
Ijms 15 15320 g004
Ijms 15 15320 g005 1024

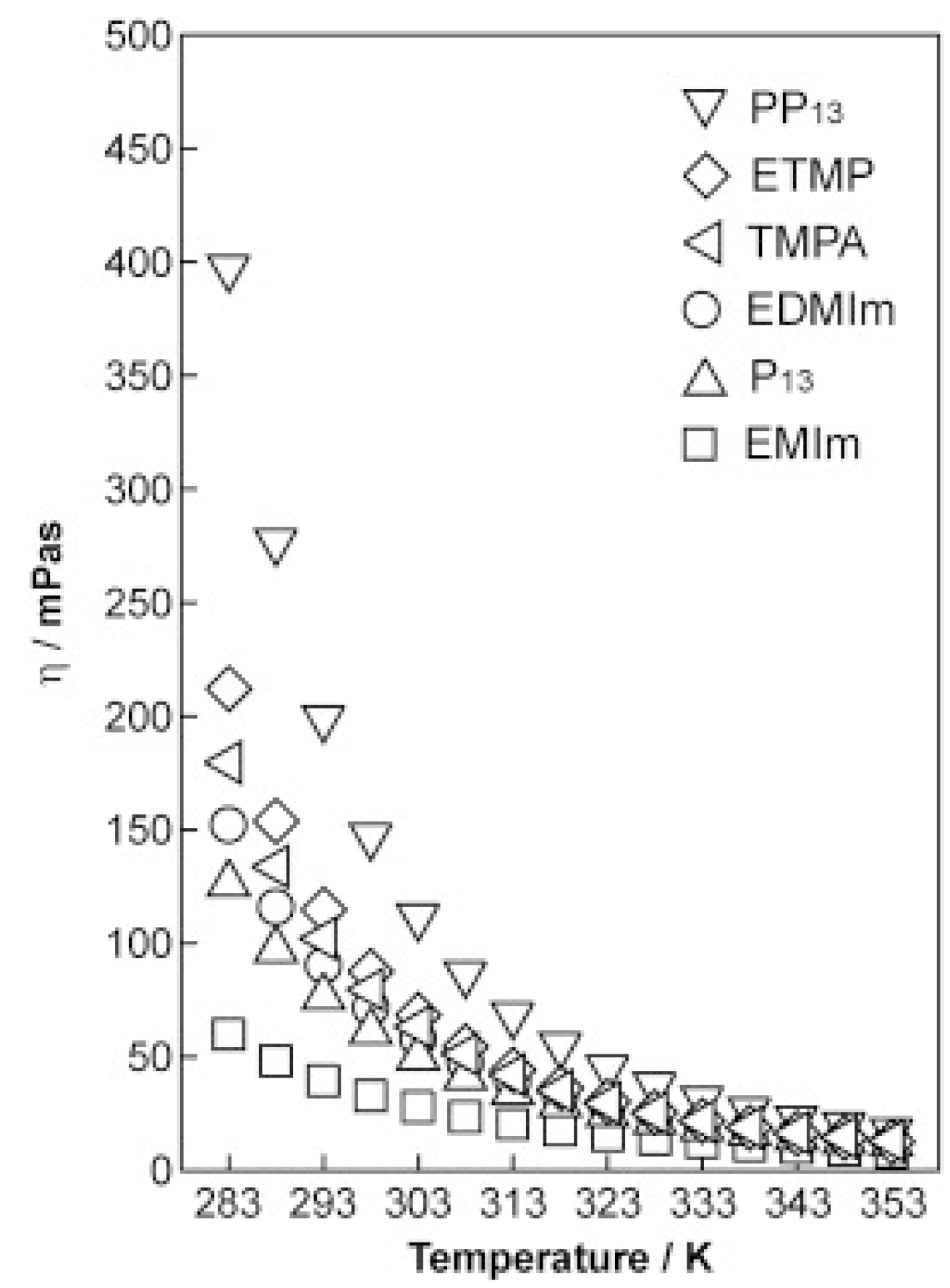

Figure 5. Effect of cations on the viscosity of ionic liquids (Reprinted with permission from ref. [18] Copyright 2010 Elsevier B.V).
Figure 5. Effect of cations on the viscosity of ionic liquids (Reprinted with permission from ref. [18] Copyright 2010 Elsevier B.V).
Ijms 15 15320 g005
Although an ionic liquid could be synthesized by various routes, [Dmim]BF4, an imidazolium-based ionic liquid, can be prepared in a relatively simple method as illustrated in Figure 6. The synthesis steps are sequentially conducted as follows: quaternization of amine, solvent removal, anion exchange with a metal salt, solvent/salt removal and refining. Using this method, a wide spectrum of physicochemical property of ionic liquids can be obtained by different functionalization (through the variation of alkyl-X) and anion species (through the variation of metal salt).
Ijms 15 15320 g006 1024

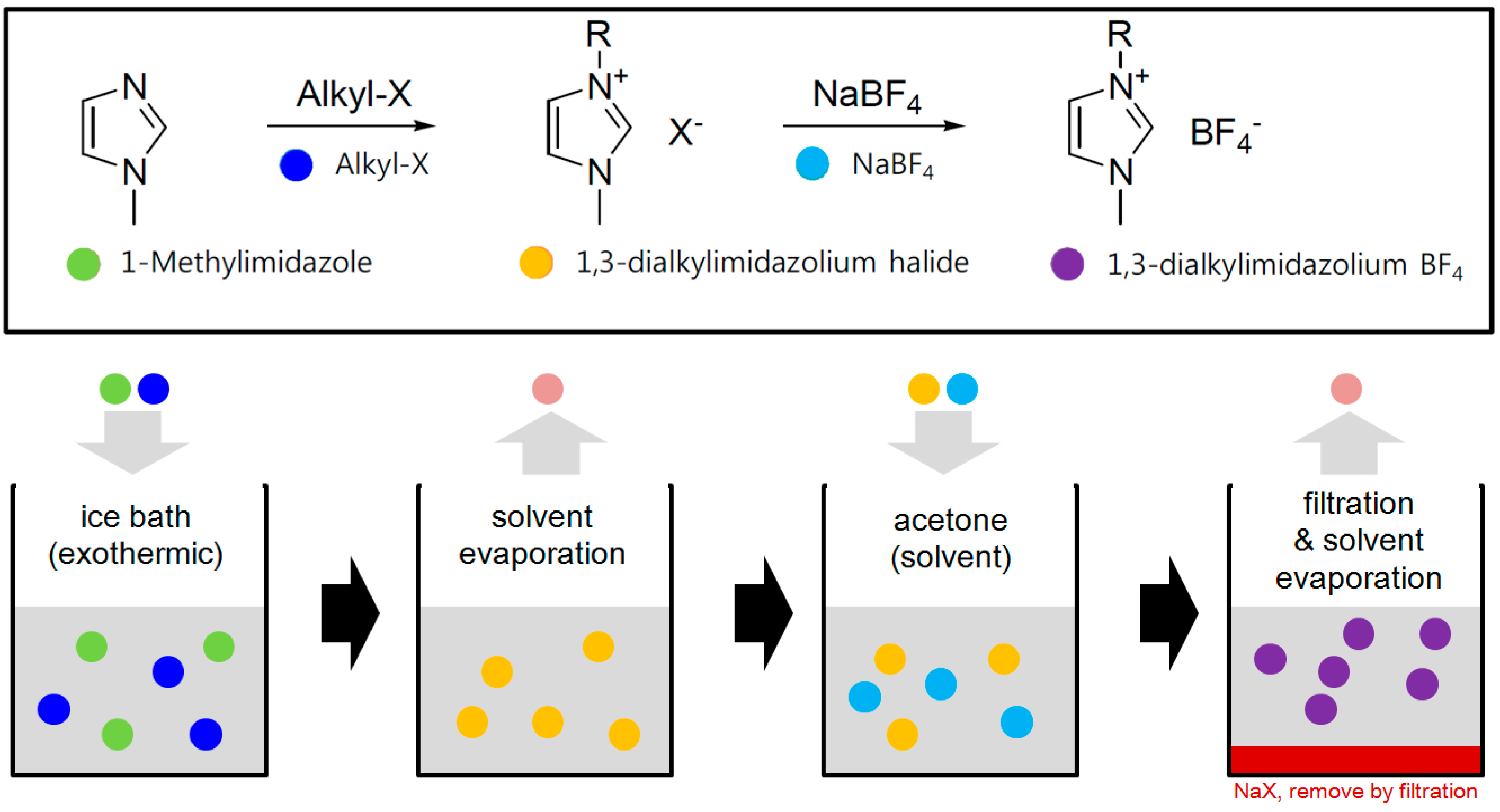

Figure 6. Synthesis procedure of an ionic liquid ([Dmim]BF4).
Figure 6. Synthesis procedure of an ionic liquid ([Dmim]BF4).
Ijms 15 15320 g006
Electrochemical characteristics such as electrochemical window and ionic conductivity can be controlled as well. Figure 7 shows the dependency of electrochemical window of ionic liquids on their constituting cations and anions. The stability limits of electrochemical window with respect to oxidation and reduction are respectively determined by anion and cation of an ionic liquid. Meanwhile, the ionic conductivity of ionic liquids can be regulated indirectly by adjusting the viscosity of ionic liquids and taking the inverse relationship between conductivity and viscosity into account. The viscosity and the according ionic conductivity are usually varied by changing the type and size of functional groups of cations or by selecting different kinds of anions. For instance, in the choice of anions, relatively small anions such as BF4 and PF6 known to have high conductivity were often considered as anions of ionic liquids, whereas TFSI anion is nowadays most frequently adopted thanks to its improved stability.
Ijms 15 15320 g007 1024

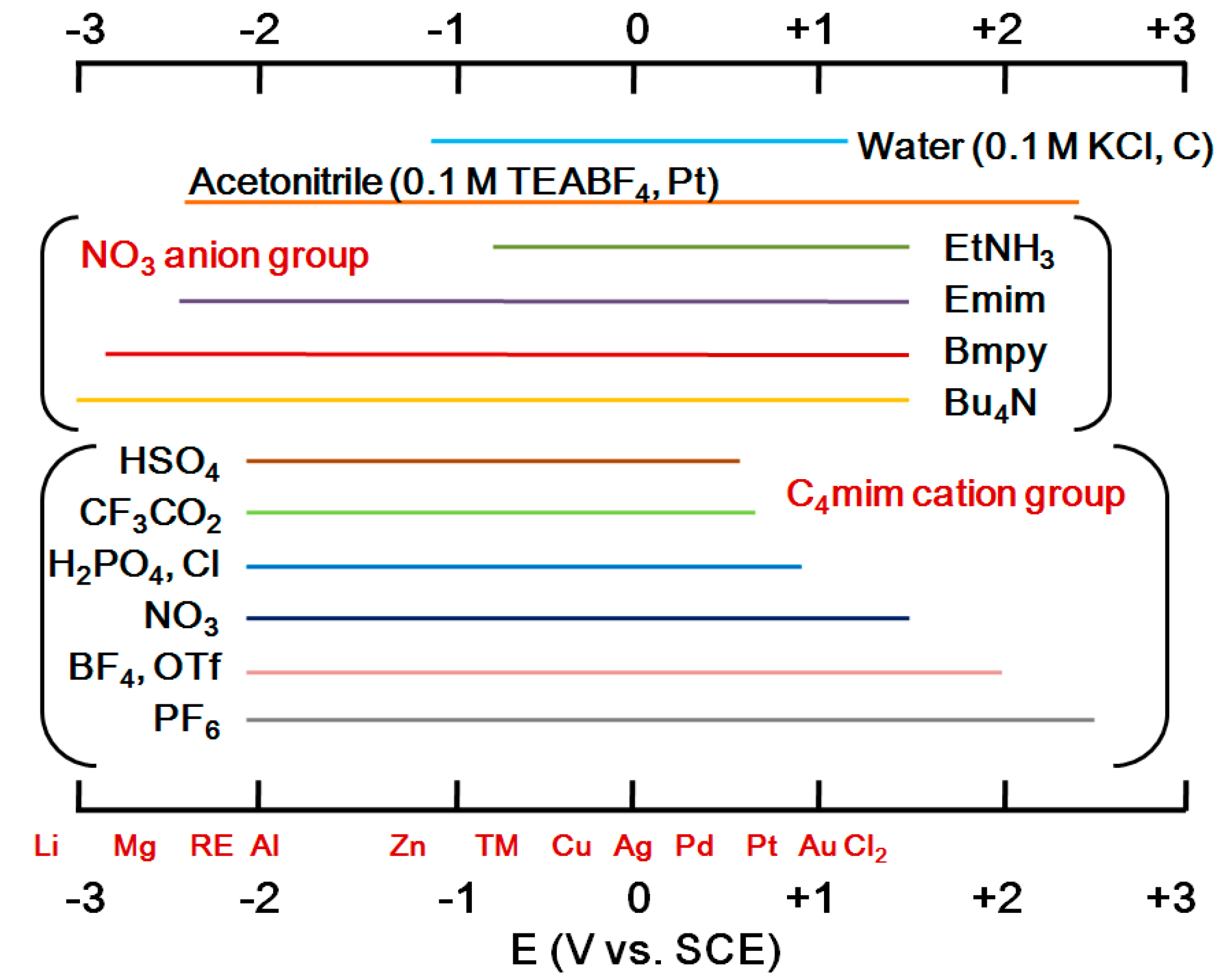

Figure 7. Effect of ion group on electrochemical window of ionic liquids.
Figure 7. Effect of ion group on electrochemical window of ionic liquids.
Ijms 15 15320 g007
To overcome the intrinsic limitation of properties belonging to ionic liquids, conventional solvents could be incorporated. Chaban et al. reported that the addition of acetonitrile to BF4 anion-based ionic liquid can improve the ionic conductivity in Figure 8 [19]. Meanwhile, the understanding of physicochemical properties of metal salt-containing ionic liquids is also important for the application of these materials to hydrometallurgy or electrometallurgy. Figure 9 is an example to investigate the phase diagram and complexation behavior of Al salt-containing ionic liquids.
Ijms 15 15320 g008 1024

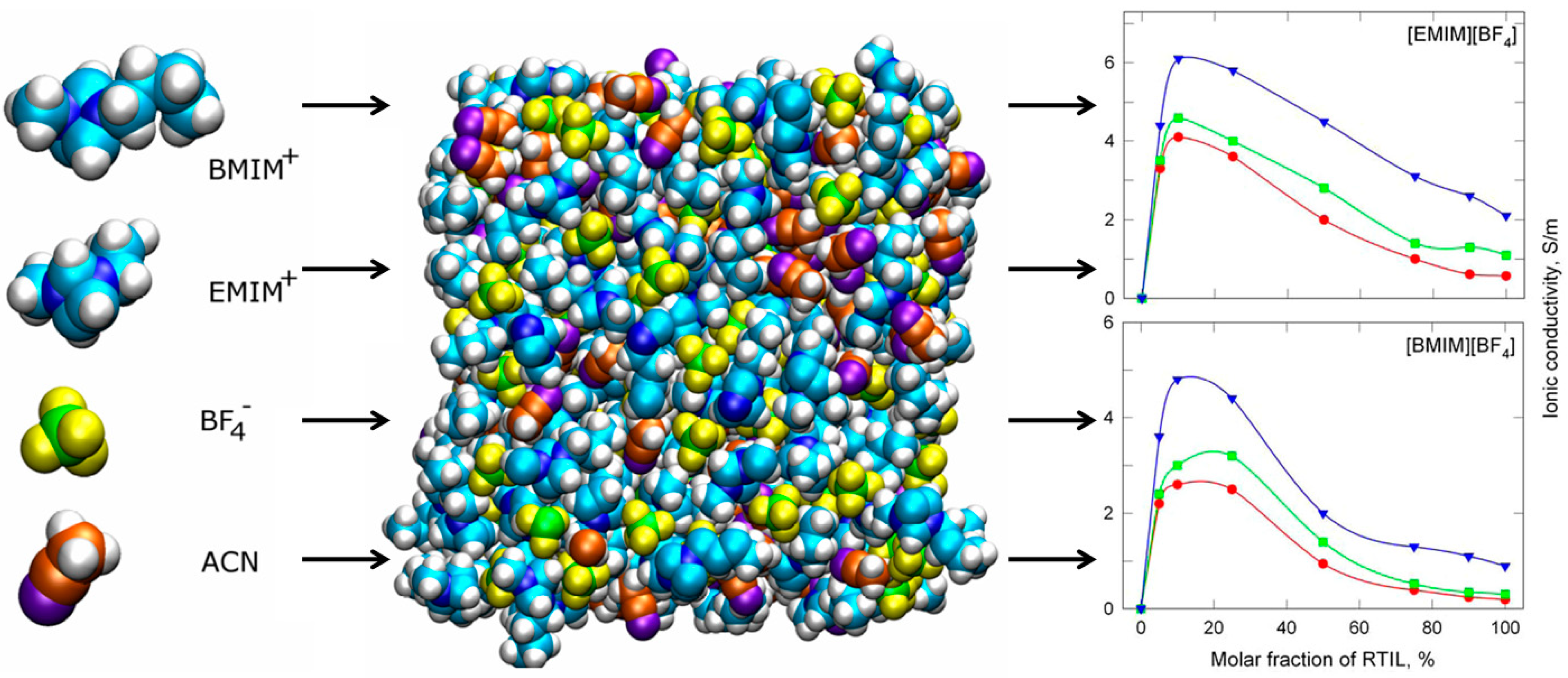

Figure 8. Enhancement of ionic conductivity of ionic liquids by mixing with organic solvents (Reprinted with permission from ref. [19] Copyright 2012 American Chemical Society).
Figure 8. Enhancement of ionic conductivity of ionic liquids by mixing with organic solvents (Reprinted with permission from ref. [19] Copyright 2012 American Chemical Society).
Ijms 15 15320 g008
Ijms 15 15320 g009 1024

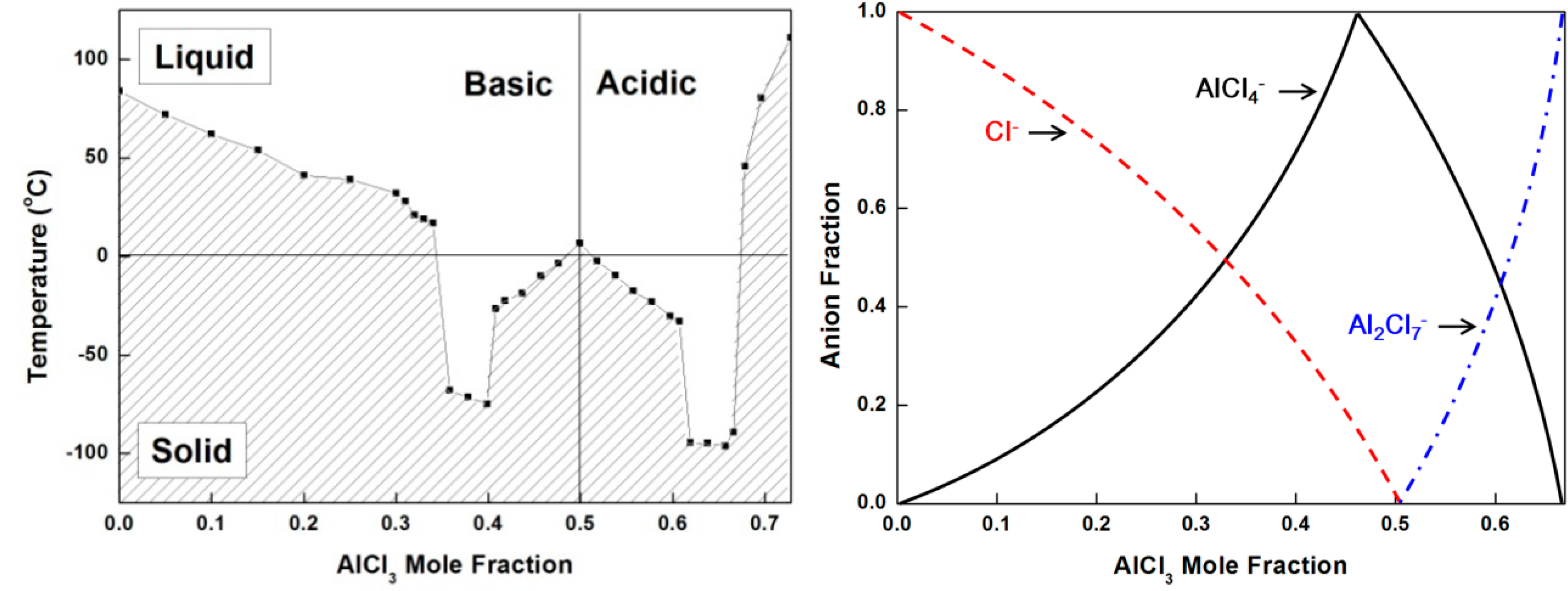

Figure 9. Phase diagram and complexation behavior of [C2C1im]Cl-AlCl3 (Reprinted with permission from ref. [20,21] Copyright 1984 American Chemical Society).
Figure 9. Phase diagram and complexation behavior of [C2C1im]Cl-AlCl3 (Reprinted with permission from ref. [20,21] Copyright 1984 American Chemical Society).
Ijms 15 15320 g009

2.2. Extraction of Metals

Ionic liquids have been introduced to leaching and solvent extraction processes in the extraction of various metals. For example, ionic liquids can be an alternative leaching agent for copper ore to the existing leaching techniques based on hydrochloric acid leaching agent, high temperature/pressure operation or bioleaching. 1-butyl-3-methylimidazolium tetrafluoroborate ([Bmim]BF4) ionic liquid as a solvent and Fe(BF4)3 as an oxidizer were used for chalcopyrite leaching, and 90% of copper was gained at 100 °C after 8 h leaching by McCluscey et al. [22]. Whitehead et al. [23] used [Bmim]HSO4 ionic liquid with Fe2(SO4)3 in the leaching of gold and silver, which demonstrates the potential of ionic liquids as a selective leaching agent for precious metals with an advantage of replacing toxic acid agents as shown in Figure 10.
Ijms 15 15320 g010 1024

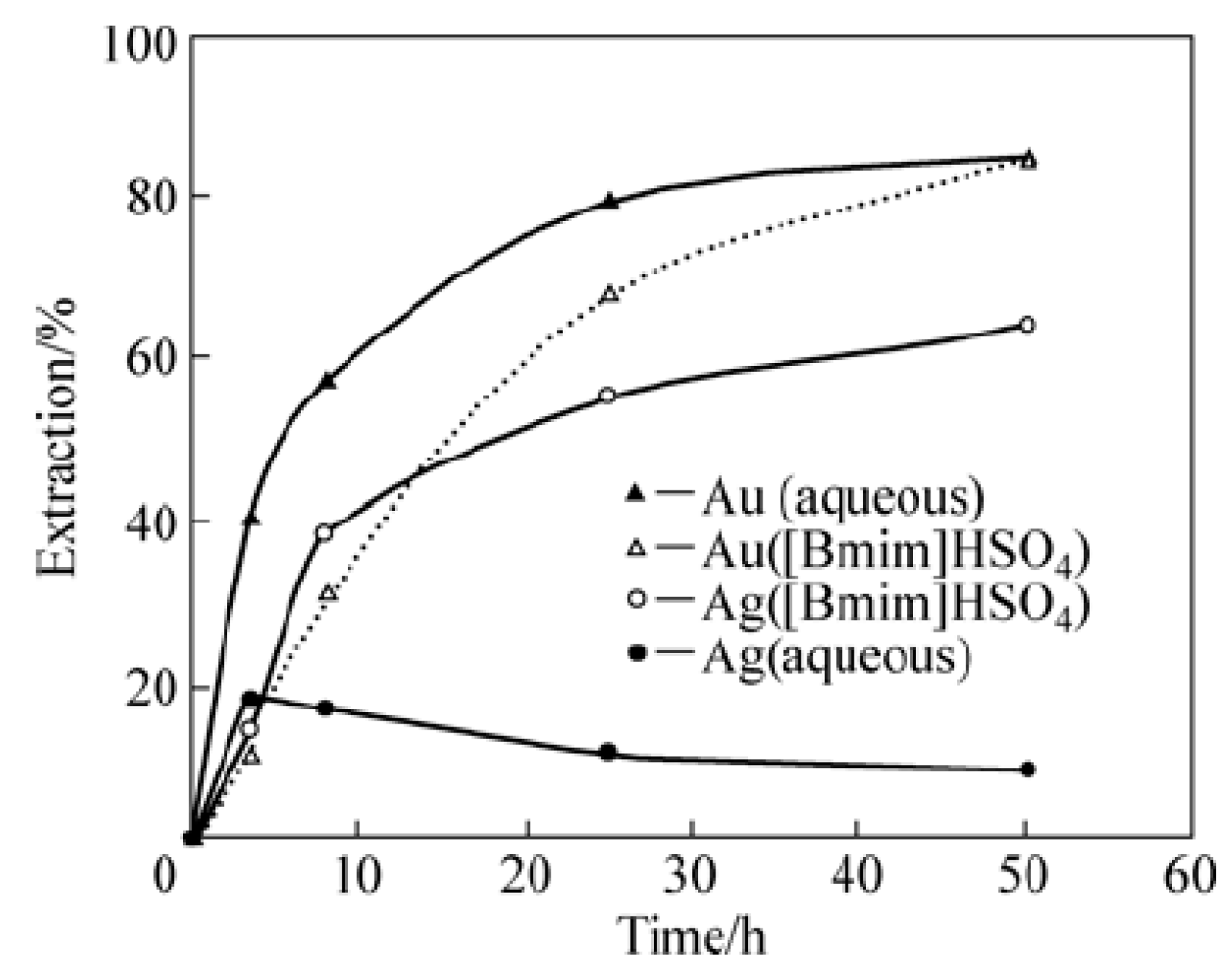

Figure 10. Leaching efficiency of Au/Ag using aqueous sulfuric acid or [Bmim]HSO4 with Fe2(SO4)3 (Reprinted with permission from ref. [24] Copyright 2010 Elsevier B.V).
Figure 10. Leaching efficiency of Au/Ag using aqueous sulfuric acid or [Bmim]HSO4 with Fe2(SO4)3 (Reprinted with permission from ref. [24] Copyright 2010 Elsevier B.V).
Ijms 15 15320 g010
Zhang et al. [25] suggested a solvent extraction technique based on three-liquid-phase partitioning including ionic liquid phase, which enables the separation or concentration of Pt(IV), Pd(II), Rh(III) from hydrochloric acid leaching solution by using [C4mim]PF6–oil phase (diisopentyl sulfide-nonane organic solution)–water phase (hydrochloric acid aqueous solution). While Rh(III) remained in the middle water phase, Pd(II) and Pt(IV) migrated toward the upper oil phase and the lower ionic liquid phase respectively as shown in Figure 11. Their application of ionic liquid to the solvent extraction of platinum group metals illustrates the effectiveness of ionic liquid in the selective separation from multi-metal solutions compared to the conventional two-phase solvent extraction systems. Cieszynska et al. [26] reported that Pd(II) can be extracted selectively from hydrochloric acid solutions containing multi-metal ions by using extraction agents (CyphosIL 101 and CyphosIL 104) based on ionic liquids (trihexyl(tetradecyl)phosphonium chloride and trihexyl(tetradecyl)phosphoniumbis-2,4,4-trimethylpentylphosphinate), respectively. They mixed the extraction agents with toluene and were able to extract more than 99% Pd(II) from 0.1 M hydrochloric acid solution including Pd(II), Ni(II), Cu(II), Pb(II), Fe(III), Rh(III), Ru(III), and Pt(IV).
These research results suggest the favorable application of ionic liquids to the separation and recovery of platinum group metals with considering the fact that the recovery in the conventional aqueous system is complex and difficult. Moreover, ionic liquids can be directly used as electrolyte for the electrowinning of dissolved metal ions because they have high ionic conductivity and wide potential windows enabling the electrolytic reduction of various metals. Meanwhile, Tian et al. [24] and Binnemans et al. [27,28,29,30,31,32,33,34,35,36] focused on the usage of ionic liquids in the extraction of nonferrous metals, which broadened the application of ionic liquids from precious metals to light and rare earth metals. In particular, in the separation between rare earth metals and transition metals, Binnemans et al. have investigated many combinations of metals and ionic liquids in the liquid-liquid extraction so far.
Ijms 15 15320 g011 1024

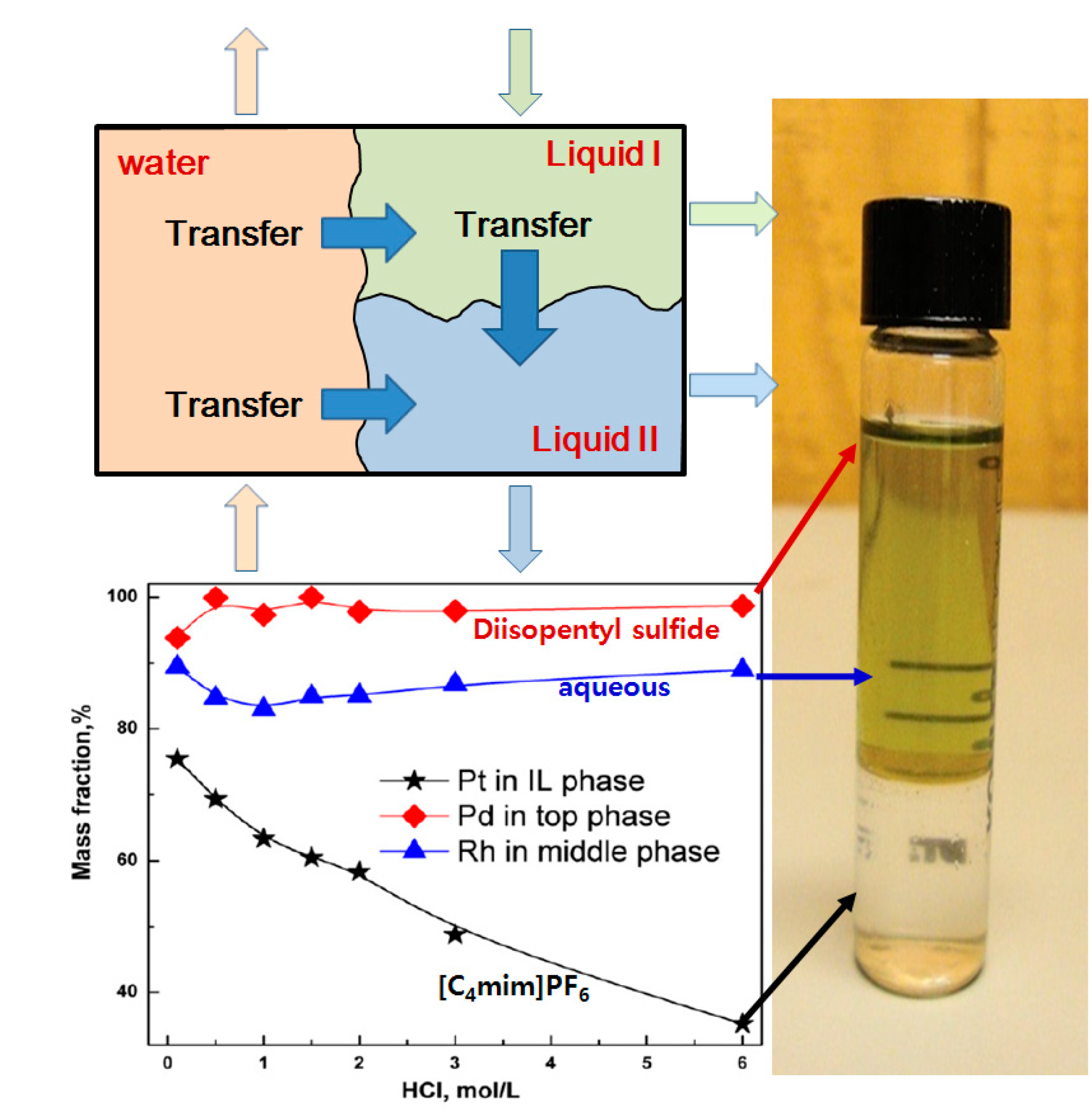

Figure 11. Extraction behaviors of Pt(IV), Pd(II) and Rh(III) in three-liquid-phase system (Reprinted with permission from ref. [25] Copyright 2013 Elsevier B.V).
Figure 11. Extraction behaviors of Pt(IV), Pd(II) and Rh(III) in three-liquid-phase system (Reprinted with permission from ref. [25] Copyright 2013 Elsevier B.V).
Ijms 15 15320 g011
Ionic liquids can also be used in metallurgy in a form of supported ionic liquid membranes (SILMs), which stabilize ionic liquids by using porous supporters. The disadvantageous high viscosity of ionic liquid compared to organic solvents can be mitigated by using SILMs, leading to the application of CO2 separation or metal ion-exchange membranes [37]. Hoshino [38] suggested the application of SILMs to the recovery of lithium from seawater as shown in Figure 12. The SILMs can recover valuable metals from solutions where target metals are dissolved by selecting an adequate ionic liquid, which have superior solubility of target metals and are immiscible with aqueous solutions, such as N-methyl-N-propylpiperidinium bis(trifluoromethanesulfonyl)imide (PP13TFSI) for lithium recovery.
Ijms 15 15320 g012 1024

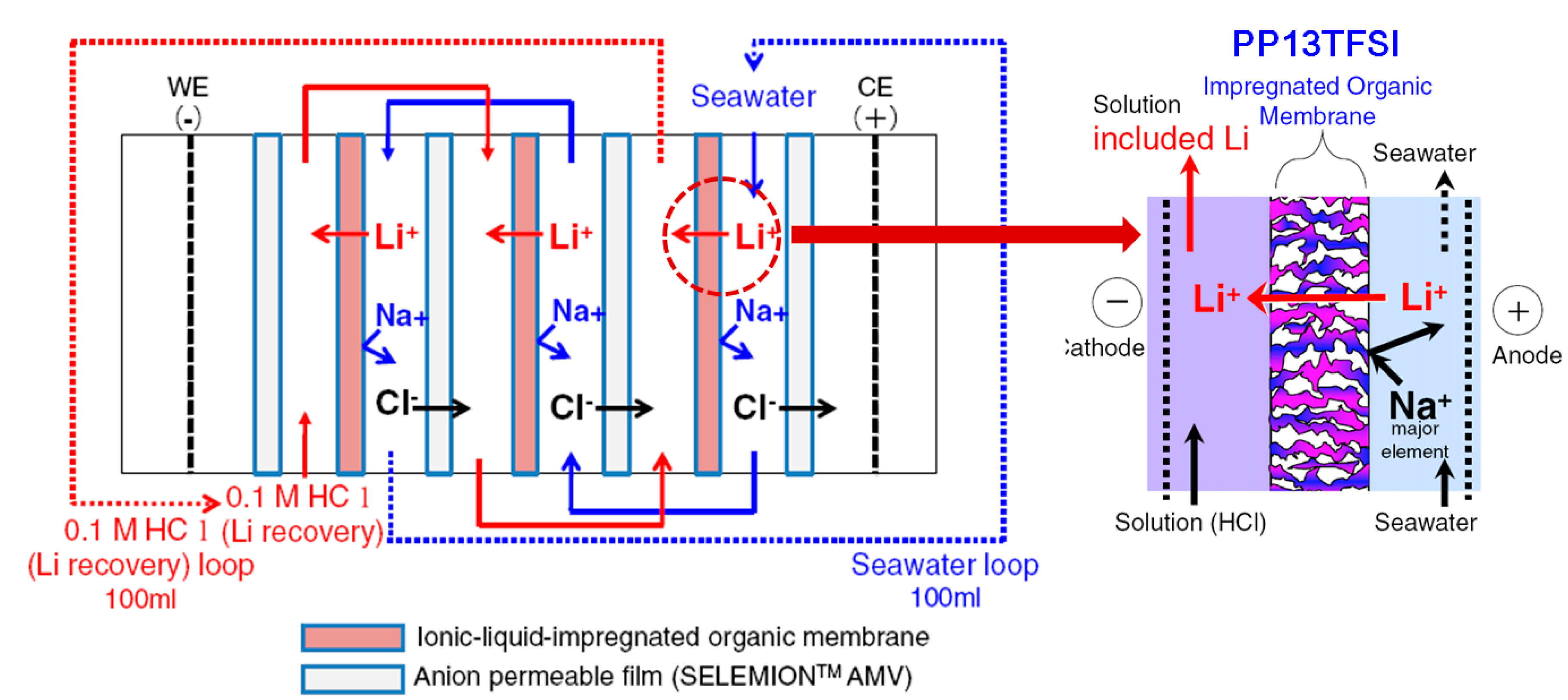

Figure 12. Schematic of the SILMs; Li extraction from sea water (Reprinted with permission from ref. [38] Copyright 2013 Elsevier B.V).
Figure 12. Schematic of the SILMs; Li extraction from sea water (Reprinted with permission from ref. [38] Copyright 2013 Elsevier B.V).
Ijms 15 15320 g012

2.3. Electrolysis of Metals

Ionic liquids have been adopted more extensively on the field of metal electrolysis than the other fields belonging to metal manufacturing industry. Because there are too many references in this field to cover their details in this review, we try to restrict the contents of this section to our own results. Table 2 is the literature survey result where the combination of some selected metals and ionic liquids is specified with reference information. Readers may refer to other review papers including F. Endre’s [39,40,41] for a more extensive overview in this field.
Table 2. Literature survey result for the combination of some selected metals and ionic liquids in the field of metal electrolysis (A–G).
Table
(A)
(A)
MetalLiMgAuPtPd
Ionic Liquids
BMI[TFSI][42]
BMP[TFSI][43][44]
Bu3HexP+[TFSI]−[45]
Bu3HexN+[TFSI]−[45]
C3mpyr[TFSI][46]
DEME[TFSI][47,48]
EMI[TFSI][49]
EMIm[TFSI][50]
N1113[TFSI][49]
N1114[TFSI][51]
Table
(B)
(B)
MetalLiMgAuTaSiNd
Ionic Liquids
PP13[TFSI][52]
Pyr14[TFSI][53]
TMHA[TFSI][54,55]
C3mpyr[FSI][56]
BMP[TFSA][57]
EMIm[TFSA][58]
PMIm[TFSA][59]
PP13[TFSA][60,61]
P2225[TFSA][62]
Py14[TFSA][60,63][64]
Table
(C)
(C)
MetalLiMgAuPtTiTaSiIn
Ionic Liquids
TMHA[TFSA][60]
EMI[FSA][61]
EMI[TSAC][49]
N2222[TSAC][49]
ABN1n[Tf2N][65]
BEPip[Tf2N][66]
BMIm[Tf2N][67]
BMP[Tf2N][68][69][67,70,71,72,73][67,69,74,75][76]
C3(OH)2mim[Tf2N][77]
C4Mim[Tf2N][78][78]
Table
(D)
(D)
MetalMgAuPtPdTiSi
Ionic Liquids
C10MIm[Tf2N][79]
EMIm[Tf2N][80]
P66614[Tf2N][81][81,82]
P(C6)3C14[Tf2N][83][83,84,85]
Py14[Tf2N][86,87,88]
TBMA[Tf2N][89]
BMP[TfO][68]
BMIm[Cl][90][90][91,92,93,94,95,96,97,98][99,100]
C3COOH[Cl][77]
C3OHMIm[Cl][77]
Table
(E)
(E)
MetalLiAuPtTi
Ionic Liquids
C3CNmim[Cl][77]
C3(OH)2mim[Cl][77]
C3(OCOCH2SH)2mim[77]
BMECl[AlCl3][101]
BMIC[AlCl3][102]
BTMAC[AlCl3][103]
EMICl[AlCl3][51,104]
EMImCl[AlCl3][105]
EtMelmCl[AlCl3][106,107]
BMI[BF4][108]
Table
(F)
(F)
MetalMgAuPtPdTiIn
Ionic Liquids
BMIm[BF4][52,109,110,111,112][113]
BMMIm[BF4][114]
C3CNMIm[BF4][77]
C3(OH)2mim[BF4][77]
DEME[BF4][115]
EMI[BF4][108]
EMIm[BF4][68][67][67][67]
BMIm[BR][116]
BMIm[BTA][117,118]
BMP[DCA][119][43][120,121]
Table
(G)
(G)
MetalAuPtPdIn
Ionic Liquids
BMIm[PF6][122][113,123]
C3(OH)2mim[PF6][77]
C8Py[PF6][124]
ZnCl2[EMIC][125,126,127]
ZnCl2[EMIm-Cl][67]
EMI[Cl-BF4][42][42][128]
mercapto IL[1-methyl-3(2'-mercaptoacetoxyethyl) imidazoliumhexafluorophosphate][129][129][129]
TOMAC(Aliquat 336 chloride-IL)[98,130]
TOMAN(Aliquat 336 nitrate-IL)[130]
Active/light metals such as magnesium, rare earth metals such as neodymium and silicon are usually recovered by pyrometallurgical processes where metal phases are obtained by direct melting or by reduction with reductants often after the additional formation steps of specific metal salts. Generally these recovery processes have problems such as high operating temperature (600–2000 °C), high operating cost, low energy efficiency (50%–80%), high energy consumption (~100 kWh/kg metal), environmental issues, and waste management. Alternatively, these metals could be recovered by electrolysis, but its practicability is limited by the use of conventional aqueous electrolytes because of low reduction potential and high chemical activity of the metals in aqueous systems. However, the properties of ionic liquids such as wide electrochemical window, low vapor pressure and satisfactory ionic conductivity shed light on the expansion of electrolysis to the recovery of active/light metals, rare earth metals and silicon.
For example, the electrochemical reduction behavior of silicon at room temperature was examined by using two kinds of ionic liquids (1-butyl-3-methylpyridinium bis(trifluoromethylsulfonyl)imide ([Bmpy]Tf2N) and 1-ethyl-3-methylimidazolium bis(trifluoromethylsulfonyl)imide ([Emim]Tf2N)) of which cations were different, and the resulting electrodeposited silicon thin films were obtained with the added salt of SiCl4 as shown in Figure 13 [131]. Further, the recycling of silicon single crystal cutting sludge was suggested based on the above reduction behavior of silicon in the ionic liquids, emphasizing that the proper choice of cation in ionic liquids is very important for the effective silicon recycling [132].
Ijms 15 15320 g013 1024

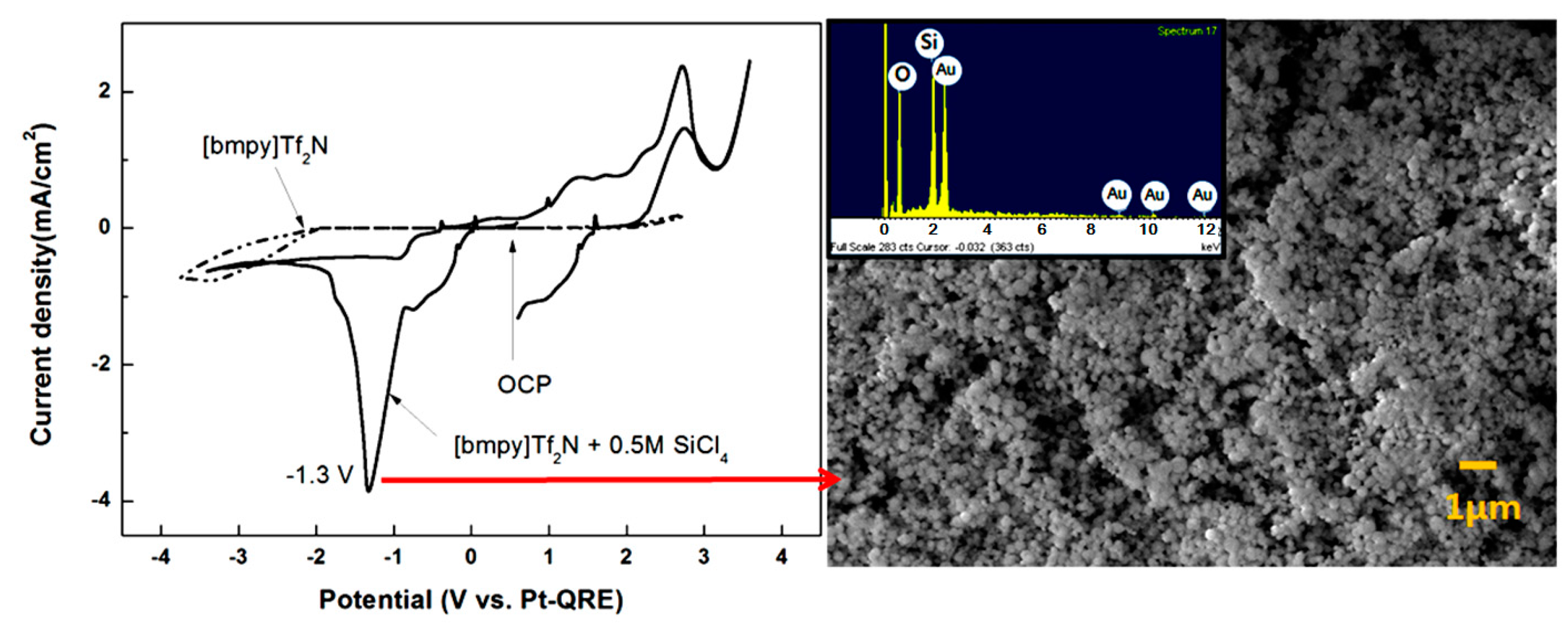

Figure 13. Electrochemical behavior of silicon in [Bmpy]Tf2N and electrodeposited silicon thin film [131].
Figure 13. Electrochemical behavior of silicon in [Bmpy]Tf2N and electrodeposited silicon thin film [131].
Ijms 15 15320 g013
The electrowinning of magnesium, a representative light metal, is not feasible in aqueous electrolytes at room temperature because of its low reduction potential and high reactivity with water. However, the electrodeposition of magnesium could be possible when an electrochemically stable ionic liquid is used as electrolyte. This possibility was examined by adopting an imidazolium-based ionic liquid and Mg(CF3SO3)2 as a magnesium source [133]. The magnesium electrodeposited at a potential of 1.5 V (vs. Mg) has a particulate morphology as depicted in Figure 14. Although the electrodeposits on silver substrate include some impurities of F and O, which might originate from the Mg salt, in addition to Mg, this study showed that a careful choice of ionic liquid and metal salt enables the room temperature electrodeposition of active/light metals.
Ijms 15 15320 g014 1024

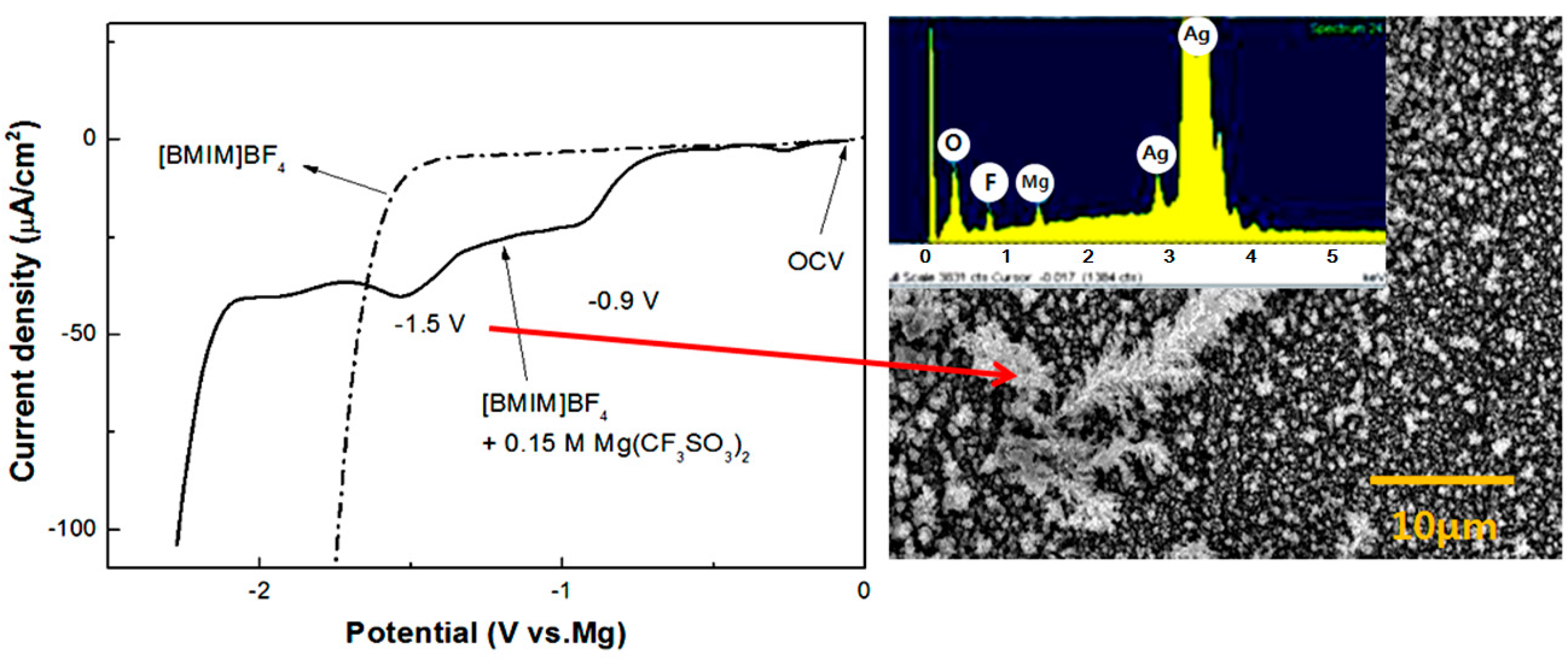

Figure 14. Electrochemical behavior of magnesium in [Bmim]BF4 and its electrodeposited thin film [133].
Figure 14. Electrochemical behavior of magnesium in [Bmim]BF4 and its electrodeposited thin film [133].
Ijms 15 15320 g014
Rare earth metals are extensively used in high-tech industries despite their scarcity on earth. For example, neodymium, of which usage has been expanded in recent years because of a proliferation of high-performance magnets for advanced motors in electric vehicles, needs to be reused or recycled considering its limited availability. The conventional extraction method of neodymium metal is fused salt electrolysis, which has some disadvantages such as high operating cost, high energy consumption, environmental issues of chlorine gas emission and so on. The production of neodymium compounds also needs complicated and costly separation and purification stages. By contrast, Figure 15 shows that simple and relatively low-cost production and recycling of neodymium metal are possible by electrowinning or electrorefining of waste magnets in ionic liquids. This possibility was examined by using a gold substrate and 1-ethyl-3-methylimidazolium bis(trifluoromethylsulfonyl)imide ([Emim]TFSI) containing Nd(TFSI)3 as a neodymium source.
Ijms 15 15320 g015 1024

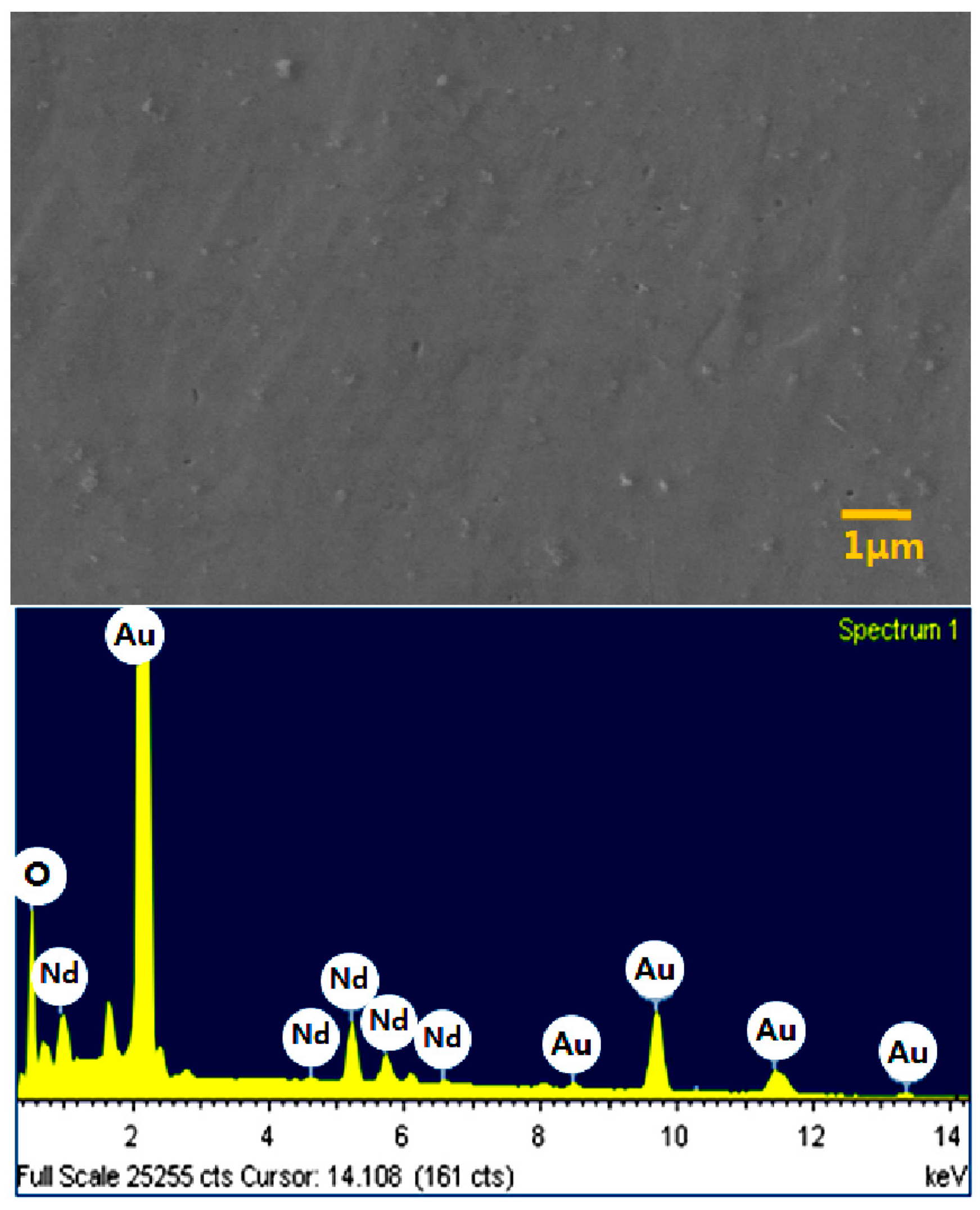

Figure 15. Electrodeposition of neodymium in [Emim]TFSI.
Figure 15. Electrodeposition of neodymium in [Emim]TFSI.
Ijms 15 15320 g015
For the selective separation/recovery of platinum group metals, hydrometallurgy or pyrometallurgy techniques could be used. A leaching process based on hydrometallurgy adopts strong acid leaching agents, which can dissolve and recover various kinds of platinum group metals constituting automotive catalysts, however, in large quantities and which incurs environmental problems [134]. On the other hand, pyrometallurgical techniques need substantial energy input and large-scale facilities because crushing and grinding pre-treatment and high temperature smelting of platinum group metal-containing materials such as spent catalysts are required in these techniques. To overcome the disadvantages of the established techniques based on hydrometallurgy or pyrometallurgy, a newly proposed separation/recovery of platinum group metals by using ionic liquids is investigated as seen in Figure 16 where platinum, palladium and rhodium have different reduction behavior depending on applied potential.
Ijms 15 15320 g016 1024

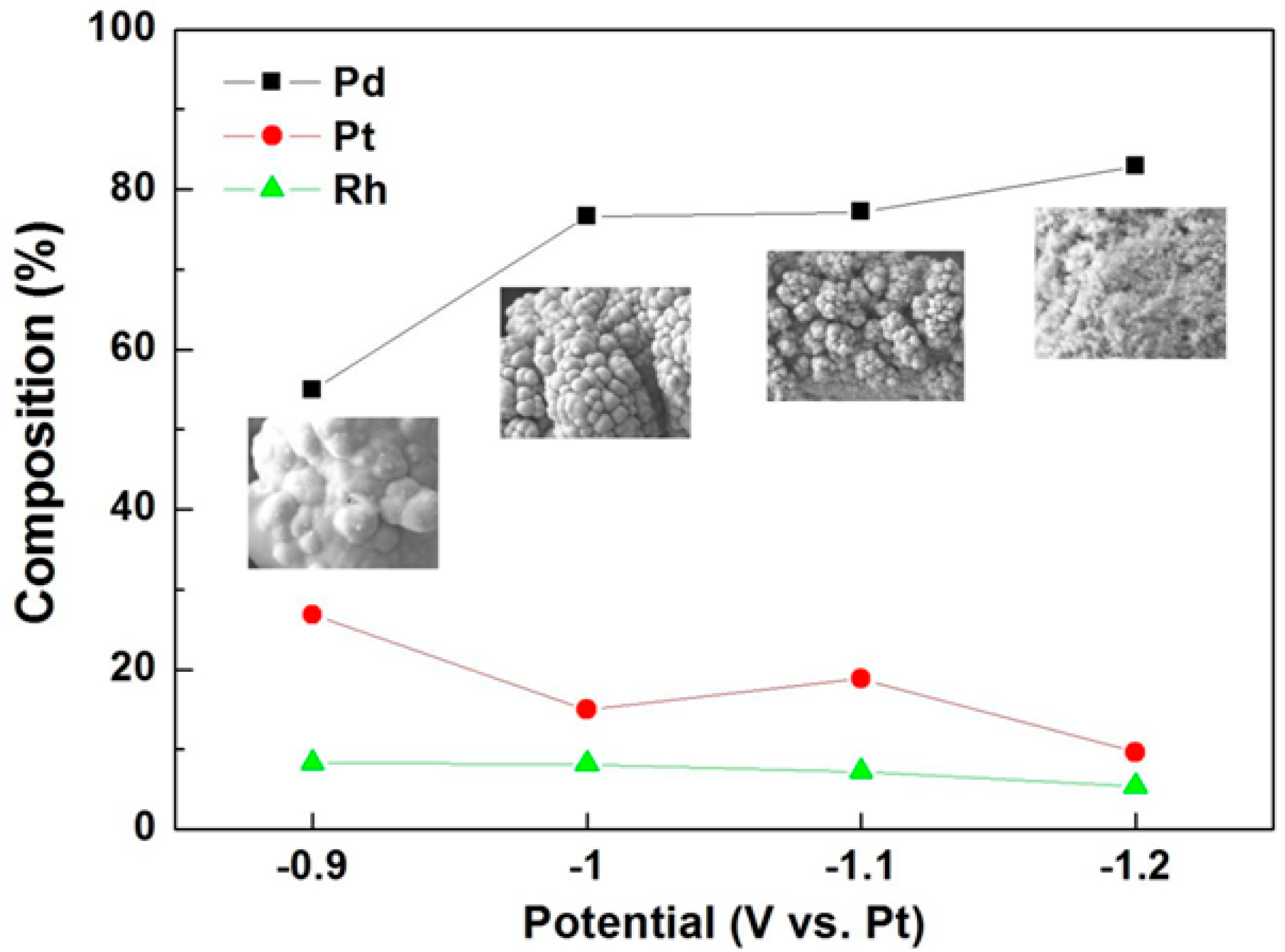

Figure 16. Compositional change of platinum group metals in [Bmim]Cl depending on applied potentials.
Figure 16. Compositional change of platinum group metals in [Bmim]Cl depending on applied potentials.
Ijms 15 15320 g016

3. Conclusions

Ionic liquids are a family of molten salts, comprising cations and anions, which exist as a liquid phase at low temperatures usually below 100 °C. Ionic liquids are considered to be durable and environmentally friendly solvents because they have low vapor pressure, a non-flammable nature, and excellent chemical/electrochemical/thermal stability, which are favorable to long-term operation. Further, they are versatile in performing a specific task by designing their structure with countless combinations of cations and anions. Thus, the development of task specific ionic liquids for the extraction, synthesis and processing of metals is actively aimed for in the metal manufacturing industry.
Ionic liquids have been introduced to leaching and solvent extraction processes in the extraction of various metals, and they can be directly used as electrolyte for the electrowinning of dissolved metal ions because they have high ionic conductivity and wide potential windows enabling the electrolytic reduction of various metals. Physicochemical and electrochemical properties of ionic liquids such as melting point, density, viscosity, chemical reactivity, ionic conductivity and electrochemical window can be optimized in principle for specific tasks by the proper design of cations and anions. Incidentally, the mixing of ionic liquids with conventional solvents has been attempted in order to widen the intrinsic limitations of properties belonging to ionic liquids.
Although there have been a number of papers regarding ionic liquids so far, relevant research activities in the field of hydrometallurgy have had limited success. Because the research and development of ionic liquids in this area are still emerging, various, more fundamental approaches should be helpful to popularize ionic liquids in the metal manufacturing industry.

Acknowledgments

This study was supported by the R&D Center for Valuable Recycling (Global-Top Environmental Technology Development Program) funded by the Ministry of Environment. (Project No.: GT-11-C-01-230-0). Yeojin Jung, Priyandi Kusumah and Kyungjung Kwon were supported by the Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Education (2013R1A1A2010795).

Author Contributions

Jesik Park and Churl Kyoung Lee conceived the idea and drew the outline. Jinyoung Lee commented on the manuscript. Jesik Park, Yeojin Jung, Priyandi Kusumah and Kyungjung Kwon wrote the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Anastas, P.T. Handbook of Green Chemistry—Green Solvents, 1st ed.; Willey-VCH: Weinheim, Germany, 2010; pp. 1–1344. [Google Scholar]
  2. SciFinder. Available online: http://scifinder.cas.org/ (accessed on 12 April 2014).
  3. Johnson, K.E. What’s an ionic liquid? Electrochem. Soc. Interface 2007, 16, 38–41. [Google Scholar]
  4. Turner, E.A.; Pye, C.C.; Singer, D.J. Use of ab initio calculations toward the rational design of room temperature ionic liquids. Phys. Chem. 2003, 107, 2277–2288. [Google Scholar] [CrossRef]
  5. Wasserscheid, P.; Welton, T. Ionic Liquids in Synthesis, 2nd ed.; Willey-VCH: Weinheim, Germany, 2008; pp. 1–724. [Google Scholar]
  6. Marsh, K.N.; Boxall, J.A.; Lichtenthaler, R. Room temperature ionic liquids and their mixtures—A review. Fluid Phase Equilib. 2004, 219, 93–98. [Google Scholar] [CrossRef]
  7. Sutto, T.E.; de long, H.C.; Trulove, P.C. Ionic liquid, graphite and gel polymer electrolytes and electrodes using 1,2-dimethyl-3-propyl-imidazolium tetrafluoroborate. Proc. Electrochem. Soc. 1999, 99, 32–42. [Google Scholar]
  8. Wilkes, J.S.; Zaworotko, M.J. Air and water stable 1-ethyl-3-methylimidazolium based ionic liquids. Chem. Commun. 1992, 13, 965–967. [Google Scholar]
  9. Guerfi, A.; Dontigny, M.; Charest, P.; Petitclerc, M.; Lagacě, M.; Vijh, A.; Zaghib, K. Improved electrolytes for Li-ion batteries: Mixtures of ionic liquid and organic electrolyte with enhanced safety and electrochemical performance. J. Power Sources 2010, 195, 845–852. [Google Scholar]
  10. Chiappe, C.; Capraro, D.; Conte, V.; Pieraccini, D. Stereoselective halogenations of alkenes and alkynes in ionic liquids. Org. Lett. 2001, 3, 1061–1063. [Google Scholar] [CrossRef]
  11. Stark, A.; MacLean, B.L.; Singer, R.D. 1-Ethyl-3-methylimidazolium halogenoaluminate ionic liquids as solvents for Friedel–Crafts acylation reactions of ferrocene. J. Chem. Soc. 1999, 63, 63–66. [Google Scholar]
  12. Sheldon, R. Catalytic reactions in ionic liquids. Chem. Commun. 2001, 23, 2399–2407. [Google Scholar] [CrossRef]
  13. Kim, H.S.; Kim, Y.J.; Lee, H.; Park, K.Y.; Lee, C.; Chin, C.S. Ionic liquids containing anionic selenium species: Applications for the oxidative carbonylation of aniline. Angew. Chem. Int. Ed. 2002, 41, 4300–4303. [Google Scholar]
  14. Lewandowski, A.; Świderska, A. Electrochemical capacitors with polymer electrolytes based on ionic liquids. Solid State Ion. 2003, 161, 243–249. [Google Scholar] [CrossRef]
  15. Wang, P.; Zakeeruddin, S.M.; Exnar, I.; Grätzel, M. High efficiency dye-sensitized nanocrystalline solar cells based on ionic liquid polymer gel electrolyte. Chem. Commun. 2002, 24, 2972–2973. [Google Scholar]
  16. Shin, J.H.; Henderson, W.A.; Passerini, S. Ionic liquids to the rescue? Overcoming the ionic conductivity limitations of polymer electrolytes. Electrochem. Commun. 2003, 5, 1016–1020. [Google Scholar]
  17. Armand, M.; Endres, F.; MacFarlane, D.R.; Ohno, H.; Scrosati, B. Ionic liquid materials for the electrochemical challenges of the future. Nat. Mater. 2009, 8, 621–629. [Google Scholar]
  18. Seki, S.; Kobayashi, T.; Kobayashi, Y.; Takei, K.; Miyashiro, H.; Hayamizu, K.; Tsuzuki, S.; Mitsugi, T.; Umebayashi, Y. Effects of cation and anion on physical properties of room-temperature ionic liquids. J. Mol. Liq. 2010, 152, 9–13. [Google Scholar] [CrossRef]
  19. Chaban, V.V.; Voroshylova, I.V.; Kalugin, O.N.; Prezhdo, O.V. Acetonitrile boosts conductivity of imidazolium ionic liquids. J. Phys. Chem. 2012, 116, 7719–7727. [Google Scholar] [CrossRef]
  20. Fannin, A.A., Jr.; Floreani, D.A.; King, L.A.; Landers, J.S.; Piersma, B.J.; Stech, D.J.; Vaughn, R.L.; Wilkers, J.S. Properties of 1,3-dialkylimidazollum chloride-aluminum chloride ionic liquids. 2. Phase transitions, densities, electrical conductivities, and viscosities. J. Phys. Chem. 1984, 88, 2614–2621. [Google Scholar] [CrossRef]
  21. Fannin, A.A., Jr.; Levisky, J.A.; Wilkers, J.S. Properties of 1,3-dialkylimidazolium chloride-aluminum chloride ionic liquids. 1. Ion interactions by nuclear magnetic resonance spectroscopy. J. Phys. Chem. 1984, 88, 2609–2614. [Google Scholar] [CrossRef]
  22. McCluscey, A.; Lawrance, G.A.; Leitch, S.K.; Owen, M.P.; Hamilton, I.C. Ionic liquids industrial applications for green chemistry. Am. Chem. Soc. 2002, 818, 199–212. [Google Scholar]
  23. Whitehead, J.A.; Lawrance, G.A.; McCluskey, A. Green leaching: Recyclable and selective leaching of gold-bearing ore in an ionic liquid. Green Chem. 2004, 6, 313–315. [Google Scholar] [CrossRef]
  24. Tian, G.; Li, J.; Hua, Y. Application of ionic liquids in hydrometallurgy of nonferrous metals. Trans. Nonferrous Met. Soc. China 2010, 20, 513–520. [Google Scholar] [CrossRef]
  25. Zhang, C.; Huang, K.; Yu, P.; Liu, H. Ionic liquid based three-liquid-phase partitioning and one-step separation of Pt(IV), Pd(II) and Rh(III). Sep. Purif. Technol. 2013, 108, 166–173. [Google Scholar]
  26. Cieszynska, A.; Wisniewski, M. Selective extraction of palladium(II) from hydrochloric acid solutions with phosphonium extractants. Sep. Purif. Technol. 2011, 80, 385–389. [Google Scholar] [CrossRef]
  27. Mehdi, H.; Binnemans, K.; Hecke, K.V.; Meervelt, L.V.; Nockemann, P. Hydrophobic ionic liquids with strongly coordinating anions. Chem. Commun. 2010, 46, 234–236. [Google Scholar] [CrossRef]
  28. Wellens, S.; Thijs, B.; Möller, C.; Binnemans, K. Separation of cobalt and nickel by solvent extraction with two mutually immiscible ionic liquids. Phys. Chem. Chem. Phys. 2013, 15, 9663–9669. [Google Scholar] [CrossRef] [Green Version]
  29. Wellens, S.; Goovaerts, R.; Möller, C.; Luyten, J.; Thijs, B.; Binnemans, K. A continuous ionic liquid extraction process for the separation of cobalt from nickel. Green Chem. 2013, 15, 3160–3164. [Google Scholar] [CrossRef]
  30. Hoogerstraete, T.V.; Onghena, B.; Binnemans, K. Homogeneous liquid–liquid extraction of metal ions with a functionalized ionic liquid. Phys. Chem. Lett. 2013, 4, 1659–1663. [Google Scholar] [CrossRef]
  31. Hoogerstraete, T.V.; Onghena, B.; Binnemans, K. Homogeneous liquid–liquid extraction of rare earths with the betaine—betainium bis(trifluoromethylsulfonyl)imide ionic liquid system. Int. J. Mol. Sci. 2013, 14, 21353–21377. [Google Scholar] [CrossRef]
  32. Hoogerstraete, T.V.; Binnemans, K. Highly efficient separation of rare earths from nickel and cobalt by solvent extraction with the ionic liquid trihexyl(tetradecyl)phosphonium nitrate: A process relevant to the recycling of rare earths from permanent magnets and nickel metal hydride batteries. Green Chem. 2014, 16, 1594–1606. [Google Scholar] [CrossRef]
  33. Rout, A.; Binnemans, K. Liquid–liquid extraction of europium(III) and other trivalent rare-earth ions using a non-fluorinated functionalized ionic liquid. Dalton Trans. 2014, 43, 1862–1872. [Google Scholar] [CrossRef]
  34. Rout, A.; Binnemans, K. Separation of rare earths from transition metals by liquid–liquid extraction from a molten salt hydrate to an ionic liquid phase. Dalton Trans. 2014, 43, 3186–3195. [Google Scholar] [CrossRef]
  35. Rout, A.; Wellens, S.; Binnemans, K. Separation of rare earths and nickel by solvent extraction with two mutually immiscible ionic liquids. RSC Adv. 2014, 4, 5753–5758. [Google Scholar] [CrossRef]
  36. Rout, A.; Souza, E.R.; Binnemans, K. Solvent extraction of europium(III) to a fluorine-free ionic liquid phase with a diglycolamic acid extractant. RSC Adv. 2014, 4, 11899–11906. [Google Scholar]
  37. Cascon, H.R.; Choudhari, S.K. 1-Butanol pervaporation performance and intrinsic stability of phosphonium and ammonium ionic liquid-based supported liquid membranes. J. Membr. Sci. 2013, 429, 214–224. [Google Scholar] [CrossRef]
  38. Hoshino, T. Preliminary studies of lithium recovery technology from seawater by electrodialysis using ionic liquid membrane. Desalination 2013, 317, 11–16. [Google Scholar] [CrossRef]
  39. Andres, F. Ionic liquids: Solvents for the electrodeposition of metals and semiconductors. Chem. Phys. Chem. 2002, 3, 144–154. [Google Scholar]
  40. Abbott, A.P.; McKenzie, K.J. Application of ionic liquids to the electrodeposition of metals. Phys. Chem. Chem. Phys. 2006, 8, 4265–4279. [Google Scholar]
  41. Simka, W.; Puszczyk, D.; Nawrat, G. Electrodeposition of metals from non-aqueous solutions. Electrochim. Acta 2009, 54, 5307–5319. [Google Scholar] [CrossRef]
  42. Su, F.Y.; Huang, J.F.; Sun, I.W. Galvanostatic deposition of palladium gold alloys in a Lewis basic EMI-Cl-BF4 ionic liquid. J. Electrochem. Soc. 2004, 151, C811–C815. [Google Scholar] [CrossRef]
  43. Huang, H.Y.; Su, C.J.; Kao, C.L.; Chen, P.Y. Electrochemical study of Pt and Fe and electrodeposition of PtFe alloys. J. Electroanal. Chem. 2010, 650, 1–9. [Google Scholar] [CrossRef]
  44. Bando, Y.; Katayama, Y.; Miura, T. Electrodeposition of palladium in a hydrophobic 1-n-butyl-1-methylpyrrolidinium bis(trifluoromethylsulfonyl)imide room temperature ionic liquid. Electrochim. Acta 2009, 53, 87–91. [Google Scholar] [CrossRef]
  45. Vega, J.A.; Zhou, J.; Kohl, P.A. Electrochemical comparison and deposition of lithium and potassium from phosphonium and ammonium TFSI ionic liquids. J. Electrochem. Soc. 2009, 156, A253–A259. [Google Scholar] [CrossRef]
  46. Lanea, G.H.; Best, A.S.; MacFarlane, D.R.; Forsyth, M.; Bayley, P.M.; Hollenkamp, A.F. The electrochemistry of lithium in ionic liquid organic diluent mixtures. Electrochim. Acta 2010, 55, 8947–8952. [Google Scholar] [CrossRef]
  47. Yoshimoto, N.; Hotta, K.; Egashira, M.; Morita, M. Electrochemical behavior of magnesium in mixed solutions consisting of ionic liquid and alkylmagnesiumbromides with different alkyl-chains. Electrochemistry 2012, 80, 774–776. [Google Scholar] [CrossRef]
  48. Shimamura, O.; Yoshimoto, N.; Matsumoto, M.; Egashia, E.; Morita, M. Electrochemical co-deposition of magnesium with lithium from quaternary ammonium-based ionic liquid. J. Power Sources 2011, 196, 1586–1588. [Google Scholar] [CrossRef]
  49. Matsumoto, H.; Sakaebe, H.; Tatsumi, K. Preparation of room temperature ionic liquids based on aliphatic onium cations and asymmetric amide anions and their electrochemical properties as a lithium battery electrolyte. J. Power Sources 2005, 146, 45–50. [Google Scholar]
  50. Yan, B.; Yang, P.; Zhao, Y.; Zhang, J.; An, M. Electrocodeposition of lithium and copper from room temperature ionic liquid 1-ethyl-3-methyllimidazolium bis(trifluoromethylsulfonyl)imide. RSC Adv. 2012, 2, 12926–12931. [Google Scholar] [CrossRef]
  51. Stark, J.K.; Ding, Y.; Kohl, P.A. Dendrite free electrodeposition and reoxidation of lithium sodium alloy for metal anode battery. J. Electrochem. Soc. 2011, 158, A1100–A1105. [Google Scholar] [CrossRef]
  52. Wang, P.; NuLi, Y.; Yang, J.; Feng, Z. Mixed ionic liquids as electrolyte for reversible deposition and dissolution of magnesium. Surf. Coat. Technol. 2006, 201, 3783–3787. [Google Scholar] [CrossRef]
  53. Schmuck, M.; Balducci, A.; Rupp, B.; Kern, W.; Passerini, S.; Winter, M. Alloying of electrodeposited silicon with lithium a principal study of applicability as anode material for lithium ion batteries. J. Solid-State Electrochem. 2010, 14, 2203–2207. [Google Scholar] [CrossRef]
  54. Komadina, J.; Akiyoshi, T.; Ishibashi, Y.; Fukunaka, Y.; Homma, T. Electrochemical quartz crystal microbalance study of Si electrodeposition in ionic liquid. Electrochim. Acta 2012, 100, 236–241. [Google Scholar]
  55. Nishimura, Y.; Fukunaka, Y.; Miranda, C.R.; Nishida, T.; Nohira, T.; Hagiwara, R. In-situ Raman spectroscopy studies of the electrolyte substrate interface during electrodeposition of silicon in a room temperature ionic liquid. ECS Trans. 2009, 16, 1–6. [Google Scholar]
  56. Bhatt, A.I.; Best, A.S.; Huang, J.; Hollenkamp, A.F. Application of the N-propyl-N-methyl-pyrrolidinium bis(fluorosulfonyl)imide RTIL containing lithium bis(fluorosulfonyl)imide in ionic liquid based lithium. J. Electrochem. Soc. 2010, 157, A66–A74. [Google Scholar]
  57. Bozzini, B.; Busson, B.; Humbert, C.; Mele, C.; Raffa, P.; Tadjeddine, A. Investigation of Au electrodeposition from [BMP][TFSA] room-temperature ionic liquid containing K[Au(CN)2] by in situ two-dimensional sum frequency generation spectroscopy. J. Electroanal. Chem. 2011, 661, 20–24. [Google Scholar] [CrossRef]
  58. Bozzini, B.; Tondo, E.; Bund, A.; Ispas, A.; Mele, C. Electrodeposition of Au from [EMIm][TFSA] room-temperature ionic liquid: An electrochemical and surface-enhanced Raman spectroscopy study. J. Electroanal. Chem. 2011, 651, 1–11. [Google Scholar] [CrossRef]
  59. Ispas, A.; Adolphi, B.; Bund, A.; Endres, F. On the electrodeposition of tantalum from three different ionic liquids with the bis(trifluoromethyl sulfonyl) amide anion. Phys. Chem. Chem. Phys. 2010, 12, 1793–1803. [Google Scholar] [CrossRef]
  60. Sano, H.; Sakaebe, H.; Matsumoto, H. In-situ optical microscope morphology observation of lithium electrodeposited in room temperature ionic liquids containing aliphatic quaternary ammonium cation. Electrochemistry 2012, 80, 777–779. [Google Scholar] [CrossRef]
  61. Sanoa, H.; Sakaebe, H.; Matsumoto, H. Observation of electrodeposited lithium by optical microscope in room temperature ionic liquid-based electrolyte. J. Power Sources 2011, 196, 6663–6669. [Google Scholar] [CrossRef]
  62. Kondo, H.; Matsumiya, M.; Tsunashima, K.; Kodama, S. Attempts to the electrodeposition of Nd from ionic liquids at elevated temperatures. Electrochim. Acta 2012, 66, 313–319. [Google Scholar] [CrossRef]
  63. Gasparotto, L.H.S.; Borisenko, N.; Bocchi, N.; el Abedin, S.Z.; Endres, F. In situ STM investigation of the lithium underpotential deposition on Au(111) in the air- and water-stable ionic liquid 1-butyl-1-methylpyrrolidinium bis(trifluoromethylsulfonyl)amide. Phys. Chem. Chem. Phys. 2009, 11, 11140–11145. [Google Scholar]
  64. Borisenkoa, N.; Ispas, A.; Zschippang, E.; Liu, Q.; Zein el Abedin, S.; Bund, A.; Endres, F. In situ STM and EQCM studies of tantalum electrodeposition from TaF5 in the air- and water-stable ionic liquid 1-butyl-1-methylpyrrolidinium. Electrochim. Acta 2009, 54, 1519–1528. [Google Scholar] [CrossRef]
  65. Ruther, T.; Huang, J.; Hollenkamp, A.F. A new family of ionic liquids based on N,N-dialkyl-3-azabicyclo[3.2.2]nonanium cations organic plastic crystal behaviour and highly reversible lithium metal electrodeposition. Chem. Commun. 2007, 48, 5226–5228. [Google Scholar] [CrossRef]
  66. Traore, Y.; Legeai, S.; Dilibertob, S.; Arrachart, G.; Pellet-Rostaing, S.; Draye, M. New insight into indium electrochemistry in a Tf2N-based room-temperature ionic liquid. Electrochim. Acta 2011, 58, 532–540. [Google Scholar]
  67. Zein el Abedin, S.; Endres, F. Electrodeposition of metals and semiconductors in air-and water-stable ionic liquids. Chem. Phys. Chem. 2006, 7, 58–61. [Google Scholar]
  68. Cheek, G.T.; O’Grady, W.E.; Zein el Abedin, S.; Moustafa, E.M.; Endres, F. Studies on the electrodeposition of magnesium in ionic liquids. J. Electrochem. Soc. 2008, 155, D91–D95. [Google Scholar] [CrossRef]
  69. Fournier, C.; Favier, F. Zn, Ti and Si nanowires by electrodeposition in ionic liquid. Electrochem. Commun. 2011, 13, 1252–1255. [Google Scholar] [CrossRef]
  70. Zein el Abedin, S.; Welz-Biermann, U.; Endres, F. A study on the electrodeposition of tantalum on NiTi alloy in an ionic liquid and corrosion behaviour of the coated alloy. Electrochem. Commun. 2005, 7, 941–946. [Google Scholar] [CrossRef]
  71. Arnould, C.; Delhalle, J.; Mekhalif, Z. Electrodeposition from ionic liquid of 2D ordered Ta2O5on titanium substrate through a polystyrene template. J. Electrochem. Soc. 2009, 156, K186–K190. [Google Scholar] [CrossRef]
  72. Zein el Abedin, S.; Farag, H.K.; Moustafa, E.M.; Welz-Biermanny, U.; Endres, F. Electroreduction of tantalum fluoride in a room temperature ionic liquid at variable temperatures. Phys. Chem. Chem. Phys. 2005, 7, 2333–2339. [Google Scholar] [CrossRef]
  73. Arnould, C.; Delhalle, J.; Mekhalif, Z. Multifunctional hybrid coating on titanium towards hydroxyapatite growth electrodeposition of tantalum and its molecular functionalization with organophosphonic acids films. Electrochim. Acta 2008, 53, 5632–5638. [Google Scholar] [CrossRef]
  74. Zein el Abedin, S.; Borissenko, N.; Endres, F. Electrodeposition of nanoscale silicon in a room temperature ionic liquid. Electrochem. Commun. 2004, 6, 510–514. [Google Scholar] [CrossRef]
  75. Borisenko, N.; Zein el Abedin, S.; Endres, F. In-situ STM investigation of gold reconstruction and of silicon electrodeposition on Au(111) in the room temperature ionic liquid 1-butyl-1-methylpyrrolidinium bis(trifluoromethylsulfonyl)imide. J. Phys. Chem. B 2006, 110, 6250–6256. [Google Scholar] [CrossRef]
  76. Zein el Abedin, S.; Saad, A.Y.; Farag, H.K.; Borisenko, N.; Liu, Q.X.; Endres, F. Electrodeposition of selenium, indium and copper in an air- and water-stable ionic liquid at variable temperatures. Electrochim. Acta 2007, 52, 2746–2754. [Google Scholar]
  77. Yu, Y.; Sun, Q.; Liu, X.; Wu, H.; Zhou, T.; Shi, G. Size controllable gold platinum alloy nanoparticles on nine functionalized ionic liquid surfaces and their application as electrocatalysts for hydrogen peroxide reduction. Chem. Eur. J. 2011, 17, 11314–11323. [Google Scholar] [CrossRef]
  78. Aldous, L.; Silvester, D.S.; Pitner, W.R.; Compton, R.G.; Lagunas, M.C.; Hardacre, C. Voltammetric studies of gold, protons and [HCl2]− in ionic liquids. J. Phys. Chem. C 2007, 111, 8496–8503. [Google Scholar]
  79. Kaminska, I.; Niedziolka-Jonsson, J.; Roguska, A.; Opallo, M. Electrodeposition of gold nanoparticles at a solidionic liquidaqueous electrolyte three phase junction. Electrochem. Commun. 2010, 12, 1742–1745. [Google Scholar] [CrossRef]
  80. Ding, J.; Wu, J.; MacFarlane, D.; Price, W.E.; Wallace, G. Induction of titanium reduction using pyrrole and polypyrrole in the ionic liquid ethyl-methyl-imidazolium. Electrochem. Commun. 2008, 10, 217–221. [Google Scholar] [CrossRef]
  81. Xiao, F.; Mo, Z.; Zhao, F.; Zeng, B. Ultrasonic electrodeposition of gold platinum alloy nanoparticles on multi walled carbon nanotubes ionic liquid composite film and their electrocatalysis towards the oxidation of nitrite. Electrochem. Commun. 2008, 10, 1740–1743. [Google Scholar] [CrossRef]
  82. Mo, Z.; Zhao, F.; Xiao, F.; Zeng, B. Preparation and characterization of AuPt alloy nanoparticle–multi-walled carbon nanotube–ionic liquid composite film for electrocatalytic oxidation of cysteine. J. Solid-State Electrochem. 2010, 14, 1615–1620. [Google Scholar] [CrossRef]
  83. Xiao, F.; Zhao, F.; Zhang, Y.; Guo, G.; Zeng, B. Ultrasonic electrodeposition of gold platinum alloy nanoparticles on ionic liquid chitosan composite film and their application in fabricating nonenzyme hydrogen peroxide sensors. J. Phys. Chem. C 2009, 113, 849–855. [Google Scholar]
  84. Zhao, F.; Xiao, F.; Zeng, B. Electrodeposition of PtCo alloy nanoparticles on inclusion complex film of functionalized cyclodextrin-ionic liquid and their application in glucose sensing. Electrochem. Commun. 2010, 12, 168–171. [Google Scholar] [CrossRef]
  85. Xiao, F.; Zhao, F.; Mei, D.; Mo, Z.; Zeng, B. Nonenzymatic glucose sensor based on ultrasonic-electrodeposition of bimetallic PtM (M = Ru, Pd and Au) nanoparticles on carbon nanotubes–ionic liquid composite film. Biosens. Bioelectron. 2009, 24, 3481–3486. [Google Scholar] [CrossRef]
  86. Al-Salman, R.; Zein el Abedinw, S.; Endres, F. Electrodeposition of Ge, Si and SixGe1-x from an air- and water-stable ionic liquid. Phys. Chem. Chem. Phys. 2008, 10, 4650–4657. [Google Scholar] [CrossRef]
  87. Al-Salman, R.; Mallet, J.; Molinari, M.; Fricoteaux, P.; Martineau, F.; Troyon, M.; Zein el Abedinw, S.; Endres, F. Template assisted electrodeposition of germanium and silicon nanowires in an ionic liquid. Phys. Chem. Chem. Phys. 2008, 10, 6233–6237. [Google Scholar]
  88. Liu, X.; Zhang, Y.; Ge, D.; Zhao, J.; Li, Y.; Endres, F. Three-dimensionally ordered macroporous silicon films made by electrodeposition from an ionic liquid. Phys. Chem. Chem. Phys. 2012, 14, 5100–5105. [Google Scholar] [CrossRef]
  89. Monzon, L.M.A.; Byrne, F.; Coey, J.M.D. Gold electrodeposition in organic media. J. Electroanal. Chem. 2011, 657, 54–60. [Google Scholar] [CrossRef]
  90. Safavi, A.; Farjami, F. Electrodeposition of gold platinum alloy nanoparticles on ionic liquid chitosan. Biosens. Bioelectron. 2011, 26, 2547–2552. [Google Scholar]
  91. Jayakumar, M.; Venkatesan, K.A.; Srinivasan, T.G. Electrochemical behavior of fission palladium in 1-butyl-3-methylimidazolium chloride. Electrochim. Acta 2007, 52, 7121–7127. [Google Scholar] [CrossRef]
  92. Jayakumar, M.; Venkatesan, K.A.; Srinivasan, T.G.; Vasudeva Rao, P.R. Electrochemical behavior of ruthenium(III), rhodium(III) and palladium(II) in 1-butyl-3-methylimidazolium chloride ionic liquid. Electrochim. Acta 2009, 54, 6747–6755. [Google Scholar] [CrossRef]
  93. Jou, L.S.; Chang, J.K.; Twhang, T.J.; Sun, I.W. Electrodeposition of palladium-copper films from 1-ethyl-3-methylimidazolium chloride-tetrafluoroborate ionic liquid on indium-tin oxide electrodes. J. Electrochem. Soc. 2009, 156, D193–D197. [Google Scholar] [CrossRef]
  94. Hsiu, S.I.; Tai, C.C.; Sun, I.W. Electrodeposition of palladium-indium from 1-ethyl-3-methylimidazolium chloride tetrafluoroborate ionic liquid. Electrochim. Acta 2006, 51, 2607–2613. [Google Scholar] [CrossRef]
  95. Tai, C.C.; Su, F.Y.; Sun, I.W. Electrodeposition of palladium-silver in a Lewis basic 1-ethyl-3-methylimidazolium chloride-tetrafluoroborate ionic liquid. Electrochim. Acta 2005, 50, 5504–5509. [Google Scholar] [CrossRef]
  96. Jou, L.H.; Chang, J.K.; Whang, T.J.; Sun, I.W. Electrodeposition of palladium-tin alloys from 1-ethyl-3-methylimidazolium chloride-tetrafluoroborate ionic liquid for ethanol electro oxidation. J. Electrochem. Soc. 2010, 157, D443–D449. [Google Scholar] [CrossRef]
  97. Jayakumar, M.; Venkatesan, K.A.; Sudha, R.; Srinivasan, T.G.; Vasudeva Rao, P.R. Electrodeposition of ruthenium, rhodium and palladium from nitric acid and ionic liquid media Recovery and surface morphology of the deposits. Mater. Chem. Phys. 2011, 128, 141–150. [Google Scholar] [CrossRef]
  98. Vasudeva Rao, P.R.; Venkatesan, K.A.; Srinivasan, T.G. Studies on applications of room temperature ionic liquids. Prog. Nucl. Energy 2008, 50, 449–455. [Google Scholar] [CrossRef]
  99. Pradhan, D.; Reddy, R.G. Electrochemical production of Ti–Al alloys using TiCl4–AlCl3–1-butyl-3-methyl imidazolium chloride (BMImCl) electrolytes. Electrochim. Acta 2009, 54, 1874–1880. [Google Scholar] [CrossRef]
  100. Pradhan, D.; Reddy, R.G.; Lahiri, A. Low temperature production of Ti-Al alloys using ionic liquid electrolytes effect of process variables on current density, current efficiency and deposit morphology. Metall. Mater. Trans. B 2009, 40B, 114–122. [Google Scholar] [CrossRef]
  101. Doyle, K.P.; Lang, C.M.; Kim, K.; Kohl, P.A. Dentrite free electrochemical deposition of Li–Na alloys from an ionic liquid electrolyte. J. Electrochem. Soc. 2006, 153, A1353–A1357. [Google Scholar] [CrossRef]
  102. Zhang, X.Y.; Hua, Y.X.; Xu, C.Y.; Zhang, Q.B.; Cong, X.B.; Xu, N. Direct electrochemical reduction of titanium dioxide in Lewis basic AlCl3-1-butyl-3-methylimidizolium ionic liquid. Electrochim. Acta 2011, 56, 8530–8533. [Google Scholar] [CrossRef]
  103. Abbott, A.P.; Eardley, C.A.; Farley, N.R.S.; Griffith, G.A.; Pratt, A. Electrodeposition of aluminium and aluminium-platinum alloys from AlCl-3-benzyltrimethylammonium chloride room temperature ionic liquids. J. Appl. Electrochem. 2001, 31, 1345–1350. [Google Scholar] [CrossRef]
  104. Piersma, B.J.; Ryan, D.B.; Schumacher, E.R.; Rieche, T.L. Electrodeposition and stripping of lithium and sodium on inert electrodes in room temperature chloroaluminate molten salts. J. Electrochem. Soc. 1996, 143, 908–913. [Google Scholar] [CrossRef]
  105. Gasparotto, L.H.S.; Prowald, A.; Borisenko, N.; Zein el Abedin, S.; Garsuch, A.; Endres, F. Electrochemical synthesis of macroporous alumunium films and their behaviour towards lithium deposition-stripping. J. Power Sources 2011, 196, 2879–2883. [Google Scholar] [CrossRef]
  106. Tsuda, T.; Hussey, C.L.; Stafford, G.R.; Bonevich, J.E. Electrochemistry of titanium and the electrodeposition of Al–Ti alloys in the lewis acidic aluminum chloride1-ethyl-3-methylimidazolium chloride melt. J. Electrochem. Soc. 2003, 150, C234–C243. [Google Scholar]
  107. Tsuda, T.; Arimoto, S.; Kuwabata, S.; Hussey, C.L. Electrodeposition of Al–Mo–Ti ternary alloys in the lewis acidic alumunium chloride-1-ethyl-3-methylimidazolium chloride room temperature ionic liquid. J. Electrochem. Soc. 2008, 155, D256–D262. [Google Scholar] [CrossRef]
  108. Oyama, T.; Okajima, T.; Ohsaka, T. Electrodeposition of gold at glassy carbon electrodes in room temperature ionic liquids. J. Electrochem. Soc. 2007, 154, D322–D327. [Google Scholar] [CrossRef]
  109. NuLi, Y.; Yang, J.; Wang, J.; Xu, J.; Wang, P. Electrochemical magnesium deposition and dissolution with high efficiency in ionic liquid. Electrochem. Solid-State Lett. 2005, 8, C166–C169. [Google Scholar] [CrossRef]
  110. NuLi, Y.; Yang, J.; Wang, P. Electrodeposition of magnesium film from BMIMBF4 ionic liquid. Appl. Surf. Sci. 2006, 252, 8086–8090. [Google Scholar] [CrossRef]
  111. NuLi, Y.; Yang, J.; Wu, R. Reversible deposition and dissolution of magnesium from BMIMBF4 ionic liquid. Electrochem. Commun. 2005, 7, 1105–1110. [Google Scholar] [CrossRef]
  112. Feng, Z.; NuLi, Y.; Wang, J.; Yang, J. Study of key factors influencing electrochemical reversibility of magnesium deposition and dissolution. J. Electrochem. Soc. 2006, 153, C689–C693. [Google Scholar] [CrossRef]
  113. He, P.; Liu, H.; Li, Z.; Li, J. Electrodeposition of platinum in room-temperature ionic liquids and electrocatalytic effect on electro-oxidation of methanol. J. Electrochem. Soc. 2005, 152, E146–E153. [Google Scholar] [CrossRef]
  114. Andriyko, Y.; Andriiko, A.; Babushkina, O.B.; Nauer, G.E. Electrochemistry of TiF4 in 1-butyl-2,3-dimethylimidazolium tetrafluoroborate. Electrochim. Acta 2010, 55, 1081–1089. [Google Scholar] [CrossRef]
  115. Zhang, D.; Chang, W.C.; Okajima, T.; Ohsaka, T. Electrodeposition of platinum nanoparticles in a room temperature ionic liquid. Langmuir 2011, 27, 14662–14668. [Google Scholar] [CrossRef]
  116. Dong, S.; Li, N.; Zhang, P.; Li, Y.; Chen, Z.; Huang, T. Fabrication of hemoglobin ionic liquid modified carbon paste electrode based on the electrodeposition of gold nanoparticles CdS quantum dots and its electrochemical application. Electroanalysis 2012, 24, 1554–1560. [Google Scholar]
  117. Mukhopadhyay, I.; Aravinda, C.L.; Borissov, D.; Freyland, W. Electrodeposition of Ti from TiCl4 in the ionic liquid 1-methyl-3-butyl-imidazolium bis(trifluoro methyl sulfone) imide at room temperature Study on phase formation by in-situ electrochemical scan. Electrochim. Acta 2005, 50, 1275–1281. [Google Scholar] [CrossRef]
  118. Mukhopadhyay, I.; Freyland, W. Electrodeposition of Ti nanowires on highly oriented pyrolytic graphite from an ionic liquid at room temperature. Langmuir 2003, 19, 1951–1953. [Google Scholar]
  119. De Sa, A.I.; Eugénio, S.; Quaresma, S.; Rangel, C.M.; Vilar, R. Electrodeposition of gold thin films from 1-butyl-1-methylpyrrolidinium. Thin Solid Films 2011, 519, 6278–6283. [Google Scholar] [CrossRef]
  120. Huang, H.Y.; Chen, P.Y. PdNi and Pd coated electrodes prepared by electrodeposition from ionic liquid for nonenzymatic electrochemical determination of ethanol and glucose in alkaline media. Talanta 2010, 83, 379–385. [Google Scholar] [CrossRef]
  121. Huang, H.Y.; Chen, P.Y. Voltammetric behavior of Pd(II) and Ni(II) ions and electrodeposition of PdNi bimetal in N-butyl-N-methylpyrrolidinium dicyanamide ionic liquid. Electrochim. Acta 2011, 56, 2336–2343. [Google Scholar] [CrossRef]
  122. Fu, C.; Zhou, H.; Xie, D.; Sun, L.; Yin, Y.; Chen, J.; Kuang, Y. Electrodeposition of gold nanoparticles from ionic liquid microemulsion. Colloid Polym. Sci. 2010, 288, 1097–1103. [Google Scholar] [CrossRef]
  123. Yu, P.; Yan, J.; Zhang, J.; Mao, L. Cost effective electrodeposition of platinum nanoparticles with ionic liquid droplet confined onto electrode surface as micro media. Electrochem. Commun. 2007, 9, 1139–1144. [Google Scholar] [CrossRef]
  124. Safavi, A.; Maleki, N.; Tajabadi, F.; Farjami, E. High electrocatalytic effect of palladium nanoparticle arrays electrodeposited on carbon ionic liquid electrode. Electrochem. Commun. 2007, 9, 1963–1968. [Google Scholar] [CrossRef]
  125. Huang, J.F.; Sun, I.W. Electrodeposition of PtZn in a lewis acidic ZnCl2–1-ethyl-3-methylimidazolium chloride ionic liquid. Electrochim. Acta 2004, 49, 3251–3258. [Google Scholar]
  126. Huang, J.F.; Sun, I.W. Formation of nanoporous platinum by selectiv anodic dissolution of PtZn surface alloy in a Lewis acidic zinc chloride-1-ethyl-3-methylimidazolium chloride ionic liquid. Chem. Mater. 2004, 16, 1829–1831. [Google Scholar] [CrossRef]
  127. Huan, J.F.; Chen, H.Y. Heat-assisted electrodissolution of platinum in an ionic liquid. Angew. Chem. Int. Ed. 2012, 51, 1684–1688. [Google Scholar] [CrossRef] [Green Version]
  128. Yang, M.H.; Yang, M.C.; Sun, I.W. Electrodeposition of indium antimonide from the water-stable 1-ethyl-3-methylimidazolium chloride-tetrafluoroborate ionic liquid. J. Electrochem. Soc. 2003, 150, C544–C548. [Google Scholar] [CrossRef]
  129. Xiao, F.; Zhao, F.; Deng, L.; Zeng, B. High electrocatalytic effect of PtAuPd ternary alloy nanoparticles electrodeposited on mercapto ionic liquid film. Electrochem. Commun. 2010, 12, 620–623. [Google Scholar] [CrossRef]
  130. Giridhar, P.; Venkatesan, K.A.; Srinivasan, T.G.; Vasudeva Rao, P.R. Extraction of fission palladium by Aliquat 336 and electrochemical studies on direct recovery from ionic liquid phase. Hydrometallurgy 2006, 81, 30–39. [Google Scholar]
  131. Park, J.; Kwon, K.; Kim, H.; Lee, C.K. Electrodeposition of silicon from 1-butyl-3-methyl-pyridinium bis(trifluromethylsulfonyl) imide ionic liquid. Int. J. Electrochem. Sci. 2013, 8, 4206–4214. [Google Scholar]
  132. Lee, C.K.; Park, J.; Park, J. Recovery Method of Elemental Silicon by Electrolysis in Non-Aqueous Electrolyte from Silicon Sludge. KR Patent 1340601, 5 December 2013. [Google Scholar]
  133. Park, J.; Lee, C.K. Preparation of magnesium thin film by non-aqueous electrolysis at room temperature. Int. J. Precis. Eng. Manuf. 2014, 15, 553–556. [Google Scholar] [CrossRef]
  134. Kim, M.A.; Lee, J.C.; Kim, C.K.; Kim, M.S.; Kim, B.S.; Yoo, K. Solvent extraction of platinum group metals from the leach liquor of spent automotive catalyst. J. Korean Inst. Resour. Recycl. 2006, 15, 3–10. [Google Scholar]

Share and Cite

MDPI and ACS Style

Park, J.; Jung, Y.; Kusumah, P.; Lee, J.; Kwon, K.; Lee, C.K. Application of Ionic Liquids in Hydrometallurgy. Int. J. Mol. Sci. 2014, 15, 15320-15343. https://doi.org/10.3390/ijms150915320

AMA Style

Park J, Jung Y, Kusumah P, Lee J, Kwon K, Lee CK. Application of Ionic Liquids in Hydrometallurgy. International Journal of Molecular Sciences. 2014; 15(9):15320-15343. https://doi.org/10.3390/ijms150915320

Chicago/Turabian Style

Park, Jesik, Yeojin Jung, Priyandi Kusumah, Jinyoung Lee, Kyungjung Kwon, and Churl Kyoung Lee. 2014. "Application of Ionic Liquids in Hydrometallurgy" International Journal of Molecular Sciences 15, no. 9: 15320-15343. https://doi.org/10.3390/ijms150915320

APA Style

Park, J., Jung, Y., Kusumah, P., Lee, J., Kwon, K., & Lee, C. K. (2014). Application of Ionic Liquids in Hydrometallurgy. International Journal of Molecular Sciences, 15(9), 15320-15343. https://doi.org/10.3390/ijms150915320

Article Metrics

Back to TopTop
