# Towards Controlling the Glycoform: A Model Framework Linking Extracellular Metabolites to Antibody Glycosylation

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

V | culture volume | L |

X_{V} | cell density | cells/L |

t | time | h |

μ | cell growth rate | h^{−1} |

k_{d} | cell death rate | h^{−1} |

F_{out} | flow rate out of culture | L/h |

Glc_{ext} | extracellular glucose concentration | mM |

Gln_{ext} | extracellular glutamine concentration | mM |

F_{in} | flow rate into culture | L/h |

Glc_{feed} | feed glucose concentration | mM |

K_{A} | activator species saturation coefficient | mM |

K_{M} | species saturation coefficient | mM |

k_{d,max} | maximum cell death rate | h^{−1} |

K_{d} | species depletion coefficient | mM |

q | species cellular production | mmol/(h-cell) |

Y | species yield | cell/mmol |

m | species cell maintenance term | mmol/(h-cell) |

mAb | Antibody product titer | mM |

Nuc | Intracellular nucleotide concentration | mM |

K_{TP} | Transport protein species saturation coefficient | mM |

V_{cell} | cell volume | L |

DNA_{f} | nucleotide fraction in DNA | dimensionless |

m_{DNA} | cellular DNA mass | mg/cell |

m_{RNA} | cellular RNA mass | mg/cell |

Mr | molecular species mass | mg/mmol |

RNA_{f} | nucleotide fraction in RNA | dimensionless |

k_{cat} | enzyme turnover rate | h^{−1} |

K_{i} | Species inhibition constant | mM |

E_{0} | Initial enzyme concentration | mM |

N_{gly,cell} | Number of glycans per cell | mmol/cell |

N_{NSD,gly} | NSDs consumed per host cell glycan | mmol/mmol |

N_{gly,mAb} | Number of glycans per antibody | mmol/mmol |

N_{NSD,mAb} | NSDs consumed per antibody | mmol/mmol |

F_{mAb} | Antibody production rate | mmol/h |

## 1. Introduction

#### Current Problems Resulting from Glycans and Causes of Variation

## 2. Mathematical Model Development

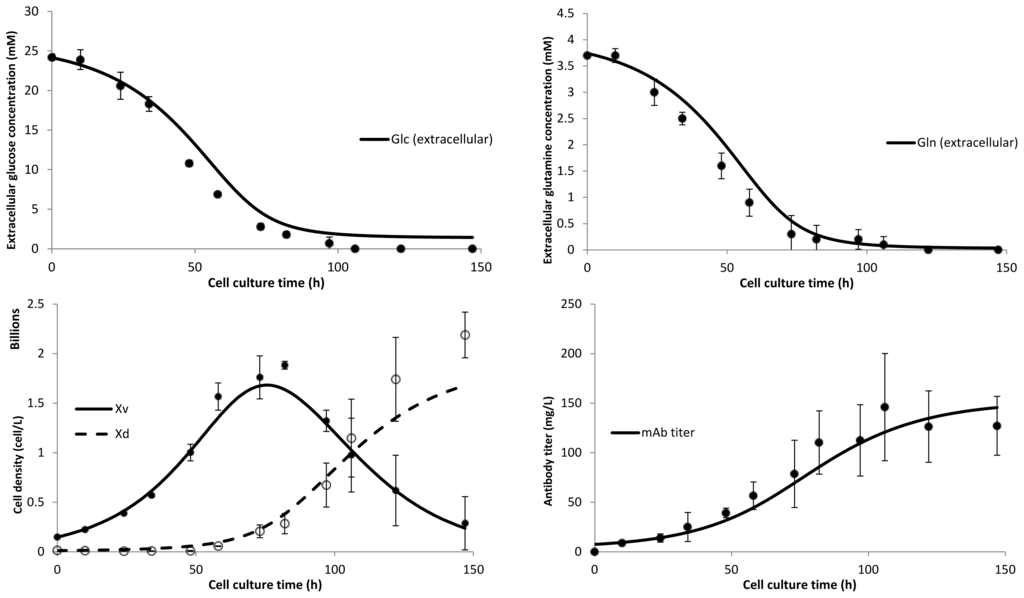

#### 2.1. Cell Culture Dynamics Model

_{V}in cells/L) is a function of growth rate (μ in h

^{−1}), death rate (k

_{d}in h

^{−1}) and the flow out of the reactor (F

_{out}in L/h):

_{M,glc}) and glutamine (K

_{M,gln}) all in units of mMol and the maximum growth rate μ

_{max}(h

^{−1}).

_{d,max,glc}in h

^{−1}) and glutamine (k

_{d,max,gln}in h

^{−1}), the species depletion coefficients for glucose (K

_{M,gln}in mmol) and glutamine (K

_{M,gln}in mmol). Parameter estimation using the gPROMS model building environment [18] showed that extracellular ammonia and lactate did not contribute significantly towards cell death or growth inhibition for this hybridoma cell line (not shown). Therefore, neither species features in other parts of the model.

_{glc}and q

_{gln}(mmol/(h-cell)) denote the specific glucose and glutamine cell uptake rate, respectively, and are defined by the equations shown below:

_{Xv}

_{/glc}and Y

_{Xv}

_{/gln}(cell/mmol) denote the biomass yield coefficient for glucose and glutamine, respectively. The m

_{glc}and m

_{gln}(mmol/(h-cell)) terms are the maintenance coefficients for glucose and glutamine, respectively. Lastly the product term and the specific productivity terms are represented by the following:

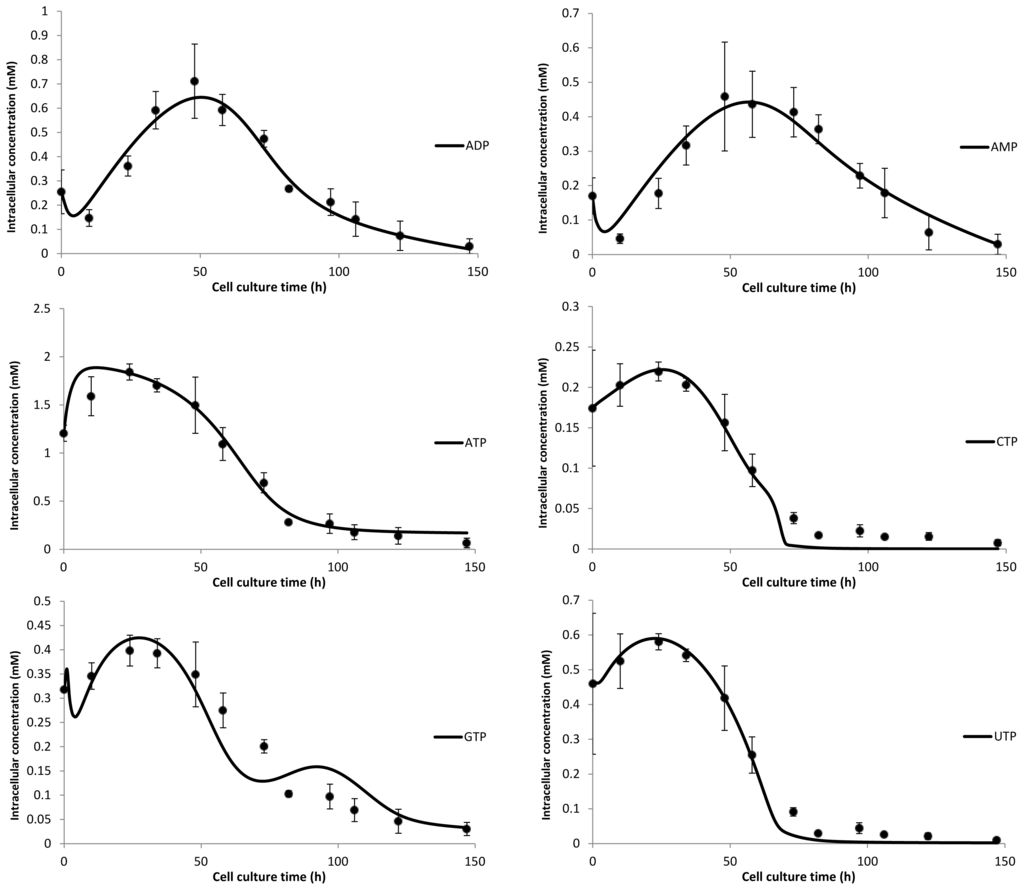

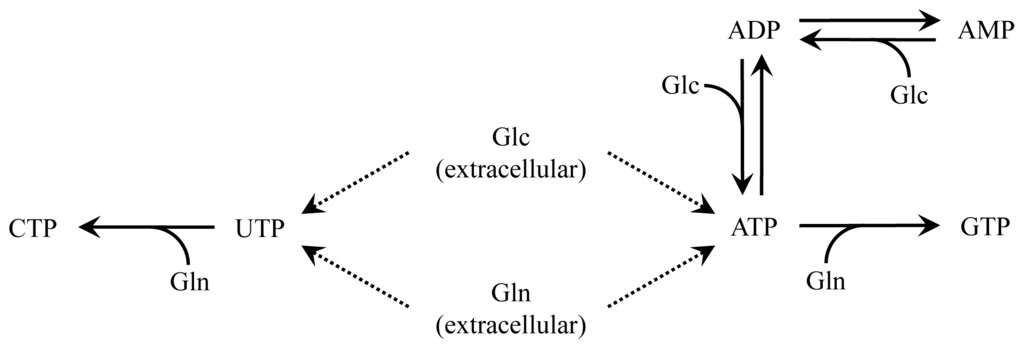

#### 2.2. Nucleotide Model

_{DNA}) and RNA monomer (Mr

_{RNA}) as well as the fraction of each nucleotide in DNA (DNA

_{f,nuc}) and RNA (RNA

_{f,nuc}) was based on the data used by Nolan and Lee [20]. The mass of DNA (m

_{DNA}) and RNA (m

_{RNA}) were taken as 7.05 and 28.55 pg/cell, respectively [21].

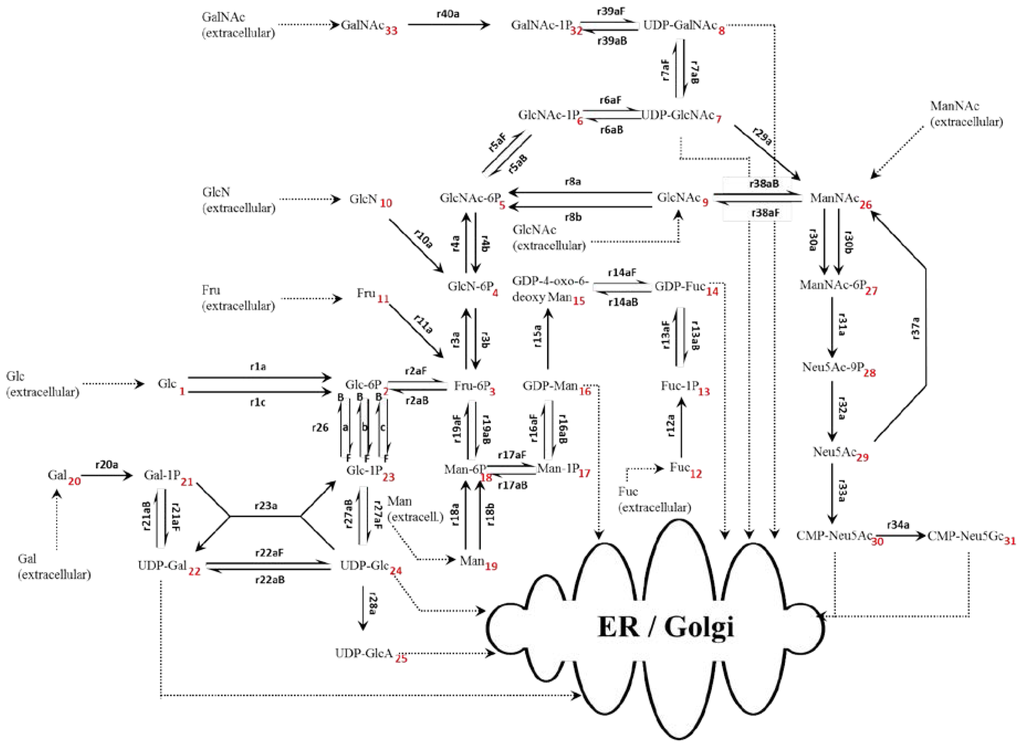

#### 2.3. Nucleotide Sugar Synthesis Model

_{m}), turnover rates (k

_{cat}), inhibitory terms (K

_{i}), enzyme activity and any Hill coefficients (Table S1). Rate equations are based on Michaelis-Menten kinetics, accounting for reported reaction mechanisms and inhibitory compounds and the Hill equation is used where data indicating deviation from Michaelis-Menten kinetics (i.e., independent binding) was available. Murine (Mus musculus) enzyme data was used where available and when lacking preference in data was based on most recent common ancestors as described in the molecular tree of mammals of the placental orders [24]. While the dissociation constant (K

_{m}) is an intrinsic parameter, V

_{max}is not, and is a function of the turnover rate constant, k

_{cat}, and the initial enzyme concentration used in a particular experimental condition [E

_{0}]. The following assumptions were made for the derivation of the rate of reaction expressions:

- Equilibrium is rapidly reached for all intermediate reactants;
- Rate-limiting steps are irreversible (Table S1);
- Where water is required for catalysis, full enzyme saturation is assumed due to the aqueous environment of the cytoplasm;
- Where more than one substrate is required for catalysis, a random order of substrate binding is assumed, unless reported otherwise;
- Rapid dissociation of reaction products from enzyme;
- Michaelis-Menten kinetics are assumed to hold true, unless reported otherwise;
- All enzyme and transport protein concentrations throughout the network are constant.

_{cat}turnover rate, E

_{0}initial enzyme concentration, and I denotes inhibitor concentrations. The derivations of rate of reaction equations for each type of mechanism including inhibitory terms are summarized more extensively in the supplementary information (Appendix 1). Each individual reaction and its corresponding mechanism are also listed in the supplementary information (Table S1). The equations for each type of kinetics are shown below.

^{5}cells as reported by Bonarius et al. [21] and an average amino acid monomer molecular weight of 127 μg/μmol as calculated by Nolan and Lee [20], an amino acid concentration per cell was found. Multiplying the cellular amino acid concentration with an O-linked glycan frequency of 0.00371 glycans per amino and an N-linked glycan frequency of 0.00400 glycans per amino acid for 64.9% of glycosylated host cell proteins [26], an O-linked and N-linked glycan concentration of 1.41 × 10

^{−8}and 1.31 × 10

^{−8}μmol/cell, respectively, was calculated for each glycan species. This in turn gives a total number of glycans per cell of 2.72 × 10

^{−8}μmol/cell (N

_{glyc,cell}). Furthermore, mass spectrometry data of the human mature B-cell glycoform was used to find the average compositions of O-linked and N-linked glycan structures based on the relative abundance of each species. The findings for each sugar species are summarized in Table 1 and the abundance of each individual identified species as well as the MS methodology on which the average glycoform are based are shown in Appendix 2. Thus, the system becomes constrained through the nine calculated outlet fluxes required to maintain cell growth. The glucose flux towards glycolysis is a function of the enzyme concentration (E

_{glyc}) for the reaction step from fructose 6-phosphate to fructose 1,6-bisphosphate and thus, is allowed to vary as part of the parameter estimation as well as with the concentration of its substrate fructose 6-phosphate. The kinetic data and reaction mechanism were obtained from Chen et al. [27]. This step is assumed to be irreversible and acts as the main outlet flux from the NSD network.

#### 2.4. Parameter Estimation

^{17}) and corresponding model outputs a metamodel was created upon which the GSA was performed thus, greatly reducing computational cost.

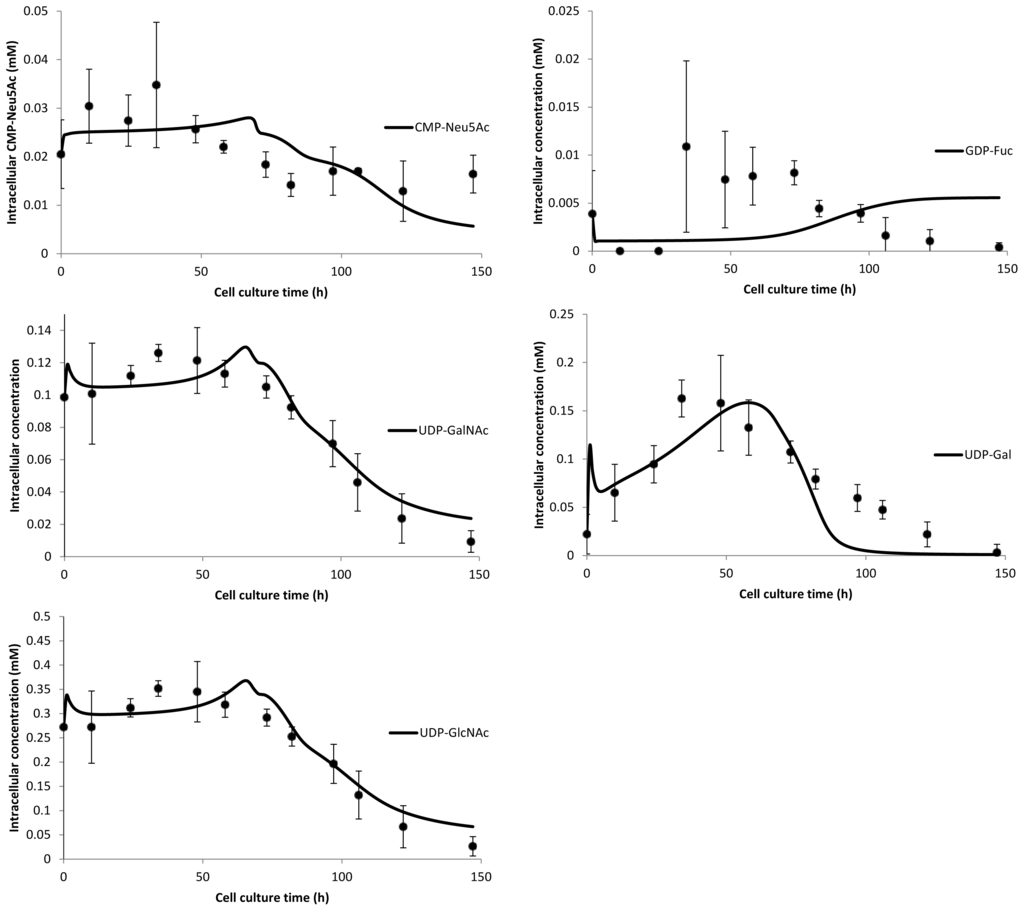

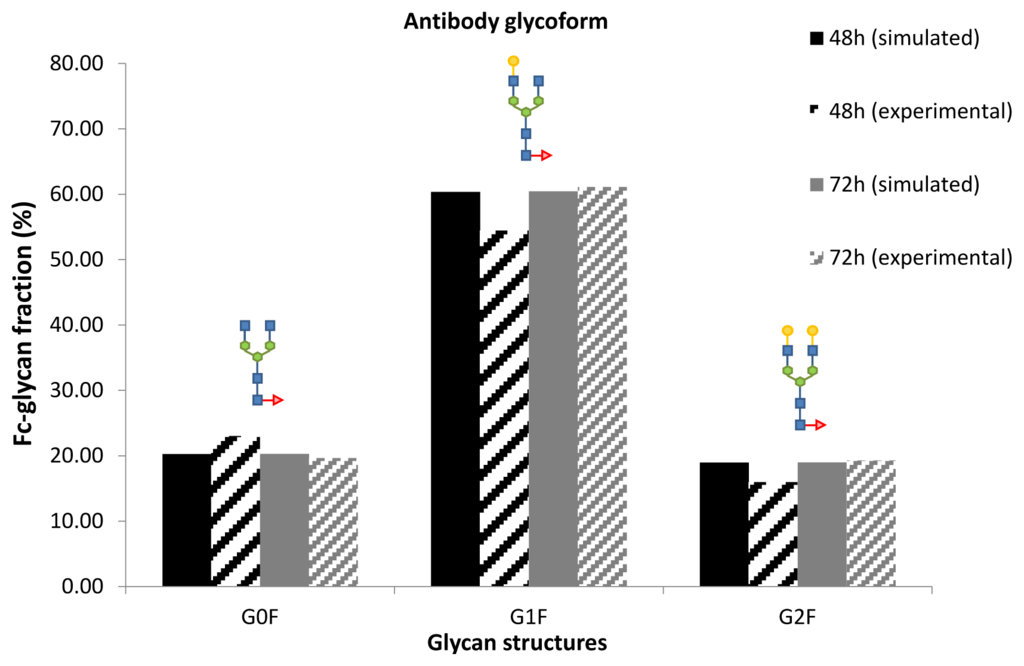

## 3. Model Performance and Discussion

_{M}value of 0.0024 mM for the UDP-Gal Golgi transporter [45]. This is well below the measured and estimated UDP-Gal concentrations and indicates saturation of the transport protein until later stages of the cell culture.

## 4. Materials and Methods

#### 4.1. Cell Culture, Metabolite Monitoring and Antibody Quantification

_{2}on an orbital shaking platform rotating at 125 rpm. Subculture was performed every three days and new cultures were seeded at a density of 2 × 10

^{5}cells/mL. Experiments were performed in 2 L vented Erlenmeyer flasks with a working volume of 400 mL. Cell concentration was determined using a Neubauer ruling haemocytometer and viability was estimated by the trypan blue dye exclusion method using light microscopy. Extracellular glucose, glutamine and lactate concentrations were measured using the BioProfile 400 (Nova Biomedical, Runcorn, UK). The antibody concentration in the supernatant was determined using an indirect sandwich enzyme-linked immunosorbent assay (ELISA) as described by Kontoravdi et al. [32].

#### 4.2. Intracellular Nucleotide and Nucleotide Sugar Extraction

#### 4.3. Characterization of Intracellular Nucleotides and Nucleotide Sugars

#### 4.4. Glycan Purification and Analysis

## 5. Conclusions

## Acknowledgments

## Appendix 1—Enzyme Mechanisms

#### A1.1. Single Substrate Michaelis-Menten Rate Equation

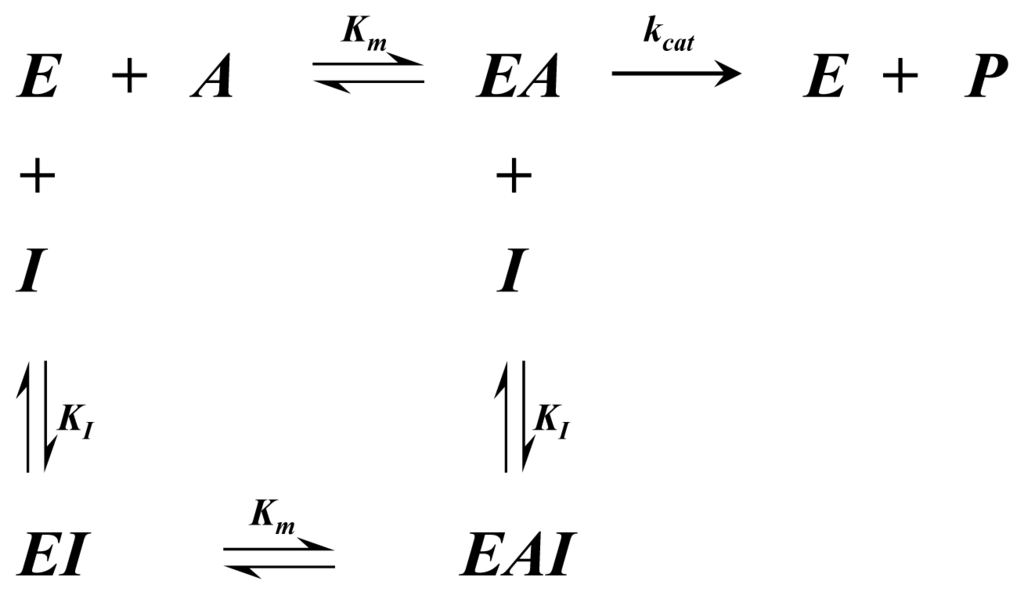

**Figure A1.**Single substrate Michaelis-Menten kinetics and competitive inhibition of species A through I.

Equation (1) Rate of reaction for Single substrate Michaelis-Menten kinetics | $v=\frac{d[P]}{dt}=\frac{{k}_{cat}[{E}_{0}][A]}{{K}_{m}+[A]}$ |

Equation (2) Rate of reaction for Single substrate Michaelis-Menten kinetics including competitive inhibition of species A | $v=\frac{d[P]}{dt}=\frac{{k}_{cat}[{E}_{0}][A]}{{K}_{m}\left(1+{\sum}_{i=1}^{NI}\frac{[{I}_{i}]}{{K}_{I,i}}\right)+[A]}$ |

Equation (3) Rate of reaction for Single substrate Michaelis-Menten kinetics including non-competitive inhibition | $v=\frac{d[P]}{dt}=\frac{{k}_{cat}[{E}_{0}][A]}{({K}_{m}+[A])\hspace{0.17em}\left(1+\frac{[I]}{{K}_{I}}\right)},$ |

#### A1.2. Random Order Bi-Bi Kinetics

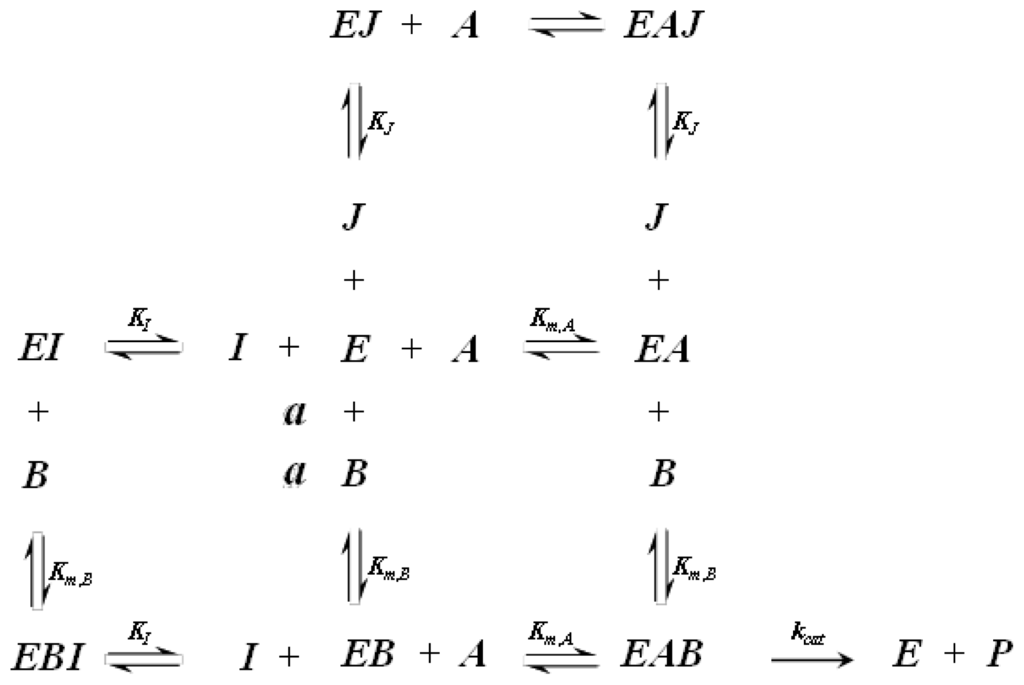

**Figure A2.**Random order bi-bi kinetics and competitive inhibition of species A through I and species B competing with J.

Equation (4) Rate of reaction for random order bi-bi kinetics | $v=\frac{d[P]}{dt}=\frac{{k}_{cat}[{E}_{0}][A][B]}{{K}_{m,A}{K}_{m,B}+{K}_{m,A}[B]+{K}_{m,B}[A]+[A][B]}$ |

Equation (5) Rate of reaction for random order bi-bi kinetics including competitive inhibition of species A and B | |

$v=\frac{d[P]}{dt}=\frac{{k}_{cat}[{E}_{0}][A][B]}{{K}_{m,A}{K}_{m,B}\left(1+{\sum}_{i=1}^{NI}\frac{[{I}_{i}]}{{K}_{I,i}}+{\sum}_{j=1}^{NJ}\frac{[{J}_{j}]}{{K}_{J,j}}\right)+{K}_{m,A}[B]\hspace{0.17em}\left(1+{\sum}_{i=1}^{NI}\frac{[{I}_{i}]}{{K}_{I,i}}\right)+{K}_{m,B}[A]\hspace{0.17em}\left(1+{\sum}_{j=1}^{NJ}\frac{[{J}_{j}]}{{K}_{J,j}}\right)+[A][B]}$ | |

Equation (6) Rate of reaction for random order bi-bi kinetics including non-competitive inhibition | |

$v=\frac{d[P]}{dt}=\frac{{k}_{cat}[{E}_{0}][A][B]}{({K}_{m,A}{K}_{m,B}+{K}_{m,A}[B]+{K}_{m,B}[A]+[A][B])\hspace{0.17em}\left(1+\frac{[I]}{{K}_{I}}\right)},$ |

#### A1.3. Ordered Bi-Bi Kinetics

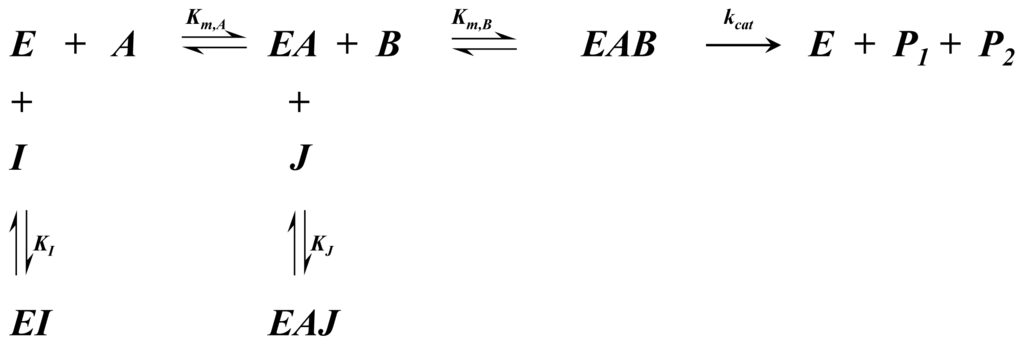

**Figure A3.**Ordered bi-bi kinetics and competitive inhibition of species A through I and species B competing with J.

Equation (7) Rate of reaction for ordered bi-bi kinetics | $v=\frac{d[P]}{dt}=\frac{{k}_{cat}[{E}_{0}][A][B]}{{K}_{m,A}{K}_{m,B}+{K}_{m,B}[A]+[A][B]}$ |

Equation (8) Rate of reaction for ordered bi-bi kinetics including competitive inhibition of species A and B | $v=\frac{d[P]}{dt}=\frac{{k}_{cat}[{E}_{0}][A][B]}{{K}_{m,A}{K}_{m,B}\left(1+{\sum}_{i=1}^{NI}\frac{[{I}_{i}]}{{K}_{I,i}}\right)+{K}_{m,B}[A]\hspace{0.17em}\left(1+{\sum}_{j=1}^{NJ}\frac{[{J}_{j}]}{{K}_{J,j}}\right)+[A][B]}$ |

Equation (9) Rate of reaction for ordered bi-bi kinetics including non-competitive inhibition | $v=\frac{d[P]}{dt}=\frac{{k}_{cat}[{E}_{0}][A][B]}{({K}_{m,A}{K}_{m,B}+{K}_{m,B}[A]+[A][B])\hspace{0.17em}\left(1+\frac{[I]}{{K}_{I}}\right)},$ |

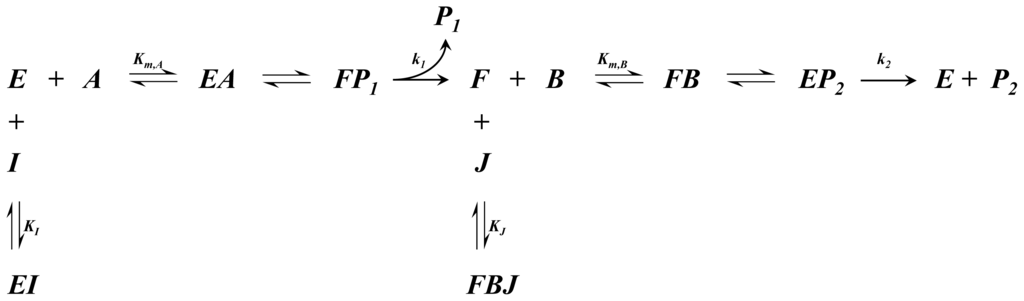

#### A1.4. Ping-Pong Bi-Bi Kinetics

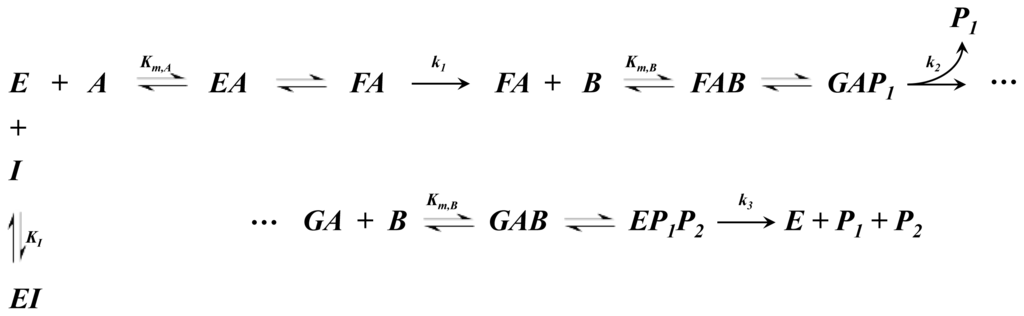

**Figure A4.**Ping-pong bi-bi kinetics and competitive inhibition of species A through I and species B competing with J.

Equation (10) Rate of reaction for ping-pong bi-bi kinetics | $v=\frac{d[P]}{dt}=\frac{{k}_{cat}[{E}_{0}][A][B]}{{K}_{m,A}[B]+{K}_{m,B}[A]+[A][B]}$ |

Equation (11) Rate of reaction for ping-pong bi-bi kinetics including competitive inhibition of species A and B | $v=\frac{d[P]}{dt}=\frac{{k}_{cat}[{E}_{0}][A][B]}{{K}_{m,A}[B]\hspace{0.17em}\left(1+{\sum}_{i=1}^{NI}\frac{[{I}_{i}]}{{K}_{I,i}}\right)+{K}_{m,B}[A]\hspace{0.17em}\left(1+{\sum}_{j=1}^{NJ}\frac{[{J}_{j}]}{{K}_{J,j}}\right)+[A][B]}$ |

Equation (12) Rate of reaction for ping-pong bi-bi kinetics including non-competitive inhibition | $v=\frac{d[P]}{dt}=\frac{{k}_{cat}[{E}_{0}][A][B]}{({K}_{m,A}[B]+{K}_{m,B}[A]+[A][B])\hspace{0.17em}\left(1+\frac{[I]}{{K}_{I}}\right)},$ |

#### A1.5. Ping-Pong Ter-Ter Kinetics

Equation (13) Rate of reaction for ping-pong ter-ter kinetics including competitive inhibition of species A |

$v=\frac{d[P]}{dt}=\frac{{k}_{cat}[{E}_{0}][A]{[B]}^{2}}{2{K}_{m,A}{K}_{m,B}[B]+2{K}_{m,B}[A][B]+{K}_{m,A}{[B]}^{2}\hspace{0.17em}\left(1+\frac{[I]}{{K}_{I}}\right)+{({K}_{m,B})}^{2}[A]+[A]{[B]}^{2}}$ |

#### A1.5. Hexokinase Rate of Reaction Expression

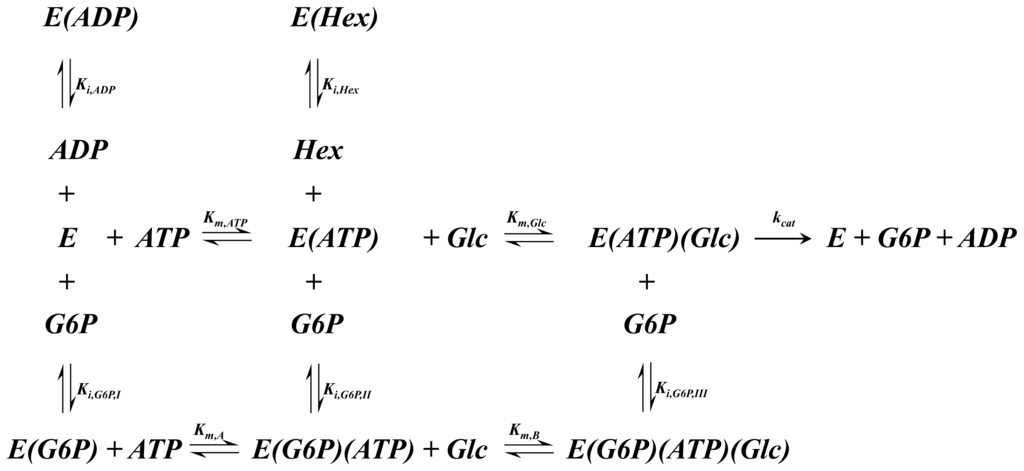

**Figure A6.**Hexokinase reaction scheme including competitive inhibition of species ATP through ADP, Glucose competing with other hexose species and un-competitive inhibition through Glucose-6P.

Equation (14) Rate of reaction for hexokinase based on the above reaction scheme |

$v=\frac{d[P]}{dt}=\frac{{k}_{cat}[{E}_{0}][ATP][Glc]}{{K}_{m,ATP}{K}_{m,Glc}\left(1+\frac{[ADP]}{{K}_{i,ADP}}+\frac{[G6P]}{{K}_{i,G6P,I}}\right)+[ATP]{K}_{m,Glc}\left(1+\frac{[G6P]}{{K}_{i,G6P,I}}+\frac{[G6P]}{{K}_{i,G6P,II}}+\mathrm{\Sigma}\frac{[{Hex}_{i}]}{{K}_{i,Hex}}\right)+[ATP][Glc]\hspace{0.17em}\left(1+\frac{[G6P]}{{K}_{i,G6P,I}}+\frac{[G6P]}{{K}_{i,G6P,II}}+\frac{[G6P]}{{K}_{i,G6P,III}}\right)}$ |

#### A1.6. Glycolysis

#### A1.7. Hill Coefficients

## Appendix 2—Relative Abundances of Activated Human B-Cell Glycans

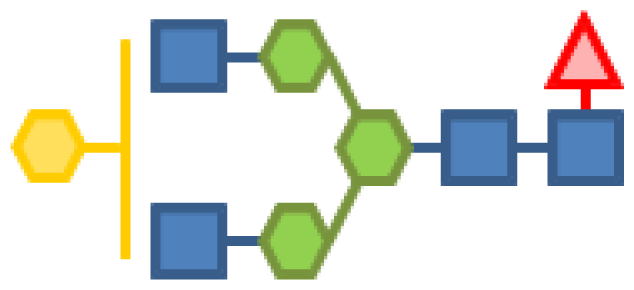

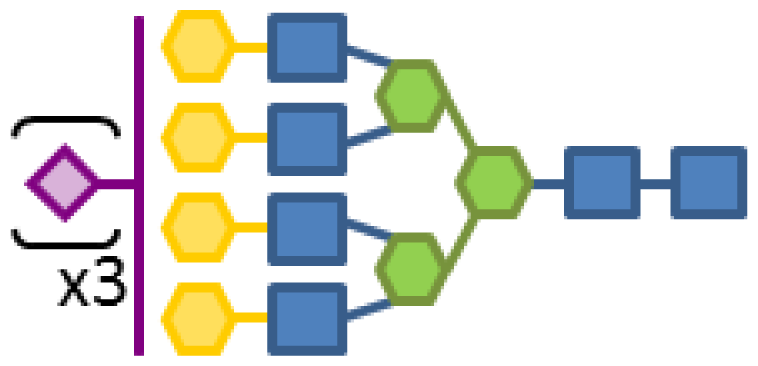

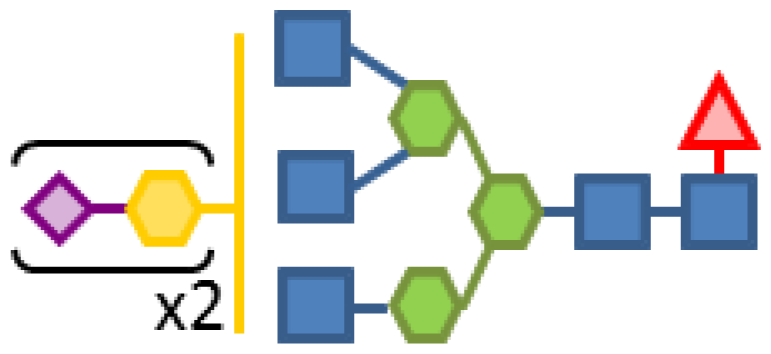

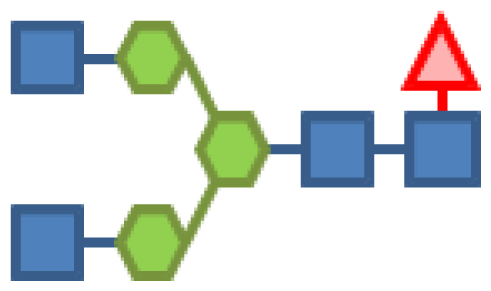

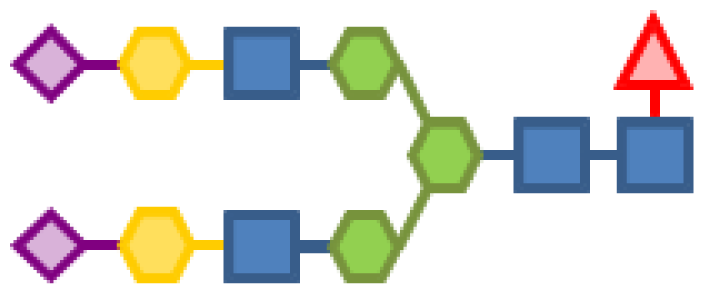

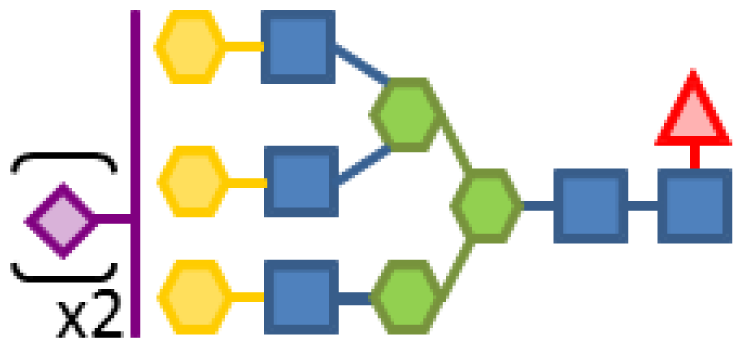

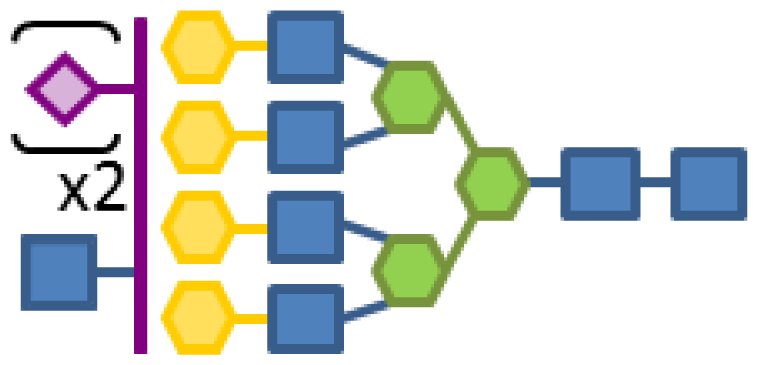

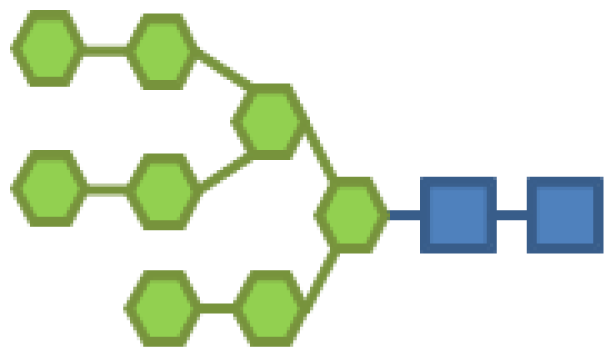

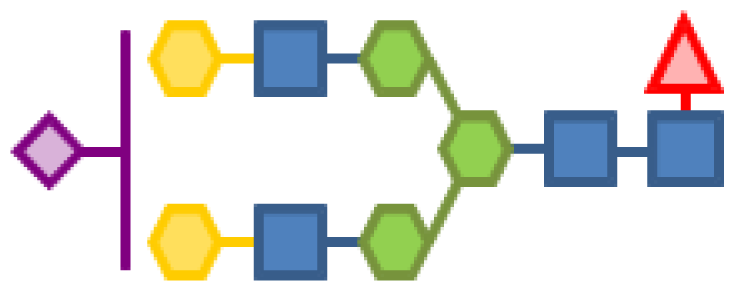

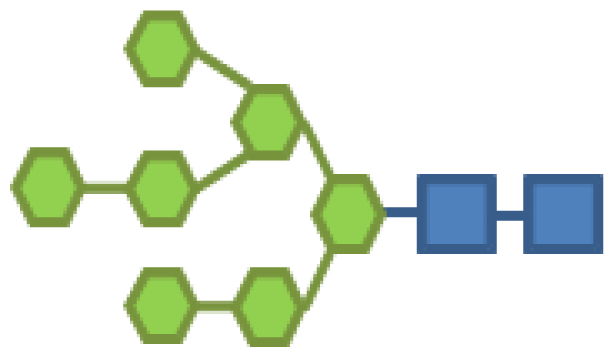

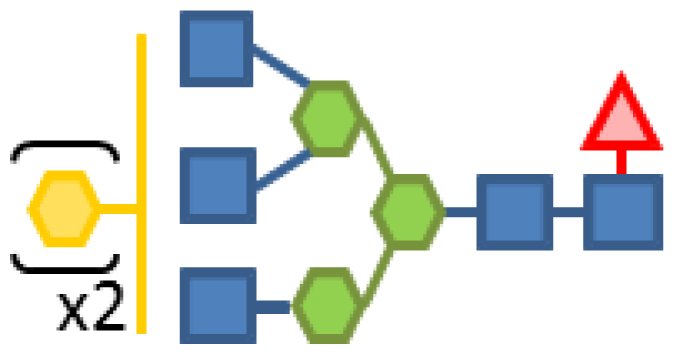

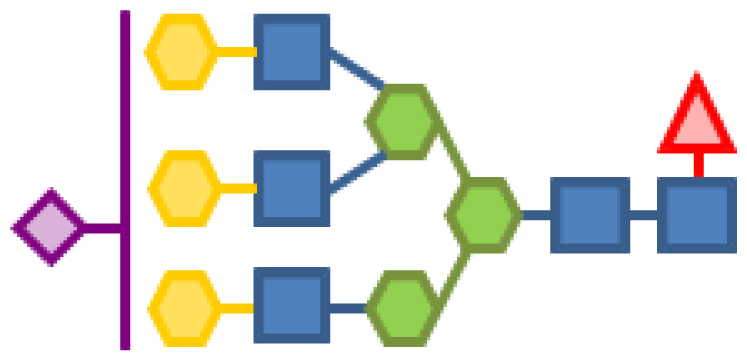

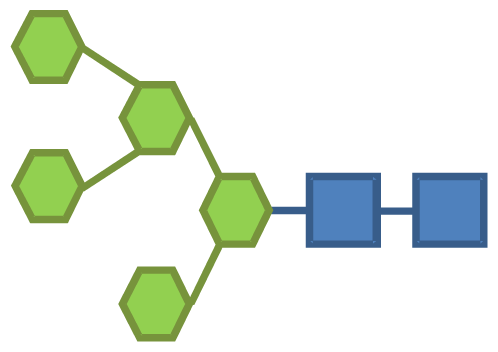

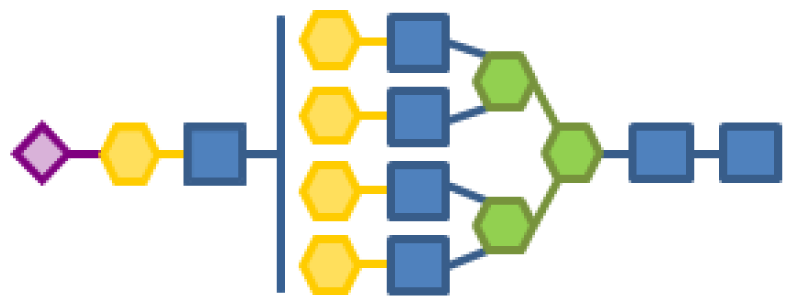

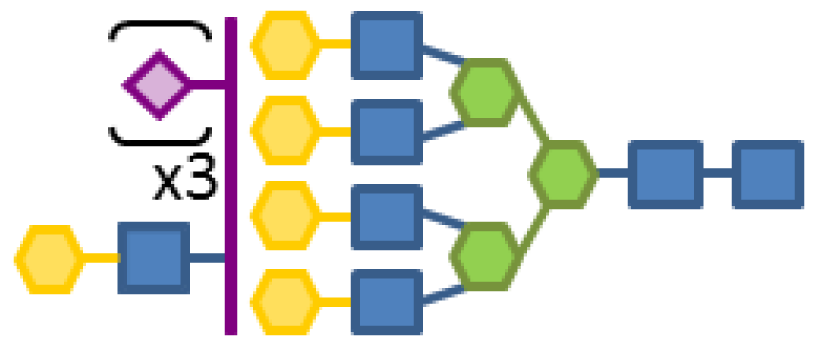

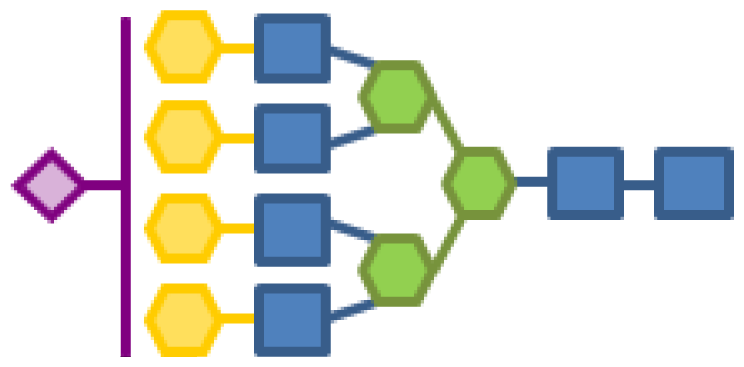

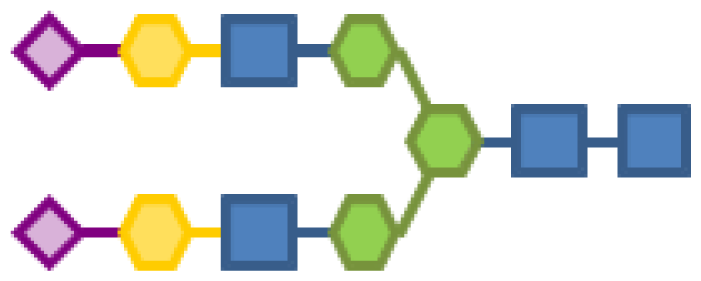

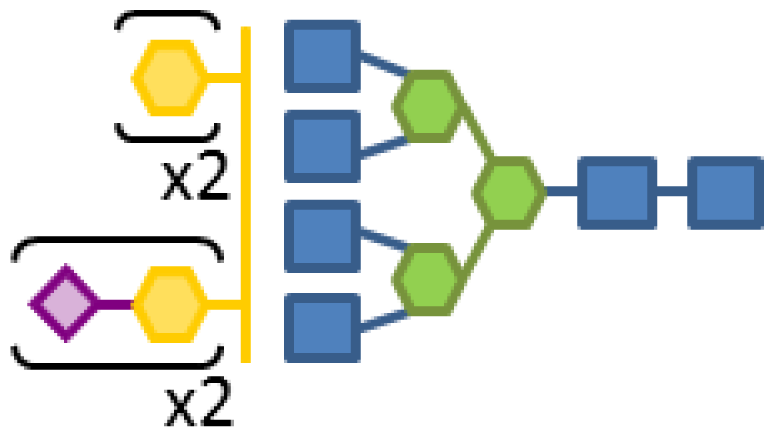

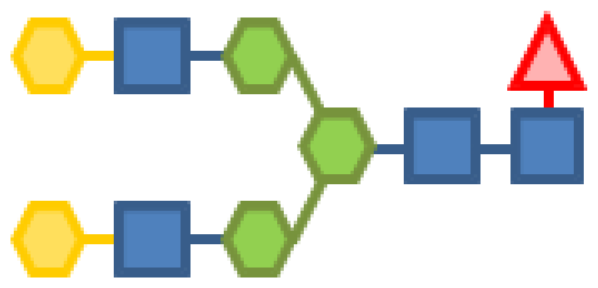

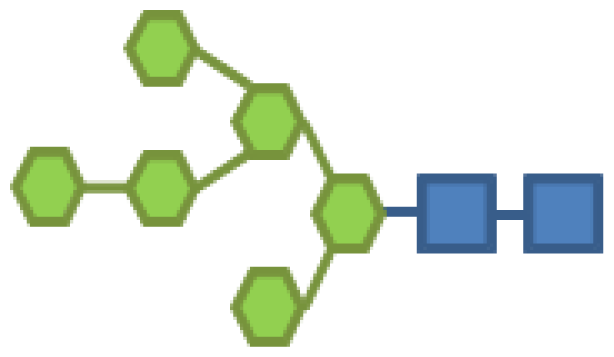

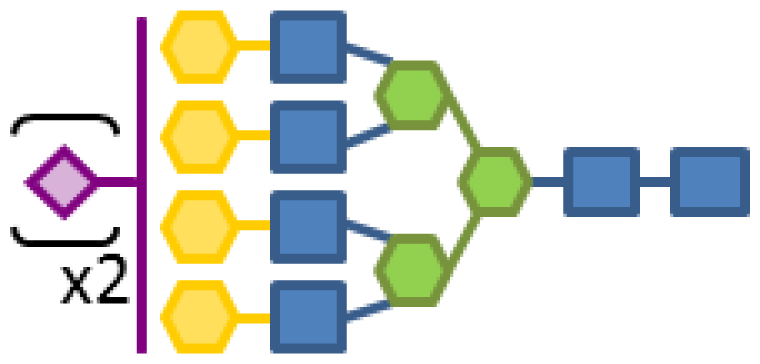

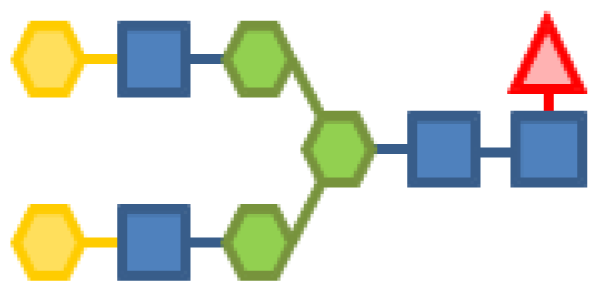

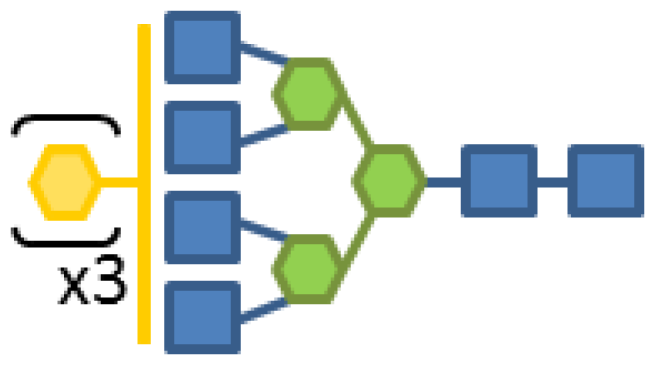

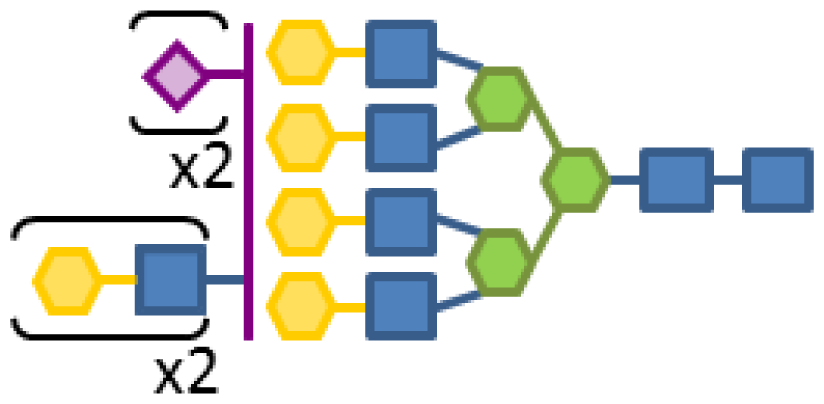

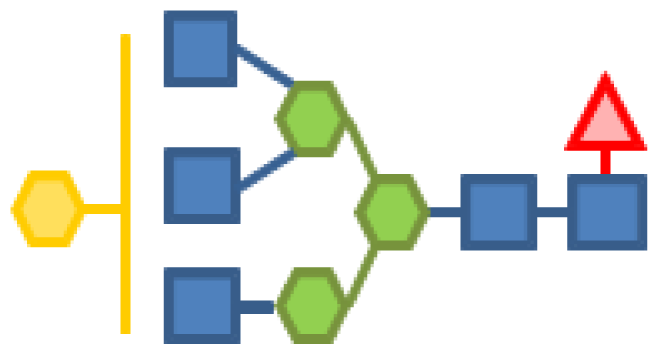

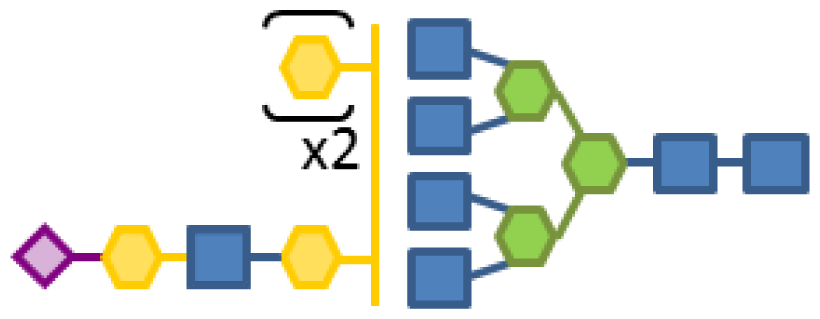

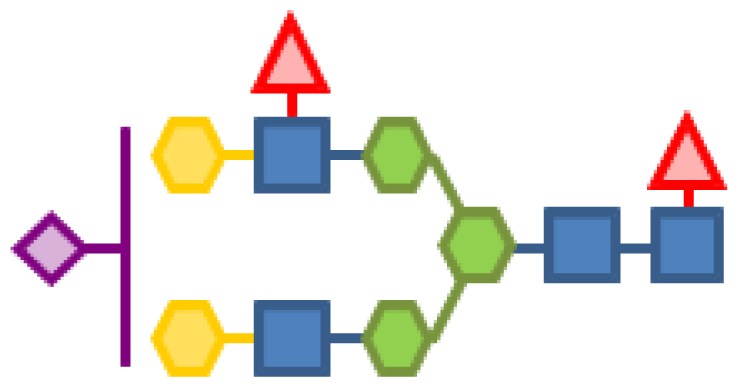

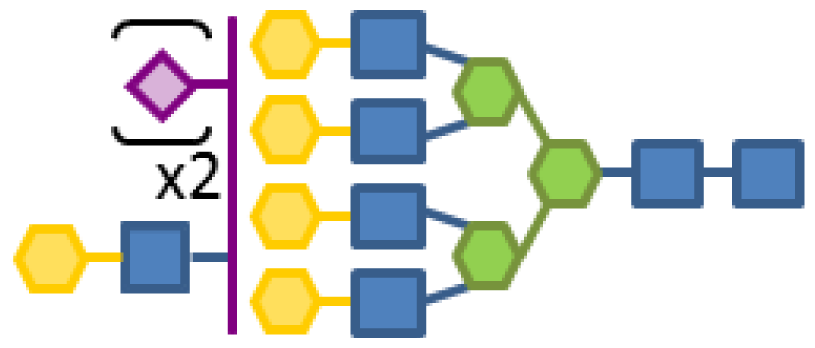

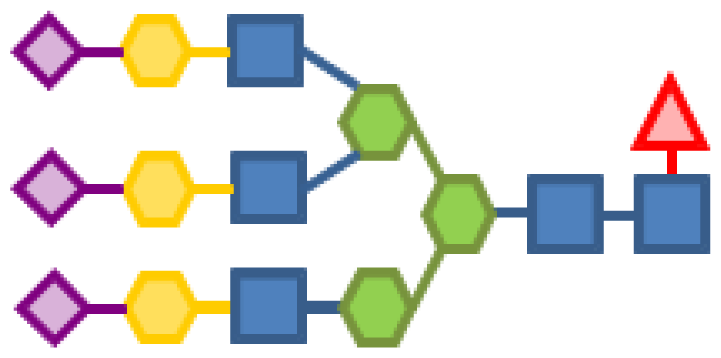

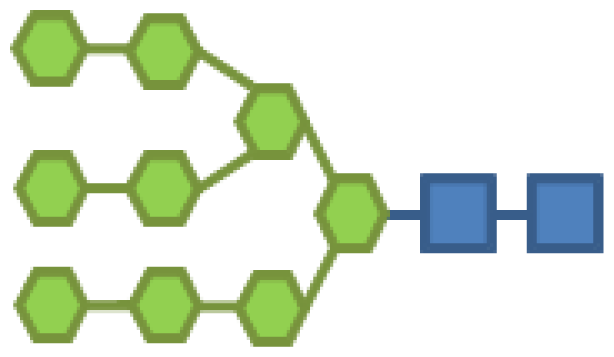

**Table A1.**Summary of the relative abundances of N-linked glycan structures used to obtain an average glycan structure.

Glycan structure | Sugar frequency per glycan (mol/mol) | |||||
---|---|---|---|---|---|---|

Species abundance (%) | GlcNAc | Man | Gal | Fuc | CMP-Neu5Ac | |

7.37 | 2 | 5 | ||||

10.86 | 2 | 6 | ||||

1.75 | 4 | 3 | 1 | |||

13.40 | 2 | 7 | ||||

1.75 | 4 | 3 | 1 | 1 | ||

14.85 | 2 | 8 | ||||

0.69 | 4 | 3 | 2 | 1 | ||

0.47 | 5 | 3 | 1 | 1 | ||

17.69 | 2 | 9 | ||||

1.87 | 4 | 3 | 2 | 1 | ||

0.44 | 5 | 3 | 2 | 1 | ||

2.97 | 4 | 3 | 2 | 1 | 1 | |

0.49 | 4 | 3 | 2 | 2 | 1 | |

1.23 | 4 | 3 | 2 | 2 | ||

10.78 | 4 | 3 | 2 | 1 | 2 | |

2.59 | 5 | 3 | 3 | 1 | 1 | |

5.03 | 5 | 3 | 2 | 1 | 2 | |

0.34 | 6 | 3 | 3 | 1 | 1 | |

1.35 | 5 | 3 | 3 | 1 | 2 | |

0.59 | 6 | 3 | 4 | 1 | 1 | |

0.12 | 6 | 3 | 3 | 1 | 2 | |

0.10 | 7 | 3 | 4 | 1 | 1 | |

0.31 | 5 | 3 | 3 | 1 | 3 | |

0.68 | 6 | 3 | 4 | 1 | 2 | |

0.10 | 7 | 3 | 5 | 1 | 1 | |

0.09 | 7 | 3 | 4 | 1 | 2 | |

0.18 | 6 | 3 | 4 | 1 | 3 | |

0.36 | 7 | 3 | 5 | 1 | 2 | |

0.09 | 7 | 3 | 5 | 1 | 3 | |

0.09 | 8 | 3 | 6 | 1 | 2 |

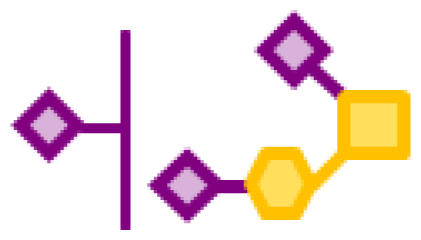

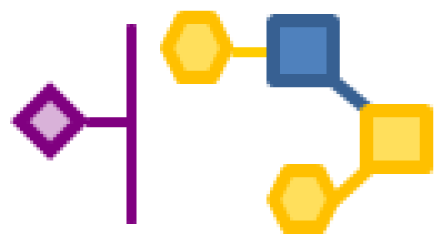

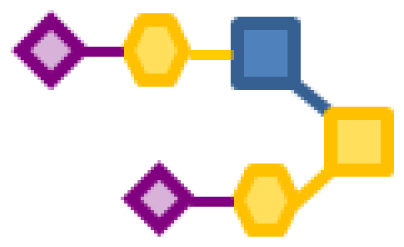

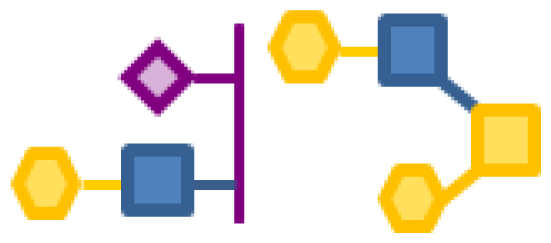

**Table A2.**Summary of the relative abundances of O-linked glycan structures used to obtain an average glycan structure.

Glycan structure | Sugar frequency per glycan (mol/mol) | ||||
---|---|---|---|---|---|

Species abundance (%) | GlcNAc | GalNAc | Gal | CMP-Neu5Ac | |

30.34 | 1 | 1 | 1 | ||

2.18 | 1 | 1 | 2 | ||

53.64 | 1 | 1 | 2 | ||

11.42 | 1 | 1 | 2 | 1 | |

0.77 | 1 | 1 | 3 | ||

1.27 | 1 | 1 | 2 | 2 | |

0.38 | 2 | 1 | 3 | 1 |

## Appendix 3—Estimated Parameter Values and Non-Nucleotide Species

#### A3.1. NSD Metabolic Network Parameter Values

Parameter name | Parameter value |
---|---|

E15a | 2.5400E−05 |

E8a | 0.0000E+00 |

E26b | 0.0000E+00 |

E28a | 0.0000E+00 |

E34a | 0.0000E+00 |

E19a | 6.4400E−06 |

E21a | 6.8586E−06 |

Eglyc | 7.0800E−05 |

Ki15a_GDPFuc | 2.1200E−04 |

E29a | 1.3313E−03 |

E1c | 1.5096E−03 |

E1a | 1.8477E−03 |

Km17a_Man6P | 2.5300E−03 |

E23a | 3.7138E−03 |

E12a | 3.9000E−03 |

E32a | 3.9000E−03 |

E14a | 3.9000E−03 |

E16a | 3.9000E−03 |

E20a | 3.9000E−03 |

E2a | 3.9000E−03 |

E37a | 3.9000E−03 |

E3b | 3.9000E−03 |

E40a | 3.9000E−03 |

E4a | 3.9000E−03 |

E4b | 3.9000E−03 |

E17a | 3.9532E−03 |

E22a | 1.0000E−02 |

E3a | 1.4167E−02 |

E38a | 3.5128E−02 |

E13a | 3.9000E−02 |

E31a | 3.9000E−02 |

E33a | 3.9000E−02 |

E5a | 3.9000E−02 |

E6a | 3.9000E−02 |

Km26a_Glc6P | 9.3842E−02 |

Km22a_UDPGlc | 2.0697E−01 |

Km7b_UDPGlcNAc | 8.2129E−01 |

Gln_coef | 1.0000E+00 |

n29a_CMPNeu5Ac | 4.2000E+00 |

Ki_SA_Tra_UDPGlcNAc | 6.8885E+00 |

Km19a_Fru6P | 1.9700E+01 |

k5aB | 6.0000E+02 |

Ki34a_CMPNeu5Gc | 1.0000E+03 |

k26aF | 2.0972E+03 |

k6aB | 2.3900E+04 |

k17aF | 7.0928E+04 |

k22aB | 1.6151E+05 |

Ki29a_CMPNeu5Ac | 5.2433E+05 |

k21aB | 4.2900E+06 |

k21aF | 6.1200E+06 |

k19aF | 1.5900E+07 |

k27aF | 1.1200E+08 |

Parameter name | Parameter value |
---|---|

k_T_gln | 3.3800E−06 |

Kd_Glc_ext | 1.0051E−01 |

Kd_Gln_ext | 1.1872E−02 |

Km_Glc_ext | 2.6700E+00 |

Km_Gln_ext | 1.2000E+00 |

mu_d_max_glc | 3.9300E−01 |

mu_d_max_gln | 6.2053E−02 |

mu_g_max | 6.6745E−02 |

Y_ext_glc | 9.1600E+07 |

Y_ext_gln | 5.6400E+08 |

Y_mAb_mu | 0.0000E+00 |

Y_mAb_Xv | 1.1400E−09 |

Glc_in | 0.0000E+00 |

Gln_in | 0.0000E+00 |

F_in | 0.0000E+00 |

F_out | 0.0000E+00 |

Parameter name | Parameter value |
---|---|

Kdf_10_Gln | 2.6356E+00 |

Kdf_11_Glc | 2.1296E+00 |

Kdf_11_Gln | 1.3425E+00 |

Kdf_12_ATP | 1.1302E+01 |

Kdf_13_ADP | 3.9892E−04 |

Kdf_13_Glc | 4.7469E+00 |

Kdf_14_ADP | 2.5000E+01 |

Kdf_15_AMP | 1.1312E+01 |

Kdf_15_Glc | 2.3025E+00 |

Kdf_8_Glc | 1.2067E+00 |

Kdf_8_Gln | 2.4832E+00 |

Kdf_9_Gln | 2.1804E+00 |

Kdf_9_UTP | 5.0374E−03 |

Kdout_ATP | 1.0000E−03 |

Kdout_CTP | 1.0000E−03 |

Kdout_GTP | 1.0000E−03 |

Kdout_UTP | 1.0000E−03 |

kf_10 | 7.6621E+00 |

kf_11 | 6.7500E+00 |

kf_12 | 3.2344E+00 |

kf_13 | 2.1454E−01 |

kf_14 | 1.1649E+02 |

kf_15 | 8.6900E+01 |

kf_8 | 7.9486E+00 |

kf_9 | 1.3393E+00 |

Parameter name | Parameter value |
---|---|

KdiFucTA | 0.0000E+00 |

KdiFucTB | 0.0000E+00 |

KdiGalTa1A | 1.0709E+02 |

KdiGalTa1B | 7.2051E+00 |

KdiGalTa2A | 3.4573E+01 |

KdiGntII | 7.7067E+01 |

#### A3.2. Non-NSD Species

Intracellular species | Intracellular conc. (mM) | Source tissue |
---|---|---|

Acetyl Coenzyme A (ACoA) | 0.029 | Rat liver |

Coenzyme A (CoA) | 0.13 | Rat liver |

Glucose-1,6-biphosphate (Glc16PP) | 0.014 | Mouse liver |

Nicotinamide adenine dinucleotide (NAD) | 0.76 | Rat liver |

Nictotinamide adenine dinucleotide phosphate (NADP) | 0.067 | Rat liver |

Nictotinamide adenine dinucleotide phosphate, reduced (NADPH) | 0.30 | Rat liver |

Phosphoenolypyruvic acid (PEP) | 0.11 | Mouse liver |

Inorganic phosphate (PPi) | 3.37 | Rat liver |

Pyruvate (Pyr) | 0.18 | Mouse liver |

## Conflicts of Interest

## References

- Evaluate Pharma Embracing the Patent Cliff. In World Preview 2018; EvaluatePharma Ltd.: London, UK, 2013; p. 38.
- Kyriakopoulos, S.; Kontoravdi, C. Analysis of the landscape of biologically-derived pharmaceuticals in Europe: Dominant production systems molecule types on the rise and approval trends. Eur. J. Pharm. Sci.
**2013**, 48, 428–441. [Google Scholar] - Shields, R.L.; Lai, J.; Keck, R.; O’Connell, L.Y.; Hong, K.; Meng, Y.G.; Weikert, S.H.A.; Presta, L.G. Lack of fucose on human IgG1 N-linked oligosaccharide improves binding to human Fc gamma RIII and antibody-dependent cellular toxicity. J. Biol. Chem.
**2002**, 277, 26733–26740. [Google Scholar] - Matsumiya, S.; Yamaguchi, Y.; Saito, J.; Nagano, M.; Sasakawa, H.; Otaki, S.; Satoh, M.; Shitara, K.; Kato, K. Structural comparison of fucosylated and nonfucosylated Fc fragments of human immunoglobulin G1. J. Mol. Biol.
**2007**, 368, 767–779. [Google Scholar] - Hodoniczky, J.; Zheng, Y.Z.; James, D.C. Control of recombinant monoclonal antibody effector functions by Fc N-glycan remodeling in vitro. Biotechnol. Progr.
**2005**, 21, 1644–1652. [Google Scholar] - Anthony, R.M.; Nimmerjahn, F.; Ashline, D.J.; Reinhold, V.N.; Paulson, J.C.; Ravetch, J.V. Recapitulation of IVIG anti-inflammatory activity with a recombinant IgG fc. Science
**2008**, 320, 373–376. [Google Scholar] - Goetze, A.M.; Liu, Y.D.; Zhang, Z.Q.; Shah, B.; Lee, E.; Bondarenko, P.V.; Flynn, G.C. High-mannose glycans on the Fc region of therapeutic IgG antibodies increase serum clearance in humans. Glycobiology
**2011**, 21, 949–959. [Google Scholar] - Mullard, A. Can next-generation antibodies offset biosimilar competition? Nat. Rev. Drug Discov.
**2012**, 11, 426–428. [Google Scholar] - Jedrzejewski, P.M.; Jimenez del Val, I.; Polizzi, K.M.; Kontoravdi, C. Applying quality by design to glycoprotein therapeutics: Experimental and computational efforts of process control. Pharm. Bioprocess.
**2013**, 1, 51–69. [Google Scholar] - Balaquer, E.; Neususs, C. Intact glycoform characterization of erythropoietin-alpha and erythropoietin-beta by CZE-ESI-TOF-MS. Chromatographia
**2006**, 64, 351–357. [Google Scholar] - Krambeck, F.J.; Bennun, S.V.; Narang, S.; Choi, S.; Yarema, K.J.; Betenbaugh, M.J. A mathematical model to derive N-glycan structures and cellular enzyme activities from mass spectrometric data. Glycobiology
**2009**, 19, 1163–1175. [Google Scholar] - Del Val, I.J.; Kontoravdi, C.; Nagy, J.M. Towards the implementation of quality by design to the production of therapeutic monoclonal antibodies with desired glycosylation patterns. Biotechnol. Progr.
**2010**, 26, 1505–1527. [Google Scholar] - Hills, A.E.; Patel, A.; Boyd, P.; James, D.C. Metabolic control of recombinant monoclonal antibody N-glycosylation in GS-NS0 cells. Biotechnol. Bioeng.
**2001**, 75, 239–251. [Google Scholar] - Grainger, R.K.; James, D.C. CHO cell line specific prediction and control of recombinant monoclonal antibody N-glycosylation. Biotechnol. Bioeng.
**2013**, 110, 2970–2983. [Google Scholar] - Wong, N.S.C.; Wati, L.; Nissom, P.M.; Feng, H.T.; Lee, M.M.; Yap, M.G.S. An investigation of intracellular glycosylation activities in CHO Cells: Effects of nucleotide sugar precursor feeding. Biotechnol. Bioeng.
**2010**, 107, 321–336. [Google Scholar] - Rathore, A.S.; Winkle, H. Quality by design for biopharmaceuticals. Nat. Biotechnol.
**2009**, 27, 26–34. [Google Scholar] - del Val, I.J.; Nagy, J.M.; Kontoravdi, C. A dynamic mathematical model for monoclonal antibody N-linked glycosylation and nucleotide sugar donor transport within a maturing Golgi apparatus. Biotechnol. Progr.
**2011**, 27, 1730–1743. [Google Scholar] - gPROMS Introductory User Guideversion—Release 3.5.0; Process Systems Enterprise, Ltd.: London, UK, 2011.
- Xie, L.Z.; Wang, D.I.C. Stoichiometric analysis of animal-cell growth and its application in medium design. Biotechnol. Bioeng.
**1994**, 43, 1164–1174. [Google Scholar] - Nolan, R.P.; Lee, K. Dynamic model of CHO cell metabolism. Metab. Eng.
**2011**, 13, 108–124. [Google Scholar] - Bonarius, H.P.; Hatzimanikatis, V.; Meesters, K.P.; de Gooijer, C.D.; Schmid, G.; Tramper, J. Metabolic flux analysis of hybridoma cells in different culture media using mass balances. Biotechnol. Bioeng.
**1996**, 50, 299–318. [Google Scholar] - KEGG (Kyoto Encylopedia of Genes and Genomes). Available online: http://www.genome.jp/kegg/ (accessed on 10 March 2014).
- BRENDA (BRaunschweig ENzyme DAtabase). Available online: http://www.brenda-enzymes.org (accessed on 10 March 2014).
- Springer, M.S.; Stanhope, M.J.; Madsen, O.; de Jong, W.W. Molecules consolidate the placental mammal tree. Trends Ecol. Evol.
**2004**, 19, 430–438. [Google Scholar] - Rijcken, W.R.P.; Overdijk, B.; Vandeneijnden, D.H.; Ferwerda, W. The effect of increasing nucleotide sugar concentrations on the incorporation of sugars into glycoconjugates in rat hepatocytes. Biochem. J.
**1995**, 305, 865–870. [Google Scholar] - Apweiler, R.; Hermjakob, H.; Sharon, N. On the frequency of protein glycosylation as deduced from analysis of the SWISS-PROT database. Bba-Gen. Subj.
**1999**, 1473, 4–8. [Google Scholar] - Chen, N.; Koumpouras, G.C.; Polizzi, K.M.; Kontoravdi, C. Genome-based kinetic modeling of cytosolic glucose metabolism in industrially relevant cell lines: Saccharomyces cerevisiae and Chinese hamster ovary cells. Bioproc. Biosyst. Eng.
**2012**, 35, 1023–1033. [Google Scholar] - Wong, D.C.F.; Wong, N.S.C.; Goh, J.S.Y.; May, L.M.; Yap, M.G.S. Profiling of N-glycosylation gene expression in CHO cell fed-batch cultures. Biotechnol. Bioeng.
**2010**, 107, 516–528. [Google Scholar] - Frame, K.K.; Hu, W.S. Cell-Volume Measurement as an estimation of mammalian-cell biomass. Biotechnol. Bioeng.
**1990**, 36, 191–197. [Google Scholar] - Lee, M.S.; Lee, G.M. Hyperosmotic pressure enhances immunoglobulin transcription rates and secretion rates of KR12H-2 transfectoma. Biotechnol. Bioeng.
**2000**, 68, 260–268. [Google Scholar] - Fujita, N.; Tamura, A.; Higashidani, A.; Tonozuka, T.; Freeze, H.H.; Nishikawa, A. The relative contribution of mannose salvage pathways to glycosylation in PMI-deficient mouse embryonic fibroblast cells. FEBS J.
**2008**, 275, 788–798. [Google Scholar] - Kontoravdi, C.; Pistikopoulos, E.N.; Mantalaris, A. Systematic development of predictive mathematical models for animal cell cultures. Comput. Chem. Eng.
**2010**, 34, 1192–1198. [Google Scholar] - Sobol, I.M. Global sensitivity indices for nonlinear mathematical models and their Monte Carlo estimates. Math. Comput. Simulat.
**2001**, 55, 271–280. [Google Scholar] - Kontoravdi, C.; Asprey, S.P.; Pistikopoulos, E.N.; Mantalaris, A. Application of global sensitivity analysis to determine goals for design of experiments: An example study on antibody-producing cell cultures. Biotechnol. Progr.
**2005**, 21, 1128–1135. [Google Scholar] - Kiparissides, A.; Kucherenko, S.S.; Mantalaris, A.; Pistikopoulos, E.N. Global sensitivity analysis challenges in biological systems modeling. Ind. Eng. Chem. Res.
**2009**, 48, 7168–7180. [Google Scholar] - Goudar, C.; Biener, R.; Boisart, C.; Heidemann, R.; Piret, J.; de Graaf, A.; Konstantinov, K. Metabolic flux analysis of CHO cells in perfusion culture by metabolite balancing and 2D [C-13 H-1] COSY NMR spectroscopy. Metab. Eng.
**2010**, 12, 138–149. [Google Scholar] - Li, G.Y.; Wang, S.W.; Rabitz, H. Practical approaches to construct RS-HDMR component functions. J. Phys. Chem. A
**2002**, 106, 8721–8733. [Google Scholar] - Li, G.Y.; Hu, J.S.; Wang, S.W.; Georgopoulos, P.G.; Schoendorf, J.; Rabitz, H. Random sampling-high dimensional model representation (RS-HDMR) and orthogonality of its different order component functions. J. Phys. Chem. A
**2006**, 110, 2474–2485. [Google Scholar] - Li, G.Y.; Rabitz, H. Ratio control variate method for efficiently determining high-dimensional model representations. J. Comput. Chem.
**2006**, 27, 1112–1118. [Google Scholar] - Feil, B.; Kucherenko, S.; Shah, N. Comparison of Monte Carlo and Quasi Monte Carlo Sampling Methods in High Dimensional Model Representation. Proceedings of the Simul: 2009 First International Conference on Advances in System Simulation, Porto, Portugal, 20–25 September 2009; pp. 12–17.
- Zuniga, M.M.; Kucherenko, S.; Shah, N. Metamodelling with independent and dependent inputs. Comput. Phys. Commun.
**2013**, 184, 1570–1580. [Google Scholar] - Geiger, T.; Velic, A.; Macek, B.; Lundberg, E.; Kampf, C.; Nagaraj, N.; Uhlen, M.; Cox, J.; Mann, M. Initial quantitative proteomic map of 28 mouse tissues using the SILAC mouse. Mol. Cell. Proteomics
**2013**, 12, 1709–1722. [Google Scholar] - Baycin-Hizal, D.; Tabb, D.L.; Chaerkady, R.; Chen, L.; Lewis, N.E.; Nagarajan, H.; Sarkaria, V.; Kumar, A.; Wolozny, D.; Colao, J.; et al. Proteomic analysis of Chinese hamster ovary cells. J. Proteome Res.
**2012**, 11, 5265–5276. [Google Scholar] - Xu, X.; Nagarajan, H.; Lewis, N.E.; Pan, S.; Cai, Z.; Liu, X.; Chen, W.; Xie, M.; Wang, W.; Hammond, S.; et al. The genomic sequence of the Chinese hamster ovary (CHO)-K1 cell line. Nat. Biotechnol.
**2011**, 29, 735–741. [Google Scholar] - Milla, M.E.; Clairmont, C.A.; Hirschberg, C.B. Reconstitution into proteoliposomes and partial purification of the Golgi apparatus membrane UDP-galactose UDP-xylose and UDP-glucuronic acid transport activities. J. Biol. Chem.
**1992**, 267, 103–107. [Google Scholar] - Dietmair, S.; Timmins, N.E.; Gray, P.P.; Nielsen, L.K.; Kromer, J.O. Towards quantitative metabolomics of mammalian cells: Development of a metabolite extraction protocol. Anal. Biochem.
**2010**, 404, 155–164. [Google Scholar] - Del Val, I.J.; Kyriakopoulos, S.; Polizzi, K.M.; Kontoravdi, C. An optimized method for extraction and quantification of nucleotides and nucleotide sugars from mammalian cells. Anal. Biochem.
**2013**, 443, 172–180. [Google Scholar] - Dell, A.; Reason, A.J.; Khoo, K.H.; Panico, M.; McDowell, R.A.; Morris, H.R. Mass spectrometry of carbohydrate-containing biopolymers. Methods Enzymol.
**1994**, 230, 108–132. [Google Scholar] - Jang-Lee, J.; North, S.J.; Sutton-Smith, M.; Goldberg, D.; Panico, M.; Morris, H.; Haslam, S.; Dell, A. Glycomic profiling of cells and tissues by mass spectrometry: Fingerprinting and sequencing methodologies. Methods Enzymol.
**2006**, 415, 59–86. [Google Scholar] - Damerell, D.; Ceroni, A.; Maass, K.; Ranzinger, R.; Dell, A.; Haslam, S.M. The GlycanBuilder and GlycoWorkbench glycoinformatics tools: Updates and new developments. Biol. Chem.
**2012**, 393, 1357–1362. [Google Scholar] - Ceroni, A.; Maass, K.; Geyer, H.; Geyer, R.; Dell, A.; Haslam, S.M. GlycoWorkbench: A tool for the computer-assisted annotation of mass spectra of glycans. J. Proteome Res.
**2008**, 7, 1650–1659. [Google Scholar] - Williamson, D.H.; Brosnan, J.T. Methods of Enzymatic Analysis; Bergmeyer, H.U., Gawehn, K., Eds.; Verlag Chemie: New York, NY, USA; London, UK, 1974; Volume 4. [Google Scholar]

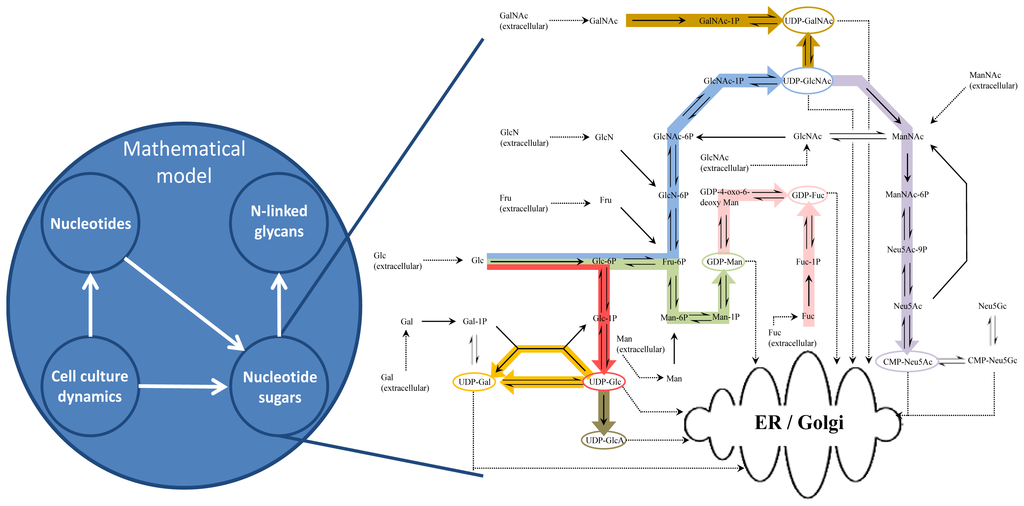

**Figure 1.**Structure of the mathematical model and the interactions of the individual model parts with a focus on the network for nucleotide sugar synthesis.

**Figure 4.**Experimental data compared with generated fits from the dynamic Monod growth model. Fits for extracellular glucose concentration (

**top left**), extracellular glutamine concentration (

**top right**), viable and dead cell density (

**bottom left**) and antibody titer (

**bottom right**).

**Figure 5.**Experimental data compared with generated fits from the nucleotide model. Fits for intracellular ADP concentration (

**top left**), intracellular AMP concentration (

**top right**), intracellular ATP concentration (

**center left**), intracellular CTP concentration (

**center right**), intracellular GTP concentration (

**bottom left**) and intracellular UTP concentration (

**bottom right**).

**Figure 6.**Experimental data compared with generated fits from the mechanistic bottom-up approach nucleotide sugar synthesis model. Fits for intracellular CMP-Neu5AC concentration (

**top left**), intracellular GDP-Fuc concentration (

**top right**), intracellular UDP-GalNAc concentration (

**center left**), intracellular UDP-Gal concentration (

**center right**) and intracellular UDP-GlcNAc concentration (

**bottom left**).

**Figure 7.**Simulated and experimentally determined distribution of the cumulative N-linked glycoform of the antibody Fc region for two time points during cell culture.

Glycan type | GlcNAc | GalNAc | Man | Gal | Neu5Ac | Fuc |
---|---|---|---|---|---|---|

N-linked glycan | 2.896 | 0 | 5.813 | 0.759 | 0.516 | 0.332 |

O-linked glycan | 0.156 | 1 | 0 | 1.156 | 1.543 | 0 |

Glycan average (N_{NSD,glyc}) | 1.579 | 0.481 | 3.018 | 0.950 | 1.010 | 0.173 |
