Open AccessArticle
Int. J. Mol. Sci. 2014, 15(2), 2959-2970;

Shape and Site Dependent in Vivo Degradation of Mg-Zn Pins in Rabbit Femoral Condyle

Orthopaedic Department, Shanghai Jiao Tong University Affiliated Sixth People's Hospital, Shanghai 200233, China
College of Sciences, Shanghai Institute of Technology, Shanghai 201418, China
Suzhou Origin Medical Technology Co. Ltd., Suzhou 215513, China
State Key Laboratory of Metal Matrix Composites, Institute of Biomedical Materials, School of Materials Science and Engineering, Shanghai Jiao Tong University, Shanghai 200240, China
Department of Advanced Materials and Nanotechnology, College of Engineering, Peking University, Beijing 100871, China
Authors to whom correspondence should be addressed.
Received: 26 October 2013 / Revised: 2 January 2014 / Accepted: 16 January 2014 / Published: 20 February 2014
(This article belongs to the Special Issue Biodegradable Magnesium Alloys and Implants)
Full-Text   |   PDF [3010 KB, uploaded 19 June 2014]

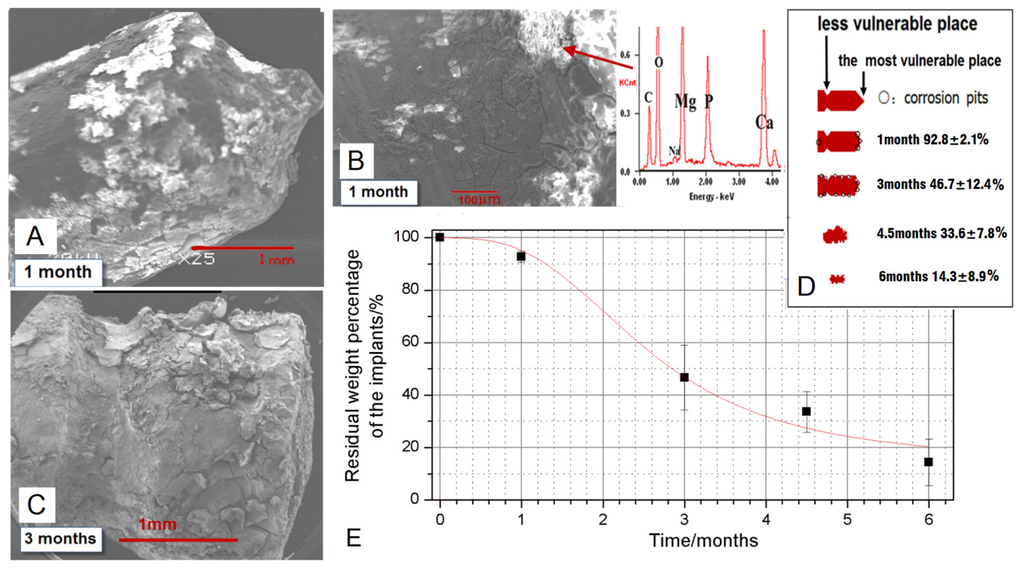

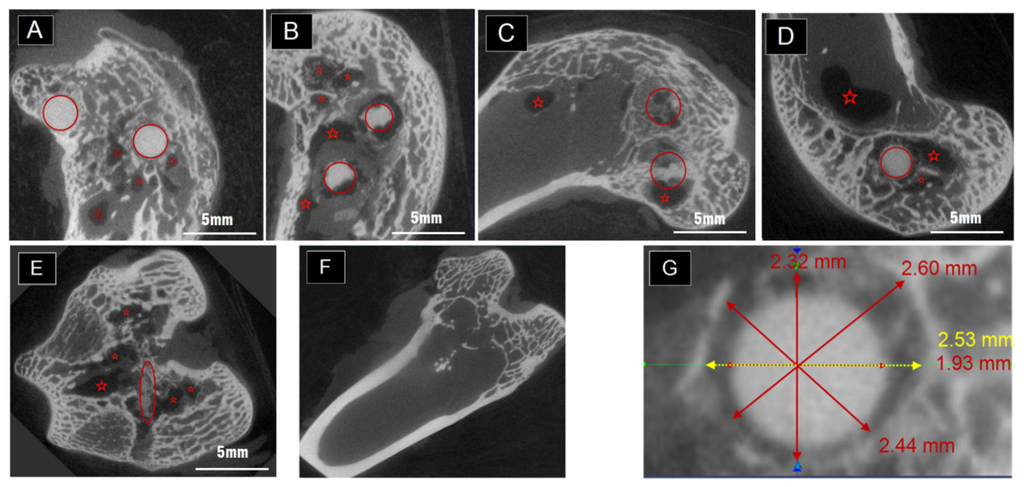

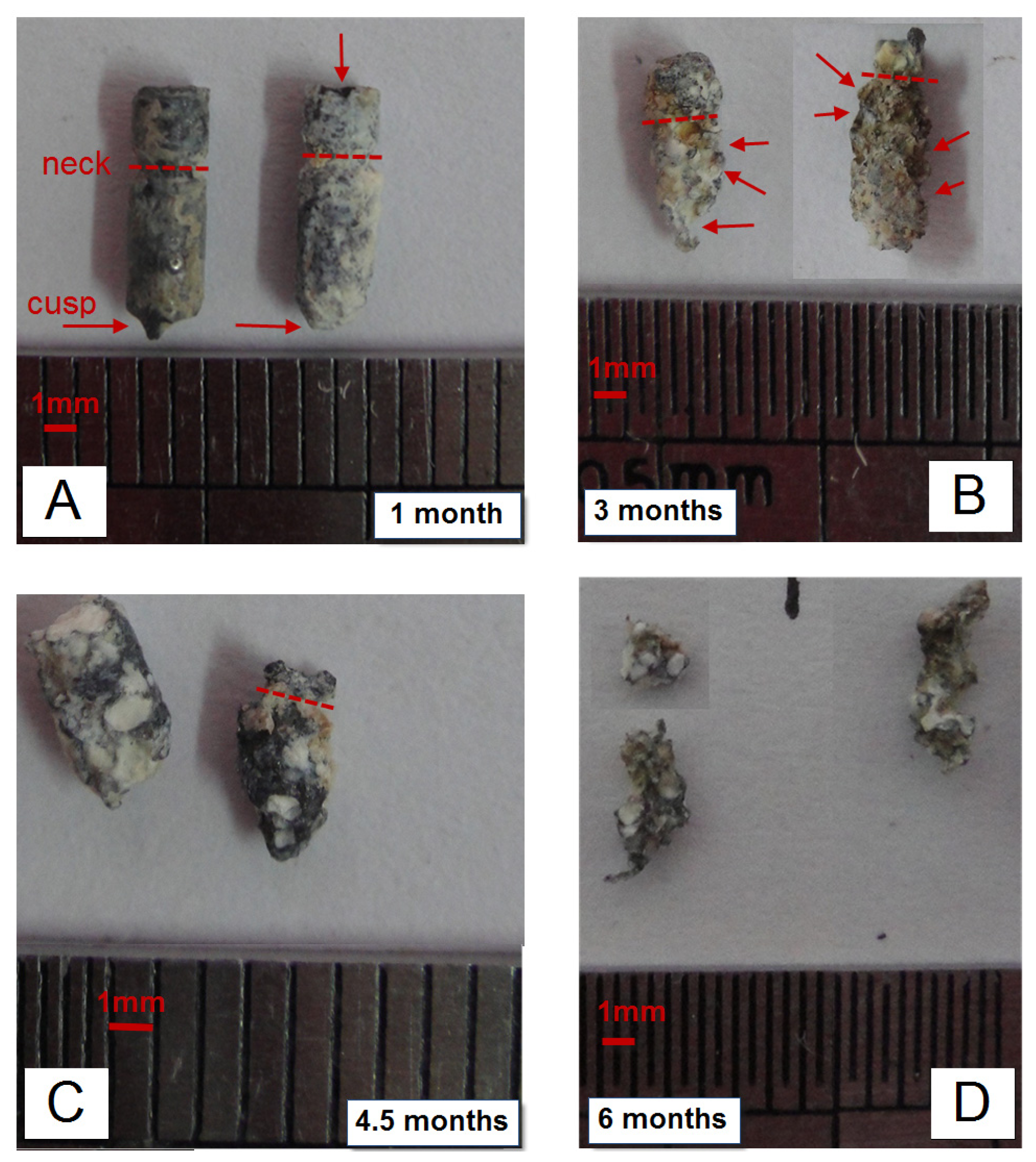

A type of specially designed pin model of Mg-Zn alloy was implanted into the full thickness of lesions of New Zealand rabbits’ femoral condyles. The recovery progress, outer surface healing and in vivo degradation were characterized by various methods including radiographs, Micro-CT scan with surface rendering, SEM (scanning electron microscope) with EDX (Energy Dispersive X-ray analysis) and so on. The in vivo results suggested that a few but not sufficient bridges for holding force were formed between the bone and the implant if there was a preexisting gap between them. The rapid degradation of the implantation in the condyle would result in the appearance of cavities. Morphological evaluation of the specially designed pins indicated that the cusp was the most vulnerable part during degradation. Furthermore, different implantation sites with distinct components and biological functions can lead to different degradation rates of Mg-Zn alloy. The rate of Mg-Zn alloy decreases in the following order: implantation into soft tissue, less trabecular bone, more trabecular bone, and cortical bone. Because of the complexities of in vivo degradation, it is necessary for the design of biomedical Mg-Zn devices to take into consideration the implantation sites used in clinics. View Full-Text
Keywords: magnesium alloy; shape dependent; site dependent; in vivo degradation magnesium alloy; shape dependent; site dependent; in vivo degradation
This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).
