Matrix-Assisted Laser Desorption/Ionization Imaging Mass Spectrometry

Department of Molecular Anatomy, Hamamatsu University School of Medicine, 1-20-1 Handayama, Higashi-ku, Hamamatsu, Shizuoka 431-3192, Japan
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2010, 11(12), 5040-5055;
Submission received: 10 November 2010 / Revised: 25 November 2010 / Accepted: 27 November 2010 / Published: 7 December 2010
(This article belongs to the Special Issue Biomarkers)


Matrix-assisted laser desorption/ionization mass spectrometry (MALDI-MS) is a powerful tool that enables the simultaneous detection and identification of biomolecules in analytes. MALDI-imaging mass spectrometry (MALDI-IMS) is a two-dimensional MALDI-mass spectrometric technique used to visualize the spatial distribution of biomolecules without extraction, purification, separation, or labeling of biological samples. MALDI-IMS has revealed the characteristic distribution of several biomolecules, including proteins, peptides, amino acids, lipids, carbohydrates, and nucleotides, in various tissues. The versatility of MALDI-IMS has opened a new frontier in several fields such as medicine, agriculture, biology, pharmacology, and pathology. MALDI-IMS has a great potential for discovery of unknown biomarkers. In this review, we describe the methodology and applications of MALDI-IMS for biological samples.

Graphical Abstract

1. Overview

Imaging mass spectrometry (IMS) is a relatively new imaging method based on mass spectrometry (MS). MS is an analytical technique that detects the mass-to-charge ratio (m/z) of ionized molecules. The application of several ionization methods, including secondary ion mass spectrometry (SIMS) [1], desorption electrospray ionization (DESI) [2], and matrix-assisted laser desorption/ionization (MALDI) [3], has been investigated for IMS. MALDI-MS is a powerful method that allows the simultaneous detection and identification of many molecules directly from biological sections [4,5]. MALDI-MS can detect a wide range of biomolecules ranging from small (m/z < 1000) [6] to large molecules (m/z > 100 kDa) [7]. Due to the widespread applicability of this method, MALDI-MS is widely used in various fields, such as proteomics [810], lipidomics [1118], metabolomics [19,20], and glycomics [21,22]. In this review, we focus on molecular imaging by MALDI-MS (MALDI-IMS), a two-dimensional MALDI-MS technique that is used to visualize the spatial distribution of biomolecules in biological sections (Figure 1) [2330]. Samples for MALDI-IMS can be obtained from any type of organism, ranging from bacteria and plants to animal and human tissues. The versatility of MALDI-IMS has opened a new frontier in several fields, including medicine, agriculture, biology, pharmacology, and pathology.
The important features that make MALDI-IMS a practical tool in a wide range of life sciences are its molecular identification capability and label-free biomolecular simultaneous imaging. These features of MALDI-IMS provide the scientific community with a new strategy for biomarker discovery. This new non-targeting screening method has proven useful for discovering unknown biomarkers [3133]. In this review, we describe the methodology and applications of MALDI-IMS for biological samples.

2. Methodology

The important experimental steps for visualizing endogenous molecules by using MALDI-IMS are sample preparation, matrix application, measurement, and data analysis. In this section, we describe the basic experimental MALDI-IMS procedure.

2.1. Biological Sample Preparation

Optimization of the sample preparation procedure according to the characteristic chemical and physical properties of each analyte is important. The sample preparation procedure needs to be controlled to obtain meaningful images of endogenous molecules in the microdomain of biological sections. Here, we discuss crucial preparation steps, including sample fixation, embedding, sectioning, and washing.

2.1.1. Fixation and Embedding

The most preferred samples for MALDI-IMS are fresh or frozen and chemically unmodified tissues. Fresh-frozen tissues can be prepared using powdered dry ice, liquid nitrogen, liquid nitrogen-chilled isopentane, etc. Among these fresh-freezing methods, the tissue section morphology appears to be well-maintained when samples are frozen by liquid nitrogen-chilled isopentane, which is used to freeze biopsy samples in clinical practice [34]. However, the optimal freezing method differs for different samples. It is important to ensure that tissue section morphology is well maintained.
Embedding of the tissue samples in supporting material, such as an optimal cutting temperature (OCT) compound, allows maintenance of tissue morphology and precise sample sectioning. However, supporting materials are often ionized during MALDI-MS analysis and sometimes act as ion suppressors of molecules of interest [35]. Therefore, samples should not be embedded if precise sample sections can be prepared without embedding. When it is difficult to prepare a sample section, the use of carboxymethylcellulose (CMC) or gelatin as embedding material is recommended. Sodium CMC (2%) is reported to be used as an alternative embedding compound that does not interfere with the detection sensitivity of biomolecules in MALDI-IMS analysis [36,37]. Chen et al. reported that gelatin provided a cleaner signal background compared to that provided by OCT [38]. Researchers should ensure suitability between the supporting material and the biomolecules of interest.
Formaldehyde fixation and paraffin embedding, the most commonly used preservation technique, has limited use in IMS. Formaldehyde fixation makes IMS analysis difficult because of the protein cross-linking induced by formaldehyde. The on-tissue proteolytic digestion method, in which proteins are denatured and digested by enzymes, has been developed in order to address this problem [9,39]. The protocol for this approach was recently published [40], and the method includes an indispensable paraffin removal step involving the use of xylene and ethanol. Lipophilic molecules are lost during this deparaffinization step; therefore, formaldehyde-fixed and paraffin-embedded (FFPE) samples cannot be used for lipid imaging.

2.1.2. Sectioning

Ionization efficiency is partly dependent on the thickness of the tissue section [41]. In general, 5–20-μm-thick sections are prepared for the analysis of low molecular weight molecules. The use of thinner tissue sections (2–5 μm thick) has been recommended for the analysis of high molecular weight molecules (range, 3–21 kDa) [42]. Sections are thaw-mounted on a stainless steel conductive stage or on commercially available indium-tin oxide (ITO)-coated glass slides. We recommend the use of ITO-coated glass slides because these transparent slides enable microscopic observation of the section after MALDI-IMS. Adhesive film can be used instead of thaw-mounting on the ITO-coated glass slides [36]. Use of adhesive film is suitable for samples for which thaw-mounted preparation of sections is challenging (e.g., rice kernel, bone, or whole-body sections) [43].

2.1.3. Washing

Washing is required for peptide or protein analysis because their detection is often prevented by large amounts of easily ionized lipid species. Lipid removal simplifies mass spectra in the range of m/z 400–1000; thus, lipid removal enables the detection of low mass peptides that are usually masked by lipid peaks. The washing method should be optimized for the target imaging molecules. Several washing protocols using organic solvents have been reported [9,35,4446]. Washing is also required after MALDI-IMS for removing the staining matrix. The matrix can be removed by the solvent after IMS. For example, 2,5-dihydroxybenzoic acid (DHB) can be removed by methanol. After MALDI-IMS completion and matrix removal, tissue samples can be stained with hematoxylin-eosin.

2.2. Matrix Application

The matrix plays a central role in MALDI-MS soft ionization [4,5]. Biomolecules are softly ionized in the co-crystal with the matrix, which absorbs the laser beam energy and protects biomolecules from the disruptive energy. Protonated ion ([M + H]+) or deprotonated ion ([M − H]) molecules are generally detected. Sodium adduct ion ([M + Na]+) and potassium adduct ion ([M + K]+) are often observed by biological sample analysis. It is very important to choose appropriate matrices to obtain meaningful biomolecule images. An overview of the matrices used for IMS can also be found in other reviews [30,47].

2.2.1. Choice of Matrix

The choice of matrix used for MALDI-IMS depends on the mass range and chemical properties of the analytes. Among the many kinds of matrices, sinapinic acid (3,5-dimethoxy-4-hydroxycinnamic acid [SA]) is generally used for high-weight molecules such as proteins, while α-cyano-4-hydroxycinnamic acid (CHCA) is often used for middle-weight molecules such as peptides. DHB or 9-aminoacridine (9-AA) is generally used for low molecular weight molecules such as lipids or metabolites. DHB appears to be suitable for analysis in the positive-ion mode, while 9-AA tends to be appropriate for analysis in the negative-ion mode.
The development of new matrices is still being reported. Ours and other research groups recently reported the use of nanoparticles as new matrices [4852]. For example, iron oxide nanoparticles enable the visualization of sulfatide and phospholipid distribution [22,53], silver nanoparticles can be used for the analysis of fatty acids [50], and gold nanoparticles are appropriate for the sensitive detection of glycosphingolipids such as sulfatide and ganglioside [54].

2.2.2. Matrix Application Methods

Three kinds of matrix application methods are generally used. The first method involves manual spraying using thin layer chromatography (TLC) sprayers or airbrushes [55]. This method should be performed at a constant room temperature and at low humidity to ensure homogeneous application of the matrix. By applying this method, tissue sections can be quickly and inexpensively coated with relatively small crystals. However, this method requires skill. The second method is automatic depositing of small droplets of matrix solution with robotic devices such as a chemical inkjet printer (ChIP-1000) (Shimadzu Corporation, Kyoto, Japan) [56]. The on-tissue digestion method mentioned above can also be performed using the ChIP-1000 instrument. Compared to the droplet spot size in manual spraying, the droplet spot size of this method increases the signal sensitivity but decreases the spatial resolution (>100–200 μm) [57]. The limitation of the inkjet printer is capillary clogging, which occurs when highly concentrated matrix solutions are used. The third method is sublimation of the matrix under reduced pressure and elevated temperature [58]. This method requires no solvent; therefore, diffusion of the analyte molecules during matrix application is eliminated. Another advantage is the increased purity of the matrix and the formation of very small matrix crystals [59].

2.3. Measurement and Data Analysis

2.3.1. Instruments

The requirement for performance of IMS is the availability of an x-axis-y-axis moving stage with electronic controls. Most modern MS instruments produced by major MS hardware companies (i.e., Shimadzu, ThermoFisher Scientific, Bruker, Applied Biosystems, Waters) can be adapted for MALDI-IMS. Time of flight (TOF) is the most widely used technology. TOF analyzers allow the separation of ionized accelerated molecules according to their mass to charge (m/z) ratio. TOF-MS offers suitable performance for MALDI-IMS, namely, good transmission ratio (50–100%), sensitivity, mass range, and repetition rate. However, TOF-MS lacks the capability to perform effective tandem MS experiments. This disadvantage of TOF-MS changed with the introduction of hybrid analyzers such as combination of quadrupole mass analyzer and TOF (so-called qTOF), combination quadrupole ion trap (QIT) and TOF (so-called QIT-TOF), combination of ion mobility spectrometry (IMS) and TOF (so-called IMS-TOF), or combination of two TOF mass spectrometers (so-called TOF-TOF). These combination systems revolutionized the application of TOF-MS systems for the structural analysis with tandem MS. In general, the first system is used to select a precursor ion for fragmentation, while the second TOF system is employed for fragment analysis. Other mass analyzers (and their combinations), such as linear ion trap (LIT) [36,60,61], triple quadrupole (QqQ) [62], and Fourier transform ion cyclotron resonance (FTICR) [63], are used for MALDI-IMS. The advantages of commercially available LIT instruments are miniaturization, capability of sample analysis on nonconductive glass slide MALDI performance at intermediate pressure, and superior performance of multistage MS. The QqQ system allows quantitative analysis and single or multiple reaction monitoring (SRM/MRM). The FTICR system offers very high mass resolving power and high mass measurement accuracy.

2.3.2. Measurement

Matrix-coated samples should be measured as soon as possible to avoid biomolecule degradation. The procedure to obtain a good MALDI-IMS spectrum is basically the same as that of traditional MALDI-MS. Since MALDI-IMS is a two-dimensional MALDI-MS technique, the measurement region and scan pitch, which decide the spatial resolution of the image, need to be fixed before the measurement is taken. At present, the finest spatial distribution of the commercially available instrument is 10 μm (Mass Microscope Shimadzu) [64,65]. The measurement time depends on the number of data spots, the frequency of the laser, the number of shots per spot, and the time required to move the sample stage. For example, when researchers select the region of interest as a 1 × 1 mm2 area with a 10-μm scan pitch (10,000 data points), it takes about 1 h to complete the measurement using a mass microscope equipped with a 1000-Hz laser (100 shots/data point).

2.3.3. Data Analysis

A large amount of data (a few gigabytes) is obtained by MALDI-IMS; therefore, visualization software packages that can rapidly and efficiently analyze enormous spectra have been developed. BioMap (a free software; Novartis, Basel, Switzerland), FlexImaging (Bruker Daltonics, Bremen, Germany), and ImageQuest (Thermo Fisher Scientific, CA, USA) are generally used for visualization. For biomarker analysis of the MALDI-IMS dataset, data mining software such as ClinProTools (Bruker Daltonics) are typically used [66]. These data mining software effectively reduce the number of biomarker candidates. We previously reported the approach using principal component analysis (PCA) to discover different biomolecules between starvation-induced fatty livers and normal livers [55]. Hierarchical clustering was also used to analyze the data obtained from gastric cancer and non-neoplastic mucosa tissue sections [67].

3. Applications of IMS

3.1. IMS for Proteins and Peptides

The proteins present in biological tissue are usually subjected to on-tissue digestion by proteolytic enzyme such as trypsin. Groseclose et al. reported the protocol for protein imaging [9]. The method for on-tissue protein digestion should include a tissue washing step with organic solvent for removing lipids. After lipid removal, a tissue section is spotted with the solution of proteolytic enzyme. Use of a chemical inkjet printer (such as ChIP-1000) is suitable for the application of proteolytic enzymes. One of the advantages of IMS is its label-free simultaneous visualization of biomolecules. In protein or peptide studies, the advantage of MALDI-IMS is utilized when analytes have variants or when non-targeting screening is performed. Stoeckli et al. visualized the amyloid-β peptide species, which is generated by cleaving the amyloid precursor protein at different cleavage sites [68]. Yao et al. visualized the biomarkers of the neurodegenerative disease model mouse (Scrapper-knockout mouse) [69] using PCA [8]. Applications of MALDI-IMS have been reported in cancer pathology, such as human gastric cancer tissues using FFPE samples [56]. MALDI-IMS has been applied in a vast spectrum of disease samples and models [39,7074].
Non-digestion approaches have also been reported. This approach was first reported by Caprioli et al. [25]. One of the interesting applications for intact proteins directly from tissue sections was reported by Dani et al. [10]. They succeeded in the identification of two proteins: an 8 kDa protein that matched an unannotated sequence of the Anopheles gambiae genome and odorant binding protein 9 (OBP-9). A comparison of the peptide profiles of the neurons of the sea slug (Aplysia californica) was reported by Rubakhin et al. [75], who revealed distinct peptide profiles for each neuronal subtype.

3.2. IMS for Lipids

IMS is currently the only methodology that enables simultaneous visualization of lipids. Visualization of various types of lipids, such as phospholipids [23,27,7679], sphingolipids [28], glycolipids [13,21,80], and neutral lipids [81], has been reported. In terms of tissue sample preparation, formaldehyde fixation and OCT embedding are not recommended for lipid imaging because of a significant reduction in the quality of the mass spectra. Figure 2 shows an example of lipid imaging in a biological sample, medaka (Oryzias latipes) [23]. IMS reveals the distribution of lipids in biological tissues at the molecular species level. Phosphatidylcholine (PC) (diacyl 16:0/18:1) was observed to be localized in the brain and liver, while PC (diacyl 16:0/20:4) was intensely detected in the liver (Figures 2a and 2b). Molecular lipid species can be identified by MS/MS tissue analyses. A representative MS/MS PC spectrum is shown in Figure 3. Neutral loss of the phosphocholine head group (59 and 183 Da) and fatty acids are usually observed by MS/MS analyses of PC in tissues. Other phospholipid species commonly exhibit neutral loss of the head group (43 Da for phosphatidylethanolamine, 162 Da for phosphatidylinositol, 87 Da for phosphatidylserine, and 59 and 183 Da for sphingomyelin) on MS/MS spectra [82]. Neutral loss of fatty acids is observed in the case of MS/MS analyses for triacylglycerol [81].
We recently reported the unique distribution of PC in varicose veins (VVs) [83]. In this study, we found arachidonic acid containing PC was localized in the damaged valvular region of VVs, suggesting that local inflammation is initiated by the arachidonic acid concentration via an unknown mechanism. We further observed this unique lipid distribution pattern in other vascular diseases. Because lipids are strongly involved in the onset of vascular diseases [84], abnormal localization of lipids might be a key clue in clarifying the unknown mechanism of vascular disease onset. The use of adhesive film is appropriate for arteriosclerotic arteries that have massive calcified regions [36,43].

3.3. IMS for Endogenous Metabolites

MALDI-IMS has been employed for the detection of endogenous molecules such as adenosine monophosphate (AMP), adenosine diphosphate (ADP), adenosine triphosphate (ATP), and uridine diphosphate (UDP) using 9-AA [85]. Hattori et al. measured the change of ATP, ADP, and AMP in an ischemic brain model [86].
Food nutrients can be visualized by IMS [20,36,82,87,88]. We recently analyzed agricultural and marine products and visualized food nutrients such as γ-aminobutyric acid (GABA), essential amino acids, sucrose, α-tocopherol, γ-oryzanol, and phytic acid [36,82,87]. Volatile components can be visualized by a mass microscope equipped with an atmospheric pressure ion-source chamber (Shimadzu) [64]. Figure 4 shows the food nutrients of rice (Oryza sativa) [36]. In this study, we found it possible that nutrient distributions are different among rice varieties. The distribution of nutrients might be used as a biomarker to discriminate the geographical origin of agricultural and marine products. A larger-scale study is required to confirm our findings.

4. Future Perspectives

MALDI-IMS is becoming an essential tool for molecular imaging of biological samples. MALDI-IMS can facilitate the discovery of characteristic molecules in regions of interest. The advantage of MALDI-IMS—in that it enables us to investigate the localization of known and unknown molecules without labeling—should facilitate biomarker discovery and validation. To make the relatively new MALDI-IMS strategy a routine tool for biomarker discovery, it must first be validated in a larger-scale sample. A combination of MALDI-IMS and other IMS such as SIMS [1], DESI [2], or laser ablation inductively coupled plasma mass spectrometry (LA-ICP-MS) [89] is also needed to overcome the MALDI-IMS limitations. SIMS utilizes a primary ion beam to produce secondary ions from the surface of the biological sections and is a superior tool for high spatial resolution IMS (submicron order) of elements and small molecules at the organelle level [9092]. However, SIMS lacks the sensitivity of the mass range over m/z 1000 due to in-source fragmentation as well as molecular identification ability due to MS/MS incapability. We recently reported that combination use of MALDI-IMS and SIMS-IMS complements their respective limitations [93]. DESI is a combination of two MS ionization methods, namely electrospray ionization and desorption ionization. DESI uses energetic charged electrosprayed solvent droplets to desorb molecules from the sample surface. Although the spatial resolution of DESI-IMS is inferior to that of MALDI-IMS, DESI-IMS allows for soft and atmospheric desorption and ionization, which could overcome the MALDI-IMS limitation. DESI was applied in several studies including metabolites [94], alkaloids in plant [2], and exogenous and endogenous chemicals in latent fingerprints [95]. LA-ICP-MS has been developed as a method for imaging elements and is the most sensitive technique for elemental imaging of biological tissues [96]. Quantitative analysis can be performed by LA-ICP-MS. Becker et al. proposed the combined application of LA-ICP-MS and MALDI-MS [96]. We believe that MALDI-IMS or combination with alternative IMS will become an essential tool for biomarker discovery in the near future.


We would like to thank Yukiko Sugiyama for her kind assistance. This work was supported by the Program for Promotion of Basic and Applied Researches for Innovations in Bio-oriented Industry (BRAIN), a Grant-in-Aid for Scientific Research (C) (22590522) to N.Z., and a Grant-in-Aid for Young Scientists (S) (20670004) to M.S.


  1. Benninghoven, A; Sichtermann, WK. Detection, Identification and Structural Investigation of Biologically Important Compounds by Secondary Ion Mass Spectrometry. Anal. Chem 1978, 50, 1180–1184. [Google Scholar]
  2. Takats, Z; Wiseman, JM; Gologan, B; Cooks, RG. Mass Spectrometry Sampling under Ambient Conditions with Desorption Electrospray Ionization. Science 2004, 306, 471–473. [Google Scholar]
  3. Caprioli, RM; Farmer, TB; Gile, J. Molecular Imaging of Biological Samples: Localization of Peptides and Proteins Using Maldi-Tof Ms. Anal. Chem 1997, 69, 4751–4760. [Google Scholar]
  4. Karas, M; Hillenkamp, F. Laser Desorption Ionization of Proteins with Molecular Masses Exceeding 10,000 Daltons. Anal. Chem 1988, 60, 2299–2301. [Google Scholar]
  5. Tanaka, K; Waki, H; Ido, Y; Akita, S; Yoshida, Y; Yoshida, T. Protein and Polymer Analyses up to M/Z 100000 by Laser Ionization Time-of Flight Mass Spectrometry. Rapid Commun. Mass Spectrom 1988, 2, 151–153. [Google Scholar]
  6. Svatos, A. Mass Spectrometric Imaging of Small Molecules. Trends Biotechnol 2010, 28, 425–434. [Google Scholar]
  7. Yates, JR, 3rd. Mass Spectrometry and the Age of the Proteome. J. Mass Spectrom 1998, 33, 1–19. [Google Scholar]
  8. Yao, I; Sugiura, Y; Matsumoto, M; Setou, M. In Situ Proteomics with Imaging Mass Spectrometry and Principal Component Analysis in the Scrapper-Knockout Mouse Brain. Proteomics 2008, 8, 3692–3701. [Google Scholar]
  9. Groseclose, MR; Andersson, M; Hardesty, WM; Caprioli, RM. Identification of Proteins Directly from Tissue: In Situ Tryptic Digestions Coupled with Imaging Mass Spectrometry. J. Mass Spectrom 2007, 42, 254–262. [Google Scholar]
  10. Dani, FR; Francese, S; Mastrobuoni, G; Felicioli, A; Caputo, B; Simard, F; Pieraccini, G; Moneti, G; Coluzzi, M; della Torre, A; et al. Exploring Proteins in Anopheles Gambiae Male and Female Antennae through Maldi Mass Spectrometry Profiling. PLoS One 2008, 3, e2822. [Google Scholar]
  11. Murphy, RC; Hankin, JA; Barkley, RM. Imaging of Lipid Species by Maldi Mass Spectrometry. J Lipid Res 2009, 50(Suppl), S317–S322. [Google Scholar]
  12. Chan, K; Lanthier, P; Liu, X; Sandhu, JK; Stanimirovic, D; Li, J. Maldi Mass Spectrometry Imaging of Gangliosides in Mouse Brain Using Ionic Liquid Matrix. Anal. Chim. Acta 2009, 639, 57–61. [Google Scholar]
  13. Sugiura, Y; Shimma, S; Konishi, Y; Yamada, MK; Setou, M. Imaging Mass Spectrometry Technology and Application on Ganglioside Study; Visualization of Age-Dependent Accumulation of C20-Ganglioside Molecular Species in the Mouse Hippocampus. PLoS One 2008, 3, e3232. [Google Scholar]
  14. Goto-Inoue, N; Hayasaka, T; Sugiura, Y; Taki, T; Li, YT; Matsumoto, M; Setou, M. High-Sensitivity Analysis of Glycosphingolipids by Matrix-Assisted Laser Desorption/Ionization Quadrupole Ion Trap Time-of-Flight Imaging Mass Spectrometry on Transfer Membranes. J. Chromatogr. B Analyt. Technol. Biomed. Life Sci 2008, 870, 74–83. [Google Scholar]
  15. Jackson, SN; Wang, HY; Woods, AS; Ugarov, M; Egan, T; Schultz, JA. Direct Tissue Analysis of Phospholipids in Rat Brain Using Maldi-Tofms and Maldi-Ion Mobility-Tofms. J. Am. Soc. Mass Spectrom 2005, 16, 133–138. [Google Scholar]
  16. Wang, HY; Jackson, SN; Woods, AS. Direct Maldi-Ms Analysis of Cardiolipin from Rat Organs Sections. J. Am. Soc. Mass Spectrom 2007, 18, 567–577. [Google Scholar]
  17. Jackson, SN; Woods, AS. Direct Profiling of Tissue Lipids by Maldi-Tofms. J. Chromatogr. B Analyt. Technol. Biomed. Life Sci 2009, 877, 2822–2829. [Google Scholar]
  18. Goto-Inoue, N; Hayasaka, T; Taki, T; Gonzalez, TV; Setou, M. A New Lipidomics Approach by Thin-Layer Chromatography-Blot-Matrix-Assisted Laser Desorption/Ionization Imaging Mass Spectrometry for Analyzing Detailed Patterns of Phospholipid Molecular Species. J. Chromatogr. A 2009, 1216, 7096–7101. [Google Scholar]
  19. Sugiura, Y; Setou, M. Imaging Mass Spectrometry for Visualization of Drug and Endogenous Metabolite Distribution: Toward in Situ Pharmacometabolomes. J. Neuroimmun. Pharmacol 2010, 5, 31–43. [Google Scholar]
  20. Burrell, M; Earnshaw, C; Clench, M. Imaging Matrix Assisted Laser Desorption Ionization Mass Spectrometry: A Technique to Map Plant Metabolites within Tissues at High Spatial Resolution. J. Exp. Bot 2007, 58, 757–763. [Google Scholar]
  21. Goto-Inoue, N; Hayasaka, T; Zaima, N; Setou, M. The Specific Localization of Seminolipid Molecular Species on Mouse Testis During Testicular Maturation Revealed by Imaging Mass Spectrometry. Glycobiology 2009, 19, 950–957. [Google Scholar]
  22. Ageta, H; Asai, S; Sugiura, Y; Goto-Inoue, N; Zaima, N; Setou, M. Layer-Specific Sulfatide Localization in Rat Hippocampus Middle Molecular Layer Is Revealed by Nanoparticle-Assisted Laser Desorption/Ionization Imaging Mass Spectrometry. Med. Mol. Morphol 2009, 42, 16–23. [Google Scholar]
  23. Zaima, N; Hayasaka, T; Goto-Inoue, N; Setou, M. Imaging of Metabolites by Maldi Mass Spectrometry. J. Oleo Sci 2009, 58, 415–419. [Google Scholar]
  24. Stoeckli, M; Farmer, TB; Caprioli, RM. Automated Mass Spectrometry Imaging with a Matrix-Assisted Laser Desorption Ionization Time-of-Flight Instrument. J. Am. Soc. Mass Spectrom 1999, 10, 67–71. [Google Scholar]
  25. Stoeckli, M; Chaurand, P; Hallahan, DE; Caprioli, RM. Imaging Mass Spectrometry: A New Technology for the Analysis of Protein Expression in Mammalian Tissues. Nat. Med 2001, 7, 493–496. [Google Scholar]
  26. Todd, PJ; Schaaff, TG; Chaurand, P; Caprioli, RM. Organic Ion Imaging of Biological Tissue with Secondary Ion Mass Spectrometry and Matrix-Assisted Laser Desorption/Ionization. J. Mass Spectrom 2001, 36, 355–369. [Google Scholar]
  27. Hayasaka, T; Goto-Inoue, N; Sugiura, Y; Zaima, N; Nakanishi, H; Ohishi, K; Nakanishi, S; Naito, T; Taguchi, R; Setou, M. Matrix-Assisted Laser Desorption/Ionization Quadrupole Ion Trap Time-of-Flight (Maldi-Qit-Tof)-Based Imaging Mass Spectrometry Reveals a Layered Distribution of Phospholipid Molecular Species in the Mouse Retina. Rapid Commun. Mass Spectrom 2008, 22, 3415–3426. [Google Scholar]
  28. Shimma, S; Sugiura, Y; Hayasaka, T; Hoshikawa, Y; Noda, T; Setou, M. Maldi-Based Imaging Mass Spectrometry Revealed Abnormal Distribution of Phospholipids in Colon Cancer Liver Metastasis. J. Chromatogr. B Analyt. Technol. Biomed. Life Sci 2007, 855, 98–103. [Google Scholar]
  29. Kimura, Y; Tsutsumi, K; Sugiura, Y; Setou, M. Medical Molecular Morphology with Imaging Mass Spectrometry. Med. Mol. Morphol 2009, 42, 133–137. [Google Scholar]
  30. Chughtai, K; Heeren, RM. Mass Spectrometric Imaging for Biomedical Tissue Analysis. Chem. Rev 2010, 110, 3237–3277. [Google Scholar]
  31. Mange, A; Chaurand, P; Perrochia, H; Roger, P; Caprioli, RM; Solassol, J. Liquid Chromatography-Tandem and Maldi Imaging Mass Spectrometry Analyses of Rcl2/Cs100-Fixed, Paraffin-Embedded Tissues: Proteomics Evaluation of an Alternate Fixative for Biomarker Discovery. J. Proteome. Res 2009, 8, 5619–5628. [Google Scholar]
  32. Meistermann, H; Norris, JL; Aerni, HR; Cornett, DS; Friedlein, A; Erskine, AR; Augustin, A; De Vera Mudry, MC; Ruepp, S; Suter, L; et al. Biomarker Discovery by Imaging Mass Spectrometry: Transthyretin Is a Biomarker for Gentamicin-Induced Nephrotoxicity in Rat. Mol. Cell Proteomics 2006, 5, 1876–1886. [Google Scholar]
  33. Lemaire, R; Menguellet, SA; Stauber, J; Marchaudon, V; Lucot, JP; Collinet, P; Farine, MO; Vinatier, D; Day, R; Ducoroy, P; et al. Specific Maldi Imaging and Profiling for Biomarker Hunting and Validation: Fragment of the 11s Proteasome Activator Complex, Reg Alpha Fragment, Is a New Potential Ovary Cancer Biomarker. J. Proteome Res 2007, 6, 4127–4134. [Google Scholar]
  34. Jehl, B; Bauer, R; Dorge, A; Rick, R. The Use of Propane/Isopentane Mixtures for Rapid Freezing of Biological Specimens. J. Microsc 1981, 123, 307–309. [Google Scholar]
  35. Schwartz, SA; Reyzer, ML; Caprioli, RM. Direct Tissue Analysis Using Matrix-Assisted Laser Desorption/Ionization Mass Spectrometry: Practical Aspects of Sample Preparation. J. Mass Spectrom 2003, 38, 699–708. [Google Scholar]
  36. Zaima, N; Goto-Inoue, N; Setou, M. Application of Imaging Mass Spectrometry for Analysis of Rice Oryza Sativa. Rapid Commun. Mass Spectrom 2010, 24, 2723–2927. [Google Scholar]
  37. Stoeckli, M; Staab, D; Schweitzer, A. Compound and Metabolite Distribution Measured by Maldi Mass Spectrometric Imaging in Whole-Body Tissue Sections. Int. J. Mass Spectrom 2006, 260, 195–202. [Google Scholar]
  38. Chen, R; Hui, L; Sturm, RM; Li, L. Three Dimensional Mapping of Neuropeptides and Lipids in Crustacean Brain by Mass Spectral Imaging. J. Am. Soc. Mass Spectrom 2009, 20, 1068–1077. [Google Scholar]
  39. Rohner, TC; Staab, D; Stoeckli, M. Maldi Mass Spectrometric Imaging of Biological Tissue Sections. Mech. Ageing Dev 2005, 126, 177–185. [Google Scholar]
  40. Djidja, MC; Francese, S; Loadman, PM; Sutton, CW; Scriven, P; Claude, E; Snel, MF; Franck, J; Salzet, M; Clench, MR. Detergent Addition to Tryptic Digests and Ion Mobility Separation Prior to Ms/Ms Improves Peptide Yield and Protein Identification for in Situ Proteomic Investigation of Frozen and Formalin-Fixed Paraffin-Embedded Adenocarcinoma Tissue Sections. Proteomics 2009, 9, 2750–2763. [Google Scholar]
  41. Sugiura, Y; Shimma, S; Setou, M. Thin Sectioning Improves the Peak Intensity and Signal-to-Noise Ratio in Direct Tissue Mass Spectrometry. J. Mass Spectrom. Soc. Jpn 2006, 54, 4. [Google Scholar]
  42. Goodwin, RJ; Pennington, SR; Pitt, AR. Protein and Peptides in Pictures: Imaging with Maldi Mass Spectrometry. Proteomics 2008, 8, 3785–3800. [Google Scholar]
  43. Kawamoto, T. Use of a New Adhesive Film for the Preparation of Multi-Purpose Fresh-Frozen Sections from Hard Tissues, Whole-Animals, Insects and Plants. Arch. Histol. Cytol 2003, 66, 123–143. [Google Scholar]
  44. Lemaire, R; Wisztorski, M; Desmons, A; Tabet, JC; Day, R; Salzet, M; Fournier, I. Maldi-Ms Direct Tissue Analysis of Proteins: Improving Signal Sensitivity Using Organic Treatments. Anal. Chem 2006, 78, 7145–7153. [Google Scholar]
  45. Aerni, HR; Cornett, DS; Caprioli, RM. Automated Acoustic Matrix Deposition for Maldi Sample Preparation. Anal. Chem 2006, 78, 827–834. [Google Scholar]
  46. Andersson, M; Groseclose, MR; Deutch, AY; Caprioli, RM. Imaging Mass Spectrometry of Proteins and Peptides: 3d Volume Reconstruction. Nature Methods 2008, 5, 101–108. [Google Scholar]
  47. Kaletas, BK; van der Wiel, IM; Stauber, J; Guzel, C; Kros, JM; Luider, TM; Heeren, RM. Sample Preparation Issues for Tissue Imaging by Imaging Ms. Proteomics 2009, 9, 2622–2633. [Google Scholar]
  48. McLean, JA; Stumpo, KA; Russell, DH. Size-Selected (2–10 nm) Gold Nanoparticles for Matrix Assisted Laser Desorption Ionization of Peptides. J. Am. Chem. Soc 2005, 127, 5304–5305. [Google Scholar]
  49. Su, CL; Tseng, WL. Gold Nanoparticles as Assisted Matrix for Determining Neutral Small Carbohydrates through Laser Desorption/Ionization Time-of-Flight Mass Spectrometry. Anal. Chem 2007, 79, 1626–1633. [Google Scholar]
  50. Hayasaka, T; Goto-Inoue, N; Zaima, N; Shrivas, K; Kashiwagi, Y; Yamamoto, M; Nakamoto, M; Setou, M. Imaging Mass Spectrometry with Silver Nanoparticles Reveals the Distribution of Fatty Acids in Mouse Retinal Sections. J. Am. Soc. Mass Spectrom 2010, 21, 1446–1454. [Google Scholar]
  51. Moritake, S; Taira, S; Sugiura, Y; Setou, M; Ichiyanagi, Y. Magnetic Nanoparticle-Based Mass Spectrometry for the Detection of Biomolecules in Cultured Cells. J. Nanosci. Nanotechnol 2009, 9, 169–176. [Google Scholar]
  52. Sugiura, Y; Setou, M. Matrix-Assisted Laser Desorption/Ionization and Nanoparticle-Based Imaging Mass Spectrometry for Small Metabolites: A Practical Protocol. Methods Mol. Biol 2010, 656, 173–195. [Google Scholar]
  53. Taira, S; Sugiura, Y; Moritake, S; Shimma, S; Ichiyanagi, Y; Setou, M. Nanoparticle-Assisted Laser Desorption/Ionization Based Mass Imaging with Cellular Resolution. Anal. Chem 2008, 80, 4761–4766. [Google Scholar]
  54. Goto-Inoue, N; Hayasaka, T; Zaima, N; Kashiwagi, Y; Yamamoto, M; Nakamoto, M; Setou, M. The Detection of Glycosphingolipids in Brain Tissue Sections by Imaging Mass Spectrometry Using Gold Nanoparticlesthe Detection of Glycosphingolipids in Brain Tissue Sections by Imaging Mass Spectrometry Using Gold Nanoparticles. J Am Soc Mass Spectrom 2010, in press.. [Google Scholar]
  55. Zaima, N; Matsuyama, Y; Setou, M. Principal Component Analysis of Direct Matrix-Assisted Laser Desorption/Ionization Mass Spectrometric Data Related to Metabolites of Fatty Liver. J. Oleo Sci 2009, 58, 267–273. [Google Scholar]
  56. Morita, Y; Ikegami, K; Goto-Inoue, N; Hayasaka, T; Zaima, N; Tanaka, H; Uehara, T; Setoguchi, T; Sakaguchi, T; Igarashi, H; et al. Imaging Mass Spectrometry of Gastric Carcinoma in Formalin-Fixed Paraffin-Embedded Tissue Microarray. Cancer Sci 2010, 101, 267–273. [Google Scholar]
  57. Cornett, DS; Reyzer, ML; Chaurand, P; Caprioli, RM. Maldi Imaging Mass Spectrometry: Molecular Snapshots of Biochemical Systems. Nature Methods 2007, 4, 828–833. [Google Scholar]
  58. Hankin, JA; Barkley, RM; Murphy, RC. Sublimation as a Method of Matrix Application for Mass Spectrometric Imaging. J. Am. Soc. Mass Spectrom 2007, 18, 1646–1652. [Google Scholar]
  59. Dekker, LJ; van Kampen, JJ; Reedijk, ML; Burgers, PC; Gruters, RA; Osterhaus, AD; Luider, TM. A Mass Spectrometry Based Imaging Method Developed for the Intracellular Detection of Hiv Protease Inhibitors. Rapid Commun. Mass Spectrom 2009, 23, 1183–1188. [Google Scholar]
  60. Wiseman, JM; Ifa, DR; Song, Q; Cooks, RG. Tissue Imaging at Atmospheric Pressure Using Desorption Electrospray Ionization (Desi) Mass Spectrometry. Angew. Chem. Int. Ed. Engl 2006, 45, 7188–7192. [Google Scholar]
  61. Landgraf, RR; Conaway, MCP; Garrett, TJ; Stacpoole, PW; Yost, RA. Imaging of Lipids in Spinal Cord Using Intermediate Pressure Matrix-Assisted Laser Desorption-Linear Ion Trap/Orbitrap Ms. Anal. Chem 2009, 81, 8488–8495. [Google Scholar]
  62. Hopfgartner, G; Varesio, E; Stoeckli, M. Matrix-Assisted Laser Desorption/Ionization Mass Spectrometric Imaging of Complete Rat Sections Using a Triple Quadrupole Linear Ion Trap. Rapid Commun. Mass Spectrom 2009, 23, 733–736. [Google Scholar]
  63. Taban, IM; Altelaar, AFM; van der Burgt, YEM; McDonnell, LA; Heeren, RMA; Fuchser, J; Baykut, G. Imaging of Peptides in the Rat Brain Using Maldi-Fticr Mass Spectrometry. J. Am. Soc. Mass Spectrom 2007, 18, 145–151. [Google Scholar]
  64. Harada, T; Yuba-Kubo, A; Sugiura, Y; Zaima, N; Hayasaka, T; Goto-Inoue, N; Wakui, M; Suematsu, M; Takeshita, K; Ogawa, K; Yoshida, Y; Setou, M. Visualization of Volatile Substances in Different Organelles with an Atmospheric-Pressure Mass Microscope. Anal. Chem 2009, 81, 9153–9157. [Google Scholar]
  65. Setou, M; Shrivas, K; Sroyraya, M; Yang, H; Sugiura, Y; Moribe, J; Kondo, A; Tsutsumi, K; Kimura, Y; Kurabe, N; et al. Developments and Applications of Mass Microscopy. Med. Mol. Morphol 2010, 43, 1–5. [Google Scholar]
  66. Zhang, X; Leung, SM; Morris, CR; Shigenaga, MK. Evaluation of a Novel, Integrated Approach Using Functionalized Magnetic Beads, Bench-Top Maldi-Tof-Ms with Prestructured Sample Supports, and Pattern Recognition Software for Profiling Potential Biomarkers in Human Plasma. J. Biomol. Tech 2004, 15, 167–175. [Google Scholar]
  67. Deininger, SO; Ebert, MP; Futterer, A; Gerhard, M; Rocken, C. Maldi Imaging Combined with Hierarchical Clustering as a New Tool for the Interpretation of Complex Human Cancers. J. Proteome Res 2008, 7, 5230–5236. [Google Scholar]
  68. Stoeckli, M; Staab, D; Staufenbiel, M; Wiederhold, KH; Signor, L. Molecular Imaging of Amyloid Beta Peptides in Mouse Brain Sections Using Mass Spectrometry. Anal. Biochem 2002, 311, 33–39. [Google Scholar]
  69. Yao, I; Takagi, H; Ageta, H; Kahyo, T; Sato, S; Hatanaka, K; Fukuda, Y; Chiba, T; Morone, N; Yuasa, S; Inokuchi, K; Ohtsuka, T; MacGregor, GR; Tanaka, K; Setou, M. Scrapper-Dependent Ubiquitination of Active Zone Protein Rim1 Regulates Synaptic Vesicle Release. Cell 2007, 130, 943–957. [Google Scholar]
  70. Skold, K; Svensson, M; Nilsson, A; Zhang, X; Nydahl, K; Caprioli, RM; Svenningsson, P; Andren, PE. Decreased Striatal Levels of Pep-19 Following Mptp Lesion in the Mouse. J. Proteome Res 2006, 5, 262–269. [Google Scholar]
  71. Pierson, J; Norris, JL; Aerni, HR; Svenningsson, P; Caprioli, RM; Andren, PE. Molecular Profiling of Experimental Parkinson’s Disease: Direct Analysis of Peptides and Proteins on Brain Tissue Sections by Maldi Mass Spectrometry. J. Proteome Res 2004, 3, 289–295. [Google Scholar]
  72. Herring, KD; Oppenheimer, SR; Caprioli, RM. Direct Tissue Analysis by Matrix-Assisted Laser Desorption Ionization Mass Spectrometry: Application to Kidney Biology. Semin. Nephrol 2007, 27, 597–608. [Google Scholar]
  73. Xu, BJ; Shyr, Y; Liang, X; Ma, LJ; Donnert, EM; Roberts, JD; Zhang, X; Kon, V; Brown, NJ; Caprioli, RM; et al. Proteomic Patterns and Prediction of Glomerulosclerosis and Its Mechanisms. J. Am. Soc. Nephrol 2005, 16, 2967–2975. [Google Scholar]
  74. Chen, Y; Allegood, J; Liu, Y; Wang, E; Cachon-Gonzalez, B; Cox, TM; Merrill, AH, Jr; Sullards, MC. Imaging Maldi Mass Spectrometry Using an Oscillating Capillary Nebulizer Matrix Coating System and Its Application to Analysis of Lipids in Brain from a Mouse Model of Tay-Sachs/Sandhoff Disease. Anal. Chem 2008, 80, 2780–2788. [Google Scholar]
  75. Rubakhin, SS; Li, L; Moroz, TP; Sweedler, JV. Characterization of the Aplysia Californica Cerebral Ganglion F Cluster. J. Neurophysiol 1999, 81, 1251–1260. [Google Scholar]
  76. Sugiura, Y; Konishi, Y; Zaima, N; Kajihara, S; Nakanishi, H; Taguchi, R; Setou, M. Visualization of the Cell-Selective Distribution of Pufa-Containing Phosphatidylcholines in Mouse Brain by Imaging Mass Spectrometry. J. Lipid Res 2009, 50, 1776–1788. [Google Scholar]
  77. Garrett, TJ; Prieto-Conaway, MC; Kovtoun, V; Bui, H; Izgarian, N; Stafford, G; Yost, RA. Imaging of Small Molecules in Tissue Sections with a New Intermediate-Pressure Maldi Linear Ion Trap Mass Spectrometer. Int. J. Mass Spectrom 2007, 260, 166–176. [Google Scholar]
  78. Koizumi, S; Yamamoto, S; Hayasaka, T; Konishi, Y; Yamaguchi-Okada, M; Goto-Inoue, N; Sugiura, Y; Setou, M; Namba, H. Imaging Mass Spectrometry Revealed the Production of Lyso-Phosphatidylcholine in the Injured Ischemic Rat Brain. Neuroscience 2010, 168, 219–225. [Google Scholar]
  79. Kobayashi, Y; Hayasaka, T; Setou, M; Itoh, H; Kanayama, N. Comparison of Phospholipid Molecular Species between Terminal and Stem Villi of Human Term Placenta by Imaging Mass Spectrometry. Placenta 2010, 31, 245–248. [Google Scholar]
  80. Goto-Inoue, N; Hayasaka, T; Setou, M. Imaging Mass Spectrometry of Glycolipids. Methods Enzymol 2010, 478, 287–301. [Google Scholar]
  81. Hayasaka, T; Goto-Inoue, N; Zaima, N; Kimura, Y; Setou, M. Organ-Specific Distributions of Lysophosphatidylcholine and Triacylglycerol in Mouse Embryo. Lipids 2009, 44, 837–848. [Google Scholar]
  82. Zaima, N; Goto-Inoue, N; Adachi, K; Setou, M. Selective Analysis of Lipids by Thin-Layer Chromatography Blot Matrix-Assisted Laser Desorption/Ionization Imaging Mass Spectrometry. J Oleo Sci 2010, in press.. [Google Scholar]
  83. Tanaka, H; Zaima, N; Yamamoto, N; Sagara, D; Suzuki, M; Nishiyama, M; Mano, Y; Sano, M; Hayasaka, H; Goto-Inoue, N; et al. Imaging Mass Spectrometry Reveals Unique Lipid Distribution in Primary Varicose Veins. Eur J Vasc Endovasc Surg 2010, in press.. [Google Scholar]
  84. Hirano, K; Ikeda, Y; Zaima, N; Sakata, Y; Matsumiya, G. Triglyceride Deposit Cardiomyovasculopathy. N. Engl. J. Med 2008, 359, 2396–2398. [Google Scholar]
  85. Benabdellah, F; Touboul, D; Brunelle, A; Laprevote, O. In Situ Primary Metabolites Localization on a Rat Brain Section by Chemical Mass Spectrometry Imaging. Anal. Chem 2009, 81, 5557–5560. [Google Scholar]
  86. Hattori, K; Kajimura, M; Hishiki, T; Nakanishi, T; Kubo, A; Nagahata, Y; Ohmura, M; Yachie-Kinoshita, A; Matsuura, T; Morikawa, T; et al. Paradoxical Atp Elevation in Ischemic Penumbra Revealed by Quantitative Imaging Mass Spectrometry. Antioxid Redox Signal 2010, 1157–1167. [Google Scholar]
  87. Goto-Inoue, N; Setou, M; Zaima, N. Visualization of Spatial Distribution of Gamma-Aminobutyric Acid in Eggplant (Solanum Melongena) by Matrix-Assisted Laser Desorption/Ionization Imaging Mass Spectrometry. Anal. Sci 2010, 26, 821–825. [Google Scholar]
  88. Taira, S; Ikeda, R; Yokota, N; Osaka, I; Sakamoto, M; Kato, M; Sahashi, Y. Mass Spectrometric Imaging of Ginsenosides Localization in Panax Ginseng Root. Am. J. Chin. Med 2010, 38, 485–493. [Google Scholar]
  89. McKay, K. New Techniques in the Pharmacokinetic Analysis of Cancer Drugs. Ii. The Ultratrace Determination of Platinum in Biological Samples by Inductively Coupled Plasma-Mass Spectrometry. Cancer Surv 1993, 17, 407–414. [Google Scholar]
  90. Yang, HJ; Ishizaki, I; Sanada, N; Zaima, N; Sugiura, Y; Yao, I; Ikegami, K; Setou, M. Detection of Characteristic Distributions of Phospholipid Head Groups and Fatty Acids on Neurite Surface by Time-of-Flight Secondary Ion Mass Spectrometry. Med. Mol. Morphol 2010, 43, 158–164. [Google Scholar]
  91. Slaveykova, VI; Guignard, C; Eybe, T; Migeon, HN; Hoffmann, L. Dynamic Nanosims Ion Imaging of Unicellular Freshwater Algae Exposed to Copper. Anal. Bioanal. Chem 2009, 393, 583–589. [Google Scholar]
  92. Finzi-Hart, JA; Pett-Ridge, J; Weber, PK; Popa, R; Fallon, SJ; Gunderson, T; Hutcheon, ID; Nealson, KH; Capone, DG. Fixation and Fate of C and N in the Cyanobacterium Trichodesmium Using Nanometer-Scale Secondary Ion Mass Spectrometry. Proc. Natl. Acad. Sci. USA 2009, 106, 9931–9931. [Google Scholar]
  93. Yang, HJ; Sugiura, Y; Ishizaki, I; Sanada, N; Ikegami, K; Zaima, N; Shrivas, K; Setou, M. Imaging of Lipids in Cultured Mammalian Neurons by Matrix Assisted Laser/Desorption Ionization and Secondary Ion Mass Spectrometry. Surf. Interf. Anal 2010, 42, 1606–1611. [Google Scholar]
  94. Wiseman, JM; Ifa, DR; Zhu, Y; Kissinger, CB; Manicke, NE; Kissinger, PT; Cooks, RG. Desorption Electrospray Ionization Mass Spectrometry: Imaging Drugs and Metabolites in Tissues. Proc. Natl. Acad. Sci. USA 2008, 105, 18120–18125. [Google Scholar]
  95. Ifa, DR; Manicke, NE; Dill, AL; Cooks, G. Latent Fingerprint Chemical Imaging by Mass Spectrometry. Science 2008, 321, 805–805. [Google Scholar]
  96. Becker, JS; Zoriy, M; Matusch, A; Wu, B; Salber, D; Palm, C; Becker, JS. Bioimaging of Metals by Laser Ablation Inductively Coupled Plasma Mass Spectrometry (La-Icp-Ms). Mass Spectrom. Rev 2010, 29, 156–175. [Google Scholar]

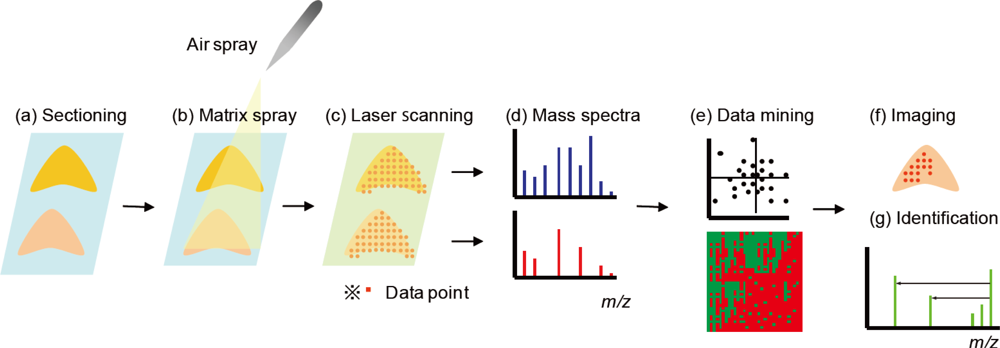

Figure 1. Schema of biomarker discovery using MALDI-IMS. Thin-section samples are mounted on a plate (a), coated with matrix (b), and measured by a mass spectrometer (c). Obtained mass spectra (d) are used for a data mining approach (e). Molecules of interest can be visualized (f) and identified by MS/MS of tissues (g).
Figure 1. Schema of biomarker discovery using MALDI-IMS. Thin-section samples are mounted on a plate (a), coated with matrix (b), and measured by a mass spectrometer (c). Obtained mass spectra (d) are used for a data mining approach (e). Molecules of interest can be visualized (f) and identified by MS/MS of tissues (g).
Ijms 11 05040f1

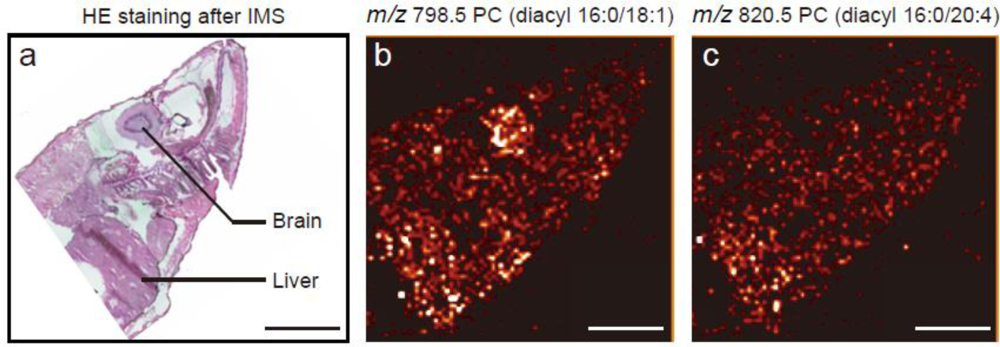

Figure 2. Ion images of phosphatidylcholine (PC) in medaka (Oryzias latipes). Scale bar: 2 mm. (a) Hematoxylin-eosin staining after MALDI-IMS. (b) Distribution of PC (diacyl 16:0/18:1). (c) Distribution of PC (diacyl 16:0/20:4).
Figure 2. Ion images of phosphatidylcholine (PC) in medaka (Oryzias latipes). Scale bar: 2 mm. (a) Hematoxylin-eosin staining after MALDI-IMS. (b) Distribution of PC (diacyl 16:0/18:1). (c) Distribution of PC (diacyl 16:0/20:4).
Ijms 11 05040f2

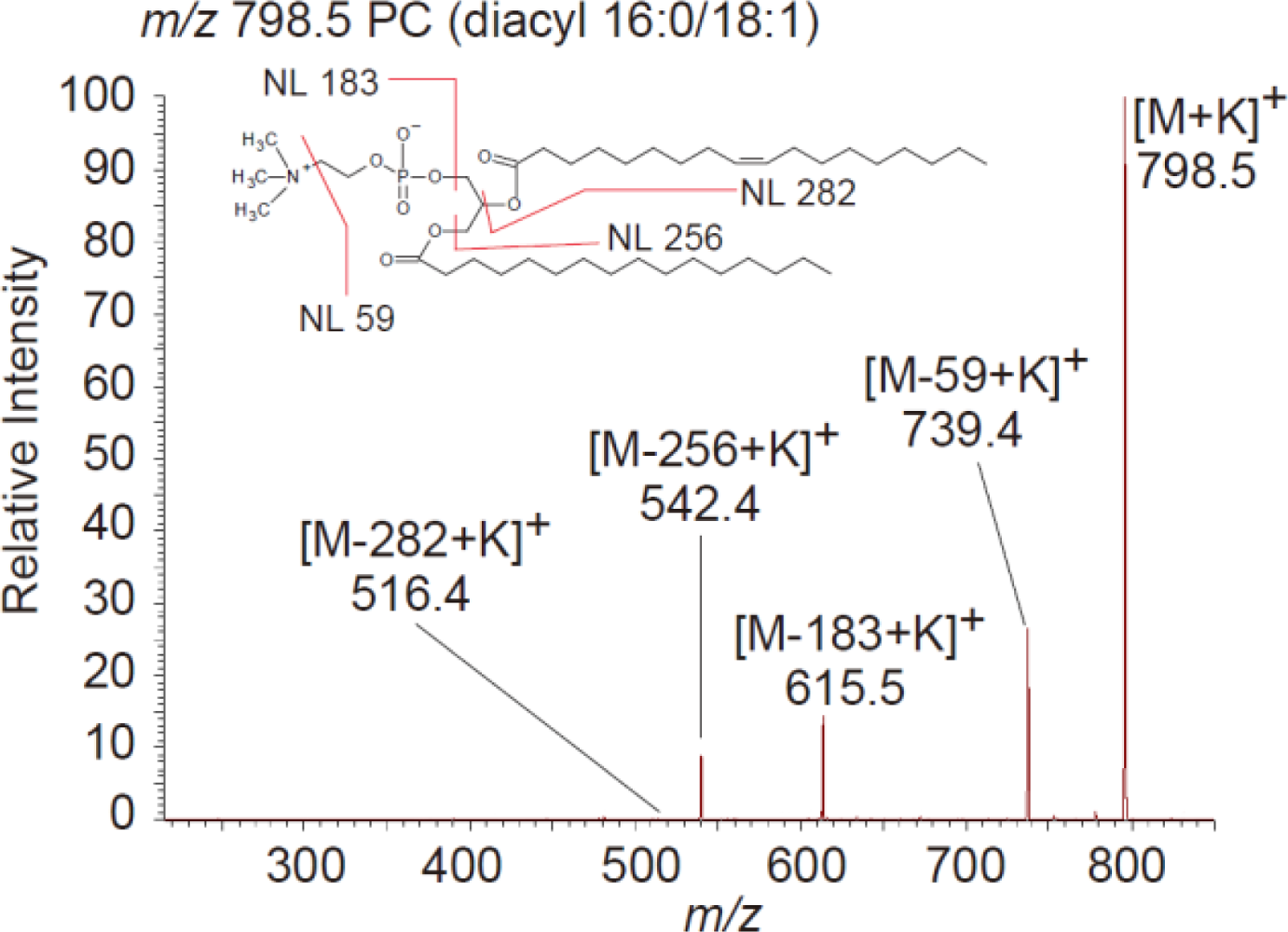

Figure 3. Phosphatidylcholine (PC) MS/MS spectrum at m/z 798.5. Neutral loss of the PC head group and fatty acids is generally observed by MS/MS analysis of phospholipids in tissues.
Figure 3. Phosphatidylcholine (PC) MS/MS spectrum at m/z 798.5. Neutral loss of the PC head group and fatty acids is generally observed by MS/MS analysis of phospholipids in tissues.
Ijms 11 05040f3

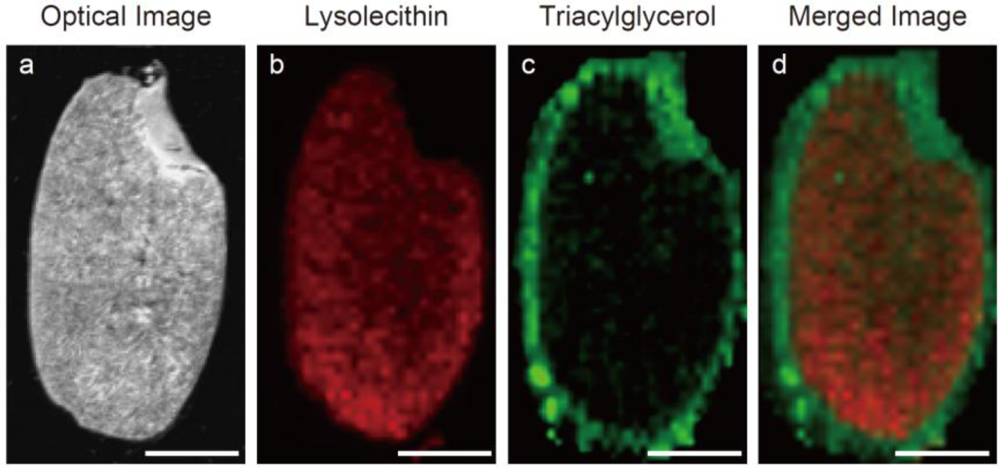

Figure 4. Ion image of nutrients in rice (Oryza sativa). Scale bar: 1 mm. (a) Optical image of a rice kernel (Hinohikari). (b) Distribution of lysolecithin. (c) Distribution of triacylglycerol. (d) Merged image of lysolecithin (red) and triacylglycerol (green). The rice kernel section can be prepared using adhesive film.
