Introduction
Macrocyclic polyethers like crown ethers have received much attention in the last few years, both in chemistry and in biology [
1,
2,
3]. Some crown ethers play an important role in membrane separation processes [
4], fibre optic chemical sensor properties [
5] and phase transfer catalysis [
6,
7]. In addition, owing to the recognition of the complexation properties of macrocyclic polyethers with alkali, alkaline-earth metal cations and uncharged organic molecules, considerable work has been done in the macrocyclic polyethers area [
8,
9,
10]. Crown ethers featuring salicyclic Schiff base ligands form the basis of an extensive class of chelating ligands that have enjoyed widespread use in the coordination chemistry of the transition and main group elements [
11,
12,
13,
14]. On the other hand, the extent of the interaction of hard cations with transition metal centers, monitoring the redox and electronic properties of the transition metal ions and these complexes can ultimately be used as sensors (electrochemical and electronic) for alkaline, alkaline-earth and lanthanide metal ions [
15,
16,
17].
In the present paper we report the preparation of two new compounds, 6 and 7, by the condensation of 1,2-bis(2-amino-phenoxy)ethane (5) with 4’-formylbenzo-15-crown-5 (2) and 4’-formyl-5’-hydroxybenzo-15-crown-5 (4) and their characterization by spectral data (IR, 1H- and 13C‑NMR, UV-Vis and MS).
Results and Discussion
The starting compounds and crown ether Schiff base have been synthesized in several steps as depicted in

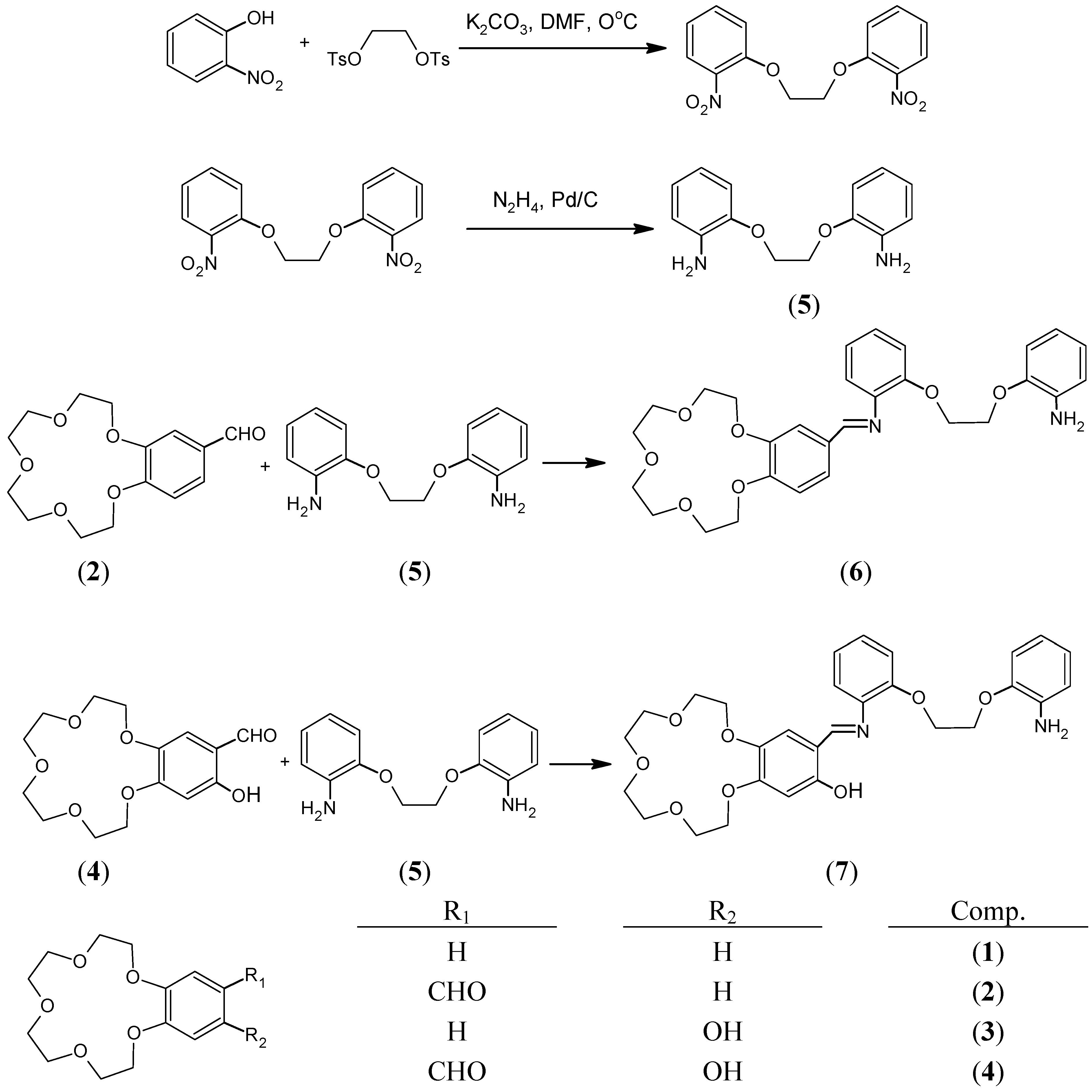

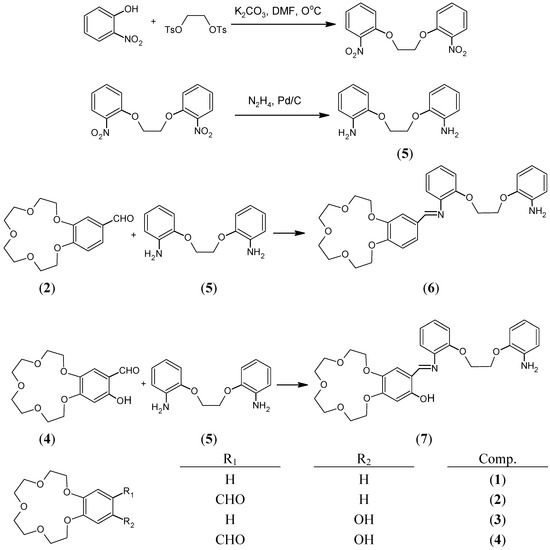

Scheme 1.
The new crown ether Schiff bases were prepared from equimolar amounts of aldehyde and diamine. The spectral data indicate that one arm of the diamine remains free in the Schiff base ligands as the IR spectra of the Schiff bases 6 and 7 showed the characteristic free amine stretching bands ν(NH2) at 3478-3365 cm-1 and 3484-3364 cm-1, respectively. The imine stretching bands attributable to the azomethine group (CH=N) were seen at 1621 cm-1 for compound 6 and 1617 cm-1 for compound 7. In the spectra of compound 7 the phenolic OH group stretching band was not observed, indicating the formation of a cyclic intramolecular hydrogen bond. But in the 1H-NMR spectra of the same ligand, the OH proton was observed at 14.12 ppm. The azomethine (CH=N) protons for compounds 6 and 7 were seen at 8.38 ppm and 8.60 ppm, respectively. The signals of the crown ether protons of both ligands are seen as multiplets at 3.96-3.76 ppm and 4.07-3.81 ppm, respectively. In the 13C decoupled NMR spectra of the crown ether Schiff bases 6 and 7, eight crown ether and amine group ether carbons were observed between 71.7-68.0 ppm and 71.5-67.7 ppm respectively. Azomethine carbons and aromatic carbons were also detected and identified. In the mass spectra (EI) of 6 and 7 the molecular ion peaks [M+] were not observed, but important fragments were observed, confirming the proposed structures. Thus, important fragments of compound 6 and 7 were found at m/z 92, 107, 119 and 134, which correspond to the fragments [(HOCH2CH2OCH2CH3)+2H], [(HOCH2CH2OCH2CH2OH)+H], (HOCH2CH2OCH2CH2OCH2) and (HOCH2CH2OCH2CH2OCH2CH3), respectively.
The fragmentation pattern shows that the ether chains are fragile under the experimental conditions. Other important fragments of compound
6 were found at m/z 243, 387 and 414 and of compound
7 at m/z 244 and 322. These fragmentation patterns proceeding by the loss of ether chain segments are in accordance with the literature [
12,
13,
18,
19,
20,
21]. In previous papers we reported tautomeric equilibria (phenol-imine, O-H
....N and keto-amine, O
....H-N forms) to be present in featuring salicyclic Schiff base derivatives depending on the formation intramolecular hydrogen bonding by UV-Vis spectra. In solution, the tautomerism depends on solvent polarity [
12,
13,
20,
21,
22,
23,
24,
25]. For instance, in polar solvents, a new band at >400 nm arises, whereas this can not be observed in non-polar solvents. The UV-Vis spectra of compound
7 was only recorded in CHCl
3 because it was not sufficiently soluble in other solvents tested (EtOH and C
6H
12). The spectra indicate that the keto-amine tautomeric form is present. In CHCl
3 one additional band appears at 422 nm (n-π*), which has been linked with the shift of the tautomeric equilibrium to the keto-amine form.
Experimental
General
All solvents were from Merck and all other reagents from Aldrich; all were used without further purification. Melting points were measured with a Thomas-Hoover apparatus using a capillary tube. Elemental analyses were performed on a Leco CHNS-932C instrument. IR spectra in the 400-4000 cm‑1 region were recorded on a Mattson 1000 FTIR spectrometer using KBr pellets. 1H- and 13C-NMR (400 MHz) spectra were recorded on a Bruker DPX FT-NMR spectrometer in CDCl3, using the solvent peaks of CDCl3, (δ =7.26) and CDCl3, (δ =77.00) as the internal locks. Chemical shifts are reported in ppm relative to TMS, used as internal standard. UV-Vis spectra were measured using a UNICAM UV2-100 series spectrometer. Mass spectra were obtained on a VG-ZAPSPEC spectrometer according to electron impact (EI, 70 eV).
Syntheses
The starting compounds
1-5 and crown ether Schiff bases
6 and
7 were prepared in several steps as depicted in
Scheme 1.
Benzo-15-crown-5 (
1) was synthesized according to the procedure of Pedersen [
26].
4’-Formylbenzo-15-crown-5 (
2) was synthesized from
1 under Vilsmeier-Hack conditions and purified via the corresponding bisulfite-adduct [
27].
4’-Formyl-5’-hydroxybenzo-15-crown-5 (
4) was synthesized from
3 according to the literature method [
29].
1,2-bis(2-nitrophenoxy)ethane and
1,2-bis(2-amino-phenoxy)ethane (
5) were prepared according to the literature methods [
30,
31].
4’-Hydroxybenzo-15-crown-5 (3)
This compound was synthesized from
2 according to a modification of the reported procedure [
28]. The improvements allow isolation of the title compound as a white crystalline powder rather than as an oil. A solution of
m-chloroperoxybenzoic acid (2.10 g, 13.5 mmol) in dichloromethane (20 mL) was added dropwise with stirring at 0 °C to a solution of 4’-formylbenzo-15-crown-5 (
2, 2.01 g, 6.8 mmol) in dichloromethane (30 mL). The mixture was then stirred for 60 h. at room temperature. To neutralize the
m-chlorobenzoic acid formed a solution of 10% NaHCO
3 (3 x 25 mL) was added with stirring to the reaction mixture. The dichloromethane phase was separated and concentrated under reduced pressure. The residue was diluted with THF (10 mL) and concentrated hydrochloric acid (4 mL) was added. The mixture was stirred for 4 h. at room temperature, diluted with water and extracted with chloroform. The chloroform layer was dried over magnesium sulfate and concentrated under reduced pressure. The residue was purified by chromatography on a silica gel column (eluent: 1:9 methanol/chloroform) to afford
3 as a white powder. Yield (1.24 g, 64%); m.p. 103 °C; Anal. Calcd. For C
14H
20O
6: C, 59.14; H, 7.09; Found: C, 59.01; H, 6.90;
1H-NMR: δ 6.72-6.20 (m, 3H, arom. H), 4.24-3.52 (m, 16H, OCH
2); IR ν/cm
-1: 3478, 3165 (OH), 2978, 2933, 2896, 1621 (arom.), 1525 (arom.), 1468, 1363, 1299, 1238 (aryl. C-O), 1180, 1138 (alkyl. C-O).
4’-Formylbenzo-15-Crown-5 with 1,2-Bis(2-aminophenoxy)ethane Schiff Base (6)
4’-Formylbenzo-15-crown-5 (2) (0.50 g; 1.68 mmol) was dissolved in methanol (50 mL) and this solution was added dropwise to a methanolic solution (25 mL) of 1,2-bis(2-aminophenoxy)ethane (0.40 g; 1.68 mmol). The mixture was refluxed for 1h and then allowed to cool to ambient temperature. The bright yellow crystals formed were filtered off and left to dry in open air. Yield 0.57 g (64.7 %); m.p. 135 °C; Anal. Calcd. For C29H34O7N2: C, 66.66; H, 6.51; N, 5.36. Found: C, 66.64; H, 6.30; N, 5.21; 1H-NMR: δ 8.38 (s, 1H, HC=N), 7.62 (q, J = 8.2 Hz, J = 1.8 Hz,1H, arom. H), 7.15-7.00 (m, 4H, arom. H), 6.90-6.77 (m, 4H, arom. H), 6.71 (d, J = 1.8 Hz, 1H, arom. H), 6.64 (d, J = 8.2 Hz, 1H, arom. H), 4.34 (m, 4H, OCH2), 4.17 (s, 2H, -NH2), 3.96-3.76 (m, 16 H, -CH2); 13C-NMR: δ 161.6 (HC=N), 155.1, 152.6, 151.6, 149.8, 146.7, 143.2, 137.3, 130.5, 127.2, 126.5, 124.7, 122.3, 121.4, 118.5, 115.7, 114.4, 112.3, 111.9 (arom. C), 71.7, 71.6, 70.9, 69.9, 69.7, 69.3, 69.2, 68.7, 68.6, 68.0 (O-CH2); IR ν/cm-1: 3478, 3365 (NH2), 2925, 2865 (aliph. CH), 1621 (C=N), 1274 (arom. C-O-C), 1120-1047 (aliph. C-O-C); UV-Vis (EtOH). λmax/nm (ε/dm3mol-1cm-1): 282 (33980), 314 (27080); MS (EI) m/z: 414, 387, 243, 134, 119, 107 and 92).
4’-Formyl-5’-Hydroxybenzo-15-Crown-5 with 1,2-Bis(2-aminophenoxy)ethane Schiff Base (7)
