Visible-Light-Controlled Thermal Energy Storage and Release: A Tetra-Ortho-Fluorinated Azobenzene-Doped Composite Phase Change Material
Abstract
1. Introduction
2. Results and Discussion

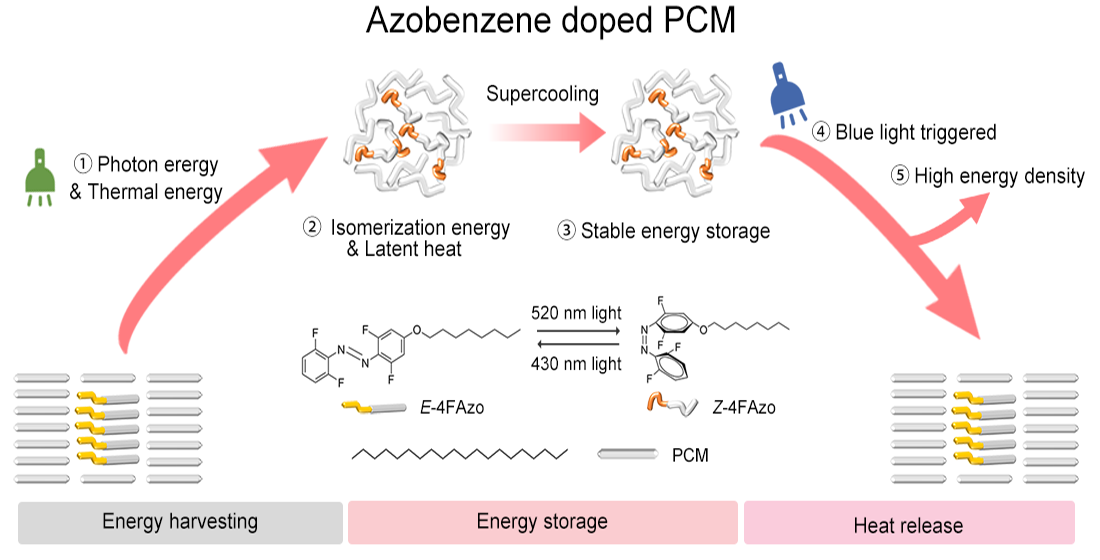

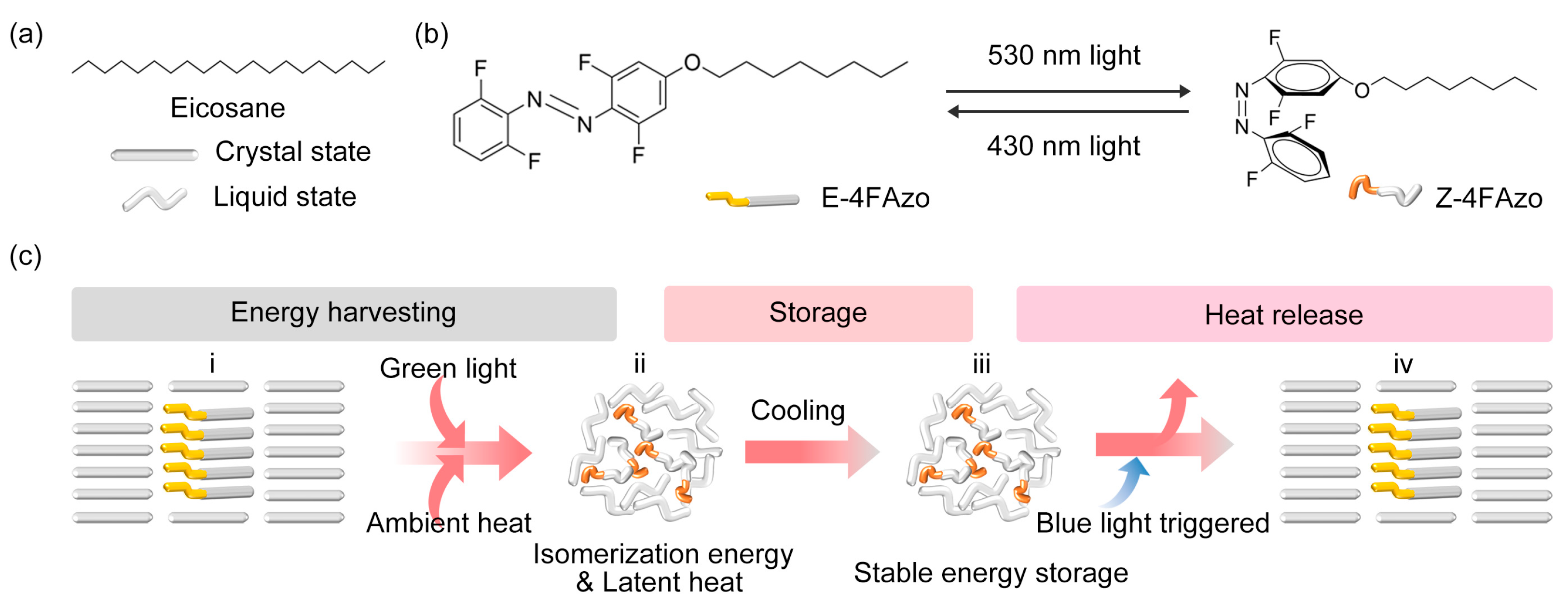

2.1. Molecule Design and Energy Havesting–Storage–Release Mechanism

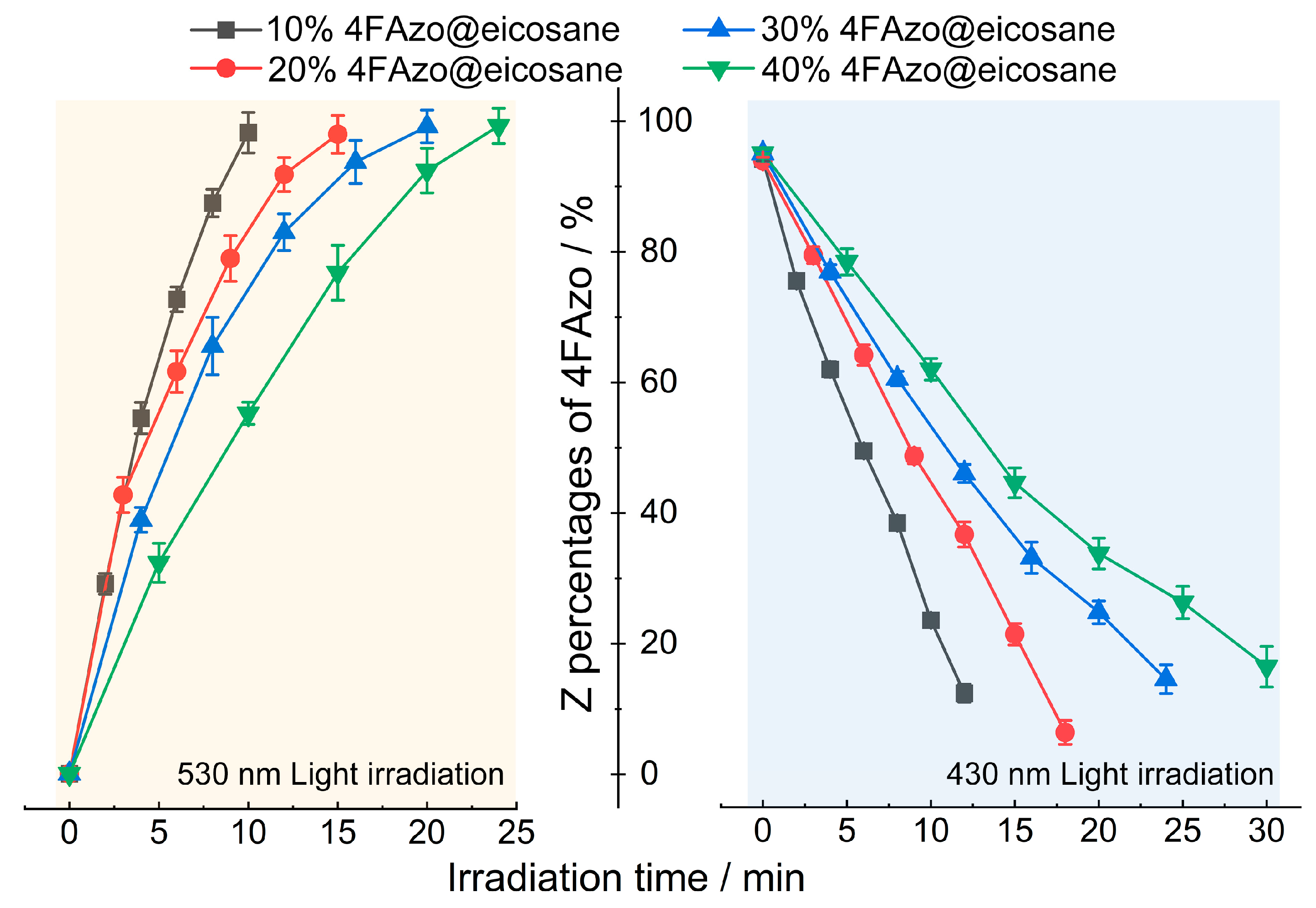

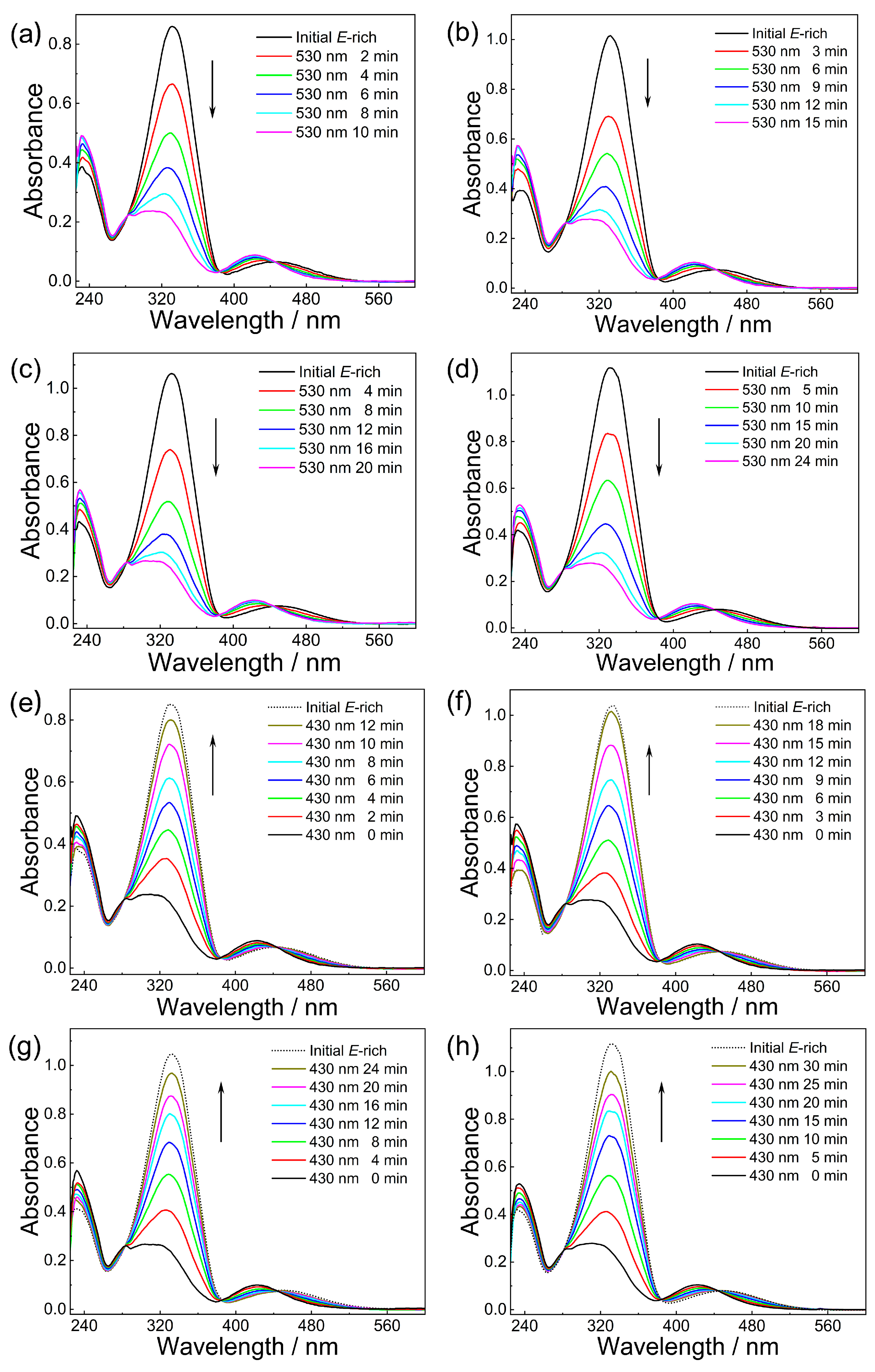

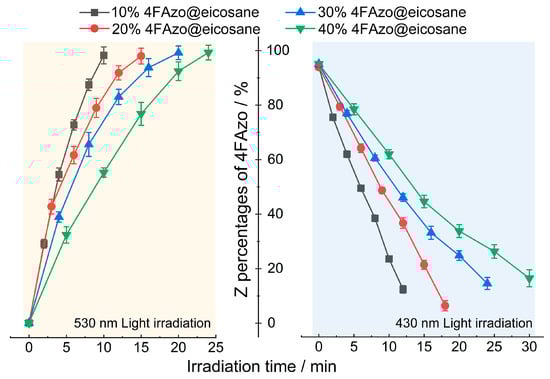

2.2. Photoisomerization Performance

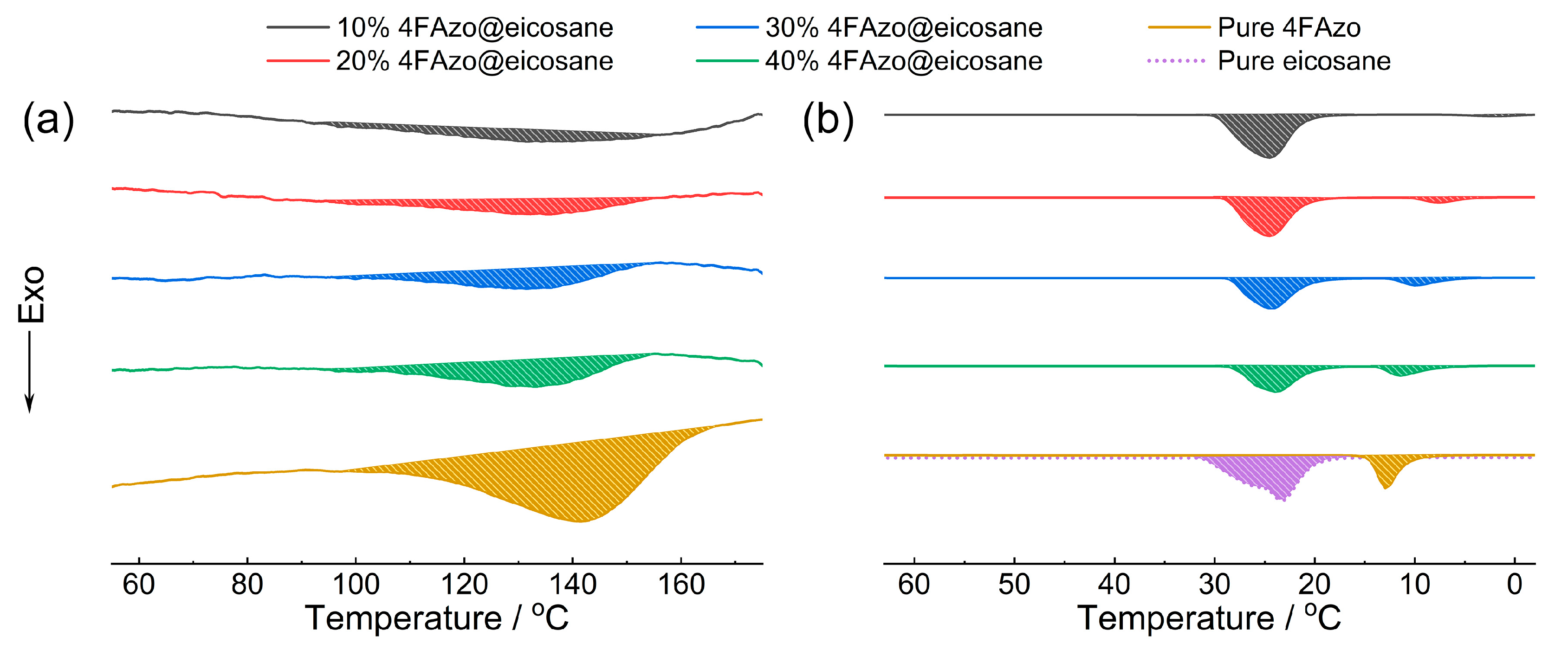

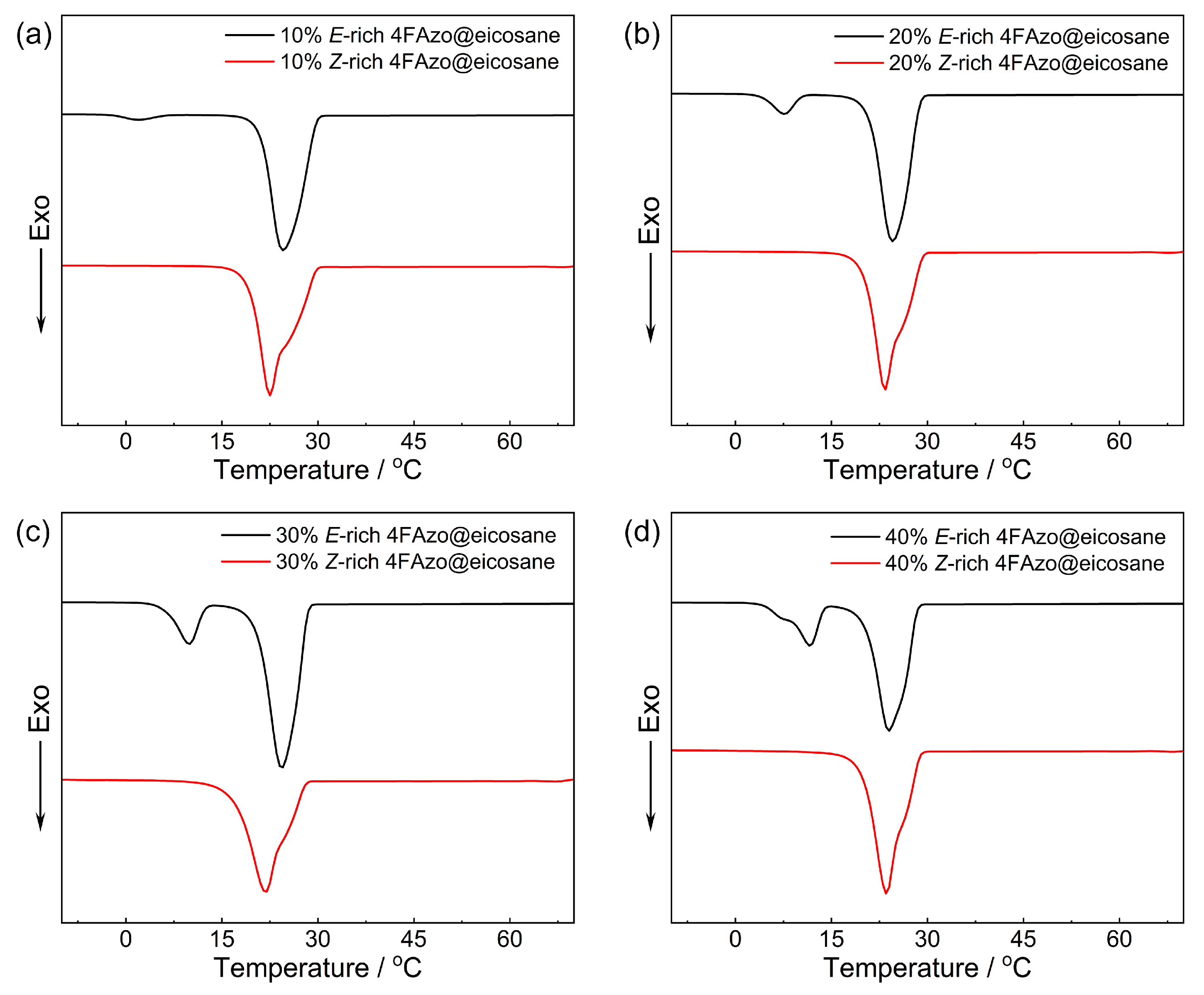

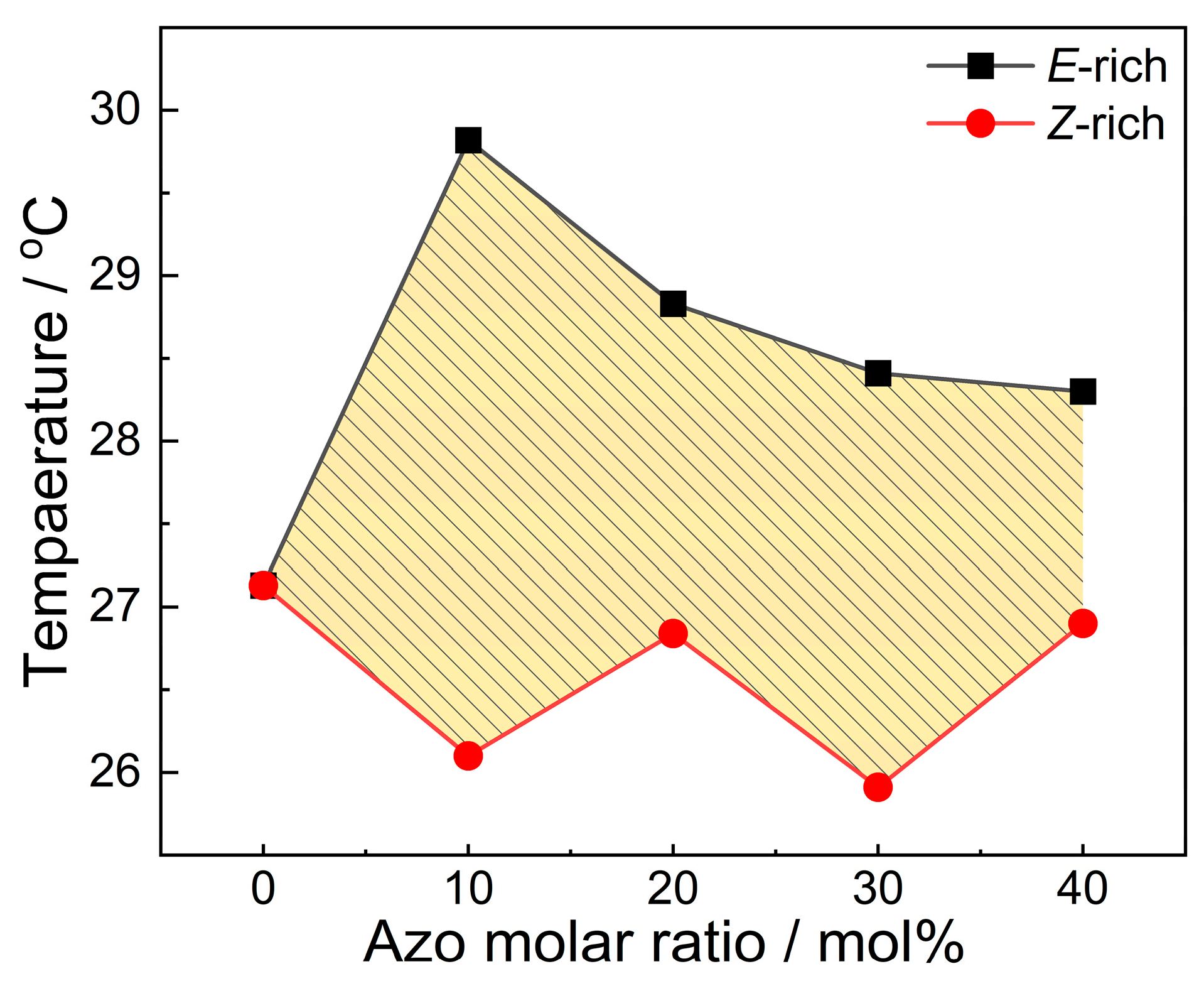

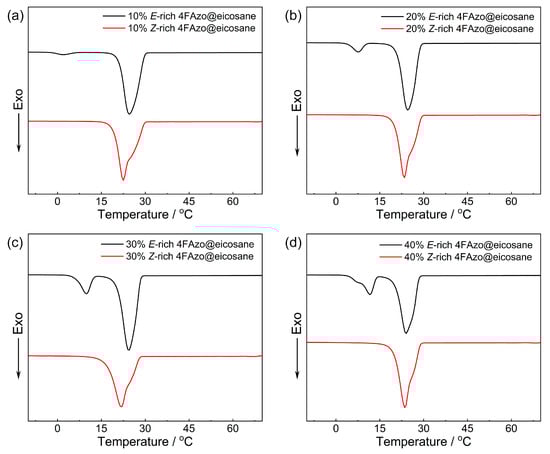

2.3. Phase Transition Property

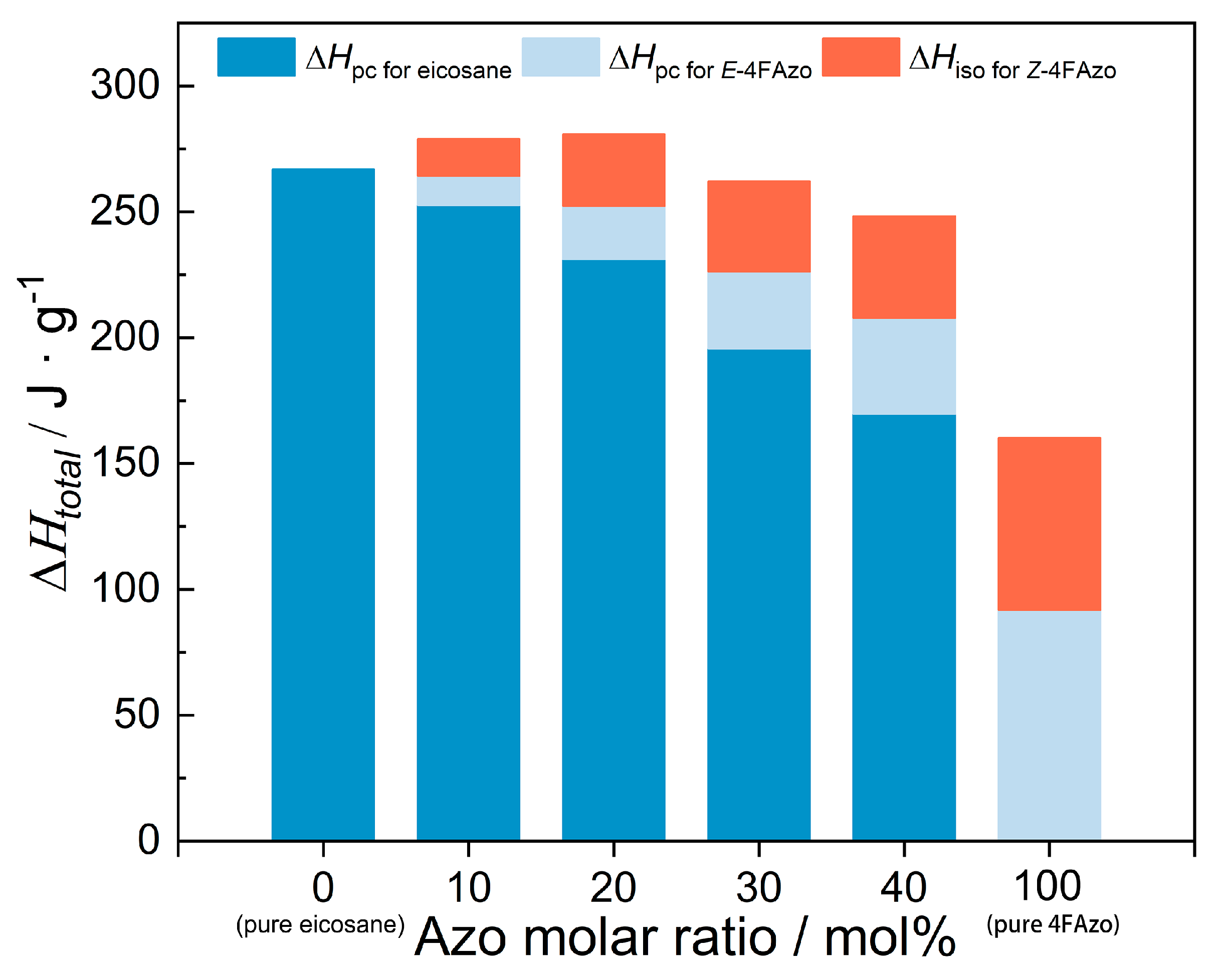

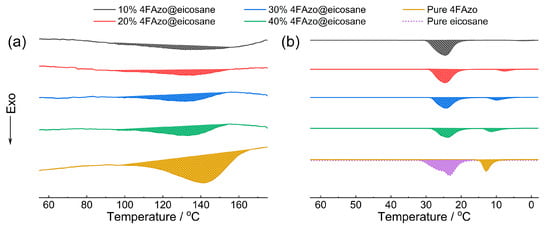

2.4. Energy Storage Density
- (1)
- Isomerization Enthalpy
- (2)
- Latent Heat of Phase Change
3. Materials and Methods
3.1. Materials
3.2. Synthesis
3.3. Preparation of 4FAzo@eicosane Composite Materials
3.4. UV–Vis Absorption Spectroscopy
3.5. DSC Measurements
3.6. Statistical Analysis:
4. Conclusions
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
Abbreviations
OPCMs | Organic solid–liquid phase change materials |
CPCMs | Composite phase change material |
Azo | Azobenzene |
4FAzo | (E)-1-(2,6-difluoro-4-(octyloxy)phenyl)-2-(2,6-difluorophenyl)diazene |
DSC | Differential scanning calorimetry |
