Sc-Modified C₃N₄ Nanotubes for High-Capacity Hydrogen Storage: A Theoretical Prediction

Abstract

Utilizing hydrogen as a viable substitute for fossil fuels requires the exploration of hydrogen storage materials with high capacity, high quality, and effective reversibility at room temperature. In this study, the stability and capacity for hydrogen storage in the Sc-modified C₃N₄ nanotube are thoroughly examined through the application of density functional theory (DFT). Our finding indicates that a strong coupling between the Sc-3d orbitals and N-2p orbitals stabilizes the Sc-modified C₃N₄ nanotube at a high temperature (500 K), and the high migration barrier (5.10 eV) between adjacent Sc atoms prevents the creation of metal clusters. Particularly, it has been found that each Sc-modified C₃N₄ nanotube is capable of adsorbing up to nine H₂ molecules, and the gravimetric hydrogen storage density is calculated to be 7.29 wt%. It reveals an average adsorption energy of −0.20 eV, with an estimated average desorption temperature of 258 K. This shows that a Sc-modified C₃N₄ nanotube can store hydrogen at low temperatures and harness it at room temperature, which will reduce energy consumption and protect the system from high desorption temperatures. Moreover, charge donation and reverse transfer from the Sc-3d orbital to the H-1s orbital suggest the presence of the Kubas effect between the Sc-modified C₃N₄ nanotube and H₂ molecules. We draw the conclusion that a Sc-modified C₃N₄ nanotube exhibits exceptional potential as a stable and efficient hydrogen storage substrate.

1. Introduction

The growing developments of human communities lead to an ever-increasing demand for fossil sources of energy. This phenomenon will lead to over-exploitation and scarcity of fossil energy. Meanwhile, hazardous gases produced by burning fossil energy pollute the environment [1,2], and the released carbon dioxide also results in global warming, causing the greenhouse effect [3,4,5,6], leading to a rise in sea levels and other adverse effects [7]. Finally, the population’s quality of life is significantly reduced due to damage to Earth’s ecosystem. Therefore, finding an environmentally friendly alternative to solve the energy problem is urgently required [8,9,10,11,12]. With its plentiful reservoirs, high specific energy, good combustion characteristics, non-toxicity, non-hazardous, and non-polluting qualities, hydrogen is an extremely effective and clean energy source. Although creating hydrogen from decomposing water has advanced significantly in recent years, locating appropriate storage materials is still a major challenge [13,14,15,16]. Extensive studies on the characteristics of liquid and solid hydrogen storage materials have been initiated in an attempt to address this issue. Solid hydrogen storage materials are often a superior option, given the high energy consumption of hydrogen liquefaction and the high requirements of hydrogen storage containers. In addition, achieving a high weight density and reversibility in terms of hydrogen storage materials is also crucial at room temperature [17,18,19]. Based on the US Department of Energy (US-DOE) standard [20,21], substrates are required to possess remarkable capacities for storing hydrogen while also displaying adsorption energy ranging from −0.2 eV to −0.7 eV for H₂ molecules [22]. In addition, hydrogen storage capacity density requires being above 6.5 wt%. To identify the optimal substrate for hydrogen storage, researchers have examined various materials, including metal hydrides [23,24,25], metal alloys [13,26,27,28], metal–organic frameworks [14,29], and zeolites [30]. Yu et al. discovered that metal alloys were difficult to dehydrogenate in hydrogen storage applications and require a higher temperature for dehydrogenation [13]. Sakintuna et al. reported that magnesium-based cyanide held a reversible hydrogen storage capability of up to 7.6 wt%, but its hydrogen resolution temperature is as high as 300 degrees Celsius [25]. The difficulties encountered by these materials are high desorption temperatures and structural instability at high temperatures. Therefore, the development of materials that possess reversible hydrogen storage properties at ambient temperature is urgently needed.

Porous systems are considered viable hydrogen storage alternatives due to their good reversibility, mild hydrogen absorption/desorption conditions, and other advantages [31,32,33]. As a new type of porous 2D material, C₃N₄ exhibits excellent hydrogen storage characteristics relating to its large porous structure, lightweight, good thermal stability, and enviable surface-to-volume ratio; therefore, it has garnered a lot of attention [34]. Previously, Chakraborty [35] et al. demonstrated the potential hydrogen storage capabilities of flat C₃N₄ [36]. However, the van der Waals (vdW) interaction between H₂ molecules and the pure layered nanostructures is weak, leading to low hydrogen storage capacity at room temperature. Doping or metal-modifying nanostructures are methods of improving hydrogen adsorption because the modification of metals enhances the surface activity of porous materials and further promotes their interaction with H₂. Some studies [37] have demonstrated that alkali metal doping may improve the hydrogen absorption of carbon nanotubes. Li-functionalized C₃N₄ increased its hydrogen storage capacity to 10 wt%., as demonstrated by Wu et al. Notably, at 0 K, Li and C₃N₄ have a low binding energy. The low binding energy would cause Li clusters to develop at a higher temperature, which would reduce the capacity of the hydrogen storage system [38]. As opposed to alkali metal elements, transition metal (TM) elements present more diverse and malleable outer electronic structures that allow them to interact with numerous substances and can alter bonding energy. Recent studies and simulations have also demonstrated that TM atoms or ions may bind hydrogen molecules and present optimal binding energies for practical uses [39,40,41,42,43]. Studies conducted by E. Durgun and colleagues demonstrated that a carbon atomic chain with two titanium atoms added may obtain a 14.4 wt% hydrogen storage capacity, greatly boosting the hydrogen storage mass density of carbon nanotubes [44]. Nachimuthu et al. showed that boron-doped graphene modified with TM atoms was a viable candidate material for improving reversible hydrogen storage capacity [45]. Sun et al. found that metal clusters formed by titanium atoms on carbon nanotubes altered the hydrogen binding and reduced the weight density percentage of hydrogen storage [46]. Sathe et al. found that Ti-modified C₂₄ fullerene can adsorb 4 H₂ with 10.5 wt% hydrogen storage; however, the ultra-high desorption temperature is a severe problem [45]. Different from other TM atoms, scandium, being the lightest TM, has an abundance of vacant 3D orbitals, which are conducive to the formation of bonds with hydrogen molecules. Sc-doped C₆₀ fullerene structures have shown that scandium stands out as one of the most optimal transition metal dopants for enhancing hydrogen storage in fullerene molecules. Vikram et al. also experimentally demonstrated Sc-modified carbon nanostructures as potential candidates for hydrogen storage [36]. Inspired by these reports, scandium modifications to C₃N₄ nanotubes are expected to improve their hydrogen storage performance.

Our study shows that Sc-modified C₃N₄ nanotubes have a strong hydrogen storage capacity and have the benefit of releasing hydrogen gas at room temperature. Based on the simulation, Sc-modified C₃N₄ nanotubes show better stability even at high temperatures, which makes it harder for the Sc atom to break free from C₃N₄ nanotubes. Moreover, a strong migration barrier keeps Sc atoms stable inside the macrocycle and inhibits the creation of metal clusters. First-principles density-functional theory simulations demonstrate that H₂ has a higher probability of diffusing along the tube; Sc-modified C₃N₄ nanotubes have the capacity to adsorb up to nine hydrogen molecules; their hydrogen storage mass density can reach 7.287 wt%; and the average binding energy is −0.20 eV/H₂, which is compliant with US Department of Energy regulations. Charge density and Bader charge analyses were performed to investigate the adsorption mechanism of Sc-modified C₃N₄ nanotubes in terms of absorbing H₂ molecules. The results show that there is a weak van der Waals connection and Kubas interaction between Sc atoms and H₂ gas. Sc-modified C₃N₄ nanotubes had an average desorption temperature of 258 K, indicating that the structure may desorb the H₂ at −15 °C without the need for further energy. As a result, Sc-modified C₃N₄ nanotubes perform very well as a hydrogen storage medium. Our findings may provide a path to developing a novel, highly effective hydrogen storage material that can utilize hydrogen at normal temperatures and store it at low temperatures.

2. Results and Discussion

2.1. Geometric Structures of Pure C₃N₄ Nanotube and Single H₂ Molecule Adsorption

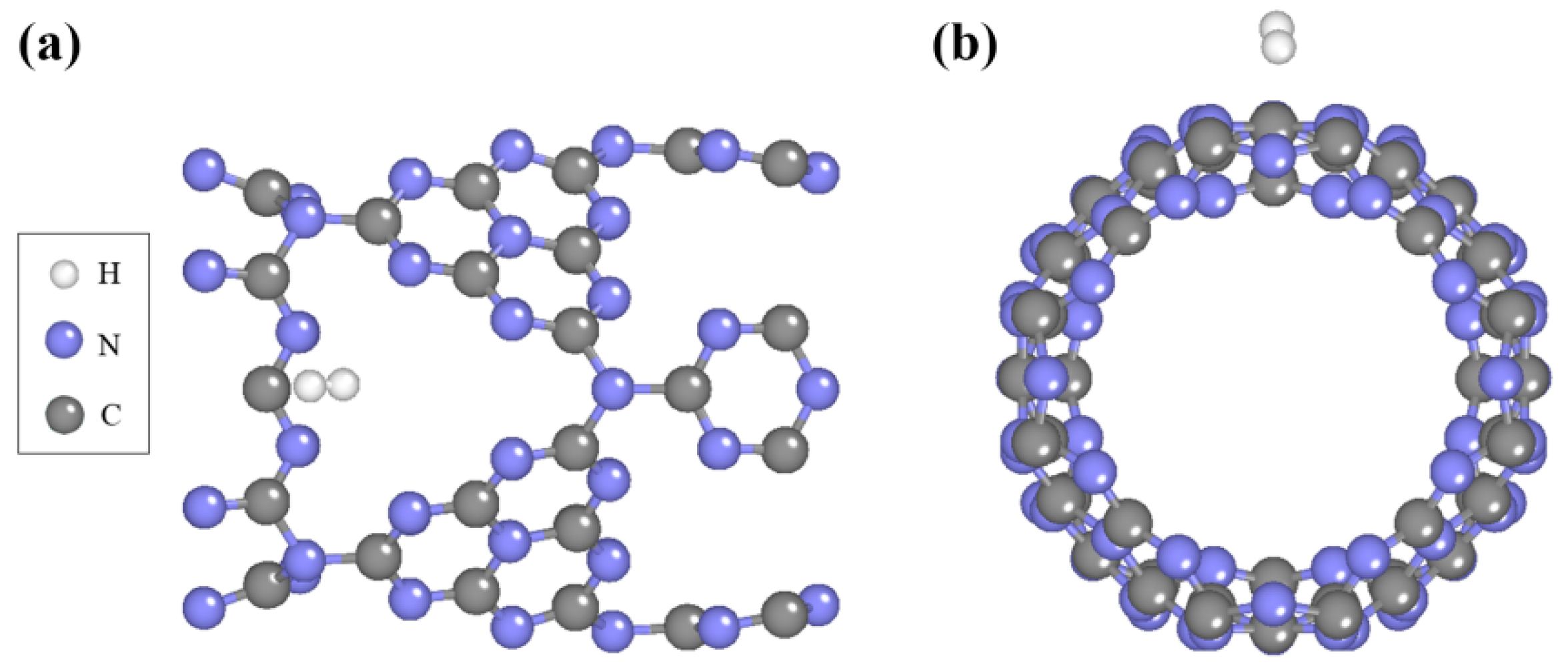

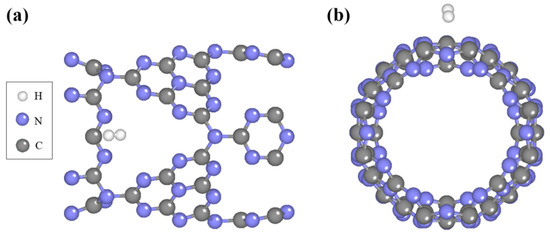

We first investigated the geometric structures of C₃N₄ nanotubes and H₂ molecule adsorption properties. As shown in Figure S1, C₃N₄ nanotubes possess rich pore structures with a large specific surface area, which is favorable for exposing more active sites, effectively improving hydrogen storage capacity. Based on its structural characteristics, it can be found that there exist eight potential locations for the adsorption of hydrogen on pure C₃N₄ nanotubes. This includes k1 and k3 (above the C atom in the pore), k2 and k4 (above the N atom in the pore), k5 and k6 (above the hexagonal ring), and k7 and k8 (above the two adjacent and next-to-next adjacent N atoms in the macrocycle). Therefore, we studied the adsorption of H₂ at different sites of H₂ at different sites of pure C₃N₄ nanotubes. According to Formula (1), the adsorption energy of a H₂ molecule on pure C₃N₄ is calculated to measure the change in energy during adsorption. The adsorption energy of hydrogen at different adsorption sites is shown in Figure S2. Due to the lowest adsorption energy, k8 is the most possible adsorption site for H₂ molecules, and the corresponding relaxed configuration for the adsorption system is shown in Figure 1. The H₂ molecule is about 3 Å away from the surface of the nanotube, indicating weak physisorption. Moreover, the adsorption energy of all sites considered for the pure C₃N₄ nanotube does not satisfy the range (DOE-US) of −0.2 eV~−0.7 eV. In other words, pure C₃N₄ nanotubes are not suitable for hydrogen storage materials because the adsorption energy of H₂ on pure C₃N₄ nanotubes is too unstable.

2.2. Structure and Stability of Sc-Modified C₃N₄ Nanotubes

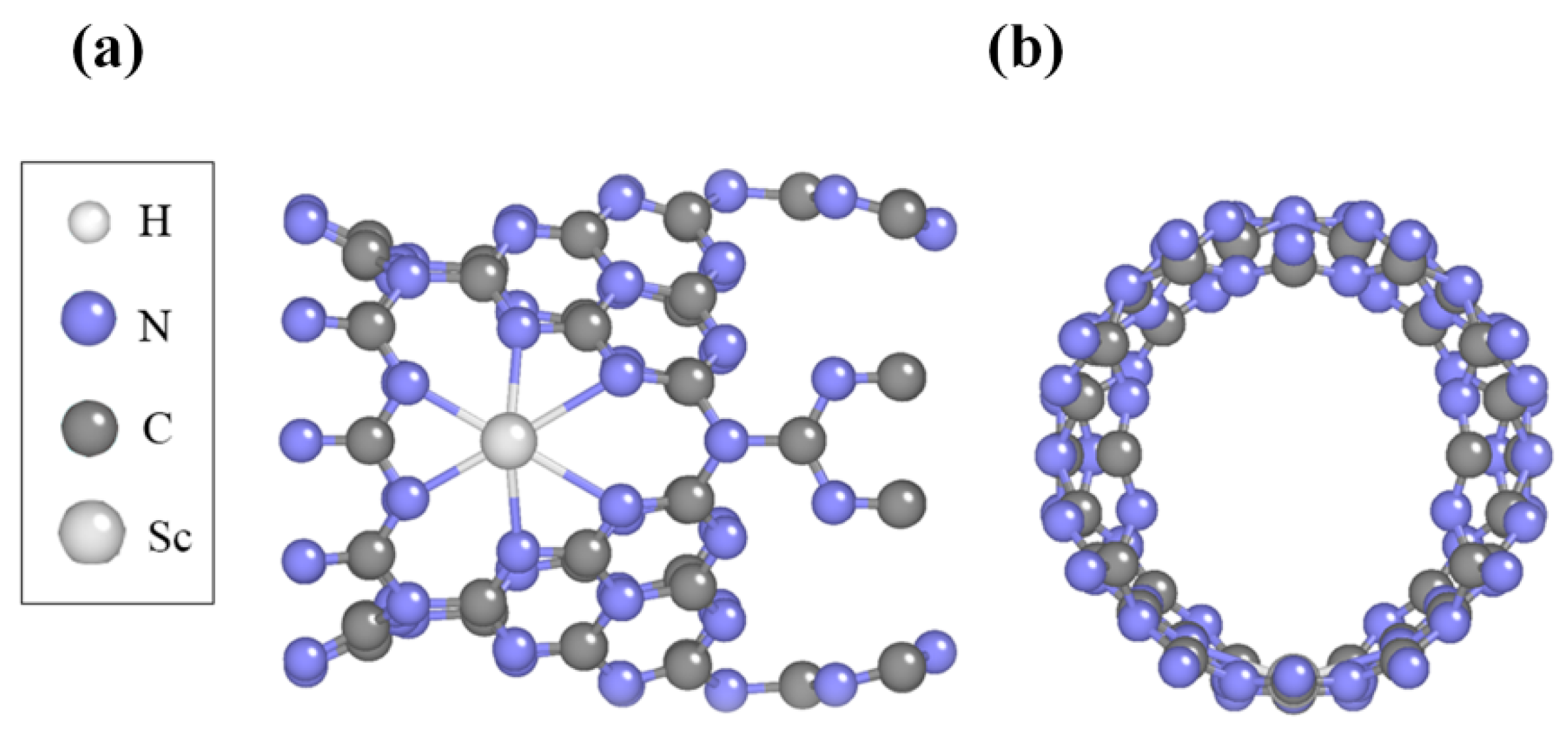

Modifications to C₃N₄ materials using Sc metal are expected to improve the stability of H₂ molecule adsorption. The locations at which Sc atoms are incorporated can influence the structural stability and the efficacy of hydrogen storage in C₃N₄ nanotubes. Considering the potential locations of H₂ adsorption in Figure S1, we studied modifying k1–k8 of pure C₃N₄ using Sc atoms to obtain a stable structure. After structural optimization, their bonding energies were calculated with Formula (2), and the results are listed in Table S1. A negative bonding energy between isolated Sc atoms and pure C₃N₄ nanotubes indicates an exothermic reaction, which suggests structural stability. The optimized structures of Sc-modified C₃N₄ nanotubes at the k7 and k8 sites tend to end up in the same configuration, and we found that both of the sites present the smallest bonding energy when comparing all of the obtained bonding energies of Sc atoms at different desorption sites in C₃N₄ nanotubes. Therefore, the macrocycle’s core is the most stable location for metal Sc atoms to adsorb in nanotubes. As shown in Figure 2, every macrocycle favoring a single Sc atom when Sc atoms are modified on C₃N₄ could avoid the clustering issue for Sc decoration in C₃N₄ nanotubes. An analysis of the elastic modulus reveals that single-atom Sc decoration has a minimal impact on the mechanical properties (a bit softer) of the C₃N₄ nanotubes. For further details, refer to the Supplementary Materials and Figure S3.

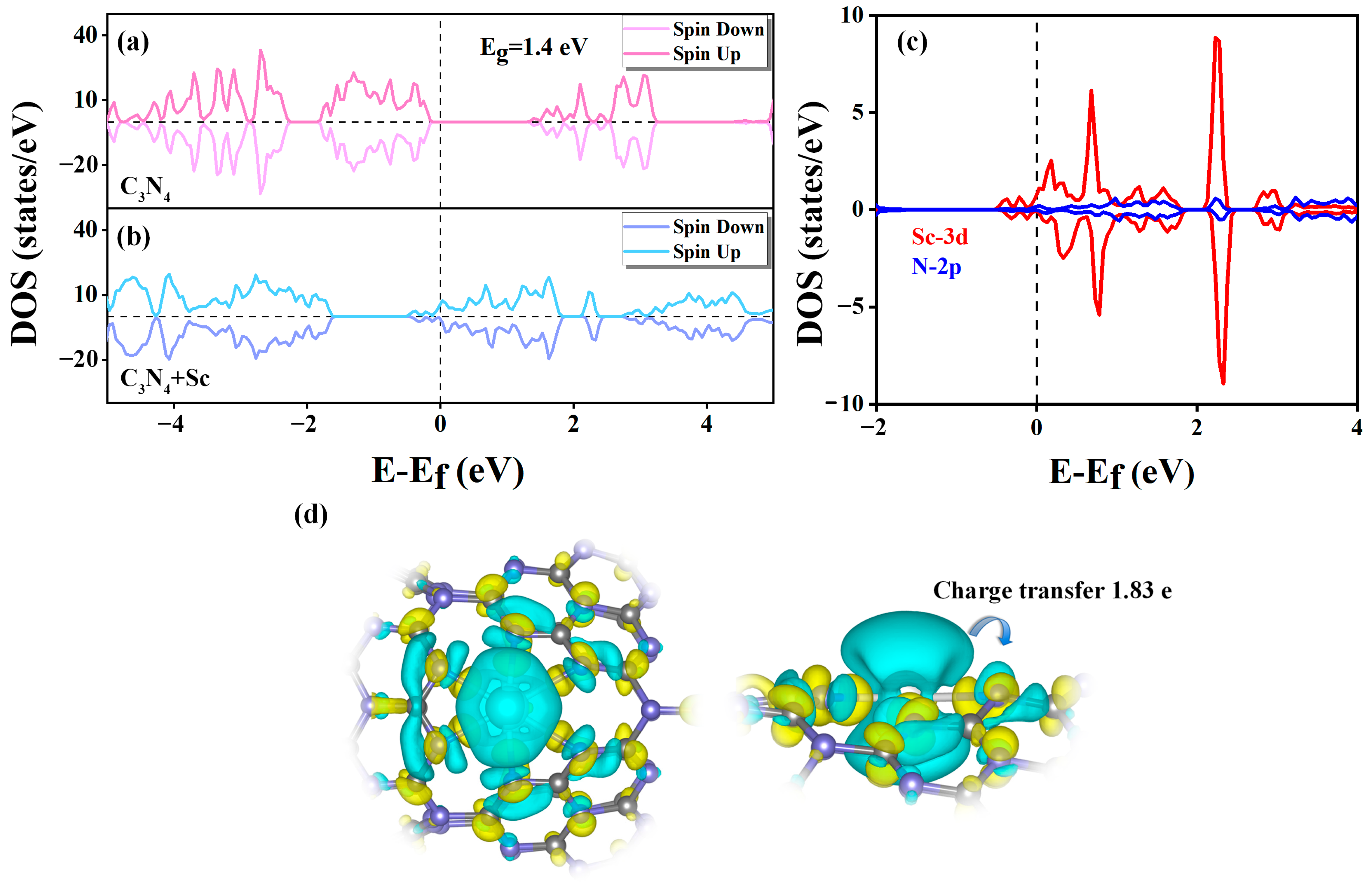

The interplay between Sc atoms and C₃N₄ nanotubes was examined using the total density of states (DOS). Figure 3a demonstrates that the DOS of pure C₃N₄ nanotubes exhibit symmetry between the up and down spins due to their nonmagnetic behavior (μ = 0 μB). However, in Figure 3b, the introduction of Sc atoms into C₃N₄ nanotubes breaks the symmetry of the up and down spins, resulting in spin polarization and the emergence of a magnetic moment in the Sc-modified C₃N₄. The band gap of the pure C₃N₄ nanotube is calculated to be 1.40 eV, whereas the Sc-modified C₃N₄ nanotube lacks a band gap and exhibits a metal-like nature. It is evident that the doping of Sc atoms in the C₃N₄ nanotubes alters the electronic structure of the substrate, which makes the nanotubes more metallic. It is anticipated that this might increase the hydrogen storage capacity of Sc-modified C₃N₄ nanotubes as they have more active electrons interacting with H₂ molecules. To uncover the nature of orbital interactions and understand the binding process within Sc-modified C₃N₄ nanotubes, we have analyzed the differences in the partial density of states (PDOS) and charge density. As shown in Figure 3c, Sc doping results in numerous new hybridization peaks at the Fermi energy level for the Sc-3d and N-2p orbitals. The hybridization between N and Sc atoms elucidates a strong orbital interaction between Sc atoms and C₃N₄ nanotubes. Additionally, an increase in the DOS can lead to the formation of chemical bonds, which forecasts the superior bonding energy and enhanced structural stability of Sc-modified C₃N₄ nanotubes. To further determine the precise number of electrons transferred from the Sc atoms, we conducted Bader charge analysis. The analysis revealed that each Sc atom transferred 1.83 e to the N-2p orbital of the C₃N₄ nanotubes. Then, as shown in Figure 3d, we plotted three-dimensional (3D) charge density difference (CDD) images. Figure 3c,d support the notion that in the bonding mechanism between Sc and C₃N₄ nanotubes, some electrons migrate from the 3D orbitals of single Sc atoms to the 2p orbitals of N atoms, thus forming covalent bonds. Based on the above analysis, it can be inferred that the combined interactions between Sc atoms and C₃N₄ nanotubes, with Sc atoms transferring 1.83 e to N atoms, form covalent bonds that can stabilize the system.

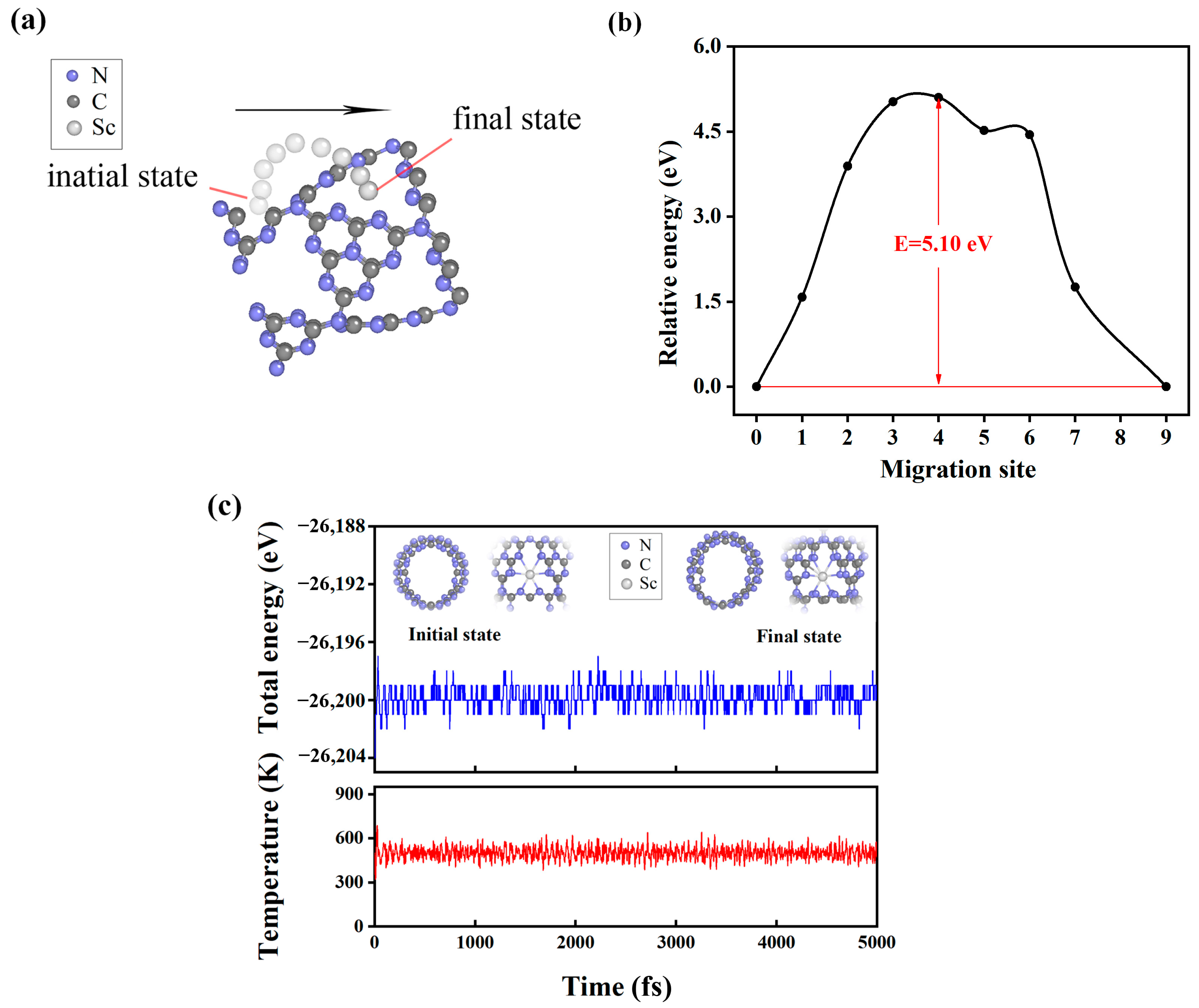

The stability of a hydrogen storage system influences hydrogen storage performance; therefore, we performed diffusion energy barrier calculation to determine the stability of Sc atoms in each macrocycle, and ab initio molecule dynamics (AIMDs) simulations relating to a Sc-modified C₃N₄ nanotube were applied to measure the structural integrity at high desorption temperatures. The clustering of metal atoms within the system can occur readily if the transition metal atom’s diffusion energy barrier is close to its thermal energy at the highest desorption temperature. Therefore, we first calculated Sc-atom thermal energy at the peak resolved temperature of 500 K according to the following equation: E = 3/2k_BT, where k_B and E represent the Boltzmann constant and the thermal energy of the Sc atom, respectively. Furthermore, the value of T was set at 500 K, which exceeds the desorption temperature. The calculated thermal energy is about 0.065 eV. Then, we moved the Sc atoms from one equilibrium position to the next neighboring equilibrium position, as shown in Figure 4a. The corresponding migration barriers of Sc atoms were calculated, and the obtained values are plotted in Figure 4b. The obtained maximum migration barrier is 5.10 eV, which greatly exceeds the aforementioned thermal energy (0.065 eV), suggesting that it takes a large amount of energy for Sc atoms to jump from the center of one macrocycle to another. The results of migration barriers calculated with other exchange-correlation functional also support this opinion. More details can be found in the Supplementary Materials. Hence, the Sc-modified C₃N₄ nanotubes possess high stability, i.e., the Sc atoms are not susceptible to metal agglomeration. Given that the substrate’s structural integrity during heat variations is related to the durability of the hydrogen storage substrate at high desorption temperatures. Therefore, for the real-world utilization of Sc-modified C₃N₄ nanotubes as hydrogen storage materials, ensuring their structural stability under high desorption temperatures is very essential. Next, we performed AIMD simulations to examine the stability of the Sc-modified C₃N₄ nanotube at 500 K. As displayed in Figure 4c, the total energy of the Sc-modified C₃N₄ system oscillates around the mean value of the 500 K simulation time data with small variations, which indicates that the system is structurally robust at high temperatures. In addition, many metal-doped g-C₃N₄ catalysts have been fabricated experimentally [47,48,49]. Therefore, Sc-modified C₃N₄ nanotubes are feasible.

2.3. H₂ Molecules Adsorption on Sc-Modified C₃N₄ Nanotubes

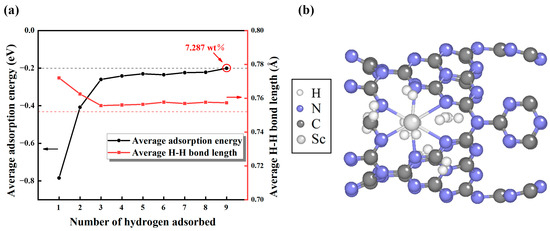

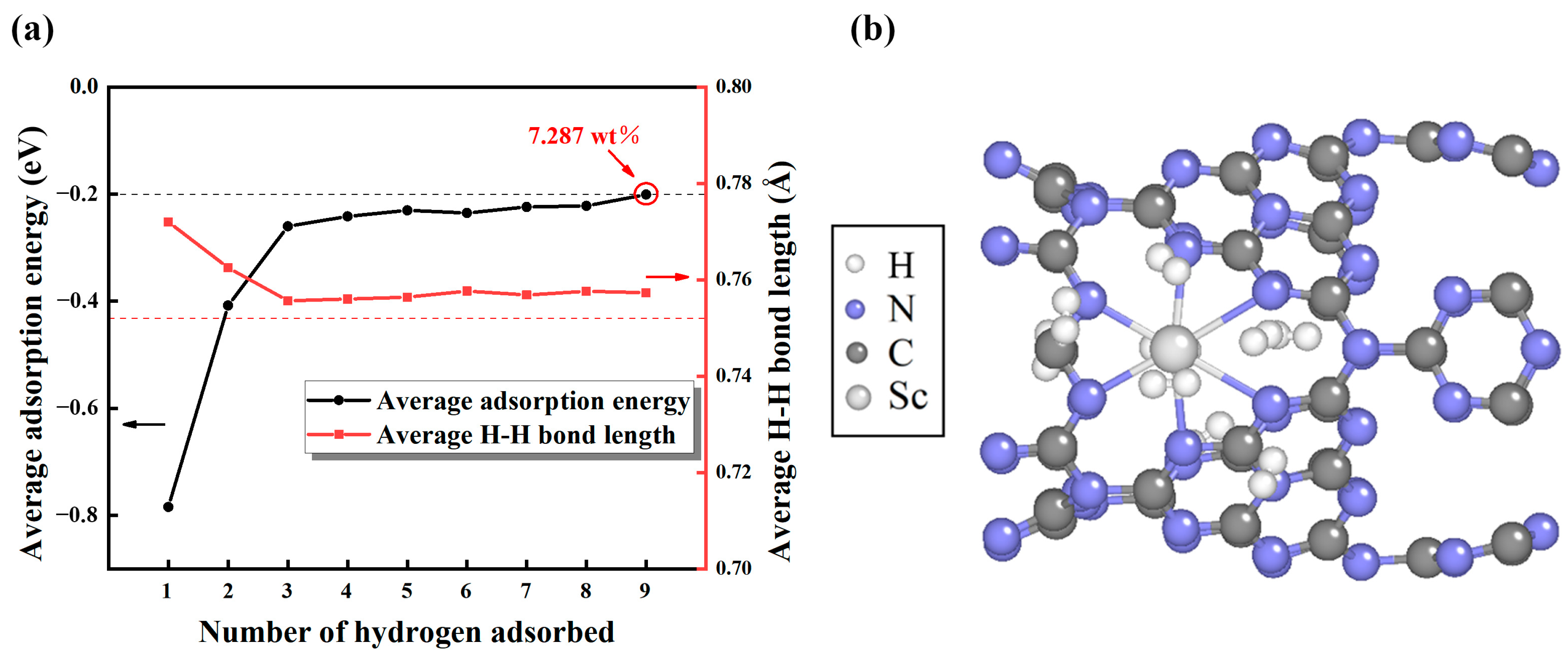

In Sc-modified C₃N₄ nanotubes, we discovered that hydrogen was adsorbed at the position of Sc single atom, and we calculated the average absorption energy of hydrogen molecules. First, the initial hydrogen molecule was positioned 2.487 Å away from the Sc-modified C₃N₄ nanotubes. After optimizing this structure, the hydrogen molecule was changed to 2.255 Å, and the calculated adsorption energy was −0.79 eV. We can conclude that the adsorption energy of the first H₂ molecule is larger than the adsorption energies of H₂ molecules guided by DOE-US (−0.2 eV to −0.7 eV). This suggests that the first hydrogen molecule has a stronger ability to be absorbed on Sc-modified C₃N₄ nanotubes. Additionally, by considering structural symmetry, we examined the potential adsorption locations for each extra hydrogen molecule. To comprehensively explore the adsorption capacity of Sc-modified C₃N₄ nanotubes, we added hydrogen molecules in turn (Figure S4) and calculated the changes in H-H bond length and average adsorption energy. The computational results are shown in Figure 5a. Obviously, as the count of H₂ molecules rises, the average adsorption energy tends to diminish. When nine H₂ molecules are added, the average adsorption energy reaches the upper limit of the DOE-US standard (−0.2 eV) [21]. This indicates that with the ongoing addition of H₂ molecules, H₂ molecules will inhibit interactions with the substrate and might escape into free H₂ molecules. Hence, we determined that nine molecules may represent a likely limit for full hydrogen saturation per Sc atom. The optimized maximum adsorption configuration is shown in Figure 5b, where nine hydrogen molecules can be adsorbed near each Sc atom. As shown in Figure S5, we combined a Sc atom at the most stable position of each large ring and obtained a mass fraction of 19.7 wt% of Sc elements, according to Formula (3). Based on Formula (4), the final hydrogen storage mass density of the Sc-modified C₃N₄ nanotubes reached 7.29 wt%, exceeding the DOE-US standard (6.5 wt%) [21], and is superior to many other hydrogen storage systems, such as Ti-decorated boron-doped twin-graphene (4.95 wt%) [50] and Sc-decorated graphene with pyridinic-N defects (4.95 wt%) [51]. The corresponding H-H bond length increases from 0.75 Å to 0.77 Å, which is close to the isolated hydrogen bond length, confirming that H₂ molecular stability forms after adsorbing on the nanotube. In addition, we considered the effect of defects (C and N point defects) and humid environments on hydrogen storage efficiency and stability. The calculated results demonstrate that, though the introduction of defects could enhance the stability of Sc atom decoration in C₃N₄ nanotubes, it brings about poor adsorption energy for the H₂ molecule, reducing hydrogen storage efficiency and stability. The adsorption energy of H₂ molecules increases to 0.073 eV in a humid environment. Such high adsorption energy means that this system cannot adsorb H₂ in this case. The possible reason for this is that H₂O molecules are passive in the active site of H₂ adsorption and hinder the adsorption of H₂ molecules (Figure S6). The details can be found in the Supplementary Materials.

2.4. Interaction between H₂ and Sc-Modified C₃N₄ Nanotube

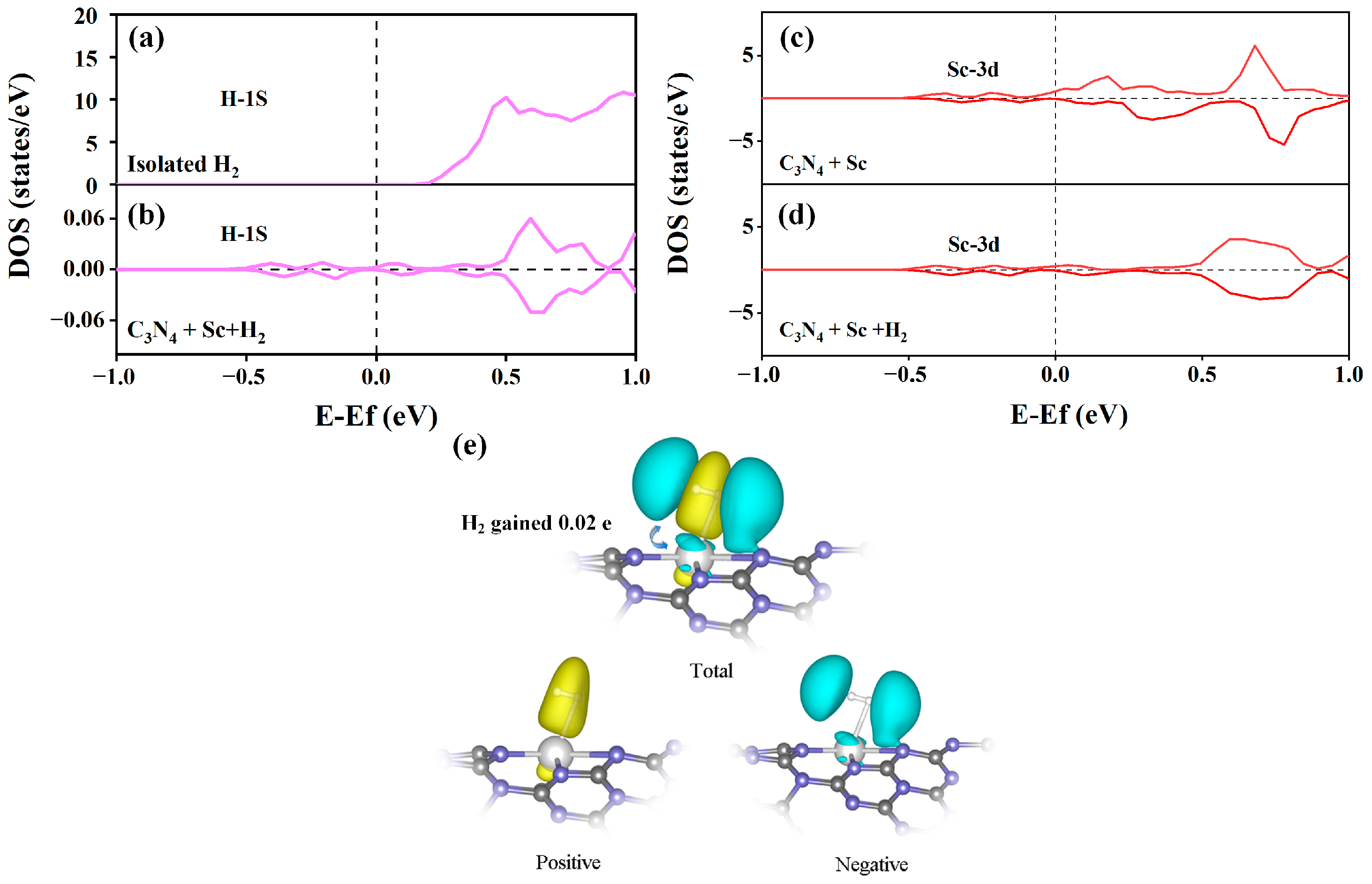

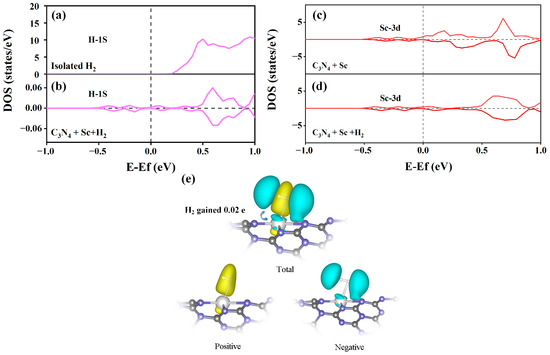

Figure 6 illustrates our analysis of the PDOS for H-1s and Sc-3d orbitals, which aided in understanding the mechanics of charge transfer and the interaction between the electronic orbitals of Sc-modified C₃N₄ nanotube and the adsorbed H₂ molecules. In Figure 6a,b, compared with isolated hydrogen molecules, H-1s orbital eigenstates are strengthened after H₂ is absorbed on Sc-modified C₃N₄ tubes, which suggests that the H-1s orbital gains charge. In addition, in Figure 6c,d, the Sc-3d orbitals eigenstates are weakened and lose charge. Hence, the improved hydrogen storage capacity of Sc-modified C₃N₄ nanotubes can be attributed to the charge migration from the Sc-3d orbitals to the H-1s orbitals upon the absorption of H₂ by the Sc-modified C₃N₄ nanotube. As discussed above, the H-H bond length elongates slightly after the hydrogen molecule is absorbed on the Sc-modified C₃N₄ nanotubes. It can be speculated that this charge transfer leads to the slight elongation of the H-H bond. To confirm this conjecture, we also calculated the differential charge and plotted the charge density of three-dimensional images to analyze the charge transfer situation, as shown in Figure 6e. Observing the charge density images, we can observe that both H₂ and Sc atoms have both charge loss regions and charge gain regions, indicating that there is both charge donation and back donation in the two atoms. When hydrogen molecules are adsorbed onto the scandium-modified C₃N₄ nanotube, a reverse charge transfer occurs from the scandium’s filled 3D orbitals to the hydrogen’s vacant lowest unoccupied molecular orbitals. Simultaneously, there is also a charge transfer from the hydrogen’s filled highest occupied molecular orbitals to the unoccupied 3D orbitals of scandium. The H-1s orbital gains a little net charge (0.02 e) during the processes of charge donation and back donation, which can promote orbital interactions and lengthen the H-H bond. Therefore, the Kubas interaction and weak van der Waals interactions are primarily responsible for the binding of hydrogen molecules with the scandium atom [35]. To further explain the Kubas interaction, we plotted the PDOS of the H-1s orbital from the hydrogen adsorbed versus the Sc-3d orbital from the substrate in Figure S7. At the near-Fermi energy level, the hybrid peak of the H-1s orbital and Sc-3d orbital is almost in the same energy range, which indicates that the H-1s orbitals appear to be coupled to the Sc-3d orbitals.

2.5. Diffusion Energy Barrier for Hydrogen in a Tube

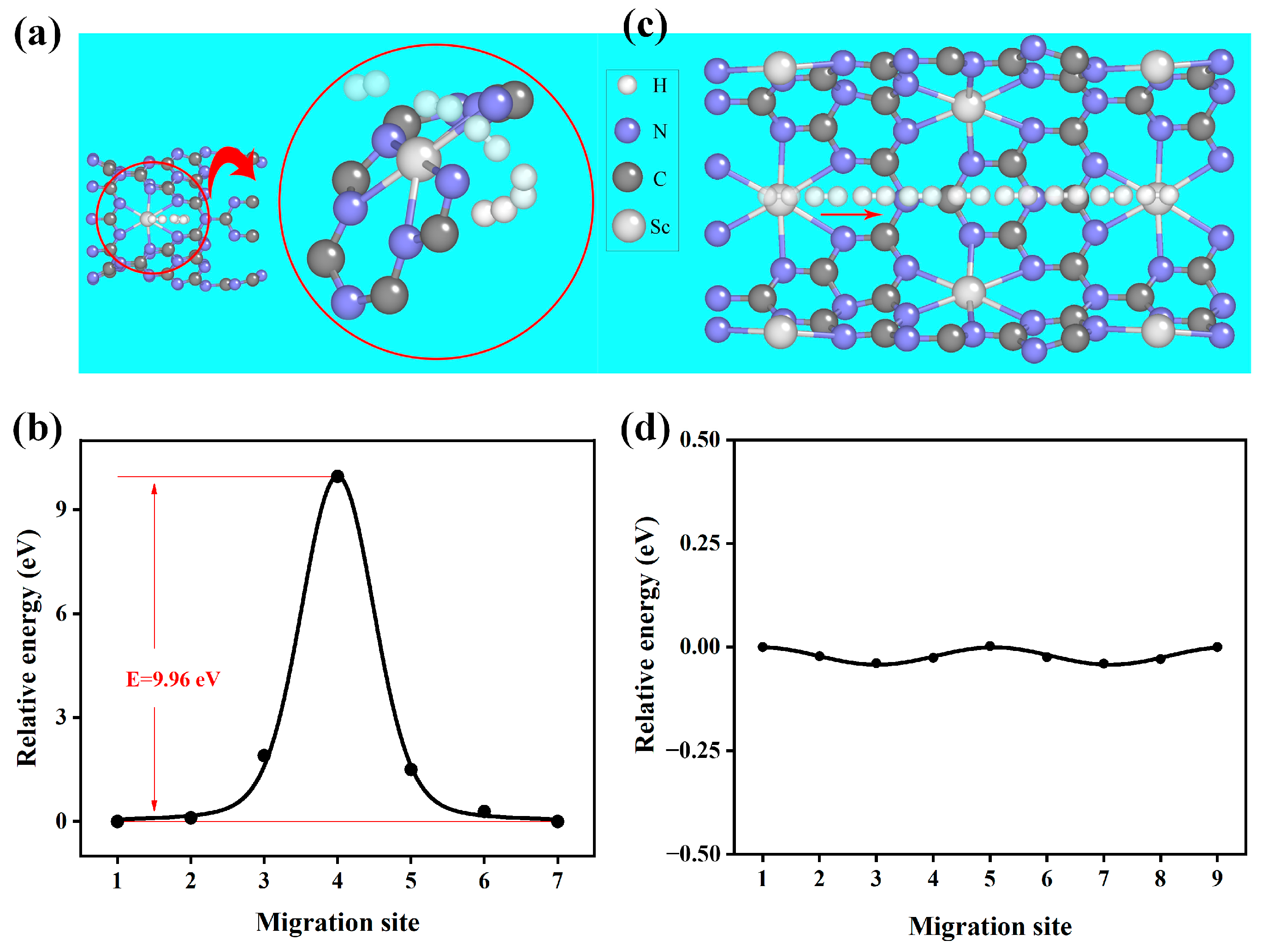

The distribution of adsorbed H₂ on both sides of the nanotubes provides the basis for the hydrogen desorption capacity that was previously described. Therefore, we must figure out the probability of hydrogen getting inside the nanotube. Obviously, there are two ways that H₂ can enter the interior: either entering the interior through the macrocycle in the side wall or via diffusion along the tube channel. To confirm the feasibility of the two pathways, we computed the relevant diffusion energy barriers, respectively. Initially, we looked into the first case. Figure 7a depicts the detailed path of H₂ diffusing along the macrocycle into the interior. The computed diffusion barriers are plotted in Figure 7b. It can be found that an energy of −9.91 eV is required for H₂ to enter the tube’s interior through the macrocycle, which is too high to handle. In the second scenario, as displayed in Figure 7c, we conducted 1 × 1 × 2 cellular expansions of the C₃N₄ nanotube to diffuse H₂ molecules from one Sc adsorption site to the neighboring Sc site and, subsequently, through the C₃N₄ tube channel along the z-axis. Figure 7d presents a plot of the estimated diffusion barriers. According to the findings, the H₂ diffusion barriers are close to 0 eV, indicating that the H₂ diffusion barrier is low along the tube channel of the C₃N₄ nanotube. As a result, we propose that H₂ diffuses more readily along the channel than along the macrocycle in C₃N₄ nanotubes. Favorable conditions for H₂ molecule transfer on Sc-modified C₃N₄ nanotubes are provided by a low diffusion barrier, which ensures efficient H₂ molecule adsorption and desorption capacity.

2.6. Molecule Dynamics for H₂ Desorption

Based on the Van Hove equation (Formula (5)), the obtained average desorption temperature is 258 K, lower than room temperature, which indicates that Sc-modified C₃N₄ nanotubes can release adsorbed hydrogen at near-ambient temperatures. The release temperatures for certain hydrogen storage substances are notably greater compared to ambient conditions [7,17]. This leads to a slow release rate in terms of adsorbed hydrogen at room temperature and cannot be used normally. Therefore, high-temperature treatments are applied to achieve the rapid desorption of hydrogen; however, high temperatures will destroy the structure of hydrogen storage materials. In contrast, Sc-modified C₃N₄ nanotubes can store hydrogen at low temperatures and release it at ambient temperatures for use, as shown in Figure S8. This will reduce energy consumption when facilitating the release of hydrogen, reaching about 10 kJ/mol H₂ molecules compared with the case of some hydrogen storage materials containing MgH₂ under standard conditions (referring to the section named “Energy Saving Compared with Some Hydrogen Storage Materials” in the Supplementary Materials). The low desorption temperature also protects the structural stability of the hydrogen storage system and increases its service life. Consequently, Sc-modified C₃N₄ nanotubes, boasting optimal average adsorption energy and release temperatures, have emerged as excellent candidates for fuel cell technologies.

3. Computation Details

The Device Studio software package (Version V2023A) [52] was employed to construct the computational models. DS-PAW software (Version V2023A) [53] was used to realize the simulation calculation of DFT, where Perdew–Burke–Ernzerhof (PBE) and generalized gradient approximation (GGA) [54] are adopted. The DFT has proven to be a reasonable calculation method and has been widely used to predict and verify hydrogen storage performance [55,56,57,58]. The DFT-D3 in the Grimme scheme was used to describe the van der Waals correction to simulate the various properties of C₃N₄ [59]. To reduce the interaction between C₃N₄ nanotubes, we placed C₃N₄ nanotubes in a 19 Å × 19 Å × 12 Å box for simulation. Since the vacuum spaces were all greater than 10 Å in the x-y plane, we can consider that there is almost no interaction between the mirror samples. In the process of structural optimization, to ensure the accuracy of the simulation, we set the cutoff energy to 450 eV, and set the convergence limits of force and energy to 0.05 eV/Å and 10⁻⁴ eV, respectively. To study the thermal stability of Sc-modified C₃N₄ nanotubes, we conducted AIMD simulations, where this system was maintained for 5ps at a temperature setting of 500 K.

The adsorption energy for a single H₂ molecule $E_{\mathrm{b}-{\mathrm{H}}_2}$ on pure C₃N₄ nanotubes, indicating the change in energy during adsorption, is established as follows [60,61]:

$$E_{\mathrm{b}-{\mathrm{H}}_2}=E_{\mathrm{t}\mathrm{o}\mathrm{t}\mathrm{a}\mathrm{l}}-E_{{\mathrm{H}}_2}-E_{\mathrm{s}\mathrm{u}\mathrm{b}}$$

(1)

where $E_{\mathrm{t}\mathrm{o}\mathrm{t}\mathrm{a}\mathrm{l}}$, $E_{{\mathrm{H}}_2}$, and $E_{\mathrm{s}\mathrm{u}\mathrm{b}}$ are the total energy of the adsorption system, isolated H₂ molecule, and pure substrate (C₃N₄ or Sc-modified C₃N₄ nanotubes used in our study), respectively.

The bonding energies of a single Sc atom on pristine C₃N₄ can be obtained with the following formula:

$$E_{\mathrm{b}-{\mathrm{S}}_{\mathrm{c}}}=E_{{\mathrm{S}}_{\mathrm{c}}+{\mathrm{C}}_3{\mathrm{N}}_4}-E_{{\mathrm{S}}_{\mathrm{c}}}-E_{{\mathrm{C}}_3{\mathrm{N}}_4}$$

(2)

where $E_{{\mathrm{S}}_{\mathrm{c}}+{\mathrm{C}}_3{\mathrm{N}}_4}$, $E_{{\mathrm{S}}_{\mathrm{c}}}$, and $E_{{\mathrm{C}}_3{\mathrm{N}}_4}$ are the total energy of Sc-modified C₃N₄ nanotubes, isolated Sc atoms, and pure C₃N₄ nanotubes, respectively.

The mass fraction of Sc atom on C₃N₄ nanotubes can be obtained with the following formula:

$${\mathrm{S}}_{\mathrm{c}}-\mathrm{w}\mathrm{t}\%=\frac{m_{{\mathrm{S}}_{\mathrm{c}}}}{m_{{\mathrm{S}}_{\mathrm{c}}+{\mathrm{C}}_3{\mathrm{N}}_4}}\times 100\%$$

(3)

${\mathrm{S}}_{\mathrm{c}}-\mathrm{w}\mathrm{t}\%$, $m_{{\mathrm{S}}_{\mathrm{c}}}$, and $m_{{\mathrm{S}}_{\mathrm{c}}+{\mathrm{C}}_3{\mathrm{N}}_4}$ denote the mass fraction of the Sc atom, the mass of Sc atoms, and the mass of the system of Sc + C₃N₄ nanotubes_.

The mass fraction of H₂ on Sc-modified C₃N₄ nanotubes can be obtained with the following formula:

$${\mathrm{H}}_2-\mathrm{w}\mathrm{t}\mathrm{\%}=\frac{m_{{\mathrm{H}}_2}}{m_{{\mathrm{S}}_{\mathrm{c}}+{\mathrm{H}}_2+{\mathrm{C}}_3{\mathrm{N}}_4}}\times 100\%$$

(4)

${\mathrm{H}}_2-\mathrm{w}\mathrm{t}\mathrm{\%}$, $m_{{\mathrm{H}}_2}$, and $m_{{\mathrm{S}}_{\mathrm{c}}+{\mathrm{H}}_2+{\mathrm{C}}_3{\mathrm{N}}_4}$ denote the mass fraction of the hydrogen, the mass of H₂, and the mass of the system of H₂ and Sc-modified C₃N₄, respectively.

To test the thermal stability and reversibility of the H₂@Sc-modified C₃N₄ configuration in the practical application, the Van Hove equation was applied to estimate the average desorption temperature $T_{\mathrm{d}}$, as follows [36]:

$$T_{\mathrm{d}}=(\frac{\overline{E_{\mathrm{b}-{\mathrm{H}}_2}}}{k_{\mathrm{B}}})(\frac{\Delta S}{R}-lnP{)}^{-1}$$

(5)

where R denotes the gas constant, $k_{\mathrm{B}}$ represents the Boltzmann constant, P is the atmospheric pressure, $\overline{E_{\mathrm{b}-{\mathrm{H}}_2}}$ signifies the mean adsorption energy for nine H₂ atoms, which is approximately −0.20 eV/H₂, and the change in entropy, represented by ΔS, which occurs during the transition of H₂ from a gas to a liquid.

4. Conclusions

DFT simulations were performed to explore the possibility of storing hydrogen in pure C₃N₄ nanotubes. The results show that pure C₃N₄ nanotubes do not satisfy the requirements for storing H₂; however, the addition of Sc to the nanotube allows for successful storage. According to the computed bonding energies and DOS, Sc atoms are stabilized in the macrocycle of C₃N₄, and covalent bonds are formed due to the fact that 1.83 electrons move to the N-2p states from the Sc-3d states. AIMD simulations and diffusion barriers confirm the structural stability of Sc-modified C₃N₄ nanotubes at high desorption temperatures. The diffusion barrier of Sc atoms from one macrocycle to its neighbor is 5.10 eV, which avoids the creation of metal clusters. From the perspective of hydrogen storage, up to nine hydrogen molecules can be absorbed on the Sc-modified C₃N₄ nanotube, with a hydrogen uptake of 7.29 wt%, which is above DOE-US requirements. The enhancement of the hydrogen storage capacity of Sc-modified C₃N₄ nanotubes is due to the charge donation and back donation from the Sc-3d to H-1s. Weak van der Waals and Kubas interactions are primarily responsible for this phenomenon. Additionally, the H₂ diffusion route was investigated. According to the findings, H₂ diffuses in C₃N₄ nanotubes more easily along the channel than along the macrocycle. Low-diffusion-barrier Sc-modified C₃N₄ nanotubes create favorable conditions for adsorption. The calculated average adsorption energy and desorption temperature are −0.20 eV and 258 K. For fuel cell applications, the Sc-modified C₃N₄ tube is suitable as it has appropriate average adsorption energy and desorption temperatures. We assert that Sc-modified C₃N₄ nanotubes are a promising and practically viable solution for high hydrogen storage.
