Diverse Co(II) Coordination Polymers with the Same Mixed Ligands: Evaluation of Chemical Stability and Structural Transformation
Department of Chemistry, Chung Yuan Christian University, Chung Li, Taoyuan City 320, Taiwan
*
Author to whom correspondence should be addressed.
Molecules 2024, 29(8), 1748; https://doi.org/10.3390/molecules29081748
Submission received: 4 March 2024
/
Revised: 30 March 2024
/
Accepted: 4 April 2024
/
Published: 12 April 2024
Abstract
:Reactions of Co(OAc)2·4H2O, N‚N’-bis(3-pyridylmethyl)oxalamide (L) and 4,4′-sulfonyldibenzoic acid (H2SDA) afforded four coordination polymers with the same mixed ligands, {[Co(L)(SDA)(H2O)2]·H2O·CH3OH}n, 1, {[Co(L)0.5(SDA)]·2H2O·0.5L}n, 2, {[Co(L)1.5(SDA)(H2O)]·H2O}n, 3, and {[Co2(L)1.5(SDA)2(H2O)2]·4H2O}n, 4, which have been structurally characterized using single-crystal X-ray crystallography. Complexes 1–4 are 2D layers, revealing topologies of sql, 2,6L1, (4,4)Ia, and 6L12, respectively, and demonstrating that the metal-to-ligand ratio, solvent system, and reaction temperature are important in determining the structural diversity. The immersion of these complexes into various solvents shows that the structural types govern the chemical stabilities of 1–4. Reversible structural transformation is shown for complexes 1 and 2 upon solvent removal and adsorption, while those of 3 and 4 are irreversible.
1. Introduction
The design and synthesis of functional coordination polymers (CPs) have drawn a great deal of attention from scientists over the past few years because of their intriguing structures and potential applications in the fields of sensors, gas adsorption and storage, heterogeneous catalysis, magnetism, and luminescence [1,2,3,4,5,6,7,8,9,10]. The structural diversity of CPs is conditional upon many factors, such as the identities of metal ions, linkers, and counter ions, as well as the reaction conditions involving the metal-to-ligand ratio, solvent system, and reaction condition. Therefore, efforts have been made to employ and control the applicable factors for preparing the target CPs.
Investigations into the structural transformations of CPs are important because such phenomena show potential applications in switches and sensors [11]. Structural transformations of CPs that lead to a change from one structure to another is difficult in the solid state due to the constrained rearrangement of the ligands. Structural transformation in CPs can be initiated by the removal of solvent, the exchange of guest molecules, exposure to reactive vapors, and external stimuli such as heat, light, and mechanical energy [12,13]. In spite of some advancement, great effort remains necessary to improve the capability to predict and control the structural transformation. Structural transformations in flexible bis-pyridyl-bis-amide (bpba)-based CPs supported by the polycarboxylate ligands have been reported [14,15,16]. To perform structural transformations upon solvent removal and adsorption for specific CPs with mixed ligands, it is required to prepare more than two CPs with the same metal ion, neutral spacer, and polycarboxylate ligands by manipulating the metal-to-ligand ratio, solvent system, and reaction condition.
In this work, we aim to elucidate the factors that govern the structural diversity of Co(II) CPs constructed from N‚N’-bis(3-pyridylmethyl)oxalamide (L) and 4,4′-sulfonyldibenzoic acid (H2SDA) (Figure 1) and to explore the roles of structural diversity in determining the structural transformations. The network structure of [Ag(L)2]NO3 [17] has been investigated and the pressure-induced polymerization of diiodobutadiyne with L has been reported [18]. Herein, we report the synthesis and structures of four diverse CPs, {[Co(L)(SDA)(H2O)2]·H2O·CH3OH}n, 1, {[Co(L)0.5(SDA)]·2H2O·0.5L}n, 2, {[Co(L)1.5(SDA)(H2O)]·H2O}n, 3, and {[Co2(L)1.5(SDA)2(H2O)2]·4H2O}n, 4, comprising mixed L and SDA2−, and an evaluation of their chemical stabilities and structural transformations forms the subject of this report.
2. Results and Discussion
2.1. Preparations for Complexes 1–4
While the procedures in the experimental section afforded the major products 1–4, some minor products can also be obtained. Table 1 lists the reaction conditions as well as their yields, which are dependent on the metal-to-ligand ratio, solvent system reaction, and reaction condition.
2.2. Structure of 1
Crystals of complex 1 conform to the triclinic space group Pī, and each asymmetric unit consists of one Co(II) ion, one L ligand, one SDA2− ligand, two coordinated water molecules, one co-crystallized water molecule, and one co-crystallized MeOH molecule. Figure 2a shows the coordination environment around the Co(II) metal center, which is six-coordinated by two nitrogen atoms from the two L ligands [Co-N = 2.1500(16)–2.1503(16) Å], two oxygen atoms from two SDA2− ligands [Co-O = 2.0225(14)–2.0569(13) Å] and two oxygen atoms from the two coordination water molecules [Co-O = 2.1256(14)–2.1549(16) Å], resulting in a distorted octahedral geometry. The Co(II) central metal atoms are bridged by SDA2− and L ligands to form a 2D layer. Topologically, if the Co(II) atoms are regarded as 4-connected nodes and the SDA2− ligands as 2-connected nodes, while the L ligands are regarded as linkers, the structure of 1 can be simplified as a 2,4-connected 2D net with the (64·8·10)(6)-2,4L3 topology (Figure 2b). Moreover, if the SDA2− ligands are considered as linkers, the structure of 1 can be further simplified as a 4-connected 2D net with the (44·62)-sql topology (Figure 2c), as determined using the ToposPro program [19]. Complex 1 and {[Ni(L)(SDA)(H2O)2]·H2O·CH3OH}n [20] are isostructural, indicating that the metal identity is not important in determining the structural topology of CP comprising L and SDA2−.
2.3. Structure of 2
Crystals of complex 2 conform to the triclinic space group Pī, and each asymmetric unit consists of one Co(II) ion, a half of an L ligand, one SDA2− ligand, two co-crystallized water molecules, and half of a co-crystallized L ligand. Figure 3a shows the coordination environment around Co(II) metal centers, which are five-coordinated by two nitrogen atoms from the two L ligands [Co-N = 2.0600(13) Å] and four oxygen atoms from four SDA2− ligands [Co-O = 2.0140(11)–2.0649(11) Å], resulting in distorted square pyramidal geometries. The Co(II) central metal atoms are bridged by SDA2− ligands to form dinuclear Co(II) units [Co---Co = 2.7202(8) Å], which are further extended by L ligands to form a 2D layer. Topologically, if the Co(II) ions are regarded as 5-connected nodes and the SDA2− as 4-connected nodes, while the L ligands are regarded as linkers, the structure of 2 can be simplified as a 4,5-connected net with the (46·64)(46)-4,5L51 topology (standard representation), as illustrated in Figure 3b. If the dinuclear Co(II) units are regarded as 6-connected nodes and the SDA2− ligands as 2-connected nodes, while the L ligands are regarded as linkers, the structure of 2 can be simplified as a 2,6-connected net with the (42·68·8·104)(4)2-2,6L1 topology (cluster representation), as illustrated in Figure 3c.
2.4. Structure of 3
Crystals of 3 conform to the triclinic space group Pī, and each asymmetric unit consists of one Co(II) ion, one and a half L ligands, one SDA2− ligand, one coordinated water molecule, and one co-crystallized water molecule. Figure 4a shows the coordination environment around a Co(II) metal center, which is six-coordinated by three nitrogen atoms from the three L ligands [Co-N = 2.168(3)–2.228(3) Å], two oxygen atoms from two SDA2− ligands [Co-O = 2.038(2) and 2.053(2) Å], and one oxygen atom from the coordinated water molecule [Co-O = 2.144(2) Å], resulting in a distorted octahedral geometry. The Co(II) central metal atoms are bridged by SDA2− and L ligands to form a 2D layer. Topologically, if the Co(II) atoms are regarded as 5-connected nodes and the SDA2− ligands as 2-connected nodes, while the L ligands are regarded as linkers, the structure of 3 can be simplified as a 2,5-connected net with the (42·67·10)(6) topology (Figure 4b). Moreover, if the SDA2− ligands are considered as linkers, the structure of 3 can be further simplified as a 5-connected net with the (48·62)-(4,4)Ia topology, as illustrated in Figure 4c.
2.5. Structure of 4
Crystals of 4 conform to the triclinic system with the Pī space group. The asymmetric unit contains two Co(II) ions, one and a half L ligands, two SDA2− ligands, two coordinated water molecules, and four co-crystallized water molecules. Figure 5a exhibits the coordination environment around Co(II) ions. While Co(1) is six-coordinated by one pyridyl nitrogen atom from the L ligand [Co-N = 2.133(3) Å], two oxygen atoms from two SDA2− ligands [Co-O = 2.054(2)–2.118(3) Å], and one oxygen from the water molecule [Co-O = 2.147(2) Å], the Co(2) is six-coordinated by two pyridyl nitrogen atoms from the L ligand [Co-N = 2.167(3)–2.172(3) Å], two oxygen atoms from two SDA2− ligands [Co-O = 2.063(3)–2.069(2) Å], and two oxygen atoms from two water molecules [Co-O = 2.118(3)–2.134(2) Å], resulting in distorted octahedral geometries. The Co(II) ions are bridged by the SDA2− to form dinuclear units [Co---Co = 3.6113(7) Å], which are further extended by L to form a 2D layer.
Topologically, if the Co(II) ions are considered as 5- and 6-connected nodes and the SDA2− ligands as 2- and 4-connected nodes, while the L ligands are regarded as linkers, the structure of 4 can be simplified as a 2,4,5,6-connected 2D net with the (32·4·5·65·7)(32·42·52·63·72·84)(32·62·72)(4) topology, showing cycle self-crossings (standard representation with 2-connected nodes), as shown in Figure 5b. If the 2-connected nodes of the SDA2− ligands are considered as linkers, the structure of 4 can be simplified as a 4,5-connected 2D net with the (32·42·66)2(32·62·72) topology with crossing edges (standard representation without 2-connected nodes), as shown in Figure 5c. If the Co(II) dinuclear units are considered as 7-connected nodes and the SDA2− ligands as 2-connected nodes, while the L ligands are regarded as linkers, the structure of 4 can be simplified as a 2,2,7-connected 2D net with the (43·55·68·84·10)(4)(6) topology (cluster representation with 2-connected nodes), as shown in Figure 5d. If the SDA2− ligands are further considered as linkers, the structure of 4 can be simplified as a 6-connected 2D net with the (414·6)-6L12 topology (cluster representation without 2-connected nodes) (Figure 5e). Complex 4 can thus be considered as a self-catenated CP.
Complexes 1–4 represent a unique example of four Co(II) CPs with L and SDA2− ligands that have been structurally characterized. For a comparison, it is interesting to note that five Cd(II) CPs containing 1,4-bis(2-methyl-imidazol-1-yl)butane and 5-bromoisophthalate ligands have been reported [21].
2.6. Ligand Conformations and Coordination Modes
For the ligand N,N’-bis(3-Pyridylmethyl)oxalamide (L), the positions of the two C=O groups can be distinguished as trans or cis. When the two groups of C=O groups show opposite directions, they are defined as trans, and when they show the same direction, they are cis. Because of the different orientations adopted by the pyridyl nitrogen atoms and the amide oxygen atoms, three more conformations can be expressed as anti–anti, syn–anti, and syn–syn. Accordingly, the ligand conformations of L in 1–4 are listed in Table 2, along with the coordination modes of the SDA2− ligands. Moreover, while the L ligands in 1–4 coordinate to the metal centers through the two pyridyl nitrogen atoms, the SDA2− ligands bridge two and four metal atoms.
2.7. Powder X-ray Analysis
In order to check the bulk purities of the products, powder X-ray diffraction (PXRD) experiments were carried out for complexes 1–4. As shown in Figures S1–S4, the peak positions of the experimental and simulated PXRD patterns are in agreement with each other, which demonstrate that the crystal structures are truly representative of the bulk materials.
2.8. Thermal Properties
Thermal gravimetric analysis (TGA) was carried out to examine the thermal decomposition of the four complexes. The samples were recorded from about 30 to 800 °C at 10 °C min−1 under a N2 atmosphere, Table 3 and Figures S5–S8. Two-step decomposition was observed for the complexes, revealing that the decomposition temperatures for the frameworks of complexes 1–4 are in the range of 200–300 °C.
2.9. Chemical Stabilities
To check the chemical stabilities of complexes 1–4 in the various solvents, 10 mg of each complex was immersed in 10 mL of methanol (MeOH), ethanol (EtOH), ether, hexane, tetrahydrofuran (THF), acetonitrile (ACN), dichloromethane (DCM), dimethylacetamide (DMAC), and dimethylformamide (DMF), respectively, for a week, and then filtered and dried at room temperature. The PXRD patterns (Figures S9–S12) show that complex 4 is unstable in all of the solvents, complex 1 is stable in EtOH, ACN, and DCM, complex 2 is stable in ether, hexane, and ACN, and complex 3 is stable in EtOH, ether, hexane, THF, ACN, and DCM, indicating that the structural diversity is important in determining the chemical stability of Co(II) CPs comprising L and SDA2− ligands.
2.10. Attempts for Structural Transformation
Complexes 1–4 provide an opportunity for an investigation of structural transformation due to the solvent exchange because they comprise the same metal centers and organic ligands with different metal-to-ligand ratios. To investigate the structural transformations, complexes 1–4 were first heated to 110, 130, 170, and 130 °C, respectively, for two hours to obtain fully desolvated samples. Figure S13 depicts the colors of these complexes before and after heating. The PXRD patterns (Figures S14–S17) demonstrate that the structures of these desolvated complexes were different from the original ones upon the removal of the crystallized solvents. Moreover, the desolvated product of 1 shows reversible structural transformations in MeOH, EtOH, and ACN, and that of 2 shows reversible structural transformations in the ether and DMAc solution. However, the desolvated samples of 3 and 4 in the solvents remained intact.
Complexes 1, 3, and 4 were all soluble in water, while complex 2 was slightly soluble in water. To investigate the stabilities of these complexes in water, complexes 1–4 were immersed in water for 2 days, and then the water was evaporated to obtain the solid samples. Their PXRD patterns and photos (Figure 6 and Figure 7) show that complexes 1, 3, and 4 and part of complex 2 were probably transformed into the same new complex. Their IR spectra confirm this change (Figure S18). Figure 7 depicts a drawing that summarizes the reaction pathways and colors of the complexes.
3. Experimental Section
3.1. General Procedures
Elemental analyses were performed on a PE 2400 series II CHNS/O elemental analyzer (PerkinElmer instruments, Shelton, CT, USA). Infrared spectra were obtained from a JASCO FT/IR-460 plus spectrometer with pressed KBr pellets (JASCO, Easton, MD, USA). Powder X-ray diffraction patterns were carried out with a Bruker D8-Focus Bragg–Brentano X-ray powder diffractometer equipped with a CuKα (λα = 1.54178 Å) radiation (Bruker Corporation, Karlsruhe, Germany). Thermal gravimetric analyses (TGA) were carried out on a TG/DTA 6200 analyzer (SEIKO Instruments Inc., Chiba, Japan).
3.2. Materials
The reagent Co(OAc)2·4H2O was purchased from Alfa Aesar (Ward Hill, MA, USA), and the H2SDA from Aldrich Chemical Co. (St. Louis, MO, USA). The ligand N,N’-di(3-methylpyridyl)oxalamide (L) was prepared according to a published procedure [20].
3.3. Preparations
3.3.1. {[Co(L)(SDA)(H2O)2]·H2O·CH3OH}n, 1
A mixture of Co(OAc)2·4H2O (0.050 g, 0.20 mmol), L (0.027 g, 0.10 mmol), and H2SDA (0.031, 0.10 mmol) was placed in a 23 mL Teflon reaction flask containing 8 mL H2O and 2 mL MeOH, which was sealed and heated at 80 °C for 48 h under autogenous pressure. Then, the reaction system was cooled to room temperature at a rate of 2 °C per hour. Dark pink crystals suitable for single-crystal X-ray diffraction were obtained. Yield: 0.049 g (34%). Anal. Calcd for C29H32CoN4O12S (MW = 719.57): C, 48.40; H, 4.48; N, 7.79%. Found: C, 48.31; H, 4.11; N, 8.04%. FT-IR (cm−1): 3677 (m), 3504 (N-H, m), 3327 (w), 3060 (w), 1663 (C=O, s), 1599 (s), 1557 (m), 1512 (m), 1385 (s), 1295 (m), 1159 (s), 1102 (m), and 1036 (w) (Figure S19).
3.3.2. {[Co(L)0.5(SDA)]·2H2O·0.5L}n, 2
Complex 2 was prepared by following similar procedures as for 1, except that a mixture of Co(OAc)2·4H2O (0.050 g, 0.20 mmol), L (0.054 g, 0.20 mmol), and H2SDA (0.031, 0.10 mmol) in 10 mL H2O was heated at 80 °C for 96 h. Indigo crystals were obtained. Yield: 0.035 g (26%). Anal. Calcd for C28H26CoN4O10S (MW = 669.52): C, 50.23; H, 3.91; N, 8.37%. Found: C, 50.50; H, 3.73; N, 8.29%. FT-IR (cm−1): 3504 (N-H, m), 3048 (w), 2944 (w), 1654 (C=O, s), 1597 (s), 1507 (s), 1404 (s), 1291 (m), 1227 (m), 1168 (m), 1103 (m), and 1034 (m) (Figure S20).
3.3.3. {[Co(L)1.5(SDA)(H2O)]·H2O}n, 3
Complex 3 was prepared by following similar procedures as for 1, except that a mixture of Co(OAc)2·4H2O (0.050 g, 0.20 mmol), L (0.054 g, 0.20 mmol), and H2SDA (0.031, 0.10 mmol) in 10 mL H2O was heated at 60 oC for 48 h. Dark pink crystals were obtained. Yield: 0.039 g (28%). Anal. Calcd for C35H33CoN6O11S (MW = 804.66): C, 52.24; H, 4.13; N, 10.44%. Found: C, 52.31; H, 3.94; N, 10.27%. FT-IR (cm−1): 3501 (N-H, w), 3394 (w), 3333 (w), 3275 (w), 1658 (C=O, s), 1599 (s), 1512 (s), 1393 (m), 1382 (m), 1102 (m), and 1034 (m) (Figure S21).
3.3.4. {[Co2(L)1.5(SDA)2(H2O)2]·4H2O}, 4
Complex 4 was prepared by following similar procedures as for 1, except that a mixture of Co(OAc)2·4H2O (0.050 g, 0.20 mmol), L (0.027 g, 0.10 mmol), and H2SDA (0.031, 0.10 mmol) in 10 mL H2O was heated at 80 °C for 96 h. Violet crystals were obtained. Yield: 0.022 g (17%). Anal. Calcd for C49H49Co2N6O21S2 (MW = 1239.92): C, 47.46; H, 3.98; N, 6.78%. Found: C, 47.77; H, 3.69; N, 6.80%. FT-IR (cm−1): 3503 (N-H, w), 3255 (w), 2816 (w), 1662 (C=O, w), 1596 (s), 1514 (m), 1384 (m), 1351 (w), 1292 (m), 1228 (w), 1160 (m), 1100 (m), and 1034 (w) (Figure S22).
3.4. X-ray Crystallography
The single-crystal X-ray data of complexes 1–4 were collected using a Bruker AXS SMART APEX II CCD diffractometer equipped with graphite-monochromated MoKα radiation (0.71073 Å). They were then reduced using standard methods [22], followed by empirical absorption corrections based on a “multi-scan”. The direct or Patterson method was adopted to locate the positions of some of the heavier atoms, and the remaining atoms were established in a series of alternating difference Fourier maps and least-square refinements. Excluding the hydrogen atoms of the water molecules, those of the others were added by using the HADD command in SHELXTL 6.1012 [23]. Table 4 lists the crystal and structure refinement parameters for 1–4. CCDC Nos. 2330673–2330676 contain the supplementary crystallographic data for this paper. These data can be obtained free of charge via http://www.ccdc.cam.ac.uk (accessed on 4 March 2024) or from the Cambridge Crystallographic Data Centre, 12 Union Road, Cambridge CB2 1EZ, UK; fax: +44-1223-336-033; e-mail: [email protected].
4. Conclusions
By careful evaluation of the metal-to-ligand ratio, solvent system, and reaction temperature, four diverse CPs constructed from Co(II) salts, N‚N’-bis(3-pyridylmethyl)oxalamide (L), and 4,4′-sulfonyldibenzoic acid (H2SDA) were successfully obtained, displaying 2D layers with the sql, 2,6L1, (4,4)Ia, and 6L12 topologies, respectively. It has also been shown that the structural diversity is important in determining the chemical stabilities of complexes 1–4. Reversible structural transformations were observed for complexes 1 and 2 upon solvent removal and adsorption, while those of 3 and 4 were irreversible. Moreover, complexes 1–4 decompose in water and may result in an identical product.
Supplementary Materials
The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules29081748/s1. PXRD patterns of complexes 1–4 (Figures S1–S4, Figures S9–S12 and Figures S14–S17). TGA curves of complexes 1–4 (Figures S5–S8). Photos of complexes 1–4 (Figure S13). IR spectra of complexes 1–4 (Figures S18–S22).
Author Contributions
Investigation, C.-Y.L.; data curation, Y.-H.Y. and S.-W.W.; review and supervision, J.-D.C. All authors have read and agreed to the published version of the manuscript.
Funding
This research was funded by the National Science and Technology Council of the Republic of China: NSTC 112-2113-M-033-004.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
The data are contained within the article or Supplementary Materials.
Acknowledgments
We are grateful to the National Science and Technology Council of the Republic of China for their support.
Conflicts of Interest
The authors declare no conflicts of interest.
References
- Tiekink, E.R.; Vittal, J.J. Frontiers in Crystal Engineering; John Wiley & Sons: Chichester, UK, 2006. [Google Scholar]
- Batten, S.R.; Neville, S.M.; Turner, D.R. Coordination Polymers Design, Analysis and Application; The Royal Society of Chemistry: London, UK, 2009. [Google Scholar]
- Lustig, W.P.; Mukherjee, S.; Rudd, N.D.; Desai, A.V.; Li, J.; Ghosh, S.K. Metal-organic frameworks: Functional luminescent and photonic materials for sensing applications. Chem. Soc. Rev. 2017, 46, 3242–3285. [Google Scholar] [CrossRef]
- Shi, Y.X.; Zhang, W.H.; Abrahams, B.F.; Braunstein, P.; Lang, J.P. Fabrication of Photoactuators: Macroscopic Photomechanical Responses of Metal-Organic Frameworks to Irradiation by UV Light. Angew. Chem. Int. Ed. 2019, 58, 9453–9458. [Google Scholar] [CrossRef] [PubMed]
- Shi, Y.X.; Chen, H.H.; Zhang, W.H.; Day, G.S.; Lang, J.P.; Zhou, H.C. Photoinduced nonlinear contraction behavior in metalorganic frameworks. Chem. Eur. J. 2019, 25, 8543–8549. [Google Scholar] [CrossRef] [PubMed]
- Wales, D.J.; Grand, J.; Ting, V.P.; Burke, R.D.; Edler, K.J.; Bowen, C.R.; Mintova, S.; Burrows, A.D. Gas sensing using porous materials for automotive applications. Chem. Soc. Rev. 2015, 44, 4290–4321. [Google Scholar] [CrossRef] [PubMed]
- Li, B.; Wen, H.-M.; Cui, Y.; Zhou, W.; Qian, G.; Chen, B. Emerging Multifunctional Metal-Organic Framework Materials. Adv. Mater. 2016, 28, 8819–8860. [Google Scholar] [CrossRef] [PubMed]
- Pamela, B.S.; Chen, H.-T.; Lin, C.-H. De novo synthesis and particle size control of iron metal organic framework for diclofenac drug delivery. Microporous Mesoporous Mater. 2020, 309, 110495. [Google Scholar]
- Ma, L.; Abney, C.; Lin, W. Enantioselective catalysis with homochiral metal–organic frameworks. Chem. Soc. Rev. 2009, 38, 1248–1256. [Google Scholar] [CrossRef] [PubMed]
- Pamei, M.; Puzari, A. Luminescent transition metal–organic frameworks: An emerging sensor for detecting biologically essential metal ions. Nano-Struct. Nano-Objects 2019, 19, 100364. [Google Scholar] [CrossRef]
- Vittal, J.J. Supramolecular structural transformations involving coordination polymers in the solid state. Coord. Chem. Rev. 2007, 251, 1781–1795. [Google Scholar] [CrossRef]
- Kole, G.K.; Vittal, J.J. Solid-state reactivity and structural transformations involving coordination polymers. Chem. Soc. Rev. 2013, 42, 1755–1775. [Google Scholar] [CrossRef] [PubMed]
- Chakraborty, S.; Park, I.-H.; Medishetty, R.; Vittal, J.J. Two-Dimensional Metal-Organic Framework Materials: Synthesis, Structures, Properties and Applications. Chem. Rev. 2021, 121, 3751–3891. [Google Scholar] [CrossRef] [PubMed]
- Liu, Y.-F.; Hu, J.-H.; Lee, W.-T.; Yang, X.-K.; Chen, J.-D. Structural Transformations of Cobalt(II) Coordination Polymers Constructed from N,N’-Di-3-pyridyladipoamide and Tetracarboxylic Acids: Disentanglement upon Water Coordination. Cryst. Growth Des. 2020, 20, 7211–7218. [Google Scholar] [CrossRef]
- Yang, X.-K.; Chen, J.-D. Crystal-to-crystal transformation and linker exchange in Cd(II) coordination polymers based on flexible bis-pyridyl-bis-amide and 1,4-naphthalenedicarboxylate. Cryst. Eng. Comm. 2019, 21, 7437–7446. [Google Scholar] [CrossRef]
- Hsu, C.-H.; Huang, W.-C.; Yang, X.-K.; Yang, C.-T.; Chhetri, P.M.; Chen, J.-D. Entanglement and Irreversible Structural Transformation in Co(II) Coordination Polymers Based on Isomeric Bis-pyridyl-bis-amide Ligands. Cryst. Growth Des. 2019, 19, 1728–1737. [Google Scholar] [CrossRef]
- Schauer, C.L.; Matwey, E.; Fowler, F.W.; Lauher, J.W. Controlled Spacing of Metal Atoms via Ligand Hydrogen Bonds. J. Am. Chem. Soc. 1997, 119, 10245–10246. [Google Scholar] [CrossRef]
- Wilhelm, C.; Boyd, S.A.; Chawda, S.; Fowler, F.W.; Goroff, N.S.; Halada, G.P.; Grey, C.P.; Lauher, J.W.; Luo, L.; Martin, C.D.; et al. Pressure-Induced Polymerization of Diiodobutadiyne in Assembled Cocrystals. J. Am. Chem. Soc. 2008, 130, 4415–4420. [Google Scholar] [CrossRef] [PubMed]
- Blatov, V.A.; Shevchenko, A.P.; Proserpio, D.M. Applied topological analysis of crystal structures with the program package ToposPro. Cryst. Growth Des. 2014, 14, 3576–3586. [Google Scholar] [CrossRef]
- Lee, W.-T.; Liao, T.-T.; Chen, J.-D. Nickel (II) Coordination Polymers Supported by Bis-pyridyl-bis-amide and Angular Dicarboxylate Ligands: Role of Ligand Flexibility in Iodine Adsorption. Int. J. Mol. Sci. 2022, 23, 3603. [Google Scholar] [CrossRef] [PubMed]
- Hou, Y.-F.; Liu, B.; Yue, K.-F.; Zhou, C.-S.; Wang, Y.-M.; Yan, N.; Wang, Y.-Y. Five solvent-induced cadmium coordination polymers (CPs) based on the same mixed ligands. Cryst. Eng. Comm. 2014, 16, 9560–9567. [Google Scholar] [CrossRef]
- Bruker AXS Inc. APEX2, V2008.6, SADABS V2008/1, SAINT V7.60A, SHELXTL V6.14; Bruker AXS Inc.: Madison, WI, USA, 2008. [Google Scholar]
- Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8. [Google Scholar]

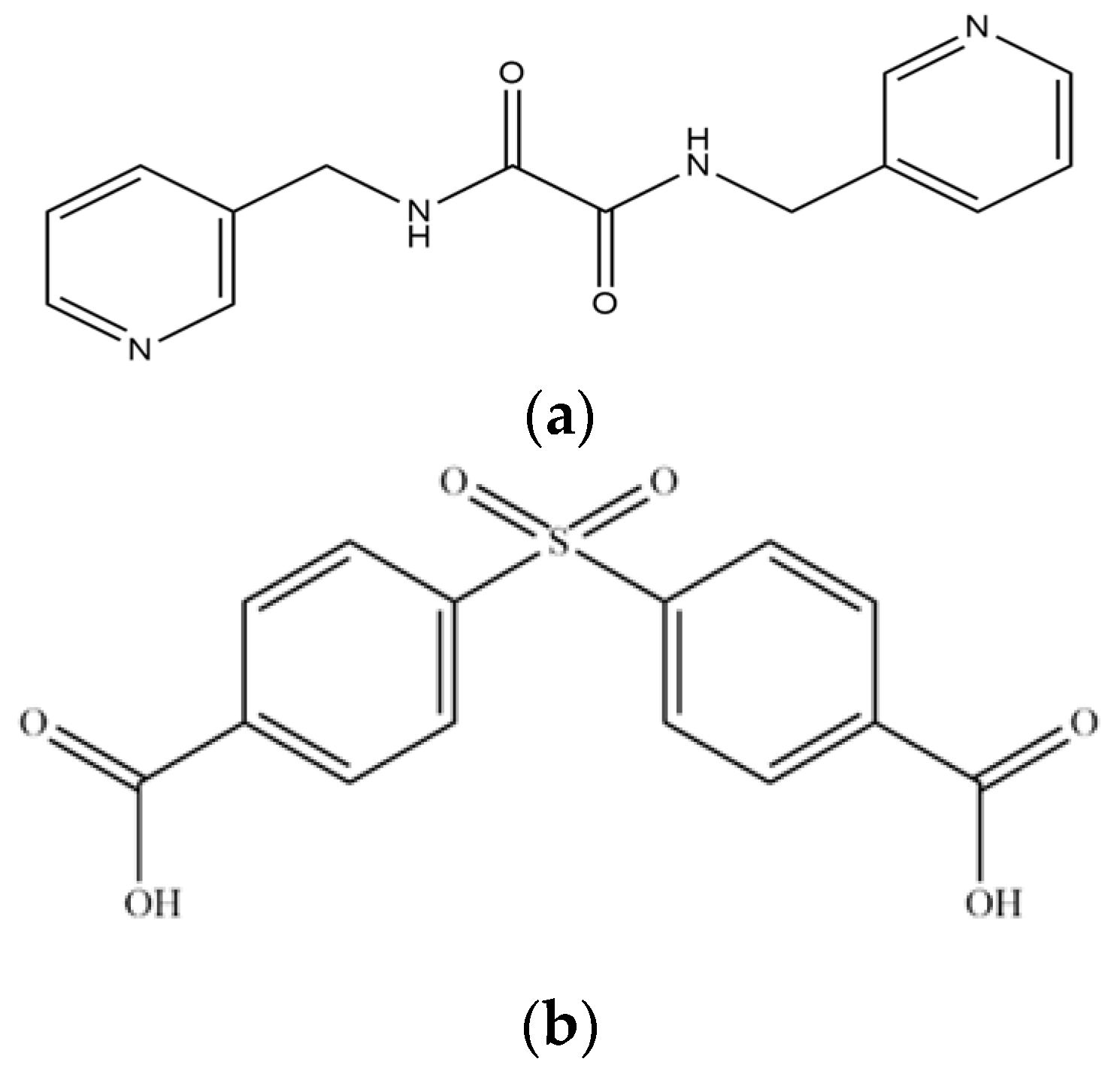

Figure 1.
Structures of (a) L and (b) H2SDA.
Figure 2.

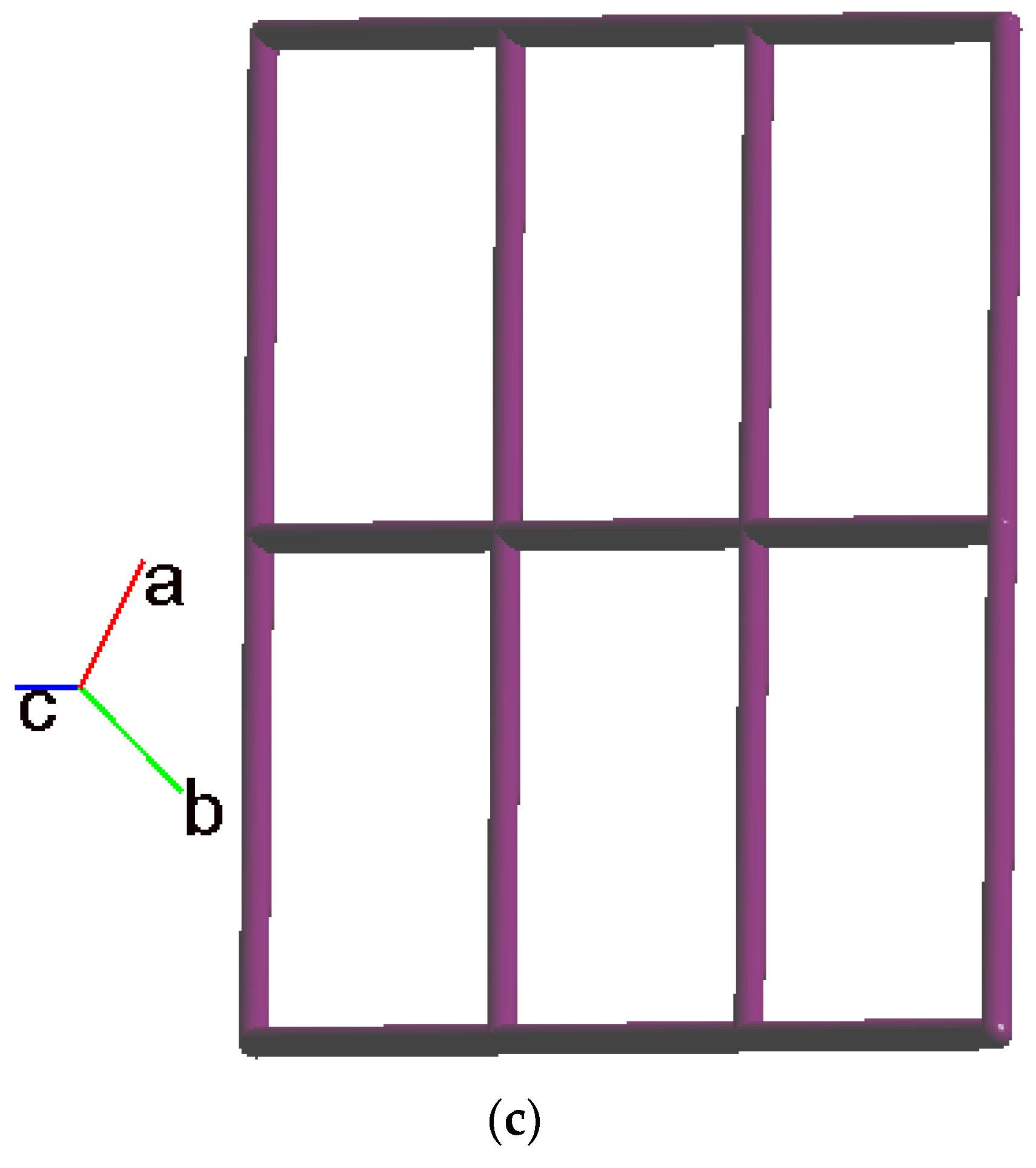

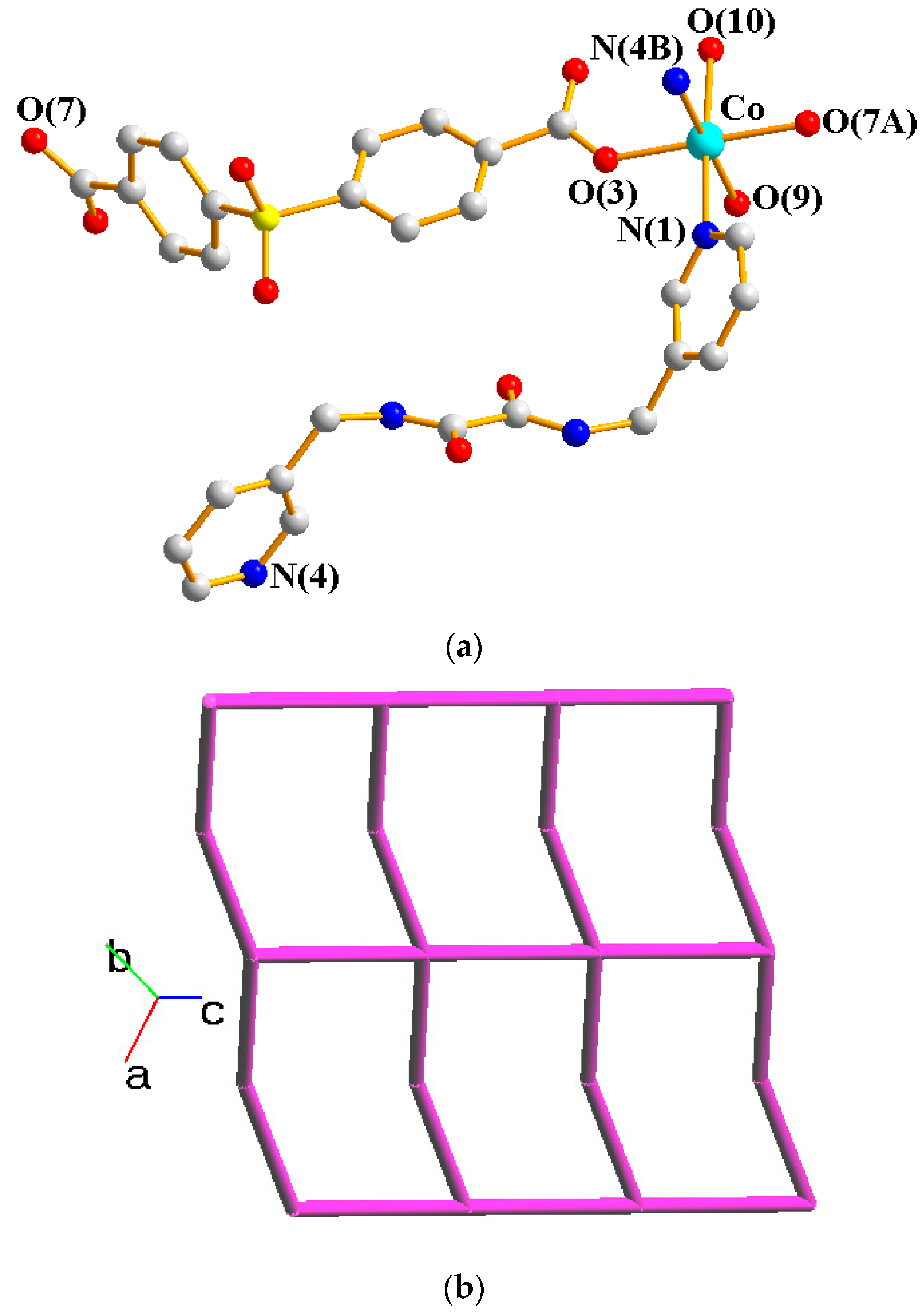

(a) Coordination environment of Co(II) ion in 1. Symmetry transformations used to generate equivalent atoms: (A) x − 1, y, z − 1; (B) x, y, z − 1. (b) Topological structure of 1 with the (64·8·10)(6)-2,4L3 topology. (c) Topological structure of 1 with the (44·62)-sql topology.
Figure 2.
(a) Coordination environment of Co(II) ion in 1. Symmetry transformations used to generate equivalent atoms: (A) x − 1, y, z − 1; (B) x, y, z − 1. (b) Topological structure of 1 with the (64·8·10)(6)-2,4L3 topology. (c) Topological structure of 1 with the (44·62)-sql topology.
Figure 3.

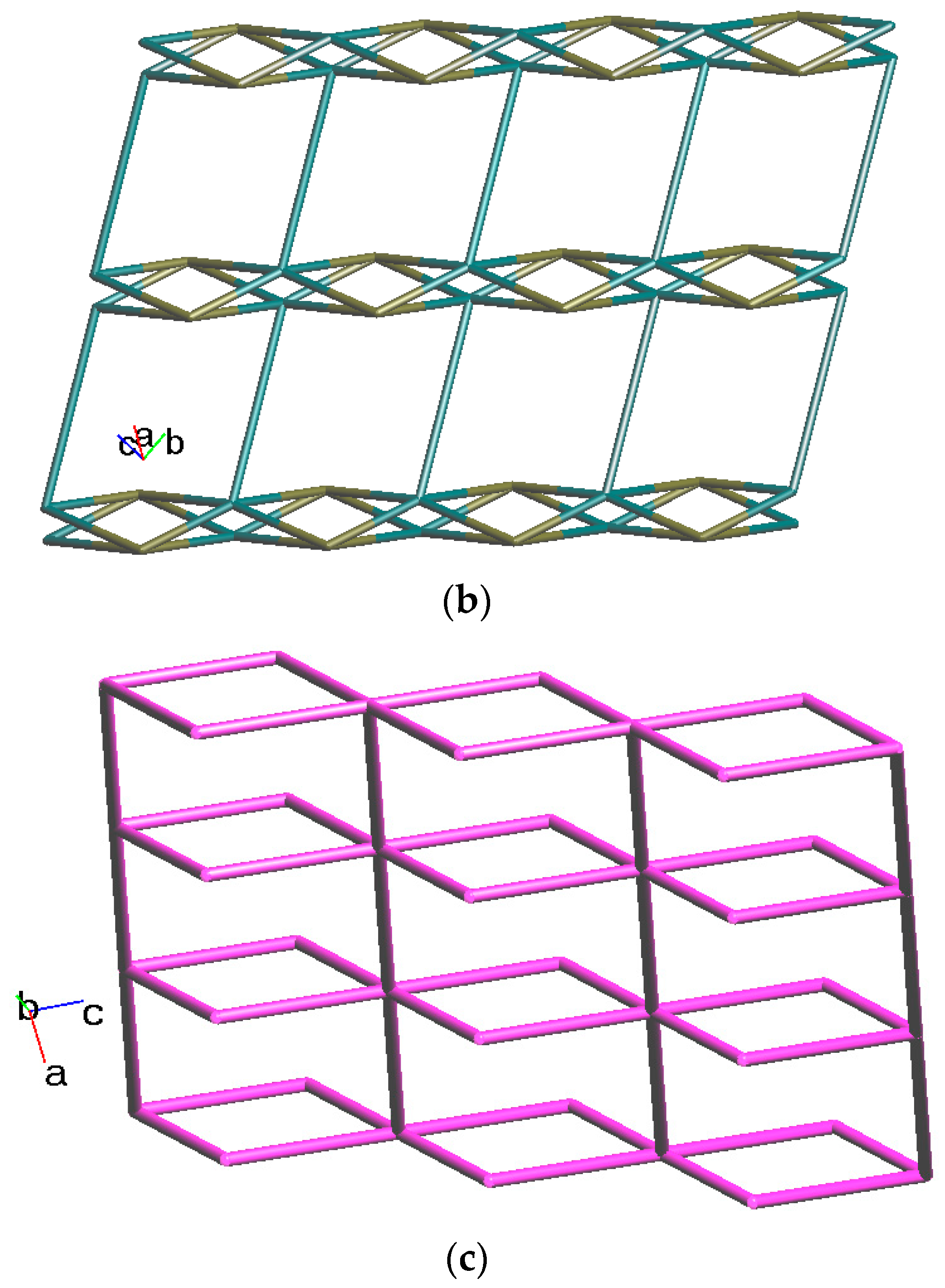

(a) Coordination environment of Co(II) ion in 2. Symmetry transformations used to generate equivalent atoms: (A) x, y + 1, z − 1; (B) −x, -y, −z + 2; (C) −x, −y + 1, −z + 1; (D) −x + 1, −y + 2, −z + 1. (b) Topological structure of 2 showing the (46·64)(46)- 4,5L51 topology. (c) Topological structure of 2 showing the (42·68·8·104)(4)2-2,6L1 topology.
Figure 3.
(a) Coordination environment of Co(II) ion in 2. Symmetry transformations used to generate equivalent atoms: (A) x, y + 1, z − 1; (B) −x, -y, −z + 2; (C) −x, −y + 1, −z + 1; (D) −x + 1, −y + 2, −z + 1. (b) Topological structure of 2 showing the (46·64)(46)- 4,5L51 topology. (c) Topological structure of 2 showing the (42·68·8·104)(4)2-2,6L1 topology.
Figure 4.

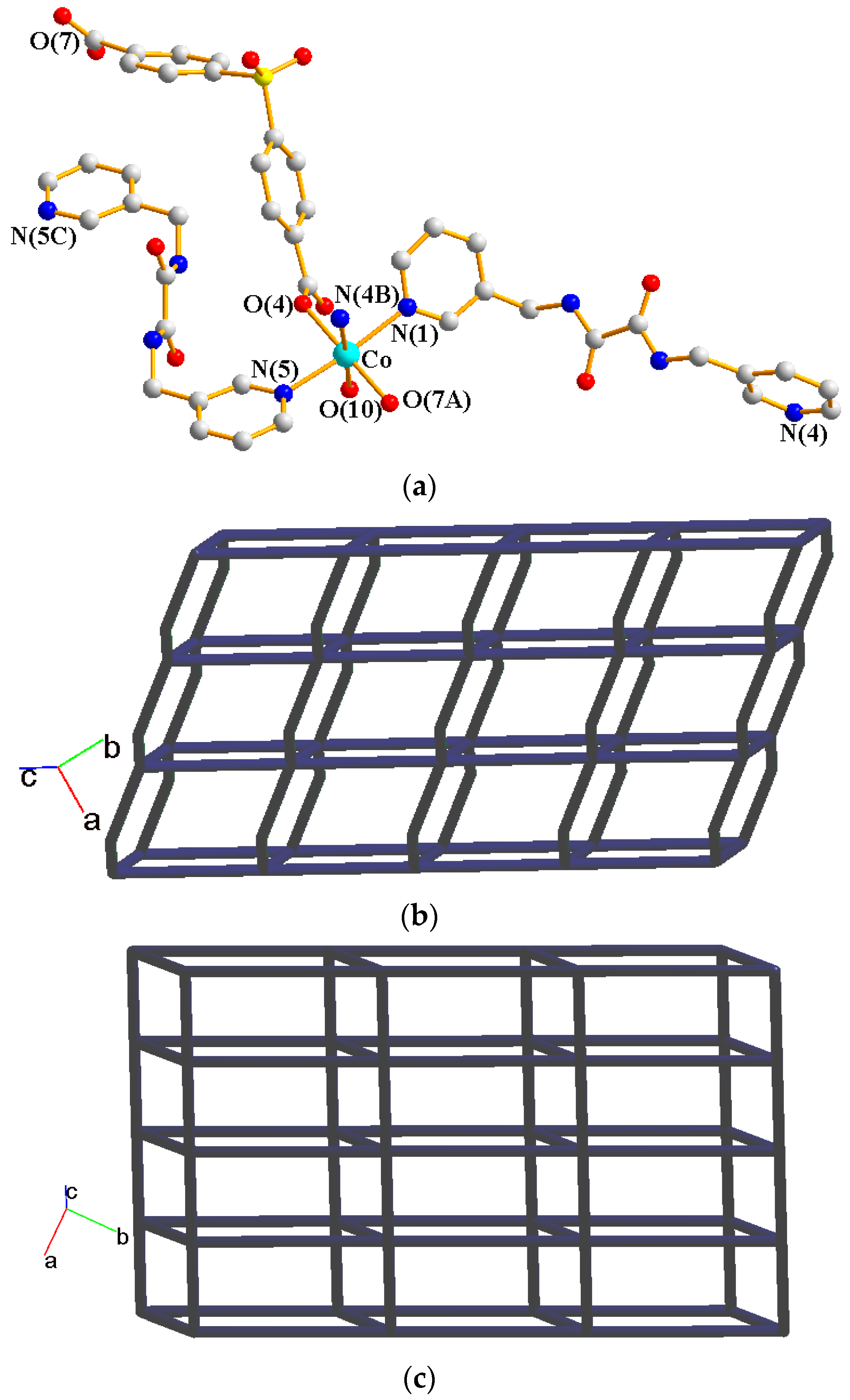

(a) Coordination environment of Co(II) ion in 3. Symmetry transformations used to generate equivalent atoms: (A) x, y + 1, z + 1; (B) x, y, z − 1; (C) −x + 1, −y + 2, −z. (b) Topological structure of 3 with the (42·67·10)(6) topology. (c) Topological structure of 3 with the (48·62)-(4,4)Ia topology.
Figure 4.
(a) Coordination environment of Co(II) ion in 3. Symmetry transformations used to generate equivalent atoms: (A) x, y + 1, z + 1; (B) x, y, z − 1; (C) −x + 1, −y + 2, −z. (b) Topological structure of 3 with the (42·67·10)(6) topology. (c) Topological structure of 3 with the (48·62)-(4,4)Ia topology.
Figure 5.

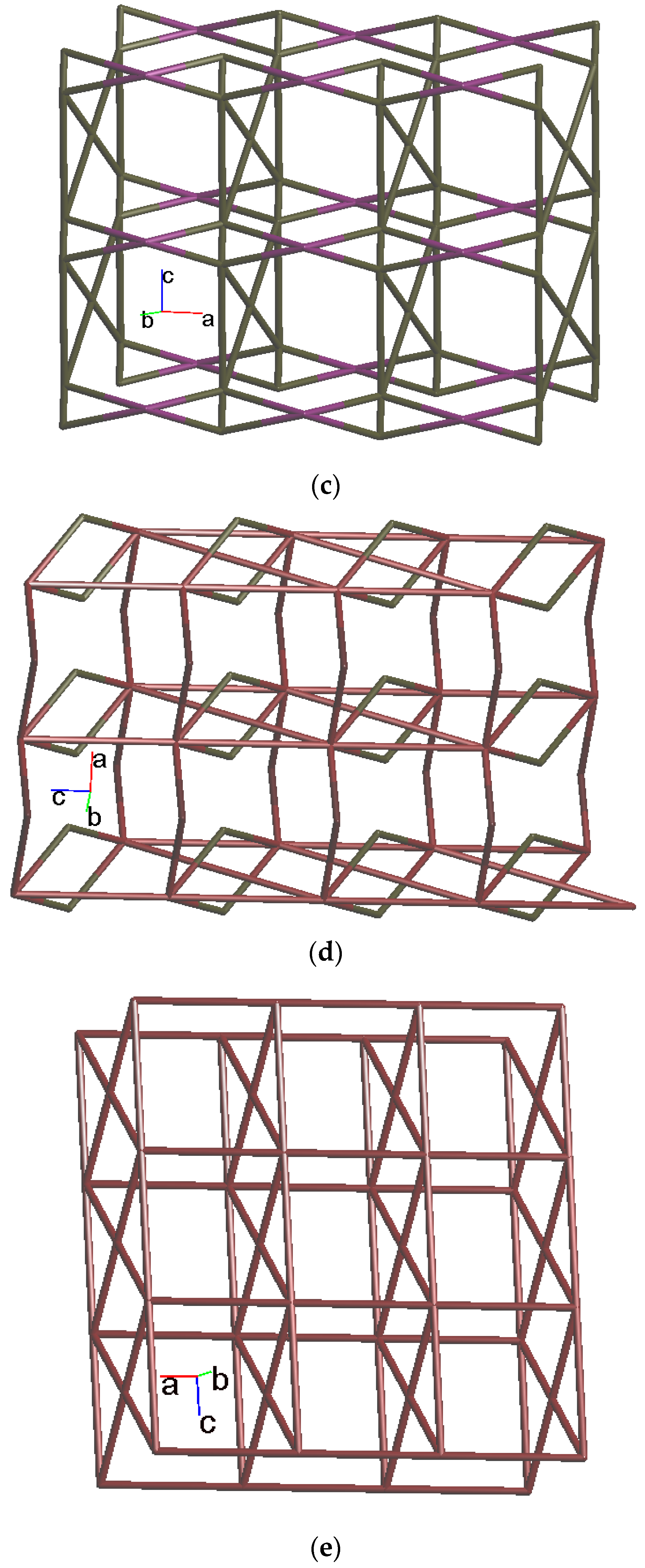

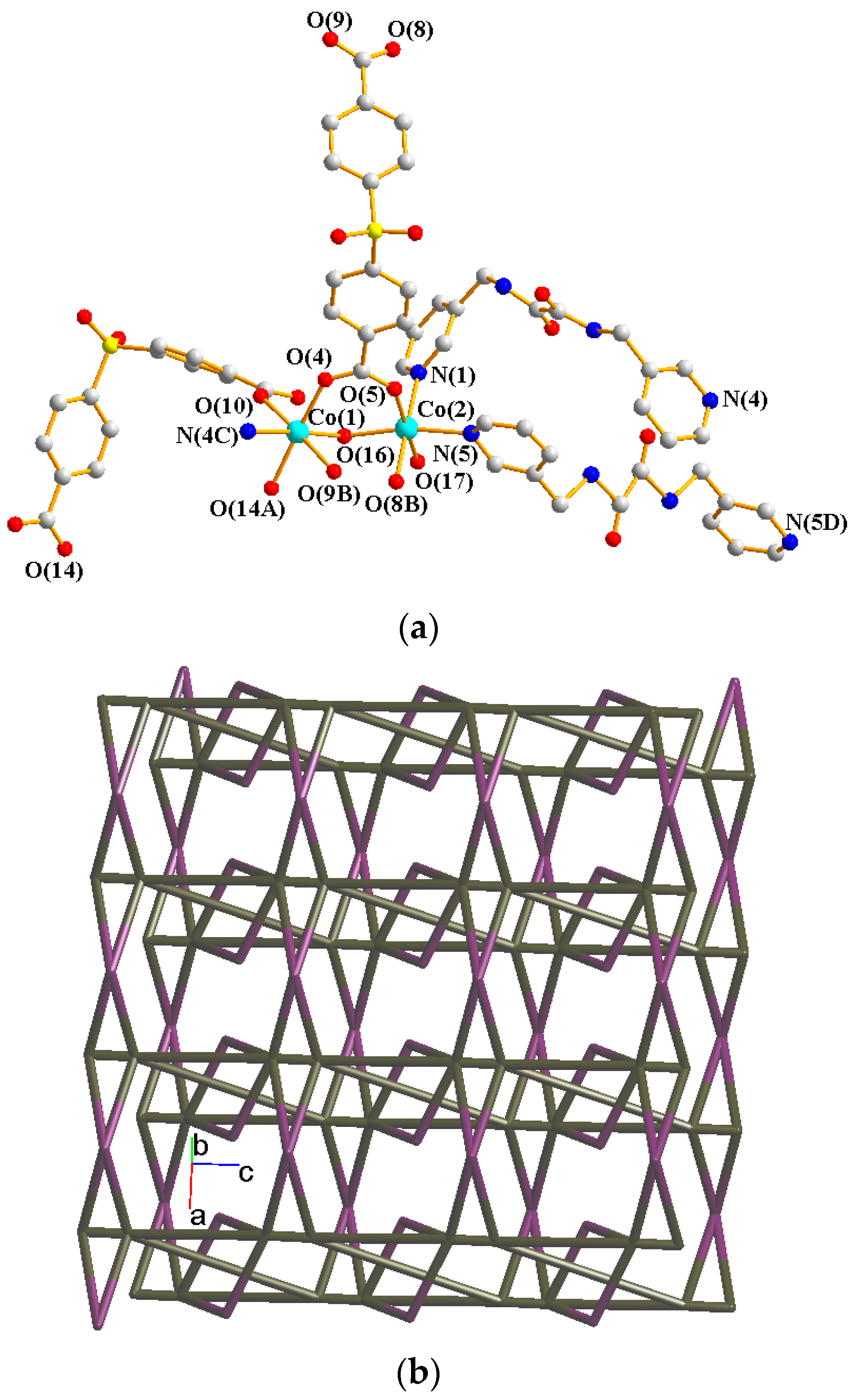

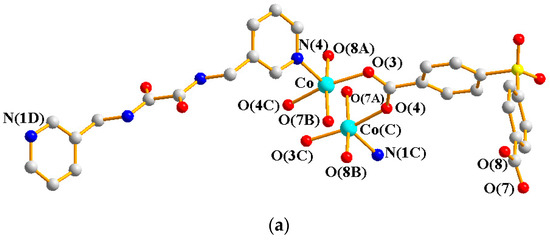

(a) Coordination environment of Co(II) ion in 4. Symmetry transformations used to generate equivalent atoms: (A) −x + 2, −y + 1, −z − 1; (B) x + 1, y, z; (C) x, y, z − 1; (D) −x + 2, −y + 1, −z + 1. (b) Topological structure with the (32·4·5·65·7)(32·42·52·63·72·84)(32·62·72)(4) topology. (c) Topological structure with the (32·42·66)2(32·62·72) topology. (d) Topological structure with the (43·55·68·84·10)(4)(6) topology. (e) Topological structure with the (414·6)- 6L12 topology.
Figure 5.
(a) Coordination environment of Co(II) ion in 4. Symmetry transformations used to generate equivalent atoms: (A) −x + 2, −y + 1, −z − 1; (B) x + 1, y, z; (C) x, y, z − 1; (D) −x + 2, −y + 1, −z + 1. (b) Topological structure with the (32·4·5·65·7)(32·42·52·63·72·84)(32·62·72)(4) topology. (c) Topological structure with the (32·42·66)2(32·62·72) topology. (d) Topological structure with the (43·55·68·84·10)(4)(6) topology. (e) Topological structure with the (414·6)- 6L12 topology.

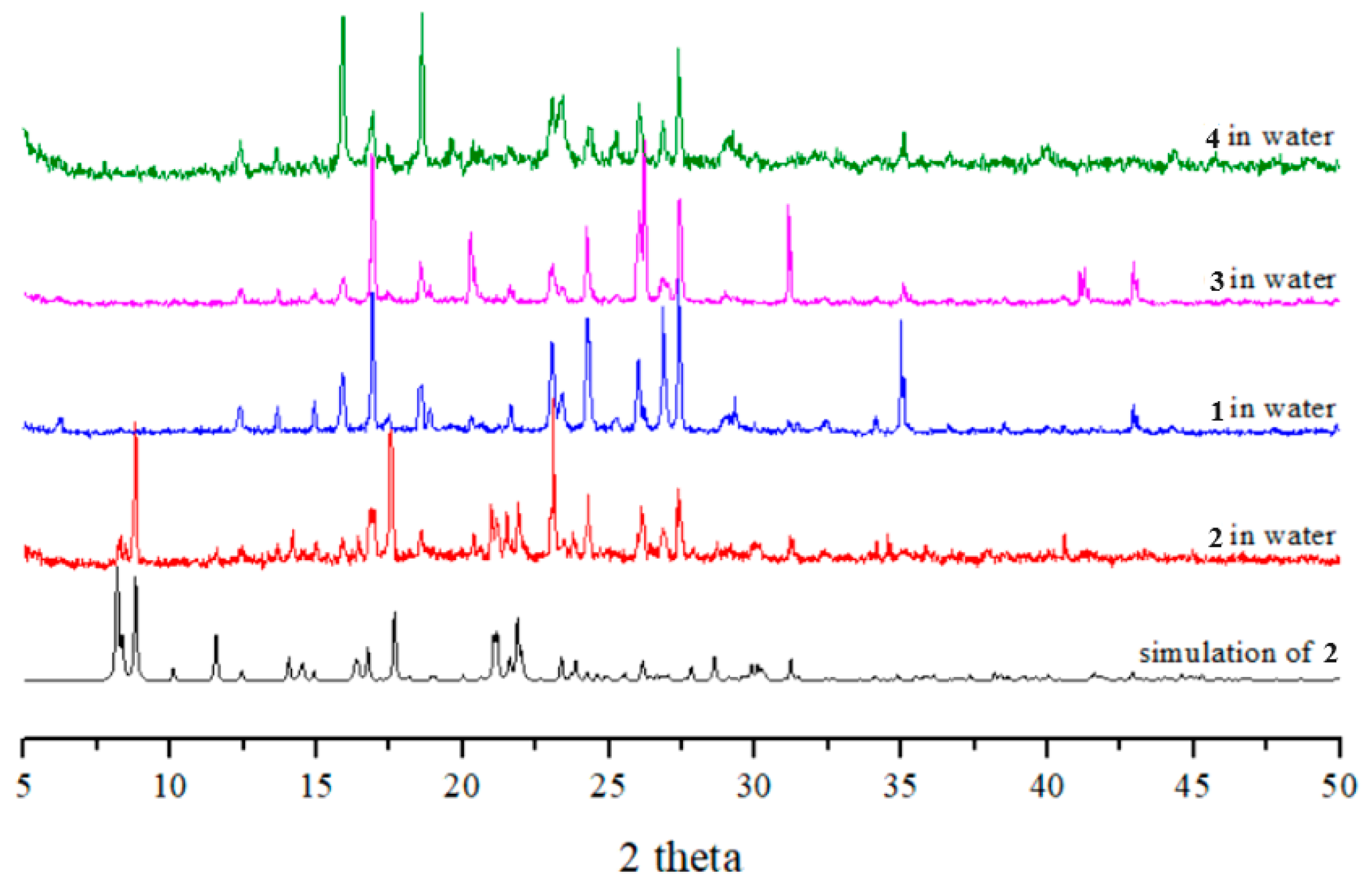

Figure 6.
PXRD patterns and photos of complexes 1–4 after immersion in water.

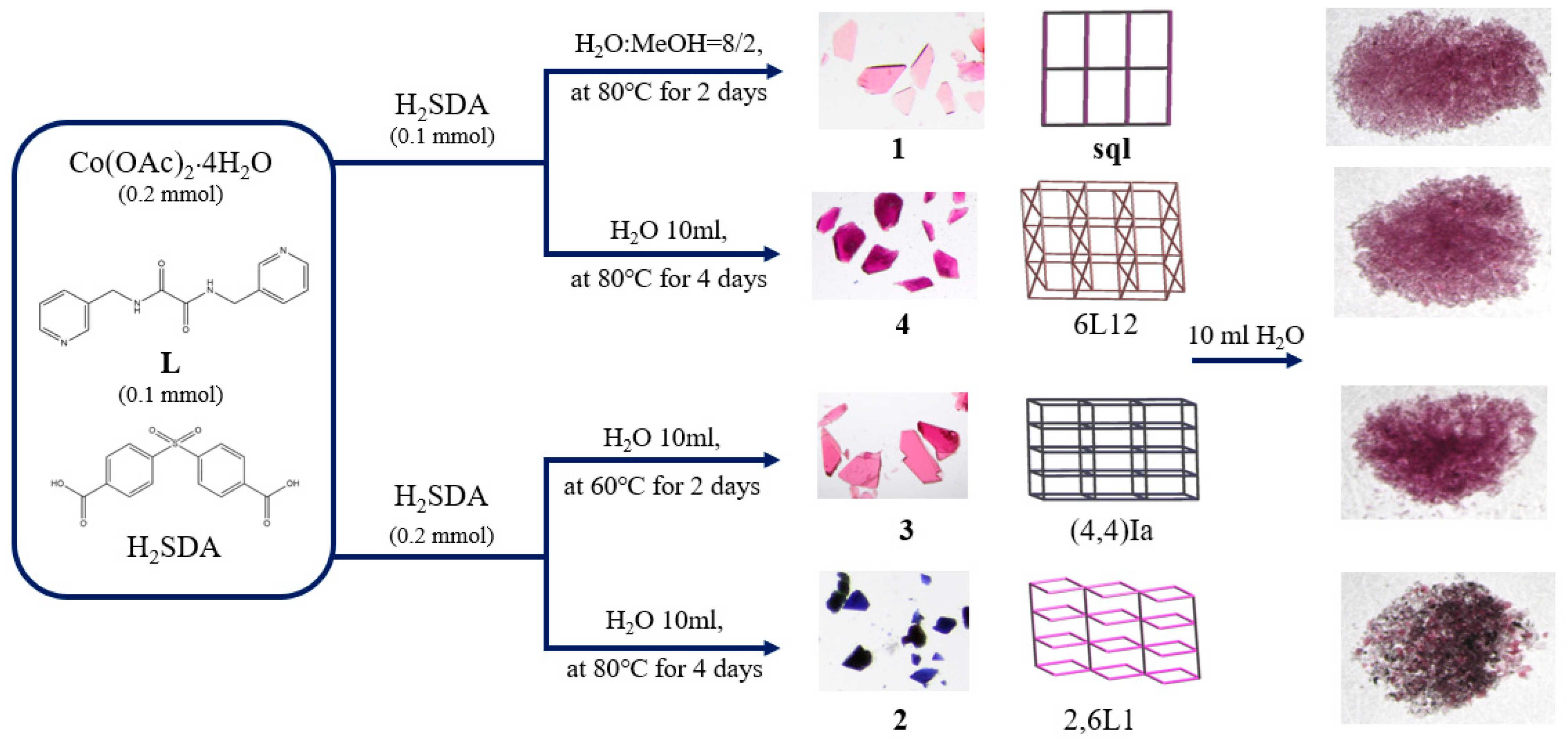

Figure 7.
