Detection of Adulterated Naodesheng Tablet (Naodesheng Pian) via In-Depth Chemical Analysis and Subsequent Reconstruction of Its Pharmacopoeia Q-Markers

by
Chunhou Li
1,†,
Xican Li
1,*,†,
Jingyuan Zeng
1,
Rongxin Cai
1,2,
Shaoman Chen
1,
Ban Chen
3 and
Xiaojun Zhao
1
1
School of Chinese Herbal Medicine, Guangzhou Higher Education Mega Center, Guangzhou University of Chinese Medicine, Waihuang East Road No. 232, Guangzhou 510006, China
2
College of Pharmacy, Chengdu University of Traditional Chinese Medicine, Chengdu 611137, China
3
Key Laboratory of Fermentation Engineering, Cooperative Innovation Center of Industrial Fermentation, Ministry of Education & Hubei Province, Hubei University of Technology, Wuhan 430068, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2024, 29(6), 1392; https://doi.org/10.3390/molecules29061392
Submission received: 27 January 2024 / Revised: 12 March 2024 / Accepted: 18 March 2024 / Published: 20 March 2024
Browse Figures
Review Reports Versions Notes

Abstract

:
Naodesheng Tablet (Naodesheng Pian), a traditional Chinese medicine formula for stroke treatment, is made up of five herbal medicines, i.e., Sanqi, Gegen, Honghua, Shanzha, and Chuanxiong. However, the current Pharmacopoeia quality-marker (Q-marker) system cannot detect possible adulteration. Our study tried to use a new strategy, i.e., standards-library-dependent ultra-high-performance liquid chromatography-quadrupole-Orbitrap mass spectrometry (UHPLC-Q-Orbitrap MS/MS) putative identification, to reconstruct the Q-marker system. Through the strategy, 30 isomers were successfully differentiated (such as 2′-hydroxygenistein, luteolin, and kaempferol; ginsenoside Rg2 and ginsenoside Rg3; ginsenoside Rf and ginsenoside Rg1). In particular, 11 compounds were unexpectedly found in Naodesheng, including 2′-hydroxygenistein, 7,4′-dihydroxyflavone, pectolinarigenin, 7-methoxy-4′-hydroxyisoflavone, scoparone, matrine, 3,3′,4′,5,6,7,8-heptamethoxyflavone, 5-hydroxyflavone, diosgenin, chloesteryl acetate, and (+)-4-cholesten-3-one. In total, 68 compounds were putatively identified and fully elucidated for their MS spectra. Subsequently, relevant compounds were further investigated using UV-vis scanning experiments, semi-quantitative analysis, and quantum chemical calculation. Finally, five adulterated Naodesheng Tablets were used for validation experiments. The experiment successfully detected five adulterated ones via a lower-version LC-MS analysis. On this basis, three new candidates (hydroxy safflor yellow A (HSYA), citric acid, and levistilide A), along with puerarin and notoginsenoside R1, are re-nominated as the Q-markers for LC-MS analysis. The LC-MS analysis of puerarin, notoginsenoside R1, HSYA, citric acid, and levistilide A can clearly detect adulteration regarding all five herbal medicines mentioned above. Therefore, the reconstructed Q-markers are described as a “perfect” quality control system to detect adulteration in Naodesheng and will offer a valuable recommendation for the Pharmacopoeia Commission.

1. Introduction

Naodesheng Tablet (Naodesheng Pian) is a traditional Chinese medicine (TCM) formula recorded in Chinese Pharmacopoeia (ChP). The Chinese “Naodesheng” means to promote the recovery from cerebral stroke, through activating blood circulation and removing blood stasis as well as clearing the channels. Therefore, it is widely consumed by numerous patients suffering from cerebral stroke [1]. Nowadays, there are 60 pharmaceutical factories manufacturing Naodesheng Tablet, according to the National Medical Products Administration of China [2].
The Naodesheng Tablet formula is made up of five herbal medicines, including Gegen, Sanqi, Honghua, Shanzha, and Chuanxiong (Table 1). ChP, however, has already defined its corresponding quality markers (Q-markers) when they were used as individual herbal medicines, that is, puerarin for Gegen, three saponins (ginsenoside Rg1 and Rb1, and notoginsenoside R1) for Sanqi, hydroxy safflor yellow A (HSYA) for Honghua, citric acid for Shanzha, and both levistilide A and ferulic acid for Chuanxiong. However, puerarin, HSYA, levistilide A, and citric acid have been excluded in the current Naodesheng Q-marker system for HPLC analysis (Table 1).
This exclusion can cause two limitations. (1) Ferulic acid in Naodesheng cannot specifically characterize the presence of Chuanxiong, although ferulic acid is defined as the Q-marker of individual Chuanxiong by ChP. This is because ferulic acid is also enriched in other herbal medicines, e.g., Honghua [3] and Shanzha [4]. (2) ChP has tried to use a TLC tool to analyze puerarin and to characterize the presence of Gegen in Naodesheng [1]. However, this characterizing tool is highly tedious and the outcome is so unreliable because it relies on spot comparisons with the Rf value and blue color. The Rf value is well known to be variable and can be affected by external conditions. The blue color is actually a consequence of phenolic –OH interacting with FeCl3. Therefore, both Rf value and blue color do not have adequate specificity.
Two limitations further suggest that the current Pharmacopoeia Q-marker system can only specifically characterize Sanqi, because the system uses HPLC to analyze three Sanqi-derived saponins (ginsenoside Rg1, ginsenoside Rb1, and notoginsenoside R1). As a result, the other four herbal medicines lack specific Q-markers in Naodesheng, including Gegen, Honghua, Shanzha, and Chuanxiong. Therefore, the adulteration regarding four herbal medicines will not be detected by the current Pharmacopoeia Q-marker system. For example, if Honghua material is replaced by wood powder, adulterated Naodesheng Tablets will not be detected due to the lack of a Honghua Q-marker. A similar situation may also occur with Chuanxiong, Shanzha, and even Gegen.
Now, it has become an inevitable tendency to use some new and high-accuracy technologies, e.g., ultra-high-performance liquid chromatography-quadrupole-Orbitrap mass spectrometry (UHPLC-Q-Orbitrap MS/MS), to reconstruct the Pharmacopoeia Q-marker system. The reconstruction requires a systematical investigation of bioactive compounds in Naodesheng. For this purpose, our study developed a reliable standards-library-dependent UHPLC-Q-Orbitrap MS/MS strategy.
The strategy depends on a set of authentic standards. After these standards were analyzed using UHPLC-Q-Orbitrap MS/MS, numerous and high-accuracy data were obtained and saved in the equipped software. Then, these data were used for matching with those from the Naodesheng sample, which also was subjected to a similar analysis under the same conditions. Through matching tests, the compounds from Naodesheng were putatively identified for their structures and even configurations.
Due to the high efficiency and high accuracy, the strategy is expected to offer reliable outcomes for compound identification. From these identified compounds, appropriate Q-marker candidates will be re-nominated based on experimental and theoretical approaches. Finally, the adulteration detection feasibility of these Q-marker candidates will be further verified by a lower-version LC-MS technology.

2. Results and Discussion

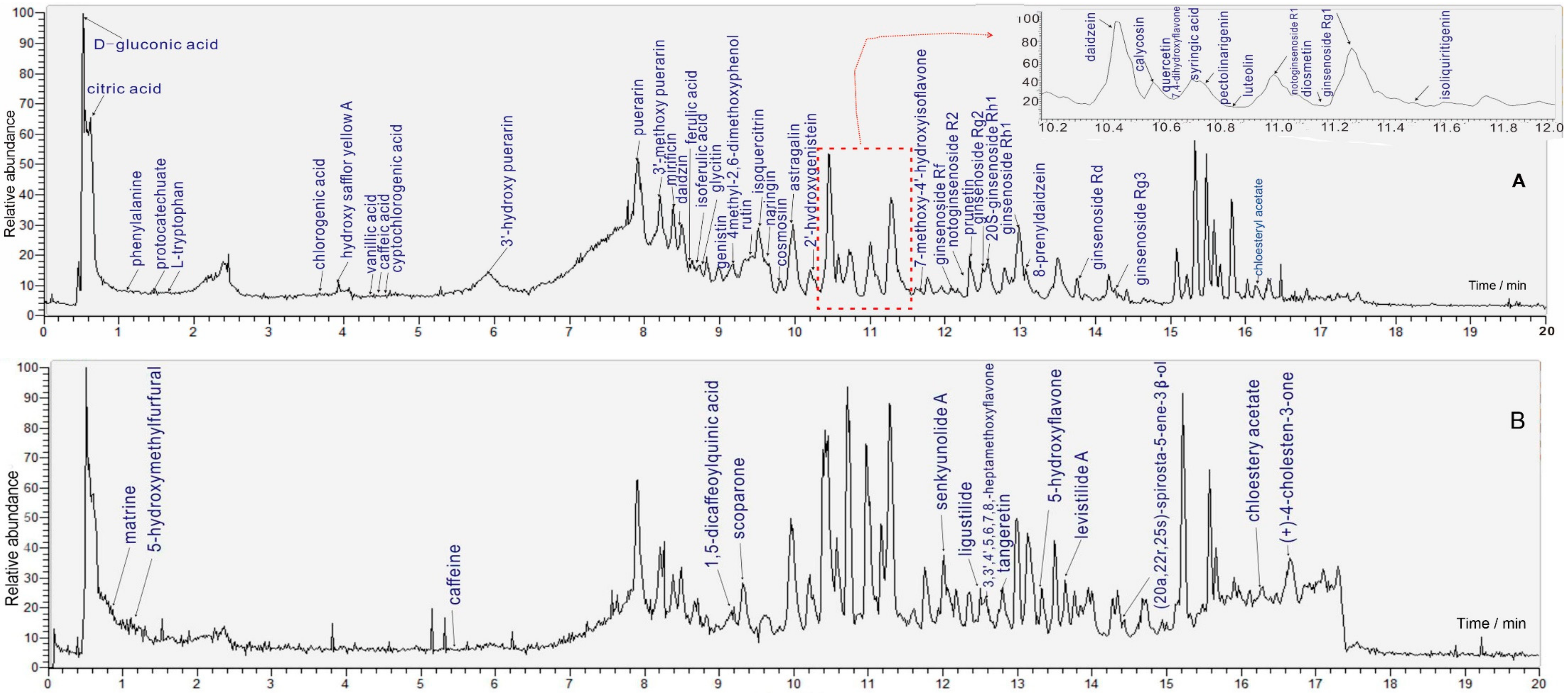

2.1. UHPLC-Q-Orbitrap MS Identification

Corresponding materials can be found in the following text (Section 3.3). LNT was processed into a sample solution. The LNT sample solution was subsequently assayed by means of the UHPLC-Q-Orbitrap MS/MS method. The total ion current (TIC) diagram is shown in Figure 1. Meanwhile, the main information on chromatographic peaks is detailed in Table 2. The information refers to retention time (R.T.) values, molecular ion peak, main MS/MS fragments, and documental evidence. Through comparison with corresponding authentic standards, 68 compounds were identified (Figure 2). The identification evidence is shown in Supplementary Materials S1–S68. The evidence indicates that the emerging UHPLC-Q-Orbitrap MS analysis was much more effective than previous HPLC-UV analyses [5,6,7,8] because the emerging analysis could simultaneously determine hundreds of compounds.
Its high efficiency was further supported by Wu’s work which simultaneously identified 189 compounds from Bufei Yishen Formula. However, Wu’s work failed to offer a full MS spectrum elucidation of all compounds and also to distinguish isomers [9]. Therefore, Wu’s work could only be considered as a tentative identification and our work as a putative identification.
Our putative identification, however, has been documented to possess evident advantages in MS spectrum elucidation and isomer distinction [10]. These advantages could also be found in the present study. As seen in Supplementary Materials S1–S68, all 68 compounds have been elucidated for their MS spectra based on fragmenting principles. The elucidation revealed that there were only 10−7 RSD values between the calculated and experimental m/z values. For example, a m/z 391 peak in Supplementary Materials S48 was calculated as 2.6 × 10−7 RSD (391.2848 vs. 391.2850). Such a low RSD value has suggested our identification to be highly reliable. Moreover, the error values (δ) between experimental m/z values and theoretical m/z values of the molecular ions of all identified compounds were also calculated and are listed in Table 2.
In contrast, the previous tentative identification could not offer MS spectrum elucidation and thus had to cite outdated documental data to match their experimental ones [11,12]. The identification of calycosin was a typical instance. Its positive model peaks (m/z 285, 270, and 134) were used to match the negative model peak values (m/z 283, 268, and 239). There is obviously no comparability between the two groups of data in m/z values, determination models, and apparatus conditions; correspondingly, the previous study could not offer MS spectrum elucidation and only listed the MS spectrum m/z values [11,12].
Our second advantage was isomer distinction; this was based on our new method [13]. Following the new method and depending on a standards library, our study successfully differentiated 30 isomers from each other (Figure 2A), under the same UHPLC-Q-Orbitrap MS analysis condition. These differentiated isomers are 2′-hydroxygenistein, luteolin, and kaempferol; ferulic acid and isoferulic acid; daidzein and 7,4′-dihydroxyflavone; genistein and apigenin; 7-methoxy-4′-hydroxyisoflavone and formononetin; calycosin and prunetin; pratensein and diosmetin; chlorogenic acid and cryptochlorogenic acid; 3′-hydroxy puerarin and genistin; hyperoside and isoquercitrin; daidzin and puerarin; ginsenoside Rg2 and ginsenoside Rg3; and ginsenoside Rf and ginsenoside Rg1.
The distinction of three isomers 2′-hydroxygenistein, luteolin, and kaempferol was a typical instance. As illustrated in Supplementary Materials S27, S34, and S43, the three possessed the same [M − H] peak (m/z 285); however, their MS/MS peaks were different from each other. Another typical instance was the distinction of ginsenoside Rg1 and its isomer ginsenoside Rf. As illustrated in Supplementary Materials S39, two isomers displayed identical [M − H] peals (m/z 799) and similar diagnostic MS/MS peaks (m/z 637, 475, and 391). However, their MS/MS profiles and R.T. values were different from each other. Accordingly, two isomers were clearly differentiated (Figure 2A and Supplementary Materials S39). Similar to the pair of ginsenoside Rg1 and ginsenoside Rf, the pair of ginsenoside Rg2 and ginsenoside Rg3 was also differentiated depending on the MS/MS peak fragments. As seen in Supplementary Materials S48 and S53, ginsenoside Rg2 showed diagnostic fragments at m/z 637, 619, 475, and 391, while its isomer ginsenoside Rg3 displayed diagnostic fragments at m/z 621 and 375. According to the different diagnostic fragments, ginsenoside Rg2 and ginsenoside Rg3 were also differentiated from each other. By comparison, previous studies have not distinguished these isomers and had to use ambiguous phrases, such as “ginsenoside Rg2 or isomer”, “isomer”, or “dimer”, to describe the identification outcomes [11,12,14,15,16,17,18,19,20,21,22,23,24,25].

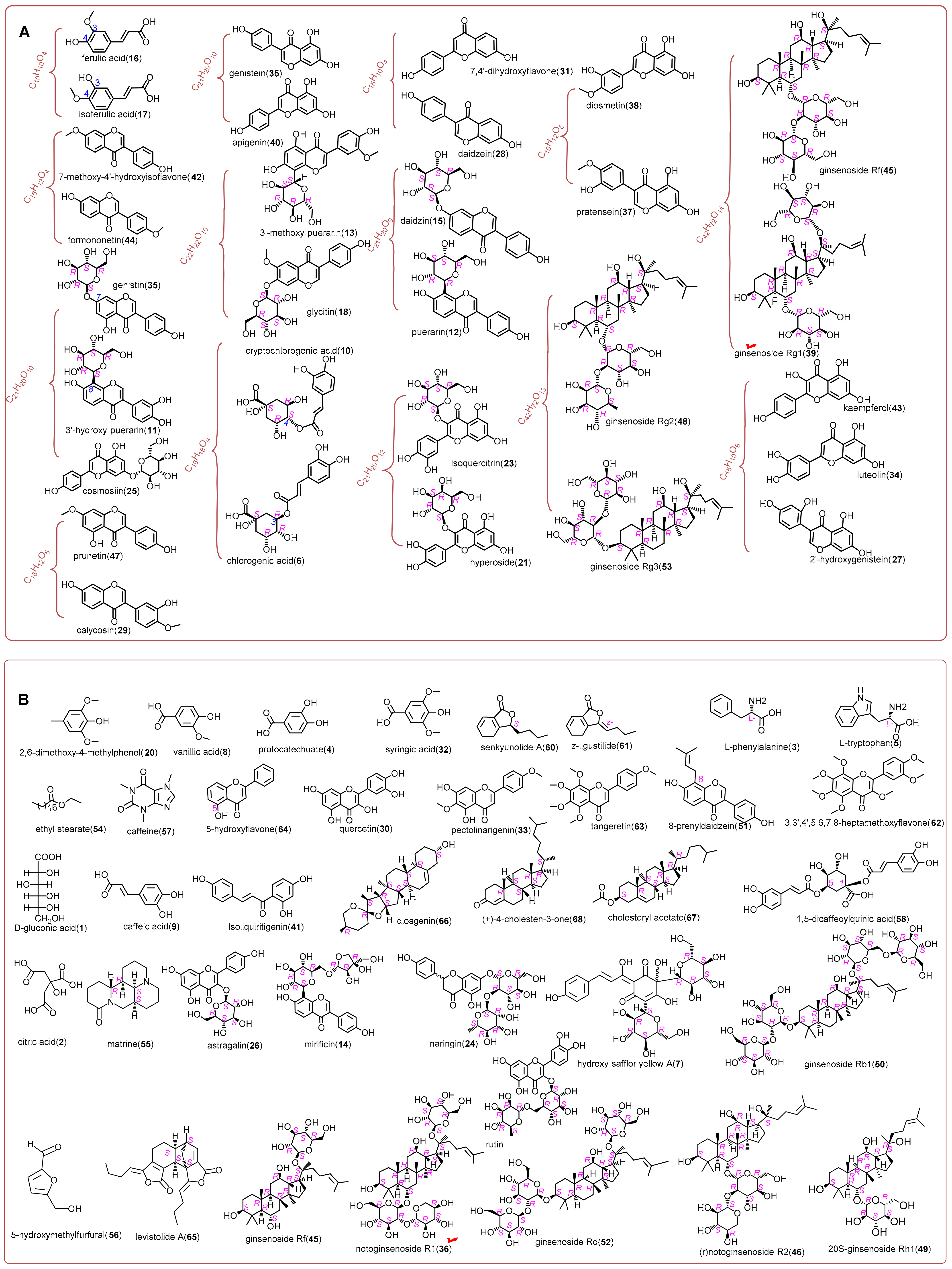

Table 2. The main information of 68 putatively identified bioactive compounds (1~68) from Naodesheng Tablet.
Table 2. The main information of 68 putatively identified bioactive compounds (1~68) from Naodesheng Tablet.
IDR.T.
min		NameMolecular IonExperimental
m/z Value		Theoretical
m/z Value		Error δ
(ppm)		Diagnostic Fragments
m/z		Plant Resource
10.53D-gluconic acidC6H11O7-195.0506195.05102.05177.0396, 159.0295, 129.0182Sanqi [26]
20.58citric acidC6H7O7-191.0192191.01920.00173.0078, 129.0184, 111.0077Shanzha [1]
31.17L-phenylalanineC9H10NO2-164.0709164.07121.83148.0777, 147.0446, 103.0540Sanqi [26]
41.56protocatechuic acidC7H5O4-153.0182153.01883.92110.0316, 109.0290, 108.0211Chuanxiong
Shanzha [27]
51.73L-tryptophanC11H11N2O2-203.0821203.08210.00186.0546, 159.0918, 142.0651, 116.0494Chuanxiong [28]
63.68chlorogenic acidC16H17O9-353.0883353.08732.83191.0556, 173.0450, 161.0237, 127.0395Shanzha [27]
73.95HSYAC27H31O16-611.1616611.16120.65491.1191, 403.1029, 325.0712, 283.0597, 119.0492Honghua [29,30]
84.33vanillic acidC8H7O4-167.0349167.03442.99152.0104, 123.0439, 108.0204Chuanxiong [28]
94.40caffeic acidC9H7O4-179.0343179.03440.56136.0473, 135.0446, 117.0334, 107.0496Chuanxiong [28]
104.50cryptochlorogenic acidC16H17O9-353.0867353.08731.70191.0556, 179.0348, 173.0445, 135.0446Chuanxiong [28]
115.893′-hydroxy puerarinC21H19O10-431.0985431.09781.62311.0556, 283.0606, 255.0657, 227.0708Gegen [31]
127.94puerarinC21H19O9-415.1038415.10292.17295.0611, 267.0657, 253.0512, 132.0211Gegen [31]
138.233′-methoxy puerarinC22H19O10-445.1138445.11350.67325.0713, 282.0534, 253.0509, 225.0551, 148.0155Gegen [31]
148.39mirificinC26H27O13-547.1447547.14520.91325.0712, 295.0606, 267.0657, 132.0205Gegen [31]
158.47daidzinC21H19O9-415.1029415.10290.00252.0421, 223.0395, 195.0446, 167.0493Gegen [31]
168.57ferulic acidC10H9O4-193.0506193.05012.59178.0261, 149.0579, 137.0239, 134.0362Chuanxiong [28],
Honghua [3]
Shanzha [4]
178.66isoferulic acidC10H9O4-193.0498193.05011.55178.0261, 149.0579, 137.0239, 134.0362Honghua [3]
188.72glycitinC22H21O10-445.1143445.11361.57325.0727, 267.0300, 239.0345, 211.0395Sanqi [26]
199.16genistinC21H19O10-431.0978431.09780.00268.0372, 239.0344, 211.0395, 195.0446Gegen [31]
209.234-methyl-2,6-dimethoxyphenolC9H11O3-169.0861169.08652.37137.0592111.0446, 109.0653, 107.0497Honghua [3]
Chuanxiong [32]
219.42hyperosideC21H19O12-463.0873463.08770.86300.0268, 271.0244, 255.0293, 243.0293Shanzha [27], Chuanxiong [28]
229.50rutinC27H29O16-609.1461609.14560.82300.0269, 271.0244, 255.0292, 243.0291Honghua [3] Shanzha [27]
239.55isoquercitrinC21H19O12-463.0877463.08770.00300.0269, 271.0244, 255.0293, 243.0293Shanzha [27]
249.66S-naringinC27H31O14-579.1703579.13146.17271.0612, 151.0025, 119.0497, 107.0126Gegen [33]
259.77cosmosiinC21H19O10-431.0981431.09780.70268.0377, 211.0395, 151.0031, 130.0410, 117.0340Chuanxiong [32]
269.97astragalinC21H19O11-447.0924447.09270.67327.0495, 284.0321, 255.0293, 227.0341Honghua [3], Gegen [33], Chuanxiong [28]
2710.232′-hydroxygenisteinC15H9O6-285.0339285.03597.02217.0502, 199.0390, 149.0233, 133.0283Gegen [34]
2810.47daidzeinC15H9O4-253.0505253.05011.58223.0395, 208.0528, 195.0446, 180.0575Gegen [31]
2910.59calycosinC16H11O5-283.0613283.06062.47268.0372, 239.0347, 211.0395, 195.0446Honghua [35]
3010.64quercetinC15H9O7-301.0353301.03481.66245.0445, 151.0025, 139.0391, 121.0283Honghua [3], Shanzha [27], Gegen [34]
3110.677,4′-dihydroxyflavoneC15H9O4-253.0504253.05011.19223.0395, 195.0446, 180.0571, 117.0340Gegen [33]
3210.68syringic acidC9H9O5-197.045197.04500.00182.0210, 166.9975, 153.0548, 138.0311, 123.0076Honghua [3]
Chuanxiong [32]
3310.70pectolinarigeninC17H13O6-313.0718313.07121.92298.0482, 283.0243, 255.0293, 227.0334Gegen [36]
3410.86luteolinC15H9O6-285.0404285.03991.75257.0434, 241.0492, 199.0391, 133.0283Shanzha [27]
3511.00genisteinC15H9O5-269.0457269.04502.60224.0471, 213.0553, 201.0552, 133.0285Gegen [31]
3611.01notoginsenoside R1C47H79O18-931.5266931.52660.00799.4864, 637.4324, 475.3787, 391.2855Sanqi [26,37,38]
3711.09pratenseinC16H11O6-299.0506299.055616.72284.0327, 255.0293, 227.0344, 211.0395Gegen [33]
3811.20diosmetinC16H11O6-299.0561299.05561.67284.0322, 256.0372, 227.0341, 183.0441Gegen [33]
3911.30ginsenoside Rg1C42H71O14-799.4788799.48447.00637.4324, 475.3783, 391.2832, 179.0551Sanqi [26,38]
4011.39apigeninC15H9O5-269.045269.04500.00241.0501, 225.0552, 213.0558, 117.0334Honghua [3] Shanzha [27]
4111.53isoliquiritigeninC15H11O4-255.0657255.06570.00213.0552, 135.0076, 119.0497Gegen [39]
4211.787-methoxy-4′-hydroxyisoflavoneC16H11O4-267.0664267.06572.62252.0423, 223.0395, 195.0446, 132.0206Gegen [33]
4311.82kaempferolC15H9O6-285.0403285.03991.40255.0293, 229.0501, 211, 0392, 117.0340Honghua [1,3], Sanqi [40], Shanzha [27]
4411.87formononetinC16H11O4-267.0660267.06571.12252.0426, 223.0395, 195.0446, 132.0208Gegeng [31]
4512.26ginsenoside RfC42H71O14-799.4831799.48441.63637.4299, 475.3781, 391.2848, 161.0450Sanqi [26]
4612.3520R-notoginsenoside R2C41H69O13-769.4735769.47400.65637.4312, 475.3795, 391.2855, 161.0445Sanqi [26]
4712.36prunetinC16H11O5-283.0612283.06062.12268.0372, 239.0334, 211.0395, 195.0446Gegen [33,34]
4812.52ginsenoside Rg2C42H71O13-783.4887783.48951.02637.4316, 619.4217, 475.3784, 391.2850Sanqi [26]
4912.5620S-ginsenoside Rh1C36H61O9-637.4323637.43161.10475.3780, 391.2863, 161.0448, 113.0234Sanqi [26]
5012.95ginsenoside Rb1C54H91O23-1107.59511107.59510.00945.5407, 783.4895, 621.4379, 459.3838Sanqi [26,38]
5112.978-prenyldaidzeinC20H17O4-321.1131321.11271.25266.0579, 237.0552, 209.0603, 143.0493Gegen [39]
5213.74 *ginsenoside RdC48H83O18+945.5411945.54231.27783.4895, 621.4366, 161.0450Chuanxiong [28]
5314.31 *ginsenoside Rg3C42H73O13+783.4877783.48952.30621.4366, 375.2899, 161.0450, 113.0239Sanqi [26]
5416.20 *ethyl stearateC20H41O2+311.2955311.29501.61183.0111, 133.0654, 119.0491Sanqi [26]
Honghua [35]
550.88 *matrineC15H25N2O+249.1952249.19676.02247.1801, 218.1544, 190.1227, 176.1052Gegen [33]
561.17 *5-hydroxymethylfurfuralC6H7O3+127.0391127.03953.15109.0288, 97.0284, 81.0339, 69.0341Sanqi [26]
575.47 *caffeineC8H11N4O2+195.0874195.08824.10138.0667, 123.0428, 110.0718, 108.0562,Sanqi [26]
589.29*1,5-dicaffeoylquinic acidC25H25O12+515.1158515.11906.21353.0871, 335.0760, 191.0551, 135.0446Shanzha [27]
599.37 *scoparoneC11H11O4+207.0646207.06522.90191.0334, 163.0388, 151.0759, 146.0360Chuanxiong [32]
6011.98 *S-senkyunolide AC12H17O2+193.1213193.12298.28175.1123, 147.1167, 137.0603, 105.0704Chuanxiong [28]
6112.59 *Z-ligustilideC12H15O2+191.1063191.10724.71173.0603, 145.1017, 129.0704, 115.0548Chuanxiong [28]
6212.68 *3,3′,4′,5,6,7,8-heptamethoxyflavoneC22H25O9+433.1481433.14994.16418.1254, 403.1014, 165.0552, 107.0496Gegen [33]
6312.88 *tangeretinC20H21O7+373.1271373.12874.29358.1053, 343.0818, 297.0754, 271.0603,Gegen [33]
6413.27 *5-hydroxyflavoneC15H11O3+239.07239.07083.35221.0603, 137.0232, 129.0340, 103.0548Gegen [33]
6513.66 *levistilide AC24H29O4+381.2084381.20664.72191.1067, 149.0593, 135.0442, 117.0702Chuanxiong [28]
6614.47 *diosgeninC27H43O3+415.3198415.32123.37271.2050, 253.1940, 171.1174, 157, 1011Chuanxiong [41]
6716.22 *chloesteryl acetateC29H49O2+429.3723429.37270.93401.3405, 205.1222, 165.0909, 105.0701Gegen [34]
6816.67 *(+)-4-cholesten-3-oneC27H45O+385.3459385.34702.85367.3365, 173.1321, 123.0807, 109.0653Gegen [34]
Note: The peaks with m/z < 50 were also found by the Xcalibur 4.1 Software package, although the scanning mode range was set at m/z 100–1200 in the mass spectra. All identification processes, including MS elucidation, are detailed in Supplementary Materials S1–S68. R.T. values with “*” were detected in positive ion mode, while R.T. values without “*” were detected in negative ion mode. The error values (δ) were calculated using the formula δ = | experimental m/z value − theoretical m/z value | ÷ theoretical m/z value ÷ 10−6.
The above advantages have indicated our standards-library-dependent UHPLC-Q-Orbitrap MS putative identification to be of not only high efficiency but also high accuracy. By means of this putative identification, 11 unexpected compounds were found from Naodesheng Tablet for the first time, including 2′-hydroxygenistein, 7,4′-dihydroxyflavone, pectolinarigenin, 7-methoxy-4′-hydroxyisoflavone, scoparone, matrine, 3,3′,4′,5,6,7,8-heptamethoxyflavone, 5-hydroxyflavone, diosgenin, chloesteryl acetate, and (+)-4-cholesten-3-one. In fact, none of the documents suggested that these compounds were from Naodesheng or its relevant plants. This obviously supplied new chemical information regarding Naodesheng.
All these expected and unexpected compounds have actually created a premise to reconstruct the Pharmacopoeia adulteration detection Q-marker system. Consulting with the “five basic principles” of Academician Chang-xiao Liu [25,42] and considering that citric acid (2), HSYA (7), puerarin (12), notoginsenoside R1 (36), and levistilide A (65) have already acted as Pharmacopoeia Q-markers for individual herbal medicines (Table 1), our study thus re-nominated these compounds (2, 7, 12, 36, and 65) as new Q-markers (Table 3). The reason why the current Pharmacopoeia Q-markers system excluded citric acid (2), HSYA (7), and puerarin (12) may be attributed to the defects of HLPC-UV.

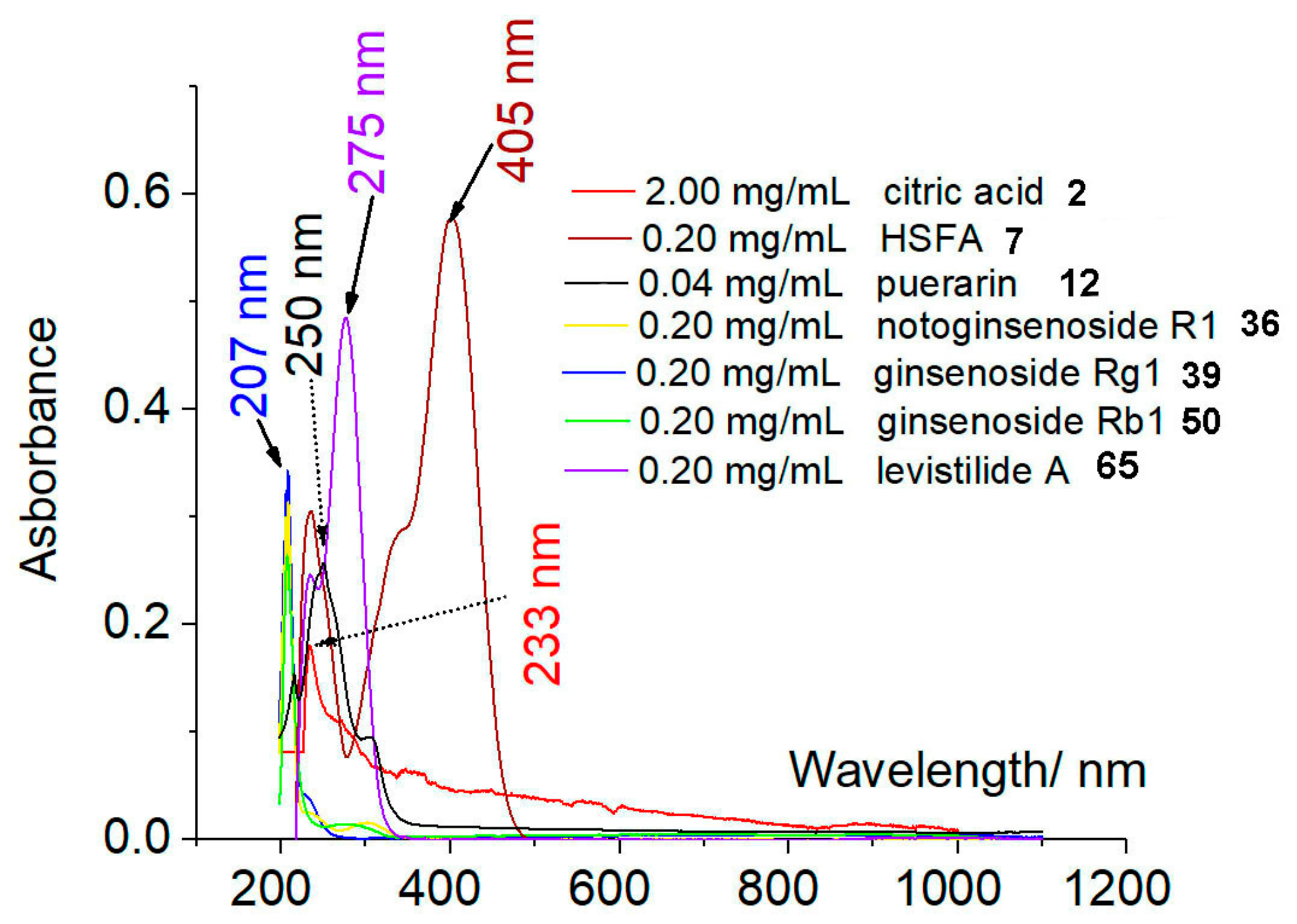

2.2. UV-Vis Spectrum Scanning and Computational Chemistry Results

To offer further evidence, five Q-marker candidates, citric acid (2), HSYA (7), puerarin (12), notoginsenoside R1 (36), and levistilide A (65), along with two old Q-markers (ginsenoside Rg1 39 and ginsenoside Rb1 50), were scanned for UV-vis spectra. As seen in Figure 3, the five formed a complicated mixture and usually shared the same maximum absorption wavelengths. Even at a range of absorption wavelengths, such as 203, 250, and 325 nm, the detected compounds were limited to several main high-abundance compounds, including puerarin (12), notoginsenoside R1 (36), ginsenoside Rg1 (39), ginsenoside Rb1 (50), and HSYA (7) [6,7,8,43,44,45]. This greatly limited the selectivity when monitored by a UV-vis detector. On the other hand, their molecular polarities (i.e., dipole moment values) were close to each other (e.g., HSYA 7, notoginsenoside R1 36, and levistilide A 65, Table 4). As a result, they could not be effectively separated by a polarity-based adsorption chromatographic column (e.g., C18). All these findings from UV-vis spectrum scanning and computational chemistry suggest that conventional HPLC-UV was not applicable for the simultaneous analysis of five Q-markers.

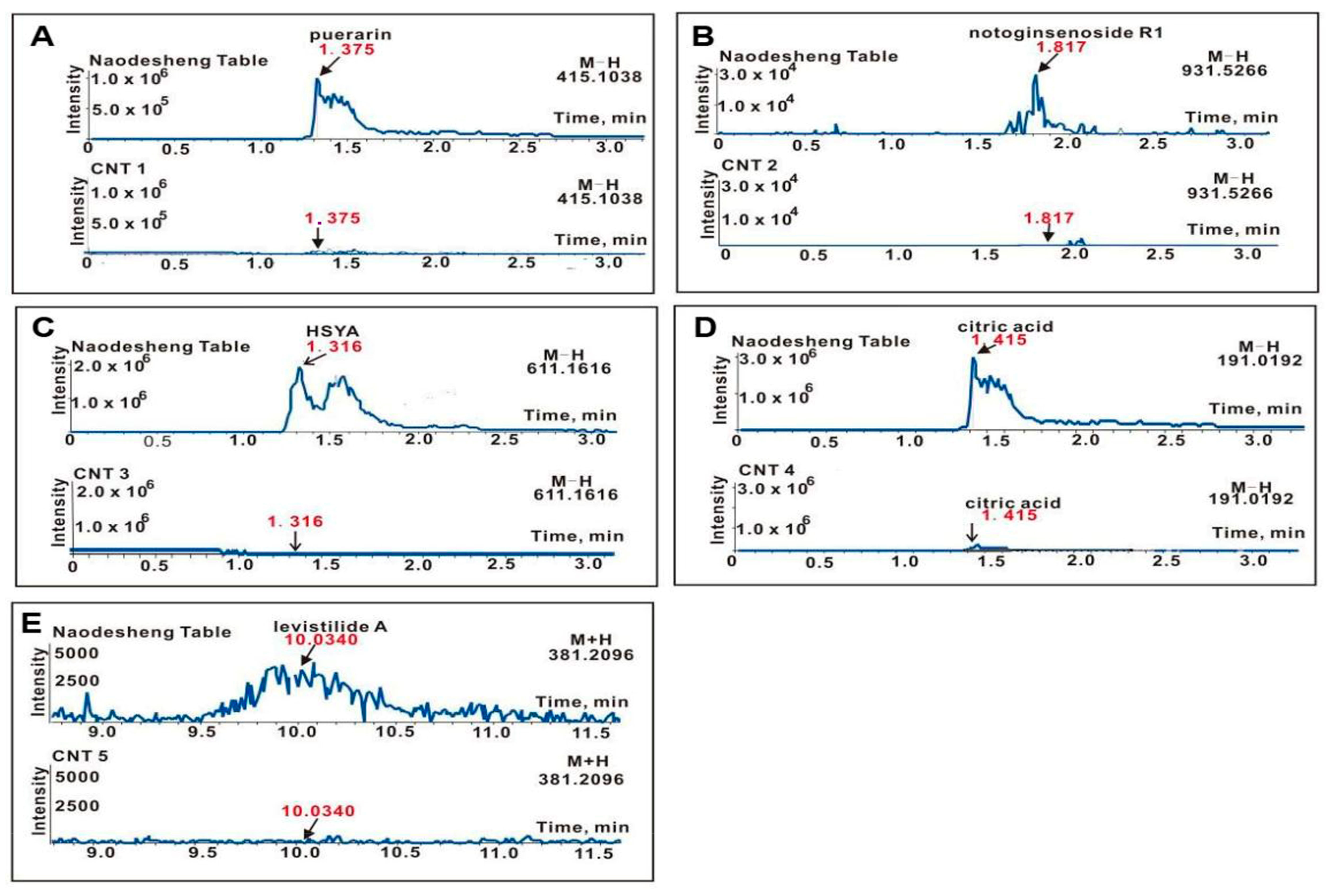

2.3. Adulteration Detection Validation Experiment Based on Five Adulterated Naodesheng Tablets and Low-Version LC-MS

To verify whether the LC-MS technology was applicable for the simultaneous analysis of five Q-marker candidates, this study introduced low-version LC-MS (i.e., UHPLC-ESI-Q-TOF-MS) to analyze CNT 1~CNT 5. As seen in Figure 4A, the UHPLC-ESI-Q-TOF-MS analysis of normal Naodesheng Tablet clearly displayed a puerarin (12) peak at R.T. 1.375 min; however, the adulterated Naodesheng Tablet (CNT 1) had no peak at the corresponding site. The comparison suggested the absence of puerarin (12) and further indicated the adulteration of Gegen in Naodesheng Tablet. Similarly, the comparison between the two diagrams in Figure 4C evidently illustrates that HSYA (7) was absent in adulterated Naodeshen (CNT 3) and thus, Honghua was adulterated in Naodeshen. Similar successful instances can also be observed in Figure 4B,D,E. Apparently, these successes could be attributed to the high selectivity of the molecular formula extraction technology in LC-MS [46].
Meanwhile, these successful experiments also showed that (1) the LC-MS technology was applicable for the analysis of these Q-markers. (2) More importantly, the adulteration regarding all five herbal medicines (Sanqi, Gegen, Honghua, Shanzha, and Chuanxiong) in Naodeshen could be effectively detected. Therefore, the reconstructed adulteration detection Q-marker system was described as a “perfect” one; it would provide valuable consideration for the ChP commission.
Finally, it should be noted that (1) ferulic acid cannot specifically characterize any herbal medicines because it is also distributed in Chuanxiong [28], Honghua [3], and Shanzha [4]; regardless, it has been used as a Q-marker of individual Chuanxiong (Table 1). (2) The reconstruction of the Q-marker system was based on the analysis of one batch of Naodesheng Tablets in our study. However, these Q-markers were also found in other batches by the previous ones [44,47,48] or Pharmacopoeia itself [1]. (3) Although Naodesheng Tablet was reported to be related to the repair of β-amyloid-induced dysfunction [49], the present study does not discuss these bio-pharmacological issues. In fact, the role of β-amyloid is still controversial nowadays [50].

3. Materials and Methods

3.1. Medicine Materials

Naodesheng Tablet (Lot. 210803) was manufactured by Harbin Huayu Pharmaceutical Co., Ltd. (Wuhan, China). Gegen (Lot. 201101) and Shanzha (Lot. 220702) were purchased from Anhui Huifeng Traditional Chinese Medicine Co., Ltd. (Bozhou, China); Chuanxiong (Lot. 221100381) was purchased from Kangmei Traditional Chinese Medicine Slices Co., Ltd. (Shantou, China); Honghua (Lot. 230303) was purchased from Putianhe Traditional Chinese Medicine Co., Ltd. (Anguo, China); Sanqi (Lot. 230601) was purchased from Hongya County Wawushan Pharmaceutical Co., Ltd. (Hongya, China).
Five adulterated Naodesheng Tablets were prepared by our team through the replacement method. Gegen was replaced by wood powder to prepare the first adulterated Naodesheng Tablet, i.e., CNT 1. Similarly, Sanqi was replaced by wood powder to obtain CNT 2. In addition, Honghua, Shanzha, and Chuanxiong were replaced by wood powder to produce CNT 3, CNT 4, and CNT 5, respectively.

3.2. Authentic Standards and Chemicals

Chlorogenic acid (C16H18O9, M.W. 354.31, Cas. 327-97-9, 98%), caffeic acid (C8H8O4, M.W. 180.16, Cas. 331-39-5, 98%), cryptochlorogenic acid (C16H18O9, M.W. 354.311, Cas. 905-99-7, 98%), mirificin (C26H28O13, M.W. 548.49, Cas. 103654-50-8, 98%), daidzin (C21H20O9, M.W. 416.38, Cas. 552-66-9, 98%), isoferulic acid (C10H10O4, M.W. 194.18, Cas. 537-73-5, 98%), genistin (C21H20O10, M.W. 432.37, Cas. 529-59-9, 98%), 4-methyl-2,6-dimethoxyphenol (C9H12O3, M.W. 168.19, Cas. 6638-05-7, 98%), hyperoside (C21H20O12, M.W. 464.37, Cas. 482-36-0, 98%), rutin (C27H30O16, M.W. 610.52, Cas. 153-18-4, 98%), isoquercitrin (C21H20O12, M.W. 464.38, Cas. 482-35-9, 98%), S-naringin (C27H32O14, M.W. 580.53, Cas. 10236-47-2, 98%), astragalin (C21H20O11, M.W. 448.38, Cas. 480-10-4, 98%), calycosin (C16H12O5, M.W. 284.27, Cas. 20575-57-9, 98%), quercetin (C15H10O7, M.W. 302.23, Cas. 117-39-5, 98%), 7,4′-dihydroxyflavone (C15H10O4, M.W. 254.24, Cas. 2196-14-7, 98%), syringic acid (C9H10O5, M.W. 198.17, Cas. 530-57-4, 98%), pectolinarigenin (C17H14O6, M.W. 314.29, Cas. 520-12-7, 98%), diosmetin (C16H12O6, M.W. 300.26, Cas. 520-34-3, 98%), apigenin (C15H10O5, M.W. 270.24, Cas. 520-36-5, 98%), isoliquiritigenin (C15H12O4, M.W. 256.25, Cas. 961-29-5, 98%), 7-methoxy-4′-hydroxyisoflavone (C16H12O4, M.W. 268.27, Cas. 486-63-5, 98%), 8-prenyldaidzein (C20H18O4, M.W. 322.35, Cas. 135384-00-8, 98%), 1,5-dicaffeoylquinic acid (C25H24O12, M.W. 516.45, Cas. 30964-13-7, 98%), tangeretin (C20H20O7, M.W. 372.37, Cas. 481-53-8, 98%), and diosgenin (C27H42O3, M.W. 416.40, Cas. 512-04-9, 98%) were purchased from Chengdu Alfa Biotechnology Co., Ltd. (Chengdu, China). Citric acid (C6H8O7, M.W. 192.12, Cas. 77-92-9, 98%), hydroxy safflor yellow A (C27H32O16, M.W. 612.53, Cas. 78281-02-4, 98%), 3′-methoxy puerarin (C22H22O10, M.W. 446.40, Cas. 117047-07-1, 98%), glycitin (C22H22O10, M.W. 446.40, Cas. 40246-10-4, 98%), cosmosiin (C21H20O10, M.W. 432.38, Cas. 578-74-5, 98%), 20R-notoginsenoside R2 (C41H70O13, M.W. 770.99, Cas. 948046-15-9, 98%), 20S-ginsenoside Rh1 (C36H62O9, M.W. 638.88, Cas. 63223-86-9, 98%), matrine (C15H24N2O, M.W. 248.37, Cas. 519-02-8, 98%), 5-hydroxymethylfurfural (C6H6O3, M.W. 126.11, Cas. 67-47-0, 98%), scoparone (C11H10O4, M.W. 206.19, Cas. 120-08-1, 98%), S-senkyunolide A (C12H16O2, M.W. 192.25, Cas. 63038-10-8, 98%), Z-ligustilide (C12H14O2, M.W. 190.24, Cas. 81944-09-4, 98%), and levistilide A (C24H28O4, M.W. 380.484, Cas. 88182-33-6, 98%) were purchased from Baoji Herbest Bio-Tech Co., Ltd. (Baoji, China). Protocatechuic acid (C7H6O4, M.W. 154.12, Cas. 99-50-3, 98%), puerarin (C21H20O9, M.W. 416.38, Cas. 3681-99-0, 98%), ginsenoside Rf (C42H72O14, M.W. 801.00, Cas. 52286-58-5, 98%), ginsenoside Rg2 (C42H72O13, M.W. 785.01, Cas. 52286-74-5, 98%), ginsenoside Rb1 (C54H92O23, M.W. 1109.29, Cas. 41753-43-9, 98%), ginsenoside Rd (C48H82O18, M.W. 963.17, Cas. 52705-93-8, 98%), ginsenoside Rg3 (C42H72O13, M.W. 785.01, Cas. 14197-60-5, 98%), and 3,3′,4′,5,6,7,8-heptamethoxyflavone (C22H42O9, M.W. 432.42, Cas. 1178-24-1, 98%) were purchased from Sichuan Weikeqi Biological Technology Co., Ltd. (Chengdu, China). 2′-Hydroxygenistein (C15H10O6, M.W. 286.23, Cas. 1156-78-1, 98%), luteolin (C15H10O6, M.W. 286.24, Cas. 491-70-3, 98%), notoginsenoside R1 (C47H80O18, M.W. 933.14, Cas. 80418-24-2, 98%), ginsenoside Rg1 (C42H72O14, M.W. 801.02, Cas. 22427-39-0, 98%), formononetin (C16H12O4, M.W. 268.26, Cas. 485-72-3, 98%), and prunetin (C16H12O5, M.W. 284.26, Cas. 552-59-0, 98%) were purchased from BioBioPha Co., Ltd. (Kunming, China). D-Gluconic acid (C6H12O7, M.W. 196.16, Cas. 526-95-4, 98%), vanillic acid (C8H8O4, M.W. 168.15, Cas. 121-34-6, 98%), ethyl stearate (C20H40O2, M.W. 312.53, Cas. 111-61-5, 98%), and chloesteryl acetate (C29H48O2, M.W. 428.69, Cas. 604-35-3, 98%) were purchased from Sigma-Aldrich Co., Ltd. (Shanghai, China). 5-Hydroxyflavone (C15H10O3, M.W. 238.24, Cas. 491-78-1, 98%), genistein (C15H10O5, M.W. 270.24, Cas. 446-72-0, 98%), and (+)-4-cholesten-3-one (C27H44O, M.W. 394.55, Cas. 601-57-0, 98%) were purchased from TCI Chemical Co., Ltd. (Shanghai, China). L-Phenylalanine (C9H11NO2, M.W. 178.18, Cas. 63-91-2, 98%) and L-tryptophan (C11H12N2O2, M.W. 204.23, Cas. 73-22-3, 98%) were obtained from J&K Scientific Co., Ltd. (Beijing, China). Daidzein (C15H10O4, M.W. 254.24, Cas. 486-66-8, 98%) and caffeine (C8H10N4O2, M.W. 194.19, Cas. 58-08-2, 98%) were obtained from Chengdu Biopurify Phytochemicals Co., Ltd. (Chengdu, China). Kaempferol (C15H10O6, M.W. 286.24, Cas. 520-18-3, 98%) and ferulic acid (C10H10O4, M.W. 194.19, Cas. 1135-24-6, 98%) were obtained from Aladdin Chemistry Co. Ltd. (Shanghai, China). 3′-Hydroxy puerarin (C21H20O10, M.W. 432.38, Cas. 117060-54-5, 98%) was purchased from Shanghai PureOne BioTech. Co. Ltd. (Shanghai, China). Pratensein (C16H12O6, M.W. 300.26, Cas. 2284-31-3, 98%) was purchased from Wuhan ChemFaces Biotech Co., Ltd. (Wuhan, China). Methanol and water at mass spectrum purity grade were purchased from Merck KGaA (Darmstadt, Germany). All other reagents used in this study were purchased at analytical grade from the Guangzhou Chemical Reagent Factory (Guangzhou, China).

3.3. Preparation of Lyophilized Aqueous Extract from Naodesheng Tablet and Authentic Standard Solution

To avoid the possible solvent effect [51], Naodesheng Tablet was extracted using distilled water. The extract was lyophilized using a freeze dryer (FDU-1200, Eyela Co., Ltd., Shanghai, China) to prepare a lyophilized powder of Naodesheng Tablet (LNT). The whole process consulted the previous method [52,53] and is summarized in Figure 5.
The LNT sample was re-dissolved using methanol under ultrasound treatment and then filtered through a 0.45 μm membrane to prepare the sample solution (~30 mg/mL) [54,55]. Similarly, each authentic standard was also dissolved using methanol under ultrasound treatment and then filtered through a 0.45 μm membrane to obtain a standard solution (~10 μg/mL). The sample solution and all standard solutions were kept in a refrigerator (4 °C) for the following analyses. Similar to Naodesheng Tablet, 5 adulterated Tablets (i.e., CNT 1~CNT 5) were, respectively, treated by the above procedure as well.

3.4. UHPLC-Q-Orbitrap MS Identification

3.4.1. Chromatography and Mass Spectrometer Conditions

The UHPLC system (Thermo Fisher Scientific, Waltham, MA, USA) was equipped with an Accucore RP-MS LC C18 column (100 mm × 2.1 mm, 2.6 μm, Thermo Fisher, Waltham, MA, USA) for chromatographic separations. The mobile phase consisted of A (0.1% formic acid in water) and B (methanol) at a flow rate of 0.4 mL min−1 for the negative model. Under the positive model, phase A was replaced by 0.1% formic acid in water containing 5 mmol/L ammonium acetate and phase B was still methanol. The gradient elution was set as follows: 0–5 min, 10% B; 5–14.5 min, 10–100% B; 14.5–16 min, 100% B; 16–16.1 min, 100–10% B; 16.1 min–20 min, 10% B. The column temperature was maintained at 40 °C and the injection volume was 3 μL [56].
The above UHPLC system was coupled with a high-resolution Q-Orbitrap mass spectrometer (Thermo Fisher Scientific, Waltham, MA, USA). The operating parameters were set as follows: auxiliary gas, 10; sheath gas, 40; sweep gas, 0; spray voltage, 4.5 kV. The temperatures of the auxiliary gas heater and capillary were both set at 450 °C. The full MS resolution and data-dependent MS2 (dd-MS2) were 70,000 and 17500, respectively, while their automatic gain control (AGC) target was 2 × 105. Nitrogen (N2) was applied for spray stabilization and the damping gas in the C-trap. The stepped normalized collision energy was set to 20, 50, and 90 V [57].

3.4.2. Software, Data Acquisition, and Putative Identification

The Xcalibur 4.1 software package and TraceFinder General Quan (Thermo Fisher Scientific Inc., Waltham, MA, USA) were used for data acquisition and analysis. The acquired data included retention time, molecular peak, MS/MS profile, and typical fragments of authentic standards [58]. The data were recorded in the software package to build up a database of authentic standards. The data acquisition conditions were set as follows: 100–1500 Da mass range; 5 ppm mass tolerance; 5 S/N threshold; 10 min R.T. window override; 90% isotopic pattern fit threshold. The data of samples were acquired in the software package under the same conditions. Through the comparison, the bioactive compounds from the sample solution were preliminarily identified. After manual elucidation of MS spectrum fragmenting, the bioactive compounds were further confirmed to finish the putative identification.

3.4.3. Semi-Quantification of Re-Nominated Q-Markers

The semi-quantification analyses of 5 re-nominated Q-markers (puerarin 12, ginsenoside Rg1, HSYA 7, citric acid 2, and levistilide A 65) were based on the principle of a previous study with minor modifications [59]. Briefly, the linear regression equation was first established through the injection of authentic standard solutions at different volumes into the UHPLC-Q-Exactive-Orbitrap MS system. The equipped Xcalibur 4.1 software offered peak area parameters for these authentic standard solutions. Under the same chromatography and MS spectrum conditions, sample solutions of certified and adulterated Naodesheng Tablets were subsequently injected into the system. According to the linear regression equation and peak area of the Q-markers, their chemical contents were finally quantified and expressed as mean ± SD.

3.5. UV-Vis Spectrum Scanning

The UV-vis spectrum scanning of citric acid (2), HSYA (7), puerarin (12), notoginsenoside R1 (36), ginsenoside Rg1 (39), ginsenoside Rb1 (50), and levistilide A (65) was conducted based on a previous method [57]. In brief, citric acid (2) was dissolved in methanol to prepare the solution at 2 mg/mL. Others were dissolved in methanol to prepare the solution at 0.04~0.20 mg/mL, respectively. The solutions were individually analyzed by UV-vis spectrum scanning on a UV spectrophotometer (UV-2600A, UNICO, Co., Ltd., Shanghai, China) using methanol as a blank. The wavelength range and scanning accuracy were 195~1100 nm and 1 nm, respectively. The UV-vis spectrum scanning of each compound was performed three times in parallel.

3.6. Adulteration Detection Validation Experiment Based on Low-Version LC-MS Analysis

The quantum chemical calculations of 5 compounds, including notoginsenoside R1 (36), puerarin (12), HSYA 7, citric acid (2), and levistilide A (65), were conducted with the B3LYP-D3 (BJ)/6-311G (d, p) basis set. The calculation tried to obtain the results of molecular geometry optimization, frequency calculation, and individual-point energy (SPE). The lack of an imaginary frequency was used to guarantee the optimal structure at the local minimum. The Gaussian 16 C.01 program was used to calculate the dipole moment and molecular polarity index (MPI) to characterize the molecular polarity degree [60,61,62,63].

3.7. Computational Details

The so-called “low-version LC-MS” referred to UHPLC-ESI-Q-TOF-MS analysis. It was used to validate whether the recommended Q-markers could detect the adulterated Naodesheng Tablets. Five Tablets were prepared through replacement by wood powder and named CNT 1~CNT 5, which characterized the defaults of Gegen, Sanqi, Honghua, Shanzha, and Chuanxiong, respectively (Table 5).
In brief, the Q-TOF-MS analysis was performed on a Triple TOF 5600plus mass spectrometer (AB SCIEX, Framingham, MA, USA) equipped with an ESI source, which was run in the negative ionization mode. The scan range was set at 100–2000 Da. The system was run with the following parameters: ion spray voltage, −4500 V; ion source heater temperature, 550 °C; curtain gas pressure (CUR, N2), 30 psi; nebulizing gas pressure (GS1, Air), 50 psi; Tis gas pressure (GS2, Air), 50 psi. The declustering potential (DP) was set at −100 V, whereas the collision energy (CE) was set at −45 V with a collision energy spread (CES) of 15 V. The above Q-TOF-MS system was connected with an ultra-high-performance liquid chromatography (UHPLC) system. The UHPLC system was equipped with a Phenomenex Luna C18 column (2.1 mm i.d. × 100 mm, 1.6 μm, Phenomenex Inc., Torrance, CA, USA). The mobile phase was employed for the elution of the system and consisted of a mixture of methanol (phase A) and 0.1% formic acid in water (phase B). The column was eluted at a flow rate of 0.2 mL/min with the following gradient elution program: 0–2 min, maintained at 30% B; 2–10 min, 30–0% B; 10–12 min, 0–30% B. The sample injection volume was set at 3 μL and the sample solution was 30 mg/mL.
The above experimental procedures were repeated using certified Naodesheng Tablet (Lot. 210803). Its sample injection volume was 3 μL and the sample solution was 30 mg/mL. The results of certified Naodesheng Tablet were compared with adulterated ones, to judge whether the Q-marker candidates could be used for adulteration detection.

3.8. Statistical Analysis

Each quantitative assessment experiment was performed in triplicate. The data were shown as the mean ± SD from three independent measurements. The calculation of correlation coefficients (R values) was based on linear analysis using Origin 6.0 professional software (Origin-Lab Corporation, Northampton, MA, USA).

4. Conclusions

In conclusion, by means of standards-library-dependent UHPLC-Q-Orbitrap MS putative identification, Naodesheng Tablet is evidenced to enrich 68 bioactive compounds. Of 68 identified compounds, HSYA, citric acid, levistilide A, puerarin, and notoginsenoside R1 are recommended to be included in the new Q-markers system. The LC-MS analysis of puerarin, notoginsenoside R1, HSYA, citric acid, and levistilide A can effectively detect adulterants regarding Gegen, Sanqi, Honghua, Shanzha, and Chuanxiong in Naodesheng.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/molecules29061392/s1, Suppls. S1–S68: UHPLC-Q-Orbitrap MS spectra and identification of S1–S68. Suppl. S69: Semi-quantification of five Q-markers. Reference [64] is cited in Supplementary Materials.

Author Contributions

C.L. and X.L. contributed to the project design and paper writing. J.Z. contributed to the literature review and constituent identification. R.C., C.L., and B.C. contributed to data analyses and software. S.C. and X.Z. contributed to paper revision. All authors have read and agreed to the published version of the manuscript.

Funding

National Nature Science Foundation of China (82304707 and 82374485) and Natural Science Foundation of Hubei Province (2023AFB373).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Dataset available on request from the authors.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Chinese-Pharmacopoeia-Commission. Chinese Pharmacopoeia (Part 1); Chinese Medical Science and Technology Press: Beijing, China, 2020; Volume 1. [Google Scholar]
  2. National Medical Products Administration of China. Data Search from National Medical Products Administration of China. Available online: https://www.nmpa.gov.cn/datasearch/ (accessed on 2 November 2023).
  3. Zhang, L.L.; Tian, K.; Tang, Z.H.; Chen, X.J.; Bian, Z.X.; Wang, Y.T.; Lu, J.J. Phytochemistry and Pharmacology of Carthamus tinctorius L. Am. J. Chin. Med. 2016, 44, 197–226. [Google Scholar] [CrossRef] [PubMed]
  4. Martinelli, F.; Perrone, A.; Yousefi, S.; Papini, A.; Castiglione, S.; Guarino, F.; Cicatelli, A.; Aelaei, M.; Arad, N.; Gholami, M.; et al. Botanical, Phytochemical, Anti-Microbial and Pharmaceutical Characteristics of Hawthorn (Crataegusmonogyna Jacq.), Rosaceae. Molecules 2021, 26, 7266. [Google Scholar] [CrossRef]
  5. Wang, G.; Li, Q.; Song, T.; Fan, W.; Zhang, M.; Liu, Y. Determination of Puerarin and hydroxy safflor yellow A in Nuodesheng soft capsule by HPLC. China Pharm. 2009, 12, 699–702. (In Chinese) [Google Scholar]
  6. Jiang, M.; Chen, L. Determination of Puerarin and Ferulic Acid in Naodesheng tablets by HPLC. Strait Pharm. J. 2014, 26, 53–58. [Google Scholar]
  7. Cui, X.; Shan, Y.; Jiang, F.; Wang, L.; Zhang, Q.; Zhao, R. Quantitative study of 10 components in Naodesheng tablets. Northwest Pharmaceul. J. (Xibei Yaoxue Zazhi) 2019, 34, 317–322. (In Chinese) [Google Scholar]
  8. Wang, J.; Liang, S.; Fu, L.; Zhang, L. Determination of isoflavones in Naodesheng tablets. Chin. Pharm. 2008, 11, 423–429. (In Chinese) [Google Scholar]
  9. Wu, J.; Cai, B.; Zhang, A.; Zhao, P.; Du, Y.; Liu, X.; Zhao, D.; Yang, L.; Liu, X.; Li, J. Chemical Identification and Antioxidant Screening of Bufei Yishen Formula using an Offline DPPH Ultrahigh-Performance Liquid Chromatography Q-Extractive Orbitrap MS/MS. Int. J. Anal. Chem. 2022, 2022, 1423801. [Google Scholar] [CrossRef] [PubMed]
  10. Zeng, J.; Li, X.; Cai, R.; Li, C.; Chen, S. Jinhua Qinggan Granule UHPLC-Q-extractive-Orbitrap-MS assay: Putative identification of 45 potential anti-COVID-19 constituents, confidential addition, and pharmacopoeia quality-markers recommendation. J. Food Drug Anal. 2023, 31, 534–551. [Google Scholar] [CrossRef]
  11. Fu, S.; Cheng, R.; Deng, Z.; Liu, T. Qualitative analysis of chemical components in Lianhua Qingwen capsule by HPLC-Q Exactive-Orbitrap-MS coupled with GC-MS. J. Pharm. Anal. 2021, 11, 709–716. [Google Scholar] [CrossRef]
  12. Xu, T.; Yang, M.; Li, Y.; Chen, X.; Wang, Q.; Deng, W.; Pang, X.; Yu, K.; Jiang, B.; Guan, S.; et al. An integrated exact mass spectrometric strategy for comprehensive and rapid characterization of phenolic compounds in licorice. Rapid Commun. Mass. Spectrom. 2013, 27, 2297–2309. [Google Scholar]
  13. Li, X.C.; Zeng, J.; Cai, R.; Li, C. New UHPLC-Q-Orbitrap MS/MS-based Library-comparison Method Simultaneously Distinguishes 22 Phytophenol Isomers from Desmodium styracifolium. Microchem. J. 2023, 190, 108938. [Google Scholar] [CrossRef]
  14. Gao, X.; Wang, N.; Jia, J.; Wang, P.; Zhang, A.; Qin, X. Chemical profliling of Dingkun Dan by ultra High performance liquid chromatography Q exactive orbitrap high resolution mass spectrometry. J. Pharm. Biomed. Anal. 2020, 177, 112732. [Google Scholar] [CrossRef] [PubMed]
  15. Duan, H.; Wang, G.C.; Khan, G.J.; Su, X.H.; Guo, S.L.; Niu, Y.M.; Cao, W.G.; Wang, W.T.; Zhai, K.F. Identification and characterization of potential antioxidant components in Isodon amethystoides (Benth.) Hara tea leaves by UPLC-LTQ-Orbitrap-MS. Food Chem. Toxicol. 2021, 148, 111961. [Google Scholar] [CrossRef] [PubMed]
  16. Jang, S.; Lee, A.; Hwang, Y.H. Qualitative Profiling and Quantitative Analysis of Major Constituents in Jinmu-tang by UHPLC-Q-Orbitrap-MS and UPLC-TQ-MS/MS. Molecules 2022, 27, 7887. [Google Scholar] [CrossRef] [PubMed]
  17. More, G.K.; Chokwe, C.R.; Meddows-Taylor, S. The attenuation of antibiotic resistant non-albicans Candida species, cytotoxicity, anti-inflammatory effects and phytochemical profiles of five Vachellia species by FTIR and UHPLC-Q/Orbitrap/MS. Heliyon 2021, 7, e08425. [Google Scholar] [CrossRef]
  18. Zheng, G.; Liu, M.; Chao, Y.; Yang, Y.; Zhang, D.; Tao, Y.; Zhang, J.; Zeng, C.; Wei, M. Identification of lipophilic components in Citri Reticulatae Pericarpium cultivars by supercritical CO(2) fluid extraction with ultra-high-performance liquid chromatography-Q Exactive Orbitrap tandem mass spectrometry. J. Sep. Sci. 2020, 43, 3421–3440. [Google Scholar] [CrossRef] [PubMed]
  19. Zhao, Y.; Cao, J.; Zhao, J.; Wei, P.; Wu, R.; Zhang, J.; Wan, L. Chemical analysis of Chrysosplenium from different species by UPLC-Q exactive orbitrap HRMS and HPLC-DAD. J. Pharm. Biomed. Anal. 2022, 218, 114861. [Google Scholar] [CrossRef] [PubMed]
  20. Wang, X.; Zhou, W.; Wang, Q.; Zhang, Y.; Ling, Y.; Zhao, T.; Zhang, H.; Li, P. A novel and comprehensive strategy for quality control in complex Chinese medicine formula using UHPLC-Q-Orbitrap HRMS and UHPLC-MS/MS combined with network pharmacology analysis: Take Tangshen formula as an example. J. Chromatogr. B 2021, 1183, 122889. [Google Scholar] [CrossRef]
  21. Wang, P.; Zhong, L.; Yang, H.; Zhang, J.; Hou, X.; Wu, C.; Zhang, R.; Cheng, Y. Comprehensive comparative analysis of lipid profile in dried and fresh walnut kernels by UHPLC-Q-Exactive Orbitrap/MS. Food Chem. 2022, 386, 132706. [Google Scholar] [CrossRef]
  22. Wang, N.; Yang, B.; Zhang, J.; Zheng, Y.; Wang, S.; Zhang, X.; Situ, H.; Lin, Y.; Wang, Z. Metabolite profiling of traditional Chinese medicine XIAOPI formula: An integrated strategy based on UPLC-Q-Orbitrap MS combined with network pharmacology analysis. Biomed. Pharmacother. 2020, 121, 109569. [Google Scholar] [CrossRef]
  23. Wang, S.; Sun, X.; An, S.; Sang, F.; Zhao, Y.; Yu, Z. High-Throughput Identification of Organic Compounds from Polygoni Multiflori Radix Praeparata (Zhiheshouwu) by UHPLC-Q-Exactive Orbitrap-MS. Molecules 2021, 26, 3977. [Google Scholar] [CrossRef]
  24. Qiao, X.; Li, R.; Song, W.; Miao, W.J.; Liu, J.; Chen, H.B.; Guo, D.A.; Ye, M. A targeted strategy to analyze untargeted mass spectral data: Rapid chemical profiling of Scutellaria baicalensis using ultra-high performance liquid chromatography coupled with hybrid quadrupole orbitrap mass spectrometry and key ion filtering. J. Chromatogr. A 2016, 1441, 83–95. [Google Scholar] [CrossRef] [PubMed]
  25. Zhang, T.; Bai, G.; Chen, C.; Xu, J.; Han, Y.; Gong, S.; Zhang, H.; Liu, C. Research approaches of quality marker (Q-marker) of Chinese materia medica formula based on five principles. Zhong Yao Cai 2018, 49, 1–13. [Google Scholar]
  26. Liu, H.; Lu, X.; Hu, Y.; Fan, X. Chemical constituents of Panax ginseng and Panax notoginseng explain why they differ in therapeutic efficacy. Pharmacol. Res. 2020, 161, 105263. [Google Scholar] [CrossRef] [PubMed]
  27. Yang, B.; Liu, P. Composition and health effects of phenolic compounds in hawthorn (Crataegus spp.) of different origins. J. Sci. Food Agric. 2012, 92, 1578–1590. [Google Scholar] [CrossRef] [PubMed]
  28. Zeng, P.; Yi, Y.; Su, H.F.; Ye, C.Y.; Sun, Y.W.; Zhou, X.W.; Lu, Y.; Shi, A.; Tian, Q. Key Phytochemicals and Biological Functions of Chuanxiong Rhizoma Against Ischemic Stroke: A Network Pharmacology and Experimental Assessment. Front. Pharmacol. 2021, 12, 758049. [Google Scholar] [CrossRef] [PubMed]
  29. Yue, S.; Tang, Y.; Li, S.; Duan, J.A. Chemical and biological properties of quinochalcone C-glycosides from the florets of Carthamus tinctorius. Molecules 2013, 18, 15220–15254. [Google Scholar] [CrossRef]
  30. Zhang, H.; Duan, C.P.; Luo, X.; Feng, Z.M.; Yang, Y.N.; Zhang, X.; Jiang, J.S.; Zhang, P.C. Two new quinochalcone glycosides from the safflower yellow pigments. J. Asian Nat. Prod. Res. 2020, 22, 1130–1137. [Google Scholar] [CrossRef]
  31. Du, G.; Zhao, H.Y.; Zhang, Q.W.; Li, G.H.; Yang, F.Q.; Wang, Y.; Li, Y.C.; Wang, Y.T. A rapid method for simultaneous determination of 14 phenolic compounds in Radix Puerariae using microwave-assisted extraction and ultra high performance liquid chromatography coupled with diode array detection and time-of-flight mass spectrometry. J. Chromatogr. A 2010, 1217, 705–714. [Google Scholar] [CrossRef]
  32. Chen, Z.; Zhang, C.; Gao, F.; Fu, Q.; Fu, C.; He, Y.; Zhang, J. A systematic review on the rhizome of Ligusticum chuanxiong Hort. (Chuanxiong). Food Chem. Toxicol. 2018, 119, 309–325. [Google Scholar] [CrossRef]
  33. Xiong, Y.; Ma, P.; Huang, L.; Li, Y.; Wang, X. Widely targeted metabolomics analysis of different parts of kudzu. BMC 2023, 37, e5545. [Google Scholar] [CrossRef] [PubMed]
  34. Maji, A.; Pandit, S.; Banerji, P.; Banerjee, D. Pueraria tuberosa: A review on its phytochemical and therapeutic potential. Nat. Prod. Res. 2014, 28, 2111–2127. [Google Scholar] [CrossRef] [PubMed]
  35. Asgarpanah, J.; Kazemivash, N. Phytochemistry, pharmacology and medicinal properties of Carthamus tinctorius L. Chem. J. Integr. Med. 2013, 19, 153–159. [Google Scholar] [CrossRef] [PubMed]
  36. Wu, W.; Zhang, Y.; Zhang, F.; Liu, J.; Ren, Z.; Xu, Y.; Liu, T.; Zhou, W.; Li, H.; Zhang, C. An analytical strategy for accurate, rapid and sensitive quantitative analysis of isoflavones in traditional Chinese medicines using ultra-high performance supercritical fluid chromatography: Take Radix Puerariae as an example. J. Chromatogr. A 2019, 1606, 460385. [Google Scholar] [CrossRef] [PubMed]
  37. Jiang, Z.; Gao, H.; Liu, R.; Xia, M.; Lu, Y.; Wang, J.; Chen, X.; Zhang, Y.; Li, D.; Tong, Y.; et al. Key Glycosyltransferase Genes of Panax notoginseng: Identification and Engineering Yeast Construction of Rare Ginsenosides. ACS Synth. Biol. 2022, 11, 2394–2404. [Google Scholar] [CrossRef] [PubMed]
  38. Xie, W.; Meng, X.; Zhai, Y.; Zhou, P.; Ye, T.; Wang, Z.; Sun, G.; Sun, X. Panax Notoginseng Saponins: A Review of Its Mechanisms of Antidepressant or Anxiolytic Effects and Network Analysis on Phytochemistry and Pharmacology. Molecules 2018, 23, 940. [Google Scholar] [CrossRef]
  39. Yue, S.Y.; Zhou, R.R.; Nan, T.G.; Huang, L.Q.; Yuan, Y. Comparison of major chemical components in Puerariae Thomsonii Radix and Puerariae Lobatae Radix. China J. Chin. Mater. Medica 2022, 47, 2689–2697. (In Chinese) [Google Scholar]
  40. Wang, T.; Guo, R.; Zhou, G.; Zhou, X.; Kou, Z.; Sui, F.; Li, C.; Tang, L.; Wang, Z. Traditional uses, botany, phytochemistry, pharmacology and toxicology of Panax notoginseng (Burk.) F.H. Chen: A review. J. Ethnopharmacol. 2016, 188, 234–258. [Google Scholar] [CrossRef]
  41. Wang, L.; Zhang, J.; Hong, Y.; Feng, Y.; Chen, M.; Wang, Y. Phytochemical and pharmacological review of da chuanxiong formula: A famous herb pair composed of chuanxiong rhizoma and gastrodiae rhizoma for headache. Evid. Based Complement. Altern. Med. 2013, 2013, 425369. [Google Scholar]
  42. Liu, C.X.; Liu, L.; Guo, D.A. Quality marker of TCMs: Concept and applications. Phytomedicine 2018, 44, 85–86. [Google Scholar] [CrossRef]
  43. Feng, X.; Tang, J.; Cao, X.; Zhao, M.; Ouyang, Z. Comparison of Excretion of Hydroxysafflor Yellow A after Oral Administration of Monomer, Medicinal Substance Aqueous Extract and Naodesheng Tablets in Rats. Chin. Pharm. J. 2012, 47, 448–452. (In Chinese) [Google Scholar]
  44. Wang, J.; Liang, S.; Nan, H. Determination of hydroxysafflower yellow A in Naodesheng tablets by RP-HPLC. J. Guangdong Coll. Pharm. 2007, 23, 650–652. (In Chinese) [Google Scholar]
  45. Fan, W.; Wang, G.; Lin, N.; Liu, Y. HPLC-ELSD determination of notoginsenoside R1, ginsenoside Rg1 and Rb1 in Naodesheng tablets. Chin. J. Pharm. Anal. 2009, 29, 830–833. (In Chinese) [Google Scholar]
  46. Li, X.C.; Ouyang, X.; Chen, B.; Liu, S.; Zeng, J. Linkage and Stereochemistry Characters of Phenolic Antioxidant Product Formation. J. Agric. Food Chem. 2023, 71, 5382–5390. [Google Scholar] [CrossRef] [PubMed]
  47. Chen, H.; Li, Y.; Zhong, J.; Fan, X. Identification of major components of traditional Chinese medicine Naodesheng tablet by HPLC-DAD-MSn. J. Zhejiang Univ. 2012, 41, 32–42. [Google Scholar]
  48. Liao, J.; Wu, Y.; Xu, F.; Chen, W.; Zheng, Z.; Han, X.; Liu, B.; Wang, S.; Guo, D. Comprehensive evaluation of NAODESHENG by combining UPLC quantitative fingerprint and antioxidant activity. J. Pharm. Biomed. Anal. 2021, 193, 113636. [Google Scholar] [CrossRef] [PubMed]
  49. Zhang, B.; Zhao, J.; Guo, P.; Wang, Z.; Xu, L.; Liu, A. Effects of Naodesheng tablets on amyloid beta-induced dysfunction: A traditional Chinese herbal formula with novel therapeutic potential in Alzheimer’s disease revealed by systems pharmacology. Biomed. Pharmacother. 2021, 141, 111916. [Google Scholar] [CrossRef]
  50. Piller, C. Blots on a field? Science 2022, 377, 358–363. [Google Scholar] [CrossRef]
  51. Li, X.C. Solvent effects and improvements in the deoxyribose degradation assay for hydroxyl radical-scavenging. Food Chem. 2013, 141, 2083–2088. [Google Scholar] [CrossRef]
  52. Chen, B.; Li, X.; Liu, J.; Qin, W.; Liang, M.; Liu, Q.; Chen, D. Antioxidant and Cytoprotective effects of Pyrola decorata H. Andres and its five phenolic components. BMC Complement. Altern. Med. 2019, 19, 275. [Google Scholar] [CrossRef]
  53. Jiang, Q.; Li, X.C.; Tian, Y.G.; Lin, Q.Q.; Xie, H.; Lu, W.B.; Chi, Y.G.; Chen, D.F. Lyophilized aqueous extracts of Mori Fructus and Mori Ramulus protect Mesenchymal stem cells from •OH-treated damage: Bioassay and antioxidant mechanism. BMC Complement. Altern. Med. 2017, 16, 423. [Google Scholar] [CrossRef] [PubMed]
  54. Zhang, W.; Li, X.; Hua, Y.; Li, Z.; Chen, B.; Liu, A.; Lu, W.B.; Zhao, X.; Diao, Y.; Chen, D. Antioxidant product analysis of Hulu Tea (Tadehagi triquetrum). New J. Chem. 2021, 45, 20257–20265. [Google Scholar] [CrossRef]
  55. Xie, H.; Li, X.C.; Ren, Z.X.; Qiu, W.M.; Chen, J.L.; Jiang, Q.; Chen, B.; Chen, D.F. Antioxidant and Cytoprotective Effects of Tibetan Tea and Its Phenolic Components. Molecules 2018, 23, 179. [Google Scholar] [CrossRef] [PubMed]
  56. Xie, Y.; Li, X.; Xu, J.; Jiang, Q.; Xie, H.; He, J.; Chen, D. Two phenolic antioxidants in Suoyang enhance viability of •OH-damaged mesenchymal stem cells: Comparison and mechanistic chemistry. Chem. Cent. J. 2017, 11, 84. [Google Scholar] [CrossRef] [PubMed]
  57. Li, X.C.; Chen, S.M.; Zeng, J.Y.; Cai, R.X.; Liang, Y.L.; Chen, C.B.; Chen, B.; Li, C.H. Database-aided UHPLC-Q-orbitrap MS/MS Strategy Putatively Identifies 52 Compounds from Wushicha Granule to Propose Anti-counterfeiting Quality-markers for Pharmacopoeia. Chin. Med. 2023, 18, 116. [Google Scholar] [CrossRef] [PubMed]
  58. Cai, R.; Li, X.; Li, C.; Zhu, J.; Zeng, J.; Li, J.; Tang, B.; Li, Z.; Liu, S.; Yan, Y. Standards-Based UPLC-Q-Exactive Orbitrap MS Systematically Identifies 36 Bioactive Compounds in Ampelopsis grossedentata (Vine Tea). Separations 2022, 9, 329. [Google Scholar] [CrossRef]
  59. Qi, P.; Zhou, Q.; Chen, G.; Lin, Z.; Zhao, J.; Xu, H.; Gao, H.; Liu, D.; Mao, X. Simultaneous qualitative and quantitative determination of 104 fat-soluble synthetic dyes in foods using disperse solid-phase extraction and UHPLC-Q-Orbitrap HRMS analysis. Food Chem. 2023, 427, 136665. [Google Scholar] [CrossRef] [PubMed]
  60. Pritchard, B.P.; Altarawy, D.; Didier, B.; Gibson, T.D.; Windus, T.L. New Basis Set Exchange: An Open, Up-to-Date Resource for the Molecular Sciences Community. J. Chem. Inf. Model. 2019, 59, 4814–4820. [Google Scholar] [CrossRef]
  61. Zheng, Y.-Z.; Chen, D.-F.; Deng, G.; Guo, R.; Fu, Z.-M. The antioxidative activity of piceatannol and its different derivatives: Antioxidative mechanism analysis. Phytochemistry 2018, 156, 184–192. [Google Scholar] [CrossRef]
  62. Lu, T.; Chen, F. Multiwfn: A multifunctional wavefunction analyzer. J. Comput. Chem. 2012, 33, 580–592. [Google Scholar] [CrossRef]
  63. Lu, T.; Chen, F. Quantitative analysis of molecular surface based on improved Marching Tetrahedra algorithm. J. Mol. Graph. Model. 2012, 38, 314–323. [Google Scholar] [CrossRef]
  64. Gross, J.H. Mass Spectrometry; Science Press: Beijing, China, 2013. [Google Scholar]
Molecules 29 01392 g001
Figure 1. The TIC diagrams of Naodesheng Tablet in the UHPLC-Q-Orbitrap MS identification under negative mode (A) and positive mode (B). The positive mode was the supplement for the negative mode.
Figure 1. The TIC diagrams of Naodesheng Tablet in the UHPLC-Q-Orbitrap MS identification under negative mode (A) and positive mode (B). The positive mode was the supplement for the negative mode.
Molecules 29 01392 g001
Molecules 29 01392 g002
Figure 2. Structures of identified bioactive compounds from Naodesheng Tablet (A) for isomers; (B) for non-isomeric compounds. The chiral atoms in all sugar residue groups have been marked in their absolute configurations to avoid possible misreading. D-glucose is expressed as the Fischer project formula. The wave line in HSYA (7) indicates uncertain stereo configuration. The red tick √ means the old Q-markers.
Figure 2. Structures of identified bioactive compounds from Naodesheng Tablet (A) for isomers; (B) for non-isomeric compounds. The chiral atoms in all sugar residue groups have been marked in their absolute configurations to avoid possible misreading. D-glucose is expressed as the Fischer project formula. The wave line in HSYA (7) indicates uncertain stereo configuration. The red tick √ means the old Q-markers.
Molecules 29 01392 g002
Molecules 29 01392 g003
Figure 3. The UV-vis spectra of 7 compounds (2, 7, 12, 36, 39, 50, and 65).
Figure 3. The UV-vis spectra of 7 compounds (2, 7, 12, 36, 39, 50, and 65).
Molecules 29 01392 g003
Molecules 29 01392 g004
Figure 4. The results of the adulteration detection validation experiment of CNT 1~CNT 5. (A) Naodesheng Tablet and CNT 1 by extraction of C21H19O6 (puerarin [ M − H], m/z 415); (B) Naodesheng Tablet and CNT 2 by extraction of C47H79O18 (notoginsenoside R1 [ M − H], m/z 931); (C) Naodesheng Tablet and CNT 3 by extraction of C27H31O16 (HSYA [ M − H], m/z 611); (D) Naodesheng Tablet and CNT 4 by extraction of C6H7O7 (citric acid [ M − H], m/z 191); (E) Naodesheng Tablet and CNT 5 by extraction of C24H29O4 (levistilide A [ M + H], m/z 381). The analytic technology was UHPLC-ESI-Q-TOF-MS. (A–D) Under the negative model; (E) under the positive model.
Figure 4. The results of the adulteration detection validation experiment of CNT 1~CNT 5. (A) Naodesheng Tablet and CNT 1 by extraction of C21H19O6 (puerarin [ M − H], m/z 415); (B) Naodesheng Tablet and CNT 2 by extraction of C47H79O18 (notoginsenoside R1 [ M − H], m/z 931); (C) Naodesheng Tablet and CNT 3 by extraction of C27H31O16 (HSYA [ M − H], m/z 611); (D) Naodesheng Tablet and CNT 4 by extraction of C6H7O7 (citric acid [ M − H], m/z 191); (E) Naodesheng Tablet and CNT 5 by extraction of C24H29O4 (levistilide A [ M + H], m/z 381). The analytic technology was UHPLC-ESI-Q-TOF-MS. (A–D) Under the negative model; (E) under the positive model.
Molecules 29 01392 g004
Molecules 29 01392 g005
Figure 5. The preparation of the lyophilized aqueous extract of Naodesheng Tablet.
Figure 5. The preparation of the lyophilized aqueous extract of Naodesheng Tablet.
Molecules 29 01392 g005
Table 1. The information of Naodesheng Tablet and 5 relevant herbal medicines.
Table 1. The information of Naodesheng Tablet and 5 relevant herbal medicines.
Herbal MedicinePlant MaterialsWeightPharmacopoeia Q-Marker and Relevant Analytic Tool
Naodesheng Tablet
(腦得生片)		 665 gginsenoside Rg1 and Rb1, notoginsenoside R1
(HPLC); puerarin (TLC); ferulic acid (TLC)
Gegen (葛根)Radix of Pueraria lobata (Willd.) Ohwi261 gpuerarin (HPLC)
Sanqi (三七)Radix or Rhizoma of
Panax notoginseng (Burk.) F. H. Chen		78 gginsenoside Rg1 and Rb1, notoginsenoside R1
(HPLC)
Honghua (红花)Dried flower of Carthamus tinctorius L.91 gHSYA (HPLC)
Shanzha (山楂)Dried fruit of Crataegus pinnatifida Bunge157 gcitric acid (HPLC)
Chuanxiong (川芎)Rhizoma of Ligusticum chuanxiong Hort.78 glevistilide A (TLC)
ferulic acid (HPLC)
Note: TLC, thinner-layer chromatography; HPLC, high-performance liquid chromatography.
Table 3. The main information of 68 putatively identified bioactive compounds (1–68) from Naodesheng Tablet).
Table 3. The main information of 68 putatively identified bioactive compounds (1–68) from Naodesheng Tablet).
Reconstructed Q-Markers
Citric Acid (2) [1]HSYA (7) [43,44]Puerarin (12) [6,7,8]NGR1 (36) [45]levistilide A (65) [1]
Traceability√√√√√
Specificity√√√√√
Testability√√√√√
Efficiency relevance√√√√√
TCM relevance√√√√√
Characterized herbal medicinesShanzhaHonghuaGegenSanqiChuanxiong
Note: HSYA, hydroxy safflor yellow A; NGR1, notoginsenoside R1.
Table 4. Semi-quantification results and computational chemistry results (including dipole moment value and HOMO→LUMO energy gap values of Q-marker candidates).
Table 4. Semi-quantification results and computational chemistry results (including dipole moment value and HOMO→LUMO energy gap values of Q-marker candidates).
Q-MarkersSemi-Quantification/(%)Computational Chemistry
Dipole MomentHOMO → LUMO
citric acid (2)0.822 ± 0.0212.0819687.3211
HSYA (7)0.039 ± 0.0026.6315308.3945
puerarin (12)1.044 ± 0.1761.9418405.7099
notoginsenoside R1 (36)0.128 ± 0.0017.2955680.0210
levistilide A (65)0.070 ± 0.0065.7291402.9922
Note: The semi-quantification was based on the certified and adulterated Naodesheng Tablet using UHPLC-Q-Orbitrap MS/MS analysis and its results were expressed as mean ± standard deviation (SD) (n = 3). The relevant data are detailed in Supplementary Materials S69. The computational chemistry was conducted using a restricted B3LYP basis set. Dipole moment value, Debye unit; HOMO → LUMO, the energy gap from the highest occupied molecular orbital to the lowest unoccupied molecular orbital, kJ/mol unit.
Table 5. Five Q-marker candidates for detecting the corresponding adulterated Naodesheng Tablets (CNT1~CNT5).
Table 5. Five Q-marker candidates for detecting the corresponding adulterated Naodesheng Tablets (CNT1~CNT5).
NameGegenSanqiHonghuaShanzhaChuanxiongQ-Marker for Analysis
CNT 1wood√√√√puerarin (12)
CNT 2√wood√√√notoginsenoside R1 (36)
CNT 3√√wood√√HSYA (7)
CNT 4√√√wood√citric acid (2)
CNT 5√√√√woodlevistilide A (65)
Certified Tablet√√√√√HSYA (7), puerarin (12), notoginsenoside R1 (36), levistilide A (65)
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Li, C.; Li, X.; Zeng, J.; Cai, R.; Chen, S.; Chen, B.; Zhao, X. Detection of Adulterated Naodesheng Tablet (Naodesheng Pian) via In-Depth Chemical Analysis and Subsequent Reconstruction of Its Pharmacopoeia Q-Markers. Molecules 2024, 29, 1392. https://doi.org/10.3390/molecules29061392

AMA Style

Li C, Li X, Zeng J, Cai R, Chen S, Chen B, Zhao X. Detection of Adulterated Naodesheng Tablet (Naodesheng Pian) via In-Depth Chemical Analysis and Subsequent Reconstruction of Its Pharmacopoeia Q-Markers. Molecules. 2024; 29(6):1392. https://doi.org/10.3390/molecules29061392

Chicago/Turabian Style

Li, Chunhou, Xican Li, Jingyuan Zeng, Rongxin Cai, Shaoman Chen, Ban Chen, and Xiaojun Zhao. 2024. "Detection of Adulterated Naodesheng Tablet (Naodesheng Pian) via In-Depth Chemical Analysis and Subsequent Reconstruction of Its Pharmacopoeia Q-Markers" Molecules 29, no. 6: 1392. https://doi.org/10.3390/molecules29061392

APA Style

Li, C., Li, X., Zeng, J., Cai, R., Chen, S., Chen, B., & Zhao, X. (2024). Detection of Adulterated Naodesheng Tablet (Naodesheng Pian) via In-Depth Chemical Analysis and Subsequent Reconstruction of Its Pharmacopoeia Q-Markers. Molecules, 29(6), 1392. https://doi.org/10.3390/molecules29061392

Article Metrics

Back to TopTop
