[2+2]-Photocycloadditions of 1,4-Naphthoquinone Under Batch and Continuous-Flow Conditions

by
Madyan A. Yaseen
1,2,
Zhifang Guo
1,
Peter C. Junk
1 and
Michael Oelgemöller
1,3,*
1
College of Science and Engineering, James Cook University, Townsville, QLD 4811, Australia
2
College of Education, University of Samarra, Samarra 34010, Salah Al-Deen, Iraq
3
Faculty of Chemistry and Biology, Hochschule Fresenius gGmbH—University of Applied Science, 65510 Idstein, Germany
*
Author to whom correspondence should be addressed.
Molecules 2024, 29(24), 5920; https://doi.org/10.3390/molecules29245920
Submission received: 24 November 2024 / Revised: 12 December 2024 / Accepted: 13 December 2024 / Published: 15 December 2024
(This article belongs to the Section Photochemistry)
Browse Figures
Versions Notes

Abstract

A series of [2+2]-photocycloadditions of 1,4-naphthoquinone with various alkenes and diphenylacetylene were investigated under batch and continuous-flow conditions. Acetone-sensitization furnished the corresponding photoadducts in good to excellent yields and purities. Compared to batch operations that demanded exhaustive irradiation times of 10–13 h, the flow process generally gave superior conversions and subsequently yields with a residence time of just 60 min. The structures of several photoaddition products were further determined by crystal structure analysis.

Graphical Abstract

1. Introduction

Due to their importance as natural products with a broad range of biological activities, quinones have attracted considerable attention from the chemical and biological communities [1,2,3,4]. Of the many photochemical transformations of quinones [5,6,7], [2+2]-photocycloadditions with alkenes, cycloalkenes and alkynes have been especially intensively studied. Depending on the substrates and irradiation conditions, the photoaddition of alkenes delivers cyclobutanes and spiro-oxetanes (Scheme 1), respectively [8,9,10,11]. These photoadducts have also been investigated for their biological activities [12,13].
Most experimental procedures are conducted in conventional batch reactors using hazardous solvents, such as benzene or acetonitrile, and harsh light conditions, such as medium-pressure mercury lamps [14,15]. The latter commonly cause decomposition of the photoproducts due to over-irradiation, necessitating optical filters that significantly reduce the energy efficiency of the lamps. Recently, continuous-flow chemistry has revolutionized chemical process technologies, especially for on-site and on-demand manufacturing of pharmaceuticals or other commodity chemicals [16,17,18]. The naturally small inner dimensions and the flow operation are especially advantageous for photochemical operations [19,20,21,22]. In particular, light can efficiently penetrate the thin reaction channels, and photoactive products are rapidly removed from the illuminated area. At the same time, new light sources enable more precise excitation of photoactive compounds [23]. Despite these recent developments in photochemical science and engineering, photochemical reactions involving quinones have only been sparsely investigated under continuous-flow conditions [24,25]. To fill this gap, this study investigated photocycloadditions of 1,4-naphthoquinone with a series of alkenes and diphenylacetylene under batch and flow conditions and compared their performances.

2. Results and Discussion

2.1. Photocycloadditions Under Batch Conditions

For irradiations under batch conditions, a modified procedure described by Maruyama et al. was selected [26]. Irradiations were conducted using Schlenk flasks in a Rayonet photochemical chamber reactor equipped with sixteen 8 W lamps (outside-in irradiation). A five-fold excess of alkene was employed to suppress undesired photodimerizations of the quinone [27]. The reaction mixtures were degassed and purged with a stream of N2 during operation. All photoreactions were monitored by TLC or by 1H-NMR spectroscopy.

2.1.1. Optimization Studies

The photocycloaddition of 1,4-naphthoquinone (1) with styrene (2a) to the corresponding cycloadducts 3a and 4a was initially used as a model system to investigate the reaction conditions (Scheme 2). A number of parameters, i.e., the choice of solvent, wavelength, glass type and light source were examined.
Solvent Optimization
To find the best reaction medium, degassed solutions of 1,4-naphthoquinone (1, 1 mmol) and styrene (2a, 5 mmol) in different organic solvents (50 mL) were irradiated with UVB light (300 ± 25 nm) in a Pyrex Schlenk flask (transmission >300 nm) for 10 h. The experimental results are summarized in Table 1.
The photocycloaddition showed two main reaction pathways: cyclobutane (3a) or oxetane (4a) formation, and the dominant chemoselectivity depended on the solvent applied. The energy levels of the (n,π*) and (π,π*) excited states of 1,4-naphthoquinone are very closely spaced but are sensitive to solvent polarities [8,28]. Photoreactions by direct excitation of 1 in acetonitrile, trifluorotoluene or chloroform produced mixtures of the cyclobutane 3a and the spiro-oxetane 4a, of which 3a could be isolated in pure form in yields of 51–58% (entries 1–3). Under these conditions, both excited states of 1 are populated simultaneously. The observed deviations in chemoselectivities can be attributed to the sensitivity of the excited states and of the reaction intermediates involved to solvent polarities [8,28,29]. In contrast, triplet sensitization by acetone (T1 = 332 kJ/mol vs. 1: T1 = 241 kJ/mol [30]) solely yielded 69% of the cyclobutane adduct 3a with no trace of 4a detectable in the crude reaction mixture (entry 4). This outcome suggests that triplet excited acetone selectively populates the π,π* triplet state of 1,4-naphthoquinone or that the polar nature of this solvent significantly lowers the π,π* triplet state energy of 1. Acetone also had practical advantages, as it was easily removed by evaporation, kept all reagents and products dissolved and prevented photodegradation of the cyclobutane photoproduct 3a. The photoreaction in methanol underwent rapid photoreduction to the corresponding naphthohydroquinone 5 instead (entry 5) [31].
The photoprotective nature of acetone was further demonstrated in a photostability study. Solutions of compound 3a in either acetone or acetonitrile (T10% = 190 nm [30]) were exposed to Pyrex-filtered UVB light for 8 h. No reaction was observed in acetone, and 3a was recovered nearly quantitatively. In contrast, irradiation in acetonitrile initiated significant decompositions due to the possible excitation of 3a (λ ≤ 315 nm) in this solvent. 1H-NMR analysis of the recovered material suggested the formation of an aldehyde, possibly through Norrish type I cleavage [32]. No attempts were made to isolate any of the degradants.
Wavelength Optimization
The absorption spectrum of 1,4-naphthoquinone shows λmax at 246, 330 and 425 nm in hexane, with the first two due to π,π* and the last due to n,π* transitions [33]. These transitions can be utilized through selection of the lamp emission and the glass type of the reaction vessel. Thus, a series of photocycloadditions of the 1/2a model pair in a Pyrex (λ ≥ 300 nm [30]) or quartz (λ ≥ 200 nm [30]) vessel were conducted with different light tubes and in various organic solvents. The results of the irradiation experiments are summarized in Table 2.
Independent of the solvent, irradiations with visible light produced regioisomeric mixtures of 3a and 4a (entries 1–4). Under these conditions, both excited states of 1,4-naphthoquinone are populated through direct excitation (1: λ ≤ 460 nm [6,7]). When UV light and acetone were used, high conversion rates and selectivity were instead observed (entries 5–8). With its absorption beginning in the UVA range (T10% = 329 nm [30]), acetone is predominantly excited and operates as a triplet-sensitizer [28]. Irradiation with UVC light in acetonitrile solely yielded cyclobutane (3a) by direct excitation of 1 to its π,π* triplet state (entry 9). As 3a and styrene (2a) show absorption bands at 254 and 248 nm themselves [6,7,8,9], competing light absorption by these compounds slowed the photocycloaddition. The formation of polymeric by-products from styrene was further confirmed by 1H-NMR analysis of the crude product. Based on these results, the combination of acetone as a solvent and Pyrex-filtered light emitted from a UVB lamp was identified as the ideal irradiation conditions for preparative photocycloadditions (entry 6).

2.1.2. Photocycloadditions with Other Alkenes

The optimized reaction protocol was subsequently transferred to other alkenes and cycloalkenes (Scheme 3). Prolonged irradiations for 10–13 h furnished conversion rates of 40–96%, as determined by 1H-NMR analyses of the crude reaction mixtures. The photoproducts, either the cyclobutanes 3a–d or the oxetane 4e, were isolated by automated chromatography in acceptable to good yields of 25–78% (Table 3). The isolation process naturally caused losses of material [34].
Photocycloaddition with Styrene
The photoreaction with styrene 2a for 10 h resulted in a conversion of 96% and furnished an approx. 3:1 mixture of the anti:syn isomers of 3a in a combined yield of 69% (entry 1). The presence of the two isomeric products was evident from two complete sets of 1H-NMR signals in the crude product. The characteristic signals to determine the isomeric ratio appeared at 3.46 ppm for the major anti-stereoisomer, whereas the minor syn-isomer occurred in the range of 3.63–3.69 ppm. Bryce-Smith et al. reported a similar reaction in benzene using a medium-pressure mercury arc lamp and obtained cyclobutane 3a in 40% with a stereoisomeric ratio of 2:1 instead [35]. The anti-isomer was subsequently crystallized from methanol while the syn-isomer was precipitated with trifluorotoluene. The structures of the separated isomers were unambiguously confirmed by NMR spectroscopy in comparison with the literature data [35]. The preference for the anti-isomer can be attributed to the preferred trans-configuration of the phenyl group with respect to the dihydronaphthoquinone ring system. The structure of the major anti-isomer was, furthermore, established by X-ray crystallography (Figure 1). The conformation of the cyclobutane was puckered, with bond angles between 87–89°. The five hydrogen atoms along the cyclobutane ring were not quite eclipsed, whereas the phenyl substituent occupied a pseudo-equatorial position [36].
Photocycloaddition with 1,1-Diphenyl Ethylene
The photocycloaddition of 1,4-naphthoquinone (1) with 1,1-diphenyl ethylene (2b) required 12 h to reach a conversion of 78% and yielded the corresponding cyclobutane 3b in a yield of 42% (entry 2). The structure of the photoproduct 3b was confirmed by X-ray crystallography (Figure 2). The cyclobutane ring possessed a puckered structure with a dihedral angle of ca 15° [36]. Four hydrogen atoms and one phenyl substituent were placed in pseudo-equatorial positions, while the second phenyl ring occupied a pseudo-axial position. The bond angles were found to be between 87–90° and the hydrogen atoms along the cyclobutane ring were not completely eclipsed. Overall, the data obtained from the X-ray analysis corresponded well with the recorded NMR data.
Photocycloaddition with Cyclopentene
Irradiation of 1 with cyclopentene (2c) for 13 h produced an incomplete conversion of 67% and solely yielded the anti-cyclobutane 3c in 50% after purification (entry 3). The complete diastereoselectivity may be explained by the increased steric bulk and flexibility of the cyclopentane moiety in 3c. The 1H-NMR spectrum of anti-3c in CDCl3 showed a pair of doublets at 2.90 ppm and 3.08 ppm for the protons on the cyclobutane ring with 3Jcis couplings of 4.4 Hz and 3.3 Hz, respectively. The photoreaction was previously investigated in benzene by Bryce-Smith et al. and produced the same isomer, anti-3c, in a much lower yield of just 10% after several hours of irradiation [35]. In contrast, Maruyama et al. reported that no cycloaddition reaction was observed upon irradiation in a benzene solution. Instead, photoreduction to 5 via hydrogen abstraction from the allylic position of cyclopentene was noted [26]. This somewhat contradictory finding may again be explained by different excited state pathways with photoreduction operating via the n,π* and acetone-sensitization via the π,π* triplet state, respectively. The crystal structure of anti-3c is shown in Figure 3. The cyclobutane adopted a much shallower conformation, with all bond angles >89°. The cis protons did not appear to be completely eclipsed, with dihedral angles of 6–8°. In contrast, the bond angles in a typical puckered structure have been determined to be 88° and the dihedral angles to be 28° [36,37]. The cyclopentane ring adopted an envelope conformation, with its ring protons in a skew conformation. The C–C–C bond angles varied from 104–106°, resulting in an asymmetrical envelope conformation.
Photocycloaddition with Cyclohexene
After 12 h of irradiation, the reaction of 1,4-naphthoquinone (1) with cyclohexene (2d) reached a conversion of 84% and furnished the cyclobutane adduct anti-3d in a low yield of 25% due to exhaustive purification (entry 4). In comparison, irradiation in a benzene solution only produced photoreduction to 5 instead [26]. The 1H-NMR spectrum of 3d revealed the two cis protons as narrowly spaced doublet of doublets at 3.35 ppm. In the corresponding 13C-NMR spectrum, the two ethylene bridges of the cyclohexane ring gave two peaks, at 22.3 and 27.5 ppm, respectively. The crystal structure of the photoadduct anti-3d is furthermore shown in Figure 4. The cyclobutane ring is somewhat less puckered, with a dihedral angle of 22°, whereas the cyclohexane ring adopts a near chair conformation [36]. In the cyclobutane ring, two types of C–H bonds were identified: pseudoaxial and pseudoequatorial. The puckered conformation of the cyclobutane exhibited bond angles of 87–88°. The constraint imposed by the anti-fusion of the rings forced the cyclohexane ring to adopt a slightly distorted and flattened chair conformation. As a result, the bond angles were found in the range of 111–120°.
Photocycloaddition with Trans-Stilbene
The photoreaction of 1 with trans-stilbene (2e) is known to produce solely the spiro-oxetane via an electron transfer process [7,8,35,38]. Bryce-Smith et al. and Covell and colleagues also observed the formation of the cyclobutane adduct upon irradiation in benzene, albeit only in trace amounts [35,39]. In this study, irradiation under standard conditions with UVB light produced significant amounts of phenanthrene due to competing excitation (2e: λ ≤ 300 nm [40]) and the subsequent oxidative electrocyclic photocyclization of 2e [41]. In addition, cis-stilbene and other undefined compounds were noted in the 1H-NMR spectrum of the crude product. Consequently, even prolonged irradiation for 13 h resulted in a low conversion of 1 of just 40%, with an isolated yield of the spiro-oxetane 4e of 27% (entry 5). When the 1/2e pair was irradiated with 419 ± 25 nm light instead, the photoreaction proceeded cleanly, required a much shorter reaction time of 6 h, and achieved a high conversion of 93% (entry 6). From this reaction, the photoadduct 4e was isolated in an improved yield of 78%. The structure of 4e was confirmed by NMR spectroscopy. In particular, the 1H-NMR spectrum showed pairs of doublets for the oxetane protons at 4.64 and 6.27 ppm and the former quinonoid CH=CH protons at 6.48 ppm and 7.03 ppm, respectively. In addition, the 13C-NMR spectrum furnished three signals at 62.5, 79.0 and 81.4 ppm for the oxetane ring and one signal for the remaining C=O group at 184.2 ppm, respectively.

2.1.3. Photocycloadditions with Diphenylacetylene

With the aim of expanding the reaction scope, the photoaddition of 1,4-naphthoquinone (1) with diphenylacetylene (6) was, furthermore, investigated (Scheme 4). Irradiation in acetone using Pyrex-filtered UVB light for 12 h resulted in the complete consumption of 1 and produced a mixture of the cyclobutene 7 in 13% and the benzoanthracenone 8 in 75%, respectively. Farid and colleagues noted that photocycloadditions involving alkynes utilize different excited states of the quinone [42]. Bosch et al. suggested that quinone methide (9) formation is initiated by either photoinduced electron transfer or direct excitation of the quinone [43]. Compound 8 was formed from the initial spiro-oxetene via ring-opening to 9 and subsequent photoinduced dehydrocyclization.
The results obtained are in general agreement with those reported by Chen et al., who isolated 8 and 7 in yields of 24% and 37% after 16 h of irradiation in benzene with light >400 nm [13]. Pappas and Portnoy also investigated this transformation and obtained a 1:4 mixture of the cyclobutene adduct 7 and the open methide product 9 after 9 h of irradiation with UVA light in acetonitrile [44]. The latter authors concluded that the competing modes of addition were impacted by the solvent, temperature and concentration.
The identity of the structures of 7 and 8 was confirmed by NMR analyses in comparison with the literature data for both compounds [42,44]. The 1H-NMR spectrum of 7 produced a singlet at 4.47 ppm, and the corresponding 13C-NMR spectrum gave a doublet at 50.9 ppm for the equivalent CH groups. Likewise, the 1H-NMR spectrum of 8 showed a pair of doublets for the olefinic protons at 6.69 and 7.61 ppm. Its structure was furthermore confirmed by X-ray crystallography (Figure 5). The four rings of the benzoanthracenone moiety formed a single plane, while the benzoyl group was twisted out of this plane by ca 86°.

2.2. Photocycloadditions Under Continuous-Flow Conditions

The batch conditions of the photocycloadditions were, consequently, applied to a continuous-flow mode in an in-house reactor system.

2.2.1. In-House Capillary Reactor

The reactor (Figure 6) used a fluorinated ethylene propylene (FEP) capillary with an exposed length of 10 m, an inner diameter of 0.8 mm and an internal volume of 5 mL [45]. The capillary was wrapped around a Pyrex cylinder with an outer diameter of 6.5 cm (48 windings covering 7.8 cm). At its center, the reactor contained a single 8 W UVB fluorescence tube (inside-out irradiation). A small fan was mounted into the base of the reactor column to cool the lamp. The whole setup was kept in a light-tight cabinet. An additional cooling fan was mounted on the left side, and a thermometer was placed through the top of the cabinet for temperature control and monitoring during operation. An external syringe pump was used to transfer the reaction mixture through the capillary tubing. The product solution was collected outside the reactor box in an amber flask.

2.2.2. Residence Time and Flow Rate Study

To find the optimal residence time for a high conversion rate, a series of flow reactions for the 1/2a model pair were carried out again. Previously degassed acetone solutions of the starting materials were pumped through the flow reactor at a constant flow rate, and the effluent was continuously collected in an external flask. The use of acetone kept all the materials in solution, hence preventing the risk of clogging caused by solid materials [46]. The conversion rates were determined by 1H-NMR analysis of the crude product, and the results are depicted in Figure 7.
As expected, increasing the residence time resulted in a higher conversion. Initial irradiation with a residence time of 15 min gave a conversion of 83%, which gradually increased until a near completion rate of 99% with a residence time of 60 min was reached. By transferring the reaction protocol from batch to flow conditions, a significant reduction in reaction time was thus achieved.

2.2.3. Photocycloadditions with Other Alkenes

The photocycloaddition protocol was subsequently extended to all alkenes (2a–e) (Scheme 3). To prevent photodegradation by overexposure, a generic residence time of 60 min was maintained. Under these conditions, acceptable to high conversions of 50–99% and yields of 47–84% were achieved (Table 4). Despite the competing photochemistry of trans-stilbene (2e) in UVB light [40,41], half of the naphthoquinone 1 was successfully consumed and the spiro-oxetane product 4e was isolated in a compared to the batch process improved yield of 47% (entry 5).

2.2.4. Photocycloadditions with Diphenylacetylene

The photoaddition of 1 with diphenylacetylene (6) was further investigated under flow conditions (Scheme 4). Using the standard residence time of 60 min, complete conversion was observed, and cyclobutene 7 and benzoanthracenone 8 were obtained with yields of 20% and 75%, respectively.
Despite its simple design, the continuous-flow photoreactor showed better performances in terms of reaction time and utilization of available light. Under flow conditions, exposure times were reduced from 10–13 h to 60 min. This was achieved by improving light penetration within the microcapillary in combination with the superior inside-out reactor design. In addition, the removal of the potentially photoactive products 3 and 4 from the irradiated zone further reduced or avoided any photodecompositions. These beneficial features consequently improved conversions, yields, product qualities and selectivity. Flow operation was also found to be more economical in terms of the light source applied. The flow reactor utilized a single 8 W fluorescent tube, while the much larger Rayonet chamber reactor employed 16 × 8 W tubes instead.

3. Materials and Methods

3.1. General Information

All solvents and reagents were commercially available (Merck Life Science Pty Ltd., Bayswater, VIC, Australia or Thermo Fisher Scientific Australia Pty Ltd, Scoresby VIC, Australia) and were used without purification. 1,4-Naphthoquinone was purified by sublimation prior to use.
Batch irradiation experiments were carried out in a Rayonet RPR-200 photochemical chamber reactor (Southern New England Ultraviolet Company, Branford, CT, USA) equipped with 16 × 8 W UVA, UVB or visible light (cool white or 419 ± 25 nm) fluorescent or UVC germicidal tubes. Pyrex or quartz Schlenk flasks with capacities of 60 mL were used as reaction vessels. A cold finger was inserted into the flask to maintain a reaction temperature below 25 °C. Photoreactions were monitored by thin-layer chromatography (TLC) or 1H-NMR spectroscopy. Continuous-flow irradiations were conducted in an in-house reactor system equipped with a single UVB fluorescent tube (Figure 6).
Structure determinations were undertaken on the MX1 beamline at the Australian Synchrotron, part of ANSTO [47]. Crystallographic data (excluding structure factors) for the structures reported in this paper have been deposited at the Cambridge Crystallographic Data Centre (CCDC) as supplementary numbers CCDC2345857 (anti-3a), CCDC2345858 (3b), CCDC2345859 (anti-3c), CCDC2345856 (anti-3d) and CCDC2345864 (8). These data can be obtained free of charge from the CCDC.

3.2. Photocycloadditions

  • General procedure for UVB photocycloadditions under batch conditions
A solution of 1,4-naphthoquinone (1 mmol) and alkene or alkyne (5 mmol) in acetone (50 mL) was irradiated in a Schlenk flask for 10–13 h while a slow, constant stream of nitrogen was passed through it. The crude reaction mixture was evaporated to dryness, and the residue was subjected to automated column chromatography using mixtures of cyclohexane and ethyl acetate or n-hexane and ethyl acetate as the mobile phase.
  • General procedure for UVB photocycloadditions under continuous-flow conditions
The capillary of the continuous-flow reactor was filled with acetone, and the cooling fans and fluorescent tube were started. A solution of 1,4-naphthoquinone (0.5 mmol) and alkene or alkyne (2.5 mmol) in acetone (25 mL) was degassed with nitrogen for 5 min, loaded into a syringe and pumped at a flow rate of 0.083 mL/min through the in-house flow photoreactor equipped with a single 8 W UVB fluorescent tube (Ushio G8T5E). At the end of the delivery, the capillary was flushed with approx. 15 mL of acetone. The reaction mixture and acetone washings were collected in an amber round-bottom flask. The products were isolated as described above.
All photocyclization products 3a–d, 4a and e, 7 and 8 are known, and their spectroscopic details matched previously described data [25,26,35,44,48]. Characteristic spectroscopic details and NMR spectra of all the products are compiled in the Supplementary Materials.

4. Conclusions

In conclusion, a series of photocycloadditions of 1,4-naphthoquinone with alkenes and a model alkyne were successfully conducted. In most cases, simple irradiation in acetone with UVB light enabled the selective generation of cyclobutane photoadducts in acceptable to good yields without any noticeable photodegradation. With trans-stilbene, the isomeric spiro-oxetane was obtained instead, while irradiation in the presence of diphenylacetylene furnished a mixture of a cyclobutene and benzoanthracenone. When transferred to a continuous-flow reactor system, a significant reduction in reaction time from several hours to one hour, improved conversions and higher isolated yields were achieved. The simple reaction protocol may be subsequently scaled-up or conducted in a more advanced flow reactor [49,50].

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules29245920/s1, Experimental details, procedures, spectroscopic data and NMR spectra; Figure S1: Photocycloaddition in the Rayonet reactor during irradiation; Figure S2: In-house continuous-flow capillary reactor during operation.

Author Contributions

M.A.Y., Z.G. and M.O. conducted the research and collected the data; P.C.J. supervised and assisted with the structure determination; M.O. also secured the funding, supervised the chemical research and wrote the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the College of Science and Engineering at James Cook University through a Competitive Research Training Grant.

Data Availability Statement

All data is available on request from the corresponding author.

Acknowledgments

M.A.Y. thanks the Ministry of Higher Education and Scientific Research of Iraq for a Ph.D. Scholarship.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Jha, R.K.; Kumar, S. Direct Functionalization of para-Quinones: A Historical Review and New Perspectives. Eur. J. Org. Chem. 2024, 27, e202400535. [Google Scholar] [CrossRef]
  2. Mone, N.S.; Bhagwat, S.A.; Sharma, D.; Chaskar, M.; Patil, R.H.; Zamboni, P.; Nawani, N.N.; Satpute, S.K. Naphthoquinones and Their Derivatives: Emerging Trends in Combating Microbial Pathogens. Coatings 2021, 11, 434. [Google Scholar] [CrossRef]
  3. Ahmadi, E.S.; Tajbakhsh, A.; Iranshahy, M.; Asili, J.; Kretschmer, N.; Shakeri, A.; Sahebkar, A. Naphthoquinone Derivatives Isolated from Plants: Recent Advances in Biological Activity. Mini-Rev. Med. Chem. 2020, 20, 2019–2035. [Google Scholar] [CrossRef] [PubMed]
  4. López, L.I.; Leyva, E.; García de la Cruz, R.F. Naphthoquinones: More than natural pigments. Rev. Mex. Cienc. Farm. 2011, 42, 6–17. [Google Scholar]
  5. Jang, J.; Lee, G.; Cho, E.J. Visible light induced reactions of quinones. Bull. Korean Chem. Soc. 2024, 45. in print. [Google Scholar] [CrossRef]
  6. de Lucas, N.C.; Ferreira, A.B.B.; Netto-Ferreira, J.C. Fotoquímica de Naftoquinonas. Rev. Virtual Quim. 2015, 7, 403–463. [Google Scholar] [CrossRef]
  7. Maruyama, K.; Osuka, A. Recent advances in the photochemistry of quinones. In The Chemistry of Quinonoid Compounds; Patai, S., Rappaport, Z., Eds.; John Wiley & Sons Ltd.: New York, NY, USA, 1988; Volume 2, Part 1, Chapter 13; pp. 759–878. [Google Scholar] [CrossRef]
  8. Gilbert, A. 1,4-Quinone Cycloaddition Reactions with Alkenes, Alkynes, and Related Compounds. In CRC Handbook of Organic Photochemistry and Photobiology, 2nd ed.; Horspool, W.M., Lenci, F., Eds.; CRC Press: Boca Raton, FL, USA, 2004; Chapter 87; pp. 1–12. [Google Scholar] [CrossRef]
  9. Creed, D. 1,4-Quinone cycloaddition reactions with alkene, alkynes and related compounds. In CRC Handbook of Organic Photochemistry and Photobiology; Horspool, W.M., Song, P.-S., Eds.; CRC Press: Boca Raton, FL, USA, 1995; Chapter 59; pp. 737–747. [Google Scholar]
  10. Maejima, S.; Yamaguchi, E.; Itoh, A. Visible-Light-Induced Regioselective Functionalization of α-Olefin: Development of One-Pot Photo-Synthesis of C3-Substituted Dihydrobenzofurans. Org. Lett. 2023, 25, 1856–1861. [Google Scholar] [CrossRef] [PubMed]
  11. Xu, X.; Yang, F.; Zhang, X.; Gao, Y.; Su, W. Visible-Light-Induced Paternò-Büchi Reaction of Anthraquinones for the Synthesis of Spirocyclic Oxetanes. Asian J. Org. Chem. 2023, 12, e202300069. [Google Scholar] [CrossRef]
  12. Tan, S.-B.; Huang, C.; Chen, X.; Wu, Y.; Zhou, M.; Zhang, C.; Zhang, Y. Small molecular inhibitors of miR-1 identified from photocycloadducts of acetylenes with 2-methoxy-1,4-naphthalenequinone. Bioorg. Med. Chem. 2013, 21, 6124–6131. [Google Scholar] [CrossRef] [PubMed]
  13. Chen, X.; Huang, C.; Zhang, W.; Wu, Y.; Chen, X.; Zhang, C.-Y.; Zhang, Y. A universal activator of micro RNAs identified from photoreaction products. Chem. Comm. 2012, 48, 6432–6434. [Google Scholar] [CrossRef] [PubMed]
  14. Bochet, C.G. On the Sustainability of Photochemical Reactions. Chimia 2019, 73, 720–723. [Google Scholar] [CrossRef]
  15. Ravelli, D.; Protti, S.; Fagnoni, M.; Albini, A. Visible Light Photocatalysis. A Green Choice? Curr. Org. Chem. 2013, 17, 2366–2373. [Google Scholar] [CrossRef]
  16. Alfano, A.I.; García-Lacuna, J.; Griffiths, O.M.; Ley, S.V.; Baumann, M. Continuous Flow Synthesis enabling Reaction Discovery. Chem. Sci. 2024, 15, 4618–4630. [Google Scholar] [CrossRef] [PubMed]
  17. Alfano, A.I.; Pelliccia, S.; Rossino, G.; Chianese, O.; Summa, V.; Collina, S.; Brindisi, M. Continuous-Flow Technology for Chemical Rearrangements: A Powerful Tool to Generate Pharmaceutically Relevant Compounds. ACS Med. Chem. Lett. 2023, 14, 326–337. [Google Scholar] [CrossRef] [PubMed]
  18. Gambacorta, G.; Sharley, J.S.; Baxendale, I.R. A Comprehensive Review of Flow Chemistry Techniques Tailored to the Flavours and Fragrances Industries. Beilstein J. Org. Chem. 2021, 17, 1181–1312. [Google Scholar] [CrossRef]
  19. Fukuyama, T.; Kasakado, T.; Hyodo, M.; Ryu, I. Improved Efficiency of Photo-induced Synthetic Reactions Enabled by Advanced Photo Flow Technologies. Photochem. Photobiol. Sci. 2022, 21, 761–775. [Google Scholar] [CrossRef]
  20. Politano, F.; Oksdath-Mansilla, G. Light on the Horizon: Current Research and Future Perspectives in Flow Photochemistry. Org. Process Res. Dev. 2018, 22, 1045–1062. [Google Scholar] [CrossRef]
  21. Rehm, T.H. Flow Photochemistry as a Tool in Organic Synthesis. Chem. Eur. J. 2020, 26, 16952–16974. [Google Scholar] [CrossRef]
  22. Oelgemöller, M.; Hoffmann, N.; Shvydkiv, O. From ‘Lab & Light on a Chip’ to Parallel Microflow Photochemistry. Austr. J. Chem. 2014, 67, 337–342. [Google Scholar] [CrossRef]
  23. Sender, M.; Ziegenbalg, D. Light Sources for Photochemical Processes—Estimation of Technological Potentials. Chem. Ing. Tech. 2017, 89, 1159–1173. [Google Scholar] [CrossRef]
  24. Khan, H.; Rajesh, V.M.; Ravva, M.K.; Sen, S. Optimization of Blue LED Photo-Flow Synthesis in Continuous Flow Reactors Using Design of Experiments (DoE): Efficient Synthesis of Diverse Diaryl Ketones. Chem. Eng. J. 2024, 501, 157657. [Google Scholar] [CrossRef]
  25. Yaseen, M.A.; Mumtaz, S.; Hunter, R.L.; Wall, D.; Belluau, V.; Robertson, M.J.; Oelgemöller, M. Continuous-Flow Photochemical Transformations of 1,4-Naphthoquinones and Phthalimides in a Concentrating Solar Trough Reactor. Austr. J. Chem. 2020, 73, 1149–1157, Erratum in Austr. J. Chem. 2020, 73, 1301. [Google Scholar] [CrossRef]
  26. Maruyama, K.; Otsuki, T.; Takuwa, A.; Kako, S. Photochemical Reaction of 1, 4-Naphthoquinone with Olefins. Bull. Inst. Chem. Res. Kyoto Uni. 1972, 50, 344–347. [Google Scholar]
  27. Dekker, J.; van Vuuren, P.J.; Venter, D.P. Photodimerization. I. The syn and anti-Photodimers of 1,4-Naphthoquinone. J. Org. Chem. 1968, 33, 464–466. [Google Scholar] [CrossRef]
  28. Bunce, N.J.; Ridley, J.E.; Zerner, M.C. On the Excited States of p-Quinones and an Interpretation of the Photocycloaddition of p-Quinones to Alkenes. Theoret. Chim. Acta 1977, 45, 283–300. [Google Scholar] [CrossRef]
  29. Bunce, N.J.; Hadley, M. On the Mechanism of Oxetane Formation in the Photocycloaddition of p-Benzoquinone to Alkenes. Canad. J. Chem. 1975, 53, 3240–3246. [Google Scholar] [CrossRef]
  30. Montalti, M.; Credi, A.; Prodi, L.; Gandolfi, M.T. Handbook of Photochemistry, 3rd ed.; CRC Press: Boca Raton, FL, USA, 2006. [Google Scholar]
  31. Leshina, T.; Polyakov, N. The Mechanism of Photoreduction of Quinones by Alcohols from Proton CIDNP Data in high and low Magnetic Fields. J. Phys. Chem. 1990, 94, 4379–4382. [Google Scholar] [CrossRef]
  32. Albini, A. Norrish’ Type I and II Reactions and their Role in the Building of Photochemical Science. Photochem. Photobiol. Sci. 2021, 20, 161–181. [Google Scholar] [CrossRef] [PubMed]
  33. Mukherjee, T. Photo and Radiation Chemistry of Quinones. Proc. Indian Natl. Sci. Acad. USA 2000, 66, 239–266. [Google Scholar]
  34. Wernerova, M.; Hudlicky, T. On the Practical Limits of Determining Isolated Product Yields and Ratios of Stereoisomers: Reflections, Analysis, and Redemption. Synlett 2010, 2010, 2701–2707. [Google Scholar] [CrossRef]
  35. Bryce-Smith, D.; Evans, E.H.; Gilbert, A.; McNeill, H.S. Photoaddition of Ethenes to 1,4-Naphthoquinone: Factors Influencing the Site of Reaction. J. Chem. Soc. Perkin Trans.1 1992, 485–489. [Google Scholar] [CrossRef]
  36. Dragojlovic, V. Conformational analysis of cycloalkanes. ChemTexts 2015, 1, 14. [Google Scholar] [CrossRef]
  37. Cotton, F.A.; Frenz, B.A. Conformations of cyclobutane. Tetrahedron 1974, 30, 1587–1594. [Google Scholar] [CrossRef]
  38. Sun, D.; Hubig, S.M.; Kochi, J.K. Oxetanes from [2+2] Cycloaddition of Stilbenes to Quinone via Photoinduced Electron Transfer. J. Org. Chem. 1999, 64, 2250–2258. [Google Scholar] [CrossRef]
  39. Covell, C.; Gilbert, A.; Richter, C. Sunlight-induced Regio-and Stereo-specific (2π+2π) Cycloaddition of Arylethenes to 2-Substituted-1, 4-naphthoquinones. J. Chem. Res. Synop. 1998, 316–317. [Google Scholar] [CrossRef]
  40. Waldeck, D.H. Photoisomerization Dynamics of Stilbenes. Chem. Rev. 1991, 91, 415–436. [Google Scholar] [CrossRef]
  41. Moore, W.M.; Morgan, D.D.; Stermitz, F.R. The Photochemical Conversion of Stilbene to Phenanthrene. The Nature of the Intermediate. J. Am. Chem. Soc. 1963, 85, 829–830. [Google Scholar] [CrossRef]
  42. Farid, S.; Kothe, W.; Pfundt, G. Competitive Photoadditions of Acetylenes to the C=C and C=O Bonds of p-Quinones. Tetrahedron Lett. 1968, 9, 4147–4150. [Google Scholar] [CrossRef]
  43. Bosch, E.; Hubig, S.; Kochi, J. Paterno-Büchi Coupling of (Diaryl) Acetylenes and Quinone via Photoinduced Electron Transfer. J. Am. Chem. Soc. 1998, 120, 386–395. [Google Scholar] [CrossRef]
  44. Pappas, S.; Portnoy, N.A. Substituent Effects on the Photoaddition of Diphenylacetylene to 1, 4-Naphthoquinones. J. Org. Chem. 1968, 33, 2200–2203. [Google Scholar] [CrossRef]
  45. Mumtaz, S.; Robertson, M.J.; Oelgemöller, M. Continuous Flow Photochemical and Thermal Multi-step Synthesis of Bioactive 3-Arylmethylene-2,3-dihydro-1H-isoindolin-1-ones. Molecules 2019, 24, 4527. [Google Scholar] [CrossRef] [PubMed]
  46. Chen, Y.; Sabio, J.C.; Hartman, R.L. When Solids Stop Flow Chemistry in Commercial Tubing. J. Flow Chem. 2015, 5, 166–171. [Google Scholar] [CrossRef]
  47. Cowieson, N.P.; Aragao, D.; Clift, M.; Ericsson, D.J.; Gee, C.; Harrop, S.J.; Mudie, N.; Panjikar, S.; Price, J.R.; Riboldi-Tunnicliffe, A.; et al. MX1: A Bending-magnet Crystallography Beamline Serving both Chemical and Macromolecular Crystallography Communities at the Australian Synchrotron. J. Synchrotron Rad. 2015, 22, 187–190. [Google Scholar] [CrossRef] [PubMed]
  48. Farid, S.; Kothe, W.; Pfundt, G. NMR-study of Cyclobutene Derivatives. Tetrahedron Lett. 1968, 9, 4151–4154. [Google Scholar] [CrossRef]
  49. Donnelly, K.; Baumann, M. Scalability of Photochemical Reactions in Continuous Flow Mode. J. Flow Chem. 2021, 11, 223–241. [Google Scholar] [CrossRef]
  50. Hunter, R.; Josland, S.; Moore, J.; Guthrie, D.; Robertson, M.J.; Oelgemöller, M. Rapid Photochemical Reaction Studies under Continuous-flow Conditions in the Vapourtec UV-150 Reactor—A Technical Note. Curr. Org. Chem. 2018, 22, 2501–2508. [Google Scholar] [CrossRef]
Molecules 29 05920 sch001

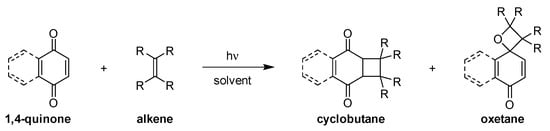

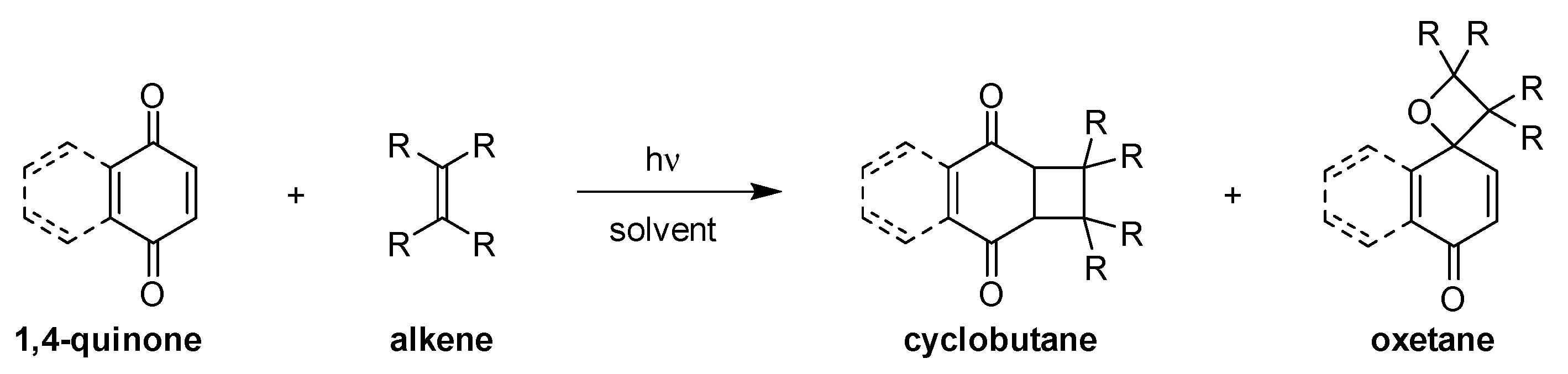

Scheme 1. [2+2]-Photocycloadditions of 1,4-quinones with alkenes.
Scheme 1. [2+2]-Photocycloadditions of 1,4-quinones with alkenes.
Molecules 29 05920 sch001
Molecules 29 05920 sch002

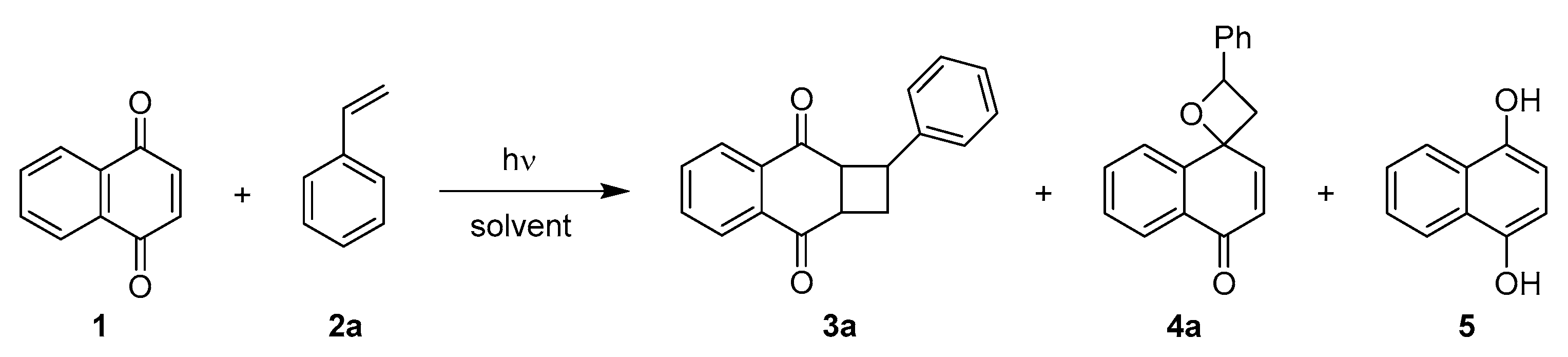

Scheme 2. [2+2]-Photocycloaddition of 1,4-naphthoquinone with styrene as a model reaction.
Scheme 2. [2+2]-Photocycloaddition of 1,4-naphthoquinone with styrene as a model reaction.
Molecules 29 05920 sch002
Molecules 29 05920 sch003

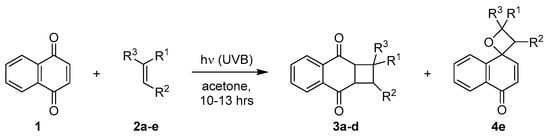

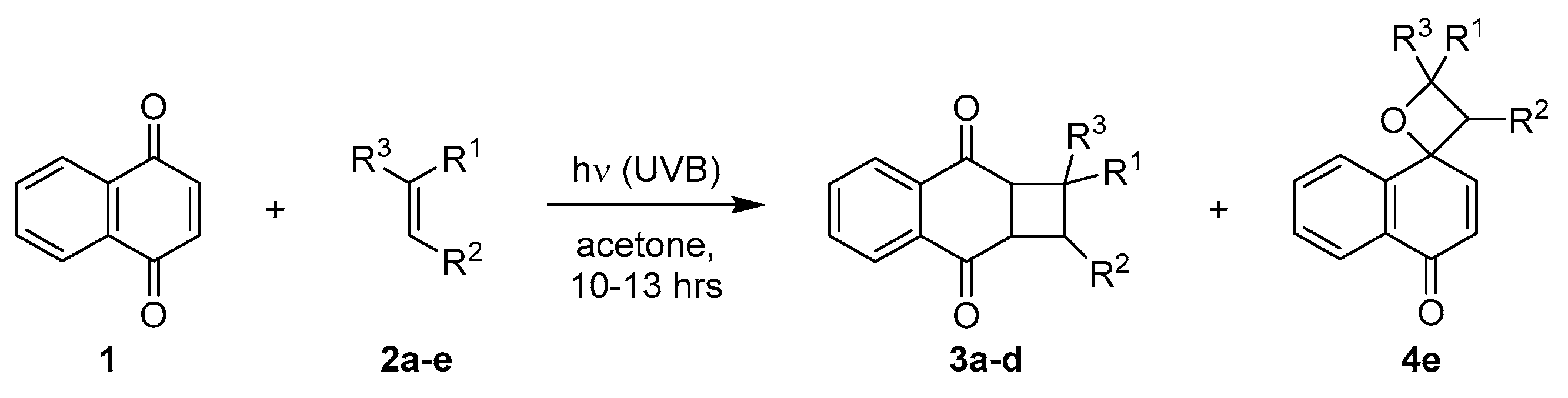

Scheme 3. [2+2]-Photocycloadditions of 1,4-naphthoquinone with various alkenes.
Scheme 3. [2+2]-Photocycloadditions of 1,4-naphthoquinone with various alkenes.
Molecules 29 05920 sch003
Molecules 29 05920 g001
Figure 1. Crystal structure of anti-3a (from methanol).
Figure 1. Crystal structure of anti-3a (from methanol).
Molecules 29 05920 g001
Molecules 29 05920 g002

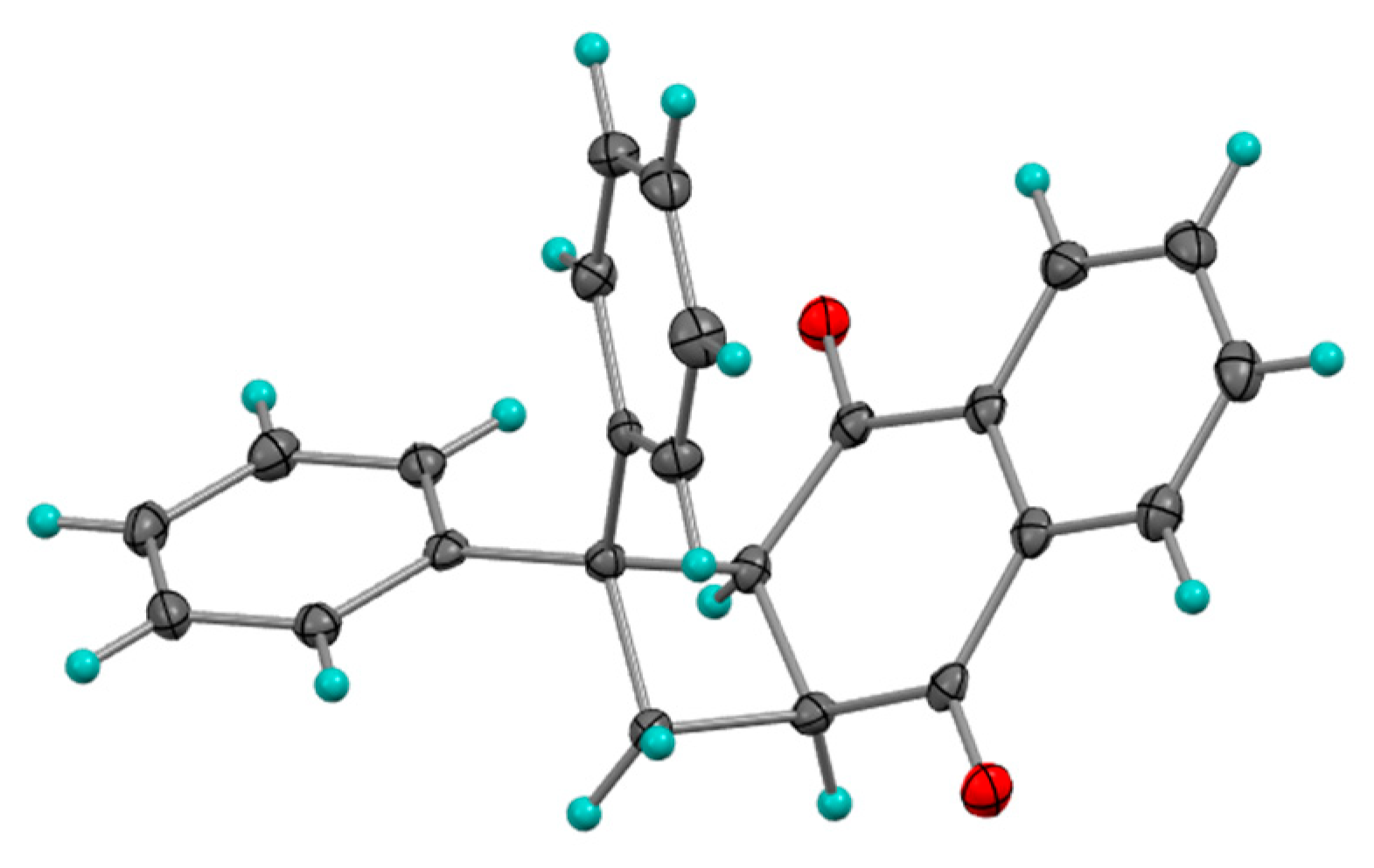

Figure 2. Crystal structure of 3b (from methanol).
Figure 2. Crystal structure of 3b (from methanol).
Molecules 29 05920 g002
Molecules 29 05920 g003

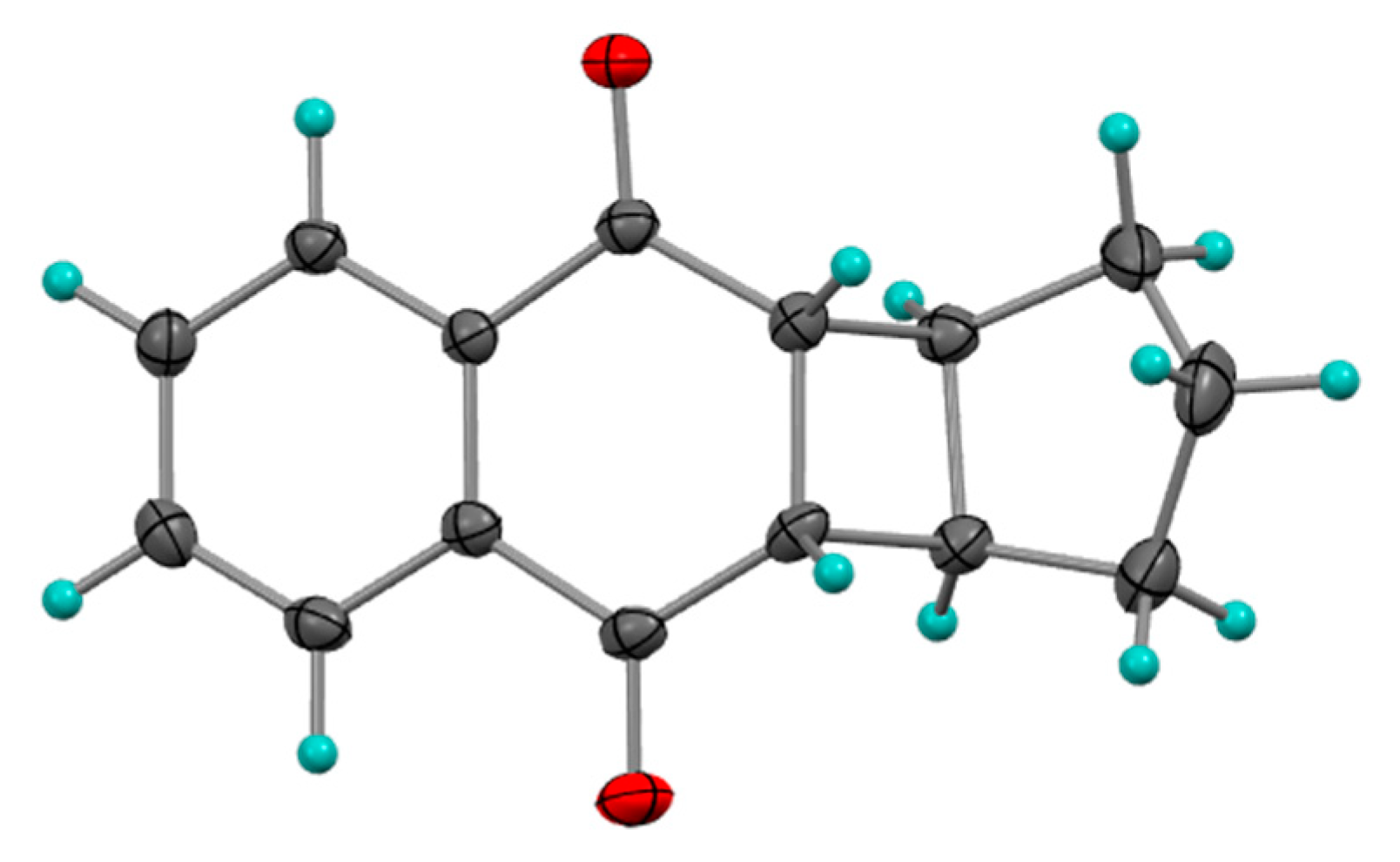

Figure 3. Crystal structure of anti-3c (from n-hexane/ethyl acetate).
Figure 3. Crystal structure of anti-3c (from n-hexane/ethyl acetate).
Molecules 29 05920 g003
Molecules 29 05920 g004

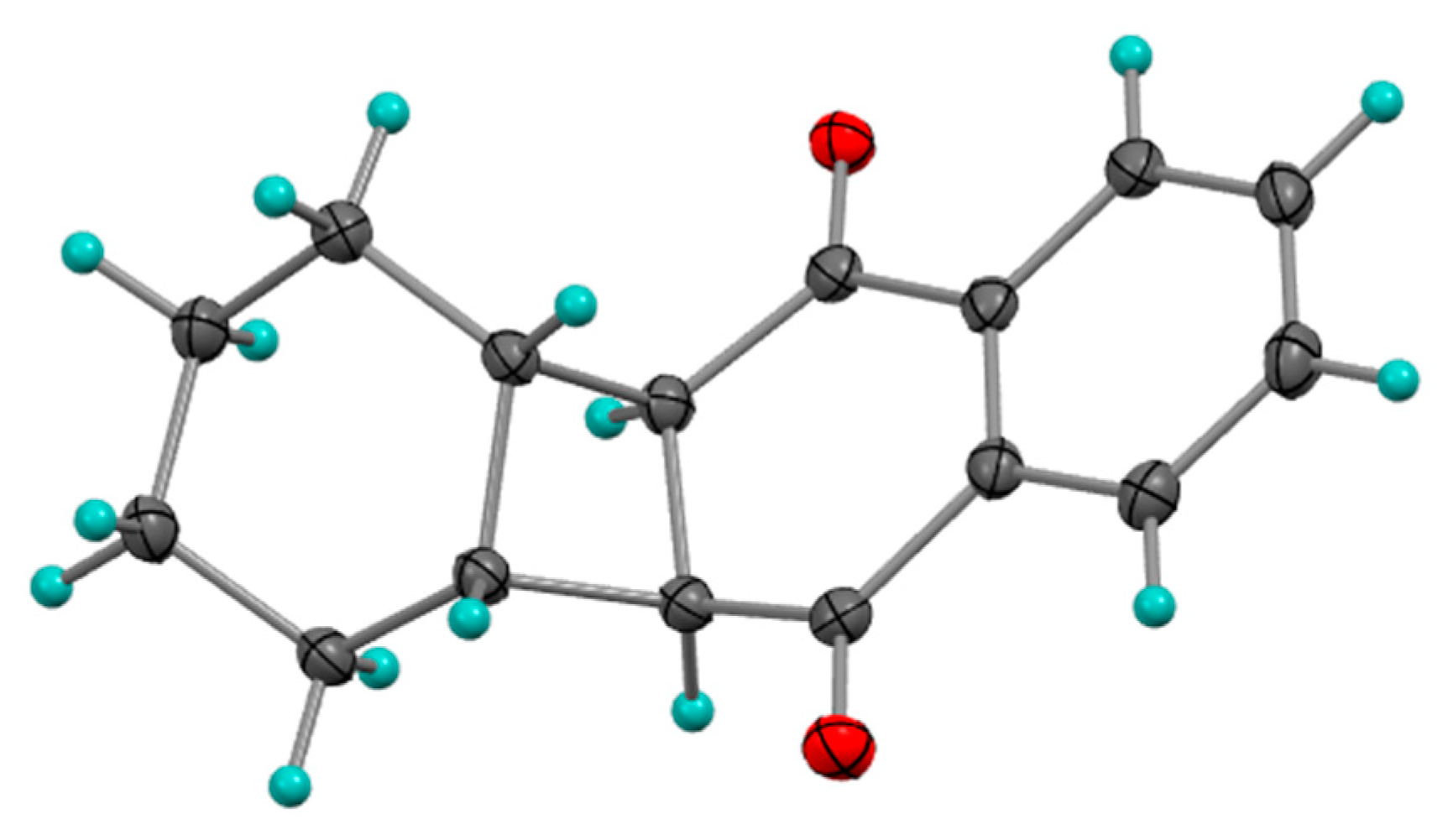

Figure 4. Crystal structure of anti-3d (from ethanol).
Figure 4. Crystal structure of anti-3d (from ethanol).
Molecules 29 05920 g004
Molecules 29 05920 sch004

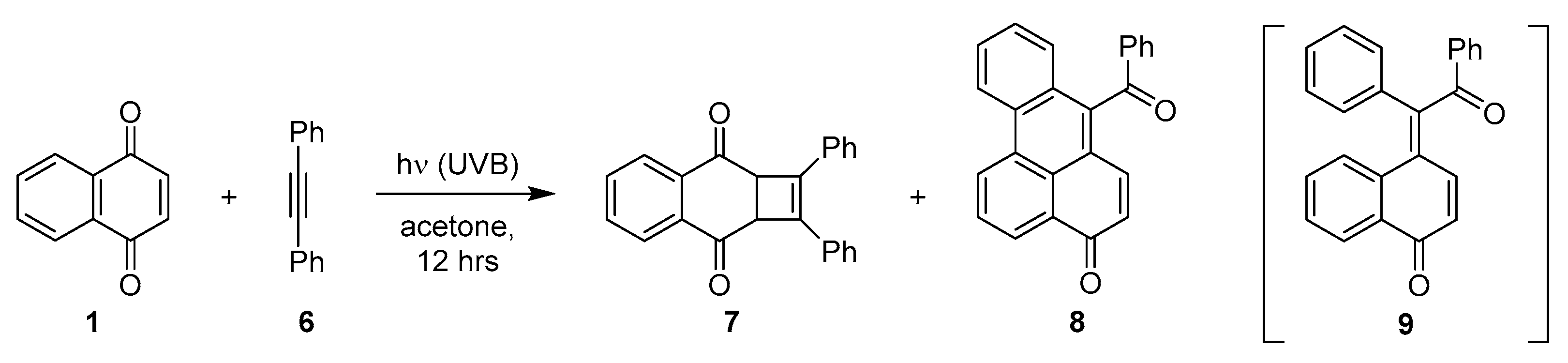

Scheme 4. [2+2]-Photocycloaddition of 1,4-naphthoquinone with diphenylacetylene.
Scheme 4. [2+2]-Photocycloaddition of 1,4-naphthoquinone with diphenylacetylene.
Molecules 29 05920 sch004
Molecules 29 05920 g005
Figure 5. Crystal structure of 8 (from n-hexane/ethyl acetate).
Figure 5. Crystal structure of 8 (from n-hexane/ethyl acetate).
Molecules 29 05920 g005
Molecules 29 05920 g006

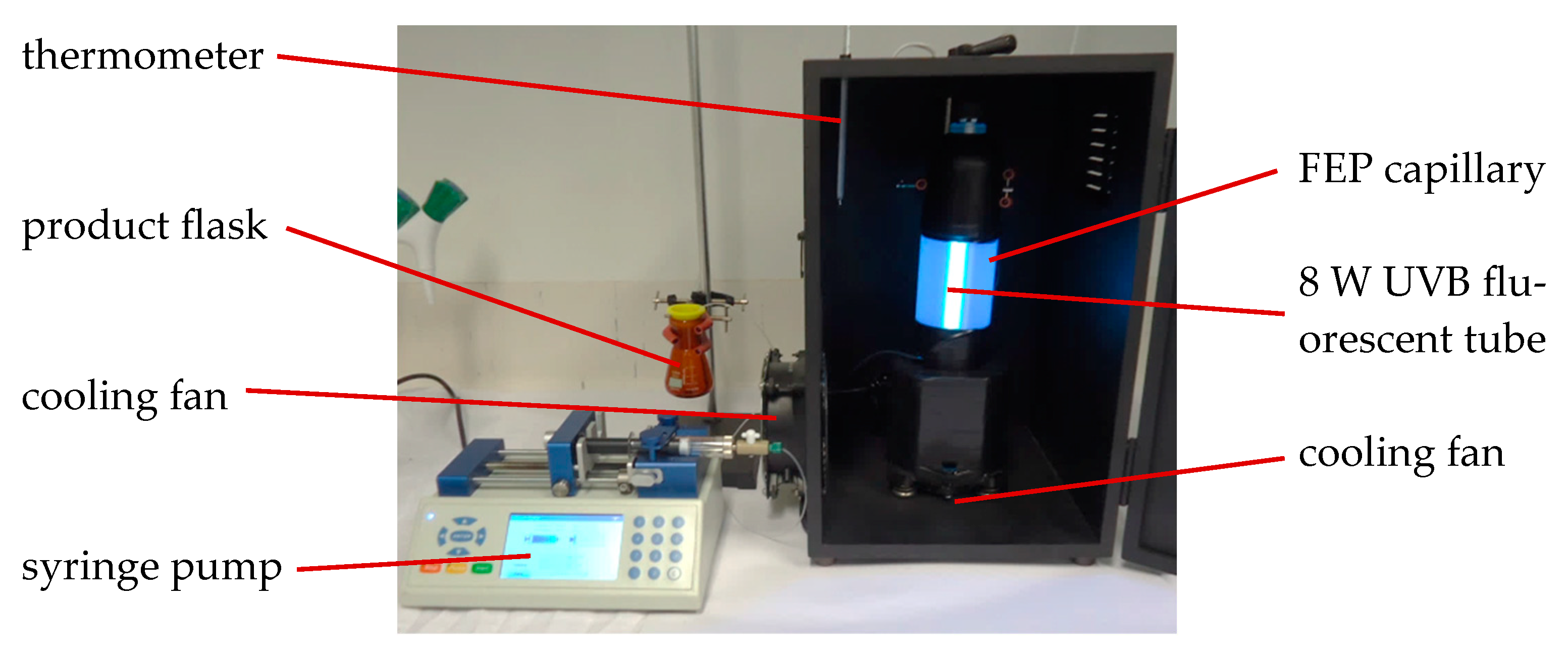

Figure 6. In-house continuous-flow capillary reactor.
Figure 6. In-house continuous-flow capillary reactor.
Molecules 29 05920 g006
Molecules 29 05920 g007

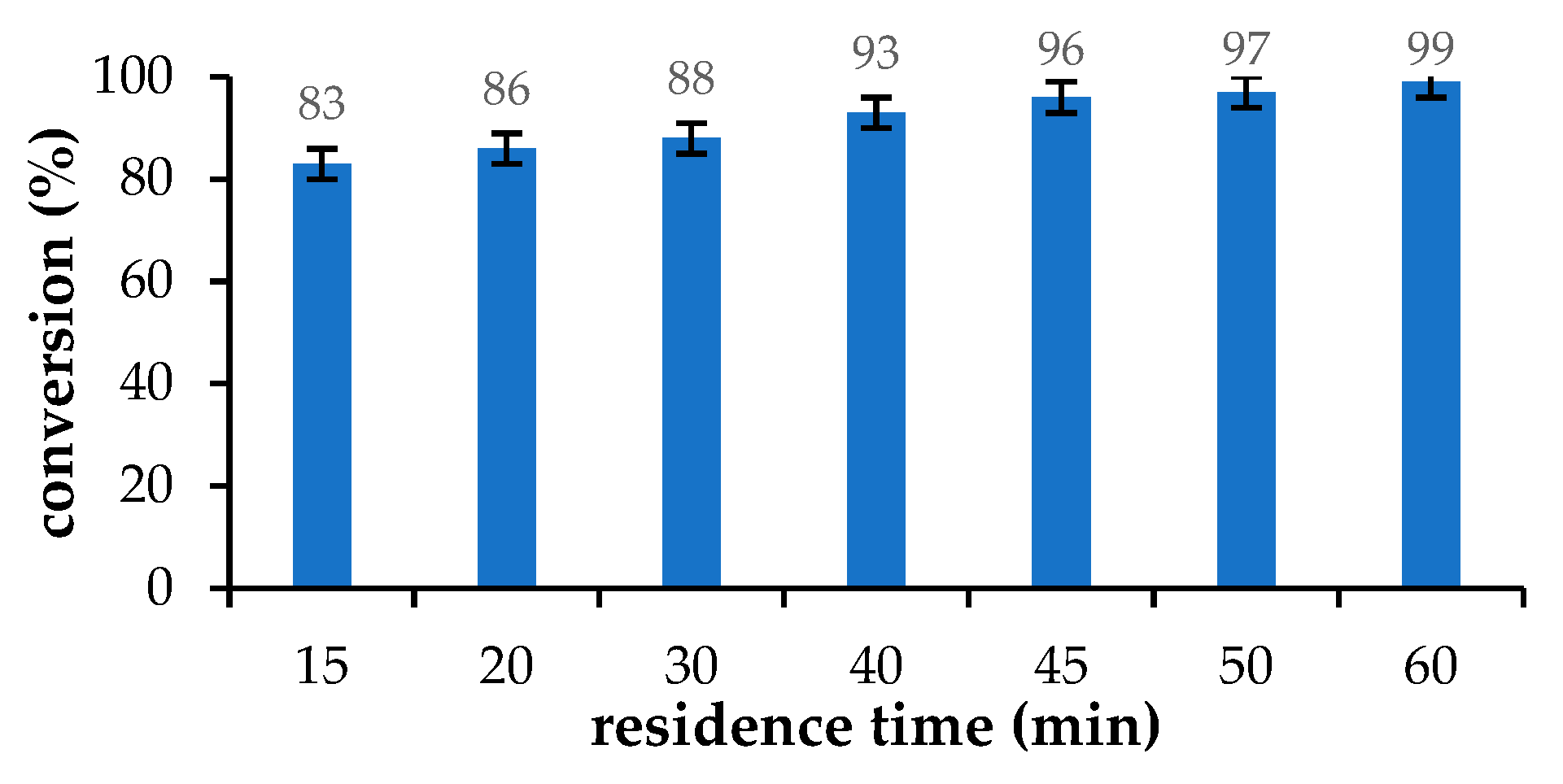

Figure 7. Conversion rates vs. residence time.
Figure 7. Conversion rates vs. residence time.
Molecules 29 05920 g007
Table 1. Experimental results of the solvent optimization study (300 ± 25 nm, Pyrex, 10 h).
Table 1. Experimental results of the solvent optimization study (300 ± 25 nm, Pyrex, 10 h).
EntrySolventConversion (%) 1Composition 1Yield of 3a (%) 2
3a (%)4a (%)
1acetonitrile8893751
2trifluorotoluene8794658
3chloroform100782255
4acetone96100069
5methanol100photoreduction to 5n.d. 3
1 Determined by 1H-NMR analysis (±3%). 2 After automated flash chromatography. 3 Not determined.
Table 2. Experimental results of the wavelength optimization study (10 h).
Table 2. Experimental results of the wavelength optimization study (10 h).
EntryIrradiation ConditionsSolventConversion (%) 1Composition 1
3a (%)4a (%)
1400–700 nm, 2 Pyrexacetone736337
2419 ± 25 nm, Pyrexacetone898218
3419 ± 25 nm, Pyrextrifluorotoluene748119
4419 ± 25 nm, Pyrexacetonitrile699010
5350 ± 25 nm, Pyrexacetone93955
6300 ± 25 nm, Pyrexacetone961000
7300 ± 25 nm, Quartzacetone961000
8254 nm, Quartzacetone911000
9254 nm, Quartzacetonitrile651000
1 Determined by 1H-NMR analysis (±3%). 2 Cool white fluorescent tubes.
Table 3. Experimental results of photocyclizations with various alkenes under batch conditions with Pyrex-filtered UVB light.
Table 3. Experimental results of photocyclizations with various alkenes under batch conditions with Pyrex-filtered UVB light.
EntryAlkene (2)Time (h)Conversion (%) 1Yield (%) 2
R1R2R3
1PhHH109669 (3a)
2PhHPh127842 (3b)
3-(CH2)3-H136750 (3c)
4-(CH2)4-H128425 (3d)
5HPhPh134027 (4e)
6 3HPhPh69378 (4e)
1 Determined by 1H-NMR analysis (±3%). 2 After automated flash chromatography. 3 Using 419 ± 25 nm light.
Table 4. Experimental results of photocyclizations with various alkenes under continuous-flow conditions (60 min).
Table 4. Experimental results of photocyclizations with various alkenes under continuous-flow conditions (60 min).
EntryAlkene (2)Conversion (%) 1Yield (%) 2
R1R2R3
1PhHH9984 (3a)
2PhHPh8660 (3b)
3-(CH2)3-H8873 (3c)
4-(CH2)4-H7855 (4d)
5HPhPh5047 (4e)
1 Determined by 1H-NMR analysis (±3%). 2 After automated flash chromatography.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yaseen, M.A.; Guo, Z.; Junk, P.C.; Oelgemöller, M. [2+2]-Photocycloadditions of 1,4-Naphthoquinone Under Batch and Continuous-Flow Conditions. Molecules 2024, 29, 5920. https://doi.org/10.3390/molecules29245920

AMA Style

Yaseen MA, Guo Z, Junk PC, Oelgemöller M. [2+2]-Photocycloadditions of 1,4-Naphthoquinone Under Batch and Continuous-Flow Conditions. Molecules. 2024; 29(24):5920. https://doi.org/10.3390/molecules29245920

Chicago/Turabian Style

Yaseen, Madyan A., Zhifang Guo, Peter C. Junk, and Michael Oelgemöller. 2024. "[2+2]-Photocycloadditions of 1,4-Naphthoquinone Under Batch and Continuous-Flow Conditions" Molecules 29, no. 24: 5920. https://doi.org/10.3390/molecules29245920

APA Style

Yaseen, M. A., Guo, Z., Junk, P. C., & Oelgemöller, M. (2024). [2+2]-Photocycloadditions of 1,4-Naphthoquinone Under Batch and Continuous-Flow Conditions. Molecules, 29(24), 5920. https://doi.org/10.3390/molecules29245920

Article Metrics

Back to TopTop
