Comprehensive Analysis of Sulfated Flavonoids in Eclipta prostrata for Quality Evaluation
1
College of Pharmaceutical Sciences, Ritsumeikan University, Kusatsu 525-8577, Shiga, Japan
2
Research Organization of Science and Technology, Ritsumeikan University, Kusatsu 525-8577, Shiga, Japan
*
Author to whom correspondence should be addressed.
Molecules 2024, 29(20), 4888; https://doi.org/10.3390/molecules29204888
Submission received: 14 September 2024
/
Revised: 13 October 2024
/
Accepted: 14 October 2024
/
Published: 15 October 2024
(This article belongs to the Special Issue Natural Bioactive Compounds from Traditional Asian Plants)
Abstract
:Eclipta prostrata (Asteraceae) is employed as a hemostatic agent in many traditional medicines, owing to its sulfated flavonoid content. In this study, we obtained crude drug samples from three provinces collected in different years and analyzed their sulfated flavonoid contents using liquid chromatography–mass spectrometry (LC–MS) for quality evaluation. Because sulfated flavonoids are unstable and difficult to isolate from extracts, this study first synthesized a variety of sulfated flavonoids and accumulated spectral data in order to identify the compounds in E. prostrata. The LC–MS analysis of six crude drug samples revealed the presence of luteolin 7-sulfate, apigenin 7-sulfate, diosmetin 7-sulfate, and diosmetin 3′-sulfate. The samples without luteolin 3′-sulfate featured high apigenin 7-sulfate content. Although the samples were collected from the same locality, their compositions differed depending on the year of collection. Further, they were classified according to three patterns: (1) samples with luteolin 7-sulfate as the main component, (2) samples with apigenin 7-sulfate as the main component, and (3) samples with relatively high diosmetin sulfate content. Luteolin 7-sulfate typically exhibits relatively high erythrocyte aggregation efficiency and fibrinogen aggregation rate. These results demonstrate that the analysis of sulfated flavonoids is beneficial for the quality evaluation of E. prostrata for hemostatic applications.
1. Introduction
Eclipta prostrata (L.) L. (Asteraceae) is an annual plant found in tropical and subtropical regions globally. This plant have been used as a traditional medicine by many ethnic groups. The Compendium of Materia Medica, edited by Li Shizhen and published in China in the late 16th century, describes the benefits of the plant for hemostasis, dental treatment, and hair growth [1]. In India, this plant is used as an ayurvedic drug for revitalization and to treat aging. Additionally, it is widely used to treat skin diseases, jaundice and other liver diseases, gastrointestinal diseases, asthma and other respiratory diseases, fever, hair loss and whitening, cuts, and enlarged spleen [2,3]. The medicinal properties of the different parts of this plant vary; the juice of its leaves is mixed with honey to treat catarrh in infants, whereas its shoot’s juice mixed with mustard oil is used to treat diarrhea and dysentery [1,2,3]. Additionally, the entire plant is used to treat hepatitis, itching, hemoptysis, bleeding, hematochezia, hematuria, diarrhea, and diphtheria. Feng et al. summarized the plant’s traditional uses in other countries [3].
Regarding the chemical constituents of the plant, several compounds have been identified, including coumestane derivatives, triterpene saponins, and flavonoids [1,3,4,5,6]. Among the coumestane derivatives, wedelolactone has been reported to exhibit various biological activities, including selective and irreversible kinase inhibitory activity [7,8]. The Chinese Pharmacopoeia specifies wedelolactone as an indicator that assess the quality of E. prostrata [9]. Moreover, several sulfated flavonoids have been identified, and Lee et al. reported the isolation of luteolin-7-sulfate and apigenin-7-sulfate from E. prostrata [5]. Recently, He et al. reported that sulfated flavonoids generally show procoagulant activities under acidic conditions [10]. Considering these activities of the sulfated flavonoid components and the typical pharmacological activity (i.e., hemostasis) of this plant, it is necessary to consider the pattern of sulfated flavonoid components when assessing the quality of E. prostrata. However, sulfated flavonoids are unstable and difficult to isolate from plant extracts for structural analysis. Furthermore, most sulfated flavonoids are difficult to identify through an analysis of the mixtures, such as liquid chromatography–mass spectrometry (LC–MS), due to the lack of spectral data in the literature and the same molecular weight in the case of regioisomers. Therefore, in order to reliably identify sulfated flavonoids in the extract, it is necessary to synthesize possible target compounds.
In this study, we first synthesized a variety of sulfated flavonoids and accumulated extensive spectral data in order to identify the compounds in E. prostrata in detail. Additionally, various crude drugs derived from E. prostrata were collected, and their methanol extracts were analyzed using LC–MS to determine the patterns of their sulfated flavonoid contents for quality evaluation.
2. Results and Discussion
2.1. Preparation of Sulfated Flavonoids
Thus far, several attempts to prepare sulfated flavonoids have been reported [11,12]. Barron et al. reported the sulfation of flavonoids using dicylohexylcarbodiimide (DCC) and tetrabutylammonium hydrogen sulfate [13]. Additionally, Hayasaka et al. described the reaction with sulfur trioxide pyridine complexes [14]. In both reactions, there was no regioselectivity in sulfation, and each hydroxyl group in the flavonoid was sulfated to form a mixture. However, in the reaction with sulfur trioxide pyridine complexes, lower concentrations of 7-sulfate were formed, and in the reaction with DCC and tetrabutylammonium hydrogen sulfate, higher concentrations of disubstituted compounds were formed. Furthermore, the sulfated flavonoids were highly unstable unless in the form of sulfates, making the mixture difficult to separate. The reaction of DCC with tetrabutylammonium hydrogen sulfate produced a mixture of tetrabutylammonium and potassium salts in the post-treatment step. This required conversion to only the potassium salt, which reduced the final yield. Therefore, by replacing tetrabutylammonium hydrogen sulfate with potassium hydrogen sulfate, the formation of disubstituted products were suppressed and the salt-exchange process was omitted (Figure 1). Nuclear magnetic resonance (NMR) data for the prepared compounds are shown in Table 1 and Table 2 (raw NMR, ultraviolet (UV) spectral data, and UV data measured with an HPLC-PDA detector are shown in the Supplementary Materials).
In Figure 2, the LC–MS spectra of luteolin 7-sulfate (1), apigenin 7-sulfate (4), and diosmetin 7-sulfate (6) are shown. The characteristic fragmentation of the sulfated flavonoids is the desorption of SO3 to distribute fragment ions derived from the original flavonoid, which was also detected in all synthetic sulfated flavonoids (the MS spectra of the compounds and MS/MS spectra from respective (M–H)− ions are shown in the Supplementary Materials) [15].
In Figure 3, the high-performance liquid (HPLC) chromatograms of the synthesized sulfated flavonoids are shown. Under the HPLC analytical conditions used in this study, the compounds within the samples were separated, except for apigenin 4′-sulfate (5) and luteolin 3′-sulfate (2). Apigenin 4′-sulfate (5) and luteolin 3′-sulfate (2) were distinguished using mass chromatography because of their different molecular weights, which did not interfere with the analysis of the extracts from the E. prostrata specimens.
2.2. LC–MS Analysis of the Extracts of the E. prostrata Specimens
Six crude drug specimens of E. prostrata included Henan Province productions in 2019 (sample 1), 2020 (sample 2), 2021 (sample 3), and year of production unknown (sample 4); Hunan Province production in 2021 (sample 5); and Jiangxi Province production (year of production unknown, sample 6). These specimens were obtained from the main E. prostrata production areas in China and are representative of the crude drugs derived from E. prostrata distributed in China.
Mass chromatograms monitored by (M–H)− ions of luteolin sulfate (m/z 364.9970), apigenin sulfate (m/z 349.0016), and diosmetin sulfate (m/z 379.0144) of the methanol extracts of six samples of E. prostrata is shown in Figure 4. (The total-ion chromatograms from the methanol extracts of six E. prostrata samples and 3D-HPLC chromatograms are shown in the Supplementary Materials). Luteolin 7-sulfate (1), apigenin 7-sulfate (4), diosmetin 7-sulfate (6), and diosmetin 3′-sulfate (7) were detected in all samples. Additionally, trace amounts of luteolin 3′-sulfate were detected in samples 2 and 4–6. Samples 1 and 3, in which luteolin 3′-sulfate (2) was not detected, had high apigenin 7-sulfate (4) content. The results of the quantification of each compound detected are shown in Table 3, and the quantitative values are shown in a radar diagram in Figure 5.
Sulfated flavonoids are typically found in a limited number of plants, including those of Apiaceae, Asteraceae, Bixaceae, Dyreniaceae, Frankeniaceae, Malvaceae, and Verbenaceae [11,16]. Cytoplasmic sulfotransferase (SOT) is involved in the biosynthesis of sulfated flavonoids and acts through a position-specific mechanism [16,17]. For example, flavonol SOT from Arabidopsis thaliana has a high affinity for kaempferol and flavonol glycosides and transfers sulfate groups to hydroxyl groups at positions 3 or 7 [18,19]. Conversely, flavonol SOTs from Flaveria bidentis have been reported to produce 4′ and 3′ sulfate derivatives with high affinity for quercetin [18,20]. Furthermore, Varin et al. reported that the most common flavonoid sulfates are represented trough sulfation at positions 7 > 3′ > 4′ > 6 > 8 and 3 > 7 > 4′ > 3′ for flavones and flavonols, respectively [16,21]. In this study, the sulfated flavonoids in E. prostrata were mainly modified at position 7, with only a few modified at the 3′, and 4′-position; modification was not found in the sulfated flavones. Our results support the reports of Varin et al.
Although samples 1–4 were collected from the same locality (Henan Province), they were classified into the following three patterns of composition depending on the year of collection: (1) luteolin 7-sulfate (1) was the main component (sample 2), (2) apigenin 7-sulfate (4) was the main component (sample 1 and 3), and (3) relatively high diosmetin sulfate content (sample 4). The samples obtained from Hunan Province (sample 5) and Jiangxi Province (sample 6) showed a similar pattern to sample 4 from Henan Province with a high diosmetin sulfate content. Although the functional role of the flavonoid sulfates in plant cells and tissues is not clear, Teles et al. have shown that sulfated flavonoid biosynthesis may be an ecological adaptation to the environment in addition to regulating plant growth through influencing auxin transport [17]. Furthermore, a strong correlation has been shown between plants growing in mineral salt-rich watersheds and the biosynthesis of sulfated flavonoids [16]. E. prostrata is a common weed in paddy fields, and from an ecological perspective, its chemical composition may be influenced by precipitation. Therefore, we examined the correlation between precipitation in Henan, Hunan, and Jiangxi provinces from May to July during 2019–2021 and the sulfated flavonoid content patterns of the samples analyzed in this study. According to meteorological data from China’s National Bureau of Statistics, in Zhengzhou, a major city in Henan Province, May–July precipitation in 2019 and 2021 was 67% and 55% of the precipitation in the decade, respectively. Hunan and Jiangxi have more precipitation than Henan, with June precipitation alone equal to the May–July total for Henan. In Hunan Province from 2019 to 2021, precipitation from May to July in 2021 was about the same as the 10-year average. Additionally, in Jiangxi, the precipitation from May to July in 2021 and 2022 constituted 51% and 63% of the decade’s average, respectively. In comparison with rainfall data, it was observed that apigenin 7-sulfate tends to increase in Henan when rainfall is low (e.g., samples 1 and 3). It has been considered that the levels of apigenin 7-sulfate might be low in Hunan and Jiangxi due to the generally high amounts of rainfall (e.g., samples 5 and 6). Regarding diosmetin sulfate, there was a tendency for diosmetin 7-sulfate concentrations to increase when precipitation in the area was normal (e.g., samples 2 and 5).
He et al. reported that luteolin 7-sulfate potassium salt (1) exhibited higher erythrocyte agglutination efficiencies and fibrinogen flocculation rates than apigenin 7-sulfate potassium salt (4) [10]. In terms of the hemostatic effect of E. prostrata, the crude drug containing high concentrations of luteolin 7-sulfate (1) was more advantageous, and it is necessary to note the difference in the composition of sulfated flavonoids found in this study, even though the samples were collected from the same region.
3. Materials and Methods
3.1. Crude Drug Specimens and Reagents
Six crude drug specimens of E. prostrata were obtained from Matsuura Yakugyo Co., Ltd. (Nagoya, Japan). The specimens included Henan Province productions in 2019 (sample 1), 2020 (sample 2), 2021 (sample 3), and year of production unknown (sample 4); Hunan Province production in 2021 (sample 5); and Jiangxi Province production (year of production unknown, sample 6). All voucher samples were deposited in the Laboratory of Pharmacognosy, College of Pharmaceutical Sciences, Ritsumeikan University (Shiga, Japan).
Apigenin, luteolin, and diosmetin were purchased from Tokyo Chemical Industry Co., Ltd. (Tokyo, Japan). In addition to these flavonoids, other commercially available chemicals and solvents were used without further purification.
Reversed-phased column chromatography was performed with Universal Premium Column ODS-SM (30 mm, 3.0 × 20.0 cm, Yamazen Co. (Osaka, Japan)). Size exclusion chromatography (SEC) was performed using TOYOPEARL HW-40F (NACALAI TESQUE Co. (Kyoto, Japan)). Desalination was performed using a Sep-Pak Vac 6 cc C18 cartridge (Waters Co. (Milford, MA, USA)). Pre-coated thin layer chromatography (TLC) was performed on Silica gel 60 RP-18 F254S (Merck (Darmstadt, Germany)) and a Polyamide FM Plate (FUJIFILM Wako Pure Chemical Co. (Osaka, Japan)). The spots on the TLC plates were detected by UV irradiation.
Other analytical-grade chemicals and chromatographic solvents (LC–MS grade) were purchased from Fujifilm Wako Pure Chemical (Osaka, Japan).
3.2. Apparatus
NMR spectra were recorded using a JNM-ECZ500R/S1 (JEOL Ltd. (Tokyo, Japan)), which was operated at 500 MHz (1H) and 125 MHz (13C). Tetramethylsilane (internal standard of NMR spectrometry) and deuterated dimethyl sulfoxide were obtained from Euriso-Top (Saint-Aubin, France). UV spectra were recorded on a Shimadzu UV-1800 spectrometer (Shimadzu Co., Kyoto, Japan).
For the LC–MS analyses, we used the mass spectrometer Shimadzu LC–IT–TOF (Shimadzu, Kyoto, Japan) equipped with a Shimadzu SPD 20A photodiode array UV–VIS detector and an electrospray ionization (ESI) interface. The ESI parameters were as follows: source voltage, −3.5 kV in negative-ion mode; capillary temperature, 200 °C; and nebulizer gas flow rate, 1.5 L/min. We used the mass spectrometer in negative-ion modes and recorded the scans from 150 to 1500 m/z. The constituents of the extracts were separated using the ODS column Waters Atlantis T3 (2.1 × 150 mm, 5 μm, 40 °C), and the binary mobile phase consisted of (A) 5 mM CH3COONH4 in water and (B) CH3CN. The compounds were eluted under the following gradient conditions: 0–30 min, linear gradient from 10% to 100% B, and 30–40 min of isocratic solution at 100% B.
3.3. Extraction of Constituents from E. prostrata
The crude drugs were weighed and powdered using a TUBE-MILL 100 milling machine (Model C S004, IKA, Staufen, Baden-Württemberg, Germany). Then, 3 g of the crude drug powder were precisely weighed and extracted with 140 mL of methanol under reflux conditions for 40 min using the B-811 Extraction System (BÜCHI Labortechnik, Flawil, St. Gallen, Switzerland). The extract was dried by removing the solvent under reduced pressure and weighed and dissolved in methanol to make a 10 mg extract/mL solution, which was filtered through a 0.45-μm polytetrafluoroethylene membrane. The same extraction procedure was performed for all crude drug samples.
3.4. Synthesis of Sulfate Conjugates
To a stirred solution of flavonoid (0.6 mmol, 1 equiv.) in pyridine (3 mL), DCC (6.0 mmol, 10 equiv.) was added at 0 °C. After 10 min, the solution of potassium hydrogen sulfate (1.2 mmol, 2 equiv.) in pyridine (16 mL) was added dropwise to the above solution, and the resulting reaction mixture was stirred at 0 °C for 3 days. Subsequently, pyridine was removed under reduced pressure, and 12 mL of potassium acetate solution in methanol (0.1 M) was added. The precipitate was filtered off and rinsed using methanol. The filtrate was evaporated, and the residue was subjected to reversed-phase chromatography (methanol–water 40:60 (v/v)) to obtain the mixture of regioisomers. This mixture was repeatedly subjected to SEC (methanol–water 30:70 (v/v)) to separate the respective mono-sulfates.
The obtained pure mono-sulfate was dissolved in 5 mL of potassium acetate buffer (pH = 4.6) to protonate the ionized phenolic hydroxy group, and the solution was subjected to a Sep-Pak Vac 6 cc C18 cartridge (washed using 16 mL of water and eluted using 20 mL of methanol) to obtain the pure sulfate potassium salt.
Compounds were identified by the comparison of various spectral data with literature values [22] and the analysis of MS and NMR spectral data.
Luteolin 7-sulfate potassium salt (1): yellow solid; 6.7% yield; UV (MeOH) λmax (log ε): 254 (4.13), 266 (sh 4.08), 349 (4.20) nm; 1H and 13C NMR, see Table 1 and Table 2.
Luteolin 3′-sulfate potassium salt (2): yellow solid; 9.3% yield; UV (MeOH) λmax (log ε): 269 (4.15), 334 (4.17) nm; 1H and 13C NMR, see Table 1 and Table 2.
Luteolin 4′-sulfate potassium salt (3): yellow solid; 9.3% yield; UV (MeOH) λmax (log ε): 269 (4.14), 329 (4.01) nm; 1H and 13C NMR, see Table 1 and Table 2.
Apigenin 7-sulfate potassium salt (4): pale yellow solid; 7.0% yield; UV (MeOH) λmax (log ε): 268 (4.17), 333 (4.26) nm; 1H and 13C NMR, see Table 1 and Table 2.
Apigenin 4′-sulfate potassium salt (5): pale yellow solid; 9.8% yield, UV (MeOH) λmax (log ε): 269 (4.34), 319 (4.17) nm; 1H and 13C NMR, see Table 1 and Table 2.
4. Conclusions
We conducted a detailed analysis of the sulfated flavonoids contained in E. prostrata, traditionally used as a hemostatic agent. The use of DCC and potassium hydrogen sulfate in the synthesis of sulfated flavonoids, which is necessary for the accurate identification of plant contents, improved the composition of the reaction’s products and the efficiency of postprocessing. The LC–MS analysis of six crude drug samples from different regions collected in different years showed luteolin 7-sulfate (1), apigenin 7-sulfate (4), diosmetin 7-sulfate (6), and diosmetin 3′-sulfate (7) in all samples. Further, trace amounts of luteolin 3′-sulfate were detected in some samples. Samples in which luteolin 3′-sulfate (2) was not detected had relatively high apigenin 7-sulfate (4) content. Even though the samples were collected from the same locality (Henan Province), they had different compositions of sulfated flavonoids. Thus, they were classified into the following three groups based on the compositions and the year of collection: (1) samples with luteolin 7-sulfate (1) as the main component, (2) samples with apigenin 7-sulfate (4) as the main component, and (3) samples with relatively high diosmetin sulfate content. Moreover, luteolin 7-sulfate (1) typically exhibited a higher erythrocyte aggregation efficiency and fibrinogen aggregation rate than apigenin 7-sulfate (4). Thus, in terms of hemostatic applications, the results demonstrate that the analysis of sulfated flavonoids is valuable for evaluating the quality of E. prostrata.
Supplementary Materials
The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules29204888/s1, Figure S1: 1H NMR Spectrum of Luteolin 7-Sulfate Potassium Salt in DMSO-d6; Figure S2: 13C NMR Spectrum of Luteolin 7-Sulfate Potassium Salt in DMSO-d6; Figure S3: 1H NMR Spectrum of Luteolin 3′-Sulfate Potassium Salt in DMSO-d6; Figure S4: 13C NMR Spectrum of Luteolin 3′-Sulfate Potassium Salt in DMSO-d6; Figure S5: 1H NMR Spectrum of Luteolin 4′-Sulfate Potassium Salt in DMSO-d6; Figure S6: 13C NMR Spectrum of Luteolin 4′-Sulfate Potassium Salt in DMSO-d6; Figure S7: 1H NMR Spectrum of Apigenin 7-Sulfate Potassium Salt in DMSO-d6; Figure S8: 3C NMR Spectrum of Apigenin 7-Sulfate Potassium Salt in DMSO-d6; Figure S9: 1H NMR Spectrum of Apigenin 4′-Sulfate Potassium Salt in DMSO-d6; Figure S10: 13C NMR Spectrum of Apigenin 4′-Sulfate Potassium Salt in DMSO-d6; Figure S11: 1H NMR Spectrum of Diosmetin 7-Sulfate Potassium Salt in DMSO-d6; Figure S12: 13C NMR Spectrum of Diosmetin 7-Sulfate Potassium Salt in DMSO-d6; Figure S13: 1H NMR Spectrum of Diosmetin 3′-Sulfate Potassium Salt in DMSO-d6; Figure S14: 13C NMR Spectrum of Diosmetin 3′-Sulfate Potassium Salt in DMSO-d6; Figure S15: UV Spectrum of Luteolin 7-Sulfate Potassium Salt in MeOH; Figure S16: UV Spectrum of Luteolin 3′-Sulfate Potassium Salt in MeOH; Figure S17: UV Spectrum of Luteolin 4′-Sulfate Potassium Salt in MeOH; Figure S18: UV Spectrum of Apigenin 7-Sulfate Potassium Salt in MeOH; Figure S19: UV Spectrum of Apigenin 4′-Sulfate Potassium Salt in MeOH; Figure S20: UV Spectrum of Diosmetin 7-Sulfate Potassium Salt in MeOH; Figure S21: UV Spectrum of Diosmetin 3′-Sulfate Potassium Salt in MeOH; Figure S22: UV Spectrum of Luteolin 7-Sulfate Measured with an HPLC-PDA Detector; Figure S23: UV Spectrum of Luteolin 3′-Sulfate Measured with an HPLC-PDA Detector; Figure S24: UV Spectrum of Luteolin 4′-Sulfate Measured with an HPLC-PDA Detector; Figure S25: UV Spectrum of Apigenin 7-Sulfate Measured with an HPLC-PDA Detector; Figure S26: UV Spectrum of Apigenin 4′-Sulfate Measured with an HPLC-PDA Detector; Figure S27: UV Spectrum of Diosmetin 7-Sulfate Measured with an HPLC-PDA Detector; Figure S28: UV Spectrum of Diosmetin 3′-Sulfate Measured with an HPLC-PDA Detector; Figure S29: MS and MS/MS Spectra of Luteolin 7-Sulfate; Figure S30: MS and MS/MS Spectra of Luteolin 3′-Sulfate; Figure S31: MS and MS/MS Spectra of Luteolin 4′-Sulfate; Figure S32: MS and MS/MS Spectra of Apigenin 7-Sulfate; Figure S33: MS and MS/MS Spectra of Apigenin 4′-Sulfate; Figure S34: MS and MS/MS Spectra of Diosmetin 7-Sulfate; Figure S35: MS and MS/MS Spectra of Diosmetin 3′-Sulfate; Figure S36: Liquid Chromatography–Mass Spectrometry Total-ion Chromatograms and Mass Chromatograms of the Extracts of the E. prostrata Specimens; Figure S37: 3D-HPLC Chromatogram of Sample 1 (Henan Province, 2019); Figure S38: 3D-HPLC Chromatogram of Sample 2 (Henan Province, 2020); Figure S39: 3D-HPLC Chromatogram of Sample 3 (Henan Province, 2021); Figure S40: 3D-HPLC Chromatogram of Sample 4 (Henan Province); Figure S41: 3D-HPLC Chromatogram of Sample 5 (Hunan Province, 2021); Figure S42: 3D-HPLC Chromatogram of Sample 6 (Jiangxi Province).
Author Contributions
Conceptualization, K.T.; data curation, R.S. and Y.N.; formal analysis, Y.N.; funding acquisition, K.T.; investigation, R.S. and Y.N.; methodology, K.T.; project administration, K.T.; resources, K.T.; supervision, K.T.; validation, K.T. and Y.N.; visualization, R.S. and K.T.; writing—original draft preparation, R.S. and K.T.; writing—review and editing, K.T. All authors have read and agreed to the published version of the manuscript.
Funding
This research received no external funding.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
The data presented in this study are available on request from the corresponding author.
Acknowledgments
We thank Tohoru Kamitanaka for his technical assistance in the synthesis of the compounds and NMR measurements. We would like to express our deepest gratitude to Yuuki Kitamaki, Matsuura Yakugyo Co., for his cooperation in sample collection and identification.
Conflicts of Interest
The authors declare no conflicts of interest.
References
- Feng, L.; Zhai, Y.Y.; Xu, J.; Yao, W.F.; Cao, Y.D.; Cheng, F.F.; Bao, B.H.; Zhang, L. A review on traditional uses, phytochemistry and pharmacology of Eclipta prostrata (L.) L. J. Ethnopharmacol. 2019, 245, 112109. [Google Scholar] [CrossRef] [PubMed]
- Jahan, R.; Al-Nahain, A.; Majumder, S.; Rahmatullah, M. Ethnopharmacological significance of Eclipta alba (L.) hassk. (Asteraceae). Int. Sch. Res. Not. 2014, 2014, 385969. [Google Scholar] [CrossRef] [PubMed]
- Timalsina, D.; Devkota, H.P. Eclipta prostrata (L.) L. (Asteraceae): Ethnomedicinal uses, chemical constituents, and biological activities. Biomolecules 2021, 11, 1738. [Google Scholar] [CrossRef] [PubMed]
- Seo, Y.J.; Kil, H.W.; Rho, T.; Yoon, K.D. A new coumestan glucoside from Eclipta prostrata. Nat. Prod. Sci. 2020, 26, 289–300. [Google Scholar] [CrossRef]
- Lee, K.Y.; Ha, N.R.; Kim, T.B.; Kim, Y.C.; Sung, S.H. Characterization of triterpenoids, flavonoids and phenolic acids in Eclipta prostrata by high-performance liquid chromatography/diode-array detector/electrospray ionization with multi-stage tandem mass spectroscopy. Nat. Prod. Sci. 2010, 16, 164–168. [Google Scholar]
- Chung, I.M.; Rajakumar, G.; Lee, J.H.; Kim, S.H.; Thiruvengadam, M. Ethnopharmacological uses, phytochemistry, biological activities, and biotechnological applications of Eclipta prostrata. Appl. Microbiol. Biotechnol. 2017, 101, 5247–5257. [Google Scholar] [CrossRef] [PubMed]
- Miao, N.J.; Xie, H.-Y.X.; Xu, D.; Yin, J.; Wang, Y.-Z.; Wang, B.; Yin, F.; Zhou, Z.L.; Cheng, Q.; Chen, P.P.; et al. Caspase-11 promotes renal fibrosis by stimulating IL-1β maturation via activating caspase-1. Acta Pharmacol. Sin. 2019, 40, 790–800. [Google Scholar] [CrossRef]
- Ha, N.M.; Hop, N.Q.; Son, N.T. Wedelolactone: A molecule of interests. Fitoterapia 2023, 164, 105355. [Google Scholar] [CrossRef]
- Chinese Pharmacopoeia Commission. Pharmacopoeia of the People’s Republic of China. Available online: https://ydz.chp.org.cn/#/item?bookId=1&entryId=596 (accessed on 29 August 2024).
- He, Z.; Liu, H.; Gui, S.; Liu, H.; Yang, J.; Guo, Q.; Ye, X.; Zhang, B. Procoagulant substances and mechanisms of hemostatic herb Eclipta alba. Process Biochem. 2022, 122, 103–114. [Google Scholar] [CrossRef]
- Barron, D.; Varin, L.; Ibrahim, R.K.; Harborne, J.B.; Williams, C.A. Sulphated flavonoids—An update. Phytochemistry 1988, 27, 2375–2395. [Google Scholar] [CrossRef]
- Correia-da-Silva, M.; Sousa, E.; Pinto, M.M.M. Emerging sulfated flavonoids and other polyphenols as drugs: Nature as an inspiration. Med. Res. Rev. 2014, 34, 223–279. [Google Scholar] [CrossRef]
- Barron, D.; Ibrahim, R.K. Synthesis of flavonoid sulfates: 1. stepwise sulfation of positions 3, 7, and 4 using N,N′-dicyclohexylcarbodiimide and tetrabutylammonium hydrogen sulfate. Tetrahedron 1987, 43, 5197–5202. [Google Scholar] [CrossRef]
- Hayasaka, N.; Shimizu, N.; Komoda, T.; Mohri, S.; Tsushida, T.; Eitsuka, T.; Miyazawa, T.; Nakagawa, K. Absorption and metabolism of luteolin in rats and humans in relation to in vitro anti-inflammatory effects. J. Agric. Food Chem. 2018, 66, 11320–11329. [Google Scholar] [CrossRef] [PubMed]
- Kleinenkuhnen, N.; Büchel, F.; Gerlich, S.C.; Kopriva, S.; Metzger, S. A novel method for identification and quantification of sulfated flavonoids in plants by neutral loss scan mass spectrometry. Front. Plant Sci. 2019, 10, 885. [Google Scholar] [CrossRef] [PubMed]
- Teles, Y.C.F.; Souza, M.S.R.; Souza, M.F.V. Sulphated flavonoids: Biosynthesis, structures, and biological activities. Molecules 2018, 23, 480. [Google Scholar] [CrossRef]
- Teles, Y.C.F.; Horta, C.; Agra, M.; Siheri, W.; Boyd, M.; Igoli, J.O.; Gray, A.I.; de Souza, M. New sulphated flavonoids from Wissadula periplocifolia (L.) C. Presl (Malvaceae). Molecules 2015, 20, 20161–20172. [Google Scholar] [CrossRef] [PubMed]
- Hirschmann, F.; Krause, F.; Papenbrock, J. The multi-protein family of sulfotransferases in plants: Composition, occurrence, substrate specificity, and functions. Front. Plant Sci. 2014, 5, 556. [Google Scholar] [CrossRef] [PubMed]
- Hashiguchi, T.; Sakakibara, Y.; Hara, Y.; Shimohira, T.; Kurogi, K.; Akashi, R.; Liu, M.C.; Suiko, M. Identification and characterization of a novel kaempferol sulfotransferase from Arabidopsis thaliana. Biochem. Biophys. Res. Commun. 2013, 434, 829–835. [Google Scholar] [CrossRef] [PubMed]
- Varin, L.; DeLuca, V.; Ibrahim, R.K.; Brisson, N. Molecular characterization of two plant flavonol sulfotransferases. Proc. Natl. Acad. Sci. USA 1992, 89, 1286–1290. [Google Scholar] [CrossRef] [PubMed]
- Varin, L. Flavonoid sulfation: Phytochemistry, enzymology and molecular biology. In Phenolic Metabolism in Plants; Springer: Boston, MA, USA, 1992; pp. 233–254. [Google Scholar]
- Grignon-Dubois, M.; Rezzonico, B.; Blanchet, H. Phenolic fingerprints of the Pacific seagrass Phyllospadix torreyi—Structural characterization and quantification of undescribed flavonoid sulfates. Phytochemistry 2022, 201, 113256. [Google Scholar] [CrossRef] [PubMed]

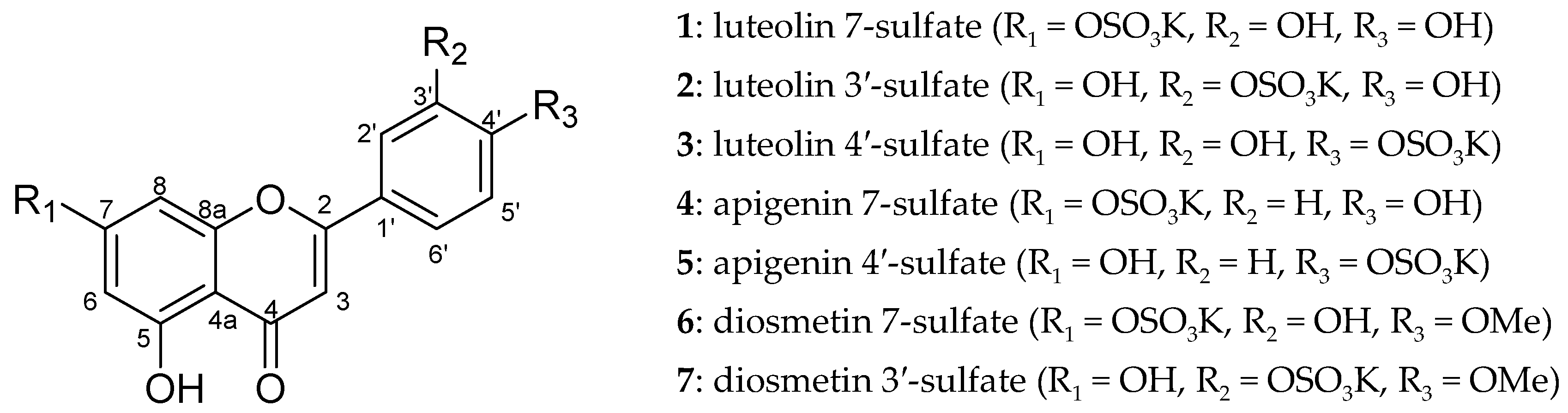

Figure 1.
Structures of sulfated flavonoids.

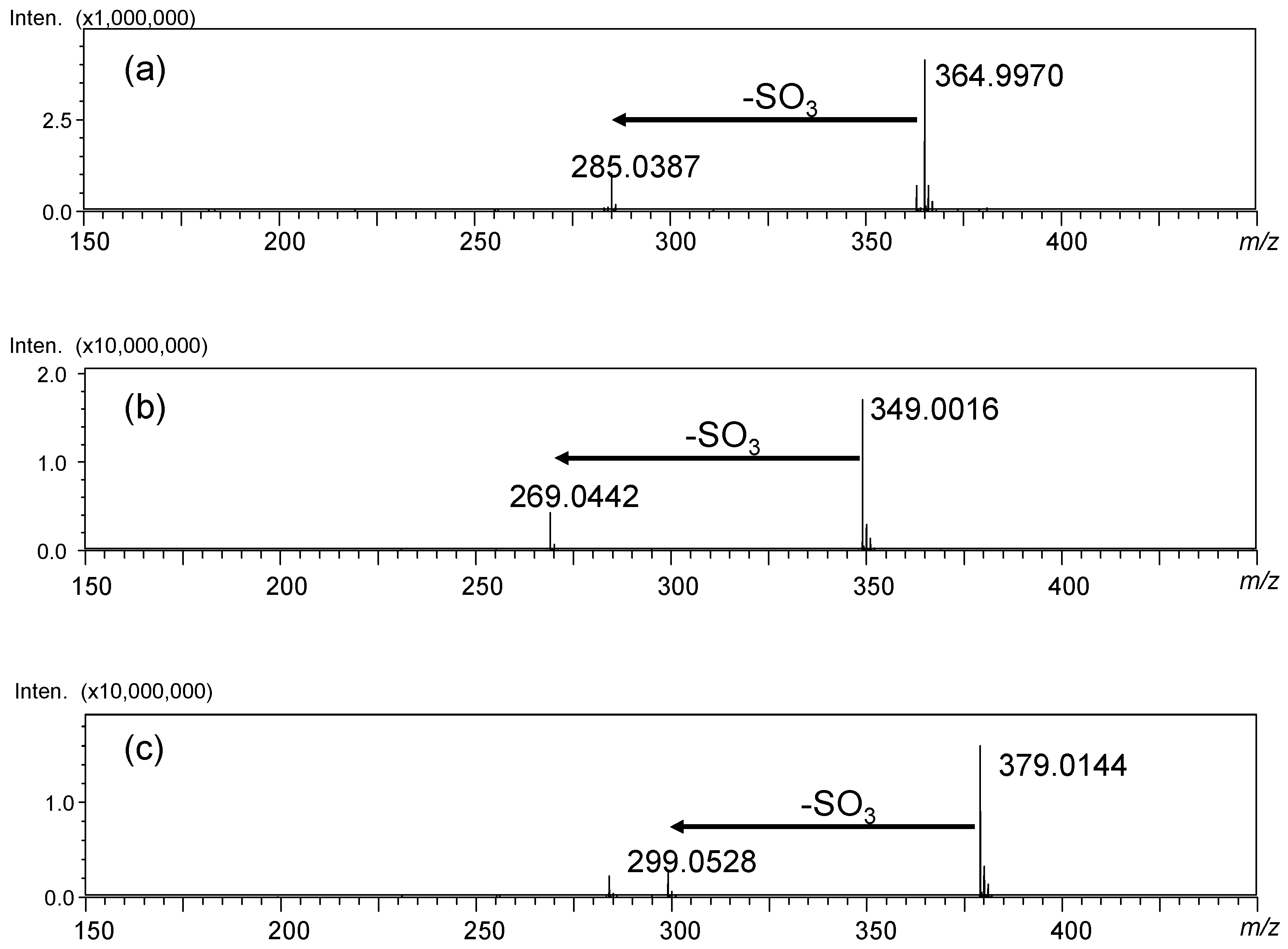

Figure 2.
LC–MS spectra of (a) luteolin 7-sulfate (1), (b) apigenin 7-sulfate (4), and (c) diosmetin 7-sulfate (6).
Figure 2.
LC–MS spectra of (a) luteolin 7-sulfate (1), (b) apigenin 7-sulfate (4), and (c) diosmetin 7-sulfate (6).

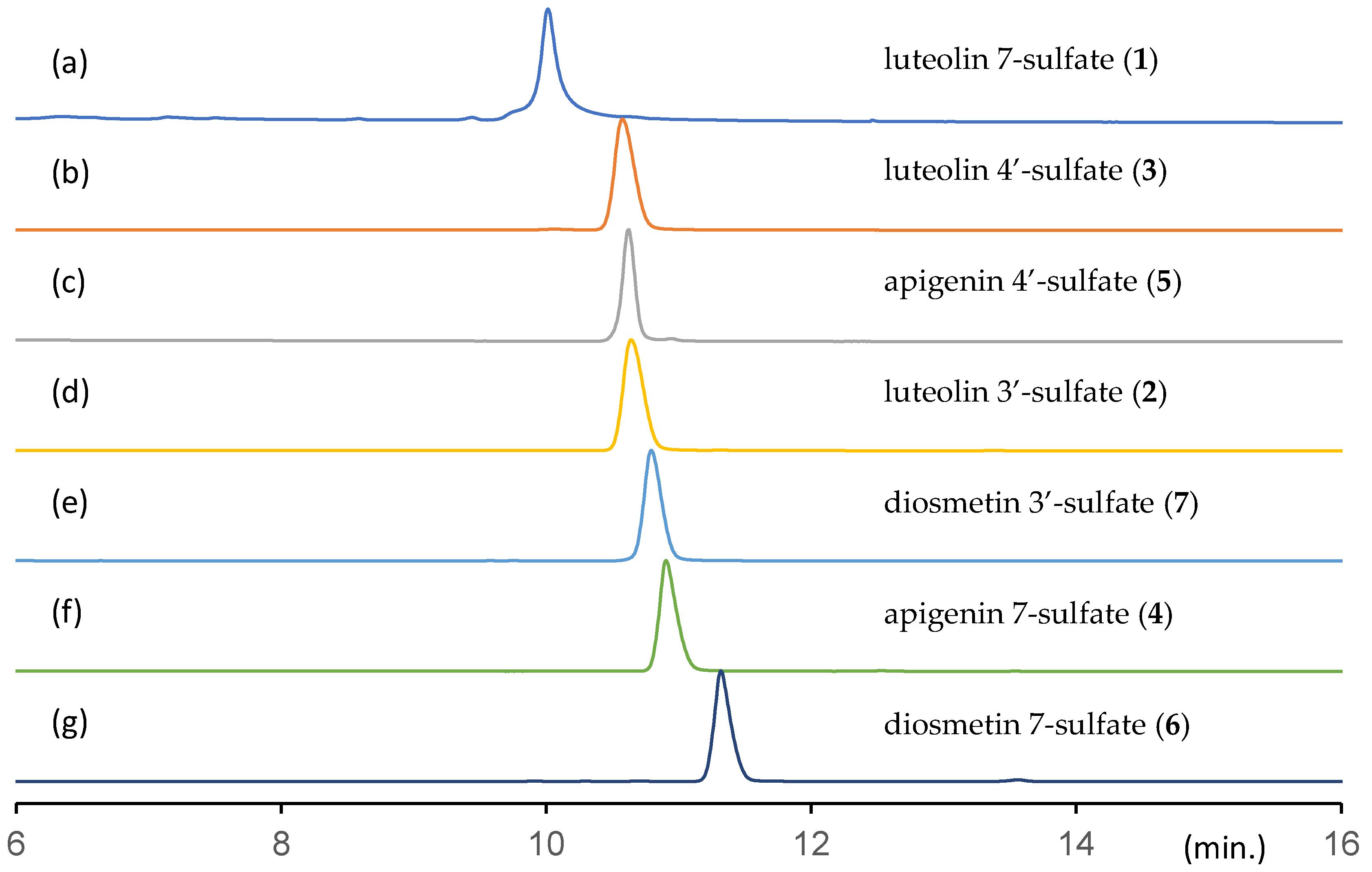

Figure 3.
High-performance liquid chromatogram of sulfated flavonoids. Peak detection was performed with ultraviolet irradiation at 330 nm. (a) Luteolin 7-sulfate (1), (b) luteolin 4′-sulfate (3), (c) apigenin 4′-sulfate (5), (d) luteolin 3′-sulfate (2), (e) diosmetin 3′-sulfate (7), (f) apigenin 7-sulfate (4), and (g) diosmetin 7-sulfate (6).
Figure 3.
High-performance liquid chromatogram of sulfated flavonoids. Peak detection was performed with ultraviolet irradiation at 330 nm. (a) Luteolin 7-sulfate (1), (b) luteolin 4′-sulfate (3), (c) apigenin 4′-sulfate (5), (d) luteolin 3′-sulfate (2), (e) diosmetin 3′-sulfate (7), (f) apigenin 7-sulfate (4), and (g) diosmetin 7-sulfate (6).

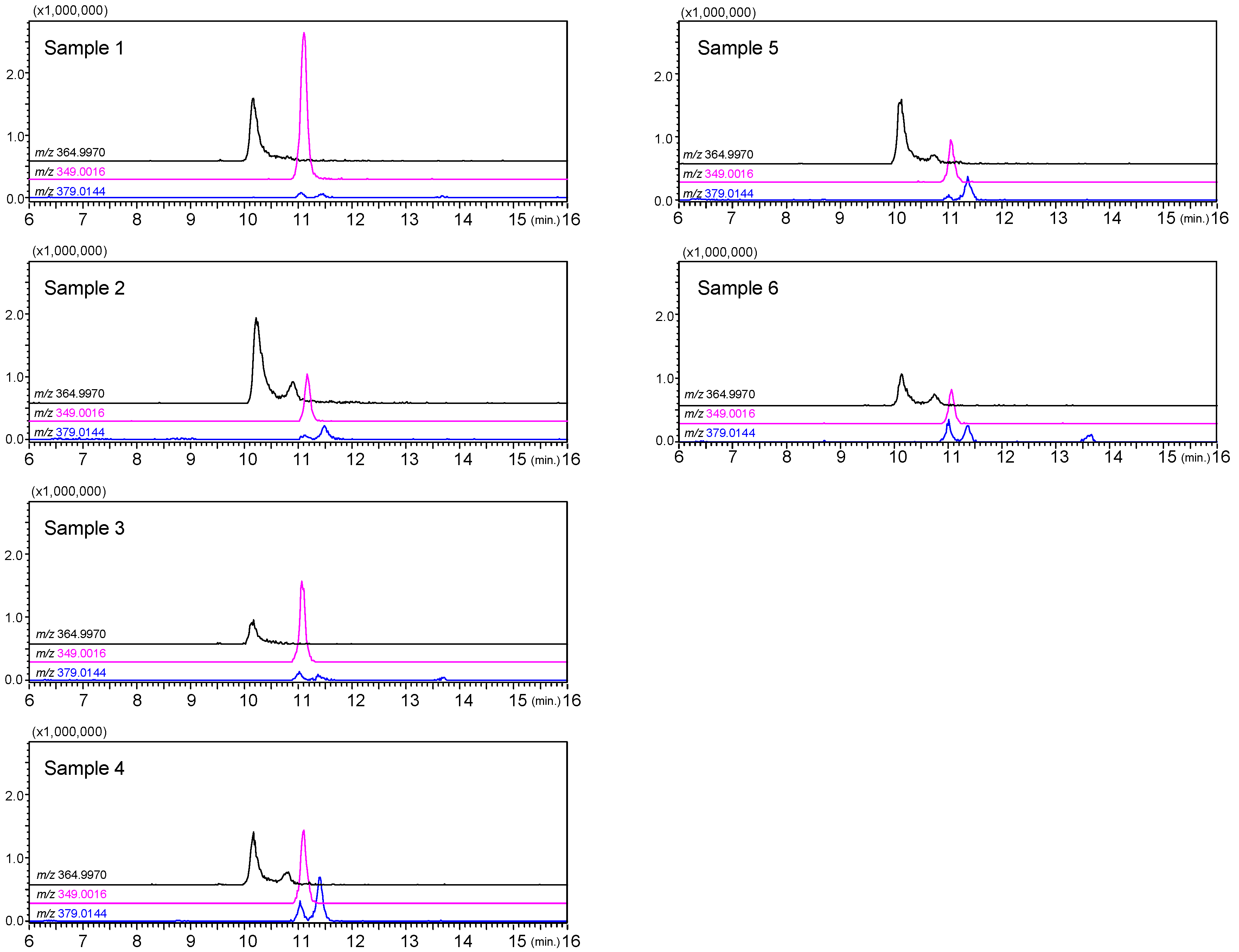

Figure 4.
Liquid chromatography–mass spectrometry mass chromatograms of the extracts of the E. prostrata specimens: monitored by (M–H)− ions of luteolin sulfate (m/z 364.9970), apigenin sulfate (m/z 349.0016) and diosmetin sulfate (m/z 379.0144).
Figure 4.
Liquid chromatography–mass spectrometry mass chromatograms of the extracts of the E. prostrata specimens: monitored by (M–H)− ions of luteolin sulfate (m/z 364.9970), apigenin sulfate (m/z 349.0016) and diosmetin sulfate (m/z 379.0144).
Figure 5.
Radar diagram of the quantitative values shown in Table 3.
Figure 5.
Radar diagram of the quantitative values shown in Table 3.
Table 1.
1H-nuclear magnetic resonance (NMR) data of sulfated flavonoids in deuterated dimethyl sulfoxide (DMSO-d6; δ ppm, (milt, J in Hz), s: singlet, d: doublet, dd: double doublet).
Table 1.
1H-nuclear magnetic resonance (NMR) data of sulfated flavonoids in deuterated dimethyl sulfoxide (DMSO-d6; δ ppm, (milt, J in Hz), s: singlet, d: doublet, dd: double doublet).
| Position | Compound | ||||||
|---|---|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | |
| 3 | 6.73 (s) | 6.69 (s) | 6.78 (s) | 6.83 (s) | 6.85 (s) | 6.81 (s) | 6.66 (s) |
| 6 | 6.51 (d, 1.9) | 6.18 (d, 1.9) | 6.19 (d, 1.9) | 6.56 (d, 1.9) | 6.20 (d, 1.9) | 6.53 (d, 1.9) | 6.19 (d, 2.3) |
| 8 | 7.02 (d, 1.9) | 6.46 (d, 1.9) | 6.48 (d, 1.9) | 7.01 (d, 1.9) | 6.50 (d, 1.9) | 7.03 (d, 1.9) | 6.43 (d, 2.3) |
| 2′ | 7.45 (d, 2.2) | 7.88 (d, 2.3) | 7.46 (d, 2.0) | 7.95 (d, 8.8) | 7.99 (d, 9.0) | 7.47 (d, 2.3) | 8.07 (d, 2.3) |
| 3′ | － | － | － | 6.92 (d, 8.8) | 7.34 (d, 9.0) | － | － |
| 4′-OMe | － | － | － | － | － | 3.86 (s) | 3.84 (s) |
| 5′ | 6.88 (d, 8.0) | 6.97 (d, 8.6) | 7.42 (d, 9.0) | 6.92 (d, 8.8) | 7.34 (d, 9.0) | 7.08 (d, 8.8) | 7.13 (d, 8.8) |
| 6′ | 7.44 (dd, 2.2, 8.0) | 7.68 (dd, 2.3, 8.6) | 7.47 (d, 2.0, 9.0) | 7.95 (d, 8.8) | 7.99 (d, 9.0) | 7.56 (dd, 2.3, 8.8) | 7.74 (dd, 2.3, 8.8) |
Table 2.
13C-NMR data of the sulfated flavonoids in DMSO-d6 (δ ppm).
| Position | Compound | ||||||
|---|---|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | |
| 2 | 164.3 | 163.3 | 163.2 | 164.2 | 163.3 | 163.9 | 163.4 |
| 3 | 103.0 | 103.2 | 104.2 | 102.9 | 104.0 | 103.6 | 103.5 |
| 4 | 182.0 | 181.6 | 181.7 | 182.0 | 181.7 | 182.0 | 181.5 |
| 5 | 160.5 | 161.4 | 161.4 | 160.4 | 161.4 | 159.6 | 161.4 |
| 6 | 102.1 | 98.8 | 98.8 | 102.2 | 98.8 | 102.1 | 98.9 |
| 7 | 159.5 | 164.1 | 164.2 | 159.5 | 164.2 | 160.4 | 164.2 |
| 8 | 97.6 | 93.8 | 93.9 | 97.7 | 94.0 | 97.6 | 93.8 |
| 4a | 105.6 | 103.7 | 103.8 | 105.6 | 103.7 | 105.6 | 103.7 |
| 8a | 156.3 | 157.2 | 157.3 | 156.3 | 157.3 | 156.3 | 157.2 |
| 1′ | 121.3 | 121.5 | 126.2 | 120.9 | 124.6 | 122.8 | 122.2 |
| 2′ | 113.3 | 120.6 | 114.5 | 128.5 | 127.5 | 112.9 | 118.6 |
| 3′ | 145.7 | 141.4 | 148.8 | 116.0 | 120.0 | 146.9 | 142.9 |
| 4′ | 149.8 | 152.9 | 144.6 | 161.3 | 156.9 | 151.2 | 153.8 |
| 4′-OMe | － | － | － | － | － | 55.7 | 55.8 |
| 5′ | 116.1 | 117.5 | 122.1 | 116.3 | 120.0 | 112.2 | 112.7 |
| 6′ | 119.1 | 123.4 | 118.0 | 128.5 | 127.5 | 118.7 | 122.4 |
Table 3.
Contents of sulfated flavonoids in the dry samples.
| Compounds | Contents (% of Dry Plant) | |||||
|---|---|---|---|---|---|---|
| Sample 1 | Sample 2 | Sample 3 | Sample 4 | Sample 5 | Sample 6 | |
| Luteolin 7-sulfate (1) | 0.168 ± 0.002 | 0.214 ± 0.024 | 0.059 ± 0.008 | 0.084 ± 0.013 | 0.144 ± 0.009 | 0.072 ± 0.007 |
| Luteolin 3′-sulfate (2) | - | 0.036 ± 0.005 | - | 0.016 ± 0.005 | 0.014 ± 0.005 | 0.026 ± 0.005 |
| Apigenin 7-sulfate (4) | 0.237 ± 0.011 | 0.047 ± 0.005 | 0.119 ± 0.008 | 0.074 ± 0.005 | 0.055 ± 0.008 | 0.037 ± 0.005 |
| Diosmetin 7-sulfate (6) | 0.004 ± 0.001 | 0.013 ± 0.002 | 0.005 ± 0.001 | 0.037 ± 0.005 | 0.027 ± 0.006 | 0.016 ± 0.003 |
| Diosmetin 3′-sulfate (7) | 0.006 ± 0.001 | 0.004 ± 0.002 | 0.013 ± 0.001 | 0.016 ± 0.001 | 0.005 ± 0.001 | 0.021 ± 0.003 |
