Oxidative Catalytic Depolymerization of Lignin into Value-Added Monophenols by Carbon Nanotube-Supported Cu-Based Catalysts

by
Chen Tang
1,2,3,
Yang Cao
4,*,
Jie Gao
1,2,3,
Gang Luo
1,2,3,
Jiajun Fan
5,
James H. Clark
1,2,3,5 and
Shicheng Zhang
1,2,3,*
1
Department of Environmental Science and Engineering, Fudan University, Shanghai 200433, China
2
Shanghai Key Laboratory of Atmospheric Particle Pollution and Prevention (LAP3), Shanghai Technical Service Platform for Pollution Control and Resource Utilization of Organic Wastes, Department of Environmental Science and Engineering, Fudan University, Shanghai 200438, China
3
Shanghai Institute of Pollution Control and Ecological Security, Shanghai 200433, China
4
Department of Civil and Environmental Engineering, The Hong Kong Polytechnic University, Hong Kong, China
5
Department of Chemistry, Circa Renewable Chemistry Institute, Green Chemistry Center of Excellence, University of York, York YO10 5DD, UK
*
Authors to whom correspondence should be addressed.
Molecules 2024, 29(19), 4762; https://doi.org/10.3390/molecules29194762
Submission received: 9 September 2024 / Revised: 28 September 2024 / Accepted: 2 October 2024 / Published: 8 October 2024
Browse Figures
Versions Notes

Abstract

:
Lignin valorisation into chemicals and fuels is of great importance in addressing energy challenges and advancing biorefining in a sustainable manner. In this study, on the basis of the high microwave absorption performance of carbon nanotubes (CNTs), a series of copper-oxide-loaded CNT catalysts (CuO/CNT) were developed to facilitate the oxidative depolymerization of lignin under microwave heating. This catalyst can promote the activation of hydrogen peroxide and air, effectively generating a range of reactive oxygen species (ROS). Through the application of electron paramagnetic resonance techniques, these ROS generated under different oxidation conditions were detected to elucidate the oxidation mechanism. The results demonstrate that the •OH and O2•− play a crucial role in the formation of aldehyde and ketone products through the cleavage of lignin Cβ-O and Cα-Cβ bonds. We further evaluated the catalytic performance of the CuO/CNT catalysts with three typical lignin feedstocks to determine their applicability for lignin biorefinery. The bio-enzymatic lignin produced a 13.9% monophenol yield at 200 °C for 20 min under microwave heating, which was higher than the 7% yield via hydrothermal heating conversion. The selectivity of G-/H-/S-type products was slightly affected, while lignin substrate had a noticeable effect on the selective production. Overall, this study explored the structural characteristics of CuO/CNT catalysts and their implications for lignin conversion and offered an efficient oxidation approach that holds promise for sustainable biorefining practices.

1. Introduction

With the large consumption and limited amount of fossil resources, it is urgent that we seek renewable resources for sustainable development. At present, the utilization of lignocellulosic biomass from forestry, agriculture, and related industries can provide a possible route to obtain value-added chemicals and fuels from these bioresources [1,2]. Steps towards a renewable chemical industry can be achieved through carefully designed catalytic systems to enable cost-competitive and environmentally friendly processes [3,4]. Lignocellulosic biomass mainly includes cellulose, hemicellulose and lignin components. The conversion of cellulose and hemicellulose can produce platform chemicals and materials, which has been extensively studied over the years [5,6,7,8]. Lignin, consisting primarily of p-hydroxyphenyl (H), guaiacyl (G), and syringyl (S) units, is a rare example of a renewable source of aromatics, but the lack of efficient chemical conversion processes means that it is usually burned as fuel and not fully utilized. Converting lignin into high-value aromatic products can not only effectively alleviate the energy crisis, but also provide feasibility and commercial value for biorefinery [9,10].
The extraction and separation of lignin from lignocellulose will inevitably modify the natural structure of lignin. A variety of chemical and biological extraction methods have been explored for the production of kraft lignin, organosolv lignin, and enzymatic lignin [11,12,13]. It is widely recognized that lignin samples exhibit significant structural variability. Lignin has the characteristics of high molecular weight, complex structure, and easy repolymerization during the reaction process compared to simple model compounds, and usually requires harsh reaction conditions to increase the yield of aromatic compounds. The harsh treatment environment, such as kraft paper pulping by using the NaOH/Na2S process, will cause significant destruction of the lignin structure, so that the most abundant β-O-4 ether bond within the native lignin structure is cleaved [14]. Bio-enzymatic hydrolysis is a mild separation, and this process can retain most of the β-O-4 bonds in the lignin structure, which is conducive to obtaining a native lignin structure for further catalytic upgrading [15,16]. The organosolv extraction process is typically conducted in the low temperature range of 80–160 °C by using alcohols and organic acids, but this method may also inevitably break some lignin β-O-4 bonds. Catalytically converting lignin into more valuable compounds requires preserving its native structure, and in the process of lignin extraction, efforts should be made to prevent the destruction of the β-O-4 bond as much as possible. For sustainable biorefining, efficient systems capable of processing various types of lignin feedstocks must be developed.
Thermochemical, photochemical, and electrochemical conversion are the three major effective lignin conversion strategies [17,18,19,20,21]. Most research focuses on thermochemical reactions, mainly including oxidative/reductive depolymerization, high-temperature pyrolysis, and gasification [22,23,24,25,26]. Reductive depolymerization typically involves external H2 or hydrogen donor solvent (e.g., methanol, ethanol, and isopropanol) to convert lignin into aromatic hydrocarbons. However, this method faces challenges due to the high reaction temperature required and the necessity of external H2 [27,28]. In contrast, catalytic oxidative depolymerization provides a more favorable alternative, because this reaction can be conducted at milder reaction temperatures by using air, oxygen (O2), or hydrogen peroxide (H2O2) as oxidants [29,30]. Various valuable products, such as vanillin, acetovanillone, and syringaldehyde, can be produced from the oxidative depolymerization of lignin [31]. However, there are typically issues with lignin oxidative depolymerization, such as low monomer yields (5–20%), and the requirement for further high-pressure O2 addition (5–20 bar) and a high concentration of alkaline solution (1–4 mol/L of NaOH).
Extensive research has been conducted on the cleavage of C-O and C-C bonds in lignin model compounds, and efficient catalysts were designed to study the mechanism of lignin depolymerization and further improve the catalytic performance for natural lignin conversion and the yield of aromatic compounds. These catalysts can be broadly categorized into two groups: homogeneous catalysts, which include transition metal salts, oxometallates, ionic liquids [32,33,34], and heterogeneous catalysts, which involve active metal species loaded on various support such as carbons, Al2O3, and SiO2 [35,36]. Heterogeneous catalysts are easy to separate from the reaction system and can be recycled for long-term applications. Notably, copper oxides (CuOx) are often considered as active centers in multiple oxidation reactions. They exhibit higher redox ability and can generate an array of reactive oxygen species (ROS) by activating different oxidants (e.g., O2, air, and H2O2). These ROS, including hydroxyl radicals (•OH), superoxide anions (O2•−), and other highly reactive intermediates, have demonstrated the ability to selectively cleave the C-O and recalcitrant C-C bonds within the lignin structure. Therefore, developing environmentally friendly and low-cost Cu-based catalysts and understanding their key roles in practical lignin oxidation processes are crucial for future industrial applications.
Current research predominantly centers on the design of active sites to improve catalytic reactions. Few studies have explored the role of carbon support, particularly its advantages in microwave adsorption during reactions. Since microwave heating can quickly heat solid substrates without creating a temperature gradient, it has become an effective method for biorefineries [37,38,39,40,41]. In this approach, the temperature of the material is effectively raised by translating the alternating electromagnetic field into the thermal motion of dielectric molecules. With regard to a large specific surface area and exceptional thermal stability, carbon nanotubes (CNTs) have been employed as carbon-based catalysts [42,43,44]. Additionally, their larger dielectric loss coefficient indicates CNTs may have superior microwave absorption capacities, enabling the efficient conversion of microwave energy into thermal energy for thermochemical reactions [45]. Several studies have highlighted the potential of CNTs in enhancing the efficiency of advanced oxidation processes (AOPs) aimed at degrading organic pollutants when coupled with microwave-assisted reactions [46,47]. The enhanced degradation performance is attributed to the generation of more ROS on the catalyst surface. Concurrently, research has demonstrated successful lignin degradation through the utilization of various oxidation reagents [48]. Based upon these findings, we hypothesize that the synergistic utilization of CuO in conjunction with CNTs may enhance the availability of active sites and promote the generation of radical species due to the strong absorption of microwaves by CNT supports, which may enable the enhanced lignin conversion under microwave heating.
In this study, based on the high absorption of microwaves by CNTs, a series of CuO/CNT catalysts were prepared at varying calcination temperatures to regulate the active Cu species along with understanding their structural evolution. These heterogeneous catalysts were investigated for the microwave-assisted oxidation of lignin, employing H2O2 as an oxidant. To enhance the solubility of lignin and promote its conversion, a low-concentration NaOH solution (0.1–1.0 M) was used. Various reaction parameters (reaction time, temperature, catalyst, H2O2 dosage, and NaOH concentration) were thoroughly investigated to elucidate the critical factors that govern the conversion of lignin. A comparative analysis was also conducted to identify the impact of microwave heating reactions versus conventional hydrothermal reactions with the prepared catalysts. Additionally, three typical lignin feedstocks were selected evaluate the applicability of the proposed oxidation system and investigate the selective production of monophenols by selecting appropriate substrates. The detection of various ROS was conducted to gain a deeper understanding of their roles in the selective production through the cleavage of lignin C-O and C-C bonds, thus elucidating the mechanistic pathways involved in the oxidative depolymerization of lignin.

2. Result and Discussion

2.1. Characterization of CuO/CNT Catalysts

The morphological characteristics of CuO/CNT catalysts were investigated by SEM analysis. As shown in Figure 1a,b, long and intertwined CNTs were observed without obvious agglomeration. These elongated CNTs played a crucial role in anchoring and dispersing CuO, thereby hindering its aggregation and preventing further growth on the supports [49]. Consequently, CuO species were found to be uniformly dispersed on the surface of the carbon nanotubes (Figure 1b). Additionally, SEM-EDX mapping confirmed the homogeneous dispersion of Cu, O, and C elements, thus providing more reactive sites for subsequent catalytic reactions (Figure 1c) [50]. In order to understand the surface functional groups of the as-prepared CuO/CNT catalyst, FTIR spectra were obtained (Figure 1d). Notably, the D and G bands at 1363 cm−1 and 1583 cm−1 were attributed to sp3 hybrid carbon defect and sp2 hybrid carbon material. The peaks at 1745 cm−1, 1153 cm−1, and 1073 cm−1 can be assigned to the stretching vibrations of C=O and C-O [51]. In addition, the surface abundance of carboxyl functional groups was also observed. These O-containing functional groups can enhance the hydrophilicity of the catalyst and promote its dispersion in water, which would also be of significant benefit for the liquid-phase reaction. The peak at 550 cm−1 attributed to Cu-O stretching vibration was observed, which provided evidence of the successful loading of CuO species onto the surface of CNT supports [52].
The phase and structure of the CuO/CNT catalysts synthesized at varying calcination temperatures were examined by XRD patterns. As shown in Figure 1e, the presence of a diffraction peak at 26° represents the carbon phase in CNT supports. Furthermore, the peaks at 35°, 38° and 48° confirmed the formation of CuO phases in all catalysts [53]. The crystal size of CuO of Cu/CNT 400 was estimated to be around 22 nm. At a higher calcination temperature of 600 °C, a discernible Cu2O diffraction peak is evident. With the increase in calcination temperature, the XRD peak intensity corresponding to CuO gradually weakens, while the peak intensity of Cu2O increased accordingly. This observation suggested that an excessively high calcination temperature may lead to a more significant carbothermal reduction in CuO to Cu2O by the carbon-based supports; the CuO/Cu2O exhibits superior catalytic performance for lignin depolymerization, which may be the reason why the yield of aromatic compounds increases with the increase in catalyst calcination temperature, thereby regulating the chemical state of the catalysts to further enhance the catalytic depolymerization of lignin [54].
The specific surface areas of the catalysts are summarized in Table 1. CuO/CNT 400 exhibited a high specific area of 222.8 m2/g, and its average pore diameter was 5.3 nm, representing a mesoporous structure. As the calcination temperature increased to 600 °C, the specific surface area and pore volume decreased slightly. The surface area of CuO/CNT 600 was maintained at 189.1 m2/g, and the pore volume was 0.23 cm3/g. However, the specific surface area of CuO/CNT 700 significantly decreased to 70 m2/g, which may be due to the aggregation of the CuO species blocking the pores of the support or the destruction of the CNT porous structure at higher temperatures, hindering the subsequent catalytic depolymerization of lignin and obtaining a lower product yield. For heterogeneous catalysis, creating a high specific surface area is important for enhancing catalytic activity. It provides more active sites to better come into contact with the lignin substrate, thus facilitating lignin conversion into aromatic products. Understanding the impact of calcination temperature on the textural structure of the catalysts provides valuable insights into the optimization of catalyst preparation.
XPS analysis further investigated the chemical state of the prepared catalysts. As shown in Figure 2a, CuO species were incorporated into carbon supports, as evidenced by the Cu peak in the XPS spectrum of CuO/CNT 600. Cu 2p3/2 XPS spectra showed two sets of peaks at binding energies of 933.1 eV and 934.6 eV that can be assigned to the Cu+/Cu0 and Cu2+ species, respectively, along with satellite peaks at 937–948 eV (Figure 2b). The binding energy at 954.1 eV was attributed to Cu 2p1/2, which also distinguished the Cu+/Cu0 and Cu2+ species in the catalyst [55]. In addition, the binding energies of 933.5 eV and 952.1 eV shifted to higher values compared to the pure CuO as the reference, indicating a strong metal–support interaction between CuO and CNT support [56,57] The enhanced interaction indicated a fast electron transfer ability on the catalyst surface, improving the overall catalytic efficiency during lignin conversion and enhancing hydrothermal stability. The C 1s XPS spectrum was deconvoluted into four sub-peaks. The peaks at 284.7, 286hen.3, 287.8, and 289.3 eV were assigned to C=C/C-C, C-O, C=O, and O-C=O species (Figure 2c). This result suggests that O-containing functional groups (i.e., carboxylic groups) are formed on the carbon support surface. We further analyzed surface oxygen species, as shown in Figure 2d. The O 1s peak of the catalyst was deconvoluted to four sub-peaks at the binding energies of 530.3, 531.8, 532.8, and 532.9 eV, corresponding to CuO, O=C, O=C-O, and O-C-O species, respectively. The results suggested that the predominant forms of surface oxygen are the carboxyl and carbonyl groups, which is consistent with the FTIR results.

2.2. Catalytic Performance of CuO/CNT for Lignin Depolymerization

Understanding catalyst properties/structures is crucial to elucidate the nature of active sites. In this regard, we found that the calcination temperature is a pivotal parameter with a profound impact on the chemical state of CuOx species. The catalysts prepared at different calcination temperatures were investigated for lignin conversion. Figure 3a showed that the yield of monophenols exhibited an increased trend when using the catalysts prepared in a temperature range of 400 to 600 °C. However, the selectivity to monophenols was rarely affected. The chemical structures of the main products were shown in Figure 3g. This can be attributed to the high specific surface area and higher proportion of Cu2O in the catalysts prepared at high calcination temperatures. It has been reported that the mixed valence state of CuO and Cu2O exhibits superior performance in the oxidation process due to the enhanced redox ability. In this study, the more electron-rich Cu2O sites formed on the CNT surface were more favorable for lignin depolymerization. However, as the calcination temperature increased to 700 °C, a decrease in monophenol yield was observed. This decrease can be attributed to the aggregation of CuO species induced by higher calcination temperatures. Consequently, it significantly reduces the specific surface area of CuO/CNT catalysts from 189 m2/g to 70 m2/g, reducing the exposed surface to support active Cu sites for catalytic reactions [58]. These results indicated that the calcination temperature affects both the chemical state of CuO and morphologies of the catalysts, which further affect the subsequent lignin conversion. These findings provide valuable insights into the optimization of catalyst synthesis for monophenol production. H2O2 was used as an oxidant for lignin oxidation. Increasing the amount of H2O2 can generate more ROS to promote the oxidative depolymerization of lignin (Figure 3b), thereby increasing the yield of aromatics, but its effect on selectivity is minimal.
To identify the role of CuO and CNT in lignin depolymerization, the catalytic performance of various catalysts (e.g., CuO, CNT, and CuO/CNT) was evaluated in terms of monophenol yield and selectivity. As shown in Figure 3c,d, both CNT support and CuO enhance the production of monophenols in comparison to the blank controls. The selectivity to monophenols varied when using the CuO, CNT, and CuO/CNT catalysts. It seems that CuO promoted the production of product 8 and product 7, and CNT exhibited a higher selectivity towards product 3 and product 4. This distinction can be attributed to the differing oxidation pathways with carbon-based materials and CuO, and further EPR results have confirmed the different oxidation mechanisms. The highest monophenol yield of 13.9% was achieved with the CuO/CNT 600 catalyst at 200 °C for 20 min. The enhanced performance can be attributed to the fact that the abundant CuO-Cu2O active sites and the enhanced generation of ROS, as both the CuO and CNT can generate ROS, thus promoting lignin depolymerization into monophenols [47,59].
The reaction conditions were further investigated to understand the key reaction parameters influencing the selective production of monophenols. Figure 3e,f illustrated the variations in the yield and selectivity of monophenols as a function of reaction temperature. The results indicated a gradual increase in monophenol yield as the temperature is raised from 160 to 200 °C. However, this trend is observed to reverse as the temperature is further increased to 220 °C. The decreased monophenol yield at 220 °C is accompanied by a decrease in the yield and selectivity of syringone and vanillone products, while the yield and selectivity of syringaldehyde and vanillin products are increased. The results indicated that the oxidation of lignin to aldehydes was more favorable at higher reaction temperatures, while the S-/G-/H-type product distribution was rarely affected.
Figure 4a showed a distinct trend in the yield of monophenol compounds at different reaction times. The yield gradually increased from 6.7% to 13.9% as the reaction time increased from 1 to 20 min. The cleavage of lignin β-O-4 bonds occurred relatively easily owing to its lower bond energy, mainly producing ketones and aldehydes [60]. When increasing the reaction time to 30 min, the produced aldehydes and ketones could be repolymerized/decomposed due to their poor thermal stability under alkaline conditions, consequently leading to a decrease in the overall yield (Figure 4b). Typically, the S-type and G-type products showed a higher thermal stability due to the -OCH3 group occupying specific positions within the benzene ring, impeding repolymerization reactions with other aromatic compounds. In addition, there is a significant decrease in H-type products at 10 min, which could be attributed to the repolymerization of product 3 and product 4 (Figure 4c,d). As the reaction time increased from 10 to 30 min, lignin was fully depolymerized, and product 3 was further generated, probably due to the defunctionalization of reactive products to H-type products, as products 8 and 9 were further generated into products 3 and 4 through C-O cleavage. The selectivity of product 4 remained relatively stable. This may be due to the fact that C-C in ketone compounds can promote the production of aldehyde products through reverse aldol condensation reaction in alkaline environments. Therefore, some products can be converted into product 3, and the lignin depolymerization, repolymerization, and defunctionalization of reactive products occurred during the oxidative processes.
The influence of NaOH concentration on the yields of aromatic compounds has been investigated, as shown in Figure 5a. When the NaOH solution was at a concentration of 0.1 M, the yield of monophenols from the depolymerization of BL was remarkably low (2.2%). A significant improvement in the yield was observed upon increasing the NaOH concentration to 1 M. This improvement can be attributed to the effective lignin solubilization by NaOH, thereby facilitating lignin depolymerization during the liquid phase reactions. Furthermore, NaOH plays a pivotal role in generating aldehydes and ketones and significantly affects the selective production of more S-type products (48.2%) from BL, which could be due to the higher stabilities of these products (Figure 5b,c). The Pearson correlation coefficient (R), between several factors and conversion efficiency, can quantitatively elucidate the impacts of reaction parameters on lignin conversion to aromatics, as shown in Figure 6. A positive correlation between NaOH concentrations and yields was observed (R = 0.792), implying that the high concentration of NaOH is a key factor in enhancing monophenol production. These findings further demonstrate how specific reaction parameters impact the production of monophenols during lignin conversion, thereby offering valuable insights for further reaction parameter optimization.
Microwave heating is considered a more environmentally friendly and sustainable method for lignin depolymerization [40]. The catalytic performance of CuO/CNT 600 under microwave heating and conventional hydrothermal liquefaction was compared. The results showed that microwave heating can increase the yield of monophenols compared with hydrothermal liquefaction, which indicates the superior efficacy of uniform microwave heating in facilitating lignin conversion into valuable phenolic compounds (Figure 5d). In addition, the prepared CuO/CNT catalysts may enhance the generation of ROS through the activation of H2O2 under microwave heating, as the CNTs have excellent microwave-absorbing properties. The impact of different reaction systems on the selectivity to H-/G-/S-type products was found to be significant (Figure 5e,f). In the microwave system, there was an increase in the production of H-type products, which may be attributed to the cleavage of the ester-linked pCA moiety. Conversely, in the hydrothermal systems with overheating, there was a higher yield of the more stable S-type product. After the first cycle, the product yield of the catalyst decreased from 13.9% to 9.2%, which may be due to the loss of some active components. However, compared with the blank and the water bath heating, the catalyst still has excellent catalytic performance (Figure 5d). Moreover, the recyclability test unveiled a slightly decreased yield. Notably, the morphology of the spent CuO/CNT catalysts remained after the cycle reaction (Figure 7). These results highlight the intricate interplay between different reaction conditions and the resultant product selectivity, offering valuable insights for optimizing catalytic processes in organic transformations.

2.3. Production of Monophenols from Different Lignin Substrates

To investigate the influence of lignin substrates on the monophenol production, three typical lignin feedstocks were selected for comparison. Table 2 shows the element analysis of different types of lignin and their molecular weights. All lignin samples showed high C contents ranging from 52.9 to 55.3%. BL exhibited a slightly higher O content attributable to oxygen-containing groups. A slightly increased sulfur content was observed in KL, probably due to the kraft extraction process involving the use of NaS [22]. The OL and BL obtained through mild extraction process showed lower molecular weights, which is conducive to depolymerization processes. Specifically, the molecular weight of BL is 925 Da, whereas the KL possessed a higher value of 10,000 Da, indicating a more significant degree of repolymerized structure in KL. The preservation of the natural lignin structure during extraction could contribute to its conversion into aromatic compounds.
The functional groups of the three lignin substrates were analyzed using FTIR. The 3343 cm−1 and 2937 cm−1 peaks can be attributed to the stretching vibrations of O-H and C-H in methyl and methylene groups, respectively (Figure 8a) [61]. Additionally, peaks at 1726 cm−1 for BL and 1692 cm−1 for OL were observed, corresponding to the stretching of C=O groups. Furthermore, the peaks observed at 1595 cm−1, 1507 cm−1, and 1422 cm−1 in various lignin samples were attributed to the stretching vibration of the aromatic ring C-C bonds, while the peak at 1460 cm−1 represents aromatic ring C-H stretching [62]. The peaks at 1215 cm−1 and 1035 cm−1 correspond to the stretching vibrations of the C-O and C-H bonds in the G-unit, respectively. Furthermore, the peaks observed at 1325 cm−1 and 1120 cm−1 represent the vibrations of the C-O and C-H bonds in the S-unit [63]. The FTIR results illustrated that the OL possessed abundant S-type units. while the KL mainly contains G-type units.
The thermochemical properties of different types of lignin were analyzed by TG. Both OL and BL show a complete weight loss at 600 °C under air conditions, indicating a high susceptibility to decomposition for these lignin feedstocks (Figure 8b). In contrast, KL retains 63% of its weight even at a higher temperature of 700 °C. This difference in thermal stability can be attributed to the structural alterations that occur in KL during this extraction process. The severe extraction conditions lead to the significant degradation of the KL structure, forming more stable C-C bonds through repolymerization, as reported by our previous studies [64]. The condensed structure of KL indicates that a harsh reaction condition may be required to break C-C bonds to produce monophenols [65].
The investigation into the yields of monophenols derived from three distinct lignin substrates is shown in Figure 8c,d and Supplementary Materials Table S1. It was observed that the yields of aromatics from the depolymerization of BL and OL were higher, which could be due to their cleavable structures, as indicated by their lower decomposition temperatures in TG profiles. Additionally, different lignin substrates illustrated varying product selectivity in the oxidative reactions. The main products from OL and BL were S-type and G-type aldehydes and ketones, which were mainly formed by the cleavage of C-O and C-C bonds in the S-type and G-type structures, and the H-type products in BL may be obtained through the cleavage of C-C and C-O in G-type structures, which is consistent with the FTIR conclusion that BL contains more G-type structures, while OL contains more S-type structures. This is consistent with the FTIR conclusion that BL lignin contains more G-type structures, while OL contains more S-type structures. Meanwhile, higher S/G-type structures in OL and BL were evidenced by FITR spectra, which can result in the selective production of these monophenols and makes it easier to obtain high yields [66]. A high selectivity to stable G/S-type products and a low yield were observed with KL substrate. This can be attributed to the condensed structure of KL that is formed during the harsh extraction process. The complex structure of KL makes it more resistant to degradation, as evidenced by the TG results, resulting in a lower yield of desired products. In addition, the low yield of S-type products can be attributed to their natural structure having fewer S-units, which is consistent with the FTIR results.

2.4. Mechanism Study

To study the reaction mechanism of oxidative depolymerization of lignin, we used EPR to identify the ROS involved in the reactions. Figure 9a showed distinct signal peaks corresponding to hydroxyl radicals when CuO, CNT, and CuO/CNT were introduced into the reactions. All Cu-based catalysts can generate •OH radicals through the activation of H2O2, while CNT may absorb microwave energy to promote the formation of •OH radicals. It is noteworthy that the CuO/CNT catalyst exhibits the highest intensity of •OH diffraction peak, indicating the potential synergistic effect of CuO and CNT in the generation of •OH radicals.
Furthermore, the six characteristic peaks of the DMPO-O2•− radical sites can be observed with both the CuO and CuO/CNT catalysts (Figure 9b). The absence of diffraction peaks in the CNT system suggested that O2•− radicals generated by CuO/CNT may originate from copper oxides. Additional experiments were conducted to elucidate the role of these radicals in lignin depolymerization and the production of resultant products. Specifically, a Fenton reaction (H2O2 and FeSO4) was employed to generate •OH radicals, while potassium peroxide (KO2) was utilized to only produce O2•− radicals [67]. In the O2•− radical system alone, the yield of monophenols is low (3.5%), mainly obtaining H-type products. The results indicated that the O2•− radicals may contribute to the cleavage of ester-linked pCA moiety and remove the side chains of the monophenols. When the H2O2 system with FeSO4 was explored, •OH radicals were generated and mainly contributed to the cleavage of C-O and Cα-Cβ, resulting in a 6.8% yield of monophenol with a high selectivity to vanillin (G-type product), acetovanillone (G-type product) and syringaldehyde (S-type product) (Figure 9c,d). From the overall yield of aromatic compounds, hydroxyl radicals have higher activity in lignin depolymerization and generate more aromatic monomers. In H2O2 system with CuO/CNT, both H2O2 and air can be activated to generate •OH and O2•−, as evidenced by EPR results. The highest yield of monophenol was achieved through the cleavage of the Cα-Cβ linkage, yielding vanillin (product 6) and syringaldehyde (product 8), as well as the cleavage of the β-O-4 bond, producing vanillone (product 7) and syringone (product 9), indicating both •OH and O2•− radicals were involved in the oxidative depolymerization of lignin (Figure 10).

3. Methods

3.1. Lignin Samples

The bio-enzymatic lignin (BL isolated from corn cob) was purchased from Shandong Longli Biotechnology. In the process of extracting organosolv lignin (OL) from cottonwood, a mixture of formic acid, acetic acid, and water was utilized. The wood biomass was thoroughly stirred with the solvent mixture and heated in an oil bath at 105 °C for 8 h. The resulting mixture was filtered to separate the residue from the filtrate. Then, a large amount of ice water was added to the filtrate, and the OL was collected as a precipitate. This method proved effective in isolating lignin from the wood biomass. Kraft lignin (KL) was purchased from Sigma Aldrich (Shanghai, China) Trading Co., Ltd. [64].

3.2. Preparation of CuO/CNT Catalyst

For the preparation of CuO/CNT, 0.5 g CNT was added to a solution comprising ethanol and water in a 1:1 ratio, followed by thorough stirring to ensure uniform distribution. Then, 0.2 g Cu(NO3)2·3H2O was added to the solution, which was then subjected to ultrasound treatment for 10 min. Magnetic stirring was then carried out at 120 °C, and the mixture was boiled until the solution volatilized to a sticky state. The colloid was dried overnight at 60 °C and then heated to 600 °C for 3 h at a heating rate of 2 °C/min in an air atmosphere to obtain CuO/CNT 600 catalysts with a CuO loading of 5%. The catalysts calcined at different temperatures (400, 500, 600, and 700 °C) were prepared for comparison. All catalysts were sieved through a 100-mesh screen.

3.3. Microwave-Assisted Oxidative Depolymerization of Lignin

In a typical run, 0.2 g of lignin was dissolved in 10 mL of 1 M NaOH solution through ultrasound. Then, 0.15 g of catalyst and 1 mL of H2O2 (30 wt%) were introduced into the reactor before heating. The utilization of microwave-assisted heating facilitated the decomposition of H2O2, thereby creating an oxidative environment conducive to lignin depolymerization. To enhance catalytic efficiency, four temperature gradients were established at 160, 180, 200, and 220 °C. Additionally, 0.15 g CNT and 0.15 g CuO were used for control experiments. The reactor was heated to the desired temperature within 7 min using 1000 W power. After the reaction, the microwave reactors were quickly cooled to room temperature by air cooling. The solid catalyst was collected by filtration and then washed three times with deionized water and ethanol and dried at 60 °C. Subsequently, the reaction solution pH was adjusted to 2 by using diluted HCl, and the liquid products were extracted by ethyl acetate for further analysis.

3.4. Qualitative and Quantitative Analysis of Products

The products obtained from the oxidative depolymerization of lignin were qualitatively and quantitatively analyzed by gas chromatography–mass spectrometry (GC-MS) (Agilent GC7890N and matching Wax column, Santa Clara, CA, USA). Dodecane was used as the internal standard to quantify the yield of monophenols [68].
Y i e l d   % = m p r o d u c t f i n a l m l i g n i n i n i t i a l × 100 %
S e l e c t i v i t y   % = m p r o d u c t f i n a l ∑ m × 100 %

3.5. Characterization of Catalyst and Lignin

Rigaku Ultima IV multifunctional X-ray diffraction (XRD) was used to analyze the crystal structure of the catalyst (λ = 0.15418 nm, 40 kV, 40 mA). Scanning electron microscopy (SEM, SU8010, Hitachi, Tokyo, Japan) and SEM with energy dispersive X-ray spectroscopy (SEM-EDX) were used to analyze the surface structure and element distribution of the catalysts, and the acceleration voltage was from 0.2 kV to 30 kV. X-ray photoelectron spectroscopy (XPS, EMAX50, Tokyo, Japan) was used to analyze the surface element composition and chemical valence of the catalyst. The chemical structure and functional group of the catalyst were analyzed by Fourier transform infrared spectroscopy (FTIR, Nicolet IS5, Madison, WI, USA). The molecular weight distribution of three different types of lignin was determined using a gel permeation chromatography (GPC) instrument (Agilent 1260HPLC Systems, Santa Clara, CA, USA) equipped with a refractive index detector (RID); the mobile phase is tetrahydrofuran, and the flow rate is 1mL/min. Element analysis (Elementar Vario EL III, Frankfurt, Germany) was used to determine the contents of C, H, O, and S in lignin samples. Thermogravimetric analysis (TG, PerkinElmer TGA 8000, Waltham, MA, USA) was used to quantitatively measure the change in mass and the change rate of mass. The lignin samples were placed in a porcelain crucible and then heated up to 700 °C with a heating rate of 20 °C/min under an air atmosphere. The electron paramagnetic resonance (EPR) spectra were obtained using A300 spectrometer (A300, Bruker, Bremen, Germany) to detect ROS. In the sample vials, 100 mM 5,5-dimethyl-1-pyrroline-N-oxide (DMPO) was added to the water or methanol solution. The peak intensities of DMPO-OH, DMPO-O2•–, and 2,2,6,6-tetramethyl-4-piperidinol (TEMP)-1O2 signals at 20 min were applied as indexes of the generated ROS after the correction of background noise.

4. Conclusions

In this work, on the basis of the high microwave absorption performance of CNTs, we developed CuO/CNT catalysts that enable the activation of H2O2 and air for lignin depolymerization under microwave heating. The calcination temperature plays a pivotal role in the speciation of CuOx and catalyst structural properties. To evaluate the catalytic performance, the yields and selectivity of monophenols were assessed for CuO/CNT catalysts prepared at varying calcination temperatures (400–700 °C). The results demonstrated that the CuO/CNT 600 catalyst exhibits a higher specific surface area and demonstrated the co-existence of CuO-Cu2O species, which could facilitate the conversion of lignin into valuable monophenols. Through a systematic optimization of several reaction parameters, we investigated the key factors determining the yield of monophenols. A notable 13.9% yield was achieved at 200 °C for 20 min when employing BL as the feedstock. This study was further expanded to encompass the oxidative depolymerization of three different types of lignin to diversify the array of aromatic compounds obtained. EPR experiments verified the pivotal roles of •OH and O2•− radicals in the cleavage of lignin C-O and C-C bonds, ultimately leading to distinct depolymerization pathways and variations in the selective production of monophenols.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules29194762/s1, Table S1. Yield and selectivity of S, G, and H under different conditions.

Author Contributions

C.T.: Conceptualization, Methodology, Investigation, Visualization, Writing—Original Draft Preparation; Y.C.: Conceptualization, Methodology, Investigation, Validation, Supervision, Writing—Review and Editing; J.G.: Methodology, Investigation, Validation, Writing—Review and Editing; G.L., J.F. and J.H.C.: Methodology, Validation, Writing—Review and Editing; S.Z.: Conceptualization, Methodology, Supervision, Resources, Project Administration, Funding Acquisition, Writing—Review and Editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China grant (No. 22278085).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in the study are included in the article and Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mujtaba, M.; Fernandes Fraceto, L.; Fazeli, M.; Mukherjee, S.; Savassa, S.M.; Araujo de Medeiros, G.; do Espírito Santo Pereira, A.; Mancini, S.D.; Lipponen, J.; Vilaplana, F. Lignocellulosic Biomass from Agricultural Waste to the Circular Economy: A Review with Focus on Biofuels, Biocomposites and Bioplastics. J. Clean. Prod. 2023, 402, 136815. [Google Scholar] [CrossRef]
  2. Manikandan, S.; Vickram, S.; Sirohi, R.; Subbaiya, R.; Krishnan, R.Y.; Karmegam, N.; Sumathijones, C.; Rajagopal, R.; Chang, S.W.; Ravindran, B.; et al. Critical Review of Biochemical Pathways to Transformation of Waste and Biomass into Bioenergy. Bioresour. Technol. 2023, 372, 128679. [Google Scholar] [CrossRef] [PubMed]
  3. Sharma, V.; Tsai, M.-L.; Nargotra, P.; Chen, C.-W.; Sun, P.-P.; Singhania, R.R.; Patel, A.K.; Dong, C.-D. Journey of Lignin from a Roadblock to Bridge for Lignocellulose Biorefineries: A Comprehensive Review. Sci. Total Environ. 2023, 861, 160560. [Google Scholar] [CrossRef] [PubMed]
  4. Deng, W.; Feng, Y.; Fu, J.; Guo, H.; Guo, Y.; Han, B.; Jiang, Z.; Kong, L.; Li, C.; Liu, H.; et al. Catalytic Conversion of Lignocellulosic Biomass into Chemicals and Fuels. Green Energy Environ. 2023, 8, 10–114. [Google Scholar] [CrossRef]
  5. Al-Azkawi, A.; Elliston, A.; Al-Bahry, S.; Sivakumar, N. Waste Paper to Bioethanol: Current and Future Prospective. Biofuels Bioprod. Biorefining 2019, 13, 1106–1118. [Google Scholar] [CrossRef]
  6. Latif, M.N.; Wan Isahak, W.N.R.; Samsuri, A.; Hasan, S.Z.; Manan, W.N.; Yaakob, Z. Recent Advances in the Technologies and Catalytic Processes of Ethanol Production. Catalysts 2023, 13, 1093. [Google Scholar] [CrossRef]
  7. Huynh, Q.T.; Zhong, C.-T.; Huang, Q.; Lin, Y.-C.; Chen, K.-F.; Liao, C.-S.; Dong, C.-D.; Chang, K.-L. Highly Effective Synthesis of 5-Hydroxymethylfurfural from Lignocellulosic Biomass over a Green and One-Pot Reaction in Biphasic System. Bioresour. Technol. 2023, 387, 129590. [Google Scholar] [CrossRef]
  8. Kumar Vaidyanathan, V.; Saikia, K.; Senthil Kumar, P.; Karanam Rathankumar, A.; Rangasamy, G.; Dattatraya Saratale, G. Advances in Enzymatic Conversion of Biomass Derived Furfural and 5-Hydroxymethylfurfural to Value-Added Chemicals and Solvents. Bioresour. Technol. 2023, 378, 128975. [Google Scholar] [CrossRef]
  9. Poveda-Giraldo, J.A.; Solarte-Toro, J.C.; Cardona Alzate, C.A. The Potential Use of Lignin as a Platform Product in Biorefineries: A Review. Renew. Sustain. Energy Rev. 2021, 138, 110688. [Google Scholar] [CrossRef]
  10. Zevallos Torres, L.A.; Lorenci Woiciechowski, A.; de Andrade Tanobe, V.O.; Karp, S.G.; Guimarães Lorenci, L.C.; Faulds, C.; Soccol, C.R. Lignin as a Potential Source of High-Added Value Compounds: A Review. J. Clean. Prod. 2020, 263, 121499. [Google Scholar] [CrossRef]
  11. Singhania, R.R.; Patel, A.K.; Raj, T.; Chen, C.-W.; Ponnusamy, V.K.; Tahir, N.; Kim, S.-H.; Dong, C.-D. Lignin Valorisation via Enzymes: A Sustainable Approach. Fuel 2022, 311, 122608. [Google Scholar] [CrossRef]
  12. Cheng, J.; Huang, C.; Zhan, Y.; Han, S.; Wang, J.; Meng, X.; Yoo, C.G.; Fang, G.; Ragauskas, A.J. Effective Biomass Fractionation and Lignin Stabilization Using a Diol DES System. Chem. Eng. J. 2022, 443, 136395. [Google Scholar] [CrossRef]
  13. Lawoko, M.; Samec, J.S.M. Kraft Lignin Valorization: Biofuels and Thermoset Materials in Focus. Curr. Opin. Green Sustain. Chem. 2023, 40, 100738. [Google Scholar] [CrossRef]
  14. Dessbesell, L.; Paleologou, M.; Leitch, M.; Pulkki, R.; Xu, C. Global Lignin Supply Overview and Kraft Lignin Potential as an Alternative for Petroleum-Based Polymers. Renew. Sustain. Energy Rev. 2020, 123, 109768. [Google Scholar] [CrossRef]
  15. Sheng, Y.; Lam, S.S.; Wu, Y.; Ge, S.; Wu, J.; Cai, L.; Huang, Z.; Le, Q.V.; Sonne, C.; Xia, C. Enzymatic Conversion of Pretreated Lignocellulosic Biomass: A Review on Influence of Structural Changes of Lignin. Bioresour. Technol. 2021, 324, 124631. [Google Scholar] [CrossRef] [PubMed]
  16. Sun, C.; Meng, X.; Sun, F.; Zhang, J.; Tu, M.; Chang, J.-S.; Reungsang, A.; Xia, A.; Ragauskas, A.J. Advances and Perspectives on Mass Transfer and Enzymatic Hydrolysis in the Enzyme-Mediated Lignocellulosic Biorefinery: A Review. Biotechnol. Adv. 2023, 62, 108059. [Google Scholar] [CrossRef]
  17. Wang, Y.; Akbarzadeh, A.; Chong, L.; Du, J.; Tahir, N.; Awasthi, M.K. Catalytic Pyrolysis of Lignocellulosic Biomass for Bio-Oil Production: A Review. Chemosphere 2022, 297, 134181. [Google Scholar] [CrossRef]
  18. Zoppi, G.; Tito, E.; Bianco, I.; Pipitone, G.; Pirone, R.; Bensaid, S. Life Cycle Assessment of the Biofuel Production from Lignocellulosic Biomass in a Hydrothermal Liquefaction–Aqueous Phase Reforming Integrated Biorefinery. Renew. Energy 2023, 206, 375–385. [Google Scholar] [CrossRef]
  19. Wu, J.; Li, T.; Qiu, X.; Qin, Y.; Chen, L. γ-Valerolactone/H2O Binary Solvent for One-Pot Preparation and Functional Tailoring of Lignin-Based Carbon Dots. ACS Sustain. Chem. Eng. 2023, 11, 12256–12264. [Google Scholar] [CrossRef]
  20. Chen, R.; Huang, Y.; Rao, C.; Su, H.; Pang, Y.; Lou, H.; Yang, D.; Qiu, X. Enhanced Photocatalytic Degradation of Lignin by In2S3 with Hydrophobic Surface and Metal Defects. Appl. Surf. Sci. 2022, 600, 154110. [Google Scholar] [CrossRef]
  21. Wu, K.; Cao, M.; Zeng, Q.; Li, X. Radical and (Photo)Electron Transfer Induced Mechanisms for Lignin Photo- and Electro-Catalytic Depolymerization. Green Energy Environ. 2023, 8, 383–405. [Google Scholar] [CrossRef]
  22. Guo, H.; Chen, Z.; Yin, Q.; Sun, T.; Liu, Y.; Ren, G.; Li, C. Waste to wealth: H2S-free fabrication of Fe-ZnS/NC by industrial lignin self S-doping for efficient lignin aerobic oxidation. Appl. Catal. B Environ. 2023, 339, 123129. [Google Scholar] [CrossRef]
  23. Tang, B.; Li, W.; Zhang, X.; Zhang, B.; Zhang, H.; Li, C. Depolymerization of Kraft lignin to liquid fuels with MoS2 derived oxygen-vacancy-enriched MoO3 in a hydrogen-donor solvent system. Fuel 2022, 324, 124674. [Google Scholar] [CrossRef]
  24. Sosa, F.H.B.; Bjelić, A.; Coutinho, J.A.P.; Costa, M.C.; Likozar, B.; Jasiukaitytė-Grojzdek, E.; Grilc, M.; Lopes, A.M.d.C. Conversion of Organosolv and Kraft lignins into value-added compounds assisted by an acidic deep eutectic solvent. Sustain. Energy Fuels 2022, 6, 4800–4815. [Google Scholar] [CrossRef]
  25. Cheng, Y.; Yang, S.; Ji, L.; Shi, H. Oligomeric Aromatic Oxides (OAO) Production From Sugarcane Bagasse Lignin by Acid-Catalyzed Solvothermal Liquefaction in Methanol. Front. Energy Res. 2020, 8, 608415. [Google Scholar] [CrossRef]
  26. Cai, W.; Wang, X.; Zhu, Z.; Kumar, R.; Nana Amaniampong, P.; Zhao, J.; Hu, Z.-T. Synergetic effects in the co-pyrolysis of lignocellulosic biomass and plastic waste for renewable fuels and chemicals. Fuel 2023, 353, 129210. [Google Scholar] [CrossRef]
  27. Shen, Z.; Wang, W.; Pan, L.; Huang, Z.; Zhang, X.; Shi, C.; Zou, J.-J. Ni5Fe5/Al2O3 catalytic hydrogenolysis of lignin: Mechanism investigation and selectivity regulation. Green Chem. 2023, 25, 7782–7793. [Google Scholar] [CrossRef]
  28. Zhou, H.; Liu, X.; Guo, Y.; Wang, Y. Self-Hydrogen Supplied Catalytic Fractionation of Raw Biomass into Lignin-Derived Phenolic Monomers and Cellulose-Rich Pulps. JACS Au 2023, 3, 1911–1917. [Google Scholar] [CrossRef]
  29. Abdelaziz, O.Y.; Clemmensen, I.; Meier, S.; Costa, C.A.E.; Rodrigues, A.E.; Hulteberg, C.P.; Riisager, A. On the Oxidative Valorization of Lignin to High-Value Chemicals: A Critical Review of Opportunities and Challenges. ChemSusChem 2022, 15, e202201232. [Google Scholar] [CrossRef]
  30. Hu, Y.; Cui, Y.; Zhao, S.; Zhao, X.; Hu, X.; Song, Z.; Fan, W.; Zhang, Q. Selective C–C bond cleavage of oxidized lignin in an aqueous phase under mild conditions. Green Chem. 2023, 25, 5150–5159. [Google Scholar] [CrossRef]
  31. Gao, D.; Ouyang, D.; Bai, Y.; Zhao, X. Synthesis and Computational Investigation of Antioxidants Prepared by Oxidative Depolymerization of Lignin and Aldol Condensation of Aromatic Aldehydes. ChemSusChem 2023, 16, e202300208. [Google Scholar] [CrossRef] [PubMed]
  32. Kärkäs, M.D.; Matsuura, B.S.; Monos, T.M.; Magallanes, G.; Stephenson, C.R.J. Transition-metal catalyzed valorization of lignin: The key to a sustainable carbon-neutral future. Org. Biomol. Chem. 2016, 14, 1853–1914. [Google Scholar] [CrossRef] [PubMed]
  33. Sun, Q.; Fu, X.; Wang, P.; Li, K.; Wei, L.; Zhai, S.; An, Q. Selective production of p-hydroxybenzaldehyde in the oxidative depolymerization of alkali lignin catalyzed by copper-containing imidazolium-based ionic liquids. J. Mol. Liq. 2023, 385, 122378. [Google Scholar] [CrossRef]
  34. Zhao, X.; Ding, Y.; Du, B.; Zhu, J.Y.; Liu, D. Polyoxometalate-Mediated Lignin Oxidation for Efficient Enzymatic Production of Sugars and Generation of Electricity from Lignocellulosic Biomass. Energy Technol. 2017, 5, 1179–1185. [Google Scholar] [CrossRef]
  35. Xiao, X.; Han, Y.; Liu, C.; Li, Y.; Sun, G.; Wang, X. Visible-light-activated TiO2 photocatalysis regionally modified by SiO2 for lignin depolymerization. Mater. Today Energy 2022, 30, 101190. [Google Scholar] [CrossRef]
  36. Gale, M.; Cai, C.M.; Gilliard-Abdul-Aziz, K.L. Heterogeneous Catalyst Design Principles for the Conversion of Lignin into High-Value Commodity Fuels and Chemicals. ChemSusChem 2020, 13, 1947–1966. [Google Scholar] [CrossRef]
  37. Ren, X.; Wang, P.; Han, X.; Zhang, G.; Gu, J.; Ding, C.; Zheng, X.; Cao, F. Depolymerization of Lignin to Aromatics by Selectively Oxidizing Cleavage of C–C and C–O Bonds Using CuCl2/Polybenzoxazine Catalysts at Room Temperature. ACS Sustain. Chem. Eng. 2017, 5, 6548–6556. [Google Scholar] [CrossRef]
  38. Cao, Y.; Chen, S.S.; Tsang, D.C.W.; Clark, J.H.; Budarin, V.L.; Hu, C.; Wu, K.C.-W.; Zhang, S. Microwave-assisted depolymerization of various types of waste lignins over two-dimensional CuO/BCN catalysts. Green Chem. 2020, 22, 725–736. [Google Scholar] [CrossRef]
  39. Zhang, Y.; Cheng, S.; Wang, B.; Shi, C.; Nie, Y. Microwave-assisted pyrolysis aspen wood for production of valuable products under different temperatures. Arab. J. Chem. 2023, 16, 105187. [Google Scholar] [CrossRef]
  40. Vega-Aguilar, C.A.; Costa, C.; Barreiro, M.F.; Rodrigues, A.E. Microwave-Assisted Lignin Wet Peroxide Oxidation to C4 Dicarboxylic Acids. Ind. Eng. Chem. Res. 2022, 61, 3570–3581. [Google Scholar] [CrossRef]
  41. Hamzah, W.S.W.; Kait, C.F.; Baharuddin, N.A.; Rahim, A.H.A.; Jumbri, K.; Wilfred, C.D.; Man, Z.; Idris, A. Microwave-assisted chemistry: Parametric optimization for catalytic degradation of lignin model compounds in imidazolium-based ILs. Biomass Convers. Biorefinery 2023, 13, 1793–1803. [Google Scholar] [CrossRef]
  42. Fernandes, D.M.; Costa, M.; Pereira, C.; Bachiller-Baeza, B.; Rodríguez-Ramos, I.; Guerrero-Ruiz, A.; Freire, C. Novel electrochemical sensor based on N-doped carbon nanotubes and Fe3O4 nanoparticles: Simultaneous voltammetric determination of ascorbic acid, dopamine and uric acid. J. Colloid Interface Sci. 2014, 432, 207–213. [Google Scholar] [CrossRef] [PubMed]
  43. Luo, C.; Liu, S.; Yang, G.; Jiang, P.; Luo, X.; Chen, Y.; Xu, M.; Lester, E.; Wu, T. Microwave-accelerated hydrolysis for hydrogen production over a cobalt-loaded multi-walled carbon nanotube-magnetite composite catalyst. Appl. Energy 2023, 333, 120538. [Google Scholar] [CrossRef]
  44. Araia, A.; Wang, Y.; Jiang, C.; Brown, S.; Caiola, A.; Robinson, B.; Li, W.; Hu, J. Insight into Enhanced Microwave Heating for Ammonia Synthesis: Effects of CNT on the Cs–Ru/CeO2 Catalyst. ACS Appl. Mater. Interfaces 2023, 15, 24296–24305. [Google Scholar] [CrossRef] [PubMed]
  45. Menéndez, J.A.; Arenillas, A.; Fidalgo, B.; Fernández, Y.; Zubizarreta, L.; Calvo, E.G.; Bermúdez, J.M. Microwave heating processes involving carbon materials. Fuel Process. Technol. 2010, 91, 1–8. [Google Scholar] [CrossRef]
  46. Ren, Y.; Chen, Y.; Li, Q.; Li, H.; Bian, Z. Microwave-Assisted Photocatalytic Degradation of Organic Pollutants via CNTs/TiO2. Catalysts 2022, 12, 940. [Google Scholar] [CrossRef]
  47. Chen, J.; Xue, S.; Song, Y.; Shen, M.; Zhang, Z.; Yuan, T.; Tian, F.; Dionysiou, D.D. Microwave-induced carbon nanotubes catalytic degradation of organic pollutants in aqueous solution. J. Hazard. Mater. 2016, 310, 226–234. [Google Scholar] [CrossRef]
  48. Davaritouchaee, M.; Hiscox, W.C.; Terrell, E.; Mancini, R.J.; Chen, S. Mechanistic studies of milled and Kraft lignin oxidation by radical species. Green Chem. 2020, 22, 1182–1197. [Google Scholar] [CrossRef]
  49. Ojeery, A.A.; Hassan, H.U.; Balawi, S.A.A.; Iqbal, M.W.; Afzal, A.M.; Hadia, N.M.A. Growth of AgCoS@CNTs Composite on Nickel Foam to Enrich the Redox Active Sites for Battery-Supercapacitor Hybrid Energy Storage Device. J. Phys. Chem. Solids 2023, 180, 111473. [Google Scholar] [CrossRef]
  50. Sun, H.; Wang, H.; Qu, Z. Construction of CuO/CeO2 Catalysts via the Ceria Shape Effect for Selective Catalytic Oxidation of Ammonia. ACS Catal. 2023, 13, 1077–1088. [Google Scholar] [CrossRef]
  51. Thanasamy, D.; Jesuraj, D.; Avadhanam, V.; Chinnadurai, K.; Kannan, S.K.K. Microstructural effect of various polyaniline-carbon nanotube core-shell nanocomposites on electrochemical supercapacitor electrode performance. J. Energy Storage 2022, 53, 105087. [Google Scholar] [CrossRef]
  52. Basit, R.A.; Abbasi, Z.; Hafeez, M.; Ahmad, P.; Khan, J.; Khandaker, M.U.; Al-Mugren, K.S.; Khalid, A. Successive Photocatalytic Degradation of Methylene Blue by ZnO, CuO and ZnO/CuO Synthesized from Coriandrum Sativum Plant Extract via Green Synthesis Technique. Crystals 2023, 13, 281. [Google Scholar] [CrossRef]
  53. Arfan, M.; Hussain, I.; Ahmad, Z.; Afzal, A.; Shahid, T.; Wattoo, A.G.; Rafi, M.; Zeb, A.; Shahzad, M.I.; Zhenlun, S. Facile Synthesis and Characterization of CuO–CeO2 Nanostructures for Photocatalytic Applications. Cryst. Res. Technol. 2022, 57, 2100230. [Google Scholar] [CrossRef]
  54. Tarabanko, V.E.; Vigul, D.O.; Kaygorodov, K.L.; Chelbina, Y.V.; Mazurova, E.V. Catalytic Oxidation of Flax Shives into Vanillin and Pulp. Catalysts 2022, 12, 1003. [Google Scholar] [CrossRef]
  55. Arulkumar, E.; Shree, S.S.; Thanikaikarasan, S. Synthesis and characterization of CuO–Mn3O4: Application to chromium (VI) photocatalytic reduction. J. Mater. Sci. Mater. Electron. 2024, 35, 198. [Google Scholar] [CrossRef]
  56. He, Z.; Lin, H.; He, P.; Yuan, Y. Effect of boric oxide doping on the stability and activity of a Cu–SiO2 catalyst for vapor-phase hydrogenation of dimethyl oxalate to ethylene glycol. J. Catal. 2011, 277, 54–63. [Google Scholar] [CrossRef]
  57. Shen, J.; Zhang, S.; Shen, H.; Xu, X.; Fang, X.; Wang, X. Studying the Structure-Reactivity Relationship of CuO/CeO2 for Catalytic Soot Particulate Combustion: On the Monolayer Dispersion Threshold Effect. ChemCatChem 2024, 16, e202301766. [Google Scholar] [CrossRef]
  58. Ma, Q.; Zhang, Y.; Zhu, X.; Chen, B. Hollow multi-shelled Co3O4 as nanoreactors to activate peroxymonosulfate for highly effective degradation of Carbamazepine: A novel strategy to reduce nano-catalyst agglomeration. J. Hazard. Mater. 2022, 427, 127890. [Google Scholar] [CrossRef]
  59. Li, Y.; Guo, L.; Huang, D.; Jawad, A.; Chen, Z.; Yang, J.; Liu, W.; Shen, Y.; Wang, M.; Yin, G. Support-Dependent Active Species Formation for CuO Catalysts: Leading to Efficient Pollutant Degradation in Alkaline Conditions. J. Hazard. Mater. 2017, 328, 56–62. [Google Scholar] [CrossRef]
  60. Liu, C.; Lin, F.; Kong, X.; Fan, Y.; Xu, W.; Lei, M.; Xiao, R. Lignin-first biorefinery of corn stalk via zirconium(IV) chloride/sodium hydroxide-catalyzed aerobic oxidation to produce phenolic carbonyls. Bioresour. Technol. 2022, 354, 127183. [Google Scholar] [CrossRef]
  61. Sun, Y.-C.; Wang, M.; Sun, R.-C. Toward an Understanding of Inhomogeneities in Structure of Lignin in Green Solvents Biorefinery. Part 1: Fractionation and Characterization of Lignin. ACS Sustain. Chem. Eng. 2015, 3, 2443–2451. [Google Scholar] [CrossRef]
  62. Seo, J.H.; Jeong, H.; Lee, H.W.; Choi, C.S.; Bae, J.H.; Lee, S.M.; Kim, Y.S. Characterization of solvent-fractionated lignins from woody biomass treated via supercritical water oxidation. Bioresour. Technol. 2019, 275, 368–374. [Google Scholar] [CrossRef] [PubMed]
  63. Yao, L.; Chen, C.; Yoo, C.G.; Meng, X.; Li, M.; Pu, Y.; Ragauskas, A.J.; Dong, C.; Yang, H. Insights of Ethanol Organosolv Pretreatment on Lignin Properties of Broussonetia Papyrifera. ACS Sustain. Chem. Eng. 2018, 6, 14767–14773. [Google Scholar] [CrossRef]
  64. Cao, Y.; Chen, S.S.; Zhang, S.; Ok, Y.S.; Matsagar, B.M.; Wu, K.C.-W.; Tsang, D.C.W. Advances in lignin valorization towards bio-based chemicals and fuels: Lignin biorefinery. Bioresour. Technol. 2019, 291, 121878. [Google Scholar] [CrossRef]
  65. Adamovic, T.; Zhu, X.; Perez, E.; Balakshin, M.; Cocero, M.J. Understanding sulfonated kraft lignin re-polymerization by ultrafast reactions in supercritical water. J. Supercrit. Fluids 2022, 191, 105768. [Google Scholar] [CrossRef]
  66. Happs, R.M.; Addison, B.; Doeppke, C.; Donohoe, B.S.; Davis, M.F.; Harman-Ware, A.E. Comparison of methodologies used to determine aromatic lignin unit ratios in lignocellulosic biomass. Biotechnol. Biofuels 2021, 14, 58. [Google Scholar] [CrossRef]
  67. Davaritouchaee, M.; Hiscox, W.C.; Martinez-Fernandez, J.; Fu, X.; Mancini, R.J.; Chen, S. Effect of reactive oxygen species on biomass structure in different oxidative processes. Ind. Crops Prod. 2019, 137, 484–494. [Google Scholar] [CrossRef]
  68. Hafezisefat, P.; Qi, L.; Brown, R.C. Lignin Depolymerization and Esterification with Carboxylic Acids to Produce Phenyl Esters. ACS Sustain. Chem. Eng. 2023, 11, 17053–17060. [Google Scholar] [CrossRef]
Molecules 29 04762 g001

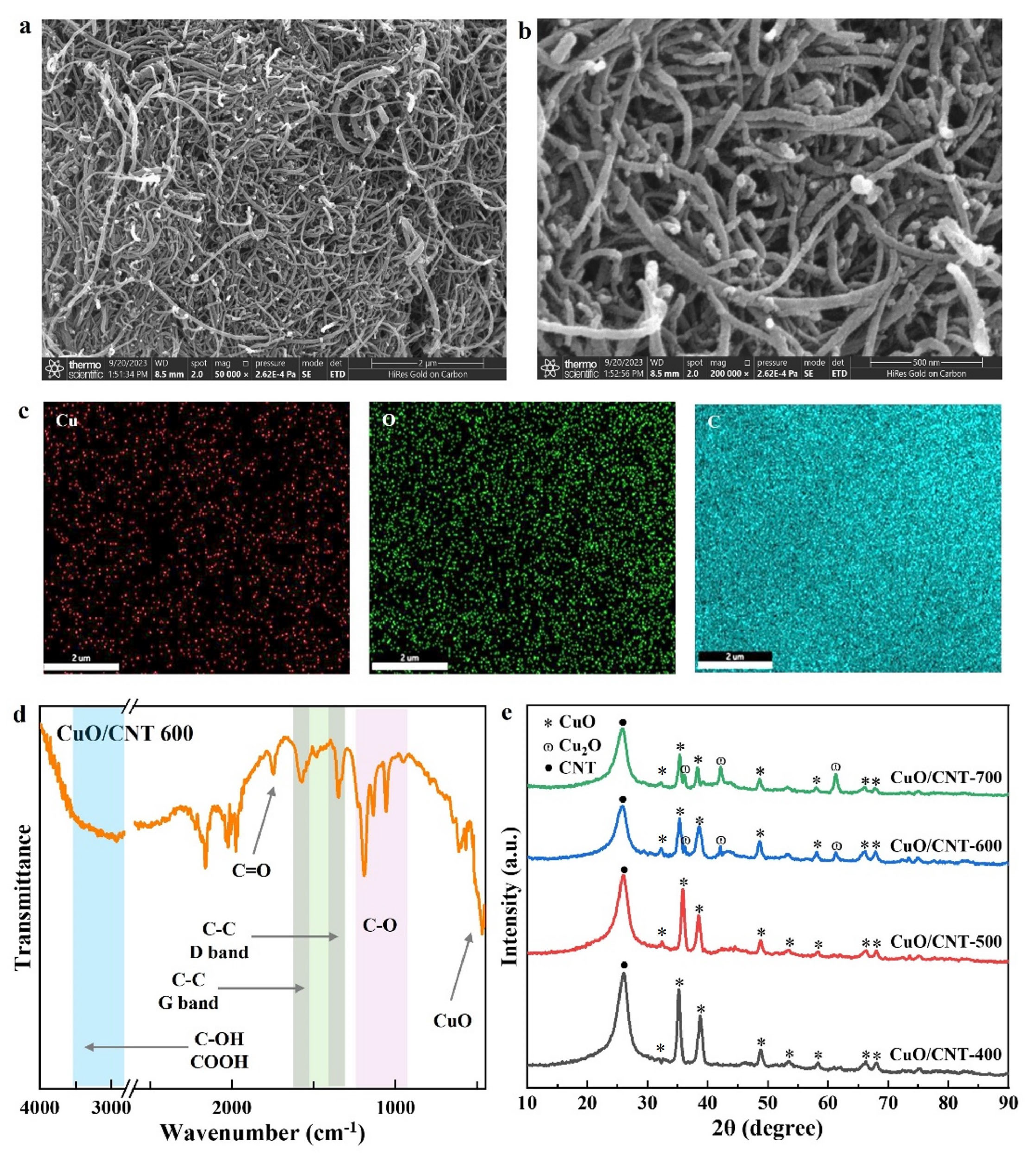

Figure 1. (a,b) SEM images of CuO/CNT 600 catalyst and (c) the element mapping of Cu, O, and C; (d) FTIR spectra of Cu/CNT 600; (e) XRD patterns of various catalysts.
Figure 1. (a,b) SEM images of CuO/CNT 600 catalyst and (c) the element mapping of Cu, O, and C; (d) FTIR spectra of Cu/CNT 600; (e) XRD patterns of various catalysts.
Molecules 29 04762 g001
Molecules 29 04762 g002

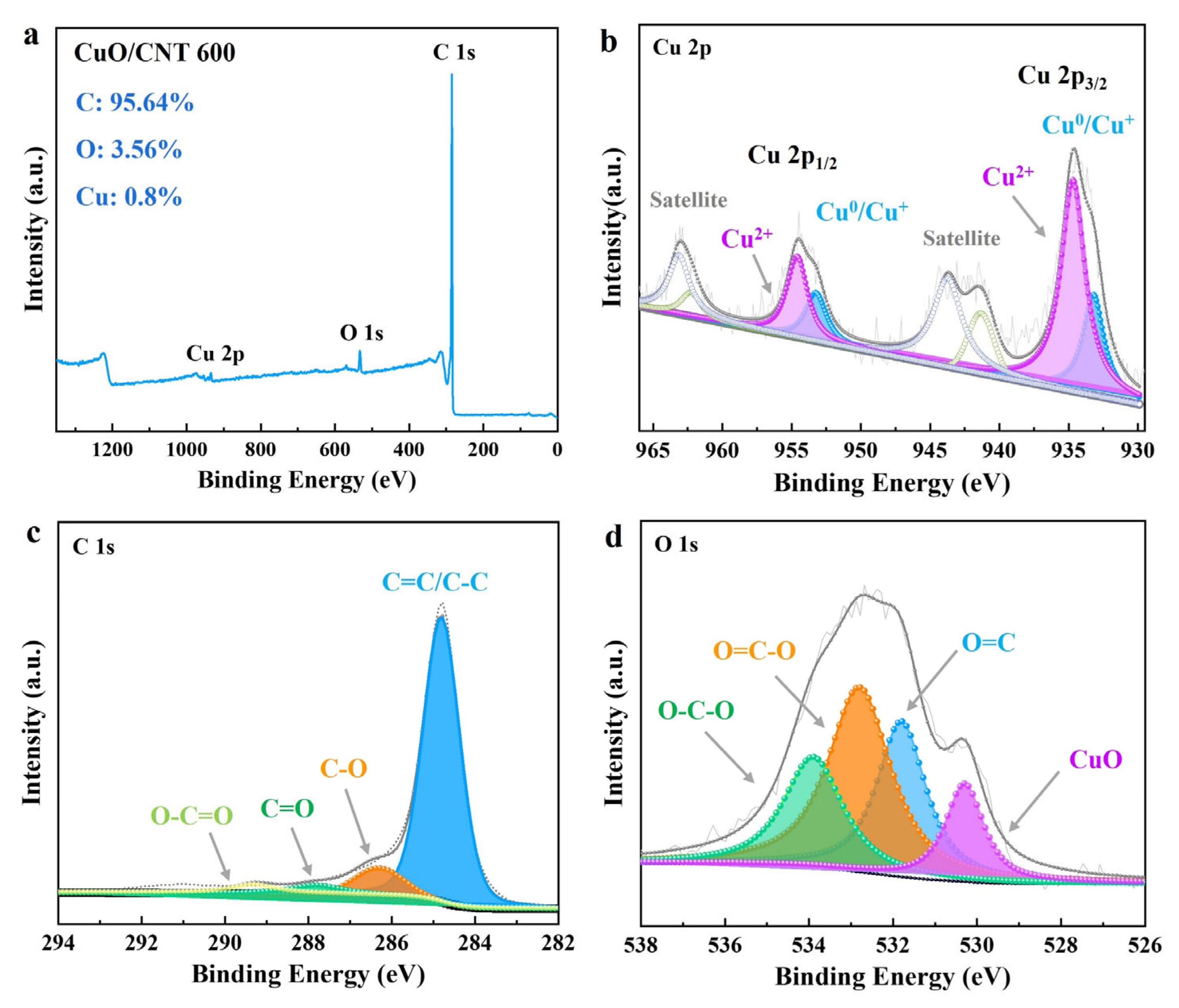

Figure 2. Chemical state of Cu catalysts. (a) The full spectrum scan of XPS spectra; (b) Cu 2p XPS spectra; (c) C 1s XPS spectra; (d) O 1s spectra for Cu/CNT 600.
Figure 2. Chemical state of Cu catalysts. (a) The full spectrum scan of XPS spectra; (b) Cu 2p XPS spectra; (c) C 1s XPS spectra; (d) O 1s spectra for Cu/CNT 600.
Molecules 29 04762 g002
Molecules 29 04762 g003

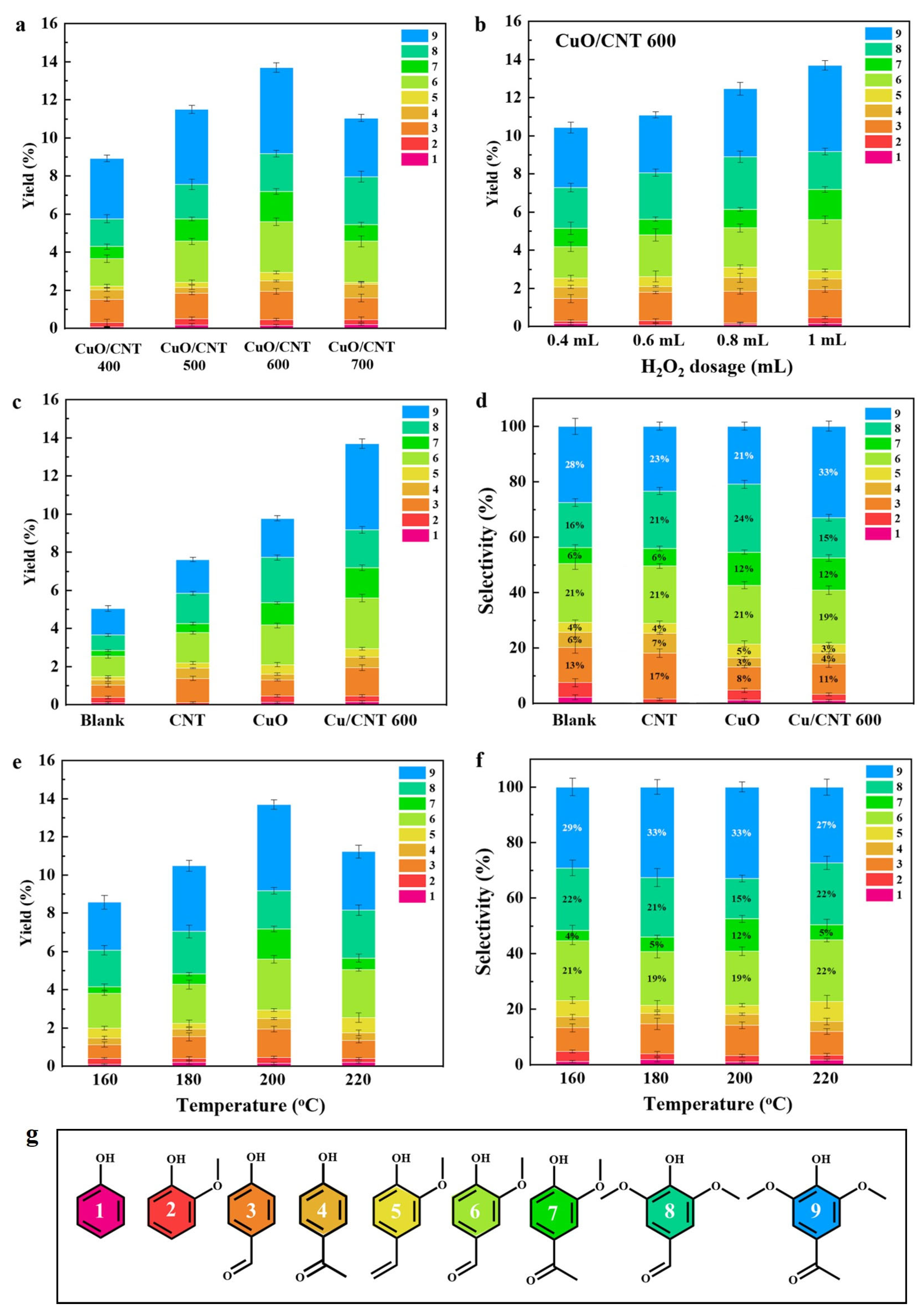

Figure 3. Effect of (a) catalyst calcination temperature and (b) H2O2 dosage on monophenol yield in the oxidative catalytic depolymerization of BL; (c) monophenol yield and (d) selectivity from BL depolymerization with various catalysts (200 °C, 20 min); effect of reaction temperature on (e) monophenol yield and (f) selectivity; (g) chemical structures of various monophenols.
Figure 3. Effect of (a) catalyst calcination temperature and (b) H2O2 dosage on monophenol yield in the oxidative catalytic depolymerization of BL; (c) monophenol yield and (d) selectivity from BL depolymerization with various catalysts (200 °C, 20 min); effect of reaction temperature on (e) monophenol yield and (f) selectivity; (g) chemical structures of various monophenols.
Molecules 29 04762 g003
Molecules 29 04762 g004

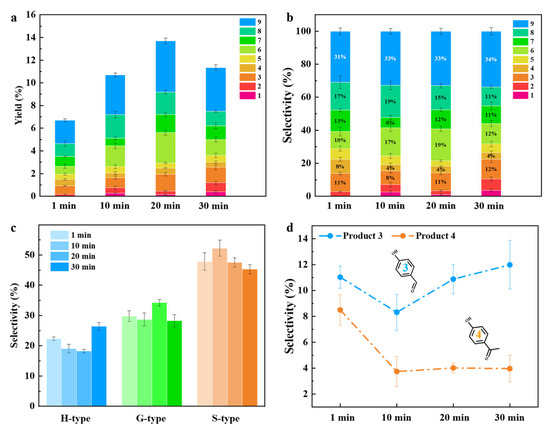

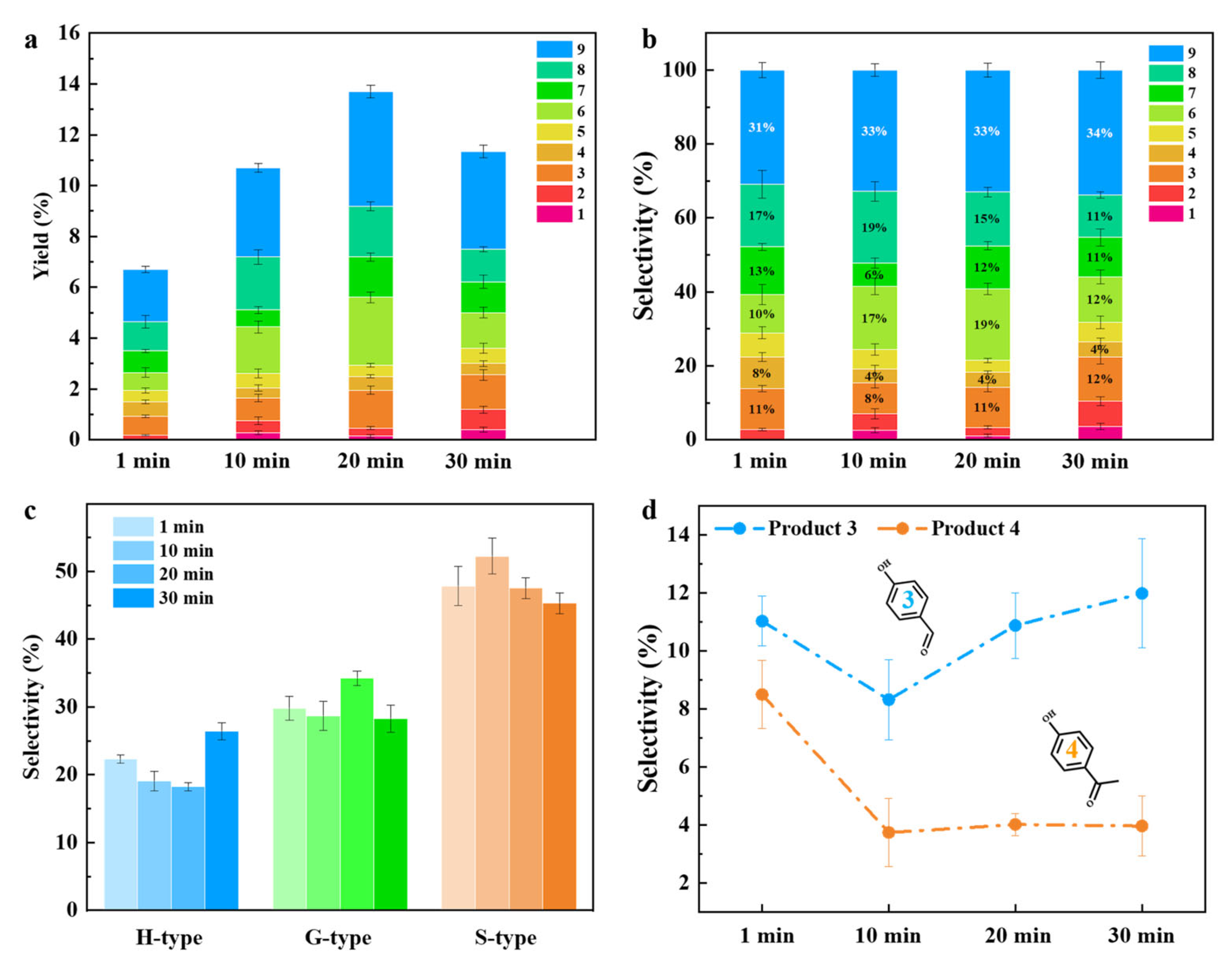

Figure 4. Effect of reaction temperature on (a) monophenol yield and (b) selectivity from BL depolymerization; selectivity of (c) H-/G-/S-type products and (d) P3 and P4 products at different reaction times. (Reaction conditions: 0.1 g BL, 0.15 g catalyst, 1 mL H2O2, 1 M NaOH, 200 °C).
Figure 4. Effect of reaction temperature on (a) monophenol yield and (b) selectivity from BL depolymerization; selectivity of (c) H-/G-/S-type products and (d) P3 and P4 products at different reaction times. (Reaction conditions: 0.1 g BL, 0.15 g catalyst, 1 mL H2O2, 1 M NaOH, 200 °C).
Molecules 29 04762 g004
Molecules 29 04762 g005

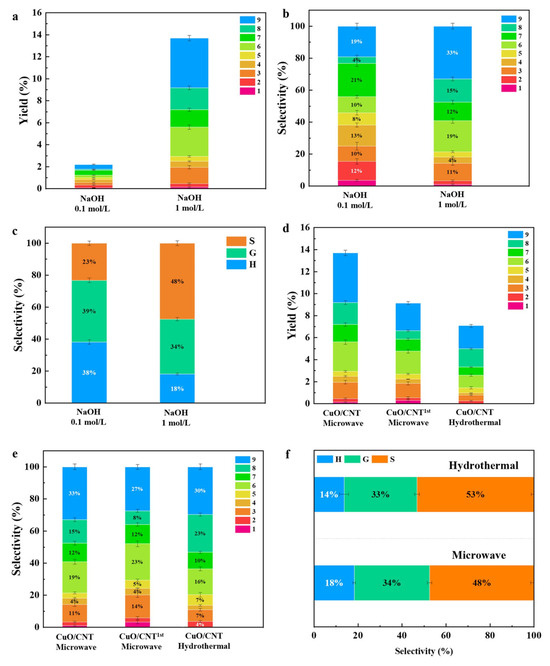

Figure 5. The effect of NaOH concentration on the (a) yield and (b) selectivity of monophenols; (c) selectivity of S-/G-/H-type products from BL depolymerization. Recyclability test on the (d) yield and (e) selectivity of monophenol yield from BL depolymerization with the CuO/BCN catalyst (microwave and hydrothermal); (f) selectivity of S/G/H-type products from BL depolymerization. (Reaction conditions: 0.2 g BL, 0.15 g catalyst, 1 mL H2O2, 1 M NaOH, 200 °C, 20 min).
Figure 5. The effect of NaOH concentration on the (a) yield and (b) selectivity of monophenols; (c) selectivity of S-/G-/H-type products from BL depolymerization. Recyclability test on the (d) yield and (e) selectivity of monophenol yield from BL depolymerization with the CuO/BCN catalyst (microwave and hydrothermal); (f) selectivity of S/G/H-type products from BL depolymerization. (Reaction conditions: 0.2 g BL, 0.15 g catalyst, 1 mL H2O2, 1 M NaOH, 200 °C, 20 min).
Molecules 29 04762 g005
Molecules 29 04762 g006

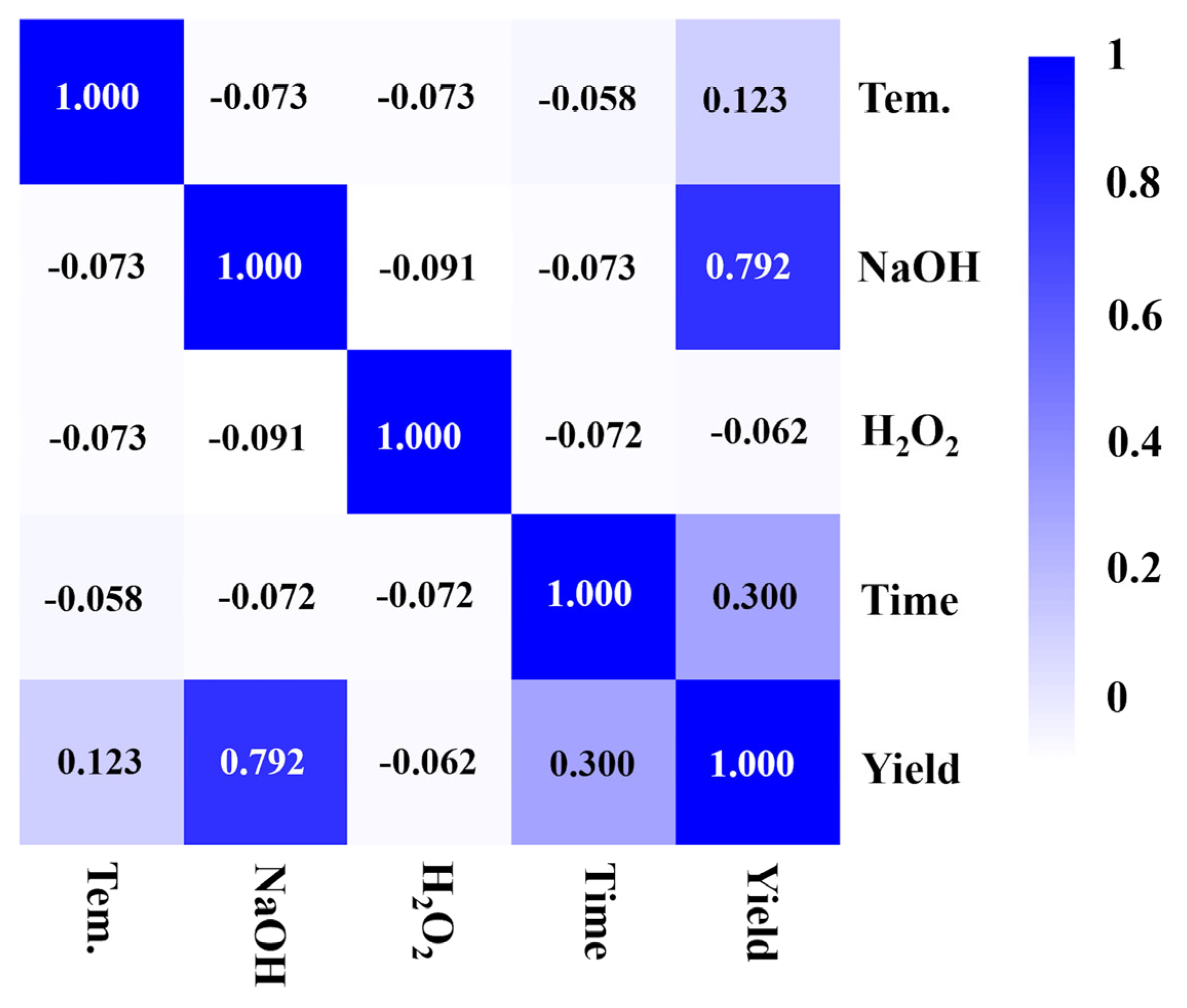

Figure 6. Pearson correlation map for reaction factors and monomer yields.
Figure 6. Pearson correlation map for reaction factors and monomer yields.
Molecules 29 04762 g006
Molecules 29 04762 g007

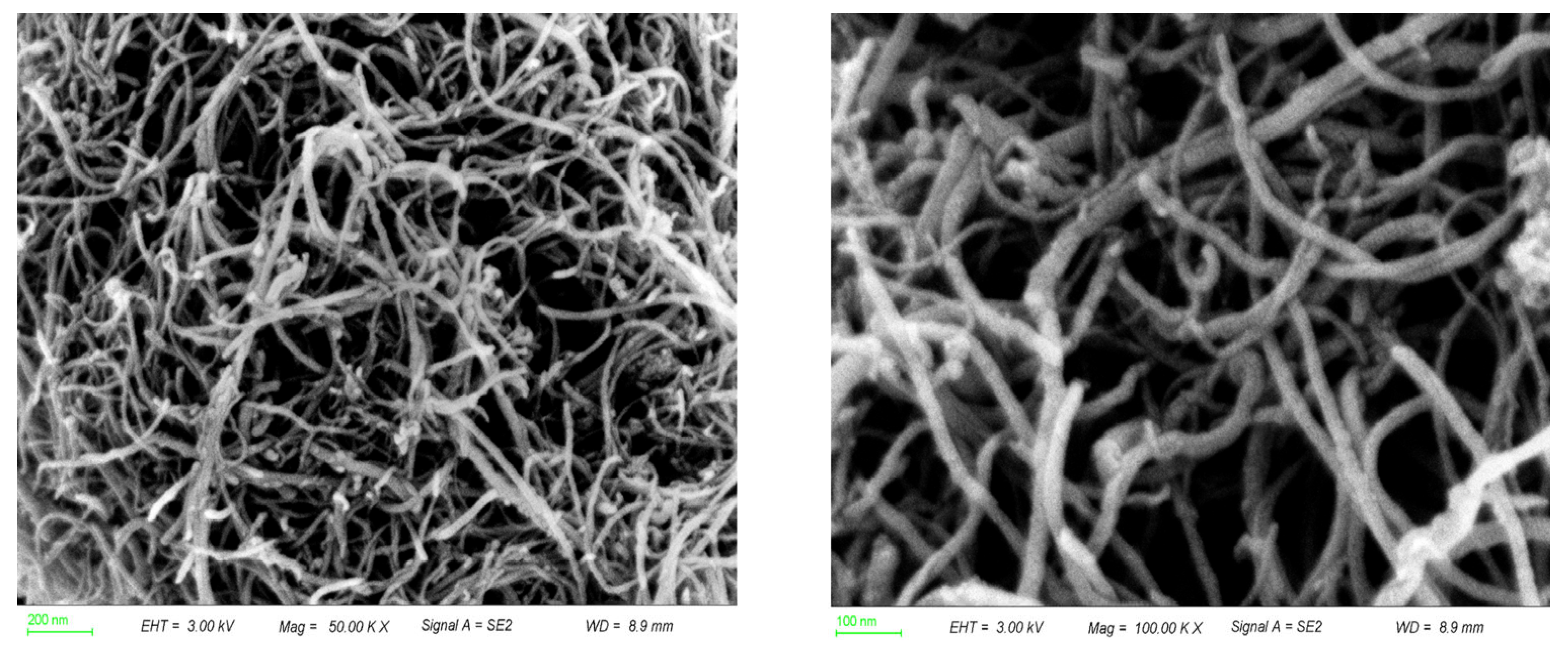

Figure 7. SEM images of the spent CuO/CNT catalysts after the reaction.
Figure 7. SEM images of the spent CuO/CNT catalysts after the reaction.
Molecules 29 04762 g007
Molecules 29 04762 g008

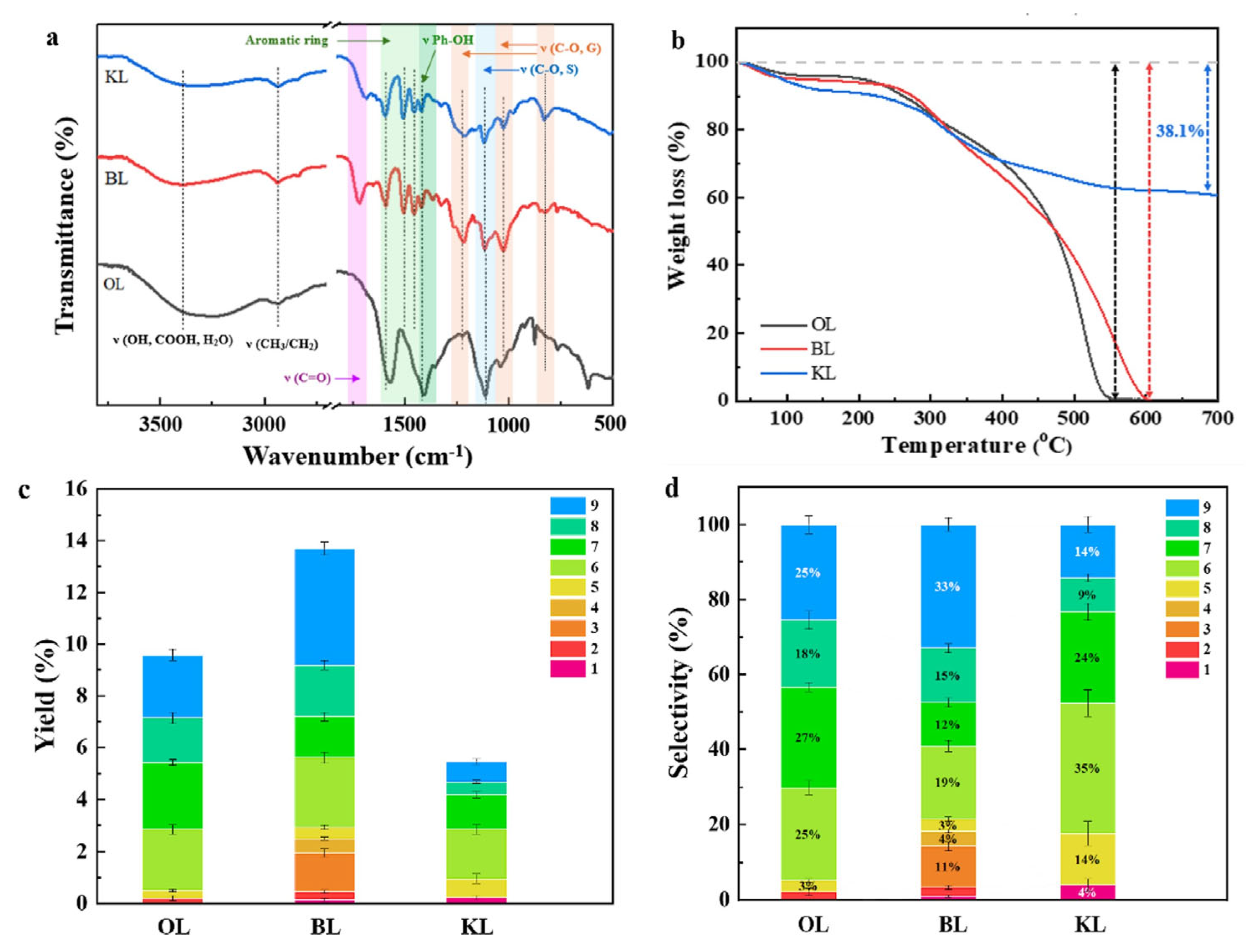

Figure 8. (a) FTIR spectra of lignin samples; (b) TG profiles of lignin samples; monophenol (c) yields and (d) selectivity with three types of lignin feedstocks. (Reaction conditions: 0.1 g lignin, 0.15 g catalyst, 1 mL H2O2, 1 M NaOH, 200 °C, 20 min).
Figure 8. (a) FTIR spectra of lignin samples; (b) TG profiles of lignin samples; monophenol (c) yields and (d) selectivity with three types of lignin feedstocks. (Reaction conditions: 0.1 g lignin, 0.15 g catalyst, 1 mL H2O2, 1 M NaOH, 200 °C, 20 min).
Molecules 29 04762 g008
Molecules 29 04762 g009

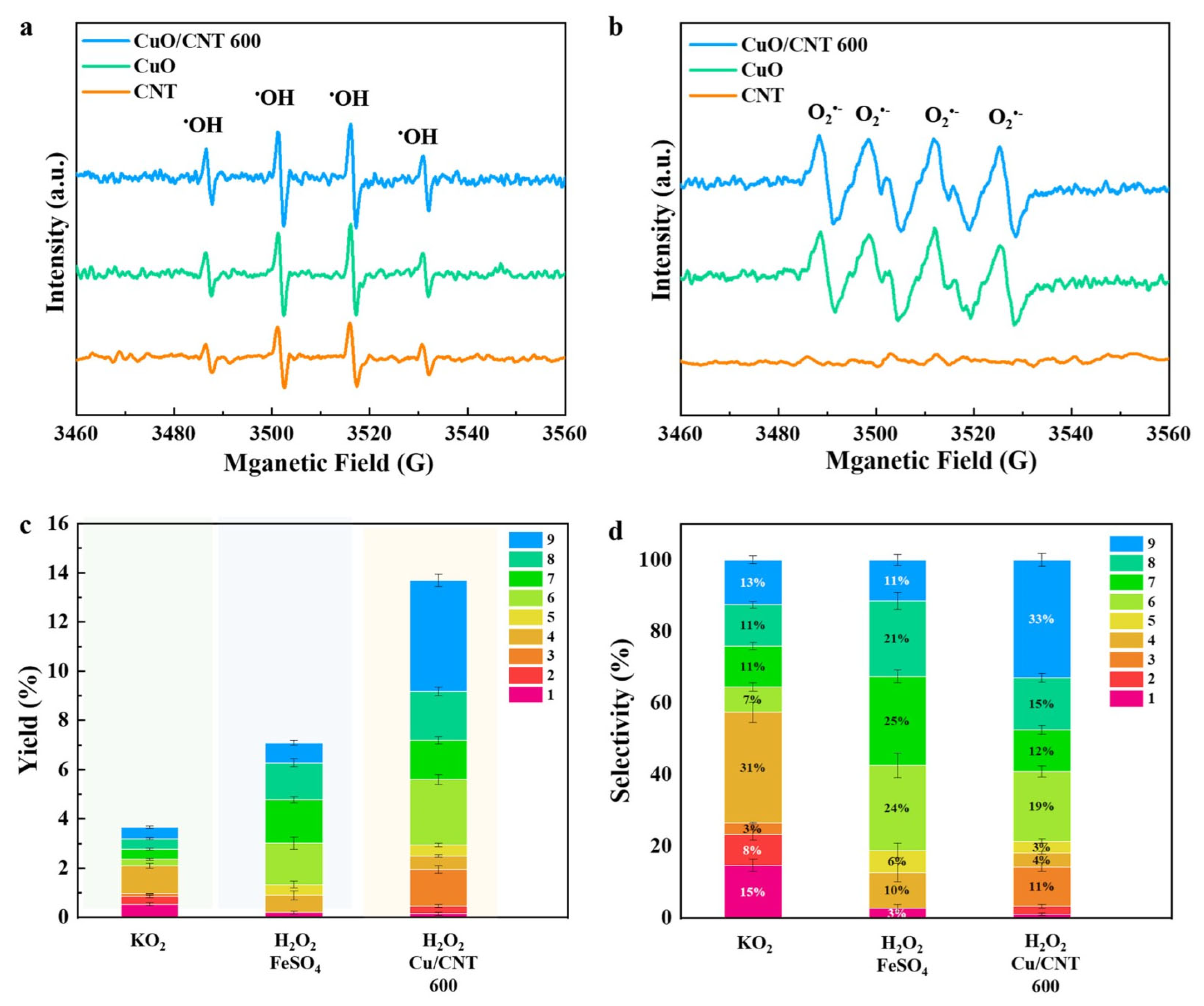

Figure 9. EPR detection of (a) hydroxyl radicals and (b) superoxide radicals; (c) monophenol yield with different radicals involved reactions; (d) selectivity of the products with different radicals involved reactions. (Reaction conditions: 0.1 g BL, 0.15 g catalyst, 1 M NaOH, 200 °C, 20 min).
Figure 9. EPR detection of (a) hydroxyl radicals and (b) superoxide radicals; (c) monophenol yield with different radicals involved reactions; (d) selectivity of the products with different radicals involved reactions. (Reaction conditions: 0.1 g BL, 0.15 g catalyst, 1 M NaOH, 200 °C, 20 min).
Molecules 29 04762 g009
Molecules 29 04762 g010

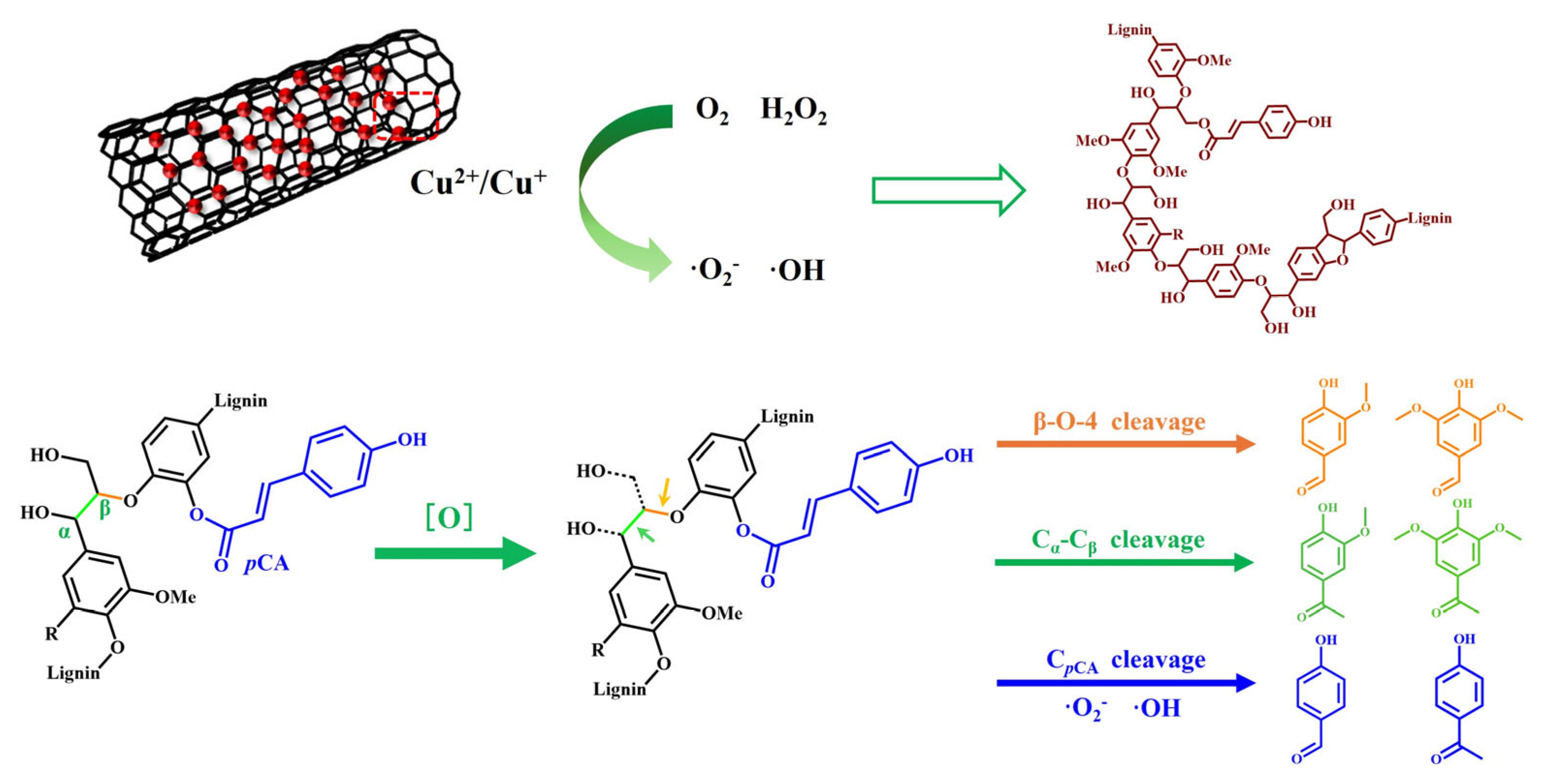

Figure 10. Proposed oxidative pathway for lignin depolymerization by ROS.
Figure 10. Proposed oxidative pathway for lignin depolymerization by ROS.
Molecules 29 04762 g010
Table 1. Textural structure of various catalysts.
Table 1. Textural structure of various catalysts.
CatalystSBET (m2/g)V a (cm3/g)D b (nm)
CuO/CNT 400222.80.295.3
CuO/CNT 500201.50.192.4
CuO/CNT 600189.10.234.8
CuO/CNT 70070.00.223.6
a Total pore volume of pores; b Average of pores width.
Table 2. Element analysis of various types of lignin (wt%).
Table 2. Element analysis of various types of lignin (wt%).
LigninNCHSOMw (Da)
OL0.1455.345.72038.81950
BL0.7752.925.54040.77925
KL0.1153.775.282.8837.9610,000
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Tang, C.; Cao, Y.; Gao, J.; Luo, G.; Fan, J.; Clark, J.H.; Zhang, S. Oxidative Catalytic Depolymerization of Lignin into Value-Added Monophenols by Carbon Nanotube-Supported Cu-Based Catalysts. Molecules 2024, 29, 4762. https://doi.org/10.3390/molecules29194762

AMA Style

Tang C, Cao Y, Gao J, Luo G, Fan J, Clark JH, Zhang S. Oxidative Catalytic Depolymerization of Lignin into Value-Added Monophenols by Carbon Nanotube-Supported Cu-Based Catalysts. Molecules. 2024; 29(19):4762. https://doi.org/10.3390/molecules29194762

Chicago/Turabian Style

Tang, Chen, Yang Cao, Jie Gao, Gang Luo, Jiajun Fan, James H. Clark, and Shicheng Zhang. 2024. "Oxidative Catalytic Depolymerization of Lignin into Value-Added Monophenols by Carbon Nanotube-Supported Cu-Based Catalysts" Molecules 29, no. 19: 4762. https://doi.org/10.3390/molecules29194762

APA Style

Tang, C., Cao, Y., Gao, J., Luo, G., Fan, J., Clark, J. H., & Zhang, S. (2024). Oxidative Catalytic Depolymerization of Lignin into Value-Added Monophenols by Carbon Nanotube-Supported Cu-Based Catalysts. Molecules, 29(19), 4762. https://doi.org/10.3390/molecules29194762

Article Metrics

Back to TopTop
