Article

FeOOH Nanosheets Coupled with ZnCdS Nanoparticles for Highly Improved Photocatalytic Degradation of Organic Dyes and Tetracycline in Water

State Environmental Protection Key Laboratory of Environmental Health Impact Assessment of Emerging Contaminants, Shanghai Academy of Environmental Sciences, Shanghai 200233, China
Molecules 2024, 29(12), 2913; https://doi.org/10.3390/molecules29122913
Submission received: 16 May 2024 / Revised: 7 June 2024 / Accepted: 18 June 2024 / Published: 19 June 2024
(This article belongs to the Section Applied Chemistry)

Abstract

:
Developing a low-cost and highly efficient semiconductor photocatalyst for the decomposition of organic pollutants and antibiotics is highly desirable. Herein, FeOOH nanosheets were prepared using a liquid-phase stirring technique and combined with ZnCdS (ZCS) nanoparticles to construct FeOOH/ZCS nanocomposite photocatalysts. The photocatalytic efficiency of the FeOOH/ZCS nanocomposite was evaluated for the decomposition of various pollutants, including rhodamine B, methylene Blue, and tetracycline. The FeOOH/ZCS nanocomposite exhibited significantly higher photocatalytic performance for the decomposition of various organics. Moreover, the optimized FeOOH/ZCS retained more than 90% of its initial photocatalytic activity even after five successful runs. Radical quenching test and electron spin resonance (ESR) analysis revealed that hydroxyl radicals (OH) play a dominant role for the decomposition of organics. The FeOOH/ZCS Z-scheme heterojunction significantly facilitates higher charge transfer efficiency and the generation of reactive radicals, resulting in excellent photocatalytic degradation performance. This work offers a new approach to synthesis FeOOH-based photocatalyst for the elimination of organics and antibiotics in water.

Graphical Abstract

1. Introduction

In recent years, various environmental pollutants such as dyes, antibiotics, and their derivatives have significantly threatened human health [1,2,3]. To overcome these issues, various treating technologies, including photocatalytic degradation [4,5,6], adsorption [7,8], biological treatment [9], and flocculation and sedimentation, have been extensively explored for the elimination of organics in water [4]. Among these approaches, semiconductor photocatalysis has been regarded as an up-and-coming advanced oxidation process (AOPs), which has superior stability, high efficiency, and green sustainability for water treatment [5,6,7,8]. However, several enormous challenges remain in photocatalysis, such as the separation of photocatalysts, low transfer efficiency, and poor redox performance [9,10,11]. Thus, extensive research is needed to develop a highly efficient photocatalyst with high migration efficiency and redox ability. To date, some strategies have been developed to address this issue, including morphological engineering, defects, and doping heteroatoms.
Zinc cadmium sulfide (ZnCdS) solid solutions have recently attracted significant research attention due to their low cadmium content and tunable band structure properties among various metal sulfides [12,13]. This has led to an increased interest in their potential applications in photo(electro)catalysis [14,15]. It is worth noting that the utilization of ZnCdS nanocrystals in the decomposition of different organics and antibiotics in water has been explored in a limited number of studies. However, the pure ZnCdS nanoparticles face challenges such as the small size of construction-related low recovery, its tendency to cluster, and thus, low efficiency and reactivity greatly hinder its practical applications. To overcome these intrinsic challenges, constructing ZnCdS-based nanocomposites that incorporate suitable cocatalysts was regarded as an ideal solution. In recent decades, a number of efficient and inexpensive cocatalysts, such as cobalt [16], nickel [17], and iron-based [18] oxides (hydroxides), have been developed for photocatalytic production or degradation. Among these metals, Fe is the most abundant transition metal and less toxic than Co and Ni. FeOOH has raised much attention among iron-based oxides due to its flexible structure, corrosion resistance, and relative stability [19,20,21]. Ultrathin two-dimensional nanosheets are commonly utilized in various catalytic reactions or as catalyst precursors to endow the large surface area for composite catalysts, leading to the improved photocatalytic performance [22,23,24]. Thus, it is imperative to fabricate hybrid photocatalyst that is both low-cost and efficient via combined FeOOH nanosheets and ZnCdS nanoparticles, which achieve the optimal photocatalytic degradation performance in water treatment.
Herein, we developed a simple synthetic method to obtain ultrathin FeOOH nanosheets modified ZnCdS nanoparticles (noted as FeOOH/ZCS) as a 2D/0D heterojunction photocatalyst for photocatalytic degradation reactions. The morphology and photocatalytic performances of the FeOOH/ZCS nanocomposites were investigated systematically. Through a series of systematic photocatalytic experiments and comprehensive characterization, the prepared FeOOH/ZCS photocatalyst exhibited a much higher photocatalytic performance for degrading rhodamine B (RhB), methylene blue (MB), and tetracycline (TC) compared to FeOOH nanosheets and ZnCdS nanoparticles. Radical quenching and ESR analysis indicated that the target contaminants were degraded via OH-dominated radical pathway. We further propose a mechanism that significantly enhances the photocatalytic decomposition activities of the FeOOH/ZCS nanocomposite.

2. Results

2.1. Catalyst Structure

From the XRD spectra in Figure S1, the patterns of ZnCdS can be assigned to the cubic phase of CdS (PDF#10-0454) and ZnS (PDF#05-0566). This observation suggests that the ZnCdS was not physically acquired from a single CdS and ZnS, but rather a solid solution of ZnCdS was formed [25]. Figure 1 illustrates the XRD patterns of ZnCdS, FeOOH, and FeOOH/ZCS samples. The diffraction peaks located at 27.8°, 45.9°, and 53.5° can be credited to (002), (110), and (200) crystal planes of hexagonal ZnCdS (JCPDS No. 89-2943), respectively [26]. The crystallite size of ZnCdS in FeOOH/ZCS and ZCS NPs was calculated to be 1.2 and 1.7 nm by Scherer equation. Three diffraction peaks at 35.5°, 40.4°, and 63.0° correspond to the (100), (011), and (110) planes of hexagonal δ-FeOOH (JCPDS No. 77-0247) [27]. The crystallite size of FeOOH in FeOOH/ZCS and pure FeOOH NSs was calculated to be 3.4 and 3.8 nm by the Scherer equation. Notably, the FeOOH/ZCS exhibit diffraction peaks similar to pristine ZnCdS. This similarity can be attributed to the low content of FeOOH in combined nanocomposite.
The morphology of the obtained samples was disclosed with SEM and TEM analyses. As illustrated in Figure S2a–c, the SEM and TEM images displayed a sheet-like structure of FeOOH. Furthermore, the HRTEM image (Figure S2d) showed a d-spacing value of 0.255 nm, corresponding to the (100) plane of the FeOOH. The TEM image (Figure 2a) of the FeOOH/ZCS displayed that the ZnCdS NCs were immobilized on the surface of the FeOOH NSs. This good interfacial connection between ZnCdS nanoparticles and FeOOH nanosheets significantly facilitates the separation as well as transfer of photoexcited charges in photocatalytic process. The HRTEM image of the FeOOH/ZCS nanocomposite (Figure 2b) showed lattice stripes with defined spaces of 0.255 nm and 0.321 nm, which can be assigned to the (100) and (002) planes of FeOOH and ZnCdS, respectively. As can be seen from Figure 2c–h, the high-angle annular dark-field (HAADF) image and elemental mapping analysis of FeOOH/ZCS showed that the detected elements were distributed throughout the FeOOH/ZCS nanocomposite, further confirming that ZnCdS nanoparticles were effectively integrated into the layered FeOOH nanosheets.
UV-Vis absorption measurement is a valuable way to investigate the band structure of semiconductors. It can be seen from Figure S3a pure ZnCdS NCs showed an intense absorption at the visible light region with an absorption edge at 545 nm, and the corresponding band gap energy (Eg) of the sample was assessed to be 2.53 eV. Pure FeOOH NSs also displayed strong absorption with an Eg of approximately 1.67 eV (Figure S3b). Impressively, the light absorption of FeOOH/ZCS was significantly broadened and red-shifted, with an estimated Eg value of 2.50 eV. These results can be attributed to the mixing of FeOOH NSs, which possessed a small band gap, a large absorption coefficient, and powerful absorption. The increased visible-light absorption and lower band gap energy for the composites could effectively facilitate the visible-light photoreactivity in reaction.
The chemical composition and electronic states of the obtained ZnCdS NCs, FeOOH NSs, and FeOOH/ZCS heterostructures were studied by XPS. For ZnCdS NCs, Zn 2p at around 1021.1 and 1044.2 eV (Figure 3a), Cd 3d at around 404.2 eV and 411.0 eV (Figure 3b), and S 2p at around 160.9 eV and 162.1 eV (Figure 3c) were proven to be zinc ions (Zn2+), cadmium ions (Cd2+), and sulfide ions (S2−) of ZnCdS NCs, respectively [10,12,28]. For the isolated FeOOH NSs (Figure 3d), two peaks at 712.5 and 724.8 eV can be related to Fe3+ ion, and a peak at 710.6 eV is related to Fe2+ ion. The existence of Fe2+ can be attributed to the formation of oxygen vacancies in FeOOH NSs [20]. The three peaks at 533.0, 531.0, and 529.6 eV in O 1s spectra can be signed by the adsorbed H2O, –OH bonds, and Fe–O in FeOOH NSs, respectively (Figure 3e) [29]. It can be seen that the binding energies of Zn 2p, Cd 3d, and S 2p in FeOOH/ZCS were higher than those in ZnCdS NCs, while the binding energy of Fe 2p in FeOOH/ZCS was lower than that in FeOOH NSs, which can be ascribed to the partial electron transfer from ZnCdS NCs to FeOOH NSs [30]. In summary, XPS analysis demonstrated that the deposition of ZnCdS NCs partly covered on the surface of FeOOH NSs, which means that the oxygen vacancies could be a priority deposition site for ZnCdS NCs, thus contributing to the formation of FeOOH/ZCS heterostructures. This result not only intensifies the interfacial contact between the two semiconductors but also facilitates their electronic interactions by providing fast electron transport channels.

2.2. Photocatalytic Dye Degradation Performances

In the present work, the photocatalytic activity of the FeOOH/ZCS system was determined for the decomposition of RhB, MB, and TC (Figure 4). The reaction was represented by pseudo-first-order kinetic Equation (1) to further compare the efficiency of photocatalysis.
−ln (Ct/C0) = kt
where C0 and Ct are the original concentration and the residual concentration, respectively. The photocatalytic performance of ZnS, CdS, and ZnCdS were mainly assessed by the decomposition of RhB. The concentration changes of RhB at 554 nm in the presence of different samples as a function of illumination time during degradation are shown in Figure S4. As shown in Figure S4a, the ZnCdS NCs demonstrated better photocatalytic performance than pure CdS and ZnS for the decomposition of RhB. The 100% RhB removal can be achieved within 60 min using a ZnCdS photocatalyst. In addition, during the photodegradation process, Figure S5 shows that the adsorption intensity significantly decreased as the reaction time increased from 0 to 40 min, indicating the RhB was degraded. Meanwhile, a blue shift in the maximum absorption peak of RhB (at 554 nm) was observed with increased irradiation time, which was ascribed to the de-ethylation reaction during irradiation [31]. To further evaluate the obtained catalyst, the photodegradation experiment of ZnCdS NCs, FeOOH NSs, and FeOOH/ZCS heterostructures for RhB and MB was carried out. As shown in Figure 4a,c, the blank experiment without the photocatalysts demonstrated that the RhB and MB can hardly be degraded. When ZnCdS NCs and FeOOH NSs are applied as photocatalysts, 60% and 30% RhB removal can be achieved after 30 min reaction (Figure 4a). Interestingly, the 98% RhB removal can be achieved within 40 min using FeOOH/ZCS catalyst, which might be attributed to the large contact interface between ZnCdS NCs and FeOOH NSs in FeOOH/ZCS. The large contact interface intensified the photoinduced charge separation and transfer, facilitating the RhB degradation in the FeOOH/ZCS photocatalytic system.
In addition, the k value of FeOOH/ZCS is calculated to be 0.083 min−1, higher than that of ZnCdS NCs (0.033 min−1) or FeOOH NSs (0.008 min−1) (Figure 4b). Meanwhile, 95% MB can be degraded by FeOOH/ZCS after 25 min, which is greater than ZnCdS NCs (72.5%) and FeOOH NSs (18%) under visible light excitation (Figure 4c,d). TC, as the quintessential antibiotic, is widely used in the medical industry and presents a threat to human health. Herein, TC was also employed to further examine the photocatalytic activity of obtained samples (Figure 4e,f). Under visible light excitation, FeOOH/ZCS shows a higher photocatalytic efficiency (99%) than ZnCdS NCs (80%) or FeOOH NSs (50%) after 20 min, which further demonstrated the high photoactivity of FeOOH/ZCS. Compared with reported similar photocatalysts in Table S1, the FeOOH/ZCS exhibited the great potential application in environmental remediation.
The FeOOH/ZCS photocatalyst has demonstrated superior photoactivity in decomposing various types of organic compounds. To assess the reusability of FeOOH/ZCS, the obtained catalyst reuse test was conducted. As shown in Figure 5a, the FeOOH/ZCS remained almost unchanged photoactivity for the RhB decomposition during the reuse test, implying that it has potential for practical applications. After the succussive cyclic test, the reacted FeOOH/ZCS composite was characterized by XRD to evaluate the integrity of its phase structure. It can be seen from Figure S6, the diffraction peaks of FeOOH/ZCS remained almost unchanged after the cycle run, demonstrating the impressive stability of FeOOH/ZCS. This result indicated that FeOOH NSs are crucial in enhancing the photocatalytic performance of ZnCdS NCs under visible light.
To identify the photodegradation regime driven by visible light, the free radical trapping tests were performed. It is generally known that isopropyl alcohol (IPA), ascorbic acid (AA), and disodium ethylenediaminetetraacetic acid (EDTA-2Na) are effective scavengers for OH, O2, and h+, respectively. As shown in Figure 5b, AA inhibited the RhB degradation slightly, suggesting that O2 partially contributes to RhB decomposition. After adding EDTA-2Na, the degradation rate of RhB decreased to 75%, implying that h+ can further induce inhibition of RhB degradation. Intriguingly, IPA induced remarkable inhibition on the RhB degradation, revealing that OH is the primary active species in the RhB decomposition. In addition, EPR analysis was performed to further validate the generation of free radical during reaction. It can be seen from Figure 5c, no signal appeared under dark condition. Impressively, upon exposure to visible light, a gradual enhancement in the signal intensity corresponding to DMPO–radical O2 was observed. As shown in Figure 5d, no characteristic peak of DMPO–radical OH was detected under dark conditions, but during visible light excitation, an EPR signal with an intensity ratio of 1:2:2:1 for DMPO–radical OH was observed [32]. Moreover, the intensity of the DMPO–radical OH signal increased with the irradiation time, indicating more OH was generated as the photocatalytic reaction. Impressively, compared with the pure ZnCdS NCs and FeOOH NSs, the FeOOH/ZCS composite system showed the strongest characteristic in the ESR test, suggesting that the FeOOH/ZCS hybrid system generated more ROS during photodegradation. The phenomenon was consistent with the photodegradation performance tests.

2.3. Proposed Photocatalytic Mechanism

To further examine the photocatalytic activity of the FeOOH/ZCS, the PL spectra were collected. Typically, the separation rate of photogenerated electrons and holes diminishes with increased PL emission intensity [33]. Figure 6a shows the PL spectra of obtained samples documented at an excitation wavelength of 290 nm at room temperature. Pure ZnCdS NCs exhibited intense luminescence, substantiating the light-induced electron/hole pair production and the next recombination process. For FeOOH/ZCS, the PL intensities decreased significantly, showing that the photogenerated carrier recombination was effectively suppressed by the p-n heterojunction between ZnCdS NCs and FeOOH NSs. In addition, time-resolved PL spectra were employed to estimate the quantum lifetimes of the photogenerated carriers. As displayed in Figure 6b, the average lifetime (τaverage) of FeOOH/ZCS was 0.42 ns, which was comparatively better than ZnCdS NCs (0.18 ns). The extended lifetime reflects increased carrier transfer efficiency and reduced recombination, which is highly favorable for photoactivity [34]. As displayed in Figure 6c, the pure ZnCdS NCs and FeOOH NSs exhibited a weak photocurrent response. Nevertheless, the FeOOH/ZCS composite exhibited a significantly improved photocurrent density, then remained stable after five on/off cycles, suggesting that the formed heterojunction between ZnCdS NCs and FeOOH NSs played crucial role in facilitating charge carrier transfer and inhibiting the recombination of photoinduced electron/hole pairs [35]. It is well accepted that the radius of the arc in the EIS Nyquist diagram mirrors the reaction rate at the electrode surface. Typically, a smaller radius corresponds to a lower electron transfer resistance and therefore means a stronger charge transfer and separation efficiency [12,36]. As illustrated in Figure 6d, FeOOH/ZCS possesses the smallest arc radius than the other pure catalysts, manifesting that FeOOH/ZCS has smaller charge transfer resistance, stronger separation efficiency of photoinduced electron/hole pairs and quicker interfacial charge transfer than pristine FeOOH NSs and ZnCdS NCs, which is in excellent concordance with the observations from PC measurements and photocatalytic performance.
Mott–Schottky (MS) plots of ZnCdS NCs and FeOOH NSs are demonstrated in Figure S7 to illuminate their electronic band structures. The flat-band potential can be derived from the x-axis intercept and is near the Fermi level (EF) [37]. The flat-band potentials were determined from the intercepts on the cross-section of the extrapolation line. It is noted that the flat-band potentials of ZnCdS NCs and FeOOH NSs were −0.41 V and 2.83 V, respectively. Since EVB = Eg + ECB, the valence band (EVB) potential of ZnCdS NCs and the conduction band (ECB) potential of FeOOH NSs were about 2.12 eV and 1.16 eV, respectively.
The TOC value of 82.61 mg/L decreased to 11.17 mg/L, which the 86.5% TOC removal was achieved using FeOOH/ZCS system after reaction, indicating RhB was partially mineralized. To identify the main decomposition intermediates of RhB, the LC-MS was performed. As shown in Figure S8, six decomposition intermediates were detected. Then, the possible RhB degradation pathway was proposed. As shown in Figure 7, RhB was attacked by OH and transformed into P1. Then, the e+ was transferred from catalyst to RhB and formed P2. The P2 was further attacked by ROS, leading to the formation of P3, P4, P5, and P6. Finally, the intermediates of P6 was further transformed into ring-opening product, which was ultimately mineralized into CO2 and H2O.

3. Discussion

On the basis of the above analysis, we proposed a potential mechanism for pollutant degradation using FeOOH/ZCS composite photocatalyst under visible light. According to the conventional type II charge transfer mechanism, the electrons in the conduction band of ZnCdS NCs will move to the conduction band of FeOOH NSs, while the holes will be transferred from the valence band of FeOOH NSs to the valence band of ZnCdS NCs. Then, photogenerated carriers can be effectively detached. However, the CB of FeOOH (1.16 eV) is higher than that of O2/O2 (−0.33 eV), and the VB of ZnCdS (2.12 eV) is smaller than that of H2O/OH (2.40 eV), indicating that the photoexcited hole cannot theoretically oxidize H2O to OH. Meanwhile, O2 cannot be produced during the catalytic reaction [38]. However, free-radical trapping experiments and EPR spin capture techniques revealed that OH and O2 are produced during the reaction. Therefore, the conventional photoinduced carriers transferring and separation mode does not accommodate this potential scheme. Hence, we should consider another possible mechanism. As shown in Figure 8, ZnCdS and FeOOH are highly activated under visible light excitation to produce e-h+ pairs. Benefiting from the formation of heterojunction between ZnCdS NCs and FeOOH NSs, the electrons in the FeOOH NCs CB are easily migrated into the ZnCdS NCs VB, resulting in that ZnCdS NCs CB generated abundant O2. Meanwhile, FeOOH NSs VB produced a significant amount of OH due to its stronger oxidation capacity. This result facilitated the effective separation and accumulation of electrons of ZnCdS NCs and FeOOH NSs, leading to a remarkable enhancement in the photocatalytic performance of FeOOH/ZCS composites [39]. Consequently, the formed h+, OH, and O2 exhibited strong oxidation capacity for the decomposition of various organics.

4. Materials and Methods

4.1. Materials

RhB (98%, Aladdin, Shanghai, China), MB (98%, Innochem, Beijing, China), TC (96%, Aladdin, Shanghai, China), IPA (99%, Innochem, Beijing, China), AA (AR, Fisher, Shanghai, China), and EDTA-2Na (99%, Innochem, Beijing, Shanghai) were directly used.

4.2. Synthesis

ZnCdS nanoparticles, FeOOH nanosheets, and FeOOH/ZCS heterostructures were synthesized and presented in Scheme 1.

4.2.1. Synthesis of ZnCdS Nanoparticles (Named ZnCdS NCs)

Quantities of 3 mmol of Zn(OAC)2·2H2O and 3 mmol of Cd(OAC)2·2H2O were dispersed in 50 mL water. Subsequently, a solution of Na2S·9H2O (6 mmol, 15 mL) was slowly added under stirring and kept for 8 h. The resulting yellowish precipitates were collected by centrifugation, washed with deionized (DI) water, and processed in a freeze dryer for 36 h. For comparison, pure ZnS and CdS were fabricated by the same way but adding Cd(OAC)2·2H2O and Zn(OAC)2·2H2O, respectively.

4.2.2. Synthesis of FeOOH Nanosheets

FeOOH nanosheets (FeOOH NSs) were prepared based on a procedure described in a previous report [40]. Typically, 41.7 mg of FeSO4·7H2O and 182 mg of CTAB were dispersed in 50 mL of DI water while continuously stirred. Then, 2 mL of a 0.4 M solution of NaBH4 was added, and the mixture was stirred for 24 h. The resulting precipitate was collected, washed several times with DI water and methanol, and dried at 45 °C for 24 h.

4.2.3. Synthesis of FeOOH/ZCS Nanocomposites

The FeOOH/ZCS nanocomposites were prepared by a solution-phase method: 95 mg of ZnCdS and 5 mg of FeOOH were dispersed in 15 mL of ethanol and subjected to ultrasonication for 15 min. The resulting mixture was then stirred magnetically for 8 h. Afterward, the nanocomposites were vacuumed and dried overnight.

4.3. Characterization

The morphology of the obtained sample was tested with field emission scanning electron microscope (SEM, Hitachi SU8220, Tokyo, Japan) and transmission electron microscopy (TEM, FEI TECNAI G2 F30, Hillsboro, FL, USA). The structure and compositions of the samples were identified using an X-ray powder diffractometer (XRD, Rigaku, D/MAX 2500V, Beijing, China) and X-ray photoelectron spectroscopy (XPS, Specs, ESCALAB 250Xi, Shanghai, China). The ultraviolet–visible diffuse reflectance spectra were detected by UV-vis spectrophotometer (UV, Shimadzu, UV-3600 Plus, Kyoto, Janpan). The photoluminescence (PL) and time-resolved PL (TRPL) were collected on a transient fluorescence spectrometer (HORIBA, FL3C-111 TCSPC, Paris, France). Photocurrent responses and electrochemical impedance spectroscopy (EIS) plots were performed on a VSP-300 multi-channel potentiostat (Bio-Logic, Cecine Parisse, France).

4.4. Photocatalytic Tests

The RhB, MB, and TC concentration were determined by light absorption at 554 nm, 665 nm, and 358 nm under visible light, respectively. The light source was a 300 W Xe lamp (CEL-HXF300, Aulight, Beijing, China) with a 400 nm UV cut-off filter. In a typical RhB degradation reaction, 20 mg of photocatalysts were added to 80 mL of 20 mg/L of RhB. The mixture was stirred for 40 min until adsorption–desorption equilibrium was achieved. The calculated 2 mL of suspension was measured using UV-Vis spectrophotometry during reactions. To test the durability of FeOOH/ZCS, the sample was collected by centrifugation after each cycle and used for photocatalytic RhB dye degradation for 5 cycles. The photocatalytic degradation measurements of MB and TC were similar to those of RhB.

5. Conclusions

In summary, 0D ZnCdS nanoparticles deposited on 2D FeOOH nanosheets by liquid-phase precipitation successfully produced FeOOH/ZCS heterojunctions. XPS analysis, EPR tests, and MS provided strong evidence to confirm that FeOOH/ZCS heterojunctions are Z-scheme. The large specific surface area provided abundant active site, absorbed more reactant molecules, and formed Z-scheme heterojunctions that simultaneously block photogenerated electron/hole complexes and promote photocatalytic carrier transfer to generate more reactive radicals and holes, thus enhancing the photocatalytic activity of the FeOOH/ZCS. Furthermore, FeOOH/ZCS maintained its photocatalytic properties, crystal structure, and microstructure after five cycles of RhB photodegradation, indicating that the obtained FeOOH/ZCS heterojunctions possessed superior electrical conductivity and chemical stability. Thus, this work provides a relatively convenient, energy-efficient, and promising strategy for the rational design of efficient and stable Z-Scheme heterojunction photocatalysts for photocatalytic wastewater remediation.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules29122913/s1. References [41,42,43,44,45,46,47,48,49] are cited in the Supplementary Materials.

Funding

This work was partially supported by the National Natural Science Foundation of China (Grants No. 52200104).

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

We appreciate Deqian Zeng for kindly support in the experiment.

Conflicts of Interest

The author declares no competing interests.

References

  1. Zhan, H.; Zhou, Q.; Li, M.; Zhou, R.; Mao, Y.; Wang, P. Photocatalytic O2 activation and reactive oxygen species evolution by surface B-N bond for organic pollutants degradation. Appl. Catal. B Environ. 2022, 310, 121329. [Google Scholar] [CrossRef]
  2. He, F.; Weon, S.; Jeon, W.; Chung, M.W.; Choi, W. Self-wetting triphase photocatalysis for effective and selective removal of hydrophilic volatile organic compounds in air. Nat. Commun. 2021, 12, 6259. [Google Scholar] [CrossRef]
  3. Ma, H.; Wang, X.; Tan, T.; Zhou, X.; Dong, F.; Sun, Y. Stabilize the oxygen vacancies in Bi2SiO5 for durable photocatalysis via altering local electronic structure with phosphate dopant. Appl. Catal. B Environ. 2022, 319, 121911. [Google Scholar] [CrossRef]
  4. Xue, J.; Peldszus, S.; Van Dyke, M.I.; Huck, P.M. Removal of polystyrene microplastic spheres by alum-based coagulation-flocculation-sedimentation (CFS) treatment of surface waters. Chem. Eng. J. 2021, 422, 130023. [Google Scholar] [CrossRef]
  5. Park, S.J.; Das, G.S.; Schütt, F.; Adelung, R.; Mishra, Y.K.; Tripathi, K.M.; Kim, T. Visible-light photocatalysis by carbon-nano-onion-functionalized ZnO tetrapods: Degradation of 2,4-dinitrophenol and a plant-model-based ecological assessment. NPG Asia Mater. 2019, 11, 8. [Google Scholar] [CrossRef]
  6. Zhang, Q.; Mirzaei, A.; Wang, Y.; Song, G.; Wang, C.; Besteiro, L.V.; Govorov, A.O.; Chaker, M.; Ma, D. Extracting hot holes from plasmonic semiconductors for photocatalysis. Appl. Catal. B Environ. 2022, 317, 121792. [Google Scholar] [CrossRef]
  7. Xu, S.; Qian, W.; Zhang, D.; Zhao, X.; Zhang, X.; Li, C.; Bowen, C.R.; Yang, Y. A coupled photo-piezo-catalytic effect in a BST-PDMS porous foam for enhanced dye wastewater degradation. Nano Energy 2020, 77, 105305. [Google Scholar] [CrossRef]
  8. Kisch, H. Semiconductor Photocatalysis for Chemoselective Radical Coupling Reactions. Acc. Chem. Res. 2017, 50, 1002–1010. [Google Scholar] [CrossRef]
  9. Anwer, H.; Park, J.-W. Lorentz force promoted charge separation in a hierarchical, bandgap tuned, and charge reversible NixMn(0.5−x)O photocatalyst for sulfamethoxazole degradation. Appl. Catal. B Environ. 2022, 300, 120724. [Google Scholar] [CrossRef]
  10. Zhang, J.; Wang, W.-N.; Zhao, M.-L.; Zhang, C.-Y.; Huang, C.-X.; Cheng, S.; Xu, H.-M.; Qian, H.-S. Magnetically Recyclable Fe3O4@ZnxCd1–xS Core–Shell Microspheres for Visible Light-Mediated Photocatalysis. Langmuir 2018, 34, 9264–9271. [Google Scholar] [CrossRef]
  11. Yang, H.; Wang, W.; Wu, X.; Siddique, M.S.; Su, Z.; Liu, M.; Yu, W. Reducing ROS generation and accelerating the photocatalytic degradation rate of PPCPs at neutral pH by doping Fe-N-C to g-C3N4. Appl. Catal. B Environ. 2022, 301, 120790. [Google Scholar] [CrossRef]
  12. Li, S.; Cai, M.; Liu, Y.; Wang, C.; Yan, R.; Chen, X. Constructing Cd0.5Zn0.5S/Bi2WO6 S-scheme heterojunction for boosted photocatalytic antibiotic oxidation and Cr(VI) reduction. Adv. Powder Mater. 2023, 2, 100073. [Google Scholar] [CrossRef]
  13. Huang, D.; Wen, M.; Zhou, C.; Li, Z.; Cheng, M.; Chen, S.; Xue, W.; Lei, L.; Yang, Y.; Xiong, W.; et al. ZnxCd1−xS based materials for photocatalytic hydrogen evolution, pollutants degradation and carbon dioxide reduction. Appl. Catal. B Environ. 2020, 267, 118651. [Google Scholar] [CrossRef]
  14. Xu, X.; Lu, R.; Zhao, X.; Zhu, Y.; Xu, S.; Zhang, F. Novel mesoporous ZnxCd1−xS nanoparticles as highly efficient photocatalysts. Appl. Catal. B Environ. 2012, 125, 11–20. [Google Scholar] [CrossRef]
  15. Li, F.; Long, Y.; Ma, H.; Qiang, T.; Zhang, G.; Shen, Y.; Zeng, L.; Lu, J.; Cong, Y.; Jiang, B.; et al. Promoting the reduction of CO2 to formate and formaldehyde via gas–liquid interface dielectric barrier discharge using a Zn0.5Cd0.5S/CoP/multiwalled carbon nanotubes catalyst. J. Colloid Interface Sci. 2022, 622, 880–891. [Google Scholar] [CrossRef]
  16. Gao, X.; Zeng, D.; Zeng, Q.; Xie, Z.; Fujita, T.; Wang, X.; He, G.; Wei, Y. Anchoring Zn0.5Cd0.5S solid solution onto 2D porous Co–CoO nanosheets for highly improved photocatalytic H2 generation. Mater. Chem. Front. 2021, 5, 7208–7215. [Google Scholar] [CrossRef]
  17. Gao, X.; Zeng, D.; Yang, J.; Ong, W.-J.; Fujita, T.; He, X.; Liu, J.; Wei, Y. Ultrathin Ni(OH)2 nanosheets decorated with Zn0.5Cd0.5S nanoparticles as 2D/0D heterojunctions for highly enhanced visible light-driven photocatalytic hydrogen evolution. Chin. J. Catal. 2021, 42, 1137–1146. [Google Scholar] [CrossRef]
  18. Chandrashekhar, V.G.; Senthamarai, T.; Kadam, R.G.; Malina, O.; Kašlík, J.; Zbořil, R.; Gawande, M.B.; Jagadeesh, R.V.; Beller, M. Silica-supported Fe/Fe–O nanoparticles for the catalytic hydrogenation of nitriles to amines in the presence of aluminium additives. Nat. Catal. 2022, 5, 20–29. [Google Scholar] [CrossRef]
  19. Ter-Oganessian, N.V.; Guda, A.A.; Sakhnenko, V.P. Linear magnetoelectric effect in göthite, α-FeOOH. Sci. Rep. 2017, 7, 16410. [Google Scholar] [CrossRef]
  20. Li, L.; Guo, C.; Ning, J.; Zhong, Y.; Chen, D.; Hu, Y. Oxygen-vacancy-assisted construction of FeOOH/CdS heterostructure as an efficient bifunctional photocatalyst for CO2 conversion and water oxidation. Appl. Catal. B Environ. 2021, 293, 120203. [Google Scholar] [CrossRef]
  21. Ma, Y.; Wang, B.; Wang, Q.; Xing, S. Facile synthesis of α-FeOOH/γ-Fe2O3 by a pH gradient method and the role of γ-Fe2O3 in H2O2 activation under visible light irradiation. Chem. Eng. J. 2018, 354, 75–84. [Google Scholar] [CrossRef]
  22. Kang, Y.; Mao, Z.; Wang, Y.; Pan, C.; Ou, M.; Zhang, H.; Zeng, W.; Ji, X. Design of a two-dimensional interplanar heterojunction for catalytic cancer therapy. Nat. Commun. 2022, 13, 2425. [Google Scholar] [CrossRef]
  23. Kolhe, N.D.; Walekar, L.S.; Kadam, A.N.; Chopade, A.S.; Lee, S.-W.; Mhamane, D.S.; Shringare, S.N.; Lawand, A.S.; Gokavi, G.S.; Misra, M.; et al. MOF derived in-situ construction of core-shell Z-scheme BiVO4@α-Fe2O3-CF nanocomposites for efficient photocatalytic treatment of organic pollutants under visible light. J. Clean. Prod. 2023, 420, 138179. [Google Scholar] [CrossRef]
  24. Salunkhe, T.T.; Gurugubelli, T.R.; Babu, B.; Yoo, K. Recent Innovative Progress of Metal Oxide Quantum-Dot-Integrated g-C3N4 (0D-2D) Synergistic Nanocomposites for Photocatalytic Applications. Catalysts 2023, 13, 1414. [Google Scholar] [CrossRef]
  25. Wang, F.; Su, Y.; Min, S.; Li, Y.; Lei, Y.; Hou, J. Synergistically enhanced photocatalytic hydrogen evolution performance of ZnCdS by co-loading graphene quantum dots and PdS dual cocatalysts under visible light. J. Solid State Chem. 2018, 260, 23–30. [Google Scholar] [CrossRef]
  26. Gao, X.; Yang, J.; Zeng, D.; He, G.; Dai, C.; Bao, Y.; Wei, Y. Two-dimensional nickel nanosheets coupled with Zn0.5Cd0.5S nanocrystals for highly improved visible-light photocatalytic H2 production. J. Alloys Compd. 2021, 871, 159460. [Google Scholar] [CrossRef]
  27. Fan, H.; Huang, X.; Kähler, K.; Folke, J.; Girgsdies, F.; Teschner, D.; Ding, Y.; Hermann, K.; Schlögl, R.; Frei, E. In-Situ Formation of Fe Nanoparticles from FeOOH Nanosheets on γ-Al2O3 as Efficient Catalysts for Ammonia Synthesis. ACS Sustain. Chem. Eng. 2017, 5, 10900–10909. [Google Scholar] [CrossRef]
  28. Dong, J.; Fang, W.; Yuan, H.; Xia, W.; Zeng, X.; Shangguan, W. Few-Layered MoS2/ZnCdS/ZnS Heterostructures with an Enhanced Photocatalytic Hydrogen Evolution. ACS Appl. Energy Mater. 2022, 5, 4893–4902. [Google Scholar] [CrossRef]
  29. Lu, J.; Wang, Z.; Guo, Y.; Jin, Z.; Cao, G.; Qiu, J.; Lian, F.; Wang, A.; Wang, W. Ultrathin nanosheets of FeOOH with oxygen vacancies as efficient polysulfide electrocatalyst for advanced lithium–sulfur batteries. Energy Storage Mater. 2022, 47, 561–568. [Google Scholar] [CrossRef]
  30. Li, N.; Wu, J.; Lu, Y.; Zhao, Z.; Zhang, H.; Li, X.; Zheng, Y.-Z.; Tao, X. Stable multiphasic 1T/2H MoSe2 nanosheets integrated with 1D sulfide semiconductor for drastically enhanced visible-light photocatalytic hydrogen evolution. Appl. Catal. B Environ. 2018, 238, 27–37. [Google Scholar] [CrossRef]
  31. Feng, B.; Wu, Z.; Liu, J.; Zhu, K.; Li, Z.; Jin, X.; Hou, Y.; Xi, Q.; Cong, M.; Liu, P.; et al. Combination of ultrafast dye-sensitized-assisted electron transfer process and novel Z-scheme system: AgBr nanoparticles interspersed MoO3 nanobelts for enhancing photocatalytic performance of RhB. Appl. Catal. B Environ. 2017, 206, 242–251. [Google Scholar] [CrossRef]
  32. Yan, H.; Pan, Y.; Liao, X.; Zhu, Y.; Yin, C.; Huang, R.; Pan, C. Enhancement of Fe2+/Fe3+ cycles by the synergistic effect between photocatalytic and co-catalytic of ZnxCd1−xS on photo-Fenton system. Appl. Surf. Sci. 2022, 576, 151881. [Google Scholar] [CrossRef]
  33. Shi, L.; Yang, L.; Zhou, W.; Liu, Y.; Yin, L.; Hai, X.; Song, H.; Ye, J. Photoassisted Construction of Holey Defective g-C3N4 Photocatalysts for Efficient Visible-Light-Driven H2O2 Production. Small 2018, 14, 1703142. [Google Scholar] [CrossRef]
  34. Meng, L.; He, J.; Zhou, X.; Deng, K.; Xu, W.; Kidkhunthod, P.; Long, R.; Tang, Y.; Li, L. Atomic layer deposition triggered Fe-In-S cluster and gradient energy band in ZnInS photoanode for improved oxygen evolution reaction. Nat. Commun. 2021, 12, 5247. [Google Scholar] [CrossRef]
  35. Xu, Y.; Wang, M.; Xie, Q.; Wang, Y.; Cui, X.; Jiang, L. B-ZnxCd1−xS/Cd Heterojunction with Sulfur Vacancies for Photocatalytic Overall Dyeing Wastewater Splitting. ACS Sustain. Chem. Eng. 2022, 10, 2938–2946. [Google Scholar] [CrossRef]
  36. Zhang, C.; Liu, H.; Wang, W.; Qian, H.; Cheng, S.; Wang, Y.; Zha, Z.; Zhong, Y.; Hu, Y. Scalable fabrication of ZnxCd1−xS double-shell hollow nanospheres for highly efficient hydrogen production. Appl. Catal. B Environ. 2018, 239, 309–316. [Google Scholar] [CrossRef]
  37. Boltersdorf, J.; Sullivan, I.; Shelton, T.L.; Wu, Z.; Gray, M.; Zoellner, B.; Osterloh, F.E.; Maggard, P.A. Flux Synthesis, Optical and Photocatalytic Properties of n-type Sn2TiO4: Hydrogen and Oxygen Evolution under Visible Light. Chem. Mater. 2016, 28, 8876–8889. [Google Scholar] [CrossRef]
  38. Shi, H.; Zhao, Y.; Fan, J.; Tang, Z. Construction of novel Z-scheme flower-like Bi2S3/SnIn4S8 heterojunctions with enhanced visible light photodegradation and bactericidal activity. Appl. Surf. Sci. 2019, 465, 212–222. [Google Scholar] [CrossRef]
  39. Gao, B.; Liu, L.; Liu, J.; Yang, F. Photocatalytic degradation of 2,4,6-tribromophenol on Fe2O3 or FeOOH doped ZnIn2S4 heterostructure: Insight into degradation mechanism. Appl. Catal. B Environ. 2014, 147, 929–939. [Google Scholar] [CrossRef]
  40. Fan, H.; Huang, X.; Shang, L.; Cao, Y.; Zhao, Y.; Wu, L.Z.; Tung, C.H.; Yin, Y.; Zhang, T. Controllable synthesis of ultrathin transition-metal hydroxide nanosheets and their extended composite nanostructures for enhanced catalytic activity in the heck reaction. Angew. Chem. 2016, 55, 2167–2170. [Google Scholar] [CrossRef]
  41. Rajendran, S.; Chellapandi, T.; UshaVipinachandran, V.; Venkata Ramanaiah, D.; Dalal, C.; Sonkar, S.K.; Madhumitha, G.; Bhunia, S.K. Sustainable 2D Bi2WO6/g-C3N5 heterostructure as visible light-triggered abatement of colorless endocrine disruptors in wastewater. Appl. Surf. Sci. 2022, 577, 151809. [Google Scholar] [CrossRef]
  42. Yang, P.; Chen, C.; Wang, D.; Ma, H.; Du, Y.; Cai, D.; Zhang, X.; Wu, Z. Kinetics, reaction pathways, and mechanism investigation for improved environmental remediation by 0D/3D CdTe/Bi2WO6 Z-scheme catalyst. Appl. Catal. B Environ. 2021, 285, 119877. [Google Scholar] [CrossRef]
  43. Wang, L.; Liu, Y.; Lin, Y.; Zhang, X.; Yu, Y.; Zhang, R. Z-scheme Cu2(OH)3F nanosheets-decorated 3D Bi2WO6 heterojunction with an intimate hetero-surface contact through a hydrogen bond for enhanced photoinduced charge separation and transfer. Chem. Eng. J. 2022, 427, 131704. [Google Scholar] [CrossRef]
  44. Ren, H.; Qi, F.; Labidi, A.; Zhao, J.; Wang, H.; Xin, Y.; Luo, J.; Wang, C. Chemically bonded carbon quantum dots/Bi2WO6 S-scheme heterojunction for boosted photocatalytic antibiotic degradation: Interfacial engineering and mechanism insight. Appl. Catal. B Environ. 2023, 330, 122587. [Google Scholar] [CrossRef]
  45. Jiang, X.; Chen, S.; Zhang, X.; Qu, L.; Qi, H.; Wang, B.; Xu, B.; Huang, Z. Carbon-doped flower-like Bi2WO6 decorated carbon nanosphere nanocomposites with enhanced visible light photocatalytic degradation of tetracycline. Adv. Compos. Hybrid Mater. 2023, 6, 47. [Google Scholar] [CrossRef]
  46. Su, M.; Sun, H.; Tian, Z.; Zhao, Z.; Li, P. Z-scheme 2D/2D WS2/Bi2WO6 heterostructures with enhanced photocatalytic performance. Appl. Catal. A 2022, 631, 118485. [Google Scholar] [CrossRef]
  47. Li, J.; Zhao, Y.; Xia, M.; An, H.; Bai, H.; Wei, J.; Yang, B.; Yang, G. Highly efficient charge transfer at 2D/2D layered P-La2Ti2O7/Bi2WO6 contact heterojunctions for upgraded visible-light-driven photocatalysis. Appl. Catal. B Environ. 2020, 261, 118244. [Google Scholar] [CrossRef]
  48. Zhu, X.; Qin, F.; Zhang, X.; Zhong, Y.; Wang, J.; Jiao, Y.; Luo, Y.; Feng, W. Synthesis of tin-doped three-dimensional flower-like bismuth tungstate with enhanced photocatalytic activity. Int. J. Mol. Sci. 2022, 23, 8422. [Google Scholar] [CrossRef]
  49. Zhu, Y.; Wang, Y.; Ling, Q.; Zhu, Y. Enhancement of full-spectrum photocatalytic activity over BiPO4/Bi2WO6 composites. Appl. Catal. B Environ. 2017, 200, 222–229. [Google Scholar] [CrossRef]

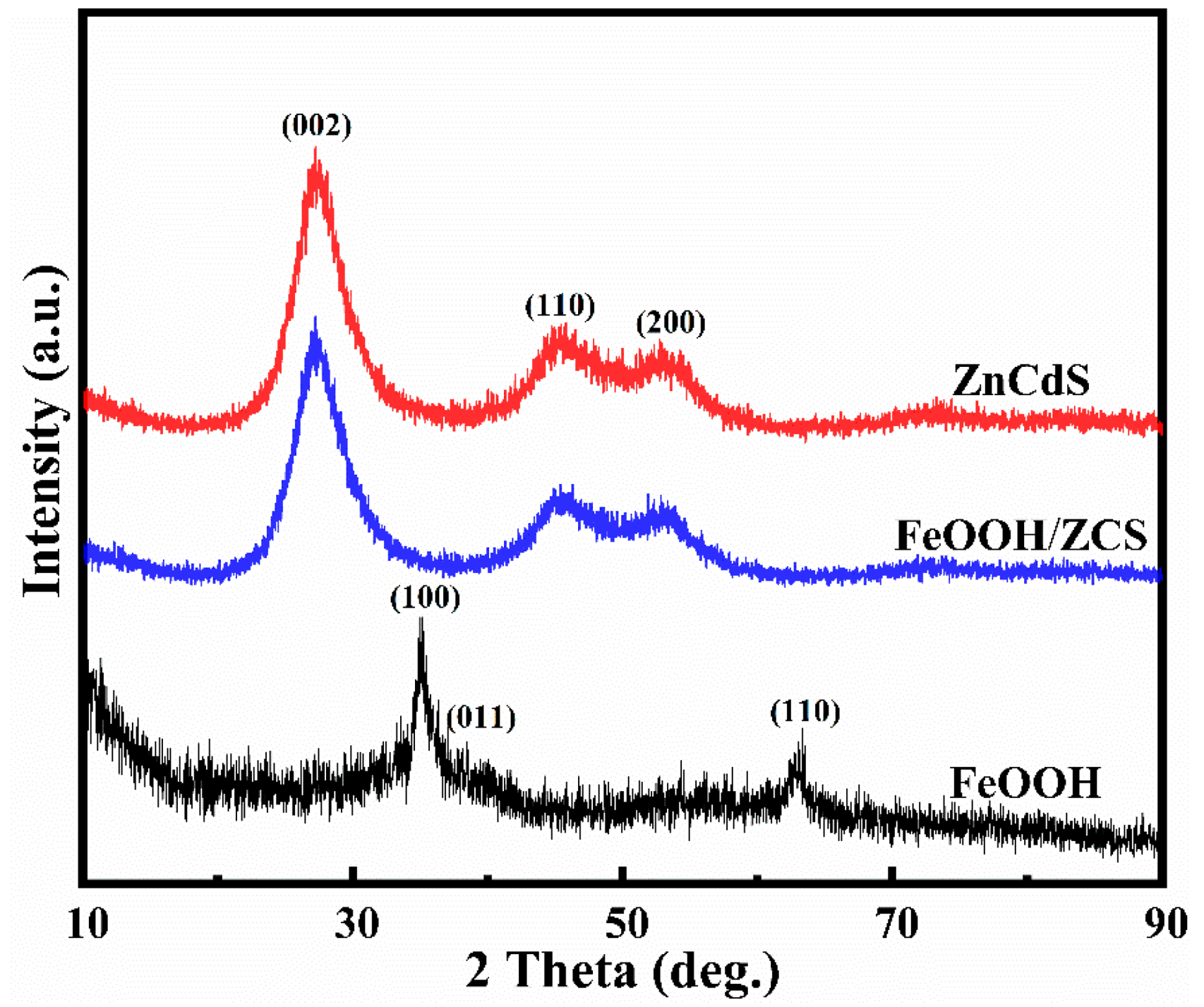

Figure 1. XRD spectra of ZnCdS NCs, FeOOH NSs, and FeOOH/ZCS.
Figure 1. XRD spectra of ZnCdS NCs, FeOOH NSs, and FeOOH/ZCS.
Molecules 29 02913 g001
Figure 2. (a) TEM, (b) HRTEM, (ch) HAADF, and elemental mapping images of FeOOH/ZCS heterostructures.
Figure 2. (a) TEM, (b) HRTEM, (ch) HAADF, and elemental mapping images of FeOOH/ZCS heterostructures.
Molecules 29 02913 g002

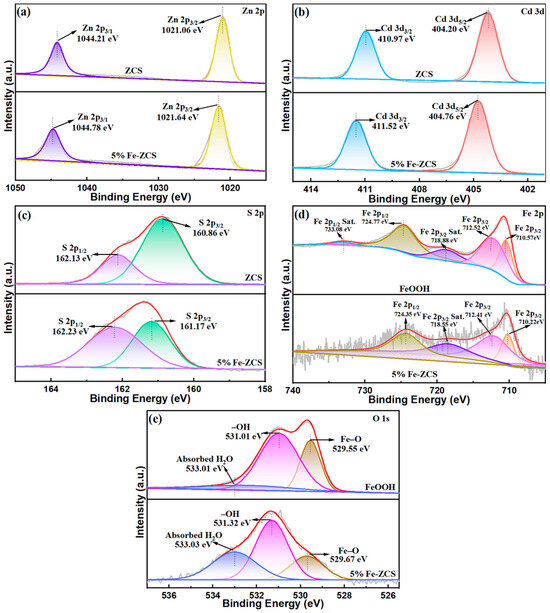

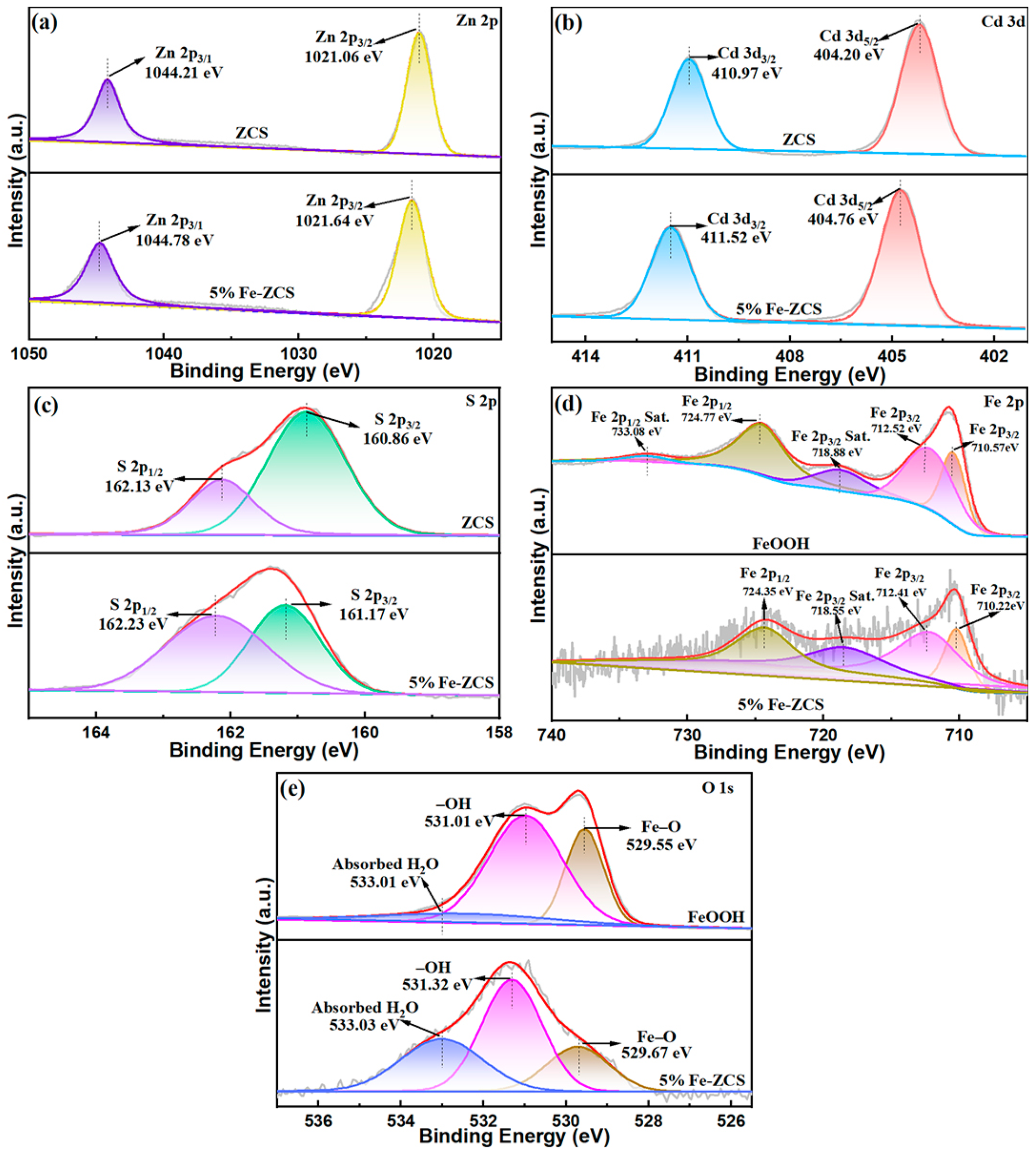

Figure 3. The XPS spectra of ZnCdS NCs and FeOOH/ZCS heterostructures: (a) Zn 2p, (b) Cd 3d, and (c) S 2p. High-resolution spectra of FeOOH NSs and FeOOH/ZCS heterostructures: (d) Fe 2p and (e) O 1s of the oxygen vacancies.
Figure 3. The XPS spectra of ZnCdS NCs and FeOOH/ZCS heterostructures: (a) Zn 2p, (b) Cd 3d, and (c) S 2p. High-resolution spectra of FeOOH NSs and FeOOH/ZCS heterostructures: (d) Fe 2p and (e) O 1s of the oxygen vacancies.
Molecules 29 02913 g003

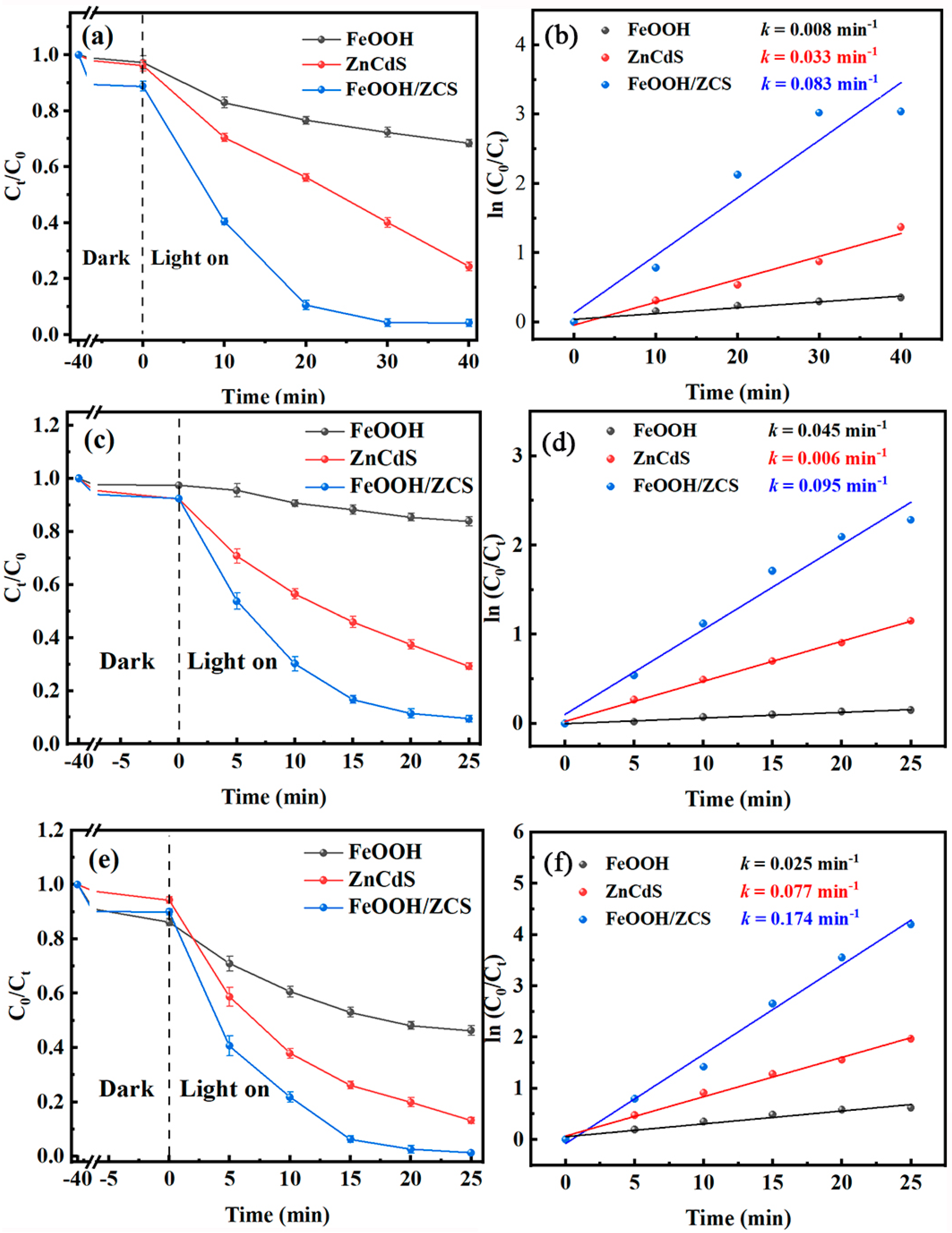

Figure 4. The removal efficiency of as-prepared samples for (a) RhB (20 mg/L), (c) MB (20 mg/L), and (e) TC (50 mg/L) photocatalysis degradation under visible light. First-order kinetic model for (b) RhB, (d) MB, and (f) TC degradation.
Figure 4. The removal efficiency of as-prepared samples for (a) RhB (20 mg/L), (c) MB (20 mg/L), and (e) TC (50 mg/L) photocatalysis degradation under visible light. First-order kinetic model for (b) RhB, (d) MB, and (f) TC degradation.
Molecules 29 02913 g004

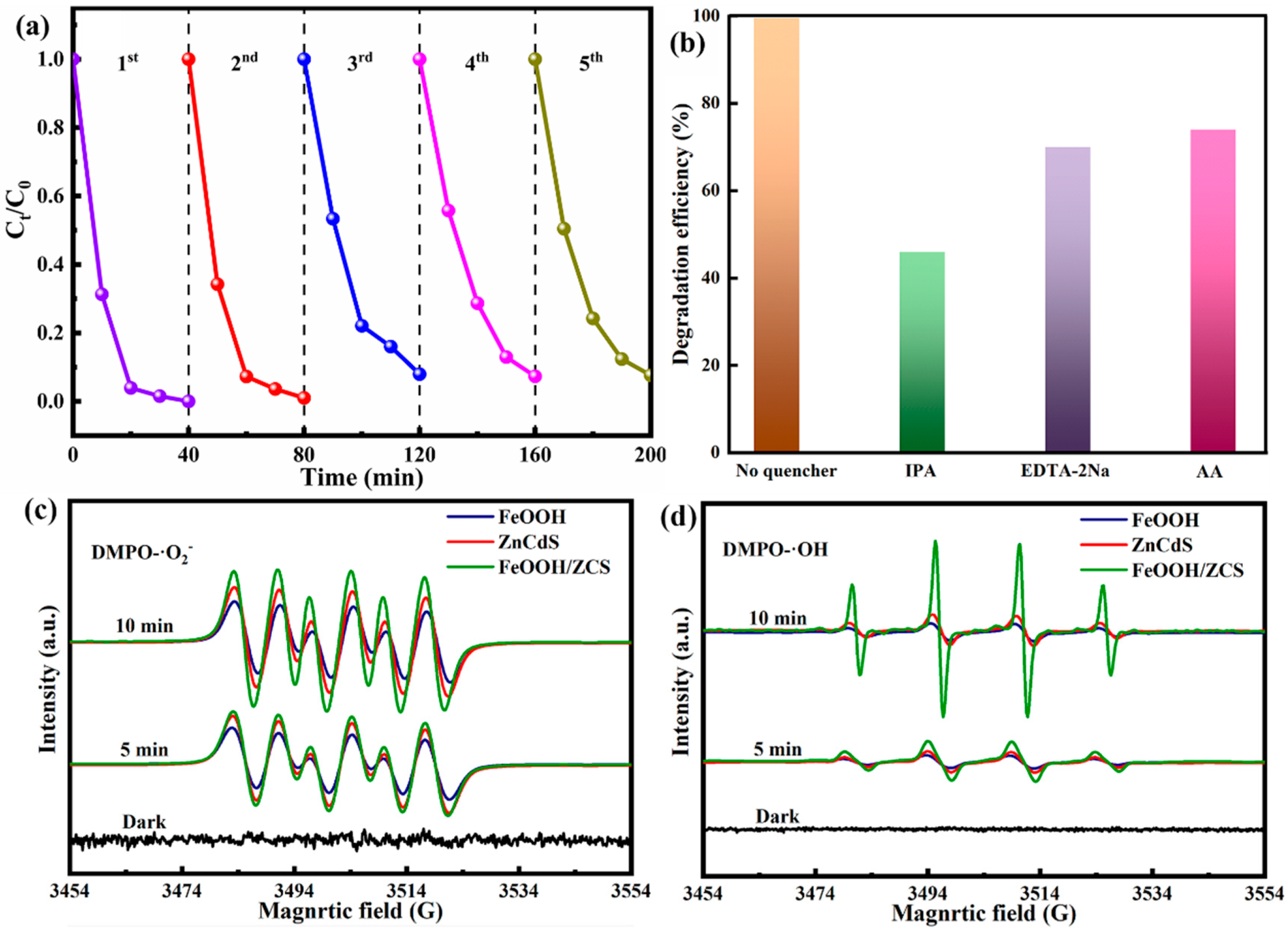

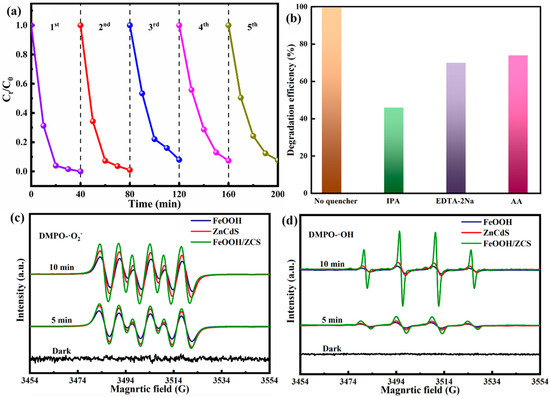

Figure 5. (a) Cycling times of the photocatalytic decomposition of RhB using FeOOH/ZCS heterostructures under light conditions, (b) degradation efficiency of RhB using FeOOH/ZCS heterostructures with different radical scavengers (reaction conditions: [IPA] = 1 M, [EDTA−2Na] = 1.5 M, [AA] = 1.5 M). EPR spin−trapping measurements of (c) DMPO−O2 and (d) DMPO−OH.
Figure 5. (a) Cycling times of the photocatalytic decomposition of RhB using FeOOH/ZCS heterostructures under light conditions, (b) degradation efficiency of RhB using FeOOH/ZCS heterostructures with different radical scavengers (reaction conditions: [IPA] = 1 M, [EDTA−2Na] = 1.5 M, [AA] = 1.5 M). EPR spin−trapping measurements of (c) DMPO−O2 and (d) DMPO−OH.
Molecules 29 02913 g005

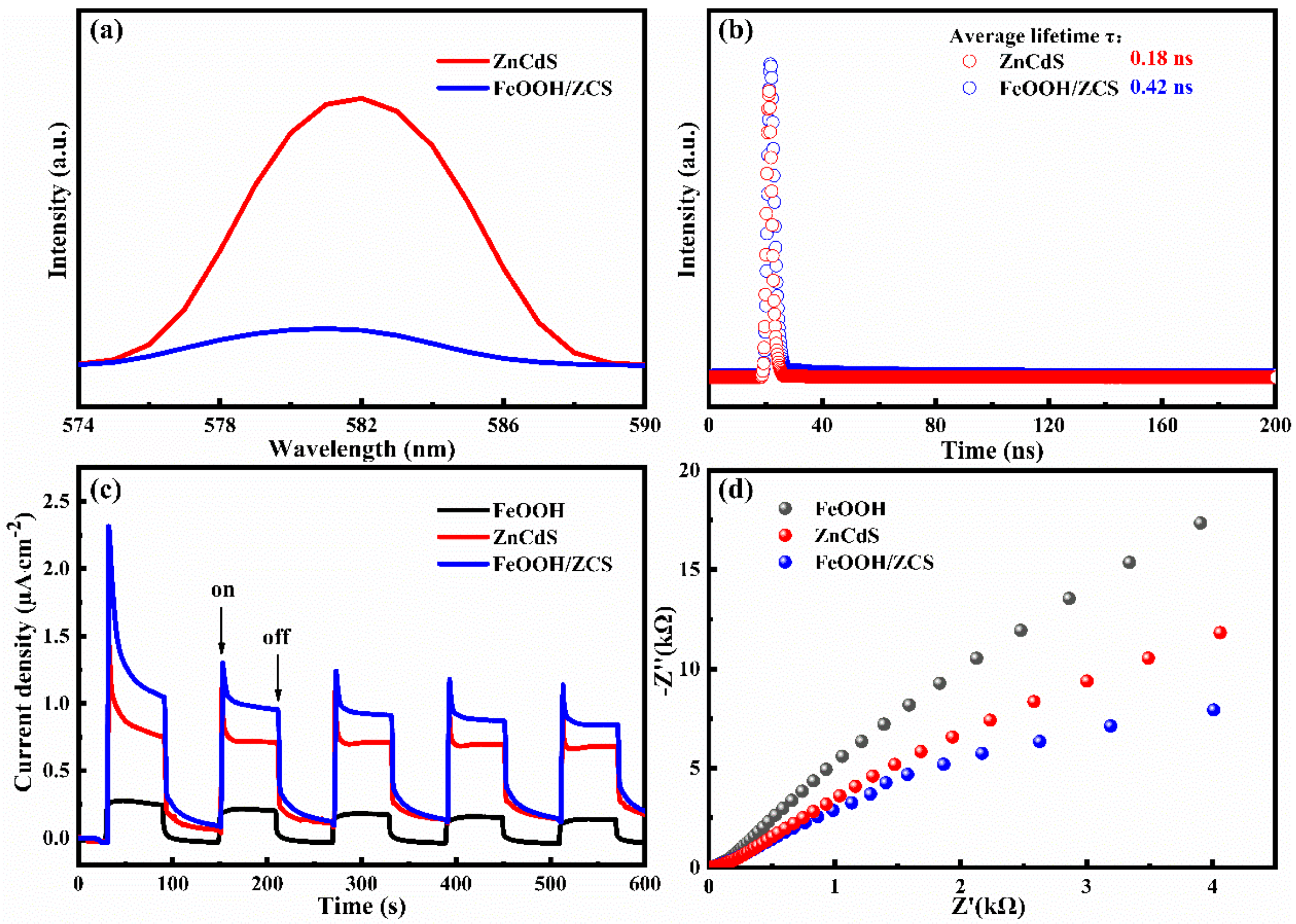

Figure 6. (a) Photoluminescence (PL) and (b) TRPL spectra of ZnCdS NCs and FeOOH/ZCS heterostructures, (c) photocurrent curves, and (d) EIS plots of ZnCdS NCs, FeOOH NSs, and FeOOH/ZCS heterostructures.
Figure 6. (a) Photoluminescence (PL) and (b) TRPL spectra of ZnCdS NCs and FeOOH/ZCS heterostructures, (c) photocurrent curves, and (d) EIS plots of ZnCdS NCs, FeOOH NSs, and FeOOH/ZCS heterostructures.
Molecules 29 02913 g006

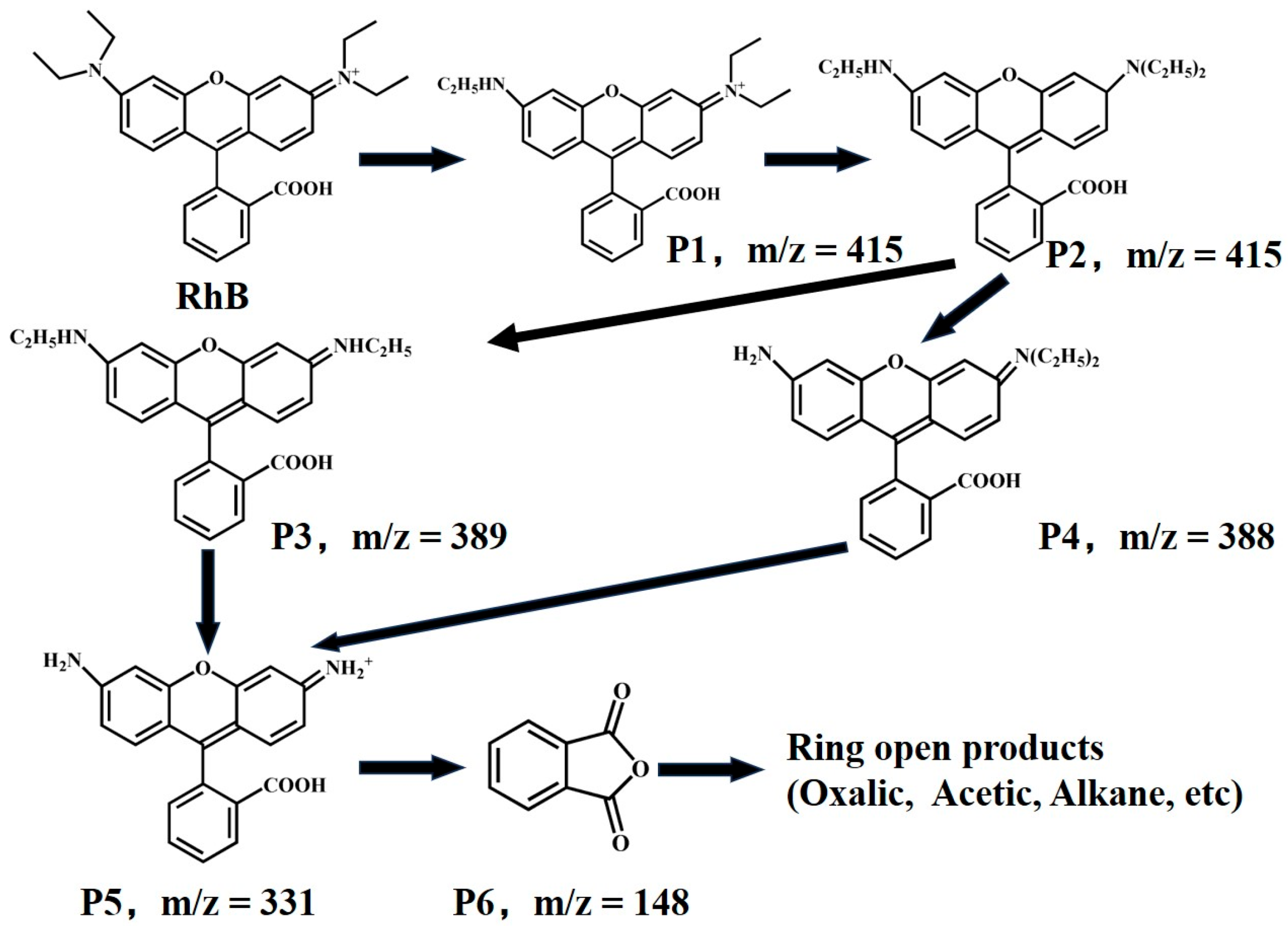

Figure 7. Proposed RhB degradation pathway.
Figure 7. Proposed RhB degradation pathway.
Molecules 29 02913 g007

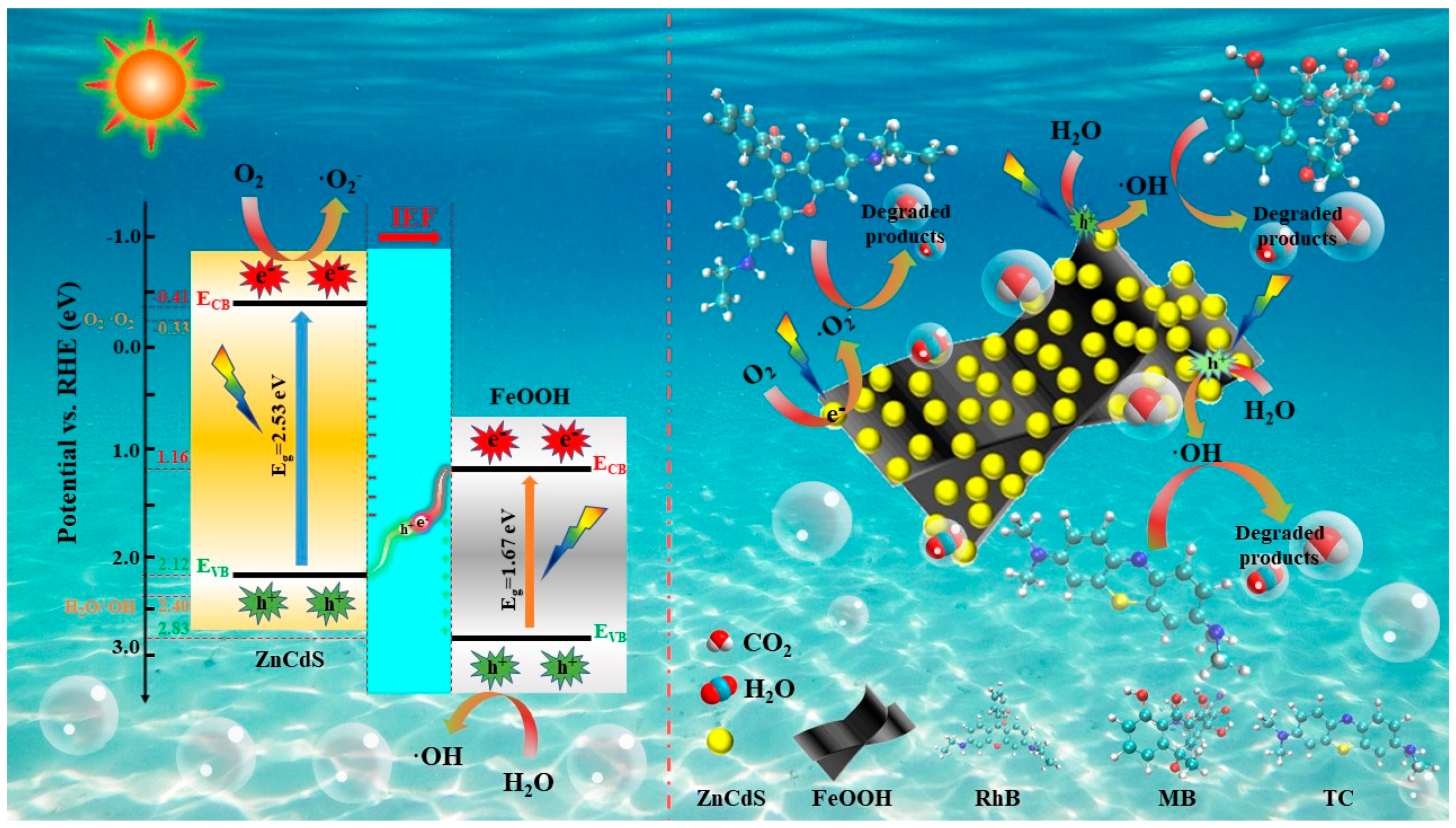

Figure 8. Proposed photocatalytic degradation of FeOOH/ZCS heterostructures.
Figure 8. Proposed photocatalytic degradation of FeOOH/ZCS heterostructures.
Molecules 29 02913 g008

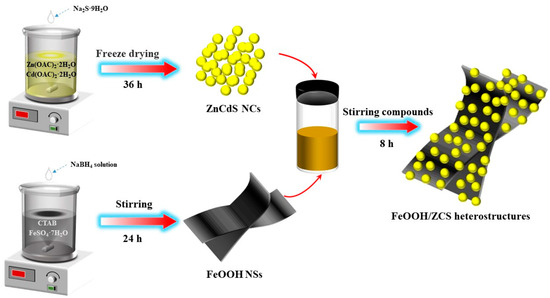

Scheme 1. Fabricating scheme of FeOOH/ZCS nanocomposites.
Scheme 1. Fabricating scheme of FeOOH/ZCS nanocomposites.
Molecules 29 02913 sch001
