Article

Selective Adsorption of Sr(II) from Aqueous Solution by Na3FePO4CO3: Experimental and DFT Studies

by
Yudong Xie
,
Xiaowei Wang
,
Jinfeng Men
*,
Min Zhu
,
Chengqiang Liang
,
Hao Ding
,
Zhihui Du
,
Ping Bao
and
Zhilin Hu
College of Nuclear Science and Technology, Naval University of Engineering, Wuhan 430033, China
*
Author to whom correspondence should be addressed.
Molecules 2024, 29(12), 2908; https://doi.org/10.3390/molecules29122908
Submission received: 15 May 2024 / Revised: 5 June 2024 / Accepted: 8 June 2024 / Published: 19 June 2024
(This article belongs to the Special Issue A New Perspective on the Determination and Removal of Pollutants in the Environment)
Browse Figures
Versions Notes

Abstract

:
The efficient segregation of radioactive nuclides from low-level radioactive liquid waste (LLRW) is paramount for nuclear emergency protocols and waste minimization. Here, we synthesized Na3FePO4CO3 (NFPC) via a one-pot hydrothermal method and applied it for the first time to the selective separation of Sr2+ from simulated LLRW. Static adsorption experimental results indicated that the distribution coefficient Kd remained above 5000 mL·g−1, even when the concentration of interfering ions was more than 40 times that of Sr2+. Furthermore, the removal efficiency of Sr2+ showed no significant change within the pH range of 4 to 9. The adsorption of Sr2+ fitted the pseudo-second-order kinetic model and the Langmuir isotherm model, with an equilibrium time of 36 min and a maximum adsorption capacity of 99.6 mg·g−1. Notably, the adsorption capacity was observed to increment marginally with an elevation in temperature. Characterization analyses and density functional theory (DFT) calculations elucidated the adsorption mechanism, demonstrating that Sr2+ initially engaged in an ion exchange reaction with Na+. Subsequently, Sr2+ coordinated with four oxygen atoms on the NFPC (100) facet, establishing a robust Sr-O bond via orbital hybridization.

Graphical Abstract

1. Introduction

Since the mid-20th century, nuclear energy has emerged as a pivotal energy source, harnessed globally for its high energy density that yields substantial electrical power from a compact volume [1]. Yet, the accidental release of radioactive nuclides remains a critical challenge as even minute quantities can inflict significant environmental and health hazards [2,3]. Notably, 90Sr, with a half-life (T1/2) of approximately 28.8 years, is particularly detrimental due to its high bioactivity and tendency for biological accumulation [4,5]. Like calcium, 90Sr is osteotropic, integrating into the skeletal system upon dietary intake [6,7]. It then emits high-energy beta particles that inflict irreversible damage to adjacent tissues. Chronic exposure can precipitate severe pathologies, including bone cancer and cardiovascular diseases, and poses a formidable risk to human health [8]. The hazards of 90Sr have garnered widespread attention within the international community. For instance, following the Fukushima nuclear accident in Japan, research into the environmental behavior and biological effects of 90Sr became a focal point [9]. Scientists have noted that the migration and transformation processes of 90Sr in the marine environment are complex, and their impact on aquatic life should not be overlooked [10]. In addition, the International Atomic Energy Agency (IAEA) has also emphasized the importance of effective monitoring and regulation of 90Sr to prevent long-term effects on public health and the environment [11].
Micro-leakages of 90Sr are often blended with other effluents, yielding large volumes of low-level radioactive waste (LLRW) with a low radioactive and non-radioactive nuclides ratio [12]. Conventional LLRW treatment strategies, including chemical precipitation [13], solvent extraction [14], oxidation/reduction [15], and membrane [16] technologies, can attenuate radioactivity. However, these techniques face high costs, secondary contamination risks, and operational intricacy. In this context, adsorption technology has become prominent for its selective and efficient removal of radioactive nuclides [17]. Adsorbents that can specifically sequester radioactive nuclides in high-salinity conditions are in demand. These materials are highly sought after, offering operational simplicity, rapid adsorption–desorption kinetics, and robust stability and reusability [18]. Inorganic adsorbents [19] maintain their adsorptive capacity in extreme environments and are frequently utilized for Sr2+ removal. Compared to organic counterparts, most inorganic materials exhibit reduced biological toxicity in their raw and by-product forms, offering enhanced environmental compatibility and sustainability [20].
Various inorganic adsorbents have been deployed for Sr2+ adsorption, encompassing hydroxyapatite [21], natural and synthetic zeolites [22], clay minerals [23], silicates [24], phosphates [25], titanates [26], metal oxides [27,28], etc. Xu Xia et al. [21] successfully fabricated porous hydroxyapatite from shell powder using a double-diffusion method, resulting in a high specific surface area of 188.5 m2·g−1. This material achieved a maximum Sr2+ removal capacity of 45.36 mg·g−1 at 313.15 K and a removal efficiency of 98.94%, with efficiency above 70% after five cycles. Aurélie Merceille et al. [29] synthesized sodium titanate and A-type zeolites using hydrothermal and sol–gel methods to remove Sr2+ from wastewater. The study noted a marked decline in adsorption performance with increasing concentrations of interfering ions (such as calcium and sodium) and decreasing in solution pH. Andrei Ivanets et al. [30] prepared Zr-Ca-Mg composite phosphates with diverse chemical compositions and evaluated their adsorption efficacy for 85Sr and 90Sr. The study revealed high adsorption efficiency (Kd > 104 mL·g−1) in distilled and low-salinity solutions, which diminished to less than 103 mL·g−1 (Kd < 103 mL·g−1) in high-salinity environments. Despite their economic viability and radiation resistance, these materials often suffer from poor selectivity and adsorption capacity, significantly reducing efficiency in acidic conditions. Na3FePO4CO3 (NFPC) is a stable inorganic material among the carbonophosphates [31]. In contrast to the majority of polyanionic compounds, carbonophosphates offer distinct advantages, including cost-effective raw materials, a simple synthesis process, and green environmental attributes [31]. The incorporation of weakly acidic carbonate ions into the phosphate matrix substantially bolsters the material’s stability. The stabilization is complemented by an extensive network of robust covalent bonds, which concurrently elevate the material’s surface electronegativity [32]. Furthermore, within the robust framework of carbonate and phosphate groups lies a substantial population of labile sodium ions, which can generate a plethora of ion exchange sites in solution. The high electronegativity and abundance of ion exchange sites endow NFPC with significant potential for the selective adsorption of strontium [33]. Theoretically, the adsorptive capabilities of NFPC are superior to those of the conventional inorganic adsorbents for strontium listed previously. Nevertheless, NFPC has not yet been identified as an adsorbent for the selective uptake of strontium or other metal ions, and its practicality and mechanism for adsorption are still unclear.
Density functional theory (DFT) [34,35,36] is a computational approach predicated on quantum mechanical principles. It is instrumental in delineating materials’ electronic structure and properties by accounting for electron density distribution. DFT is extensively applied across material science, catalysis, condensed matter physics, and biochemistry. DFT surpasses traditional experimental analyses and characterizations (e.g., XPS, FTIR, XRD) by simulating complex environments and dynamic adsorption processes, offering profound insights into the interactions between adsorption sites and molecules at the microscopic level. DFT has been instrumental in studying the coordination chemistry and adsorption behavior of adsorbates, with applications in inorganic materials such as attapulgite [37], boron nitride [38], hematite [39], kaolinite [40], etc. However, no reports exist on NFPC’s adsorption behavior.
This study pioneers the exploration of NFPC as an adsorbent for the selective removal of Sr2+, with DFT employed to investigate its adsorption mechanism deeply. The examination began with the impact of adsorption kinetics, isotherms, thermodynamics, and variables such as pH, contact time, temperature, and coexisting ions on Sr2+ adsorption. Subsequent characterization using EDS (mapping), FTIR, and XPS analyzed the adsorbent’s elemental, functional group, and chemical state changes before and after Sr2+ adsorption. The adsorption configuration was refined using the CP2K software suite, with an electronic density of states, differential charge density, and Bader charge transfer calculations. This comprehensive analysis elucidated the bonding mechanism and adsorption behavior of Sr2+ on the NFPC surface, contributing to the advancement of selective adsorption materials for Sr2+ sequestration from complex environmental matrices.

2. Results and Discussion

2.1. Characterization

The architectural framework of NFPC, classified as sidorenkite, is illustrated in the three-dimensional rendering of Figure 1. The framework is characterized by the interconnection of FeO6 octahedra and PO4 tetrahedra through corner-sharing, assembling a layered structure. The CO3 groups, trigonal and planar, are positioned unilaterally within these layers, sharing two oxygen atoms with adjacent FeO6 octahedra. Within the interlayer spaces, sodium atoms are found in two discrete coordination environments: one site (termed Na1) is coordinated with six oxygen atoms, while another (termed Na2) is coordinated with seven [31]. Relative to the Na1 site, the Na2 site features a less robust bond with its coordinating oxygen atoms, endowing it with diminished stability and a heightened susceptibility to dissociation from the underlying framework. This attribute renders the Na2 site a likely candidate for ion-exchange interactions with adsorbate species. As depicted in Figure 2a, microscopic analysis via SEM delineates the NFPC as exhibiting a distinct and uniform block-like morphology, with lateral dimensions varying from 57.5 nm to 192.6 nm. Complementary EDS analysis, presented in Figure 2b, confirms the elemental composition of NFPC as being primarily carbon (C), oxygen (O), iron (Fe), phosphorus (P), and sodium (Na). Following treatment with simulated waste solutions, post-adsorption analysis reveals the presence of Sr2+ on the NFPC surface, indicative of effective adsorption. As shown in Figure 2c, elemental mapping facilitates a preliminary deduction of the adsorption mechanism. A notable reduction in the Na content from an initial 13.32% to a subsequent 4.81%, concurrent with an elevation in surface Sr2+ content to 11.33%, suggests that Sr2+ has been effectively adsorbed onto the NFPC surface. This observation supports a proposed adsorption mechanism involving ion exchange at the Na2 site.
The crystalline integrity of the synthesized NFPC was probed using X-ray diffraction (XRD) analysis both before and after adsorption to ascertain any structural modifications. The findings are detailed in Figure 2d,e. Alignment of the synthesized material with the standard NFPC pattern (PDF#97-023-7801) demonstrated a high degree of correspondence between the prominent diffraction peaks, affirming the successful synthesis [41]. Despite a decrease in the intensity of specific principal peaks after the adsorption process, the peak positions remained unchanged, indicating that the crystalline structure of NFPC was preserved. However, the crystallinity of NFPC was affected, as evidenced by a reduction in overall crystallinity, which can be attributed to the incorporation of adsorbed Sr2+.

2.2. Adsorption Properties

2.2.1. Effect of pH

The initial solution pH was crucial for the dissociation equilibrium of Sr2+ and the surface properties of the adsorbent [42]. To preclude precipitation of Sr2+ in solution, the morphologies of Sr2+ (initial concentration was 5 mg·L−1) were simulated at different pH using Hydra and Medusa software, as depicted in Figure 3a. The findings revealed that Sr2+ was the predominant species in solution within the pH range of 1–10, with the onset of Sr(OH)− formation observed at pH values exceeding 10. In engineering applications, the pH range for most low-level waste liquids typically lies between 3–9, where Sr2+ remains soluble [43]. Consequently, adsorption experiments were conducted across this pH range. Furthermore, the temperature within the shaking incubator was maintained at 303 K, with an adsorption duration of 2 h.
The effects of solution pH on the Sr2+ removal efficiency and adsorption capacity are presented in Figure 3b. At a pH of 3, NFPC exhibited negligible adsorption of Sr2+. However, the removal efficiency and adsorption capacity of Sr2+ by NFPC increased markedly and asymptotically approached equilibrium with rising pH. This trend can be ascribed to two primary factors: (1) In acidic conditions, the adsorption efficiency of Sr2+ is diminished due to competition with protons [44,45]. As the pH increases, deprotonation is enhanced, exposing additional adsorption sites on the adsorbent surface until equilibrium is achieved. (2) The surface charge of the adsorbent is pH-dependent, which directly influences the electrostatic interactions between NFPC and Sr2+ [46]. As illustrated by the Zeta potential measurements in Figure 3a, the electronegativity of the adsorbent surface increased significantly with rising pH, mirroring the observed adsorption behavior. Thus, the observed adsorption pattern can be attributed to electrostatic interactions, with the specific adsorption mechanism detailed in Section 2.3.

2.2.2. Effect of Contact Time

The influence of contact time (t) on the Sr2+ removal efficiency and adsorption capacity (Qe) are delineated in Figure 4a. As time increased, the Sr2+ removal efficiency and Qe gradually rose to equilibrium. Notably, NFPC achieved adsorption equilibrium in approximately 36 min, with a maximum removal efficiency and Qe recorded at 99.86% and 12.49 mg·g−1, respectively.
The pseudo-first order, pseudo-second order, and Elovich models were applied to evaluate the adsorption process better [47,48,49,50,51]. The pseudo-first-order kinetic model posits that the rate-limiting step is diffusion-controlled, while the pseudo-second-order model suggests that chemical interactions predominantly govern the adsorption rate. Conversely, the Elovich model accounts for the heterogeneity of active sites on the adsorbent, leading to variable chemical adsorption energies. The experimental data about the adsorption of Sr2+ by NFPC were subjected to fits using these three kinetic models, with the outcomes presented in Figure 4b–d and Table S1. The application of confidence and prediction bands facilitated an assessment of the models’ accuracy and reliability. The pseudo-second-order (PSO) model yielded an equilibrium adsorption capacity of 12.58 mg·g−1 for NFPC towards Sr2+, closely approximating the experimental value of 12.47 mg·g−1, with a negligible error of 0.87%. The PSO model’s fitting line was closest to the experimental data points and exhibited the most compact confidence and prediction bands. Furthermore, the PSO model’s coefficient of determination (R2) surpassed 0.99, significantly higher than the other models. Consequently, the PSO model was deemed more adept at characterizing the kinetic behavior of NFPC in the adsorption of Sr2+ from aqueous solutions. These findings suggest that the adsorption of Sr2+ by NFPC is predominantly mediated by chemical interactions such as ion exchange, electrostatic interactions, and chelation processes.
Because the three aforementioned kinetic models cannot elucidate the diffusion mechanism, we employed the Boyd external diffusion rate model and the Weber–Morris (W-M) internal diffusion rate model to investigate further the factors influencing the adsorption rate. Two types of diffusion predominantly govern adsorption by the adsorbent: film diffusion and intraparticle diffusion. Film diffusion pertains to the migration of the adsorbate from the liquid film surrounding the adsorbent’s surface into its interior. Intraparticle diffusion, on the other hand, describes the subsequent movement of the adsorbate within the adsorbent’s pores or particles. The Boyd model postulates that the primary source of diffusion resistance arises from the film diffusion process. Conversely, the W-M model proposes negligible film diffusion resistance, assuming a constant diffusion coefficient and a random diffusion direction. Figure 4e,f and Table S2 detail the fitting curves and the corresponding parameter values.
The Boyd model demonstrated notably tighter confidence and prediction bands than the Weber–Morris (W-M) model, accompanied by a superior coefficient of R2. This observation indicated that the Boyd model has a greater predictive accuracy than the Weber–Morris (W-M) model, rendering it a more suitable framework for characterizing the diffusion mechanism of Sr2+ on the surface of NFPC. As detailed in Table S2, the model’s intercept IB value was recorded at 0.13. The parameter’s absolute value close to zero signifies a strong film diffusion influence on adsorption. Consequently, the adsorption rate of Sr2+ was inferred to be predominantly mediated by film diffusion, with the adsorbate being predominantly adsorbed onto the NFPC surface after traversing the liquid film.

2.2.3. Effect of Temperature and Initial Concentration

The equilibrium adsorption capacities of NFPC across a spectrum of temperatures and initial Sr2+ concentrations are presented in Figure 5a. Elevating the initial concentration of Sr2+ led to a substantial enhancement in adsorption capacity across all three temperatures studied, with the maximum equilibrium adsorption capacity reaching 67.10 mg·g−1 at 303 K.
Initially, the adsorption mechanism of NFPC for Sr2+ was probed at a constant temperature, and a range of initial concentrations was found. The experimental data were analyzed using the Langmuir, Freundlich, Dubinin–Radushkevich (D-R), and Temkin models [52,53,54,55,56]. The Langmuir model, which assumes a finite number of uniform adsorption sites on the adsorbent surface with equal adsorption probabilities for target ions, indicates monolayer adsorption without a change in the adsorption layer post-adsorption. The Freundlich model, which posits a heterogeneous surface energy distribution on the adsorbent, is typically applied to multilayer chemical adsorption at lower adsorbate concentrations. The D-R model suggests that adsorption involves the progressive filling of adsorbent pores by the adsorbate, allowing for the differentiation between physical and chemical adsorption mechanisms. The Temkin model hypothesizes a linear relationship between adsorption enthalpy and temperature, with a maximal distribution of uniform bond energies. The fitting curves and pertinent parameters are detailed in Figure 5b–e and Table S3. An exhaustive comparison revealed that the Langmuir model’s confidence and prediction bands were significantly narrower than those of the other three models, with the highest R2 of 0.9917. Consequently, the Langmuir model more accurately represents the adsorption process of Sr2+ by NFPC, confirming a uniform distribution of adsorption sites and monolayer adsorption. The Langmuir isotherm model predicts a maximum adsorption capacity (Qm) for Sr2+ of 63.48 mg·g−1, closely approximating the experimental value of 67.1 mg·g−1, bearing a negligible discrepancy of 5.39%. The D-R isotherm model (R2 = 0.9596) calculated an average free energy of 15.82 kJ·mol−1. The average free energy within the 8 to 16 kJ·mol−1 range suggested that the ion exchange mechanism is predominant, aligning with the kinetic model analysis presented in Section 2.2.2. The Freundlich isotherm model (R2 = 0.9591), with a constant n within the 0–1 range, indicated preferential adsorption of metal ions by NFPC. The variation of the separation factor (RL) with the initial concentration of Sr2+ is depicted in Figure 5a. The RL value decreased as the initial Sr2+ concentration increased, consistently remaining within the 0–1 range. The trend indicated a favorable adsorption of Sr2+ by NFPC, and the adsorption process became increasingly advantageous at higher initial concentrations of Sr2+.

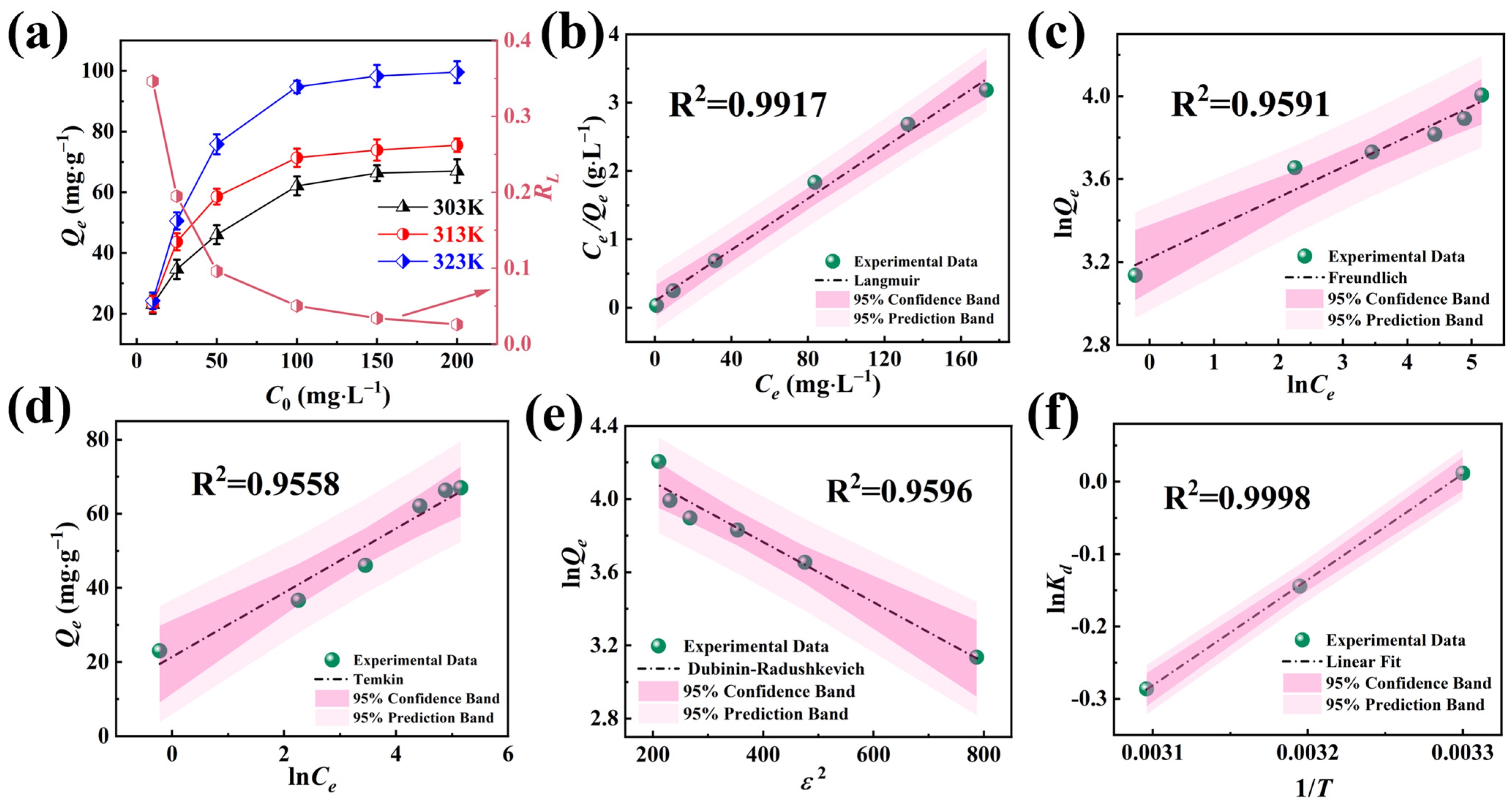

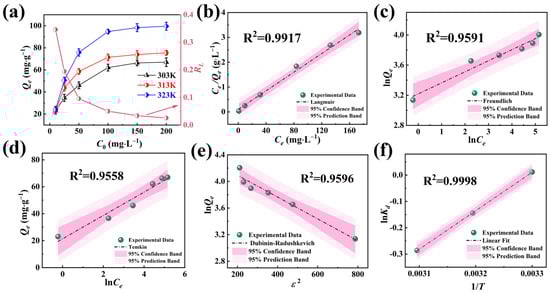

As illustrated in Figure 5a, the adsorption capacity of NFPC at a constant initial concentration substantially increased with rising temperature, indicative of the endothermic nature of the adsorption process. At an initial Sr2+ concentration of 200 mg·L−1 and a temperature of 323 K, the equilibrium adsorption capacity peaked at 99.6 mg·g−1. To further elucidate the influence of temperature on the adsorption of Sr2+ by NFPC, a thermodynamic analysis was conducted to evaluate the adsorption process [57]. The relationship between lnKd and the inverse temperature (1/T) are presented in Figure 5f. The simulated Kd0 values were obtained via Equation (22) in S2.3 [58]. At the same time, the enthalpy change (ΔH) and entropy change (ΔS) were calculated from the slopes and intercepts of the fitted lines in Figure 5f, as detailed in Table S4. The negative values of ΔG and ΔH across the three temperatures confirmed that the adsorption process was a thermodynamically spontaneous exothermic reaction. The negative value of ΔS indicated an enhancement in systemic orderliness throughout the adsorption process, denoting a decrement in molecular mobility in the adsorbed state relative to the solvated state.

2.2.4. Effect of Co-Existing Ions

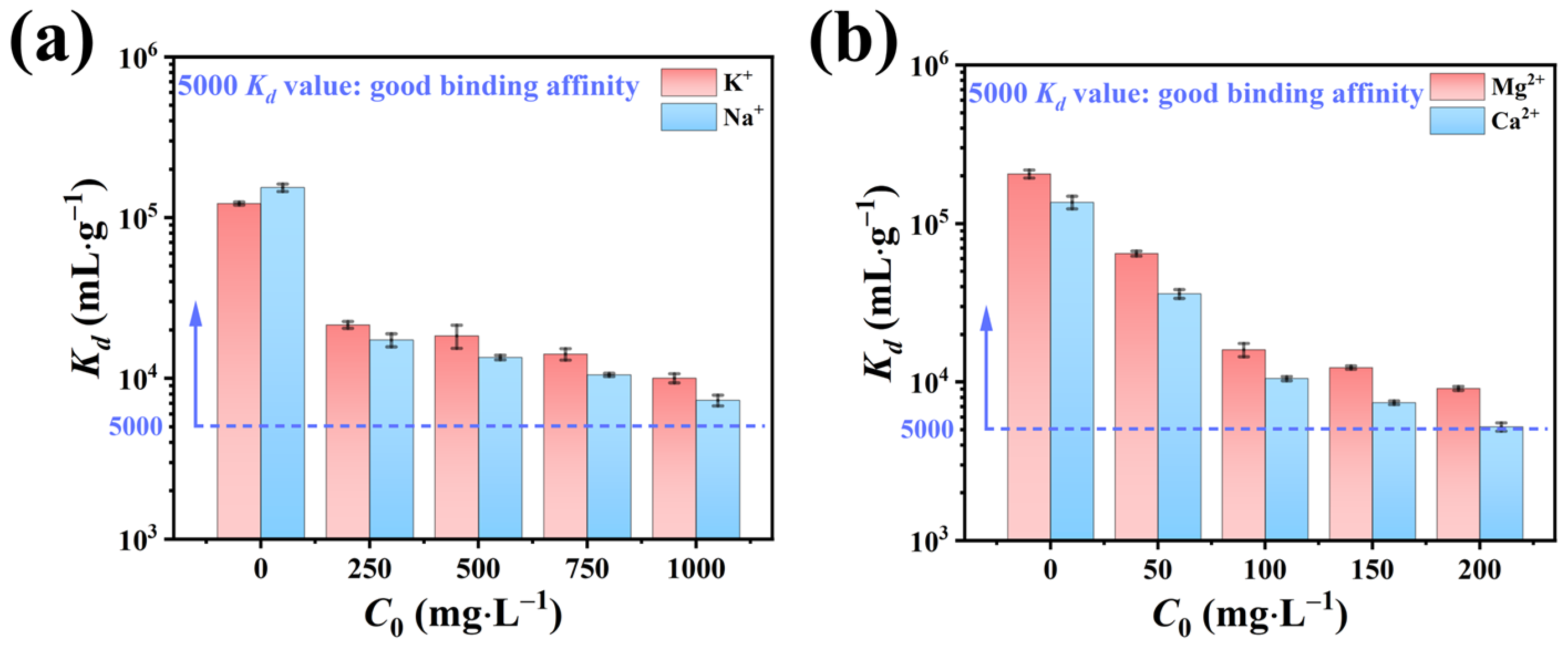

In addition to trace radioactive nuclides such as Sr2+, low-level radioactive waste also contains significant quantities of non-radioactive ions, including K+, Na+, Ca2+, and Mg2+. To simulate the adsorptive performance of NFPC under realistic environmental conditions, the influence of these varying concentrations on Sr2+ adsorption was evaluated. Figure 6 delineates the impact of coexisting ion concentrations on Kd values for Sr2+ adsorption, which indicated the adsorbent–adsorbate affinity. A gradual decline in Kd values with increasing coexisting ion concentrations was observed. Notably, even at an elevated concentration of 1000 mg·L−1 (200-fold) for K+ and Na+, the Kd values remained substantially above the threshold of 5000, suggesting a minimal impact on Sr2+ adsorption. Conversely, when the Ca2+ and Mg2+ concentrations were elevated to 200 mg·L−1 (40-fold), the Kd values slightly exceeded 5000, implying a more pronounced effect on Sr2+ adsorption. This trend could be attributed to the charge density, defined as the ratio of the ionic charge to the hydrated ionic radius [59]. The charge densities for K+, Na+, Ca2+, Mg2+, and Sr2+ were 0.30 (1/3.31), 0.28 (1/3.58), 0.47 (2/4.28), 0.49 (2/4.12), and 0.49 (2/4.12), respectively. The higher charge densities of Ca2+ and Mg2+, compared to K+ and Na+, result in a more significant influence on Kd values. Among these, the charge density of Ca2+ matched that of Sr2+ and was slightly higher than Mg2+, indicating that Ca2+ exerts the greatest impact on Sr2+ adsorption, followed by Mg2+. In conclusion, the influence of coexisting ions on the adsorption of Sr2+ is strongly associated with their charge density, with the greatest impact observed when the charge density closely resembles Sr2+ [59].

2.2.5. Leachability, Regeneration Property, and Adsorption Performance Comparison

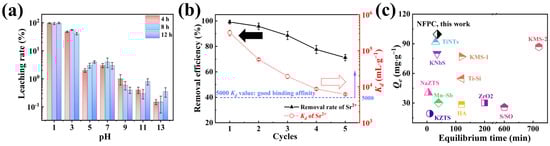

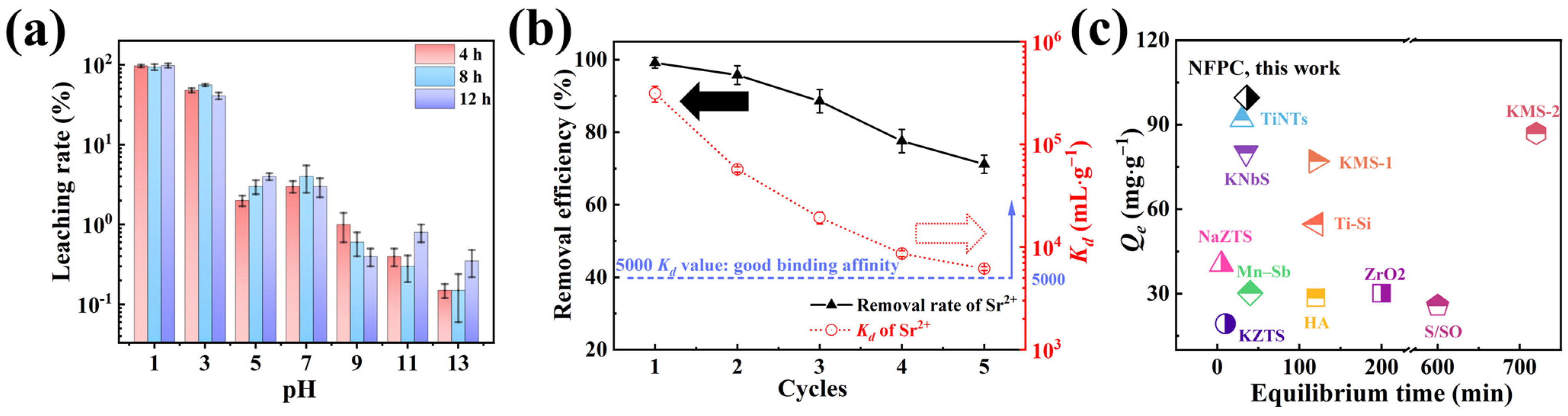

Leachability was a critical parameter for assessing adsorbent materials, with substantial implications for engineering applications [60]. We evaluated the leachability of NFPC under various pH and contact times using a temperature-controlled shaker incubator, with results depicted in Figure 7a. Our findings indicated that the leaching rates of NFPC remain relatively consistent over the 4 h to 12 h interval. Furthermore, strontium exhibited increased leachability under acidic conditions, with the rate escalating as the acidity intensified. At a contact time of 4 h and pH values of 1, 3, and 5, the leaching percentages of strontium were 97%, 48%, and 2%, respectively, correlating with the adsorption trends observed in Figure 3b. This suggested that NFPC, post-strontium adsorption, should be stored in environments that mitigate exposure to strong acids, with conditions above a pH of 5 being more stable. Additionally, this provided insights into the regeneration of NFPC, as after 4 h in contact with a solution at pH 1, a significant desorption of strontium from the NFPC surface was achieved. The reusability of adsorbents was crucial to engineering applications [61]. Consequently, the reusability of NFPC was assessed over five cycles of adsorption/desorption experiments. Figure 7b demonstrates that the removal efficiency and adsorption capacity of NFPC for Sr2+ diminishes with increasing cycles. After five cycles, the removal efficiency and Kd values were reduced from their initial values of 99.2% and 3.1 × 105 to 71.2% and 6180, respectively. The decline might stem from incomplete desorption at some sites, leading to decreased adsorption efficacy. Nonetheless, after the fifth desorption experiment, the Kd value remained above 5000 mL·g−1, indicating NFPC’s commendable reusability for Sr2+ removal from LLRW. In Figure 7c, we juxtaposed the performance of NFPC for Sr2+ removal with other inorganic adsorbents reported in the literature. NFPC demonstrated an equivalent or superior adsorption rate and capacity performance compared to previously documented materials.

2.3. Adsorption Mechanism

To validate the model above fitting results, experimental characterization via FTIR and XPS, in conjunction with DFT calculations, was conducted to explore the adsorption mechanism further. FTIR analysis was performed to ascertain changes in the functional groups of NFPC before and after Sr2+ adsorption, as depicted in Figure 8a. The scarcity of FTIR bands for NFPC implied a limited array of functional groups within this inorganic material. The sample’s absorption peak at 3329 cm−1, attributable to the stretching vibrations of hydroxyl groups [71], shifted to 3301 cm−1 upon adsorption. This shift might result from the forming of hydroxyl groups through the interaction of hydrogen ions with surface oxygen atoms on NFPC. The absorption peaks at 1636 cm−1, 1356 cm−1, and 1068 cm−1 were ascribed to the asymmetric stretching vibrations of C=O, P=O, and C-O, respectively [72,73]. No significant changes in wavelength or intensity were observed post-adsorption, indicating that the NFPC structure remained largely unaltered upon Sr2+ adsorption.

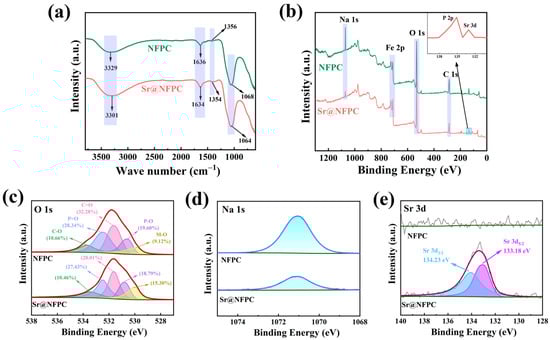

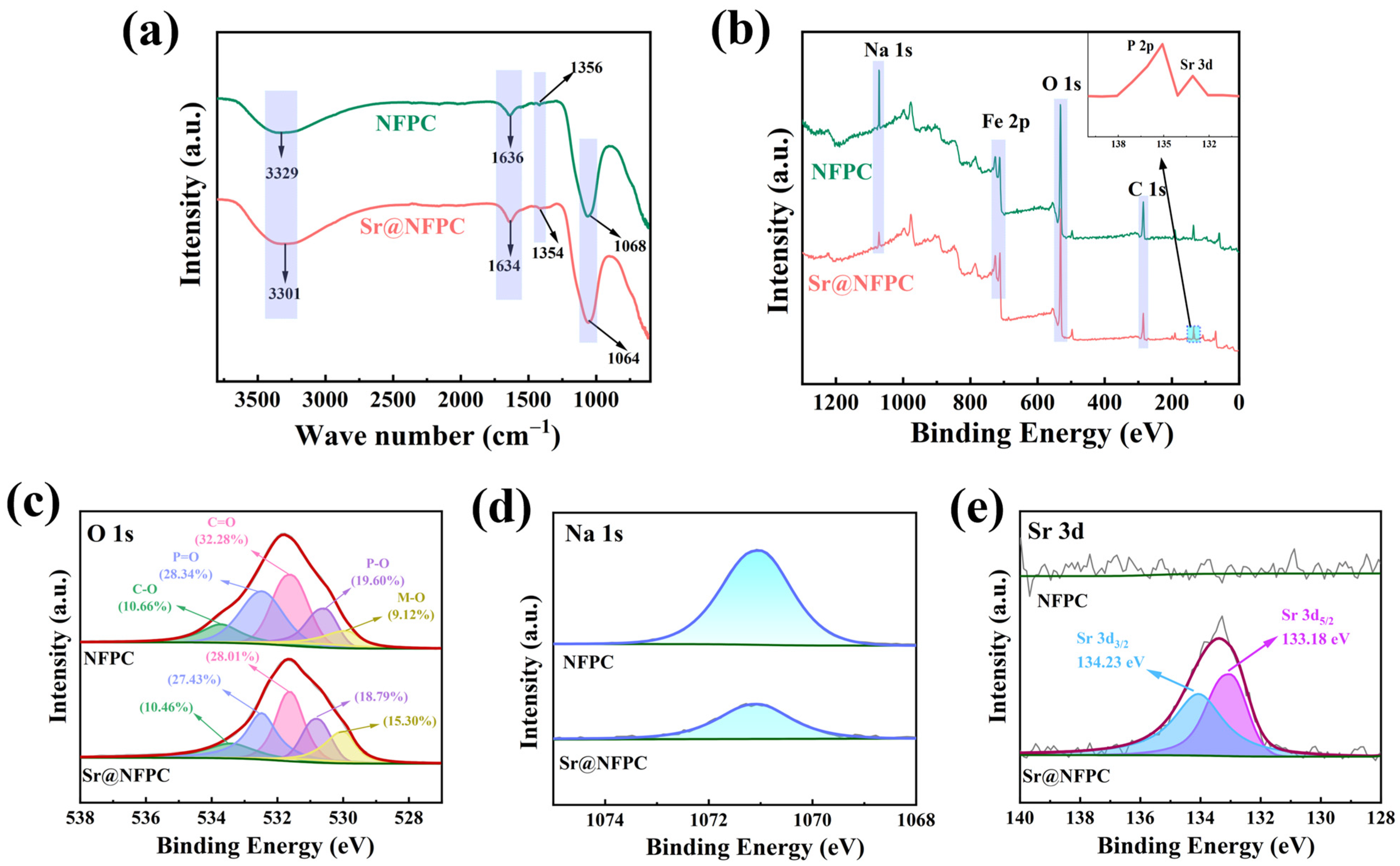

XPS is a technique that elucidates a sample’s surface chemical composition and status by analyzing the energy of photoelectrons ejected via X-ray irradiation. It is utilized to investigate the adsorption mechanism further. The XPS analysis of Sr2+ coordination on the NFPC surface before and after adsorption is presented in Figure 8. The absence of Sr2+ on the NFPC surface before adsorption is confirmed by Figure 8b,e [20]. The O 1s spectrum reveals five distinct oxygen coordination types: carbon–oxygen single bonds (C-O, 10.66%), carbon–oxygen double bonds (C=O, 32.28%), phosphorus–oxygen single bonds (P-O, 19.60%), phosphorus–oxygen double bonds (P=O, 28.34%), and metal–oxygen bonds (M-O, where M signifies metal elements, 9.12%) [74,75,76]. Following NFPC’s interaction with a Sr2+-containing solution, Sr2+ peaks (133.18 eV and 134.23 eV) in the spectrum signify Sr2+ adsorption onto the NFPC surface. According to Figure 8b,d, a noticeable decrease in the intensity of the Na 1s peak is observed after the adsorption reaction, indicating a reduction in the content of some sodium atoms. This decrease implies that ion exchange may occur between Na+ and Sr2+ during the adsorption process. Subsequent analysis of the O 1s spectrum post-adsorption disclosed alterations in the proportions of the five oxygen-containing bond types to C-O (10.46%), C=O (28.01%), P-O (18.79%), P=O (27.43%), and M-O (15.30%). The proportion of M-O bonds on the NFPC surface notably increased due to ion exchange, where Sr2+ replaced sodium ions, forming stronger Sr-O bonds.

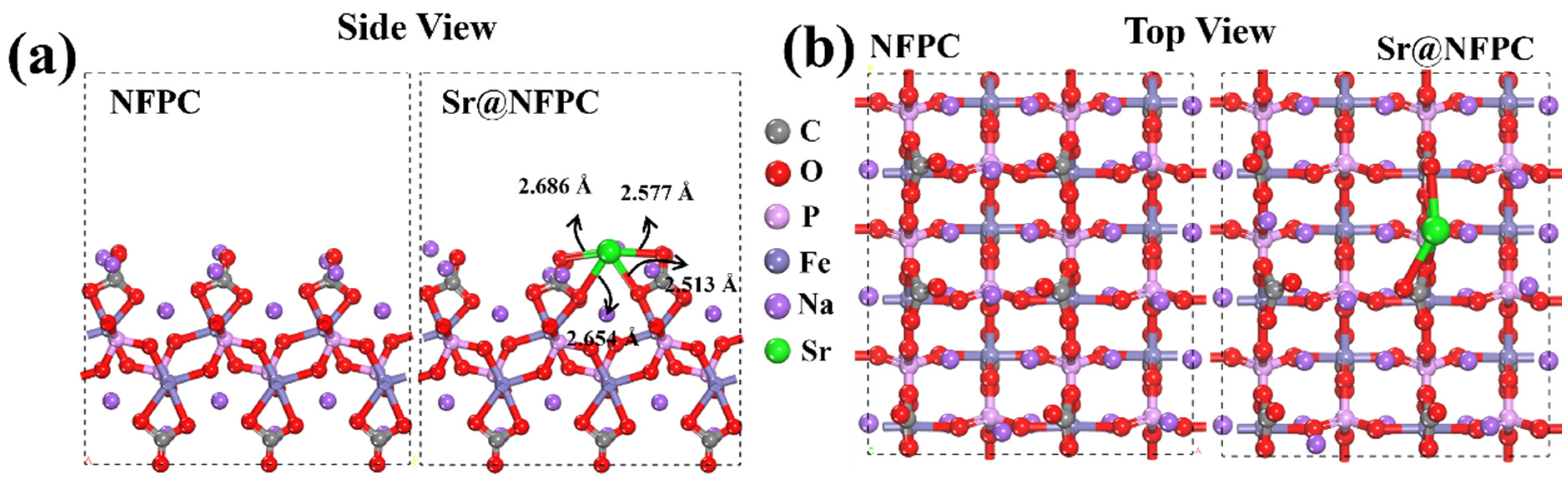

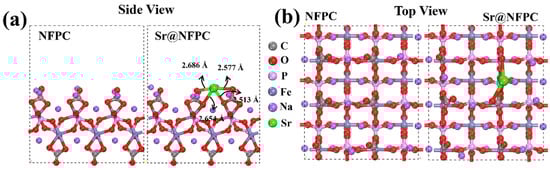

Density functional theory (DFT) was harnessed to investigate the adsorption behavior of Sr2+ on NFPC. The underlying periodic structure of NFPC was derived from the Crystallography Open Database (COD). Post-geometric optimization, the most stable configurations before and after the adsorption of Sr2+ on the NFPC (100) surface were obtained, as shown in Figure 9. In Figure 9a, Sr2+ is observed to interact with four oxygen atoms on the NFPC surface (originating from C=O and C-O/Fe-O) at distances of 2.513 Å, 2.577 Å, 2.654 Å, and 2.686 Å. The total energies of Sr2+, NFPC, and Sr@NFPC were calculated to be −30.30 kcal·mol−1, −4679.99 kcal·mol−1, and −4710.91 kcal·mol−1, respectively. The binding energy (BE) of Sr2+ on the NFPC (100) surface was −380.44 kcal·mol−1, underscoring the robust adsorptive effect [37,77].

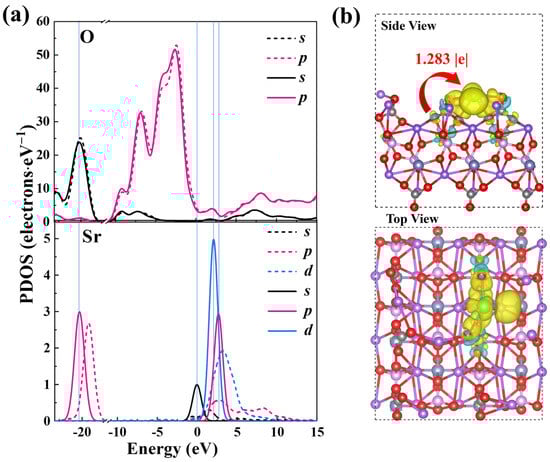

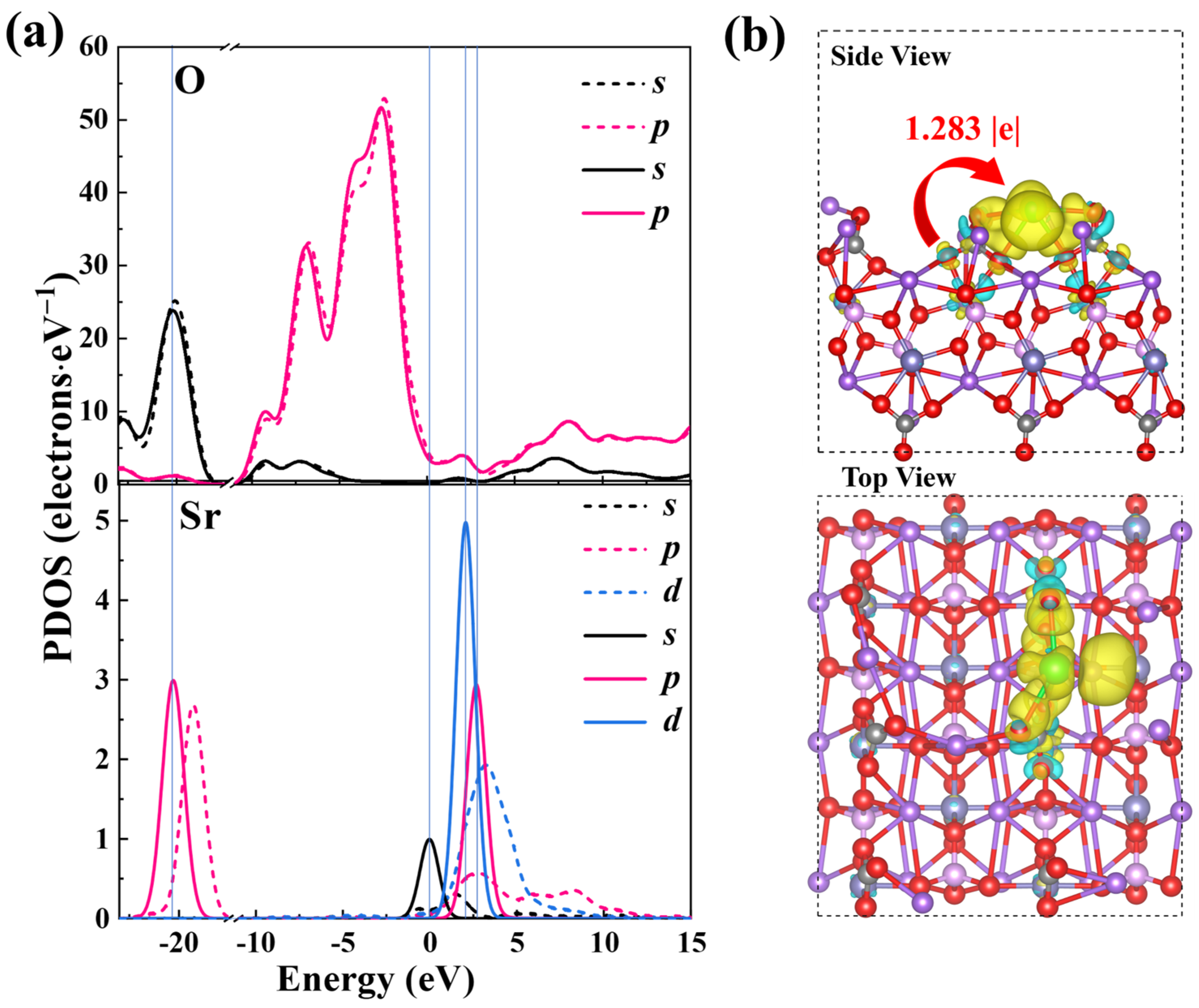

To attain a profound understanding of NFPC’s selective capture of Sr2+, the atomic orbital projected state density (PDOS) and differential charge density before and after Sr2+ adsorption were examined, with results depicted in Figure 10. The PDOS analysis is presented in Figure 10a, where the blue vertical lines indicate orbital overlap. After Sr2+ adsorption, the O atoms and Sr2+ orbitals descended to lower energy states, signifying electron transfer during the adsorption process [78]. Additionally, there was an observed overlap between the s and p orbitals of O atoms and the s, p, and d orbitals of Sr2+. The phenomenon indicated orbital hybridization between NFPC and Sr2+, intense charge transfer, and chemical interaction between Sr2+ and O atoms [79,80]. The charge difference analysis presented in Figure 10b, coupled with the Bader charge transfer value of 1.283 |e|, confirmed that electrons from O atoms on the NFPC surface were transferred to the Sr2+ surface during adsorption. The electron analysis indicated that NFPC facilitates stable Sr2+ adsorption through electron transfer from its surface oxygen atoms. In conjunction with the experimental data fitting results detailed in Section 2.2 and the conclusions drawn from XPS analysis, a chemical interaction related to ion exchange between NFPC and Sr2+ was revealed.

3. Material and Methods

3.1. Materials and Reagents

All chemical grades met the experimental requirements and did not require further purification. Ferrous sulfate heptahydrate (FeSO4·7H2O), diamine hydrogen phosphate ((NH4)2HPO4), and sodium carbonate (Na2CO3) were purchased from Shanghai Aladdin Biochemical Technology Co., Ltd. (Shanghai, China). Sodium chloride (NaCl), potassium chloride (KCl), magnesium chloride (MgCl2), calcium chloride (CaCl2), manganese chloride (MnCl2), strontium nitrate (Sr(NO3)2), anhydrous methanol (CH4O), and other reagents were purchased from Tianjin Damao Chemical Reagent Co., Ltd. (Tianjin, China). Deionized water (with a conductivity below 5 μS·cm−1 at room temperature) was produced by Reverse Osmosis Ultra-Pure Water Equipment from Ningbo Dansibo Environmental Technology Co., Ltd. (Ningbo, Zhejiang, China). The initial pH of each solution was adjusted with dilute HCl or NaOH solution.

3.2. Synthesis of NFPC

As shown in Figure 1, Na3FePO4CO3 (NFPC) was prepared via a one-pot hydrothermal synthesis route within a 100 mL polytetrafluoroethylene (PTFE) lined autoclave enclosed by a steel shell [31]. Initially, 8 mmol of iron sulfate heptahydrate (FeSO4·7H2O) was dissolved in 20 mL of deionized water to achieve a homogeneous solution (solution A). Concurrently, a separate solution was prepared by dissolving a total of 8 mmol of diammonium hydrogen phosphate (NH4)2HPO4 and 0.075 mol of sodium carbonate (Na2CO3) in 40 mL of deionized water, resulting in solution B. Subsequently, solution A was rapidly introduced to solution B under vigorous magnetic stirring to form a mixed slurry. The slurry was then poured into the PTFE-lined reactor and subjected to hydrothermal treatment at a temperature of 180 °C for 20 h. Upon completion of the reaction period, the reactor was allowed to cool naturally to ambient temperature. The resultant slurry was centrifugally separated, followed by successive washing with deionized water and methanol to purify the solid product. The solid samples were dried under vacuum at 40 °C for 12 h to obtain the NFPC product.

3.3. Characterization

Scanning electron microscopy (SEM; Hitachi-3400N, Hitachi Production Co., Ltd.; Tokyo, Japan) coupled with energy-dispersive X-ray spectroscopy (EDS; INCA ENERGY 350, Oxford Instruments plc; Oxford, UK) was employed to scrutinize the surface morphologies and ascertain the elemental composition of the materials, respectively. X-ray diffraction (XRD, D8 DISCOVER, Bruker AXS GmbH; Karlsruhe, Germany) analysis was conducted utilizing a Cu Kα radiation source at 40 kV and 30 mA, with scans ranging from 5° to 80° in 2θ. The surface composition and chemical states of the elements within the NFPC were elucidated using X-ray photoelectron spectroscopy (XPS; Thermo Scientific ESCALAB 250Xi, Thermo Fisher Scientific; Waltham, MA, USA). Fourier transform infrared spectroscopy (FTIR; Thermo Nicolet 6700, Thermo Fisher Scientific; Waltham, MA, USA) was applied to identify functional groups on the NFPC surface within the 4000 to 600 cm−1 wavenumber range. Additionally, the surface potential of a 100 mg·L−1 NFPC solution was quantified across a pH gradient of 3 to 9 using a Zetasizer nano instrument (Nano ZS90, Malvern Instruments Ltd.; Malvern, UK).

3.4. Adsorption and Desorption Experiments

We investigated the adsorptive performance of NFPC towards Sr2+ in aqueous solutions, meticulously evaluating a spectrum of pertinent experimental parameters. Preliminary adsorption studies were executed with a 0.4 g·L−1 NFPC solution, comprising 0.02 g of adsorbent in 50 mL of the target solution, against a backdrop of a 5 mg·L−1 Sr2+ solution. The influence of various parameters on the adsorption efficacy was appraised, including contact time (ranging from 10 to 220 min), solution pH (varied between 3 and 9), temperature (specifically at 303, 313, and 323 K), initial Sr2+ concentration (spanning 10 to 200 mg·L−1), and the presence of competing ions (K+, Na+, Ca2+, and Mg2+), all of which are critical in an engineering context. Equilibrium adsorption assays were uniformly performed on thermostatted shakers at 140 revolutions per minute. Post-experimental processing involved filtration of all samples through 0.22 μm pore-sized membranes, after which Sr2+ concentrations were quantified using an atomic absorption spectrophotometer (AAS; ContrAA700, Analytik Jena GmbH, Jena, Germany). Leaching experiments were conducted to investigate the potential leachability of strontium from Sr@NFPC under various durations (4 h, 8 h, and 12 h) and solution pH levels (ranging from 1 to 13 with increments of 2). Sr@NFPC was prepared by adsorbing NFPC in a 50 mL strontium solution with a concentration of 5 mg·L−1 at pH 7 for 120 min, followed by vacuum drying at 60 °C for 12 h. All experiments were performed on thermostatted shakers at 303 K with a rotation speed of 140 rpm. For reusability assays, Sr2+ was desorbed from NFPC via a 0.1 M HCl treatment for 4 h, followed by successive washing with deionized water until the supernatant’s pH approximated neutrality and Sr2+ could not be detected. The protocol for solid–liquid separation encompassed high-speed centrifugation. Adsorption, leaching, and desorption trials were replicated a minimum of two times to ensure the reliability of the findings. The adsorption performance parameters and models were depicted in Text S1 and Text S2, respectively.

3.5. DFT Calculation

Density functional theory (DFT) calculations delineate the electronic distribution, structural attributes, and interatomic interactions between Sr2+ and NFPC. The CP2K code [81] is an advanced computational tool that conducts ab initio molecular dynamics (AIMD) simulations across diverse states, encompassing solids, liquids, molecules, periodic systems, and crystals [82,83,84]. It is uniquely suited for modeling the interactions of periodic materials with charged particles, exemplified by the adsorption of Sr2+ onto NFPC. To comprehensively understand the adsorption mechanism, we harnessed the CP2K code, utilizing DFT to simulate and dissect the adsorption process meticulously. The detailed calculation method was described in Text S3.

4. Conclusions

The article systematically studied the adsorption performance and interaction mechanisms of NFPC for Sr2+ based on adsorption experiments, characterization analysis, and DFT calculation results for the first time. The adsorbent exhibited a broad pH applicability range (4–9), exceptionally high adsorption selectivity (with Kd values surpassing 5000 mL·g−1 even in the presence of interfering ions at concentrations over 40 times higher than Sr2+), swift adsorption kinetics (equilibrium time was 36 min), substantial adsorption capacity (Q = 99.6 mg·g−1), and outstanding regenerative characteristics. Kinetics and isotherm analysis indicated that Sr2+ adsorption was a monolayer chemical process predominantly affected by film diffusion. Thermodynamic model analysis discloses that Sr2+ adsorption is an endothermic, entropy-increasing, spontaneous process. Combining experimental data with DFT-calculated configurations, we observed that Sr2+ participates in an ion exchange reaction with Na+ during adsorption and then coordinates with four oxygen atoms on the NFPC (100) surface. The PDOS results demonstrated the formation of Sr-O bonds through orbital hybridization between oxygen atoms and Sr2+ ions. The differential charge density and Bader charge transfer analyses confirmed the transfer of electrons from the oxygen atoms to Sr2+, leading to stable chemical adsorption. Overall, NFPC stands out for its straightforward fabrication and superior adsorption capabilities, suggesting promising applications in the selective uptake of Sr2+ from low-level radioactive wastewater.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/molecules29122908/s1: Text S1. Adsorption performance parameters; Text S2. Adsorption model. Text S3. DFT calculation. Table S1. Partial kinetic parameters of the Sr2+ adsorption by NFPC; Table S2. Fitting parameters obtained by Boyd model and Weber–Morris models; Table S3. Fitting parameters obtained by adsorption isotherm models; Table S4. Fitting parameters obtained by adsorption thermodynamic models.

Author Contributions

This work was carried out through collaboration between all authors. P.B.: Investigation, Methodology; Z.H.: Data curation. Z.D.: Conceptualization, Supervision; H.D.: Methodology; C.L.: Investigation, Methodology; M.Z.: Investigation, Methodology, Supervision; J.M.: Investigation, Writing—review and editing, Funding acquisition; X.W.: Conceptualization, Supervision, Writing—review and editing, Project administration; Y.X.: Investigation, Software, Visualization, Writing—original draft. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financed by the National Natural Science Foundation of China (No. 51573208).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data are contained within the article.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Verma, A.; Ahmad, A.; Giovannini, F. Nuclear energy, ten years after Fukushima. Nature 2021, 591, 199–201. [Google Scholar] [CrossRef]
  2. Zhang, H.; Li, A.; Li, K.; Wang, Z.; Xu, X.; Wang, Y.; Sheridan, M.V.; Hu, H.-S.; Xu, C.; Alekseev, E.V. Ultrafiltration separation of Am (VI)-polyoxometalate from lanthanides. Nature 2023, 616, 482–487. [Google Scholar] [CrossRef]
  3. Garai, M.; Yavuz, C.T. Radioactive strontium removal from seawater by a MOF via two-step ion exchange. Chem 2019, 5, 750–752. [Google Scholar] [CrossRef]
  4. Zhang, Z.; Gu, P.; Zhang, M.; Yan, S.; Dong, L.; Zhang, G. Synthesis of a robust layered metal sulfide for rapid and effective removal of Sr2+ from aqueous solutions. Chem. Eng. J. 2019, 372, 1205–1215. [Google Scholar] [CrossRef]
  5. Zhang, F.; Wang, J.; Bi, Q.; Du, J. 90Sr in seawater of the East China Sea: Inventory, new potential source, and environmental implications. Sci. Total Environ. 2021, 764, 144266. [Google Scholar] [CrossRef]
  6. Guo, Y.; Hong Nhung, N.T.; Dai, X.; He, C.; Wang, Y.; Wei, Y.; Fujita, T. Strontium ion removal from artificial seawater using a combination of adsorption with biochar and precipitation by blowing CO2 nanobubble with neutralization. Front. Bioeng. Biotechnol. 2022, 10, 819407. [Google Scholar] [CrossRef]
  7. Choi, J.-W.; Cho, S.; Choi, S.-J. Ecofriendly, selective removal of radioactive strontium ions in aqueous solutions using magnetic banana peels. Sci. Total Environ. 2021, 778, 146327. [Google Scholar] [CrossRef]
  8. Yang, H.-M.; Jeon, H.; Lee, Y.; Choi, M. Sulfur-modified zeolite A as a low-cost strontium remover with improved selectivity for radioactive strontium. Chemosphere 2022, 299, 134309. [Google Scholar] [CrossRef]
  9. Ten Hoeve, J.E.; Jacobson, M.Z. Worldwide health effects of the Fukushima Daiichi nuclear accident. Energy Environ. Sci. 2012, 5, 8743–8757. [Google Scholar] [CrossRef]
  10. Lin, W.; Mo, M.; Yu, K.; Du, J.; Shen, H.; Wang, Y.; He, X.; Feng, L. Establishing historical 90Sr activity in seawater of the China seas from 1963 to 2018. Mar. Pollut. Bull. 2022, 176, 113476. [Google Scholar] [CrossRef]
  11. Chen, Y.; Wang, Z.; Liu, S.; Zhang, G.; Dong, L.; Gu, P. Layered metal sulfide NMTS for rapid removal of radioactive strontium ions from aqueous solution. Sep. Purif. Technol. 2023, 310, 122887. [Google Scholar] [CrossRef]
  12. Smith, J.; Marks, N.; Irwin, T. The risks of radioactive wastewater release. Science 2023, 382, 31–33. [Google Scholar] [CrossRef]
  13. Meunier, N.; Drogui, P.; Montané, C.; Hausler, R.; Mercier, G.; Blais, J.-F. Comparison between electrocoagulation and chemical precipitation for metals removal from acidic soil leachate. J. Hazard. Mater. 2006, 137, 581–590. [Google Scholar] [CrossRef]
  14. Li, X.; Du, Y.; Wu, G.; Li, Z.; Li, H.; Sui, H. Solvent extraction for heavy crude oil removal from contaminated soils. Chemosphere 2012, 88, 245–249. [Google Scholar] [CrossRef]
  15. Sun, Y.; Ding, C.; Cheng, W.; Wang, X. Simultaneous adsorption and reduction of U (VI) on reduced graphene oxide-supported nanoscale zerovalent iron. J. Hazard. Mater. 2014, 280, 399–408. [Google Scholar] [CrossRef]
  16. Gao, J.; Sun, S.-P.; Zhu, W.-P.; Chung, T.-S. Chelating polymer modified P84 nanofiltration (NF) hollow fiber membranes for high efficient heavy metal removal. Water Res. 2014, 63, 252–261. [Google Scholar] [CrossRef]
  17. Li, J.; Chen, C.; Zhang, S.; Wang, X. Surface functional groups and defects on carbon nanotubes affect adsorption–desorption hysteresis of metal cations and oxoanions in water. Environ. Sci. Nano 2014, 1, 488–495. [Google Scholar] [CrossRef]
  18. Sun, Y.; Wu, Z.-Y.; Wang, X.; Ding, C.; Cheng, W.; Yu, S.-H.; Wang, X. Macroscopic and microscopic investigation of U (VI) and Eu (III) adsorption on carbonaceous nanofibers. Environ. Sci. Technol. 2016, 50, 4459–4467. [Google Scholar] [CrossRef]
  19. Zhou, Y.-F.; Haynes, R.J. Sorption of heavy metals by inorganic and organic components of solid wastes: Significance to use of wastes as low-cost adsorbents and immobilizing agents. Crit. Rev. Environ. Sci. Technol. 2010, 40, 909–977. [Google Scholar] [CrossRef]
  20. Wang, S.; Ning, S.; Zhang, W.; Zhang, S.; Zhou, J.; Wang, X.; Wei, Y. Synthesis of carboxyl group functionalized silica composite resin for strontium removal. Mater. Des. 2020, 185, 108224. [Google Scholar] [CrossRef]
  21. Xia, X.; Shen, J.; Cao, F.; Wang, C.; Tang, M.; Zhang, Q.; Wei, S. A facile synthesis of hydroxyapatite for effective removal strontium ion. J. Hazard. Mater. 2019, 368, 326–335. [Google Scholar] [CrossRef]
  22. Pérez-Botella, E.; Valencia, S.; Rey, F. Zeolites in adsorption processes: State of the art and future prospects. Chem. Rev. 2022, 122, 17647–17695. [Google Scholar] [CrossRef]
  23. Uddin, M.K. A review on the adsorption of heavy metals by clay minerals, with special focus on the past decade. Chem. Eng. J. 2017, 308, 438–462. [Google Scholar] [CrossRef]
  24. Shin, E.W.; Han, J.S.; Jang, M.; Min, S.-H.; Park, J.K.; Rowell, R.M. Phosphate adsorption on aluminum-impregnated mesoporous silicates: Surface structure and behavior of adsorbents. Environ. Sci. Technol. 2004, 38, 912–917. [Google Scholar] [CrossRef]
  25. Jia, K.; Pan, B.; Zhang, Q.; Zhang, W.; Jiang, P.; Hong, C.; Pan, B.; Zhang, Q. Adsorption of Pb2+, Zn2+, and Cd2+ from waters by amorphous titanium phosphate. J. Colloid Interface Sci. 2008, 318, 160–166. [Google Scholar] [CrossRef]
  26. Ryu, J.; Kim, S.; Hong, H.-J.; Hong, J.; Kim, M.; Ryu, T.; Park, I.-S.; Chung, K.-S.; Jang, J.S.; Kim, B.-G. Strontium ion (Sr2+) separation from seawater by hydrothermally structured titanate nanotubes: Removal vs. recovery. Chem. Eng. J. 2016, 304, 503–510. [Google Scholar] [CrossRef]
  27. Wang, L.; Shi, C.; Pan, L.; Zhang, X.; Zou, J.-J. Rational design, synthesis, adsorption principles and applications of metal oxide adsorbents: A review. Nanoscale 2020, 12, 4790–4815. [Google Scholar] [CrossRef]
  28. Chen, J.; Feng, J.; Yan, W. Influence of metal oxides on the adsorption characteristics of PPy/metal oxides for Methylene Blue. J. Colloid Interface Sci. 2016, 475, 26–35. [Google Scholar] [CrossRef]
  29. Merceille, A.; Weinzaepfel, E.; Barré, Y.; Grandjean, A. The sorption behaviour of synthetic sodium nonatitanate and zeolite A for removing radioactive strontium from aqueous wastes. Sep. Purif. Technol. 2012, 96, 81–88. [Google Scholar] [CrossRef]
  30. Ivanets, A.; Shashkova, I.; Kitikova, N.; Dzikaya, A.; Nekrasova, N.; Milyutin, V.; Baigenzhenov, O.; Zaruba-Venhlinskaya, K.; Radkevich, A. Composite metal phosphates for selective adsorption and immobilization of cesium, strontium, and cobalt radionuclides in ceramic matrices. J. Clean. Prod. 2022, 376, 134104. [Google Scholar] [CrossRef]
  31. Chen, H.; Hautier, G.; Ceder, G. Synthesis, Computed Stability, and Crystal Structure of a New Family of Inorganic Compounds: Carbonophosphates. J. Am. Chem. Soc. 2012, 134, 19619–19627. [Google Scholar] [CrossRef]
  32. Huang, H.; Wu, X.; Gao, Y.; Li, Z.; Wang, W.; Dong, W.; Song, Q.; Gan, S.; Zhang, J.; Yu, Q. Polyanionic cathode materials: A comparison between Na-ion and K-ion batteries. Adv. Energy Mater. 2024, 14, 2304251. [Google Scholar] [CrossRef]
  33. Xie, B.; Sakamoto, R.; Kitajou, A.; Nakamoto, K.; Zhao, L.; Okada, S.; Fujita, Y.; Oka, N.; Nishida, T.; Kobayashi, W. Cathode properties of Na3FePO4CO3 prepared by the mechanical ball milling method for Na-ion batteries. Sci. Rep. 2020, 10, 3278. [Google Scholar] [CrossRef]
  34. Liu, J.X.; Li, W.X. Theoretical study of crystal phase effect in heterogeneous catalysis. Wiley Interdiscip. Rev. Comput. Mol. Sci. 2016, 6, 571–583. [Google Scholar] [CrossRef]
  35. Zhang, T.; Li, D.; Tao, Z.; Chen, J. Understanding electrode materials of rechargeable lithium batteries via DFT calculations. Prog. Nat. Sci. Mater. Int. 2013, 23, 256–272. [Google Scholar] [CrossRef]
  36. Cui, W.; Chen, J. Insight into mineral flotation fundamentals through the DFT method. Int. J. Min. Sci. Technol. 2021, 31, 983–994. [Google Scholar] [CrossRef]
  37. Xu, L.; Liu, Y.; Wang, J.; Tang, Y.; Zhang, Z. Selective adsorption of Pb2+ and Cu2+ on amino-modified attapulgite: Kinetic, thermal dynamic and DFT studies. J. Hazard. Mater. 2021, 404, 124140. [Google Scholar] [CrossRef]
  38. Grosjean, B.; Pean, C.; Siria, A.; Bocquet, L.; Vuilleumier, R.; Bocquet, M.-L. Chemisorption of hydroxide on 2D materials from DFT calculations: Graphene versus hexagonal boron nitride. J. Phys. Chem. Lett. 2016, 7, 4695–4700. [Google Scholar] [CrossRef]
  39. Yan, L.; Chan, T.; Jing, C. Arsenic adsorption on hematite facets: Spectroscopy and DFT study. Environ. Sci. Nano 2020, 7, 3927–3939. [Google Scholar] [CrossRef]
  40. Wang, X.; Huang, Y.; Pan, Z.; Wang, Y.; Liu, C. Theoretical investigation of lead vapor adsorption on kaolinite surfaces with DFT calculations. J. Hazard. Mater. 2015, 295, 43–54. [Google Scholar] [CrossRef]
  41. Chen, H.; Hautier, G.; Jain, A.; Moore, C.; Kang, B.; Doe, R.; Wu, L.; Zhu, Y.; Tang, Y.; Ceder, G. Carbonophosphates: A new family of cathode materials for Li-ion batteries identified computationally. Chem. Mater. 2012, 24, 2009–2016. [Google Scholar] [CrossRef]
  42. Hiemstra, T.; Van Riemsdijk, W.H. A surface structural approach to ion adsorption: The charge distribution (CD) model. J. Colloid Interface Sci. 1996, 179, 488–508. [Google Scholar] [CrossRef]
  43. Zhang, X.; Liu, Y. Nanomaterials for radioactive wastewater decontamination. Environ. Sci. Nano 2020, 7, 1008–1040. [Google Scholar] [CrossRef]
  44. Liu, H.; Lu, X.; Li, M.; Zhang, L.; Pan, C.; Zhang, R.; Li, J.; Xiang, W. Structural incorporation of manganese into goethite and its enhancement of Pb (II) adsorption. Environ. Sci. Technol. 2018, 52, 4719–4727. [Google Scholar] [CrossRef]
  45. Xiang, J.; Lin, Q.; Cheng, S.; Guo, J.; Yao, X.; Liu, Q.; Yin, G.; Liu, D. Enhanced adsorption of Cd (II) from aqueous solution by a magnesium oxide–rice husk biochar composite. Environ. Sci. Pollut. Res. 2018, 25, 14032–14042. [Google Scholar] [CrossRef]
  46. Illés, E.; Tombácz, E. The effect of humic acid adsorption on pH-dependent surface charging and aggregation of magnetite nanoparticles. J. Colloid Interface Sci. 2006, 295, 115–123. [Google Scholar] [CrossRef]
  47. Namvar-Mahboub, M.; Khodeir, E.; Bahadori, M.; Mahdizadeh, S.M. Preparation of magnetic MgO/Fe3O4 via the green method for competitive removal of Pb and Cd from aqueous solution. Colloids Surf. A 2020, 589, 124419. [Google Scholar] [CrossRef]
  48. Simonin, J.-P. On the comparison of pseudo-first order and pseudo-second order rate laws in the modeling of adsorption kinetics. Chem. Eng. J. 2016, 300, 254–263. [Google Scholar] [CrossRef]
  49. Wu, F.-C.; Tseng, R.-L.; Juang, R.-S. Characteristics of Elovich equation used for the analysis of adsorption kinetics in dye-chitosan systems. Chem. Eng. J. 2009, 150, 366–373. [Google Scholar] [CrossRef]
  50. Guo, W.; Chen, R.; Liu, Y.; Meng, M.; Meng, X.; Hu, Z.; Song, Z. Preparation of ion-imprinted mesoporous silica SBA-15 functionalized with triglycine for selective adsorption of Co (II). Colloids Surf. A 2013, 436, 693–703. [Google Scholar] [CrossRef]
  51. Svilović, S.; Rušić, D.; Bašić, A. Investigations of different kinetic models of copper ions sorption on zeolite 13X. Desalination 2010, 259, 71–75. [Google Scholar] [CrossRef]
  52. Kaganer, V.M.; Möhwald, H.; Dutta, P. Structure and phase transitions in Langmuir monolayers. Rev. Mod. Phys. 1999, 71, 779. [Google Scholar] [CrossRef]
  53. Crini, G. Recent developments in polysaccharide-based materials used as adsorbents in wastewater treatment. Prog. Polym. Sci. 2005, 30, 38–70. [Google Scholar] [CrossRef]
  54. Sheindorf, C.; Rebhun, M.; Sheintuch, M. A Freundlich-type multicomponent isotherm. J. Colloid Interface Sci. 1981, 79, 136–142. [Google Scholar] [CrossRef]
  55. Hu, Q.; Zhang, Z. Application of Dubinin–Radushkevich isotherm model at the solid/solution interface: A theoretical analysis. J. Mol. Liq. 2019, 277, 646–648. [Google Scholar] [CrossRef]
  56. Pursell, C.J.; Hartshorn, H.; Ward, T.; Chandler, B.D.; Boccuzzi, F. Application of the Temkin model to the adsorption of CO on gold. J. Phys. Chem. C 2011, 115, 23880–23892. [Google Scholar] [CrossRef]
  57. Zahakifar, F.; Keshtkar, A.R.; Talebi, M. Synthesis of sodium alginate (SA)/polyvinyl alcohol (PVA)/polyethylene oxide (PEO)/ZSM-5 zeolite hybrid nanostructure adsorbent by casting method for uranium (VI) adsorption from aqueous solutions. Prog. Nucl. Energy 2021, 134, 103642. [Google Scholar] [CrossRef]
  58. Chen, T.; Da, T.; Ma, Y. Reasonable calculation of the thermodynamic parameters from adsorption equilibrium constant. J. Mol. Liq. 2021, 322, 114980. [Google Scholar] [CrossRef]
  59. Zhang, L.; Wei, J.; Zhao, X.; Li, F.; Jiang, F.; Zhang, M.; Cheng, X. Removal of strontium (II) and cobalt (II) from acidic solution by manganese antimonate. Chem. Eng. J. 2016, 302, 733–743. [Google Scholar] [CrossRef]
  60. Zhou, P.; Gu, Q.; Zhou, S.; Cui, X. A novel montmorillonite clay-cetylpyridinium chloride material for reducing PFAS leachability and bioavailability from soils. J. Hazard. Mater. 2024, 465, 133402. [Google Scholar] [CrossRef]
  61. Han, J.; Jun, B.-M.; Heo, J.; Lee, G.; Yoon, Y.; Park, C.M. Highly efficient organic dye removal from waters by magnetically recoverable La2O2CO3/ZnFe2O4-reduced graphene oxide nanohybrid. Ceram. Int. 2019, 45, 19247–19256. [Google Scholar] [CrossRef]
  62. Kim, J.; Sambudi, N.S.; Cho, K. Removal of Sr2+ using high-surface-area hydroxyapatite synthesized by non-additive in-situ precipitation. J. Environ. Manag. 2019, 231, 788–794. [Google Scholar] [CrossRef]
  63. Liang, C.; Jia, M.; Wang, X.; Du, Z.; Men, J.; Ding, H. Preparation of potassium niobium sulfide and its selective adsorption properties for Sr2+ and Co2+. J. Radioanal. Nucl. Chem. 2019, 322, 377–387. [Google Scholar] [CrossRef]
  64. Gürboğa, G.; Tel, H. Preparation of TiO2–SiO2 mixed gel spheres for strontium adsorption. J. Hazard. Mater. 2005, 120, 135–142. [Google Scholar] [CrossRef]
  65. Manos, M.J.; Kanatzidis, M.G. Metal sulfide ion exchangers: Superior sorbents for the capture of toxic and nuclear waste-related metal ions. Chem. Sci. 2016, 7, 4804–4824. [Google Scholar] [CrossRef]
  66. Mertz, J.L.; Fard, Z.H.; Malliakas, C.D.; Manos, M.J.; Kanatzidis, M.G. Selective Removal of Cs+, Sr2+, and Ni2+ by K2xMgxSn3–xS6 (x= 0.5–1)(KMS-2) relevant to nuclear waste remediation. Chem. Mater. 2013, 25, 2116–2127. [Google Scholar] [CrossRef]
  67. Zhang, L.; Wei, J.; Zhao, X.; Li, F.; Jiang, F.; Zhang, M. Strontium (II) adsorption on Sb (III)/Sb2O5. Chem. Eng. J. 2015, 267, 245–252. [Google Scholar] [CrossRef]
  68. İnan, S.; Tel, H.; Altaş, Y. Sorption studies of strontium on hydrous zirconium dioxide. J. Radioanal. Nucl. Chem. 2006, 267, 615–621. [Google Scholar] [CrossRef]
  69. Zhang, M.; Gu, P.; Zhang, Z.; Liu, J.; Dong, L.; Zhang, G. Effective, rapid and selective adsorption of radioactive Sr2+ from aqueous solution by a novel metal sulfide adsorbent. Chem. Eng. J. 2018, 351, 668–677. [Google Scholar] [CrossRef]
  70. Zhang, M.; Gu, P.; Yan, S.; Dong, L.; Zhang, G. Na/Zn/Sn/S (NaZTS): Quaternary metal sulfide nanosheets for efficient adsorption of radioactive strontium ions. Chem. Eng. J. 2020, 379, 122227. [Google Scholar] [CrossRef]
  71. Liu, K.; Chen, Q.; Hu, H.; Yin, Z. Characterization and leaching behaviour of lizardite in Yuanjiang laterite ore. Appl. Clay Sci. 2010, 47, 311–316. [Google Scholar] [CrossRef]
  72. Hamza, M.F.; Guibal, E.; Wei, Y.; Ning, S. Synthesis, characterization, and evaluation of thiocarbazide-functionalized maleic-based polymer for thorium (IV) removal from aqueous solutions. Chem. Eng. J. 2023, 464, 142638. [Google Scholar] [CrossRef]
  73. Florek, J.; Chalifour, F.; Bilodeau, F.; Larivière, D.; Kleitz, F. Nanostructured hybrid materials for the selective recovery and enrichment of rare earth elements. Adv. Funct. Mater. 2014, 24, 2668–2676. [Google Scholar] [CrossRef]
  74. Zhang, S.; Ning, S.; Liu, H.; Zhou, J.; Wang, S.; Zhang, W.; Wang, X.; Wei, Y. Highly-efficient separation and recovery of ruthenium from electroplating wastewater by a mesoporous silica-polymer based adsorbent. Microporous Mesoporous Mater. 2020, 303, 110293. [Google Scholar] [CrossRef]
  75. Zhao, X.; Li, Y.; Carroll, K.C.; Li, F.; Qiu, L.; Huo, Z. Mesoporous goethite for rapid and high-capacity fluoride removal from drinking water. J. Environ. Chem. Eng. 2021, 9, 105278. [Google Scholar] [CrossRef]
  76. Zhang, W.; Ning, S.; Zhang, S.; Wang, S.; Zhou, J.; Wang, X.; Wei, Y. Synthesis of functional silica composite resin for the selective separation of zirconium from scandium. Microporous Mesoporous Mater. 2019, 288, 109602. [Google Scholar] [CrossRef]
  77. O’Connor, N.J.; Jonayat, A.; Janik, M.J.; Senftle, T.P. Interaction trends between single metal atoms and oxide supports identified with density functional theory and statistical learning. Nat. Catal. 2018, 1, 531–539. [Google Scholar] [CrossRef]
  78. Chen, Q.; Tang, Z.; Li, H.; Wu, M.; Zhao, Q.; Pan, B. An electron-scale comparative study on the adsorption of six divalent heavy metal cations on MnFe2O4@ CAC hybrid: Experimental and DFT investigations. Chem. Eng. J. 2020, 381, 122656. [Google Scholar] [CrossRef]
  79. Zeng, M.; Yang, B.; Yan, H.; Qu, H.; Hu, Y. Efficient recovery of Ag (I) from aqueous solution using MoS2 nanosheets: Adsorption study and DFT calculation. Chem. Phys. Lett. 2020, 757, 137865. [Google Scholar] [CrossRef]
  80. Lu, Q.; Zhou, X.-Y.; Wu, Y.-W.; Mi, T.-G.; Liu, J.; Hu, B. Migration and transformation of lead species over CaO surface in municipal solid waste incineration fly Ash: A DFT study. Waste Manag. 2021, 120, 59–67. [Google Scholar] [CrossRef]
  81. VandeVondele, J.; Krack, M.; Mohamed, F.; Parrinello, M.; Chassaing, T.; Hutter, J. Quickstep: Fast and accurate density functional calculations using a mixed Gaussian and plane waves approach. Comput. Phys. Commun. 2005, 167, 103–128. [Google Scholar] [CrossRef]
  82. Kühne, T.D.; Iannuzzi, M.; Del Ben, M.; Rybkin, V.V.; Seewald, P.; Stein, F.; Laino, T.; Khaliullin, R.Z.; Schütt, O.; Schiffmann, F. CP2K: An electronic structure and molecular dynamics software package-Quickstep: Efficient and accurate electronic structure calculations. J. Chem. Phys. 2020, 152, 19. [Google Scholar] [CrossRef]
  83. VandeVondele, J.; Mohamed, F.; Krack, M.; Hutter, J.; Sprik, M.; Parrinello, M. The influence of temperature and density functional models in ab initio molecular dynamics simulation of liquid water. J. Chem. Phys. 2005, 122, 14515. [Google Scholar] [CrossRef]
  84. Shakiba, M.; Stippell, E.; Li, W.; Akimov, A.V. Nonadiabatic molecular dynamics with extended density functional tight-binding: Application to nanocrystals and periodic solids. J. Chem. Theory Comput. 2022, 18, 5157–5180. [Google Scholar] [CrossRef]
Molecules 29 02908 g001

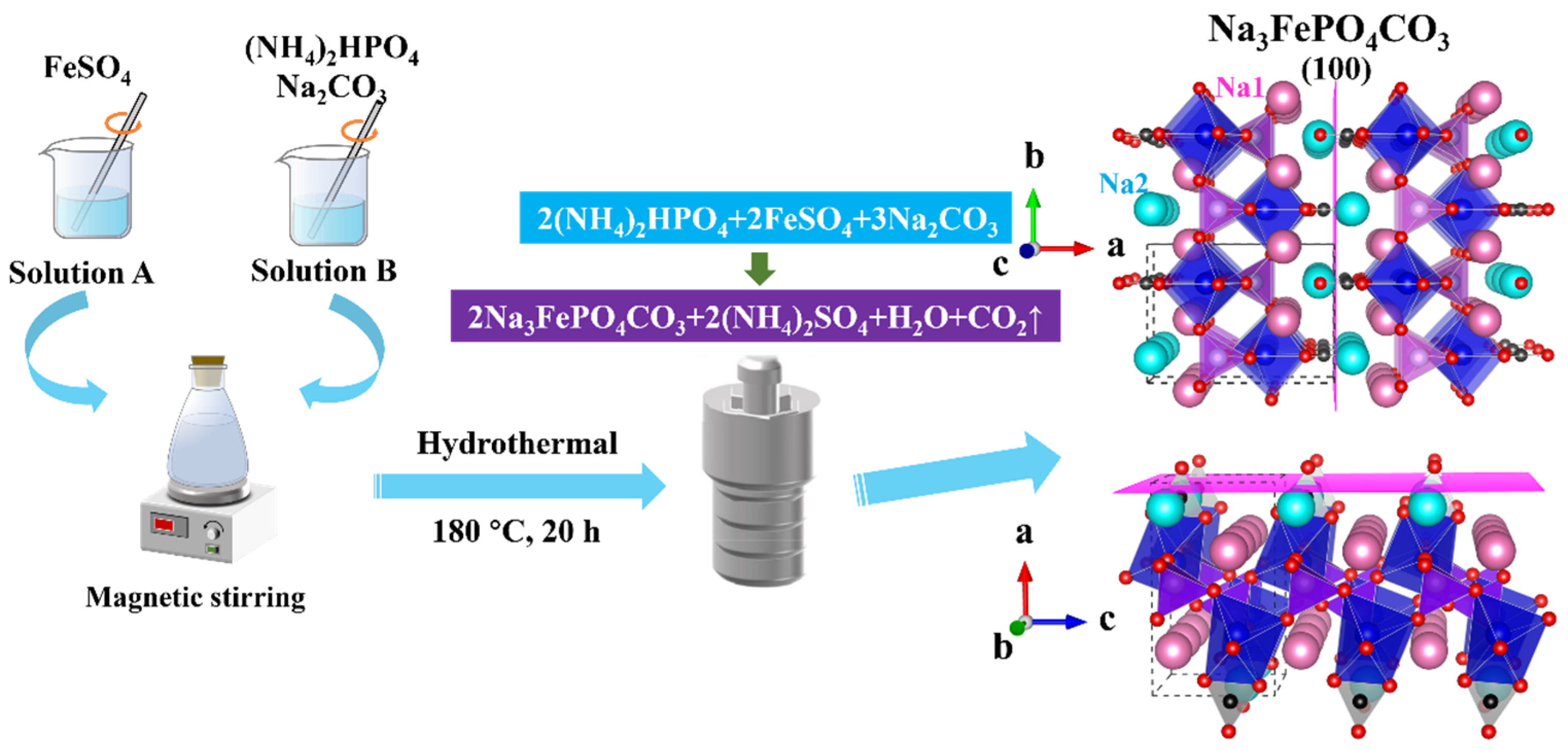

Figure 1. The illustration of the hydrothermal method to prepare NFPC and its crystal structure (Na1, Na2, O, and C atoms are figured in pink, cyan, red, and black, respectively. FeO6 and PO4 are drawn in blue and Purple, respectively).
Figure 1. The illustration of the hydrothermal method to prepare NFPC and its crystal structure (Na1, Na2, O, and C atoms are figured in pink, cyan, red, and black, respectively. FeO6 and PO4 are drawn in blue and Purple, respectively).
Molecules 29 02908 g001
Molecules 29 02908 g002

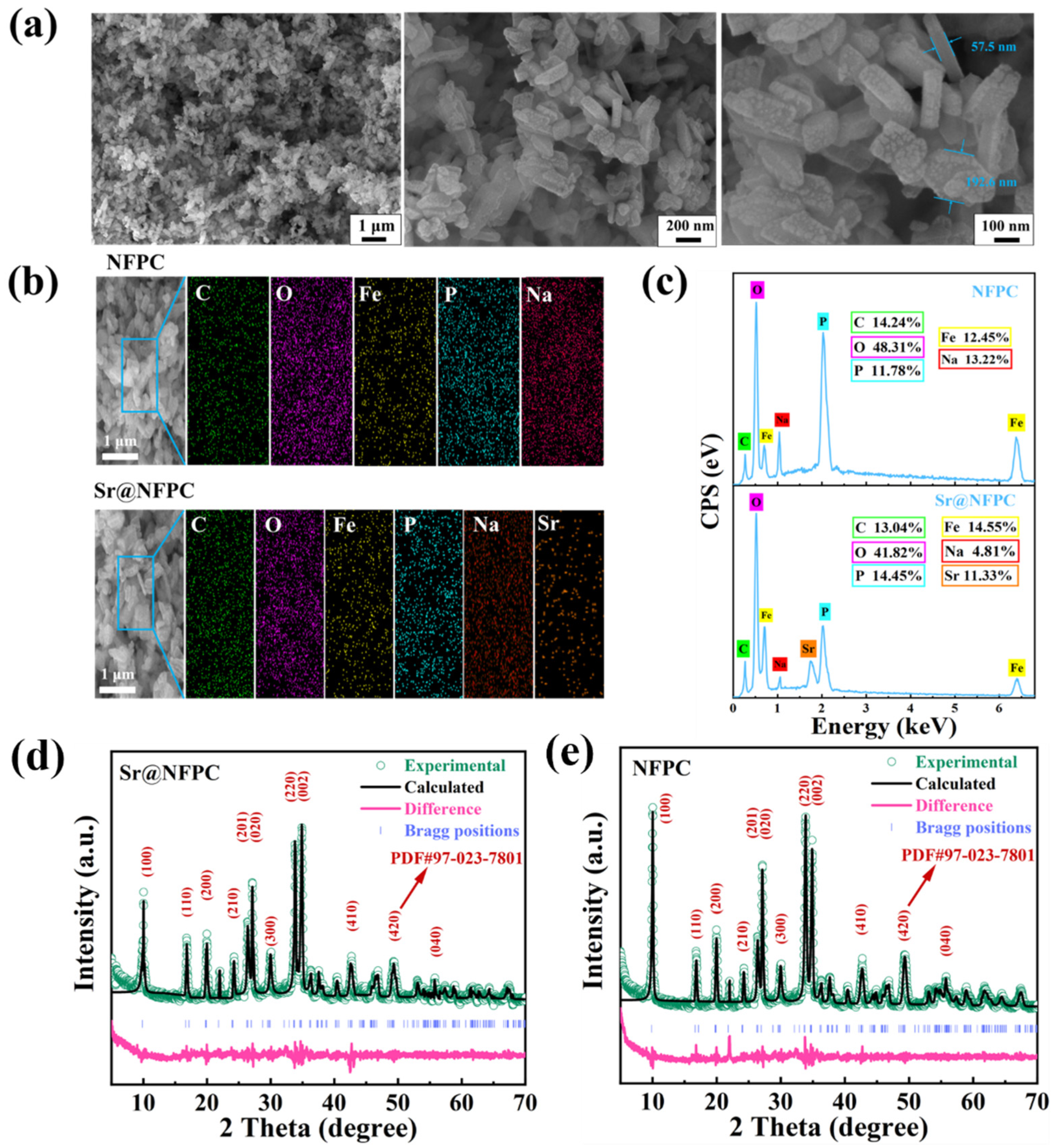

Figure 2. Characterization of NFPC before and after adsorption (Sr@NFPC). (a) SEM images of NFPC at different magnifications. EDS results (b,c) and XRD (d,e) patterns of NFPC and Sr@NFPC.
Figure 2. Characterization of NFPC before and after adsorption (Sr@NFPC). (a) SEM images of NFPC at different magnifications. EDS results (b,c) and XRD (d,e) patterns of NFPC and Sr@NFPC.
Molecules 29 02908 g002
Molecules 29 02908 g003

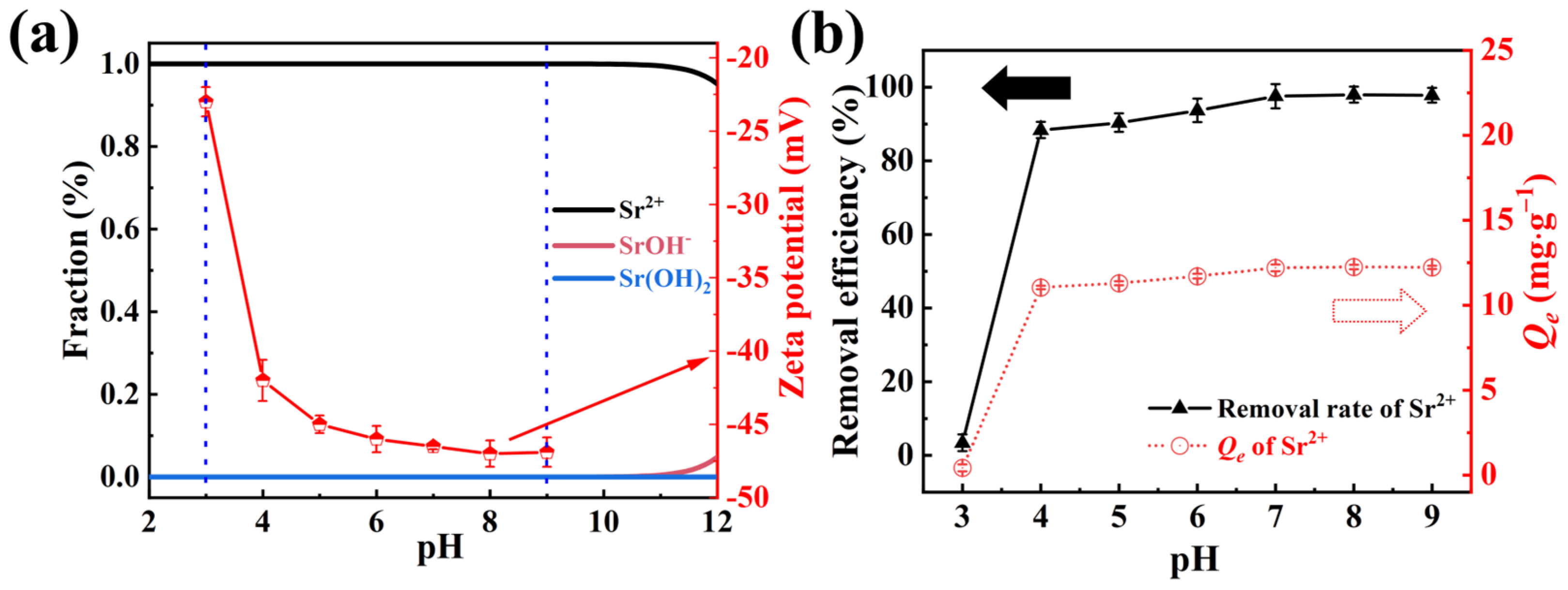

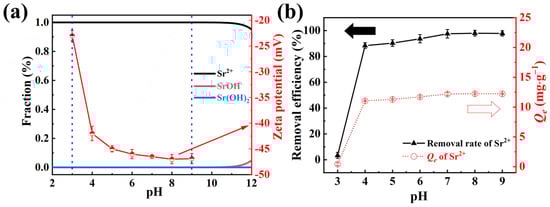

Figure 3. (a) The forms of Sr2+ and zeta potential at different pH, the red arrow indicates the zeta potential; (b) influence of solution pH on the removal efficiency and Qe (conditions: NFPC dose = 0.4 g·L−1; initial Sr2+ concentration = 5 mg·L −1; temperature = 303 K; contact time = 120 min), the black and red dashed arrow represent removal efficiency and Qe, respectively.
Figure 3. (a) The forms of Sr2+ and zeta potential at different pH, the red arrow indicates the zeta potential; (b) influence of solution pH on the removal efficiency and Qe (conditions: NFPC dose = 0.4 g·L−1; initial Sr2+ concentration = 5 mg·L −1; temperature = 303 K; contact time = 120 min), the black and red dashed arrow represent removal efficiency and Qe, respectively.
Molecules 29 02908 g003
Molecules 29 02908 g004

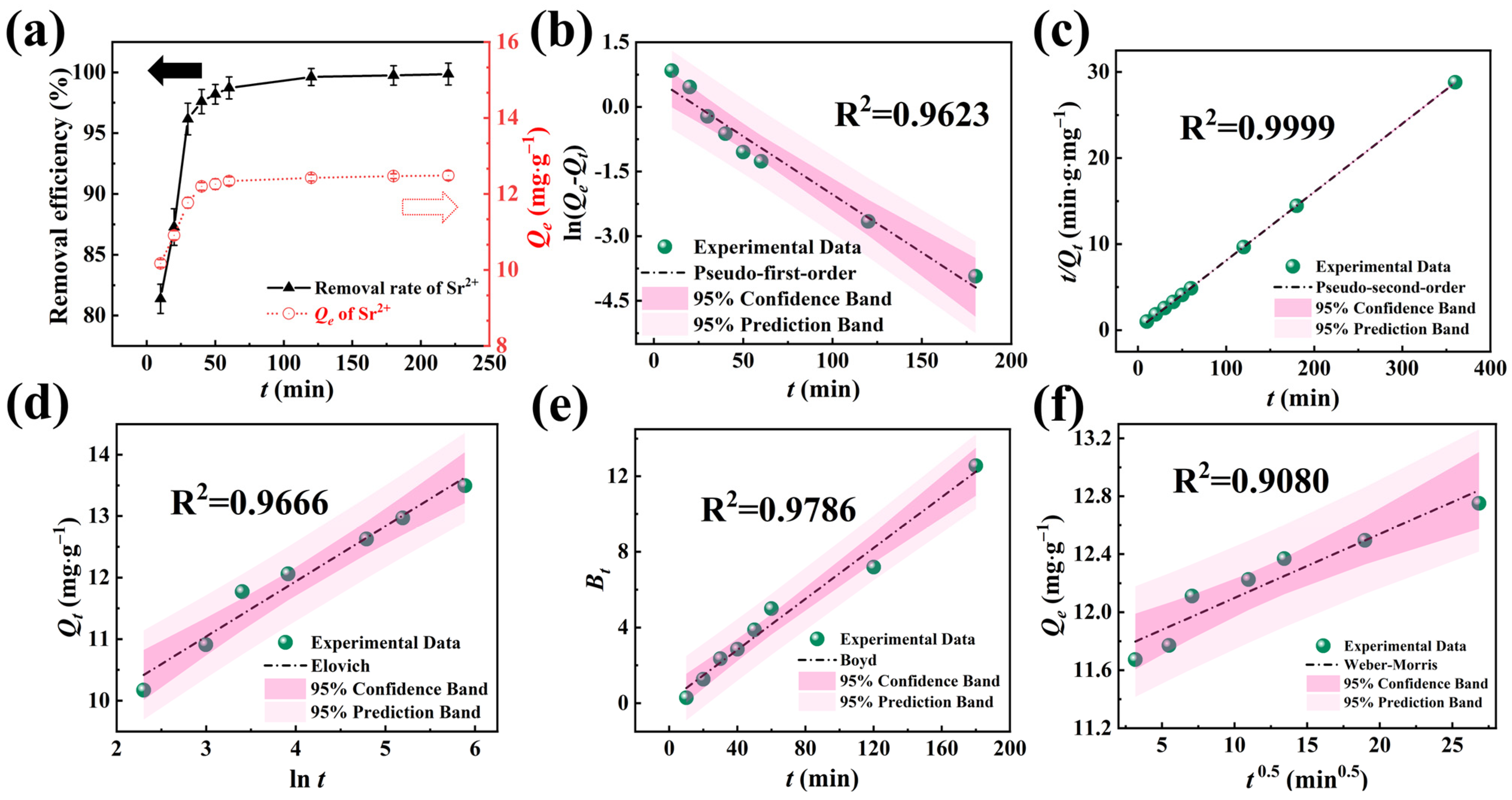

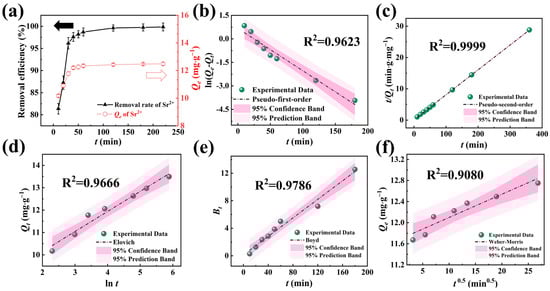

Figure 4. (d–f) The influence of contact time on adsorption performance and adsorption kinetics research. (a) Influence of contact time on the removal efficiency and Qe (conditions: NFPC dose = 0.4 g·L−1; initial Sr2+ concentration = 5 mg·L−1; temperature = 303 K; pH = 7), the black and red dashed arrow represent removal efficiency and Qe, respectively. Pseudo-first-order (a), Pseudo-second-order (b), Elovich (c), Boyd (a), and Weber–Morris kinetics results for the adsorption of Sr2+.
Figure 4. (d–f) The influence of contact time on adsorption performance and adsorption kinetics research. (a) Influence of contact time on the removal efficiency and Qe (conditions: NFPC dose = 0.4 g·L−1; initial Sr2+ concentration = 5 mg·L−1; temperature = 303 K; pH = 7), the black and red dashed arrow represent removal efficiency and Qe, respectively. Pseudo-first-order (a), Pseudo-second-order (b), Elovich (c), Boyd (a), and Weber–Morris kinetics results for the adsorption of Sr2+.
Molecules 29 02908 g004
Molecules 29 02908 g005
Figure 5. (a) Influence of initial Sr2+ concentration on Qe and RL (conditions: NFPC dose = 0.4 g·L−1; pH = 7; contact time = 120 min). Langmuir (b), Freundlich (c), Temkin (d), and Dubinin–Radushkevich (e) isotherms result in the adsorption of Sr2+. (f) The fitting curve between lnKd and 1/T.
Figure 5. (a) Influence of initial Sr2+ concentration on Qe and RL (conditions: NFPC dose = 0.4 g·L−1; pH = 7; contact time = 120 min). Langmuir (b), Freundlich (c), Temkin (d), and Dubinin–Radushkevich (e) isotherms result in the adsorption of Sr2+. (f) The fitting curve between lnKd and 1/T.
Molecules 29 02908 g005
Molecules 29 02908 g006
Figure 6. Influence of (a) K+ and Na+ and (b) Ca2+ and Mg2+ ionic strength on the Kd values of Sr2+ adsorption (conditions: NFPC dose = 0.4 g·L−1; initial Sr2+ concentration = 5 mg·L−1; temperature = 303 K; pH = 7; contact time = 120 min).
Figure 6. Influence of (a) K+ and Na+ and (b) Ca2+ and Mg2+ ionic strength on the Kd values of Sr2+ adsorption (conditions: NFPC dose = 0.4 g·L−1; initial Sr2+ concentration = 5 mg·L−1; temperature = 303 K; pH = 7; contact time = 120 min).
Molecules 29 02908 g006
Molecules 29 02908 g007
Figure 7. (a) Influence of pH and contact time on leaching rate of Sr2+ (conditions: Sr@NFPC dose = 0.4 g·L−1; temperature = 303 K); (b) reusability valuation for Sr2+ adsorption of NFPC until five adsorption–desorption cycles (conditions: NFPC dose = 0.4 g·L−1; initial Sr2+ concentration = 5 mg·L−1; temperature = 303 K; pH = 7; contact time = 120 min); (c) the values of Qe and equilibrium time at 303 K in this work are compared to those reported in the literature. HA (Hydroxyapatite) [62]; TiNTs (titanate nanotubes) [63]; KNbS (potassium niobium sulfide) [63]; Mn–Sb (manganese-antimony composite oxide) [59]; Ti-Si (TiO2–SiO2 mixed gel spheres) [64]; KMS-1 (K2xMnxSn3-xS6 (x = 0.5−1)) [65]; KMS-2 (K2xMgxSn3−xS6(x = 0.5−1)) [66]; S/SO (Sb(III)/Sb2O5) [67]; ZrO2 (hydrous zirconium dioxide) [68]; KZTS (K1.87ZnSn1.68S5.30) [69]; NaZTS (Na5Zn3.5Sn3.5S13·6H2O) [70].
Figure 7. (a) Influence of pH and contact time on leaching rate of Sr2+ (conditions: Sr@NFPC dose = 0.4 g·L−1; temperature = 303 K); (b) reusability valuation for Sr2+ adsorption of NFPC until five adsorption–desorption cycles (conditions: NFPC dose = 0.4 g·L−1; initial Sr2+ concentration = 5 mg·L−1; temperature = 303 K; pH = 7; contact time = 120 min); (c) the values of Qe and equilibrium time at 303 K in this work are compared to those reported in the literature. HA (Hydroxyapatite) [62]; TiNTs (titanate nanotubes) [63]; KNbS (potassium niobium sulfide) [63]; Mn–Sb (manganese-antimony composite oxide) [59]; Ti-Si (TiO2–SiO2 mixed gel spheres) [64]; KMS-1 (K2xMnxSn3-xS6 (x = 0.5−1)) [65]; KMS-2 (K2xMgxSn3−xS6(x = 0.5−1)) [66]; S/SO (Sb(III)/Sb2O5) [67]; ZrO2 (hydrous zirconium dioxide) [68]; KZTS (K1.87ZnSn1.68S5.30) [69]; NaZTS (Na5Zn3.5Sn3.5S13·6H2O) [70].
Molecules 29 02908 g007
Molecules 29 02908 g008
Figure 8. FTIR (a) and XPS spectra of NFPC and Sr@NFPC: (b) overall spectrum; (c) O 1s; (d) Na 1s; (e) Sr 3d3/2 and Sr 3d5/2.
Figure 8. FTIR (a) and XPS spectra of NFPC and Sr@NFPC: (b) overall spectrum; (c) O 1s; (d) Na 1s; (e) Sr 3d3/2 and Sr 3d5/2.
Molecules 29 02908 g008
Molecules 29 02908 g009
Figure 9. The side view (a) and top view (b) of the DFT-calculated configuration of NFPC and Sr2+ on NFPC (100) surface.
Figure 9. The side view (a) and top view (b) of the DFT-calculated configuration of NFPC and Sr2+ on NFPC (100) surface.
Molecules 29 02908 g009
Molecules 29 02908 g010
Figure 10. (a) PDOS of O and Sr atom before (dotted line) and after (solid line) Sr2+ adsorption on NFPC (100) surface; (b) the charge density differences and Bader charge transfer of Sr2+ adsorption on NFPC (100) surface. Yellow indicates electron accumulation, and light blue indicates depletion.
Figure 10. (a) PDOS of O and Sr atom before (dotted line) and after (solid line) Sr2+ adsorption on NFPC (100) surface; (b) the charge density differences and Bader charge transfer of Sr2+ adsorption on NFPC (100) surface. Yellow indicates electron accumulation, and light blue indicates depletion.
Molecules 29 02908 g010
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Xie, Y.; Wang, X.; Men, J.; Zhu, M.; Liang, C.; Ding, H.; Du, Z.; Bao, P.; Hu, Z. Selective Adsorption of Sr(II) from Aqueous Solution by Na3FePO4CO3: Experimental and DFT Studies. Molecules 2024, 29, 2908. https://doi.org/10.3390/molecules29122908

AMA Style

Xie Y, Wang X, Men J, Zhu M, Liang C, Ding H, Du Z, Bao P, Hu Z. Selective Adsorption of Sr(II) from Aqueous Solution by Na3FePO4CO3: Experimental and DFT Studies. Molecules. 2024; 29(12):2908. https://doi.org/10.3390/molecules29122908

Chicago/Turabian Style

Xie, Yudong, Xiaowei Wang, Jinfeng Men, Min Zhu, Chengqiang Liang, Hao Ding, Zhihui Du, Ping Bao, and Zhilin Hu. 2024. "Selective Adsorption of Sr(II) from Aqueous Solution by Na3FePO4CO3: Experimental and DFT Studies" Molecules 29, no. 12: 2908. https://doi.org/10.3390/molecules29122908

APA Style

Xie, Y., Wang, X., Men, J., Zhu, M., Liang, C., Ding, H., Du, Z., Bao, P., & Hu, Z. (2024). Selective Adsorption of Sr(II) from Aqueous Solution by Na3FePO4CO3: Experimental and DFT Studies. Molecules, 29(12), 2908. https://doi.org/10.3390/molecules29122908

Article Metrics

Back to TopTop
