Article

Qualitative and Quantitative Detection of Typical Reproductive Hormones in Dairy Cows Based on Terahertz Spectroscopy and Metamaterial Technology

1
Intelligent Equipment Research Center, Beijing Academy of Agriculture and Forestry Sciences, Beijing 100097, China
2
College of Agricultural Engineering, Shanxi Agricultural University, Taigu 030801, China
*
Author to whom correspondence should be addressed.
Molecules 2024, 29(10), 2366; https://doi.org/10.3390/molecules29102366
Submission received: 6 April 2024 / Revised: 24 April 2024 / Accepted: 14 May 2024 / Published: 17 May 2024

Abstract

:
Progesterone (PROG) and estrone (E1) are typical reproductive hormones in dairy cows. Assessing the levels of these hormones in vivo can aid in estrus identification. In the present work, the feasibility of the qualitative and quantitative detection of PROG and E1 using terahertz time-domain spectroscopy (THz-TDS) and metamaterial technology was preliminarily investigated. First, the time domain spectra, frequency domain spectra, and absorption coefficients of PROG and E1 samples were collected and analyzed. A vibration analysis was conducted using density functional theory (DFT). Subsequently, a double-ring (DR) metamaterial structure was designed and simulated using the frequency domain solution algorithm in CST Studio Suite (CST) software. This aimed to ensure that the double resonance peaks of DR were similar to the absorption peaks of PROG and E1. Finally, the response of DR to different concentrations of PROG/E1 was analyzed and quantitatively modeled. The results show that a qualitative analysis can be conducted by comparing the corresponding DR resonance peak changes in PROG and E1 samples at various concentrations. The best R2 for the PROG quantitative model was 0.9872, while for E1, it was 0.9828. This indicates that terahertz spectral–metamaterial technology for the qualitative and quantitative detection of the typical reproductive hormones PROG and E1 in dairy cows is feasible and worthy of in-depth exploration. This study provides a reference for the identification of dairy cow estrus.

1. Introduction

Estrus identification is crucial for breeding management in dairy farms as it directly affects the calving interval, reproductive ability, and milk production. Timely and accurate estrus identification holds significant importance for dairy farming [1]. Currently, estrus identification relies on manual detection, which includes a vaginal examination and tail wax coating. However, these methods are typically labor-intensive, subjective, and inefficient [2]. During the estrus stage, cows generally exhibit changes in their physiological and behavioral characteristics, such as temperature fluctuations [3,4], increased movement [5,6], and mounting behavior [7]. Researchers have developed a variety of wearable devices based on these characteristics and have implemented them in small-scale applications. However, these devices still have shortcomings, such as their susceptibility to damage and detachment, alongside the distress caused to the animals wearing them. Previous studies have shown that the physiological process of estrus in dairy cows is regulated by hormones in the hypothalamus, anterior pituitary, ovaries, and uterus (Figure 1) [8]. Therefore, methods for estrus identification based on changes in typical reproductive hormone levels in the body are worth exploring.
Hormones are bioactive substances secreted directly into the bloodstream by the endocrine organs or tissues of humans and animals. The coordinated actions of multiple hormones are necessary to maintain the body’s metabolism and functions. Reproductive hormones play an important role in the development, function, and regulation of the reproductive system. Researchers have conducted quantitative studies on reproductive hormones based on ELISA [9], gas chromatography [10], and high-performance liquid chromatography [11]. Although these methodologies are efficacious, they come with significant constraints, including time-intensive and costly procedures, and the requirements of skilled personnel and strict adherence to experimental conditions. Therefore, there is a need for the development of a rapid and accurate method for detecting typical reproductive hormones.
Spectral analysis technology has been widely used in hormone detection and research because of its low detection cost, nondestructive properties, and speed [12,13,14,15]. As compared with other spectra, the terahertz (THz) spectrum is non-ionizing, has high penetrability, and can provide intermolecular information on the vibrational activities of molecules. It can detect weak intermolecular interactions such as hydrogen bonds and van der Waals forces. Since the vibration frequency of hormone molecules falls within the terahertz band, terahertz spectroscopy can be utilized for their qualitative and quantitative analysis. Combined with terahertz spectroscopy, metamaterial technology, a signal enhancement technology, has recently emerged as a method for qualitative and quantitative detection [16,17,18,19]. Uro et al. [20] studied the terahertz absorption characteristics of melatonin in the 1.5 THz to 4.5 THz range, identifying strong absorption peaks at 3.21 THz and weak absorption peaks at 4.20 THz. They explained the formation of absorption peaks based on DFT. Shen [21] studied the vibration characteristics of melatonin, obtained its spectrum at 0.518 THz, and calculated and analyzed its vibration characteristics. Shen found that low-frequency vibration mainly arose from intermolecular and intramolecular vibration coupling, while high-frequency vibration originated from intramolecular vibration. Zhu [22] studied the absorption characteristics of dopamine in the terahertz band, discovering multiple absorption peaks in the range of 0.5 to 18 THz, and identified and analyzed its vibration modes based on DFT. Yeon [23] studied the terahertz spectral characteristics of stable and metastable progesterone polycrystalline structures and was able to distinguish between different states of progesterone. However, the aforementioned studies solely utilized terahertz spectroscopy for qualitative research on these hormones, indicating a gap in quantitative analysis modeling research combined with hormone terahertz fingerprint spectra.
Inefficient estrus detection causes low pregnancy rates, resulting in economic losses and the deterioration of fertility performance [24]. The physiological characteristics of cow estrus, namely the typical bovine reproductive hormones PROG and E1, were chosen as the research objects in this study, with the aim of reducing these issues. Terahertz spectral–metamaterial technology was explored as a method for the qualitative and quantitative detection of PROG and E1, aiming to provide a new reference method for cow estrus identification.

2. Materials and Methods

2.1. Sample Preparation

In this study, progesterone (PROG, purity > 98%, CAS 57-83-0) and estrone (E1, purity > 98%, CAS 56-17-3) were purchased from Shanghai Yuanye Biotechnology Co., LTD, Shanghai, China, and anhydrous ethanol (Analytical Reagent, 99.7%) was purchased from Shanghai Yien Chemical Technology Co., LTD, Shanghai, China. Neither the reagents nor the solutions underwent additional purification prior to usage.
Three pressed tablets were prepared for both PROG and E1 for terahertz absorption characterization. The tablet sample preparation process was as follows: Initially, 100 mg each of PROG/E1 and polyethylene powders were weighed using an electronic balance and then thoroughly mixed after grinding. Next, the powder was poured into a tablet grinding tool, with attention paid to preventing powder spillage, and pressure was applied to the tablets for 5 min at 5 t to ensure a smooth surface. Finally, the tablets were removed, and their thickness was measured using digital calipers.
The test solution was prepared as follows: Initially, 80 mg of PROG/E1 powder was weighed using an electronic balance. An amount of 2 mL of ethanol solution was measured with a measuring cylinder. The sample powder and ethanol solution were transferred to a beaker and stirred thoroughly to prepare the test solution at a concentration of 40 mg/mL. Next, 1 mL of the 40 mg/mL solution was transferred into a test tube, and 1 mL of ethanol was added to adjust the concentration to 20 mg/mL. Finally, the solution was prepared with a gradient of concentrations, namely 5, 10, 20, and 40 mg/mL.

2.2. Metamaterial Structure Design

Metamaterials are artificial materials distinguished by their distinctive electromagnetic properties, stemming from a structure comprising regularly spaced subwavelength elements [25,26]. Notably, metamaterials exhibit significant field enhancement effects, thereby facilitating the detection of extremely low concentrations of both chemical and biological substances. Here, the design and simulation of metamaterial structures were carried out based on the frequency domain solution algorithm in CST. The metamaterial structure was a double-ring structure, consisting of a double-ring metal array periodically arranged on a quartz substrate, as shown in Figure 2a. The metal was gold, with a thickness of 0.2 μm. The thickness of the quartz was set to 10 μm to avoid the effect of echoes in the simulation. The actual thickness was 500 μm, and the period was P = 100 μm. The metamaterial structure was designed using CST Studio Suite software and simulated in the frequency range of 0 to 1.5 THz.

2.3. THz-TDS Measurements

The THz-TDS system used in this study, produced by Menlo, Martinsried, Germany (Figure 3), pumps a laser with a wavelength of 1560 nm, a repetition frequency of 100 MHz, a measurement range of 0.1–2.5 THz, and a spectral resolution of less than 1.2 GHz [27,28].
The system is located in an airtight enclosure. In order to avoid the influence of water vapor during the measurement process, the ambient temperature is maintained at around 25 °C; dry air is continuously circulated to keep the ambient humidity below 7%. As the terahertz pulse is repeatedly reflected at the sample–air interface, an echo is generated in the terahertz time-domain spectrum. By selecting the window before the echo arrives as the effective time-domain waveform and setting all the terahertz pulses after this window to 0, and then using the Fourier transform to convert the time-domain signal into a frequency-domain signal, the calculation formula is as follows:
E ~ ( ω ) = A ( ω ) e i ϕ ( ω ) = d t E ( t ) e i ω t
The absorption coefficients of the samples to be tested are as follows:
n ( ω ) = c φ ( ω ) d ω + 1
α ( ω ) = d 2 l n 4 n ( ω ) A ( ω ) ( n ω + 1 ) 2 + 1
The transmission coefficient is obtained by comparing the sample spectra with the reference signal spectra using the following formula:
T ( ω ) = A s / A r
where ϕ ( ω ) denotes the phase of the electric field, A ( ω ) denotes the amplitude of the electric field, E ( t ) denotes the electric field, d denotes the thickness of the sample, c denotes the speed of light in a vacuum, ω denotes angular frequency, A s denotes the amplitude of the sample frequency-domain signal, and A r   denotes the amplitude of the reference frequency-domain signal.
The spectra of the tablet samples were collected by placing the pressed samples in the sample holder, placing them in the terahertz optical path to collect their time-domain spectral signals, and then calculating their absorption coefficients according to Equations (1)–(3). The spectra of the test solution were collected by extracting 5 μL of the solution from the surface of the metamaterials using a pipette gun and then drying it in a dryer until the ethanol solution evaporated completely. At this time, the surface of the metamaterials was covered with a layer of PROG/E1 film. The time-domain spectral signals were collected, and the transmittance spectra were calculated according to Equations (1) and (4).
The experimental flow chart is shown in Figure 4. Initially, the terahertz spectra of PROG and E1 were collected and analyzed; they were then compared with the results of DFT, and their vibration modes were identified. Next, the metamaterial structure was designed by combining the terahertz fingerprint spectra of PROG and E1. Subsequently, numerical simulations and real-world machining tests were conducted. Finally, a concentration gradient PROG–ethanol solution and E1–ethanol solution was prepared. Then, the terahertz metamaterial was employed for detection, and the responses of PROG and E1 to the resonant peak were qualitatively and quantitatively analyzed.

3. Results

3.1. THz Spectroscopy and DFT Analysis of Samples

3.1.1. Terahertz Spectral Measurements of the Samples

The THz spectrum of air was used as the reference signal, and the THz spectra of PROG and E1 were used as the sample signals. Due to the effect of instrumental noise, the frequency bands with the highest signal-to-noise ratios were selected for analysis. Figure 5a,b show the terahertz time-domain spectra and frequency-domain spectra of dry air and of the samples, respectively. It can be seen that the sample signal shows a time delay of about 2~3 ps compared with the reference signal. This is due to the different propagation speeds of terahertz waves in the air and in the samples. The amplitude of the sample signal shows different degrees of attenuation compared to that of the reference signal, which is due to the absorption, reflection, and scattering of the samples.
After converting the time-domain signals to frequency-domain signals and smoothing them, the sample signals all showed an attenuation in intensity compared with the reference signals. The frequency-domain signals of PROG were weaker than those of estrone, indicating that the absorption of terahertz waves by PROG was stronger than that by E1. The absorption characteristics of PROG and E1 are depicted in Figure 5c. PROG displays weak absorption peaks at 0.86 THz and 0.97 THz, accompanied by a prominent absorption peak at 1.23 THz. Conversely, E1 exhibits a weak absorption peak at 1.05 THz and a strong absorption peak at 1.43 THz.

3.1.2. Comparative Analysis of DFT Calculation and Experimental Results of PROG and E1

To obtain the molecular vibrational modes corresponding to the absorption peaks of PROG and E1, geometrical configuration optimization and theoretical vibrational frequency calculations of PROG and E1 molecules were carried out using density functional theory (DFT) regarding the B3LYP hybridization flooding, combined with the 6-311G basis group, ensuring that no imaginary frequencies appeared during the calculations. Figure 6a shows the calculated and experimental results for PROG; calculated absorption peaks can be seen at 1.02 THz and 1.24 THz, and experimental peaks appear at 0.86 THz, 0.97 THz, and 1.23 THz. Figure 6b shows the calculated and experimental results for E1; the calculated absorption peak can be seen at 0.98 THz, and experimental peaks are located at 1.05 THz and 1.43 THz.
Comparing the theoretical calculations and experimental results, it is evident that some absorption peaks, such as the absorption peaks at 0.86 THz for PROG and 1.43 THz for E1, are not reflected in the theoretical calculations. This discrepancy may be related to the isolated single-molecule model used in the calculations, which only considered intramolecular vibration modes and did not take into account intermolecular interactions, the crystal field effect, and crystal resonance [29]. Furthermore, there is a deviation between the theoretical calculations and experimental results. An absorption peak at 1.24 THz was obtained using PROG calculations, while the experiments yielded 1.23 THz. The difference in temperature may have caused this phenomenon, as the measurements were taken at ambient temperature, while the theoretical calculations were based on a temperature of 0 K. Thermal expansion and contraction may have led to a change in bond lengths, resulting in a frequency shift [30].

3.1.3. Vibration Mode Analysis and Absorption Peak Identification

Figure 7 depicts the molecular vibrational modes of the PROG absorption peaks at 1.02 THz and 1.24 THz, as well as of the E1 absorption peak at 0.98 THz. The PROG absorption peak at 1.02 THz is mainly due to the wobbling vibrations of the 5C-6C-1C-2C-3C and 12C-13C-14C-15C-16C atoms, hydrogen atoms, oxygen atoms, and the 48CH3 methyl group. The absorption peak at 1.24 THz originates from the overall torsional vibration of the 5C-6C-1C-2C-3C and 12C-13C-14C-15C-16C atom groups, the torsional vibration of the external hydrogen atoms, the carboxylate group, and the overall torsional vibration of the methyl group. The absorption peak at 0.98 THz for E1 mainly originates from the overall rocking vibrations of the atomic groups 6C-1C-2C-3C and 14C-15C-16C and the outer band of hydrogen atoms, as well as the overall rocking vibration of the 35CH3 methyl group.

3.2. Simulation and Verification of Metamaterials

The metamaterial simulation was carried out using the frequency domain solver in CST software. The terahertz wave was vertically incident on the surface of the structure along the Z-axis direction in the simulation, with the X and Y directions set as the periodic boundary conditions and the Z direction set as the open boundary condition. Figure 8a shows a comparison between the DR transmission curve simulation and the actual test results. It can be seen that the two trends are consistent, but there are small differences between the position and intensity of the resonance peaks, which may be related to the processing accuracy. In addition, there are two DR resonance peaks with frequencies of 0.819 THz and 1.394 THz, which are similar to the absorption peaks of 0.86 THz and 1.43 THz for PROG and E1, respectively.
In order to investigate the DR’s ability to detect substances, its response to substances with different refractive indices was simulated, and the results are shown in Figure 8b,c. The two resonance peaks show a good linear relationship between frequency and intensity with concentration changes. In addition, in order to illustrate the physical mechanism of DR resonance, the electric field and current distribution of DR at the resonance peaks are shown in Figure 8d–g. It can be seen that the resonance mode at the DR resonance peaks is dipole resonance. Therefore, the feasibility of PROG and E1 detection using DR was demonstrated by this simulation.

3.3. Measurement and Analysis of PROG and E1 THz Spectra

3.3.1. Measurement of PROG and E1 THz Spectra

Samples of the test solutions were examined using the terahertz–metamaterials technique. The transmission spectra of blank metamaterials and of the four concentrations of PROG and E1 solutions (5 mg/mL, 10 mg/mL, 20 mg/mL, and 40 mg/mL) are represented in Figure 9a–c and Figure 9d–f, respectively; each curve represents the average of three measurements.
Regarding PROG detection, it can be seen from Figure 9a that the resonance peaks at 0.819 THz and 1.394 THz both underwent significant changes. The resonance peak at 0.819 THz shows a significant redshift phenomenon with an increase in PROG concentration; there is a redshift from 0.819 THz to 0.744 THz, with a decrease of 0.0792 in transmittance intensity (Figure 9b). The resonance peak at 1.394 THz increases with PROG concentration and has no frequency shift, and transmission intensity decreases by 0.1136 (Figure 9c). As for E1 detection, as shown in Figure 9d, the two resonance peaks show almost no frequency shift, but the transmission intensity changes; the transmission intensity of the resonance peaks at 0.819 THz and 1.394 THz decreases by 0.028 (Figure 9e) and 0.0983 (Figure 9f), respectively.
By analyzing the PROG and E1 transmittance spectra of the metamaterials, it was found that changes in their concentrations are reflected in the frequency shifts and transmitted intensity changes in the resonance peaks, which provide a theoretical basis for qualitative and quantitative analysis. There are two main reasons for the resonance peak frequency shift and intensity change. Firstly, with an increase in sample concentration, the film on the surface of the metamaterial thickens, and the absorption of the terahertz wave becomes stronger. This leads to a reduction in the transmitted terahertz wave, which is manifested as a reduction in resonance peak intensity. In metamaterials, resonance peak frequency shifts are usually caused by changes in the effective refractive index of the surrounding materials. When PROG and E1 cover the surface of the metamaterial, the effective refractive index changes, leading to a frequency shift in the resonance peak. In addition, the frequency shift of the resonance peak at 1.394 THz is not obvious in this study, which may be due to the sample concentration not being high enough to change the effective refractive index and thus failing to cause a resonance peak frequency shift in the metamaterial [31].

3.3.2. Qualitative Analysis of PROG and E1

The analysis above suggests that the alterations in the resonance peak at 0.819 THz are particularly pronounced in metamaterials. This result was therefore utilized for qualitative assessment. The discrepancy between the absorption peak of PROG at 0.86 THz and the resonance peak at 0.819 THz is 41 GHz, while the difference between the absorption peak of E1 at 1.05 THz and the resonance peak is 231 GHz (Figure 10a). This indicates that the absorption peak frequency of PROG is closer to the resonance peak frequency of the metamaterial. Figure 10b,c show that PROG exhibits a greater frequency shift and intensity variation compared to E1. Consequently, focusing solely on the variation in the resonance peak at 0.819 THz is sufficient. The substance that exhibits a larger frequency shift and intensity variation also has the closest absorption peak to the resonance peak of the metamaterials, thus facilitating the preliminary qualitative analysis of PROG and E1.

3.3.3. Quantitative Analysis of PROG and E1

The response of the metamaterial resonance peaks to the different concentrations of PROG is summarized in Table 1. It is evident that both the frequency and intensity of the resonance peaks fluctuate with the concentration of PROG; therefore, a quantitative modeling study was undertaken.
Figure 11a,b show the results of quantitative modeling between the frequency shift and intensity change of the metamaterial resonant peak at 0.819 THz and PROG concentration. The linear regression equation for the frequency shift is Y = 1.87X + 2.15, with R2 = 0.9872, and the linear regression equation for the intensity change is Y = 0.00182X + 0.00627, with R2 = 0.9183. Figure 11c shows the relationship between the intensity of the resonance peak at 1.394 THz and the concentration of PROG, with a linear regression equation of Y = 0.00285X + 0.00875 and R2 = 0.9105. It can thus be seen that the quantitative detection of PROG was achieved using the variation in the resonance peak at 0.819 THz and the 1.394 THz model, and each R2 was above 0.90.
Table 2 summarizes the response of the metamaterial resonance peaks to the different concentrations of E1, which primarily manifested as a decrease in the intensity of the resonance peaks as E1 concentration increases, thus suggesting the feasibility of conducting a quantitative modeling study.
Figure 12a,b show the quantitative modeling results for the variations in resonant peak intensity at 0.819 THz and 1.394 THz, respectively. Both resonance peaks show a good linear relationship with E1 concentration. The linear regression equation of the intensity change at 0.819 THz is Y = 0.000638X + 0.00473, with R2 = 0.8640. The linear regression equation of the intensity change at 1.394 THz is Y = 0.00248X + 0.00231, with R2 = 0.9828. The superior fitting degree between the intensity and concentration change at 1.394 THz is probably due to the smaller frequency offset (36 GHz) between the absorption peak at 1.43 THz and the resonant peak at 1.394 THz of E1, which is smaller than the frequency offset (161 GHz) between the absorption peak at 0.98 THz and the resonant peak at 0.819 THz of E1. The optimal E1 quantitative detection model was therefore constructed using the changes in resonant peaks at 0.819 THz and 1.394 THz, and R2 was above 0.85.
In summary, through comparing the response of the resonant peak at DR 0.819 THz to different concentrations of PROG and E1, it was observed that the response of DR to PROG is more pronounced. This may be attributed to the fact that the absorption peak of PROG at 0.86 THz is closer to the resonant peak frequency of DR. Subsequently, a quantitative PROG and E1 detection model was established. It was revealed that a linear relationship exists between the frequency shift or intensity change of DR and the concentration of PROG and E1, with an R2 value above 0.85. Additionally, an intriguing observation was made: the quantitative PROG detection model based on the resonance peak at 0.819 THz outperforms that based on 1.394 THz, while the quantitative E1 detection model based on the resonance peak at 1.394 THz surpasses that based on 0.819 THz. This could be attributed to the frequency offset between the absorption peaks of PROG and E1 and the resonant peak of DR. Employing metamaterial sensors with similar absorption peaks to the target substances may yield a more discernible response and enhance detection efficiency.
In conclusion, the qualitative and quantitative detection of hormones can preliminarily be achieved through the utilization of terahertz spectrum–metamaterial technology. In contrast to previous studies employing metamaterials [32,33], our approach involves designing the metamaterial structure according to the hormone absorption peaks, thereby achieving resonance coupling. The results demonstrate that this method can not only facilitate quantitative detection but can also enable a preliminary qualitative analysis.

4. Conclusions

In this paper, a double-ring metamaterial structure was designed for the qualitative and quantitative detection of the typical dairy cow reproductive hormones, PROG and E1. Firstly, the terahertz characteristic spectra of PROG and E1 were analyzed, and a vibration mode identification analysis was performed based on the Gaussian density functional (DFT-B3LYP) theory. Then, a metamaterial structure with double-resonant peaks was designed based on the absorption characteristics of PROG and E1, and the response of the structure to different refractive indices was confirmed. Finally, a concentration gradient of PROG/E1–ethanol solution was prepared, and the changes in the metamaterial double-resonance peaks were utilized for qualitative and quantitative analysis. The offset of the metamaterial resonance peaks and PROG and E1 absorption peaks was calculated, and a qualitative analysis was conducted by observing the frequency shifts and intensity changes in PROG and E1 samples at various concentrations. Based on the frequency shifts and intensity changes in the resonant peaks, quantitative models for PROG and E1 detection were constructed to facilitate quantitative analysis. The results show that a preliminary qualitative and quantitative detection of hormones can be achieved using terahertz spectrum–metamaterial technology, providing a new method for cow estrus identification.

Author Contributions

Conceptualization, S.L. and B.L.; methodology, writing—original draft, S.L.; writing—review and editing, J.Z., W.Z., S.L., N.J., Z.Z. and B.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Key R&D Program of China (No. 2022YFD1301103), the 2024 Beijing Academy of Agriculture and Forestry Reform and Development Project, and the Postdoctoral Science Foundation of the Beijing Academy of Agriculture and Forestry Sciences of China (No.2021-ZZ-031).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The original contributions presented in the study are included in the article, further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Han, M.; Wang, J.; Zhu, W.; Wang, M.; Peng, H. The current situation of dairy breeding on large-scale dairy farms in China. Anim. Husb. Vet. Med. 2023, 55, 124–131. [Google Scholar]
  2. Wang, Z.; Song, H.; Wang, Y.; Hua, Z.; Li, R.; Xu, X. Research Progress and Technology Trend of Intelligent Morning of Dairy Cow Motion Behavior. Smart Agric. 2022, 4, 36–52. [Google Scholar] [CrossRef]
  3. Randi, F.; McDonald, M.; Duffy, P.; Kelly, A.K.; Lonergan, P. The relationship between external auditory canal temperature and onset of estrus and ovulation in beef heifers. Theriogenology 2018, 110, 175–181. [Google Scholar] [CrossRef]
  4. Ozaki, R.; Inoue, S.; Yorozui, Y.; Ichikawa, R.; Yamada, N.; Higashi, S.; Matsuyama, S.; Tsukamura, H.; Ohkura, S.; Uenoyama, Y. Capturing temperature changes on the ocular surface along with estrus and ovulation using infrared thermography in Japanese Black cows. J. Reprod. Dev. 2024, 70, 49–54. [Google Scholar] [CrossRef] [PubMed]
  5. Tippenhauer, C.; Plenio, J.-L.; Madureira, A.; Cerri, R.; Heuwieser, W.; Borchardt, S. Factors associated with estrous expression and subsequent fertility in lactating dairy cows using automated activity monitoring. J. Dairy Sci. 2021, 104, 6267–6282. [Google Scholar] [CrossRef]
  6. Wang, J.; Zhang, Y.; Bell, M.; Liu, G. Potential of an activity index combining acceleration and location for automated estrus detection in dairy cows. Inf. Process. Agric. 2022, 9, 288–299. [Google Scholar] [CrossRef]
  7. Wang, Z.; Hua, Z.; Wen, Y.; Zhang, S.; Xu, X.; Song, H. E-YOLO: Recognition of estrus cow based on improved YOLOv8n model. Expert Syst. Appl. 2024, 238, 122212. [Google Scholar] [CrossRef]
  8. Reith, S.; Hoy, S. Behavioral signs of estrus and the potential of fully automated systems for detection of estrus in dairy cattle. Animal 2018, 12, 398–407. [Google Scholar] [CrossRef] [PubMed]
  9. Wu, D.; Wang, C.-J.; Simujide, H.; Liu, B.; Chen, Z.; Zhao, P.; Huangfu, M.; Liu, J.; Gao, X.; Wu, Y.; et al. Reproductive Hormones Mediate Intestinal Microbiota Shifts during Estrus Synchronization in Grazing Simmental Cows. Animals 2022, 12, 1715. [Google Scholar] [CrossRef]
  10. Socas-Rodríguez, B.; Asensio-Ramos, M.; Hernández-Borges, J.; Herrera-Herrera, A.V.; Rodríguez-Delgado, M.Á. Chromatographic analysis of natural and synthetic estrogens in milk and dairy products. TrAC Trends Anal. Chem. 2013, 44, 58–77. [Google Scholar] [CrossRef]
  11. Wei, L.; Yan, Y.; Deng, J.; Ma, Y.; Wang, Y.; Wu, X.; Kang, X. Determination of estrogens in milk using polypyrrole fiber-mediated solid-phase extraction followed by high performance liquid chromatography. J. Braz. Chem. Soc. 2018, 29, 2137–2143. [Google Scholar] [CrossRef]
  12. Yang, Y.; Krin, A.; Cai, X.; Poopari, M.R.; Zhang, Y.; Cheeseman, J.R.; Xu, Y. Conformations of steroid hormones: Infrared and vibrational circular dichroism spectroscopy. Molecules 2023, 28, 771. [Google Scholar] [CrossRef]
  13. Kim, S.-B.; Nishihara, R.; Paulmurugan, R. Near-Infrared Imaging of Steroid Hormone Activities Using Bright BRET Templates. Int. J. Mol. Sci. 2022, 24, 677. [Google Scholar] [CrossRef]
  14. Ondieki, A.M.; Birech, Z.; Kaduki, K.A.; Mwangi, P.W.; Juma, M.; Chege, B.M. Label-free assaying of testosterone and growth hormones in blood using surface-enhanced Raman spectroscopy. Vib. Spectrosc. 2023, 129, 103605. [Google Scholar] [CrossRef]
  15. Ondieki, A.M.; Birech, Z.; Kaduki, K.A.; Kaingu, C.K.; Ndeke, A.N.; Namanya, L. Biomarker Raman bands of estradiol, follicle-stimulating, luteinizing, and progesterone hormones in blood. Vib. Spectrosc. 2022, 122, 103425. [Google Scholar] [CrossRef]
  16. Bi, H.; You, R.; Bian, X.; Zhao, X.; You, Z. A magnetic control enrichment technique combined with terahertz metamaterial biosensor for detecting SARS-CoV-2 spike protein. Biosens. Bioelectron. 2024, 243, 115763. [Google Scholar] [CrossRef] [PubMed]
  17. Yang, J.; Qi, L.; Li, B.; Wu, L.; Shi, D.; Uqaili, J.A.; Tao, X. A terahertz metamaterial sensor used for distinguishing glucose concentration. Results Phys. 2021, 26, 104332. [Google Scholar] [CrossRef]
  18. Hu, J.; Zhan, C.; Wang, Q.; Shi, H.; He, Y.; Ouyang, A. Research on highly sensitive quantitative detection of aflatoxin b2 solution based on thz metamaterial enhancement. Spectrochim. Acta Part A: Mol. Biomol. Spectrosc. 2023, 300, 122809. [Google Scholar] [CrossRef]
  19. Shen, Y.; Li, X.; Wang, J.; Liu, H.; Jing, J.; Deng, X.; Wei, D. Low-concentration biological sample detection using an asymmetric split resonator terahertz metamaterial. In Proceedings of the Photonics; 2023; p. 111. [Google Scholar]
  20. Puc, U.; Abina, A.; Jeglič, A.; Zidanšek, A.; Kašalynas, I.; Venckevičius, R.; Valušis, G. Spectroscopic analysis of melatonin in the terahertz frequency range. Sensors 2018, 18, 4098. [Google Scholar] [CrossRef]
  21. Shen, J.; Zhu, Z.; Zhang, Z.; Guo, C.; Zhang, J.; Ren, G.; Chen, L.; Li, S.; Zhao, H. Ultra-broadband terahertz fingerprint spectrum of melatonin with vibrational mode analysis. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2021, 247, 119141. [Google Scholar] [CrossRef]
  22. Zhu, Z.; Zhang, J.; Song, Y.; Chang, C.; Ren, G.; Shen, J.; Zhang, Z.; Ji, T.; Chen, M.; Zhao, H. Broadband terahertz signatures and vibrations of dopamine. Analyst 2020, 145, 6006–6013. [Google Scholar] [CrossRef]
  23. Son, Y.J.; Lee, D.-K.; Son, J.-H. Identification of interpolymorph transformations of progesterone by terahertz time-domain spectroscopy. Curr. Appl. Phys. 2016, 16, 45–50. [Google Scholar] [CrossRef]
  24. Diskin, M.G.; Sreenan, J.M. Expression and detection of oestrus in cattle. Reprod. Nutr. Dev. 2000, 40, 481–491. [Google Scholar] [CrossRef] [PubMed]
  25. Tian, H.; Huang, G.; Xie, F.; Fu, W.; Yang, X. THz biosensing applications for clinical laboratories: Bottlenecks and strategies. TrAC Trends Anal. Chem. 2023, 163, 117057. [Google Scholar] [CrossRef]
  26. Wang, H.; Zheng, F.; Xu, Y.; Mauk, M.G.; Qiu, X.; Tian, Z.; Zhang, L. Recent progress in terahertz biosensors based on artificial electromagnetic subwavelength structure. TrAC Trends Anal. Chem. 2023, 158, 116888. [Google Scholar] [CrossRef]
  27. Bai, J.; Ni, Y.; Li, B.; Wang, H.; Zhu, J.; Dong, C. Quantitative analysis of FQs antibiotics content in FMF using THz spectral and imaging technology. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2022, 264, 120284. [Google Scholar] [CrossRef]
  28. Li, D.; Yang, Z.; Fu, A.; Chen, T.; Chen, L.; Tang, M.; Zhang, H.; Mu, N.; Wang, S.; Liang, G.; et al. Detecting melanoma with a terahertz spectroscopy imaging technique. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2020, 234, 118229. [Google Scholar] [CrossRef] [PubMed]
  29. Wang, F.; Sun, X.; Zan, J.; Li, M.; Liu, Y.; Chen, J. Terahertz spectra and weak intermolecular interactions of nucleosides or nucleoside drugs. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2022, 265, 120344. [Google Scholar] [CrossRef] [PubMed]
  30. Pan, T.; Li, S.; Zou, T.; Yu, Z.; Zhang, B.; Wang, C.; Zhang, J.; He, M.; Zhao, H. Terahertz spectra of L-phenylalanine and its monohydrate. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2017, 178, 19–23. [Google Scholar] [CrossRef]
  31. Lee, S.-H.; Lee, D.; Choi, M.H.; Son, J.-H.; Seo, M. Highly sensitive and selective detection of steroid hormones using terahertz molecule-specific sensors. Anal. Chem. 2019, 91, 6844–6849. [Google Scholar] [CrossRef]
  32. Tantiwanichapan, K.; Durmaz, H. Herbicide/pesticide sensing with metamaterial absorber in THz regime. Sens. Actuators A Phys. 2021, 331, 112960. [Google Scholar] [CrossRef]
  33. Liang, W.; Zuo, J.; Zhou, Q.; Zhang, C. Quantitative determination of glycerol concentration in aqueous glycerol solutions by metamaterial-based terahertz spectroscopy. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2022, 270, 120812. [Google Scholar] [CrossRef] [PubMed]

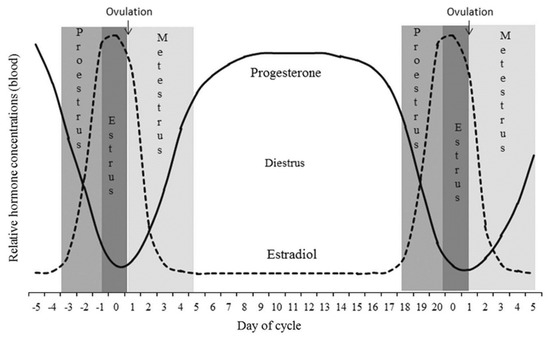

Figure 1. Changes in reproductive hormone content during the estrus cycle in cows.
Figure 1. Changes in reproductive hormone content during the estrus cycle in cows.
Molecules 29 02366 g001

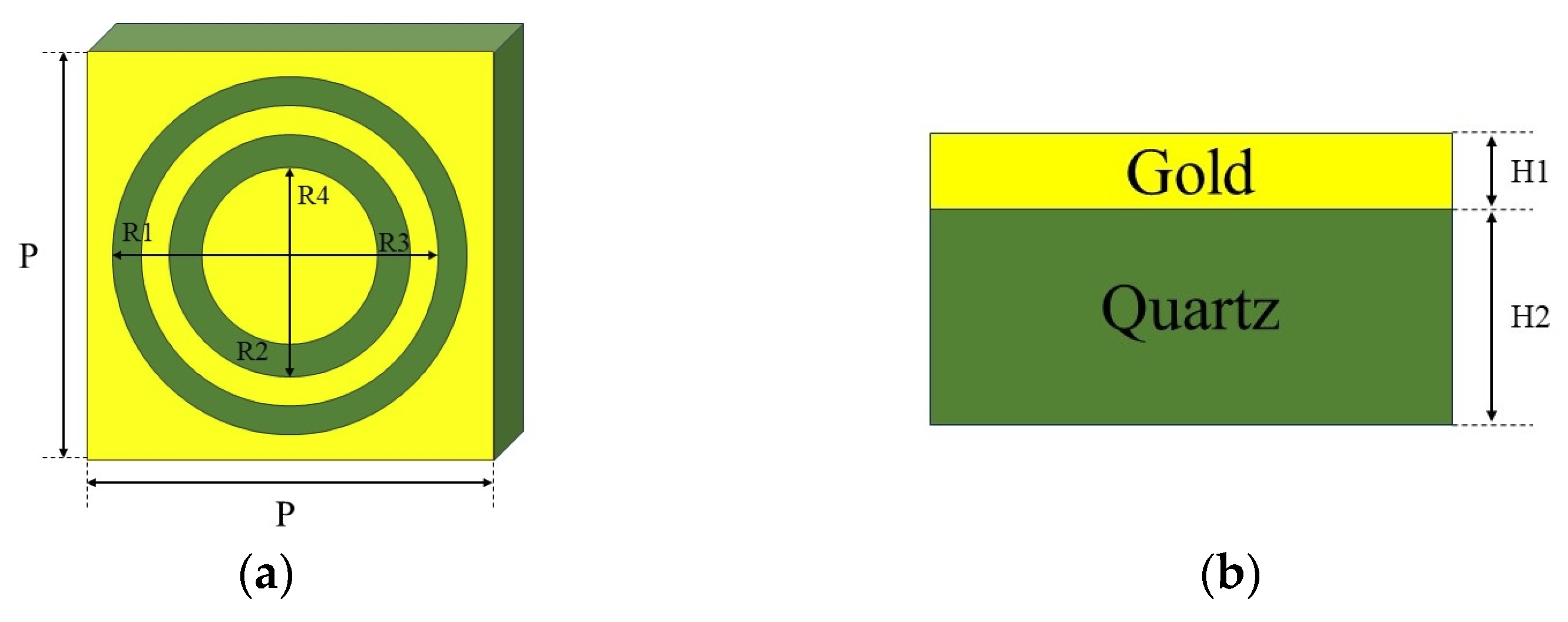

Figure 2. Metamaterial structure diagram: (a) double-ring structure and (b) thickness.
Figure 2. Metamaterial structure diagram: (a) double-ring structure and (b) thickness.
Molecules 29 02366 g002

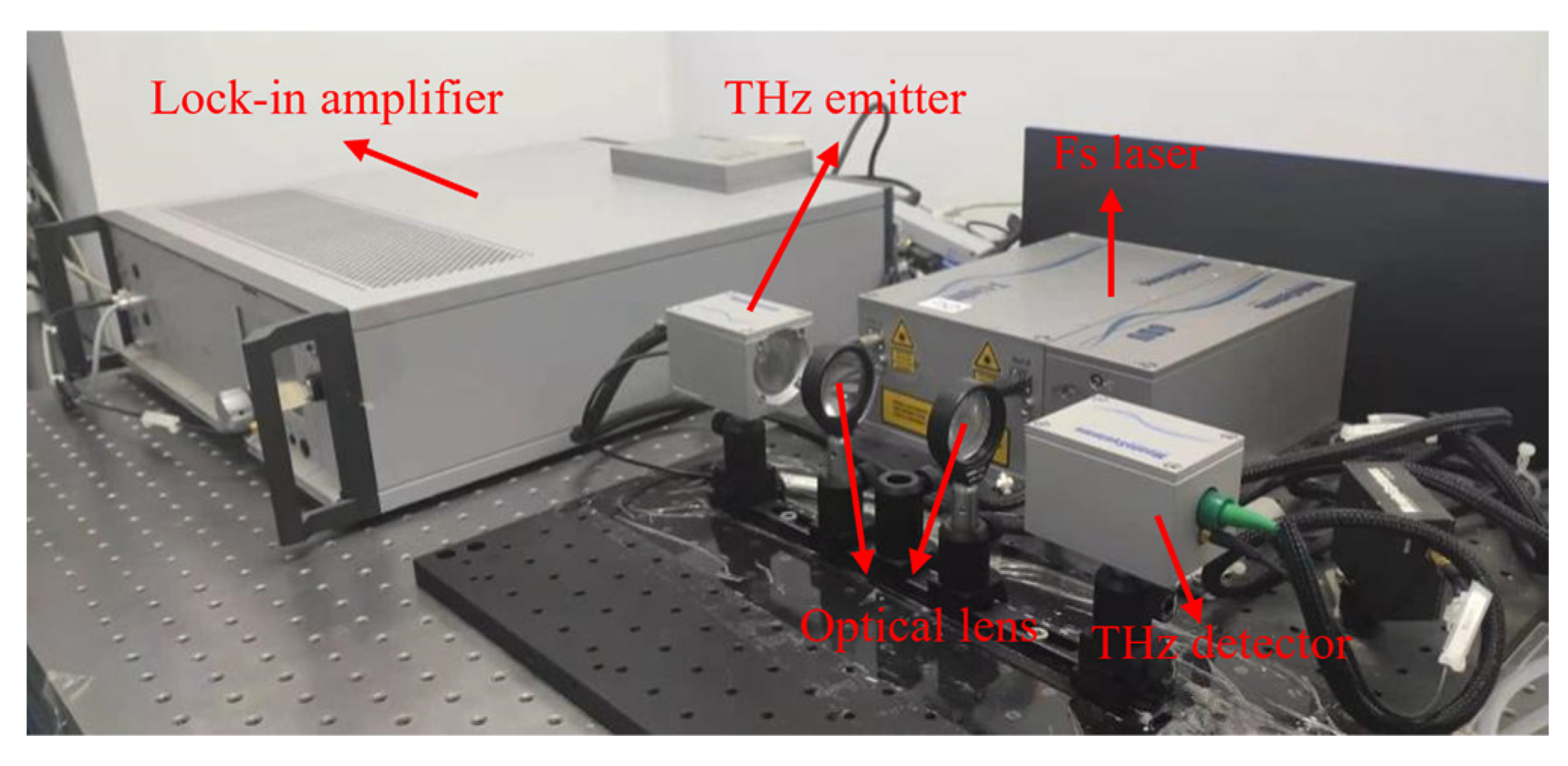

Figure 3. Diagram of the THz-TDS system.
Figure 3. Diagram of the THz-TDS system.
Molecules 29 02366 g003

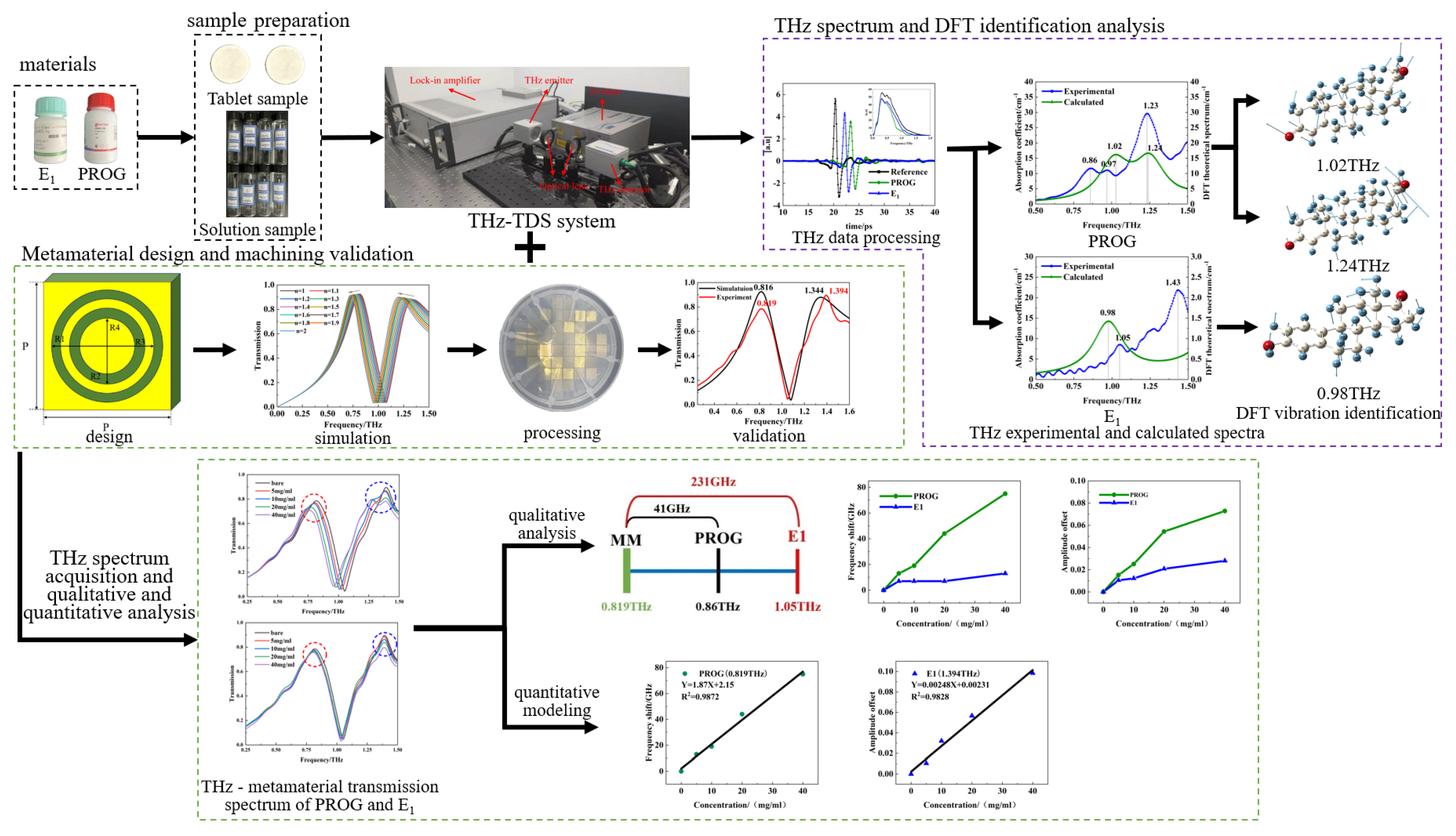

Figure 4. Flow chart of research.
Figure 4. Flow chart of research.
Molecules 29 02366 g004

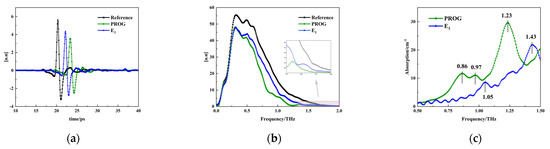

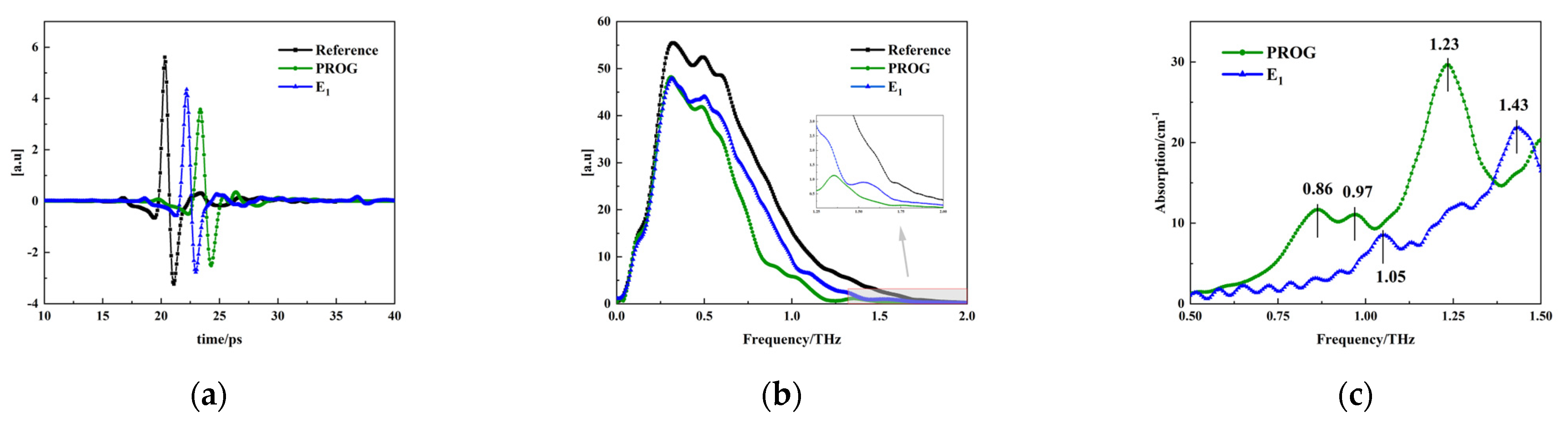

Figure 5. Terahertz spectral information: (a) time domain, (b) frequency domain, and (c) absorption coefficient.
Figure 5. Terahertz spectral information: (a) time domain, (b) frequency domain, and (c) absorption coefficient.
Molecules 29 02366 g005

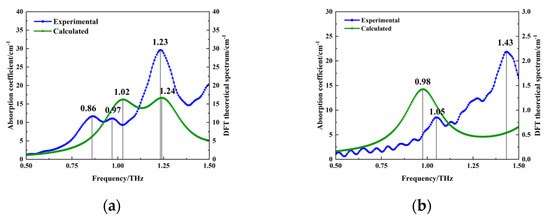

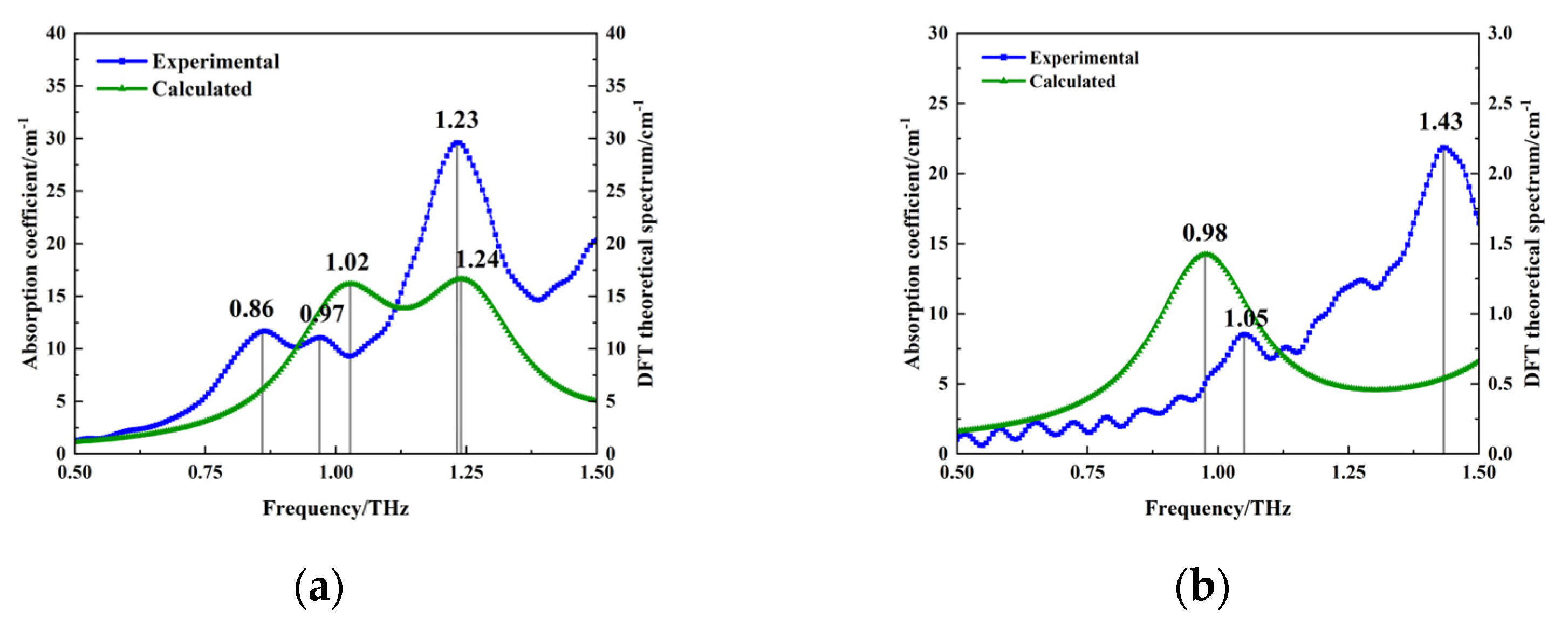

Figure 6. Comparison of experimental and calculated results: (a) PROG and (b) E1.
Figure 6. Comparison of experimental and calculated results: (a) PROG and (b) E1.
Molecules 29 02366 g006

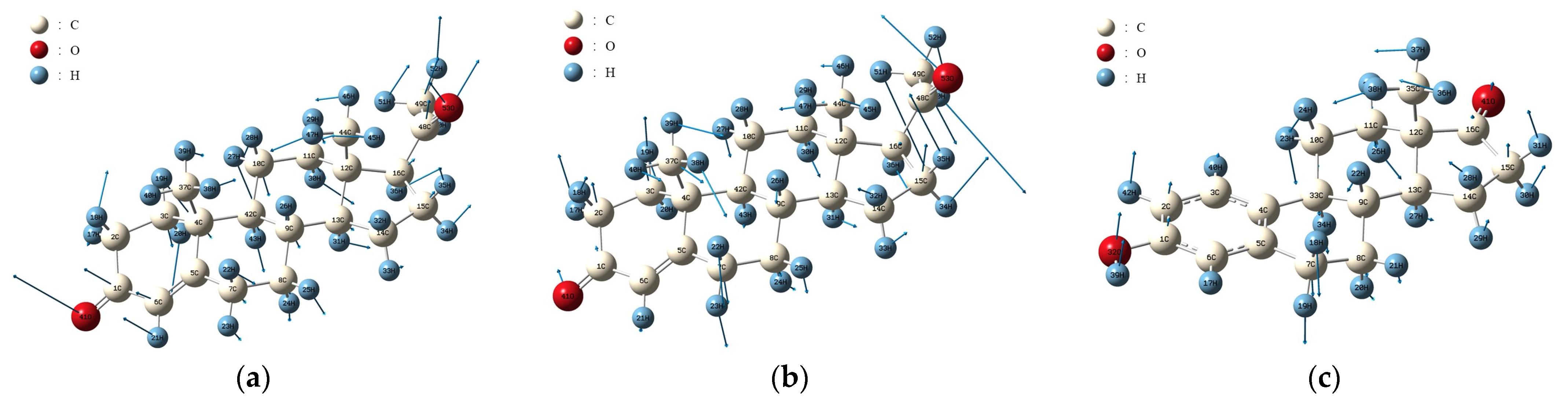

Figure 7. Vibration identification of (a) PROG at 1.02 THz and (b) 1.24 THz; (c) E1 at 0.98 THz.
Figure 7. Vibration identification of (a) PROG at 1.02 THz and (b) 1.24 THz; (c) E1 at 0.98 THz.
Molecules 29 02366 g007

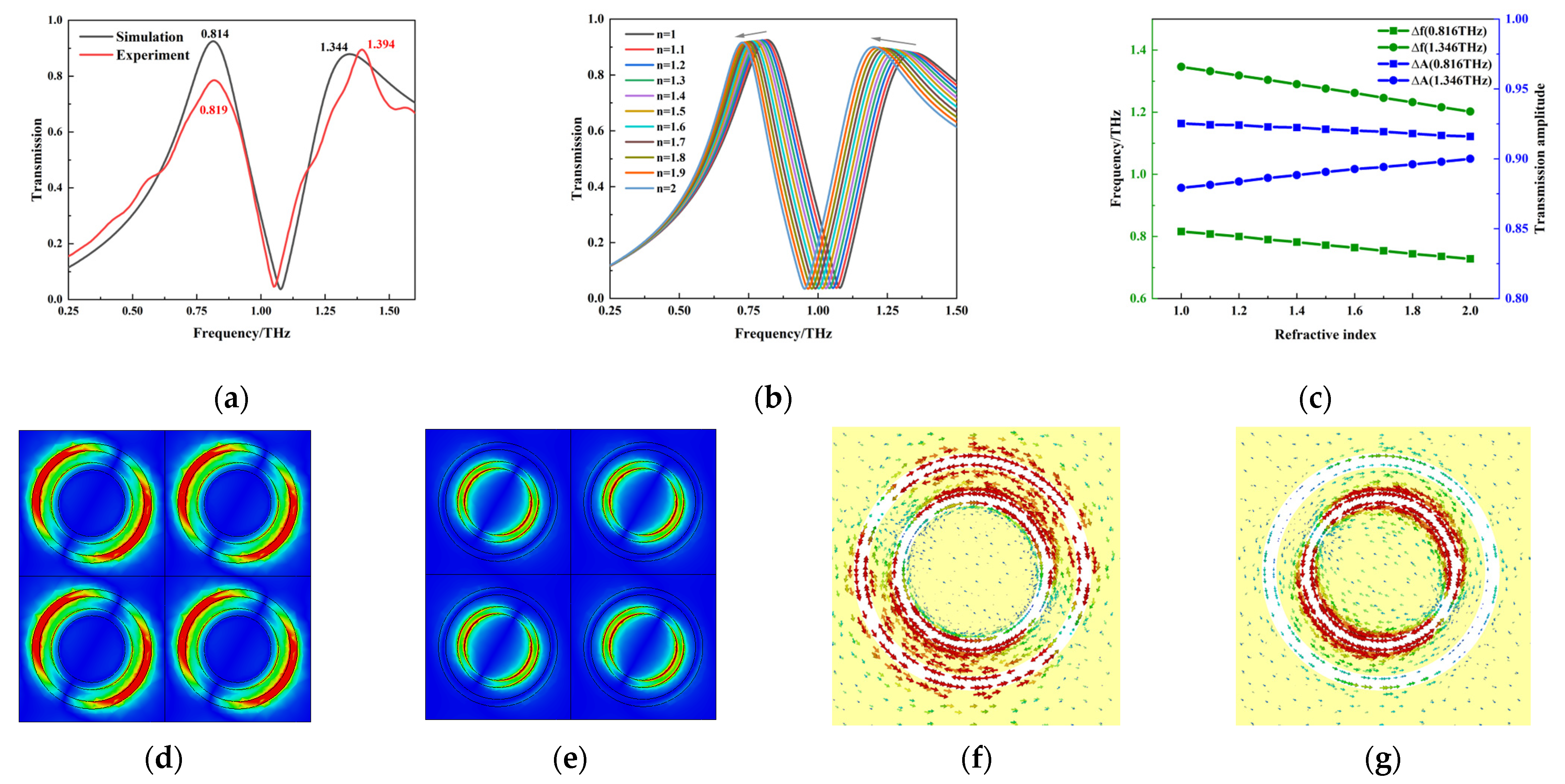

Figure 8. Metamaterial design and simulation; (a) simulation and test results; (b) responses to different refractive indices; (c) relationship between resonant peak frequency shifts, intensity changes, and the refractive index; (d) electric field distribution at 0.819 THz; (e) electric field distribution at 1.394 THz; (f) surface current distribution at 0.819 THz; (g) surface current distribution at 1.394 THz.
Figure 8. Metamaterial design and simulation; (a) simulation and test results; (b) responses to different refractive indices; (c) relationship between resonant peak frequency shifts, intensity changes, and the refractive index; (d) electric field distribution at 0.819 THz; (e) electric field distribution at 1.394 THz; (f) surface current distribution at 0.819 THz; (g) surface current distribution at 1.394 THz.
Molecules 29 02366 g008

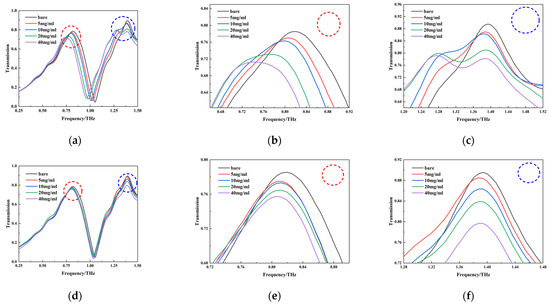

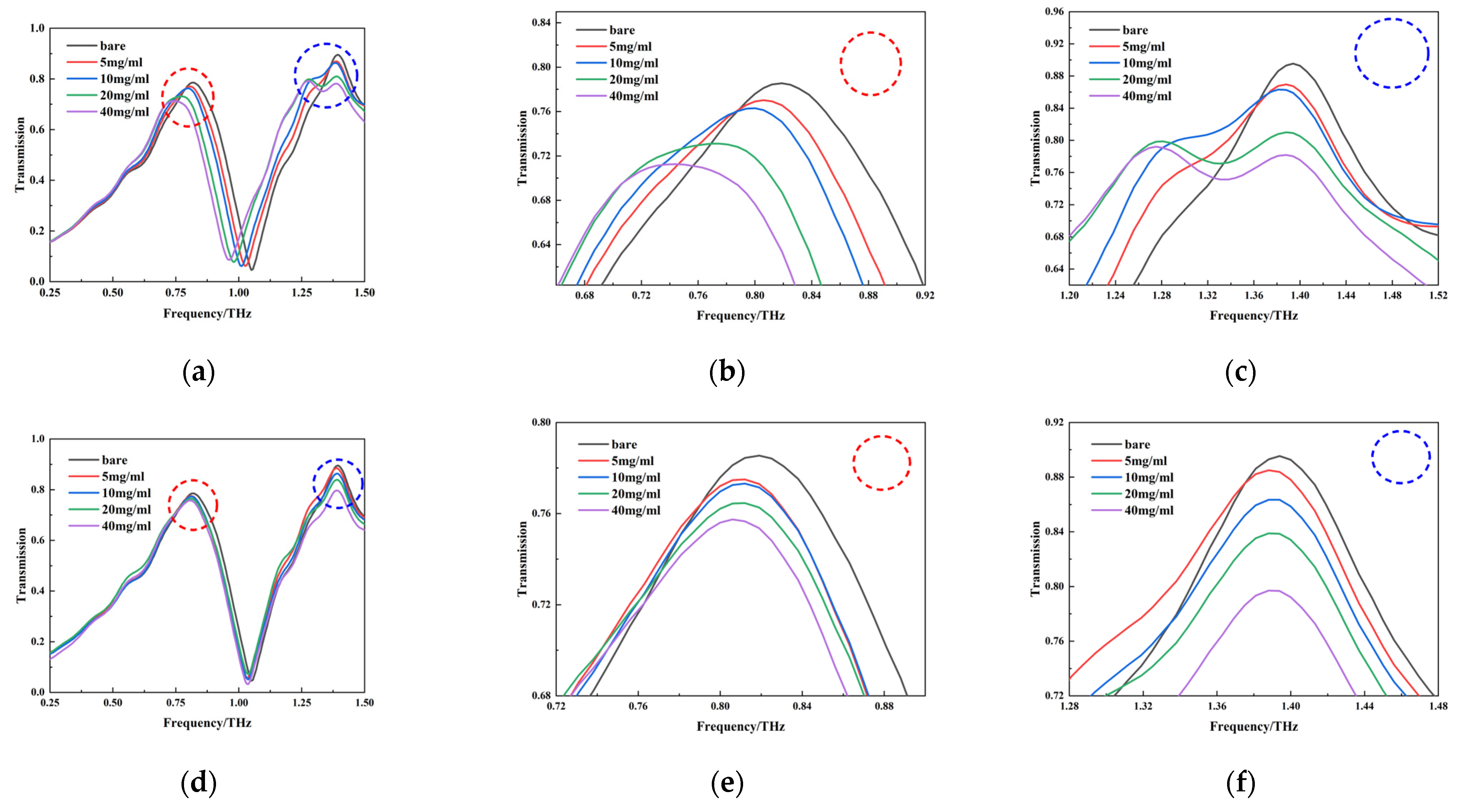

Figure 9. Transmission spectra of different concentrations of PROG and E1; (a) PROG transmission spectra; (b,c) detailed spectrum of transmission peak at 0.819 THz and 1.394 THz for PROG; (d) E1 transmission spectra; (e,f) detailed spectrum of transmission peak at 0.819 THz and 1.394 THz for E1.
Figure 9. Transmission spectra of different concentrations of PROG and E1; (a) PROG transmission spectra; (b,c) detailed spectrum of transmission peak at 0.819 THz and 1.394 THz for PROG; (d) E1 transmission spectra; (e,f) detailed spectrum of transmission peak at 0.819 THz and 1.394 THz for E1.
Molecules 29 02366 g009

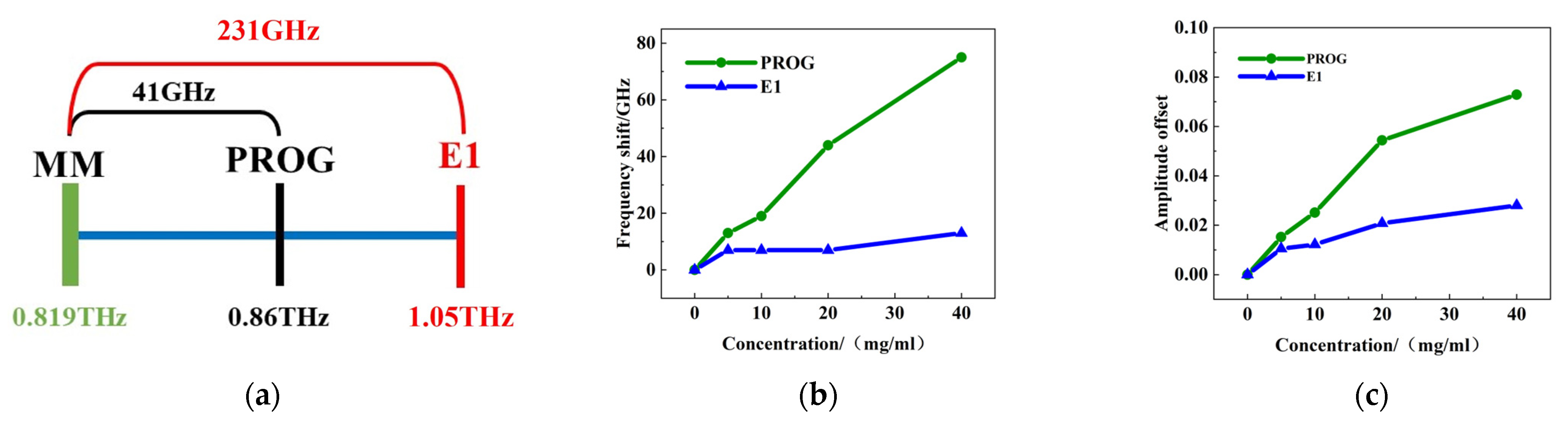

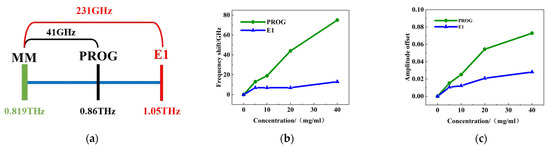

Figure 10. Qualitative analysis: (a) matching the degree of the PROG/E1 absorption peak with the metamaterial resonance peak, (b) frequency change om the 0.819 THz resonance peak, and (c) intensity change.
Figure 10. Qualitative analysis: (a) matching the degree of the PROG/E1 absorption peak with the metamaterial resonance peak, (b) frequency change om the 0.819 THz resonance peak, and (c) intensity change.
Molecules 29 02366 g010

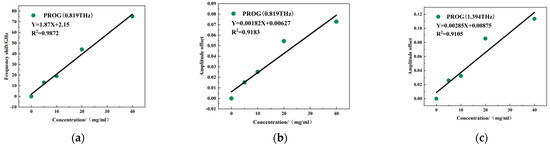

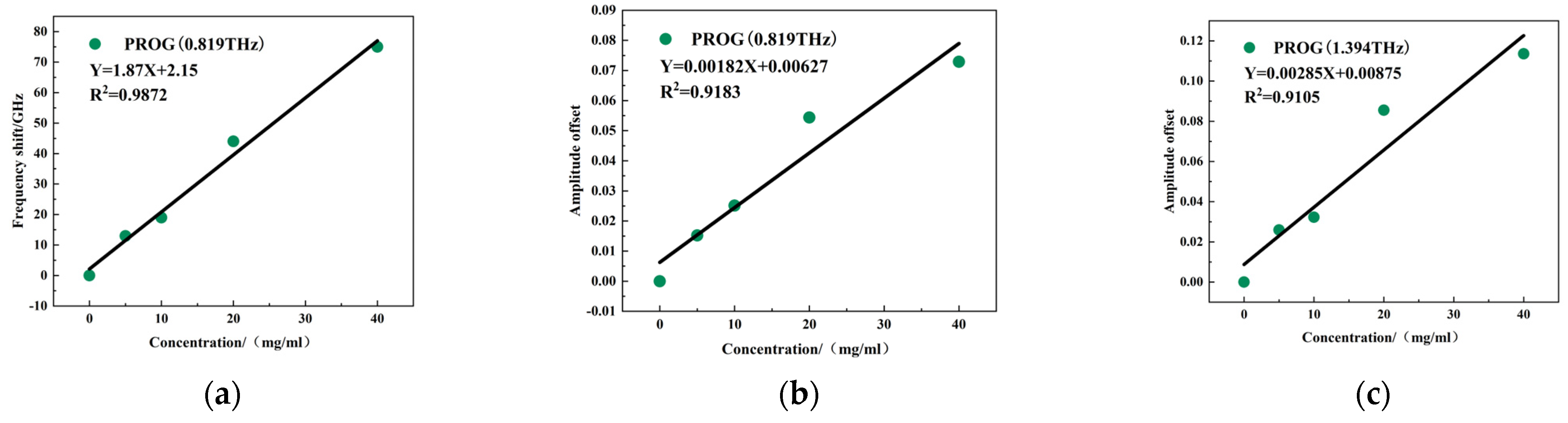

Figure 11. Resonance peak change: (a) 0.819 THz frequency shift, (b) 0.819 THz intensity change, and (c) 1.394 THz intensity change and PROG concentration linear fitting results.
Figure 11. Resonance peak change: (a) 0.819 THz frequency shift, (b) 0.819 THz intensity change, and (c) 1.394 THz intensity change and PROG concentration linear fitting results.
Molecules 29 02366 g011

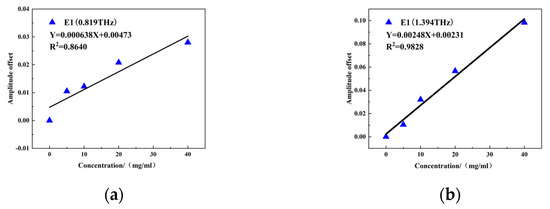

Figure 12. Resonance peak change: (a) 0.819 THz intensity change and (b) 1.394 THz intensity change and E1 concentration linear fitting results.
Figure 12. Resonance peak change: (a) 0.819 THz intensity change and (b) 1.394 THz intensity change and E1 concentration linear fitting results.
Molecules 29 02366 g012
Table 1. Effects of different concentrations of PROG on metamaterial resonance peaks.
Table 1. Effects of different concentrations of PROG on metamaterial resonance peaks.
PROG0.819 THz1.394 THz
Frequency Shift/GHzAmplitude OffsetAmplitude Offset
5 mg/mL130.01520.0259
10 mg/mL190.02510.0323
20 mg/mL440.05440.0855
40 mg/mL750.07290.1136
Table 2. Effects of different concentrations of E1 on metamaterial resonance peaks.
Table 2. Effects of different concentrations of E1 on metamaterial resonance peaks.
E10.819 THz1.394 THz
Amplitude OffsetAmplitude Offset
5 mg/mL0.01050.0104
10 mg/mL0.01220.0320
20 mg/mL0.02080.0566
40 mg/mL0.02800.0983
