Fe-Co Co-Doped 1D@2D Carbon-Based Composite as an Efficient Catalyst for Zn–Air Batteries

by
Ziwei Deng
1,
Wei Liu
2,
Junyuan Zhang
1,
Shuli Bai
1,
Changyu Liu
1,
Mengchen Zhang
1,
Chao Peng
1,
Xiaolong Xu
1,* and
Jianbo Jia
1,*
1
Jiangmen Key Laboratory of Synthetic Chemistry and Cleaner Production, School of Environmental and Chemical Engineering, Carbon Neutrality Innovation Center, Wuyi University, Jiangmen 529020, China
2
Jiangmen Customs District Technology Center, Jiangmen 529020, China
*
Authors to whom correspondence should be addressed.
Molecules 2024, 29(10), 2349; https://doi.org/10.3390/molecules29102349
Submission received: 18 April 2024 / Revised: 8 May 2024 / Accepted: 14 May 2024 / Published: 16 May 2024
(This article belongs to the Special Issue Advances in Nanomaterials for Catalysis, Electrochemistry and Environmental Applications)
Browse Figures
Versions Notes

Abstract

A Fe-Co dual-metal co-doped N containing the carbon composite (FeCo-HNC) was prepared by adjusting the ratio of iron to cobalt as well as the pyrolysis temperature with the assistance of functionalized silica template. Fe1Co-HNC, which was formed with 1D carbon nanotubes and 2D carbon nanosheets including a rich mesoporous structure, exhibited outstanding oxygen reduction reaction (ORR) and oxygen evolution reaction (OER) catalytic activities. The ORR half-wave potential is 0.86 V (vs. reversible hydrogen electrode, RHE), and the OER overpotential is 0.76 V at 10 mA cm−2 with the Fe1Co-HNC catalyst. It also displayed superior performance in zinc–air batteries. This method provides a promising strategy for the fabrication of efficient transition metal-based carbon catalysts.

Graphical Abstract

1. Introduction

The immoderate utilization of fossil fuels can cause the serious environmental deterioration problems such as global warming. It is imperative to accelerate the application of new energy resources and the development of clean energy technologies [1,2]. Currently, metal–air batteries and fuel batteries are the most effective means of reducing energy shortage [3,4,5]. Nevertheless, they require efficient bifunctional catalysts for both the oxygen reduction reaction (ORR) at the cathode and the oxygen evolution reaction (OER) at the anode [6,7]. There are mainly Pt, Ru, and Ir catalysts in the current market. Unfortunately, they usually do not possess the bifunctional catalytic activity for both ORR and OER at the same time. In addition, the high cost and poor stability limit the development and application of batteries on the large scale [8,9]. Therefore, it is crucial to develop efficient, low-cost, and durable bifunctional catalysts for ORR and OER at the same time [10,11].
Since cobalt phthalocyanine exhibits some ORR electrocatalytic activity [12], various catalysts composed of transition metals incorporated into nitrogen-doped carbon matrices (M-N-Cs, especially Fe-N-C and Co-N-C) have been studied extensively [13,14,15,16]. However, most of the monometallic M-N-Cs displayed an unsatisfactory performance as the bifunctional catalysts for ORR and OER [17,18]. Thus, there is a great challenge to develop efficient bifunctional ORR/OER electrocatalysts. A reasonable solution would be engineering the N-doped carbon matrix with bimetallic sites so that the performance can be tuned accordingly [19,20,21]. In addition, numerous studies have shown that the catalyst structure has a significant impact on its performance. For example, the modified zeolitic imidazolate frameworks (SiO2@Fe-ZIF-8/ZIF-67) was designed to prepare the atomically dispersed Fe and Co doping 3D nitrogen-doped carbon nanosheets (CNSs), which exhibited excellent electrochemical performance with a ORR/OER potential gap (the potential difference (∆E) of half-wave potential (E1/2, V vs. reversible hydrogen electrode (RHE)) for ORR and potential at the current density of 10 mA cm−2 (Ej=10, V vs. iR-corrected RHE) for OER, which is an important indicator for evaluating the bifunctional catalyst of 0.80 V [22,23]. Recently, ZnCo bimetallic sites were incorporated in hierarchical N-doped carbon via a one-step pyrolysis method, and displayed excellent ORR catalytic activities [24]. By integrating 1D carbon nanotubes (CNTs) and 2D CNSs, the problem of agglomerating and stacking 2D materials can be solved, and the surface area and chemical stability were improved [24,25,26]. The integrated 1D@2D layered structure has enhanced surface area, better operational stability, and higher conductivity [27].
Herein, the Fe-Co bimetal co-doped N containing the carbon composite (FexCo-HNC-T) was prepared with modified silicon nanospheres as sacrificial template. Through using Fe@ZIF-8/ZIF-67, 1D CNTs with diameter of ~40 nm was generated on the surface of silicon nanospheres, and 2D CNSs with high specific surface area was obtained after etching of the silicon nanosphere templates. The main goal is to provide an efficient method for the development of non-precious metal electrocatalysts and to expand the application of zinc–air batteries in the near future. In the final structure, nitrogen-doped carbon was arranged in a hierarchical manner with abundant mesoporous 1D nanotubes and 2D nanosheets with Fe1Co-HNC-1000 showing excellent ORR/OER bifunctional catalytic activity. When the prepared composite was applied as the cathodic catalyst in the zinc–air battery, it exhibited an excellent open circuit voltage (1.660 V), high power density (94.9 mW cm−2), and good cycling stability (67 h). Compared to previous catalysts for zinc-air battery cathodes, it displayed the improved performances in rechargeable zinc-air batteries [28]. These results indicate that Fe1Co-HNC-1000 is an ideal bifunctional electrocatalyst for future zinc-air batteries, and provide an important guidance for further understanding and designing bifunctional catalysts.

2. Results and Discussion

2.1. Structural Characterization

Scheme 1 shows the synthesis process of the FexCo-HNC-T composite which was formed by 1D CNTs and 2D CNSs. In the first step, reversed-phase microemulsion was selected to prepare the silica nanosphere template with particle size of ~80 nm, as shown in Figure S1a. Afterward, the positively charged PDDA which can be transferred to the surface of the SiO2 nanospheres through electrostatic interaction was added, and the resulting positive charge surface can be obtained (P-SiO2). Next, the negatively charged PSS was chosen to modify the P-SiO2 nanospheres to get a negative charge surface (PP-SiO2, Figure S1b). Positively charged substances, such as metal ions, can be absorbed on the PP-SiO2 surface conveniently. Therefore, the electrostatic adsorption capacity of the resulting PP-SiO2 nanospheres can be enhanced. PP-SiO2 was dispersed in methanol uniformly, followed by the addition of Zn, Co, and Fe salts, and mixed thoroughly with stirring. In the presence of ammonia, metal ions can form corresponding metal hydroxides (MOH) by hydrolysis under alkaline condition. These metal hydroxides can adhere to the surface of the PP-SiO2 nanospheres, the corresponding solution color changed from purple to brown. Subsequently, a methanol solution containing 2-methylimidazole ligand was added, resulting in the successful synthesis of Fe/Co/Zn-ZIF-8/ZIF-67@PP-SiO2. In contrast, the prepared Fe/Co/Zn-ZIF-8/ZIF-67 exhibits an uneven polyhedral structure in the absence of ammonia (Figure S1c). Therefore, Fe/Co/Zn-ZIF-8/ZIF-67 was able to grow uniformly on the surface of SiO2 nanospheres in the presence of ammonia. In addition, the product size was smaller than 50 nm in the presence of ammonia (Figure S1d), indicating that the growth of ZIF-8/ZIF-67 was limited under the given conditions. Figure 1a displays that there are lots of 1D CNTs on the silica nanosphere template. However, the 1D CNTs was agglomerated in the sample generated with the unmodified SiO2 template (Figure S2a). The prepared Fe/Co/Zn-ZIF-8/ZIF-67@PP-SiO2 were then annealed in nitrogen atmosphere and acid-washed to remove the silica template. The final FexCo-HNC was obtained with rich 1D CNTs and 2D CNSs structure. Interestingly, compared with Co-HNC, FexCo-HNC exhibits a uniform CNT structure which can be attributed to the introduction of Fe as the efficient catalyst for the growth of CNTs (Figure S2b,c). Such a structure should be good for improving the structural stability and electronic conductivity.
Based on the SEM image (Figure 1a), 1D CNTs was generated around the silica template. The unetched silica template presented circular shadows (Figure 1b). After acid etching of the sample, bamboo-like CNTs can be observed clearly (Figure 1c). At the same time, CNSs was formed after removing PP-SiO2 templates, led to 1D@2D heterostructure of the prepared composites (Figure 1d,e). The formation of 1D@2D heterostructure should be ascribed to the presence of specific PP-SiO2 template. In addition, it was found that the sample prepared at 900 °C (Fe1Co-HNC-900) generated more CNTs than that prepared at 1000 °C (Fe1Co-HNC-1000). However, Fe1Co-HNC-1000 displayed more CNSs than that of Fe1Co-HNC-900. The unique 1D@2D heterostructure had a greater number of active sites, which should be more conducive to catalytic reaction. In addition, the mapping analysis of Fe1Co-HNC-1000 was performed. The result demonstrated the prepared composite was composed of C, N, O, Fe, and Co, indicating that the Fe-Co bimetallic doped N-contained carbon composite was prepared successfully.
The crystalline structures of the prepared composites were then characterized using the XRD analysis. It is evident from Figure S3 that Co-HNC-900, Fe1Co-HNC-900, and Fe1Co-HNC-1000 all exhibit a distinct diffraction peak at about 26°, which can be attributed to (002) of graphitic carbon [29]. Fe1Co-HNC-900 and Fe1Co-HNC-1000 also demonstrate a diffraction peak at about 44.6°, which can be attributed to the Fe(110) crystal plane [30], indicating that Fe was successfully doped in the nitrogen-containing carbon composite. However, there is no obvious peak which can be ascribed to Co crystal using XRD as the low content of Co in the prepared composite (as given in Table S1). Hence, XPS was selected to further investigate the elemental composition and chemical state in the target catalyst. The results verified that the product consisted of C, N, O, Fe, and Co in Figure S4 and Table S2, proving the successful doping of Fe and Co. According to Figure 2a, the high-resolution C 1s XPS segment of Fe1Co-HNC-1000 can be divided into four sub-peaks at 288.5, 286.4, 285.2 and 284.7 eV, corresponding to O-C=O, C=O, C-O/C-N and C=C groups, respectively [31]. These abundant carbon–oxygen species are often considered as more active site-related defects that can promote ORR in alkaline environments [32]. The N 1s spectra of Fe1Co-HNC-1000 can be divided into four peaks in XPS, corresponding to pyridinic-N (398.5 eV), M-Nx (399. 7 eV, M = Fe, Co, and Zn), pyrrolic-N (400.5 eV), and graphitic-N (401.6 eV), as shown in Figure 2b. It was believed that the high contents of pyridinic-N and pyrrolic-N can provide high ORR activities [33,34]. Figure 2c,d display the XPS spectra of Co 2p and Fe 2p of Fe1Co-HNC-1000. The regional Co 2p spectrum in Figure 2c reveals a high energy band at 795.7 eV (Co 2p1/2) and a low energy band at 780.3 eV (Co 2p3/2), being in accordance with the report of Co3O4 [35]. And the energy bands at 722.1, 720.0, 709.8, and 707.5 eV are corresponding to Fe3O4 [20]. In addition, Figure S3 also exhibits the XRD patterns of Co-HNC-900, Fe1Co-HNC-900, and Fe1Co-HNC-1000. The peak at approximately 44.6° can be attributed to the (200) plane of Fe3O4 (Powder Diffraction File (PDF) # 28-0491) or the (400) plane of Co3O4 (PDF # 42-1467) [36,37]. Therefore, we can conclude that there is an oxidation state of Fe and/or Co in the prepared composite. Furthermore, the metal contents were also analyzed using MP-AES. According to Table S1, it is clear that Zn was attenuated as the increase in the pyrolysis temperature, and it was no longer detectable when the pyrolysis temperature was 1000 °C. Interestingly, when the temperature was constant, the added amount of Fe had little effect on the final loading amount of Co. At the same time, the M-Nx content increased from 10.4% (Co-HNC-900) to 15.32% (Fe1Co-HNC-900) with the addition of Fe (Figure 2e). It was believed that M-Nx are active sites which are responsible for the excellent electrocatalytic properties [38]. In addition, graphitic-N increased from 11.4% to 15.91%, whereas pyrrolic-N decreased from 16% to 5.45% as the temperature increased from 900 °C to 1000 °C (Figure 2e). The change should be attributed to that the unstable pyrrolic-N was converted to graphitic-N at high temperature, while graphitic-N can accelerate electron transfer and increase the limiting current density, thus favoring the enhancement of ORR activity [39]. Overall, the pyridinic-N content of Fe1Co-HNC-1000 is slightly higher than that of Fe1Co-HNC-900. It is believed that the metals Fe and Co are coordinated with pyridinic-N to form the active sites [40].
The porous structure was investigated using the N2 adsorption–desorption method. The adsorption–desorption curves of the prepared composites all exhibited type IV isotherm curves which were consistent with the H4 hysteresis loop based on the N2 adsorption–desorption isotherms (Figure 3a,b and Table S3). The result exhibited that Fe1Co-HNC-1000 presents a high specific surface area of 662.33 m2 g−1 and an enormous total pore volume of 0.75 cm3 g−1. Compared with unetched-Fe1Co-HNC-1000 (151.07 m2 g−1), the specific surface area of Fe1Co-HNC-1000 was increased significantly. At the same time, as the temperature increased from 800 °C to 1000 °C, the average mesoporous diameter increased from 16.50 nm to 18.70 nm. The result indicated that higher temperature is more conducive to the formation of large mesopores. However, the average mesoporous diameter of the unetched-Fe1Co-HNC-1000 is only 14.88 nm, demonstrating that the effective removal of the silica template resulted in a larger mesoporous diameter and specific surface area. It was believed that the mesoporous structure can provide abundant active sites, which will facilitate mass transfer/electron transfer, thereby improving catalytic efficiency [41,42]. Based on Raman spectroscopy, defects and graphitization degree were estimated. The characteristic peaks are located at ≈1352 and ≈1602 cm−1 [43], respectively, corresponding to the D-band of defects and the G-band of sp2 graphitic carbon. According to Figure 3c, the ratio of defects increased with the increase in annealing temperature, which can be attributed to the Zn volatilization in the ZIF skeleton as the temperature increase. The sample prepared at 1000 °C has the largest ID/IG (1.38), implying that there are abundant defects in Fe1Co-HNC-1000 which can contribute to the adsorption of reactants during the catalytic reaction.

2.2. Electrochemical Characterization

The effect of the added amount of Fe on the ORR catalytic activity was checked at first. The linear sweep voltammetry (LSV) measurement was chosen to assess the electrocatalytic activity in oxygen-saturated 0.10 M KOH. The results indicated that the ORR half-wave potential (E1/2) of the monometallic Co doped Co-HNC-1000 was low (E1/2 = 0.78 V, Figure S5). As Fe was added, the ORR E1/2 shifted positively. When the Fe/Co ratio was 1:1, Fe1Co-HNC-900 demonstrated the highest E1/2 (0.85 V), indicating the effective synergistic effect between Fe and Co. Then, Fe1Co-HNC-1000 which was prepared at 1000 °C and the Fe:Co ratio of 1.0 exhibited the best ORR activity than those of other samples (Figure 4a and Table S4). The half-wave potential of Fe1Co-HNC-1000 is 0.86 V which is 10 mV more positive than that of Fe1Co-HNC-900. Moreover, the excellent ORR activity of Fe1Co-HNC-1000 is further reflected by the Tafel slope (Figure 4b), which is the smallest among all samples (103.7 mV dec−1), including the commercial Pt/C (127.9 mV dec−1). The result indicated that Fe1Co-HNC-1000 possessed a fast electron transfer rate for ORR. It can be ascribed to the unique 1D@2D structure, high content of pyridinic-N and graphitic-N, rich mesopores, plenty of defects, and the synergistic effect of Fe and Co [22,44,45].
To explore the ORR kinetics of Fe1Co-HNC-1000, LSV curves were obtained at different rotational speeds from 400 to 2025 rpm (Figure 4c), where JL (JL is the limiting current density) increased with increasing speed and fitted well with the first-order kinetic equations. From the Koutecky–Levich (K-L) plot in Figure 4d, it can be seen that the average electron transfer number (n) is about 4.06, reflecting the high efficiency of the direct reduction in oxygen to water on Fe1Co-HNC-1000. The hypothesis was further confirmed by rotating ring-disk electrode measurements (Figure S6), where the yield of H2O2 was 11% with an average n of 3.9, which were comparable with those of the commercial Pt/C.
The stability and methanol resistance of Fe1Co-HNC-1000 were analyzed and compared with those of commercial Pt/C. After 5000 CV cycles, the Fe1Co-HNC-1000 RRDE curve remained identical to the initial one (Figure 4e). In contrast, the RRDE curve of Pt/C exhibited an obvious negative shift after 5000 CV cycles, with E1/2 and JL becoming significantly smaller (Figure 4f). Additionally, Fe1Co-HNC-1000 was subjected to extensive testing at 0.52 V for 30,000 s. The current density remained at 99.8% of the original one, which was much higher than the commercial Pt/C (85%), confirming that Fe1Co-HNC-1000 had excellent stability (Figure S7). The CV curves of Fe1Co-HNC-1000 for methanol were depicted in Figure S8a. There was no change before and after the addition of methanol for Fe1Co-HNC-1000, whereas Pt/C exhibited a significant methanol oxidation peak in the presence of 1.0 M methanol (Figure S8b). The result indicated that the active sites of Fe1Co-HNC-1000 have excellent tolerance to methanol, which is much superior to Pt/C. All of these results demonstrated that the Fe1Co-HNC-1000 catalyst is exceptionally durable and selective.
In addition, the electrochemically active surface area (ECSA) has a notable effect on the ORR [46], which can be assessed by the double-layer capacitance (Cdl) in CV curves (Figure S9). Specifically, Fe1Co-HNC-1000 had the highest Cdl value of 43.36 mF cm−2, which implied a dramatic increase in ECSA of the 1D@2D Fe1Co-HNC-1000. It was hypothesized that Fe1Co-HNC-1000 exhibited a significantly increased charge transfer capability compared with its bimetallic counterpart prepared at lower temperatures, mainly due to the rich defects, mesoporous structure, and the unique 1D@2D structure. Notably, the Cdl value of the bimetallic catalyst was much higher than that of Co-HNC-900 (6.58 mF cm−2), which also highlighted the synergistic effect of Fe1Co-HNC-1000, creating more active sites. In addition, the electrochemical impedance spectra were selected to explain this phenomenon based on the interfacial charge transfer of the prepared catalysts, which can be calculated from the Nyquist diagram (Figure S10) [47]. The result displayed that Fe1Co-HNC-1000 had a smaller charge transfer resistance (Rct), which can produce faster ORR kinetics.
The OER performance of different catalysts was tested and displayed in Figure 5. The overpotential of Fe1Co-HNC-1000 in 1.0 M KOH was 399 mV at the current density of 10 mA cm−2, which was slightly higher than that of RuO2 in 1.0 M KOH (388 mV). The difference between E1/2 of Fe1Co-HNC-1000 and its OER at J = 10 mA cm−2 was calculated to be 0.76 V, which is slightly lower than that of Pt/C + RuO2 (0.79 V). The result indicated the excellent bifunctional catalytic activity of Fe1Co-HNC-1000 (Table S5). In addition, the OER Tafel slope of Fe1Co-HNC-1000 (72.45 mV dec−1) was smaller than that of RuO2 (130.01 mV dec−1) according to the Tafel fitting curve as shown in Figure 5b. The result demonstrated that the kinetics of OER on Fe1Co-HNC-1000 is faster. Also, the OER Tafel slope of Fe1Co-HNC-1000 was lower than that of Fe1Co-HNC-900 (94.73 mV dec−1), indicating that Fe1Co-HNC-1000 has a faster mass transfer rate. The result is consistent with the BET results that the average mesopore diameter of Fe1Co-HNC-1000 is large, thus speeding up the diffusion rate. The high OER Tafel slope of Co-HNC-900 (164.38 mV dec−1) further indicates that there is a synergistic coupling formed between Fe and Co, and the existence of metal oxides should play the key role in improving OER catalytic activities [48,49].
In order to evaluate the effectiveness of Fe1Co-HNC-1000, it was employed as the air cathodic catalyst in an assembled zinc–air battery (Figure S11a). The open-circuit voltage of the battery was then measured using a multimeter (Figure S11b), yielding a value of 1.660 V for the Fe1Co-HNC-1000-modified cathode. In contrast, a zinc–air battery with Pt/C + RuO2 as the cathodic catalyst only produced an open-circuit voltage of 1.415 V. In addition, two zinc–air batteries with Fe1Co-HNC-1000 as the cathodic catalyst were successfully connected in series to light a small LED (Figure S11c). The power densities of the zinc–air batteries were also tested at different current densities, and the results showed that the zinc–air batteries with Fe1Co-HNC-1000 as the cathodic catalyst achieved the highest power density of 94.9 mW cm−2 at 159.8 mA cm−2, while the Pt/C + RuO2 catalyst achieved the highest power density of 80.3 mW cm−2 at 118.8 mA cm−2 (Figure S11d). This indicated that the Zn–air batteries with Fe1Co-HNC-1000 as the cathodic catalyst had higher electrochemical performance and power density than those of the Pt/C + RuO2 modified electrode. In order to verify its durability, a charge–discharge cycle test was carried out on zinc–air batteries assembled with Fe1Co-HNC-1000 or Pt/C + RuO2 as the cathodic catalyst (Figure S11e). The results indicated that Fe1Co-HNC-1000 outperformed Pt/C + RuO2 in terms of power density and durability, thus confirming the superior performance of Fe1Co-HNC-1000 in zinc–air batteries.

3. Experimental Section

3.1. Chemicals

2-methylimidazole (2-MIM) (98%), Fe(NO3)3·9H2O (99%), Co(NO3)2·6H2O (99%), HF (40%), n-hexanol (99%), and cyclohexane (99%) were supplied from Shanghai Aladdin Biochemical Technology Co., Ltd. (Shanghai, China). Triton X-100 (99%) and Nafion (5 wt%) were obtained by Sigma-Aldrich (St. Louis, USA). Commercially available Pt/C (20 wt%) was bought from Johnson Matthey Company (Shanghai, China). And RuO2 (99.9%), ethyl orthosilicate, 3-aminopropyltriethoxysilane (99%), NH3·H2O, polydiallyldimethylammonium chloride (PDDA, 99%), and sodium polystyrene sulfonate (PSS, 99%) were purchased from Shanghai McLean Biochemical Technology Co, Ltd. (Shanghai, China). All chemical reagents were used directly without further treatment.

3.2. Synthesis of Catalysts

3.2.1. Preparation of Silica Nanospheres

The preparation of silica nanospheres was based on a modified typical reversed-phase microemulsion method [50]. The water/oil microemulsion was obtained by adding 15.4 mL of cyclohexane, 0.68 mL of pure water, 3.80 mL of Triton X-100, and 3.20 mL of hexanol to a 50 mL beaker and stirring uniformly for 30 min at room temperature. To the water/oil microemulsion system, 1.05 mL of ethyl orthosilicate was added and stirred for 5 h. Next, 0.35 mL of 3-aminopropyltriethoxysilane was added, and then 0.20 mL of NH3·H2O was added after stirring for 60 min at room temperature, to initiate the hydrolysis of ethyl orthosilicate and 3-aminopropyltriethoxysilane. After stirring for 18 h at room temperature, ethanol was added to destabilize the microemulsion system. Finally, the product was washed three times with ethanol, collected using centrifugation, and dried in a vacuum-drying oven.

3.2.2. Preparation of Polyelectrolyte-Modified Silica Nanospheres (PP-SiO2)

The PDDA-modified silica nanospheres (P-SiO2) were obtained by adding 3.00 g of silica nanospheres to 200 mL of 1.0 wt% PDDA solution, stirring for 1 h at room temperature, washing with purified water and centrifuging three times, and drying overnight in a vacuum-drying oven. Similarly, the obtained P-SiO2 was treated with 200 mL of 1.0 wt% PSS solution, and PDDA-PSS-modified silica nanospheres (PP-SiO2) were obtained after washing with pure water, centrifugation, and drying, respectively [51].

3.2.3. Preparation of FexCo-HNC-T

Preparation of solution I: PP-SiO2 (1.000 g), Zn(NO3)2·6H2O (1.119 g), and the molar ratio of Fe(NO3)3·9H2O to Co(NO3)2·6H2O was x/y (x is the mass of Fe(NO3)3·9H2O, y is the mass of Co(NO3)2·6H2O, and x/y = 0, 0.8, 1.0, or 1.2) to 40 mL of methanol and mixed thoroughly. Solution II was prepared by dissolving 2-methylimidazole (2.420 g) in 40 mL of methanol with 3.00 mL of NH3·H2O. Solution II was added to solution I drop by drop, stirred for 3 h, washed three times with methanol, then collected using centrifugation and placed under vacuum to dry overnight to obtain a brown powder. As a blank control group, ZIF-8/ZIF-67 was prepared under the same conditions (the molar ratio of doped Fe/Co was 1.0) in the absence of the functionalized PP-SiO2 template.
The above product was ground with an agate mortar and then placed in a tube furnace in nitrogen atmosphere for the following pyrolysis procedure: firstly, from room temperature to 240 °C at a heating rate of 2 °C min−1 and kept at 240 °C for 2 h, then from 240 to T °C (T = 800, 900, or 1000 ℃) at a heating rate of 2 °C min−1, and kept for 2 h. After cooling to room temperature, the silica template was etched with 10 wt % HF to obtain FexCo-HNC-T.

4. Conclusions

In conclusion, we have successfully developed a simple method to prepare a bifunctional catalyst with a Fe and Co bimetal-doped 1D CNTs and 2D CNSs composite. By precisely controlling the structure and composition of the precursors, it is possible to obtain electrocatalysts with open mesoporous structures and abundant active sites after pyrolysis. The catalysts exhibited excellent ORR and OER activities under alkaline conditions. In addition, the catalyst showed excellent performance in terms of open circuit potential and charge/discharge cycle life when it was applied to zinc–air batteries. The result offers the possibility of designing promising bifunctional catalysts to replace noble metal-based catalysts in the field of energy storage and conversion.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules29102349/s1, Figure S1. SEM images of (a) SiO2, (b) PP-SiO2, (c) Fe/Co/Zn-ZIF-8/ZIF-67 without the addition of ammonia, and (d) Fe/Co/Zn-ZIF-8/ZIF-67 with the addition of ammonia. Figure S2. SEM images of (a) Fe1Co-HNC-1000 (un-etched, unmodified SiO2), (b) Co-HNC-900, and (c) Fe1Co@CNFs-900. Figure S3. XRD patterns of Co-HNC-900, Fe1Co-HNC-900, and Fe1Co-HNC-1000. Figure S4. XPS spectra of Fe1Co-HNC-1000. Figure S5. RRDE polarization curves of different electrocatalysts at 1600 rpm. Scan rate is 5 mV/s. Figure S6. H2O2 yield and n of (a) Fe1Co-HNC-1000, and (b) Pt/C. Figure S7. Chronoamperometric curves of Fe1Co-HNC-1000 and Pt/C at 0.52 V. Figure S8. CV curves of (a) Fe1Co-HNC-1000, and (b) Pt/C with and without 1.0 M CH3OH at O2-saturated 0.10 M KOH electrolyte. Scan rate is 5 mV/s. Figure S9. (a–g) CV curves of different electrocatalysts in 0.10 M KOH at various scan rate. (a) FeCo-NC-900, (b) Co-HNC-900, (c) Fe0.8Co-HNC-900, (d) Fe1Co-HNC-900, (e) Fe1.2Co-HNC-900, (f) Fe0.8Co-HNC-800, and (g) Fe0.8Co-HNC-1000. (h, i) Plots of ΔJ vs. scan rate at 1.064 V (vs. RHE) of different electrocatalysts in 0.10 M KOH. Figure S10. EIS of Fe1Co-HNC-900 and Fe1Co-HNC-1000 in 0.10 M KOH. Frequency range 100 kHz to 0.01 Hz, amplitude 5 mV, potential 0.52 V (vs. RHE). Figure S11. Electrochemical performance of the Fe1Co-HNC-1000 and commercial Pt/C + RuO2 mixture catalysts in a zinc–air battery. (a) Schematic illustration of the rechargeable liquid-state zinc–air battery. (b) Open-circuit potential plots (Illustrations: a: Fe1Co-HNC-1000 and b: Pt/C+RuO2 open circuit voltage diagram tested with a multimeter). (c) The photo of a lighted LED powered by two Fe1Co-HNC-1000-based zinc–air batteries in series. (d) Discharge polarization curves and power density plots. (e) Galvanostatic charge–discharge cycling curves at 10 mA cm−1. Table S1. Metal atom contents of each catalyst tested using MP-AES. Table S2. The elemental content of different samples obtained using XPS. Table S3. Pore parameters of Fe1Co-HNC synthesized at different temperatures. Table S4. Comparison of the ORR activity with different catalysts. Table S5. Comparison of the potential gap (ΔE) between ORR half-wave potential (ORRE1/2 = 0.86 V) and OER overpotential at 10 mA cm−2 (OEREj = 10 mA) of Fe1Co-HNC-1000 with recently reported analogous Fe/Co-based electrocatalysts. References [52,53,54,55] are cited in the Supplementary Materials.

Author Contributions

Conceptualization, X.X. and J.J.; Methodology, W.L. and J.Z.; Validation, J.Z.; Formal analysis, C.L. and M.Z.; Investigation, Z.D., S.B. and X.X.; Resources, C.L.; Data curation, W.L. and C.P.; Writing—original draft, Z.D.; Writing—review & editing, J.J.; Visualization, S.B.; Project administration, X.X.; Funding acquisition, J.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Natural Science Foundation of China (Grant Nos. 21974097 and 22274117), Education Department of Guangdong Province (2022ZDJS027).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Materials, further inquiries can be directed to the corresponding authors.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Karumba, S.; Sethuvenkatraman, S.; Dedeoglu, V.; Jurdak, R.; Kanhere, S.S. Barriers to blockchain-based decentralised energy trading: A systematic review. Int. J. Sustain. Energy 2023, 42, 41–71. [Google Scholar] [CrossRef]
  2. Luo, X.J.; Ren, C.H.; Song, J.; Luo, H.; Xiao, K.; Zhang, D.W.; Hao, J.J.; Deng, Z.F.; Dong, C.F.; Li, X.G. Design and fabrication of bipolar plates for PEM water electrolyser. J. Mater. Sci. Tech. 2023, 146, 19–41. [Google Scholar] [CrossRef]
  3. Liu, H.M.; Liu, Q.L.; Wang, Y.R.; Wang, Y.F.; Chou, S.L.; Hu, Z.Z.; Zhang, Z.Q. Bifunctional carbon-based cathode catalysts for zinc-air battery: A review. Chin. Chem. Lett. 2022, 33, 683–692. [Google Scholar] [CrossRef]
  4. Yang, L.J.; Shui, J.L.; Du, L.; Shao, Y.; Liu, J.; Dai, L.; Hu, Z. Carbon-based metal-free ORR electrocatalysts for fuel batteries: Past, present, and future. Adv. Mater. 2019, 31, 1804799. [Google Scholar] [CrossRef] [PubMed]
  5. Shah, S.S.A.; Najam, T.B.; Bashir, M.S.; Peng, L.; Nazir, M.A.; Javed, M.S. Single-atom catalysts for next-generation rechargeable batteries and fuel batteries. Energy Storage Mater. 2022, 45, 301–322. [Google Scholar] [CrossRef]
  6. Ren, S.S.; Duan, X.D.; Liang, S.; Zhang, M.; Zheng, H. Bifunctional electrocatalysts for Zn-air batteries: Recent developments and future perspectives. J. Mater. Chem. A 2020, 8, 6144–6182. [Google Scholar] [CrossRef]
  7. Mamtani, K.; Jain, D.; Dogu, D.; Gustin, V.; Gunduz, S.; Co, A.C.; Ozkan, U.S. Insights into oxygen reduction reaction (ORR) and oxygen evolution reaction (OER) active sites for nitrogen-doped carbon nanostructures (CNx) in acidic media. Appl. Catal. B Environ. 2018, 220, 88–97. [Google Scholar] [CrossRef]
  8. Wang, H.F.; Tang, C.; Zhang, Q.A. Review of precious-metal-free bifunctional oxygen electrocatalysts: Rational design and applications in Zn-air batteries. Adv. Funct. Mater. 2018, 28, 1803329. [Google Scholar] [CrossRef]
  9. Xu, H.M.; Ci, S.Q.; Ding, Y.C.; Wang, G.; Wen, Z. Recent advances in precious metal-free bifunctional catalysts for electrochemical conversion systems. J. Mater. Chem. A 2019, 7, 8006–8029. [Google Scholar] [CrossRef]
  10. Liu, H.T.; Guan, J.Y.; Yang, S.X.; Yu, Y.; Shao, R.; Zhang, Z.; Dou, M.; Wang, F.; Xu, Q. Metal-organic framework-derived Co2P nanoparticle/multi-doped porous carbon as a trifunctional electrocatalyst. Adv. Mater. 2020, 32, 2003649. [Google Scholar] [CrossRef]
  11. Vijayakuma, E.; Ramakrishnan, S.; Sathiskumar, C.; Yoo, D.J.; Balamurugan, J.; Noh, H.S.; Kwon, D.; Kim, Y.H.; Lee, H. MOF-derived CoP-nitrogen-doped carbon@NiFeP nanoflakes as an efficient and durable electrocatalyst with multiple catalytically active sites for OER, HER, ORR and rechargeable zinc-air batteries. Chem. Eng. J. 2022, 428, 131115. [Google Scholar] [CrossRef]
  12. Jasinski, R. A new fuel batteries cathode catalyst. Nature 1964, 201, 1212–1213. [Google Scholar] [CrossRef]
  13. Shi, Z.S.; Yang, W.Q.; Gu, Y.T.; Liao, T.; Sun, Z. Metal-nitrogen-doped carbon materials as highly efficient catalysts: Progress and rational design. Adv. Sci. 2020, 7, 2001069. [Google Scholar] [CrossRef]
  14. Zhao, C.X.; Li, B.Q.; Liu, J.N.; Zhang, Q. Intrinsic electrocatalytic activity regulation of M-N-C single-atom catalysts for the oxygen reduction reaction. Angew. Chem. Int. Ed. 2021, 60, 4448–4463. [Google Scholar] [CrossRef]
  15. Huang, H.J.; Yu, D.S.; Hu, F.; Huang, S.C.; Song, J.; Chen, H.Y.; Li, L.L.; Peng, S. Clusters induced electron redistribution to tune oxygen reduction activity of transition metal single-atom for metal-air batteries. Angew. Chem. Int. Ed. 2022, 61, e202116068. [Google Scholar] [CrossRef]
  16. Qin, J.Y.; Liu, H.; Zou, P.C.; Zhang, R.; Wang, C.; Xin, H.L. Altering ligand fields in single-atom sites through second-shell anion modulation boosts the oxygen reduction reaction. J. Am. Chem. Soc. 2022, 144, 2197–2207. [Google Scholar] [CrossRef] [PubMed]
  17. Jose, V.; Hu, H.M.; Edison, E.; Manalastas, W., Jr.; Ren, H.; Kidkhunthod, P.; Sreejith, S.; Jayakumar, A.; Nsanzimana, J.M.; Srinivasan, M.; et al. Modulation of single atomic Co and Fe sites on hollow carbon nanospheres as oxygen electrodes for rechargeable Zn-air batteries. Small Methods 2021, 5, 2000751. [Google Scholar] [CrossRef]
  18. Chi, B.; Zhang, X.R.; Liu, M.G.; Jiang, S.J.; Liao, S. Applications of M/N/C analogue catalysts in PEM fuel batteries s and metal-air/oxygen batteries: Status quo, challenges and perspectives. Prog. Nat. Sci. Mater. Int. 2020, 30, 807–814. [Google Scholar] [CrossRef]
  19. Zhao, X.M.; Liu, X.; Huang, B.Y.; Wang, P.; Pei, Y. Hydroxyl group modification improves the electrocatalytic ORR and OER activity of graphene-supported single and bi-metal atomic catalysts (Ni, Co, and Fe). J. Mater. Chem. A 2019, 7, 24583–24593. [Google Scholar] [CrossRef]
  20. Zhou, X.Y.; Gao, J.J.; Hu, Y.X.; Jin, Z.; Hu, K.; Reddy, K.M.; Yuan, Q.; Lin, X.; Qiu, H.J. Theoretically revealed and experimentally demonstrated synergistic electronic interaction of CoFe dual-metal sites on N-doped carbon for boosting both oxygen reduction and evolution reactions. Nano Lett. 2022, 22, 3392–3399. [Google Scholar] [CrossRef]
  21. He, Y.T.; Yang, X.X.; Li, Y.S.; Liu, L.; Guo, S.; Shu, C.; Liu, F.; Liu, Y.; Tan, Q.; Wu, G. Atomically dispersed Fe-Co dual metal sites as bifunctional oxygen electrocatalysts for rechargeable and flexible Zn-air batteries. ACS Catal. 2022, 12, 1216–1227. [Google Scholar] [CrossRef]
  22. Zhong, Y.J.; Xu, X.M.; Su, C.; Tadé, M.O.; Shao, Z. Promoting bifunctional oxygen catalyst activity of double-perovskite-type cubic nanocrystallites for aqueous and quasi-solid-state rechargeable Zinc-air batteries. Catalysts 2023, 13, 1332. [Google Scholar] [CrossRef]
  23. Luo, Y.; Zhang, J.; Chen, J.W.; Chen, Y.; Zhang, C.; Luo, Y.; Wang, G.; Wang, R. Bi-functional electrocatalysis through synergetic coupling strategy of atomically dispersed Fe and Co active sites anchored on 3D nitrogen-doped carbon sheets for Zn-air battery. J. Catal. 2021, 397, 223–232. [Google Scholar] [CrossRef]
  24. Lin, S.Y.; Xia, L.X.; Cao, Y.; Meng, H.L.; Zhang, L.; Feng, J.J.; Zhao, Y.; Wang, A.J. Electronic regulation of ZnCo dual-atomic active sites entrapped in 1D@2D hierarchical N-doped carbon for efficient synergistic catalysis of oxygen reduction in Zn-Air battery. Small 2022, 18, 2107141. [Google Scholar] [CrossRef] [PubMed]
  25. Yang, L.; Lv, Y.L.; Cao, D.P. Co, N-codoped nanotube/graphene 1D/2D heterostructure for efficient oxygen reduction and hydrogen evolution reactions. J. Mater. Chem. A 2018, 6, 3926–3932. [Google Scholar] [CrossRef]
  26. Chen, Y.P.; Zhang, L.; Feng, J.J.; Li, X.S.; Wang, A.J. Water-regulated and bioinspired one-step pyrolysis of iron-cobalt nanoparticles-capped carbon nanotubes/porous honeycombed nitrogen-doped carbon composite for highly efficient oxygen reduction. J. Colloid Interface Sci. 2022, 618, 352–361. [Google Scholar] [CrossRef] [PubMed]
  27. Chandran, P.; Puthusseri, D.; Ramaprabhu, S. 1D-2D integrated hybrid carbon nanostructure supported bimetallic alloy catalyst for ethanol oxidation and oxygen reduction reactions. Int. J. Hydrogen Energy 2019, 44, 4951–4961. [Google Scholar] [CrossRef]
  28. Hao, X.Q.; Jiang, Z.Q.; Zhang, B.A.; Tian, X.; Song, C.; Wang, L.; Maiyalagan, T.; Hao, X.; Jiang, Z.J. N-doped carbon nanotubes derived from graphene oxide with embedment of FeCo nanoparticles as bifunctional air electrode for rechargeable liquid and flexible all-solid-state zinc–air batteries. Adv. Sci. 2021, 8, 2004572. [Google Scholar] [CrossRef] [PubMed]
  29. Zhang, W.; Yao, X.; Zhou, S.; Li, X.; Li, L.; Yu, Z.; Gu, L. ZIF-8/ZIF-67-derived Co-Nx-embedded 1D porous carbon nanofibers with graphitic carbon-encased Co nanoparticles as an efficient bifunctional electrocatalyst. Small 2018, 14, 1800423. [Google Scholar] [CrossRef]
  30. Hu, K.; Tao, L.; Liu, D.; Huo, J.; Wang, S. Sulfur-doped Fe/N/C nanosheets as highly efficient electrocatalysts for oxygen reduction reaction. ACS Appl. Mater. Interfaces 2016, 8, 19379–19385. [Google Scholar] [CrossRef]
  31. Wang, Y.; Yang, D.; Chen, A.; Yi, Q. Fe/Co-loaded hollow carbon sphere nanocomposites as excellent cathodic catalysts of Zn-air battery. J. Electrochem. Soc. 2021, 168, 090512. [Google Scholar] [CrossRef]
  32. Hbssen, M.M.; Artyushkova, K.; Atanassov, P.; Serov, A. Synthesis and characterization of high performing Fe-N-C catalyst for oxygen reduction reaction (ORR) in alkaline exchange membrane fuel batteries. J. Power. Sources 2018, 375, 214–221. [Google Scholar] [CrossRef]
  33. Chen, Y.B.; Li, J.J.; Zhu, Y.P.; Zou, J.; Zhao, H.; Chen, C.; Cheng, Q.Q.; Yang, B.; Zou, L.L.; Zou, Z.Q.; et al. Vicinal Co atom-coordinated Fe-N-C catalysts to boost the oxygen reduction reaction. J. Mater. Chem. A 2022, 10, 9886–9891. [Google Scholar] [CrossRef]
  34. Zhu, G.H.; Yang, H.Y.; Jiang, Y.; Sun, Z.; Li, X.; Yang, J.; Wang, H.; Zou, R.; Jiang, W.; Qiu, P.; et al. Modulating the electronic structure of FeCo nanoparticles in N-doped mesoporous carbon for efficient oxygen reduction reaction. Adv. Sci. 2022, 9, 2200394. [Google Scholar] [CrossRef] [PubMed]
  35. Xia, W.; Zou, R.Q.; An, L.; Xia, D.; Guo, S. A metal-organic framework route to in situ encapsulation of Co@Co3O4@C core@bishell nanoparticles into a highly ordered porous carbon matrix for oxygen reduction. Energy Environ. Sci. 2015, 8, 568–576. [Google Scholar] [CrossRef]
  36. Su, Y.H.; Jiang, H.L.; Zhu, Y.H.; Yang, X.; Shen, J.; Zou, W.; Chen, J.; Li, C. Enriched graphitic N-doped carbon-supported Fe3O4 nanoparticles as efficient electrocatalysts for oxygen reduction reaction. J. Mater. Chem. A 2014, 2, 7281–7287. [Google Scholar] [CrossRef]
  37. Aijaz, A.; Masa, J.; Rösler, C.; Xia, W.; Weide, P.; Botz, A.J.; Fischer, R.A.; Schuhmann, W.; Muhler, M. Co@Co3O4 encapsulated in carbon nanotube-grafted nitrogen-doped carbon polyhedral as an advanced bifunctional oxygen electrode. Angew. Chem. Int. Ed. 2016, 55, 4087–4091. [Google Scholar] [CrossRef] [PubMed]
  38. Lei, Y.; Li, G.; Yang, J.; Zhang, F.; Shen, Y.; Zhang, X.; Wang, X. Constructing a Fe3O4/Fe–Nx dual catalytic active center on an N-doped porous carbon as an oxygen reduction reaction catalyst for zinc–air batteries. Energy Fuels 2023, 37, 11260–11269. [Google Scholar] [CrossRef]
  39. Feng, Y.; Song, K.X.; Zhang, W.; Zhou, X.; Yoo, S.J.; Kim, J.G.; Qiao, S.; Qi, Y.; Zou, X.; Chen, Z.; et al. Efficient ORR catalysts for zinc-air battery: Biomass-derived ultra-stable Co nanoparticles wrapped with graphitic layers via optimizing electron transfer. J. Energy. Chem. 2022, 70, 211–218. [Google Scholar] [CrossRef]
  40. Mao, J.X.; Liu, P.; Li, J.W.; Yan, J.; Ye, S.; Song, W. Accelerated intermediate conversion through nickel doping into mesoporous Co-N/C nanopolyhedron for efficient ORR. J. Energy Chem. 2022, 73, 240–247. [Google Scholar] [CrossRef]
  41. Álvarez-Manuel, L.; Alegre, C.; Sebastián, D.; Eizaguerri, A.; Napal, P.F.; Lázaro, M.J. N-doped carbon xerogels from urea-resorcinol-formaldehyde as carbon matrix for Fe-NC catalysts for oxygen reduction in fuel cells. Catal. Today 2023, 37, 114067. [Google Scholar] [CrossRef]
  42. Zhong, Y.J.; Wang, S.F.; Sha, Y.J.; Liu, M.; Cai, R.; Li, L.; Shao, Z. Trapping sulfur in hierarchically porous, hollow indented carbon spheres: A high-performance cathode for lithium-sulfur batteries. J. Mater. Chem. A 2016, 4, 9526–9535. [Google Scholar] [CrossRef]
  43. Wang, S.; Chen, L.; Liu, X.; Long, L.; Liu, H.; Liu, C.; Dong, S.; Jia, J. Fe/N-doped hollow porous carbon spheres for oxygen reduction reaction. Nanotechnology 2020, 31, 125404. [Google Scholar] [CrossRef]
  44. Zhong, Y.J.; Xu, X.M.; Liu, P.Y.; Ran, R.; Jiang, S.P.; Wu, H.; Shao, Z. A function-separated design of electrode for realizing high-performance hybrid zinc battery. Adv. Energy Mater. 2020, 10, 2002992. [Google Scholar] [CrossRef]
  45. Zhang, S.L.; Guan, B.Y.; Lou, X.W. Co–Fe alloy/N-doped carbon hollow spheres derived from dual metal–organic frameworks for enhanced electrocatalytic oxygen reduction. Small 2019, 15, 1805324. [Google Scholar] [CrossRef]
  46. Leng, Y.M.; Yang, B.L.; Zhao, Y.; Xiang, Z. Fluorinated bimetallic nanoparticles decorated carbon nanofibers as highly active and durable oxygen electrocatalyst for fuel cells. J. Energy. Chem. 2022, 73, 549–555. [Google Scholar] [CrossRef]
  47. Fan, X.Z.; Du, X.; Pang, Q.Q.; Zhang, S.; Liu, Z.Y.; Yue, X.Z. In situ construction of bifunctional N-doped carbon-anchored Co nanoparticles for OER and ORR. ACS Appl. Mater. Interfaces 2022, 14, 8549–8556. [Google Scholar] [CrossRef]
  48. Xu, L.; Jiang, Q.Q.; Xiao, Z.H.; Li, X.; Huo, J.; Wang, S.; Dai, L. Plasma-engraved Co3O4 nanosheets with oxygen vacancies and high surface area for the oxygen evolution reaction. Angew. Chem. Int. Ed. 2016, 128, 5363–5367. [Google Scholar] [CrossRef]
  49. Chutia, B.; Chetry, R.; Rao, K.N.; Singh, N.; Sudarsanam, P.; Bharali, P. Durable and stable bifunctional Co3O4-based nano-catalyst for oxygen reduction/evolution reactions. ACS Appl. Nano Mater. 2024, 7, 3620–3630. [Google Scholar] [CrossRef]
  50. Santra, S.; Bagwe, R.P.; Dutta, D.; Stanley, J.T.; Walter, G.A.; Tan, W.; Moudgil, B.M.; Mericle, R.A. Synthesis and characterization of fluorescent, radio-opaque, and paramagnetic silica nanoparticles for multimodal. Adv. Mater. 2005, 17, 2165. [Google Scholar] [CrossRef]
  51. Liu, Y.; Yu, Y.Y.; Yang, Q.Y.; Qu, Y.; Liu, Y.; Shi, G.; Jin, L. Trace detection of nitroaromatic compounds with layer-by-layer assembled {SBA/PSS}(n)/PDDA modified electrode. Sens. Actuator B Chem. 2008, 131, 432. [Google Scholar] [CrossRef]
  52. Xiong, J.; Chen, X.; Zhang, Y.; Lu, Y.; Liu, X.; Zheng, Y.; Lin, J. Fe/Co/N–C/graphene derived from Fe/ZIF-67/graphene oxide three dimensional frameworks as a remarkably efficient and stable catalyst for the oxygen reduction reaction. RSC Adv. 2022, 12, 2425. [Google Scholar] [CrossRef]
  53. Yang, W.; Guo, J.; Ma, J.; Wu, N.; Xiao, J.; Wu, M. FeCo nanoalloys encapsulated in N-doped carbon nanofibers as a trifunctional catalyst for rechargeable Zn-air batteries and overall water electrolysis. J. Alloys Compd. 2022, 926, 166937. [Google Scholar] [CrossRef]
  54. Liu, B.; Wang, S.; Feng, R.; Ni, Y.; Song, F.; Liu, Q. Anchoring bimetal single atoms and alloys on N-doping-carbon nanofiber networks for an efficient oxygen reduction reaction and zinc–air batteries. ACS Appl. Mater. Interfaces 2022, 14, 38739. [Google Scholar] [CrossRef]
  55. Ji, C.; Zhang, T.; Sun, P.; Li, P.; Wang, J.; Zhang, L.; Sun, Y.; Duan, W.; Li, Z. Facile preparation and properties of high nitrogen-containing Fe/Co/N co-doped three-dimensional graphene bifunctional oxygen catalysts for zinc air battery. Int. J. Hydrogen Energy 2023, 48, 26328–26340. [Google Scholar] [CrossRef]
Molecules 29 02349 sch001
Scheme 1. Illustration for synthesis of FexCo-HNC-T.
Scheme 1. Illustration for synthesis of FexCo-HNC-T.
Molecules 29 02349 sch001
Molecules 29 02349 g001
Figure 1. (a) SEM images of Fe1Co-HNC-1000 (un-etched), TEM images of (b) Fe1Co-HNC-1000 (un-etched), (c) Fe1Co-HNC-1000, (d) Fe1Co-HNC-900, (e) Fe1Co-HNC-1000, and (f) HAADF mappings of Fe1Co-HNC-1000.
Figure 1. (a) SEM images of Fe1Co-HNC-1000 (un-etched), TEM images of (b) Fe1Co-HNC-1000 (un-etched), (c) Fe1Co-HNC-1000, (d) Fe1Co-HNC-900, (e) Fe1Co-HNC-1000, and (f) HAADF mappings of Fe1Co-HNC-1000.
Molecules 29 02349 g001
Molecules 29 02349 g002

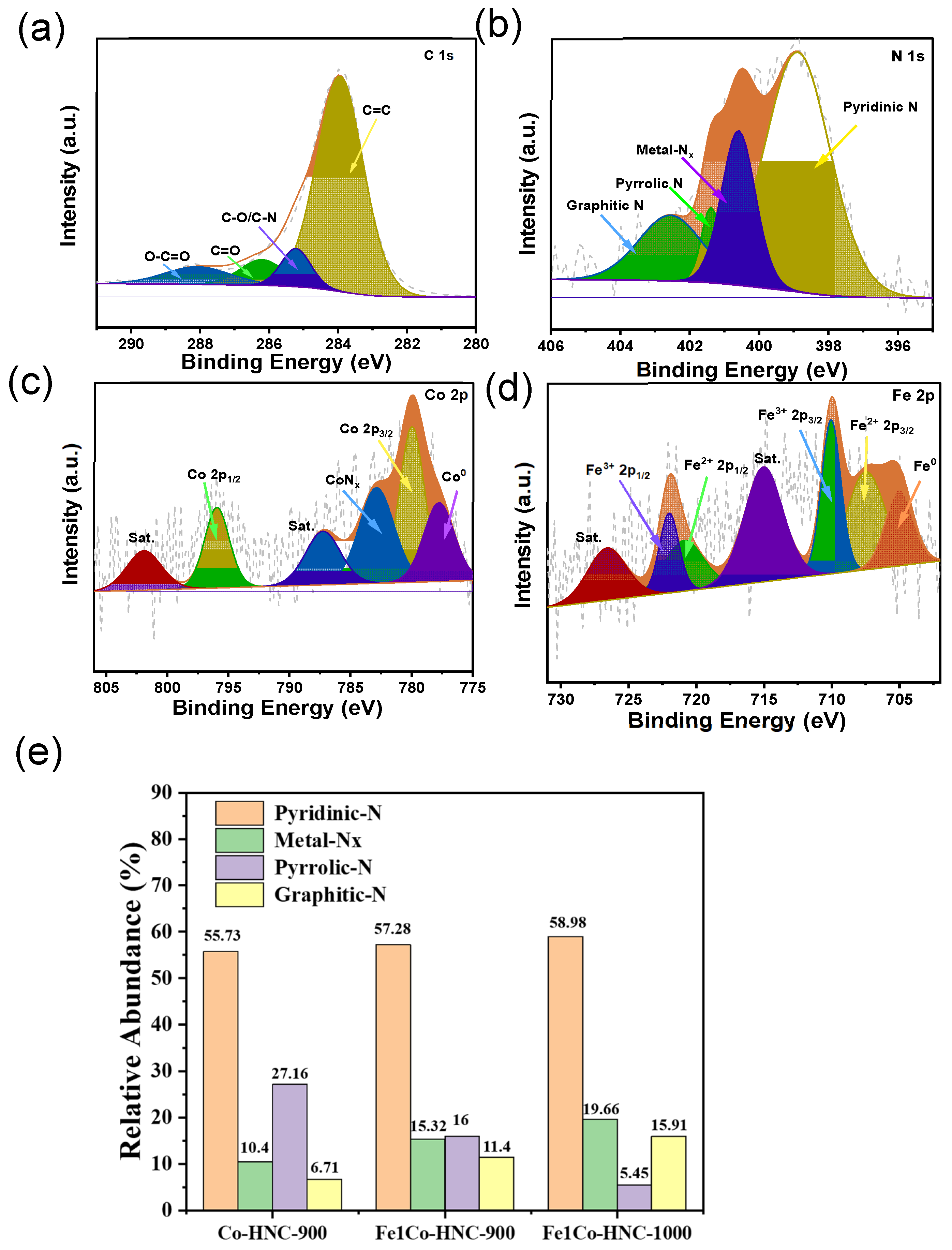

Figure 2. High-resolution XPS spectra of Fe1Co-HNC-1000 (a) C 1s, (b) N 1s, (c) Co 2p, and (d) Fe 2p. (e) Chemical states of N elements in Fe1Co-HNCs prepared at different temperatures according to the N1s narrow-scan spectrum.
Figure 2. High-resolution XPS spectra of Fe1Co-HNC-1000 (a) C 1s, (b) N 1s, (c) Co 2p, and (d) Fe 2p. (e) Chemical states of N elements in Fe1Co-HNCs prepared at different temperatures according to the N1s narrow-scan spectrum.
Molecules 29 02349 g002
Molecules 29 02349 g003

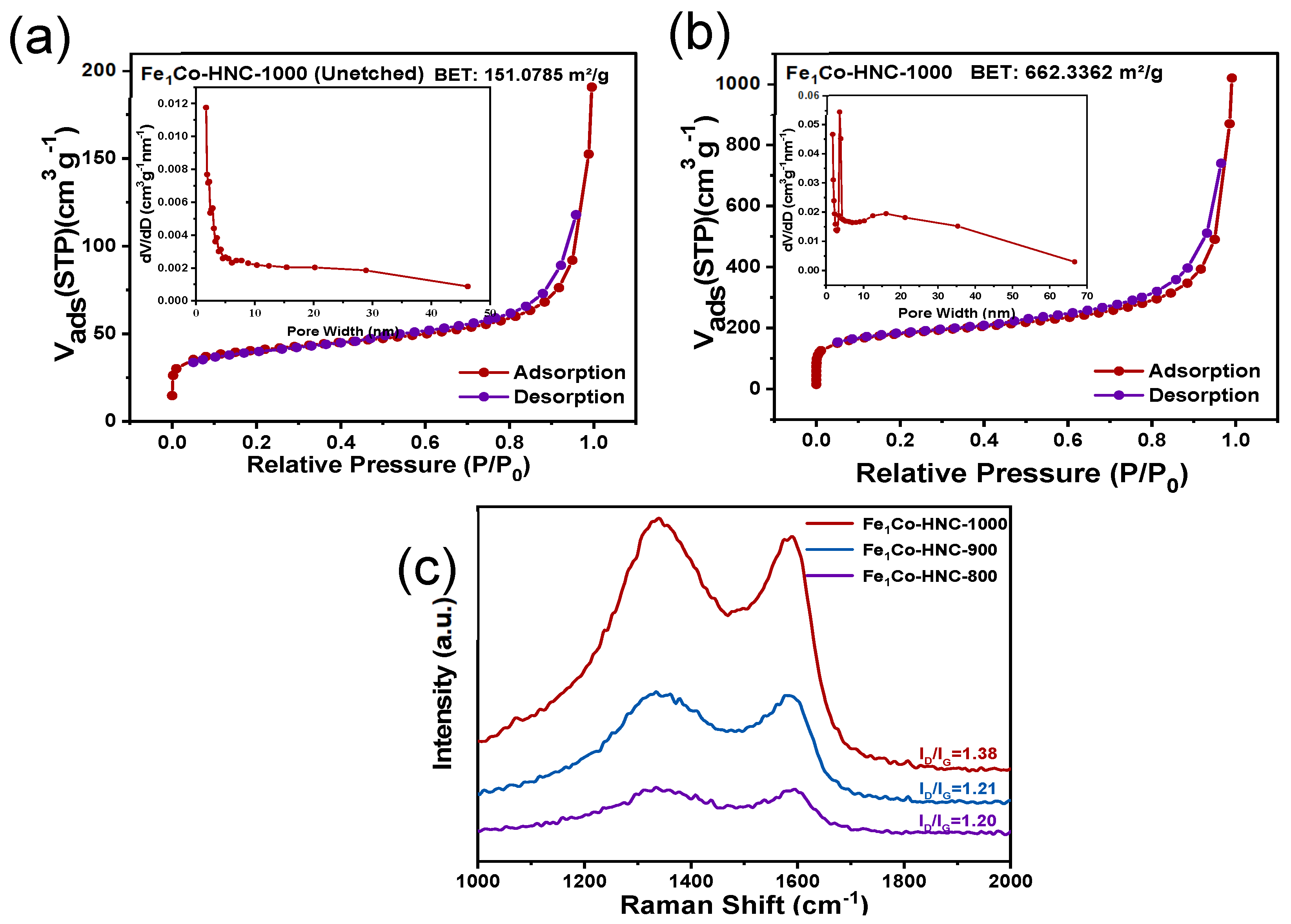

Figure 3. (a,b) N2 adsorption–desorption isotherms of Fe1Co-HNC-1000 (unetched) and Fe1Co-HNC-1000. (c) Raman spectra of Fe1Co-HNC were prepared at different temperatures.
Figure 3. (a,b) N2 adsorption–desorption isotherms of Fe1Co-HNC-1000 (unetched) and Fe1Co-HNC-1000. (c) Raman spectra of Fe1Co-HNC were prepared at different temperatures.
Molecules 29 02349 g003
Molecules 29 02349 g004

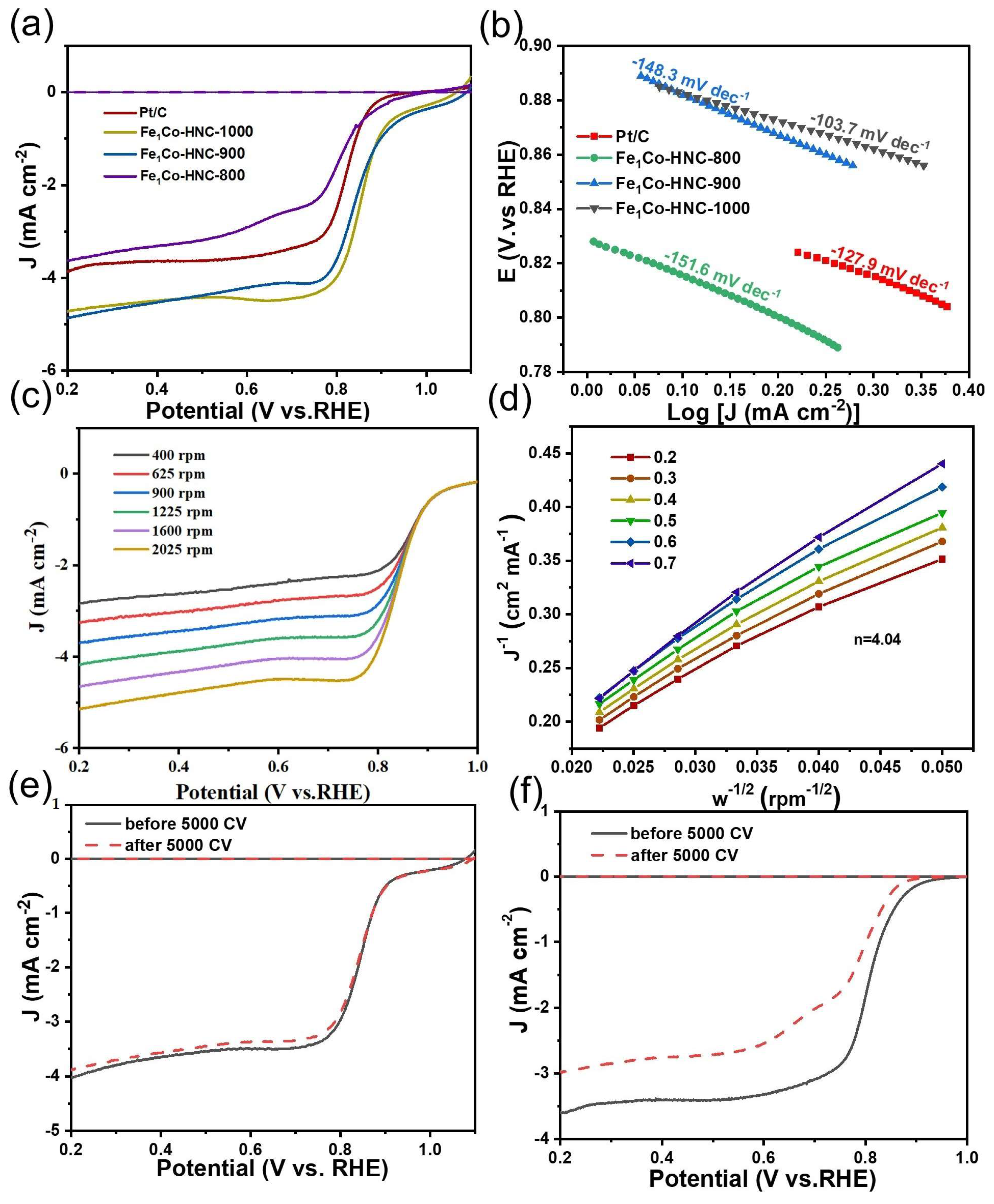

Figure 4. (a) RRDE polarization curves of different electrocatalysts. (b) Tafel slope plots. (c) LSV polarization curves of Fe1Co-HNC-1000 carried on various rotating rates. (d) Corresponding K-L plots and calculated n. (e) LSV curves of Fe1Co-HNC-1000, and (f) Pt/C in 0.10 M KOH before and after 5000 CV cycles. Scan rate is 5 mV/s.
Figure 4. (a) RRDE polarization curves of different electrocatalysts. (b) Tafel slope plots. (c) LSV polarization curves of Fe1Co-HNC-1000 carried on various rotating rates. (d) Corresponding K-L plots and calculated n. (e) LSV curves of Fe1Co-HNC-1000, and (f) Pt/C in 0.10 M KOH before and after 5000 CV cycles. Scan rate is 5 mV/s.
Molecules 29 02349 g004
Molecules 29 02349 g005

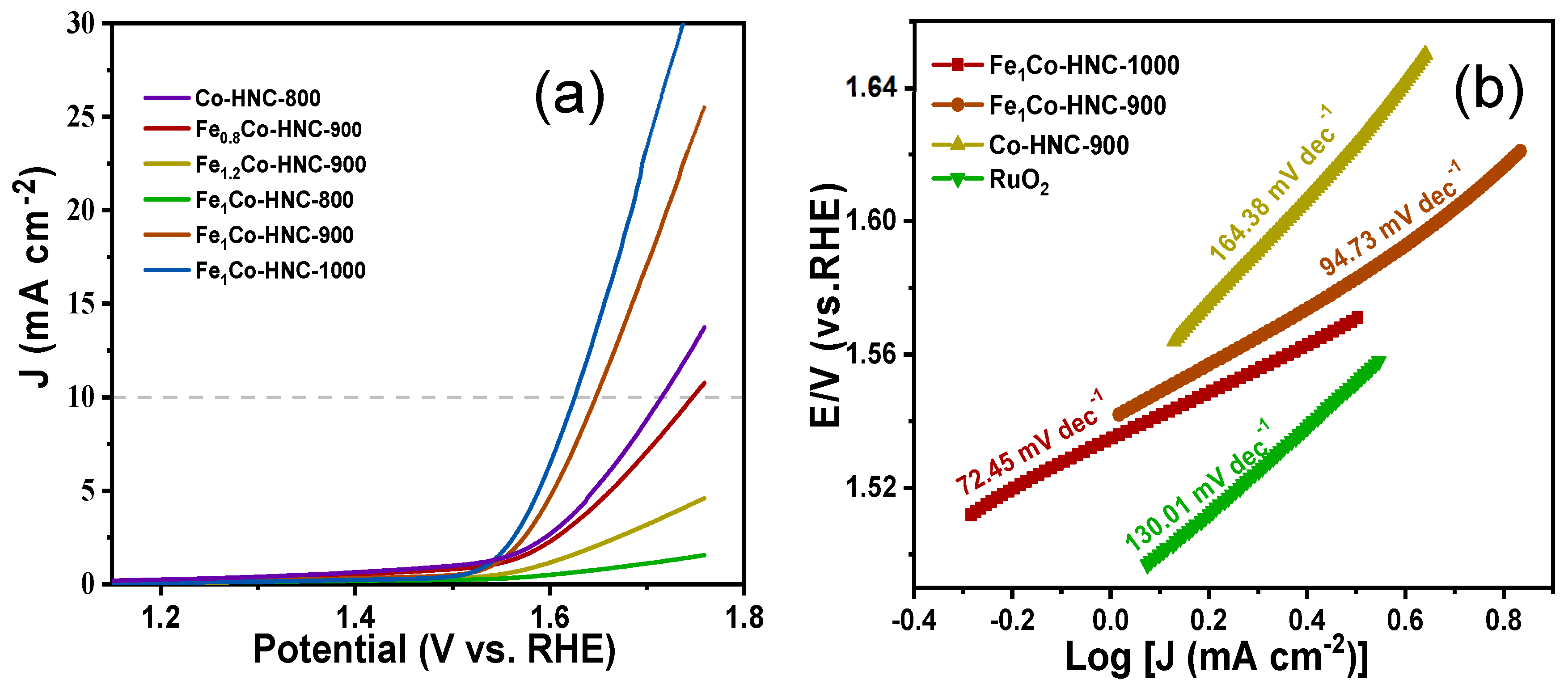

Figure 5. (a) RRDE polarization curves of different electrocatalysts at 1600 rpm. (b) Tafel slope plots. Scan rate is 5 mV/s.
Figure 5. (a) RRDE polarization curves of different electrocatalysts at 1600 rpm. (b) Tafel slope plots. Scan rate is 5 mV/s.
Molecules 29 02349 g005
