Palladium-Catalyzed β-C(sp3)–H Bond Arylation of Tertiary Aldehydes Facilitated by 2-Pyridone Ligands

by
Ziting Xu
1,
Zhi Li
1,
Chong Liu
2,
Ke Yang
1,* and
Haibo Ge
2,*
1
Jiangsu Key Laboratory of Advanced Catalytic Materials & Technology, School of Petrochemical Engineering, Changzhou University, Changzhou 213164, China
2
Department of Chemistry and Biochemistry, Texas Tech University, Lubbock, TX 79409, USA
*
Authors to whom correspondence should be addressed.
Molecules 2024, 29(1), 259; https://doi.org/10.3390/molecules29010259
Submission received: 26 November 2023 / Revised: 28 December 2023 / Accepted: 1 January 2024 / Published: 3 January 2024
(This article belongs to the Section Organic Chemistry)
Browse Figures
Review Reports Versions Notes

Abstract

:
2-Pyridone ligand-facilitated palladium-catalyzed direct C–H bond functionalization via the transient directing group strategy has become an attractive topic. Here, we report a Pd-catalyzed direct β-C(sp3)–H arylation reaction of tertiary aliphatic aldehydes by using an α-amino acid as a transient directing group in combination with a 2-pyridone ligand.

1. Introduction

Aliphatic aldehydes are not only important intermediates in chemical synthesis, but also ubiquitous structural units in pharmaceuticals and natural products [1,2,3]. Among various synthetic approaches for aliphatic aldehydes, transition metal-catalyzed C–H bond functionalization represents one of the most efficient tools for the construction and derivatization of aliphatic aldehydes [4,5,6,7,8,9]. Recently, the transient directing group strategy (TDGS) has been well applied in the field of transition metal-catalyzed C–H bond functionalization of aldehydes, ketones, and amines [10,11,12,13,14,15]. In 2016, the Yu group reported the Pd-catalyzed C–H arylation of o-alkyl benzaldehydes and aliphatic ketones by employing α-amino acids as transient directing groups [16]. Meanwhile, our group also disclosed the first example of Pd-catalyzed direct β-C(sp3)–H arylation of aliphatic aldehydes by using either 3-aminopropanoic acid or 3-amino-3-methylbutanoic acid as a transient directing group [17]. Although much significant progress has been made in this research area, the β-C(sp3)–H bond functionalization of tertiary aldehydes is rare with only a few examples reported [18,19]. In 2017, the Bull group disclosed Pd-catalyzed β-C(sp3)–H arylation of tertiary aldehydes with simple N-tosylethylenediamine as transient directing group (Scheme 1a) [18]. Later, the same group reported the Pd-catalyzed intramolecular β-C(sp3)–H arylation of tertiary aldehydes in the presence of 2-methoxyethan-1-amine (Scheme 1b) [19]. In 2019, the Chen and Zhou group demonstrated Pd-catalyzed selective C–H arylation of phenylacetaldehydes using L-valine as the transient directing group (Scheme 1c) [20]. Recently, the Yang and Li group used a calix[4]arene-derived diamine as the transient directing group to achieve this process (Scheme 1d) [21]. Unfortunately, these strategies only provided limited examples with isolated yields no more than 63%. Therefore, the development of highly efficient methodologies with a broader substrate scope is desirable.
Recently, the use of a transient directing group in combination with an external 2-pyridone ligand has emerged as a promising strategy in Pd-catalyzed C–H functionalization reactions [22,23,24,25,26,27,28,29,30,31]. It is believed that the 2-pyridone ligand can effectively stabilize the palladium catalyst and lower the transition-state energy of the C–H bond cleavage, promoting and accelerating this catalytic process [22,23,24,25,26,27,28,29,30,31,32,33,34]. The Yu group first found that versatile 2-pyridone ligands could significantly improve the efficiency of TDG-enabled Pd-catalyzed C–H arylation and fluorination of alkyl amines [22,23]. Subsequently, the Yu and Sorensen groups disclosed that 2-pyridone ligands could promote the Pd-catalyzed C–H arylation of aliphatic ketones [24,25,26]. Additionally, Zhang and co-workers reported an effective TDG-enabled Pd-catalyzed ortho-C–H chlorination of benzaldehydes with the assistance of external 2-pyridone ligands [27]. Moreover, the Bull group disclosed the Pd-catalyzed methylene C(sp3)–H β,β′-diarylation of cyclohexanecarbaldehydes enabled by a transient directing group and 2-pyridone ligand [28].
In 2020, our group discovered the first example of Pd-catalyzed γ-C(sp3)–H arylation of aliphatic aldehydes by concurrently using L-phenylalanine as a transient directing group and 3-nitro-5-(trifluoromethyl)pyridin-2-ol as an external ligand [29]. Later, both our and the Yu groups demonstrated that 5-nitro-3-(trifluoromethyl)pyridin-2-ol could promote the palladium-catalyzed direct β-C(sp3)–H arylation of primary aliphatic aldehydes [30,31]. Encouraged by the above results, we report here a palladium-catalyzed amino acid-enabled direct β-C(sp3)–H arylation reaction of tertiary aliphatic aldehydes in the presence of a 2-pyridone ligand (Scheme 1e).

2. Results and Discussion

On the basis of our previous studies, we commenced our investigation on the reaction of pivalaldehyde (1a) and methyl 4-iodobenzoate (2a) in the presence of catalytic Pd(OAc)2 and stoichiometric amounts of AgTFA with L-phenylglycine (TDG1, 40 mol%) and 3-nitro-5-(trifluoromethyl)pyridin-2-ol (L1, 30 mol%) at 100 °C under a nitrogen atmosphere (Scheme 2 and Table 1). After an extensive solvent screening, it was determined that a mixture of HFIP and HOAc in a ratio of 3:1 yielded the desired arylated product 3a-mono (42% NMR yield) as well as the diarylated product 3a-di (34% NMR yield) (Table 1, entries 1–6). The subsequent investigation on the amounts of L1 and TDG1 revealed that increasing the loading of L1 (from 40 to 60 mol%) resulted in an enhancement in the yields of 3a-mono and 3a-di to 53% and 35%, respectively (Table 1, entries 7–12). Furthermore, no significant improvements were observed when employing alternative Pd catalysts, such as Pd(TFA)2, PdCl2, and PdBr2 (Table 1, entries 13–15). In the absence of the 2-pyridone ligand, both the yields of 3a-mono and 3a-di decreased, while no products were obtained in the absence of a transient directing group (Table 1, entries 16–17).
Next, the effect of both transient directing groups and 2-pyridone ligands on this reaction was examined (Scheme 3). While the use of α-amino acids TDG1–5 afforded the mono- and di-arylated products in good yields, 2-aminoisobutyric acid (TDG6) proved inefficient. Furthermore, β-amino acids TDG7–10 failed to provide any desired products. These results suggest that L-phenylglycine (TDG1) was the optimal transient directing group, presumably via formation of a [5,5]-bicyclic palladium species in this protocol. The subsequent screening of 2-pyridone derivatives revealed that 3-nitro-5-(trifluoromethyl)pyridin-2-ol (L1) was the optimal ligand, while other 2-pyridone ligands L2–10 provided only moderate yields.
With the optimized reaction conditions at hand, the substrate scope study of aryl iodides was carried out (Scheme 4). The presence of a strong electron-withdrawing (ester, cyano, nitro, and trifluoromethyl) group on the phenyl ring at the para- or meta-position of iodobenzene was found to be compatible with our current catalytic process, resulting in the isolation of desired mono- and di-arylated products 3a–g with good overall yields. Notably, the synthetic applicability of this protocol could be further enhanced by facile conversion of these well-tolerated functional groups into other important moieties. As expected, this catalytic system also exhibited compatibility with 5-iodo-2-(trifluoromethyl)pyridine, providing the desired mono-arylated product 3h in moderate yield. To our delight, natural products-containing aryl iodide derived from complex organic frameworks, including menthol and fenchol, could also be efficiently converted into the desired products 3i–j with high overall yields. However, the use of TDG1 and L1 yielded only moderate yields when employing unsubstituted or electron-donating substituted iodobenzenes as coupling partners, as well as weakly electron-withdrawing iodobenzenes. The utilization of TDG2 and L2 resulted in a significant enhancement in the overall yields of 3k (from 43% to 66%). Furthermore, the desired products 3l–o were obtained with good yields from iodobenzenes bearing a methoxy, methyl, or halogen group.
Subsequently, the substrate scope study of aliphatic aldehydes was carried out (Scheme 5). The α-methyl-α,α-dialkyl acetaldehydes, such as 2-methyl-2-propylpentanal, 2-methyl-2-propylhexanal, and 2-methyl-2-propylheptanal, produced only the mono-arylated products 3p–3r in good yields. Furthermore, a tertiary aliphatic aldehyde bearing a cyclohexyl group also provided the desired product 3s in 55% yield. These results indicate that the functionalization of the methyl β-C–H bond is predominantly favored over the methylene β-C–H bond. Additionally, when α,α-dimethyl-α-aryl acetaldehydes were employed, only mono-arylated products 3t–u were obtained in moderate to good yields. It is noteworthy that the ether group was also tolerated and both mono- and di-arylated products 3v–w were isolated with good overall yields. Unfortunately, non-α-quaternary aliphatic aldehydes, including cyclohexanal, 2-methylpentaldehyde, and n-pentanal, failed in our current catalytic cycle (3x–z).
Based on the above results and previous reports [18,19,20,21,22,23,24,25,26,27,28,29,30,31], a plausible catalytic cycle is proposed in Scheme 6 [10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37]. The reversible imine formation of tertiary aliphatic aldehyde 1a with TDG1 generates imine intermediate A. Next, the coordination of imine species A, 2-pyridone ligand L1 to the Pd(II) catalyst provides cyclic palladium intermediate B. Subsequently, 2-pyridone ligand-assisted β-C(sp3)–H bond activation occurs with intermediate B to give rise to [5,5]-bicyclic palladium intermediate C. Next, ligand replacement of intermediate C with aryl iodide 2, followed by an oxidative addition process, provides Pd(IV) intermediate D. Then, Pd(IV) intermediate E is formed through iodine abstraction of intermediate D by AgTFA and is further transformed into intermediate F via a reductive elimination process. In the presence of 2-pyridone ligand L1, metathesis occurs between intermediate F and imine intermediate A, resulting in the formation of imine intermediate G and regeneration of cyclic palladium intermediate B. Imine intermediate G finally undergoes hydrolysis to generate the desired product 3-mono and release TDG1. Subsequently, the second arylation of 3-mono in this catalytic cycle produces the di-arylated product 3-di.

3. Materials and Methods

3.1. General Information

All the solvents and commercially available reagents were purchased and used directly. Thin layer chromatography (TLC) was performed on EMD precoated plates (silica gel 60 F254, Art 5715, Yantai Jiangyou Silica gel Development Co., LTD, Yantai, China) and visualized by fluorescence quenching under UV light. Column chromatography was performed on EMD Silica Gel 60 (200–300 Mesh, Shanghai Titan Technology Co., Ltd., Shanghai, China) using a forced flow of 0.5–1.0 bar. The 1H and 13C NMR spectra were obtained on a Bruker AVANCE III–300 or 400 spectrometer (Bruker Corporation, Billerica, Massachusetts, USA). 1H NMR data was reported as: chemical shift (δ ppm), multiplicity, coupling constant (Hz), and integration. 13C NMR data was reported in terms of chemical shift (δ ppm), multiplicity, and coupling constant (Hz). Mass (HRMS) analysis was obtained using Agilent 6200 Accurate-Mass TOF LC/MS (Agilent Technologies Co., Ltd., Santa Clara, California, USA). system with Electrospray Ionization (ESI). Aliphatic aldehydes 1 and (hetero)aryl iodides (2a–2g and 2j–2n) were purchased from Energy-chemical (Shanghai, China), Atomax-chemical (Shenzhen, China), BLDpharm (Shanghai, China), Chemieliva (Chongqing, China), Enamine (Shanghai, China), Adamas-beta® (Shanghai, China), TCI (Shanghai, China), J&K@ (Shanghai, China) or Sigma-Aldrich (Shanghai, China). Aryl iodide 2h and 2i were prepared by using 4-iodobenzoic acid with menthol and fenchol according to literature procedures [38].

3.2. Optimization of the Reaction Conditions

A 10 mL Schlenk tube was charged with methyl 4-iodobenzoate (2a, 104.81 mg, 0.4 mmol), L-phenylglycine (TDG1), 3-nitro-5-(trifluoromethyl)pyridin-2-ol (L1), Pd source (0.02 mmol), and AgTFA (0.3 mmol). The tube was evacuated and filled with N2 three times. Next, pivalaldehyde (1a, 22.0 μL, 0.2 mmol) and the solvents were added into the tube quickly. The reaction was then stirred vigorously at room temperature for 20 min before being heated to 100 °C for 24 h. After cooling to room temperature, the reaction mixture was diluted with EtOAc (15 mL), filtered through a pad of celite, and the filtrate was then concentrated in vacuo; the crude product was analyzed by 1H NMR in CDCl3. Yields are based on 1a, determined by crude 1H NMR using dibromomethane as the internal standard. The residue was purified by flash chromatography on silica gel using petroleum ether/EtOAc (v/v = 10:1) as the eluent to yield products 3a-mono and 3a-di.

3.3. The Investigations of Transient Directing Groups

A 10 mL Schlenk tube was charged with methyl 4-iodobenzoate (2a, 104.81 mg, 0.4 mmol), transient directing groups (TDG, 0.08 mmol), 3-nitro-5-(trifluoromethyl)pyridin-2-ol (L1, 25.0 mg, 0.12 mmol), Pd(OAc)2 (4.53 mg, 0.02 mmol), and AgTFA (66.27 mg, 0.3 mmol). The tube was evacuated and filled with N2 three times. Next, pivalaldehyde (1a, 22.0 μL, 0.2 mmol) and the mixture of HFIP (1.5 mL) and HOAc (0.5 mL) were added into the tube quickly. The reaction was then stirred vigorously at room temperature for 20 min before being heated to 100 °C for 24 h. After cooling to room temperature, the reaction mixture was diluted with EtOAc (15 mL), filtered through a pad of celite, and the filtrate was then concentrated in vacuo; the crude product was analyzed by 1H NMR in CDCl3. Yields (3a-mono and 3a-di) are based on 1a, determined by crude 1H NMR using dibromomethane as the internal standard.

3.4. The Investigations of 2-Pyridone Ligands

A 10 mL Schlenk tube was charged with methyl 4-iodobenzoate (2a, 104.81 mg, 0.4 mmol), L-phenylglycine (TDG1, 12.09 mg, 0.08 mmol), 2-pyridone ligands (L1, 0.12 mmol), Pd(OAc)2 (4.53 mg, 0.02 mmol), and AgTFA (66.27 mg, 0.3 mmol). The tube was evacuated and filled with N2 three times. Next, pivalaldehyde (1a, 22.0 μL, 0.2 mmol) and the mixture of HFIP (1.5 mL) and HOAc (0.5 mL) were added into the tube quickly. The reaction was then stirred vigorously at room temperature for 20 min before being heated to 100 °C for 24 h. After cooling to room temperature, the reaction mixture was diluted with EtOAc (15 mL), filtered through a pad of celite, and the filtrate was then concentrated in vacuo; the crude product was analyzed by 1H NMR in CDCl3. Yields (3a-mono and 3a-di) are based on 1a, determined by crude 1H NMR using dibromomethane as the internal standard.

3.5. Synthetic Procedures for the Synthesis of Compound 3

A 10 mL Schlenk tube was charged with iodobenzene (2, 0.4 mmol), transient directing groups (TDG1 or TDG2, 0.08 mmol), 2-pyridone ligands (L1 or L2, 0.12 mmol), Pd(OAc)2 (4.53 mg, 0.02 mmol), and AgTFA (66.27 mg, 0.3 mmol). The tube was evacuated and filled with N2 three times. Next, aldehyde (1, 0.2 mmol) and the mixture of HFIP (1.5 mL) and HOAc (0.5 mL) were added into the tube quickly. The reaction was then stirred vigorously at room temperature for 20 min before being heated to 100 °C for 24 or 72 h. After cooling to room temperature, the reaction mixture was diluted with EtOAc (15 mL), filtered through a pad of celite, and the filtrate was then concentrated in vacuo; the residue was purified by flash chromatography on silica gel using petroleum ether/EtOAc as the eluent to yield the product 3.
Methyl 4-(2,2-dimethyl-3-oxopropyl)benzoate (3a-mono). The title compound was prepared by using TDG1 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 10:1). Colorless oil, 22.5 mg, yield: 51% (known compound [21]). 1H NMR (300 MHz, CDCl3) δ 9.50 (s, 1H), 7.88 (d, J = 8.3 Hz, 2H), 7.10 (d, J = 8.2 Hz, 2H), 3.83 (s, 3H), 2.76 (s, 2H), 0.98 (s, 6H). 13C NMR (75 MHz, CDCl3) δ 205.41, 167.00, 142.50, 130.33, 129.46, 128.53, 52.12, 46.95, 42.90, 21.45.
Dimethyl 4,4′-(2-formyl-2-methylpropane-1,3-diyl)dibenzoate (3a-di). The title compound was prepared by using TDG1 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 10:1). White solid, 22.7 mg, yield: 32%. 1H NMR (300 MHz, CDCl3) δ 9.58 (s, 1H), 7.88 (d, J = 8.3 Hz, 4H), 7.09 (d, J = 8.3 Hz, 4H), 3.84 (s, 6H), 3.00 (d, J = 13.5 Hz, 2H), 2.69 (d, J = 13.5 Hz, 2H), 0.93 (s, 3H). 13C NMR (75 MHz, CDCl3) δ 200.17, 161.91, 136.75, 125.44, 124.60, 123.79, 47.18, 46.15, 37.59, 13.36. HRMS (ESI, m/z): calcd. For C21H22NaO5 [M + Na]+: 377.1358, found: 377.1358.
Ethyl 4-(2,2-dimethyl-3-oxopropyl)benzoate (3b-mono). The title compound was prepared by using TDG1 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 10:1). Colorless oil, 23.4 mg, yield: 50% (known compound [21]). 1H NMR (400 MHz, CDCl3) δ 9.50 (s, 1H), 7.93–7.84 (m, 2H), 7.10 (d, J = 8.3 Hz, 2H), 4.32–4.26 (m, 2H), 2.76 (s, 2H), 1.31 (t, J = 7.1 Hz, 3H), 0.98 (s, 6H). 13C NMR (75 MHz, CDCl3) δ 204.34, 165.47, 141.30, 129.21, 128.36, 127.84, 59.87, 45.87, 41.87, 20.39, 13.29.
Diethyl 4,4′-(2-formyl-2-methylpropane-1,3-diyl)dibenzoate (3b-di). The title compound was prepared by using TDG1 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 10:1). White solid, 24.5 mg, yield: 32%. 1H NMR (400 MHz, CDCl3) δ 9.58 (s, 1H), 7.88 (d, J = 8.3 Hz, 4H), 7.08 (d, J = 8.3 Hz, 4H), 4.32–4.26 (m, 4H), 2.99 (d, J = 13.5 Hz, 2H), 2.69 (d, J = 13.5 Hz, 2H), 1.31 (t, J = 7.1 Hz, 6H), 0.92 (s, 3H). 13C NMR (75 MHz, CDCl3) δ 205.16, 166.41, 141.62, 130.37, 129.55, 129.14, 60.98, 51.13, 42.58, 18.35, 14.35. HRMS (ESI, m/z): calcd. For C23H27O5 [M + H]+: 383.1853, found: 383.1838.
4-(2,2-Dimethyl-3-oxopropyl)benzonitrile (3c-mono). The title compound was prepared by using TDG1 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 50:1). Colorless oil, 22.8 mg, yield: 61% (known compound [39]). 1H NMR (300 MHz, CDCl3) δ 9.56 (s, 1H), 7.57 (d, J = 8.0 Hz, 2H), 7.23 (d, J = 8.0 Hz, 2H), 2.85 (s, 2H), 1.06 (s, 6H). 13C NMR (75 MHz, CDCl3) δ 204.84, 142.86, 131.93, 131.06, 118.79, 110.57, 46.92, 42.82, 21.52.
4,4′-(2-Formyl-2-methylpropane-1,3-diyl)dibenzonitrile (3c-di). The title compound was prepared by using TDG1 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 50:1). Colorless oil, 8.1 mg, yield: 14%. 1H NMR (300 MHz, CDCl3) δ 9.60 (s, 1H), 7.58 (d, J = 8.0 Hz, 4H), 7.20 (d, J = 8.0 Hz, 4H), 3.07 (d, J = 13.5 Hz, 2H), 2.75 (d, J = 13.5 Hz, 2H), 1.02 (s, 3H). 13C NMR (75 MHz, CDCl3) δ 204.25, 141.68, 132.14, 131.14, 118.58, 111.07, 51.09, 42.60, 18.47. HRMS (ESI, m/z): calcd. For C19H16N2NaO [M + Na]+: 311.1155, found: 311.1151.
2,2-Dimethyl-3-(4-nitrophenyl)propanal (3d-mono). The title compound was prepared by using TDG1 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 50:1). Colorless oil, 31.1 mg, yield: 75% (known compound [21]). 1H NMR (300 MHz, CDCl3) δ 9.57 (s, 1H), 8.14 (d, J = 8.7 Hz, 2H), 7.29 (d, J = 8.7 Hz, 2H), 2.91 (s, 2H), 1.09 (s, 6H). 13C NMR (75 MHz, CDCl3) δ 204.78, 146.84, 145.06, 131.15, 123.39, 46.99, 42.46, 21.57.
2-Methyl-2-(4-nitrobenzyl)-3-(4-nitrophenyl)propanal (3d-di). The title compound was prepared by using TDG1 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 50:1). Colorless oil, 6.6 mg, yield: 10% (known compound [18]). 1H NMR (300 MHz, CDCl3) δ 9.56 (s, 1H), 8.09 (d, J = 8.4 Hz, 4H), 7.20 (d, J = 5.6 Hz, 4H), 3.07 (d, J = 13.4 Hz, 2H), 2.75 (d, J = 13.5 Hz, 2H), 0.99 (s, 3H). 13C NMR (75 MHz, CDCl3) δ 204.10, 147.09, 143.74, 131.26, 123.61, 51.15, 42.30, 18.54.
2,2-Dimethyl-3-(4-(trifluoromethyl)phenyl)propanal (3e-mono). The title compound was prepared by using TDG1 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 50:1). Colorless oil, 22.6 mg, yield: 49% (known compound [40]). 1H NMR (300 MHz, CDCl3) δ 9.50 (s, 1H), 7.45 (d, J = 7.9 Hz, 2H), 7.14 (d, J = 7.9 Hz, 2H), 2.77 (s, 2H), 0.99 (s, 6H). 13C NMR (101 MHz, CDCl3) δ 205.28, 141.24, 130.59, 128.90 (q, J = 32.5 Hz), 125.09 (q, J = 3.8 Hz), 124.24 (q, J = 272.0 Hz), 46.91, 42.64, 21.44.
2-Methyl-2-(4-(trifluoromethyl)benzyl)-3-(4-(trifluoromethyl)phenyl)propanal (3e-di). The title compound was prepared by using TDG1 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 50:1). Colorless oil, 16.5 mg, yield: 22% (known compound [40]). 1H NMR (300 MHz, CDCl3) δ 9.57 (s, 1H), 7.46 (d, J = 8.0 Hz, 4H), 7.13 (d, J = 8.0 Hz, 4H), 3.00 (d, J = 13.6 Hz, 2H), 2.69 (d, J = 13.6 Hz, 2H), 0.94 (s, 3H). 13C NMR (101 MHz, CDCl3) δ 204.97, 140.39, 130.70, 129.22 (q, J = 32.6 Hz), 125.28 (q, J = 3.7 Hz), 124.14 (q, J = 271.9 Hz), 51.05, 42.38, 18.32.
Methyl 3-(2,2-dimethyl-3-oxopropyl)benzoate (3f-mono). The title compound was prepared by using TDG1 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 10:1). Colorless oil, 20.3 mg, yield: 46% (known compound [21]). 1H NMR (300 MHz, CDCl3) δ 9.52 (s, 1H), 7.84 (d, J = 7.4 Hz, 1H), 7.72 (s, 1H), 7.31–7.21 (m, 2H), 3.84 (s, 3H), 2.77 (s, 2H), 0.99 (s, 6H). 13C NMR (75 MHz, CDCl3) δ 205.49, 167.06, 137.35, 134.79, 131.26, 130.10, 128.27, 127.88, 52.18, 46.90, 42.71, 21.39.
Dimethyl 3,3′-(2-formyl-2-methylpropane-1,3-diyl)dibenzoate (3f-di). The title compound was prepared by using TDG1 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 10:1). Colorless oil, 22.7 mg, yield: 32%. 1H NMR (300 MHz, CDCl3) δ 9.61 (s, 1H), 7.84 (d, J = 7.6 Hz, 2H), 7.70 (s, 2H), 7.32–7.19 (m, 4H), 3.84 (s, 6H), 2.99 (d, J = 13.6 Hz, 2H), 2.70 (d, J = 13.6 Hz, 2H), 0.94 (s, 3H). 13C NMR (75 MHz, CDCl3) δ 205.23, 166.94, 136.73, 134.85, 131.38, 130.24, 128.41, 128.09, 52.17, 51.07, 42.31, 18.25. HRMS (ESI, m/z): calcd. For C21H22NaO5 [M + Na]+: 377.1354, found: 377.1358.
2,2-Dimethyl-3-(3-nitrophenyl)propanal (3g-mono). The title compound was prepared by using TDG1 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 50:1). Colorless oil, 22.0 mg, yield: 53%. 1H NMR (300 MHz, CDCl3) δ 9.50 (s, 1H), 8.02–8.00 (m, 1H), 7.92 (s, 1H), 7.38 (d, J = 5.0 Hz, 2H), 2.84 (s, 2H), 1.01 (s, 6H). 13C NMR (75 MHz, CDCl3) δ 204.78, 148.11, 139.21, 136.47, 129.10, 124.98, 121.76, 46.88, 42.26, 21.47. HRMS (ESI, m/z): calcd. For C11H14NO3 [M + H]+: 208.0968, found: 208.0968.
2-Methyl-2-(3-nitrobenzyl)-3-(3-nitrophenyl)propanal (3g-di). The title compound was prepared by using TDG1 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 50:1). Yellow solid, 11.8 mg, yield: 18%. 1H NMR (300 MHz, CDCl3) δ 9.59 (s, 1H), 8.06 (d, J = 7.6 Hz, 2H), 7.91 (s, 2H), 7.47–7.31 (m, 4H), 3.07 (d, J = 13.7 Hz, 2H), 2.77 (d, J = 13.7 Hz, 2H), 1.02 (s, 3H). 13C NMR (75 MHz, CDCl3) δ 204.05, 148.21, 138.07, 136.47, 129.40, 125.11, 122.18, 51.04, 41.98, 18.47. HRMS (ESI, m/z): calcd. For C17H16N2NaO5 [M + Na]+: 351.0951, found: 351.0933.
2,2-Dimethyl-3-(6-(trifluoromethyl)yridine-3-yl)propanal (3h). The title compound was prepared by using TDG1 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 10:1). Yellow oil, 23.1 mg, yield: 50% (known compound [40]). 1H NMR (400 MHz, CDCl3) δ 9.47 (s, 1H), 8.44 (s, 1H), 7.60–7.53 (m, 2H), 2.81 (s, 2H), 1.02 (s, 6H). 13C NMR (101 MHz, CDCl3) δ 204.47, 151.43, 146.49 (q, J = 34.7 Hz), 139.02, 136.33, 121.60 (q, J = 273.8 Hz), 119.96 (q, J = 2.7 Hz), 46.81, 39.27, 21.47.
(1S,2S,5S)-2-Isopropyl-5-methylcyclohexyl 4-(2,2-dimethyl-3-oxopropyl)benzoate (3i-mono). The title compound was prepared by using TDG1 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 10:1). Colorless oil, 26.2 mg, yield: 38%. 1H NMR (300 MHz, CDCl3) δ 9.51 (s, 1H), 7.88 (d, J = 8.1 Hz, 2H), 7.10 (d, J = 8.1 Hz, 2H), 4.89–4.80 (m, 1H), 2.76 (s, 2H), 2.06–2.02 (m, 1H), 1.91–1.86 (m, 1H), 1.67–1.64 (m, 2H), 1.54–1.43 (m, 2H), 1.21–0.96 (m, 9H), 0.86–0.83 (m, 6H), 0.72 (d, J = 6.9 Hz, 3H). 13C NMR (75 MHz, CDCl3) δ 205.38, 165.98, 142.22, 130.24, 129.43, 129.27, 74.79, 47.29, 46.93, 42.95, 40.99, 34.34, 31.45, 26.47, 23.62, 22.05, 21.48, 21.44, 20.80, 16.50. HRMS (ESI, m/z): calcd. For C22H32NaO3 [M + Na]+: 367.2244, found: 367.2249.
(1S,2S,5S)-2-isopropyl-5-methylcyclohexyl 4-(2-formyl-3-(4-((((1R,2R,5R)-2-isopropyl-5-methylcyclohexyl)oxy)carbonyl)phenyl)-2-methylpropyl)benzoate (3i-di). The title compound was prepared by using TDG1 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 10:1). Colorless oil, 29.0 mg, yield: 24%. 1H NMR (300 MHz, CDCl3) δ 9.59 (s, 1H), 7.88 (d, J = 8.0 Hz, 4H), 7.08 (d, J = 8.0 Hz, 4H), 4.89–4.80 (m, 2H), 3.00 (dd, J = 13.5, 2.0 Hz, 2H), 2.70 (dd, J = 13.5, 2.6 Hz, 2H), 2.06–2.02 (m, 2H), 1.90–1.86 (m, 2H), 1.67–1.64 (m, 4H), 1.53–1.43 (m, 4H), 1.21–0.99 (m, 6H), 0.94 (s, 3H), 0.96–0.83 (m, 12H), 0.72 (d, J = 6.9 Hz, 6H). 13C NMR (101 MHz, CDCl3) δ 205.25, 165.91, 141.51, 130.36, 129.57, 129.49, 74.86, 51.20, 47.27, 42.66, 40.98, 34.32, 31.46, 26.45, 23.57, 22.08, 20.83, 18.34, 16.49. HRMS (ESI, m/z): calcd. For C39H55O5 [M+H]+: 603.4044, found: 603.4031.
(1R,4S)-1,3,3-Trimethylbicyclo[2.2.1]heptan-2-yl 4-(2,2-dimethyl-3-oxopropyl)benzoate (3j-mono). The title compound was prepared by using TDG1 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 10:1). Colorless oil, 34.2 mg, yield: 50% (known compound [21]). 1H NMR (300 MHz, CDCl3) δ 9.51 (s, 1H), 7.90 (d, J = 8.0 Hz, 2H), 7.11 (d, J = 8.0 Hz, 2H), 4.53 (s, 1H), 2.77 (s, 2H), 1.90–1.81 (m, 1H), 1.74–1.67 (m, 2H), 1.61–1.54 (m, 1H), 1.50–1.39 (m, 1H), 1.17 (d, J = 8.2 Hz, 2H), 1.11 (s, 3H), 1.03 (s, 3H), 1.00 (s, 6H), 0.77 (s, 3H). 13C NMR (75 MHz, CDCl3) δ 205.38, 166.75, 142.32, 130.32, 129.41, 129.10, 86.65, 48.64, 48.43, 46.95, 42.96, 41.47, 39.85, 29.76, 26.89, 25.92, 21.47, 20.33, 19.50.
(1S,4R)-1,3,3-Trimethylbicyclo[2.2.1]heptan-2-yl 4-(2-formyl-2-methyl-3-(4-((((1R,4S)-1,3,3-trimethylbicyclo[2.2.1]heptan-2-yl)oxy)carbonyl)phenyl)propyl)benzoate (3j-di). The title compound was prepared by using TDG1 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 10:1). White solid, 36.0 mg, yield: 30%. 1H NMR (300 MHz, CDCl3) δ 9.60 (s, 1H), 7.90 (d, J = 8.0 Hz, 4H), 7.10 (d, J = 8.0 Hz, 4H), 4.53 (s, 2H), 3.01 (d, J = 13.5 Hz, 2H), 2.71 (d, J = 13.5 Hz, 2H), 1.89–1.80 (m, 2H), 1.74–1.67 (m, 4H), 1.60–1.58 (m, 2H), 1.50–1.40 (m, 2H), 1.17 (d, J = 10.0 Hz, 4H), 1.10 (s, 6H), 1.03 (s, 6H), 0.95 (s, 3H), 0.77 (s, 6H). 13C NMR (75 MHz, CDCl3) δ 205.18, 166.65, 141.61, 130.43, 129.54, 129.34, 86.71, 51.20, 48.64, 48.43, 42.65, 41.47, 39.85, 29.76, 26.89, 25.92, 20.35, 19.51, 18.38. HRMS (ESI, m/z): calcd. For C39H50NaO5 [M + Na]+: 621.3550, found: 621.3543.
Compound 3k is a mixture of 2,2-dimethyl-3-phenylpropanal (3k-mono), 2-benzyl-2-methyl-3-phenylpropanal (3k-di), and 2,2-dibenzyl-3-phenylpropanal (3k-tri). 3k-mono:3k-di:3k-tri = 1.0:0.76:0.35. The compound 3k was prepared by using TDG2 and L2, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 100:1). Colorless oil, 28.5 mg, yield: 66% (known compound [18]). 2,2-Dimethyl-3-phenylpropanal (3k-mono): 1H NMR (300 MHz, CDCl3) δ 9.51 (s, 1H), 7.22–7.00 (m, 5H), 2.70 (s, 2H), 0.98 (s, 6H). 2-Benzyl-2-methyl-3-phenylpropanal (3k-di): 1H NMR (300 MHz, CDCl3) δ 9.61 (s, 1H), 7.22–7.00 (m, 5H), 2.95 (d, J = 13.6 Hz, 2H), 2.64 (d, J = 13.6 Hz, 2H), 0.91 (s, 3H). 2,2-Dibenzyl-3-phenylpropanal (3k-tri): 1H NMR (300 MHz, CDCl3) δ 9.70 (s, 1H), 7.22–7.00 (m, 5H), 2.85 (s, 6H). 13C NMR (75 MHz, CDCl3) δ 206.86, 206.22, 206.01, 136.92, 136.62, 136.59, 130.59, 130.37, 130.26, 128.30, 128.26, 128.17, 126.66, 126.55, 53.56, 51.24, 46.96, 43.23, 42.84, 40.22, 21.40, 18.17.
3-(4-Methoxyphenyl)-2,2-dimethylpropanal (3l-mono). The title compound was prepared by using TDG2 and L2, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 50:1). Colorless oil, 11.5 mg, yield: 30% (known compound [18]). 1H NMR (300 MHz, CDCl3) δ 9.50 (s, 1H), 6.93 (d, J = 8.1 Hz, 2H), 6.73 (d, J = 8.1 Hz, 2H), 3.71 (s, 3H), 2.65 (s, 2H), 0.96 (s, 6H). 13C NMR (75 MHz, CDCl3) δ 206.24, 158.32, 131.18, 128.90, 113.58, 55.22, 47.04, 42.38, 21.33.
2-(4-Methoxybenzyl)-3-(4-methoxyphenyl)-2-methylpropanal (3l-di). The title compound was prepared by using TDG2 and L2, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 50:1). Colorless oil, 13.1 mg, yield: 22% (known compound [18]). 1H NMR (300 MHz, CDCl3) δ 9.58 (s, 1H), 6.92 (d, J = 8.1 Hz, 4H), 6.72 (d, J = 8.3 Hz, 4H), 3.70 (s, 6H), 2.88 (d, J = 13.8 Hz, 2H), 2.56 (d, J = 13.8 Hz, 2H), 0.88 (s, 3H). 13C NMR (75 MHz, CDCl3) δ 206.66, 158.35, 131.30, 128.62, 113.64, 55.22, 51.46, 41.91, 18.06.
2,2-Bis(4-methoxybenzyl)-3-(4-methoxyphenyl)propanal (3l-tri). The title compound was prepared by using TDG2 and L2, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 50:1). Colorless oil, 8.1 mg, yield: 10% (known compound [18]). 1H NMR (300 MHz, CDCl3) δ 9.74 (s, 1H), 7.02 (d, J = 8.3 Hz, 6H), 6.80 (d, J = 8.4 Hz, 6H), 3.78 (s, 9H), 2.84 (s, 6H). 13C NMR (75 MHz, CDCl3) δ 207.40, 158.28, 131.53, 128.62, 113.64, 55.22, 53.81, 39.23.
Compound 3m is a mixture of 2,2-dimethyl-3-(p-tolyl)propanal (3m-mono), 2-methyl-2-(4-methylbenzyl)-3-(p-tolyl)propanal (3m-di), and 2,2-bis(4-methylbenzyl)-3-(p-tolyl)propanal (3m-tri). 3m-mono:3m-di:3m-tri = 1.0:0.71:0.42. The compound 3m was prepared by using TDG2 and L2, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 100:1). Colorless oil, 33.0 mg, yield:68% (known compound [21]). 2,2-Dimethyl-3-(p-tolyl)propanal (3m-mono): 1H NMR (300 MHz, CDCl3) δ 9.51 (s, 1H), 7.18–6.88 (m, 4H), 2.66 (s, 2H), 2.23 (s, 3H), 0.97 (s, 6H). 2-Methyl-2-(4-methylbenzyl)-3-(p-tolyl)propanal (3m-di): 1H NMR (300 MHz, CDCl3) δ 9.60 (s, 1H), 7.18–6.88 (m, 4H), 2.90 (d, J = 13.6 Hz, 2H), 2.58 (d, J = 13.6 Hz, 2H), 2.23 (s, 6H), 0.88 (s, 3H). 2,2-bis(4-methylbenzyl)-3-(p-tolyl)propanal (3m-tri): 1H NMR (300 MHz, CDCl3) δ 9.67 (s, 1H), 7.18–6.88 (m, 4H), 2.79 (s, 6H), 2.23 (s, 9H). 13C NMR (75 MHz, CDCl3) δ 207.30, 206.50, 206.16, 136.16, 136.08, 133.75, 133.58, 133.51, 130.48, 130.22, 130.12, 128.93, 128.86, 53.59, 51.30, 46.95, 42.87, 42.43, 39.71, 21.37, 21.01, 18.10.
3-(4-Bromophenyl)-2,2-dimethylpropanal (3n-mono). The title compound was prepared by using TDG2 and L2, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 100:1). Colorless oil, 24.0 mg, yield: 50% (known compound [18]). 1H NMR (400 MHz, CDCl3) δ 9.48 (s, 1H), 7.32 (d, J = 8.4 Hz, 2H), 6.90 (d, J = 8.3 Hz, 2H), 2.66 (s, 2H), 0.97 (s, 6H). 13C NMR (75 MHz, CDCl3) δ 205.52, 135.97, 131.95, 131.27, 120.57, 46.80, 42.39, 21.39.
2-(4-Bromobenzyl)-3-(4-bromophenyl)-2-methylpropanal (3n-di). The title compound was prepared by using TDG2 and L2, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 100:1). Colorless oil, 19.8 mg, yield: 25% (known compound [18]). 1H NMR (400 MHz, CDCl3) δ 9.54 (s, 1H), 7.32 (d, J = 8.3 Hz, 4H), 6.87 (d, J = 8.4 Hz, 4H), 2.87 (d, J = 13.7 Hz, 2H), 2.56 (d, J = 13.7 Hz, 2H), 0.89 (s, 3H). 13C NMR (75 MHz, CDCl3) δ 205.44, 135.33, 132.03, 131.42, 120.84, 50.91, 41.99, 18.23.
Compound 3o is a mixture of 3-(2-fluorophenyl)-2,2-dimethylpropanal (3o-mono), 2-(2-fluorobenzyl)-3-(2-fluorophenyl)-2-methylpropanal (3o-di), and 2,2-bis(2-fluorobenzyl)-3-(2-fluorophenyl)propanal (3o-tri). The compound 3o was prepared by using TDG2 and L2, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 100:1). 3o-mono:3o-di:3o-tri = 1.0:0.77:0.28. Colorless oil, 29.0 mg, yield: 60% (known compound [18]). 3-(2-Fluorophenyl)-2,2-dimethylpropanal (3o-mono): 1H NMR (400 MHz, CDCl3) δ 9.51 (d, J = 1.3 Hz, 1H), 7.17–6.92 (m, 4H), 2.76 (d, J = 1.1 Hz, 2H), 1.00 (s, 6H). 2-(2-Fluorobenzyl)-3-(2-fluorophenyl)-2-methylpropanal (3o-di): 1H NMR (400 MHz, CDCl3) δ 9.61 (t, J = 1.9 Hz, 1H), 7.17–6.92 (m, 4H), 3.00 (d, J = 13.7 Hz, 2H), 2.76 (d, J = 13.7 Hz, 2H), 0.91 (s, 3H). 2,2-Bis(2-fluorobenzyl)-3-(2-fluorophenyl)propanal (3o-tri): 1H NMR (400 MHz, CDCl3) δ 9.57 (d, J = 1.7 Hz, 1H), 7.17–6.92 (m, 4H), 2.91 (s, 6H). 13C NMR (75 MHz, CDCl3) δ 204.44, 203.86, 203.16, 161.99, 161.87, 161.83, 158.75, 158.63, 158.58, 131.92, 131.86, 131.63, 131.58, 131.52, 127.76, 127.65, 127.55, 127.44, 122.99, 122.92, 122.87, 122.80, 122.75, 122.65, 122.44, 114.62, 114.54, 114.31, 114.23, 52.75, 50.58, 46.09, 34.71, 34.42, 31.66, 20.23, 16.27.
Methyl 4-(2-formyl-2-propylpentyl)benzoate (3p). The title compound was prepared by using TDG1 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 10:1). Colorless oil, 36.0 mg, yield: 65%. 1H NMR (400 MHz, CDCl3) δ 9.47 (s, 1H), 7.86 (d, J = 7.9 Hz, 2H), 7.07 (d, J = 7.9 Hz, 2H), 3.83 (s, 3H), 2.81 (s, 2H), 1.41–1.31 (m, 4H), 1.24–1.18 (m, 4H), 0.83 (t, J = 7.1 Hz, 6H). 13C NMR (75 MHz, CDCl3) δ 206.57, 166.99, 142.77, 130.06, 129.51, 128.43, 53.59, 52.09, 38.51, 34.32, 31.75, 25.77, 23.25, 16.98, 14.62, 13.97, 1.04. HRMS (ESI, m/z): calcd. for C17H25O3 [M + H]+: 277.1798, found: 277.1789.
Methyl 4-(2-formyl-2-propylhexyl)benzoate (3q). The title compound was prepared by using TDG1 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 10:1). Colorless oil, 39.0 mg, yield: 67%. 1H NMR (300 MHz, CDCl3) δ 9.54 (s, 1H), 7.94 (d, J = 7.9 Hz, 2H), 7.14 (d, J = 7.9 Hz, 2H), 3.90 (s, 3H), 2.88 (s, 2H), 1.52–1.27 (m, 10H), 0.90 (t, J = 6.9 Hz, 6H). 13C NMR (75 MHz, CDCl3) δ 205.50, 165.92, 141.71, 128.99, 128.45, 127.36, 52.53, 51.02, 37.43, 33.24, 30.67, 24.70, 22.18, 15.91, 13.56, 12.90. HRMS (ESI, m/z): calcd. for C18H27O3 [M + H]+: 291.1955, found: 291.1948.
Methyl 4-(2-formyl-2-propylheptyl)benzoate (3r). The title compound was prepared by using TDG1 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 10:1). Colorless oil, 37.7 mg, yield: 62%. 1H NMR (300 MHz, CDCl3) δ 9.47 (s, 1H), 7.86 (d, J = 8.2 Hz, 2H), 7.07 (d, J = 8.2 Hz, 2H), 3.83 (s, 3H), 2.81 (s, 2H), 1.45–1.18 (m, 12H), 0.85–0.79 (m, 6H). 13C NMR (75 MHz, CDCl3) δ 205.52, 165.96, 141.76, 129.02, 128.47, 127.39, 52.60, 51.04, 37.45, 33.30, 31.32, 31.02, 22.25, 21.44, 15.95, 13.58, 13.00. HRMS (ESI, m/z): calcd. for C19H28NaO3 [M + Na]+: 327.1931, found: 327.1921.
Methyl 4-((1-formylcyclohexyl)methyl)benzoate (3s). The title compound was prepared by using TDG1 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 10:1). Colorless oil, 28.6 mg, yield: 55% (known compound [21]). 1H NMR (300 MHz, CDCl3) δ 9.45 (s, 1H), 7.86 (d, J = 8.3 Hz, 2H), 7.06 (d, J = 8.3 Hz, 2H), 3.83 (s, 3H), 2.70 (s, 2H), 1.85–1.81 (m, 2H), 1.59–1.46 (m, 3H), 1.29–1.17 (m, 5H). 13C NMR (75 MHz, CDCl3) δ 205.78, 165.94, 140.74, 129.25, 128.38, 127.52, 51.04, 49.67, 42.25, 30.14, 24.47, 21.58.
Methyl 4-(2-(4-chlorophenyl)-2-methyl-3-oxopropyl)benzoate (3t). The title compound was prepared by using TDG2 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 10:1). Colorless oil, 31.7 mg, yield: 50% (known compound [20]). 1H NMR (300 MHz, CDCl3) δ 9.49 (s, 1H), 7.74 (d, J = 7.7 Hz, 2H), 7.26 (d, J = 8.1 Hz, 2H), 6.98 (d, J = 8.1 Hz, 2H), 6.76 (d, J = 7.8 Hz, 2H), 3.80 (s, 3H), 3.12 (s, 2H), 1.30 (s, 3H). 13C NMR (75 MHz, CDCl3) δ 200.91, 166.98, 141.98, 137.10, 133.79, 130.43, 129.18, 129.03, 128.99, 128.51, 77.49, 77.06, 76.64, 54.65, 52.09, 42.70, 18.14.
Methyl 4-(2-(2-bromophenyl)-2-methyl-3-oxopropyl)benzoate (3u). The title compound was prepared by using TDG2 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 10:1). Yellow oil, 44.0 mg, yield: 61% (known compound [20]). 1H NMR (300 MHz, CDCl3) δ 9.89 (s, 1H), 7.76 (d, J = 8.0 Hz, 2H), 7.70–7.67 (m, 1H), 7.23–7.15 (m, 2H), 6.82–6.79 (m, 1H), 6.73 (d, J = 8.0 Hz, 2H), 3.87 (s, 3H), 3.71 (d, J = 13.5 Hz, 1H), 3.29 (d, J = 13.5 Hz, 1H), 1.32 (s, 3H). 13C NMR (75 MHz, CDCl3) δ 202.20, 167.05, 142.29, 139.00, 134.43, 130.63, 130.52, 129.63, 128.95, 128.31, 127.57, 123.51, 55.95, 52.03, 39.13, 20.74.
Methyl 4-(3-(benzyloxy)-2-formyl-2-methylpropyl)benzoate (3v-mono). The title compound was prepared by using TDG1 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 10:1). Colorless oil, 37.2 mg, yield: 57% (known compound [21]). 1H NMR (300 MHz, CDCl3) δ 9.58 (s, 1H), 7.84 (d, J = 8.2 Hz, 2H), 7.34–7.20 (m, 5H), 7.09 (d, J = 8.2 Hz, 2H), 4.42 (s, 2H), 3.82 (s, 3H), 3.29 (dd, J = 27.8, 9.3 Hz, 2H), 2.88 (dd, J = 52.1, 13.4 Hz, 2H), 0.90 (s, 3H). 13C NMR (75 MHz, CDCl3) δ 204.63, 167.01, 142.22, 137.72, 130.47, 129.46, 128.50, 127.88, 127.74, 73.38, 72.08, 52.10, 51.13, 37.70, 16.68.
Dimethyl 4,4′-(2-((benzyloxy)methyl)-2-formylpropane-1,3-diyl)dibenzoate (3v-di). The title compound was prepared by using TDG1 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 10:1). White solid, 16.6 mg, yield: 18%. 1H NMR (400 MHz, CDCl3) δ 9.67 (s, 1H), 7.91 (d, J = 8.2 Hz, 4H), 7.42–7.32 (m, 5H), 7.14 (d, J = 8.2 Hz, 4H), 4.45 (s, 2H), 3.90 (s, 6H), 3.29 (s, 2H), 3.11 (d, J = 13.6 Hz, 2H), 2.97 (d, J = 13.6 Hz, 2H). 13C NMR (101 MHz, CDCl3) δ 204.31, 166.90, 141.49, 137.51, 130.31, 129.65, 128.80, 128.56, 128.03, 73.49, 68.02, 55.57, 52.14, 38.53. HRMS (ESI, m/z): calcd. for C28H29O6 [M + H]+: 461.1959, found: 461.1949.
Methyl 4-(3-((4-chlorobenzyl)oxy)-2-formyl-2-methylpropyl)benzoate (3w-mono). The title compound was prepared by using TDG2 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 10:1). White solid, 38.2 mg, yield: 53% (known compound [21]). 1H NMR (300 MHz, CDCl3) δ 9.58 (s, 1H), 7.86 (d, J = 8.1 Hz, 2H), 7.27 (d, J = 8.3 Hz, 2H), 7.18 (d, J = 8.3 Hz, 2H), 7.10 (d, J = 8.1 Hz, 2H), 4.38 (s, 2H), 3.84 (s, 3H), 3.29 (dd, J = 25.7, 9.3 Hz, 2H), 2.88 (dd, J = 49.0, 13.4 Hz, 2H), 0.92 (s, 3H). 13C NMR (75 MHz, CDCl3) δ 204.45, 166.99, 142.04, 136.20, 133.63, 130.40, 129.49, 128.95, 128.66, 128.60, 72.61, 72.28, 52.11, 51.11, 37.87, 16.76.
Dimethyl 4,4′-(2-(((4-chlorobenzyl)oxy)methyl)-2-formylpropane-1,3-diyl)dibenzoate (3w-di). The title compound was prepared by using TDG2 and L1, then isolated by flash chromatography on the silica gel by using mixed petroleum ether and ethyl acetate (v/v = 10:1). White solid, 12.0 mg, yield: 12%. 1H NMR (400 MHz, CDCl3) δ 9.68 (s, 1H), 7.92 (d, J = 8.2 Hz, 4H), 7.36 (d, J = 8.4 Hz, 2H), 7.27 (d, J = 7.1 Hz, 2H), 7.14 (d, J = 8.2 Hz, 4H), 4.40 (s, 2H), 3.91 (s, 6H), 3.28 (s, 2H), 3.12 (d, J = 13.6 Hz, 2H), 2.97 (d, J = 13.6 Hz, 2H). 13C NMR (101 MHz, CDCl3) δ 204.12, 166.88, 141.37, 135.98, 133.81, 130.25, 129.68, 129.23, 128.86, 128.73, 72.66, 68.21, 55.58, 52.19, 38.52. HRMS (ESI, m/z): calcd. for C28H27ClNaO6 [M + H]+: 495.1569, found: 495.1561.

4. Conclusions

In summary, we have developed a palladium-catalyzed direct methyl β-C(sp3)–H arylation reaction of tertiary aliphatic aldehydes with the commercially available α-amino acids as the transient directing groups and 2-pyridones as external ligands. Furthermore, a good functional group compatibility was observed in this catalytic cycle, and a variety of aryl iodides were efficiently coupled with different tertiary aliphatic aldehydes, providing the desired arylated aldehydes in moderate to good yields. A further application study is currently ongoing in our laboratory.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules29010259/s1, Figure S1: Aliphatic aldehydes and aryl iodides; Figures S2–S75: 1H and 13C NMR Spectra.

Author Contributions

Synthesis and Characterization, Z.X., Z.L. and C.L.; data curation, K.Y.; writing—original draft preparation, K.Y. and H.G.; writing—review and editing, K.Y. and H.G.; funding acquisition, K.Y. and H.G. All authors have read and agreed to the published version of the manuscript.

Funding

H.G. acknowledges NSF (CHE-2029932), the Robert A. Welch Foundation (D-2034-20230405), and Texas Tech University for financial support. K.Y. is grateful for financial support from the Changzhou University, Advanced Catalysis and Green Manufacturing Collaborative Innovation Center (ACGM2022-10-10), and Jiangsu Key Laboratory of Advanced Catalytic Materials and Technology (BM2012110).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Acknowledgments

We acknowledge the analytical testing support from Analysis and Testing Center, NERC Biomass of Changzhou University.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Parenty, A.; Moreau, X.; Campagne, J.-M. Macrolactonizations in the total synthesis of natural products. Chem. Rev. 2006, 106, 911–939. [Google Scholar] [CrossRef] [PubMed]
  2. Kim, H.Y.; Walsh, P.J. Efficient approaches to the stereoselective synthesis of cyclopropyl alcohols. Acc. Chem. Res. 2012, 45, 1533–1547. [Google Scholar] [CrossRef] [PubMed]
  3. Tatsuta, K. Total synthesis of the big four antibiotics and related antibiotics. J. Antibiot. 2013, 66, 107–129. [Google Scholar] [CrossRef] [PubMed]
  4. Roman, B.I.; Kimpe, N.D.; Stevens, C.V. Synthesis of β-, γ-, δ-, …, ω-halogenated ketones and aldehydes. Chem. Rev. 2010, 110, 5914–5988. [Google Scholar] [CrossRef] [PubMed]
  5. Zhang, S.L.; Xie, H.X.; Zhu, J.; Li, H.; Zhang, X.S.; Li, J.; Wang, W. Organocatalytic enantioselective β-functionalization of aldehydes by oxidation of enamines and their application in cascade reactions. Nat. Commun. 2011, 2, 211. [Google Scholar] [CrossRef] [PubMed]
  6. Pirnot, M.T.; Rankic, D.; Martin, D.D.C.; MacMillan, D.W.C. Photoredox activation for the direct β-arylation of ketones and aldehydes. Science 2013, 339, 1593–1596. [Google Scholar] [CrossRef] [PubMed]
  7. Allena, A.E.; MacMillan, D.W.C. Synergistic catalysis: A powerful synthetic strategy for new reaction development. Chem. Sci. 2012, 3, 633–658. [Google Scholar] [CrossRef]
  8. Park, Y.J.; Park, J.W.; Jun, C.H. Metal-organic cooperative catalysis in C−H and C−C bond activation and its concurrent recovery. Acc. Chem. Res. 2008, 41, 222–234. [Google Scholar] [CrossRef]
  9. Chen, Z.K.; Wang, B.J.; Zhang, J.T.; Yu, W.L.; Liu, Z.X.; Zhang, Y.H. Transition metal-catalyzed C–H bond functionalizations by the use of diverse directing groups. Org. Chem. Front. 2015, 2, 1107–1295. [Google Scholar]
  10. Zhao, Q.; Poisson, T.; Pannecoucke, X.; Besset, T. The Transient directing group strategy: A new trend in transition-metal-catalyzed C–H bond functionalization. Synthesis 2017, 49, 4808–4826. [Google Scholar]
  11. Gandeepan, P.; Ackermann, L. Transient directing groups for transformative C–H activation by synergistic metal catalysis. Chem 2018, 4, 199–222. [Google Scholar] [CrossRef]
  12. Bhattacharya, T.; Pimparkar, S.; Maiti, D. Combining transition metals and transient directing groups for C–H functionalizations. RSC Adv. 2018, 8, 19456–19464. [Google Scholar] [CrossRef] [PubMed]
  13. John-Campbell, S.S.; Bull, J.A. Transient imines as ‘next generation’ directing groups for the catalytic functionalisation of C–H bonds in a single operation. Org. Biomol. Chem. 2018, 16, 4582–4595. [Google Scholar] [CrossRef] [PubMed]
  14. Niu, B.; Yang, K.; Lawrence, B.; Ge, H. Transient ligand-enabled transition metal-catalyzed C−H functionalization. ChemSusChem 2019, 12, 2955–2969. [Google Scholar] [CrossRef]
  15. Yang, K.; Song, M.J.; Liu, H.; Ge, H. Palladium-catalyzed direct asymmetric C–H bond functionalization enabled by the directing group strategy. Chem. Sci. 2020, 11, 12616–12632. [Google Scholar] [CrossRef]
  16. Zhang, F.L.; Hong, K.; Li, T.J.; Park, H.; Yu, J.-Q. Functionalization of C(sp3)–H bonds using a transient directing group. Science 2016, 351, 252. [Google Scholar] [CrossRef]
  17. Yang, K.; Li, Q.; Liu, Y.B.; Li, G.; Ge, H. Catalytic C–H arylation of aliphatic aldehydes enabled by a transient ligand. J. Am. Chem. Soc. 2016, 138, 12775–12778. [Google Scholar] [CrossRef]
  18. John-Campbell, S.S.; White, A.J.P.; Bull, J.A. Single operation palladium catalysed C(sp3)–H functionalisation of tertiary aldehydes: Investigations into transient imine directing groups. Chem. Sci. 2017, 8, 4840–4847. [Google Scholar] [CrossRef]
  19. John-Campbell, S.S.; Bull, J.A. Intramolecular palladium(II)/(IV) catalysed C(sp3)–H arylation of tertiary aldehydes using a transient imine directing group. Chem. Commun. 2019, 55, 9172–9175. [Google Scholar] [CrossRef]
  20. Guo, B.B.; Liu, H.F.; Chen, J.; Zhou, L. Palladium-catalyzed site-selective C(sp3)–H arylation of phenylacetaldehydes. Org. Lett. 2019, 21, 7084–7088. [Google Scholar]
  21. Wu, Y.; Ma, Z.Y.; Shi, J.; Sun, X.Q.; Yang, K.; Li, Z.Y. Supramolecular interaction controlled and calix[4]arene ligand assisted Pd-catalyzed C(sp3)−H arylation of aliphatic aldehydes. Chin. Chem. Lett. 2022, 33, 5116–5119. [Google Scholar] [CrossRef]
  22. Chen, Y.Q.; Wang, Z.; Wu, Y.W.; Wisniewski, S.R.; Qiao, J.X.; Ewing, W.R.; Eastgate, M.D.; Yu, J.-Q. Overcoming the limitations of γ- and δ-C–H arylation of amines through ligand development. J. Am. Chem. Soc. 2018, 140, 17884–17894. [Google Scholar] [CrossRef] [PubMed]
  23. Chen, Y.Q.; Singh, S.; Wu, Y.W.; Wang, Z.; Hao, W.; Singh, P.; Qiao, J.X.; Sunoj, R.B.; Yu, J.-Q. Pd-catalyzed γ-C(sp3)–H fluorination of free amines. J. Am. Chem. Soc. 2020, 142, 9966–9974. [Google Scholar] [CrossRef] [PubMed]
  24. Xiao, L.J.; Hong, K.; Luo, F.; Hu, L.; Ewing, W.R.; Yeung, K.S.; Yu, J.-Q. PdII-catalyzed enantioselective C(sp3)–H arylation of cyclobutyl ketones using a chiral transient directing group. Angew. Chem. Int. Ed. 2020, 59, 9594–9600. [Google Scholar] [CrossRef] [PubMed]
  25. Provencher, P.A.; Hoskin, J.F.; Wong, J.J.; Chen, X.Y.; Yu, J.-Q.; Houk, K.N.; Sorensen, E.J. Pd(II)-catalyzed synthesis of benzocyclobutenes by β-methylene-selective C(sp3)–H arylation with a transient directing group. J. Am. Chem. Soc. 2021, 143, 20035–20041. [Google Scholar] [CrossRef]
  26. Provencher, A.P.; Bay, K.L.; Hoskin, J.F.; Houk, K.N.; Yu, J.-Q.; Sorensen, E.J. Cyclization by C(sp3)–H arylation with a transient directing group for the diastereoselective preparation of indanes. ACS Catal. 2021, 11, 3115–3127. [Google Scholar] [CrossRef]
  27. Li, F.; Zhou, Y.R.; Yang, H.; Wang, Z.Q.; Yu, Q.Q.; Zhang, F.L. Monodentate transient directing group enabled Pd-catalyzed ortho-C–H methoxylation and chlorination of benzaldehydes. Org. Lett. 2019, 21, 3692–3695. [Google Scholar] [CrossRef]
  28. John-Campbell, S.S.; White, A.J.P.; Bull, J.A. Methylene C(sp3)–H β,β′-diarylation of cyclohexanecarbaldehydes promoted by a transient directing group and pyridone ligand. Org. Lett. 2020, 22, 1807–1812. [Google Scholar] [CrossRef]
  29. Li, B.J.; Lawrence, B.; Li, G.; Ge, H. Ligand-controlled direct γ-C–H arylation of aldehydes. Angew. Chem. Int. Ed. 2020, 59, 3078–3082. [Google Scholar] [CrossRef]
  30. Yang, K.; Li, Z.; Liu, C.; Li, Y.J.; Hu, Q.Y.; Elsaid, M.; Li, B.J.; Das, J.; Dang, Y.F.; Maiti, D.; et al. Ligand-promoted palladium-catalyzed β-methylene C–H arylation of primary aldehydes. Chem. Sci. 2022, 13, 5938–5943. [Google Scholar] [CrossRef]
  31. Li, Y.H.; Ouyang, Y.X.; Chekshin, N.; Yu, J.-Q. PdII–Catalyzed Site-selective β- and γ-C(sp3)–H arylation of primary aldehydes controlled by transient directing groups. J. Am. Chem. Soc. 2022, 144, 4727–4733. [Google Scholar] [CrossRef] [PubMed]
  32. Wang, D.H.; Engle, K.M.; Shi, B.F.; Yu, J.Q. Ligand-enabled reactivity and selectivity in a synthetically versatile aryl C–H olefination. Science 2010, 327, 315–319. [Google Scholar] [CrossRef] [PubMed]
  33. Wang, P.; Verma, P.; Xia, G.Q.; Shi, J.; Qiao, J.X.; Tao, S.W.; Cheng, P.T.W.; Poss, M.A.; Farmer, M.E.; Yeung, K.S.; et al. Ligand-accelerated non-directed C–H functionalization of arenes. Nature 2017, 551, 489–493. [Google Scholar] [CrossRef] [PubMed]
  34. Park, H.S.; Fan, Z.L.; Zhu, R.Y.; Yu, J.Q. Distal γ-C(sp3)−H olefination of ketone derivatives and free carboxylic acids. Angew. Chem. Int. Ed. 2020, 59, 12853–12859. [Google Scholar] [CrossRef] [PubMed]
  35. Das, J.; Ali, W.; Maiti, D. The evolution of directing group strategies for C(sp3)–H activation. Trends Chem. 2023, 5, 551–560. [Google Scholar] [CrossRef]
  36. Li, Y.-H.; Ouyang, Y.; Chekshin, N.; Yu, J.-Q. PdII-catalyzed γ-C(sp3)–H (hetero)arylation of ketones enabled by transient directing groups. ACS Catal. 2022, 12, 10581–10586. [Google Scholar] [CrossRef] [PubMed]
  37. Goswami, N.; Bhattacharya, T.; Maiti, D. Transient directing ligands for selective metal-catalysed C–H activation. Nat. Rev. Chem. 2021, 5, 646–659. [Google Scholar] [CrossRef]
  38. Yuan, F.; Hou, Z.-L.; Pramanick, P.K.; Yao, B. Site-selective modification of α-amino acids and oligopeptides via native amine-directed γ-C(sp3)–H arylation. Org. Lett. 2019, 21, 9381–9385. [Google Scholar] [CrossRef]
  39. Abrams, D.J.; West, J.G.; Sorensen, E.J. Toward a mild dehydroformylation using base-metal catalysis. Chem. Sci. 2017, 8, 1954–1959. [Google Scholar] [CrossRef]
  40. Vernier, W.; Volgraf, M.; Braun, M.-G.; Castanedo, G.M.; Gibbons, P.A.; Breitenbucher, J.G.; Adams, D.; Lang, B. Preparation of Spirocyclic Modulators of Cholesterol Biosynthesis and Their Use for Promoting Remyelination; World Intellectual Property Organization: Geneva, Switzerland, 2023; p. WO2023097234. [Google Scholar]
Molecules 29 00259 sch001

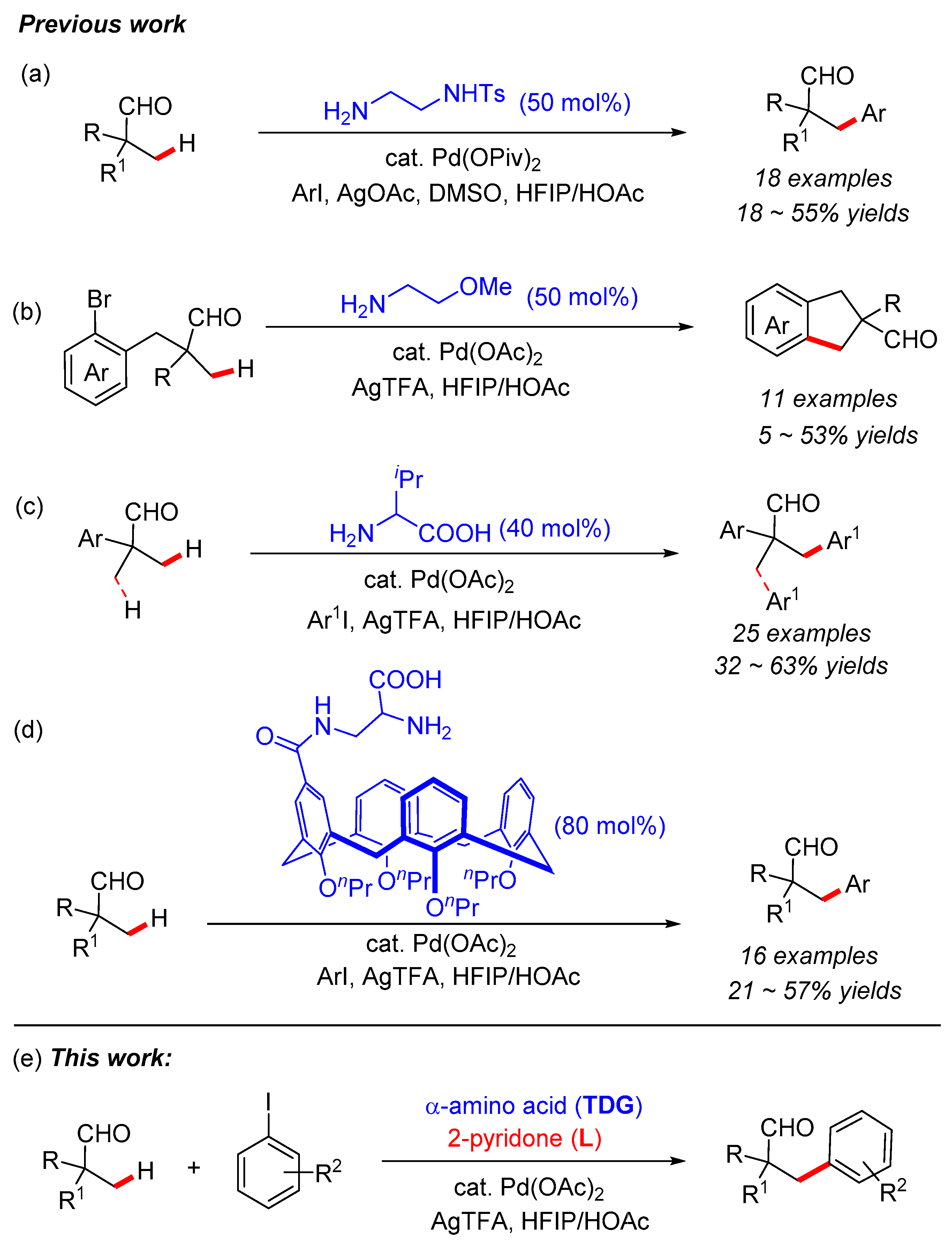

Scheme 1. Pd-catalyzed β-C(sp3)–H arylation of tertiary aldehydes using the transient directing group strategy. (a) Intermolecular β-C(sp3)–H arylation using N-tosylethylenediamine as a transient directing group; (b) intramolecular β-C(sp3)–H arylation using 2-methoxyethan-1-amine as a transient directing group; (c) Intermolecular β-C(sp3)–H arylation of phenylacetaldehydes using L-valine as a transient directing group; (d) Intermolecular β-C(sp3)–H arylation using calix[4]arene-derived diamine as a transient directing group; (e) Intermolecular β-C(sp3)–H arylation using an α-amino acid as a transient directing group in combination with a 2-pyridone ligand.
Scheme 1. Pd-catalyzed β-C(sp3)–H arylation of tertiary aldehydes using the transient directing group strategy. (a) Intermolecular β-C(sp3)–H arylation using N-tosylethylenediamine as a transient directing group; (b) intramolecular β-C(sp3)–H arylation using 2-methoxyethan-1-amine as a transient directing group; (c) Intermolecular β-C(sp3)–H arylation of phenylacetaldehydes using L-valine as a transient directing group; (d) Intermolecular β-C(sp3)–H arylation using calix[4]arene-derived diamine as a transient directing group; (e) Intermolecular β-C(sp3)–H arylation using an α-amino acid as a transient directing group in combination with a 2-pyridone ligand.
Molecules 29 00259 sch001
Molecules 29 00259 sch002

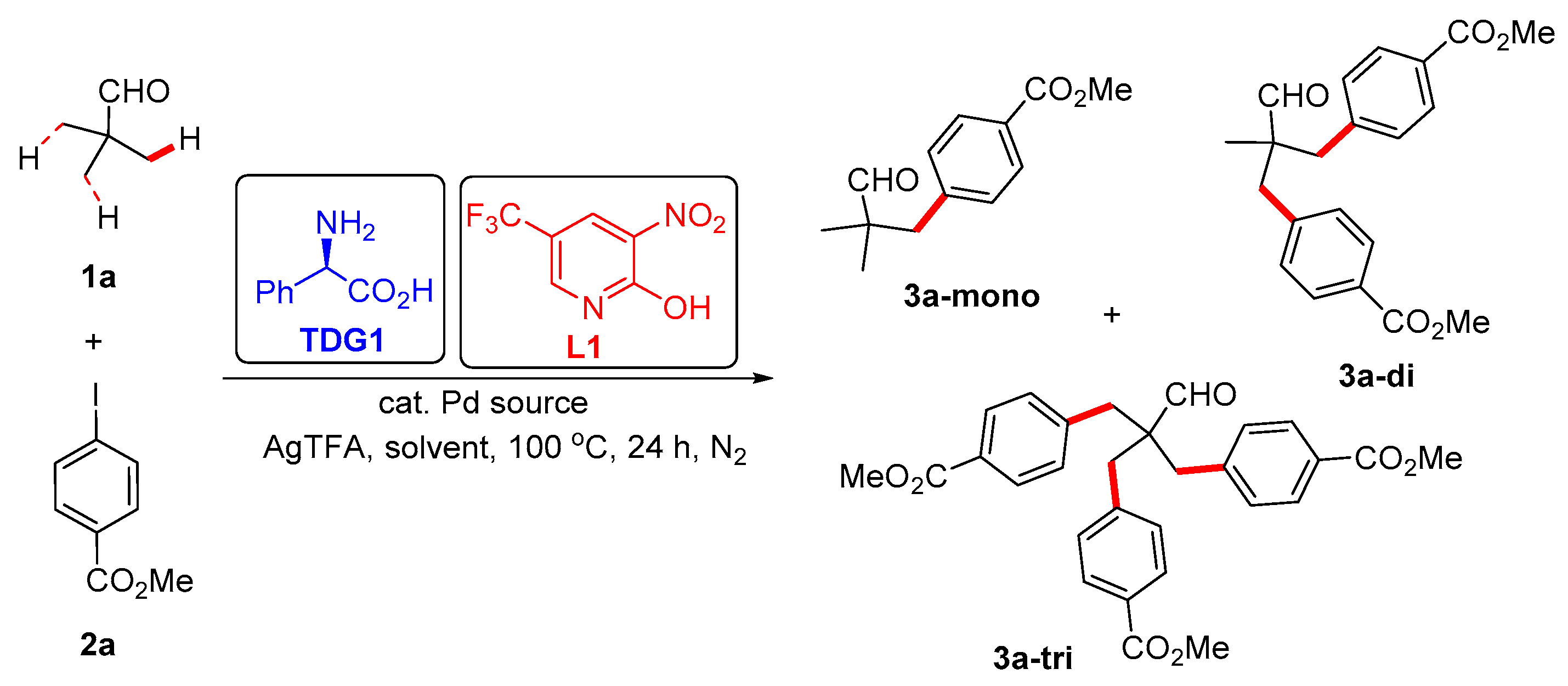

Scheme 2. Pd-catalyzed β-C(sp3)–H arylation of pivalaldehyde with methyl 4-iodobenzoate.
Scheme 2. Pd-catalyzed β-C(sp3)–H arylation of pivalaldehyde with methyl 4-iodobenzoate.
Molecules 29 00259 sch002
Molecules 29 00259 sch003
Scheme 3. Investigations of transient directing groups and 2-pyridone ligands.
Scheme 3. Investigations of transient directing groups and 2-pyridone ligands.
Molecules 29 00259 sch003
Molecules 29 00259 sch004

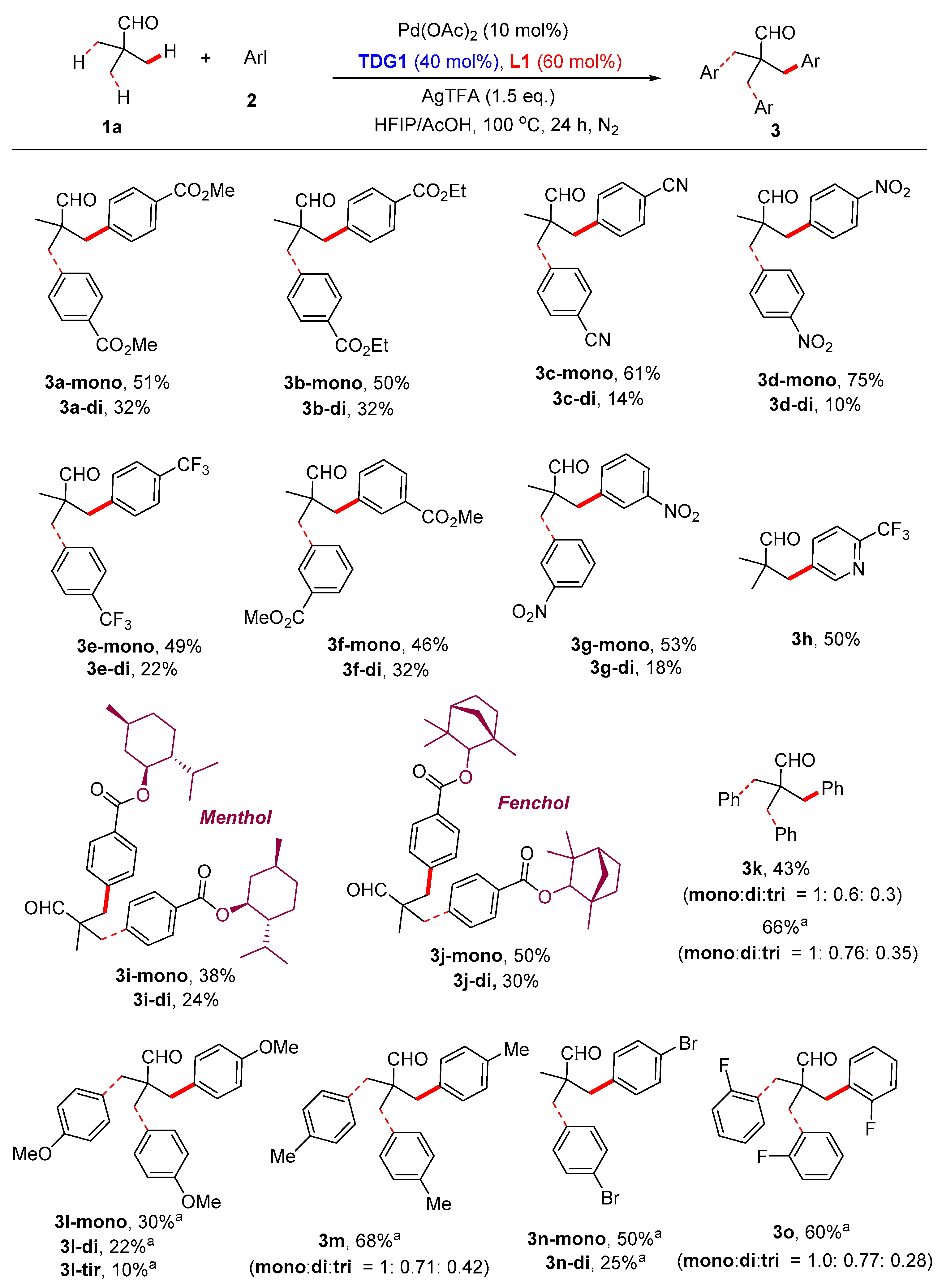

Scheme 4. Scope of aryl iodides. Reaction conditions: 1a (0.2 mmol), Pd(OAc)2 (10 mol%), 2 (0.4 mmol), AgTFA (0.3 mmol), TDG1 (40 mol%), L1 (60 mol%), HFIP (1.5 mL), HOAc (0.5 mL), 100 °C, 24 h, N2. Isolated yields. a The use of TDG2 and L2 instead of TDG1 and L1.
Scheme 4. Scope of aryl iodides. Reaction conditions: 1a (0.2 mmol), Pd(OAc)2 (10 mol%), 2 (0.4 mmol), AgTFA (0.3 mmol), TDG1 (40 mol%), L1 (60 mol%), HFIP (1.5 mL), HOAc (0.5 mL), 100 °C, 24 h, N2. Isolated yields. a The use of TDG2 and L2 instead of TDG1 and L1.
Molecules 29 00259 sch004
Molecules 29 00259 sch005

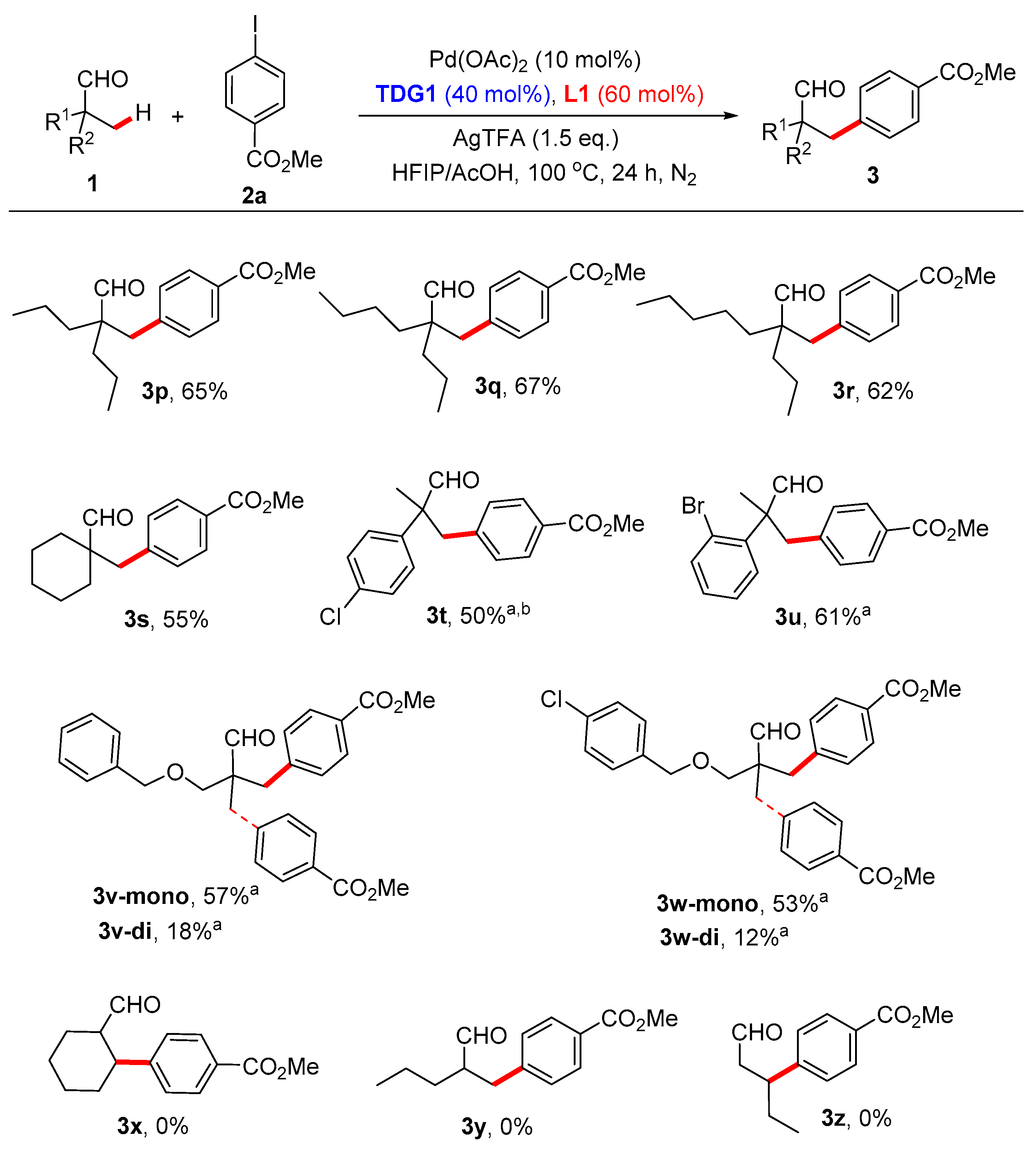

Scheme 5. Scope of aryl iodides. Reaction conditions: 1 (0.2 mmol), Pd(OAc)2 (10 mol%), 2a (0.4 mmol), AgTFA (0.3 mmol), TDG1 (40 mol%), L1 (60 mol%), HFIP (1.5 mL), HOAc (0.5 mL), 100 °C, 24 h, N2. Isolated yields. a The use of TDG2 instead of TDG1. b 72 h.
Scheme 5. Scope of aryl iodides. Reaction conditions: 1 (0.2 mmol), Pd(OAc)2 (10 mol%), 2a (0.4 mmol), AgTFA (0.3 mmol), TDG1 (40 mol%), L1 (60 mol%), HFIP (1.5 mL), HOAc (0.5 mL), 100 °C, 24 h, N2. Isolated yields. a The use of TDG2 instead of TDG1. b 72 h.
Molecules 29 00259 sch005
Molecules 29 00259 sch006
Scheme 6. Plausible catalytic cycle.
Scheme 6. Plausible catalytic cycle.
Molecules 29 00259 sch006
Table 1. Optimization of reaction conditions. a
Table 1. Optimization of reaction conditions. a
EntryPd SourceTDG1 (mol%)L1 (mol%)Solvent (v/v, mL)3a-mono
Yield (%)		3a-di
Yield (%)		3a-tri
Yield (%)
1Pd(OAc)2TDG1 (40)L1 (30)AcOH237<5
2Pd(OAc)2TDG1 (40)L1 (30)HFIP3419<5
3Pd(OAc)2TDG1 (40)L1 (30)HFIP/AcOH (1/1)4826<5
4Pd(OAc)2TDG1 (40)L1 (30)HFIP/AcOH (1/3)3912<5
5Pd(OAc)2TDG1 (40)L1 (30)HFIP/AcOH (3/1)4234<5
6Pd(OAc)2TDG1 (40)L1 (30)HFIP/AcOH (9/1)4027<5
7Pd(OAc)2TDG1 (20)L1 (30)HFIP/AcOH (3/1)4130<5
8Pd(OAc)2TDG1 (60)L1 (30)HFIP/AcOH (3/1)4722<5
9Pd(OAc)2TDG1 (40)L1 (20)HFIP/AcOH (3/1)4034<5
10Pd(OAc)2TDG1 (40)L1 (40)HFIP/AcOH (3/1)4535<5
11Pd(OAc)2TDG1 (40)L1 (60)HFIP/AcOH (3/1)53 (51) b35 (32) b<5
12Pd(OAc)2TDG1 (40)L1 (80)HFIP/AcOH (3/1)5029<5
13Pd(TFA)2TDG1 (40)L1 (60)HFIP/AcOH (3/1)5026<5
14PdCl2TDG1 (40)L1 (60)HFIP/AcOH (3/1)4820<5
15PdBr2TDG1 (40)L1 (60)HFIP/AcOH (3/1)4723<5
16Pd(OAc)2TDG1 (40)-HFIP/AcOH (3/1)3523<5
17Pd(OAc)2-L1 (60)HFIP/AcOH (3/1)000
a Reaction conditions: 1a (0.2 mmol), Pd source (10 mol%), 2a (0.4 mmol), AgTFA (0.3 mmol), L1, TDG1, solvent (2.0 mL), 100 °C, 24 h, N2. Yields are based on 1a, determined by 1H-NMR using dibromomethane as internal standard. b Isolated yields.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Xu, Z.; Li, Z.; Liu, C.; Yang, K.; Ge, H. Palladium-Catalyzed β-C(sp3)–H Bond Arylation of Tertiary Aldehydes Facilitated by 2-Pyridone Ligands. Molecules 2024, 29, 259. https://doi.org/10.3390/molecules29010259

AMA Style

Xu Z, Li Z, Liu C, Yang K, Ge H. Palladium-Catalyzed β-C(sp3)–H Bond Arylation of Tertiary Aldehydes Facilitated by 2-Pyridone Ligands. Molecules. 2024; 29(1):259. https://doi.org/10.3390/molecules29010259

Chicago/Turabian Style

Xu, Ziting, Zhi Li, Chong Liu, Ke Yang, and Haibo Ge. 2024. "Palladium-Catalyzed β-C(sp3)–H Bond Arylation of Tertiary Aldehydes Facilitated by 2-Pyridone Ligands" Molecules 29, no. 1: 259. https://doi.org/10.3390/molecules29010259

Article Metrics

Back to TopTop
