Rapid Elution of ²²⁶Th from a Two-Column ²³⁰U/²²⁶Th Generator with Diluted and Buffer Solutions

Abstract

A radionuclide generator of the short-lived alpha emitter ²²⁶Th was proposed. An original scheme consisting of two in-series chromatographic columns was developed for rapidly producing a neutral citric-buffered eluate of high purity ²²⁶Th. The first column filled with TEVA resin retained the parent ²³⁰U, while ²²⁶Th was eluted with 7 M HCl solution to be immediately adsorbed on the second column containing DGA resin or UTEVA resin. Having substituted the strongly acidic medium of second column with neutral salt solution, ²²⁶Th was desorbed with diluted citric buffer solution. One cycle of generator milking took 5–7 min and produced >90% of ²²⁶Th in 1.5 mL of eluate (pH 4.5–5.0) appropriate for direct use in radiopharmaceutical synthesis. The ²³⁰U impurity in ²²⁶Th eluate was less than 0.01%. The proposed two-column ²³⁰U/²²⁶Th generator was tested over 2 months including a second loading of ²³⁰U additionally accumulated from ²³⁰Pa.

1. Introduction

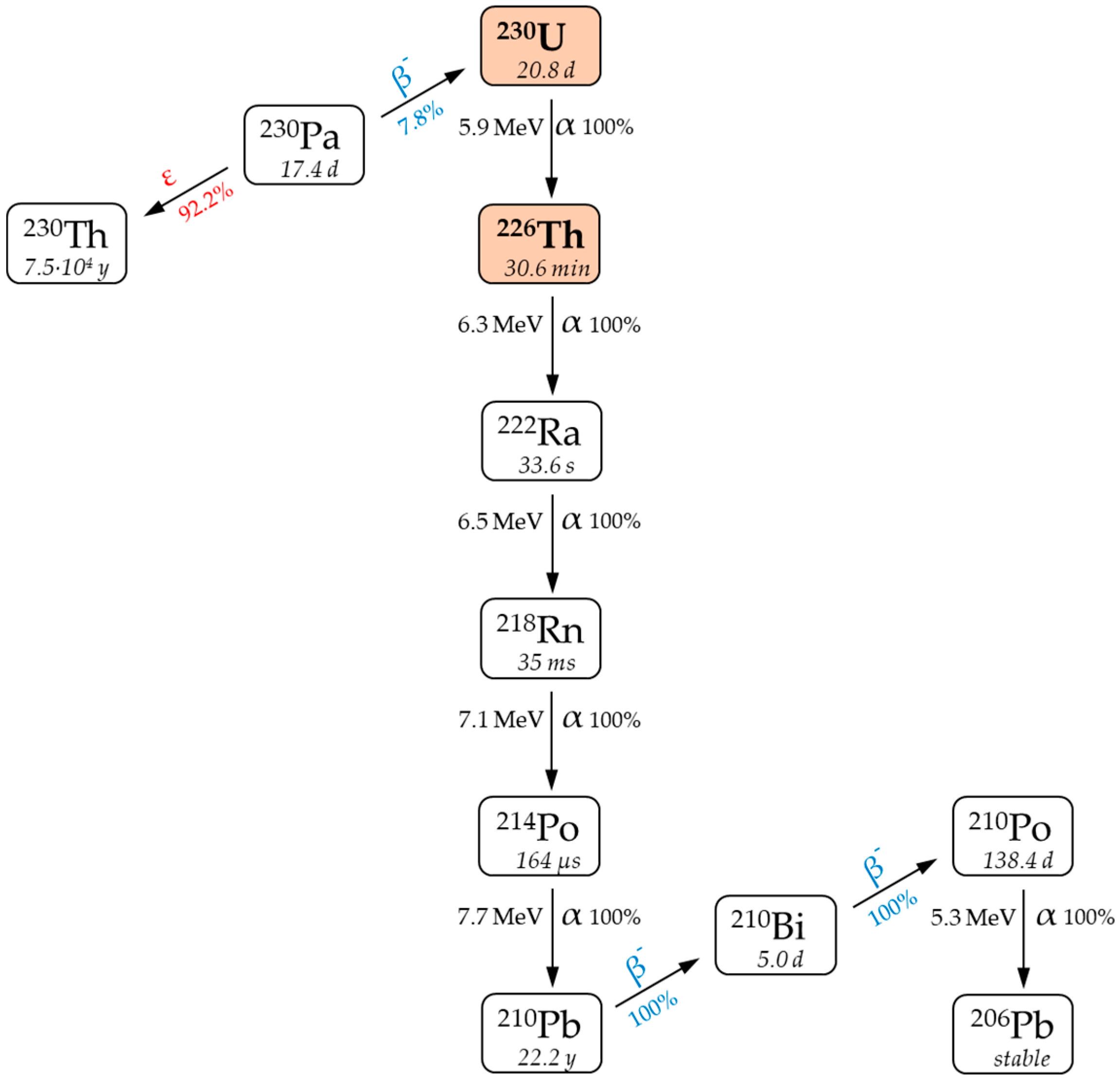

A new fast-paced branch of nuclear medicine called targeted alpha therapy (TAT) is effective for the treatment of various oncological diseases due to the property of α-particles to release a large amount of energy in a limited area of living tissue (~10 cell diameters). One of the promising radionuclides for TAT is ²³⁰U (T_1/2 = 20.2 d) [1]. The decay of ²³⁰U generates a chain of short-lived products that emit five α-particles with a total energy of 33.5 MeV (Figure 1), resulting in effective cell damage [2]. The short-lived daughter alpha emitter ²²⁶Th (T_1/2 = 30.6 min) is also an attractive radionuclide for using in TAT [3]. In terms of nuclear properties, the ²³⁰U/²²⁶Th pair is similar to the well-researched ²²⁵Ac/²¹³Bi generator pair [4].

The expected therapeutic efficacy of ²³⁰U/²²⁶Th has not been demonstrated yet; nevertheless, research is underway to find optimal chelating agents that can stably bind in vivo ²³⁰U [5] and ²²⁶Th [6]. Daughter nuclide released from a radiopharmaceutical molecule due to recoil effect can potentially migrate from the target cancer cell, which might cause considerable toxic effects to heathy tissues. If the half-life of a formed nucleus is short, its diffusion is time-limited. Therefore, a major advantage of ²²⁶Th-TAT compared with ²³⁰U-TAT is that the uncontrolled redistribution of a recoiled daughter nuclide (for ²³⁰U, this nuclide is ²²⁶Th itself) is significantly diminished (Figure 1).

The effective and reliable production of ²³⁰U and ²²⁶Th is required in order to accelerate biological studies and implement these radionuclides in TAT. ²³⁰U can be produced directly via nuclear reactions ²³¹Pa(p,2n)²³⁰U [7] and ²³¹Pa(d,3n)²³⁰U [8]. The initial ²³¹Pa (T_1/2 = 3.3 × 10⁴ y) is a decay product of ²³⁵U, it must be isolated from aged uranium samples. The raw material is hardly accessible, which restricts the method implementation. Another approach uses reactions of thorium nuclei with accelerated protons and deuterons, leading to the formation of the ²³⁰Pa precursor decaying into ²³⁰U with a branching ratio of 7.8%: ²³²Th(p,3n)²³⁰Pa→²³⁰U and ²³²Th(d,4n)²³⁰Pa→²³⁰U.

Scientific organizations worldwide are actively developing the production of ²³⁰U through irradiation of ²³²Th with protons [9,10,11,12,13]. This method has proven to be the most effective in terms of product yield compared with the reactions with deuterons [14,15]. Moreover, the maximum of the ²³²Th(p,3n)²³⁰Pa reaction excitation function is around 20 MeV [15,16], which enables up-scaled production of ²³⁰U on accessible commercial cyclotrons. At higher proton energies (>100 MeV), ²³⁰U can be obtained as a byproduct in ²²⁵Ac production [17,18] along with ²²³Ra [19].

²³⁰U from proton-irradiated thorium contains a chemically inseparable impurity of long-lived uranium isotopes. This impurity was evaluated in our previous paper [15] as up to 0.02% ²³²U (T_1/2 = 68.9 y) and 0.001% ²³³U (T_1/2 = 1.6 × 10⁵ y). Long-lived admixtures make the medical use of ²³⁰U as a source in a radionuclide generator of ²²⁶Th more prospective than direct applications.

²²⁶Th is considered to be an alternative to another promising generator-produced short-lived radionuclide ²¹³Bi (T_1/2 = 45.6 min) [20]. ²²⁶Th presumably provides a greater impact on cancer cells compared with ²¹³Bi. A rapid cascade of four α-particles initiated by ²²⁶Th decay deposits totally 27.7 MeV, while ²¹³Bi emits only one α-particle with an energy of 8.4 MeV. ²²⁶Th-radiopharmaceuticals can be effective for therapy of epithelial or easily accessible tumors [21]. Radioimmunoconjugates Nimotuzumab-p-SCN-Bn-DTPA(DOTA) were synthesized in our previous paper and their specificity toward EGFR overexpressing epidermoid carcinoma A431 cells were demonstrated [22].

Due to the relatively short half-life of ²²⁶Th, time economy becomes a major requirement throughout the entire process from obtaining ²²⁶Th to radiopharmaceutical administration. For this reason, the generator system must ensure the rapid and efficient separation of the accumulated thorium radionuclide. Various methods of liquid–liquid extraction [23,24], extraction chromatography [11,25,26,27], and ion exchange chromatography [28,29,30] have been developed for the separation of thorium and uranium. For example, the methods employing extraction chromatographic sorbents TEVA^TM resin and UTEVA/TRU^TM resin were recommended for the selective isolation and determination of U, Th, and a number of other radionuclides in water (sample volume up to 1 L) [31,32]. The chromatographic methods are more appropriate for a ²³⁰U/²²⁶Th generator since they usually provide ²²⁶Th in a small volume of eluate containing a reduced amount of long-lived impurities.

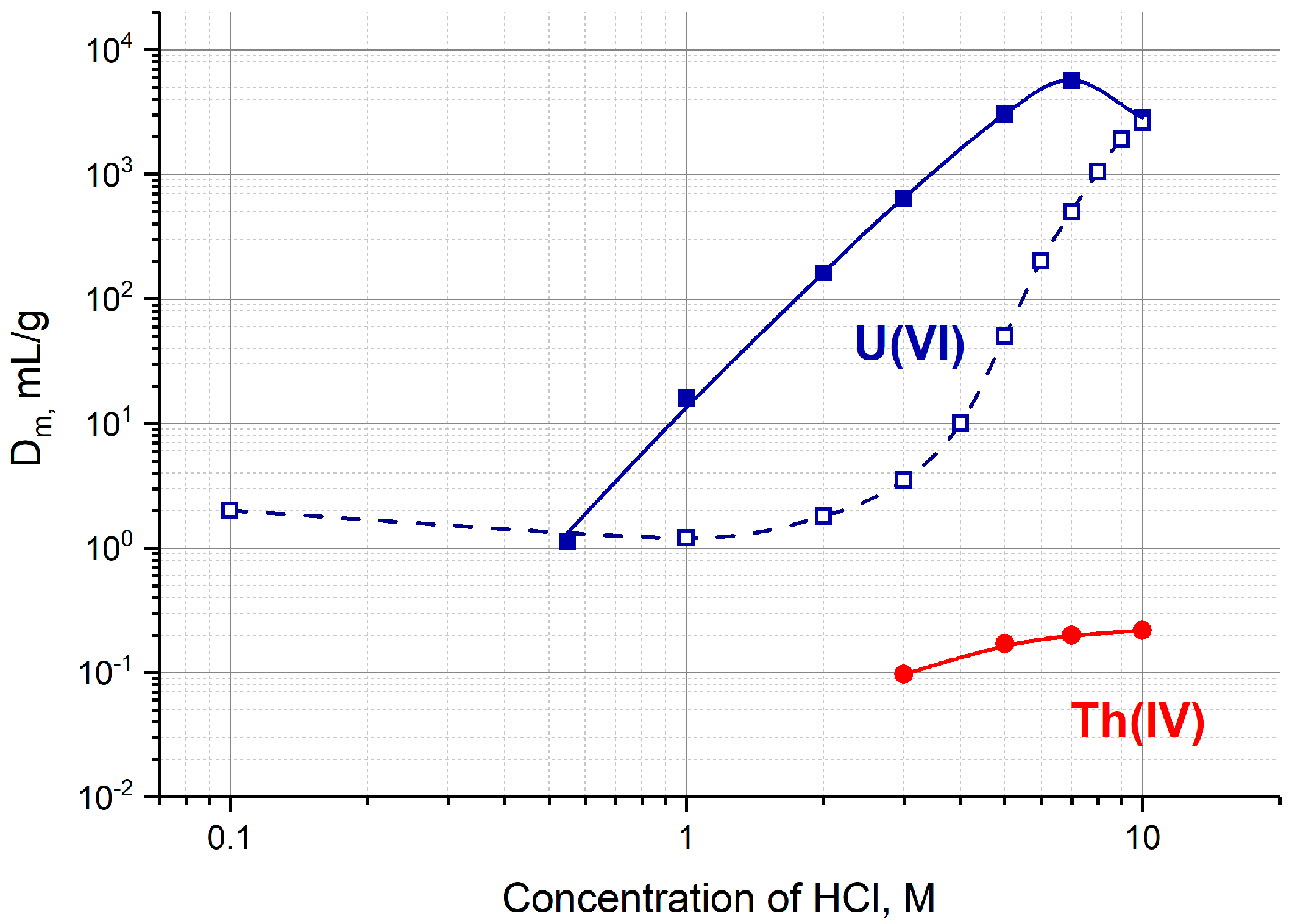

Effective separation of U(VI) and Th(IV) can be achieved on sorbents displaying anion-exchange properties in strong hydrochloric acid solutions. As it can be seen in Figure 2, U(VI) exhibits high affinity to a strong base anion-exchange resin Dowex 1 (or AG 1) and to an extraction chromatographic resin TEVA at c(HCl) > 6 M, whereas Th(IV) is not retained. Both resins were tested as sorbents for a ²³⁰U/²²⁶Th «direct» generator [22]. TEVA resin proved to be more preferable, it provided high ²²⁶Th yield in less volume of eluate (1–2 mL). Furthermore, the maximal mass distribution ratio D_m of U(VI) adsorbed on TEVA resin is located around 7 M HCl, whereas the largest adsorption of U(VI) on AG 1 corresponds to HCl concentration greater than 9 M (Figure 2). The high acidity of the final ²²⁶Th eluate was found to be the main disadvantage assuming the extra-time needed to convert the eluate into neutral solution prior to labeling.

Another approach is based on a reverse scheme of a ²³⁰U/²²⁶Th generator, i.e., the parent ²³⁰U is not fixed on the column filled with sorbent while the daughter ²²⁶Th remains adsorbed. An extraction chromatographic DGA resin containing a diglycolamide derivative was reported to be appropriate for obtaining ²²⁶Th in citric buffer solution that was amenable to direct labeling with minimal losses of time [13]. However, the ²²⁶Th eluate recovered from the reported reverse ²³⁰U/²²⁶Th generator contained at least 0.2% of ²³⁰U [13], which was unacceptable for clinical trials to date.

In the presented article, we investigated different schemes of two-column ²³⁰U/²²⁶Th generators pursuing two goals: (i) Obtaining ²²⁶Th of high purity in a solution amenable to further labeling; (ii) reducing the time of ²²⁶Th production. The first column served for fixing the parent ²³⁰U and elution of ²²⁶Th. The second column was intended to adsorb ²²⁶Th from a strongly acidic solution, and then to desorb it with diluted or neutral solution. This concept was proposed earlier and tested for a ²²⁵Ac/²¹³Bi generator [34,35,36]. In the first column, ²²⁵Ac formed an extremely strong complex with bis-(2-ethylhexyl)methanediphosphonic acid (H2DEH[MDP]) immobilized on a silica support (Ac resin). Products of the ²²⁵Ac decay, ²²¹Fr, and ²¹³Bi were eluted with 1 M HCl and concentrated on the second column filled with the ion exchanger AG-MP 50 from 0.2 M HCl. Then, ²¹³Bi was eluted from the second column with 0.1 M HI. The high efficiency of this approach makes it promising for the ²³⁰U/²²⁶Th pair, as well.

2. Results and Discussion

A two-column ²³⁰U/²²⁶Th generator was proposed and investigated for fast ²²⁶Th production in diluted or neutral citric solution. The parent ²³⁰U was adsorbed onto the first column filled with TEVA resin (Triskem Int.). On reaching the transient equilibrium, the daughter ²²⁶Th was separated and eluted with strong HCl solution. The role of the second column was to reduce quickly the acidity of ²²⁶Th solution, i.e., a sorbent for second column was to retain ²²⁶Th from the strong HCl solution and to desorb it into a diluted solution. Three extraction chromatographic resins eligible for this purpose were considered: TRU resin, UTEVA resin, and DGA resin (all Triskem Int.). According to the reported data [37,38,39] obtained in static conditions and shown in Figure 3a, the resins can be arranged in a row with respect to Th(IV) retention from <5 M HCl solution:

DGA resin > TRU resin > UTEVA resin

In order to evaluate the feasibility of a two-column ²³⁰U/²²⁶Th generator, column experiments on ²²⁶Th sorption from 7 M HCl and its desorption with diluted HCl solutions were carried out.

2.1. Elution of ²²⁶Th from the Second Column with HCl Solutions

First, the transfer of ²²⁶Th to a second column was investigated (Figure 4a, Step 1). ²²⁶Th was easily stripped off the parent column with 7 M HCl solution, the concentration corresponding to the maximum of U(VI) sorption on TEVA resin (Figure 2). The integral ²²⁶Th elution curve (blue line in Figure 5a) indicates that the solution volume of 1.5 mL was sufficient to wash out ≥99% of ²²⁶Th. DGA resin and TRU resin display high adsorption of ²²⁶Th from 7 M HCl solution (Figure 3a), the values of k′ Th(IV) attain 10⁴. When the second column was filled with 0.1 mL of these resins and connected directly to the exit of the parent column, ²²⁶Th was completely adsorbed onto the second column. In contrast, the values of k′ Th(IV) on UTEVA resin are below 10 under the same conditions. Therefore, the quantity of UTEVA resin in the second column was increased up to 1 mL to ensure a tolerable breakthrough of ²²⁶Th of less than 3% (red line in Figure 5a).

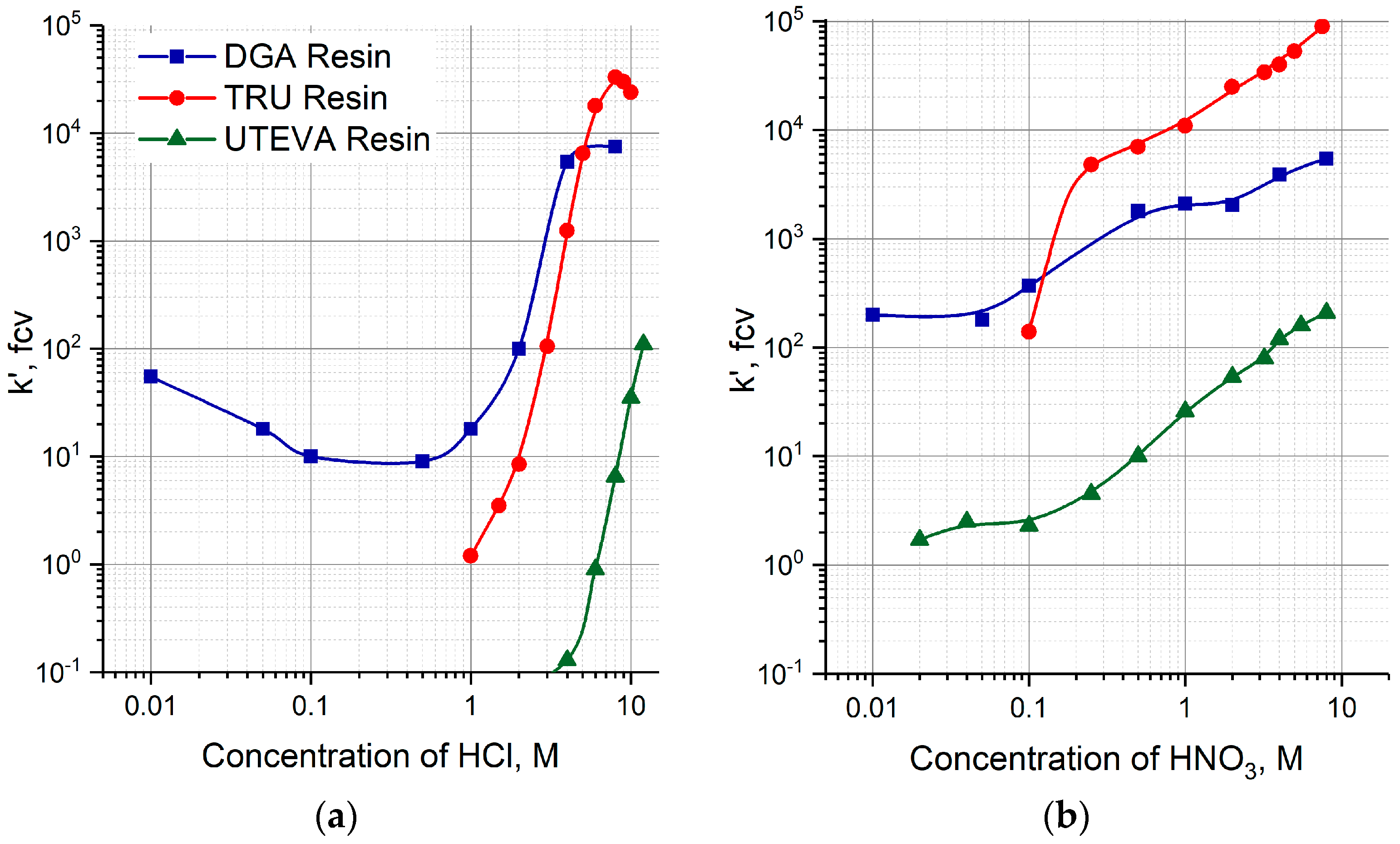

The transferred ²²⁶Th was eluted with different HCl solutions as shown in Figure 4c (Step 2). The DGA resin exhibits the greatest retention of ²²⁶Th among the studied resins from diluted hydrochloric solutions (Figure 3a). Our results of column experiments were in a good agreement with the k′ data. The elution of ²²⁶Th with 0.3 M HCl solution, which is the most favorable for ²²⁶Th desorption, resulted in 40% of ²²⁶Th yield in 6 mL of eluate. For other HCl concentrations, the ²²⁶Th yield was even lower.

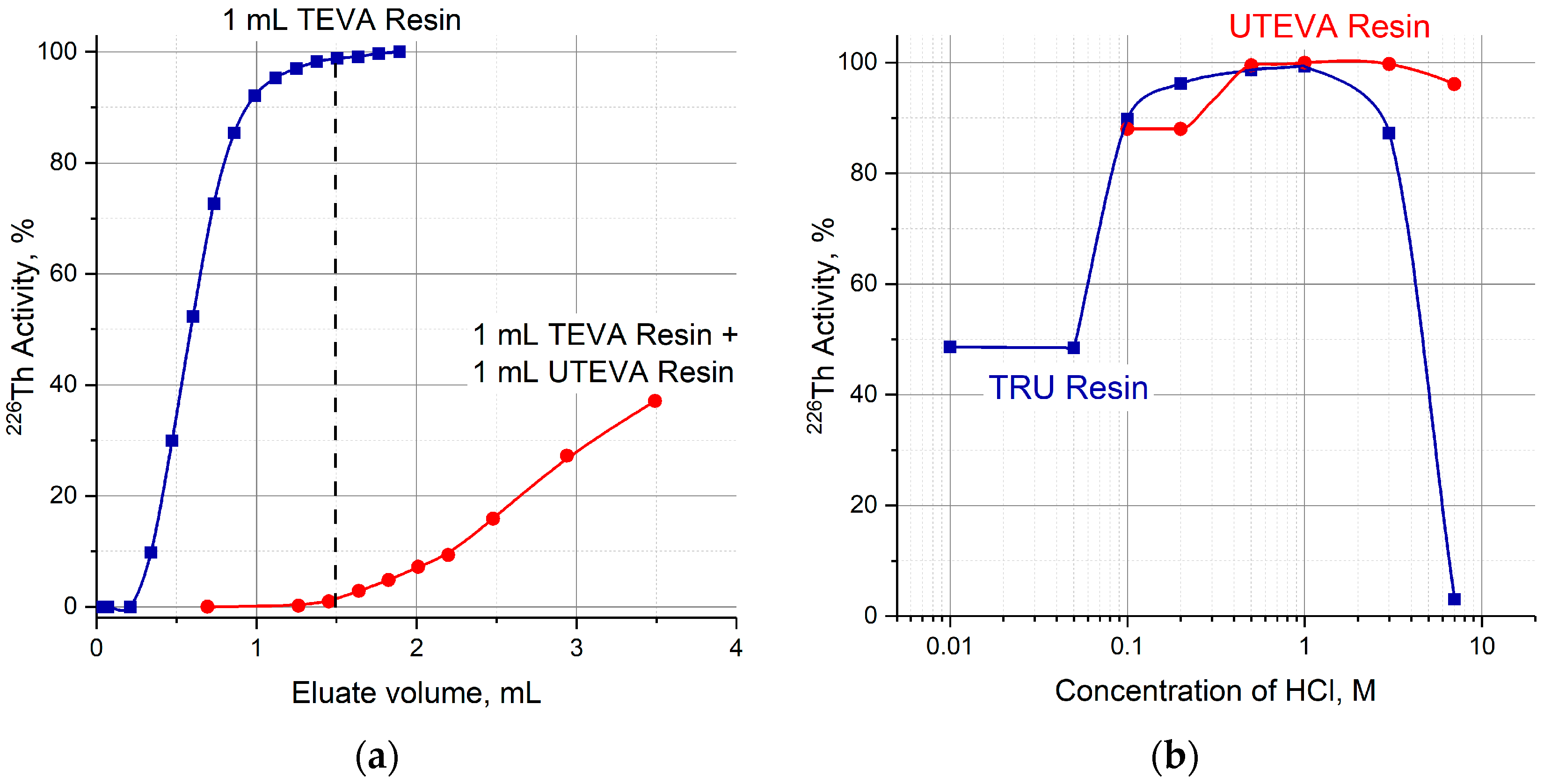

The efficiency of ²²⁶Th desorption from the second columns filled with TRU and UTEVA resins versus the concentration of hydrochloric solution is presented in Figure 5b. The optimal HCl concentration range of ²²⁶Th desorption was 0.4–1 M for TRU resin and 0.5–2 M for UTEVA resin. Typical ²²⁶Th elution curves (Figure 6) display that ²²⁶Th was completely eluted in ~1 mL of eluate. It is interesting to note that the width of ²²⁶Th chromatographic peaks from the TRU resin and UTEVA resin columns was almost the same, although the bed volume of UTEVA resin was 10 times larger than the TRU resin.

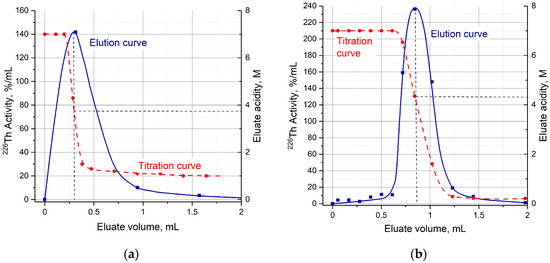

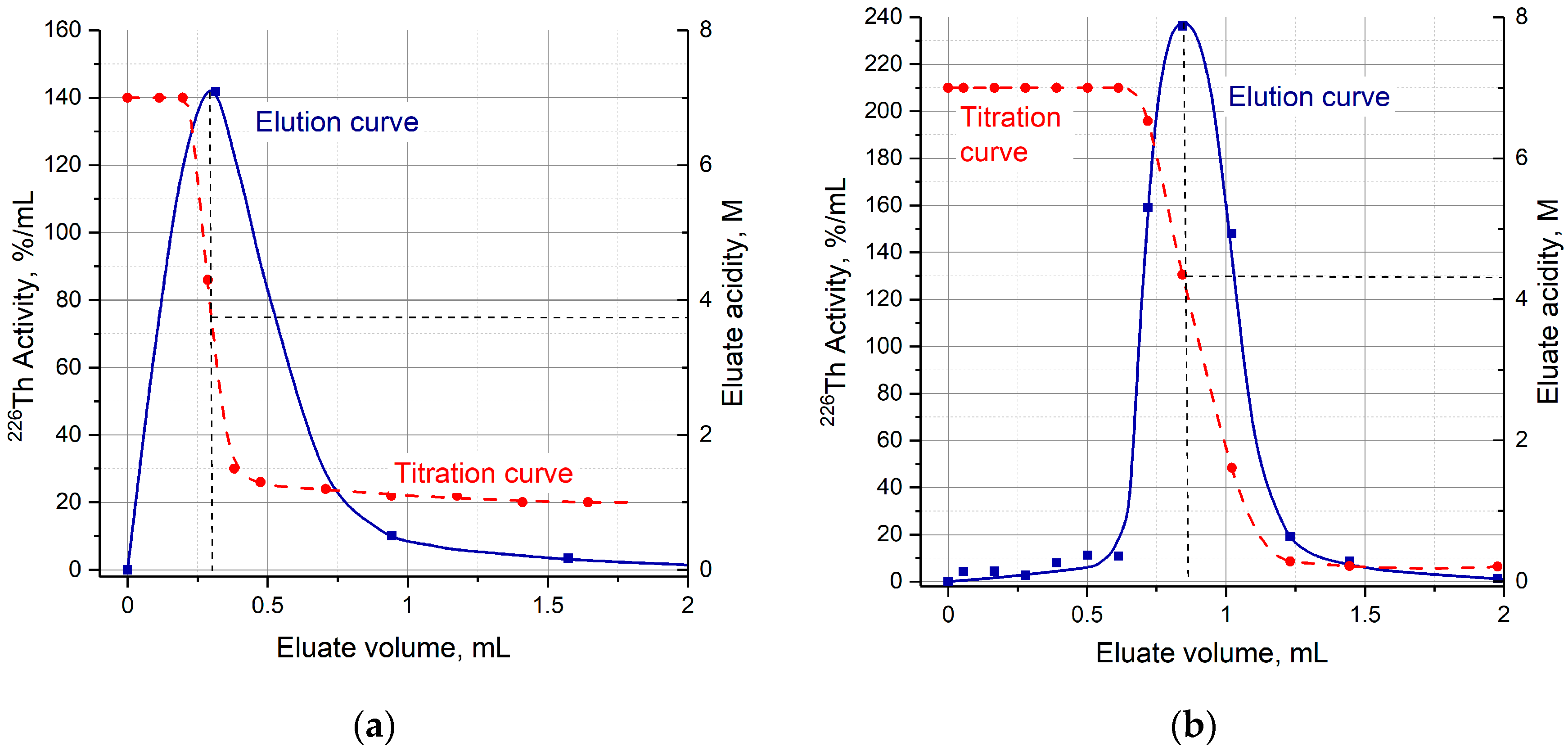

Despite the fact that the HCl concentration of the solution entering the second column for ²²⁶Th desorption (Step 2) was relatively low, the eluate acidity from both TRU resin and UTEVA resin columns was 3–4 M [H⁺]. The detailed titration curves of eluate collected by portions (Figure 6) demonstrate that ²²⁶Th is eluted on the drastic HCl concentration gradient when one solution is replaced by another. The maximum of ²²⁶Th chromatographic peak corresponds to H⁺ concentration around 4 M. Therefore, the use of dilute HCl solutions allowed us to decrease eluate acidity by only a factor of two.

2.2. Elution of ²²⁶Th from the Second Column with Citric Buffer Solutions

After transferring ²²⁶Th from the parent column to a second one containing TRU, UTEVA or DGA resin, ²²⁶Th can be desorbed with a neutral citric buffer solution. The efficiency of ²²⁶Th desorption was studied as a function of H₃Cit (pH 5.0) concentration in the range of 10⁻⁴ M–10⁻¹ M. The dependencies plotted on the graph (Figure 7) are arranged in the order reflecting the above-mentioned sequence of resin affinity for thorium (IV). For the studied resins, 0.1 M citric buffer solution fully recovered ²²⁶Th.

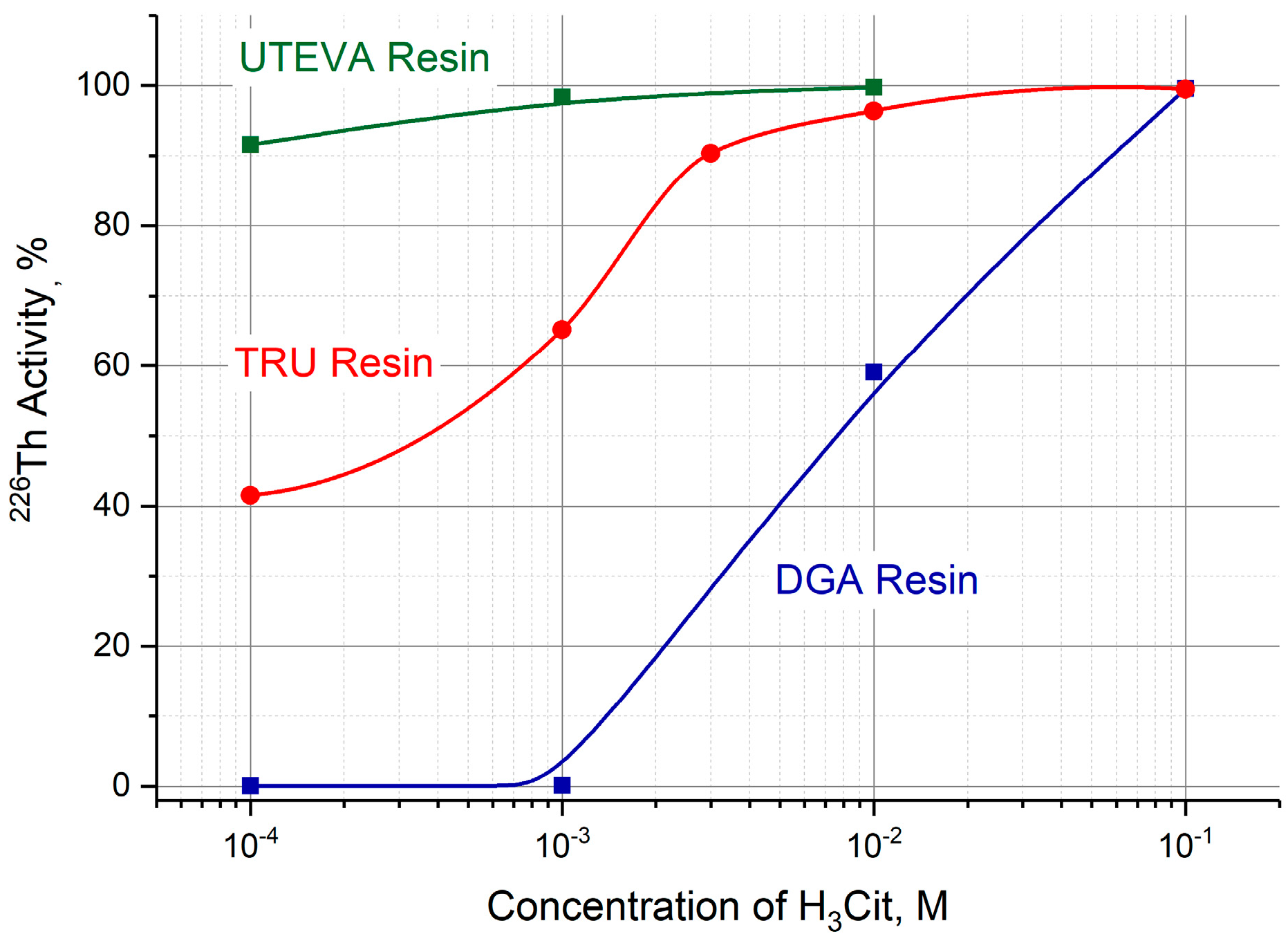

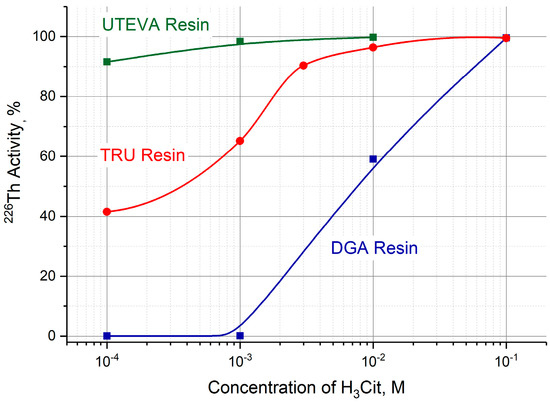

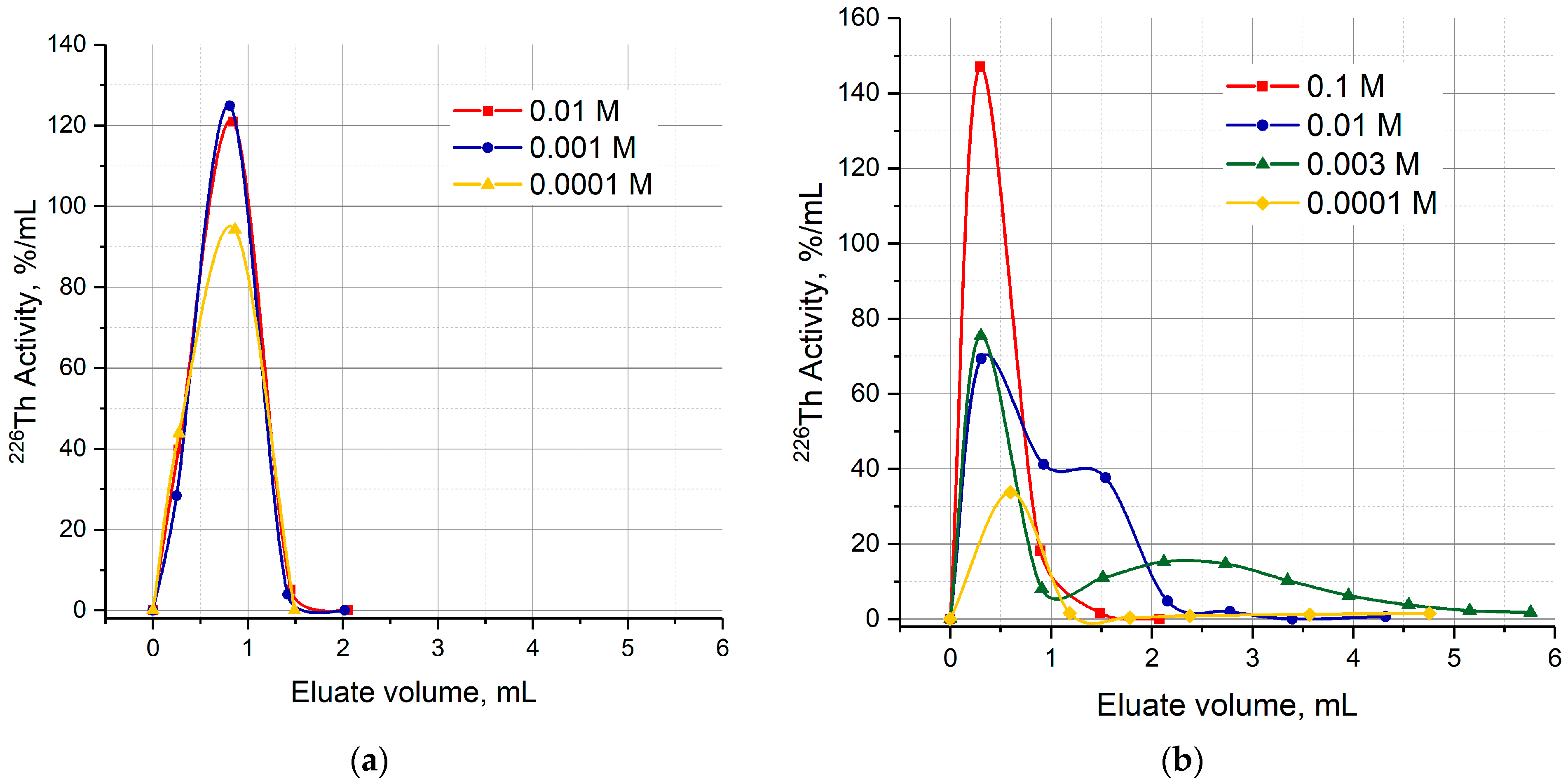

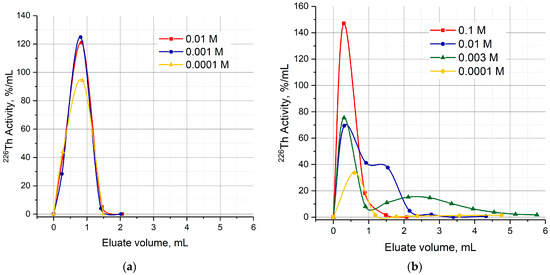

Typical curves of ²²⁶Th elution from the UTEVA resin and DGA resin columns consisted of the only chromatographic peak within the given range of citric acid concentration (Figure 8a). Similar to the ²²⁶Th elution with dilute hydrochloric solutions, the peak maximum followed the acidity gradient. Otherwise, two chromatographic peaks were observed when ²²⁶Th was eluted from the TRU column with citric buffer solutions (Figure 8b). The first peak was in the same way related to the HCl concentration gradient. The position of maximum V_max of the second peak, as well as the capacity factor k′ defined as $k^{\prime }=\frac{V_{max}-V_c}{V_c}$ [37] (V_c is free volume of sorbent in a column), depended on the citric acid concentration.

According to the literature data, various complexes of Th(IV) are coexisting in citric acid media depending on pH values and salinity [40,41]. At pH 5–6, the predominant species are ThCit₃⁵⁻ and ThCit₂(OH)₂⁴⁻ [40] with cumulative formation constants (logβ) of 28 and 15, respectively. In more acidic solution (pH < 1), the speciation shifts toward cation forms of Th(IV), e.g., Th⁴⁺ and ThCit⁺ (logβ = 14). It is evident that all these species may exhibit different affinities to the resins and the detailed analysis is complicated. However, in the case of TRU resin, the dependence of k′ Th(IV) on citric acid concentration may be expressed by a simple correlation helpful for practice use:

$$k^{\prime }=\frac{k_0^{\prime }}{1+a·\left[{\mathrm{H}}_3\mathrm{C}\mathrm{i}\mathrm{t}\right]}$$

where $k_0^{\prime }$ and $a$ are empirical constants.

Satisfactory values of ²²⁶Th yield (>90%) in a small amount of eluate (1–1.5 mL) were obtained for all the studied resins, the eluate characteristics are listed in

Table 1. Characteristics of ²²⁶Th eluted from the second column of ²³⁰U/²²⁶Th generator with citric buffer solution.

Resin	Concentration of Citric Buffer Solution (Eluent), M	226Th Yield, %	Eluate Volume, mL	Eluate Acidity, M
UTEVA	10−3–10−1	97 ± 2	1.5	1.9–2.1
TRU	10−1	94 ± 3	1.2	1.6–1.7
DGA	10−1	93 ± 2	1.2	1.6–1.7

.

It was found that eluate acidity remained relatively excessive for immediate synthesis of labeled compounds. In order to maintain ²²⁶Th on the second column during the substitution of the acidic medium with the neutral one, the influence of nitrate ions was studied.

2.3. Stabilization of ²²⁶Th on the Second Column before Elution

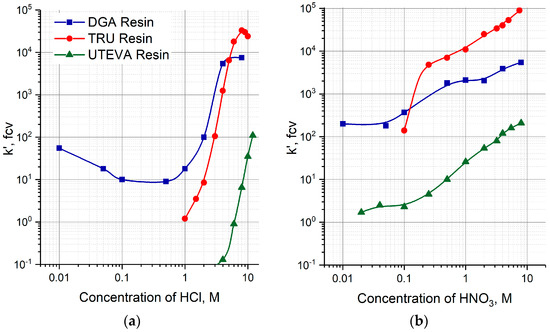

The ability of Th(IV) to form stable anionic complexes with nitrate ions is widely used to separate it from other elements. Comparison of k′ values for DGA, TRU, and UTEVA resins reveals higher sorption of Th(IV) from nitric solutions (Figure 3b) than from hydrochloric ones (Figure 3a), especially for the acidity below 1 M. Taking this fact into account, we modified the procedure of ²²⁶Th production from the two-column ²³⁰U/²²⁶Th generator.

The initial part of modification consisted of the pre-treatment of the second column. Before transferring ²²⁶Th from the parent column (Step 1), 10 mL of HNO₃ solution of a certain concentration was passed through the second column at a flowrate of 1 mL/min. For the DGA and TRU resins, the HNO₃ concentration was 0.1 M, which corresponds to moderate values of the capacity factor 150 < k′ Th(IV) < 350 (Figure 3b). In the case of UTEVA resin, the values of k′ Th(IV) for dilute nitric acid solutions are small; they grow with an increasing acid concentration and reach values around 100 in the region of 3–4 M HNO₃.

Starting from these data obtained in static conditions, the UTEVA column was pre-treated with a HNO₃ solution of various concentrations and ²²⁶Th losses during Step 1 were studied. The results presented in Figure 9 display that the ²²⁶Th losses when transferring from the TEVA column to UTEVA one with 7 M HCl solution noticeably diminished along with increasing the concentration of HNO₃ used for UTEVA pre-treatment. For 3 M HNO₃ solution, the breakthrough of ²²⁶Th began after passing not less than 2.5 mL of 7 M HCl.

In addition, a variation of Step 1 was tested (Figure 4b) that provided the flow of 7 M HCl solution carrying ²²⁶Th to be equally mixed with the flow of 3 M HNO₃ solution at the entrance of the UTEVA column (“two flows” variation). As a result, ²²⁶Th breakthrough was not observed even after passing 20 mL of 7 M HCl (>20 bed volumes).

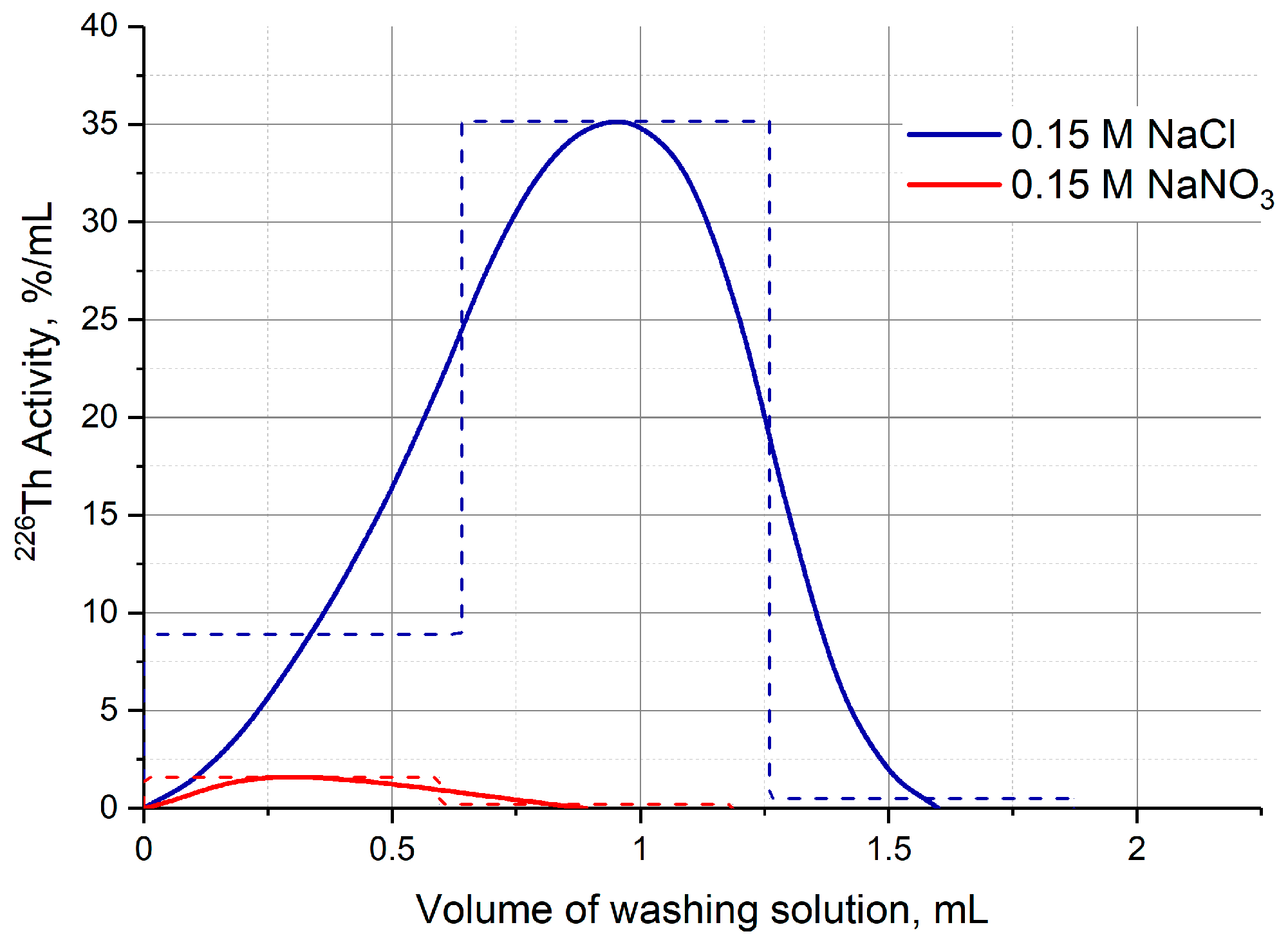

The other part of the second column modification was carried out after Step 1 and involved substituting the 7 M HCl medium with dilute or neutral one. Solutions of 0.1 M HNO₃, 0.15 M NaCl, and 0.15 M NaNO₃ were studied. Full change in medium in the DGA column took place after passing 1.0–1.2 mL of each solution, and ²²⁶Th losses did not exceed 3%. In the case of TRU column, ²²⁶Th was partially washed out on the HCl concentration gradient (similar to Figure 6a) regardless of the substituting solution, its losses ranged from 10% to 40% and were poorly reproducible. The UTEVA resin retained ²²⁶Th well when the solutions of 0.1 M HNO₃ and 0.15 M NaNO₃ were passed through the second column, whereas the 0.15 M NaCl solution washed out up to 28% of ²²⁶Th (Figure 10).

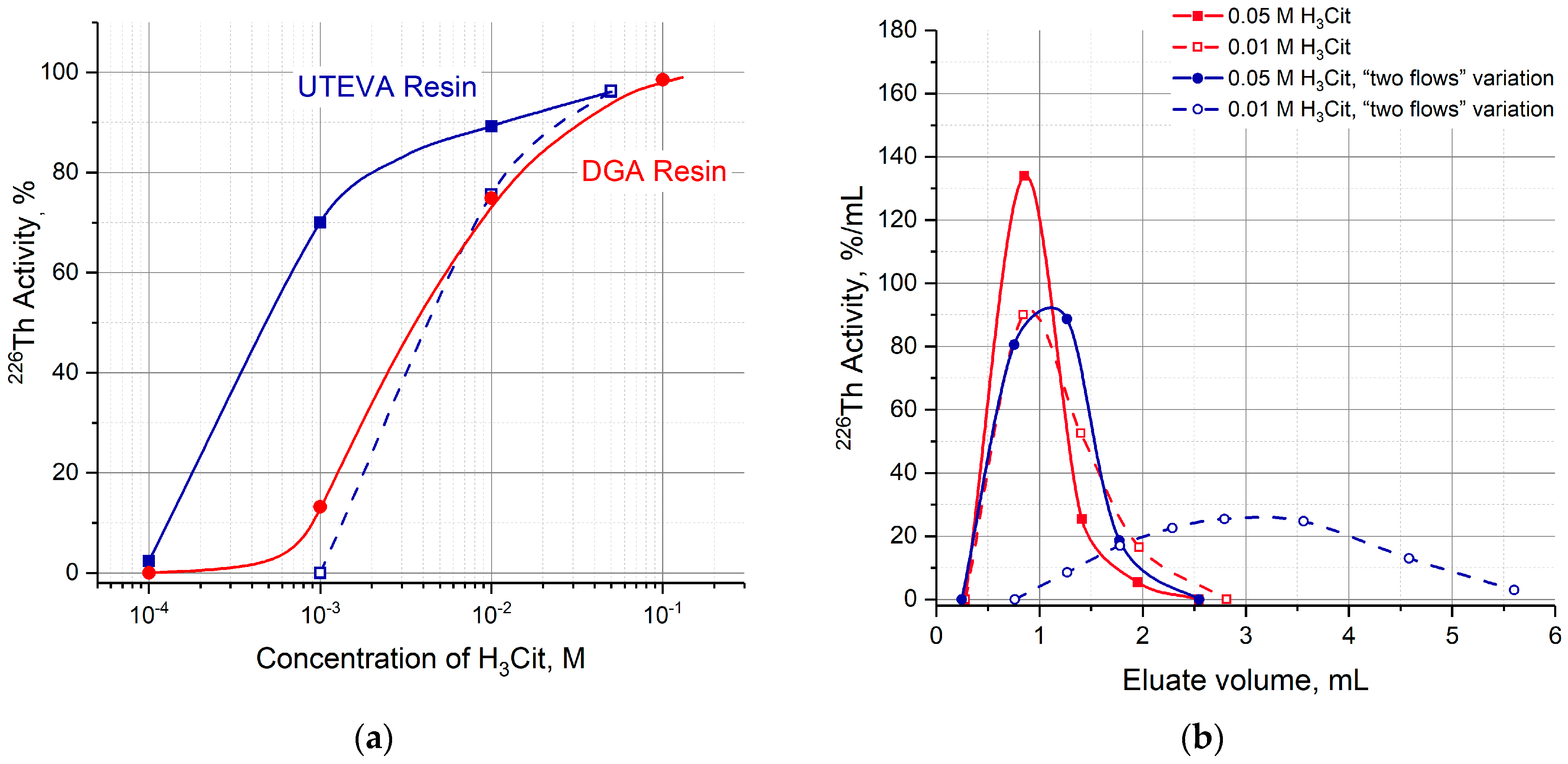

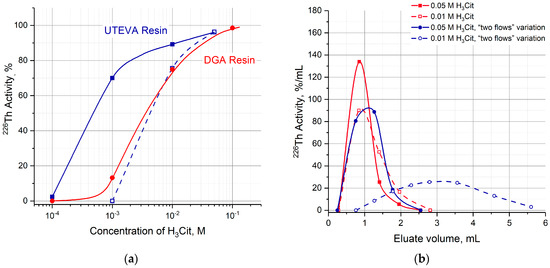

Having replaced the strongly acidic medium in the second column, ²²⁶Th was washed out with a citric buffer solution (pH 5.0) of various concentrations (Figure 11a). The results obtained for the UTEVA column:

• without the pre-treatment and medium substitution (green line in Figure 7);
• with the pre-treatment and substitution of 7 M HCl with 0.15 M NaNO₃ solution (blue solid line in Figure 11a);
• with the pre-treatment, “two flows” variation and the substitution (blue dashed line in Figure 11a)

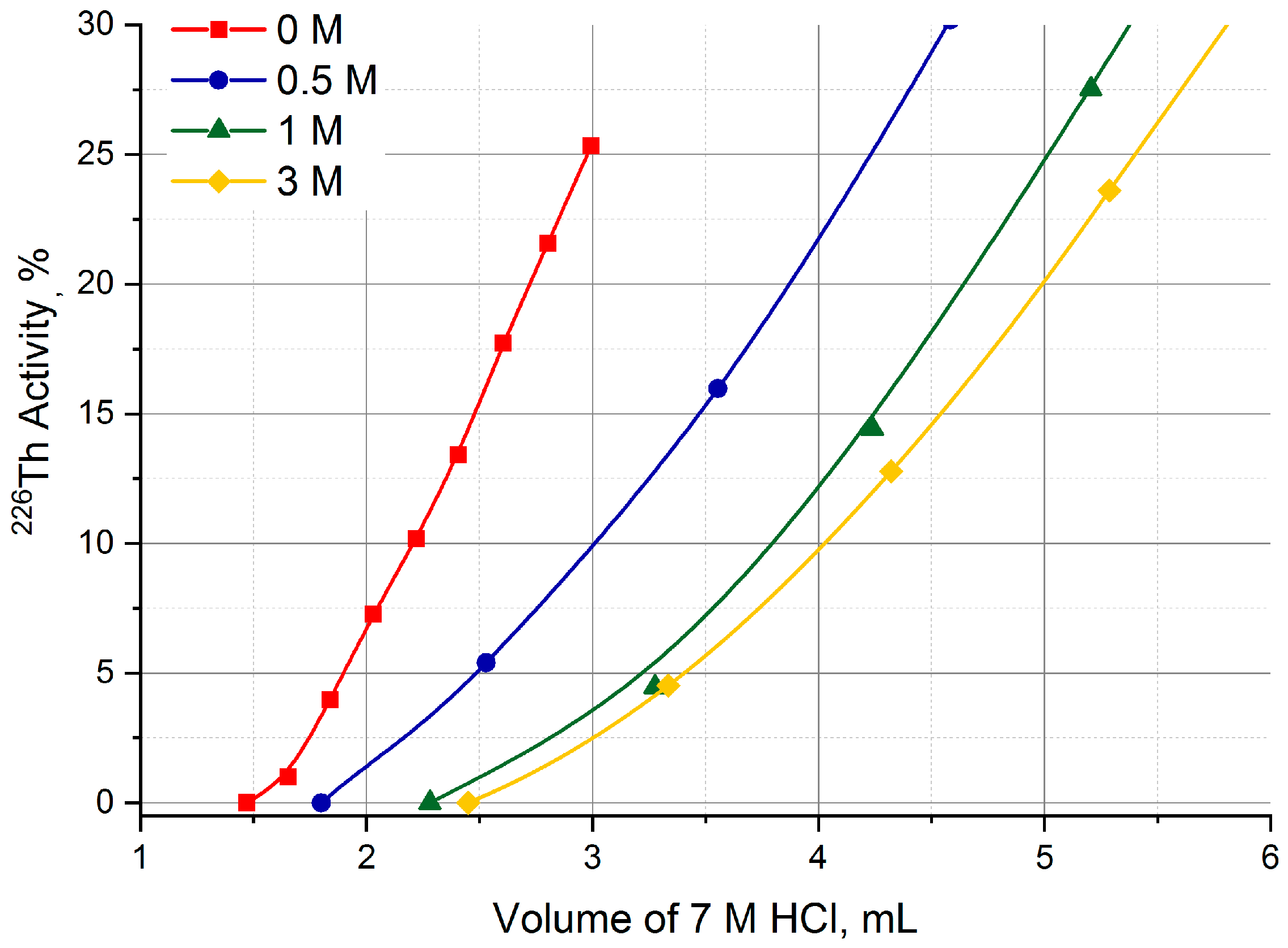

allow us to suggest that increasing contact time of the UTEVA resin and nitric solution led to an increasing difficult ²²⁶Th recovery. The relative positions of ²²⁶Th elution curves (Figure 11b) were also in line with these suggestions.

Moreover, the influence of the contact time was evaluated in parallel experiments that included the 3 M HNO₃ pre-treatment of the UTEVA column, the HCl substitution with 0.15 M NaNO₃ solution, and the ²²⁶Th elution with a 10⁻³ M citric buffer solution. As the pre-treatment duration increased from 10 min to 10 h, the efficiency of ²²⁶Th production decreased from 70% (see in Figure 11a) to zero. The behavior of the UTEVA resin may be explained by the fact that the k′ Th(IV) dependence in nitric solutions is higher than the hydrochloric solutions over the entire concentration range (Figure 3).

Two most effective procedures for obtaining ²²⁶Th from the two-column ²³⁰U/²²⁶Th generator are presented in

Table 2. Effective procedures of ²²⁶Th extraction from the two-column ²³⁰U/²²⁶Th generator (>90% of ²²⁶Th in 1.5 mL of eluate, pH 4.5–5.0).

Step	Solution
	For DGA Column	For UTEVA Column
Second column pretreatment	0.1 M HNO3	3 M HNO3
Transfer 226Th to a second column	7 M HCl
Acid substitution in the second column	0.15 M NaCl	0.15 M NaNO3
226Th elution	0.1 M H3Cit, pH 5.0	0.05 M H3Cit, pH 5.0

.

The overall time of ²²⁶Th eluate production was within 5–7 min. The time expenditure was slightly shorter when the DGA column was used, since its size was 10 times smaller than the UTEVA column. Meanwhile, the use of UTEVA resin for the second column resulted in high yield of ²²⁶Th in a less concentrated solution (0.01–0.05 M H₃Cit, pH 4.5–5.0).

2.4. Long-Term Performance of the Two-Column ²³⁰U/²²⁶Th Generator

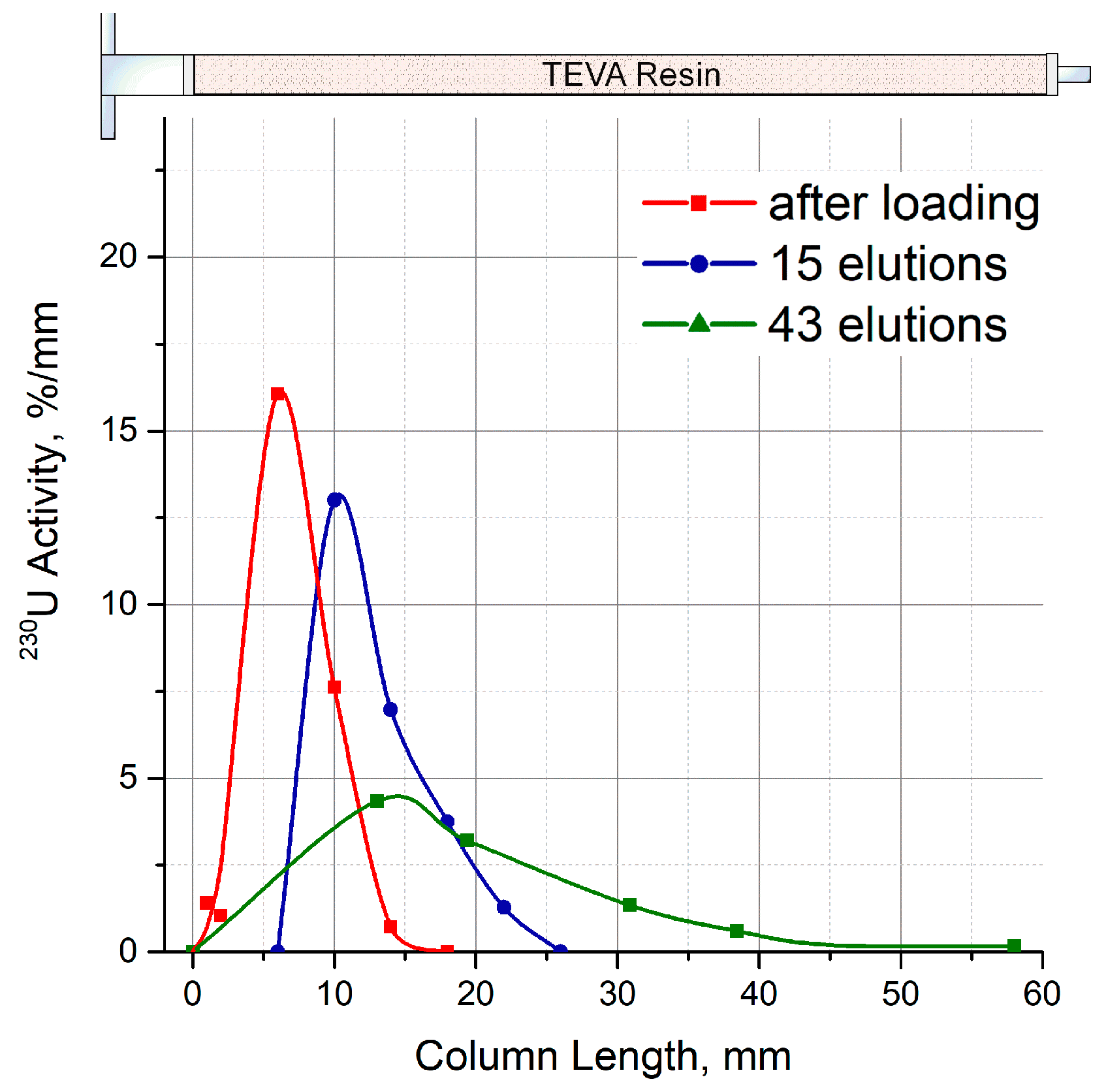

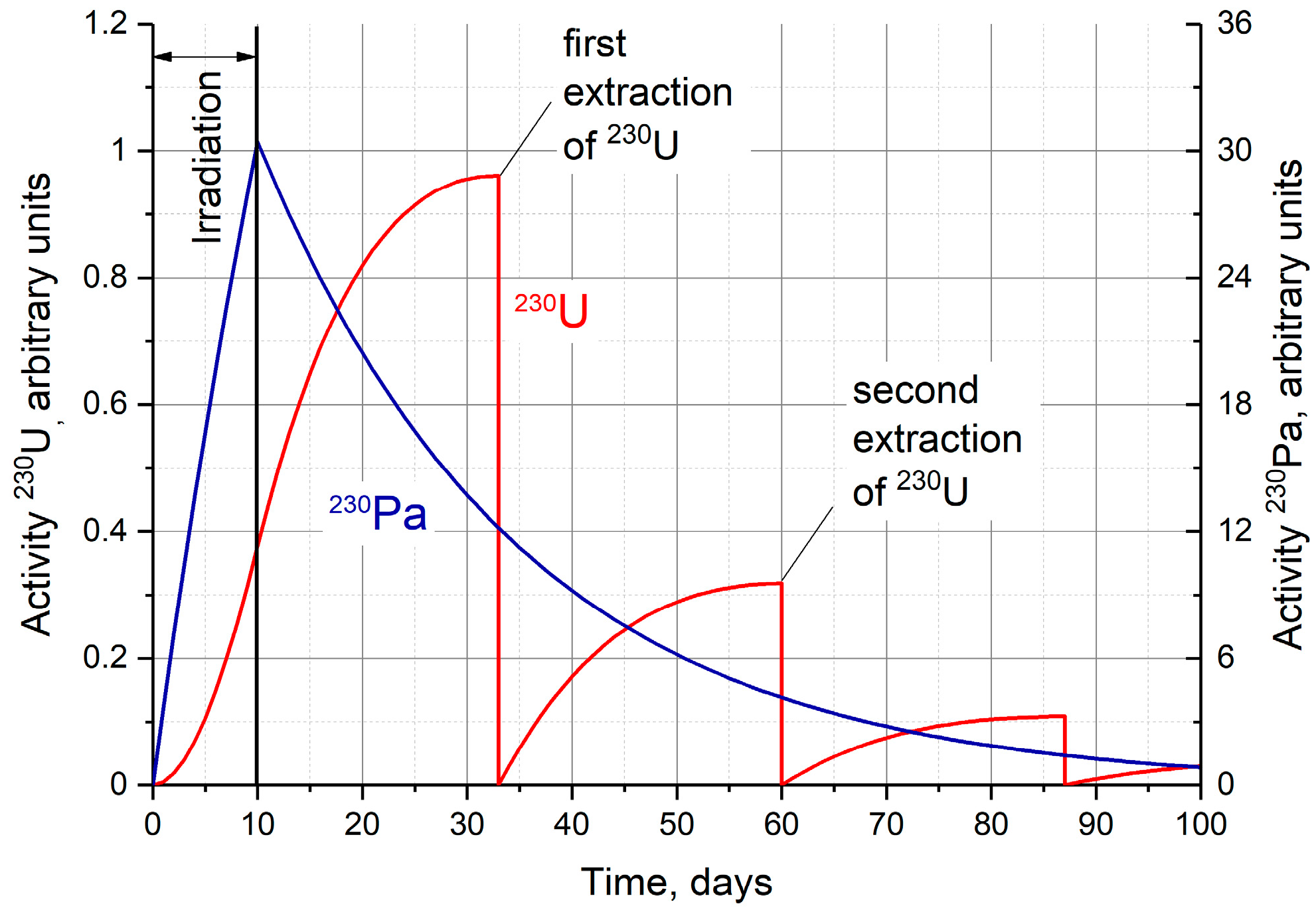

Following the developed procedure, the solution of 7 M HCl was only passed through the parent column containing ²³⁰U adsorbed on TEVA resin. The distribution of ²³⁰U along with the length of parent column was monitored throughout the generator lifetime (Figure A2). Usually, two cycles of ²²⁶Th production per weekday were performed over 2 months. The total volume of 7 M HCl solution that passed through the parent column was about 200 mL including accessory operations and a loading of a second portion of ²³⁰U. According to the calculations illustrated by Figure A3, one third of the initial amount of ²³⁰U was additionally accumulated from ²³⁰Pa in 27–28 days after the first separation, and then loaded onto the parent column.

Due to the two-column scheme of ²²⁶Th production, the proposed generator provided deep purification ²²⁶Th from ²³⁰U. It was found that the ²³⁰U impurity in the ²²⁶Th eluates did not exceed 0.01%, which was at least one order of magnitude better in comparison with the reported literature data [13].

In this work, we used low ²³⁰U activities that do not lead to radiolysis and destruction of the sorbent. Influence of these processes on the generator performance is to be investigated in future studies.

3. Materials and Methods

All chemicals were of p.a. (pro analysis) quality or higher, obtained from Merck (Darmstadt, Germany), and used without additional purifications. All experiments were carried out using de-ionized “Milli-Q” water (18 MΩ∙cm⁻¹). DGA resin (N,N,N′,N′tetroctyldiglicolamide as an extracting agent), TEVA resin (quaternary ammonium salt Aliquate 336 as an extracting agent), TRU resin (octyl(phenyl)-N,N-di-isobutylcarbomoylmethylphosphine oxide dissolved in tributylphosphate), and UTEVA resin (dipentil pentylphosphonate as an extracting agent) with 50–150 μm particle size were obtained from Triskem, France.

Citric buffer solutions (10⁻⁴–10⁻¹ M, pH 5.0 ± 0.1) were prepared by dissolving the corresponding solid acid sample and adding small portions of 1 M NaOH to obtain a solution with the required pH value.

Measurements of operational pH values were performed with an Orion 2 Star Benchtop pH meter using an Orion 8103SC combination pH electrode. Commercial pH Titrisol buffer concentrates (Merck p.a.) were used to calibrate the setup at room temperature.

Acid-base titration with indicators methyl orange and phenolphthalein were used to determine the acid content in commercial solutions of concentrated HCl and HNO₃, as well as in the ²²⁶Th containing eluate.

The experiments were carried out at a temperature of 21 ± 2 °C.

3.1. Gamma-ray Spectroscopy

The measurement of radionuclide activities was performed by γ-ray spectrometry using a high resolution HP Ge detector (ORTEC GEM15P4-70). Samples were counted at different detector-source distances respecting a level of dead-time of less than 10%. The detector efficiency at the used distances were determined with standard calibration sources. Net peak areas in the detected photopeaks were evaluated by means of the GammaVision32 software.

The characteristic γ-ray emission of ²²⁶Th (111.1 keV, 3.29%) and ²²²Ra (324.3 keV, 2.77%) [2] were used for ²³⁰U and ²²⁶Th activity quantification of various generator testing samples respecting the transient equilibrium of daughter radionuclides.

3.2. Target Preparation and Irradiation, and ²³⁰U Isolation

Metallic thorium supplied by Institute for Physics and Power Engineering (IPPE, Russia) was used as target material. Thorium plates of (2.2 × 2.5) cm² approximate dimensions with thickness of 1.5–2.0 mm were fabricated and packed in copper and aluminum foil envelopes, which served for beam monitoring purposes, as well. Each package was encapsulated in a graphite shell sealed with high-temperature silicone adhesive. Several targets were irradiated at the linear proton accelerator of the Institute for Nuclear Research of the Russian Academy of Sciences (INR RAS, Moscow, Russia) [42] with an initial energy of 120–130 MeV. The beam current and total beam charge were 3–5 µA and 12–18 µA·h, respectively.

The dissolution of the irradiated thorium was performed as described previously [18,43] 4 to 5 days after the end of bombardment (EOB). The protactinium fraction including ²³⁰Pa was recovered from the solution according to the procedure reported in [15] and remained in 7 M HCl/0.1 M HF solution for ²³⁰U accumulation during 27–28 days. Traces of Nb (mainly ⁹⁵Nb) and Ru (^103,106Ru) radionuclides were impurities of ²³⁰Pa/²³⁰U.

A chromatographic technique close to the one developed by A.W. Knight [44] was implemented for separation of ²³⁰U from ²³⁰Pa. The solution with radionuclides was loaded onto a column filled with 2 mL of TEVA resin. Due to the presence of fluoride ions, Pa(V) together with Ru(IV) were eluted, while U(VI) and Nb(V) were retained on the resin. The column was washed with 7 M HCl/0.1 M HF solution to remove Pa(V). The washing was added to the Pa(V) eluate and the combined solution was maintained for the next ²³⁰U accumulation. Then, having the column washed with 7 M HCl solution, U(VI) and a part of Nb(V) were desorbed with 0.1 M HCl solution. The desorbate was adjusted to 3 M HCl by adding concentrated hydrochloric acid, and following the known procedure [13,45], this solution was passed through a column filled with 1 mL of DGA resin. The uranium fraction was adsorbed, while the ⁹⁵Nb was washed out of the column. Finally, ²³⁰U was eluted with a small amount of 0.1 M HCl solution.

3.3. Generator Schemes for Producing ²²⁶Th

3.3.1. Preparation of a Parent ²³⁰U Column

A plastic column of ~5 mm in diameter was filled with 1 mL of TEVA resin equilibrated with 7 M HCl. The resin was fixed inside by two frits at the bottom and at the top of column. The ²³⁰U solution was evaporated and reconstituted in 7 M HCl. The resulting solution was passed through the column followed by washing with a solution of 7 M HCl. The uranium was adsorbed under these conditions, the loaded activity of ²³⁰U was 300–350 kBq. Approximately a month after the ²³⁰U isolation and loading, a second part of ²³⁰U was accumulated, separated from ²³⁰Pa as described above and added to the column.

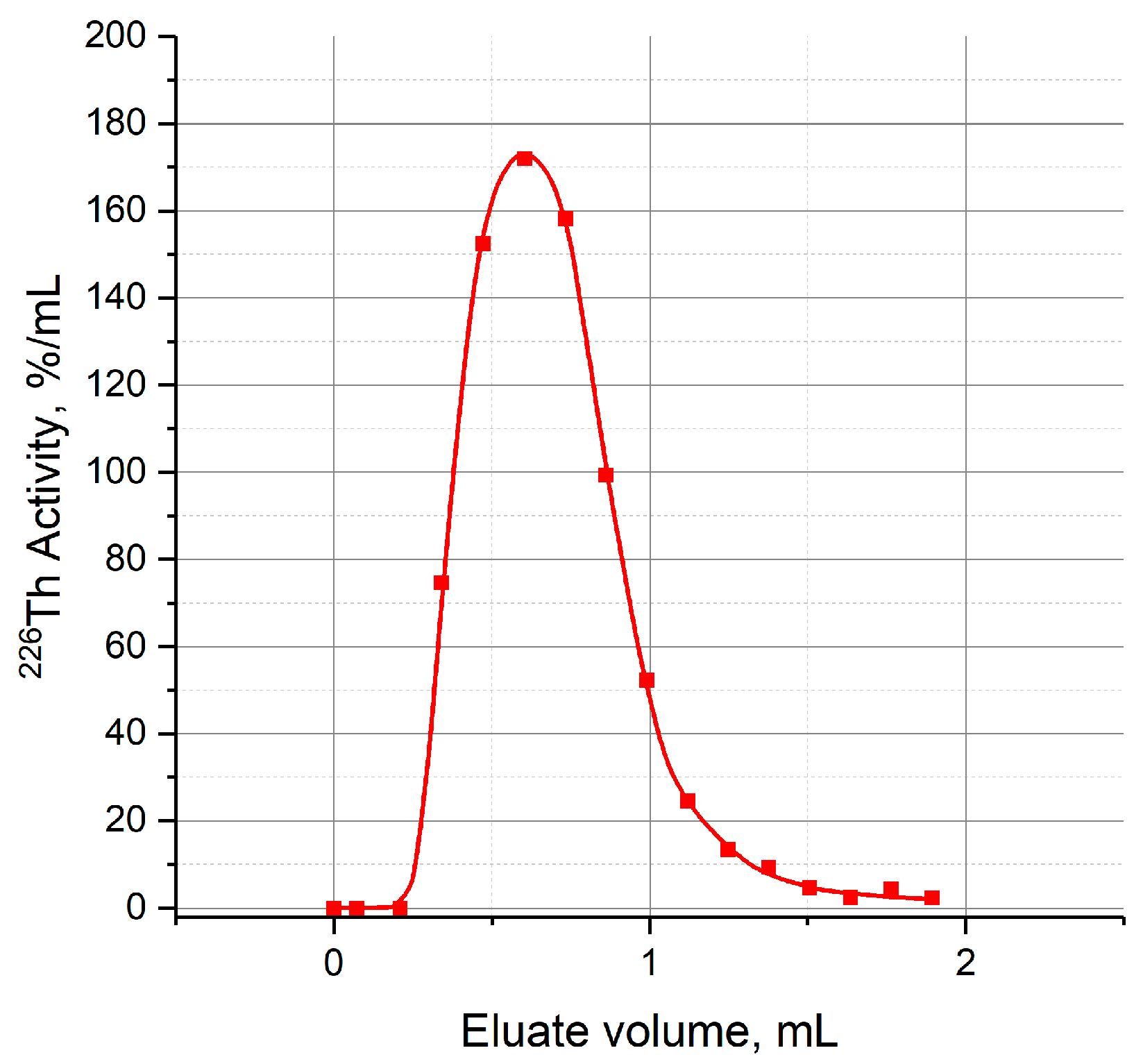

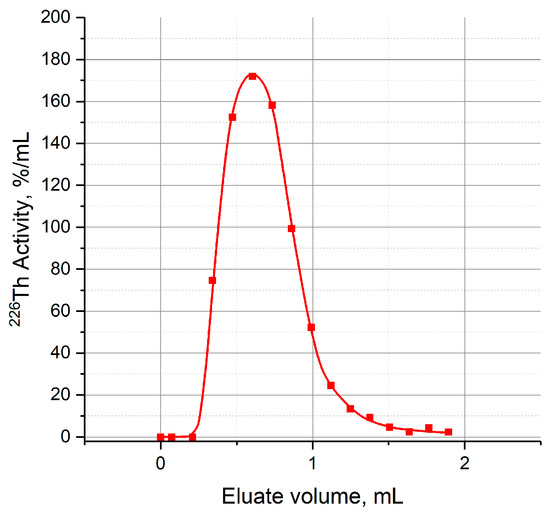

The prepared column served as parent one, and it could work as a one-column generator providing ²²⁶Th elution in 7 M HCl. A typical differential curve of ²²⁶Th elution is shown in Figure A1. Furthermore, the parent column was a part of the two-column generator schemes.

3.3.2. Two-Column ²³⁰U/²²⁶Th Generator Scheme and ²²⁶Th Elution Cycle

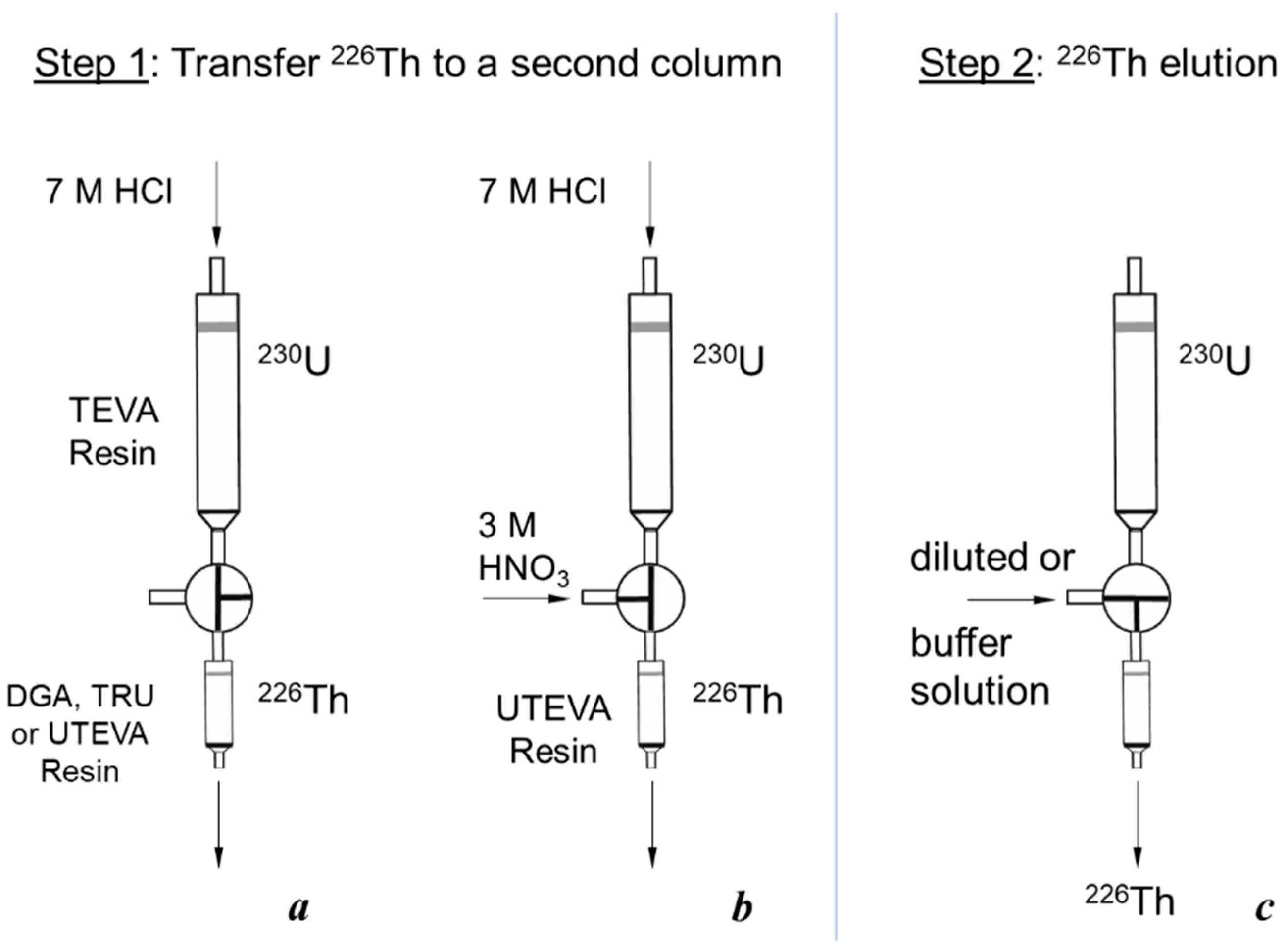

A general scheme of the ²³⁰U/²²⁶Th generator comprised two columns connected in series via a three-valve cock as shown in Figure 4. The parent TEVA column containing ²³⁰U was the first column and a column filled with TRU, UTEVA or DGA resin served as a second one that could be interchanged when necessary. A milking procedure included two common steps: (1) Transfer ²²⁶Th with 7 M HCl solution from the parent column to the second one (Figure 4a,b); (2) ²²⁶Th elution with diluted HCl or citric buffer solution (Figure 4c). Eluates were collected for measurement of ²²⁶Th and ²³⁰U activity and eluate acidity. Flow rates of solutions passing through the columns were maintained and controlled with a peristaltic pump. The values of flow rate were 1 and 0.6 mL/min for Steps 1 and 2, respectively.

The TRU or DGA resin was loaded into a plastic column of ~3 mm in diameter, the height of resin bed was 11–12 mm (resin volume ~0.1 mL). Diameter of the column for the UTEVA resin was ~5 mm, the height of the UTEVA bed was 55–58 mm (~1 mL). Each column was equipped with bottom and top frits.

For some experiments with the UTEVA column, we modified Step 1 as it is shown in Figure 4b. A flow of 7 M HCl solution (0.5 mL/min) after passing the parent ²³⁰U column was mixed with a flow of 3 M HNO₃ solution (0.5 mL/min) resulting in 1 mL/min flow of 3.5 M HCl/1.5 M HNO₃ solution at the entrance of the UTEVA resin column.

3.4. ²³⁰U Measurements

The activity of ²³⁰U in eluates was usually measured overnight for complete ²²⁶Th decay. ²³⁰U was assayed by γ-ray spectroscopy via the daughter radionuclides ²²⁶Th and ²²⁶Ra.

Distribution of ²³⁰U along the length of TEVA resin column was monitored by successive scanning of the column through a 4 mm wide slit between lead blocks. The measurements were performed after ²³⁰U loading onto the TEVA resin column and regularly after milking.

4. Conclusions

We have proposed and tested the proof-of-concept of a two-column ²³⁰U/²²⁶Th generator for rapidly producing ²²⁶Th amenable to further labeling. The first ²³⁰U column with TEVA resin furnished ²²⁶Th in 7 M HCl solution. The second column retained ²²⁶Th from the strongly acidic solution, and then released it with a diluted hydrochloric or neutral citric buffer solution. Analysis based on the dependence of the capacity factor k′ Th(IV) on the concentration of hydrochloric and nitric acid allowed us to consider DGA, TRU, and UTEVA resins as promising sorbents for the second column.

High yields (>97%) of ²²⁶Th elution from TRU and UTEVA resins with a small volume (~1 mL) of diluted HCl solutions were obtained. However, the resulting acidity of the eluate was 3–4 M [H⁺] regardless of the solution concentration entering the second column. The titration analysis displayed that ²²⁶Th was eluted on the HCl concentration gradient when one solution was replaced by another.

Elution of ²²⁶Th transferred to the second column containing DGA, TRU or UTEVA resin was studied with citric buffer solutions (pH 5.0) in two modes. Direct ²²⁶Th desorption was also influenced by the acidity gradient. While ²²⁶Th was stripped off the UTEVA and DGA columns in one chromatographic peak, a typical curve of ²²⁶Th elution from the TRU column consisted of two chromatographic peaks within the studied range of citric acid concentration. The first peak followed the HCl concentration gradient, and the second one may be attributed to ²²⁶Th complexation with citrate ions in the course of TRU column elution. Satisfactory yields were achieved by ²²⁶Th elution from the second column filled with any of the studied resins. For TRU and DGA resins, 1–1.5 mL of 0.1 M H₃Cit (pH 5.0) solution extracted more than 90% of ²²⁶Th, while the UTEVA resin column demonstrated similar effectiveness with less concentrated citric buffer solutions (down to 10⁻³ M H₃Cit). The acidity of citric eluates was about two times lower than the diluted HCl solution’s eluates but still relatively high for immediate labeling.

Neutral citric-buffered ²²⁶Th eluates were obtained when nitrate ions were introduced. The second column was initially put in contact with a nitric acid solution. Then, after ²²⁶Th transfer from the parent column, the acidic medium of the second column was substituted with the neutral one maintaining ²²⁶Th immobile. Solutions of 0.15 M NaCl and of 0.15 M NaNO₃ were used for the DGA and UTEVA column, respectively. Finally, ²²⁶Th was extracted with citric buffer solution: 0.1 M H₃Cit from the DGA column and 0.01–0.05 M H₃Cit from the UTEVA one. Therefore, one cycle of generator milking took 5–7 min and produced >90% of ²²⁶Th in 1.5 mL of eluate, pH 4.5–5.0.

The proposed two-column ²³⁰U/²²⁶Th generator was tested over 2 months including a second loading of ²³⁰U additionally accumulated from ²³⁰Pa. The ²³⁰U impurity in the ²²⁶Th eluate was less than 0.01% allowing its use directly in synthesis of radiopharmaceutical compounds.
