Tadalafil Rescues the p.M325T Mutant of Best1 Chloride Channel

by
Kathleen Elverson
1,
Jim Warwicker
2,
Sally Freeman
3,* and
Forbes Manson
1,*
1
Division of Evolution, Infection and Genomics, Faculty of Biology, Medicine and Health, The University of Manchester, Manchester M13 9PT, UK
2
Division of Molecular and Cellular Function, Faculty of Biology, Medicine and Health, Manchester Institute of Biotechnology, The University of Manchester, Manchester M1 7DN, UK
3
Division of Pharmacy and Optometry, School of Health Sciences, Faculty of Biology, Medicine and Health, The University of Manchester, Manchester M13 9PT, UK
*
Authors to whom correspondence should be addressed.
Molecules 2023, 28(8), 3317; https://doi.org/10.3390/molecules28083317
Submission received: 27 February 2023 / Revised: 24 March 2023 / Accepted: 31 March 2023 / Published: 8 April 2023
(This article belongs to the Special Issue Novel Drug Design and Activity Targeting Ion Channels)
Browse Figures
Versions Notes

Abstract

:
Bestrophin 1 (Best1) is a chloride channel that localises to the plasma membrane of retinal pigment epithelium (RPE) cells. Mutations in the BEST1 gene are associated with a group of untreatable inherited retinal dystrophies (IRDs) called bestrophinopathies, caused by protein instability and loss-of-function of the Best1 protein. 4PBA and 2-NOAA have been shown to rescue the function, expression, and localisation of Best1 mutants; however, it is of interest to find more potent analogues as the concentration of the drugs required is too high (2.5 mM) to be given therapeutically. A virtual docking model of the COPII Sec24a site, where 4PBA has been shown to bind, was generated and a library of 1416 FDA-approved compounds was screened at the site. The top binding compounds were tested in vitro in whole-cell patch-clamp experiments of HEK293T cells expressing mutant Best1. The application of 25 μM tadalafil resulted in full rescue of Cl− conductance, comparable to wild type Best1 levels, for p.M325T mutant Best1 but not for p.R141H or p.L234V mutants.

1. Introduction

Bestrophin 1 (Best1) is a Ca2+- dependent Cl− channel that primarily localises to the basolateral plasma membrane of retinal pigment epithelium (RPE) cells [1,2]. Mutations in the BEST1 gene are associated with a group of inherited retinal dystrophies (IRDs) called bestrophinopathies, caused by protein instability and loss-of-function of the Best1 protein. Over 350 mutations in BEST1 have been identified and result in clinically distinct diseases including Best vitelliform macular dystrophy (BVMD), autosomal recessive Bestrophinopathy (ARB), autosomal dominant vitreoretinochoroidopathy (ADVIRC) and retinitis pigmentosa (RP) [3,4]. Bestrophinopathies cause blindness and are currently incurable.
Research on different strategies for the treatment of bestrophinopathies and other IRDs has mainly focused on genome editing and gene- and cell-based therapy due to recent advances in molecular genetics and the immune privilege of the human eye [5]. However, there have also been developments in pharmacological approaches, for example, in the use of chemical chaperones to correct protein folding of mutant proteins causing RP, or drugs that target the visual cycle as a treatment for Stargardt disease [6,7].
The small molecule sodium phenylbutyrate (4PBA) and its analogue 2-naphthoxyacetic acid (2-NOAA) (Figure 1) can restore the expression, localisation, and function of mutant Best1 that causes ARB and BVMD [8,9]. The concentrations of 4PBA and 2-NOAA are too high (~2.5 mM) to be used therapeutically [10]; therefore, it is of interest to find more potent drugs as potential treatments.
4PBA is an FDA- and EMA-approved orally administrated drug for the treatment of urea cycle disorders [11]. It has a secondary function in increasing the function of missense proteins although the mode of action is unknown. It has been suggested to act as a chemical chaperone for the treatment of cystic fibrosis [12], cerebral ischemia [13] and congenital nephrotic syndrome [14]. 4PBA has been shown to induce the synthesis of molecular chaperones and downregulate protein synthesis in vivo [10,15]. The regulation of genes involved in the unfolded protein response (UPR) pathway is characteristic of histone deacetylase inhibitors (HDACis) and the potential anticancer properties of 4PBA via its HDACi activity on cell proliferation is under investigation [16,17,18].
4PBA has also been suggested to act as a proteostasis regulator through attenuation of endoplasmic reticulum (ER) stress. Work by Ma et al. (2017) showed that 4PBA competes with the binding of p24 proteins in the formation of COPII (Coat Protein Complex II) vesicles [19]. Crystallographic analysis of the Sec24a binding site on COPII showed evidence of 4PBA binding at low concentrations. The structure of 4PBA closely resembles the ΦC ER (C-terminal aromatic endoplasmic reticulum) export signal motif which binds at the Sec24a site, identified in studies of the p24–family proteins. Therefore, 4PBA may promote the packaging of mutant proteins into COPII vesicles and their anterograde transport to the Golgi apparatus, reducing the stringency of their retention in the ER [19].
Virtual screening (VS) is often employed in the early stages of drug discovery as a low cost, effective technique for identifying potential drug leads [20]. The process involves the in silico docking of a large library of compounds into the binding site of a protein, allowing the potential differentiation between active and inactive compounds for biological testing [21]. As 4PBA binds to COPII, the first objective of this work was to establish and validate a docking model of the Sec24a COPII binding site.
Molecular docking software predicts the non-covalent binding interactions between small molecule ligands and the macromolecular receptor protein [22]. The molecular conformation of a ligand in the receptor binding pocket is evaluated and its binding affinity to the receptor is then calculated through the use of a scoring function [23]. Although there are a number of docking software packages, most show similar results when tested on a series of protein-ligand complexes [24]. In this research, AutoDock Vina was used, a freely available software that employs a Monte Carlo-based search algorithm and an empirical scoring function [22].
In this study, we docked 1416 compounds from an FDA-approved drug library into the Sec24a COPII binding site. The top binding drugs were identified after post docking filtering for in vitro testing by whole-cell patch-clamp, the gold standard technique for measuring ion channel conductance across the cell membrane [25]. Compounds were tested for their ability to restore the Cl− conductance of Best1 mutants (p.L234V associated with BVMD and p.M325T associated with ARB) at 100-fold lower concentrations (25 µM) than 4PBA to identify more effective drugs for the treatment of the bestrophinopathies.

2. Results

2.1. Generation of the COPII Sec24a Docking Model

A docking model of COPII was first generated with the objective of screening a large library of molecules in the Sec24a 4PBA binding site (Figure 2A) in order to find compounds that bind with a higher affinity than 4PBA. The docking model was validated in re-docking experiments with 4PBA using AutoDock Vina 1.1.2 software [22] (Supplementary Materials S1).
The 4PBA ligand was docked into the binding site as the carboxylate anion to give a binding energy (BE) of −5.8 kcal mol−1, forming several key interactions with residues in the binding site (Figure 2B), including hydrophobic contacts between the phenyl group with V748, L808, I818, and Y437. The carboxylate anion head group formed moderately strong, mostly electrostatic hydrogen bonding with the positively charged guanidino side chains of residues R750 and R752 and hydrophobic interactions with R435 and R430.

2.2. Screening of an FDA-Approved Drug Library into the COPII Sec24a Docking Model

A library of 1416 FDA-approved compounds from the DrugBank database [28] was screened into the docking model and the strongest BE for each compound was collated and analysed. Post docking filtering was applied using the ChemBioServer, a publicly available online application used to increase the efficiency of post process drug candidate selection in virtual screening studies of the PI3Kα protein [29,30]. The results were filtered based on Lipinski’s rules (Mr < 500 g mol−1, hydrogen bond donors ≤ 5, hydrogen bond acceptors ≤ 10, partition coefficient (log P) ≤ 5) and Veber’s Rules (polar surface area ≤ 140 Å, rotatable bonds ≤ 10) as these are good measures for the potential oral bioavailability of a compound [31,32]. This filter ruled out 312 compounds. The remaining 1104 compounds were ranked by binding energy; the top five candidates from the library (Table 1) range in binding energies from −9.1 to −8.8 kcal mol−1, three orders of magnitude stronger binding than 4PBA at −5.8 kcal mol−1. Here, binding energy (BE) is used as a ranking to identify more potent compounds than 4PBA, not as an absolute free energy measurement (the individual terms in AutoDock Vina’s scoring function are provided as relative scores) [22,33].
The six compounds with the highest BEs are shown in Table 1. Lumacaftor is a chemical chaperone that improves the processing of mutant ΔF508 cystic fibrosis transmembrane conductance regulator (CFTR) and its transport to the cell surface [34]. It is of note that Lumacaftor has been shown to rescue the processing and cell surface expression of ABCA4 mutants associated with Stargardt Disease [35]; however, by western blot we previously found that it did not increase the expression of mutant Best1.
Table
Table 1. Top hits from docking studies of the DrugBank FDA library in the Sec24a site of COPII. Compounds were docked as anions where appropriate, the best binding pose and corresponding binding energy for each compound is displayed. LogP values are computed by XLogP3 3.0 on PubChem database [36], binding pose images generated in PyMOL with pdb 5vnl [19,26].
Table 1. Top hits from docking studies of the DrugBank FDA library in the Sec24a site of COPII. Compounds were docked as anions where appropriate, the best binding pose and corresponding binding energy for each compound is displayed. LogP values are computed by XLogP3 3.0 on PubChem database [36], binding pose images generated in PyMOL with pdb 5vnl [19,26].
Name
ZINC ID		StructureBest Binding PoseBinding Energy/kcal mol−1Mr/
g mol−1		LogP
Lumacaftor
ZINC000064033452		Molecules 28 03317 i001Molecules 28 03317 i002−9.14524.4
Risperdal
ZINC000000538312		Molecules 28 03317 i003Molecules 28 03317 i004−9.04112.7
Lurasidone
ZINC000003927822		Molecules 28 03317 i005Molecules 28 03317 i006−8.94935.4
Thalidomide
ZINC000001530948		Molecules 28 03317 i007Molecules 28 03317 i008−8.82580.3
Tadalafil
ZINC000003993855		Molecules 28 03317 i009Molecules 28 03317 i010−8.83892.3
Paliperidone
ZINC000004214700		Molecules 28 03317 i011Molecules 28 03317 i012−8.84272.2
4-Phenylbutanoic acidMolecules 28 03317 i013Molecules 28 03317 i014−5.81642.4

2.3. Tadalafil Forms Key Hydrophobic Interactions in COPII Sec24a Site

Tadalafil was docked into the Sec24a binding site of COPII and formed a large number of hydrophobic contacts with residues in the binding pocket (Val748, Leu808, Ala806, Arg430, Tyr437, Ile818, Tyr496, and Glu495), and a hydrogen bond interaction between its benzodioxole group and Arg816 (Figure 3A,B). The large number of interactions made by tadalafil contributes to a three-fold greater binding energy than 4PBA in the COPII site. This docking shows Tadalafil binding close to the 4PBA site in COPII, but with higher affinity than 4PBA.

2.4. Tadalafil Rescues Cl− Conductance of p.M325T ARB Mutant hBest1

The top five binding compounds from the FDA screen (risperdal, thalidomide, tadalafil, paliperidone, and lurasidone) were then tested by whole cell patch-clamp recording, a technique which measures the membrane current of an entire cell by forming a seal with the membrane. Control patch-clamp experiments are shown in the Supplementary Materials (Figures S3 and S4), confirming that cells expressed a Ca2+-activated Cl− channel. HEK293T cells expressing mutant ARB (p.M325T) hBest1 were treated with the compounds at 25 µM for 24 h (Figure 4). The application of 25 µM of Lurasidone was cytotoxic to HEK293Ts so was excluded from further study. Treatment with 25 µM of tadalafil, a known phosphodiesterase-5 (PDE5) inhibitor, showed significant rescue of M325T Cl− conductance, comparable to wild type Best1 levels, with a strong dose response effect (Figure 5) (raw data are shown in Figure S5) [37]. The docking shown in Section 2.3 is consistent with the enhanced ability of tadalafil to rescue the p.M325T mutant of Best1 chloride channel, when compared with 4PBA. However, no rescue was shown for cells expressing p.R141H (associated with ARB) or p.L234V (associated with BVMD) mutant Best1 (Figure 5).

3. Discussion

Repurposing previously approved drugs has several distinct advantages over the development of novel drugs; the safety of the compound will have been established through toxicity tests and pharmacokinetic/pharmacodynamic (PK/PD) studies, therefore bypassing the need for Phase 1 clinical trials. Research and development costs and the time needed to bring the drug to market are also considerably cut [38].
In this study, we sought to find more potent drugs for treatment of the bestrophinopathies by virtually screening a library of FDA compounds into a model of the COPII Sec 24a binding site, where 4PBA, a rescuer of mutant Best1 function, has been shown to bind [9,19]. The computational model was successfully validated following re-docking experiments with 4PBA, followed by the docking of a library of 1416 compounds into the binding site to identify the top binding compounds. There are a few limitations to this docking model; AutoDock Vina makes the assumption that the receptor is rigid, keeping covalent lengths and angles constant, whilst allowing rotation of ligand molecules (known as ‘flexible docking’) [22]. In reality, the COPII protein will show a high degree of conformational flexibility which may lead to errors in calculated binding energies. The docking model is also dependent on the mechanism of 4PBA action. It is unknown if 4PBA acts as a chemical chaperone, HDACi, a proteostasis regulator through binding to COPII vesicles, or, most likely, through a combination of these pathways. Therefore, compounds that have a higher affinity for the COPII site than 4PBA may not necessarily be more potent rescuers of mutant Best1 function; however, virtual screening into the COPII site is a rational method for generating potential 4PBA analogues.
We selected the 5 top binding compounds to test in whole-cell patch-clamp experiments. The small molecule tadalafil was able to increase p.M325T ARB Best1 function to wild type level at 25 µM. In contrast, the other compounds (risperdal, thalidomide, and paliperidone) showed no effect at 25 µM. This is a 100-fold-improvement on the potency of 4PBA which is active at 2.5 mM. Surprisingly, tadalafil had no effect on the Cl− conductance of another ARB mutant, p.R141H, or the BVMD mutant, p.L234V, at 25 µM.
Tadalafil was originally developed as a treatment for erectile dysfunction in addition to other PDE5 inhibitors: sildenafil, vardenafil, and avanafil [39]. This class of compounds has been the focus of recent research for other purposes, such as to increase bone mass [40], treat pulmonary hypertension [41,42], and act as anticancer agents [43]. The inhibition of PDE5 causes an increase in cyclic-guanosine monophosphate (cGMP) levels, a regulator of CFTR expression. Tadalafil, sildenafil, and vardenafil were successful in restoring the Cl− transport of ΔF508 mutant CFTR proteins across the nasal mucosa of mice after intraperitoneal injection [44]. Recent studies showed that vardenafil was able to promote the early steps of cellular processing and trafficking of F508del CFTR through a cGMP-independent mechanism in human bronchial epithelial cells [45].
The predominant form of PDE in the retina is PDE6, which is found in the internal membranes of rod and cone photoreceptors and regulates cGMP levels in response to light [46]. There have been some studies that suggest PDE5 inhibitors cause side effects in the eye, for example, non-arteritic ischemic neuropathy from sildenafil use; however, more studies are needed to determine if there is a cause-and-effect relationship [47]. Tadalafil has a weaker effect on visual function than sildenafil, which may relate to its high PDE5 selectivity over PDE6 [48]. The link between Best1 and PDE is unknown; we propose that tadalafil may act as a proteostasis regulator by binding to COPII and reducing the retention of misfolded Best1 in the ER to restore mutant function.
It is curious why tadalafil increases the function of mutant p.M235T Best1 but not the p.R141H (ARB) or p.L234V (BVMD) mutants. 4PBA fully rescues both p.R141H and p.M325T and partially rescues p.L234V mutants [8,9]. p.M325T is located on a portion of the intracellular C-terminal tail which has not yet proven to be functionally significant (auto-inhibitory segment is formed from residues 346–379), in comparison to p.R141H and p.L234V, which are closer to functionally important sites (Figure 6). p.L234V is located at a site that forms key interactions with an acidic residue cluster, close to the Ca2+ clasp site [49]. Therefore, due to its disruption of the Ca2+ active site, the p.L234V mutant may be less active than the p.M325T mutant and its function harder to rescue. p.R141H is located in a cytosolic loop between two transmembrane domains and may disrupt Best1 regulation [50]. It is possible that the Cl− activity of p.M325T Best1 is easier to rescue as the mutant is less damaging to overall protein function. However, more research is needed to determine the number of Best1 mutants, which show a restoration of Cl− conductance when treated with tadalafil in comparison to 4PBA.
The repurposing of drugs is a relatively quick and economic route to drug discovery for new conditions. Here, we have demonstrated that tadalafil can fully restore the function of a mutant Best1 associated with a rare disease that lacks any therapeutic treatment options. Further investigation is required to determine whether tadalafil has the potential as a therapeutic treatment for bestrophinopathies, but nonetheless, it is a promising lead compound which can inspire the future design and development of therapeutic small molecules for this currently untreatable genetic eye disorder.

4. Materials and Methods

4.1. Virtual Docking Studies of COPII Binding Site

4.1.1. Validation of Docking Model

Electron density files (pdb 5vnl, 5vnn) for the COPII Sec24a binding site were viewed in Coot [19,51]. A receptor pdbqt file of COPII (pdb 5vnl, resolution 2.4 Å) was generated using AutoDock Tools [52]. Crystallographic water molecules were left in, and hydrogen atoms were added to the structure. Gasteiger charges were added, and non-polar hydrogen atoms were merged. The coordinates of the COPII Sec24a binding site were identified and the search space (15 × 15 × 15 Å) was set by calculating the centre of mass of key binding site residues.
The ligand pdbqt file of 4PBA was generated by extracting the 4PBA ligand from pdb 5vnl using PyMOL [26]. The torsion root of 4PBA was then detected in AutoDock Tools and rotatable bonds were set. Gasteiger charges were added, and non-polar hydrogen atoms were merged. AutoDock Vina was run for the ligand and receptor files with an exhaustiveness of 16 [22]. The ligand output pdbqt file yielded 9 conformers, which were viewed and analysed in PyMOL; the best conformer with the lowest binding energy was selected. RMSD values were calculated in PyMOL.

4.1.2. Docking of DrugBank FDA Libraries

Ligand pdbqt files for the DrugBank FDA library [28] were generated by conversion of mol2 files (available on ZINC website [53]) to pdbqt format using OpenBabel 3.1.1 software [54]. Ligands were docked using AutoDock Vina on the Computational Shared Facility 3 Manchester (CSF3) and results were viewed in PyMOL. The lowest binding energy of each conformer was collated and analysed in Excel.
Post docking filtering was applied to the FDA library based on Lipinski’s and Veber’s rules using the ChemBioServer [29]. Properties of selected compounds (Table 1) were obtained from ZINC and PubChem databases. Statistical analysis was performed by Pearson correlation coefficient using GraphPad Prism version 9.1.2 for Windows, GraphPad Software, San Diego, CA, USA, www.graphpad.com (accessed on 30 June 2022).

4.2. Cell Culture

Human Embryo Kidney 293T (HEK293T) cell lines were cultured using Dulbecco’s Modified Eagle’s Medium (high glucose) supplemented with 10% heat inactivated foetal bovine serum (FBS) and 1% L-glutamine (L-glut). Cell lines were incubated in a humidified atmosphere at 37 °C, 5% CO2, and passaged when cells reached 70% confluence.

4.3. Plasmid Extraction

Plasmid DNA was extracted from overnight cultures using the QIAprep miniprep kit® (Qiagen) according to the manufacturer’s instructions. Plasmid concentrations were determined using a NanoPhotometer N60 spectrophotometer (GeneFlow Ltd., Lichfield, UK).

4.4. Whole-Cell Patch-Clamp

4.4.1. Transient Transfection

HEK293T cells were co-transfected with wild type or mutant Best1 and GFP in a 4:1 ratio using Fugene HD transfection reagent (Promega, Madison, WI, USA) in a reverse or normal transfection protocol. Cells were seeded on 13 mm glass coverslips treated with 0.01% poly-L-lysine solution (P4832, Sigma-Aldrich, St. Louis, MO, USA) at least 24 h prior to patch-clamp experiments.

4.4.2. Small Molecule Treatment

Compounds were added to cell media 24 h prior to patch-clamp experiments. 4PBA (1716-12-7, Sigma-Aldrich) was dissolved in water at a concentration of 2.5 mM. All other compounds were dissolved in water and DMSO (0.001% final concentration in media).

4.5. Whole-Cell Patch-Clamp Recordings

Whole-cell voltage-clamp recordings were performed using borosilicate glass capillaries GC100F-10 (Harvard Apparatus, Edenbridge, UK). Pipettes were pulled with a Model P-97 pipette puller (Sutter Instrument Co., Novato, CA, USA) and fire-polished to a resistance of 1–2 MΩ. The electrophysiology setup consisted of a MultiClamp 700A amplifier controlled by pCLAMP 10.4 (Molecular Devices, Wokingham, UK). Cell membrane potential was held at −50 mV before being stepped from −120 mV to +80 mV in 20 mV increments when recording. The step duration was 2 s and at least 3 recordings were taken from each cell. Recordings were sampled at 20 kHz and filtered online at 10 kHz. The intracellular solution (317.6 osmol) contained 20 mM of CsCl, 10 mM of EGTA, 7.2 mM of CaCl2, 2 mM of MgCl2, 10 mM of HEPES, 10 mM of glucose, and 110 mM of Cs aspartate, adjusted to pH 7.2 with CsOH. The extracellular solution (339 osmol) contained 140 mM of NaCl, 2 mM of CaCl2, 1 mM of MgCl2, 10 mM of HEPES, 10 mM of glucose and 30 mM of mannitol, adjusted to pH 7.4 with NaOH. The low Cl− extracellular solution (339 osmol) contained 140 mM of sodium aspartate, 2 mM of CaCl2, 1 mM of MgCl2, 10 mM of HEPES, 10 mM of glucose and 30 mM of mannitol, adjusted to pH 7.4 with NaOH. Cells showing a GFP signal were used for assessment of current magnitudes. Regarding 4,4′-Diisothiocyano-2,2′-stilbenedisulfonic acid (DIDS) (53005-05-3, EMD Millipore Corp., Burlington, MA, USA), 1 mM was dissolved in DMSO and added to extracellular bath solution before relevant patch-clamp experiments.

4.6. Data Analysis

Quantitative data collected from at least three separate experiments were plotted as means ± standard error of the mean (±s.e.m.). Statistical analysis was performed by one-way ANOVA or Student’s t test using GraphPad Prism version 9.1.2.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28083317/s1, Figure S1: Validation of COPII docking model; Figure S2: Effect of 4PBA on Cl− currents recorded in HEK293T cells by whole-cell patch-clamp experiments; Figure S3: Effect of 4PBA on Cl− currents recorded in HEK293T cells by whole-cell patch-clamp experiments; Figure S4: Representative whole cell current responses of HEK293T cells transiently transfected with M325T Best1 treated with DMSO or 25 µM tadalafil; Figure S5: Representative whole cell current responses of HEK293T cells transiently transfected with M325T Best1 treated with compounds. References [19,22,26,51,55] are cited in the Supplementary Materials.

Author Contributions

Conceptualization, writing—original draft preparation, K.E., S.F., J.W. and F.M.; methodology, investigation, formal analysis, K.E., S.F. and F.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by a PhD studentship for K.E. from Sight Research UK, Grant number RES 010, principal investigator F.M.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The datasets used and analysed during the current study are available from the corresponding author on reasonable request. ZINC DrugBank FDA drug library available from https://zinc.docking.org/catalogs/dbfda/ (accessed on 4 January 2023).

Acknowledgments

The authors would like to acknowledge the assistance given by Research IT, the use of the Computational Shared Facility at The University of Manchester and Richard Baines for patch clamping advice.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sun, H.; Tsunenari, T.; Yau, K.W.; Nathans, J. The vitelliform macular dystrophy protein defines a new family of chloride channels. Proc. Natl. Acad. Sci. USA 2002, 99, 4008–4013. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Marmorstein, A.D.; Marmorstein, L.Y.; Rayborn, M.; Wang, X.; Hollyfield, J.G.; Petrukhin, K. Bestrophin, the product of the Best vitelliform macular dystrophy gene (VMD2), localizes to the basolateral plasma membrane of the retinal pigment epithelium. Proc. Natl. Acad. Sci. USA 2000, 97, 12758–12763. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Stenson, P.D.; Mort, M.; Ball, E.V.; Evans, K.; Hayden, M.; Heywood, S.; Hussain, M.; Phillips, A.D.; Cooper, D.N. The Human Gene Mutation Database: Towards a comprehensive repository of inherited mutation data for medical research, genetic diagnosis and next-generation sequencing studies. Hum. Genet. 2017, 136, 665–677. [Google Scholar] [CrossRef] [Green Version]
  4. Johnson, A.A.; Guziewicz, K.E.; Lee, C.J.; Kalathur, R.C.; Pulido, J.S.; Marmorstein, L.Y.; Marmorstein, A.D. Bestrophin 1 and retinal disease. Prog. Retin. Eye Res. 2017, 58, 45–69. [Google Scholar] [CrossRef] [Green Version]
  5. Singh Grewal, S.; Smith, J.J.; Carr, A.F. Bestrophinopathies: Perspectives on clinical disease, Bestrophin-1 function and developing therapies. Ther. Adv. Ophthalmol. 2021, 13, 2515841421997191. [Google Scholar] [CrossRef] [PubMed]
  6. Noorwez, S.M.; Kuksa, V.; Imanishi, Y.; Zhu, L.; Filipek, S.; Palczewski, K.; Kaushal, S. Pharmacological chaperone-mediated in vivo folding and stabilization of the P23H-opsin mutant associated with autosomal dominant retinitis pigmentosa. J. Biol. Chem. 2003, 278, 14442–14450. [Google Scholar] [CrossRef] [Green Version]
  7. Lu, L.J.; Liu, J.; Adelman, R.A. Novel therapeutics for Stargardt disease. Graefes Arch. Clin. Exp. Ophthalmol. 2017, 255, 1057–1062. [Google Scholar] [CrossRef]
  8. Uggenti, C.; Briant, K.; Streit, A.K.; Thomson, S.; Koay, Y.H.; Baines, R.A.; Swanton, E.; Manson, F.D. Restoration of mutant bestrophin-1 expression, localisation and function. Dis. Model. Mech. 2016, 9, 1317–1328. [Google Scholar] [CrossRef] [Green Version]
  9. Liu, J.; Taylor, R.L.; Baines, R.A.; Swanton, L.; Freeman, S.; Corneo, B.; Patel, A.; Marmorstein, A.; Knudsen, T.; Black, G.C.; et al. Small Molecules Restore Bestrophin 1 Expression and Function of Both Dominant and Recessive Bestrophinopathies in Patient-Derived Retinal Pigment Epithelium. Investig. Ophthalmol. Vis. Sci. 2020, 61, 28. [Google Scholar] [CrossRef]
  10. Cortez, L.; Sim, V. The therapeutic potential of chemical chaperones in protein folding diseases. Prion 2014, 8, 197–202. [Google Scholar] [CrossRef] [Green Version]
  11. Kolb, P.S.; Ayaub, E.A.; Zhou, W.; Yum, V.; Dickhout, J.G.; Ask, K. The therapeutic effects of 4-phenylbutyric acid in maintaining proteostasis. Int. J. Biochem. Cell Biol. 2015, 61, 45–52. [Google Scholar] [CrossRef]
  12. Rubenstein, R.C.; Egan, M.E.; Zeitlin, P.L. In vitro pharmacologic restoration of CFTR-mediated chloride transport with sodium 4-phenylbutyrate in cystic fibrosis epithelial cells containing delta F508-CFTR. J. Clin. Investig. 1997, 100, 2457–2465. [Google Scholar] [CrossRef] [Green Version]
  13. Qi, X.; Hosoi, T.; Okuma, Y.; Kaneko, M.; Nomura, Y. Sodium 4-phenylbutyrate protects against cerebral ischemic injury. Mol. Pharmacol. 2004, 66, 899–908. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Liu, X.L.; Doné, S.C.; Yan, K.; Kilpeläinen, P.; Pikkarainen, T.; Tryggvason, K. Defective trafficking of nephrin missense mutants rescued by a chemical chaperone. J. Am. Soc. Nephrol. 2004, 15, 1731–1738. [Google Scholar] [CrossRef] [Green Version]
  15. Ryu, H.; Smith, K.; Camelo, S.I.; Carreras, I.; Lee, J.; Iglesias, A.H.; Dangond, F.; Cormier, K.A.; Cudkowicz, M.E.; Brown, R.H., Jr.; et al. Sodium phenylbutyrate prolongs survival and regulates expression of anti-apoptotic genes in transgenic amyotrophic lateral sclerosis mice. J. Neurochem. 2005, 93, 1087–1098. [Google Scholar] [CrossRef]
  16. Kusaczuk, M.; Krętowski, R.; Bartoszewicz, M.; Cechowska-Pasko, M. Phenylbutyrate—A pan-HDAC inhibitor—Suppresses proliferation of glioblastoma LN-229 cell line. Tumor Biol. 2016, 37, 931–942. [Google Scholar] [CrossRef] [Green Version]
  17. Lin, J.; Gilbert, J.; Rudek, M.A.; Zwiebel, J.A.; Gore, S.; Jiemjit, A.; Zhao, M.; Baker, S.D.; Ambinder, R.F.; Herman, J.G.; et al. A phase I dose-finding study of 5-azacytidine in combination with sodium phenylbutyrate in patients with refractory solid tumors. Clin. Cancer Res. 2009, 15, 6241–6249. [Google Scholar] [CrossRef] [Green Version]
  18. Maslak, P.; Chanel, S.; Camacho, L.H.; Soignet, S.; Pandolfi, P.P.; Guernah, I.; Warrell, R.; Nimer, S. Pilot study of combination transcriptional modulation therapy with sodium phenylbutyrate and 5-azacytidine in patients with acute myeloid leukemia or myelodysplastic syndrome. Leukemia 2006, 20, 212–217. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Ma, W.; Goldberg, E.; Goldberg, J. ER retention is imposed by COPII protein sorting and attenuated by 4-phenylbutyrate. Elife 2017, 6, e26624. [Google Scholar] [CrossRef] [PubMed]
  20. Wang, C.; Xu, P.; Zhang, L.; Huang, J.; Zhu, K.; Luo, C. Current Strategies and Applications for Precision Drug Design. Front. Pharmacol. 2018, 9, 787. [Google Scholar] [CrossRef]
  21. Kontoyianni, M. Docking and Virtual Screening in Drug Discovery. Methods Mol. Biol. 2017, 1647, 255–266. [Google Scholar] [CrossRef] [PubMed]
  22. Trott, O.; Olson, A.J. AutoDock Vina: Improving the speed and accuracy of docking with a new scoring function, efficient optimization, and multithreading. J. Comput. Chem. 2010, 31, 455–461. [Google Scholar] [CrossRef] [Green Version]
  23. Pinzi, L.; Rastelli, G. Molecular Docking: Shifting Paradigms in Drug Discovery. Int. J. Mol. Sci. 2019, 20, 4331. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Wang, Z.; Sun, H.; Yao, X.; Li, D.; Xu, L.; Li, Y.; Tian, S.; Hou, T. Comprehensive evaluation of ten docking programs on a diverse set of protein–ligand complexes: The prediction accuracy of sampling power and scoring power. Phys. Chem. Chem. Phys. 2016, 18, 12964–12975. [Google Scholar] [CrossRef]
  25. Lippiat, J.D.; Wrighton, D.C. Conventional micropipette-based patch clamp techniques. Methods Mol. Biol. 2013, 998, 91–107. [Google Scholar] [CrossRef] [PubMed]
  26. Schrödinger, L. The PyMOL Molecular Graphics System; Version 1.3; DeLano Scientific: San Carlos, CA, USA, 2010. [Google Scholar]
  27. Laskowski, R.A.; Swindells, M.B. LigPlot+: Multiple ligand-protein interaction diagrams for drug discovery. J. Chem. Inf. Model. 2011, 51, 2778–2786. [Google Scholar] [CrossRef]
  28. Wishart, D.S.; Feunang, Y.D.; Guo, A.C.; Lo, E.J.; Marcu, A.; Grant, J.R.; Sajed, T.; Johnson, D.; Li, C.; Sayeeda, Z.; et al. DrugBank 5.0: A major update to the DrugBank database for 2018. Nucleic Acids Res. 2018, 46, D1074–D1082. [Google Scholar] [CrossRef] [PubMed]
  29. Athanasiadis, E.; Cournia, Z.; Spyrou, G. ChemBioServer: A web-based pipeline for filtering, clustering and visualization of chemical compounds used in drug discovery. Bioinformatics 2012, 28, 3002–3003. [Google Scholar] [CrossRef] [Green Version]
  30. Gkeka, P.; Athanasiadis, E.; Spyrou, G.; Cournia, Z. Enhancing the effectiveness of virtual screening by using the ChemBioServer: Application to the discovery of PI3Kα inhibitors. In Proceedings of the 2012 IEEE 12th International Conference on Bioinformatics & Bioengineering (BIBE), Larnaca, Cyprus, 11–13 November 2012; pp. 266–269. [Google Scholar]
  31. Lipinski, C.A.; Lombardo, F.; Dominy, B.W.; Feeney, P.J. Experimental and computational approaches to estimate solubility and permeability in drug discovery and development settings. Adv. Drug Deliv. Rev. 2001, 46, 3–26. [Google Scholar] [CrossRef]
  32. Veber, D.F.; Johnson, S.R.; Cheng, H.-Y.; Smith, B.R.; Ward, K.W.; Kopple, K.D. Molecular Properties That Influence the Oral Bioavailability of Drug Candidates. J. Med. Chem. 2002, 45, 2615–2623. [Google Scholar] [CrossRef]
  33. Cournia, Z.; Allen, B.; Sherman, W. Relative Binding Free Energy Calculations in Drug Discovery: Recent Advances and Practical Considerations. J. Chem. Inf. Model. 2017, 57, 2911–2937. [Google Scholar] [CrossRef] [PubMed]
  34. Deeks, E.D. Lumacaftor/Ivacaftor: A Review in Cystic Fibrosis. Drugs 2016, 76, 1191–1201. [Google Scholar] [CrossRef]
  35. Sabirzhanova, I.; Lopes Pacheco, M.; Rapino, D.; Grover, R.; Handa, J.T.; Guggino, W.B.; Cebotaru, L. Rescuing Trafficking Mutants of the ATP-binding Cassette Protein, ABCA4, with Small Molecule Correctors as a Treatment for Stargardt Eye Disease. J. Biol. Chem. 2015, 290, 19743–19755. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Kim, S.; Chen, J.; Cheng, T.; Gindulyte, A.; He, J.; He, S.; Li, Q.; Shoemaker, B.A.; Thiessen, P.A.; Yu, B.; et al. PubChem 2023 update. Nucleic Acids Res. 2023, 51, D1373–D1380. [Google Scholar] [CrossRef]
  37. Carson, C.C.; Rajfer, J.; Eardley, I.; Carrier, S.; Denne, J.S.; Walker, D.J.; Shen, W.; Cordell, W.H. The efficacy and safety of tadalafil: An update. BJU Int. 2004, 93, 1276–1281. [Google Scholar] [CrossRef]
  38. Pushpakom, S.; Iorio, F.; Eyers, P.A.; Escott, K.J.; Hopper, S.; Wells, A.; Doig, A.; Guilliams, T.; Latimer, J.; McNamee, C.; et al. Drug repurposing: Progress, challenges and recommendations. Nat. Rev. Drug Discov. 2019, 18, 41–58. [Google Scholar] [CrossRef] [PubMed]
  39. Huang, S.A.; Lie, J.D. Phosphodiesterase-5 (PDE5) Inhibitors in the Management of Erectile Dysfunction. Pharm. Ther. 2013, 38, 407–419. [Google Scholar]
  40. Kim, S.M.; Taneja, C.; Perez-Pena, H.; Ryu, V.; Gumerova, A.; Li, W.; Ahmad, N.; Zhu, L.L.; Liu, P.; Mathew, M.; et al. Repurposing erectile dysfunction drugs tadalafil and vardenafil to increase bone mass. Proc. Natl. Acad. Sci. USA 2020, 117, 14386–14394. [Google Scholar] [CrossRef] [PubMed]
  41. Poitras, E.L.; Gust, S.L.; Kerr, P.M.; Plane, F. Repurposing of the PDE5 Inhibitor Sildenafil for the Treatment of Persistent Pulmonary Hypertension in Neonates. Curr. Med. Chem. 2021, 28, 2418–2437. [Google Scholar] [CrossRef]
  42. Barnes, H.; Brown, Z.; Burns, A.; Williams, T. Phosphodiesterase 5 inhibitors for pulmonary hypertension. Cochrane Database Syst. 2019, 1, Cd012621. [Google Scholar] [CrossRef]
  43. Chhonker, S.K.; Rawat, D.; Koiri, R.K. Repurposing PDE5 inhibitor tadalafil and sildenafil as anticancer agent against hepatocellular carcinoma via targeting key events of glucose metabolism and multidrug resistance. J. Biochem. Mol. Toxicol. 2022, 36, e23100. [Google Scholar] [CrossRef]
  44. Noel, S.; Dhooghe, B.; Leal, T. PDE5 Inhibitors as Potential Tools in the Treatment of Cystic Fibrosis. Front. Pharmacol. 2012, 3, 167. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Dhooghe, B.; Bouzin, C.; Mottais, A.; Hermans, E.; Delion, M.; Panin, N.; Noel, S.; Leal, T. Vardenafil increases intracellular accumulation of the most prevalent mutant cystic fibrosis transmembrane conductance regulator (CTFR) in human bronchial epithelial cells. Biol. Open 2020, 9, bio053116. [Google Scholar] [CrossRef] [PubMed]
  46. Cote, R.H. Characteristics of photoreceptor PDE (PDE6): Similarities and differences to PDE5. Int. J. Impot. Res. 2004, 16 (Suppl. S1), S28–S33. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Barroso, F.; Ribeiro, J.C.; Miranda, E.P. Phosphodiesterase Type 5 Inhibitors and Visual Side Effects: A Narrative Review. J. Ophthalmic Vis. Res. 2021, 16, 248–259. [Google Scholar] [CrossRef]
  48. Zhang, X.; Feng, Q.; Cote, R.H. Efficacy and selectivity of phosphodiesterase-targeted drugs in inhibiting photoreceptor phosphodiesterase (PDE6) in retinal photoreceptors. Investig. Ophthalmol. Vis. Sci. 2005, 46, 3060–3066. [Google Scholar] [CrossRef]
  49. Owji, A.P.; Wang, J.; Kittredge, A.; Clark, Z.; Zhang, Y.; Hendrickson, W.A.; Yang, T. Structures and gating mechanisms of human bestrophin anion channels. Nat. Commun. 2022, 13, 3836. [Google Scholar] [CrossRef]
  50. Johnson, A.A.; Bachman, L.A.; Gilles, B.J.; Cross, S.D.; Stelzig, K.E.; Resch, Z.T.; Marmorstein, L.Y.; Pulido, J.S.; Marmorstein, A.D. Autosomal Recessive Bestrophinopathy Is Not Associated with the Loss of Bestrophin-1 Anion Channel Function in a Patient with a Novel BEST1 Mutation. Investig. Ophthalmol. Vis. Sci. 2015, 56, 4619–4630. [Google Scholar] [CrossRef] [Green Version]
  51. Emsley, P.; Lohkamp, B.; Scott, W.G.; Cowtan, K. Features and development of Coot. Acta Crystallographica. Sect. D Biol. Crystallogr. 2010, 66, 486–501. [Google Scholar] [CrossRef] [Green Version]
  52. Morris, G.M.; Huey, R.; Lindstrom, W.; Sanner, M.F.; Belew, R.K.; Goodsell, D.S.; Olson, A.J. AutoDock4 and AutoDockTools4: Automated docking with selective receptor flexibility. J. Comput. Chem. 2009, 30, 2785–2791. [Google Scholar] [CrossRef] [Green Version]
  53. Sterling, T.; Irwin, J.J. ZINC 15—Ligand Discovery for Everyone. J. Chem. Inf. Model. 2015, 55, 2324–2337. [Google Scholar] [CrossRef] [PubMed]
  54. O’Boyle, N.M.; Banck, M.; James, C.A.; Morley, C.; Vandermeersch, T.; Hutchison, G.R. Open Babel: An open chemical toolbox. J. Cheminform. 2011, 3, 33. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Bell, E.W.; Zhang, Y. DockRMSD: An open-source tool for atom mapping and RMSD calculation of symmetric molecules through graph isomorphism. J. Cheminform. 2019, 11, 40. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Molecules 28 03317 g001 550

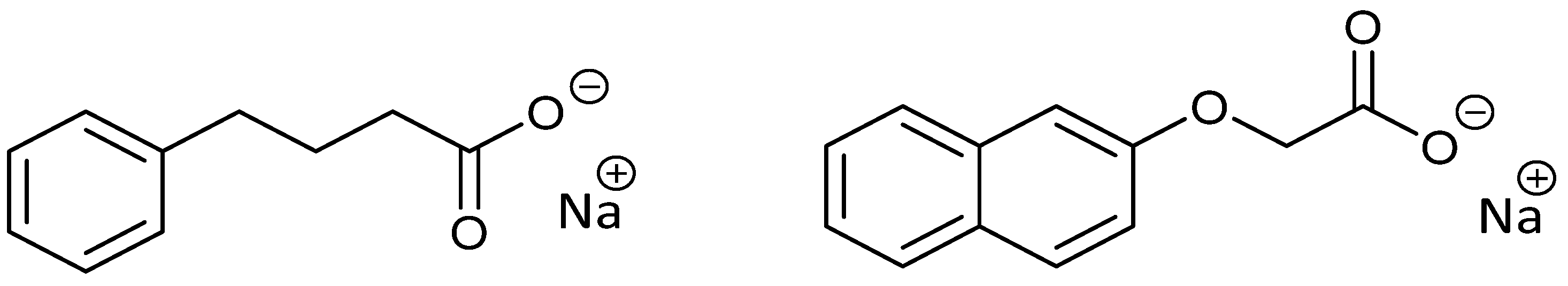

Figure 1. Sodium salt of 4-Phenylbutyric acid (4PBA) and 2-naphthoxyacetic acid (2-NOAA).
Figure 1. Sodium salt of 4-Phenylbutyric acid (4PBA) and 2-naphthoxyacetic acid (2-NOAA).
Molecules 28 03317 g001
Molecules 28 03317 g002 550

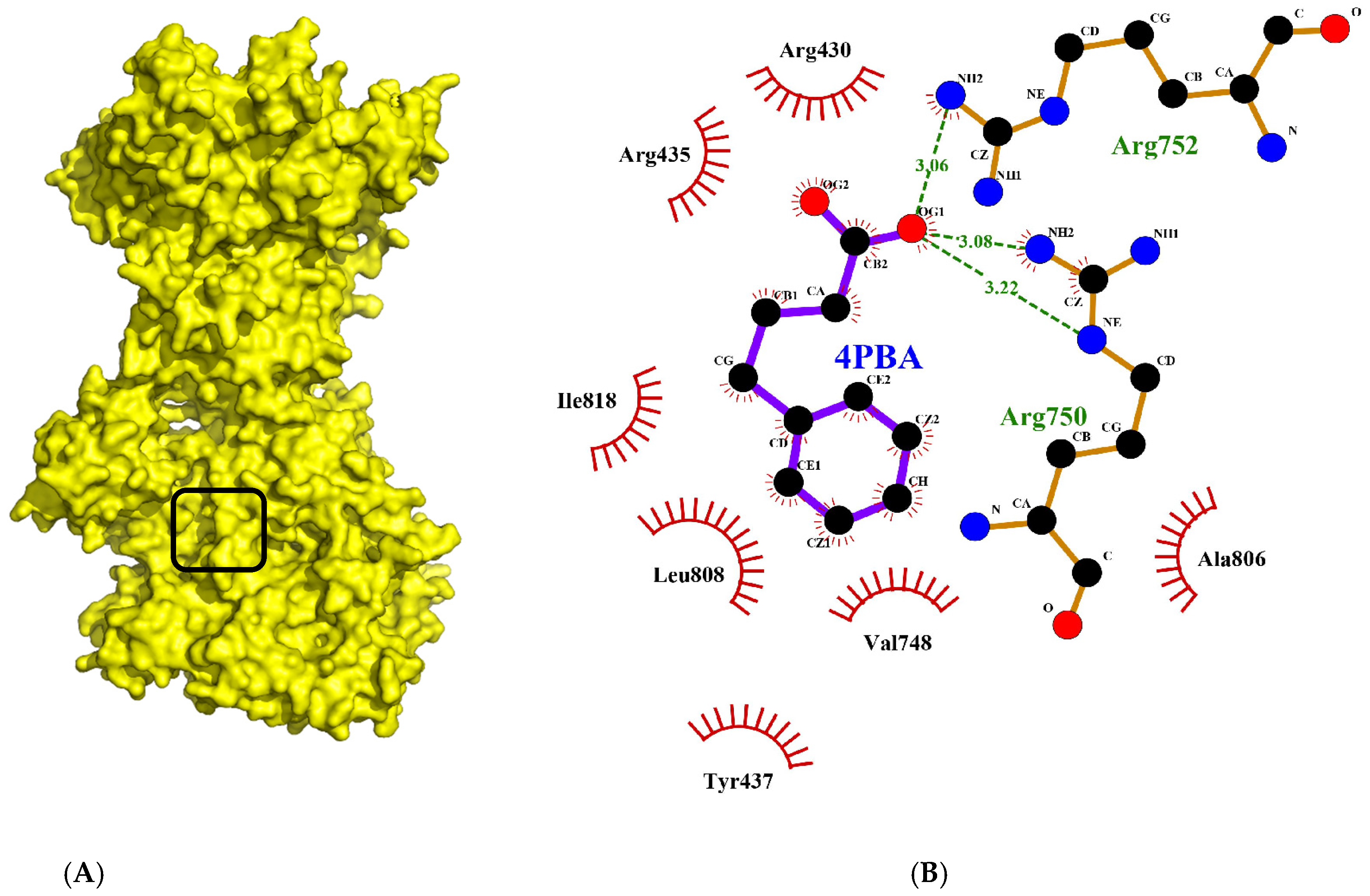

Figure 2. (A) COPII protein (pdb 5vnl) with the Sec24a binding site highlighted, figure generated from pdb file 5vnl using PyMOL 1.3 software [19,26]. (B) Interactions between the 4PBA conformer obtained from docking studies with residues in the COPII Sec24a binding site are shown. Hydrophobic contacts (represented by red arcs and spokes) are shown between the 4PBA benzyl group and Val748, Leu808, Ile818, and Tyr437 residues. The 4PBA carboxylate head group forms key hydrogen bond interactions (represented by green dashes) with residues Arg750 and Arg752 and hydrophobic contacts with Arg435 and Arg430. Diagram produced with LigPlot+ from the docked 4PBA conformer and pdb 5vnl [19,27].
Figure 2. (A) COPII protein (pdb 5vnl) with the Sec24a binding site highlighted, figure generated from pdb file 5vnl using PyMOL 1.3 software [19,26]. (B) Interactions between the 4PBA conformer obtained from docking studies with residues in the COPII Sec24a binding site are shown. Hydrophobic contacts (represented by red arcs and spokes) are shown between the 4PBA benzyl group and Val748, Leu808, Ile818, and Tyr437 residues. The 4PBA carboxylate head group forms key hydrogen bond interactions (represented by green dashes) with residues Arg750 and Arg752 and hydrophobic contacts with Arg435 and Arg430. Diagram produced with LigPlot+ from the docked 4PBA conformer and pdb 5vnl [19,27].
Molecules 28 03317 g002
Molecules 28 03317 g003 550

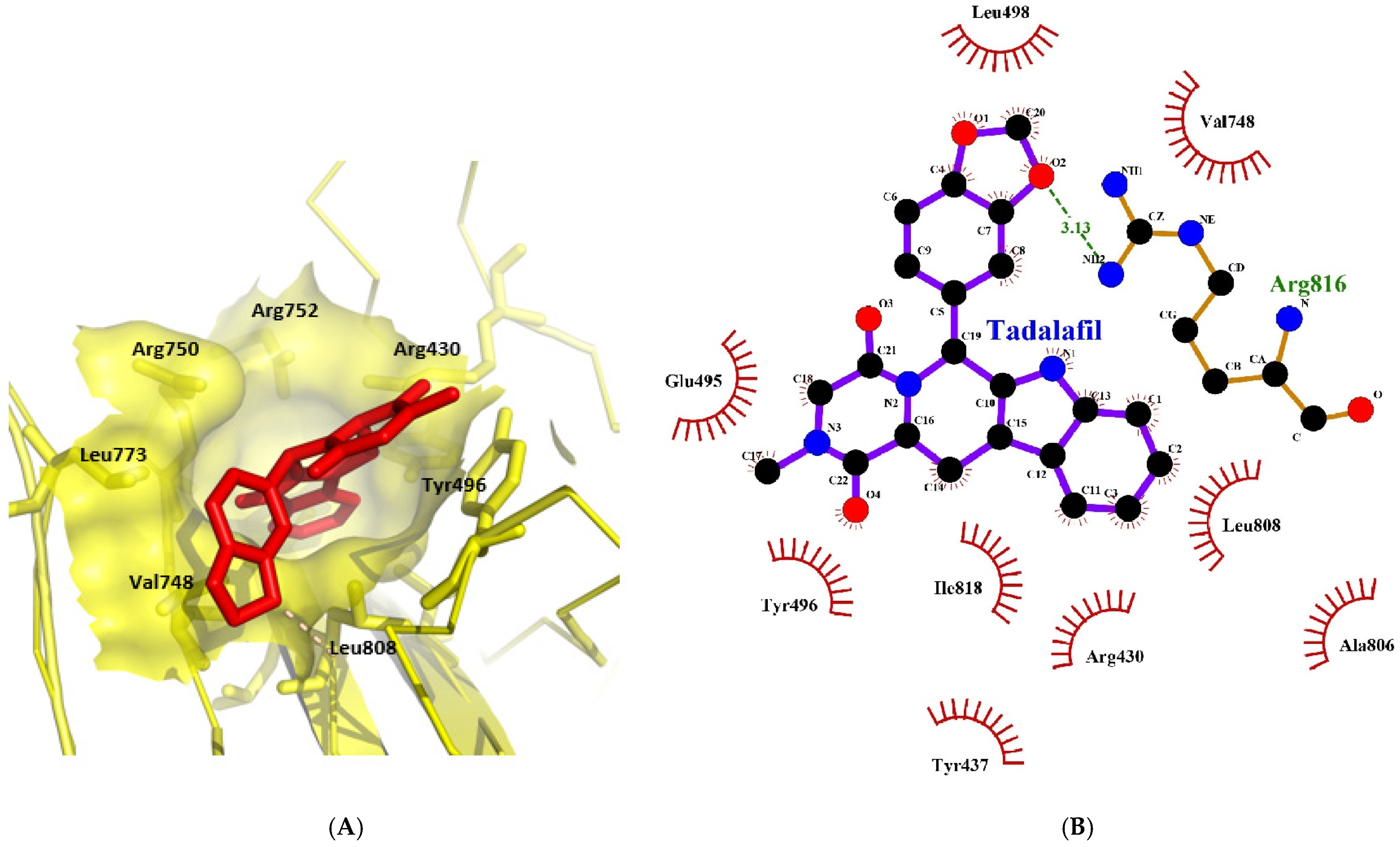

Figure 3. Interaction of tadalafil with COPII binding site. (A) The tadalafil ligand (red) docked into in the Sec24a binding site of COPII (pdb 5vnl) is shown with the benzodioxole group lying on the adjacent shelf region. (B) Interactions between the tadalafil conformer with residues in the COPII binding site are shown. Hydrophobic contacts (represented by red arcs and spokes) are shown for Val748, Leu808, Ala806, Arg430, Tyr437, Ile818, Tyr496, and Glu495 residues. The ether oxygen of tadalafil also forms a hydrogen bond interaction (represented by green dashes) with Arg816. Diagram produced with LigPlot+ from the docked tadalafil conformer and pdb 5vnl [19,27].
Figure 3. Interaction of tadalafil with COPII binding site. (A) The tadalafil ligand (red) docked into in the Sec24a binding site of COPII (pdb 5vnl) is shown with the benzodioxole group lying on the adjacent shelf region. (B) Interactions between the tadalafil conformer with residues in the COPII binding site are shown. Hydrophobic contacts (represented by red arcs and spokes) are shown for Val748, Leu808, Ala806, Arg430, Tyr437, Ile818, Tyr496, and Glu495 residues. The ether oxygen of tadalafil also forms a hydrogen bond interaction (represented by green dashes) with Arg816. Diagram produced with LigPlot+ from the docked tadalafil conformer and pdb 5vnl [19,27].
Molecules 28 03317 g003
Molecules 28 03317 g004 550

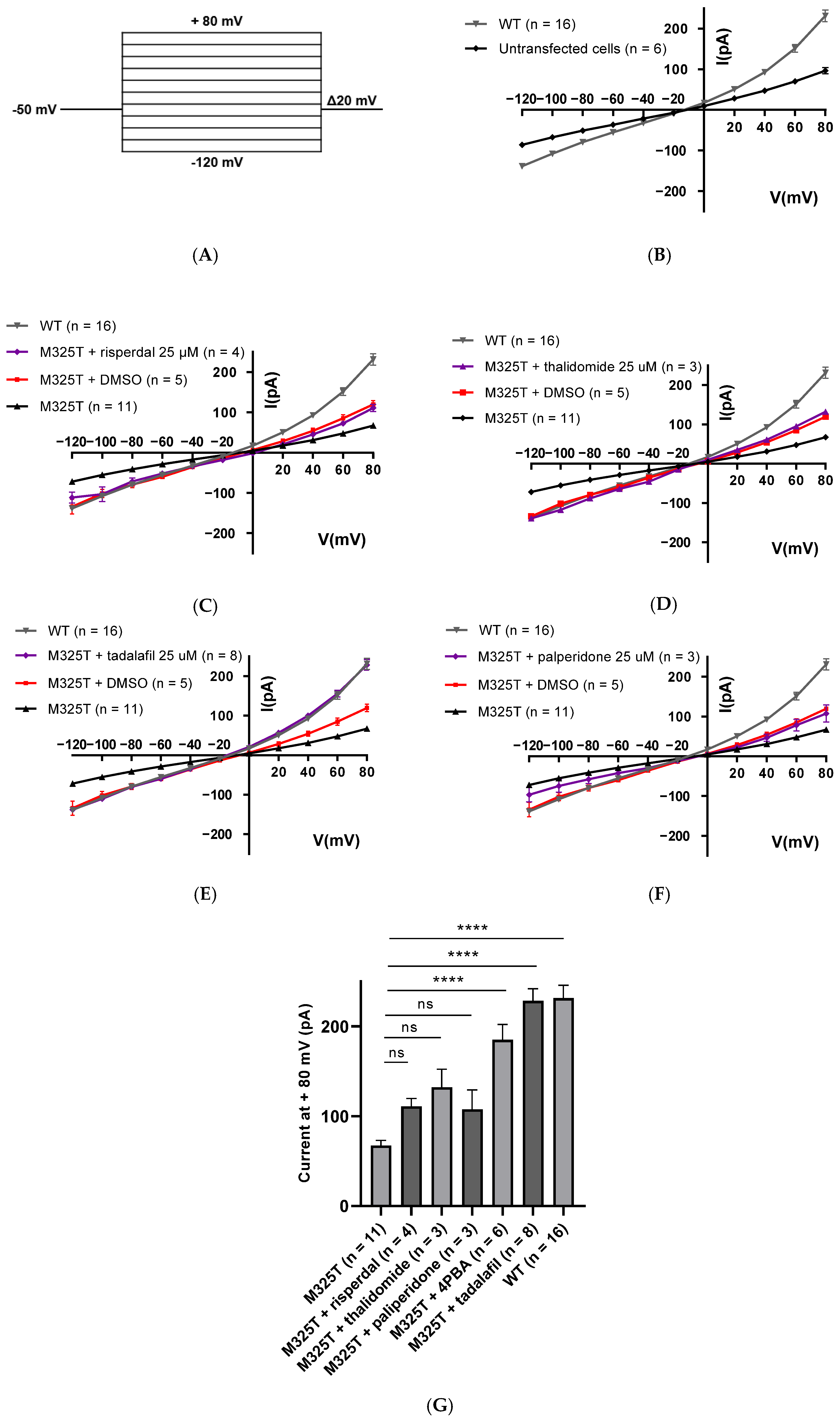

Figure 4. Effect of drugs on M325T Best1 Cl− currents recorded in HEK293T cells by whole-cell patch-clamp experiments. (A) Voltage protocol; the membrane potential was held at −50 mV and recordings were taken in the range of −120 mV to +80 mV in Δ20 mV steps of 2 s each. (B) Mean current/voltage relationships for wild type (WT) Best1 and untransfected HEK293T cells. (C–F) Mean current/voltage relationships for p.M325T Best1 expressing cells before and after treatment with 25 µM risperdal, thalidomide, tadalafil and paliperidone, respectively. (G) Currents measured at +80 mV (pA) for p.M325T Best1 before and after treatment with drugs. Addition of 25 µM tadalafil results in full rescue of p.M325T Cl− conductance to WT levels (results presented as mean ± s.e.m, **** p < 0.0001, as calculated by one-way ANOVA). p.M325T + 2.5 mM 4PBA (dissolved in water) is shown for reference.
Figure 4. Effect of drugs on M325T Best1 Cl− currents recorded in HEK293T cells by whole-cell patch-clamp experiments. (A) Voltage protocol; the membrane potential was held at −50 mV and recordings were taken in the range of −120 mV to +80 mV in Δ20 mV steps of 2 s each. (B) Mean current/voltage relationships for wild type (WT) Best1 and untransfected HEK293T cells. (C–F) Mean current/voltage relationships for p.M325T Best1 expressing cells before and after treatment with 25 µM risperdal, thalidomide, tadalafil and paliperidone, respectively. (G) Currents measured at +80 mV (pA) for p.M325T Best1 before and after treatment with drugs. Addition of 25 µM tadalafil results in full rescue of p.M325T Cl− conductance to WT levels (results presented as mean ± s.e.m, **** p < 0.0001, as calculated by one-way ANOVA). p.M325T + 2.5 mM 4PBA (dissolved in water) is shown for reference.
Molecules 28 03317 g004
Molecules 28 03317 g005 550

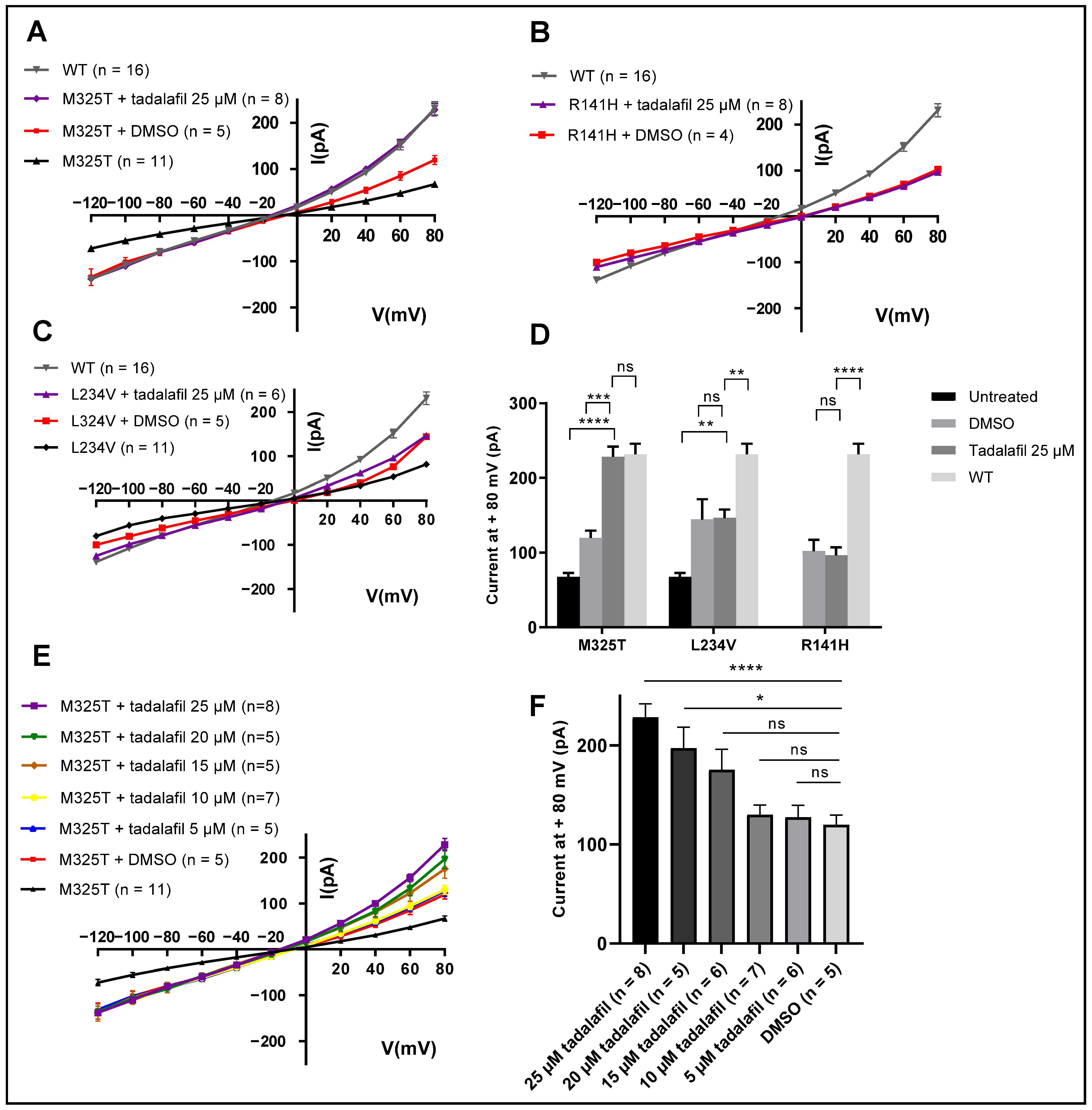

Figure 5. Effect of tadalafil on mutant Best1 Cl− currents recorded in HEK293T cells by whole-cell patch-clamp experiments. The membrane potential was held at −50 mV and recordings were taken in the range of −120 mV to +80 mV in Δ20 mV steps of 2 s each. (A–C) Mean current/voltage relationships for mutant Best1 expressing cells (p.M325T, p.R141H (ARB) and p.L234V (BVMD)) before and after treatment with 25 µM tadalafil. (D) Currents measured at +80 mV (pA) for mutant Best1 before and after treatment with 25 µM tadalafil. Tadalafil fully rescues the Cl− conductance of p.M325T to WT levels but not for p.R141H or p.L324V mutants (results presented as mean ± s.e.m, ** p < 0.01, *** p < 0.001, **** p < 0.0001, as calculated by one-way ANOVA). (E) Dose response effect shown for Cl− current of p.M325T Best1 expressing cells treated with decreasing concentrations of tadalafil. (F) Currents measured at +80 mV (pA) for p.M325T Best1 expressing cells treated with decreasing concentrations of tadalafil (Results presented as mean ± s.e.m, * p < 0.05, **** p < 0.0001, as calculated by one-way ANOVA).
Figure 5. Effect of tadalafil on mutant Best1 Cl− currents recorded in HEK293T cells by whole-cell patch-clamp experiments. The membrane potential was held at −50 mV and recordings were taken in the range of −120 mV to +80 mV in Δ20 mV steps of 2 s each. (A–C) Mean current/voltage relationships for mutant Best1 expressing cells (p.M325T, p.R141H (ARB) and p.L234V (BVMD)) before and after treatment with 25 µM tadalafil. (D) Currents measured at +80 mV (pA) for mutant Best1 before and after treatment with 25 µM tadalafil. Tadalafil fully rescues the Cl− conductance of p.M325T to WT levels but not for p.R141H or p.L324V mutants (results presented as mean ± s.e.m, ** p < 0.01, *** p < 0.001, **** p < 0.0001, as calculated by one-way ANOVA). (E) Dose response effect shown for Cl− current of p.M325T Best1 expressing cells treated with decreasing concentrations of tadalafil. (F) Currents measured at +80 mV (pA) for p.M325T Best1 expressing cells treated with decreasing concentrations of tadalafil (Results presented as mean ± s.e.m, * p < 0.05, **** p < 0.0001, as calculated by one-way ANOVA).
Molecules 28 03317 g005
Molecules 28 03317 g006 550

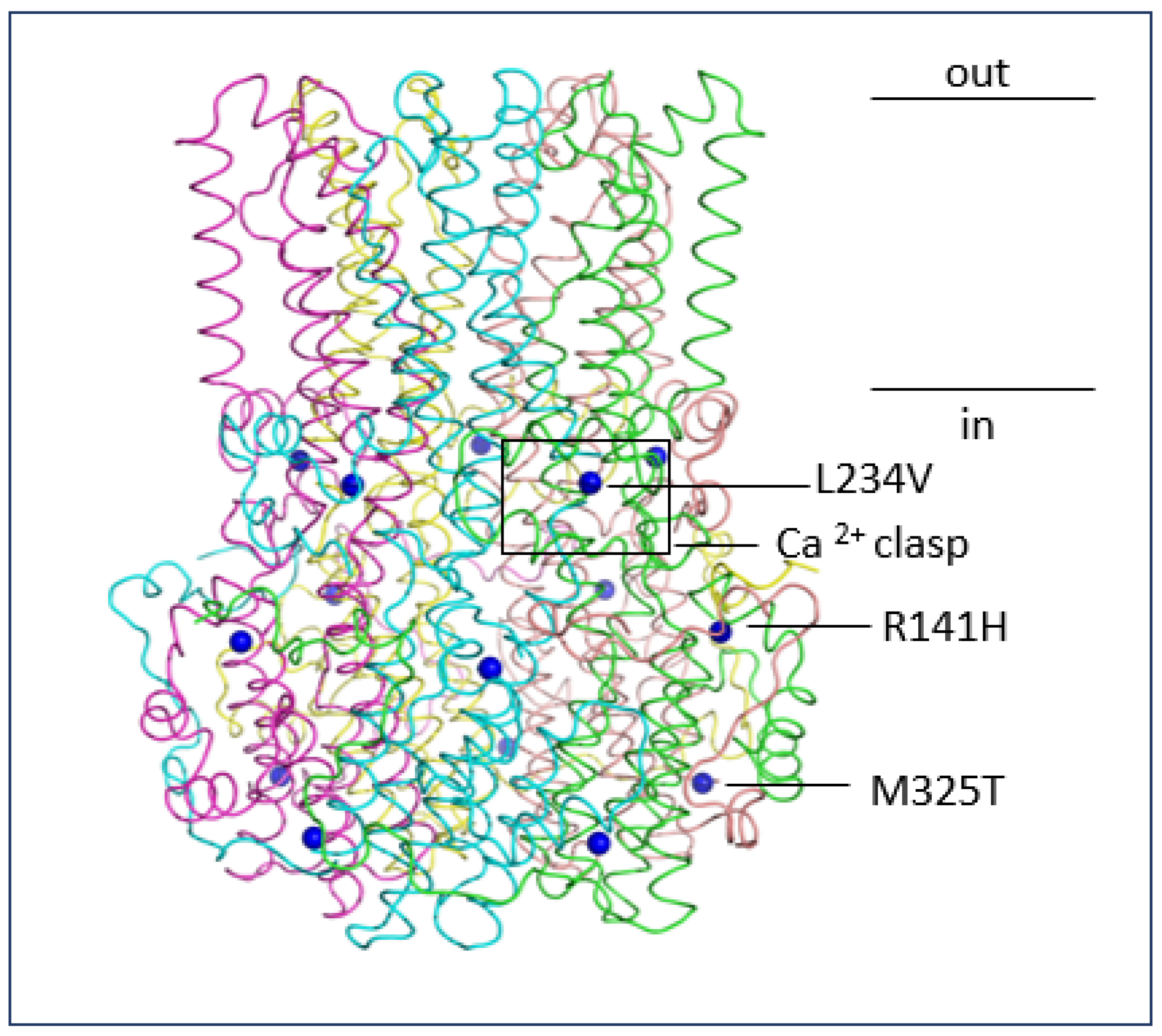

Figure 6. L234V, R141H and M325T missense mutation locations in a model of hBest1. Alpha carbon atoms of L234V, R141H and M325T missense mutations (from the HGMD) are displayed on each monomer of the hBest1 homopentamer model as blue spheres. The tube backbone of modelled hBest1 is colour-coded by chain. The location of a calcium clasp and approximate boundaries of the transmembrane region are marked, together with indication of inside or outside of cell.
Figure 6. L234V, R141H and M325T missense mutation locations in a model of hBest1. Alpha carbon atoms of L234V, R141H and M325T missense mutations (from the HGMD) are displayed on each monomer of the hBest1 homopentamer model as blue spheres. The tube backbone of modelled hBest1 is colour-coded by chain. The location of a calcium clasp and approximate boundaries of the transmembrane region are marked, together with indication of inside or outside of cell.
Molecules 28 03317 g006
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Elverson, K.; Warwicker, J.; Freeman, S.; Manson, F. Tadalafil Rescues the p.M325T Mutant of Best1 Chloride Channel. Molecules 2023, 28, 3317. https://doi.org/10.3390/molecules28083317

AMA Style

Elverson K, Warwicker J, Freeman S, Manson F. Tadalafil Rescues the p.M325T Mutant of Best1 Chloride Channel. Molecules. 2023; 28(8):3317. https://doi.org/10.3390/molecules28083317

Chicago/Turabian Style

Elverson, Kathleen, Jim Warwicker, Sally Freeman, and Forbes Manson. 2023. "Tadalafil Rescues the p.M325T Mutant of Best1 Chloride Channel" Molecules 28, no. 8: 3317. https://doi.org/10.3390/molecules28083317

APA Style

Elverson, K., Warwicker, J., Freeman, S., & Manson, F. (2023). Tadalafil Rescues the p.M325T Mutant of Best1 Chloride Channel. Molecules, 28(8), 3317. https://doi.org/10.3390/molecules28083317

Article Metrics

Back to TopTop
