Ppb-Level Hydrogen Sulfide Gas Sensor Based on the Nanocomposite of MoS2 Octahedron/ZnO-Zn2SnO4 Nanoparticles

by
Di Wu
and
Ali Akhtar
*
School of Information Science and Technology, Dalian Maritime University, Dalian 116026, China
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(7), 3230; https://doi.org/10.3390/molecules28073230
Submission received: 8 February 2023 / Revised: 24 March 2023 / Accepted: 28 March 2023 / Published: 4 April 2023
Browse Figures
Versions Notes

Abstract

:
Hydrogen sulfide (H2S) detection is extremely necessary due to its hazardous nature. Thus, the design of novel sensors to detect H2S gas at low temperatures is highly desirable. In this study, a series of nanocomposites based on MoS2 octahedrons and ZnO-Zn2SnO4 nanoparticles were synthesized through the hydrothermal method. Various characterizations such as X-ray diffraction (XRD), Brunauer–Emmett–Teller (BET), scanning electron microscopy (SEM), transmission electron microscopy (TEM), energy-dispersive X-ray spectroscopy (EDS) and X-ray photoelectron spectrum (XPS) have been used to verify the crystal phase, morphology and composition of synthesized nanocomposites. Three gas sensors based on the nanocomposites of pure ZnO-Zn2SnO4 (MS-ZNO-0), 5 wt% MoS2-ZnO-Zn2SnO4 (MS-ZNO-5) and 10 wt% MoS2-ZnO-Zn2SnO4 (MS-ZNO-10) were fabricated to check the gas sensing properties of various volatile organic compounds (VOCs). It showed that the gas sensor of (MS-ZNO-5) displayed the highest response of 4 to 2 ppm H2S and fewer responses to all other tested gases at 30 °C. The sensor of MS-ZNO-5 also displayed humble selectivity (1.6), good stability (35 days), promising reproducibility (5 cycles), rapid response/recovery times (10 s/6 s), a limit of detection (LOD) of 0.05 ppm H2S (Ra/Rg = 1.8) and an almost linear relationship between H2S concentration and response. Several elements such as the structure of MoS2, higher BET-specific surface area, n-n junction and improvement in oxygen species corresponded to improving response.

1. Introduction

H2S gas, which has a rotten egg smell, could be considered one of the hazardous gases [1] which has an atrocious influence on human health. The long-term exposure to H2S gas at low concentrations (25–50 ppm) causes various diseases such as headaches, dizziness, nausea, vomiting and irritation in the eyes, etc. Moreover, high concentrations of H2S (more than 120 ppm) exposure may result in acute poisoning, paralysis and even sometimes death [2,3]. Thus, the veracious and real-time detection of H2S gas at low temperatures is very decisive, which is enabled by various semiconductor metal oxide (SMO)-based gas sensors.
Several gas sensors based on SMOs such as zinc oxide (ZnO), zinc gallate (ZnGa2O4), tin oxide (SnO2), nickel cobaltite (NiCo2O4), zinc stannate (Zn2SnO4), copper oxide (CuO), etc., possess some good properties such as precision, low cost, small dimensions, long-term stability and environmental friendliness; because of these properties, SMOs could be considered the primary candidates for the detection of toxic gases as well in photo-catalysis, etc. [4,5,6,7,8,9,10]. Plenty of research has shown that some complex metal oxides have been widely used as gas sensors in the last decades. Among these SMOs, an n-type SMOs Zn2SnO4 is an imperative ternary metal oxide with some properties such as high chemical stability and electron mobility, high conductivity, low visible adsorption, etc., have been studied widely in various fields such as photo-catalysis, solar cells and gas sensors [11,12,13]. Furthermore, ZnO, an n-type semiconductor material, has also been studied in various fields. The study described by An et al. showed that the sensor based on Zn2SnO4 detected the highest response to ethanol when compared with H2 [14]. Additionally, during the study on th sensing properties of ZnO nanosheets and nanorods, it was revealed that the sensor of ZnO nanosheets detected 100 ppm ethanol; by making comparison, it was noted that the response of nanosheets was 4.7-fold that of nanorods [15]. Some other sensors, such as Zn2SnO4-/ZnO-loaded Pd-based sensors, enhanced H2 sensing properties; the sensors based on the ZnO–SnO2–Zn2SnO4 hetero-junction, Pt–Zn2SnO4 hollow octahedron and Zn2SnO4/ZnO, revealed better gas sensing performances towards ethanol, acetone and formaldehyde, respectively [16,17,18]. However, pure metal oxides still face some demerits such as low response, high operating temperature, poor selectivity, etc. Therefore, their coupling with 2D materials is essential to increase the gas sensing properties of SMO-based gas sensors.
In the last few years, another research approach based on the emergence of 2D materials into SMOs has received great attention in various fields. Due to some rare properties such as narrow band gap, low density and thermal constancy, these have gained significant attention in the field of photo-catalysis, gas sensing, etc. [19,20,21,22,23,24]. Typical among transition metal dichalcogenides (TMDs), MoS2 has received gear attention as a fascinating candidate. This is not only as a gas sensor, but MoS2 can also be used for potential applications in the fields of photodetectors, solar cells, etc. [25,26,27]. Consequently, the synthesis of 2D material MoS2 is essential, which would accelerate the adsorption of oxygen molecules as well as increase gas sensing properties. For instance, various 2D materials and metal oxide-based gas sensors such as MoS2-reduced graphene oxide nanohybrid, MoS2@MoO3 magnetic hetero-structure, wool-based carbon fiber/MoS2 composite and ZnO-MoS2 nanocomposites were used to detect various types of VOCs, accompanied by high response, good selectivity, rapid response/recovery times, etc. [28,29,30,31].
The purpose of the current study was the detection of hazardous gases. In this regard, a series of gas sensors based on pure ZnO-Zn2SnO4 nanoparticles and octahedron MoS2 were synthesized via a simple hydrothermal method. To date, no literature has been reported on low-temperature gas sensors, such as 30 °C H2S gas sensors based on a MoS2-ZnO-Zn2SnO4 nanocomposite. Three gas sensors based on various nanocomposites (MS-ZNO-0, MS-ZNO-5, MS-ZNO-10) were tested to detect different hazardous gases, and our results studied that the highest response of 4 to 2 ppm H2S was received by the gas sensor of MS-ZNO-5. Furthermore, it revealed humble selectivity, good stability, rapid response/recovery times and LOD, promising reproducibility and an almost linear relationship between H2S concentration and response, suggesting its potential applicability in the field of gas sensors. Hence, the decoration of ZnO-Zn2SnO4 nanoparticles with octahedron MoS2 is expected to enable the generation of a novel sensor for H2S sensing.

2. Results and Discussion

2.1. Characterizations of Materials

Figure 1a showed the XRD diffraction peaks of synthesized nanocomposites MS-ZNO-0, MS-ZNO-5 and MS-ZNO-10. The PDF numbers of Zn2SnO4, ZnO and MoS2 were PDF#24-1470, PDF#36-1451 and PDF#50-0739, respectively. Two diffraction peaks, cited at 2θ values of 34.42° and 36.25°, were matched well to the (002) and (101) crystal planes of ZnO. Furthermore, various peaks of Zn2SnO4 were found at 17.72°, 34.29°, 41.68°, 55.11° and 60.44°, and corresponded to the (111), (311), (400), (511) and (440) crystal planes of Zn2SnO4, respectively. The peak observed at half maximum (β) of the (311) and (002) was studied to check the average crystallite sizes. It was also notable that very fine peaks of MoS2 were also cited in both the nanocomposites (MS-ZNO-5 and MS-ZNO-10) at the 2θ values of 14.37 and 29.09, signified to the (002) and (004) crystal planes of MoS2. The estimated mean crystallite sizes such as 10.5, 22.5 and 12 of ZnO-Zn2SnO4 were examined by the Scherrer formula [32] in MS-ZNO-0, MS-ZNO-5 and MS-ZNO-10, respectively. The addition of MoS2 was reasoned to augment the crystallite sizes in both nanocomposites. Besides, the presence of MoS2 in composites was confirmed by other characteristics as well, such as SEM, TEM, EDS, XPS, etc. In order to check the BET-specific surface areas of three samples, N2 adsorption–desorption isotherms were studied in Figure 1b. The BET surface areas of MS-ZNO-0, MS-ZNO-5 and MS-ZNO-10 were 3.46, 20.15 and 13.16 m2/g, respectively. In addition, Figure 1c showed that the average pore sizes of MS-ZNO-0, MZ-ZNO-5 and MS-ZNO-10 were 11.1 nm, 8.1 nm and 11.3 nm, respectively.
As shown in Figure 2a–f, the morphology of the synthesized nanocomposites was observed from the SEM graphs. In Figure 2a,b, the SEM graphs of MS-ZNO-0 have been described. The ZnO-Zn2SnO4 nanoparticles, with an average particle size of 200–250 nm, were evaluated from the SEM images, while their modification with octahedron MoS2 was also confirmed from the SEM graphs of MS-ZNO-5 and MS-ZNO-10 in Figure 2c,d and Figure 2e,f, respectively. The SEM and TEM results showed that the relative particle sizes of ZnO-Zn2SnO4 nanoparticles and octahedron MoS2 were increased by the addition of MoS2 contents in the nanocomposite of MS-ZNO-5 but decreased a little in the nanocomposite of MS-ZNO-10, which also corresponds to the XRD results.
In Figure 3a–f, TEM results also proved the existence of MoS2 in nanocomposites of MS-ZNO-5 and MS-ZNO-10, with average particle sizes of 200−250 nm for ZnO-Zn2SnO4 nanoparticles in the nanocomposites, as shown below. The TEM graphs of MS-ZNO-5 in Figure 3a–f stated that particle size of ZnO-Zn2SnO4 nanoparticles was enhanced, while the size of octahedron MoS2 was almost 3.2 µm and 2.3 µmt in the TEM graphs of MS-ZNO-5 and MS-ZNO-10, respectively. The presence of octahedron MoS2 was further proved from the EDS spectrum of MS-ZNO-5. In Figure 3g, the EDS mapping images of Zn, Sn, O, Mo and S stated that each element had a uniform scattering effect in the nanocomposite of MS-ZNO-5.
The XPS data were fitted by XPSPEAK41 software. The X-ray photo-electron spectroscopy (XPS) results were revealed in Figure 4. The full XPS spectrum of the MS-ZNO-5 composite was disclosed in Figure 4a, which revealed the presence of all the elements such as Zn, Sn, O, Mo and S. In the XPS spectrum of Zn 2p (Figure 4b), two peaks, positioned at 1020.7 and 1043.8 eV, corresponded to Zn 2p3/2 and Zn 2p1/2 [33]. These results pointed out that Zn ions in the composite have a valence state of “2+”. In Figure 4c, the Sn 3d spectrum showed two peaks appearing at 485.6 and 496.1 eV corresponding to Sn 3d5/2 and Sn 3d3/2, respectively [34]. Additionally, one satellite peak at the value of 497.1 eV was cited. The O 1s spectrum of MS-ZNO-5 demonstrated more oxygen adsorption sites (OV), which was one of the factors required to enhance the gas sensing properties [8]. The peaks at the values of 529.5 and 530.8 eV in Figure 4d were matched to a typical metal–oxygen bond and defect sites in the XPS spectrum of MS-ZNO-5; on the contrary, in the XPS spectrum of MS-ZNO-0, the two peaks were cited at the values of 529.4 and 530.8 [35,36]. In the high-resolution spectra of Mo 3d, four peaks were cited. The peaks at the values of 225.1, 227.9, 231.1, 234.4 and 283.8 eV, shown in Figure 4e, were related to S 2s, Mo4+ 3d5/2, Mo4+ 3d3/2, and Mo6+ 3d5/2, respectively [37]. In Figure 4f, the peaks at the values of 160.8 eV and 162.0 eV were related to S 2p3/2 and S 2p1/2, respectively, in MoS2 [37].

2.2. Gas Sensing Properties

In this portion, the gas sensing properties of various sensors were studied. Their deep explanation was as follows: the response/recovery time curves for MS-ZNO-0, MS-ZNO-5 and MS-ZNO-10 were depicted in Figure 5a, which showed that response/recovery times for 2 ppm H2S were 10 s/6 s, (Figure 5b). Importantly, the minimum response of 1.8 to 0.05 ppm H2S was detected. The modification of octahedron MoS2 with ZnO-Zn2SnO4 nanoparticles not only enhances the BET surface area but also intensifies the adsorption of H2S molecules on the surface of the material, and it may also facilitate the adsorption of the oxygen species. These can be some factors which increase the gas sensing properties of nanocomposite (MS-ZNO-5). In Table 1, the gas sensing properties of the current sensor and some previous sensors were studied, which stated that the sensor based on MS-ZNO-5 received lower temperature gas sensing, better response, humble selectivity, LOD and rapid response/recovery times. Figure 5c was the temperature–resistance diagram of MS-ZNO-0, MS-ZNO-5 and MS-ZNO-10 at the operating temperature of 30 °C in air. When the operating temperature increased, the resistance showed a downward trend; this is because, when heating, the O2− on the surface of both materials adsorbed oxygen and O2− was converted into O−, which produces a large number of free electrons. At the same time, a large number of electrons reduced the concentration of negative ions on the surface of all the materials; in this way the potential barrier was twisted and the resistance was finally reduced [38,39]. As the temperature continued to enhance, the resistance of materials continued to decrease as the electrons moved faster. Figure 5d described the response vs. temperature curves, which specified that the response was improving with the increase in H2S concentrations. Thus, due to the linearity of the current sensor, it could be considered a promising material because of the linear relationship between H2S ppm and response. In Figure 5e, three sensors based on synthesized nanocomposites were tested to 2 ppm H2S at different operating temperatures. The maximum response detected by the sensor of MS-ZNO-5 was 4 to 2 ppm H2S at 30 °C. The decrease in response at higher temperatures could be explained as follows: the chemical activity is low at lower operating temperature, and vice versa. As a result, more gas molecules adsorbed onto the material surface quickly at higher temperatures, resulting in a decrease in response [40].
Figure 6a stated that the highest response to 2 ppm H2S was 4 and the second highest response to 2 ppm TMA was 2.5 at the operating temperature of 30 °C; in this way, the humble selectivity (S2 ppm H2S/S2 ppm TMA = 1.6) was detected. The results about the reproducibility in Figure 6b demonstrated that the sensor based on MS-ZNO-5 showed promising reproducibility; it was checked around five times at the operating temperature of 30 °C and a similar response was noted. While other sensors detected good reproducibility, our main concern was the gas sensing properties of MS-ZNO-5. For this reason, the promising reproducibility was studied in correspondence with the sensor of MS-ZNO-5. The improvement in gas sensing response corresponded to some aspects such as the octahedron structure of MoS2; this enhanced BET surface area, allowing more oxygen species to adsorb onto the surface of the material and make the reaction faster to increase the gas sensing response [17].
The stability evaluation in Figure 7a explained that the sensors of MS-ZNO-0, MS-ZNO-5 and MS-ZNO-10 were almost stable for approximately 35 days. The resistance of all the sensors decreased slightly with time. To date, the majority of the gas sensors based on semiconductor gas sensors were not satisfied, which demerits their applications in the field of gas sensors. However, in the present case we may see that the long-term stability was quite stable for almost a month. Different responses (3.2, 4, 3.4, and 3.4) to 2 ppm H2S were detected by the sensor of MS-ZNO-5 at various relative humidities (RH) of 20, 40, 60, and 80, respectively; the detail was revealed in Figure 7b. The highest response was detected at the 40% RH value. The results explained that the response was decreased after 40% RH due to the presence of the higher amount of water molecules with increased relative humidity; these can be adsorbed onto the surface of the material, and accordingly, the resistance decreases [41]. The results proved that the sensor based on MS-ZNO-5 was noteworthy in all aspects such as high response, humble selectivity, rapid response–recovery times, LOD, good stability, an almost linear relation between H2S gas concentration and response, etc.

2.3. Gas Sensing Mechanism

N-type gas sensing behavior was discussed based on the sensor of MS-ZNO-5 described in Figure 7c. Usually, all SMOs involve three steps, such as (1) adsorption; (2) oxidation; and (3) desorption. When the sensor of MS-ZNO-5 was tested in the air ambiance, the process was similar to our previous work [10]; first, oxygen molecules were adsorbed onto the surface of the material. There, they converted the captured electrons from the conduction band of ZnO-Zn2SnO4 into oxygen ions such as O−, O2−, and O2−, while forming the electron depletion layer and enhancing the sensor resistance, which was described in Equations (1)–(4). The adsorbed oxygen species depends on the operating temperatures, as shown in the following equations [42]. When the sensor of MS-ZNO-5 was tested in gas ambiance, the molecules of H2S reacted with oxygen ions and converted them into H2O and SO2, as mentioned in Equation (5). After that, the captured electrons were discharged back, due to the decrease in the resistance and space charge layer [10]. Thus, the sensor of MS-ZNO-5 showed a low resistance in gas atmosphere [43,44]. Further detail about the sensing mechanism has been given in the Equations below.
O2 (gas) → O2 (ads.),
O2 (ads.) + e− → O2−(ads.), T < 100 °C
O2−(ads.) + e− → 2O−(ads.), 100 °C ≤ T ≤ 300 °C
O−(ads.) + e− → O2−(ads.), T > 300 °C
2H2S (g) + 2O2− (ads) → 2SO2 + 2H2O + 3e−
Enhancement in gas sensing response of MS-ZNO-5 may correspond to some parameters due to the attachment of octahedron MoS2. Firstly, the formation of the n-n junction can also be one of the factors used to enhance gas sensing properties; the octahedron structure of MoS2 was checked by SEM and TEM [45]; the octahedron structure developed the exposure of active edge sites of MoS2, and improved the efficiency of gas transportation, reaction and carrier exchange, etc. This resulted in the enhanced H2S gas sensing properties and increased BET-specific surface area of MS-ZNO-5 (N2 adsorption–desorption isotherms); this factor can be very helpful to the adsorption and diffusion of H2S molecules. Moreover, the attachment with octahedron MoS2 increased the conductivity of the noteworthy composite [45] and enlarged the number of oxygen species (XPS), etc. This was also one of the parameters used to enhance their performance.
Table
Table 1. The comparison of sensing properties between some sensors.
Table 1. The comparison of sensing properties between some sensors.
MaterialsTemp. (°C)Gas/Conc.
ppm		Response (Rg/Ra)SelectivityLimit of DetectionRef.
ZnSnO3230ethanol/50471.41 ppm[46]
ZnO/Co3O4250acetone/5046-2 ppm[47]
ZnO-ZnS150H2S/50.88-1 ppm[48]
Pd/ZnO220CO/10015-20 ppm[49]
Zn2SnO4133H2S/1--1 ppb[50]
Nb2O5/SnO2275H2S/2043.8-[51]
Ag-In2O330H2S/2093719-0.005 ppm[52]
MoS2-ZnO-Zn2SnO430H2S/241.60.05 ppmThis work
Temp. = temperature, Conc. = concentration, Ref. = reference.

3. Experimental Section

3.1. Chemicals

The chemicals (molybdenum disulfide (MoS2), zinc nitrate hexahydrate (Zn(NO3)2·6H2O), tin chloride pentahydrate (SnCl4·5H2O) and sodium hydroxide (NaOH)) utilized in the synthesis method of ZnO-Zn2SnO4 nanoparticles and MoS2-ZnO-Zn2SnO4 nanocomposites were bought from the Sinopharm Chemical Reagent Limited Corporation (Dalian, China) and all these chemicals were used without further purification.

3.2. The Synthesis of ZnO-Zn2SnO4 Nanoparticles and MoS2-ZnO-Zn2SnO4 Nanocomposite

Hydrothermal was used to synthesize ZnO-Zn2SnO4 nanoparticles and MoS2-ZnO-Zn2SnO4 nanocomposites. Concisely, Zn(NO3)2. 6H2O (8 mmol, 1.477 g), and SnCl4.5H2O (4 mmol, 0.876 g) were mixed into three different beakers (1, 2 and 3) with 50 mL deionized water while stirring and then different contents of MoS2, such as 0 wt% MoS2 (MS-ZNO-0), 5 wt% MoS2 (MS-ZNO-5) and 10 wt% MoS2 (MS-ZNO-10), were added into beaker numbers 1, 2 and 3, respectively. After half an hour, 2M NaOH solution was gradually added to all the beakers to adjust the pH to about 12. The stirring process was carried out for 24 h to thoroughly mix all the ingredients and to receive the milky solutions. Furthermore, there was an autoclave process in which the samples were transferred into 100 mL stainless steel autoclaves and placed into an oven, and the time (20 h) and temperature (190 °C) were adjusted. After the autoclave process, the powder materials were separated by centrifugation process (washing with ethanol and DI water, 8000 rpm) and drying process (heating 60 °C, 20 h). Finally, the white products were calcined at 300 °C, 3 h and 5 °C/min. After that, the fabrication of gas sensors for gas sensing performances and other characteristics was carried out to check crystallite size, morphology and other properties of all the samples. The dried samples after calcination were ground in a mortar for fabricating the sensors and also for other characterizations such as XRD, SEM, TEM, etc.

3.3. Characterizations of the Nanocomposites

Numerous characterizations have been used to identify the crystal size, BET-specific surface area, morphology and surface properties of synthesized products. Their deep explanation has been studied as follows: X-ray diffraction (XRD, D/MAX-Ultima, Cu Kα source, 2°/min scanning rate, scanning angle from 10°–80° as well as power of 40 kV and 40 mA, Rigaku, Tokyo, Japan), BET method (ASAP2010C instrument, Norcross, GA, USA), scanning electron microscopy (SEM, Suppa 55 Sapphire, Carl Zeiss AG, Jena, Germany), transmission electron microscopy (TEM, JEM-3200FS, JEOL, Tokyo, Japan), energy-dispersive X-ray spectroscopy (EDS, Sapphire 55 Supra, Zeiss, Jena, Germany) and X-ray photoelectron spectroscopy (XPS, Thermo Scientific ESCALAB 250 XI, ThermoFisher Scientific, Waltham, MA, USA) were used to check the crystal size, BET-specific surface area, morphology and surface properties of synthesized products. These tests were best performed by providing powder samples for XRD (about 20–30 mg of powder), SEM (about 10 mg of powder), TEM (about 10 mg of powder), EDS (about 10 mg of powder), BET (about 200 mg of powder) and XPS (about 5–10 mg of powder), respectively.

3.4. Fabrication of Gas Sensor

The gas sensor diagram and the electrical circuit were displayed in Figure 8. The fabrication process of the gas sensor was studied as follows: firstly, the paste was made with 0.2 g nanocomposite and 2–3 drops of terpineol and then the mixture was coated onto the outer surface of the alumina tube. After that, the alumina tube was heated in an oven for 10 h at 80 °C to remove the contents of terpineol. Then, a Ni-Cr alloy wire was placed in the alumina tube to control the operating temperature in the range of 30–400 °C. All the hazardous gases detected in the present work were bought from the Dalian Haide Technology Company Limited (Dalian China). The gas sensor based on MoS2-ZnO-Zn2SnO4 nanocomposites showed n-type gas sensor behavior and the response was calculated as S = Ra/Rg, where Ra was the resistance in air and Rg was the resistance in the gas. The selectivity of the sensor was calculated in this study, which may be defined as the ratio of the highest response and second highest response; in the present case, it was ‘S10ppm H2S/S10ppm TMA = 1.6’, and likewise response/recovery times were stated as the time taken to reach 90% value of the final signal. The sensors were stable for 35 days and reproducible for five cycles.

4. Conclusions

The pure ZnO-Zn2SnO4 nanoparticles and nanocomposites were synthesized via a hydrothermal method. The synthesized materials were characterized using XRD, BET method, SEM, TEM, EDS and XPS, respectively. The XRD and SEM results may relate to each other, and we studied to see why the crystallite size and particle were increased when ZnO-Zn2SnO4 nanoparticles were attached with octahedron MoS2, respectively. From BET and XPS results, it was concluded that the MS-ZNO-5 nanocomposite revealed higher BET-specific surface area and more adsorption of oxygen species than MS-ZNO-0, which could be the main factors enhancing the gas sensing properties. The gas sensing properties of three gas sensors based on MS-ZNO-0, MS-ZNO-5 and MS-ZNO-10 were studied. The gas sensor based on an MS-ZNO-5 nanocomposite detected the highest response to 2 ppm H2S, and humble selectivity, rapid response/recovery time, good stability, promising reproducibility and LOD (0.05 ppm) were noticed. Furthermore, the sensor of MS-ZNO-0 and MS-ZNO-10 detected far fewer responses towards all gases. The enhancement in gas sensing response of MS-ZNO-5 corresponded with some parameters such as layered structure, n-n junction, higher BET surface area, more adsorption of oxygen species, etc. An almost linear relation between response and concentration of H2S (0.05–2 ppm) could allow the current sensor to be considered a potential candidate for gas sensing applications in the detection of and warning about leakage of hazardous VOCs.

Author Contributions

Conceptualization, D.W. and A.A.; methodology, A.A.; validation, A.A.; investigation, D.W. and A.A.; resources, A.A.; writing—original draft preparation, D.W. and A.A.; writing—review and editing, D.W. and A.A.; supervision, A.A. All authors have read and agreed to the published version of the manuscript.

Funding

This work is financially supported by the Scientific Research Funding Project of Educational Department of Liaoning Province (Grant No. LJKZ0060), the Liaoning Applied Fundamental Research Project (Grant No. 2022JH2/101300158).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data can be provided on the responsible request to the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are available from the authors.

References

  1. Tong, X.; Shen, W.; Chen, X.; Corriou, J.P. A fast response and recovery H2S gas sensor based on free-standing TiO2 nanotube array films prepared by one-step anodization method. Ceram. Int. 2017, 43, 14200–14209. [Google Scholar] [CrossRef] [Green Version]
  2. Han, C.; Li, X.; Shah, C.; Li, X.; Ma, J.; Zhang, X.; Liu, Y. Composition-controllable p-CuO/n-ZnO hollow nanofibers for high-performance H2S detection. Sens. Actuators B Chem. 2019, 285, 495–503. [Google Scholar] [CrossRef]
  3. Samokhvalov, A.; Tatarchuk, B.J. Characterization of active sites, determination of mechanisms of H2S, COS and CS2 sorption and regeneration of ZnO low-temperature sorbents: Past, current and perspectives. Phys. Chem. Chem. Phys. 2011, 13, 3197–3209. [Google Scholar] [CrossRef] [PubMed]
  4. Hsueh, T.J.; Ding, R.Y. A Room Temperature ZnO-NPs/MEMS Ammonia Gas Sensor. Nanomaterials 2022, 12, 3287. [Google Scholar] [CrossRef] [PubMed]
  5. Ren, X.; Xu, Z.; Zhang, Z.; Tang, Z. Enhanced NO2 Sensing Performance of ZnO-SnO2 Heterojunction Derived from Metal-Organic Frameworks. Nanomaterials 2022, 12, 3726. [Google Scholar] [CrossRef]
  6. Horng, R.H.; Lin, S.H.; Hung, D.R.; Chao, P.H.; Fu, P.K.; Chen, C.H.; Chen, Y.C.; Shah, J.H.; Huang, C.Y.; Tarntair, F.G.; et al. Structure Effect on the Response of ZnGa2O4 Gas Sensor for Nitric Oxide Applications. Nanomaterials 2022, 12, 3759. [Google Scholar] [CrossRef]
  7. Yang, Y.; Maeng, B.; Jung, D.G.; Lee, J.; Kim, Y.; Kwon, J.; An, H.K.; Jung, D. Annealing Effects on SnO2 Thin Film for H2 Gas Sensing. Nanomaterials 2022, 12, 3227. [Google Scholar] [CrossRef] [PubMed]
  8. Akhtar, A.; Sadaf, S.; Liu, J.; Wang, Y.; Wei, H.; Zhang, Q.; Fu, C.; Wang, J. Hydro-thermally synthesized spherical g-C3N4-NiCo2O4 nanocomposites for ppb level ethanol detection. J. Alloy. Compd. 2022, 911, 165048. [Google Scholar] [CrossRef]
  9. Akhtar, A.; Jaio, C.; Chu, X.F.; Liang, S.; Dong, Y.; He, L. Acetone sensing properties of the g–C3N4–CuO nanocomposites prepared by hydrothermal method. Mater. Chem. Phys. 2021, 265, 124375. [Google Scholar] [CrossRef]
  10. Akhtar, A.; Wen, H.; Chu, X.F.; Liang, S.; Dong, Y.; He, L.; Zhang, K. Synthesis of g-C3N4-Zn2SnO4 nanocomposites with enhanced sensing performance to ethanol vapor. Synth. Met. 2021, 278, 116829. [Google Scholar] [CrossRef]
  11. Yan, T.; Liu, H.; Sun, M.; Wang, X.; Li, M.; Yan, Q.; Xu, W.; Du, B. Efficient photocatalytic degradation of bisphenol A and dye pollutants over BiOI/Zn2SnO4 hetero-junction photocatalyst. RSC Adv. 2015, 5, 10688–10696. [Google Scholar] [CrossRef]
  12. Wang, K.; Shi, Y.; Guo, W.; Yu, X.; Ma, T. Zn2SnO4-Based Dye-Sensitized Solar Cells: Insight into Dye-Selectivity and Photoelectric Behaviors. Electrochim. Acta 2014, 135, 242–248. [Google Scholar] [CrossRef]
  13. Shu, S.; Wang, M.; Yang, W.; Liu, S. Synthesis of surface layered hierarchical octahedron-like structured Zn2SnO4/SnO2 with excellent sensing properties toward HCHO. Sens. Actuators B Chem. 2017, 243, 1171–1180. [Google Scholar] [CrossRef]
  14. An, D.; Mao, N.; Deng, G.; Zou, Y.; Li, Y.; Wei, T.; Lian, X. Ethanol gas-sensing characteristic of the Zn2SnO4 nanospheres. Ceram. Int. 2016, 42, 3535–3541. [Google Scholar] [CrossRef]
  15. Cao, F.F.; Li, C.P.; Li, M.J.; Li, H.J.; Huang, X.; Yang, B.H. Direct growth of Al-doped ZnO ultrathin nanosheets on electrode for ethanol gas sensor application. Appl. Surf. Sci. 2018, 447, 173–181. [Google Scholar] [CrossRef]
  16. Zhang, Y.; Xin, X.; Sun, H.; Liu, Q.; Zhang, J.; Li, G.; Gao, J.; Lu, H.; Wang, C. Porous ZnO–SnO2–Zn2SnO4 heterojunction nanofibers fabricated by electrospinning for enhanced ethanol sensing properties under UV irradiation. J. Alloy. Compd. 2021, 854, 157311. [Google Scholar] [CrossRef]
  17. Hanha, N.H.; Duy, L.V.; Hung, C.M.; Xuan, C.T.; Duy, N.V.; Hoa, N.D. High-performance acetone gas sensor based on Pt–Zn2SnO4 hollow octahedra for diabetic diagnosis. J Alloy. Compd. 2021, 886, 161284. [Google Scholar] [CrossRef]
  18. Wang, B.; Zheng, Z.Q.; Zhu, L.F.; Yang, Y.H.; Wu, H.Y. Self-assembled and Pd decorated Zn2SnO4/ZnO wire-sheet shape nano-heterostructures networks hydrogen gas sensors. Sens. Actuators B Chem. 2014, 195, 549–561. [Google Scholar] [CrossRef] [Green Version]
  19. Munusami, V.; Arutselvan, K.; Vadivel, S.; Govindasamy, S. High sensitivity LPG and H2 gas sensing behavior of MoS2/graphene hybrid sensors prepared by facile hydrothermal method. Ceram. Int. 2022, 48, 29322–29331. [Google Scholar] [CrossRef]
  20. Ou, J.Z.; Ge, W.; Carey, B.; Daeneke, T.; Rotbart, A.; Shan, W.; Wang, Y.; Fu, Z.; Chrimes, A.F.; Wlodarski, W.; et al. Physisorption-Based Charge Transfer in Two-Dimensional SnS2 for Selective and Reversible NO2 Gas Sensing. ACS Nano 2015, 9, 10313–10323. [Google Scholar] [CrossRef]
  21. Zhou, H.; Xu, K.; Ha, N.; Cheng, Y.; Ou, R.; Ma, Q.; Hu, Y.; Trinh, V.; Ren, G.; Li, Z.; et al. Reversible Room Temperature H2 Gas Sensing Based on Self-Assembled Cobalt Oxysulfide. Sensors 2022, 22, 303. [Google Scholar] [CrossRef] [PubMed]
  22. Cheng, Y.; Ren, B.; Xu, K.; Jeerapan, I.; Chen, H.; Li, Z.; Ou, J.Z. Recent progress in intrinsic and stimulated room-temperature gas sensors enabled by low-dimensional materials. J. Mater. Chem. C 2021, 9, 3026–3051. [Google Scholar] [CrossRef]
  23. Xu, K.; Ha, N.; Hu, Y.; Ma, Q.; Chen, W.; Wen, X.; Ou, R.; Trinh, V.; McConville, C.F.; Zhang, B.Y.; et al. A room temperature all-optical sensor based on two-dimensional SnS2 for highly sensitive and reversible NO2 sensing. J. Hazard. Mater. 2022, 426, 127813. [Google Scholar] [CrossRef]
  24. Alkathiri, T.; Xu, K.; Zhang, B.Y.; Khan, M.Y.; Jannat, A.; Syed, N.; Almutairi, A.F.M.; Ha, N.; Alsaif, M.M.Y.A.; Pillai, N.; et al. 2D Palladium Sulphate for Visible-Light-Driven Optoelectronic Reversible Gas Sensing at Room Temperature. Small Sci. 2022, 2, 2100097. [Google Scholar] [CrossRef]
  25. Li, K.; Du, C.; Gao, H.; Yin, T.; Yu, Y.; Wang, W. Ultra-fast and linear polarization-sensitive photodetectors based on ReSe2/MoS2 van der Waals heterostructures. J. Mater. 2022, 8, 1158–1164. [Google Scholar] [CrossRef]
  26. Abdelazeez, A.A.A.; Trabelsi, A.B.G.; Alkallas, F.H.; Rabia, M. Successful 2D MoS2 nanosheets synthesis with SnSe grid-like nanoparticles: Photoelectrochemical hydrogen generation and solar cell applications. Sol. Energy 2022, 248, 251–259. [Google Scholar] [CrossRef]
  27. Zhao, W.; Yan, R.; Li, H.; Ding, K.; Chen, Y.; Xu, D. Highly sensitive NO2 gas sensor with a low detection limit based on Pt-modified MoS2 flakes. Mater. Lett. 2023, 330, 133386. [Google Scholar] [CrossRef]
  28. Li, W.; Li, H.; Qian, R.; Zhuo, S.; Ju, P.; Chen, Q. CTAB Enhanced Room-Temperature Detection of NO2 Based on MoS2-Reduced Graphene Oxide Nanohybrid. Nanomaterials 2022, 12, 1300. [Google Scholar] [CrossRef]
  29. Li, W.; Shahbazi, M.; Xing, K.; Tesfamichael, T.; Motta, N.; Qi, D.C. Highly Sensitive NO2 Gas Sensors Based on MoS2@MoO3 Magnetic Heterostructure. Nanomaterials 2022, 12, 1303. [Google Scholar] [CrossRef]
  30. Xia, Y.; Wu, Z.; Qin, Z.; Chen, F.; Lv, C.; Zhang, M.; Shaymurat, T.; Duan, H. Wool-Based Carbon Fiber/MoS2 Composite Prepared by Low-Temperature Catalytic Hydrothermal Method and Its Application in the Field of Gas Sensors. Nanomaterials 2022, 12, 1105. [Google Scholar] [CrossRef]
  31. Wang, S.; Chen, W.; Li, J.; Song, Z.; Zhang, H.; Zeng, W. Low Working Temperature of ZnO-MoS2 Nanocomposites for Delaying Aging with Good Acetylene Gas-Sensing Properties. Nanomaterials 2020, 10, 1902. [Google Scholar] [CrossRef]
  32. Parthibavarman, M.; Vallalperuman, K.; Sathishkumar, S.; Durairaj, M.; Thavamani, K. A novel microwave synthesis of nanocrystalline SnO2 and its structural optical and dielectric properties. J. Mater. Sci. Mater. Electron. 2014, 25, 730–735. [Google Scholar] [CrossRef]
  33. Zhang, C.; Shao, X.; Li, C.; Wang, M.; Zhang, M.; Liu, Y. Electrospun nanofibers of p type NiO/n-type ZnO heterojunctions with enhanced photocatalytic activity. ACS Appl. Mater. Interfaces 2010, 2, 2915–2923. [Google Scholar] [CrossRef]
  34. Han, L.; Liu, J.; Wang, Z.; Zhang, K.; Luo, H.; Xu, B.; Zou, X.; Zheng, X.; Ye, B.; Yu, X. Shape-controlled synthesis of ZnSn(OH)6 crystallites and their HCHO-sensing properties. CrystEngComm 2012, 14, 3380–3386. [Google Scholar] [CrossRef]
  35. Chang, X.; Qiao, X.; Li, K.; Wang, P.; Xiong, Y.; Li, X.; Xia, F.; Xue, Q. UV assisted ppb level acetone detection based on hollow ZnO/MoS2 nanosheets core/shell heterostructures at low temperature. Sens. Actuators B Chem. 2020, 317, 128208. [Google Scholar] [CrossRef]
  36. Chakraborty, A.; Kebede, M. Preparation and characterization of WO3/Bi3O4Cl nanocomposite and its photocatalytic behavior under visible light irradiation. React. Kinet. Mech. Catal. 2012, 106, 83–98. [Google Scholar] [CrossRef]
  37. Lei, Y.; Guo, P.; Jia, M.; Wang, W.; Liu, J.; Zhai, J. One-step photo-deposition synthesis of TiO2 nanobelts/MoS2 quantum dots/rGO ternary composite with remarkably enhanced photocatalytic activity. J. Mater. Sci. 2020, 55, 14773–14786. [Google Scholar] [CrossRef]
  38. Liu, X.; Cheng, B.; Jifan, H.; Qin, H.; Jiang, M. Preparation, structure, resistance and methane-gas sensing properties of nominal La1−xMgxFeO3. Sens. Actuators B Chem. 2008, 133, 340–344. [Google Scholar] [CrossRef]
  39. Li, X.; Zhang, Y.; Bhattacharya, A.; Chu, X.; Liang, S.; Zeng, D. The formaldehyde sensing properties of CdGa2O4 prepared by co-precipitation method. Sens. Actuators B Chem. 2021, 343, 129834. [Google Scholar] [CrossRef]
  40. Liu, L.; Li, S.C.; Zhuang, J.; Wang, L.Y.; Zhang, J.B.; Li, H.Y.; Liu, Z.; Han, Y.; Jiang, X.X.; Zhang, P. Improved selective acetone sensing properties of Co-doped ZnO nanofibers by electrospinning. Sens. Actuator B Chem. 2011, 155, 782–788. [Google Scholar] [CrossRef]
  41. Xu, J.Q.; Xue, Z.G.; Qin, N.; Cheng, Z.X.; Xiang, Q. The crystal facet-dependent gas sensing properties of ZnO nanosheets: Experimental and computational study. Sens. Actuator B-Chem. 2017, 242, 148–157. [Google Scholar] [CrossRef]
  42. Li, Q.; Chen, D.; Miao, J.; Lin, S.; Yu, Z.; Han, Y.; Yang, Z.; Zhi, X.; Cui, D.; An, Z. Agmodified 3D reduced graphene oxide aerogel-based sensor with an embedded microheater for a fast response and high-sensitive detection of NO2. ACS Appl. Mater. Interfaces 2020, 12, 25243–25252. [Google Scholar] [CrossRef]
  43. Chen, Y.J.; Yu, L.; Feng, D.D.; Zhuo, M.; Zhang, M.; Zhang, E.D.; Xu, Z.; Li, Q.H.; Wang, T.H. Superior ethanol-sensing properties based on Ni-doped SnO2 p–n hetero-junction hollow spheres. Sens. Actuators B Chem. 2012, 166–167, 61–67. [Google Scholar] [CrossRef]
  44. Wang, X.; Liu, F.; Xie, X.; Xu, G.; Tian, J.; Cui, H. Au modifified single crystalline and polycrystalline composite tin oxide for enhanced n-butanol sensing performance. Powder Technol. 2018, 331, 270–275. [Google Scholar] [CrossRef]
  45. Li, Y.; Song, Z.; Li, Y.; Chen, S.; Li, S.; Li, Y.; Wang, H.; Wang, Z. Hierarchical hollow MoS2 microspheres as materials for conductometric NO2 gas sensors. Sens. Actuators B Chem. 2019, 282, 259–267. [Google Scholar] [CrossRef]
  46. Zhang, D.; Zhang, Y.; Fan, Y.; Luo, N.; Cheng, Z.; Xu, J. Micro-spherical ZnSnO3 material prepared by microwave-assisted method and its ethanol sensing properties. Chin. Chem. Lett. 2020, 31, 2087–2090. [Google Scholar] [CrossRef]
  47. Lei, M.; Zhou, X.; Zou, Y.; Ma, J.; Alharthic, F.A.; Alghamdi, A.; Yang, X.; Deng, Y. A facile construction of heterostructured ZnO/Co3O4 mesoporous spheres and superior acetone sensing performance. Chin. Chem. Lett. 2021, 32, 1998–2004. [Google Scholar] [CrossRef]
  48. Ding, P.; Xu, D.; Dong, N.; Chen, Y.; Xu, P.; Zheng, D.; Li, X. A high-sensitivity H2S gas sensor based on optimized ZnO-ZnS nano-heterojunction sensing material. Chin. Chem. Lett. 2020, 31, 2050–2054. [Google Scholar] [CrossRef]
  49. Luo, N.; Zhang, B.; Zhang, D.; Xu, J. Enhanced CO sensing properties of Pd modified ZnO porous nanosheets. Chin. Chem. Lett. 2020, 31, 2033–2036. [Google Scholar] [CrossRef]
  50. Xu, T.T.; Zhang, X.F.; Dong, X.; Deng, Z.P.; Huo, L.H.; Gao, S. Enhanced H2S gas-sensing performance of Zn2SnO4 hierarchical quasi-microspheres constructed from nanosheets and octahedra. J. Hazard. Mater. 2019, 361, B49–B55. [Google Scholar] [CrossRef]
  51. Mao, L.W.; Zhu, L.Y.; Wu, T.T.; Xu, L.; Jin, X.H.; Lu, H.L. Excellent long-term stable H2S gas sensor based on Nb2O5/SnO2 core-shell heterostructure nanorods. Appl. Surf. Sci. 2022, 602, 154339. [Google Scholar] [CrossRef]
  52. Yan, S.; Li, Z.; Li, H.; Wu, Z.; Wang, J.; Shen, W.; Fu, Y.Q. Ultra-sensitive room-temperature H2S sensor using Ag–In2O3 nanorod composites. J. Mater. Sci. 2018, 53, 16331–16344. [Google Scholar] [CrossRef]
Molecules 28 03230 g001 550

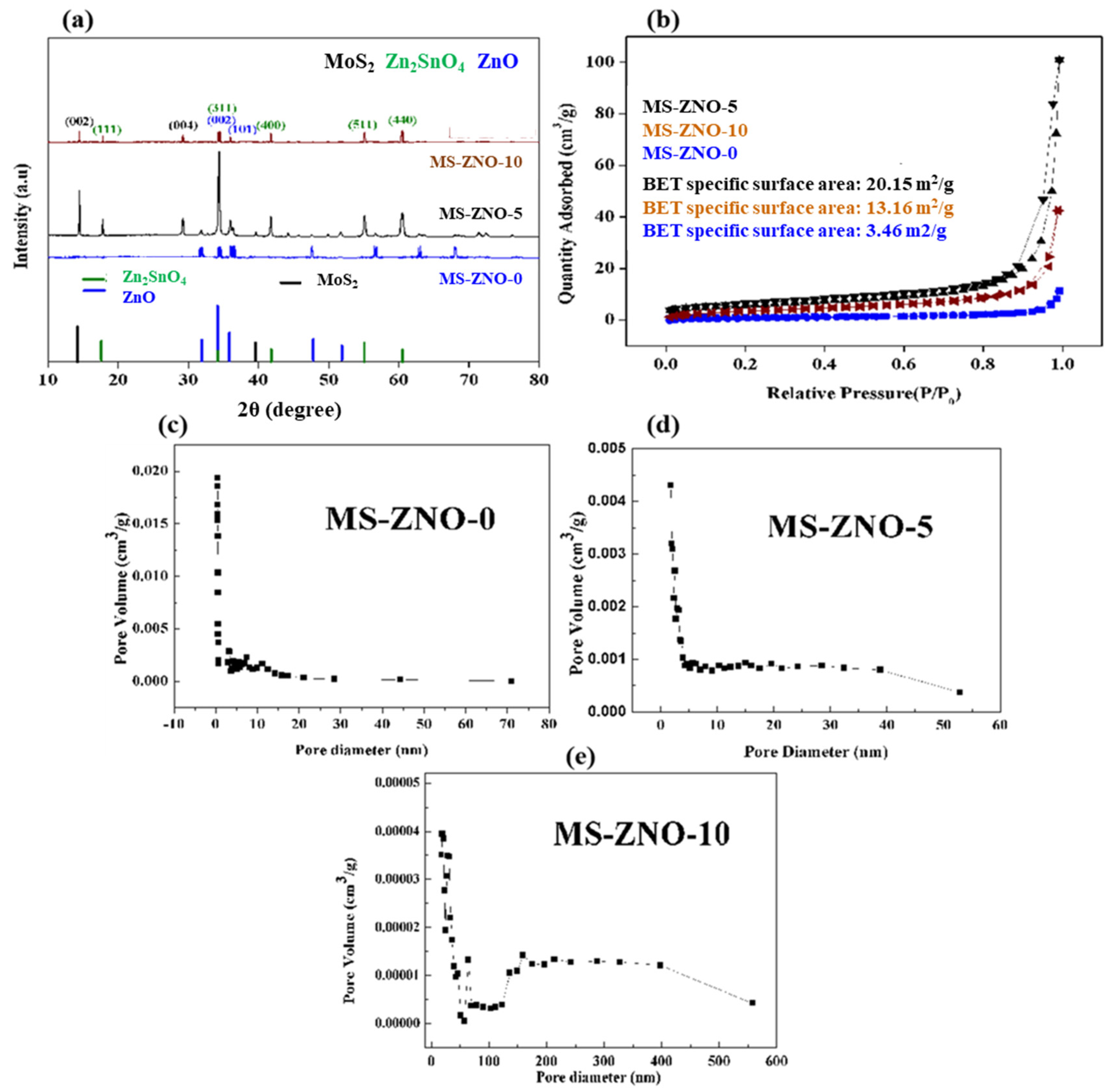

Figure 1. (a) XRD patterns; (b) N2 adsorption–desorption isotherms; (c) pore size distribution of MS-ZNO-0; (d) pore size distribution of MS-ZNO-5; (e) pore size distribution of MS-ZNO-10.
Figure 1. (a) XRD patterns; (b) N2 adsorption–desorption isotherms; (c) pore size distribution of MS-ZNO-0; (d) pore size distribution of MS-ZNO-5; (e) pore size distribution of MS-ZNO-10.
Molecules 28 03230 g001
Molecules 28 03230 g002 550

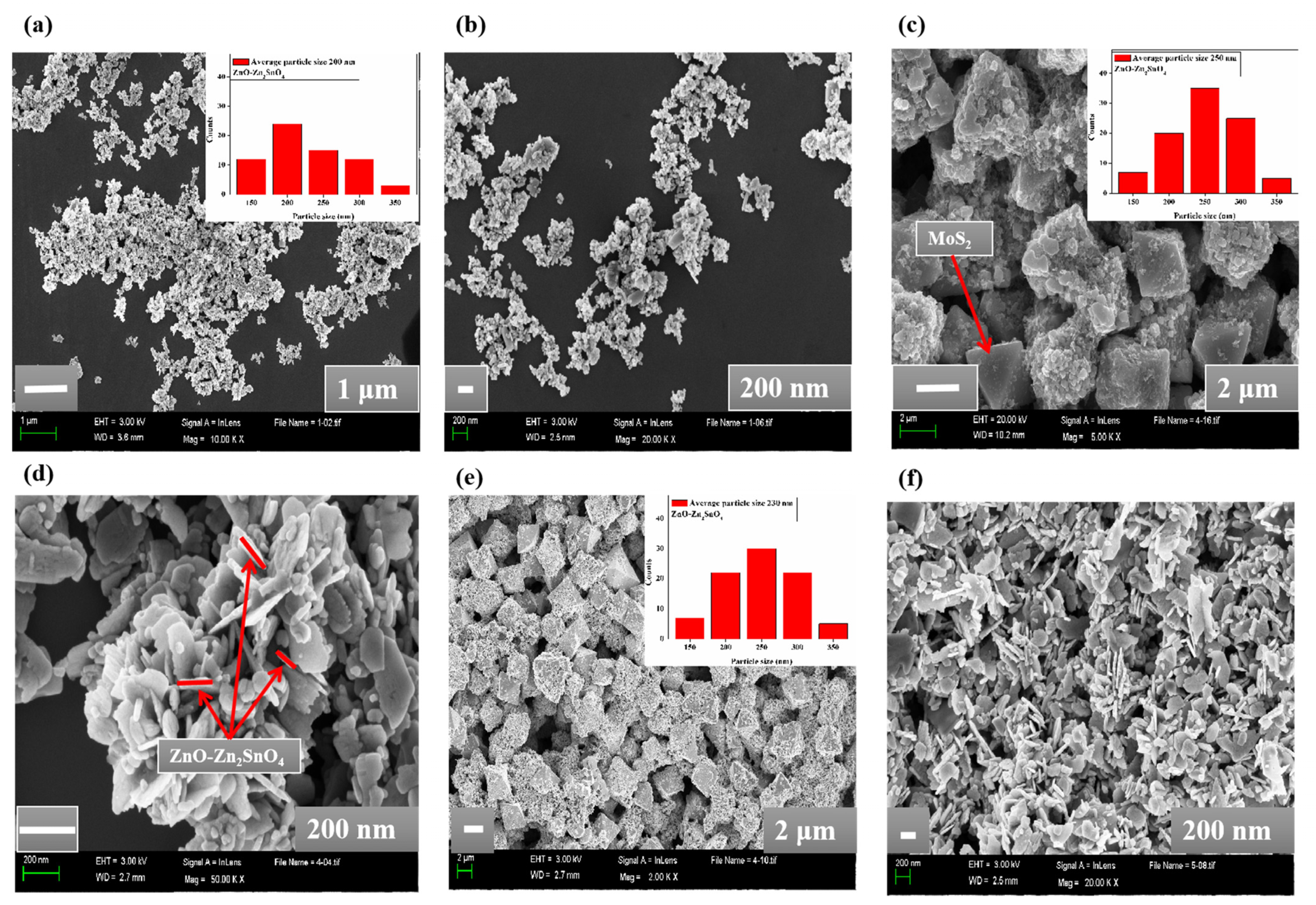

Figure 2. Morphologies of the nanocomposites: (a,b) SEM images of MS-ZNO-0; (c,d) SEM images of MS-ZNO-5; (e,f) SEM images of MS-ZNO-10.
Figure 2. Morphologies of the nanocomposites: (a,b) SEM images of MS-ZNO-0; (c,d) SEM images of MS-ZNO-5; (e,f) SEM images of MS-ZNO-10.
Molecules 28 03230 g002
Molecules 28 03230 g003 550

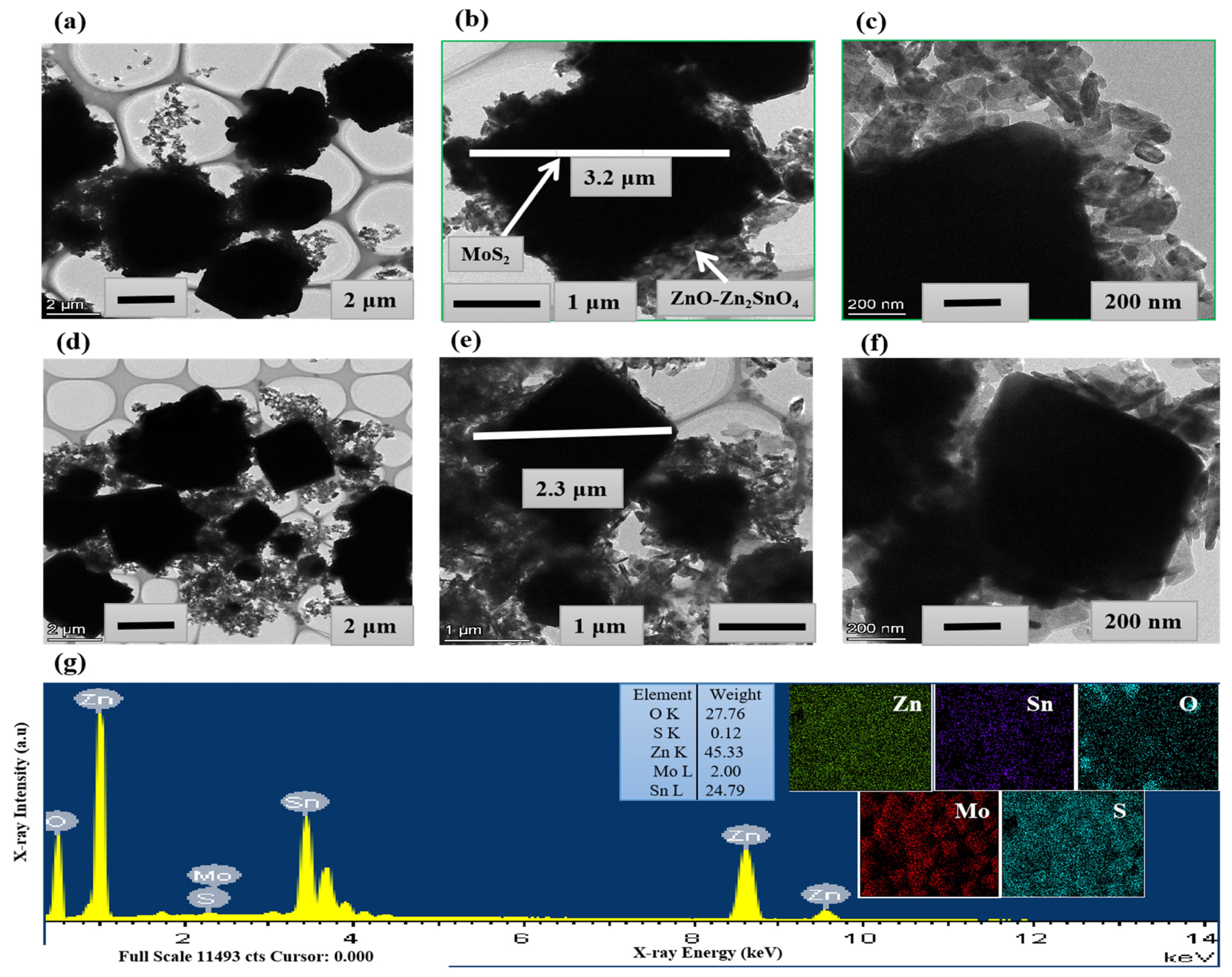

Figure 3. (a–c) TEM images of MS-ZNO-5; (d–f) TEM images of MS-ZNO-10; (g) EDS mapping and spectrum of all elements in MS-ZNO-5.
Figure 3. (a–c) TEM images of MS-ZNO-5; (d–f) TEM images of MS-ZNO-10; (g) EDS mapping and spectrum of all elements in MS-ZNO-5.
Molecules 28 03230 g003
Molecules 28 03230 g004 550

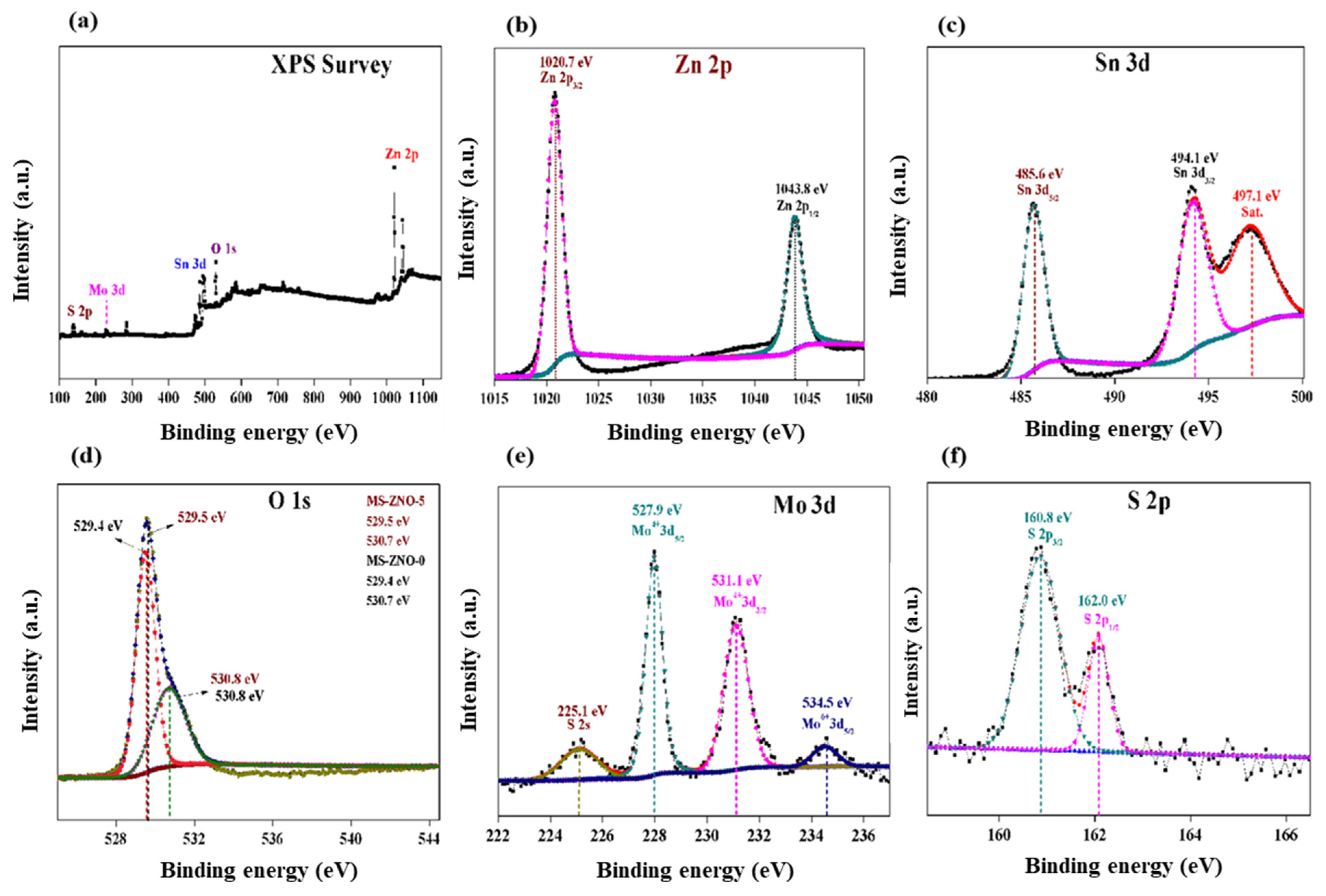

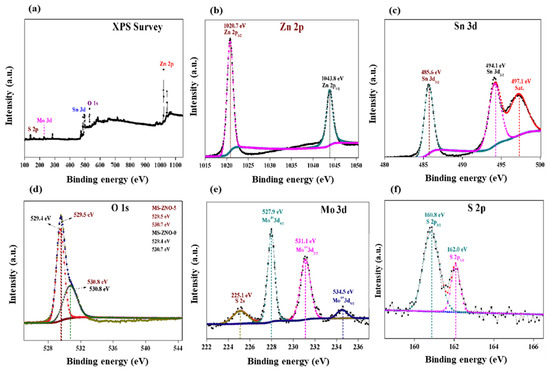

Figure 4. (a) XPS survey of MS-ZNO-5; (b,c) Zn 2p and Sn 3d spectrum’s of MS-ZNO-5; (d) O 1s spectrum of MS-ZNO-5 and MS-ZNO-0; (e,f) Mo 3d and S 2p spectrum’s of MS-ZNO-5.
Figure 4. (a) XPS survey of MS-ZNO-5; (b,c) Zn 2p and Sn 3d spectrum’s of MS-ZNO-5; (d) O 1s spectrum of MS-ZNO-5 and MS-ZNO-0; (e,f) Mo 3d and S 2p spectrum’s of MS-ZNO-5.
Molecules 28 03230 g004
Molecules 28 03230 g005 550

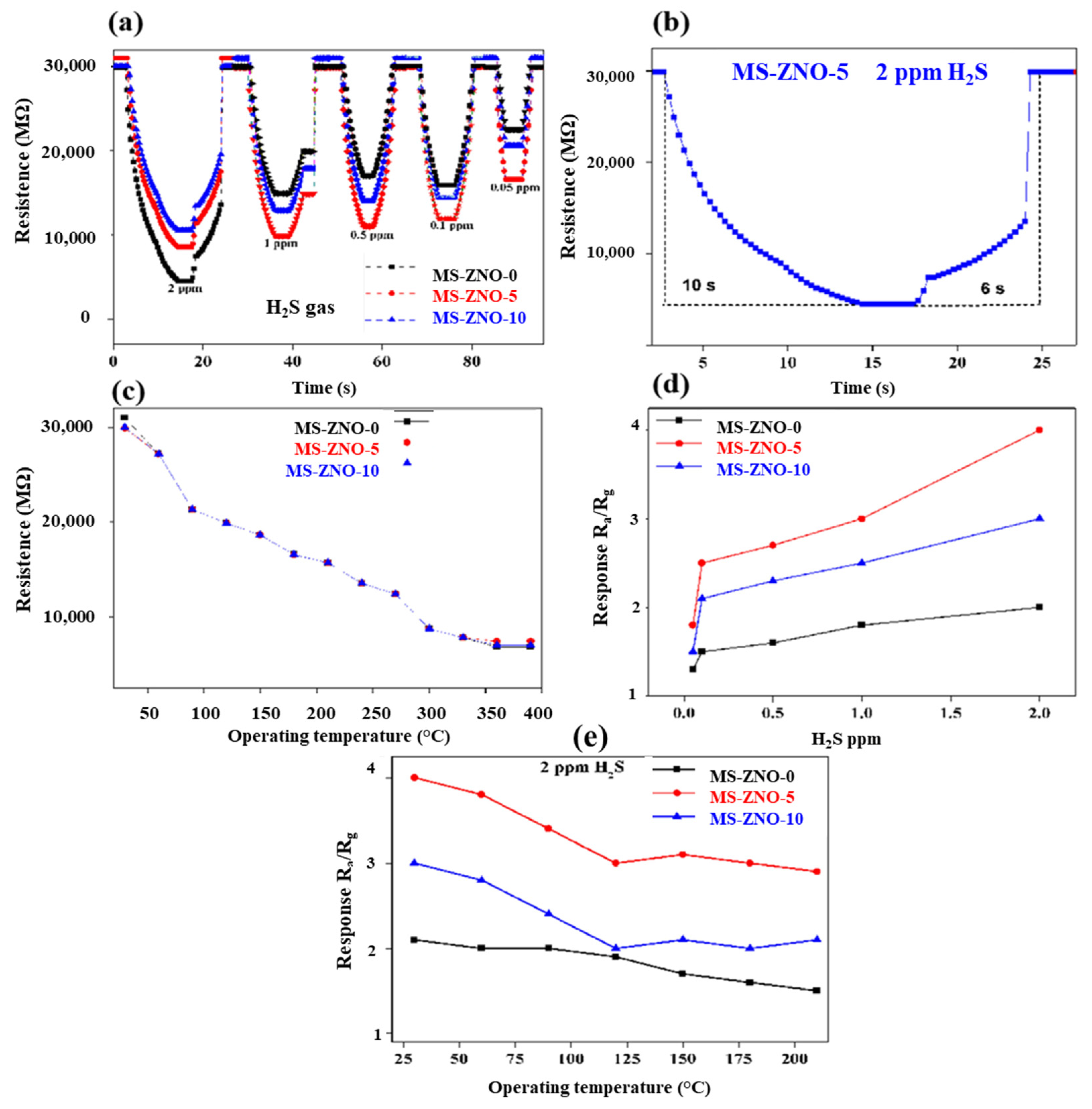

Figure 5. (a) Dynamic responses of all sensors to H2S 0.05-2 ppm at the operating temperature of 30 °C; (b) response/recovery diagram of MS-ZNO-5 towards 2 ppm H2S; (c) temperature resistance of pure and composite materials towards 2 ppm in the air at 30 °C; (d) graph of the relationship between the different concentration of H2S ppm and response at 30 °C; (e) the responses of all sensors towards 2 ppm H2S at various operating temperatures.
Figure 5. (a) Dynamic responses of all sensors to H2S 0.05-2 ppm at the operating temperature of 30 °C; (b) response/recovery diagram of MS-ZNO-5 towards 2 ppm H2S; (c) temperature resistance of pure and composite materials towards 2 ppm in the air at 30 °C; (d) graph of the relationship between the different concentration of H2S ppm and response at 30 °C; (e) the responses of all sensors towards 2 ppm H2S at various operating temperatures.
Molecules 28 03230 g005
Molecules 28 03230 g006 550

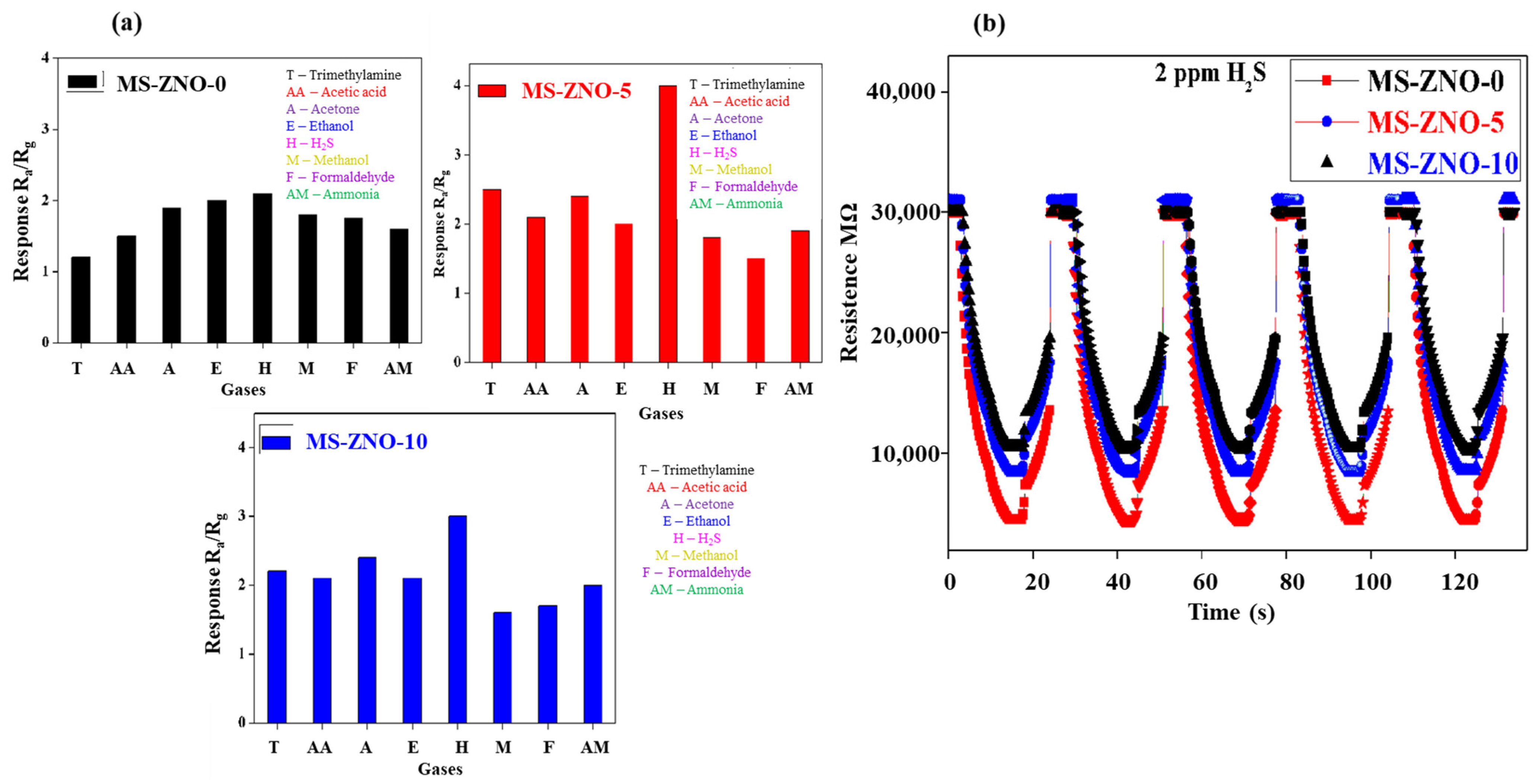

Figure 6. (a) Responses of MS-ZNO-0, MS-ZNO-5 and MS-ZNO-10 towards different gases (2 ppm); (b) reproducibility graphs of MS-ZNO-0, MS-ZNO-5 and MS-ZNO-10.
Figure 6. (a) Responses of MS-ZNO-0, MS-ZNO-5 and MS-ZNO-10 towards different gases (2 ppm); (b) reproducibility graphs of MS-ZNO-0, MS-ZNO-5 and MS-ZNO-10.
Molecules 28 03230 g006
Molecules 28 03230 g007 550

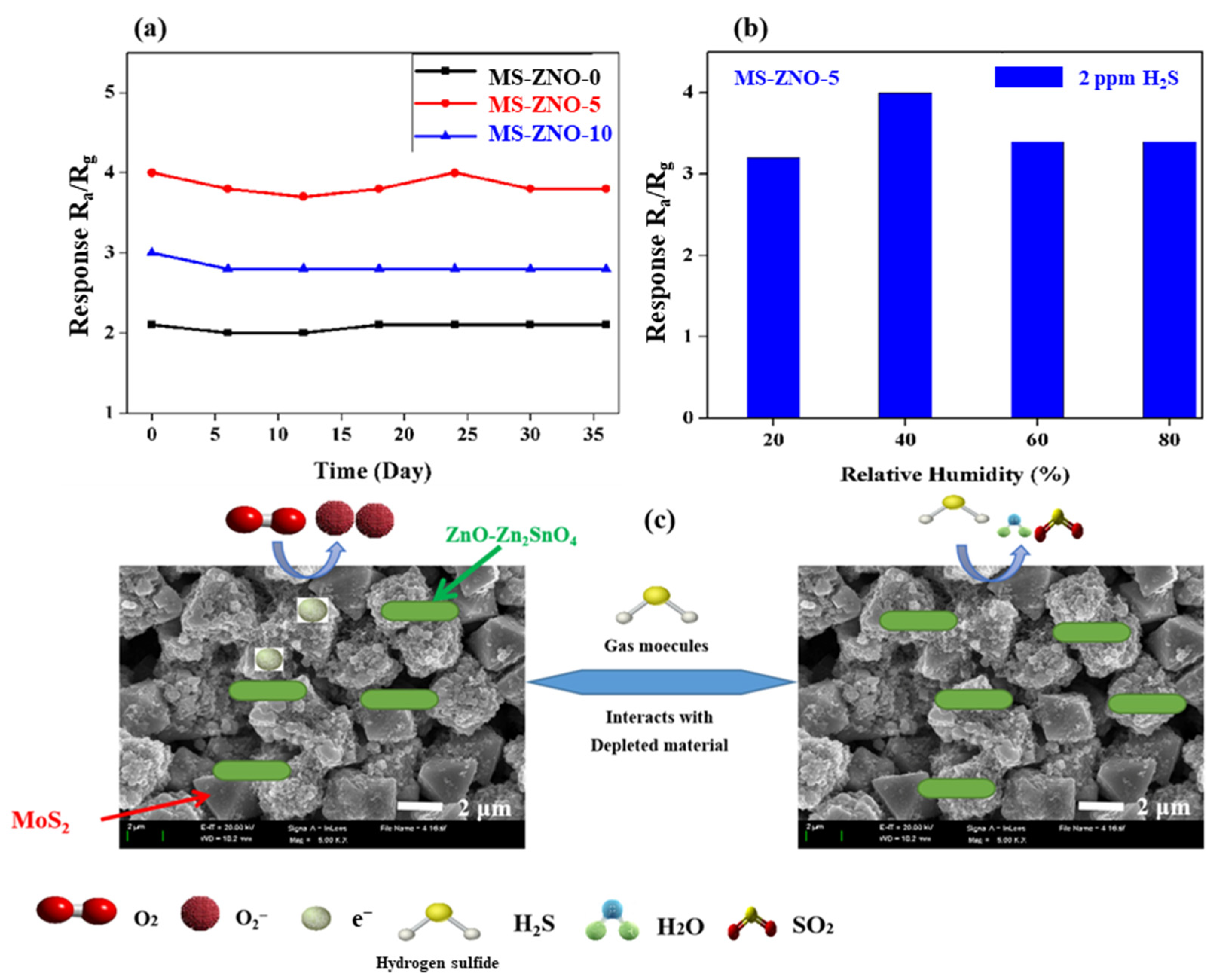

Figure 7. (a) The stability graph; (b) relationship between response of MS−ZNO−5 to 2 ppm H2S and different relative humidity at 30 °C; (c) diagram of gas sensing mechanism.
Figure 7. (a) The stability graph; (b) relationship between response of MS−ZNO−5 to 2 ppm H2S and different relative humidity at 30 °C; (c) diagram of gas sensing mechanism.
Molecules 28 03230 g007
Molecules 28 03230 g008 550

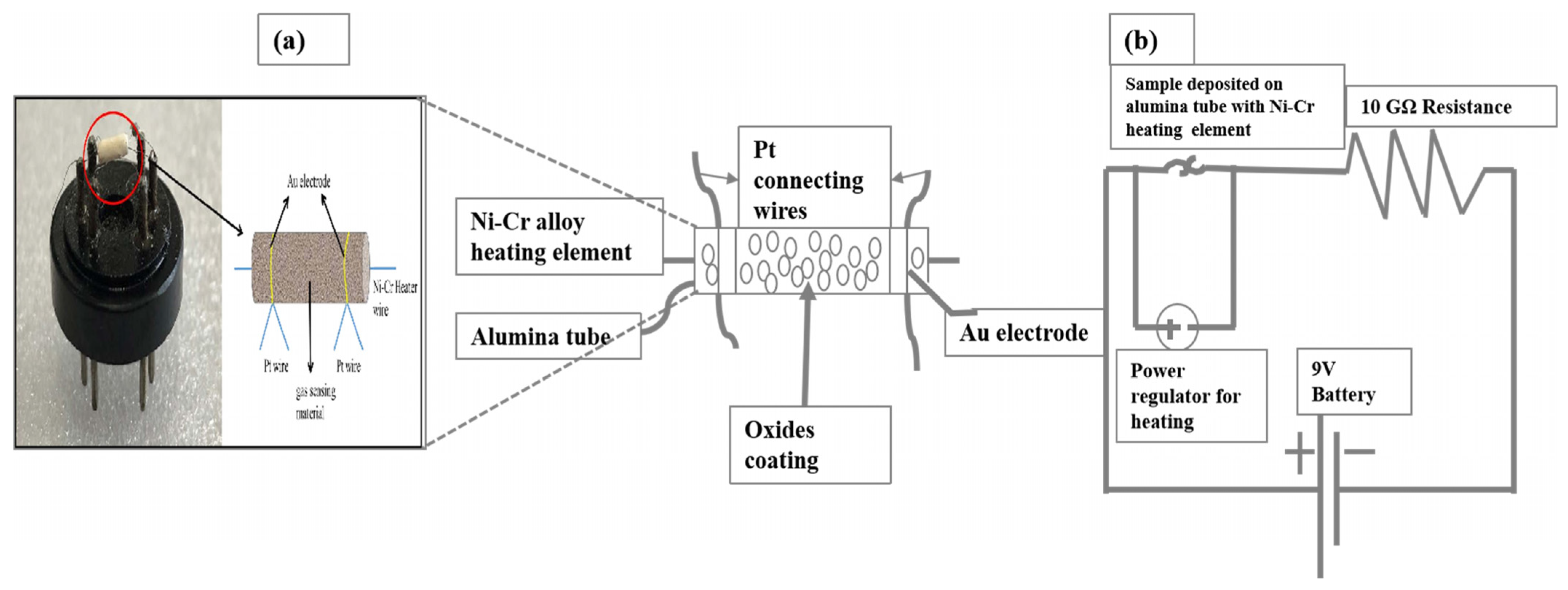

Figure 8. (a) The gas sensor device diagram and (b) the electrical circuit [8].
Figure 8. (a) The gas sensor device diagram and (b) the electrical circuit [8].
Molecules 28 03230 g008
