Study on Benzylamine(BZA) and Aminoethylpiperazine(AEP) Mixed Absorbent on Ship-Based Carbon Capture

Abstract

To find suitable absorbents for ship-based carbon capture, the absorption and desorption properties of four mixed aqueous amines based on BZA were investigated, and the results indicated that BZA-AEP had the best absorption and desorption performance. Then, the absorption and desorption properties of different mole ratios of BZA-AEP were tested. The results showed that the average CO₂ absorption rate had the highest value at the mole ratio of BZA to AEP of three. The average CO₂ desorption rate had the maximum value at the mole ratio of BZA to AEP of one. Three fitted models of the absorption and desorption performance of BZA-AEP based on the test data were obtained. The p-values of all three models were less than 0.0001. Considering the performance and material cost, the BZA-AEP mole ratio of 1.5 is more appropriate for ship carbon capture. Compared with MEA, the average CO₂ absorption rate increased by 48%, the CO₂ desorption capacity increased by 120%, and the average CO₂ desorption rate increased by 161%.

1. Introduction

Ship transport is by far the most carbon-efficient mode of commercial transport, and it accounts for about 3% of total global greenhouse gas emissions [1]. An initial strategy was drawn up at the International Maritime Organization (IMO) strategy meeting in April 2018 to peak greenhouse gas emissions from international shipping as soon as possible [2], reducing total annual greenhouse gas emissions by at least 50% by 2050 compared to 2008.

Carbon Capture and Storage (CCS) is one of the most important measures to reduce CO₂ emissions in international shipping. Luo and Wang [3] estimated the Ship-Based Carbon Capture (SBCC) cost for a cargo ship with a total power of 17 MW. The Post-combustion Carbon Capture (PCC) process integrated with the existing ship energy system can only achieve a 73% carbon capture level. The cost of capturing CO₂ is about 77.50 EUR/t CO₂. Feenstra et al. [4] performed ship-based carbon capture simulations for 1280 kW and 3000 kW power ships, and the cost of SBCC for an inland 1280 kW diesel-fueled ship using 30 wt% MEA was 389 EUR/t CO₂ (60% capture level) and 296 EUR/t CO₂ (80% capture level). In this case, a capture level of 90% could not be achieved because the exhaust gas from the diesel engine does not provide enough energy for solvent regeneration. Switching to piperazine as a chemical absorption solvent for 1280 kW ships allows the desorption of CO₂ at higher pressures, thus saving on compression systems and overall costs. For diesel-fueled ships, the costs are 304 EUR/t CO₂ for a 60% capture level and 207 EUR/t CO₂ for a 90% capture level. SBCC for 3000 kW LNG-fueled ships costs 120 EUR/t CO₂ using 30 wt% MEA and 98 EUR/t CO₂ using piperazine, which can achieve a 90% capture level. However, in the aluminum industry, the cost of carbon capture using MEA is around 55 EUR/t CO₂ for the flue gas CO₂ with a concentration of 5% [5]. At the same exhaust gas concentration, the current carbon capture cost in the marine industry is too high compared to other sectors. Therefore, it is necessary to further reduce the cost of SBCC, the core of which is the absorbent selection.

The limited space and residual heat are vital factors limiting SBCC [6]. Therefore, according to voyage type, there are different requirements for the characteristics of marine absorbents. Ships with short voyages may only install absorption towers on the ship and regenerate the rich solvent centrally off the ship. In this case, a high CO₂ load and fast CO₂ absorption rate are required for the absorbent. Ships with long voyages need to install a complete carbon capture system (absorption tower, desorption tower, and carbon dioxide storage equipment). Their absorbent requirements are a fast CO₂ absorption rate, fast CO₂ desorption rate, high CO₂ desorption capacity, and low energy consumption.

The absorbent is the key to the carbon capture system. The most widely used method for PCC is chemical absorption. The amine absorbent is the most mature process in the chemical absorption method [7], where ethanolamine (MEA) is the most commonly used. Although MEA has the advantage of a fast CO₂ absorption rate, it has the disadvantages of easy degradation [8,9], high corrosiveness [10,11,12], and high energy consumption for regeneration. In addition, the International Labor Organization (ILO) said that MEA [13] is harmful to aquatic organisms, and the substance may cause long-term effects on the marine environment.

Amines are classified as primary, secondary, or tertiary according to the number of carbons bonded directly to the nitrogen atom. Primary amines have one carbon bonded to nitrogen. Secondary amines have two carbons bonded to nitrogen, and tertiary amines have three carbons bonded to nitrogen. The reaction process of primary and secondary amines with CO₂ can be explained by zwitterion [14] and trimolecular [15] mechanisms, while the reaction process of tertiary amines with CO₂ can be explained by the base-catalyzed hydration mechanism. The reaction (1) of primary amines with CO₂ and the reaction (2) of secondary amines with CO₂ mainly produce carbamates. The reaction (3) of tertiary amines with CO₂ mainly produces bicarbonates, where n represents the number of amino groups in a single molecule. Primary and secondary amines generally react with CO₂ faster, but their CO₂ load is lower. Tertiary amines generally react with CO₂ more slowly, but their CO₂ load is higher. Therefore, a mixture of both types of amines is considered to combine their advantages.

$${\mathrm{nCO}}_2+2{\mathrm{RN}}_{\mathrm{n}}{\mathrm{H}}_{2\mathrm{n}}\iff {\mathrm{RN}}_{\mathrm{n}}{\mathrm{H}}_{\mathrm{n}}{\left({\mathrm{COO}}^{-}\right)}_{\mathrm{n}}+{\mathrm{RN}}_{\mathrm{n}}{\mathrm{H}}_{3\mathrm{n}}^{+}$$

(1)

$${\mathrm{nCO}}_2+2{\mathrm{RN}}_{\mathrm{n}}{\mathrm{H}}_{\mathrm{n}}\iff {\mathrm{RN}}_{\mathrm{n}}{\left({\mathrm{COO}}^{-}\right)}_{\mathrm{n}}+{\mathrm{RN}}_{\mathrm{n}}{\mathrm{H}}_{2\mathrm{n}}^{+}$$

(2)

$${\mathrm{nCO}}_2+{\mathrm{RN}}_{\mathrm{n}}+{\mathrm{nH}}_2\mathrm{O}\iff {\mathrm{R}}_1{\mathrm{R}}_2{\mathrm{R}}_3{\mathrm{N}}_{\mathrm{n}}{\mathrm{H}}^{+}+{\mathrm{nHCO}}_3^{-}$$

(3)

The published literature indicated that Benzylamine (BZA) has better absorption performance than MEA. Richner et al. [16] evaluated the facilitation of MDEA by MEA, DEA, and BZA. The results showed that the CO₂ absorption rate of MDEA increased by BZA was the highest. Conway et al. [17] measured the mass transfer coefficients of MEA and BZA. They found that the mass transfer coefficient of BZA was more excellent at the same concentration and the difference between BZA and MEA was more significant as the concentration increased. Richner et al. [18] observed that BZA has similar reaction kinetics to MEA. BZA has a larger negative enthalpy, which is usually favorable for the absorption rate [19]. However, BZA absorbs CO₂ to form precipitates at high concentrations (≥50 wt%). Gao et al. [20] identified that the mixture of MEA and BZA would form a precipitate with a high CO₂ load. Mukherjee et al. [21] used an artificial neural network (ANN) model to predict the CO₂ solubility of a mixture of BZA and N-(2-aminoethyl)-ethanolamine (AEEA). Zheng et al. [22] investigated the reaction kinetics of BZA with CO₂ using a stopped-flow apparatus. They showed that BZA has a higher secondary reaction rate and lower activation energy compared to MEA, diethanolamine (DEA), methyl diethanolamine (MDEA), and 2-amino-2-methyl-1-propanol (AMP). The values predicted by the zwitterion and the termolecular mechanism models were compared with the experimental values with absolute average deviation (AAD) of 5.15% and 4.15%, respectively. Both models could be used to explain the reaction kinetics of BZA with CO₂. Puxty et al. [23] studied the effect of nine co-solvents on the vapor pressure of BZA, among which imidazole was the most effective in reducing the vapor pressure of BZA. Chen et al. [24] examined the performance of BZA mixed with MEA. The CO₂ load of BZA-MEA mixed absorbent with different concentration ratios did not vary significantly, and BZA should not exceed 3M in the starting solution to avoid the formation of white precipitation, which would hinder further absorption of CO₂.

Theoretically, BZA has lower energy consumption than MEA for desorption. The heat capacity of BZA [25] (25 °C, 1.93 J·g⁻¹·K⁻¹) is smaller than MEA [26] (30 °C, 2.74 J·g⁻¹·K⁻¹). Through theoretical calculations, Mukherjee et al. [27,28,29] concluded that BZA has a small reaction energy potential barrier (∼26 kJ/mol). Later, the heat of absorption and heat capacity of BZA, AEEA, and their mixtures in aqueous solutions were measured using an automated reaction calorimeter, and the results showed that the solution heat capacity increased with increasing temperature. Moreover, for the BZA-AEEA mixture, the solution heat capacity increased with the larger percentage of AEEA concentration.

The aromatic structure makes BZA low-corrosive and highly stable. Martin et al. [30] compared the corrosiveness and stability of 22 amines. They noted that the MEA solution was highly corrosive to carbon steel and stainless steel, while BZA was less corrosive. The degradation rate of MEA was more than twice that of BZA after 14 days at 140 °C and 0.5 MPa with the influx of a gas mixture of 75% CO₂, 20% N_2, and 5% O₂. Because aromatic compounds form a protective film on metal surfaces, they are considered intrinsically non-corrosive [31]. BZA is excellently biodegradable [32], with 96.1–98.9% degradation after six days in lake water [33].

Although the available literature indicates that BZA has the advantages of a fast CO₂ absorption rate, low heat capacity, high stability, low corrosiveness, and easy biodegradation, BZA has a lower desorption capacity like MEA. Ship-based carbon capture absorbents need to have a large desorption capacity. Therefore, this paper examines the absorption and desorption properties of four mixed aqueous amines based on BZA to further increase the desorption capacity of BZA.

2. Results and Discussion

2.1. Absorption and Desorption Properties of Mixed Aqueous Amines Based on BZA

BZA, as the primary amine, has a fast CO₂ absorption rate, but its CO₂ desorption capacity is relatively low. Tertiary amines and steric hindrance amines have low CO₂ absorption rates and high CO₂ desorption capacity. For this reason, four amines (DMEA, DEEA, AEP, and AMP) were selected to improve the CO₂ desorption capacity of BZA. The absorption and desorption performance of the four mixed aqueous amines based on BZA was investigated with a total amine concentration of 3 mol/kg and a ratio of 2:1 between BZA and each of the four amines.

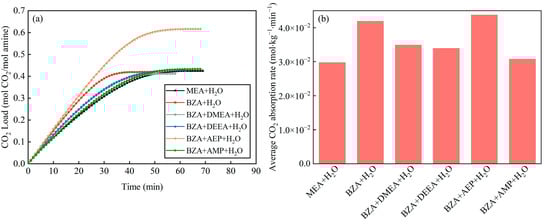

According to the change in the CO₂ load of the mixed aqueous amines, it can be seen in Figure 1a that the mixture of BZA-AEP increased the CO₂ load by 45% relative to MEA and 47% relative to BZA. Compared to BZA, the other three mixed aqueous amines did not increase the CO₂ load much because DMEA, DEEA, and AMP all have only one amino group per molecule for CO₂ fixation, while AEP has three amino groups per molecule. As can be seen in Figure 1b, the BZA absorption rate is faster than MEA, and BZA has a larger negative CO₂ absorption enthalpy than typical amines due to its structural rigidity [31], which facilitates the absorption reaction. When the lone pair of electrons of the nitrogen on the amino group is distributed to form a bond, the reduction of the supplied electron sites will limit the activity of the reaction of the amine with carbon dioxide [34]. In contrast, the lone pair of electrons on the ammonia atom of BZA is not delocalized into the Π system of the benzene ring by the presence of the carbon atom [18]. The average CO₂ absorption rates of BZA-DMEA, BZA-DEEA, BZA-AEP, and BZA-AMP were increased by 17%, 14%, 47%, and 3%, respectively, relative to MEA. Relative to BZA, the average CO₂ absorption rates of BZA-DMEA, BZA-DEEA, and BZA-AMP decreased to different extents. Among them, the average CO₂ absorption rate of the BZA-AMP absorbent decreased the most. The reason for this is the formation of intramolecular hydrogen bonds in solution, when the lone pair of electrons of nitrogen is distributed into bonds, the supply electron sites are reduced, which limits the activity of amine reaction in CO₂ [34]. AMP makes the carbamate unstable due to the steric hindrance effect, which limits the CO₂ absorption rate. The average CO₂ absorption rate of BZA-AEP absorbent was slightly increased compared with that of BZA because AEP has three amino groups, increasing the reaction site with CO₂ [35]. No precipitation was produced during the absorption experiments.

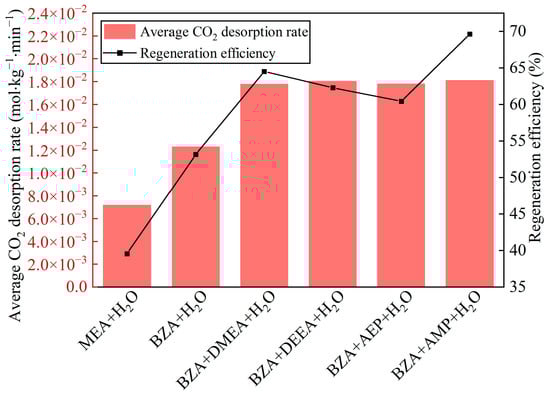

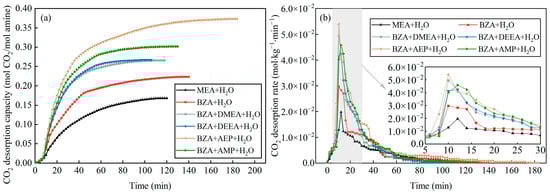

According to the variation of mixed aqueous amine CO₂ desorption capacity, it can be seen from Figure 2a that the equilibrium desorption time was shortened for BZA-DMEA, BZA-DEEA, and BZA-AMP and extended for BZA-AEP relative to BZA. BZA-AEP has the largest CO₂ desorption capacity, reaching 0.373 mol CO₂/mol amine, which improved by 122% compared to MEA and 67% to BZA. The CO₂ desorption capacity of BZA-DMEA, BZA-DEEA, and BZA-AMP was enhanced by 58%, 59%, and 79%, respectively, in contrast to MEA and by 19%, 20%, and 35%, respectively, in comparison to BZA. The carbamate formed by tertiary amines after absorbing carbon dioxide is less stable than primary amines. At the same time, according to Sartori and Savage [36], the compound is susceptible to hydrolysis reactions of carbamates due to steric hindrance effects. A large number of substitutions in the steric hindrance amine will reduce the stability of the carbamate and thus achieve a higher CO₂ desorption capacity [37]. As shown in Figure 2b, the CO₂ desorption rate of the absorbents gradually increased in the first 10 min because the desorption experiment started from 50 °C with a certain heating time to reach the desorption temperature. Then, the CO₂ desorption rate began to decrease as the CO₂ load in the solution gradually reduced. The maximum CO₂ desorption rate of BZA-AEP increased the most, by 173% over MEA and 81% over BZA. In comparison to MEA, BZA-DMEA, BZA-DEEA, and BZA-AMP, the maximum CO₂ desorption rates grew 150%, 114%, and 132%, respectively. Compared to BZA, the maximum CO₂ desorption rates increased by 66%, 42%, and 54%, respectively. The CO₂ desorption rates did not change much until 10 min and changed very minimally after 60 min. In Figure 3, it is apparent that adding DMEA, DEEA, AEP, and AMP increases the average CO₂ desorption rate of BZA. In addition, the degree of improvement is basically the same, which is about 150% compared to MEA and about 45% compared to BZA. Moreover, it was found that four mixed aqueous amines had a regeneration efficiency of around 65%. The reason for the high CO₂ desorption capacity and high CO₂ desorption rate of BZA-AEP may be the presence of steric hindrance in branched alkanolamines, which results in faster desorption rates, higher cycle capacities, and lower regeneration heat loads than the straight-chain amine analogs [38].

2.2. Effect of BZA and AEP Concentration Ratio

A comparison of the absorption and desorption performance of four mixed aqueous amines based on BZA revealed that BZA-AEP performed better. The experiments were designed using the simplex lattice design method to investigate the effect of different concentration ratios of BZA-AEP on both absorption and desorption performance. A description of the experimental design can be found in

Table 1. Experimental design.

Std	Run	BZA (mol/kg)	AEP (mol/kg)
6	1	3	0
2	2	0	3
1	3	3	0
3	4	1.5	1.5
5	5	0.75	2.25
7	6	0	3
8	7	1.5	1.5
4	8	2.25	0.75

.

2.2.1. Absorption and Desorption Performance

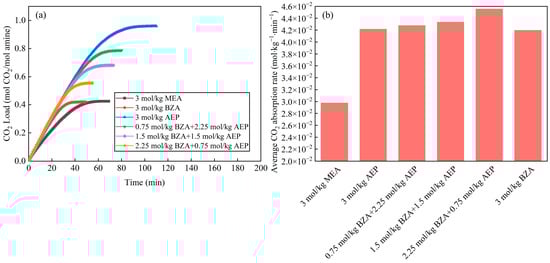

The effects of the BZA-AEP concentration ratio on CO₂ load are shown in Figure 4a, which shows that a higher BZA concentration results in a shorter absorption equilibrium time, while a higher AEP concentration results in a higher CO₂ load. The CO₂ load and absorption equilibration time have excellent linear relationships with the concentration ratio. The CO₂ load of BZA-AEP increased by 30~85% relative to MEA. Figure 4b shows that the average CO₂ absorption rate of BZA-AEP shot up by 41~53% relative to MEA. With an increase in BZA concentration, the average CO₂ absorption rate increased and then decreased. A BZA to AEP concentration ratio of about three was the most optimal. No precipitation was found in the absorption process when observing different concentration ratios of BZA-AEP absorbents. Zhang et al. [39] investigated the CO₂ absorption and desorption performance of a mixed aqueous amine of MEA, N-methyldiethanolamine (MDEA), and piperazine (PZ) as a CO₂ capture solvent. The total concentration of the mixed aqueous amine was 6M, mixing different amine molar ratios. Among them, 3M MEA-1.5M MDEA-1.5M PZ showed the best absorption and desorption performance, the average CO₂ absorption rate was increased by 20% compared with 5M MEA. The result is obvious; compared with 3M MEA-1.5M MDEA-1.5M PZ, the average CO₂ absorption rate of BZA-AEP is more improved than conventional absorbent (MEA).

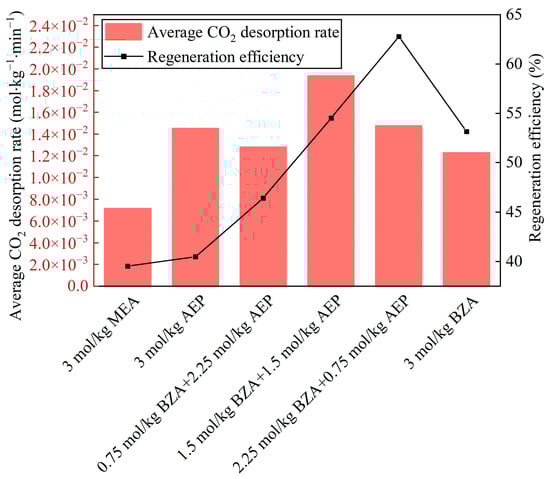

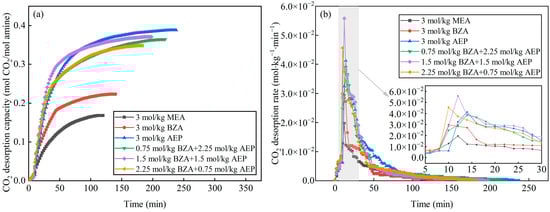

The BZA-AEP concentration ratio affects CO₂ desorption capacity and rate. Figure 5a illustrates the variation in the CO₂ desorption capacity of BZA-AEP with time. The desorption equilibrium time increases as the proportion of AEP concentration increases. Although AEP has a high CO₂ load, most of it cannot be desorbed, and mixing it with BZA enhances its regeneration efficiency. The CO₂ desorption capacity of BZA-AEP is increased by 33~131% relative to MEA. Moreover, the thermal degradation of AEP is relatively high. In Figure 5b, it is shown that the time to reach the maximum CO₂ desorption rate decreases with increasing BZA concentration. The maximum CO₂ desorption rate of BZA-AEP increased by 51% to 182% relative to MEA. It can be seen from Figure 6 that the average CO₂ desorption rate of BZA-AEP was increased by 70~170% compared to MEA, which had the highest value at a BZA to AEP concentration ratio of about one. The average CO₂ desorption rate of 3M MEA-1.5M MDEA-1.5M PZ mixed aqueous amines studied by Zhang et al. [39] was 119% faster than that of 5M MEA. When the concentration ratio of BZA to AEP was one, the average CO₂ desorption rate of BZA-AEP was more enhanced than that of traditional absorbent MEA relative to 3M MEA-1.5M MDEA-1.5M PZ. The highest regeneration efficiency is 63%, which has the largest value at a BZA to AEP concentration ratio of about three.

2.2.2. Fitted Model

Among the five indicators of absorption and desorption performance, the average CO₂ absorption rate, average CO₂ desorption rate, and CO₂ desorption capacity are the most important. According to the test points designed in Table 1, the three response indicators of average CO₂ absorption rate (Y₁), average CO₂ desorption rate (Y₂), and CO₂ desorption capacity (Y₃) were fitted with polynomials to explore the relationship between BZA concentration (X₁) and AEP (X₂) concentration and these three.

In the model for the average CO₂ absorption rate, its F-value of 513.19 implies the model is significant (p-value < 0.0001). In this case ${\mathrm{X}}_1$, ${\mathrm{X}}_2$, ${\mathrm{X}}_1{\mathrm{X}}_2$, ${\mathrm{X}}_1^2{\mathrm{X}}_2$, ${\mathrm{X}}_1{\mathrm{X}}_2^2$, ${\mathrm{X}}_1^3{\mathrm{X}}_2$, ${\mathrm{X}}_1^2{\mathrm{X}}_2^2$, and ${\mathrm{X}}_1{\mathrm{X}}_2^3$ are significant model terms. The ‘Adj R-Squared’ of 0.9966 is in reasonable agreement. The model for the average CO₂ desorption rate has an F-value of 1421.48, which indicates that the model is significant (p-value < 0.0001). There are significant model terms associated with ${\mathrm{X}}_1$, ${\mathrm{X}}_2$, ${\mathrm{X}}_1{\mathrm{X}}_2$, ${\mathrm{X}}_1^2{\mathrm{X}}_2$, ${\mathrm{X}}_1{\mathrm{X}}_2^2$, ${\mathrm{X}}_1^3{\mathrm{X}}_2$, ${\mathrm{X}}_1^2{\mathrm{X}}_2^2$, and ${\mathrm{X}}_1{\mathrm{X}}_2^3$ in this case. The ‘Adj R-Squared’ of 0.9988 is in reasonable agreement. Considering the F-value of 2277.16 for the model of CO₂ desorption capacity, it is evident that the model is significant (p-value < 0.0001). It should be noted that model terms ${\mathrm{X}}_1$, ${\mathrm{X}}_2$, ${\mathrm{X}}_1{\mathrm{X}}_2$, ${\mathrm{X}}_1^2{\mathrm{X}}_2$, and ${\mathrm{X}}_1{\mathrm{X}}_2^2$ are significant in this case. The ‘Adj R-Squared’ of 0.9990 is in reasonable agreement.

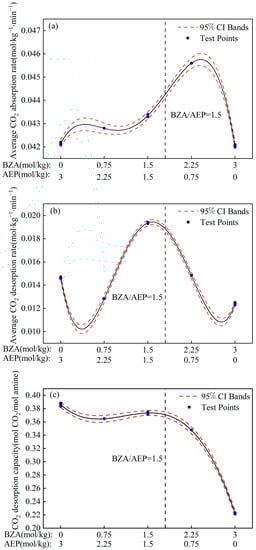

Figure 7 shows the fitted model for the three response indicators. It can be seen that the absorption and desorption performance is non-linearly related to the concentration ratio of BZA-AEP. There is an interaction between BZA and AEP. The average CO₂ absorption rate has a maximum value when BZA/AEP is around three. The average CO₂ desorption rate has a maximum value when BZA/AEP is about one. The price of AEP is 68% higher than that of BZA, and the higher the AEP concentration, the higher the absorbent costs. If a ship needs to install a complete carbon capture system, it is more economical to have a BZA/AEP of about 1.5, and its regeneration efficiency is about 55%. Compared with MEA, the average CO₂ absorption rate increases by 48%, the CO₂ desorption capacity increases by 120%, and the average CO₂ desorption rate increases by 161%.

3. Materials and Methods

3.1. Materials

Ethanolamine (MEA, 141-43-5, Xiya, 99%), benzylamine (BZA, 100-46-9, Macklin, 99%), 2-amino-2-methyl-1-propanol (AMP, 124-68-5, Macklin, 99%), N, N-dimethylethanolamine (DMEA, 108-01-0, Macklin, 99%), N, N-diethylethanolamine (DEEA, 100-37-8, Macklin, 99%), aminoethylpiperazine (AEP, 140-31-8, Macklin, 99%), deionized water (DI, Macklin), CO₂ gas (Ningbo Fangxin Gas Company, Ningbo, China, 99.9%), and N₂ gas (Ningbo Fangxin Gas Company, Ningbo, China, 99.9%) were purchased directly and without further purification.

Table 2. Physicochemical properties of materials.

Reagent Name	Abbreviation	Boiling Point/°C (101.325 kPa)	Dynamic Viscosity/mPa·s (20 °C)
ethanolamine	MEA	170	7.5
benzylamine	BZA	185	1.78
2-amino-2-methyl-1-propanol	AMP	165	147
N, N-dimethylethanolamine	DMEA	134	3.58
N, N-diethylethanolamine	DEEA	163	5
aminoethylpiperazine	AEP	220	15.4

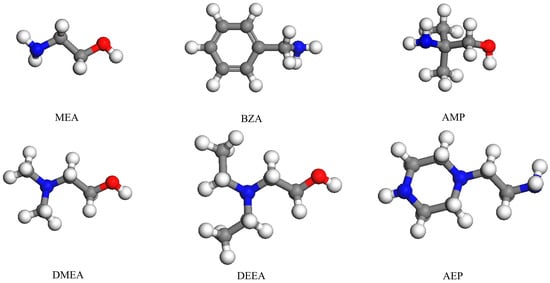

shows the physicochemical properties of these reagents. Figure 8 shows the structure of amines.

3.2. Experimental Setup

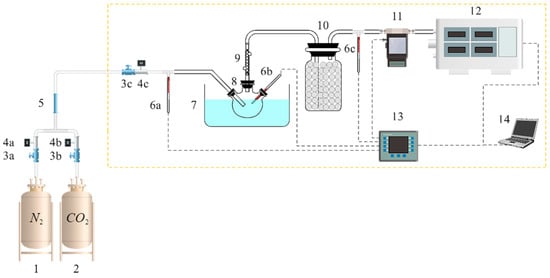

The experimental setup is shown in Figure 9. A flue gas analyzer (testo 350, Testo SE & Co. KGaA, Titisee-Neustadt, Germany) was used to detect the outlet CO₂ concentration with a sampling flow of 1 L/min; a data acquisition instrument (DAQ970A, Keysight, Santa Rosa, CA, America) was used to collect the inlet and outlet gas temperatures, the solution temperature, and the outlet gas flow. Before the experiment, a leak test and N₂ purge were performed on the system. According to the ship exhaust treatment process, the flue gas temperature is around 50 °C, and the CO₂ concentration is about 5% after denitrification, dust removal, and desulfurization [1,40]. For the absorption experiments, the valves 3a, 3b, and 3c were opened, the inlet CO₂ concentration was 5%, the inlet gas flow was 1.25 L/min, the absorption temperature was 50 °C, and the absorption solution was 50 g. The valves 3a, 3b, and 3c were closed for the desorption experiments, and the desorption temperature was 100 °C. Each group of experiments was repeated three times, and the results were averaged three times.

3.3. Data Processing

There are five primary absorption and desorption performance indicators of absorbents, which are CO₂ load, CO₂ absorption rate, CO₂ desorption capacity, CO₂ desorption rate, and regeneration efficiency. Currently, the CO₂ load of the rich solvent in the engineering carbon capture system is about 80% of its equilibrium load [41,42,43,44]. Therefore, the average absorption rate in this paper is the average CO₂ absorption rate when the absorbent reaches 80% of the equilibrium load, and the average desorption rate is the average CO₂ desorption rate when the absorbent comes to 80% of the equilibrium desorption capacity. The following are the formulas for calculating these indicators.

$$m_i=273.15\times \frac{44}{22.4}\times \left(\frac{V_0{c}_{0}t}{T_0}-\sum \frac{V_i{c}_i∆t}{T_i}\right)$$

(4)

$${\alpha }_i=\frac{m_i/44}{\sum m_j/M_j}$$

(5)

$$v_i^{\mathrm{abs}}=\frac{d{m}_i}{44m_s∆t}$$

(6)

where $m_i$ is CO₂ absorption capacity at the moment i (g), ${\alpha }_i$ is CO₂ load at the moment i (mol CO₂/mol amine), $m_j$ is the mass of component j of the amine in the absorbent to be measured (g), $M_j$ is the molar mass of component j of the amine in the absorbent to be measured (g/mol), $V_0$ is the gas inlet flow (L/min), $c_0$ is inlet CO₂ concentration (%), $V_i$ is the gas outlet flow at the moment i (L/min), $c_i$ is outlet CO₂ concentration at the moment i (%), t is reaction time (min), $∆t$ is recording time step (min), $T_0$ is gas inlet temperature (K), $T_i$ is gas outlet temperature at the moment i (K), $v_i^{\mathrm{abs}}$ is CO₂ absorption rate at the moment i (mol·kg⁻¹·min⁻¹), and $m_s$ is the mass of the solution (kg).

$${\beta }_i=\frac{\sum 273.15V_i{c}_i∆t/T_i}{22.4\sum m_j/M_j}$$

(7)

$$v_i^{des}=\frac{273.15V_i{c}_i}{22.4m_s{T}_i}$$

(8)

$${\eta }_i=\frac{{\beta }_i}{{\alpha }_{bal}}\times 100\%$$

(9)

where ${\beta }_i$ is CO₂ desorption capacity from 0 to i (mol CO₂/mol amine), $v_i^{des}$ is CO₂ desorption rate at the moment i (mol·kg⁻¹·min⁻¹), ${\eta }_i$ is regeneration efficiency at the moment i (%), and ${\alpha }_{bal}$ is the CO₂ equilibrium load (mol CO₂/mol amine).

4. Conclusions

• The absorption and desorption performance of four mixed aqueous amines based on BZA was investigated, and it was found that BZA-AEP had the highest average CO₂ absorption rate and CO₂ desorption capacity. The CO₂ absorption rate of BZA-DMEA, BZA-DEEA, and BZA-AMP decreased in comparison to BZA under the same conditions, while the CO₂ absorption rate of BZA-AEP did not decrease. In contrast to MEA, the average CO₂ absorption rate of BZA-AEP increased by 47%, and the CO₂ desorption capacity increased by 122%. By adding DMEA, DEEA, AEP, and AMP to BZA, the average CO₂ desorption rate was enhanced by about 150% compared with MEA and by about 45% compared with BZA.
• The absorption and desorption characteristics of BZA-AEP with different concentration ratios were investigated. The results indicated that there was an optimal concentration ratio for the average CO₂ absorption rate and average CO₂ desorption rate. The average CO₂ absorption rate of BZA-AEP improved by 41~53%, the CO₂ desorption capacity improved by 33~131%, and the average CO₂ desorption rate improved by 70~170% relative to MEA. It was found that the CO₂ load and the absorption equilibrium time had a linear relationship with the concentration ratio, and the desorption equilibrium time increased with the proportion of AEP in the solution.
• The model established by the experimental data indicates that it is more economical to install a complete set of carbon capture systems on a ship with a BZA/AEP concentration ratio of approximately 1.5. Compared with MEA, its average CO₂ absorption rate increases by 48%, its CO₂ desorption capacity increases by 120%, and its average CO₂ desorption rate increases by 161%. In light of its excellent absorption and desorption characteristics, BZA-AEP mixed aqueous amine can reduce the design size of the absorption tower and desorption tower to solve the problem of limited space for SBCC. Therefore, BZA-AEP can be considered a candidate material for SBCC.
• The regeneration efficiency of BZA-AEP is around 55%, and there is still much space to improve its desorption performance using a solid acid catalyst in the future.
