Study of the Mechanism of Astragali Radix in Treating Type 2 Diabetes Mellitus and Its Renal Protection Based on Enzyme Activity, Network Pharmacology, and Experimental Verification

by
Chunnan Li
1,2,
Kaiyue Zhang
1,
Lu Liu
1,
Jiaming Shen
1,
Yuelong Wang
1,
Yiying Tan
1,
Xueqin Feng
1,
Wanjie Liu
1,
Hui Zhang
1,* and
Jiaming Sun
1,*
1
Jilin Ginseng Academy, Changchun University of Chinese Medicine, Changchun 130117, China
2
Jilin Correction Pharmacy New Drug Development Co., Ltd., Changchun 130012, China
*
Authors to whom correspondence should be addressed.
Molecules 2023, 28(24), 8030; https://doi.org/10.3390/molecules28248030
Submission received: 15 November 2023 / Revised: 26 November 2023 / Accepted: 7 December 2023 / Published: 10 December 2023
Browse Figures
Versions Notes

Abstract

:
Astragali Radix (AR) is a common Chinese medicine and food. This article aims to reveal the active role of AR in treating Type 2 diabetes mellitus (T2DM) and its renal protective mechanism. The hypoglycemic active fraction was screened by α-glucosidase and identified by UPLC-QE-Orbitrap-MS spectrometry. The targets and KEGG pathway were determined through the application of network pharmacology methodology. Molecular docking and molecular dynamics simulation technology were used for virtual verification. Subsequently, a mouse model of T2DM was established, and the blood glucose and renal function indexes of the mice after administration were analyzed to further prove the pharmacodynamic effect and mechanism of AR in the treatment of T2DM. HA was determined as the best hypoglycemic active fraction by the α-glucosidase method, with a total of 23 compounds identified. The main active components, such as calycoside-7-O-β-D-glucoside, methylnisoline, and formononetin, were revealed by network pharmacology. In addition, the core targets and the pathway have also been determined. Molecular docking and molecular dynamics simulation techniques have verified that components and targets can be well combined. In vivo studies have shown that AR can reduce blood sugar levels in model mice, enhance the anti-inflammatory and antioxidant activities of kidney tissue, and alleviate kidney damage in mice. And it also has regulatory effects on proteins such as RAGE, PI3K, and AKT. AR has a good therapeutic effect on T2DM and can repair disease-induced renal injury by regulating the RAGE/PI3K/Akt signaling pathway. This study provides ideas for the development of new drugs or dietary interventions for the treatment of T2DM.

1. Introduction

Diabetes mellitus encompasses a collection of endocrine disorders characterized by elevated blood glucose levels, leading to potential damage to bodily tissues and organs as a result of various factors [1]. Type 2 diabetes mellitus (T2DM) predominates among individuals diagnosed with diabetes mellitus, and its prevalence has steadily risen in recent years, garnering significant scholarly interest [2]. Diabetic nephropathy (DN), a severe microvascular complication of T2DM, stands as a primary contributor to end-stage renal disease, boasting a substantial global incidence and mortality rate [3]. Metformin hypoglycemic agents are commonly prescribed for the treatment of Type 2 diabetes mellitus (T2DM), but prolonged use may result in drug resistance and increased side effects [4]. In contrast, traditional Chinese medicine (TCM) possesses the attributes of being multicomponent and multitargeted, enabling a comprehensive control of blood sugar levels and the alleviation of associated complications in diabetic patients [5].
Astragali Radix (AR) is derived from the root of Astragalus membranaceus (Fisch.) Bge. var. mongholicus (Bge.) Hsiao (A. mongholicus) and Astragalus membranaceus (Fisch.) Bge. (A. membranaceus). Among these, Mongolian Astragalus is the prevailing species and is extensively employed in China for its qi-invigorating and blood-nourishing properties [6]. AR serves as a frequently utilized traditional Chinese medicine (TCM) and health food, finding widespread application in the clinical management of diverse systemic ailments, yielding notable clinical outcomes. Polysaccharides, glycosides, flavonoids, betaine, amino acids, folic acid, carotene, choline, linoleic acid, and other trace elements are some of the main active components of AR [7]. According to modern research, AR has anticancer, anti-inflammatory, and antioxidant properties, blood lipids, and improves immunity [8,9,10,11]. It is reported in the literature that AR is a common drug in the compound prescription for treating T2DM, and it can effectively prevent renal injury caused by T2DM [12,13,14].
However, there is a lack of comprehensive research on the active components and mechanism of AR in the treatment of T2DM. Therefore, to better understand the efficacy of AR in the treatment of T2DM and its protective mechanism against renal injury, we conducted in-depth research by means of enzyme activity, network pharmacology, mass spectrometry, molecular dynamics simulation, and animal models, aiming at clarifying the active mechanism of AR. The expected result of this study is to establish a scientific basis for developing new drugs or dietary supplements that can effectively intervene in the management of T2DM.

2. Results

2.1. Results of α-Glucosidase Inhibition

The AR aqueous decoction was subjected to membrane separation and aqueous alcohol precipitation to obtain fraction A (HA), fraction B (HB), fraction C (HC), and fraction D (HD), respectively. The inhibitory effects of different fractions of AR on α-glucosidase are evident in Figure 1. The concentration of 0.125 to 2 mg/mL demonstrates a dose–effect relationship, with the inhibitory effect increasing as the concentration increases. The IC50 values for HA, HB, HC, and HD on α-glucosidase were determined to be 0.18 ± 0.06 mg/mL, 0.39 ± 0.05 mg/mL, 1.96 ± 0.03 mg/mL, and 0.43 ± 0.05 mg/mL, respectively. These results indicate a statistically significant difference (p < 0.05). The present analysis reveals that HA exhibits the most potent inhibitory effect on α-glucosidase and comprises the most efficacious hypoglycemic active constituents of AR. It can be seen that the inhibition rate of HA is close to that of acarbose. Consequently, HA warrants further investigation in subsequent stages.

2.2. Analysis of HA Components

The analysis and identification of HA were conducted using UPLC-QE-Orbitrap-MS, resulting in the identification of 23 active compounds, as presented in Table 1. The ion diagram can be observed in Figure 2.

2.3. AR Prediction of Core Targets for T2DM Treatment

A comprehensive analysis was conducted utilizing the Swiss Target Prediction database, resulting in the prediction of 1869 components and the exclusion of 920 targets. By conducting a search, a total of 1097 disease targets associated with T2DM were identified, which were further refined to 444 disease-related targets after merging and eliminating duplicates. The intersection of disease targets and AR potential component targets yielded 43 common targets, as represented in Figure 3A.

2.4. KEGG Pathway Analysis and Construction of “Component-Effect Target-Pathway” Network

The KEGG function enrichment analysis and visualization of core targets were conducted using the Metascape database. The analyzed KEGG pathways encompassed the AGE-RAGE signaling pathway in diabetic complications, Type 2 diabetes mellitus, and PI3K-Akt signaling pathway, among others. Figure 3B displays the top 20 signaling pathways with their corresponding p values. Cytoscape was utilized to incorporate components, core effect targets, and signaling pathways, resulting in the construction of a network diagram depicting the relationship between medicinal flavor components, core effect targets, and pathways (Figure 3C). The findings indicate that methylnissolin, calycosin-7-O-β-D-glucoside, formononetin, ononin, and other components may play a crucial role in the treatment of T2DM as key components of AR (Figure 4). Additionally, PIK3CA, AKT1, MAPK1, and TNF were identified as key targets.

2.5. Molecular Docking Results

Three primary targets, AKT1 (PDB ID:6NPZ), MAPK1 (PDB ID:6OPH), and PI3KCA (PDB ID:4A55), identified as having the highest degree value in the network diagram, along with the top components, were chosen for molecular docking analysis. All docking results yielded negative outcomes (Figure 5A). Notably, a lower binding energy corresponded to a stronger binding ability and a more stable conformation formation. Among them, the binding energy of target AKT1 to the original ligand was only −3.1 kcal/mol, while the binding energies of MAPK1 and PI3KCA to the original ligand were −8.6 kcal/mol and −8.2 kcal/mol, respectively. Generally speaking, the molecular docking results of our ligands with the target were very good, being similar to those of the original ligands, and some results were even better than those of the original ligands. Figure 5B depicts the specific binding site of each protein and the calculated specific binding energy of each target, highlighting those with superior binding energy.

2.6. Molecular Dynamics Simulation

The stability of the binding between the top two compounds and the target protein was confirmed through the implementation of molecular dynamics simulation. The CHARMM force field was incorporated into the system, and 100 ns simulation sampling was conducted to investigate the structural stability of the complex-target protein during the molecular dynamics simulation. The simulated trajectory was analyzed and the root mean square deviation (RMSD), root mean square fluctuation (RMSF), and protein radius of gyration (RG) were evaluated. The RMSD serves as a metric for assessing the stability of the system. During the simulation process, it was evident that the RMSD value of the complex and the target protein consistently remained at a low level. This observation suggests a strong binding affinity between the ligand and the receptor, resulting in the formation of a stable complex within a stable range (Figure 6A). Furthermore, analysis of Figure 6B reveals that the majority of receptor residues involved in the compound-target protein interaction remain within a stable range, with minimal fluctuations in the RMSF value throughout the simulation process. Finally, the radius of gyration is used to represent the compactness of the protein structure in the simulation process. According to the analysis of Figure 6C, the protein shows a smaller radius of gyration, indicating that the protein structure is more compact and the composite is more stable.

2.7. In Vivo Activity Verification

2.7.1. The Effect of HA on the Body Weight and Blood Sugar in Model Mice

Compared with the administration group and the model control group (Figure 7), the weight of mice in the control group increased steadily, which is normal physiological weight gain; the model group, MH group, and HA group were fed with high-fat feed for the first 4 weeks, so the weight of the mice was heavier than that of control group. At the fourth week, STZ was injected into the model. Compared with control healthy mice, the weight gain of other groups of mice decreased. After 5 weeks of administration, the weight gain of mice in the model group was slow, while the weight gain of mice in other groups increased, and it was related to time.
Following the successful implementation of the model mice, the blood glucose levels of the mice in each respective group were measured after a 4-week period of administration, as presented in Table 2. Notably, the blood glucose levels of the healthy mice in the control group exhibited no significant increase, thus lacking statistical significance. Conversely, compared to the healthy mice in the control group, the model group demonstrated a significantly elevated blood glucose level (p < 0.05). The blood glucose levels of mice in the MH and HA groups gradually decreased and exhibited a direct correlation after 4 weeks of treatment, compared to the model group. Furthermore, it is evident that the HA treatment group displayed a more pronounced reduction in blood glucose levels compared to the MH group, suggesting that HA exhibits a favorable hypoglycemic effect, which improves with prolonged administration.

2.7.2. Effect of HA on Serum Renal Function in Model Mice

According to the findings presented in Figure 8A, it was observed that the serum levels of creatinine (CRE), blood urea nitrogen (BUN), and uric acid (UA) were significantly elevated (p < 0.01) in the model group compared to the normal group, suggesting the presence of renal tissue damage. Conversely, the levels of serum CRE, BUN, and UA were found to be reduced (p < 0.05) in both the MH group and HA treatment group compared to the model group, indicating a similar intervention effect of HA and salt MH drugs. These results provide evidence that T2DM can lead to kidney damage and subsequently result in diabetic nephropathy (DN), while AR demonstrates efficacy in preserving renal function.

2.7.3. Effects of Oxidative Damage Index and Inflammatory Markers in Kidney Tissues

The findings of this study indicate that the levels of SOD and GSH were significantly lower in the model group compared to the control group, while the levels of MDA were significantly higher. Conversely, the levels of SOD and GSH were higher in the MH group and HA group compared to the model group, while the level of MDA was lower, particularly in the HA group. These results suggest that HA has the potential to enhance antioxidant stress levels in kidney tissue of DN mice, as illustrated in Figure 8B.
Furthermore, through the utilization of an ELISA kit for the examination of rat serum, it was observed that the concentration of inflammatory factors in the experimental group exhibited a noteworthy elevation in comparison to the control group (p < 0.01). Moreover, subsequent to the administration, a reduction in the serum levels of TNF-α, IL-6β, and IL-1 was observed in contrast to the experimental group (p < 0.01), thereby suggesting that AR possesses anti-inflammatory properties, as depicted in Figure 8C.

2.7.4. Histopathological Examination of Kidney

Based on the findings from the H&E staining analysis (Figure 9A), it can be observed that the control group exhibits intact glomeruli and renal tubules, characterized by well-organized epithelial cells with preserved morphology and uniform cytoplasm. Conversely, in the model group, degeneration and necrosis of glomerular endothelial cells were evident, along with the presence of vacuoles of varying sizes in the renal tubular epithelial cells. Additionally, a minority of renal tubular epithelial cells exhibited necrosis and exfoliation, accompanied by pronounced inflammatory infiltration. The glomerular morphology appeared normal in both the MH group and HA group, with a reduction in inflammatory infiltration. Furthermore, the PAS group observation revealed heavier glycogen staining in the kidney tissue of mice in the model group, indicating the deposition of glycogen in the kidney. The glycogen staining appeared purple–blue and positive but became lighter after administration.

2.7.5. Effect of HA on the Expression of RAGE, p38, p-AKT, and PI3Kp85 Protein in Kidney Tissue of Model Mice

The results depicted in Figure 9B demonstrate significant differences in the expression levels of RAGE, p38, p-P38, p-AKT, and PI3Kp85 between the model group and the control group (p < 0.01). Following treatment, there was a significant decrease in the expression levels of RAGE, p38, and protein (p < 0.01), while the expression levels of p-AKT and PI3Kp85 protein exhibited a significant increase (p < 0.05). Notably, the expression level of HA histone was significantly higher than that of the model group (p < 0.01) and more pronounced than that of MH. These findings suggest that HA exerts a notable regulatory effect on these proteins, warranting further investigation.

3. Discussion

Diabetes mellitus is a metabolic disorder characterized by elevated blood glucose levels, and it is recognized as the third-most prevalent non-communicable disease that significantly impacts both physical and mental well-being. It ranks below malignant tumors and cardiovascular diseases in terms of the severity of its effects. Of particular concern is the increasing burden of Type 2 diabetes mellitus, which poses a major challenge to global healthcare systems [15].
We conducted enzyme activity assays to evaluate the inhibitory effects of AR extracts on key enzymes involved in glucose metabolism. The results demonstrated significant inhibitory activity, suggesting the presence of potent hypoglycemic components in AR. In our study, we initially employed enzyme activity to screen the hypoglycemic active components of AR, followed by the utilization of UPLC-QE-Orbitrap-MS for compound composition identification. After considering the aforementioned findings, we conducted an extensive network pharmacological analysis to predict the targets. Subsequently, our predicted active components and targets were confirmed by molecular docking and related experimental procedures.
A total of 23 compounds were present in HA, the active constituent of AR, and were subjected to analysis using UPLC-QE-Orbitrap-MS. Subsequently, network pharmacology was employed to elucidate the principal components and targets of AR in the management of T2DM. It is noteworthy that flavonoids, namely, methylnissolin, calycoside-7-O-β-D-glucoside, and formononetin, have been identified as the primary active components of AR with significant hypoglycemic properties. These flavonoids exhibit remarkable attributes, including anti-apoptotic, anti-inflammatory, and therapeutic effects on renal injury and renal fibrosis [16,17,18]. The key targets in this study included PIK3CA, AKT1, MAPK1, and TNF. AKT1, as the primary downstream target of the PI3K-Akt signaling pathway, plays a crucial role in facilitating the transportation of insulin to various tissues such as the liver, pancreas, skeletal muscle, and adipose tissue. This transportation process is essential for maintaining glucose homeostasis, promoting insulin secretion, and regulating lipid metabolism balance, and PIK3CA specifically plays a critical role in insulin metabolism and blood sugar regulation [19,20]. MAPK1 is associated with numerous inflammatory pathways and serves as a multifunctional cytokine implicated in the proliferation, differentiation, and functional modulation of diverse cell types. It assumes a pivotal role in immune and inflammatory responses, while also exhibiting the ability to impede insulin resistance in individuals with T2DM [21]. The enrichment analysis of the KEGG pathway demonstrated that the differential targets were primarily concentrated in signaling pathways, including the AGE-RAGE signaling pathway in diabetic complications, Type 2 diabetes mellitus, and the PI3K-Akt signaling pathway.
To corroborate the preceding prognostic outcomes, we implemented a T2DM mouse model by employing STZ in conjunction with high-fat feeding [22,23]. The analysis of renal function indices revealed significant disparities between the model group and the control group, with the latter exhibiting relatively elevated blood sugar levels, thereby substantiating the success of the experimental model. Furthermore, the alterations in biochemical indices and blood sugar levels in the model mice demonstrated that the administration effectively regulated blood sugar levels over time, resulting in a substantial decrease in the levels of renal function indices such as creatinine (CRE), blood urea nitrogen (BUN), and uric acid (UA). The concentrations of superoxide dismutase (SOD) and glutathione (GSH) in renal tissue exhibited an increase, whereas the levels of malondialdehyde (MDA) demonstrated a decrease. Additionally, the levels of tumor necrosis factor-alpha (TNF-α), interleukin-6 beta (IL-6β), and interleukin-1 (IL-1) inflammatory factors were inhibited. Creatinine (CRE), blood urea nitrogen (BUN), and uric acid (UA) serve as crucial indicators for assessing renal function, effectively reflecting the renal and glomerular filtration functions of the body. Deviations from normal values of these indicators indicate impaired renal function [24]. Superoxide dismutase (SOD), glutathione (GSH), and malondialdehyde (MDA) primarily serve as indicators of the body’s antioxidant stress level. SOD and GSH exhibit antioxidant properties and contribute to anti-aging effects. In instances where the kidney generates an excessive amount of superoxide and hydroxyl radicals, the redox equilibrium becomes disrupted, resulting in diminished levels of SOD and GSH and increased levels of MDA, along with diminished tissue antioxidant capacity being observed [25,26]. Inflammatory cytokines TNF-α and IL-6 are swiftly and transiently produced in response to infection and tissue injury [27]. Both IL-1β and IL-6 serve as inflammatory mediators associated with inflammation. Activation of IL-1β has been shown to stimulate the NF-κ B signaling pathway and enhance the secretion of IL-6 [28]. These findings provide evidence that AR not only reduces blood glucose levels in model mice, but also ameliorates renal tissue damage induced by T2DM.
Furthermore, the outcomes of histological examination using H&E and PAS staining revealed that the integrity of glomerular and renal tubular structures was compromised in the diabetic model group, accompanied by an elevation in polysaccharide deposition. This can be attributed to the induction of hyperglycemia, which subsequently triggers excessive glucose uptake, resulting in glomerular impairment and aberrant renal function [29]. The findings indicate that the active constituents of AR exhibit specific effects in ameliorating renal damage in individuals with T2DM.
To enhance our comprehension of the therapeutic mechanism of AR in the management of T2DM, we conducted an analysis of the protein blot to assess the expression levels of RAGE, p38, p-P38, p-AKT, and PI3Kp85 proteins. This investigation was conducted in conjunction with the KEGG analysis results. The AGE-RAGE signaling pathway in diabetic complications is a crucial signal transduction pathway wherein protein glycosylation products resulting from hyperglycemia bind to their corresponding RAGE receptors, thereby initiating a cascade of reactions. This signaling pathway assumes a significant role in the initiation and progression of diabetic complications [30]. The protein RAGE, which plays a crucial role in the development of Type 2 Diabetes Mellitus (T2DM) and various other disorders, demonstrates the ability to regulate multiple pathways, such as the MAPK family, PI3K-AKT, and several others [31]. RAGE is predominantly present in glomerular epithelial cells, renal tubular epithelial cells, and glomerular membrane cells within the kidney. Its presence in these cells enables the regulation and mitigation of inflammatory infiltration and fibrosis in diabetic mice [32]. P38 is primarily accountable for the regulation of inflammation and apoptosis within the MAPK signaling pathway [33,34]. The existing literature suggests that the reduction of P38 and the activation of Akt and NFκB significantly contribute to the protective impact of pharmaceutical interventions on renal ischemia-reperfusion injury in rats [35]. PI3K is an enzyme consisting of a heterodimeric structure, comprising the catalytic subunit p110 and either the non-catalytic subunit p85 or p110. Extensive research has revealed a direct correlation between the PI3K/Akt signaling pathway and the development of diabetic nephropathy, highlighting it as a crucial target in this context [36]. In the transduction pathway of insulin effect, any disruption in the PI3K/Akt signaling pathway may result in insulin resistance [37]. Furthermore, it has been reported that the activation of Akt has the capability to transmit biological signals to receptor substrates downstream, thereby initiating a range of biological effects such as glucose absorption, glycolysis, glycogen synthesis, and protein synthesis [38]. Hence, it is postulated that the potential mechanism underlying the therapeutic effects of AR in the treatment of T2DM involves the activation of the RAGE protein, subsequently modulating the pivotal PI3K/Akt pathway associated with renal injury (see Figure 10).

4. Materials and Methods

4.1. Materials and Reagents

Goat anti-rabbit antibody was acquired from Utibody (No. UT200). Streptozocin (STZ) was obtained from Beijing Solarbio Science and Technology Co., Ltd. (Beijing, China). A high-fat diet (HFD; 47% carbohydrate, 28% fat, 25% protein) was purchased from Changchun Yisi Experimental Animal Technology Co., Ltd. (Changchun, China). The α-glucosidase enzyme was procured from Sigma Company. Acarbose was purchased from Shanghai Yuanye Biotechnology Co., Ltd. (Shanghai, China). RAGE (No. WL01514) and p-P38 (No. WLP1576) were obtained from Wanlaibao (Foshan, China). P-AKT (No. YT0185), P38 (No.YT3511), PI3K-P85 (No. YM3503), and anti-β-actin antibodies (No. YM3028) were sourced from Immunoway (Plano, TX, USA).

4.2. Plant Materials and Extraction

AR was obtained from Jilin Pharmacy Co., Ltd., located in Changchun, China. The AR was pulverized and was then decocted with eight times the amount of water for 2 h each time. The resulting decoction was collected and divided into two parts. The decocted components were filtered by an ultrafiltration system with a regenerated cellulose composite membrane (Ultracellulose PLBC, Millipore, MA, USA) with a molecular weight of 3 kDa, and two membrane separation components were obtained: fraction A (HA) with a molecular weight less than 3 kDa and fraction B (HB) with a molecular weight greater than 3 kDa. The precipitate fraction C (HC) and supernatant fraction D (HD) were obtained by water extraction and alcohol precipitation. These four fractions were then evaporated in a water bath maintained at 80 °C and stored at 4 °C for future use.

4.3. Measurement of α-Glucosidase Inhibitory Activity

The reference method underwent a slight modification [39]. In a 96-well plate, 80 μL of 0.1 mol/L phosphate buffer (pH 6.8) was dispensed, followed by the addition of 20 μL of the sample solution and 100 μL of α-glucosidase (0.5 U/mL) solution. The plate was then incubated in a shaker at 37 °C for 20 min. Subsequently, 50 μL of PNPG (5 mmol/L) solution was added. The absorbance A was measured at 405 nm at 0 min and 5 min using an enzyme-labeled instrument and the IC50 value was calculated. Each sample was subjected to at least three parallel measurements and the average value was determined. The formula is:
Suppression ratio% = {[(A5 min − A0 min) control – (A5 min − A0 min) sample]/(A5 min − A0 min) control} × 100%

4.4. UPLC-QE-Orbitrap-MS Condition

The Poroshell 120 EC-C18 column (250 mm × 4.6 mm, 4.0 μm) was used with a flow rate of 0.5 mL/min and a column temperature of 35 °C. The mobile phase consisted of a 0.1% formic acid aqueous solution (mobile phase A) and acetonitrile (mobile phase B). Gradient elution was performed with a range of 0–20 min at 2–49% B, 20–30 min at 49–90% B, and 30–55 min at 90–100% B. The analysis was conducted in electrospray negative ion scanning mode (ESI-) with a dry gas (N2) flow rate of 9 L/min, a temperature of 300 °C, an atomizing gas pressure of 2.41 × 105 Pa, a capillary voltage of 3.5 kV, a crushing voltage of 175 V, a cone voltage of 65 V, and a mass scanning range of m/z 66.5 to 1000.

4.5. AR Treatment of T2DM Target Acquisition

The HA components were subjected to analysis using the PubChem (https://PubChem.ncbi.nlm.nih.gov/ (accessed on 14 May 2023)) and SwissTargetPrediction (http://swisstargetprediction.ch/ (accessed on 14 May 2023)) databases in order to predict the target of these components. The search for T2DM-related disease targets was conducted through the DrugBank database, OMIM database, and GeneCard database. The GeneCard database employed a selection criterion of targets with Relevance scores above the average value, and these targets were combined to eliminate any duplicated target genes, resulting in the identification of disease-related targets. Subsequently, these disease-related targets were matched with the active ingredient target to determine the potential for treating T2DM.

4.6. KEGG Pathway Analysis

The target should be entered into the Metascape database (https://Metascape.org/ (accessed on 2 June 2023)) to conduct functional enrichment analysis and visualization of Kyoto Gene and Genome Encyclopedia (KEGG). The species “Homo sapiens” should be chosen for this purpose.

4.7. Network Construction of “Component-Core Target-Signaling Pathway”

The active ingredient A, along with the core target and signaling pathway data, were imported into Cytoscape 3.7.2 software for network construction. The topological parameters were subsequently analyzed using the Network Analyzer plug-in.

4.8. Molecular Docking

The active compounds were searched by the Pubmed database and the SDF (*.sdf) format files of the compounds were downloaded and converted into the pdbqt (*. Pdbqt) format. The PDB database was used to retrieve and download the core target protein obtained by the Cytoscape software. Molecular docking was carried out by using Autodock Vina 1.5.6 software.

4.9. Molecular Dynamics Simulation

The initial conformation of molecular dynamics simulation is obtained by the results of molecular docking. Gromacs, a dynamic simulation software, is used and Charmm36 force field and TIP3P water model are used. Establish a water tank and add a sodium ion balance system. During the simulation operation, the energy minimization of the whole system is performed to achieve better molecular configuration. Subsequently, the system is balanced under canonical ensemble (NVT) and isothermal–isobaric ensemble (NPT) at ambient temperature and pressure and is used for 100 ns molecular dynamics simulation. RMSD, RMSF, and protein skeleton radius of gyration are used to further evaluate the simulated trajectory.

4.10. Animals Experiment In Vivo

4.10.1. Animals and Experimental Design

Fifty male SPF mice weighing 20 ± 3 g were obtained from Changchun Yisi Experimental Animal Technology Co., Ltd. This study received approval from the Animal Protection and Use Committee of Changchun University of Chinese Medicine (No. 2023447). The mice were housed in a controlled environment at approximately 22 ± 2 °C, with a 12 h light/dark cycle, and were provided with unrestricted access to standard food and tap water.
Mice with fasting blood glucose levels below 6.00 mmol L−1 were randomly assigned to four groups: control group, model group, metformin hydrochloride (MH) group (150 mg/kg body weight), and HA group (150 mg/kg body weight). Each group consisted of 10 mice. The control group was fed a regular diet, while the other groups were fed a high-fat diet. Starting from the fifth week, the mice were intraperitoneally injected with 60 mg/kg of streptozotocin (STZ), which was dissolved in 0.05 mol/L sodium citrate with a pH of 4.5 prior to injection. Simultaneously, the mice in the control group received intravenous injections of an equivalent volume of 0.9% NaCl aqueous solution for a duration of 5 days, thereby establishing the model. The criterion for model success was defined as a blood sugar value exceeding 9.0 mmol/L. Subsequently, the drug was administered continuously for a period of 4 weeks, and daily monitoring of blood glucose levels in the tail vein was conducted using a blood glucose meter.
The animals were euthanized 12 h after the final administration, and subsequent blood and tissue samples were obtained. A portion of the samples were preserved at a temperature of −80 °C in a refrigerator, while the remaining specimens were stored in a 4% formalin buffer for subsequent histological analysis.

4.10.2. Analysis of Serum and Tissue

The blood urea nitrogen (BUN), creatinine (CRE), and uric acid (UA) kits were acquired from Nanjing JianCheng Institute of Biological Engineering in Nanjing, China. Superoxide dismutase (SOD), glutathione (GSH), and malondialdehyde (MDA) enzyme-linked immuno-sorbent assay (ELISA) kits were obtained from Changchun Bestgene Biotechnology Co., Ltd. in Changchun, China. Enzyme-linked immuno-sorbent assay (ELISA) kits for tumor necrosis factor-α (TNF-α), interleukin-6 (IL-6), and interleukin-1 (IL-1) were purchased from American R&D. All operational procedures were meticulously followed in accordance with the manufacturers’ instructions for the utilized kits.

4.10.3. Histopathological Examinations

The tissue specimen was initially preserved in a 10% neutral paraformaldehyde solution, subsequently embedded in paraffin, manually sectioned using a microtome to achieve 4 μm thick slices, subjected to dewaxing and hydration processes, stained using the H&E and PAS techniques, and finally examined under an optical microscope (Nikon, Tokyo, Japan).

4.10.4. Western Blotting

The quantification of total protein extracted from renal tissue was performed using the BCA detection kit (Solaibao, Beijing, China). A 10% separation gel and 5% concentrated gel were prepared, and the samples were loaded and subsequently electro-transferred onto nitrocellulose membranes. The wet transfer of the membrane onto an NC/PVDF membrane (0.22 µm, Millipore, Burlington, MA, USA) was conducted for a duration of 1 h. Afterwards, the membrane was obstructed using 5% skimmed milk powder for a duration of 1 h, and subsequently subjected to incubation with the primary antibody overnight at a temperature of 4 °C. Following this, the membrane was rinsed and exposed to the second antibody at room temperature. The gray values were then documented subsequent to electrochemiluminescence development. Result analysis was conducted using Gel-Pro Analyzer 4 (Media Cybernetics, Rockville, MD, USA).

4.11. Statistical Analysis

All samples were subjected to a minimum of three evaluations, with the resulting values representing the average standard deviation (SD). The disparities between groups were assessed through the utilization of one-way ANOVA and back testing (SPSS 22.0). Graphics were generated using GraphPad Prism 8.0. p < 0.05 indicates a significant difference and p < 0.01 indicates an extremely significant difference.

5. Conclusions

In summary, the utilization of enzyme activity, network pharmacology, molecular docking, molecular dynamics, and in vivo experiments revealed the significant contribution of flavonoids present in AR to the therapeutic management of T2DM. AR exhibits antioxidant and anti-inflammatory properties that mitigate renal damage induced by T2DM, while also modulating the RAGE/PI3K/Akt signaling pathway to lower blood glucose levels and enhance renal function. These findings establish a solid foundation for future investigations into the potential clinical utilization of AR for T2DM treatment.

Author Contributions

Conceptualization, H.Z. and J.S. (Jiaming Sun); methodology, L.L. and C.L.; software, K.Z. and J.S. (Jiaming Shen); validation, Y.W., Y.T., and W.L.; formal analysis, L.L.; investigation, C.L.; resources, H.Z. and J.S. (Jiaming Sun); data curation, J.S. (Jiaming Shen); writing—original draft preparation, C.L.; writing—review and editing, K.Z.; visualization, Y.T and X.F.; supervision, J.S. (Jiaming Sun); project administration, C.L.; funding acquisition, C.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Jilin Province Science and Technology Department, Grant/Award Number: YDZJ202301ZYTS172; postdoctoral researchers in Jilin Province, Grant/Award Number: 2023, No. 36; and the Young Scientist Program of “XingLin Scholar Project” of Changchun University of Chinese Medicine, Grant/Award Number: QNKXJ2-2021+ZR17.

Institutional Review Board Statement

The study was approved by the Animal Protection and Utilization Committee of Changchun University of Chinese Medicine (protocol code No. 2023447).

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

Author Chunnan Li was employed by the company Jilin Correction Pharmacy New Drug Development Co., Ltd. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Mi, W.; Xia, Y.; Bian, Y. Meta-analysis of the association between aldose reductase gene (CA)n microsatellite variants and risk of diabetic retinopathy. Exp. Ther. Med. 2019, 18, 4499–4509. [Google Scholar] [CrossRef] [PubMed]
  2. Buttermore, E.; Campanella, V.; Priefer, R. The increasing trend of Type 2 diabetes in youth: An overview. Diabetes Metab. Syndr. 2021, 15, 102253. [Google Scholar] [CrossRef] [PubMed]
  3. Kato, M.; Natarajan, R. Epigenetics and epigenomics in diabetic kidney disease and metabolic memory. Nat. Rev. Nephrol. 2019, 15, 327–345. [Google Scholar] [CrossRef] [PubMed]
  4. Huang, F.; Sun, X.Y.; Ouyang, J.M. Preparation and characterization of selenized Astragalus polysaccharide and its inhibitory effect on kidney stones. Mater. Sci. Eng. C Mater. Biol. Appl. 2020, 110, 110732. [Google Scholar] [CrossRef] [PubMed]
  5. Lu, Z.; Zhong, Y.; Liu, W.; Xiang, L.; Deng, Y. The Efficacy and Mechanism of Chinese Herbal Medicine on Diabetic Kidney Disease. J. Diabetes Res. 2019, 2019, 2697672. [Google Scholar] [CrossRef]
  6. Hua, Y.L.; Ma, Q.; Yuan, Z.W.; Zhang, X.S.; Yao, W.L.; Ji, P.; Hu, J.J.; Wei, Y.M. A novel approach based on metabolomics coupled with network pharmacology to explain the effect mechanisms of Danggui Buxue Tang in anaemia. Chin. J. Nat. Med. 2019, 17, 275–290. [Google Scholar] [CrossRef]
  7. Dai, H.; Shan, Y.; Yu, M.; Wang, F.; Zhou, Z.; Sun, J.; Sheng, L.; Huang, L.; Sheng, M. Network pharmacology, molecular docking and experimental verification of the mechanism of huangqi-jixuecao herb pair in treatment of peritoneal fibrosis. J. Ethnopharmacol. 2024, 318, 116874. [Google Scholar] [CrossRef] [PubMed]
  8. Sun, X.; Zheng, Y.; Tian, Y.; Xu, Q.; Liu, S.; Li, H.; Cheng, K.; Yuan, J.; Liu, H.; Zhu, P. Astragalus polysaccharide alleviates alcoholic-induced hepatic fibrosis by inhibiting polymerase I and transcript release factor and the TLR4/JNK/NF-κB/MyD88 pathway. J. Ethnopharmacol. 2023, 314, 116662. [Google Scholar] [CrossRef]
  9. Xiao, W.; Xu, Y.; Baak, J.P.; Dai, J.; Jing, L.; Zhu, H.; Gan, Y.; Zheng, S. Network module analysis and molecular docking-based study on the mechanism of astragali radix against non-small cell lung cancer. BMC Complement. Med. Ther. 2023, 23, 345. [Google Scholar] [CrossRef]
  10. Li, K.; Li, S.; Du, Y.; Qin, X. Screening and structure study of active components of Astragalus polysaccharide for injection based on different molecular weights. J. Chromatogr. B Anal. Technol. Biomed. Life Sci. 2020, 1152, 122255. [Google Scholar] [CrossRef]
  11. Ren, J.; Ding, Y.; Li, S.; Lei, M. Predicting the anti-inflammatory mechanism of Radix Astragali using network pharmacology and molecular docking. Medicine 2023, 102, e34945. [Google Scholar] [CrossRef] [PubMed]
  12. Li, J.J.; Luo, Q.M.; Guo, J.C.; Xu, M.T.; Fang, Z.H.; Jiang, A.J.; Shen, G.M. Prescription and medication rules of traditional Chinese medicine for prevention and treatment of diabetic microangiopathy based on literature mining. China J. Chin. Mater. Medica 2023, 48, 5091–5101. [Google Scholar] [CrossRef]
  13. Su, M.; Tang, T.; Tang, W.; Long, Y.; Wang, L.; Liu, M. Astragalus improves intestinal barrier function and immunity by acting on intestinal microbiota to treat T2DM: A research review. Front. Immunol. 2023, 14, 1243834. [Google Scholar] [CrossRef] [PubMed]
  14. Sun, L.; Yang, Z.; Zhao, W.; Chen, Q.; Bai, H.; Wang, S.; Yang, L.; Bi, C.; Shi, Y.; Liu, Y. Integrated lipidomics, transcriptomics and network pharmacology analysis to reveal the mechanisms of Danggui Buxue Decoction in the treatment of diabetic nephropathy in type 2 diabetes mellitus. J. Ethnopharmacol. 2022, 283, 114699. [Google Scholar] [CrossRef]
  15. Khan, M.A.B.; Hashim, M.J.; King, J.K.; Govender, R.D.; Mustafa, H.; Al Kaabi, J. Epidemiology of Type 2 Diabetes—Global Burden of Disease and Forecasted Trends. J. Epidemiol. Glob. Health 2020, 10, 107–111. [Google Scholar] [CrossRef] [PubMed]
  16. Chen, R.; Liao, C.; Guo, Q.; Wu, L.; Zhang, L.; Wang, X. Combined systems pharmacology and fecal metabonomics to study the biomarkers and therapeutic mechanism of type 2 diabetic nephropathy treated with Astragalus and Leech. RSC Adv. 2018, 8, 27448–27463. [Google Scholar] [CrossRef]
  17. Li, W.; Sun, Y.N.; Yan, X.T.; Yang, S.Y.; Kim, S.; Lee, Y.M.; Koh, Y.S.; Kim, Y.H. Flavonoids from Astragalus membranaceus and their inhibitory effects on LPS-stimulated pro-inflammatory cytokine production in bone marrow-derived dendritic cells. Arch. Pharmacal Res. 2014, 37, 186–192. [Google Scholar] [CrossRef]
  18. Luo, G.; Liu, H.; Xie, B.; Deng, Y.; Xie, P.; Zhao, X.; Sun, X. Therapeutic mechanism of Shenbing Decoction Ⅲ for renal fibrosis in chronic kidney disease: A study with network pharmacology, molecular docking and validation in rats. J. South. Med. Univ. 2023, 43, 924–934. [Google Scholar] [CrossRef]
  19. Guo, F.; Yao, L.; Zhang, W.; Chen, P.; Hao, R.; Huang, X.; Jiang, J.; Wu, S. The therapeutic mechanism of Yuye decoction on type 2 diabetes mellitus based on network pharmacology and experimental verification. J. Ethnopharmacol. 2023, 308, 116222. [Google Scholar] [CrossRef]
  20. Liu, Y.; Kang, J.; Gao, H.; Zhang, X.; Chao, J.; Gong, G.; Yuan, H.; Xie, C. Exploration of the Effect and Mechanism of ShenQi Compound in a Spontaneous Diabetic Rat Model. Endocr. Metab. Immune Disord. Drug Targets 2019, 19, 622–631. [Google Scholar] [CrossRef]
  21. Yang, M.; Hu, Z.; Zhang, L.; Yue, R. Effects and Mechanisms of Ban-Xia Xie-Xin Decoction on Type 2 Diabetes Mellitus: Network Pharmacology Analysis and Experimental Evidence. Endocr. Metab. Immune Disord. Drug Targets 2023, 23, 947–963. [Google Scholar] [CrossRef]
  22. Zhu, F.; Song, Z.; Zhang, S.; Zhang, X.; Zhu, D. The Renoprotective Effect of Shikonin in a Rat Model of Diabetic Kidney Disease. Transplant. Proc. 2023, 55, 1731–1738. [Google Scholar] [CrossRef]
  23. Zhao, Y.; Niu, M.; Jia, Y.; Yuan, J.; Xiang, L.; Dai, X.; Wang, G.; Chen, H. Establishment of type 2 diabetes mellitus models using streptozotocin after 3 months high-fat diet in Bama minipigs. Anim. Biotechnol. 2023, 34, 2295–2312. [Google Scholar] [CrossRef]
  24. Wang, Z.; Jian, G.; Chen, T.; Chen, Y.; Li, J.; Wang, N. The Qi-Bang-Yi-Shen formula ameliorates renal dysfunction and fibrosis in rats with diabetic kidney disease via regulating PI3K/AKT, ERK and PPARγ signaling pathways. Eur. J. Histochem. 2023, 67, 3648. [Google Scholar] [CrossRef]
  25. Wang, Q.; Qi, G.; Zhou, H.; Cheng, F.; Yang, X.; Liu, X.; Wang, R. Protective effect of thymol on glycerol-induced acute kidney injury. Ren. Fail. 2023, 45, 2227728. [Google Scholar] [CrossRef] [PubMed]
  26. Bagheri, S.; Khorramabadi, R.M.; Assadollahi, V.; Khosravi, P.; Cheraghi Venol, A.; Veiskerami, S.; Ahmadvand, H. The effects of pomegranate peel extract on the gene expressions of antioxidant enzymes in a rat model of alloxan-induced diabetes. Arch. Physiol. Biochem. 2023, 129, 870–878. [Google Scholar] [CrossRef] [PubMed]
  27. Tanaka, T.; Narazaki, M.; Kishimoto, T. IL-6 in inflammation, immunity, and disease. Cold Spring Harb. Perspect. Biol. 2014, 6, a016295. [Google Scholar] [CrossRef] [PubMed]
  28. Lu, X.; Wang, J.; Chen, X.; Jiang, Y.; Pan, Z.K. Rolipram Protects Mice from Gram-negative Bacterium Escherichia coli-induced Inflammation and Septic Shock. Sci. Rep. 2020, 10, 175. [Google Scholar] [CrossRef] [PubMed]
  29. Xiao, Y.; Liu, Y.; Lai, Z.; Huang, J.; Li, C.; Zhang, Y.; Gong, X.; Deng, J.; Ye, X.; Li, X. An integrated network pharmacology and transcriptomic method to explore the mechanism of the total Rhizoma Coptidis alkaloids in improving diabetic nephropathy. J. Ethnopharmacol. 2021, 270, 113806. [Google Scholar] [CrossRef] [PubMed]
  30. Zhao, J.; Randive, R.; Stewart, J.A. Molecular mechanisms of AGE/RAGE-mediated fibrosis in the diabetic heart. World J. Diabetes 2014, 5, 860–867. [Google Scholar] [CrossRef]
  31. Wang, Y.; Liu, Y.; Chen, S.; Li, F.; Wu, Y.; Xie, X.; Zhang, N.; Zeng, C.; Bai, L.; Dai, M.; et al. The protective mechanism of Dehydromiltirone in diabetic kidney disease is revealed through network pharmacology and experimental validation. Front. Pharmacol. 2023, 14, 1201296. [Google Scholar] [CrossRef] [PubMed]
  32. Xu, C.; Chen, Y.; Liu, Z.; Fu, X. Hedysarum polybotrys polysaccharide attenuates renal inflammatory infiltration and fibrosis in diabetic mice by inhibiting the HMGB1/RAGE/TLR4 pathway. Exp. Ther. Med. 2023, 26, 493. [Google Scholar] [CrossRef]
  33. Wang, J.L.; Ren, C.H.; Feng, J.; Ou, C.H.; Liu, L. Oleanolic acid inhibits mouse spinal cord injury through suppressing inflammation and apoptosis via the blockage of p38 and JNK MAPKs. Biomed. Pharmacother. 2020, 123, 109752. [Google Scholar] [CrossRef] [PubMed]
  34. Ji, P.; Shi, Q.; Liu, Y.; Han, M.; Su, Y.; Sun, R.; Zhou, H.; Li, W.; Li, W. Ginsenoside Rg1 treatment alleviates renal fibrosis by inhibiting the NOX4-MAPK pathway in T2DM mice. Ren. Fail. 2023, 45, 2197075. [Google Scholar] [CrossRef] [PubMed]
  35. Cavdar, Z.; Kocak, A.; Ural, C.; Afagh, A.; Ersan, S.; Ozbal, S.; Tatli, M.; Celik, A.; Arslan, S.; Cavdar, C. Role of p38 MAPK, Akt and NFκB in renoprotective effects of nebivolol on renal ischemia-reperfusion injury in rats. Biotech Histochem. 2023, 98, 401–411. [Google Scholar] [CrossRef]
  36. Li, S.; Chen, H.; Wang, J.; Wang, X.; Hu, B.; Lv, F. Involvement of the PI3K/Akt signal pathway in the hypoglycemic effects of tea polysaccharides on diabetic mice. Int. J. Biol. Macromol. 2015, 81, 967–974. [Google Scholar] [CrossRef] [PubMed]
  37. Ni, W.J.; Guan, X.M.; Zeng, J.; Zhou, H.; Meng, X.M.; Tang, L.Q. Berberine regulates mesangial cell proliferation and cell cycle to attenuate diabetic nephropathy through the PI3K/Akt/AS160/GLUT1 signalling pathway. J. Cell. Mol. Med. 2022, 26, 1144–1155. [Google Scholar] [CrossRef] [PubMed]
  38. Wang, J.; Wang, C.; Li, S.; Li, W.; Yuan, G.; Pan, Y.; Chen, H. Anti-diabetic effects of Inonotus obliquus polysaccharides in streptozotocin-induced type 2 diabetic mice and potential mechanism via PI3K-Akt signal pathway. Biomed. Pharmacother. 2017, 95, 1669–1677. [Google Scholar] [CrossRef]
  39. Wan, C.; Yuan, T.; Li, L.; Kandhi, V.; Cech, N.B.; Xie, M.; Seeram, N.P. Maplexins, new α-glucosidase inhibitors from red maple (Acer rubrum) stems. Bioorg. Med. Chem. Lett. 2012, 22, 597–600. [Google Scholar] [CrossRef]
Molecules 28 08030 g001

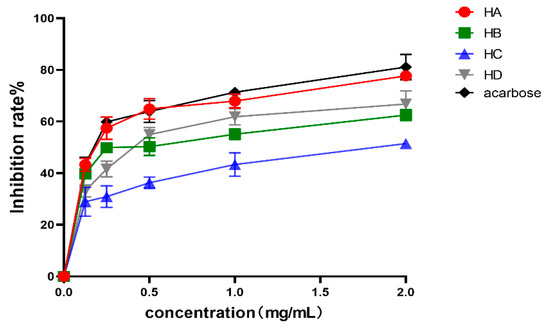

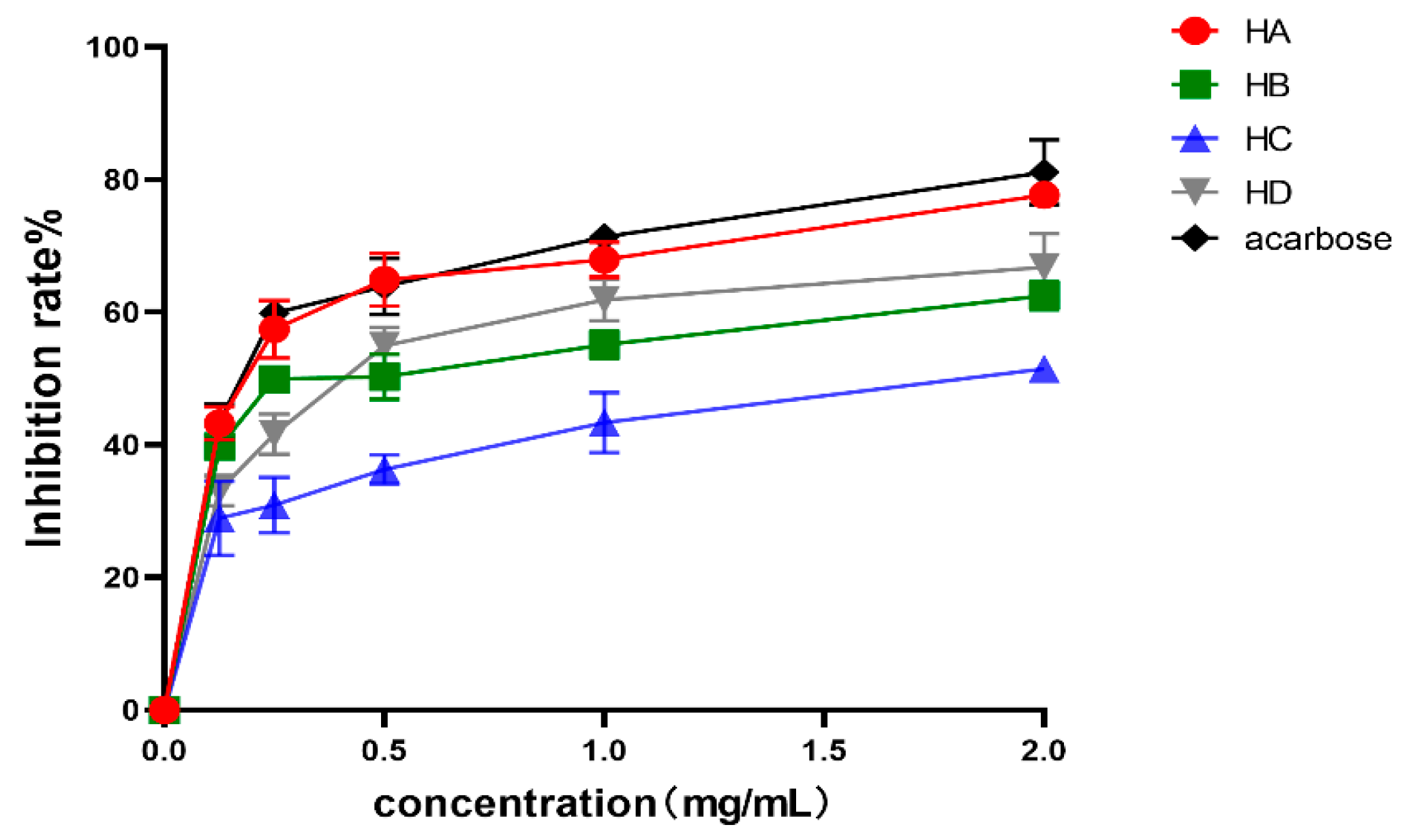

Figure 1. Inhibitory rate of different components of AR on α-glycosides. Values are expressed as mean ± SD (n = 3).
Figure 1. Inhibitory rate of different components of AR on α-glycosides. Values are expressed as mean ± SD (n = 3).
Molecules 28 08030 g001
Molecules 28 08030 g002

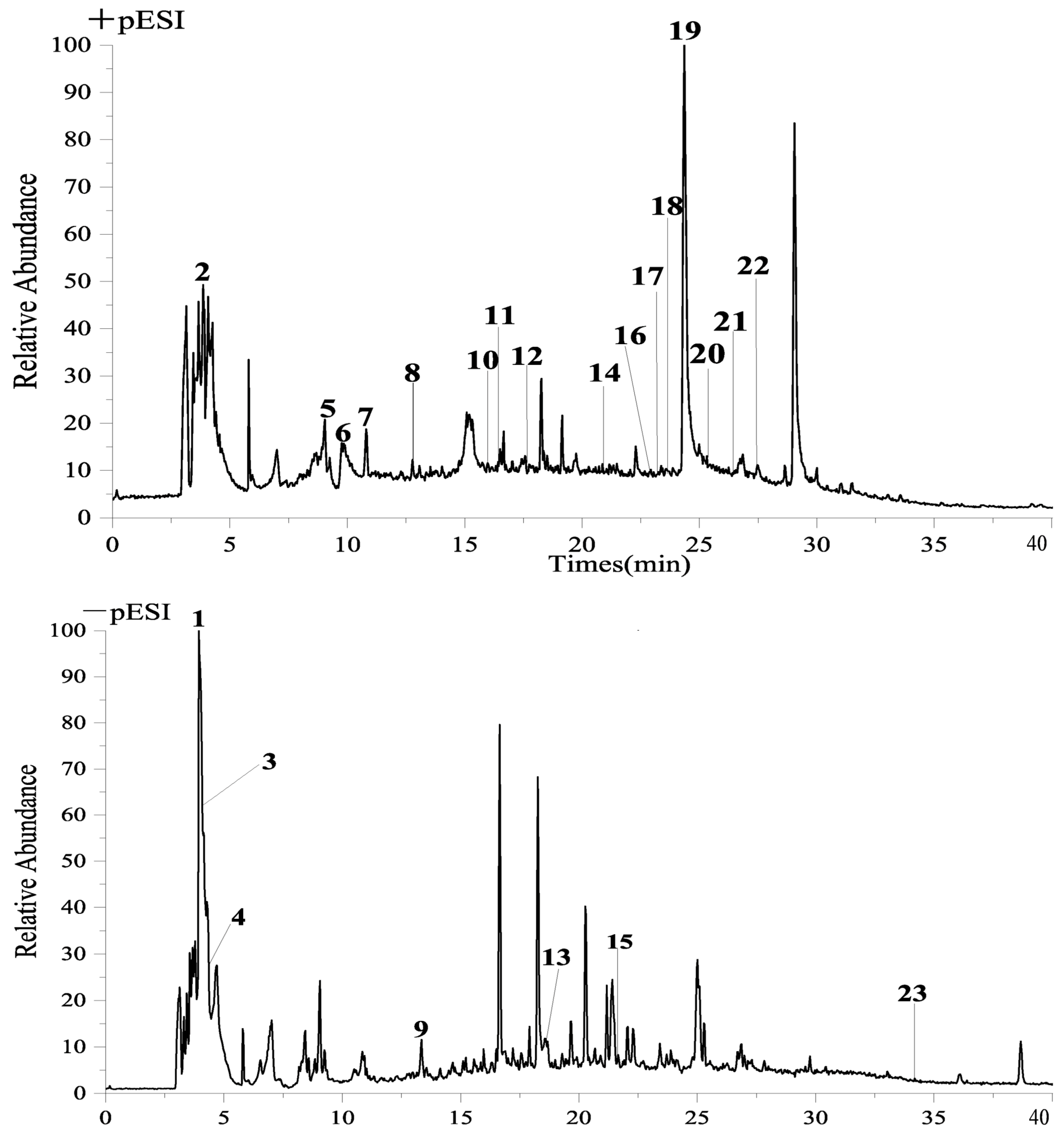

Figure 2. UPLCQE−Orbitrap−MS liquid quality analysis chart.
Figure 2. UPLCQE−Orbitrap−MS liquid quality analysis chart.
Molecules 28 08030 g002
Molecules 28 08030 g003

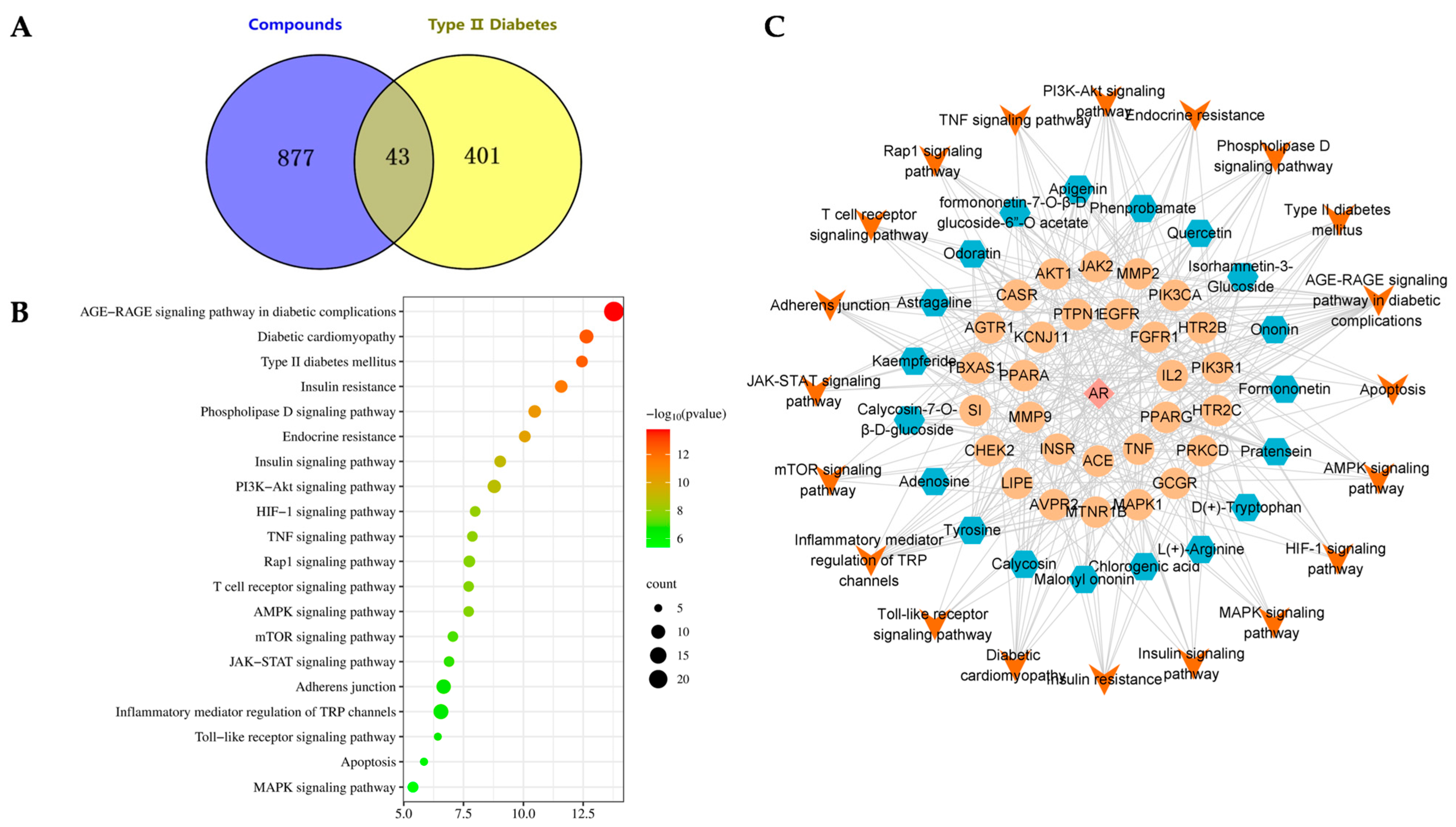

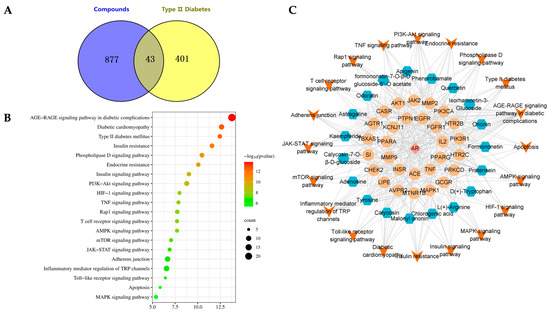

Figure 3. Study of network pharmacology of AR in the treatment of T2DM. (A) Common targets. (B) KEGG pathway analysis. (C) “Component-effect target-pathway” network.
Figure 3. Study of network pharmacology of AR in the treatment of T2DM. (A) Common targets. (B) KEGG pathway analysis. (C) “Component-effect target-pathway” network.
Molecules 28 08030 g003
Molecules 28 08030 g004

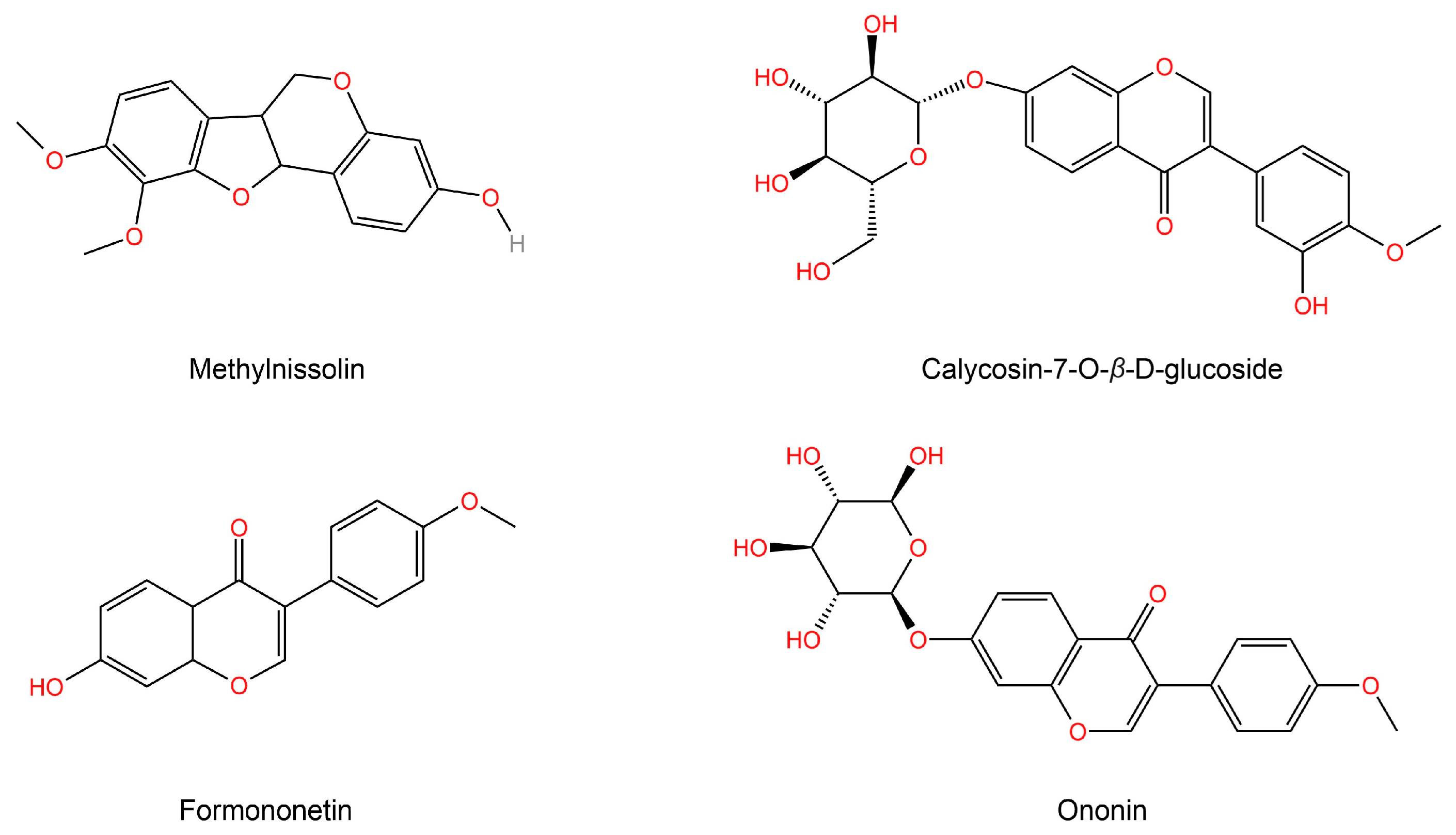

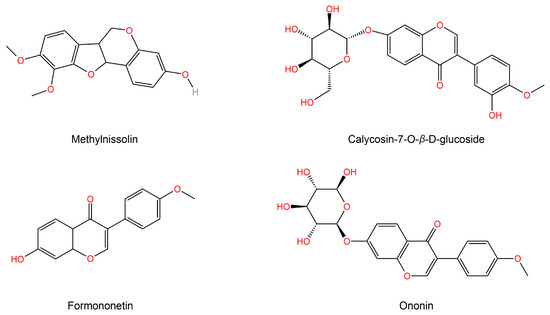

Figure 4. Topological parameter analysis of a network diagram obtained the top active ingredient structure of AR in treating T2DM.
Figure 4. Topological parameter analysis of a network diagram obtained the top active ingredient structure of AR in treating T2DM.
Molecules 28 08030 g004
Molecules 28 08030 g005

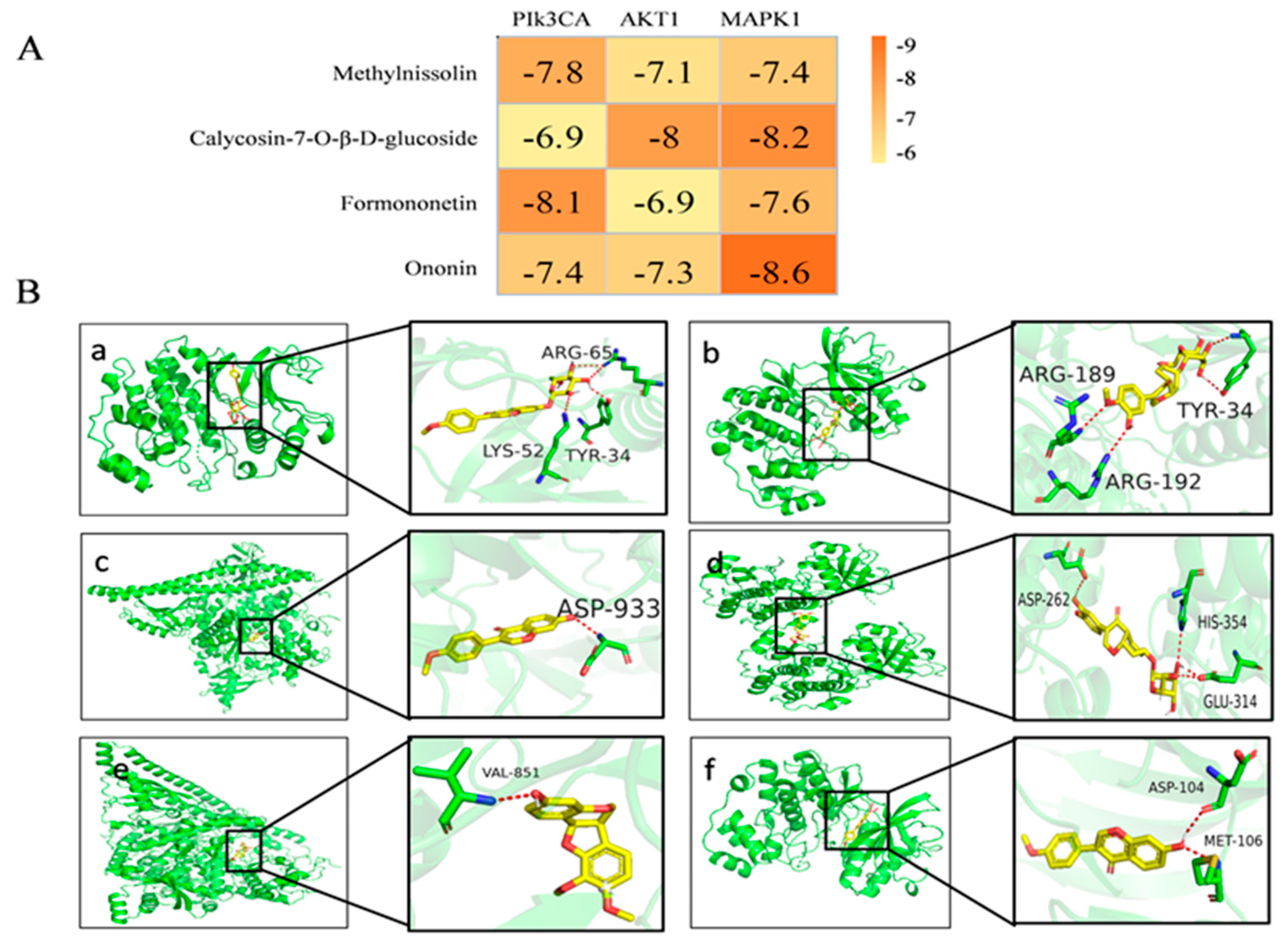

Figure 5. Molecular docking results and visualization. (A) Molecular docking results of key components with various targets. (B) The 3D image of the docking of components with the core target. (a) Ononin and MAPK1. (b) Calycosin-7-O-β-D-glucoside and MAPK1. (c) Formononetin and PIk3CA. (d) Calycosin-7-O-β-D-glucoside and AKT1. (e) Methylnissolin and PIk3CA. (f) Formononetin and MAPK1.
Figure 5. Molecular docking results and visualization. (A) Molecular docking results of key components with various targets. (B) The 3D image of the docking of components with the core target. (a) Ononin and MAPK1. (b) Calycosin-7-O-β-D-glucoside and MAPK1. (c) Formononetin and PIk3CA. (d) Calycosin-7-O-β-D-glucoside and AKT1. (e) Methylnissolin and PIk3CA. (f) Formononetin and MAPK1.
Molecules 28 08030 g005
Molecules 28 08030 g006

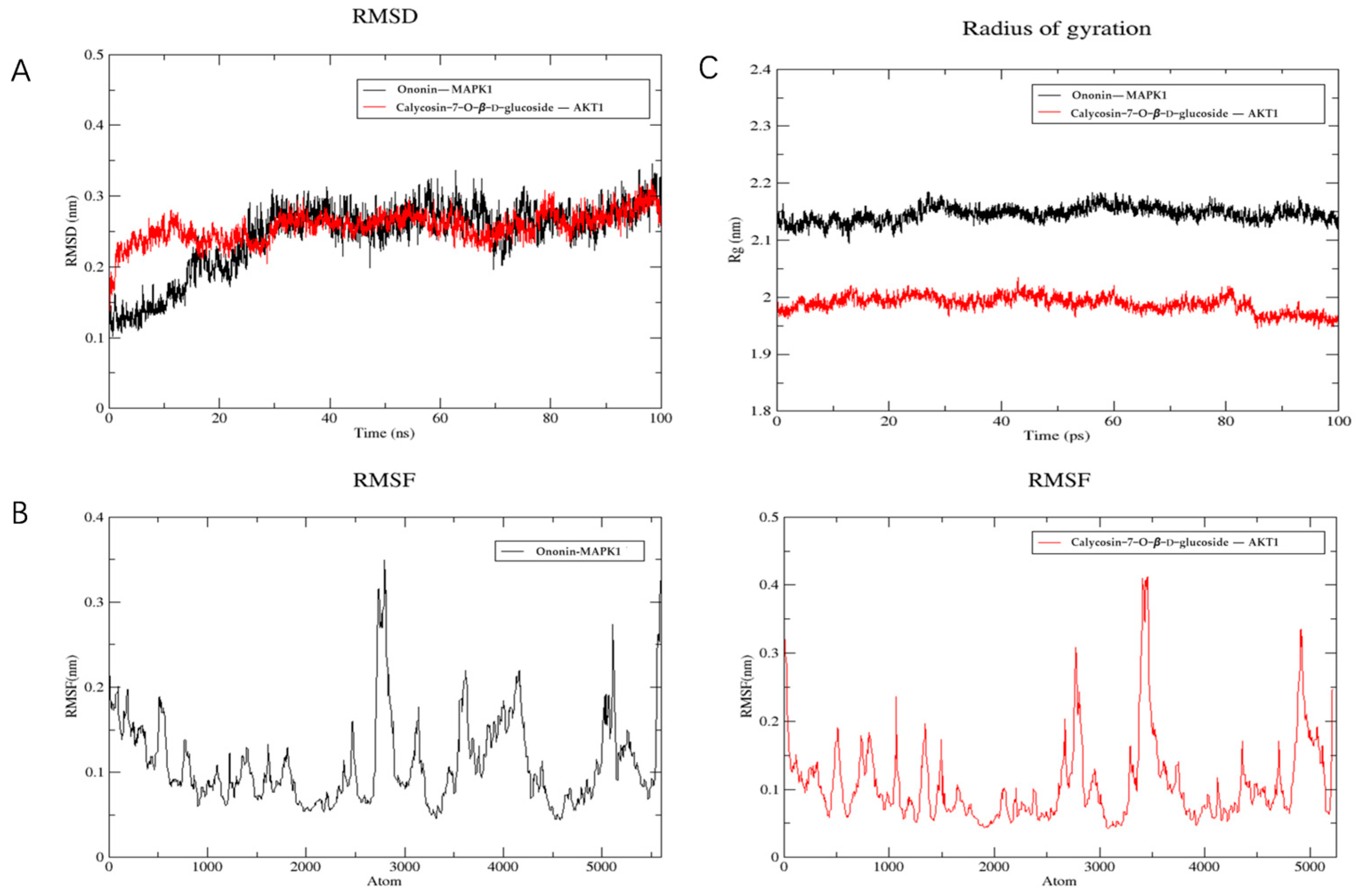

Figure 6. Molecular dynamics simulation. (A) RMSD analysis. (B) RMSF analysis. (C) Gyration radius.
Figure 6. Molecular dynamics simulation. (A) RMSD analysis. (B) RMSF analysis. (C) Gyration radius.
Molecules 28 08030 g006
Molecules 28 08030 g007

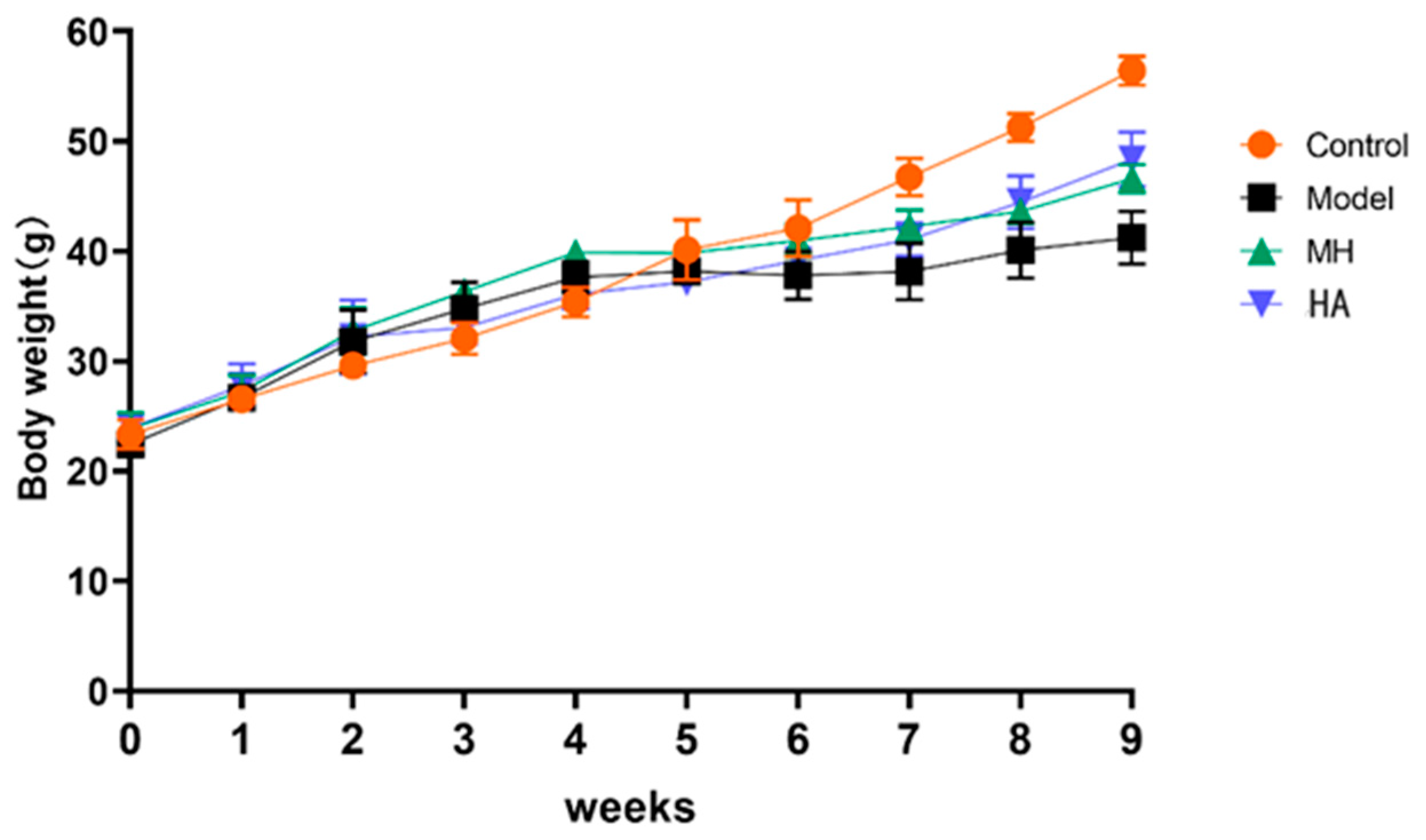

Figure 7. The effect of drug administration on the weights of mice over 9 weeks. Values are expressed as mean ± SD (n = 6).
Figure 7. The effect of drug administration on the weights of mice over 9 weeks. Values are expressed as mean ± SD (n = 6).
Molecules 28 08030 g007
Molecules 28 08030 g008

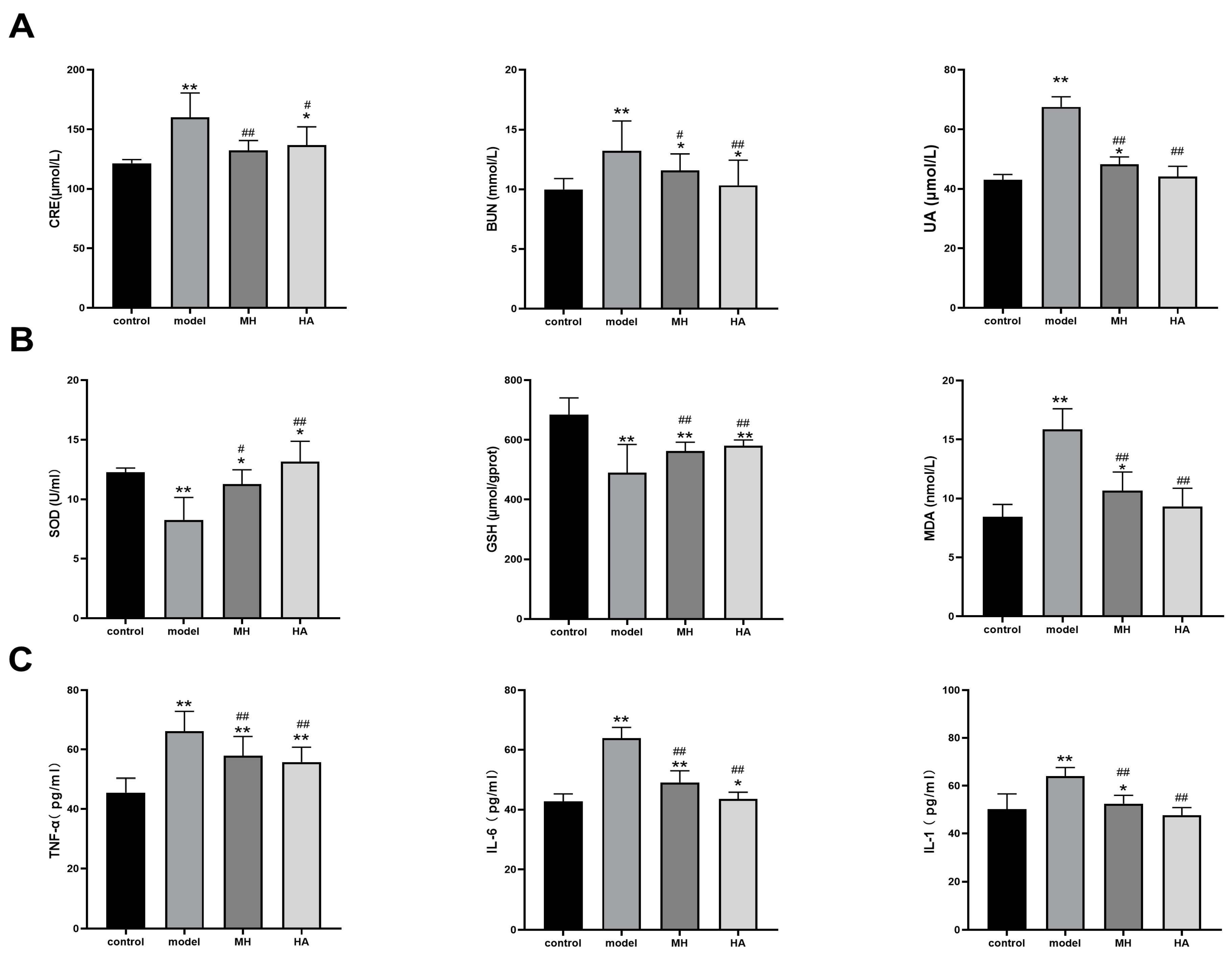

Figure 8. Effects of HA on renal function, antioxidant level, and inflammatory factors. (A) The CRE, BUN, and UA test results. (B) The SOD, GSH, and MDA test results. (C) The TNF-α, IL-6, and IL-1 test results. Values are expressed as mean ± SD (n = 6). * p < 0.05 and ** p < 0.01 versus control; # p < 0.05 and ## p < 0.01 versus model.
Figure 8. Effects of HA on renal function, antioxidant level, and inflammatory factors. (A) The CRE, BUN, and UA test results. (B) The SOD, GSH, and MDA test results. (C) The TNF-α, IL-6, and IL-1 test results. Values are expressed as mean ± SD (n = 6). * p < 0.05 and ** p < 0.01 versus control; # p < 0.05 and ## p < 0.01 versus model.
Molecules 28 08030 g008
Molecules 28 08030 g009

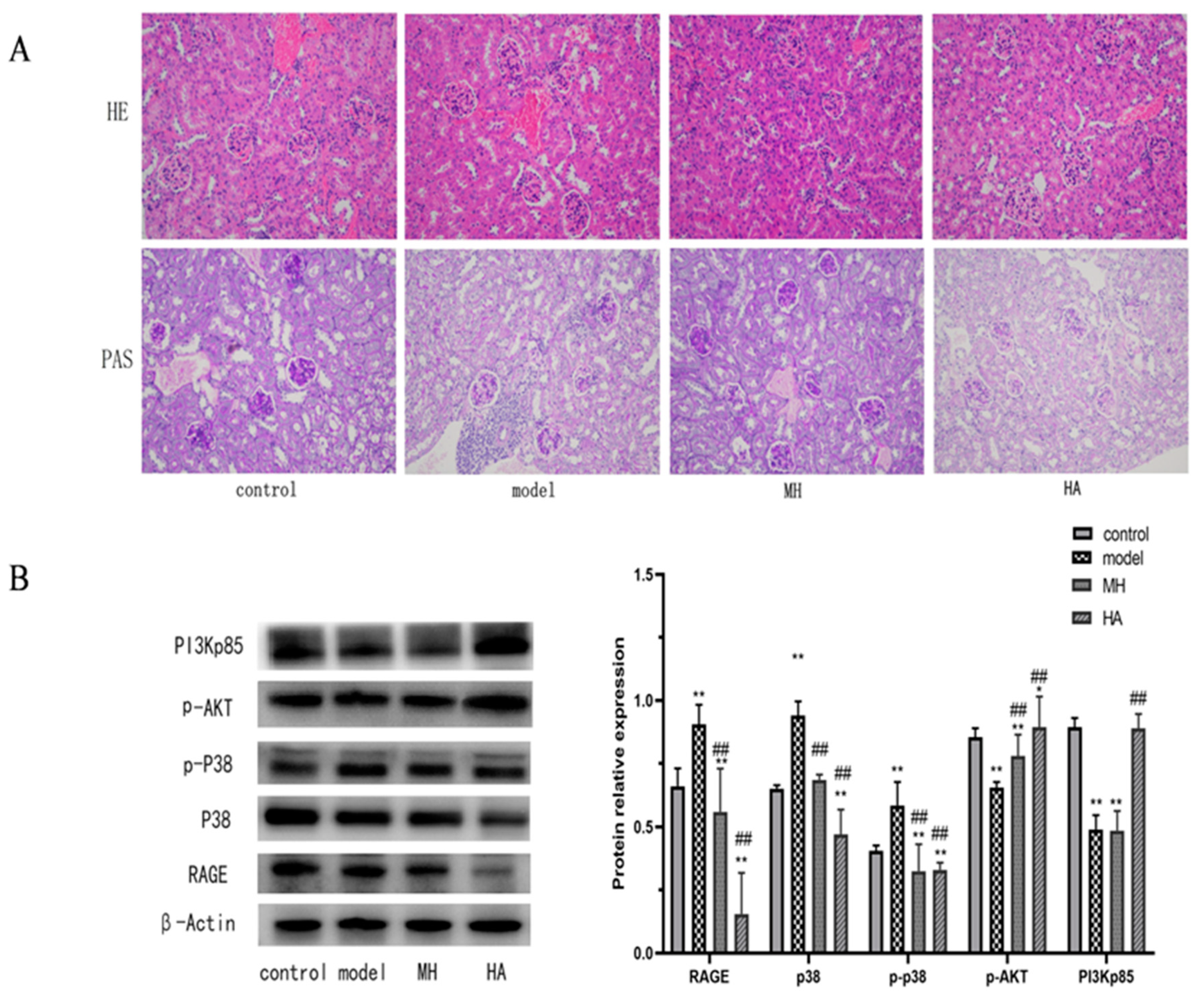

Figure 9. The results of pathological observation and Western blot. (A) H&E staining and PAS staining show the typical images of renal pathological structure in each group (magnification: 200×). (B) Western blotting is used to detect relative protein expression levels in liver tissue. Values are expressed as mean ± SD (n = 3). * p < 0.05 and ** p < 0.01 versus control; ## p < 0.01 versus model.
Figure 9. The results of pathological observation and Western blot. (A) H&E staining and PAS staining show the typical images of renal pathological structure in each group (magnification: 200×). (B) Western blotting is used to detect relative protein expression levels in liver tissue. Values are expressed as mean ± SD (n = 3). * p < 0.05 and ** p < 0.01 versus control; ## p < 0.01 versus model.
Molecules 28 08030 g009
Molecules 28 08030 g010

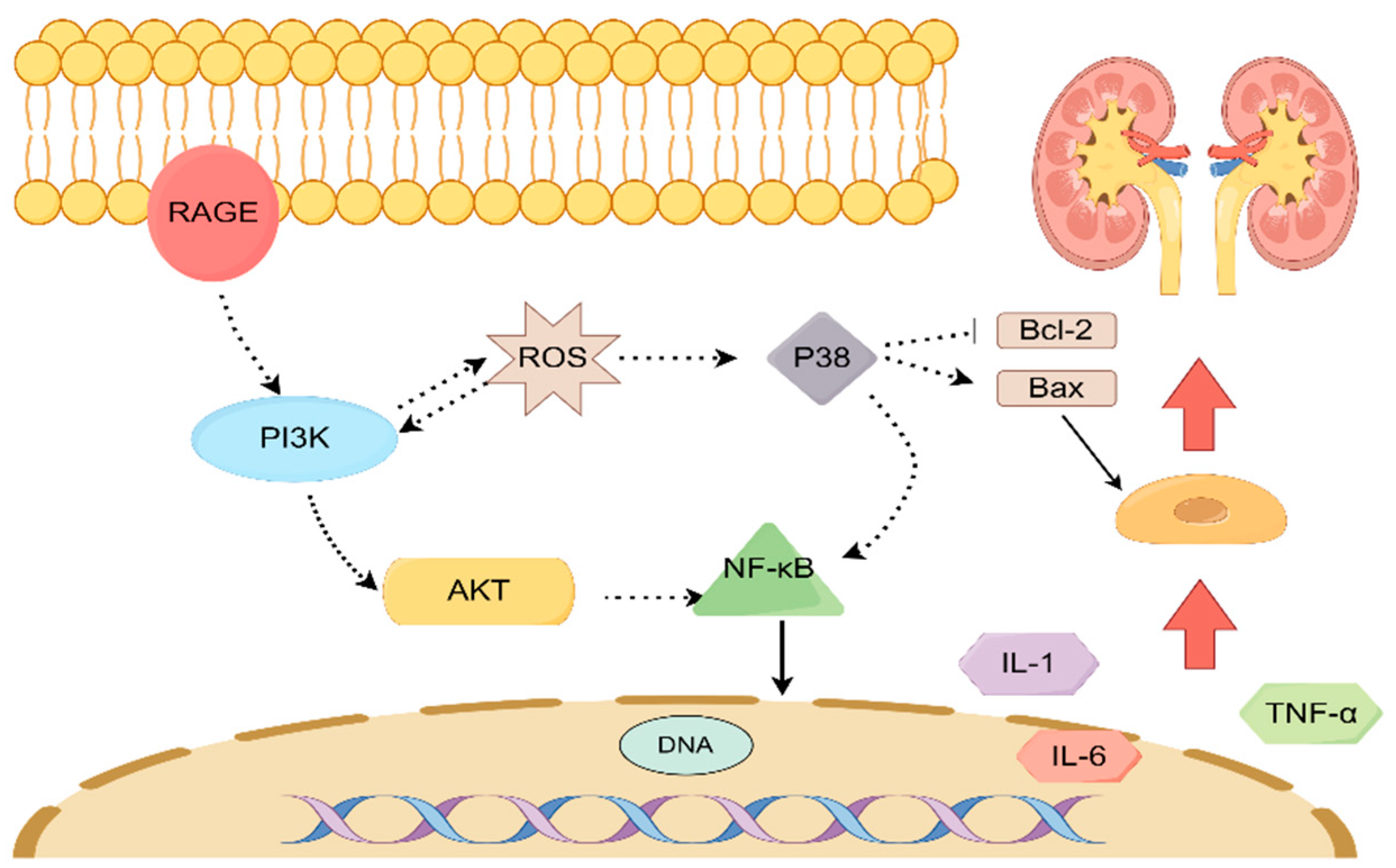

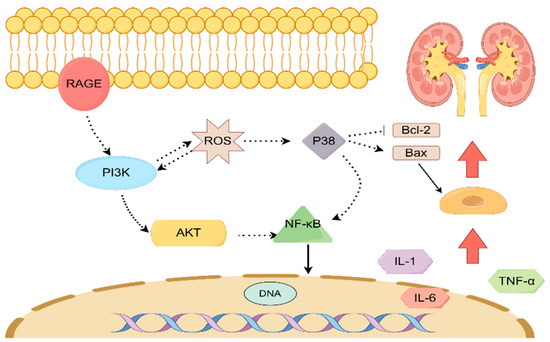

Figure 10. The mechanism of action of AR in the treatment of T2DM renal injury.
Figure 10. The mechanism of action of AR in the treatment of T2DM renal injury.
Molecules 28 08030 g010
Table 1. MS data for characterization of compounds in HA by UPLC-QE-Orbitrap-MS.
Table 1. MS data for characterization of compounds in HA by UPLC-QE-Orbitrap-MS.
No.TimeFormulaMeasured WeightMS2 Characteristic Ions (m/z)Chemical Compound
13.8C22H22O12477.1027253.0930, 150.9785Isorhamnetin-3-Glucoside
23.84C5H11NO2188.034758.0657Betaine
34.10C16H18O9353.0709191.0189, 179.0547, 161.0440Chlorogenic acid
44.19C15H10O7303.0414119.0333, 117.0174, 151.0972Quercetin
59.05C10H13N5O4268.1028268.1036, 136.0617Adenosine
69.86C15H10O5271.1024254.1129Apigenin
710.81C9H11NO2166.0856166.0860, 120.0808Phenprobamate
812.97C23H24O10461.1396299.08856,4′-dimethoxyisoflavone-7-O-glucoside
913.30C16H12O6299.0764285.0621, 239.0517Kaempferide
1015.87C9H11NO3182.0780164.1181, 136.0012, 119.9608Tyrosine
1116.64C22H22O10447.1263285.0753, 270.0517, 253.0484, 225.0542Calycosin-7-O-β-D-glucoside
1217.90C16H12O5285.0330270.0518, 253.0490, 225.0544, 137.0232Calycosin
1318.59C22H22O9431.1172269.0414Ononin
1420.90C17H18O5303.1209193.0855, 181.0853, 167.0701, 123.04417,2′-Dihydroxy-3′,4′-dimethoxyisoflavan
1521.65C25H24O12514.3209187.0961, 225.1126Malonyl ononin
1622.71C17H14O6315.0844300.0619Odoratin
1723.14C24H24O10473.1461270.0837, 269.0804Formononetin-7-O-β-Dglucoside-6″-Oacetate (4), (8)
1823.70C14H16N2O5293.1343165.0365, 135.0803Methylnissolin
1924.08C6H14O2N4175.0695116.3644L(+)-Arginine
2025.33C11H12N2O2205.6131163.8078, 149.0228D(+)-Tryptophan
2126.77C16H12O4269.0730254.0569, 237.0544, 226.0612, 118.0414Formononetin
2227.42C16H12O6301.1030286.0821, 241.0858Pratensein
2334.22C18H32O3295.1392195.1378, 171.101113-Hydroxy-9,11-octadecenoic acid
Table 2. Blood sugar values of mice in each group after administration (mmol·L−1).
Table 2. Blood sugar values of mice in each group after administration (mmol·L−1).
Group0 d7 d14 d21 d28 d
Control5.23 ± 0.215.30 ± 0.355.12 ± 0.265.27 ± 0.215.17 ± 0.23
Model10.02 ± 1.0110.93 ± 0.3211.9 ± 0.3012.93 ± 0.2512.09 ± 1.10
MH9.60 ± 0.819.36 ± 0.468.62 ± 0.93 *7.53 ± 1.22 **6.6 ± 0.85 **
HA9.54 ± 0.768.3 ± 1.06 *7.85 ± 0.93 *6.76 ± 1.13 **5.7 ± 1.47 **
Values are expressed as mean ± SD (n = 6); * p < 0.05 and ** p < 0.01 versus model.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Li, C.; Zhang, K.; Liu, L.; Shen, J.; Wang, Y.; Tan, Y.; Feng, X.; Liu, W.; Zhang, H.; Sun, J. Study of the Mechanism of Astragali Radix in Treating Type 2 Diabetes Mellitus and Its Renal Protection Based on Enzyme Activity, Network Pharmacology, and Experimental Verification. Molecules 2023, 28, 8030. https://doi.org/10.3390/molecules28248030

AMA Style

Li C, Zhang K, Liu L, Shen J, Wang Y, Tan Y, Feng X, Liu W, Zhang H, Sun J. Study of the Mechanism of Astragali Radix in Treating Type 2 Diabetes Mellitus and Its Renal Protection Based on Enzyme Activity, Network Pharmacology, and Experimental Verification. Molecules. 2023; 28(24):8030. https://doi.org/10.3390/molecules28248030

Chicago/Turabian Style

Li, Chunnan, Kaiyue Zhang, Lu Liu, Jiaming Shen, Yuelong Wang, Yiying Tan, Xueqin Feng, Wanjie Liu, Hui Zhang, and Jiaming Sun. 2023. "Study of the Mechanism of Astragali Radix in Treating Type 2 Diabetes Mellitus and Its Renal Protection Based on Enzyme Activity, Network Pharmacology, and Experimental Verification" Molecules 28, no. 24: 8030. https://doi.org/10.3390/molecules28248030

APA Style

Li, C., Zhang, K., Liu, L., Shen, J., Wang, Y., Tan, Y., Feng, X., Liu, W., Zhang, H., & Sun, J. (2023). Study of the Mechanism of Astragali Radix in Treating Type 2 Diabetes Mellitus and Its Renal Protection Based on Enzyme Activity, Network Pharmacology, and Experimental Verification. Molecules, 28(24), 8030. https://doi.org/10.3390/molecules28248030

Article Metrics

Back to TopTop
