Article

Computational Design of Ni6@Pt1M31 Clusters for Multifunctional Electrocatalysts

by
Jiaojiao Jia
and
Dongxu Tian
*
School of Chemistry, Dalian University of Technology, No. 2 Linggong Road, Dalian 116024, China
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(22), 7563; https://doi.org/10.3390/molecules28227563
Submission received: 13 June 2023 / Revised: 29 June 2023 / Accepted: 10 July 2023 / Published: 13 November 2023
(This article belongs to the Special Issue Nanocatalysts for Electrochemical Reactions: Design, Synthesis, and Fundamental Understanding)
Browse Figures
Review Reports Versions Notes

Abstract

:
High-efficiency and low-cost multifunctional electrocatalysts for hydrogen evolution reaction (HERs), oxygen evolution reaction (OERs) and oxygen reduction reaction (ORRs) are important for the practical applications of regenerative fuel cells. The activity trends of core–shell Ni6@M32 and Ni6@Pt1M31 (M = Pt, Pd, Cu, Ag, Au) were investigated using the density functional theory (DFT). Rate constant calculations indicated that Ni6@Pt1Ag31 was an efficient HER catalyst. The Volmer–Tafel process was the kinetically favorable reaction pathway for Ni6@Pt1M31. The Volmer–Heyrovsky reaction mechanism was preferred for Ni6@M32. The Pt active site reduced the energy barrier and changed the reaction mechanism. The ORR and OER overpotentials of Ni6@Pt1Ag31 were calculated to be 0.12 and 0.33 V, indicating that Ni6@Pt1Ag31 could be a promising multifunctional electrocatalyst. Ni6@Pt1M31 core–shell clusters present abundant active sites with a moderate adsorption strength for *H, *O, *OH and *OOH. The present study shows that embedding a single Pt atom onto a Ni@M core–shell cluster is a rational strategy for designing an effective multifunctional electrocatalyst.

Graphical Abstract

1. Introduction

Reversible fuel cells or unitized regenerative fuel cells (URFCs) combine the functions of fuel cells and electrolyzers, which attract increasing attention because of their high levels of efficiency and environmentally friendly merits [1]. The key challenge is to develop highly active and stable multifunctional electrocatalysts for hydrogen and oxygen electrode reactions [2,3]. The cathodic hydrogen evolution reaction (HER) and the anodic oxygen evolution reaction (OER) have sluggish kinetics due to large overpotentials. Pt/C and noble metal oxides of RuO2 and IrO2 demonstrated advanced activity with reduced overpotentials in ORR/HER/OER processes [4,5,6]. However, the wider applications of noble-metal materials have been limited by their high price and scarcity [7,8]. Thus, efforts are mainly devoted to the design of efficient and cheap catalysts whose catalytic performances are comparable to noble metals in accelerating the ORR, OER and HER [9,10,11,12,13].
Recently, electrocatalysts with core–shell structures were prepared to be applicable for catalyzing the ORR/OER/HER efficiently [14,15]. The electronic structure of a core–shell cluster can be regulated through the electronic interaction between the core and shell [16]. Many core–shell nanoclusters have been explored theoretically and experimentally for the ORR process [17,18,19]. A novel Pt core–shell catalyst for the ORR was reported with an impressive improvement, producing 3.7 times greater results relative to a Pt/C material [20]. Chen and colleagues reported that Ni-Pd alloys with Pd-enriched surfaces exhibited significantly enhanced ORR activities and improved CH3OH tolerances compared to Pd/C catalysts [21]. Lin et al. reported the synthesis of snap-bean-like, multi-dimensional core/shell Ni/NiCoP nano-heterojunctions (NHs), presenting improved stability and activity for both hydrogen evolution reactions (HERs) and oxygen evolution reactions (OERs) [22]. Ma et al. demonstrated a core–shell-structured non-noble-metal, Ni@In, loaded on silicon nanowire arrays (SiNWs) for the efficient reduction of CO2 to formate [23]. Park’s group synthesized a Ni-based core–shell material (Ni@Ni-NC) which displayed excellent electrocatalytic OER performance with over- and onset potentials of 371 mV and 1.51 V, respectively, which are superior to those of commercial IrO2 [24], and Yu’s group found that Ni@Pd core–shell nanoparticles exhibited robust ORR activity and stability in both acidic and alkaline electrolytes, comparable to commercially available Pt/C catalysts [25]. In addition, Lang’s group prepared binary core–shell Ni@Pt NPs [26] with good ORR performance and durability. A Ni19@Pt70 cluster exhibited better catalytic activity and stability for the ORR than Pt79 [27].
With nearly 100% atom utilization, a unique local coordination environment and electronic configuration, noble-metal single-atom catalysts (SACs) exhibit unique properties [28,29,30,31,32]. Li’s group predicted that the Pt1/PMA (phosphomolybdic acid cluster) catalyst is a promising multifunctional electrocatalyst for use in water splitting (ηHER = 0.02 V and ηOER = 0.49 V) and a metal–air battery (ηORR = 0.79 V) [33]. Zhao et al. reported a single-atom Ru catalyst for the OER with the overpotential of 118 mV [34]. Zhang et al. proposed a single-atom Au electrocatalyst supported by NiFe-LDH with high activity for the OER [35].
A multifunctional electrocatalyst should have abundant active sites which remarkably facilitate the adsorption/desorption of *H, *O, *OH and *OOH intermediates and products or two reactions simultaneously. The adsorption and desorption energies of the reaction species should be moderate, according to the Sabatier’s principle [36].
We systematically investigated the stability and multifunctional catalytic behavior of Ni6@M32 (M = Pt, Pd, Cu, Ag, Au) and Ni6@Pt1M31 (M = Pd, Cu, Ag, Au) for the ORR, OER and HER using DFT calculations. The OER overpotential of Ni6@Pt1Ag31 (ηOER = 0.33 V) is lower than RuO2 (ηOER = 0.37 V) [34] and IrO2 (ηOER = 0.56 V) [37]. Rate constant calculations indicated that Ni6@Pt1Ag31 is an efficient HER catalyst. The Volmer–Tafel process was a kinetically favorable reaction pathway for Ni6@Pt1M31, while the Volmer–Heyrovsky process was the major pathway for Ni6@M32. The present study shows that embedding a single Pt atom onto core–shell Ni@PtM cluster is a rational strategy for designing a multifunctional electrocatalyst.

2. Results and Discussion

2.1. Structure and Stability Analysis

A core–shell Ni6@M32 (M = Pt, Pd, Cu, Ag, Au) cluster (Figure 1) was used as a catalyst model to understand the activity trends of the HER, OER and ORR. The average bond lengths were calculated and are shown in Table S2. The average bond lengths of the Ni6@M32 (M = Pt, Pd, Cu, Ag, Au) clusters were shorter than those of pure M32 clusters arising from a lattice mismatch between the core and shell atoms. The average bond length of the shell decreases in the following order: Ni6@Au32 ≈ Ni6@Ag32 > Ni6@Pd32 > Ni6@Pt32 > Ni6@Cu32.
The formation energies of the Ni6@Pt1M31 structures were calculated according to Equation (S1) and are presented in Table 1. The negative values indicate that it is thermodynamically favorable for the formation of Ni6@Pt1M31 from Ni6@M32 and a Pt atom. The thermodynamic trend is Ni6@Pt1Pd31 (−0.56 eV) > Ni6@Pt1Ag31 (−0.51 eV) > Ni6@Pt1Cu31 (−0.08 eV) > Ni6@Pt1Au31 (0.33 eV).
The average binding energy was calculated according to Equation (S2) and is presented in Figure 2a. The average binding energy decreases in the following order: Ni6@Pt32 (4.53 eV) > Ni6@Pd32 (4.36 eV), Ni6@Pt1Pd31 (4.40 eV) > Ni6@Pt1Au31 (3.02 eV), Ni6@Au32 (2.96 eV) > Ni6@Pt1Ag31 (2.63 eV), Ni6@Ag32 (2.53 eV) > Ni6@Pt1Cu31 (0.42 eV), Ni6@Cu32 (0.25 eV). Ni6@Pt32 has the highest binding energy (4.53 eV) and is the most stable catalyst.
A Bader charge analysis was carried out to investigate the electronic properties of the Ni6@M32 and Ni6@Pt1M31. The electronegativities (Pauling scale) of Ni, Pt, Pd, Au, Ag and Cu are 1.91, 2.28, 2.20, 2.54, 1.93 and 1.90, respectively. As presented in Figure 2b, the charge transfer amount changes in the following order: Ni6@Pt32 > Ni6@Pd32, and Ni6@Au32 > Ni6@Ag32 > Ni6@Cu32. The charge transfer amount increases with the increased difference in the electronegativity between the core and shell elements. It is closely related to the average binding energy, as shown in Figure S1. The average binding energy increases with an increased amount of charge transferred between the core and shell.
The density of the states projected onto the d states of the Ni6@M32 clusters and Ni6@Pt1M31 (M = Pd, Cu, Ag, Au) clusters is shown in the Figure S2. The introduction of a Pt atom narrows the distribution of the d states. Its influence is smaller on the Ni6@Pd32 cluster than on the other three clusters. The Ni6@Pt1Ag31 cluster shows the most significant change in its PDOS compared to the Ni6@Ag32 cluster, with the population of high-energy states decreasing and the population of low-energy states increasing. This feature may present active sites with a moderate adsorption strength for *H, *O, *OH and *OOH.

2.2. Hydrogen Evolution Reaction (HER) Catalytic Activity

Mechanistically, the HER involves three possible principal steps in acidic media which occur via either the Volmer–Heyrovsky or Volmer–Tafel process as presented in Text S1. The Volmer reaction refers to the initial adsorption of protons from the acid solution to form adsorbed H and is usually considered to be fast. The Heyrovsky reaction refers to the reaction of a proton in the water layer with an adsorbed hydrogen to form H2. Two adsorbed H atoms react to form H2, which is Tafel reaction process.

2.2.1. The Hydrogen-Adsorption Gibbs Free Energies of Ni6@M32 and Ni6@Pt1M31

To assess the Volmer performance of the Ni6@M32 (M = Pt, Pd, Cu, Ag, Au) and Ni6@Pt1M31 (M = Pd, Cu, Ag, Au), we calculated the differential hydrogen-adsorption Gibbs free energy (d−ΔGH*) and average-hydrogen-adsorption Gibbs free energy (a−ΔGH*) values (Equations (S3)–(S5) in Text S1) as functions of the hydrogen coverage (θH*). Here, θH* was defined as n/6, where n is the number of adsorbed H atoms. The exchange current density value i0 was calculated as a function of d−ΔGH* according to the Equations (S6) and (S7) in Text S1. The d−ΔGH* and a−ΔGH* values of Ni6@Pt1M31 (M = Pd, Cu, Ag, Au) from θH* = 1/6 to 6/6 are presented in Figure 3a,b,d,e,g,h,j,k. A volcano relation formed between d−ΔGH* and the exchange current density. The volcano plot of i0 as a function of d−ΔG*H is presented in Figure 3c,f,i,l. For comparison, data regarding Ni6@M32 (M = Pt, Pd, Cu, Ag, Au), including the d−ΔGH*, a−ΔGH* and i0 values, are presented in Figure S3.
For Ni6@M32 and Ni6@Pt1M31 (M = Pd, Pt), the high hydrogen coverage value (θH* = 6/6) corresponds to the optimal d−ΔGH* and i0 values. For example, for Ni6@Pt1Pd31, the d−ΔGH* values were calculated to be −0.28, −0.23, −0.25, −0.12, −0.33 and 0.10 eV at a H coverage ranging from 1/6 to 6/6, and the volcano plot indicates that the high θH* = 6/6 corresponds to the low d−ΔGH* and high i0 values. Compared with the Ni6@Pd32 cluster (Figure S3), the d−ΔGH* and a−ΔGH* values of Ni6@Pt1Pd31 are closer to zero, demonstrating the benefit of the introduction of single-site Pt. For Ni6@M32 (M = Cu, Ag, Au) and Ni6@Pt1M31 (M = Ag, Au), the low hydrogen coverage (θH* = 1/6) value corresponds to the optimal d−ΔGH* and high i0 values.
The repulsion interaction between neighboring negatively charged, adsorbed *H atoms possibly improves the desorption. At low H coverage, Ni6@M32 (M = Cu, Ag, Au) present d−ΔGH* and i0 values which are comparable to Ni6@Pt32. The optimal |d−ΔGH*|, |a−ΔGH*| and i0 values and the Bader charges of the hydrogen atoms in the Ni6@M32 and Ni6@Pt1M31 systems are presented in Table S3. These results show the complex influence of the hydrogen coverage on the interaction between the adsorbate and the adsorption site. An analysis of the projected density of states (PDOS, Figure S4) shows that high coverage can broaden the distribution of the d-DOS of the adsorption sites for the Ni6@Pd32 and Ni6@Pt1Pd31 clusters. This weakens the adsorption strength of the adsorbates at the adsorption site.

2.2.2. The Energy Barriers of the Tafel and Heyrovsky Processes

From the point of the adsorption free energy, at a low H coverage, Ni6@M32 (M = Cu, Ag, Au) present Volmer activity comparable to Pt-based Ni6@Pt32. We further investigated the kinetic properties of all candidates. Considering the water environment, the energy barriers of the Tafel and Heyrovsky processes were calculated for Ni6@M32 and Ni6@Pt1M31, with a d−ΔG*H value close to zero. Figure 4 displays the structures of the adsorption state, transition state and product species and the energy barriers. The energy barriers of the Tafel process for Ni6@Pt1M31 (M = Pd, Cu, Ag, Au) are 0.33, 0.21, 0.10 and 0.55 eV, respectively. We employed the H3O species to consider the H3O+ + e− approximately for the simulation of the Heyrovsky step. The energy barriers of the Heyrovsky process were calculated to be, respectively, 0.89, 0.88, 0.45 and 0.77 eV. For Ni6@Pt1M31 (M = Pd, Cu, Au), the Heyrovsky process needs to overcome a relatively higher energy barrier to form H2 by H3O reacting with an adsorbed H*. The Volmer–Tafel reaction mechanism is main pathway for Ni6@Pt1M31 (M = Pd, Cu, Ag, Au) by combining two adsorbed hydrogens to form H2. The energy barriers of the Tafel process for Ni6@M32 (M = Pt, Pd, Cu, Ag) are 0.55, 0.66, 0.78 and 1.06 eV, respectively, as presented in Figure S6. The energy barriers of the Heyrovsky process for Ni6@M32 (M = Pt, Pd, Cu, Ag) are 0.43, 0.54, 0.14 and 0.70 eV, respectively. The Volmer–Heyrovsky reaction pathway is favorable for Ni6@M32 (M = Pt, Pd, Cu, Ag).
The rate constants (k/s) of the Tafel and Heyrovsky processes in the HER were calculated according to Equation (S8), based on the Eyring transition state theory with Wigner correction [38], as presented in Table 2. By comparing the rate constants, the Volmer–Heyrovsky reaction mechanism was determined to be favorable for Ni6@M32, and the Volmer–Tafel process was determined to be a kinetically advantageous reaction pathway for Ni6@Pt1M31. The Pt active site decreases the energy barrier and modulates the reaction mechanism.
Platinum metal catalysts have been known as the most efficient catalysts for the HER due to their optimum Gibbs free energy for atomic hydrogen adsorption (ΔGH*). Ni6@Cu32 has comparable HER activity to Ni6@Pt32, and at θH* = 2/6, Ni6@Pt1Ag31 is the most efficient catalyst of Ni6@M32 and Ni6@Pt1M31. These results indicate the H coverage is an important factor in the kinetic activity of the HER.

2.3. The Oxygen Reduction Reaction (ORR)/Oxygen Evolution Reaction (OER): Catalytic Activity

The activity of the ORR and OER under acidic conditions were investigated for Ni6@M32 and Ni6@Pt1M31. It was given that the oxygen reduction reaction pathway occurs via an associative mechanism, with four protonation reaction steps. The adsorption free energies of the oxygenated intermediates were calculated as presented in Table S4 via the computational hydrogen electrode (CHE) model, using hydrogen and water as references, according to Equations (S18)–(S21). The free energy diagram of the four-electron reaction is presented in Figure 5. The OER/ORR overpotential was obtained by Equations (S22) and (S23). As shown in Figure 4, the ORR’s potential-limiting step is the proton-coupled electron transfer step *OH → H2O for Pt38, Pt (111), Ni6@Pt1Cu31 and Ni6@M32 (M = Pd, Cu, Ag, Au). The potential-limiting step of the ORR’s elementary reactions for Ni6@Pt1M31 (M = Pd, Au) is O2 + H+ + e− → *OOH. For Ni6@Pt32 and Ni6@Pt1Ag31, *O → *OH is the potential-limiting step. The ORR overpotentials are presented in Table S5. The overpotential (ηORR) values of the Pt (111) and Pt38 clusters were calculated to be 0.73 and 0.81 V. For Ni6@Pt1M31 (M = Pd, Cu, Ag, Au), the overpotentials were calculated to be 0.77, 0.83, 0.12 and 1.06 V, respectively. Ni6@Pt1Ag31 showed the best activity, with ηORR = 0.12 V. In the OER process, the potential-limiting step is the *O → *OOH step for Pt38, Pt (111), Ni6@M32 (M = Pt, Pd) and Ni6@Pt1M31 (M = Pd, Cu, Au). For Ni6@Cu32 and Ni6@Pt1Ag31, the OER’s potential-limiting step is the *OOH → O2 process. The second deprotonation process (*OH → *O) is the OER’s potential-limiting step for Ni6@M32 (M = Ag, Au). The OER overpotentials for Pt38 and Pt (111) are 1.34 and 0.74 V. The OER overpotentials for the Ni6@M32 (M = Pt, Pd, Cu, Ag, and Au) clusters are 1.17, 0.81, 0.92, 0.93 and 1.08 V, respectively. The calculated OER overpotentials for Ni6@Pt1M31 (M = Pd, Cu, Ag, Au) are respective 1.36, 1.61, 0.33 and 0.61 V. The OER overpotential for a Ni6@Pt1Ag31 (ηOER = 0.33 V) single-atom catalyst is lower than those of RuO2 (ηOER = 0.37V) [37] and IrO2 (ηOER = 0.56V) [37].
The adsorption strength of the three intermediates, *OOH, *O and *OH, was analyzed to explore the activity trend of the Ni6@M32 and Ni6@Pt1M32 (M = Pd, Cu, Ag, Au). As shown in Figure 6a,b, there is a linear relationship between the adsorption free energy values of *OOH and *OH. The inverted volcano curve was obtained by plotting the adsorption free energy of *OH and the corresponding ORR overpotential, as presented in Figure 6c. On the left leg, the rate-limiting step is the *OH → H2O process due to the strong *OH adsorption strength. On the right-side, because of the weak adsorption for *OOH, the process of generating *OOH intermediates from oxygen becomes the limiting step. A similar volcano curve can be obtained by plotting the adsorption free energy of the *OOH and the ORR overpotential, and the details are presented in Figure S7.
The d-band centers (εd) were calculated to explain the interaction of the adsorbates with the adsorption sites because the O* adsorption strength of a metal is closely correlated with its d-orbital levels [39]. The d-band centers of the adsorption sites of Ni6@M32 and Ni6@Pt1M31 were calculated to explain the interaction of the *O intermediate with the adsorption sites. As shown in Figure 7a, there is no linear relationship between the adsorption energy of the *O intermediate and the d-band center of the adsorption site. A small deformation of the geometry of the metal cluster was caused by O adsorption. The adsorption energy was thought to be the superposition of the metal cluster’s geometry deformation energy and the binding energy between the metal cluster and the O. The adsorption energy was decomposed as follows: ΔEads = ΔEdeformation + ΔEbinding, where ΔEdeformation is the difference in the energy of the metal cluster before and after the O adsorption; ΔEbinding is the binding energy of the O on the metal cluster. A linear relationship between the binding energy and the d-band center is presented in Figure 7b. The adsorption strength of the adsorbed oxygen intermediate decreases with the downshift in εd to the Fermi energy level due to the d-p anti-bond orbital occupancy [39].
The PDOS was analyzed to explore the interaction between O* and the active site, as presented in Figure 7c. The blue and green colors represent the d state distributions of the adsorption sites, and the red part represents the p-orbital distribution of the adsorbed oxygen atom. In the PDOS diagrams of Ni6@M32 (M = Au, Ag) and Ni6@Pt1M31 (M = Au, Ag), the antibonding orbitals are occupied, resulting in weakened adsorption strength. On the contrary, the PDOS diagrams of Ni6@M32 (M = Pt, Pd) and Ni6@Pt1M31 (M = Pt, Pd) show that the antibonding orbital energy levels shift up over the Fermi energy level, leading to a relatively stronger d-p interaction. Comparing Ni6@M32 and Ni6@Pt1M31, the single Pt atom causes the d-band centers to up-shift to the Fermi energy level, resulting in a slightly stronger adsorption strength. Combined with the d-band center and PDOS analyses, a moderate O adsorption interaction significantly improved the potential-limiting step *O → *OH, with a reduced overpotential of ηORR = 0.12 V. Among all the candidates, Ni6@Pt1Ag31 is a promising multifunctional electrocatalyst for splitting water (∆GTSHeyrovsky = 0.10 eV and ηOER = 0.33 V) and has a low overpotential of ηORR = 0.21 V.
In summary, the electronic properties of the adsorption sites can be manipulated by changing the chemical composition of the core and shell. The free energies and electronic structures of the core–shell Ni6@Pt1M32 nanoclusters can be modulated to offer improved performance in the electrocatalysis of the ORR, HER and OER. In the ORR, Ni6@Pt1Pd31 and Ni6@Pt1Ag31 exhibit lower overpotentials than Pt (111). In the HER, Ni6@Cu32 (0.14 eV), Ni6@Pt1Cu31 (0.21 eV), Ni6@Pt1Pd31 (0.33 eV) and Ni6@Pt1Ag31 (0.10 eV) are promising efficient electrocatalysts. In the OER, the overpotentials of Ni6@Pt1Ag31 and Ni6@Pt1Au31 are lowered compared to that of Pt (111).

3. Computational Details

3.1. Computational Methods

Spin-polarized DFT methods were implemented in the Vienna Ab initio Simulation Package (VASP) [40,41,42] to carry out energy calculations and a geometry optimization. The interaction between valence and core electrons was described using the projector-augmented wave (PAW) pseudopotential [43,44], with an energy cutoff for the plane waves of 400 eV. A generalized gradient approximation (GGA) with the PW91 functional was used to calculate the exchange–correlation energies [45,46]. The clusters were placed at the center of a 20 × 20 × 20 Å3 cubic box, 65% of which was vacuum space to avoid interaction between the clusters and their images. A Pt (111) slab was modeled using a five-layer, periodically repeated √3 × √2 super cell with 35 Å of vacuum space. A Gamma (1 × 1 × 1) point mesh was used during the geometric optimization of clusters. A threshold for self-consistent calculations of 1 × 10−5 eV was used, and 0.02 eV/Å was used for ionic optimization. The transition state (TS) was determined via the Dimer method [47]. A Bader charge analysis was conducted to analyze the charge transfer [48].

3.2. Models

A truncated octahedral (TO) structure was employed as the theoretical model. The shell of the TO structure consists of eight (111) planes and six (100) planes. There are eight non-equivalent adsorption sites (two top sites, three bridge sites, two face sites and one hollow site) on the Pt38 and Ni6@M32 (M = Pt, Pd, Cu, Ag, Au) clusters. The structures are shown in Figure 1.

4. Conclusions

A high-efficiency and low-cost multifunctional electrocatalyst for splitting water and reducing oxygen is required for the practical applications of regenerative fuel cells. The HER, OER and ORR activity trends were investigated for core–shell Ni6@M32 (M = Pt, Pd, Cu, Ag, Au) and Ni6@Pt1M31 (M = Pd, Cu, Ag, Au) via first-principles calculations. The core–shell Ni6@Pt1M31 clusters present abundant active sites with moderate adsorption strengths for *H, *O, *OH and *OOH. The HER reaction energy barriers and rate constants indicated that Ni6@Pt1Ag31 was the most efficient catalyst of all the Ni6@M32 (M = Pt, Pd) and Ni6@Pt1M31 clusters at an H coverage of θH* = 2/6. The Pt active site decreased the energy barrier and changed the reaction mechanism. The Volmer–Heyrovsky reaction mechanism was favorable for Ni6@M32, and the Volmer–Tafel process was a kinetically advantageous reaction pathway for Ni6@Pt1M31. The ORR and OER overpotentials of Ni6@Pt1Ag31 were calculated to be 0.12 and 0.33 V, and the OER overpotential was lower than that of RuO2 and IrO2, which proves that Ni6@Pt1Ag31 is a promising multifunctional electrocatalyst for the OER, HER and ORR. The present work provides significant insights for further searches for a high-efficiency and low-cost multifunctional electrocatalyst for regenerative fuel cells.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28227563/s1, Figure S1: The relationship between the calculated average binding energy of catalysts and the amount of charge transfer between the core and shell (red represents the amount of Bader charge transfer, blue represents the average binding energy); Figure S2: Density of states projected onto the d states of Ni6@M32 clusters (left) and Ni6@Pt1M31 (M = Pd, Cu, Ag, Au) clusters (right); Figure S3: The differential Gibbs free energy profiles (d−ΔGH*) over the Ni6@M32 (M = Pt, Pd, Cu, Ag, Au) clusters (a,d,g,j,m), the average Gibbs free energy profiles (a−ΔGH*) (b,e,h,k,n), and the volcano plot of i0 as a function of d−ΔGH* at the best H coverage (c,f,i,l,o) and the highlight in blue denotes the free energy window of ±0.25 eV; Figure S4: Density of states projected onto the d states of adsorption sites of Ni6@Pd32 clusters (left) and Ni6@Pt1Pd31 clusters (right) under different hydrogen coverages; Figure S5: Insight into the electron density disparity at the solid-liquid interface in the initial state (Heyrovsky) is presented for the catalysts (a) 6H-Ni6@Pt1Pd31, (b) 4H-Ni6@Pt1Cu31, (c) 2H-Ni6@Pt1Ag31 and (d) 2H-Ni6@Pt1Au31. Regions of electron depletion and electron accumulation are depicted in cyan and light yellow, respectively; Figure S6: The potential energy profiles of the HER by Volmer–Tafel process and Volmer–Heyrovsky process at the optimal coverage of H. (a,b) Ni6@Pt32, (c,d) Ni6@Pd32, (e,f) Ni6@Cu32, (g,h) Ni6@Ag32, respectively; Figure S7: The linear relationship between ORR overpotential and *OOH adsorption free energy of catalysts according to four-electron step mechanism (ORR volcano plot); Table S1: The models by doping a Pt atom at the core (Ni5Pt1@M32), the center or the hexagonal (Ni6@Pt1M31) site of the surface in the core-shell nanocluster Ni6@M32 (M = Pd, Cu, Ag, and Au); Table S2: Structural parameters of core-shell cluster catalysts; Table S3: The optimal |d−ΔGH*| and |a−ΔGH*| and log(i0) values of Ni6@M32 (M = Pt, Pd, Cu, Ag, Au) and Ni6@Pt1M31 (M = Pd, Cu, Ag, Au) and corresponding Bader charge of hydrogen atom; Table S4: The most stable adsorption sites and corresponding adsorption free energies of O, OH and OOH intermediates on the catalysts; Table S5: The reaction free energy corresponding to the four-electron step of the ORR reaction on the catalyst and the overpotential of the ORR and OER reactions; Table S6: The average binding energy of Ni6@M32 (M = Ni, Pt, Pd, Cu, Ag, Au); Table S7: The formation energy of Ni6@Pt1M31 (M = Ni, Pd, Cu, Ag, Au); Table S8: Alteration in energy accompanying the migration of two hydrogen atoms from distinct adsorption sites (either on the same or different facets) on Ni6@Cu32 to a unified adsorption configuration; Text S1: Supplementary information for computational design of Ni6@Pt1M31 clusters for multifunctional electrocatalysts. References [37,49,50,51,52,53] are cited in the supplementary materials.

Author Contributions

Conceptualization, D.T.; methodology, D.T. and J.J.; software, D.T. and J.J.; validation, D.T. and J.J.; formal analysis, D.T. and J.J.; investigation, J.J.; resources, D.T.; data curation, D.T. and J.J.; writing—original draft preparation, J.J.; writing—review and editing, D.T. and J.J.; visualization, J.J.; supervision, D.T.; project administration, D.T.; funding acquisition, D.T. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Nature Science Foundation of China (91961204).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Acknowledgments

The authors acknowledge the Supercomputer Center of Dalian University of Technology for providing computation resources.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gabbasa, M.; Sopian, K.; Fudholi, A.; Asim, N. A Review of Unitized Regenerative Fuel Cell Stack: Material, Design and Research Achievements. Int. J. Hydrogen Energy 2014, 39, 17765–17778. [Google Scholar] [CrossRef]
  2. Gewirth, A.A.; Varnell, J.A.; DiAscro, A.M. Nonprecious Metal Catalysts for Oxygen Reduction in Heterogeneous Aqueous Systems. Chem. Rev. 2018, 118, 2313–2339. [Google Scholar] [CrossRef]
  3. Wang, J.; Zhong, H.X.; Wang, Z.L.; Meng, F.L.; Zhang, X.B. Integrated Three-Dimensional Carbon Paper/Carbon Tubes/Cobalt-Sulfide Sheets as an Efficient Electrode for Overall Water Splitting. ACS Nano 2016, 10, 2342–2348. [Google Scholar] [CrossRef] [PubMed]
  4. Reier, T.; Oezaslan, M.; Strasser, P. Electrocatalytic Oxygen Evolution Reaction (OER) on Ru, Ir, and Pt Catalysts: A Comparative Study of Nanoparticles and Bulk Materials. ACS Catal. 2012, 2, 1765–1772. [Google Scholar] [CrossRef]
  5. Suen, N.T.; Hung, S.F.; Quan, Q.; Zhang, N.; Xu, Y.J.; Chen, H.M. Electrocatalysis for the Oxygen Evolution Reaction: Recent Development and Future Perspectives. Chem. Soc. Rev. 2017, 46, 337–365. [Google Scholar] [CrossRef] [PubMed]
  6. Stoerzinger, K.A.; Diaz-Morales, O.; Kolb, M.; Rao, R.R.; Frydendal, R.; Qiao, L.; Wang, X.R.; Halck, N.B.; Rossmeisl, J.; Hansen, H.A.; et al. Orientation-Dependent Oxygen Evolution on RuO2 without Lattice Exchange. ACS Energy Lett. 2017, 2, 876–881. [Google Scholar] [CrossRef]
  7. Tian, X.; Zhao, X.; Su, Y.Q.; Wang, L.; Wang, H.; Dang, D.; Chi, B.; Liu, H.; Hensen, E.J.M.; Lou, X.W.D.; et al. Engineering Bunched Pt-Ni Alloy Nanocages for Efficient Oxygen Reduction in Practical Fuel Cells. Science 2019, 366, 850–856. [Google Scholar] [CrossRef]
  8. Sealy, C. The Problem with Platinum. Mater. Today 2008, 11, 65–68. [Google Scholar] [CrossRef]
  9. Jiao, Y.; Zheng, Y.; Jaroniec, M.; Qiao, S.Z. Design of Electrocatalysts for Oxygen- and Hydrogen-Involving Energy Conversion Reactions. Chem. Soc. Rev. 2015, 44, 2060–2086. [Google Scholar] [CrossRef]
  10. Montoya, J.H.; Seitz, L.C.; Chakthranont, P.; Vojvodic, A.; Jaramillo, T.F.; Norskov, J.K. Materials for Solar Fuels and Chemicals. Nat. Mater. 2016, 16, 70–81. [Google Scholar] [CrossRef]
  11. Anantharaj, S.; Ede, S.R.; Sakthikumar, K.; Karthick, K.; Mishra, S.; Kundu, S. Recent Trends and Perspectives in Electrochemical Water Splitting with an Emphasis on Sulfide, Selenide, and Phosphide Catalysts of Fe, Co, and Ni: A Review. ACS Catal. 2016, 6, 8069–8097. [Google Scholar] [CrossRef]
  12. Reier, T.; Nong, H.N.; Teschner, D.; Schlögl, R.; Strasser, P. Electrocatalytic Oxygen Evolution Reaction in Acidic Environments—Reaction Mechanisms and Catalysts. Adv. Energy Mater. 2017, 7, 1601275. [Google Scholar] [CrossRef]
  13. Yu, F.Y.; Lang, Z.L.; Yin, L.Y.; Feng, K.; Xia, Y.J.; Tan, H.Q.; Zhu, H.T.; Zhong, J.; Kang, Z.H.; Li, Y.G. Pt-O Bond as an Active Site Superior to Pt0 in Hydrogen Evolution Reaction. Nat. Commun. 2020, 11, 490. [Google Scholar] [CrossRef]
  14. Kulkarni, A.; Siahrostami, S.; Patel, A.; Norskov, J.K. Understanding Catalytic Activity Trends in the Oxygen Reduction Reaction. Chem. Rev. 2018, 118, 2302–2312. [Google Scholar] [CrossRef]
  15. Seh, Z.W.; Kibsgaard, J.; Dickens, C.F.; Chorkendorff, I.; Norskov, J.K.; Jaramillo, T.F. Combining Theory and Experiment in Electrocatalysis: Insights into Materials Design. Science 2017, 355, eaad4998. [Google Scholar] [CrossRef]
  16. Yang, H. Platinum-Based Electrocatalysts with Core-Shell Nanostructures. Angew. Chem. Int. Ed. Engl. 2011, 50, 2674–2676. [Google Scholar] [CrossRef]
  17. Zhu, B.; Lu, J.; Sakaki, S. Catalysis of Core-Shell Nanoparticle M@Pt (M = Co and Ni) for Oxygen Reduction Reaction and Its Electronic Structure in Comparison to Pt Nanoparticle. J. Catal. 2021, 397, 13–26. [Google Scholar] [CrossRef]
  18. Park, H.U.; Park, A.H.; Shi, W.; Park, G.G.; Kwon, Y.U. Ternary Core-Shell PdM@Pt (M = Mn and Fe) Nanoparticle Electrocatalysts with Enhanced ORR Catalytic Properties. Ultrason. Sonochem. 2019, 58, 104673. [Google Scholar] [CrossRef]
  19. Xiong, Y.; Xiao, L.; Yang, Y.; DiSalvo, F.J.; Abruña, H.D. High-Loading Intermetallic Pt3Co/C Core–Shell Nanoparticles as Enhanced Activity Electrocatalysts toward the Oxygen Reduction Reaction (ORR). Chem. Materials 2018, 30, 1532–1539. [Google Scholar]
  20. Ball, S.C.; Burton, S.L.; Fisher, J.; O’Malley, R.; Tessier, B.C.; Theobald, B.; Thompsett, D.; Zhou, W.-P.; Su, D.; Zhu, Y.; et al. Structure and Activity of Novel Pt Core-Shell Catalysts for the Oxygen Reduction Reaction. ECS Trans. 2009, 25, 1023–1036. [Google Scholar] [CrossRef]
  21. Chen, Y.-M.; Liang, Z.-X.; Chen, S.-L. Synthesis and Electrocatalytic Properties of Ni-Pd/C Catalysts with Pd-Enriched Surface. J. Electrochem. 2009, 15, 371–376. [Google Scholar] [CrossRef]
  22. Lin, Y.; Pan, Y.; Liu, S.; Sun, K.; Cheng, Y.; Liu, M.; Wang, Z.; Li, X.; Zhang, J. Construction of Multi-Dimensional Core/Shell Ni/Nicop Nano-Heterojunction for Efficient Electrocatalytic Water Splitting. Appl. Catal. B 2019, 259, 118039. [Google Scholar] [CrossRef]
  23. Ma, W.; Xie, M.; Xie, S.; Wei, L.; Cai, Y.; Zhang, Q.; Wang, Y. Nickel and Indium Core-Shell co-Catalysts Loaded Silicon Nanowire Arrays for Efficient Photoelectrocatalytic Reduction of CO2 to Formate. J. Energy Chem. 2021, 54, 422–428. [Google Scholar] [CrossRef]
  24. Seok, S.; Choi, M.; Lee, Y.; Jang, D.; Shin, Y.; Kim, Y.-H.; Jo, C.; Park, S. Ni Nanoparticles on Ni Core/N-Doped Carbon Shell Heterostructures for Electrocatalytic Oxygen Evolution. ACS Appl. Nano Mater. 2021, 4, 9418–9429. [Google Scholar] [CrossRef]
  25. Jiang, J.; Gao, H.; Lu, S.; Zhang, X.; Wang, C.-Y.; Wang, W.-K.; Yu, H.-Q. Ni–Pd Core–Shell Nanoparticles with Pt-Like Oxygen Reduction Electrocatalytic Performance in Both Acidic and Alkaline Electrolytes. J. Mater. Chem. A 2017, 5, 9233–9240. [Google Scholar] [CrossRef]
  26. Leteba, G.M.; Mitchell, D.R.G.; Levecque, P.B.J.; van Steen, E.; Lang, C.I. Topographical and Compositional Engineering of Core-Shell Ni@Pt ORR Electro-Catalysts. RSC Adv. 2020, 10, 29268–29277. [Google Scholar] [CrossRef] [PubMed]
  27. Nair, A.S.; Pathak, B. Computational Screening for ORR Activity of 3d Transition Metal Based M@Pt Core–Shell Clusters. J. Phys. Chem. C 2019, 123, 3634–3644. [Google Scholar] [CrossRef]
  28. Wang, A.; Li, J.; Zhang, T. Heterogeneous Single-Atom Catalysis. Nat. Rev. Chem. 2018, 2, 65–81. [Google Scholar] [CrossRef]
  29. Qiao, B.; Wang, A.; Yang, X.; Allard, L.F.; Jiang, Z.; Cui, Y.; Liu, J.; Li, J.; Zhang, T. Single-Atom Catalysis of Co Oxidation Using Pt1/FeOx. Nat. Chem. 2011, 3, 634–641. [Google Scholar] [CrossRef]
  30. Javed, M.S.; Zhang, X.; Ali, S.; Mateen, A.; Idrees, M.; Sajjad, M.; Batool, S.; Ahmad, A.; Imran, M.; Najam, T.; et al. Heterostructured bimetallic–sulfide@ layered Ti3C2Tx–MXene as a synergistic electrode to realize high-energy-density aqueous hybrid-supercapacitor. Nano Energy 2022, 101, 107624. [Google Scholar] [CrossRef]
  31. Shah, S.S.A.; Najam, T.; Bashir, M.S.; Peng, L.; Nazir, M.A.; Javed, M.S. Single-atom catalysts for next-generation rechargeable batteries and fuel cells. Energy Storage Mater. 2022, 45, 301–322. [Google Scholar] [CrossRef]
  32. Najam, T.; Shah SS, A.; Javed, M.S.; Chen, P.T.; Chuang, C.; Saad, A.; Cai, X. Modulating the electronic structure of zinc single atom catalyst by P/N coordination and Co2P supports for efficient oxygen reduction in Zn-Air battery. Chem. Eng. J. 2022, 440, 135928. [Google Scholar] [CrossRef]
  33. Talib, S.H.; Lu, Z.; Yu, X.; Ahmad, K.; Bashir, B.; Yang, Z.; Li, J. Theoretical Inspection of M1/PMA Single-Atom Electrocatalyst: Ultra-High Performance for Water Splitting (HER/OER) and Oxygen Reduction Reactions (OER). ACS Catal. 2021, 11, 8929–8941. [Google Scholar] [CrossRef]
  34. Zhao, C.; Tang, Y.; Yu, C.; Tan, X.; Banis, M.N.; Li, S.; Wan, G.; Huang, H.; Zhang, L.; Yang, H.; et al. Insights into the Electronic Origin of Enhancing the Catalytic Activity of Co3o4 for Oxygen Evolution by Single Atom Ruthenium. Nano Today 2020, 34, 100955. [Google Scholar] [CrossRef]
  35. Zhang, J.; Liu, J.; Xi, L.; Yu, Y.; Chen, N.; Sun, S.; Wang, W.; Lange, K.M.; Zhang, B. Single-Atom Au/NiFe Layered Double Hydroxide Electrocatalyst: Probing the Origin of Activity for Oxygen Evolution Reaction. J. Am. Chem. Soc. 2018, 140, 3876–3879. [Google Scholar] [CrossRef] [PubMed]
  36. Sabatier, P. Hydrogénations et déshydrogénations par catalyse. Berichte Dtsch. Chem. Ges. 1911, 44, 1984–2001. [Google Scholar] [CrossRef]
  37. Rossmeisl, J.; Qu, Z.W.; Zhu, H.; Kroes, G.J.; Nørskov, J.K. Electrolysis of Water on Oxide Surfaces. Electroanal. Chem. 2007, 607, 83–89. [Google Scholar] [CrossRef]
  38. Wigner, E.P. On the Quantum Correction for Thermodynamic Equilibrium. Phys. Rev. 1932, 40, 749–759. [Google Scholar] [CrossRef]
  39. Nilsson, A.; Pettersson, L.G.M.; Hammer, B.; Bligaard, T.; Christensen, C.H.; Norskov, J.K. The Electronic Structure Effect in Heterogeneous Catalysis. Catal. Lett. 2005, 100, 111–114. [Google Scholar] [CrossRef]
  40. Kresse, G.; Hafner, J. Ab Initio Molecular-Dynamics Simulation of the Liquid-Metal-Amorphous-Semiconductor Transition in Germanium. Phys. Rev. B Condens. Matter. 1994, 49, 14251–14269. [Google Scholar] [CrossRef]
  41. Kresse, G.; Furthmüller, J. Efficiency of Ab-Initio Total Energy Calculations for Metals and Semiconductors Using a Plane-Wave Basis Set. Comp. Mater. Sci. 1996, 6, 15–50. [Google Scholar] [CrossRef]
  42. Kresse, G.; Furthmuller, J. Efficient Iterative Schemes for Ab Initio Total-Energy Calculations Using a Plane-Wave Basis Set. Phys. Rev. B Condens. Matter. 1996, 54, 11169–11186. [Google Scholar] [CrossRef]
  43. Kresse, G.; Joubert, D. From Ultrasoft Pseudopotentials to the Projector Augmented-Wave Method. Phys. Rev. B 1999, 59, 1758–1775. [Google Scholar] [CrossRef]
  44. Blochl, P.E. Projector Augmented-Wave Method. Phys. Rev. B Condens. Matter. 1994, 50, 17953–17979. [Google Scholar] [CrossRef] [PubMed]
  45. Perdew, J.P.; Chevary, J.A.; Vosko, S.H.; Jackson, K.A.; Pederson, M.R.; Singh, D.J.; Fiolhais, C. Atoms, Molecules, Solids, and Surfaces: Applications of the Generalized Gradient Approximation for Exchange and Correlation. Phys. Rev. B Condens. Matter. 1992, 46, 6671–6687. [Google Scholar] [CrossRef]
  46. Perdew, J.P.; Wang, Y. Accurate and simple density functional for the electronic exchange energy: Generalized gradient approximation. Phys. Rev. B 1986, 33, 8800–8802. [Google Scholar] [CrossRef]
  47. Henkelman, G.; Jónsson, H. A Dimer Method for Finding Saddle Points on High Dimensional Potential Surfaces Using Only First Derivatives. J. Chem. Phys. 1999, 111, 7010–7022. [Google Scholar] [CrossRef]
  48. Bader, R.F.W. Atoms in molecules. Acc. Chem. Res. 1985, 18, 9–15. [Google Scholar] [CrossRef]
  49. Gennero de Chialvo, M.R.; Chialvo, A.C. Kinetics of Hydrogen Evolution Reaction with Frumkin Adsorption: Re-Examination of the Volmer–Heyrovsky and Volmer–Tafel Routes. Electrochim. Acta 1998, 44, 841–851. [Google Scholar] [CrossRef]
  50. de Chialvo, M.R.G.; Chialvo, A.C. Hydrogen Evolution Reaction: Analysis of the Volmer-Heyrovsky-Tafel Mechanism with a Generalized Adsorption Model. Eelectroanal. Chem. 1994, 372, 209–223. [Google Scholar] [CrossRef]
  51. Gopalakrishnan, D.; Lee, A.; Thangavel, N.K.; Reddy Arava, L.M. Facile Synthesis of Electrocatalytically Active NbS2 Nanoflakes for an Enhanced Hydrogen Evolution Reaction (HER). Sustain. Energ. Fuels 2018, 2, 96–102. [Google Scholar] [CrossRef]
  52. Nørskov, J.K.; Bligaard, T.; Logadottir, A.; Kitchin, J.R.; Chen, J.G.; Pandelov, S.; Stimming, U. Trends in the Exchange Current for Hydrogen Evolution. J. Electrochem. Soc. 2005, 152, J23. [Google Scholar] [CrossRef]
  53. Nørskov, J.K.; Rossmeisl, J.; Logadottir, A.; Lindqvist, L.; Kitchin, J.R.; Bligaard, T.; Jónsson, H. Origin of the Overpotential for Oxygen Reduction at a Fuel-Cell Cathode. J. Phys. Chem. B 2004, 108, 17886–17892. [Google Scholar] [CrossRef]
Molecules 28 07563 g001

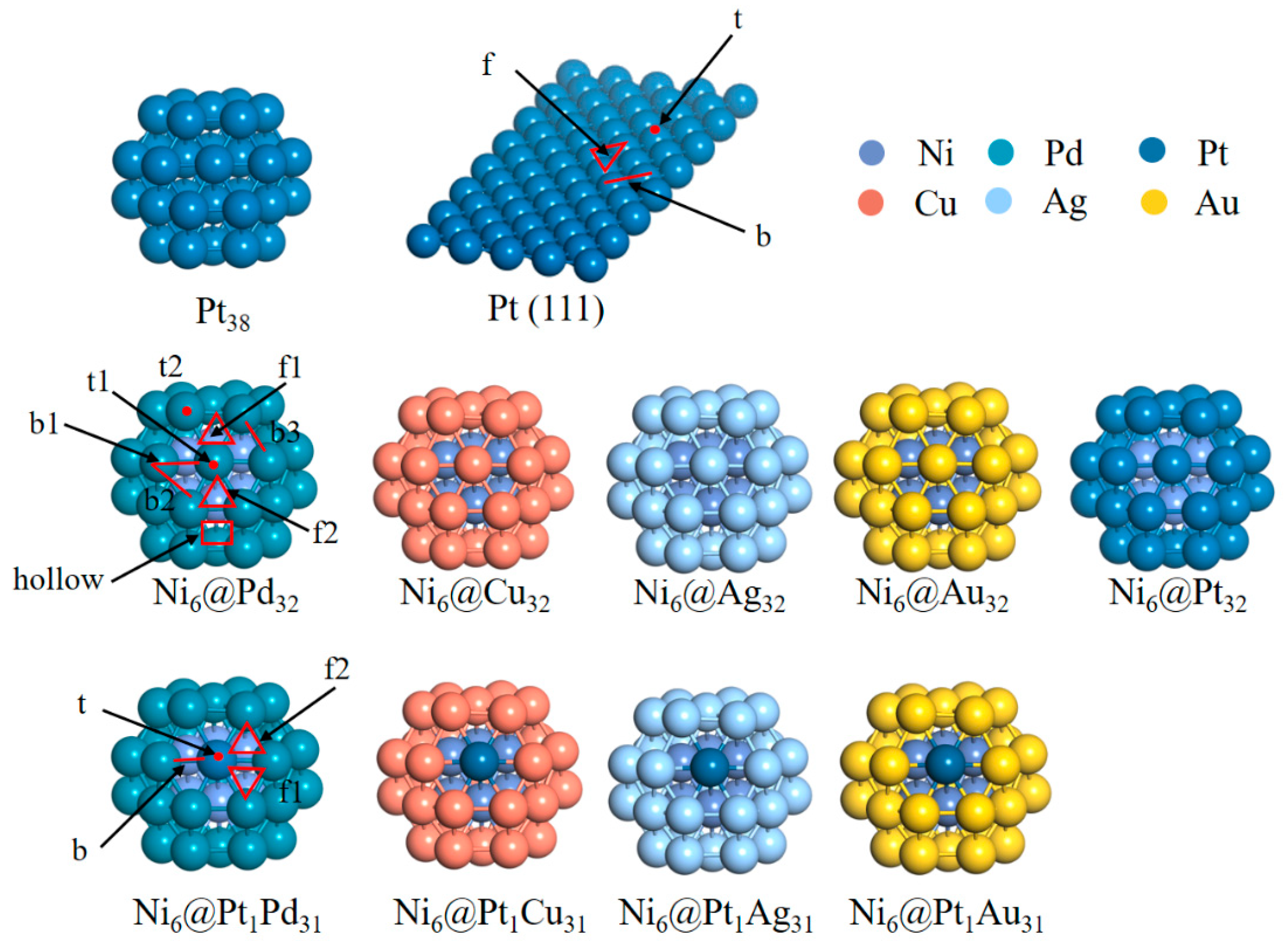

Figure 1. The structures of Pt38, Pt (111), core–shell Ni6@M32 (M = Pt, Pd, Cu, Ag, Au) and Ni6@Pt1M31 (M = Pd, Cu, Ag, Au) clusters. T, b, f and hollow represent the top, bridge, face and hollow site, respectively.
Figure 1. The structures of Pt38, Pt (111), core–shell Ni6@M32 (M = Pt, Pd, Cu, Ag, Au) and Ni6@Pt1M31 (M = Pd, Cu, Ag, Au) clusters. T, b, f and hollow represent the top, bridge, face and hollow site, respectively.
Molecules 28 07563 g001
Molecules 28 07563 g002

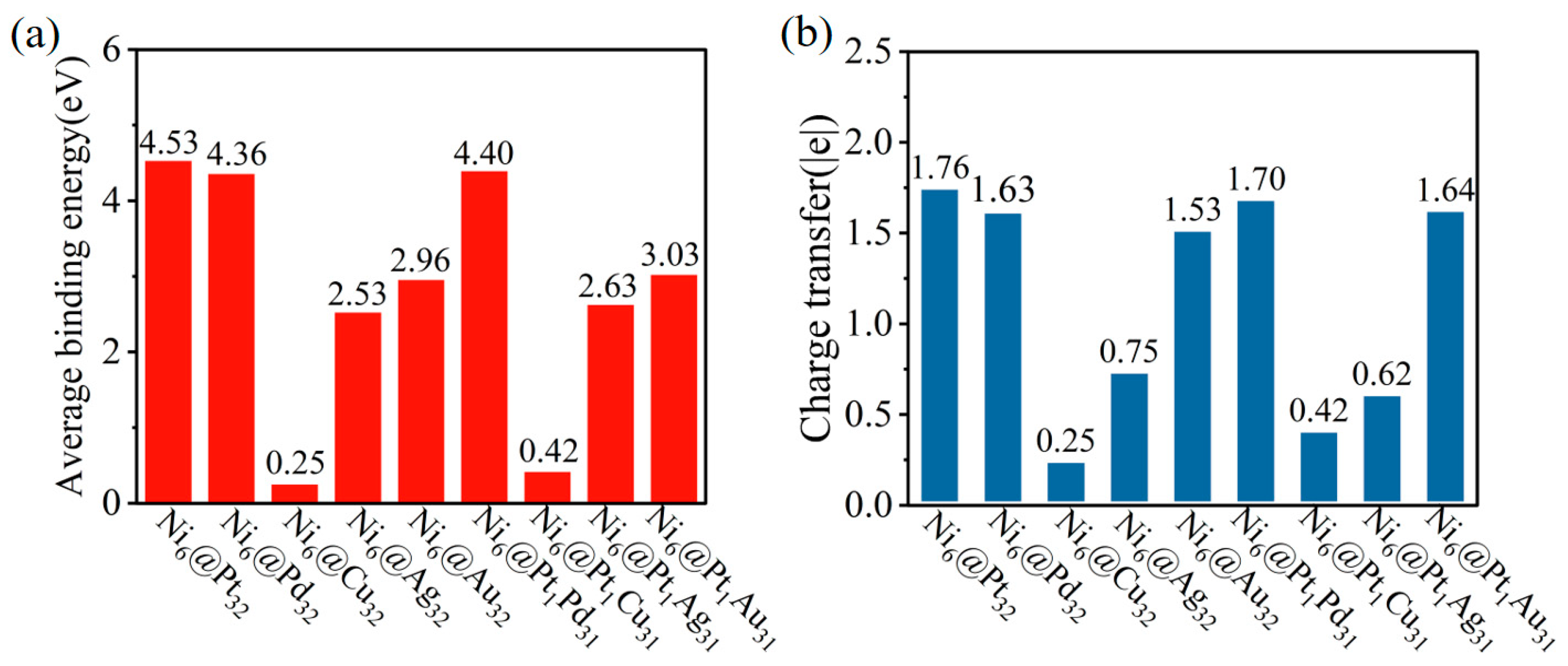

Figure 2. (a) Average binding energies for core–shell clusters. (b) Bader charge transfer amounts between the cores and shells of clusters.
Figure 2. (a) Average binding energies for core–shell clusters. (b) Bader charge transfer amounts between the cores and shells of clusters.
Molecules 28 07563 g002
Molecules 28 07563 g003

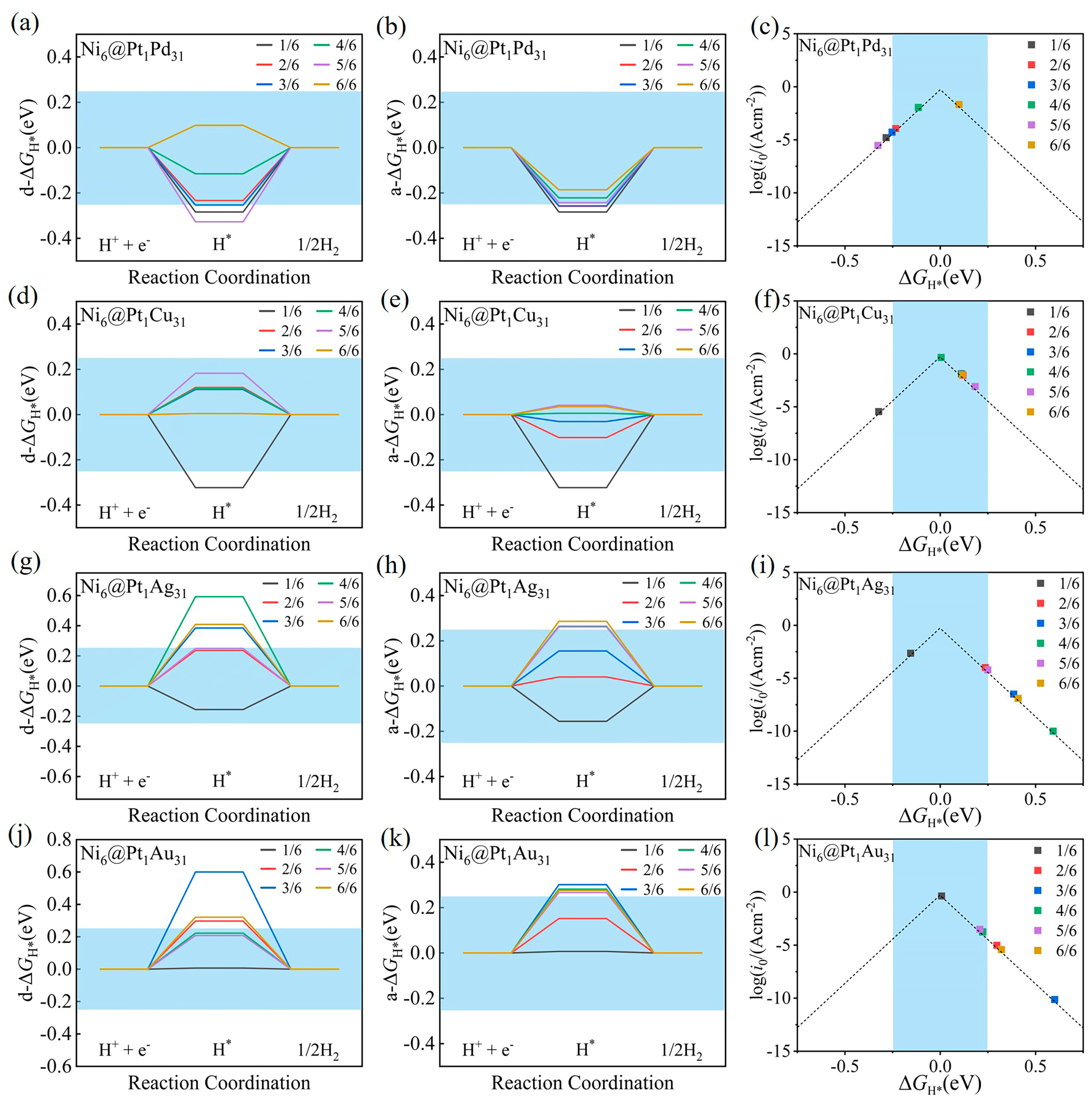

Figure 3. The differential Gibbs free energy profiles (d−ΔGH*) over the Ni6@Pt1M31 (M = Pd, Cu, Ag, Au) clusters (a,d,g,j); the average Gibbs free energy profiles (a−ΔGH*) (b,e,h,k); the volcano plot of i0 as a function of d−ΔGH* at the best H coverage (c,f,i,l); the highlight in blue denotes the free energy window of ±0.25 eV.
Figure 3. The differential Gibbs free energy profiles (d−ΔGH*) over the Ni6@Pt1M31 (M = Pd, Cu, Ag, Au) clusters (a,d,g,j); the average Gibbs free energy profiles (a−ΔGH*) (b,e,h,k); the volcano plot of i0 as a function of d−ΔGH* at the best H coverage (c,f,i,l); the highlight in blue denotes the free energy window of ±0.25 eV.
Molecules 28 07563 g003
Molecules 28 07563 g004

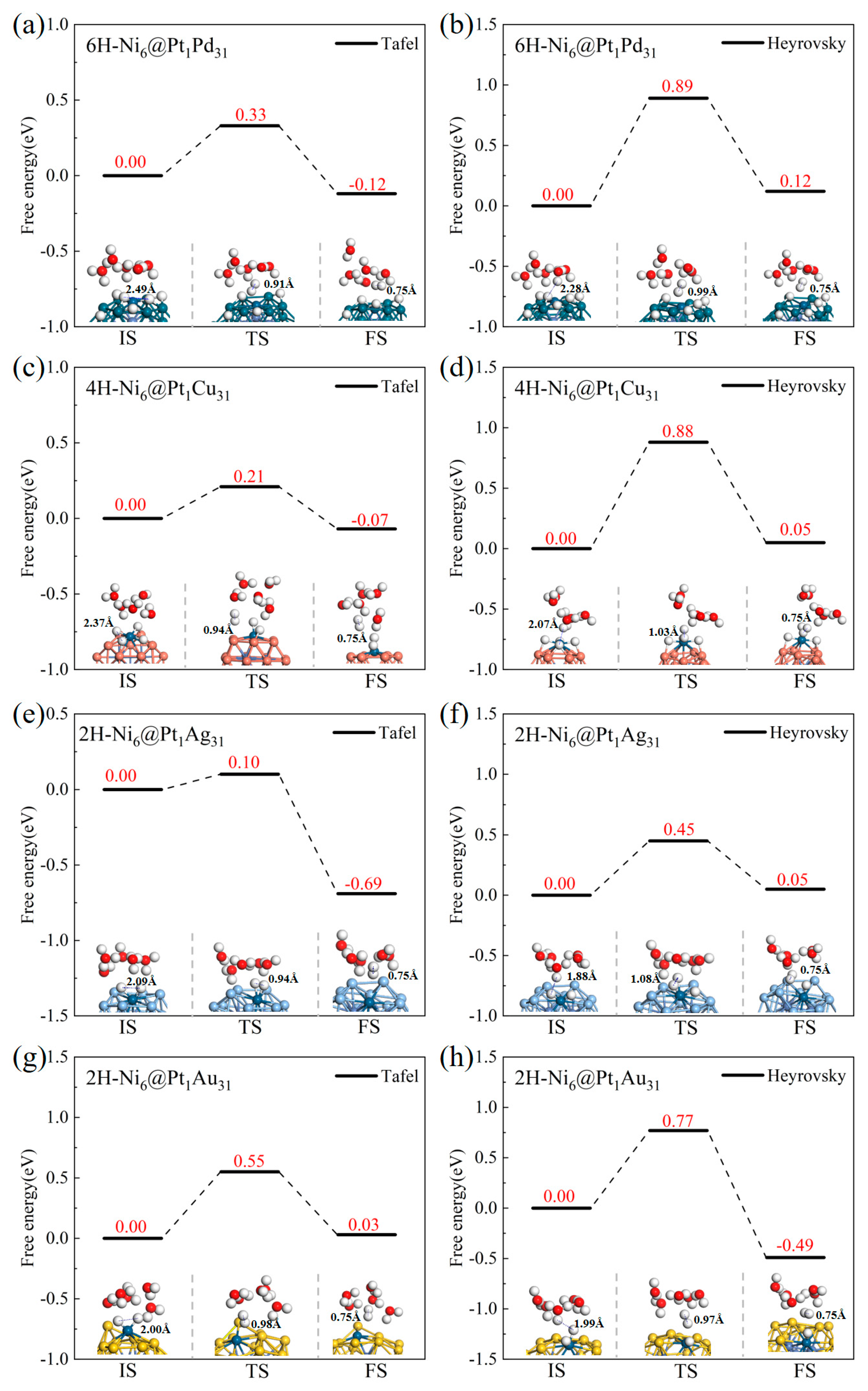

Figure 4. The potential energy profiles of the HER via the Tafel process and the Heyrovsky process at the optimal H coverage. 6H-Ni6@Pt1Pd31 (a,b), 4H-Ni6@Pt1Cu31 (c,d), 2H-Ni6@Pt1Ag31 (e,f) and 2H-Ni6@Pt1Au31 (g,h). White, red, blue, coppery, grey and golden ball represent H, O, Ni, Cu, Ag and Au, respectively.
Figure 4. The potential energy profiles of the HER via the Tafel process and the Heyrovsky process at the optimal H coverage. 6H-Ni6@Pt1Pd31 (a,b), 4H-Ni6@Pt1Cu31 (c,d), 2H-Ni6@Pt1Ag31 (e,f) and 2H-Ni6@Pt1Au31 (g,h). White, red, blue, coppery, grey and golden ball represent H, O, Ni, Cu, Ag and Au, respectively.
Molecules 28 07563 g004
Molecules 28 07563 g005

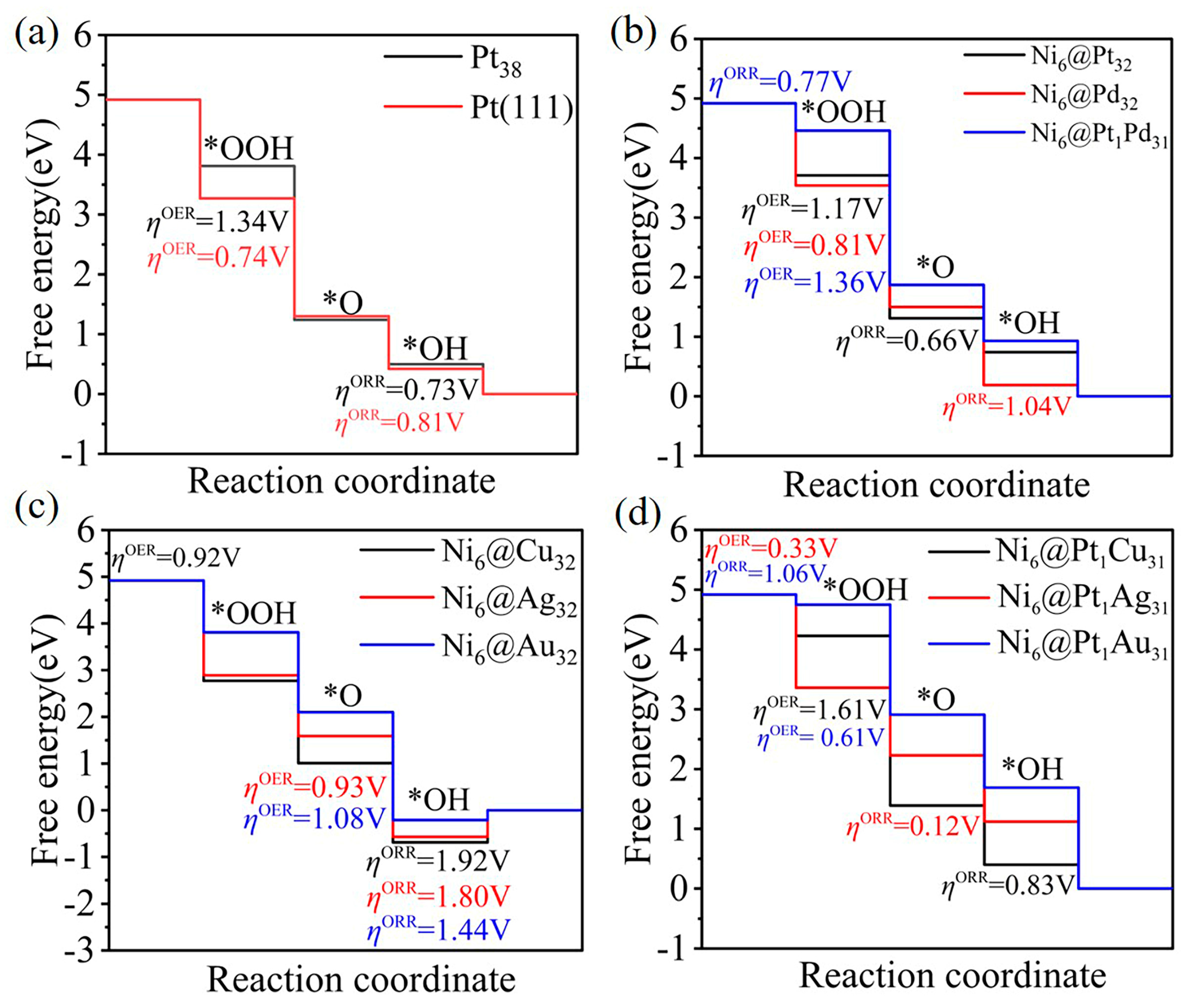

Figure 5. The Gibbs energy diagrams for the ORR and OER for (a) Pt38, Pt (111), (b) Ni6@M32 (M = Pt, Pd) and Ni6@Pt1Pd31, (c) Ni6@M32 (M = Cu, Ag, Au), (d) Ni6@Pt1Pd31 (M = Cu, Ag, Au) at U = 0 V (RHE).
Figure 5. The Gibbs energy diagrams for the ORR and OER for (a) Pt38, Pt (111), (b) Ni6@M32 (M = Pt, Pd) and Ni6@Pt1Pd31, (c) Ni6@M32 (M = Cu, Ag, Au), (d) Ni6@Pt1Pd31 (M = Cu, Ag, Au) at U = 0 V (RHE).
Molecules 28 07563 g005
Molecules 28 07563 g006

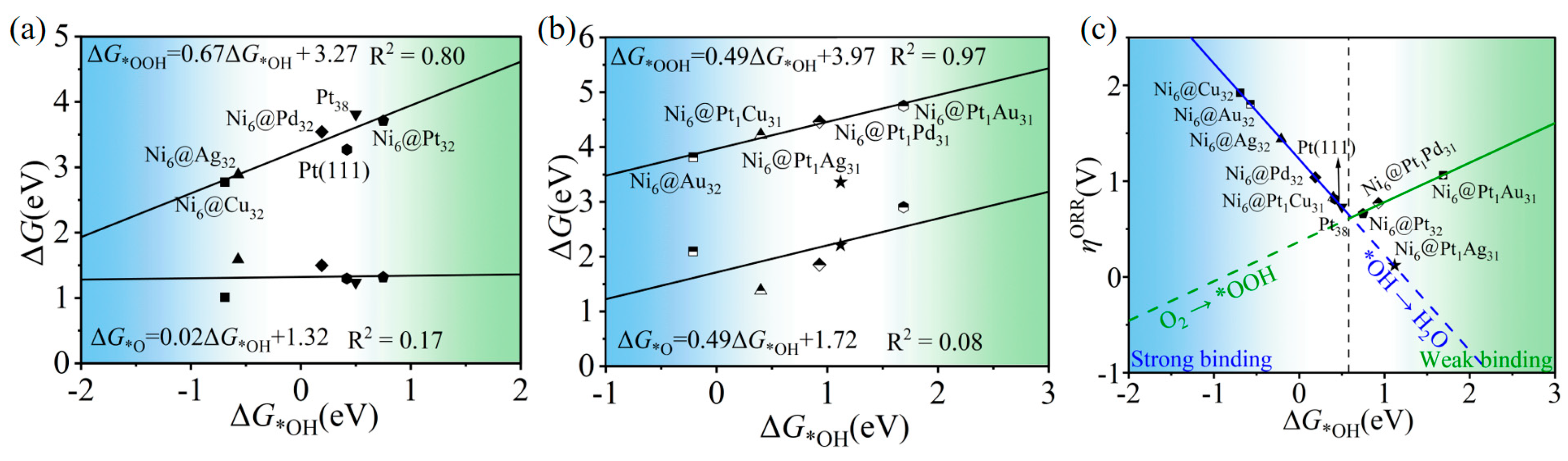

Figure 6. (a) Scaling relationships between the Gibbs free energy (ΔG) of *OOH and *OH for Ni6@M32 and (b) for Ni6@Pt1M31. (c) The linear relationship between the ORR overpotential and *OH adsorption free energy.
Figure 6. (a) Scaling relationships between the Gibbs free energy (ΔG) of *OOH and *OH for Ni6@M32 and (b) for Ni6@Pt1M31. (c) The linear relationship between the ORR overpotential and *OH adsorption free energy.
Molecules 28 07563 g006
Molecules 28 07563 g007

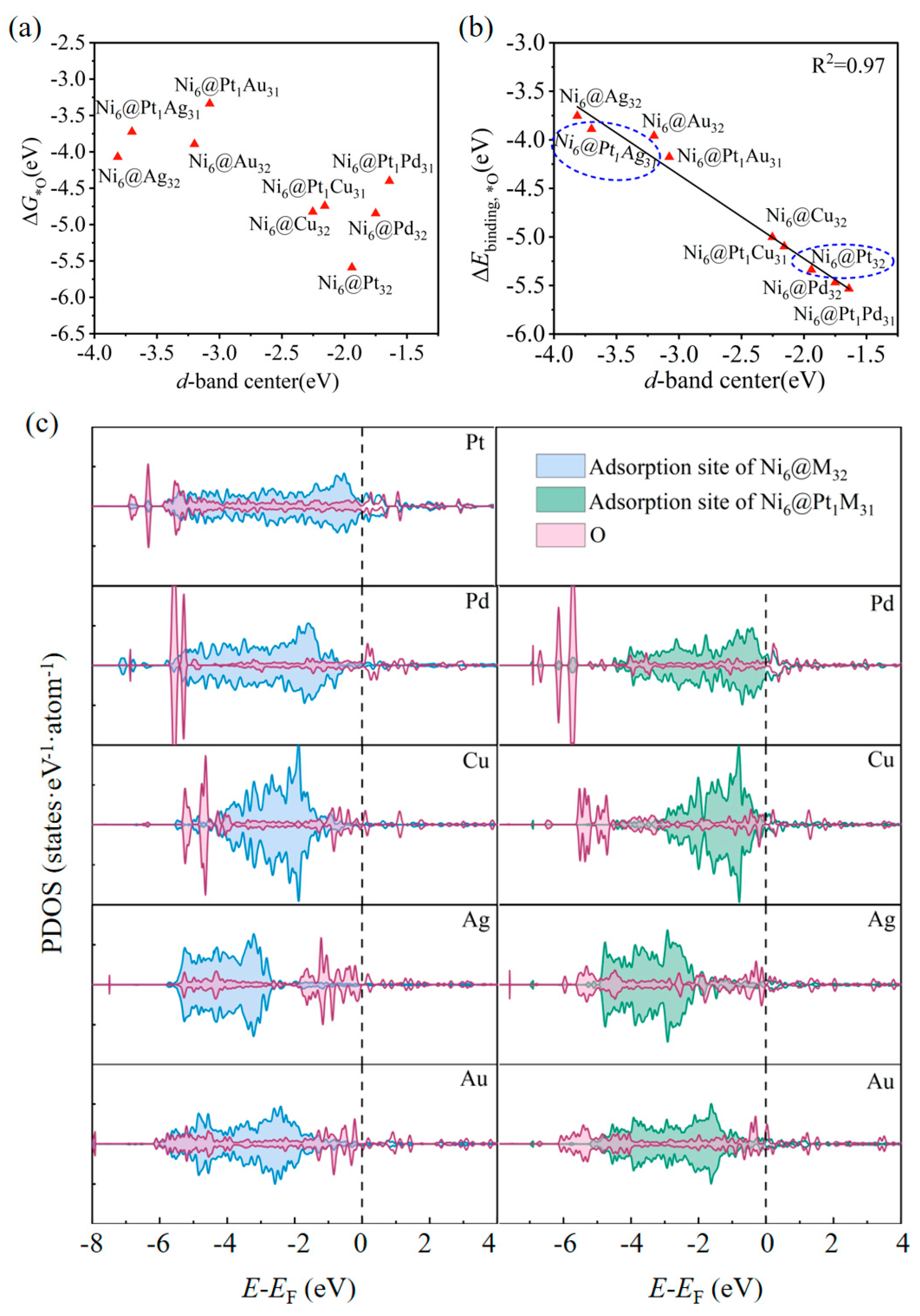

Figure 7. (a) Plot of the adsorption free energy of *O on Ni6@M32 and Ni6@Pt1M31 against the d-band center of the adsorption site. (b) Plot of the binding energy of *O on Ni6@M32 and Ni6@Pt1M31 against the d-band center of adsorption site. (c) Density of states projected onto the d states of adsorption site on *O of Ni6@M32 (blue), adsorption site on *O of Ni6@Pt1M31 (green), and the p states of adsorbed oxygen atoms, respectively (pink).
Figure 7. (a) Plot of the adsorption free energy of *O on Ni6@M32 and Ni6@Pt1M31 against the d-band center of the adsorption site. (b) Plot of the binding energy of *O on Ni6@M32 and Ni6@Pt1M31 against the d-band center of adsorption site. (c) Density of states projected onto the d states of adsorption site on *O of Ni6@M32 (blue), adsorption site on *O of Ni6@Pt1M31 (green), and the p states of adsorbed oxygen atoms, respectively (pink).
Molecules 28 07563 g007
Table 1. The formation energies of the Ni6@Pt1M31 structures.
Table 1. The formation energies of the Ni6@Pt1M31 structures.
Reaction CoordinationEf/eV
Ni6@Pd32 + Pt1 → Ni6@Pt1Pd31 + Pd1−0.56
Ni6@Cu32 + Pt1 → Ni6@Pt1Cu31 + Cu1−0.08
Ni6@Ag32 + Pt1 → Ni6@Pt1Ag31 + Ag1−0.51
Ni6@Au32 + Pt1 → Ni6@Pt1Au31 + Au10.33
Table 2. Rate constants (k/s) and energy barriers of the Tafel and Heyrovsky processes in the HER on Ni6@M32 (M = Pt, Pd, Cu, Ag) and Ni6@Pt1M31 (M = Pd, Cu, Ag, Au).
Table 2. Rate constants (k/s) and energy barriers of the Tafel and Heyrovsky processes in the HER on Ni6@M32 (M = Pt, Pd, Cu, Ag) and Ni6@Pt1M31 (M = Pd, Cu, Ag, Au).
SystemΔGTafel≠/eVTafel (k/s)ΔGHeyrovsky≠/eVHeyrovsky (k/s)
6H-Ni6@Pt320.554.35 × 1030.433.92 × 105
6H-Ni6@Pd320.6654.40.544.78 × 103
2H-Ni6@Cu320.780.720.143.17 × 1010
3H-Ni6@Ag321.061.84 × 10−50.709.84
6H-Ni6@Pt1Pd310.331.76 × 1070.896.17 × 103
4H-Ni6@Pt1Cu310.211.84 × 1090.889.25 × 10−3
2H-Ni6@Pt1Ag310.101.83 × 10110.451.69 × 105
2H-Ni6@Pt1Au310.553.27 × 1030.770.64
