Magnetic/Zeolitic Imidazolate Framework-67 Nanocomposite for Magnetic Solid-Phase Extraction of Five Flavonoid Components from Chinese Herb Dicranopteris pedata

Abstract

A magnetically functionalized Fe₃O₄@ZIF−67 metal–organic framework (MOF) was prepared by electrostatic self-assembly using magnetic Fe₃O₄ nanoparticles as the core and ZIF−67 as the shell. The composite was characterized by electron microscopy, X-ray diffraction, Fourier- transform infrared spectroscopy, and Brunauer–Emmett–Teller measurements. Magnetic solid-phase extraction (MSPE) was performed on five flavonoids from Dicranopteris pedata using Fe₃O₄@ZIF−67 as an adsorbent. The developed MSPE method was combined with high-performance liquid chromatography–ultraviolet detection to preconcentrate and separate five flavonoids (rutin, quercitrin, kaempferol-3-O-α-L-rhamnoside, quercetin, and kaempferol) from Dicranopteris pedata. The factors affecting the extraction, such as the amount of Fe₃O₄@ZIF−67 adsorbent, salt ion concentration in the sample solution, vortex time, type and amount of desorbing solvent, concentration of formic acid to acidify the desorbing solvent, and acetonitrile ratio, were optimized. The developed method showed good linearity over the concentration range of 1.09–70.0 μg∙mL⁻¹ for the five flavonoids, with R² values between 0.9901 and 0.9945. The limits of detection and average recoveries for the five flavonoids were in the ranges of 39.5–56.2 ng∙mL⁻¹ and 92.2–100.7%, respectively. The method presented herein is simple, efficient, and sensitive; it can be used for enrichment analysis of the five flavonoids in Dicranopteris pedata.

1. Introduction

Dicranopteris pedata (Houtt.) Nakai is a perennial herb found in Dicranopteris Bernh, which belongs to the Gleicheniaceae family. Dicranopteris pedata is rich in flavonoids, saponins, and polysaccharides; exhibits strong antioxidant, antibacterial, and anticancer pharmacological properties; and has attracted considerable attention in the biomedical field [1,2,3,4]. To date, flavonoids in Dicranopteris pedata have been isolated and analyzed using high-performance liquid chromatography–ultraviolet detection (HPLC-UV) [5] and ultra-performance liquid chromatography–tandem mass spectrometry (UPLC-Q- TOF/MS) [6]. However, owing to the complex composition and low concentration of flavonoids in Dicranopteris pedata, pretreatment is required before HPLC-UV or UPLC-Q- TOF/MS analyses to eliminate interferences and improve the sensitivity of the method.

Solid-phase extraction (SPE) is widely used as a pretreatment technique for sample preparation because it uses fewer organic solvents and has higher selectivity than traditional liquid–liquid extraction techniques [7,8]. Metal–organic frameworks (MOFs) are a class of hybrid materials that utilize metal clusters and organic linkers to form crystalline framework structures through coordination bonds and are characterized by high porosity and high specific surface area [9]. Their unique properties make MOFs useful for a wide range of analytical chemistry applications. MOFs have been successfully used as sorbents for SPE and solid-phase microextraction and as stationary phases for gas and liquid chromatography [10,11,12].

Magnetic solid-phase extraction (MSPE) based on magnetic nanoparticles (NPs) has shown great potential for preconcentration and separation owing to the advantages of magnetic separation compared to conventional SPE techniques. First, the separation of the analyte from the solution is accomplished by pure magnetic separation without the need to fill the column, thus avoiding the clogging and inefficient reactivation of conventional SPE columns. For example, Wang et al. [13] synthesized Fe₃O₄/MIL-101 (Cr) composites for the determination of non-steroidal anti-inflammatory drugs in complex aqueous solutions, which are more rapid, environment-friendly, and easy to recycle. It also bypasses the bed-filling technique required for column loading [14,15]. Second, the separation occurs rapidly, with a significantly shorter time and lower costs of organic solvents than solid-phase microextraction techniques [16]. Third, the magnetic adsorbent has a larger contact area with the solvent, and thus, the advantages of the adsorption site and large specific surface area can be used more rationally [17]. In addition, the adsorbent can be easily recovered and recycled. Thus, MSPE is now widely used for sample preparation in environmental, food, and biological applications [18,19,20,21].

The subtle coupling of MOFs and MSPE is an interesting and important technique for SPE applications considering the unique properties of MOFs, such as high porosity and high specific surface area. However, owing to the limited magnetization strength of MOFs, magnetic functionalization of the material is necessary. Therefore, it is expected that magnetized MOFs can be applied as adsorbents for SPE to achieve better sample pretreatment results when analyzing plant samples with complex compositions, many interfering substances, and low concentrations of the substances to be measured [22].

In this work, we prepared magnetically functionalized Fe₃O₄@ZIF−67 by electrostatic self-assembly using Fe₃O₄ magnetic NPs as the core. The material was used as a solid-phase extraction sorbent for the effective preconcentration of flavonoids in the Chinese medicine Dicranopteris pedata. A detailed evaluation of the potential factors affecting the adsorption performance of Fe₃O₄@ZIF−67 was performed to determine the full potential of MSPE of flavonoids in Dicranopteris pedata. The adsorption mechanism of Fe₃O₄@ZIF−67 for flavonoids was explored. Finally, a new MSPE-HPLC-UV coupling method was developed for the separation and determination of rutin, quercitrin, kaempferol-3-O-α-L-rhamnoside, quercetin, and kaempferol. This method was successfully applied for the simultaneous separation and determination of the five flavonoids in Dicranopteris pedata.

2. Results and Discussion

2.1. Selection of Adsorbents for Magnetic MOFs

Seven different materials were used for the adsorption of flavonoid components from Dicranopteris pedata and analyzed by HPLC-UV. As shown in Figure S1, Fe₃O₄@ZIF−4, Fe₃O₄@MOF−74, and Fe₃O₄@ZIF−67 showed high adsorption and removal capacities, whereas Fe₃O₄@ZIF−67 showed the highest adsorption and the best removal effect. ZIF−4 has some adsorption capacity for flavonoids owing to its ability to form hydrogen bonds because of the large number of imidazole ligand-bridging structures. Therefore, ZIF−4 is more likely to adsorb flavonoids with more hydroxyl groups. It is believed that the larger molecular structure of flavonoids affects their diffusion into the MOF pores, which is one of the reasons for the limited adsorption capacity of ZIF−4 for flavonoids [23]. In addition, the small size of the pore cage cavity of ZIF−4, approximately 3.3 Å [24], also limits the diffusion of compounds into the material. The cavity cage size of ZIF−67 (10 Å) is significantly larger than that of ZIF−4, which explains the lower adsorption efficiency of ZIF−4 compared to ZIF−67. Unlike ZIF−67, the positive surface charge of the MIL−101 series materials decreased with increasing the pH [25], and the adsorption capacity decreased continuously, whereas the pH of the Dicranopteris pedata sample was neutral and unsuitable for the adsorption environment of the MIL-101 series. The luminal pore cage size of MOF−74 (Co-Zn) is 11 Å, and although it does not limit the diffusion of flavonoids within the pore channel, its surface charge is lower than that of the other materials of the ZIF series [26], which explains the lower adsorption of MOF−74 (Co-Zn). Therefore, Fe₃O₄@ZIF−67 was used as a solid-phase adsorbent for flavonoids in Dicranopteris pedata.

2.2. Characterization of Fe₃O₄@ZIF−67

The morphology of Fe₃O₄@ZIF−67 was characterized using scanning electron microscopy (SEM) and transmission electron microscopy (TEM) (Figure 1a,b). The SEM images show the morphology of ZIF−67 as a dodecahedron with well-defined edges. Figure 1B shows the TEM characterization of Fe₃O₄@ZIF−67, from which it is observed that the surface of ZIF−67 was modified by aggregated Fe₃O₄ NPs with clearly visible edges, indicating that the Fe₃O₄ NPs successfully magnetized ZIF−67. Figure 1c illustrates that the Fe₃O₄@ZIF−67 composite consists of the elements C, N, O, Fe, and Co and gives the percentage of each element, which are the basic elements that make up Fe₃O₄@ZIF−67. Figure 1e,f,g,h show the distribution of Fe, Co, N, and C, respectively, indicating a uniform distribution of each element during the synthesis.

Figure 2a shows the X-ray diffraction (XRD) patterns of Fe₃O₄, ZIF−67, and Fe₃O₄@ZIF−67. The presence of characteristic peaks of ZIF−67 and Fe₃O₄ in the XRD patterns of Fe₃O₄@ZIF−67 confirms the formation of Fe₃O₄@ZIF−67. The characteristic peaks of Fe₃O₄@ZIF−67 at 18.20° (111), 30.22° (220), 35.68° (311), 43.28° (400), 53.68° (422), 57.18° (511), and 62.76° (440) correspond to the characteristic peaks of Fe₃O₄ NPs, indicating that the crystal structure of Fe₃O₄@ZIF−67 is intact and there was no serious crystallographic disruption in ZIF−67 by the incorporation of Fe₃O₄ during the synthesis.

The porosities of ZIF−67 and Fe₃O₄@ZIF−67 were measured using N₂ adsorption isotherms at 77 K (Figure 2b). The specific surface area of ZIF−67 calculated using the Brunauer–Emmett–Teller (BET) method was 890.307 m²∙g⁻¹, with a mesopore pore size of 6.3030 nm. The specific surface area of Fe₃O₄@ZIF−67 was 379.517 m²∙g⁻¹ with a mesopore size of 8.7226 nm. Compared to the BET surface area of pure ZIF−67, that of Fe₃O₄@ZIF−67 was slightly smaller owing to the presence of the non-porous Fe₃O₄ core but was still a large specific surface area.

The Fourier-transform infrared (FT-IR) spectra of Fe₃O₄, ZIF−67, and Fe₃O₄@ZIF−67 were characterized using FT-IR spectroscopy (Figure 2c). The characteristic band at 422 cm⁻¹ in the FT-IR spectrum of Fe₃O₄@ZIF−67 was attributed to Co-N stretching vibrations. The peaks at 1055 and 1392 cm⁻¹ confirmed the presence of benzene rings. The peaks at 575 cm⁻¹ were attributed to Fe-O-Fe bonds in the Fe₃O₄ particles. The characteristic band at 1350–1500 cm⁻¹ can be attributed to the stretching vibration of the imidazole ring. The characteristic band at 1590 cm⁻¹ is consistent with the C=N stretching vibrations in ZIF−67. The FT-IR spectra of Fe₃O₄@ZIF−67 showed characteristic peaks of ZIF−67, indicating that Fe₃O₄ NPs were successfully loaded onto ZIF−67, which is consistent with the XRD and SEM results.

As shown in Figure 2d, the saturation magnetization values of Fe₃O₄ and Fe₃O₄@ZIF−67 were classified as 97.16 and 19.79 emu∙g⁻¹, respectively. The magnetic properties of Fe₃O₄@ZIF−67 decreased with the encapsulation of ZIF−67 but were still good (inset of Figure 2d). The relatively high saturation magnetization values of Fe₃O₄@ZIF−67 make it susceptible to magnetic fields and easy to separate from aqueous solutions. The absence of significant hysteresis, remanence, and coercivity of the hysteresis line illustrates the superparamagnetic nature of Fe₃O₄@ZIF−67, which is crucial for magnetic extraction.

The zeta potential of the Fe₃O₄@ZIF−67 surface was measured. As shown in Figure S2, the positive charge of Fe₃O₄@ZIF−67 gradually increased with increasing pH, reaching a maximum value of 35 mV at pH 8. When crossing the isotropic potential (PI = 9), Fe₃O₄@ZIF−67 changed from a positive to a negative surface charge.

2.3. Optimization of MSPE Extraction Conditions

2.3.1. Selection of Desorbing Solvent

The surface of Fe₃O₄@ZIF−67 was positively charged at a pH below 8 (Figure S2). Flavonoids rich in hydroxyl groups are adsorbed onto Fe₃O₄@ZIF−67 owing to electrostatic forces upon entering the pore cage of Fe₃O₄@ZIF−67; therefore, a suitable desorbing solvent is critical. A mixture of methanol, acetonitrile, ethyl acetate, phosphate buffer, and 70% acetonitrile solution was evaluated for the desorption of flavonoids from Fe₃O₄@ZIF−67. Figure 3a compares the performance of the five solvents. Under the same extraction and elution conditions, the five flavonoids showed the highest peak heights in the chromatogram when a 70% solution of acetonitrile was used as the desorbing solvent. This demonstrated the superior desorption performance of the 70% acetonitrile solution, which was therefore chosen as the desorbing solvent for the remaining experiments.

2.3.2. Effect of the Amount of Fe₃O₄@ZIF−67

The effect of the amount of Fe₃O₄@ZIF−67 (10, 20, 30, and 40 mg) on the extraction efficiency was investigated. As shown in Figure 3b, initially, the peak heights of the five flavonoids increased with the amount of Fe₃O₄@ZIF−67. The peak heights of most of the flavonoids reached a maximum (i.e., optimum extraction efficiency) when the amount of Fe₃O₄@ZIF−67 was 20 mg and started to decrease at 30 mg. In general, an increase in the amount of sorbent will improve the extraction capacity. However, in the elution phase, the more sorbent that is involved, the more difficult it is for the analytes to be eluted from the sorbent. Even the latter may be more prominent, which leads to the result that increasing the amount of sorbent decreases the recovery [27]. Therefore, 20 mg of Fe₃O₄@ZIF−67 was chosen for subsequent experiments.

2.3.3. Optimization of the Desorbing Solvent Volume

The effect of the desorbing solvent volume, set to 0.5, 1.0, 1.5, and 2 mL, on the desorption performance was investigated. As shown in Figure 3c, the amounts of eluted flavonoids increased as the volume of the desorbing solvent increased. At 1.5 mL, the peak height of the flavonoids reached the maximum, but the interfering substances also increased (Figure S3). Considering the desorption performance and interfering impurities, 1.0 mL was chosen as the optimum volume for the desorbing solvent.

2.3.4. Effect of the Proportion of Acetonitrile in the Desorbing Solvent

Different ratios of desorbing solvents were examined. As shown in Figure 3d, the desorption performance was analyzed at acetonitrile ratios of 60, 65, 70, 75, and 80%. The experimental results showed that the best desorption performance was achieved with 70% acetonitrile, which was thus chosen as the optimum eluent ratio.

2.3.5. Effect of Formic Acid Concentration to Acidify Desorbing Solvent

The concentration of formic acid used to acidify the desorbing solvent had a strong influence on the desorption performance. Maintaining the desorbing solvent under acidic conditions can protect flavonoids from oxidative degradation [28] and improve the extraction efficiency of the substances to be measured. Additionally, the acidity influences how much the analyte dissociates in the solvent, which changes the analyte’s surface charge and, consequently, the electrostatic adsorption between the analyte and the sorbent. Therefore, we investigated the effect of acidifying the desorbing solvent on the extraction efficiency by using different concentrations of formic acid (concentration range of 0.1–0.5%). As shown in Figure 3e, with the increase in formic acid concentration, flavonoids were continuously desorbed from the sorbent and the corresponding peak heights increased. However, the chromatogram of the Dicranopteris pedata samples showed that the peak heights of the interfering substance peaks were also increasing (Figure S4). Considering the extraction efficiency of the substances to be evaluated and the influence of interfering substances, 0.3% was selected as the optimal concentration of formic acid to acidify the desorbing solvent for the remaining experiments.

2.3.6. Effect of Salt Ion Concentration in the Sample Solution

The effect of the ionic strength of the sample on the extraction efficiency of Fe₃O₄@ZIF−67 was investigated by varying the concentration of NaAc in the mixed standard solutions of the five flavonoids (Figure 3f) at 0.01, 0.05, 0.1, 0.15, and 0.2 M. The highest extraction efficiency for each substance to be evaluated was achieved at 0.1 M. Above that, the efficiency decreased. Therefore, the optimum salt ion concentration was determined to be 0.1 M. This indicates that the adsorption of Fe₃O₄@ZIF−67 can be improved by tuning the ionic strength; however, a high salt ion concentration affects the electrostatic interaction, making the adsorption rate less efficient than that at low ionic concentrations [29].

2.3.7. Effect of Vortex Time on Adsorption Capacity

For MSPE, vortex is a time-dependent process. Therefore, the effect of vortex extraction times of 0, 1, 2, 3, 4, and 5 min on the extraction efficiency of Fe₃O₄@ZIF−67 was investigated. As shown in Figure 3g, the extraction efficiency was optimal at a vortex extraction time of 1 min, which was thus elected as the optimal vortex extraction time. This may be because the dispersion extraction mode increases the interfacial area between the sorbent and the target sample solution, thus facilitating mass transfer and allowing the adsorption to reach equilibrium rapidly [27].

In summary, the optimal conditions for MSPE are as follows: 70% acetonitrile solution as the desorbing solvent, Fe₃O₄@ZIF−67 at an amount of 20 mg, desorbing solvent at a volume of 1.0 mL, proportion of acetonitrile in the desorbing solvent of 70%, concentration of formic acid to acidify the desorbing solvent of 0.3%, concentration of salt ions in the sample solution of 0.1 M, and vortex time of 1.0 min.

2.4. Stability and Reusability of Fe₃O₄ @ZIF−67

The stability of Fe₃O₄@ZIF−67 was examined at 7, 14, 21, and 28 days under optimal MSPE conditions. Changes in the extractive properties of the materials were recorded. Three mixed standard solutions of the five flavonoid compounds were prepared in parallel, and the same Fe₃O₄@ZIF−67 was used for MSPE-HPLC-UV measurements on days 0, 7, 14, 21, and 28, respectively, with three parallel measurements for each sample. The recoveries of Fe₃O₄@ZIF−67 for each flavonoid at different times were calculated using Equation (1).

$$R=\frac{A_{\mathrm{n}}}{A_0}\times 100\%$$

(1)

where R is the recovery of each flavonoid from Fe₃O₄@ZIF−67 on days 7, 14, 21, and 28; A₀ is the peak area of each flavonoid on day 0; and A_n is the peak area of each corresponding flavonoid on day n (n = 0, 7, 14, 21, 28).

As shown in Figure 4a, the R value of all five flavonoids was over 90% on days 7 and 14. However, after days 21 and 28, R rapidly decreased to below 80%, indicating that the stability of Fe₃O₄@ZIF−67 decreased rapidly with increasing storage time. Therefore, Fe₃O₄@ZIF−67 is stable enough to use until 14 days of storage.

The reusability of Fe₃O₄@ZIF−67 was evaluated under optimized conditions. The sorbent was washed and dried with methanol before proceeding to the next cycle. As shown in Figure 4b, the extraction efficiency of the sorbent remained almost unchanged (RSD ≤ 4.2%) after four consecutive adsorption–desorption cycles. This phenomenon indicates that the sorbent has good reusability.

2.5. Validation of Method

The established MSPE-HPLC-UV method was examined for five flavonoids’ mixed standard solutions in terms of precision, linearity, the limit of detection (LOD), the limit of quantification (LOQ), and accuracy. The performance of this method was evaluated under optimal conditions following the International Conference on Harmonisation document on validation methodology [30] and the procedure described by Rambla-Alegre et al. [31]. As shown in

Table 1. Calibration curves, LODs, and LOQs of five flavonoids.

Compound	Linearity Equation	Determination Coefficient (R2)	Linearity Range (μg∙mL−1)	Intra-Day RSD (%, n = 3)	Inter-Day RSD (%, n = 3)	LOD (ng∙mL−1)	LOQ (ng∙mL−1)
Rutin	y = 7.7124x − 18.831	0.9922	4.38–70.00	3.6	4.9	41.4	132.4
Quercitrin	y = 10.994x + 118.94	0.9913	2.34–37.50	2.2	3.8	56.2	147.2
Kaempferol-3-O-α-L-rhamnoside	y = 4.8385x + 18.599	0.9901	1.25–20	3.0	5.8	40.2	131.2
Quercetin	y = 12.554x + 5.8314	0.9945	1.09–17.50	2.8	4.1	39.5	130.5
Kaempferol	y = 18.289x + 68.642	0.9921	2.03–32.50	4.0	4.1	42.8	133.8

, the determination coefficients (R²) ranged from 0.9901 to 0.9945 with good linearity. The LOD (S/N = 3) and LOQ (S/N = 10) were calculated according to the 3σ/m criterion proposed by the IUPAC, with σ being the standard deviation of the blanks and m being the slope of the calibration plot. The obtained values were in the range of 39.5–56.2 ng∙mL⁻¹ and 130.5–147.2 ng∙mL⁻¹ for LOD and LOQ, respectively, indicating the high sensitivity of the method.

2.6. Method Application

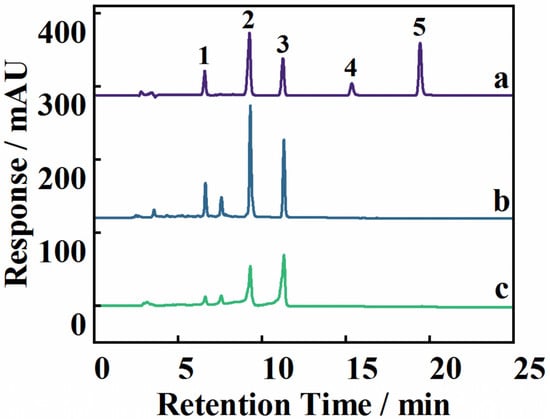

The MSPE–HPLC-UV method was applied to the extraction and analysis of flavonoids from Dicranopteris pedata under optimal extraction conditions to evaluate the practicality of the developed method in real samples. Figure 5 shows the chromatograms of the Dicranopteris pedata samples before and after MSPE. The interfering substances were greatly reduced in the samples after MSPE, thereby reducing the influence on the target analytes. The quantitative results of the five flavonoids are shown in

Table 2. Recovery results of five flavonoids (n = 3).

Compound	Sample Content (μg∙mL−1) ± SD	Added (μg∙mL−1)	Detected (μg∙mL−1) ± SD	Recovery (%)	RSD (%)	Average Recovery (%)
Rutin	18.9 ± 0.33	17.5	32.3 ± 0.84	88.8
		8.7	26.1 ± 0.80	94.5	2.2	92.2
		4.3	21.7 ± 0.50	93.3
Quercitrin	19.6 ± 0.26	12.5	33.5 ± 0.71	104.7
		6.2	25.8 ± 0.68	99.8	1.4	100.7
		3.1	22.2 ± 1.31	96.2
Kaempferol-3-O-α-L-rhamnoside	3.1 ± 0.07	5.0	8.1 ± 0.18	99.6
		2.5	5.4 ± 0.15	96.8	1.9	95.6
		1.2	3.9 ± 0.10	90.0
Quercetin	0	5.0	4.8 ± 0.13	95.7
		2.5	2.3 ± 0.13	92.5	1.8	92.6
		1.3	1.1 ± 0.08	89.7
Kaempferol	0	10.4	10.0 ± 0.16	96.5
		5.2	5.1 ± 0.24	98.8	0.2	96.3
		2.6	2.4 ± 0.22	93.5

. Kaempferol-3-O-α-L-rhamnoside, quercitrin, and rutin were enriched by 1.18-, 3.11-, and 6.34-fold, respectively. Quercetin and kaempferol were not found in the Dicranopteris pedata samples. The precision and accuracy of the proposed method were verified by analyzing spiked samples at low, medium, and high concentration levels. Relative recoveries and relative standard deviations (RSDs) were used to express the precision and accuracy of the proposed method. The relative recoveries of the five flavonoids were in the range of 91.2–99.9%, with RSDs in the range of 0.24–2.2% (Table 2), indicating that the method is reliable and reproducible and highlighting its feasibility and applicability.

By comparison with other reported methods for the determination of flavonoids (

Table 3. Comparison of various methods for the determination of flavonoids.

Flavonoids	Adsorbent	Analytical Technique	Matrix	LOD (ng∙mL−1)	Recovery (%)	Reference
Rutin, quercetin, and kaempferol	OasisTM HLB	SPE-UHPLC-PDA	Wine extract	10.0–59.0	63.0–114.0	[32]
Rutin, quercetin, and kaempferol	TiO2 NPs and diatomaceous earth	Multi-step matrix solid-phase dispersion (MSPD)- capillary LC and LC-MS/MS	Residual brewing yeast	7.0–11.0	—	[33]
Rutin, quercetin, and kaempferol	—	Ultrasound-assisted extraction (UAE)-HPLC-UV	Flos Sophorae Immaturus	2000.0–4000.0	97.7–99.3	[34]
Rutin, quercetin, and kaempferol	Supelco LC-18	SPE-LC-MS/MS	Red onion, orange peel, and honey	39.0–76.0	86.0–114.0	[35]
Rutin, quercitrin, kaempferol-3-O-α-L-rhamnoside, quercetin, and kaempferol	Fe3O4@ZIF−67	MSPE-HPLC-UV	Dicranopteris pedata	39.5–56.2	92.2–100.7	This work

), it can be seen that the developed MSPE-HPLC-UV method based on the Fe₃O₄@ZIF−67 adsorbent also has good sensitivity and high recovery. Moreover, the method is simple and convenient due to the fast magnetic separation during sample enrichment.

3. Materials and Methods

3.1. Materials

Dicranopteris pedata was harvested from the Sanmenjiang National Forest Park, Liuzhou, Guangxi. All reagents and chemicals used were of analytical grade. Methanol and acetonitrile (HPLC-grade) were obtained from Merck (Darmstadt, Germany). Zinc nitrate hexahydrate (Zn(NO₃)₂·6H₂O), cobalt nitrate hexahydrate (Co(NO₃)₂·6H₂O), chromium oxide nonahydrate (Cr(NO₃)₃·9H₂O), imidazole, 2-methylimidazole (Mim), terephthalic acid, 2-amino terephthalic acid, and 2,5-dihydroxy terephthalic acid were purchased from Shanghai Aladdin Biochemical Technology Co. Ltd. Rutin (95%), kaempferol (97%), kaempferol-3-O-α-L-rhamnoside (98%), quercitrin (98%), and quercetin (95%) were purchased from Shanghai Maclean Biochemical Technology Co. Ltd. Sodium phosphate monobasic dihydrate (NaH₂PO₄·2H₂O), glacial acetic acid, sodium hydroxide, iron (III) chloride hexahydrate (FeCl₃·6H₂O), sodium acetate (NaAc), ethylene glycol, absolute ethanol, ammonia (25%), N,N-dimethylformamide (DMF), chloroform (CHCl₃), ethyl orthosilicate (TEOS), and ethyl acetate were obtained from Guangdong Guanghua (Guangdong, China). The deionized (DI) water (18.2 MΩ·cm) used in our experiments was produced using a UPH-1 V-20 T Houpu series ultrapure water machine (Sichuan Houpu Super Pure Technology Co., Ltd., Chengdu, China).

3.2. Instrumentation and Chromatographic Conditions

The morphology and size distribution of the particles were observed using scanning electron microscopy (SEM; Hitachi S-4800, Tokyo, Japan) and transmission electron microscopy (TEM; JEOL JEM 2100, Tokyo, Japan). The elemental analysis chart was measured using energy-dispersive X-ray spectroscopy (EDS; Oxford, UK). Powder X-ray diffraction (XRD; Bruker D8A A25, Bruker, Germany) and Fourier-transform infrared (FT-IR) spectroscopy (Frontier, FL, USA) were performed to characterize the material structure. The specific surface area and pore size distribution of the materials were measured using Brunauer–Emmett–Teller (BET) measurements with an ASAP-2460 gas adsorption instrument (Micromeritics, USA). The zeta potential of ZIF−67 was measured using a Zetasizer Nano ZS (NanoZS90; Malvern, UK). All hysteresis loops were collected using an MPMS-XL SQUID magnetometer and a vibrating sample magnetometer (VSM) (Quantum Design, Caledonia, IL, USA).

The chromatographic system consisted of an Agilent 1260 HPLC with a variable wavelength detector (Agilent Technologies, Santa Clara, CA, USA). All analyses were performed on a Pntulips TMBP C18 column (4.6 mm × 250 mm, 5 μm). The mobile phase consisted of phase A (acetonitrile with 1% formic acid) and phase B (an aqueous solution with 0.2% formic acid). The flow rate, UV detection wavelength, injection volume, and column temperature were 1 mL∙min⁻¹, 365 nm, 20 µL, and 30 °C, respectively. All analytes were separated using gradient elution, whose conditions are shown in Table S1.

3.3. Preparation of Fe₃O₄ NPs

Fe₃O₄ NPs were prepared according to a previous report with slight modifications [36]. Certain amounts of FeCl₃·6H₂O and 8.46 g of sodium acetate were dissolved in 64 mL of ethylene glycol. After stirring for 30 min, the mixed solution was transferred to an autoclave with a PTFE liner and heated at 220 °C for 24 h. After cooling and separation under an applied magnetic field, the prepared products were alternately washed three times with deionized water and ethanol. Finally, the product was dried in a vacuum drying oven at 60 °C for 12 h to obtain Fe₃O₄ NPs.

3.4. Preparation of Fe₃O₄@ZIF−67

Fe₃O₄@ZIF−67 was prepared according to the literature protocol [37] with slight modifications. In brief, 0.02 g of prepared Fe₃O₄ NPs and 0.5730 g of Co(NO₃)₂·6H₂O were dissolved in methanol (7.5 mL) to obtain solution A. Additionally, 0.6512 g of 2-methylimidazole was dissolved in methanol (7.5 mL) and sonicated for 5 min to obtain solution B. Solution A was then mixed with solution B for 10 min and left to age for 12 h. The product was separated by an applied magnetic field, dried in a vacuum drying oven at 60 °C for 20 min, and ground for subsequent experiments.

The details of the preparation procedure for Fe₃O₄@MIL-101 (Fe), Fe₃O₄@MIL-101 (Cr), Fe₃O₄@ZIF-4, Fe₃O₄@IRMOF-3, Fe₃O₄@Zn-MOF-74, and Fe₃O₄@Co-MOF-74 can be found in the Supplementary Materials S1 section.

3.5. Sample Preparation

The freshly harvested Dicranopteris pedata was dried in a drying oven at 105 °C. The stems and leaves were crushed and passed through a 20-mesh sieve. Then, 1.0 g of the sieved powder was dissolved in 40 mL of 80% ethanol at 85 °C for 2 h with reflux condensation. The resulting extract was concentrated to 10 mL, diluted 10 times with absolute ethanol, and used as a sample solution for subsequent experiments.

3.6. MSPE Procedure

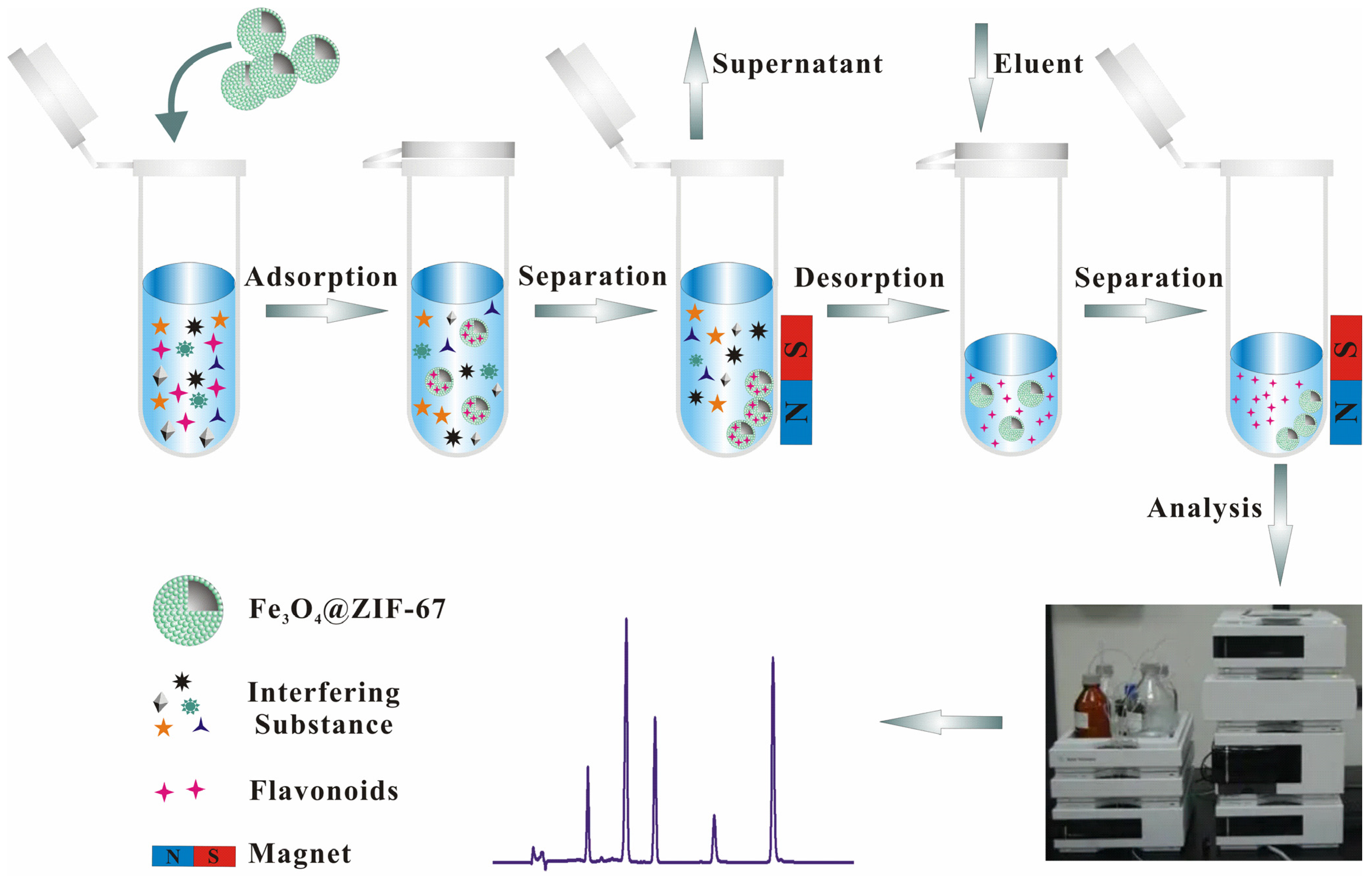

The extraction procedure for the five flavonoids using the magnetic MOF is shown in Figure 6. First, a certain amount of the prepared magnetic MOF was dispersed in the Dicranopteris pedata sample solution. The suspension was vortexed and thoroughly shaken. The individual magnetic MOFs were then separated from the solution under an applied magnetic field and the supernatant was discarded. Next, the adsorbed analytes were eluted from the magnetic MOFs with 1 mL of eluent by sonication for 2 min and repeated twice. The eluate was then separated by an applied magnetic field, dried with N₂, and dissolved in 200 μL of acetonitrile. The resulting product was filtered through a 0.22-micrometer filter before HPLC-UV analysis.

4. Conclusions

In this study, magnetically functionalized Fe₃O₄@ZIF−67 was prepared by electrostatic self-assembly and overgrowth to be used as an SPE sorbent for the extraction of flavonoids from the traditional Chinese medicine Dicranopteris pedata. A method was developed for the determination of the five flavonoids in Dicranopteris pedata using MSPE-HPLC-UV. The extraction conditions, including the amount of Fe₃O₄@ ZIF−67, the type and amount of the desorbing solvent, the concentration of formic acid to acidify the desorbing solvent, the ratio of acetonitrile of the desorbing solvent, the vortex extraction time, and the ionic strength of the sample, were optimized, resulting in considerable flavonoid recoveries. The method exhibited low detection limits, high precision, high accuracy, simple operation, and advantageous results. It can be used for the analysis of flavonoids in other Chinese herbal medicines.
