Review

Application of New COF Materials in Secondary Battery Anode Materials

by
Miao Jia
1,*,
Lixin Zhang
1 and
Qiong Yuan
2
1
College of Chemistry and Materials Engineering, Beijing Technology and Business University, Beijing 100048, China
2
College of Chemical and Food, Zhengzhou University of Technology, Zhengzhou 450044, China
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(16), 5953; https://doi.org/10.3390/molecules28165953
Submission received: 18 July 2023 / Revised: 2 August 2023 / Accepted: 7 August 2023 / Published: 8 August 2023
Browse Figures
Versions Notes

Abstract

:
Covalent organic framework materials (COFs), as a new type of organic porous material, not only have the characteristics of flexible structure, abundant resources, environmental friendliness, etc., but also have the characteristics of a regular structure and uniform pore channels, so they have broad application prospects in secondary batteries. Their functional group structure, type, and number of active sites play a crucial role in the performance of different kinds of batteries. Therefore, this article starts from these aspects, summarizes the application and research progress of the COF anode materials used in lithium-ion batteries, sodium-ion batteries, and potassium-ion batteries in recent years, discusses the energy storage mechanism of COF materials, and expounds the application prospects of COF electrodes in the field of energy storage.

Graphical Abstract

1. Introduction

With the gradual depletion of fossil energy sources, such as oil and natural gas, and demand for reductions in carbon dioxide emissions, the development and utilization of new energy and renewable clean energy storage technology have become an urgent problem to solve, as well as a topic of increasing concern [1,2,3]. Electrochemical energy storage, inductor energy storage, and gravitational potential energy storage are the main energy storage technologies currently developed. Because of its efficient and flexible application, electrochemical energy storage enjoys an increasingly important role in energy storage systems [1,4]. At present, electrochemical energy storage includes battery energy storage and capacitor energy storage. Ordinary batteries include lithium-ion batteries, sodium-ion batteries, potassium-ion batteries, supercapacitors, etc. Secondary batteries are usually composed of a cathode material, anode material, electrolyte, diaphragm, and other parts, among which the anode material plays a very important role in the performance of the battery.
Generally speaking, the electrode materials of secondary batteries include carbon materials, alloy materials, metal oxide/sulfur/selenide materials, and polymer materials. Carbon materials have advanced technology and low cost but low specific capacity and poor safety [5]. The alloy material has high capacity but large volume change, causing poor circulation performance [6]; metal oxide/sulfur/selenide materials have high specific capacity but poor conductivity, and they are prone to volume expansion [7]. Among various anode electrode materials, some organic compounds with rich conjugation systems and lone pair electrons can undergo reversible oxidation reduction reactions without relying on transition metal element resources; meanwhile, the structure and performance are easy to design and control, so they have certain potential.
Among polymer anodes, covalent organic frameworks (COFs) are new crystalline porous materials composed of light organic molecular elements (H, B, C, N, O, etc.) and connected by full covalent bonds to form a two-dimensional or three-dimensional network structure, with excellent structural controllability and functional adjustability. Compared with traditional metal organic framework (MOF) materials, COFs have a more orderly pore structure and higher stability. In addition, the advantages, such as low skeleton density, high porosity, and pore structure, give COFs broad application prospects in gas storage, adsorption and separation, photoelectric conversion, heterogeneous catalysis, and other fields [8,9].
In recent years, COFs have been gradually used in various secondary battery anode materials, including lithium-ion batteries, sodium-ion batteries, potassium-ion batteries, etc. (Figure 1) [10,11,12]. Compared with traditional organic composite electrode materials, the regular network structure of COFs can obtain richer redox active sites, which is conducive to ion/electron transmission. Therefore, COFs, as anode materials of secondary batteries, have better electrochemical properties [13]. In addition to alkali-ion battery anode materials, COFs are also promising for multivalent ion batteries, like Mg-ion, Ca-ion, and Zn-ion batteries [14,15,16,17]. Due to adjustable pore size, regular channel structure, and rich redox active sites, COFs may be potential electrode materials for multivalent ion batteries. Tunable and stable porous structure is conducive to Mg2+, Ca2+, and Zn2+ storage. Most efforts so far have been made on COFs directly as cathode materials for multivalent ion batteries, and less research is about the application of COFs on anodes. The application of COFs on anodes revolves in modifying the Mg, Ca, or Zn anode as protective layers. Zhao et al. prepared a COFs@Zn anode (TpPa-SO3H@Zn-foil) for zinc-ion batteries, which effectively promoted the uniform deposition of zinc ions and inhibited dendrite growth [18]. Zhang et al. prepared TB-COF as an anode for calcium-ion batteries, demonstrating the high reversible capacity of 253 mA h g−1 at 1.0 A g−1 [19]. Apparently, COFs play an important role in the energy storage of multivalent ions, the same as for alkali-ion batteries. In addition, aqueous batteries have shown certain progress. Lin et al. [20] prepared a kind of anode material containing pyrozine (C=N) and phenylimino (-NH-) groups as a water system battery. The strong covalent bond of COF and the hydrogen bond network between -NH- and water molecules jointly improved the acid–base resistance and accelerated the ion transmission. Therefore, the COF electrode has excellent capacity and cycle stability. At present, the research of COFs used for new types of secondary battery is in the initial stage, and there will be more research on COFs in the future. Meanwhile, in supercapacitors, COF materials have relatively sufficient research, but the transmission speed of supercapacitors through electrodes is slower, so their power density is relatively low [21,22].
Currently, COF anode materials face inherent challenges, such as poor electronic conductivity, potential solubility in electrolytes, and low volume capacity. Therefore, this paper summarizes the corresponding solutions and the application of COFs and their composites in the field of lithium/sodium/potassium secondary battery anodes, including the latest achievements and the reaction mechanism of COFs in the energy storage process. Finally, the challenges faced by COFs in the field of secondary batteries are discussed, and future developments are prospected.
Molecules 28 05953 g001

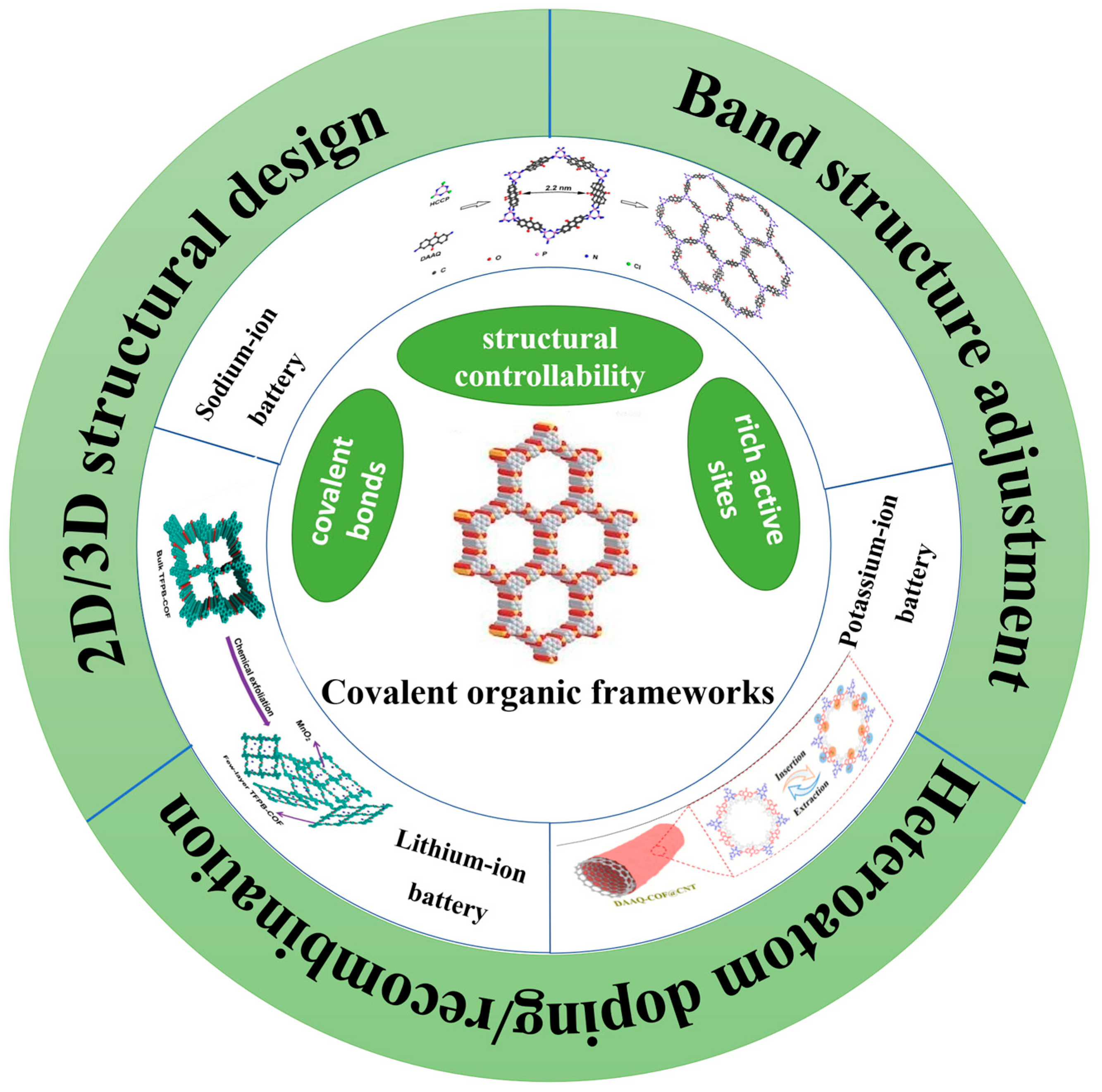

Figure 1. Application of COF materials in anode of secondary-ion batteries [10,11,12].
Figure 1. Application of COF materials in anode of secondary-ion batteries [10,11,12].
Molecules 28 05953 g001

2. Application of COF Materials in the Lithium-Ion Battery Anode

2.1. COF Anode

Lithium-ion batteries (LIBs) have the advantages of high voltage and light weight. The battery voltage is usually about 3.6 V, which is equivalent to the series voltage of 2–4 Ni-MH batteries; meanwhile, lithium-ion batteries have high energy density. The density of lithium-ion batteries commonly used at present can reach 180 Wh kg−1, which is 5–7 times that of lead-acid batteries. In addition, lithium-ion batteries have long service life, low self-discharge, and no memory effect [23,24]. At present, in portable electronic devices, new energy vehicles, and other technologies, lithium-ion batteries have gradually shown their advantages. With the advent of the era of the smart grid, lithium-ion batteries have also been rapidly developed on a large scale [25,26].
As an anode of lithium-ion batteries, the following requirements should be met: when lithium ions are introduced into the anode matrix, the oxidation reduction potential should be as low as possible, close to the metallic lithium potential to increase the input voltage of the battery; during the intercalation/deintercalation process, the main structure change in the anode electrode is insignificant or does not change at all; the oxidation reduction potential should also change as little as possible, so that the battery voltage will not change significantly and can maintain a relatively stable charge/discharge voltage; the inserted compound should have excellent electronic/ionic conductivity, which can reduce polarization and can be charged and discharged under large current density; the main materials should have a valuable surface structure and be able to form a good SEI with liquid electrolytes; lithium ion has a large diffusion coefficient in the base material, which is convenient for fast charging and discharging; from a practical point of view, the material should be economical and environmentally friendly [27].
At present, two-dimensional COFs are relatively widely used in lithium-ion batteries, which are usually composed of a planar network structure connected by rigid building units and stacked by π–π interaction between layers. Theoretically, the overlap of π–π electron clouds between layers and the conjugated connection within layers enable the carrier to transfer rapidly in the COF skeleton [28]. At present, many kinds of two-dimensional COF materials have been prepared and have obtained excellent performance in lithium-ion battery anodes.
Haldar et al. [29] synthesized self-assembled covalent organic skeleton nanosheets (Figure 2a,b) using the solvothermal method. This two-dimensional structure can shorten the transport path and is conducive to the rapid intercalation/deintercalation of Li+, so it has high reversibility and cycle stability. This study proved that COFs are very suitable for ion insertion in the form of stripping. Yang et al. [30] grew highly conductive two-dimensional COF polyporphyrin (TThPP) connected by 4-thiophenephenyl on the surface of copper foil through in situ chemical oxidation polymerization. As the anode of lithium-ion batteries, the regular arrangement of two-dimensional polyporphyrin nanosheets (Figure 2c,d) facilitates the flow of charge carriers on the COF framework, thereby improving electronic conductivity. Simultaneously, the structure endows the composite with more active sites and large specific surface area, which can promote the rapid diffusion and effectively shorten the transmission path of Li+. Zhao et al. [31] synthesized a layered porous covalent organic framework with C=N and C=O double redox-active centers through the condensation reaction of 2,6-diaminoanthraquinone (DAAQ) and 1,3,5- benzenetricarboxaldehyde (TB). This 2D DAAQ-COF plane is stacked and aggregated through strong π–π interactions, forming a layered structure; meanwhile, the introduction of the C=O helps to increase the active sites and improve the theoretical capacity. Thus, DAAQ-COF exhibits excellent performance and continuous “activation” behavior. After 500 cycles under 1 A g−1, the discharge capacity is up to 787 mA h g−1. Wu et al. [32] designed and prepared a redox-active PA-TA COF with super-large interlayer spacing, which had a non-planar tetrahedral chair conformational piperazine unit. This unique structure gives it a bigger interlayer distance. Compared with commercial graphite and two-dimensional COF anode materials with dense aromatic stacking, the ultra-large interlayer spacing of PA-TA COF can effectively promote the intercalation/deintercalation of Li+ with fast transport kinetics, thereby increasing the rate capacity. After 400 cycles at 1.0 A g−1, the specific capacity of the composite material still reaches 543 mA h g−1, while at a high current density of 5.0 A g−1, its specific capacity can still reach 207 mA h g−1. Cai et al. [33] synthesized a π-conjugated covalent organic framework (DCB-COF) based on a triazine (DCB) structure (Figure 2e,f). As the anode material of the lithium-ion battery, the active sites for lithium storage of DCB-COF are attributed to its C-N functional group and the π-conjugated benzene ring, which cause strong cycle stability, high energy storage, and power supply capacity.
In addition to carbonyl (C=O), triazine structure, and other functional groups, the imine group (C=N) is also a typical active site for COFs in Li-ion storage. Zhao et al. [34] synthesized a new triangular topological covalent organic framework (HAB-COF) based on hexaaminobenzene. Due to its conjugated structure and high-density imine (C=N) groups (Figure 3a), it effectively promotes electron transport and Li+ intercalation/deintercalation. At the same time, HAB-COF undergoes an activation stage during the electrochemical cycling process, and the specific capacity reaches 1255 mA h g−1 after 1100 cycles at 1 A g−1 (Figure 3b), far exceeding the theoretical specific capacity based solely on C=N group materials. This may be due to the cyclic synergistic effect of the stable activated C=C group in benzene on HAB and Td monomers. Chen et al. [10] designed a novel imine-based COF (TFPB COF) through the Schiff base reaction and chemically peeled it off into multi-layer nanosheets. Its structure is similar to that of graphene (Figure 3c), with an ordered mesoporous structure and large specific surface area, which can effectively promote ion/electron diffusion, so it has excellent lithium storage performance. In addition, MnO2 can act as a spacer between layers, effectively preventing the aggregation of composite materials during cycling, thus also possessing long-term cycling stability. The E-TFPB-COF/MnO2 electrode showed a large reversible capacity of 1359 mA h g−1 after 300 cycles, without the need for prolonged cycling activation (Figure 3d). Therefore, the design of composite materials has a significant impact on improving battery performance. Long et al. [35] synthesized Fe2O3@COF-LZU1 (FO@LZU1) composites. The existence of COF-LZU1 increases the additional active site for lithium storage, as well as providing a unique heterostructure. A large number of C=N groups and benzene rings exist in imine-based COFs, providing a rich active center for lithium storage through electrochemical reaction (Figure 3e). In addition, its ordered pores promote the permeation of electrolytes in each layer, and the rigid skeleton can improve the structural stability and limit the volume expansion of Fe2O3. Therefore, FO@LZU150% showed high initial capacity and long-term cycling performance, with a capacity of 2171 mA h g−1 after 300 cycles at 0.1 A g−1 (Figure 3f).
In addition, COFs are often compounded with graphene, carbon nanotubes, MXene, and other materials. To improve the capacity and long cycle stability of COF materials, Wang et al. [36] modified dioxin-chain COF with graphene quantum dots. This composite material introduced graphene quantum dots rich in carboxyl groups, thus changing the surface structure of COF, exposing more active sites, and promoting the transport dynamics of lithium ions. Yang et al. [37] synthesized the COF@CNT composite material. The introduction of carbon nanotubes helped COF shorten the ion/electron transport path, expose more active sites, and improve the conductivity. Therefore, the composite material has excellent lithium storage performance, with a specific capacity of approximately 570 mA h g−1 after 100 cycles under 0.1 A g−1. Guo et al. [38] compounded COF materials with MXene. The aminated 2D MXene provides reactive sites for the interface-initiated imine bond formation, which is conducive to the nucleation of COF and the growth towards mixed heterostructures on the MXene layer. The heterostructure brought by two two-dimensional materials significantly improves the lithium storage and charge transfer performance of the composite material (Figure 4a–c).
It can be seen from the above that to improve the electrochemical properties of COF materials, it is important to increase the active sites of composite materials. Therefore, a variety of COFs with double-active groups have also been developed. Zhao et al. [39] prepared Tp-Ta-COF containing C=N and C=O double-active centers (Figure 4d). The diffusion kinetics was significantly enhanced, and the resistance and migration barrier were reduced, resulting in excellent lithium storage performance. In situ FT-IR and Raman (Figure 4e) combined with XPS and DFT calculation further prove that the interaction between the redox active site and lithium ions is highly reversible. Therefore, this composite material can deliver a high reversible capacity of 413 mA h g−1 under 200 mA g−1. Zhao et al. [40] designed a covalent organic framework (Tp-Azo-COF) with N=N and C=O (Figure 3f). The active sites were characterized via in situ FT-IR (Figure 4g,h). Such composite materials have a large surface area and lithium-ion transport path, so they have high electrochemical kinetics and structural stability. Tong et al. [13] developed a C=N and N=N double-active-center COF. After 100 cycles at 0.1 A g−1, the practical capacity of the COF electrode could achieve 433 mA h g−1.
Molecules 28 05953 g004

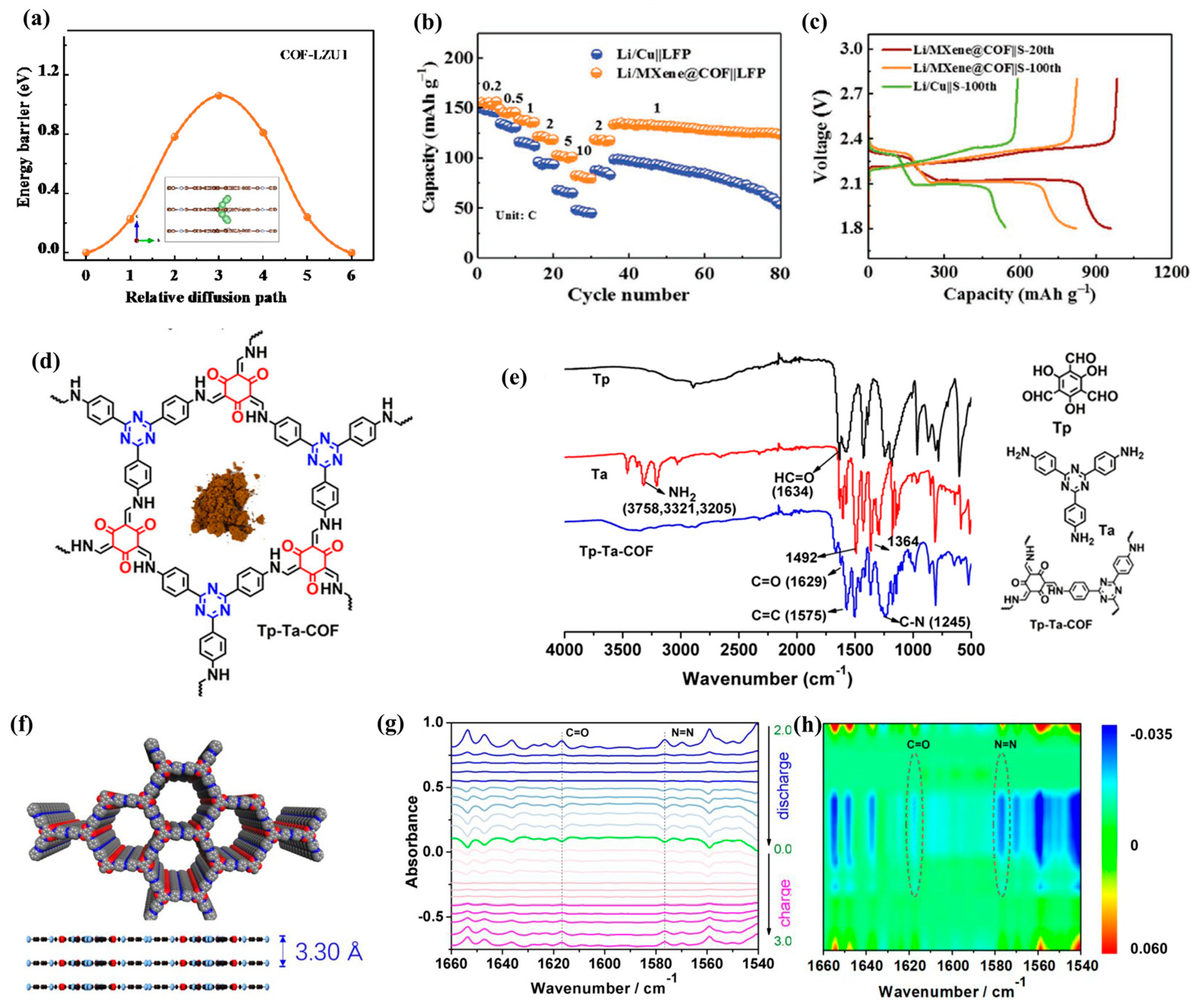

Figure 4. (a) Diffusion kinetics of Li ions in pristine COF-LZU1; (b) rate performance (c) discharge/charge curves of MXene@COF products in full batteries [38]; (d) structural characterization of Tp-Ta-COF AA stacking mode, (e) FT-IR spectra of starting materials of Tp, Ta, and as-prepared Tp-Ta-COF [39]; (f) schematic diagram of Tp-Azo-COF preparation, (g) in situ FT-IR spectra changes in electrode samples under different discharge states, (h) contour and response surface analysis corresponding to discharge process [40].
Figure 4. (a) Diffusion kinetics of Li ions in pristine COF-LZU1; (b) rate performance (c) discharge/charge curves of MXene@COF products in full batteries [38]; (d) structural characterization of Tp-Ta-COF AA stacking mode, (e) FT-IR spectra of starting materials of Tp, Ta, and as-prepared Tp-Ta-COF [39]; (f) schematic diagram of Tp-Azo-COF preparation, (g) in situ FT-IR spectra changes in electrode samples under different discharge states, (h) contour and response surface analysis corresponding to discharge process [40].
Molecules 28 05953 g004

2.2. The Lithium Storage Mechanism of COF Materials

The types of COF materials are complex, so their mechanisms of action in lithium-ion batteries are also different, but they still follow the basic “Rocking Chair Battery” principle of lithium-ion batteries. Energy storage and release in lithium-ion batteries are achieved by the movement of lithium ions between two electrodes through electrolytes under cyclic voltage. During the charging process, lithium ions will be released from the grid of the positive electrode material, thus improving the electrode potential of the positive electrode. At the same time, lithium ions move to the surface of the negative electrode together with the electrolyte and intercalate into the negative active material, resulting in a decrease in the potential of the negative electrode and an increase in the voltage difference between the positive and negative electrode, which realizes the charging of the lithium-ion battery; when discharging, the situation is exactly the opposite [41].
Sinha et al. [42] explored the intercalation mechanism of lithium ions in COF materials using first-principles calculations. As shown in Figure 5a–d, structural parameter studies reveal that, due to the interatomic interaction between the COF layer and the embedded lithium atom, the embedding of lithium atoms will affect the lattice constant, structural parameters, equilibrium bond length, and interlayer distance. In addition, the cohesive energy of COF material is relatively high, about 7.34 eV/electron, which is very close to that of graphene, so it has good thermodynamic stability. Even after embedding 3–10 lithium atoms, its structure remains very stable. Therefore, this study demonstrates that embedding lithium ions in COF materials is completely feasible. The electronic properties of the material show that the insertion of Li atoms changes the inherent properties of the material, namely the electronic band structure and DOS. The material will transform into a conductor after being embedded with lithium ions. The reason for this change is due to the interaction between lithium atoms and organic groups in pure COF-IITI-0 structural units. Therefore, lithium-embedded porous materials can be used for lithium storage applications. Furthermore, Chen et al. [43] showed that the inserted thiophene group is also conducive to the adsorption and diffusion of Li+, the HOMO energy increases cause the band gap to narrow, the recombination energy decreases, and the charge redistribution is localized (Figure 5e,f). The small energy barrier of Li+ diffusion on BPT-COF also confirms that the inserted thiophene group can significantly reduce the energy barrier and improve lithium-ion conductivity (Figure 5g,h).
In summary, various COF materials based on carbonyl, triazine, imine, and other functional groups have been manufactured and utilized in LIBs. Most of the COF anodes are two-dimensional materials, which can shorten the transmission path and facilitate the rapid transfer of Li+. However, COF will undergo a thermally activated reversible reaction, leading to dissolution. Therefore, to improve the cycle stability of COF materials, they are usually compounded with graphene, carbon nanotubes, MXene, and other materials, or the structure is constructed with a double-active site. The heterostructure brought by two different materials can improve the lithium storage and charge transfer properties of the composite materials. At present, some research has been conducted on COF anodes in LIBs (Table 1). Through the analysis of the lithium storage mechanism, it can be seen that COF materials are very suitable for lithium ion embedding and can maintain a stable structure, which has broad application prospects in lithium-ion battery anode materials.
Molecules 28 05953 g005

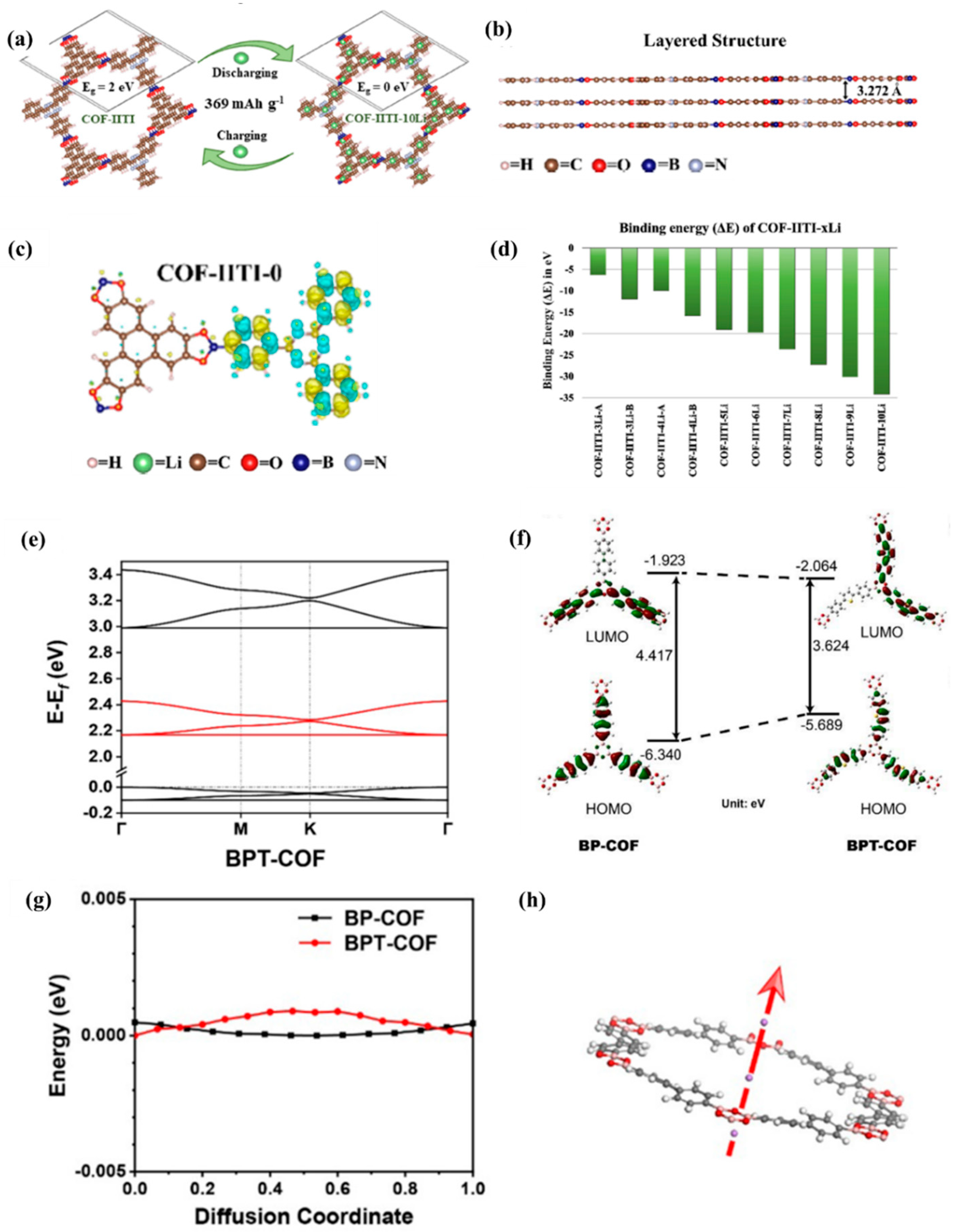

Figure 5. (a) Schematic diagram of Li storage and charge discharge process in lithium-ion battery electrodes using COF-IITI-0 as anode, (b) equilibrium layered structure of COF-IITI-0, (c) electron density of COF-IITI-0, (d) predicted binding energies (ΔE) of Li embedded in COF [42]. (e) Band structure of BPT-COF; (f) the HOMO/LUMO and energy level of BP-COF (left) and BPT-COF (right) molecules, (g) relative energy of cell when Li-ions pass through COF pores, (h) graphical representation of Li ions passing through COF pores [43].
Figure 5. (a) Schematic diagram of Li storage and charge discharge process in lithium-ion battery electrodes using COF-IITI-0 as anode, (b) equilibrium layered structure of COF-IITI-0, (c) electron density of COF-IITI-0, (d) predicted binding energies (ΔE) of Li embedded in COF [42]. (e) Band structure of BPT-COF; (f) the HOMO/LUMO and energy level of BP-COF (left) and BPT-COF (right) molecules, (g) relative energy of cell when Li-ions pass through COF pores, (h) graphical representation of Li ions passing through COF pores [43].
Molecules 28 05953 g005

3. Application of COF Materials in the Sodium-Ion Battery Anode

Although lithium-ion batteries have developed very rapidly, one of the most important obstacles to their development is the scarcity of lithium resources on the Earth. Therefore, the top priority of current research and development should be to develop other low-cost technologies to replace the energy storage related to lithium-ion batteries. In recent years, with the advent of the era of electric vehicles and smart grids, sodium-ion batteries (SIBs) have once again received widespread attention from the scientific research community due to their low price. At present, the key to the practical application of SIBs is to find high cycle stability and suitable commercial electrode materials for sodium-ion batteries [44].
At present, the most common application of COF materials in sodium-ion batteries is still the preparation of two-dimensional materials. Liu and his colleagues [45] continued to use the COF material system used in lithium-ion batteries to prepare millimeter-scale crystal covalent triazine frameworks (CTFs) with clear layered structures and peeled them off into several micrometer-scale 2DP sheets through micromechanical cracking and liquid ultrasound treatment, which exhibited good dispersibility in DMF solvents. Due to the strong conjugated porosity of 1D open channels arranged in crystal CTF and 2DP, they can provide fast and smooth diffusion paths for charge transfer and storage. These two modified composite materials provide extremely high reversible capacities of 225/262 and 67/119 mA h g−1 under 0.1 and 5.0 A g−1, respectively, and maintain 95% of their initial capacity of 1.0 A g−1 after 1200 cycles, outperforming most previously reported organic/polymer SIB anodes. Shehab et al. [46] synthesized microporous two-dimensional COF (Aza-COF) through the condensation reaction of hexaketocyclohexane with 1,2,4,5-benzenetetramine. The crystallinity and porosity of Aza-COF facilitates the fast and reversible access of Na+ and electrons to the dense phenazine redox active sites during electrochemical processes, and Na+ has the characteristics of reversible accommodation in Aza-COF porous channels. Therefore, electrodes based on Aza-COF exhibit quite high average specific capacity and cycle stability (550 mA h g−1 at 0.1 C), along with excellent energy and power density.
However, most 2D COFs show strong aggregation and readily form hydrolyzed species since they need to be synthesized via condensation reactions. Therefore, Kim et al. [47] prepared covalent organic nanosheet network polymers (CONs) via conventional reflux and solvothermal methods through Stille cross coupling, studying their structural dependence and energy storage performance. By controlling the specific surface area and self-assembly morphology of CONs, the planarity of the polymer main chain was enhanced, or by increasing its specific surface area while maintaining the main chain structure, the carrier conductivity was improved, and the storage capacity of sodium ions was increased. By adjusting the synthesis route of the reflux and solvothermal reaction, six types of CON anodes were obtained (Figure 6a,b). Comparison revealed that the electrode based on CON-16 exhibited the best performance, maintaining a reversible discharge capacity of about 250 mA h g−1 after 30 cycles under 100 mA g−1 (Figure 6c). Similarly, Hu et al. [11] used 2,6-diaminoanthraquinone (DAAQ) condensed with a hexachlorocyclotriphosphazene (HCCP) linker containing six substituent sites of -Cl, forming an ordered porous DAAQ-HCCP COF. The covalent bond formed between the nitrogen atom of DAAQ and the phosphorus atom of HCCP inhibits the dissolution of DAAQ in organic electrolyte, thus improving the stability of COF during charging and discharging. The ordered porous structure improves the diffusion rate of ions, and the condensation of redox-active quinones with linkers containing more substituents can increase the redox active portion in COFs, effectively increasing their specific capacity. The as-prepared COF showed a specific capacity of 88 mA h g−1 after 100 cycles at 100 mA g−1 and 72 mA h g−1 after 1000 cycles at 2000 mA g−1.
In addition, doping is also an important way to modify the anode material of SIBs. Xie et al. [48] introduced Sb3+ as an important catalyst for the formation of COF and further anchored it in the channel of COF through reduction (Sb@NGA-CMP). Ultrafine antimony nanoparticles are uniformly and densely encapsulated by the NGA-CMP framework. Nitrogen-containing groups provide a close electronic interaction between Sb nanoparticles and π-conjugated microporous polymers (CMPs), greatly accelerating the charge transfer along the COF framework and effectively accommodating the huge volume changes that are prone to occur with antimony in the electrochemical process, and this prevents aggregation. This unique anode design exhibits a high-rate performance of 223 mA h g−1 at 5 A g−1 and excellent sodium storage performance of 344 mA h g−1 after 5000 long cycles at 1 A g−1. Yang et al. [49] prepared fully π-conjugated and nitrogen-doped 2D COF (MPc-2D-cCOF) and used it as the anode material for SIBs. DFT calculation shows that, as shown in Figure 6d,e, after the adsorption of Na ions, the electron accumulation regions are mainly distributed around the aza-N and pyrrole-N atoms of CuPc-2D-cCOF, which further confirms the interaction between Na+ and the N atoms of the Pc macrocycle and the pyrrole-N conjugate part. At the same time, the electronic band structure of CuPc-2D-cCOF and CuPc is given by theoretical calculation. As a very important parameter of semiconductors, the electronic band structure can directly determine the conductivity of semiconductor materials. Therefore, the composite material exhibits excellent electrochemical performance (Figure 6f). On this basis, Haldar et al. [50] prepared three different mesoporous COFs (phenyl vs. tetrazine and bispyridine-tetrazine), which have almost the same highest occupied molecular orbital (HOMO) energy levels, but the lowest unoccupied molecular orbital (LUMO) energy levels are different. Compared with phenyl, the use of tetrazine/pyridine units reduces the LUMO energy level, making it easier for the former to accumulate electrons under external potential. This accumulated anti-bonding LUMO energy level provides a suitable driving force for the initially slow Na+ ions to enter the anode from the electrolyte.

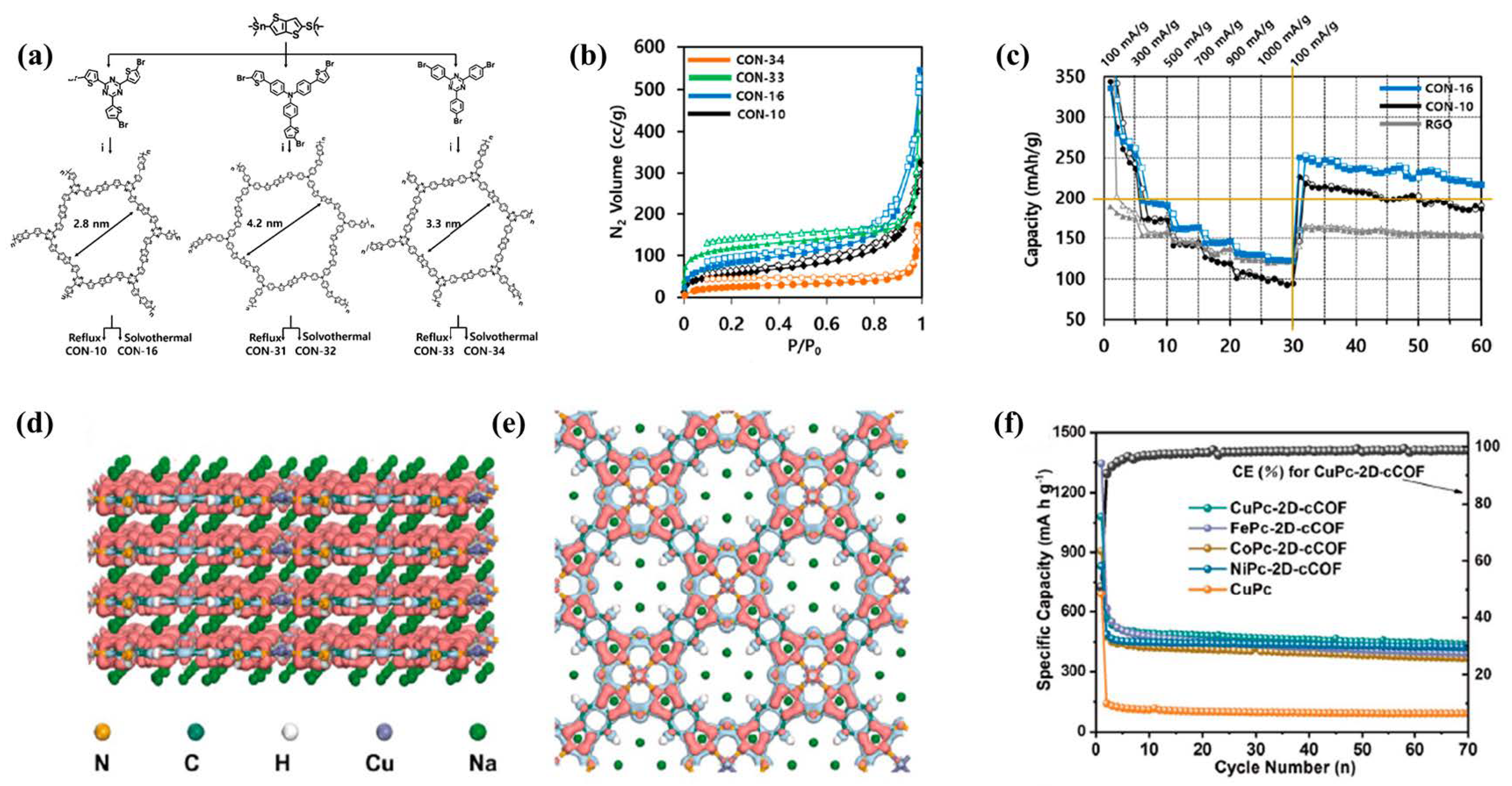

Molecules 28 05953 g006

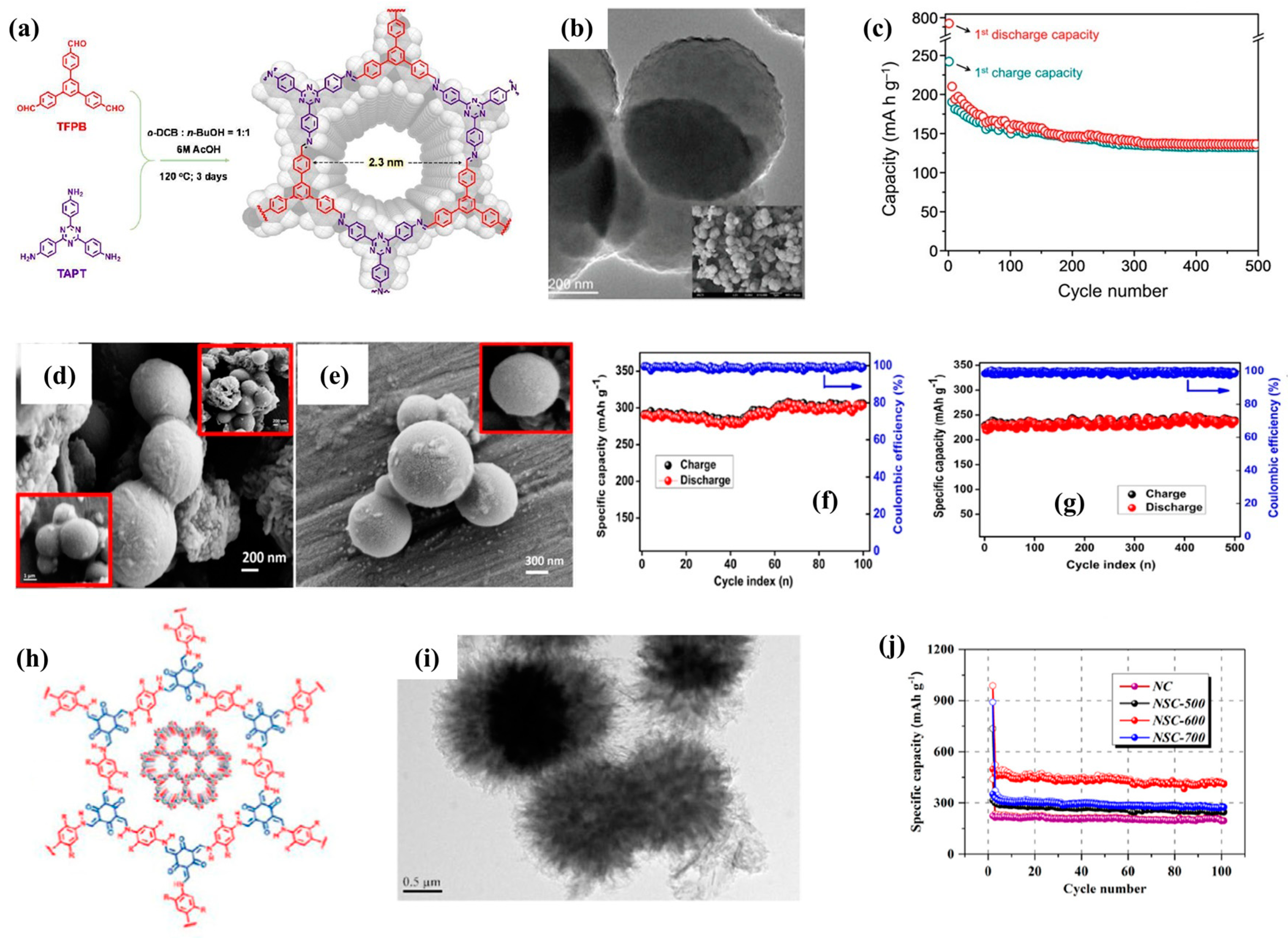

Figure 6. (a) General synthesis procedure and molecular structures of CONs with precursor monomers; “i” refers to 3-day reflux (CON-10, CON-31, and CON-33) or 3-day solvothermal treatment (CON-16, CON-32, and CON-34) in the presence of Pd0 in mesitylene at 170 °C, (b) N2 adsorption/desorption isotherms (empty/solid symbols and corresponding lines represent desorption/adsorption), (c) cyclic performance of CON electrodes under 100, 300, 500, 700, 900, and 1000 mA g−1 (and back to 100 mA g−1) compared with RGO. Empty symbols and corresponding lines represent the discharge capacities; solid symbols and corresponding lines represent the charge capacities of CON-10 and CON-16 compared with RGO [47]; differential charge density distribution along (d) a axis and (e) c axis after CuPc-2D-cCOF adsorbed Na ions, (f) electrochemical performance of as-synthetized MPc-2D-cCOFs and reference electrode cycle performance under 100 mA g−1 [49].
Figure 6. (a) General synthesis procedure and molecular structures of CONs with precursor monomers; “i” refers to 3-day reflux (CON-10, CON-31, and CON-33) or 3-day solvothermal treatment (CON-16, CON-32, and CON-34) in the presence of Pd0 in mesitylene at 170 °C, (b) N2 adsorption/desorption isotherms (empty/solid symbols and corresponding lines represent desorption/adsorption), (c) cyclic performance of CON electrodes under 100, 300, 500, 700, 900, and 1000 mA g−1 (and back to 100 mA g−1) compared with RGO. Empty symbols and corresponding lines represent the discharge capacities; solid symbols and corresponding lines represent the charge capacities of CON-10 and CON-16 compared with RGO [47]; differential charge density distribution along (d) a axis and (e) c axis after CuPc-2D-cCOF adsorbed Na ions, (f) electrochemical performance of as-synthetized MPc-2D-cCOFs and reference electrode cycle performance under 100 mA g−1 [49].
Molecules 28 05953 g006
Further, 3D COFs have also made some progress in the anode of SIBs in recent years. Patri et al. [9] synthesized a novel COF material with a C3-C3 symmetric topology, named TFPB-TAPT (Figure 7a,b). In SIBs, the average potential of the COF anode is 0.65V (vs. Na+/Na), and the Na+ ion storage capacity is mainly attributed to its open and ordered nanoporous framework, which provides reversible ion accommodation. Therefore, the initial reversible capacity of TFPB-TAPT COF is 246 mA h g−1 and can be effectively cycled up to 500 times (Figure 7c). Various carbon materials derived from three-dimensional COFs can also exhibit excellent performance. For example, Selvamani et al. [51] synthesized nitrogen-rich porous spherical carbon particles with large surface area through the facile pyrolysis of amorphous covalent organic frameworks (Figure 7d,e). The surface and edges of the carbon skeleton are uniformly grafted with nitrogen atoms, providing abundant active centers and exhibiting excellent electrochemical performance (Figure 7f,g), which can be attributed to its high level of nitrogen doping, large interlayer spacing, and specific surface area. In addition, compared to single doping, double doping can introduce more defects and accelerate ion diffusion, while the synergistic effect between double-doped atoms can significantly improve the electrochemical performance of the material. Zhang et al. [52] used COFs as precursors to prepare N/S co-doped sea-urchin-like porous carbons (NSCs) through a combination of carbonization and sulfurization (Figure 7h,i). The advantages of sea-urchin-like morphology and porous structure provide a stable internal structure, while dual doping endows it with rich defects, high electronic conductivity, and good capacitive behavior. Therefore, the composite material exhibits excellent sodium storage performance, with a capacity of 483.5 mA h g−1 after 100 cycles at 0.1 A g−1 (Figure 7j).
In summary, at present, because the mechanism of SIBs is similar to that of LIBs, most of the COF anode system of SIBs still adopts a structure similar to that of LIBs, and it has achieved relatively excellent performance (Table 1). In addition to the traditional 2D COF materials, 3D COFs are also beginning to be used in the anode of SIBs. By adjusting the COF structure, doping, and composite measures, the stability of the COF anode is significantly improved, the deactivation ratio is reduced, and the contribution capacity is significantly increased. Therefore, excellent cycling performance and rate performance can be achieved. It is worth noting that there is no activation phenomenon similar to that in LIBs during the electrochemical performance of the anode of SIBs. It is necessary to further determine the reason for this phenomenon through mechanism analysis.

4. Application of COF Materials in the Potassium-Ion Battery Anode

Potassium-ion batteries (PIBs) not only possess abundant resources but also have some other advantages, such as higher voltage plateau and energy density, as well as better conductivity of potassium electrolytes [53,54]. This means that PIBs are expected to replace LIBs as a new generation of battery energy storage system. The development of high-performance organic electrodes for PIBs has attracted attention due to their sustainability and low cost. However, electrolyte systems and anode materials that have been proven successful in high-performance LIBs have achieved relatively little success in PIBs.
Usually, the performance improvement in COF materials in PIBs is achieved through structural design or doping. Wolfson et al. [55] prepared various COF materials containing alkynyl functional groups (Figure 8a), and calculations showed that the presence of alkynyl groups can promote the binding of potassium ions through enthalpy and geometric driving force, leading to high reversible capacity (Figure 8b,c). Yang et al. [56] reported a fully aromatic-conjugated COF (FAC-Pc-COF) based on two-dimensional phthalocyanines, which has excellent physical and chemical stability and conductivity as high as 0.93–1.94 × 10−4 S cm−1, coupled with its highly ordered stable structure and N/O-rich skeleton, exhibiting high-performance K+ storage. After 100 cycles at 50 mA g−1, it exhibits a large reversible capacity of 424 mA h g−1. Especially under high-current conditions, due to its higher π-electron delocalization, which can improve electron transport, and the larger tunnel size, K+ ion transport can be enhanced, and the capacity retention rate approaches 100% after more than 10,000 cycles at 2000 mA g−1. Luo et al. [57] prepared in situ controlled polyimide COF on the surface of SWCNT (P-COF@SWCNT, Figure 8d). Through simple ball milling for stripping, more active site and various open channels are exposed, which shortens the diffusion path of ions in the electrolyte and prevents irreversible dissolution; ex situ FT-IR, XPS, Raman, and DFT calculations show that during the charge/discharge process, the C=O group can interact with K+, and the π-cation effect of the aromatic naphthalene ring provides an additional active site for K+ storage (Figure 8e); therefore, the P-COF@SWCNT anode exhibits an outstanding capacity of 438 mA h g−1 under 0.05 A g−1 (Figure 8f). Therefore, by introducing single-walled carbon nanotubes, a cross-linked conductive network is formed to accelerate the transfer of electrons from single-walled carbon nanotubes to P-COF, ensuring that the electroactive groups are fully utilized and can perform well, even at high current densities.
Therefore, using carbon nanotubes for composites is also a powerful method to improve performance. Chen et al. [58] successfully prepared a COF based on borate ester on the outer surface of carbon nanotubes (CNTs) by reasonably designing the organic condensation reaction (Figure 8g) and used it as the anode material for PIBs. The enhanced π-π stacking in fewer layers of COF-10@CNT COF can provide more exposed active sites, shorten the ion/electron diffusion distance, and enhance the insertion/removal kinetics of K+. In addition, the characterization of the potassium ion storage mechanism through XPS and Raman spectroscopy could be attributed to the π–K+ interaction between potassium ions and the COF-10 benzene ring (Figure 8h). Duan et al. [12] also explored the construction of COF anodes modified with carbon nanotubes and compared them with carboxylated carbon nanotubes (DAAQ-COF@CNT). Synthetic DAAQ-COF@CNTs have a large number of active sites, stable conductive skeleton, and suitable surface area of nanopores, which can provide high conductivity, shorten the ion/electron diffusion distance, and accelerate K+ diffusion. Comprehensive characterization via ex situ XPS, FT-IR, and DFT calculation indicates that the potassium storage mechanism of DAAQ-COF@CNT is the reversible insertion/extraction of K+ and its binding with C=O groups.
In 1864, Hugo Schiff reported the reaction of aniline with aldehydes to form imines, which were, therefore, named Schiff bases. In the reaction, amine carries out a nucleophilic attack on the carbonyl group, and after proton transfer, the semi-amine acetal formed by the secondary amine and hydroxyl group on the adjacent carbon atom is formed. The hydroxyl group of semi-amine acetal is protonated and dehydrated to form imine, which is deprotonated to form an imine with a carbon–nitrogen double bond. When molecules containing multiple amine groups react with molecules containing multiple carbonyl groups, Schiff base polymers can be prepared. Due to the presence of carbon nitrogen double bonds in Schiff bases, aromatic reactants can produce conjugated Schiff base polymers, while conjugated Schiff base polymers prepared using triamines (or trialdehydes) and dialdehydes (or diamines) can form highly cross-linked porous networks [59]. Polarographic studies have shown that organic electrolytes can undergo a reversible reaction at low potential, which inspired researchers to apply Schiff bases to anode materials for alkali metal ion batteries. Sun et al. [60] constructed a Schiff base COF/carbon nanotube (TP-COF/CNT) composite material for efficient PIBs anodes. By introducing carbon nanotubes, 1D hollow nanostructures were successfully constructed, exposing more active sites, thus giving the materials higher K+ transport dynamics and excellent conductivity. When used as an anode for PIBs, it has a high specific capacity and excellent electrochemical cycle stability. Furthermore, XPS, FT-IR, and DFT calculations show that the storage of K+ depends on the electroactive C=N group and π–K+ effect.
In summary, the research on COF materials in potassium-ion batteries is currently relatively limited, but some progress has been made, Table 1 and Figure 9 shows the research progress and performance comparison of lithium-ion batteries, sodium-ion batteries, and potassium-ion batteries in recent years. The vast majority of materials have similar structures and, therefore, have similar functional groups and synergistic effects of π–K+. Similar to sodium-ion batteries, the main research direction of potassium-ion battery anodes is to increase the active sites and various open channels, increasing the efficient ion diffusion and preventing irreversible dissolution in the electrolyte. Meanwhile, its electrochemical process does not include the activation process.
Table 1. Performance of some COF materials in secondary-ion batteries.
Table 1. Performance of some COF materials in secondary-ion batteries.
MaterialsPrecursor COFsCurrent Density (A g−1)Cycle NumberSpecific Capacity (mA h g−1)Batteries Ref.
TFPB-TAPT COFTFPB-TAPT COF0.03500125SIBs[9]
E-TFPB-COF/MnO2TFPB-COF0.13001359LIBs[10]
DAAQ-HCCP COFDAAQ-HCCP COF0.110088SIBs[11]
DAAQ-COF@CNTDAAQ-COF0.1/157.7PIBs[12]
TA-COFTA-COF52000227LIBs[13]
CONTrialdehyde and 3,5-diaminotriazole0.11000~720LIBs[29]
DAAQ-COFDAAQ-COF1500787LIBs[31]
PA-TA COFPA-TA COF1400543LIBs[32]
DCB-COFDCB-COF0.4~500387LIBs[33]
HAB-COFHAB-COF111001255LIBs[34]
FO@LZU150%COF-LZU10.13002143LIBs[35]
COF-GQDsCOF-GQDs0.1300~820LIBs[36]
COF@CNT-2TP-DA-COF0.1100570LIBs[37]
Tp-Ta-COFTp-Ta-COF0.2500264LIBs[39]
Tp-Azo-COFTp-Azo-COF13000305.97LIBs[40]
Exfoliated 2DPDCB-COF0.1/262SIBs[45]
Aza-COFAza-COF0.06/550SIBs[46]
CON-16CON-160.130~250SIBs[47]
Sb@NGA–CMPNGA–CMP15000344SIBs[48]
MPc-2D-cCOFsMPc-2D-cCOFs0.05/538SIBs[49]
IISERP-COF18bispyridine-tetrazine COF1/340SIBs[50]
N-rich SCPDA-COF0.5500238SIBs[51]
NSCTFP-PPD-COF0.1100483.5SIBs[52]
TAEB-COFTAEB-COF0.05300254.0PIBs[55]
FAC-Pc-COFQPP-FAC-Pc-COF0.05100424PIBs[56]
P-COF@SWCNTNTCDA- TAPA0.128260PIBs[57]
COF-10@CNTCOF-100.1500288PIBs[58]
TP-COF/CNTsTP-COF0.1200290PIBs[60]
Tf-TAPA@siloxeneTf-TAPA21000583.6LIBs[61]
81500443.3
Si@COFTpPa210001864LIBs[62]
DTP-ANDI-COF@CNTsDTP-ANDI-COF0.210067LIBs[63]
CPOFsPOM0.1500550.6LIBs[64]
DBA-COF 3DBA0.0590207LIBs[65]
Co-MOP@COFCOF-LZU10.11501020LIBs[66]
Sn@COF-hollowTAPB0.11001080LIBs[67]
H–Co3O4@CNBFTAPT-DHNDA0.2100808LIBs[68]
CeO2-NiO/NCDHNDA-BTH1500852LIBs[69]
NBCsTAB-FPBA-COF55000205.5LIBs[70]
105000171.4
NiO/NCFTpPa0.160673.6LIBs[71]
NCMDAB-Tp5400345LIBs[72]
TQBQ-COFTQBQ-COF0.02100352.3SIBs[73]
DAAQ-COFDAAQ-COF0.1100420SIBs[74]
Carbonised COFTAPB0.1/303SIBs[75]
PICOF-1Py-1P COF0.06917595SIBs[76]
TPB-DMTP-COFTPB-DMTP-COF12000179PIBs[77]

5. Conclusions

This paper reviews the application and research progress of the COF anode materials used in LIBs, SIBs, and PIBs in recent years. There are many studies on COF materials in the anode of LIBs, and their structures are also quite diverse. However, overall, the COF anodes of LIBs require a period of activation during the electrochemical cycling process to obtain stable capacity. Most of the anode materials in SIBs and PIBs follow the system of LIBs, but the research is still not perfect, which needs further analysis, and there is no activation process in both sodium-/potassium-ion batteries, so further research needs to be carried out in combination with the mechanism.
Multiple studies have shown that the electrochemical properties of COF anodes can be adjusted reasonably through different functional groups and porous structures. The current mainstream functional groups include C=C, C=O, C=N, C-N, N=N, π-conjugated benzene ring etc., all of which have correspondingly excellent performances, and through the introduction of multi-functional groups, more active sites can be introduced to increase the energy storage capacity. Therefore, the research on COF functional groups still needs to be further deepened.
Though COFs express promising advantages for metal-ion batteries, intrinsic challenges still exist, blocking the practical application of COFs as anode materials. (1) In order to achieve fast reaction kinetics, the electronic conductivity of COF materials still needs to be enhanced. Two ways could be considered to improve the conductivity. One is compounding COFs with electrically conductive guest materials, and the other is molecular structure modification, such as adjusting the direction of the conjugate π bond to increase intrinsic conductivity in all directions. (2) Potential dissolution in electrolytes needs to be further suppressed to alleviate capacity attenuation. Introducing special functional groups in organic ligand molecules, adding inhibitors to the electrolyte, or designing solid electrolytes may be effective ways to inhibit COF dissolution in electrolytes. (3) Low volumetric capacities still need to be improved due to the low density of COFs. It is necessary to explore novel morphologies and the structure of COF materials. (4) It is significant to investigate the storage mechanism of metal ions in COF materials by using advanced characterization techniques and theoretical calculations.
In conclusion, COF anodes have been relatively widely used in rechargeable batteries in recent years. As an organic anode, COF materials have the advantages of regular network structure, rich redox-active sites that can be modified, and fast particle transport paths, etc., which are bound to have a broader development prospect.

Author Contributions

Conceptualization, M.J.; writing—original draft preparation, M.J. and L.Z.; writing—review and editing, Q.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Not applicable.

References

  1. Liang, Y.; Lai, W.; Miao, Z.; Chou, S. Nanocomposite materials for the sodium-ion battery: A Review. Small 2018, 14, 1702514. [Google Scholar] [CrossRef] [PubMed]
  2. Hwang, J.; Myung, S.; Sun, Y. Sodium-ion batteries: Present and future. Chem. Soc. Rev. 2017, 46, 3529–3614. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Larcher, D.; Tarascon, J.M. Towards greener and more sustainable batteries for electrical energy storage. Nat. Chem. 2014, 7, 19–29. [Google Scholar] [CrossRef] [PubMed]
  4. Palomares, V.; Serras, P.; Villaluenga, I.; Hueso, K.; González, J.; Rojo, T. Na-ion batteries, recent advances and present challenges to become low cost energy storage systems. Energy Environ. Sci. 2012, 5, 5884–5901. [Google Scholar] [CrossRef]
  5. Liu, B.; Zhang, Q.; Li, L.; Zhang, L.; Hu, B.; Jin, Z.; Wang, C.; Su, Z. A simple synthesis of highly ordered microporous carbon nanospheres for high performance potassium-ion batteries. Energy Environ. Sci. 2020, 479, 229113. [Google Scholar] [CrossRef]
  6. Li, H.; Yamaguchi, T.; Matsumoto, S.; Hoshikawa, H.; Kumagai, T.; Okamoto, N.; Ichitsubo, T. Circumventing huge volume strain in alloy anodes of lithium batteries. Nat. Commun. 2020, 11, 1584. [Google Scholar] [CrossRef] [Green Version]
  7. Yin, H.; Han, D.; Yu, X.; Cao, M.; Hou, Z.; Li, C.; Zhu, M. Recent Advances in Electrospun Metal Chalcogenide Anodes for Lithium-Ion and Sodium-Ion Batteries. ACS Appl. Energy Mater. 2023, 6, 1155–1175. [Google Scholar] [CrossRef]
  8. Wei, C.; Tan, L.; Zhang, Y.; Zhang, K.; Xi, B.; Xiong, S.; Feng, J.; Qian, Y. Covalent Organic Frameworks and Their Derivatives for Better Metal Anodes in Rechargeable Batteries. ACS Nano 2021, 15, 12741–12767. [Google Scholar] [CrossRef]
  9. Chandra, P.B.; Kanti, D.S.; Arnab, G.; Raj, A.K.; Moitra, P.; Addicoat, M.; Mitra, S.; Bhaumik, A.; Bhattacharya, S.; Pradhan, A. Covalent organic framework based microspheres as an anode material for rechargeable sodium batteries. J. Mater. Chem. A 2018, 6, 16655–16663. [Google Scholar]
  10. Chen, X.; Li, Y.; Wang, L.; Xu, Y.; Nie, A.; Li, Q.; Wu, F.; Sun, W.; Zhang, X.; Vajtai, R.; et al. High-Lithium-Affinity Chemically Exfoliated 2D Covalent Organic Frameworks. Adv. Mater. 2019, 31, 1901640. [Google Scholar] [CrossRef]
  11. Hu, M.; Huang, H.; Gao, Q.; Tang, Y.; Luo, Y.; Deng, Y.; Zhang, L. Anthraquinone-Based Covalent Organic Framework Nanosheets with Ordered Porous Structures for Highly Reversible Sodium Storage. Energy Fuels 2020, 35, 1851–1858. [Google Scholar] [CrossRef]
  12. Duan, J.; Wang, W.; Zou, D.; Liu, J.; Li, N.; Weng, J.; Xu, L.; Guan, Y.; Zhang, Y.; Zhou, P. Construction of a Few-Layered COF@CNT Composite as an Ultrahigh Rate Cathode for Low-Cost K Ion Batteries. ACS Appl. Mater. Interfaces 2022, 14, 31234–31244. [Google Scholar] [CrossRef]
  13. Tong, Y.; Sun, Z.; Wang, J.; Huang, W.; Zhang, Q. Covalent organic framework containing dual redox centers as an efficient anode in Li-ion batteries. SmartMat 2022, 3, 685–694. [Google Scholar] [CrossRef]
  14. Wei, S.; Wang, J.; Li, Y.; Fang, Z.; Wang, L.; Xu, Y. Recent progress in COF-based electrode materials for rechargeable metal-ion batteries. Nano Res. 2023, 16, 6753–6770. [Google Scholar] [CrossRef]
  15. Wang, Z.; Hu, J.; Lu, Z. Covalent Organic Frameworks as Emerging Battery Materials. Batter. Supercaps 2023, 6, e202200545. [Google Scholar] [CrossRef]
  16. Feng, K.; Wang, D.; Yu, Y. Progress and Prospect of Zn Anode Modification in Aqueous Zinc-Ion Batteries: Experimental and Theoretical Aspects. Molecules 2023, 28, 2721. [Google Scholar] [CrossRef]
  17. Lei, L.; Dong, J.; Ke, S.; Wu, S.; Yuan, S. Porous Framework Materials for Stable Zn Anode in Aqueous Zinc-Ion Batteries. Inorg. Chem. Front. 2023, ahead of print. [Google Scholar] [CrossRef]
  18. Zhao, J.; Ying, Y.; Wang, G.; Hu, K.; Yuan, Y.D.; Ye, H.; Liu, Z.; Lee, J.Y.; Zhao, D. Covalent organic framework film protected zinc anode for highly stable rechargeable aqueous zinc-ion batteries. Energy Storage Mater. 2022, 48, 82–89. [Google Scholar] [CrossRef]
  19. Zhang, S.; Zhu, Y.; Ren, S.; Li, C.; Chen, X.; Li, Z.; Han, Y.; Shi, Z.; Feng, S. Covalent Organic Framework with Multiple Redox Active Sites for High-Performance Aqueous Calcium Ion Batteries. J. Am. Chem. Soc. 2023, ahead of print. [Google Scholar] [CrossRef]
  20. Lin, Y.; Cui, H.; Liu, C.; Li, R.; Wang, S.; Qu, G.; Wei, Z.; Yang, Y.; Wang, Y.; Tang, Z.; et al. A Covalent Organic Framework as a Long-life and High-Rate Anode Suitable for Both Aqueous Acidic and Alkaline Batteries. Angew. Chem. Int. Ed. 2023, 62, e202218745. [Google Scholar] [CrossRef]
  21. Sriram, G.; Kurkuri, M.; Oh, T. Recent Trends in Highly Porous Structured Carbon Electrodes for Supercapacitor Applications: A Review. Energies 2023, 16, 4641. [Google Scholar] [CrossRef]
  22. Mukherjee, P.; Vishwanath, R.S.; Borenstein, A.; Zidki, T. Compositing redox-rich Co–Co@Ni–Fe PBA nanocubes into cauliflower-like conducting polypyrrole as an electrode material in supercapacitors. Mater. Chem. Front. 2023, 7, 1110–1119. [Google Scholar] [CrossRef]
  23. Li, S.; Zhao, C.; Li, B.; Wu, H. Performance Enhancement of silicon anode for lithium ion battery. Curr. Nanosci. 2016, 12, 169–174. [Google Scholar] [CrossRef]
  24. Doughty, D.H. Materials issues in lithium ion rechargeable battery technology. Sample J. 1995, 32, 75–81. [Google Scholar]
  25. Casas, C.D.L.; Li, W. A review of application of carbon nanotubes for lithium ion battery anode material. J. Power Sources 2012, 208, 74–85. [Google Scholar] [CrossRef]
  26. Balogun, M.S.; Luo, Y.; Qiu, W.; Liu, P.; Tong, Y. A review of carbon materials and their composites with alloy metals for sodium ion battery anodes. Carbon 2016, 98, 162–178. [Google Scholar] [CrossRef]
  27. Wu, Y.; Zhang, H.; Wu, F.; Li, C. Polymer lithium ion batteries. 2007. [Google Scholar]
  28. Li, W.; Xie, W.; Shao, F.; Qian, J.; Han, S.; Wen, P.; Lin, J.; Chen, M.; Lin, X. Molecular engineering of interplanar spacing via π-conjugated phenothiazine linkages for high-power 2D covalent organic framework batteries. Chem 2023, 9, 117–129. [Google Scholar] [CrossRef]
  29. Haldar, S.; Roy, K.; Nandi, S.; Chakraborty, D.; Puthusseri, D.; Gawli, Y.; Ogale, S.; Vaidhyanathan, R. High and Reversible Lithium Ion Storage in Self-Exfoliated Triazole-Triformyl Phloroglucinol-Based Covalent Organic Nanosheets. Adv. Energy Mater. 2017, 8, 1702170. [Google Scholar] [CrossRef]
  30. Yang, H.; Zhang, S.; Han, L.; Zhang, Z.; Xue, Z.; Gao, J.; Li, Y.; Huang, C.; Yi, Y.; Liu, H.; et al. High Conductive Two-Dimensional Covalent Organic Framework for Lithium Storage with Large Capacity. ACS Appl. Mater. Interfaces 2016, 8, 5366–5375. [Google Scholar] [CrossRef]
  31. Zhao, H.; Chen, H.; Xu, C.; Li, Z.; Ding, B.; Dou, H.; Zhang, X. Charge Storage Mechanism of an Anthraquinone-Derived Porous Covalent Organic Framework with Multiredox Sites as Anode Material for Lithium-Ion Battery. ACS Appl. Energy Mater. 2021, 4, 11377–11385. [Google Scholar] [CrossRef]
  32. Wu, M.; Zhao, Y.; Zhang, H.; Zhu, J.; Ma, Y.; Li, C.; Zhang, Y.; Chen, Y. A 2D covalent organic framework with ultra-large interlayer distance as high-rate anode material for lithium-ion batteries. Nano Res. 2022, 15, 9779–9784. [Google Scholar] [CrossRef]
  33. Cai, Y.; Gong, Z.; Rong, Q.; Liu, J.; Yao, L.; Cheng, F.; Liu, J.; Xia, S.; Guo, H. Improved and stable triazine-based covalent organic framework for lithium storage. Appl. Surf. Sci. 2022, 594, 153481. [Google Scholar] [CrossRef]
  34. Zhao, H.; Luo, D.; Xu, H.; He, W.; Ding, B.; Dou, H.; Zhang, X. A novel covalent organic framework with high-density imine groups for lithium storage as anode material in lithium-ion batteries. J. Mater. Sci. 2022, 57, 9980–9991. [Google Scholar] [CrossRef]
  35. Long, Z.; Shi, C.; Wu, C.; Yuan, L.; Qiao, H.; Wang, K. Heterostructure Fe2O3 nanorods@imine-based covalent organic framework for long cycling and high-rate lithium storage. Nanoscale 2022, 14, 1906–1920. [Google Scholar] [CrossRef] [PubMed]
  36. Wang, H.; Zhao, L.; Tang, X.; Lv, L.; Sun, W.; Wang, Y. Functionalized Graphene Quantum Dots Modified Dioxin-Linked Covalent Organic Frameworks for Superior Lithium Storage. Chem. A Eur. J. 2022, 28, e202103901. [Google Scholar] [CrossRef]
  37. Yang, X.; Lin, C.; Han, D.; Li, G.; Huang, C.; Liu, J.; Wu, X.; Zhai, L.; Mi, L. In situ construction of redox-active covalent organic frameworks/carbon nanotube composites as anodes for lithium-ion batteries. J. Mater. Chem. A 2022, 10, 3989–3995. [Google Scholar] [CrossRef]
  38. Guo, D.; Ming, F.; Shinde, D.; Cao, L.; Huang, G.; Li, C.; Li, Z.; Yuan, Y.; Hedhili, M.; Alshareef, H.; et al. Covalent Assembly of Two-Dimensional COF-on-MXene Heterostructures Enables Fast Charging Lithium Hosts. Adv. Funct. Mater. 2021, 31, 2101194. [Google Scholar] [CrossRef]
  39. Zhao, G.; Sun, Y.; Yang, Y.; Zhang, C.; An, Q.; Guo, H. Molecular engineering regulation redox-dual-active-center covalent organic frameworks-based anode for high-performance Li storage. EcoMat 2022, 4, e12221. [Google Scholar] [CrossRef]
  40. Zhao, G.; Zhang, Y.; Gao, Z.; Li, H.; Liu, S.; Cai, S.; Yang, X.; Guo, H.; Sun, X. Dual Active Site of the Azo and Carbonyl-Modified Covalent Organic Framework for High-Performance Li Storage. ACS Energy Lett. 2020, 5, 1022–1031. [Google Scholar] [CrossRef]
  41. He, L.; Xu, W.; Song, Y.; Luo, Y.; Liu, X.; Zhao, Z. New Insights into the Application of Lithium-Ion Battery Materials: Selective Extraction of Lithium from Brines via a Rocking-Chair Lithium-Ion Battery System. Glob. Chall. 2018, 2, 1870020. [Google Scholar] [CrossRef] [Green Version]
  42. Sinha, N.; Joshi, H.; Pakhira, S. Lithium Intercalation in Covalent Organic Frameworks: A Porous Electrode Material for Lithium-Ion Batteries. ACS Appl. Electron. Mater. 2022, 4, 6237–6252. [Google Scholar] [CrossRef]
  43. Chen, L.; Wang, Y.; Wang, H.; Yang, Y.; Li, J. Theoretical study of thiophene-inserted COF as high performance anode material for Li-ion battery. Chem. Phys. Lett. 2021, 783, 139042. [Google Scholar] [CrossRef]
  44. Mei, Y.; Huang, Y.; Hu, X. Nanostructured Ti-based anode materials for Na-ion batteries. J. Mater. Chem. A 2016, 4, 12001–12013. [Google Scholar] [CrossRef]
  45. Liu, J.; Lyu, P.; Zhang, Y.; Nachtigall, P.; Xu, Y. New Layered Triazine Framework/Exfoliated 2D Polymer with Superior Sodium-Storage Properties. Adv. Mater. 2018, 30, 1705401. [Google Scholar] [CrossRef]
  46. Shehab, M.; Weeraratne, K.; Huang, T.; Lao, K.; Kaderi, H. Exceptional Sodium-Ion Storage by an Aza-Covalent Organic Framework for High Energy and Power Density Sodium-Ion Batteries. ACS Appl. Mater. Interfaces 2021, 13, 15083–15091. [Google Scholar] [CrossRef]
  47. Kim, M.; Lee, W.; Paek, S.; Park, J. Covalent Organic Nanosheets as Effective Sodium-Ion Storage Materials. ACS Appl. Mater. Interfaces 2018, 10, 32102–32111. [Google Scholar] [CrossRef]
  48. Xie, M.; Li, C.; Ren, S.; Ma, Y.; Chen, X.; Fan, X.; Han, Y.; Shi, Z.; Feng, S. Ultrafine Sb nanoparticles in situ confined in covalent organic frameworks for high-performance sodium-ion battery anodes. J. Mater. Chem. A 2022, 10, 15089–15100. [Google Scholar] [CrossRef]
  49. Yang, X.; Jin, Y.; Yu, B.; Gong, L.; Liu, W.; Liu, X.; Chen, X.; Wang, K.; Jiang, J. Two-dimensional conjugated N-rich covalent organic frameworks for superior sodium storage. Sci. China Chem. 2022, 65, 1291–1298. [Google Scholar] [CrossRef]
  50. Haldar, S.; Kaleeswaran, D.; Rase, D.; Roy, K.; Ogale, S.; Vaidhyanathan, R. Tuning the electronic energy level of covalent organic frameworks for crafting high-rate Na-ion battery anode. Nanoscale Horiz. 2020, 5, 1264–1273. [Google Scholar] [CrossRef]
  51. Selvamani, V.; Gopi, S.; Rajagopal, V.; Kathiresan, M.; Vembu, S.; Velayutham, D.; Gopukumar, S. High Rate Performing in Situ Nitrogen Enriched Spherical Carbon Particles for Li/Na-Ion Cells. ACS Appl. Mater. Interfaces 2017, 9, 39326–39335. [Google Scholar] [CrossRef]
  52. Zhang, X.; Zhang, Z.; Zhang, X.; Sun, H.; Hu, Q.; Wang, H. Improving the Sodium Storage Performance of Porous Carbon Derived from Covalent Organic Frameworks Through N, S Co-Doping. Front. Mater. 2022, 8, 820671. [Google Scholar] [CrossRef]
  53. Ge, J.; Fan, L.; Wang, J.; Zhang, Q.; Liu, Z.; Zhang, E.; Liu, Q.; Yu, X.; Lu, B. MoSe2/N-Doped Carbon as Anodes for Potassium-Ion Batteries. Adv. Energ. Mater. 2018, 8, 1801477. [Google Scholar] [CrossRef]
  54. Lei, K.; Wang, C.; Liu, L.; Luo, Y.; Mu, C.; Li, F.; Chen, J. A Porous Network of Bismuth Used as the Anode Material for High-Energy-Density Potassium-Ion Batteries. Angew. Chem. Int. Ed. 2018, 57, 4687–4691. [Google Scholar] [CrossRef] [PubMed]
  55. Wolfson, E.; Schkeryantz, L.; Moscarello, E.; Fernandez, J.; Paszek, J.; Wu, Y.; Hadad, C.; McGrier, P. Alkynyl-Based Covalent Organic Frameworks as High-Performance Anode Materials for Potassium-Ion Batteries. ACS Appl. Mater. Interfaces 2021, 13, 41628–41636. [Google Scholar] [CrossRef]
  56. Yang, X.; Gong, L.; Wang, K.; Ma, S.; Liu, W.; Li, B.; Li, N.; Pan, H.; Chen, X.; Wang, H.; et al. Ionothermal Synthesis of Fully Conjugated Covalent Organic Frameworks for High-Capacity and Ultrastable Potassium-Ion Batteries. Adv. Mater. 2022, 34, 2207245. [Google Scholar] [CrossRef]
  57. Luo, X.; Li, W.; Liang, H.; Zhang, H.; Du, K.; Wang, X.; Liu, X.; Zhang, J.; Wu, X. Covalent Organic Framework with Highly Accessible Carbonyls and π-Cation Effect for Advanced Potassium-Ion Batteries. Angew. Chem. Int. Ed. 2022, 61, e202117661. [Google Scholar]
  58. Chen, X.; Zhang, H.; Ci, C.; Sun, W.; Wang, Y. Few-Layered Boronic Ester based Covalent Organic Frameworks/Carbon Nanotube Composites for High-Performance K-Organic Batteries. ACS Nano 2019, 13, 3600–3607. [Google Scholar] [CrossRef]
  59. Fabbrizzi, L. Beauty in Chemistry: Making Artistic Molecules with Schiff Bases. J. Org. Chem. 2020, 85, 12212–12226. [Google Scholar] [CrossRef]
  60. Sun, J.; Xu, Y.; Li, A.; Tian, R.; Fei, Y.; Chen, B.; Zhou, X. Schiff-Base Covalent Organic Framework/Carbon Nanotubes Composite for Advanced Potassium-Ion Batteries. ACS Appl. Nano Mater. 2022, 5, 15592–15599. [Google Scholar] [CrossRef]
  61. Zhang, Y.; Wu, Y.; An, Y.; Wei, C.; Tan, L.; Xi, B.; Xiong, S.; Feng, J. Ultrastable and High-Rate 2D Siloxene Anode Enabled by Covalent Organic Framework Engineering for Advanced Lithium-Ion Batteries. Small Methods 2022, 6, 2200306. [Google Scholar] [CrossRef] [PubMed]
  62. Ai, Q.; Fang, Q.; Liang, J.; Xu, X.; Zhai, T.; Gao, G.; Guo, H.; Han, G.; Ci, L.; Lou, J. Lithium-Conducting Covalent-Organic-Frameworks as Artificial Solid-Electrolyte-Interphase on Silicon Anode for High Performance Lithium Ion Batteries. Nano Energy 2020, 72, 104657. [Google Scholar] [CrossRef]
  63. Xu, F.; Jin, S.; Zhong, H.; Wu, D.; Yang, X.; Chen, X.; Wei, H.; Fu, R.; Jiang, D. Electrochemically active, crystalline, mesoporous covalent organic frameworks on carbon nanotubes for synergistic lithium-ion battery energy storage. Sci. Rep. 2015, 5, 8225. [Google Scholar] [CrossRef] [Green Version]
  64. Yu, X.; Li, C.; Ma, Y.; Li, D.; Li, H.; Guan, X.; Yan, Y.; Valtchev, V.; Qiu, S.; Fang, Q. Crystalline, porous, covalent polyoxometalate-organic frameworks for lithium-ion batteries. Microporous Mesoporous Mater. 2020, 299, 110105. [Google Scholar] [CrossRef]
  65. Wolfson, E.; Xiao, N.; Schkeryantz, L.; Haug, W.; Wu, Y.; McGrier, P. A dehydrobenzoannulene-based two-dimensional covalent organic framework as an anode material for lithium-ion batteries. Mol. Syst. Des. Eng. 2020, 5, 97–101. [Google Scholar] [CrossRef]
  66. Zhao, L.; Tang, X.; Lv, L.; Chen, S.; Sun, W.; Wang, Y. Imine-Induced Metal-Organic and Covalent Organic Coexisting Framework with Superior Li-Storage Properties and Activation Mechanism. ChemSusChem 2021, 14, 3283–3292. [Google Scholar] [CrossRef]
  67. Tang, X.; Lv, L.; Chen, S.; Sun, W.; Wang, Y. Tin-nitrogen coordination boosted lithium-storage sites and electrochemical properties in covalent-organic framework with layer-assembled hollow structure. J. Colloid Interface Sci. 2022, 622, 591–601. [Google Scholar] [CrossRef]
  68. Chen, K.; Huang, R.; Gu, F.; Du, Y.; Song, Y. A novel hollow Co3O4@N-doped carbon nanobubble film composite for high-performance anode of lithium-ion batteries. Compos. Part B Eng. 2021, 224, 109247. [Google Scholar] [CrossRef]
  69. Gu, F.; Chen, K.; Du, Y.; Song, Y.; Wang, L. CeO2-NiO/N,O-rich porous carbon derived from covalent-organic framework for enhanced Li-storage. Chem. Eng. J. 2022, 442, 136298. [Google Scholar] [CrossRef]
  70. Ni, B.; Li, Y.; Chen, T.; Lu, T.; Pan, L. Covalent organic frameworks converted N, B co-doped carbon spheres with excellent lithium ion storage performance at high current density. J. Colloid Interface Sci. 2019, 542, 213–221. [Google Scholar] [CrossRef] [PubMed]
  71. Chen, K.; Gu, F.; Xiong, J.; Yu, H.; Du, Y.; Song, Y. NiO/nitrogen-oxygen co-doped carbon nanoflower composites based on covalent organic frameworks for lithium-ion battery anodes. J. Alloys Compd. 2022, 924, 166524. [Google Scholar] [CrossRef]
  72. Sun, L.; Wang, H.; Zhai, S.; Wang, X.; Wu, H.; Deng, W. Edge-on-Plane-Confined Covalent Organic Frameworks Enable a Defect- and Nitrogen-Rich Carbon Matrix for High-Rate Lithium-Ion Storage. ACS Appl. Energy Mater. 2021, 4, 5957–5962. [Google Scholar] [CrossRef]
  73. Shi, R.; Liu, L.; Lu, Y.; Wang, C.; Li, Y.; Li, L.; Yan, Z.; Chen, J. Nitrogen-rich covalent organic frameworks with multiple carbonyls for high-performance sodium batteries. Nat. Commun. 2020, 11, 178. [Google Scholar] [CrossRef] [Green Version]
  74. Gu, S.; Wu, S.; Cao, L.; Li, M.; Qin, N.; Zhu, J.; Wang, Z.; Li, Y.; Li, Z.; Chen, J.; et al. Tunable Redox Chemistry and Stability of Radical Intermediates in 2D Covalent Organic Frameworks for High Performance Sodium Ion Batteries. J. Am. Chem. Soc. 2019, 141, 9623–9628. [Google Scholar] [CrossRef] [PubMed]
  75. Zhang, Y.; Gao, Z. High performance anode material for sodium-ion batteries derived from covalent-organic frameworks. Electrochim. Acta 2019, 301, 23–28. [Google Scholar] [CrossRef]
  76. Shehab, M.; Weeraratne, K.; Kadri, O.; Yadavalli, V.; Kaderi, H. Templated Synthesis of 2D Polyimide Covalent Organic Framework for Rechargeable Sodium-Ion Batteries. Macromol. Rapid Commun. 2023, 44, 2200782. [Google Scholar] [CrossRef]
  77. Xu, Q.; Li, Q.; Guo, Y.; Luo, D.; Qian, J.; Li, X.; Wang, Y. Multiscale Hierarchically Engineered Carbon Nanosheets Derived from Covalent Organic Framework for Potassium-Ion Batteries. Small Methods 2020, 4, 2000159. [Google Scholar] [CrossRef]
Molecules 28 05953 g002

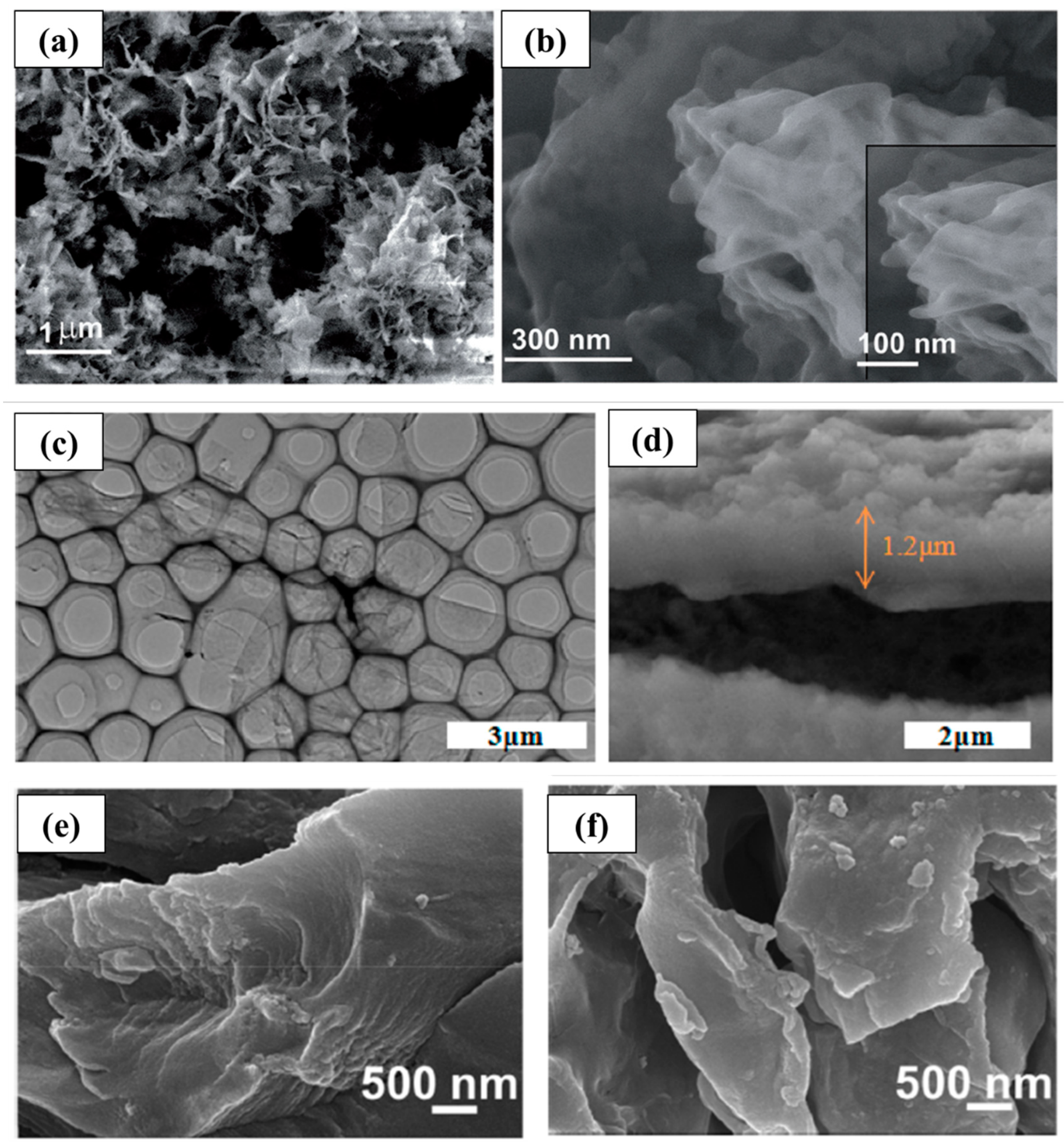

Figure 2. Research on 2D COF in lithium-ion batteries. (a,b) FE-SEM and higher-resolution FE-SEM of very thin nanosheets (CON) [29]; (c,d) TEM image of as-exfoliated nanosheets (TThPP) [30]; (e,f) SEM images of DCB-COF-450 and DCB-COF-500 nanosheets [33].
Figure 2. Research on 2D COF in lithium-ion batteries. (a,b) FE-SEM and higher-resolution FE-SEM of very thin nanosheets (CON) [29]; (c,d) TEM image of as-exfoliated nanosheets (TThPP) [30]; (e,f) SEM images of DCB-COF-450 and DCB-COF-500 nanosheets [33].
Molecules 28 05953 g002
Molecules 28 05953 g003

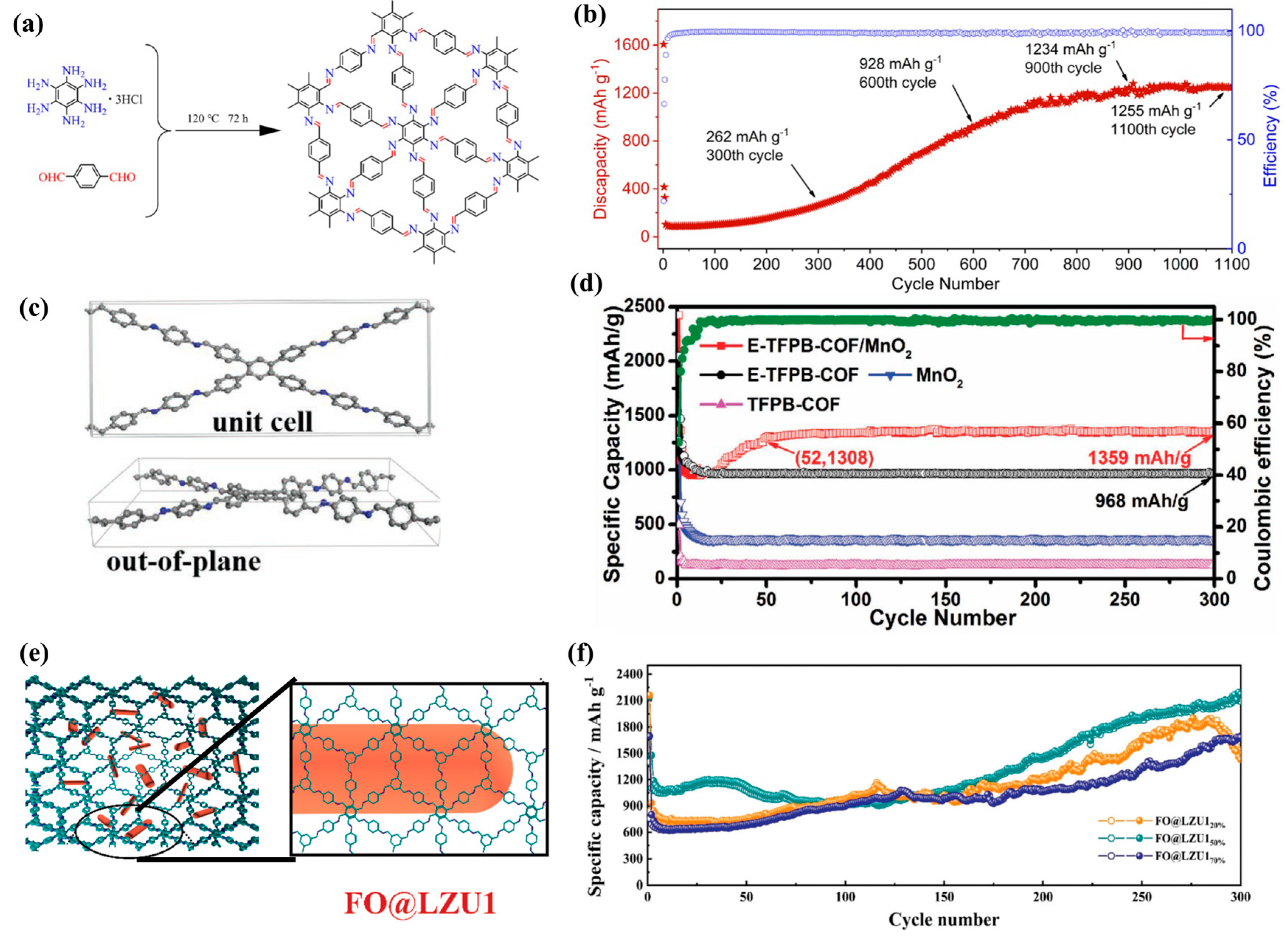

Figure 3. Structure and properties of some two-dimensional COFs. (a) Synthesis of HAB-COF; (b) the electrochemical performance of the HAB-COF under 1 A g−1 (first three cycles are under 0.1 A g−1) [34]; (c) characterization of layered TFPB-COF unit cell, (d) electrochemical performances of E-TFPB-COF/MnO2 products at 0.1 A g−1 [10]; (e) characterization of FO@LZU1, (f) cycle performance of FO@LZU products [35].
Figure 3. Structure and properties of some two-dimensional COFs. (a) Synthesis of HAB-COF; (b) the electrochemical performance of the HAB-COF under 1 A g−1 (first three cycles are under 0.1 A g−1) [34]; (c) characterization of layered TFPB-COF unit cell, (d) electrochemical performances of E-TFPB-COF/MnO2 products at 0.1 A g−1 [10]; (e) characterization of FO@LZU1, (f) cycle performance of FO@LZU products [35].
Molecules 28 05953 g003
Molecules 28 05953 g007

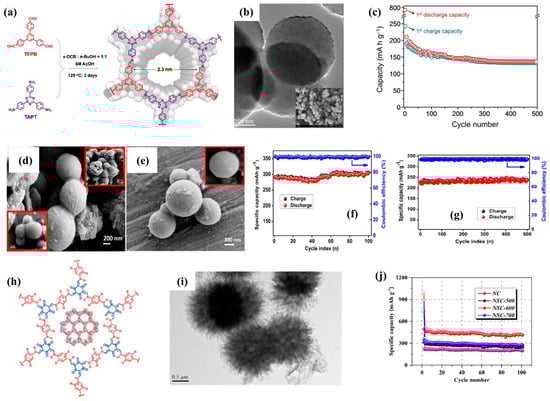

Figure 7. (a) Synthetic scheme of TFPB-TAPT COF, (b) TEM image of TFPB-TAPT COF, (c) long-term cycle performance of TFPB-TAPT COF [9]. (d,e) FE-SEM images of N-rich SC particles (inset: high magnification), (f) electrochemical performance of N-rich SC in capacity retention of SIBs as a function of cycle number, (g) steady-state cycling performance under 0.5 A g−1 [51]; (h) as-prepared COF, (i) TEM images of NSC-600, (j) cycling performances under 0.1 A g−1 [52].
Figure 7. (a) Synthetic scheme of TFPB-TAPT COF, (b) TEM image of TFPB-TAPT COF, (c) long-term cycle performance of TFPB-TAPT COF [9]. (d,e) FE-SEM images of N-rich SC particles (inset: high magnification), (f) electrochemical performance of N-rich SC in capacity retention of SIBs as a function of cycle number, (g) steady-state cycling performance under 0.5 A g−1 [51]; (h) as-prepared COF, (i) TEM images of NSC-600, (j) cycling performances under 0.1 A g−1 [52].
Molecules 28 05953 g007
Molecules 28 05953 g008

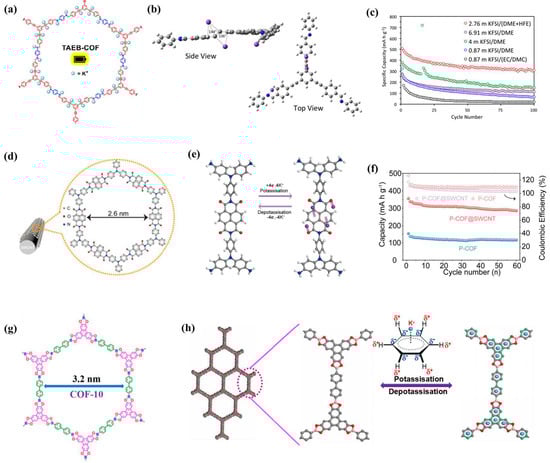

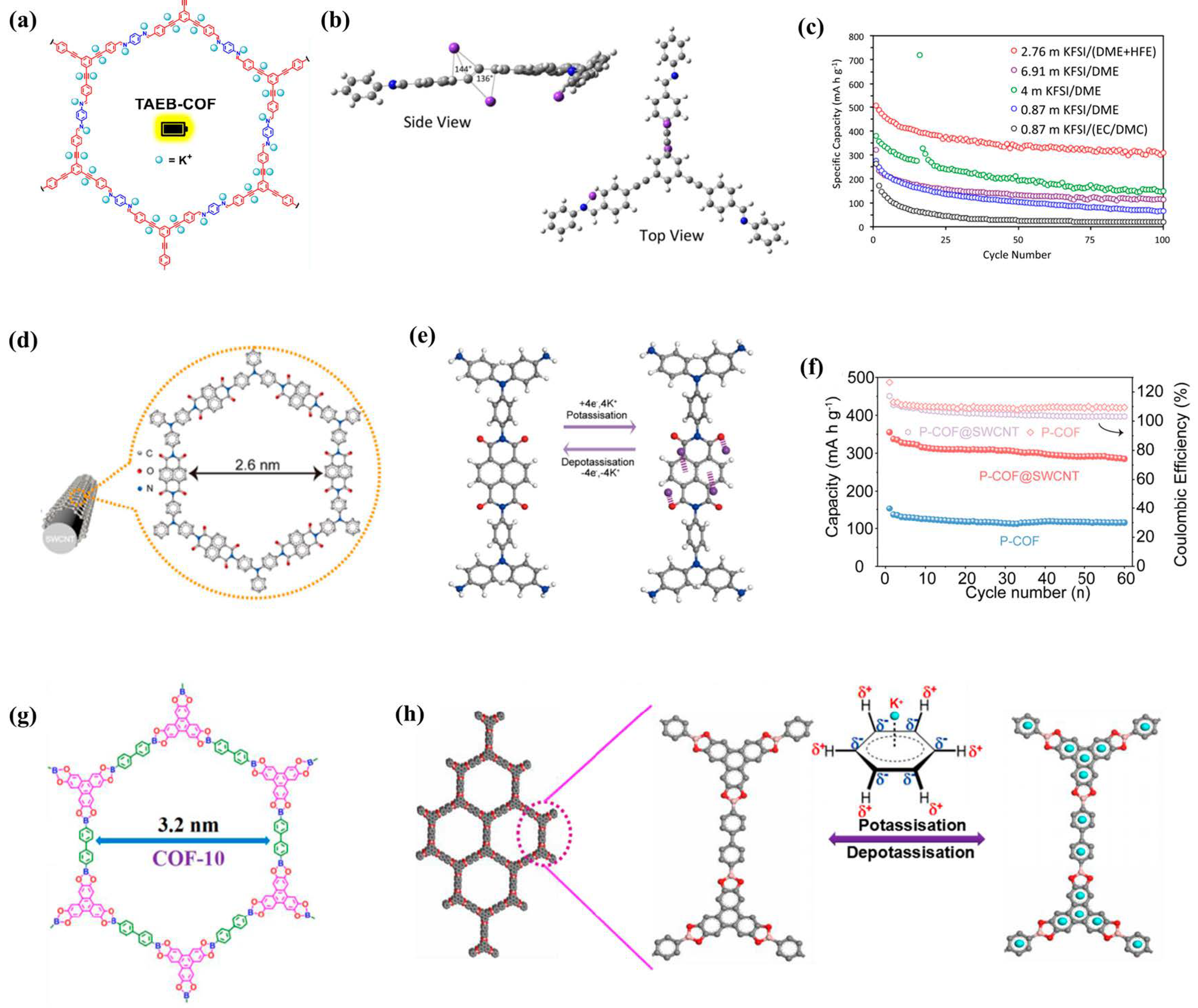

Figure 8. (a) Synthetic scheme of TAEB-COF, (b) visualization of optimized geometry (B4) of three K+ bound to radical anionic TAEB-PI. Deviation from the linear alkynyl bond (C-C-C) is shown in degrees, (c) charge capacities of TAEB-COF KIB coin cell fabricated with different electrolyte formulations at 50 mA g−1 [55]; (d) structural and morphological characterizations of P-COF@SWCNT, (e) schematic diagram of the proposed K+ storage mechanism (gray for carbon, red for oxygen, white for hydrogen, purple for potassium), (f) cycle performance of P-COF and P-COF@SWCNT at 0.1 A g−1 [57]; (g) structure of COF-10@CNT, (h) illustration of the proposed potassium storage mechanism [58].
Figure 8. (a) Synthetic scheme of TAEB-COF, (b) visualization of optimized geometry (B4) of three K+ bound to radical anionic TAEB-PI. Deviation from the linear alkynyl bond (C-C-C) is shown in degrees, (c) charge capacities of TAEB-COF KIB coin cell fabricated with different electrolyte formulations at 50 mA g−1 [55]; (d) structural and morphological characterizations of P-COF@SWCNT, (e) schematic diagram of the proposed K+ storage mechanism (gray for carbon, red for oxygen, white for hydrogen, purple for potassium), (f) cycle performance of P-COF and P-COF@SWCNT at 0.1 A g−1 [57]; (g) structure of COF-10@CNT, (h) illustration of the proposed potassium storage mechanism [58].
Molecules 28 05953 g008
Molecules 28 05953 g009

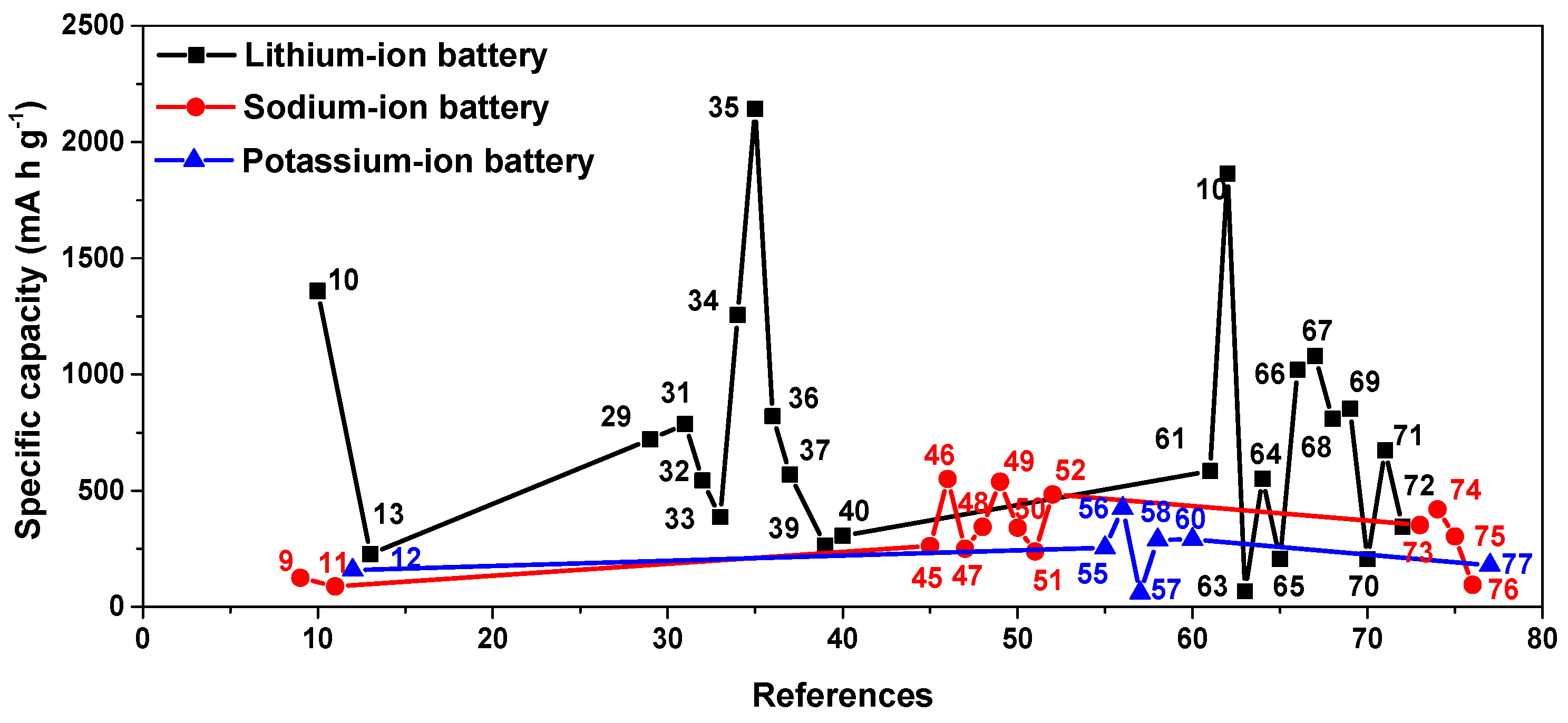

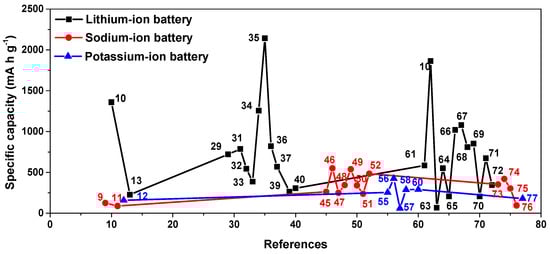

Figure 9. Performance comparison of COF materials in lithium-/sodium-/potassium-ion batteries.
Figure 9. Performance comparison of COF materials in lithium-/sodium-/potassium-ion batteries.
Molecules 28 05953 g009
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Jia, M.; Zhang, L.; Yuan, Q. Application of New COF Materials in Secondary Battery Anode Materials. Molecules 2023, 28, 5953. https://doi.org/10.3390/molecules28165953

AMA Style

Jia M, Zhang L, Yuan Q. Application of New COF Materials in Secondary Battery Anode Materials. Molecules. 2023; 28(16):5953. https://doi.org/10.3390/molecules28165953

Chicago/Turabian Style

Jia, Miao, Lixin Zhang, and Qiong Yuan. 2023. "Application of New COF Materials in Secondary Battery Anode Materials" Molecules 28, no. 16: 5953. https://doi.org/10.3390/molecules28165953

APA Style

Jia, M., Zhang, L., & Yuan, Q. (2023). Application of New COF Materials in Secondary Battery Anode Materials. Molecules, 28(16), 5953. https://doi.org/10.3390/molecules28165953

Article Metrics

Back to TopTop
