Novel Hybrid Electrode Coatings Based on Conjugated Polyacid Ternary Nanocomposites for Supercapacitor Applications

by
Sveta Ozkan
1,
Lyudmila Tkachenko
2,
Valeriy Petrov
1,
Oleg Efimov
2 and
Galina Karpacheva
1,*
1
A.V. Topchiev Institute of Petrochemical Synthesis, Russian Academy of Sciences, 29 Leninsky Prospect, Moscow 119991, Russia
2
Federal Research Center of Problems of Chemical Physics and Medicinal Chemistry, Russian Academy of Sciences, 1 Academician Semenov Avenue, Chernogolovka 142432, Russia
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(13), 5093; https://doi.org/10.3390/molecules28135093
Submission received: 26 May 2023 / Revised: 21 June 2023 / Accepted: 22 June 2023 / Published: 29 June 2023
(This article belongs to the Special Issue Nanocomposite and Hybrid Nanomaterial Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
Electrochemical behavior of novel electrode materials based on polydiphenylamine-2-carboxylic acid (PDPAC) binary and ternary nanocomposite coatings was studied for the first time. Nanocomposite materials were obtained in acidic or alkaline media using oxidative polymerization of diphenylamine-2-carboxylic acid (DPAC) in the presence of activated IR-pyrolyzed polyacrylonitrile (IR-PAN-a) only or IR-PAN-a and single-walled carbon nanotubes (SWCNT). Hybrid electrodes are electroactive layers of stable suspensions of IR-PAN-a/PDPAC and IR-PAN-a/SWCNT/PDPAC nanocomposites in formic acid (FA) formed on the flexible strips of anodized graphite foil (AGF). Specific capacitances of electrodes depend on the method for the production of electroactive coatings. Electrodes specific surface capacitances Cs reach 0.129 and 0.161 F∙cm−2 for AGF/IR-PAN-a/PDPACac and AGF/IR-PAN-a/SWCNT/PDPACac, while for AGF/IR-PAN-a/PDPACalk and AGF/IR-PAN-a/SWCNT/PDPACalk Cs amount to 0.135 and 0.151 F∙cm−2. Specific weight capacitances Cw of electrodes with ternary coatings reach 394, 283, 180 F∙g−1 (AGF/IR-PAN-a/SWCNT/PDPACac) and 361, 239, 142 F∙g−1 (AGF/IR-PAN-a/SWCNT/PDPACalk) at 0.5, 1.5, 3.0 mA·cm−2 in an aprotic electrolyte. Such hybrid electrodes with electroactive nanocomposite coatings are promising as a cathode material for SCs.

Graphical Abstract

1. Introduction

With the development of alternative resource-saving energy, it is of great importance to solve the problems related to the creation of both energy storage devices and new ways to store energy [1,2,3]. The popularity of wearable electronic devices cause interest in the development of more efficient energy storage systems [4,5,6,7,8]. The supercapacitors (SCs) of high power density, long service life and comparatively high maintenance attract special attention among such systems [9,10,11,12]. While batteries provide better energy density for storage, SCs ensure faster charge and discharge [7,13,14]. Therefore, SCs are used when no large energy storage capacity is required, but powerful impulses are wantrequired, such as for starting electric cars.
The combination of advantages of batteries and SCs can be achievable in the hybrid SCs based on conductive polymers and carbon nanomaterials, where energy is stored at the electrode/electrolyte interface using double-layer capacitance and Faraday pseudocapacitance [15,16,17,18,19,20,21,22,23,24]. This type of a system with two energy storage mechanisms requires the development of highly efficient electrode materials that determine the capacitance, energy density, and specific power of SCs [25,26,27,28,29]. The use of electro-active conductive polymers (ECP) in the creating of electrode materials of hybrid SCs is an undoubted achievement of the last decade [30,31]. Quasi-reversible electrochemical charge-discharge processes in such polymers are carried out when they are doped with counter-ions due to the formation of delocalized π-electrons or holes and their transfer under the influence of an electric field along the system of conjugated double bonds of ECP. In terms of specific energy and specific power, the electrochemical SCs with ECP are in an intermediate position between the double-layer SCs and the lithium-ion batteries. Such polymer-carbon nanomaterials as electroactive coatings for hybrid electrodes are promising for the creation of SCs, rechargeable batteries, electrochemical current sources, solar panels, fuel cells, etc. [32,33,34,35,36,37,38,39,40,41].
Graphene-like materials and carbon nanotubes can be used as carbon materials for hybrid electrode coatings [34,38,42,43,44,45]. They easily form composites with redox active polymers to increase the pseudocapacitance for energy storage [46,47,48,49]. Along with carbon nanoparticles, porous carbon materials, in particular activated carbon materials, are considered promising [21,25,28,29]. The latter are derived from carbon precursors by physical or chemical activation.
The use of activated IR-pyrolyzed polyacrylonitrile (IR-PAN-a) offers exciting electrochemical properties of resulting composites by changing the structural characteristics of the carbon material. The carbon structure of IR-PAN-a contains nitrogen atoms that provide additional Faraday pseudocapacity [50,51]. The introduction of nitrogen heteroatoms into the structure of carbonaceous materials leads to an increase in the free space for electrolyte placement, providing high accessibility of electrolyte ions to the active surface [40,52].
In the last decade, researchers have focused on the production of hybrid electrode materials that include, along with a conductive polymer, a combination of different carbon nanomaterials. Only a few papers have shown that PANI-based nanocomposites containing graphene and CNT nanoparticles have improved SCs [53,54,55]. PANI is the most studied electro-active polymer. Its main advantages are simplicity of synthesis, ease of doping-dedoping processes, stability of properties. The simultaneous presence of two different carbon nanoparticles in the nanocomposite composition contributes to the formation of a three-dimensional structure where redox centers of PANI are more accessible. The addition of CNT to two-dimensional graphene nanosheets increases the surface area, but physical interactions between carbon nanomaterials are not enough to hold them together. PANI is considered as a kind of glue for attaching various types of carbon nanomaterials to each other [56]. Not only the performance of SCs is significantly increased, but also the resistance to charge transfer is reduced in such a structure.
In order to obtain both high capacitance and high charge-discharge currents, the combination of a high porous carbon substrate, carbon nanoparticles and electroactive polymer in electrode materials makes it possible to balance contributions of double layer charging and Faraday pseudocapacitance.
Attention should be drawn to the fact that the information available in the literature on the study of electrode materials based on ternary nanocomposites of PANI with two carbon components describes the results of electrochemical measurements, conducted in acid or alkaline aqueous electrolytes. We have not been able to find any references to studies of such nanocomposites in lithium organic electrolytes. The main disadvantages of aqueous electrolytes are low discharge voltage, narrow operating temperature range, high corrosive activity. On the other hand, lithium batteries use organic electrolytes, which have a wider range of operating potentials and operating temperatures, high corrosion resistance. It should be noted that the number of works on SCs with organic electrolytes is extremely limited (some of them were done by the authors of this article [57,58]). Moreover, we have not been able to find any research work on electrode materials based on ECP ternary nanocomposites with two carbon components in lithium organic electrolytes. Nevertheless, the transition to organic electrolytes gives the prospect of creating hybrid devices that combine the advantages of SCs and lithium batteries.
The present work is the first study of the electrochemical behavior of a cathode material based on a conjugated polyacid, IR-PAN-a and CNT in a lithium organic electrolyte. Such cathode materials in organic electrolytes are the most promising for the creation of hybrid SCs due to the possibility of increasing the SC voltage and achieving high values of energy density and charge-discharge current.
In this research paper, for electroactive coatings, hybrid ternary polymer-carbon-carbon nanocomposites based on polydiphenylamine-2-carboxylic acid (PDPAC), IR-PAN-a and SWCNT were prepared in two different ways for the first time. The choice of PDPAC as a polymer component is due to the possibility of coordination of carbon nanoparticles not only for amine but also for carboxylic groups. Furthermore, the presence of carboxylic groups makes it difficult to aggregate polymer chains (as in the case of PANI). Steric difficulties caused by carboxylic groups contribute to a looser structure that facilitates electrolyte penetration.
SWCNTs, which differ in high electrical conductivity and graphite-like external surface of the walls, are selected as one of the carbon components. Due to the π-π* stacking, adsorption of aromatic monomers is possible on such a surface, during oxidative polymerization of which a polymer shell grows, which prevents CNT aggregation. CNTs form an internal conductive framework that provides electronic transport in the composite.
Another carbon component of polymer-carbon-carbon nanocomposite is IR-PAN, leached to form a highly porous structure, adsorbing a part of the polymer phase, resulting in the general loosening of the nanocomposite.
In this work, the IR-PAN-a/SWCNT/PDPAC nanomaterials were synthesized in an acidic medium or in an alkaline medium via in situ oxidative polymerization of DPAC monomer in the presence both of SWCNT and IR-PAN-a as a highly porous N-doped carbon component. Electrochemical properties of the ternary IR-PAN-a/SWCNT/PDPAC nanocomposite electroactive coatings on a flexible strips of AGF with a developed porous surface in 1 M LiClO4 in propylene carbonate organic electrolyte were investigated. For comparison, under the same conditions, the binary composite coatings of IR-PAN-a/PDPAC were studied.

2. Results and Discussion

2.1. Synthesis and Characterization of IR-PAN-a/SWCNT/PDPAC Nanocomposites

PDPAC-based ternary nanocomposites were prepared via in situ oxidative polymerization of DPAC in the presence of IR-PAN-a and SWCNT in acidic and alkaline media. For comparison, binary composites of IR-PAN-a/PDPAC were obtained under the same conditions. Figure 1 shows a synthesis scheme of ternary nanomaterials of IR-PAN-a/SWCNT/PDPAC.
The formation of IR-PAN-a/SWCNT/PDPAC nanomaterials was confirmed by FTIR and Raman spectroscopy, XRD and field emission scanning electron microscopy (FE-SEM).
According to XRD analysis, as well as IR-PAN-a/PDPAC, IR-PAN-a/SWCNT/PDPAC nanocomposites are amorphous irrespective of the preparing method (Figure 2). Diffractograms of binary and ternary composites identify reflection peaks of IR-PAN-a in the range of scattering angles 2θ = 39°, 69° (CrKα radiation). These diffraction peaks correlate to Miller indices (002), (101). The carbon phase reflection peak from a single SWCNT plane is not identified.
Figure 3 shows the ATR FTIR spectra of the ternary nanocomposites obtained in an acidic medium (IR-PAN-a/SWCNT/PDPACac) and in an alkaline medium (IR-PAN-a/SWCNT/PDPACalk). The main bands of IR-PAN-a/SWCNT/PDPAC and IR-PAN-a/PDPAC are the same [59,60]. The chemical structure of the polymer component mainly depends on the pH of the reaction medium for the nanocomposite synthesis (Figure 1). In the IR-PAN-a/PDPACac composite, the absorption bands at 751, 785, and 892 cm–1 are due to the out-of-plane bending vibrations of the δC–H bonds of the 1,2-, 1,2,4-, and 1,4-substituted benzene rings, respectively. In the IR-PAN-a/PDPACalk composite, the absorption bands at 745 and 820 cm–1 correspond to out-of-plane bending vibrations of the δC–H bonds of the 1,2-disubstituted and 1,2,4-trisubstituted benzene rings. In the ternary IR-PAN-a/SWCNT/PDPAC nanocomposites, the shift in the absorption bands, corresponding to stretching vibrations of νC–C bonds in the aromatic rings indicate the π–π* interaction of PDPAC phenyl rings with the aromatic structures of IR-PAN-a and SWCNT (stacking effect). The charge transfer from the polymer chain to IR-PAN-a/SWCNT is manifested in the shift of skeletal oscillation frequencies of the polymer component.
Figure 4 shows the Raman spectra of the IR-PAN-a/PDPAC and composites prepared using two methods. As can be seen, in the Raman spectra of IR-PAN-a-based composites, there are two pronounced G and D bands. A G band at ~1596 cm−1 characterizes sp2 carbon atoms. A D band at ~1339 cm−1 corresponds to sp3 carbon atoms. The G band is a distinctive feature of graphite structures, whereas the D band is associated with disordered and defective structures [43]. The intensity ratio of these bands in the Raman spectrum of neat IR-PAN-a is ID/IG = 0.91 [59]. The splitting of the G and D bands in the Raman spectra of the binary and ternary composites is associated with the presence of a polymer component. In the IR-PAN-a/SWCNT/PDPAC, the intensity ratio of the ID/IG decreases to 0.04 regardless of the method of obtaining composites due to sp2 carbon atoms of SWCNT.
Figure 5 shows FE-SEM images of IR-PAN-a/SWCNT/PDPAC both as powders and as coatings on AGF. Good adhesion of composite films to the loosened surface of the AGF substrate makes it possible to create electroactive coatings on it by pouring stable dispersions of composites in FA [57,58].
According to FE-SEM data, in ternary nanocomposites (Figure 5a,c), the presence of carbon nanotubes contributes to the loosening of materials. Nanocomposites are permeated with SWCNT with a polymer film coating due to π-π* interaction of phenyl rings of PDPAC with SWCNT aromatic structures (stacking effect) [61]. The formation of a polymer coating on the surface of CNT provides interfacial charge transport. The electrical conductivity of ternary IR-PAN-a/SWCNT/PDPAC nanocomposites is higher than that of binary composites, which is associated with the presence of CNT. Regardless of the synthesis method, the electrical conductivity of IR-PAN-a/SWCNT/PDPAC reaches (4.8–7.2) × 10−3 S/cm (Table 1).
Thick (80 nm) interwoven bundles are visible in the nanocomposite coating which forms on AGF after pouring the suspension of IR-PAN-a/SWCNT/PDPACac in FA subjected to ultrasonic treatment. These bundles are SWCNT with a polymer coating, with adhering particles of the IR-PAN-a/PDPACac composite (Figure 5b). This results in a three-dimensional hierarchical porous structure of the IR-PAN-a/SWCNT/PDPACac coating on AGF and an increase in the surface area available for electrolyte wetting.
In the nanocomposite coating of IR-PAN-a/SWCNT/PDPACalk on AGF (Figure 5d), polymer-coated SWCNT and IR-PAN-a are dispersed in the polymer matrix. Polymer-coated fragments of IR-PAN-a are engaged in the three-dimensional structure of the nanocomposite. On the surface of this film coating there are cavities, which leads to an increase in the surface of the composite contacting with the electrolyte.

2.2. Electrochemical Behavior of Nanocomposite Coatings in an Organic Electrolyte

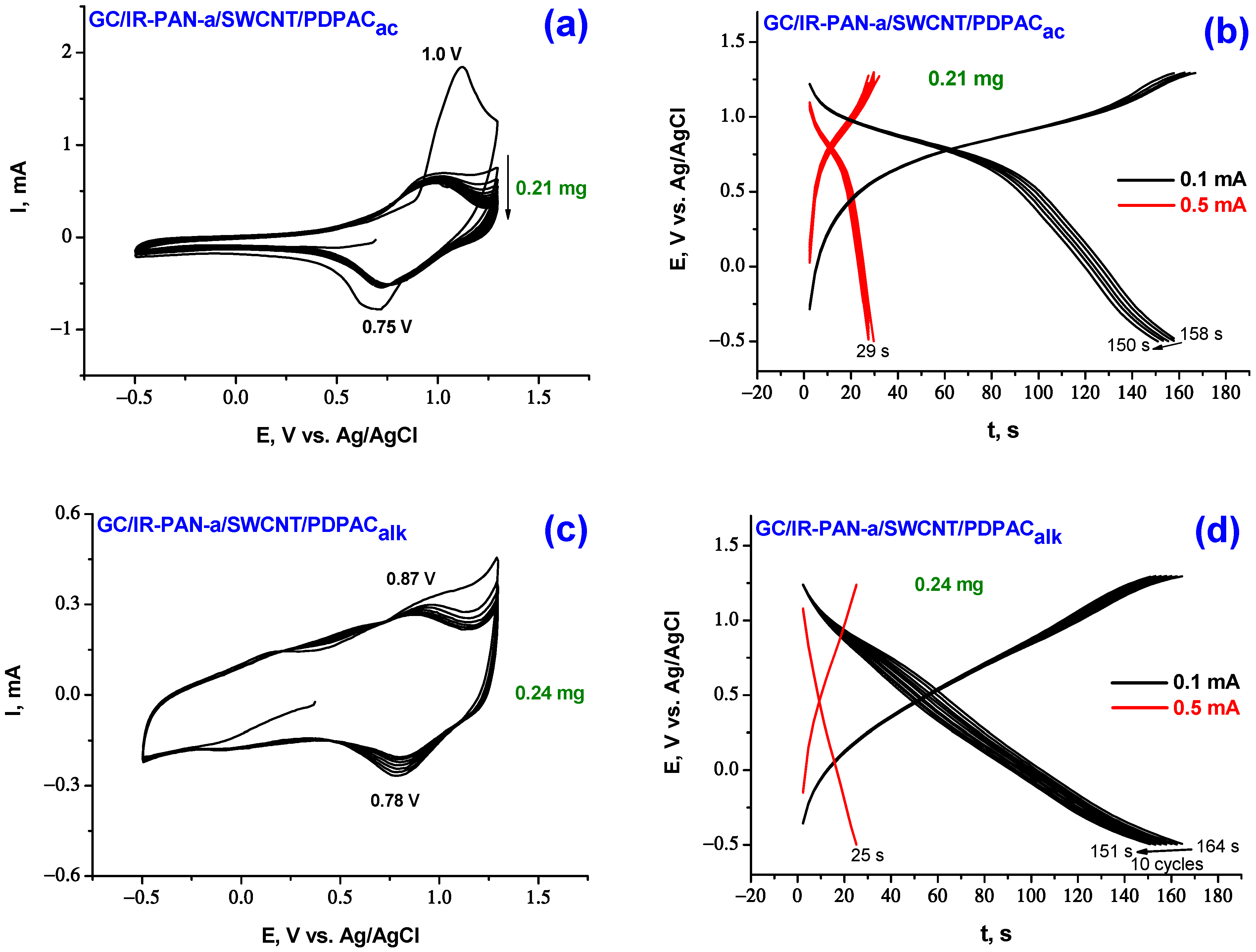

Structural features of nanocomposite coatings are clearly reflected on CV when IR-PAN-a/SWCNT/PDPAC suspensions in FA are applied to the smooth surface of GC. Here, unlike in case of binary nanocomposites (IR-PAN-a/PDPAC and SWCNT/PDPAC), there is practically no transition of the active mass of ternary coatings into the electrolyte. Figure 6 shows CV and charge-discharge curves of the electrodes of GC/IR-PAN-a/SWCNT/PDPAC in 1 M LiClO4 in propylene carbonate at the potential scan rate of 20 mV·s−1 in the potential range from −0.5 V to 1.3 V.
The CV of GC/IR-PAN-a/SWCNT/PDPACac electrode material from cycle 2 demonstrates an anodic peak at 1.0 V and a cathodic peak at 0.75 V, that refer to the formation of the PDPACac2+ dication (Figure 6a). Redox transitions with the formation of the PDPACac+· radical cation are not identified on CV. In the region of 0.7 V, there is a sharp increase in current on the anodic branch. This is connected with the merging of two redox transitions into one due to the increase in electronic and ionic conductivity for doped PDPACac. The CV shape and peak position of the IR-PAN-a/SWCNT/PDPACac composite coating on GC is identical to that of the PDPACac polymer coating (1.02 V and 0.78 V) [57]. For IR-PAN-a/SWCNT/PDPACac composite, Coulombic efficiency ŋ increases to 98% (Table 2), while for PDPACac polymer coating, Coulombic efficiency ŋ is 84%. When cycling anode and cathode currents fall very slowly. Practically, the transfer of the electroactive mass into the electrolyte does not occur.
The CV of GC/IR-PAN-a/SWCNT/PDPACalk composite electrode shows two redox transitions in the polymer (Figure 6c). In the range of lower potentials from 0.25 to 0.75 V, the blurred anodic peak characterizes the transition of the polymer to the PDPACalk/PDPAC+∙ radical cation state. Very broad cathodic peak in the range from −0.25 V to +0.25 V refers to the reduction of radical cation centers, some of which are located in the near electrode layer due to the dissolution of the coating. Very clear transition at 0.87 V associated with further oxidation of radical cations to PDPAC+∙/PDPAC2+ dication. A cathodic peak is observed at 0.78 V for the PDPAC2+/PDPAC+∙ redox transition. When cycling IR-PAN-a/SWCNT/PDPACalk composite coating, the anode and cathode currents decrease due to the transition of the electroactive mass into the electrolyte. For GC/IR-PAN-a/SWCNT/PDPACac and GC/IR-PAN-a/SWCNT/PDPACalk, the electrochemical capacitances of composite coatings calculated from CV at a potential scan rate of 20 mV·s−1 are 44 and 37 F∙g−1 with Coulombic efficiency ŋ = 98 and 93%, respectively (Table 2).
The comparison of CV of ternary nanocomposites obtained in different media in the simultaneous presence of IR-PAN-a (10 wt%) and SWCNT (10 wt%) (Figure 6a,c) shows that the capacitance of the IR-PAN-a/SWCNT/PDPACalk nanocomposite coating on GC is determined by a larger contribution of double-layer charge-discharge. This is expressed in a sharp increase in the area of CV in the range of potentials from −0.5 to +0.6 V. Whereas the capacitance of IR-PAN-a/SWCNT/PDPACac is determined by a larger contribution of the Faraday pseudocapacitance. These features are also manifested in the shape of charge-discharge curves (Figure 6b,d).
For comparable coating weights on GC, for GC/IR-PAN-a/SWCNT/PDPACalk, the capacitances calculated from the charge-discharge curves are 35 and 29 F∙g−1 at 0.1 and 0.5 mA∙cm−2 with a capacity loss of 8% in the first 10 cycles at a charge-discharge current of 0.1 mA∙cm−2. For the IR-PAN-a/SWCNT/PDPACac composite coating, higher capacitance values of 40 and 38 F∙g−1 were obtained under the same conditions with a 5% loss of capacity in the first 10 cycles. This may be due to the higher conductivity of the composite in which the polymer is in a finished state (Table 1). At a charge-discharge current of 0.5 mA∙cm–2, the electrodes operate stably over 50 cycles. On AGF, the capacitance values of these coatings at 0.5 mA∙cm−2 increase by an order of magnitude and amount to 394 F∙g−1 for IR-PAN-a/SWCNT/PDPACac and 361 F∙g−1 for IR-PAN-a/SWCNT/PDPACalk coatings with Coulombic efficiency ŋ = 100% (Table 2 and Table 3).
It is characteristic that the use of the flexible strips of AGF with a roughened surface as a current collector leads to a significant improvement of electrochemical characteristics of electroactive composite coatings due to good adhesion, as compared to the use of a smooth GC substrate [57,58].
Before use, the smooth surface of the original graphite foil is activated by anodic treatment. The special feature of this foil is its high porosity and low specific weight close to 1 g/cm2. However, when rolling the foil, the graphene nanosheets are shifted and the internal pores are closed. During anodic treatment, the surface is etched and access to internal pores is opened. It is essential that oxygen-containing functional groups are formed on graphene nanosheets during etching. When applying the composite by pouring, these groups form hydrogen bonds with composite components. The composite fills the surface pores of the current collector in the form of thin layers. In general, a strongly bonded composite coating is formed.

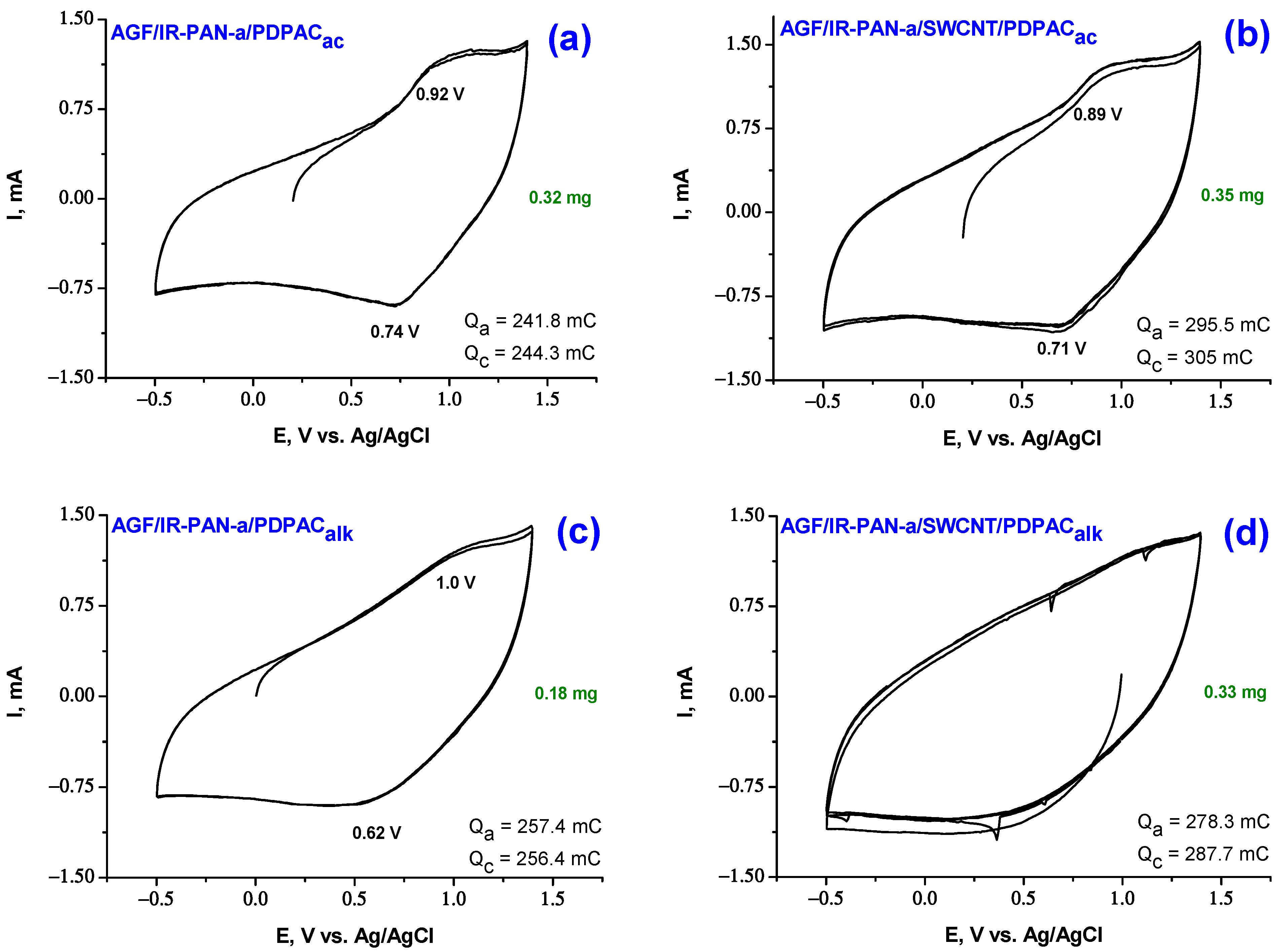

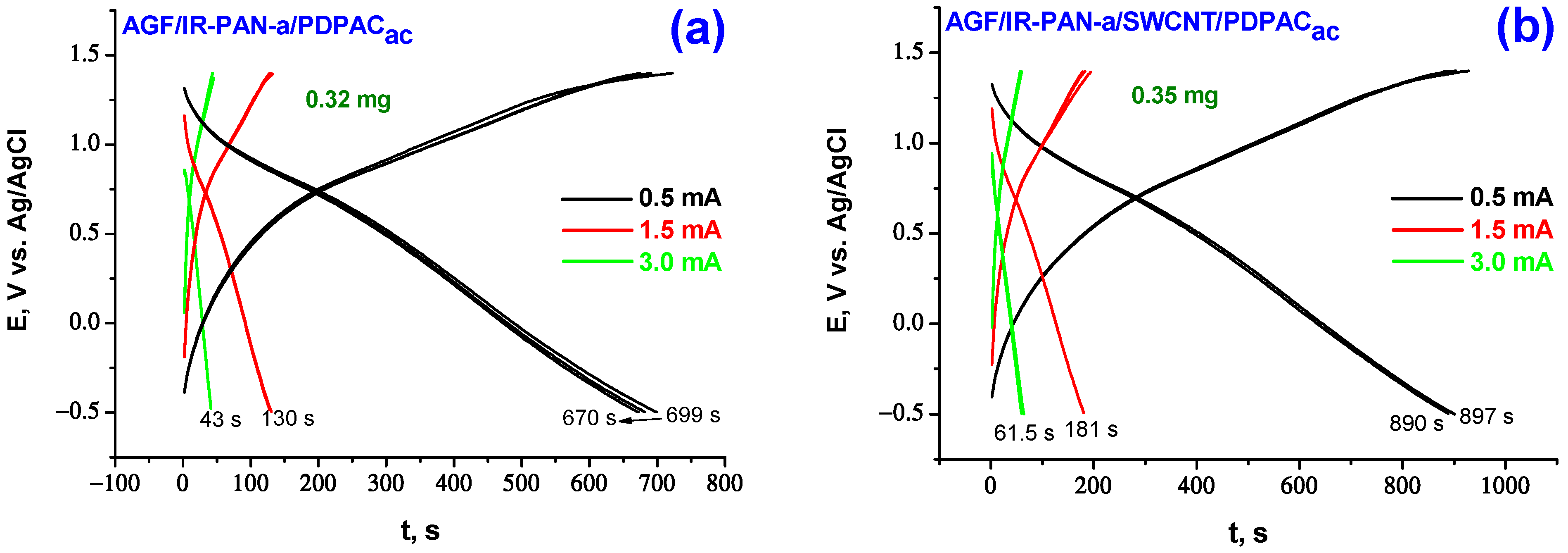

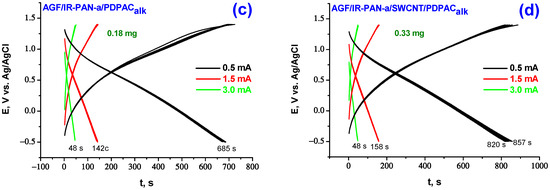

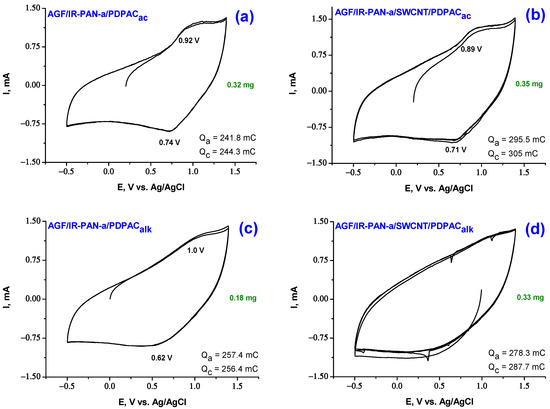

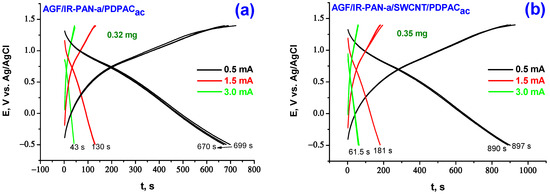

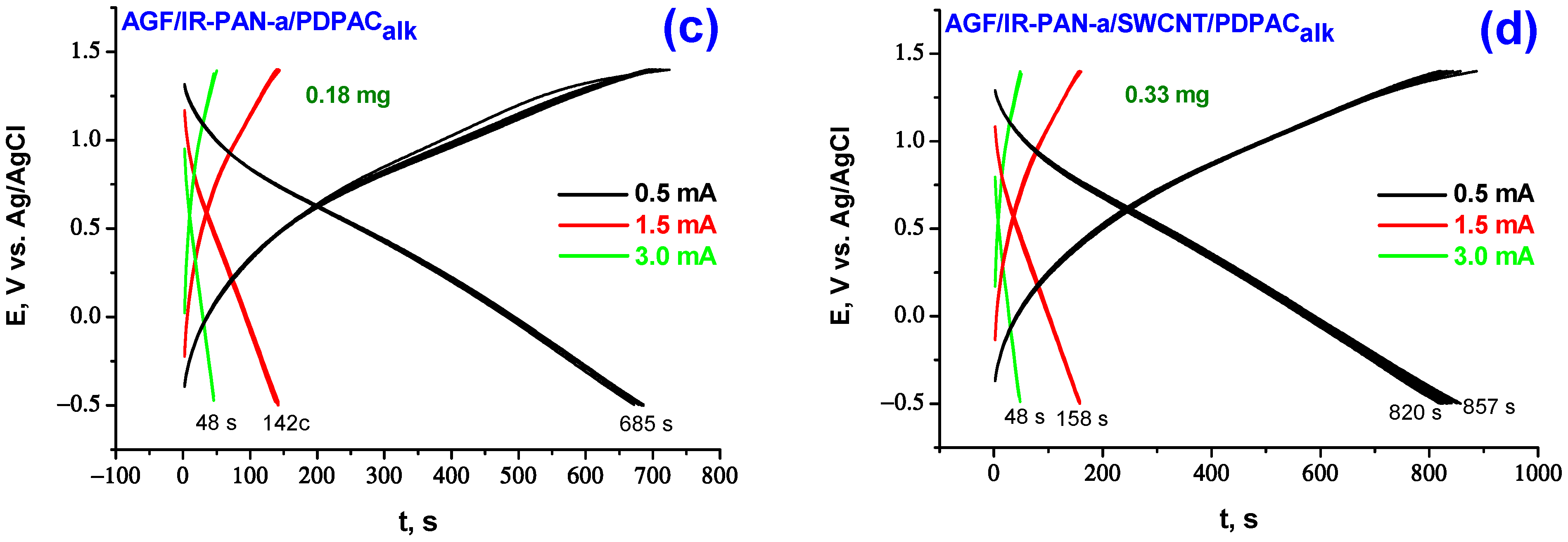

Figure 7 and Figure 8 show CV of AGF-based electrode materials recorded at potential scan rate of 5 mV·s−1, as well as galvanostatic charge-discharge dependences at the discharge current density of 0.5, 1.5, 3.0 mA·cm−2 in 1 M LiClO4 in propylene carbonate. Redox transitions on CV of AGF/IR-PAN-a/PDPAC and AGF/IR-PAN-a/SWCNT/PDPAC electrodes are noticeable when the potential scan rate is reduced to 5 mV·s−1 due to sufficient time for ions to access electroactive areas [62]. The CV shape for the studied coatings indicates the predominant contribution of the electric double layer charging to the specific capacitance.
The CV of the AGF/IR-PAN-a/PDPACalk electrode shows a wide anode wave at 1.0 V and a corresponding wide cathode peak in the range of 0.62 V associated with redox transitions in the polymer (Figure 7). In the AGF/IR-PAN-a/SWCNT/PDPACalk, redox transitions typical of the polymer are not observed due to the predominant contribution of the double layer capacitance. CV of the IR-PAN-a/PDPACac and IR-PAN-a/SWCNT/PDPACac coatings on AGF demonstrate more pronounced redox transitions of the polymer due to the Faraday pseudocapacitance.
Specific surface capacitances Cs of AGF-based electrode materials in 1 M LiClO4 in propylene carbonate calculated from CV are given in Table 2. For ternary nanocomposites, as compared to binary ones, the capacitances increase from 0.135 to 0.151 F∙cm−2 (by 12% for IR-PAN-a/SWCNT/PDPACalk) and from 0.129 to 0.161 F∙cm−2 (by 25% for IR-PAN-a/SWCNT/PDPACac). Coulombic charge-discharge efficiency ŋ of AGF/IR-PAN-a/PDPAC and AGF/IR-PAN-a/SWCNT/PDPAC electrodes is close to 100%.
When calculating the specific weight capacitance Cw of composite coatings deposited on AGF, the capacitances introduced by AGF were subtracted from the total electrode capacitance at the corresponding charge-discharge currents [24]. The capacitance loss during charge-discharge of binary IR-PAN-a/PDPAC composite coatings on AGF at 0.5 mA·cm−2 during the first 10 cycles is 7–9%, after the tenth cycle no drop in capacitance is observed. The AGF/IR-PAN-a/SWCNT/PDPACac electrode works stably with the capacity loss of 1.4% in the first 10 charge-discharge cycles at 0.5 mA·cm−2.
In the simultaneous presence of the three components of PDPAC, IR-PAN-a and SWCNT in a nanocomposite coating, capacitance characteristics of the electrodes are 361, 239, 142 F/g (AGF/IR-PAN-a/SWCNT/PDPACalk) and 394, 283, 180 F/g (AGF/IR-PAN-a/SWCNT/PDPACac) at charge-discharge currents of 0.5, 1.5, 3.0 mA·cm−2 (Table 3). For the IR-PAN-a/SWCNT/PDPACalk coating, the capacitance retention at the increase in charge-discharge currents to 1.5 and 3.0 mA·cm−2 amounts to 66 and 39%, whereas the capacitance of the AGF/IR-PAN-a/SWCNT/PDPACac electrode is retained at 72 and 46%. Combining the polymer with CNT can reduce degradation of the polymer component caused by volume change of electroactive coating during cycling.
Characteristic features of IR-PAN-a/SWCNT/PDPAC nanocomposite coatings are high electrical conductivity (up to 7.2 × 10−3 S/cm) and highly developed surface. This simultaneously provides conditions for creating a double-layer capacitance and pseudocapacitance due to the rapid diffusion of electrolyte ions at the electrode–electrolyte interface. Taken together, this leads to an increase in cycling stability of the coatings and an improvement in electrochemical characteristics.

3. Experimental

3.1. Materials

Diphenylamine-2-carboxylic acid (DPAC) (C13H11O2N) (analytical grade), (NH4)2SO4 (Fisher Chemical), sulfuric acid (reagent grade), formic acid (FA) (analytical grade), aqueous ammonia (reagent grade), and chloroform (reagent grade) were used without any additional purification. Ammonium persulfate (analytical grade) was purified using recrystallization from distilled water. Propylene carbonate was dried over molecular sieves. LiClO4 (Aldrich) was dried in vacuum at 120 °C for 3 days. The electrolyte prepared from a 1 M LiClO4 solution in propylene carbonate was stored under argon.
SWCNTs from Carbon Chg, Ltd. (Moscow, Russia) with values of d = 1.4–1.6 nm, l = 0.5–1.5 µm were produced by electric arc discharge technique with Ni/Y catalyst. To prepare IR-PAN-a, the suspension of IR-heated polyacrylonitrile in the KOH aqueous solution was dried at 80 °C in a vacuum, and the powder was IR heated at 800 °C for 2 min in a nitrogen atmosphere [59]. The GC-2000 glassy carbon plates (NIIgrafit, Moscow, Russia) sized 0.5 × 3 cm was polished with a diamond paste of the ASM-3/2 type. To produce AGF, the graphite foil (GF) (Unichimtek, MSU, Russia) was used. The GF strips sized 5 × 0.5 cm were anodized in 0.1 M (NH4)2SO4 electrolyte for 4 min at 3.0 V and 0.3 A [63].

3.2. Synthesis of IR-PAN-a/PDPAC and IR-PAN-a/SWCNT/PDPAC

IR-PAN-a/PDPAC composites were prepared via oxidative polymerization of DPAC in the presence of 10 wt% IR-PAN-a in the homogeneous acidic medium (IR-PAN-a/PDPACac) and in the heterophase system in an alkaline medium (IR-PAN-a/PDPACalk) described in [59].
IR-PAN-a/SWCNT/PDPAC nanocomposites were synthesized in two different ways according to the synthesis method for IR-PAN-a/PDPAC in [59]. The content of IR-PAN-a and SWCNT was equal (CIR-PAN-a = CSWCNT = 10 wt% relative to the monomer weight).

3.3. Electrodes Preparation

The electroactive coatings made of suspensions of nanocomposites in FA were applied to the GC and AGF substrates. An HD 3200 ultrasonic homogenizer was used to sonicate the suspensions of nanocomposites in FA (1.5 wt%). The coating square was 1 cm2.

3.4. Electrochemical Measurements

Cyclic voltammograms (CV) and galvanostatic charge-discharge curves in the potential range of −0.5–1.4 V were recorded using an IPC-Compact P-8 potentiostat (Elins, Russia). Electrochemical measurements were made in a sealed three-electrode cell in the argon atmosphere in a 1 M LiClO4 solution in propylene carbonate. The Pt plate (1 cm2) was used as an auxiliary electrode. The Ag/AgCl was used as a reference electrode.
According to the method described in [57], coulombic efficiency ŋ, specific weight and surface capacitances Cw and Cs were calculated from the charge-discharge curves.

3.5. Materials Characterization

Attenuated total reflection (ATR) FTIR spectra were recorded using a HYPERION-2000 IR microscope (Bruker, Karlsruhe, Germany) coupled with the Bruker IFS 66v FTIR spectrometer (Karlsruhe, Germany) in the range of 600–4000 cm−1 (ZnSe crystal, resolution of 2 cm−1).
Raman spectra were recorded using a Senterra II Raman spectrometer (Bruker, Karlsruhe, Germany). A laser with a wavelength of 532 nm and a power of 0.25 mW was used. The spectral resolution was 4 cm−1.
An XRD analysis was performed using a Difray-401 X-ray diffractometer (Scientific Instruments Joint Stock Company, Saint Petersburg, Russia) with Bragg–Bretano focusing on CrKα radiation, λ = 0.229 nm.
FE-SEM images were taken using a Zeiss Supra 25 FE-SEM field emission scanning electron microscope (Carl Zeiss AG, Jena, Germany).
Electric characteristics of the nanocomposites were measured using the Miller FPP-5000 4-Point Probe (Fountain Valley, CA, USA).

4. Conclusions

Electrochemical behavior of the advanced electrodes based on the IR-PAN-a/SWCNT/PDPAC ternary nanocomposite coatings compared to IR-PAN-a/PDPAC binary one on roughened AGF substrate in 1 M LiClO4 electrolyte in propylene carbonate were studied for the first time. Ternary nanocomposites for electrode coatings were prepared via in situ oxidative polymerization of DPAC in the presence both of IR-PAN-a and SWCNT in two different ways in acidic and alkaline media. The main contribution to the electrochemical capacitance is provided by the electric double-layer charging and specific weight capacitances Cw of electrodes reach 394, 283, 180 F∙g−1 (AGF/IR-PAN-a/SWCNT/PDPACac) and 361, 239, 142 F∙g−1 (AGF/IR-PAN-a/SWCNT/PDPACalk) at charge-discharge currents of 0.5, 1.5, 3.0 mA∙cm−2. Specific surface capacitances Cs of hybrid electrodes amount to 0.161 and 0.151 F∙cm−2 for AGF/IR-PAN-a/SWCNT/PDPACac and AGF/IR-PAN-a/SWCNT/PDPACalk. Such electroactive nanocomposite coatings for hybrid electrodes are promising as a cathode material for SCs with increased voltage.

Author Contributions

Conceptualization, investigation, writing—original draft and writing— review and editing, S.O. and L.T.; supervision, writing—review and editing, O.E. and G.K.; synthesis, investigation, V.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

This work was carried out within the State Program of TIPS RAS, and within the State Program of FRC PCP MC RAS, № AAAA-A19-119071190044-3. This work was performed using the equipment of the Shared Research Center «Analytical center of deep oil processing and petrochemistry of TIPS RAS, and the equipment of the Research Center FRC PCP MC RAS.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hasan, M.A.M.; Wang, Y.; Bowen, C.R.; Yang, Y. 2D Nanomaterials for effective energy scavenging. Nano-Micro Lett. 2021, 13, 82. [Google Scholar] [CrossRef] [PubMed]
  2. Yatoo, M.A.; Kawale, S.S.; Skinner, S.J. Chapter 9—Perovskite and layered oxide materials for intermediate temperature solid oxide fuel cells. In Intermediate Temperature Solid Oxide Fuel Cells; Kaur, G., Ed.; Elsevier: Amsterdam, The Netherlands, 2020; pp. 315–346. ISBN 9780128174456. [Google Scholar] [CrossRef]
  3. Liu, C.; Yan, X.; Hu, F.; Gao, G.; Wu, G.; Yang, X. Toward superior capacitive energy storage: Recent advances in pore engineering for dense electrodes. Adv. Mater. 2018, 30, 1705713. [Google Scholar] [CrossRef] [PubMed]
  4. Zhang, X.; Jiang, C.; Liang, J.; Wu, W. Electrode materials and device architecture strategies for flexible supercapacitors in wearable energy storage. J. Mater. Chem. A 2021, 9, 8099–8128. [Google Scholar] [CrossRef]
  5. Zhao, Z.; Xia, K.; Hou, Y.; Zhang, Q.; Ye, Z.; Lu, J. Designing flexible, smart and self-sustainable supercapacitors for portable/wearable electronics: From conductive polymers. Chem. Soc. Rev. 2021, 50, 12702–12743. [Google Scholar] [CrossRef] [PubMed]
  6. Rajagopal, S.; Vallikkattil, R.P.; Ibrahim, M.M.; Velev, D.G. Electrode materials for supercapacitors in hybrid electric vehicles: Challenges and current progress. Condens. Matter 2022, 7, 6. [Google Scholar] [CrossRef]
  7. Simon, P.; Gogotsi, Y. Perspectives for electrochemical capacitors and related devices. Nat. Mater. 2020, 19, 1151–1163. [Google Scholar] [CrossRef]
  8. Wang, F.; Wu, X.; Yuan, X.; Liu, Z.; Zhang, Y.; Fu, L.; Zhu, Y.; Zhou, Q.; Wu, Y.; Huang, W. Latest advances in supercapacitors: From new electrode materials to novel device designs. Chem. Soc. Rev. 2017, 46, 6816–6854. [Google Scholar] [CrossRef]
  9. Lv, H.; Pan, Q.; Song, Y.; Liu, X.-X.; Liu, T. A review on nano-/microstructured naterials constructed by electrochemical technologies for supercapacitors. Nano-Micro Lett. 2020, 12, 118. [Google Scholar] [CrossRef]
  10. Volfkovich, Y.M. Electrochemical supercapacitors (a review). Russ. J. Electrochem. 2021, 57, 311–347. [Google Scholar] [CrossRef]
  11. González, A.; Goikole, E.; Barren, J.A.; Mysyk, R. Review on supercapacitors: Technologies and materials. Renew. Sustain. Energy Rev. 2016, 58, 1189–1206. [Google Scholar] [CrossRef]
  12. Xu, R.H.; Ma, P.P.; Liu, G.F.; Qiao, Y.; Hu, R.Y.; Liu, L.Y.; Demir, M.; Jiang, G.H. Dual-phase coexistence design and advanced electrochemical performance of Cu2MoS4 electrode materials for supercapacitor application. Energy Fuels 2023, 37, 6158–6167. [Google Scholar] [CrossRef]
  13. Simon, P.; Gogotsi, Y.; Dunn, B. Where do batteries end and supercapacitors begin? Science 2014, 343, 1210–1211. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Jiao, Z.; Chen, Y.; Du, M.; Demir, M.; Yan, F.; Zhang, Y.; Wang, C.; Gu, M.; Zhang, X.; Zou, J. In-situ formation of morphology-controlled cobalt vanadate on CoO urchin-like microspheres as asymmetric supercapacitor electrode. J. Alloys Compd. 2023, 958, 170489. [Google Scholar] [CrossRef]
  15. Meng, Q.; Cai, K.; Chen, Y.; Chen, L. Research progress on conducting polymer based supercapacitor electrode materials. Nano Energy 2017, 36, 268–285. [Google Scholar] [CrossRef]
  16. Zhao, C.; Jia, X.; Shu, K.; Yu, C.; Wallace, G.G.; Wang, C. Conducting polymer composites for unconventional solid-state supercapacitors. J. Mater. Chem. A 2020, 8, 4677–4699. [Google Scholar] [CrossRef]
  17. Han, C.; Tong, J.; Tang, X.; Zhou, D.; Duan, H.; Li, B.; Wang, G. Boost anion storage capacity using conductive polymer as a pseudocapacitive cathode for high-energy and flexible lithium ion capacitors. ACS Appl. Mater. Interfaces 2020, 12, 10479–10489. [Google Scholar] [CrossRef]
  18. Zhang, D.; Tan, C.; Zhang, W.; Pan, W.; Wang, Q.; Li, L. Expanded graphite-based materials for supercapacitors: A review. Molecules 2022, 27, 716. [Google Scholar] [CrossRef]
  19. Li, B.; Cheng, J.; Wang, Z.; Li, Y.; Ni, W.; Wang, B. Highly-wrinkled reduced graphene oxide-conductive polymer fibers for flexible fiber-shaped and interdigital-designed supercapacitors. J. Power Sources 2018, 376, 117–124. [Google Scholar] [CrossRef]
  20. Wang, S.; Li, Y.; Xu, Q.; Fu, Q.; Guo, X.; Zheng, Y.; Zhang, W.; Cao, Z.; Li, R.; Ren, J. Facile preparation of graphene@polyaniline nanofiber network/oxidized carbon cloth composites for high-performance flexible solid-state supercapacitors. Nanoscale 2022, 14, 15908–15917. [Google Scholar] [CrossRef] [PubMed]
  21. Wang, X.; Wu, D.; Song, X.; Du, W.; Zhao, X.; Zhang, D. Review on carbon/polyaniline hybrids: Design and synthesis for supercapacitor. Molecules 2019, 24, 2263. [Google Scholar] [CrossRef] [Green Version]
  22. Kumar, R.; Joanni, E.; Sahoo, S.; Shim, J.-J.; Tan, W.K.; Matsuda, A.; Singh, R.K. An overview of recent progress in nanostructured carbon-based supercapacitor electrodes: From zero to bi-dimensional materials. Carbon 2022, 193, 298–338. [Google Scholar] [CrossRef]
  23. Chen, J.-J.; Fan, L.-Q.; Wu, Z.-X.; Deng, X.-G.; Tang, T.; Huang, Y.-F.; Wu, J.-H. Phenothiazine/reduced graphene oxide composite as a pseudocapacitive cathode for lithium ion capacitors. Electrochim. Acta 2022, 434, 141340. [Google Scholar] [CrossRef]
  24. Hong, X.; Zhang, B.; Murphy, E.; Zou, J.; Kim, F. Three-dimensional reduced graphene oxide/polyaniline nanocomposite film prepared by diffusion driven layer-by-layer assembly for high-performance supercapacitors. J. Power Sources 2017, 343, 60–66. [Google Scholar] [CrossRef]
  25. Zhao, Y.; Liu, C.; Lu, Q.; Ahmad, O.; Pan, X.; Daria, M. Recent progress on freestanding carbon electrodes for flexible supercapacitors. New Carbon Mater. 2022, 37, 875–897. [Google Scholar] [CrossRef]
  26. Patra, A.; Namsheer, K.; Jose, J.R.; Sahoo, S.; Chakraborty, B.; Rout, C.S. Understanding the charge storage mechanism of supercapacitors: In situ/operando spectroscopic approaches and theoretical investigations. J. Mater. Chem. A 2021, 9, 25852–25891. [Google Scholar] [CrossRef]
  27. Ahmad, H.; Khan, R.A.; Koo, B.H.; Alsalme, A. Systematic study of physicochemical and electrochemical properties of carbon nanomaterials. RSC Adv. 2022, 12, 15593–15600. [Google Scholar] [CrossRef]
  28. Shao, H.; Wu, Y.-C.; Lin, Z.; Taberna, P.-L.; Simon, P. Nanoporous carbon for electrochemical capacitive energy storage. Chem. Soc. Rev. 2020, 49, 3005–3039. [Google Scholar] [CrossRef] [Green Version]
  29. Pattanayak, B.; Le, P.-A.; Panda, D.; Simanjuntak, F.M.; Wei, K.-H.; Winie, T.; Tseng, T.-Y. Ion accumulation-induced capacitance elevation in a microporous graphene-based supercapacitor. RSC Adv. 2022, 12, 27082–27093. [Google Scholar] [CrossRef]
  30. Ahmad, Z.; Kim, W.; Santosh Kumar, S.; Yoon, T.-H.; Lee, J.-S. Nanocomposite supercapacitor electrode from sulfonated graphene oxide and poly(pyrrole-(biphenyldisulfonic acid)-pyrrole). ACS Appl. Energy Mater. 2020, 3, 6743–6751. [Google Scholar] [CrossRef]
  31. Amirabad, T.N.; Ensafi, A.A.; Mousaabadi, K.Z.; Rezaei, B.; Demir, M. Binder-free engineering design of Ni-MOF ultrathin sheet-like grown on PANI@GO decorated nickel foam as an electrode for in hydrogen evolution reaction and asymmetric supercapacitor. Int. J. Hydrogen Energy 2023. [Google Scholar] [CrossRef]
  32. Liu, P.; Yan, J.; Guang, Z.; Huang, Y.; Li, X.; Huang, W. Recent advancements of polyaniline-based nanocomposites for supercapacitors. J. Power Sources 2019, 424, 108–130. [Google Scholar] [CrossRef]
  33. Sahoo, S.; Kumar, R.; Joann, E.; Singh, R.K.; Shim, J.-S. Advances in pseudocapacitive and battery-like electrode materials for high performance supercapacitors. J. Mater. Chem. A 2022, 10, 13190–13240. [Google Scholar] [CrossRef]
  34. Zhang, T.; Yue, H.; Gao, X.; Yao, F.; Chen, H.; Lu, X.; Wang, Y.; Guo, X. High-performance supercapacitors based on polyaniline nanowire arrays grown on three-dimensional graphene with small pore sizes. Dalton Trans. 2020, 49, 3304–3311. [Google Scholar] [CrossRef] [PubMed]
  35. Zheng, X.; Yu, H.; Xing, R.; Ge, X.; Sun, H.; Li, R.; Zhang, Q. Multi-growth site graphene/polyaniline composites with highly enhanced specific capacitance and rate capability for supercapacitor application. Electrochim. Acta 2018, 260, 504–513. [Google Scholar] [CrossRef]
  36. Wang, W.; Sadak, O.; Guan, J.; Gunasekaran, S. Facile synthesis of graphene paper/polypyrrole nanocomposite as electrode for flexible solid-state supercapacitor. J. Energy Storage 2020, 30, 101533. [Google Scholar] [CrossRef]
  37. Ji, J.; Li, R.; Li, H.; Shu, Y.; Li, Y.; Qiu, S.; He, C.; Yang, Y. Phytic acid assisted fabrication of graphene/polyaniline composite hydrogels for high-capacitance supercapacitors. Compos. Part B Eng. 2018, 155, 132–137. [Google Scholar] [CrossRef]
  38. Huang, S.; Li, J.; Zhang, X.; Yang, X.; Wang, L.; Lia, X.; Lü, W. Reduced graphene oxide/polyaniline wrapped carbonized sponge with elasticity for energy storage and pressure sensing. New J. Chem. 2021, 45, 7860–7866. [Google Scholar] [CrossRef]
  39. Ha, J.-S.; Lee, J.-M.; Lee, H.-R.; Huh, P.; Jo, N.-J. Polymer composite electrode consisting of polyaniline and modified multi-walled carbon nanotube for rechargeable battery. J. Nanosci. Nanotechnol. 2015, 15, 8977–8983. [Google Scholar] [CrossRef]
  40. Feng, X.; Bai, Y.; Liu, M.; Li, Y.; Yang, H.; Wang, X.; Wu, C. Untangling the respective effects of heteroatom-doped carbon materials in batteries, supercapacitors and the ORR to design high performance materials. Energy Environ. Sci. 2021, 14, 2036–2089. [Google Scholar] [CrossRef]
  41. Ramachandran, R.; Chen, T.-W.; Veerakumar, P.; Anushya, G.; Chen, S.-M.; Kannan, R.; Mariyappan, V.; Chitra, S.; Ponmurugarajh, N.; Boominathana, M. Recent development and challenges in fuel cells and water electrolyzer reactions: An overview. RSC Adv. 2022, 12, 28227–28244. [Google Scholar] [CrossRef]
  42. Li, G.; Ren, M.; Zhou, H. Observably boosted electrochemical performances of roughened graphite sheet/polyaniline electrodes for use in flexible supercapacitors. Surf. Interfaces 2022, 30, 101874. [Google Scholar] [CrossRef]
  43. Zhang, M.; Wang, X.; Yang, T.; Zhang, P.; Wei, X.; Zhang, L.; Li, H. Polyaniline/graphene hybrid fibers as electrodes for flexible supercapacitors. Synth. Met. 2020, 268, 116484. [Google Scholar] [CrossRef]
  44. Potphode, D.D.; Sivaraman, P.; Mishra, S.P.; Patri, M. Polyaniline/partially exfoliated multi-walled carbon nanotubes based composites for supercapacitors. Electrochim. Acta 2015, 155, 402–410. [Google Scholar] [CrossRef]
  45. Dong, C.; Zhang, X.; Yu, Y.; Huang, L.; Li, J.; Wu, Y.; Liu, Z. An ionic liquid-modified RGO/polyaniline composite for high-performance flexible all-solid-state supercapacitors. Chem. Commun. 2020, 56, 11993–11996. [Google Scholar] [CrossRef]
  46. Khan, R.; Nishina, Y. Covalent functionalization of carbon materials with redox-active organic molecules for energy storage. Nanoscale 2021, 13, 36–50. [Google Scholar] [CrossRef] [PubMed]
  47. Jiang, Y.; Ji, J.; Huang, L.; He, C.; Zhang, J.; Wang, X.; Yang, Y. One-pot mechanochemical exfoliation of graphite and in situ polymerization of aniline for the production of graphene/polyaniline composites for high-performance supercapacitors. RSC Adv. 2020, 10, 44688–44698. [Google Scholar] [CrossRef]
  48. Vengadesan, K.; Madaswamy, S.L.; Lee, S.C.; Siddiqui, M.R.; Dhanusuraman, R.; Ponnusamy, V.K. One-step fabrication of poly(aniline-co-2,5 dimethoxyaniline) nanohybrid coated graphitic sheet electrode for efficient energy application. Int. J. Hydrogen Energy 2023, 48, 21018–21028. [Google Scholar] [CrossRef]
  49. Abalyaeva, V.V.; Tkachenko, L.I.; Nikolaeva, G.V.; Orlov, A.V.; Kiseleva, S.G.; Efimov, O.N.; Karpacheva, G.P. Synthesis and electrochemical properties of nanocomposites containing poly(3,6-bis(phenylamino)-2,5-dichlorobenzoquinone and multiwalled carbon nanotubes. Polym. Sci. Ser. B 2017, 59, 459–471. [Google Scholar] [CrossRef]
  50. Efimov, M.N.; Sosenkin, V.E.; Volfkovich, Y.M.; Vasilev, A.A.; Muratov, D.G.; Baskakov, S.A.; Efimov, O.N.; Karpacheva, G.P. Electrochemical performance of polyacrylonitrile-derived activated carbon prepared via IR pyrolysis. Electrochem. Commun. 2018, 96, 98–102. [Google Scholar] [CrossRef]
  51. Abalyaeva, V.V.; Efimov, M.N.; Efimov, O.N.; Karpacheva, G.P.; Dremova, N.N.; Kabachkov, E.N.; Muratov, D.G. Electrochemical synthesis of composite based on polyaniline and activated IR pyrolyzed polyacrylonitrile on graphite foil electrode for enhanced supercapacitor properties. Electrochim. Acta 2020, 354, 136671. [Google Scholar] [CrossRef]
  52. Yu, Q.; Wang, Y.; Meng, M.; Shen, S.; Tang, Z.; Yang, J. Supercapacitors based on nitrogen-enriched crumpled graphene with a high volumetric capacitance and high-mass-loading per area of the electrode. New Carbon Mater. 2022, 37, 575–584. [Google Scholar] [CrossRef]
  53. Jiang, X.; Cao, Y.; Li, P.; Wei, J.; Wang, K.; Wu, D.; Zhu, H. Polyaniline/graphene/carbon fiber ternary composites as supercapacitor electrodes. Mater. Lett. 2015, 140, 43–47. [Google Scholar] [CrossRef]
  54. Fan, W.; Miao, Y.; Zhang, L.; Huang, Y.; Liu, T. Porous grapheme-carbon nanotube hybrid paper as a flexible nano-scaffold for polyaniline immobilization and application in all-solid-state supercapacitors. RSC Adv. 2015, 5, 31064–31073. [Google Scholar] [CrossRef]
  55. Zhang, Y.; Si, L.; Zhou, B.; Zhao, B.; Zhu, Y.; Zhu, L.; Jiang, X. Synthesis of novel graphene oxide/pristine graphene/polyaniline ternary composites and application to supercapacitor. Chem. Eng. J. 2016, 288, 689–700. [Google Scholar] [CrossRef]
  56. Choi, H.; Ahn, K.; Lee, Y.; Noh, S.; Yoon, H. Free-standing, multilayered graphene/polyaniline-glue/graphene nanostructures for flexible, solid-state electrochemical capacitor application. Adv. Mater. Interfaces 2015, 2, 1500117. [Google Scholar] [CrossRef]
  57. Tkachenko, L.I.; Ozkan, S.Z.; Efimov, O.N.; Karpacheva, G.P.; Nikolaeva, G.V.; Kostev, A.I.; Dremova, N.N.; Kabachkov, E.N. Electrochemical behavior of polydiphenylamine-2-carboxylic acid and its hybrid nanocomposites with single-walled carbon nanotubes on anodized graphite foil in lithium aprotic electrolyte. React. Funct. Polym. 2022, 173, 105225-10. [Google Scholar] [CrossRef]
  58. Ozkan, S.Z.; Tkachenko, L.I.; Efimov, O.N.; Karpacheva, G.P.; Nikolaeva, G.V.; Kostev, A.I.; Dremova, N.N.; Kabachkov, E.N. Advanced electrode coatings based on poly-N-phenylanthranilic acid composites with reduced graphene oxide for supercapacitors. Polymers 2023, 15, 1896. [Google Scholar] [CrossRef]
  59. Ozkan, S.Z.; Petrov, V.A.; Efimov, M.N.; Vasilev, A.A.; Muratov, D.G.; Sadovnikov, A.A.; Bondarenko, G.N.; Karpacheva, G.P. Novel hybrid composites based on polymers of diphenylamine-2-carboxylic acid and highly porous activated IR-pyrolyzed polyacrylonitrile. Polymers 2023, 15, 441. [Google Scholar] [CrossRef]
  60. Ozkan, S.Z.; Karpacheva, G.P.; Kostev, A.I.; Bondarenko, G.N. Formation features of hybrid nanocomposites based on polydiphenylamine-2-carboxylic acid and single-walled carbon nanotubes. Polymers 2019, 11, 1181. [Google Scholar] [CrossRef] [Green Version]
  61. Wang, W.; Zhang, Q.; Li, J.; Liu, X.; Wang, L.; Zhu, J.; Luo, W.; Jiang, W. An efficient thermoelectric material: Preparation of reduced graphene oxide/polyaniline hybrid composites by cryogenic grinding. RSC Adv. 2015, 5, 8988–8995. [Google Scholar] [CrossRef]
  62. Li, Y.; Kang, Z.; Yan, X.; Cao, S.; Li, M.; Liu, Y.; Liu, S.; Sun, Y.; Zheng, X.; Zhang, Y. A facile method for the preparation of three-dimensional CNT sponge and a nanoscale engineering design for high performance fiber-shaped asymmetric supercapacitors. J. Mater. Chem. A 2017, 5, 22559–22567. [Google Scholar] [CrossRef]
  63. Ambrosi, A.; Pumera, M. Exfoliation of layered materials using electrochemistry. Chem. Soc. Rev. 2018, 47, 7213–7224. [Google Scholar] [CrossRef]
Molecules 28 05093 g001 550

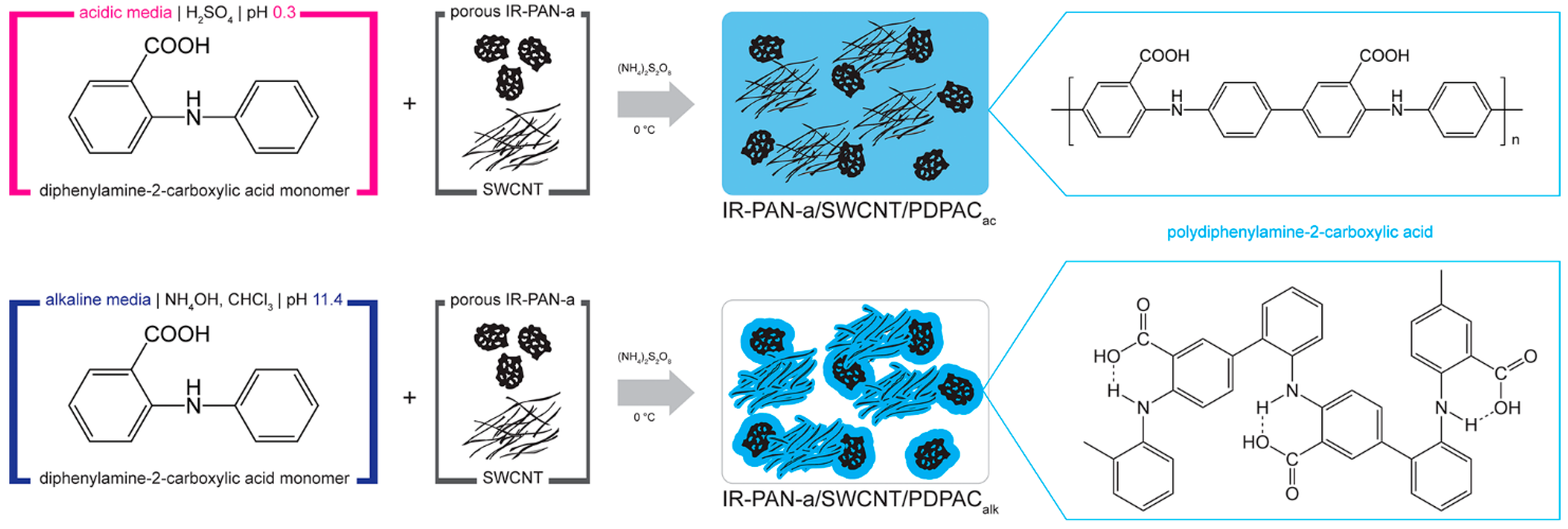

Figure 1. The synthesis scheme of IR-PAN-a/SWCNT/PDPAC nanocomposites.
Figure 1. The synthesis scheme of IR-PAN-a/SWCNT/PDPAC nanocomposites.
Molecules 28 05093 g001
Molecules 28 05093 g002 550

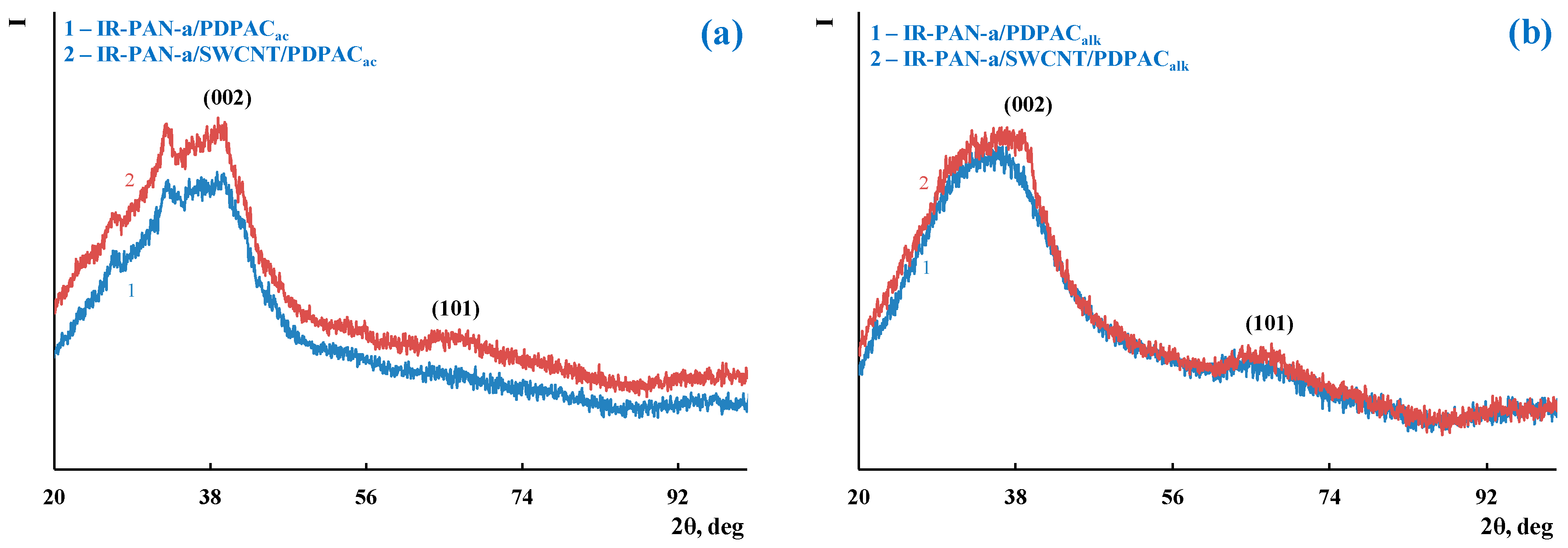

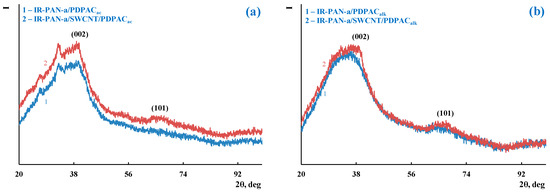

Figure 2. XRD of IR-PAN-a/PDPAC (1) and IR-PAN-a/SWCNT/PDPAC (2), prepared in an acidic (a) and alkaline media (b).
Figure 2. XRD of IR-PAN-a/PDPAC (1) and IR-PAN-a/SWCNT/PDPAC (2), prepared in an acidic (a) and alkaline media (b).
Molecules 28 05093 g002
Molecules 28 05093 g003 550

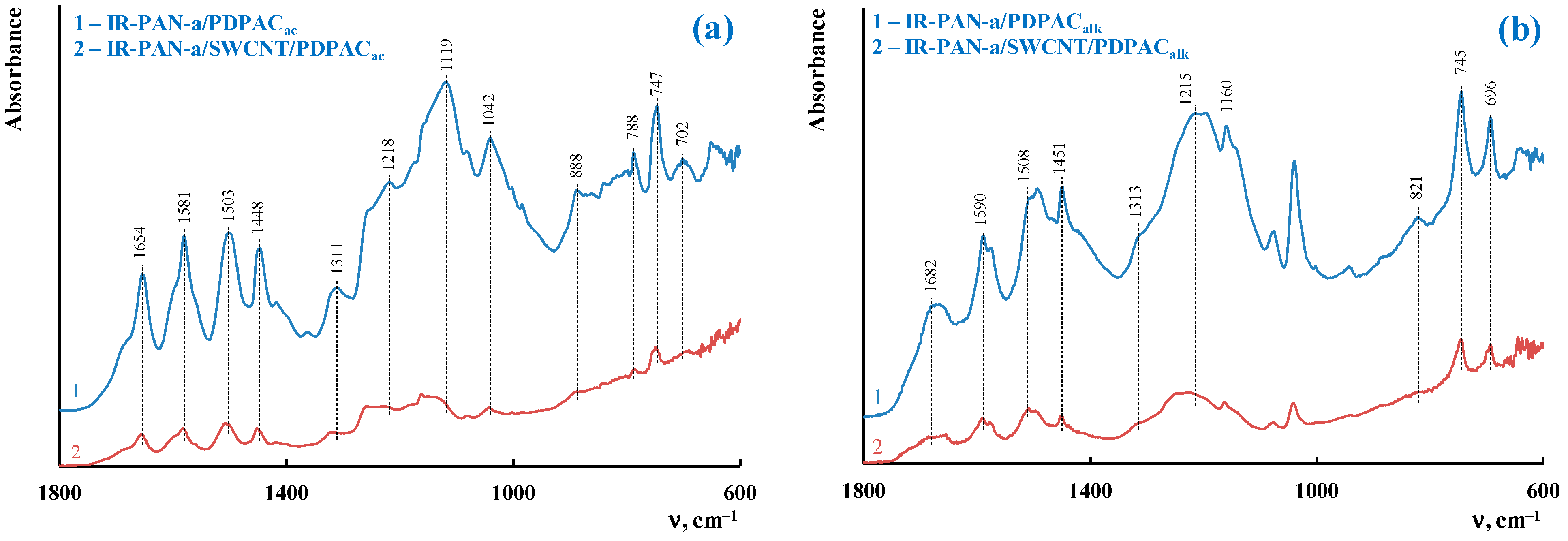

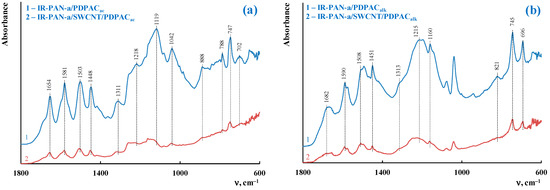

Figure 3. Attenuated total reflection (ATR) FTIR spectra of IR-PAN-a/PDPAC (1) and IR-PAN-a/SWCNT/PDPAC (2), prepared in an acidic (a) and alkaline media (b).
Figure 3. Attenuated total reflection (ATR) FTIR spectra of IR-PAN-a/PDPAC (1) and IR-PAN-a/SWCNT/PDPAC (2), prepared in an acidic (a) and alkaline media (b).
Molecules 28 05093 g003
Molecules 28 05093 g004 550

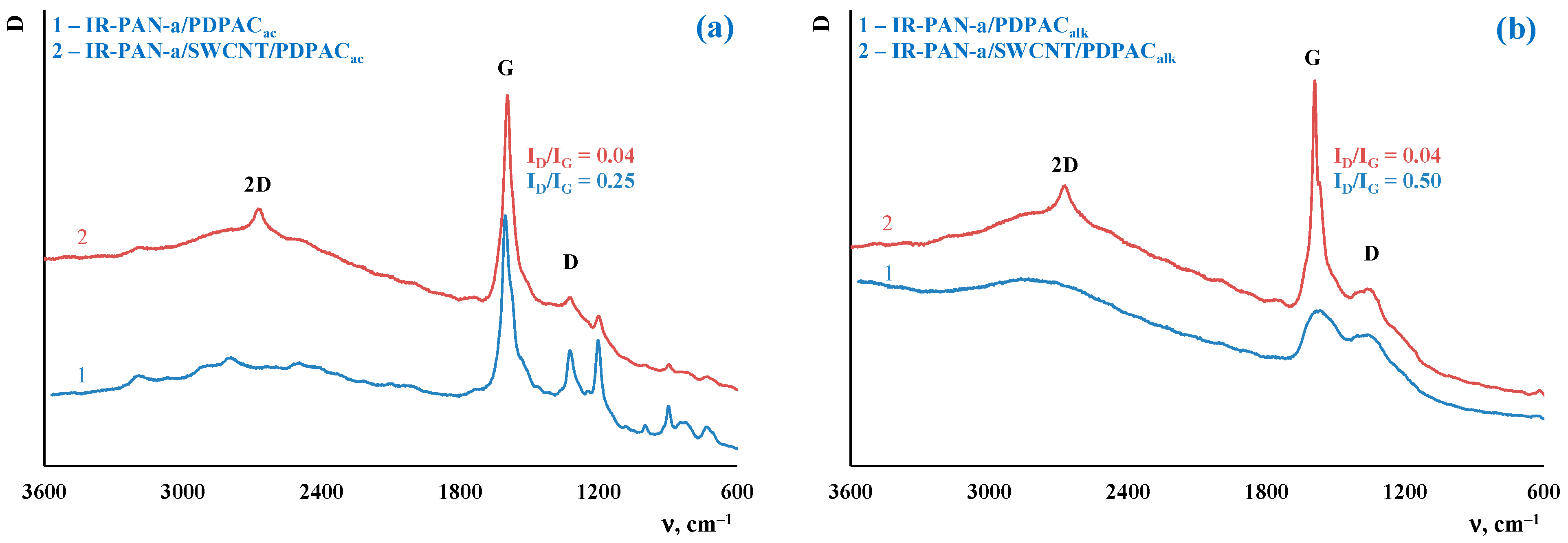

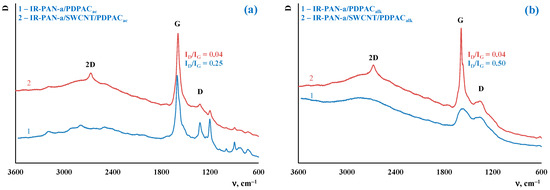

Figure 4. Raman spectra of IR-PAN-a/PDPAC (1) and IR-PAN-a/SWCNT/PDPAC (2), prepared in an acidic (a) and alkaline media (b).
Figure 4. Raman spectra of IR-PAN-a/PDPAC (1) and IR-PAN-a/SWCNT/PDPAC (2), prepared in an acidic (a) and alkaline media (b).
Molecules 28 05093 g004
Molecules 28 05093 g005 550
Figure 5. FE-SEM images of IR-PAN-a/SWCNT/PDPACac (a), AGF/IR-PAN-a/SWCNT/PDPACac (b), IR-PAN-a/SWCNT/PDPACalk (c) and AGF/IR-PAN-a/SWCNT/PDPACalk (d).
Figure 5. FE-SEM images of IR-PAN-a/SWCNT/PDPACac (a), AGF/IR-PAN-a/SWCNT/PDPACac (b), IR-PAN-a/SWCNT/PDPACalk (c) and AGF/IR-PAN-a/SWCNT/PDPACalk (d).
Molecules 28 05093 g005
Molecules 28 05093 g006 550
Figure 6. CV curves (a,c) and galvanostatic charge-discharge dependences (b,d) of the electrodes of GC/IR-PAN-a/SWCNT/PDPACac (a,b) and GC/IR-PAN-a/SWCNT/PDPACalk (c,d) at 20 mV·s−1.
Figure 6. CV curves (a,c) and galvanostatic charge-discharge dependences (b,d) of the electrodes of GC/IR-PAN-a/SWCNT/PDPACac (a,b) and GC/IR-PAN-a/SWCNT/PDPACalk (c,d) at 20 mV·s−1.
Molecules 28 05093 g006
Molecules 28 05093 g007 550
Figure 7. CV curves on the electrodes of AGF/IR-PAN-a/PDPACac (a), AGF/IR-PAN-a/SWCNT/PDPACac (b), AGF/IR-PAN-a/PDPACalk (c) and AGF/IR-PAN-a/SWCNT/PDPACalk (d) at 5 mV·s−1.
Figure 7. CV curves on the electrodes of AGF/IR-PAN-a/PDPACac (a), AGF/IR-PAN-a/SWCNT/PDPACac (b), AGF/IR-PAN-a/PDPACalk (c) and AGF/IR-PAN-a/SWCNT/PDPACalk (d) at 5 mV·s−1.
Molecules 28 05093 g007
Molecules 28 05093 g008a 550Molecules 28 05093 g008b 550
Figure 8. Galvanostatic charge-discharge dependences of the electrodes of AGF/IR-PAN-a/PDPACac (a), AGF/IR-PAN-a/SWCNT/PDPACac (b), AGF/IR-PAN-a/PDPACalk (c) and AGF/IR-PAN-a/SWCNT/PDPACalk (d) at 0.5, 1.5, 3.0 mA∙cm−2.
Figure 8. Galvanostatic charge-discharge dependences of the electrodes of AGF/IR-PAN-a/PDPACac (a), AGF/IR-PAN-a/SWCNT/PDPACac (b), AGF/IR-PAN-a/PDPACalk (c) and AGF/IR-PAN-a/SWCNT/PDPACalk (d) at 0.5, 1.5, 3.0 mA∙cm−2.
Molecules 28 05093 g008aMolecules 28 05093 g008b
Table
Table 1. The conductivity values of materials.
Table 1. The conductivity values of materials.
MaterialsCIR-PAN-a, wt%CSWCNT, wt%σ, S/cm
IR-PAN-a/PDPACac10–1.3 × 10−5
* SWCNT/PDPACac–102.5 × 10−3
IR-PAN-a/SWCNT/PDPACac10107.2 × 10−3
IR-PAN-a/PDPACalk10–1.5 × 10−10
* SWCNT/PDPACalk–102.9 × 10−4
IR-PAN-a/SWCNT/PDPACalk10104.8 × 10−3
* From [57].
Table
Table 2. Electrochemical characteristics of electrode materials in 1 M LiClO4 in propylene carbonate, calculated from CV.
Table 2. Electrochemical characteristics of electrode materials in 1 M LiClO4 in propylene carbonate, calculated from CV.
Electrode MaterialsQuantity of Electricity
Q, mC		Coulombic Efficiency
ŋ, %		Specific Surface Capacitance
Cs, F∙cm−2
QchargeQdischarge
GC/IR-PAN-a/SWCNT/PDPACac16.816.5989.2 × 10−3
GC/IR-PAN-a/SWCNT/PDPACalk17.115.9938.8 × 10−3
AGF/IR-PAN-a/PDPACac241.8244.31000.129
* AGF/SWCNT/PDPACac269.6270.81000.145
AGF/IR-PAN-a/SWCNT/PDPACac295.5305.01000.161
AGF/IR-PAN-a/PDPACalk257.4256.499.60.135
* AGF/SWCNT/PDPACalk273.5262.2960.138
AGF/IR-PAN-a/SWCNT/PDPACalk278.3287.71000.151
ν = 5 mV·s−1 (for AGF-based) and 20 mV·s−1 (for GC-based). * From [57].
Table
Table 3. Electrochemical characteristics of electrode materials in 1 M LiClO4 in propylene carbonate, calculated from charge-discharge curves.
Table 3. Electrochemical characteristics of electrode materials in 1 M LiClO4 in propylene carbonate, calculated from charge-discharge curves.
Electrode MaterialsCoatings Weight,
mg		Discharge Current Density Icharge-discharge,
mA∙cm−2		Specific Surface Capacitance
Cs, F∙cm−2		Specific Weight Capacitance
* Cw, F∙g−1
GC/IR-PAN-a/SWCNT/PDPACac0.210.19.2 × 10−340
0.538
GC/IR-PAN-a/SWCNT/PDPACalk0.240.18.8 × 10−335
0.529
AGF/IR-PAN-a/PDPACac0.320.50.176247
1.50.103178
3.00.068122
** AGF/SWCNT/PDPACac0.320.50.237438
1.50.158350
3.00.112259
AGF/IR-PAN-a/SWCNT/PDPACac0.350.50.235394
1.50.145283
3.00.092180
AGF/IR-PAN-a/PDPACalk 0.180.50.180461
1.50.112367
3.00.076261
** AGF/SWCNT/PDPACalk 0.240.50.185367
1.50.090183
3.00.05088
AGF/IR-PAN-a/SWCNT/PDPACalk0.330.50.216361
1.50.125239
3.00.076142
* Cw calculated from coating weight. ** From [57].
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ozkan, S.; Tkachenko, L.; Petrov, V.; Efimov, O.; Karpacheva, G. Novel Hybrid Electrode Coatings Based on Conjugated Polyacid Ternary Nanocomposites for Supercapacitor Applications. Molecules 2023, 28, 5093. https://doi.org/10.3390/molecules28135093

AMA Style

Ozkan S, Tkachenko L, Petrov V, Efimov O, Karpacheva G. Novel Hybrid Electrode Coatings Based on Conjugated Polyacid Ternary Nanocomposites for Supercapacitor Applications. Molecules. 2023; 28(13):5093. https://doi.org/10.3390/molecules28135093

Chicago/Turabian Style

Ozkan, Sveta, Lyudmila Tkachenko, Valeriy Petrov, Oleg Efimov, and Galina Karpacheva. 2023. "Novel Hybrid Electrode Coatings Based on Conjugated Polyacid Ternary Nanocomposites for Supercapacitor Applications" Molecules 28, no. 13: 5093. https://doi.org/10.3390/molecules28135093

APA Style

Ozkan, S., Tkachenko, L., Petrov, V., Efimov, O., & Karpacheva, G. (2023). Novel Hybrid Electrode Coatings Based on Conjugated Polyacid Ternary Nanocomposites for Supercapacitor Applications. Molecules, 28(13), 5093. https://doi.org/10.3390/molecules28135093

Article Metrics

Back to TopTop
