Fractionation Coupled to Molecular Networking: Towards Identification of Anthelmintic Molecules in Terminalia leiocarpa (DC.) Baill

by
Esaïe Tchetan
1,2,3,4,
Sergio Ortiz
4,5,
Pascal Abiodoun Olounladé
6,
Kristelle Hughes
4,
Patrick Laurent
7,
Erick Virgile Bertrand Azando
1,2,8,
Sylvie Mawule Hounzangbe-Adote
1,
Fernand Ahokanou Gbaguidi
3 and
Joëlle Quetin-Leclercq
4,*
1
Laboratoire d’Ethnopharmacologie et de Santé Animale, Faculté des Sciences Agronomiques, Université d’Abomey-Calavi, Cotonou 01 BP 526, Benin
2
Laboratoire de Biotechnologie et d’Amélioration Animale, Faculté des Sciences Agronomiques, Institut des Sciences Biomédicales Appliquées (ISBA), Université d’Abomey-Calavi, Cotonou 01 BP 526, Benin
3
Laboratoire de Chimie Organique et Chimie Pharmaceutique, UFR Pharmacie, Faculté des Sciences de la Santé, Université d’Abomey-Calavi, Cotonou 01 BP 188, Benin
4
Pharmacognosy Research Group, Louvain Drug Research Institute, Université Catholique de Louvain (UCLouvain), Avenue E. Mounier, 72, B1.72.03, B-1200 Brussels, Belgium
5
UMR CNRS Laboratoire d’Innovation Thérapeutique (LIT) 7200, Faculté de Pharmacie, Université de Strasbourg, 74 Rte du Rhin, 67400 Illkirch-Graffenstaden, France
6
Unité de Recherche en Zootechnie et Système d’Elevage (EGESE), Laboratoire des Sciences Animale et Halieutique (LaSAH), Ecole de Gestion et d’Exploitation des Sytèmes d’Elevage (EGESE), Université Nationale d’Agriculture (UNA), Porto-Novo 01 BP 55, Benin
7
Laboratory of Neurophysiology, ULB Neuroscience Institute (UNI), Université Libre de Bruxelles (ULB), 808 route de Lennik, CP601, 1070 Brussels, Belgium
8
Laboratoire d’Écologie, de Santé et de Productions Animales, Département des Sciences et Techniques de Production Animale et Halieutique (DSTPAH), Faculté d’Agronomie (FA), Université de Parakou (UP), Cotonou 01 BP 2115, Benin
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(1), 76; https://doi.org/10.3390/molecules28010076
Submission received: 15 November 2022 / Revised: 8 December 2022 / Accepted: 18 December 2022 / Published: 22 December 2022

Abstract

:
Terminalia leiocarpa is a medicinal plant widely used in ethnoveterinary medicine to treat digestive parasitosis whose extracts were shown to be active against gastrointestinal nematodes of domestic ruminants. The objective of our study was to identify compounds responsible for this activity. Column fractionation was performed, and the activity of the fractions was assessed in vitro on Haemonchus contortus and Caenorhabditis elegans as well as their cytotoxicity on WI38 fibroblasts. Two fractions were the most active on both nematode models and less cytotoxic. LC-MS/MS analysis and manual dereplication coupled to molecular networking allowed identification of the main compounds: ellagic acid and derivatives, gallic acid, astragalin, rutin, quinic acid, and fructose. Other potentially identified compounds such as shikimic acid, 2,3-(S)-hexahydroxydiphenoyl-D-glucose or an isomer, quercetin-3-O-(6-O-galloyl)-β-D-galactopyranoside or an isomer, and a trihydroxylated triterpenoid bearing a sugar as rosamultin are reported in this plant for the first time. Evaluation of the anthelmintic activity of the available major compounds showed that ellagic and gallic acids were the most effective in inhibiting the viability of C. elegans. Their quantification in fractions 8 and 9 indicated the presence of about 8.6 and 7.1 µg/mg ellagic acid and about 9.6 and 2.0 µg/mg gallic acid respectively. These concentrations are not sufficient to justify the activity observed. Ellagic acid derivatives and other compounds that were found to be positively correlated with the anthelmintic activity of the fractions may have additive or synergistic effects when combined, but other unidentified compounds could also be implicated in the observed activity.

1. Introduction

Terminalia leiocarpa (DC.) Baill (Combretaceae) (previously Anogeissus leiocarpus) is a 15–18 m tall tree found in India and Africa (especially in West and Central Africa). It is a very important tree because of its high use in traditional medicine, as wood, and in energy production. Indeed, T. leiocarpa is widely used by various communities to treat numerous ailments including cough, tuberculosis, diarrhea, dysentery, helminthiasis, malaria, trypanosomiasis, hemorrhoids, skin diseases, fever, and diabetes [1,2,3,4,5]. Several pharmacological studies have concluded that the plant has antibacterial, antioxidant, anthelmintic, and anti-tuberculosis properties [4,6,7].
The anthelmintic activity of T. leiocarpa has been already evaluated and the results obtained showed that its leaf extracts were very active on ruminant digestive parasites both in vitro and in vivo. Indeed, Kabore et al. [8] showed that the aqueous extract of T. leiocarpa leaves was very active in vitro on eggs, larvae, and adult worms of H. contortus, a digestive parasite of small ruminants. The IC50 value of the extract was estimated to be 409.5 µg/mL for the inhibition of H. contortus egg hatching. Similarly, Ndjonka et al. [6] showed that the ethanol extract of T. leiocarpa leaves exhibited strong anthelmintic activity in vitro on C. elegans. These results were later confirmed by the work of Soro et al. [9] who showed that the ethanol extract of the plant roots was very effective in vivo (in sheep) on H. contortus and Trichostrongylus colubriformis at a concentration of 80 mg/kg orally. Furthermore, a screening of the in vitro anthelmintic activity of some of the most common plants used in ethnoveterinary medicine in Benin to treat digestive parasitosis of small ruminants on H. contortus larvae migration showed that the MeOH extract of T. leiocarpa leaves was one of the most active ones [10].
Although the interesting anthelmintic activity of T. leiocarpa has already been established [6,8,9,10], little work has been conducted to identify the molecules responsible for this activity. Ndjonka et al. [11] linked the anthelmintic activity of the plant to phenolic acids including ellagic acid, gentisic acid, and gallic acid. On the other hand, the work of Waterman et al. [2] concluded that punicalagin was partly responsible for the anthelmintic activity of the aqueous extract of the leaves of T. leiocarpa. Indeed, the authors considered that the concentration of punicalagin in the extract was too low to justify the strong anthelmintic activity of the plant. There would therefore have to be other anthelmintic compounds that act in addition or synergy with punicalagin. Furthermore, Ademola and Eloff [1] concluded that the anthelmintic activity of T. leiocarpa was due to several different compounds, but did not identify them. Thus, in view of the pharmacological importance of this plant in the treatment of digestive parasitosis in ruminants, it appears necessary to identify the main compounds responsible for its anthelmintic activity. This is particularly relevant to identify new anthelmintic molecules in the context of the development of resistance against the synthetic anthelmintics currently used [12,13].
The identification of compounds in an extract is a difficult, tedious, and sometimes time-consuming and expensive task due to the complexity of some plant matrixes. In recent years, molecular networking, an organization and dereplication LC-MS/MS based technique has been developed. This technique allows rapid identification proposals of molecules and their visualization and organization into clusters based on the similarity between their MS/MS fragmentation [14,15,16]. Molecular networking is increasingly used for the tentative identification of natural substances by comparison of the experimental data with reference MS/MS fragmentation spectra [17,18].
In the present study, we combined fractionation of the MeOH extract of T. leiocarpa leaves with HPLC-PDA-HRMS/MS analysis and the use of molecular networking to identify the major compounds responsible for its anthelmintic activity. The anthelmintic activity was evaluated individually for identified major compounds commercially available, some of which were quantified by HPLC-PDA.

2. Results and Discussion

2.1. Cytotoxicity and Anthelminthic Activities of Fractions

We chose the MeOH extract of leaves of T. leiocarpa in view of its high anthelmintic activity and low cytotoxicity observed previously [10]. Open column chromatography fractionation of the extract yielded nine fractions labelled 1 to 9. Cytotoxicity of the fractions was evaluated on WI38 cells with the MTT assay. Fractions 1 to 6 showed mild to moderate toxicity with IC50 values ranging from 58.9 to 78.9 µg/mL (Table 1). On the other hand, fractions 7, 8, and 9 were considered as not cytotoxic with an IC50 greater than 100 µg/mL [18].
The anthelmintic activity of the fractions was evaluated on infective H. contortus larvae and young adult of C. elegans. These two nematode models are often used to evaluate anthelmintic activity and to identify anthelmintic molecules in natural substances [2,6,8]. Unfortunately, after the cytotoxicity evaluation, the remaining amount of fractions 1 and 3 was not sufficient to evaluate their anthelmintic activity. Nevertheless, these fractions were the two most cytotoxic on WI38 cells, after fraction 6, and would be less interesting to promote as anthelmintic.
On the other hand, fractions 8 and 9 exhibited strong anthelmintic activity (superior to that obtained for the MeOH extract of T. leiocarpa) on H. contortus and C. elegans (Table 1). In addition, fractions 5, 6, and 7 showed moderate anthelmintic activity with inhibition of larval migration ranging from 21.0 to 40.0% at a concentration of 600 µg/mL. The anthelmintic activity of these three fractions on young adult of C. elegans was in the same range as that observed on H. contortus, with approximately 20% inhibition of viability. These results suggest that anthelmintic compounds are more concentrated in fractions 8 and 9. Furthermore, the lower anthelmintic activity observed in fractions 5, 6, and 7 suggests that these fractions also contain anthelmintic compounds with lower activity or present in lower quantities. These results corroborate the work of Ademola and Eloff [1] who concluded that the anthelmintic activity of T. leiocarpa was due to several compounds with various polarities. In general, the anthelmintic activity of the different fractions on H. contortus is similar to that observed on C. elegans, the two nematodes sharing nearly 70% similarity [19].These results support the use of C. elegans in the identification of anthelmintic compounds instead of ruminant parasitic nematodes that are difficult to obtain and maintain in the laboratory [6,11]. Furthermore, the high anthelmintic activity observed in both nematode species and different physiological stages (larva and adult) suggests that the compounds responsible for anthelmintic activity in T. leiocarpa could be multitarget. Generally, compounds/extracts with anthelmintic properties show some specificity of action on nematode stages. For example, the water extract of Daniellia oliveri leaves was more active on eggs than larvae [8]. Similarly, levamisole is very active on larvae and adult worms but ineffective on eggs [20].
As fractions 8 and 9 were the least toxic and were more active than other fractions, we considered the identification of their major compounds.

2.2. Molecular Networking and Major Compounds in the Most Active Fractions

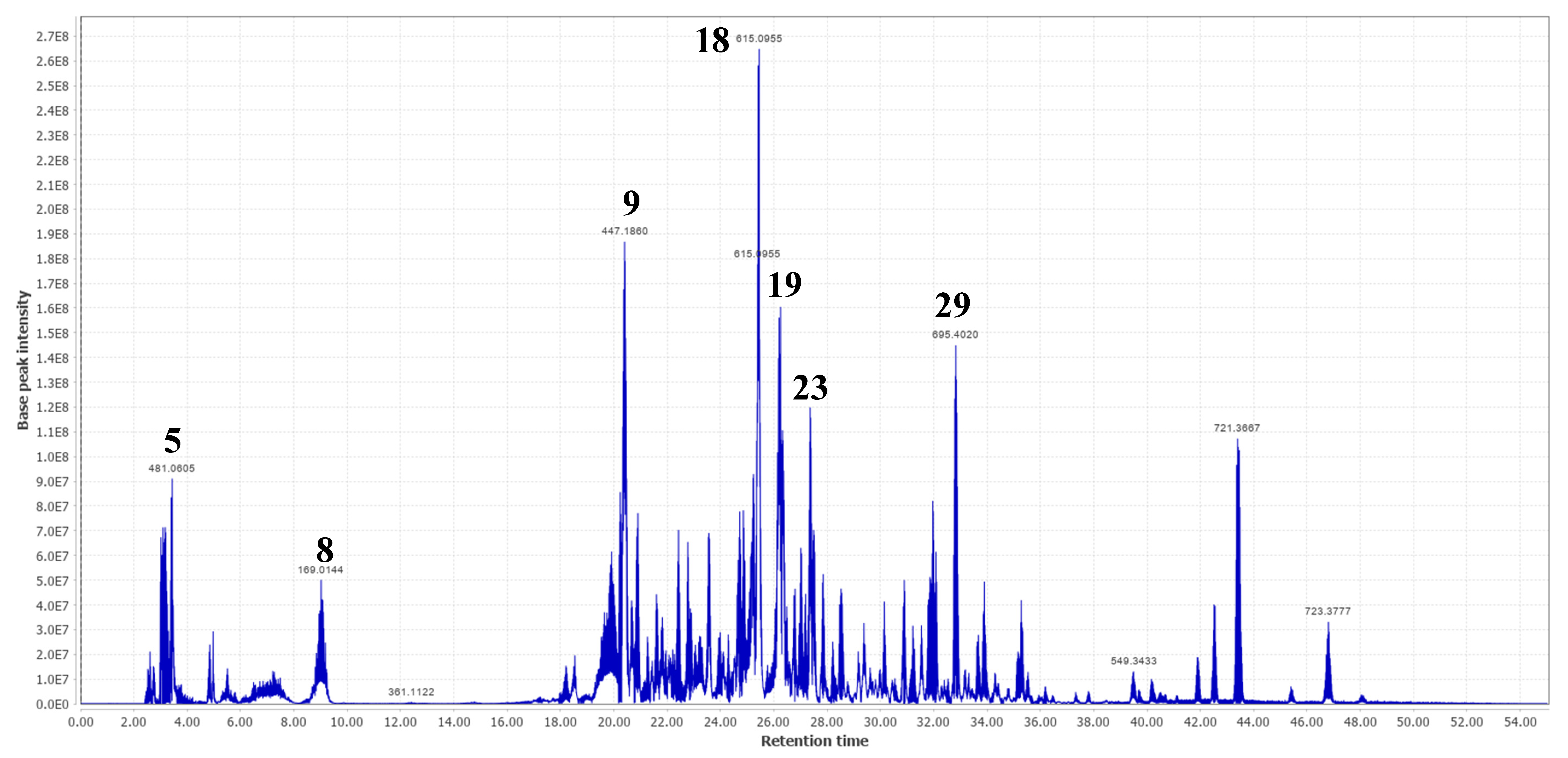

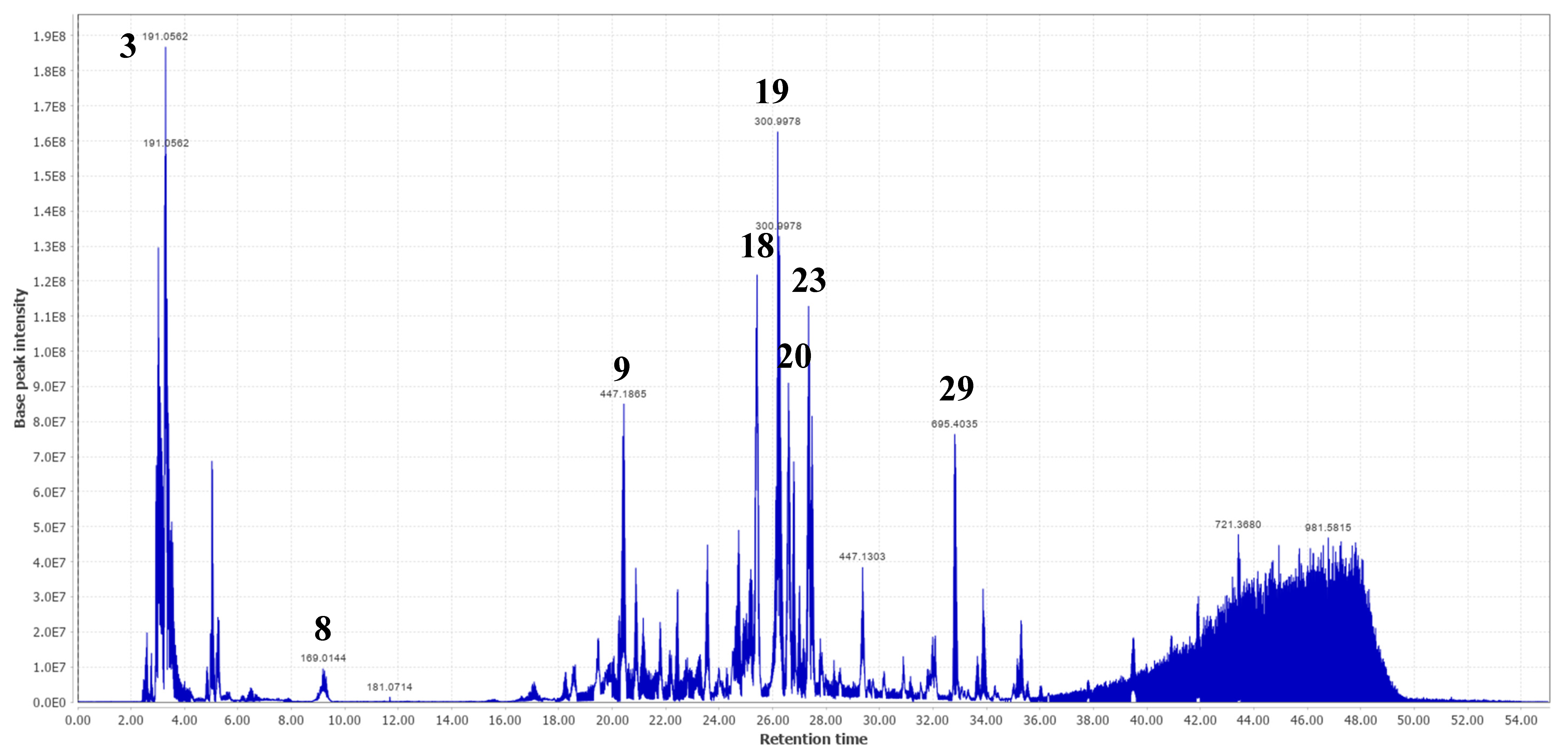

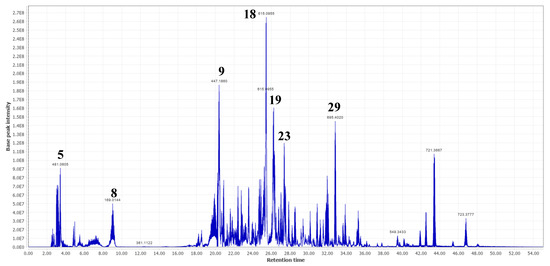

All fractions as well as the MeOH extract, were analyzed by HPLC-PDA-HRMS/MS in negative ion mode. The mass spectrometry data of all fractions (fraction 1 to 9) processed on MZmine 2.5.3 allowed the generation of a spectral alignment with 362 features. The molecular network was built with these 362 features on GNPS and is available on the link: http://gnps.ucsd.edu/ProteoSAFe/status.jsp?task=a9c6688a76d54309817b5a617054b536 (accessed on 10 November 2022).

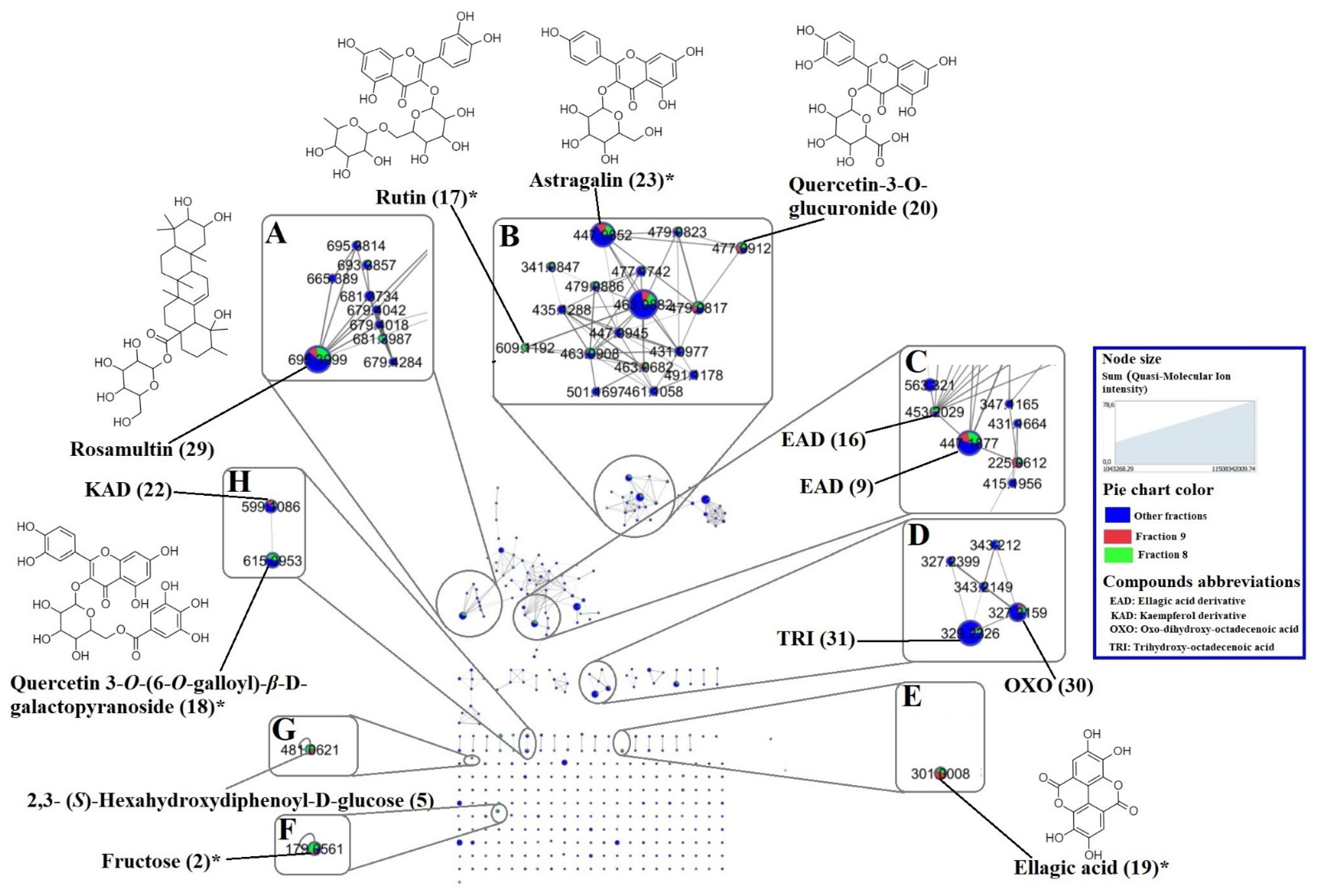

The constructed molecular network shows the metabolites present in fractions 8 (green nodes) and 9 (red nodes) compared to those observed in fractions 1–7 (blue nodes) (Figure 1). We mainly focused on fractions 8 and 9 because of their stronger anthelmintic activity and lower cytotoxicity. The molecular network classified the detected metabolites into several clusters. In the molecular network presented in Figure 1, we identified triterpenic derivatives (Figure 1A), O-glycosylated flavonoids (Figure 1B), ellagic acid derivatives (Figure 1C), fatty acids (Figure 1D), ellagic acid (Figure 1E), sugar (Figure 1F), tannin (Figure 1G), and glycosylated galloylated flavonoids (Figure 1H). This is in accordance with the previously performed phytochemical analyses which showed that T. leiocarpa contains mainly triterpenes, phenolic acids including ellagic acid and its derivatives, flavonoids, fatty acids, tannins, and sugars [2,4,7,21].
The dereplication performed on GNPS was completed by manual dereplication comparing HRMS/MS data to existing literature in order to identify the major compounds in fractions 8 and 9. Table 2 presents the mass spectrometry data of the major compounds identified putatively or confirmed with reference standards, in fractions 8 and 9.
Compounds (3), (4), and (8) were the first three eluting phenolic acids in fractions 8 and/or 9, which were tentatively identified. Compound (3) showed a deprotonated molecular ion [M-H]- at m/z 191.0562 and one of its MS/MS fragments was observed at m/z 173.0465 [M-H-H2O]-. Compound (8) showed a signal in the full scan spectrum at m/z 169.0144 [M-H]- and a main MS/MS fragment at m/z 125.0247 [M-H-CO2]-. So, these two phenolic acids were identified as quinic acid (3) and gallic acid (8). Their identification was confirmed by injection with the corresponding standards. Compounds (3) and (8) were previously identified in T. leiocarpa [2,3]. Compound (4) showed a deprotonated [M-H]- ion at m/z 173.0456 and one of its major MS/MS fragments was observed at m/z 119.0353. A comparison of the MS/MS data of compound (4) with the literature identified it as shikimic acid [22]. To the best of our knowledge, this is the first time the presence of compound (4) has been reported in T. leiocarpa. Compound (19), eluting later, yielded a deprotonated molecular ion [M-H]- at m/z 300.9978 that fragmented in MS/MS to give two main fragments at m/z 163.0398 and m/z 169.0144 (Table 2). Its correspondence to ellagic acid was confirmed by injection of a standard. Like compounds (3) and (8), ellagic acid (19) was previously identified in T. leiocarpa extracts [4,7]. It was one of the major compounds in fractions 8 and 9 (Figure 2 and Figure 3, respectively) and can be visualized in the molecular network (Figure 1E).
Compounds (9), (10), (11), (12), (13), (14), (15), and (16), grouped into cluster 1C (Figure 1) were identified as derivatives of ellagic acid (19). Indeed, these compounds showed different molecular ions in the full scan spectrum and a main MS/MS fragment at m/z 300.9987, corresponding to the ellagic acid fragment (Table 2). This main fragment corresponded to [M-H-146]- for (9 and 11), [M-H-176]- for (10), [M-H-130]- for (12 and 15) and [M-H-152]- for (14 and 16), which suggests that the ellagic acid moiety was potentially linked to a deoxyhexoside, a glucuronide, a dideoxyhexoside, or a gallate unit, respectively. However, the Δ ppm obtained for these structural proposals were too high (sometimes >200). Isolation should allow their precise identification and characterization of these compounds will likely identify new compounds in T. leiocarpa. The presence of ellagic acid derivatives has long been suspected in some extracts of T. leiocarpa, in the genus Terminalia or other Combretaceae species [4,7,23,24,25].
A total of five flavonoids were identified in both fractions. The first eluted at 25.24 min and exhibited a deprotonated molecular ion [M-H]- at m/z 609.1453 with main MS/MS signals at m/z 459.1496, m/z 301.0353 and m/z 313.0574 (Table 2). A comparison of these MS/MS fragments with those of the literature allowed us to identify compound (17) as rutin. Its identification was confirmed by injection of the standard. The compound (18) showed a signal in the full scan spectrum at m/z 615.0955 [M-H]- and two main MS/MS fragments at m/z 301.0353 and m/z 313.0553. Since compound (18) showed a molar mass close to 2-O-galloylhyperin and this compound was available in our laboratory, we injected it to see if it was the same compound. The 2-O-galloylhyperin gave the two main MS/MS fragments (m/z 301.0353 and m/z 313.0553), like compound (18) but had a different retention time. We therefore concluded that these were isomers, and that compound (18) could correspond to quercetin-3-O-(6-O-galloyl)-β-D-galactopyranoside or an isomer. The latter was previously identified in Guiera senegalensis (Combretaceae) [3] and Tapirira guianensis (Anacardiaceae) [26]. To the best of our knowledge, this is the first time that compound (18) has been identified in T. leiocarpa. Mass spectrometry chromatograms showed that it is also one of the major compounds in fractions 8 and 9 (Figure 2 and Figure 3). Compound (23) ([M-H]- at m/z 447.0932) showed two major MS/MS fragments at m/z 285.0404 and m/z 284.0323. It was identified as astragalin [27]. The identification was confirmed by injection of the standard. The compound was previously identified in Pteleopsis suberosa (Combretaceae) [27]. To the best of our knowledge, this is the first time this compound has been identified in T. leiocarpa where it seems to be present as the major compound of the leaves. The molecular network organized the flavonoids detected into two major groups. Cluster H consists of glycosylated galloylated flavonoids (including compounds 18 and 22) and cluster B contained O-glycosylated flavonoids (including compounds 17, 20, and 23) (Figure 1C,D).
Another major metabolite was eluted at 3.44 min and showed a signal in the full scan spectrum at m/z 481.0605 [M-H]- with a high MS/MS fragment at m/z 331.0672. These spectral data are similar to those obtained by Fernandes et al. [28] who identified the compound as 2,3-(S)-hexahydroxydiphenoyl-D-glucose, or an isomer (5), a hydrolysable tannin. This compound was previously identified in Terminalia myriocarpa and Terminalia calamansanai [29,30]. To the best of our knowledge, this is the first time that compound (5) has been identified in T. leiocarpa. Combretaceae in general and species of the genus Terminalia in particular are well known for their high content of hydrolysable tannins [29,30]. Compound (5) is one of the major compounds in fraction 8 (Figure 3) and was visualized in the molecular network (Figure 1G).
Compound (29) is a trihydroxylated triterpene wearing a sugar, which could correspond to rosamultin, already identified in Terminalia alata [31]. Similarly, compounds (30) and (31) were putatively identified as fatty acids in comparison with literature data [32,33,34]. Compound (2) exhibited a deprotonated molecular ion [M-H]- at m/z 179.0564 and was identified as fructose after injection of the standard, while compound 1 was tentatively identified as an hexitol.
Table 2. HPLC-DAD-HRMS/MS data (APCI negative mode) of the major compounds identified in fractions 8 and 9 of the MeOH extract of Terminalia leiocarpa.
Table 2. HPLC-DAD-HRMS/MS data (APCI negative mode) of the major compounds identified in fractions 8 and 9 of the MeOH extract of Terminalia leiocarpa.
CodeRT (min)Molecular FormulaQuasi-
Molecular Ion
MS/MS FragmentMolecular MassError (ppm)IdentificationIsolated Previously fromSourceReferences
ObservedTheoretical F8#F9#
13.02C6H14O6181.0715
[M-H]-
179.0560
144.0665
101.0245
163.0610
182.0794182.07901.99Hexitol
23.17C6H12O6179.0564
[M-H]-
161.0460
113.0248
180.0643180.06345.06Fructose *
33.29C7H12O6191.0562
[M-H]-
181.0715
179.0569
173.0465
189.8369
192.0641192.06343.71Quinic acid *Terminalia ferdinandiana[35]
43.40C7H10O5173.0456
[M-H]-
119.0353
129.0198
137.0243
155.0348
174.0535174.05283.89Shikimic acidAnogeissus latifolia[3]
53.44C20H18O14481.0605
[M-H]-
331.0672
421.1343
173.0456
300.9998
375.1294
482.0684482.0697−2.702,3- (S)-Hexahydroxydiphenoyl-D-glucoseT. calamansanai, T. myriocarpa [29,30]
64.97C9H18O7283.1037 [M+HCOO]-243.0630
273.0739
179.0564
238.1061238.10533.56n.i
75.51C17H26O12421.1360
[M-H]-
375.1310
287.0888
267.0739
357.1195
331.0686
422.1439422.14243.49n.i
89.02C₇H₆O₅169.0144
[M-H]-
125.0247
168.0070
124.0173
126.0283
170.0223170.02154.57Gallic acid *A. leiocarpa, T. ferdinandiana[2,25,35]
920.43 447.1860
[M-H]-
401.1822
300.9978
179.0560
Ellagic acid derivative
1020.90 477.1626
[M-H]-
431.1540
445.1712
300.9982
169.0147
Ellagic acid derivative
1121.60 447.1515
[M-H]-
300.9987
289.0723
387.1662
169.0150
Ellagic acid derivative
1222.43 431.1910
[M-H]-
387.1653
169.0145
300.9980
327.1093
Ellagic acid derivative
1322.78 387.1660
[M-H]-
169.0149
301.0005
Ellagic acid derivative
1423.56 453.1048
[M-H]-
387.1666
289.0226
439.0686
169.0143
300.9990
125.0252
Ellagic acid derivative
1524.73 431.1912
[M-H]-
300.9982
169.0146
289.0718
125.0248
205.1234
Ellagic acid derivative
1624.86 453.1979
[M-H]-
433.2072
300.9979
407.1930
169.0145
Ellagic acid derivative
1725.24C27H30O16609.1453
[M-H]-
459.1496
301.0353
313.0574
567.2086
169.0144
610.1532610.1534−0.30Rutin *A. leiocarpa [21]
1825.44
C28H24O16615.0955
[M-H]-
301.0353
313.0553
565.2844
463.0887
169.0144
616.1034616.1064−4.93Quercetin-3-O-(6-O-galloyl)-β-D-galactopyranosideT. guianensis[26]
1926.22C14H6O8
300.9978
[M-H]-
163.0398
169.0144
302.0057302.0063−1.88Ellagic acid *A. leiocarpa Terminalia brownii[4,7]
2026.59C21H18O13477.0677
[M-H]-
301.0354
302.0383
169.0145
439.0670
151.0035
289.0715
287.0564
478.0756478.07471.80Quercetin-3-O-glucuronide
2126.79C48H68O5723.5013
[M-H]-
439.0679
169.0140
463.0896
303.0508
289.0721
677.5002
125.0249
724.5092724.50673.48n.i
2227.02C28H24O15599.1047
[M-H]-
435.1282
285.0406
473.1672
313.0556
600.1126600.11151.80Kaempferol linked to gallate and deoxy-hexose
2327.35C21H20O11447.0932
[M-H]-
285.0404
284.0323
439.0670
442.7359
289.0715
448.1011448.10061.20Astragalin *P. suberosa[27]
2427.85C37H60O14727.3909
[M-H]-
565.3358
519.3334
439.0675
477.1035
343.2121
728.3988728.39830.68n.i
2528.53C37H60O13711.3926
[M-H]-
343.2126
371.1710
531.1526
439.0681
583.1072
289.0722
712.4005712.4034−4.06n.i
2629.36C22H24O10447.1303
[M-H]-
439.0685
303.0513
169.0151
287.0574
289.0725
125.0251
448.1382448.13692.80n.i
2730.90C30H62O18709.3831
[M-H]-
507.2063
547.3296
501.3242
597.1829
461.1088
710.3910710.3936−3.68n.i
2831.96C37H60O13711.3934
[M-H]-
549.3431
697.3820
503.3406
695.4033
702.6718
712.4013712.4034−2.94n.i
2932.82C36H58O10695.4020
[M + HCOO]-
487.3446
173.9751
686.9651
533.3465
650.4043650.40302.00Rosamultin or isomer
T. alata[31]
3033.88C18H32O5327.2178
[M-H]-
324.4868
211.1343
289.0727
171.1030
229.1447
328.2257328.22502.21Oxo-dihydroxy-octadecenoic acid
Globularia spp.
Bituminaria bituminosa
Sasa veitchii
[32,33,34]
3135.28C18H33O5329.2329
[M-H]-
211.1343
116.0257
229.1447
326.4767
169.0144
330.2408330.24060.53Trihydroxy-octadecenoic acidGlobularia spp.
B. bituminosa
S. veitchii
[32,33,34]
3243.40C34H58O16721.3667
[M-H]-
675.3602
397.1340
712.4544
277.2173
722.3746722.37252.93n.i
3346.81C34H60O16723.3777
[M-H]-
677.3750
116.0257
397.1347
167.0363
119.0260
724.3856724.3881−3.50n.i
RT Retention time; n.i non-identified; * compounds identified by standard comparison; F8 fraction 8; F9 fraction 9, # detected by MS ion ca.

2.3. Prediction of Anthelmintic Activity of Features Detected in T. leiocarpa Fractions by Pearson Correlation

Phytochemical analysis of the fractions of T. leiocarpa showed that they contain a variety of metabolites. Thus, in order to identify those potentially responsible for anthelmintic activity, we calculated the correlation coefficient between the intensity of the different metabolites within each fraction and the anthelmintic activity of the fractions on C. elegans. To achieve this, we added the anthelmintic activity on C. elegans of the nine fractions to the spectral alignment file containing the 362 features detected. The file was then exported to RStudio to calculate the Pearson correlation coefficient between the detected features and the anthelmintic activity. The calculated correlation coefficient along with the probability (p-value) was used to generate a three-value score (−1, 0 and +1) which was then imported into Cytoscape to visualize the features/compounds. A −1 signifies a significant (p < 0.05) negative correlation between the feature and anthelmintic activity on C. elegans. In other words, these compounds would exhibit antagonistic activity. On the other hand, a +1 means a significant (p < 0.05) positive correlation between the feature concerned and the anthelmintic activity on C. elegans. Compounds represented in the molecular network by green colored nodes are significantly positively correlated to the anthelmintic activity (Figure 4). This means that these compounds could have anthelmintic activity and could partially account for the anthelmintic activity of the fractions on C. elegans. Those not significantly (p > 0.05) correlated with the anthelmintic activity of the fractions on C. elegans are represented in yellow.
The results showed that 43 features (11.88%) were significantly positively correlated with anthelmintic activity compared to 318 (87.85%) that were not significantly correlated, and only one feature (0.27%) was significantly and negatively correlated with anthelmintic activity. The results showed that ellagic acid (19) and its derivatives (compound 9 for example) were more abundant in fractions 8 and 9, and positively correlated with the anthelmintic activity of the fractions (Figure 4C,E). They may explain at least in part the higher activity of fractions 8 and 9 as several of them are present in higher quantities in these fractions. Ellagic acid (19) is known to possess interesting anthelmintic activity on H. contortus and C. elegans [11,36]. Like ellagic acid (19), some flavonoids identified in fractions 8 and 9 were positively correlated with anthelmintic activity on C. elegans (Figure 4B,D). These include compounds (17) and (20). Many studies have shown that flavonoids are endowed with anthelmintic activity on various nematodes [37,38,39]. Nevertheless, all flavonoids are not correlated with anthelminthic activities, as we observed that astragalin (23) which was quite abundant in the most active fractions did not possess a significant correlation with anthelmintic activity (Figure 4B). The same was observed for the triterpenic derivative tentatively identified as rosamultin (29) (Figure 4A). A significant positive correlation was also observed for compound (5) (a hydrolysable tannin). Previously conducted studies show that tannins are endowed with strong anthelmintic activity [38], but this activity may depend on the type and structure of the tannins that are present. A positive correlation was also observed for fructose (2), which is a common sugar that should not have anthelminthic activity, but whose polarity may be close to active compounds.

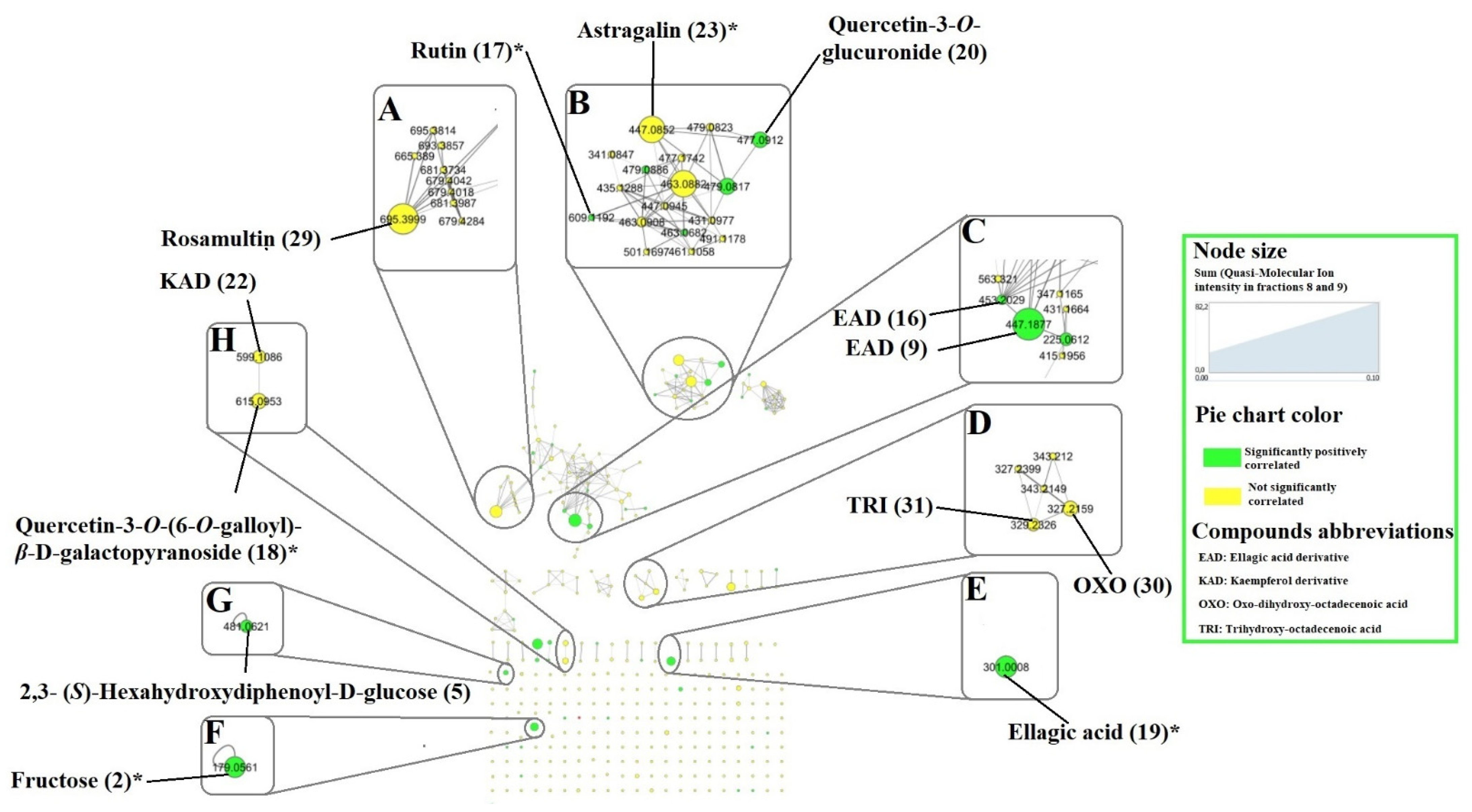

The results of the correlation between the detected metabolites and the anthelmintic activity on C. elegans of the fractions remain indicative and should be taken with caution. Indeed, antagonistic, additive, or synergistic activity are possible when compounds are in a mixture, and their activity in these extracts is not related to their activity when tested individually. These results are nevertheless a lead towards an identification of anthelmintic molecules in T. leiocarpa. The evaluation of the anthelmintic activity of each compound and several mixtures would allow the confirmation or not of the results of the correlation.

2.4. Anthelmintic Activity of Major Compounds and Their Quantification

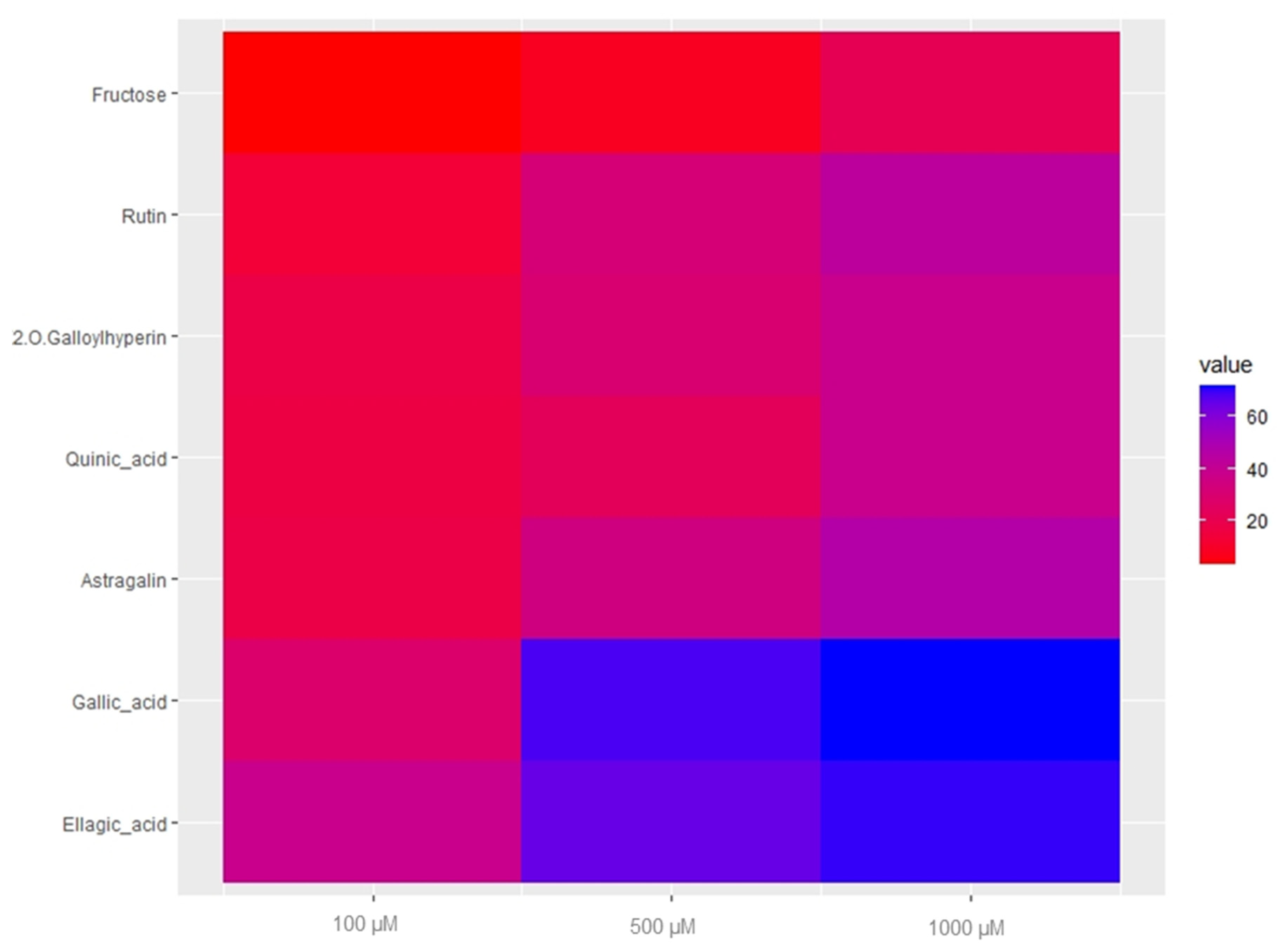

The anthelmintic activity of the major identified and commercially available compounds of fractions 8 and 9 was evaluated in order to confirm or not the predictions in Section 2.3 and to determine if these compounds could be responsible for the anthelmintic activity of the MeOH extract of T. leiocarpa. The results of the anthelmintic activity of available standards are presented in Figure 5.
In general, the different compounds inhibited the viability of young adults of C. elegans. The anthelmintic activity varied with the compounds and concentrations tested. Ellagic acid (19) and gallic acid (8) were the most effective with a reduction in viability approaching 70% at 500 µM (compound 19: 151.1 µg/mL and compound 8: 85.06 µg/mL). These results confirm the positive correlation between the anthelmintic activity of the fractions and these compounds. Furthermore, studies conducted previously had concluded that compounds (8) and (19) have strong anthelmintic activity on H. contortus and C. elegans [11,36]. Astragalin (23) and rutin (17) moderately inhibited the viability of C. elegans at the highest concentration tested (1000 µM) (compound 17: 610.5 µg/mL and compound 23: 448.4 µg/mL) and the inhibition rate for both compounds was around 50% (Figure 5). The moderate anthelmintic activity of compound (23) confirms the absence of significant correlation between the anthelmintic activity of the fractions and this feature (Figure 4D). The anthelmintic activity of compound (23) was previously evaluated on Fasciolopsis buski, a parasitic trematode of pig [40]. To our knowledge, this is the first time that the anthelmintic activity of astragalin has been evaluated on C. elegans. Rutin (17) on the other hand showed low anthelmintic activity despite its strong anthelmintic activity prediction. Previous work also showed weak anthelmintic activity of compound (17) on H. contortus [37,38]. Like the other flavonoids, 2-O-galloylhyperin (an isomer of compound 18) moderately inhibited the viability of adult C. elegans worms at a concentration of 1000 µM (616.5 µg/mL). This activity seems low in view of the significant positive correlation between compound (18) (its isomer) and the anthelmintic activity of the fractions, but as the structures are different, we cannot draw a conclusion.
Furthermore, the major available identified compounds that showed highest anthelmintic activity were quantified in the most active fractions (fractions 8 and 9). Astragalin (23) which showed moderate anthelmintic activity was also quantified in the two most active fractions, as it could serve as an analytical marker, given its high concentration. As some ellagic acid derivatives were significantly positively correlated with anthelmintic activity (Figure 4A), we also quantified the ellagic acid derivatives in ellagic acid equivalents. The results are presented in Table 3 and Table 4. The concentrations of ellagic acid (19) and gallic acid (8) in fraction 8 were estimated to be 8.6 ± 0.7 and 9.7 ± 0.8 µg/mg of the fraction (Table 3). These compounds were most concentrated in fraction 8 compared to astragalin (23) which accounted for only 0.8 ± 0.1 µg/mg of this fraction. Compounds (8) and (19) were more concentrated in fraction 8 while compound (23) was more concentrated in fraction 9 (Table 3). The total concentrations of ellagic acid derivatives (916) were 2.1 and 6.0 µg of ellagic acid equivalents/mg fraction respectively in fractions 8 and 9 (Table 4). The concentration of ellagic acid derivatives plus ellagic acid in fraction 8 (10.8 µg/mg of fraction) was lower than that obtained in fraction 9 (13.2 µg/mg of fraction).

3. Materials and Methods

3.1. Chemicals and Reagents

HPLC grades of hexane, dichloromethane (DCM), and methanol (MeOH) were purchased from VWR International (Radnor, PA, USA). WI38 cells (non-cancerous human fibroblast cell line) were obtained from LGC standards (Molsheim, France). Dimethylsulfoxide (DMSO), camptothecin, (3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT)), levamisole, and ellagic acid (19) were purchased from Sigma-Aldrich (Bornem, Belgium). Penicillin and streptomycin were purchased from Lonza (Verviers, Belgium). 2-O-galloylhyperin was purchased from MedChemTronica (Sollentuna Sweden). Astragalin (23) was purchased from AmBeed (Arlington, USA). Gallic acid (8) and rutin (17) were purchased from Sigma-Aldrich (Steinheim, Germany). Quinic acid (3) was purchased from Tokyo Chemical Industry (TIC) Europe NV (Zwijndrecht, Belgium). Fructose (2) was purchased from Merck (Darmstadt, Germany).

3.2. Plant Collection

Fresh leaves of T. leiocarpa were collected in North Benin (N’Dali municipality). The sample was authenticated at the National Herbarium of Benin (NHB), University of Abomey-Calavi, Benin (AAC 1504/HNB). The leaves were washed with water to remove dust and other contaminants before being dried in the laboratory at 25 °C for 2 weeks. The dry leaves were ground in a 0.5 mm diameter mill. The powder obtained was stored in hermetically sealed boxes at 25 °C in the laboratory.

3.3. Extraction Procedure

The extraction procedure has been described previously [10]. Briefly, 250 mL of hexane was added to 50 g of powder and the mixture was macerated on a shaker for 12 h. After filtration, a second 250 mL portion of hexane was used for a further 12 h maceration under shaking. The same procedure was repeated for dichloromethane (DCM) and MeOH on the same powder sample. The MeOH extract was evaporated with a rotavapor, weighed, transferred to labelled boxes, and stored at +4 °C.

3.4. Open Column Chromatography (OCC) Fractionation of T. leiocarpa MeOH Extract

A series with thin layer chromatography (TLC) was performed to identify the solvent system to be used for the fractionation of the MeOH extract of T. leiocarpa. Twenty grams of extract was solubilized in MeOH and added to 50 g of silica gel (0.063–0.2 mm), mixed, and evaporated. In parallel, a silica column was mounted (350 g silica gel in DCM in a glass column: 33 × 35 cm). Extract mixed with silica gel was deposited on the top of the mounted column and the different solvent systems were prepared to elute the column (Table 5). TLC (on silica gel and using the solvent system used to elute the column as mobile phase) was performed in parallel to pool the collected fractions. The plates were sprayed with sulfuric anisaldehyde solution [41] and heated. Sub-fractions were formed by mixing the fractions showing a similar TLC profile. They were dried and stored at +4 °C until use.

3.5. Fractions Cytotoxicity

Cytotoxicity of the fractions was evaluated on WI38 cells (non-cancerous human fibroblast cell line) using MTT-assay according to a procedure described in the literature [42]. They were solubilized in DMSO at a concentration of 20 mg/mL. Then 5000 cells per well were seeded overnight in 96-well plates in 180 µL of DMEM (Dulbecco’s Modified Eagle’s Medium supplemented with 10% inactivated fetal calf serum and 1% penicillin/streptomycin). Solubilized extract/fractions (20 mg/mL) were diluted with DMEM to give concentrations from 0.5 to 1000 µg/mL and 20 µL of each diluted solution was added to the seeded cells in each well. Final concentrations tested ranged from 0.05 to 100 µg/mL. After 72 h of incubation, medium was replaced by 100 µL of MTT ([3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl tetrazolium bromide] tetrazolium salt) solution to measure the metabolic activity of the cells, an indicator of cell viability. MTT solution was prepared by dissolving 15 mg of MTT in 50 mL (5 mL of PBS and 45 mL of DMEM). After 45 min, MTT solution was replaced with an equal volume of DMSO, and absorbance was measured with a spectrophotometer (SpectraMax M3) at 570 and 620 nm to measure formazan formed by the reduction of MTT. The assay was repeated twice in duplicate.

3.6. Anthelmintic Activities of Fractions

3.6.1. Viability of C. elegans Adult Worms Treated with Fractions and Pure Compounds

Anthelmintic activity of the fractions was evaluated on young adults of the wild type (N2) strain of C. elegans. The young adults were provided by the Laboratory of Neurophysiology (Neuroscience Institute, Université Libre de Bruxelles, Brussels, Belgium). Briefly, ten young C. elegans adults were manually transferred into each well of a 48-well plate containing 250 µL of M9 buffer solution. Two hundred and fifty microliters of each sample (at a concentration of 1200 µg/mL in M9 buffer) was added to the worms. The final concentration tested for each fraction was 600 µg/mL. This dose was shown to be very discriminating in recently published work [10] and could enable us to easily distinguish the most active fractions from the less active ones. Viability of young adults of C. elegans was measured under a binocular microscope after 24 h incubation. Worms that were elongated and immobile even after shaking were considered dead or non-viable [11]. Levamisole was used as a positive control at a concentration of 25 µM. Each treatment was tested in duplicate, and the assay was repeated twice.
Anthelmintic activity of the pure compounds was also evaluated on young adults of C. elegans. The assay was conducted in the same way as for the fractions but at three concentrations: 100, 500, and 1000 µM. Each treatment was tested in triplicate and the assay was repeated twice.

3.6.2. Larval Migration Inhibition Assay (LAMIA)

Anthelmintic activity of the fractions was also evaluated on infested larvae (L3) of H. contortus using the larval migration inhibition assay (LAMIA). The larvae were obtained by artificially infesting sheep with a pure strain of H. contortus provided by the Laboratoire d’Ethnopharmacologie et de Santé Animale (LESA), University of Abomey-Calavi. The droppings of the infested sheep were cultured in the laboratory for ten days and the larvae were collected by the Baermann device. The collected larvae were stored at +4 °C for three months before use. The methodology used for LAMIA was described in the literature [10,43]. In summary, larvae (1000 L3s/mL) were incubated at 25 °C with the fractions at a concentration of 600 µg/mL in phosphate-buffered saline (PBS) solution. After three hours of incubation, the larvae were washed by centrifugation (67× g) with PBS solution and deposited on inserts (20 µm diameter) for migration for 3 h. The inserts were previously deposited on canonical tubes, containing PBS solution. After 3 h, the larvae contained in the inserts were discarded and those that migrated into the canonical tubes under the inserts were recovered and counted under the microscope. The rate of inhibition of larval migration was calculated according to the following formula:
A = T M T × 100
where A is the rate of inhibition of larval migration, T is the total number of larvae deposited on the insert, and M is the number of larvae counted in the canonical tube.

3.7. HPLC-PDA-HRMS/MS Analysis

T. leiocarpa fractions as well as MeOH extract were analyzed by HPLC-PDA-HRMS/MS to identify major compounds. HPLC-PDA (Thermo Scientific Accela LC Systems) coupled with mass spectrometry (Thermo Scientific LTQ orbitrap XL, Bremen, Germany) constituted the system used for analysis. Instruments were controlled using Thermo Scientific Xcalibur X software. HPLC separation was performed on a Luna C18 column, 250 × 4.6 mm packed with 5 µm particles. The mobile phase consisted of water + 0.1% formic acid (A) and 100% acetonitrile (B). The gradient used for elution was as follows: 0–10 min, 95% A; 10–40 min, 95–40% A; 40–45 min, 40% A; 45–50 min, 40–95% A, and 50–55 min, 95% A. Samples to be analyzed (10 mg/mL) were solubilized in MeOH and 20 µL was injected per fraction. Standards were prepared at a concentration of 500 µg/mL and 20 µL was injected. HRMS/MS analyses were performed in APCI (atmospheric pressure chemical ionization) in positive and negative modes with the following input conditions for the negative mode: capillary temperature 250 °C; APCI vaporizer temperature 400 °C; sheath gas flow rate 20 a.u.; auxiliary gas flow rate 5 a.u. and sweep gas flow rate 5 a.u. For positive mode: capillary temperature 250 °C; APCI vaporizer temperature 400 °C; sheath gas flow 25 a.u.; auxiliary gas flow 25 a.u. and sweep gas flow 5 a.u.; discharge current of 5 µA; capillary voltage of 21 V, and tube lens voltage of 75 V. Chromatograms were recorded between 200 and 600 nm.

3.8. Data Processing on MZmine

Raw mass spectrometry data of the fractions as well as that of MeOH extract of T. leiocarpa were pre-processed in the MZmine software (version 2.5.3). We only worked with the negative data as they were more sensitive and more informative in comparison with the positive mode. In summary, an ion list was generated by setting the noise level to 1.5 × 105 and 1, respectively for MS1 and MS2. The ion list thus created was used to construct the chromatogram with the MZmine ADAP Chromatogram builder function. The minimum number of scans in the cluster was set to 5. The group intensity threshold and the highest minimum intensity were set to 1.5 × 105. Deconvolution of the constituted ion list was performed using the wavelets (ADAP) algorithm. Deconvolution was performed by setting the main parameters as follows: S/N threshold: 6, SN estimator: intensity window S/N, minimum feature height: 120.000, coefficient/area threshold: 3, peak duration: 0.00 to 0.50, and RT wavelet range: 0.00 to 0.10. Isotopes were grouped using the “Isotope grouper” function and setting the m/z tolerance to 10 ppm and the RT tolerance to 0.3 min (absolute). Lists of deisotoped ions were aligned by setting the parameters at the same level as for isotope grouping (m/z tolerance: 10 ppm and RT tolerance: 0.3 min absolute). The list of aligned ions was filtered by removing duplicate peaks (m/z tolerance: 0.02 and RT tolerance: 0.4 min absolute) and using the “Feature list rows filter” function. The aligned list was deisotoped, gap-filled, and exported as a .csv and .mgf file for submission to GNPS-FBMN (Global Natural Product Social Molecular Networking-Feature Based Molecular Networking).

3.9. Dereplication on GNPS

Exported MZmine files as well as the raw mass spectrometry data of the fractions were sent to the GNPS platform using Win SCP software (version 5.21.2). The m/z tolerance for MS1 and MS2 was set to 0.02 Da by default. Molecular networking was created on the GNPS platform (http://gnps.ucsd.edu (accessed on 10 November 2022)), version 28.2. Nodes were filtered to have a cosine score greater than 0.7 and at least 6 matched peaks. Dereplication against GNPS libraries was set to a cosine score of 0.7, with at least 6 matching peaks. The molecular network was finally processed and visualized on Cytoscape (version 3.8.2).

3.10. Quantification of Major Compounds

The quantification of the major compounds from fractions 8 and 9 was performed using an HPLC-PDA system (Accela Thermo ScientificTM, Bremen, Germany) based on the UV absorbance of the compounds. The system was controlled using ChromQuest software (version 4.2.34). Separation of compounds was performed on a Luna C18 (250 × 4.6 mm, 5 μm particles). The mobile phase consisted of water + 0.1% formic acid (A) and 100% acetonitrile (B). The column was eluted in gradient mode: 0–10 min, 5–12% B; 10–20 min, 12–18% B; 20–45 min, 18–25% B; 45–46 min, 25–5% B; and 46–55 min, 5% B. This gradient is different from that used for LC-MS/MS analysis and was intended to allow for better separation of compounds to facilitate quantification. The quantification was performed with an injection of 20 µL and a flow rate of 700 µL/min. The standard compounds to be quantified were prepared at different concentrations in MeOH (HPLC grade) varying from 150 to 25 µg/mL for compounds (8) and (19) and 50 to 5 µg/mL for compound (23). Samples of fractions 8 and 9 were solubilized in MeOH (HPLC grade) at a concentration of 10 mg/mL. The PDA wavelength was set between 220 and 360 nm and the chromatogram was integrated at 254 nm. The assay was conducted in triplicate and repeated three times. The limit of detection (LOD) and limit of quantification (LOQ) were determined from the residual standard deviation (σ) of the regression curves and slopes (S), according to the following equations: LOD = 3.3 σ/S and LOQ = 10 σ/S [18].

3.11. Statistical Analysis

Means ± standard deviation of the rate of inhibition of larval migration (H. contortus) and viability of young adult worms (C. elegans) were calculated for each fraction and control tested. The Pearson correlation coefficient between the metabolite intensities and anthelmintic activity of the fractions and the MeOH extract of T. leiocarpa was determined by the methodology developed by Nothias et al. [44]. Analysis was performed on RStudio software (Version 1.4.1717). The calculated correlation coefficient was used to identify on the molecular network, the metabolites whose intensities are significantly correlated (p < 0.05) or not, with the anthelmintic activity of the fractions on C. elegans.

4. Conclusions

In summary, our study identified several compounds in the most active fractions on adult C. elegans worms. Several of these compounds had already been previously identified in T. leiocarpa. These include quinic acid (3), gallic acid (8), ellagic acid (19), and rutin (17). On the other hand, shikimic acid (4), 2,3-(S)-hexahydroxydiphenoyl-D-glucose (5), or an isomer, quercetin-3-O-(6-O-galloyl)-β-D-galactopyranoside (18) or an isomer, and a glycosylated trihydroxylated triterpene, as rosamultin (29) were identified for the first time in the plant as well as several ellagic acid derivatives. The results of the biological activity prediction showed that several of these compounds are significantly positively correlated with the anthelmintic activity of the fractions on C. elegans. Evaluation of the anthelmintic activity of the major available compounds identified showed that gallic acid (8) and ellagic acid (19) were the most active. The other compounds tested moderately inhibited the viability of C. elegans. These results suggest an additive/synergistic effect of the different compounds present but may also indicate that some active substances may not have been identified by our LC-MS method. Further studies could focus on the verification of this hypothesis as well as the isolation and characterization of the other compounds positively and significantly correlated with the anthelmintic activity of the fractions. The anthelmintic activity of these compounds could be evaluated as well as their mechanism of action.

Author Contributions

Conceptualization: E.T., F.A.G., J.Q.-L., S.M.H.-A., P.A.O. and E.V.B.A.; methodology: E.T., S.O., K.H., P.L. and J.Q.-L.; writing original draft preparation, E.T.; writing review and editing: S.O., K.H., P.A.O., F.A.G. and J.Q.-L.; supervision: S.O., E.V.B.A., P.A.O., P.L., S.M.H.-A. and J.Q.-L.; project administration, P.A.O., F.A.G. and J.Q.-L.; funding acquisition: P.A.O., F.A.G. and J.Q.-L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Kingdom of Belgium through the “Académie de Recherche et d’Enseignement Supérieur” (ARES) (PRD/ARES/PETITS RUMINANTS/2018).

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki and approved by the Ethics Committee of the University of Abomey-Calavi, Abomey-Calavi, Benin (approval number 2019UAC352). All efforts were made to minimize animal suffering.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data generated or analyzed during this study are included in this manuscript.

Acknowledgments

MS data were obtained at the MASSMET platform of UCLouvain. The authors want to thank Marie-France Hérent for her expertise and technical assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ademola, I.; Eloff, J. In Vitro Anthelmintic Effect of Anogeissus leiocarpus (Dc.) Guill. & Perr. Leaf Extracts and Fractions on Developmental Stages of Haemonchus contortus. Afr. J. Tradit. Complement. Altern. Med. 2011, 8, 134–139. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Waterman, C.; Patel, Z.; Kim, S.; Rivera, A.; Pontiggia, L.; Grace, M.H.; Smith, R. Anthelmintic Activity of Punicalagin from Anogeissus leiocarpus. Univers. J. Plant Sci. 2015, 3, 67–71. [Google Scholar] [CrossRef] [Green Version]
  3. Singh, D.; Baghel, U.S.; Gautam, A.; Baghel, D.S.; Yadav, D.; Malik, J.; Yadav, R. The Genus Anogeissus: A Review on Ethnopharmacology, Phytochemistry and Pharmacology. J. Ethnopharmacol. 2016, 194, 30–56. [Google Scholar] [CrossRef] [PubMed]
  4. Salih, E.Y.A.; Julkunen-Tiitto, R.; Luukkanen, O.; Sipi, M.; Fahmi, M.K.M.; Fyhrquist, P.J. Potential Anti-Tuberculosis Activity of the Extracts and Their Active Components of Anogeissus leiocarpa (DC.) Guill. and Perr. with Special Emphasis on Polyphenols. Antibiotics 2020, 9, 25. [Google Scholar] [CrossRef] [PubMed]
  5. Tchetan, E.; Olounlade, A.P.; Houehanou, T.D.; Azando, E.V.B.; Kaneho, J.A.; Houinato, M.R.B.; Hounzangbe-Adote, S.M.; Quetin-Leclercq, J.; Gbaguidi, F.A. Ethnoveterinary Knowledge of Sheep and Goat Farmers in Benin (West Africa): Effect of Socioeconomic and Environmental Factors. Heliyon 2021, 7, e07656. [Google Scholar] [CrossRef]
  6. Ndjonka, D.; Ajonina-Ekoti, I.; Djafsia, B.; Lüersen, K.; Abladam, E.; Liebau, E. Anogeissus leiocarpus Extract on the Parasite Nematode Onchocerca ochengi and on Drug Resistant Mutant Strains of the Free-Living Nematode Caenorhabditis elegans. Vet. Parasitol. 2012, 190, 136–142. [Google Scholar] [CrossRef]
  7. Salih, E.Y.A.; Kanninen, M.; Sipi, M.; Luukkanen, O.; Hiltunen, R.; Vuorela, H.; Julkunen-Tiitto, R.; Fyhrquist, P. Tannins, Flavonoids and Stilbenes in Extracts of African Savanna Woodland Trees Terminalia brownii, Terminalia laxiflora and Anogeissus leiocarpus Showing Promising Antibacterial Potential. S. Afr. J. Bot. 2017, 108, 370–386. [Google Scholar] [CrossRef]
  8. Kabore, A.; Belem, G.A.M.; Sawadogo, L. In Vitro Anthelmintic Effect of Two Medicinal Plants (Anogeissus leiocarpus and Daniellia oliveri) on Haemonchus contortus, an Abosomal Nematode of Sheep in Burkina Faso. Afr. J. Biotechnol. 2009, 8, 4690–4695. [Google Scholar]
  9. Soro, D.; Koné, W.M.; Bonfoh, B.; Dro, B.; Toily, K.B.; Kamanzi, K. In Vivo Anthelmintic Activity of Anogeissus leiocarpus Guill & Perr (Combretaceae) against Nematodes in Naturally Infected Sheep. Parasitol. Res. 2013, 112, 2681–2688. [Google Scholar] [CrossRef]
  10. Tchetan, E.; Olounladé, P.A.; Azando, E.V.B.; Khaliq, H.A.; Ortiz, S.; Houngbeme, A.; Alowanou, G.G.; Koura, B.I.; Akouedegni, G.C.; Houinato, M.R.B.; et al. Anthelmintic Activity, Cytotoxicity, and Phytochemical Screening of Plants Used to Treat Digestive Parasitosis of Small Ruminants in Benin (West Africa). Animals 2022, 12, 2718. [Google Scholar] [CrossRef]
  11. Ndjonka, D.; Abladam, E.D.; Djafsia, B.; Ajonina-Ekoti, I.; Achukwi, M.D.; Liebau, E. Anthelmintic Activity of Phenolic Acids from the Axlewood Tree Anogeissus leiocarpus on the FIlarial Nematode Onchocerca ochengi and Drug-Resistant Strains of the Free-Living Nematode Caenorhabditis elegans. J. Helminthol. 2014, 88, 481–488. [Google Scholar] [CrossRef] [PubMed]
  12. Varady, M.; Papadopoulos, E.; Dolinská, M.; Königová, A. Anthelmintic Resistance in Parasites of Small Ruminants: Sheep versus Goats. Helminthologia 2011, 48, 137–144. [Google Scholar] [CrossRef] [Green Version]
  13. Abongwa, M.; Martin, R.J.; Robertson, A.P. A Brief Review on the Mode of Action of Antinematodal Drugs. Acta Vet. 2017, 67, 137–152. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Allard, P.-M.; Péresse, T.; Bisson, J.; Gindro, K.; Pham, V.C.; Roussi, F.; Litaudon, M.; Wolfender, J.-L. Integration of Molecular Networking and In-Silico MS/MS Fragmentation for Natural Products Dereplication. Anal. Chem. 2016, 88, 3317–3323. [Google Scholar] [CrossRef] [PubMed]
  15. Quinn, R.A.; Nothias, L.-F.; Vining, O.; Meehan, M.; Esquenazi, E.; Dorrestein, P.C. Molecular Networking As a Drug Discovery, Drug Metabolism, and Precision Medicine Strategy. Trends Pharmacol. Sci. 2017, 38, 143–154. [Google Scholar] [CrossRef] [PubMed]
  16. Aron, A.T.; Gentry, E.C.; McPhail, K.L.; Nothias, L.-F.; Nothias-Esposito, M.; Bouslimani, A.; Petras, D.; Gauglitz, J.M.; Sikora, N.; Vargas, F.; et al. Reproducible Molecular Networking of Untargeted Mass Spectrometry Data Using GNPS. Nat. Protoc. 2020, 15, 1954–1991. [Google Scholar] [CrossRef] [PubMed]
  17. Hughes, K.; Ho, R.; Greff, S.; Herbette, G.; Filaire, E.; Ranouille, E.; Berthon, J.-Y.; Raharivelomanana, P. Feature-Based Molecular Networks Identification of Bioactive Metabolites from Three Plants of the Polynesian Cosmetopoeia Targeting the Dermal Papilla Cells of the Hair Cycle. Molecules 2021, 27, 105. [Google Scholar] [CrossRef]
  18. Abdul Khaliq, H.; Ortiz, S.; Alhouayek, M.; Muccioli, G.G.; Quetin-Leclercq, J. Dereplication and Quantification of Major Compounds of Convolvulus arvensis L. Extracts and Assessment of Their Effect on LPS-Activated J774 Macrophages. Molecules 2022, 27, 963. [Google Scholar] [CrossRef]
  19. Hahnel, S.R.; Dilks, C.M.; Heisler, I.; Andersen, E.C.; Kulke, D. Caenorhabditis elegans in Anthelmintic Research–Old Model, New Perspectives. Int. J. Parasitol. Drugs Drug Resist. 2020, 14, 237–248. [Google Scholar] [CrossRef]
  20. Coles, G.C.; Jackson, F.; Pomroy, W.E.; Prichard, R.K.; von Samson-Himmelstjerna, G.; Silvestre, A.; Taylor, M.A.; Vercruysse, J. The Detection of Anthelmintic Resistance in Nematodes of Veterinary Importance. Vet. Parasitol. 2006, 136, 167–185. [Google Scholar] [CrossRef]
  21. Attioua, B.; Lagnika, L.; Yeo, D.; Antheaume, C.; Kaiser, M.; Weniger, B.; Lobstein, A.; Vonthron-Sénécheau, C. In Vitro Antiplasmodial and Antileishmanial Activities of Flavonoids from Anogeissus leiocarpus (Combretaceae). Int. J. Pharm. Sci. Rev. 2011, 11, 7. [Google Scholar]
  22. Razgonova, M.; Zakharenko, A.; Pikula, K.; Manakov, Y.; Ercisli, S.; Derbush, I.; Kislin, E.; Seryodkin, I.; Sabitov, A.; Kalenik, T.; et al. LC-MS/MS Screening of Phenolic Compounds in Wild and Cultivated Grapes Vitis Amurensis Rupr. Molecules 2021, 26, 3650. [Google Scholar] [CrossRef] [PubMed]
  23. Oliveira, A.L.; Destandau, E.; Fougère, L.; Lafosse, M. Isolation by Pressurised Fluid Extraction (PFE) and Identification Using CPC and HPLC/ESI/MS of Phenolic Compounds from Brazilian Cherry Seeds (Eugenia uniflora L.). Food Chem. 2014, 145, 522–529. [Google Scholar] [CrossRef]
  24. Wu, N.; Li, L.; Cai, Z.-C.; Yuan, J.-H.; Wang, W.-X.; Yin, S.-X.; Liu, S.-J.; Wei, L.-F.; Mei, Y.-Q.; Chen, C.-H.; et al. Quality Evaluation of Taxilli Herba from Different Hosts Based on Simultaneous Determination of Multiple Bioactive Constituents Combined with Multivariate Statistical Analysis. Molecules 2021, 26, 7490. [Google Scholar] [CrossRef]
  25. Das Neves Costa, F.; Jerz, G.; Hewitson, P.; de Souza Figueiredo, F.; Ignatova, S. Laguncularia Racemosa Phenolics Profiling by Three-Phase Solvent System Step-Gradient Using High-Performance Countercurrent Chromatography with Off-Line Electrospray Mass-Spectrometry Detection. Molecules 2021, 26, 2284. [Google Scholar] [CrossRef] [PubMed]
  26. Calassara, L.L.; Pinto, S.C.; Condack, C.P.M.; Leite, B.F.; Nery, L.C.d.E.S.; Tinoco, L.W.; Aguiar, F.A.; Leal, I.C.R.; Martins, S.M.; da Silva, L.L.; et al. Isolation and Characterization of Flavonoids from Tapirira guianensis Leaves with Vasodilatory and Myeloperoxidase-Inhibitory Activities. Nat. Prod. Res. 2021, 35, 5480–5483. [Google Scholar] [CrossRef]
  27. De Leo, M.; Braca, A.; Sanogo, R.; Cardile, V.; DeTommasi, N.; Russo, A. Antiproliferative Activity of Pteleopsis suberosa Leaf Extract and Its Flavonoid Components in Human Prostate Carcinoma Cells. Planta Med. 2006, 72, 604–610. [Google Scholar] [CrossRef] [PubMed]
  28. Fernandes, T.A.; Antunes, A.M.M.; Caldeira, I.; Anjos, O.; de Freitas, V.; Fargeton, L.; Boissier, B.; Catarino, S.; Canas, S. Identification of Gallotannins and Ellagitannins in Aged Wine Spirits: A New Perspective Using Alternative Ageing Technology and High-Resolution Mass Spectrometry. Food Chem. 2022, 382, 132322. [Google Scholar] [CrossRef]
  29. Tanaka, T.; Morita, A.; Nonaka, G.; Lin, T.; Nishioka, I.; Ho, F. Tannins and Related Compounds. CIII. Isolation and Characterizatino of New Monomeric, Dimeric and Trimeric Ellagitannins, Calamansanin and Calamanins A, B and C, from Terminalia calamansanai (BLANCO) ROLFE. Chem. Pharm. Bull. 1991, 39, 60–63. [Google Scholar] [CrossRef] [Green Version]
  30. Marzouk, M.S.A.; El-Toumy, S.A.A.; Moharram, F.A. Pharmacologically Active Ellagitannins from Terminalia Myriocarpa. Planta Med. 2002, 68, 523–527. [Google Scholar] [CrossRef]
  31. Srivastava, S.K.; Chouksey, B.K.; Srivastava, S.D. Triterpenoid Glycoside from the Roots of Terminalia alata. Fitoterapia 2001, 72, 191–193. [Google Scholar] [CrossRef] [PubMed]
  32. Friščić, M.; Bucar, F.; Hazler Pilepić, K. LC-PDA-ESI-MSn Analysis of Phenolic and Iridoid Compounds from Globularia Spp.: Phytochemical Analysis of Globularia Spp. J. Mass Spectrom. 2016, 51, 1211–1236. [Google Scholar] [CrossRef] [PubMed]
  33. Llorent-Martínez, E.J.; Spínola, V.; Gouveia, S.; Castilho, P.C. HPLC-ESI-MSn Characterization of Phenolic Compounds, Terpenoid Saponins, and Other Minor Compounds in Bituminaria bituminosa. Ind. Crops Prod. 2015, 69, 80–90. [Google Scholar] [CrossRef]
  34. Van Hoyweghen, L.; De Bosscher, K.; Haegeman, G.; Deforce, D.; Heyerick, A. In Vitro Inhibition of the Transcription Factor NF-ΚB and Cyclooxygenase by Bamboo Extracts: Bamboo Extracts Inhibit Nf-Κb And Cyclooxygenase. Phytother. Res. 2014, 28, 224–230. [Google Scholar] [CrossRef] [PubMed]
  35. Sirdaarta, J.; Matthews, B.; White, A.; Cock, I.E. GC-MS and LC-MS Analysis of Kakadu Plum Fruit Extracts Displaying Inhibitory Activity against Microbial Triggers of Multiple Sclerosis. Pharmacogn. Commun. 2015, 5, 100–115. [Google Scholar] [CrossRef] [Green Version]
  36. Mondal, H.; Hossain, H.; Awang, K.; Saha, S.; Mamun-Ur-Rashid, S.; Islam, K.; Rahman, S.; Jahan, I.A.; Rahman, M.M.; Shilpi, J.A. Anthelmintic Activity of Ellagic Acid, a Major Constituent of Alternanthera sessilis Against Haemonchus contortus. Pak. Vet. J. 2015, 35, 58–62. [Google Scholar]
  37. Hussein, D.; El-Shiekh, R.A.; Saber, F.R.; Attia, M.M.; Mousa, M.R.; Atta, A.H.; Abdel-Sattar, E.; Mouneir, S.M. Unravelling the Anthelmintic Bioactives from Jasminum grandiflorum L. Subsp. Floribundum Adopting in Vitro Biological Assessment. J. Ethnopharmacol. 2021, 275, 114083. [Google Scholar] [CrossRef]
  38. Klongsiriwet, C.; Quijada, J.; Williams, A.R.; Mueller-Harvey, I.; Williamson, E.M.; Hoste, H. Synergistic Inhibition of Haemonchus contortus Exsheathment by Flavonoid Monomers and Condensed Tannins. Int. J. Parasitol. Drugs Drug Resist. 2015, 5, 127–134. [Google Scholar] [CrossRef]
  39. Dilrukshi Herath, H.M.P.; Preston, S.; Hofmann, A.; Davis, R.A.; Koehler, A.V.; Chang, B.C.H.; Jabbar, A.; Gasser, R.B. Screening of a Small, Well-Curated Natural Product-Based Library Identifies Two Rotenoids with Potent Nematocidal Activity against Haemonchus contortus. Vet. Parasitol. 2017, 244, 172–175. [Google Scholar] [CrossRef]
  40. Swargiary, A.; Roy, B. In Vitro Anthelmintic Efficacy of Alpinia nigra and Its Bioactive Compound, Astragalin against Fasciolopsis buski. Int. J. Pharm. Pharm. Sci. 2015, 7, 30–35. [Google Scholar]
  41. Waldi, D. Spray Reagents for Thin-Layer Chromatography. In Thin-Layer Chromatography: A Laboratory Handbook; Bolliger, H.R., Brenner, M., Gänshirt, H., Mangold, H.K., Seiler, H., Stahl, E., Waldi, D., Stahl, E., Eds.; Springer: Berlin/Heidelberg, Germany, 1965; pp. 483–502. ISBN 978-3-662-01031-0. [Google Scholar]
  42. Stévigny, C.; Block, S.; De Pauw-Gillet, M.C.; de Hoffmann, E.; Llabrès, G.; Adjakidjé, V.; Quetin-Leclercq, J. Cytotoxic Aporphine Alkaloids from Cassytha filiformis. Planta Med. 2002, 68, 1042–1044. [Google Scholar] [CrossRef] [PubMed]
  43. Rabel, B.; Mcgregor, R.; Douch, P.G.C. Improved Bioassay for Estimation of Inhibitory Effects of Ovine Gastrointestinal Mucus and Anthelmintics on Nematode Larval Migration. Int. J. Parasitol. 1994, 24, 671–676. [Google Scholar] [CrossRef] [PubMed]
  44. Nothias, L.-F.; Nothias-Esposito, M.; da Silva, R.; Wang, M.; Protsyuk, I.; Zhang, Z.; Sarvepalli, A.; Leyssen, P.; Touboul, D.; Costa, J.; et al. Bioactivity-Based Molecular Networking for the Discovery of Drug Leads in Natural Product Bioassay-Guided Fractionation. J. Nat. Prod. 2018, 81, 758–767. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Molecular network of fractions 1 to 9 of Terminalia leiocarpa leaves MeOH extract showing the major compounds in fractions 8 (green), 9 (red), and other fractions (blue). The numbers indicate the identification code of the compounds and asterisks show the compounds whose identification was confirmed by injection with the standard. (A) triterpenic derivatives, (B) O-glycosylated flavonoids, (C) ellagic acid derivatives, (D) fatty acids, (E) ellagic acid, (F) sugar, (G) tannin, (H) glycosylated galloylated flavonoids. Edge widths are proportional to the level of similarity (cosine score). The size of the nodes is proportional to the sum of quasi-molecular ion intensity of fractions 1 to 9. * compounds identified by standard comparison.
Figure 1. Molecular network of fractions 1 to 9 of Terminalia leiocarpa leaves MeOH extract showing the major compounds in fractions 8 (green), 9 (red), and other fractions (blue). The numbers indicate the identification code of the compounds and asterisks show the compounds whose identification was confirmed by injection with the standard. (A) triterpenic derivatives, (B) O-glycosylated flavonoids, (C) ellagic acid derivatives, (D) fatty acids, (E) ellagic acid, (F) sugar, (G) tannin, (H) glycosylated galloylated flavonoids. Edge widths are proportional to the level of similarity (cosine score). The size of the nodes is proportional to the sum of quasi-molecular ion intensity of fractions 1 to 9. * compounds identified by standard comparison.
Molecules 28 00076 g001
Figure 2. Base peak intensity (BPI) chromatogram of fraction 8 of the MeOH extract of Terminalia leiocarpa showing the main compounds identified. (5) 2,3-(S)-hexahydroxydiphenoyl-D-glucose or isomer; (8) gallic acid; (9) ellagic acid derivative; (18) quercetin-3-O-(6-O-galloyl)-β-D-galactopyranoside or isomer; (19) ellagic acid; (23) astragalin, and (29) rosamultin or isomer.
Figure 2. Base peak intensity (BPI) chromatogram of fraction 8 of the MeOH extract of Terminalia leiocarpa showing the main compounds identified. (5) 2,3-(S)-hexahydroxydiphenoyl-D-glucose or isomer; (8) gallic acid; (9) ellagic acid derivative; (18) quercetin-3-O-(6-O-galloyl)-β-D-galactopyranoside or isomer; (19) ellagic acid; (23) astragalin, and (29) rosamultin or isomer.
Molecules 28 00076 g002
Figure 3. Base peak intensity (BPI) chromatogram of fraction 9 of the MeOH extract of Terminalia leiocarpa showing the main compounds identified. (3) Quinic acid; (8) gallic acid; (9) ellagic acid derivative; (18) quercetin-3-O-(6-O-galloyl)-β-D-galactopyranoside or isomer; (19) ellagic acid; (20) quercetin-3-O-glucuronide; (23) astragalin, and (29) rosamultin or isomer.
Figure 3. Base peak intensity (BPI) chromatogram of fraction 9 of the MeOH extract of Terminalia leiocarpa showing the main compounds identified. (3) Quinic acid; (8) gallic acid; (9) ellagic acid derivative; (18) quercetin-3-O-(6-O-galloyl)-β-D-galactopyranoside or isomer; (19) ellagic acid; (20) quercetin-3-O-glucuronide; (23) astragalin, and (29) rosamultin or isomer.
Molecules 28 00076 g003
Figure 4. Molecular network of fractions of MeOH extract of Terminalia leiocarpa leaves showing compounds significantly positively (green nodes) or not significantly (yellow nodes) correlated with the anthelmintic activity on C. elegans. The numbers indicate the identification code of the compounds and asterisks show the compounds whose identification was confirmed by the injection of a standard. (A) triterpenic derivatives, (B) O-glycosylated flavonoids, (C) ellagic acid derivatives, (D) fatty acids, (E) ellagic acid, (F) sugar, (G) tannin, (H) glycosylated galloylated flavonoids. Edge widths are proportional to the level of similarity (cosine score). The size of the nodes is proportional to the sum of quasi-molecular ion intensity of fractions 8 and 9. * compounds identified by standard comparison.
Figure 4. Molecular network of fractions of MeOH extract of Terminalia leiocarpa leaves showing compounds significantly positively (green nodes) or not significantly (yellow nodes) correlated with the anthelmintic activity on C. elegans. The numbers indicate the identification code of the compounds and asterisks show the compounds whose identification was confirmed by the injection of a standard. (A) triterpenic derivatives, (B) O-glycosylated flavonoids, (C) ellagic acid derivatives, (D) fatty acids, (E) ellagic acid, (F) sugar, (G) tannin, (H) glycosylated galloylated flavonoids. Edge widths are proportional to the level of similarity (cosine score). The size of the nodes is proportional to the sum of quasi-molecular ion intensity of fractions 8 and 9. * compounds identified by standard comparison.
Molecules 28 00076 g004
Figure 5. Heatmap of viability inhibition rate (%) (minus that of the negative control) of young Caenorhabditis elegans adults treated with the compounds at different concentrations.
Figure 5. Heatmap of viability inhibition rate (%) (minus that of the negative control) of young Caenorhabditis elegans adults treated with the compounds at different concentrations.
Molecules 28 00076 g005
Table 1. Migration inhibition rate (%) of Haemonchus contortus L3 larvae, mortality rate (%) of Caenorhabditis elegans young adult worms treated with Terminalia leiocarpa MeOH extract and its fractions at a concentration of 600 µg/mL and cytotoxicity (IC50) on fibroblast cells (WI38).
Table 1. Migration inhibition rate (%) of Haemonchus contortus L3 larvae, mortality rate (%) of Caenorhabditis elegans young adult worms treated with Terminalia leiocarpa MeOH extract and its fractions at a concentration of 600 µg/mL and cytotoxicity (IC50) on fibroblast cells (WI38).
Sample/ControlH. contortus (%)C. elegans (%)Cytotoxicity, IC50 (µg/mL)
MeOH63.4 ± 0.870.0 ± 7.1>100
1--64.5 ± 5.7
229.8 ± 17.52.5 ± 4.358.9 ± 2.9
3--64.1 ± 2.2
415.1 ± 6.212.5 ± 4.360.3 ± 10.0
521.0 ± 3.922.5 ± 4.359.6 ± 4.9
635.7 ± 11.720.0 ± 7.178.9 ± 2.0
739.9 ± 7.922.5 ± 4.3>100
869.4 ± 10.475.0 ± 5.0>100
976.4 ± 1.885.0 ± 5.0>100
DMSO (0.5%)3.1 ± 0.80-
LEV (25µM)100.0 ± 0.0100.0 ± 0.0-
I MeOH: methanol extract of T. leiocarpa 1: fraction 1, … 9: fraction 9, DMSO: dimethylsulfoxide, LEV: levamisole, -: not tested.
Table 3. Concentration of the major compounds in the two most active fractions.
Table 3. Concentration of the major compounds in the two most active fractions.
Compound (ID)EquationR2LOD (µg/mL)LOQ (µg/mL)F8F9
µg/mLµg/mg of Fractionµg/mLµg/mg of Fraction
Ellagic acid (19)y = 228815x + 9260410.9995.516.586.4 ± 6.98.6 ± 0.771.4 ± 2.67.1 ± 0.3
Astragalin (23)y = 45696x + 159640.9973.39.97.7 ± 1.20.8 ± 0.19.6 ± 0.41.0 ± 0.0
Gallic acid (8)y = 8197.3x + 268750.99510.331.196.5 ± 7.89.7 ± 0.819.9 ± 0.52.0 ± 0.5
LOD Limit of Detection, LOQ Limit of Quantification, ID codes, F8 Fraction 8, F9 Fraction 9.
Table 4. Concentration of ellagic acid derivatives (in ellagic acid equivalents) in the two most active fractions.
Table 4. Concentration of ellagic acid derivatives (in ellagic acid equivalents) in the two most active fractions.
Compound (ID)F8F9
µg/mLµg/mg of Fractionµg/mLµg/mg of Fraction
Ellagic derivative (9)1.0 ± 0.40.1 ± 0.013.6 ± 1.11.4 ± 0.1
Ellagic derivative (10)2.1 ± 0.30.2 ± 0.0--
Ellagic derivative (11)4.2 ± 2.00.4 ± 0.235.9 ± 3.63.6 ± 0.4
Ellagic derivative (12)----
Ellagic derivative (13)2.4 ± 0.80.2 ± 0.10.5 ± 1.40.1 ± 0.2
Ellagic derivative (14)--8.0 ± 0.10.8 ± 0.0
Ellagic derivative (15)0.3 ± 0.50.1 ± 0.10.4 ± 1.0<LOQ
Ellagic derivative (16)11.1 ± 0.61.1 ± 0.11.8 ± 0.20.2 ± 0.0
ID codes, F8 Fraction 8, F9 Fraction 9.
Table 5. Solvent system used for the fractionation of the MeOH extract of Terminalia leiocarpa.
Table 5. Solvent system used for the fractionation of the MeOH extract of Terminalia leiocarpa.
Solvent SystemRatioVolume (mL)
DCM-MeOH100–0300
DCM-MeOH99.5–0.5400
DCM-MeOH99–1600
DCM-MeOH98–2600
DCM-MeOH96–4600
DCM-MeOH94–61000
DCM-MeOH92–8600
DCM-MeOH90–101000
DCM-MeOH85–151200
DCM-MeOH80–201200
DCM-MeOH70–301200
DCM-MeOH60–401200
DCM: Dichloromethane MeOH: Methanol.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Tchetan, E.; Ortiz, S.; Olounladé, P.A.; Hughes, K.; Laurent, P.; Azando, E.V.B.; Hounzangbe-Adote, S.M.; Gbaguidi, F.A.; Quetin-Leclercq, J. Fractionation Coupled to Molecular Networking: Towards Identification of Anthelmintic Molecules in Terminalia leiocarpa (DC.) Baill. Molecules 2023, 28, 76. https://doi.org/10.3390/molecules28010076

AMA Style

Tchetan E, Ortiz S, Olounladé PA, Hughes K, Laurent P, Azando EVB, Hounzangbe-Adote SM, Gbaguidi FA, Quetin-Leclercq J. Fractionation Coupled to Molecular Networking: Towards Identification of Anthelmintic Molecules in Terminalia leiocarpa (DC.) Baill. Molecules. 2023; 28(1):76. https://doi.org/10.3390/molecules28010076

Chicago/Turabian Style

Tchetan, Esaïe, Sergio Ortiz, Pascal Abiodoun Olounladé, Kristelle Hughes, Patrick Laurent, Erick Virgile Bertrand Azando, Sylvie Mawule Hounzangbe-Adote, Fernand Ahokanou Gbaguidi, and Joëlle Quetin-Leclercq. 2023. "Fractionation Coupled to Molecular Networking: Towards Identification of Anthelmintic Molecules in Terminalia leiocarpa (DC.) Baill" Molecules 28, no. 1: 76. https://doi.org/10.3390/molecules28010076

Article Metrics

Back to TopTop
