Synthesis and Structural Characterization of Phosphanide Gold(III)/Gold(I) Complexes and Their Thallium(III) and Gold(III) Precursors

Abstract

In this paper, we describe a series of diphenylphosphane and diphenylphosphanide gold(III) and gold(III)/gold(I) complexes containing 3,5-C₆Cl₂F₃ as aryl ligands at gold that have been synthesized due to the arylating and oxidant properties of the new polymeric thallium(III) complex [TlCl(3,5-C₆Cl₂F₃)₂]_n (1). Its reaction with [Au(3,5-C₆Cl₂F₃)(tht)] (tht = tetrahydrothiophene) produces the gold(III) complex [Au(3,5-C₆Cl₂F₃)₃(tht)] (2), which allows the synthesis of the diphenylohosphane derivative [Au(3,5-C₆Cl₂F₃)₃(PPh₂H)] (3). Its treatment with acetylacetonate gold(I) derivatives leads to two novel Au^III/Au^I phosphanido-bridged complexes, [PPN][Au(3,5-C₆Cl₂F₃)₃(µ-PPh₂)AuCl] (4) and [PPN][{(3,5-C₆Cl₂F₃)₃Au(µ-PPh₂)}₂Au] (5). All these complexes have been characterized, and the crystal structures of 1, 2, 4 and 5 have been established by single crystal X-ray diffraction methods, showing a novel polymeric arrangement in 1.

1. Introduction

As is well known, the chemistry of gold(I) has been traditionally much more developed than that of gold(III), mainly due to the lower stability of this last oxidation number, at least with typical ligands in coordination chemistry, such as tertiary phosphanes, amines or halogens. Similarly, there is an even greater difference in the stability of the oxidation numbers +1 and +3 in the case of thallium, where the inert-pair effect, a concept that was first proposed by Sidgwick in 1927 [1], plays an important role. The number of monovalent thallium or gold derivatives is much greater than that of their trivalent congeners, and the stabilizing effect of perhalophenyl groups, more specifically, of C₆F₅, is evident in gold, where their use has facilitated the synthesis of trivalent gold compounds [2]. In the case of thallium, its chemistry has, in general, attracted less interest, and the advance of its organometallic chemistry is closely connected with the application of thallium intermediates in organic synthesis [3]. Furthermore, the coordination chemistry or organothallium complexes have been limited by their weak Lewis acid character (only about 70 structures of diorganothallium compounds had been reported prior to 1998) [4]. It is worth noting that, while a search in the CSD brings up 652 crystal structures of perhalophenylgold compounds (517 of them containing C₆F₅ as aryl group), only 9 structures of perhalophenythallium complexes (from which only one contains C₆Cl₅ instead of C₆F₅ [5]) are found. One of such compounds, specifically [Tl(C₆F₅)₂Cl], was the key for the synthesis of the triarylgold(III) derivative [Au(C₆F₅)₃(tht) [6], sometimes employed as starting material in gold(III) chemistry.

On the other hand, although tertiary phosphanes have been widely employed as ligands in coordination chemistry, secondary (and especially primary) phosphanes or their phosphanido derivatives have been used to a lesser extent, due to their much lower stability. In the particular case of gold, there is an infra-undergrowth in comparison with other transition metals such as palladium or platinum [7,8], in spite of the possible catalytic activity of di- and polynuclear phosphanido complexes [8,9,10,11]. In addition, PR₂⁻ groups possess a strong nucleophilicity and a high bridging tendency, which could facilitate the presence of aurophilic interactions, frequently responsible for optical properties such as luminescence. As expected from the comments above regarding the relative stability of the oxidation numbers +1 and +3 in gold, only about the 10% of the gold phosphanido compounds reported contain gold(III) centers [12]. To the best of our knowledge, with the sole exceptions of [Au₂Me₄(µ-PPh₂)₂], reported by Puddephatt in 1976 [13], and [Au₂{2,6-NC₅H₃(C₆H₄)₂}₂(µ-PPh₂)]ClO₄, published in 2008 [14], the remainder of gold(III) phosphanido gold(III) derivatives were published by our research group between 1998 and 2006 [15,16,17,18,19,20], all of them containing perfluorophenyl groups as stabilizing ligands at gold. Therefore, this area of the chemistry has not witnessed much progress over the last three lustra, with only about one paper per year on gold(I) phosphanido complexes, and the sole contribution on gold(III) derivatives by Li et al. [14].

With these precedents, we focused our interest in the synthesis of phosphanido gold(III) complexes, and with this aim, we thought of the possibility of employing the poorly represented 3,5-dichlorotrifluorophenyl group as a ligand bonded to gold, which could modify the electronic and steric effects in the new complexes and could confer them different stability and properties. However, surprisingly, the synthesis of gold(III) species with this perhalophenyl ligand seems to be not as obvious as expected, and when the same procedures as those employed to prepare trans-[Au(C₆F₅)_{2 × 2}]⁻ [21], cis-[Au(C₆F₅)₂X₂]⁻ [21] and [Au(μ-Cl)(C₆F₅)₂]₂ [22] are followed, a quick rearrangement of aryl groups occurs, and a mixture of [Au(3,5-C₆Cl₂F₃)₃(solv)], [Au(3,5-C₆Cl₂F₃)₂Cl(solv)] and [Au(3,5-C₆Cl₂F₃)Cl₂(solv)] (solv = OEt₂, OH₂) is obtained [23].

For these reasons, we directed our efforts to the obtention of pure 3,5-dichlorotrifluorophenyl gold(III) derivatives containing diphenylphosphane or diphenylphosphanide as ligands. To achieve this goal, we first needed to prepare the appropriate starting materials: in an initial step, the thallium(III) derivative [Tl(3,5-C₆Cl₂F₃)₂Cl]_n (1) and, subsequently, the gold(III) complex [Au(3,5-C₆Cl₂F₃)₃(tht)] (2). Further treatment of 2 with PPh₂H produced the gold(III) phosphane derivative [Au(C₆Cl₂F₃)₃(PPh₂H)] (3), which was subsequently treated with acetylacetonate gold(I) compounds, following the “acac method” [24], to obtain mixed Au^III/Au^I complexes containing bridging diphenylphosphanide ligands. The new compounds have been characterized by analytical and spectroscopic techniques, and the crystal structures of almost all of them have been determined by X-ray diffraction methods.

2. Results and Discussion

2.1. Synthesis and Characterization of the Thallium(III) Complex [Tl(3,5-C₆Cl₂F₃)₂Cl]_n (1)

2.1.1. Synthesis and Spectroscopic Characterization of [Tl(3,5-C₆Cl₂F₃)₂Cl]_n (1)

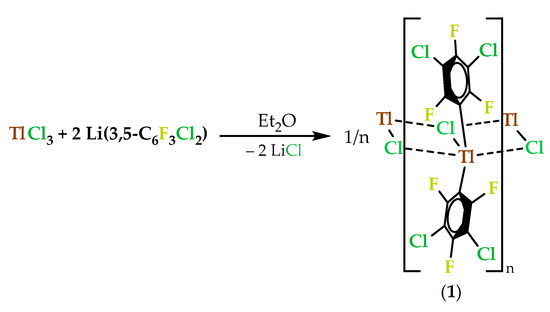

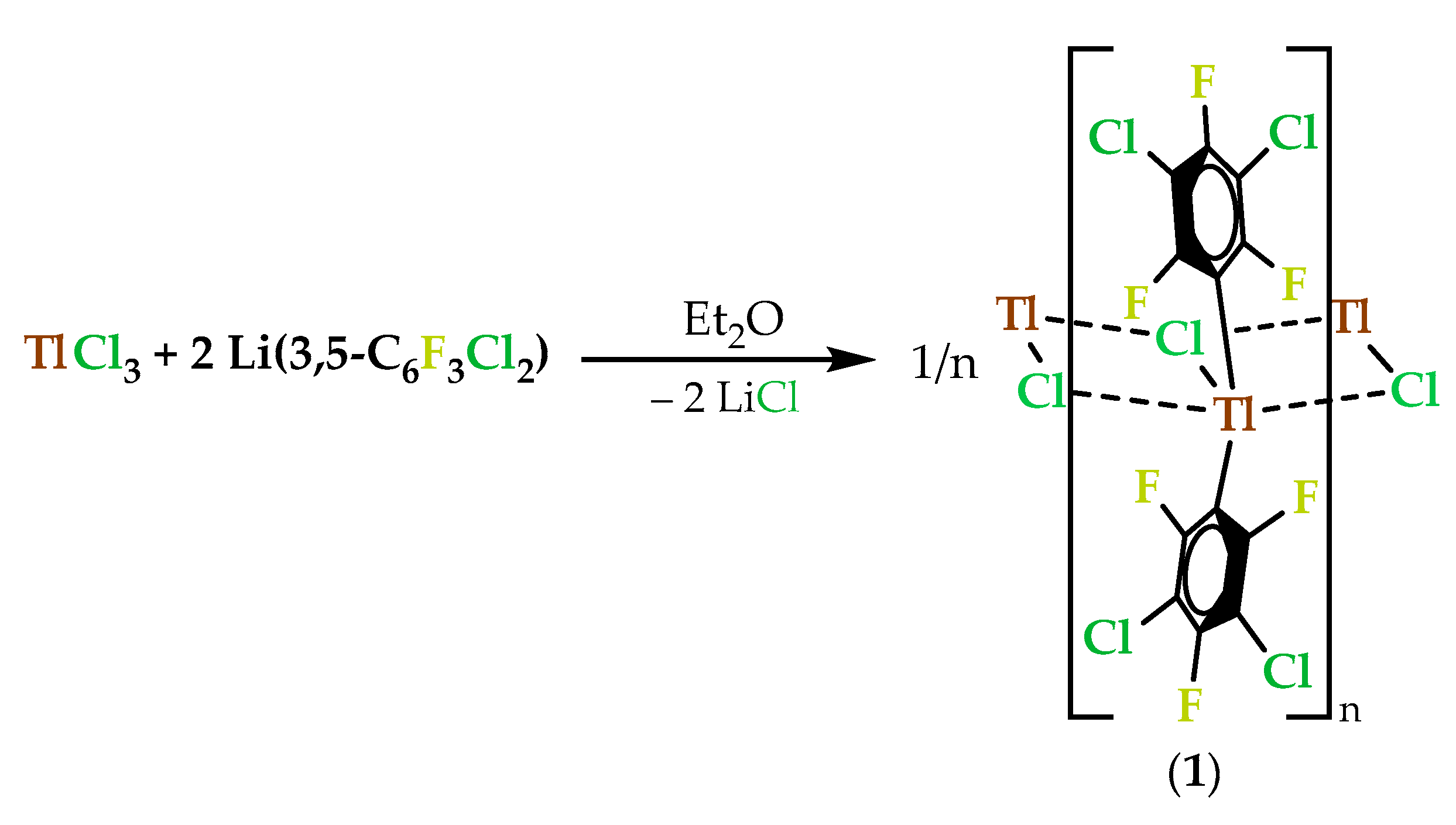

As mentioned above, our interest was focused not only on the synthesis of new diphenylphosphane and phosphanido-bridged compounds, but also on the preparation of unknown starting materials for the subsequent synthesis of such gold(III) species. Considering the difficulties involved in the oxidation of the bis(aryl)aurate(I) anion [Au(3,5-C₆Cl₂F₃)₂]⁻ commented on above, which leads to mixtures of different aryl gold(III) complexes [23], we decided to employ the neutral gold(I) compound [Au(3,5-C₆Cl₂F₃)(tht)] as starting material. Nevertheless, the first target was the synthesis of the appropriate oxidizing complex to treat [Au(3,5-C₆Cl₂F₃)(tht)] with. Therefore, we first synthesized the novel aryl thallium(III) derivative [Tl(3,5-C₆Cl₂F₃)₂Cl]_n (1), which would supposedly act as oxidant and arylating agent if it behaved similarly to its pentafluorophenyl congener [6]. As expected, complex 1 was obtained as an air- and moisture-stable white solid by the transmetallation reaction that takes place between anhydrous thallium(III) chloride and two equivalents of a freshly prepared solution of 3,5-dichlorotrifluorophenyllithium in diethyl ether at −75 °C and under a nitrogen atmosphere (Scheme 1). Its analytical and spectroscopic data are in accordance with the proposed stoichiometry and it behaves as a non-conducting species in acetone solutions.

The IR spectrum of 1 shows, among other features, absorption bands due to the presence of the aryl groups located at 1597, 1074 and 783 cm⁻¹. Its ¹⁹F NMR spectrum in DMSO-d₆ shows two resonances, at −110.49 and −92.99 ppm, with a relative integration of 1:2, as expected for the inequivalent fluorine atoms in the para and ortho positions of the aryl rings, respectively. As a consequence of the coordination of the aryl ligands to thallium, each signal splits into doublets due to the spin–spin coupling between ²⁰⁵Tl and ¹⁹F, with Tl-F coupling constants of 759.9 (³J_Tl-Fo) and 62.4 Hz (⁵J_Tl-Fp), consistent with those described for other polyhalophenyl groups bonded to thallium [25]. Finally, the HRMS (+) of 1 shows a peak at m/z = 602.8369, corresponding to the cationic fragment [Tl(C₆Cl₂F₃)₂]⁺, with an experimental isotopic distribution in agreement with the calculated one.

2.1.2. Crystal Structure of [Tl(3,5-C₆Cl₂F₃)₂Cl]_n (1)

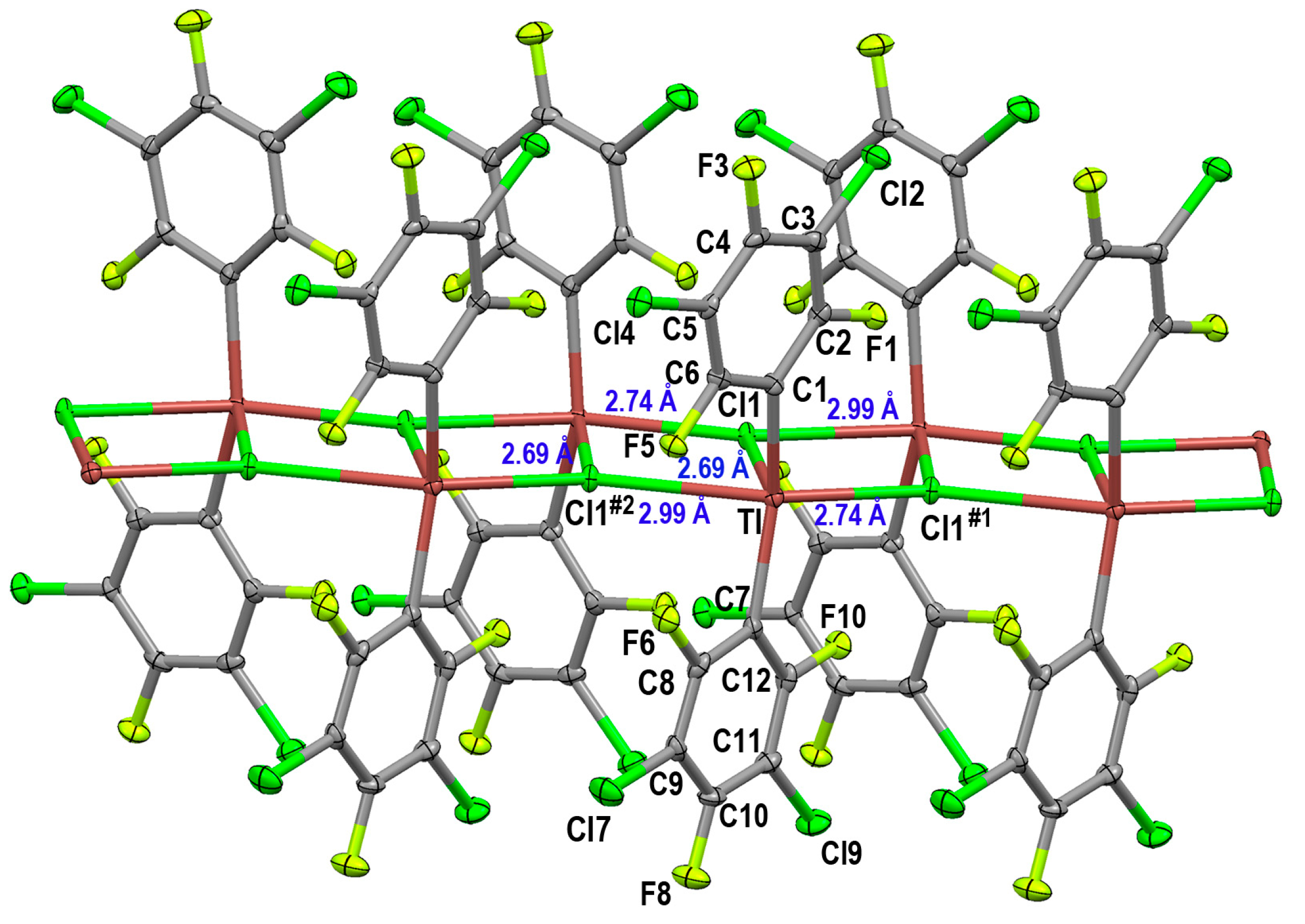

It is worth mentioning that, although some complexes of the type [Tl(aryl)₂Cl] (aryl = C₆Cl₅ [26], C₆F₅, 2,3,5,6-C₆F₄H, 2,3,4,6-C₆F₄H, 2,4,6-C₆F₃H₂, 4-C₆FH₄, 3-CF₃C₆H₄, [27] or mesityl [28]) had already been reported years ago, none of them had been studied by X-ray diffraction studies, and a dimeric structure with bridging chlorine atoms was supposed for them. We have determined the crystal structure of 1 by X-ray diffraction methods from single crystals obtained by slow diffusion of diethyl ether into a concentrated dichloromethane solution of the complex. Compound 1 crystallizes in the P2₁/c space group of the monoclinic system, with one [Tl(3,5-C₆Cl₂F₃)₂Cl] fragment in the asymmetric unit with Tl–C bond lengths of 2.135(5) and 2.141(5) Å and a Tl–Cl distance of 2.6893(11) Å. The marked tendency of thallium to display high coordination numbers [4] together with the ability of chlorine to act as bridging ligand, which in this case connects three metal centers, result in the formation of an infinite polymeric zig-zag band of [Tl(3,5-C₆Cl₂F₃)₂Cl] units (parallel to the crystallographic b axis) with Tl–Cl bonds of similar length, (2.6893(11) and 2.7397(13) Å), which are tied together by somewhat longer Tl–Cl bonds (2.9856(13) Å), as shown in Figure 1. This structure somehow resembles the “dimeric” structure (really a polymer) described for [Tl(2,3,5,6-C₆F₄H)₂Br] [29], although in our case no “dimers” are present.

The Tl–Cl distances within the zig-zag band [2.6893(11) and 2.7397(13) Å] are intermediate between those found for terminal Tl–Cl bonds in TlCl₃·3C₅H₅N (2.520(6) and 2.498(4) Å) [30], [Tl(FcN)₂Cl] (2.581(3) Å) [31], [Tl(C₆F₅)₂Cl{Au(C₆F₅)₃(OdppmO)}₂] (2.469(7) Å) [32] or [Tl(C₆F₅)₂(OdppmO)₂][Tl(C₆F₅)₂Cl₂] (2.497(27) and 2.567(2) Å) [33], and those described for bridging Tl–Cl bond lengths in [TlMe₂Cl]_n (3.029 Å) [34,35], [Tl(p-C₆F₄H)₂Cl(OPPh₃)]₂ (2.936(3) Å) [36], {[Tl(8-Me₂NC₁₀H₆)₂]Cl}_n (2.929(2) and 2.933(2) Å) [37] or [TlPh₂Cl(py)₂]_n (2.907(4), 2.9285(5) and 2.951(4) Å) [38], being closer to the Tl–Cl distance found in {1,2-(Ph₂TlN₄C)₂C₆H₄·Ph₂TlCl·2MeOH·2H₂O}_n (2.777(1) Å) [39], where the chlorine atom acts as a linear and symmetric bridge between two thallium centers, or to the shorter of the Tl–Cl lengths in [Tl(Me₃SiCH₂)₂Cl]₂ (2.76(1) and 2.99(1) Å) [40], which shows asymmetric Tl–Cl bond lengths. In fact, the latter is similar to the third Tl–Cl distance in the unidimensional polymer in 1 (2.9856(13) Å), which also compares well with most of the bridging Tl–Cl distances commented on above [34,35,36,37,38] (see

Table 1. Bridging and terminal Tl–Cl bond lengths [Å] found in the crystal structures of 1 and other thallium(III) complexes.

	Tl–Cl (Bridging)	Tl–Cl (Terminal)	Ref.
[Tl(3,5-C6Cl2F3)2Cl]n (1)	2.6893(11), 2.7397(13) and 2.9856(13)
TlCl3·3C5H5N		2.520(6), 2.498(4)	[30]
[Tl(FcN)2Cl]		2.581(3)	[31]
[Tl(C6F5)2Cl{Au(C6F5)3(OdppmO)}2]		2.469(7)	[32]
[Tl(C6F5)2(OdppmO)2][Tl(C6F5)2Cl2]		2.497(27), 2.567(2)	[33]
[TlMe2Cl]n	3.029		[34,35]
[Tl(p-C6F4H)2Cl(OPPh3)]2	2.936(3)		[36]
{[Tl(8-Me2NC10H6)2]Cl}n	2.929(2), 2.933(2)		[37]
[TlPh2Cl(py)2]n	2.907(4), 2.9285(5), 2.951(4)		[38]
{1,2-(Ph2TlN4C)2C6H4·Ph2TlCl·2MeOH·2H2O}n	2.777(1)		[39]
[Tl(Me3SiCH2)2Cl]2	2.76(1) and 2.99(1)		[40]

).

An additional weaker Tl···Cl contact of 3.4716(11) Å that involves a chlorine atom of a perhaloaryl group appears between neighboring chains. It is worth noting that this weakly coordinated Cl is not a chloride, but part of a perhaloaryl group, which could, therefore, be seen as a sort of bridging ligand. This Tl···Cl contact, together with a couple of Cl···F interactions, [d(Cl-F) = 3.206(3) and 2.975(4) Å], give rise to an extended layer normal to the crystallographic a axis (see Figure S1). Finally, these layers are connected through pairs of Cl···F contacts of 3.193(4) Å, resulting in a 3D network (Figure S2).

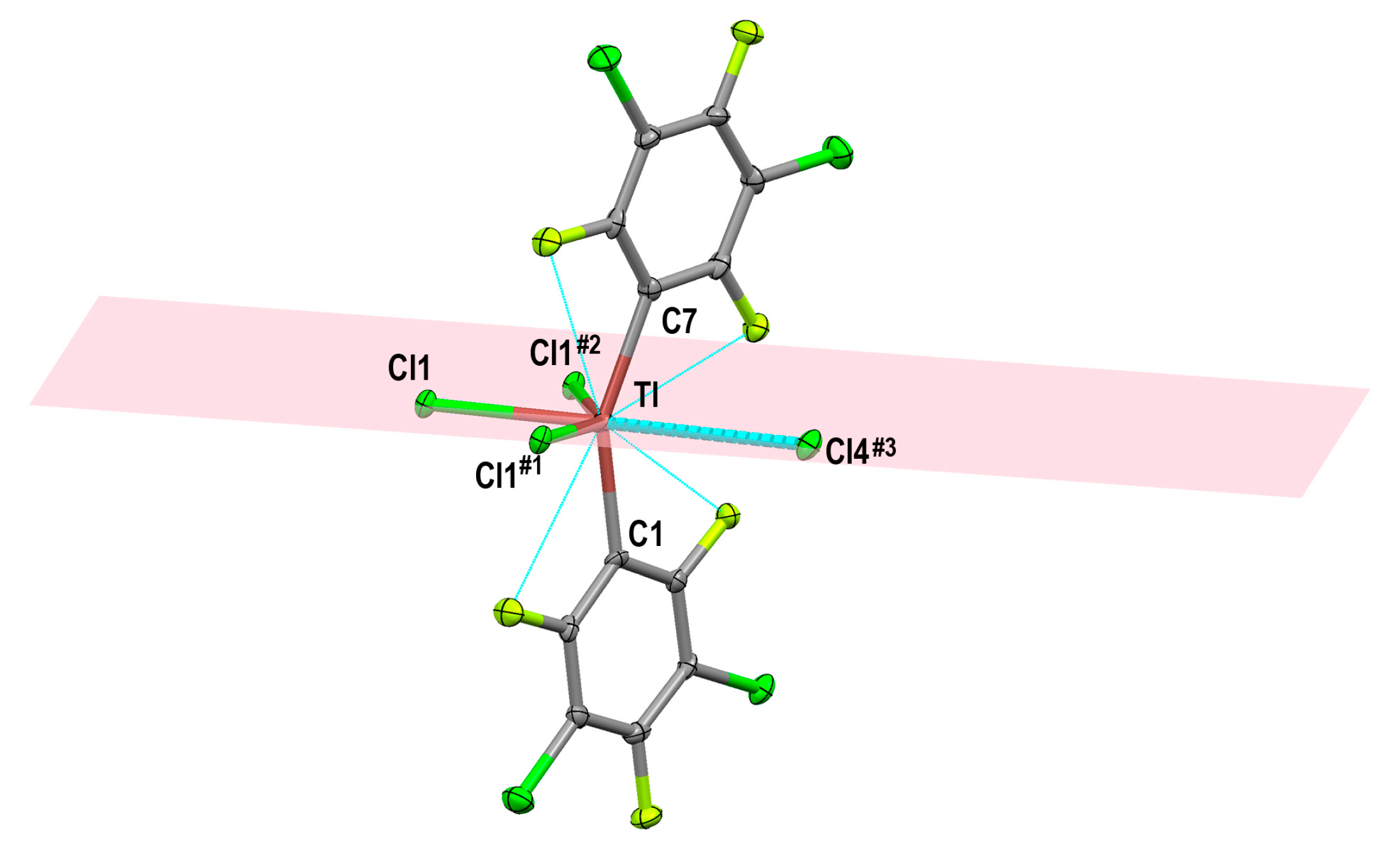

Upon examination, the thallium environment, as can be seen in Figure 2, could be described as a very distorted octahedral one, where thallium is fairly [5+1] coordinated, with the four chlorine atoms lying in the same plane as the metal center and the carbon atoms of the aryl groups “perpendicular” to this plane (C1-Tl-C7 152.42(18)°). This strong deviation in the C-Tl-C angle, which bends toward the side of the weakest donor (the aryl-bound Cl ligand), is likely to be caused by the formation of the above-mentioned Tl···Cl_aryl and Cl···F interactions between aryl groups of neighboring chains (Figure S1).

2.2. Synthesis and Characterization of Gold(III) Complexes

2.2.1. Synthesis and Spectroscopic Characterization of Gold(III) Complexes

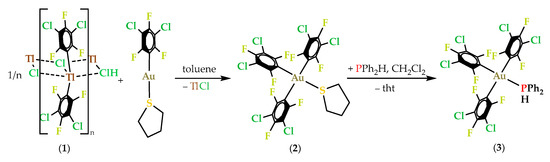

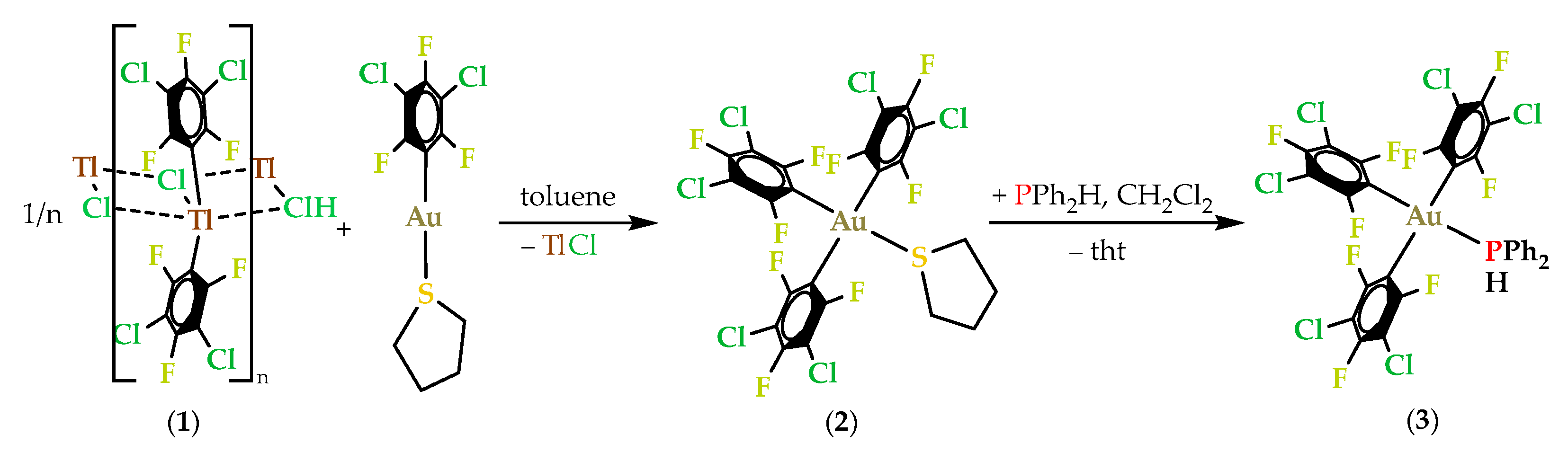

The next step was the synthesis of the appropriate gold(III) precursor for the further preparation of phosphane and phosphanide complexes. As we expected, the thallium(IIII) derivative [Tl(3,5-C₆Cl₂F₃)₂Cl]_n (1) is capable of transferring its two aryl groups to gold(I) when treated with equivalent amounts of [Au(3,5-C₆Cl₂F₃)(tht)] in toluene and under reflux. This oxidative addition reaction, which takes place with the simultaneous precipitation of thallium(I) chloride, leads to the synthesis of [Au(3,5-C₆Cl₂F₃)₃(tht)] (2), which is obtained as a white stable solid (Scheme 2) whose analytical and spectroscopic data agree with the proposed stoichiometry. It is nonconducting in acetone, soluble in most of the common organic solvents and non-soluble in hexane.

The labile tetrahydrothiophene ligand present in 2 can be easily replaced by diphenylphosphane. Thus, reaction of 2 with PPh₂H (1:1) in dichloromethane and under a nitrogen atmosphere leads to [Au(3,5-C₆Cl₂F₃)₃(PPh₂H)] (3), one of the very few examples of gold complexes containing a primary or a secondary phosphane as ligand, obtained as an oily and sticky compound. All attempts to isolate it as a pure solid were unsuccessful; however, its spectroscopic data agree with the proposed stoichiometry for this compound and it was employed in situ, without isolating it, for subsequent reactions.

The IR spectrum of complex 2 shows, among other features, very strong absorptions arising from the C₆Cl₂F₃⁻ groups at 1600 (vs), 1062 (vs) and 781 (vs) cm⁻¹, as well as a couple of weaker bands at 1310 and 1250 cm⁻¹, which correspond to the sulfur donor ligand.

The ¹⁹F NMR spectrum of 2 displays two groups of resonances at −94.94 and −95.41 ppm (due to 2 and 4 F_o atoms, respectively), and at −112.51 and −113.57 ppm (due to 2 and 1 F_p atoms, respectively), as expected for a complex with 2 types of inequivalent 3,5-dichlorotrifluorophenyl rings bonded to gold(III). The ¹⁹F NMR spectrum of compound 3 is very similar to that of 2, showing only small shifts in the location of the signals [−94.71 (4 Fo), −95.08 (2 Fo), −114.07 (2 Fp) and −114.55 ppm (1 Fp)]. In addition, the signals of the F_o atoms appear broadened in both cases because of their coupling with other fluorine atoms of the aryl ligands as well as with the phosphorus of PPh₂H in 3.

Regarding their ¹H NMR spectra, that of complex 2 shows only 2 multiplets centered at 3.14 and 2.05 ppm, with relative intensities of 1:1, corresponding to the methylenic protons of the tetrahydrothiophene ligand. In the case of 3, its ¹H NMR spectrum, in addition to the signals attributed to the aromatic protons between 7.8 and 7.4 ppm, displays a resonance centered at 6.18 ppm, corresponding to the highly unshielded hydrogen atom directly bonded to phosphorus, which, therefore, appears as a doublet with a large P-H coupling constant [J_P-H = 414.1 Hz]. The presence of the secondary phosphane is also revealed by its ³¹P{¹H} NMR spectrum, which displays a broad signal (because of the coupling of the phosphorus with the ortho fluorine atoms of the aryl group located in trans to PPh₂H) at −8.38 ppm that is shifted to low field relative to the resonance of the free ligand, which appears at −40.3 ppm, as a consequence of its coordination with gold.

Finally, the HRMS (−) spectrum of 3 shows that the peak corresponding to the anion [Au(C₆Cl₂F₃)₃(PPh₂)]⁻ was found at 978.8187 Da, with an experimental isotopic distribution in agreement with the calculated one.

2.2.2. Crystal Structure of [Au(3,5-C₆F₅)₃(tht)] (2)

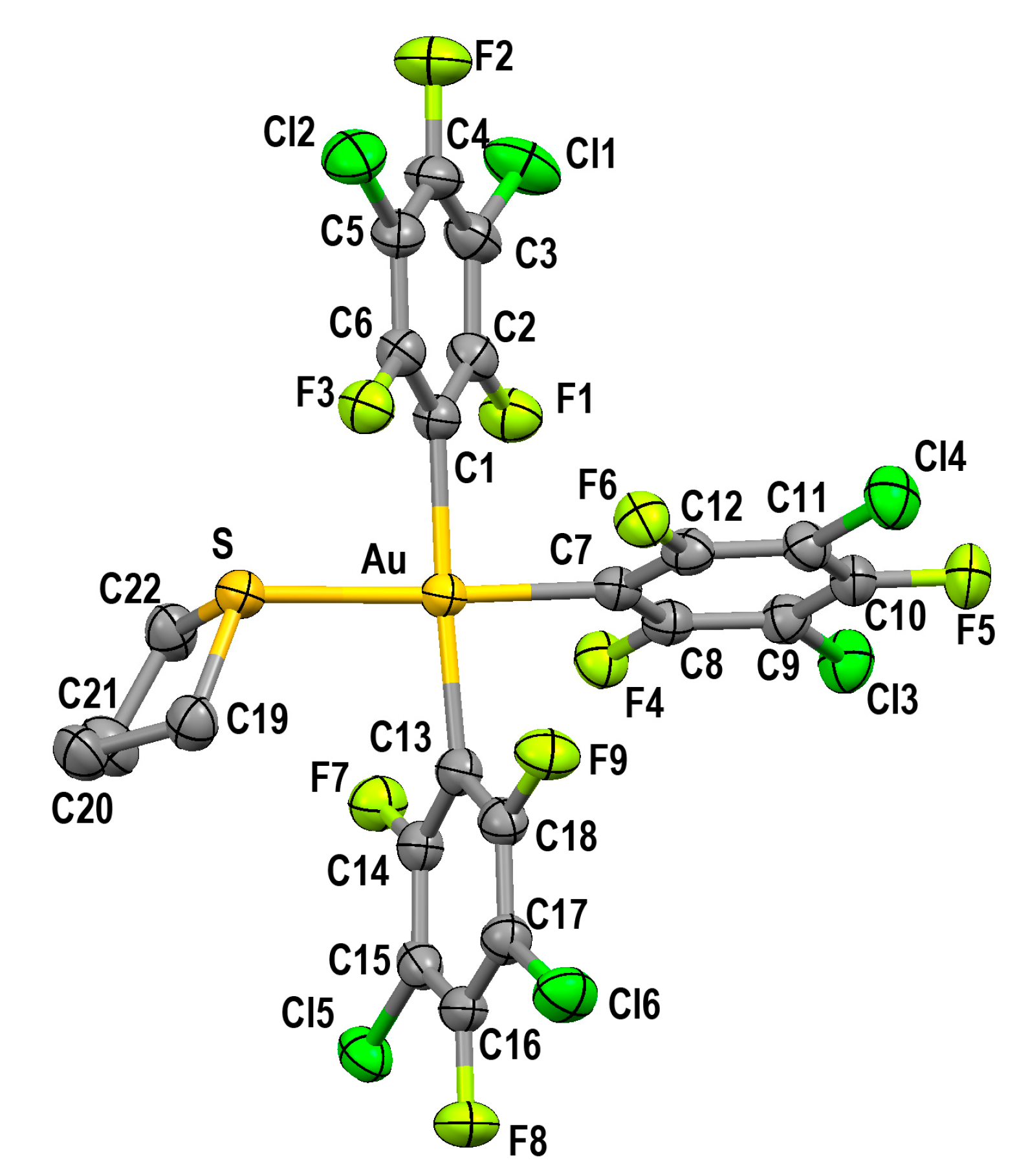

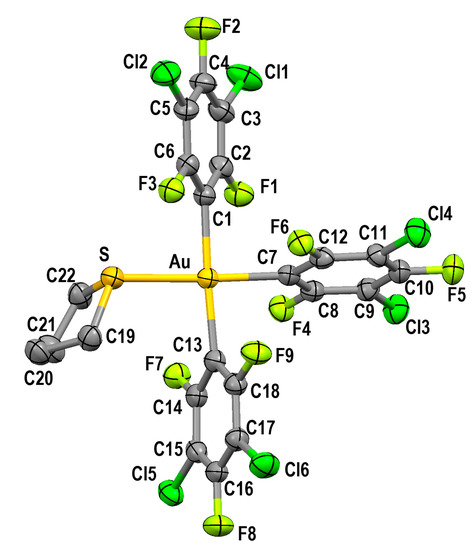

The molecular structure of 2 was determined by X-ray diffraction methods from single crystals grown by slow evaporation of a hexane solution of the complex, which crystallizes in the monoclinic P2₁/n space group. Its molecular structure consists of [Au(3,5-C₆F₅)₃(tht)] neutral molecules in which the square-planar gold(III) center is surrounded by three C atoms of the dichlorotrifluorophenyl groups and the sulfur donor atom of a tetrahydrothiophene molecule (Figure 3).

The mutually trans Au–C bond lengths, of 2.073(3) and 2.068(3) Å, are longer than the Au–C trans to sulfur, of 2.035(3) Å, according to the higher trans influence of the aryl groups than S-donor ligands, and compare well with the Au–C bond lengths described for the mutually trans aryl groups in [Au(3,5-C₆Cl₂F₃)₃(OH₂)] (2.056(7) Å) or in the anion [Au(3,5-C₆Cl₂F₃)₄]⁻ (2.059(5) Å) [23] (

Table 2. Au–C and Au–S bond lengths [Å] found in the structures of 2 and other gold complexes.

	AuIII–C (trans to aryl)	AuIII–C (trans to S/P)	AuIII–S	AuI–S	Ref.
[Au(3,5-C6Cl2F3)3(tht)] (2)	2.073(3) 2.068(3)	2.035(3)	2.3897(8)
[Au(3,5-C6Cl2F3)3(OH2)]	2.056(7)				[23]
[Au(3,5-C6Cl2F3)4]−	2.059(5)				[23]
[Au(C6F5)3(tht)]	2.056(5)- -2.068(2)	2.030(5) 2.032(3)	2.3623(13) 2.37792(9)		[41]
[Au(C6F5)(tht)]				2.317(3) 2.320(3)	[41]
[Ag2Au(3,5-C6Cl2F3)(CF3CO2)2(tht)]n				2.3158(16)	[42]

). In addition, all the Au–C bond lengths in [Au(3,5-C₆Cl₂F₃)₃(tht)] (2) are almost equal to those found for its pentafluorophenyl analogue (Au–C trans to C₆F₅: 2.056(5)-2.068(2) Å and Au–C trans to S: 2.030(5) and 2.032(3) Å) [41]. In contrast, the Au–S bond length of 2.3897(8) Å is slightly longer than those found in [Au(C₆F₅)₃(tht)] (2.3623(13) and 2.37792(9) Å) [41], and surprisingly longer than the Au^I-S bond lengths found in [Au(C₆F₅)(tht)]_n (2.317(3) and 2.320(3) Å) [41] and [Ag₂Au(3,5-C₆Cl₂F₃)(CF₃CO₂)₂(tht)]_n (2.3158(16) Å) [42], which contain gold(I) instead of gold(III) centers in the linear [Au(C₆X₅)(tht)] units (see Table 2).

No apparent reason for this fact is found in the supramolecular structure of 2, where neither the sulfur atom nor the gold one participates in weak interactions. C–H···F hydrogen bonds and weak Cl···Cl contacts between adjacent molecules result in a 3D array instead (see Figures S3–S5 and Table S1).

2.3. Synthesis and Characterization of Gold(III)/Gold(I) Phosphanido Complexes

2.3.1. Synthesis and Spectroscopic Characterization of Gold(III)/Gold(I) Phosphanido Complexes

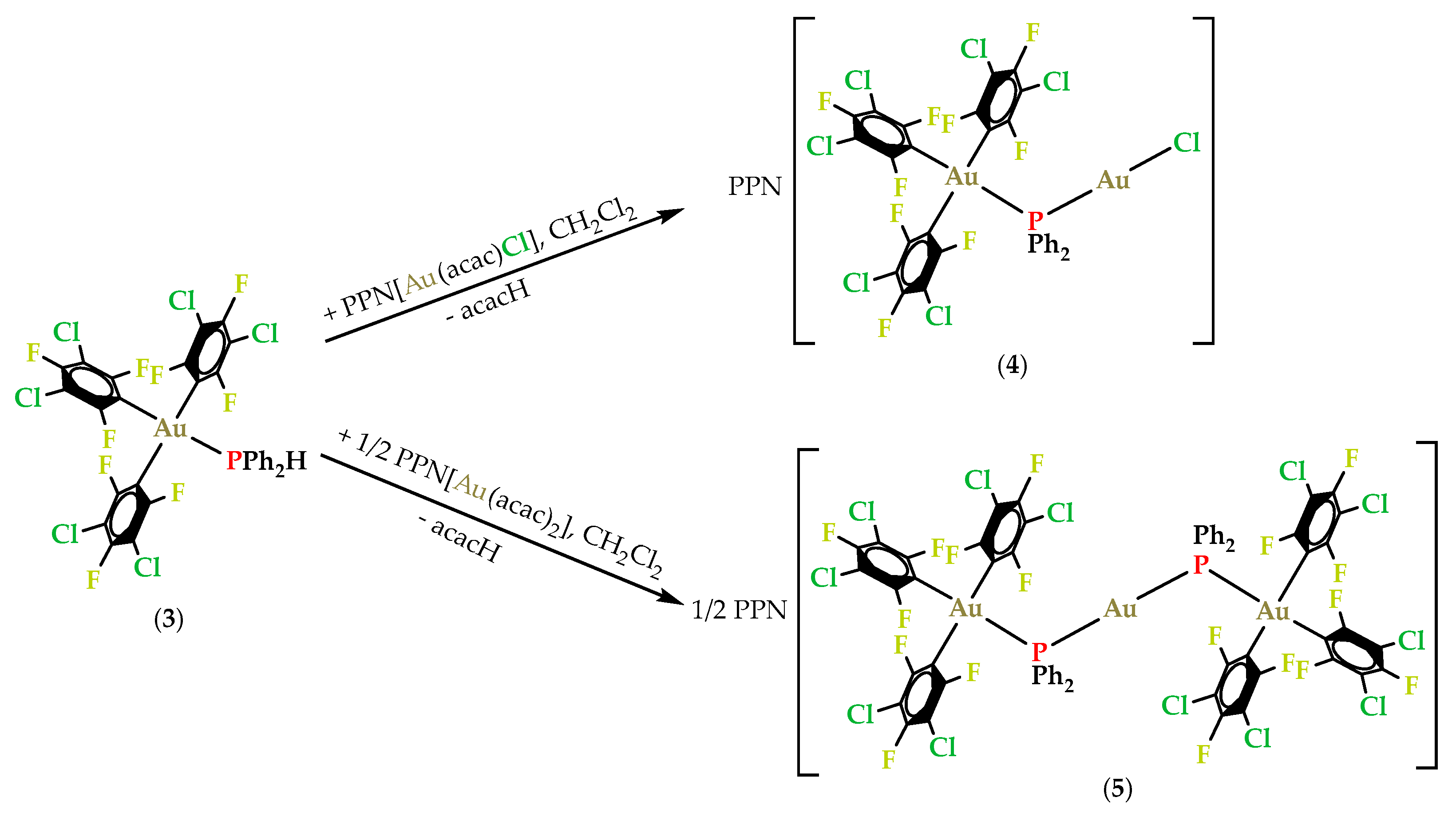

As commented on in the introduction, our goal was to obtain mixed Au^III/Au^I complexes containing bridging diphenylphosphanide ligands and, with this aim, we explored the use of [Au(3,5-C₆Cl₂F₃)₃(PPh₂H)] (3) as starting material. Considering the deprotonating ability of acetylacetonate [24], which is able to deprotonate primary or secondary phosphane ligands [12], we treated a freshly prepared solution of 3 in dichloromethane with the acetylacetonate gold(I) derivates [PPN][Au(acac)Cl] (PPN = [N(PPh₃)₂]⁺) or [PPN][Au(acac)₂] in 1:1 or 2:1 molar ratios, respectively. As expected, these reactions take place with the generation of diphenylphosphanide gold(III) units that rapidly incorporate the gold(I) fragments to the phosphorus atoms, thus producing the di- and trinuclear Au^III/Au^I phosphanido-bridged gold species [PPN][Au(3,5-C₆Cl₂F₃)₃(µ-PPh₂)AuCl] (4) and [PPN][{(3,5-C₆Cl₂F₃)₃Au(µ-PPh₂)}₂Au] (5), respectively, with the concomitant formation of acetylacetone (see Scheme 3). It is worth noting that, as far as we are aware, these are the first dichlorotrifluorophenyl phosphanido complexes ever reported.

Both compounds 4 and 5 are obtained as white solids that behave as 1:1 electrolyte in acetone solutions, and their analytical and spectroscopic data agree with the proposed formulation for these complexes. Their IR spectra display, among other features, absorptions assigned to the PPN⁺ cation (at 534 cm⁻¹) as well as to the aryl groups bonded to gold(III) at about 1590, 1055 and 781 cm⁻¹. In addition, a weak band at 322 cm⁻¹ appears in the IR spectrum of 4, which corresponds to the Au^I֪–Cl bond.

The ¹⁹F NMR spectra of 4 and 5 in CDCl₃ are nearly identical and display the same pattern as that observed in the spectra of complexes 2 and 3, although with the resonances slightly displaced, confirming the presence of the tris(aryl)gold(III) fragments. On the other hand, their ³¹P{¹H} NMR spectra show a sharp singlet at 21.1 ppm, confirming the presence of the cation PPN⁺, and a broader resonance due to the phosphorus of the PPh₂⁻ ligands, which appear at 19.48 (4) or 30.9 ppm (5), that is, low-field shifted when compared with that of 3 (−8.38 ppm).

Regarding their ¹H NMR spectra, the disappearance of the doublet assigned to the PPh₂H hydrogen in the ¹H NMR spectra of 3 confirms the absence of H–P bonds, displaying only signals assigned to aromatic hydrogen atoms.

Finally, in their HRMS (−), the peaks corresponding to the molecular anion [Au(C₆Cl₂F₃)₃(µ-PPh₂)AuCl]⁻ (4) or [{(C₆Cl₂F₃)₃Au(µ-PPh₂)}₂Au]⁻ (5) appear at m/z = 1210.7519 or 2154.6073, respectively, with experimental isotopic distributions in agreement with the calculated ones.

2.3.2. Crystal Structures of PPN[Au(3,5-C₆Cl₂F₃)₃(µ-PPh₂)AuCl] (4) and PPN[{(3,5-C₆Cl₂F₃)₃Au(µ-PPh₂)}₂Au] (5)

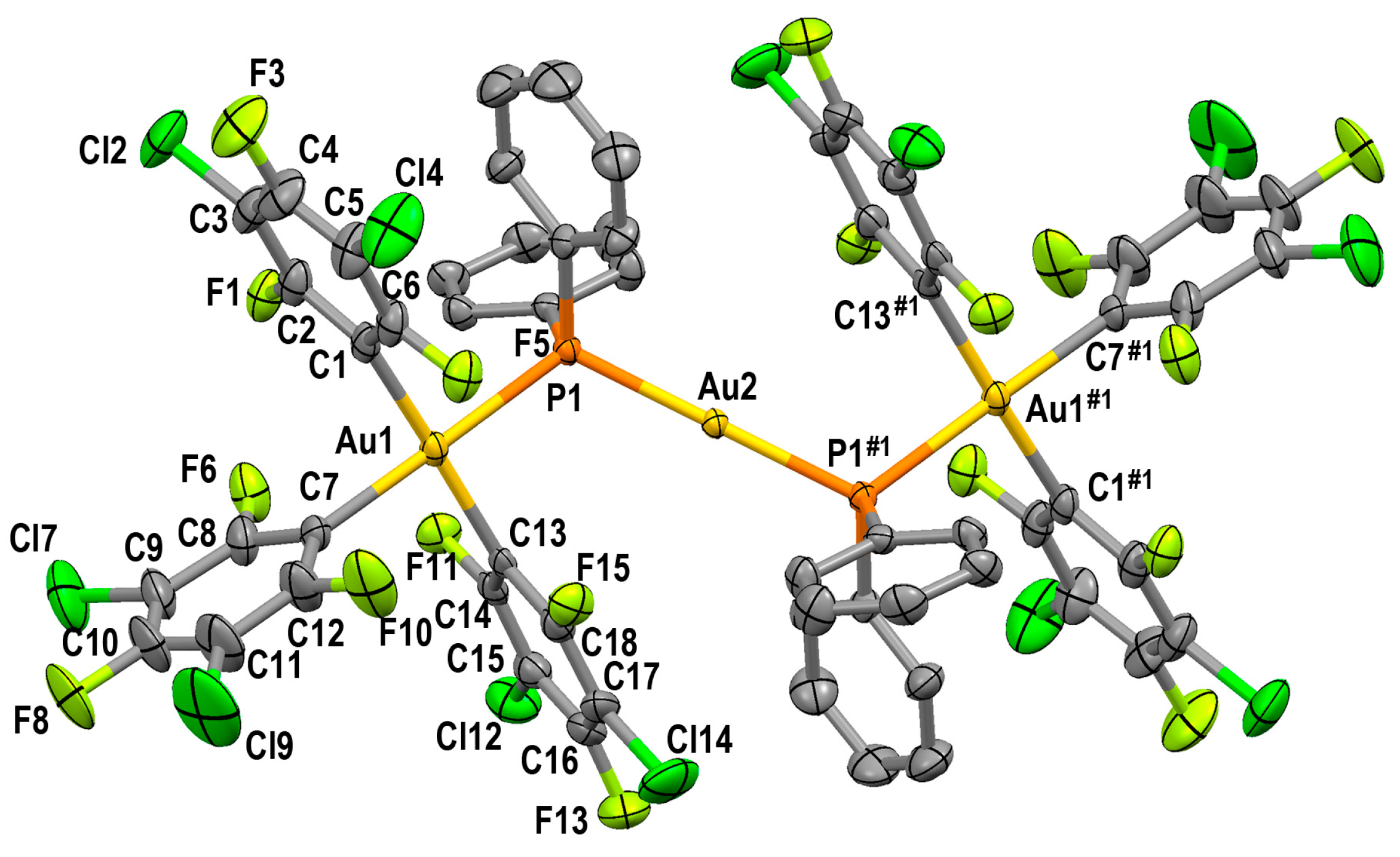

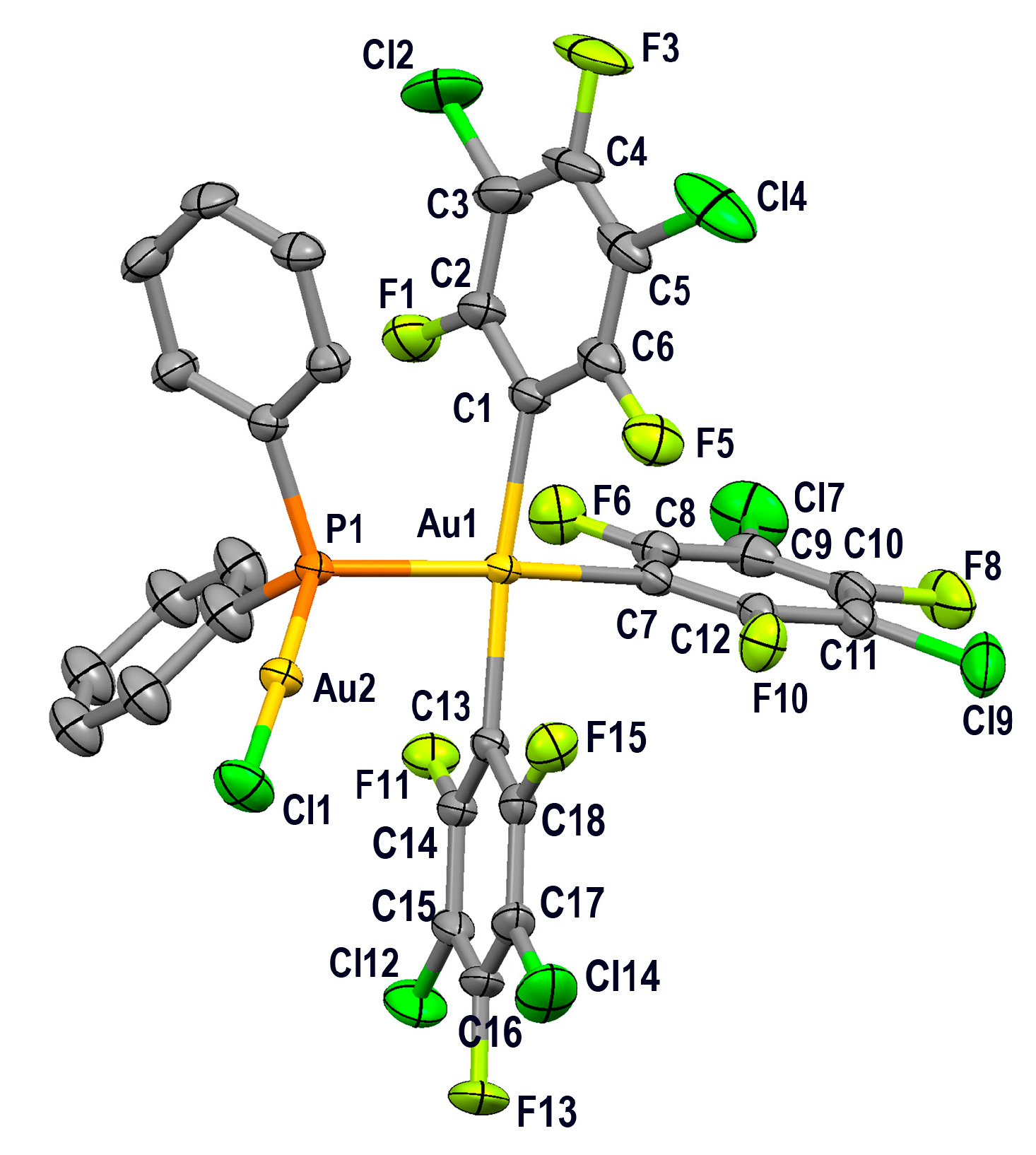

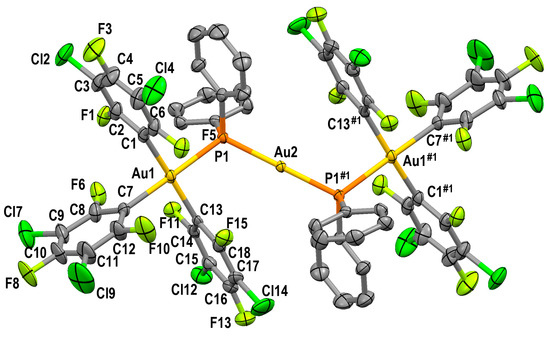

Crystals of 4 and 5 suitable for X-ray diffraction studies were obtained from solutions of the corresponding complex in tetrahydrofuran layered with hexane. The molecular structure of complex 4 displays PPN⁺ cations and [Au(3,5-C₆Cl₂F₃)₃(µ-PPh₂)AuCl]⁻ anions, the latter containing a diphenylphosphanide fragment that connects a tris(aryl)gold(III) unit and a chloroaurate(I) anion (Figure 4), while in the case of complex 5, the molecular anion is formed by two tris(aryl)diphenylphosphanideaurate(III) units linked by a linear gold(I) atom, which lies in the inversion center (Figure 5). The gold(I) atom in 4 is also linearly coordinated, with a deviation of the ideal angle of only 1.54°.

The [Au(3,5-C₆Cl₂F₃)₃(µ-PPh₂)]⁻ fragments are essentially equal in both structures showing essentially square-planar geometries for the gold(III) atoms, with the Au^III center (Au1) lying on the plane defined by the ipso carbon atoms of the three aryl groups (C1, C7 and C13) and the phosphorus atom (P1) at 0.617 (4) or at 0.256 Å (5) of the plane.

The Au^III-Au^I distance, of 3.9483(5) Å in 4 and 3.9391(3) Å in 5, is too large to consider any kind of gold···gold interaction. The Au–C bond lengths (

Table 3. Selected bond lengths [Å] found in the structures of 2, 4 and 5 (for comparison purposes).

	AuIII–C (trans to aryl)	AuIII–C (trans to S/P)	AuIII–P	AuI–P	C–AuIII–C/S/P (trans)	P–AuI–P/Cl (trans)
2	2.073(3)	2.035(3)			176.79(11) (C) 177.27(7) (S)
	2.068(3)
4	2.058(5)	2.076(5)	2.3707(13)	2.2436(13)	172.4(2) (C)	178.66(6) (Cl)
	2.068(5)				171.13(15) (P)
5	2.044(5) 2.066(5)	2.059(5)	2.3645(11)	2.3079(13)	175.42(17) (C) 177.71(14) (P)	180.0 (P)

), in the range 2.058(5)–2.076(5) Å in 4 and 2.044(5)–2.066(5)Å in 5, compare well with those observed for the mutually trans carbons in 2 and also with those reported for related tris(pentafluorophenyl)gold(III) phosphanide compounds [15,16,17,19,20]. The similarity of the three Au–C bond lengths in each complex evidences a similar trans influence for dichlorotrifluorophenyl and diphenylphosphanide groups, both of them higher than the trans influence of the S-donor ligand. Taking this trans influence order into account, one would expect to find similar Au–P distances to those located in trans to an aryl group or to phosphorus, or even shorter for those involving gold(III) centers, according to the smaller radius expected for Au^III than for Au^I. In contrast, the Au^III–P (trans to 3,5-C₆Cl₂F₃) bond lengths in 4 (2.3707(13) Å) and in 5 (2.3645(11) Å) are longer than the Au^I–P (trans to PPh₂) in 5 (2.3079(13) Å), and all of them longer than the Au^I–P length in 4 (2.2436(13) Å), where the phosphorus is located in trans to a chlorine atom, with lower trans influence. Similar Au^III–P and Au^I–P bond lengths have been reported for other pentafluorophenyl gold(III) phosphanido complexes [15,16,17,18,19,20]. Regarding the Au^I-Cl bond length in 4, of 2.2830(16) Å, it is shorter than those found in the dinuclear gold(I) phosphanides PPN[(AuCl)₂(μ-PR₂)] (R = t-Bu, cyclo-C₆H₁₁), which are 2.3027(14) and 2.3083(13) Å (R = cyclo-C₆H₁₁) and 2.3141(10) and 2.3140(11) Å (R = t-Bu) [43].

Finally, intermolecular C–H···F and C–H···Cl hydrogen bonds between the counterions give rise to an extended supramolecular one-dimensional array in 4 (Figure S6 and Table S2), while in the case of complex 5, only intramolecular C–H···F interactions are observed within the molecular anion (Figure S7 and Table S3).

3. Experimental Section

3.1. General

All reactions were performed in oven-dried glassware with magnetic stirring under a deoxygenated nitrogen atmosphere. The starting complexes [Au(3,5-C₆Cl₂F₃)(tht)] (tht = tetrahydrothiophene) [44], [PPN][Au(acac)Cl] [45] and [PPN][Au(acac)₂] [45,46] were prepared as described in the literature. The starting materials were obtained from commercial sources; these included 1,3,5-tricloro-2,4,6-trifluorobenzene (Fluorochem, Old Glossop, UK and n-Butyllithium solution 1.6 M in hexane (Sigma-Aldrich, Madrid, Spain), and were used as received. PPh₂H was purchased from Sigma-Aldrich and used as a 0.96 M tetrahydrothiophene solution. Thallium(III) chloride was purchased from Sigma-Aldrich and anhydrous thallium(III) chloride was prepared according to the known procedure as described in the literature [47]. Because of the toxic nature of many thallium compounds, rubber gloves were worn throughout this portion of the experimental study. All solvents used for the synthesis of the new compounds were obtained from commercial sources and were used without further purification.

3.2. Instrumentation

Infrared spectra were recorded in the 4000–225 cm⁻¹ range on a Nicolet Nexos FT-IR Spectrum (Thermo Nicolet Corporation, Madison, WI, USA) using Nujol mulls between polyethylene sheets. Conductivities were measured in ca. 5 × 10⁻⁴ M acetone solutions with a Jenway 4010 conductimeter (Jenway, Felsted, UK). High resolution mass spectrometry (HRMS) was performed using a time-of-flight mass spectrometer equipped with an ESI ionization source (Bruker MicroTOF-Q spectrometer, Bruker Corporation, Bremen, Germany). The analyses were carried out in negative and positive mode. ³¹P{¹H}, ¹⁹F and ¹H NMR experiments were recorded on a Bruker AVANCE 400 (Bruker Corporation, Fällanden, Switzerland) in CDCl₃ solutions or on a Bruker ARX300 in CDCl₃ or DMSO-d₆ solutions. Chemical shifts are quoted relative to H₃PO₄ (³¹P, external), CFCl₃(¹⁹F, external) and SiMe₄ (¹H, external).

3.3. Synthesis

3.3.1. Synthesis of [Tl(3,5-C₆Cl₂F₃)₂Cl]_n (1)

A round-bottom 2-neck flask was cooled to −75 °C and charged with 1,3,5-trichloro-2,4,6-trifluorobenzene (3.5004 g, 14.869 mmol) in 70 mL diethyl ether, whereupon a solution of butyllithium in diethyl ether (9.2931 mL, 14.869 mmol) was added dropwise. As soon as the addition was completed, the dropping funnel was replaced by a mineral oil bubbler and the mixture was stirred under a nitrogen atmosphere for 4 h and 30 min while the temperature was maintained at −75 °C.

Anhydrous thallium trichloride (2.3000 g, 7.4017 mmol) was added to the above solution of (3,5-dichlorotrifluorophenyl)lithium and the mixture was stirred for 1 h and 30 min at −75 °C, after which it was allowed to reach room temperature (slowly ~1 h). The nitrogen stream was stopped, and the precipitated lithium chloride was removed by filtration over celite. The yellow-orange filtrate was treated with 80 mL water previously acidified with 4 drops of concentrated HCl (addition of water followed by acidification leads to OH⁻ containing end products). Then, the organic layer—which, during this operation, has lost color—was removed by using a separating funnel, and the aqueous layer—which was extracted with diethyl ether (3 × 10 mL)—were then added to the previously separated diethyl ether solution and dried over 1–2 g anhydrous magnesium sulfate.

After filtration, the diethyl ether was removed at reduced pressure, and cold hexane (20 mL) was added to produce a white precipitate. The mixture was stirred for 5 min, and the product was isolated by filtration, washed with cold hexane (3 × 1 mL) and dried under vacuum to produce the new complex [Tl(3,5-C₆Cl₂F₃)₂Cl]_n (1) as a white solid (2.2896 g, 3.5788 mmol, 53%).

Λ_M (acetone): 5.0 Ω⁻¹ cm² mol⁻¹. HRMS (+): m/z = 602.8369 Da, [Tl(C₆Cl₂F₃)₂]⁺ (calculated = 602.839709 Da). IR: ν(C₆Cl₂F₃) = 1597 (vs), 1074 (vs) and 783 (vs) cm⁻¹; ¹⁹F NMR (DMSO-d₆, 298K), δ: −92.99 (d, 4F, F_o, ³J_Tl-F = 759.9 Hz), −110.49 ppm (d, 2F, F_p, ⁵J_Tl-F = 62.4 Hz).

3.3.2. Synthesis of [Au(3,5-C₆Cl₂F₃)₃(tht)] (2)

[Au(3,5-C₆Cl₂F₃)(tht)] (0.4851 g, 1.000 mmol) was added to a solution of [Tl(3,5-C₆Cl₂F₃)₂Cl]_n (1) (0.6400 g, 1.000 mmol) in 30 mL of toluene, and after a few minutes, the solution turned yellowish as solid thallium chloride started to appear. After 7 h stirring at room temperature followed by 14 h refluxing, and after allowing the solution to reach room temperature, the TlCl that had completely precipitated was filtered off and the filtrate evaporated to dryness in vacuo. Hexane (20 mL) was then added, and a white precipitate started to arise. The mixture was stirred for 5 min; the solid was separated by filtration, washed with hexane (3 × 1 mL) and dried under vacuum to produce [Au(3,5-C₆Cl₂F₃)(tht)] (2) as a white solid (0.4956 g, 0.6303 mmol, 56%).

Λ_M (acetone): 1.0 Ω⁻¹ cm² mol⁻¹. IR: ν(C₆Cl₂F₃) = 1600 (vs), 1062 (vs) and 781 (vs) cm⁻¹; ν(SC₄H₈) = 1310 (w) and 1250 (w) cm⁻¹; ¹H NMR (CDCl₃, 298K), δ: 3.14 (m, 4H, S-CH₂-CH₂), 2.05 (m, 4H, S-CH₂-CH₂). ¹⁹F NMR (CDCl₃, 298K), δ: -94.94 (m, 2F, F_o), −95.41 (m, 4F, F_o), −112.51 (s, 2F, F_p), −113.57 (s, 1F, F_p).

3.3.3. Synthesis of [Au(3,5-C₆Cl₂F₃)₃(PPh₂H)] (3)

PPh₂H (0.20 mL, 0.20 mmol) was added to a solution of [Au(3,5-C₆Cl₂F₃)₃(tht)] (2) (0.1770 g, 0.2000 mmol) in 20 mL of diethyl ether under a nitrogen atmosphere. After 30 min of stirring, the solution was concentrated under vacuum to ca. 5 mL and, by addition of cold hexane (20 mL) while stirring the mixture, complex [Au(3,5-C₆Cl₂F₃)₃(PPh₂H)] (3) was precipitated as a white oily and sticky material (0.1140 g, 0,1160 mmol, 58%).

HRMS (−): m/z = 978.8187 Da, [Au(C₆Cl₂F₃)₃(PPh₂)]⁻ (calculated = 978.817874 Da); ¹H NMR (CDCl₃, 298K), δ: 7.8–7.4 (m, 10H, Ph), 6.18 (d, 1H, PPh₂H, J_P-H = 414.1 Hz); ¹⁹F NMR (CDCl₃, 298K), δ: −94.71 (m, 4F, F_o), −95.08 (m, 2F, F_o), −114.07 (s, 2F, F_p), −114.55 (s, 1F, F_p); ³¹P{¹H} NMR (CDCl₃, 298K), δ: −8.38 (br s).

3.3.4. Synthesis of [PPN][Au(3,5-C₆Cl₂F₃)₃(µ-PPh₂)AuCl] (4)

To a freshly prepared solution of [Au(3,5-C₆Cl₂F₃)₃(PPh₂H)] (3) (0.1966 g, 0.2000 mmol) in 20 mL of dichloromethane, [PPN][Au(acac)Cl] (0.1740 g, 0.2000 mmol) was added. After the reaction mixture was stirred for 2 h at room temperature, total evaporation of the solvent under vacuum and addition of cold hexane (20 mL) gave rise to the precipitation of a white solid. It was filtered, washed with cold hexane (3 × 1 mL) and dried under reduced pressure to produce [PPN][Au(3,5-C₆Cl₂F₃)₃(µ-PPh₂)AuCl] (4) as a pure white solid in an almost quantitative yield (0.3435 g, 0.2213 mmol, 98%).

Λ_M (acetone): 120 Ω⁻¹ cm² mol⁻¹. HRMS (−): m/z = 1210.7519 Da, [Au(C₆Cl₂F₃)₃(µ-PPh₂)AuCl]⁻ (calculated = 1210.753296 Da). HRMS (+): m/z = 538.1853 Da, [PPN]⁺ (calculated = 538.184800 Da). IR: ν(C₆Cl₂F₃) = 1589 (vs), 1053 (vs) and 781 (vs) cm⁻¹; ν(Au^I-Cl) = 322 (w) cm⁻¹; ν(PPN⁺) = 534 (s) cm⁻¹. ¹H NMR (CDCl₃, 298K), δ: 7.66–7.45 (m, 10H, Ph); ¹⁹F NMR (CDCl₃, 298K), δ: −92.11 (m, 4F, F_o), −93.30 (m, 2F, F_o), −117.82 (s, 2F, F_p), −118.45 (s, 1F, F_p). ³¹P{¹H} NMR (CDCl₃, 298K), δ: 19.48 (s, PPh₂⁻), 21.14 (s, PPN⁺).

3.3.5. Synthesis of [PPN][{(3,5-C₆Cl₂F₃)₃Au(µ-PPh₂)}₂Au] (5)

To a freshly prepared solution of [Au(3,5-C₆Cl₂F₃)₃(PPh₂H)] (3) (0.1966 g, 0.200 mmol) in 20 mL of dichloromethane, [PPN][Au(acac)₂] (0.0938 g, 0.1000 mmol) was added. After the reaction mixture was stirred for 2 h at room temperature, the solvent was concentrated to ca. 5 mL in vacuo. Cold hexane (20 mL) was added and the mixture was stirred for 5 min; the precipitate thus formed was separated by filtration, washed with hexane (3 × 1 mL) and dried under vacuum to produce [PPN][{(3,5-C₆Cl₂F₃)₃Au(µ-PPh₂)}Au] (5) as a white solid (0.2698 g, 0.0999 mmol, 50%).

Λ_M (acetone): 106 Ω⁻¹ cm² mol⁻¹. HRMS (−): m/z = 2154.6073 Da, [{(3,5-C₆Cl₂F₃)₃Au(µ-PPh₂)}Au]⁻ (calculated = 2154.601769 Da). HRMS (+): m/z = 538.1850 Da, [PPN]⁺ (calculated = 538.184800 Da). IR: ν(C₆Cl₂F₃) = 1591 (vs), 1055 (vs) and 781 (vs) cm⁻¹; ν(PPN⁺) = 534 (s) cm⁻¹. ¹H NMR (CDCl₃, 298K), δ: 7.67–7.44 (m, 10H, Ph); ¹⁹F NMR (CDCl₃, 298K), δ: −92.14 (m, 8F, F_o), −93.33 (m, 4F, F_o), −117.84 (s, 4F, F_p), −118.48 (s, 2F, F_p); ³¹P{¹H} NMR (CDCl₃, 298K), δ: 30.9 (s, PPh₂⁻), 21.10 (s, PPN⁺).

3.4. Crystallography

Crystals were mounted in inert oil on glass fibers and transferred to the cold gas stream of a Bruker APEX-II CCD diffractometer equipped with an Oxford Instruments low-temperature attachment controller system (Mo Kα = 0.71073 Å, graphite monochromator). Data were collected in ω- and φ-scan modes. Absorption effects were treated by numerical correction. The structures were solved with the SHELXT 2014/5 program [48] and refined by a full-matrix least-squares procedure based on F2 with SHELXL 2018/3 [49] using Olex2 program suite [50]. All non-hydrogen atoms, except those of the PPN⁺ cation in 5, which is highly disordered, were refined anisotropically. A complex model has been defined to solve this disorder, considering the phosphorus atom disordered over three positions with ratio 0.6:0.2:0.2, and the phenyl rings disordered over two (C31→C36 and C43→C48) or three positions (C37→C42), with ratios 0.7:0.3 or 0.7:0.15:0.15, respectively. Furthermore, an additional high residual electron density was found between ions in 5, presumably due to heavily disordered solvent molecules, so the structure was further analyzed using the BYPASS subroutine implemented in Olex2. This analysis indicates the presence of 182 electrons per unit cell, which is consistent with the presence of 4 molecules of disordered THF (OC4H8) per asymmetric unit. Hydrogen atoms were placed in calculated positions refined using a riding model. Geometrical calculations were performed using PLATON [51] and the structure drawings were executed with MERCURY [52] programs.

Table 4. Crystallographic data and structure refinement details for compounds 1, 2, 4 and 5.

Compound	1	2	4	5
CCD number	2221966	2221967	2221968	2221968
Empirical formula	C12Cl5F6Tl	C22H8AuCl6F9S	C66H40Au2Cl7F9NP3	C96H50Au3Cl12F18NP4
Formula weight	639.74	885.01	1752.98	2699.55
Temperature/K	100(2)	100(2)	273(2)	100(2)
Crystal system	Monoclinic	Monoclinic	Triclinic	Triclinic
Space group	P21/c	P21/n	P-1	P-1
a/Å	14.3123(18)	10.105(2)	13.4927(10)	13.0360(5)
b/Å	5.5515(7)	23.044(5)	14.4362(13)	14.5245(6)
c/Å	20.123(2)	12.100(2)	19.1129(17)	17.2981(8)
α/º	90	90	73.616(3)	92.010(2)
β/º	103.725(5)	110.680(7)	73.465(3)	109.185(2)
γ/º	90	90	83.852(3)	108.171(2)
Volume/Å3	1553.2(3)	2635.9(9)	3422.5(5)	2904.3(2)
Z	4	4	2	1
ρcalcd/g·cm−3	2.736	2.230	1.701	1.543
μ/mm−1	11.315	6.346	4.689	4.178
F(000)	1168	1672	1692	1296
Crystal size/mm3	0.114 × 0.051 × 0.025	0.315 × 0.263 × 0.187	0.167 × 0.142 × 0.096	0.200 × 0.189 × 0.059
Radiation	MoKα (λ = 0.71073)	MoKα (λ = 0.71073)	MoKα (λ = 0.71073)	MoKα (λ = 0.71073)
2θ range for data collection/°	6.33 to 55.80	6.41 to 55.81	4.77 to 55.89	5.97 to 53.46
Index rages	−18 ≤ h ≤ 18 −5 ≤ k ≤ 7 −26 ≤ l ≤ 26	−13 ≤ h ≤ 13 −30 ≤ k ≤ 30 −14 ≤ l < 15	−15 ≤ h ≤ 17 −19 ≤ k ≤ 19 −25 ≤ l < 25	−15 ≤ h ≤ 16 −18 ≤ k ≤ 18 −21 ≤ l < 21
Reflections collected	23,964	62,875	93,776	58,913
Independent reflections	3,702 [R(int) = 0.0586]	6,247 [R(int) = 0.0370]	16,345 [R(int) = 0.0479]	12,292 [R(int) = 0.0453]
Completeness to theta = 25.242°	99.6 %	99.4 %	99.5 %	99.5 %
Data/restraints/parameters	3702/0/217	6247/68/352	16,345/36/763	12,292/87/522
Goodness-of-fit in F2	1.057	1.101	1.104	1.017
Final R indexes [I > 2sigma(I)]	R1 = 0.0297 wR2 = 0.0527	R1 = 0.0217 wR2 = 0.0545	R1 = 0.0384 wR2 = 0.0731	R1 = 0.0339 wR2 = 0.0816
R indices (all data)	R1 = 0.0401 wR2 = 0.0553	R1 = 0.0231 wR2 = 0.0553	R1 = 0.0591 wR2 = 0.0846	R1 = 0.0446 wR2 = 0.0875
Largest diff. peak and hole/e·Å−3	1.483 and −1.250	1.187 and −0.393	3.093 and −1.493	1.804 and −1.810

contains crystallographic data and structure refinement details for compounds 1, 2, 4 and 5 and CCDC 2221966–2221969 contain the supplementary crystallographic data for this paper. These data can be obtained free of charge via www.ccdc.cam.ac.uk/conts/retrieving.html (accessed on 23 November 2022), or by contacting The Cambridge Crystallographic Data Centre, 12 Union Road, Cambridge CB2 1EZ, UK; fax: +44 1223 336033.

4. Conclusions

The novel diorganothallium(III) chloride [Tl(3,5-C₆Cl₂F₃)₂Cl]_n (1), which shows a three-dimensional structure formed due to Tl···Cl and Cl···F interactions of different intensities, has been demonstrated to be an effective oxidizing and arylating reagent against the gold(I) precursor [Au(3,5-C₆Cl₂F₃)(tht)]. This synthetic route has allowed us to prepare one of the first pure dichlorotrilfluorophenylgold(III) complexes, [Au(3,5-C₆Cl₂F₃)₃(tht)] (2), since this type of poorly represented compound tends to produce mixtures of different species in equilibrium.

The aforementioned complex is the key to the synthesis of a series of gold(III) diphenylphosphane and -phosphanide derivatives aided by the stabilizing effect of perhalophenyl ligands. Thus, we have prepared the Au^III neutral complex [Au(3,5-C₆Cl₂F₃)₃(PPh₂H)] (3), which is employed as starting material for the further synthesis of the mixed Au^III/Au^I anionic phosphanide compounds [PPN][Au(3,5-C₆Cl₂F₃)₃(µ-PPh₂)AuCl] (4) and [PPN][{(3,5-C₆Cl₂F₃)₃Au(µ-PPh₂)}₂Au] (5) by a simple reaction pathway that makes use of the deprotonating and coordinating ability of acetylacetonate gold complexes. These are among the scarce gold phosphanide compounds and represent the first examples of phosphane or phosphanide gold complexes with 3,5-dichlorotrifluorophenyl groups as ligands.
