Review

Opportunities and Challenges in Targeting the Proofreading Activity of SARS-CoV-2 Polymerase Complex

1
Aligos Therapeutics, Inc., San Francisco, CA 94080, USA
2
SAMDI Tech, Inc., Chicago, IL 60616, USA
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(9), 2918; https://doi.org/10.3390/molecules27092918
Received: 7 April 2022 / Revised: 29 April 2022 / Accepted: 30 April 2022 / Published: 3 May 2022
(This article belongs to the Special Issue Small Molecule Inhibitors of Polymerases Involved in Human Diseases)

Abstract

:
Severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) is the cause of the COVID-19 pandemic. While the development of vaccines and the emergence of antiviral therapeutics is promising, alternative strategies to combat COVID-19 (and potential future pandemics) remain an unmet need. Coronaviruses feature a unique mechanism that may present opportunities for therapeutic intervention: the RNA polymerase complex of coronaviruses is distinct in its ability to proofread and remove mismatched nucleotides during genome replication and transcription. The proofreading activity has been linked to the exonuclease (ExoN) activity of non-structural protein 14 (NSP14). Here, we review the role of NSP14, and other NSPs, in SARS-CoV-2 replication and describe the assays that have been developed to assess the ExoN function. We also review the nucleoside analogs and non-nucleoside inhibitors known to interfere with the proofreading activity of NSP14. Although not yet validated, the potential use of non-nucleoside proofreading inhibitors in combination with chain-terminating nucleosides may be a promising avenue for the development of anti-CoV agents.

1. Introduction

The respiratory infection COVID-19 is caused by severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2). SARS-CoV-2 is an enveloped, positive-sense, single-stranded RNA virus that belongs to the β-coronavirus genus of the Coronaviridae family as part of the Nidovirales order [1]. The RNA genome of SARS-CoV-2 is divided into multiple open-reading frames, among which ORF1ab contains the nonstructural proteins (NSPs) 7 to 16 required for RNA replication and transcription, with the exception of NSP11. The replication and transcription of CoV RNA requires a complex and multi-step coordination of viral enzymatic functions encoded by NSPs (for a complete review, see [2]). NSP12 contains the RNA-dependent-RNA polymerase (RdRp) activity responsible for RNA synthesis and is considered a major target for antiviral agents [3,4]. NSP12 also encodes a second enzymatic site referred to as the NiRAN (nidovirus RdRp-associated nucleotidyltransferase) also responsible for UMPylation of the NSP9 [5]. The NiRAN domain of NSP12 is found only in viruses belonging to the Nidovirales order and is an emerging target for antiviral therapy development [6]. NSP13 encodes nucleoside triphosphatase and helicase functions responsible for unwinding viral RNA. NSP15 encodes an endonuclease activity, and NSP16 is a 2′O-MTase; both enzymes are key to viral RNA maturation. NSP14 is a bifunctional enzyme featuring exonuclease (ExoN) and guanine G7-methylransferase (MTase) activities that plays a critical role in SARS-CoV-2 replication. While the G7-MTase role in RNA capping and its relevance as a therapeutic target have been described elsewhere [7,8,9,10,11], this review focuses on the function and potential therapeutic opportunity of the ExoN proofreading activity of NSP14.

2. NSP14 Is Essential to RNA Replication and Transcription

First identified in SARS-CoV, the ExoN activity of double-stranded RNA (dsRNA) proceeds in a 3′ to 5′ direction [12]. Conserved amongst cellular exonucleases [13], the ExoN domain features the critical Asp and Glu residues along with the two metal binding sites that drive nucleotide excision, classifying NSP14 in the DEDDh superfamily [14,15], which includes DNA proofreading enzymes. The identification of NSP14 catalytic residues is further supported by structural studies [16] that also highlight the importance of two zinc finger domains for ExoN activity [17]. A yeast two-hybrid screen revealed that NSP14 interacts with NSP10 [18], an interaction that increased ExoN activity over 35-fold, potentially through stabilization of the NSP14 ExoN active site [16,19].
The combination of biochemical and structural approaches has shed light on the role of NSP14 in viral replication. Pull-down studies using recombinantly expressed proteins in Escherichia coli confirmed that the NSP12-NSP7-NSP8 complex can interact with NSP14 with no loss of polymerase, ExoN, or G7-MTase activities [20]. The RdRp protein (NSP12) interacts with the NSP14 ExoN and G7-MTase domains. Small-angle X-ray scattering studies revealed a hinge region that separates the ExoN and G7-MTase domains, suggesting a molecular switch allowing different functions and activities with diverse substrates [21] (reviewed in [22]). These data support a model in which RNA polymerization and proofreading occur in a single complex with a high degree of cooperativity so that nascent double stranded RNA exiting the polymerase passes over the NSP14 ExoN and NSP15 endonuclease sites before being unwound [23]. This process is further supported by recent crystal structures highlighting the interaction between NSP14 and NSP10 along with cryo-EM structures showing how NSP14-NSP10 facilitates proofreading of viral RNA in concert with NSP12 [24,25,26].
The primary role of NSP14 ExoN in the replication complex is to ensure replication fidelity by removing mismatched nucleotides from the 3′ end of the growing RNA strand [21,27]. In mouse hepatitis virus (MHV)-CoV, catalytically inactive (yet viable) ExoN mutants generate significantly altered patterns of recombination and less frequent recombination events than the wild type. Decreased subgenomic RNA populations and increased defective viral genomes observed with these mutants support the importance of proofreading by NSP14 ExoN in viral RNA synthesis and viral fitness [28]. Genetic studies further support the proofreading mechanism of NSP14. Loss-of-function ExoN mutants exhibit a 20-fold increase in mutation frequency during replication in cell culture [13,29].
In addition to its role in proofreading, the NSP14 ExoN activity has also been implicated in the innate immune response. By digesting double-stranded RNA (dsRNA)—an intermediate of viral replication that often triggers an immune response—NSP14 ExoN has been proposed to shield the RNA from recognition by innate immune sensors [30]. This mechanism, together with the function of the G7-MTase domain in mRNA cap formation to mask viral RNA as “self”, contributes to further evade the host immune response [31]. NSP14 is highly conserved in α, β, and γ coronaviruses, which explains why these mechanisms of immune response evasion are also shared by other coronaviruses [32,33,34,35,36]. Taken together, these data support the potential of NSP14 as a therapeutic target for addressing current and future coronavirus pandemics.

3. In Vitro Assays to Identify and Characterize NSP14 Proofreading Inhibitors

To date, drug discovery efforts focused on NSP14 have been limited. While there are many established assay technologies well suited for measuring the methyltransferase activity of NSP14, assays that measure the ExoN and proofreading activity are more challenging. Historically, nuclease activities are mainly characterized by gel electrophoresis, which is useful for characterizing enzyme activities and simultaneously providing information on the various enzymatic products, but the limited throughput is not conducive for large-scale drug discovery efforts. Emerging data highlighting the therapeutic potential of the NSP14 ExoN activity has motivated the development of high-throughput nuclease assays to facilitate drug discovery. One example takes advantage of the small molecule intercalator RiboGreen that binds to dsRNA, the substrate for NSP14. Digestion of dsRNA by NSP14 ExoN activity dissociates the RiboGreen from the dsRNA and leads to a loss of fluorescence signal (Figure 1A) [37]. The RiboGreen format was used to screen 5000 small molecules against the NSP14-NSP10 complex to identify ExoN inhibitors. While the assay performance was sufficiently robust (Z-factor = 0.72), the readout suffers from two major limitations. Firstly, RiboGreen fluorescence decreases over time, which could lead to false negative results if plates are not read in a timely manner. Secondly, this assay is prone to high rates of false positives and false negatives, either due to compounds that displace the RiboGreen from dsRNA independent of nuclease activity or through intrinsic auto-fluorescence of small molecule compounds. These assay artifacts made it difficult to distinguish true inhibition hits, motivating the development of a FRET-based assay (Figure 1B) [37]. Utilizing a dsRNA sequence with a low melting temperature and featuring a fluorescent emitter on one strand and a fluorescent quencher on the other, ExoN activity releases the emitter generating a fluorescent signal. The FRET format is straightforward and accessible but is still prone to false positive and false negative results due to optical interference (auto-fluorescence or quenching) of small molecule library compounds. To overcome optical interference, a label-free and high-throughput assay has been described using a combination of self-assembled monolayers and matrix-assisted laser desorption ionization (MALDI) mass spectrometry, a technique termed SAMDI (Figure 1C). The SAMDI-MS assay offers several benefits, including a robust format (Z-factor = 0.85), significant signal-to-background ratio (>200), and the ability to distinguish multiple reaction products. The SAMDI-MS assay was used to screen 10,000 small molecules against the NSP14-NSP10 complex focused on the ExoN activity [38]. ExoN inhibitor selectivity was further evaluated against another RNA nuclease and in a thiazole orange assay to rule out RNA intercalators, revealing single-digit micromolar inhibitors that remain under investigation. This particular assay format is interesting given its multiplexing capability [39]. In this format, one could envisage monitoring the polymerase activity of RdRp and the proofreading activity of NSP14 ExoN to monitor the polymerase and proofreading activities of the complex simultaneously, offering a powerful assay to discover antiviral compounds against SARS-CoV-2 and other coronaviruses.

4. Known Small Molecules That Interfere with the Proofreading Activity of NSP14

4.1. Nucleosides Causing Delayed Chain Termination or Error Catastrophe

Until now, the main efforts to develop nucleoside analogs against SARS-CoV-2 have focused on repurposing molecules already known to be effective against other RNA viruses. However, obligate chain-terminating antiviral nucleosides are generally not effective against SARS-CoV-2 because coronaviruses carry the NSP14-encoded ExoN proofreading activity that removes incorporated nucleotide analogs from the 3′-end of nascent RNA (for a review, see [40]). Sofosbuvir, an approved hepatitis C virus drug that acts as an immediate chain terminator, was predicted in silico to be recognized in its nucleoside triphosphate form (SOF-TP) by the polymerase complex of SARS-CoV-2 [41]. It was recently reported that SOF-TP, once incorporated into viral RNA in its monophosphate form, is efficiently excised by NSP14, thereby allowing RNA synthesis to resume [24]. However, SOF-TP was also shown experimentally to be a poor substrate for viral RNA incorporation [42], consistent with the lack of anti-CoV activity of sofosbuvir in cell culture [43,44]. For these reasons, it remains unclear whether the lack of sofosbuvir activity against SARS-CoV-2 is due to high discrimination by the viral polymerase or to excision by the viral proofreading mechanism. In contrast, the nucleoside analog remdesivir efficiently inhibited SARS-CoV-2 in cell culture and in animal models [45,46,47]. Remdesivir was the first FDA-approved drug for the treatment of patients with COVID-19 (Figure 2). Remdesivir might be able to circumvent the ExoN excision/repair activity of NSP14 because its incorporation does not immediately terminate elongation of the nascent RNA strand but instead stalls the polymerase complex after the addition of three more nucleotides [42,48,49,50,51].
The RNA proofreading activity of the NSP14 ExoN domain also protects coronaviruses from ribavirin. Ribavirin is a triazole nucleoside that was discovered 50 years ago [52]. The mechanism of antiviral activity of ribavirin is believed to involve lethal mutagenesis as a combined result of inosine monophosphate dehydrogenase inhibition resulting in nucleotide pool imbalance, together with insertion into the nascent viral RNA [53,54]. Consequently, many unrelated RNA viruses are sensitive to ribavirin [55,56,57]. However, ribavirin has no or limited antiviral activity against coronaviruses, including SARS [58,59,60]. The ExoN of CoV NSP14 was shown to excise ribavirin 5′-monophosphate after its incorporation into viral RNA, providing a potential explanation for its limited efficacy in vivo [21]. Consequently, both ribavirin and 5′-fluorouracil, another mutagenic agent, displayed increased antiviral potency against an ExoN-defective CoV mutant [61]. Favipiravir, in its ribosylated triphosphate form, is another mutagenic nucleoside that was also once considered a potential treatment for COVID-19. Favipiravir (T-705) is a purine-base analog with broad-spectrum antiviral activity that is approved in Japan for the treatment of severe influenza virus infection. The nucleoside triphosphate form of favipiravir is efficiently recognized by the polymerase complex of SARS-CoV-2 [62]. The mutagenic antiviral effect of favipiravir has also been reported in cell culture, but overall, its anti-CoV potency is weak [46,62,63]. More studies are needed to determine if the ExoN activity of NSP14 is responsible for the weak in vitro anti-CoV effect of favipiravir. In the clinic, treatment of COVID-19 patients with favipiravir resulted in a modest to marginal benefit in terms of viral clearance, clinical improvement, and mortality [64].
Molnupiravir is another broad-spectrum antiviral agent that acts as a mutagenic nucleoside. Unlike ribavirin, molnupiravir is active against coronaviruses. Molnupiravir (EIDD-2801, MK-4482) was first evaluated for the treatment of alphavirus infections, and it recently received emergency use authorization by the FDA for the treatment of COVID-19 (for a review, see [65]). Molnupiravir is the valine ester orally bioavailable prodrug of β-d-N4-Hydroxycytidine (NHC; EIDD-1931). NHC inhibits coronaviruses lacking ExoN proofreading activity similarly to their wild-type counterparts, suggesting an ability to evade the NSP14 ExoN activity [66]. In cell culture, NHC is >100-fold more potent than ribavirin and favipiravir against SARS-CoV-2 [63]. Molnupiravir improved pulmonary function and reduced virus titer and body weight loss in mice infected with SARS-CoV or MERS-CoV [67]. The increased G>A and C>U transition mutation frequency in viral genome caused by molnupiravir treatment suggested that the nucleoside was incorporated into viral RNA by bypassing NSP14 ExoN. This was confirmed in two independent mechanistic studies using purified viral polymerase complexes [68,69,70]. The authors showed that the active entity NHC 5′-triphosphate is an efficient substrate of SARS-CoV-2 RdRp complex without causing inhibition of RNA synthesis. Once incorporated into viral RNA, NHC-monophosphate supported the formation of both NHC:G and NHC:A base pairs with similar efficiencies. However, it should be noted that NHC also induced mutagenic effects on host genes, indicating a lack of selectivity between viral and host polymerases and suggesting potential safety liabilities [63].

4.2. Non-Nucleoside Inhibitors

A selection of non-nucleoside analog inhibitors of NSP14 ExoN has recently been described (Figure 3). In one example using the FRET-based assay described above, two compounds, patulin and aurintricarboxylic acid, were revealed as potential NSP14 ExoN inhibitors. The two compounds appeared to inhibit NSP14-NSP10 ExoN activity with selectivity over RNaseA and benzonase, and interestingly reduced viral proliferation in VERO E6 cell-based assays. When combined with the nucleoside analog remdesivir, patulin and aurintricarboxylic acid did not show synergistic effects. Since ExoN mutations have been shown to have higher sensitivity to remdesivir treatment [71], these data suggest that in cells the two compounds may operate through mechanisms other than targeting the ExoN activity. Another study utilized the FRET-based assay to test compounds following structural analysis [72]. Several compounds were identified with IC50 values around 20 µM in biochemical assays that also exhibited synergistic activity with remdesivir in the viral assay [72]. Similar synergistic results were recently obtained when combining nucleoside analogs with HCV NS5A inhibitors also blocking SARS-CoV-2 NSP14 [73]. It is important to note that the biological mechanism underlying the synergistic effect remains to be defined. Future work combining pharmacologic and genetic approaches will shed light on whether these compounds and others target the NSP14 ExoN activity and proofreading mechanism as well as their therapeutic potential as antiviral agents.
The available structural data have motivated several researchers to focus on in silico screening approaches to reveal potential inhibitors. In one study, a homology model of the NSP14-NSP10 complex bound to RNA was used to virtually screen over 5000 compounds, including FDA-approved drugs, natural products, and an antiviral library of approximately 300 compounds. The study revealed a number of potential binders, including the RNA bases guanosine and inosine, the chemotherapeutic carfilzomib, and the antiviral compound ritonavir. The predicted binding pocket of ritonavir overlaps with the RNA binding pocket, suggesting that ritonavir may inhibit the ExoN activity [74]. The study postulates several molecules with therapeutic potential, but future biochemical and cellular assays are required to properly assess the activity of the compounds. The structural data of NSP14 interacting partners, including NSP10 and other members of the replication transcription complex, open avenues for in silico screening of compounds that may disrupt critical protein-protein interactions. A novel comprehensive in silico screening approach, VirtualFlow [75], was recently used in a discovery program to identify small molecules that may bind to various sites of SARS-CoV-2 proteins, including NSP14 [76]. The study relied on the available structural data for 15 viral proteins and two human proteins. An advantage of this particular approach was its ability to assess multiple potential binding sites on each protein, allowing the identification of non-competitive binders that could be used in combination for improved efficacy or to overcome future variants. For the NSP14 ExoN site, betamethasone was identified as a potential binder, suggesting it may have therapeutic value beyond the anti-inflammatory effects in the host commonly seen with corticosteroids, although this theory remains to be validated experimentally. While virtual screens can potentially assess billions of compounds in weeks to months, there are several challenges to consider. First, the success of the screen depends on the available structural data, which may differ in the biochemical and cellular context. Second, the binding affinities are calculated based on docking scores and the Gibbs’ equation and therefore should be considered approximations rather than actual dissociation constants. Third, biochemical and cell-based assays are still required to validate the predicted hits and demonstrate proof of target engagement.

5. Conclusions: Is There a Case for NSP14 Proofreading Inhibitors?

The recent approval of the influenza polymerase cap-snatching inhibitor baloxavir marboxil (Xofluza) provides the first proof of principle that viral nucleases are viable targets for antiviral therapies. In contrast, there are very few reports of small molecules inhibiting the ExoN activity of the CoV replication complex. Biochemical ExoN assays to support compound screening and profiling have been described, but the biggest limitation seems to be the ability to monitor the effect of ExoN inhibition in infected cells. As recently described, it is likely that ExoN inhibitors might not have a direct antiviral effect on their own, but would need to be combined with other modalities such as nucleoside analogs [72]. The ability to generate resistance mutations with this new class of anti-CoV agents would also provide further evidence of target engagement in a cellular context. Finally, we cannot neglect the theoretical concern of increased mutations leading to the emergence of new variants as a result of inhibiting the proofreading function of the SARS-CoV-2 replication complex. Taken together, pursuing NSP14 proofreading inhibitors remains an encouraging therapeutic avenue. New studies to further validate the target and characterize the proofreading activity in a cellular context and in animals will be needed.

Author Contributions

All authors have read and agreed to the published version of the manuscript.

Funding

The cost for the article was funded by Aligos Therapeutics, Inc.

Acknowledgments

We thank Peggy Korn for her careful editorial review of the manuscript.

Conflicts of Interest

J.D. is currently employed by Aligos Therapeutics, Inc. Z.A.G.-L. is currently employed by SAMDI Tech. The funder of the article had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Group, C.S. The species Severe acute respiratory syndrome-related coronavirus: Classifying 2019-nCoV and naming it SARS-CoV-2. Nat. Microbiol. 2020, 5, 536–544. [Google Scholar]
  2. V’Kovski, P.; Kratzel, A.; Steiner, S.; Stalder, H.; Thiel, V. Coronavirus biology and replication: Implications for SARS-CoV-2. Nat. Rev. Microbiol. 2021, 19, 155–170. [Google Scholar] [CrossRef] [PubMed]
  3. Hillen, H.S.; Kokic, G.; Farnung, L.; Dienemann, C.; Tegunov, D.; Cramer, P. Structure of replicating SARS-CoV-2 polymerase. Nature 2020, 584, 154–156. [Google Scholar] [CrossRef] [PubMed]
  4. Chien, M.; Anderson, T.K.; Jockusch, S.; Tao, C.; Li, X.; Kumar, S.; Russo, J.J.; Kirchdoerfer, R.N.; Ju, J. Nucleotide Analogues as Inhibitors of SARS-CoV-2 Polymerase, a Key Drug Target for COVID-19. J. Proteome Res. 2020, 19, 4690–4697. [Google Scholar] [CrossRef]
  5. Lehmann, K.C.; Gulyaeva, A.; Zevenhoven-Dobbe, J.C.; Janssen, G.M.; Ruben, M.; Overkleeft, H.S.; van Veelen, P.A.; Samborskiy, D.V.; Kravchenko, A.A.; Leontovich, A.M.; et al. Discovery of an essential nucleotidylating activity associated with a newly delineated conserved domain in the RNA polymerase-containing protein of all nidoviruses. Nucleic Acids Res. 2015, 43, 8416–8434. [Google Scholar] [CrossRef][Green Version]
  6. Shannon, A.; Fattorini, V.; Sama, B.; Selisko, B.; Feracci, M.; Falcou, C.; Gauffre, P.; El Kazzi, P.; Delpal, A.; Decroly, E.; et al. A dual mechanism of action of AT-527 against SARS-CoV-2 polymerase. Nat. Commun. 2022, 13, 621. [Google Scholar] [CrossRef]
  7. Sweis, R.F.; Pliushchev, M.; Brown, P.J.; Guo, J.; Li, F.; Maag, D.; Petros, A.M.; Soni, N.B.; Tse, C.; Vedadi, M.; et al. Discovery and development of potent and selective inhibitors of histone methyltransferase g9a. ACS Med. Chem. Lett. 2014, 5, 205–209. [Google Scholar] [CrossRef][Green Version]
  8. Devkota, K.; Schapira, M.; Perveen, S.; Khalili Yazdi, A.; Li, F.; Chau, I.; Ghiabi, P.; Hajian, T.; Loppnau, P.; Bolotokova, A.; et al. Probing the SAM Binding Site of SARS-CoV-2 Nsp14 In Vitro Using SAM Competitive Inhibitors Guides Developing Selective Bisubstrate Inhibitors. SLAS Discov. 2021, 26, 1200–1211. [Google Scholar] [CrossRef]
  9. Ogando, N.S.; El Kazzi, P.; Zevenhoven-Dobbe, J.C.; Bontes, B.W.; Decombe, A.; Posthuma, C.C.; Thiel, V.; Canard, B.; Ferron, F.; Decroly, E.; et al. Structure-function analysis of the nsp14 N7-guanine methyltransferase reveals an essential role in Betacoronavirus replication. Proc. Natl. Acad. Sci. USA 2021, 118, e2108709118. [Google Scholar] [CrossRef]
  10. Selvaraj, C.; Dinesh, D.C.; Panwar, U.; Abhirami, R.; Boura, E.; Singh, S.K. Structure-based virtual screening and molecular dynamics simulation of SARS-CoV-2 Guanine-N7 methyltransferase (nsp14) for identifying antiviral inhibitors against COVID-19. J. Biomol. Struct. Dyn. 2021, 39, 4582–4593. [Google Scholar] [CrossRef]
  11. Ahmed-Belkacem, R.; Sutto-Ortiz, P.; Guiraud, M.; Canard, B.; Vasseur, J.J.; Decroly, E.; Debart, F. Synthesis of adenine dinucleosides SAM analogs as specific inhibitors of SARS-CoV nsp14 RNA cap guanine-N7-methyltransferase. Eur. J. Med. Chem. 2020, 201, 112557. [Google Scholar] [CrossRef] [PubMed]
  12. Minskaia, E.; Hertzig, T.; Gorbalenya, A.E.; Campanacci, V.; Cambillau, C.; Canard, B.; Ziebuhr, J. Discovery of an RNA virus 3′->5′ exoribonuclease that is critically involved in coronavirus RNA synthesis. Proc. Natl. Acad. Sci. USA 2006, 103, 5108–5113. [Google Scholar] [CrossRef] [PubMed][Green Version]
  13. Eckerle, L.D.; Lu, X.; Sperry, S.M.; Choi, L.; Denison, M.R. High fidelity of murine hepatitis virus replication is decreased in nsp14 exoribonuclease mutants. J. Virol. 2007, 81, 12135–12144. [Google Scholar] [CrossRef] [PubMed][Green Version]
  14. Beese, L.S.; Steitz, T.A. Structural basis for the 3′-5′ exonuclease activity of Escherichia coli DNA polymerase I: A two metal ion mechanism. EMBO J. 1991, 10, 25–33. [Google Scholar] [CrossRef] [PubMed]
  15. Chen, P.; Jiang, M.; Hu, T.; Liu, Q.; Chen, X.S.; Guo, D. Biochemical characterization of exoribonuclease encoded by SARS coronavirus. J. BioChem. Mol. Biol. 2007, 40, 649–655. [Google Scholar] [CrossRef]
  16. Ma, Y.; Wu, L.; Shaw, N.; Gao, Y.; Wang, J.; Sun, Y.; Lou, Z.; Yan, L.; Zhang, R.; Rao, Z. Structural basis and functional analysis of the SARS coronavirus nsp14-nsp10 complex. Proc. Natl. Acad. Sci. USA 2015, 112, 9436–9441. [Google Scholar] [CrossRef][Green Version]
  17. Ogando, N.S.; Zevenhoven-Dobbe, J.C.; van der Meer, Y.; Bredenbeek, P.J.; Posthuma, C.C.; Snijder, E.J. The Enzymatic Activity of the nsp14 Exoribonuclease Is Critical for Replication of MERS-CoV and SARS-CoV-2. J. Virol. 2020, 94, e01246-20. [Google Scholar] [CrossRef]
  18. Pan, J.; Peng, X.; Gao, Y.; Li, Z.; Lu, X.; Chen, Y.; Ishaq, M.; Liu, D.; Dediego, M.L.; Enjuanes, L.; et al. Genome-wide analysis of protein-protein interactions and involvement of viral proteins in SARS-CoV replication. PLoS ONE 2008, 3, e3299. [Google Scholar] [CrossRef]
  19. Bouvet, M.; Imbert, I.; Subissi, L.; Gluais, L.; Canard, B.; Decroly, E. RNA 3′-end mismatch excision by the severe acute respiratory syndrome coronavirus nonstructural protein nsp10/nsp14 exoribonuclease complex. Proc. Natl. Acad. Sci. USA 2012, 109, 9372–9377. [Google Scholar] [CrossRef][Green Version]
  20. Subissi, L.; Posthuma, C.C.; Collet, A.; Zevenhoven-Dobbe, J.C.; Gorbalenya, A.E.; Decroly, E.; Snijder, E.J.; Canard, B.; Imbert, I. One severe acute respiratory syndrome coronavirus protein complex integrates processive RNA polymerase and exonuclease activities. Proc. Natl. Acad. Sci. USA 2014, 111, e3900-9. [Google Scholar] [CrossRef][Green Version]
  21. Ferron, F.; Subissi, L.; Silveira De Morais, A.T.; Le, N.T.T.; Sevajol, M.; Gluais, L.; Decroly, E.; Vonrhein, C.; Bricogne, G.; Canard, B.; et al. Structural and molecular basis of mismatch correction and ribavirin excision from coronavirus RNA. Proc. Natl. Acad. Sci. USA 2018, 115, E162–E171. [Google Scholar] [CrossRef] [PubMed][Green Version]
  22. Romano, M.; Ruggiero, A.; Squeglia, F.; Maga, G.; Berisio, R. A Structural View of SARS-CoV-2 RNA Replication Machinery: RNA Synthesis, Proofreading and Final Capping. Cells 2020, 9, 1267. [Google Scholar] [CrossRef] [PubMed]
  23. Perry, J.K.; Appleby, T.C.; Bilello, J.P.; Feng, J.Y.; Schmitz, U.; Campbell, E.A. An atomistic model of the coronavirus replication-transcription complex as a hexamer assembled around nsp15. J. Biol. Chem. 2021, 297, 101218. [Google Scholar] [CrossRef] [PubMed]
  24. Moeller, N.H.; Shi, K.; Demir, O.; Belica, C.; Banerjee, S.; Yin, L.; Durfee, C.; Amaro, R.E.; Aihara, H. Structure and dynamics of SARS-CoV-2 proofreading exoribonuclease ExoN. Proc. Natl. Acad. Sci. USA 2022, 119, e2106379119. [Google Scholar] [CrossRef]
  25. Yan, L.; Yang, Y.; Li, M.; Zhang, Y.; Zheng, L.; Ge, J.; Huang, Y.C.; Liu, Z.; Wang, T.; Gao, S.; et al. Coupling of N7-methyltransferase and 3′-5′ exoribonuclease with SARS-CoV-2 polymerase reveals mechanisms for capping and proofreading. Cell 2021, 184, 3474–3485.e11. [Google Scholar] [CrossRef]
  26. Liu, C.; Shi, W.; Becker, S.T.; Schatz, D.G.; Liu, B.; Yang, Y. Structural basis of mismatch recognition by a SARS-CoV-2 proofreading enzyme. Science 2021, 373, 1142–1146. [Google Scholar] [CrossRef]
  27. Ogando, N.S.; Ferron, F.; Decroly, E.; Canard, B.; Posthuma, C.C.; Snijder, E.J. The Curious Case of the Nidovirus Exoribonuclease: Its Role in RNA Synthesis and Replication Fidelity. Front. Microbiol. 2019, 10, 1813. [Google Scholar] [CrossRef]
  28. Gribble, J.; Stevens, L.J.; Agostini, M.L.; Anderson-Daniels, J.; Chappell, J.D.; Lu, X.; Pruijssers, A.J.; Routh, A.L.; Denison, M.R. The coronavirus proofreading exoribonuclease mediates extensive viral recombination. PLoS Pathog. 2021, 17, e1009226. [Google Scholar] [CrossRef]
  29. Eckerle, L.D.; Becker, M.M.; Halpin, R.A.; Li, K.; Venter, E.; Lu, X.; Scherbakova, S.; Graham, R.L.; Baric, R.S.; Stockwell, T.B.; et al. Infidelity of SARS-CoV Nsp14-exonuclease mutant virus replication is revealed by complete genome sequencing. PLoS Pathog. 2010, 6, e1000896. [Google Scholar] [CrossRef][Green Version]
  30. Case, J.B.; Li, Y.; Elliott, R.; Lu, X.; Graepel, K.W.; Sexton, N.R.; Smith, E.C.; Weiss, S.R.; Denison, M.R. Murine Hepatitis Virus nsp14 Exoribonuclease Activity Is Required for Resistance to Innate Immunity. J. Virol. 2018, 92, e01531-17. [Google Scholar] [CrossRef][Green Version]
  31. Chen, Y.; Cai, H.; Pan, J.; Xiang, N.; Tien, P.; Ahola, T.; Guo, D. Functional screen reveals SARS coronavirus nonstructural protein nsp14 as a novel cap N7 methyltransferase. Proc. Natl. Acad. Sci. USA 2009, 106, 3484–3489. [Google Scholar] [CrossRef][Green Version]
  32. Sevajol, M.; Subissi, L.; Decroly, E.; Canard, B.; Imbert, I. Insights into RNA synthesis, capping, and proofreading mechanisms of SARS-coronavirus. Virus Res. 2014, 194, 90–99. [Google Scholar] [CrossRef] [PubMed]
  33. Prompetchara, E.; Ketloy, C.; Palaga, T. Immune responses in COVID-19 and potential vaccines: Lessons learned from SARS and MERS epidemic. Asian Pac. J. Allergy Immunol. 2020, 38, 1–9. [Google Scholar] [PubMed]
  34. Kikkert, M. Innate Immune Evasion by Human Respiratory RNA Viruses. J. Innate. Immun. 2020, 12, 4–20. [Google Scholar] [CrossRef] [PubMed]
  35. Shokri, S.; Mahmoudvand, S.; Taherkhani, R.; Farshadpour, F. Modulation of the immune response by Middle East respiratory syndrome coronavirus. J. Cell Physiol. 2019, 234, 2143–2151. [Google Scholar] [CrossRef] [PubMed][Green Version]
  36. Case, J.B.; Ashbrook, A.W.; Dermody, T.S.; Denison, M.R. Mutagenesis of S-Adenosyl-l-Methionine-Binding Residues in Coronavirus nsp14 N7-Methyltransferase Demonstrates Differing Requirements for Genome Translation and Resistance to Innate Immunity. J. Virol. 2016, 90, 7248–7256. [Google Scholar] [CrossRef] [PubMed][Green Version]
  37. Canal, B.; McClure, A.W.; Curran, J.F.; Wu, M.; Ulferts, R.; Weissmann, F.; Zeng, J.; Bertolin, A.P.; Milligan, J.C.; Basu, S.; et al. Identifying SARS-CoV-2 antiviral compounds by screening for small molecule inhibitors of nsp14/nsp10 exoribonuclease. BioChem. J. 2021, 478, 2445–2464. [Google Scholar] [CrossRef]
  38. Scholle, M.D.; Liu, C.; Deval, J.; Gurard-Levin, Z.A. Label-Free Screening of SARS-CoV-2 NSP14 Exonuclease Activity Using SAMDI Mass Spectrometry. SLAS Discov. 2021, 26, 766–774. [Google Scholar] [CrossRef]
  39. Liu, C.; Boland, S.; Scholle, M.D.; Bardiot, D.; Marchand, A.; Chaltin, P.; Blatt, L.M.; Beigelman, L.; Symons, J.A.; Raboisson, P.; et al. Dual inhibition of SARS-CoV-2 and human rhinovirus with protease inhibitors in clinical development. Antiviral. Res. 2021, 187, 105020. [Google Scholar] [CrossRef]
  40. Robson, F.; Khan, K.S.; Le, T.K.; Paris, C.; Demirbag, S.; Barfuss, P.; Rocchi, P.; Ng, W.L. Coronavirus RNA Proofreading: Molecular Basis and Therapeutic Targeting. Mol. Cell 2020, 79, 710–727. [Google Scholar] [CrossRef]
  41. Elfiky, A.A. Ribavirin, Remdesivir, Sofosbuvir, Galidesivir, and Tenofovir against SARS-CoV-2 RNA dependent RNA polymerase (RdRp): A molecular docking study. Life Sci 2020, 253, 117592. [Google Scholar] [CrossRef] [PubMed]
  42. Gordon, C.J.; Tchesnokov, E.P.; Woolner, E.; Perry, J.K.; Feng, J.Y.; Porter, D.P.; Gotte, M. Remdesivir is a direct-acting antiviral that inhibits RNA-dependent RNA polymerase from severe acute respiratory syndrome coronavirus 2 with high potency. J. Biol. Chem. 2020, 295, 6785–6797. [Google Scholar] [CrossRef] [PubMed][Green Version]
  43. Lim, Y.S.; Nguyen, L.P.; Lee, G.H.; Lee, S.G.; Lyoo, K.S.; Kim, B.; Hwang, S.B. Asunaprevir, a Potent Hepatitis C Virus Protease Inhibitor, Blocks SARS-CoV-2 Propagation. Mol. Cells 2021, 44, 688–695. [Google Scholar] [CrossRef] [PubMed]
  44. Lo, H.S.; Hui, K.P.Y.; Lai, H.M.; He, X.; Khan, K.S.; Kaur, S.; Huang, J.; Li, Z.; Chan, A.K.N.; Cheung, H.H.; et al. Simeprevir Potently Suppresses SARS-CoV-2 Replication and Synergizes with Remdesivir. ACS Cent. Sci. 2021, 7, 792–802. [Google Scholar] [CrossRef]
  45. Sheahan, T.P.; Sims, A.C.; Graham, R.L.; Menachery, V.D.; Gralinski, L.E.; Case, J.B.; Leist, S.R.; Pyrc, K.; Feng, J.Y.; Trantcheva, I.; et al. Broad-spectrum antiviral GS-5734 inhibits both epidemic and zoonotic coronaviruses. Sci. Transl. Med. 2017, 9, eaal3653. [Google Scholar] [CrossRef][Green Version]
  46. Wang, M.; Cao, R.; Zhang, L.; Yang, X.; Liu, J.; Xu, M.; Shi, Z.; Hu, Z.; Zhong, W.; Xiao, G. Remdesivir and chloroquine effectively inhibit the recently emerged novel coronavirus (2019-nCoV) in vitro. Cell Res. 2020, 30, 269–271. [Google Scholar] [CrossRef]
  47. Pruijssers, A.J.; George, A.S.; Schafer, A.; Leist, S.R.; Gralinksi, L.E.; Dinnon, K.H., 3rd; Yount, B.L.; Agostini, M.L.; Stevens, L.J.; Chappell, J.D.; et al. Remdesivir Inhibits SARS-CoV-2 in Human Lung Cells and Chimeric SARS-CoV Expressing the SARS-CoV-2 RNA Polymerase in Mice. Cell Rep. 2020, 32, 107940. [Google Scholar] [CrossRef]
  48. Wang, Q.; Wu, J.; Wang, H.; Gao, Y.; Liu, Q.; Mu, A.; Ji, W.; Yan, L.; Zhu, Y.; Zhu, C.; et al. Structural Basis for RNA Replication by the SARS-CoV-2 Polymerase. Cell 2020, 182, 417–428.e13. [Google Scholar] [CrossRef]
  49. Gordon, C.J.; Tchesnokov, E.P.; Feng, J.Y.; Porter, D.P.; Gotte, M. The antiviral compound remdesivir potently inhibits RNA-dependent RNA polymerase from Middle East respiratory syndrome coronavirus. J. Biol. Chem. 2020, 295, 4773–4779. [Google Scholar] [CrossRef][Green Version]
  50. Kokic, G.; Hillen, H.S.; Tegunov, D.; Dienemann, C.; Seitz, F.; Schmitzova, J.; Farnung, L.; Siewert, A.; Hobartner, C.; Cramer, P. Mechanism of SARS-CoV-2 polymerase stalling by remdesivir. Nat. Commun. 2021, 12, 279. [Google Scholar] [CrossRef]
  51. Bravo, J.P.K.; Dangerfield, T.L.; Taylor, D.W.; Johnson, K.A. Remdesivir is a delayed translocation inhibitor of SARS-CoV-2 replication. Mol. Cell 2021, 81, 1548–1552.e4. [Google Scholar] [CrossRef] [PubMed]
  52. Sidwell, R.W.; Huffman, J.H.; Khare, G.P.; Allen, L.B.; Witkowski, J.T.; Robins, R.K. Broad-spectrum antiviral activity of Virazole: 1-beta-D-ribofuranosyl-1,2,4-triazole-3-carboxamide. Science 1972, 177, 705–706. [Google Scholar] [CrossRef] [PubMed]
  53. Parker, W.B. Metabolism and antiviral activity of ribavirin. Virus Res. 2005, 107, 165–171. [Google Scholar] [CrossRef] [PubMed]
  54. Crotty, S.; Maag, D.; Arnold, J.J.; Zhong, W.; Lau, J.Y.; Hong, Z.; Andino, R.; Cameron, C.E. The broad-spectrum antiviral ribonucleoside ribavirin is an RNA virus mutagen. Nat. Med. 2000, 6, 1375–1379. [Google Scholar] [CrossRef] [PubMed]
  55. McHutchison, J.G.; Gordon, S.C.; Schiff, E.R.; Shiffman, M.L.; Lee, W.M.; Rustgi, V.K.; Goodman, Z.D.; Ling, M.H.; Cort, S.; Albrecht, J.K. Interferon alfa-2b alone or in combination with ribavirin as initial treatment for chronic hepatitis C. Hepatitis Interventional Therapy Group. N. Engl. J. Med. 1998, 339, 1485–1492. [Google Scholar] [CrossRef] [PubMed][Green Version]
  56. Hall, C.B.; Walsh, E.E.; Hruska, J.F.; Betts, R.F.; Hall, W.J. Ribavirin treatment of experimental respiratory syncytial viral infection. A controlled double-blind study in young adults. JAMA 1983, 249, 2666–2670. [Google Scholar] [CrossRef]
  57. McCormick, J.B.; King, I.J.; Webb, P.A.; Scribner, C.L.; Craven, R.B.; Johnson, K.M.; Elliott, L.H.; Belmont-Williams, R. Lassa fever. Effective therapy with ribavirin. N. Engl. J. Med. 1986, 314, 20–26. [Google Scholar] [CrossRef]
  58. Stockman, L.J.; Bellamy, R.; Garner, P. SARS: Systematic review of treatment effects. PLoS Med. 2006, 3, e343. [Google Scholar] [CrossRef][Green Version]
  59. Chen, F.; Chan, K.H.; Jiang, Y.; Kao, R.Y.; Lu, H.T.; Fan, K.W.; Cheng, V.C.; Tsui, W.H.; Hung, I.F.; Lee, T.S.; et al. In vitro susceptibility of 10 clinical isolates of SARS coronavirus to selected antiviral compounds. J. Clin. Virol. 2004, 31, 69–75. [Google Scholar] [CrossRef]
  60. Cinatl, J.; Morgenstern, B.; Bauer, G.; Chandra, P.; Rabenau, H.; Doerr, H.W. Glycyrrhizin, an active component of liquorice roots, and replication of SARS-associated coronavirus. Lancet 2003, 361, 2045–2046. [Google Scholar] [CrossRef][Green Version]
  61. Smith, E.C.; Blanc, H.; Surdel, M.C.; Vignuzzi, M.; Denison, M.R. Coronaviruses lacking exoribonuclease activity are susceptible to lethal mutagenesis: Evidence for proofreading and potential therapeutics. PLoS Pathog. 2013, 9, e1003565. [Google Scholar] [CrossRef] [PubMed][Green Version]
  62. Shannon, A.; Selisko, B.; Le, N.T.; Huchting, J.; Touret, F.; Piorkowski, G.; Fattorini, V.; Ferron, F.; Decroly, E.; Meier, C.; et al. Rapid incorporation of Favipiravir by the fast and permissive viral RNA polymerase complex results in SARS-CoV-2 lethal mutagenesis. Nat. Commun. 2020, 11, 4682. [Google Scholar] [CrossRef] [PubMed]
  63. Zhou, S.; Hill, C.S.; Sarkar, S.; Tse, L.V.; Woodburn, B.M.D.; Schinazi, R.F.; Sheahan, T.P.; Baric, R.S.; Heise, M.T.; Swanstrom, R. beta-d-N4-hydroxycytidine Inhibits SARS-CoV-2 Through Lethal Mutagenesis But Is Also Mutagenic To Mammalian Cells. J. Infect. Dis. 2021, 224, 415–419. [Google Scholar] [CrossRef] [PubMed]
  64. Ghasemnejad-Berenji, M.; Pashapour, S. Favipiravir and COVID-19: A Simplified Summary. Drug Res. 2021, 71, 166–170. [Google Scholar] [CrossRef]
  65. Painter, G.R.; Natchus, M.G.; Cohen, O.; Holman, W.; Painter, W.P. Developing a direct acting, orally available antiviral agent in a pandemic: The evolution of molnupiravir as a potential treatment for COVID-19. Curr. Opin. Virol. 2021, 50, 17–22. [Google Scholar] [CrossRef] [PubMed]
  66. Agostini, M.L.; Pruijssers, A.J.; Chappell, J.D.; Gribble, J.; Lu, X.; Andres, E.L.; Bluemling, G.R.; Lockwood, M.A.; Sheahan, T.P.; Sims, A.C.; et al. Small-Molecule Antiviral beta-d-N (4)-Hydroxycytidine Inhibits a Proofreading-Intact Coronavirus with a High Genetic Barrier to Resistance. J. Virol. 2019, 93, e01348-19. [Google Scholar] [CrossRef] [PubMed][Green Version]
  67. Sheahan, T.P.; Sims, A.C.; Zhou, S.; Graham, R.L.; Pruijssers, A.J.; Agostini, M.L.; Leist, S.R.; Schafer, A.; Dinnon, K.H., 3rd; Stevens, L.J.; et al. An orally bioavailable broad-spectrum antiviral inhibits SARS-CoV-2 in human airway epithelial cell cultures and multiple coronaviruses in mice. Sci. Transl. Med. 2020, 12, eabb5883. [Google Scholar] [CrossRef] [PubMed][Green Version]
  68. Gordon, C.J.; Tchesnokov, E.P.; Schinazi, R.F.; Gotte, M. Molnupiravir promotes SARS-CoV-2 mutagenesis via the RNA template. J. Biol. Chem. 2021, 297, 100770. [Google Scholar] [CrossRef]
  69. Malone, B.; Campbell, E.A. Molnupiravir: Coding for catastrophe. Nat. Struct. Mol. Biol. 2021, 28, 706–708. [Google Scholar] [CrossRef]
  70. Kabinger, F.; Stiller, C.; Schmitzova, J.; Dienemann, C.; Kokic, G.; Hillen, H.S.; Hobartner, C.; Cramer, P. Mechanism of molnupiravir-induced SARS-CoV-2 mutagenesis. Nat. Struct. Mol. Biol. 2021, 28, 740–746. [Google Scholar] [CrossRef]
  71. Agostini, M.L.; Andres, E.L.; Sims, A.C.; Graham, R.L.; Sheahan, T.P.; Lu, X.; Smith, E.C.; Case, J.B.; Feng, J.Y.; Jordan, R.; et al. Coronavirus Susceptibility to the Antiviral Remdesivir (GS-5734) Is Mediated by the Viral Polymerase and the Proofreading Exoribonuclease. mBio 2018, 9, e00221-18. [Google Scholar] [CrossRef] [PubMed][Green Version]
  72. Rona, G.; Zeke, A.; Miwatani-Minter, B.; de Vries, M.; Kaur, R.; Schinlever, A.; Garcia, S.F.; Goldberg, H.V.; Wang, H.; Hinds, T.R.; et al. The NSP14/NSP10 RNA repair complex as a Pan-coronavirus therapeutic target. Cell Death Differ. 2022, 29, 285–292. [Google Scholar] [CrossRef] [PubMed]
  73. Wang, X.; Sacramento, C.Q.; Jockusch, S.; Chaves, O.A.; Tao, C.; Fintelman-Rodrigues, N.; Chien, M.; Temerozo, J.R.; Li, X.; Kumar, S.; et al. Combination of antiviral drugs inhibits SARS-CoV-2 polymerase and exonuclease and demonstrates COVID-19 therapeutic potential in viral cell culture. Commun. Biol. 2022, 5, 154. [Google Scholar] [CrossRef] [PubMed]
  74. Narayanan, N.; Nair, D.T. Ritonavir may inhibit exoribonuclease activity of nsp14 from the SARS-CoV-2 virus and potentiate the activity of chain terminating drugs. Int. J. Biol. Macromol. 2021, 168, 272–278. [Google Scholar] [CrossRef] [PubMed]
  75. Gorgulla, C.; Boeszoermenyi, A.; Wang, Z.F.; Fischer, P.D.; Coote, P.W.; Padmanabha Das, K.M.; Malets, Y.S.; Radchenko, D.S.; Moroz, Y.S.; Scott, D.A.; et al. An open-source drug discovery platform enables ultra-large virtual screens. Nature 2020, 580, 663–668. [Google Scholar] [CrossRef] [PubMed]
  76. Gorgulla, C.; Padmanabha Das, K.M.; Leigh, K.E.; Cespugli, M.; Fischer, P.D.; Wang, Z.F.; Tesseyre, G.; Pandita, S.; Shnapir, A.; Calderaio, A.; et al. A multi-pronged approach targeting SARS-CoV-2 proteins using ultra-large virtual screening. iScience 2021, 24, 102021. [Google Scholar] [CrossRef]

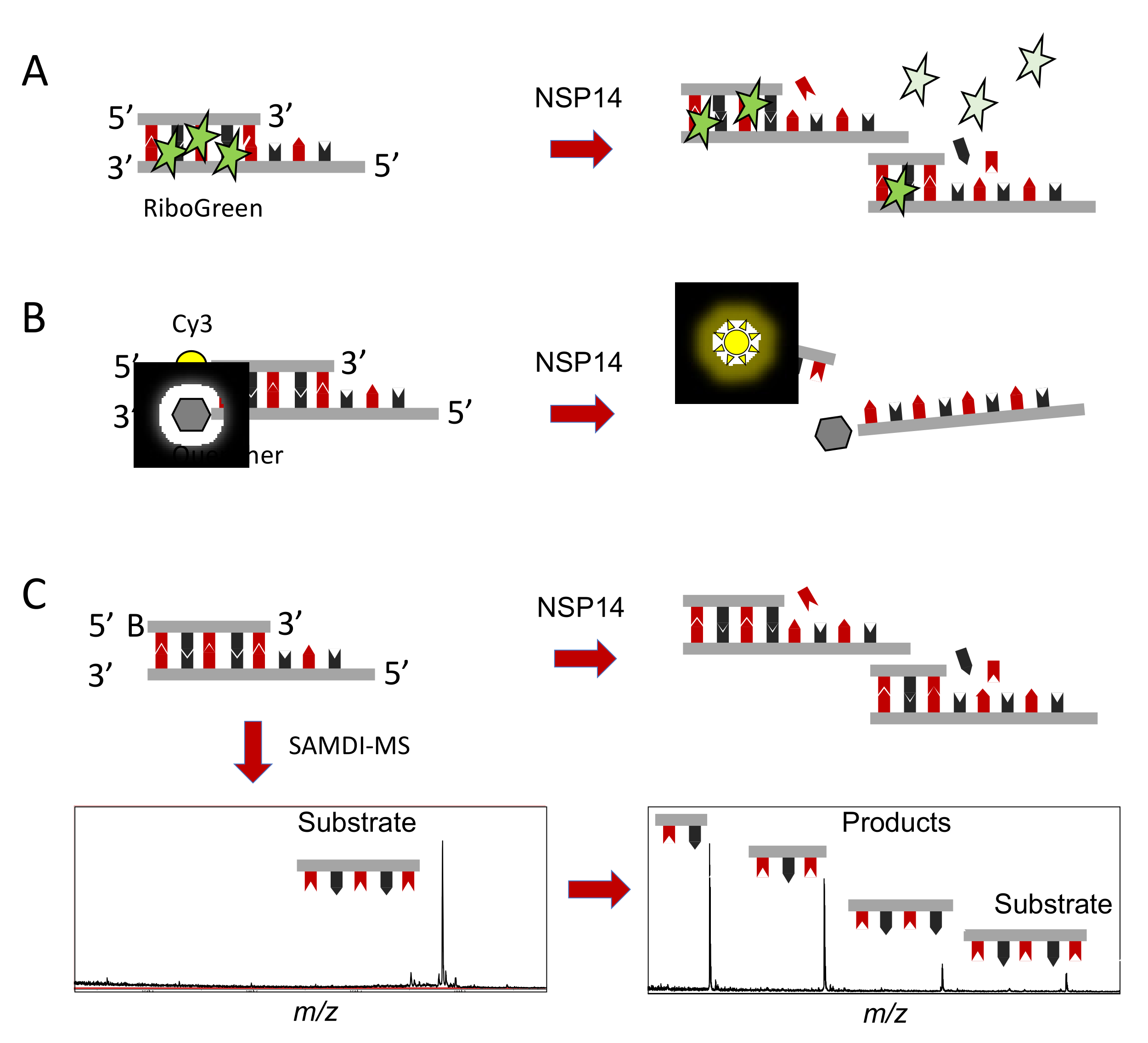

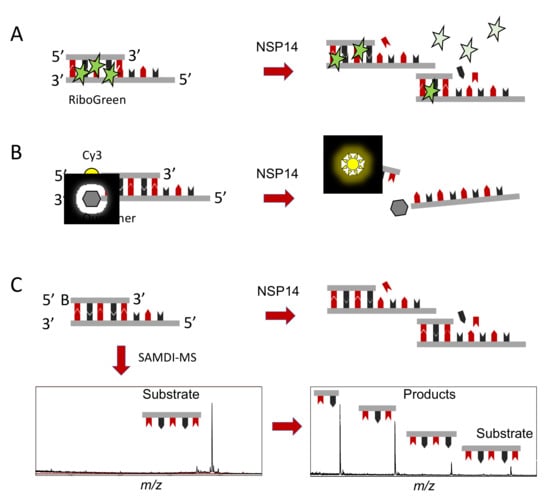

Figure 1. High-throughput biochemical activity assays for NSP14 exonuclease activity. (A). Double-stranded RNA is incubated with the non-specific intercalator RiboGreen. Upon nuclease activity, the RiboGreen is released, corresponding to a loss of signal. (B). Traditional FRET assay using dsRNA substrates featuring a fluorescent emitter, such as Cy3, and a fluorescent quencher. Upon NSP14 nuclease activity, the two strands dissociate, releasing the fluorescent emitter generating a fluorescent signal. (C). A dsRNA substrate featuring a biotin on the 5′ end is digested by NSP14 exonuclease activity. The biotinylated substrates and products are immobilized onto NeutrAvidin, presenting self-assembled monolayers in a high-density biochip array format that are efficient substrates for MALDI-ToF-MS, a technique termed SAMDI.
Figure 1. High-throughput biochemical activity assays for NSP14 exonuclease activity. (A). Double-stranded RNA is incubated with the non-specific intercalator RiboGreen. Upon nuclease activity, the RiboGreen is released, corresponding to a loss of signal. (B). Traditional FRET assay using dsRNA substrates featuring a fluorescent emitter, such as Cy3, and a fluorescent quencher. Upon NSP14 nuclease activity, the two strands dissociate, releasing the fluorescent emitter generating a fluorescent signal. (C). A dsRNA substrate featuring a biotin on the 5′ end is digested by NSP14 exonuclease activity. The biotinylated substrates and products are immobilized onto NeutrAvidin, presenting self-assembled monolayers in a high-density biochip array format that are efficient substrates for MALDI-ToF-MS, a technique termed SAMDI.
Molecules 27 02918 g001

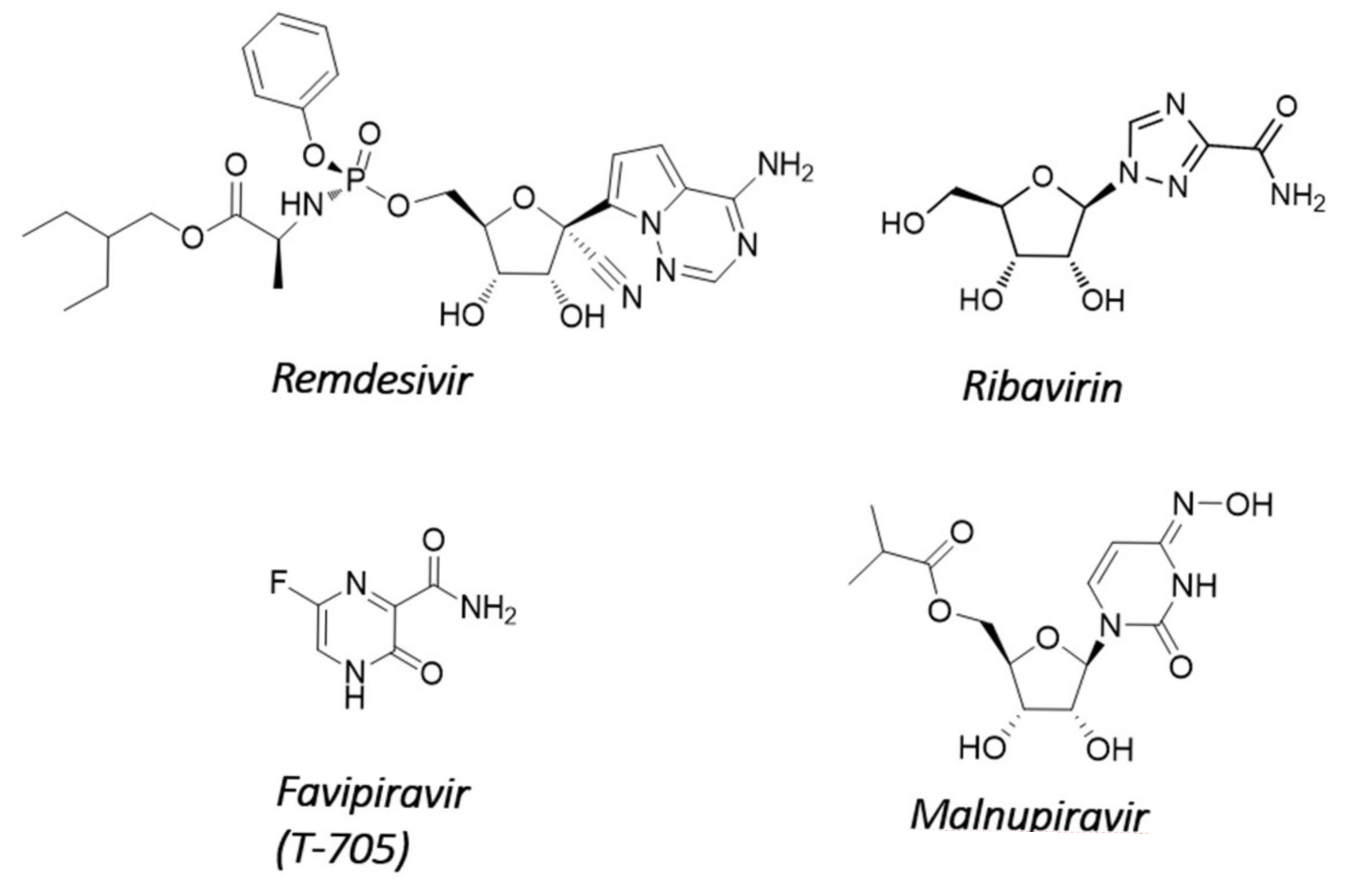

Figure 2. Representative nucleoside analogs interfering with RNA proofreading.
Figure 2. Representative nucleoside analogs interfering with RNA proofreading.
Molecules 27 02918 g002

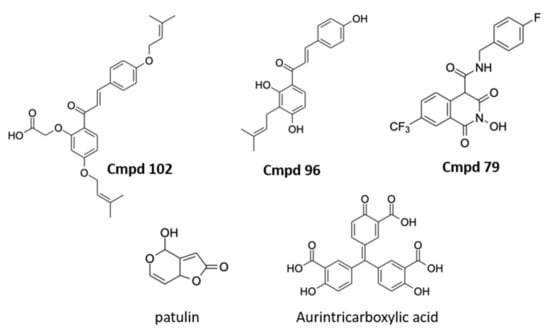

Figure 3. Representative non-nucleoside NSP14 inhibitors. Compounds 102 (IC50: 19.4 μM), 96 (IC50: 17.4 μM), and 79 (IC50: 22.0 μM) described in [72], and patulin (IC50: 1.8 μM) and aurintricarboxylic acid (IC50: 10.3 μM) described in [37].
Figure 3. Representative non-nucleoside NSP14 inhibitors. Compounds 102 (IC50: 19.4 μM), 96 (IC50: 17.4 μM), and 79 (IC50: 22.0 μM) described in [72], and patulin (IC50: 1.8 μM) and aurintricarboxylic acid (IC50: 10.3 μM) described in [37].
Molecules 27 02918 g003
