Significant Enhancement of the Capacity and Cycling Stability of Lithium-Rich Manganese-Based Layered Cathode Materials via Molybdenum Surface Modification

by
Yijia Shao
†,
Zhiyuan Lu
†,
Luoqian Li
,
Yanni Liu
,
Lijun Yang
,
Ting Shu
,
Xiuhua Li
and
Shijun Liao
*
The Key Laboratory of Fuel Cell Technology of Guangdong Province, School of Chemistry and Chemical Engineering, South China University of Technology, Guangzhou 510641, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2022, 27(7), 2100; https://doi.org/10.3390/molecules27072100
Submission received: 29 January 2022 / Revised: 19 March 2022 / Accepted: 21 March 2022 / Published: 24 March 2022
(This article belongs to the Section Applied Chemistry)
Browse Figures
Review Reports Versions Notes

Abstract

:
Lithium-rich manganese-based layered cathode materials are considered to be one of the best options for next-generation lithium-ion batteries, owing to their ultra-high specific capacity (>250 mAh·g−1) and platform voltage. However, their poor cycling stability, caused by the release of lattice oxygen as well as the electrode/electrolyte side reactions accompanying complex phase transformation, makes it difficult to use this material in practical applications. In this work, we suggest a molybdenum surface modification strategy to improve the electrochemical performance of Li1.2Mn0.54Ni0.13Co0.13O2. The Mo-modified Li1.2Mn0.54Ni0.13Co0.13O2 material exhibits an enhanced discharge specific capacity of up to 290.5 mAh·g−1 (20 mA·g−1) and a capacity retention rate of 82% (300 cycles at 200 mA·g−1), compared with 261.2 mAh·g−1 and a 70% retention rate for the material without Mo modification. The significantly enhanced performance of the modified material can be ascribed to the formation of a Mo-compound-involved nanolayer on the surface of the materials, which effectively lessens the electrolyte corrosion of the cathode, as well as the activation of Mo6+ towards Ni2+/Ni4+ redox couples and the pre-activation of a Mo compound. This study offers a facile and effective strategy to address the poor cyclability of lithium-rich manganese-based layered cathode materials.

Graphical Abstract

1. Introduction

With the development of renewable energy technology and electric vehicles, conventional cathode materials, such as LiCoO2, LiMn2O4, LiFePO4, and Li(NixMnyCo1−x−y)O2, are unable to meet the requirements of next-generation lithium ion batteries because they cannot achieve the high capacity, high energy density, and high cyclability demanded for electric vehicles. Thus, new cathode materials with a high energy density are urgently needed [1,2,3]. Lithium-rich manganese-based cathode materials (LMR), specifically low-Co and -Ni content lithium-rich materials, such as 0.5 Li2MnO3 0.5 LiNi0.33Co0.33Mn0.33O2 or Li1.2Mn0.54Ni0.13Co0.13O2, have been recognized as some of the most promising cathode candidates because of their ultra-high specific capacity (>250 mAh·g−1) and power density (>1000 Wh g−1) and low cost. It has been demonstrated that the reduction of the lattice oxygen of the Li2MnO3 component under a high charge voltage of 4.8 V (vs. Li+/Li) plays a crucial role for the ultra-high discharge capacity of LMR. However, due to the lower electronic conductivity of Li2MnO3, its oxygen releasing and phase transition from layer to spinel, as well as the degradation of electrolytes, LMR suffers from some crucial drawbacks, such as its poor cycling stability, low rate capability, and voltage fading, hindering its practice application [4,5,6,7,8].
To address the above stated problems, many efforts have been devoted to improving the performance of the materials, such as morphology control [9,10,11,12,13,14,15], surface modification [16,17,18,19,20,21,22,23], heteroelements doping [24,25,26,27,28,29,30,31,32], etc. Among them, newly emerged surface modification is regarded as the most effective way to mitigate phase transition triggered by oxygen release and electrolytes etching. Furthermore, surface modification is also an effective way to enhance the Li+ and electronic conductivity of LMR materials. It is confirmed by our group’s previous work [33] that the doping of the molybdenum (Mo) element in the LMR material can retard the Jahn–Teller effect of Mn and effectively impede the phase transformation caused by the release of lattice oxygen. Meanwhile, it is found that the doping of Mo in layer-structured LMR material could expand the interlayer spacing and consequently accelerate the bulk diffusion of Li+ [34]. Furthermore, coating LMR materials with molybdenum oxide or molybdenite could improve the interface conductivity of Li+ and electrons effectively.
Inspired by the previous research works and results, we attempted to improve the performance of LMR materials through surface modification. It is found that the discharge capacity and cycling stability of Li1.2Mn0.54Ni0.13Co0.13O2 could be enhanced significantly through modification of the material with molybdenum by using the ammonium molybdate (H8MoN2O4) as a modifier (Scheme 1). Based on the characterization results, a nanometer layer containing the Mo compound is formed on the LMR surface, and some of the Mo6+ ions penetrate the material’s crystal lattice. The Mo-modified LMR material exhibits a significantly enhanced electrochemical performance, and especially a considerably enhanced electrochemical rate performance and thermodynamic stability, giving the material outstanding cycling stability.

2. Results and Discussion

Figure 1 shows the XRD patterns of LMR (denotes Li1.2Mn0.54Ni0.13Co0.13O2) and LMR-Mo (denotes Mo-surface-modified Li1.2Mn0.54Ni0.13Co0.13O2). For the sample LMR, all of the dominant diffraction peaks and apparent splitting peaks of 006/102 and 018/110 of both materials can be indexed to the R-3m space group of the hexagonal α-NaFeO2-type layered structure, without an obvious impurity phase [35,36]. The weak superstructure reflections of both materials between 20° and 25° indicate the existence of the Li2MnO3 phase, which is the typical feature of lithium-rich cathode materials, arising from the superlattice ordering of Li and Mn in the transition metal layers of the Li2MnO3 phase [37,38,39,40].
After the modification process by H8MoN2O4, the (003) peak of LMR-Mo was shifted to a lower angle, compared with the LMR sample. This should be caused by the larger ionic radius of Mo6+ (0.59 Å) than Mn4+ (0.53 Å), indicating that part of the Mo atoms/ions are inserted into the LMR lattice. The lattice parameters of LMR-Mo, calculated by Jade software and shown in Table 1, also provide evidence that the lattice was expended from a and c directions. This lattice expansion is beneficial to the diffusion of Li+ in the materials’ lattice, resulting in the enhancement of the performance of the materials.
As shown in Table 1, the ratio of I(003)/I(104) of LMR-Mo is larger than that of the LMR sample, indicating the decrease in Ni2+ entering the Li+ layer. In other words, the Mo surface modification effectively restrained the cationic mixing. This will result in a better electrochemical performance, according to the literature [41,42]. Further, obvious changes can be observed in the weak reflections from 20° to 25° after modification: LMR only exhibited two broad peaks, whereas LMR-Mo exhibited four sharp peaks, because the bonds between Mo and O were stronger than those between Mn and O in Li2MnO3 [43]. As Mo atoms were doped into the Li/Mn layer, they would activate and stabilize the local environment of the O atoms in Li2MnO3.
SEM images of LMR and LMR-Mo are presented in Figure 2a and Figure S1a, Supplementary Materials. Both materials show an assembled morphology of pebble-like particles. TEM and high-resolution TEM images of LMR and LMR-Mo are illustrated in Figure 2b and Figure S1b, Supplementary Materials. It was clear that an approximate 1 nm-thick, rough nanostructure layer was uniformly coated on the particle surface, confirming the successful surface modification/coating of Mo, and that clear lattice fringes (see insert of Figure 2b) and electron diffraction (ED) patterns (Figure 2c) corresponded to the (003), (012), and (006) plane of the LiTMO2 (here, TM denotes transition metal element), and (020), (111), (−113) plane of the Li2MnO3 component, respectively [44,45]. These results are consistent with the results of XRD. Furthermoe, the EDS mapping results (Figure 2d) further confirm the successful preparation of Mo-modified lithium-rich cathode materials and the surface modification of Mo on LRM materials.
To investigate the changes in chemical states brought about by Mo modification, XPS analysis was conducted in this work. Figure 3 shows the spectra of Mn, Ni, and Mo in LMR and LMR-Mo. For the LMR sample, the binding energies of Mn 2p3/2 and Mn 2p1/2 were 642.5 eV and 654 eV, corresponding to the Mn4+ of MnO2 [46,47]. In comparison, the binding energies of Mn 2p3/2 and Mn 2p1/2 for the LMR-Mo sample were slightly down-shifted, indicating that the charge transfer to Mn from Mo occurred after surface modification with Mo. As shown in Figure 3b, all of the Ni 2p3/2 were divided into two peaks for Ni2+ and Ni3+; after Mo modification, the Ni2+ content increased from 27% for LMR to 41% for LMR-Mo. Evidently, Mo surface modification led to an increase in Ni2+ and a decrease in Ni3+, improving the Ni2+/Ni4+ ratio and thus boosting the cathode material’s specific capacity. Figure 3d shows the XPS spectrum of Mo. The binding energy of Mo 3d5/2 was around 232.5 eV, indicating that Mo existed in the material in the +6 oxidation state, implying that the coating layer may be composed of molybdenum oxide or molybdenate.
Figure 4a shows the initial charge/discharge profiles of batteries with LMR or LMR-Mo as cathodes, respectively. Generally, the charging process of lithium-rich manganese-based layered cathode materials can be divided into two stages [48,49,50,51]. In the first stage (potential < 4.45 V), the Li+ are released and charge compensation is achieved by transition metal ion oxidation in LiTMO2, specifically Ni2+/Ni4+ and Co3+/Co4+; the Li2MnO3 phase does not participate in the reaction and only plays the role of stabilizing the material’s structure. In the second stage, when the voltage is higher than 4.45 V, Li+ is released and charge compensation is achieved by the O2– in Li2MnO3; at the same time, Li2MnO3 turns into the MnO2 active component. Figure 4a shows that LMR and LMR-Mo had two similar charge/discharge curves and delivered respective discharge capacities of 261.2 and 280.9 mAh·g–1 at 0.1 C. Surface modification with Mo thus brought about a 10% increase in the discharge capacity. In fact, the maximum discharge specific capacity of LMR-Mo reached 290.5 mAh·g–1 after typical electrochemical activation. LMR-Mo also exhibited a better rate performance (Figure 4b) and better cyclability than LMR. After 300 cycles at 1 C, the capacity of the battery with the LMR-Mo cathode was 181.8 mAh·g–1, with the capacity retention being up to 82%, whereas the battery with the LMR cathode had a capacity of only 124.5 mAh·g–1, with approximately a 70% capacity retention (Figure 4c). The dQ/dV curves of LMR and LMR-Mo (Figure S2, Supplementary Materials) also illustrated that, even after 300 cycles, the LMR-Mo still had a higher cycle retention. All of the above results indicated that the surface modification with Mo significantly improved the electrochemical performance of LMR. We suggested that the formation of a Mo compound nanolayer on the surface of the material particles may have lessened the electrolyte’s corrosive effect on the active material, resulting in a better long cycling stability.
CV analysis was used to further investigate the effects of Mo surface modification on the redox reactions during the charge/discharge process. Figure 5 shows the CV curves of the initial three cycles for LMR and LMR-Mo in the potential range of 2.0–4.8 V. For the initial charge processes, both samples exhibited two main oxidation peaks, with those of the LMR-Mo sample near 4.111 V and 4.734 V corresponding to the Ni2+/4+ and oxygen compensation reactions. After modification with Mo, these two redox reactions presented a completely inverse trend as a result of the increased Ni2+ content and the stability of the Mo-O bond, which was consistent with the XPS analysis results described earlier and the initial charge curve at 0.1 C. For the first discharge process, there were two reduction peaks around 3.735 V and 3.325 V, corresponding to the redox of Ni4+/2+ and Mn4+/3+. All peak potentials are higher than those of the LMR sample, indicating that the Mo modification strategy effectively increased the reversibility of the Ni2+/4+ redox and hindered the phase transition from layer to spinel. In the next two CV curves, the same trend can be observed, indicating the reduction in irreversible capacity loss, as well as oxygen release, at the activation of Li2MnO3 [52,53,54,55,56,57], which resulted in a better initial coulombic efficiency and cycling stability for this lithium-rich cathode material.
To further explore the effect of Mo surface modification on the kinetic properties of LMR, an EIS measurement was conducted in the open-circuit state after charging to 4.8 V (vs. Li/Li+). As shown in Figure 6, the Nyquist curves of both materials are composed of a semicircle and an inclined straight line. The semicircle in the high-frequency region corresponds to the charge-transfer resistance (Rct), which indicates the impedance between the interior and the interface of the active materials [21,58]. Through simulations, we obtained the Rct values of LMR (185.9 Ω) and LMR-Mo (152.1 Ω), showing that, after Mo modification, the charge transfer resistance between the positive electrode material and the electrolyte (Rct) was significantly reduced; hence, the kinetics was effectively accelerated, resulting in a higher capacity and rate performance. The slope of the inclined line in the low-frequency region is related to the Warburg impedance resistance (Zw), which reflects the ease of the solid-phase diffusion of lithium ions in electrode materials [59,60]. In addition, from the relationships [23,61,62] between Zre and ω–1/2 in the low-frequency region, the lithium-ion diffusion coefficients (DLi+) of all of the samples were estimated to be 3.25 × 10−17 and 4.38 × 10−17 cm2S−1 for LMR and LMR-Mo, respectively. Clearly, LMR-Mo demonstrated a higher lithium-ion diffusivity than LMR, which fits with the electrochemical performance results.

3. Materials and Methods

3.1. Preparation and Characterization

The LMR sample was prepared using a spray-drying process. First, stoichiometric amounts of transition metal acetate (Co(CH3COO)2·4H2O, Mn(CH3COO)2·4H2O, Ni(CH3COO)2·4H2O), lithium hydroxide(LiOH·H2O, excess 5%), ammonium hydrogen carbonate, and hexadecyl trimethyl ammonium bromide (as a surfactant) were separately dissolved in deionized water to obtain transition metal acetate solution (solutions A), lithium hydroxide solution (solution B), and ammonium hydrogen carbonate and hexadecyl trimethyl ammonium bromide solution (solution C). Afterward, solutions A and B were dripped slowly into solution C, with vigorous stirring. After aging by 12 h at room temperature, the resulting suspension was spray-dried by a spray-drying instrument (SP-1500, Nanbei Instrument Limited, ShunYi, Beijing, China) to yield a homogenous powder. Finally, the LMR cathode materials were obtained by first heating the powder at 450 °C for 5 h and then calcining it at 900 °C for 12 h in air.
Surface modification of LMR was carried out as follows. First, H8MoN2O4 was dissolved in ethanol to obtain a solution containing Mo, with a molar ratio of Mn/Mo of 17/1. Then the LMR powder was dispersed in the solution for surface adsorption. The solvent was then evaporated via continuous stirring at 70 °C for 8 h, followed by drying at 80 °C for 12 h, and further calcining at 600 °C for 6 h in air.
Phase identification was carried out using an X-ray powder diffractometer (XRD TD3500, Tong-da, Dalian, China), and the morphology and surface state of the samples were examined with a scanning electron microscope (SEM SU8220, Hitachi, Tokyo, Japan), a transmission electron microscope (TEM JEM-2100HR, JEOL, Tokyo, Japan), and an X-ray photoelectron spectroscope (XPS K-Alpha, Thermo-VG Scientific, Waltham, MA, USA).

3.2. Electrochemical Measurement

The electrochemical properties of the cathode materials were evaluated with a CR2016 coin-type cell, using a fresh lithium foil as the reference electrode, a polypropylene microporous film (Celgard 2500, Charlotte, NC, USA) as the separator, and 1 mol L–1 LiPF6 solution as the electrolyte, obtained by dissolving LiPF6 in a mixed organic solvent of dimethyl carbonate and ethylene carbonate (1:1 in volume ratio). The testing cathode (working electrode) was prepared as follows. First, the prepared active material (80 wt%), acetylene black (10 wt%), and polyvinylidene fluoride (10 wt%) were weighed in proportion. Then, N-methyl pyrrolidone was added dropwise and the mixture was stirred thoroughly. Next, the mixed slurry was uniformly coated on aluminum foils and dried overnight at 80 °C, then cut with a manual slicer to obtain a positive electrode sheet with a diameter of 14 mm. The coin cell was assembled in an argon-filled glove box.
All of the electrochemical tests in this experiment were conducted at room temperature, and the testing voltage window was 2.0–4.8 V (vs. Li/Li+). Galvanostatic charge/discharge testing of the prepared coin battery was conducted on an RT-3008w battery testing system (Xingwei, Shenzhen, China). In this work, we specified 1 C as 200 mAh·g–1. Cyclic voltammetry (CV) tests were carried out on an Autolab PGSTAT302N electrochemical workstation (Metrohm, Autolab PGSTAT302N, Herisau, Switzerland) at a scanning rate of 0.1 mV·s–1. The electrochemical workstation used for electrochemical impedance spectroscopy (EIS) was an IM6e (Zahner, IM6e, Kronach, Germany), and a frequency range of 0.1–100 KHz with a sinusoidal voltage signal 5 mV in amplitude was the perturbation.

4. Conclusions

In this work, we intensively investigated the surface modification of the lithium-rich cathode material Li1.2Mn0.54Ni0.13Co0.13O2 with Mo. After modification, a surface layer of molybdenum oxide or molybdenite involved with a thickness of 1–2 nm was formed on the Li-rich cathode material particles, which effectively improved the surface kinetics and lessened the electrolyte corrosion of the positive material during long cycling, ultimately giving the material a significantly enhanced activity and stability. Based on the characterization results, it is found that the Mo6+ simultaneously entered the surface layer of the Li-rich material, enlarging the Li+ slab and facilitating the diffusion of Li+ into the layered structure. The surface modification with Mo also increased the ratio of Ni2+/Ni4+ redox couples and preactivated the Li2MnO3 component, thereby greatly improving the cathode material’s discharge capacity and cycling stability. Our work offers a modification strategy for enhancing the electrochemical performance of Li-rich materials, and could be beneficial for the commercialization of lithium-rich manganese-based cathode materials.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/molecules27072100/s1, Figure S1: SEM (a) and HRTEM (b) of LMR sample, Figure S2: The dQ/dV curves of LMR (a) and Mo-LMR (b).

Author Contributions

Data curation, Y.S., Z.L., L.L. and Y.L.; writing—original draft preparation, Z.L. and Y.S.; writing—review and editing, Z.L., Y.S., L.Y., T.S., X.L. and S.L.; supervision, S.L.; funding acquisition, S.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the National Key Research and Development Program of China (Project Nos. 2017YFB0102900, 2016YFB0101201), the National Natural Science Foundation of China (NSFC Project Nos. 21476088, 21776104), the Guangdong Provincial Department of Science and Technology (Project No. 2015B010106012), and the Guangzhou Science Technology and Innovation Committee (Project Nos. 201504281614372, 2016GJ006).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors.

References

  1. Goodenough, J.B.; Park, K.-S. The Li-Ion Rechargeable Battery: A Perspective. J. Am. Chem. Soc. 2013, 135, 1167–1176. [Google Scholar] [PubMed]
  2. Tarascon, J.M.; Armand, M. Issues and challenges facing rechargeable lithium batteries. Nature 2001, 414, 359–367. [Google Scholar] [PubMed]
  3. Goodenough, J.B. Evolution of Strategies for Modern Rechargeable Batteries. Acc. Chem. Res. 2013, 46, 1053–1061. [Google Scholar] [PubMed]
  4. Chen, J.; Deng, W.; Gao, X.; Yin, S.; Yang, L.; Liu, H.; Zou, G.; Hou, H.; Ji, X. Demystifying the Lattice Oxygen Redox in Layered Oxide Cathode Materials of Lithium-Ion Batteries. ACS Nano 2021, 15, 6061–6104. [Google Scholar]
  5. Fan, Y.M.; Zhang, W.C.; Zhao, Y.L.; Guo, Z.P.; Cai, Q. Fundamental understanding and practical challenges of lithium-rich oxide cathode materials: Layered and disordered-rocksalt structure. Energy Storage Mater. 2021, 40, 51–71. [Google Scholar]
  6. He, W.; Guo, W.; Wu, H.; Lin, L.; Liu, Q.; Han, X.; Xie, Q.; Liu, P.; Zheng, H.; Wang, L.; et al. Challenges and Recent Advances in High Capacity Li-Rich Cathode Materials for High Energy Density Lithium-Ion Batteries. Adv. Mater. 2021, 33, 2005937. [Google Scholar]
  7. Ji, X.; Xia, Q.; Xu, Y.; Feng, H.; Wang, P.; Tan, Q. A review on progress of lithium-rich manganese-based cathodes for lithium ion batteries. J. Power Sources 2021, 487, 229362. [Google Scholar]
  8. Pan, H.G.; Zhang, S.M.; Chen, J.; Gao, M.X.; Liu, Y.F.; Zhu, T.J.; Jiang, Y.Z. Li- and Mn-rich layered oxide cathode materials for lithium-ion batteries: A review from fundamentals to research progress and applications. Mol. Syst. Des. Eng. 2018, 3, 748–803. [Google Scholar]
  9. Fang, J.; An, H.; Qin, F.; Wang, H.; Chen, C.; Wang, X.; Li, Y.; Hong, B.; Li, J. Simple Glycerol-Assisted and Morphology-Controllable Solvothermal Synthesis of Lithium-Ion Battery-Layered Li1.2Mn0.54Ni0.13Co0.13O2 Cathode Materials. ACS Appl. Mater. Interfaces 2020, 12, 55926–55935. [Google Scholar]
  10. Zhang, J.T.; Tan, X.H.; Guo, L.M.; Jiang, Y.; Liu, S.N.; Wang, H.F.; Kang, X.H.; Chu, W.G. Controllable formation of lithium carbonate surface phase during synthesis of nickel-rich LiNi0.9Mn0.1O2 in air and its protection role in electrochemical reaction. J. Alloy. Compd. 2019, 771, 42–50. [Google Scholar]
  11. Ma, Y.; Liu, P.; Xie, Q.; Zhang, G.; Zheng, H.; Cai, Y.; Li, Z.; Wang, L.; Zhu, Z.-Z.; Mai, L.; et al. Double-shell Li-rich layered oxide hollow microspheres with sandwich-like carbon@spinel@layered@spinel@carbon shells as high-rate lithium ion battery cathode. Nano Energy 2019, 59, 184–196. [Google Scholar]
  12. Liu, C.; Wu, M.; Zong, Y.; Zhang, L.; Yang, Y.; Yang, G. Synthesis and structural properties of xLi2MnO3⋅(1-x)LiNi0.5Mn0.5O2 single crystals towards enhancing reversibility for lithium-ion battery/pouch cells. J. Alloy. Compd. 2019, 770, 490–499. [Google Scholar]
  13. Li, H.; Ren, Y.; Yang, P.; Jian, Z.; Wang, W.; Xing, Y.; Zhang, S. Morphology and size controlled synthesis of the hierarchical structured Li1.2Mn0.54Ni0.13Co0.13O2 cathode materials for lithium ion batteries. Electrochim. Acta 2019, 297, 406–416. [Google Scholar]
  14. Ko, D.-S.; Park, J.-H.; Park, S.; Ham, Y.N.; Ahn, S.J.; Park, J.-H.; Han, H.N.; Lee, E.; Jeon, W.S.; Jung, C. Microstructural visualization of compositional changes induced by transition metal dissolution in Ni-rich layered cathode materials by high-resolution particle analysis. Nano Energy 2019, 56, 434–442. [Google Scholar]
  15. Deng, B.; Chen, Y.; Wu, P.; Han, J.; Li, Y.; Zheng, H.; Xie, Q.; Wang, L.; Peng, D.-L. Lithium-rich layered oxide nanowires bearing porous structures and spinel domains as cathode materials for lithium-ion batteries. J. Power Sources 2019, 418, 122–129. [Google Scholar]
  16. Liu, H.; Xiang, W.; Bai, C.; Qiu, L.; Wu, C.; Wang, G.; Liu, Y.; Song, Y.; Wu, Z.-G.; Guo, X. Enabling Superior Electrochemical Performance of Lithium-Rich Li1.2Ni0.2Mn0.6O2 Cathode Materials by Surface Integration. Ind. Eng. Chem. Res. 2020, 59, 19312–19321. [Google Scholar]
  17. Wang, T.; Huang, Z.; Cai, M.; Shi, S. High performance lithium-rich cathode modified with Al2O3 by melting impregnation method. Mater. Lett. 2020, 279, 128479. [Google Scholar]
  18. Xu, L.; Sun, Z.; Zhu, Y.; Han, Y.; Wu, M.; Ma, Y.; Huang, Y.; Zhang, H.; Chen, Y. A Li-rich layered-spinel cathode material for high capacity and high rate lithium-ion batteries fabricated via a gas-solid reaction. Sci. China Mater. 2020, 63, 2435–2442. [Google Scholar]
  19. Xu, Z.; Ci, L.; Yuan, Y.; Nie, X.; Li, J.; Cheng, J.; Sun, Q.; Zhang, Y.; Han, G.; Min, G.; et al. Potassium Prussian blue-coated Li-rich cathode with enhanced lithium ion storage property. Nano Energy 2020, 75, 104942. [Google Scholar]
  20. Zou, P.; Lin, Z.; Fan, M.; Wang, F.; Liu, Y.; Xiong, X. Facile and efficient fabrication of Li3PO4-coated Ni-rich cathode for high-performance lithium-ion battery. Appl. Surf. Sci. 2020, 504, 144506. [Google Scholar]
  21. He, Z.; Li, J.; Luo, Z.; Zhou, Z.; Jiang, X.; Zheng, J.; Li, Y.; Mao, J.; Dai, K.; Yan, C.; et al. Enhancing Cell Performance of Lithium-Rich Manganese-Based Materials via Tailoring Crystalline States of a Coating Layer. ACS Appl. Mater. Interfaces 2021, 13, 49390–49401. [Google Scholar] [PubMed]
  22. Kobayashi, H.; Yuan, G.; Gambe, Y.; Honma, I. Effective Li3AlF6 Surface Coating for High-Voltage Lithium-Ion Battery Operation. ACS Appl. Energy Mater. 2021, 4, 9866–9870. [Google Scholar]
  23. Panda, A.; Patra, J.; Hsieh, C.-T.; Huang, Y.-C.; Gandomi, Y.A.; Fu, C.-C.; Lin, M.-H.; Juang, R.-S.; Chang, J.-K. Improving high-temperature performance of lithium-rich cathode by roll-to-roll atomic layer deposition of titania nanocoating for lithium-ion batteries. J. Energy Storage 2021, 44, 103348. [Google Scholar]
  24. Zhang, C.; Wei, B.; Jiang, W.; Wang, M.; Hu, W.; Liang, C.; Wang, T.; Chen, L.; Zhang, R.; Wang, P.; et al. Insights into the Enhanced Structural and Thermal Stabilities of Nb-Substituted Lithium-Rich Layered Oxide Cathodes. ACS Appl. Mater. Interfaces 2021, 13, 45619–45629. [Google Scholar] [PubMed]
  25. Wang, M.; Han, Y.; Chu, M.; Chen, L.; Liu, M.; Gu, Y. Enhanced electrochemical performances of cerium-doped Li-Rich Li1.2Ni0.13Co0.13Mn0.54O2 cathode materials. J. Alloy. Compd. 2021, 861, 158000. [Google Scholar]
  26. Nie, L.; Wang, Z.; Zhao, X.; Chen, S.; He, Y.; Zhao, H.; Gao, T.; Zhang, Y.; Dong, L.; Kim, F.; et al. Cation/Anion Codoped and Cobalt-Free Li-Rich Layered Cathode for High-Performance Li-Ion Batteries. Nano Lett. 2021, 21, 8370–8377. [Google Scholar]
  27. Liu, Y.-H.; Tsai, T.-Y. Improving electrochemical performance of lithium ion batteries using a binder-free carbon fiber-based LiNi0.5(1−x)Mn1.5(1−x/3)CrxO4 cathode with a conventional electrolyte. J. Power Sources 2021, 484, 229262. [Google Scholar]
  28. Liang, G.; Peterson, V.K.; Wu, Z.; Zhang, S.; Hao, J.; Lu, C.Z.; Chuang, C.H.; Lee, J.F.; Liu, J.; Leniec, G.; et al. Crystallographic-Site-Specific Structural Engineering Enables Extraordinary Electrochemical Performance of High-Voltage LiNi0.5Mn1.5O4 Spinel Cathodes for Lithium-Ion Batteries. Adv. Mater. 2021, 33, e2101413. [Google Scholar]
  29. Kocak, T.; Wu, L.; Wang, J.; Savaci, U.; Turan, S.; Zhang, X. The effect of vanadium doping on the cycling performance of LiNi0.5Mn1.5O4 spinel cathode for high voltage lithium-ion batteries. J. Electroanal. Chem. 2021, 881, 114926. [Google Scholar]
  30. Abulikemu, A.; Matsunaga, T.; Watanabe, A.; Yamamoto, K.; Uchiyama, T.; Nakanishi, K.; Kawaguchi, S.; Osaka, K.; Uchimoto, Y. Rocksalt type Li2Nb0·15Mn0·85O3 without structure degradation or redox evolution upon cycling. J. Alloy. Compd. 2021, 853, 156984. [Google Scholar]
  31. Zhong, J.; Yang, Z.; Yu, Y.; Liu, Y.; Li, J.; Kang, F. Surface substitution of polyanion to improve structure stability and electrochemical properties of lithium-rich layered cathode oxides. Appl. Surf. Sci. 2020, 512, 145741. [Google Scholar]
  32. Zhang, P.; Zhai, X.; Huang, H.; Zhou, J.; Li, X.; He, Y.; Guo, Z. Suppression of structural phase transformation of Li-rich Mn-based layered cathode materials with Na ion substitution strategy. Electrochim. Acta 2020, 349, 136402. [Google Scholar]
  33. Chen, M.; Chen, P.; Yang, F.; Song, H.; Liao, S. Ni, Mo Co-doped Lithium Manganate with Significantly Enhanced Discharge Capacity and Cycling Stability. Electrochim. Acta 2016, 206, 356–365. [Google Scholar]
  34. Guo, L.; Tan, X.; Liu, S.; Wu, J.; Ren, J.; Zhao, T.; Kang, X.; Wang, H.; Chu, W. Considerable capacity increase of high-nickel lithium-rich cathode materials by effectively reducing oxygen loss and activating Mn4+/3+ redox couples via Mo doping. J. Alloy. Compd. 2019, 790, 170–178. [Google Scholar]
  35. Mohanty, D.; Huq, A.; Payzant, E.; Safa-Sefat, A.; Li, J.; Abraham, D.; Wood, D.; Daniel, C. Neutron Diffraction and Magnetic Susceptibility Studies on a High-Voltage Li1.2Mn0.55Ni0.15Co0.10O2 Lithium Ion Battery Cathode: Insight into the Crystal Structure. Chem. Mater. 2013, 25, 4064–4070. [Google Scholar]
  36. Yu, H.; Kim, H.; Wang, Y.; He, P.; Asakura, D.; Nakamura, Y.; Zhou, H. High-energy ‘composite’ layered manganese-rich cathode materials via controlling Li2MnO3 phase activation for lithium-ion batteries. Phys. Chem. Chem. Phys. 2012, 14, 6584–6595. [Google Scholar]
  37. Jarvis, K.A.; Deng, Z.; Allard, L.F.; Manthiram, A.; Ferreira, P.J. Understanding structural defects in lithium-rich layered oxide cathodes. J. Mater. Chem. 2012, 22, 11550–11555. [Google Scholar]
  38. Kaewmala, S.; Limphirat, W.; Yordsri, V.; Kim, H.; Muhammad, S.; Yoon, W.-S.; Srilomsak, S.; Limthongkul, P.; Meethong, N. Structural and Electrochemical Kinetic Properties of 0.5Li2MnO3·0.5LiCoO2 Cathode Materials with Different Li2MnO3 Domain Sizes. Sci. Rep. 2019, 9, 427. [Google Scholar]
  39. Zheng, H.; Zhang, C.; Zhang, Y.; Lin, L.; Liu, P.; Wang, L.; Wei, Q.; Lin, J.; Sa, B.; Xie, Q.; et al. Manipulating the Local Electronic Structure in Li Rich Layered Cathode Towards Superior Electrochemical Performance. Adv. Funct. Mater. 2021, 31, 2100783. [Google Scholar]
  40. Fang, Z.; Li, W.; Zhao, B.; Bai, J.; Li, K.; Ma, H.; Zhu, X.; Sun, Y. Particle Size and Particle-Size Distribution Effects on Li+ Extraction/Insertion Kinetics for Li-Rich Mn-Based Oxides. ACS Appl. Energy Mater. 2021, 4, 10986–10997. [Google Scholar]
  41. Thackeray, M.M.; Kang, S.-H.; Johnson, C.S.; Vaughey, J.T.; Benedek, R.; Hackney, S.A. Li2MnO3-stabilized LiMO2 (M = Mn, Ni, Co) electrodes for lithium-ion batteries. J. Mater. Chem. 2007, 17, 3112–3125. [Google Scholar]
  42. Ma, G.; Li, S.; Zhang, W.; Yang, Z.; Liu, S.; Fan, X.; Chen, F.; Tian, Y.; Zhang, W.; Yang, S.; et al. A General and Mild Approach to Controllable Preparation of Manganese-Based Micro- and Nanostructured Bars for High Performance Lithium-Ion Batteries. Angew. Chem. Int. Ed. Engl. 2016, 55, 3667–3671. [Google Scholar] [PubMed]
  43. Gao, Y.; Ma, J.; Wang, X.; Lu, X.; Bai, Y.; Wang, Z.; Chen, L. Improved electron/Li-ion transport and oxygen stability of Mo-doped Li2MnO3. J. Mater. Chem. A 2014, 2, 4811–4818. [Google Scholar]
  44. Fu, F.; Tang, J.; Yao, Y.; Shao, M. Hollow Porous Hierarchical-Structured 0.5Li2MnO3 0.5LiMn0.4Co0.3Ni0.3O2 as a High-Performance Cathode Material for Lithium-Ion Batteries. ACS Appl. Mater. Interfaces 2016, 8, 25654–25659. [Google Scholar] [PubMed]
  45. Yu, R.; Zhang, Z.; Jamil, S.; Chen, J.; Zhang, X.; Wang, X.; Yang, Z.; Shu, H.; Yang, X. Effects of Nanofiber Architecture and Antimony Doping on the Performance of Lithium-Rich Layered Oxides: Enhancing Lithium Diffusivity and Lattice Oxygen Stability. ACS Appl. Mater. Interfaces 2018, 10, 16561–16571. [Google Scholar]
  46. Wu, F.; Li, N.; Su, Y.; Shou, H.; Bao, L.; Yang, W.; Zhang, L.; An, R.; Chen, S. Spinel/Layered Heterostructured Cathode Material for High-Capacity and High-Rate Li-Ion Batteries. Adv. Mater. 2013, 25, 3722–3726. [Google Scholar]
  47. Liu, J.; Hou, M.; Yi, J.; Guo, S.; Wang, C.; Xia, Y. Improving the electrochemical performance of Layered lithium-rich transition-metal oxides by controlling the structural defects. Energy Environ. Sci. 2014, 7, 705–714. [Google Scholar]
  48. Van der Ven, A.; Bhattacharya, J.; Belak, A.A. Understanding Li Diffusion in Li-Intercalation Compounds. Acc. Chem. Res. 2013, 46, 1216–1225. [Google Scholar]
  49. Xie, Y.; Saubanere, M.; Doublet, M.L. Requirements for reversible extra-capacity in Li-rich layered oxides for Li-ion batteries. Energy Environ. Sci. 2017, 10, 266–274. [Google Scholar]
  50. Hy, S.; Liu, H.; Zhang, M.; Qian, D.; Hwang, B.-J.; Meng, Y.S. Performance and design considerations for lithium excess layered oxide positive electrode materials for lithium ion batteries. Energy Environ. Sci. 2016, 9, 1931–1954. [Google Scholar]
  51. Feng, Z.; Song, H.; Li, Y.; Lyu, Y.; Xiao, D.; Guo, B. Adjusting Oxygen Redox Reaction and Structural Stability of Li- and Mn-Rich Cathodes by Zr-Ti Dual-Doping. Acs Appl. Mater. Interfaces 2022, 14, 5308–5317. [Google Scholar]
  52. Hu, E.; Lyu, Y.; Xin, H.L.; Liu, J.; Han, L.; Bak, S.-M.; Bai, J.; Yu, X.; Li, H.; Yang, X.-Q. Explore the Effects of Microstructural Defects on Voltage Fade of Li- and Mn-Rich Cathodes. Nano Lett. 2016, 16, 5999–6007. [Google Scholar]
  53. Wu, Y.; Ma, C.; Yang, J.; Li, Z.; Allard, L.F.; Liang, C.; Chi, M. Probing the initiation of voltage decay in Li-rich layered cathode materials at the atomic scale. J. Mater. Chem. A 2015, 3, 5385–5391. [Google Scholar]
  54. Kim, J.H.; Sun, Y.K. Electrochemical performance of Li LixNi(1−3x)/2Mn(1+x)/2O2 cathode materials synthesized by a sol-gel method. J. Power Sources 2003, 119, 166–170. [Google Scholar]
  55. Hong, Y.S.; Park, Y.J.; Ryu, K.S.; Chang, S.H.; Kim, M.G. Synthesis and electrochemical properties of nanocrystalline LiNixLi(1−2x)/3Mn(2−x)/3O2 prepared by a simple combustion method. J. Mater. Chem. 2004, 14, 1424–1429. [Google Scholar]
  56. Hua, W.; Chen, M.; Schwarz, B.; Knapp, M.; Bruns, M.; Barthel, J.; Yang, X.; Sigel, F.; Azmi, R.; Senyshyn, A.; et al. Lithium/Oxygen Incorporation and Microstructural Evolution during Synthesis of Li-Rich Layered Li[Li0.2Ni0.2Mn0.6]O2 Oxides. Adv. Energy Mater. 2019, 9, 1803094. [Google Scholar]
  57. Cui, S.-L.; Gao, M.-Y.; Li, G.-R.; Gao, X.-P. Insights into Li-Rich Mn-Based Cathode Materials with High Capacity: From Dimension to Lattice to Atom. Adv. Energy Mater. 2022, 12, 2003885. [Google Scholar]
  58. Xu, Q.; Li, X.; Sari, H.M.K.; Li, W.; Liu, W.; Hao, Y.; Qin, J.; Cao, B.; Xiao, W.; Xu, Y.; et al. Surface engineering of LiNi0.8Mn0.1Co0.1O2 towards boosting lithium storage: Bimetallic oxides versus monometallic oxides. Nano Energy 2020, 77, 105034. [Google Scholar]
  59. Shenouda, A.Y.; Murali, K.R. Electrochemical properties of doped lithium titanate compounds and their performance in lithium rechargeable batteries. J. Power Sources 2008, 176, 332–339. [Google Scholar]
  60. Wang, M.; Luo, M.; Chen, Y.; Su, Y.; Chen, L.; Zhang, R. Electrochemical deintercalation kinetics of 0.5Li2MnO3·.5LiNi1/3Mn1/3Co1/3O2 studied by EIS and PITT. J. Alloy. Compd. 2017, 696, 907–913. [Google Scholar]
  61. Zhao, J.; Wang, Z.; Guo, H.; Li, X. Enhanced electrochemical properties of LiNiO2-based cathode materials by nanoscale manganese carbonate treatment. Appl. Surf. Sci. 2017, 403, 426–434. [Google Scholar]
  62. Yang, Z.; Li, Z.; Huang, Y.; Zhang, M.; Liu, C.; Zhang, D.; Cao, G. Artificial interface stabilized LiNi0.80Co0.15Al0.05O2@Polysiloxane cathode for stable cycling lithium-ion batteries. J. Power Sources 2020, 471, 228480. [Google Scholar]
Molecules 27 02100 sch001 550

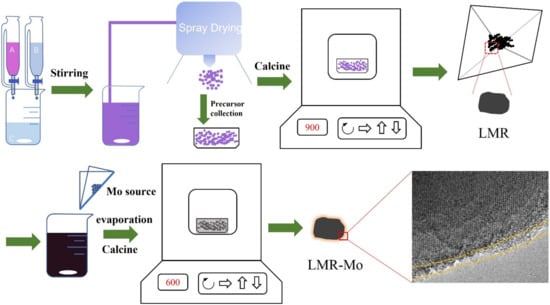

Scheme 1. Illustration of the synthesis process of LMR and LMR-Mo samples.
Scheme 1. Illustration of the synthesis process of LMR and LMR-Mo samples.
Molecules 27 02100 sch001
Molecules 27 02100 g001 550

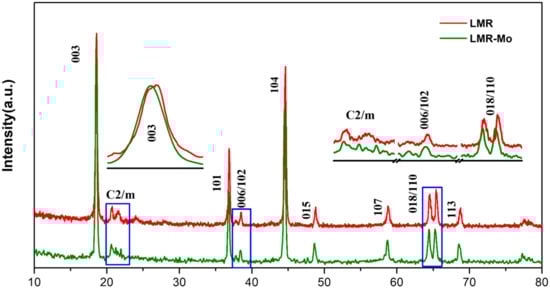

Figure 1. XRD patterns for LMR and LMR-Mo, including enlargement of the 2θ range.
Figure 1. XRD patterns for LMR and LMR-Mo, including enlargement of the 2θ range.
Molecules 27 02100 g001
Molecules 27 02100 g002 550
Figure 2. SEM (a), HRTEM (b), and ED pattern (c) of LMR-Mo, and HAADF and EDS mapping (d) of Ni (red), Mn (blue), Co (green), and Mo (yellow) for LMR-Mo.
Figure 2. SEM (a), HRTEM (b), and ED pattern (c) of LMR-Mo, and HAADF and EDS mapping (d) of Ni (red), Mn (blue), Co (green), and Mo (yellow) for LMR-Mo.
Molecules 27 02100 g002
Molecules 27 02100 g003 550
Figure 3. (a) XPS results for Mn 2p. (b) Experimental and fitted Ni 2p. (c) Percentages of Ni2+ and Ni3+ derived from the fitted spectra in b. (d) XPS results for Mo 3d at various depths in LMR-Mo.
Figure 3. (a) XPS results for Mn 2p. (b) Experimental and fitted Ni 2p. (c) Percentages of Ni2+ and Ni3+ derived from the fitted spectra in b. (d) XPS results for Mo 3d at various depths in LMR-Mo.
Molecules 27 02100 g003
Molecules 27 02100 g004 550

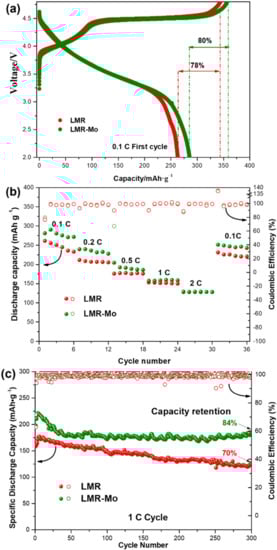

Figure 4. Electrochemical performance of LMR and LMR-Mo: (a) initial charge/discharge profiles at a rate of 0.1 C; (b) rate performance; (c) cycling stability performance at a rate of 1 C.
Figure 4. Electrochemical performance of LMR and LMR-Mo: (a) initial charge/discharge profiles at a rate of 0.1 C; (b) rate performance; (c) cycling stability performance at a rate of 1 C.
Molecules 27 02100 g004
Molecules 27 02100 g005 550

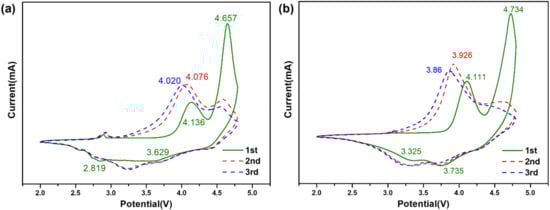

Figure 5. CV curves of initial three cycles in the potential range of 2.8–4.8 V for (a) LMR and (b) LMR-Mo.
Figure 5. CV curves of initial three cycles in the potential range of 2.8–4.8 V for (a) LMR and (b) LMR-Mo.
Molecules 27 02100 g005
Molecules 27 02100 g006 550

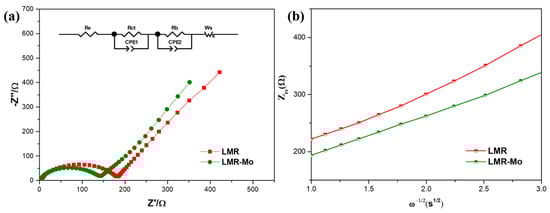

Figure 6. (a) Nyquist plots of LMR and LMR-Mo. (b) Plots of Zre vs. ω–1/2.
Figure 6. (a) Nyquist plots of LMR and LMR-Mo. (b) Plots of Zre vs. ω–1/2.
Molecules 27 02100 g006
Table
Table 1. Refined crystal parameters and relative diffraction peak ratios of LMR and LMR-Mo.
Table 1. Refined crystal parameters and relative diffraction peak ratios of LMR and LMR-Mo.
MaterialsA (Å)C (Å)V (Å)C/AI(003)/I(104)
LMR2.84514.315100.3435.031.20
LMR-Mo2.85614.374101.5375.031.30
