A Molecular-Wide and Electron Density-Based Approach in Exploring Chemical Reactivity and Explicit Dimethyl Sulfoxide (DMSO) Solvent Molecule Effects in the Proline Catalyzed Aldol Reaction

Abstract

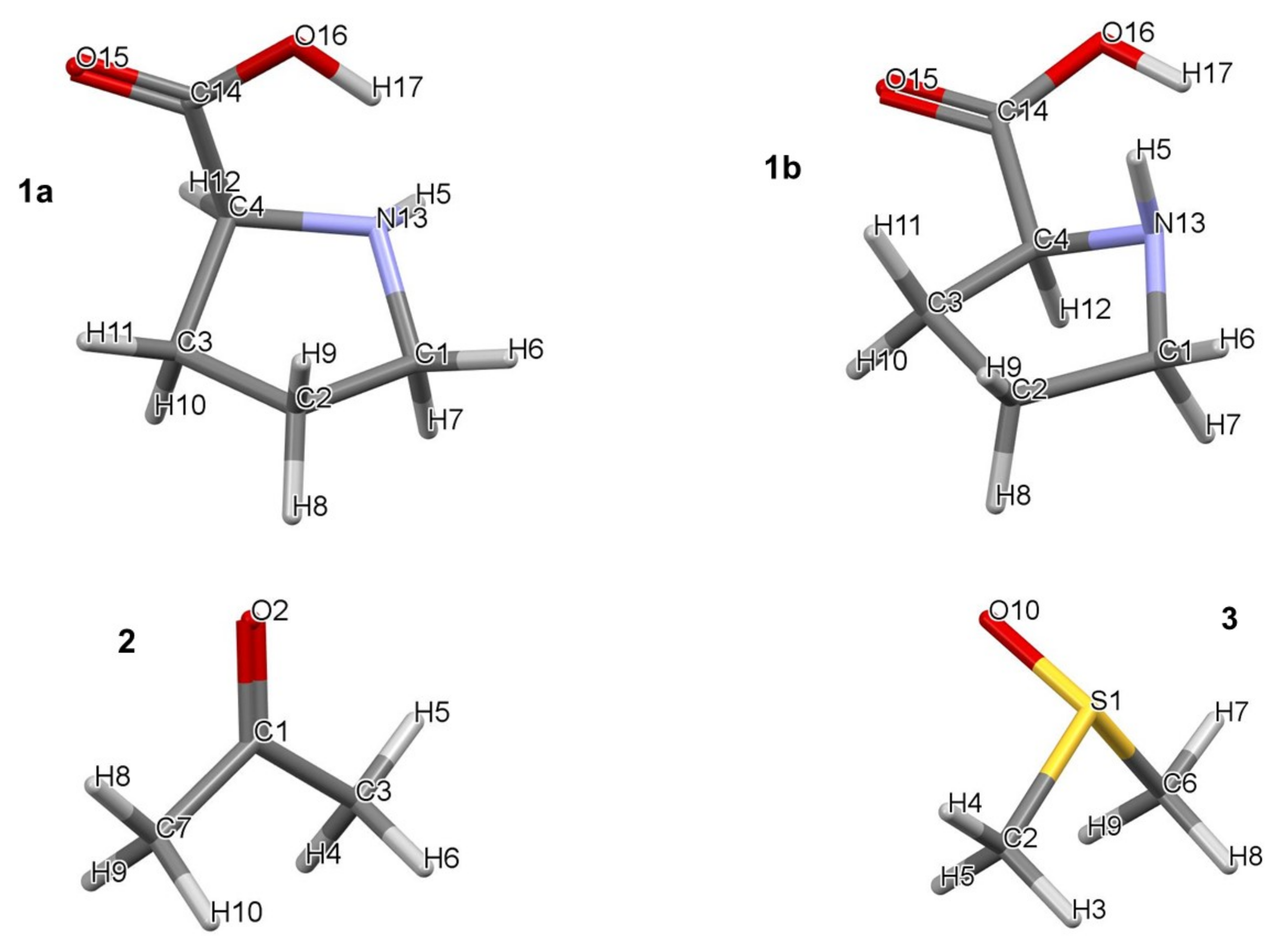

Modelling of the proline (1) catalyzed aldol reaction (with acetone 2) in the presence of an explicit molecule of dimethyl sulfoxide (DMSO) (3) has showed that 3 is a major player in the aldol reaction as it plays a double role. Through strong interactions with 1 and acetone 2, it leads to a significant increase of energy barriers at transition states (TS) for the lowest energy conformer 1a of proline. Just the opposite holds for the higher energy conformer 1b. Both the ‘inhibitor’ and ‘catalyst’ mode of activity of DMSO eliminates 1a as a catalyst at the very beginning of the process and promotes the chemical reactivity, hence catalytic ability of 1b. Modelling using a Molecular-Wide and Electron Density-based concept of Chemical Bonding (MOWED-CB) and the Reaction Energy Profile–Fragment Attributed Molecular System Energy Change (REP-FAMSEC) protocol has shown that, due to strong intermolecular interactions, the HN-C-COOH (of 1), CO (of 2), and SO (of 3) fragments drive a chemical change throughout the catalytic reaction. We strongly advocate exploring the pre-organization of molecules from initially formed complexes, through local minima to the best structures suited for a catalytic process. In this regard, a unique combination of MOWED-CB with REP-FAMSEC provides an invaluable insight on the potential success of a catalytic process, or reaction mechanism in general. The protocol reported herein is suitable for explaining classical reaction energy profiles computed for many synthetic processes.

1. Introduction

Organocatalysts have historically been utilized to catalyze a range of non-asymmetrical organic transformations, most notably Knoevenagel condensations, esterifications, Baylis-Hillman reactions and Stetter reactions [1,2]. Attempts to develop organocatalyzed asymmetrical transformations led to the development of the Hajos-Parrish-Eder-Sauer-Wiechert reaction in the 1970s [3,4]. However, following this breakthrough, the development in the field remained largely limited until the late 1990s [2]. In the past two decades, the increasing demand for pure and optically active compounds in chemical industries and academia and a growing drive for greener metal-free catalytic processes has prompted a renaissance in the field of asymmetric organocatalysis [2,5,6,7]. As a result, one can now access vast libraries of organocatalysts that can be utilized for a multitude of different chemical transformations. Notably, the use of proline and related analogues in asymmetric synthesis has continued to see development, becoming one of the most widely utilized classes of organocatalysts [8,9,10,11].

One of the more important transformations catalyzed by proline is the economic direct aldol reaction, wherein a C–C bond is formed between simple carbonyls [12,13,14], allowing access to enantiomerically rich intermediates. Proline has been shown to exhibit a similar effect to that of type 1 aldolase enzymes [12,15], wherein the C–C bond formation is preceded by the formation of a key enamine intermediate [12,16,17]. Proline’s efficiency, as an organocatalyst in the aldol reaction, has in turn led to several investigations aimed at elucidating the mechanistic details of the transformation [17,18,19,20].

As pertaining to the proline catalyzed aldol reaction, Ajitha and Suresh proposed in 2011 [21], based on a density functional theory (DFT) study, that the lowest energy conformer (LEC) of (S) proline [22] was inactive with its reaction pathway not proceeding beyond an initial proton transfer step. In 2019, we confirmed these findings using the REP-FAMSEC technique [23] (Reaction Energy Profile–Fragment Attributed Molecular System Energy Change). This approach goes beyond the classical use of reaction energy profiles by identifying fragments of a molecular system and quantifying their contributions in either driving, facilitating, or inhibiting the progression of a reaction [23,24].

In previously reported computational modelling studies of the aldol reaction [18,20,21,23,25,26,27], an implicit solvent model has been explicitly used. This is despite the fact that:

• The aldol reaction is reported to proceed better when performed in dimethyl sulfoxide (DMSO) [12,15,28].
• Incorporating explicit solvent molecules produced more reliable computed activation free energy barriers in modelling of numerous reaction mechanisms [29,30].
• Discrete solvent molecules can capture solvent dynamics [31] and may play a significant role in chemical reactions that implicit solvation models fail to capture [32,33].

Hence, the major aim of this work is to explore and explain the mechanistic roles played by explicit DMSO solvent molecules and the carboxylic group of proline (called a co-catalyst [12]) in the proline catalyzed aldol reaction. Our special focus is on the initial step described by List et al. [12] as ‘the nucleophilic attack of the amino group’ that leads to a CN-bond formation. List et al. [12] hypothesized that ‘This co-catalyst may facilitate each individual step of the mechanism, including the nucleophilic attack of the amino group’ but were not able to support it. This initial step is of critical importance because it fixes the ketone-coupling partner, e.g., acetone, through the newly formed CN-bond with proline and this is a pre-requisite for consecutive steps to proceed successfully. To achieve our aims we took advantage of the recently reported Molecular-Wide and Electron Density-based concept of Chemical Bonding (MOWED-CB) [34] and the REP-FAMSEC [23,24] protocol as only through exploring entire molecular environments can one identify and understand reaction forces leading to a chemical change, e.g., intramolecular re-arrangement or breaking/forming of classical chemical bonds.

2. Computational Details

All calculations were performed in Gaussian 09 Rev. D01 [35] at the RB3LYP/6-311++G(d,p) level of theory with Grimme’s [36] empirical correction for dispersion (GD3). It was established that, using CCSD(T) as a benchmark, B3LYP-GD3, M06, and M06-2X (with the 6-31+G(d,p) basis set) give a reasonable, within a few kcal/mol, electronic and Gibbs free energies when modelling reaction mechanisms [37]. All calculations were performed using a hybrid implicit–explicit solvation model with DMSO as a solvent employing the implicit default solvation model–coordinates and energies of all structures discussed in this work are provided in Part 1 of the Supplementary Materials. Frequency calculations were performed for the optimized local, global, and transition state (TS) structures. Zero and one imaginary frequency were obtained for minimum energy (local and global) and TS structures, respectively. The lowest energy pathway connecting a given transition state with the two associated energy minima (intrinsic reaction coordinate–IRC) was calculated to verify each transition state. Topological calculations were performed in AIMAll (ver. 19.02.13) [38] using B3LYP-generated wavefunctions as IQA energy terms, and interaction energies in particular, were found to be highly comparable to those obtained at the CCSD/BBC1 level [39]. To discover the lowest energy 3-, 4-, and 5-molecular complexes with one, two, and three DMSO solvent molecules, respectively, were subjected to a conformational search performed in Spartan [40]. Each molecular complex contained a single molecule of proline and acetone. The atom numbering of individual molecules is shown in Figure 1. Numbering of atoms in complexes always starts with proline, hence its numbering remains the same throughout, followed by acetone (i.e., C1 becomes C18 and so on) followed by molecules of DMSO (e.g., S1 becomes S28).

3. Basic Concepts of REP-FAMSEC Method Applicable to This Work

A detailed account of the concept and potential applicability of the REP-FAMSEC method have been described previously [23]. Hence, to aid the interpretation of generated energy trends, only basic ideas and expressions relevant to molecular systems of interest to this work will be presented and explained.

We consider a molecular system as a 3D assembly of any number of atoms that are mathematically treated on an equal footing using an IQA [41,42] (Interacting Quantum Atoms) electronic energy partitioning scheme. All atoms of a molecular system interact with each other and, as we have previously explained in detail [23], the interatomic interactions are influenced by far more (often by more than an order of magnitude) than just atomic energies when a chemical event occurs. Monitoring, quantifying, and interpreting of mainly, but not exclusively, changes in interaction energies is the fundamental concept incorporated in the REP-FAMSEC method. The main inputs come from a diatomic interaction energy term, $E_{\mathrm{int}}^{\mathrm{A},\mathrm{B}}$, and its components (a Coulomb or classical term, $V_{\mathrm{cl}}^{\mathrm{A},\mathrm{B}}$, and an exchange-correlation term, $V_{\mathrm{XC}}^{\mathrm{A},\mathrm{B}}$, which is commonly used as a measure of the degree of covalent contribution). In accordance with the MOWED-CB [34] concept, these terms are computed for each unique atom-pair A,B in a molecular system regardless of (i) the internuclear distance between them, d(A,B), or whether atoms are considered as being chemically bonded. One must stress that even the smallest displacement of one (or more) atoms within a molecular system will always change all $E_{\mathrm{int}}^{\mathrm{A},\mathrm{B}}$ values computed for a full set of unique atom-pairs. Naturally, the significance of the interaction energy change, $\Delta E_{\mathrm{int}}^{\mathrm{A},\mathrm{B}}$, depends on the extent of the atoms’ displacement due to a chemical event and is largest for atom-pairs containing displaced atoms and their immediate (closest) neighbors.

From a classical perspective, atoms of a molecular system might belong to a single molecule (due to a network of covalent bonds) or several molecules. In the MOWED-CB world, however, a molecule or poly-molecule system is considered as a constellation of atoms linked by a network of interactions. In a larger molecular system, typically, only a few atoms will experience a significant diatomic interaction energy variation on a chemical event, e.g., more than ±10 kcal/mol. These atoms are considered in the REP-FAMSEC approach as most responsible for a chemical change and their interactions are seen as forces driving a chemical change through a specific reaction mechanism; hence, these atoms’ strongest (decisive) interactions are monitored and analyzed along the reaction coordinates. It is then appropriate and convenient to consider the selected atoms as a molecular n-atom fragment G of a molecular system. Each molecule may have a set of most ‘influential’ atoms, when a reaction mechanism is considered, and they will be treated as separate fragments. Moreover, there might be more than one molecular fragment in a single molecule. Typically, changes in interaction energies are monitored in a stepwise fashion along the reaction coordinates as ΔE_int = ^finE_int − ⁱⁿⁱE_int, where fin and ini refer to the final (after a chemical change) and initial (prior to a chemical change) structure (or 3D placement of atoms) of a molecular system. The ΔE_int term might provide invaluable insight at any stage of a process under investigation, e.g.,:

• Formation of a poly-molecular complex from separate molecule—from this, one can learn how and why molecules arrange themselves relative to each other, and which atoms drive such arrangement.
• Inclusion of a solvent molecule to a poly-molecular complex—does this impact relative placement of molecules in the complex, what is the solvent molecule’s preferred site and why.
• Can molecules re-arrange themselves ‘freely’ within a complex and which atoms drive the molecules to attain their lowest, or global minimum structure.
• What drives molecules to better pre-organization required for subsequent bond formation or breaking, etc.

To gain a full picture and understand the reaction mechanism, we will analyze many interaction energy terms, such as intra- and intermolecular, covalent and long-distance non-covalent interactions, all of them computed either for a single molecule or for grouped molecules. This requires a specific, purposeful grouping of diatomic interaction energy $E_{\mathrm{int}}^{\mathrm{A},\mathrm{B}}$ terms. As a consequence, numerous and not commonly encountered expressions quantifying such energy terms will be introduced; for convenience they are placed together with descriptions in Appendix A at the end of the manuscript.

4. Results and Discussion

4.1. Exploring the Number of DMSO Molecules in an Explicit Solvation Model

When implementing an explicit solvation model, in which discrete molecule/s of solvent are included in the computational modelling, the number of solvent molecules to be added and their positioning relative to the solute molecules is still a subject of debate [43]. We decided to pay special attention to two aspects in our preliminary investigations, namely:

• The minimum number of explicit DMSO solvent molecules needed to strike a balance between the computational cost and insights derived knowing that the computational time and a number of intermolecular interactions increase exponentially with a number of atoms in a molecular system. We decided to limit the number of DMSO solvent molecules to three at most and use a smaller basis set in our preliminary studies, namely 6-31+G(d,p), rather than 6-311++G(d,p) employed in this work.
• Specific properties of our molecular system in terms of leading intermolecular interactions between proline 1 and acetone 2. The input structures for conformational searches in Spartan had a relative arrangement of 1 and 2 such that the intermolecular H-bonding O16–H17···O19 was preserved. This is because our recent findings [23] revealed that the transfer of H17 from proline 1 to O19 of acetone 2 must take place as it largely facilitates the CN-bond formation occurring between N13 (in 1) and C18 (in 2).

4.1.1. Geometrical Considerations

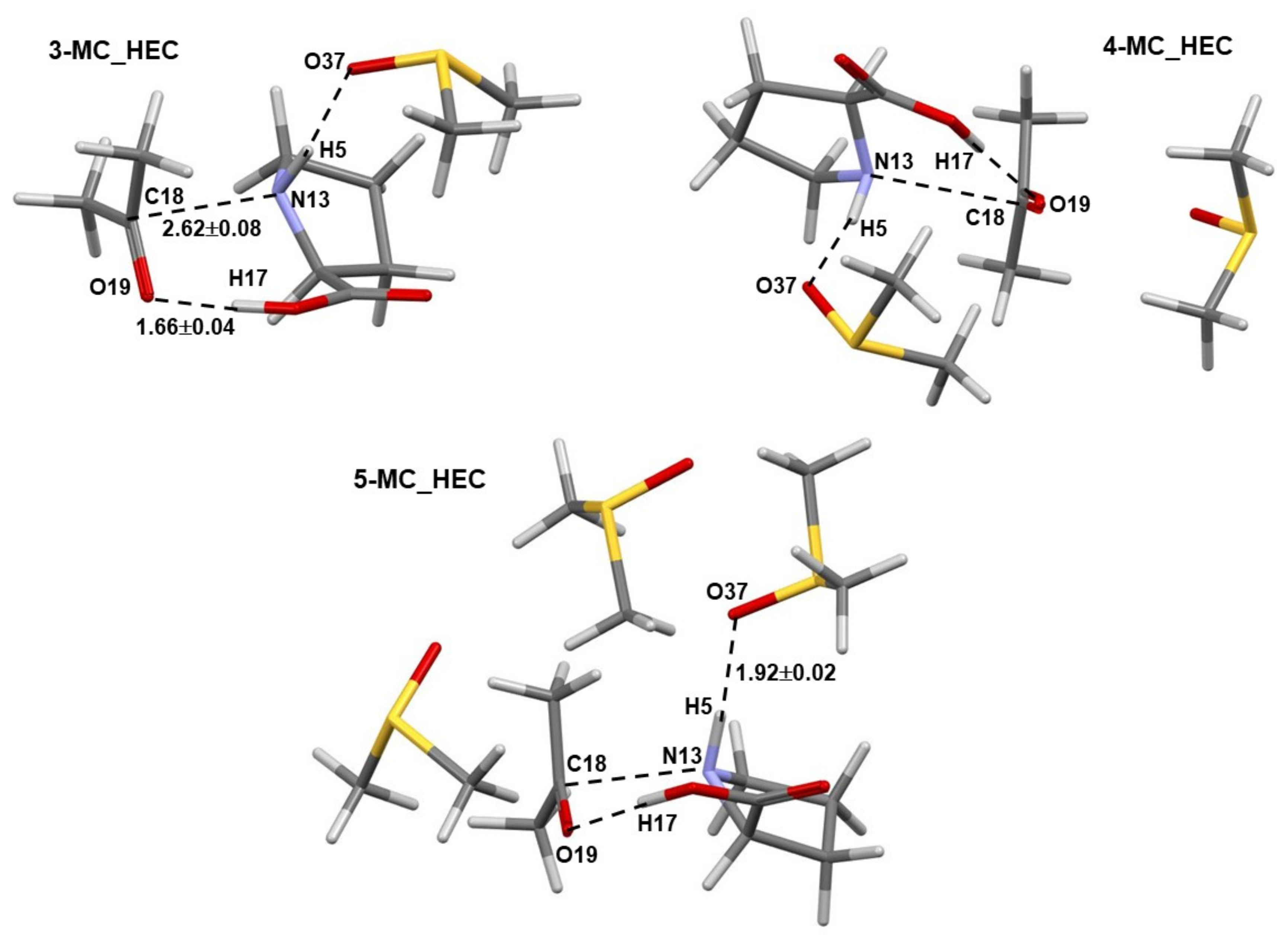

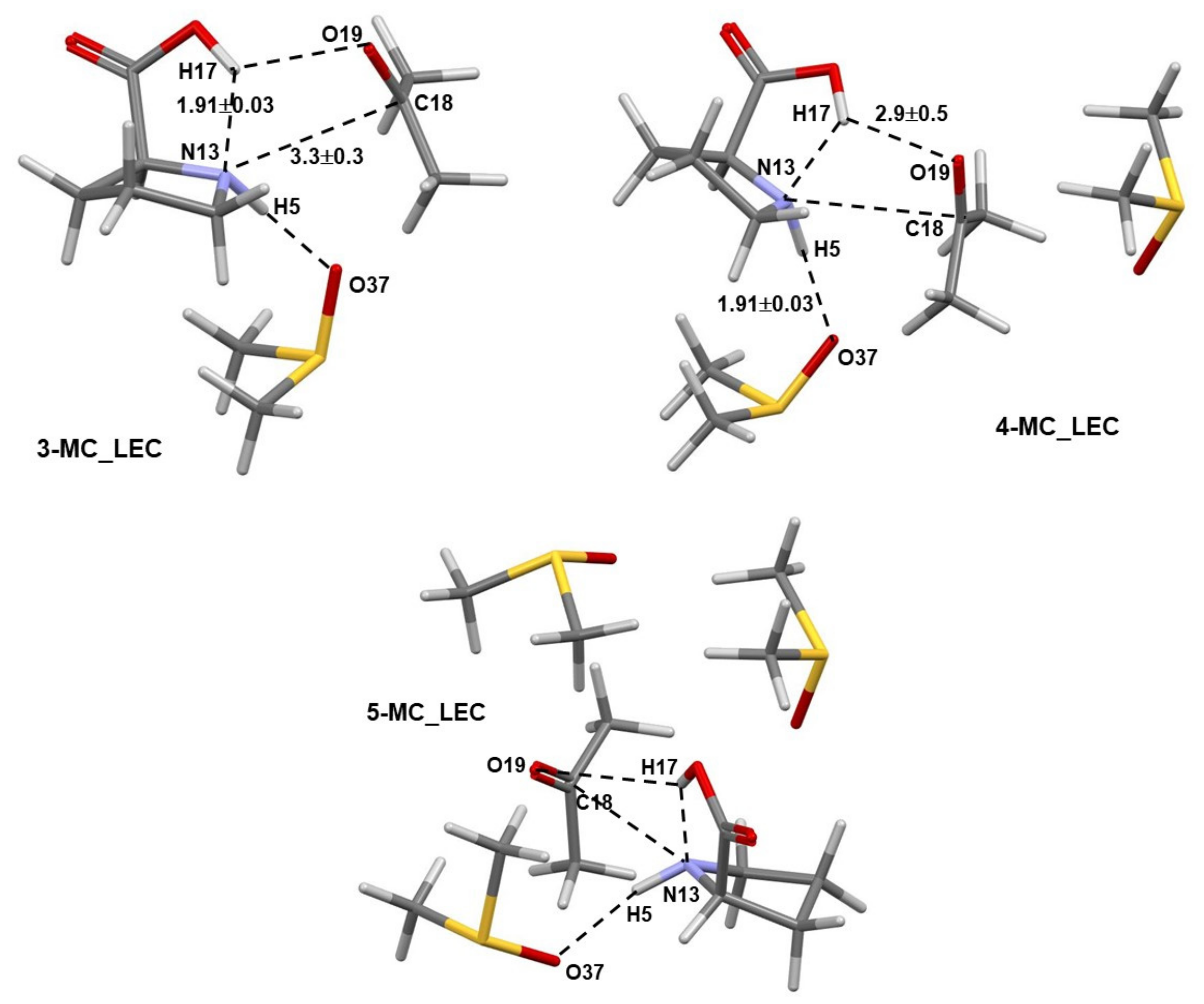

Numerous structures of the 3-MC, 4-MC, and 5-MC (MC = molecular complex) discovered by Spartan were optimized in Gaussian. Only pre-organized structures for the concurrent transfer of H17 (from 1) to O19 (of 2) and a CN-bond formation between N13 (of 1) and C18 (of 2) were selected for further studies. Complexes containing the LEC of 1 are shown in Figure 2, where dashed lines indicate common geometrical features observed in all complexes; values represent average interatomic distances obtained for all complexes. Notably, the N13,C18 and H17,O19 atom-pairs are also linked by dashed lines. Importantly, the interatomic distances do not vary dramatically with an increase in the number of DMSO molecules as indicated by rather small standard deviations.

Comparable general geometrical features, but with shorter interatomic distances and smaller standard deviations, are also observed for complexes containing the higher energy conformer (HEC, 1b) of proline 1—Figure 3. As an example, the distance between atoms destined to form a new bond in the first step of the catalytic process d(N13,C18) of 3.3 ± 0.3 Å (with 1a) and 2.62 ± 0.08 Å (with 1b) was found, on average, in 3-, 4-, and 5-MCs.

4.1.2. Leading Diatomic Interactions

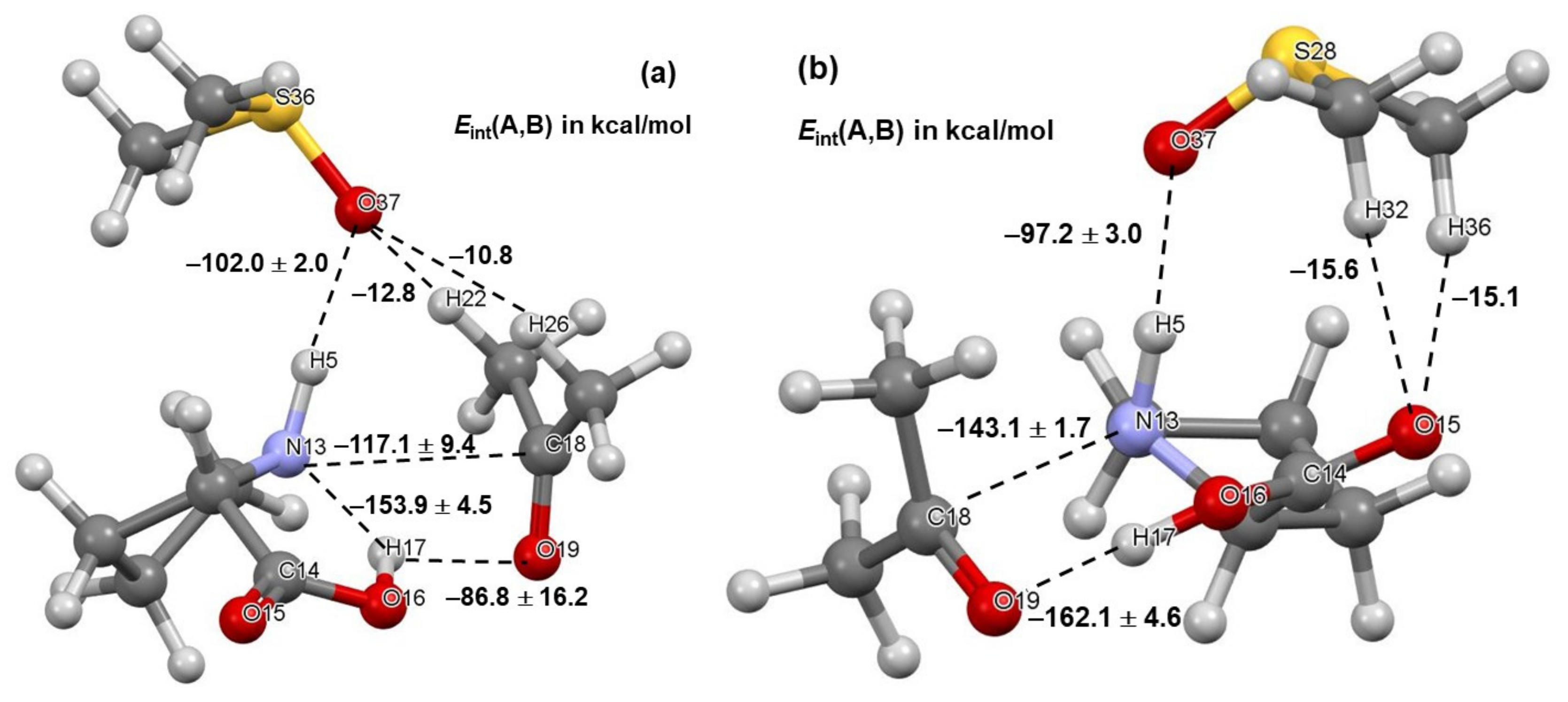

Two critical intermolecular di-atomic interactions must be considered. They involve N13,C18 and H17,O19 atom-pairs, as two new bonds are formed during the initial stage, N13–C18 and O19–H17 [23]. These interactions are much stronger in 1b complexes and hardly vary in strength with the addition of DMSO molecules—Figure 4. To this effect, the interaction energy $E_{\mathrm{int}}^{\mathrm{N}13,\mathrm{C}18}$ = –143.1 ± 1.7 stays nearly unchanged in complexes containing 1b and, on average, is stronger by over –25 kcal/mol when compared with molecular complexes containing 1a. From structures in Figure 2 and Figure 3, it is clear that only one DMSO molecule is involved in a strong diatomic intermolecular interaction with H5 of proline 1. This interaction is highly comparable in all complexes; on average $E_{\mathrm{int}}^{\mathrm{H}5,\mathrm{O}37}$ of –102.0 ± 2.0 and –97.2 ± 3.0 kcal/mol was found, respectively, in 1a- and 1b-containing complexes—see Figure 4. Due to very strong diatomic interactions between 1 and 2, as well as 1 and a DMSO molecule 3, the 3-MC feature is seen in all complexes, regardless of the number of solvent molecules. One might say that the 3-MC is a ‘fixed’ and quite rigid structure that is solvated by adding more DMSO molecules. Rigidity of the 3-MCs is significantly strengthened by additional and very strong attractive and repulsive diatomic interactions. To illustrate this, see data included in

Table 1. Strongest diatomic attractive (part (a)) and repulsive (part (b)) interaction energies between atoms of the higher energy conformer of proline 1b and a molecule of acetone 2 in 3-, 4-, and 5-molecular complexes.

Part (a)
Atoms in		Di-Atomic Interaction Energies in kcal/mol
1b	2	3-MC	4-MC	5-MC	Average
C14	O19	−188.5	−178.1	−190.1	−185.6 ± 7
H17	O19	−164.8	−156.8	−164.6	−162.1 ± 5
N13	C18	−145.1	−142.1	−147.4	−144.9 ± 3
O16	C18	−135.0	−131.7	−132.0	−132.9 ± 2
O15	C18	−88.8	−85.0	−87.1	−87.0 ± 2
H5	O19	−54.5	−58.4	−57.9	−57.0 ± 2
Part (b)
Atoms in		Di-Atomic Interaction Energies in kcal/mol
1b	2	3-MC	4-MC	5-MC	Average
H5	C18	46.7	47.6	48.7	47.7 ± 1
H17	C18	100.2	98.7	97.6	98.8 ± 1
O15	O19	115.4	110.2	116.1	113.9 ± 3
C14	C18	142.5	135.6	140.1	139.4 ± 4
N13	O19	145.7	149.5	147.7	147.6 ± 2
O16	O19	174.4	171.9	176.0	174.1 ± 2

where the strongest intermolecular diatomic interactions between 1b and acetone 2 are presented. Small standard deviations in computed interaction energies show compellingly that if solvent molecules play any role in this catalytic process, then it must be mainly due to the DMSO molecule that forms an ‘inseparable’ 3-MC by being anchored to H5 of 1; additional DMSO molecules in 4- and 5-MCs do not impact interactions between 1 and 2 significantly.

4.1.3. The Energy Barrier Computed for the First Step of the Catalytic Process

Conclusions arrived at from the analyses employing geometric data (Section 4.1.1) and diatomic intermolecular interactions (Section 4.1.2) strongly indicate that investigating the 3-MC with a single DMSO molecule should be sufficient to provide the sought after answer of whether DMSO is just a medium or if it does play a role in a catalytic process. In search of further support for the above assumption, we decided to model the first step of the catalytic process in the presence of 3-, 4-, and 5-MCs; results obtained are included in

Table 2. Energies (in au at the RB3LYP/6-31+G(d,p)/GD3 level in DMSO) computed for the first stage of the catalytic process [23], i.e., the concurrent H-transfer from 1 to 2 and CN-bond formation between 1 and 2. The lowest energy pre-organized 3-MC, 4-MC, and 5-MC with 1a (part (a)) and 1b (part (b)) were used as input structures for computational modelling. Relative to the energy of the relevant input molecular complex, energy changes (Δ) for a transition state (TS) and equilibrium product (EQ) of the first stage are reported in kcal/mol.

Part (a)
	E	∆E	EZPVE	ΔEZPVE	H	∆H	G	∆G
3-MCs
input	−1147.6522	0.0	−1147.3418	0.0	−1147.3193	0.0	−1147.3962	0.0
TS	−1147.6413	6.8	−1147.3295	7.8	−1147.3093	6.3	−1147.3786	11.1
EQ	−1147.6595	−4.6	−1147.3430	−0.7	−1147.3232	−2.5	−1147.3902	3.8
4-MCs
input	−1700.8866	0.0	−1700.4953	0.0	−1700.4654	0.0	−1700.5614	0.0
TS	−1700.8767	6.2	−1700.4841	7.0	−1700.4565	5.6	−1700.5451	10.3
EQ	−1700.8940	−4.6	−1700.4968	−0.9	−1700.4695	−2.6	−1700.5557	3.6
5-MCs
input	−2254.1254	0.0	−2253.6530	0.0	−2253.6158	0.0	−2253.7275	0.0
TS	−2254.1111	9.0	−2253.6371	10.0	−2253.6026	8.3	−2253.7051	14.0
EQ	−2254.1271	−1.1	−2253.6491	2.5	−2253.6143	0.9	−2253.7190	5.3
Part (b)
	E	∆	EZPVE	Δ	H	∆	G	∆
3-MCs
input	−1147.6474	0.0	−1147.3360	0.0	−1147.3140	0.0	−1147.3880	0.0
TS	−1147.6450	1.5	−1147.3325	2.2	−1147.3130	0.9	−1147.3800	5.0
EQ	−1147.6613	−8.7	−1147.3454	−5.9	−1147.3260	−7.3	−1147.3930	−3.0
4-MCs
input	−1700.8798	0.0	−1700.4884	0.0	−1700.4580	0.0	−1700.5530	0.0
TS	−1700.8798	0.0	−1700.4868	1.0	−1700.4590	−0.6	−1700.5460	4.6
EQ	−1700.8969	−10.7	−1700.4999	−7.3	−1700.4730	−8.9	−1700.5590	−3.4
5-MCs
input	−2254.1236	0.0	−2253.6494	0.00	−2253.6130	0.0	−2253.7210	0.0
TS	−2254.1223	0.8	−2253.6471	1.5	−2253.6130	0.3	−2253.7140	4.0
EQ	−2254.1362	−7.9	−2253.6577	−5.2	−2253.6240	−6.5	−2253.7240	−2.1

.

Firstly, and as one would expect, energies computed at transition states do vary slightly with the number of DMSO molecules as there are many degrees of freedom in placing DMSO molecules relative to each other as well as relative to molecules 1 and 2. However, the network of strongest interactions remains unchanged—Figure 4. Focusing on E_ZPVE as an example, the energy barrier at the TS for 1a-containing complexes is 7.8 kcal/mol for the 3-MC, slightly smaller for the 4-MC (7 kcal/mol) and somewhat larger for the 5-MC, 10.0 kcal/mol; this translates to 8.3 ± 1.6 kcal/mol on average for 3-, 4-, and 5-MCs. A much smaller and even more consistent value of 1.6 ± 0.6 kcal/mol was obtained at the TS for 1b-containing complexes—Table 2, part (b).

Considering the 3- and 4-MCs, the energy barriers are consistently lower for 1b-containing complexes, respectively, by 5.6 and 6.0 (for E_ZPVE), 5.4 and 6.2 (for H), and 6.1 and 5.7 (for G) kcal/mol. This shows that the addition of a second DMSO molecule does not have a decisive impact on the energy barriers at the TSs.

Therefore, accounting for all the findings discussed above, we concluded that a single molecule of DMSO that interacts directly and very strongly with 1 might play a significant role; hence, our further studies are restricted to 3-MCs.

4.2. Impact of a DMSO Solvent Molecule on the Reaction Energy Profile

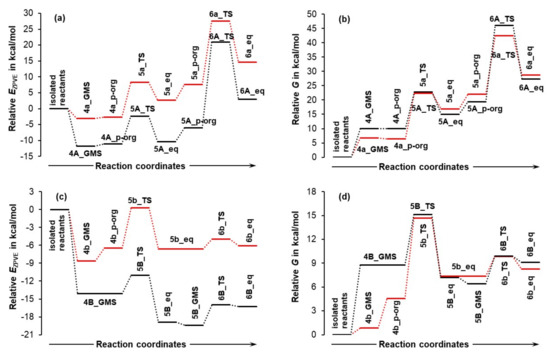

The reaction energy profiles obtained for the 2- and 3-MCs (up to the second proton transfer) are presented in Figure 5.

Small letters represent data obtained at each consecutive step along the reaction coordinates for 2-MCs, i.e., in the absence of a DMSO molecule. Relevant data obtained in the presence of an explicit DMSO molecule are marked with capital letters. Letters a/A and b/B refer to the molecular systems containing the LEC (1a) and HEC (1b), respectively. To illustrate the impact of a DMSO solvent molecule, the energy trends are presented relative to the combined energies of isolated reactants of the 2- and 3-MCs. Full sets of energies obtained for each stationary point and relevant structures are included in Tables S1–S3, Part 2 of the Supplementary Materials. Only the most important observations and conclusions pertaining to the first and second proton transfer follow.

4.2.1. Concomitant First Proton Transfer and the C–N Bond Formation Step

Looking at the relevant free energy data for the first H-transfer (Figure 5b,d), it is clear that the DMSO molecule had no significant impact on the free energy barrier ΔG^‡ at the 5-TS stage; relative to the isolated molecules, data obtained for the 2- and 3-MCs is comparable.

A very different picture is seen for trends in the E_ZPVE values (Figure 5a,c) as the presence of a DMSO molecule decreased the electronic energies of both molecular systems (MSs)–the black line trace (3-MC) is well below the red one. Importantly, the values computed at transition states 5A/B_TS for the 3-MCs are also below the energies of isolated reactants, whereas the relevant values at 5a/b_TS for 2MCs (without the DMSO explicit solvent molecule) are positive and hence, less favorable. Moreover, the energy barriers ΔE^‡_ZPVE (i.e., the difference in the electronic energy between the TS and the GMS) decreased in the presence of a DMSO molecule by nearly six (for the HEC) and two (for the LEC) kcal/mol. This means that a DMSO molecule is minimizing the energy barrier at transition states regardless of whether or not the MS contains 1a or 1b, but the energy has been decreased by far more in the case of the HEC (1b). As a result, small ΔE^‡_ZPVE values of about 3.1 and 9.4 kcal/mol in the case of HEC- and LEC-containing MSs, respectively, are observed in the presence of the explicit DMSO solvent molecule.

Energy levels computed for the products of the first H-proton transfer deserve special attention. Considering 5a_eq and 5b_eq (i.e., in the absence of an explicit DMSO molecule, 2-MCs), the red line traces for E_ZPVE and G seen in Figure 5 reveal that the products of the first proton transfer are a few kcal/mol higher in energy than the global minimum structures (GMS) of 2-molecular complexes, 4a/b_GMSs. A reversal of this unfavorable trend is observed in the presence of an explicit DMSO molecule, but only in the case of the HEC (1b). Notably and specifically, for the reaction energy profile obtained for E_ZPVE (Figure 5c, black trace), the energy of 5B_GMS is lower by –6.2 kcal/mol relative to 4B_GMS. The opposite is true for the product containing 1a, i.e., 5A_eq. Its energy is higher than 4A_GMS by +1.4 kcal/mol as shown in Figure 5a, black trace.

It has been established [21,23] that structural interconversion from 1a to 1b does not require a large energy barrier. This means that the two conformers are always present in a reaction vessel. Combining this knowledge with the data shown in Figure 5a,c implies that the LEC of proline is not catalytically active at all, as it will not even become involved in the first H-transfer stage. This is because, when both global minimum structures of the 3-MCs, 4A_GMS and 4B_GMS, are present in a solution, the system will always follow a downwards change in its energy that leads to the most stable 5B_GMS state containing the higher energy conformer of proline. Note that a system with the LEC must climb the hill of E_ZPVE to reach the 5A_eq state and this is not only higher in energy than the starting point, i.e., the 4A_GMS 3-MC, but also higher in energy, by +3.3 kcal/mol, than the 5B_GMS of 3-MC with the HEC of proline.

This clearly shows that the mechanism through the higher energy conformer 1b becomes even more favorable in the presence of the explicit DMSO solvent molecule. In other words, the presence of a DMSO molecule not only decreases the energy barrier but also differentiates between the two conformers of proline. This conclusion is further and strongly supported by the free energies of products 5 of the first H-transfer/CN-bond formation step (Figure 5b,d). Relative to the reactants in the form of the global minimum 3-MCs, 4A_GMS and 4B_GMS, the change in the free energy ΔG of +4.9 and –1.6 kcal/mol is observed, respectively, for the first stage products, 5A_eq and 5B_GMS. Furthermore, the value of G computed for 5B_GMS with the HEC is lower, by –2.7 kcal/mol, than that obtained for the 5A_eq, i.e., a hypothetical product of the first stage involving the LEC of proline.

Our computational modelling confirmed that the explicit DMSO molecule is not directly involved in a chemical change at the first stage. At the same time, from the trends shown in Figure 5a,c it is obvious that DMSO acts as a catalyst by decreasing the transition state energies. From that it follows that to understand the role played by a DMSO molecule 3, one must initially examine intermolecular interactions between 3 and molecules of proline 1 and acetone 2, as these interactions must have caused a decrease in the E_ZPVE values and resulted in significantly smaller energy barriers for the first H-transfer.

It was then of importance to investigate a change in the intermolecular interactions at the two transition states, 5A_TS and 5B_TS relative to the reactive 3-MCs. The term ${}_{\mathrm{inter}}{}^{}E{}_{\mathrm{int}}^{3,\left(1,2\right)}$ = ${}_{\mathrm{inter}}{}^{}E{}_{\mathrm{int}}^{3,1}$ + ${}_{\mathrm{inter}}{}^{}E{}_{\mathrm{int}}^{3,2}$ was calculated. It quantifies the total intermolecular interaction energy of DMSO, ${}_{\mathrm{inter}}{}^{}E{}_{\mathrm{int}}^{3,\left(1,2\right)}$, which is made of interactions between atoms of the DMSO molecule 3 and atoms of proline 1, ${}_{\mathrm{inter}}{}^{}E{}_{\mathrm{int}}^{3,1}$, and atoms of acetone 2, ${}_{\mathrm{inter}}{}^{}E{}_{\mathrm{int}}^{3,2}$. We found that at the TSs, the intermolecular interactions between a DMSO molecule and:

• Proline plus acetone strengthened significantly as ${}_{\mathrm{inter}}{}^{}E{}_{\mathrm{int}}^{3,\left(1,2\right)}$ changed favorably (became more negative) by –55.3 and –75.7 kcal/mol for 5A_TS and 5B_TS, respectively. Hence, exactly the same set of diatomic intermolecular interactions, between 3 and 1 plus between 3 and 2, became stronger, by –20.4 kcal/mol, in the case of the 1b-containing MS.
• Acetone strengthened more, by –7.1 kcal/mol, in the case of the LEC-containing MS; the change in the ${}_{\mathrm{inter}}{}^{}E{}_{\mathrm{int}}^{3,2}$ term of –14.7 (at 5A_TS) and –7.6 (at 5B_TS) kcal/mol was obtained.
• Proline strengthened a lot and in favor of 1b-containing MS by –27.5 kcal/mol; the change in the ${}_{\mathrm{inter}}{}^{}E{}_{\mathrm{int}}^{3,1}$ term of –40.6 (5A_TS) and –68.1 (5B_TS) kcal/mol was obtained.

From the above, it is clear that the larger increase in the strength (by –27.5 kcal/mol) of the interactions between the DMSO molecule and the HEC of proline at the 5B_TS must have led to a more significant decrease in the energy barrier discovered for the 1b-containing MS.

4.2.2. Second Proton Transfer

Although we have shown that the LEC cannot be catalytically active beyond the first proton transfer, we will analyze the impact of a DMSO explicit molecule for the two proline conformers for illustrative purposes. Relative to the 1a-containing 2-MC, the energy barriers between 5A_eq and 6A_TS in Figure 5a,c became even larger in the presence of DMSO. The energy barriers increased by +6.4 and +5.3 kcal/mol for E_ZPVE and G, respectively. Consequently, the free energy barrier at the 6A_TS reached an insurmountable ΔG^‡ value of 46 kcal/mol. Moreover, the product of the second proton transfer 6A_eq is much higher in energy than that of the first proton transfer, 5A_eq, regardless of whether E_ZPVE or G is considered. It is then clear that the reaction energy profile obtained for the LEC prohibits any reaction progress when starting from reactants, but it also shows that the reverse process, from 6A_eq toward reactants would be, if permitted, a spontaneous process.

On the other hand, the presence of a DMSO molecule has a facilitating impact on the reaction progress involving the HEC. Figure 5c,d shows that:

• The energy barriers ΔE^‡_ZPVE and ΔG^‡ (from 5B_GMS to 6B_TS) are very low, just a few kcal/mol for both energy terms.
• The energy difference between a transition state 6B_TS and the product of the second proton transfer 6B_eq decreased slightly in the presence of DMSO.

These two findings, however, do not matter at all. What really matters is the energy difference between 6B_eq and 4B_GMS. The most abundant 1b-containing 3-MC of the reactants (4B_GMS) after overcoming two negligible energy barriers becomes the product of the second proton transfer 6B_eq that finds itself in a energetically favorable position. This is because its E_ZPVE is below the energy of 4B_GMS by –2 kcal/mol. Notably, the equivalent energy difference obtained for 2-MCs (without DMSO) was found to be +2.6 kcal/mol. Hence, the E_ZPVE energy term for 6b_eq is slightly less favorable when compared with the starting materials, i.e., 4b_GMS. Moreover, the 1b-containing molecular systems become more stable in the presence of a DMSO molecule, by –4.6 kcal/mol relative to 2-MC.

A very interesting picture is observed in Figure 5d, where 4B_GMS (3-MC with DMSO) is significantly higher in energy than 4b_GMS. However and importantly, the increase in energy caused by a DMSO molecule must have a beneficial effect because the energy difference between the product of the second proton transfer 6b-eq and 4b_GMS of +7.4 kcal/mol (red line trace) was nearly nullified to +0.3 kcal/mol for the 3-MC (black line trace linking 4B_GMS and 6B_eq). This means that in the presence of DMSO, there is essentially no backward driving force, from 6B_eq to the starting material 4B_GMS and hence the reaction can proceed forward ‘unopposed’.

4.3. Molecular Interactions Driving a Chemical Change

Reaction energy profiles, such as those in Figure 5, are very useful computational tools used by physical organic chemists in predicting the most likely and rejecting the most unlikely reaction mechanisms for a synthetic process of interest. A conclusion is solely made based on the activation energy barriers at transition states. Often such predictions coincide with experimental data (when available), but do not provide any deeper explanation related to chemical reactivity or the role played by solvent or non-covalent interactions. To build a knowledge base needed to understand reaction mechanisms and forces driving a chemical change on a fundamental level, down to atomic scale, one must fully explore all possible modes of interactions. This is also very clear from trends in Figure 5, where variations in energy levels can be attributed only to interactions between all three molecules.

For a chemical reaction to proceed towards a desired product, a poly-molecular system must pre-organize itself such that atoms destined to form new bonds face each other and are as close to each other as possible. Without any doubt, the same leading forces, i.e., interactions between specific molecular fragments and atoms will drive (or obstruct) such a re-arrangement as well as a chemical reaction of interest. Hence, to explore the forces leading to a chemical change, it is of importance to discover the processes leading to the global minimum structures (GMSs) of a molecular system, as they constitute the majority of species present in a solution. In the best-case scenario, the GMS is pre-organized for the required chemical change, but this is not always the case. Hence, to estimate an energy barrier at the TS, the energy required from the GMS to best pre-organized structure would have to be accounted for.

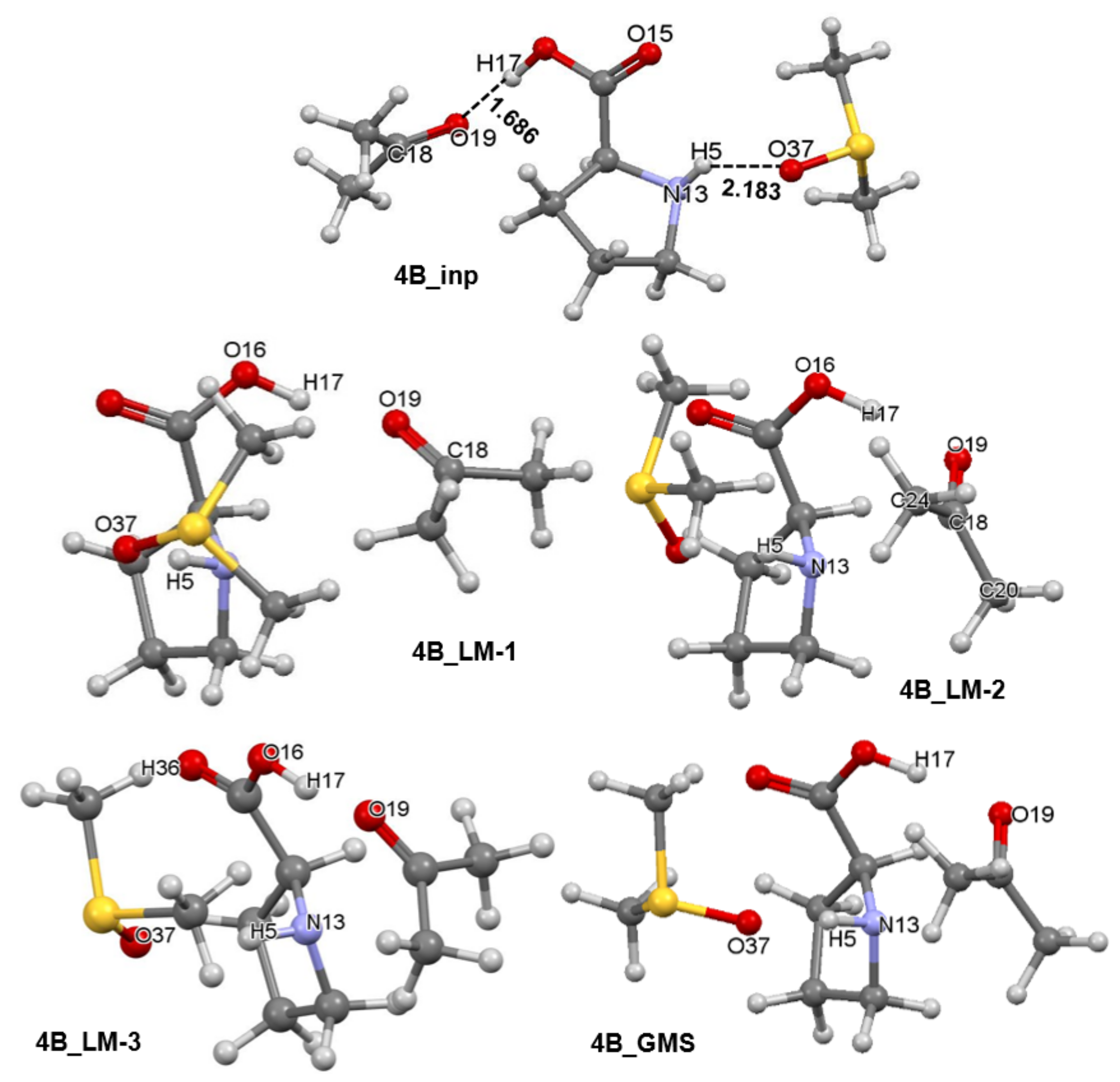

Separate sets of five 3-MCs were prepared for 1a and 1b conformers of proline using a protocol described in Part 3 of the Supplementary Materials. Each set had an input structure, three local minimum (LM) structures and a GMS–1a-containing 3-MCs are shown in Figures S1–S4 in Part 3 of the Supplementary Materials whereas relevant complexes containing 1b are shown in Figure 6. Each set contains the pre-organized structure necessary to model the first stage of this catalytic process as well as intermediate stationary points through which a molecular system must proceed in order to reach the best structural arrangement prior climbing the energy barrier of the TS. A full set of energies (i.e., electronic (E), zero-point vibrational energy corrected electronic energy (E_ZPVE), enthalpy (H), and the Gibbs free energy (G)) computed for all structures seen in Figure 6 and Figure 7 is included in Table S4, Part 3 of the Supplementary Materials. It is worthwhile to note that the 4A_GMS (Figure S4, Part 3 in the Supplementary Materials) is not a well pre-organized structure due to an ‘incorrect’ placement of 2 relative to 1a. The 4A_LM-3 structure (Figure S3, Part 3 in the Supplementary Materials) that is slightly higher in energy is best pre-organized for the new CN-bond formation and proton transfer, H17 from 1a to O19 of 2. Considering 1b-containing structures, the 4B_GMS (Figure 6) is also the best pre-organized structure.

In the sections that follow, we will explore in some detail the forces driving a chemical change and the role played by a DMSO solvent molecule.

4.3.1. Changes in the Electronic Energy, Gibbs Free Energy, and the Total Molecular System Interaction Energy

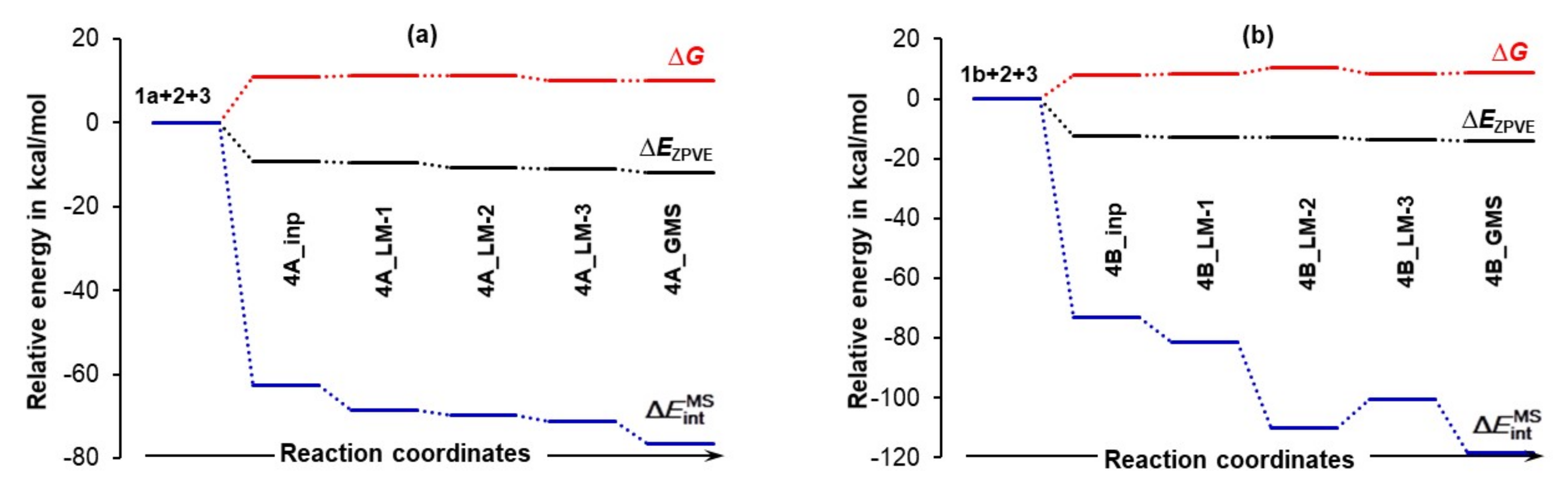

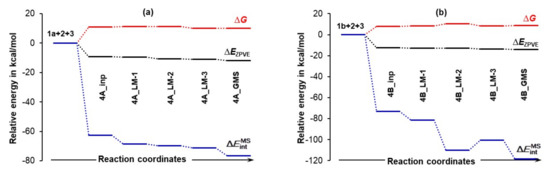

Figure 7 shows that the formation of the 3-MC is energetically favorable as, relative to separate components, ΔE_ZPVE decreased by –9.3 and –12.6 kcal/mol for the 4A_inp and 4B_inp systems, respectively. It is also clear that a classical analysis, based on trends in the ΔE/ΔG values, cannot provide any significant information on what drives molecular systems towards a GMS and the subsequent first stage of a catalytic process. This is because throughout the 4_inp → 4_GMS rearrangement, the ΔE_ZPVE and ΔG values remain rather small, they are nearly constant (relative to the 4_inp structures, E_ZPVE decreased just by –2.5 kcal/mol in the 4_GMSs) and are highly comparable for both molecular systems.

Remarkably, the $\Delta E_{\mathrm{int}}^{\mathrm{MS}}$ terms (they incorporate all intramolecular and intermolecular interaction energy contributions computed for entire molecular systems) are nearly an order of magnitude more significant than the ΔE_ZPVE values. Molecules became instantly involved in strong interactions and $\Delta E_{\mathrm{int}}^{\mathrm{MS}}$ = –72.9 kcal/mol obtained for 4B_inp is about –10 kcal/mol more significant than the value computed for the 4A_inp with 1a, i.e., the lowest energy conformer of proline. Whereas electronic and Gibbs free energies appear to be ‘insensitive’ to large structural re-arrangement from the input to the global minimum structures, the total interaction energies show significant variation and a clear trend. These interactions became stronger in both 4B_GMSs. However, the $\Delta E_{\mathrm{int}}^{\mathrm{MS}}$ term of –118.2 kcal/mol shows that interactions in 4B_GMS are, relative to 4A_GMS, stronger by over –40 kcal/mol. Trends seen n Figure 7 lead to the obvious conclusion that:

• The interactions drive the 3-MCs formation in the first place.
• Strengthening of interactions is a leading force in the 4_inp → 4_GMS structural re-arrangement.
• To gain a deeper understanding of a chemical change, one must explore different modes of interactions.
• Much stronger interactions found for 4B_GMS already point to the 1b-containing complex for which a smaller energy barrier at TS should be expected, and this agrees with trends seen in Figure 5 very well.

4.3.2. Total Intramolecular and Intermolecular Interaction Energies Computed for Individual Molecules

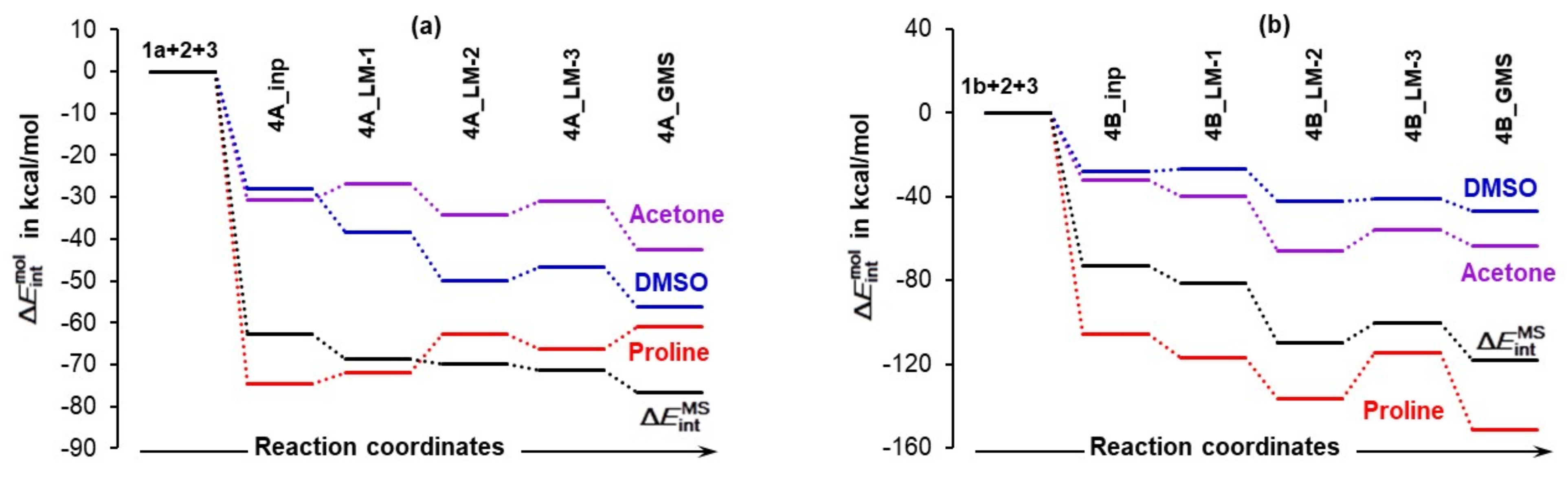

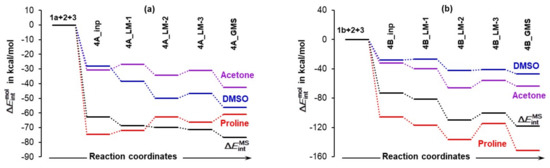

To understand the role a DMSO solvent molecule plays, it is necessary to decompose the total molecular system interaction energy to components linked with individual molecule, i.e., to compute the $E_{\mathrm{int}}^{\mathrm{mol}}$ energy term. This term is comprised of contributions derived from covalently bonded atoms making a skeleton of a molecule, non-covalent long-distance (L−D) intramolecular interactions, as well as intermolecular interactions between atoms of a selected molecule and atoms of all remaining molecules. This approach follows a recent molecular-wide and electron density-based concept of chemical bonding [34] and the REP-FAMSEC method [23] that provides all necessary tools to implement it in studying reaction mechanisms or, in general, exploring forces driving a chemical change.

Considering the LEC of proline 1a, a change in molecular interaction energy $\Delta E_{\mathrm{int}}^{\mathrm{mol}}$ is calculated as $\Delta E_{\mathrm{int}}^{1a}$ = ${}_{\mathrm{intra}}{}^{}\Delta E_{\mathrm{int}}^{1a}$ + ${}_{\mathrm{inter}}{}^{}E{}_{\mathrm{int}}^{1a,2}$ + ${}_{\mathrm{inter}}{}^{}E{}_{\mathrm{int}}^{1a,3}$. The first term, ${}_{\mathrm{intra}}{}^{}\Delta E_{\mathrm{int}}^{1a}$, accounts for the change in the intramolecular (intra-proline) interactions on the complex formation from 1a, 2, and 3, whereas the latter two terms account for intermolecular interaction energies between atoms of 1a and all atoms of the other two molecules in the 3-MCs, i.e., 2 (acetone) and 3 (a DMSO solvent molecule). From Figure 8, we found that:

• Quite surprisingly, 1a is the only molecule for which interactions weakened as the $\Delta E_{\mathrm{int}}^{1a}$ term changed from –74.5 (in 4A_inp) to –61.1 kcal/mol (in 4A_GMS).
• Molecular interactions computed for 1b are not only much stronger when compared with 1a, but they strengthened immensely, from $\Delta E_{\mathrm{int}}^{1b}$ of –105.9 (in 4B_inp) to –151.6 (in 4B_GMS) kcal/mol. This means that molecular interactions computed for 4B_GMS are more than twice as strong as those obtained for 4A_GMS.
• Only trends computed for individual molecules of 1b-containing complexes follow the trend for $\Delta E_{\mathrm{int}}^{\mathrm{MS}}$ throughout.
• Looking at data obtained for a DMSO molecule in 1a-containing complexes, its interactions strengthened more than that found for (i) a molecule of acetone and (ii) a DMSO molecule in 1b-containing complexes.

Using common sense and chemical intuition, one would expect a good catalyst (here proline) to be involved in the strongest interactions in a given molecular system and the solvent molecule to be involved in the weakest interactions. This is indeed observed in Figure 8, but only for the 3-MCs with 1b.

4.3.3. Intermolecular Interaction Energies between Individual Molecules

It is reasonable to assume that stronger intermolecular interactions computed for the entire molecular system ${}_{\mathrm{inter}}{}^{}E{}_{\mathrm{int}}^{\mathrm{MS}}$ should bring molecules closer to each other and this, in turn, must facilitate a catalytic process. We found that trends in ${}_{\mathrm{inter}}{}^{}E{}_{\mathrm{int}}^{\mathrm{MS}}$ follow the trends in $\Delta E_{\mathrm{int}}^{\mathrm{MS}}$ (combined, intermolecular, and intramolecular interactions), but the ${}_{\mathrm{inter}}{}^{}E{}_{\mathrm{int}}^{\mathrm{MS}}$ values are more significant (i.e., more negative)—see Figure S7, Part 3 of the Supplementary Materials. Notably, intermolecular interactions ${}_{\mathrm{inter}}{}^{}E{}_{\mathrm{int}}^{\mathrm{MS}}$ of –144.2 kcal/mol in 4B_GMS are much stronger, by –61 kcal/mol, than those in 4A_GMS; this strongly points at 1b, the HEC of proline, as being a better catalyst and is in a full agreement with reaction energy profiles seen in Figure 5.

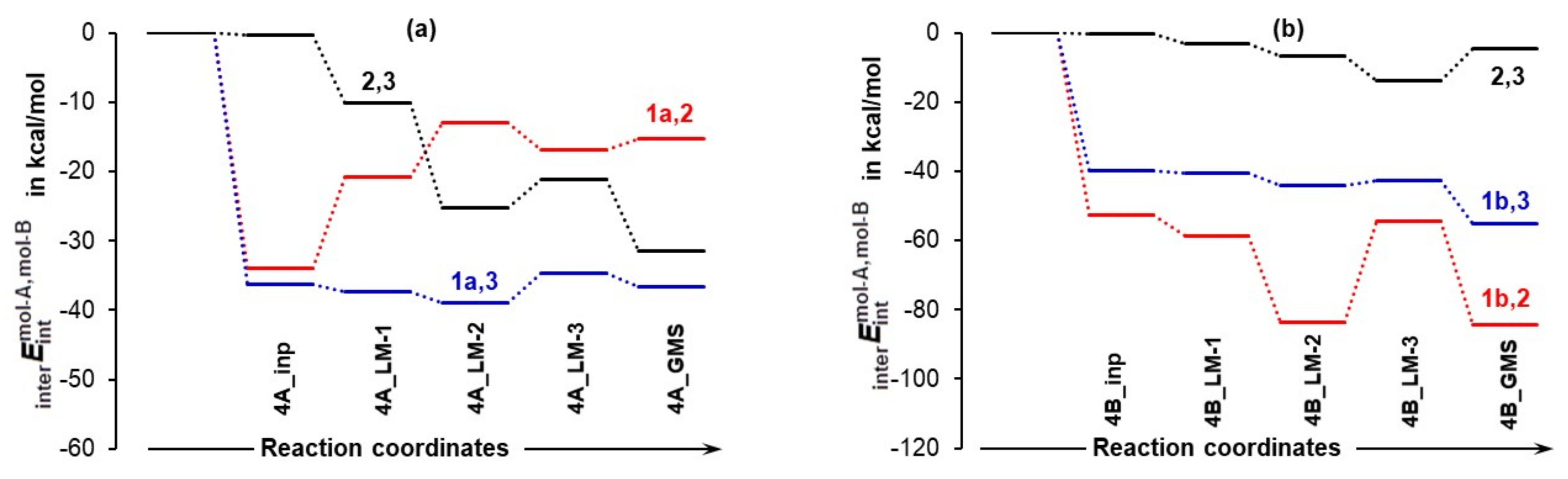

To gain insight into the role played by individual molecules, we analyzed intermolecular interactions between each unique molecule-pair trends obtained, which are shown in Figure 9. Let us start from 1 and 2, as one would assume that proline and acetone should play the most decisive and leading role in driving the reaction forward as they are destined to form a new CN-bond. Considering the lowest energy conformer of proline, there are at least two important and entirely surprising observations one can make, namely:

• The strongest intermolecular interactions are not between 1a and acetone 2, but between 1a and a DMSO solvent molecule 3; this is not what one would like to see at all.
• Significant weakening of interactions between 1a and 2 (from –34.0 to –15.3 kcal/mol) took place on the transition from 4A_inp → 4A_GMS—see red trace. This shows that ability to drive a catalytic process weakens when 1a spontaneously reaches its global minimum structure.

Notably, interactions between 1b and 2 (the ${}_{\mathrm{inter}}{}^{}E{}_{\mathrm{int}}^{1b,2}$ term) strengthened from –52.6 (in 4B_inp) to –84.5 (in 4B_GMS) kcal/mol. Clearly, the higher energy conformer of proline 1b must be a better and maybe the only active catalyst as the latter value is over five times more significant than that obtained for 1a,2 interactions computed for the 4A_LM-3 and 4A_GMS. This finding is again in perfect harmony with data shown in Figure 5.

Furthermore, interactions between acetone 2 and a DMSO molecule 3 are much stronger and are strengthened even further (by –31.1 kcal/mol) in the case of 3-MCs with 1a, whereas they hardly changed in complexes with 1b. Intuitively, one might speculate that the strong interactions between acetone 2 and a solvent molecule 3 need to be weakened before a reaction between 1a and 2 can proceed and this, potentially, might result in an increase in the associated energy barrier at a TS.

Finally, intermolecular interactions between 1 and 3 are strong in both systems and, relative to 4A_GMS, they are about –20 kcal/mol stronger in 4B_GMS but, importantly, still much weaker than interactions between the major players, 1b and 2. This suggests that the solvent molecule must play a significant role at this stage of the catalytic process.

We also analyzed interactions of single molecule with the remaining two molecules of the molecular systems and noted that:

• Relative to the input structure 4A_inp, the ${}_{\mathrm{inter}}{}^{}E{}_{\mathrm{int}}^{1a,\left(2,3\right)}$ = ${}_{\mathrm{inter}}{}^{}E{}_{\mathrm{int}}^{1a,2}$ + ${}_{\mathrm{inter}}{}^{}E{}_{\mathrm{int}}^{1a,3}$ term increased (interactions weakened) by about 19 kcal/mol in 4a_GMS, whereas the ${}_{\mathrm{inter}}{}^{}\Delta E_{\mathrm{int}}^{1b,\left(2,3\right)}$ term became more negative, i.e., interactions strengthened by about –47 kcal/mol when in 4B_GMS.
• The combined intermolecular interactions between 1b and {2+3} of –139.6 kcal/mol in 4B_GMS are 2.7 times stronger than the interactions between 1a and {2+3} in 4A_GMS.

4.4. Molecular Fragments Driving a Chemical Change

The above shows that all molecules interact strongly with each other and, in general, the trends discussed above illustrate the importance of interactions in modelling reaction mechanisms. It is obvious, however, that not all atoms of molecules forming a molecular system play significant and comparable roles. Hence, to identify atoms driving a chemical change, we change the focus from the molecular to atomic level.

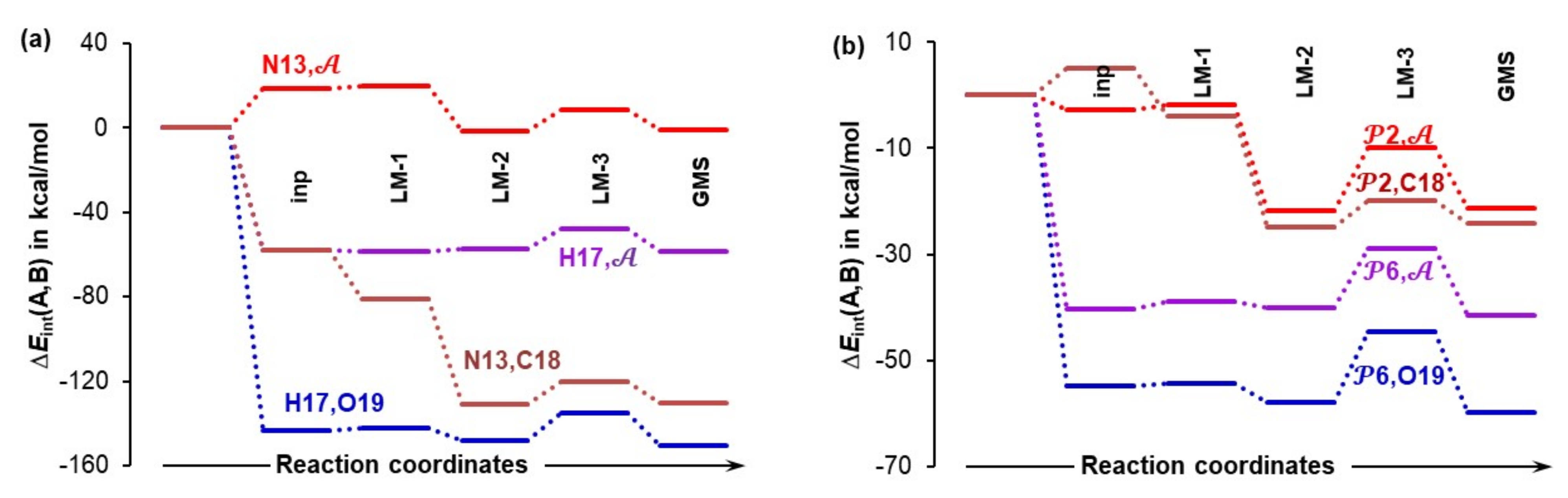

Atoms with the largest positive (C14, S28, C18, H17, H5) and negative (O37, O15, O19, O16, N13) net atomic charges (Tables S5 and S6, Part 4 of the Supplementary Materials) are also involved in the strongest attractive (e.g., $E_{\mathrm{int}}^{\mathrm{C}14,\mathrm{O}37}$ = –171 kcal/mol) and repulsive (e.g., $E_{\mathrm{int}}^{\mathrm{C}14,\mathrm{S}28}$ = +148 kcal/mol) intermolecular interactions (Tables S7 and S8, Part 5 of the Supplementary Materials). Such strong and mainly electrostatic interactions drive the arrangement of molecules that subsequently leads to bonds breaking and forming. It became obvious that it is not a single atom-pair that drives the process, as typically adopted in a classical approach. We grouped selected atoms into molecular fragments and a full set of trends generated for interaction energies between molecular fragments 𝒜 = {C18,O19} in acetone, $𝒟$ = {S28,O37} in DMSO and $𝒫$ = {C1,C4,H5,N13,C14,O15,O16,H17} in proline is shown in Figures S8 and S9, Part 6 of the Supplementary Materials. As an example, and for the purpose of illustration, Figure 10 shows large differences in inter-fragment interaction energies computed for 4A and 4B molecular systems and they are clearly in favor of the latter. One would expect that the leading fragments of molecules that are to form new bonds (1 and 2) should be involved in the strong(est) interactions. This is indeed found in 4B_GMS with $E_{\mathrm{int}}^{\mathcal{P},\mathcal{A}}$ = –62.8 kcal/mol, but surprisingly $E_{\mathrm{int}}^{\mathcal{P},\mathcal{A}}$ ~ 0 kcal/mol is observed for 4A_GMS—see Figure 10a. Note also that $E_{\mathrm{int}}^{\mathcal{P},\mathcal{A}}$ = –6.6 kcal/mol is seen for the pre-organized 4A_LM-3 structure.

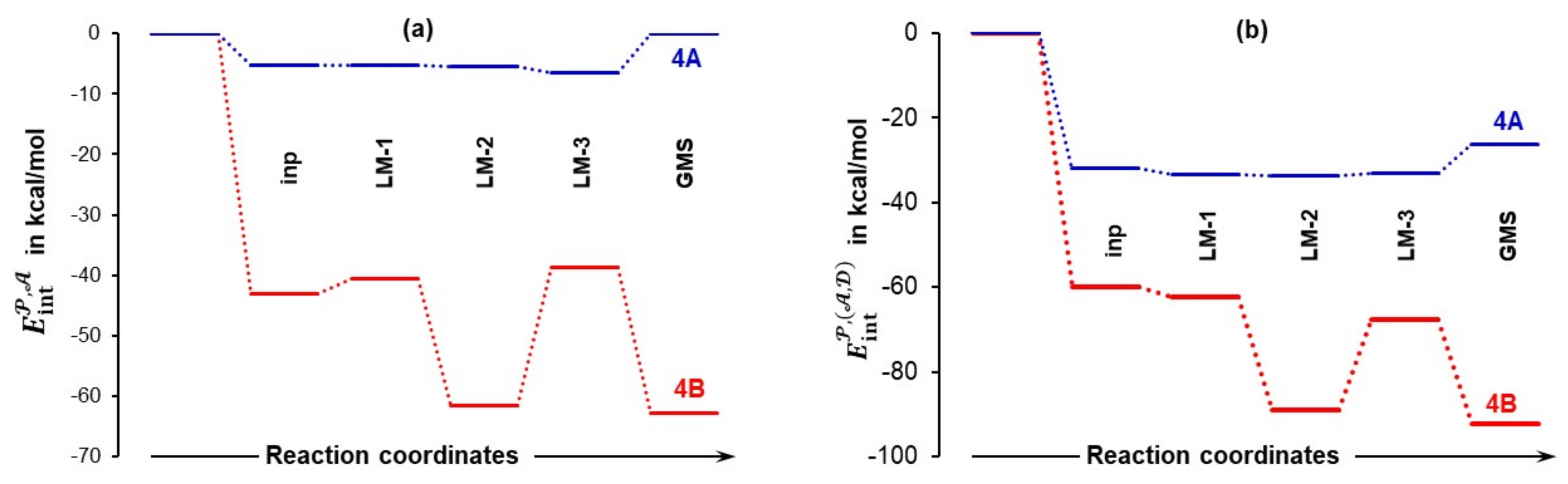

The combined intermolecular interactions of $𝒫$ with $\mathrm{(𝒜}$ plus $𝒟$) shown in Figure 10b reveal a strong attraction between atoms of $𝒫$ in proline (1a and 1b) and atoms of $𝒟$ in DMSO as values of $E_{\mathrm{int}}^{\mathcal{P},\left(\mathcal{A},\mathcal{D}\right)}$ are more negative than $E_{\mathrm{int}}^{\mathcal{P},\mathcal{A}}$ in Figure 10a. This finding is of importance as it shows that the DMSO solvent molecule assists in attaining the most desired 3D placement of 1 and 2 for subsequent bond formation. On the other hand, interactions between the 𝒜 and $𝒟$ fragments are very weak (0.0 and +1.4 kcal/mol in 4A_LM-3 and 4B_GMS, respectively see Figure S8, Part 6 in the Supplementary Materials) and this is exactly what a synthetic chemist would like to see as the process of bonding between proline and acetone will not require additional energy for breaking interactions between acetone 2 and DMSO 3. Remarkably, relative to 4A_LM-3, interactions between the three fragments in Figure 10b are three times stronger in 4B_GMS and this must have a huge and facilitating impact on the bond formation between N13 and C18 as well as O19 and H17; this correlates well with the lowering of the activation energy at 4B_TS when 1b is involved.

4.5. Importance of N13,C18 and H17,O19 Atom-Pairs

The N13,C18 and H17,O19 atom-pairs are destined to form two new bonds at the first stage of this catalytic process. Hence, their diatomic interactions must be seen as navigating a chemical change even though they are not the strongest (selected intermolecular diatomic interaction energies are presented in Tables S9–S11, Part 6 of the Supplementary Materials). Trends in intermolecular diatomic interaction energies $E_{\mathrm{int}}^{\mathrm{N}13,\mathrm{C}18}$ and $E_{\mathrm{int}}^{\mathrm{H}17,\mathrm{O}19}$ shown in Figure 11 constitute additional and critical support for (i) selecting best pre-organized 4A_LM-3, rather than commonly used global minimum structures and (ii) predicting a lower energy barrier for 4B_GMS as indeed found in this study (Figure 5). Notably, the $E_{\mathrm{int}}^{\mathrm{H}17,\mathrm{O}19}$ of –150.6 kcal/mol is stronger (more attractive) than $E_{\mathrm{int}}^{\mathrm{N}13,\mathrm{C}18}$ by –20.2 kcal/mol in the 4B_GMS. It is then clear that the interaction between H17 and O19 is in the driving seat when a chemical change occurs. The opposite trend is observed for 4A_LM-3, where a difference of –22 kcal/mol in favor of $E_{\mathrm{int}}^{\mathrm{N}13,\mathrm{C}18}$ was found. This reveals that, in principle, the same catalytic process might proceed by a somewhat different mechanism when different conformers are involved. The first stage is mainly driven by the H17,O19 and N13,C18 atom-pair, respectively, in the system with the higher (1b) and lowest (1a) energy conformer of proline.

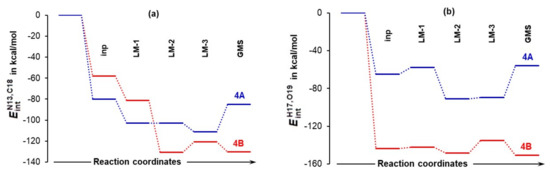

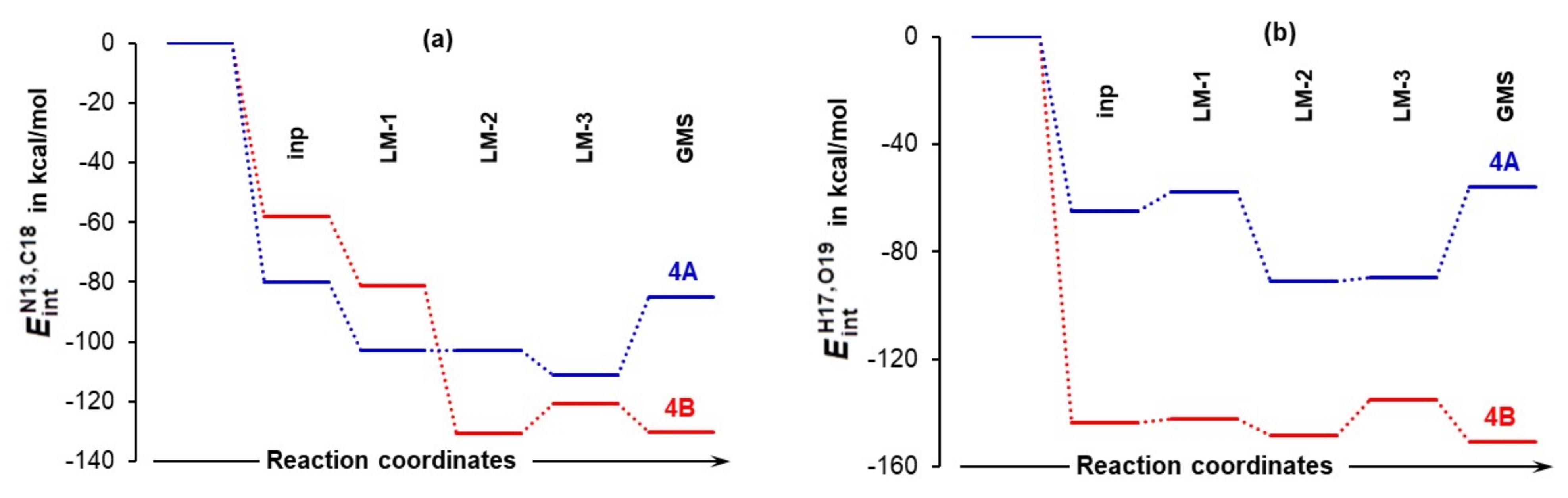

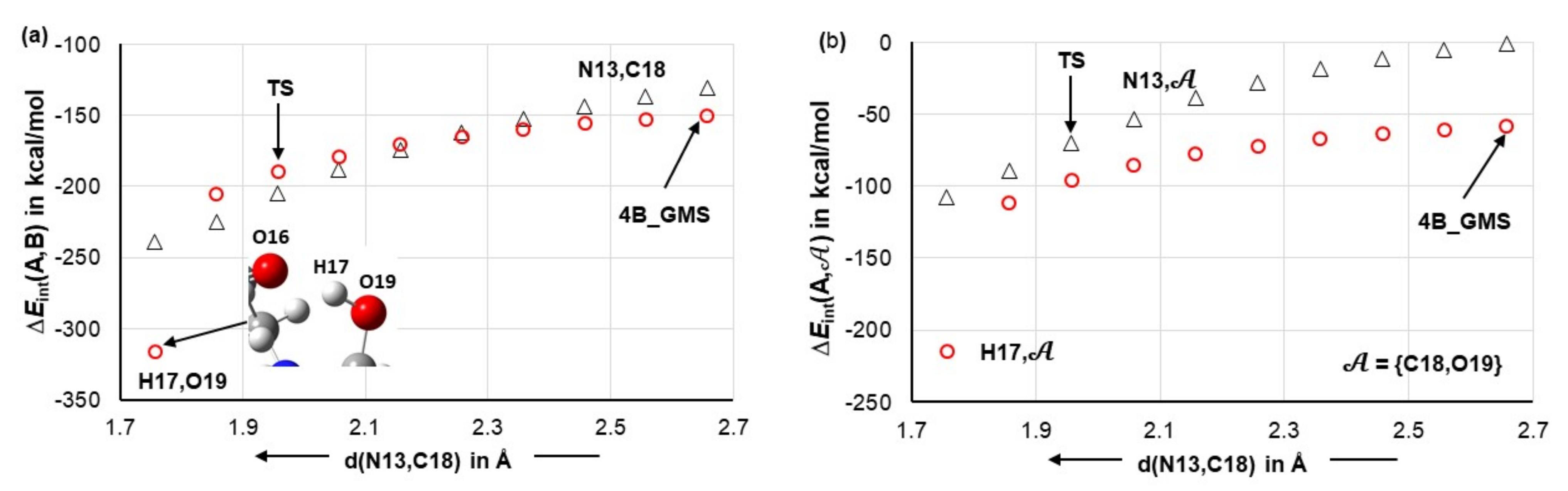

A full set of interaction energies between either N13 or H17 of proline 1 and atoms of either $\mathcal{A}$ or $\mathcal{D}$ is shown in Figure S10 (see also Table S12, Part 6 of the Supplementary Materials). Let us follow a classical approach where interactions between two atoms are commonly considered, in this case between N13 and C18 [15,20,26]. This interaction is highly attractive with $E_{\mathrm{int}}^{\mathrm{N}13,\mathrm{C}18}$ = –111.0 kcal/mol in 4A_LM-3, and even more so with –130.4 kcal/mol in 4B_GMS. To follow such an approach, however, one must provide scientifically sound answers to the following two questions:

• The attractive interaction between N13 and C18 is far from being the strongest between atoms of proline 1 and acetone 2; so, why is only this interaction considered?
• There are also very strong repulsive interactions between atoms of proline 1 and acetone 2; why are they not considered at all?

Clearly, there is no justification for such a simplistic and orthodox approach. So let us follow the molecular-wide and electron density-based concept of chemical bonding and do some simple mathematics related to the main actors. This means that a broader spectrum of interactions must be accounted for when the role played by N13 and H17 of proline 1 is considered.

Summing up the interaction energies between N13 and the remaining major players, i.e., atoms of $\mathcal{A}$ (C18 and O19 of acetone 2) and $𝒟$ (S28 and O37 of DMSO 3), we obtained +24.4 (for 4B_GMS) and +36.7 (for 4A_LM-3) kcal/mol. In both cases, a large repulsive interaction was computed that would prevent the CN-bond formation. This is rather unexpected and a surprising finding, but one must realize that, for example, the attractive interaction between N13 and C18 in 4A_LM-3 (–111 kcal/mol) is counteracted by more significant repulsive interactions, $E_{\mathrm{int}}^{\mathrm{N}13,\mathrm{O}19}$ = +123.9 kcal/mol, between N13 and O19 (the atom C18 is bonded to). Considering 4B_GMS, we obtained the attractive interaction between N13 and C18 (of –130.4 kcal/mol) that counteracts, but only barely, the repulsive interaction between N13 and O19 (of +129.4 kcal/mol).

Following the above approach used for the interactions involving N13, we summed up interaction energies between H17 and the remaining major players. A very different picture emerged as we obtained –68.4 (in 4B_GMS) and –30.8 (in 4A_LM-3) kcal/mol. Overall, large attractive interaction energies were obtained that promote a proton transfer from proline 1 to acetone 2. Importantly, only in the case of 4B_GMS, the attractive interactions involving H17 (of –68.4 kcal/mol) compensated repulsive interactions involving N13 (of +24.4 kcal/mol). Hence, using major players as a predictive tool, the reaction should not proceed via the LEC of proline 1 at all from the very first step as it was also predicted from the trends in Figure 5.

4.6. Special Role Played by H17 in 1b-Containing Complexes

The above data suggests that the H17 atom of a carboxylic group in proline plays an important, or even special, role in this catalytic process. To gain more insight, we analyzed additional trends that were computed for the 1b-containing complexes—see Figure 12. Starting from a classical, 2-atom approach, the H17···O19 interaction is highly attractive from the very beginning (already starting from the 4B-inp structure–Figure 12a) and persists to dominate the diatomic N13···C18 interaction throughout the entire process of structural rearrangement, from 4B_inp to 4B_GMS. Clearly, H17 attracts the in-coming acetone molecule much more than N13.

As mentioned already, it is imperative to also account for the obstructive (repulsive) interactions between N13 and O19 as well as H17 and C18 when 2 is approaching 1b. To achieve this, we computed interaction energies between either N13 or H17 and the molecular fragment 𝒜 = {C18,O19} of acetone; trends obtained (Figure 12a) strongly point to H17 as a driver of a chemical change. This is because N13 is initially opposing the approaching acetone—see the top trend for N13, in Figure 12a where approximately +20 kcal/mol, hence highly repulsive interaction for the inp and LM-1 complexes, is observed. In contrast, a very strong attractive force acts between H17 and 𝒜 throughout the 4B_inp → 4B_GMS rearrangement—see the H17, trace in Figure 12a. The picture does not change much when 4-atom fragments $𝒫$2 (with N13) and $𝒫$6 (with H17) instead of individual atoms N13 and H17 are considered (Figure 12b). Regardless of whether interactions with a single or both atoms of 𝒜 are considered, it is the $𝒫$6 fragment with H17 that attracts 2 much more than $𝒫$2 with N13.

4.7. Forces in the Driving Seat of a Simulated CN-Bond Formation

Considering the catalytic reaction between proline and acetone, the CN-bond formation is undoubtedly the most important initial chemical change for a classical organic chemist. Hence, we decided to monitor interaction energies between selected atoms and fragments throughout the process of a simulated CN-bond formation. Data obtained from scanning reaction coordinates, starting from d(N13,C18) = 2.6573 Å in 4B_GMS, through a transition state TS at d(N13,C18) = 1.9527 Å and up to 0.2 Å beyond the TS, is shown in Figure 13. Focusing on just diatomic interactions (see Figure 13a), the H17,O19 atom-pair continues to be in the driving seat up to d(N13,C18) = 2.257 Å, where the two atom-pairs experience similar diatomic attraction of about –165 kcal/mol. Beyond this point, the interaction energy between N13 and C18 starts to dominate and is –16 kcal/mol stronger than the interaction between H17 and O19 at the transition state. Interestingly, well before the CN-bond is formed, i.e., at d(N13,C18) = 1.7573 Å, H17 permanently leaves proline and forms a new bond with O19 of acetone—see the insert in Figure 13a.

It is reasonable to assume that H17 would move to acetone even earlier if not for being restrained by a strong attraction to O16. To produce more realistic trends, one must consider a wider molecular environment. The interaction energies between atoms in question, N13 or H17, and the molecular fragment 𝒜 (see Figure 13b) show dominance of H17 over N13, in terms of attracting acetone, in the entire region of the reaction coordinates scan. Additional trends obtained for the interactions between molecular fragments $𝒫$2 and $𝒫$6 and either atoms of a molecular fragment 𝒜 or the entire 𝒜 are presented in Figure S11, Part 6 of the Supplementary Materials and they fully support what we observe in Figure 13b.

From this it follows that the first step’s name as a CN-bond formation, or as it was coined many years ago ‘the nucleophilic attack of the amino group’, is somewhat misleading. In our opinion and based on evidence provided in this work, a better description of the first step could be ‘a first proton transfer/CN-bond formation’, as this correctly reflects the sequence of chemical changes taking place during this step. Furthermore, the first step is the result of the attraction between two atom-pairs that guide 2 in its approach to 1 and there is no way to separate, either experimentally or theoretically, these chemical events, which take place nearly simultaneously. Due to the leading role played by H17 (it is involved in largely dominating attractive interaction with O19 of acetone) and for brevity we refer to this step as the first proton transfer also because it is a part of a multi-step proton transfer catalytic process involving proline. This is the dominating catalytic activity of a proton of a carboxylic group that not only facilitates the CN-bond formation, but makes ‘the nucleophilic attack of the amino group’ possible. Moreover, during the second H-transfer stage, H5 rebuilds the carboxylic COOH group of proline through an intramolecular mechanism, moving across from N13 to O16 [23]. The presence of the COOH functionality is a pre-requisite for the third consecutive H-transfer step during which water is eliminated by H5 extracting the O19H17 group from the acetone back-bone.

5. Conclusions

Considering a solvent just as a solubilizing medium for reactants and products might be, as this work demonstrates, far from the full picture. Through the use of the REP-FAMSEC [23,24] approach and the concept of MOWED-CB [34] (MOWED-CB = Molecular-Wide and Electron Density based concept of Chemical Bonding), the role of DMSO is revealed to extend well beyond that of a simple spectator. We demonstrated that DMSO, although not involved in bond forming/breaking or as a classical catalyst, is a major player in the aldol reaction. Modelling of the proline (1) catalyzed aldol reaction (with acetone 2) in the presence of an explicit molecule of DMSO (3) has revealed that, due to strong intermolecular interactions, stable 3-molecular complexes (3-MCs) are instantly formed. Importantly, it is the HN-C-COOH (of 1), CO (of 2), and SO (of 3) fragments that lead the 3-MCs to the global minimum structures (GMSs) and, as a matter of fact, they must be seen as driving a chemical change throughout the catalytic reaction. Essentially, a DMSO molecule plays a double role as it 1) leads to the elimination of the lowest energy conformer 1a (LEC) as a catalyst at the very beginning of the process, namely at the first H-transfer/CN-bond formation and 2) acts as a facilitator by promoting the catalytic ability of the higher energy conformer (HEC) of proline 1b.

We found that exploring (in detail) the process of structural rearrangement starting from separate molecules, through intermediate local minimum structures to the global minimum structure (GMS) of 3-MCs provides an initial and invaluable insight on either a success or failure of a potential catalytic process/mechanism. At the same time, molecular fragments of each molecule that drive the process can be identified and their role can be quantified. We found that the failure of 1a as a catalyst was in the making from the very beginning as the total interactions, intramolecular and intermolecular in GMS of the 3-MCs, weakened for 1a, but significantly strengthened for 1b. Importantly, they became 2.5 times stronger when compared with the same set of interactions computed for 1a-containing GMS of the 3-MC. Moreover and opposite to what one expects from a potential catalyst, the interaction between 1a and acetone 2 became weaker. We found the opposite for the 1b···2 intermolecular interactions that became over five times stronger than 1a···2 in the GMS of the 3-MCs. We discovered a similar trend for the intermolecular interactions between 1 and {2+3}, i.e., the remaining molecules of the 3-MC, acetone 2 and the explicit DMSO solvent molecule 3. The combined intermolecular interactions between the higher energy conformer 1b and acetone 2 plus a DMSO molecule 3, i.e., 1b···{2+3}, are 2.7 times stronger than 1a···{2+3} in the global minimum structures of the 3-MCs.

Mechanistically, although the N-atom of 1 clearly acts as a harbor for the acetone molecule 2 in the aldol reaction, the actual CN-bond formation is shown to be preceded by a proton transfer from the carboxylic acid group to the oxygen of 2. Thereafter, a second proton transfer takes place, from the resulting quaternized nitrogen, to rebuild the carboxylic acid group that is necessary for the next proton involvement that leads to water elimination. Once again, DMSO is shown to play key and diverse roles in shaping reaction energy profiles by influencing the energies for the transformation of the LEC and HEC-based molecular systems. Importantly, this effect is by far more favorable for the 1b-containing molecular system as the product of the first H-transfer is lower in energy than the proceeding GMS, but only in the case of 1b-containing 3-MC. This energetic observation and above-mentioned interaction-based preferences for 1b when coupled with the fact that 1a and 1b can readily interconvert with minimal energy in solution shows that the 3MC derived from the LEC can be considered catalytically inactive and essentially “cut-off” at the first proton transfer with the reaction preferring to proceed via 1b. Furthermore, although unlikely, if the mechanism involving 1a is able to proceed beyond the first proton transfer, it is for all intents and purposes completely cut off at the second H-transfer due to an insurmountably energy barrier. Once again, the dynamics of the DMSO molecule feature prominently facilitating stronger interactions between H5 of proline 1 and O37 of DMSO 3, hindering (but only for 1a) the required intramolecular transfer of H5 to O16 within proline 1.

Interestingly, List previously reported that not only the CN-bond formation, but most likely the entire catalytic process is to be mediated through a series of proton transfers involving the CO₂H group of proline 1 [12]. It is notable that the findings reported herein are in a manner pre-meditated by List [12] who suggested that:

• clearly both the pyrrolidine ring and the carboxylate are essential for efficient catalysis to occur and, based on experimental data, noted that
• after screening several solvents, we found anhydrous DMSO at room temperature to be the most suitable condition regarding reaction times and enantioselectivity.

Although our focus is on the proline catalyzed aldol reaction, the general approach described in this work that involves detailed analysis of the processes leading to the pre-organized complexes formation using the REP-FAMSEC method and MOWED-CB [34] concept will be applicable to many synthetic processes. This is because the interaction energies vary much more, typically by an order of magnitude, than commonly computed energy terms (E, H or G) used in drawing reaction energy profiles. Importantly, the REP-FAMSEC-based approach allows one to uncover subtle underlying relationships between atoms/fragments/molecules and how they influence each other; these are not easily predictable, if at all, using only classical approaches and chemical intuition. By investigating any and on purpose selected modes of interactions, one can fully explore and explain not only the role played by a solvent molecule(s), but also complex mechanistic processes can be rationalized in terms of molecular fragments driving the chemical change. From that, one can also identify catalytically (in)active conformers as well as suggest possible additional functionalities needed to improve a synthetic/catalytic process.
