Review

Spotlight on Nociceptin/Orphanin FQ Receptor in the Treatment of Pain

by
Amal El Daibani
1 and
Tao Che
1,2,*
1
Department of Anesthesiology, Washington University School of Medicine, St. Louis, MO 63110, USA
2
Center for Clinical Pharmacology, University of Health Sciences and Pharmacy in St. Louis, St. Louis, MO 63110, USA
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(3), 595; https://doi.org/10.3390/molecules27030595
Submission received: 1 December 2021 / Revised: 12 January 2022 / Accepted: 12 January 2022 / Published: 18 January 2022
(This article belongs to the Special Issue Opioids and Their Receptors: Present and Emerging Concepts in Opioid Drug Discovery II)
Browse Figures
Review Reports Versions Notes

Abstract

:
In our society today, pain has become a main source of strain on most individuals. It is crucial to develop novel treatments against pain while focusing on decreasing their adverse effects. Throughout the extent of development for new pain therapies, the nociceptin/orphanin FQ receptor (NOP receptor) has appeared to be an encouraging focal point. Concentrating on NOP receptor to treat chronic pain with limited range of unwanted effects serves as a suitable alternative to prototypical opioid morphine that could potentially lead to life-threatening effects caused by respiratory depression in overdose, as well as generate abuse and addiction. In addition to these harmful effects, the uprising opioid epidemic is responsible for becoming one of the most disastrous public health issues in the US. In this article, the contributing molecular and cellular structure in controlling the cellular trafficking of NOP receptor and studies that support the role of NOP receptor and its ligands in pain management are reviewed.

1. Introduction

Persistent pain affects more than 30% of North America’s population throughout their life and it attributes to substantial expense in the US with annual costs ranging between $560 and $635 billion, which is larger than the cost of the nation’s priority health conditions [1]. This main socio-economic issue is expected to have a two-fold increase within the next 10 years especially in the elderly, as reported by the 2010 Medical Expenditure Panel Survey (MEPS). Despite the life- threatening effect caused by respiratory depression in overdose and the potential of high abuse, opioid analgesics stand as the conventional choice of treatment for moderate to severe pain [2,3,4,5,6]. As a result of misuse and extensive diversion, the use of opioids has become a leading crisis in the US, which was declared by the United States Department of Health and Human Service (HHS) in 2017 [7,8]. According to the Centers for Disease Control and Prevention (CDC), a significant increase in overdose-related deaths occurred in 2020 in which the involvement of synthetic opioids was over 60% [9]. For this reason, several research institutes have made it a priority to develop safe, effective, and non-addictive therapeutics for chronic pain management and address opioid-use disorders with innovative medications, to save lives and encourage recovery.
Opioids exert their effect via opioid receptors, a member of a large superfamily of seven-transmembrane-spanning (7TM) G-protein-coupled receptors (GPCRs), mu (MOP receptor), kappa (KOP receptor), delta (DOP receptor), and nociceptin (NOP receptor) [10]. Since NOP receptors are distributed in various regions (dorsal root ganglia (DRG), spinal dorsal horn (SDH), and brain) that are involved in pain transmission, NOP receptor ligands are under investigation primarily as an alternative for MOP receptor opioid analgesic in addition to their anxiolysis and antidepressant-like effect [11,12,13]. However, the NOP receptor was considered a controversial drug target for analgesics because of its unique pharmacological effects in pain modulation (antinociceptive vs. nociceptive effects) in the earlier phases of discovering nociceptin [14,15,16,17,18,19]. Currently, the NOP receptor has become a main focus as a promising target for analgesics as NOP receptor ligands have reported to show antinociceptive effects in non-human primates regardless of their administered doses and administration routes (spinal or supraspinal).
Moreover, the bifunctional and multifunctional NOP/opioid receptor agonists have recently displayed potent antinociceptive activity with favorable side effect profiles. Among these agonists, cebranopadol represents a promising therapeutic candidate for pain, according to the results of its clinical trials. In this article, the current literature for NOP receptor’s crystal structure, distribution, signaling pathway, and the rational design of NOP receptor ligands with various pharmacological profiles as a promising alternative for conventional opioid analgesic is reviewed to assess its therapeutic potential as analgesics.

2. Structure of NOP Receptor

In the mid 1990s, the human cDNA clone that encodes the NOP receptor was first isolated from the human and mouse brainstem and was then identified in several murine genomes including rat, pig, and guinea pig [20,21,22,23,24,25]. It was previously known as “orphanin FQ”, “nociceptin,”, or “ORL-1” for opioid receptor-like 1 receptor, due to the lack of its endogenous peptide ligand in the binding assays; however, nociceptin or orphanin FQ (N/OFQ) that closely resemble dynorphin A, a selective KOP receptor endogenous peptide, was characterized a year later by applying reverse pharmacology as the endogenous neuropeptide for NOP receptor [14,15]. This endogenous neuropeptide has 17 amino acids, Phe-Gly-Gly-Phe-Thr-Gly-Ala-Arg-Lys-Ser-Ala-Arg-Lys-Leu-Ala-Asn-Gln, which have quite unique features. The Phe-Gly-Gly-Phe amino terminal is noticeably comparable to the Tyr-Gly-Gly-Phe that is conserved in other classical opioid peptides [26,27]. Moreover, the number of Lys and Arg residues that are found in N/OFQ are similar to dynorphin A. Along with this resemblance, the gene structure of opioid peptide genes (preprodynorphin and preproenkephalin) and nociceptin precursor gene are also similar [27,28]. Multiple conserved amino acid residues and motifs specifically in the transmembrane helices and the intracellular loops have been identified by comparing the cDNA-derived amino acid sequence of the NOP receptor protein with that of other opioid receptors, indicating that NOP receptor belongs to GPCR Class A (rhodopsin-like) receptors, as the fourth and last characterized opioid receptor [29]. Consequently, the IUPHAR nomenclature defined this receptor and its peptide which are currently named NOP receptor and N/OFQ [30].
To date, three crystal structures of human NOP receptor have been solved with three piperidine-based antagonists (Banyn Compound-24 (C24), SB-612111, and Compound-35 (C-35)) at a resolution of 3 Å [31,32]. These crystal structures provide a perspective into the atomic details of the molecular structure of the NOP receptor and support previous homology models developed to further understand the functional mechanism of NOP receptor. In all three structures, the protonated nitrogen of the piperidine interacts with the D1303.32 (superscripts indicate the Ballesteros Weinstein TM helix residue numbering) residue in NOP receptor which leads to the formation of a salt bridge, implying the high affinity for these ligands. Consistent with NOP receptor crystal structure in its inactive state, the previous homology models of NOP receptor in complex with N/OFQ further support that the N-terminal amino groups of an endogenous neuropeptide agonist, N/OFQ, interact with D1303.32 [33,34,35]. This indicates the important role of this residue which is conserved in other canonical opioid receptors on the binding of NOP receptor ligands. Moreover, the replacement of D1303.32 into alanine or asparagine in the mutagenesis studies abolished N/OFQ binding, emphasizing the negative charge essentiality at this location [32].
Computer aided molecular docking studies of the selective NOP receptor agonist Ro 64-6198 into the first active state NOP receptor homology model, have also indicated signs for the mentioned NOP receptor selectivity enhancing of interactivity [34]. In this model, the amide hydrogen in Ro 64-6198 directly interacts with T3057.39 to form a hydrogen bond that takes place at the extracellular end of the orthosteric binding site, while the phenalenyl ring of Ro 64-6198 and the hydrophobic V2796.51 residue interact together inside the binding site.
Despite these studies that have highlighted the key residues and structures that are involved with ligand binding, receptor activation, and signaling, the determination of NOP receptor in its active state is required to illuminate the conformational changes in receptor’s architecture.

3. The Distribution and Signaling Pathway of NOP Receptor

Several techniques and animal model including in situ hybridization, immunohistochemistry, autoradiography, RT-PCR, knock-in mice with a fluorescent-tagged NOP receptor (NOP receptor-eGFP) in place of the native NOP receptor, and [35S]-GTPγS assay were employed to reveal the tissue distribution of NOP receptor. It is widely expressed in the human and other animal species both in the central and peripheral nervous systems [12,36]. Peripherally, the human immune cells (lymphocytic B and T-cell lines, monocytic cell lines, and circulating lymphocytes and monocytes) express NOP receptor mRNA [37]. Centrally, the NOP receptor mRNA is detected in the cortical areas, hypothalamus, mammillary bodies, the substantia nigra, thalamus nuclei, limbic structures (the hippocampus and amygdala), brainstem (colliculi, the ventral tegmental area, the locus coeruleus), and the pituitary gland [37,38].
Because NOP receptor activation modulates several physiological functions and pharmacological roles including, but not limited to, pain sensation, mood, learning, memory, cardiovascular control, and immune response [39], it is important to understand its signaling pathways and subsequent trafficking events. NOP receptor has shown a high sequence identity and homology in the TM helices and intracellular loops with other classical opioid receptors (DOP receptor, MOP receptor, and KOP receptor) which couple to inhibitory G proteins, suggesting a similar activation mechanism upon ligand binding. This binding triggers the heterotrimeric dissociation of Gαβγ subunits following the replacement of guanosine diphosphate (GDP) by guanosine triphosphate (GTP) at Gα subunit and subsequently induces multiple intracellular signaling pathways [40,41]. The dissociated Gα subunit suppresses adenyl cyclase and cAMP production, while Gβγ subunits directly couple with different ion channels such as Ca2+ and Kir3 [42,43,44]. NOP receptor also regulates the voltage-dependent Ca2+ channels by modulating Rho-associated coiled-coil-containing protein kinase (ROCK) and LIM domain kinase (LIMK) [45]. Like canonical opioid receptor, the suppression of pre and postsynaptic Ca2+ influx, the activation of G protein gated inward rectifying potassium (GIRKs) conductance, as well as the inhibition of various ions channels such as Na+ channel resulted in cellular hyperpolarization and attenuation of neuronal excitability and nociceptive stimuli transmission, thus producing antinociceptive effects [46]. In addition to ion channels, the activation of NOP receptors also modulates all three mitogen-activated protein kinase (MAPK). MAPK activity thereby regulates cell proliferation, progression, and differentiation (ERK1/ERK2), as well as the response to cellular stressors (p38 and JNK1/JNK2/JNK3) [47,48]. Moreover, the neurotransmitter release of serotonin, noradrenaline and glutamate, as well as the phospholipase (PLC) A2 and C signaling, are induced by NOP receptor activation [49,50,51,52].
Within minutes of NOP receptor activation, the uncoupling of NOP receptor to G protein is facilitated by a desensitization process, a feedback mechanism to control the receptor overstimulation during acute and chronic exposure to the ligand [53]. This process is regulated by various kinases such as GPCR kinases (GRKs) that mediate the phosphorylation, and the arrestin ligation to the C-terminus of the opioid receptor. Besides GRKs, second messenger-dependent protein kinases including protein kinase A (PKA), protein kinase C (PKC), and calcium/calmodulin-dependent protein kinase II have also been shown to phosphorylate and desensitize the NOP receptor [54,55]. The receptor desensitization is suppressed through the inhibition of mitogen activated protein dependent kinase that could interfere with the arrestin recruitment. After the GRK/arrestin recruitment, the NOP receptor is translocated into the intracellular compartment through clathrin-mediated endocytosis into which the receptor is recycled and re-sensitized to restore the receptor function back again.

4. Ligands of NOP Receptor

Analgesia is one of the potential clinical indications of NOP receptor due to its wide distribution in the nervous system (central and peripheral) which are involved in the pain processing pathways. In this review, NOP receptor ligands including N/OFQ-related peptides, nonpeptidic, and bifunctional compounds with different pharmacological profiles (full agonist, partial agonist, and antagonist) that represent viable drug target for pain are spotlighted. Initially, intrathecally (i.t) administered N/OFQ produces dose-dependent analgesia in the tail flick assay and flinching behavior in the formalin test without causing sedation as well as promotes antinociceptive effect of morphine in both rats and monkey [16,17,18,19]. Whereas opposite effects like hyperalgesia and a decrease in locomotor activity are produced as a result of the intracerebroventricular (i.c.v) N/OFQ administration in the hot plate test and the tail flick test in mice [14,15]. The unexpected action of i.c.v. N/OFQ administration resulted from both the anti-opioid activity (antagonizing MOP receptor, DOP receptor, and KOP receptor antinociception activity) via NOP receptor stimulation in the periaqueductal gray (PAG) neurons and the reversal of opioid induced analgesia of N/OFQ opposed to the nociceptive activity as proposed previously [56,57,58]. These findings indicate the dual actions of N/OFQ that mainly depend on the administered dose, pain models (chronic or acute), examined species, and the route of administration as illustrated in Figure 1. The reason behind this discrepancy across species is not known yet; however, some studies (reviewed in [29,59]) suggest that the difference in neuronal circuitry of pain between different species could be the reason for NOP receptor system having opposite effects in pain processing. Furthermore, the effectiveness of NOP receptor agonists in addressing chronic pain (over acute pain), can be explained by the varying levels of NOP receptor mRNA and NFQ peptide induced by chronic inflammation.
In this section, the relevant pharmacological features of NOP receptor ligands including peptide, nonpeptide, and bifunctional and mixed NOP receptor compounds are explored with a focus on their role in modulating pain to further comprehend the nature of the N/OFQ–NOP receptor system within these processes.

4.1. Peptide Ligands Related to N/OFQ Targeting Pain

Earlier systematic SAR studies revealed that both truncation and amidation of N/OFQ are required to sustain the biological activity of N/OFQ and avoid the N-terminus degradation by proteases, respectively [60]. As a result, N/OFQ(1-13)-NH2, which is the shortest peptide sequence that maintains the potency, efficacy, and affinity as N/OFQ, has been used as a template to design a new series of N/OFQ analogues. In the frame of SAR studies, several peptides with distinct pharmacological activity have been identified such as [Phe1Ψ(CH2-NH)Gly2]N/OFQ(1-13)NH2, UFP-101, and [Nphe1]N/OFQ(1-13)NH2 (NOP receptor antagonists), UFP-112 (highly potent NOP receptor agonist), and UFP-113 (partial NOP receptor agonist) [61,62,63,64,65]. The peptides that have antinociceptive activity are summarized in Table 1 and described below.

4.1.1. [Nphe1]N/OFQ(1-13)NH2

A preliminary hypothesis regarding the behavior of NOP receptor-active compounds stated that if N/OFQ induces pain, antagonists are likely to exhibit antinociceptive activity. To test this, [Nphe1]N/OFQ(1-13)-NH2, the first reported peptide with antagonist activity, was generated by shifting the side chain of Phe1 from C to N atom in the amidated N/OFQ. A binding assay using Chinese hamster ovary (CHO) cells that express recombinant human NOP receptor and cyclic AMP accumulation in CHO cells identified the antagonistic properties of [Nphe1]N/OFQ(1-13)-NH2. The mouse tail withdrawal assay revealed that a single i.c.v. administration of [Nphe1]N/OFQ(1-13)NH2 increased the tail withdrawal latency time, while a combinational administration of [Nphe1]N/OFQ(1-13)NH2 with N/OFQ and morphine inverted the reduction of tail withdrawal latency time latency and promoted the antinociceptive effect of morphine, respectively, implying the analgesic action of this ligand [61,72].

4.1.2. [Nphe1, Arg14, Lys15]N/OFQ-NH2 (UFP-101)

Previous studies have shown that the binding of C-terminus-amidated N/OFQ to the acidic restudies at the ECL2 of NOP receptor was enhanced by inserting Arg and Lys [35,73]. Combination of [Nphe1]N/OFQ(1-13)-NH2 and [Arg14, Lys15]N/OFQ-NH2 led to the generation of a new peptide [Nphe1, Arg14, Lys15]N/OFQ-NH2, also called UFP-101 [62]. In vitro assays including functional binding assays using (CHO cells expressing human NOP receptor and [35S]-GTPγS), cyclic AMP accumulation experiment, and Schild regression analysis of electrically stimulated isolated peripheral (rats, mice, and guinea pigs) and central tissues (rat) showed that UFP-101 competitively antagonized the effects of N/OFQ. Similar to [Nphe1]N/OFQ(1-13)-NH2, i.c.v. administration of 10 nmol UFP-101 produced antinociceptive effect in the mouse tail withdrawal assay, but with higher potency and longer duration of action, indicating that the presence of Arg14 and Lys15 may promote either the binding of UFP-101 to NOP receptor and/or the UFP-101 metabolic stability. Since UFP-101 is a selective NOP receptor antagonist, it has been also used as a research tool to confirm that NOP receptor mediates both the inhibition of spinal excitatory transmission in vitro as well as the spinal antinociception in vivo [66].

4.1.3. [(pF)Phe4Aib7Arg14Lys15]N/OFQ-NH2 (UFP-112)

The chemical modifications of the phenyl ring in Phe4 residue that is essential for NOP receptor activation by inserting pF along with the replacement of Ala at position 7 by α-aminoisobutyric acid (Aib) in N/OFQ sequence resulted in generation of more potent ligands [74,75,76]. By applying these two chemical modifications to [Arg14, Lys15]N/OFQ-NH2, [(pF)Phe4Aib7Arg14Lys15]N/OFQ-NH2, also known as (UFP-112), was synthesized [67]. This ligand acts as a potent (100-fold higher than N/OFQ) and a selective NOP receptor agonist. A long-lasting dose dependent antinociceptive effect was observed after the i.t. administration of UFP-112 (1–100 pmol) in the mouse tail withdrawal assay. In contrast, the same dose of UFP-112 produced a pronociceptive effect and a long-lasting reduction in the locomotor activity when it was administered intracerebroventricularly. Subsequent to intravenous (i.v.) administration of UFP-112 in rats, diuresis as well as reduction in heart rate, blood pressure, and urinary sodium excretion were significantly observed. Consistent with the mouse tail withdrawal assay finding, a long-lasting dose dependent antinociceptive effect was also observed after the i.t. administration of UFP-112 (1–10 nmol) in monkeys without inducing itching by using acute and chronic primate pain modalities (acute noxious stimulus and capsaicin-induced thermal hyperalgesia, respectively) [68]. Notably, the spinal administration of a subthreshold dose of UFP-112 (1 nmol) synergized a morphine analgesic effect without increasing pruritus.

4.1.4. [Phe1Ψ(CH2-NH)Gly2(pF)Phe4Aib7Arg14Lys15]N/OFQ-NH2 (UFP-113)

The combination of [Phe1Ψ(CH2-NH)Gly2](N/OFQ-NH2 that was synthesized to further avoid the protease degradation [63] and the mentioned above [(pF)Phe4Aib7Arg14Lys15]N/OFQ-NH2, UFP-112, led to the generation of [Phe1Ψ(CH2-NH)Gly2(pF)Phe4Aib7Arg14Lys15]N/OFQ-NH2, also referred to as UFP-113 [77]. In vitro pharmacological characterization studies that include the functional [35S]-GTPγS binding in CHO cells that express the human NOP receptor and electrically stimulated mouse and rat vas deferens and guinea pig ileum tissues, reveals that UFP-113 acts as a selective partial agonist for NOP receptor [77]. The spinal catheterization of UFP-113 induced an analgesic response in rats at doses that range between (0.001 and 1 nmol); however, in the knockout of rats for the NOP receptor gene the analgesic effect no longer persisted, implying that the antinociceptive effect of UFP-113 is mediated through the NOP receptor stimulation [69].

4.1.5. PWT2-N/OFQ

By employing a novel chemical strategy using peptide wilding approach (PWT), three tetrabranched derivatives of N/OFQ that include PWT1-N/OFQ, PWT2-N/OFQ, and PWT3-N/OFQ were generated [78]. Both in vitro ([35S]-GTPγS binding, calcium mobilization, and electrically stimulated mouse vas deferens assays) and in vivo studies using NOP receptor gene knocked out [NOP receptor (−/−)], revealing that these PWT derivatives act as full NOP receptor agonists that have high potency and a long duration of action of, particularly in PWT2-N/OFQ (40-fold more potent than N/OFQ) [70]. Additionally, analgesic effects were reported after the spinal administration of PWT2-N/OFQ using the nociceptive pain model (tail withdrawal assay) and the neuropathic pain model (chronic constriction injury) in mice and monkeys [71]. PWT2-N/OFQ exhibited higher potency (40-fold more potent) and longer duration (10-fold longer duration of action) in comparison to N/OFQ.
Despite having high potency and selectivity of the previously mentioned NOP receptor peptides in targeting NOP receptor, their pharmacokinetic properties, specifically their poor penetration across the blood-brain barrier have limited their therapeutic indications. However, these peptides have substantially contributed to the detailed understanding of the various responses of the peripheral (respiratory, gastrointestinal, genitourinary, immune, and cardiovascular systems) and central (pain transmission, anxiety, food intake, locomotion, and drug addiction) systems that are related to the N/OFQ–NOP receptor system.

4.2. Non-Peptide NOP Receptor Ligands Targeting Pain

To overcome the poor metabolic stability of peptide ligands related to N/OFQ and require to be administered either intrathecally or intracerebroventricularly, several studies were conducted to identify new selective non-peptide ligands that are suitable for intraperitoneal or oral administration. High-throughput screening and medicinal chemistry research have led to the discovery of multiple classes of chemical compounds including piperidines, spiropiperidines, nortropanes, 4-amino-quinolines, and quinazolines that act as NOP receptor ligands with enhanced metabolic stability. The non-peptides that have antinociceptive activity are summarized in Table 2 and described below.

4.2.1. Ro 65-6570

The high-throughput screening of 8-acenaphthene-l-yl-l-phenyl-l,3,8-triaza-spiro[4.5]decan-4-one was performed to develop Ro 65-6570, 8-(1,2-dihydroacenaphthylen-1-yl)-1-phenyl-1,3,8-triazaspiro[4,5]decan-4-one, by a group of scientists at Roche laboratories [86]. In vitro studies that include radioligand binding and cAMP inhibition assays in (CHO) cells expressing the recombinant human NOP receptor indicated that Ro 65-6570 acts as a NOP receptor full agonist with poor selectivity in comparison to other opioid receptors [87]. In mice, i.v. administration of Ro 65-6570 resulted in dose-dependent antinociceptive effects without modifying motor coordination using formalin paw and orofacial formalin (OFF) tests [79,80]. Further in vitro functional selectivity studies such as the BRET-based assay revealed that Ro 65-6570 is a G protein-biased agonist which exhibited antinociceptive effects in β-arrestin 2 knockout mice as compared to the wild-type [88,89].

4.2.2. Ro 64-6198

In an effort to develop a new NOP receptor agonist with high selectivity (greater than 100-fold over canonical opioid receptors) and potency, [(1S,3aS)-8-(2,3,3a,4,5, 6- hexahydro-1H-phenalen-1-yl)-1-phenyl-1,3,8-triaza- spiro[4.5] decan-4-one], also known as Ro 64-6198, was identified by a group of scientists at Hoffman La Roche in Switzerland [81,90,91]. Using Ro 64-6198 as a valuable pharmacological tool highlighted therapeutic applications for NOP receptor agonist such as anxiety, neuropathic pain, addiction, cough, and anorexia, in addition to the undesirable effects it has on learning, memory, motor activity, and body temperature (hypothermia) [92]. Similar to morphine, analgesic effects in the hot plate and shock threshold assays were observed after the systemic administration of Ro 64-6198 (3 mg/kg, intraperitoneal (i.p)) in wild-type mice but not in NOP receptor knockout mice [82,83]. Conversely, increased pain sensitivity was observed as an opposite effect in the tail flick assay, implying the complex role of NOP receptor in pain processing. Furthermore, coadministration of low doses (1 mg/kg) of Ro 64-6198 and morphine resulted in an additive analgesic effect [83]. Consistent with these findings, analgesic effects without causing depression, itching, and reinforcing responses were observed after the subcutaneous (s.c.) administration of Ro 64-6198 (0.001–0.06 mg/kg) in both acute (acute noxious stimulus) and chronic (capsaicin-induced neuropathic pain) pain modalities in monkeys [93]. Pretreatment with J-113397 (0.1 mg/kg), a selective nonpeptidic NOP receptor antagonist, blocked Ro 64-6198-induced antinociception, emphasizing that the antinociceptive actions of Ro 64-6198 is mediated via NOP receptor. Despite the robust analgesic effects of systemically administered Ro 64-6198 in non-human primates, several in vivo studies using tail flick and immersion, tactile or cold water stimulation and foot shock assays revealed that Ro 64-6198 does not modulate pain processing in rodents, except mouse hot plate assay [81,83,93,94,95].

4.2.3. SCH221510

SCH221510 is a potent and selective non-peptide NOP receptor agonist that was reported to induce analgesia in neuropathic pain when administered orally and intrathecally in mice and rat models, respectively [96,97,98]. It is also reported to attenuate the respiratory depression and itch response that were observed after the systemic administration of buprenorphine to a non-human primate, as well as reinforcing MOP receptor agonists induced responses in rats [97,99]. Conversely, a s.c. administration of SCH221510 (3 and 10 mg/kg) in hot-plate test did not produce analgesia, while SCH221510 administration (3 mg/kg) reduced morphine-induced analgesia. The co-administration of SCH221510 (3 mg/kg) and morphine (10 mg/kg) accelerated the tolerance development to the antinociceptive effect of morphine in female mice [100].

4.3. Bifunctional and Mixed NOP Receptor Compounds

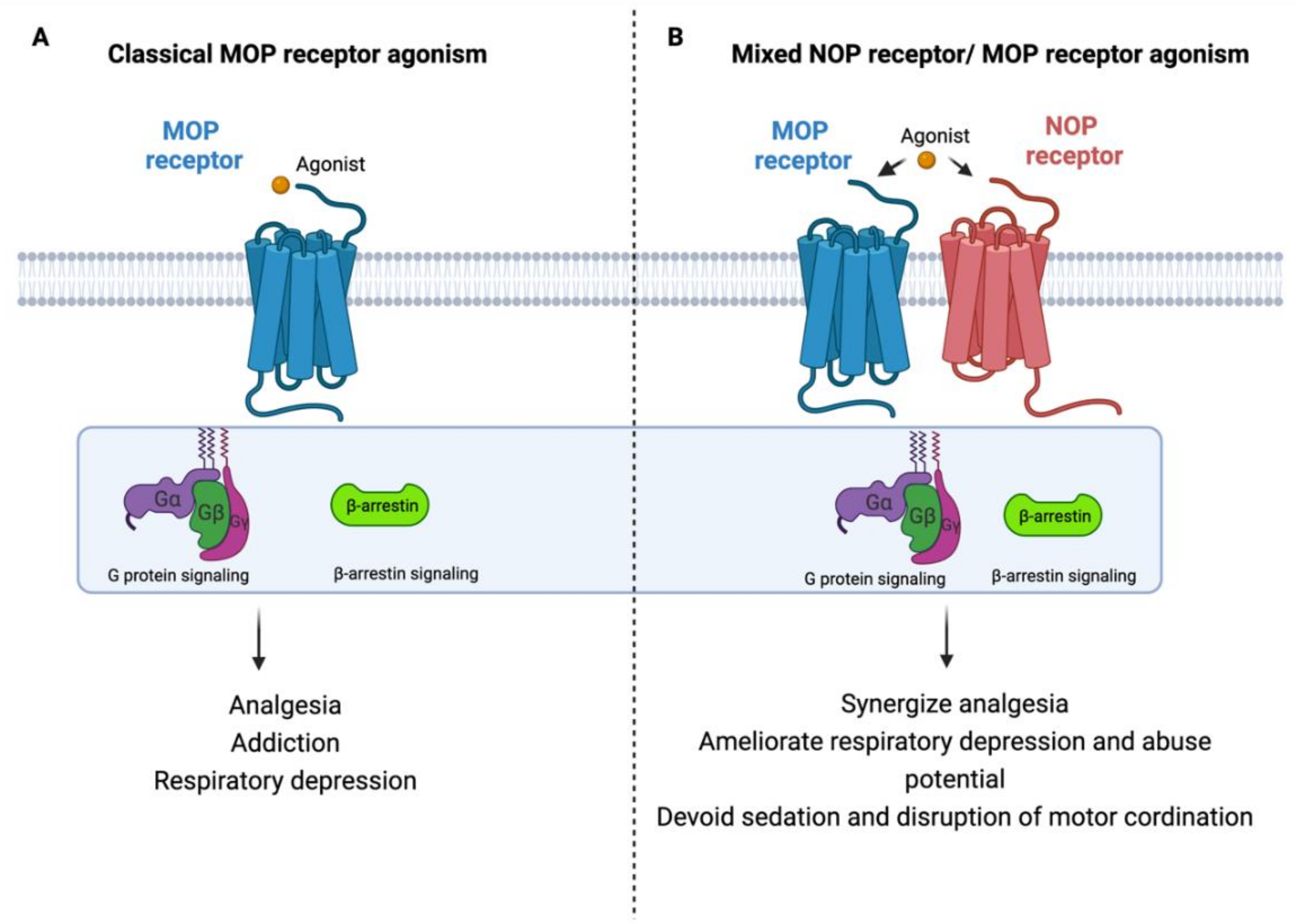

Considering the potential ability of intracerebroventricularly administered N/OFQ to attenuate morphine tolerance and suppress drug reinforcing response, the development of new synthetic agonists may constitute an innovative pharmacological approach for analgesics that target both MOP receptor and NOP receptor to enhance their analgesic effect and minimize their side effects as depicted in Figure 2 [99,101,102,103,104,105]. Additionally, multiple pathophysiological pathways are involved in the pain process, so developing analgesic agents with multiple mechanisms of actions could be an innovative strategy for developing new effective and safe analgesics [106]. Accordingly, several compounds including AT-121 (a partial agonist of NOP receptor and MOP receptor), buprenorphine (semisynthetic multifunctional opioid), and its analogue BU08028 were synthesized (reviewed in [107,108,109]).

4.3.1. SR 16435

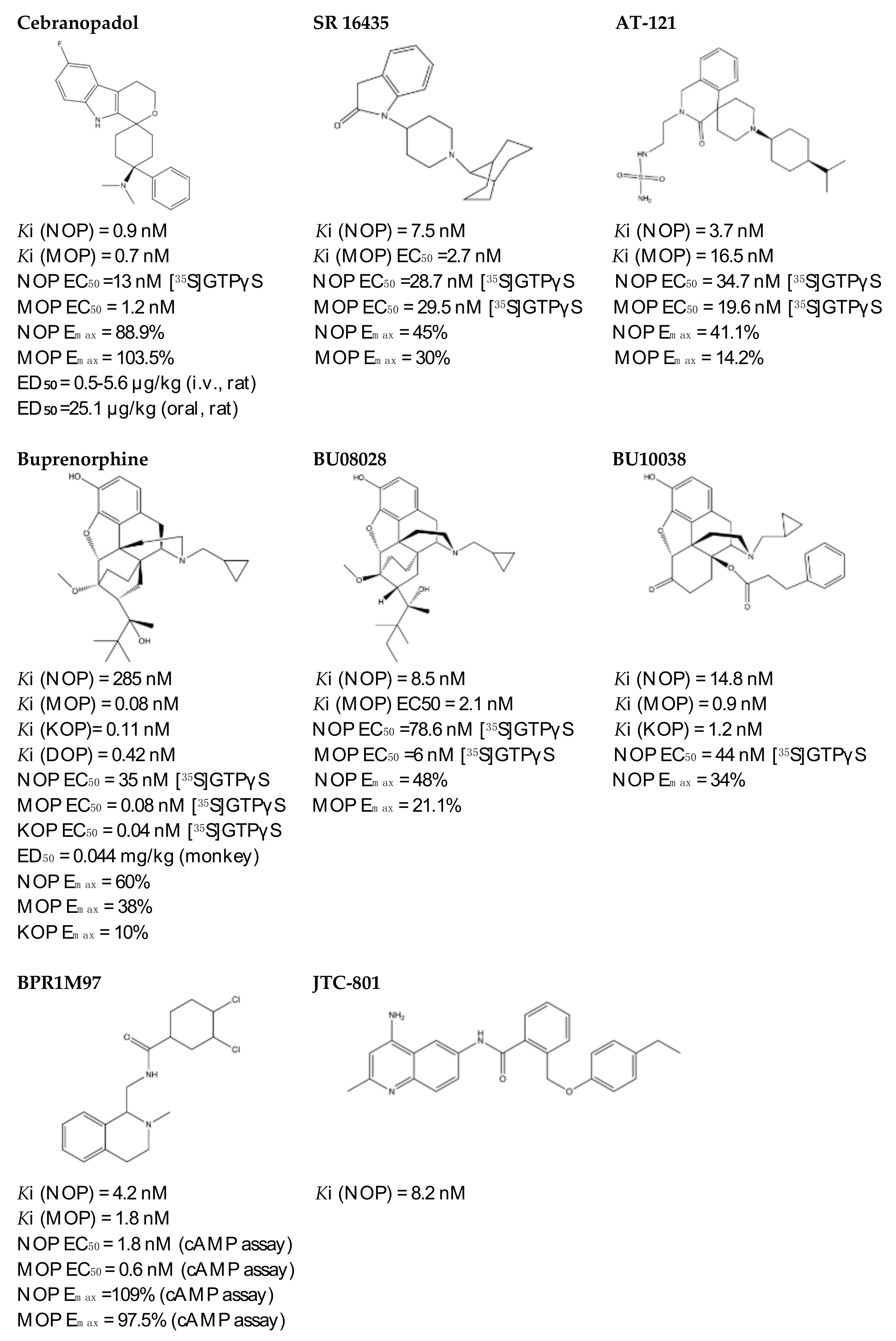

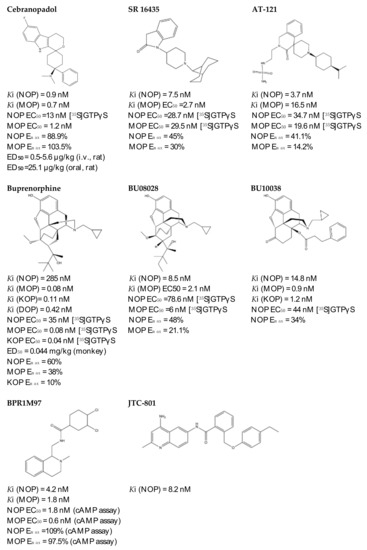

SR 16435 (Figure 3), also referred to as [1-(1-(bicyclo[3.3.1]nonan-9-yl)piperidin-4-yl)indolin-2-one] behaved as a bi-functional NOP receptor /MOP receptor partial agonist with high binding affinity was synthesized by Toll group [110]. In mice, SR 16435 administration produced an analgesic effect (s.c. and i.t.) which was effective and potent in attenuating both neuropathic and inflammatory pain (i.t) with diminished tolerance development to the antinociceptive effect of SR 16435 [96,110]. Nonetheless, the conditioned place preference (CPP) that was primarily mediated by MOP receptor activation was induced after the administration of SR 16435. This finding emphasizes that full agonistic activity at NOP receptor could be required to reduce the rewarding properties associated with MOP receptor [110].

4.3.2. AT-121

AT-121 (Figure 3) is a non- morphinan compound which acts as a bifunctional NOP receptor /MOP receptor partial agonist with high binding affinity [114]. It was synthesized to optimize the pharmacological profile of MOP receptor agonists by synergizing their therapeutic effects (analgesia and treatment of substance abuse) and minimizing their side effects (respiratory depression, tolerance dependent, and abuse liability) via targeting NOP receptor. In monkeys, s.c. administration of AT-121 produced morphine-like analgesic and antiallodynic effects using the warm water tail-withdrawal assay and capsaicin-induced allodynia, respectively, without trigging itch, physical dependence, respiratory depression, and hyperalgesia mediated by opioid. These effects were confirmed to be mediated by MOP receptor and NOP receptor activation by using selective dose of MOP receptor and NOP receptor antagonists, J-113397 (0.1 mg/kg) and naltrexone (0.03 mg/kg), respectively. Additionally, AT-121 could be therapeutically implicated for opioid addiction as it lacks the abuse potential (reinforcing effects) and diminished oxycodone reinforcing response.

4.3.3. Buprenorphine and Its Analog BU08028

Buprenorphine (Figure 3) is a natural derived alkaloid of the opium poppy with a mixed pharmacological activity (MOP receptor /NOP receptor partial agonist and DOP receptor /KOP receptor low partial agonist) clinically approved to treat pain and substance abuse [99,115]. In rodent, full analgesic effects were produced after the administration of buprenorphine in both chronic and acute pain models [120]. After a systemic administration of 0.01–0.1 mg/kg to a non-human primate, an antinociceptive effect was present in a dose-dependent manner. A resultant respiratory depression and itch were observed and subsequently confirmed to be induced by MOP receptor activation. These side effects associated with buprenorphine were found to be attenuated by the co-administration of an NOP receptor selective agonist such as Ro 64-6198 and SCH 221510 [99]. As such, the combination emphasized the therapeutic potential of mixed MOP receptor /NOP receptor agonists as innovative analgesics. A buprenorphine analog that is known as BU08028 (Figure 3) demonstrated a similar binding profile to buprenorphine with improved binding affinity and efficacy to NOP receptor. In mice, an intrathecal administration of BU08028 produced an analgesic effect, which was more potent than morphine in attenuating both neuropathic and inflammatory pain [96]. Consistent with these results, a systemic administration of BU08028 to a non-human primate produced a long-lasting analgesic effect (>24 h) with a reduced reinforcing effect as compared to cocaine, remifentanil, or buprenorphine and without causing respiratory depression and CVS adverse effects [121].

4.3.4. BPR1M97

By applying a high-throughput screening, BPR1M97 (Figure 3) was identified as a dual agonist that produced a significant analgesic effect in a tail-flick assay in mice [122]. Both in vitro assays (radioligand binding, c-AMP production, membrane potential, β-Arrestin-2 recruitment, and internalization assays) and in vivo behavior assays (tail flick and clip, respiratory and cardiovascular functional, acetone drop, von Frey hair, charcoal meal, glass bead, locomotor activity, conditioned place preference (CPP) and naloxone precipitation assays) proved that BPR1M97 behaved as a dual agonist for MOP receptor (full agonist) and NOP receptor (G-protein biased agonist) [118]. Notably, rapid analgesic actions (more potent than morphine in cancer-induced sensory allodynia) were observed after the BPR1M97 s.c. administration with less undesirable side effect as compared to morphine.

4.3.5. BU10038

A naltrexone-derived bifunctional MOP receptor /NOP receptor agonist, also referred to as BU10038 (Figure 3), behaved as a partial MOP receptor and NOP receptor agonist was synthesized by Husbands and Ko groups [117]. In non-human primate, both systemic (0.001–0.01 mg/kg) and intrathecal (3 mg) administrations of BU10038 resulted in a long-lasting antinociceptive with neither reinforcing effects nor other effects like itching, respiratory depression, and tolerance when administered repeatedly.

4.3.6. JTC-801

JTC-801 (Figure 3), also referred to as [N-(4-amino-2-methylquinolin-6-yl)-2-(4-ethylphenoxymethyl) benzamide hydrochloride], behaved as a NOP receptor antagonist and was developed by a group of scientists at the Central Pharmaceutical Research Institute [119]. JTC-801 produced antinociceptive effects in a hot plate test and a formalin test using mice and rats, respectively. Although the injectable and oral formulations of JTC-801 entered Phase II of its clinical trials in both Japan and the UK to treat the neuropathic and postoperative pain, it was suspended for unknown reasons [123].

4.3.7. Cebranopadol

The rational optimization strategy of spiro[cyclohexanedihydropyrano[3,4-b]indole]-amine resulted in the discovery of cebranopadol (Figure 3) that represents the first in its class to be a highly potent and efficacious antinociceptive agent with combined agonistic activity at MOP receptor, NOP receptor (subnanomolar affinity), KOP receptor, and DOP receptor (low nanomolar affinity) [111,112,124]. Behavior in vivo studies including acute and chronic pain models in rodents (tail-flick, formalin test, rheumatoid arthritis, bone cancer, spinal nerve ligation, diabetic neuropathy) further indicated the high potency and extremely long-lasting analgesic effect of cebranopadol in comparison with selective MOP receptor agonist, particularly in the chronic pain model [111,125]. Extensive preclinical safety and tolerability studies have been conducted on rodent models to reveal the possible side effects on the CNS, the respiratory system, and the gastrointestinal system (reviewed in [126]). Limited range of unwanted effects were also observed, as cebranopadol did not decrease respiratory rate, develop a tolerance, or impair the motor coordination, unlike the effects of morphine. The G-protein-biased agonistic activity at NOP receptor could be the reason behind these favorable side effect profiles of cebranopadol [125]. Notably, cebranopadol is equipotent and equi-efficacious toward the G protein activation at both MOP receptor and NOP receptor without inducing phosphorylation or NOP receptor internalization and without recruiting B-arrestin2 at NOP receptor only in BRET assay [125,127]. The noncompartmental analysis in phase I and phase II clinical trials was used to assess the pharmacokinetics profiles of cebranopadol. The maximum plasma concentration [Cmax] (4–6 h) with a long half-value duration (14–15 h) was reached after oral administration of immediate release formulation of cebranopadol. After the administration of multiple once-daily oral doses of cebranopadol in patients, the steady state was reached in nearly 2 weeks. Following single- and multiple-doses administration of cebranopadol in healthy subjects and patients, a two-compartment disposition model with first-order elimination process and a two lagged transition compartments was observed [128]. Several phase II clinical trials were conducted and listed as complete in patients suffering from acute (bunionectomy trial) and chronic (diabetic neuropathy, osteoarthritis, chronic low back pain, and diabetic polyneuropathy) pain to evaluate the efficacy, safety, and tolerability of a single oral dose of cebranopadol [129,130,131,132,133,134,135]. While most phase III clinical trials have recently proven the effectiveness, safety, and tolerability of cebranopadol when administered orally (200–1000 µg per day) to cancer patients who suffer from moderate to severe chronic pain [136,137].

5. Future Directions and Conclusions

In this review, the rational design of NOP receptor ligands with various pharmacological profiles as a promising alternative for conventional opioid analgesic is discussed. The crystal structure, distribution, and signaling pathway of NOP receptor are also highlighted. It is important to note that other therapeutic indications for NOP receptor in the treatment of various neurological disorders and alcohol abuse have not been explored in this review. Notably, NOP receptor-related peptides have substantially attributed in expanding our knowledge regarding the various peripheral and central responses related to N/OFQ–NOP receptor system, but their poor bioavailability has limited their therapeutic implications. Regardless of the controversial results between the spinal and supraspinal administration of endogenous neuropeptide of NOP receptor that remains poorly understood, the NOP receptor ligands exhibit favorable pharmacological activity and side effects, particularly the mixed which target multiple opioid receptors. So far, cebranopadol represents the most promising NOP receptor ligand to treat acute and chronic pain without reducing respiratory rate, developing a tolerance, or impairing the motor coordination as compared to the clinically approved opioid analgesic. However, further work needs to be done to resolve the high-resolution structure of NOP receptor in its active state to elucidate the distinct residues responsible for NOP receptor agonist binding [138]. Conceivably, a deep understanding of the NOP receptor signaling pathway and structure along with computer-aided molecular docking and behavior studies will facilitate the discovery of polypharmacological ligands that target multiple receptors including NOP receptor as new effective and safe analgesics.

Author Contributions

A.E.D. and T.C. wrote the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by R35GM143061 to T.C.

Conflicts of Interest

The authors have no conflict of interests to declare.

References

  1. Gaskin, D.J.; Richard, P. The economic costs of pain in the United States. J. Pain 2012, 13, 715–724. [Google Scholar] [CrossRef]
  2. Brownstein, M.J. A brief history of opiates, opioid peptides, and opioid receptors. Proc. Natl. Acad. Sci. USA 1993, 90, 5391–5393. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Volkow, N.D.; Collins, F.S. The Role of Science in Addressing the Opioid Crisis. N. Engl. J. Med. 2017, 377, 391–394. [Google Scholar] [CrossRef]
  4. Ballantyne, J.C.; Kalso, E.; Stannard, C. WHO analgesic ladder: A good concept gone astray. BMJ 2016, 352, i20. [Google Scholar] [CrossRef] [PubMed]
  5. Bruchas, M.R.; Roth, B.L. New Technologies for Elucidating Opioid Receptor Function. Trends Pharmacol. Sci. 2016, 37, 279–289. [Google Scholar] [CrossRef] [Green Version]
  6. Khademi, H.; Kamangar, F.; Brennan, P.; Malekzadeh, R. Opioid Therapy and its Side Effects: A Review. Arch. Iran. Med. 2016, 19, 870–876. [Google Scholar] [PubMed]
  7. Iwanicki, J.L.; Severtson, S.G.; Margolin, Z.; Dasgupta, N.; Green, J.L.; Dart, R.C. Consistency between Opioid-Related Mortality Trends Derived From Poison Center and National Vital Statistics System, United States, 2006–2016. Am. J. Public Health 2018, 108, 1639–1645. [Google Scholar] [CrossRef] [PubMed]
  8. Kirson, N.Y.; Scarpati, L.M.; Enloe, C.J.; Dincer, A.P.; Birnbaum, H.G.; Mayne, T.J. The Economic Burden of Opioid Abuse: Updated Findings. J. Manag. Care Spec. Pharm. 2017, 23, 427–445. [Google Scholar] [CrossRef]
  9. Available online: https://www.cdc.gov/nchs/nvss/vsrr/drug-overdose-data.htm (accessed on 12 January 2022).
  10. Wacker, D.; Stevens, R.C.; Roth, B.L. How Ligands Illuminate GPCR Molecular Pharmacology. Cell 2017, 170, 414–427. [Google Scholar] [CrossRef] [Green Version]
  11. Anton, B.; Fein, J.; To, T.; Li, X.; Silberstein, L.; Evans, C.J. Immunohistochemical localization of ORL-1 in the central nervous system of the rat. J. Comp. Neurol. 1996, 368, 229–251. [Google Scholar] [CrossRef]
  12. Mollereau, C.; Mouledous, L. Tissue distribution of the opioid receptor-like (ORL1) receptor. Peptides 2000, 21, 907–917. [Google Scholar] [CrossRef]
  13. Neal, C.R., Jr.; Mansour, A.; Reinscheid, R.; Nothacker, H.P.; Civelli, O.; Akil, H.; Watson, S.J., Jr. Opioid receptor-like (ORL1) receptor distribution in the rat central nervous system: Comparison of ORL1 receptor mRNA expression with (125)I-[(14)Tyr]-orphanin FQ binding. J. Comp. Neurol. 1999, 412, 563–605. [Google Scholar] [CrossRef]
  14. Meunier, J.C.; Mollereau, C.; Toll, L.; Suaudeau, C.; Moisand, C.; Alvinerie, P.; Butour, J.L.; Guillemot, J.C.; Ferrara, P.; Monsarrat, B.; et al. Isolation and structure of the endogenous agonist of opioid receptor-like ORL1 receptor. Nature 1995, 377, 532–535. [Google Scholar] [CrossRef] [PubMed]
  15. Reinscheid, R.K.; Nothacker, H.P.; Bourson, A.; Ardati, A.; Henningsen, R.A.; Bunzow, J.R.; Grandy, D.K.; Langen, H.; Monsma, F.J., Jr.; Civelli, O. Orphanin FQ: A neuropeptide that activates an opioidlike G protein-coupled receptor. Science 1995, 270, 792–794. [Google Scholar] [CrossRef]
  16. Xu, X.J.; Hao, J.X.; Wiesenfeld-Hallin, Z. Nociceptin or antinociceptin: Potent spinal antinociceptive effect of orphanin FQ/nociceptin in the rat. Neuroreport 1996, 7, 2092–2094. [Google Scholar]
  17. Ko, M.C.; Naughton, N.N. Antinociceptive effects of nociceptin/orphanin FQ administered intrathecally in monkeys. J. Pain 2009, 10, 509–516. [Google Scholar] [CrossRef] [Green Version]
  18. Ko, M.C.; Wei, H.; Woods, J.H.; Kennedy, R.T. Effects of intrathecally administered nociceptin/orphanin FQ in monkeys: Behavioral and mass spectrometric studies. J. Pharmacol. Exp. Ther. 2006, 318, 1257–1264. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Yamamoto, T.; Nozaki-Taguchi, N.; Kimura, S. Analgesic effect of intrathecally administered nociceptin, an opioid receptor-like1 receptor agonist, in the rat formalin test. Neuroscience 1997, 81, 249–254. [Google Scholar] [CrossRef]
  20. Bunzow, J.R.; Saez, C.; Mortrud, M.; Bouvier, C.; Williams, J.T.; Low, M.; Grandy, D.K. Molecular cloning and tissue distribution of a putative member of the rat opioid receptor gene family that is not a mu, delta or kappa opioid receptor type. FEBS Lett. 1994, 347, 284–288. [Google Scholar] [CrossRef] [Green Version]
  21. Fukuda, K.; Kato, S.; Mori, K.; Nishi, M.; Takeshima, H.; Iwabe, N.; Miyata, T.; Houtani, T.; Sugimoto, T. cDNA cloning and regional distribution of a novel member of the opioid receptor family. FEBS Lett. 1994, 343, 42–46. [Google Scholar] [CrossRef] [Green Version]
  22. Mollereau, C.; Parmentier, M.; Mailleux, P.; Butour, J.L.; Moisand, C.; Chalon, P.; Caput, D.; Vassart, G.; Meunier, J.C. ORL1, a novel member of the opioid receptor family. Cloning, functional expression and localization. FEBS Lett. 1994, 341, 33–38. [Google Scholar] [CrossRef]
  23. Nishi, M.; Takeshima, H.; Mori, M.; Nakagawara, K.; Takeuchi, T. Structure and chromosomal mapping of genes for the mouse kappa-opioid receptor and an opioid receptor homologue (MOR-C). Biochem. Biophys. Res. Commun. 1994, 205, 1353–1357. [Google Scholar] [CrossRef] [PubMed]
  24. Osinski, M.A.; Pampusch, M.S.; Murtaugh, M.P.; Brown, D.R. Cloning, expression and functional role of a nociceptin/orphanin FQ receptor in the porcine gastrointestinal tract. Eur. J. Pharmacol. 1999, 365, 281–289. [Google Scholar] [CrossRef]
  25. Wick, M.J.; Minnerath, S.R.; Lin, X.; Elde, R.; Law, P.Y.; Loh, H.H. Isolation of a novel cDNA encoding a putative membrane receptor with high homology to the cloned mu, delta, and kappa opioid receptors. Brain Res. Mol. 1994, 27, 37–44. [Google Scholar] [CrossRef]
  26. Mollereau, C.; Moisand, C.; Butour, J.L.; Parmentier, M.; Meunier, J.C. Replacement of Gln280 by His in TM6 of the human ORL1 receptor increases affinity but reduces intrinsic activity of opioids. FEBS Lett. 1996, 395, 17–21. [Google Scholar] [CrossRef]
  27. Mollereau, C.; Simons, M.J.; Soularue, P.; Liners, F.; Vassart, G.; Meunier, J.C.; Parmentier, M. Structure, tissue distribution, and chromosomal localization of the prepronociceptin gene. Proc. Natl. Acad. Sci. USA 1996, 93, 8666–8670. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Nothacker, H.P.; Reinscheid, R.K.; Mansour, A.; Henningsen, R.A.; Ardati, A.; Monsma, F.J., Jr.; Watson, S.J.; Civelli, O. Primary structure and tissue distribution of the orphanin FQ precursor. Proc. Natl. Acad. Sci. USA 1996, 93, 8677–8682. [Google Scholar] [CrossRef] [Green Version]
  29. Toll, L.; Bruchas, M.R.; Calo, G.; Cox, B.M.; Zaveri, N.T. Nociceptin/Orphanin FQ Receptor Structure, Signaling, Ligands, Functions, and Interactions with Opioid Systems. Pharmacol. Rev. 2016, 68, 419–457. [Google Scholar] [CrossRef]
  30. Cox, B.M.; Christie, M.J.; Devi, L.; Toll, L.; Traynor, J.R. Challenges for opioid receptor nomenclature: IUPHAR Review 9. Br. J. Pharmacol. 2015, 172, 317–323. [Google Scholar] [CrossRef] [Green Version]
  31. Miller, R.L.; Thompson, A.A.; Trapella, C.; Guerrini, R.; Malfacini, D.; Patel, N.; Han, G.W.; Cherezov, V.; Caló, G.; Katritch, V.; et al. The Importance of Ligand-Receptor Conformational Pairs in Stabilization: Spotlight on the N/OFQ G Protein-Coupled Receptor. Structure 2015, 23, 2291–2299. [Google Scholar] [CrossRef] [Green Version]
  32. Thompson, A.A.; Liu, W.; Chun, E.; Katritch, V.; Wu, H.; Vardy, E.; Huang, X.P.; Trapella, C.; Guerrini, R.; Calo, G.; et al. Structure of the nociceptin/orphanin FQ receptor in complex with a peptide mimetic. Nature 2012, 485, 395–399. [Google Scholar] [CrossRef]
  33. Akuzawa, N.; Takeda, S.; Ishiguro, M. Structural modelling and mutation analysis of a nociceptin receptor and its ligand complexes. J. Biochem. 2007, 141, 907–916. [Google Scholar] [CrossRef]
  34. Daga, P.R.; Zaveri, N.T. Homology modeling and molecular dynamics simulations of the active state of the nociceptin receptor reveal new insights into agonist binding and activation. Proteins 2012, 80, 1948–1961. [Google Scholar] [CrossRef] [Green Version]
  35. Topham, C.M.; Moulédous, L.; Poda, G.; Maigret, B.; Meunier, J.C. Molecular modelling of the ORL1 receptor and its complex with nociceptin. Protein Eng. 1998, 11, 1163–1179. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Ozawa, A.; Brunori, G.; Mercatelli, D.; Wu, J.; Cippitelli, A.; Zou, B.; Xie, X.S.; Williams, M.; Zaveri, N.T.; Low, S.; et al. Knock-In Mice with NOP-eGFP Receptors Identify Receptor Cellular and Regional Localization. J. Neurosci. 2015, 35, 11682–11693. [Google Scholar] [CrossRef] [Green Version]
  37. Peluso, J.; LaForge, K.S.; Matthes, H.W.; Kreek, M.J.; Kieffer, B.L.; Gavériaux-Ruff, C. Distribution of nociceptin/orphanin FQ receptor transcript in human central nervous system and immune cells. J. Neuroimmunol. 1998, 81, 184–192. [Google Scholar] [CrossRef]
  38. Neal, C.R., Jr.; Akil, H.; Watson, S.J., Jr. Expression of orphanin FQ and the opioid receptor-like (ORL1) receptor in the developing human and rat brain. J. Chem. Neuroanat. 2001, 22, 219–249. [Google Scholar] [CrossRef]
  39. Lambert, D.G. The nociceptin/orphanin FQ receptor: A target with broad therapeutic potential. Nat. Rev. Drug Discov. 2008, 7, 694–710. [Google Scholar] [CrossRef]
  40. Childers, S.R.; Creese, I.; Snowman, A.M.; Synder, S.H. Opiate receptor binding affected differentially by opiates and opioid peptides. Eur. J. Pharmacol. 1979, 55, 11–18. [Google Scholar] [CrossRef]
  41. Childers, S.R.; Snyder, S.H. Guanine nucleotides differentiate agonist and antagonist interactions with opiate receptors. Life Sci. 1978, 23, 759–761. [Google Scholar] [CrossRef]
  42. Connor, M.; Christie, M.J. Modulation of Ca2+ channel currents of acutely dissociated rat periaqueductal grey neurons. J. Physiol. 1998, 509, 47–58. [Google Scholar] [CrossRef] [PubMed]
  43. Darlison, M.G.; Greten, F.R.; Harvey, R.J.; Kreienkamp, H.J.; Stühmer, T.; Zwiers, H.; Lederis, K.; Richter, D. Opioid receptors from a lower vertebrate (Catostomus commersoni): Sequence, pharmacology, coupling to a G-protein-gated inward-rectifying potassium channel (GIRK1), and evolution. Proc. Natl. Acad. Sci. USA 1997, 94, 8214–8219. [Google Scholar] [CrossRef] [Green Version]
  44. Zhang, N.R.; Planer, W.; Siuda, E.R.; Zhao, H.C.; Stickler, L.; Chang, S.D.; Baird, M.A.; Cao, Y.Q.; Bruchas, M.R. Serine 363 is required for nociceptin/orphanin FQ opioid receptor (NOPR) desensitization, internalization, and arrestin signaling. J. Biol. Chem. 2012, 287, 42019–42030. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Mittal, N.; Roberts, K.; Pal, K.; Bentolila, L.A.; Fultz, E.; Minasyan, A.; Cahill, C.; Pradhan, A.; Conner, D.; DeFea, K.; et al. Select G-protein-coupled receptors modulate agonist-induced signaling via a ROCK, LIMK, and beta-arrestin 1 pathway. Cell Rep. 2013, 5, 1010–1021. [Google Scholar] [CrossRef] [Green Version]
  46. Stein, C. Opioid Receptors. Annu. Rev. Med. 2016, 67, 433–451. [Google Scholar] [CrossRef]
  47. Al-Hasani, R.; Bruchas, M.R. Molecular mechanisms of opioid receptor-dependent signaling and behavior. Anesthesiology 2011, 115, 1363–1381. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Parker, K.E.; Bruchas, M.R. NOP Receptor Signaling Cascades. Handb. Exp. Pharmacol. 2019, 254, 131–139. [Google Scholar]
  49. Armstead, W.M. Differential activation of ERK, p38, and JNK MAPK by nociceptin/orphanin FQ in the potentiation of prostaglandin cerebrovasoconstriction after brain injury. Eur. J. Pharmacol. 2006, 529, 129–135. [Google Scholar] [CrossRef]
  50. New, D.C.; Wong, Y.H. The ORL1 receptor: Molecular pharmacology and signalling mechanisms. Neurosignals 2002, 11, 197–212. [Google Scholar] [CrossRef] [PubMed]
  51. Marti, M.; Stocchi, S.; Paganini, F.; Mela, F.; De Risi, C.; Calo, G.; Guerrini, R.; Barnes, T.A.; Lambert, D.G.; Beani, L.; et al. Pharmacological profiles of presynaptic nociceptin/orphanin FQ receptors modulating 5-hydroxytryptamine and noradrenaline release in the rat neocortex. Br. J. Pharmacol. 2003, 138, 91–98. [Google Scholar] [CrossRef]
  52. Nicol, B.; Lambert, D.G.; Rowbotham, D.J.; Smart, D.; McKnight, A.T. Nociceptin induced inhibition of K+ evoked glutamate release from rat cerebrocortical slices. Br. J. Pharmacol. 1996, 119, 1081–1083. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Ferguson, S.S. Evolving concepts in G protein-coupled receptor endocytosis: The role in receptor desensitization and signaling. Pharmacol. Rev. 2001, 53, 1–24. [Google Scholar]
  54. Krupnick, J.G.; Benovic, J.L. The role of receptor kinases and arrestins in G protein-coupled receptor regulation. Annu Rev. Pharmacol. Toxicol. 1998, 38, 289–319. [Google Scholar] [CrossRef]
  55. Waldhoer, M.; Bartlett, S.E.; Whistler, J.L. Opioid receptors. Annu. Rev. Biochem. 2004, 73, 953–990. [Google Scholar] [CrossRef] [Green Version]
  56. Mogil, J.S.; Grisel, J.E.; Reinscheid, R.K.; Civelli, O.; Belknap, J.K.; Grandy, D.K. Orphanin FQ is a functional anti-opioid peptide. Neuroscience 1996, 75, 333–337. [Google Scholar] [CrossRef]
  57. Mogil, J.S.; Grisel, J.E.; Zhangs, G.; Belknap, J.K.; Grandy, D.K. Functional antagonism of mu-, delta- and kappa-opioid antinociception by orphanin FQ. Neurosci. Lett. 1996, 214, 131–134. [Google Scholar] [CrossRef]
  58. Morgan, M.M.; Grisel, J.E.; Robbins, C.S.; Grandy, D.K. Antinociception mediated by the periaqueductal gray is attenuated by orphanin FQ. Neuroreport 1997, 8, 3431–3434. [Google Scholar] [CrossRef] [PubMed]
  59. Toll, L.; Ozawa, A.; Cippitelli, A. NOP-Related Mechanisms in Pain and Analgesia. Handb. Exp. Pharmacol. 2019, 254, 165–186. [Google Scholar] [PubMed]
  60. Guerrini, R.; Calo, G.; Rizzi, A.; Bianchi, C.; Lazarus, L.H.; Salvadori, S.; Temussi, P.A.; Regoli, D. Address and message sequences for the nociceptin receptor: A structure-activity study of nociceptin-(1-13)-peptide amide. J. Med. Chem. 1997, 40, 1789–1793. [Google Scholar] [CrossRef] [PubMed]
  61. Calo, G.; Guerrini, R.; Bigoni, R.; Rizzi, A.; Marzola, G.; Okawa, H.; Bianchi, C.; Lambert, D.G.; Salvadori, S.; Regoli, D. Characterization of [Nphe(1)]nociceptin(1-13)NH(2), a new selective nociceptin receptor antagonist. Br. J. Pharmacol. 2000, 129, 1183–1193. [Google Scholar]
  62. Calo, G.; Rizzi, A.; Rizzi, D.; Bigoni, R.; Guerrini, R.; Marzola, G.; Marti, M.; McDonald, J.; Morari, M.; Lambert, D.G.; et al. [Nphe1,Arg14,Lys15]nociceptin-NH2, a novel potent and selective antagonist of the nociceptin/orphanin FQ receptor. Br. J. Pharmacol. 2002, 136, 303–311. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Guerrini, R.; Calo, G.; Rizzi, A.; Bigoni, R.; Bianchi, C.; Salvadori, S.; Regoli, D. A new selective antagonist of the nociceptin receptor. Br. J. Pharmacol. 1998, 123, 163–165. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Rizzi, A.; Salis, M.B.; Ciccocioppo, R.; Marzola, G.; Bigoni, R.; Guerrini, R.; Massi, M.; Madeddu, P.; Salvadori, S.; Regoli, D.; et al. Pharmacological characterisation of [(pX)Phe4]nociceptin(1-13)NH2 analogues. 2. In vivo studies. Naunyn Schmiedebergs Arch. Pharmacol. 2002, 365, 450–456. [Google Scholar] [CrossRef]
  65. Bigoni, R.; Rizzi, D.; Rizzi, A.; Camarda, V.; Guerrini, R.; Lambert, D.G.; Hashiba, E.; Berger, H.; Salvadori, S.; Regoli, D.; et al. Pharmacological characterisation of [(pX)Phe4]nociceptin(1-13)amide analogues. 1. In vitro studies. Naunyn Schmiedebergs Arch. Pharmacol. 2002, 365, 442–449. [Google Scholar] [CrossRef] [PubMed]
  66. Nazzaro, C.; Rizzi, A.; Salvadori, S.; Guerrini, R.; Regoli, D.; Zeilhofer, H.U.; Calo, G. UFP-101 antagonizes the spinal antinociceptive effects of nociceptin/orphanin FQ: Behavioral and electrophysiological studies in mice. Peptides 2007, 28, 663–669. [Google Scholar] [CrossRef]
  67. Rizzi, A.; Spagnolo, B.; Wainford, R.D.; Fischetti, C.; Guerrini, R.; Marzola, G.; Baldisserotto, A.; Salvadori, S.; Regoli, D.; Kapusta, D.R.; et al. In vitro and in vivo studies on UFP-112, a novel potent and long lasting agonist selective for the nociceptin/orphanin FQ receptor. Peptides 2007, 28, 1240–1251. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. Hu, E.; Calò, G.; Guerrini, R.; Ko, M.C. Long-lasting antinociceptive spinal effects in primates of the novel nociceptin/orphanin FQ receptor agonist UFP-112. Pain 2010, 148, 107–113. [Google Scholar] [CrossRef] [Green Version]
  69. Micheli, L.; Di Cesare Mannelli, L.; Guerrini, R.; Trapella, C.; Zanardelli, M.; Ciccocioppo, R.; Rizzi, A.; Ghelardini, C.; Calò, G. Acute and subchronic antinociceptive effects of nociceptin/orphanin FQ receptor agonists infused by intrathecal route in rats. Eur. J. Pharmacol. 2015, 754, 73–81. [Google Scholar] [CrossRef]
  70. Rizzi, A.; Malfacini, D.; Cerlesi, M.C.; Ruzza, C.; Marzola, E.; Bird, M.F.; Rowbotham, D.J.; Salvadori, S.; Guerrini, R.; Lambert, D.G.; et al. In vitro and in vivo pharmacological characterization of nociceptin/orphanin FQ tetrabranched derivatives. Br. J. Pharmacol. 2014, 171, 4138–4153. [Google Scholar] [CrossRef] [Green Version]
  71. Rizzi, A.; Sukhtankar, D.D.; Ding, H.; Hayashida, K.; Ruzza, C.; Guerrini, R.; Calò, G.; Ko, M.C. Spinal antinociceptive effects of the novel NOP receptor agonist PWT2-nociceptin/orphanin FQ in mice and monkeys. Br. J. Pharmacol. 2015, 172, 3661–3670. [Google Scholar] [CrossRef] [Green Version]
  72. Guerrini, R.; Caló, G.; Bigoni, R.; Rizzi, A.; Varani, K.; Toth, G.; Gessi, S.; Hashiba, E.; Hashimoto, Y.; Lambert, D.G.; et al. Further studies on nociceptin-related peptides: Discovery of a new chemical template with antagonist activity on the nociceptin receptor. J. Med. Chem. 2000, 43, 2805–2813. [Google Scholar] [CrossRef] [PubMed]
  73. Okada, K.; Sujaku, T.; Chuman, Y.; Nakashima, R.; Nose, T.; Costa, T.; Yamada, Y.; Yokoyama, M.; Nagahisa, A.; Shimohigashi, Y. Highly potent nociceptin analog containing the Arg-Lys triple repeat. Biochem. Biophys. Res. Commun. 2000, 278, 493–498. [Google Scholar] [CrossRef]
  74. Dooley, C.T.; Houghten, R.A. Orphanin FQ: Receptor binding and analog structure activity relationships in rat brain. Life Sci. 1996, 59, PL23-9. [Google Scholar] [CrossRef]
  75. Reinscheid, R.K.; Ardati, A.; Monsma, F.J., Jr.; Civelli, O. Structure-activity relationship studies on the novel neuropeptide orphanin FQ. J. Biol. Chem. 1996, 271, 14163–14168. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Zhang, C.; Miller, W.; Valenzano, K.J.; Kyle, D.J. Novel, potent ORL-1 receptor agonist peptides containing alpha-Helix-promoting conformational constraints. J. Med. Chem. 2002, 45, 5280–5286. [Google Scholar] [CrossRef]
  77. Arduin, M.; Spagnolo, B.; Calò, G.; Guerrini, R.; Carrà, G.; Fischetti, C.; Trapella, C.; Marzola, E.; McDonald, J.; Lambert, D.G.; et al. Synthesis and biological activity of nociceptin/orphanin FQ analogues substituted in position 7 or 11 with Calpha, alpha-dialkylated amino acids. Bioorg. Med. Chem. 2007, 15, 4434–4443. [Google Scholar] [CrossRef] [PubMed]
  78. Guerrini, R.; Marzola, E.; Trapella, C.; Pela’, M.; Molinari, S.; Cerlesi, M.C.; Malfacini, D.; Rizzi, A.; Salvadori, S.; Calo’, G. A novel and facile synthesis of tetra branched derivatives of nociceptin/orphanin FQ. Bioorg. Med. Chem. 2014, 22, 3703–3712. [Google Scholar] [CrossRef] [PubMed]
  79. Byford, A.J.; Anderson, A.; Jones, P.S.; Palin, R.; Houghton, A.K. The hypnotic, electroencephalographic, and antinociceptive properties of nonpeptide ORL1 receptor agonists after intravenous injection in rodents. Anesth. Analg. 2007, 104, 174–179. [Google Scholar] [CrossRef]
  80. Rizzi, A.; Ruzza, C.; Bianco, S.; Trapella, C.; Calo’, G. Antinociceptive action of NOP and opioid receptor agonists in the mouse orofacial formalin test. Peptides 2017, 94, 71–77. [Google Scholar] [CrossRef] [PubMed]
  81. Jenck, F.; Wichmann, J.; Dautzenberg, F.M.; Moreau, J.L.; Ouagazzal, A.M.; Martin, J.R.; Lundstrom, K.; Cesura, A.M.; Poli, S.M.; Roever, S.; et al. A synthetic agonist at the orphanin FQ/nociceptin receptor ORL1: Anxiolytic profile in the rat. Proc. Natl. Acad. Sci. USA 2000, 97, 4938–4943. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  82. Chang, S.D.; Brieaddy, L.E.; Harvey, J.D.; Lewin, A.H.; Mascarella, S.W.; Seltzman, H.H.; Reddy, P.A.; Decker, A.M.; McElhinny, C.J., Jr.; Zhong, D.; et al. Novel Synthesis and Pharmacological Characterization of NOP Receptor Agonist 8-[(1S,3aS)-2,3,3a,4,5,6-Hexahydro-1H-phenalen-1-yl]-1-phenyl-1,3,8-triazaspiro[4.5]decan-4-one (Ro 64-6198). ACS Chem. Neurosci. 2015, 6, 1956–1964. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  83. Reiss, D.; Wichmann, J.; Tekeshima, H.; Kieffer, B.L.; Ouagazzal, A.M. Effects of nociceptin/orphanin FQ receptor (NOP) agonist, Ro64-6198, on reactivity to acute pain in mice: Comparison to morphine. Eur. J. Pharmacol. 2008, 579, 141–148. [Google Scholar] [CrossRef] [PubMed]
  84. Varty, G.B.; Lu, S.X.; Morgan, C.A.; Cohen-Williams, M.E.; Hodgson, R.A.; Smith-Torhan, A.; Zhang, H.; Fawzi, A.B.; Graziano, M.P.; Ho, G.D.; et al. The anxiolytic-like effects of the novel, orally active nociceptin opioid receptor agonist 8-[bis(2-methylphenyl)methyl]-3-phenyl-8-azabicyclo[3.2.1]octan-3-ol (SCH 221510). J. Pharmacol. Exp. Ther. 2008, 326, 672–682. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  85. Sobczak, M.; Mokrowiecka, A.; Cygankiewicz, A.I.; Zakrzewski, P.K.; Sałaga, M.; Storr, M.; Kordek, R.; Małecka-Panas, E.; Krajewska, W.M.; Fichna, J. Anti-inflammatory and antinociceptive action of an orally available nociceptin receptor agonist SCH 221510 in a mouse model of inflammatory bowel diseases. J. Pharmacol. Exp. Ther. 2014, 348, 401–409. [Google Scholar] [CrossRef] [Green Version]
  86. Röver, S.; Adam, G.; Cesura, A.M.; Galley, G.; Jenck, F.; Monsma, F.J., Jr.; Wichmann, J.; Dautzenberg, F.M. High-affinity, non-peptide agonists for the ORL1 (orphanin FQ/nociceptin) receptor. J. Med. Chem. 2000, 43, 1329–1338. [Google Scholar] [CrossRef] [PubMed]
  87. Hashiba, E.; Harrison, C.; Galo’, G.; Guerrini, R.; Rowbotham, D.J.; Smith, G.; Lambert, D.G. Characterisation and comparison of novel ligands for the nociceptin/orphanin FQ receptor. Naunyn Schmiedebergs Arch. Pharmacol. 2001, 363, 28–33. [Google Scholar] [CrossRef] [PubMed]
  88. Azevedo Neto, J.; Ruzza, C.; Sturaro, C.; Malfacini, D.; Pacifico, S.; Zaveri, N.T.; Calò, G. Functional Selectivity Does Not Predict Antinociceptive/Locomotor Impairing Potencies of NOP Receptor Agonists. Front. Neurosci. 2021, 15, 657153. [Google Scholar] [CrossRef] [PubMed]
  89. Ferrari, F.; Malfacini, D.; Journigan, B.V.; Bird, M.F.; Trapella, C.; Guerrini, R.; Lambert, D.G.; Calo’, G.; Zaveri, N.T. In vitro pharmacological characterization of a novel unbiased NOP receptor-selective nonpeptide agonist AT-403. Pharmacol. Res. Perspect. 2017, 5, e00333. [Google Scholar] [CrossRef]
  90. Wichmann, J.; Adam, G.; Röver, S.; Cesura, A.M.; Dautzenberg, F.M.; Jenck, F. 8-acenaphthen-1-yl-1-phenyl-1,3,8-triaza-spiro[4.5]decan-4-one derivatives as orphanin FQ receptor agonists. Bioorg. Med. Chem. Lett. 1999, 9, 2343–2348. [Google Scholar] [CrossRef]
  91. Wichmann, J.; Adam, G.; Röver, S.; Hennig, M.; Scalone, M.; Cesura, A.M.; Dautzenberg, F.M.; Jenck, F. Synthesis of (1S,3aS)-8-(2,3,3a,4,5, 6-hexahydro-1H-phenalen-1-yl)-1-phenyl-1,3,8-triaza-spiro[4. 5]decan-4-one, a potent and selective orphanin FQ (OFQ) receptor agonist with anxiolytic-like properties. Eur. J. Med. Chem. 2000, 35, 839–851. [Google Scholar] [CrossRef]
  92. Shoblock, J.R. The pharmacology of Ro 64-6198, a systemically active, nonpeptide NOP receptor (opiate receptor-like 1, ORL-1) agonist with diverse preclinical therapeutic activity. CNS Drug Rev. 2007, 13, 107–136. [Google Scholar] [CrossRef]
  93. Ding, H.; Hayashida, K.; Suto, T.; Sukhtankar, D.D.; Kimura, M.; Mendenhall, V.; Ko, M.C. Supraspinal actions of nociceptin/orphanin FQ, morphine and substance P in regulating pain and itch in non-human primates. Br. J. Pharmacol. 2015, 172, 3302–3312. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  94. Obara, I.; Przewlocki, R.; Przewlocka, B. Spinal and local peripheral antiallodynic activity of Ro64-6198 in neuropathic pain in the rat. Pain 2005, 116, 17–25. [Google Scholar] [CrossRef] [PubMed]
  95. Varty, G.B.; Hyde, L.A.; Hodgson, R.A.; Lu, S.X.; McCool, M.F.; Kazdoba, T.M.; Del Vecchio, R.A.; Guthrie, D.H.; Pond, A.J.; Grzelak, M.E.; et al. Characterization of the nociceptin receptor (ORL-1) agonist, Ro64-6198, in tests of anxiety across multiple species. Psychopharmacology 2005, 182, 132–143. [Google Scholar] [CrossRef] [PubMed]
  96. Sukhtankar, D.D.; Zaveri, N.T.; Husbands, S.M.; Ko, M.C. Effects of spinally administered bifunctional nociceptin/orphanin FQ peptide receptor/μ-opioid receptor ligands in mouse models of neuropathic and inflammatory pain. J. Pharmacol. Exp. Ther. 2013, 346, 11–22. [Google Scholar] [CrossRef] [Green Version]
  97. Sukhtankar, D.D.; Lagorio, C.H.; Ko, M.C. Effects of the NOP agonist SCH221510 on producing and attenuating reinforcing effects as measured by drug self-administration in rats. Eur. J. Pharmacol. 2014, 745, 182–189. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  98. Wu, Q.; Liu, L. ORL1 Activation Mediates a Novel ORL1 Receptor Agonist SCH221510 Analgesia in Neuropathic Pain in Rats. J. Mol. Neurosci. 2018, 66, 10–16. [Google Scholar] [CrossRef]
  99. Cremeans, C.M.; Gruley, E.; Kyle, D.J.; Ko, M.C. Roles of mu-opioid receptors and nociceptin/orphanin FQ peptide receptors in buprenorphine-induced physiological responses in primates. J. Pharmacol. Exp. Ther. 2012, 343, 72–81. [Google Scholar] [CrossRef] [Green Version]
  100. Hao, X.Q.; Wang, Z.Y.; Chen, J.M.; Wu, N.; Li, J. Involvement of the nociceptin opioid peptide receptor in morphine-induced antinociception, tolerance and physical dependence in female mice. Metab. Brain Dis. 2021, 36, 2243–2253. [Google Scholar] [CrossRef]
  101. Kiguchi, N.; Ko, M.C. Effects of NOP-Related Ligands in Nonhuman Primates. Handb. Exp. Pharmacol. 2019, 254, 323–343. [Google Scholar] [PubMed]
  102. Lutfy, K.; Hossain, S.M.; Khaliq, I.; Maidment, N.T. Orphanin FQ/nociceptin attenuates the development of morphine tolerance in rats. Br. J. Pharmacol. 2001, 134, 529–534. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  103. Murphy, N.P.; Lee, Y.; Maidment, N.T. Orphanin FQ/nociceptin blocks acquisition of morphine place preference. Brain Res. 1999, 832, 168–170. [Google Scholar] [CrossRef]
  104. Murphy, N.P.; Ly, H.T.; Maidment, N.T. Intracerebroventricular orphanin FQ/nociceptin suppresses dopamine release in the nucleus accumbens of anaesthetized rats. Neuroscience 1996, 75, 1–4. [Google Scholar] [CrossRef]
  105. Rutten, K.; De Vry, J.; Bruckmann, W.; Tzschentke, T.M. Effects of the NOP receptor agonist Ro65-6570 on the acquisition of opiate- and psychostimulant-induced conditioned place preference in rats. Eur. J. Pharmacol. 2010, 645, 119–126. [Google Scholar] [CrossRef]
  106. Raffa, R.B.; Pergolizzi, J.V., Jr.; Tallarida, R.J. The determination and application of fixed-dose analgesic combinations for treating multimodal pain. J. Pain 2010, 11, 701–709. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  107. Kiguchi, N.; Ding, H.; Kishioka, S.; Ko, M.C. Nociceptin/Orphanin FQ Peptide Receptor-Related Ligands as Novel Analgesics. Curr. Top. Med. Chem. 2020, 20, 2878–2888. [Google Scholar] [CrossRef] [PubMed]
  108. Kiguchi, N.; Ding, H.; Ko, M.C. Therapeutic potentials of NOP and MOP receptor coactivation for the treatment of pain and opioid abuse. J. Neurosci. Res. 2020, 100, 191–202. [Google Scholar] [CrossRef]
  109. Mustazza, C.; Pieretti, S.; Marzoli, F. Nociceptin/Orphanin FQ Peptide (NOP) Receptor Modulators: An Update in Structure-Activity Relationships. Curr. Med. Chem. 2018, 25, 2353–2384. [Google Scholar] [CrossRef] [PubMed]
  110. Khroyan, T.V.; Zaveri, N.T.; Polgar, W.E.; Orduna, J.; Olsen, C.; Jiang, F.; Toll, L. SR 16435 [1-(1-(bicyclo[3.3.1]nonan-9-yl)piperidin-4-yl)indolin-2-one], a novel mixed nociceptin/orphanin FQ/mu-opioid receptor partial agonist: Analgesic and rewarding properties in mice. J. Pharmacol. Exp. Ther. 2007, 320, 934–943. [Google Scholar] [CrossRef]
  111. Linz, K.; Christoph, T.; Tzschentke, T.M.; Koch, T.; Schiene, K.; Gautrois, M.; Schröder, W.; Kögel, B.Y.; Beier, H.; Englberger, W.; et al. Cebranopadol: A novel potent analgesic nociceptin/orphanin FQ peptide and opioid receptor agonist. J. Pharmacol. Exp. Ther. 2014, 349, 535–548. [Google Scholar] [CrossRef] [Green Version]
  112. Schunk, S.; Linz, K.; Hinze, C.; Frormann, S.; Oberbörsch, S.; Sundermann, B.; Zemolka, S.; Englberger, W.; Germann, T.; Christoph, T.; et al. Discovery of a Potent Analgesic NOP and Opioid Receptor Agonist: Cebranopadol. ACS Med. Chem. Lett. 2014, 5, 857–862. [Google Scholar] [CrossRef] [Green Version]
  113. Zaveri, N.T.; Jiang, F.; Olsen, C.M.; Deschamps, J.R.; Parrish, D.; Polgar, W.; Toll, L. A novel series of piperidin-4-yl-1,3-dihydroindol-2-ones as agonist and antagonist ligands at the nociceptin receptor. J. Med. Chem. 2004, 47, 2973–2976. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  114. Ding, H.; Kiguchi, N.; Yasuda, D.; Daga, P.R.; Polgar, W.E.; Lu, J.J.; Czoty, P.W.; Kishioka, S.; Zaveri, N.T.; Ko, M.C. A bifunctional nociceptin and mu opioid receptor agonist is analgesic without opioid side effects in nonhuman primates. Sci. Transl. Med. 2018, 10, eaar3483. [Google Scholar] [CrossRef] [Green Version]
  115. Huang, P.; Kehner, G.B.; Cowan, A.; Liu-Chen, L.Y. Comparison of pharmacological activities of buprenorphine and norbuprenorphine: Norbuprenorphine is a potent opioid agonist. J. Pharmacol. Exp. Ther. 2001, 297, 688–695. [Google Scholar] [PubMed]
  116. Khroyan, T.V.; Polgar, W.E.; Cami-Kobeci, G.; Husbands, S.M.; Zaveri, N.T.; Toll, L. The first universal opioid ligand, (2S)-2-[(5R,6R,7R,14S)-N-cyclopropylmethyl-4,5-epoxy-6,14-ethano-3-hydroxy-6-methoxymorphinan-7-yl]-3,3-dimethylpentan-2-ol (BU08028): Characterization of the in vitro profile and in vivo behavioral effects in mouse models of acute pain and cocaine-induced reward. J. Pharmacol. Exp. Ther. 2011, 336, 952–961. [Google Scholar]
  117. Kiguchi, N.; Ding, H.; Cami-Kobeci, G.; Sukhtankar, D.D.; Czoty, P.W.; DeLoid, H.B.; Hsu, F.C.; Toll, L.; Husbands, S.M.; Ko, M.C. BU10038 as a safe opioid analgesic with fewer side-effects after systemic and intrathecal administration in primates. Br. J. Anaesth. 2019, 122, e146–e156. [Google Scholar] [CrossRef] [Green Version]
  118. Chao, P.K.; Chang, H.F.; Chang, W.T.; Yeh, T.K.; Ou, L.C.; Chuang, J.Y.; Tsu-An Hsu, J.; Tao, P.L.; Loh, H.H.; Shih, C.; et al. BPR1M97, a dual mu opioid receptor/nociceptin-orphanin FQ peptide receptor agonist, produces potent antinociceptive effects with safer properties than morphine. Neuropharmacology 2020, 166, 107678. [Google Scholar] [CrossRef]
  119. Shinkai, H.; Ito, T.; Iida, T.; Kitao, Y.; Yamada, H.; Uchida, I. 4-Aminoquinolines: Novel nociceptin antagonists with analgesic activity. J. Med. Chem. 2000, 43, 4667–4677. [Google Scholar] [CrossRef] [PubMed]
  120. Christoph, T.; Kögel, B.; Schiene, K.; Méen, M.; De Vry, J.; Friderichs, E. Broad analgesic profile of buprenorphine in rodent models of acute and chronic pain. Eur. J. Pharmacol. 2005, 507, 87–98. [Google Scholar] [CrossRef] [PubMed]
  121. Ding, H.; Czoty, P.W.; Kiguchi, N.; Cami-Kobeci, G.; Sukhtankar, D.D.; Nader, M.A.; Husbands, S.M.; Ko, M.C. A novel orvinol analog, BU08028, as a safe opioid analgesic without abuse liability in primates. Proc. Natl. Acad. Sci. USA 2016, 113, E5511–E5518. [Google Scholar] [CrossRef] [Green Version]
  122. Chen, S.R.; Ke, Y.Y.; Yeh, T.K.; Lin, S.Y.; Ou, L.C.; Chen, S.C.; Chang, W.T.; Chang, H.F.; Wu, Z.H.; Hsieh, C.C.; et al. Discovery, structure-activity relationship studies, and anti-nociceptive effects of N-(1,2,3,4-tetrahydro-1-isoquinolinylmethyl)benzamides as novel opioid receptor agonists. Eur. J. Med. Chem. 2017, 126, 202–217. [Google Scholar] [CrossRef] [PubMed]
  123. Zaveri, N.T. Nociceptin Opioid Receptor (NOP) as a Therapeutic Target: Progress in Translation from Preclinical Research to Clinical Utility. J. Med. Chem. 2016, 59, 7011–7028. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  124. Lambert, D.G.; Bird, M.F.; Rowbotham, D.J. Cebranopadol: A first in-class example of a nociceptin/orphanin FQ receptor and opioid receptor agonist. Br. J. Anaesth. 2015, 114, 364–366. [Google Scholar] [CrossRef] [Green Version]
  125. Rizzi, A.; Cerlesi, M.C.; Ruzza, C.; Malfacini, D.; Ferrari, F.; Bianco, S.; Costa, T.; Guerrini, R.; Trapella, C.; Calo’, G. Pharmacological characterization of cebranopadol a novel analgesic acting as mixed nociceptin/orphanin FQ and opioid receptor agonist. Pharmacol. Res. Perspect. 2016, 4, e00247. [Google Scholar] [CrossRef] [PubMed]
  126. Tzschentke, T.M.; Linz, K.; Koch, T.; Christoph, T. Cebranopadol: A Novel First-in-Class Potent Analgesic Acting via NOP and Opioid Receptors. Handb. Exp. Pharmacol. 2019, 254, 367–398. [Google Scholar]
  127. Mann, A.; Moulédous, L.; Froment, C.; O’Neill, P.R.; Dasgupta, P.; Günther, T.; Brunori, G.; Kieffer, B.L.; Toll, L.; Bruchas, M.R.; et al. Agonist-selective NOP receptor phosphorylation correlates in vitro and in vivo and reveals differential post-activation signaling by chemically diverse agonists. Sci. Signal. 2019, 12, eaau8072. [Google Scholar] [CrossRef] [PubMed]
  128. Kleideiter, E.; Piana, C.; Wang, S.; Nemeth, R.; Gautrois, M. Clinical Pharmacokinetic Characteristics of Cebranopadol, a Novel First-in-Class Analgesic. Clin. Pharmacokinet. 2018, 57, 31–50. [Google Scholar] [CrossRef] [Green Version]
  129. Available online: https://clinicaltrials.gov/ct2/show/NCT00872885 (accessed on 12 January 2022).
  130. Available online: https://clinicaltrials.gov/ct2/show/NCT01939366 (accessed on 12 January 2022).
  131. Available online: https://clinicaltrials.gov/ct2/show/NCT01357837 (accessed on 12 January 2022).
  132. Available online: https://clinicaltrials.gov/ct2/show/NCT01709214 (accessed on 12 January 2022).
  133. Available online: https://clinicaltrials.gov/ct2/show/NCT01725087 (accessed on 12 January 2022).
  134. Available online: https://clinicaltrials.gov/ct2/show/NCT01347671 (accessed on 12 January 2022).
  135. Available online: https://clinicaltrials.gov/ct2/show/NCT00878293 (accessed on 12 January 2022).
  136. Eerdekens, M.H.; Kapanadze, S.; Koch, E.D.; Kralidis, G.; Volkers, G.; Ahmedzai, S.H.; Meissner, W. Cancer-related chronic pain: Investigation of the novel analgesic drug candidate cebranopadol in a randomized, double-blind, noninferiority trial. Eur. J. Pain 2019, 23, 577–588. [Google Scholar] [CrossRef]
  137. Koch, E.D.; Kapanadze, S.; Eerdekens, M.H.; Kralidis, G.; Létal, J.; Sabatschus, I.; Ahmedzai, S.H. Cebranopadol, a Novel First-in-Class Analgesic Drug Candidate: First Experience With Cancer-Related Pain for up to 26 Weeks. J. Pain Symptom. Manag. 2019, 58, 390–399. [Google Scholar] [CrossRef]
  138. Che, T.; Roth, B.L. Structural Insights Accelerate the Discovery of Opioid Alternatives. Annu. Rev. Biochem. 2021, 90, 739–761. [Google Scholar] [CrossRef] [PubMed]
Molecules 27 00595 g001 550

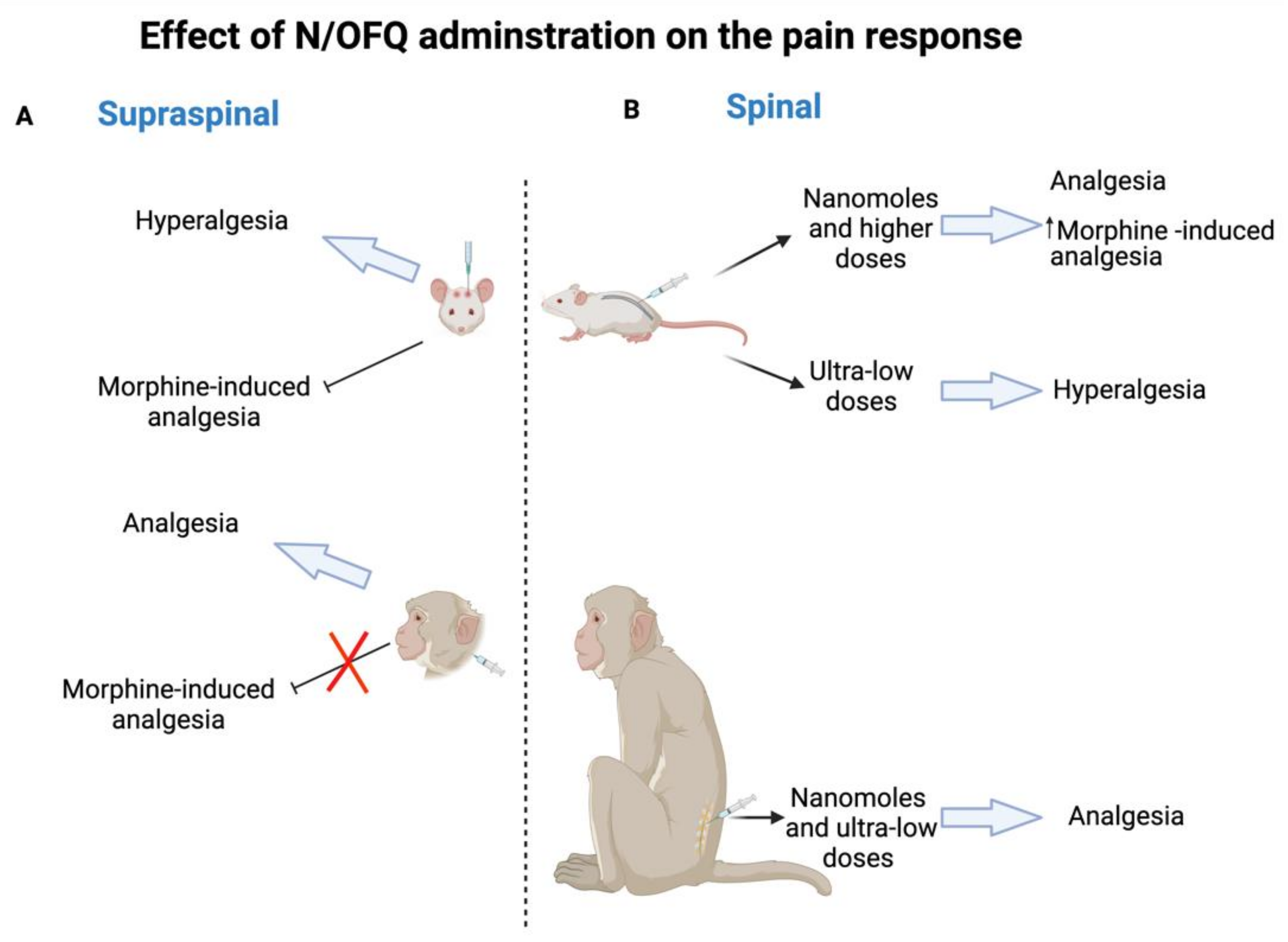

Figure 1. N/OFQ effect in rodent and non-human primates on pain response. (A) Supraspinal administration of N/OFQ produces hyperalgesia and blocks morphine-induced analgesia in rodent, whereas the opposite effect of analgesia and the promotion of an antinociceptive effect are produced in non-human primates. (B) Spinal administration of N/OFQ produces dose-dependent analgesia in both rodent (nanomoles and higher doses) and non-human primates (nanomoles and ultra-low doses) as well as promotes an antinociceptive effect of morphine, while ultra-low doses of N/OFQ induce hyperalgesia in rodent.
Figure 1. N/OFQ effect in rodent and non-human primates on pain response. (A) Supraspinal administration of N/OFQ produces hyperalgesia and blocks morphine-induced analgesia in rodent, whereas the opposite effect of analgesia and the promotion of an antinociceptive effect are produced in non-human primates. (B) Spinal administration of N/OFQ produces dose-dependent analgesia in both rodent (nanomoles and higher doses) and non-human primates (nanomoles and ultra-low doses) as well as promotes an antinociceptive effect of morphine, while ultra-low doses of N/OFQ induce hyperalgesia in rodent.
Molecules 27 00595 g001
Molecules 27 00595 g002 550
Figure 2. Rational design of new safer analgesics. (A) Beneficiary and side effects produced by MOP receptor activation. (B) Beneficiary (synergizing analgesic effect) and protective (ameliorating typical-opioid side effect profile) effects produced by developing a new compound with simultaneous agonistic activity at NOP receptor and MOP receptor.
Figure 2. Rational design of new safer analgesics. (A) Beneficiary and side effects produced by MOP receptor activation. (B) Beneficiary (synergizing analgesic effect) and protective (ameliorating typical-opioid side effect profile) effects produced by developing a new compound with simultaneous agonistic activity at NOP receptor and MOP receptor.
Molecules 27 00595 g002
Molecules 27 00595 g003 550
Figure 3. Chemical structures and in vitro pharmacological profiles of bifunctional and mixed NOP receptor ligands that target pain [99,110,111,112,113,114,115,116,117,118,119].
Figure 3. Chemical structures and in vitro pharmacological profiles of bifunctional and mixed NOP receptor ligands that target pain [99,110,111,112,113,114,115,116,117,118,119].
Molecules 27 00595 g003
Table
Table 1. The peptides that have antinociceptive activity are summarized.
Table 1. The peptides that have antinociceptive activity are summarized.
Name/StructureCategoryIn Vitro Human NOP ReceptorIn VivoRef
Receptor Binding pKi[35S]GTPγS pKB/pA2Ca+2
Mobilization
pKB/pA2		Administration Route/Dose/SpeciesEffect
[Nphe1]N/OFQ(113)NH2Selective
NOP receptor antagonist		8.397.336.29(30 nmol)
i.c.v.
mice		Analgesia
Promote morphine-induced analgesia.		[61]
[Nphe1, Arg14, Lys15]N/OFQ-NH2
(UFP-101)		Selective
NOP receptor antagonist		10.248.857.66(10 nmol)
i.c.v.
mice		Long lasting analgesia
Block N/OFQ effect on locomotor activity		[62]
(10 nmol)
i.t.
mice		Block N/OFQ (i.t.1 nmol) analgesic effect[66]
[(pF)Phe4Aib7Arg14Lys15]N/OFQ-NH2
(UFP-112)		Selective
NOP receptor agonist		10.5510.559.05(1–100 pmol)
i.c.v.
mice		Hyperalgesia
Decrease locomotor activity		[67]
(1–100 pmol)
i.t.
mice		Long lasting dose dependent analgesia[67]
(0.1 and 10 nmol/kg)
Intravenous (i.v.)
rats		Decrease heart rate
Decrease blood pressure
Decrease urinary sodium excretion
Increase urine flow		[67]
(1–10 nmol)
i.t.
monkey		Dose-dependent analgesia
without inducing itch
Promotes morphine-induced analgesia without increasing itch response		[68]
[Phe1Ψ(CH2-NH)Gly2(pF)Phe4Aib7Arg14Lys15]N/OFQ-NH2
(UFP-113)		Selective NOP receptor partial agonist10.269.727.97(0.001–1 nmol)
i.t.
rats		Analgesia[69]
PWT2-N/OFQ
Molecules 27 00595 i001		Selective NOP receptor agonist10.310.128.83(250 pmol)
i.c.v.
mice		Decease locomotor activity[70]
(2.5–250 pmol)
i.t.
mice		Dose-dependent analgesia[71]
(0.3, 1, and 3 nmol)
i.t.
monkey		Analgesia
No itching
No sedation
No impairment in motor activity		[71]
Table
Table 2. Non-peptide NOP receptor ligands targeting pain.
Table 2. Non-peptide NOP receptor ligands targeting pain.
Name/StructureCategoryIn Vitro Human NOP ReceptorIn VivoRef
Receptor Binding pKi[35S]GTPγS
pEC50		Ca+2
MobilizationpEC
50		Administration Route/Dose/SpeciesEffect
Ro 65-6570
Molecules 27 00595 i002		NOP receptor non
peptide agonist		8.6 (0.1–1 mg/kg)
(0.03 to 1 μmol/kg)
i.v.
mice		Analgesia[79,80]
Ro 64-6198
Molecules 27 00595 i003		NOP receptor nonpeptide agonist9.418.097.98(3 mg/kg)
(1 mg/kg)
intraperitoneal (i.p)
mice
(0.3 to 3 mg/kg)
i.p.
mice		Analgesia
Additive analgesia
anxiolytic-like
effects		[81,82,83]
(0.001–0.06 mg/kg),
subcutaneous (s.c.)
monkey		Analgesia
No depression
No itching
No reinforcing		[17]
SCH221510
Molecules 27 00595 i004		Selective NOP receptor nonpeptide agonist0.312 1–30 mg/kg)
peroral (p.o.)
rat		anxiolytic-like effects[84]
(0.1–3.0 mg/kg)
i.p., p.o., intracolonic
mice		potent anti-inflammatory and analgesic effect[85]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

El Daibani, A.; Che, T. Spotlight on Nociceptin/Orphanin FQ Receptor in the Treatment of Pain. Molecules 2022, 27, 595. https://doi.org/10.3390/molecules27030595

AMA Style

El Daibani A, Che T. Spotlight on Nociceptin/Orphanin FQ Receptor in the Treatment of Pain. Molecules. 2022; 27(3):595. https://doi.org/10.3390/molecules27030595

Chicago/Turabian Style

El Daibani, Amal, and Tao Che. 2022. "Spotlight on Nociceptin/Orphanin FQ Receptor in the Treatment of Pain" Molecules 27, no. 3: 595. https://doi.org/10.3390/molecules27030595

APA Style

El Daibani, A., & Che, T. (2022). Spotlight on Nociceptin/Orphanin FQ Receptor in the Treatment of Pain. Molecules, 27(3), 595. https://doi.org/10.3390/molecules27030595

Article Metrics

Back to TopTop
