Catalytic Ammonia Synthesis Mediated by Molybdenum Complexes with PN3P Pincer Ligands: Influence of P/N Substituents and Molecular Mechanism

by
Katja Bedbur
,
Nadja Stucke
,
Lina Liehrs
,
Jan Krahmer
and
Felix Tuczek
*
Institut für Anorganische Chemie, Max-Eyth-Straße 2, 24118 Kiel, Germany
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(22), 7843; https://doi.org/10.3390/molecules27227843
Submission received: 6 September 2022 / Revised: 8 November 2022 / Accepted: 9 November 2022 / Published: 14 November 2022
(This article belongs to the Special Issue Design Strategies for Metal Complexes that Activate Bio-Related Small Molecules)
Browse Figures
Versions Notes

Abstract

:
Three molybdenum trihalogenido complexes supported by different PN3P pincer ligands were synthesized and investigated regarding their activity towards catalytic N2-to-NH3 conversion. The highest yields were obtained with the H-PN3PtBu ligand. The corresponding Mo(V)-nitrido complex also shows good catalytic activity. Experiments regarding the formation of the analogous Mo(IV)-nitrido complex lead to the conclusion that the mechanism of catalytic ammonia formation mediated by the title systems does not involve N-N cleavage of a dinuclear Mo-dinitrogen complex, but follows the classic Chatt cycle.

1. Introduction

Ammonia is one of the most important basic chemicals. It is produced on a large scale using the Haber–Bosch process and mainly used for the synthesis of fertilizers [1,2,3]. In nature, the enzyme nitrogenase binds dinitrogen and converts it into ammonia. This process takes place at the active center, the FeMoco [4,5,6,7,8,9,10,11]. In synthetic nitrogen fixation, model systems capable of converting dinitrogen into ammonia are developed, following the example of nitrogenase. The first dinitrogen complex was synthesized by Allen and Senoff in 1965 [12]. Chatt et al. established and elucidated the first mechanism of transition metal-mediated N2 reduction [13,14]. Since then, many other systems have been developed. The majority of catalytic systems are based on molybdenum and iron centers, which are also present in the FeMoco [15,16,17,18,19,20,21,22]. For the stepwise reduction and protonation of the dinitrogen ligand and the corresponding catalysis, respectively, acids such as [LutH]OTf (2,6-dimethylpyridine trifluoromethanesulfonate) or [ColH]OTf (2,4,6-trimethylpyridine trifluoromethansulfonate) as proton source and various metallocenes such as CoCp*2 or CrCp*2 as electron source have been used [18,19,20]. In 2019, Nishibayashi et al. introduced a new method for catalytic N2 fixation [23]. H2O is used as the proton source, coordinating to the [SmI2(thf)2] complex which donates the electrons, thus forming a PCET reagent. Employing this reagent instead of separate electron and proton donors led to a significant increase of the ammonia yield in catalytic experiments [23,24].
Based on their favorable properties in small-molecule activation, many different pincer ligands have been introduced over the last years [25,26,27,28,29,30,31]. PN3P pincer ligands containing amine groups between a central pyridine moiety and the terminal phosphine donors were developed by Schirmer et al. [27] and investigated by Kirchner et al. [28,29,32,33] with regard to their coordination to different metal centers, such as molybdenum. In this context, a range of catalytically active metal complexes were prepared [29,32]. Previously, these systems were also investigated in relation to their suitability for catalysts in synthetic nitrogen fixation [20]. Dinitrogen complexes, as far as they could be obtained, were also investigated and characterized [20]. In ref. [34], Nishibayashi and coworkers compared Mo(V)-nitrido complexes supported by the “classic” PNP pincer ligand to the Mo(V)-nitrido complex [Mo(N)Cl(H-PN3PtBu)]+ supported by a PN3P-ligand with respect to catalytic ammonia formation, using metallocenes (CoCp2, CrCp*2) as reductants and lutidinium triflate as acid. They found that the latter complex is catalytically inactive, in contrast to the systems supported by PNP ligand. In ref. [20], we showed that, using CrCp*2 as reductant and lutidinium triflate as acid, the complex [MoCl3(H-PN3PtBu)] is able to generate 3.1 equivalents of NH3 from N2. This suggests that the corresponding Mo-nitrido complex may be catalytic as well, in contrast to Nishibayashi’s initial result of ref. [34].
Due to the aforementioned increase in ammonia yield using SmI2/H2O, molybdenum complexes supported by PN3P-ligands herein are also examined in conjunction with this reagent in order to check whether a significant increase in ammonia yields is possible. Moreover, the title systems are also investigated regarding to the question of which mechanism applies to the N2-to-NH3 conversion. Currently, two scenarios are postulated for molybdenum complexes active in nitrogen fixation: firstly, Chatt’s distal mechanism [13,14] and secondly, the mechanism postulated by Nishibayashi et al. [35] for his pincer systems, which proceeds via a N-N cleavage of a bridged Mo(I)-dinitrogen complex. Finally, the substituents on the P-donors as well as on the amine groups in the ligand backbone are varied on order to investigate the influence of these changes on the catalytic activity of the derived complex.

2. Results and Discussion

In our previous study, the three PN3P ligands H-PN3PtBu, H-PN3PPh, and Me-PN3PPh were coordinated to MoX3 precursors (X = Cl, Br, I; see Scheme 1) and reduced to corresponding dinitrogen complexes in the presence of various monophosphines [20]. Furthermore, initial catalytic N2 reduction experiments were carried out with the PN3P-MoX3 complexes of Scheme 1, using [ColH]OTf or [LutH]OTf as the proton source and CrCp*2 or CoCp2 as the electron source. The best results (3.12 equiv. per catalyst) were obtained with catalyst 1a when [LutH]OTf and CrCp*2 were employed [20]. More recently, Nishibayashi et al. achieved a new record for ammonia production with the PNP and PCP pincer systems using the PCET reagent SmI2 and water/ethylene glycol [23]. To determine if a similar increase in ammonia formation is possible with molybdenum PN3P pincer complexes, these are tested under similar conditions.
The different ligands were synthesized and coordinated to molybdenum(III) precursors to form the corresponding Mo(III) halido complexes 1a–c, 2a–b, 3a–b (see Scheme 1), as described previously [20]. Complexes 2c and 3c are new and were synthesized in analogy to the others [20].
The catalysis was performed after the protocol introduced by Nishibayashi et al. [23]. Water and samarium iodide form the PCET reagent, serving as the proton and electron source. First, 180 equiv. of water and 180 eq. of SmI2(thf)2 were dissolved in THF and stirred for 10 min. Then, 1 equiv. of catalyst (1a–c, 2a–c, 3a–c, 4) was diluted in THF and added to the mixture. The solution was stirred in a closed vessel under N2 atmosphere overnight until the blue solution decolorized. The resulting ammonia was transferred into 15 mL of a cold 2 M solution of HCl in ether using a constant N2 flow, and the formed ammonia was quantified by the Berthelot reaction [36]. The results are collected in Table 1.
Catalysts 2a–c and 3a–c (run 4–9) show no catalytic activity as they do not significantly exceed the stoichiometric limit of 2 equiv. (Table 1). Therefore, the change from the secondary amine to the tertiary amine has no significant influence on the activity of the catalyst. Notably, the dinitrogen complex derived from 2 (containing two monophosphine coligands) shows a less activated N2 ligand (νNN = 1962 cm−1) compared to the dinitrogen complex corresponding to 3 (1923 cm−1) [20]. Thus, it would have been expected that complexes 3a–c have a significantly higher catalytic activity than their counterparts 2a–c. Obviously, both systems are below a threshold required to mediate catalytic N2 reduction. In contrast, catalysts 1a–c (run 1–3) are highly active, generating up to 39.7 equiv. of ammonia. Only minor changes in the ammonia yield were observed when changing the halide ligands. This observation also applies to the other systems [23,24], i.e., the halide ligands have no significant influence on the catalytic activity. The greatest influence thus is observed when going from the tert-butyl-phosphine group (1a–c) to the diphenylphosphino group (2a–c, 3a–c).
Two mechanisms have been postulated for the catalytic conversion of N2 to NH3 mediated by pincer systems. In both mechanisms, the Mo(IV) nitrido complex 5 complex plays an essential role. The Mo(V) nitrido complex [MoCl(N)(H-PN3PtBu)](OTf) (4) was prepared first, as it is easier to isolate than its Mo(IV) counterpart 5 (see below). The synthesis of 4 (Scheme 2) was performed according to the literature with slight modifications [34].
Complex 4 was characterized using various spectroscopic and analytical methods. An X-ray crystal structure determination had been performed before, and a magnetic moment of µeff = 2.1 µB was determined by Evans–NMR spectroscopy [34]. In addition, we obtained an EPR spectrum of this complex (Figure 1, black) showing an S = 1/2 signal with additional hyperfine coupling to the nuclear spins of the I = 5/2 molybdenum isotopes 95Mo and 97Mo. Furthermore, a triplet splitting to the phosphorus nuclei can be observed. This splitting is evident for the main signal deriving from the I = 0 isotopes of Mo as well as for the hyperfine-spit signals. The coupling constants derived from a fit (red) are A(P) = 40 G and A(Mo) = 138.8 G. The isotropic g-value of the compound is 1.9862. Moreover, a HR-ESI mass spectrum as well as a 31P{1H} NMR spectrum (δ = 67.1 ppm) were obtained (Figures S1 and S5), being in agreement with the constitution of 4. Due to the paramagnetic properties of 4, the 1H NMR spectrum just shows broad signals and could not be analyzed.
Complex 4 was then investigated regarding its catalytic activity towards N2-reduction, using SmI2/H2O. It was found that, applying similar conditions as before (see above), it is able to generate 17 equiv. of ammonia. Thus, the complex is catalytically active, but does not reach the activity of the molybdenum(III) halogen systems. This may be due to various reasons. Firstly, the molybdenum center of 4 has an oxidation state of +V, whereas the nitrido intermediates in the postulated mechanisms are in the oxidation state +IV (see below). Due to the employed PCET reagent, the mechanism thus may run over “wrong” oxidation states, which could influence the catalytic activity. Moreover, catalytic experiments with Mo-pincer complexes were mostly performed with neutral species [20,23,24]; therefore, the positive charge of the complex could also have an influence on the yield of NH3. Finally, in the case of complex 4, OTf− has been introduced as counter anion. Previous studies have shown that the counter anion can greatly influence catalytic activity [37].
Since the catalytic mechanism is thought to occur via a Mo(IV)-nitrido complex, the next goal was to synthesize this complex and investigate its catalytic activity. The synthesis was adapted from a protocol described by Nishibayashi et al. for the synthesis of Mo(IV)-nitrido complexes with PNP pincer ligands [38] (Scheme 3). [MoCl3(thf)3] was dissolved in THF and Me3SiN3 was added. The solution was stirred for 1 h at 50 °C. The solvent was removed and H-PN3PtBu, dissolved in THF, was added. The solution was stirred for 4 h at 50 °C. After cooling to room temperature, KC8 was added. The suspension was stirred overnight and then filtered over Celite. The solvent was removed, the residue was washed with hexane and dried under vacuum.
In contrast to 4, chemical analysis and spectroscopic characterization of its one-electron reduced derivative 5 turned out to be difficult. A high-resolution ESI mass spectrum of 5 could be obtained (Figure S6). Notably, this is identical to that obtained for 4 since the monocation of 5 (being formed as a result of the ionization process) corresponds to the Mo(V)-nitrido complex 4. The possibility that the mass spectrum derives from unreacted 4 can be excluded as it is very unlikely that a reduction with KC8 leaves the original Mo(V)-complex unaffected (see electrochemistry below). Thus we conclude that reduction of the Mo(V)- to the Mo(IV)-complex has in fact occurred, and the obtained ESI mass spectrum derives from the Mo(IV) product. This is supported by the fact that the Mo(V)-nitrido complex 4, which previously had been visible in the NMR (see above, Scheme 2), could not be detected any more in the reaction product. Instead, the corresponding NMR spectra show a clean signal set that can be assigned to a compound with diamagnetic properties (Figures S2–S4). The signals agree with the NMR spectra of the free ligand H-PN3PtBu regarding the chemical shifts and coupling constants. As the probability is very low that the signals of 5, which are visible, are identical to those of the free ligand in all NMR spectra, we concluded that only the latter was detected in the solution. The results thus indicate that reduction of 4 has occurred, but the solid product 5 decomposes on a time scale of minutes upon re-dissolution.
Further information on this issue is provided by vibrational spectroscopy. The IR spectrum of the solid product obtained from the synthesis of 5 (i.e., after evaporation of the solvent) is compared with the IR spectrum of 4 (Figure 2). Overall, the IR spectra (Figure 2a) show no major differences, which would be compatible with the fact that complexes 4 and 5 have the same structure except for the oxidation state of the Mo center. However, when comparing the two spectra in the 1000 cm−1 range, a shift of the Mo-N stretching vibration is visible (Figure 2b). Since complex 5 has a higher electron density at the Mo center than complex 4, the triple bond between Mo and N is anticipated to be weaker in the former. Therefore, the band should shift to lower wavenumbers, in agreement with the observation. Specifically, the Mo(V)-nitrido complex 4 has a Mo-N stretching vibration band at 1030 cm−1. The Mo(IV)-nitrido complex 5 has two bands in this region, one (more intense) at 1022 and one (weaker) at 1011 cm−1. The fact that two bands appear in the Mo-N stretching region may be due to the fact that loss of the second chloride ligand upon one-electron reduction to the Mo(IV)-complex is incomplete, generating an admixture of a Mo(IV)-nitrido-dihalogenido species.
Cyclic voltammetry measurements were performed with complex 4 in order to determine the reduction potential of Mo(V) to Mo(IV) (Figure 3). In the corresponding CV of 4, a reduction of Mo(V) to Mo(IV) occurs at −1.72 V vs. Fc+/Fc. Notably, this is far more negative than given by Nishibayashi et al. for this complex (−1.17 V vs. Fc/Fc+) [34] and slightly above the reduction potential of CoCp*2 (E1/2 = −1.85 V in THF) [39]. Therefore, this or any stronger reducing agent (e.g., KC8) should in fact allow a one electron reduction reaction. However, the reduction process is not reversible in the CV; i.e., re-oxidation of Mo(IV) to Mo(V) only occurs to a very small extent. Moreover, an increase of the scan rate did not lead to a reversible reduction and oxidation. To conclude, the Mo(IV)-nitrido complex 5 is probably present in the solid reaction product deriving from the reduction of 4, but in solution it seems to decompose irreversibly. Optimization of the synthesis by changing the solvents, reaction times, and substitution of the halides led to the same results.
Nishibayashi et al. postulated the pathway shown in Scheme 4a to account for the SmI2/H2O-mediated ammonia generation observed with their pincer systems [35,38,40]. Here, the molybdenum(III) halide complex is reduced to a dinitrogen-bridged dimolybdenum(I) complex. Subsequently, the N-N bond is spontaneously cleaved and two Mo(IV)-nitrido complexes are formed. The nitrido complexes are protonated and reduced three times, forming mononuclear Mo(I) ammine complexes. Afterwards, N2 coordinates, forming a dinitrogen-bridged diammine-complex. In the last step, ammonia decoordinates and the initial complex is obtained.
In order to evaluate this mechanism for our PN3P-pincer complex, N-N-cleavage experiments (Scheme 5) were carried out according to the literature [23,42]. To this end, the molybdenum(III) complex was dissolved in toluene or THF and reacted with 2 eq.s of CoCp*2 or 5 eq.s of SmI2(thf)2 under N2 for 15 min. The solvent was removed in vacuo and the residue was washed three times with pentane.
To identify the Mo(IV)-nitrido complex 5 as a cleavage product, high-resolution ESI mass spectrometry was employed instead of NMR spectroscopy, due to the low stability of this complex 5 in solution. However, 5 could not be detected in the mass spectrum as a product from these N-N cleavage experiments, in contrast to the reaction involving one-electron reduction of the Mo(V)-nitrido complex (see above, Scheme 2). In addition, changes in the experimental procedures, e.g., reaction time or equivalents, did not lead to positive results (Figures S7 and S8). Based on these findings, we conclude that the Mo(IV)-nitrido complex is not formed as a product of N-N cleavage. If the catalysis would proceed via N-N cleavage, the Mo(IV)-nitrido complex should have been obtained in the corresponding experiments. Since it could not be detected, the catalytic cycle does not involve N-N cleavage at the level of a dinuclear Mo(I) complex.
In an alternative, Chatt-type pathway (Scheme 4b) [13,14,35], the molybdenum(III) halide complex is reduced to a molybdenum dinitrogen complex which is protonated/reduced three times by SmI2/H2O, forming the first equivalent of ammonia and a molybdenum-nitrido complex. If a Mo(IV)-nitrido complex is present at this stage, the starting dinitrogen complex should be Mo(I)-N2. Formation of the Mo(IV)-nitrido complex is also possible by one-electron reduction of the Mo(V)-nitrido complex. The nitrido ligand of the former complex is also protonated and reduced three times. At the end of the cycle, ammonia is released and catalyst is regenerated. The major difference between the two mechanisms is the pathway leading to the Mo(IV)-nitrido complex. In the Chatt cycle (b), the distal nitrogen undergoes concerted protonation and reduction steps to reach the Mo(IV)-nitrido stage. In comparison, in the Nishibayashi mechanism (a), N-N cleavage occurs to form this species.
Coming back to the initial question regarding the influence of changes in the ligand system on the catalytic activity of the derived molybdenum complexes, it can be stated that only di-tert-butyl substituted P-donors seem to be able to confer the necessary activation to the N2-ligand of the parent dinitrogen complex to undergo protonation and reduction to ammonia. Diphenylphosphine groups, by contrast, are not capable of providing this activation, regardless of whether the amine function within the ligand backbone is methylated or not.

3. Materials and Methods

All reactions were performed under a nitrogen atmosphere using Schlenk techniques. The solvents were dried and freshly distilled under argon atmosphere prior to use. All starting materials were supplied from Sigma-Aldrich Co. and abcr GmbH & Co. KG and used as received. The ligands H-PN3PtBu [28], H-PN3PPh [27], and Me-PN3PPh [32] were prepared according to the literature. [MoCl3(thf)3] [43], [MoBr3(thf)3] [44], and [MoI3(thf)3] [45] were prepared according to literature. The complexes 1a–c, 2a/b and 3a/b were prepared according to literature [20].
Spectroscopic Characterization: IR spectra were obtained using a Bruker ALPHA-P-Spectrometer. FT-Raman spectra were recorded with an IFS 66/CS NIR Fourier-transform-Raman-spectrometer and a FRA 106 from Bruker (range from 3300 cm−1 to 20 cm−1 at a resolution of 20 cm−1). NMR spectra were recorded on a Bruker Avance III HD 400 pulse Fourier Transform spectrometer operating at a 1H frequency of 400.13 MHz and a 31P frequency of 161.98 MHz. Referencing was performed with tetramethylsilane (δ(1H) = 0 ppm) and 85% H3PO4 (δ(31P) = 0 ppm) serving as substitutive standards. Deuterated solvents for NMR measurements were purchased from Deutero and used as supplied.
Elemental analyses were performed with a EuroEA 3000 Elemental Analyzer. Samples were burned in sealed tin containers in a stream of oxygen.
High-resolution ESI mass spectra (HR-ESI) were measured with a Thermo Scientific Q Exactive Plus with a heated ESI unit.
Parallel Mode cw X-band EPR Spectra were collected using a Bruker EMXplus spectrometer with a PremiumX microwave bridge equipped with a dual mode cavity (Bruker ER-4116DM). EPR data collection was managed using the Bruker Xenon 1.0 software package. Spectral simulations were performed using the EPR simulation software package EasySpin [46].
Electrochemical studies were performed with a home-made 3-electrode cell (WE: Pt, RE: Ag in a 1 mM THF/(NBu4)Otf solution, 0.1 M, CE: Ag). Ferrocene was added at the end of the experiments to determine the exact redox potential values. The potential of the cell was controlled by an EG&G 273A potentiostat.
[MoI3HPN3PPh] 2c
The ligand H-PN3PPh (300 mg, 629 µmol) was dissolved in 20 mL toluene. The precursor [MoI3(thf)3] (359 mg, 569 µmol) was added to the solution. The suspension was stirred for 6 h under reflux. Afterwards the mixture was stirred for 14 h at rt. Next, the solid residue was filtered and washed with toluene, ether, n-hexane and THF.
Yield: 463 mg (486 µmol, 85%).
Anal. Calc. (%) for C29H25I3MoN3P2 (M = 954 g.mol−1): C, 36.5; H, 2.6; N, 4.4; found: C, 36.5; H, 3.0; N, 4.7.
IR (ATR): 3050, 2979, 2933, 2898, 1584, 1480, 1453, 1433 cm−1.
[MoI3MePN3PPh] 3c
The ligand Me-PN3PPh (200 mg, 397 µmol) was dissolved in 10 mL toluene. The precursor [MoI3(thf)3] (262 mg, 378 µmol) was added to the solution. The suspension was stirred for 6 h under reflux. Afterwards the mixture was stirred for 2 d at 80 °C and 2 d at rt. Next, the solid residue was filtered and washed with toluene, ether, n-hexane, THF, and DCM.
Yield: 250 mg (286 µmol, 76%).
Anal. Calc. (%) for C31H29I3MoN3P2 (M = 582.2 g.mol−1): C, 37.9; H, 3.0; N, 4.3; found: C, 37.8; H, 3.2; N, 4.5.
IR (ATR): 3050, 2979, 2933, 2898, 1584, 1480, 1453, 1433 cm−1.
[Mo(V)ClN(H-PN3PtBu)]OTf 4
The complex was synthesized after Nishiabayashi et al. [38]; [MoCl3(thf)3] (211.8 mg, 0.51 mmol) and Me3SiN3 (70 µL, 0.53 mmol) were dissolved in 10 mL THF and stirred for 1 h at 50 °C. The solution was concentrated under reduced pressure and H-PN3PtBu (203 mg, 0.51 mmol) in 10 mL THF was added via a syringe. The solution was stirred for 4 h at 50 °C. After concentrating under reduced pressure, the residue was washed 3x with n-hexane. AgOTf (83.5 mg, 0.32 mmol) suspended in 10 mL THF and added to the residue. The solution was stirred for 16 h at rt. After removing the solvent under reduced pressure, the residue was washed 3x with hexane and diluted again in THF. The suspension was filtered through Celite, the filter cake was washed 3x with 5 mL THF. The solution was concentrated under reduced pressure. After slowly adding benzol and n-hexane a light brown solid was obtained by filtration. The solid was dried under reduced pressure and stored under nitrogen atmosphere.
Yield: 180 mg (260 µmol, 81%).
MS: C21H41ClMoN4P2+ Calc.: m/z = 544.15437 found: m/z = 544.15413.
Anal. Calc. (%) for C22H41ClF3MoN4O3P2S (M = 692.01 g.mol−1): C, 38.2; H, 6.0; N, 8.1; S, 4.6 found: C, 35.1; H, 6.6; N, 8.0; S, 4.5. The high fluorine content falsifies the elemental analysis.
IR (ATR): 3253, 2944, 2870, 2073, 1588, 1455, 1389, 1283, 1242, 1221, 1156, 1030, 867, 786, 636, 571, 516 cm−1.
31P{1H} NMR: (THF-d8, 162.0 MHz, 300.0 K) δ = 67.1 (s, 2 P, PtBu) ppm.
General procedure for catalytic experiments:
First, 3.6 mL of a SmI2(thf)2 solution (0.1 M, 360 µmol, 180 equiv.) in THF and 1.4 mL of H2O (0.26 M, 360 µmol, 180 equiv.) in THF were mixed for 5 min. In the meantime, 1 equiv. (2 µmol) of the catalyst (1–3) was dissolved in 2 mL THF. After adding the catalyst to the solution, it was stirred in a closed vessel under N2 atmosphere over night at rt. The color of the mixture thereby changed from blue to yellow. The generated ammonia in the solution was driven out with a stream of N2 through a glass bridge into a cold trap (cooled with acetone/N2) filled with 20 mL 2 M ethereal HCl solution. To drive off remaining ammonia, 20 mL of a 0.125 M solution of NaOH in methanol was added to the reaction solution. After expulsion of all NH3, the solvent from the cold trap was removed in vacuum. The resulting NH4Cl was quantified by the Berthelot reaction.

4. Conclusions

It could be shown that the use of SmI2(thf)2 and H2O leads to a significant increase of the ammonia yield in the catalysis mediated by Mo-PN3P complexes. However, the systems with phenyl-phosphine are still not catalytically active, only with tert-butyl-phosphine could catalytic activity be established. Unfortunately, samarium iodide and the synthesis of the catalyst are too expensive to be considered for large-scale application. To understand the mechanism of the catalytic cycle, the Mo(V)-nitrido complex 4 was first synthesized and characterized. It also exhibited a catalytic activity, generating 17 equiv. of ammonia. The Mo(V)-nitrido complex 4 could be reduced to the Mo(IV)-nitrido complex 5, but detailed characterization of the latter species was hampered by its instability. Furthermore, N-N cleavage experiments were carried out. The Mo(IV)-nitrido complex 5 could not be detected in any of these experiments. Therefore, it is concluded that the catalytic cycle of the PN3P-systems follows a Chatt-type, distal mechanism of N2-reduction.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27227843/s1, Figure S1: 31P{1H} NMR Spectrum of Mo(V)-nitrido complex 4 in THF-d8. Impurities are caused by slow decomposition in solution. Figure S2: (a) 31P{1H} NMR Spectrum of Mo(IV)-nitrido 5 in THF-d8. (b) 31P{1H} NMR Spectrum of H-PN3PtBu in THF-d8. Figure S3: (a) 1H NMR Spectrum of Mo(IV)-nitrido 5 in THF-d8. (b) 1H NMR Spectrum of H-PN3PtBu in THF-d8. * Signals of the Ligand H-PN3PtBu, # Educt from the synthesis of the ligand H-PN3PtBu. Figure S4: (a) 13C{1H} NMR spectrum of Mo(IV)-nitrido complex 5 in THF-d8. (b) 13C{1H} NMR Spectrum of H-PN3PtBu in THF-d8. * Signals of the Ligand H-PN3PtBu, # Educt from the synthesis of the ligand H-PN3PtBu. Figure S5: HR-ESI mass spectrum of the Mo(V)-nitrido 4. The measured spectrum is shown in black (top) and the simulated spectrum is shown in green (bottom), when the signal positions match. Figure S6: HR-ESI mass spectrum of the Mo(IV)- nitrido complex 5. The measured spectrum is shown in black (top) and the simulated spectrum is shown in green (bottom), when the signal positions match. Figure S7: HR-ESI mass spectrum of the N-N-cleavage experiment with [MoCl3(H-PN3PtBu)] and CoCp*2 in THF. The measured spectrum is shown on the top and the simulated spectrum is shown below. The signals do not fit. Figure S8: HR-ESI mass spectrum of the N-N-cleavage experiment with [MoCl3(H-PN3PtBu)] and CoCp*2 in toluene. The measured spectrum is shown on the top and the simulated spectrum is shown below (red and green). The signals marked in green of the simulated spectrum agree with the measured spectrum. The red signals in the simulated cannot be found in the measured spectrum. Overall, the signals do not fit. Figure S9: HR-ESI mass spectrum of the N-N-cleavage experiment with [MoCl3(H-PN3PtBu)] and SmI2(thf)2 in THF. The measured spectrum is shown on the top. In the N-N cleavage experiment with SmI2(thf)2 Nishibayashi et al. only obtained the Mo(IV)-iodido nitrido complex [23]. Therefore the simulated spectrum of the analogous species is shown at the bottom (black). The signals do not fit.

Author Contributions

Conceptualization, K.B. and F.T.; methodology, N.S. and K.B.; validation, K.B., N.S. and L.L.; formal analysis, J.K.; investigation, K.B., N.S. and L.L.; resources, F.T.; writing—original draft preparation, K.B.; writing—review and editing, F.T.; supervision, F.T.; funding acquisition, F.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors thank the spectroscopic department of the inorganic chemistry, especially S. Pehlke and J. Pick for measurements, as well as CAU Kiel for financial support of this research.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors.

References

  1. Hermann, A. Haber und Bosch: Brot aus Luft—Die Ammoniaksynthese. Phys. Bl. 1965, 21, 168–171. [Google Scholar] [CrossRef]
  2. Haber, F.; van Oordt, G. Über die Bildung von Ammoniak den Elementen. Z. Anorg. Chem. 1905, 44, 341–378. [Google Scholar] [CrossRef] [Green Version]
  3. Baerns, M.; Behr, A.; Brehm, A.; Gmehling, J.; Hinrichsen, K.-O.; Hofmann, H.; Palkovits, R.; Onken, U.; Renken, A. Technische Chemie, 2nd ed.; Wiley-VCH: Weinheim, Germany, 2013. [Google Scholar]
  4. Burgess, B.K.; Lowe, D.J. Mechanism of Molybdenum Nitrogenase. Chem. Rev. 1996, 96, 2983–3012. [Google Scholar] [CrossRef] [PubMed]
  5. Spatzal, T.; Aksoyoglu, M.; Zhang, L.; Andrade, S.L.A.; Schleicher, E.; Weber, S.; Rees, D.C.; Einsle, O. Evidence for Interstitial Carbon in Nitrogenase FeMo Cofactor. Science 2011, 334, 940. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Lancaster, K.M.; Roemelt, M.; Ettenhuber, P.; Hu, Y.; Ribbe, M.W.; Neese, F.; Bergmann, U.; DeBeer, S. X-ray Emission Spectroscopy Evidences a Central Carbon in the Nitrogenase Iron-Molybdenum Cofactor. Science 2011, 334, 974–977. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Ribbe, M.W.; Hu, Y.; Hodgson, K.O.; Hedman, B. Biosynthesis of nitrogenase metalloclusters. Chem. Rev. 2014, 114, 4063–4080. [Google Scholar] [CrossRef] [Green Version]
  8. Hoffman, B.M.; Lukoyanov, D.; Yang, Z.-Y.; Dean, D.R.; Seefeldt, L.C. Mechanism of nitrogen fixation by nitrogenase: The next stage. Chem. Rev. 2014, 114, 4041–4062. [Google Scholar] [CrossRef]
  9. Milton, R.D.; Abdellaoui, S.; Khadka, N.; Dean, D.R.; Leech, D.; Seefeldt, L.C.; Minteer, S.D. Nitrogenase bioelectrocatalysis: Heterogeneous ammonia and hydrogen production by MoFe protein. Energy Environ. Sci. 2016, 9, 2550–2554. [Google Scholar] [CrossRef] [Green Version]
  10. Sickerman, N.S.; Tanifuji, K.; Hu, Y.; Ribbe, M.W. Synthetic Analogues of Nitrogenase Metallocofactors: Challenges and Developments. Chem. Eur. J. 2017, 23, 12425–12432. [Google Scholar] [CrossRef]
  11. Mus, F.; Alleman, A.B.; Pence, N.; Seefeldt, L.C.; Peters, J.W. Exploring the alternatives of biological nitrogen fixation. Metallomics 2018, 10, 523–538. [Google Scholar] [CrossRef]
  12. Allen, A.D.; Senoff, C.V. Nitrogenopentammineruthenium(II) complexes. Chem. Commun. 1965, 24, 621–622. [Google Scholar] [CrossRef]
  13. Chatt, J.; Richards, R.L. The reactions of dinitrogen in its metal complexes. J. Organomet. Chem. 1982, 239, 65–77. [Google Scholar] [CrossRef]
  14. Pickett, C. The Chatt cycle and the mechanism of enzymic reduction of molecular nitrogen. JBIC J. Biol. Inorg. Chem. 1996, 1, 601–606. [Google Scholar] [CrossRef]
  15. Engesser, T.A.; Kindjajev, A.; Junge, J.; Krahmer, J.; Tuczek, F. A Chatt-Type Catalyst with One Coordination Site for Dinitrogen Reduction to Ammonia. Chem. Eur. J. 2020, 26, 14807–14812. [Google Scholar] [CrossRef] [PubMed]
  16. Anderson, J.S.; Rittle, J.; Peters, J.C. Catalytic conversion of nitrogen to ammonia by an iron model complex. Nature 2013, 501, 84–87. [Google Scholar] [CrossRef] [Green Version]
  17. Buscagan, T.M.; Oyala, P.H.; Peters, J.C. N2 -to-NH3 Conversion by a triphos-Iron Catalyst and Enhanced Turnover under Photolysis. Angew. Chem. Int. Ed. 2017, 56, 6921–6926. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Arashiba, K.; Miyake, Y.; Nishibayashi, Y. A molybdenum complex bearing PNP-type pincer ligands leads to the catalytic reduction of dinitrogen into ammonia. Nat. Chem. 2011, 3, 120–125. [Google Scholar] [CrossRef]
  19. Eizawa, A.; Arashiba, K.; Tanaka, H.; Kuriyama, S.; Matsuo, Y.; Nakajima, K.; Yoshizawa, K.; Nishibayashi, Y. Remarkable catalytic activity of dinitrogen-bridged dimolybdenum complexes bearing NHC-based PCP-pincer ligands toward nitrogen fixation. Nat. Commun. 2017, 8, 14874. [Google Scholar] [CrossRef] [Green Version]
  20. Stucke, N.; Krahmer, J.; Näther, C.; Tuczek, F. Molybdenum Complexes Supported by PN 3 P Pincer Ligands: Synthesis, Characterization, and Application to Synthetic Nitrogen Fixation. Eur. J. Inorg. Chem. 2018, 2018, 5108–5116. [Google Scholar] [CrossRef]
  21. Simonneau, A.; Turrel, R.; Vendier, L.; Etienne, M. Group 6 Transition-Metal/Boron Frustrated Lewis Pair Templates Activate N2 and Allow its Facile Borylation and Silylation. Angew. Chem. 2017, 129, 12436–12440. [Google Scholar] [CrossRef]
  22. Simonneau, A.; Etienne, M. Enhanced Activation of Coordinated Dinitrogen with p-Block Lewis Acids. Chem. Eur. J. 2018, 24, 12458–12463. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Ashida, Y.; Arashiba, K.; Nakajima, K.; Nishibayashi, Y. Molybdenum-catalysed ammonia production with samarium diiodide and alcohols or water. Nature 2019, 568, 536–540. [Google Scholar] [CrossRef] [PubMed]
  24. Ashida, Y.; Arashiba, K.; Tanaka, H.; Egi, A.; Nakajima, K.; Yoshizawa, K.; Nishibayashi, Y. Molybdenum-Catalyzed Ammonia Formation Using Simple Monodentate and Bidentate Phosphines as Auxiliary Ligands. Inorg. Chem. 2019, 58, 8927–8932. [Google Scholar] [CrossRef]
  25. Lagaditis, P.O.; Schluschaß, B.; Demeshko, S.; Würtele, C.; Schneider, S. Square-Planar Cobalt(III) Pincer Complex. Inorg. Chem. 2016, 55, 4529–4536. [Google Scholar] [CrossRef] [PubMed]
  26. van Alten, R.S.; Wieser, P.A.; Finger, M.; Abbenseth, J.; Demeshko, S.; Würtele, C.; Siewert, I.; Schneider, S. Halide Effects in Reductive Splitting of Dinitrogen with Rhenium Pincer Complexes. Inorg. Chem. 2022, 61, 11581–11591. [Google Scholar] [CrossRef]
  27. Schirmer, W.; Flörke, U.; Haupt, H.-J. Darstellung, Eigenschaften und Moleklstrukturen von Komplexen des versteiften dreizhnigen Chelatliganden N, N?-Bis(diphenylphosphino)-2,6-diaminopyridin mit MII—und M0-bergangsmetallen [MII = Ni, Pd, Pt; M0 = Cr, Mo, W]. Z. Anorg. Allg. Chem. 1987, 545, 83–97. [Google Scholar] [CrossRef]
  28. Benito-Garagorri, D.; Becker, E.; Wiedermann, J.; Lackner, W.; Pollak, M.; Mereiter, K.; Kisala, J.; Kirchner, K. Achiral and Chiral Transition Metal Complexes with Modularly Designed Tridentate PNP Pincer-Type Ligands Based on N-Heterocyclic Diamines. Organometallics 2006, 25, 1900–1913. [Google Scholar] [CrossRef]
  29. Benito-Garagorri, D.; Kirchner, K. Modularly designed transition metal PNP and PCP pincer complexes based on aminophosphines: Synthesis and catalytic applications. Acc. Chem. Res. 2008, 41, 201–213. [Google Scholar] [CrossRef]
  30. Schöffel, J.; Šušnjar, N.; Nückel, S.; Sieh, D.; Burger, P. 4d vs. 5d—Reactivity and Fate of Terminal Nitrido Complexes of Rhodium and Iridium. Eur. J. Inorg. Chem. 2010, 2010, 4911–4915. [Google Scholar] [CrossRef]
  31. Angersbach-Bludau, F.; Schulz, C.; Schöffel, J.; Burger, P. Syntheses and electronic structures of μ-nitrido bridged pyridine, diimine iridium complexes. Chem. Commun. 2014, 50, 8735–8738. [Google Scholar] [CrossRef]
  32. de Aguiar, S.R.M.; Stöger, B.; Pittenauer, E.; Puchberger, M.; Allmaier, G.; Veiros, L.F.; Kirchner, K. A complete series of halocarbonyl molybdenum PNP pincer complexes – Unexpected differences between NH and NMe spacers. J. Organomet. Chem. 2013, 760, 74–83. [Google Scholar] [CrossRef] [Green Version]
  33. Mastalir, M.; de Aguiar, S.R.M.M.; Glatz, M.; Stöger, B.; Kirchner, K. A Convenient Solvothermal Synthesis of Group 6 PNP Pincer Tricarbonyl Complexes. Organometallics 2016, 35, 229–232. [Google Scholar] [CrossRef]
  34. Kinoshita, E.; Arashiba, K.; Kuriyama, S.; Eizawa, A.; Nakajima, K.; Nishibayashi, Y. Synthesis and Catalytic Activity of Molybdenum–Nitride Complexes Bearing Pincer Ligands. Eur. J. Inorg. Chem. 2015, 2015, 1789–1794. [Google Scholar] [CrossRef]
  35. Tanabe, Y.; Nishibayashi, Y. Comprehensive insights into synthetic nitrogen fixation assisted by molecular catalysts under ambient or mild conditions. Chem. Soc. Rev. 2021, 50, 5201–5242. [Google Scholar] [CrossRef]
  36. Chaney, A.L.; Marbach, E.P. Modified Reagents for Determination of Urea and Ammonia. Clin. Chem. 1962, 8, 130–132. [Google Scholar] [CrossRef]
  37. Schneider, R.; Engesser, T.A.; Näther, C.; Krossing, I.; Tuczek, F. Copper-Catalyzed Monooxygenation of Phenols: Evidence for a Mononuclear Reaction Mechanism. Angew. Chem. Int. Ed. 2022, 61, e202202562. [Google Scholar] [CrossRef]
  38. Tanaka, H.; Arashiba, K.; Kuriyama, S.; Sasada, A.; Nakajima, K.; Yoshizawa, K.; Nishibayashi, Y. Unique behaviour of dinitrogen-bridged dimolybdenum complexes bearing pincer ligand towards catalytic formation of ammonia. Nat. Commun. 2014, 5, 3737. [Google Scholar] [CrossRef] [Green Version]
  39. Bruch, Q.J.; Malakar, S.; Goldman, A.S.; Miller, A.J.M. Mechanisms of Electrochemical N2 Splitting by a Molybdenum Pincer Complex. Inorg. Chem. 2022, 61, 2307–2318. [Google Scholar] [CrossRef]
  40. Tian, Y.-H.; Pierpont, A.W.; Batista, E.R. How Does Nishibayashi’s Molybdenum Complex Catalyze Dinitrogen Reduction to Ammonia? Inorg. Chem. 2014, 53, 4177–4183. [Google Scholar] [CrossRef]
  41. Tuczek, F.; Horn, K.H.; Lehnert, N. Vibrational spectroscopic properties of molybdenum and tungsten N2 and N2Hx complexes with depe coligands: Comparison to dppe systems and influence of H-bridges. Coord. Chem. Rev. 2003, 245, 107–120. [Google Scholar] [CrossRef]
  42. Arashiba, K.; Eizawa, A.; Tanaka, H.; Nakajima, K.; Yoshizawa, K.; Nishibayashi, Y. Catalytic Nitrogen Fixation via Direct Cleavage of Nitrogen–Nitrogen Triple Bond of Molecular Dinitrogen under Ambient Reaction Conditions. Bull. Chem. Soc. Jpn. 2017, 90, 1111–1118. [Google Scholar] [CrossRef]
  43. Stoffelbach, F.; Saurenz, D.; Poli, R. Improved Preparations of Molybdenum Coordination Compounds from Tetrachlorobis(diethyl ether)molybdenum(IV). Eur. J. Inorg. Chem. 2001, 2001, 2699–2703. [Google Scholar] [CrossRef]
  44. Owens, B.E.; Poli, R.; Rheingold, A.L. Conformational preferences in six-coordinate, octahedral complexes of molybdenum(III). Synthesis and structure of MoX3(dppe)L [X = Cl, Br, I; dppe = bis(diphenylphosphino)ethane; L = tetrahydrofuran, acetonitrile, trimethylphosphine]. Inorg. Chem. 1989, 28, 1456–1462. [Google Scholar] [CrossRef]
  45. Cotton, F.A.; Poli, R. Low-valent molybdenum carbonyl complexes as an entry to octahedral MoI3L3 complexes. Synthesis and X-ray molecular structure of triiodotris(tetrahydrofuran)molybdenum. Inorg. Chem. 1987, 26, 1514–1518. [Google Scholar] [CrossRef]
  46. Stoll, S.; Schweiger, A. EasySpin, a comprehensive software package for spectral simulation and analysis in EPR. J. Magn. Reson. 2006, 178, 42–55. [Google Scholar] [CrossRef]
Molecules 27 07843 sch001 550

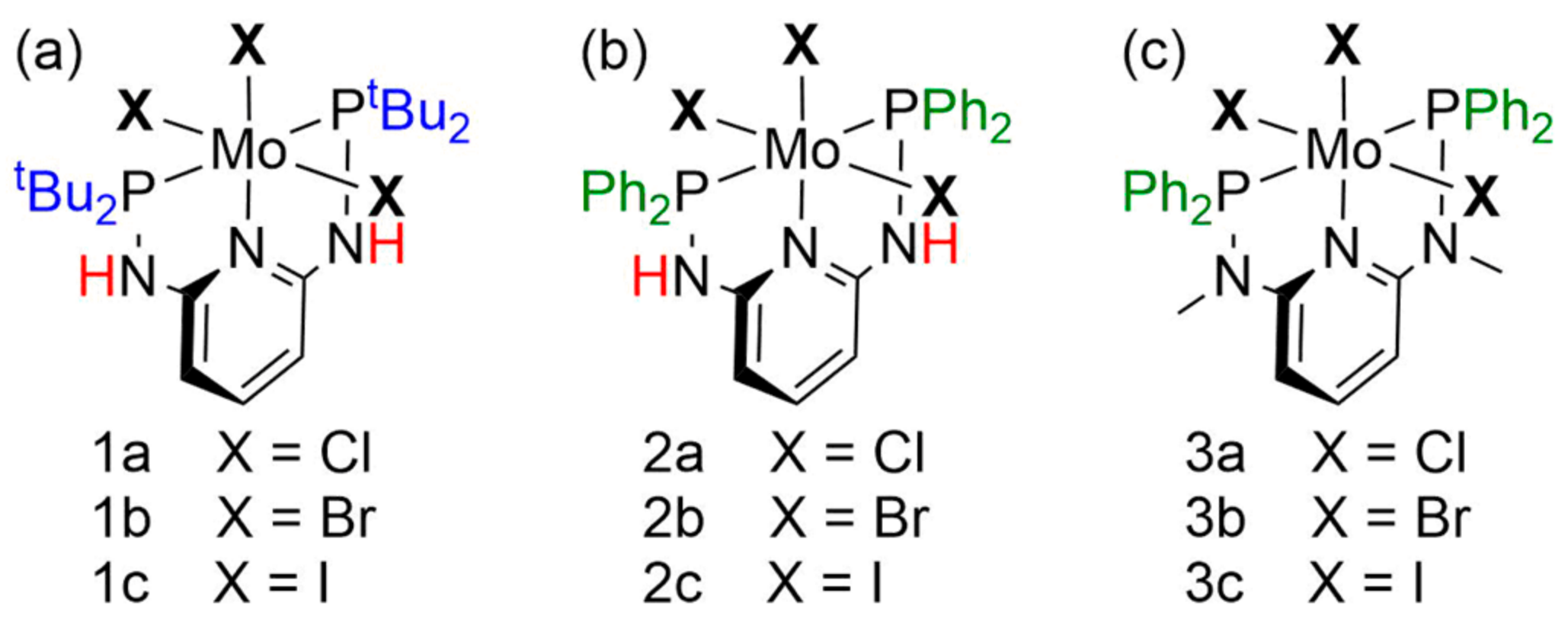

Scheme 1. Complexes investigated in this study. (a) [MoX3(H-PN3PtBu)] (X = Cl, Br, I) complex 1a–c has a tert-butyl phosphine group and a secondary amine-bridge to the pyridine. (b) [MoX3(H-PN3PPh)] (X = Cl, Br, I) complex 2a–c has a diphenylphosphino in place of the tert-butyl group and a secondary amine as a bridge. (c) [MoX3(Me-PN3PPh)] (X = Cl, Br, I) complex 3a–c has the same diphenylphosphino group but a tertiary amine with a methyl group as a bridge between the phosphine and the pyridine. The indices a, b, and c indicate which halogen is coordinated to the molybdenum, a = Cl, b = Br, c = I.
Scheme 1. Complexes investigated in this study. (a) [MoX3(H-PN3PtBu)] (X = Cl, Br, I) complex 1a–c has a tert-butyl phosphine group and a secondary amine-bridge to the pyridine. (b) [MoX3(H-PN3PPh)] (X = Cl, Br, I) complex 2a–c has a diphenylphosphino in place of the tert-butyl group and a secondary amine as a bridge. (c) [MoX3(Me-PN3PPh)] (X = Cl, Br, I) complex 3a–c has the same diphenylphosphino group but a tertiary amine with a methyl group as a bridge between the phosphine and the pyridine. The indices a, b, and c indicate which halogen is coordinated to the molybdenum, a = Cl, b = Br, c = I.
Molecules 27 07843 sch001
Molecules 27 07843 sch002 550

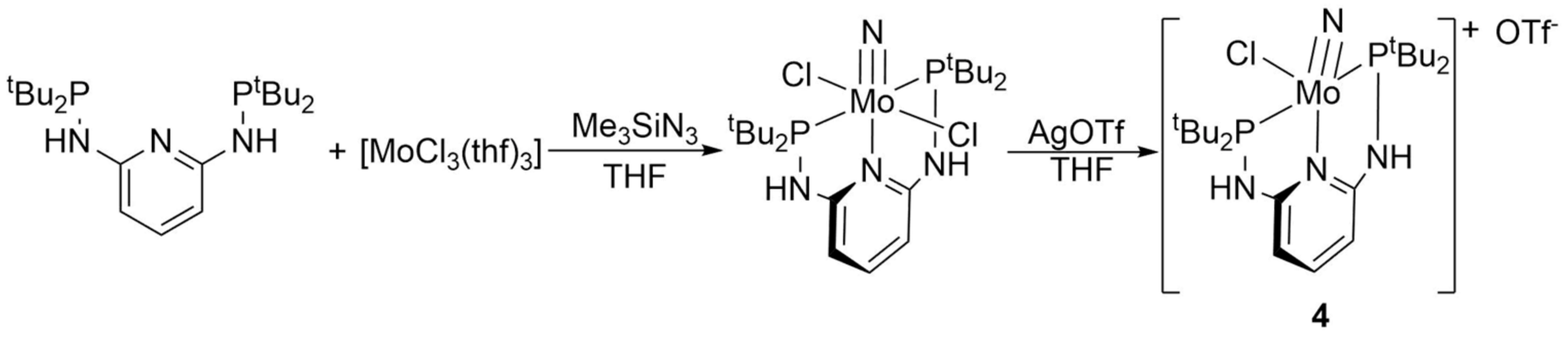

Scheme 2. Synthesis of the molybdenum(V)-nitrido complex 4 [34].
Scheme 2. Synthesis of the molybdenum(V)-nitrido complex 4 [34].
Molecules 27 07843 sch002
Molecules 27 07843 g001 550

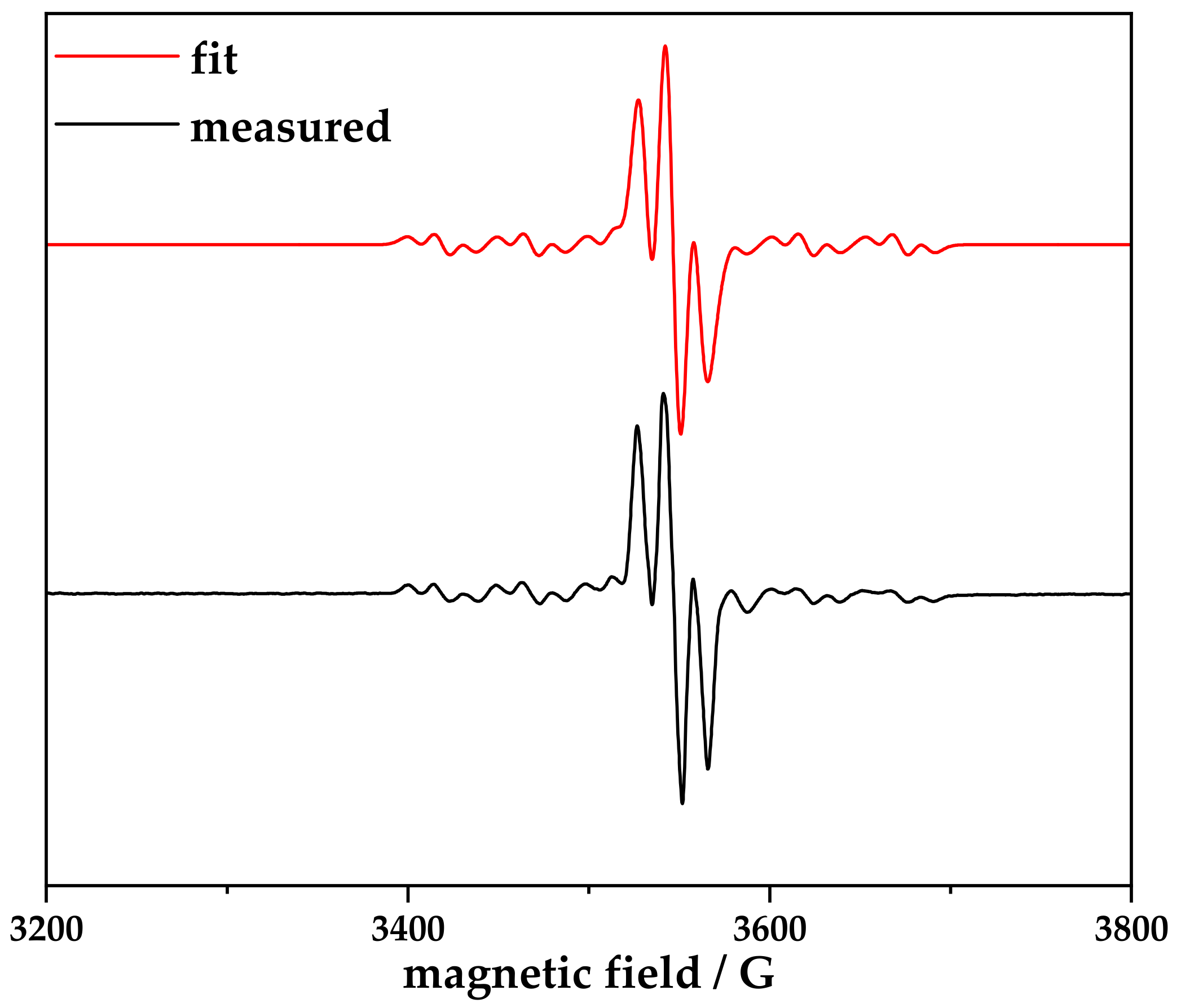

Figure 1. Measured liquid solution EPR spectrum (bottom, black) at 298 K in THF of complex 4, with a natural abundance isotope mixture. The spectrum was measured at a microwave frequency 9.86 GHz and a power 0.2 mW using 100 mT field modulation at 100 kHz. Above in red is the fitted EPR spectrum shown.
Figure 1. Measured liquid solution EPR spectrum (bottom, black) at 298 K in THF of complex 4, with a natural abundance isotope mixture. The spectrum was measured at a microwave frequency 9.86 GHz and a power 0.2 mW using 100 mT field modulation at 100 kHz. Above in red is the fitted EPR spectrum shown.
Molecules 27 07843 g001
Molecules 27 07843 sch003 550

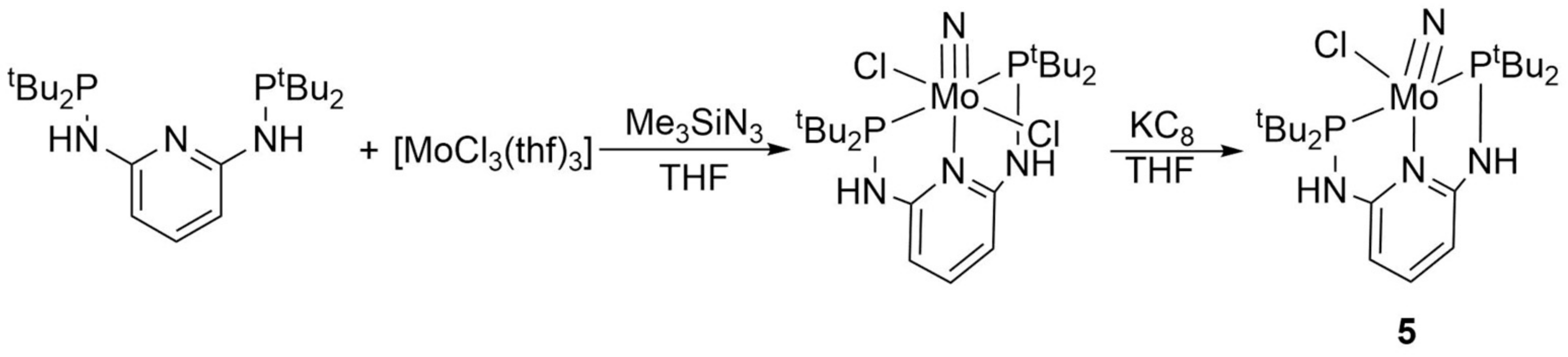

Scheme 3. Reaction scheme for the synthesis of the molybdenum(IV) nitrido complex 5.
Scheme 3. Reaction scheme for the synthesis of the molybdenum(IV) nitrido complex 5.
Molecules 27 07843 sch003
Molecules 27 07843 g002 550

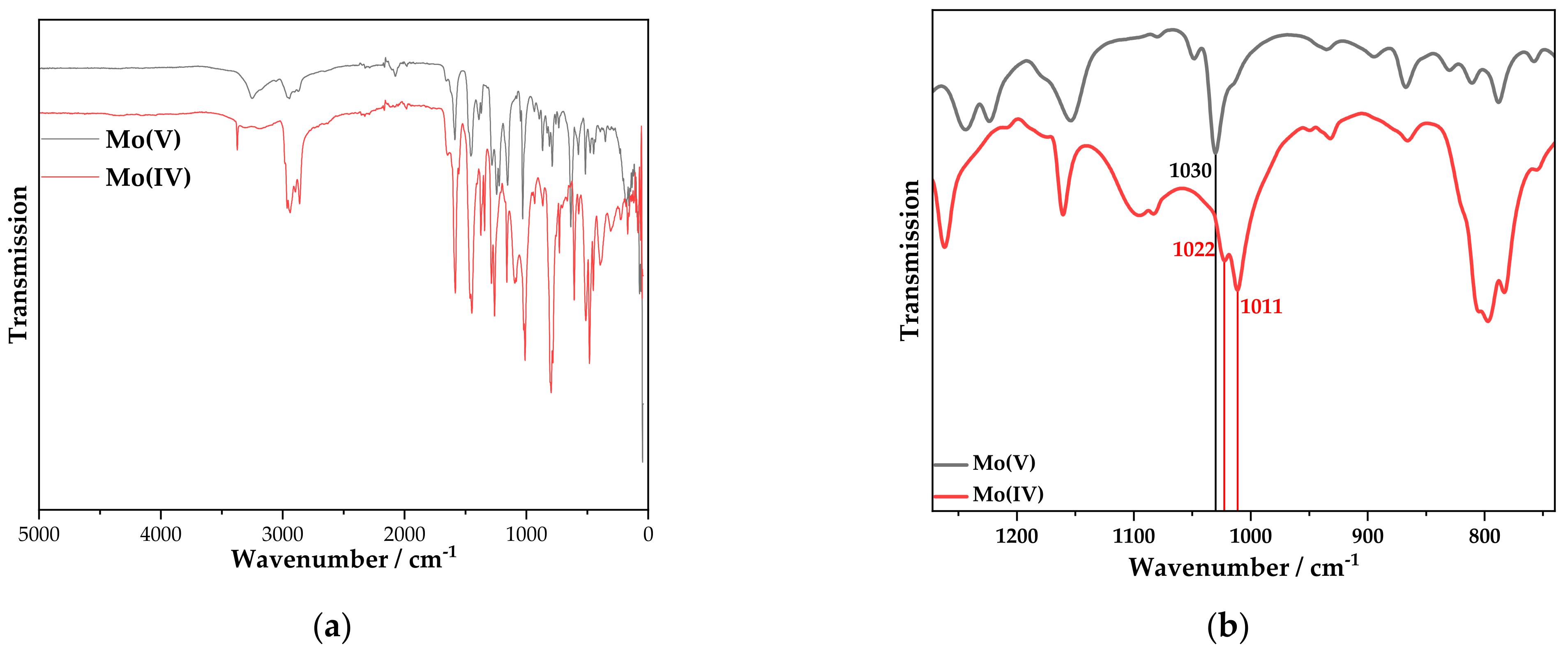

Figure 2. (a) IR spectra of the products 4 (black) and 5 (red). (b) Section of the IR spectra of the products 4 (black) and 5 (red) to highlight the Mo-N stretching vibration.
Figure 2. (a) IR spectra of the products 4 (black) and 5 (red). (b) Section of the IR spectra of the products 4 (black) and 5 (red) to highlight the Mo-N stretching vibration.
Molecules 27 07843 g002
Molecules 27 07843 g003 550

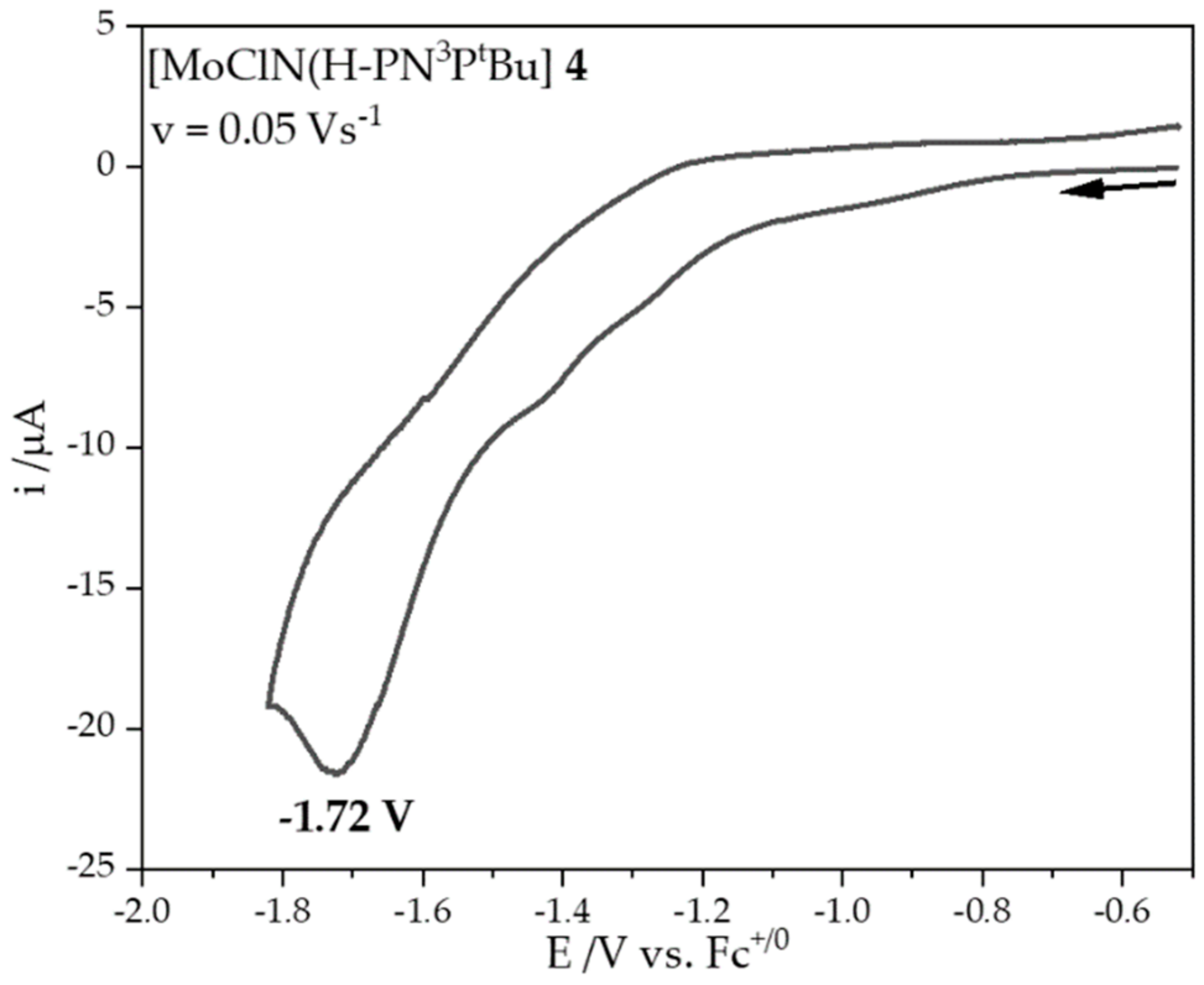

Figure 3. Cyclic voltammetry (E/V vs. Fc+/Fc) at a Pt working electrode (diam. 1 mm) of Mo(V)-nitrido 4 (1 mM) in THF/NBu4OTf (0.1 mM) at 0.05 Vs−1.
Figure 3. Cyclic voltammetry (E/V vs. Fc+/Fc) at a Pt working electrode (diam. 1 mm) of Mo(V)-nitrido 4 (1 mM) in THF/NBu4OTf (0.1 mM) at 0.05 Vs−1.
Molecules 27 07843 g003
Molecules 27 07843 sch004 550

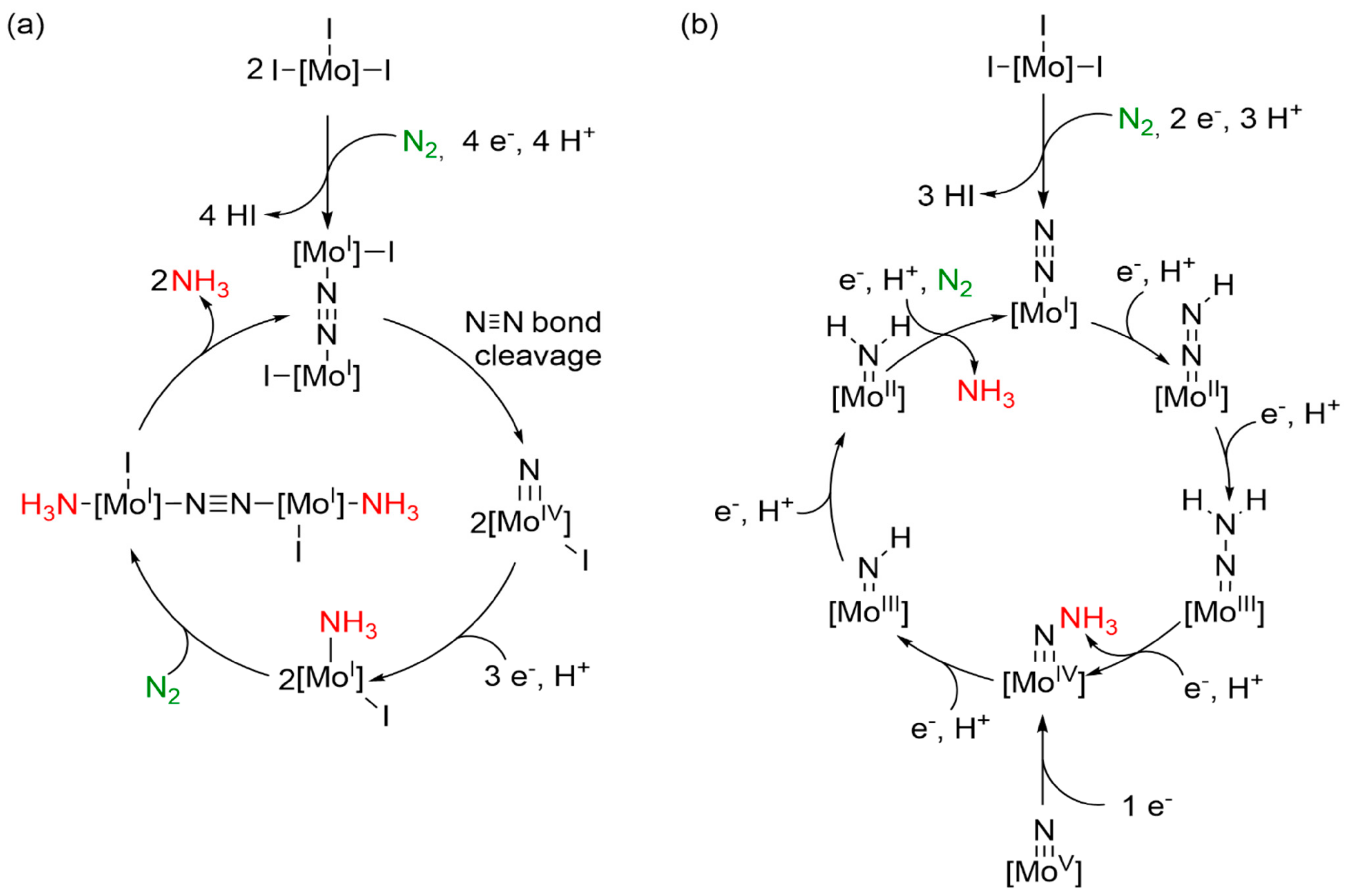

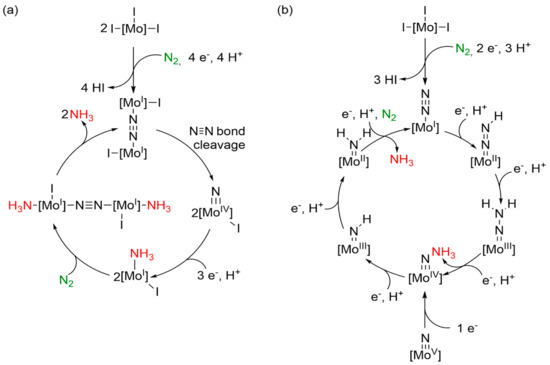

Scheme 4. (a) Schematic representation of the postulated mechanisms from Nishibayashi et al. for pincer ligand systems [35]. (b) Schematic representation of a Chatt-type, distal mechanism with a PCET reagent [13,14,35,41].
Scheme 4. (a) Schematic representation of the postulated mechanisms from Nishibayashi et al. for pincer ligand systems [35]. (b) Schematic representation of a Chatt-type, distal mechanism with a PCET reagent [13,14,35,41].
Molecules 27 07843 sch004
Molecules 27 07843 sch005 550

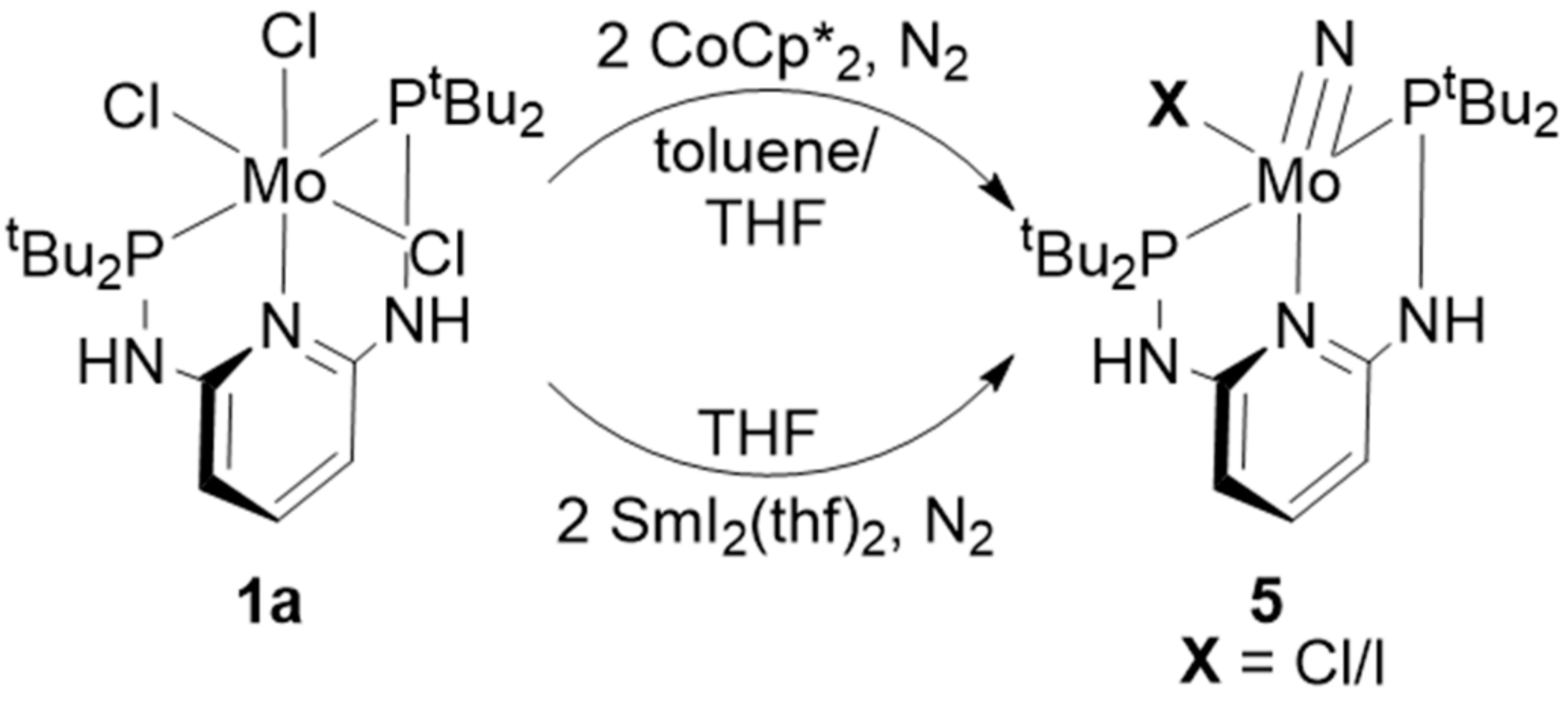

Scheme 5. Reaction scheme for the N-N-cleveage experiments according to the literature [23,42]. Neither reaction afforded the Mo(IV)-nitrido complex 5.
Scheme 5. Reaction scheme for the N-N-cleveage experiments according to the literature [23,42]. Neither reaction afforded the Mo(IV)-nitrido complex 5.
Molecules 27 07843 sch005
Table

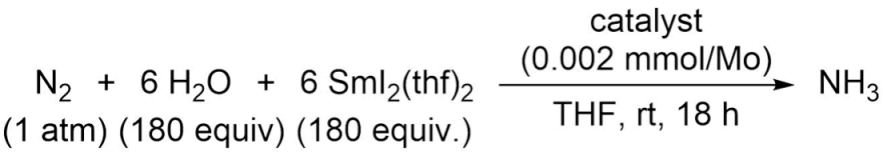

Table 1. Results of catalysis with the PN3P-Mo(III) halide complexes with 180 equiv. SmI2/H2O.
Table 1. Results of catalysis with the PN3P-Mo(III) halide complexes with 180 equiv. SmI2/H2O.
Molecules 27 07843 i001
RunCatalystNH3/equiv.NH3/%
11a38.5 (±0.3)64.2
21b39.7 (±0.1)66.2
31c32.4 (±0.1)54.0
42a1.4 (±0.1)2.3
52b1.5 (±0.2)2.5
62c2.3 (±0.1)3.8
73a1.8 (±0.1)3.0
83b1.9 (±0.1)3.3
93c1.7 (±0.1)2.8
10417.0 (±1.0)28.3
