Article

The Valence and Spin State Tuning of Iron(II/III) Porphyrazines with Bulky Pyrrolyl Periphery in Solution and Solid State

by
Tomasz Koczorowski
1,*,
Wojciech Szczolko
1,
Pawel Bakun
1,
Barbara Wicher
1,
Lukasz Sobotta
2,
Maria Gdaniec
3,
Anna Teubert
4,
Jadwiga Mielcarek
2,
Ewa Tykarska
1,
Jozef Korecki
5,
Kvetoslava Burda
6 and
Tomasz Goslinski
1
1
Chair and Department of Chemical Technology of Drugs, Poznan University of Medical Sciences, Grunwaldzka 6, 60-780 Poznan, Poland
2
Chair and Department of Inorganic and Analytical Chemistry, Poznan University of Medical Sciences, Rokietnicka 3, 60-806 Poznan, Poland
3
Faculty of Chemistry, Adam Mickiewicz University, Uniwersytetu Poznańskiego 8, 61-614 Poznan, Poland
4
Institute of Bioorganic Chemistry, Polish Academy of Sciences, Z. Noskowskiego 12, 61-704 Poznan, Poland
5
Jerzy Haber Institute of Catalysis and Surface Chemistry, Polish Academy of Sciences, Niezapominajek 8, 30-239 Krakow, Poland
6
Faculty of Physics and Applied Computer Science, AGH University of Science and Technology in Krakow, al. Mickiewicza 30, 30-059 Krakow, Poland
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(22), 7820; https://doi.org/10.3390/molecules27227820
Submission received: 3 October 2022 / Revised: 6 November 2022 / Accepted: 9 November 2022 / Published: 13 November 2022
(This article belongs to the Special Issue Multifunctional High Spin Molecules and Singlet Biradicals)
Browse Figures
Review Reports Versions Notes

Abstract

:
Iron(III) porphyrazines containing peripheral 2,5-dimethyl-, 2-methyl-5-phenyl-, and 2,3,5-triphenyl-1H-pyrrol-1-yl substituents were synthesized and subjected to physicochemical characterization. This was accomplished by high-resolution mass spectrometry, nuclear magnetic resonance (as diamagnetic Fe(II) derivatives), HPLC purity analysis, and UV-Vis spectroscopy, accompanied by the solvation study in dichloromethane and pyridine. X-ray structure analysis was performed for a single crystal of the previously obtained 2,5-diphenyl-substituted derivative of porphyrazine complex (5d). The octahedral geometries of iron cation, present in the porphyrazine core, influenced the packing mode of molecules in the crystals. Mössbauer studies, performed for solid samples of iron porphyrazines, indicated that low-spin reduced iron states might occupy low- or high-symmetry binding sites. It was found that the hyperfine parameters and the subsequent contribution of the iron cations depend on the number of phenyl groups surrounding the pyrrolyl moiety. For iron(II) porphyrazine 2,3,5-triphenylpyrrol-1-yl substituents (5b), a high-spin ferrous state fraction was observed. Temperature-dependent measurements showed that the freed rotation of the peripheral porphyrazine ligands and the increased flexibility of the macrocycle ring result in the Fe2+ ion being stabilized in a diamagnetic state at a binding site of high symmetry at room temperature in the solid state. This process is most probably stimulated by the range of collective motions of the polymeric ribbons consisting of iron(II) porphyrazines observed in the X-ray.

1. Introduction

Porphyrazines (Pzs) along with their structurally relevant analogs, such as porphyrins and phthalocyanines, belong to porphyrinoid macrocycles. Due to their unique photo and electrochemical properties, many of them revealed potential applications as photosensitizers in medicine and as catalysts or sensors in technology [1,2]. Pzs can be modified by exchanging the metal cation inside the core or by peripheral modifications with aliphatic, aryl, sulfur, oxygen, and nitrogen groups in their β positions [3,4,5,6,7]. Some Pzs metalized with iron Fe2+/3+ cations have demonstrated catalytic properties in oxidation reactions [8,9,10]. Our group reviewed electrochemical and catalytic activity as well as sensing properties of various iron(II/III) porphyrazines and phthalocyanines [11,12]. The influences of peripheral and axial substituents of iron(II/III) porphyrins and porphyrazines on their UV-Vis spectra were reviewed and investigated by Nakamura and Stuzhin [13,14,15]. The aforementioned phenomenon impacts further applications of iron(II/III) porphyrazines. Therefore, it is crucial to determine the Fe spin state and tune it by axial ligation.
There have been limited data on Pzs modified with peripheral 5-membered heteroaromatic rings. Luo et al. [16] synthesized binuclear Pzs with twelve peripheral trimethylthiophenyl groups, revealing interesting photochromic characteristics. For the last 15 years, our group obtained many examples of Pzs bearing peripheral 2,5-dimethylpyrrol-1-yl, 2,5-dithienylpyrrol-1-yl, 2,5-di(biphenyl-4-yl)pyrrol-1-yl, 2-(1-adamantyl)-5-phenylpyrrol-1-yl, and 3,4-dihalide-2,5-dimethylpyrrol-1-yl moieties [17,18,19,20,21]. Lately, it was found that bulky 2,5-diphenylpyrrol-1-yl substituents on the periphery of iron(II) porphyrazine influence its physicochemical properties, which was confirmed by Mössbauer spectroscopy [22]. The current study presents a series of porphyrazines with pyrrolyl groups substituted in their second, third, and fifth positions with methyl and/or phenyl groups. Novel compounds were characterized in terms of their structural properties using X-ray crystallography, NMR, and Mössbauer spectroscopy. The valence and spin states of the iron cation inside the macrocyclic core in solution and solid state were discussed.

2. Results and Discussion

2.1. Synthesis and Physicochemical Characterization

Previously, we reported the synthetic pathway and physicochemical characterization of metal-free porphyrazines with an alternate system of 2,3,5-trisubstituted pyrrolyl and dimethylamino substituents [18,22,23]. The Paal–Knorr reaction of diaminomaleonitrile (1) with 1-phenylpentane-1,4-dione in methanol, 1,2,4-triphenylbutane-1,4-dione in methanol, and 2,5-hexanedione in benzene, and in the presence of the catalytic amount of trifluoroacetic acid (TFA) or oxalic acid, led to the maleonitrile derivatives 2a, 2b, and 2c, respectively (Scheme 1). This synthetic approach leading to pyrrolyl-substituted maleonitriles was discovered by Begland et al. and further developed by our group [24]. Compounds 2a–2c were subjected to alkylation reactions following the procedure used by Beall et al. [25] to give 3a–3c. Next, the maleonitrile derivatives were utilized in the macrocyclization reaction in dimethylaminoethanol (DMAE) following the procedure used by Decreau et al. [26], leading to the free base porphyrazines 4a, 4b, and 4c. Their subsequent metalation with FeBr2 in the toluene-THF-2,6-lutidine system [27] allowed the obtaining of corresponding novel iron Pzs 5a, 5b, and 5c with 54%, 58%, and 46% yield, respectively.
Synthesis of 5a, 5b, and 5c may be considered as the continuation and further development of the recently published methodology which allowed the obtaining of magnesium(II) porphyrazine with 2,5-diphenylpyrollyl and dimethylamino groups and its iron(II) analog 5d [18,22].
All new macrocycles 5a–5c were purified by column chromatography and subjected to physicochemical characterization, including high-resolution mass spectrometry, nuclear magnetic resonance, HPLC purity analysis, and UV-Vis spectroscopy, accompanied by a solvation study in dichloromethane and pyridine.
In the UV-Vis spectra of 5a–5c recorded in dichloromethane, the Soret and Q-bands characteristic for porphyrinoids can be observed at approximately 300 nm and 690 nm, respectively (Figure 1). The obtained data were in good agreement with those obtained for the 2,5-diphenylpyrrolyl derivative reported earlier, where the Soret and Q-band were detected at 296 nm and 691 nm, respectively [22]. As a consequence of using the preparation method involving purification of synthesized macrocycles from iron salt excess in a two-phase system of dichloromethane:1M HCl, all the obtained UV-Vis spectra are similar to those recorded for five-coordinated Fe(III)Cl porphyrazine species [28,29] with an additional red-shifted band at approximately 915 nm. It can be noted that the addition of phenyl groups to peripheral pyrrolyl substituents in 5a and 5b led to an increase in the Soret/Q-band ratio compared to 5c with 2,5-dimethylpyrrolyl moieties.
The solvation studies of 5a–5c performed in dichloromethane and pyridine revealed the strong axial coordination of pyridine molecules to the central metal cation (Figures S1–S6 in the Supplementary Materials). The decline of additional red-shifted peaks in UV-Vis spectra was observed, indicating the change in iron cation valence from paramagnetic five-coordinated Fe(III) complex to diamagnetic six-coordinated Fe(II) complex. It is known that in solvents with higher dielectric constant and/or donor properties (acetone, dimethylsulfoxide, pyridine, etc.), Fe3+ is reduced to Fe2+ with the formation of diamagnetic six-coordinated iron(II) complexes (L)2FePz [14] which can be noticed by changes in the UV-Vis spectra as in this case. In addition, the synthesized porphyrazines obeyed the Lambert-Beer law in pyridine, whereas aggregation could be observed in freshly distilled dichloromethane (Table S1). Moreover, we performed an additional experiment with the formation of the µ-oxo dimer of Fe(III)Pz, following the literature procedure [30]. The porphyrazine 5c was subjected to an oxidation reaction in a two-phase system: dichloromethane:1M NaOH, exposed to the air while stirring. In the UV-Vis spectra collected in dichloromethane, two effects indicating the formation of the dimeric form were noted [14]. The first was a decay of the peak at 916 nm, and the second was a red-shifting of the Q-band from 685 nm to 782 nm (Figure 2).
The 1H and 13C NMR spectra of synthesized porphyrazines 5a–5c were recorded in deuterated pyridine for better solvation than in CDCl3, resulting in a reduction of the paramagnetic Fe(III) species to the diamagnetic Fe(II) derivative. In the 1H NMR of 5a, the splitting of CH3 signals from both dimethylamino and 2-methyl-5-phenylpyrrolyl groups can be noticed in the aliphatic area due to atropoisomer formation (see page 18 in Supplementary Materials) observed for the magnesium(II) analog [18]. The occurrence of the 1H signal splitting of phenyl substituents in the aromatic area in 5b due to atropoisomerism was also recorded. However, the 1H NMR spectrum of 5c revealed the existence of two forms of porphyrazine macrocycle—a free, non-aggregated Pz 5c and an aggregated Pz 5c* (see page 20 in Supplementary Materials). Similar behavior was reported earlier for porphyrazine 5d with peripheral dimethylamino and 2,5-diphenylpyrrolyl substituents [22]. The assignment of 1H and 13C NMR signals and the nuclear correlations of porphyrazines 5a–5c are presented in Figures S7 and S8 in Supplementary Materials.

2.2. X-ray Study

All iron(III) porphyrazines 5a–5c obtained in this work and the fourth analog of the series, previously synthesized Pz 5d, were subjected to crystallization experiments, resulting in the formation of a fine single crystal for the latter. The crystal of Pz 5d (Figure 3) was obtained at room temperature by slow evaporation of dichloromethane:methanol (1:1) resulting in the substitution of chloride with methanol moieties in the porphyrazine complex. Crystal data and details of the X-ray diffraction analyses are reported in Table S2.
X-ray structural analysis revealed that in the crystal of 5d, the Fe(II)-Pz molecule is located at a special position of S4 symmetry. The iron cation is in a slightly distorted octahedral environment with four N-pyrrole atoms located in equatorial positions and two O atoms from the coordinated methanol ligands in apex positions, indicating the presence of a six-coordinated Fe2+ cation. The Fe(II)-N and Fe(II)-O bond lengths are 1.926(2) and 2.208(3) Å, respectively. The Pz macrocycle exhibits a saddle-like conformation with the displacement of the β-pyrrole carbons from the Pz best plane in the range ±0.371(3) Å (Figure 4 and Table S3).
Large substituents attached to the Cβ atoms of the pyrrole rings lead to steric overcrowding of the periphery of the Pz molecule. Hence, the peripheral groups are twisted with respect to the mean plane of the Pz core, and the rotations about the Cβ-N bonds differ depending on the substituent [18]. The dihedral angles formed with the Pz core by the dimethylamine groups [34.9(1)°] are smaller than those created by the exo-pyrrole rings [84.1(3)°]. A Cβ-N bond length to the dimethylamine group of 1.361(3) Å points to a significant electron conjugation between the Pz core and this group. This conjugation is strongly reduced for the exo-pyrrole ring, as reflected in the Cβ-N bond length of 1.420(4) Å.
In 5d, hydrophobic pockets are generated on both sides of the macrocycle ring by substituents strongly twisted relative to the Pz core. In the case of octahedral coordination, both pockets are occupied by a coordinated solvent molecule. In magnesium(II) porphyrazines with similar pyrrolyl substituents, the central atom is in the square-pyramidal coordination. Only one of the pockets is occupied by a coordinated solvent molecule. Thus, porphyrazine molecules associate with centrosymmetric dimers through the interpenetration of the phenyl rings into unoccupied pockets [18]. In 5d, such dimers cannot be formed as both pockets are filled with solvent molecules. Instead, a ribbon motif formed by porphyrazine molecules is observed (Figure 5).

2.3. Mössbauer Spectroscopy Study

The solid samples of synthesized porphyrazines 5a–5c containing peripheral 2,5-disubstituted- and 2,3,5-trisubstituted-pyrrol-1-yl groups, obtained by slow evaporation of dichloromethane:methanol (1:1, v/v) mixture, were researched by Mössbauer spectroscopy. As mentioned in Section 2.2, the use of methanol can cause the substitution of chloride anions with MeOH moieties. Mössbauer spectroscopy is a unique method that allows directly detecting local valence and spin states of heme-iron in Pzs. The hyperfine parameters, an isomer shift (IS), and a quadrupole splitting (QS) obtained from theoretical fits of the experimental data are additionally sensitive to the type of iron porphyrinoids and their arrangement [31,32]. The preparation of solid samples involving the solvent with a high dielectric constant (methanol) has a strong influence on the structure of porphyrazine complexes due to obtaining low-spin six-coordinated Fe2+ species [14,33] or intermediate-spin Fe3+ species [13].
In Figure 6, the Mössbauer spectra of 5c measured at 95 and 304 K are presented. Three doublets having small comparable isomer shifts (~0.17 mm/s at low temperatures) but different quadrupole splittings indicate three distinct configurations of Fe binding sites. In all cases, heme-iron is stabilized in a low-spin ferrous state (in a diamagnetic state, Fe2+ with S = 0). Electrons from the nitrogen atoms of dimethylamino groups donate electrons to the iron ion, keeping it in a reduced Fe2+ state. Usually, one could expect a small QS (about 0.1–0.4 mm/s) for such a diamagnetic iron state as is observed for component #3 (comp#3) (Table S5) [32,34]. However, distortion of the octahedral field in the iron-binding site significantly increases quadrupole splitting. Even identical ligands having varying distances from the central ion lead to a reduction in the field symmetry. A different character of one of the axial ligands can also cause the deformation of the octahedron. Heme-iron in oxyhemoglobin is such an example [32,35]. Additionally, the growth of the quadrupole splitting can be enhanced by a torsion of the tetrapyrrole ring [22,36]. Therefore, the two other components detected for 5c, comp#1 and comp#2, characterized by a QS as high as ~2.8–3.3 mm/s, may also be assigned to the low-spin Fe2+ state, especially as the temperature dependence of their hyperfine parameters and contributions confirm our hypothesis. A substantial decrease in these quadrupole splittings with increasing temperature is related to the activated rotational flexibility of the iron axial ligands and the activation of short and long cooperative motions of the complexes [37,38]. Interestingly, the contribution of comp#1 starts to decrease at T > 160 K, whereas that of comp#2 begins to increase (Figure 6 and Figure 8, Table S4). Additionally, at T > 185 K, the content of comp#3 increases. Because similar Debye temperatures are expected for all the Fe substates (~180–200 K) [31,37], one can conclude that comp#1 gradually transforms into comp#2 and then to comp#3, characterized by the highest symmetry of the electric field at the iron-binding site.
The Mössbauer spectra of the Pz with 2-methyl-5-phenylpyrrol-1-yl groups 5a consist of three subspectra characterized by hyperfine parameters similar to those detected for 5c (Figure 7 and Table S5). However, the contributions of the subcomponents differ from those observed in the case of 5c. Comp#2 has the highest content in the spectrum of 5a. It increases from ~52% at 90 K up to ~61% at 200 K and decreases at T > 260 K but still dominates the other subcomponents. Within the range of temperatures from 90 K to 200 K, the contribution of comp#1 decreases from about 42% to 27%, whereas the contribution of comp#3 increases from about 6% up to about 12%. One can again notice that comp#1 transfers to comp#3 via comp#2. This effect is evident at T > 250 K, when the abrupt decrease in comp#2 content is related to the increase in comp#3 content (Table S5 and Figure 8).
From the data presented above, it can be concluded that the peripheral phenyl group is responsible for the inversion of the occupation of binding sites #1 and #2 by the iron atom. In addition, the interactions of the Pz ring and probably axial ligands with the phenyl groups force a more efficient formation of the high-symmetry field (comp#3) at temperatures above 200 K (Figure 8). The attachment of 2,5-diphenylpyrrol-1-yl groups to the porphyrazine core in 5d results in an increase in the contribution of the most symmetric iron-binding site in the Mössbauer spectrum to about 36% at 85 K [22]. In the case of 5b, in which 2,3,5-triphenylpyrrol-1-yl groups are present, the content of the highly symmetric iron-binding site (comp#2) reaches even 50% at 80K (Figure 9, Table S6). The values of hyperfine parameters characterizing comp#1 for 5b are weighted averages of those obtained for comp#1 and comp#2 in the case of the other Pzs 5a, 5c, and 5d. Comp#3 observed for 5b is characterized by a high-spin state. Its relatively small quadrupole splitting, smaller by about 0.6 mm/s than that detected for the high-spin state in 5d [22], indicates higher field symmetry at the iron site in 5b.
Mössbauer results show that the successive attachment of phenyl groups to the pyrrol-1-yl substituent enhances the stabilization of Fe2+ in a high-symmetry field. Its contribution linearly increases with an increasing number of phenyl groups bound to the pyrrole ring (Figure 10). A deviation from the rule at low temperatures is only observed for 5a having only one phenyl group attached to the pyrrol-1-yl substituent and most probably comes from the presence of an extra methyl group, which can donate electrons to the central ion and modify the electron density distribution in the iron vicinity. Furthermore, the incorporation of 2-methyl-5-phenyl-pyrrol-1-yl groups at the Cβ positions of Pz pyrrole rings in comparison to more sterically bulky 2,5-diphenylpyrrol-1-yl and 2,3,5-triphenylpyrrol-1-yl groups decreases the barrier to their rotation about Cβ-N bonds. It has also been found that more than one phenyl group attached to the pyrrol-1-yl moiety influences the appearance of a high-spin state of ferrous iron at low temperatures, and its content in 5b (2,3,5-triphenylpyrrol-1-yl group) is about 2-fold higher than that reported for 5d (2,5-diphenylpyrrol-1-yl group) [22] (Figure 10).
Narrow line widths of all the subspectra resolved for the Fe-porphyrazines (about 0.18 ± 0.02 mm/s) suggest a high homogeneity of the heme-iron surroundings. It was proved that the temperature changes of the hyperfine parameters and fractions of the subspectra are reversible. This means that the iron ligands are conserved, and only their configuration is modified. High values of quadrupole splittings observed in 5c at a low temperature for more than 90% of the iron fraction suggest that the electric field gradient at the six-coordinated iron (four bonds with N atoms from the tetrapyrrole ring and two axial bonds to methanol molecules) has tetragonal distortion and that it has high symmetry only for less than 10% of iron-binding sites. Interestingly, it was observed that with increasing temperature, more iron ions occupy a symmetric configuration. This is enhanced by the presence of a phenyl substituent at the pyrrol-1-yl group in 5a. According to the Jahn-Teller theorem, there always exists a non-totally symmetric configuration compared to which the fully symmetric structure is unstable in transition metal complexes [39,40]. Even a minimal asymmetry of the field leads to the split of the degenerate ground state into two lower-lying nondegenerate states. Because the tetragonal distortion can lead to an octahedron either elongated or compressed, three possible energy minima are separated from one another by three potential barriers. If the potential barrier is ΔE > kBT, then a static effect is observed, and if ΔE ≤ kBT, a dynamic effect is observed. Thus, in the Mössbauer studies, three possible field configurations could be observed at sufficient or relatively low temperatures [40]. At higher temperatures, one could expect an increased occupation of the higher energetic state-which is the most symmetrical. The presented Mössbauer data show that diverse Fe species occur in all the Fe-Pzs investigated by us, and at room temperatures, the occupation of the Fe octahedral configuration increases.
On the basis of changes in the contribution of the component characterized by high QS in Mössbauer spectra as a function of temperature, taking into account the quadrupole splitting distribution (Figure S9), one can estimate the activation energy of the dynamic Jahn–Teller effect for Pz 5a and Pz 5c. Activation of fast collective motions at higher temperatures ultimately leads to the relaxation of the system. Therefore, the changes presented in Figure S9 are well described by the simplified Debye model valid for T > ½ θD extended for anharmonicity of the lattice vibrations which leads to the temperature-dependent Debye temperature (θD = θ0(1 + AT), where θ0 is the Debye temperature at the low-temperature limit and A is a parameter of the effective Debye temperature variation) [37,41]. We obtained θD = 213 ± 21 K (A = −(2.8 ± 0.3) × 10−3 K−1) and θD = 134 ± 16 K (A = −(2.3 ± 0.4) × 10−3 K−1) for Pz 5c and Pz 5a, respectively, allowing the estimation of the activation energy 18 ± 2 meV for Pz 5c and 12 ± 1 meV for Pz 5a.
Our results also provide experimental evidence that the phenomenon described above is related to the dynamic Jahn–Teller effect [39,40], which can be additionally regulated by the arrangement of all ligands, including the phenyl groups attached to the pyrrol-1-yl substituents. Their presence may change electron density distribution in the iron surrounding and thus the metal-to-ligand distances as well as the bond angles. The electronic anisotropy can be reduced or enhanced by the intermolecular interactions between the phenyl-phenyl rings and/or phenyl-porphyrazine rings which occur in the case of J-aggregates. In the present study, it was shown that these effects might modify energetic barriers between the different configuration states of Pzs and in this way influence their stability at a given temperature. Most probably, the high-spin state detected for Pz 5b at low temperatures also results from those interactions.

3. Materials and Methods

3.1. General Procedures

All reactions were conducted in oven-dried glassware under argon. All solvents were evaporated in a rotary evaporator at or below 50 °C. Reaction temperatures reported refer to external bath temperatures. Methanol, tetrahydrofuran, and dichloromethane were distilled before use. Other solvents and all reagents were obtained from commercial suppliers and used without further purification unless otherwise stated. Melting points (Mp) were obtained on a “Stuart” Bibby apparatus and are uncorrected. The flash column chromatography was carried out on Merck silica gel 60, particle size 40–63 µm, and Fluka silica gel 90 C18-reversed phase. Thin layer chromatography (TLC) was performed on silica gel Merck Kieselgel 60 F254 plates and visualized with UV (λmax 254 or 365 nm). UV-Vis spectra were recorded on a Hitachi UV/VIS U-1900 spectrometer (Hitachi High-Tech Corporation, Tokio, Japan); λmax (log ε), nm. HPLC analyses were performed on an Agilent 1200 instrument (Agilent Technologies, Santa Clara, CA, USA)equipped with a DAD detector. The chromatographic separation was carried out on an Eclipse XDB-C18 column, 150 mm × 4.6 mm, 5 μm (Agilent) or Gemini C6-Phenyl column (Phenomenex), 150 mm × 4.6 mm, 5 μm using isocratic elution conditions at a flow rate of 1.0 mL/min in three different configurations of solvents. Mass spectra HRMS (MALDI TOF, Impact HD, Bruker Daltonics, Billerica, MA, USA)) were measured at the Wielkopolska Centre for Advanced Technologies in Poznan.

3.2. Synthesis

General Synthetic Procedure

The syntheses of porphyrazines 5a–5c were performed following the procedures described earlier [18,22,23]: free-base porphyrazine derivative (4a: 48 mg, 0.043 mmol; 4b: 25 mg, 0.015 mmol; 4c: 84 mg, 0.09 mmol), FeBr2 (93 mg, 0.43 mmol for 5a; 32 mg, 0.15 mmol for 5b; and 194 mg, 0.9 mmol for 5c), and 2,6-lutidine (2 mL) were heated in a toluene–THF mixture (1:1, 10 mL) under reflux for 20 h. After being allowed to cool to room temperature, the green mixture was evaporated to dryness. Next, a dark green solid dissolved in dichloromethane (10 mL) was mixed with 1M HCl (10 mL) for 30 min (two-phase system). The organic layer was mixed with brine (10 mL) for 30 min (two-phase system). The organic layer was separated, dried with anhydrous MgSO4, and evaporated in a rotary evaporator. The residual iron species were removed by extraction in CH2Cl2 (10 mL) and saturated citric acid solution (10 mL). The dry residue was extensively purified by column chromatography (CH2Cl2:CH3OH, 50:1) to give the targeted porphyrazines 5a–5c.
[2,7,12,17-Tetrakis(dimethylamino)-3,8,13,18-tetrakis-(2-methyl-5-phenyl-1H-pyrrol-1-yl)porphyrazinato]iron(III) chloride (5a): dark green solid (27 mg, 54% yield). m.p. > 300 °C. Rf (CH2Cl2:CH3OH, 50:1) 0.26. UV-Vis (CH2Cl2): λmax, nm (log ε) 289 (4.97), 377 (4.44), 434 (4.45), 553 (4.32), 689 (4.60), 917 (4.21). 1H NMR (500 MHz; pyridine-d5): δH, ppm 2.10–2.78, 3.25–3.78 (2×m, 36H, pyrrolyl-CH3 and N(CH3)2), 6.57–6.93 (m, 20H, C6H5), 7.58–7.65 (m, 8H, C6H5). 13C NMR (125 MHz; pyridine-d5): δC, ppm 13.1, 14.1, 14.3, 39.0, 39.9, 42.5, 108.2, 109.0, 109.1, 109.3, 110.3, 126.3, 127.0, 127.5, 127.7, 128.0, 128.8, 128.9, 129.6, 129.9, 135.7, 136.5, 138.1, 149.9. HRMS (MALDI TOF): m/z Calc. for C68H64N16Fe [M]+ 1160.4849, found 1160.6684. HPLC purity 97.97–98.57%.
[2,7,12,17-Tetrakis(dimethylamino)-3,8,13,18-tetrakis-(2,3,5-triphenyl-1H-pyrrol-1-yl)porphyrazinato]iron(III) chloride (5b): dark green solid (15 mg, 58% yield). m.p. > 300 °C. Rf (CH2Cl2:CH3OH, 50:1) 0.33. UV-Vis (CH2Cl2): λmax, nm (log ε) 298 (5.24), 378 (4.59), 436 (4.58), 547 (4.41), 692 (4.69), 915 (4.37). 1H NMR (500 MHz; pyridine-d5): δH, ppm 2.83–3.69 (m, 24H, N(CH3)2), 6.54–7.07 (m, 26H, C6H5), 7.15–7.16 (d, 1H, C6H5), 7.24–7.26 (m, 6H, C6H5), 7.30–7.40 (m, 15H, C6H5), 7.45–7.50 (m, 4H, pyrrolyl-H), 7.61 (s, 1H, C6H5), 7.67–7.71 (m, 9H, C6H5), 7.77–7.78 (m, 2H, C6H5). 13C NMR (125 MHz; pyridine-d5): δC, ppm 39.5, 41.8, 110.0, 110.1, 110.2, 124.3, 125.9, 126.2, 126.3, 127.0, 127.1, 127.7, 127.8, 127.9, 128.0, 128.2, 128.3, 128.5, 129.0, 129.2, 131.1, 131.3, 131.4, 131.5, 132.4, 132.4, 133.8, 133.9, 134.3, 134.5, 134.6, 137.6, 137.7, 137.8, 145.5, 147.2, 149.4. HRMS (MALDI TOF): m/z Calc. for C112H89N16Fe[M + H]+ 1713.6806, found 1713.1149. HPLC purity 95.07–96.51%.
[2,7,12,17-Tetrakis(dimethylamino)-3,8,13,18-tetrakis-(2,5-dimethyl-1H-pyrrol-1-yl)porphyrazinato]iron(III) chloride (5c): dark green solid (41 mg, 46% yield). m.p. > 300 °C. Rf (CH2Cl2:CH3OH, 50:1) 0.29. UV-Vis (CH2Cl2): λmax, nm (log ε) 310 (4.75), 373 (4.53), 429 (4.53), 552 (4.41), 685 (4.70), 916 (4.26). 1H NMR (500 MHz; pyridine-d5): δH, ppm 1.99 (s, 24H, pyrrolyl-CH3), 2.20–2.33 * (m, pyrrolyl-CH3), 2.74 (s, 24H, N(CH3)2), 3.39–3.50 * (m, N(CH3)2), 5.85 (s, 8H, pyrrolyl-H), 6.27–6.34 * (m, pyrrolyl-H). 13C NMR (125 MHz; pyridine-d5): δC, ppm 13.4, 14.4 *, 40.2 (N(CH3)2), 42.8 * (N(CH3)2), 107.0 *, 107.8, 132.3, 139.4, 151.8, 152.8, 165.2. An asterisk (*) indicates the aggregated specie. HRMS (MALDI TOF): m/z Calc. for C48H56N16Fe[M]+ 912.4223, found 912.6889. HPLC purity 94.58–100%.

3.3. Solvation Study

A solvation study was performed in dichloromethane and pyridine (Baker, J.T. Avantor, Allentown, PA, USA) according to a previously described method [42].

3.4. Single-Crystal X-ray Structure Determination

The X-ray diffraction measurements were carried out with an Oxford Diffraction Xcalibur E diffractometer with graphite-monochromated MoKα radiation (Oxford Diffraction Ltd, Abingdon, UK)). CrysAlis PRO [43] was used for data processing. Structures were solved by direct methods with SIR2004 [44] and refined by full-matrix least squares based on F2 (SHELXL-2016) [45]. All non-H atoms were refined with anisotropic displacement parameters. C-bound hydrogen atoms were placed at idealized positions and were refined as riding on their carriers with Uiso(H) = 1.2Ueq for CH and CH2 groups and Uiso(H) = 1.5Ueq for the methyl group.
Due to the S4 symmetry of the Pz molecule, the carbon atom of the coordinated methanol molecule is disordered and refined with an occupancy of 0.5. The second methanol molecule observed in the Pz pocket also had to be refined as disordered with an occupancy factor of 0.5. The positions of OH hydrogen atoms of methanol molecules were not determined. Other solvent molecules were severely disordered and could not be reliably located. The SQUEEZE [46] procedure was applied to remove the contribution of disordered solvents to structure factors using the following parameters: grid 0.20 Å, probe radius 1.2 Å, and NStep 6. Solvent-accessible voids in the unit cell have a volume of 1264.6 Å3, and the electron count per unit cell is 284.
Crystal data and details of data collection, data reduction, and the refinement process are given in Table S2. Crystallographic data for this paper can be obtained free of charge from The Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/cif (CCDC 1570662) (accessed on 3 October 2022).

3.5. NMR Study

1H NMR and 13C NMR spectra were recorded using Bruker 400, 500, and 700 spectrometers. Chemical shifts (δ) are quoted in parts per million (ppm) and refer to a residual solvent peak. Coupling constants (J) are quoted in Hertz (Hz). The abbreviations s, d, t, and m refer to singlet, doublet, triplet, and multiplet, respectively. Chemical shifts of aggregated species are signed with an asterisk (*). Additional techniques (1H-1H COSY, 1H-13C HSQC, and HMBC) were used to assist allocation.

3.6. Mössbauer Spectroscopy Study

Porphyrazine derivatives containing iron ions were examined using Mössbauer spectroscopy. These measurements were carried out in a home-built cryostat. All samples were kept in darkness. 57Co(Rh), 50 mCi, was a source of 14.4 keV radiation. Porphyrazine 5a and 5c powder samples were investigated in a wide range of temperatures from 90 K to 304 K. The Mössbauer spectrum of powder 5b was collected at 80 K. The temperature was stabilized within 0.03 K. Recoil software was used to evaluate experimental data [47]. Values of isomer shifts are given relative to α-Fe at 295 K.

4. Conclusions

Iron(III) porphyrazines with 2,5-dimethyl-, 2-methyl-5-phenyl-, and 2,3,5-triphenyl-1H-pyrrol-1-yl substituents at the periphery were synthesized. Physicochemical characterization was conducted with high-resolution mass spectrometry (MALDI TOF), nuclear magnetic resonance (1H, 13C, two-dimensional techniques), and UV-Vis spectrophotometry. Moreover, solvation studies in dichloromethane and pyridine were performed. The purity of the synthesized porphyrazines was assessed with high-performance liquid chromatography. The UV-Vis studies revealed the presence of characteristic signals for iron(III) porphyrazines as a result of applying an aqueous hydrochloride solution during synthesis. All iron(III) porphyrazines 5a–5c obtained in this work as well as the previously synthesized porphyrazine 5d were subjected to crystallization experiments in a dichloromethane:methanol (1:1 v/v) mixture. The X-ray crystal structure analysis of 5d revealed a saddle-like conformation of the porphyrazine ring. Crystal packing was determined by the octahedral coordination geometry of the central metal ion. All synthesized porphyrazines were also studied using Mössbauer spectroscopy to assess the oxidation and spin state of the iron metal cation inside the macrocyclic core. These studies suggested the presence of the Fe2+ cation inside the macrocyclic core axially coordinated by two methanol moieties previously used in solid sample preparation involving slow evaporation of solvent with a high dielectric constant. Moreover, temperature-dependent measurements using this technique showed, for the first time, that the number and flexibility of the peripheral phenyl groups can strongly influence the properties of the iron-binding site and Fe spin state. Their freed rotation at higher temperatures ensures that a high-symmetry binding site of the iron ion in a strong electric field is favored in the Pzs at room temperatures. This is consistent with the results obtained from crystallographic measurements, which showed a single iron site and short Fe-N bond distances (1.926 Å) characteristic of a low-spin Fe2+ state [48]. The effects discussed above can be additionally regulated by long-range collective motions of the polymeric structures of Fe-Pzs forming ribbons.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27227820/s1, Figure S1. Spectra and correlation between absorbance and concentration at 693 nm for the concentration range 3.62 × 10−5–1.13 × 10−6 mol/dm3 in CH2Cl2 for Pz 5a. Figure S2. Spectra and linear correlations between absorbance and concentration at 690 nm for the concentration range 4.21 × 10−5–2.63 × 10−6 mol/dm3 in pyridine for Pz 5a. Figure S3. Spectra and correlation between absorbance and concentration at 694 nm for the concentration range 2.91 × 10−5–1.82 × 10−6 mol/dm3 in CH2Cl2 for Pz 5b. Figure S4. Spectra and linear correlations between absorbance and concentration at 696 nm for the concentration range 3.05 × 10−5–1.90 × 10−6 mol/dm3 in pyridine for Pz 5b. Figure S5. Spectra and correlation between absorbance and concentration at 685 nm for the concentration range 5.44 × 10−5–3.40 × 10−6 mol/dm3 in CH2Cl2 for Pz 5c. Figure S6. Spectra and linear correlations between absorbance and concentration at 685 nm for the concentration range 5.33 × 10−5–3.33 × 10−6 mol/dm3 in pyridine for Pz 5c. Figure S7. The assignment of 1H and 13C NMR signals of 5a and 5b in pyridine-d5. Figure S8. The assignment of 1H and 13C NMR signals of 5c and 5c* in pyridine-d5. Figure. S9. Normalized Mössbauer spectra of Pz 5c measured at 95 K (A) and Pz 5a measured at 90 K (B). Symbols represent experimental data and lines theoretical fits. Each subspectrum is marked by different color (component fitted without distribution of the quadrupole splitting - green, component fitted with distribution of the quadrupole splitting - magenta) and black line is a sum of the two subspectra. Temperature dependence of the contribution of the component characterized by high QS with the quadrupole splitting distribution (subspectrum marked by magenta in A and B) for Pz 5c (C) and Pz 5a (D). The solid lines in figs. C and D represent theoretical fits obtained by using the simplified Debye model extended for anharmonicity [37,41]. For more details see the main text. Table S1. Statistical data for solvation study in two solvents. Table S2. X-ray experimental details for porphyrazine 5d. Table S3. The deviation of atoms from least-squares plane of Pz core (* indicates atom used to define a plane). Table S4. Hyperfine parameters (IS—isomer shift, QS—quadrupole splitting) obtained from the theoretical evaluation of the 5c Mössbauer spectra and contributions of the subsequent components (A). Table S5. Hyperfine parameters (IS—isomer shift, QS—quadrupole splitting) obtained from the theoretical evaluation of the 5a Mössbauer spectra and contributions of the subsequent components (A). Table S6. Hyperfine parameters (IS—isomer shift, QS—quadrupole splitting) obtained from the theoretical evaluation of the 5b Mössbauer spectrum and contributions of the subsequent components (A).

Author Contributions

Conceptualization, T.K. and T.G.; methodology, T.K., W.S., B.W., L.S. and A.T.; investigation, T.K., K.B., L.S., B.W. and E.T.; resources, M.G. and J.K.; writing—original draft preparation, T.K., E.T. and K.B; writing—review and editing, E.T., K.B., J.M. and T.G.; visualization, P.B.; supervision, T.G.; funding acquisition, T.G. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Science Centre, Poland, under Grant No. 2020/39/O/NZ7/00351. AT acknowledges financial support from the European Fund for Regional Development No. UDA-POIG.02.01.00-30-182/09.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

This work was performed within the BIONAN cooperation. The authors thank Beata Kwiatkowska and Rita Kuba for excellent technical support.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds 5a–5c are available from the authors.

References

  1. Montalban, A.G.; Jarrell, W.; Riguet, E.; Mccubbin, Q.J.; Anderson, M.E.; White, A.J.P.; Williams, D.J.; Barrett, A.G.M.; Hoffman, B.M. Bis(dimethylamino)porphyrazines: Synthetic, Structural, and Spectroscopic Investigations. J. Org. Chem. 2000, 65, 2472–2478. [Google Scholar] [CrossRef] [PubMed]
  2. Fuchter, M.J.; Zhong, C.; Zong, H.; Hoffman, B.M.; Barrett, A.G.M. Porphyrazines: Designer Macrocycles by Peripheral Substituent Change. Aust. J. Chem. 2008, 61, 235–255. [Google Scholar] [CrossRef]
  3. Trivedi, E.R.; Vesper, B.J.; Weitman, H.; Ehrenberg, B.; Barrett, A.G.M.; Radosevich, J.A.; Hoffman, B.M. Chiral Bis-Acetal Porphyrazines as near-Infrared Optical Agents for Detection and Treatment of Cancer. Photochem. Photobiol. 2010, 86, 410–417. [Google Scholar] [CrossRef] [PubMed]
  4. Manet, I.; Manoli, F.; Donzello, M.P.; Viola, E.; Masi, A.; Andreano, G.; Ricciardi, G.; Rosa, A.; Cellai, L.; Ercolani, C.; et al. Pyrazinoporphyrazines with Externally Appended Pyridine Rings. 13. Structure, UV-Visible Spectral Features, and Noncovalent Interaction with DNA of a Positively Charged Binuclear (ZnII/PtII) Macrocycle with Multimodal Anticancer Potentialities. Inorg. Chem. 2013, 52, 321–328. [Google Scholar] [CrossRef] [PubMed]
  5. Rodríguez-Morgade, M.S.; Stuzhin, P.A. The Chemistry of Porphyrazines: An Overview. J. Porphyr. Phthalocyanines 2004, 8, 1129–1165. [Google Scholar] [CrossRef]
  6. Michel, S.L.J.; Hoffman, B.M.; Baum, S.M.; Barrett, A.G.M. Peripherally Functionalized Porphyrazines: Novel Metallomacrocycles with Broad, Untapped Potential. In Progress in Inorganic Chemistry; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2001; Volume 50, ISBN 0471435104. [Google Scholar]
  7. Güzel, E.; Yarasir, M.N.; Özkaya, A.R. Low Symmetry Solitaire- and Trans-Functional Porphyrazine/Phthalocyanine Hybrid Complexes: Synthesis, Isolation, Characterization, and Electrochemical and in-Situ Spectroelectrochemical Properties. Synth. Met. 2020, 262, 116331. [Google Scholar] [CrossRef]
  8. Liao, M.; Watts, J.D.; Huang, M.; Box, P.O.; State, J.; Uni, V. Fe II in Different Macrocycles: Electronic Structures and Properties. J. Phys. Chem. A 2005, 109, 7988–8000. [Google Scholar] [CrossRef]
  9. Theodoridis, A.; Maigut, J.; Puchta, R.; Kudrik, E.V.; Van Eldik, R. Novel Iron(III) Porphyrazine Complex. Complex Speciation and Reactions with NO and H2O2. Inorg. Chem. 2008, 47, 2994–3013. [Google Scholar] [CrossRef]
  10. Zhang, Z.; Peng, Q.; Sun, J.; Fang, L.; Deng, K. Enhancement of Catalytic Activities of a Biomimetic Catalyst FePz(DtnCl2)4 for the Wet Oxidation of Brilliant Red X3B through the Synergetic Effect of Heat and Light Irradiation. Ind. Eng. Chem. Res. 2013, 52, 13342–13349. [Google Scholar] [CrossRef]
  11. Koczorowski, T.; Szczolko, W.; Goslinski, T. Physicochemical Properties and Catalytic Applications of Iron Porphyrazines and Phthalocyanines. In Recent Progress in Organometallic Chemistry; InTech Open: Rijeka, Croatia, 2017; pp. 101–121. [Google Scholar]
  12. Koczorowski, T.; Cerbin-Koczorowska, M.; Rębiś, T. Azaporphyrins Embedded on Carbon-Based Nanomaterials for Potential Use in Electrochemical Sensing—A Review. Nanomaterials 2021, 11, 2861. [Google Scholar] [CrossRef]
  13. Nakamura, M. Electronic Structures of Highly Deformed Iron(III) Porphyrin Complexes. Coord. Chem. Rev. 2006, 250, 2271–2294. [Google Scholar] [CrossRef]
  14. Stuzhin, P.A. Iron Complexes of Octaphenyltetraazaporphine. Macroheterocycles 2009, 2, 114–129. [Google Scholar] [CrossRef] [Green Version]
  15. Stuzhin, P.A.; Mahmud, H.; Ulrich, Z. Iron octaphenyltetraazaporphyrins: Synthesis and characterization of the five-coordinate complexes of iron (III)(XFeIIIOPTAP; X= F, Cl, Br, I, HSO4). Inorganica Chimica Acta 1995, 236, 131–139. [Google Scholar] [CrossRef]
  16. Luo, Q.; Cheng, S.; Tian, H. Synthesis and Photochromism of a New Binuclear Porphyrazinato Magnesium(II). Tetrahedron Lett. 2004, 45, 7737–7740. [Google Scholar] [CrossRef]
  17. Goslinski, T.; White, A.J.P. Synthesis, Characterization and Spectroscopic Properties of Novel Periphery—Functionalized Unsymmetrical Porphyrazines Containing Mixed Dithienylpyrrolyl and Dimethylamino Groups. Polyhedron 2009, 28, 2579–2584. [Google Scholar] [CrossRef]
  18. Szczolko, W.; Koczorowski, T.; Wicher, B.; Sobotta, L.; Gdaniec, M.; Teubert, A.; Mielcarek, J.; Korecki, J.; Burda, K.; Tykarska, E.; et al. X-ray and NMR Structural Studies of the Series of Porphyrazines with Peripheral Pyrrolyl Groups. Inorg. Chim. Acta 2019, 484, 368–374. [Google Scholar] [CrossRef]
  19. Szczolko, W.; Koczorowski, T.; Wicher, B.; Kryjewski, M.; Krakowska, Z.; Tykarska, E.; Goslinski, T. Porphyrazines with Bulky Peripheral Pyrrolyl Substituents—Synthesis via Microwave-Assisted Suzuki-Miyaura Cross-Coupling Reaction, Optical and Electrochemical Properties. Dye. Pigment. 2022, 206, 110607. [Google Scholar] [CrossRef]
  20. Szczolko, W.; Wzgarda, A.; Koczorowski, T.; Wicher, B.; Sobotta, L.; Gdaniec, Z.; Gdaniec, M.; Mielcarek, J.; Tykarska, E.; Goslinski, T. The Suzuki Cross-Coupling Reaction for the Synthesis of Porphyrazine Possessing Bulky 2,5-(Biphenyl-4-Yl)Pyrrol-1-Yl Substituents in the Periphery. Polyhedron 2015, 102, 462–468. [Google Scholar] [CrossRef]
  21. Kryjewski, M.; Tykarska, E.; Rebis, T.; Dlugaszewska, J.; Ratajczak, M.; Teubert, A.; Gapiński, J.; Patkowski, A.; Piskorz, J.; Milczarek, G.; et al. Porphyrazine with Bulky 2-(1-Adamantyl)-5-Phenylpyrrol-1-Yl Periphery Tuning Its Spectral and Electrochemical Properties. Polyhedron 2015, 98, 217–223. [Google Scholar] [CrossRef]
  22. Koczorowski, T.; Szczolko, W.; Burda, K.; Nowak, M.; Dawidowska, M.; Teubert, A.; Sobotta, L.; Gdaniec, M.; Korecki, J.; Mielcarek, J.; et al. Influence of Bulky Pyrrolyl Substitent on the Physicochemical Properties of Porphyrazines. Dye. Pigment. 2015, 112, 138–144. [Google Scholar] [CrossRef]
  23. Szczolko, W.; Sobotta, L.; Fita, P.; Koczorowski, T.; Mikus, M.; Gdaniec, M.; Orzechowska, A.; Burda, K.; Sobiak, S.; Wierzchowski, M.; et al. Synthesis, Characteristics and Photochemical Studies of Novel Porphyrazines Possessing Peripheral 2,5-Dimethylpyrrol-1-Yl and Dimethylamino Groups. Tetrahedron Lett. 2012, 53, 2040–2044. [Google Scholar] [CrossRef]
  24. Begland, R.W.; Hartter, D.R.; Jones, F.N.; Sam, D.J.; Sheppard, W.A.; Webster, O.W.; Weigert, F.J. Hydrogen Cyanide Chemistry. VIII. New Chemistry of Diaminomaleonitrile. Heterocyclic Synthesis. J. Org. Chem. 1974, 39, 2341–2350. [Google Scholar] [CrossRef]
  25. Beall, L.S.; Mani, N.S.; White, A.J.P.; Williams, D.J.; Barrett, A.G.M.; Hoffman, B.M. Porphyrazines and Norphthalocyanines Bearing Nitrogen Donor Pockets: Metal Sensor Properties. J. Org. Chem. 1998, 63, 5806–5817. [Google Scholar] [CrossRef] [PubMed]
  26. Decréau, R.; Chanon, M.; Julliard, M. Synthesis and Characterization of a Series of Hexadecachlorinated Phthalocyanines. Inorg. Chim. Acta 1999, 293, 80–87. [Google Scholar] [CrossRef]
  27. Goslinski, T.; Zhong, C.; Fuchter, M.J.; Stern, C.L.; White, A.J.P.; Barrett, A.G.M.; Hoffman, B.M. Porphyrazines as Molecular Scaffolds: Flexible Syntheses of Novel Multimetallic Complexes. Inorg. Chem. 2006, 45, 3686–3694. [Google Scholar] [CrossRef] [PubMed]
  28. Ricciardi, C.; Bavoso, A.; Bencini, A.; Rosa, A.; Lelj, F.; Bonosi, F. Synthesis, Structure, Magnetic, Spectroscopic and Electrochemical Behaviour of Chloro-Iron(III) and -Manganese(III) Complexes of 2,3,7,8,12,13,17,18-Octakis(Ethylsulfanyl)-5,10,15,20-Tetraazaporphyrin. Dalton Trans. 1996, 2799–2807. [Google Scholar] [CrossRef]
  29. Stuzhin, P.A.; Nefedov, S.E.; Kumeev, R.S.; Ul-Haq, A.; Minin, V.V.; Ivanova, S.S. Effects of Solvation on the Spin State of Iron(III) in 2,8,12,18-Tetrabutyl-3,7,13,17-Tetramethyl-5,10-Diazaporphyrinatoiron(III) Chloride. Inorg. Chem. 2010, 49, 4802–4813. [Google Scholar] [CrossRef]
  30. Colomban, C.; Kudrik, E.V.; Tyurin, D.V.; Albrieux, F.; Nefedov, S.E.; Afanasiev, P.; Sorokin, A.B. Synthesis and Characterization of μ-Nitrido, μ-Carbido and μ-Oxo Dimers of Iron Octapropylporphyrazine. Dalton Trans. 2015, 44, 2240–2251. [Google Scholar] [CrossRef]
  31. Burda, K.; Hrynkiewicz, A.; Kołoczek, H.; Stanek, J.; Strzałka, K. Mixed Valence State in Ironporphyrin Aggregates. Biochim. Biophys. Acta 1995, 1244, 345–350. [Google Scholar] [CrossRef]
  32. Lang, G.; Marshali, W. Mössbauer Effect in Some Haemoglobin Compounds. Proc. Phys. Soc. 1966, 87, 3–34. [Google Scholar] [CrossRef]
  33. Fitzgerald, J.P.; Haggerty, B.S.; Rheingold, A.L.; May, L.; Brewer, G.A. Iron Octaethyltetraazaporphyrins—Synthesis, Characterization, Coordination Chemistry, and Comparisons to Related Iron Porphyrins and Phthalocyanines. Inorg. Chem. 1992, 31, 2006–2013. [Google Scholar] [CrossRef]
  34. Reimer, K.J.; Sibley, C.A. Electric Field Gradient at Iron in Dicarbonyl Complexes of (Tetraphenylporphyrinato)- and (Octamethyltetrabenzoporphyrinato)Iron(II). J. Am. Chem. Soc. 1983, 105, 5147–5149. [Google Scholar] [CrossRef]
  35. Kaczmarska, M.; Fornal, M.; Messerli, F.H.; Korecki, J.; Grodzicki, T.; Burda, K. Erythrocyte Membrane Properties in Patients with Essential Hypertension. Cell Biochem. Biophys. 2013, 67, 1089–1102. [Google Scholar] [CrossRef] [PubMed]
  36. Hu, C.; Noll, B.C.; Schulz, C.E.; Scheidt, W.R. Four-Coordinate Iron(II) Porphyrinates: Electronic Configuration Change by Intermolecular Interaction. Inorg. Chem. 2007, 46, 619–621. [Google Scholar] [CrossRef] [Green Version]
  37. Burda, K.; Hrynkiewicz, A.; Kołoczek, H.; Stanek, J.; Strzałka, K. Molecular Dynamics and Local Electronic States of Sn and Fe in Metallocytochrome and Metalloporphyrin. Hyperfine Interact. 1994, 91, 891–897. [Google Scholar] [CrossRef]
  38. Hayami, S.; Komatsu, Y.; Shimizu, T.; Kamihata, H.; Lee, Y.H. Spin-Crossover in Cobalt(II) Compounds Containing Terpyridine and Its Derivatives. Coord. Chem. Rev. 2011, 255, 1981–1990. [Google Scholar] [CrossRef]
  39. Jahn, H.A.; Teller, E. Stability of Polyatomic Molecules in Degenerate Electronic States I. Orbital Degeneracy. Proc. R. Soc. Lond. 1937, 161, 220–235. [Google Scholar]
  40. Schläfer, H.L.; Gliemann, G. (Eds.) Basic Principles of Ligand Field Theory; Wiley-Interscience of John Wiley & Sons Ltd.: London, UK; New York, NY, USA; Sydney, Australia; Toronto, ON, Canada, 1969. [Google Scholar]
  41. Hałas, A.; Orzechowska, A.; Derrien, V.; Chumakov, A.I.; Sebban, P.; Fiedor, J.; Lipińska, M.; Zaja̧c, M.; Ślězak, T.; Strzałka, K.; et al. The Dynamics of the Non-Heme Iron in Bacterial Reaction Centers from Rhodobacter Sphaeroides. Biochim. Biophys. Acta—Bioenerg. 2012, 1817, 2095–2102. [Google Scholar] [CrossRef] [Green Version]
  42. Sobotta, L.; Fita, P.; Szczolko, W.; Wrotynski, M.; Wierzchowski, M.; Goslinski, T.; Mielcarek, J. Functional Singlet Oxygen Generators Based on Porphyrazines with Peripheral 2,5-Dimethylpyrrol-1-Yl and Dimethylamino Groups. J. Photochem. Photobiol. A Chem. 2013, 269, 9–16. [Google Scholar] [CrossRef]
  43. Agilent Technologies. CrysAlis PRO Software v38; Agilent Technologies: Yarnton, UK, 2009. [Google Scholar]
  44. Burla, M.C.; Caliandro, R.; Camalli, M.; Carrozzini, B.; Cascarano, G.L.; De Caro, L.; Giacovazzo, C.; Polidori, G.; Spagna, R. SIR2004: An Improved Tool for Crystal Structure Determination and Refinement. J. Appl. Crystallogr. 2005, 38, 381–388. [Google Scholar] [CrossRef] [Green Version]
  45. Sheldrick, G.M. A Short History of SHELX. Acta Crystallogr. Sect. A Found. Crystallogr. 2007, 64, 112–122. [Google Scholar] [CrossRef] [PubMed]
  46. Spek, A.L. PLATON SQUEEZE: A Tool for the Calculation of the Disordered Solvent Contribution to the Calculated Structure Factors. Acta Crystallogr. Sect. C Struct. Chem. 2015, 71, 9–18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Rancourt, D.G.; Ping, J.Y. Voigt-Based Methods for Arbitrary-Shape Static Hyperfine Parameter Distributions in Mössbauer Spectroscopy. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. At. 1991, 58, 85–97. [Google Scholar] [CrossRef]
  48. Gütlich, P.; Goodwin, H.A. (Eds.) Spin Cross over in Transition Metal Compounds; Springer: Berlin/Heidelberg, Germany, 2004; Volume 233–235. [Google Scholar]
Molecules 27 07820 sch001 550

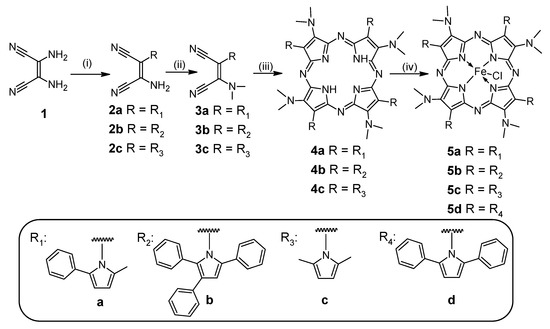

Scheme 1. Reagents and conditions: (i) 2a: 1-phenylpentane-1,4-dione, methanol, TFA, reflux, 24 h; 2b: 1,2,4-triphenylbutane-1,4-dione, methanol, TFA, reflux, 24 h; 2c: 2,5-hexanedione, oxalic acid, benzene, reflux, 10 h; (ii) NaH (60% suspension in mineral oil), (CH3O)2SO2, THF, −15 °C to rt, 24 h; (iii) DMAE, reflux, 24 h; (iv) FeBr2, toluene, THF, 2,6-lutidine, reflux, 24 h, follow-up procedure with DCM:1M HCl; DCM—dichloromethane, DMAE—dimethylaminoethanol, TFA—trifluoroacetic acid.
Scheme 1. Reagents and conditions: (i) 2a: 1-phenylpentane-1,4-dione, methanol, TFA, reflux, 24 h; 2b: 1,2,4-triphenylbutane-1,4-dione, methanol, TFA, reflux, 24 h; 2c: 2,5-hexanedione, oxalic acid, benzene, reflux, 10 h; (ii) NaH (60% suspension in mineral oil), (CH3O)2SO2, THF, −15 °C to rt, 24 h; (iii) DMAE, reflux, 24 h; (iv) FeBr2, toluene, THF, 2,6-lutidine, reflux, 24 h, follow-up procedure with DCM:1M HCl; DCM—dichloromethane, DMAE—dimethylaminoethanol, TFA—trifluoroacetic acid.
Molecules 27 07820 sch001
Molecules 27 07820 g001 550

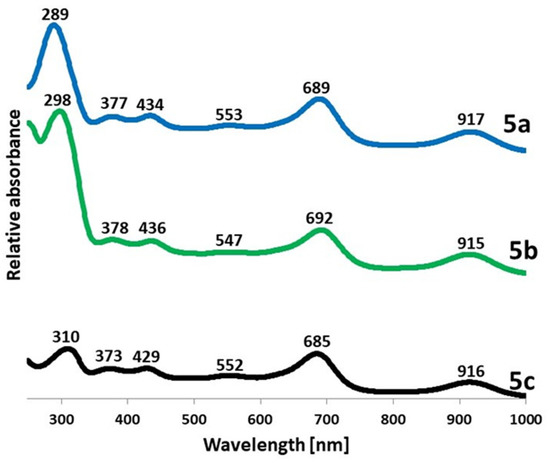

Figure 1. The UV-Vis spectra of 5a, 5b, and 5c in dichloromethane.
Figure 1. The UV-Vis spectra of 5a, 5b, and 5c in dichloromethane.
Molecules 27 07820 g001
Molecules 27 07820 g002 550

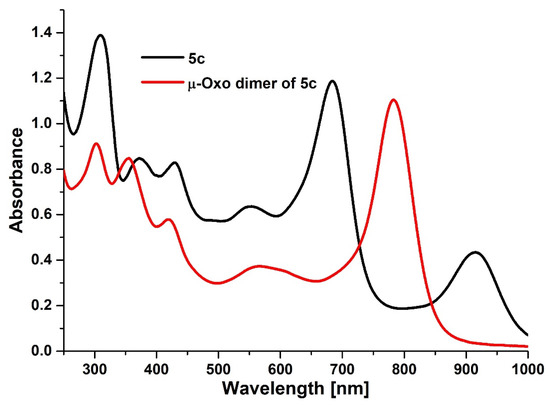

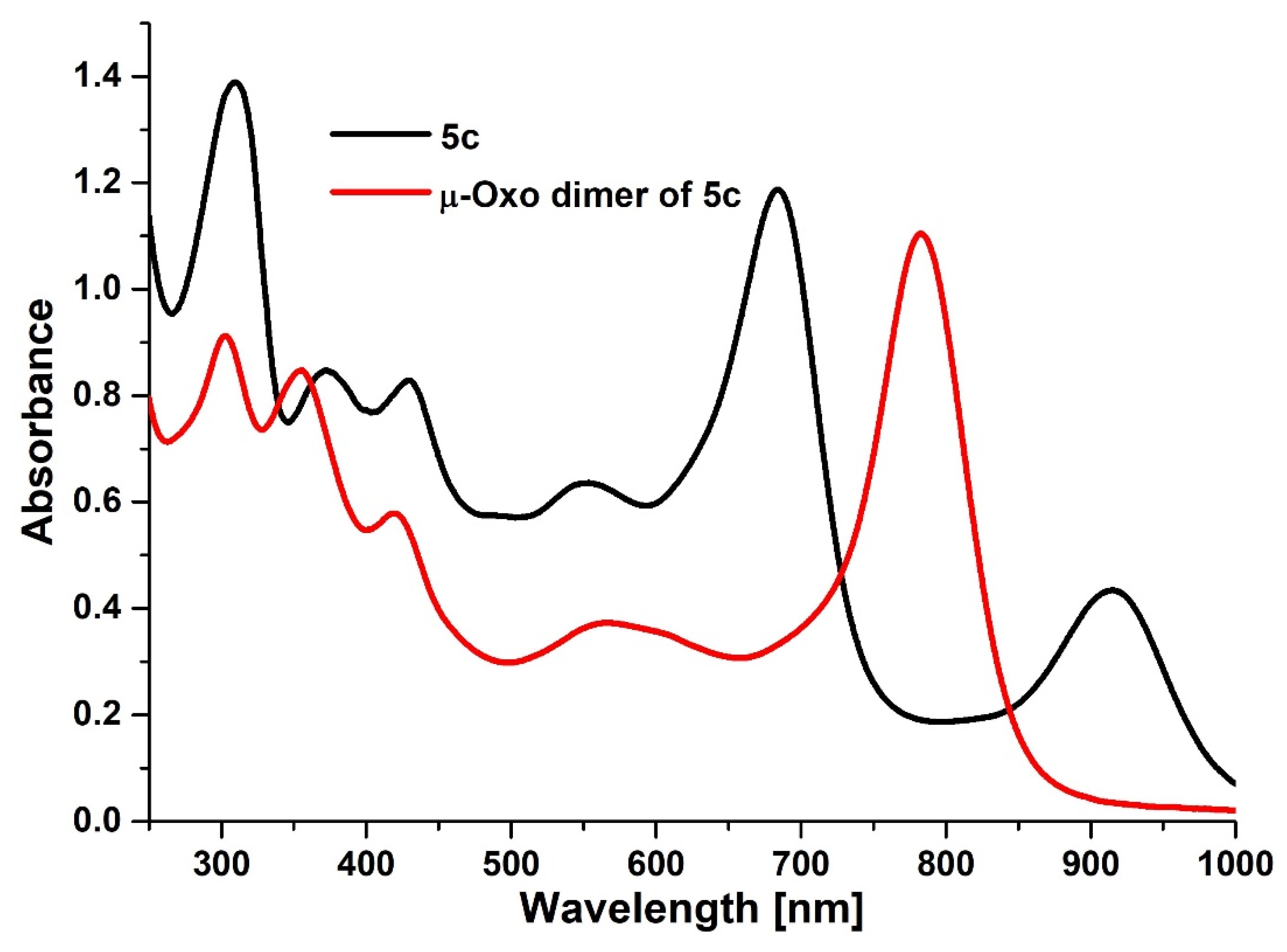

Figure 2. The UV-Vis spectra of 5c and its µ-oxo dimer in dichloromethane.
Figure 2. The UV-Vis spectra of 5c and its µ-oxo dimer in dichloromethane.
Molecules 27 07820 g002
Molecules 27 07820 g003 550

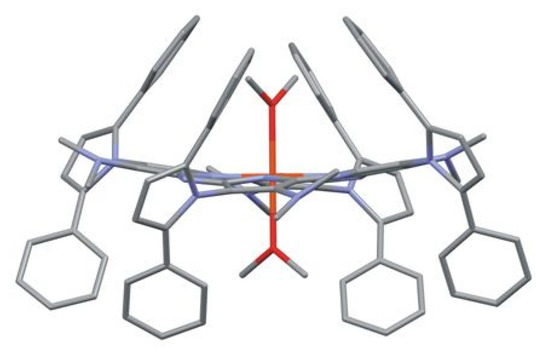

Figure 3. Molecular structure of porphyrazine 5d with coordinated methanol molecules. The C atoms of methanol molecules are disordered. The H atoms and the non-coordinated methanol molecule are omitted for clarity.
Figure 3. Molecular structure of porphyrazine 5d with coordinated methanol molecules. The C atoms of methanol molecules are disordered. The H atoms and the non-coordinated methanol molecule are omitted for clarity.
Molecules 27 07820 g003
Molecules 27 07820 g004 550

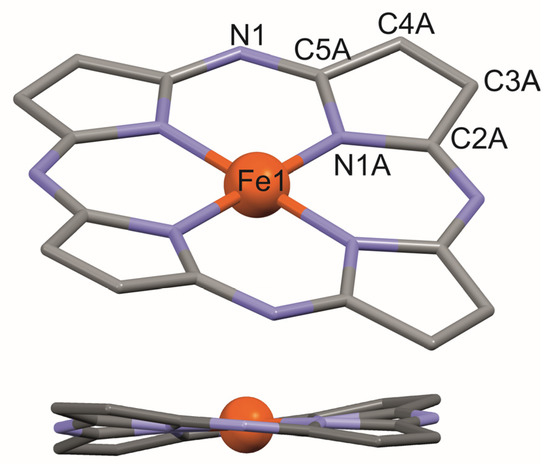

Figure 4. Saddle-like conformation of 24-atom porphyrazine macrocycle 5d. At the top, the numbering scheme is shown.
Figure 4. Saddle-like conformation of 24-atom porphyrazine macrocycle 5d. At the top, the numbering scheme is shown.
Molecules 27 07820 g004
Molecules 27 07820 g005 550

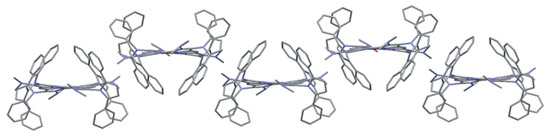

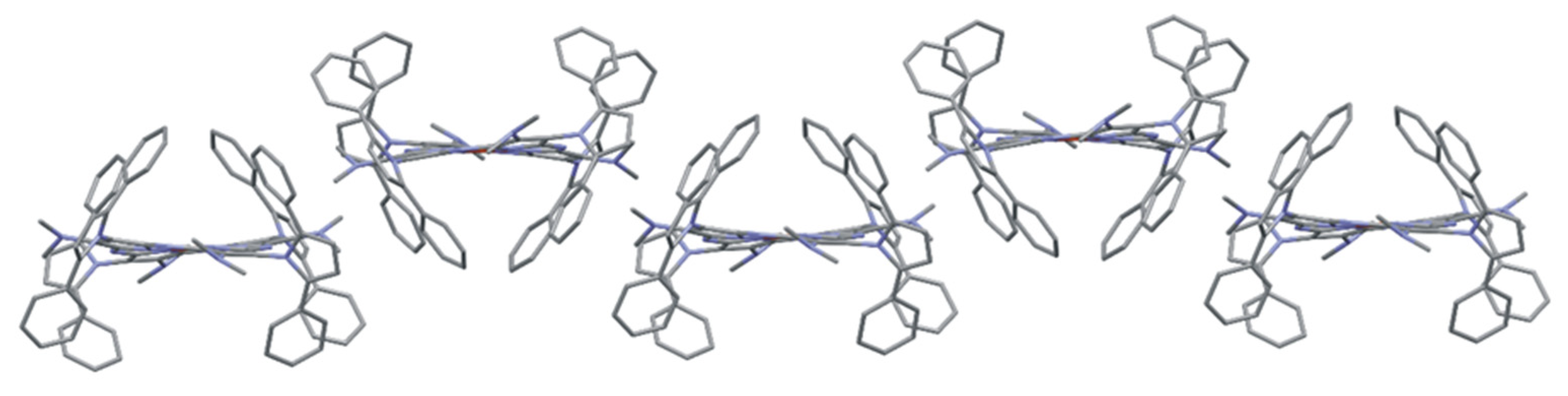

Figure 5. Ribbons of porphyrazine 5d molecules in the crystal structure.
Figure 5. Ribbons of porphyrazine 5d molecules in the crystal structure.
Molecules 27 07820 g005
Molecules 27 07820 g006 550

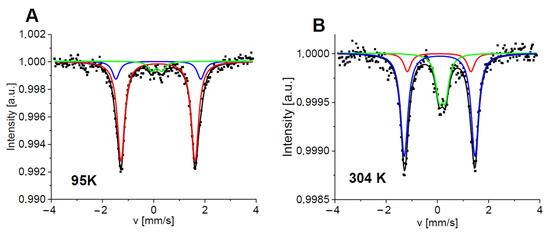

Figure 6. Normalized Mössbauer spectra of 5c measured at 95 K (A) and 304 K (B). Symbols represent experimental data and lines correspond to theoretical fits. Each subspectrum is marked by a different color (comp#1—red, comp#2—blue, and comp#3—green), and the black line is a sum of the components.
Figure 6. Normalized Mössbauer spectra of 5c measured at 95 K (A) and 304 K (B). Symbols represent experimental data and lines correspond to theoretical fits. Each subspectrum is marked by a different color (comp#1—red, comp#2—blue, and comp#3—green), and the black line is a sum of the components.
Molecules 27 07820 g006
Molecules 27 07820 g007 550
Figure 7. Normalized Mössbauer spectra of 5a measured at 90 K (A) and 300 K (B). Symbols represent experimental data and lines correspond to theoretical fits. Each subspectrum is marked by a different color (comp#1—red, comp#2—blue, and comp#3—green), and the black line is a sum of the components.
Figure 7. Normalized Mössbauer spectra of 5a measured at 90 K (A) and 300 K (B). Symbols represent experimental data and lines correspond to theoretical fits. Each subspectrum is marked by a different color (comp#1—red, comp#2—blue, and comp#3—green), and the black line is a sum of the components.
Molecules 27 07820 g007
Molecules 27 07820 g008 550

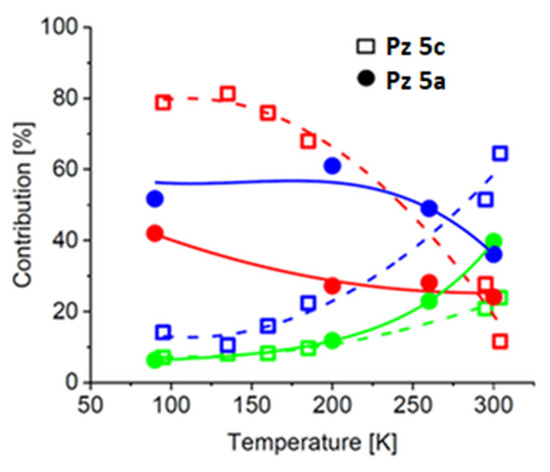

Figure 8. Temperature dependence of contributions of subsequent components resolved in Mössbauer spectra obtained for 5c (open squares) and 5a (closed circles). Colors correspond to the subspectra presented in Figure 6 and Figure 7.
Figure 8. Temperature dependence of contributions of subsequent components resolved in Mössbauer spectra obtained for 5c (open squares) and 5a (closed circles). Colors correspond to the subspectra presented in Figure 6 and Figure 7.
Molecules 27 07820 g008
Molecules 27 07820 g009 550

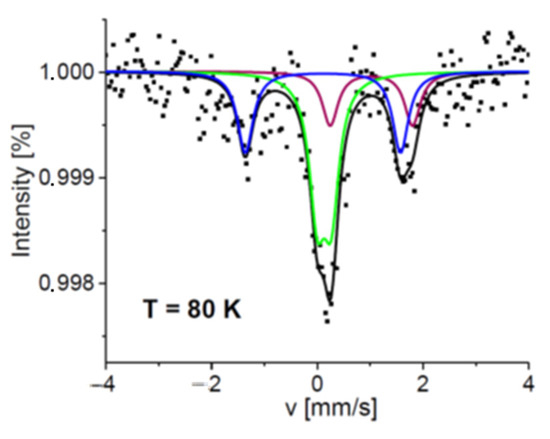

Figure 9. Normalized Mössbauer spectrum of 5b collected at 80K. Symbols represent experimental data and lines correspond to theoretical fits. Each subspectrum is marked by a different color (comp#1—blue, comp#2—green, and comp#3—magenta), and the black line is a sum of the components.
Figure 9. Normalized Mössbauer spectrum of 5b collected at 80K. Symbols represent experimental data and lines correspond to theoretical fits. Each subspectrum is marked by a different color (comp#1—blue, comp#2—green, and comp#3—magenta), and the black line is a sum of the components.
Molecules 27 07820 g009
Molecules 27 07820 g010 550

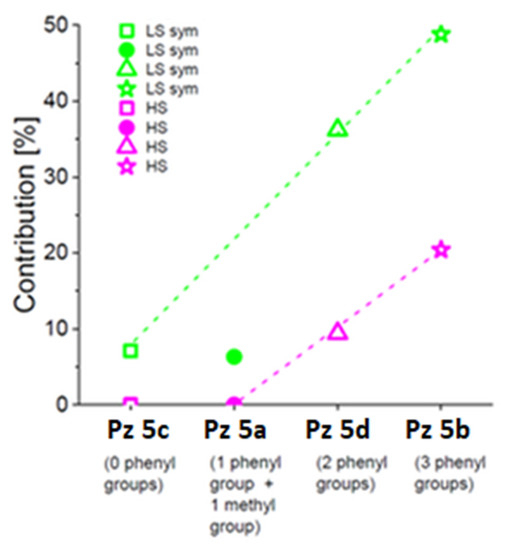

Figure 10. Relative contributions of low-spin Fe2+ in a symmetric field (green symbols, LS sym) and high-spin Fe2+ (magenta symbols, HS) obtained from the theoretical fits of Mössbauer spectra for 5c (open squares), 5a (filled circles), and 5b (open stars) recorded within 80–95 K. In this figure, data for 5d (open triangles) [22] are included.
Figure 10. Relative contributions of low-spin Fe2+ in a symmetric field (green symbols, LS sym) and high-spin Fe2+ (magenta symbols, HS) obtained from the theoretical fits of Mössbauer spectra for 5c (open squares), 5a (filled circles), and 5b (open stars) recorded within 80–95 K. In this figure, data for 5d (open triangles) [22] are included.
Molecules 27 07820 g010
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Koczorowski, T.; Szczolko, W.; Bakun, P.; Wicher, B.; Sobotta, L.; Gdaniec, M.; Teubert, A.; Mielcarek, J.; Tykarska, E.; Korecki, J.; et al. The Valence and Spin State Tuning of Iron(II/III) Porphyrazines with Bulky Pyrrolyl Periphery in Solution and Solid State. Molecules 2022, 27, 7820. https://doi.org/10.3390/molecules27227820

AMA Style

Koczorowski T, Szczolko W, Bakun P, Wicher B, Sobotta L, Gdaniec M, Teubert A, Mielcarek J, Tykarska E, Korecki J, et al. The Valence and Spin State Tuning of Iron(II/III) Porphyrazines with Bulky Pyrrolyl Periphery in Solution and Solid State. Molecules. 2022; 27(22):7820. https://doi.org/10.3390/molecules27227820

Chicago/Turabian Style

Koczorowski, Tomasz, Wojciech Szczolko, Pawel Bakun, Barbara Wicher, Lukasz Sobotta, Maria Gdaniec, Anna Teubert, Jadwiga Mielcarek, Ewa Tykarska, Jozef Korecki, and et al. 2022. "The Valence and Spin State Tuning of Iron(II/III) Porphyrazines with Bulky Pyrrolyl Periphery in Solution and Solid State" Molecules 27, no. 22: 7820. https://doi.org/10.3390/molecules27227820

Article Metrics

Back to TopTop
