Secondary Structure Characterization of Glucagon Products by Circular Dichroism and Nuclear Magnetic Resonance Spectroscopy

by
Zhongli Bao
,
Ya-Chi Cheng
,
Justin Jun Wei
,
Mary Ziping Luo
and
Jack Yongfeng Zhang
*
Amphastar Pharmaceuticals, Inc., Rancho Cucamonga, CA 91730, USA
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(22), 7805; https://doi.org/10.3390/molecules27227805
Submission received: 23 September 2022 / Revised: 7 November 2022 / Accepted: 8 November 2022 / Published: 12 November 2022
(This article belongs to the Section Photochemistry)
Browse Figures
Versions Notes

Abstract

:
Glucagon, a 29-amino acid polypeptide hormone, is an essential therapeutic agent used in the emergency treatment of hypoglycemia. However, glucagon is inherently unstable in aqueous solution. While glucagon equilibrates between unordered and the secondary α-helix state in solution, it can quickly transform into a different secondary β-sheet-rich amyloid-like fibril/oligomer structure under various conditions. Since changes in the secondary structure of glucagon can cause significant impacts, structure analysis is necessary and essential to assess the safety of the product. This study analyzed the secondary structure of glucagon products at the release and at the expiry using circular dichroism spectroscopy (CD) and 2D Nuclear Overhauser effect spectroscopy (2D NOESY). In order to also determine if structural differences exist between glucagon produced through different manufacturing processes, synthetic and recombinant glucagon products were used and compared. The CD results indicated that for all release and expired glucagon products, the structure compositions were 14 to 16% α-helix, 17 to 19% β-strand, 14 to 15% Turn, and 53 to 54% Unordered. This was consistent with the 2D NOESY analysis which showed that both products had an approximate α-helix composition of 14 to 17%. Overall, there were no significant differences in terms of the secondary structure between synthetic and recombinant glucagon products both at the release and at the expiry.

1. Introduction

Glucagon, a 29-amino acid polypeptide hormone, is an essential therapeutic agent used in the emergency treatment of hypoglycemia [1]. However, glucagon is inherently unstable in aqueous solution. While glucagon equilibrates between unordered and the secondary alpha-helix state in solution, it can quickly transform into a different secondary β-sheet-rich amyloid-like fibril/oligomer structure under various conditions such as a different concentration, pH, temperature, and time [2]. The formation of fibrillary aggregates is a serious type of degradation in glucagon as it can occur rapidly, which may affect the drug potency and increase the risk of life-threatening immunogenicity [3]. As a result, commercial glucagon products are typically formulated as lyophilized powder to be reconstituted with diluent for an immediate use [4]. Recently, a synthetic version of glucagon for injection was approved by the FDA as a generic to Eli Lilly’s Glucagon Emergency Kit, which is of a recombinant DNA origin [5]. Briefly, the recombinant glucagon is produced in a laboratory strain of Escherichia coli bacteria that has been genetically altered by the addition of the gene for glucagon [6]. In contrast, the synthetic glucagon is chemically synthesized using a solid-phase peptide synthesis (SPPS) method. SPPS involves stepwise additions of protected amino acid derivatives to a growing peptide chain, followed by cleavage from the resin, including cleavage of the remaining protecting groups, pre-purification, and purification steps by preparative high-performance liquid chromatography [7,8].
Since any changes in the secondary structure of a protein or peptide such as glucagon can cause a significant impact on its function, it is of interest to evaluate the secondary structural characteristics of synthetic glucagon in comparison to the recombinant version. Circular dichroism (CD) [9,10] and nuclear magnetic resonance (NMR) spectroscopy [11] are two common techniques used to study the structure of glucagon in solution.
Circular dichroism is increasingly recognized as a valuable technique for examining the structure of proteins in solution [12,13,14,15,16]. Briefly, the method is based on the differential absorption of left and right circularly polarized light. When circularly polarized light passes through the medium, an optically active chiral compound will absorb the left and right polarized light by different amounts. The difference in the left- and right-handed absorbance is the signal registered in the CD spectra. The ordered α-helices, β-sheets, β-turn, and random coil conformations all have characteristic spectra. These unique spectra form the basis for protein secondary structure analysis [16].
Nuclear magnetic resonance spectroscopy (NMR) is another technique often used to provide the structural and dynamic characterization of peptides and proteins [11,17,18,19]. Structure determination by NMR spectroscopy consists of several phases, each using a separate set of highly specialized techniques [18]. There are three 2D spectra which are widely used for the structure determination of proteins with a mass of up to 10kD: 2D correlation spectroscopy (COSY) and 2D total correlation spectroscopy (TOCSY) experiments which identify amino acid spin system and 2D nuclear Overhauser effect spectroscopy (NOESY) which identifies neighboring amino acids and sequentially connects the amino acid spin systems. While TOCSY only provides information for self cross-peaks (NHi and αHi), 2D NOESY shows both self (NHi-αHi) and sequential cross-peaks (NHi-αHi-1) in the same region. Therefore, by overlapping the spectrums produced from TOCSY and NOESY, the αH groups of the amino acid can be located. The connectivity of this amino acid residue (i-1) to its following amino acid residue (i) can be observed in NOESY, which can further identify its neighboring amino acid residue [19]
Previous literatures have successfully observed the secondary structure of glucagon under various conditions, with the α-helical region being in the Phe22 to Leu26 fragment [9,10,11]. However, there were no studies evaluating and comparing the secondary structure of synthetic and recombinant glucagon products. This study provides a structural comparison of synthetic and recombinant glucagon through a combination of the commonly used techniques of circular dichroism (CD) and nuclear magnetic resonance spectroscopy (NMR).

2. Results

2.1. Secondary Structure Evaluation by CD Spectroscopy

The CD spectra of glucagon are shown in Figure 1, which includes three lots of AMP-glucagon at the release and three lots at expiry (colored blue), three lots of recently manufactured, and three lots of expired ELI-glucagon (colored red). The spectra were truncated to 200–260 nm to remove the noise in the 185–200 nm range. The CD spectra in Figure 1 show that both synthetic and recombinant glucagon have very similar spectra with no differences observed between the recent and aged lots.
The secondary structure percentage obtained through the CD spectra for both at the release and at the expiration of AMP-glucagon and ELI-glucagon are summarized in Table 1. For the AMP-glucagon solution, the CD results showed about 14 to 16% α-helix, 17 to 19% β-strand, 14 to 15% Turn, and 53 to 54% Unordered at the release and expiration. The ELI-glucagon showed very similar results with 14 to 17% α-helix, 15 to 17% β-strand, 14 to 15% Turn, and 53 to 55% Unordered for the recently manufactured and expired lots.
Based on the CD data in Table 1, the ELI-glucagon extremes were obtained and the equivalence evaluation criteria (EEC) limits were determined using the established EEC equation. The EEC for the secondary structure data of glucagon at the release and at the expiration are summarized in Table 2. It is demonstrated that the secondary structure (α-helix, β-sheet, turn, and unordered) of AMP-glucagon meets the EEC at both the release and at the expiration.
To further confirm the study’s results, two additional CD data analysis programs (SELCON3 and CDSSTR) were used to estimate the secondary structure of glucagon. While the %helix content from CONTIN spans from 13.8 to 17.1, it appears to be slightly lower using SELCON3 (12.1–13.5) and CDSSTR (9.4–11.2). The CD results from all three programs indicate an α-helix structure in glucagon having approximately 3–5 amino acids.

2.2. Structure Characterization of Glucagon by NMR

The TOCSY and NOESY sequential walk method was used for the identification and sequential assignment of the amino acid residues [19,20,21]. In this method, NOESY and TOCSY spectra were acquired separately and then overlaid, as shown in Figure 2. The TOCSY spectrum (blue) only showed self cross-peaks (NHi and αHi) while the NOESY spectrum (red) showed both self (NHi-αHi) and sequential (NHi-αHi-1) cross-peaks in the fingerprint region. The peaks appearing in both the NOESY and TOCSY spectrums are αH groups of the amino acid. The connectivity of this given amino acid residue (i-1) to its following residue (i) can be observed in NOESY. Using sequential walking, the cross-peaks of the amino acids Phe22, Val23, Gln24, Trp25, and Leu26 were identified from hundreds of other cross-peaks in the NOESY spectrum.
After the cross-peaks of Phe22, Val23, Gln24, Trp25, and Leu26 were identified, the interactions between the α-H and N-H of these amino acids were determined which indicated the presence of a helix structure. As shown in Table 3 and Figure 3 and Figure 4, strong intensity dαN(i, i+2) and dαN(i, i+3) cross-peaks were observed between the αH of Val23 and the NH of Trp25 and NH of Leu26 for both AMP-glucagon and ELI-glucagon, both at the release and at the end of the shelf life. In addition, weak intensity dαN(i, i+2) and dαN(i, i+3) cross-peaks were observed between the α-H of Phe22 and the NH of Gln24 and the NH of Trp25 for all the glucagon products. This result indicates that all the reconstituted glucagon products have a local non-random spatial structure spanning residues of Phe22-Val23-Gln24-Trp25-Leu26.
The complete chemical shift assignments of ELI-glucagon and AMP-glucagon are provided in Tables S1 and S2, respectively. For both glucagon products, the majority of the glucagon residues were assigned in the fingerprint region, with a few residues ambiguously assigned due to overlapping peaks and weak peaks such as the α-H of Lys12. The observed chemical shifts were then compared with the respective reference values based on the chemical shift index. The Hα chemical shifts of Phe22 to Leu26 for both ELI-glucagon (Table S3 and Figure S1) and AMP-glucagon (Table S4) were shown to be less than the CSI reference values (≤0.1 ppm or CSI of −1), which indicates an α-helix between Phe22 and Leu26. It was noted that several residues such as Ser11 and Met27 had possible alpha helix regions with CSI index values of −1. These residues were further analyzed for dαN connectivity, however, these residues did not have dαN(i, i+2) and/or dαN(i, i+3) interactions, indicating that there was no alpha helix. The dαN connectivities were further confirmed by dNN connectivity studies which show Phe22 and Leu26 amide proton connectivities [dNN(i, i+1), (i, i+2), (i, i+3), and (i, i+4)] in both ELI-glucagon and AMP-glucagon (Figures S2–S4).
To confirm the sequential assignment, the COSY spectra were also measured (provided in Supplementary Material). The COSY spectrum in Figure S5 shows a cross-peak between the NH (7.89 ppm) and αH (3.85 ppm) of Val23, confirming the NH and αH assignment from the NOESY and TOCSY sequential assignment method. In addition, the COSY spectrum in Figure S6 shows cross-peaks from αH-βH and βH-ƴH interactions, which further confirms the αH, βH, and ƴH assignment of Val23.
Based on the NMR results, it is likely that there is a one turn alpha helix structure in the sequence of Val23-Gln24-Trp25-Leu26 (four residues), Phe22-Val23-Gln24-Trp25 (four residues), or Phe22-Val23-Gln24-Trp25-Leu26 (five residues) for both glucagon products at both the release and at the expiration. The results suggests that there are likely four–five amino acids which form an α-helix. Since glucagon contains 29 amino acids, 14% (4/29) to 17% (5/29) are calculated to be the α-helix.

3. Discussion and Conclusions

The results of this circular dichroism study demonstrated an equivalency in terms of the secondary structure between a synthetic (AMP-glucagon) and recombinant (ELI-glucagon) glucagon product. Interestingly, the CD results showed no significant differences between the two products for the secondary ordered structures including an alpha helix, beta strand, turn, and unordered structure. In addition, for all the tested lots at the release and at the expiry, there were no significant differences in the secondary structure. Further, the alpha helix percentage found in this study (14–16%) is also consistent with previous studies in the literature which found dilute glucagon solutions (<1 mg/mL) to have an α-helix composition of 10–15% [9].
The results of the 2D NMR analysis were also similar to that of the CD, with approximately 14–17% of the glucagon having an alpha helix structure for both synthetic and recombinant glucagon products. In general, an α-helix consists of 3.6 amino acids per helical turn, and is characterized by NOE cross-peaks between residues dαN(i, i+2), dαN(i, i+3), and dαN(i, i+4) [22,23,24,25]. Our findings indicated that this turn occurs at a specific sequence, Phe22-Val23-Gln24-Trp25-Leu26, in both of the glucagon products tested.
Previous 1H NMR studies demonstrated that glucagon has an α-helical structure [11,26] with Phe22-Leu26 having a local non-random α-helical structure [11], which is essential for receptor binding [27]. Since the Phe22-Leu26 peptide fragment has such an important function in the biological activity of glucagon, a further 2D NMR structure study using NOESY and TOCSY on Phe22-Leu26 may be valuable. However, previous 2D NMR studies mainly assessed glucagon bound to lipid micelles glucagon [28], glucagon amyloid fibril [29] or glucagon analogs (desHis1, desPhe6, and Glu9) [30], and GLP-1 [31]. Further, there were no 2D NMR structural studies on commercial glucagon. Our study expanded on previous findings by evaluating and comparing the secondary structure of commercial synthetic and recombinant glucagon products using 2D NMR and circular dichroism (CD).
Overall, the CD and NMR structural findings of this study indicated that the synthetic and recombinant glucagon products are similar with no major differences in the secondary structure throughout the entirety of both shelf lives.

4. Materials and Methods

Glucagon samples of different manufacturing dates (i.e., recently released and expired lots) were obtained and studied. Six lots of synthetic glucagon were provided by Amphastar Pharmaceuticals, Inc. (Rancho Cucamonga, CA, USA), of which three lots were recently manufactured and three were expired lots. Six lots of recombinant glucagon (Eli Lilly and Company, Indianapolis, IN, USA) were purchased commercially and used as the reference listed drug (RLD): three lots were recently purchased, and three were expired. The expired lots were studied to determine whether there were any significant changes in the secondary structure of glucagon products after long-term storage. In this study, the synthetic glucagon is referred to as AMP-glucagon and the RLD recombinant glucagon is referred to as ELI-glucagon.

4.1. Circular Dichroism Study

For the quantitative characterization of the secondary structure through the CD analysis for glucagon in solution, it is important to maintain a specific condition at which the secondary structure of glucagon is stable. In this characterization study, the following conditions were utilized: a glucagon concentration of 0.25 mg/mL, a solution pH at 2, a temperature at around 20 °C, a diluent (12 mg/mL of glycerin, pH 2.0), and only fresh samples were used. For each sample preparation, 1 mL of glucagon was reconstituted with 3 mL of diluent in a vial.
CD experiments were performed on a JASCO J-815 (Hachioji, Tokyo, Japan) spectrometer equipped with a Peltier type cell holder. The spectra were recorded at a temperature of 20 °C, a scanning speed of 5 nm/min, and a band width of 1 nm. To calculate the secondary structure components (percent of α-helix, β-strand, turn, and unordered) of the glucagon, the measured CD spectra were smoothed with a mean window of 25 data points and truncated to 200–260 nm to remove the noise in the range of 185–200 nm [2,14]. The per-residue molar protein concentration and cuvette path length of 0.1 cm were entered in the CDPro analysis program, and the SP37A soluble protein CD database and CONTIN fit of the data were applied.
In order to evaluate whether the secondary structure of the AMP-glucagon is equivalent to that of the ELI-glucagon, the equivalence evaluation criteria (EEC) was determined. The EEC was established based on the following equations:
EEC Lower Limit = Rmin · (1 − η)
EEC Upper Limit = Rmax · (1 + η)
where Rmin and Rmax are the minimum and maximum (overall extreme) of the results for the ELI-glucagon lots, i.e., the lowest value and the highest value, respectively, for the tested characterization parameters at a specific time: (i) recently manufactured ELI-glucagon or (ii) expired ELI-glucagon. η is the allowed percentage range, which is 10% for the CD analysis for the secondary structure of glucagon. The secondary structure data (percent of α-helix, β-strand, turn, and unordered) of the synthetic glucagon is considered to be equivalent if the value falls within the EEC limits.

4.2. Nuclear Magnetic Resonance (NMR) Study

The solution used for the reconstituted glucagon sample consisted of 990 µL of original diluent, 8 µL of 25 mM Trimethylsilylpropanoic acid (TSP-d4) in D2O, and 42 µL of D2O. A 2D TOCSY was conducted to identify the amino acid spin system. The 2D TOCSY was conducted on one lot of ELI-glucagon and one lot of AMP-glucagon, and the spectra were acquired on a 700 MHZ NMR using a modified sequence to suppress the peaks of water, lactose, and glycerin. The mixing time of the 2D TOCSY was 60 ms, which provides a spectrum that almost shows the whole amino acid spin system.
Next, the 2D-NOESY was conducted to identify the neighboring amino acid residues and sequentially connect the amino acid spin systems. The NMR data were acquired on a 700 MHz Bruker instrument equipped with a cryoprobe. The mixing time of the 2D 1H-1H NOESY was 250 ms. After the NOESY mixing period, one shaped 90 pulse and one shaped 180 pulse were used which only excited the amide regions, so that no lactose, glycerin, or water signals would be detected. The acquisition time on the direct and indirect dimensions were about 104 ms and 30.4 ms, respectively. The NMR measurements were performed at 300 K. The spectra were processed with the Bruker Biospin TopSpin 2.1.1 software (Rheinstetten, Germany).
The spectra from NOESY and TOCSY were then overlaid to locate the αH groups of the amino acid. While the TOCSY spectrum only gives NHi and αHi self cross-peaks in the fingerprint region, NOESY fingerprint gives both self (NHi-αHi) and sequential (NHi-αHi-1) cross-peaks in the same region. Therefore, peaks that appeared in both the NOESY and TOCSY spectrums are the αH groups of the amino acid in the fingerprint region. The neighboring amino acids in the sequence can be further identified. In addition, a 2D COSY was also performed to confirm the sequential assignment results.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/molecules27227805/s1, Figure S1: The Chemical shift index analysis of ELI-Glucagon; Figure S2: F22 Amide Proton connectivity [dNN (i, i+1), (i, i+2), (i, i+3), (i, i+4)] (ELI-Glucagon); Figure S3: V23 Amide Proton connectivity [dNN (i, i+1), (i, i+2), (i, i+3), (i, i+4)] (ELI-Glucagon); Figure S4: F22 Amide Proton connectivity [dNN (i, i+1), (i, i+2), (i, i+3), (i, i+4)] (AMP-Glucagon); Figure S5: COSY image of glucagon (NH-αH Region); Figure S6: COSY image of glucagon (αH-βH-ƴH Region); Table S1: 1H Chemical Shift Assignment (PPM) of ELI-Glucagon using 2D NMR; Table S2: 1H Chemical Shift Assignment (PPM) of AMP-Glucagon using 2D NMR; Table S3: The Chemical shift index analysis of ELI-Glucagon; Table S4: The Chemical shift index analysis of AMP-Glucagon.

Author Contributions

Z.B., Y.-C.C. and J.J.W. carried out the experiments and performed the data analysis. J.Y.Z. and M.Z.L. participated in the study design and supervised the study. All authors contributed to the writing of the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This study was financially supported by Amphastar pharmaceuticals, Inc.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors are employees of Amphastar Pharmaceuticals, Inc. at the time of the study and article preparation.

References

  1. Hall-Boyer, K.; Zaloga, G.P.; Chernow, B. Glucagon: Hormone or therapeutic agent? Crit. Care Med. 1984, 12, 584–589. [Google Scholar] [CrossRef] [PubMed]
  2. Ghodke, S.; Nielsen, S.B.; Christiansen, G.; Hjuler, H.A.; Flink, J.; Otzen, D. Mapping out the multistage fibrillation of glucagon. FEBS J. 2012, 279, 752–765. [Google Scholar] [CrossRef] [PubMed]
  3. Moorthy, B.S.; Ghomi, H.T.; Lill, M.A.; Topp, E.M. Structural transitions and interactions in the early stages of human glucagon amyloid fibrillation. Biophys J. 2015, 108, 937–948. [Google Scholar] [CrossRef]
  4. Wilson, L.M.; Castle, J.R. Stable Liquid Glucagon: Beyond Emergency Hypoglycemia Rescue. J. Diabetes Sci. Technol. 2018, 12, 847–853. [Google Scholar] [CrossRef] [PubMed]
  5. Pang, E.; Chong, W.; Luke, M.C. Scientific and Regulatory Considerations for the Approval of the First Generic Glucagon. J. Endocr. Soc. 2021, 5 (Suppl. 1), A324–A325. [Google Scholar] [CrossRef]
  6. Glucagon (rDNA Origin). Prescribing Information for Glucagon for Injection (rDNA Origin). Indianapolis, IN: Eli Lilly and Company. 2021. Available online: http://pi.lilly.com/us/rglucagon-pi.pdf (accessed on 4 November 2022).
  7. Mäde, V.; Els-Heindl, S.; Beck-Sickinger, A.G. Automated solid-phase peptide synthesis to obtain therapeutic peptides. Beilstein J. Org. Chem. 2014, 10, 1197–1212. [Google Scholar] [CrossRef]
  8. BACHEM. Bachem Peptide Guide—Pioneering Partner for Peptides. Bachem Holding AG: Bubendorf, Switzerland, 2009. [Google Scholar]
  9. Srere, P.A.; Brooks, G.C. The circular dichroism of glucagon solutions. Arch. Biochem. Biophys. 1969, 129, 708–710. [Google Scholar] [CrossRef]
  10. Tran, C.D.; Beddard, G.S.; Osborne, A.D. Secondary structure and dynamics of glucagon in solution. Biochim. Biophys. Acta. 1982, 709, 256–264. [Google Scholar] [CrossRef]
  11. Boesch, C.; Bundi, A.; Oppliger, M.; Wüthrich, K. 1H nuclear-magnetic-resonance studies of the molecular conformation of monomeric glucagon in aqueous solution. Eur. J. Biochem. 1978, 91, 209–214. [Google Scholar] [CrossRef]
  12. Hall, V.; Sklepari, M.; Rodger, A. Protein secondary structure prediction from circular dichroism spectra using a self-organizing map with concentration correction. Chirality 2014, 26, 471–482. [Google Scholar] [CrossRef]
  13. Dodero, V.I.; Quirolo, Z.B.; Sequeira, M.A. Biomolecular studies by circular dichroism. Front. Biosci. 2011, 16, 61–73. [Google Scholar] [CrossRef] [PubMed]
  14. Whitmore, L.; Wallace, B.A. Protein secondary structure analyses from circular dichroism spectroscopy: Methods and reference databases. Biopolymers 2008, 89, 392–400. [Google Scholar] [CrossRef] [PubMed]
  15. Greenfield, N.J. Using circular dichroism spectra to estimate protein secondary structure. Nat. Protoc. 2006, 1, 2876–2890. [Google Scholar] [CrossRef] [PubMed]
  16. Micsonai, A.; Wien, F.; Kernya, L.; Lee, Y.H.; Goto, Y.; Réfrégiers, M.; Kardos, J. Accurate secondary structure prediction and fold recognition for circular dichroism spectroscopy. Proc. Natl. Acad. Sci. USA 2015, 112, E3095–E3103. [Google Scholar] [CrossRef]
  17. Castiglia, F.; Zevolini, F.; Riolo, G.; Brunetti, J.; De Lazzari, A.; Moretto, A.; Manetto, G.; Fragai, M.; Algotsson, J.; Evenas, J.; et al. NMR Study of the Secondary Structure and Biopharmaceutical Formulation of an Active Branched Antimicrobial Peptide. Molecules 2019, 24, 4290. [Google Scholar] [CrossRef]
  18. Wüthrich, K. The way to NMR structures of proteins. Nat. Struct. Biol. 2001, 8, 923–925. [Google Scholar] [CrossRef]
  19. Otara, C.B.; Jones, C.E.; Younan, N.D.; Viles, J.H.; Elphick, M.R. Structural analysis of the starfish SALMF amide neuropeptides S1 and S2: The N-terminal region of S2 facilitates self-association. Biochem. Biophs Acta 2014, 1844, 358–365. [Google Scholar]
  20. Kline, A.D.; Justice, R.M., Jr. Complete sequence-specific 1H NMR assignments for human insulin. Biochemistry 1990, 29, 2906–2913. [Google Scholar] [CrossRef]
  21. Wüthrich, K. NMR of Protein and Nucleic Acids; Wiley: New York, NY, USA, 1986. [Google Scholar]
  22. Georgiev, D.D.; Glazebrook, J.F. Quantum transport and utilization of free energy in protein α-helices. Adv. Quantum Chem. 2020, 82, 253–300. [Google Scholar] [CrossRef]
  23. Wüthrich, K.; Wider, G.; Wagner, G.; Braun, W. Sequential resonance assignments as a basis for determination of spatial protein structures by high resolution proteins nuclear magnetic resonance. J. Mol. Biol. 1982, 155, 311–319. [Google Scholar] [CrossRef]
  24. Wüthrich, K.; Billeter, M.; Braun, W. Polypeptide secondary structure determination by nuclear magnetic resonance observation of short proton–proton distances. In NMR in Structural Biology: A Collection of Papers by Kurt Wüthrich; World Scientific: Singapore, 1995; pp. 218–243. [Google Scholar]
  25. Markoska, T.; Vasiljevic, T.; Huppertz, T. Unravelling Conformational Aspects of Milk Protein Structure-Contributions from Nuclear Magnetic Resonance Studies. Foods 2020, 9, 1128. [Google Scholar] [CrossRef] [PubMed]
  26. Yi, G.; Choi, B.; Kim, H. The conformation of glucagon in dilute aqueous solution as studied by 1H NMR. Biochem. Int. 1992, 28, 519–524. [Google Scholar] [PubMed]
  27. Rodbell, M.; Birnbaumer, L.; Pohl, S.; Sundby, F. The reaction of glucagon with its receptor: Evidence for discrete regions of activity and binding in the glucagon molecule. Proc. Nat. Acad. Sci. USA 1971, 68, 909–913. [Google Scholar] [CrossRef] [PubMed]
  28. Braun, W.; Wider, G.; Lee, K.; Wuthrich, K. Confirmation of Glucagon in a Lipid-Water Interphase by 1H Nuclear Magnetic Resonance. J. Mol. Biol. 1983, 169, 921–948. [Google Scholar] [CrossRef]
  29. Svane, A.; Jahn, K.; Deva, T.; Malmednal, A.; Otzen, D.; Dittmer, J.; Nielsen, N. Early stages of Amyloid Fibril Formation Studied by Liquid-State NMR: The Peptide Hormone Glucagon. Biophyisical J. 2008, 95, 366–377. [Google Scholar] [CrossRef] [PubMed]
  30. Ying, J.; Ahn, J.; Jacobsen, N.; Brown, M.; Hruby, V. NMR Solution Structure of the Glucagon Antagonist [desHis1, desPhe6, Glu9] Glucagon Amide in the Presence of Perdeuterated Dodecylphophochoine Micelles. Biochemistry 2003, 42, 2825–2835. [Google Scholar] [CrossRef] [PubMed]
  31. Chang, X.; Keller, D.; O’Donoghue, S.; Led, J. NMR studies of the aggregation of glucagon-like peptide-1: Formation of a symmetric helical dimer. FEBS Lett. 2002, 515, 165–170. [Google Scholar] [CrossRef]
Molecules 27 07805 g001 550

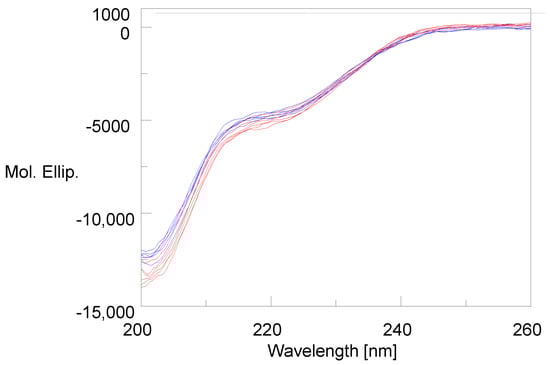

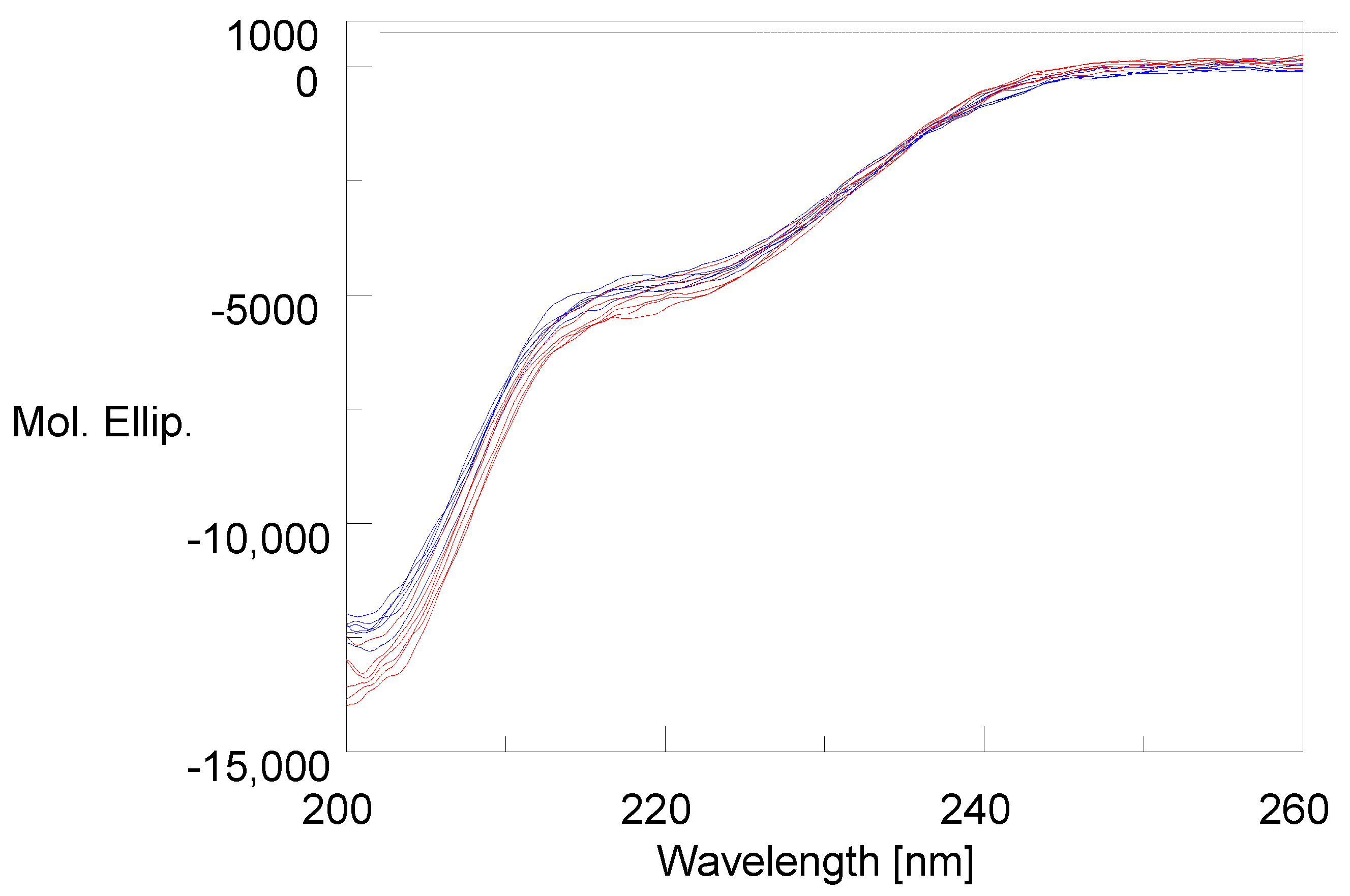

Figure 1. The CD spectra show the structures of synthetic glucagon and recombinant glucagon (new or aged lots) are equivalent. Three lots of AMP-glucagon at release and three lots at expiry (colored blue), three lots of recently manufactured and three lots of expired ELI-glucagon (colored red).
Figure 1. The CD spectra show the structures of synthetic glucagon and recombinant glucagon (new or aged lots) are equivalent. Three lots of AMP-glucagon at release and three lots at expiry (colored blue), three lots of recently manufactured and three lots of expired ELI-glucagon (colored red).
Molecules 27 07805 g001
Molecules 27 07805 g002 550

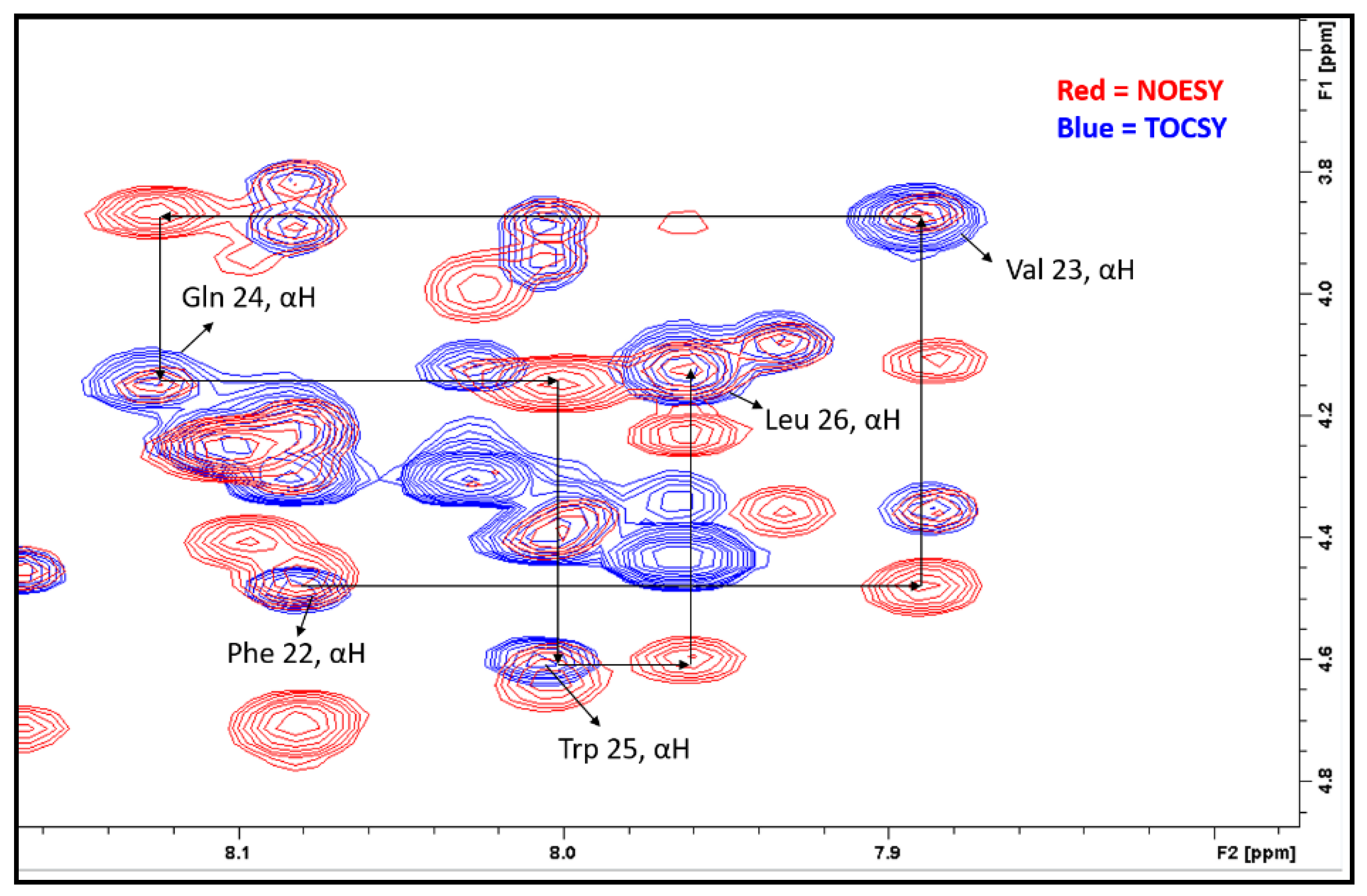

Figure 2. TOCSY and NOESY overlaid spectra demonstrates the sequential walk for the α-H on Phe22Val23Gln24Trp25Leu26.
Figure 2. TOCSY and NOESY overlaid spectra demonstrates the sequential walk for the α-H on Phe22Val23Gln24Trp25Leu26.
Molecules 27 07805 g002
Molecules 27 07805 g003 550

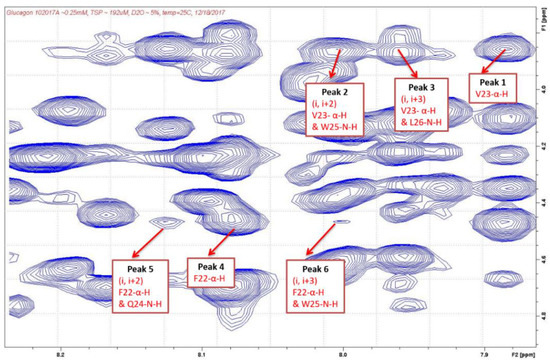

Figure 3. NOESY cross-peaks in AMP-glucagon.
Figure 3. NOESY cross-peaks in AMP-glucagon.
Molecules 27 07805 g003
Molecules 27 07805 g004 550

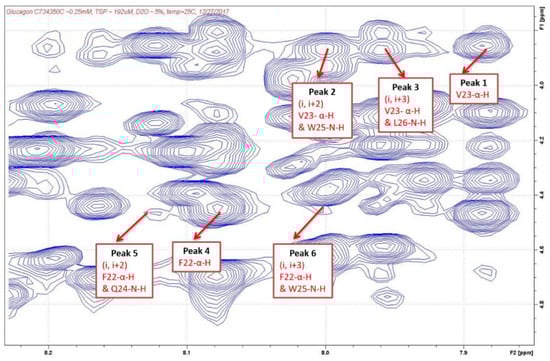

Figure 4. NOESY cross-peaks in ELI-glucagon.
Figure 4. NOESY cross-peaks in ELI-glucagon.
Molecules 27 07805 g004
Table
Table 1. Secondary Structure Content of AMP-Glucagon and ELI-Glucagon by CD.
Table 1. Secondary Structure Content of AMP-Glucagon and ELI-Glucagon by CD.
ProductsTime for Shelf LifeLot
Number		Secondary Structure Tested by CD
α Helix %β Strand %Turn %Unordered %
AMP-glucagonAt release10201714.417.514.653.6
102017A13.917.414.654.1
102017B13.817.914.354.1
ELI-glucagonRecently manufacturedC304844A14.317.414.653.7
C304844C14.117.314.653.9
C283822C14.417.314.653.8
AMP-glucagonExpired > 3 years2191414.318.214.453.0
021914A13.918.514.553.2
021914B15.816.914.153.1
ELI-glucagonEnd of shelf lifeC494099D16.715.41453.9
C505143A17.116.813.652.6
C502399D14.116.714.554.8
Table
Table 2. Equivalence Evaluation for Secondary Structure with CD Method for AMP-Glucagon vs. ELI-Glucagon.
Table 2. Equivalence Evaluation for Secondary Structure with CD Method for AMP-Glucagon vs. ELI-Glucagon.
Equivalence Evaluation TypeEstablishment of EEC & Equivalence EvaluationSecondary Structure, Tested by CD
α Helix (%)β Strand (%)Turn(%)Unordered (%)
AMP-glucagon vs. ELI-glucagon at releaseExtreme of ELI-glucagon, fresh lots (n = 3)RMin14.117.314.653.7
RMax14.417.414.653.9
EEC at release *Lower12.715.613.148.3
Upper15.819.116.159.3
AMP-glucagon meets EEC? AMP-glucagon lot No.102017√√√√
102017A√√√√
102017B√√√√
AMP-glucagon vs. ELI-glucagon at expirationExtreme of ELI-glucagon, Expired lots (n = 3)RMin14.115.413.652.6
RMax17.116.814.554.8
EEC at expiration *Lower12.713.912.247.3
Upper18.818.516.060.3
AMP-glucagon meets EEC?AMP-glucagon lot No.21914√√√√
021914A√√√√
021914B√√√√
* EEC = ELI-glucagon extreme ± 10%, i.e., lower limit = 0.9 × RMin, and upper limit =1.1 × RMax.
Table
Table 3. NOESY Cross-Peak Intensity for AMP-Glucagon and ELI-Glucagon.
Table 3. NOESY Cross-Peak Intensity for AMP-Glucagon and ELI-Glucagon.
Glucagon Amino Acid SequenceVal23-Gln24-Trp25-Leu26Phe22-Val23-Gln24-Trp25
Amino acid residueVal23Trp25Leu26Phe22Gln24Trp25
αHNHNHαHNHNH
ii+2i+3ii+2i+3
NOE cross-peak chemical shift (ppm)N-H7.898.007.968.088.128.00
α-H3.853.853.854.454.454.45
NOESY cross-peak intensity (abs, 105)AMP-glucagon
(at release)		102017-2.11.2-0.30.2
102017A-2.01.2-0.30.2
102017B-1.91.2-0.30.2
ELI-glucagon
(recently manufactured)		C734350C-1.50.9-0.2Visible
C699511C-1.40.8-Visible0.2
C753564A-1.70.9-0.2Visible
AMP-glucagon
(expired)		21914-1.60.9-0.20.2
021914A-2.01.3-0.30.2
021914B-1.71.1-0.30.2
ELI-glucagon
(expired)		C505143A-1.60.9-0.20.2
C502399D-1.81.0-0.2Visible
C404099D-1.70.9-0.20.2
