2.1. Titanium Dioxide (TiO2) Nanostructures
Figure 1.
SEM micrographs of different nano morphologies of TiO
2 (
a) Nanorod (Reprinted with permission from [
18]. Copyright 2014 Elsevier), (
b) Nanoflower (Reprinted with permission from [
19]. Copyright 2012 Elsevier), (
c) Nanotubes (Reprinted with permission from [
20]. Copyright 2014 Springer Nature), (
d) Nanospheres (Reprinted with permission from [
21]. Copyright 2011 Royal Society of Chemistry), (
e) Nanospindles (Reprinted with permission from [
22]. Copyright 2018 Elsevier).
Figure 1.
SEM micrographs of different nano morphologies of TiO
2 (
a) Nanorod (Reprinted with permission from [
18]. Copyright 2014 Elsevier), (
b) Nanoflower (Reprinted with permission from [
19]. Copyright 2012 Elsevier), (
c) Nanotubes (Reprinted with permission from [
20]. Copyright 2014 Springer Nature), (
d) Nanospheres (Reprinted with permission from [
21]. Copyright 2011 Royal Society of Chemistry), (
e) Nanospindles (Reprinted with permission from [
22]. Copyright 2018 Elsevier).
Due to the nontoxic nature, natural and abundant availability, wide spectrum application range, and attractive physical properties, titanium dioxide-based nanomaterials of different morphologies (
Figure 1) are of tremendous interest in the field of photocatalysis [
23], photovoltaics [
24], hydrogen production [
25], self-cleaning coatings [
26], energy storage [
27], and antifogging coatings [
28]. Different morphologies of titania NMs including nanorods, nano spindles, nanotubes, nanospheres, and nanoflowers, can be prepared using different approaches such as sol-gel method, electrochemical route, hydrothermal method, atomic layer deposition approach (ALD) etc. It becomes imperative to understand the effect of various morphologies of TiO
2 nanomaterial on the surface physiochemical properties during its growth and end application. The performance of TiO
2 as a photocatalyst primarily depends upon ion transport across the catalyst material, mass transfer to catalytic sites and charge transfer at the available surface of the material, and all of the above depends on the morphology of TiO
2. The photocatalytic process is controlled to a large extent by the morphology of the titania nanomaterials and can be improved by the large surface area and nano-size of the nanoparticles [
29]. It can ultimately control nature, density, crystallinity and defect concentration in the nanomaterials. It has a profound effect on charge transfer and ion transport properties. In contrast to the bulk titania phase, the morphology of nanostructures such as nanorods, nanoflowers, nano spindles, nanotubes, and nanospheres show high surface area and ease of mass transfer.
Table 1.
Photocatalytic activity study of different nano morphologies of TiO2.
Table 1.
Photocatalytic activity study of different nano morphologies of TiO2.
S. NO. | Material & Morphology | Method | Application | Photocatalytic Activity | Reference |
---|
| | Nanorod | | | |
1 | TiO2/Nanorod | Sol-gel | P-nitrophenol, under 15 W UV Philips lamp | 69% in 20 min | [30] |
2 | TiO2/Nanorod | Chemical vapour deposition | Methyl Orange (MO) & Methylene Blue (MB) under 100 W UV mercury lamp | 97% of MO in 100 min 99% of MB in 50 min | [18] |
3 | TiO2/Nanorod | Sol-gel | Phenol under18 W UV lamp, | 48% in 360 min | [23] |
4 | TiO2/Nanorod | Hydrothermal Method at 120 °C for 15 h | Phenol under UV light | 87% in 360 min | [31] |
5 | TiO2/Nanorod | Hydrothermal Method at 200 °C for 12 h | MO under 300 W UV Xenon lamp | 100% in 95 min | [32] |
6 | TiO2/Nanorod | Hydrothermal Method at 225 °C for 24 h | MO & MB under 6 W UV lamp | 100% of MO & 88% of MB in 120 min | [33] |
7 | TiO2/Nanorod | Hydrothermal Method at 180 °C for 12 h | Phenol, 20 W UV lamp, 365 | 55% in 360 min | [21] |
8 | TiO2/rod | Hydrothermal, 200 °C for 18 h | MB, under 6 W UV lamp | 80% in 100 min | [34] |
9 | TiO2/Nanorod | Hydrothermal Method at 180 °C for 24 h | MO, under UV mercury lamp | 51% in 150 min | [35] |
| | Flower | | | |
10 | TiO2/Flower | Sol-gel | Phenol, under 18 W UV lamp | 70% within 360 min | [23] |
11 | TiO2/Flower | Hydrothermal, 180 °C for 12 h | Phenol, 20 W UV lamp | 97% in120 min | [21] |
12 | TiO2/Flower | Hydrothermal, 180 °C for 6 h | Rhodamine B (RhB), under 450 W UV Xenon lamp | 69% in 160 min | [36] |
13 | TiO2/Flower | Sol-gel | RhB under 300 W UV lamp | 91.4% in 50 min | [37] |
14 | TiO2/Flower | Hydrothermal, 150 °C for 24 h | RhB, under 350 W Xenon Visible lamp | 63% in 60 min | [38] |
15 | TiO2/Flower | Hydrothermal, 150 °C for 3 h | MB under UV lamp | 78% in 60 min | [39] |
16 | TiO2/Flower | Hydrothermal, 120 °C for 48 h | MO under sunlight | 60% in 60 min | [19] |
17 | TiO2/Flower | Hydrothermal, 150 °C for 24 h | MB under UV 300 W high-pressure mercury (Hg) lamp | 75% in 60 min | [40] |
| | Tube | | | |
18 | TiO2/Tube | Furnace 500 °C for 4 h | Papermaking wastewater, under 375 W high-pressure Hg lamp | 99.5% in 720 min | [41] |
19 | TiO2/Tube | Electrochemical Method | MB, under UV lamp | 98% in 60 min | [20] |
20 | TiO2/Tube | Hydrothermal, 160 °C for 24 h | MO, under 300 W UV lamp | 50.2% in 60 min | [42] |
21 | TiO2/Tube | Sol-gel stirring at 40 °C for 24 h | RhB & Dibutyl phthalate (DBP) 125 W high-pressure Hg UV lamp | 20% of RhB in 60 min & 15% of DBP in 60 min | [43] |
22 | TiO2/Tube | Solvothermal, 180 °C for 24 h | Orange II, under 18 high-pressure Hg lamps | 97.98% in 3000 min | [44] |
23 | TiO2/Tube | Electrochemical method | MB, under UV light lamp | 72% in 200 min | [45] |
24 | TiO2/Tube | Electrochemical Method | Phenol, under 1000 W Xenon lamp visible light lamp | 99.5% in 40 min | [46] |
| | Sphere | | | |
25 | TiO2/Sphere | Hydrothermal, 180 °C for 24 h | Phenol, under 20 W UV lamp, | 60% in 120 min | [21] |
26 | TiO2/Sphere | Hydrothermal, 130 °C for 48 h | MB, under UV lamp | 96% in 80 min | [47] |
27 | TiO2/Sphere | Hydrothermal, 200 °C for 18 h | MB, under 6 W UV lamp | 90% in 100 min | [34] |
28 | TiO2/Sphere | Hydrothermal, 80 °C for 24 h | MB, under UV light | 96% in 100 min | [48] |
29 | TiO2/Sphere | Hydrothermal, 160 °C for 24 h | MO, under 4 W UV lamp | 50% in 60 min | [49] |
30 | TiO2/Sphere | Hydrothermal, 150 °C for 72 h | MO, under 8 W UV lamp | 91.6% in 60 min | [50] |
| | Spindle | | | |
31 | TiO2/spindle | Hydrothermal, 180 °C for 12 h | MO, under 300 W visible light | 38% in 120 min, | [51] |
32 | TiO2/spindle | Hydrothermal, 200 °C for 24 h | RhB, under 350 W Xenon visible lamp | 23% in 60 min | [52] |
33 | TiO2/spindle | Reverse micellar method | RhB, under UV lamp | 90% in 130 min | [53] |
34 | TiO2/spindle | Hydrothermal, 180 °C for 12 h | MO, under 250 W UV high-voltage Hg lamp | 91% in 300 min | [54] |
35 | TiO2/spindle | Hydrothermal, 200 °C for 24 h | RhB, visible light | 25% in 60 min | [55] |
Various morphologies of TiO
2 were synthesized using different approaches (
Table 1), such as sol-gel [
56,
57], hydrothermal, electrochemical, solvothermal and solid-state methods. The nanorods were synthesized using sol-gel [
30], solid-state [
58], and hydrothermal methods [
34]. Generally, it takes two hours for the complete mineralization of organic pollutants using TiO
2 nanorods. TiO
2 nanoflowers were prepared by using the sol-gel [
34] and hydrothermal methods [
21,
36]. It takes more than an hour to remove organic contaminants by a photocatalytic process using TiO
2 nanoflowers. The nanotubes were prepared by using electrochemical, hydrothermal [
59], sol-gel [
60], and solvothermal methods [
61]. The 99.5% removal of organic pollutants was achieved within 40 min using TiO
2 nanotubes [
46]. TiO
2 nanospheres were synthesized mostly by hydrothermal technique. It takes more than 2 h for the total mineralization of organic contaminants photocatalytically by using TiO
2 nanospheres. TiO
2 nano spindles were obtained by using hydrothermal [
52] and reverse micellar [
20] approaches. Nanospindle morphology was seen to be the slowest among all morphologies for photocatalytic mineralization of organic pollutants. It takes more than two hours to complete the mineralization of organic contaminants by using TiO
2 nano spindles.
Therefore, it is important to study the parameters involved, such as surface area, the temperature of crystal growth, the time required for synthesis as well as photocatalytic activity in unison and collectively along with the range of different morphologies for a holistic understanding. The data collected from existing literature indicates that on all counts, TiO
2 nanotube morphology proved to be excellent amongst different morphologies compared, as stated above. We have considered the best results from the available literature for comparison and analysis (

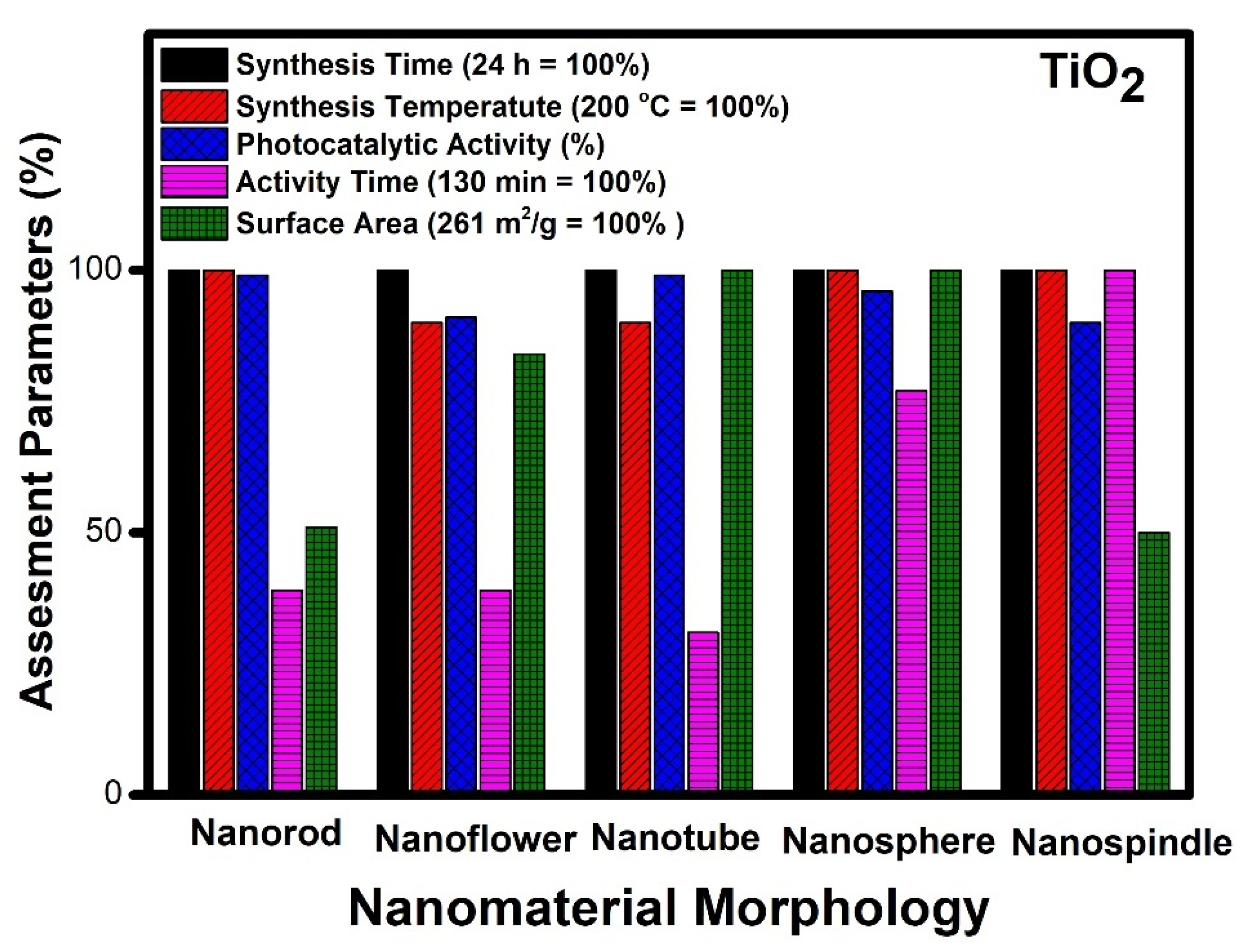

Figure 2).
It can be observed from
Figure 2 that different morphologies can be compared based on various parameters. The temperature of synthesis varies for obtaining different morphologies of TiO
2. Nanorods, nanospindle, and nanospheres show the highest temperature requirement (200 °C), whereas nanoflower and nanotubes can be synthesized at a twenty-degree lower temperature. In the case of photocatalytic performance, nanorods, nanotubes, and nanospheres show the highest performance, whereas nanoflowers and nanospindle show a 10% lesser performance. The catalytic activity time taken by nanospindle is the highest, and nanotubes show the lowest among the reported. The nanorod and nanoflower show moderate time, but nanosphere time is a little higher comparatively. The surface area of nanotubes and nanospheres is the highest among the reported, whereas nanorods and nanospindle show a 50% lesser surface area as compared to nanotubes and nanospheres. The surface area of nanoflower shows a moderate value comparatively.
The remarkable catalytic activity (99%) with minimum activity time (40 min) was observed in the case of TiO
2 with nanotube morphology [
46]. This can be related to the high surface area (261 m
2/g) and ease of access to the reactants during the catalytic process. Thus, it can be inferred that surface area and easy access to reactants are essential factors which govern the performance of the different morphologies in TiO
2. The increased surface area makes available microchannels for the free flow of reactants and degradation products during the photocatalytic process. These microchannel increases the possibility of interaction with a more catalytic active center, thereby increasing the performance of the catalyst. The highlight of this tube-like morphology is its low-temperature synthesis (180 °C) by solvothermal route [
61]. The different morphologies of TiO
2, such as nanorods and nanospheres, also show excellent performance in terms of photocatalytic activity but have less surface area and more activity time as compared to the nanotube morphology. However, the efficiency of nanospheres is close to nanotubes and can be considered as the next best material matched with nanotubes [
62]. Further, nanoflower morphology with a high surface area lacks the desired catalytic performance, probably due to poor accessibility of reactive species to active centers during the photochemical process [
23]. The different morphologies studied in decreasing order of their efficiency are nanotubes [
47], nanospheres [
48], nanorods [
18], nanospindle [
53] and nanoflowers [
37].
2.2. Zinc Oxide (ZnO) Nanostructures

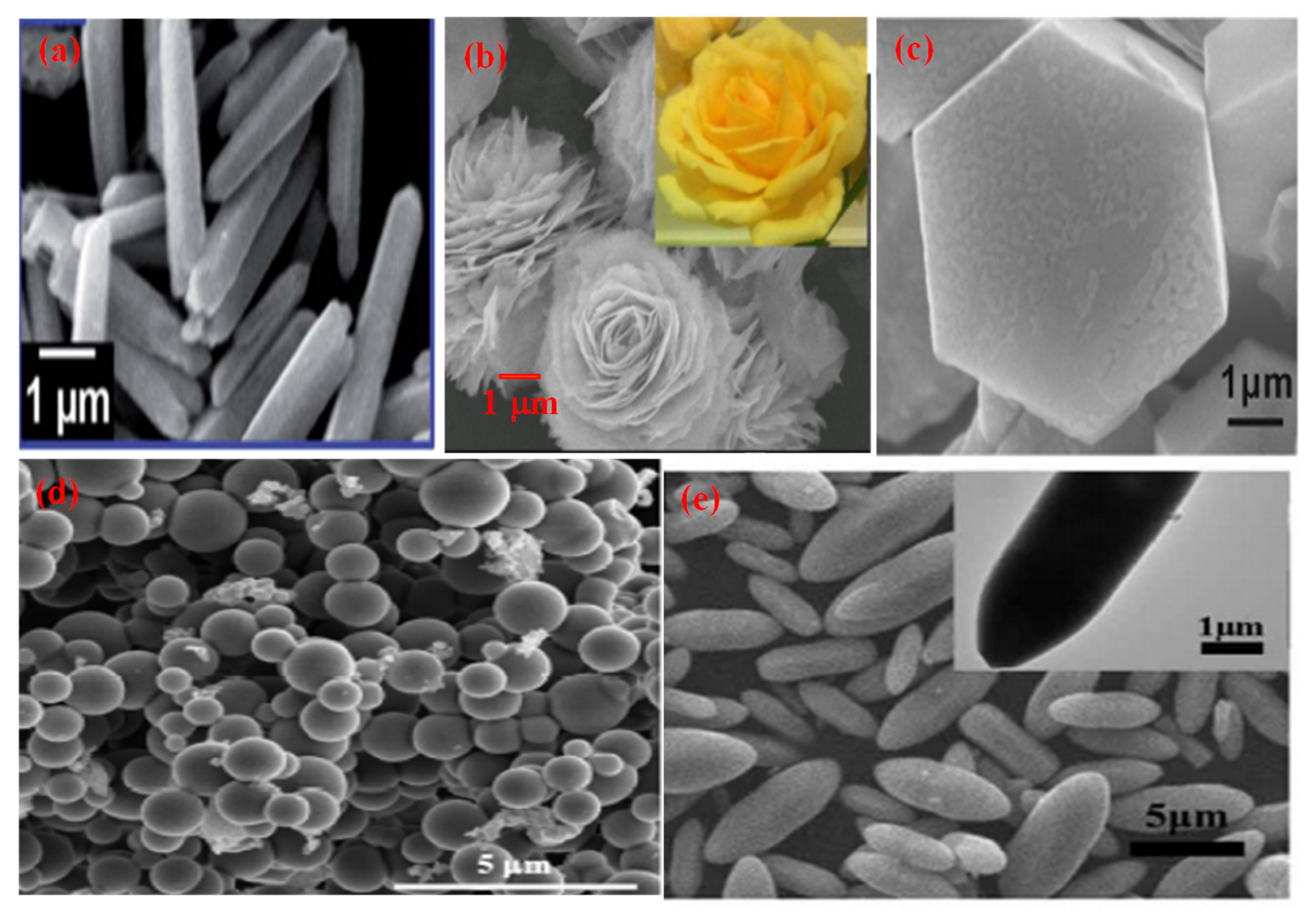

Figure 3.
SEM micrographs of different morphologies of ZnO (
a) Nanorod (Reprinted with permission from [
63]. Copyright 2014 Royal Society of Chemistry), (
b) Nanoflower (Reprinted with permission from [
64]. Copyright 2016 Elsevier), (
c) Hexagonal (Reprinted with permission from [
65]. Copyright 2017 Royal Society of Chemistry), (
d) Nanospheres (Reprinted with permission from [
66]. Copyright 2019 Elsevier), (
e) Nanospindles (Reprinted with permission from [
67] Copyright 2017 Elsevier).
Figure 3.
SEM micrographs of different morphologies of ZnO (
a) Nanorod (Reprinted with permission from [
63]. Copyright 2014 Royal Society of Chemistry), (
b) Nanoflower (Reprinted with permission from [
64]. Copyright 2016 Elsevier), (
c) Hexagonal (Reprinted with permission from [
65]. Copyright 2017 Royal Society of Chemistry), (
d) Nanospheres (Reprinted with permission from [
66]. Copyright 2019 Elsevier), (
e) Nanospindles (Reprinted with permission from [
67] Copyright 2017 Elsevier).

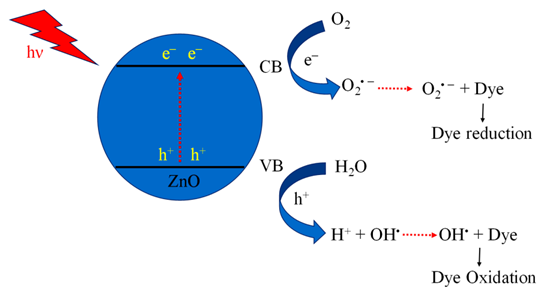

Different morphologies of zinc oxide (ZnO) are (
Figure 3) considered a vital semiconductor catalyst with a wide band gap of 3.37 eV with high excitation binding energy of 60 eV and have been studied extensively for photocatalytic reactions. The performance of ZnO as a semiconductor photocatalyst can be related to the absorption of light, which excites electrons from the valence band (VB) to the conduction band, which creates a hole (h
+) in VB and initiates the photo redox reaction. Zinc oxide occurs in nature as a zincite mineral which has a hexagonal structure with lattice parameters a and c of 3.25 Å and 5.20 Å, respectively. It is used for making pigments, transducers, lasers, diodes, sensors and catalysts. The most common use of ZnO in the nanoscale range is for making sunscreen additives for protection from UV radiation, and ZnO thin films are used in making devices. Thus, ZnO can be used in a broad range of applications starting with catalytic activity to optoelectronics and to antimicrobial activity as well, which leads to a variety of products manufactured. ZnO is preferred as a semiconductor catalyst due to its low cost, efficiency, nontoxic nature, high redox potential and ease of availability. When compared to TiO
2, the photocatalytic performance of ZnO is much superior. It is due to the absorption of a more significant portion of the UV spectrum by ZnO with greater electron mobility (200–300 cm
2V
−1s
−1) and higher oxidation potential of the
•OH radical generated [
68]. This results in a rapid electron transfer leading to a higher quantum yield. ZnO has a higher recombination rate of electrons and holes generated during photocatalysis which reduces its performance as a photocatalyst.
Table 2.
Comparative study of different nano morphologies of nanostructured ZnO.
Table 2.
Comparative study of different nano morphologies of nanostructured ZnO.
S. NO. | Material & Morphology | Method | Application | Performance | Reference |
---|
| | Rod | | | |
1 | ZnO/Rod | Microwave reactor (heated to 80 °C for 10 min) | MO, under 300 W Hg lamp | 86.3% in 180 min | [69] |
2 | ZnO/Rod | Hydrothermal, 180 °C for 24 h | Resorcinol, under 15 W UV lamp | 100% in 120 min | [70] |
3 | ZnO/Rod | Atmospheric self-induction method | RhB, under 400 W Xenon visible lamp | 36.8% in 300 min | [71] |
4 | ZnO/Rod | Solvothermal, 80 °C for 5 h | MB under 300 W UV lamp | 100% in 20 min | [72] |
5 | ZnO/Rod | Hydrothermal, 140 °C for 12 h | MB under 6 W UV lamp | 98.5% in 100 min | [73] |
6 | ZnO/Rod | Hydrothermal, 120 °C for 20 h | Phenol under l 15 W UV lamp | 100% in 40 min | [74] |
7 | ZnO/Rod | Hydrothermal, 95 °C for 30 h | RhB under 500 W visible Xenon lamp | 50% in 300 min | [75] |
| | Flower | | | |
8 | ZnO/Flower | Hydrothermal, 100 °C for 12 h | RhB, under 300 W Hg lamp | 99.84% in 25 min | [64] |
9 | ZnO/Flower | Thermal decomposition at 300 °C for 20 min | RhB, under 36 W UV lamp | 100% in 90 min | [76] |
10 | ZnO/Flower | Sol-gel at 80 °C | RhB, under 200 W high-pressure Hg UV lamp | 99.8% in 100 min | [77] |
11 | ZnO/Flower | Hydrothermal, 140 °C for 12 h | MB, under 6 W UV lamp | 94% in 100 min | [73] |
12 | ZnO/Flower | Precipitation method | RhB, under Hg UV lamp | 30% in 180 min | [78] |
13 | ZnO/Flower | Hydrothermal, at 190 °C for 1 h | MB, 125 W Hg UV lamp | 98% in 60 min | [77] |
14 | ZnO/Flower | Solution based at 97 °C for 4 h. | MB, under 30 W Hg UV lamp | 99.9% in 180 min | [79] |
15 | ZnO/Flower | Microwave, at 300 W for 12 s | MB, under high-pressure Hg UV lamp | 80% in 60 min | [63] |
16 | ZnO/Flower | Hydrothermal, at 90 ° C for 24 h | MB, under BLB UV lamp | 100% in 105 min | [80] |
17 | ZnO/Flower | Sol-gel at room temperature for 16 h. | RhB, under 300 W Xenon UV lamp | 100% in 100 min | [81] |
| | Sphere | | | |
18 | ZnO/Sphere | Hydrothermal, at 140 °C for 12 h | MB, under 6 W UV lamp | 74% in 100 min | [73] |
19 | ZnO/Sphere | Hydrothermal, at 180 °C for 24 h | RhB, under 15 W UV lamp | 100% in 240 min | [82] |
20 | ZnO/Sphere | Heated in a silicone bath at 120−140 °C for 4 h | MO, under 24 W UV lamp | 90% in 300 min | [83] |
21 | ZnO/Sphere | Hydrothermal, at 180 °C for 4 h | Congo Red, under 30 W UV lamp | 99.2%, in 90 min | [84] |
22 | ZnO/Sphere | Hydrothermal, at 120 °C for 6 h | MB, under 80 W UV lamp | 95% in 60 min | [85] |
| | Hexagonal | | | |
23 | ZnO/Hexagonal | Heated at 150 °C on a hotplate | MB, under 450 W medium pressure Hg UV lamp | 100% in 16 min | [68] |
24 | ZnO/Hexagonal | Calcined at 400 °C | MB, under 16 W UV lamp | 100% in 75 min | [86] |
25 | ZnO/Hexagonal | Solvothermal, at 110 °C for 10 h | RhB, under Hg UV lamp | 80% in 60 min | [87] |
26 | ZnO/Hexagonal | Sol-gel at 80 °C for 3 h | MB, under 100 W UV lamp | 100% in 20 min | [88] |
27 | ZnO/Hexagonal | Hydrothermal, 120 °C for 20 h | MB, under UV lamp | 100% in 60 min | [74] |
28 | ZnO/Hexagonal | solid-phase method | MO, under 300 W UV lamp | 96.4% in 60 min | [89] |
29 | ZnO/Hexagonal | Hydrothermal, at 200 °C for 24 h | MB, under 300 W Hg UV lamp | 60% in 180 min | [90] |
30 | ZnO/Hexagonal | Sol-gel at 80 °C for 12 h | MB, under UV lamp | 95% in 60 min | [65] |
31 | ZnO/Hexagonal | Sonochemical method | MB, under 400 W Xenon UV lamp | 97% in 30 min | [91] |
| | Spindle | | | |
32 | ZnO/Spindle | Hydrothermal, 140 °C for 12 h | MB, under 365 UV lamp | 62% in 100 min | [73] |
33 | ZnO/Spindle | Hydrothermal, 120 °C for 8 h | MO, under UV lamp | 55% in 180 min | [67] |
34 | ZnO/Spindle | Hydrothermal, 150 °C for 3 h | RhB, under 8W HG UV lamp | 73% in 120 min | [92] |
35 | ZnO/Spindle | Microwave, at 110 °C for 17 min | MB, under 300 W high-pressure Hg UV lamp | 98% in 120 min | [93] |
36 | ZnO/Spindle | Hydrothermal, at 140 °C for 12 h | MB, under 6 W high-pressure Hg UV lamp | 72% in 100 min | [73] |
37 | ZnO/Spindle | Hydrothermal, 95 °C for 24 h | MB, under 60 W Hg UV lamp | 83% in 55 min | [94] |
There are different methods, such as hydrothermal, sol-gel, coprecipitation, microwave, sonochemical and solid-state approaches which have been used in the preparation of zinc oxide with varying morphologies (
Table 2). Zinc oxide nanorods were synthesized using microwave irradiation [
69], hydrothermal [
73,
75] and solvothermal methods [
72]. The average time taken for complete mineralization is around two hours. Zinc oxide nanoflowers were prepared using hydrothermal [
64,
73,
77,
80], sol-gel [
79,
81,
95], coprecipitation [
78], and microwave irradiation method [
63]. It is reported to take about two hours for the nanoflower morphology to completely remove organic contaminants photocatalytically from an aqueous medium. Zinc oxide nanospheres were synthesized mostly using the hydrothermal route, and when applied for environmental photocatalysis, it takes less than 2 h for the complete mineralization of organic contaminants from water. The hexagonal morphology of zinc oxide was made using solvothermal [
87], sol-gel [
65,
88,
96], hydrothermal [
90], solid-state [
89] and sonochemical [
91] approaches. It takes less than 1 h for the removal of organic pollutants by using hexagonal morphology. Nanospindle morphology was prepared mostly using hydrothermal routes [
72,
94]; however, the microwave technique [
93] was also applied in its synthesis. The complete mineralization of organic contaminants achieved by using nano spindles was less than two hours.
Thus, it will be quite interesting to know as to which factors are responsible for the best performance of ZnO morphologies as a photocatalyst. ZnO nanomaterials show different morphologies such as nanorods [
72], nanoflowers [
97], nanospheres [
85], nanospindle [
94] and hexagonal morphology [
91]. To analyze these different morphologies, the best results available in the literature were compared (

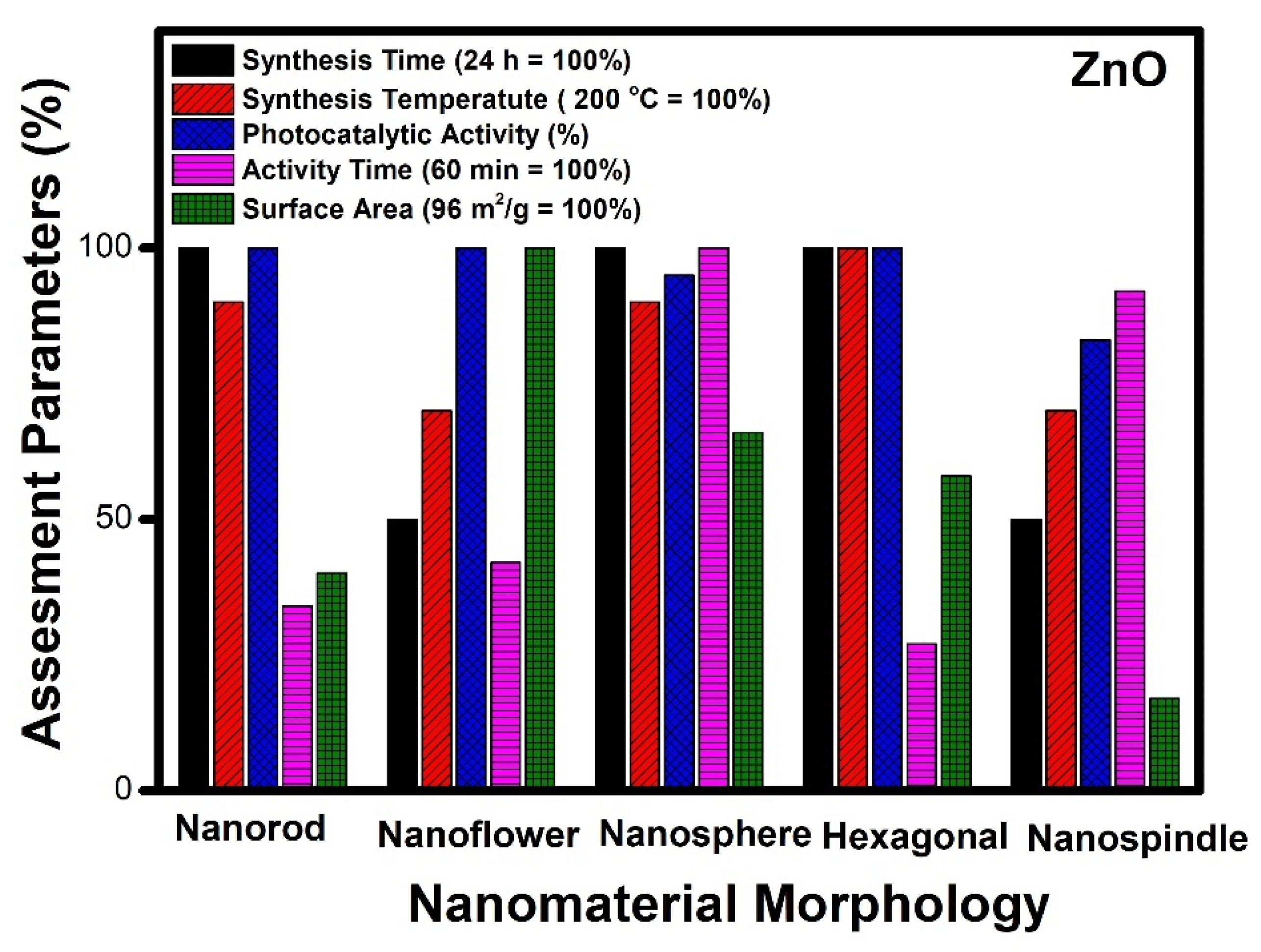

Figure 4).
Figure 4 indicates that the nanorods, nanospheres and hexagonal morphology of ZnO required more time for synthesis (24 h), whereas nanoflower and nanospindle morphologies need 50% lesser time, comparatively. The temperature needed for the synthesis of hexagonal, nanorod and nanospheres is maximum (200 °C); however, nanoflower and nanospindle morphology require thirty per cent lesser temperature relatively. In the case of photocatalytic performance, nanorod, nanoflower, and hexagonal morphologies show the highest value, while the performance of nanospindle and nanospheres shows a little lesser value comparatively. The photocatalytic activity time taken by nanospheres and nanospindle morphology is the highest amongst reported morphologies, while nanorods, nanoflowers and hexagonal morphology show moderate values. The surface area of nanoflowers shows the highest values, whereas nanorods, nanospheres, and hexagons have modest values, but nanospindle reveal the lowest among the reported morphologies.
It is observed that ZnO nanoflower morphology shows the best results [
98] in terms of surface area, time of synthesis, time of catalytic activity, and performance, amongst all other reported morphologies.
Figure 3b shows the highest surface area (96 m
2/g) for nanoflower morphology which has a direct impact on the performance of the catalyst. The surface area plays a vital role in mass transfer and charge transfer on the active catalytic surface. The time required (12 h) for the synthesis of nanoflower is also the lowest among other reported morphologies. The nanoflower morphology shows the removal of pollutants within 25 min, and the temperature of synthesis is the lowest compared to other morphologies. Thus, the nanoflower morphology of the ZnO stands out to be the best photocatalyst on all counts as equated with other reported morphologies of ZnO. The other morphology next to nanoflower is hexagonal in terms of surface area (56 m
2/g), which enables the complete removal of pollutants within 16 min by the photocatalytic route. However, considering the time for synthesis of (24 h at 200 °C) of the hexagonal structure needs further optimization [
68]. The nanorod morphology of ZnO shows complete removal of the pollutants within 20 min, whereas, in the case of nanosphere morphology, it takes an hour to achieve the same. The nano spindle morphology shows poor results in terms of catalytic performance (83%) and time taken to remove pollutants. However, the good thing is that the time and temperature of synthesis, i.e., 12 h and 140 °C, respectively, are more economical. Thus, the order of the morphologies for ZnO in terms of significance may be considered (from most significant to the lowest) as nanoflowers, nanospheres, nanorods, nano hexagons and lastly, nanospindle.
2.3. Cadmium Sulphide (CdS) Nanostructures
Figure 5.
SEM micrographs of different morphologies of CdS (
a) Nanorod (Reprinted with permission from [
99]. Copyright 2018 Elsevier), (
b) Nanoflower (Reprinted with permission from [
100]. Copyright 2017 Elsevier), (
c) Particles (Reprinted with permission from [
101]. Copyright 2019 Elsevier), (
d) Nanosphere (Reprinted with permission from [
102]. Copyright 2013 Elsevier), (
e) Sheet (Reprinted with permission from [
103]. Copyright 2018 Elsevier).
Figure 5.
SEM micrographs of different morphologies of CdS (
a) Nanorod (Reprinted with permission from [
99]. Copyright 2018 Elsevier), (
b) Nanoflower (Reprinted with permission from [
100]. Copyright 2017 Elsevier), (
c) Particles (Reprinted with permission from [
101]. Copyright 2019 Elsevier), (
d) Nanosphere (Reprinted with permission from [
102]. Copyright 2013 Elsevier), (
e) Sheet (Reprinted with permission from [
103]. Copyright 2018 Elsevier).
Synthesis of various morphologies of CdS nanostructures has been achieved by employing different approaches such as the solvothermal method, hydrothermal method, irradiation technique, electrodeposition process, liquid crystal template route [
104] etc. Systematic research on the influence of phase behaviour has opened up new avenues for the generation of different morphologies, such as nanorods, nanospheres, and nanoflowers. According to Onsager [
105], at low volume fractions, nanorods can form a distinct phase of anisotropic crystals having the positional disorder and leading to a nematic phase. Entropy drives the phase transition in the synthesis of such morphology. The contact of the photocatalyst surface with reactants has a remarkable influence on photocatalytic reactions, and the interfacial contact depends upon the morphology of the catalyst and the surface area available. In the case of CdS, nanomaterials morphology and particle size have an enormous impact on the photocatalytic property, and hence researchers are working on controlling the morphology of CdS nanomaterials to enhance the photocatalytic activity. Different morphologies such as nanosheets [
103], nanorods [
106], nanospheres [
107], nano particles [
108], and nanoflower [
109] have been explored in this context (
Figure 5). Several synthetic routes, such as chemical vapor deposition, thermal deposition, electrodeposition, template approach, microwave-assisted process, and solvothermal and hydrothermal methods, were applied to achieve the desired morphology of CdS nanomaterials. Out of these synthesis approaches hydrothermal route was found to be the most preferred and yielded the best results for optimal morphology. CdS has a narrow and direct band gap of 2.42 eV and can be considered an ideal II-VI semiconductor photocatalyst in the visible region. Thus, it is the most widely studied photocatalyst for several photocatalytic transformations, such as water splitting, reduction of nitro compounds, dye degradation, and photoelectric conversions. Tri-n-octyl phosphine oxide (TOPO) was used by Alivisatos [
110] as a size and shape-controlling ligand for obtaining CdS nanomaterials. CdS nanowires were synthesized by Lieber et al. [
111]., by using a laser ablation technique. Nanorods, nanowires and nanotubes were synthesized by using a thermal approach or a CVD method. The Ethylenediamine template approach was used [
112] in the synthesis of nanorods and nanowires via a solvothermal route.

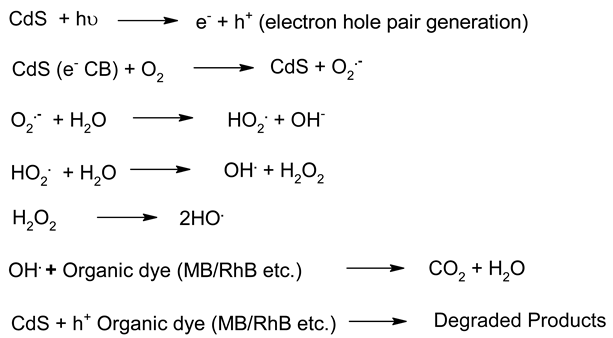

The Nanoflower morphology of semiconductor materials (CdS) is being applied as a chemo-sensor, photocatalyst, and catalyst for microbiological processes. As compared to other materials like ZnS, ZnO, TiO
2, CdSe and similar other semiconductor materials, CdS has shown an increase in photocatalytic activity under visible light irradiation due to its narrow bandgap of 2.4 eV [
113]. The nanomorphology and surface area are mainly responsible for its light absorption ability and charge carrier’s characteristics. Further, the ordered flower-like microstructure also boosts the photocatalytic properties of CdS. The nucleation and growth of different shapes of nanoflowers decide the order of construction of CdS nanoflowers. The actual morphology of the CdS microstructure can be tuned by adding surfactants or capping agents. The active surface of nanocrystals, due to the addition of surfactants, reduces interfacial activation energy and induces secondary nucleation during synthesis. There are many methods available in the literature for the synthesis of nanoflowers, such as rose-like flowers, nanocomposite flowers, petal-like structures and spindles. The CdS nanoflower morphology is applicable over a wide range of wavelengths and can be useful for the degradation of dyes like Rhodamine B and methylene blue under visible light. The structure of CdS nanoflowers contains more oxygen vacancies than that of other morphologies. The hydrothermal method is the most preferred in the synthesis of hierarchical CdS nanostructures due to its cost-effectiveness, scale-up, easy control and better crystalline quality of the product obtained. Hierarchical morphologies of CdS play an essential role during photocatalytic activity. It enhances the performance of the photocatalyst by increasing the absorption efficiency of the incident radiation and further transferring the energy to reactant molecules [
114]. The charge separation in the hierarchical structure is much more efficient. To attain the maximum efficiency of CdS nanostructures, the synthesis of controllable hierarchical nano morphologies become important.
Table 3.
Details of the synthesis and photocatalytic performance of various morphologies of CdS.
Table 3.
Details of the synthesis and photocatalytic performance of various morphologies of CdS.
S. NO. | Material & Morphology | Method | Application | Performance | Reference |
---|
| | Rod | | | |
1 | CdS/Rod | Hydrothermal, 180 °C for 6 h | MB, under 300 W Xenon visible lamp | 70% in 80 min | [115] |
2 | CdS/Rod | Reflux method for 13 h | MB, under 300 W Xenon visible lamp | 95% in 50 min | [106] |
3 | CdS/Rod | Hydrothermal, 160 °C for 48 h | Malachite green (MG) & MO, under 300 W Xenon visible lamp | 67% of MG in 30 min & 58% of MO in 45 min | [116] |
4 | CdS/Rod | Hydrothermal, 120 °C for 10 h | Salicylic acid and p-nitrophenol under 125 W Hg UV lamp | 70% Salicylic acid & 43.7% p-nitrophenol in 240 min | [117] |
5 | CdS/Rod | Hydrothermal, 180 °C for 12 h | Congo red (CR), under a visible tungsten lamp | 40% in 25 min | [118] |
6 | CdS/Rod | Hydrothermal, 180 °C for 24 h | MB, under a 100 W visible lamp | 62% in 180 min | [119] |
7 | CdS/Rod | Hydrothermal, 160 °C for 12 h | MB, under Hg UV lamp | 35% in 120 min | [114] |
8 | CdS/Rod | Hydrothermal, 160 °C for 24 h | Cr (VI), under a 1 kW Xenon visible light lamp | 19% in 120 min | [120] |
9 | CdS/Rod | 400 °C for 1 h in an N2 atmosphere | RhB, under a 200 W tungsten halogen visible lamp | 100% in 55 min | [121] |
10 | CdS/Rod | Hydrothermal, 200 °C for 10 h | MB, under a Xenon visible lamp | 50% in 120 min | [122] |
11 | CdS/Rod | Hydrothermal, 180 °C for 1 h | Ciprofloxacin (CIP), under a 300 W Xenon visible lamp | 57% in 60 min | [123] |
12 | CdS/Rod | Wet chemical method under reflux condition (100 °C for 7 h) | MO under a 300 W UV mercury lamp | 93% within 40 min | [124] |
| | Flower | | | |
13 | CdS/Flower | Hydrothermal 200 °C for 12 h | MB, under a 125 W Hg visible lamp | 100% in 220 min | [125] |
14 | CdS/Flower | Sol-gel method | MB, under a 300 W Xenon visible lamp | 80% in 60 min | [126] |
15 | CdS/Flower | Hydrothermal 260 °C for 12 h | RhB, under a 300 W Xenon visible lamp | 70%, in 180 min | [127] |
16 | CdS/Flower | Hydrothermal, 180 °C for 12 h, | Acid fuchsine, under a 125 W Hg UV lamp | 100% in 40 min | [109] |
17 | CdS/Flower | Hydrothermal, 160 °C for 12 h | MB, under a 300 W Xenon visible lamp | 100% in 180 min | [128] |
18 | CdS/Flower | Hydrothermal, 160 °C for 4 h | MB, MO & RhB, under a 500 W Xenon visible lamp | 100% of MB, 91% of MO, and 85% of RhB in 150 min | [113] |
19 | CdS/Flower | Hydrothermal, 200 °C for 5 h | RhB, under visible light irradiation | 93% in 120 min | [100] |
| | Sheet | | | |
20 | CdS/Sheet | Hydrothermal, 80 °C for 72 h | H2 production under a visible-light, AM 1.5 G solar simulator | 20 μmol within 480 min | [129] |
21 | CdS/Sheet | Electrochemical deposition for 15 min | CO2 reduction under sunlight | 2.1 μmol/g of C2H5OH and 62.8 μmol/g of HCOOH, 0.25% in 300 min | [130] |
22 | CdS/Sheet | Microwave method, at 80 °C for 30 min | H2 production, under visible light irradiation | 27.4 μmol/g in 240 min | [131] |
23 | CdS/Sheet | Heated in an oil bath at 60 °C for 3 h | H2 production under a 350 W Xenon visible lamp | 582 μmol/g in 240 min | [103] |
24 | CdS/Sheet | Ultrasonication at 90 °C for 2.5 h | RhB, under a 500 W Xenon visible lamp | 50% in 180 min | [112] |
| | Sphere | | | |
25 | CdS/Sphere | Hydrothermal, at 120 °C for 10 h | Salicylic acid & p-nitrophenol, under a 125 W Hg UV lamp | 20% Salicylic acid & 6.25% p-nitrophenol in 240 min | [117] |
26 | CdS/Sphere | Hydrothermal, at 160 °C for 12 h | MB, under a Hg UV lamp | 38% in 120 min | [114] |
27 | CdS/Sphere | Hydrothermal, 180 °C for 4 h | Eosin Y, under a 500 W iodine tungsten lamp | 100% in 120 min | [107] |
28 | CdS/Sphere | Ultrasonic method | MB, under a 125 W UV lamp | 87% in 90 min | [132] |
29 | CdS/Sphere | Hydrothermal, at 100 °C for 2 h | 4-Chlorophenol, under 65 W fluorescent visible lamps | 52% in 150 min | [133] |
30 | CdS/Sphere | Microwave for 30 min | MB & RhB, under a 300 W Xenon visible lamp | 95% of MB in 150 min, 90% of RhB in 180 min | [102] |
31 | CdS/Sphere | Hydrothermal, at 200 °C for 3.5 h | RhB, under a 300 W tungsten halide visible lamp | 90% in 180 min | [134] |
| | Particles | | | |
32 | CdS/Particle | Hydrothermal, at 160 °C for 12 h | MO, under a 350 W Xenon visible lamp | 12% in 60 min | [101] |
33 | CdS/Particle | Microwave for 20 s | Selective oxidation of alcohols to corresponding aldehydes under a 300 W Xenon visible lamp | 94% in 60 min | [108] |
34 | CdS/Particle | Hydrothermal, at 160 °C for 12 h | MB, under a Hg UV lamp | 29% in 120 min | [114] |
35 | CdS/Particle | Heating at 120 °C in an N2 environment | RhB, MB, & Cr (VI), under a 300 W Xenon visible lamp | 21% of RhB, 16% of Cr (VI) in 20 min & 24% of MB in 40 min | [135] |
36 | CdS/Particle | Hydrothermal, at 160 °C for 24 h | RhB, under a 250 W visible lamp | 72% in 240 min | [136] |
37 | CdS/Particle | Sol-gel method | MB, under a 300 W Xenon visible lamp | 48% in 60 min | [126] |
Herein, different morphologies such as nanorods, nanoflowers, nanosheets, nanospheres and nanoparticles of CdS have been reviewed. From
Table 3, it can be observed that CdS nanorods were mainly obtained by the hydrothermal method. The time required in the synthesis by hydrothermal route varies from 1 h to 48 h. It was later applied in the mineralisation of organic pollutants and was reported to take an hour for the complete degradation of organic dye [
121]. Generally, the temperature for the hydrothermal synthesis of the nanorods varies between 120 and 180 °C. CdS nanoflowers can be synthesised by using a hydrothermal route (most commonly used) where synthesis time and temperature vary between 4–12 h and 160–260 °C, respectively. The removal of organic dye photo catalytically was done within less than an hour [
109]. The CdS nanosheets have been prepared by different methods, such as hydrothermal [
129], electrochemical [
130], microwave [
131] and ultrasonication methods. It is reported that CdS nanosheets require three hours for the complete degradation of organic pollutants [
112]. CdS nanosheets can also be applied in hydrogen production and CO
2 reduction. Synthesis of CdS nanospheres was reported mostly by using hydrothermal routes [
134], whereas other methods such as ultrasonication [
132] and microwave irradiation [
102] were also used. The removal of organic pollutants was carried out within three hours photocatalytically by using CdS nanospheres. CdS nanoparticles were synthesized by hydrothermal method [
136], microwave technique [
108] and sol-gel method [
126]. The CdS nanoparticles required around 1 h for the complete degradation of organic dye [
108].
CdS nanoparticles have been stabilized in different nano morphologies such as nanorods, nanoflowers, nanosheets, nanospheres and nanoparticles etc. We need to understand the morphology and its efficiency in terms of its end application and the time taken for photocatalytic activity, the time required for synthesis and the temperature of catalyst synthesis.
CdS nanosheet morphology requires 72 h for synthesis; however, nanorods, nanoflowers, and nanoparticles can be prepared in 17 h, and nanosphere morphology takes only 6 h for synthesis. For nanoflowers, nanospheres and nanorods need the highest reported temperature for synthesis, while nanoparticles can be prepared with a twenty per cent lesser value, and nanosheets can be synthesized at the lowest reported value of temperature. The photocatalytic performance of nanorods, nanoflowers, nanospheres and nanoparticles are the highest amongst those reported, while nanosheet shows a 50% lower value, comparatively. The time taken for the degradation of organic compounds photo catalytically is the maximum for nanosheet morphology; however other morphologies show an average of 1 h. The surface area of nanorods and nanoflowers is the highest among the reported, whereas nanosheets, nanospheres, and nanoparticles show moderate values.

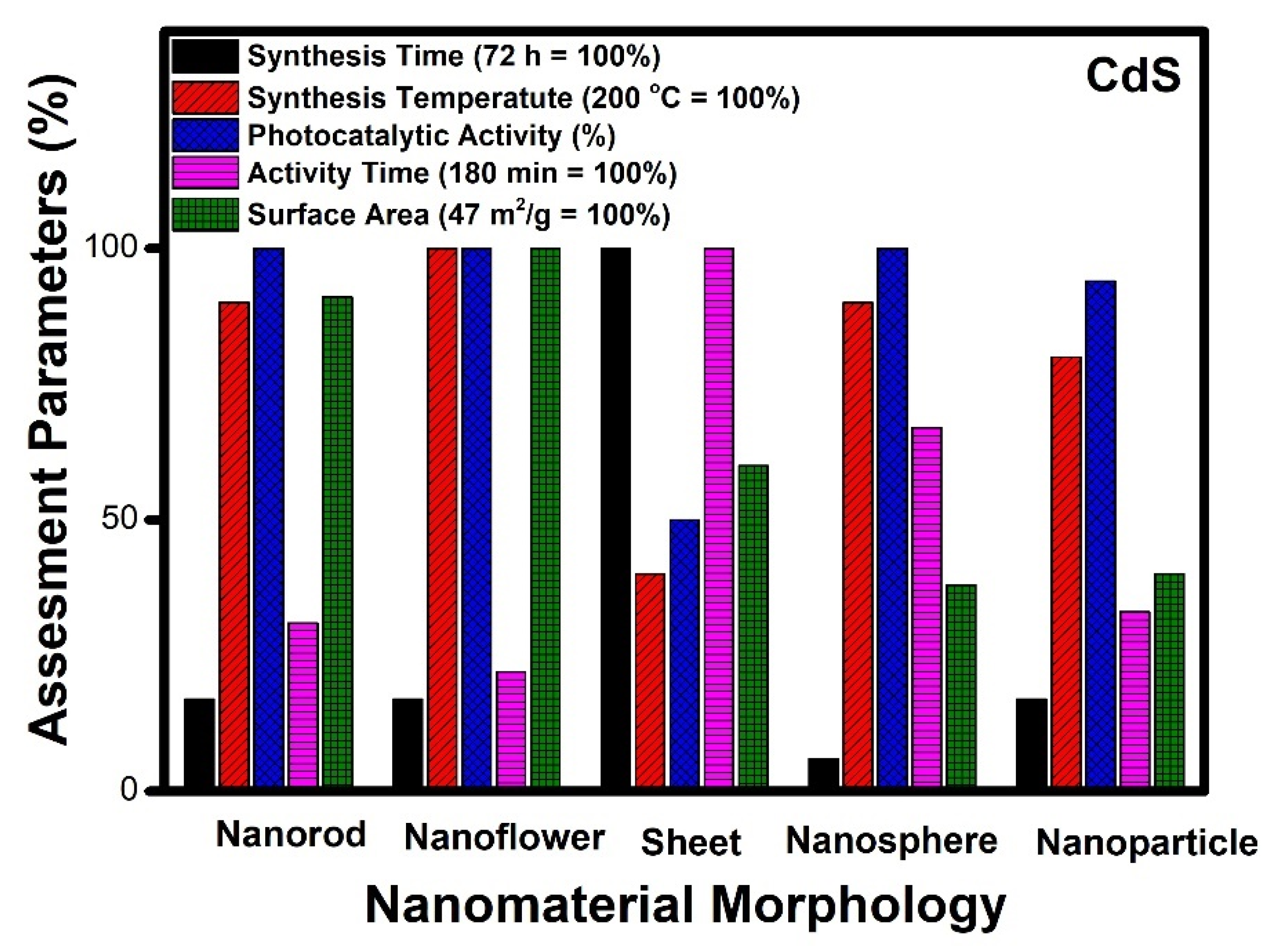

It can be seen from
Figure 6 that the surface area of CdS nanoflower (47 m
2/g) is the highest among all the reported morphologies. The time required for the complete degradation of organic pollutants is also comparatively less than (40 min). It can be observed that the temperature of synthesis of various morphologies varies between 160 to 200 °C. In the case of CdS nanosheets, nanospheres, and nanoparticles, the reported surface area are 28, 18, and 19 m
2/g, respectively. This seems to be the primary reason for the poor performance in terms of catalytic activity for these morphologies as compared to nanoflowers. Thus, based on the assessment parameters such as surface area, activity time, and photocatalytic performance, it can be seen that nanoflower morphology emerges as the best CdS nanostructure to be used as a photocatalyst. The order of preference of the different CdS morphologies for photocatalysis can be assigned as nanoflowers, nanorods, nanosheets, nanospheres and nanoparticles.
2.4. Silver Phosphate (Ag3PO4) Nanostructures
The treatment of pollutants in wastewater by heterogeneous photocatalysis in the presence of semiconductors has been regarded as a promising and efficient approach due to the high efficiency, eco-friendly nature, and easy recycling carried out under mild conditions. Among various photoactive materials, silver phosphate (Ag
3PO
4) nanostructure with different morphologies (
Figure 7) has attracted much attention and has been found to be a fascinating material. It is an excellent photocatalyst in the visible region and has a high quantum efficiency [
137] of about 90%. It has superior semiconductor properties for direct water splitting and photodecomposition of organic dyes [
138]. It has been reported that the direct band gap of Ag
3PO
4 is 2.43 eV which can absorb wavelengths up to 530 nm [

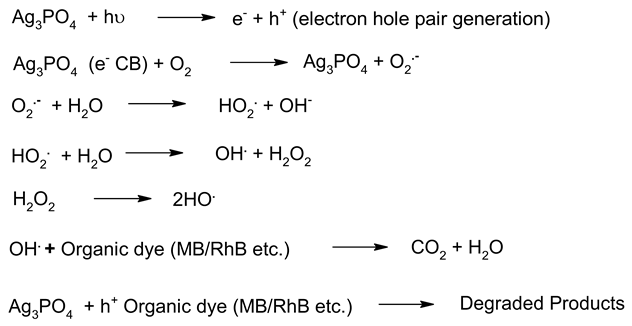

139]. The photocatalytic activity of Ag
3PO
4 depends upon its electronic structure, and its valence band (VB) is made up of 2p orbitals of oxygen and 4d orbitals of silver. However, the conduction band (CB) is made up of hybridized 5s and 5p orbitals of silver favoring electron transfer and energy dispersion in all directions. The presence of d states in the conduction band in other semiconductors increases electron-hole recombination and also hinders the mobility of electrons, resulting in a reduction in photocatalytic activity. However, here in the case of Ag
3PO
4, the effect of d orbital in CB is inhibited. Therefore, the high photocatalytic activity is also attributed to the absence of d orbitals in the CB of Ag
3PO
4. However, the practical application of Ag
3PO
4 is still not satisfactory due to the formation of Ag
0 particles on the surface of the photocatalyst during the photocatalysis process. Recently, some studies revealed that the photocatalytic activity of Ag
3PO
4 is directly influenced by size, morphology and presence of highly reactive facets [
140]. To understand the properties of Ag
3PO
4 semiconductors, the surface and interfaces are crucial for photocatalytic activity. Hence, significant attention has been paid to the synthesis of morphology-controlled Ag
3PO
4, including cubes, dodecahedrons, tetrahedrons, spheres and polyhedrons.

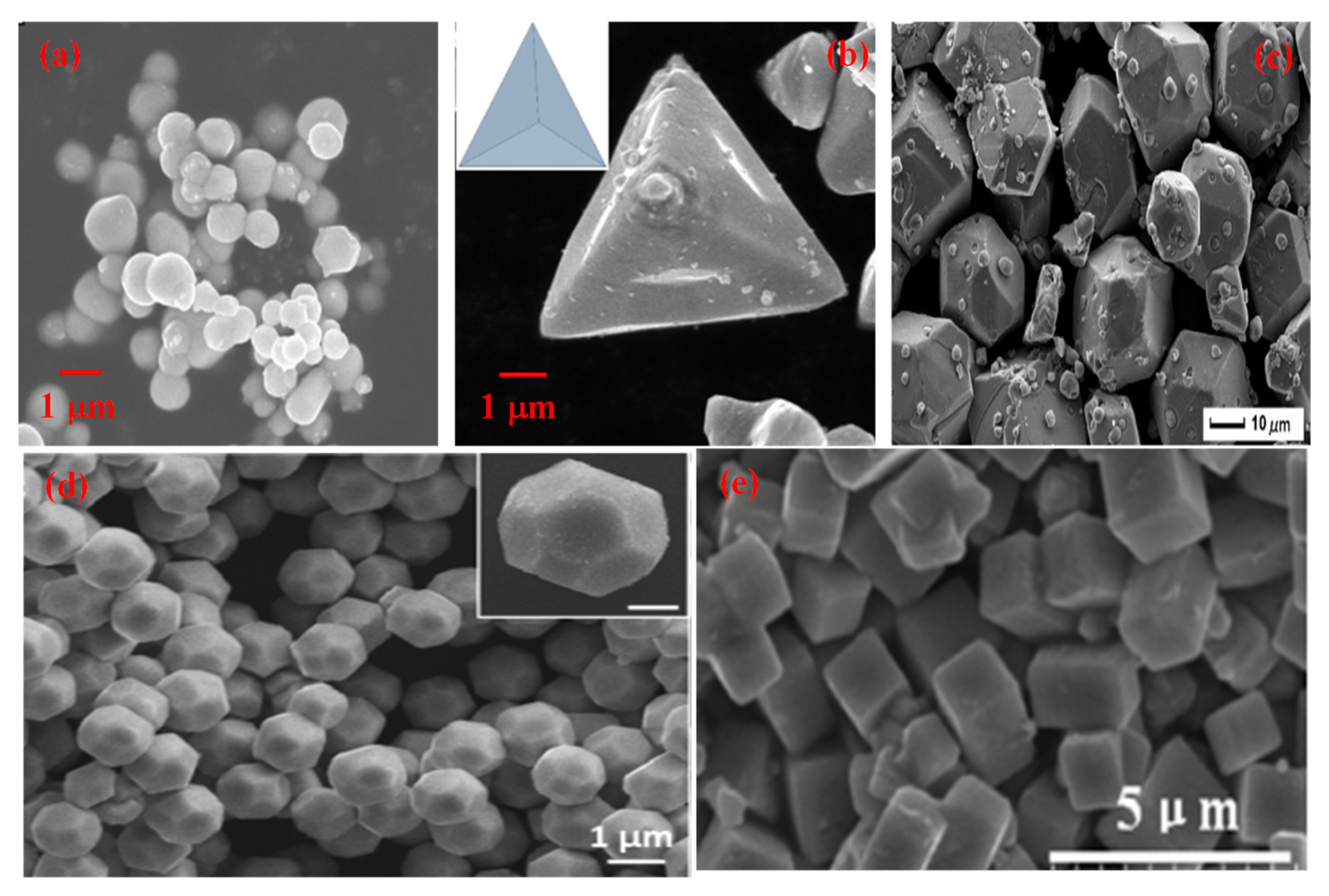

Figure 7.
SEM micrographs of different morphologies of Ag
3PO
4 (
a) Sphere (Reprinted with permission from [
141]. Copyright 2018 Elsevier), (
b) Tetrahedral (Reprinted with permission from [
142]. Copyright 2018 Elsevier), (
c) Polyhedral (Reprinted with permission from [
137] Copyright 2013 American Chemical Society), (
d) Dodecahedral (Reprinted with permission from [
143]. Copyright 2017 American Chemical Society), (
e) Cubic (Reprinted with permission from [
144]. Copyright 2015 Elsevier).
Figure 7.
SEM micrographs of different morphologies of Ag
3PO
4 (
a) Sphere (Reprinted with permission from [
141]. Copyright 2018 Elsevier), (
b) Tetrahedral (Reprinted with permission from [
142]. Copyright 2018 Elsevier), (
c) Polyhedral (Reprinted with permission from [
137] Copyright 2013 American Chemical Society), (
d) Dodecahedral (Reprinted with permission from [
143]. Copyright 2017 American Chemical Society), (
e) Cubic (Reprinted with permission from [
144]. Copyright 2015 Elsevier).
Table 4.
Details of different morphologies of nanostructured Ag3PO4.
Table 4.
Details of different morphologies of nanostructured Ag3PO4.
S. NO. | Material & Morphology | Method | Application | Performance | Reference |
---|
| | Spherical | | | |
1 | Ag3PO4/Spherical | Continuous flow synthesis | Microfluidic photocatalytic dye-degradation, microreactor under visible light illumination | 97% within 15 min | [145] |
2 | Ag3PO4/Spherical | Precipitation method | Phenol, BSP, visible light, 400-W metal halide lamp | 82% phenol within 12 min, 81% Bisphenol within 10 min | [146] |
3 | Ag3PO4/Spherical | Precipitation | Rh.B. Xenon lamp (15 W), visible light | 88% within 35 min, | [147] |
4 | Ag3PO4/Spherical | Sol-gel | phenol under visible light irradiation with a 1000 W Xenon lamp | 42% within 60 min, | [142] |
5 | Ag3PO4/Spherical | Precipitation method at room temperature, 500 W Xenon lamp | MO under visible light irradiation | 35%, within 15 min | [141] |
6 | Ag3PO4/Spherical | Precipitation method | MB, 5 W compact fluorescent lamp, visible light | 78%, within 70 min | [13] |
7 | Ag3PO4/Spherical | Sol-gel | 6 W/649 fluorescent lamp | Sulfamethoxazole, 100% after 15 min | [148] |
8 | Ag3PO4/Spherical | Coprecipitation method at 20 °C | RhB, visible light, 300 W Xenon lamp | 66% within 6 min | [149] |
9 | Ag3PO4/Spherical | Precipitation method | Congo red (CR) under visible light irradiation, 400 W metal halogen lamp | 96%, within 210 min | [150] |
10 | Ag3PO4/Spherical | Precipitation method | CR, visible light irradiation with a 350 W Xenon lamp | 91%, within 14 min | [151] |
11 | Ag3PO4/Spherical | Precipitation method | RhB and MO dyes in 10 mgL−1, WLED with a luminous flux (Φv) of 85 l m | 100% within 30 min | [152] |
| | Tetrahedral | | | |
12 | Ag3PO4/Tetrahedral | Sol-gel | phenol under visible light irradiation with a 1000 W Xenon lamp | 70% within 60 min, | [142] |
13 | Ag3PO4/Tetrahedral | Sol-gel method | MO, visible light, 500 W Xenon lamp | 100% within 90 min | [143] |
14 | Ag3PO4/Tetrahedral | Precipitation method | MB, MO, RhB Visible light, 500 W Xenon lamp | 100% MB, 93% MO, 100% RhB within 6 min | [153] |
15 | Ag3PO4/Tetrahedral | Precipitation method | MB, under visible light irradiation, 300 W Xenon lamp | 88% within 12 min | [154] |
16 | Ag3PO4/Tetrahedral | Ion exchange in the ethanol-water solvent at room temperature | RhB, visible-light provided by a 250 W Xenon lamp | 100% within 24 min | [155] |
| | Dodecahedral | | | |
17 | Ag3PO4/dodecahedral | Sol-gel | phenol under visible light irradiation with a 1000 W Xenon lamp | 100% within 60 min, | [142] |
18 | Ag3PO4/dodecahedral | Precipitation method | CR under visible light irradiation, 400 W metal halogen lamp | 85%, within 210 min | [150] |
19 | Ag3PO4/dodecahedral | Precipitation method | MB), RhB, and reactive orange (RO), visible light, TL-D/35 fluorescent tube (18 W, Philips) | 90% MB, 82% RhB, 22% RO within 60 min | [156] |
20 | Ag3PO4/dodecahedral | Sol-gel method | MO, visible light, 500 W Xenon lamp | 78% within 90 min | [143] |
21 | Ag3PO4/dodecahedral | Hydrothermally processed at 150 °C for 24 h | RhB, UV illumination, 15 W UV germicidal irradiation lamps | 99.55% within 120 min | [157] |
22 | Ag3PO4/dodecahedral | Precipitation method | MB, MO, RhB Visible light, 500 W Xenon lamp | 93% MB, 62% MO, 100% RhB within 18 min | [153] |
| | Polyhedral | | | |
23 | Ag3PO4/Polyhedral | Hydrothermal at 120 °C for 12 h | RhB, visible light, 300 W Xenon lamp | 97.83% in 6 min | [149] |
24 | Ag3PO4/Polyhedral | Sol-gel | RhB, visible light, 350 W Xenon lamp | 100% in 4 min | [137] |
25 | Ag3PO4/Polyhedral | Precipitation method | MO, 300 W halogen lamp | 85% of MO within 15 min | [158] |
26 | Ag3PO4/Polyhedral | Sol-gel | phenol under visible light irradiation with a 1000 W Xenon lamp | 100% within 60 min | [142] |
27 | Ag3PO4/Polyhedral | Conventional ion exchange/precipitation method | phenol under visible light irradiation with a 35 W Xenon lamp | 100% within 120 min | [159] |
| | Cubic | | | |
28 | Ag3PO4/Cubic | Ion exchange method | RhB, Sunlight | 100% within 10 min | [144] |
29 | Ag3PO4/Cubic | Sol-gel method | MO, visible light, 500 W Xenon lamp | 65% within 90 min | [143] |
30 | Ag3PO4/Cubic | Precipitation method | crystal violet (CV) and MB, MO and orange G (OG) with visible irradiation, 125 W high-pressure HG lamp | 93.0% of CV, within 30 min, 98% MB, MO 79.4%, OG 57.3% within 50 min | [160] |
31 | Ag3PO4/Cubic | Precipitation method | MB, MO, RhB Visible light, 500 W Xenon lamp | 91% MB, 32% MO, 78% RhB within 18 min | [153] |
32 | Ag3PO4/Cubic | Simple ion-exchange deposition method | RhB, Visible light, 300 W Xenon | 92% within 30 min | [161] |
33 | Ag3PO4/Cubic | Hydrothermal treatment at 160 °C for 3 h | MB and RhB, sunny light between 10 am to 2 pm in the summer | 81% within 90 min | [162] |
Variation in the synthesis methodology acts as an important aspect of the development of a particular morphology. Different morphologies of silver phosphate have been synthesized by various approaches, such as coprecipitation, sol-gel, hydrothermal, and ion exchange methods (
Table 4). Nanospheres of silver phosphate were prepared mostly using the coprecipitation method [
13,
133,
141,
147,
149,
152,
163]; however, the sol-gel route was also employed [
142]. In less than 1 h, the complete mineralization was achieved using silver phosphate nanospheres catalytically. Tetrahedral morphology of silver phosphate was obtained using sol-gel method [
143], coprecipitation [
153] and ion exchange method [
155]. The removal of aromatic dye contaminant was accomplished within an hour using tetrahedral nanocrystals. Dodecahedral morphology of silver phosphate was synthesized using sol-gel [
142,
143], coprecipitation [
153] and hydrothermal route [
157]. It takes about two hours for the complete mineralization of organic pollutants from an aqueous medium photocatalytically. Polyhedral morphology was obtained using the hydrothermal [
149], sol-gel [
142] and coprecipitation methods [
158]. It takes less than an hour for the degradation of organic contaminants from an aqueous medium by employing the polyhedral morphology of silver phosphate. It has been reported [
137] that Ag
3PO
4 with different morphology shows entirely different exposed facets. Hence it is important to compare the efficiency of photocatalysis by different morphologies such as spheres, tetrahedral, dodecahedral, polyhedral and cubic morphologies of Ag
3PO
4 (
Figure 8).

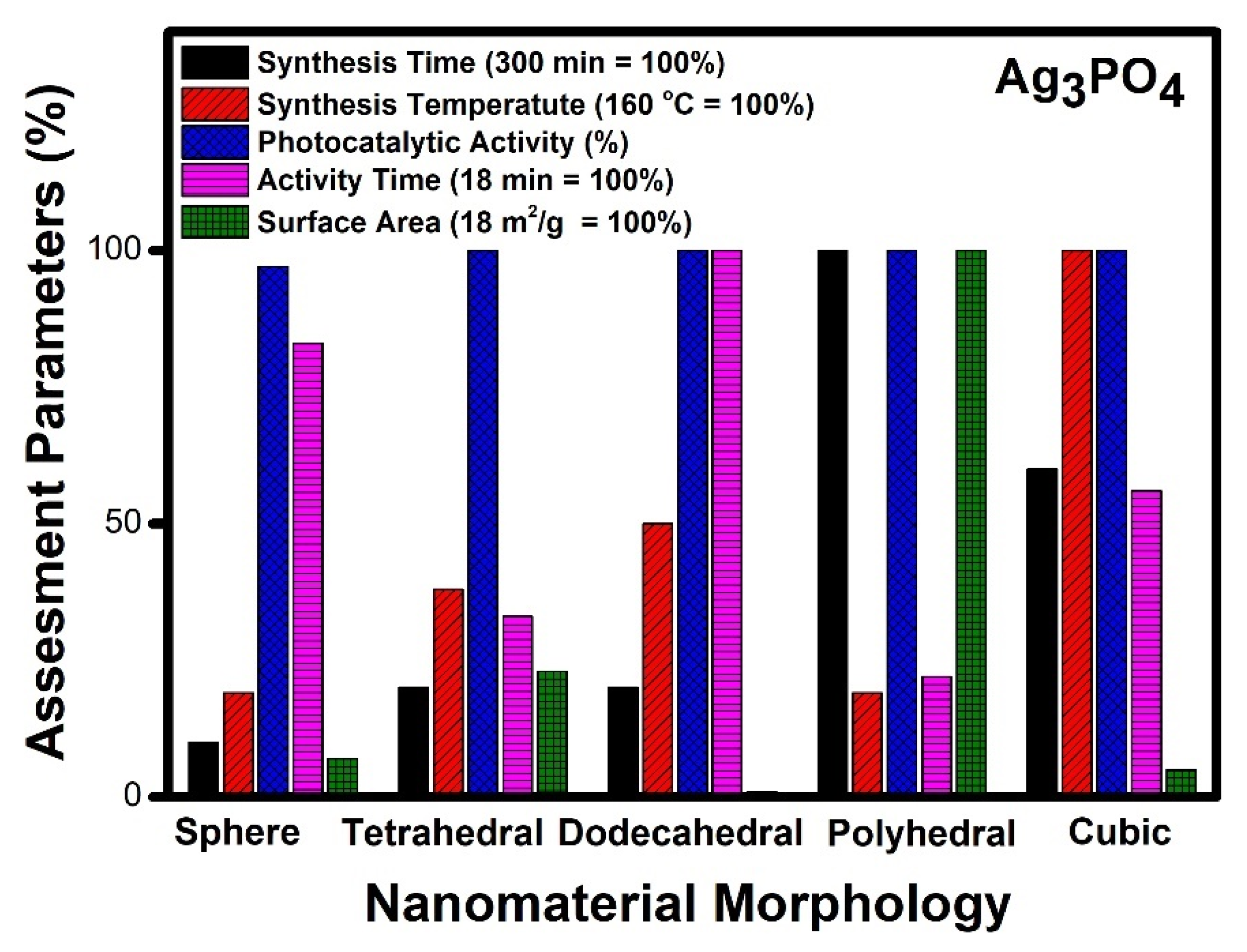

Figure 8 denotes a comparative account of different morphologies of silver phosphate. It can be seen that polyhedral morphology takes five hours for synthesis, whereas nanospheres, tetrahedral, and dodecahedral morphologies of silver phosphate can be prepared within an hour. The temperature of synthesis required by cubic morphology was reported to be the highest (160 °C), while other morphologies show moderate values. The photocatalytic performance of all the reported morphologies of silver phosphate was good. In the case of time required for photocatalytic degradation of organic compounds, dodecahedral and nanospheres shows the highest value, whereas tetrahedral, polyhedral and cubic morphologies denote moderate value. Surface area values of polyhedral morphology are the highest among the reported, while dodecahedral and nanospheres had the lowest values among reported.
Our analysis indicates that polyhedral morphology exhibits the highest activity compared to any other morphology. The photocatalytic activity follows the order of polyhedral > tetrahedral > cubic > dodecahedral and sphere. It can be seen from
Figure 8 that polyhedral morphology shows 100% activity within 4 min and probably due to its higher surface area (18 m
2/g). The polyhedral morphology was obtained using a simple eco-friendly sol-gel method at room temperature [
142]. Other morphologies also show good photocatalytic activity, but the required time is high, and this may be due to low surface area and poor accessibility of reactants to reach the active sites.
2.5. Zinc Titanate (ZnTiO3) Nanostructures

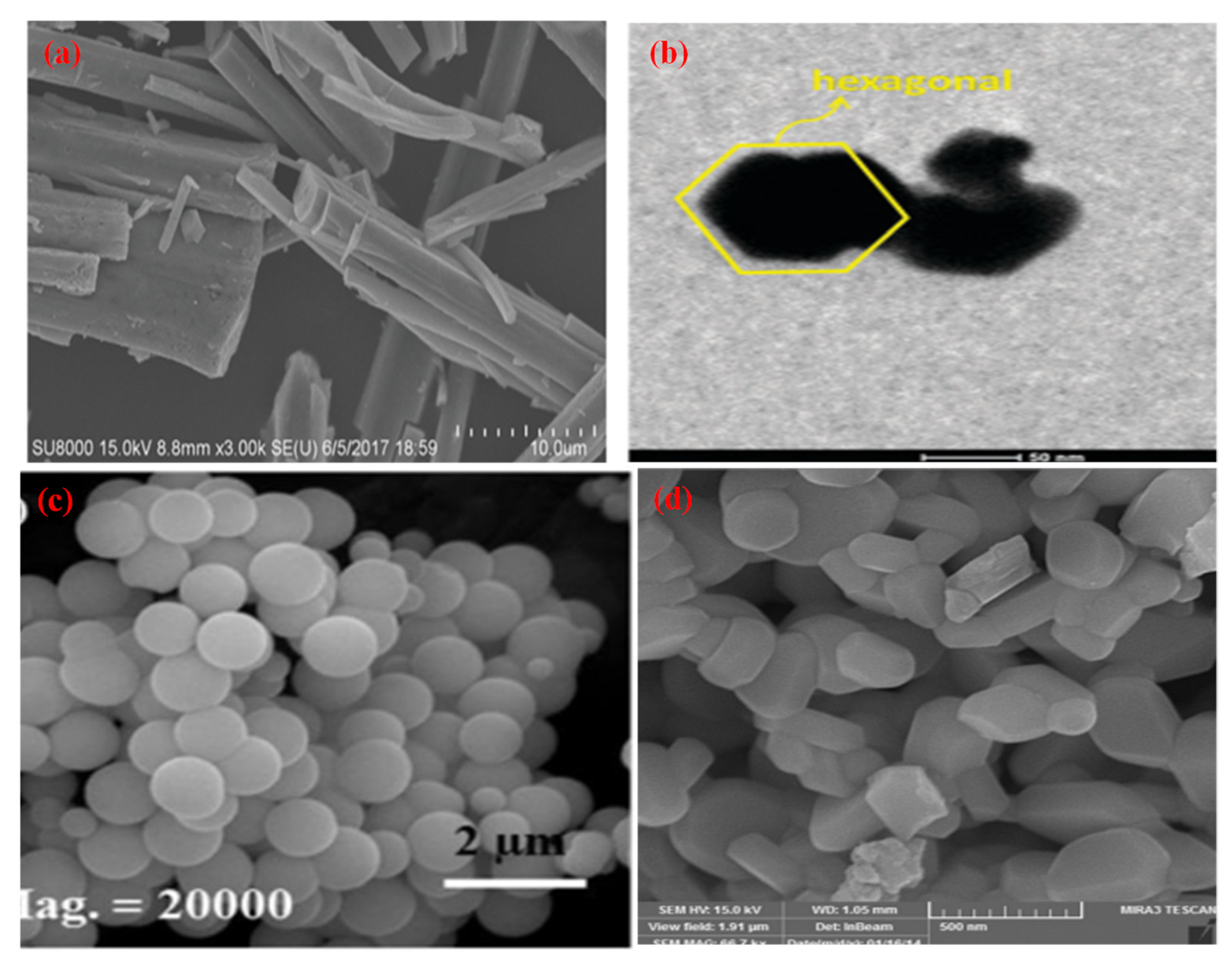

Figure 9.
SEM & TEM micrographs of different morphologies of ZnTiO
3 (
a) Nanorod (Reprinted with permission from [
164]. Copyright 2018 Royal Society of Chemistry), (
b) Hexagonal (Reprinted with permission from [
165]. Copyright 2014 Royal Society of Chemistry), (
c) Nanosphere (Reprinted with permission from [
166]. Copyright 2016 Wiley), (
d) Particle (Reprinted with permission from [
167]. Copyright 2016 Elsevier).
Figure 9.
SEM & TEM micrographs of different morphologies of ZnTiO
3 (
a) Nanorod (Reprinted with permission from [
164]. Copyright 2018 Royal Society of Chemistry), (
b) Hexagonal (Reprinted with permission from [
165]. Copyright 2014 Royal Society of Chemistry), (
c) Nanosphere (Reprinted with permission from [
166]. Copyright 2016 Wiley), (
d) Particle (Reprinted with permission from [
167]. Copyright 2016 Elsevier).
Metal titanates-based dielectric materials with the general formula ATiO
3 (A denotes metal) are known for different values of permittivity ranging from 7 to more than 5000 under temperature variations. ZnTiO
3 system (hexagonal ilmenite) has been studied earlier mainly due to its striking features for practical applications in microwave resonators, mobile phones, and satellite communication systems. However, the above studies need well-sintered materials with large particle sizes. Various morphologies of ZnTiO
3 NMs have been developed (
Figure 9) due to their special features for their application as photocatalysts with a lower band gap (3.08 eV) than TiO
2 (3.2 eV). Three compounds are known in the ZnO-TiO
2 system such as Zn
2TiO
4 (cubic spinel), ZnTiO
3 (hexagonal ilmenite) and Zn
2Ti
3O
8 (cubic defect spinel). The thermodynamically stable phase for ZnTiO
3 at low temperatures is a cubic phase which changes to a hexagonal phase at high temperatures (800 °C) and also decomposes into Zn
2TiO
4 and TiO
2 at a temperature of 900 °C. ZnTiO
3 decomposes at high temperatures since Zn volatilizes and creates non-stoichiometry. Thus, it is challenging to synthesize pure ZnTiO
3.
ZnTiO
3 has two types of crystal structures, i.e., cubic and hexagonal, out of which this hexagonal structure shows the best photocatalytic performance. The pure form of hexagonal ZnTiO
3 can be obtained by using high-temperature solid-state reactions as well as low-temperature methods such as sol-gel, hydrothermal, modified alcoholysis, carbothermal and molten salt methods. Hexagonal ZnTiO
3 is a UV-active photocatalyst with a band gap of 3.08 eV. The hydrothermal method was used in the synthesis of zinc titanate [
168]. Alternately pure zinc titanate can also be prepared by the conventional solid-state method at high temperatures. Other methods, such as mechanochemical activation, molten salt synthesis, and microbead milling, were also applied in the synthesis of ZnTiO
3 [
169], but they resulted in irregular size, morphology, and grain size. Sol-gel technique has been preferred mostly by researchers in the synthesis of zinc titanate due to its low cost, high yield, small processing time, homogeneity and high purity of the end product. It can be useful in making thin films, membranes and multicomponent oxide materials. Generally, metal alkoxides are used as precursors in the sol-gel process. Further, the metal alkoxide is subjected to hydrolysis and polycondensation to obtain the desired combinations. The resultant material obtained by the sol-gel process has a large specific surface area and pore volume, which is the essential requirement of the material to be used as a catalyst.
Table 5.
Details of different morphologies of nanostructured ZnTiO3.
Table 5.
Details of different morphologies of nanostructured ZnTiO3.
S. NO. | Material & Morphology | Method | Application | Performance | Reference |
---|
| | Particles | | | |
1 | ZnTiO3/Particle | Sol-gel | Phenol, under a 100 W incandescent visible lamp | 100% in 300 min | [170] |
2 | ZnTiO3/Particle | Hydrothermal, at 180 °C for 8 h | MB, under a 350 W Xenon visible lamp | 29.7% in 120 min | [168] |
3 | ZnTiO3/Particle | Sol-gel | 4-chlorophenol, under natural sunlight | 67% in 45 min | [171] |
4 | ZnTiO3/Particle | Sonochemical method | Rh), under a 70 W LED visible lamp | 36% in 150 min | [172] |
5 | ZnTiO3/Particle | Sol-gel | MO, under a 400 W UV lamp | 70% in 60 min | [167] |
6 | ZnTiO3/Particle | Solvothermal, at 180 °C 24 h | RhB & MO, under a 400 W halide visible lamp | 17% of Rh B, 3% of MO in 90 min | [157] |
| | Rod | | | |
7 | ZnTiO3/Rod | Microwave | RhB, under a 150 W Xenon visible lamp | 93% in 180 min | [173] |
8 | ZnTiO3/Rod | Sol-gel | RhB, under a 50 W high-pressure Hg lamp | 97% in 70 min | [174] |
9 | ZnTiO3/Rod | Precipitation method | RhB, under sunlight | 71% in 60 min | [164] |
10 | ZnTiO3/Rod | Hydrothermal, 120 °C for 24 h | MO, under a 500 W Xenon lamp | 99.3% in 20 min | [175] |
11 | ZnTiO3/Rod | Sol-gel | RhB & crystal violet, under sunlight | 98% of CV in 60 min & 77% of RhB in 90 min | [166] |
| | Spherical | | | |
12 | ZnTiO3/Spherical | Sol-gel | Methyl violet, under sunlight | 97% in 120 min | [169] |
13 | ZnTiO3/Spherical | Sol-gel | H2 production, under a 125 W high-pressure Hg UV lamp | 110 µmol/h, 60% in 3600 min | [176] |
14 | ZnTiO3/Spherical | Sol-gel | MB, under a 150 W UV lamp | 33% in 3600 min | [177] |
15 | ZnTiO3/Spherical | Sol-gel | Norfloxacin (NOR) and MO, under a 300 W Xenon visible lamp | 95% of NOR & 46% of MB in 60 min | [178] |
16 | ZnTiO3/Spherical | Sol-gel | MB, under sunlight | 76% in 60 min | [179] |
| | Hexagonal | | | |
17 | ZnTiO3/Hexagonal | Sol-gel | p-nitrophenol, under sonocatalytic activity | 74.8% in 180 min | [180] |
18 | ZnTiO3/Hexagonal | Sol-gel | RhB, under sunlight | 35% in 180 min | [165] |
Varying morphologies of zinc titanates were synthesized using several low-temperature methods. It can be observed from
Table 5 that the method of synthesis plays an essential role in the formation of different morphologies such as nanorods, nanoparticles, nanospheres and hexagonal nanostructures. Zinc titanate nanoparticles were synthesized by using a sol-gel approach [
167,
170,
171], hydrothermal/solvothermal process [
168,
181] sonochemical method [
172]. The temperature of synthesis of nanoparticles was reported as 180 °C in general for the hydrothermal method, whereas sol-gel and sonochemical methods require a lower temperature. Zinc titanate nanoparticles normally take an hour to degrade 70% of the organic pollutants. The nanorods were obtained using sol-gel [
166,
174], microwave technique [
173], coprecipitation method [
164], and the hydrothermal process [
173]. The hydrothermal process consumes more energy as compared to sol-gel and coprecipitation techniques. The photocatalytic performance shows that the nanorod structure of zinc titanate requires 20 min [
182] for the complete mineralization of organic pollutants. Zinc titanate nanospheres have been synthesized using the sol-gel technique in general. This morphology, as reported by Kong et al. [
169], takes 2 h for the complete mineralization of aromatic compounds photocatalytically. In the case of hexagonal nanostructures synthesis by the sol-gel technique, [
165,
180] is mostly preferred. As per the available report, the time taken for the degradation of aromatic compounds is more than three hours by zinc titanate hexagonal nanostructures. Thus, considering the ease of synthesis by the sol-gel method and the efficiency of the photocatalytic performance of zinc titanate nanorods, it should be the most preferred morphology.
To analyze the different reported morphologies of zinc titanate and to decide the optimal one which is the best for the photocatalytic application, we have chosen nanorods, hexagonal nanostructures, nanospheres and nanoparticles for our assessment (
Figure 10). The standard parameters such as surface area, time of synthesis, photocatalytic and catalytic activity time and synthesis temperature have been considered for the assessment.

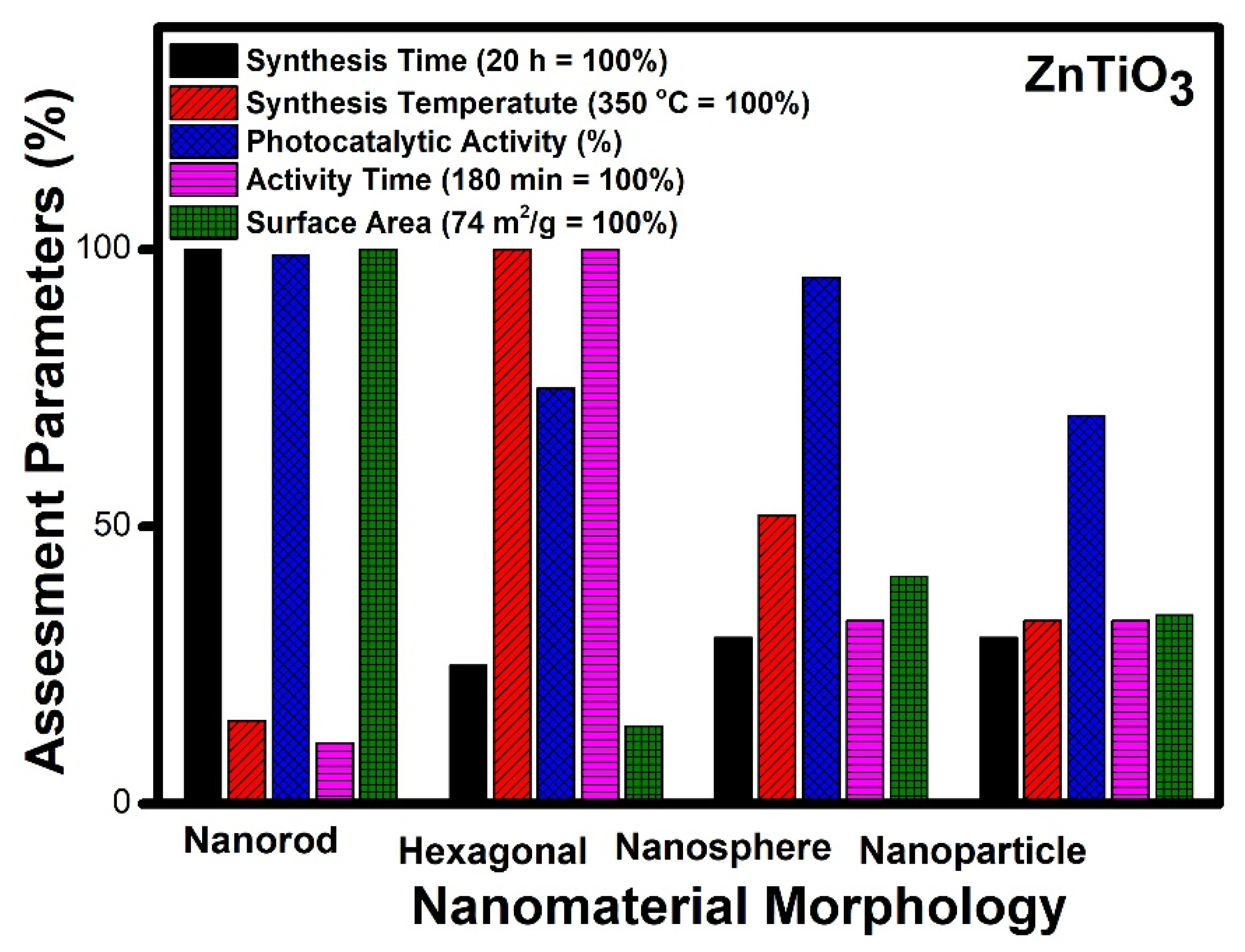

Figure 10 reveals an assessment of various morphologies of zinc titanate. The nanorod morphology requires maximum time for synthesis (20 h), while other morphologies such as nanospheres, hexagonal and nanoparticles can be prepared in an average of five hours. Hexagonal morphology needs the highest temperature for synthesis (350 °C), whereas nanorods need the lowest values, and nanospheres show the highest values, whereas hexagonal and nanoparticles show a 30% lesser value, comparatively. The time taken for photocatalytic degradation is highest (3 h) for hexagonal morphology; however other morphologies need an hour for complete degradation. The value of the surface area is the highest for nanorod morphology, while nanoparticles and nanospheres show moderate value, and hexagonal morphology denotes a lower surface area, comparatively.
It can be seen from
Figure 10 that the nanorod [
182] morphology possesses the highest surface area (74 m
2/g), whereas hexagonal morphology has the lowest surface area (10 m
2/g) amongst the reported structures [
180]. Complete mineralization of the organic pollutants was achieved photo-catalytically within 20 min in the case of nanorod morphology, while various other morphologies require more than an hour to achieve the same target. The time of synthesis of the nanorod morphology was 24 h which is the highest amongst the other reported morphologies, whereas nanospheres can be prepared within one hour by using a similar hydrothermal technique. It is the lowest reported time of synthesis compared to other morphologies mentioned. Thus, by taking into account the variation in the assessment parameter reported, it can be seen that nanorod morphology shows the best result and can be considered the best photocatalytic material in the case of zinc titanate. The order of preference based on efficiencies is nanorods [
182], nanospheres [
178], nanoparticles [
167] and lastly, hexagonal nanostructures [
180] of zinc titanate.

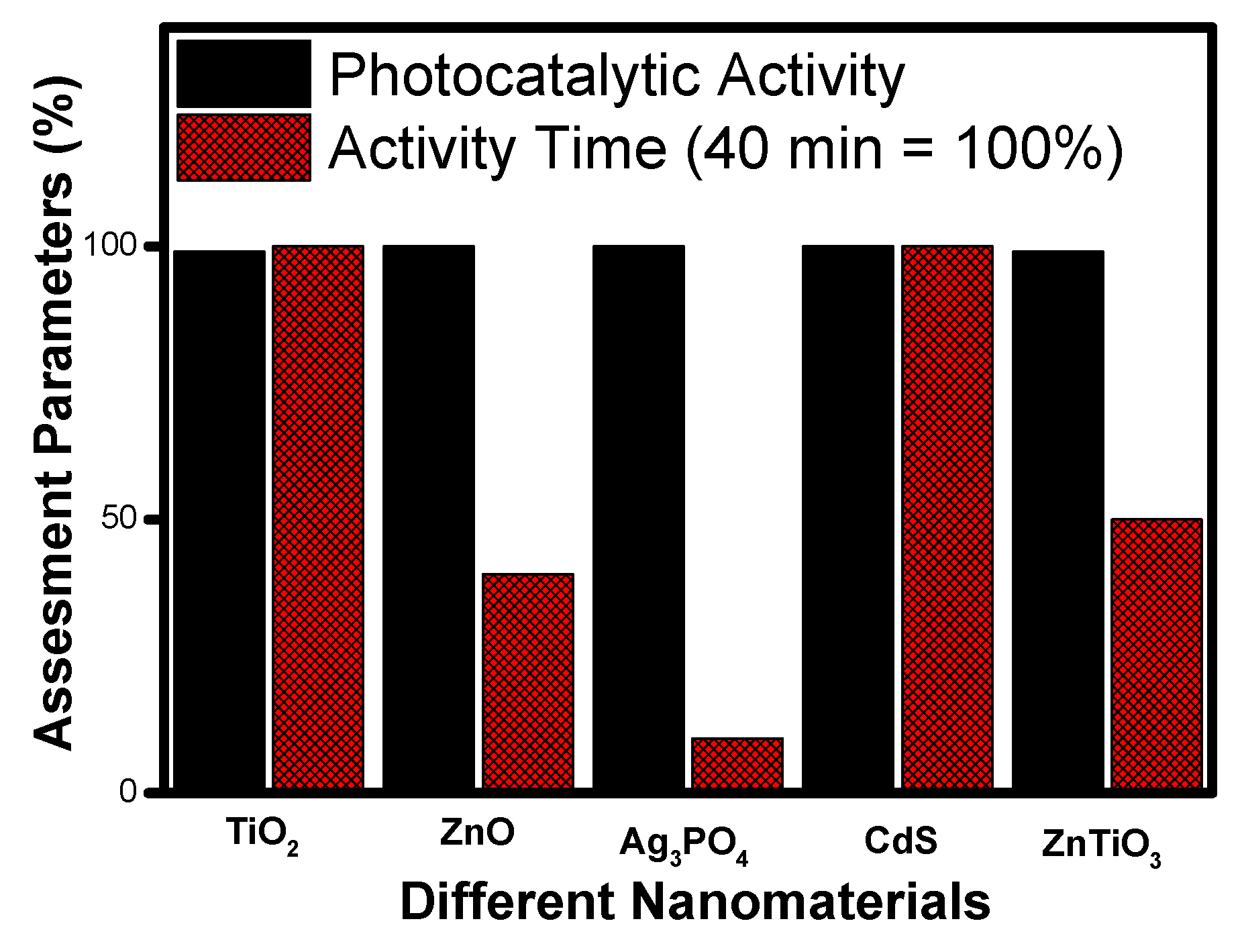

Figure 11 shows the comparative analysis of photocatalytic performance and mineralization time of TiO
2, ZnO, CdS, Ag
3PO
4 and ZnTiO
3 nanomaterials at a glance. It can be seen that silver phosphate shows the best photocatalytic activity amongst the studied nanomaterials based on the minimum time taken (less than ten minutes) for the complete mineralization of organic compounds. Though the band gap of silver phosphate (2.28 eV) and cadmium sulphide (2.3 eV) are similar, their performances are poles apart, and the reason may be the morphology formed by these nanomaterials. Further, based on an overall comparison with the other photocatalyst, the order of preference can be assigned as silver phosphate (Ag
3PO
4), zinc oxide (ZnO), zinc titanate (ZnTiO
3), titanium dioxide (TiO
2) and cadmium sulphide (CdS).
Figure 11.
Comparative photocatalytic activity among different photocatalysts based on degradation time.
Figure 11.
Comparative photocatalytic activity among different photocatalysts based on degradation time.

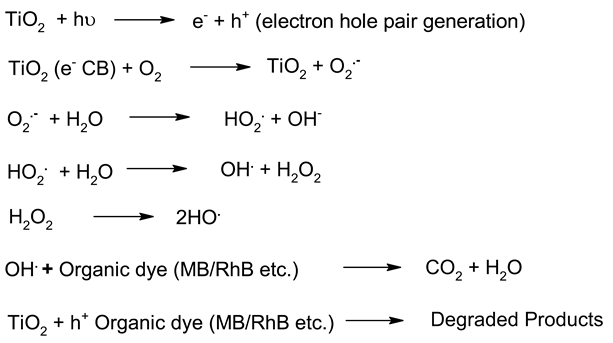

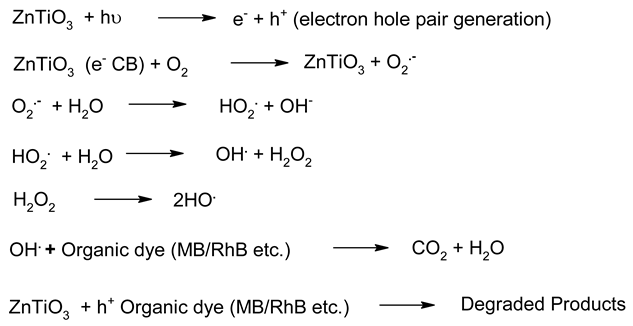

Table 6.
Mechanism of photocatalysis for TiO2, ZnO, Ag3PO4, CdS and ZnTiO3 photocatalysts nanomaterials photocatalysts.
Table 7.
Important characteristics of photocatalyst TiO2, ZnO, Ag3PO4, CdS and ZnTiO3.
Table 7.
Important characteristics of photocatalyst TiO2, ZnO, Ag3PO4, CdS and ZnTiO3.
S. No. | Photocatalytic Materials | Band Gap Energy (Eg) eV | Photocatalytic Performances | Ref. |
---|
1. | TiO2 | Eg ~ 3.1 | The synthesised TiO2 nanotubes possess better photocatalytic activity than the as-prepared counterparts because of the larger surface area and good crystallinity. The emission stability of the catalyst also validates that TiO2 nanotubes could find potential applications in cold-cathode-based electronics. Literature shows that the decoration of TiO2 nanotubes by noble metal nanoparticles (such as Au, Ag, and Pt) also enhances its photocatalytic activity. | [45,188,189] |
2. | ZnO | Eg ~ 3.35 | Qu et al. Synthesised various shapes and morphology of ZnO nanomaterials using different ultrasonic processes. The study revealed that ZnO nanoflower morphology shows excellent photocatalytic activity. | [97,190] |
3. | Ag3PO4 | Eg ~ 2.45 | Morales et al. synthesised silver phosphate microcrystals with polyhedral morphologies and its higher surface area played an important role in higher photocatalytic activity.Geng et al. successfully prepared the polyhedral morphology of the Ag3PO4 microcrystal structure. The photocatalytic activity study confirmed its excellent photocatalytic ability. | [191,192] |
4. | CdS | Eg ~ 2.4 | Ganesh et al. synthesised CdS nanoflowers. The nano flowers of the CdS materials showed better photocatalytic activity in visible light. Wang et al. recently studied Ti3C2 MXene@CdS based nanoflowers composites heterostructures. It shows steady photoluminescence intensity and a longer fluorescence lifetime. | [100,193] |
5. | ZnTiO3 | Eg ~ 2.9 (indirect) 3.59 (direct) | Dutta et al. reported the Ag-doped ZnTiO3 nanorods. The photocatalytic results show improved photocatalytic activity. Chuaicham et al. recently studied ZnTiO3 mixed metal oxide. The higher photocatalytic activity was observed for phenol photodegradation. | [173,194] |
Table 8.
Photocatalytic Stability and biocompatibility of different NP photocatalysts.
Table 8.
Photocatalytic Stability and biocompatibility of different NP photocatalysts.
Type of NPs | Stability and Recyclability | Biocompatibility | Ref. |
---|
TiO2 | The photostability of TiO2 for phenol degradation in four cycles remained constant. | Biocompatible, supports osteoblast-like cell formation, and can be used in biomedical applications. | [195,196,197] |
ZnO | RhB aqueous solution for five cycles, good recyclability. | high bactericidal efficacy along with good cytocompatibility | [64,76,98,198] |
Ag3PO4 | Photocatalytic efficiency remained consistently high after four cycles [11]. | Spectacular biocompatibility and good immunosensor sensitivity, low toxicity. | [137,199] |
CdS | The catalytic activity of the photocatalyst remained constant. | Environment-friendly and economical photocatalyst | [200,201] |
ZnTiO3 | The efficacy of the photocatalyst remained constant. | Excellent antitumor ability and good biocompatibility | [202,203,204] |
