Next Article in Journal
Influence of PCL and PHBV on PLLA Thermal and Mechanical Properties in Binary and Ternary Polymer Blends
Previous Article in Journal
The Influence of the Halide in the Crystal Structures of 1-(2,3,5,6-Tetrafluoro-4-pyridyl)-3-benzylimidazolium Halides


Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Fabrication of Novel Bentonite-Anthracite@Zetag (BT-An@Zetag) Composite for the Removal of Arsenic (V) from an Aqueous Solution

by
Mohamed R. El-Aassar
1,*,
Ahmed K. Alezbaway
2,
Ibrahim O. Althobaiti
3,
Mohamed Y. El-Sayed
1,
Hend S. Abu Salem
4,
Hassan M. A. Hassan
1,
Rawan F. Alolaimi
1,
Emam F. El Agammy
5,
Mohamed S. Mohy-Eldin
6,* and
Fathy M. Mohamed
7,*
1
Chemistry Department, College of Science, Jouf University, Sakaka 72341, Saudi Arabia
2
Geology Department, Faculty of Science, Helwan University, Ain Helwan 11795, Egypt
3
Chemistry Department, College of Science and Arts, Jouf University, Al-Nasfah 77217, Saudi Arabia
4
Geology Department, Faculty of Science, Cairo University, Giza 12613, Egypt
5
Physics Department, College of Science, Jouf University, Sakaka 72341, Saudi Arabia
6
Polymer Materials Research Department, Advanced Technology and New Material Institute, City of Scientific Research and Technological Applications (SRTA City), New Borg El-Arab City 21934, Egypt
7
Hydrogeology and Environment Department, Faculty of Earth Sciences, Beni-Suef University, Beni-Suef 62521, Egypt
*
Authors to whom correspondence should be addressed.
Molecules 2022, 27(21), 7635; https://doi.org/10.3390/molecules27217635
Submission received: 21 October 2022 / Revised: 29 October 2022 / Accepted: 3 November 2022 / Published: 7 November 2022
(This article belongs to the Section Macromolecular Chemistry)

Abstract

:
The arsenic (As) pollution of water has been eliminated via intensive scientific efforts, with the purpose of giving safe drinking water to millions of people across the world. In this study, the adsorption of As(V) from a synthetic aqueous solution was verified using a Bentonite-Anthracite@Zetag (BT-An@Zetag) composite. The SEM, FT-IR, XRD, DSC, TGA, and SBET techniques were used to characterize the (BT-An@Zetag) composite. The adsorption of As(V) was explored using batch adsorption under varied operating scenarios. Five kinetic modelswere used to investigate kinetic data, whereas three isotherms had been used to fit empirical equilibrium data. According to the findings, the adsorption mechanism of As(V) was best described by the Freundlich isotherm with a maximum monolayer coverage of 38.6 mg/g showing pseudo-second-order mode. The estimated enthalpy (H°) indicates that the adsorption process is both chemical and endothermic.The calculated free energy (G°) indicates that the reaction is nonspontaneous. After four sequential adsorption cycles, the produced BT-An@Zetag composite demonstrated good reusability and a greater adsorption affinity for As(V) ions. Overall, the BT-An@Zetag composite is suited for removing arsenic from wastewater using adsorption as a cost-effective and efficient technique.

1. Introduction

As a result of anthropogenic activities and natural processes, arsenic (As) has been discharged into surface water and groundwater, causing severe health concerns to humans and other living organisms. In many parts of the world, arsenic exposure has been associated with significant health risks such as kidney, bladder, lung, and skin cancers, as well as other skin diseases [1]. Toxic arsenic is consumed by 35–50 × 106 people in Bangladesh and West Bengal, more than ten million in Vietnam, and more than twenty million in China, according to current estimates [2,3]. Arsenic is often included in insecticides, glass, desiccants, alloys, pigments, electronic components, and pharmaceuticals, as well as wood preservatives in recent years, all contributing to arsenic poisoning [4,5]. Arsenic is mostly abundant in the aquatic environment as arsenate and arsenite species, with arsenate (As(V)) being the most prevalent in oxidizing conditions [6]. The presence of As(V) in natural water is a consequence of the leaching of arsenic-rich rocks and sediments [7,8]. Because arsenic is a known carcinogen as well as a toxic element, its presence in drinking water, even at trace levels, causes a health risk. The permitted limit of arsenic in potable water, according to the World Health Organization (WHO) and the United States Environmental Protection Agency, is 10 μg/L [9,10,11].
Several studies were made to effectively remove arsenic from water, e.g., by activated biochar [12,13], natural iron-enriched samples [14], activated red mud [15], and rare-earth based materials [16]. The adsorption method is the most promising method due to its easy handling, sludge-free operation, and efficient use in various systems [11]. Activated alumina is an effective adsorbent used for arsenic removal from polluted water [17,18,19,20]. Because of the following advantages, adsorption has gotten a lot of attention in comparison to other conventional procedures such as coagulation/precipitation, oxidation, ion exchange, filtration, membrane/reverse osmosis, and biological treatment. Generally, (i) it does not require a large volume or additional chemicals, (ii) it is easier to set up as a POE/POU (point of entry/point of use) arsenic resorption system [21], and (iii) it produces no hazardous byproducts [22,23] and is potentially more cost effective [14,24]. Many researchers used volarized anthracite in wastewater treatment [25].Anthracite impregnated with carbon nanotube (MW/CNT) [26]. For example, acrylonitrile derivatives [27], poly (Styrene-co-Acrylonitrile) copolymer [28], activated silica [29], composite of olive seed residue, anthracite, chitosan [25], inorganic coagulant of aluminum and iron impregnated with activated silica [30,31], and PFTE derivatives [32]. Other scientists conducted arsenic removal via different materialssuch as Sulphide Precipitation [33],Iron-Coated Cork Granulates [34,35], Iron-Coated Seaweeds [36], and Porous HematiteIron-Based Adsorbent [37,38].
The steps implemented in this study include: (1) the impregnation of bentonite with anthracite using Zetag binder, (2) the characterization of the obtained composite BT-An@Zetag, and (3) assessing the influence of experimental factors (pH, sorbent doze, As equilibrium concentration, mixing speed, and time) on the sorption of As(V) on BT-An@Zetag in a batch system (4) fitting the experimental results to the different kinetic and isotherm models to better understand the adsorption mechanism of As(V) [39,40,41]. Thus, the aim of this paper is to synthesize, for the first time, a novel BT-An@Zetag composite for As(V) removal from the aqueous solution and evaluate its adsorption behavior based on the isotherm, kinetics, and thermodynamics’ characteristics.

2. Results and Discussions

2.1. The BT-An@Zetag Composite Characterization

2.1.1. XRD Analysis of the BT-An@Zetag Composite

The BT-An@Zetag composite X–ray data showed crystalline nature at 22° and 25° (Figure 1A). Furthermore, the SiO2 reflection was represented by the sharp diffraction peaks at 26° [42,43]. The crystalline structure of BT-An@Zetag composite was reflected by strong peaks at 24°, 29°, 42°and 45°. The crystalline polymorphs of silica cristobalite and tridymite, which were detected at 20.94, 36.64, 50.17, 60.11, 68.23, and 77.31°, correspond with the SiO2 peaks of native BT and BT-An@Zetag composite [44,45]. A strong peak at 26.5° and a weak peak at 43.9° suggested the existence of an amorphous graphite structure in the BT and BT-An@Zetag composites, and is attributed to the random lattice structure of anthracite layers [45].

2.1.2. Thermogravimetric Analysis/Differential Scanning Calorimetry Analysis (TGA)

The TGA analysis of the BT-An@Zetag composite was shown in Figure 1B. The degradation of the BT-An@Zetag composite is multi-staged, with no stable intermediate product. The release of volatile gases such as water vapor, SO2, CO, CO2, and Zetag could account for weight losses of 1.5 and 3% at 50 and 300 °C, respectively. The TGA curve of the BT-An@Zetag composite shows three primary decomposition steps: the first is due to the loss of volatile gases or adsorbed water from Zetag, while the second is due to Zetag degradation and dehydration, as well as de-polymerization of the Zetag chain [46,47]. Conversely, in the DSC thermograms of the BT-An@Zetag composite, the volatile gases were lost at around 50–150 °C, according to the graph, and the BT-An@Zetag composite attained a steady state after this temperature (Figure 1C). Due to their high content, volatile elements, notably volatile gases, were lost around 50 and 150 °C in the BT-An@Zetag composite. Furthermore, the shape of the thermograms denotes an endothermic reaction.

2.1.3. Raman Spectroscopy

Figure 1D shows the Raman spectrum of the BT-An@Zetag composite. The two conspicuous peaks G and D were attributed to the spectrum of (An), with the G band having a larger amplitude at 1585 cm−1, indicating the emergence of the graphite structure [48,49,50]. The addition of anthracite and Zetag may be responsible for the increased intensity of the BT-An@Zetag composite. This stage corresponds to C=C stretching in the aromatic ring’s hexagonal sheet. The Raman disorder shift is assigned to the Raman scattering mode’s dual resonance at 1250–1450 cm−1, while the Dband represents a lattice structure disorder as well as cavities in aromatic rings [51]. The disorder in the BT-An@Zetag composite graphite layer can be detected, which is in exact agreement with another recently published graphite material investigation [52,53]. These comments go hand in hand with the XRD results for the BT-An@Zetag composite [54,55].

2.1.4. Surface Morphology and Elemental Analysis

The elemental analysis was performed with a SEM-EDX micrograph in BT-An@Zetag, as shown in Figure 2a,b, respectively. Surface morphology was used to identify the inhomogeneous topography of minerals confined in a carbon matrix. The presence of C, O, Na, Mg, Al, Si, Ca, and Fe (C: 25.15, O: 54.47, Na: 0.74, Mg: 0.48, Al: 4.57, Si: 11.39, Ca: 0.75, S: 0.44, and Fe: 1.64%) for BT-An@Zetag was observed. Figure 2a,b shows the BT-An@Zetag SEM diagrams incorporating (BT-An) into the Zetag polymer; On the other hand, Figure 2a,b shows the production of the BT-An@Zetag composite with bright and opaque characteristics. SiO2 and Al2O3 were found as big particles with a diameter of 10 μm in BT-An@Zetag composites. The inclusion of anthracite and Zetag resulted in an increase in oxygen content and a decrease in carbon content in the BT-An@Zetag composite as a result of the binding with anthracite and Zetag. The increase in BT-An@Zetag composite holes leads to an increase in surface area (103.5 m2/g) after mixing with anthracite and Zetag at temperatures of 70 and 90 °C during the manufacturing and treatment of BT-An@Zetag composites. Volatile gases such as H2, CO, and CO2 evaporate at these temperatures, creating these gaps [42].

2.1.5. N2-Adsorption Analysis

Figure 3a,b shows N2 adsorption/desorption isotherms produced at 77 K and BJH pore size distributions of BT-An@Zetag composite. The adsorption–desorption isotherms of Type I curves according to the IUPAC classification are shown in the BT-An@Zetag composite based on BET analysis, which is indicative of the presence of a narrow mesopore micro-porosity structure and a wider structure of micropores. The BT-An@Zetag composite surface area grew dramatically from 10.937 m2/g to 81.935 m2/g, implying a high micropore concentration in the composite BT-An@Zetag [56], with micropores gradually increasing from 0.00028 to 0.0151 (cm3/g). Following that, low-density volatile gases evacuated during the preparation and curing of the BT-An@Zetag composite, implying a tidy formation and resulting in a smaller hole between the layers. As a result of the pore curing, the specific surface area (SSA) and very microporous structure of the composite BT-An@Zetag will be dramatically developed, as well as the SSA. In addition, Figure 3b shows the BJH-measured pore size distributions of the BT-An@Zetag composite. The composite BT-An@Zetag has a tiny hole diameter distribution of 1.5–5 nm, with big pores ranging from 5 nm to over 50 nm. The results showed that curing created more pores; mesoporous materials may prevail in porous structures, therefore, curing resulted in an increase in the composite BT-An@Zetag’s total surface area, which is qualitatively compatible with the change in the surface area of the BET. The results demonstrate that due to a high temperature and increased degree of carbonization, the degree of the microcrystalline BT structure shifts greatly and enhance the degree of graphitization, potentially resulting in an excellent sorptive material [57]. The average pore size, total pore volume, and surface area obtained from the BT-An@Zetag composite are 13.87, 0.0333 cm3/g, and 81.935 m2/g, respectively, (Table 1).

2.2. Controls on As(V) Adsorption

2.2.1. Effect of pH

In general, the solution pH represents an important parameter influencing heavy metal adsorption because it affects the adsorbent’s surface charge as well as the prevailing species of the metal ions. The effect of altering the solution pH (3–9) on the adsorption of As(V) ions using BT and the BT-An@Zetag composite is shown in Figure 4A. At a pH of 3, As(V) had the highest adsorption capability onto BT (12.25 mg/g) and the BT-An@Zetag composite (27.8 mg/g). It is worth mentioning that under identical working conditions, As(V) had a higher adsorption capacity on the BT-An@Zetag composite than BT. However, increasing the pH from 4 to 7 reduced the adsorption capacity to 19 mg/g due to the partial deprotonation of the BT-An@Zetag composite’s functional groups, followed by a decrease in the interaction between the adsorbent’s oxygen/amine containing-functional groups and As(V). Furthermore, elevating the pH of the solution from 8 to 10 resulted in the competition for active sites on the adsorbent surface between functional groups (i.e., OH) and AsO4−3 anions (the only stable oxidative form at this pH). H2AsO4−4 and HAsO4−4 compounds are native in all arsenate complexes [58].
Depending on the nature of the charge, these species will attract or repel on the adsorbent surface. The H2AsO4−4 and HAsO4−4 species adhere to the positive surface of the BT-An@Zetag composite, leading the negative charge on the adsorbent to grow while the positive charge diminished. For the similarity of charges, the surface of BT-An@Zetag should change to negative and repel the H2AsO4−4 and HAsO4−4 species, leading to a decrease in As(V) adsorption. Other researchers [59,60] noticed the same tendency in the influence of pH on arsenic eradication. At pH levels up to 7, the As(V) removal by the BT-An@Zetag composite was maintained at a high adsorption capacity. A chemical interaction, in addition to electrostatic contact, is a fair assumption.

2.2.2. Effect of Adsorbent Dose

Figure 4B depicts the effect of BT-An@Zetag dosage on As(V) adsorption. Because there were more adsorptive sites for the ions to adsorb as the adsorbent dose increased from 5 to 55 mg, the amount of As(III) and As(V) adsorbed by BT-An@Zetag was still over 13 mg/g at 10 µg/L and over 40 mg/g at 50 µg/L [60]. However, increasing the BT-An@Zetag masses up to 55 mg had no impact on the As(V) adsorption efficiency (98.7%) due to the equilibrium between the adsorbate and the adsorbent under specific operating conditions, as well as the solid-concentrationeffect [61]. When the dose of BT-An@Zetag was increased from 5 to 55 mg, the arsenic ion adsorption capacity increased dramatically from 4.696 to 22.425 mg/g. The increase of the adsorbent mass to roughly 22 mg relatively maintains the adsorption capacity (23.49 mg/g). On the other hand, once the BT-An@Zetag dose is increased from 5 to 55 mg, the adsorption capacity decreases to 22.425 mg/g.

2.2.3. The Agitation Speed Effect

The effect of increasing the speed of agitation (50–250 rpm) on the As(V) adsorption behavior in a 25 mL arsenic solution at PH = 3 and 25 °C is shown in Figure 4C. With an increase in agitation speed, the adsorption capacity and adsorption efficiency of arsenate ions rise from 4.44 to 27.91 mg/g and from 7.1 to 44.66 percent, respectively, as a result of an enhanced solute molecule dispersion and an increased exposed adsorbent surface area to the arsenate ions. When the speed is 250 rpm, however, the adsorption performance approaches constant values. As a result, the plateau refers to the removal of all accessible As(V) from the solution.

2.2.4. The Initial Concentration Effects

In Figure 4D, the adsorption capacity and removal efficacy were plotted against the initial As(V) concentration. The adsorption performance improved, and it achieved its highest value (32.08 mg/g) with removal percentages of 42.8%when the As(V) concentration increased. These findings could be explained by the availability of more energetic spots at lower As(V) ion/adsorbent ratios, as well as the huge ratio of the adsorbent’s accessible surface area to the number of As(V) ions moles. The active sites, on the other hand, were rapidly occupiedby increasing the metal ion/adsorbent ratio, thus, decreasing the adsorption efficiency as the adsorption began at lower energy sites. The As(V) removal percentage diminishes from 42.8 to 25.3 percent as the initial As(V) concentration rises from 5 to 60 mg/L.

2.2.5. Contact Time Effect

Figure 5a shows the adsorption as a function of residence time (5–150 min) at a metal ion concentration of 25 mg/L, BT-An@Zetag dosage of 20 mg, and a pH of 3. The sorptive capacity and the percentage of arsenic adsorption obviously improved as the contact time was increased from 5 to 150 min, with the maximum adsorption capacity reaching 26.361 mg/g. The composition of the sorbent and the available surface sites had a significant impact on the time it took to reach equilibrium (which was120 min for BT-An@Zetag). Firstly, there may be more vacant active sites available for adsorption, however, as adsorption time passed [62], the repulsive forces between adsorbate molecules and the solid phase increased, making residual free surface sites difficult to occupy and the adsorption affinity decrease. The equilibrium times for 11.175 mg/L and 44.703 mg/L are 0.5 and 3 h, respectively.

2.3. Kinetics and Mechanism of the Adsorption Process

The estimated parameters of the preliminary kinetic models are summarized in Table 2. In comparison to the pseudo-second-order model, the qcal value produced from the pseudo-second-order model (Figure 5b) was close to the value of qexp (Figure 5a). Thus, the pseudo-second-order model best fits the kinetic sorption mode, highlighting that the adsorption of As(V) onto the BT-An@Zetag composite is advantageous. Furthermore, it is assumed that the rate of metal ion uptake is dependent on the number of active sites on the sorbent surface. The rapid adsorption rate (h) reveals that a significant number of arsenic ions accessed the sorbent surface in a short amount of time.
The Elovich model was used to assess the likelihood that different forces are relevantto the adsorption of As(V) from the system [39]. In this model, the greater constant value is related to the extension of surface coverage, indicating that the BT-An@Zetag adsorbent has a larger surface area (Table 2). The lower value of the constant, which is related to the chemisorption rate, suggests that more than one mechanism was involved in the uptake of arsenate.

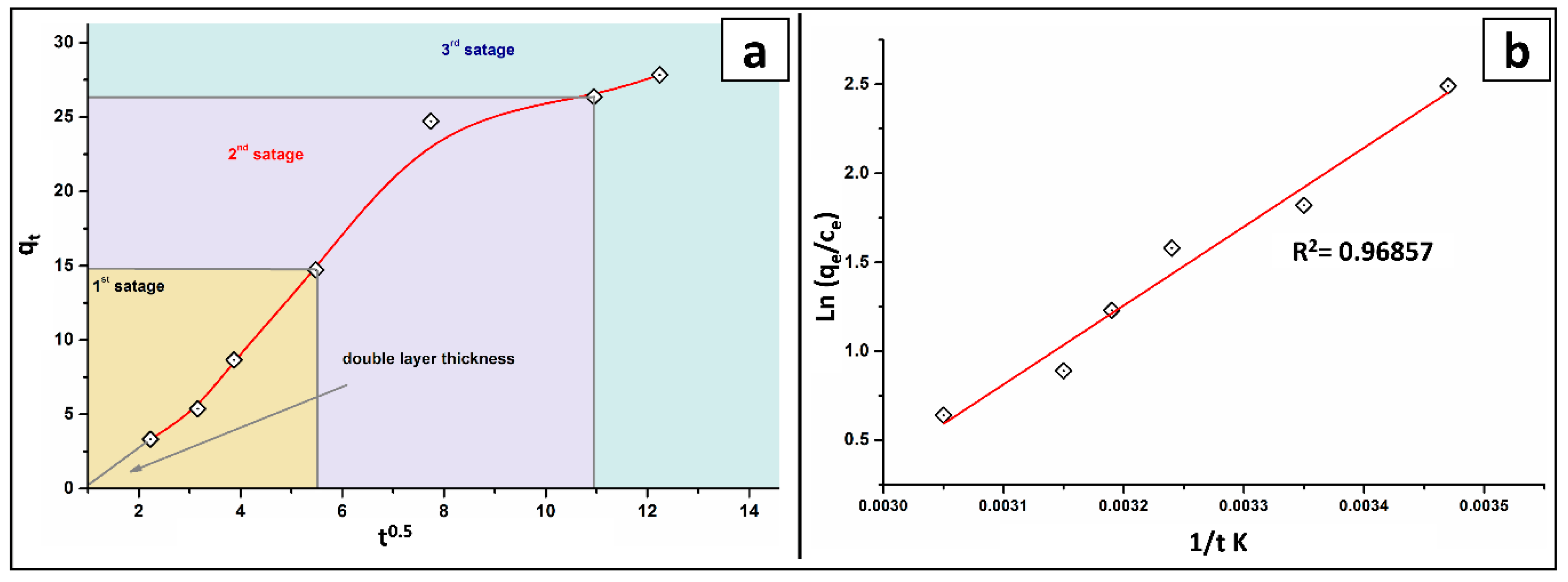

The intraparticle diffusion was employed to investigate the adsorption process of As(V). The many stages of the intraparticle-diffusion model for As adsorption are clearly depicted in Figure 6a. Additionally, the adsorption achievement was not constant over the entire time range, indicating that the adsorption process is governed by several phenomena. The multilinear plot did not pass through the origin, implying that As(V) adsorption’s process is complex, with both intra-particle diffusion (i.e., boundary-layer diffusion) and surface adsorption contributing to the rate limiting step.
The minor value of Kp1 (the slope of the first steeper stage) than the anticipated value of Kp2 (the slope of the second linear section) supports this finding, as do other authors [25]. Additionally, as demonstrated in Table 2 and Figure 6a, the intercept values are proportional to the depth of the border layer.
Additionally, the distinction between film and particle diffusion mechanisms is clearly shown by Boyd linear plot (Figure 6b). If the straight line passes through the origin, the adsorption rate is determined by particle diffusion; if not, it is regulated by film diffusion. Film diffusion is clearly revealed in the Boyd plots as the regulating mechanism. Other researchers [29] have observed similar investigations.

2.4. Thermodynamic Study

The mechanism of As(V) adsorption onto the constructed BT-An@Zetag composite was studied at temperatures ranging from 288 to 318 K, as illustrated in Figure 6b. The adsorption capacity decreased from 28.315 to 18.875 mg/g, suggesting that more energy was necessary to defeat the activation-barrier between the solid/liquid interfaces and allow more AsO4−1 ions to penetrate the BT-An@Zetag adsorbent. The decrease in adsorption ability could be attributed to a decrease in the potential of attraction between the adsorbate and the adsorbent, reflecting an endothermic mechanism. For the spontaneity of the adsorption phase, the thermodynamic parameters studied from the slope and intercept of the plot of lnKD vs. 1/T shown in Figure 7b can be evaluated; Table 3. The positive enthalpy value (36.864 kJ/mol) revealed that chemisorption is As(V) adsorption, which is endothermic and advantageous at low temperatures. This result confirmed that the fundamental response between As(V) and BT-An@Zetag composites is complex and dominated by electrostatic interactions [25,39], (i.e., concurrent physical and chemical reactions). Furthermore, the negative entropy value (−107.53 J/mol K) during the adsorption of As(V) ions onto the BT-An@Zetag composite in an aqueous solution shows unpredictability at the liquid/solid mediator [41]. The positive value of G ranging from 67.934 to 71.058 kJ/mol) at the temperature range studied, on the other hand, confirms the likelihood of a non-spontaneous adsorption response.

2.5. Isotherm’s Modeling

Table 4 lists the isotherm parameters that have derived from visualizing the three isotherm models shown in Figure 7a–c. The Langmuir isotherm is shown in Figure 7a. The Freundlich isotherm (Figure 7b) best described the absorption of As(V) onto BT-An@Zetag surface (R2 = 0.997), implying a monolayer adsorption with heterogeneous adsorption energy. Furthermore, the low value of KL and high value of qmax (38.65 mg/g) indicate that the fabricated BT-An@Zetag composite has a considerable sensitivity for As(V). Additionally, the computed RL value was less than 1, whereas the 1/n value calculated from the slope of the Freundlich model (Figure 7b) was greater than 1, indicating that As(V) adsorption was advantageous. Furthermore, the larger positive value of BT obtained from the Temkin plot indicated a greater sorbent/sorbate interaction (Figure 7c). In this investigation, the maximum monolayer uptake capacity of As(V) was compared to that of other adsorbents in the literature, with the findings reported in Table 5.

2.6. Evaluation of Adsorbent Reusability

The ability of sorbent materials to be rejuvenated and reprocessed multiple times is a critical economic aspect because it determines the cost of production. The immediate attraction between the metal ions and the adsorbent surface was recovered by regenerating the arsenic-adsorbed composite in this study. After four consecutive cycles, the BT-An@Zetag composite adsorbent retained a high uptake affinity, as shown in Figure 8, with As(V) removal (percent) still above 70 percent. The results show that the synthesized composite is a good As(V) adsorbent that is also recyclable.

2.7. Adsorption Mechanism

The adsorption mechanism of As(V) on the BT-An@Zetag composite was shown in Figure 9. The electrostatic forces between the negatively charged As(V) species and the multi-functional groups of the composite, and the surface complexation with carboxyl and hydroxyl groups were discovered, and thus, the uptake mechanism of As(V) was reduced by the adjacent electron donor groups. During the adsorption process, the As(V) was converted to less harmful As (III) ions by the interaction between the negatively charged carboxyl groups of the BT-An@Zetag and the arsenic ions. Furthermore, by an ion exchange mechanism, the As(V) metal ions can be adsorbed by the Si-O group [63].
Electrostatic attraction was observed between positively charged adsorbent surfaces and negatively charged arsenate species, indicating that electrostatic forces may have played a role in the adsorption process. Metal ions and surface groups interact to absorb BT-An@Zetag particles and metal ions, according to the theory of surface chemistry.
Due to the exterior surface of the BT-high An@Zetag’s protonation at (pH 2.0–4.0), there are many attraction forces between (arsenate) species and functionalized groups of the material. One such force is electrostatic attraction, where the arsenate species and the protonated Si-OH+ of the BT-An@Zetag adsorbent showed the highest uptake percentages.

3. Materials and Methods

3.1. Materials

Natural Bentonite (BT) from the Egyptian bentonite clay quarries at the Egyptian Western Desert is used. Anthracite was supplied by Egypt’s Matrouh Water and Wastewater Company (An), which was characterized by El-Aassar et al. [25]. Polyelectrolyte Zetag used in this study is the commercial name and was obtained from dental waste, while sodium arsenate (Na3AsO3.7H2O) was obtained from Sigma-Aldrich, USA, at a purity of 99.5 percent. The stock solution (1000 mg/L) of As(V) was prepared by dissolving a specified weight of Na3AsO3.7H2O in deionized water. Sodium hydroxide (NaOH), and Hydrochloric acid (HCl) (37%) of analytical grade were obtained from El-Nasr Company, Egypt. All compounds used in this investigation were used exactly as they were supplied.

3.2. Preparation of Bentonite/Anthracite/Zetag (BT-An@Zetag) Composite

After just being dried at 90 °C for 48 h, 5 g of bentonite (BT) and 1 g of anthracite were carefully crushed and sieved below 100 microns. The obtained composite material was then softly crushed and sieved below 63 microns and classed as BT-An composite after being mixed with 0.5 g of Zetag, which was dissolved in 5 mL of distilled water and dried at 90 °C for 48 h.

3.3. Adsorbent Characterization

BT-An@Zetag composite samples were analyzed using an X-ray diffractometer (Shimadzu XRD-7000, Tokyo, Japan with an X-ray wavelength Cu detector). Scanning electron microscopy was used to analyze the morphological topographies of BT-An@Zetag composites (SEM, JEOL JSM-6610 LV, Tokyo, Japan). Thermal gravimetric analysis (TGA-51 Shimadzu, Tokyo, Japan) and DSC were used to assess thermal changes across a temperature range of 25–600 °C (Shimadzu DSC-60 Plus, Tokyo, Japan). Raman spectrometer (Shimadzu IR–Tracer 100 Fourier Transform Infrared Spectrophotometer, Tokyo, Japan) was used to determine the Raman spectra of the BT-An@Zetag composite (HOUND UNCHAINED LABS spectrometer, Berlin, Germany). A NOVA 4200e was used to evaluate the nitrogen adsorption–desorption isotherms at 77 K (Quantachrome Instruments, Boynton Beach, FL, USA). The Brunauer–Emmett–Teller (BET) equation and the specific surface area were used to further investigate surface area and pore size.Also, Pore size distributions were also calculated using the Barrett–Joyner–Halenda (BJH) methods. Initial and final concentrations of arsenate were analyzed using Triple Quadrupole Inductively Coupled Plasma Mass Spectrometry (TQ-ICP-MS), Thermo Fishers scientific (Waltham, MA, USA).

3.4. Batch Experiments

The batch system was used to optimize the adsorption process of As(V) onto BT-An@Zetag composite surfaces to determine the best adsorption conditions. The effects of adsorbent dose (5–55 mg/L), solution pH (2–9) adjusted with HCl and NaOH, agitation rate (50–250 rpm), and temperature (25–45 °C) at different residence times were investigated using different initial As concentrations (5–60) mg/L prepared by diluting a stock solution of As(V) of 1000 mg/L (5–150 min). A digital shaker (ELMI/Europe—Model: DOS-20L) was used to agitate similar weights of the composite (20 mg) with 50 mL of As(V) solution for 120 min at constant temperature (25 °C) in a typical equilibrium experiment. The adsorbate/adsorbent mixture was separated for 30 min at 10,000 rpm using a centrifuge (Hettich, EBA 200 S, Hettich, Germany). The residual As(V) content was measured using an ICP (Model DR6000, HACH/Germany). Triplicate experiments were used to determine the removal efficiency (R%) and adsorption capacity (qe, mg/g) following Equations (1) and (2), respectively [25,28]:
R % = C 0 C e C 0 × 100
q e = C 0 C e V W
where C0 and Ce are the As(V) initial and equilibrium concentrations (mg/L), respectively. R is the removal percentage, qe is the adsorption capacity, V is the As(V) volume (L), and W is the adsorbent weight (g).

3.5. Kinetics, Isotherms, and Thermodynamics

To study the adsorption paths, mechanisms, and rates, four kinetic models were used for experimental data fitting (e.g., pseudo-first-order, pseudo-second-order, Elovich, and intraparticle-diffusion, Equations (3)–(6), respectively) [25,39]:
ln q e q t = ln q e k 1 t
t q t = 1 k 2 q e 2 + t q e
q t = β ln α β + β ln t
q t = K p t 0.5 + C
where qe and qt (g/g) are the equilibrium and time adsorption capacities, respectively. The constant rate parameters are represented by k1 (min−1) and k2 (g/gmin) and are related to the pseudo-first-order and pseudo-second-order models, respectively. The number of possible active sites (g/g) is equal to the adsorption extent (g/g min). The rate constant (g/g min) and intercept are Kp (g/g min) and C, respectively. The adsorbed solute fraction of time t is F = qt/qe.
Isothermal models were used to examine the adsorption isotherm to demonstrate the interaction between As(V) and the fabricated BT-An@Zetag composite [40]. To illustrate the adsorption equilibrium data, the Langmuir, Freundlich, and Temkin isotherm models, Equations (7)–(9), were fitted and studied.
C e q e = 1 q max K L + C e q max
ln q e = ln K F + 1 n ln C e
q e = B T ln KT + B T lnC e
The qmax (g/g) and KL (L/g) represent the saturated adsorption capacity and the Langmuir isotherm constant, respectively. The adsorption capacity is represented by KF, while the adsorption intensity is represented by 1/n. The heat of adsorption (J/mol) is represented by B, while the maximum binding energy (L/g) is represented by KT. The adsorption favorability could be described using the dimensionless separation factor (RL, see Equation (10) [28,41]:
R L = 1 1 + K L C 0
The interior energy change that transpires in the adsorption of As(V) ion using the fabricated adsorbent, as well as spontaneity, and reaction paths were investigated using the thermodynamic parameters (e.g., Gibbs free energy (G), entropy (S), and enthalpy (H), expressed by Equations (11) and (12) [38].
ln K D = Δ H RT + Δ S R
Δ G = Δ H T Δ S

3.6. Reusability Test

The manufactured BT-An@Zetag composite was tested for reusability by soaking it in 1 M HNO3 for 6 h where the number of cycles in the adsorption–desorption process wascounted.

4. Conclusions

The propertyof the manufactured BT-An@Zetag composite for the adsorption of As(V) from the aqueous solution was demonstrated in this investigation. Various characterization technologies were used to thoroughly characterize the produced adsorbent. Solution pH, contact time, adsorbent dosage, agitation rate, initial metal ion concentration, and temperature were all evaluated and optimized as factors impacting As(V) absorption. The isotherm results revealed that As(V) is adsorbed on BT-An@Zetag as a monolayer where the maximum capacity of adsorption is38.8 mg/g at pH 3. The kinetics results also showed that the pseudo-second-order model adequately described the adsorption process. More than one mechanism was implicated in the adsorption of arsenic onto BT-An@Zetag, according to the Bedsides, Elovich, and intraparticle diffusion. The thermodynamic parameters such as ∆H and ∆G indicate that chemical, endothermic, and entry-driven adsorption is the most likely mechanism. Furthermore, the regeneration and reusability studies revealed that even after four cycles, the BT-An@Zetag adsorbent maintained good adsorption behavior. As a result, the BT-An@Zetag composite might be employed for the effective removal of As(V) from wastewater as well as being reusable.

Author Contributions

Conceptualization, M.S.M.-E.; Data curation, E.F.E.A.; Funding acquisition, M.R.E.-A.; Investigation, A.K.A., H.S.A.S., H.M.A.H., R.F.A. and M.S.M.-E.; Methodology, M.Y.E.-S. and E.F.E.A.; Project administration, M.R.E.-A.; Software, M.Y.E.-S.; Supervision, F.M.M., M.Y.E.-S., I.O.A. and M.S.M.-E.; Validation, E.F.E.A.; Writing – review & editing, M.R.E.-A. and F.M.M. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Deanship of Scientific Research at Jouf University under Grant Number (DSR2022-RG-0136).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors.

References

  1. World Health Organization. Arsenic Compounds (Environmental Health Criteria 224); World Health Organization: Geneva, Switzerland, 2001. [Google Scholar]
  2. Stüben, D.; Berner, Z.; Chandrasekharam, D.; Karmakar, J. Arsenic Enrichment in Groundwater of West Bengal, India: Geochemical Evidence for Mobilization of as under Reducing Conditions. Appl. Geochem. 2003, 18, 1417–1434. [Google Scholar] [CrossRef]
  3. Berg, M.; Luzi, S.; Trang, P.T.K.; Viet, P.H.; Giger, W.; Stüben, D. Arsenic Removal from Groundwater by Household Sand Filters: Comparative Field Study, Model Calculations, and Health Benefits. Environ. Sci. Technol. 2006, 40, 5567–5573. [Google Scholar] [CrossRef] [PubMed]
  4. Khan, T.; Chaudhuri, M. Adsorption of Arsenate from Aqueous Solution by Rice Husk-Based Adsorbent. In Proceedings of the IOP Conference Series: Earth and Environmental Science, Putrajaya, Malaysia, 5–6 March 2013; IOP Publishing: Bristol, UK, 2013; Volume 16, p. 12095. [Google Scholar]
  5. McGraw Hill Encyclopedia of Science & Technology (Mcgraw Hill Encyclopedia of Science And Technology). McGraw-Hill Yearbook of Science and Technology; McGraw-Hill Companies: New York, NY, USA, 1982; ISBN 0070454892. [Google Scholar]
  6. Shi, Y.; Ren, X.; Zheng, H.; Zhang, Y.; Zuo, Q. Hierarchical 13X Zeolite/Reduced Graphene Oxide Porous Material for Trace Pb (II) Capturing from Drinking Water. Microporous Mesoporous Mater. 2022, 329, 111540. [Google Scholar] [CrossRef]
  7. Karaağaçlıoğlu, İ.E.; Karataş, D.; Özyıldırım, Ö.; Çelik, M.S. Investigation of the Interactions of Arsenic with Gangue Minerals in Colemanite Calcination. Microporous Mesoporous Mater. 2022, 333, 111735. [Google Scholar] [CrossRef]
  8. Hering, J.G.; Elimelech, M. International Perspective on Arsenic in Groundwater: Problems and Treatment Strategies. In Proceedings of the AWWA 1995 Annual Conference Proceedings Water Quality Technology Conference, Reno, NV, USA, 20 December 1995. [Google Scholar]
  9. World Health Organization. Guidelines for Drinking-Water Quality; World Health Organization: Geneva, Switzerland, 2004; Volume 1, ISBN 9241546387. [Google Scholar]
  10. Nordstrom, D.K. Worldwide Occurrences of Arsenic in Ground Water. Science 2002, 296, 2143–2145. [Google Scholar] [CrossRef]
  11. Pirnie, M. Technologies and Costs for Removal of Arsenic from Drinking Water; US EPA Rep.; US Environmental Protection Agency: Washington, DC, USA, 2000; Available online: https://www.ircwash.org/resources/technologies-and-costs-removal-arsenic-drinking-water (accessed on 7 October 2022).
  12. Dobrzyńska, J.; Wysokińska, A.; Olchowski, R. Raspberry Stalks-Derived Biochar, Magnetic Biochar and Urea Modified Magnetic Biochar-Synthesis, Characterization and Application for As (V) and Cr (VI) Removal from River Water. J. Environ. Manag. 2022, 316, 115260. [Google Scholar] [CrossRef]
  13. Chen, H.; Xu, J.; Lin, H.; Wang, Z.; Liu, Z. Multi-Cycle Aqueous Arsenic Removal by Novel Magnetic N/S-Doped Hydrochars Activated via One-Pot and Two-Stage Schemes. Chem. Eng. J. 2022, 429, 132071. [Google Scholar] [CrossRef]
  14. Zhang, G.-S.; Qu, J.-H.; Liu, H.-J.; Liu, R.-P.; Li, G.-T. Removal Mechanism of As (III) by a Novel Fe− Mn Binary Oxide Adsorbent: Oxidation and Sorption. Environ. Sci. Technol. 2007, 41, 4613–4619. [Google Scholar] [CrossRef]
  15. Altundoğan, H.S.; Altundoğan, S.; Tümen, F.; Bildik, M. Arsenic Removal from Aqueous Solutions by Adsorption on Red Mud. Waste Manag. 2000, 20, 761–767. [Google Scholar] [CrossRef]
  16. Imai, H. Anion Adsorption Behavior of Rare Earth Oxide Hydrates. Nippon Kagaku Kaishi 1987, 5, 807–813. [Google Scholar] [CrossRef]
  17. Anderson, M.A.; Ferguson, J.F.; Gavis, J. Arsenate Adsorption on Amorphous Aluminum Hydroxide. J. Colloid Interface Sci. 1976, 54, 391–399. [Google Scholar] [CrossRef]
  18. Lin, T.-F.; Wu, J.-K. Adsorption of Arsenite and Arsenate within Activated Alumina Grains: Equilibrium and Kinetics. Water Res. 2001, 35, 2049–2057. [Google Scholar] [CrossRef]
  19. Tripathy, S.S.; Raichur, A.M. Enhanced Adsorption Capacity of Activated Alumina by Impregnation with Alum for Removal of As (V) from Water. Chem. Eng. J. 2008, 138, 179–186. [Google Scholar] [CrossRef]
  20. Singh, T.S.; Pant, K.K. Kinetics and Mass Transfer Studies on the Adsorption of Arsenic onto Activated Alumina and Iron Oxide Impregnated Activated Alumina. Water Qual. Res. J. 2006, 41, 147–156. [Google Scholar] [CrossRef]
  21. Jang, M.; Chen, W.; Cannon, F.S. Preloading Hydrous Ferric Oxide into Granular Activated Carbon for Arsenic Removal. Environ. Sci. Technol. 2008, 42, 3369–3374. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Genç-Fuhrman, H.; Tjell, J.C.; McConchie, D. Adsorption of Arsenic from Water Using Activated Neutralized Red Mud. Environ. Sci. Technol. 2004, 38, 2428–2434. [Google Scholar] [CrossRef]
  23. Zhang, Y.; Lim, C.T.; Ramakrishna, S.; Huang, Z.-M. Recent Development of Polymer Nanofibers for Biomedical and Biotechnological Applications. J. Mater. Sci. Mater. Med. 2005, 16, 933–946. [Google Scholar] [CrossRef]
  24. Han, C.; Li, H.; Pu, H.; Yu, H.; Deng, L.; Huang, S.; Luo, Y. Synthesis and Characterization of Mesoporous Alumina and Their Performances for Removing Arsenic (V). Chem. Eng. J. 2013, 217, 1–9. [Google Scholar] [CrossRef]
  25. El-Aassar, M.R.; Mohamed, F.M. Characterization Valorized Anthracite and Its Application in Manganese (VII) Adsorption from Aqueous Solution; Batch and Column Studies. Microporous Mesoporous Mater. 2021, 310, 110641. [Google Scholar] [CrossRef]
  26. Mohamed, F.M.; Li, Z.; Zayed, A.M. Carbon Nanotube Impregnated Anthracite (An/CNT) as a Superior Sorbent for Azo Dye Removal. RSC Adv. 2020, 10, 25586–25601. [Google Scholar] [CrossRef]
  27. El-Aassar, M.R.; Hashem, F.S.; Elzain, A.A.; Ali, A.S.M.; Mohamed, F.M. Reduction of Non-Point Source Pollution by Poly (Styrene-Co-Acrylonitrile) Composites Nanofibers Inoculated with Sorbent Materials. Int. J. Environ. Sci. Technol. 2021, 18, 3071–3082. [Google Scholar] [CrossRef]
  28. El-Aassar, M.R.; Masoud, M.S.; Elkady, M.F.; Elzain, A.A. Synthesis, Optimization, and Characterization of Poly (Styrene-co-Acrylonitrile) Copolymer Prepared via Precipitation Polymerization. Adv. Polym. Technol. 2018, 37, 2021–2029. [Google Scholar] [CrossRef]
  29. Mohamed, F.M.; Alfalous, K.A. The Effectiveness of Activated Silica Derived from Rice Husk in Coagulation Process Compared with Inorganic Coagulants for Wastewater Treatment. Egypt. J. Aquat. Res. 2020, 46, 131–136. [Google Scholar] [CrossRef]
  30. Abo-El-Enein, S.A.; Eissa, M.A.; Diafullah, A.A.; Rizk, M.A.; Mohamed, F.M. Removal of Some Heavy Metals Ions from Wastewater by Copolymer of Iron and Aluminum Impregnated with Active Silica Derived from Rice Husk Ash. J. Hazard. Mater. 2009, 172, 574–579. [Google Scholar] [CrossRef] [PubMed]
  31. Abo-El-Enein, S.A.; Eissa, M.A.; Diafullah, A.A.; Rizk, M.A.; Mohamed, F.M. Utilization of a Low Cost Agro-Residue for Production of Coagulant Aids and Their Applications. J. Hazard. Mater. 2011, 186, 1200–1205. [Google Scholar] [CrossRef] [PubMed]
  32. El Gamala, M.; Mohamedb, F.M.; Mekewic, M.A.; Hashemc, F.S.; El-Aassard, M.R.; Khalifae, R.E. Adsorptive Removal of Methyl Orange from Aqueous Solutions by Polyvinylidene Fluoride Tri-Flouro Ethylene/Carbon Nanotube/Kaolin Nanocomposite: Kinetics, Isotherm, and Thermodynamics. Desalination Water Treat. 2020, 193, 142–151. [Google Scholar] [CrossRef]
  33. Chowdhury, R. Using Adsorption and Sulphide Precipitation as the Principal Removal Mechanisms of Arsenic from a Constructed Wetland—A Critical Review. Chem. Ecol. 2017, 33, 560–571. [Google Scholar] [CrossRef]
  34. Pintor, A.M.A.; Vieira, B.R.C.; Santos, S.C.R.; Boaventura, R.A.R.; Botelho, C.M.S. Arsenate and Arsenite Adsorption onto Iron-Coated Cork Granulates. Sci. Total Environ. 2018, 642, 1075–1089. [Google Scholar] [CrossRef]
  35. Vieira, B.R.C.; Pintor, A.M.A.; Boaventura, R.A.R.; Botelho, C.M.S.; Santos, S.C.R. Arsenic Removal from Water Using Iron-Coated Seaweeds. J. Environ. Manag. 2017, 192, 224–233. [Google Scholar] [CrossRef]
  36. Yang, G.; Liu, Y.; Song, S. Competitive Adsorption of As (V) with Co-Existing Ions on Porous Hematite in Aqueous Solutions. J. Environ. Chem. Eng. 2015, 3, 1497–1503. [Google Scholar] [CrossRef]
  37. Fakour, H.; Pan, Y.-F.; Lin, T.-F. Effect of Humic Acid on Arsenic Adsorption and Pore Blockage on Iron-Based Adsorbent. Water Air Soil Pollut. 2015, 226, 14. [Google Scholar] [CrossRef]
  38. Hao, L.; Liu, M.; Wang, N.; Li, G. A Critical Review on Arsenic Removal from Water Using Iron-Based Adsorbents. RSC Adv. 2018, 8, 39545–39560. [Google Scholar] [CrossRef] [PubMed]
  39. Khalifa, R.E.; Omer, A.M.; Tamer, T.M.; Salem, W.M.; Eldin, M.S.M. Removal of Methylene Blue Dye from Synthetic Aqueous Solutions Using Novel Phosphonate Cellulose Acetate Membranes: Adsorption Kinetic, Equilibrium, and Thermodynamic Studies. Desalination Water Treat. 2019, 144, 272–285. [Google Scholar] [CrossRef]
  40. Koushkbaghi, S.; Zakialamdari, A.; Pishnamazi, M.; Ramandi, H.F.; Aliabadi, M.; Irani, M. Aminated-Fe3O4 Nanoparticles Filled Chitosan/PVA/PES Dual Layers Nanofibrous Membrane for the Removal of Cr (VI) and Pb (II) Ions from Aqueous Solutions in Adsorption and Membrane Processes. Chem. Eng. J. 2018, 337, 169–182. [Google Scholar] [CrossRef]
  41. Omer, A.M.; Elgarhy, G.S.; El-Subruiti, G.M.; Khalifa, R.E.; Eltaweil, A.S. Fabrication of Novel Iminodiacetic Acid-Functionalized Carboxymethyl Cellulose Microbeads for Efficient Removal of Cationic Crystal Violet Dye from Aqueous Solutions. Int. J. Biol. Macromol. 2020, 148, 1072–1083. [Google Scholar] [CrossRef]
  42. Toprak, A. The Effect of Pore and Surface Characteristics of Activated Carbon Produced by Coal through N2 and H2O Vapor/H3PO4 Activation on a Single Step for CH4 Adsorption in the Low Pressure. Energy Sources Part A Recovery Util. Environ. Eff. 2020, 42, 1950–1962. [Google Scholar] [CrossRef]
  43. Kaklidis, N.; Kyriakou, V.; Garagounis, I.; Arenillas, A.; Menendez, J.A.; Marnellos, G.E.; Konsolakis, M. Effect of Carbon Type on the Performance of a Direct or Hybrid Carbon Solid Oxide Fuel Cell. RSC Adv. 2014, 4, 18792–18800. [Google Scholar] [CrossRef]
  44. Guthrie, G.D.; Dish, D.L.; Reynolds, R.C. Modeling the X-ray Diffraction Pattern of Opal-CT. Am. Mineral. 1995, 80, 869–872. [Google Scholar] [CrossRef]
  45. Hernández-Ortiz, M.; Hernández-Padrón, G.; Bernal, R.; Cruz-Vázquez, C.; Castaño, V.M. Nanocrystalline Mimetic Opals: Synthesis and Comparative Characterization vs. Natural Stones. Int. J. Basic Appl. Sci. 2015, 4, 238. [Google Scholar] [CrossRef]
  46. Souza, N.L.G.D.; Salles, T.F.; Brandão, H.M.; Edwards, H.G.M.; de Oliveira, L.F.C. Synthesis, Vibrational Spectroscopic and Thermal Properties of Oxocarbon Cross-Linked Chitosan. J. Braz. Chem. Soc. 2015, 26, 1247–1256. [Google Scholar] [CrossRef]
  47. Osman, Z.; Arof, A.K. FTIR Studies of Chitosan Acetate Based Polymer Electrolytes. Electrochim. Acta 2003, 48, 993–999. [Google Scholar] [CrossRef]
  48. Eckmann, A.; Felten, A.; Mishchenko, A.; Britnell, L.; Krupke, R.; Novoselov, K.S.; Casiraghi, C. Probing the Nature of Defects in Graphene by Raman Spectroscopy. Nano Lett. 2012, 12, 3925–3930. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Inai, S.; Harao, A.; Nishikawa, H. Correlation between the Luminescence Properties and the Surface Structures of Submicron Silica Particles. J. Non-Cryst. Solids 2007, 353, 510–513. [Google Scholar] [CrossRef]
  50. Sadezky, A.; Muckenhuber, H.; Grothe, H.; Niessner, R.; Pöschl, U. Raman Microspectroscopy of Soot and Related Carbonaceous Materials: Spectral Analysis and Structural Information. Carbon 2005, 43, 1731–1742. [Google Scholar] [CrossRef]
  51. Mohan, A.N.; Manoj, B.; Ramya, A. V Probing the Nature of Defects of Graphene like Nano-Carbon from Amorphous Materials by Raman Spectroscopy. Asian J. Chem. 2016, 28, 1501. [Google Scholar] [CrossRef]
  52. Byamba-Ochir, N.; Shim, W.G.; Balathanigaimani, M.S.; Moon, H. Highly Porous Activated Carbons Prepared from Carbon Rich Mongolian Anthracite by Direct NaOH Activation. Appl. Surf. Sci. 2016, 379, 331–337. [Google Scholar] [CrossRef]
  53. Ramya, K.; John, J.; Manoj, B. Raman Spectroscopy Investigation of Camphor Soot: Spectral Analysis and Structural Information. Int. J. Electrochem. Sci. 2013, 8, 9421–9428. [Google Scholar]
  54. Xue, C.; Wilson, L.D. A Spectroscopic Study of Solid-Phase Chitosan/Cyclodextrin-Based Electrospun Fibers. Fibers 2019, 7, 48. [Google Scholar] [CrossRef] [Green Version]
  55. Zhang, Y.; Liu, X.; Wang, Y.; Jiang, P.; Quek, S.Y. Antibacterial Activity and Mechanism of Cinnamon Essential Oil against Escherichia Coli and Staphylococcus Aureus. Food Control 2015, 59, 282–289. [Google Scholar] [CrossRef]
  56. Cychosz, K.A.; Thommes, M. Progress in the Physisorption Characterization of Nanoporous Gas Storage Materials. Engineering 2018, 4, 559–566. [Google Scholar] [CrossRef]
  57. Zhao, Y.; Liu, L.; Cui, T.; Tong, G.; Wu, W. Enhanced Photocatalytic Properties of ZnO/Reduced Graphene Oxide Sheets (RGO) Composites with Controllable Morphology and Composition. Appl. Surf. Sci. 2017, 412, 58–68. [Google Scholar] [CrossRef]
  58. Sharma, V.K.; Sohn, M. Aquatic Arsenic: Toxicity, Speciation, Transformations, and Remediation. Environ. Int. 2009, 35, 743–759. [Google Scholar] [CrossRef] [PubMed]
  59. Dai Luu, M.; Dao, N.N.; Van Nguyen, D.; Pham, N.C.; Doan, T.D. A New Perovskite-Type NdFeO3 Adsorbent: Synthesis, Characterization, and As (V) Adsorption. Adv. Nat. Sci. Nanosci. Nanotechnol. 2016, 7, 25015. [Google Scholar]
  60. Kim, J.; Song, J.; Lee, S.M.; Jung, J. Application of iron-modifed biochar for arsenite removal and toxicity reduction. J. Ind. Eng. Chem. 2019, 80, 17–22. [Google Scholar] [CrossRef]
  61. Uddin, J.; Jeong, Y.-K. Application of magnesium ferrite nanomaterials for adsorptive removal of arsenic from water: Effects of Mg and Fe ratio. Chemosphere 2022, 307, 135817. [Google Scholar] [CrossRef]
  62. Lin, L.; Qiu, W.; Wang, D.; Huang, Q.; Song, Z.; Chau, H.W. Arsenic removal in aqueous solution by a novel Fe-Mn modified biochar composite: Characterization and mechanism. Ecotoxicol. Environ. Saf. 2017, 144, 514–521. [Google Scholar] [CrossRef]
  63. Li, R.; Li, Q.; Gao, S.; Shang, J.K. Exceptional Arsenic Adsorption Performance of Hydrous Cerium Oxide Nanoparticles: Part A. Adsorption Capacity and Mechanism. Chem. Eng. J. 2012, 185, 127–135. [Google Scholar] [CrossRef]

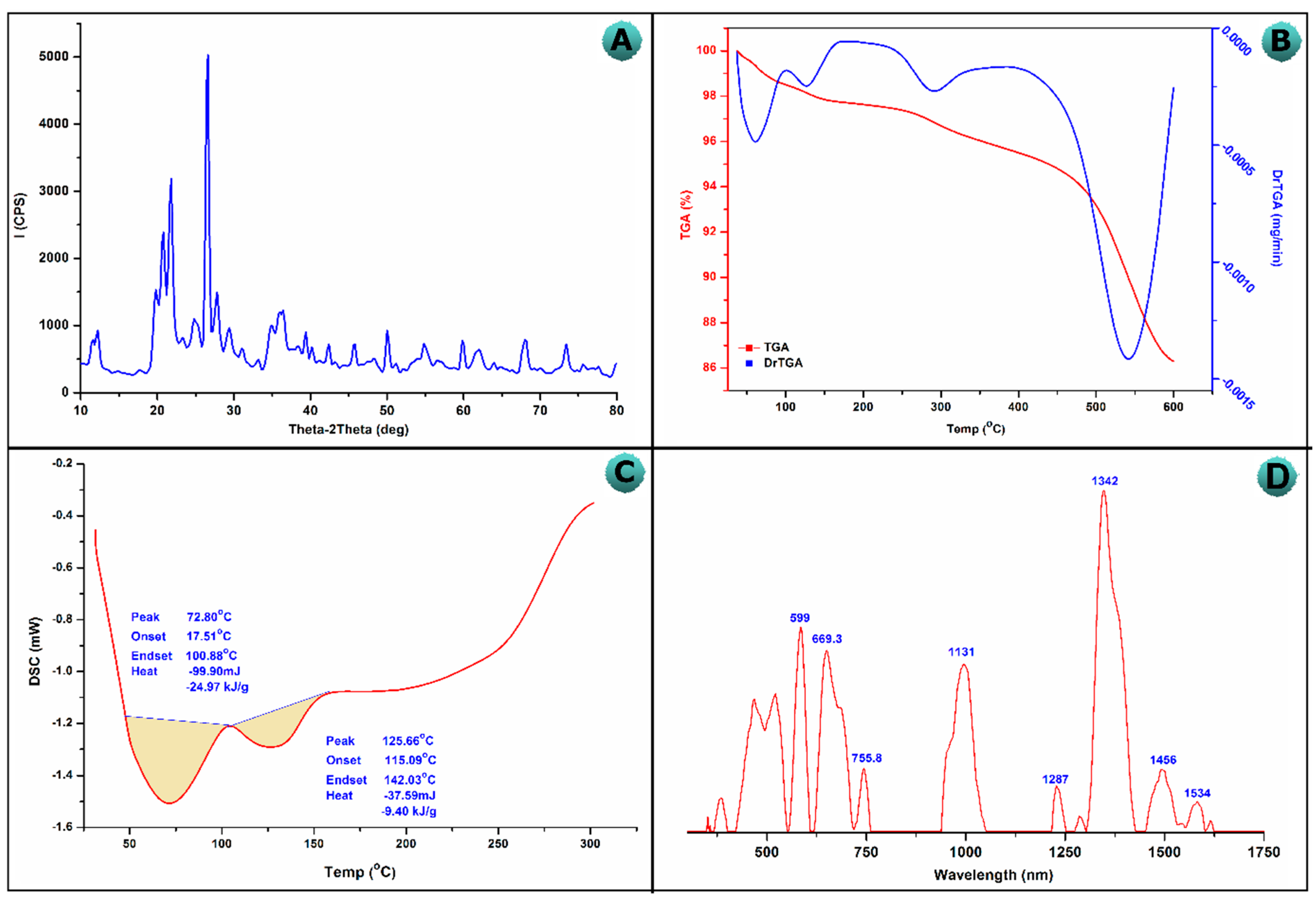

Figure 1. (A) XRD pattern, (B) TGA, (C) DSC, and (D) Raman spectra of the BT-An@Zetag composite.
Figure 1. (A) XRD pattern, (B) TGA, (C) DSC, and (D) Raman spectra of the BT-An@Zetag composite.
Molecules 27 07635 g001

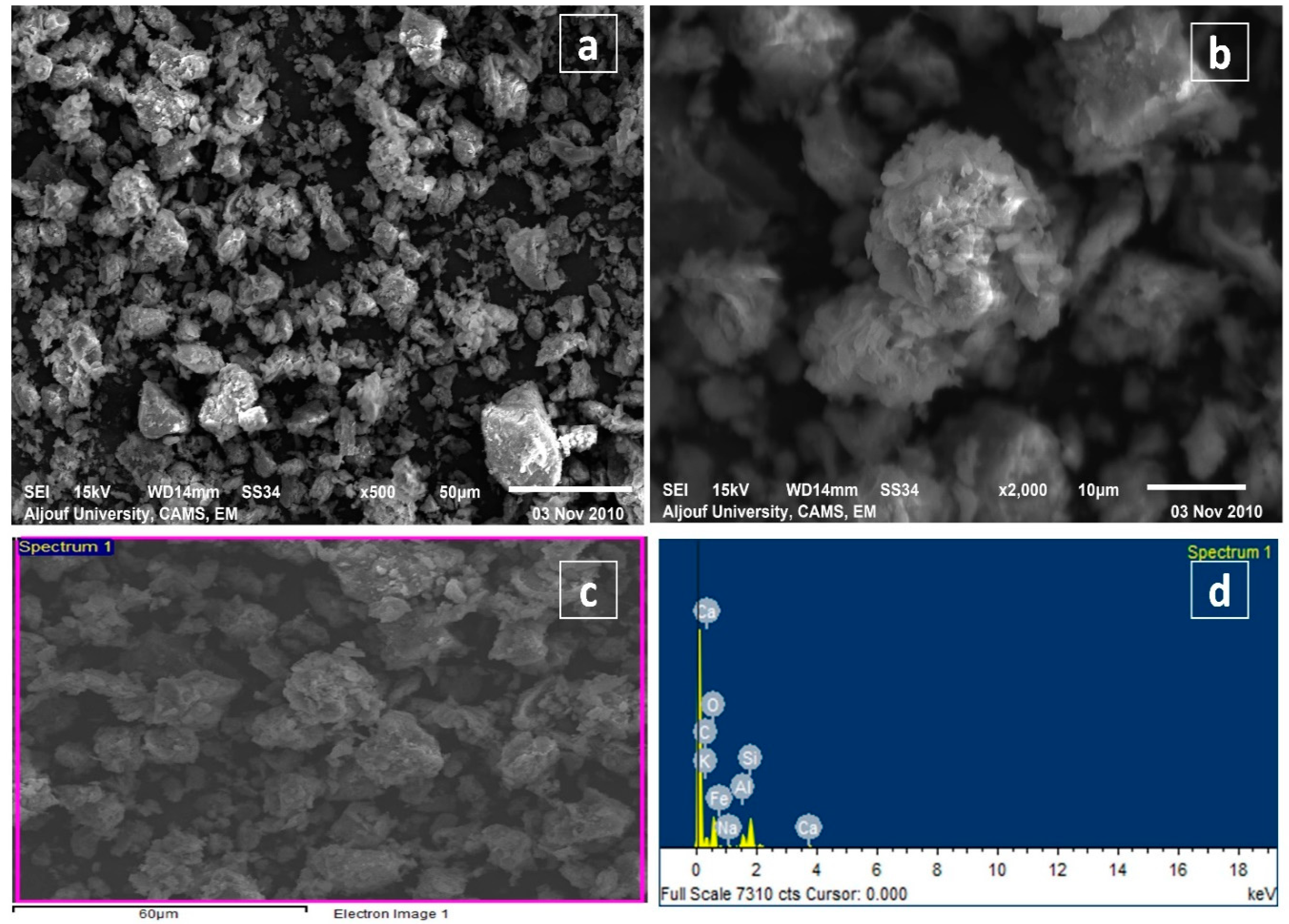

Figure 2. Scanning electron microscopy with the energy-dispersive X-ray spectroscopy (SEM-EDX) analysis of the BT-An@Zetag composite (ad).
Figure 2. Scanning electron microscopy with the energy-dispersive X-ray spectroscopy (SEM-EDX) analysis of the BT-An@Zetag composite (ad).
Molecules 27 07635 g002
Figure 3. (a) N2adsorption/desorption isotherms curves of the BT-An@Zetag composite obtained from the nitrogen gas, and (b) the BJH pore size distribution of the BT-An@Zetag composite.
Figure 3. (a) N2adsorption/desorption isotherms curves of the BT-An@Zetag composite obtained from the nitrogen gas, and (b) the BJH pore size distribution of the BT-An@Zetag composite.
Molecules 27 07635 g003

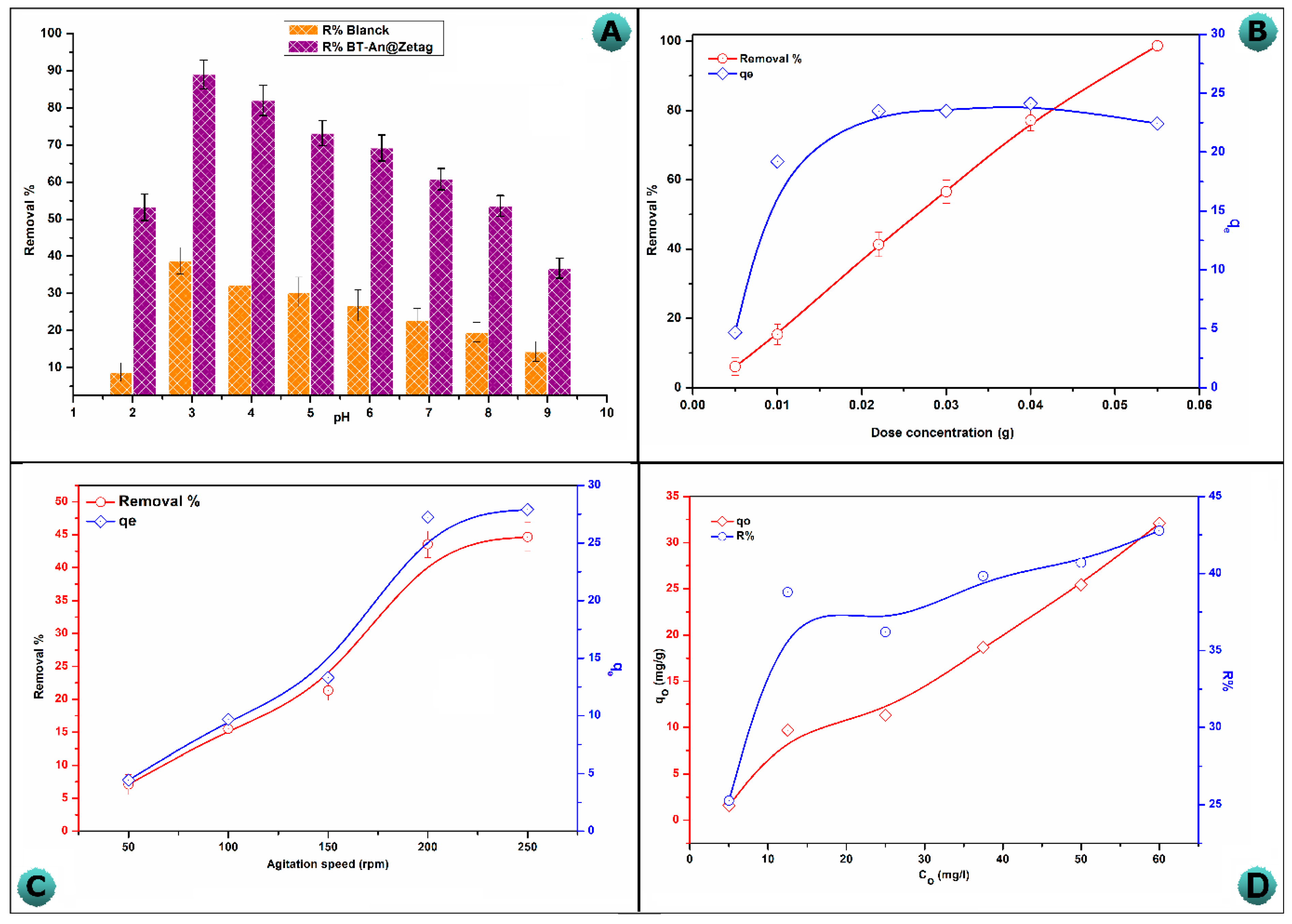

Figure 4. (A) The effect of solution pH on As(V) adsorption by BT-An@Zetag composites (Concentration: 50 mg/L, adsorbent weight: 20 mg, contact time: 120 min, and agitation speed: 200 rpm at 25 °C), and effect of (B) adsorbent doze, (C) agitation speed, and (D) initial concentration on As(V) adsorption by the BT-An@Zetag composite.
Figure 4. (A) The effect of solution pH on As(V) adsorption by BT-An@Zetag composites (Concentration: 50 mg/L, adsorbent weight: 20 mg, contact time: 120 min, and agitation speed: 200 rpm at 25 °C), and effect of (B) adsorbent doze, (C) agitation speed, and (D) initial concentration on As(V) adsorption by the BT-An@Zetag composite.
Molecules 27 07635 g004
Figure 5. (a) Effect of time, (b) pseudo-first-order, (c) pseudo-second-order models for the adsorption of As(V) by the BT-An@Zetag composite.
Figure 5. (a) Effect of time, (b) pseudo-first-order, (c) pseudo-second-order models for the adsorption of As(V) by the BT-An@Zetag composite.
Molecules 27 07635 g005

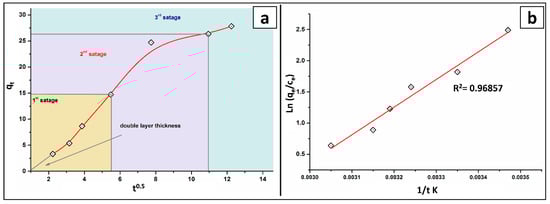

Figure 6. (a) Intraparticle-diffusion models and (b) the Van’t Hoff plot on the adsorption process of As(V) by BT-An@Zetag composite.
Figure 6. (a) Intraparticle-diffusion models and (b) the Van’t Hoff plot on the adsorption process of As(V) by BT-An@Zetag composite.
Molecules 27 07635 g006

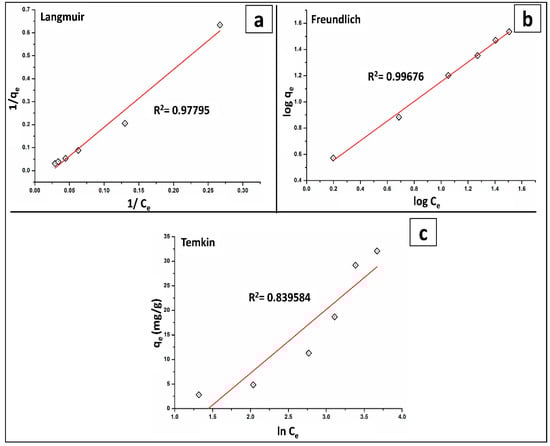

Figure 7. RAdsorption isotherm models of (a) Langmuir, (b) Freundlich, and (c) Temkin of As(V) by the BT-An@Zetag composite.
Figure 7. RAdsorption isotherm models of (a) Langmuir, (b) Freundlich, and (c) Temkin of As(V) by the BT-An@Zetag composite.
Molecules 27 07635 g007

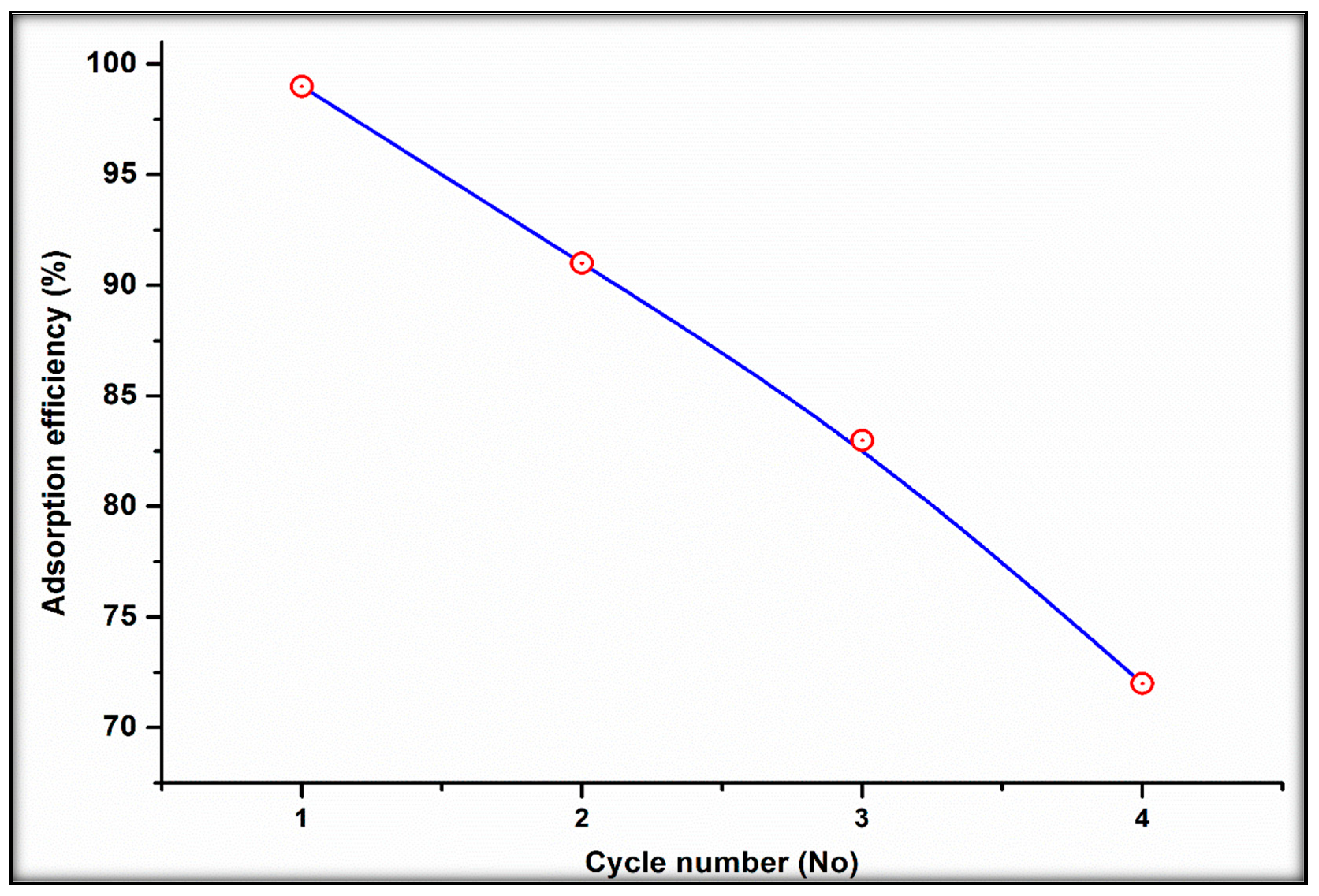

Figure 8. Reusability of BT-An@Zetag adsorbent composite.
Figure 8. Reusability of BT-An@Zetag adsorbent composite.
Molecules 27 07635 g008
Figure 9. Mechanism of the As(V) adsorption by the BT-An@Zetag adsorbent composite.
Figure 9. Mechanism of the As(V) adsorption by the BT-An@Zetag adsorbent composite.
Molecules 27 07635 g009
Table 1. Textural parameters of the BT-An@Zetag composite.
Table 1. Textural parameters of the BT-An@Zetag composite.
CompositeSBET (m2/g)Total Pore Volume (Vt) (cm3/g)Mean Pore Width (nm)
BT-An@Zetag81.9350.033313.87
Table 2. Kinetic model adsorption variables for the adsorption of As(V) on the BT-An@Zetag composite.
Table 2. Kinetic model adsorption variables for the adsorption of As(V) on the BT-An@Zetag composite.
Kinetic ModelParameterValue
Pseudo-first-orderqe,cal(mg/g)38.65
qe,exp (mg/g)26.2
K1 (min−1)0.026
R20.925
Pseudo-second-orderqe,cal(mg/g)38.65
qe,exp (mg/g)41.66
R20.940
Elovich modelα (mg/g min)0.135
β (mg/g)34.293
R20.907
Table 3. Thermodynamic parameters of the adsorption process based on the Van’t Hoff plot.
Table 3. Thermodynamic parameters of the adsorption process based on the Van’t Hoff plot.
Parameter∆H (KJ/mole)∆S (J/mol K)∆G (KJ/mole)
36.864−107.5367.934 to 71.058
Table 4. Isotherms’ model parameters for the As(V) adsorption on BT-An@Zetag composite.
Table 4. Isotherms’ model parameters for the As(V) adsorption on BT-An@Zetag composite.
LangmuirFreundlichTemkin
qmax (mg/g)KL (L/mg)R2RLkf (mg/g)1/nR2BT (J/mol)KT (L/mg)R2
38.650.6060.9780.3672.5350.75020.99712.960.0930.839
Table 5. Comparison of the maximum adsorption capacity of As(V) for adsorbents from selected studies with the BT-An@Zetag composite.
Table 5. Comparison of the maximum adsorption capacity of As(V) for adsorbents from selected studies with the BT-An@Zetag composite.
Adsorbentqmax (mg/g)Reference
Mesoporous alumina36.6[24]
NdFeO3126.58[59]
Granular activated alumina15.9[18]
Porous hematite5.67[36]
Iron-Based Adsorbent7.0[37]
Modified biochar56.06[60]
Magnesium ferrites45.52[61]
Fe–Mn modifed biochar8.25[62]
BT-An@Zetag38.65This study
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

El-Aassar, M.R.; Alezbaway, A.K.; Althobaiti, I.O.; El-Sayed, M.Y.; Abu Salem, H.S.; Hassan, H.M.A.; Alolaimi, R.F.; El Agammy, E.F.; Mohy-Eldin, M.S.; Mohamed, F.M. Fabrication of Novel Bentonite-Anthracite@Zetag (BT-An@Zetag) Composite for the Removal of Arsenic (V) from an Aqueous Solution. Molecules 2022, 27, 7635. https://doi.org/10.3390/molecules27217635

AMA Style

El-Aassar MR, Alezbaway AK, Althobaiti IO, El-Sayed MY, Abu Salem HS, Hassan HMA, Alolaimi RF, El Agammy EF, Mohy-Eldin MS, Mohamed FM. Fabrication of Novel Bentonite-Anthracite@Zetag (BT-An@Zetag) Composite for the Removal of Arsenic (V) from an Aqueous Solution. Molecules. 2022; 27(21):7635. https://doi.org/10.3390/molecules27217635

Chicago/Turabian Style

El-Aassar, Mohamed R., Ahmed K. Alezbaway, Ibrahim O. Althobaiti, Mohamed Y. El-Sayed, Hend S. Abu Salem, Hassan M. A. Hassan, Rawan F. Alolaimi, Emam F. El Agammy, Mohamed S. Mohy-Eldin, and Fathy M. Mohamed. 2022. "Fabrication of Novel Bentonite-Anthracite@Zetag (BT-An@Zetag) Composite for the Removal of Arsenic (V) from an Aqueous Solution" Molecules 27, no. 21: 7635. https://doi.org/10.3390/molecules27217635

Article Metrics

Back to TopTop
