Rational Design of Mono- and Bi-Nuclear Cyclometalated Ir(III) Complexes Containing Di-Pyridylamine Motifs: Synthesis, Structure, and Luminescent Properties

Institut Parisien de Chimie Moléculaire (IPCM) UMR CNRS 8232, Sorbonne Université-Campus Pierre et Marie Curie, 4 place Jussieu, CEDEX 05, 75252 Paris, France
Chimie ParisTech, NMR Facility, PSL University, 75005 Paris, France
Istituto per la Sintesi Organica e la Fotoreattività (ISOF), Consiglio Nazionale delle Ricerche (CNR) Via Gobetti 101, 40129 Bologna, Italy
Authors to whom correspondence should be addressed.
Molecules 2022, 27(18), 6003;
Submission received: 11 July 2022 / Revised: 7 September 2022 / Accepted: 9 September 2022 / Published: 15 September 2022
(This article belongs to the Section Inorganic Chemistry)


Heteroleptic cyclometalated iridium (III) complexes (13) containing di-pyridylamine motifs were prepared in a stepwise fashion. The presence of the di-pyridylamine ligands tunes their electronic and optical properties, generating blue phosphorescent emitters at room temperature. Herein we describe the synthesis of the mononuclear iridium complexes [Ir(ppy)2(DPA)][OTf] (1), (ppy = phenylpyridine; DPA = Dipyridylamine) and [Ir(ppy)2(DPA-PhI)][OTf] (2), (DPA-PhI = Dipyridylamino-phenyliodide). Moreover, the dinuclear iridium complex [Ir(ppy)2(L)Ir(ppy)2][OTf]2 (3) containing a rigid angular ligand “L = 3,5-bis[4-(2,2′-dipyridylamino)phenylacetylenyl]toluene” and displaying two di-pyridylamino groups was also prepared. For comparison purposes, the related dinuclear rhodium complex [Rh (ppy)2(L)Rh(ppy)2][OTf]2 (4) was also synthesized. The x-ray molecular structure of complex 2 was reported and confirmed the formation of the target molecule. The rhodium complex 4 was found to be emissive only at low temperature; in contrast, all iridium complexes 13 were found to be phosphorescent in solution at 77 K and room temperature, displaying blue emissions in the range of 478–481 nm.

1. Introduction

Cyclometalated iridium (III) complexes are an important class of molecules because they display remarkable photophysical properties [1] for a wide range of applications [2,3,4,5,6,7]. Moreover, they show high stability, which makes them adequate emitters for organic light-emitting devices (OLEDs) [8,9,10]. Generally, they display octahedral geometry with six coordination bonds and can be obtained as neutral, homoleptic species, such as [Ir(C^N)3], with three cyclometalated ligands bound to the metal center [11,12]. For instance, [Ir(ppy)3] is a well-representative molecule for such compounds and behaves as a green emitter for organic light-emitting devices with high efficiency as reported by Thompson and coworkers [13]. The introduction of a bipyridine (bpy)-type ligand (N^N) to the metal center generates cationic heteroleptic complexes of the type [Ir(C^N)2(N^N)]+ [14,15,16]. Such compounds have been utilized as light-emitting-electrochemical cells (LECs) [17,18]. Modifying the nature of the ancillary ligands affects the optical properties of the compounds and makes them emissive throughout the whole range of the electromagnetic visible and NIR spectrum [19,20,21,22]. Replacement of the bipyridine by the dipyridylamine (DPA) ligand also provides cationic complexes of the type [Ir(C^N)2(DPA)]+; however, it affects the electronic properties of the molecule relative to the [Ir(C^N)2(N^N)]+ complexes (C^N = ppy; N^N = bpy) [23]. Unlike bpy, the two pyridyl units in DPA are not conjugated, and this contributes to push the LUMO level to higher energy without changing the HOMO (Scheme 1). As a consequence, the HOMO–LUMO gap becomes larger, and eventually, such compounds become more suited to emit at higher energy, when compared to their analogous compounds [Ir(C^N)2(N^N)+ with bipyridine ligands (C^N = F2ppy, ppy; N^N = bpy) [24,25]. Hence, using the DPA ligand might be an interesting approach to prepare complexes that emit in the blue region. Pursuing our research activity in this area of luminescent metal complexes, we prepared several cyclometalated rhodium and iridium complexes (14) (Scheme 2) containing dipyridylamine motifs in a stepwise fashion. The purpose of this work is to investigate the effect of the functionalized dipyridyl amine on the optical properties of these complexes. Furthermore, the binuclear rhodium and iridium complexes containing rigid angular ligands displaying two dipyridylamine motifs are also reported, including their luminescent properties when compared to the related mononuclear species.

2. Results and Discussion

2.1. Synthesis and Characterization

Complexes 14 were obtained in two steps, following a synthetic procedure developed by our group. The first step consisted of the preparation of the solvated metal complex in situ, by treatment of the chloride dimer [M(ppy)2(-Cl)]2 (M = Rh, Ir), with two equivalents of AgCF3SO3 in acetone at room temperature for 2 h. Then, the mixture was filtered to remove the solid AgCl and subsequently treated with the desired ligand in dichloroethane under reflux for 12 h, followed by the reaction work up afforded the target compounds 14 in good yields, ranging from 71 to 95% (Scheme 2).
The 1H-NMR spectra of complexes 14 recorded in CD2Cl2 and CD3NO2 confirm the formation of the target complexes. For instance, complex 1 displayed a symmetric pattern for the aromatic protons of the two “ppy” and the dipyridyl amino groups, due to the presence of C2-symmetry in the molecule. A total of 10 multiplets were visible in the range of δ 6.1–8.3 ppm; moreover, the amine-H appeared downfield at δ 9.92 ppm. On the other hand, compound 2, which also contains a C2-symmetry, displayed 12 multiplets for the aromatic protons between δ 6.1 ppm and δ 8.0 ppm, highlighting a symmetric motif as well. As for the binuclear complexes, the 1H-NMR of 3 and 4 displayed similar spectra. Again, a well symmetric pattern was visible for the aromatic protons, where 13 multiplets for 3 (11 multiplets for 4) appeared in the range of δ 6.2 ppm to δ 8.2 ppm, in addition the methyl protons that appeared as a singlet at δ 2.41 ppm, which was downfield relative to the free ligand L. The 13C-NMR spectra of complexes 3 and 4 showed 24 aromatic carbons in the range δ 116.8–167.4 ppm, confirming the symmetric pattern observed in the solution for these molecules. Moreover, the integrity of the iridium and rhodium dimers 34 in the solution was ascertained by electrospray spectrometry, in which [{Ir(ppy)2}2(L)]2+ fragment was identified at m/z = 816.2208, and for [{Rh(ppy)2}2(L)]2+, at m/z = 726.1628, respectively (Figure S9). A complete spectroscopic characterization (1H, 13C, IR, MS) and elemental analyses are given in the experimental section and SI (Figures S1–S8). Moreover, the structure of 2 was confirmed by a single-crystal X-ray diffraction study.

2.2. X-ray Molecular Structure of [Ir(ppy)2(DPA-PhI)][OTf] (2)

Convenient crystals of 2 were obtained from CH2Cl2/Et2O via a slow evaporation process of diethyl ether into a CH2Cl2 solution of the complex. The structure confirms the formation of the target molecule 2 (Figure 1a).
The structure shows that the iridium center is coordinated to two “ppy” ligands and one dipyridylamino moiety, generating a distorted octahedral geometry around the metal center. The two nitrogen centers of the two ppy units were disposed in trans-configuration, with N-Ir bond distances of 2.047(3) Å and 2.062(3) Å. The two carbon centers were in cis-geometry and induced a trans-effect on the two nitrogen centers of the DPA-PhI ligand. As a consequence, the N-Ir bond distances were 2.168(3) Å and 2.172(3) Å. These distances are longer than those observed for the two ppy units. This data is in accord with those reported previously. The chelating angle of the dipyridylamino ligand (N^N) towards the Ir(III) center was 83.82(10)°, as expected for a six-membered metallacycle. This is larger than those of the ppy ligands (C^N), 80.27(12)° and 80.49(12)°. Unlike the (C^N) ligands, which are planar, the N^N chelate ring adopted a boat conformation with central amine nitrogen bonded to the -PhI group. The latter was disposed of in the apical position (Figure 1a).
Examining the packing of the molecules in the crystal revealed the presence of two sets of π-π interactions among individual molecules (Figure 1b). The first interaction occured between two ppy units of the two adjacent molecules, with π-π contacts with C20···C24 at 3.342(7) Å, while the second π-π interaction with C8···C9 at 3.644(5) Å occured between two diphenylamino groups of two close individual molecules generating 1D supramolecular assembly.

2.3. Absorption Properties

The absorption spectra of the ligand the L and the complexes 1–4 in the CH3CN solution at room temperature are depicted in Figure 2, and related key data are reported in Table 1.
The ligand L exhibited a broad and relatively intense absorption band and two shoulders between 280 and 340 nm in the UV region. The first one was centered at about 336 nm, with ε = 68,800 M−1 cm−1 and one of the shoulders at 318 nm (ε = 65,200 M−1 cm−1). These two lowest-energy bands are attributed to the amine N-to ring CT transitions. The second shoulder, located at a higher energy at ~286 nm (ε = 45,400 M−1 cm−1), was assigned to the pyridine-based ligand-centered (LC) transition. These features were also observed in previous studies of 2,2′-dypyridylamine derivatives [26,27].
The Ir(III) complexes 1–3 presented several absorption bands in the UV region (Figure 2). The most intense absorption bands were found between 245 to 265 nm, in which the molar absorption coefficient of the binuclear complex 3 was twice as intense (ε = 104,000 M−1 cm−1) as the mononuclear complexes 1 and 2 (ε < 49,000 M−1 cm−1). The absorption behavior of [Ir(ppy)2(DPA)][OTf] (1), as well as its luminescence properties (vide infra), were almost identical to what was already reported for the analogous [Ir(ppy)2(DPA)][PF6], with a hexafluorophosphate counter ion [23]. Additionally, complex 3 showed another three intense and defined absorption bands at 295, 306, and 336 nm (ε > 69,000 M−1 cm−1), while the mononuclear complexes exhibited only two shoulders between 260 and 300 nm (ε < 42,000 M−1 cm−1). These absorption bands are associated with the spin-allowed π-π* ligand-centered (LC) transitions from dipyridylamine and phenylpyridine ligands [25,26,28,29,30]. For all the complexes, a weak and broad absorption band above 370 nm was observed, which is attributed to metal-to-ligand charge transfer (MLCT) transitions, along with ligand-centered (LC) contribution from the ligands. In addition to these transitions, a long tail extended to the visible region can be attributed to the strong spin-orbit coupling (SOC) applied by the Ir atom, which can cause the direct singlet–triplet transition [2,6,23,31,32,33]. The Rh(III) derivative 4 displayed a similar envelope of absorption bands, with the obvious absence of the low energy singlet–triplet direct absorption above 380 nm [34].

2.4. Luminescence Properties

The photoluminescence properties of the bridging ligand L and complexes 1–4 were investigated in de-aerated and air-equilibrated CH3CN solution at room temperature (298 K) and in CH3OH:C2H5OH (1:4) glassy solution at 77 K. The normalized emission spectra of the ligand and complexes at 298 K are shown in Figure 3, and the spectra at 77 K are given in Figure 4. The emission maxima (λmax), photoluminescence quantum yields (ϕ), and lifetimes (τ) are collected in Table 2.
The ligand L exhibits at room temperature a relatively broad and unstructured emission band, centerd at 395 nm (Figure 3). Notably, L presents a high quantum yield in de-aerated solution (ϕ = 73.7%), moderately quenched by oxygen in aerated solution (ϕ = 64.0%), and shortens lifetimes on the nanosecond time scale, even when the oxygen is removed (τ = 1.6 ns in de-aerated and 1.4 ns in aerated solution, respectively). This behavior, which can be attributed to the fluorescence of the 2,2′-pyridylamine units of the molecule, is in line with previous studies of parent compounds and their use as blue-emitting active material in OLED devices, as has been suggested [26,35,36,37,38,39,40]. The fluorescence spectrum of L in CH3OH: C2H5OH glassy solution at 77 K is slightly more structured and hypsochromically shifted about 2300 cm−1, with respect to that at room temperature, and presents a shorter lifetime, τ = 0.7 ns (Figure 4, Table 2). Interestingly, under the same conditions and under pulsed excitation light in time-gated detection mode, the phosphorescence emission of the ligand L has also been detected, displaying a structured emission profile with a maximum at about 494 nm, ca. 20,250 cm−1 (Figure 4).
The Ir(III) complexes 1–3 presented in the de-aerated CH3CN solution at room temperature a significant red-shift of the emission, in comparison to the free ligand (Figure 3), exhibiting broad, structured, and almost identical emission spectra, with λmax at about 480 nm, a second band at ~520 nm, and a shoulder around 550 nm. The novel dinuclear Rh(III) complex [Rh (ppy)2(L)Rh(ppy)2][OTf]2 (4) displayed a non-emission behavior. We also note that the mononuclear complex containing dipyridylamine [Rh(ppy)2(DPA)][PF6] was also found to be non-emissive [34]. The vibronic structure observed indicates a predominantly 3LC π-π* character of the emissive excited state, rather than 3MLCT or 3LLCT characters. This is in line with the photoluminescence behavior of other cyclometalated Ir(III) complexes [29,30,41,42,43,44,45,46]. However, differences in the photoluminescence quantum yields and lifetimes can be seen between them in Table 2. In de-aerated CH3CN solutions, the mononuclear complex 1 exhibited a remarkably higher quantum yield and longer lifetime, ϕ = 11.0% and τ = 510 ns, than the complex 2 (ϕ = 0.3%, τ = 20 ns). This observation indicates that adding a phenyl unit with an iodine atom to the ligand 2,2′-diphenylamine has a detrimental effect on the quantum yield, and the excited-state lifetime concomitantly decreases. The same reasoning can be applied to the binuclear complex 3, where its emission properties (ϕ = 0.6%, τ = 110 ns) were affected by the increment of the conjugation of the ligand and the role that plays the formed bridge. Similarly, Williams and co-workers had observed that the complex [Ir(L4)2]3+ [43], and the binuclear complex [Ir(tpy)(μ-tpy-ϕ-ϕ-mtbpy)Ir-(dpyx)]4+ [47], presented short lifetimes and low quantum yields. This was attributed to an increment of the conjugation by introducing a bis-mesityl group into the terpyridine ligand for the former, and to an extended bridging ligand for the latter complex. These results have already been seen in other families of binuclear Ir(III) complexes, where lower quantum yields than their related mononuclear derivatives were shown, due to the nature of the bridging ligands and the length of the spacer [1,48,49,50,51,52,53]. In our case, the lower quantum yield and shorter emission lifetimes suggest an enhancement of the non-radiative decay pathways.
In air-equilibrated CH3CN solutions, the three Ir(III) complexes 13 were less emissive, the quantum yield being about two times lower than in de-aerated solutions. At the same time, the emission lifetimes were shortened; complex 1 presents a 10-fold decrease, while complex 3 displays a smaller quenching by oxygen, ca. a 2-fold decrease. The phosphorescence emission of complex 2, bearing the phenyl-iodine group in the dipyridylamine ligand, was only slightly quenched by oxygen, suggesting that the excited triplet-state de-activation back to the ground singlet-state was dominated by the non-radiative intersystem crossing processes promoted by the strong spin-orbit coupling induced by the iodine atom (ζ = 5069 cm−1), rather than the triplet–triplet energy transfer to the molecular oxygen [54].
All investigated complexes 14 and the bridging ligand L were luminescent in CH3OH:C2H5OH glassy solution at 77 K. The three Ir(III) complexes 13 showed emission spectra that were much more structured, with respect to the emission in the CH3CN solution at 298 K. As observed in Figure 4, the emission bands of the Ir(III) complexes were similar to the phosphorescence emission of the ligand L, suggesting that the emissive excited states of the complexes originated from the dipyridylamine unit of the ligand. Nonetheless, the emission spectra of the binuclear complex 3 were more similar to that of the ligand L and exhibited a maximum emission at 488 nm, with small rigidochromic blue-shift (6 nm) with respect to that of the ligand L, and was red-shifted (~10 nm) compared to its emission in CH3CN solution at 298 K. On the other hand, the two mononuclear complexes, 1 and 2, exhibited an emission maximum at about 470 nm, and a small blue-shift was observed, around 8 nm, with respect to their emission in CH3CN at 298 K. These observations can confirm that the 3LC π-π* character is predominant in the emissive excited state [11,29,31,41,55]. The Rh(III) derivative 4 shows a structured emission, blue-shifted with respect to that of the corresponding Ir(III) derivative 3 by ca. 1060 cm−1. In this case the emission can also be attributed to 3LC excited states, as for the Ir(III) analogue 3 [56,57].
The trend of emission lifetimes of the Ir(III) complexes 13 differed substantially from 298 K to 77 K (Table 2). In a glassy solution at 77 K, longer mono-exponential lifetimes were observed. This feature is commonly observed in Ir(III) ortho-metalated complexes, as the rigid matrix and the low temperature usually hinder the non-radiative mechanisms, thus increasing the luminescence intensity and the relevant excited-state lifetime [1]. While the mononuclear complexes exhibited lifetimes in the range of the microseconds, τ = 4.8 μs for 1 and τ = 5.2 μs for 2, which are in line with previous findings of other mononuclear Ir(III) complexes [29,31,41,55,58,59,60,61], the binuclear complex 3 showed significantly longer emission lifetimes, in the range of the milliseconds: τ = 5.5 ms. As mentioned before, the extended conjugation and the presence of substituents on the ligands play a significant role in the photophysics of the complexes. It should be noted that relatively long lifetimes in the microseconds scale have been found in other families of binuclear Ir(III) complexes with different bridging ligands [31,47,48,49,62,63,64,65], but excited state lifetimes in the millisecond scale are relatively rare for Ir(III) complexes [1].

3. Conclusions

In this paper, we described the synthesis of some mononuclear cyclometalated iridium complexes (12) containing dipyridylamine ligands. The x-ray molecular structure of complex 2 is reported and confirms the formation of the target molecule. Moreover, we successfully extended our synthetic methodology and prepared two rare binuclear cyclometalated iridium (3) and rhodium (4) complexes featuring two dipyridylamine motifs. These binuclear complexes represent the first examples of these types of compounds. The Ir(III) complexes 13 displayed a blue phosphorescence at about 480 nm, originating from 3LC excited states mainly located on the bridging ligand bearing the dipyridylamine moiety. The Rh(III) complex 4 was only luminescent in glassy solution at 77 K, with the emission originating from 3LC excited states as well. The dinuclear complex 3 presented an unusually long excited-state lifetime, in the millisecond range, for this kind of complex. Notably, in the bridging ligand L, the fluorescence and phosphorescence emissions were both observed. The dipyridylamine ligand evidenced a strong influence on the photophysical properties of the iridium complexes.

4. Materials and Methods

All solvents used were of reagent grade or better. Deuterated solvents and commercially available reagents were used as received, unless otherwise specified. The 1H-NMR spectra were recorded on Bruker Avance-400 and Avance-Neo 500 spectrometers. Chemical shifts were reported in the ppm downfield from tetramethylsilane and refer to the residual hydrogen signal of deuterated solvents (CHD2NO2 at 4.33 ppm, CHDCl2 at 5.32 ppm) and the residual solvent carbon signal (CD3NO2 at 61.4 ppm, CD2Cl2 at 53.5 ppm) for 13C NMR. IR spectra were recorded on a Bruker Tensor 27 equipped with a Harrick ATR. Ligand 3,5-Bis[4-(2,2′-dipyridylamino)phenylethynyl] toluene (L) was prepared, as reported previously by our group [66].
[Ir(ppy)2(DPA)][OTf] (1). [Ir(ppy)2(μ-Cl)]2 (75 mg, 0.07 mmol) and AgOTf (39 mg, 0.15 mmol.) were introduced into a Schlenk tube containing acetone (20 mL), and the mixture was refluxed for 2 h. Then the suspension was filtered through celite to remove the AgCl precipitate and the filtrate was collected and dried under vacuum. To this was added, via a cannula, a solution of dipyridylamine (DPA) (26 mg, 0.15 mmol) in dichloroethane (10 mL). The reaction mixture was heated to reflux with stirring for 12 h and then cooled to room temperature. The solution was concentrated under vacuum, and the subsequent addition of diethyl ether (50 mL) created a yellow precipitate. The resulting precipitate was collected by filtration, washed with ether (2 × 10 mL), and dried under a vacuum to make complex 1 a yellow powder (102 mg, 83%). The 1H NMR (500 MHz, CD2Cl2) δ (ppm) found: 9.92 (s, 1H, NH), 8.21 (ddd, J = 5.9; 1.5; 0.7 Hz, 2H, H2), 7.95 (br d, J = 8.2 Hz, 2H, H5), 7.84 (ddd, J = 8.2; 7.5; 1.5 Hz, 2H, H4), 7.70–7.65 (m, 4H, H8 and H15), 7.60–7.57 (m, 4H, H13 and H16), 7.15 (ddd, J = 7.5; 5.9; 1.5 Hz, 2H, H3), 6.98 (ddd, J = 7.8; 7.3; 1.2 Hz, 2H, H9), 6.84 (td, J = 7.5; 1.4 Hz, 2H, H10), 6.62 (ddd, J = 7.2; 5.9; 1.4 Hz, 2H, H14), 6.17 (br. d, J = 7.5 Hz, 2H, H11). The 13C NMR (125 MHz, CD2Cl2) δ (ppm): 167.7 (C6), 151.7 (C17), 150.0 (C12), 149.6 (C13), 149.5 (C2), 144.0 (C7), 139.3 (C15), 138.2 (C4), 131.8 (C11), 130.4 (C10), 124.8 (C8), 123.0 (C3), 122.4 (C9), 119.8 (C5), 119.0 (C14), 116.3 (C16). The results were calculated for C33H25F3N5O3IrS.H2O: C 47.25; H 3.24; N 8.35%. We found: C 47.35; H 3.22; N 8.22%. IR, v(CF3SO3) 1030 cm−1; 1251 cm−1.
[Ir(ppy)2(DPA-PhI)][OTf] (2). This compound was prepared in a similar way to that described for [Ir(ppy)2(DPA)][OTf], but using [Ir(ppy)2(μ-Cl)]2 (100 mg, 0.092 mmol), AgOTf (52 mg, 0.20 mmol.) and ligand 4-(2,2′-Dipyridylamino)-phenyl iodide (DPA-PhI) (75 mg, 0.20 mmol.). The target compound was isolated as a yellow powder (164 mg, 81%). The 1H NMR (500 MHz, CD2Cl2) δ (ppm) found: 7.97 (ddd, J = 8.2; 1.3; 0.8 Hz, 2H, H5), 7.94–7.90 (m, 4H, H13 and H15), 7.88 (ddd, J = 5.8; 1.5; 0.8 Hz, 2H, H2), 7.82 (ddd, J = 8.2; 7.5; 1.5 Hz, 2H, H4), 7.70 (dd, J = 7.8; 1.5 Hz, 2H, H8), 7.67 (d, J = 9.0 Hz, 2H, H21), 7.58 (dd, J = 8.9; 1.3 Hz, 2H, H16), 7.07 (ddd, J = 7.2; 5.9; 1.3 Hz, 2H, H14), 7.02 (ddd, J = 7.8; 7.3; 1.2 Hz, 2H, H9), 6.90–6.86 (m, 4H, H3 and H10), 6.65 (d, J = 9.0 Hz, 2H, H20), 6.21 (ddd, J = 7.6; 1.2; 0.4 Hz, 2H, H11). The 13C NMR (125 MHz, CD2Cl2) δ (ppm) found: 167.6 (C6), 153.5 (C17), 151.5 (C13), 149.7 (C2), 148.1 (C12), 143.9 (C7), 143.2 (C19), 140.7 (C15), 139.4 (C21), 138.5 (C4), 131.7 (C11), 130.5 (C10), 125.0 (C8), 123.7 (C14), 123.2 (C16), 122.9 (C9), 122.8 (C3), 121.9 (C20), 120.0 (C5), 88.8 (C22). The results were calculated for C39H28F3IN5O3IrS.H2O: C 45.00; H 2.91; N 6.73%. We found: C 44.68; H 2.88; N 6.66%. IR(ATR), v(CF3SO3) 1030 cm−1; 1251 cm−1.
[{Ir(ppy)2}2(L)][OTf]2 (3). Complex 3 was obtained following a similar procedure as described above, but starting with the following amounts [Ir(ppy)2(μ-Cl)]2 (65.0 mg, 0.06 mmol), AgOTf (35 mg, 0.13 mmol.), and 3,5-Bis[4-(2,2′-dipyridylamino)phenylethynyl]toluene (L) (40 mg, 0.06 mmol). Compound 3 was obtained as a yellow powder (114 mg, 95%). The 1H NMR (400 MHz, CD3NO2) δ (ppm) found: 8.12–8.06 (m, 12H, H5, H13 and H15), 8.02 (d, J = 5.9 Hz, 4H, H2), 7.95–7.92 (m, 4H, H16), 7.88 (td, J = 8.0; 1.5 Hz, 4H, H4), 7.79 (dd, J = 7.8; 1.0 Hz, 4H, H8), 7.54 (br.s, 1H, H26), 7.49 (d, J = 9.0 Hz, 4H, H21), 7.43 (br. S, 2H, H27), 7.27–7.22 (m, 4H, H14), 7.00 (td, J = 7.8; 1.1 Hz, 4H, H9), 6.93 (d, J = 9.0 Hz, 4H, H20), 6.90–6.84 (m, 8H, H3 and H10), 6.32 (dd, J = 7.8; 1.1 Hz, 4H, H11), 2.41 (s, 3H, H29). The 13C NMR (100 MHz, CD3NO2)) δ (ppm) found: 167.3 (C6), 153.5 (C17), 151.5 (C13), 150.3 (C2), 148.4 (C12), 144.6 (C7), 144.5 (C19), 140.9 (C15), 139.5 (C28), 138.4 (C4), 133.0 (C21), 131.9 (C27), 131.8 (C11), 131.0 (C26), 130.0 (C10), 124.8 (C16), 124.7 (C8), 124.4 (C14), 123.5 (C25), 122.8 (C3), 122.7 (C9), 119.8 (C5), 117.5 (C22), 116.9 (C20), 88.9 (C23), 88.4 (C24), 19.8 (C29). IR(ATR), v(CF3SO3) 1032 cm−1; 1253 cm−1. The ES-HRMS (m/z) was: [{Ir(ppy)2}2(L)]2+:816.2203; the result found was: 816.2208.
The results were Calculated for C89H62F6N10O6IrS2.C2H4Cl2: C 53.87; H3.28; N 6.90%. We found: C 53.90; H 3.14; N 7.13. IR,v(CF3SO3) 1030 cm−1; 1251 cm−1.
[{Rh(ppy)2}2(L)][OTf]2 (4). This compound was prepared in a similar procedure to that described for [Ir(ppy)2(DPA)][OTf], but using the following materials: [Rh(ppy)2(μ-Cl)]2 (53 mg, 0.06 mmol), AgOTf (34 mg, 0.13 mmol.), and 3,5-Bis[4-(2,2′-dipyridylamino)phenylethynyl]toluene (L) (40 mg, 0.06 mmol). Compound 4 was obtained as an off-white powder (78 mg, 71%). The 1H NMR (400 MHz, CD3NO2) δ (ppm) found: 8.14–8.08 (m, 8H, H5 and H13), 8.08–8.02 (m, 8H, H2 and H15), 7.96 (ddd, J = 8.1; 7.5; 1.5 Hz, 4H, H4), 7.86–7.80 (m, 8H, H8 and H16), 7.54 (br.s, 1H, H26), 7.50 (d, J = 9.0 Hz, 4H, H21), 7.43 (br. s, 2H, H27), 7.25 (ddd, J = 7.2; 5.7; 1.2 Hz, 4H, H14), 7.08 (td, J = 7.6; 1.2 Hz, 4H, H9), 6.98–6.90 (m, 12H, H3, H10 and H20), 6.37 (d, J = 7.6 Hz, 4H, H11), 2.41 (s, 3H, H29). The 13C NMR (100 MHz, CD3NO2)) δ (ppm) found: 166.3 (d, JCRh = 33.0 Hz, C12), 164.6 (C6), 154.0 (C17), 151.2 (C13), 150.3 (C2), 144.5 (C19), 144.4 (C7), 141.0 (C15), 139.5 (C28), 138.6 (C4), 133.1 (C21), 132.9 (C11), 131.9 (C27), 131.0 (C26), 129.9 (C10), 124.6 (C8), 124.1 (C16), 123.5 (C9, C14 and C25), 122.9 (C3), 120.0 (C5), 117.75 (C20), 117.66 (C22), 88.9 (C23), 88.4 (C24), 19.8 (C29). The results were Calculated for C89H62F6N10O6Rh2S2.3/2C2H4Cl2:C 58.16; H 3.61; N 7.37%. We found: C 58.18; H 3.32; N 7.45%. IR,v(CF3SO3) 1030 cm−1; 1251 cm−1. The ES-HRMS (m/z) was: [{Rh(ppy)2}2(L)]2+:726.1629; we found: 726.1628.
X-Ray crystal structure determination. A single crystal was selected, mounted, and transferred into a cold nitrogen gas stream. Intensity data was collected with a Bruker Kappa-APEX2 system, using fine-focus sealed tube Mo-Kα radiation. Unit-cell parameters determination, data collection strategy, integration, and absorption correction were carried out with the Bruker APEX2 suite of programs. The structure was solved with SIR97 and refined anisotropically by full-matrix least-squares methods with SHELXL, using WinGX. The structure was deposited at the Cambridge Crystallographic Data Centre with number CCDC 2171075 and can be obtained free of charge via (accessed on 8 September 2022).
Crystal data for 2: C39H32F3IIrN5O5S, triclinic P -1, a = 9.3487(3) Å, b = 14.9683(5) Å, c = 15.8197(5) Å, α = 95.105(2)°, β = 106.778(1)°, γ = 105.650(1)°, V = 2007.20(11) Å3, Z = 2, green bar 0.5 × 0.1 × 0.05 mm3, μ = 4.209 mm−1, min/max transmission = 0.42/0.49, T= 200(1) K, λ = 0.71073 Å, θ range = 2.16° to 30.54°, 59351 reflections measured, 12284 independent, Rint = 0.0193, completeness = 0.999, 514 parameters, 0 restraints, final R indices R1 [I > 2σ(I)] = 0.0310 and wR2 (all data) = 0.0885, GOF on F2 = 1.111, and largest difference peak/hole = 2.70/−1.13 e·Å−3.
Photophysical measurements. All solvents used for photophysical studies were of spectroscopic grade and were used without further purification. Square optical Suprasil Quartz (QS) cuvettes of 1 cm path length were used for the absorption and emission measurements at room temperature. Luminescence measurements of CH3OH:C2H5OH (1:4) frozen glassy solutions at 77 K were performed in quartz capillary tubes immersed in liquid nitrogen, hosted within a homemade quartz cold finger Dewar.
The absorption spectra of dilute solutions were obtained by using a Perkin Elmer Lambda 950 UV/VIS/NIR spectrophotometer. The molar absorption coefficients (ε) were calculated by applying the Lambert–Beer law to low absorbance spectra (A < 1) and recorded at successive dilutions.
Steady-state photoluminescence spectra were measured in right angle mode using an Edinburgh FLS920 fluorimeter, equipped with a Xenon arc lamp and a Hamamatsu R928P Peltier-cooled photomultiplier tube. The concentration of sample solutions was adjusted to obtain absorption values of A < 0.1 at the excitation wavelength. The solutions were de-aerated by bubbling argon for at least 20 min in custom-made gas-tight cuvettes. All emission spectra were corrected for the wavelength-dependent phototube response between 200 and 900 nm, using a calibration curve provided by the manufacturer. The luminescence quantum yields in the solution were evaluated by comparing the wavelength-integrated intensities of corrected spectra, with reference to [Ru(bpy)3]Cl2r = 0.040 in air-equilibrated H2O) and quinine sulphate (ϕr = 0.53 in air-equilibrated H2SO4 0.1 N) standards [54]. The phosphorescence spectra of the ligand in solvent-diluted glassy solutions at 77 K were recorded in gated detection mode on the same Edinburgh fluorimeter equipped with a pulsed Xe lamp.
The luminescence lifetimes were obtained using a TCSPC apparatus (HORIBA) equipped with a TBX Picosecond photon detection module and NanoLED/SpectraLED pulsed excitation sources. The analysis of luminescence decay profiles against time was accomplished using the Decay Analysis Software DAS v6.5 (HORIBA).

Supplementary Materials

The following supporting information can be downloaded at:, Figures S1–S8. 1H and 13C NMR spectra of complexes 14 and Figure S9. ESI-MS spectra of complexes 3 and 4.

Author Contributions

The synthesis and spectroscopic characterization of the new complexes were performed by H.S. The NMR spectra were done by M.N.R. The X-ray structural determination was carried out by G.G., E.B. and A.S.M., who also performed the photophysical characterization. A.B. supervised the photophysical investigation and wrote the related paragraphs. All authors participated in the discussion. Preparation and writing of the manuscript were made by H.A., who also directed the project. All authors have read and agreed to the published version of the manuscript.


This research has been funded in part by grants from: The Italian Ministry of Economic Development (MiSE)—Mission Innovation Programme (Italian Energy Materials Acceleration Platform, IEMAP); The Italian National Research Council (CNR)—CNR-CNRS Joint International Laboratory Projects (d10 Metal Architectures for Green Lighting, Photoredox Catalysis and Remote Sensing, D10-GREEN); and The Italian National Research Council (CNR)—Research Projects @CNR (Piezo-Phototronic Integrated Devices for the Reduction of CO2 to Liquid Solar Fuels, RIPRESA).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.


This work was supported by the CNRS and the Sorbonne Université campus Pierre et Marie Curie, which we gratefully acknowledge. A.B. acknowledges the support from the CNR and MiSE. M.N.R acknowledges the support from the Ile de France Region for funding a 500 MHz NMR spectrometer of Chimie-ParisTech in the framework of the SESAME equipment project (n°16016326). A.S.M. is the recipient of a CNR fellowship in the framework of the CNR-CNRS Joint International Laboratory Projects.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Not applicable.


  1. Flamigni, L.; Barbieri, A.; Sabatini, C.; Ventura, B.; Barigelletti, F. Photochemistry and Photophysics of Coordination Compounds: Iridium. In Photochemistry and Photophysics of Coordination Compounds Ii; Springer: Berlin/Heidelberg, Germany, 2007; Volume 281, pp. 143–203. [Google Scholar]
  2. You, Y.; Nam, W. Photofunctional triplet excited states of cyclometalated Ir(III) complexes: Beyond electroluminescence. Chem. Soc. Rev. 2012, 41, 7061–7084. [Google Scholar] [CrossRef]
  3. Yam, V.W.-W.; Au, V.K.-M.; Leung, S.Y.-L. Light-Emitting Self-Assembled Materials Based on d(8) and d(10) Transition Metal Complexes. Chem. Rev. 2015, 115, 7589–7728. [Google Scholar] [CrossRef]
  4. He, L.; Tan, C.; Cao, Q.; Mao, Z. Application of Phosphorescent Cyclometalated Iridium (III) Complexes in Cancer Treatment. Prog. Chem. 2018, 30, 1548–1556. [Google Scholar]
  5. Aoki, S.; Yokoi, K.; Balachandran, C.; Hisamatsu, Y. Synthesis and Functionalization of Cyclometalated Iridium(111) Complexes by Post-Complexation Functionalization for Biomedical and Material Sciences -Development of Intelligent Molecules Using Metal Complex Building Blocks. J. Synt. Org. Chem. JP. 2021, 79, 1113–1124. [Google Scholar] [CrossRef]
  6. Groue, A.; Montier-Sorkine, E.; Cheng, Y.; Rager, M.N.; Jean, M.; Vanthuyne, N.; Crassous, J.; Lopez, A.C.; Moncada, A.S.; Barbieri, A.; et al. Enantiopure, luminescent, cyclometalated Ir(III) complexes with N-heterocyclic carbene-naphthalimide chromophore: Design, vibrational circular dichroism and TD-DFT calculations. Dalton Trans. 2022, 51, 2750–2759. [Google Scholar] [CrossRef]
  7. Groue, A.; Tranchier, J.P.; Rager, M.N.; Gontard, G.; Metivier, R.; Buriez, O.; Khatyr, A.; Knorr, M.; Amouri, H. Cyclometalated Rhodium and Iridium Complexes Containing Masked Catecholates: Synthesis, Structure, Electrochemistry, and Luminescence Properties. Inorg. Chem. 2022, 61, 4909–4918. [Google Scholar] [CrossRef] [PubMed]
  8. Mao, H.-T.; Li, G.-F.; Shan, G.-G.; Wang, X.-L.; Su, Z.-M. Recent progress in phosphorescent Ir(III) complexes for nondoped organic light-emitting diodes. Coord. Chem. Rev. 2020, 413, 213283. [Google Scholar] [CrossRef]
  9. Deaton, J.C.; Castellano, F.N. Archetypal Iridium(III) Compounds for Optoelectronic and Photonic Applications: Photophysical Properties and Synthetic Methods. In Iridium(iii) in Optoelectronic and Photonics Applications; Zysman-Colman, E., Ed.; John Wiley & sons Ltd.: West Sussex, UK, 2017; Volume 1, pp. 1–69. [Google Scholar]
  10. Li, T.-Y.; Wu, J.; Wu, Z.-G.; Zheng, Y.-X.; Zuo, J.-L.; Pan, Y. Rational design of phosphorescent iridium(III) complexes for emission color tunability and their applications in OLEDs. Coord. Chem. Rev. 2018, 374, 55–92. [Google Scholar] [CrossRef]
  11. Sprouse, S.; King, K.A.; Spellane, P.J.; Watts, R.J. Photophysical Effects of Metal-Carbon Sigma-Bonds in Ortho-Metalated Complexes of Ir(Iii) and Rh(Iii). J. Am. Chem. Soc. 1984, 106, 6647–6653. [Google Scholar] [CrossRef]
  12. King, K.A.; Spellane, P.J.; Watts, R.J. Excited-State Properties of a Triply Ortho-Metalated Iridium(Iii) Complex. J. Am. Chem. Soc. 1985, 107, 1431–1432. [Google Scholar] [CrossRef]
  13. Baldo, M.A.; Lamansky, S.; Burrows, P.E.; Thompson, M.E.; Forrest, S.R. Very high-efficiency green organic light-emitting devices based on electrophosphorescence. Appl. Phys. Lett. 1999, 75, 4–6. [Google Scholar] [CrossRef]
  14. Waern, J.B.; Desmarets, C.; Chamoreau, L.-M.; Amouri, H.; Barbieri, A.; Sabatini, C.; Ventura, B.; Barigelletti, F. Luminescent Cyclometalated RhIII, IrIII, and (DIP)2RuII Complexes with Carboxylated Bipyridyl Ligands: Synthesis, X-ray Molecular Structure, and Photophysical Properties. Inorg. Chem. 2008, 47, 3340–3348. [Google Scholar] [CrossRef] [PubMed]
  15. Damas, A.; Ventura, B.; Moussa, J.; Esposti, A.D.; Chamoreau, L.-M.; Barbieri, A.; Amouri, H. Turning on Red and Near-Infrared Phosphorescence in Octahedral Complexes with Metalated Quinones. Inorg. Chem. 2012, 51, 1739–1750. [Google Scholar] [CrossRef] [PubMed]
  16. Damas, A.; Sesolis, H.; Rager, M.N.; Chamoreau, L.M.; Gullo, M.P.; Barbieri, A.; Amouri, H. Ester-substituted cyclometallated rhodium and iridium coordination assemblies with π-bonded dioxolene ligand: Synthesis, structures and luminescent properties. RSC Adv. 2014, 4, 23740–23748. [Google Scholar] [CrossRef]
  17. Costa, R.D.; Orti, E.; Bolink, H.J.; Monti, F.; Accorsi, G.; Armaroli, N. Luminescent Ionic Transition-Metal Complexes for Light-Emitting Electrochemical Cells. Angew. Chem. Int. Ed. 2012, 51, 8178–8211. [Google Scholar] [CrossRef]
  18. Housecroft, C.E.; Constable, E.C. Over the LEC rainbow: Colour and stability tuning of cyclometallated iridium(III) complexes in light-emitting electrochemical cells. Coord. Chem. Rev. 2017, 350, 155–177. [Google Scholar] [CrossRef]
  19. Lee, Y.H.; Park, G.Y.; Kim, Y.S. White light emission using heteroleptic tris-cyclometalated iridium (III) complexes. J. Korean Phys. Soc. 2007, 50, 1722–1728. [Google Scholar] [CrossRef]
  20. Lanoe, P.-H.; Chan, J.; Gontard, G.; Monti, F.; Armaroli, N.; Barbieri, A.; Amouri, H. Deep-Red Phosphorescent Iridium(III) Complexes with Chromophoric N-Heterocyclic Carbene Ligands: Design, Photophysical Properties, and DFT Calculations. Eur. J. Inorg. Chem. 2016, 2016, 1626. [Google Scholar] [CrossRef]
  21. Hierlinger, C.; Cordes, D.B.; Slawin, A.M.Z.; Jacquemin, D.; Guerchais, V.; Zysman-Colman, E. Phosphorescent cationic iridium(III) complexes bearing a nonconjugated six-membered chelating ancillary ligand: A strategy for tuning the emission towards the blue. Dalton Trans. 2018, 47, 10569–10577. [Google Scholar] [CrossRef]
  22. Tamura, Y.; Hisamatsu, Y.; Kazama, A.; Yoza, K.; Sato, K.; Kuroda, R.; Aoki, S. Stereospecific Synthesis of Tris-heteroleptic Tris-cyclometalated Iridium(III) Complexes via Different Heteroleptic Halogen-Bridged Iridium(III) Dimers and Their Photophysical Properties. Inorg. Chem. 2018, 57, 4571–4589. [Google Scholar] [CrossRef]
  23. Tseng, M.C.; Su, W.L.; Yu, Y.C.; Wang, S.P.; Huang, W.L. Synthesis, structure, and photophysical properties of a bis-cyclometalated heteroleptic iridium(III) complex containing 2,2′-dipyridylamine. Inorg. Chim. Acta 2006, 359, 4144–4148. [Google Scholar] [CrossRef]
  24. Chen, W.-T.; Chen, Y.-J.; Wu, C.-S.; Lin, J.-J.; Su, W.-L.; Chen, S.-H.; Wang, S.-P. Two new blue-phosphorescent Ir(III) cyclometalated complexes demonstrating the pushing-up effects of amino on levels of pi-type molecular orbitals. Inorg. Chim. Acta 2013, 408, 225–229. [Google Scholar] [CrossRef]
  25. Sauvageot, E.; Marion, R.; Sguerra, F.; Grimault, A.; Daniellou, R.; Hamel, M.; Gaillard, S.; Renaud, J.-L. Iridium(III) dipyridylamine complexes: Synthesis, characterization and catalytic activities in photoredox reactions. Org. Chem. Front. 2014, 1, 639–644. [Google Scholar] [CrossRef]
  26. Shavaleev, N.M.; Barbieri, A.; Bell, Z.R.; Ward, M.D.; Barigelletti, F. New ligands in the 2,2′-dipyridylamine series and their Re(i) complexes; synthesis, structures and luminescence properties. New J. Chem. 2004, 28, 398–405. [Google Scholar] [CrossRef]
  27. Jana, P.; Ganguly, T.; Sarkar, S.K.; Mitra, A.; Mallick, P.K. N heteroatomic effect on the photophysics of a polyphenyl system: 2,2′-dipyridylamine. J. Photochem. Photobiol. A 1996, 94, 113–118. [Google Scholar] [CrossRef]
  28. Wu, F.; Tong, H.; Wang, K.; Wang, Z.; Li, Z.; Zhu, X.; Wong, W.-Y.; Wong, W.-K. Synthesis, structural characterization and photophysical studies of luminescent Cu(I) heteroleptic complexes based on dipyridylamine. J. Photochem. Photobiol. A 2016, 318, 97–103. [Google Scholar] [CrossRef]
  29. Tamayo, A.B.; Garon, S.; Sajoto, T.; Djurovich, P.I.; Tsyba, I.M.; Bau, R.; Thompson, M.E. Cationic bis-cyclometalated iridium(III) diimine complexes and their use in efficient blue, green, and red electroluminescent devices. Inorg. Chem. 2005, 44, 8723–8732. [Google Scholar] [CrossRef]
  30. Hajra, T.; Bera, J.K.; Chandrasekhar, V. Multimetallic compounds containing cyclometalated Ir(III) units: Synthesis, structure, electrochemistry and photophysical properties. Inorg. Chim. Acta 2011, 372, 53–61. [Google Scholar] [CrossRef]
  31. Plummer, E.A.; Hofstraat, J.W.; De Cola, L. Mono- and di-nuclear iridium(iii) complexes. Synthesis and photophysics. Dalton Trans. 2003, 2080–2084. [Google Scholar] [CrossRef]
  32. Lowry, M.S.; Goldsmith, J.I.; Slinker, J.D.; Rohl, R.; Pascal, R.A.; Malliaras, G.G.; Bernhard, S. Single-Layer Electroluminescent Devices and Photoinduced Hydrogen Production from an Ionic Iridium(III) Complex. Chem. Mater. 2005, 17, 5712–5719. [Google Scholar] [CrossRef]
  33. Yang, X.; Feng, Z.; Zhao, J.; Dang, J.S.; Liu, B.; Zhang, K.; Zhou, G. Pyrimidine-Based Mononuclear and Dinuclear Iridium(III) Complexes for High Performance Organic Light-Emitting Diodes. ACS Appl. Mater. Interfaces 2016, 8, 33874–33887. [Google Scholar] [CrossRef] [PubMed]
  34. Su, W.L.; Yu, Y.C.; Tseng, M.C.; Wang, S.P.; Huang, W.L. Photophysical and electrochemical properties of new ortho-metalated complexes of rhodium(III) containing 2,2′-dipyridylketone and 2,2′-dipyridylamine. An experimental and theoretical study. Dalton Trans. 2007, 3440–3449. [Google Scholar] [CrossRef] [PubMed]
  35. Yang, W.; Chen, L.; Wang, S. Syntheses, structures, and luminescence of novel lanthanide complexes of tripyridylamine, N,N,N′,N′-tetra(2-pyridyl)-1,4-phenylenediamine and N,N,N′,N′-tetra(2-pyridyl)biphenyl-4,4′-diamine. Inorg. Chem. 2001, 40, 507–515. [Google Scholar] [CrossRef]
  36. Kang, Y.; Seward, C.; Song, D.; Wang, S. Blue luminescent rigid molecular rods bearing N-7-azaindolyl and 2,2′-dipyridylamino and their Zn(II) and Ag(I) complexes. Inorg. Chem. 2003, 42, 2789–2797. [Google Scholar] [CrossRef] [PubMed]
  37. Pang, J.; Tao, Y.; Freiberg, S.; Yang, X.-P.; D’Iorio, M.; Wang, S. Syntheses, structures, and electroluminescence of new blue luminescent star-shaped compounds based on 1,3,5-triazine and 1,3,5-trisubstituted benzene. J. Mater. Chem. 2002, 12, 206–212. [Google Scholar] [CrossRef]
  38. Jia, W.-L.; Liu, Q.-D.; Song, D.; Wang, S. Blue Luminescent Organosilicon Compounds Based on 2,2′-Dipyridylaminophenyl and 2,2′-Dipyridylaminobiphenyl. Organometallics 2002, 22, 321–327. [Google Scholar] [CrossRef]
  39. Kang, Y.; Wang, S. Syntheses and photophysical properties of rigid-rod conjugated compounds based on N-7-azaindole and 2,2′-dipyridylamine. Tetrahedron Lett. 2002, 43, 3711–3713. [Google Scholar] [CrossRef]
  40. Seward, C.; Pang, J.; Wang, S. Luminescent Star-Shaped Zinc(II) and Platinum(II) Complexes Based on Star-Shaped 2,2′-Dipyridylamino-Derived Ligands. Eur. J. Inorg. Chem. 2002, 2002, 1390–1399. [Google Scholar] [CrossRef]
  41. He, L.; Duan, L.; Qiao, J.; Wang, R.; Wei, P.; Wang, L.; Qiu, Y. Blue-Emitting Cationic Iridium Complexes with 2-(1H-Pyrazol-1-yl)pyridine as the Ancillary Ligand for Efficient Light-Emitting Electrochemical Cells. Adv. Funct. Mater. 2008, 18, 2123–2131. [Google Scholar] [CrossRef]
  42. Lamansky, S.; Djurovich, P.; Murphy, D.; Abdel-Razzaq, F.; Lee, H.E.; Adachi, C.; Burrows, P.E.; Forrest, S.R.; Thompson, M.E. Highly phosphorescent bis-cyclometalated iridium complexes: Synthesis, photophysical characterization, and use in organic light emitting diodes. J. Am. Chem. Soc. 2001, 123, 4304–4312. [Google Scholar] [CrossRef]
  43. Leslie, W.; Batsanov, A.S.; Howard, J.A.; Williams, J.A.G. Cross-couplings in the elaboration of luminescent bis-terpyridyl iridium complexes: The effect of extended or inhibited conjugation on emission. Dalton Trans. 2004, 623–631. [Google Scholar] [CrossRef] [PubMed]
  44. Martinez-Alonso, M.; Cerda, J.; Momblona, C.; Pertegas, A.; Junquera-Hernandez, J.M.; Heras, A.; Rodriguez, A.M.; Espino, G.; Bolink, H.; Orti, E. Highly Stable and Efficient Light-Emitting Electrochemical Cells Based on Cationic Iridium Complexes Bearing Arylazole Ancillary Ligands. Inorg. Chem. 2017, 56, 10298–10310. [Google Scholar] [CrossRef]
  45. Vaquero, M.; Ruiz-Riaguas, A.; Martinez-Alonso, M.; Jalon, F.A.; Manzano, B.R.; Rodriguez, A.M.; Garcia-Herbosa, G.; Carbayo, A.; Garcia, B.; Espino, G. Selective Photooxidation of Sulfides Catalyzed by Bis-cyclometalated Ir(III) Photosensitizers Bearing 2,2′-Dipyridylamine-Based Ligands. Chem. Eur. J. 2018, 24, 10662–10671. [Google Scholar] [CrossRef] [PubMed]
  46. Soriano-Diaz, I.; Orti, E.; Giussani, A. On the Importance of Ligand-Centered Excited States in the Emission of Cyclometalated Ir(III) Complexes. Inorg. Chem. 2021, 60, 13222–13232. [Google Scholar] [CrossRef] [PubMed]
  47. Whittle, V.L.; Williams, J.A.G. Cyclometallated, bis-terdentate iridium complexes as linearly expandable cores for the construction of multimetallic assemblies. Dalton Trans. 2009, 3929–3940. [Google Scholar] [CrossRef] [PubMed]
  48. Donato, L.; McCusker, C.E.; Castellano, F.N.; Zysman-Colman, E. Mono- and dinuclear cationic iridium(III) complexes bearing a 2,5-dipyridylpyrazine (2,5-dpp) ligand. Inorg. Chem. 2013, 52, 8495–8504. [Google Scholar] [CrossRef]
  49. Fernández-Cestau, J.; Giménez, N.; Lalinde, E.; Montaño, P.; Moreno, M.T.; Sánchez, S. Synthesis, Characterization, and Properties of Doubly Alkynyl Bridging Dinuclear Cyclometalated Iridium(III) Complexes. Organometallics 2015, 34, 1766–1778. [Google Scholar] [CrossRef]
  50. Auffrant, A.; Barbieri, A.; Barigelletti, F.; Collin, J.P.; Flamigni, L.; Sabatini, C.; Sauvage, J.P. Dinuclear iridium(III) complexes consisting of back-to-back tpy-(ph)n-tpy bridging ligands (n = 0, 1, or 2) and terminal cyclometallating tridentate N-C-N ligands. Inorg. Chem. 2006, 45, 10990–10997. [Google Scholar] [CrossRef]
  51. Costa, R.D.; Fernandez, G.; Sanchez, L.; Martin, N.; Orti, E.; Bolink, H.J. Dumbbell-shaped dinuclear iridium complexes and their application to light-emitting electrochemical cells. Chem. Eur. J. 2010, 16, 9855–9863. [Google Scholar] [CrossRef]
  52. Constable, E.C.; Ertl, C.D.; Housecroft, C.E.; Zampese, J.A. Green-emitting iridium(III) complexes containing sulfanyl- or sulfone-functionalized cyclometallating 2-phenylpyridine ligands. Dalton Trans. 2014, 43, 5343–5356. [Google Scholar] [CrossRef]
  53. Bettington, S.; Tavasli, M.; Bryce, M.R.; Batsanov, A.S.; Thompson, A.L.; Al Attar, H.A.; Dias, F.B.; Monkman, A.P. Bridged diiridium complexes for electrophosphorescent OLEDs: Synthesis, X-ray crystal structures, photophysics, and devices. J. Mater. Chem. 2006, 16, 1046–1052. [Google Scholar] [CrossRef]
  54. Montalti, M.; Credi, A.; Prodi, L.; Gandolfi, M.T. Handbook of Photochemistry, 3rd ed.; CRC Press: Boca Raton, FL, USA, 2006. [Google Scholar]
  55. Colombo, M.G.; Brunold, T.C.; Riedener, T.; Guedel, H.U.; Fortsch, M.; Buergi, H.-B. Facial tris cyclometalated rhodium(3+) and iridium(3+) complexes: Their synthesis, structure, and optical spectroscopic properties. Inorg. Chem. 2002, 33, 545–550. [Google Scholar] [CrossRef]
  56. Maestri, M.; Sandrini, D.; Balzani, V.; Maeder, U.; Von Zelewsky, A. Absorption-Spectra, Electrochemical-Behavior, Luminescence Spectra, and Excited-State Lifetimes of Mixed-Ligand Ortho-Metalated Rhodium(III) Complexes. Inorg. Chem. 1987, 26, 1323–1327. [Google Scholar] [CrossRef]
  57. Indelli, M.T.; Chiorboli, C.; Scandola, F. Photochemistry and Photophysics of Coordination Compounds: Rhodium. In Photochemistry and Photophysics of Coordination Compounds I; Springer: Berlin/Heidelberg, Germany, 2007; Volume 280, pp. 215–255. [Google Scholar]
  58. Wilde, A.P.; King, K.A.; Watts, R.J. Resolution and analysis of the components in dual emission of mixed-chelate/ortho-metalate complexes of iridium(III). J. Phys. Chem. 1991, 95, 629–634. [Google Scholar] [CrossRef]
  59. Flamigni, L.; Barigelletti, F.; Armaroli, N.; Collin, J.-P.; Dixon, I.M.; Sauvage, J.-P.; Williams, J.A.G. Photoinduced processes in multicomponent arrays containing transition metal complexes. Coord. Chem. Rev. 1999, 190–192, 671–682. [Google Scholar] [CrossRef]
  60. Garces, F.O.; King, K.A.; Watts, R.J. Synthesis, structure, electrochemistry, and photophysics of methyl-substituted phenylpyridine ortho-metalated iridium(III) complexes. Inorg. Chem. 1988, 27, 3464–3471. [Google Scholar] [CrossRef]
  61. Huang, W.L.; Segers, D.P.; DeArmond, M.K. Emission studies of transition-metal complexes of 2,2′-dipyridylamine. 1. Bis complexes of rhodium(III) and iridium(III). J. Phys. Chem. 1981, 85, 2080–2086. [Google Scholar] [CrossRef]
  62. Cavazzini, M.; Pastorelli, P.; Quici, S.; Loiseau, F.; Campagna, S. Two-color luminescence from a tetranuclear Ir(III)/Ru(II) complex. Chem. Commun. 2005, 5266–5268. [Google Scholar] [CrossRef]
  63. Lafolet, F.; Welter, S.; Popović, Z.; De Cola, L. Iridium complexes containing p-phenylene units. The influence of the conjugation on the excited state properties. J. Mater. Chem. 2005, 15, 2820–2828. [Google Scholar] [CrossRef]
  64. Neve, F.; Crispini, A.; Serroni, S.; Loiseau, F.; Campagna, S. Novel dinuclear luminescent compounds based on iridium(III) cyclometalated chromophores and containing bridging ligands with ester-linked chelating sites. Inorg. Chem. 2001, 40, 1093–1101. [Google Scholar] [CrossRef]
  65. Van Diemen, J.H.; Hage, R.; Haasnoot, J.G.; Lempers, H.E.B.; Reedijk, J.; Vos, J.G.; De Cola, L.; Barigelletti, F.; Balzani, V. Electrochemical and photophysical properties of new triazole-bridged heterobimetallic ruthenium-rhodium and ruthenium-iridium complexes. Inorg. Chem. 1992, 31, 3518–3522. [Google Scholar] [CrossRef]
  66. Djeda, R.; Desmarets, C.; Chamoreau, L.M.; Li, Y.L.; Journaux, Y.; Gontard, G.; Amouri, H. Meso-Helicates with Rigid Angular Tetradentate Ligand: Design, Molecular Structures, and Progress Towards Self-Assembly of Metal-Organic Nanotubes. Inorg. Chem. 2013, 52, 13042–13047. [Google Scholar] [CrossRef] [PubMed]

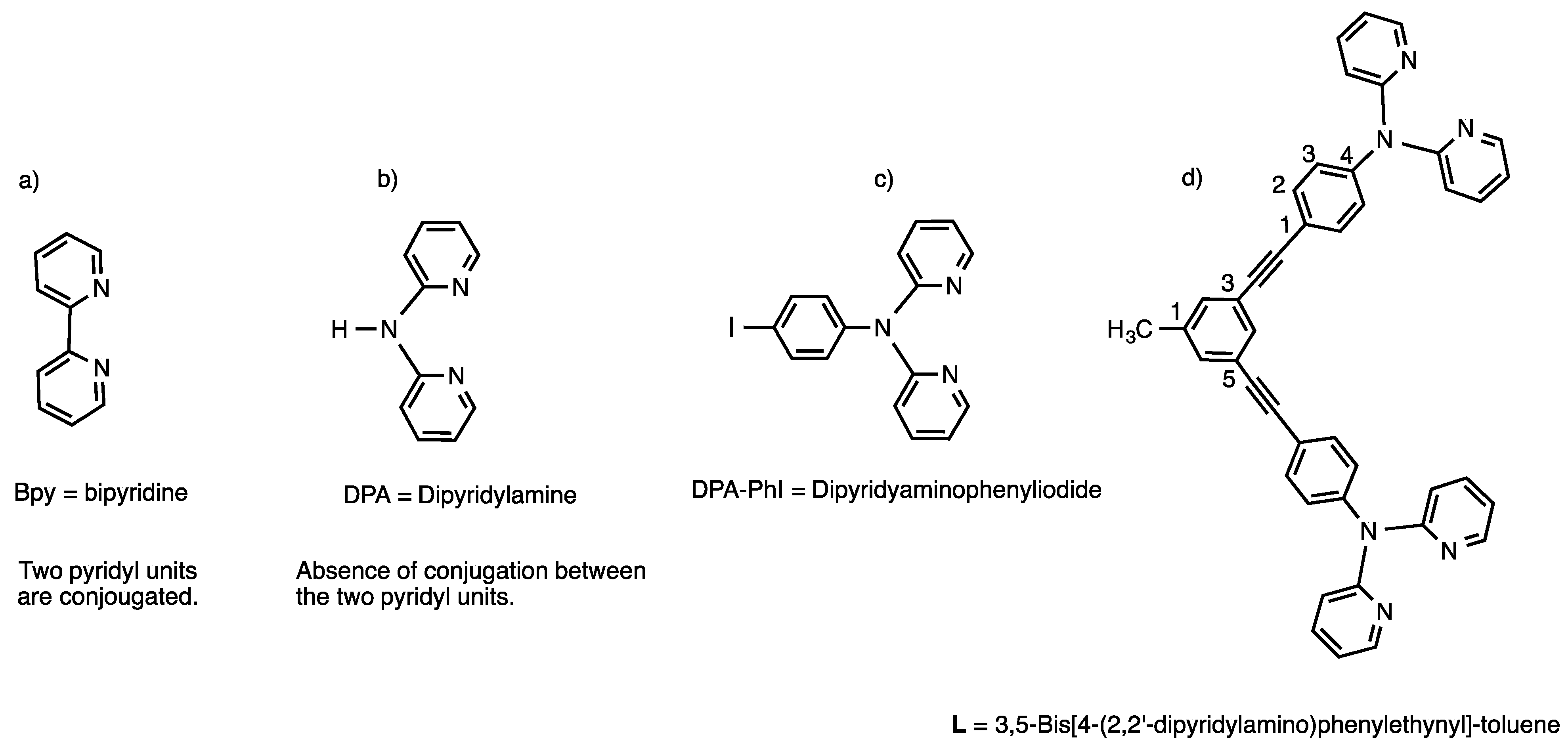

Scheme 1. (a) Bipyrdine ligand versus (b) dipyridine amine (DPA) ligand, (c) dipyridylaminophenyliodide (DPA-PhI) ligand, and (d) the assembling ligand L containing two dipyridyl amine motifs, used in this work.
Scheme 1. (a) Bipyrdine ligand versus (b) dipyridine amine (DPA) ligand, (c) dipyridylaminophenyliodide (DPA-PhI) ligand, and (d) the assembling ligand L containing two dipyridyl amine motifs, used in this work.
Molecules 27 06003 sch001
Scheme 2. Synthesis of the mononuclear 12 and the dinuclear 34 complexes containing dipyridylamine motifs.
Scheme 2. Synthesis of the mononuclear 12 and the dinuclear 34 complexes containing dipyridylamine motifs.
Molecules 27 06003 sch002

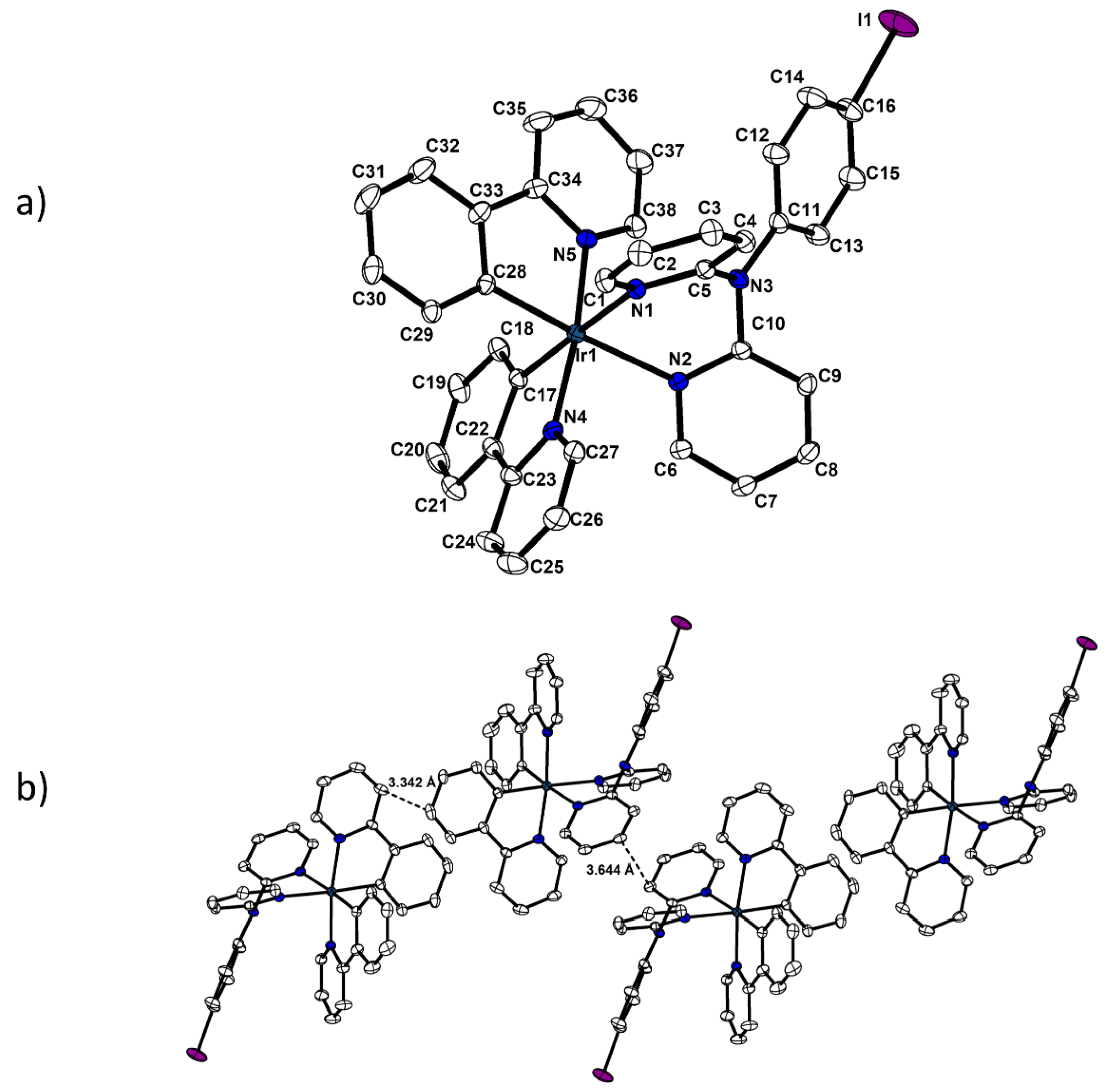

Figure 1. (a) Molecular structure of 2, with thermal ellipsoids drawn at the 30% probability level; triflate ion, water molecules, and hydrogen atoms were omitted for clarity. (b) π-π interactions among individual molecules generating 1D supramolecular assembly. Selected average bond distances (Å) and angles (deg): Ir-N1 2.168(3), Ir-N2 2.172(3), Ir-N4 2.062(3), Ir-N5 2.047(3), Ir-C17 2.011(3), Ir-C28 2.009(3), N1-Ir-N2 83.82(10), N4-Ir-C17 80.49(12), and N5-Ir-C28 80.27(12).
Figure 1. (a) Molecular structure of 2, with thermal ellipsoids drawn at the 30% probability level; triflate ion, water molecules, and hydrogen atoms were omitted for clarity. (b) π-π interactions among individual molecules generating 1D supramolecular assembly. Selected average bond distances (Å) and angles (deg): Ir-N1 2.168(3), Ir-N2 2.172(3), Ir-N4 2.062(3), Ir-N5 2.047(3), Ir-C17 2.011(3), Ir-C28 2.009(3), N1-Ir-N2 83.82(10), N4-Ir-C17 80.49(12), and N5-Ir-C28 80.27(12).
Molecules 27 06003 g001
Figure 2. Absorption spectra of bridging ligand L and complexes 1–4 in CH3CN solution at rt.
Figure 2. Absorption spectra of bridging ligand L and complexes 1–4 in CH3CN solution at rt.
Molecules 27 06003 g002

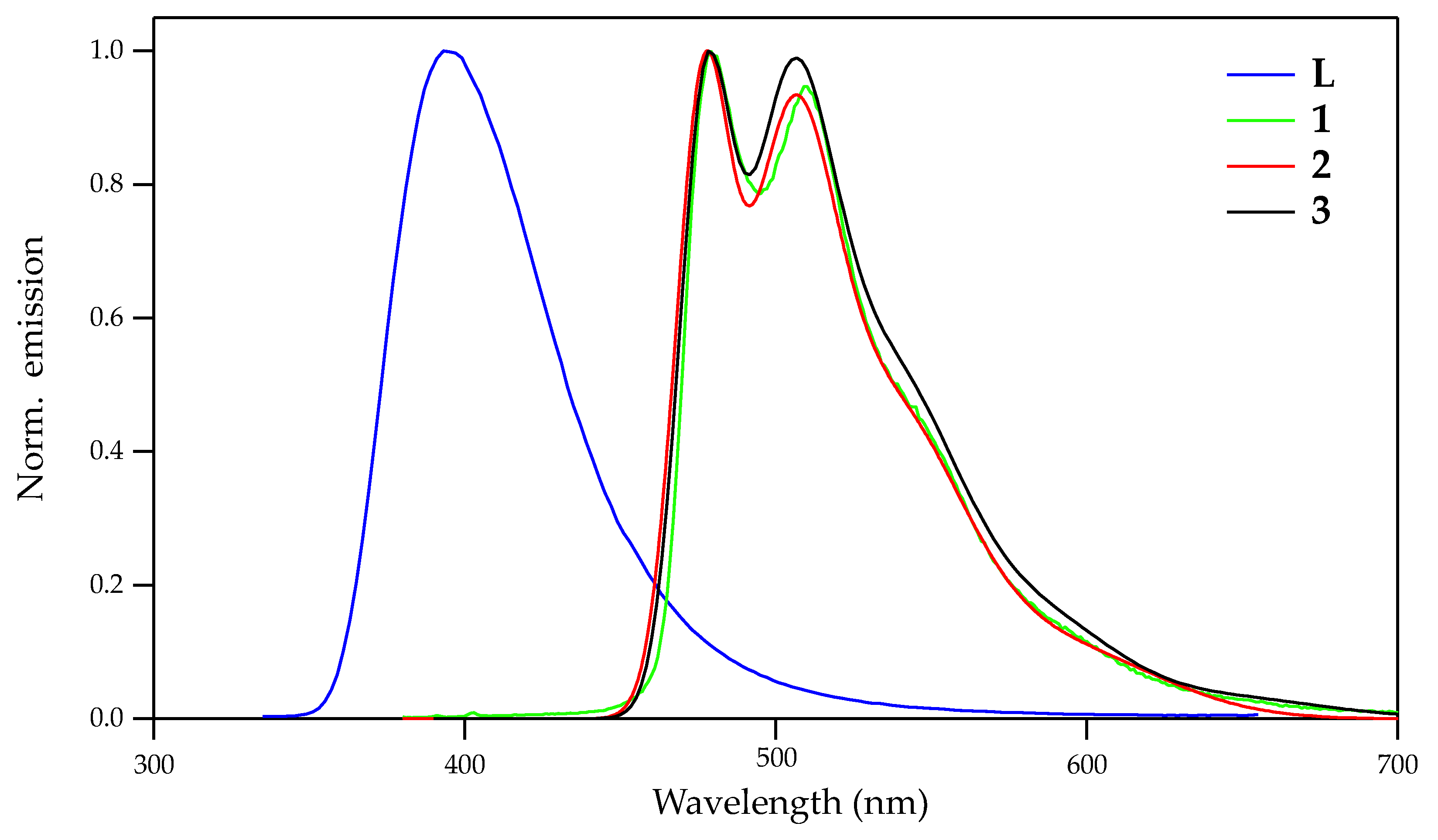

Figure 3. Normalized emission spectra of bridging ligand L and Ir(III) complexes 13 in de-aerated CH3CN solution at rt. No emission has been detected for the Rh(III) derivative 4 at rt.
Figure 3. Normalized emission spectra of bridging ligand L and Ir(III) complexes 13 in de-aerated CH3CN solution at rt. No emission has been detected for the Rh(III) derivative 4 at rt.
Molecules 27 06003 g003

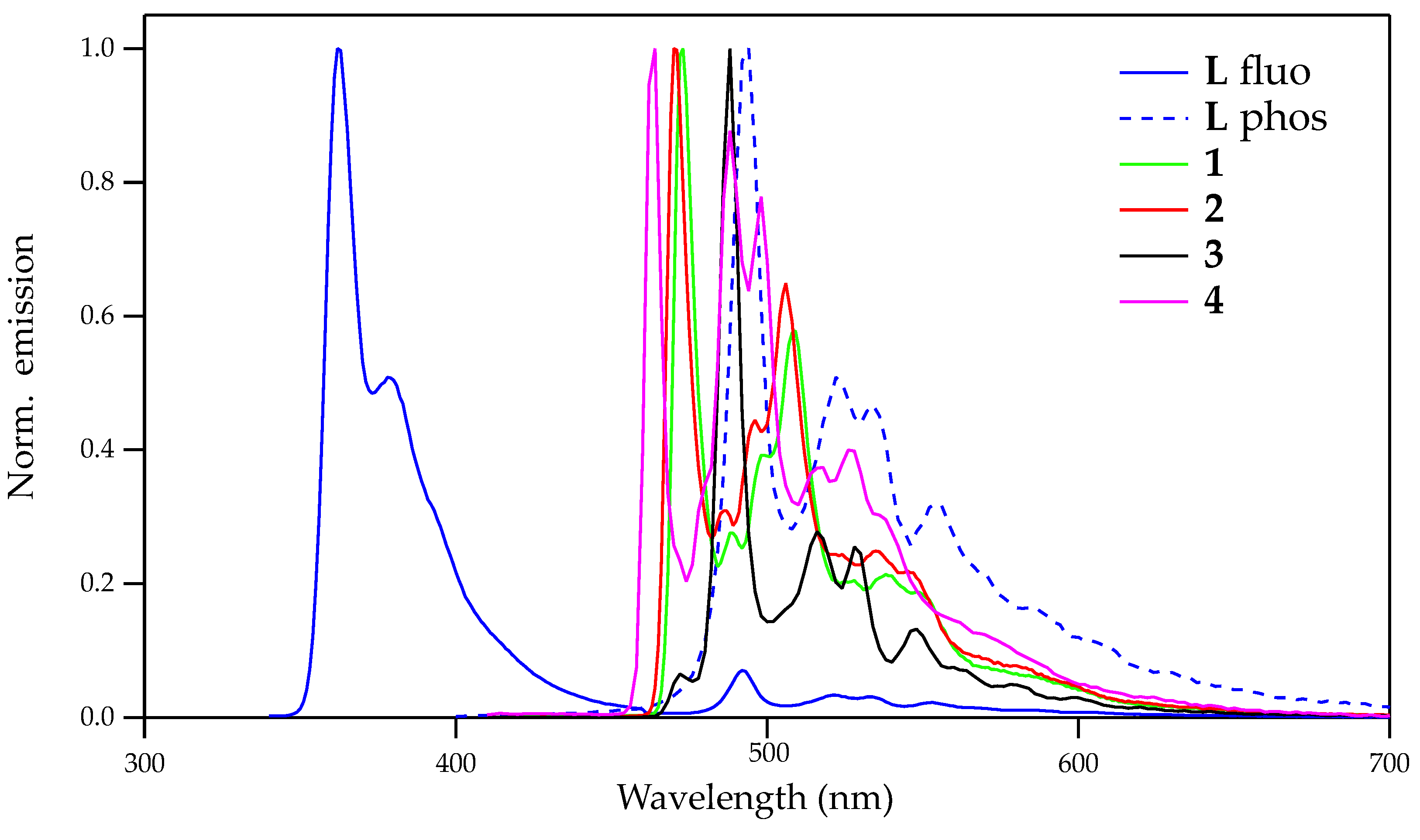

Figure 4. Normalized emission spectra of bridging ligand L and complexes 14 in CH3OH: C2H5OH (1:4) glassy solution at 77 K.
Figure 4. Normalized emission spectra of bridging ligand L and complexes 14 in CH3OH: C2H5OH (1:4) glassy solution at 77 K.
Molecules 27 06003 g004
Table 1. Absorption data.
Table 1. Absorption data.
λmax, nm (ε, ×103 M−1 cm−1) a
L286 sh (45.4), 318 sh (65.2), 336 (68.8)
1254 (49.3), 267 sh (41.8), 300 sh (22.4), 377 sh (4.04)
2249 (45.9), 262 sh (41.2), 295 sh (25.1), 376 sh (4.73)
3263 (104.0), 295 (90.5), 306 (89.6), 336 (69.9), 385 sh (11.8)
4231 sh (87.1), 261 (84.8), 312 (76.7), 336 (74.7)
a In CH3CN solution at rt; sh is the shoulder.
Table 2. Emission data.
Table 2. Emission data.
rt77 K
λmax, nm aϕ (%) aτ, ns aλmax, nm bτ, μs b
L39573.7 (64.0)1.6 (1.4)362 (fluo)
494 (phos)
0.7 × 10−3 (fluo)
722 × 103 (phos)
148111.0 (1.2)510 (55)4734.8
24780.3 (0.2)20 (17)4705.2
34780.6 (0.3)115 (63)4885.5 × 103
a In de-aerated and air-equilibrated CH3CN solution at rt. b In CH3OH:C2H5OH (1:4) glassy solution at 77 K.
